Serverless networking allows EMnify to provide cloud-native connectivity for IoT devices using AWS Transit Gateway (TGW) in a serverless fashion. TGW securely connects customer VPCs to EMnify's core VPC and IoT devices through resource sharing and routing. The provisioning process is triggered via API and uses AWS Step Functions for serverless orchestration. This allows EMnify to build connectivity features with minimal maintenance through a fully serverless data and control plane.

1. Serverless Networking - How We Provide
Cloud-Na8ve Connec8vity for IoT Devices
Steffen Gebert, EMnify
emnify.com/devs

2. Serverless Networking –
How We Provide Cloud-Native
Connectivity for IoT Devices
Steffen Gebert
AWS Community Day – Bay Area, 13.11.2020

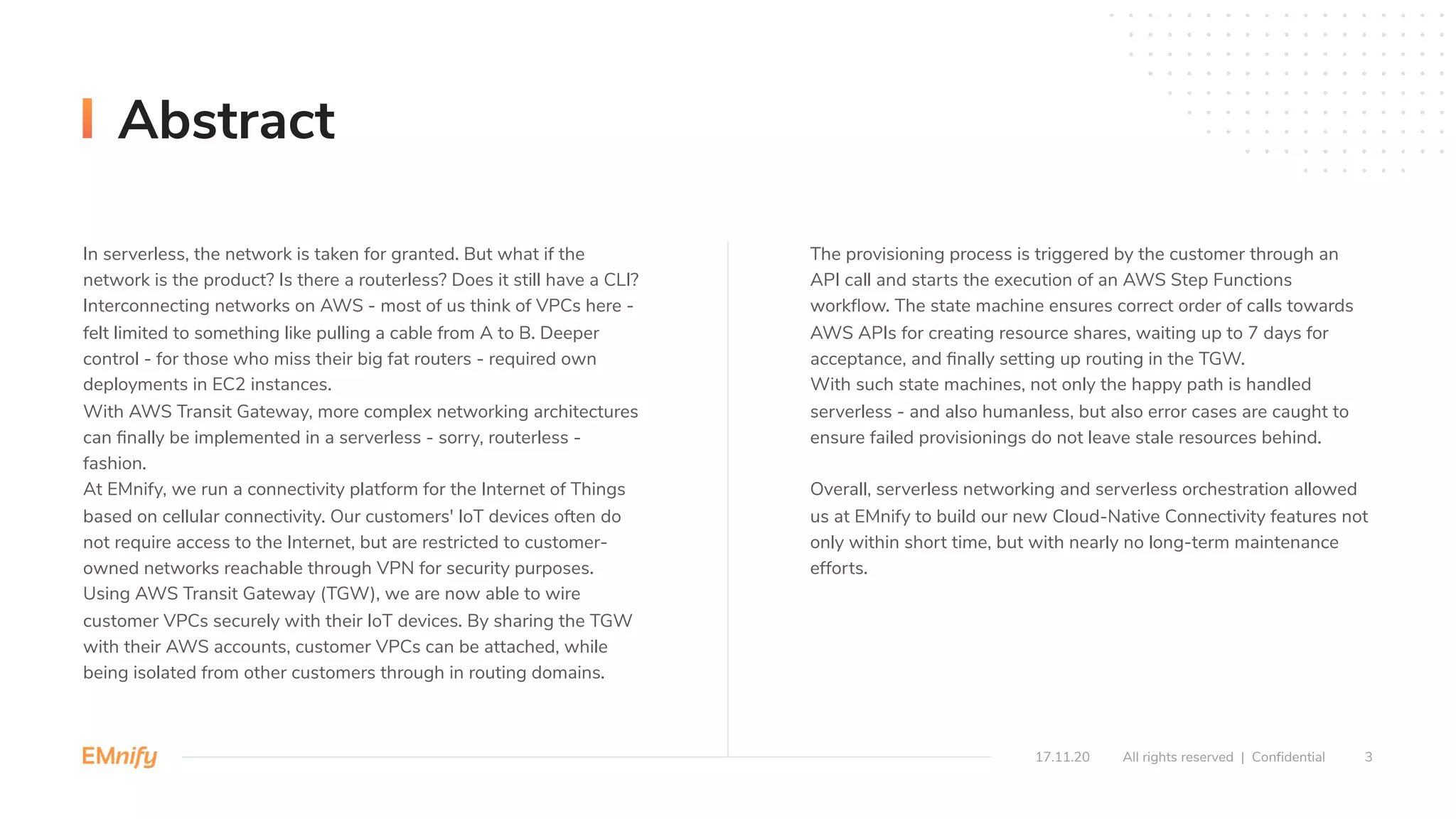

3. In serverless, the network is taken for granted. But what if the
network is the product? Is there a routerless? Does it still have a CLI?
Interconnecting networks on AWS - most of us think of VPCs here -
felt limited to something like pulling a cable from A to B. Deeper
control - for those who miss their big fat routers - required own
deployments in EC2 instances.
With AWS Transit Gateway, more complex networking architectures
can finally be implemented in a serverless - sorry, routerless -
fashion.
At EMnify, we run a connectivity platform for the Internet of Things
based on cellular connectivity. Our customers' IoT devices often do
not require access to the Internet, but are restricted to customer-
owned networks reachable through VPN for security purposes.
Using AWS Transit Gateway (TGW), we are now able to wire
customer VPCs securely with their IoT devices. By sharing the TGW
with their AWS accounts, customer VPCs can be attached, while
being isolated from other customers through in routing domains.
The provisioning process is triggered by the customer through an
API call and starts the execution of an AWS Step Functions
workflow. The state machine ensures correct order of calls towards
AWS APIs for creating resource shares, waiting up to 7 days for
acceptance, and finally setting up routing in the TGW.
With such state machines, not only the happy path is handled
serverless - and also humanless, but also error cases are caught to
ensure failed provisionings do not leave stale resources behind.
Overall, serverless networking and serverless orchestration allowed
us at EMnify to build our new Cloud-Native Connectivity features not
only within short time, but with nearly no long-term maintenance
efforts.
3All rights reserved | Confidential
Abstract
17.11.20

4. Thanks to Our Sponsors!
17.11.20 @StGebert 4

5. Agenda
1. Serverless for Network Enthusiasts
2. Cellular IoT Connectivity
3. Cloud Native IoT Connectivity
Data Plane Implementation
Demo 🤞
Control Plane implementation

6. We ❤ serverless
E V E R Y B O D Y

7. Serverless for
Network Enthusiasts

8. • Joined EMnify in 2017
• Started with AWS in 2017
• PhD on software based
networking from
University of Würzburg,
Germany
About Myself
@StGebert
❤
@StGebert 8

9. The Network

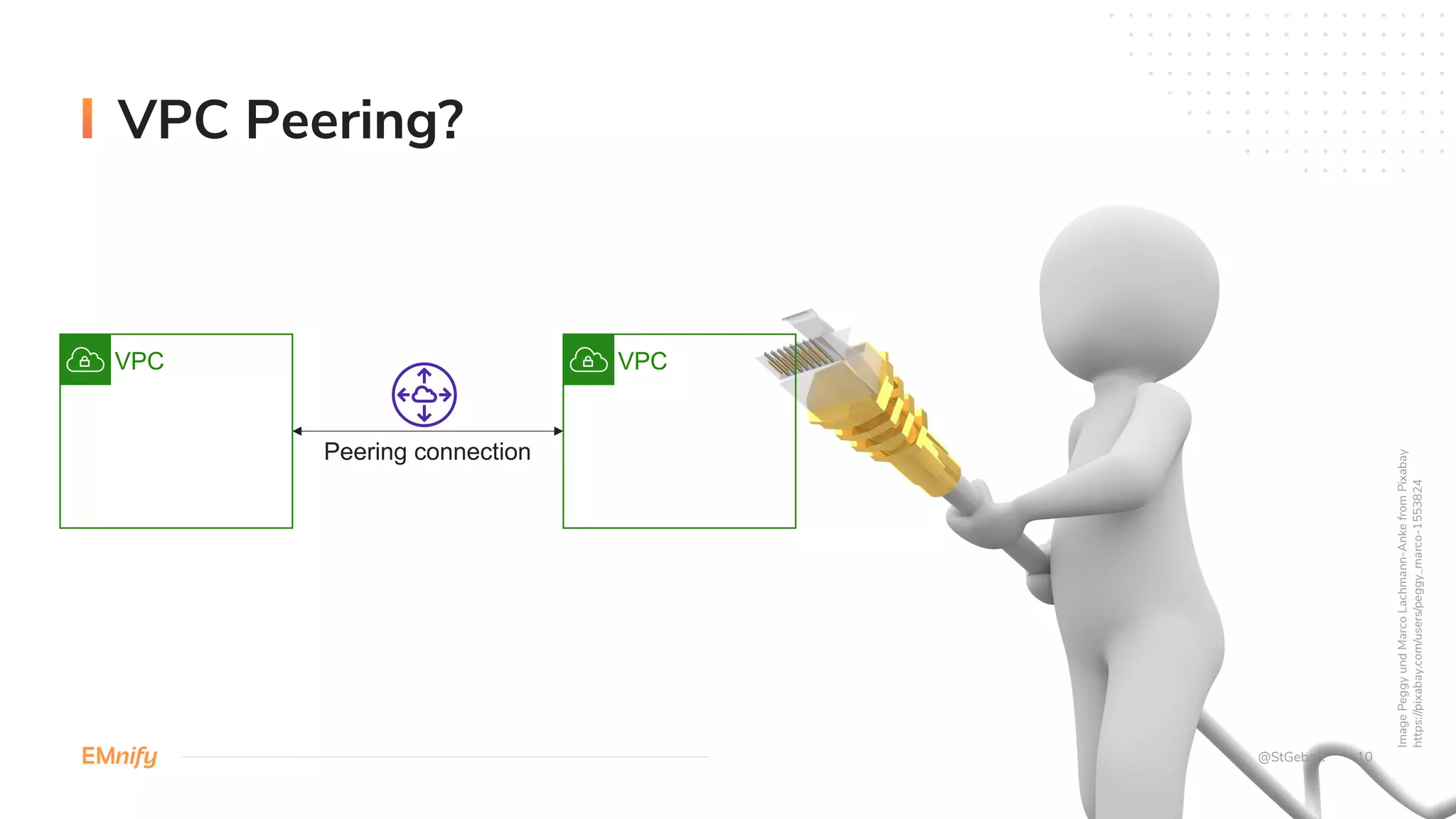

10. VPC Peering?
@StGebert 10
VPC VPC
Peering connection
ImagePeggyundMarcoLachmann-AnkefromPixabay
https://pixabay.com/users/peggy_marco-1553824

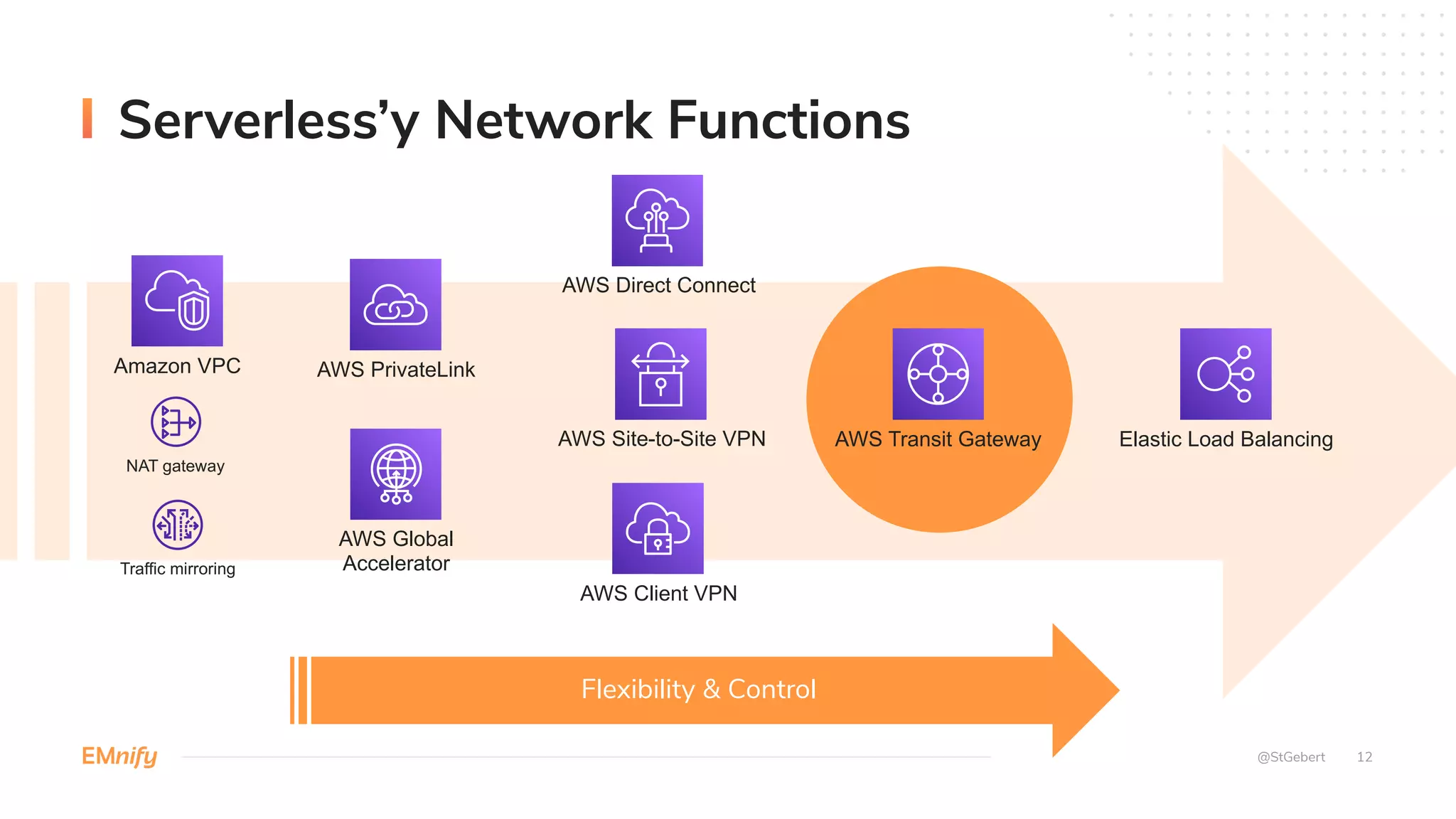

11. Network Functions

12. Serverless’y Network Functions
@StGebert 12
Traffic mirroring
NAT gateway
Amazon VPC AWS PrivateLink
AWS Global
Accelerator
AWS Transit Gateway
AWS Direct Connect
AWS Client VPN
AWS Site-to-Site VPN Elastic Load Balancing
Flexibility & Control

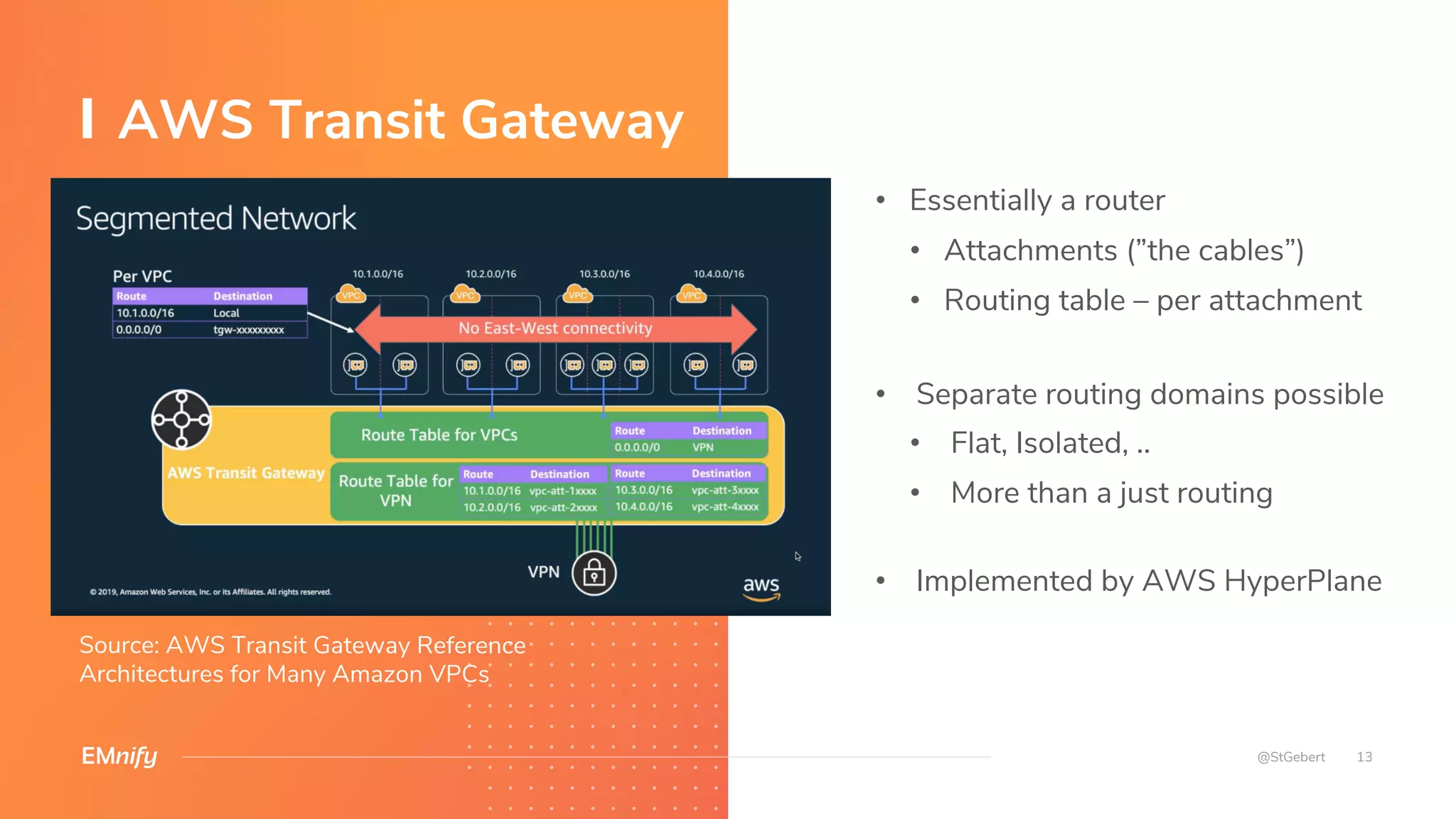

13. • Essentially a router
• Attachments (”the cables”)
• Routing table – per attachment
• Separate routing domains possible
• Flat, Isolated, ..
• More than a just routing
• Implemented by AWS HyperPlane
AWS Transit Gateway
13@StGebert
Source: AWS Transit Gateway Reference
Architectures for Many Amazon VPCs

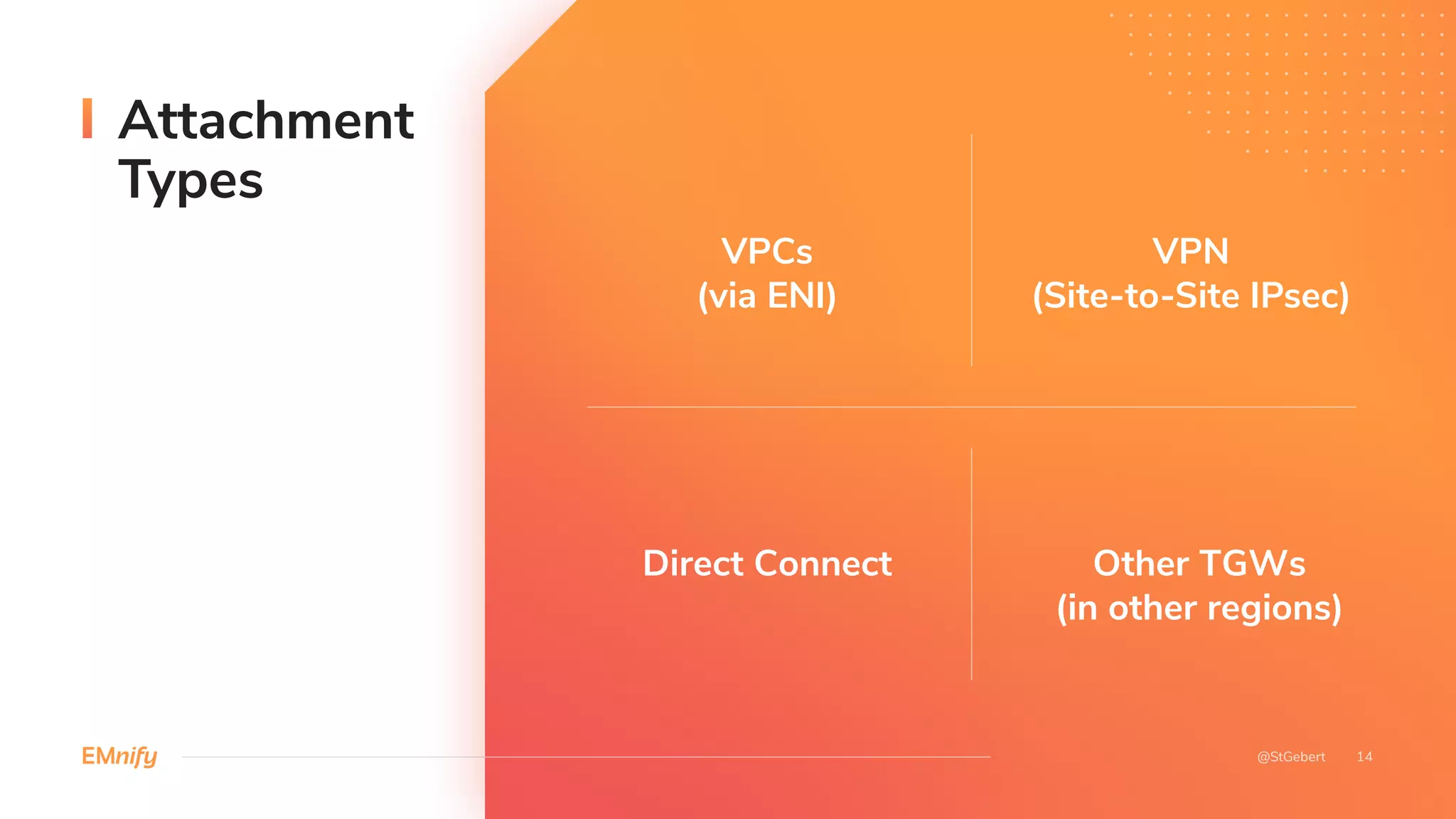

14. VPCs
(via ENI)
Attachment
Types
VPN
(Site-to-Site IPsec)
Direct Connect Other TGWs
(in other regions)

15. 15

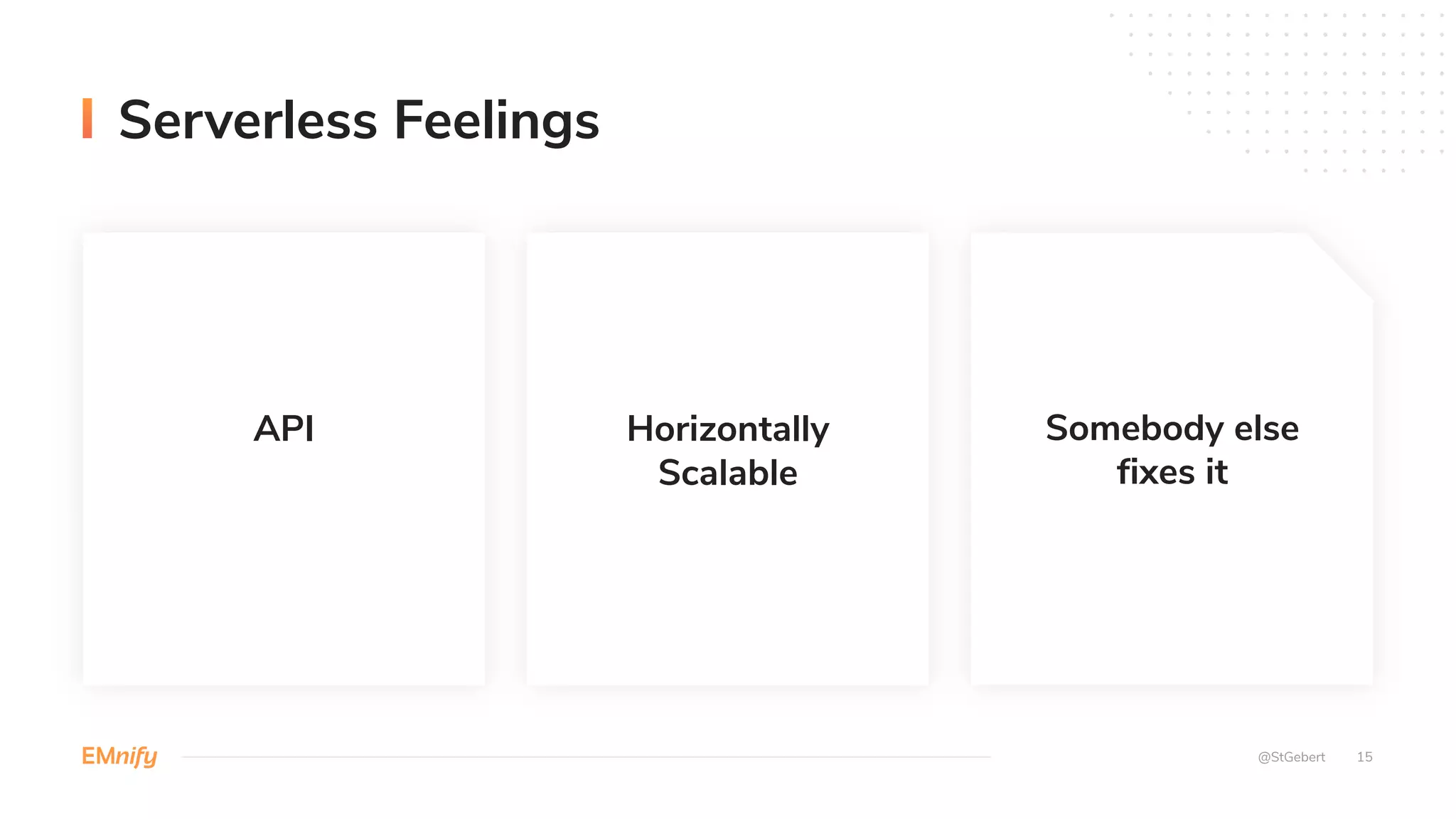

Serverless Feelings
Horizontally
Scalable
Somebody else
fixes it
@StGebert
API

16. Is this called “routerless”?
N O B O D Y

17. Another fleet of EC2 instances
to terminate
S T E F F E N

18. Connecting the
Internet of Things

19. 19
Cellular Connectivity Anywhere in the World
@StGebert
180 countries
540 networks
2G, 3G, 4G,
LTE-M, NB-IoT
Pay-as-you go pricing
with data pooling

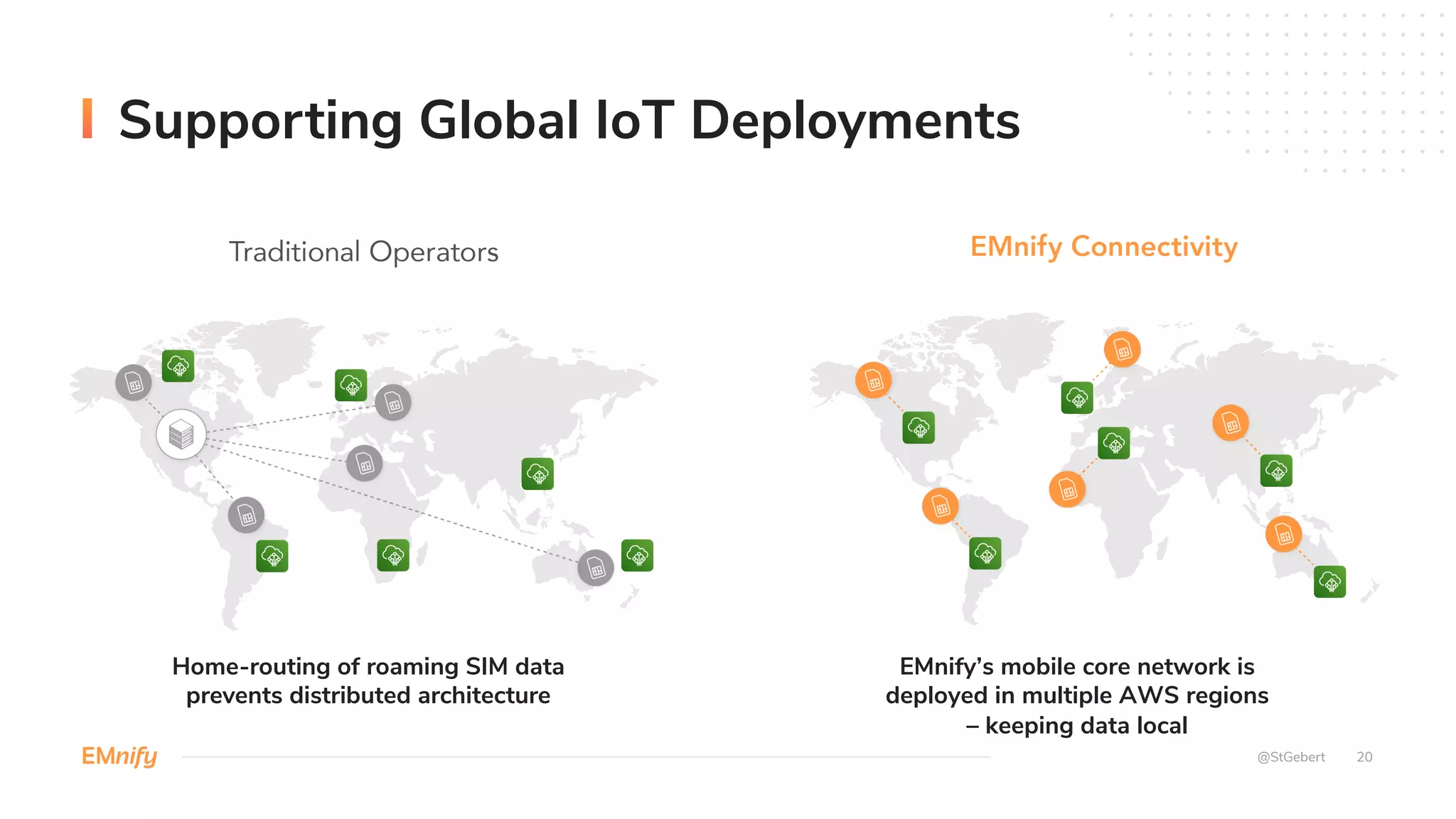

20. Supporting Global IoT Deployments
Home-routing of roaming SIM data
prevents distributed architecture
EMnify’s mobile core network is
deployed in multiple AWS regions
– keeping data local
20@StGebert

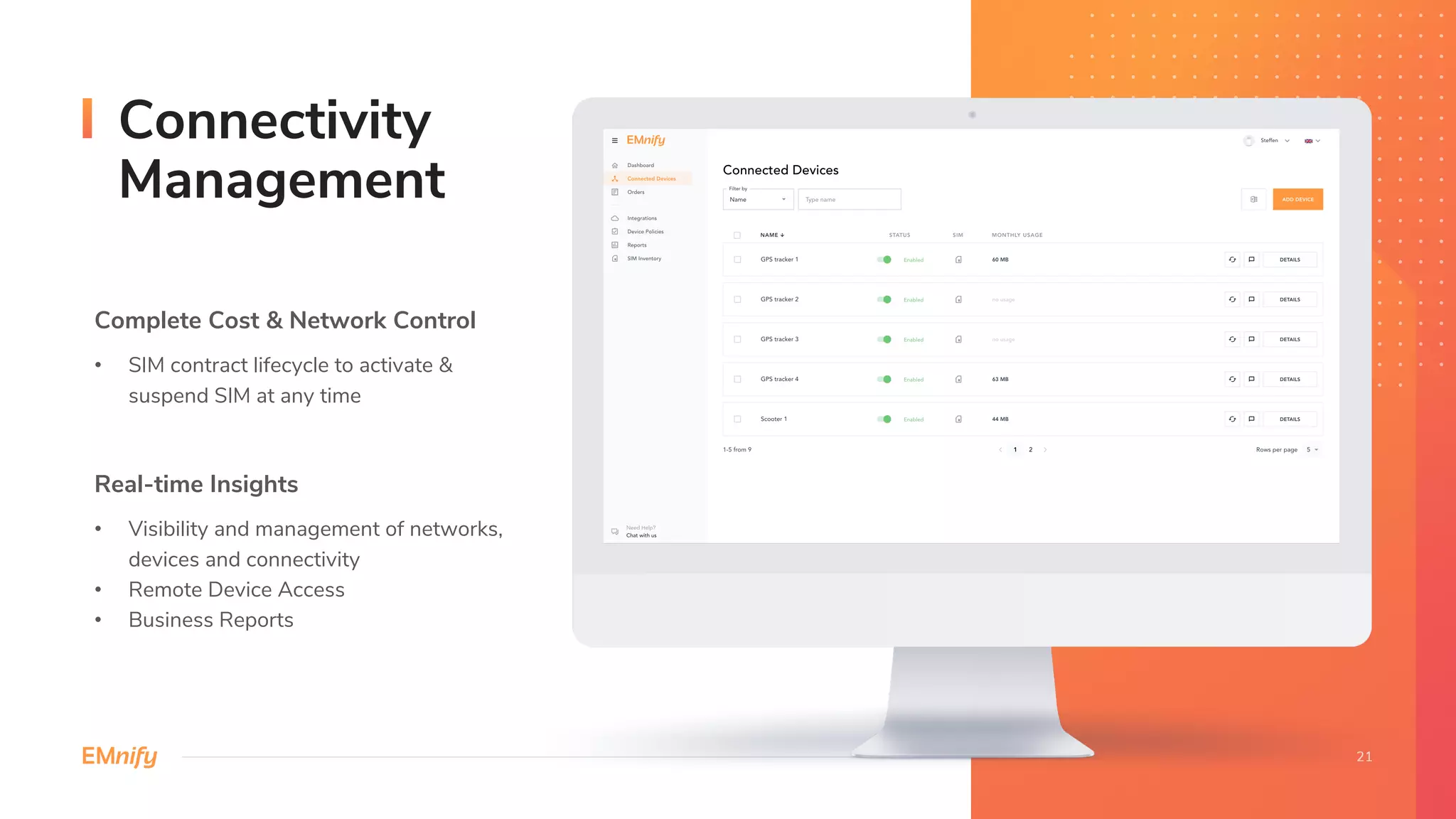

21. Connectivity
Management
Complete Cost & Network Control
• SIM contract lifecycle to activate &
suspend SIM at any time
Real-time Insights
• Visibility and management of networks,
devices and connectivity
• Remote Device Access
• Business Reports

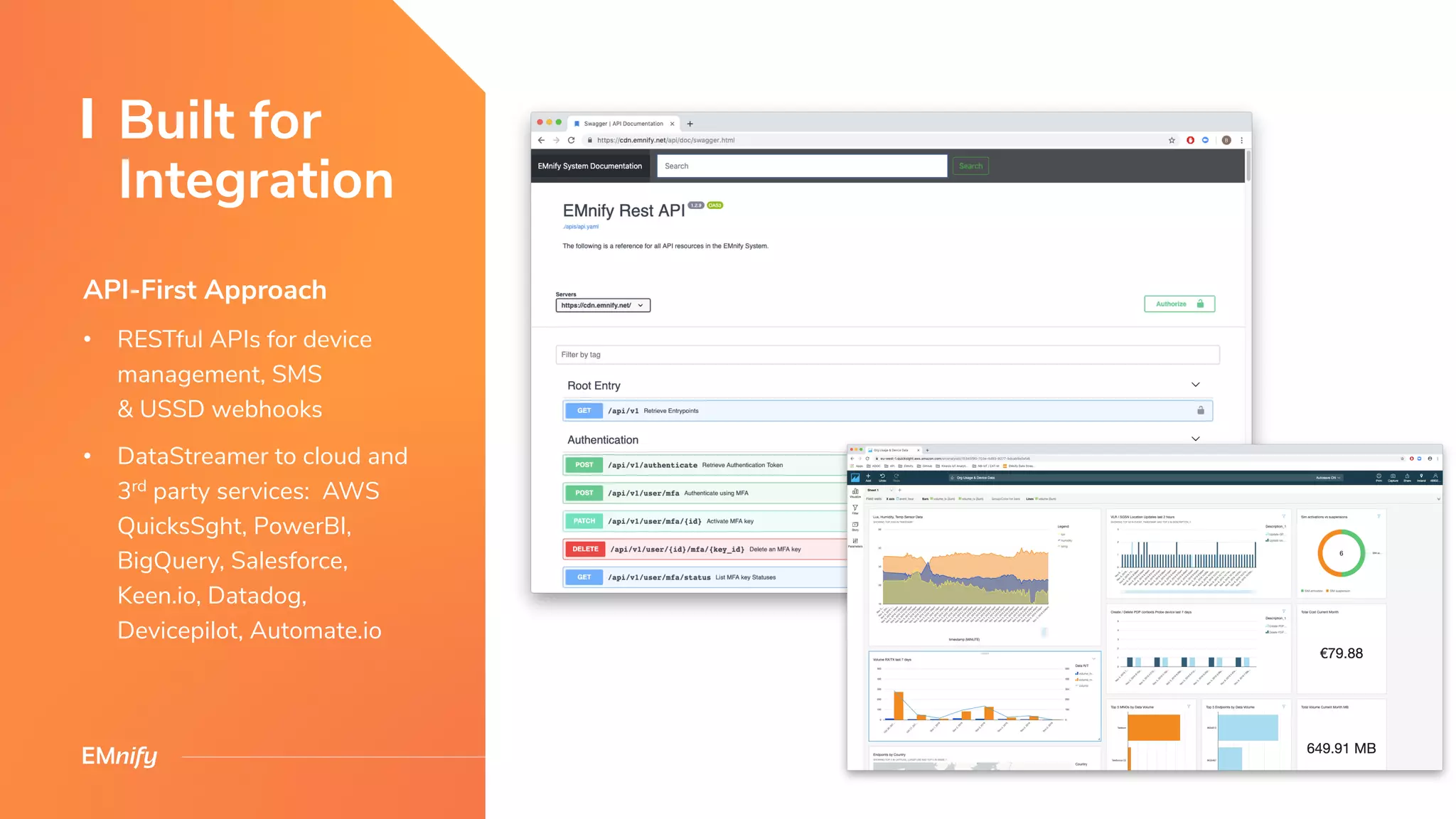

22. Built for
Integration
API-First Approach
• RESTful APIs for device
management, SMS
& USSD webhooks
• DataStreamer to cloud and
3rd party services: AWS
QuicksSght, PowerBI,
BigQuery, Salesforce,
Keen.io, Datadog,
Devicepilot, Automate.io

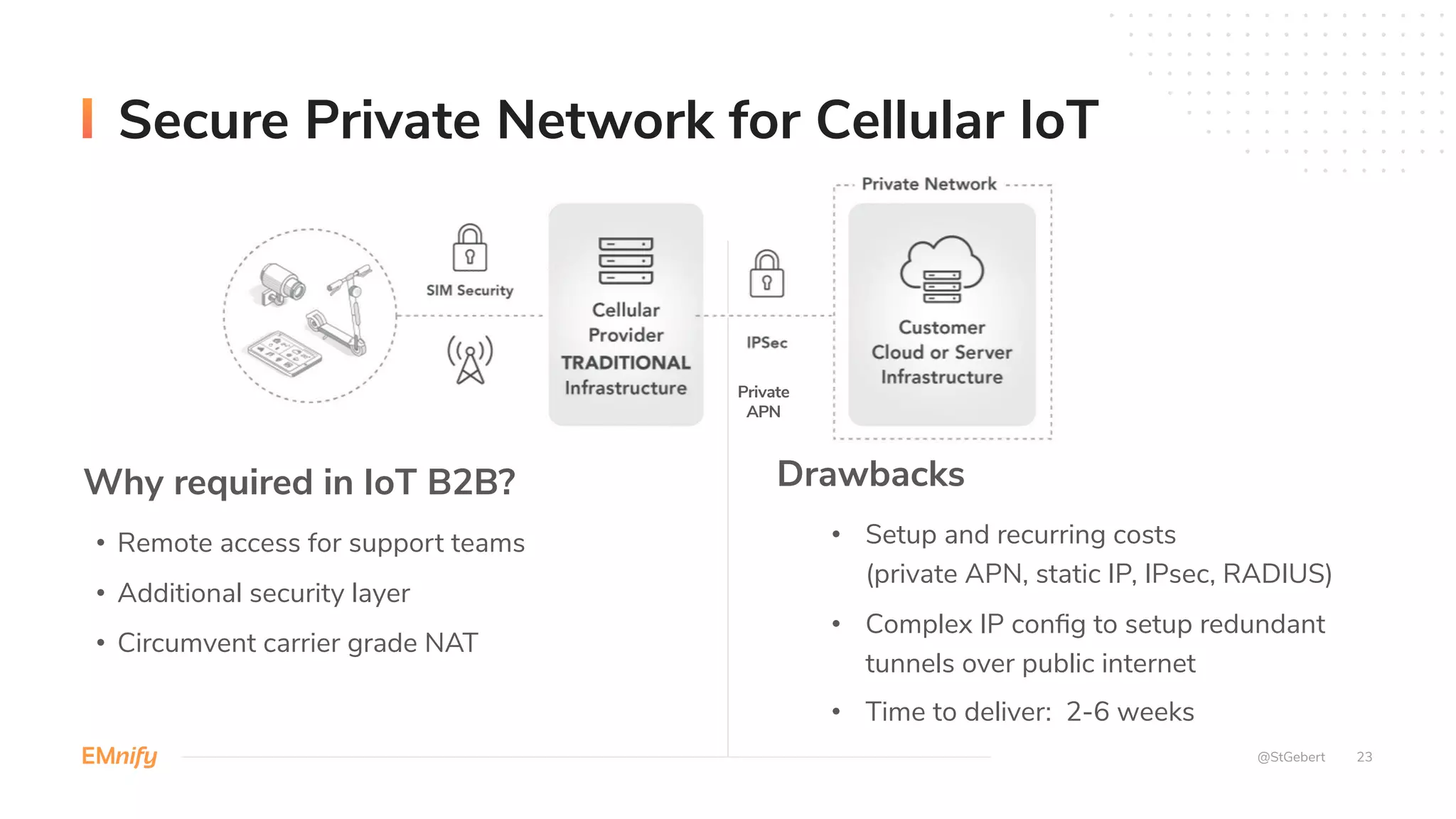

23. Why required in IoT B2B?
• Remote access for support teams
• Additional security layer
• Circumvent carrier grade NAT
Drawbacks
• Setup and recurring costs
(private APN, static IP, IPsec, RADIUS)
• Complex IP config to setup redundant
tunnels over public internet
• Time to deliver: 2-6 weeks
23@StGebert
Secure Private Network for Cellular IoT
Private
APN

24. Implementing EMnify’s
Cloud Native Connectivity (CNC)

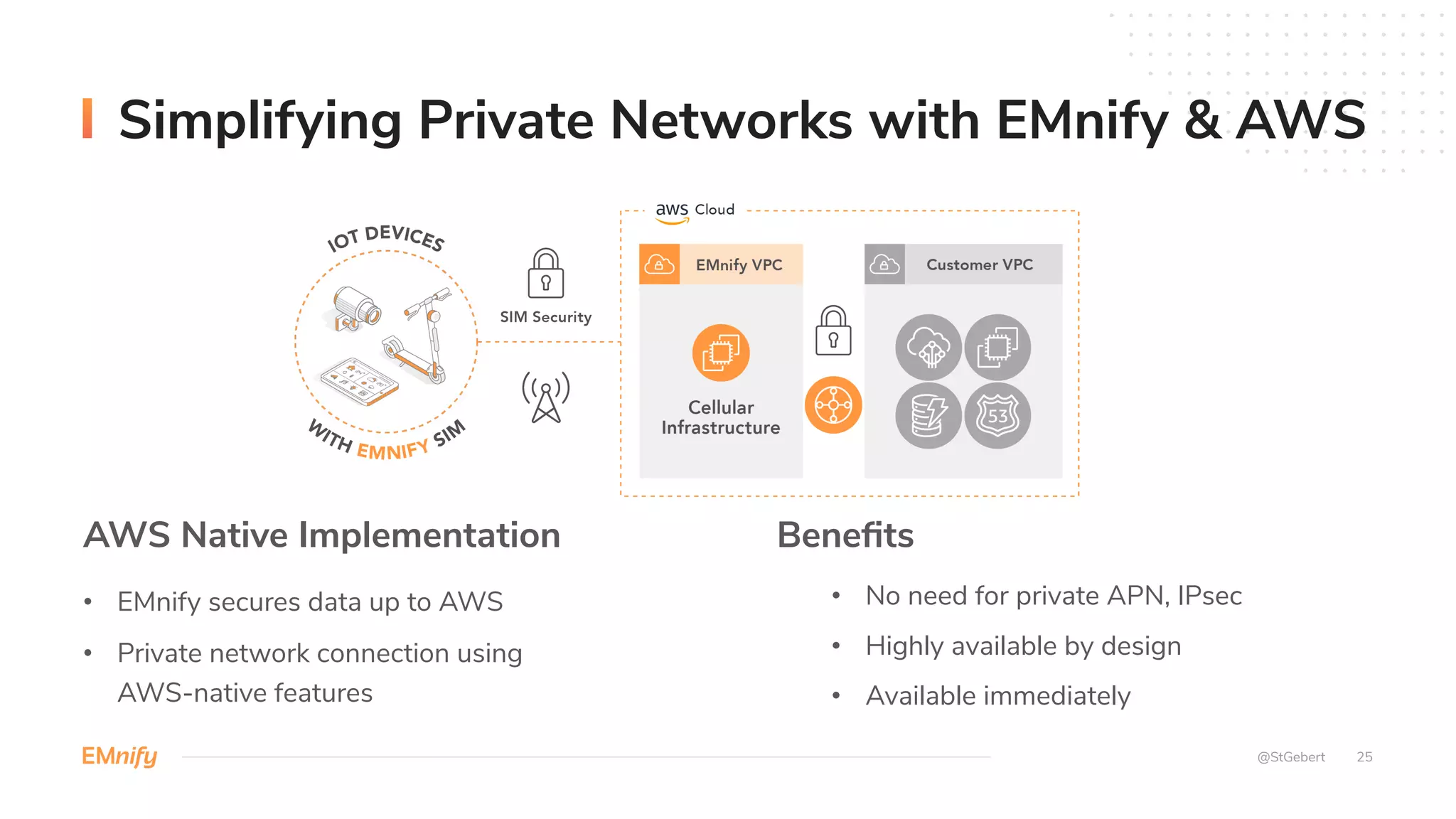

25. Simplifying Private Networks with EMnify & AWS
@StGebert 25
AWS Native Implementation
• EMnify secures data up to AWS
• Private network connection using
AWS-native features
Benefits
• No need for private APN, IPsec
• Highly available by design
• Available immediately

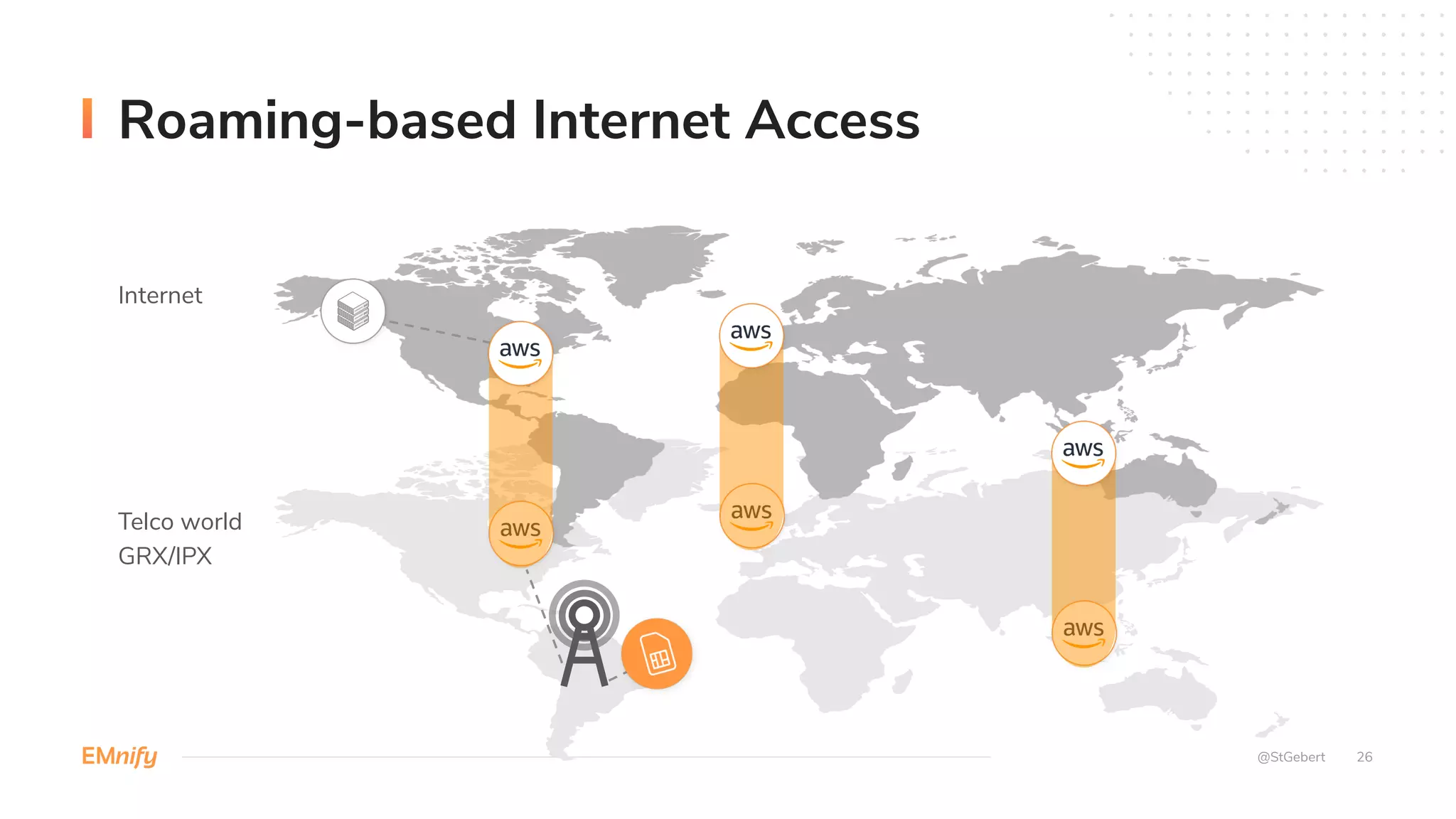

26. Roaming-based Internet Access
26
Internet
Telco world
GRX/IPX
@StGebert

27. Private
Link
Transit
Gateway

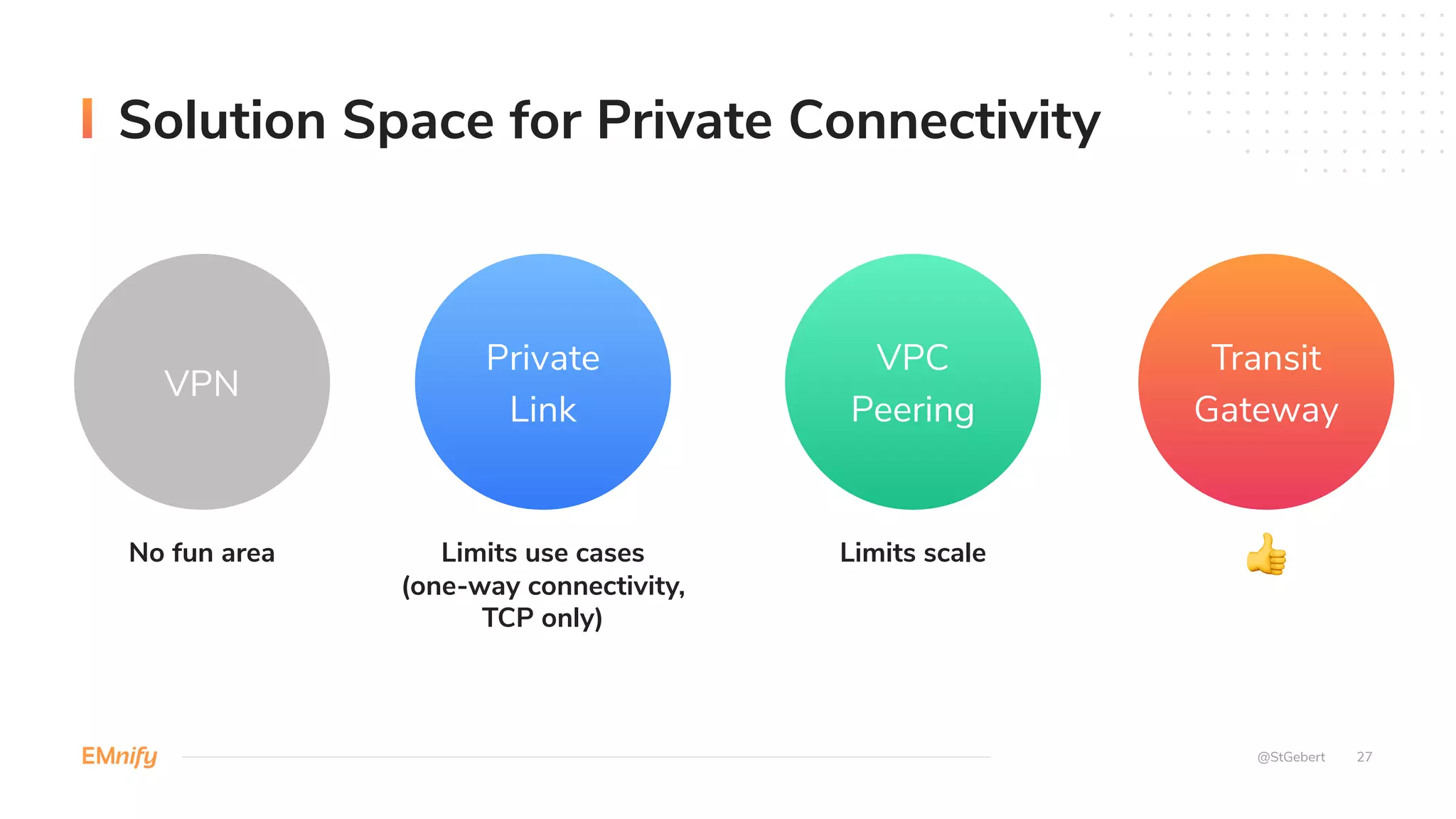

Solution Space for Private Connectivity
Limits use cases
(one-way connectivity,
TCP only)
Limits scale 👍
VPC
Peering
VPN
No fun area
27@StGebert

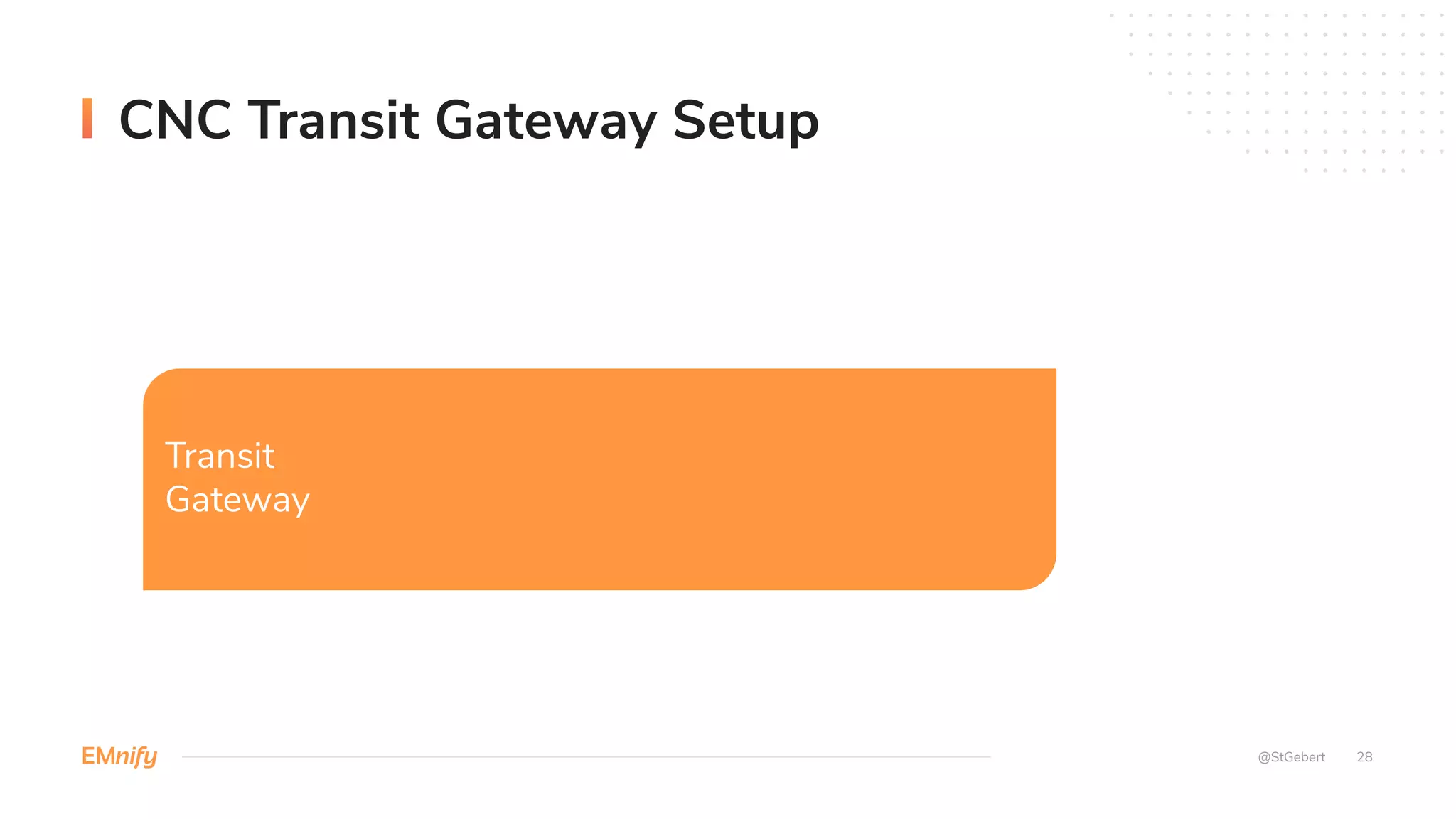

28. CNC Transit Gateway Setup
@StGebert 28
Transit
Gateway

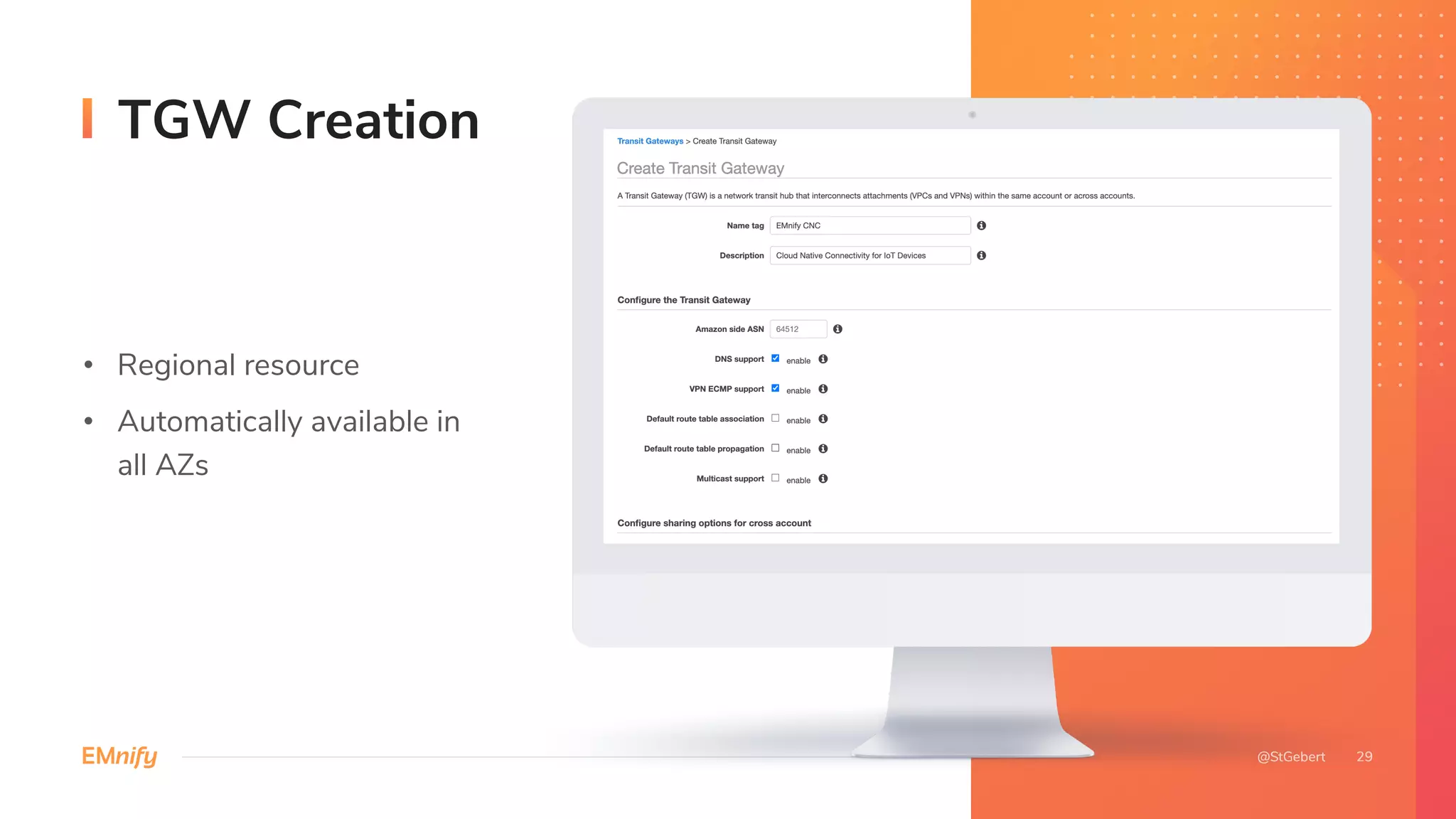

29. • Regional resource
• Automatically available in
all AZs
TGW Creation

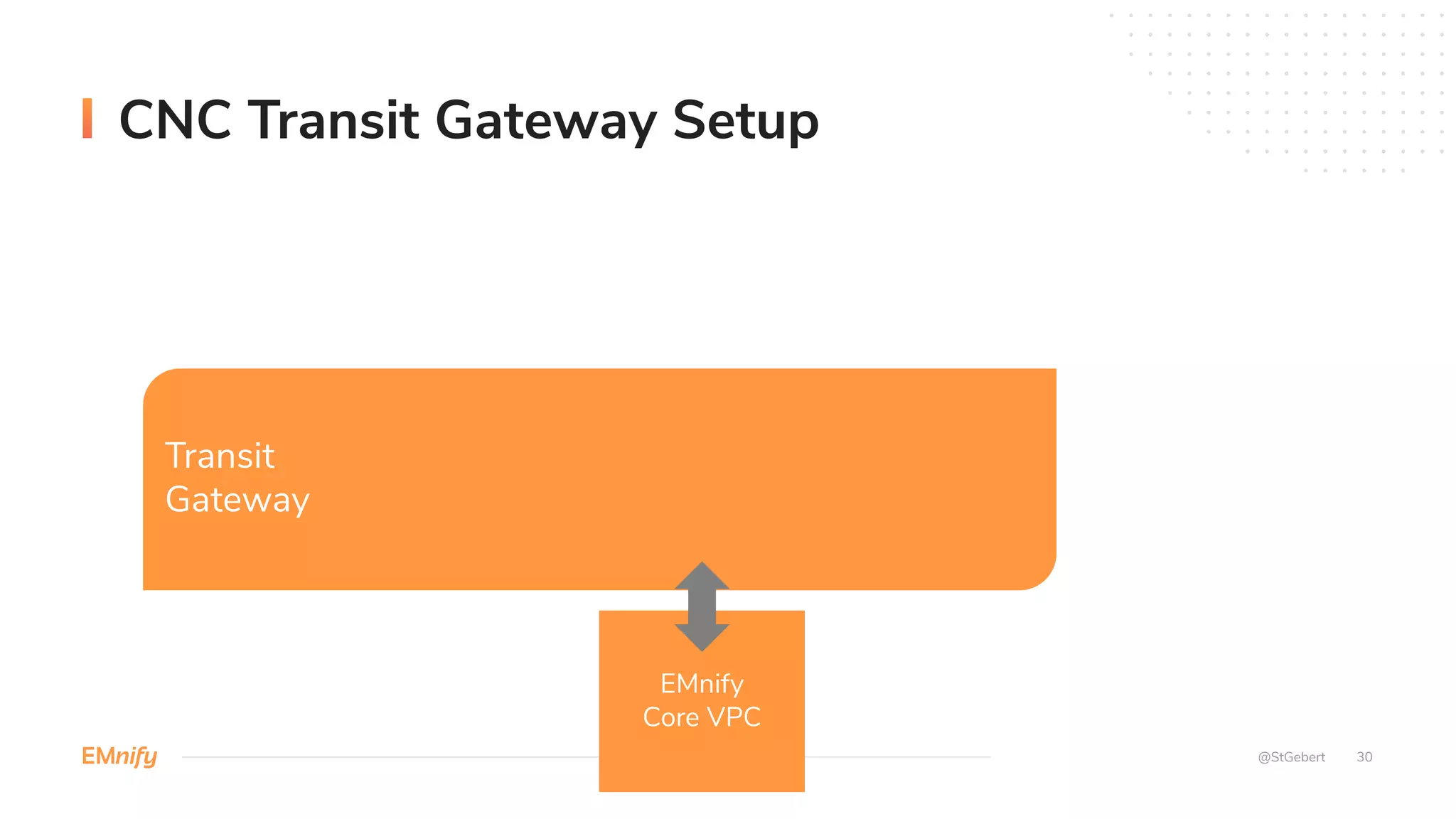

30. CNC Transit Gateway Setup
@StGebert 30
Transit
Gateway
EMnify
Core VPC

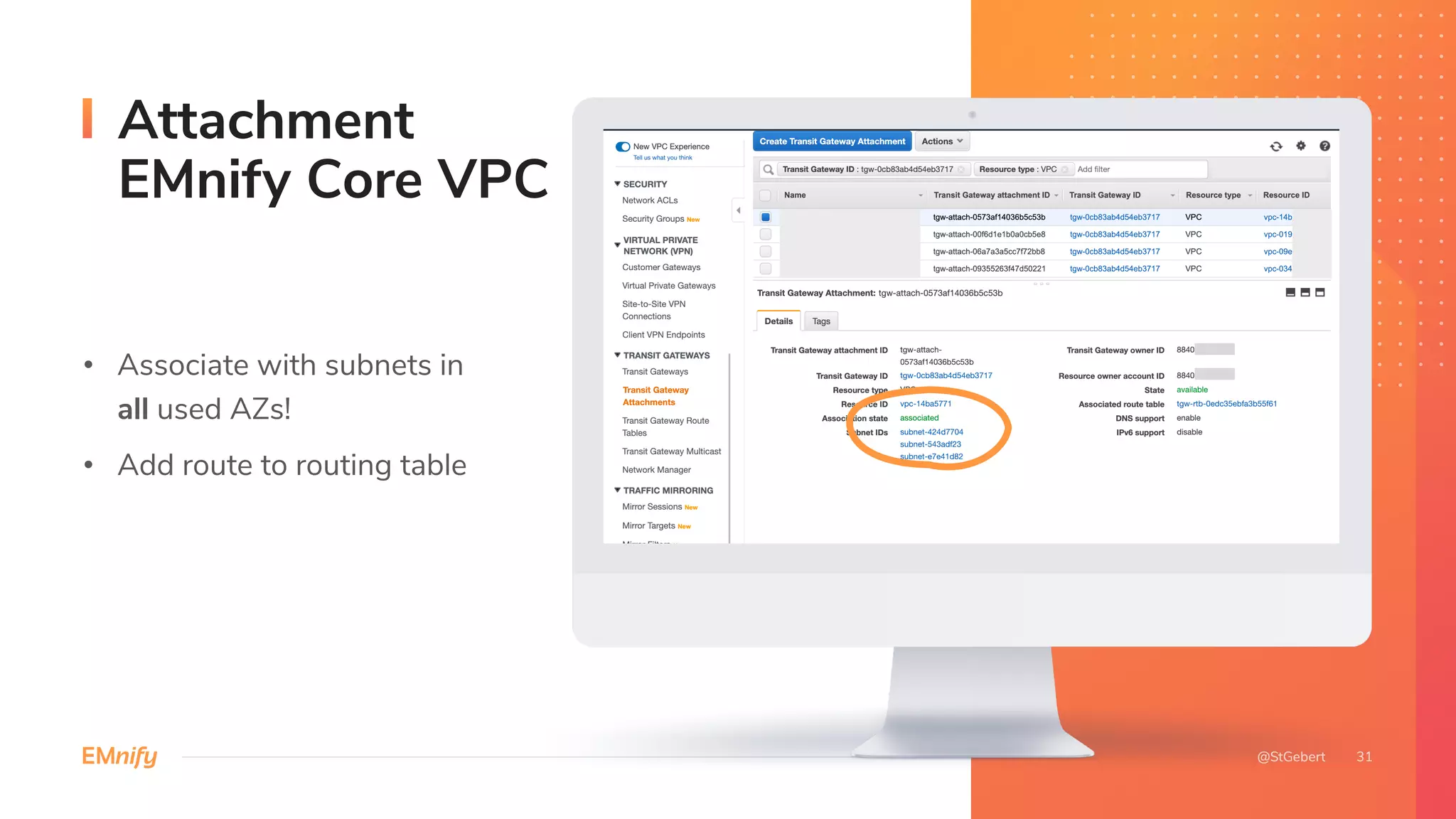

31. • Associate with subnets in
all used AZs!
• Add route to routing table
Attachment
EMnify Core VPC

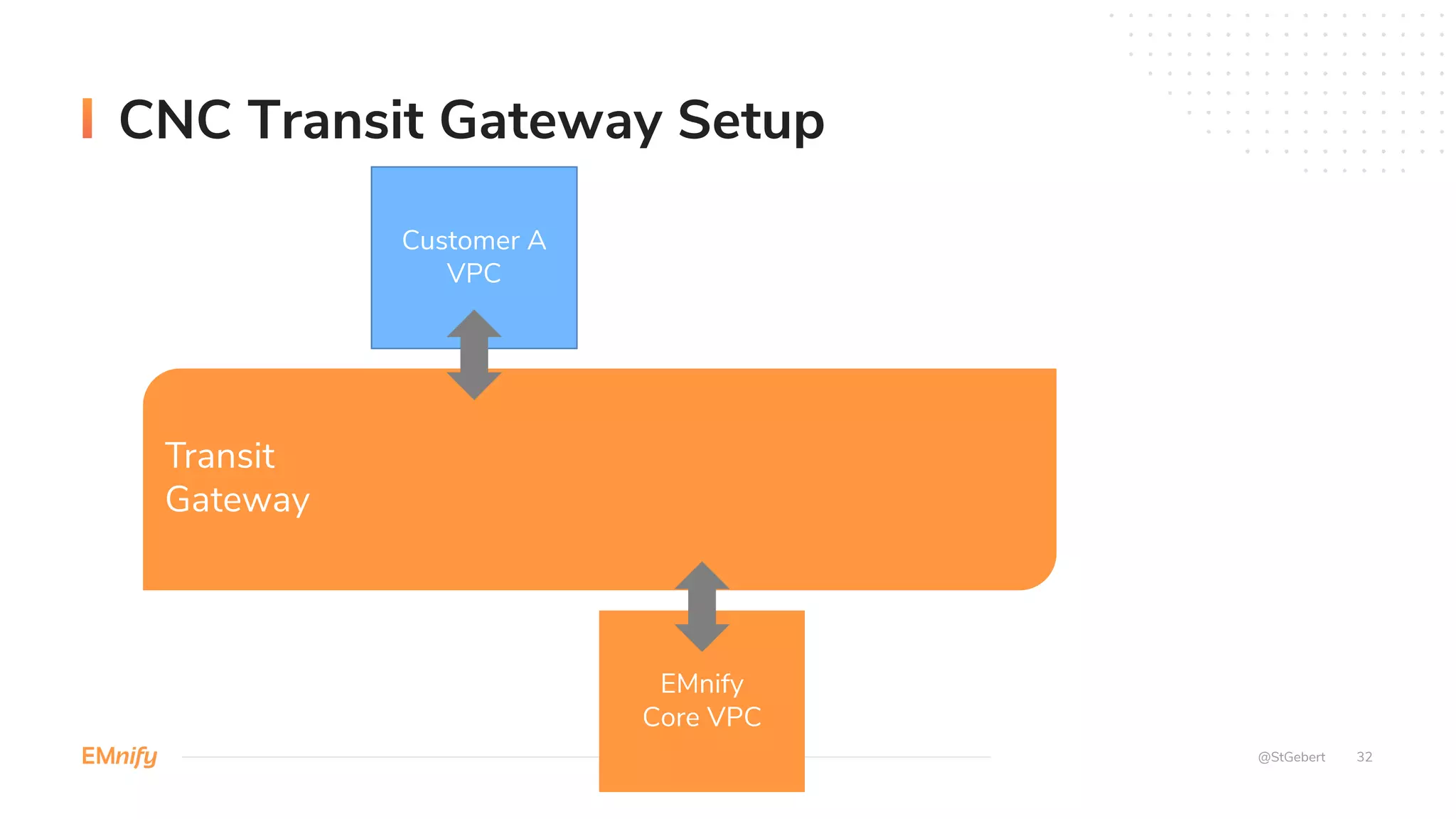

32. CNC Transit Gateway Setup
@StGebert 32
Transit
Gateway
EMnify
Core VPC
Customer A
VPC

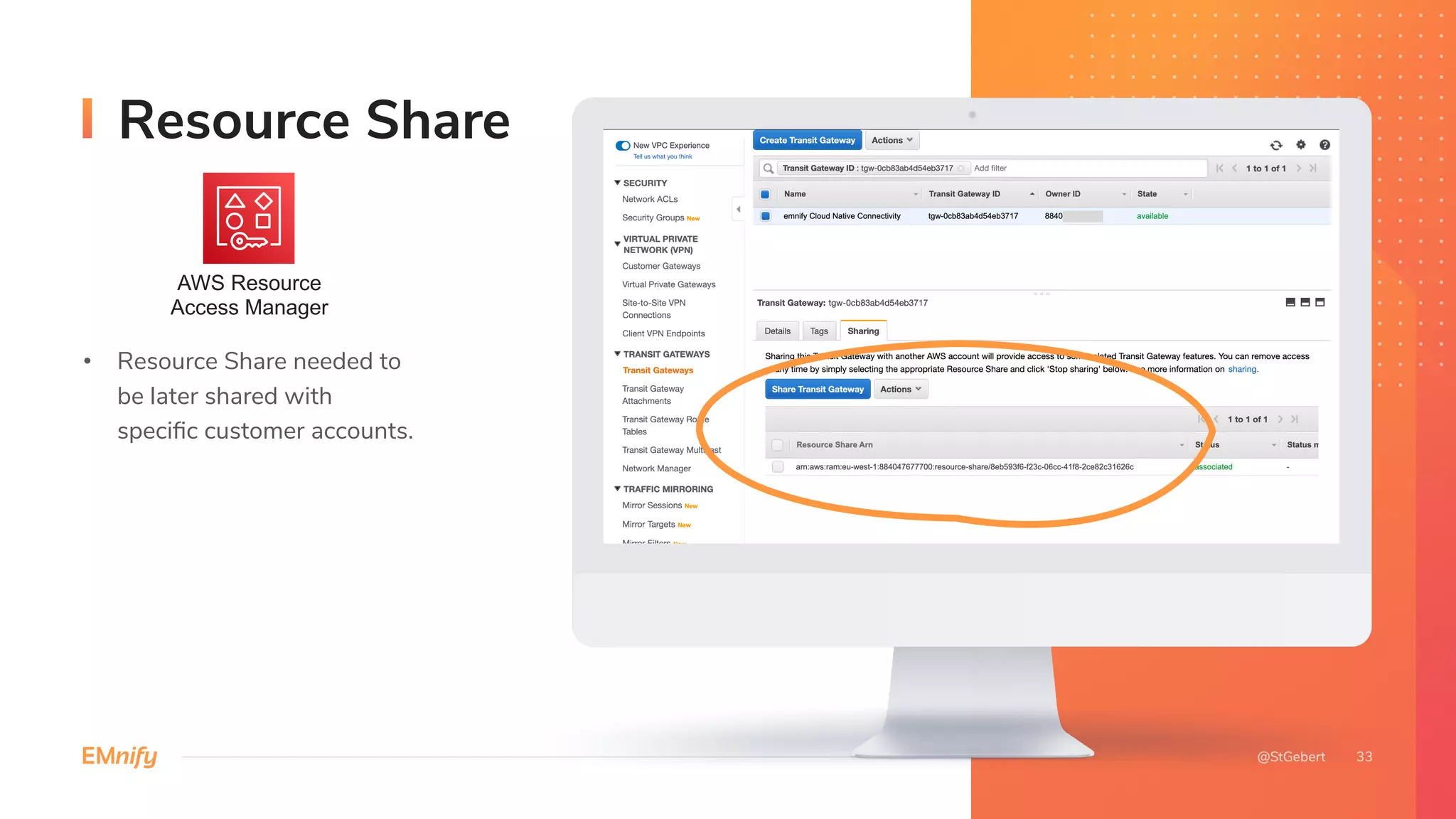

33. • Resource Share needed to
be later shared with
specific customer accounts.
Resource Share
AWS Resource
Access Manager

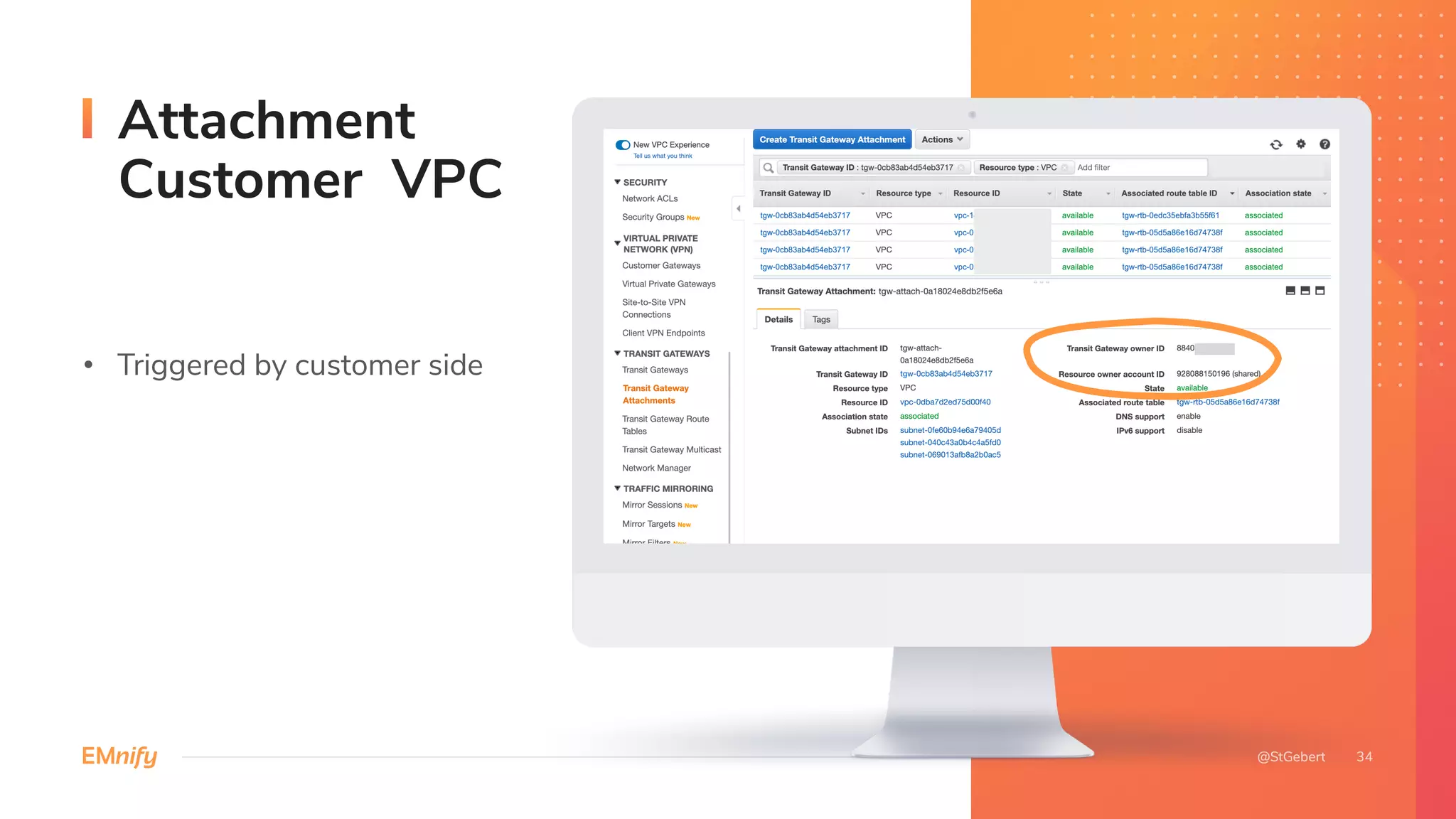

34. • Triggered by customer side
Attachment
Customer VPC

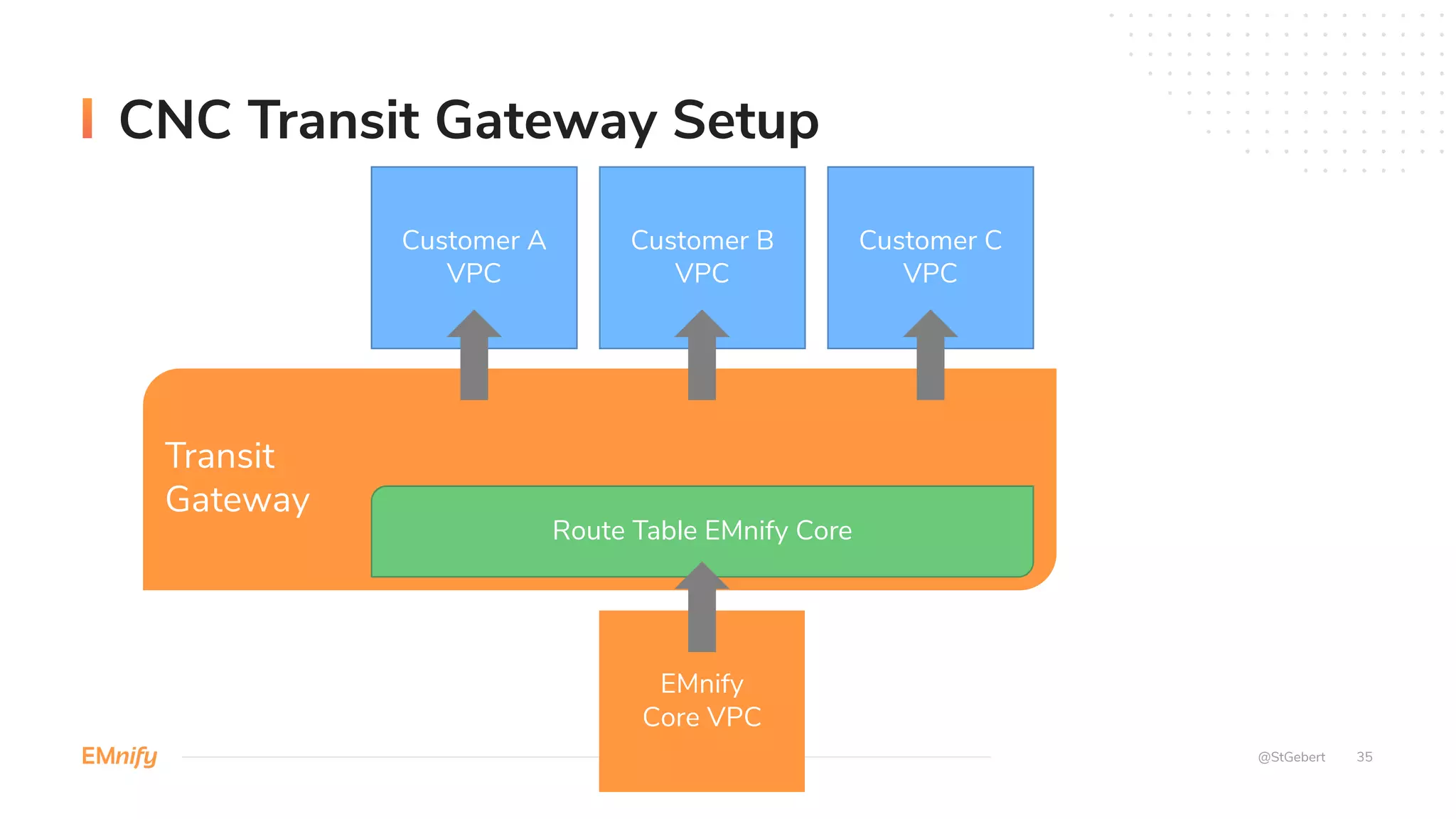

35. CNC Transit Gateway Setup
@StGebert 35
Transit
Gateway
Route Table EMnify Core
EMnify
Core VPC
Customer A
VPC
Customer B
VPC
Customer C
VPC

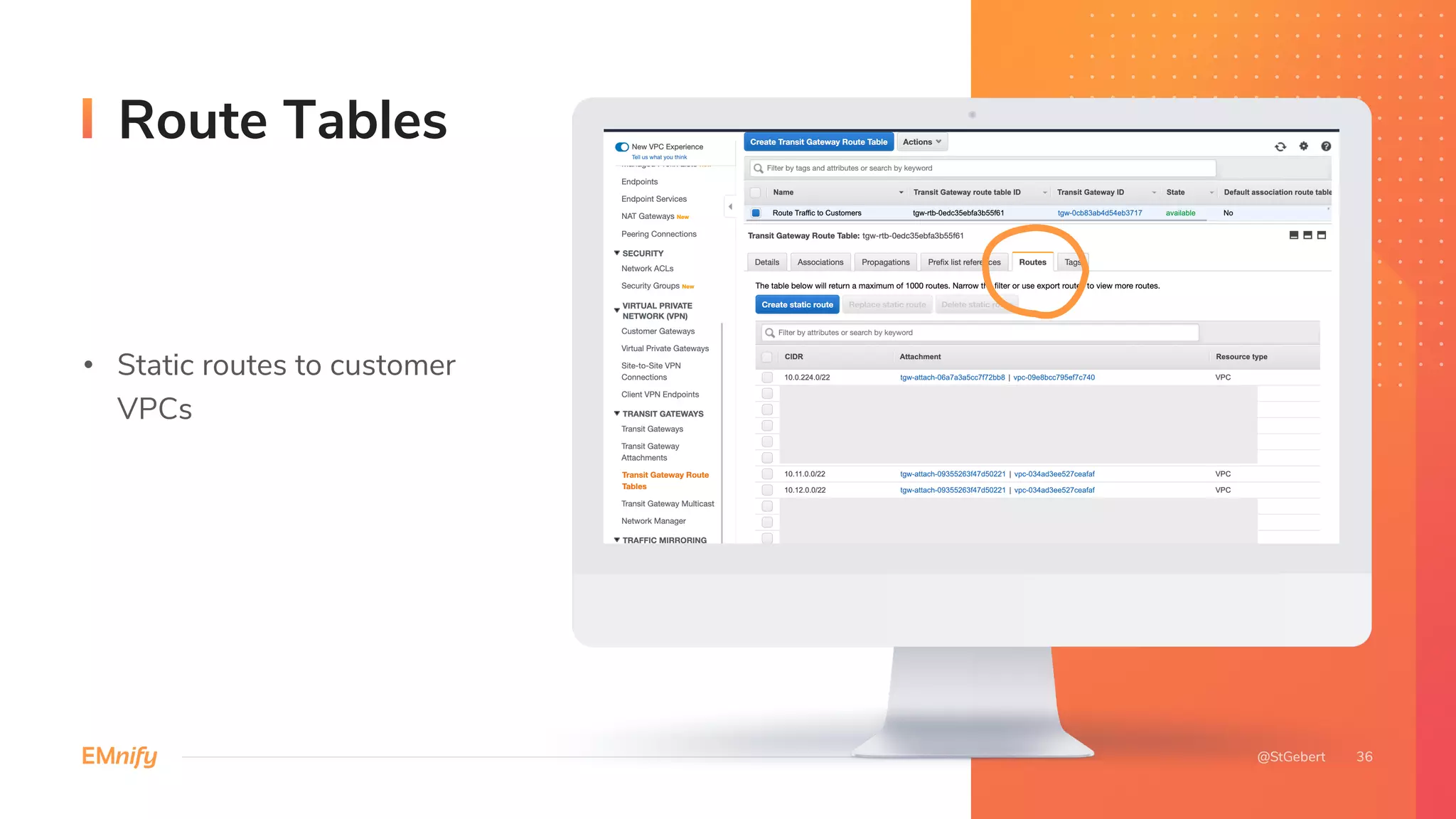

36. • Static routes to customer
VPCs
Route Tables

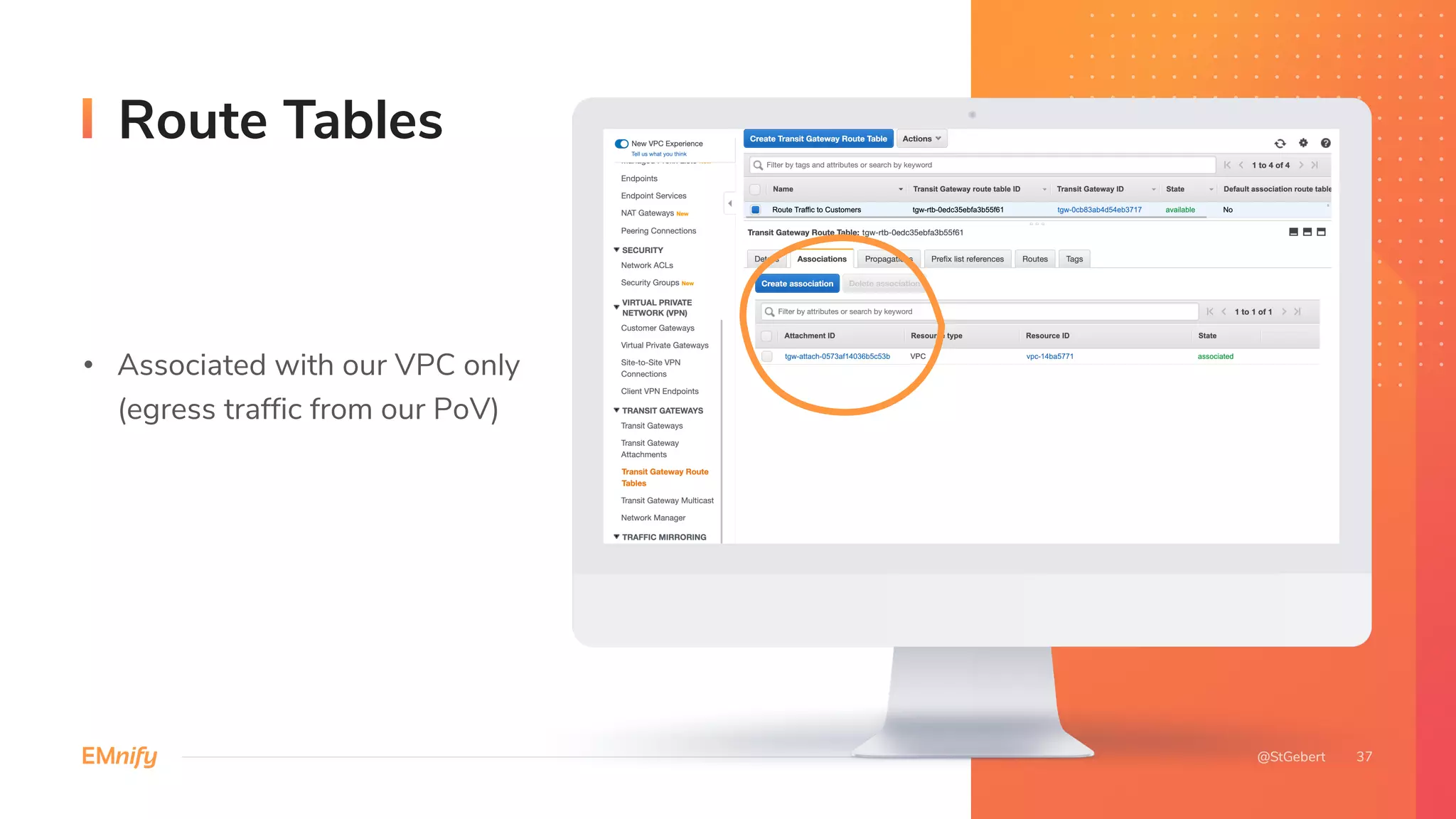

37. • Associated with our VPC only
(egress traffic from our PoV)
Route Tables

38. CNC Transit Gateway Setup
@StGebert 38
Transit
Gateway
Route Table Customers
Route Table EMnify Core
EMnify
Core VPC
Customer A
VPC
Customer B
VPC
Customer C
VPC

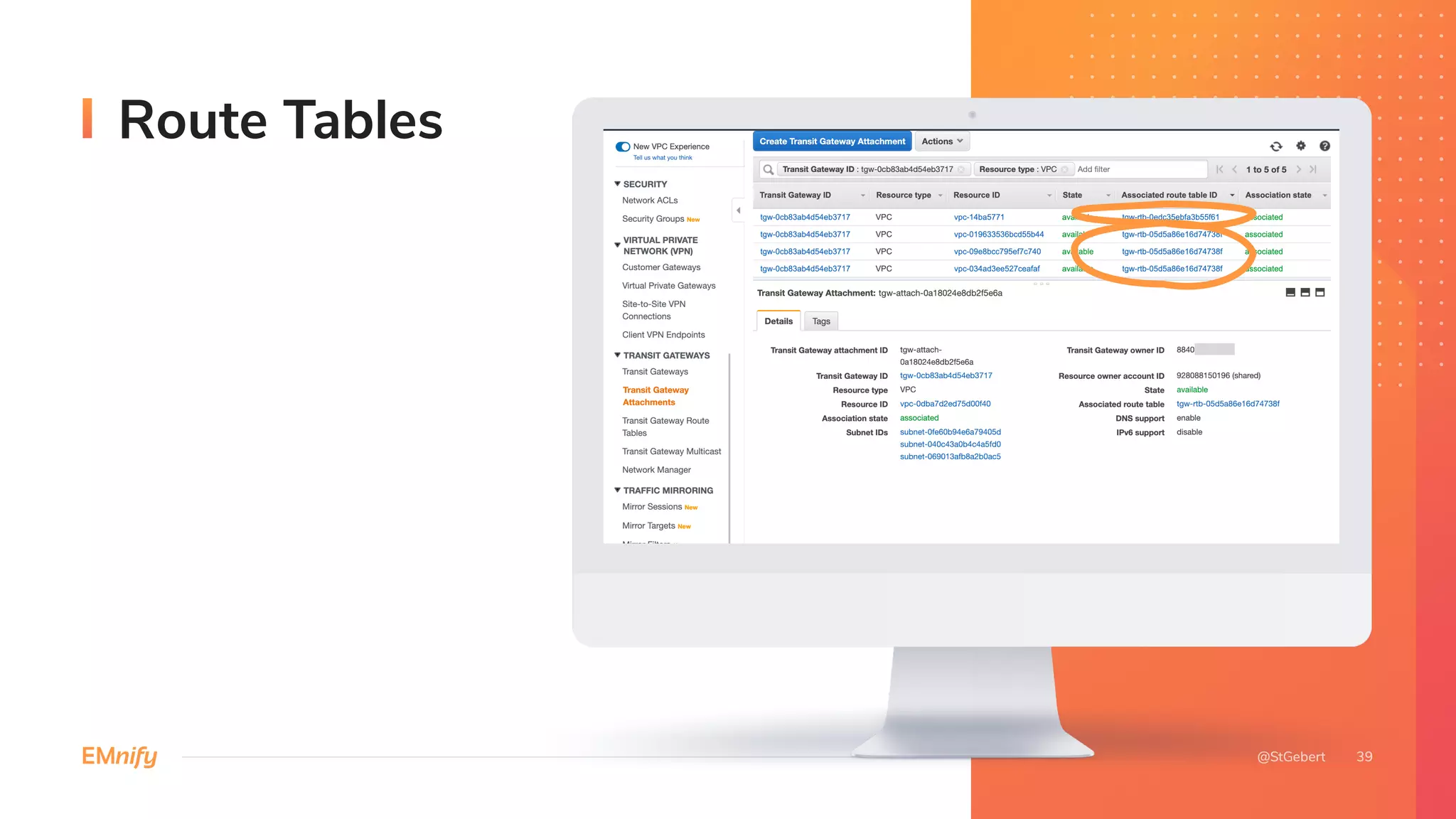

39. Route Tables

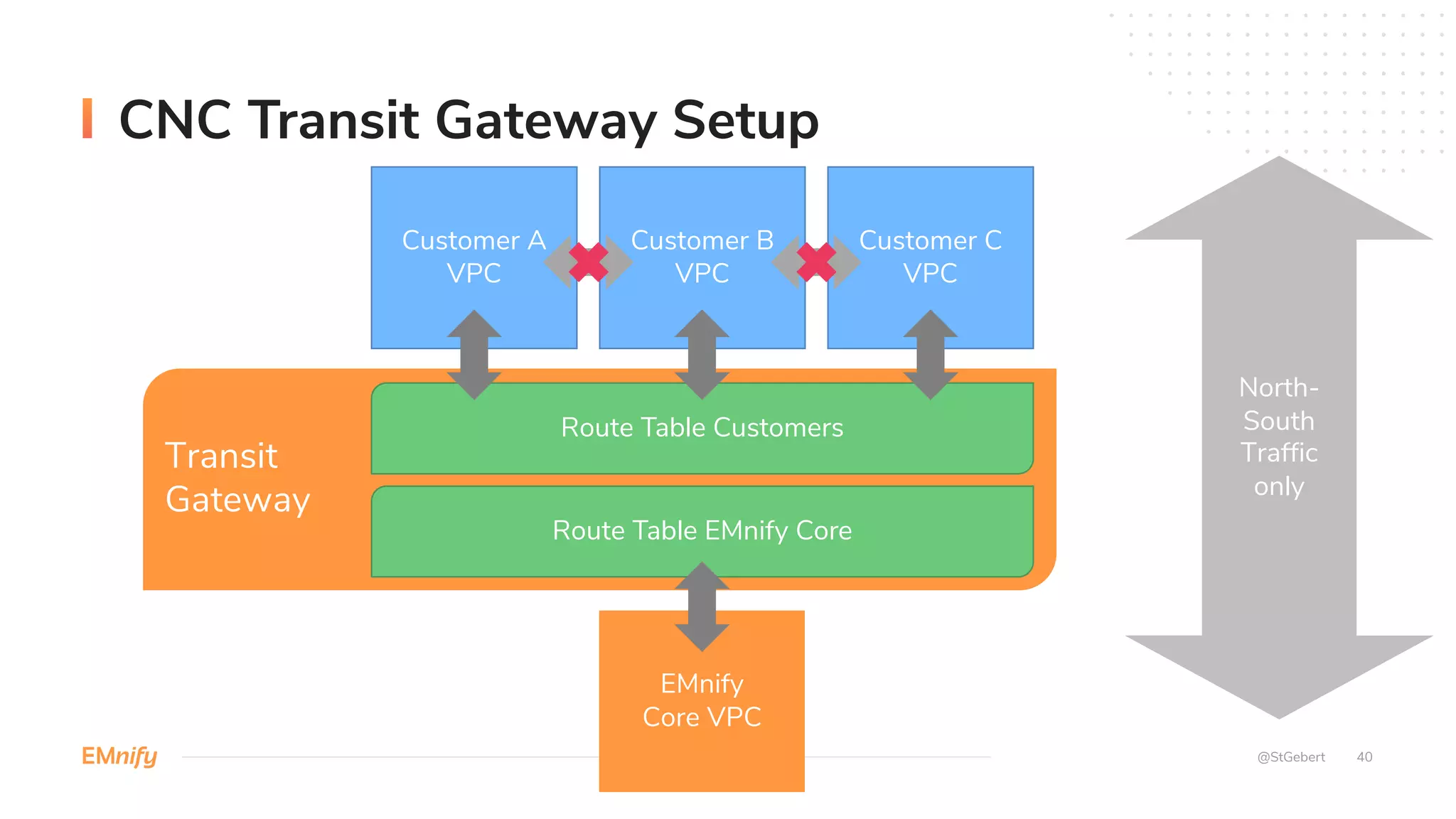

40. CNC Transit Gateway Setup
@StGebert 40
Transit
Gateway
Route Table Customers
Route Table EMnify Core
EMnify
Core VPC
Customer A
VPC
Customer B
VPC
Customer C
VPC
North-
South
Traffic
only

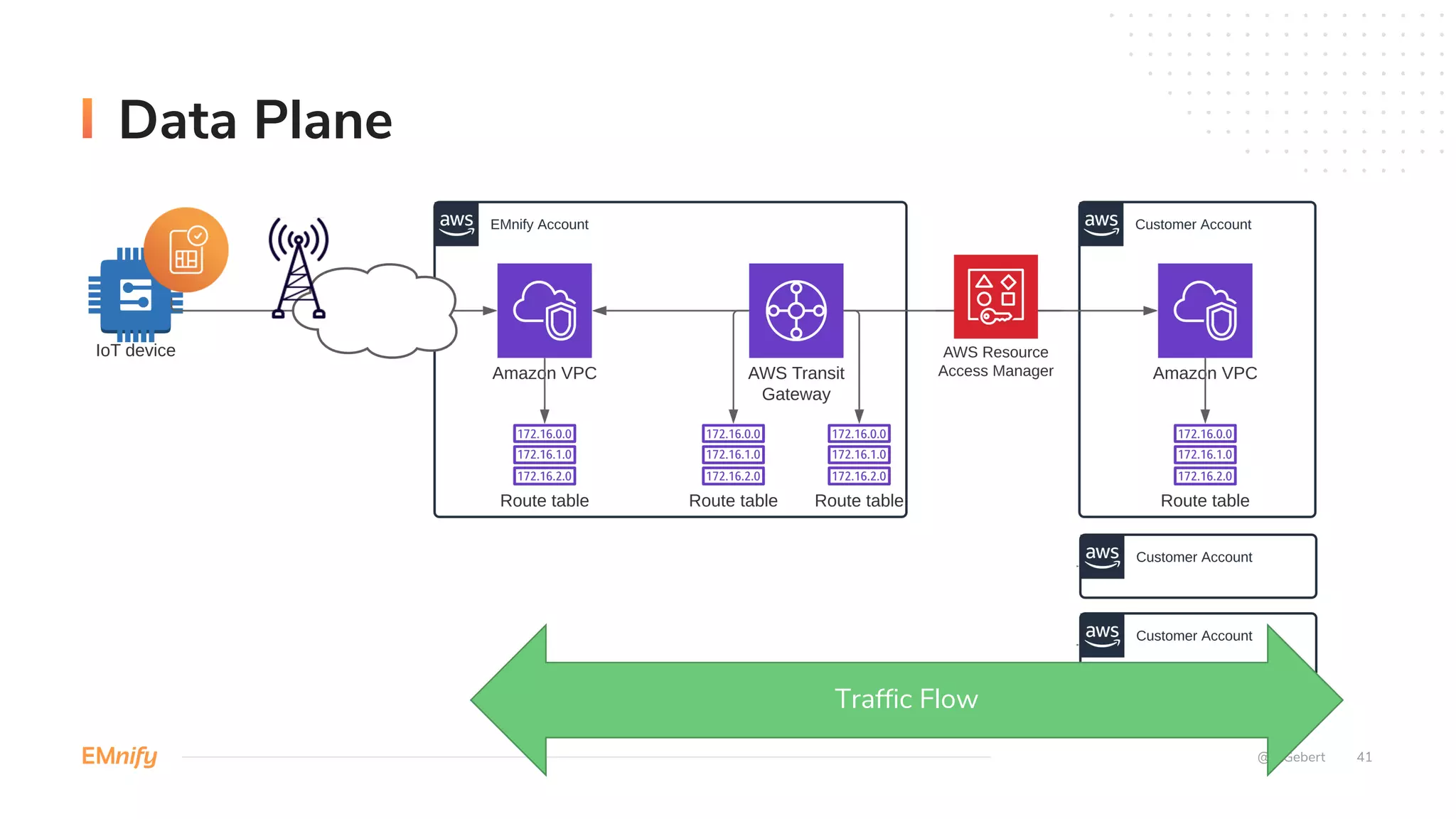

41. Data Plane
@StGebert 41
Traffic Flow

42. TGW Bonus Points

43. Independence of our core network deployment regions
43

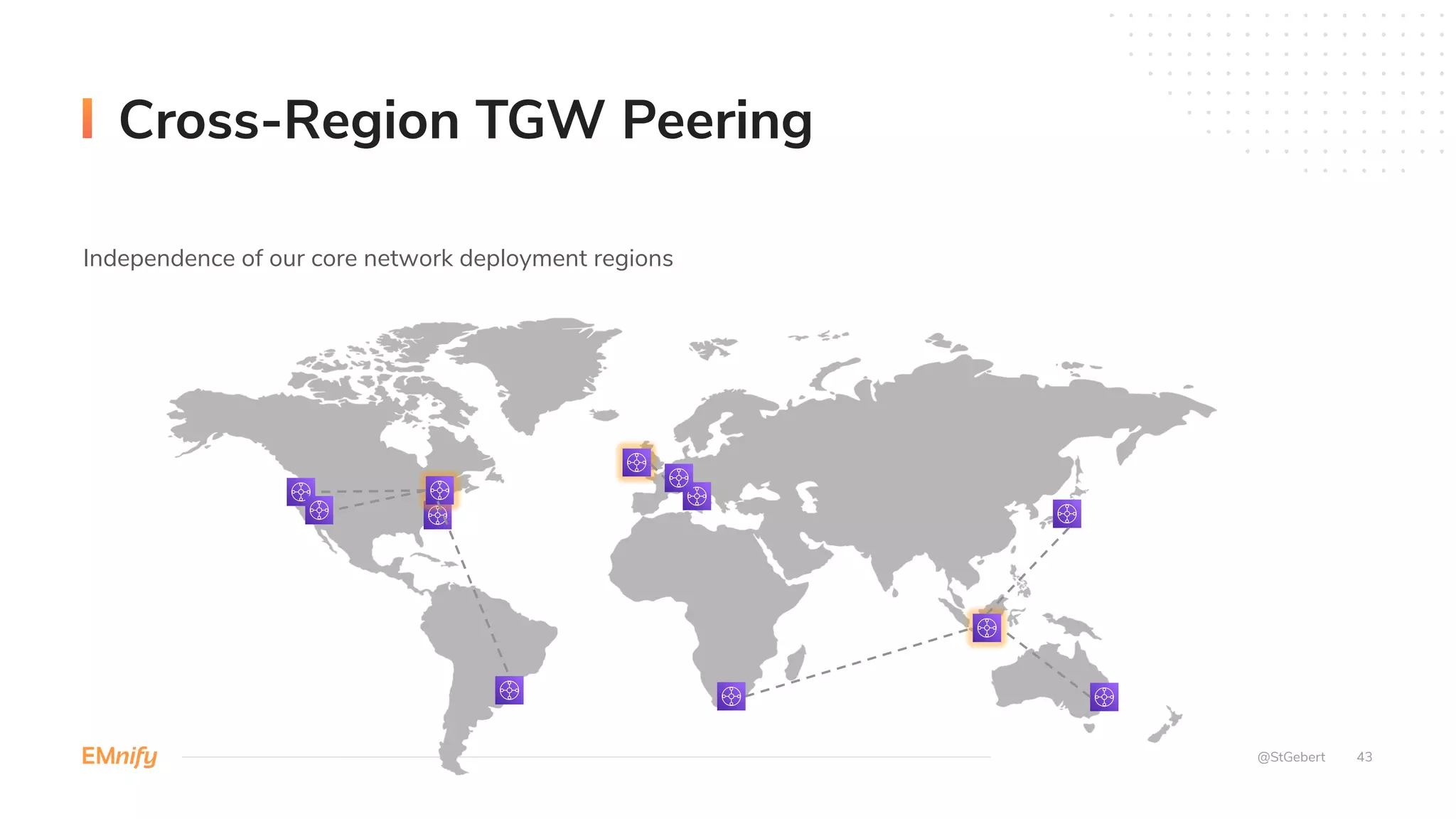

Cross-Region TGW Peering
@StGebert

44. • Replacing custom IPsec
setups with managed
AWS Site-to-Site VPN
• Advantages
API
Highly available (BGP)
Somebody else fixes it
IPsec VPN
¯_(ツ)_/¯
All rights reserved | Confidential17.11.20

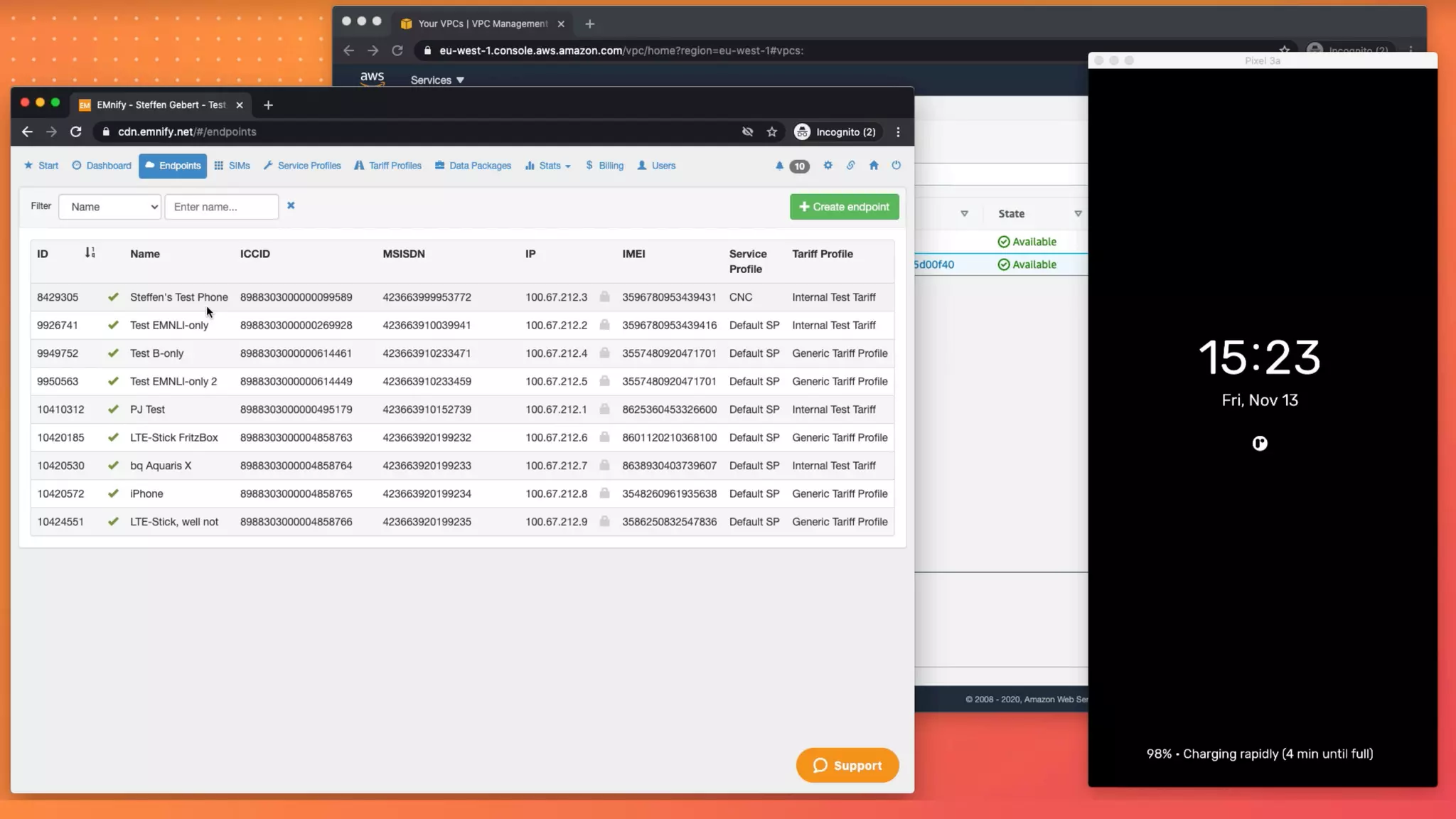

45. Demo

47. Control Plane

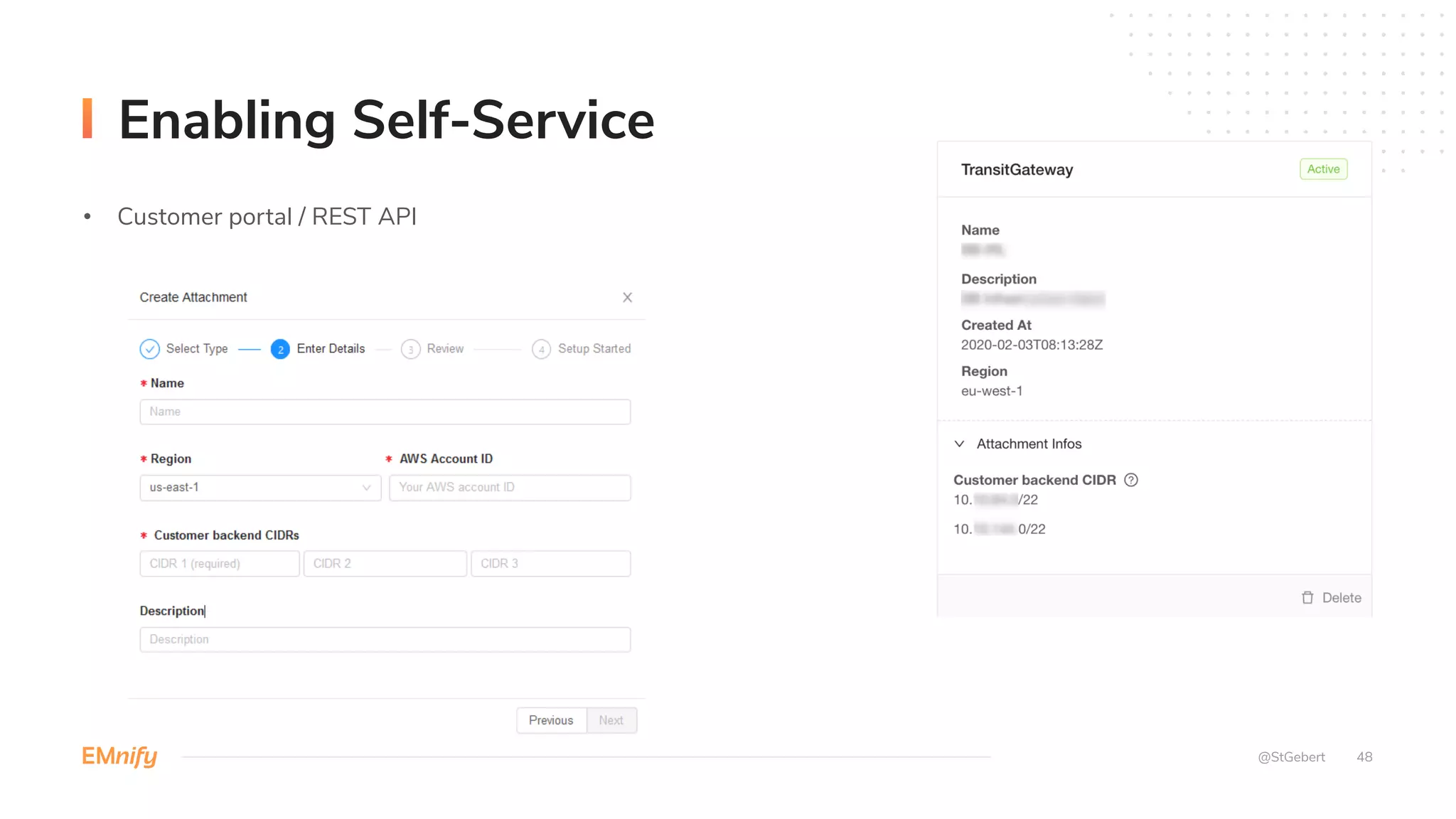

48. • Customer portal / REST API
48
Enabling Self-Service
@StGebert

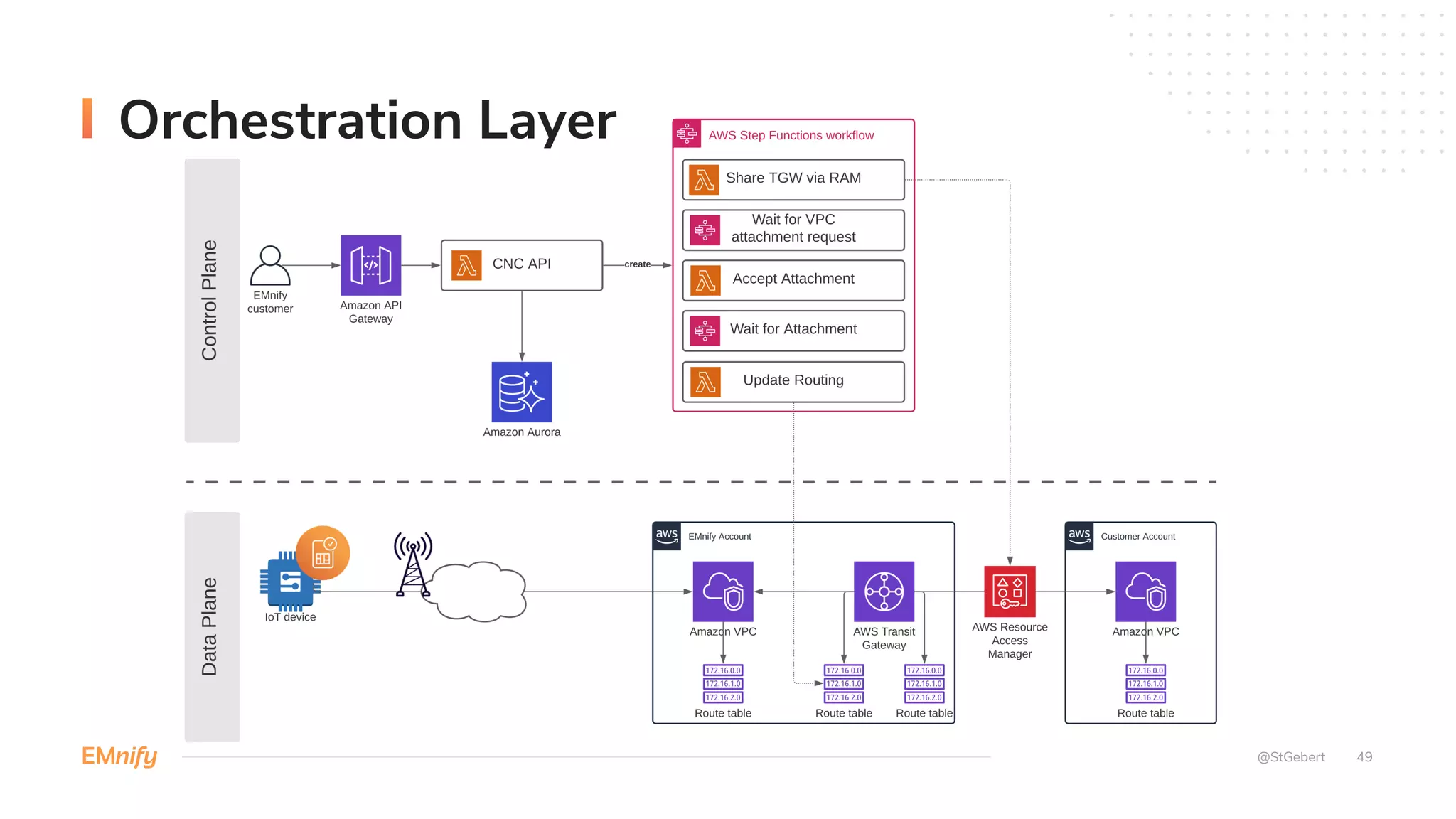

49. Orchestration Layer
49@StGebert

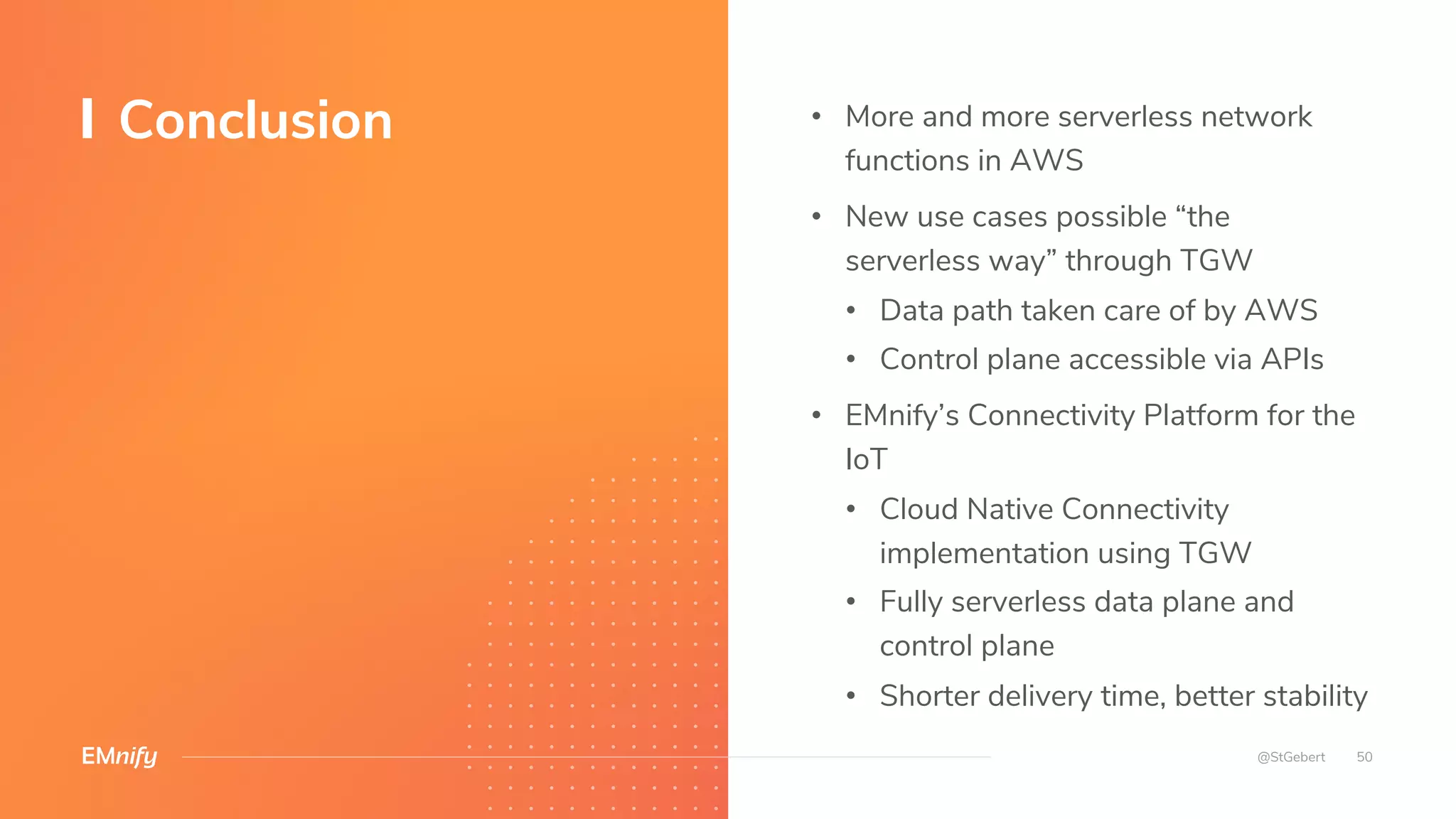

50. • More and more serverless network
functions in AWS
• New use cases possible “the
serverless way” through TGW
• Data path taken care of by AWS
• Control plane accessible via APIs
• EMnify’s Connectivity Platform for the
IoT
• Cloud Native Connectivity
implementation using TGW
• Fully serverless data plane and
control plane
• Shorter delivery time, better stability
Conclusion
50@StGebert

51. Need a
Lockdown
Project?
Go to emnify.com/devs
