This document provides information about a presentation given by Steffen Gebert on the official typo3.org infrastructure and the TYPO3 Server Admin Team. The presentation introduces the team members, describes the public sites and services maintained by the team such as typo3.org and forge.typo3.org, and discusses the infrastructure including the use of virtualization, monitoring, configuration management with Chef, and future plans.

1. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
Die offizielle typo3.org Infrastruktur &
das TYPO3 Server Admin Team
[slides in english]
Official typo3.org infrastructure &
the TYPO3 Server Admin Team

2. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
Your Presenter
Hi,
I’m Steffen!
Please give me feedback
about this presentation!
steffen.gebert@typo3.org
@StGebert on Twitter

3. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
I live in Würzburg
Studied Computer science there
Photo by Juergen Mangelsdorf (CC)
http://www.flickr.com/photos/22084572@N07/2217991811/

4. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
Day-to-day Job
Now PhD student and researcher
• Future Internet research
Photo by Paul Soler-Moya (CC)
http://www.flickr.com/photos/40351463@N00/3927504524/

5. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
TYPO3 Core Team Member

6. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
TYPO3.org Server Admin Team Member

7. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

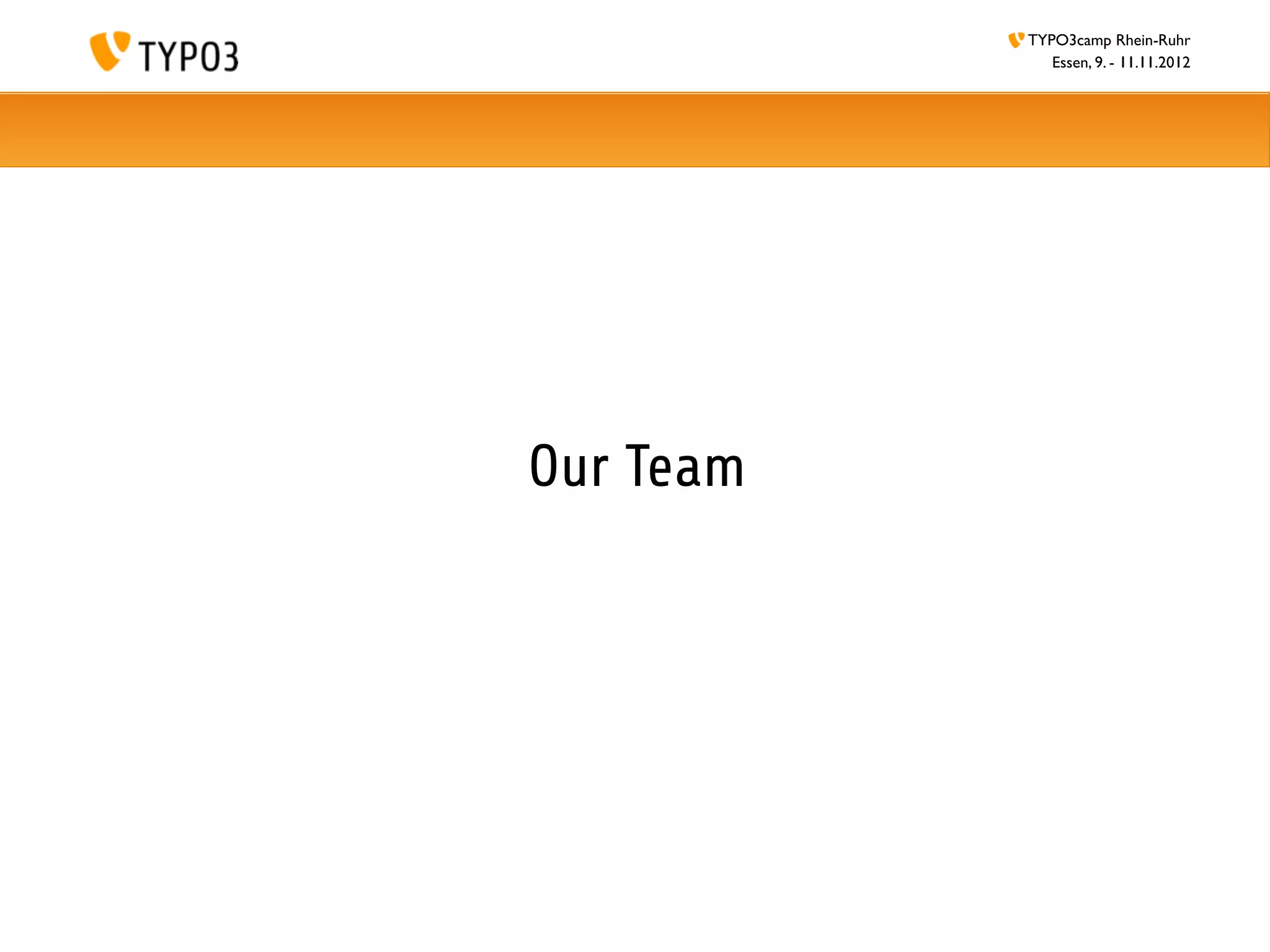

Our Team

8. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
The team
Michael Stucki (Leader)
Peter
Niederlag Christian Trabold Fabien Udriot Steffen Gebert

9. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

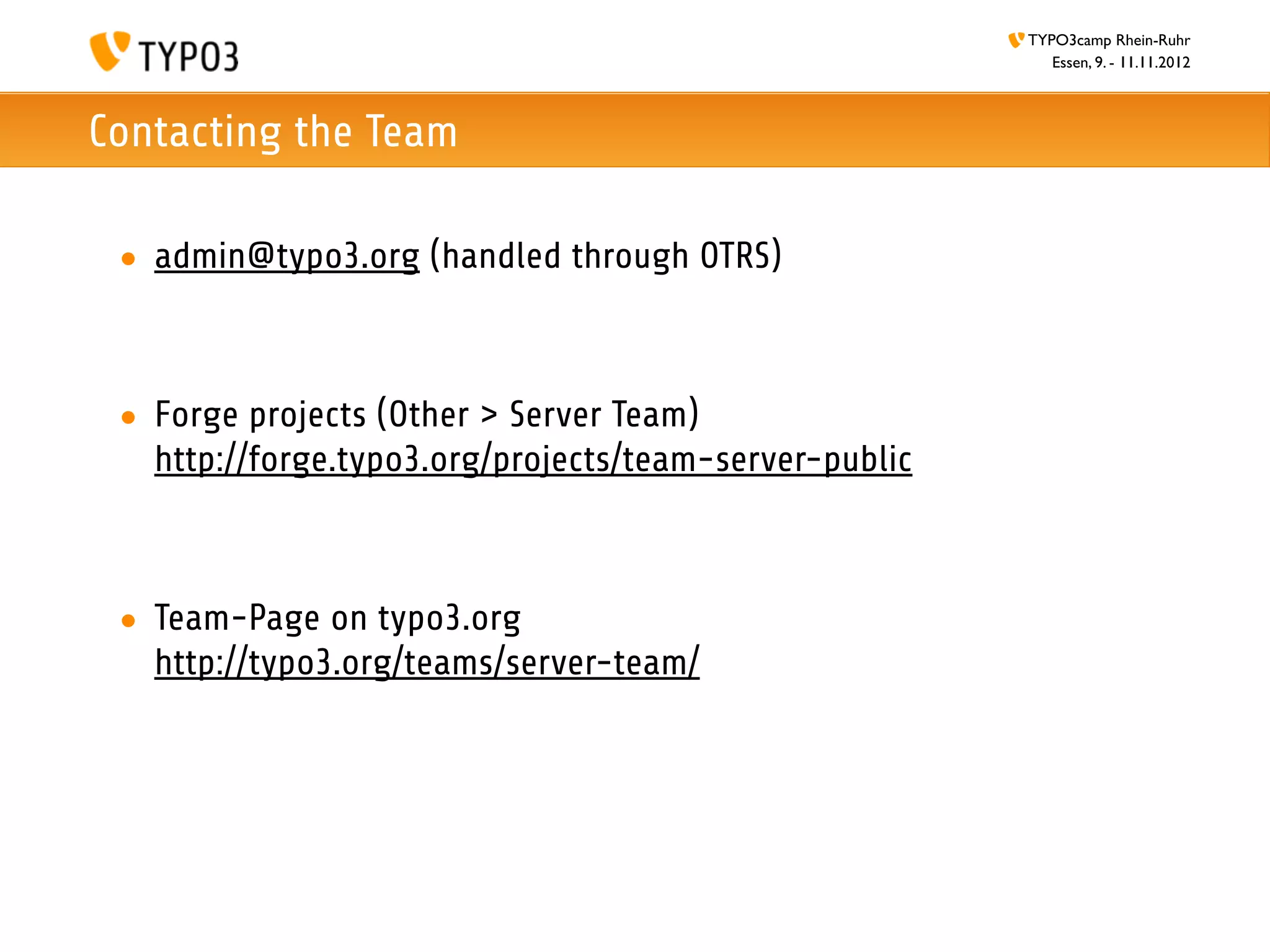

Contacting the Team
• admin@typo3.org (handled through OTRS)
• Forge projects (Other > Server Team)
http://forge.typo3.org/projects/team-server-public
• Team-Page on typo3.org
http://typo3.org/teams/server-team/

10. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

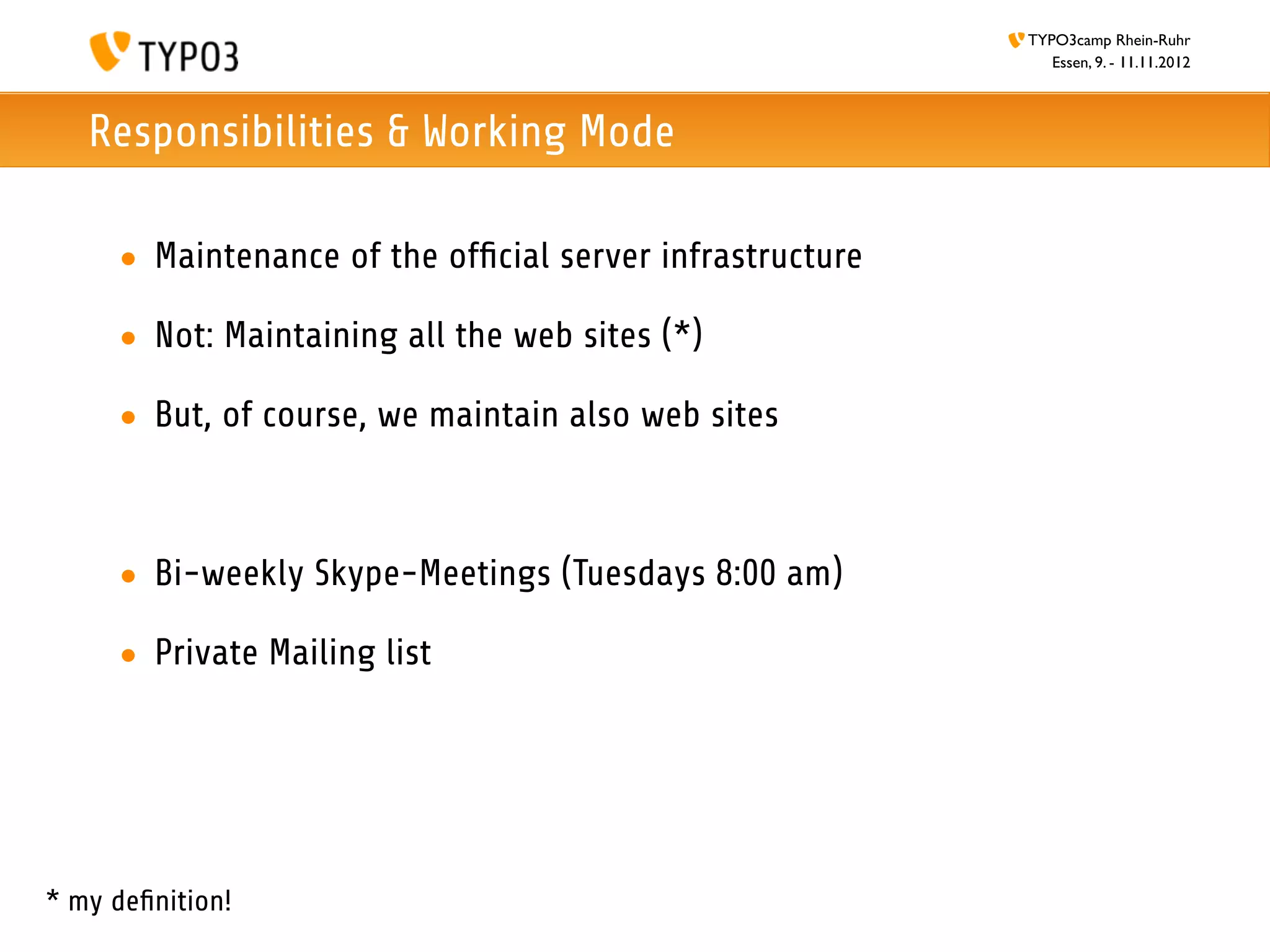

Responsibilities & Working Mode
• Maintenance of the official server infrastructure
• Not: Maintaining all the web sites (*)
• But, of course, we maintain also web sites
• Bi-weekly Skype-Meetings (Tuesdays 8:00 am)
• Private Mailing list
* my definition!

11. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

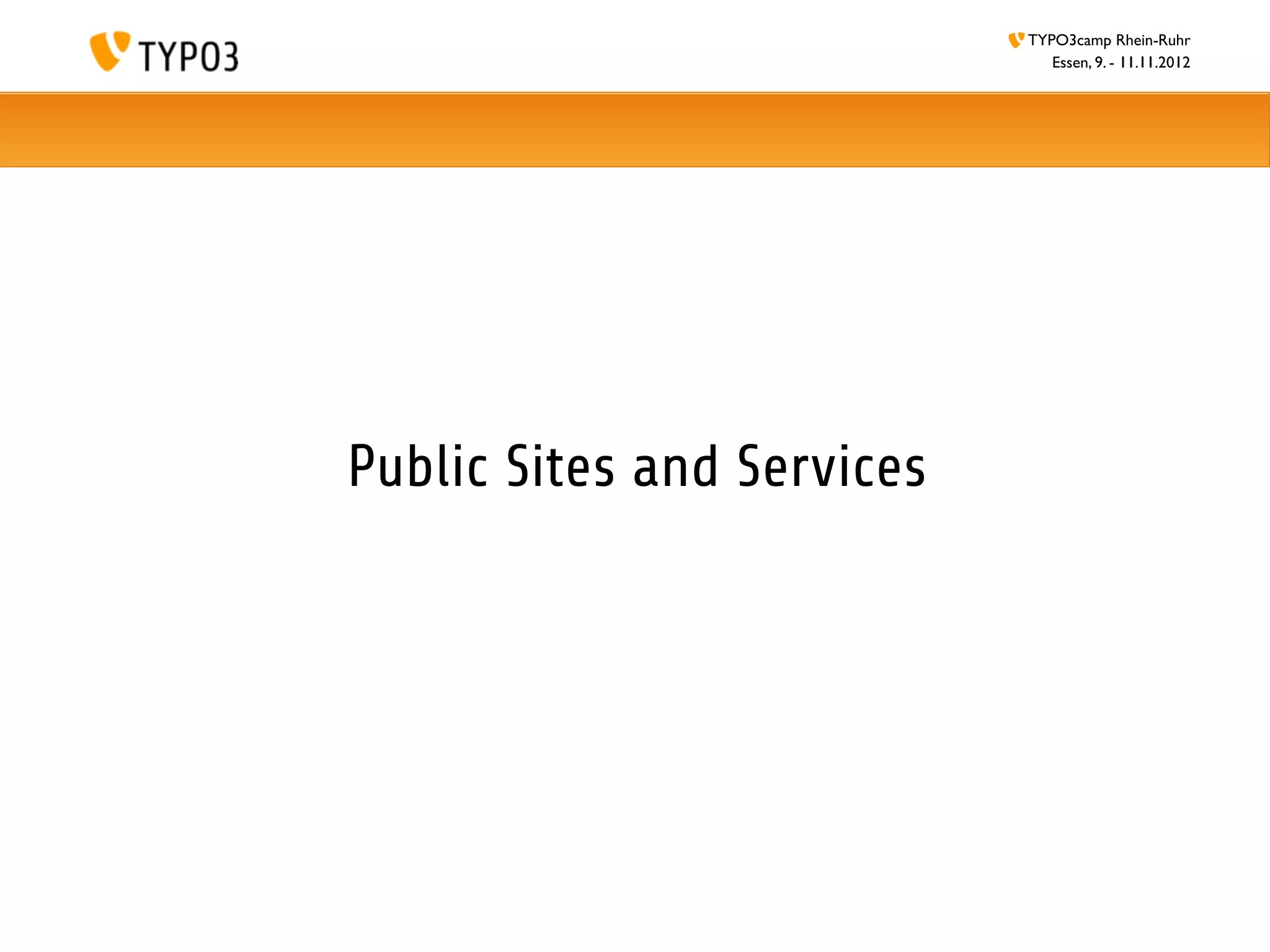

Public Sites and Services

12. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

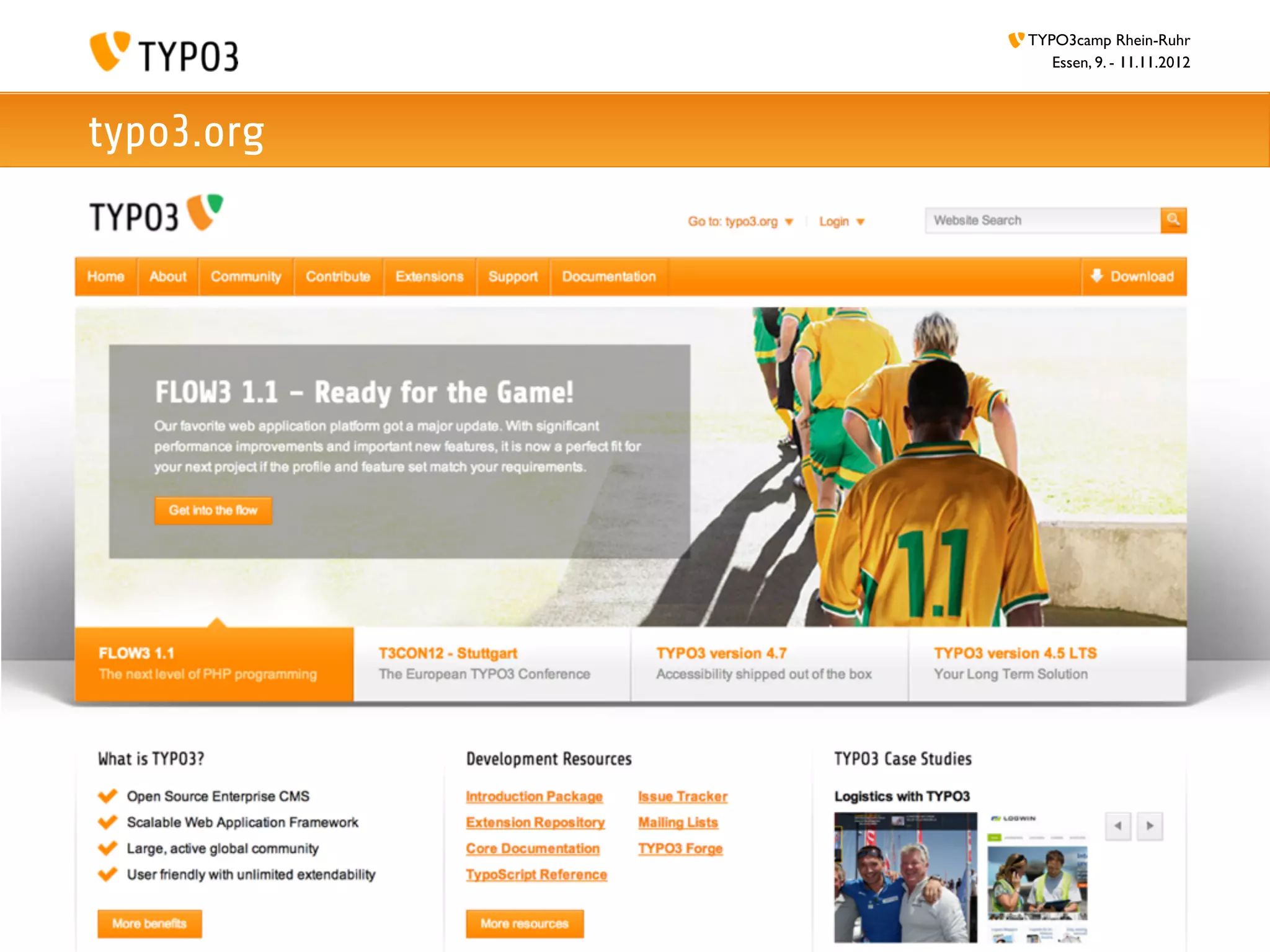

typo3.org

13. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

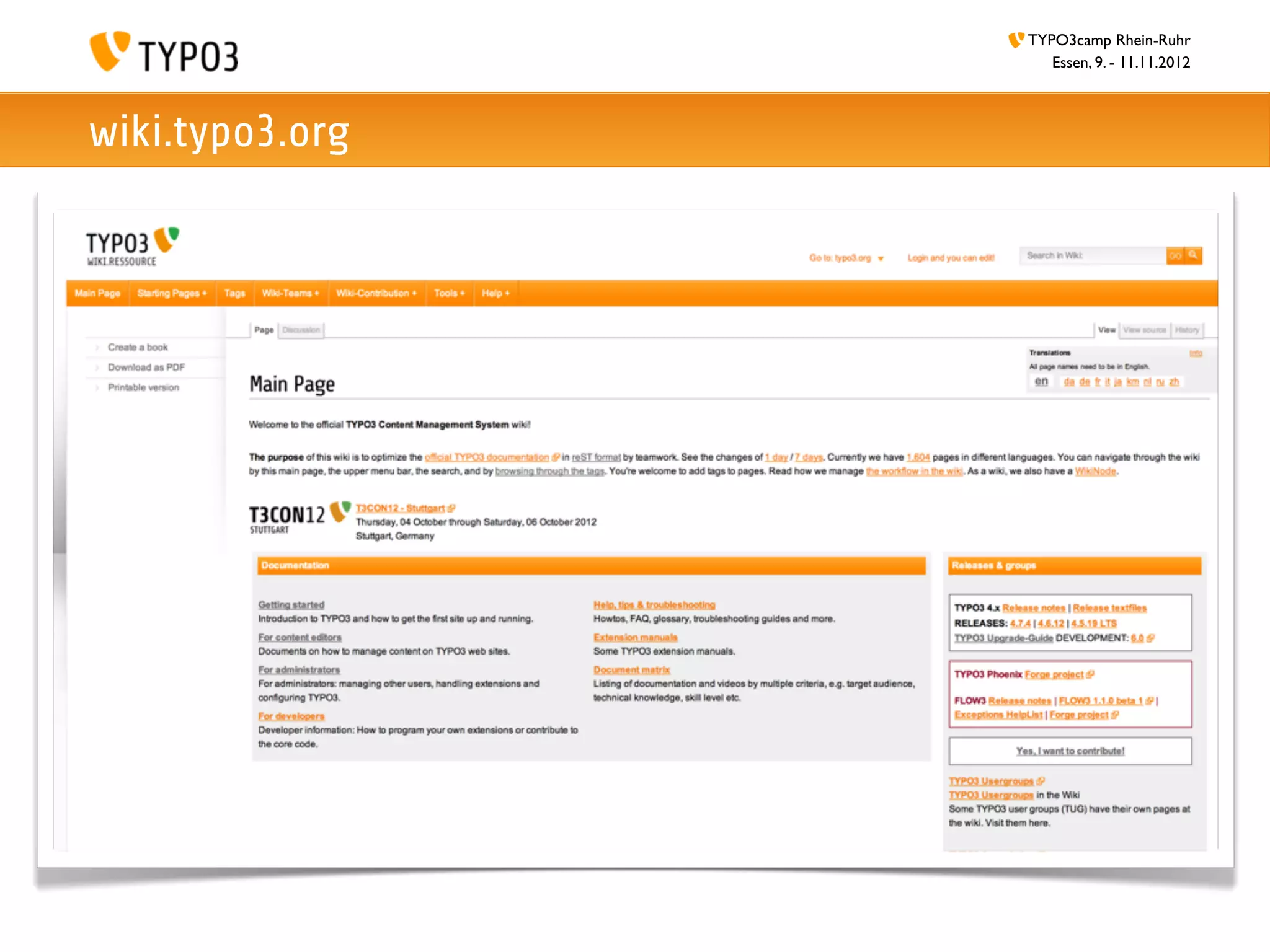

wiki.typo3.org

14. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

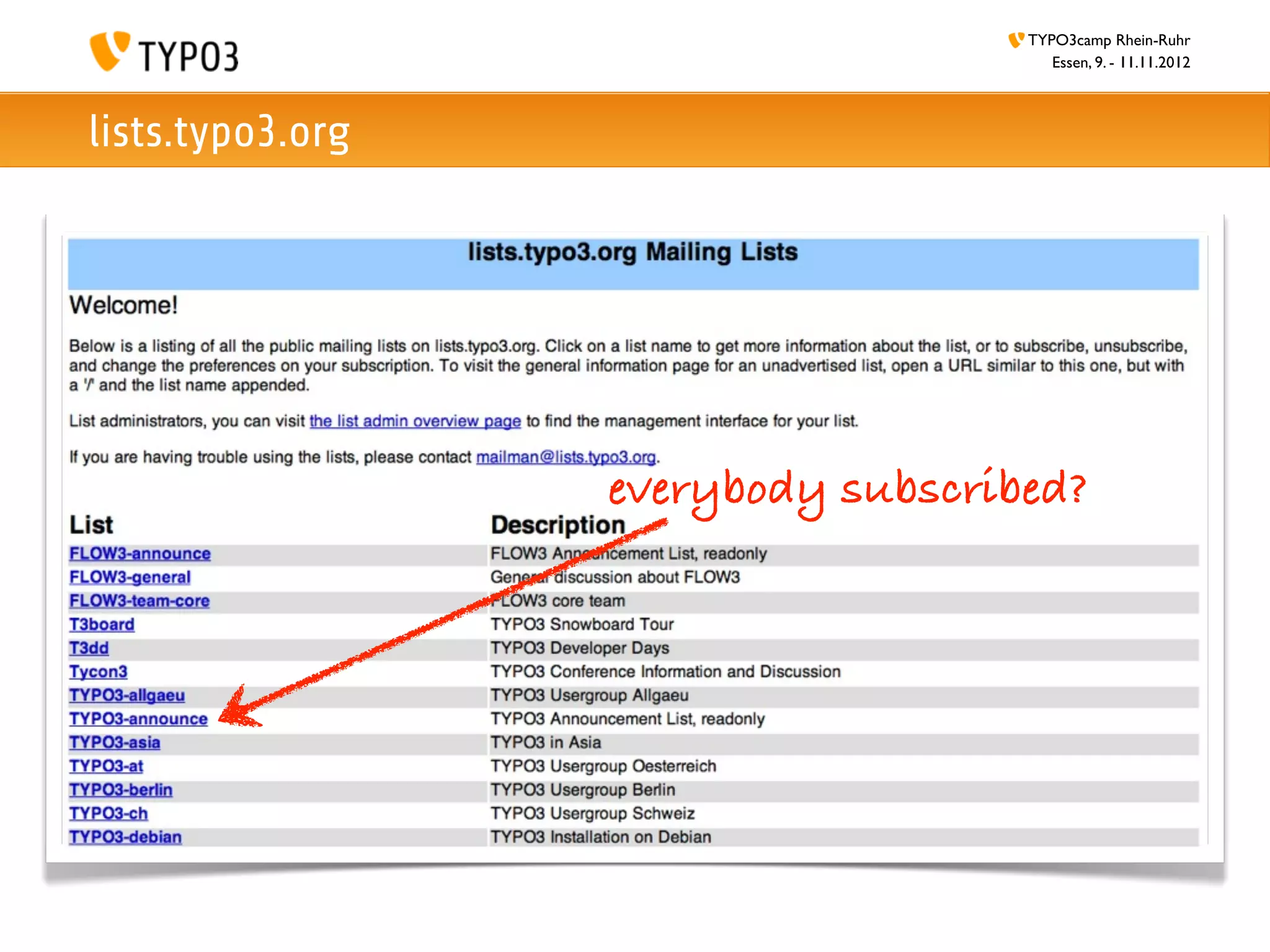

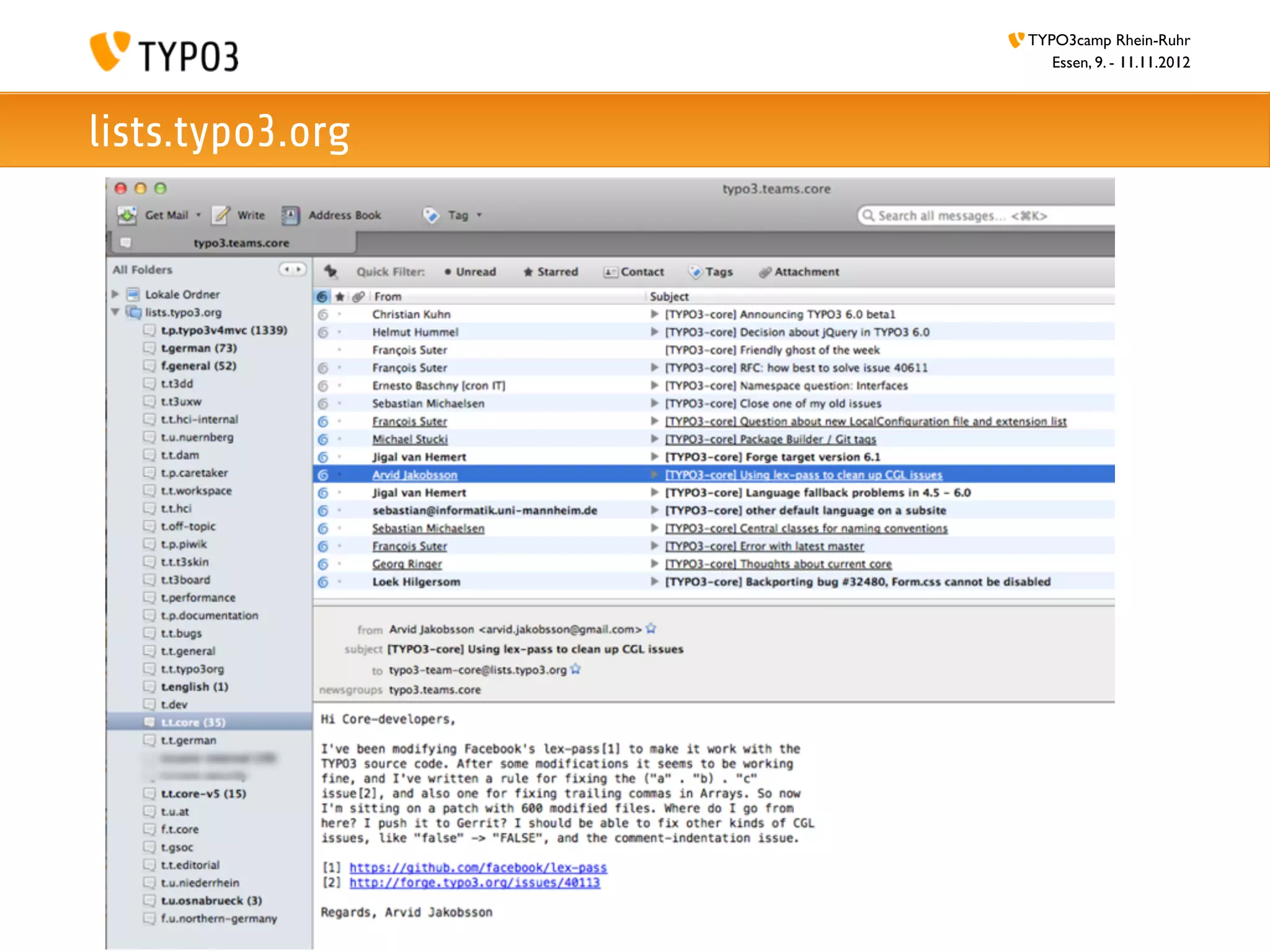

lists.typo3.org
everybody subscribed?

15. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
lists.typo3.org

16. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

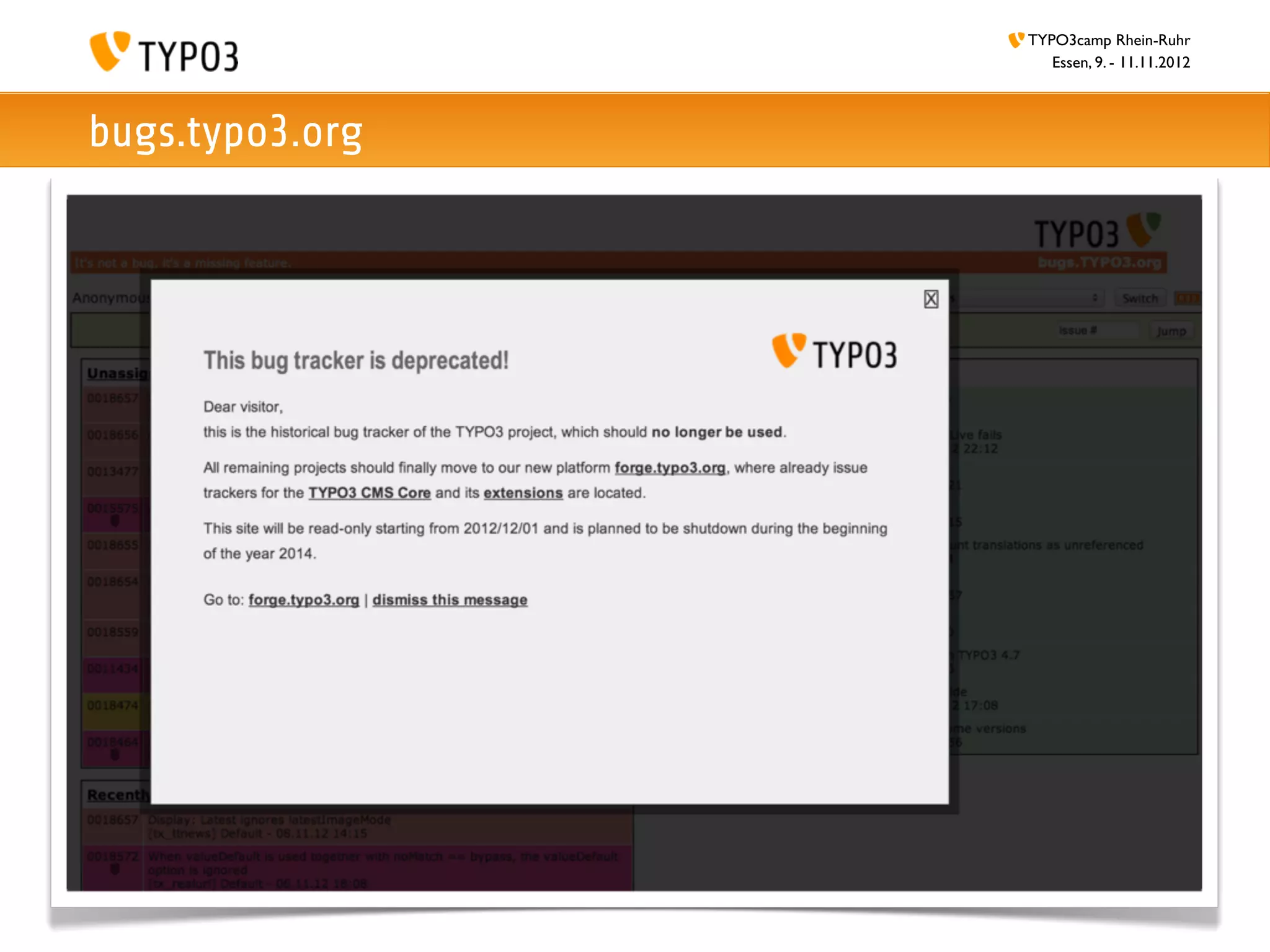

bugs.typo3.org

17. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

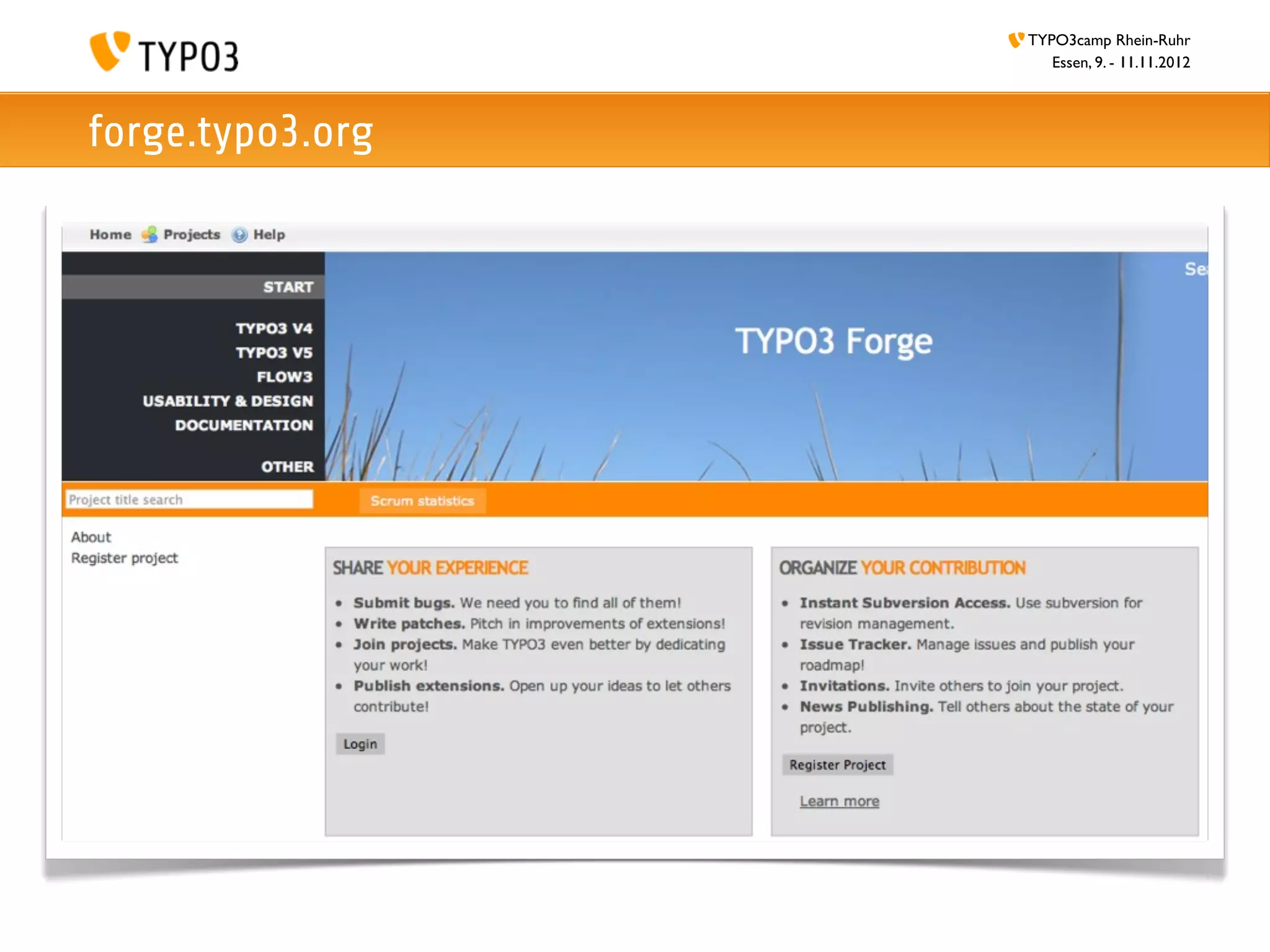

forge.typo3.org

18. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

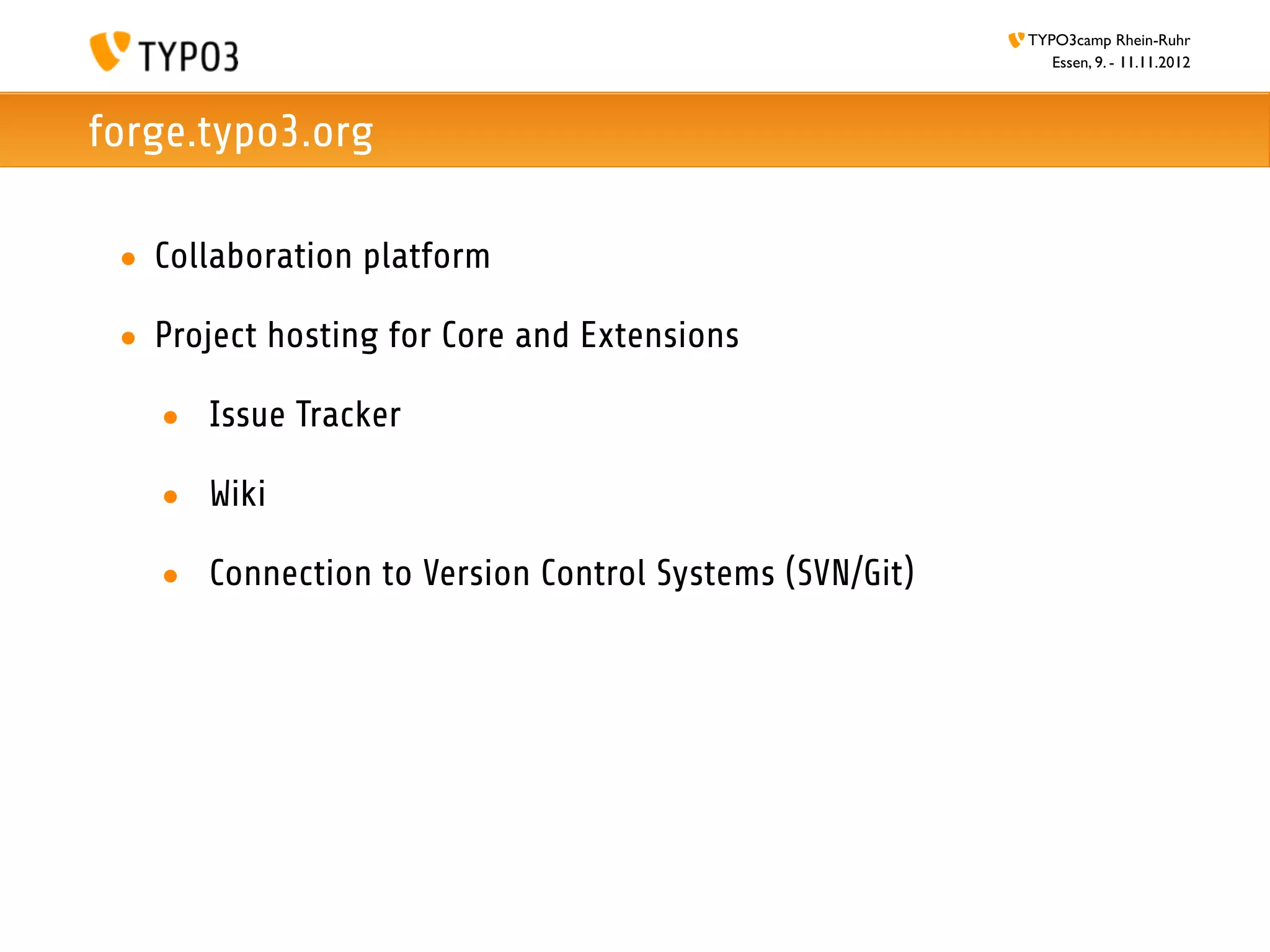

forge.typo3.org
• Collaboration platform
• Project hosting for Core and Extensions
• Issue Tracker
• Wiki
• Connection to Version Control Systems (SVN/Git)

19. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

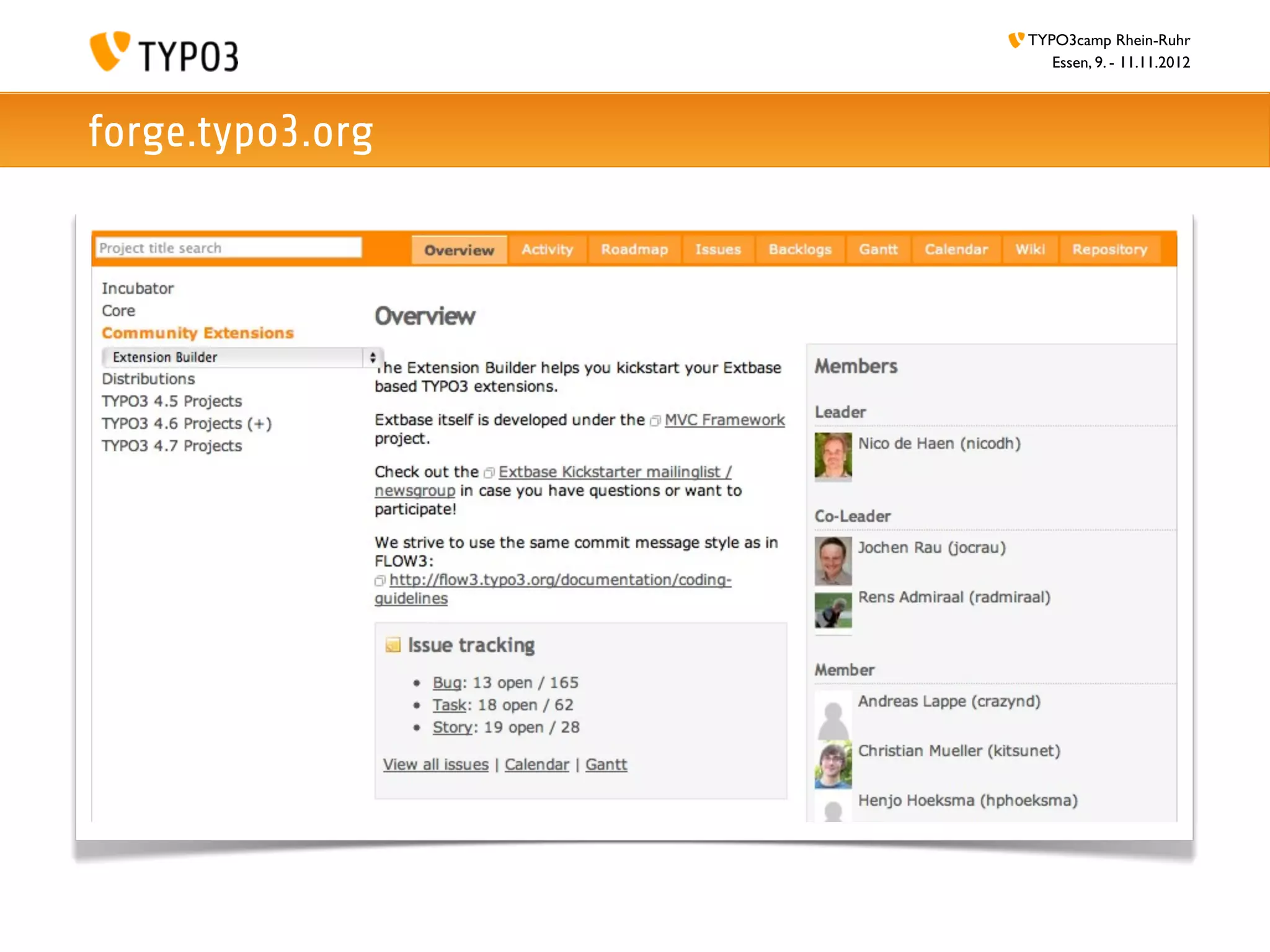

forge.typo3.org

20. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

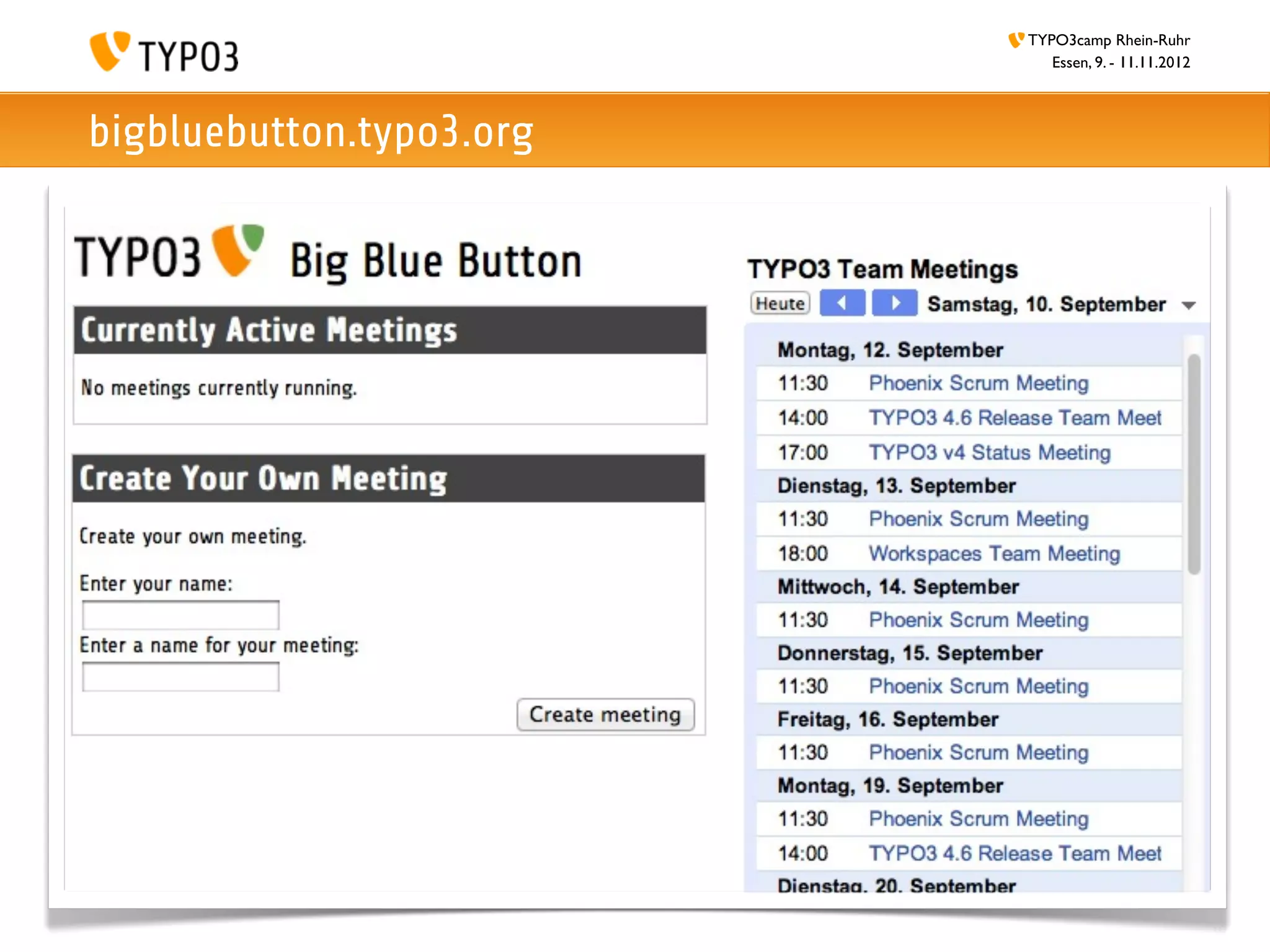

bigbluebutton.typo3.org

21. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

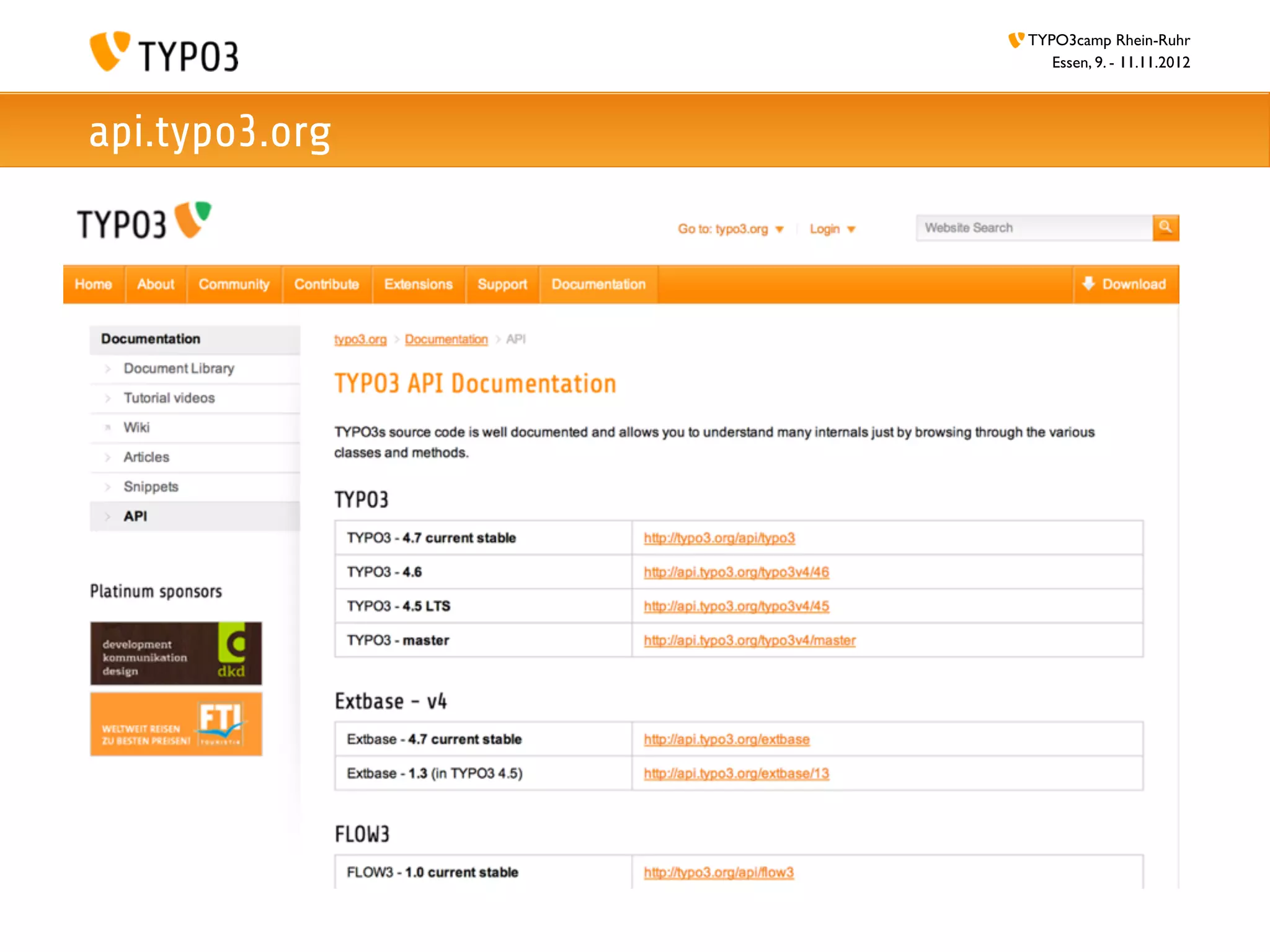

api.typo3.org

22. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

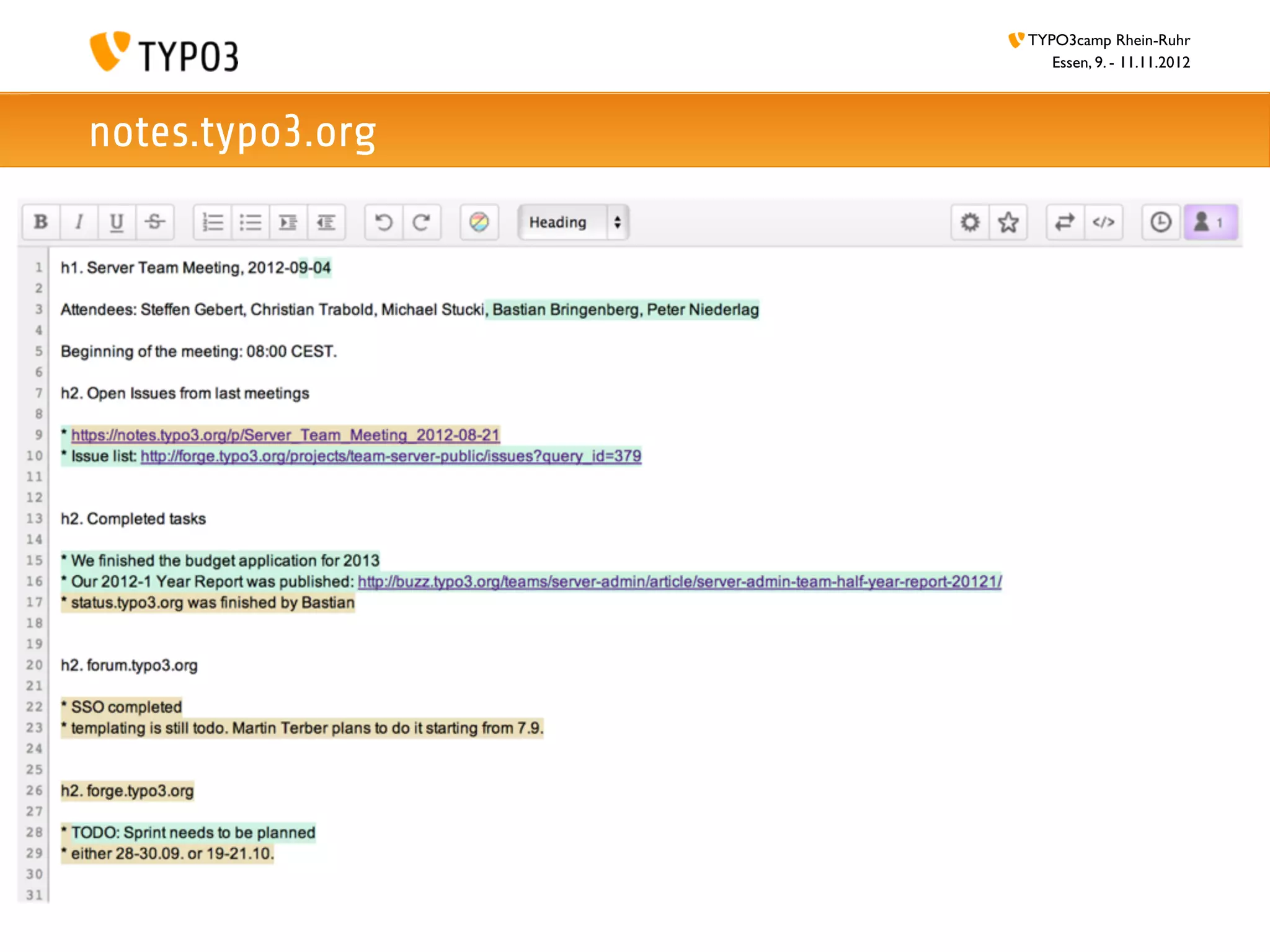

notes.typo3.org

23. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

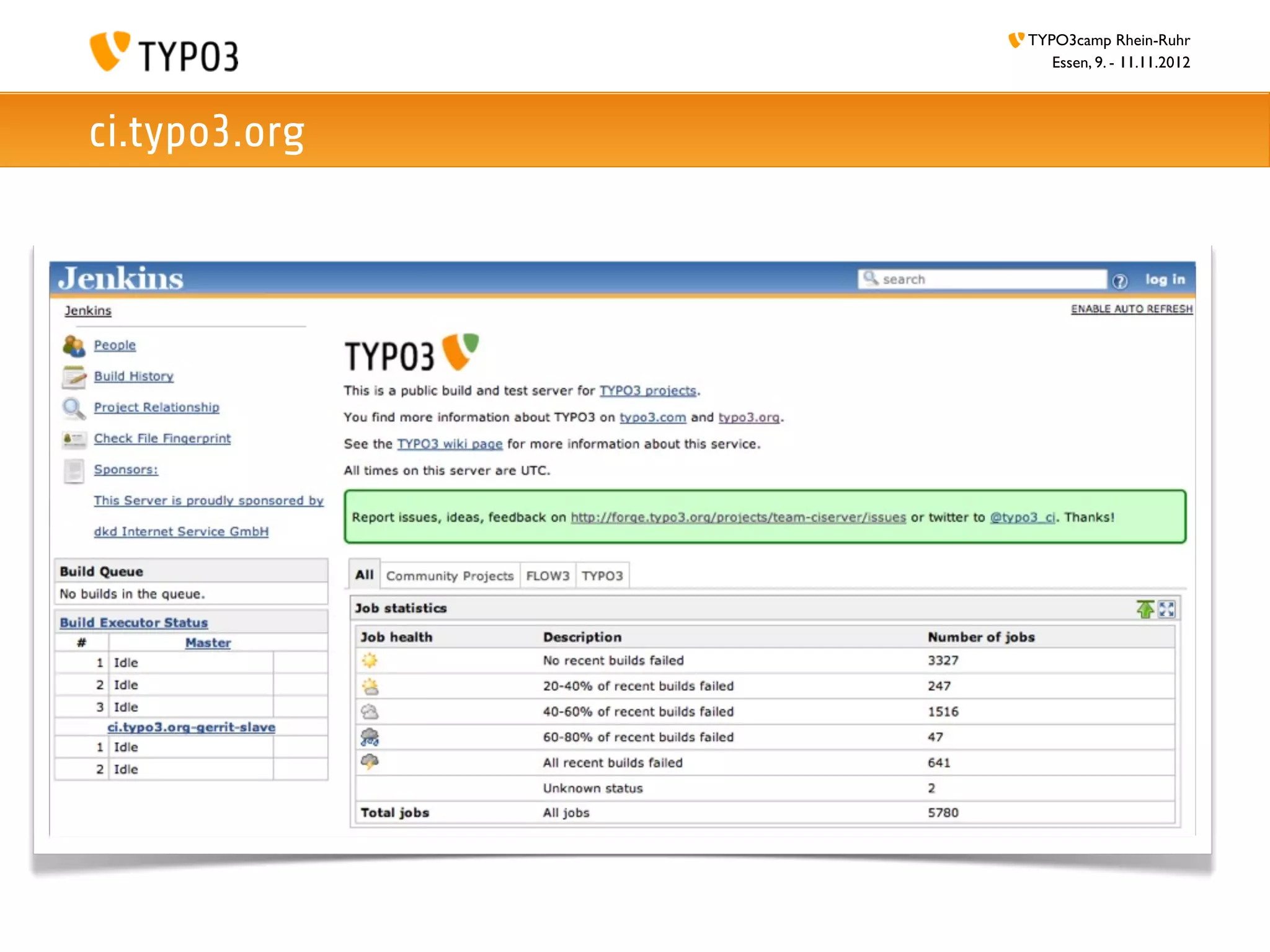

ci.typo3.org

24. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

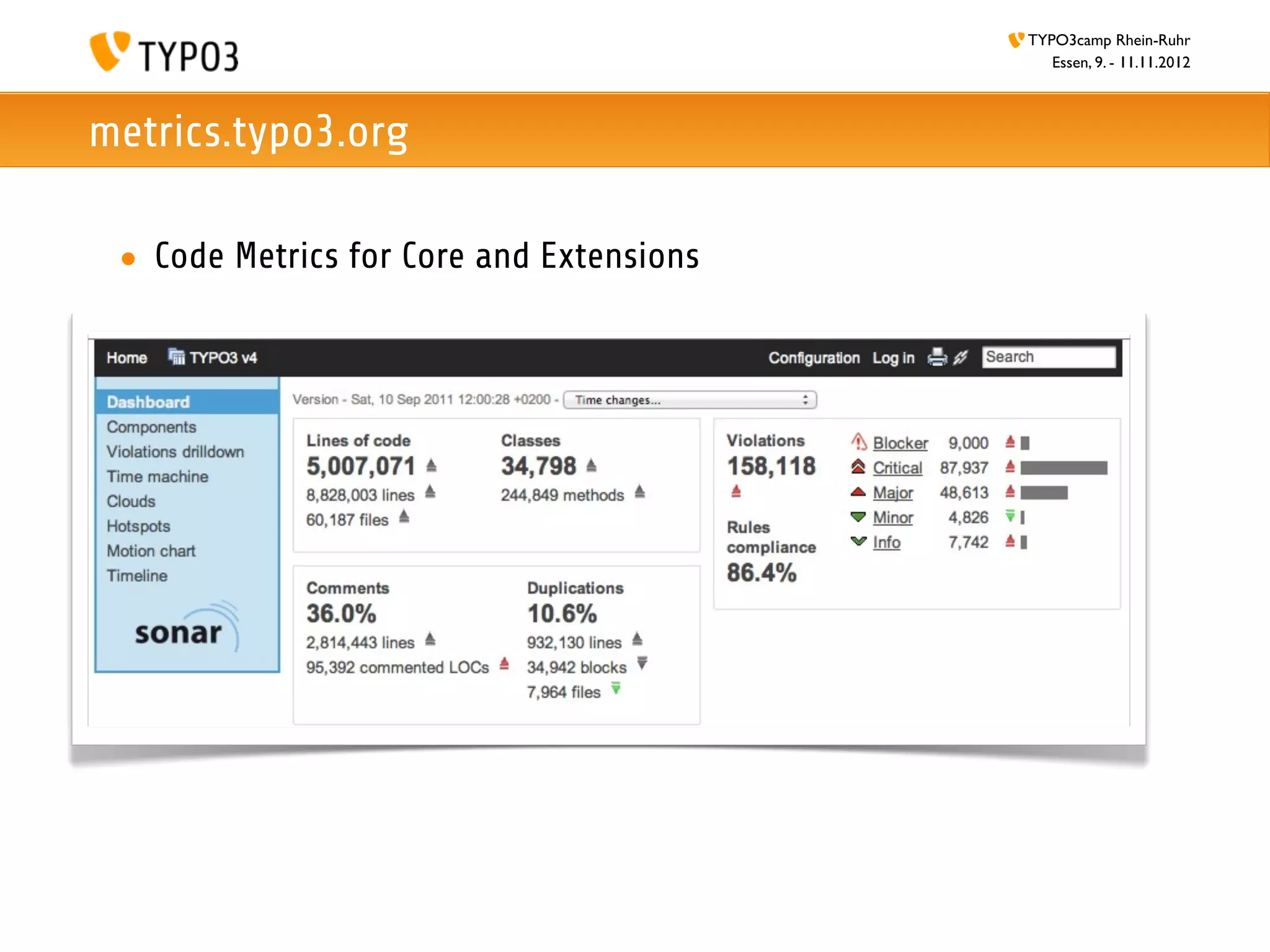

metrics.typo3.org
• Code Metrics for Core and Extensions

25. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

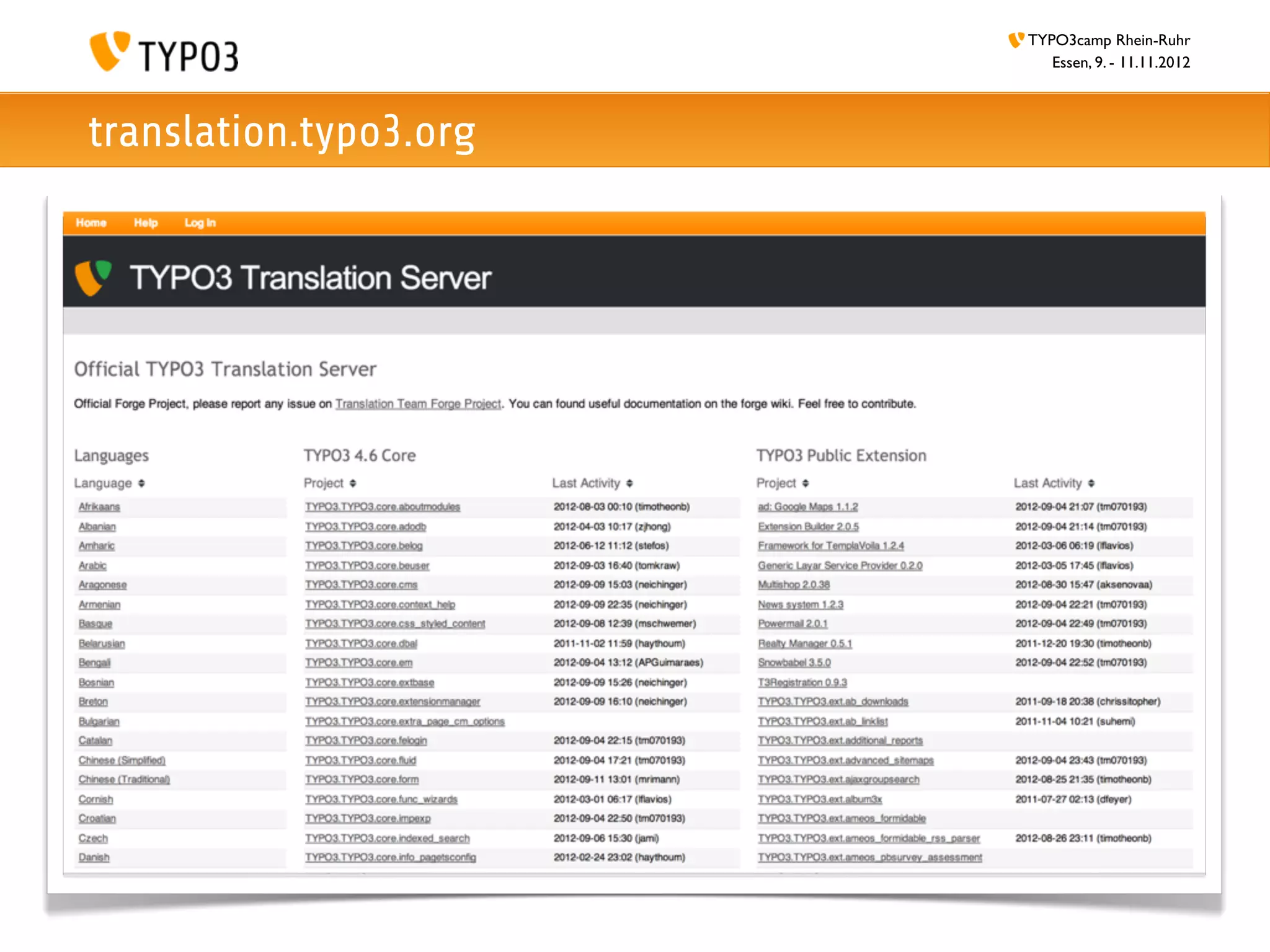

translation.typo3.org

26. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

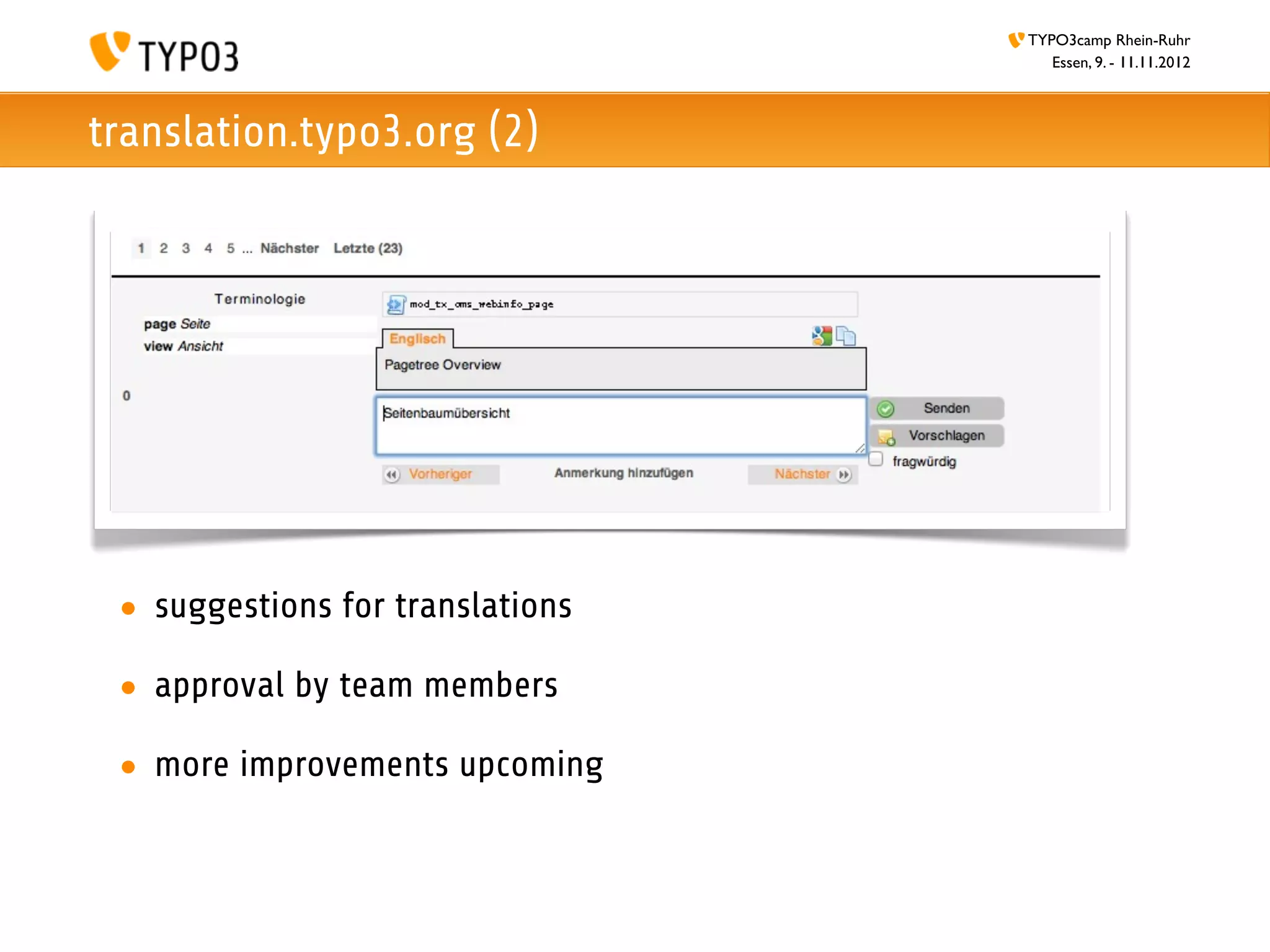

translation.typo3.org (2)
• suggestions for translations
• approval by team members
• more improvements upcoming

27. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

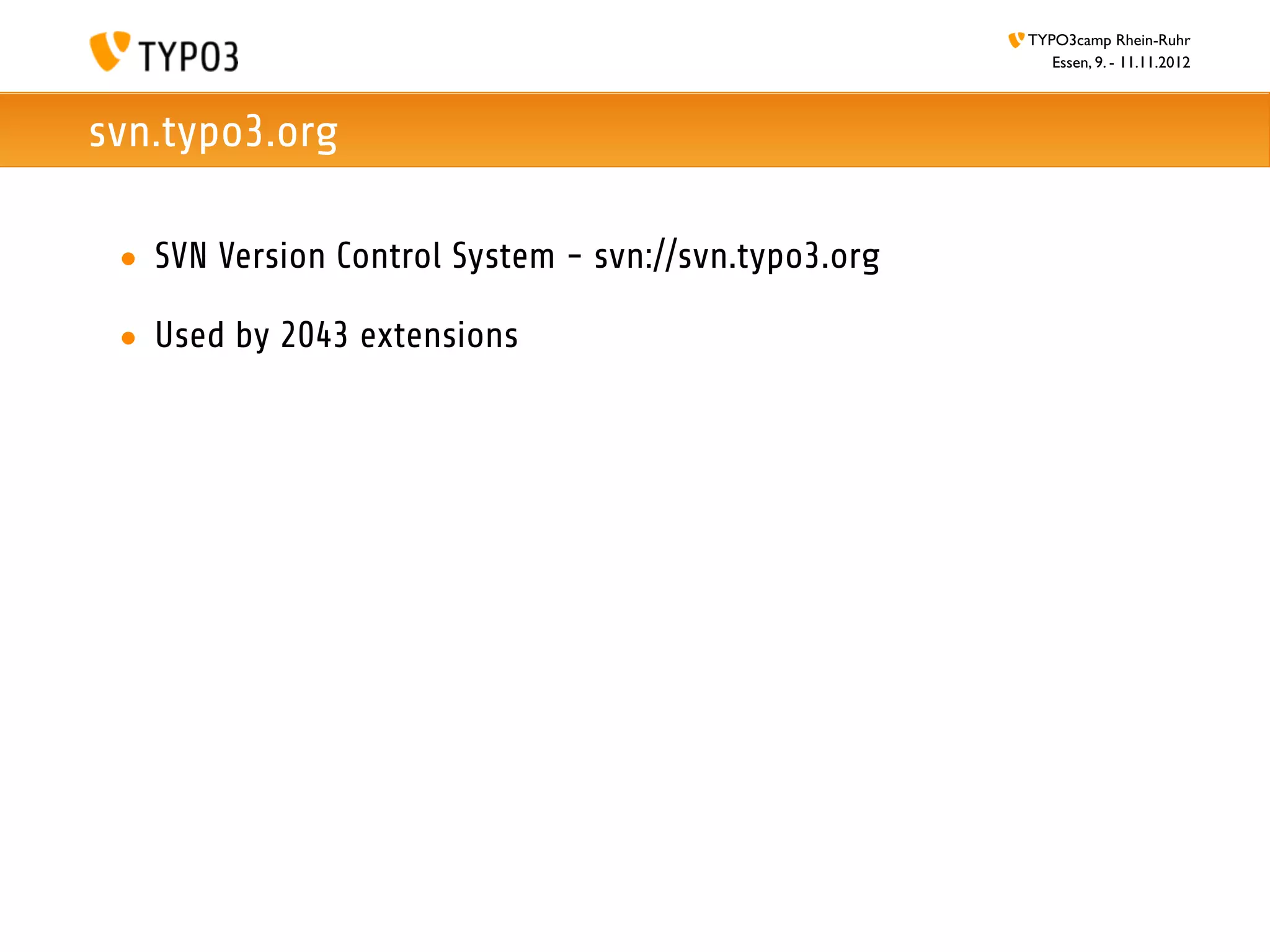

svn.typo3.org
• SVN Version Control System - svn://svn.typo3.org
• Used by 2043 extensions

28. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

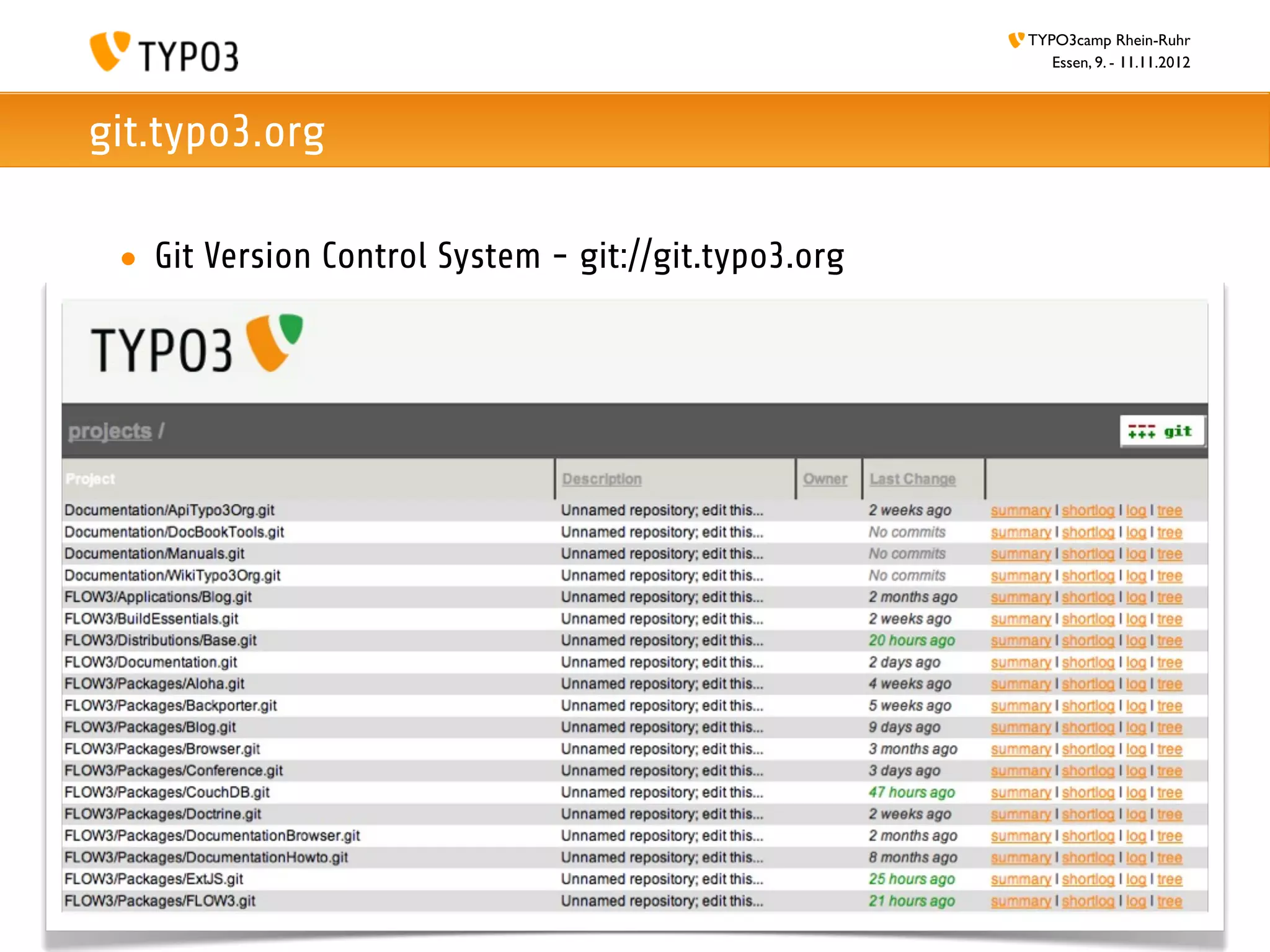

git.typo3.org
• Git Version Control System - git://git.typo3.org

29. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

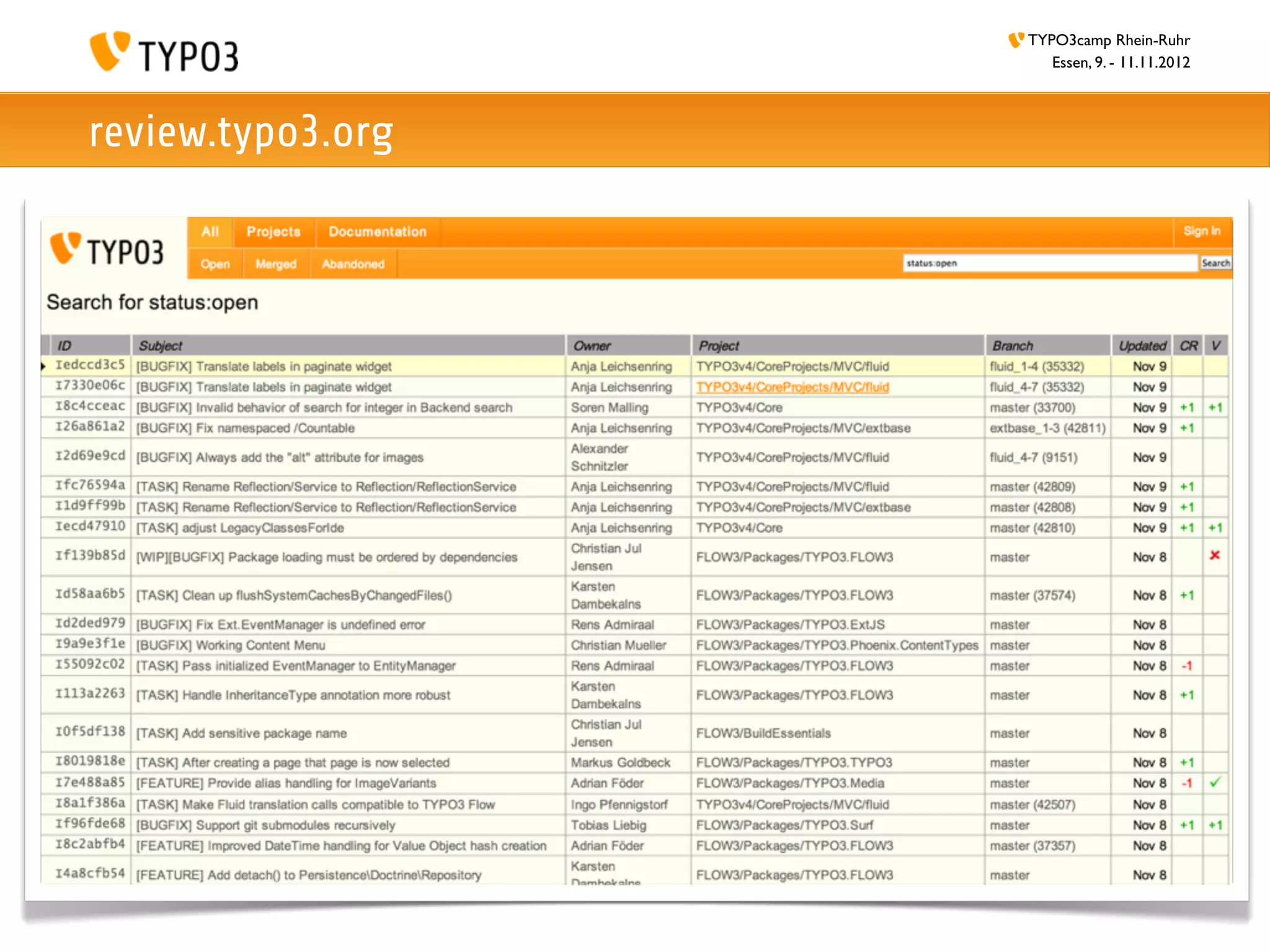

review.typo3.org

30. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

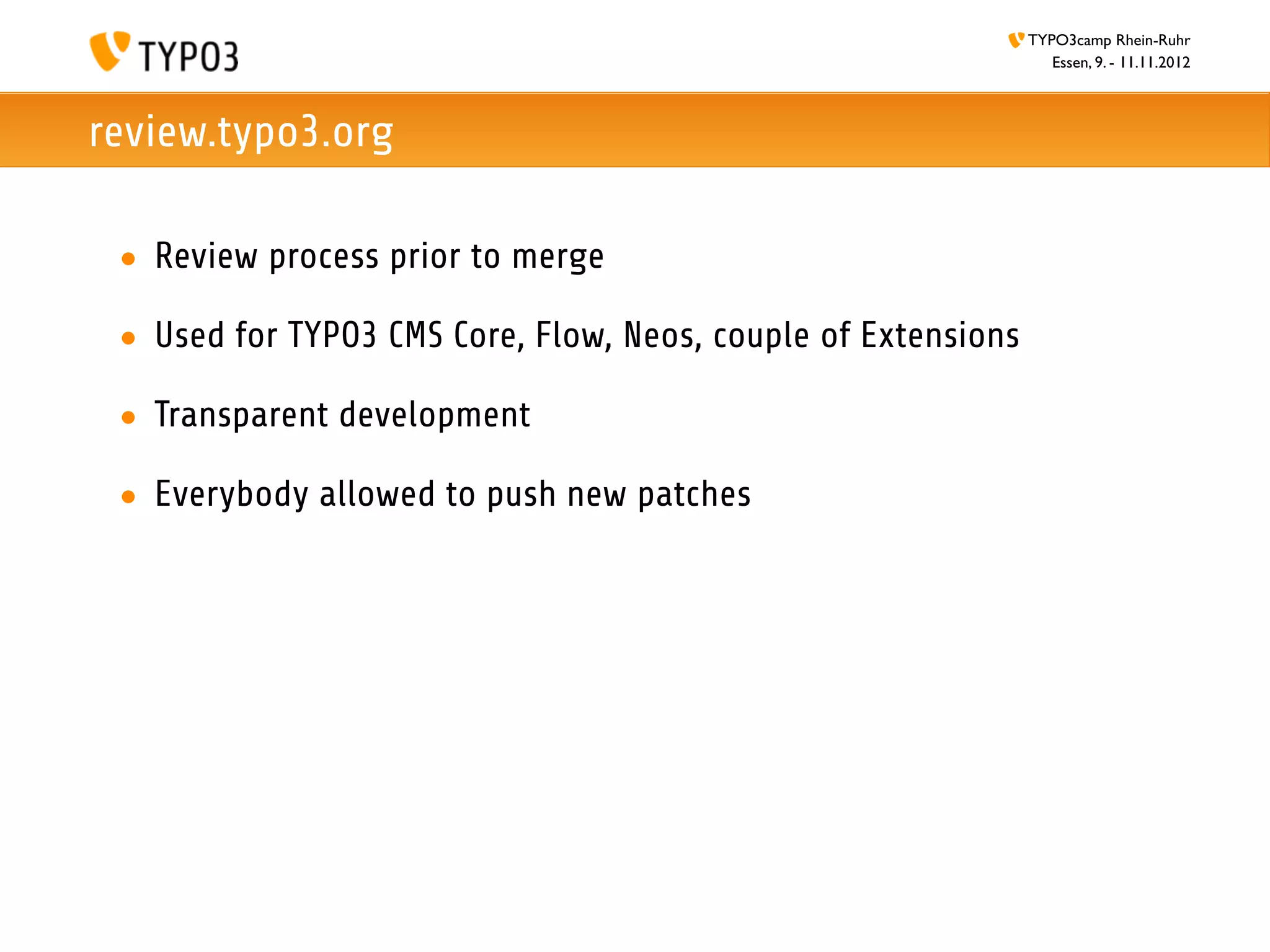

review.typo3.org
• Review process prior to merge
• Used for TYPO3 CMS Core, Flow, Neos, couple of Extensions
• Transparent development
• Everybody allowed to push new patches

31. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

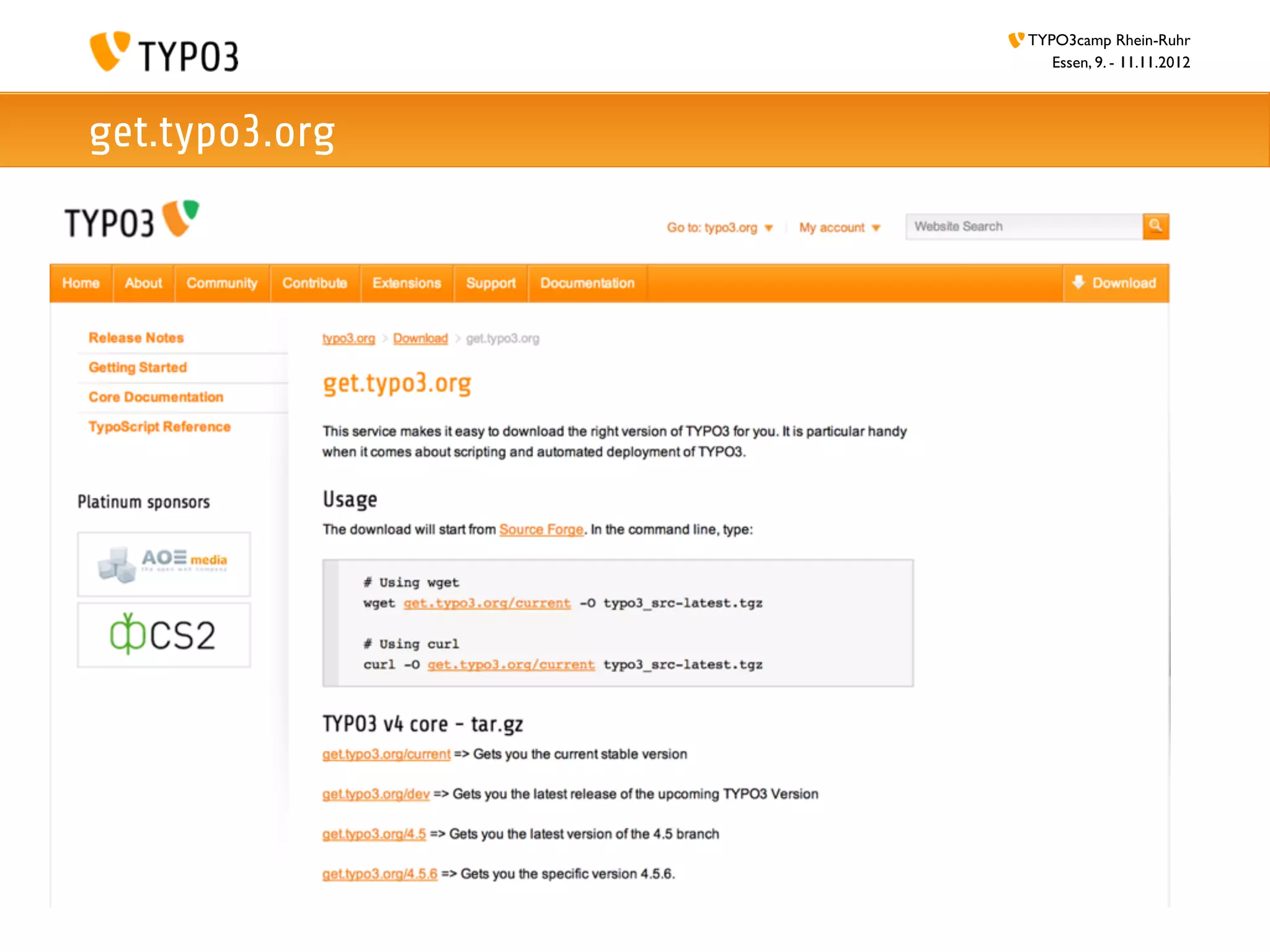

get.typo3.org

32. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

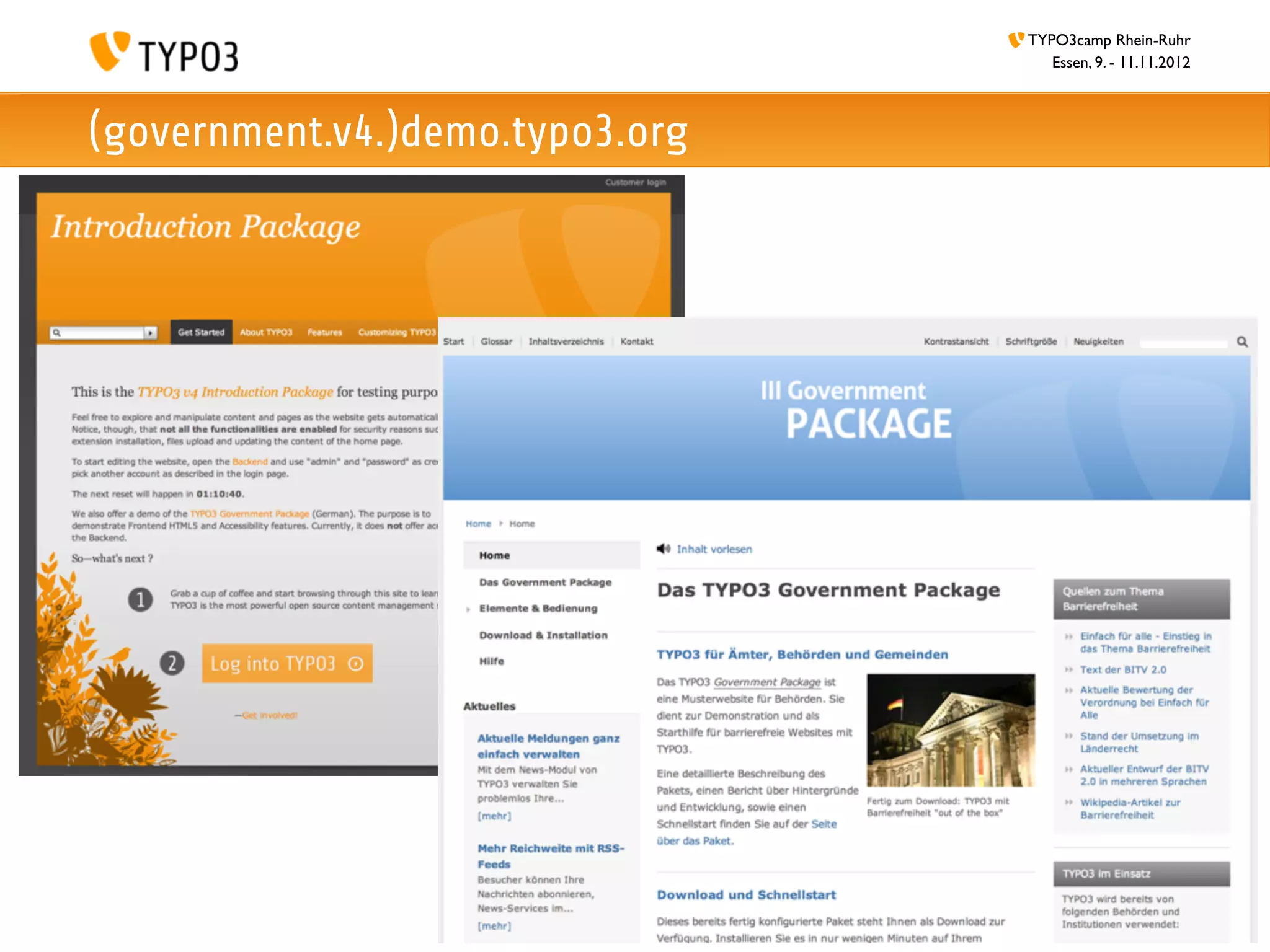

(government.v4.)demo.typo3.org

33. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

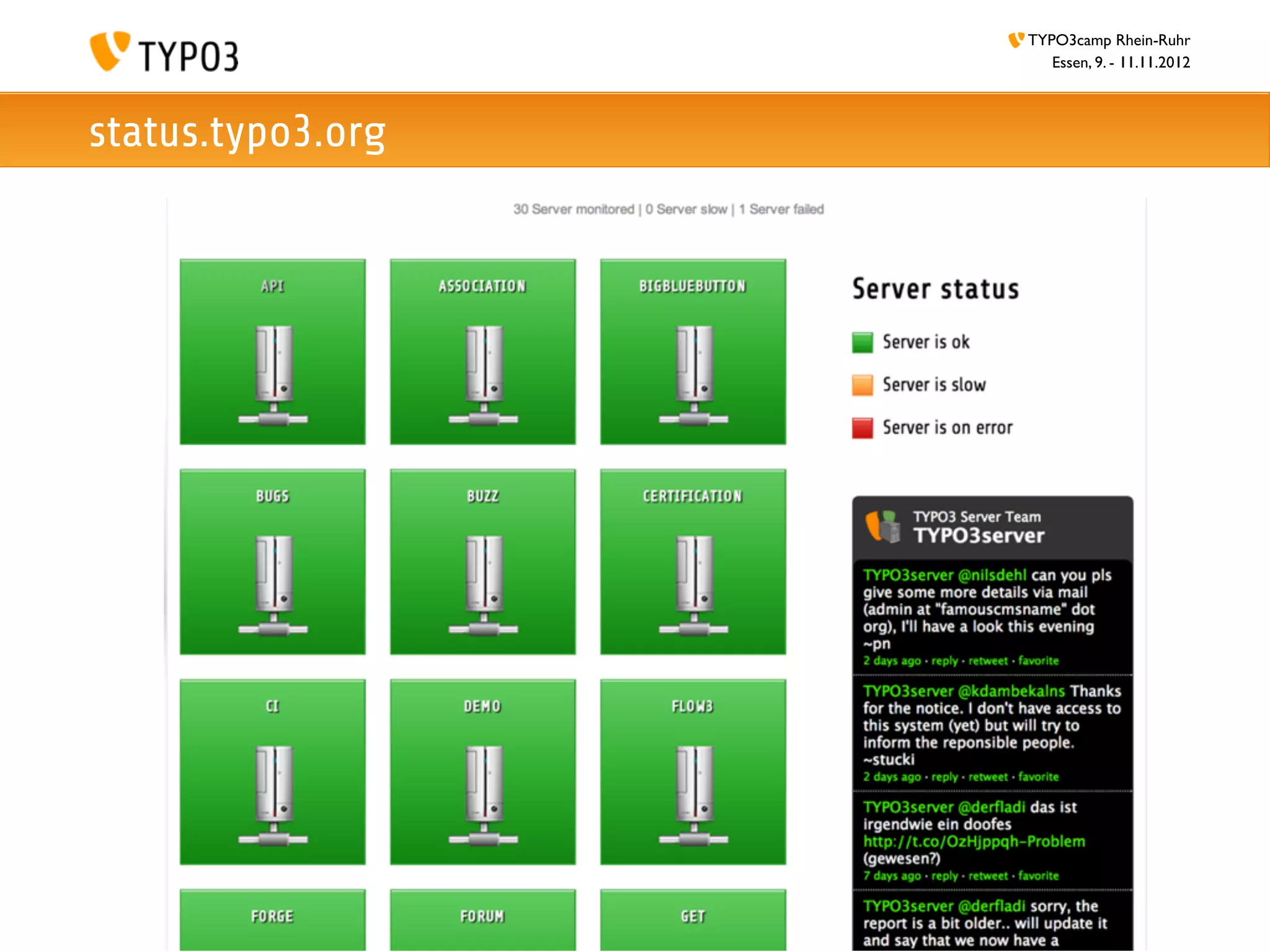

status.typo3.org

34. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

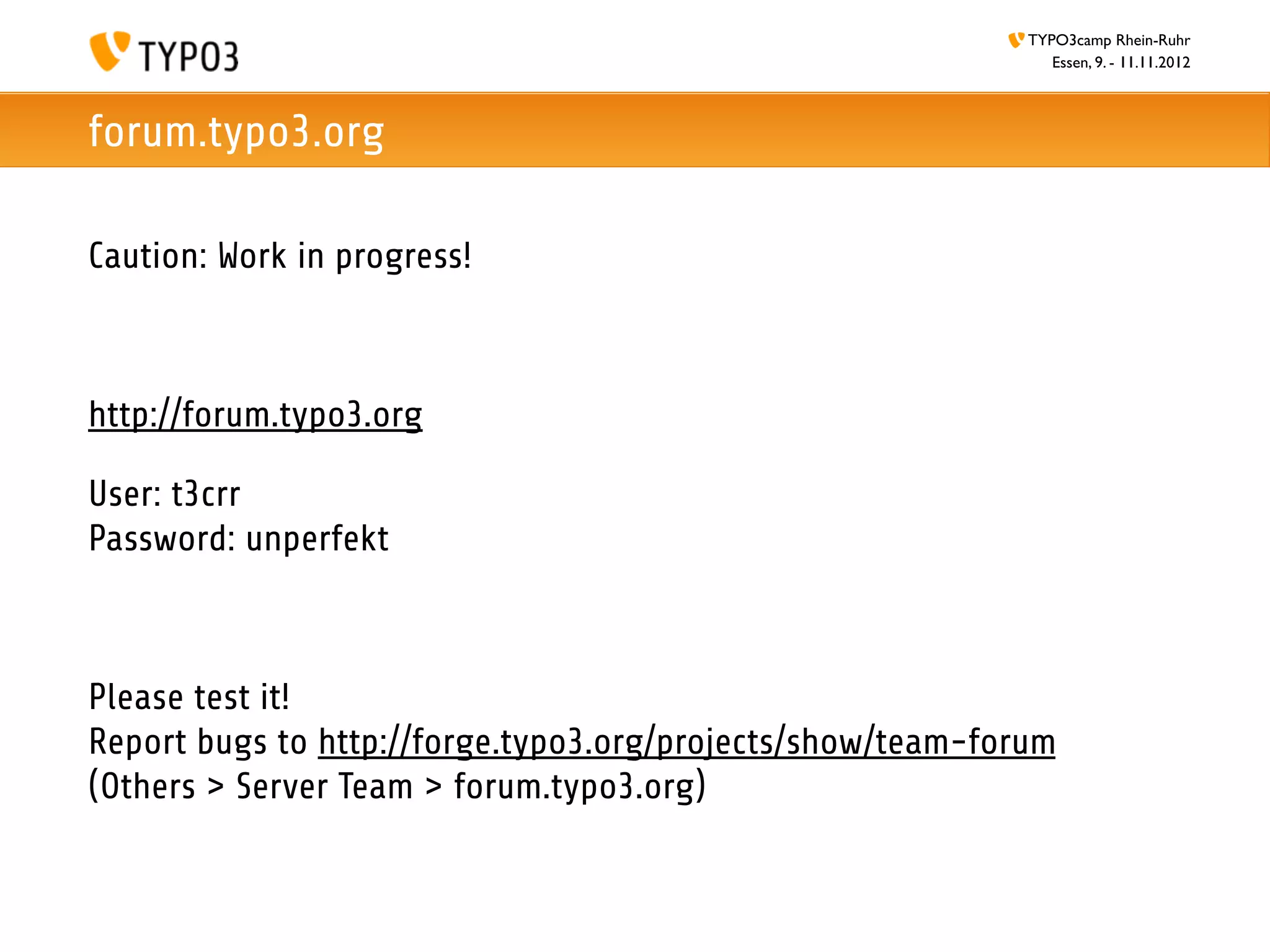

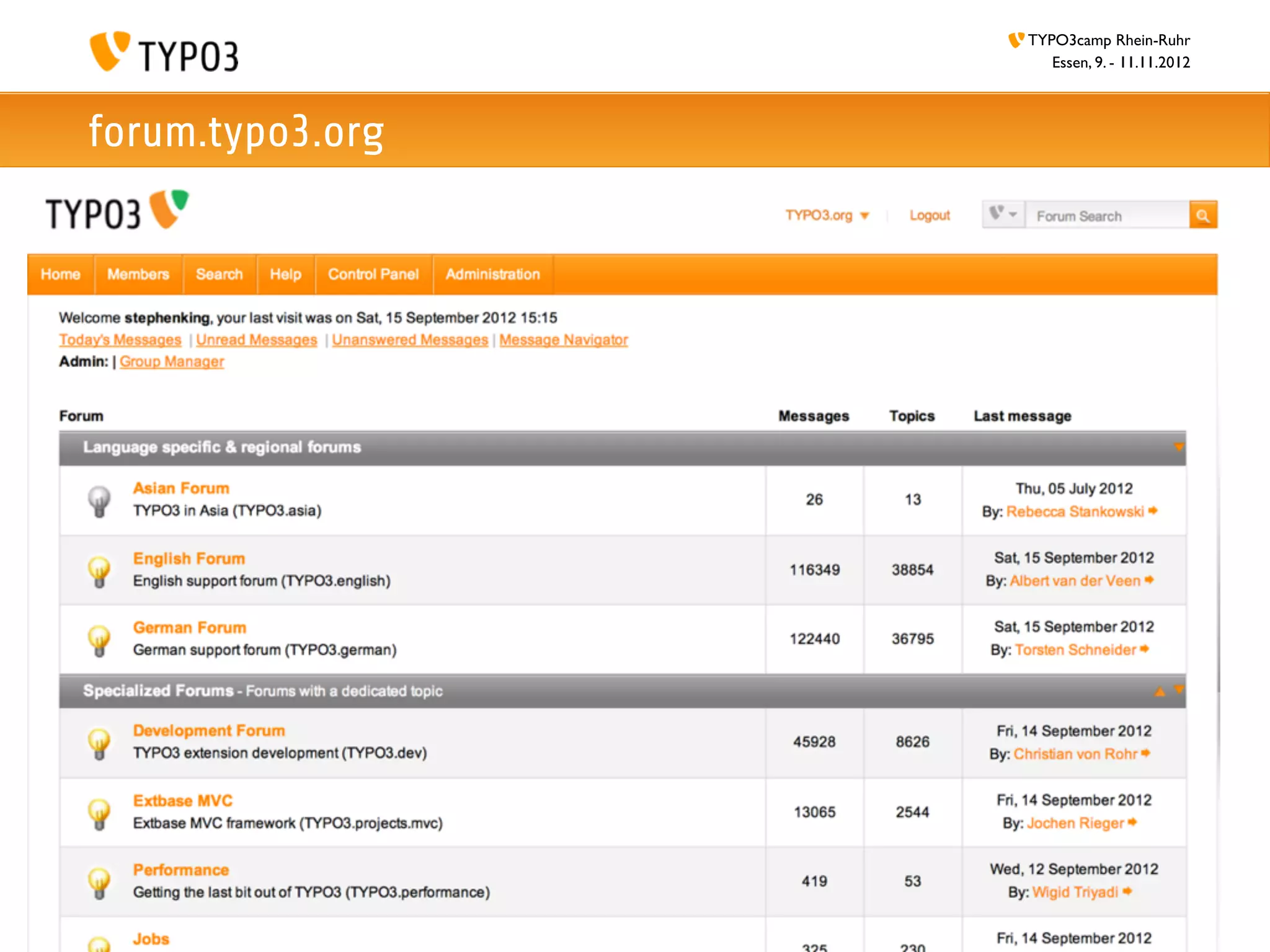

forum.typo3.org

35. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012
forum.typo3.org
Caution: Work in progress!
http://forum.typo3.org
User: t3crr
Password: unperfekt
Please test it!
Report bugs to http://forge.typo3.org/projects/show/team-forum
(Others > Server Team > forum.typo3.org)

36. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

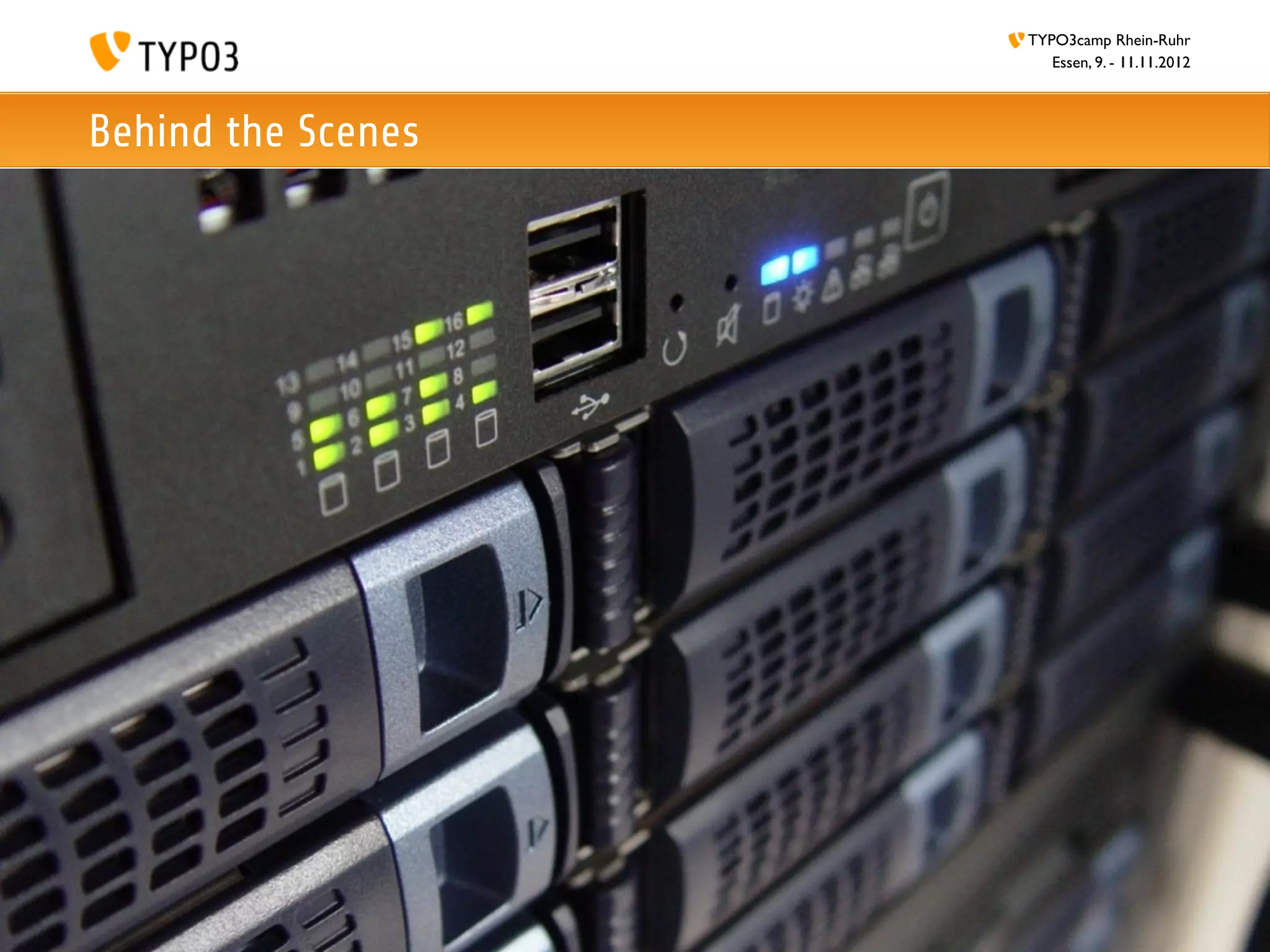

Behind the Scenes

37. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

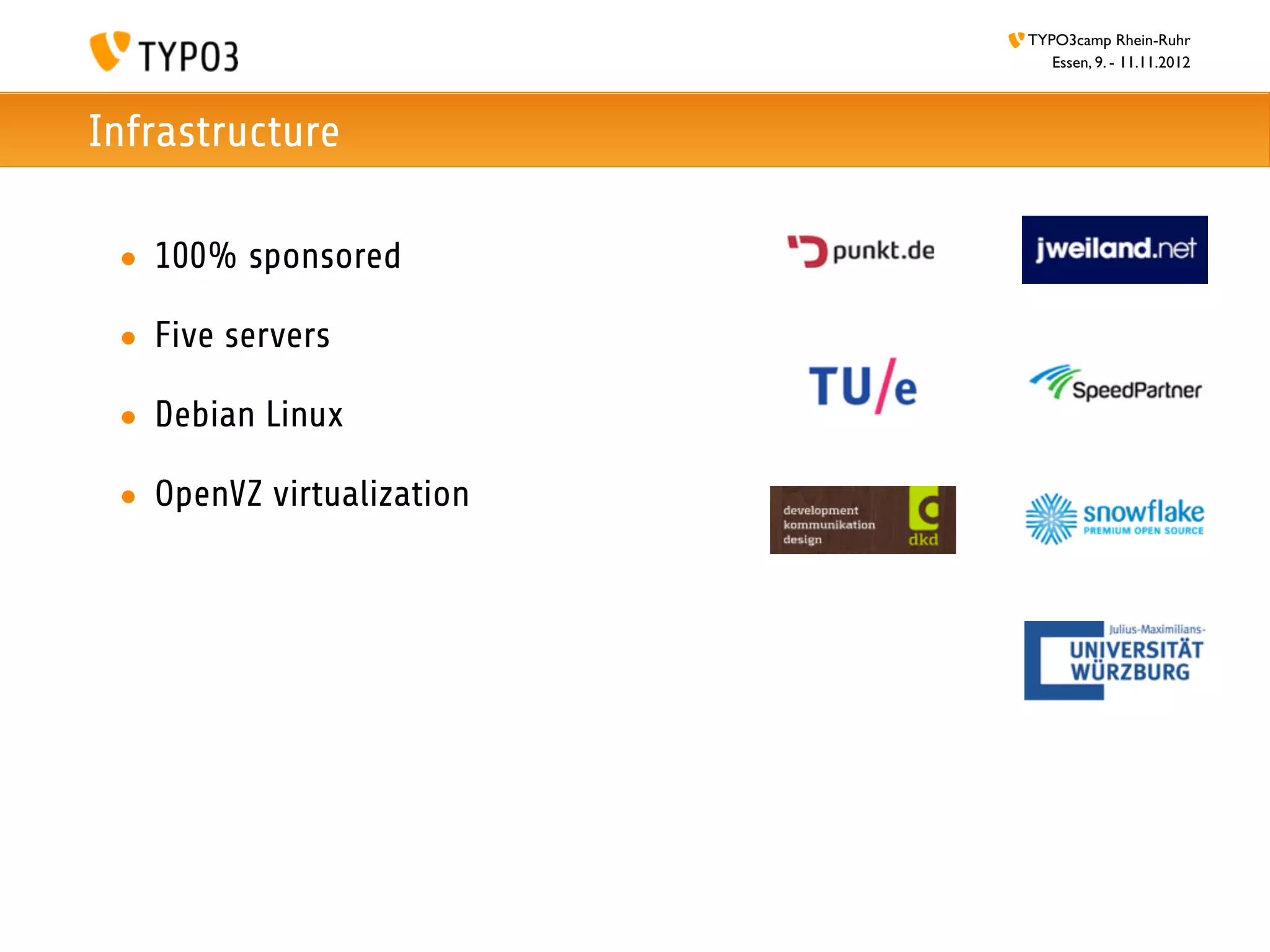

Infrastructure
• 100% sponsored
• Five servers
• Debian Linux
• OpenVZ virtualization

38. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

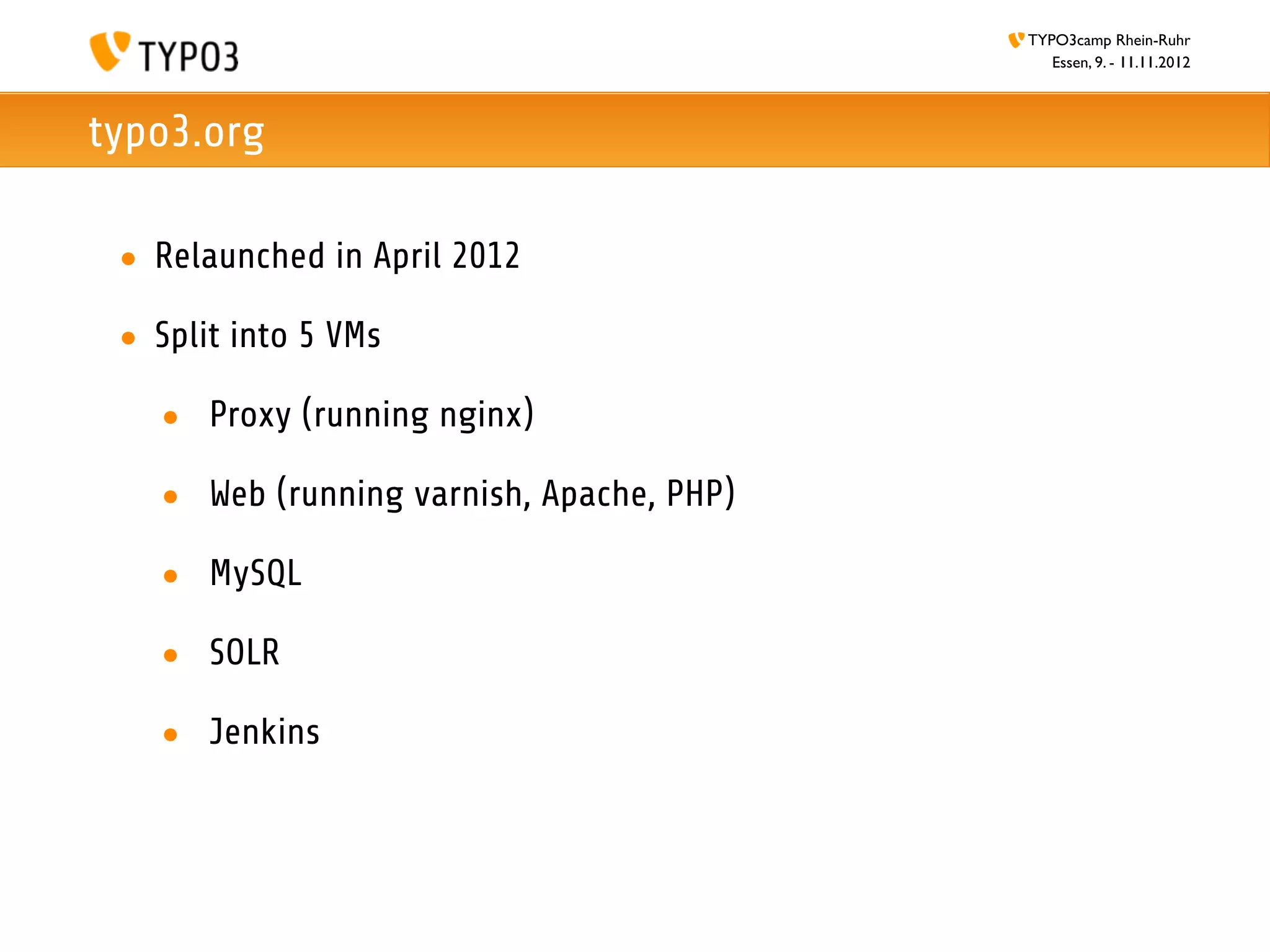

typo3.org
• Relaunched in April 2012
• Split into 5 VMs
• Proxy (running nginx)
• Web (running varnish, Apache, PHP)
• MySQL
• SOLR
• Jenkins

39. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

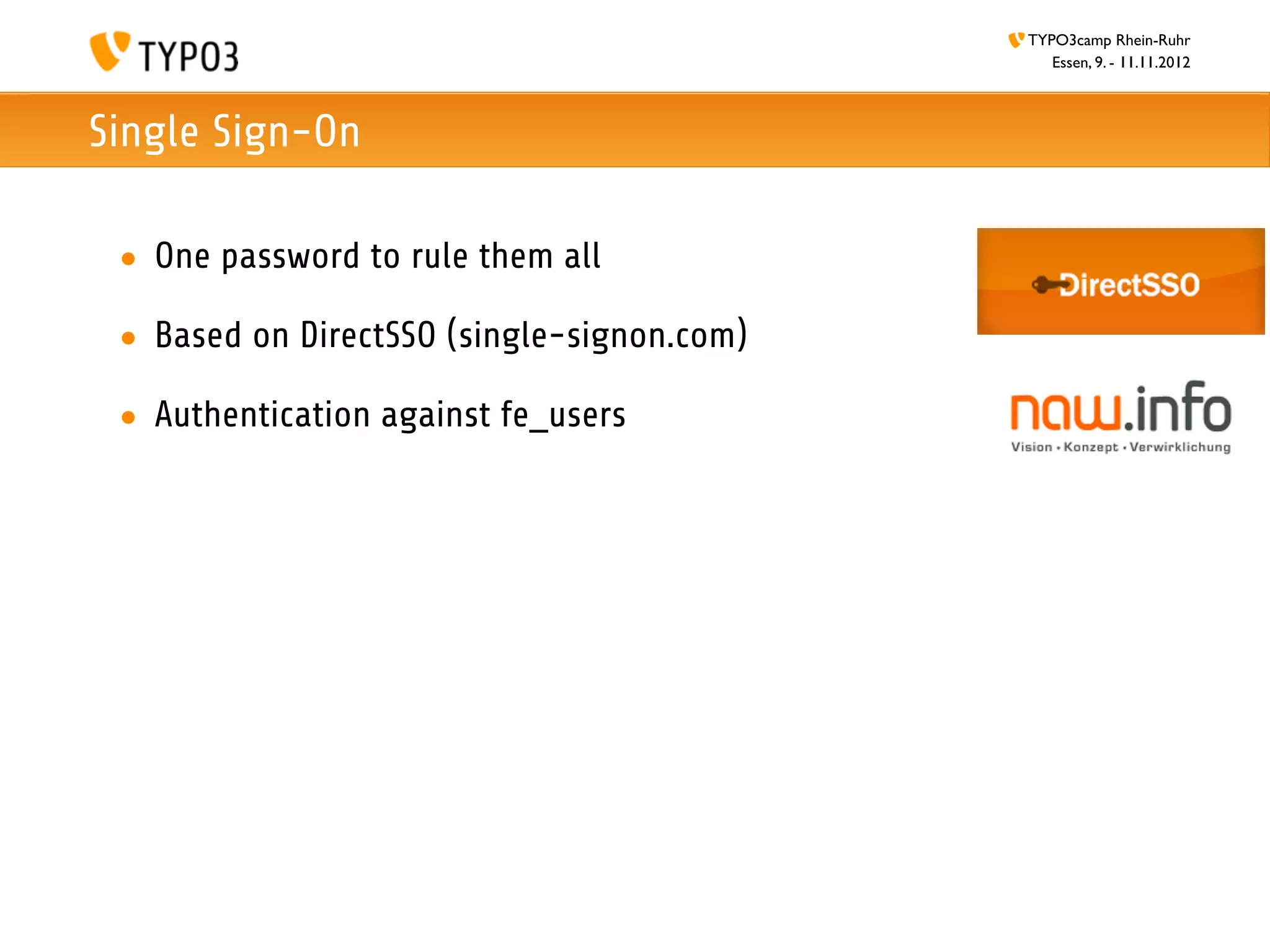

Single Sign-On
• One password to rule them all
• Based on DirectSSO (single-signon.com)
• Authentication against fe_users

40. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

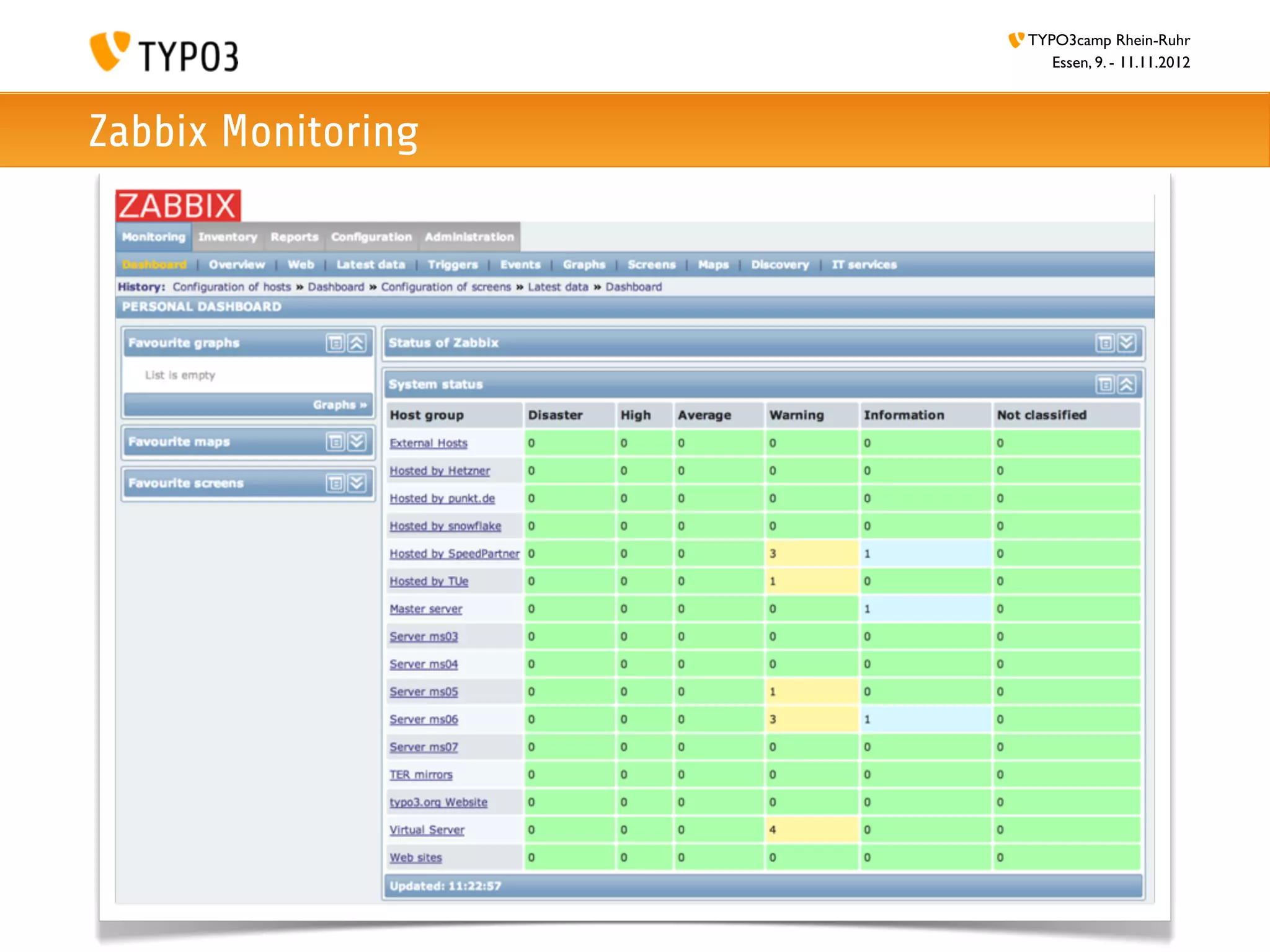

Zabbix Monitoring

41. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

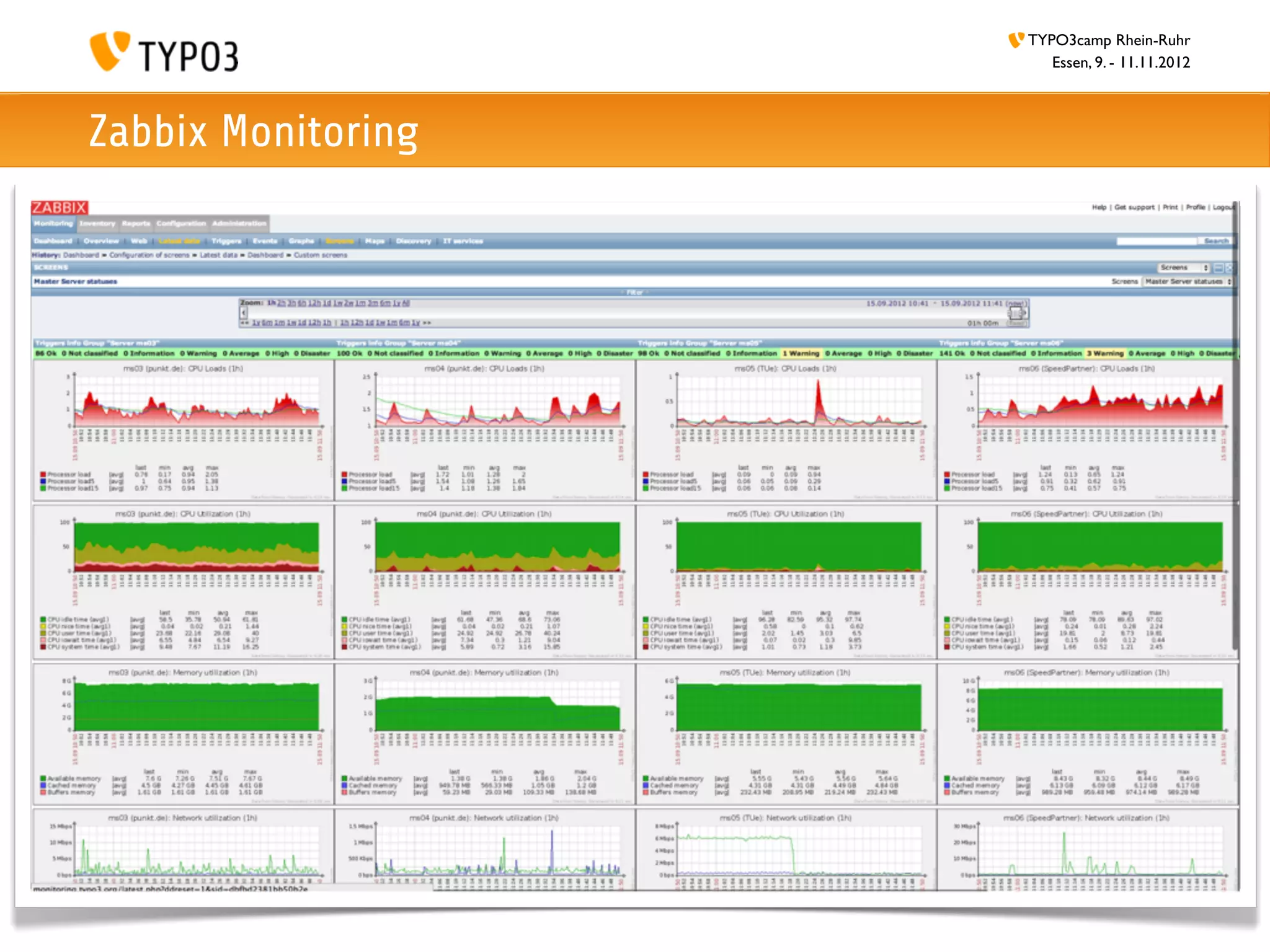

Zabbix Monitoring

42. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

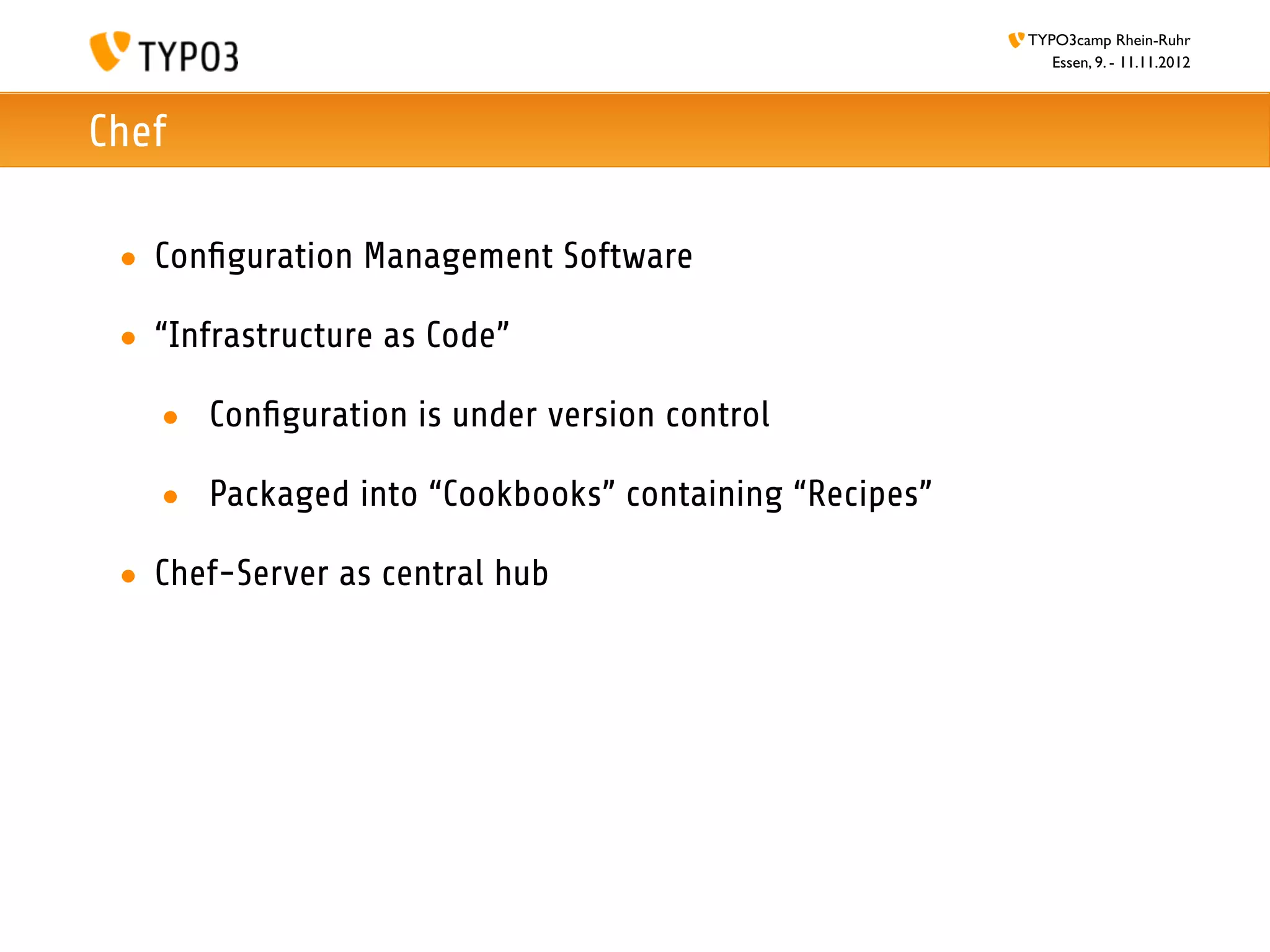

Chef
• Configuration Management Software
• “Infrastructure as Code”
• Configuration is under version control
• Packaged into “Cookbooks” containing “Recipes”
• Chef-Server as central hub

43. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

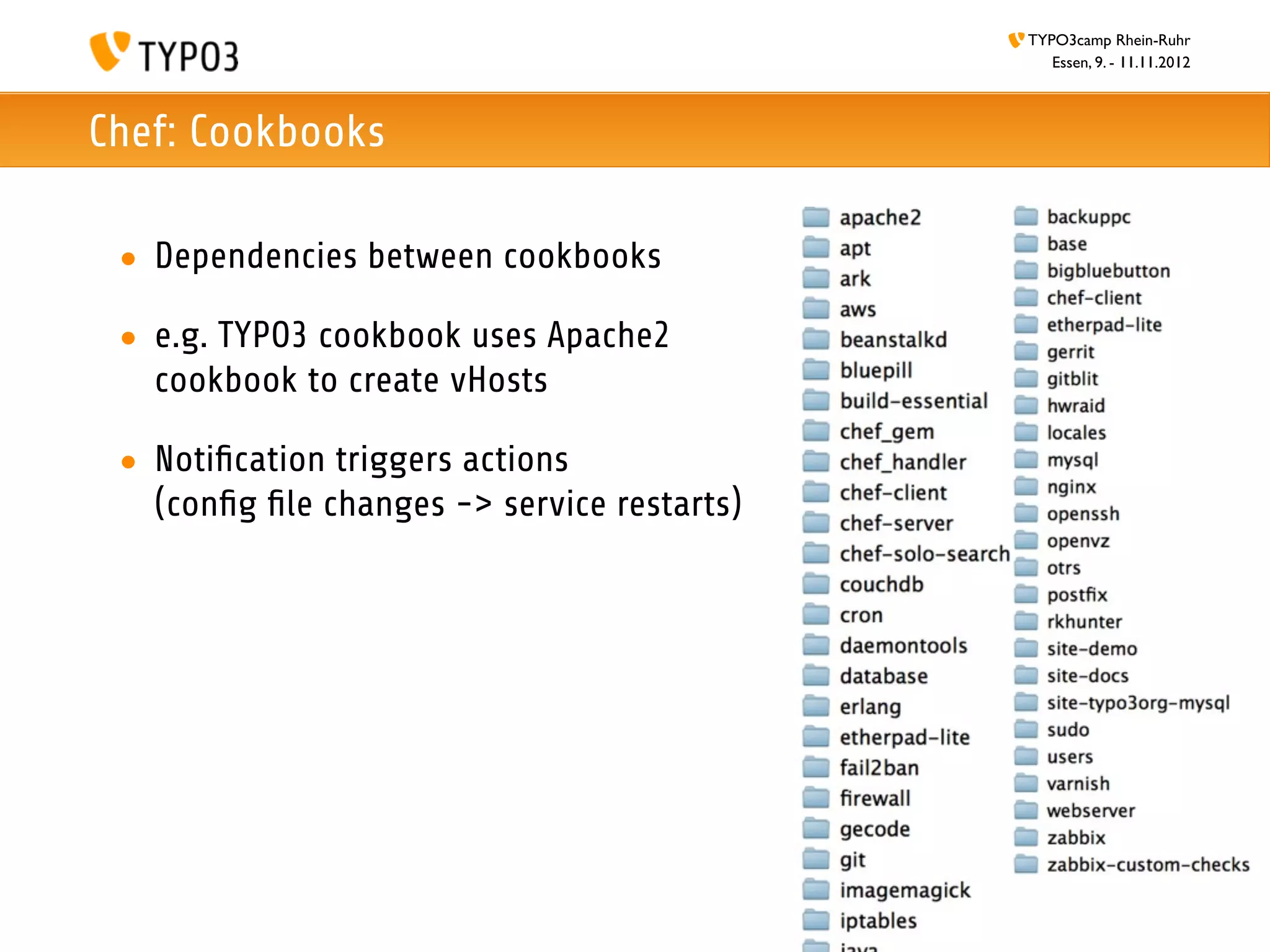

Chef: Cookbooks
• Dependencies between cookbooks
• e.g. TYPO3 cookbook uses Apache2
cookbook to create vHosts
• Notification triggers actions
(config file changes -> service restarts)

44. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

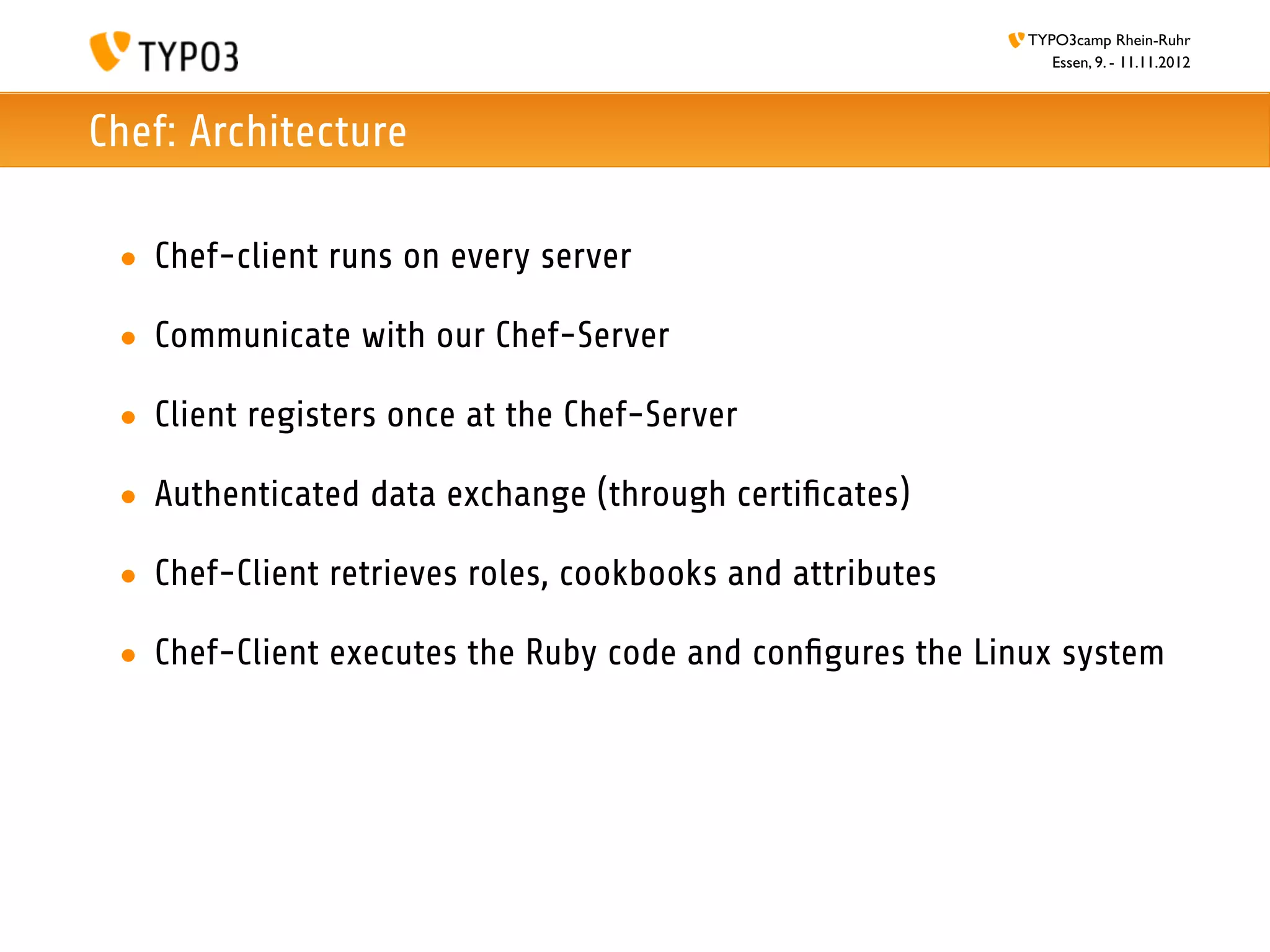

Chef: Architecture
• Chef-client runs on every server
• Communicate with our Chef-Server
• Client registers once at the Chef-Server
• Authenticated data exchange (through certificates)
• Chef-Client retrieves roles, cookbooks and attributes
• Chef-Client executes the Ruby code and configures the Linux system

45. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

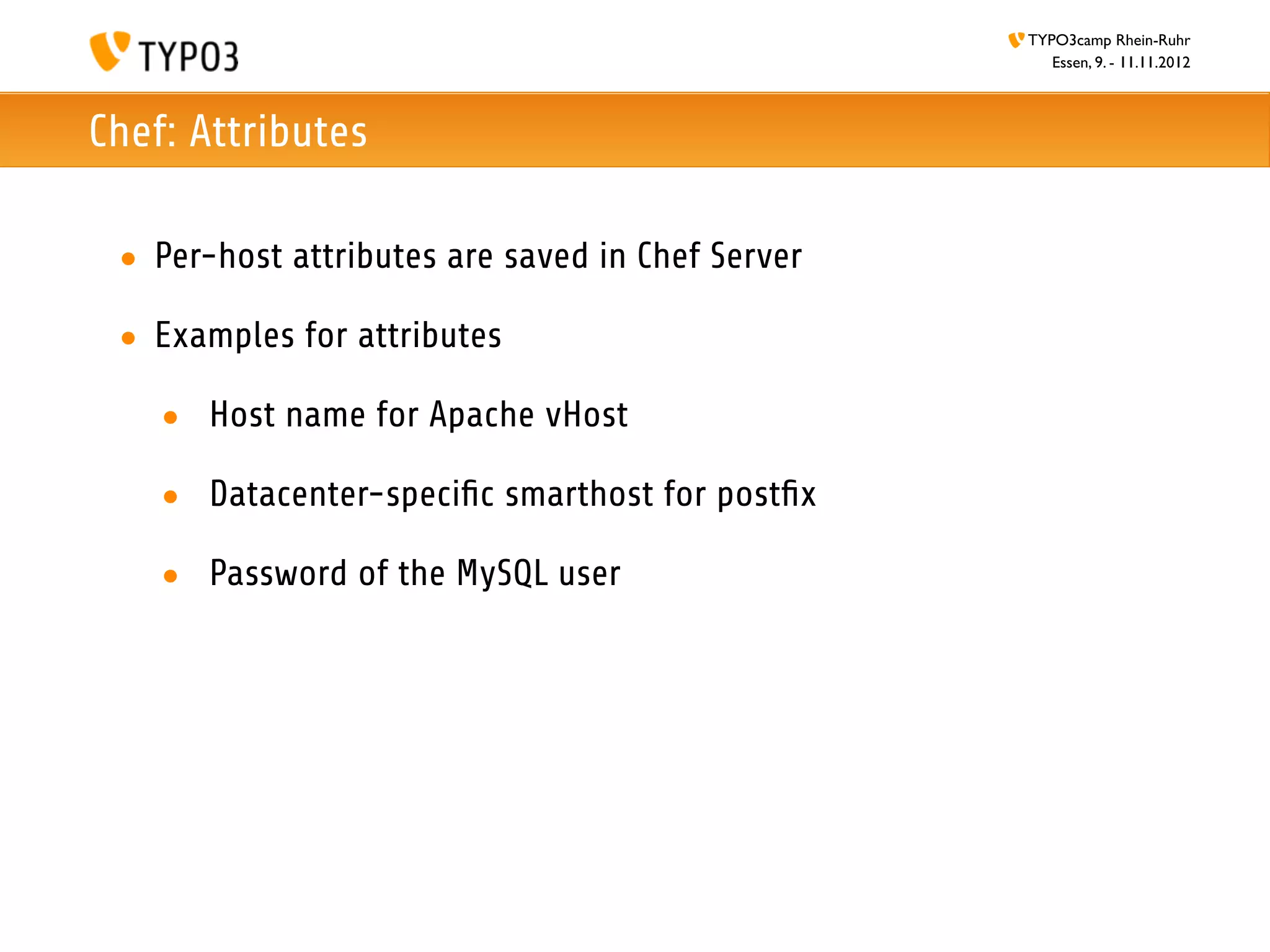

Chef: Attributes
• Per-host attributes are saved in Chef Server
• Examples for attributes
• Host name for Apache vHost
• Datacenter-specific smarthost for postfix
• Password of the MySQL user

46. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

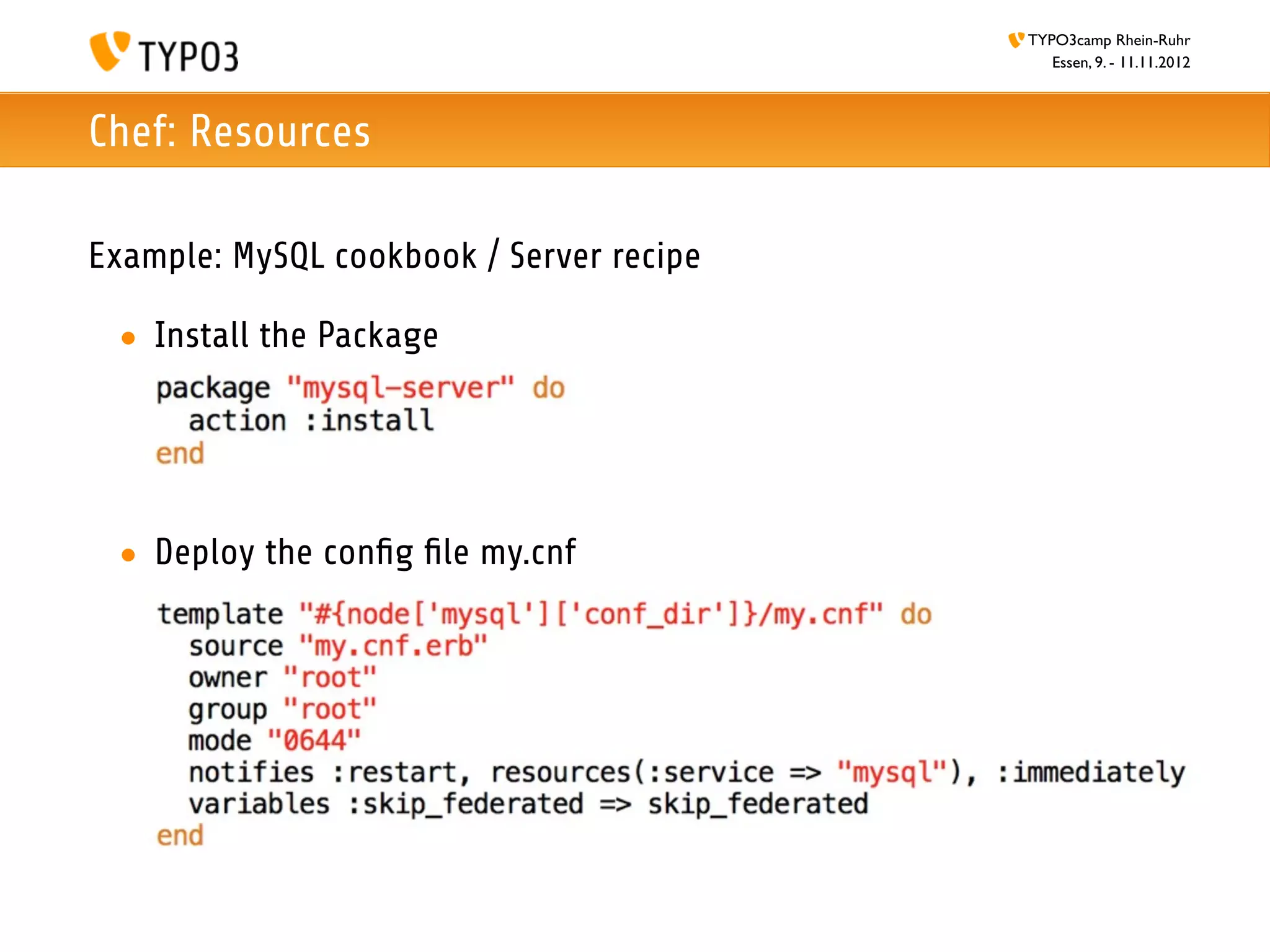

Chef: Resources
Example: MySQL cookbook / Server recipe
• Install the Package
• Deploy the config file my.cnf

47. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

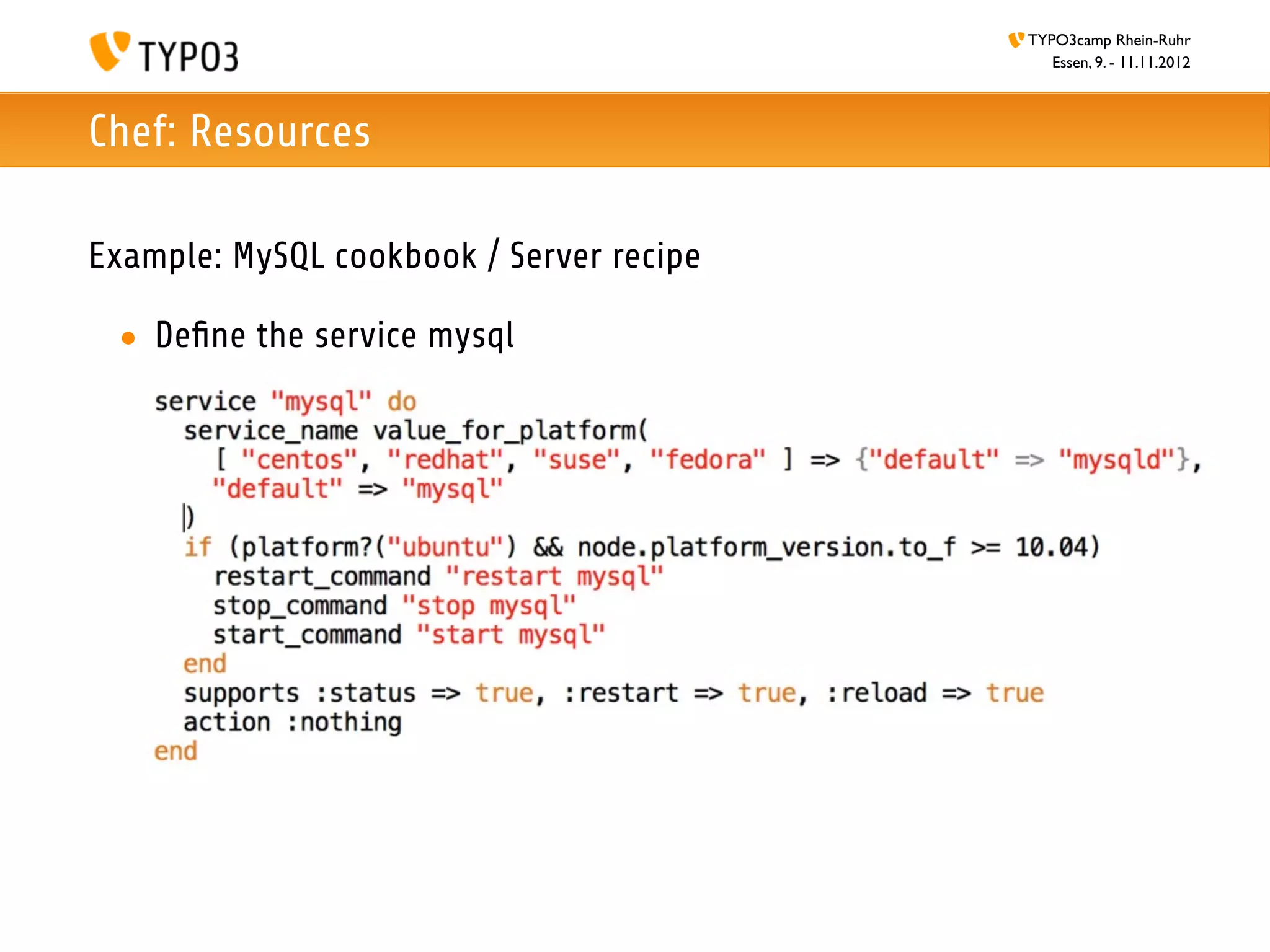

Chef: Resources
Example: MySQL cookbook / Server recipe
• Define the service mysql

48. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

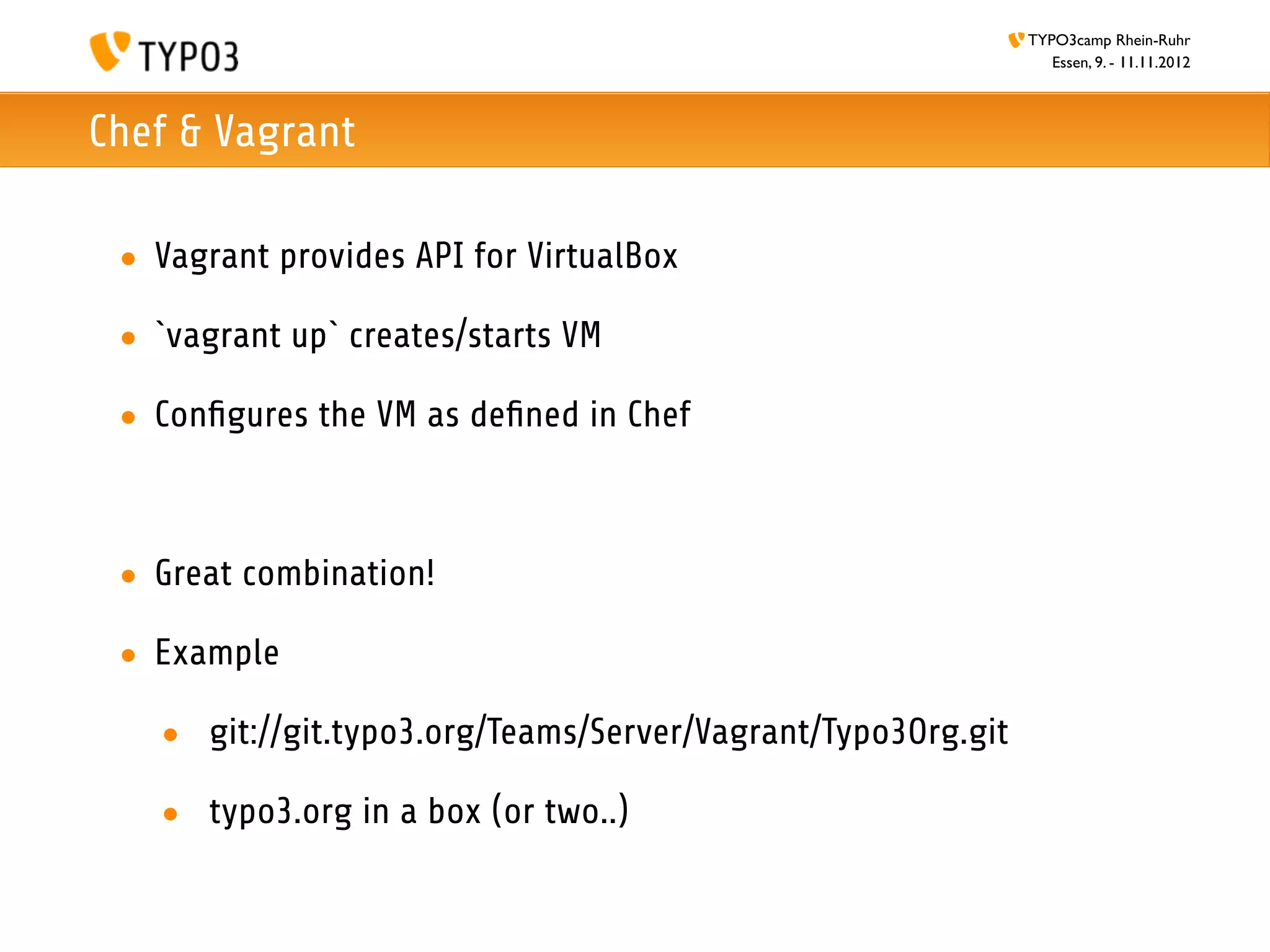

Chef & Vagrant
• Vagrant provides API for VirtualBox
• `vagrant up` creates/starts VM
• Configures the VM as defined in Chef
• Great combination!
• Example
• git://git.typo3.org/Teams/Server/Vagrant/Typo3Org.git
• typo3.org in a box (or two..)

49. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

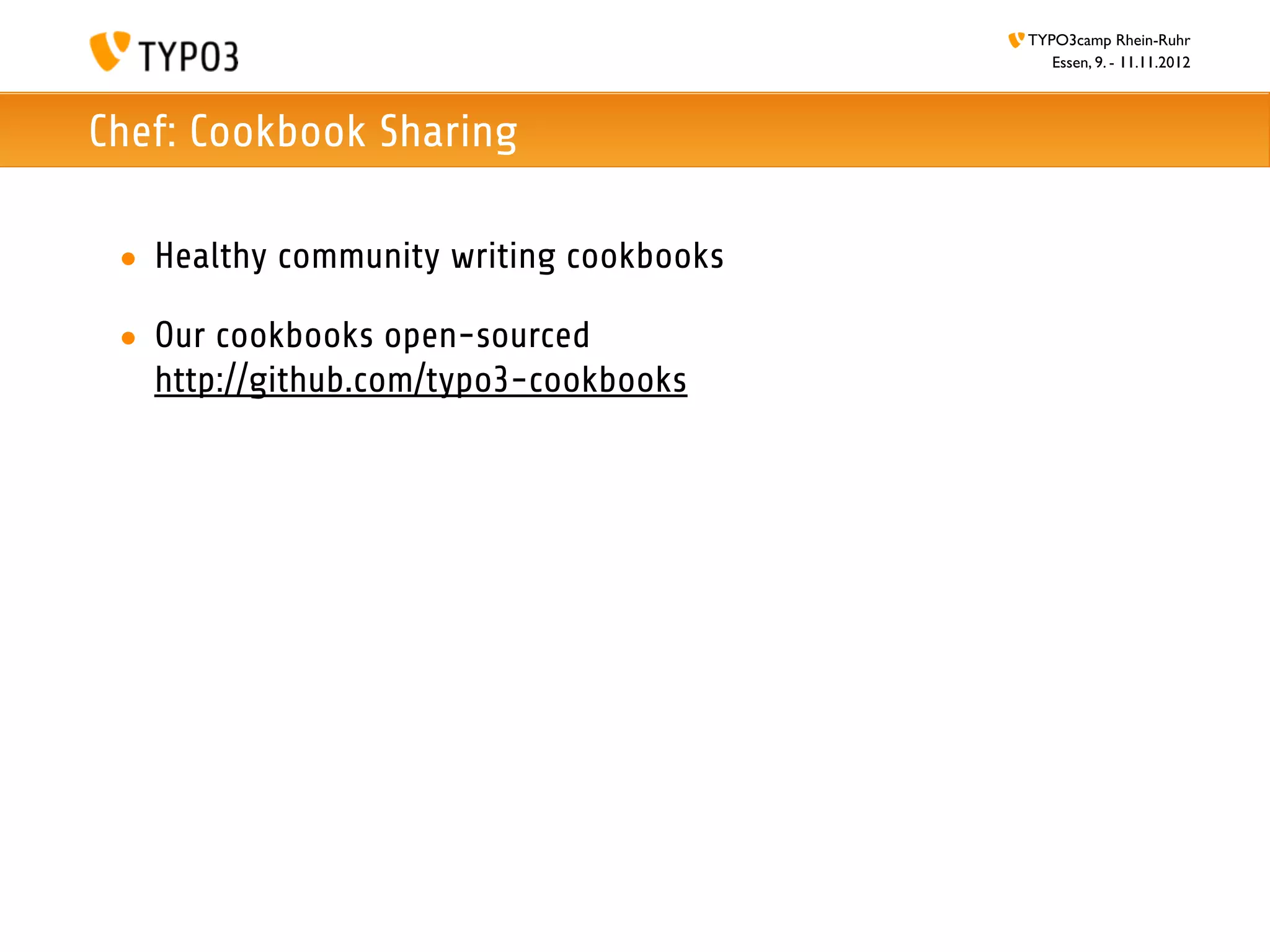

Chef: Cookbook Sharing
• Healthy community writing cookbooks
• Our cookbooks open-sourced
http://github.com/typo3-cookbooks

50. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

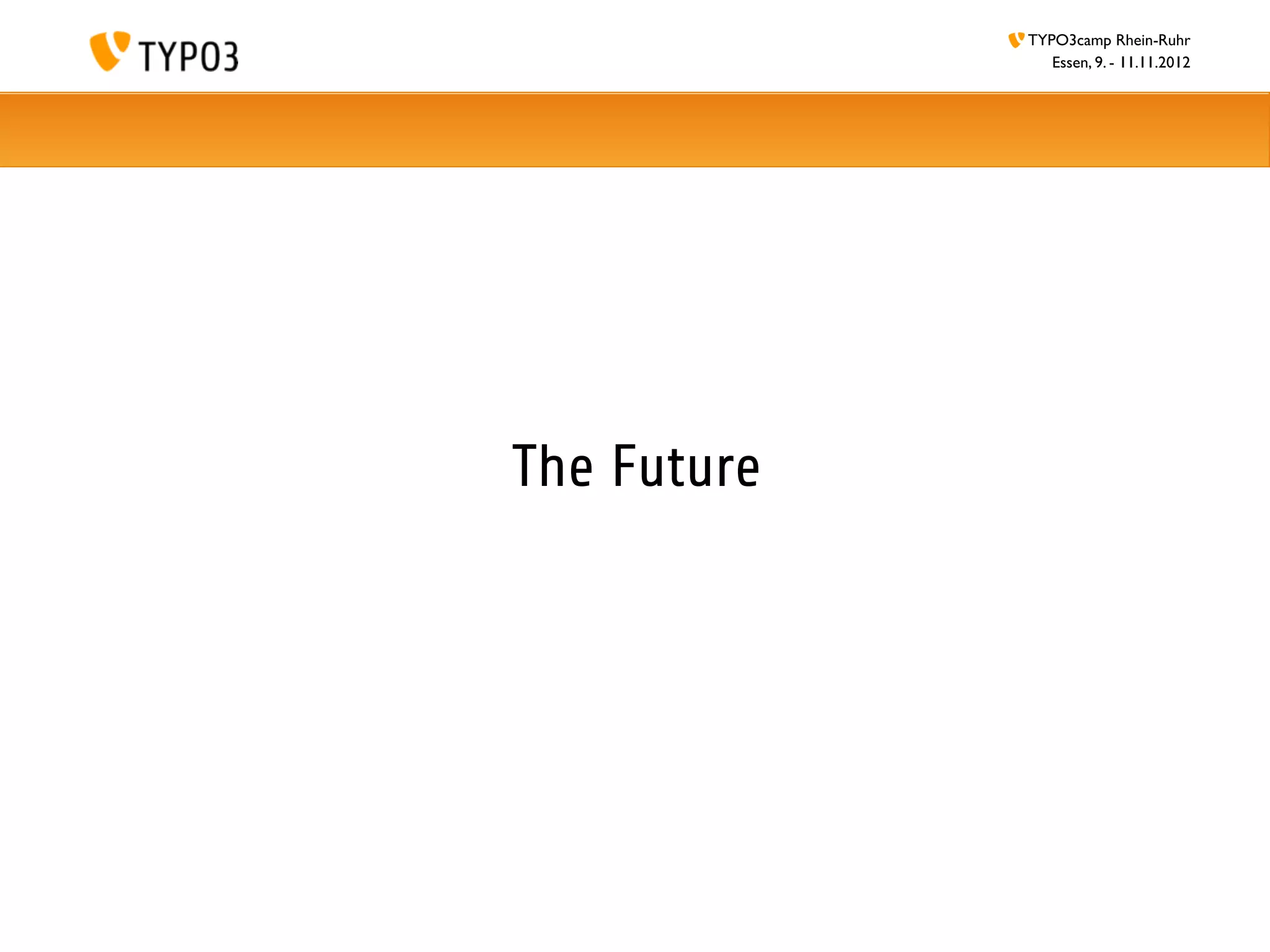

The Future

51. TYPO3camp Rhein-Ruhr
Essen, 9. - 11.11.2012

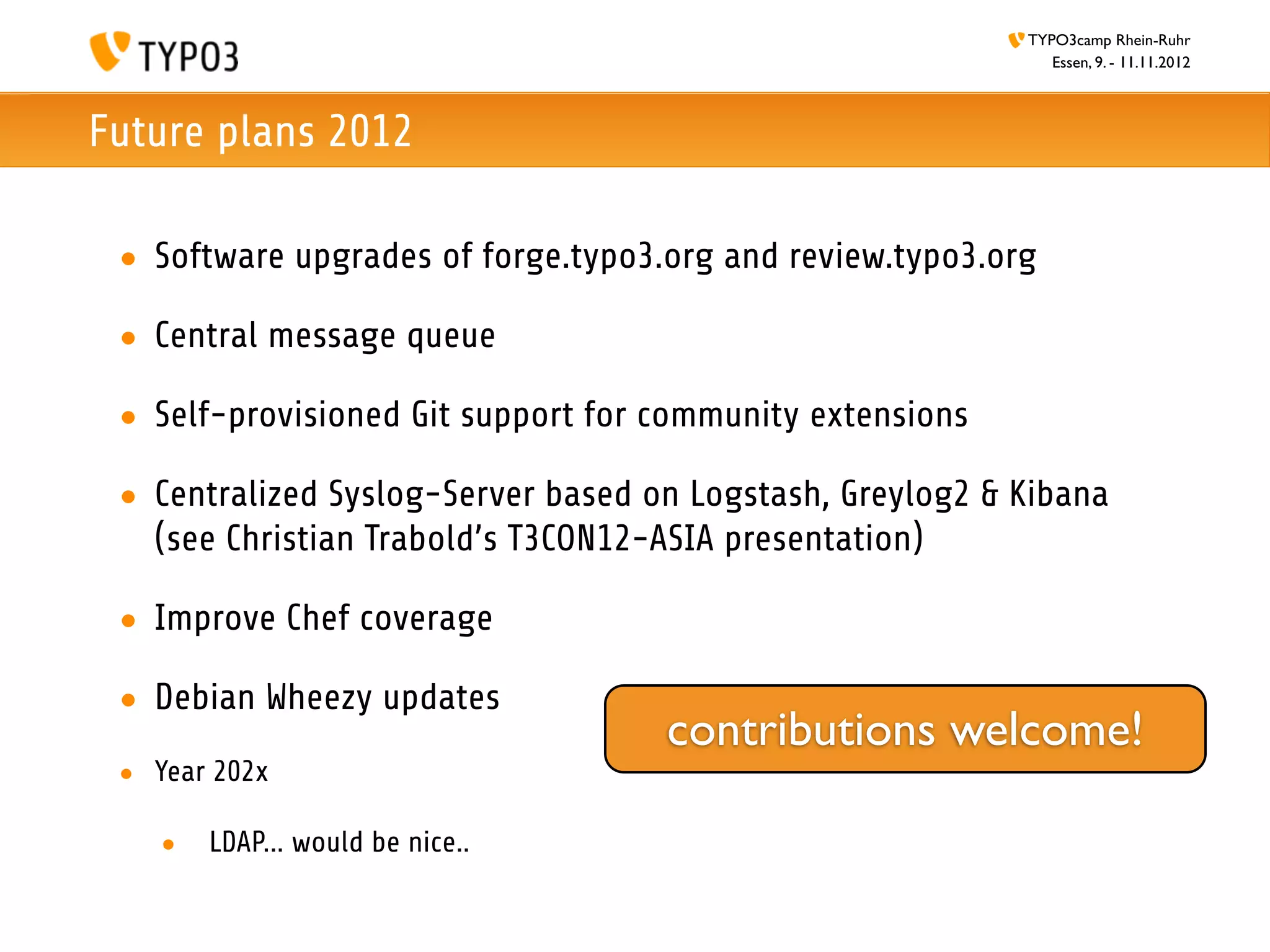

Future plans 2012
• Software upgrades of forge.typo3.org and review.typo3.org
• Central message queue
• Self-provisioned Git support for community extensions
• Centralized Syslog-Server based on Logstash, Greylog2 & Kibana
(see Christian Trabold’s T3CON12-ASIA presentation)
• Improve Chef coverage
• Debian Wheezy updates
contributions welcome!
• Year 202x
• LDAP... would be nice..
