This document provides an introduction to using tables in web design. It discusses using page layout tables to set up the basic structure of a webpage and data tables to display content within the page layout. Key points include how to define and write code for tables, add attributes like borders and formatting, and nest tables within each other. Advanced table features covered are spanning cells, table headings, scope attributes, and using captions. The document also lists some keyboard shortcuts for working with documents and defines common symbols that can be inserted into HTML code using character entity references.

1. Intro to Web Design

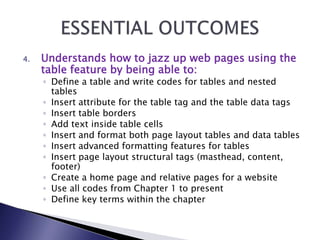

2. 4. Understands how to jazz up web pages using the
table feature by being able to:
◦ Define a table and write codes for tables and nested
tables
◦ Insert attribute for the table tag and the table data tags
◦ Insert table borders
◦ Add text inside table cells
◦ Insert and format both page layout tables and data tables
◦ Insert advanced formatting features for tables
◦ Insert page layout structural tags (masthead, content,
footer)
◦ Create a home page and relative pages for a website
◦ Use all codes from Chapter 1 to present
◦ Define key terms within the chapter

3.  Flag Key  (Windows) + E: Opens
up the Computer Dialog Box
 Flag Key  + D: Places all open
documents on the task bar
 Alt + Tab: Allows you to move
through all open documents
 Ctrl + C: copies
 Ctrl + V: pastes

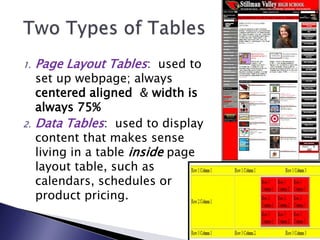

4. 1. Page Layout Tables: used to
set up webpage; always
centered aligned & width is
always 75%
2. Data Tables: used to display
content that makes sense
living in a table inside page
layout table, such as
calendars, schedules or
product pricing.

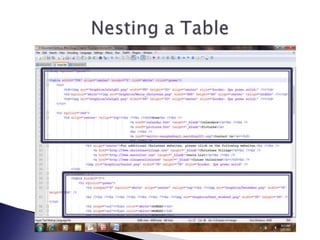

5.  Nesting: placing a table inside another table
 For example: placing a data table inside a
page layout table

7.  Insert table: <table></table>:
paired element tag
 Insert rows: <tr></tr>:
paired element tag
 Insert columns: <td></td>:
paired element tag

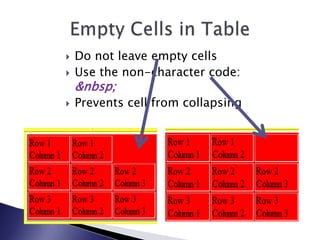

8.  Do not leave empty cells
 Use the non-character code:
&nbsp;
 Prevents cell from collapsing

9.  There are 6 attributes used with
table element <table>:
1. Align
2. Width
3. Border
4. Color
5. Cellpadding
6. Cellspacing

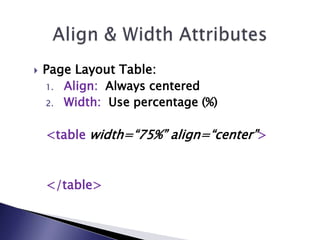

10.  Page Layout Table:
1. Align: Always centered
2. Width: Use percentage (%)
<table width=“75%” align=“center”>
</table>

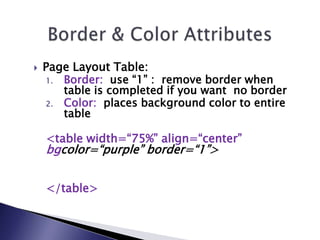

11.  Page Layout Table:
1. Border: use “1” : remove border when
table is completed if you want no border
2. Color: places background color to entire
table
<table width=“75%” align=“center”
bgcolor=“purple” border=“1”>
</table>

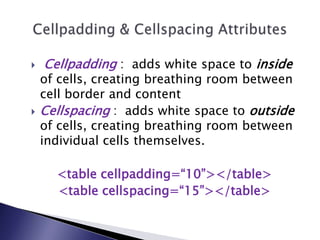

12.  Cellpadding : adds white space to inside
of cells, creating breathing room between
cell border and content
 Cellspacing : adds white space to outside
of cells, creating breathing room between
individual cells themselves.
<table cellpadding=“10”></table>
<table cellspacing=“15”></table>

13.  5 attributes with the table
data tag
1. Align
2. Valign
3. Background color
4. Nowrap
5. Width

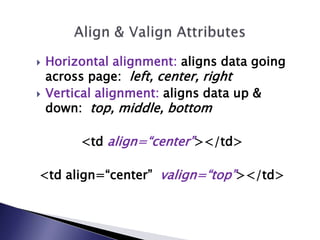

14.  Horizontal alignment: aligns data going
across page: left, center, right
 Vertical alignment: aligns data up &
down: top, middle, bottom
<td align=“center”></td>
<td align=“center” valign=“top”></td>

15. <td> element: will place same color within a
row of columns
<td bgcolor=“red”>
<td bgcolor=“green”>
 <tr> element: will place color in a single
cell
<tr bgcolor=“white”>
<tr bgcolor=“blue”>
<tr bgcolor=“orange”>

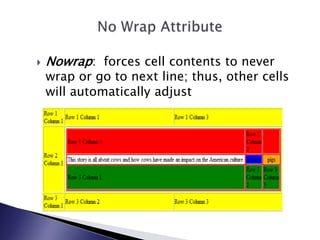

16.  Nowrap: forces cell contents to never
wrap or go to next line; thus, other cells
will automatically adjust

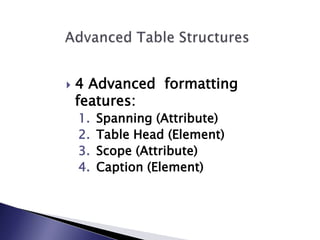

17.  4 Advanced formatting
features:
1. Spanning (Attribute)
2. Table Head (Element)
3. Scope (Attribute)
4. Caption (Element)

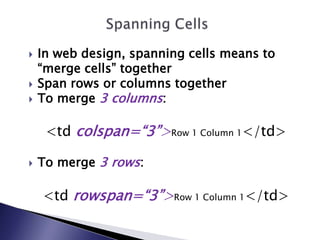

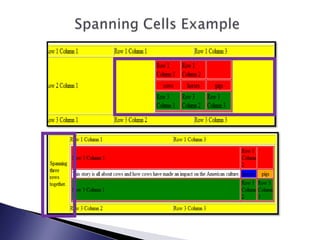

18.  In web design, spanning cells means to
“merge cells” together
 Span rows or columns together
 To merge 3 columns:
<td colspan=“3”>Row 1 Column 1</td>
 To merge 3 rows:
<td rowspan=“3”>Row 1 Column 1</td>

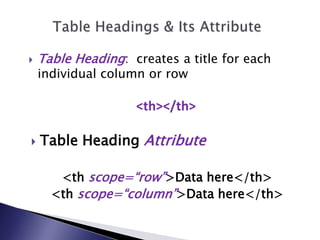

20.  Table Heading: creates a title for each
individual column or row
<th></th>
 Table Heading Attribute
<th scope=“row”>Data here</th>
<th scope=“column”>Data here</th>

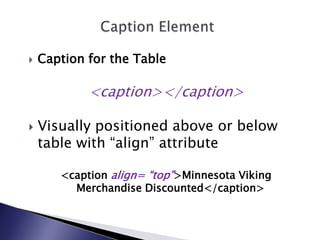

21.  Caption for the Table
<caption></caption>
 Visually positioned above or below
table with “align” attribute
<caption align= “top”>Minnesota Viking
Merchandise Discounted</caption>

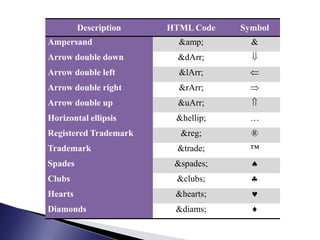

22. Description HTML Code Symbol
Ampersand &amp; &
Arrow double down &dArr;
Arrow double left &lArr;
Arrow double right &rArr;
Arrow double up &uArr;
Horizontal ellipsis &hellip; …
Registered Trademark &reg; ®
Trademark &trade; ™
Spades &spades;
Clubs &clubs;
Hearts &hearts;
Diamonds &diams;

23. Intro to Web Design
