1. DATA STRUCTURE
Chapter 10: Hashing & hash
table
Prepared & Presented by
Mr. Mahmoud R. Alfarra
2011-2012
College of Science & Technology
Dep. Of Computer Science & IT
BCs of Information Technology
http://mfarra.cst.ps

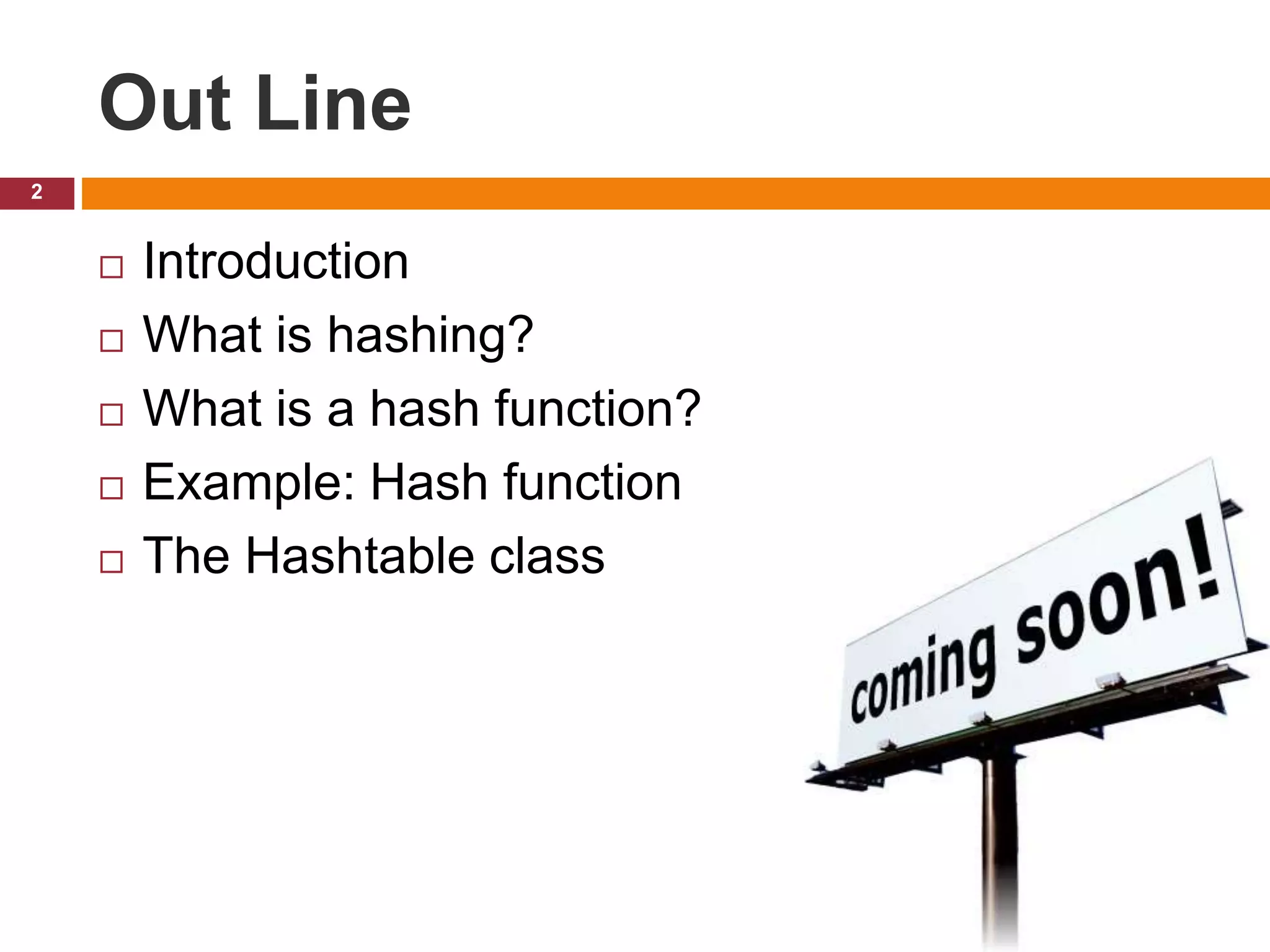

2. Out Line
 Introduction
 What is hashing?
 What is a hash function?
 Example: Hash function
 The Hashtable class
2

3. Introduction
 Hashing is a very common technique for storing
data in such a way the data can be inserted,
retrieved and deleted very quickly.
 Hashing uses a data structure called a hash
table.
 Operations that involve searching, such as
finding the minimum or maximum value, are not
performed very quickly. For these types of
operations, Binary search tree is preferred.
 The .NET Framework library provides a very
useful class for working with hash tables, the
3

4. What is hashing?
4
 A hash table data structure is designed around
an array. The array consists of elements 0
through some predetermined size, though we
can increase the size later if necessary.
 Each data item is stored in the array based on
some piece of the data, called the key.
 To store an element in the hash table, the key
is mapped into a number in the range of 0 to
the hash table size using a function called a
hash function.

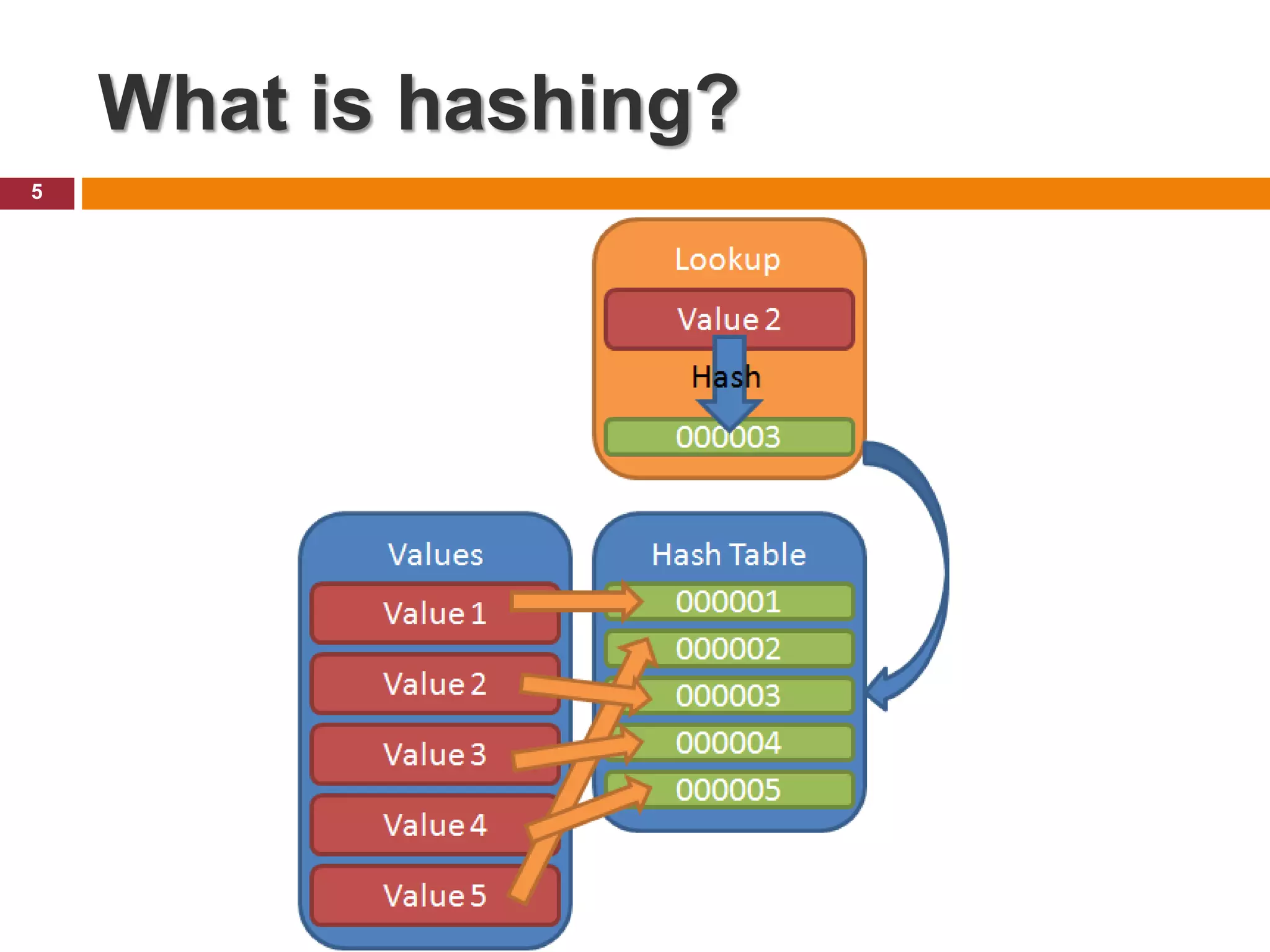

5. What is hashing?
5

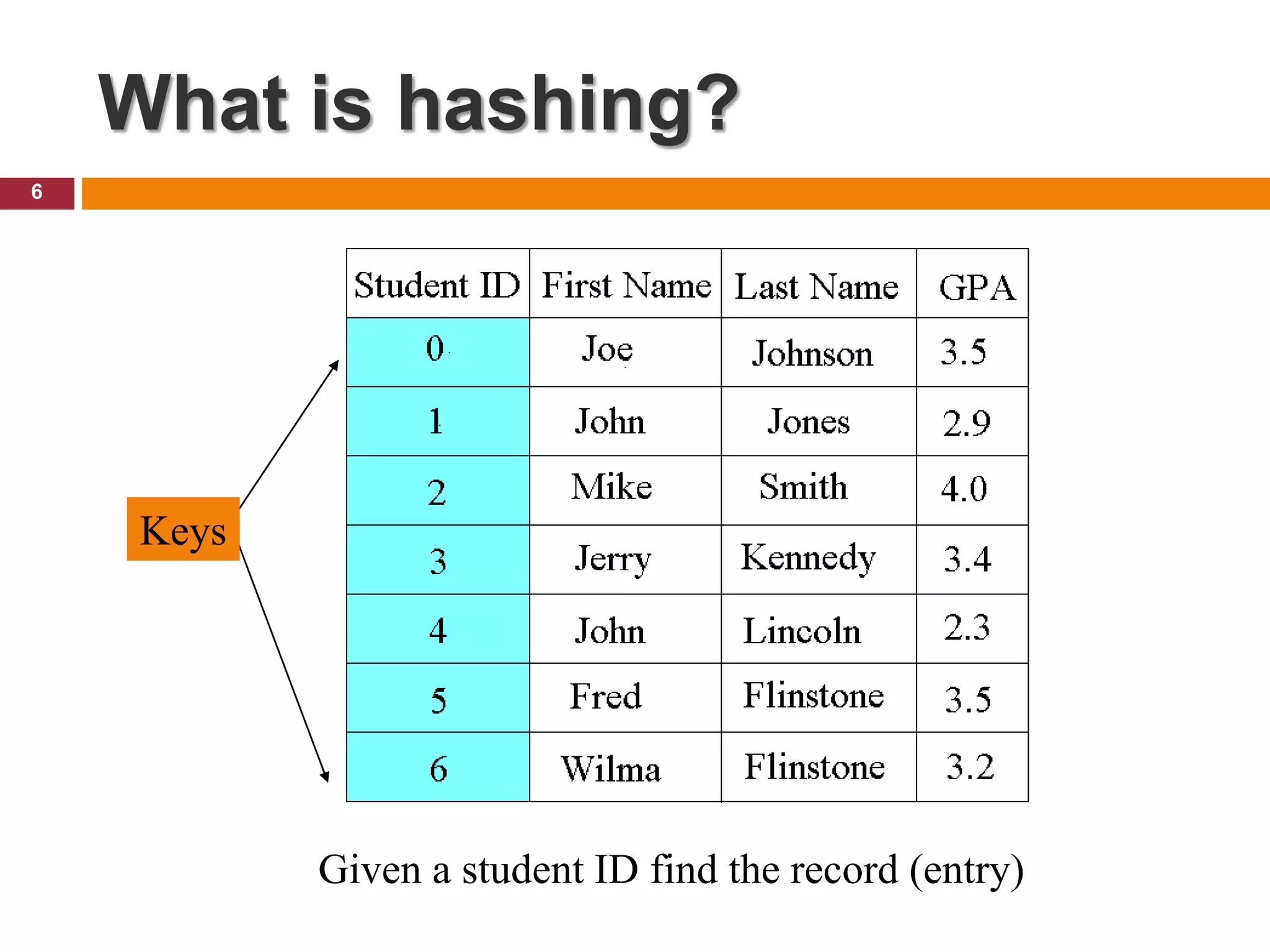

6. What is hashing?
6
Given a student ID find the record (entry)
Keys

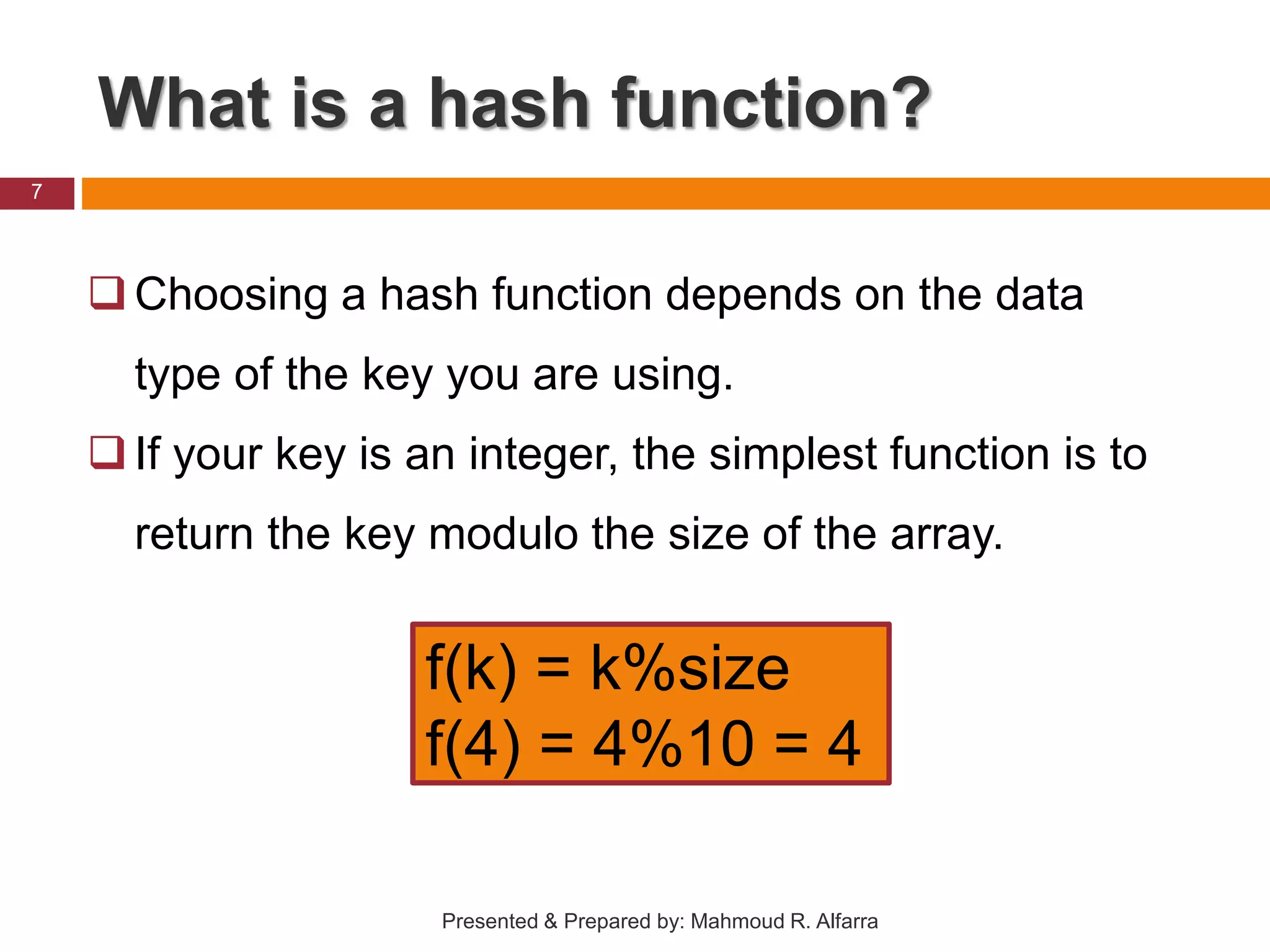

7. What is a hash function?
7
Presented & Prepared by: Mahmoud R. Alfarra
Choosing a hash function depends on the data
type of the key you are using.
If your key is an integer, the simplest function is to
return the key modulo the size of the array.
f(k) = k%size
f(4) = 4%10 = 4

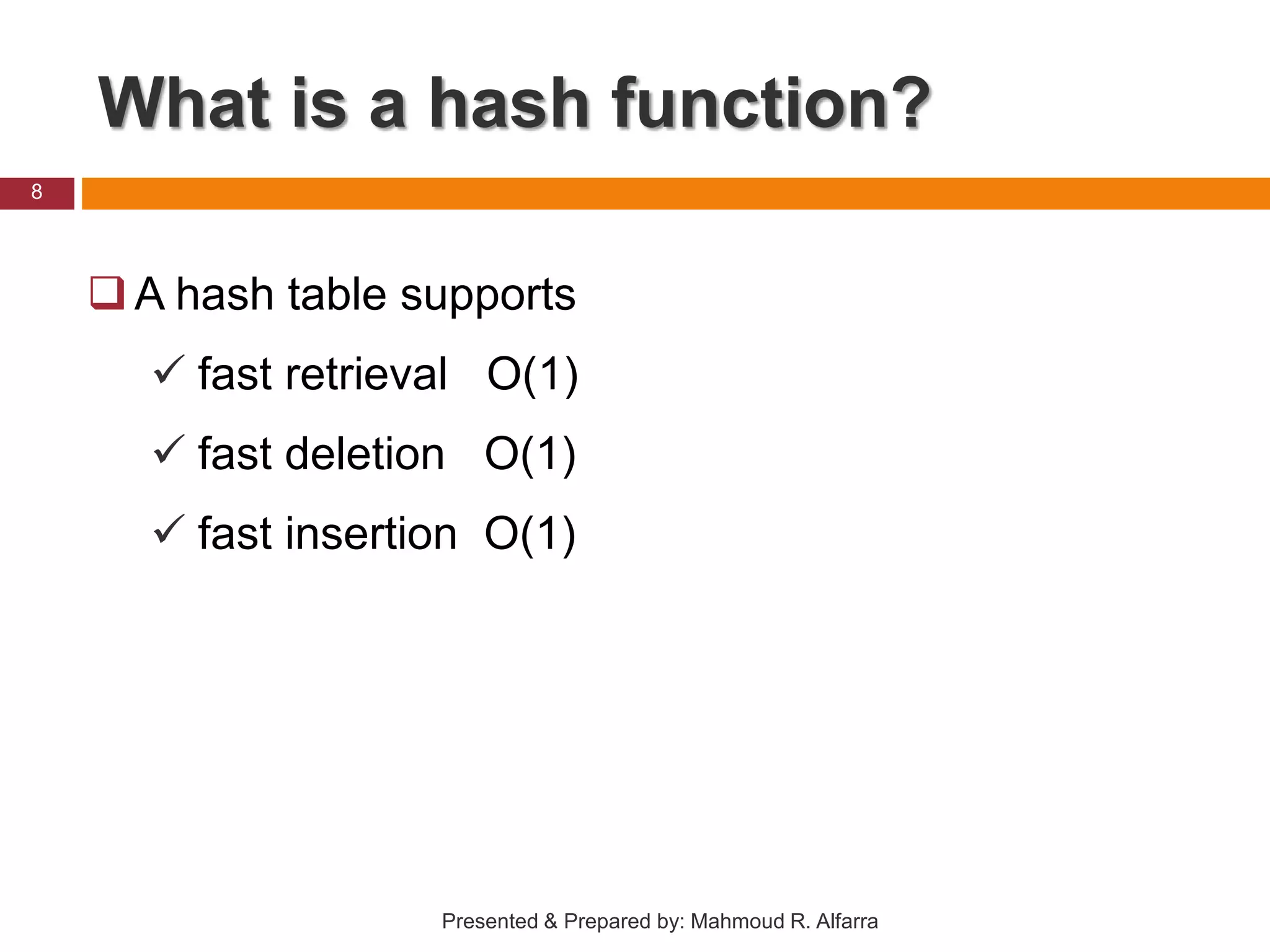

8. What is a hash function?
8
Presented & Prepared by: Mahmoud R. Alfarra
A hash table supports
 fast retrieval O(1)
 fast deletion O(1)
 fast insertion O(1)

9. Hash method works something like this
zzzzzzzz
Domain: "!" .. "zzzzzzzz" Range: 0 ... 9996
hash(key)
AAAAAAAA 8482
hash(key)
1273
Convert a String key into an integer that will be in the
range of 0 through the maximum capacity-1
Assume the array capacity is 9997

10. Hash method
 What if the ASCII value of individual chars of the
string key added up to a number from ("A") 65 to
possibly 488 ("zzzz") 4 chars max
 If the array has size = 309, mod the sum
390 % TABLE_SIZE = 81
394 % TABLE_SIZE = 85
404 % TABLE_SIZE = 95
 These array indices store these keys
81
85
95
abba
abcd
able

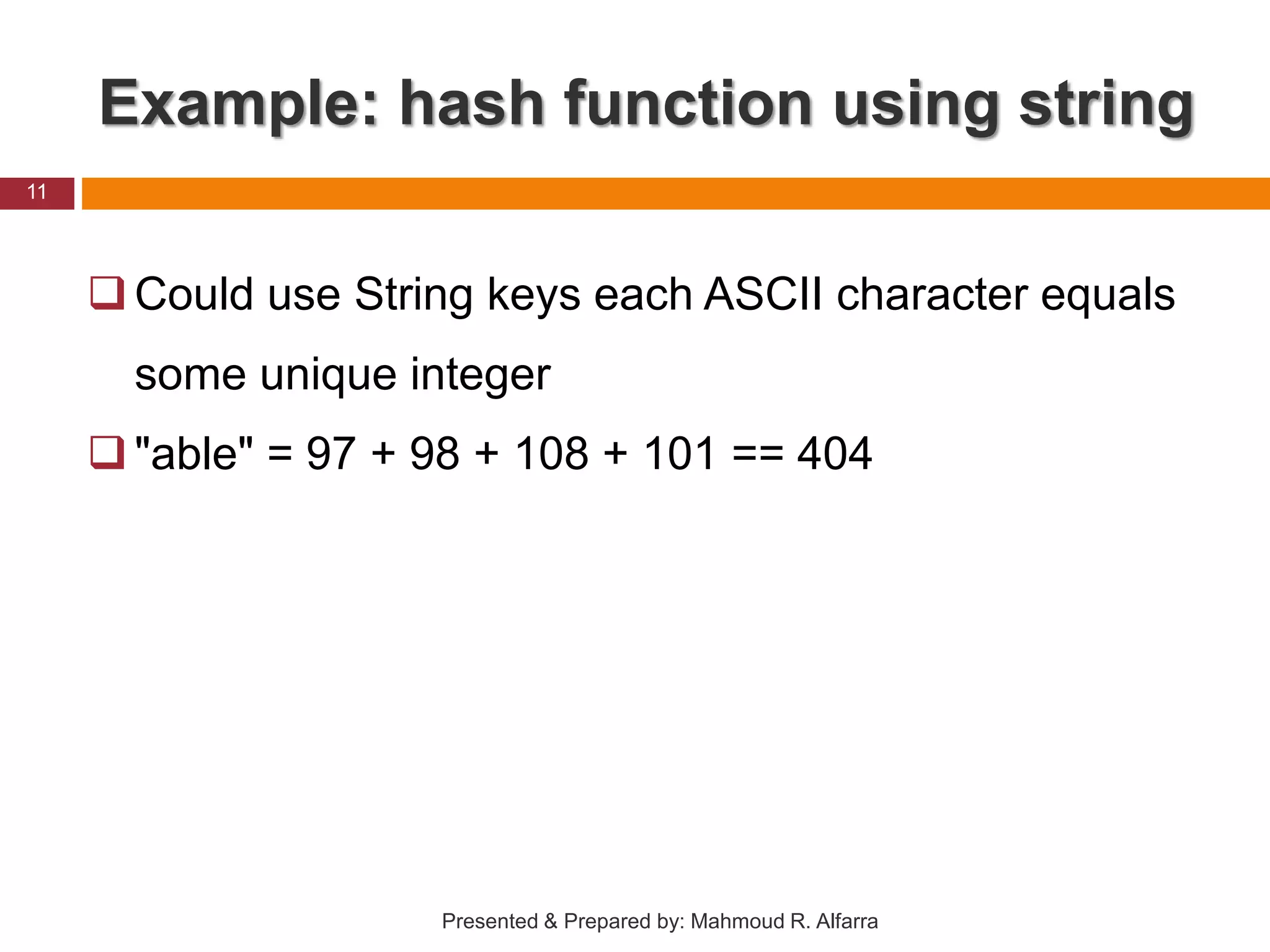

11. Example: hash function using string
11
Presented & Prepared by: Mahmoud R. Alfarra
Could use String keys each ASCII character equals
some unique integer
"able" = 97 + 98 + 108 + 101 == 404

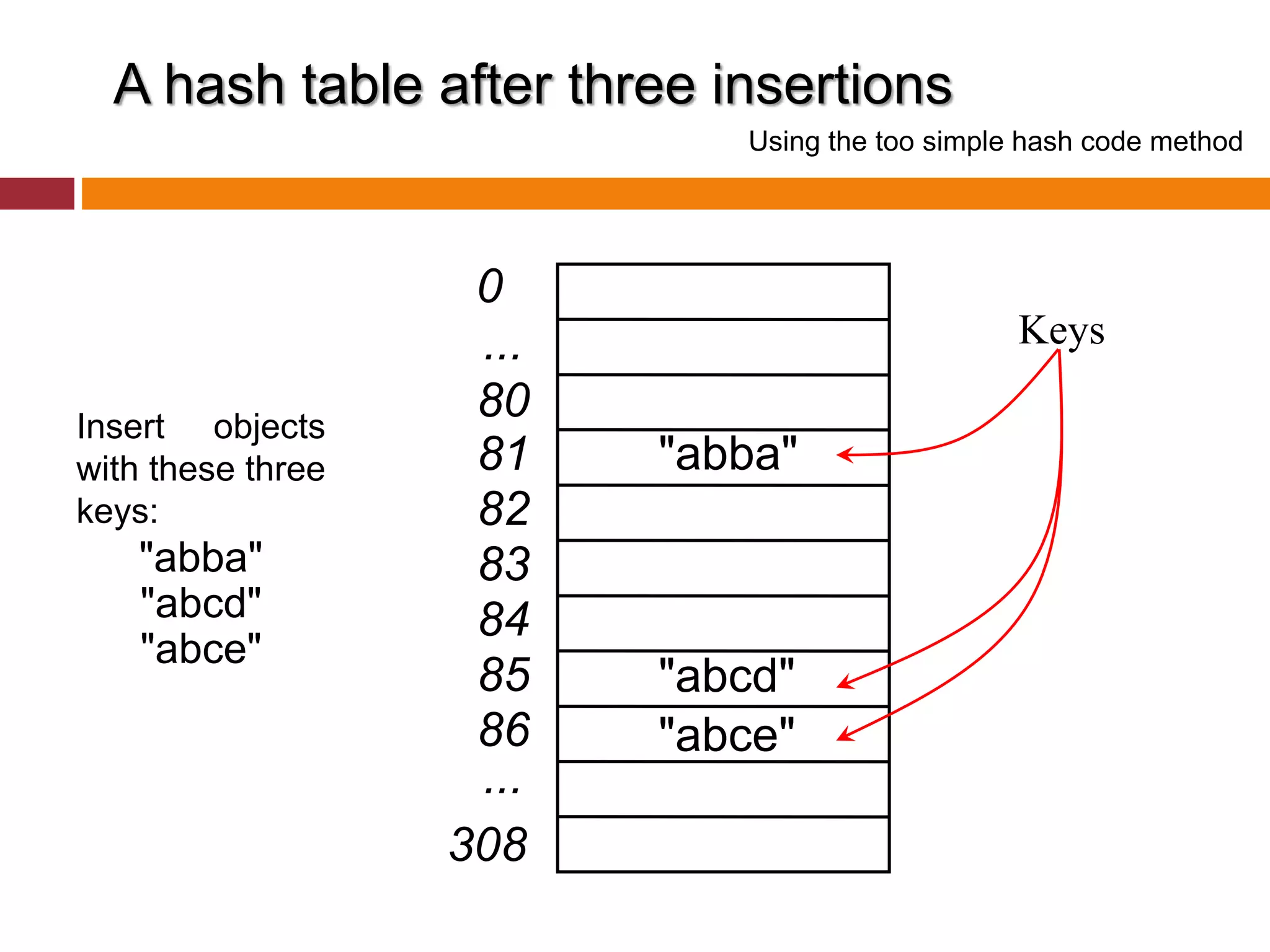

12. 81
82
83
84
85
86
308
A hash table after three insertions
Using the too simple hash code method
"abba"
Keys
80
...
0
Insert objects
with these three
keys:
"abba"
"abcd"
"abce"
...
"abcd"
"abce"

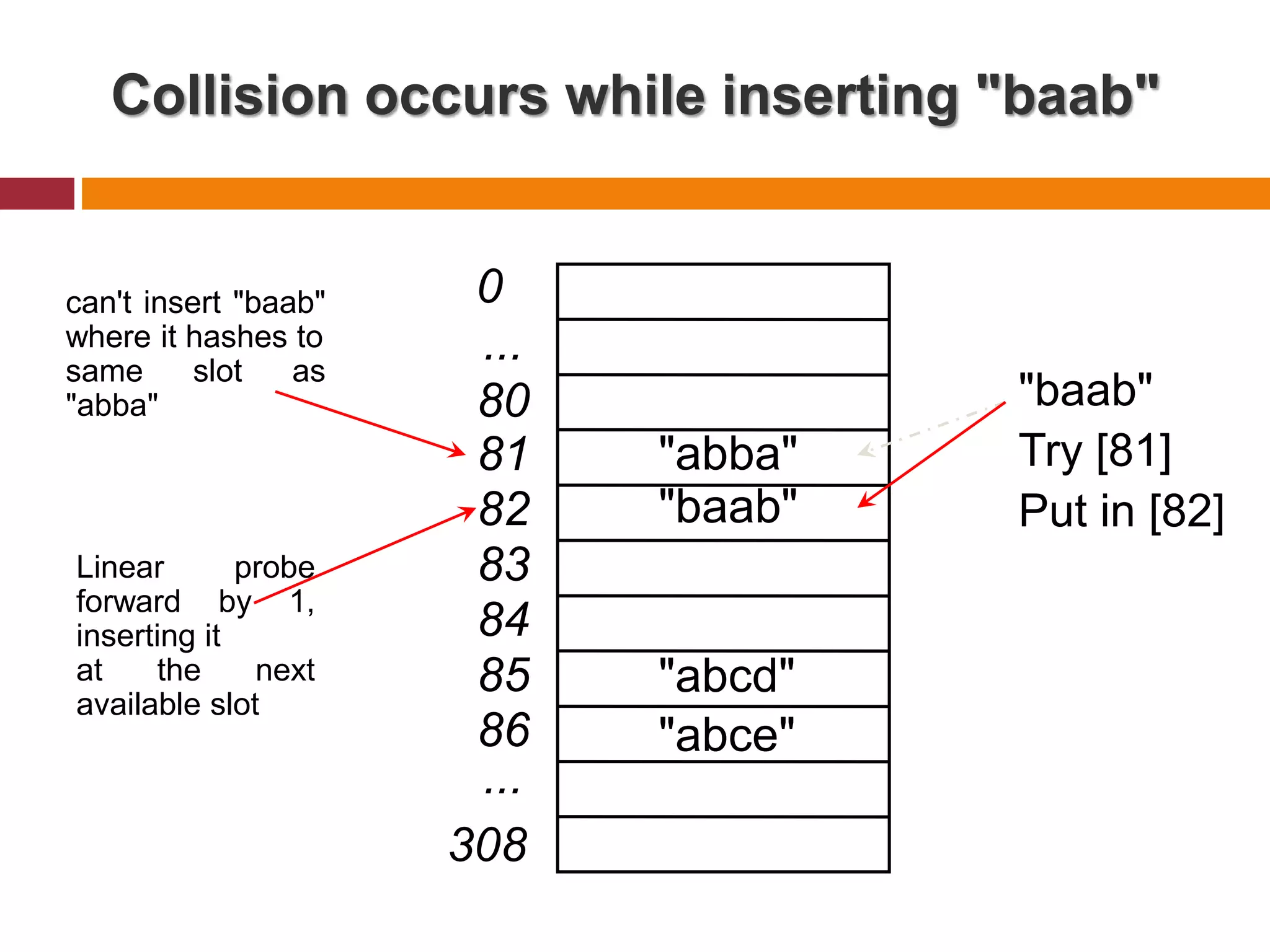

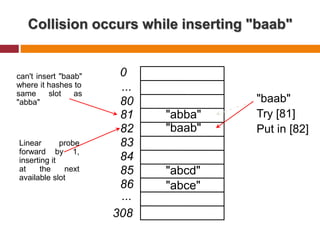

13. Collision occurs while inserting "baab"
can't insert "baab"
where it hashes to
same slot as
"abba"
Linear probe
forward by 1,
inserting it
at the next
available slot
"baab"
Try [81]
Put in [82]
81
82
83
84
85
86
308
"abba"
80
...
0
...
"abcd"
"abce"
"baab"

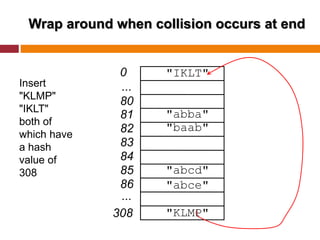

14. Wrap around when collision occurs at end
Insert
"KLMP"
"IKLT"
both of
which have
a hash
value of
308
81
82
83
84
85
86
308
"abba"
80
...
0
...
"abcd"
"abce"
"baab"
"KLMP"
"IKLT"

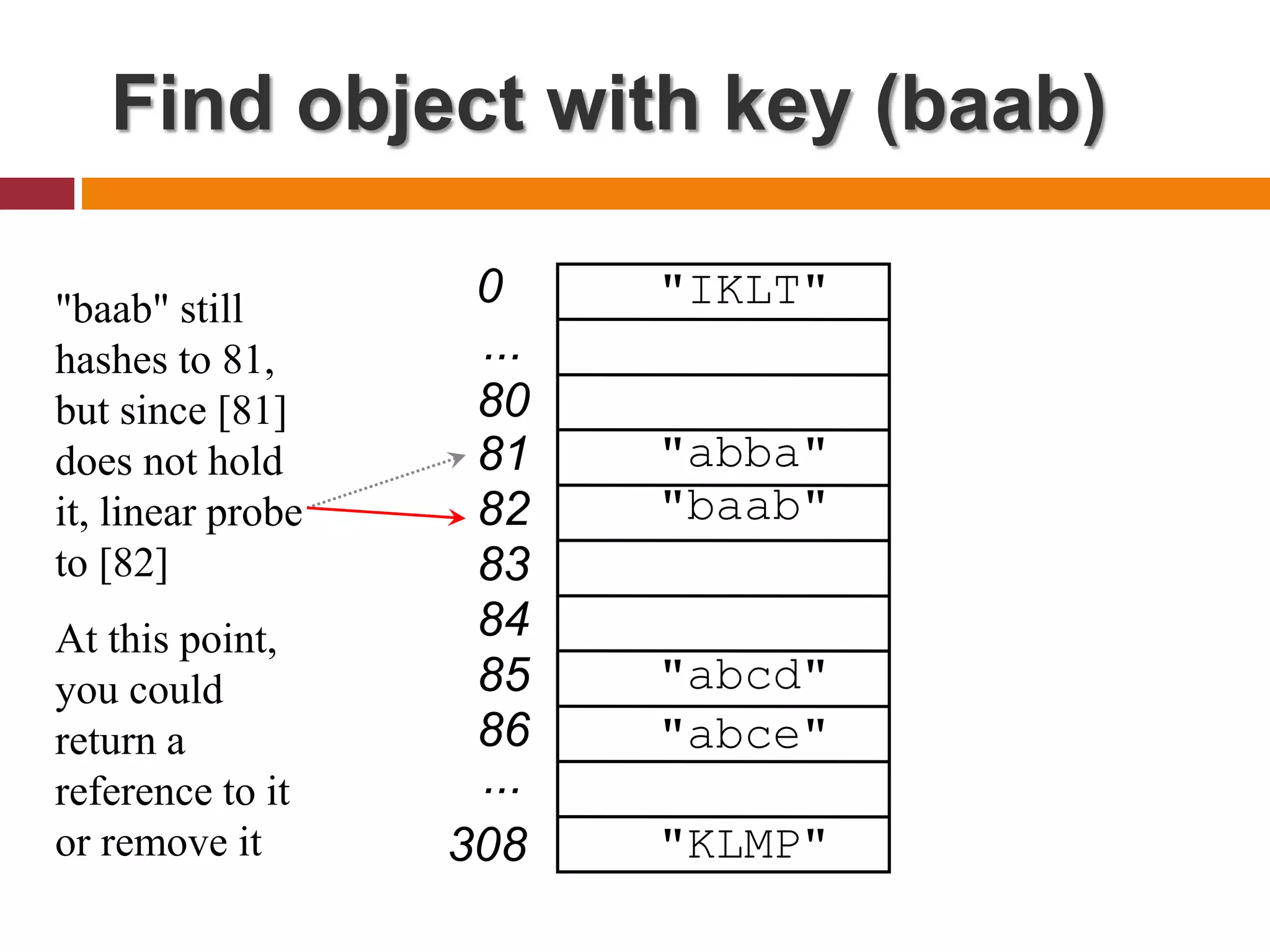

15. Find object with key (baab)
81
82
83
84
85
86
308
"abba"
80
...
0
...
"abcd"
"abce"
"baab"
"KLMP"
"IKLT"
"baab" still
hashes to 81,
but since [81]
does not hold
it, linear probe
to [82]
At this point,
you could
return a
reference to it
or remove it

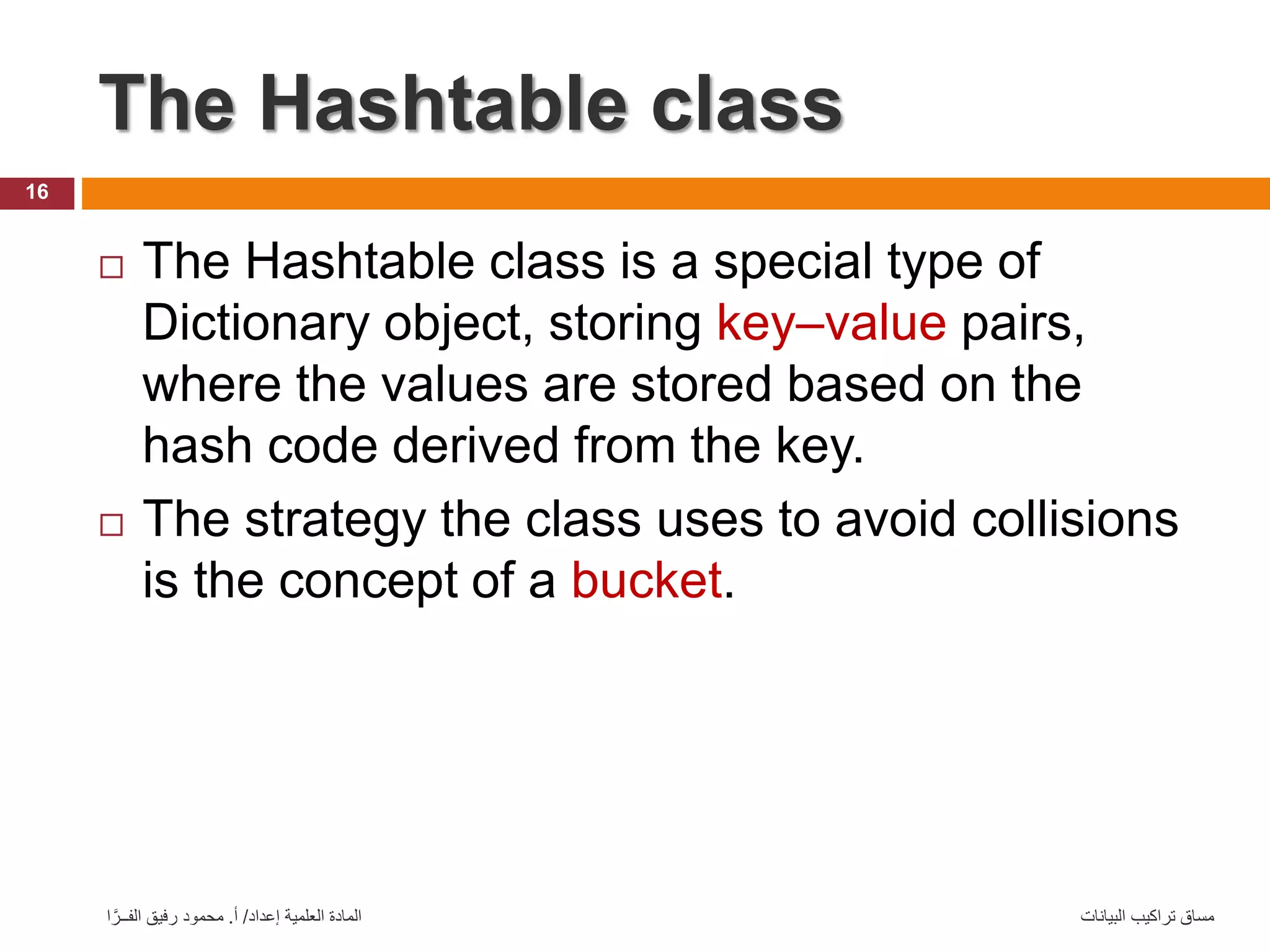

16. The Hashtable class
16
‫البيانات‬ ‫تراكيب‬ ‫مساق‬
‫إعداد‬ ‫العلمية‬ ‫المادة‬
/
‫أ‬
.
‫ا‬ َّ‫الفــر‬ ‫رفيق‬ ‫محمود‬
 The Hashtable class is a special type of
Dictionary object, storing key–value pairs,
where the values are stored based on the
hash code derived from the key.
 The strategy the class uses to avoid collisions
is the concept of a bucket.

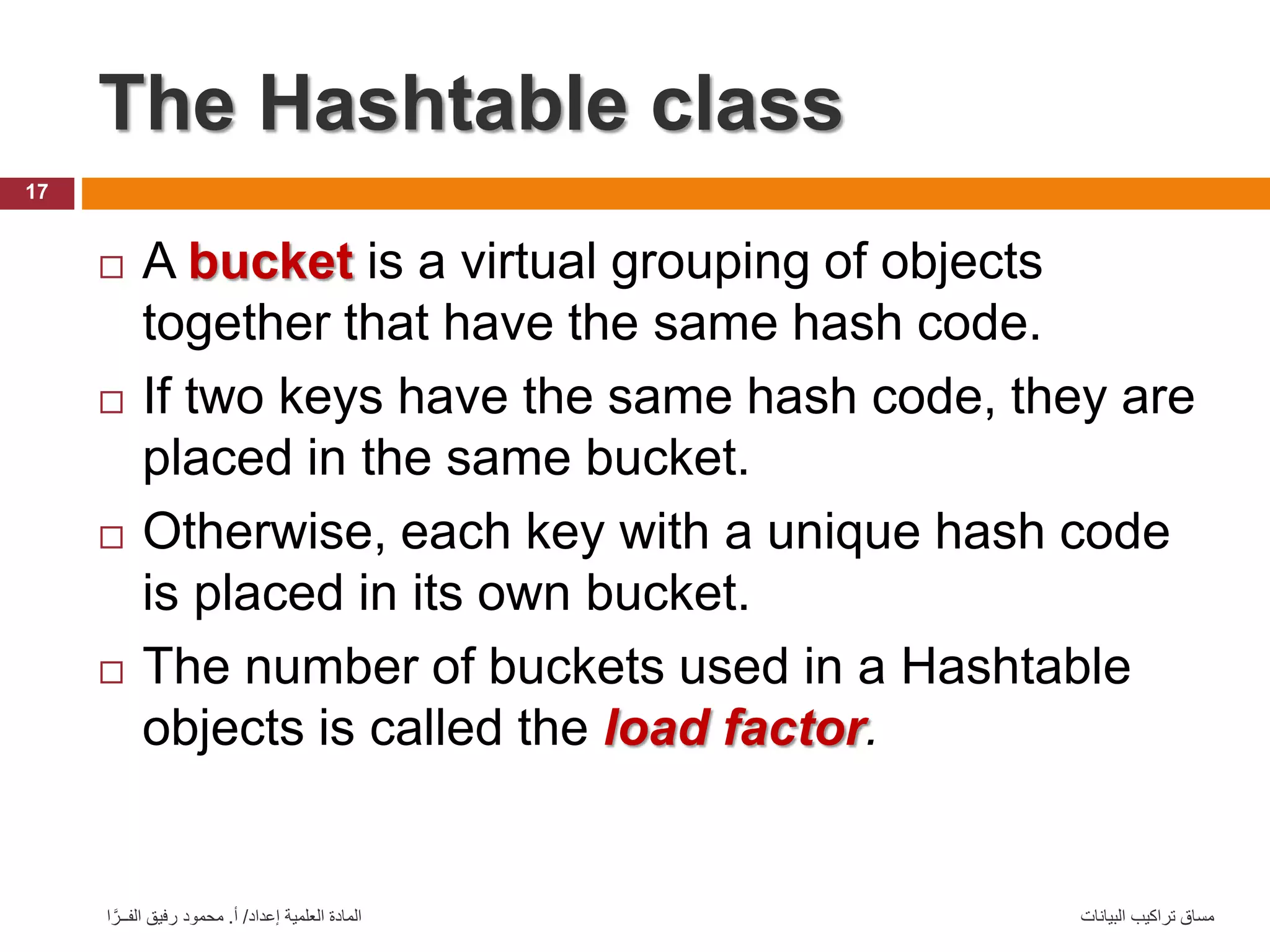

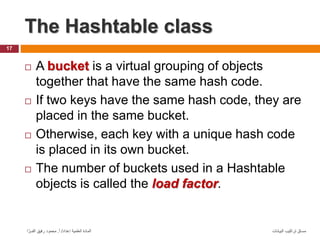

17. The Hashtable class
17
‫البيانات‬ ‫تراكيب‬ ‫مساق‬
‫إعداد‬ ‫العلمية‬ ‫المادة‬
/
‫أ‬
.
‫ا‬ َّ‫الفــر‬ ‫رفيق‬ ‫محمود‬
 A bucket is a virtual grouping of objects
together that have the same hash code.
 If two keys have the same hash code, they are
placed in the same bucket.
 Otherwise, each key with a unique hash code
is placed in its own bucket.
 The number of buckets used in a Hashtable
objects is called the load factor.

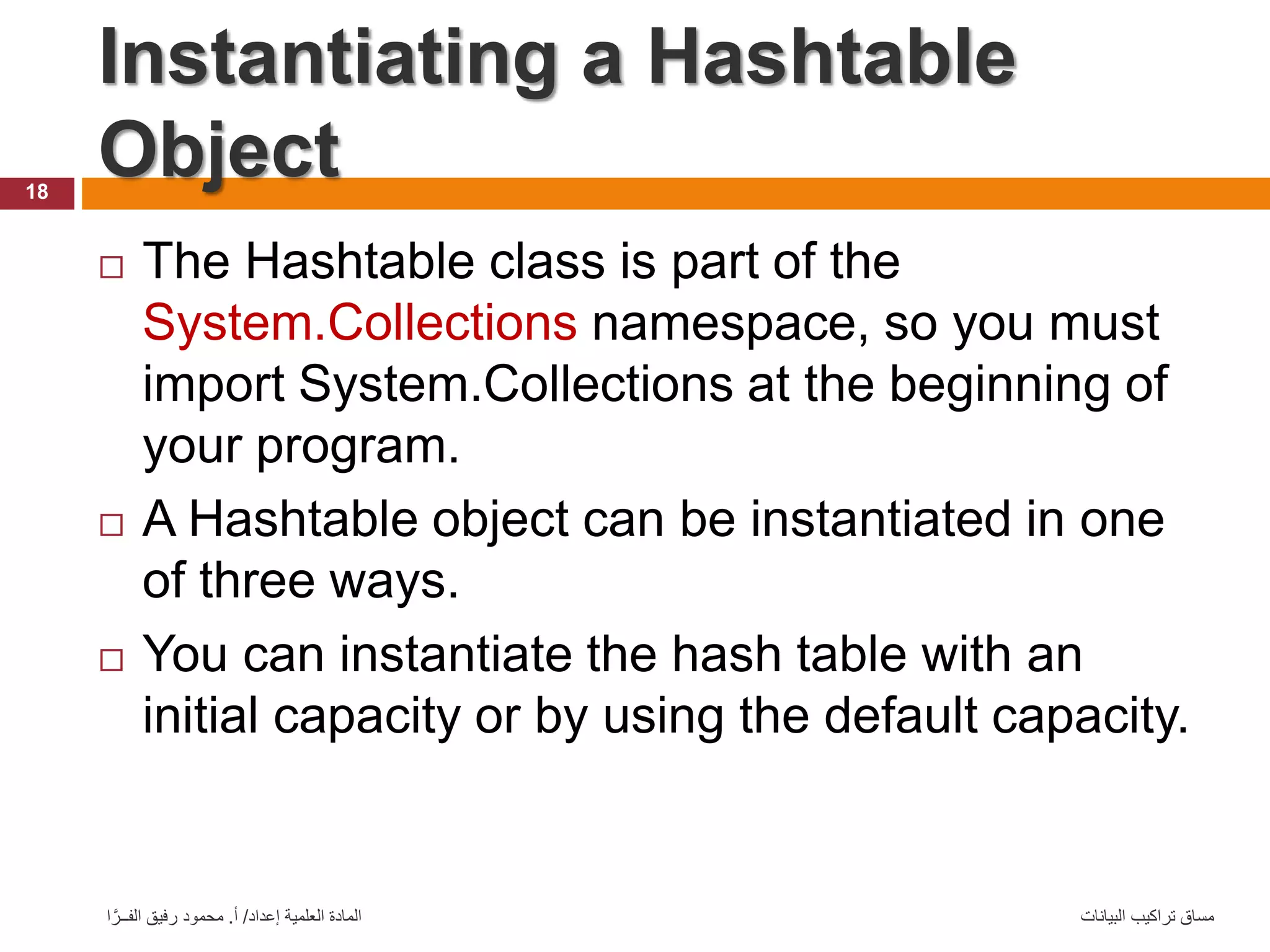

18. Instantiating a Hashtable
Object
18
‫البيانات‬ ‫تراكيب‬ ‫مساق‬
‫إعداد‬ ‫العلمية‬ ‫المادة‬
/
‫أ‬
.
‫ا‬ َّ‫الفــر‬ ‫رفيق‬ ‫محمود‬
 The Hashtable class is part of the
System.Collections namespace, so you must
import System.Collections at the beginning of
your program.
 A Hashtable object can be instantiated in one
of three ways.
 You can instantiate the hash table with an
initial capacity or by using the default capacity.

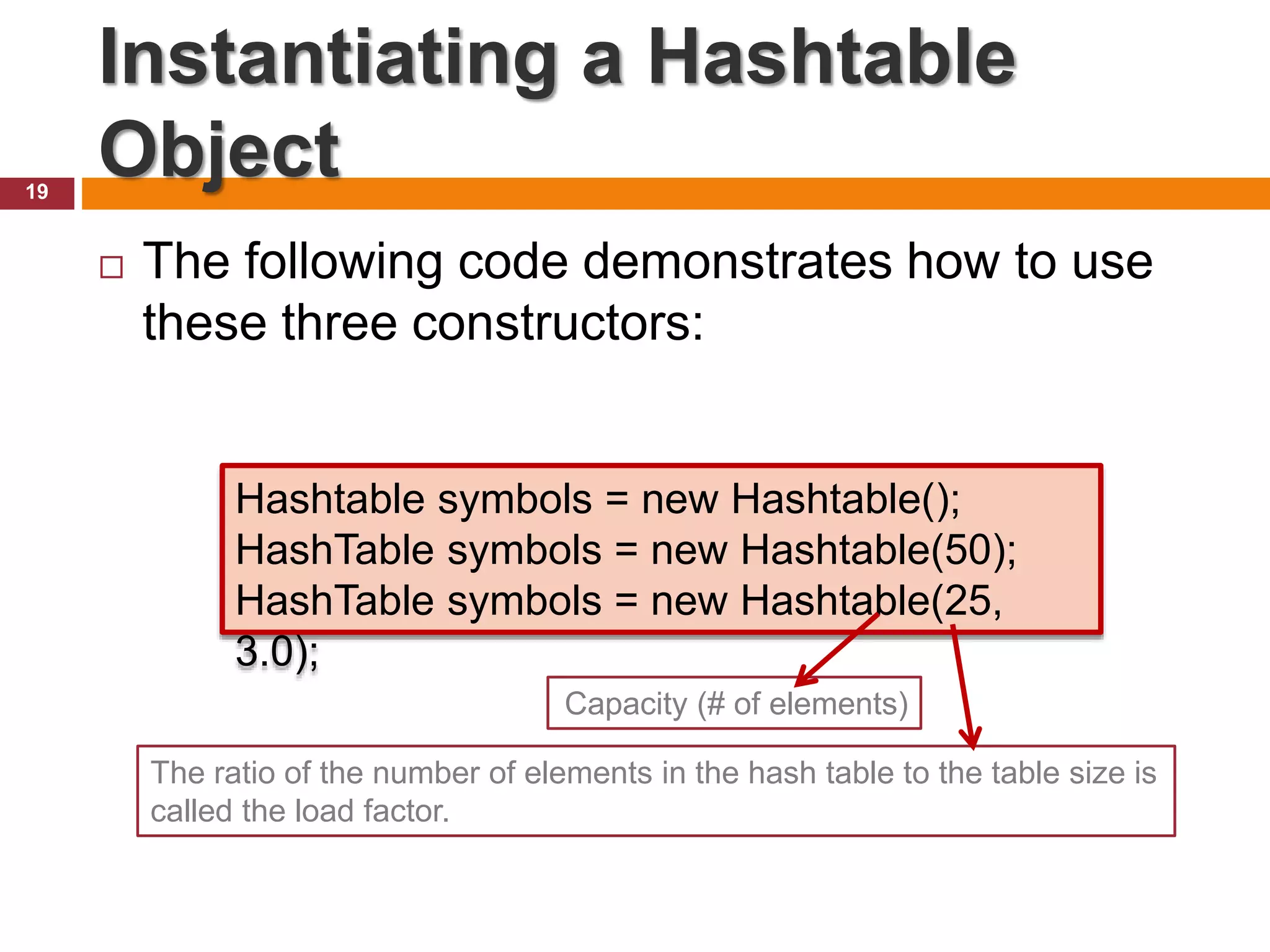

19. Instantiating a Hashtable
Object
19
 The following code demonstrates how to use
these three constructors:
Hashtable symbols = new Hashtable();
HashTable symbols = new Hashtable(50);
HashTable symbols = new Hashtable(25,
3.0);
The ratio of the number of elements in the hash table to the table size is
called the load factor.
Capacity (# of elements)

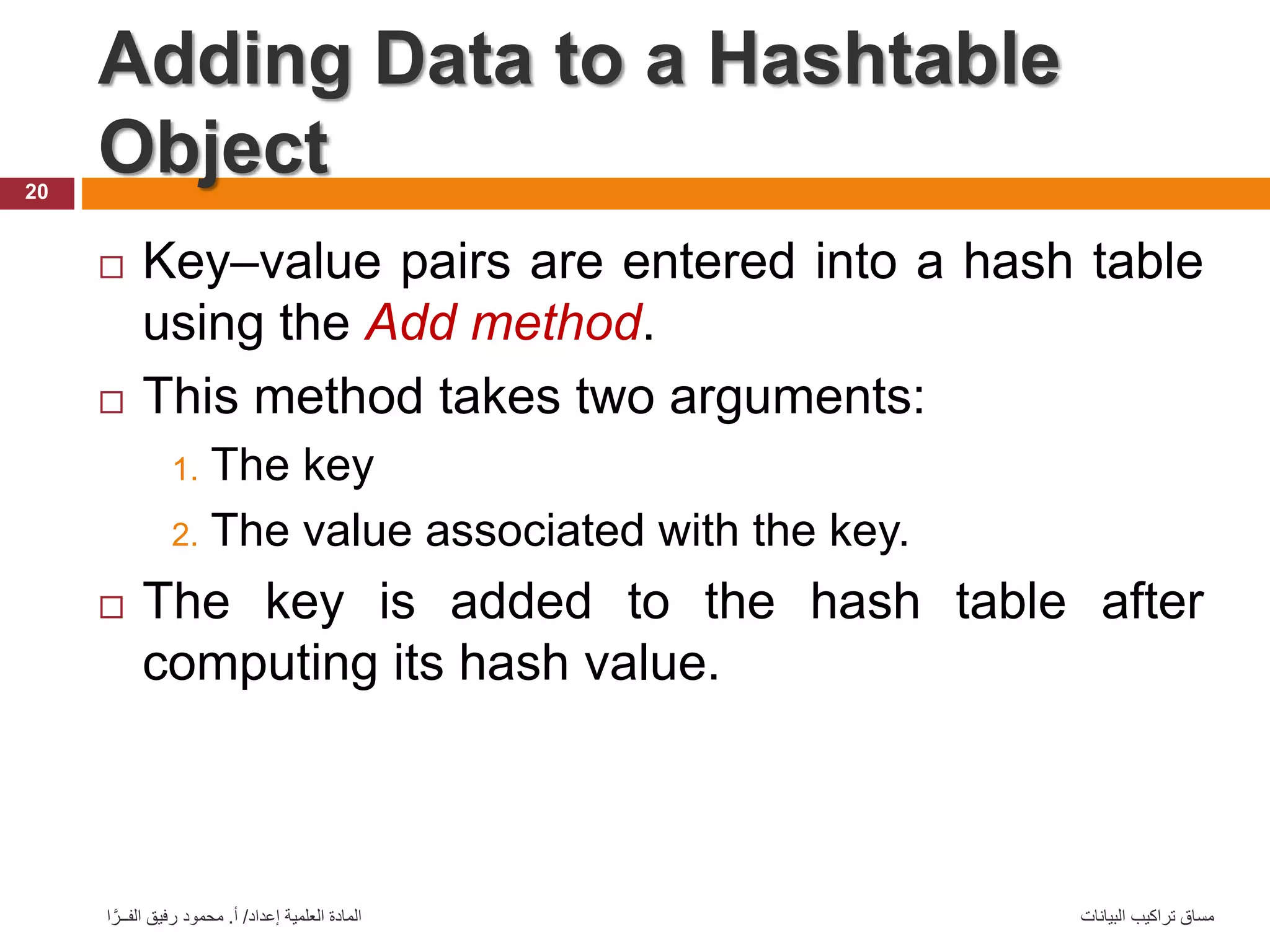

20. Adding Data to a Hashtable
Object
20
‫البيانات‬ ‫تراكيب‬ ‫مساق‬
‫إعداد‬ ‫العلمية‬ ‫المادة‬
/
‫أ‬
.
‫ا‬ َّ‫الفــر‬ ‫رفيق‬ ‫محمود‬
 Key–value pairs are entered into a hash table
using the Add method.
 This method takes two arguments:
1. The key
2. The value associated with the key.
 The key is added to the hash table after
computing its hash value.

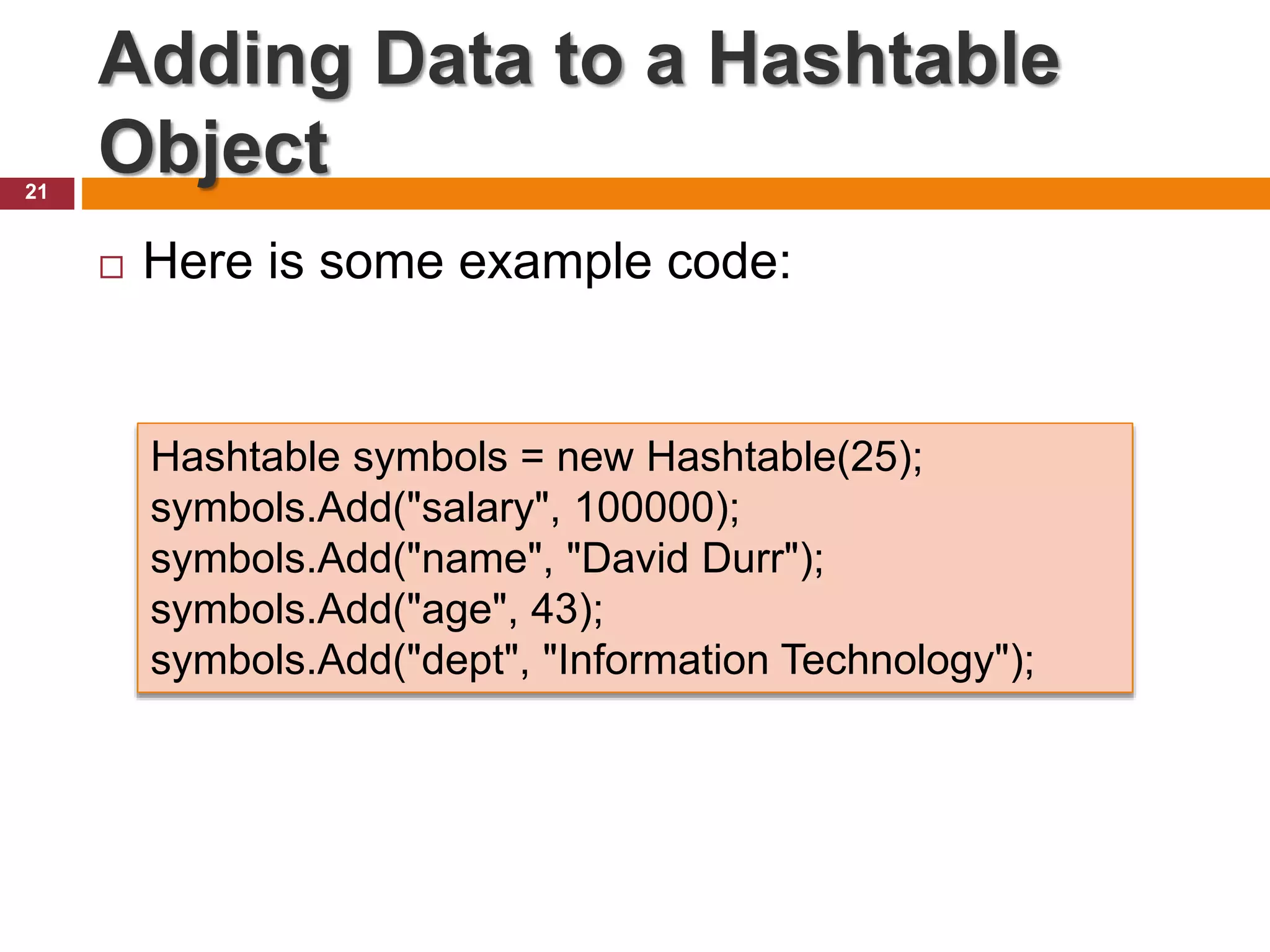

21. Adding Data to a Hashtable
Object
21
 Here is some example code:
Hashtable symbols = new Hashtable(25);
symbols.Add("salary", 100000);
symbols.Add("name", "David Durr");
symbols.Add("age", 43);
symbols.Add("dept", "Information Technology");

22. Thank You …
22
Remember that: question is the key of knowledge
