Changes in the atmosphere

CHANGES OF THE EARTH’S SURFACE
AND ATMOSPHERE
The different
layers of the
atmosphere
Data collection and
presentation by
Carl Denef

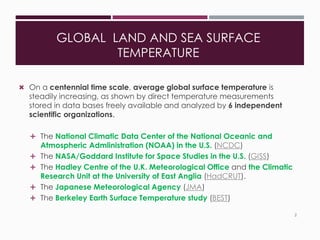

GLOBAL LAND AND SEA SURFACE
TEMPERATURE
 On a centennial time scale, average global surface temperature is
steadily increasing, as shown by direct temperature measurements
stored in data bases freely available and analyzed by 6 independent
scientific organizations.
 The National Climatic Data Center of the National Oceanic and
Atmospheric Admlinistration (NOAA) in the U.S. (NCDC)
 The NASA/Goddard Institute for Space Studies in the U.S. (GISS)
 The Hadley Centre of the U.K. Meteorological Office and the Climatic
Research Unit at the University of East Anglia (HadCRUT).
 The Japanese Meteorological Agency (JMA)
 The Berkeley Earth Surface Temperature study (BEST)
2

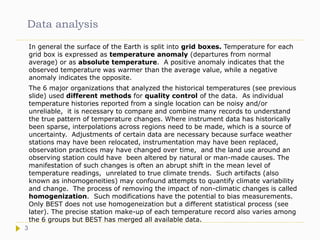

Data analysis
In general the surface of the Earth is split into grid boxes. Temperature for each
grid box is expressed as temperature anomaly (departures from normal
average) or as absolute temperature. A positive anomaly indicates that the
observed temperature was warmer than the average value, while a negative
anomaly indicates the opposite.
The 6 major organizations that analyzed the historical temperatures (see previous
slide) used different methods for quality control of the data. As individual
temperature histories reported from a single location can be noisy and/or
unreliable, it is necessary to compare and combine many records to understand
the true pattern of temperature changes. Where instrument data has historically
been sparse, interpolations across regions need to be made, which is a source of
uncertainty. Adjustments of certain data are necessary because surface weather
stations may have been relocated, instrumentation may have been replaced,
observation practices may have changed over time, and the land use around an
observing station could have been altered by natural or man-made causes. The
manifestation of such changes is often an abrupt shift in the mean level of
temperature readings, unrelated to true climate trends. Such artifacts (also
known as inhomogeneities) may confound attempts to quantify climate variability
and change. The process of removing the impact of non-climatic changes is called
homogenization. Such modifications have the potential to bias measurements.
Only BEST does not use homogeneization but a different statistical process (see
later). The precise station make-up of each temperature record also varies among
the 6 groups but BEST has merged all available data.
3

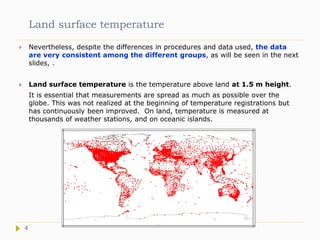

Land surface temperature
 Nevertheless, despite the differences in procedures and data used, the data
are very consistent among the different groups, as will be seen in the next
slides, .
 Land surface temperature is the temperature above land at 1.5 m height.
It is essential that measurements are spread as much as possible over the
globe. This was not realized at the beginning of temperature registrations but
has continuously been improved. On land, temperature is measured at
thousands of weather stations, and on oceanic islands.
4

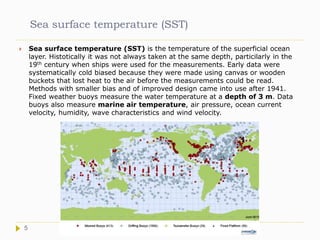

Sea surface temperature (SST)
 Sea surface temperature (SST) is the temperature of the superficial ocean
layer. Histotically it was not always taken at the same depth, particilarly in the
19th century when ships were used for the measurements. Early data were
systematically cold biased because they were made using canvas or wooden
buckets that lost heat to the air before the measurements could be read.
Methods with smaller bias and of improved design came into use after 1941.
Fixed weather buoys measure the water temperature at a depth of 3 m. Data
buoys also measure marine air temperature, air pressure, ocean current
velocity, humidity, wave characteristics and wind velocity.
5

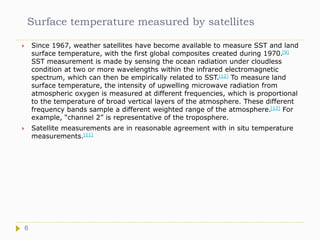

Surface temperature measured by satellites
 Since 1967, weather satellites have become available to measure SST and land
surface temperature, with the first global composites created during 1970.[9]
SST measurement is made by sensing the ocean radiation under cloudless
condition at two or more wavelengths within the infrared electromagnetic
spectrum, which can then be empirically related to SST.[12] To measure land
surface temperature, the intensity of upwelling microwave radiation from
atmospheric oxygen is measured at different frequencies, which is proportional
to the temperature of broad vertical layers of the atmosphere. These different
frequency bands sample a different weighted range of the atmosphere.[12] For
example, “channel 2” is representative of the troposphere.
 Satellite measurements are in reasonable agreement with in situ temperature
measurements.[11]
6

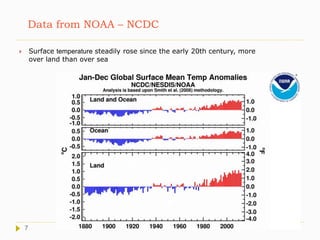

Data from NOAA – NCDC
 Surface temperature steadily rose since the early 20th century, more
over land than over sea
7

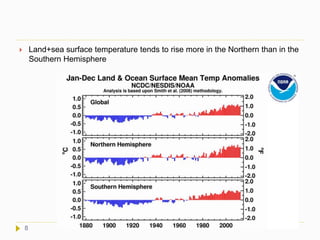

 Land+sea surface temperature tends to rise more in the Northern than in the
Southern Hemisphere
8

Data from NASA - GISS
 Annual and five-year global temperature anomalies from 1880 to 2012, with
the base period average of 1951-1980.
NASA/Goddard
9

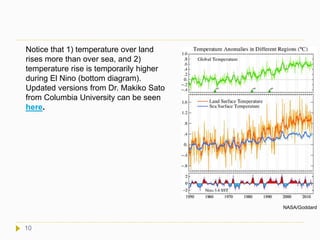

Notice that 1) temperature over land
rises more than over sea, and 2)
temperature rise is temporarily higher
during El Nino (bottom diagram).
Updated versions from Dr. Makiko Sato
from Columbia University can be seen
here.
NASA/Goddard
10

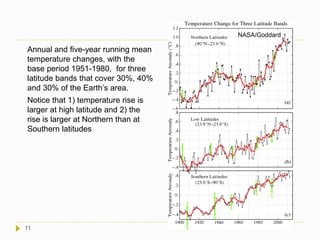

Annual and five-year running mean
temperature changes, with the
base period 1951-1980, for three
latitude bands that cover 30%, 40%
and 30% of the Earth’s area.
Notice that 1) temperature rise is
larger at high latitude and 2) the
rise is larger at Northern than at
Southern latitudes
NASA/Goddard
11

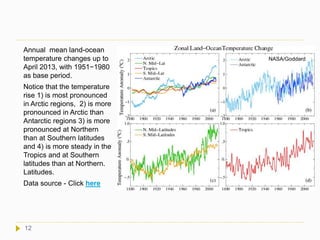

Annual mean land-ocean
temperature changes up to
April 2013, with 1951−1980
as base period.
Notice that the temperature
rise 1) is most pronounced
in Arctic regions, 2) is more
pronounced in Arctic than
Antarctic regions 3) is more
pronounced at Northern
than at Southern latitudes
and 4) is more steady in the
Tropics and at Southern
latitudes than at Northern.
Latitudes.
Data source - Click here
NASA/Goddard
12

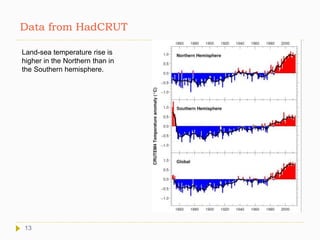

Data from HadCRUT
Land-sea temperature rise is
higher in the Northern than in
the Southern hemisphere.
13

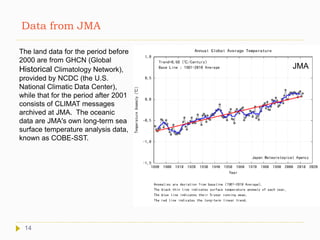

Data from JMA
The land data for the period before
2000 are from GHCN (Global
Historical Climatology Network),
provided by NCDC (the U.S.
National Climatic Data Center),
while that for the period after 2001
consists of CLIMAT messages
archived at JMA. The oceanic
data are JMA's own long-term sea
surface temperature analysis data,
known as COBE-SST.
JMA
14

The Berkeley Earth Surface Temperature study (BEST)
 BEST is a project conceived of and funded by the Novim group at University of
California at Santa Barbara.[1]It is an effort to resolve criticism of the records of the
Earth's surface temperatures that were previously available on public websites, but
in so many different locations and different formats that most people could access
only a small subset of the data. BEST merged all data in one database,
consisting of 1.6 billion temperature reports from 16 preexisting data archives.
BEST is using over 36,000 unique stations, which is about five times more than
any other group. The database and analysis of the temperatures, with all
calculations, methods and results are available online. The team is an independent,
non-political, non-partisan group, including physicists, climate scientists, statisticians, and
others with experience analyzing large and complex data sets. It is funded by
unrestricted educational grants. Donors have no control over how BEST conducts
the research or what they publish.[6]
 So far, only land-surface temperature records were analyzed but they are going back 250
years, about 100 years further in the past than previous studies.
 Unlike the other groups, BESTshows temperature anomalies and absolute temperatures
 BEST also has carefully studied issues raised by skeptics, such as data selection, poor
station quality, data adjustment and possible bias from ‘urban heat island effects’ (that
were claimed by skeptics to affect average surface temperature even though they amount to
less than 1% of the land area), It was demonstrated that these do not unduly bias the
results.
15

 BEST uses an algorithm that attaches an automatic weighting to every data
point, according to its consistency with comparable readings. This approach
allows the inclusion of weird readings without distorting the result. Standard
statistical techniques were used to remove outliers. The methodology also avoids
traditional procedures that require long, continuous data segments, thus
accommodating for short sequences, such as those provided by temporary
weather stations. This innovation allowed BEST to compile earlier records than
its predecessors, although with a high degree of uncertainty because, at the
time, there were only two weather stations in America, just a few in Europe and
one in Asia.[11][17]
 For more about data set analysis, filter use and quality control, click here
 The BEST analysis reported in 2011-2012 shows that the rise in average world
land temperature is approximately 1.5 °C in the past 250 years, and about 0.9 °C
in the past 50 years, which mirrors very well the data obtained from all earlier
studies, showing that potential bias insinuated by climate change skeptics did
not seriously affect the global warming conclusions.
16

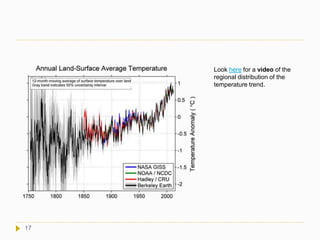

Look here for a video of the
regional distribution of the
temperature trend.
17

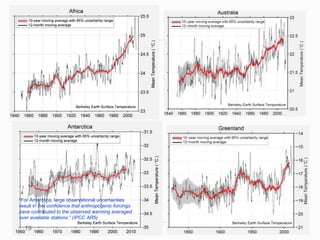

Berkeley Earth
“For Antarctica, large observational uncertainties
result in low confidence that anthropogenic forcings
have contributed to the observed warming averaged
over available stations.” (IPCC AR5)
19

Satellite data
 Two satellite records of the temperature in the lower atmosphere exist: one from the
University of Alabama in Hunstville (UAH) and another from Remote Sensing
Systems (RSS). The two groups analyzed the same satellite data with different
methods to determine temperature (see left Figure). The trend of temperature rise
corresponds well with direct thermometer data. The right Figure shows global monthly
mean Sea Surface Temperature (SST) anomaly measured by satellites (ATSR-1, -2
and AATSR), compared with in situ records (HadSST3); again there is high agreement
of the SST rise between both. From IPCC AR5 Figure 2.17
21

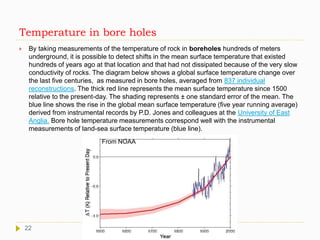

Temperature in bore holes
 By taking measurements of the temperature of rock in boreholes hundreds of meters
underground, it is possible to detect shifts in the mean surface temperature that existed
hundreds of years ago at that location and that had not dissipated because of the very slow
conductivity of rocks. The diagram below shows a global surface temperature change over
the last five centuries, as measured in bore holes, averaged from 837 individual
reconstructions. The thick red line represents the mean surface temperature since 1500
relative to the present-day. The shading represents ± one standard error of the mean. The
blue line shows the rise in the global mean surface temperature (five year running average)
derived from instrumental records by P.D. Jones and colleagues at the University of East
Anglia. Bore hole temperature measurements correspond well with the instrumental
measurements of land-sea surface temperature (blue line).
From NOAA
22

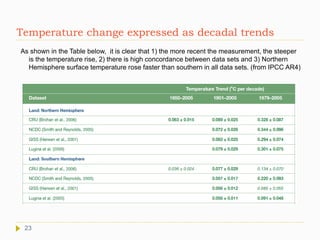

Temperature change expressed as decadal trends
As shown in the Table below, it is clear that 1) the more recent the measurement, the steeper
is the temperature rise, 2) there is high concordance between data sets and 3) Northern
Hemisphere surface temperature rose faster than southern in all data sets. (from IPCC AR4)
23

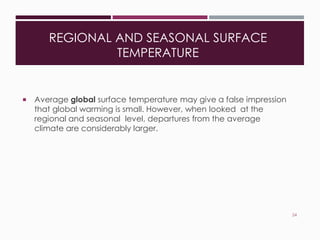

REGIONAL AND SEASONAL SURFACE
TEMPERATURE
 Average global surface temperature may give a false impression
that global warming is small. However, when looked at the
regional and seasonal level, departures from the average
climate are considerably larger.
24

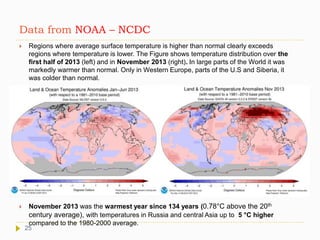

Data from NOAA – NCDC
 Regions where average surface temperature is higher than normal clearly exceeds
regions where temperature is lower. The Figure shows temperature distribution over the
first half of 2013 (left) and in November 2013 (right). In large parts of the World it was
markedly warmer than normal. Only in Western Europe, parts of the U.S and Siberia, it
was colder than normal.
 November 2013 was the warmest year since 134 years (0.78°C above the 20th
century average), with temperatures in Russia and central Asia up to 5 °C higher
compared to the 1980-2000 average.
25

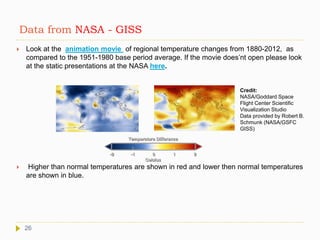

Data from NASA - GISS
 Look at the animation movie of regional temperature changes from 1880-2012, as
compared to the 1951-1980 base period average. If the movie does’nt open please look
at the static presentations at the NASA here.
 Higher than normal temperatures are shown in red and lower then normal temperatures
are shown in blue.
From 1890 to 1894 From 2008 to 2012
Credit:
NASA/Goddard Space
Flight Center Scientific
Visualization Studio
Data provided by Robert B.
Schmunk (NASA/GSFC
GISS)
26

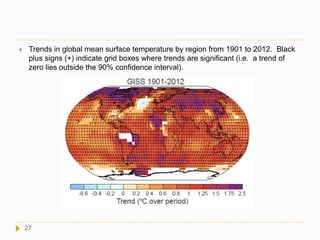

 Trends in global mean surface temperature by region from 1901 to 2012. Black
plus signs (+) indicate grid boxes where trends are significant (i.e. a trend of
zero lies outside the 90% confidence interval).
27

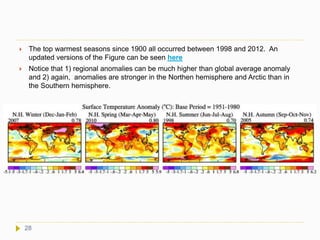

 The top warmest seasons since 1900 all occurred between 1998 and 2012. An
updated versions of the Figure can be seen here
 Notice that 1) regional anomalies can be much higher than global average anomaly
and 2) again, anomalies are stronger in the Northen hemisphere and Arctic than in
the Southern hemisphere.
28

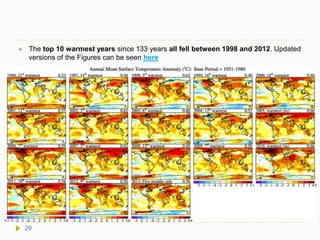

 The top 10 warmest years since 133 years all fell between 1998 and 2012. Updated
versions of the Figures can be seen here
29

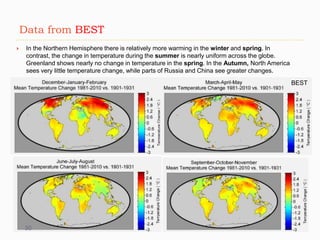

Data from BEST
 In the Northern Hemisphere there is relatively more warming in the winter and spring. In
contrast, the change in temperature during the summer is nearly uniform across the globe.
Greenland shows nearly no change in temperature in the spring. In the Autumn, North America
sees very little temperature change, while parts of Russia and China see greater changes.
BEST
30

TROPOSPHERE AND STRATOSPHERE
TEMPERATURE
 Warming is also be seen in the
lower troposphere, as measured
by weather balloons and
satellites. The trend is opposite in
the statosphere, as a
consequence of decreased
radiation towards space by the
absorption of radiation in the
troposphere. The Figure shows
different data sets.
31
(from IPCC AR5 Figure 2.24).

 The temperature changes in the troposphere and stratosphere are also seen at
the regional level: warming of lower troposphere (LT), particularly in the Northern
Hemisphere and Arctic, and cooling in the lower stratosphere (LS). The data are
from satellite measurements UAH and RSS. From IPCC AR5 Figure 2.25.
32

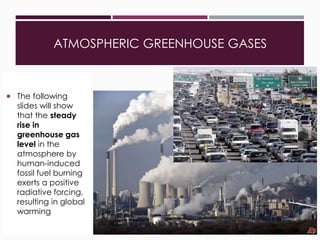

ATMOSPHERIC GREENHOUSE GASES

33
 The following
slides will show
that the steady
rise in
greenhouse gas
level in the
atmosphere by
human-induced
fossil fuel burning
exerts a positive
radiative forcing,
resulting in global
warming

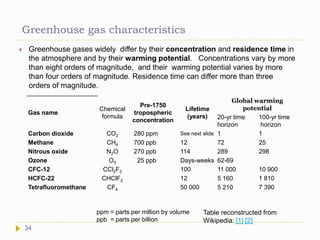

Greenhouse gas characteristics
 Greenhouse gases widely differ by their concentration and residence time in
the atmosphere and by their warming potential. Concentrations vary by more
than eight orders of magnitude, and their warming potential varies by more
than four orders of magnitude. Residence time can differ more than three
orders of magnitude.
Gas name
Chemical
formula
Pre-1750
tropospheric
concentration
Lifetime
(years)
Global warming
potential
20-yr time
horizon
100-yr time
horizon
Carbon dioxide CO2 280 ppm See next slide 1 1
Methane CH4 700 ppb 12 72 25
Nitrous oxide N2O 270 ppb 114 289 298
Ozone O3 25 ppb Days-weeks 62-69
CFC-12 CCl2F2 100 11 000 10 900
HCFC-22 CHClF2 12 5 160 1 810
Tetrafluoromethane CF4 50 000 5 210 7 390
ppm = parts per million by volume
ppb = parts per billion
Table reconstructed from
Wikipedia: [1] [2]
34

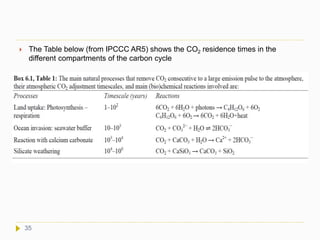

 The Table below (from IPCCC AR5) shows the CO2 residence times in the
different compartments of the carbon cycle
35

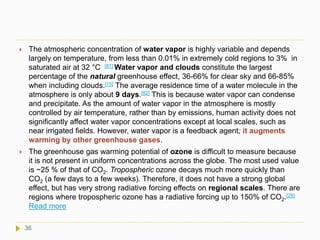

 The atmospheric concentration of water vapor is highly variable and depends
largely on temperature, from less than 0.01% in extremely cold regions to 3% in
saturated air at 32 °C [81] Water vapor and clouds constitute the largest
percentage of the natural greenhouse effect, 36-66% for clear sky and 66-85%
when including clouds.[15] The average residence time of a water molecule in the
atmosphere is only about 9 days.[82] This is because water vapor can condense
and precipitate. As the amount of water vapor in the atmosphere is mostly
controlled by air temperature, rather than by emissions, human activity does not
significantly affect water vapor concentrations except at local scales, such as
near irrigated fields. However, water vapor is a feedback agent; it augments
warming by other greenhouse gases.
 The greenhouse gas warming potential of ozone is difficult to measure because
it is not present in uniform concentrations across the globe. The most used value
is ~25 % of that of CO2. Tropospheric ozone decays much more quickly than
CO2 (a few days to a few weeks). Therefore, it does not have a strong global
effect, but has very strong radiative forcing effects on regional scales. There are
regions where tropospheric ozone has a radiative forcing up to 150% of CO2.[29]
Read more
36

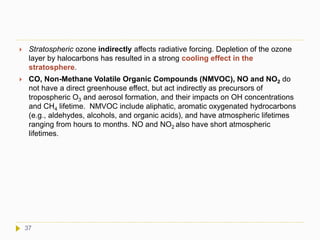

 Stratospheric ozone indirectly affects radiative forcing. Depletion of the ozone
layer by halocarbons has resulted in a strong cooling effect in the
stratosphere.
 CO, Non-Methane Volatile Organic Compounds (NMVOC), NO and NO2 do
not have a direct greenhouse effect, but act indirectly as precursors of
tropospheric O3 and aerosol formation, and their impacts on OH concentrations
and CH4 lifetime. NMVOC include aliphatic, aromatic oxygenated hydrocarbons
(e.g., aldehydes, alcohols, and organic acids), and have atmospheric lifetimes
ranging from hours to months. NO and NO2 also have short atmospheric
lifetimes.
37

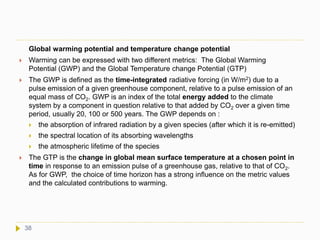

Global warming potential and temperature change potential
 Warming can be expressed with two different metrics: The Global Warming
Potential (GWP) and the Global Temperature change Potential (GTP)
 The GWP is defined as the time-integrated radiative forcing (in W/m2) due to a
pulse emission of a given greenhouse component, relative to a pulse emission of an
equal mass of CO2. GWP is an index of the total energy added to the climate
system by a component in question relative to that added by CO2 over a given time
period, usually 20, 100 or 500 years. The GWP depends on :
 the absorption of infrared radiation by a given species (after which it is re-emitted)
 the spectral location of its absorbing wavelengths
 the atmospheric lifetime of the species
 The GTP is the change in global mean surface temperature at a chosen point in
time in response to an emission pulse of a greenhouse gas, relative to that of CO2.
As for GWP, the choice of time horizon has a strong influence on the metric values
and the calculated contributions to warming.
38

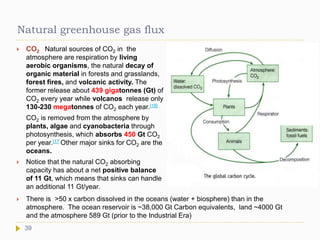

Natural greenhouse gas flux
 CO2 Natural sources of CO2 in the
atmosphere are respiration by living
aerobic organisms, the natural decay of
organic material in forests and grasslands,
forest fires, and volcanic activity. The
former release about 439 gigatonnes (Gt) of
CO2 every year while volcanos release only
130-230 megatonnes of CO2 each year.[18]
CO2 is removed from the atmosphere by
plants, algae and cyanobacteria through
photosynthesis, which absorbs 450 Gt CO2
per year.[17 Other major sinks for CO2 are the
oceans.
 Notice that the natural CO2 absorbing
capacity has about a net positive balance
of 11 Gt, which means that sinks can handle
an additional 11 Gt/year.
39
 There is >50 x carbon dissolved in the oceans (water + biosphere) than in the
atmosphere. The ocean reservoir is ~38,000 Gt Carbon equivalents, land ~4000 Gt
and the atmosphere 589 Gt (prior to the Industrial Era)

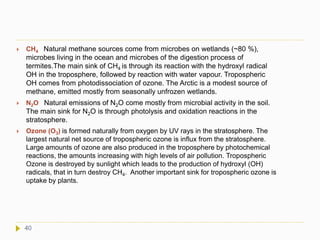

 CH4 Natural methane sources come from microbes on wetlands (~80 %),
microbes living in the ocean and microbes of the digestion process of
termites.The main sink of CH4 is through its reaction with the hydroxyl radical
OH in the troposphere, followed by reaction with water vapour. Tropospheric
OH comes from photodissociation of ozone. The Arctic is a modest source of
methane, emitted mostly from seasonally unfrozen wetlands.
 N2O Natural emissions of N2O come mostly from microbial activity in the soil.
The main sink for N2O is through photolysis and oxidation reactions in the
stratosphere.
 Ozone (O3) is formed naturally from oxygen by UV rays in the stratosphere. The
largest natural net source of tropospheric ozone is influx from the stratosphere.
Large amounts of ozone are also produced in the troposphere by photochemical
reactions, the amounts increasing with high levels of air pollution. Tropospheric
Ozone is destroyed by sunlight which leads to the production of hydroxyl (OH)
radicals, that in turn destroy CH4. Another important sink for tropospheric ozone is
uptake by plants.
40

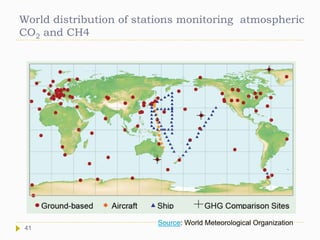

World distribution of stations monitoring atmospheric
CO2 and CH4
Source: World Meteorological Organization
41

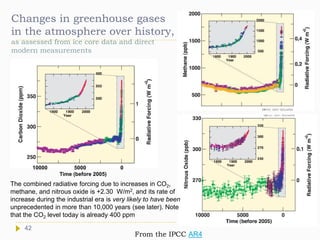

Changes in greenhouse gases
in the atmosphere over history,
as assessed from ice core data and direct
modern measurements
10000 5000 0
Time (before 2005)
The combined radiative forcing due to increases in CO2,
methane, and nitrous oxide is +2.30 W/m2, and its rate of
increase during the industrial era is very likely to have been
unprecedented in more than 10,000 years (see later). Note
that the CO2 level today is already 400 ppm
From the IPCC AR4
42

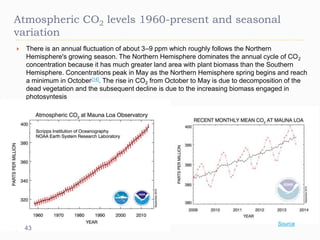

Atmospheric CO2 levels 1960-present and seasonal
variation
 There is an annual fluctuation of about 3–9 ppm which roughly follows the Northern
Hemisphere's growing season. The Northern Hemisphere dominates the annual cycle of CO2
concentration because it has much greater land area with plant biomass than the Southern
Hemisphere. Concentrations peak in May as the Northern Hemisphere spring begins and reach
a minimum in October[14]. The rise in CO2 from October to May is due to decomposition of the
dead vegetation and the subsequent decline is due to the increasing biomass engaged in
photosyntesis
Source
43

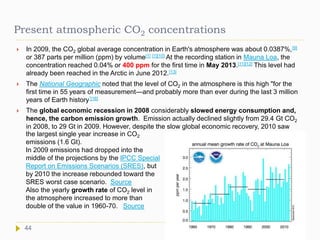

Present atmospheric CO2 concentrations
 In 2009, the CO2 global average concentration in Earth's atmosphere was about 0.0387%,[9]
or 387 parts per million (ppm) by volume[1] [1][10] At the recording station in Mauna Loa, the
concentration reached 0.04% or 400 ppm for the first time in May 2013.[11][12] This level had
already been reached in the Arctic in June 2012.[13]
 The National Geographic noted that the level of CO2 in the atmosphere is this high "for the
first time in 55 years of measurement—and probably more than ever during the last 3 million
years of Earth history”[16]
 The global economic recession in 2008 considerably slowed energy consumption and,
hence, the carbon emission growth. Emission actually declined slightly from 29.4 Gt CO2
in 2008, to 29 Gt in 2009. However, despite the slow global economic recovery, 2010 saw
44
the largest single year increase in CO2
emissions (1.6 Gt).
In 2009 emissions had dropped into the
middle of the projections by the IPCC Special
Report on Emissions Scenarios (SRES), but
by 2010 the increase rebounded toward the
SRES worst case scenario. Source
Also the yearly growth rate of CO2 level in
the atmosphere increased to more than
double of the value in 1960-70. Source

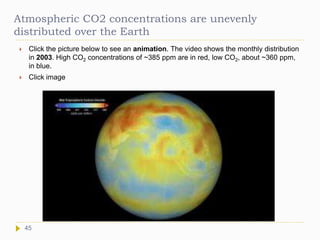

Atmospheric CO2 concentrations are unevenly
distributed over the Earth
 Click the picture below to see an animation. The video shows the monthly distribution
in 2003. High CO2 concentrations of ~385 ppm are in red, low CO2, about ~360 ppm,
in blue.
 Click image
45

Tropospheric ozone
 Tropospheric ozone levels are spatially and temporally highly heterogeneous.
Ozone forcing increased throughout the 20th century, with highest levels at altitudes
around 15°–30°North due to tropospheric pollution but negative values over Antarctica
due to stratospheric loss late in the century.
The Figure shows the distribution over the globe of the mean radiative forcing
(W/m2) due to ozone for the indicated times, based on multi-model simulations.
Global area-weighted means are given in the upper right. From IPCC AR5 Figure
8.25
46

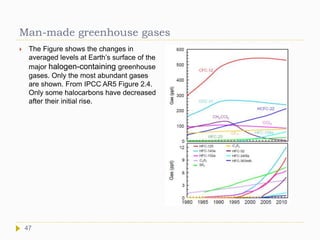

Man-made greenhouse gases
 The Figure shows the changes in
averaged levels at Earth’s surface of the
major halogen-containing greenhouse
gases. Only the most abundant gases
are shown. From IPCC AR5 Figure 2.4.
Only some halocarbons have decreased
after their initial rise.
47

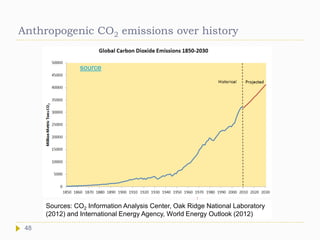

Anthropogenic CO2 emissions over history
Sources: CO2 Information Analysis Center, Oak Ridge National Laboratory
(2012) and International Energy Agency, World Energy Outlook (2012)
48
source

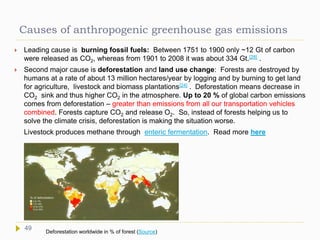

Causes of anthropogenic greenhouse gas emissions
 Leading cause is burning fossil fuels: Between 1751 to 1900 only ~12 Gt of carbon
were released as CO2, whereas from 1901 to 2008 it was about 334 Gt.[28] .
 Second major cause is deforestation and land use change: Forests are destroyed by
humans at a rate of about 13 million hectares/year by logging and by burning to get land
for agriculture, livestock and biomass plantations[24] . Deforestation means decrease in
CO2 sink and thus higher CO2 in the atmosphere. Up to 20 % of global carbon emissions
comes from deforestation – greater than emissions from all our transportation vehicles
combined. Forests capture CO2 and release O2. So, instead of forests helping us to
solve the climate crisis, deforestation is making the situation worse.
Livestock produces methane through enteric fermentation. Read more here
Deforestation worldwide in % of forest (Source)
49

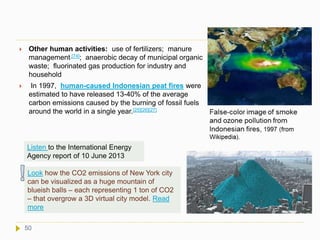

 Other human activities: use of fertilizers; manure
management [74]; anaerobic decay of municipal organic
waste; fluorinated gas production for industry and
household
 In 1997, human-caused Indonesian peat fires were
estimated to have released 13-40% of the average
carbon emissions caused by the burning of fossil fuels
around the world in a single year.[25][26][27]
50
Listen to the International Energy
Agency report of 10 June 2013
Look how the CO2 emissions of New York city
can be visualized as a huge mountain of
blueish balls – each representing 1 ton of CO2
– that overgrow a 3D virtual city model. Read
more

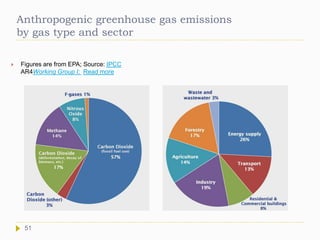

Anthropogenic greenhouse gas emissions
by gas type and sector
 Figures are from EPA; Source: IPCC
AR4Working Group I; Read more
51

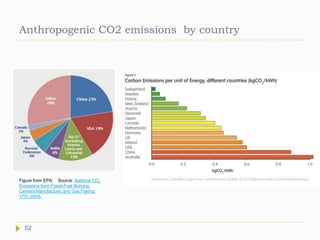

Anthropogenic CO2 emissions by country
Figure from EPA; Source: National CO2
Emissions from Fossil-Fuel Burning,
Cement Manufacture, and Gas Flaring:
1751-2008.
52

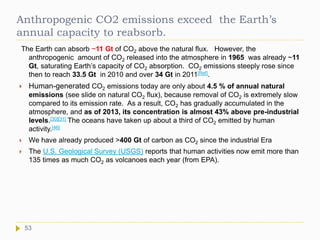

Anthropogenic CO2 emissions exceed the Earth’s
annual capacity to reabsorb.
The Earth can absorb ~11 Gt of CO2 above the natural flux. However, the
anthropogenic amount of CO2 released into the atmosphere in 1965 was already ~11
Gt, saturating Earth’s capacity of CO2 absorption. CO2 emissions steeply rose since
then to reach 33.5 Gt in 2010 and over 34 Gt in 2011[Ref].
 Human-generated CO2 emissions today are only about 4.5 % of annual natural
emissions (see slide on natural CO2 flux), because removal of CO2 is extremely slow
compared to its emission rate. As a result, CO2 has gradually accumulated in the
atmosphere, and as of 2013, its concentration is almost 43% above pre-industrial
levels.[30][31] The oceans have taken up about a third of CO2 emitted by human
activity.[46]
 We have already produced >400 Gt of carbon as CO2 since the industrial Era
 The U.S. Geological Survey (USGS) reports that human activities now emit more than
135 times as much CO2 as volcanoes each year (from EPA).
53

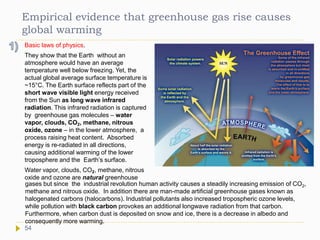

Empirical evidence that greenhouse gas rise causes
global warming
Basic laws of physics.
They show that the Earth without an
atmosphere would have an average
temperature well below freezing. Yet, the
actual global average surface temperature is
~15°C. The Earth surface reflects part of the
short wave visible light energy received
from the Sun as long wave infrared
radiation. This infrared radiation is captured
by greenhouse gas molecules – water
vapor, clouds, CO2, methane, nitrous
oxide, ozone – in the lower atmosphere, a
process raising heat content. Absorbed
energy is re-radiated in all directions,
causing additional warming of the lower
troposphere and the Earth’s surface.
Water vapor, clouds, CO2, methane, nitrous
oxide and ozone are natural greenhouse
gases but since the industrial revolution human activity causes a steadily increasing emission of CO2,
methane and nitrous oxide. In addition there are man-made artificial greenhouse gases known as
halogenated carbons (halocarbons). Industrial pollutants also increased tropospheric ozone levels,
while pollution with black carbon provokes an additional longwave radiation from that carbon.
Furthermore, when carbon dust is deposited on snow and ice, there is a decrease in albedo and
consequently more warming.
54

Measurement of downward thermal radiation started to become available during the early
1990s at a limited number of worldwide distributed sites. From these records, Wild et al.
(2008) determined an overall increase of +2.6 W/m2 per decade over the 1990s, in line with
what climate models project. Measurements at eight radiation stations distributed over the
central Alps have shown that atmospheric longwave downward radiation significantly
increased with +1.8 W/m2 over eight years (Philipona et al, 2004).
Satellites have measured a trend of less heat escaping to space at exactly the wavelengths
that absorb CO2, which is consistent with a risen CO2 greenhouse effect in the lower
atmosphere.
Satellites have measured the stratosphere to cool. If the surface warming is due to a rise in
the greenhouse effect, the stratosphere should cool because of the heat being trapped in the
lower atmosphere (the troposphere). Next Figure shows that this is indeed the case.
An increased greenhouse effect would make nights warm faster than days, and this is what has been
observed. This is because infrared radiation continues during the night, whereas warming during the
day stops at night
Global temperature anomalies in the
lower Stratosphere between 1960 and
2010 (base period: 1981–2010) showing
cooling. The Figure shows 5 different
data sets (in different colors), displaying
high concordance. From IPCC AR5
Figure 2.24.
55

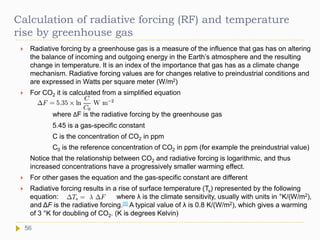

Calculation of radiative forcing (RF) and temperature
rise by greenhouse gas
 Radiative forcing by a greenhouse gas is a measure of the influence that gas has on altering
the balance of incoming and outgoing energy in the Earth’s atmosphere and the resulting
change in temperature. It is an index of the importance that gas has as a climate change
mechanism. Radiative forcing values are for changes relative to preindustrial conditions and
are expressed in Watts per square meter (W/m2)
 For CO2 it is calculated from a simplified equation
where ΔF is the radiative forcing by the greenhouse gas
5.45 is a gas-specific constant
C is the concentration of CO2 in ppm
C0 is the reference concentration of CO2 in ppm (for example the preindustrial value)
Notice that the relationship between CO2 and radiative forcing is logarithmic, and thus
increased concentrations have a progressively smaller warming effect.
 For other gases the equation and the gas-specific constant are different
 Radiative forcing results in a rise of surface temperature (Ts) represented by the following
equation: where λ is the climate sensitivity, usually with units in °K/(W/m2),
and ΔF is the radiative forcing.[5] A typical value of λ is 0.8 K/(W/m2), which gives a warming
of 3 °K for doubling of CO2. (K is degrees Kelvin)
56

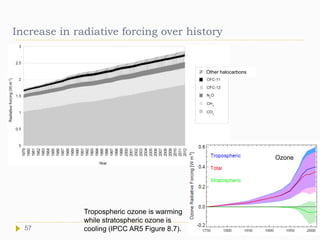

Increase in radiative forcing over history

Other halocarbons
Ozone
Tropospheric ozone is warming
while stratospheric ozone is
cooling (IPCC AR5 Figure 8.7).57

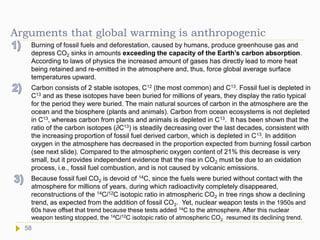

Arguments that global warming is anthropogenic
Burning of fossil fuels and deforestation, caused by humans, produce greenhouse gas and
depress CO2 sinks in amounts exceeding the capacity of the Earth’s carbon absorption.
According to laws of physics the increased amount of gases has directly lead to more heat
being retained and re-emitted in the atmosphere and, thus, force global average surface
temperatures upward.
Carbon consists of 2 stable isotopes, C12 (the most common) and C13. Fossil fuel is depleted in
C13 and as these isotopes have been buried for millions of years, they display the ratio typical
for the period they were buried. The main natural sources of carbon in the atmosphere are the
ocean and the biosphere (plants and animals). Carbon from ocean ecosystems is not depleted
in C13, whereas carbon from plants and animals is depleted in C13. It has been shown that the
ratio of the carbon isotopes (∂C13) is steadily decreasing over the last decades, consistent with
the increasing proportion of fossil fuel derived carbon, which is depleted in C13. In addition
oxygen in the atmosphere has decreased in the proportion expected from burning fossil carbon
(see next slide). Compared to the atmospheric oxygen content of 21% this decrease is very
small, but it provides independent evidence that the rise in CO2 must be due to an oxidation
process, i.e., fossil fuel combustion, and is not caused by volcanic emissions.
Because fossil fuel CO2 is devoid of 14C, since the fuels were buried without contact with the
atmosphere for millions of years, during which radioactivity completely disappeared,
reconstructions of the 14C/12C isotopic ratio in atmospheric CO2 in tree rings show a declining
trend, as expected from the addition of fossil CO2. Yet, nuclear weapon tests in the 1950s and
60s have offset that trend because these tests added 14C to the atmosphere. After this nuclear
weapon testing stopped, the 14C/12C isotopic ratio of atmospheric CO2 resumed its declining trend.
58

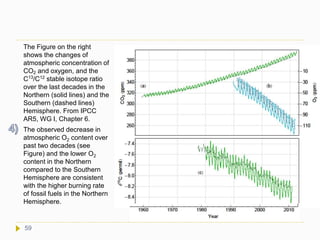

The Figure on the right
shows the changes of
atmospheric concentration of
CO2 and oxygen, and the
C13
/C12
stable isotope ratio
over the last decades in the
Northern (solid lines) and the
Southern (dashed lines)
Hemisphere. From IPCC
AR5, WG I, Chapter 6.
The observed decrease in
atmospheric O2 content over
past two decades (see
Figure) and the lower O2
content in the Northern
compared to the Southern
Hemisphere are consistent
with the higher burning rate
of fossil fuels in the Northern
Hemisphere.
59

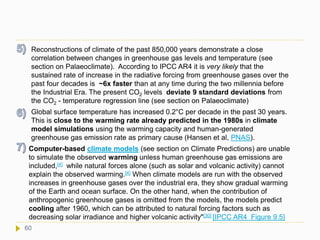

Reconstructions of climate of the past 850,000 years demonstrate a close
correlation between changes in greenhouse gas levels and temperature (see
section on Palaeoclimate). According to IPCC AR4 it is very likely that the
sustained rate of increase in the radiative forcing from greenhouse gases over the
past four decades is ~6x faster than at any time during the two millennia before
the Industrial Era. The present CO2 levels deviate 9 standard deviations from
the CO2 - temperature regression line (see section on Palaeoclimate)
Global surface temperature has increased 0.2°C per decade in the past 30 years.
This is close to the warming rate already predicted in the 1980s in climate
model simulations using the warming capacity and human-generated
greenhouse gas emission rate as primary cause (Hansen et al, PNAS).
Computer-based climate models (see section on Climate Predictions) are unable
to simulate the observed warming unless human greenhouse gas emissions are
included,[4] while natural forces alone (such as solar and volcanic activity) cannot
explain the observed warming.[4] When climate models are run with the observed
increases in greenhouse gases over the industrial era, they show gradual warming
of the Earth and ocean surface. On the other hand, when the contribution of
anthropogenic greenhouse gases is omitted from the models, the models predict
cooling after 1960, which can be attributed to natural forcing factors such as
decreasing solar irradiance and higher volcanic activity"[30] [IPCC AR4 Figure 9.5]
60

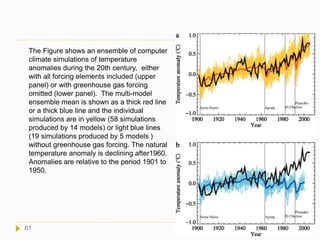

The Figure shows an ensemble of computer
climate simulations of temperature
anomalies during the 20th century, either
with all forcing elements included (upper
panel) or with greenhouse gas forcing
omitted (lower panel). The multi-model
ensemble mean is shown as a thick red line
or a thick blue line and the individual
simulations are in yellow (58 simulations
produced by 14 models) or light blue lines
(19 simulations produced by 5 models )
without greenhouse gas forcing. The natural
temperature anomaly is declining after1960.
Anomalies are relative to the period 1901 to
1950.
61

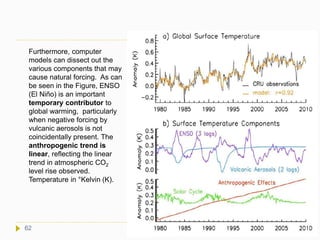

Furthermore, computer
models can dissect out the
various components that may
cause natural forcing. As can
be seen in the Figure, ENSO
(El Niño) is an important
temporary contributor to
global warming, particularly
when negative forcing by
vulcanic aerosols is not
coincidentally present. The
anthropogenic trend is
linear, reflecting the linear
trend in atmospheric CO2
level rise observed.
Temperature in °Kelvin (K).
62

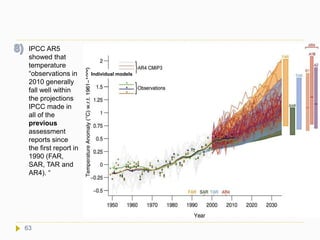

IPCC AR5
showed that
temperature
“observations in
2010 generally
fall well within
the projections
IPCC made in
all of the
previous
assessment
reports since
the first report in
1990 (FAR,
SAR, TAR and
AR4). “
Individual models
63

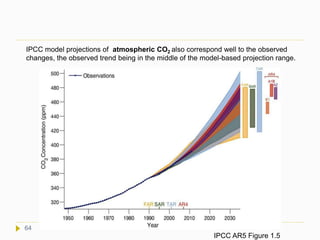

IPCC model projections of atmospheric CO2 also correspond well to the observed
changes, the observed trend being in the middle of the model-based projection range.
IPCC AR5 Figure 1.5
64

N2O level rose over the lower limit of the IPCC projected values. However, the model-
projected rise of CH4 was higher than that observed during the last decade
. From IPCC AR5 Figure 1.6 and 1.765

,
66

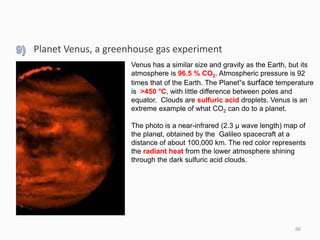

Venus has a similar size and gravity as the Earth, but its
atmosphere is 96.5 % CO2. Atmospheric pressure is 92
times that of the Earth. The Planet”s surface temperature
is >450 °C, with little difference between poles and
equator. Clouds are sulfuric acid droplets. Venus is an
extreme example of what CO2 can do to a planet.
The photo is a near-infrared (2.3 µ wave length) map of
the planet, obtained by the Galileo spacecraft at a
distance of about 100,000 km. The red color represents
the radiant heat from the lower atmosphere shining
through the dark sulfuric acid clouds.
Planet Venus, a greenhouse gas experiment

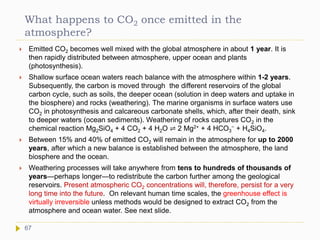

What happens to CO2 once emitted in the
atmosphere?
 Emitted CO2 becomes well mixed with the global atmosphere in about 1 year. It is
then rapidly distributed between atmosphere, upper ocean and plants
(photosynthesis).
 Shallow surface ocean waters reach balance with the atmosphere within 1-2 years.
Subsequently, the carbon is moved through the different reservoirs of the global
carbon cycle, such as soils, the deeper ocean (solution in deep waters and uptake in
the biosphere) and rocks (weathering). The marine organisms in surface waters use
CO2 in photosynthesis and calcareous carbonate shells, which, after their death, sink
to deeper waters (ocean sediments). Weathering of rocks captures CO2 in the
chemical reaction Mg2SiO4 + 4 CO2 + 4 H2O ⇌ 2 Mg2+ + 4 HCO3
− + H4SiO4.
 Between 15% and 40% of emitted CO2 will remain in the atmosphere for up to 2000
years, after which a new balance is established between the atmosphere, the land
biosphere and the ocean.
 Weathering processes will take anywhere from tens to hundreds of thousands of
years—perhaps longer—to redistribute the carbon further among the geological
reservoirs. Present atmospheric CO2 concentrations will, therefore, persist for a very
long time into the future. On relevant human time scales, the greenhouse effect is
virtually irreversible unless methods would be designed to extract CO2 from the
atmosphere and ocean water. See next slide.
67

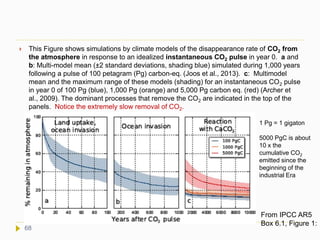

 This Figure shows simulations by climate models of the disappearance rate of CO2 from
the atmosphere in response to an idealized instantaneous CO2 pulse in year 0. a and
b: Multi-model mean (±2 standard deviations, shading blue) simulated during 1,000 years
following a pulse of 100 petagram (Pg) carbon-eq. (Joos et al., 2013). c: Multimodel
mean and the maximum range of these models (shading) for an instantaneous CO2 pulse
in year 0 of 100 Pg (blue), 1,000 Pg (orange) and 5,000 Pg carbon eq. (red) (Archer et
al., 2009). The dominant processes that remove the CO2 are indicated in the top of the
panels. Notice the extremely slow removal of CO2.
From IPCC AR5
Box 6.1, Figure 1:
1 Pg = 1 gigaton
5000 PgC is about
10 x the
cumulative CO2
emitted since the
beginning of the
industrial Era
68

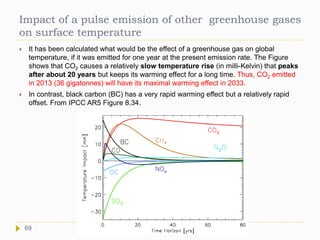

Impact of a pulse emission of other greenhouse gases
on surface temperature
 It has been calculated what would be the effect of a greenhouse gas on global
temperature, if it was emitted for one year at the present emission rate. The Figure
shows that CO2 causes a relatively slow temperature rise (in milli-Kelvin) that peaks
after about 20 years but keeps its warming effect for a long time. Thus, CO2 emitted
in 2013 (36 gigatonnes) will have its maximal warming effect in 2033.
 In contrast, black carbon (BC) has a very rapid warming effect but a relatively rapid
offset. From IPCC AR5 Figure 8.34.
69

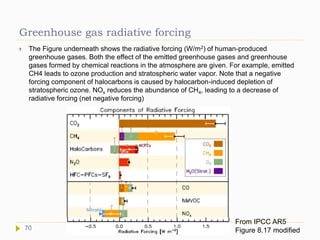

Greenhouse gas radiative forcing
 The Figure underneath shows the radiative forcing (W/m2) of human-produced
greenhouse gases. Both the effect of the emitted greenhouse gases and greenhouse
gases formed by chemical reactions in the atmosphere are given. For example, emitted
CH4 leads to ozone production and stratospheric water vapor. Note that a negative
forcing component of halocarbons is caused by halocarbon-induced depletion of
stratospheric ozone. NOx reduces the abundance of CH4, leading to a decrease of
radiative forcing (net negative forcing)
From IPCC AR5
Figure 8.17 modified70

Feedbacks on radiative forcing
 Feedbacks are an important factor in determining the sensitivity of the climate
system to increased atmospheric greenhouse gas concentrations. Other factors being
equal, a higher climate sensitivity means that more warming will occur for a given
increase in greenhouse gas forcing.[114] If feedback is negative, greenhouse gas rise
will have less effect on warming.
 The main negative feedback on global warming is the energy which the Earth's
surface radiates into space as infrared radiation.[112] According to the Stefan-
Boltzmann law, if temperature doubles, radiated energy increases by a factor of 16 (2
to the 4th power).[113]
 Other feedbacks - that can be negative and positive - are clouds. Clouds have a
greenhouse effect but also reflect solar radiation.
 Positive feedbacks to warming are the following: melting-induced decrease in ice and
snow albedo, water vapor and changes in the Earth's carbon cycle (e.g., the
release of carbon from soil and release of methane from thawed permafrost).[111]
Another important feedback is change in vegetation.
Read more here
71

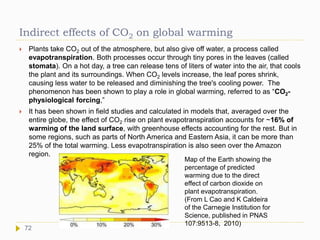

Indirect effects of CO2 on global warming
 Plants take CO2 out of the atmosphere, but also give off water, a process called
evapotranspiration. Both processes occur through tiny pores in the leaves (called
stomata). On a hot day, a tree can release tens of liters of water into the air, that cools
the plant and its surroundings. When CO2 levels increase, the leaf pores shrink,
causing less water to be released and diminishing the tree's cooling power. The
phenomenon has been shown to play a role in global warming, referred to as “CO2-
physiological forcing,”
 It has been shown in field studies and calculated in models that, averaged over the
entire globe, the effect of CO2 rise on plant evapotranspiration accounts for ~16% of
warming of the land surface, with greenhouse effects accounting for the rest. But in
some regions, such as parts of North America and Eastern Asia, it can be more than
25% of the total warming. Less evapotranspiration is also seen over the Amazon
region.
Map of the Earth showing the
percentage of predicted
warming due to the direct
effect of carbon dioxide on
plant evapotranspiration.
(From L Cao and K Caldeira
of the Carnegie Institution for
Science, published in PNAS
107:9513-8, 2010)
72

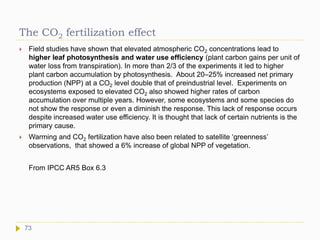

The CO2 fertilization effect
 Field studies have shown that elevated atmospheric CO2 concentrations lead to
higher leaf photosynthesis and water use efficiency (plant carbon gains per unit of
water loss from transpiration). In more than 2/3 of the experiments it led to higher
plant carbon accumulation by photosynthesis. About 20–25% increased net primary
production (NPP) at a CO2 level double that of preindustrial level. Experiments on
ecosystems exposed to elevated CO2 also showed higher rates of carbon
accumulation over multiple years. However, some ecosystems and some species do
not show the response or even a diminish the response. This lack of response occurs
despite increased water use efficiency. It is thought that lack of certain nutrients is the
primary cause.
 Warming and CO2 fertilization have also been related to satellite ‘greenness’
observations, that showed a 6% increase of global NPP of vegetation.
From IPCC AR5 Box 6.3
73

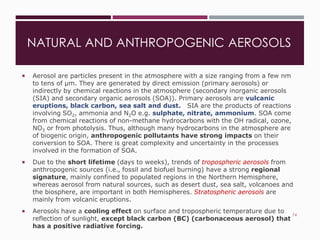

NATURAL AND ANTHROPOGENIC AEROSOLS
 Aerosol are particles present in the atmosphere with a size ranging from a few nm
to tens of µm. They are generated by direct emission (primary aerosols) or
indirectly by chemical reactions in the atmosphere (secondary inorganic aerosols
(SIA) and secondary organic aerosols (SOA)). Primary aerosols are vulcanic
eruptions, black carbon, sea salt and dust. SIA are the products of reactions
involving SO2, ammonia and N2O e.g. sulphate, nitrate, ammonium. SOA come
from chemical reactions of non-methane hydrocarbons with the OH radical, ozone,
NO3 or from photolysis. Thus, although many hydrocarbons in the atmosphere are
of biogenic origin, anthropogenic pollutants have strong impacts on their
conversion to SOA. There is great complexity and uncertainty in the processes
involved in the formation of SOA.
 Due to the short lifetime (days to weeks), trends of tropospheric aerosols from
anthropogenic sources (i.e., fossil and biofuel burning) have a strong regional
signature, mainly confined to populated regions in the Northern Hemisphere,
whereas aerosol from natural sources, such as desert dust, sea salt, volcanoes and
the biosphere, are important in both Hemispheres. Stratospheric aerosols are
mainly from volcanic eruptions.
 Aerosols have a cooling effect on surface and tropospheric temperature due to
reflection of sunlight, except black carbon (BC) (carbonaceous aerosol) that
has a positive radiative forcing.
74

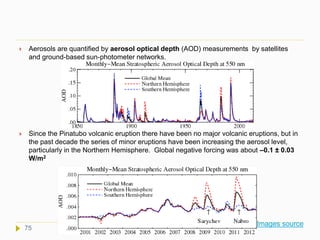

 Aerosols are quantified by aerosol optical depth (AOD) measurements by satellites
and ground-based sun-photometer networks.
 Since the Pinatubo volcanic eruption there have been no major volcanic eruptions, but in
the past decade the series of minor eruptions have been increasing the aerosol level,
particularly in the Northern Hemisphere. Global negative forcing was about –0.1 ± 0.03
W/m2
Images source
75

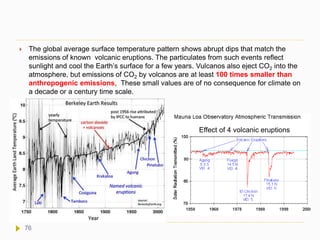

 The global average surface temperature pattern shows abrupt dips that match the
emissions of known volcanic eruptions. The particulates from such events reflect
sunlight and cool the Earth’s surface for a few years. Vulcanos also eject CO2 into the
atmosphere, but emissions of CO2 by volcanos are at least 100 times smaller than
anthropogenic emissions, These small values are of no consequence for climate on
a decade or a century time scale.
Effect of 4 volcanic eruptions
76

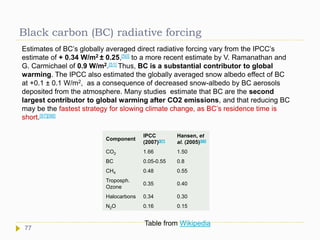

Black carbon (BC) radiative forcing
Component
IPCC
(2007)[67]
Hansen, et
al. (2005)[68]
CO2 1.66 1.50
BC 0.05-0.55 0.8
CH4 0.48 0.55
Troposph.
Ozone
0.35 0.40
Halocarbons 0.34 0.30
N2O 0.16 0.15
Estimates of BC’s globally averaged direct radiative forcing vary from the IPCC’s
estimate of + 0.34 W/m2 ± 0.25,[50] to a more recent estimate by V. Ramanathan and
G. Carmichael of 0.9 W/m2.[51] Thus, BC is a substantial contributor to global
warming. The IPCC also estimated the globally averaged snow albedo effect of BC
at +0.1 ± 0.1 W/m2, as a consequence of decreased snow-albedo by BC aerosols
deposited from the atmosphere. Many studies estimate that BC are the second
largest contributor to global warming after CO2 emissions, and that reducing BC
may be the fastest strategy for slowing climate change, as BC’s residence time is
short.[97][98]
Table from Wikipedia
77

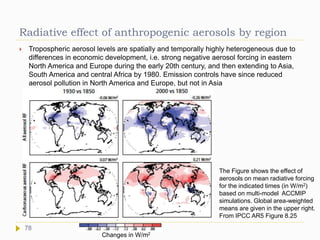

Radiative effect of anthropogenic aerosols by region
 Tropospheric aerosol levels are spatially and temporally highly heterogeneous due to
differences in economic development, i.e. strong negative aerosol forcing in eastern
North America and Europe during the early 20th century, and then extending to Asia,
South America and central Africa by 1980. Emission controls have since reduced
aerosol pollution in North America and Europe, but not in Asia
Changes in W/m2
The Figure shows the effect of
aerosols on mean radiative forcing
for the indicated times (in W/m2)
based on multi-model ACCMIP
simulations. Global area-weighted
means are given in the upper right.
From IPCC AR5 Figure 8.25
78

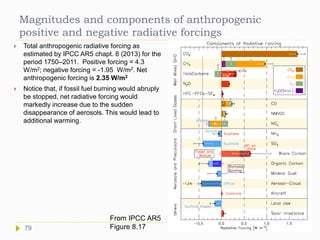

Magnitudes and components of anthropogenic
positive and negative radiative forcings
 Total anthropogenic radiative forcing as
estimated by IPCC AR5 chapt. 8 (2013) for the
period 1750–2011. Positive forcing = 4.3
W/m2; negative forcing = -1.95 W/m2. Net
anthropogenic forcing is 2.35 W/m2
 Notice that, if fossil fuel burning would abruply
be stopped, net radiative forcing would
markedly increase due to the sudden
disappearance of aerosols. This would lead to
additional warming.
From IPCC AR5
Figure 8.1779

WARMING BY CHANGES IN SOLAR
RADIATION?
 Solar energy directly heats the climate system.
 Total solar irradiance (TSI) at the top of the atmosphere can be measured
directly by satellites since 1975. TSI is variable over short and longterm time
scales.
 Indirect estimates of variation in TSI have been obtained from sunspot
observations over the last 400 years. There is an 11-year cycle in sunspot
number, a higher number being indicative for more irradiance. The
magnitude varies from cycle to cycle. Average TSI level also fluctuates on
a centennial time scale, with minimum sunspot episodes, such as the
Maunder Minimum (1645–1715) and the Dalton Minimum (1795–1825), and
maximum sunspot episodes, such as the Grand Modern Maximum since
~1950.
80

Data source: SIDC - Solar
Influences Data Analysis Center
(Data are through July 2013,
Last modified: 2013/09/01). See
also
http://www.columbia.edu/~mhs1
19/Solar/
(SSN)
81

• Since 35 years direct and accurate measurements of TSI could be obtained from
satellites. It was found that sunspot number positively correlates with TSI
measured by satellites.
The figure shows TSI data as measured by different instruments in satellites (adjusted to
a common scale). The lower data are counted sunspots. Over the last 35 years the 11
years cycles of TSI remained similar but with a small decreasing trend of the
maximums.
Source: click here.
82

• TSI measurements from satellites can be correlated with solar sunspot number and
faculae; these correlations can then be used to extrapolate the TSI to time periods prior
to satellite-borne measurements, since the solar records extend back 100 years for
faculae and 400 years for sunspots.
• The figure below is a reconstruction of TSI over the last 400 years based on
measurements from the SORCE satellite by the Total Irradiance Monitor (TIM) and
analyzed in the Solar Radiation and Climate Experiment (SORCE)(University of Colorado,
Boulder). TIM measures the absolute intensity of solar radiation, integrated over the entire
solar irradiance spectrum (between 1 nm and 2000 nm (read more about TIM here).
The 11 years solar cycles are of variable magnitude and average TSI fluctuates with a
centennial period. There was a gradual rise (~0.5 W/m2) in average TSI since the mid-
19th century.
Source:
click here
SORCE satellite in Earth Orbit
83

• IPCC’s AR4 estimate of solar radiation change over the whole industrial era was lower, i.e.
0.12 W/m2 (0.06-0.30 W/m2) and the IPCC AR5 estimate was only 0.04 ± 0.06 W /m2.
There was greater irradiation up to 1980 and then a decrease. The apparent decrease is
due to the decline of the solar maximum of latest two solar sunspot cycles. The present
cycle shows an unusually low minimum and a slower rise toward maximum as well,
suggesting a considerable downward trend in solar activity. Several projections indicate
lower TSI for the forthcoming decades, which may attenuate the global warming trend.
Source
Sato & Hansen,
Columbia University
84

• Another way of estimating solar radiation is by measuring surface solar radiation (SSR),
the solar radiation received on the Earth’s surface. Many observations show a decline in
SSR from the 1950s to the 1980s (‘dimming’), and a ‘brightening’ (2-3 W/m2/decade; see
Figure) from the mid-1980s to 2000. These records are in line with changes in sunshine
duration, diurnal temperature range and evaporation data during these periods (IPCC-AR5
chapt. 2). SSR trends are also in line with observed decadal temperature trends, which
show less warming during phases of declining SSR, and more warming during phases of
increasing SSR. Increased SSR cannot be explained by changes of TSI at the top of the
atmosphere as the latter are more than an order of magnitude smaller (~0.16 W/m2 ).
Rather, the SSR rise could be explained by increased greenhouse gas radiation and
decreased negative forcing by aerosols after 1980.
Annual mean Surface Solar Radiation (SSR) as observed at Stockholm,
Sweden, from 1923 to 2010. Stockholm has the longest SSR record
available worldwide. From IPCC AR5 Figure 2.13: 85

• A warming UV component in solar irradiance? UV may have a more significant
impact on climate than what TSI suggests, as UV produces ozone and ozone is a
greenhouse gas. The IPCC AR5 reports that the 11-years cycles of UV irradiance
between 1750 and the present increased ~25% at ~120 nm, ~8% at 130–175 nm,
and ~4% at 175–200 nm. Thus, the UV irradiance appears to have generally
increased over the past centuries, but the magnitude is too small to be responsible
for global warming. If it affects climate, it is rather via ozone.
• Cosmic rays? Cosmic rays enhance new particle formation in the troposphere, but
the effect on the concentration of cloud condensation nuclei is too weak to have any
detectable climatic influence.
• If the sun were responsible for the observed warming of Earth’s surface and lower
troposphere, one would expect warming of both the troposphere and
stratosphere.[109]This is not the case: the stratosphere is cooling.
CONCLUSION: 1) There is some solar forcing of climate during the 20th century
(0.06-0.30 W/m2), but it remains largely inferior to net anthropogenic radiative
forcing (2.35 W/m2).
2) Solar radiation at the Earth’s surface level, that rose after 1980, can only be
explained by increased greenhouse gas radiation and decreased aerosol
loading.
86

INTERACTION BETWEEN NATURAL CLIMATE
VARIABILITY AND GLOBAL WARMING
87
 Many natural processes temporarily influence the rising trend in
global warming.

Stand-stills in global warming?
 An apparent stand-still of global temperature rise can be seen during the 1940-1975
period, particularly in the northern hemisphere. This is generally attributed to a cooling
event by sulphate aerosols and particulate air pollution, which was seen during the
period of rapid growth of fossil fuel use without there was control on particulate air
pollution.[33] It is postulated that with passage of the “Clean Air Act” in the late 1970's,
which reduced particulate and aerosol emissions, and consequently the cooling effect of
the latter, global warming began a more rapid increase.
 An apparent standstill of the mean global temperature rise can also be seen from 2000 to
2012. The relevance of it is considered low as it is not detectable in the Southern
Hemisphere and one decade is too short to conclude that there is a real standstill. A
number of scientists explain the apparent stand-still by one or more of the following
coincident natural variability events: 1) El Niño in 1998 was exceptionally strong[110],
unusually enhancing global temperature in that year but making temperature look relatively
lower in following years, 2) there was a La Niña from mid-2007 throughout 2008 and in
2011[Ref] , 3) solar irradiance weakened during this period (see later), 4) a negative
phase in the Pacific Decadal 0scillation cycle is in course since the begining of this
century. Other possible mechanisms that have been proposed are: 1) a slowdown in
radiative forcing due to a decrease in stratospheric water vapour since 2000 (Science
327,1219-1223; water vapour in the stratosphere has a warming effect) and 2) the rapid
88

increase of stratospheric and tropospheric aerosols4; several small volcanic
eruptions have caused a cooling of –0.11 [–0.15 to –0.08] W/m2 for the years 2008–
2011, which is approximately twice as strong as during the years 1999–2002. 5All
these negative forcing events may have obscured the man-made greenhouse gas-
evoked warming.
 Furthermore, computer-based climate models have given more direct evidence that
the standstill is due to natural variability:
In 2007 the UK's Met Office Hadley Centre presented the first climate model that does
predict natural internal climate variability, known as the “Met Office Decadal Climate
Prediction System (DePreSys)”. [Ref] The new model is able to take these parameters
into account by including data about the state of the ocean, something that was
difficult to do in the past because of a scarcity of data for the ocean. This model
explains the apparent stand-still of global warming during the last decade.
 In continuation of the latter findings, a 2013 paper in Nature 501, 403–407, presented
another new model that specifically includes the observed history of sea surface
temperature over the central to eastern tropical Pacific (not done in previous
climate models) and showed that the stand-still is very likely caused by the recent
cooling in the eastern equatorial Pacific. The modeled temperature change was in
perfect match with the observed temperature changes (correlation coefficient r = 0.97
for 1970–2012).
89

These recent findings emphasize the strong link between ocean and atmosphere in
determining climate and that climate change due to anthropogenic greenhouse gas
emissions can be attenuated or augmented by natural climate variability.
 Finally, the IPCC AR5 states (Stockholm september 2013) that « mean surface
temperature exhibits substantial decadal and interannual variability. Due to natural
variability, trends based on short records are very sensitive to the beginning and end
dates and do not in general reflect long-term climate trends. »
90

Natural climate variability and the global warming
AMO
Source: NOAA, Short-term Cooling on a Warming Planet,
Author: Michon Scott, 2009
Black and grey lines are global temperature averages
91

El Niño/La Niña
 Global surface temperature anomalies tend to be higher in El Nino years and lower
in La Nina years.
Figure from
World
Meteorological
Organization
92

 ENSO is a dominant source of year-to-year temperature variability9, 11, 12. During the
last several decades, the number of El Niño events tended to increase, and the
number of La Niña to decrease[47], although observations of ENSO for much longer
are needed to detect robust changes.[48] Furthermore, the amplitude of the ENSO
variability increases, by as much as 60% in the last 50 years.[50]The question is
whether this is a random fluctuation or the result of global warming.
 A recent paper in Nature (Nature 502, 541–545, 2013), shed new light on the influence
of climate change on El Niño. The paper shows a stronger agreement among the
different climate models used in predicting the future impact of El Niño. It was found
that future changes in precipitation anomalies during El Niño years are primarily
determined by a nonlinear response to surface global warming. Both wet and dry
anomalies associated with El Niño will be greater in future El Nino years, indicating
that ENSO-augmented droughts and floods are due to climate change.
93

SUMMARY: THE MAIN CAUSES OF GLOBAL
WARMING
The net flow of shortwave solar radiation into the Earth System and the longwave
radiation out to Space determine the Earth’s energy budget. During the industrial
Era this budget became out of balance. Longwave radiation to the Earth surface
and troposphere increased as a consequence of:
1. Anthropogenic greenhouse gas emissions
2. Anthropogenic black carbon aerosols
3. Decreased evapotranspiration-linked cooling arising from ‘CO2-physiological
forcing’
4. Periodic warming by El-Niño
5. A slightly increased solar radiation
Although radiative forcing is attenuated by anthropogenic aerosols and temporally
by volcanic eruption aerosols and La Niña, the effect is too weak to reverse the
warming trend.
Cumulative net radiative forcing between1970 and today added 8x1023 Joules (=
25,000 terrawatt.year) heat energy to the Earth System, which is 40 x more than
our cumulative fossil and nuclear energy consumption over that time period. Ref For
comparison: A 1 Megaton hydrogen bomb = 4x1015 Joules
94

 The Figure shows the cumulative energy
flux (in Joules) into the Earth system from
changes in greenhouse gases, solar forcing,
changes in tropospheric aerosol forcing,
volcanic forcing and surface albedo, (relative
to 1860–1879). From IPCC AR5 Box 13.1,
Figure 1
95

Changes in the atmosphere

More Related Content

What's hot

Similar to Changes in the atmosphere

More from cdenef

Recently uploaded

Changes in the atmosphere
