Challenges in understanding clinical notes: Why NLP engines fall short and where background knowledge can help.

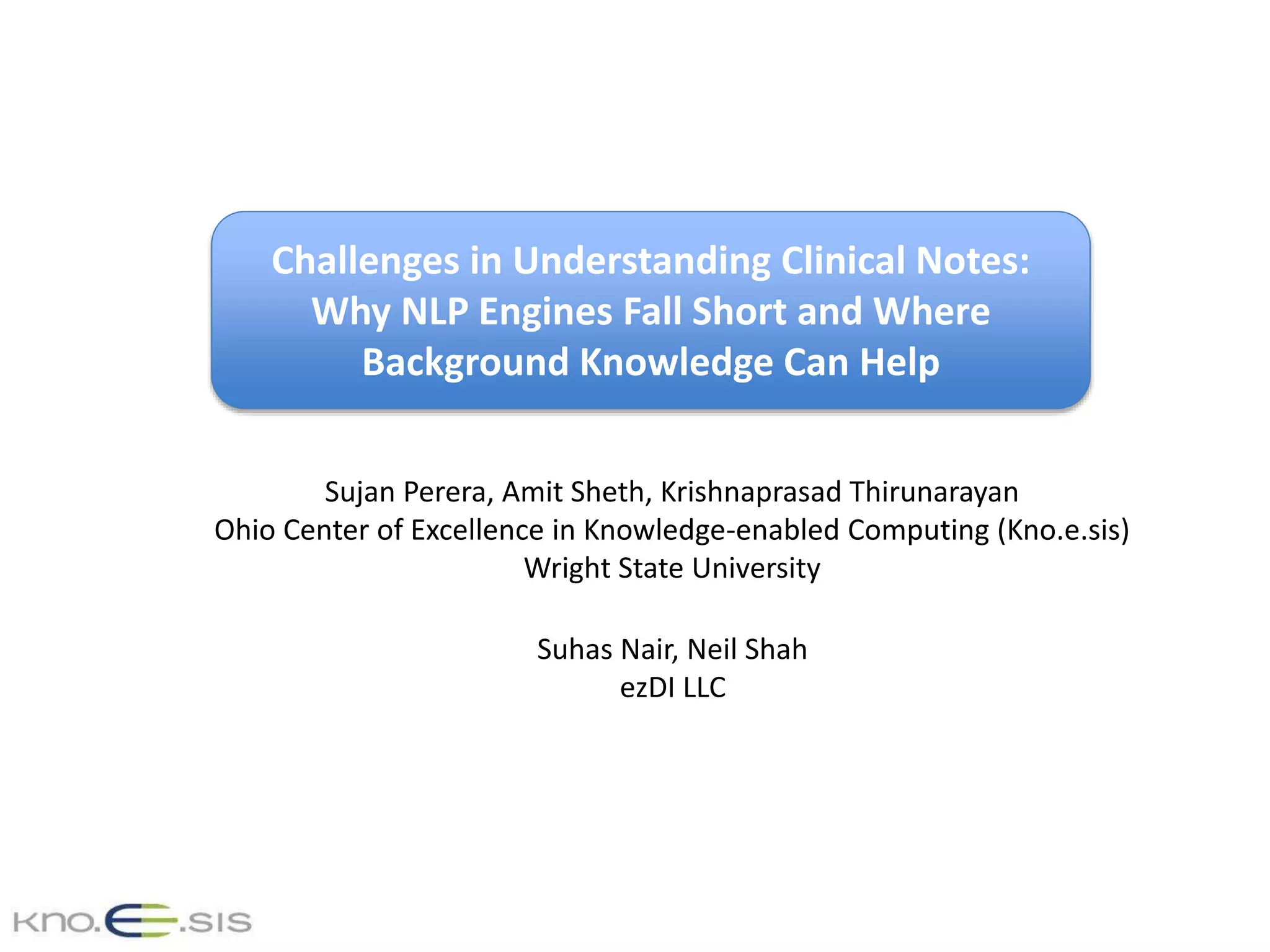

- 1. Challenges in Understanding Clinical Notes: Why NLP Engines Fall Short and Where Background Knowledge Can Help Sujan Perera, Amit Sheth, Krishnaprasad Thirunarayan Ohio Center of Excellence in Knowledge-enabled Computing (Kno.e.sis) Wright State University Suhas Nair, Neil Shah ezDI LLC

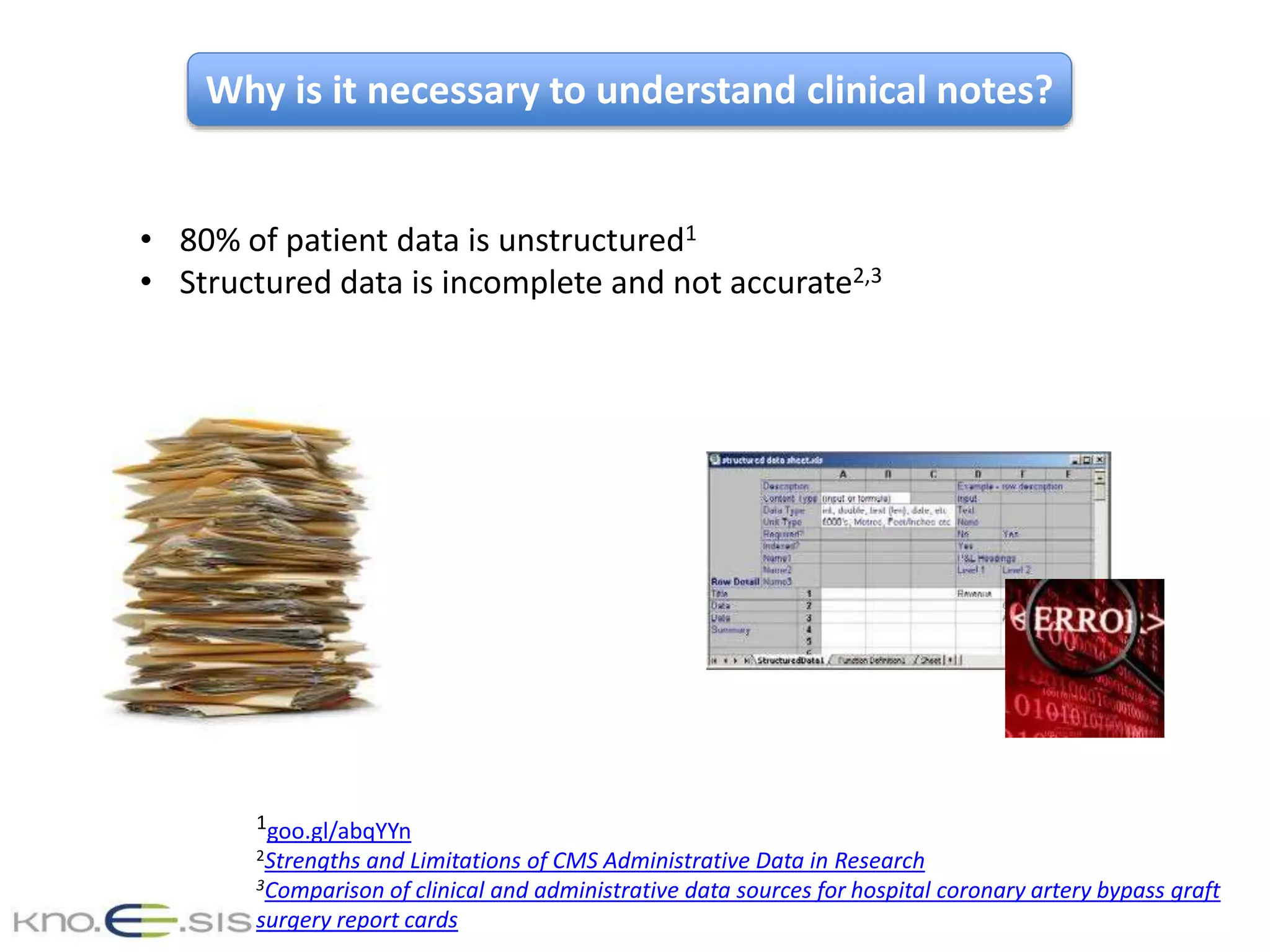

- 2. Why is it necessary to understand clinical notes? • 80% of patient data is unstructured1 • Structured data is incomplete and not accurate2,3 1goo.gl/abqYYn 2Strengths and Limitations of CMS Administrative Data in Research 3Comparison of clinical and administrative data sources for hospital coronary artery bypass graft surgery report cards
- 3. Why is it necessary to understand clinical notes? • Key indicators for decision making reside in patient notes • facilities • “Holter monitor was ordered by Lisa. She failed to get this because she did not have transportation” • non-compliance • “Atrial fibrillation with poorly controlled ventricular rate due to noncompliance.” • financial status • “The patient mentioned that Bystolic is expensive and cannot afford it now.” • family history • “his father is hypertensive”
- 4. • ICD10 adaptation – need to understand the relationships E08 - Diabetes mellitus due to underlying condition E08.0 - Diabetes mellitus due to underlying condition with hyperosmolarity E08.00 - without nonketotic hyperglycemic-hyperosmolar coma (NKHHC) E08.01 - with coma E08.1 - Diabetes mellitus due to underlying condition with ketoacidosis E08.10 - without coma E08.11 – with coma • The underlying condition can be congenital rubella, Cushing's syndrome, cystic fibrosis, malignant neoplasm, malnutrition, pancreatitis Why is it necessary to understand clinical notes?
- 5. Patient Data Distribution Structured data Unstructured data
- 6. Understanding Clinical Notes • What conditions patient has? • What symptoms patient has? • What medications with what dosage he/she taking? • What are the relationships between entities? • What is patients medical history? • What is his/her family history? • What is patients behavior? • What are his diet and discharge instructions?
- 7. Understanding Clinical Notes - Tasks • Entity identification • she does not state that the reason for her stopping after two blocks is shortness of breath or chest discomfort. • Annotate with standard vocabulary • Shortness of breath – UMLS concept C0013404 • Chest discomfort – UMLS concept C0235710 • Relationship identification • Temporal information extraction • if her symptoms do not change at all, she will go back on the lipitor after two weeks. • Negation detection • he has not required any nitroglycerin. • Certainty detection • She is not sure if she is just depressed or not. • Conditioning detection • if he experiences any chest pain, shortness of breath with exertion or dizziness or syncopal episodes to let us know.
- 8. Understanding Linguistic Constructs • Rule based algorithms are popular • simplicity • low computational cost • Maintains a dictionary of words indicate particular language construct • Negation – no, not, deny, cannot, don’t etc • Simple rules deciding applicability • <negation phrase> * <entity> • <entity> * <negation phrase> • Does not associate with the correct phrase of the sentence • Lead to incorrect output • he did not make the increase on his metoprolol. • his weight has not changed and that his edema is primarily at the end of the day. • Sometimes even associating to the correct phrase is not enough • “I do not have an explanation for this dyspnea.” • “there was no evidence of ischemia." • Common to other constructs (certainty and conditioning)
- 9. Leads to Conflicting Instances • Failure to identify such linguistic constructs leads to conflicting instances • Document 1: • Coronary artery disease listed in the current diagnosis list • “Send for carotid duplex to rule out carotid artery stenosis given his risk factors and underlying coronary artery dis- ease.“ • Document 2: • “Extremities : Warm and dry. No clubbing or cyanosis. No lower extremity edema.“ • “I have advised the patient on the side effect of potential lower extremity edema.“ • Document 3 • “He is not having any symptoms of chest pain or exertional syncope or dizziness.” • “I advised him that if he experiences chest pain, shortness of breath with exertion or dizziness or syncopal episodes to let us know and we can do appropriate workup.” • 620 instances within 3172 documents
- 10. Solution • Our method attempts to resolve the conflicts by understanding other observations by leveraging coded domain knowledge Atrial FibrillationSyncope Is_symptom_of Warfarin Atenolol AspirinIs_medication_for Symptoms Medication Medication Medication • We used only medication information because extraction algorithms performs well with its list structure.
- 11. Knowledge Base Domains Cardiology Orthopedics Oncology Neurology Etc… Concepts 1008161 Problems(diseases, symptoms) 125778 Procedures 262360 Medicines 298993 Medical Devices 33124 Relationships 77261 is treated with (disease -> medication) 41182 is relevant procedure (procedure -> disease) 3352 is symptom of (symptom -> disease) 8299 contraindicated drug (medication -> disease) 24428
- 12. Knowledge Base Statin simvastatin zocor High Cholesterol vytorin Pravachol Pravastatin • We use medication hierarchy to find the relationships Is_medication_for Type_of
- 13. Evaluation Predicted Class Positive Negative Actual Class Positive 18 6 Negative 3 5 Accuracy = TP + TN TP + TN + FP + FN = 71.87% • 25 Documents • 32 conflicting instances
- 14. Observations and Insights • False Negatives are for common symptoms • headache, obesity, shortness of breath • Doctors may not prescribe medications for these symptoms • False Positives based on common medications • Aspirin • Conflicts on major conditions can resolve accurately • Coronary artery disease, Atrial fibrillation, Peripheral vascular disease, Ischemia, Cardiomyopathy etc • Patient should take medications for these conditions
- 15. Observations and Insights • The evidences should be ranked • Metoprolol is strong evidence for hypertension than aspirin • Insulin is strong evidence for diabetics • More sophisticated evidence aggregation method should be used • Rule-based • Probabilistic method
- 16. Beyond Conflicts • Populate relationships among the entities • Which medications are associated with which condition • Derive implicit information in the patient notes • Patient notes can be incomplete • Domain experts read the note and can understand beyond what is written there • This insights are important for prediction algorithms • Knowledge driven inferencing can be used to fill this gap
- 17. Thank You Perera, Sujan, Amit Sheth, Krishnaprasad Thirunarayan, Suhas Nair, and Neil Shah. "Challenges in understanding clinical notes: Why nlp engines fall short and where background knowledge can help." In Proceedings of the 2013 international workshop on Data management & analytics for healthcare, pp. 21- 26. ACM, 2013. PDF
