1. PAP SMEAR
dr. monika nema

2. Definition:-
The Babeș-Papanicolaou test (also called Pap
smear, Pap test, cervical smear, or smear test) is
a screening test used to detect potentially
pre-cancerous and cancerous processes in the the
endocervical canal (transformation zone) of the female
reproductive system.
Credit for its development goes to Dr George N.
Papanicolaou.
dr. monika nema

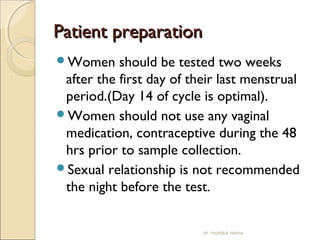

3. PPaattiieenntt pprreeppaarraattiioonn
Women should be tested two weeks
after the first day of their last menstrual
period.(Day 14 of cycle is optimal).
Women should not use any vaginal
medication, contraceptive during the 48
hrs prior to sample collection.
Sexual relationship is not recommended
the night before the test.
dr. monika nema

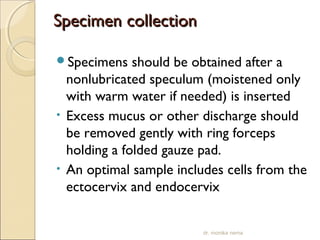

4. SSppeecciimmeenn ccoolllleeccttiioonn
Specimens should be obtained after a
nonlubricated speculum (moistened only
with warm water if needed) is inserted
• Excess mucus or other discharge should
be removed gently with ring forceps
holding a folded gauze pad.
• An optimal sample includes cells from the
ectocervix and endocervix
dr. monika nema

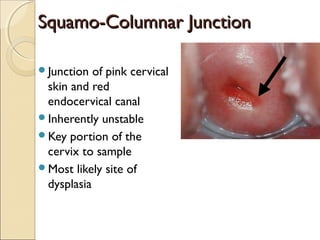

5. SSqquuaammoo--CCoolluummnnaarr JJuunnccttiioonn
Junction of pink cervical
skin and red
endocervical canal
Inherently unstable
Key portion of the
cervix to sample
Most likely site of
dysplasia

6. The location of the squamo-columnar
junction ( 8 mm to 13 mm proximal to
the external cervical OS) in most women
varies with the age and fertility.
dr. monika nema

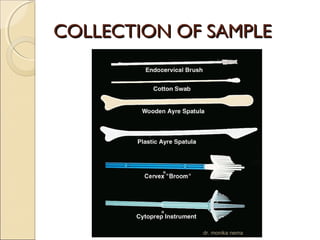

7. CCOOLLLLEECCTTIIOONN OOFF SSAAMMPPLLEE
dr. monika nema

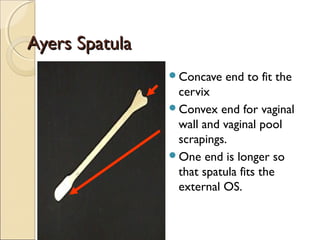

8. AAyyeerrss SSppaattuullaa
Concave end to fit the
cervix
Convex end for vaginal
wall and vaginal pool
scrapings.
One end is longer so
that spatula fits the
external OS.

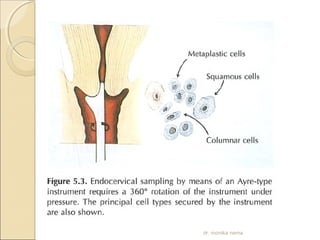

9. dr. monika nema

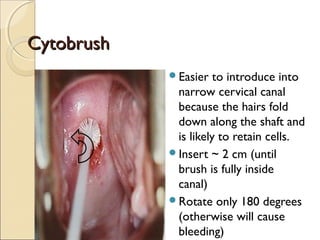

10. CCyyttoobbrruusshh
Easier to introduce into
narrow cervical canal
because the hairs fold
down along the shaft and
is likely to retain cells.
Insert ~ 2 cm (until
brush is fully inside
canal)
Rotate only 180 degrees
(otherwise will cause
bleeding)

11. dr. monika nema

12. MMaakkee PPaapp SSmmeeaarr
As thin as possible
Properly labeled

13. FFiixxaattiioonn
Fixative is an agent used to prepare
cytologic specimen for the purpose of
preserving and maintaining the existing
form and structure of all constituent
elements.
dr. monika nema

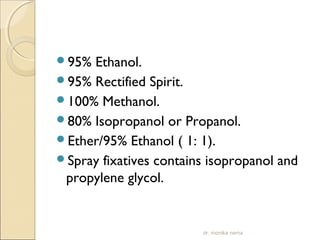

14. 95% Ethanol.
95% Rectified Spirit.
100% Methanol.
80% Isopropanol or Propanol.
Ether/95% Ethanol ( 1: 1).
Spray fixatives contains isopropanol and
propylene glycol.
dr. monika nema

15. Immediate fixation (within seconds) is critical in order to prevent
air-drying artifact
dr. monika nema

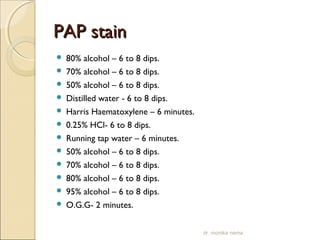

16. PPAAPP ssttaaiinn
 80% alcohol – 6 to 8 dips.
 70% alcohol – 6 to 8 dips.
 50% alcohol – 6 to 8 dips.
 Distilled water - 6 to 8 dips.
 Harris Haematoxylene – 6 minutes.
 0.25% HCl- 6 to 8 dips.
 Running tap water – 6 minutes.
 50% alcohol – 6 to 8 dips.
 70% alcohol – 6 to 8 dips.
 80% alcohol – 6 to 8 dips.
 95% alcohol – 6 to 8 dips.
 O.G.G- 2 minutes.
dr. monika nema

17. PPAAPP ssttaaiinn
 95% alcohol – Rinse in two dishes.
 E. A 50 - 2 minutes.
 95% alcohol – Rinse in three dishes.
 100% alcohol – 6 to 8 dips.
 100% alcohol – 6 to 8 dips.
 Equal parts of absolute alcohol and xylene– Rinse in two dishes.
 Xylene– 6 to 8 dips
 Xylene– 6 to 8 dips.
 Xylene– 6 to 8 dips
 DPX mount
dr. monika nema

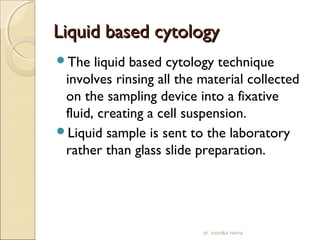

18. LLiiqquuiidd bbaasseedd ccyyttoollooggyy
The liquid based cytology technique
involves rinsing all the material collected
on the sampling device into a fixative
fluid, creating a cell suspension.
Liquid sample is sent to the laboratory
rather than glass slide preparation.
dr. monika nema

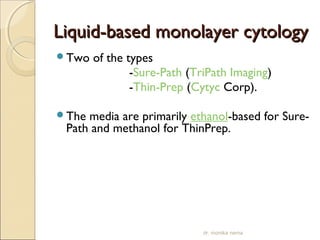

19. LLiiqquuiidd--bbaasseedd mmoonnoollaayyeerr ccyyttoollooggyy
Two of the types
-Sure-Path (TriPath Imaging)
-Thin-Prep (Cytyc Corp).
The media are primarily ethanol-based for Sure-
Path and methanol for ThinPrep.
dr. monika nema

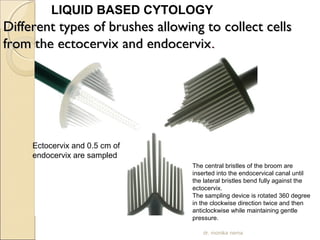

20. LIQUID BASED CYTOLOGY
a Different types of brushes alllloowwiinngg ttoo ccoolllleecctt cceellllss
ffrroomm tthhee eeccttoocceerrvviixx aanndd eennddoocceerrvviixx..
Ectocervix and 0.5 cm of
endocervix are sampled
The central bristles of the broom are
inserted into the endocervical canal until
the lateral bristles bend fully against the
ectocervix.
The sampling device is rotated 360 degree
in the clockwise direction twice and then
anticlockwise while maintaining gentle
pressure.
dr. monika nema

21. The brush is removed aanndd ddeeppoossiitteedd iinn tthhee mmeetthhaannooll
bbaasseedd lliiqquuiidd mmeeddiiuumm..RRBBCC aarree llyysseedd bbyy ttrraannssppoorrtt
mmeeddiiuumm..
dr. monika nema

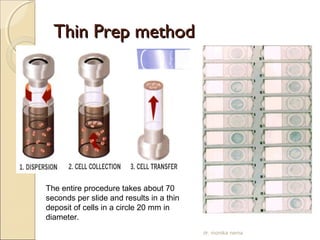

22. TThhiinn PPrreepp mmeetthhoodd
The entire procedure takes about 70
seconds per slide and results in a thin
deposit of cells in a circle 20 mm in
diameter.
dr. monika nema

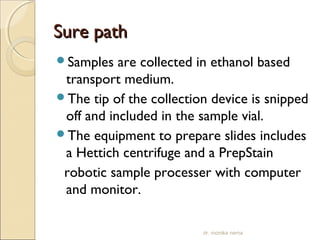

23. SSuurree ppaatthh
Samples are collected in ethanol based
transport medium.
The tip of the collection device is snipped
off and included in the sample vial.
The equipment to prepare slides includes
a Hettich centrifuge and a PrepStain
robotic sample processer with computer
and monitor.
dr. monika nema

24. • Red blood cells and some leukocytes are
eliminated by density centrifugation.
• In addition to preparing an evenly
distributed deposit of cells in a circle 13
mm in diameter, the method
incorporates a final staining step that
discretely stains each individual slide.
dr. monika nema

25. LLIIQQUUIIDD BBAASSEEDD CCYYTTOOLLOOGGYY
• Reduces number of inadequate smears and
need for repeat smears
• Thin-Prep appears to be superior to convention
Pap test in detecting SIL.
• Cellular preservation is enhanced.
• Good fixation results in improved microscopic
details.
dr. monika nema

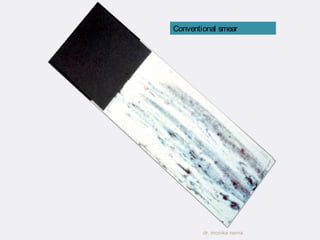

26. Conventional smear
dr. monika nema

27. What we see under the microscope
conventional smear
dr. monika nema

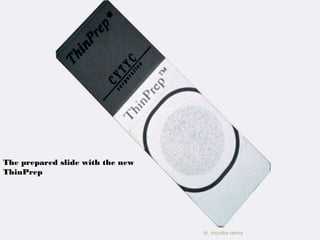

28. The prepared slide with the new
ThinPrep
dr. monika nema

29. What we see under the
microscope. Notice the clean back
ground and how well the cells are
dispersed rendering easier dr. monika to
nema

30. Cervical cytology practice guidelines
Test Requisition
The minimal clinical data:
 Age
 Date of LMP or onset of menopause
 Past or Current history of any abnormalities or treatment
 Pregnancy status
dr. monika nema

31. dr. monika nema

32. NNOORRMMAALL CCEERRVVIICCAALL CCEELLLLSS
Superficial cells Intermediate cells
Basal cells
Parabasal cells Metaplastic cells
dr. monika nema

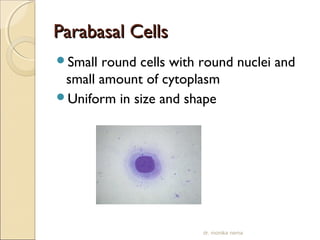

33. PPaarraabbaassaall CCeellllss
Small round cells with round nuclei and
small amount of cytoplasm
Uniform in size and shape
dr. monika nema

34. IInntteerrmmeeddiiaattee CCeellllss
May be small or large
Round nuclei, nucleus
similar in size as
parabasal cells
Entire cell
approximately twice
the size of parabasal
cells
Cytoplasm becomes
angular, irregular and
folded as cell enlarges dr. monika nema

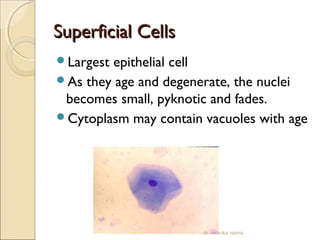

35. SSuuppeerrffiicciiaall CCeellllss
Largest epithelial cell
As they age and degenerate, the nuclei
becomes small, pyknotic and fades.
Cytoplasm may contain vacuoles with age
dr. monika nema

36. SSuuppeerrffiicciiaall CCeellllss CCoonnttiinnuueedd
Cornification is the degeneration process
Superficial cells are commonly called
cornified cells
Once nucleus is lost become Anuclear
cells
dr. monika nema

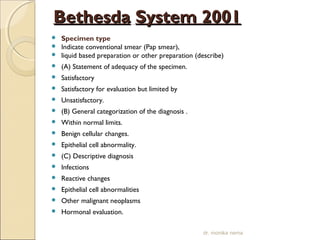

37. BBeetthheessddaa SSyysstteemm 22000011
 Specimen type
 Indicate conventional smear (Pap smear),
 liquid based preparation or other preparation (describe)
 (A) Statement of adequacy of the specimen.
 Satisfactory
 Satisfactory for evaluation but limited by
 Unsatisfactory.
 (B) General categorization of the diagnosis .
 Within normal limits.
 Benign cellular changes.
 Epithelial cell abnormality.
 (C) Descriptive diagnosis

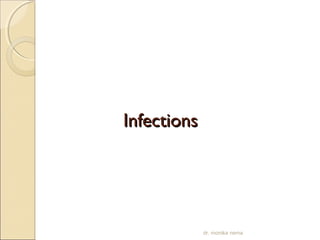

 Infections
 Reactive changes
 Epithelial cell abnormalities
 Other malignant neoplasms
 Hormonal evaluation.
dr. monika nema

38. BBeetthheessddaa SSyysstteemm 22000011
 Interpretation/result
 Negative for Intraepithelial Lesion or Malignancy (NILM)
 Organisms
 • Trichomonas vaginalis
 • Candida species
 • Bacterial vaginosis
 • Actinomyces species
 • Herpes simplex virus
Other non-neoplastic findings-
Reactive cellular changes associated with
 - inflammation (includes typical repair)
 - irradiation
 - Intrauterine contraceptive device (IUD)
dr. monika nema

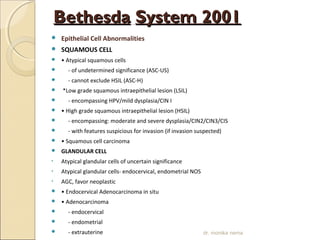

39. BBeetthheessddaa SSyysstteemm 22000011
 Epithelial Cell Abnormalities
 SQUAMOUS CELL
 • Atypical squamous cells
 - of undetermined significance (ASC-US)
 - cannot exclude HSIL (ASC-H)

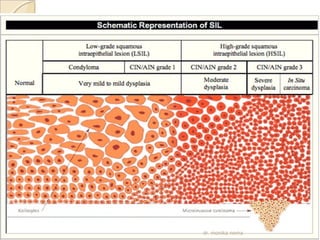

 *Low grade squamous intraepithelial lesion (LSIL)

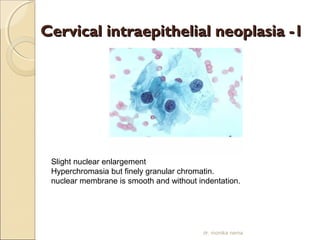

 - encompassing HPV/mild dysplasia/CIN I
 • High grade squamous intraepithelial lesion (HSIL)
 - encompassing: moderate and severe dysplasia/CIN2/CIN3/CIS
 - with features suspicious for invasion (if invasion suspected)
 • Squamous cell carcinoma
 GLANDULAR CELL
• Atypical glandular cells of uncertain significance
• Atypical glandular cells- endocervical, endometrial NOS
• AGC, favor neoplastic

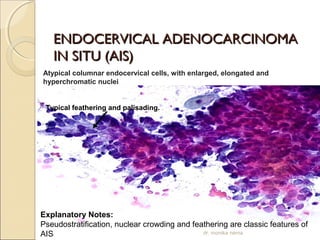

 • Endocervical Adenocarcinoma in situ
 • Adenocarcinoma
 - endocervical
 - endometrial
 - extrauterine
 - not otherwise specified (NOS)
dr. monika nema

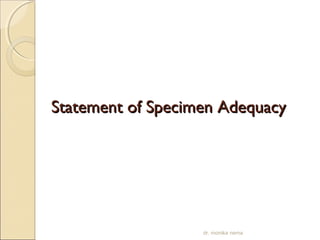

40. SSttaatteemmeenntt ooff SSppeecciimmeenn AAddeeqquuaaccyy
dr. monika nema

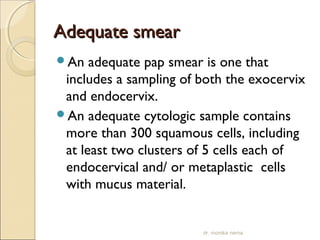

41. AAddeeqquuaattee ssmmeeaarr
An adequate pap smear is one that
includes a sampling of both the exocervix
and endocervix.
An adequate cytologic sample contains
more than 300 squamous cells, including
at least two clusters of 5 cells each of
endocervical and/ or metaplastic cells
with mucus material.
dr. monika nema

42. This image was composed to depict the appearance of a 4X field with
approximately 1400 cells. It is to be used as a guide in assessing
squamous cellularity of conventional specimens. An adequate
conventional smear has an estimated minimum of approximately
8,000-12,000 well visualized and preserved squamous cells.
dr. monika nema

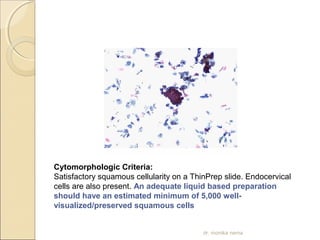

43. Cytomorphologic Criteria:
Satisfactory squamous cellularity on a ThinPrep slide. Endocervical
cells are also present. An adequate liquid based preparation
should have an estimated minimum of 5,000 well-visualized/
preserved squamous cells
dr. monika nema

44. Cytomorphologic Criteria:
Distinct cytoplasmic borders are seen in the cluster of cells on the left,
giving a ?honeycomb? appearance. The cell cluster on the right is seen
from a side view, giving the ?picket fence? appearance. Interpretation is
NILM.
dr. monika nema

45. This specimen is unsatisfactory due to scant squamous cellularity seen at10X
dr. monika nema

46. Cytomorphologic Criteria:
Over 75% of cells are obscured by inflammation and blood.
.
dr. monika nema

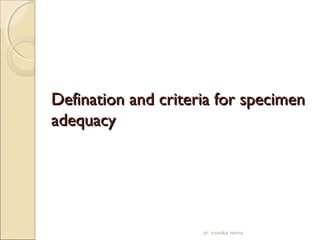

47. Defination aanndd ccrriitteerriiaa ffoorr ssppeecciimmeenn
aaddeeqquuaaccyy
dr. monika nema

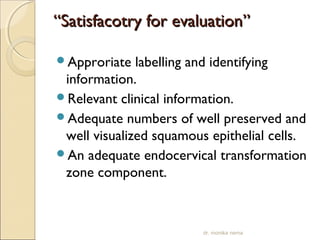

48. ““SSaattiissffaaccoottrryy ffoorr eevvaalluuaattiioonn””
Approriate labelling and identifying
information.
Relevant clinical information.
Adequate numbers of well preserved and
well visualized squamous epithelial cells.
An adequate endocervical transformation
zone component.
dr. monika nema

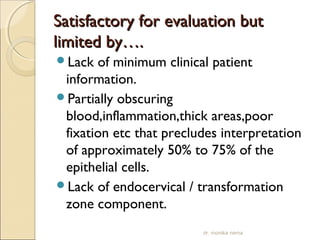

49. SSaattiissffaaccttoorryy ffoorr eevvaalluuaattiioonn bbuutt
lliimmiitteedd bbyy……..
Lack of minimum clinical patient
information.
Partially obscuring
blood,inflammation,thick areas,poor
fixation etc that precludes interpretation
of approximately 50% to 75% of the
epithelial cells.
Lack of endocervical / transformation
zone component.
dr. monika nema

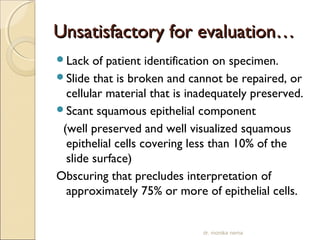

50. UUnnssaattiissffaaccttoorryy ffoorr eevvaalluuaattiioonn……
Lack of patient identification on specimen.
Slide that is broken and cannot be repaired, or
cellular material that is inadequately preserved.
Scant squamous epithelial component
(well preserved and well visualized squamous
epithelial cells covering less than 10% of the
slide surface)
Obscuring that precludes interpretation of
approximately 75% or more of epithelial cells.
dr. monika nema

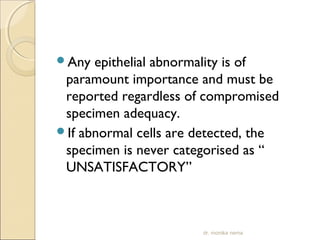

51. Any epithelial abnormality is of
paramount importance and must be
reported regardless of compromised
specimen adequacy.
If abnormal cells are detected, the
specimen is never categorised as “
UNSATISFACTORY”
dr. monika nema

52. IInnffeeccttiioonnss
dr. monika nema

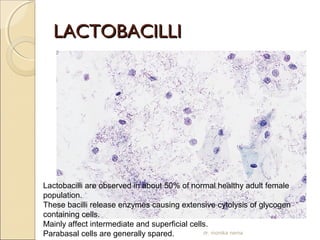

53. LLAACCTTOOBBAACCIILLLLII
Lactobacilli are observed in about 50% of normal healthy adult female
population.
These bacilli release enzymes causing extensive cytolysis of glycogen
containing cells.
Mainly affect intermediate and superficial cells.
Parabasal cells are generally spared. dr. monika nema

54. BBaacctteerriiaall vvaaggiinnoossiiss
Between puberty and the menopause the presence of
lactobacilli maintains a pH of vagina between 3.8 and
4.2.
Changes in pH over 4.5 leads to non specific vaginitis.
It is an infectious disease classically associated with gray
or white,thin, homogenous discharge that tends to
adhere to vaginal walls.
Exudes a characteristic fishy odour when mixed with
10% KOH.
Gardnerella vaginalis – putative pathogen.
dr. monika nema

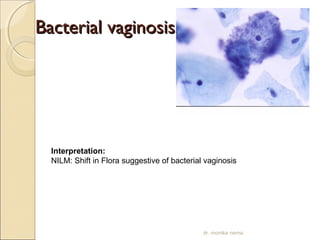

55. BBaacctteerriiaall vvaaggiinnoossiiss
Interpretation:
NILM: Shift in Flora suggestive of bacterial vaginosis
dr. monika nema

56. HHeerrppeess ssiimmpplleexx
Cytomorphologic Criteria:
Nuclei showing "ground-glass" appearance. Multinucleation, nuclear
molding, and dense eosinophilic intranuclear inclusions surrounded by a
halo are also seen.
dr. monika nema

57. AAccttiinnoommyycceess
 Cytomorphologic Criteria:
Tangled clumps of filamentous organisms, often with acute angle
branching, sometimes showing irregular wooly appearance. Swollen
filaments may be seen with clubs at periphery. A cotton ball like acute
inflammatory response is common.
Actinomyces is often associated with intrauterine device (IUD)
usage.
dr. monika nema

58. CCaannddiiddaa
Cytomorphologic Criteria:
Pseudohyphae and reactive changes in the squamous epithelial cells.
dr. monika nema

59. TTrriicchhoommoonnaass vvaaggiinnaalliiss
Cytomorphologic Criteria:
Trichomonas is a pear-shaped, oval to round, cyanophilic organism that
ranges in size from 15-30 microns. The nucleus is pale, vesicular and
centrally located. Eosinophilic granules are often visible in the cytoplasm.
dr. monika nema

60. AAccuuttee iinnffllaammmmaattiioonn
Dirty background of the smear.
Desquamation of cells in sheets and aggregates.
Large number of degenerating polymorphs.
Dark pyknotic nuclei in superficial and
intermediate cells.
Perinuclear halos.
Increased number of parabasal cells.
Enlarged endocervical cells with
prominent chromocentres.
dr. monika nema

61. IINNFFLLAAMMMMAATTOORRYY LLEESSIIOONNSS
AACCUUTTEE IINNFFLLAAMMMMAATTIIOONN
dr. monika nema

62. AACCUUTTEE CCEERRVVIICCIITTIISS
nuclei with variable staining
Polymorphs
dr. monika nema

63. CCHHRROONNIICC CCEERRVVIICCIITTIISS
Plasma cells
Lymphocytes
dr. monika nema

64. HHyyppeerrkkeerraattoossiiss
Cytomorphologic Criteria:
Anucleate mature polygonal squamous cells with ghost-like ?nuclear
holes?
dr. monika nema

65. LLyymmpphhooccyyttiicc cceerrvviicciittiiss
Cytomorphologic Criteria:
Polymorphous population of lymphoid cells and tingible body
macrophages.
dr. monika nema

66. RREEAACCTTIIVVEE CCHHAANNGGEESS IINN SSQQUUAAMMOOUUSS
CCEELLLLSS IINN IINNFFLLAAMMMMAATTOORRYY LLEESSIIOONNSS
Nuclear pallor &
enlargement
dr. monika nema

67. IINNFFLLAAMMMMAATTOORRYY CCHHAANNGGEESS IINN
EENNDDOOCCEERRVVIICCAALL CCEELLLLSS
Enlargement,
Presence of
prominent
nucleoli
dr. monika nema

68. IINNFFLLAAMMMMAATTOORRYY CCHHAANNGGEESS IINN
EENNDDOOCCEERRVVIICCAALL CCEELLLLSS
Cytoplasmic
vacoulation of the
endocervical cells
dr. monika nema

69. IIUUDD EEFFFFEECCTT
Calcified debris
Small cluster of glandular cells with cytoplasmic vacuoles displacing
nuclei.creating a signet-ring appearance
dr. monika nema

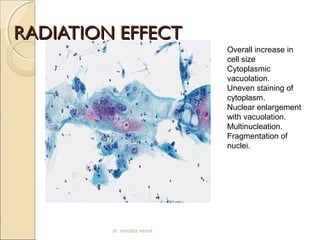

70. RRAADDIIAATTIIOONN EEFFFFEECCTT
Overall increase in
cell size
Cytoplasmic
vacuolation.
Uneven staining of
cytoplasm.
Nuclear enlargement
with vacuolation.
Multinucleation.
Fragmentation of
nuclei.
dr. monika nema

71. EEnnddoommeettrriiaall cceellllss
Squamous
cells
Endometrial cells
dr. monika nema

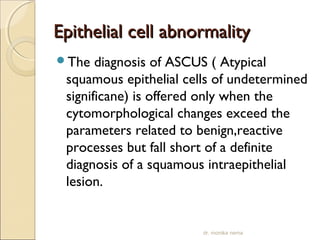

72. EEppiitthheelliiaall cceellll aabbnnoorrmmaalliittyy
The diagnosis of ASCUS ( Atypical
squamous epithelial cells of undetermined
significane) is offered only when the
cytomorphological changes exceed the
parameters related to benign,reactive
processes but fall short of a definite
diagnosis of a squamous intraepithelial
lesion.
dr. monika nema

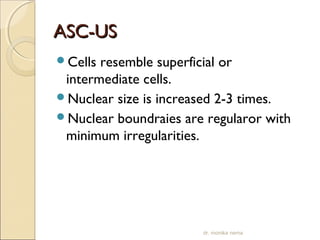

73. AASSCC--UUSS
Cells resemble superficial or
intermediate cells.
Nuclear size is increased 2-3 times.
Nuclear boundraies are regularor with
minimum irregularities.
dr. monika nema

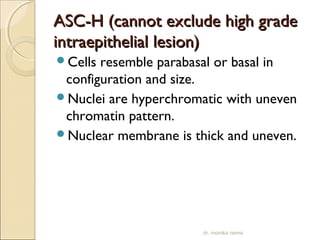

74. AASSCC--HH ((ccaannnnoott eexxcclluuddee hhiigghh ggrraaddee
iinnttrraaeeppiitthheelliiaall lleessiioonn))
Cells resemble parabasal or basal in
configuration and size.
Nuclei are hyperchromatic with uneven
chromatin pattern.
Nuclear membrane is thick and uneven.
dr. monika nema

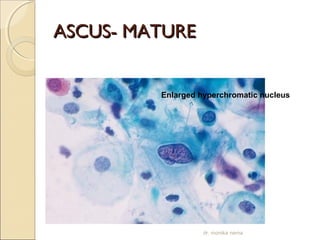

75. AASSCCUUSS-- MMAATTUURREE
Enlarged hyperchromatic nucleus
dr. monika nema

76. AASSCC--HH ((ccaannnnoott eexxcclluuddee hhiigghh ggrraaddee
iinnttrraaeeppiitthheelliiaall lleessiioonn))
Loosely cohesive metaplastic cells with
increased N:C ratio.
dr. monika nema

77. AASSCC--HH
metaplastic cells and slightly enlarged nuclei with occasional
nuclear contour irregularities.
dr. monika nema

78. AAGGUUSS
dr. monika nema

79. dr. monika nema

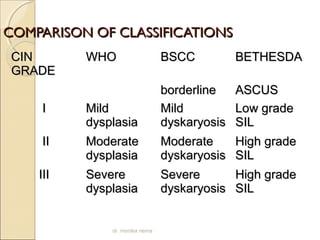

80. CCOOMMPPAARRIISSOONN OOFF CCLLAASSSSIIFFIICCAATTIIOONNSS
CCIINN
GGRRAADDEE
WWHHOO BBSSCCCC BBEETTHHEESSDDAA
bboorrddeerrlliinnee AASSCCUUSS
II MMiilldd
ddyyssppllaassiiaa
MMiilldd
ddyysskkaarryyoossiiss
LLooww ggrraaddee
SSIILL
IIII MMooddeerraattee
ddyyssppllaassiiaa
MMooddeerraattee
ddyysskkaarryyoossiiss
HHiigghh ggrraaddee
SSIILL
IIIIII SSeevveerree
ddyyssppllaassiiaa
SSeevveerree
ddyysskkaarryyoossiiss
HHiigghh ggrraaddee
SSIILL
dr. monika nema

81. In CIN I and III , the characteristic
nuclear changes are better observed in
intermediate cells.
As the grades of CIN increase, parabasal
and basal cells start showing nuclear
abnormalities.
dr. monika nema

82. Cervical iinnttrraaeeppiitthheelliiaall nneeooppllaassiiaa --11
Slight nuclear enlargement
Hyperchromasia but finely granular chromatin.
nuclear membrane is smooth and without indentation.
dr. monika nema

83. CCeerrvviiccaall iinnttrraaeeppiitthheelliiaall
nneeooppllaassiiaa --IIII
Hyperchromasia is more marked.
Chromatin can be seen in small clumps.
Nuclear membrane is thickened slightly but indentation are
ususlly absent.
dr. monika nema

84. Cervical iinnttrraaeeppiitthheelliiaall nneeooppllaassiiaa
--IIIIII
Nuclear membrane is characteristically irregular and indented
dr. monika nema

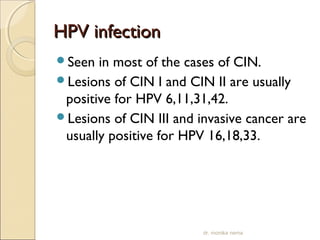

85. HHPPVV iinnffeeccttiioonn
Seen in most of the cases of CIN.
Lesions of CIN I and CIN II are usually
positive for HPV 6,11,31,42.
Lesions of CIN III and invasive cancer are
usually positive for HPV 16,18,33.
dr. monika nema

86. KKOOIILLOOCCYYTTEE ((HHPPVV))
Large squamous
cell with
enlarged
hyperchromatic
nucleus & large
sharply
demarcated
perinuclear clear
zone
dr. monika nema

87. PPSSEEUUDDOOKKOOIILLOOCCYYTTEESS
Glycogen in squamous
cells can give the
appearance of
"pseudokoilocytosis".
Nuclear abnormalities
required for an
interpretation of ASC-US/
LSIL are absent.
dr. monika nema

88. SSqquuaammoouuss cceellll ccaarrcciinnoommaa-- nnoonn
kkeerraattiinniizziinngg
Irregular chromatin,
prominent nucleolus
Dysplastic squamous cells with anisocytosis and anisonucleosis
including keratinization and tadpole cells are diagnostic of invasive
squamous cell carcinoma.
dr. monika nema

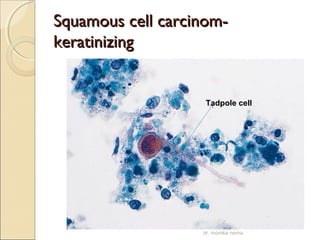

89. SSqquuaammoouuss cceellll ccaarrcciinnoomm--
kkeerraattiinniizziinngg
Tadpole cell
dr. monika nema

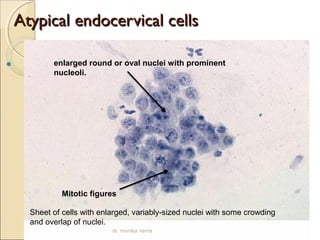

90. AAttyyppiiccaall eennddoocceerrvviiccaall cceellllss
 enlarged round or oval nuclei with prominent
nucleoli.
Mitotic figures
Sheet of cells with enlarged, variably-sized nuclei with some crowding
and overlap of nuclei.
dr. monika nema

91. EENNDDOOCCEERRVVIICCAALL AADDEENNOOCCAARRCCIINNOOMMAA
IINN SSIITTUU ((AAIISS))
Atypical columnar endocervical cells, with enlarged, elongated and
hyperchromatic nuclei.
Typical feathering and palisading.
Explanatory Notes:
Pseudostratification, nuclear crowding and feathering are classic features of
AIS dr. monika nema

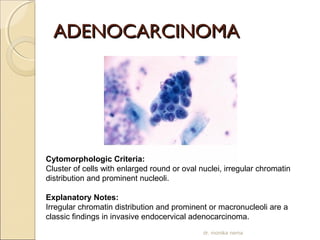

92. AADDEENNOOCCAARRCCIINNOOMMAA
Cytomorphologic Criteria:
Cluster of cells with enlarged round or oval nuclei, irregular chromatin
distribution and prominent nucleoli.
Explanatory Notes:
Irregular chromatin distribution and prominent or macronucleoli are a
classic findings in invasive endocervical adenocarcinoma.
dr. monika nema

93. Invasive adenocarcinoma
Go back to the list
IINNVVAASSIIVVEE AADDEENNOOCCAARRCCIINNOOMMAA::
Cells are round,crowded,
hyperchromatic
dr. monika nema

94. IINNVVAASSIIVVEE AADDEENNOOCCAARRCCIINNOOMMAA
Crowding,large nucleoli
dr. monika nema

95. EENNDDOOMMEETTRRIIAALL
AADDEENNOOCCAARRCCIINNOOMMAA
Large hyperchromatic nucleus,
Vacuolated cytoplasm
dr. monika nema

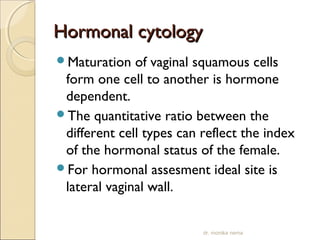

96. HHoorrmmoonnaall ccyyttoollooggyy
Maturation of vaginal squamous cells
form one cell to another is hormone
dependent.
The quantitative ratio between the
different cell types can reflect the index
of the hormonal status of the female.
For hormonal assesment ideal site is
lateral vaginal wall.
dr. monika nema

97. Estrogens have proven action on
maturation of squamous epithelium of
vagina.
Its excess causes enhancement of
maturation and the smear contains more
of superficial cells, on the other hand its
lack causes lower degree of maturation
or the atrophy of squamous epithelium,
the same effect could be reflected due to
antagonistic action of the excess of
progesterone.
dr. monika nema

98. CCeelllluullaarr iinnddiicceess ffoorr hhoorrmmoonnaall
aasssseessssmmeenntt

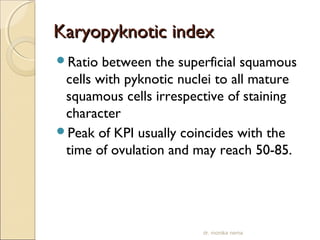

Karyopyknotic index
Eosinophilic index

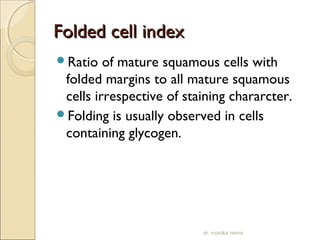

Folded cell index

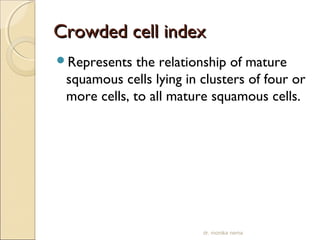

Crowded cell index

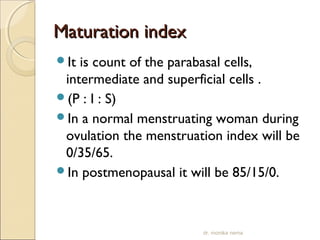

Maturation index
dr. monika nema

99. KKaarryyooppyykknnoottiicc iinnddeexx
Ratio between the superficial squamous
cells with pyknotic nuclei to all mature
squamous cells irrespective of staining
character
Peak of KPI usually coincides with the
time of ovulation and may reach 50-85.
dr. monika nema

100. EEoossiinnoopphhiilliicc iinnddeexx
Ratio of mature squamous cells with
eosinophilic cytoplasm to all mature
squamous cells irrespective of size of
nucleus.
Peak value is 50-75 during ovulation.
dr. monika nema

101. FFoollddeedd cceellll iinnddeexx
Ratio of mature squamous cells with
folded margins to all mature squamous
cells irrespective of staining chararcter.
Folding is usually observed in cells
containing glycogen.
dr. monika nema

102. CCrroowwddeedd cceellll iinnddeexx
Represents the relationship of mature
squamous cells lying in clusters of four or
more cells, to all mature squamous cells.
dr. monika nema

103. MMaattuurraattiioonn iinnddeexx
It is count of the parabasal cells,
intermediate and superficial cells .
(P : I : S)
In a normal menstruating woman during
ovulation the menstruation index will be
0/35/65.
In postmenopausal it will be 85/15/0.
dr. monika nema

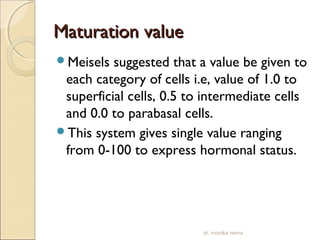

104. MMaattuurraattiioonn vvaalluuee
Meisels suggested that a value be given to
each category of cells i.e, value of 1.0 to
superficial cells, 0.5 to intermediate cells
and 0.0 to parabasal cells.
This system gives single value ranging
from 0-100 to express hormonal status.
dr. monika nema

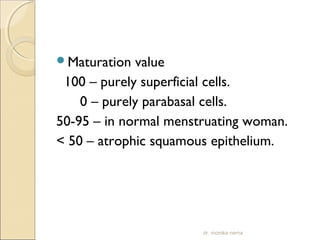

105. Maturation value
100 – purely superficial cells.
0 – purely parabasal cells.
50-95 – in normal menstruating woman.
< 50 – atrophic squamous epithelium.
dr. monika nema

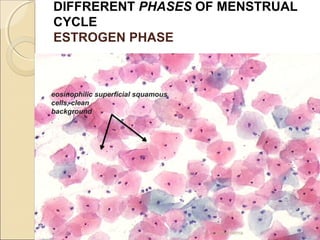

106. DIFFRERENT PHASES OF MENSTRUAL
CYCLE
ESTROGEN PHASE
eosinophilic superficial squamous
cells, clean
background
.
dr. monika nema

107. OVULATORY SMEAR
fern-like crystalline structures
eosinophilic superficial
squamous cells
dr. monika nema

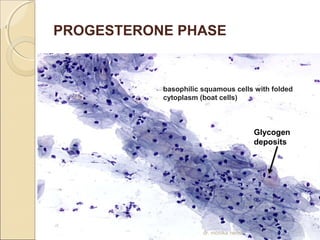

108. . ( PROGESTERONE PHASE
basophilic squamous cells with folded
cytoplasm (boat cells)
Glycogen
deposits
dr. monika nema

109. PROGESTERONE PHASE WITH
ABUNDANT LACTOBACILLI AND
CYTOLYSIS
navicular cells
Naked nuclei
dr. monika nema

110. MMeennooppaauussee
Maturation of cervical epithelium is
estrogen dependent
Due to its insufficiency, maturation is
retarded.
Number of mature squamous and
intermediate cells is reduced.
In early menopause intermediate cells
increase in number.
dr. monika nema

111. AAttrroopphhyy
Cytomorphologic Criteria:
Parabasal cells and blue blobs.
Explanatory Notes:
Overall cellularity of smear is reduced. Small and large parabasal cells are
seen with almost absence of superficial cells.
Blue blobs are globular collections of basophilic amorphous material
reflecting either degenerated parabasal cells or inspissated mucus
dr. monika nema

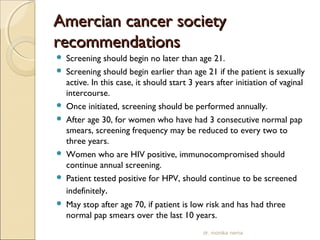

112. AAmmeerrcciiaann ccaanncceerr ssoocciieettyy
rreeccoommmmeennddaattiioonnss
 Screening should begin no later than age 21.
 Screening should begin earlier than age 21 if the patient is sexually
active. In this case, it should start 3 years after initiation of vaginal
intercourse.
 Once initiated, screening should be performed annually.
 After age 30, for women who have had 3 consecutive normal pap
smears, screening frequency may be reduced to every two to
three years.
 Women who are HIV positive, immunocompromised should
continue annual screening.
 Patient tested positive for HPV, should continue to be screened
indefinitely.
 May stop after age 70, if patient is low risk and has had three
normal pap smears over the last 10 years.
dr. monika nema

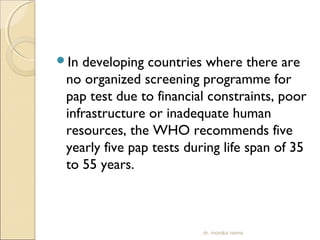

113. In developing countries where there are
no organized screening programme for
pap test due to financial constraints, poor
infrastructure or inadequate human
resources, the WHO recommends five
yearly five pap tests during life span of 35
to 55 years.
dr. monika nema

114. TTHHAANNKK YYOOUU
SPEAKER : Dr. MONIKA NEMA
dr. monika nema
