CensusGIV - Geographic Information Visualisation of Census Data
The document discusses the development of CensusGIV, a prototype for providing innovative geographic visualization of UK census small area statistics. It aims to develop an interactive web-based mapping application using open source technologies to allow users to easily explore and analyze census data through dynamic choropleth maps and other visualization techniques. The document outlines the objectives, design considerations, system architecture, and timeline for the CensusGIV prototype. Key aspects discussed include data access, map creation, color theory, and a modular client-server architecture.
More Related Content
Similar to CensusGIV - Geographic Information Visualisation of Census Data
CensusGIV - Geographic Information Visualisation of Census Data

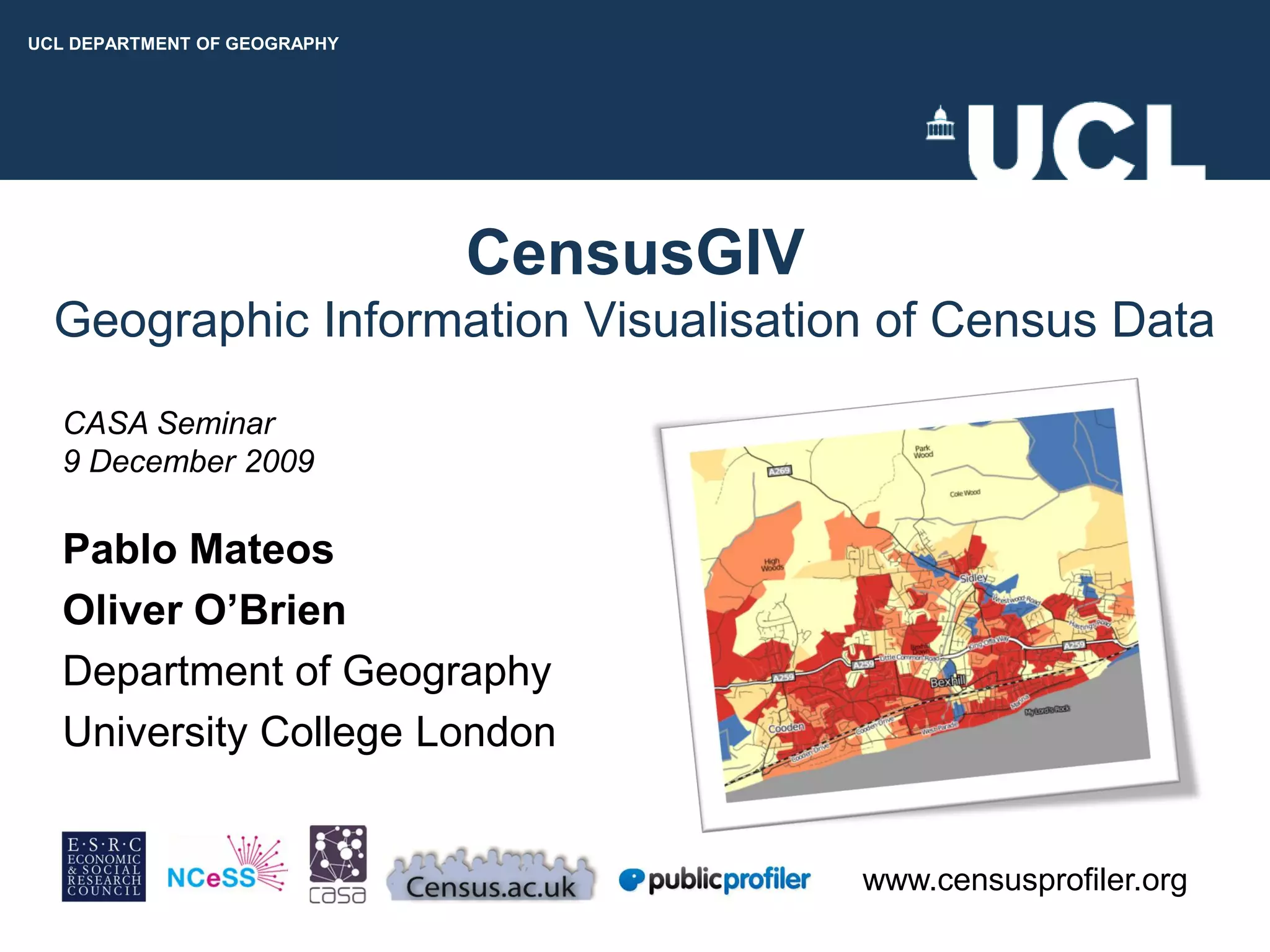

- 1. UCL DEPARTMENT OFGEOGRAPHY UCL DEPARTMENT OF GEOGRAPHY UCL DEPARTMENT OF GEOGRAPHY CensusGIV Geographic Information Visualisation of Census Data CASA Seminar 9 December 2009 Pablo Mateos Oliver O’Brien Department of Geography University College London www.censusprofiler.org

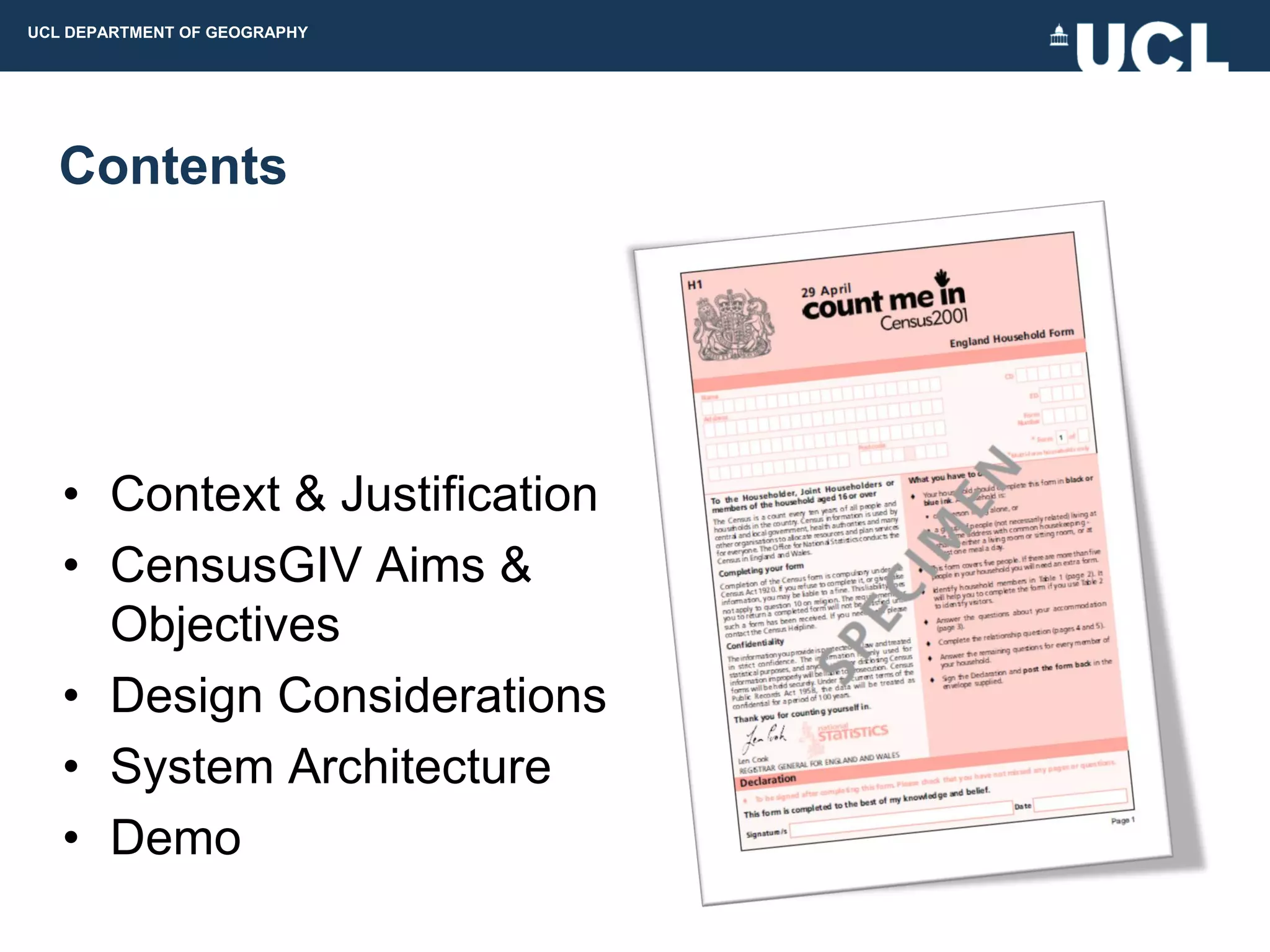

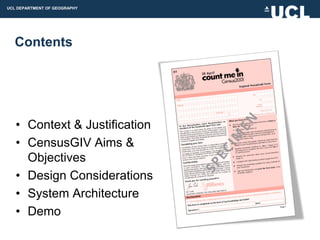

- 2. UCL DEPARTMENT OFGEOGRAPHY Contents • Context & Justification • CensusGIV Aims & Objectives • Design Considerations • System Architecture • Demo

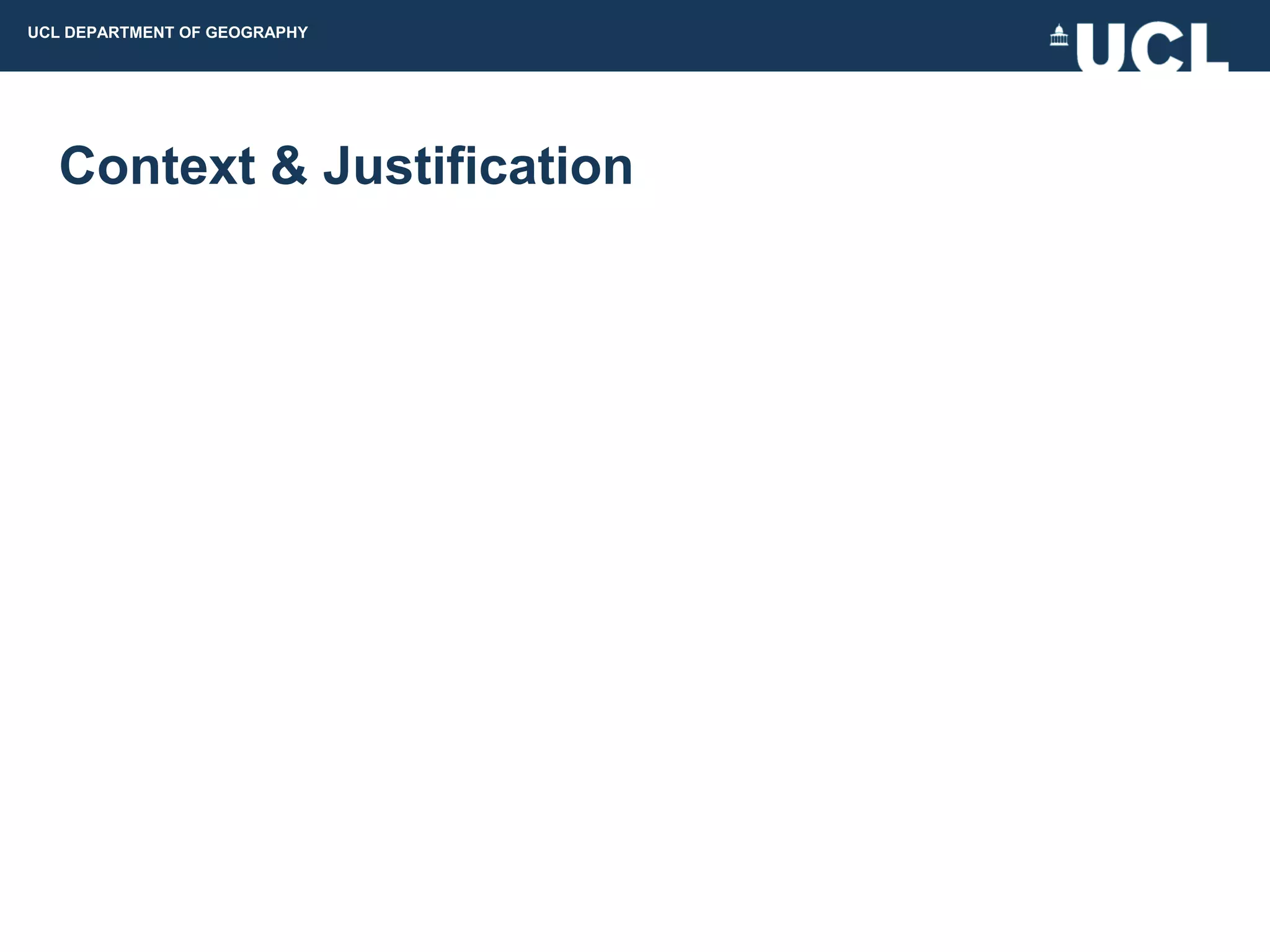

- 3. UCL DEPARTMENT OFGEOGRAPHY Context & Justification

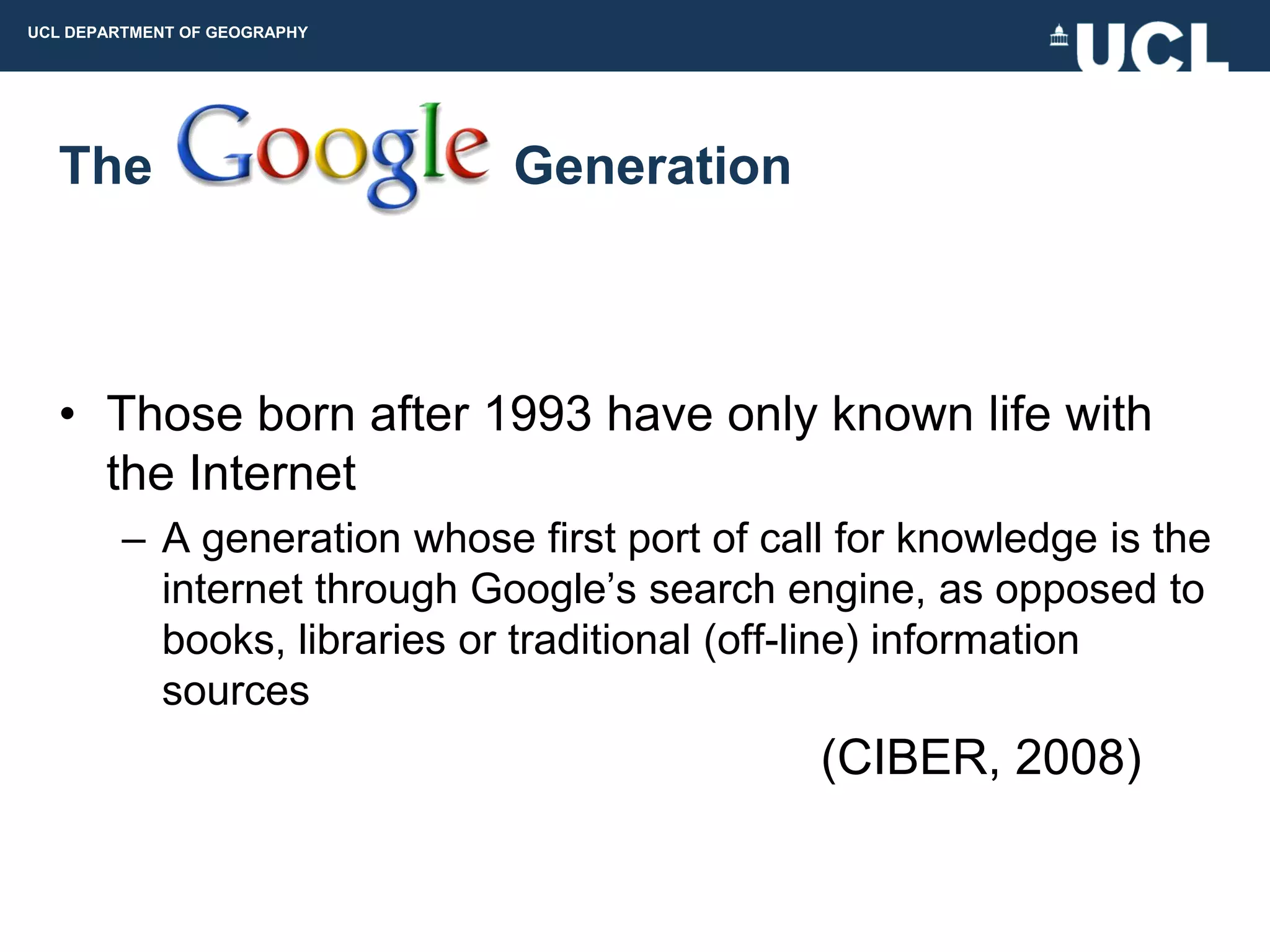

- 4. UCL DEPARTMENT OFGEOGRAPHY The Generation • Those born after 1993 have only known life with the Internet – A generation whose first port of call for knowledge is the internet through Google‟s search engine, as opposed to books, libraries or traditional (off-line) information sources (CIBER, 2008)

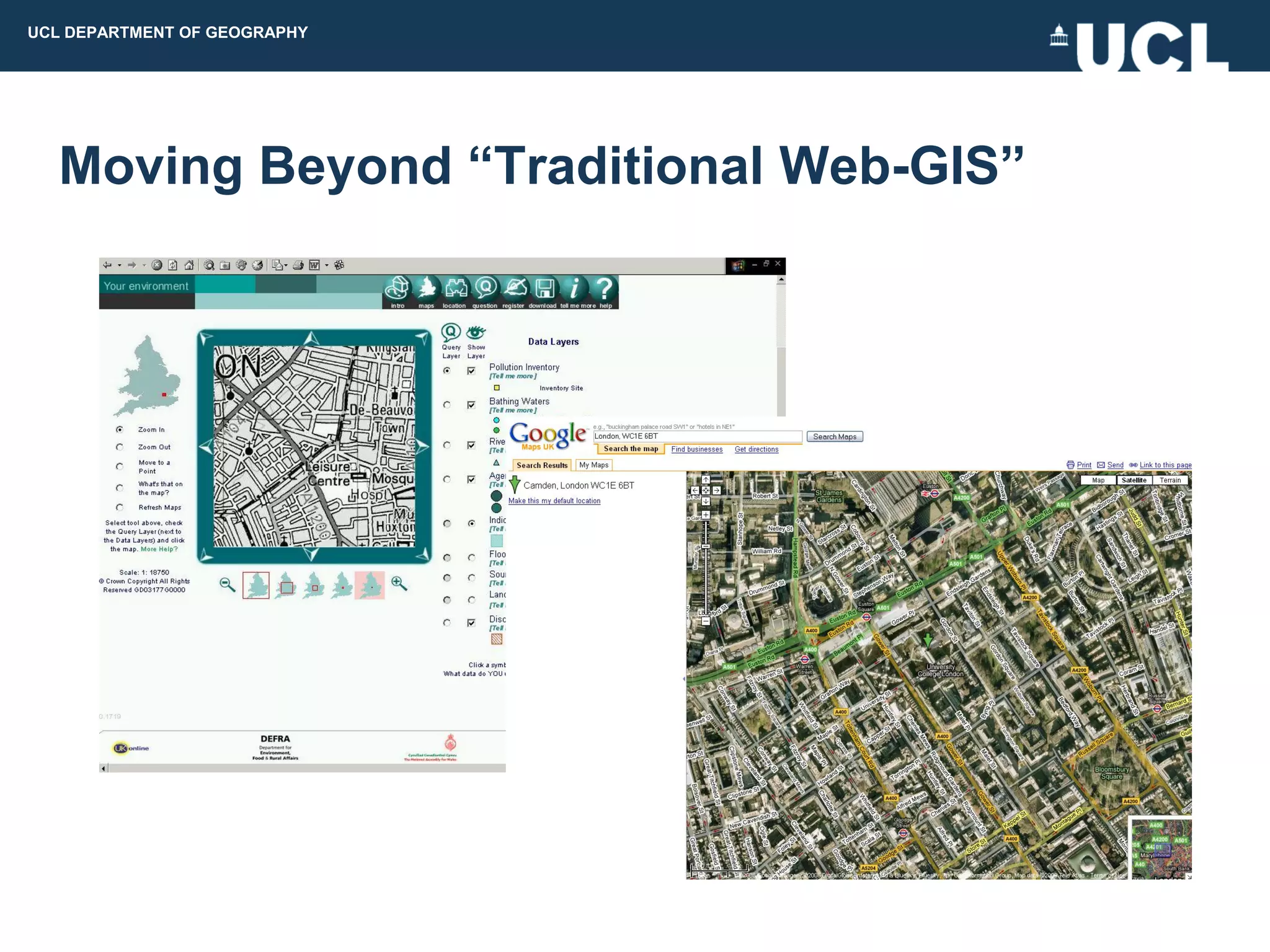

- 5. UCL DEPARTMENT OFGEOGRAPHY Moving Beyond “Traditional Web-GIS”

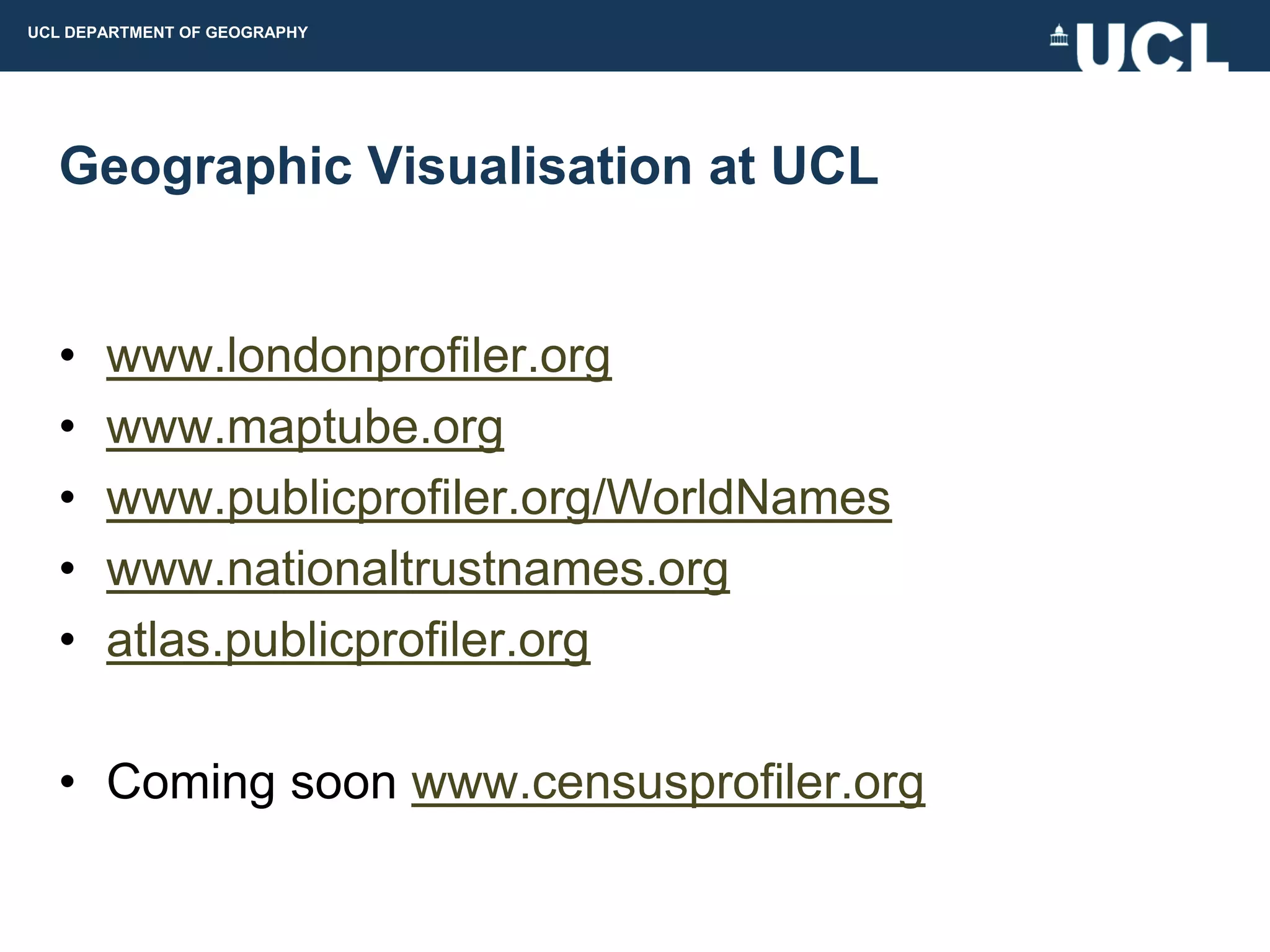

- 6. UCL DEPARTMENT OFGEOGRAPHY Geographic Visualisation at UCL • www.londonprofiler.org • www.maptube.org • www.publicprofiler.org/WorldNames • www.nationaltrustnames.org • atlas.publicprofiler.org • Coming soon www.censusprofiler.org

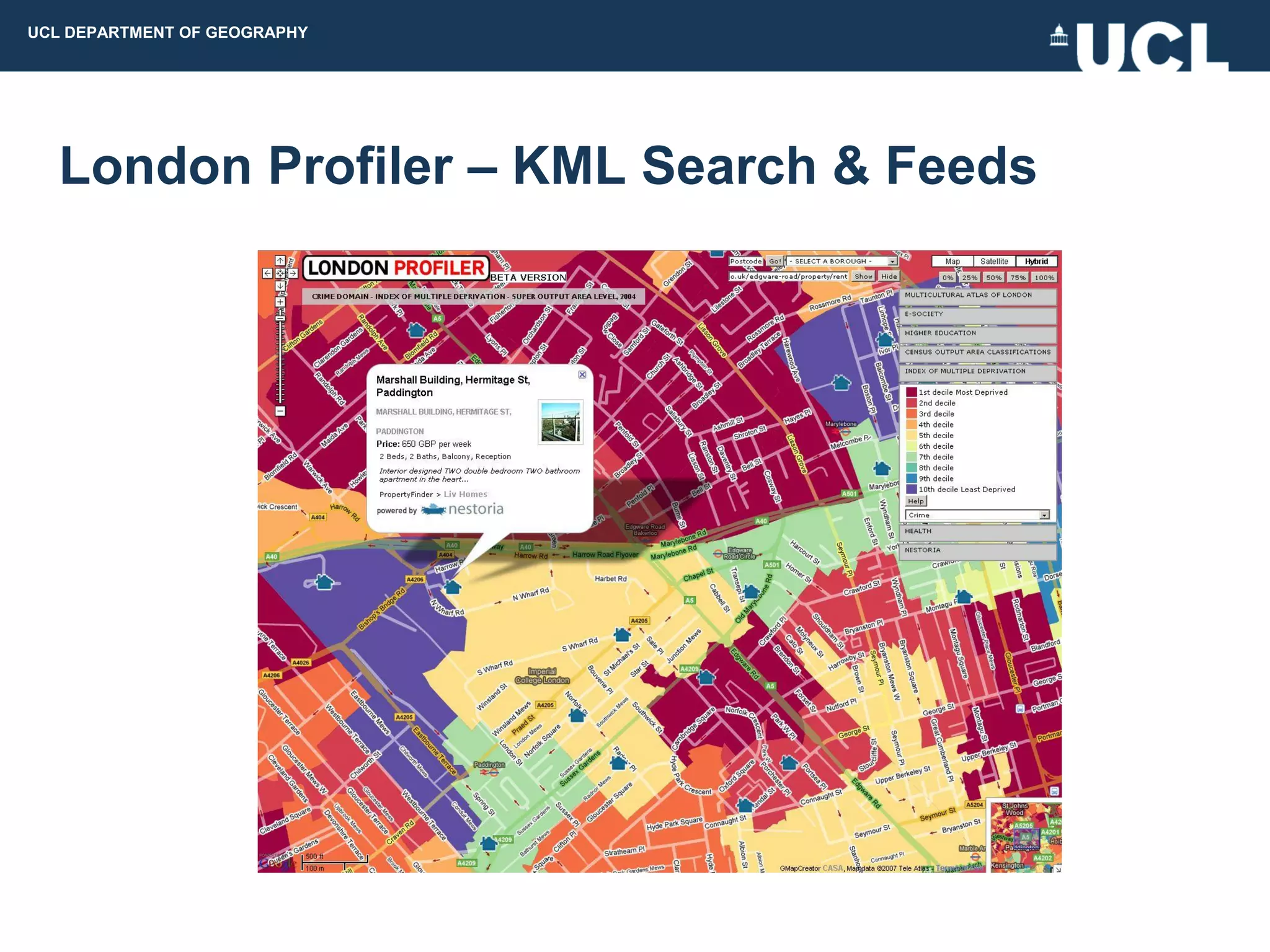

- 7. UCL DEPARTMENT OFGEOGRAPHY London Profiler – KML Search & Feeds

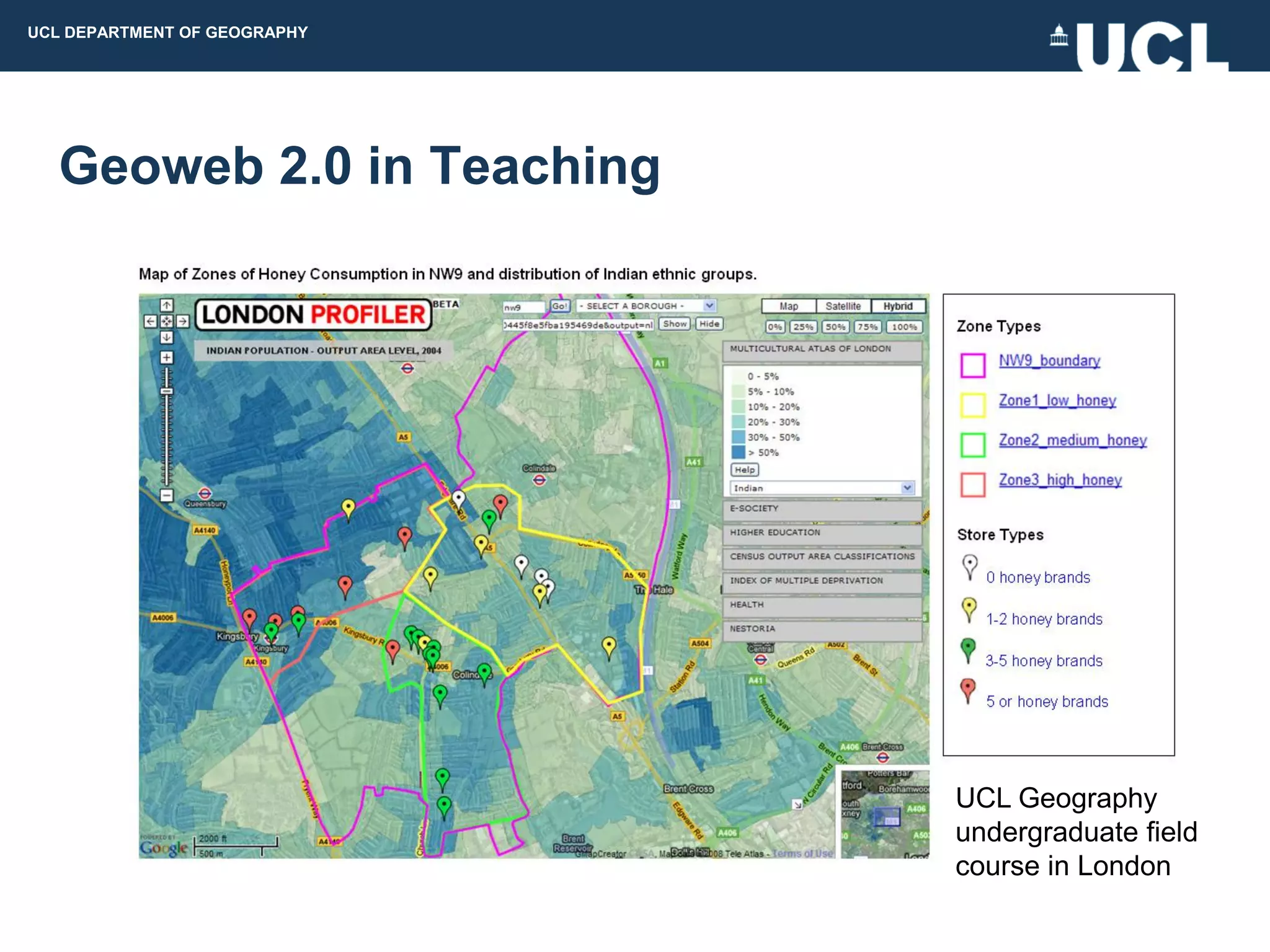

- 8. UCL DEPARTMENT OFGEOGRAPHY Geoweb 2.0 in Teaching UCL Geography undergraduate field course in London

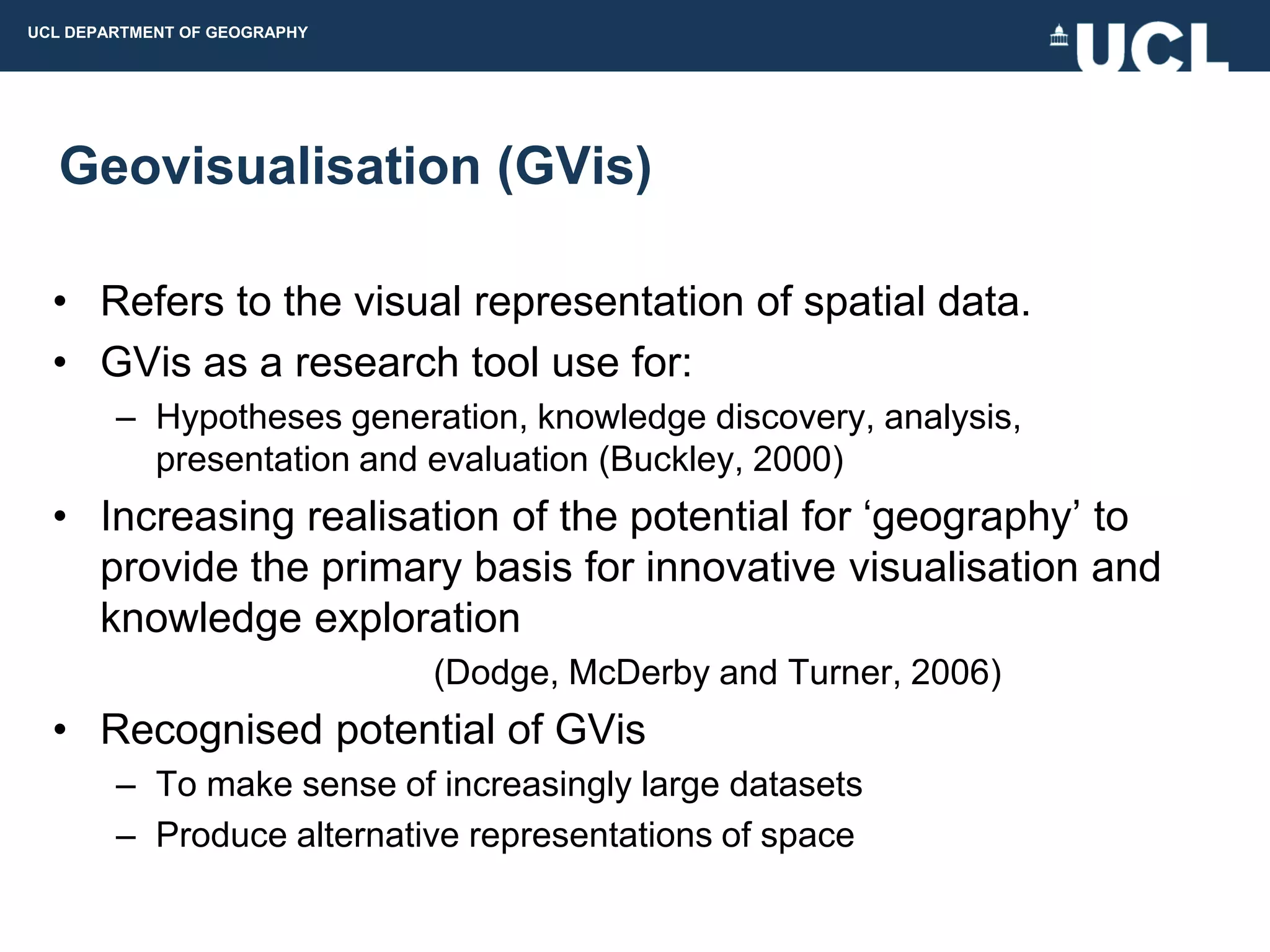

- 9. UCL DEPARTMENT OFGEOGRAPHY Geovisualisation (GVis) • Refers to the visual representation of spatial data. • GVis as a research tool use for: – Hypotheses generation, knowledge discovery, analysis, presentation and evaluation (Buckley, 2000) • Increasing realisation of the potential for „geography‟ to provide the primary basis for innovative visualisation and knowledge exploration (Dodge, McDerby and Turner, 2006) • Recognised potential of GVis – To make sense of increasingly large datasets – Produce alternative representations of space

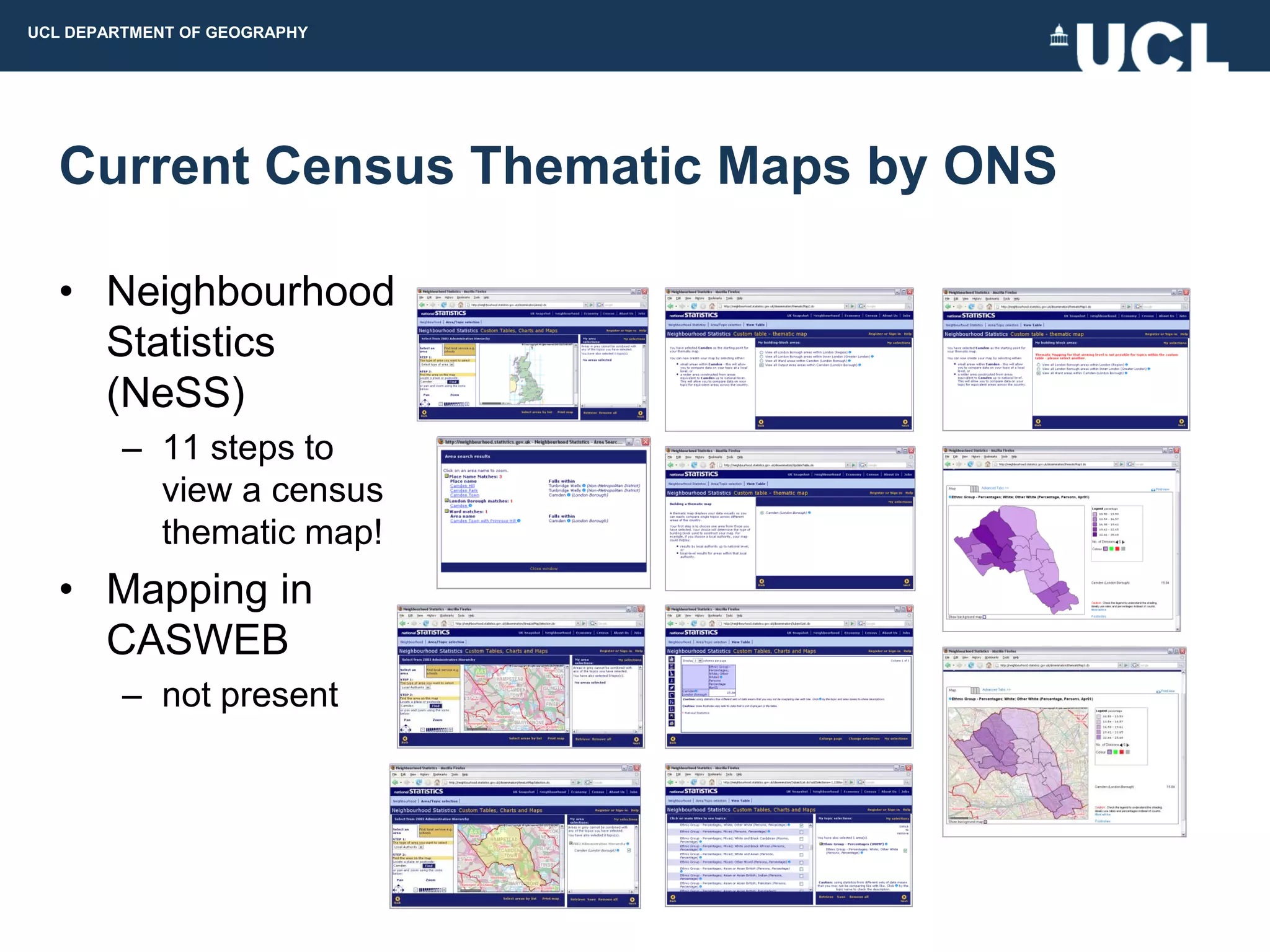

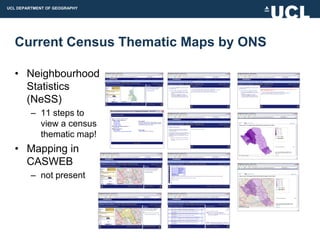

- 10. UCL DEPARTMENT OFGEOGRAPHY Current Census Thematic Maps by ONS • Neighbourhood Statistics (NeSS) – 11 steps to view a census thematic map! • Mapping in CASWEB – not present

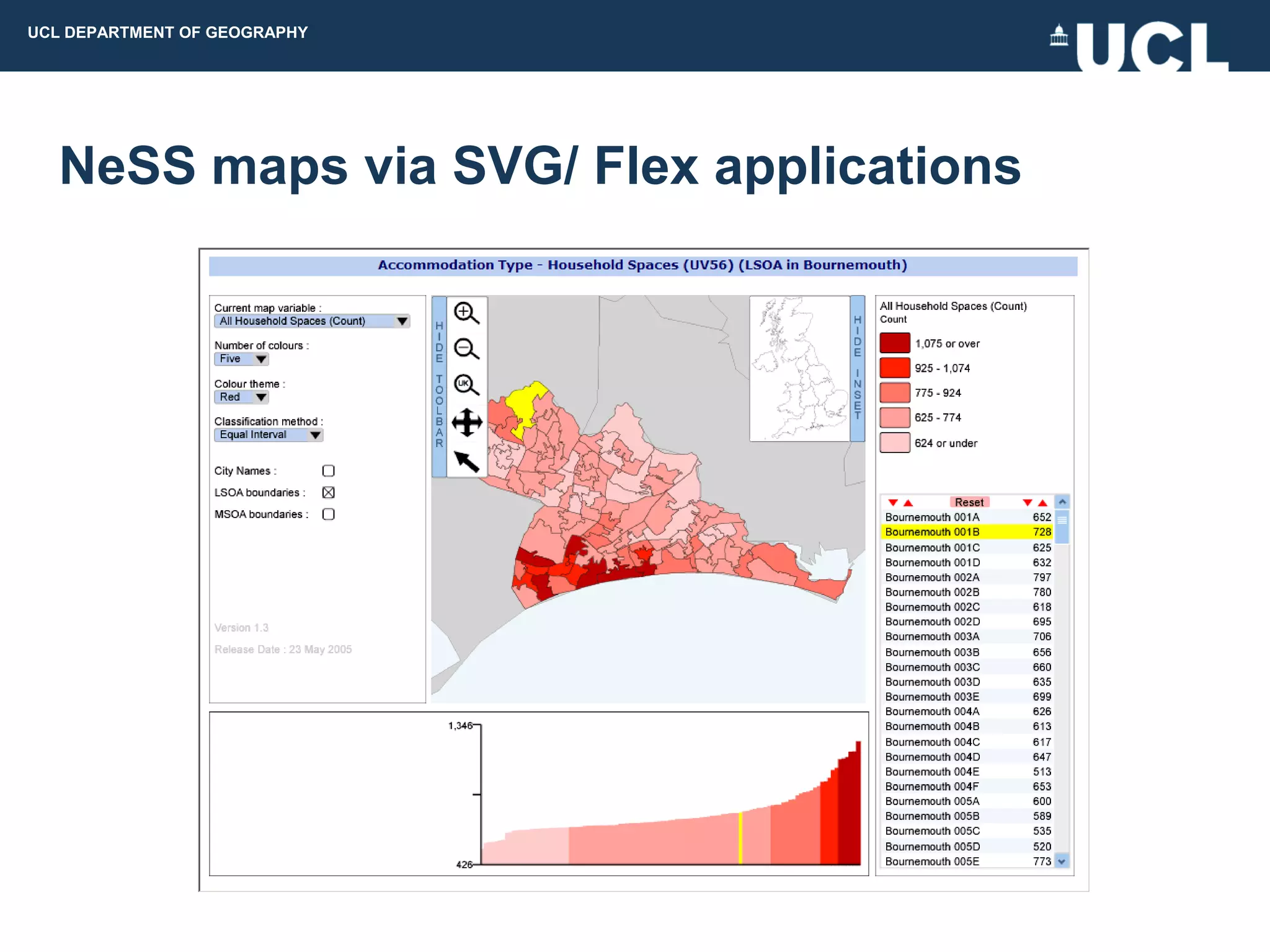

- 11. UCL DEPARTMENT OFGEOGRAPHY NeSS maps via SVG/ Flex applications

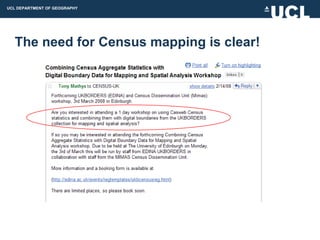

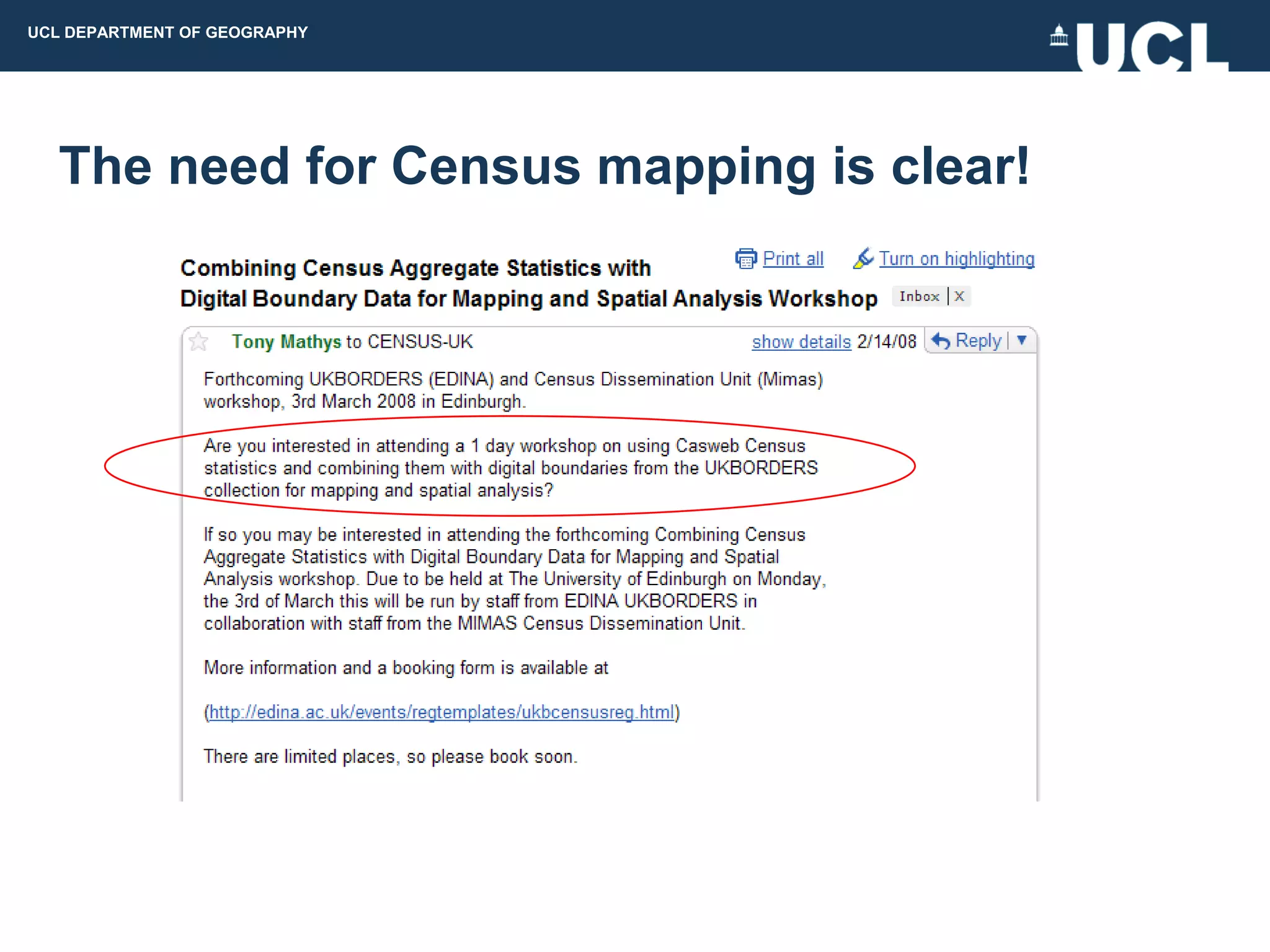

- 12. UCL DEPARTMENT OFGEOGRAPHY The need for Census mapping is clear!

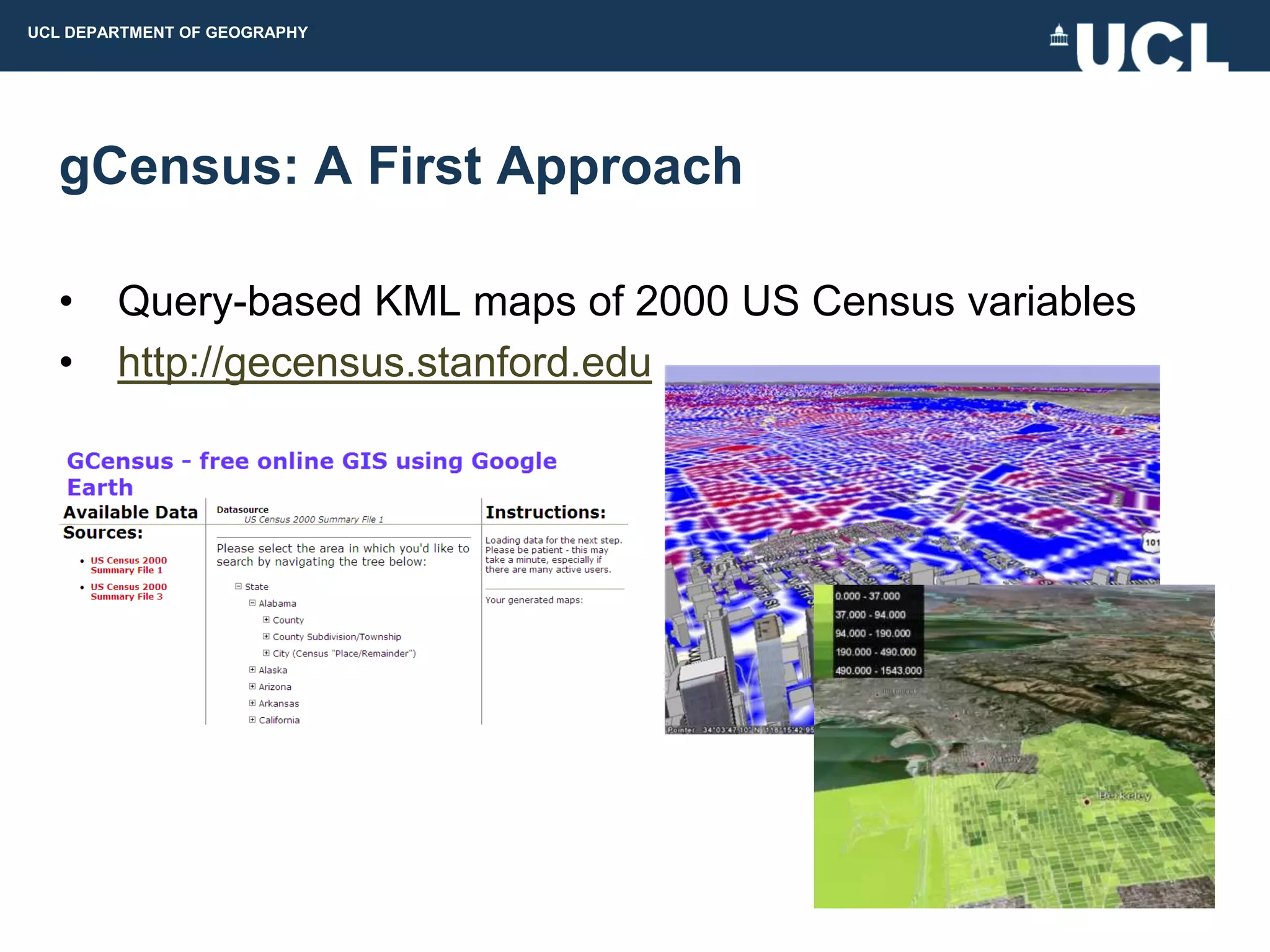

- 13. UCL DEPARTMENT OFGEOGRAPHY gCensus: A First Approach • Query-based KML maps of 2000 US Census variables • http://gecensus.stanford.edu

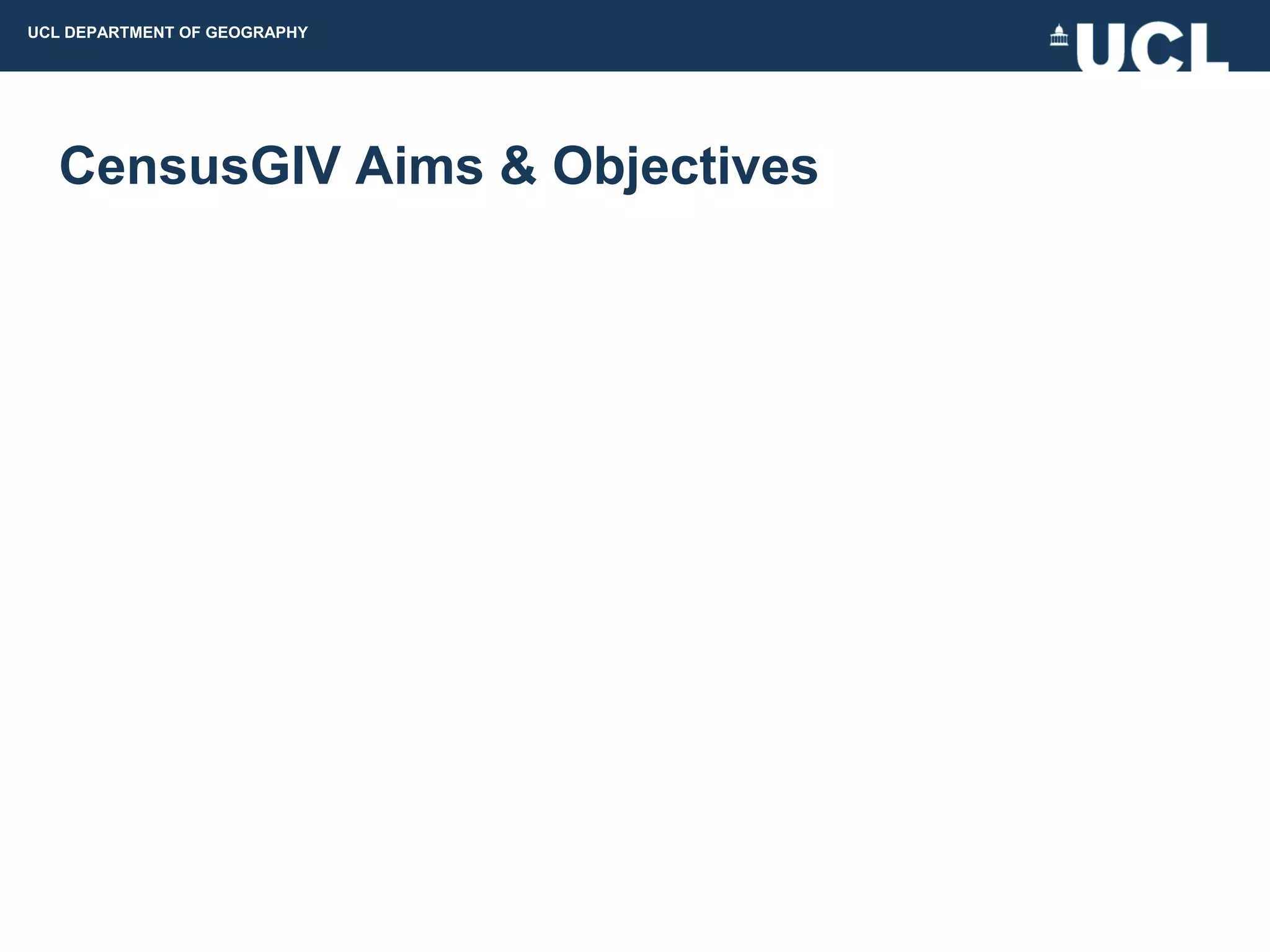

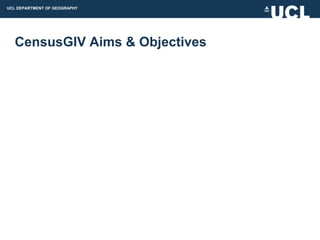

- 14. UCL DEPARTMENT OFGEOGRAPHY CensusGIV Aims & Objectives

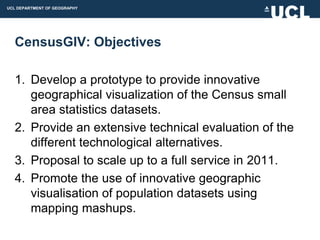

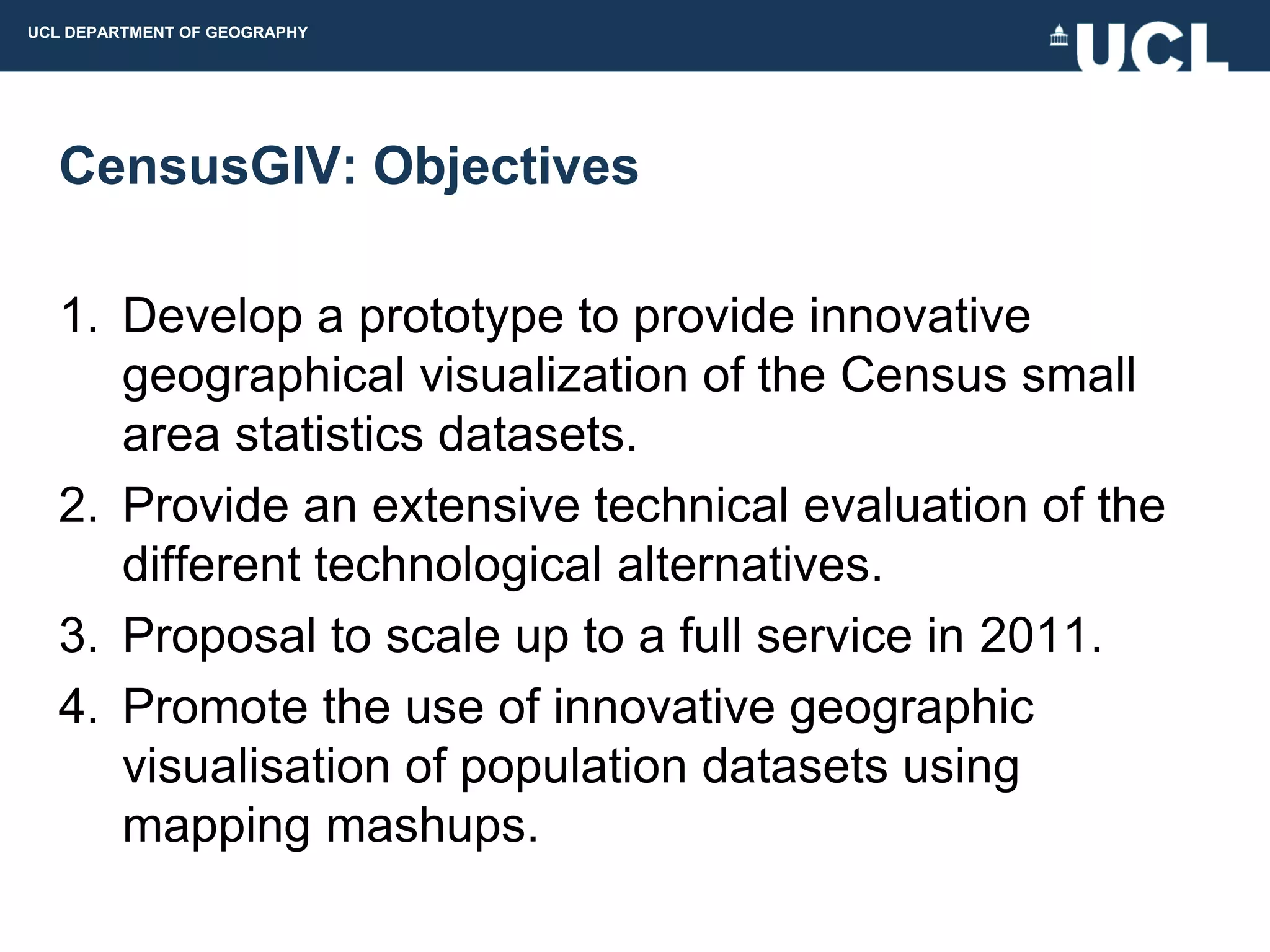

- 15. UCL DEPARTMENT OFGEOGRAPHY CensusGIV: Objectives 1. Develop a prototype to provide innovative geographical visualization of the Census small area statistics datasets. 2. Provide an extensive technical evaluation of the different technological alternatives. 3. Proposal to scale up to a full service in 2011. 4. Promote the use of innovative geographic visualisation of population datasets using mapping mashups.

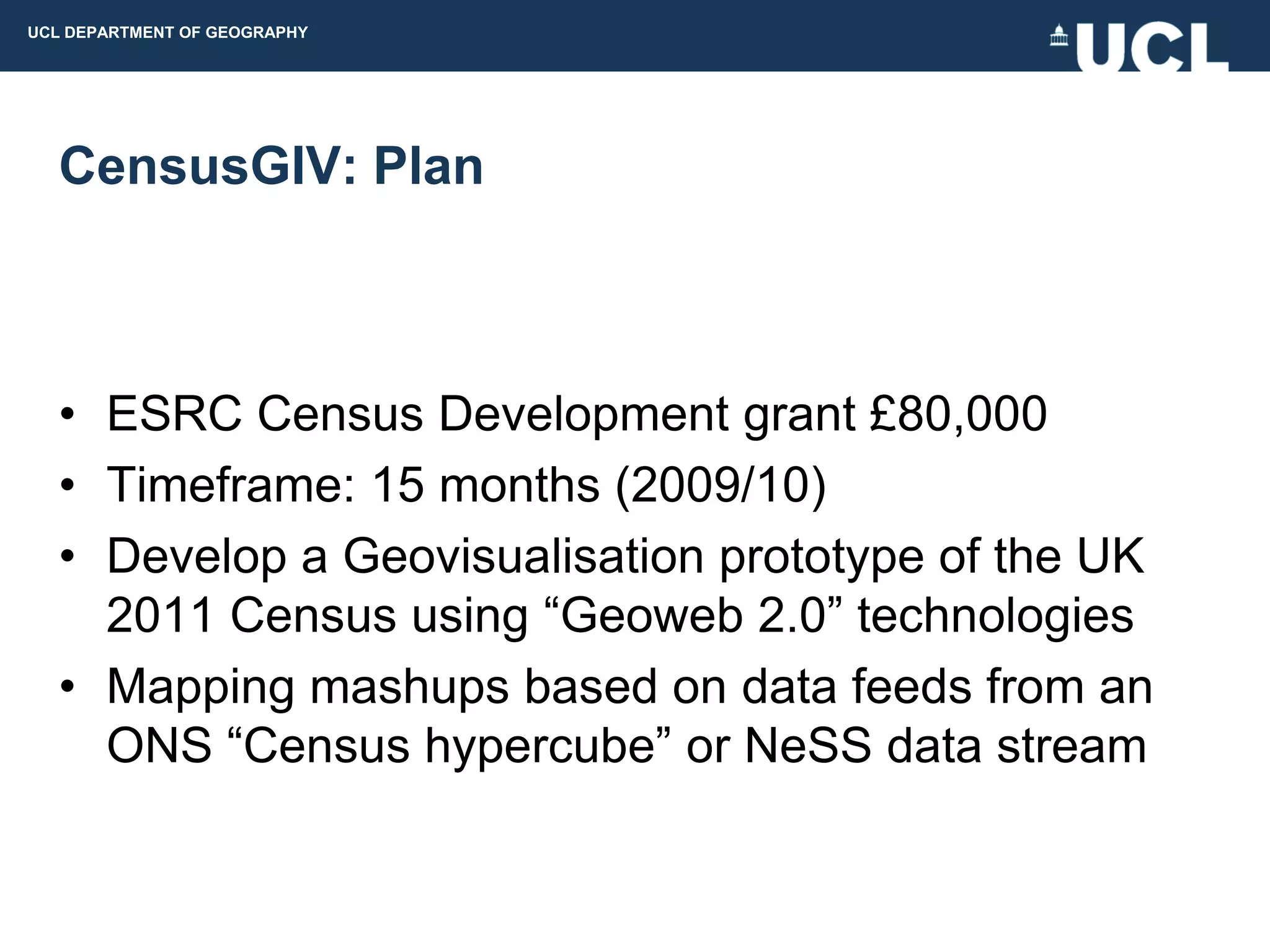

- 16. UCL DEPARTMENT OFGEOGRAPHY CensusGIV: Plan • ESRC Census Development grant £80,000 • Timeframe: 15 months (2009/10) • Develop a Geovisualisation prototype of the UK 2011 Census using “Geoweb 2.0” technologies • Mapping mashups based on data feeds from an ONS “Census hypercube” or NeSS data stream

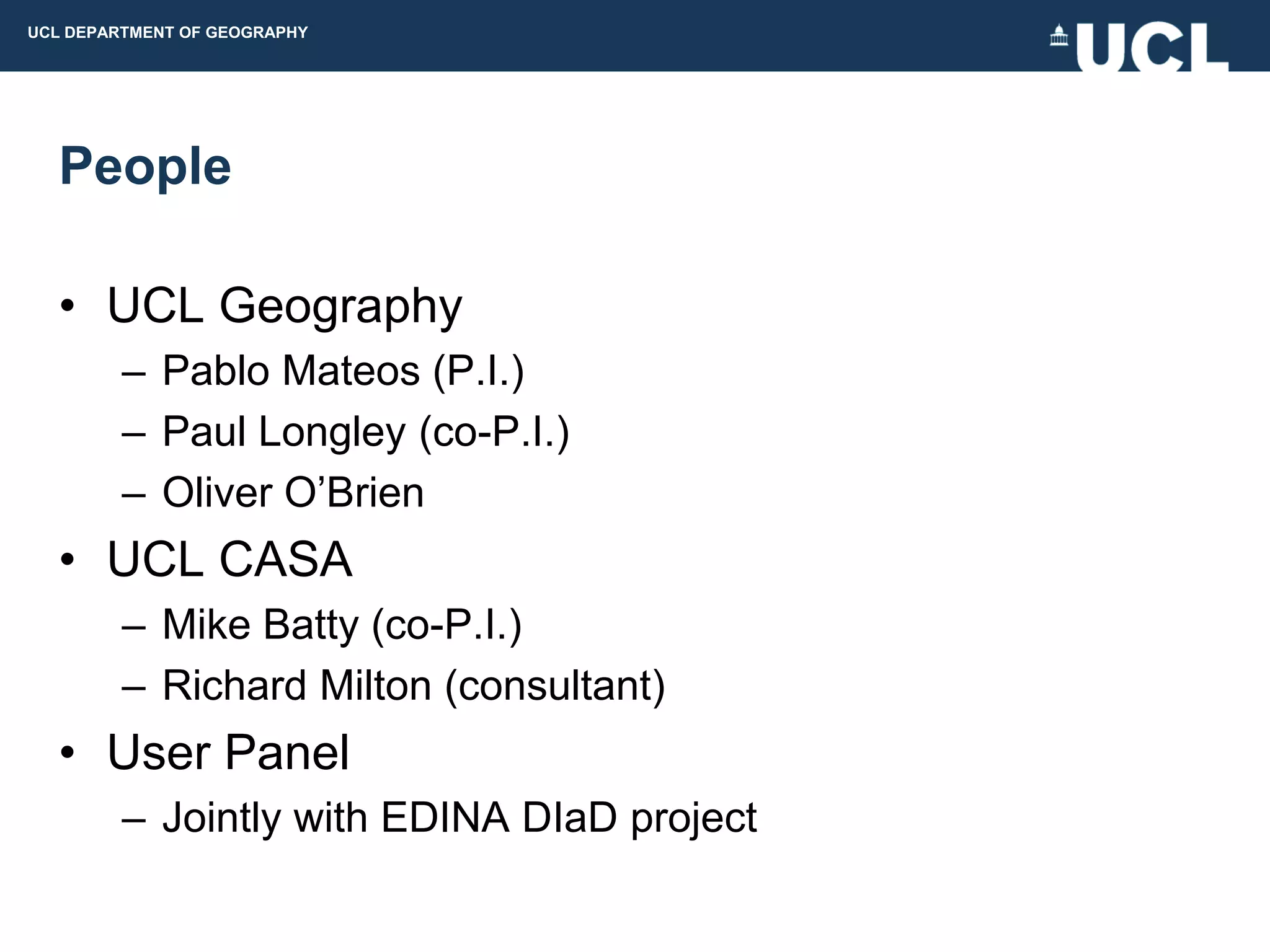

- 17. UCL DEPARTMENT OFGEOGRAPHY People • UCL Geography – Pablo Mateos (P.I.) – Paul Longley (co-P.I.) – Oliver O‟Brien • UCL CASA – Mike Batty (co-P.I.) – Richard Milton (consultant) • User Panel – Jointly with EDINA DIaD project

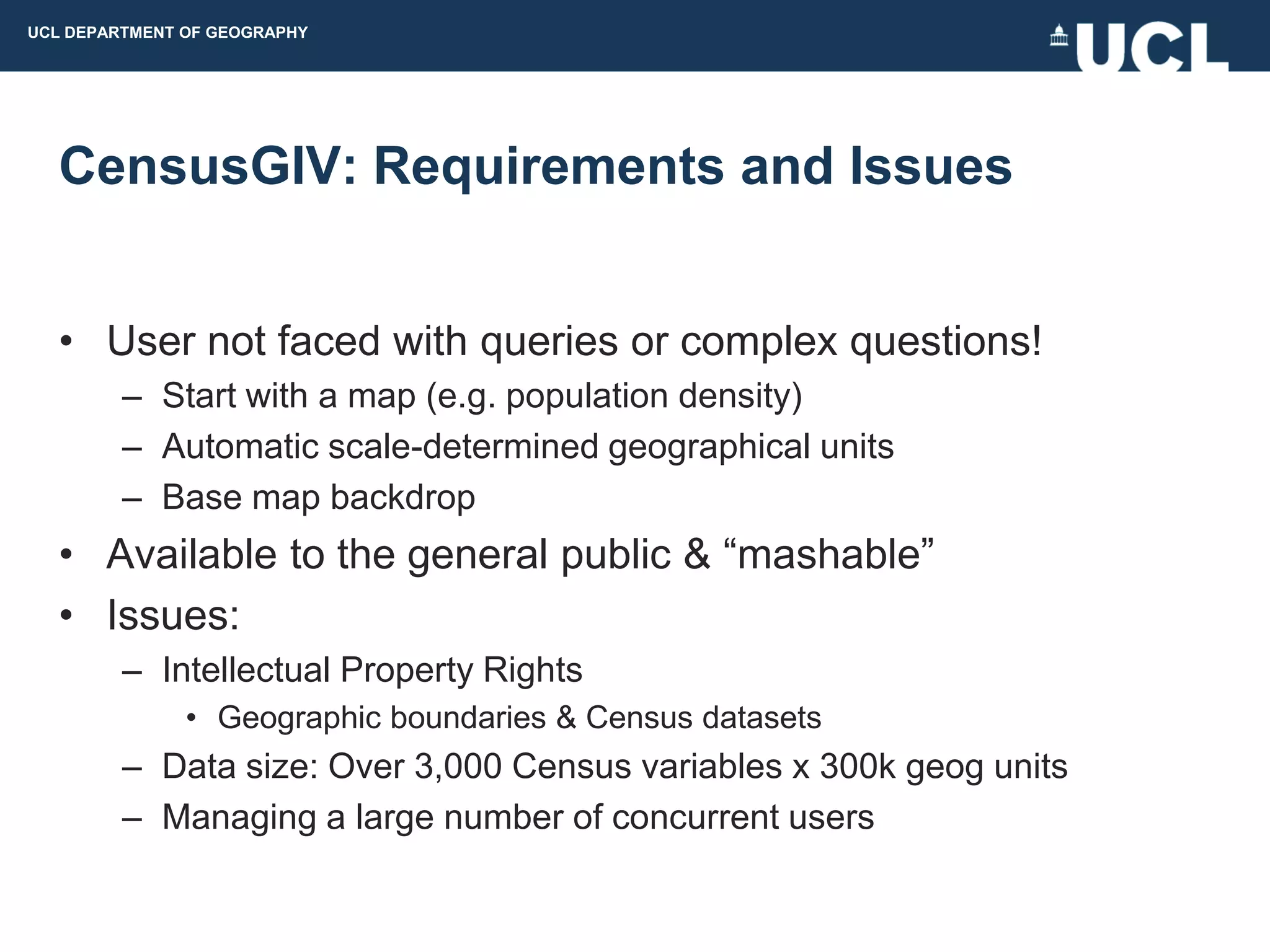

- 18. UCL DEPARTMENT OFGEOGRAPHY CensusGIV: Requirements and Issues • User not faced with queries or complex questions! – Start with a map (e.g. population density) – Automatic scale-determined geographical units – Base map backdrop • Available to the general public & “mashable” • Issues: – Intellectual Property Rights • Geographic boundaries & Census datasets – Data size: Over 3,000 Census variables x 300k geog units – Managing a large number of concurrent users

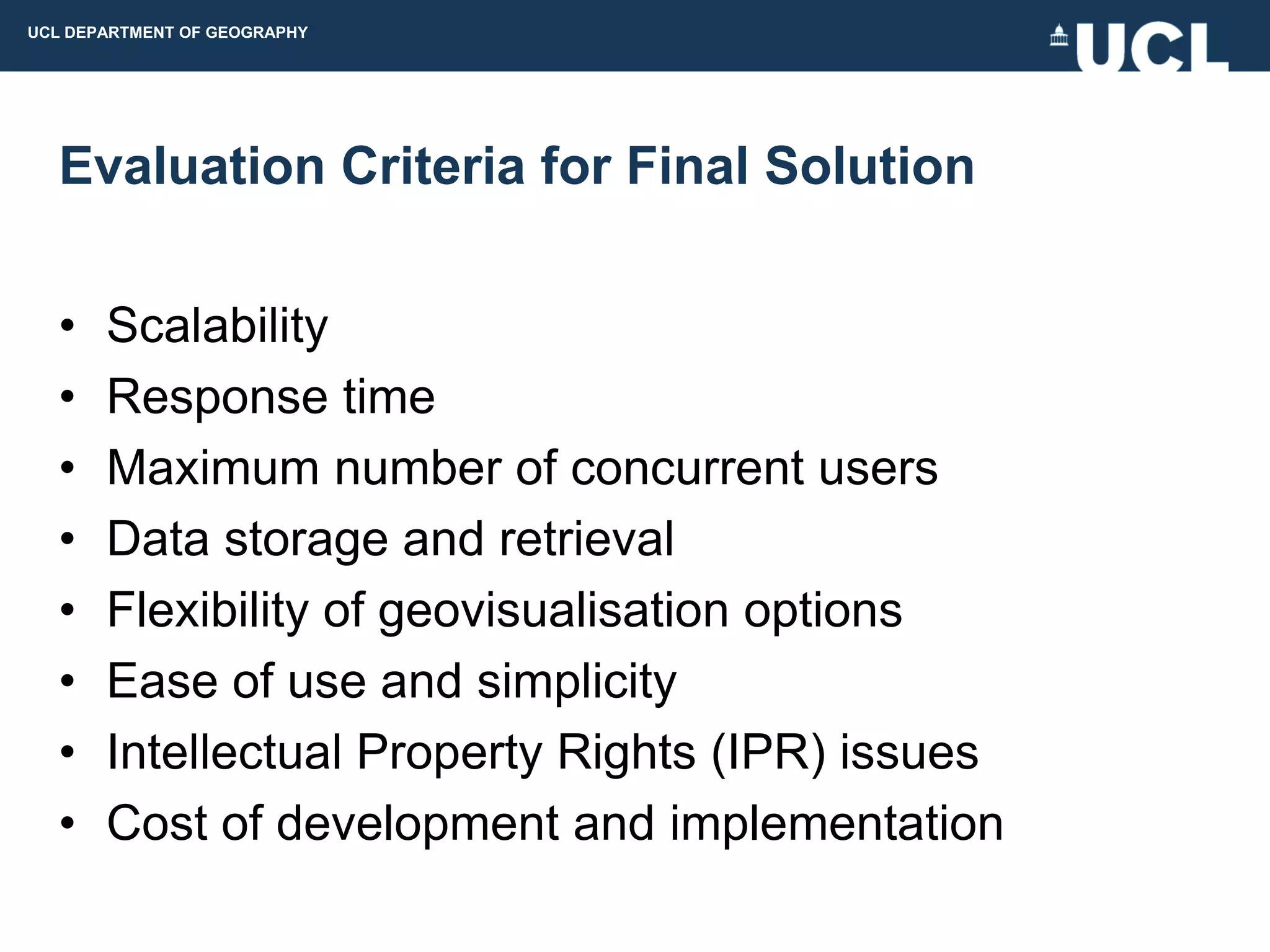

- 19. UCL DEPARTMENT OFGEOGRAPHY Evaluation Criteria for Final Solution • Scalability • Response time • Maximum number of concurrent users • Data storage and retrieval • Flexibility of geovisualisation options • Ease of use and simplicity • Intellectual Property Rights (IPR) issues • Cost of development and implementation

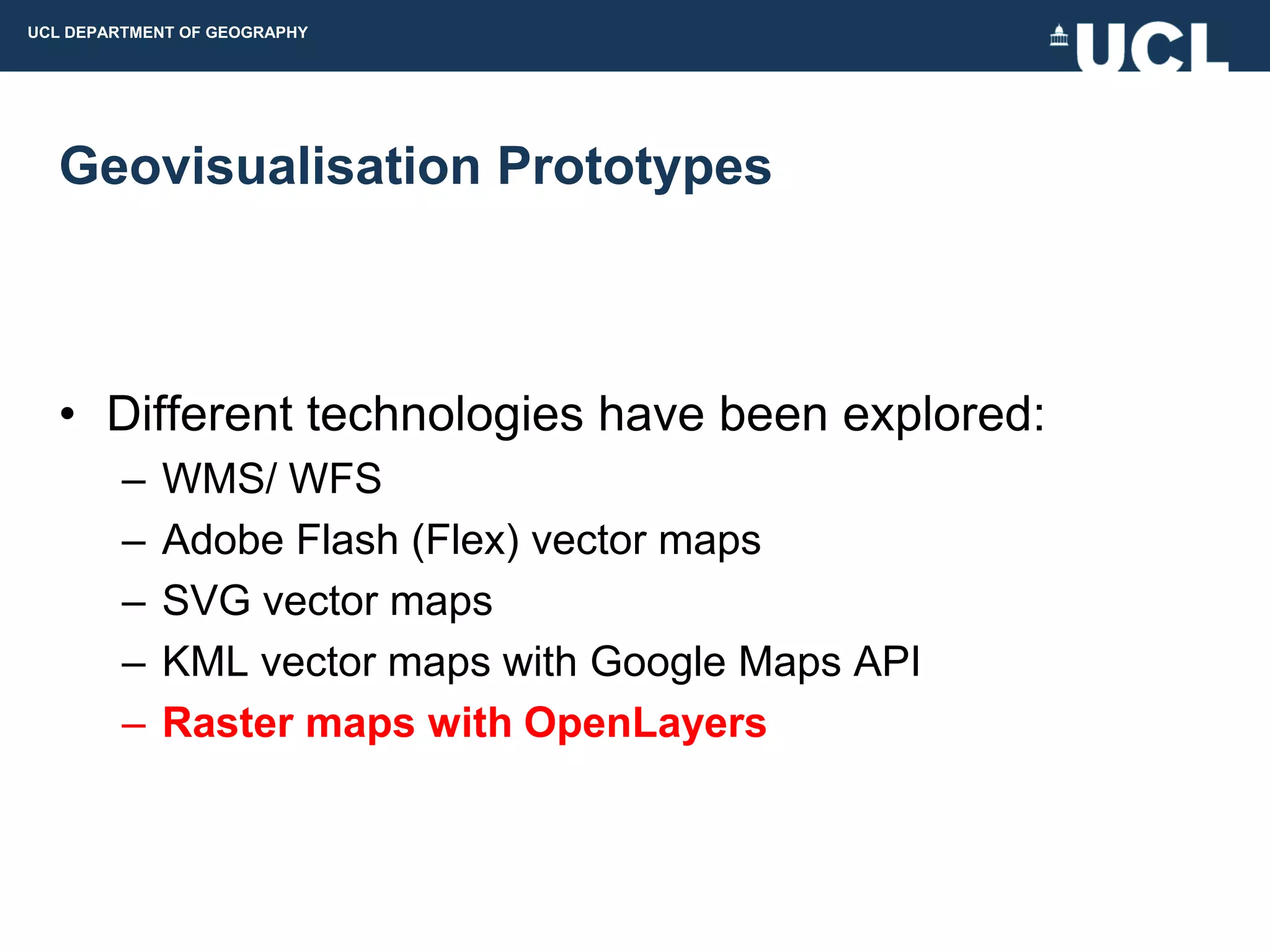

- 20. UCL DEPARTMENT OFGEOGRAPHY Geovisualisation Prototypes • Different technologies have been explored: – WMS/ WFS – Adobe Flash (Flex) vector maps – SVG vector maps – KML vector maps with Google Maps API – Raster maps with OpenLayers

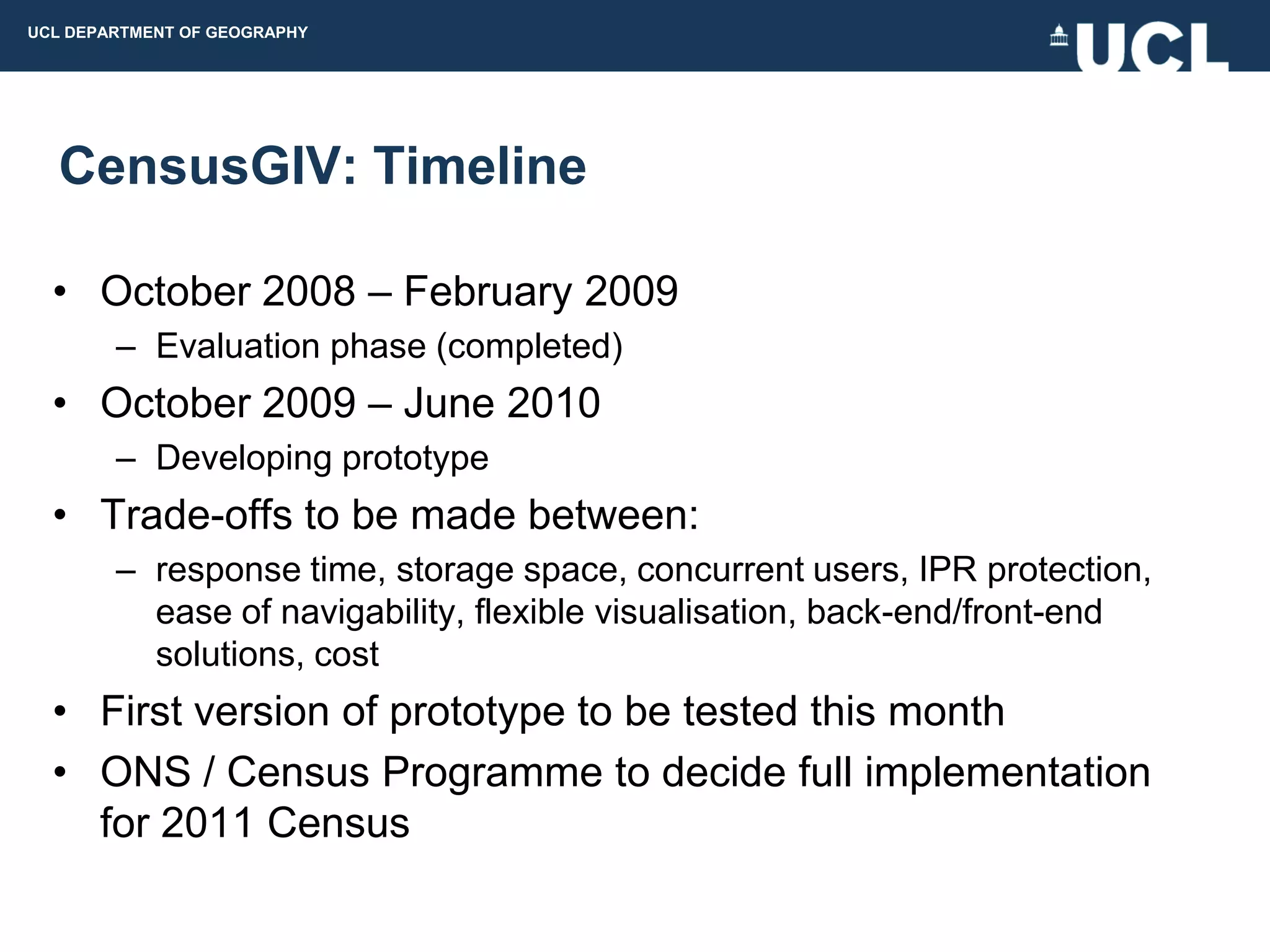

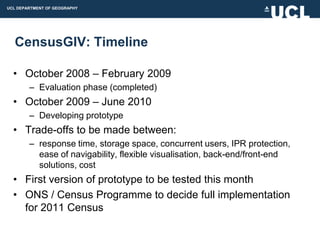

- 21. UCL DEPARTMENT OFGEOGRAPHY CensusGIV: Timeline • October 2008 – February 2009 – Evaluation phase (completed) • October 2009 – June 2010 – Developing prototype • Trade-offs to be made between: – response time, storage space, concurrent users, IPR protection, ease of navigability, flexible visualisation, back-end/front-end solutions, cost • First version of prototype to be tested this month • ONS / Census Programme to decide full implementation for 2011 Census
- 22. UCL DEPARTMENT OFGEOGRAPHY Design Considerations

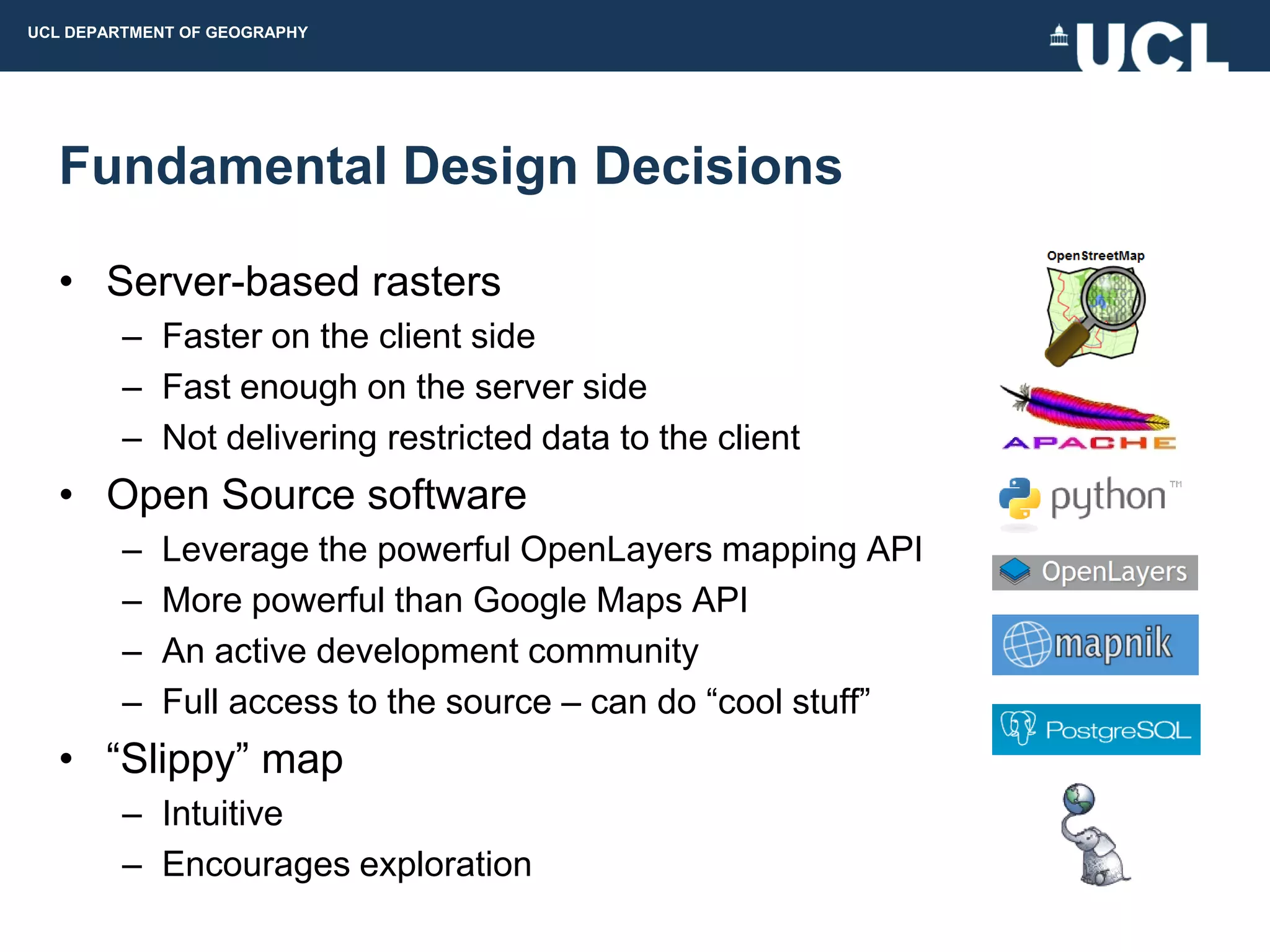

- 23. UCL DEPARTMENT OFGEOGRAPHY Fundamental Design Decisions • Server-based rasters – Faster on the client side – Fast enough on the server side – Not delivering restricted data to the client • Open Source software – Leverage the powerful OpenLayers mapping API – More powerful than Google Maps API – An active development community – Full access to the source – can do “cool stuff” • “Slippy” map – Intuitive – Encourages exploration

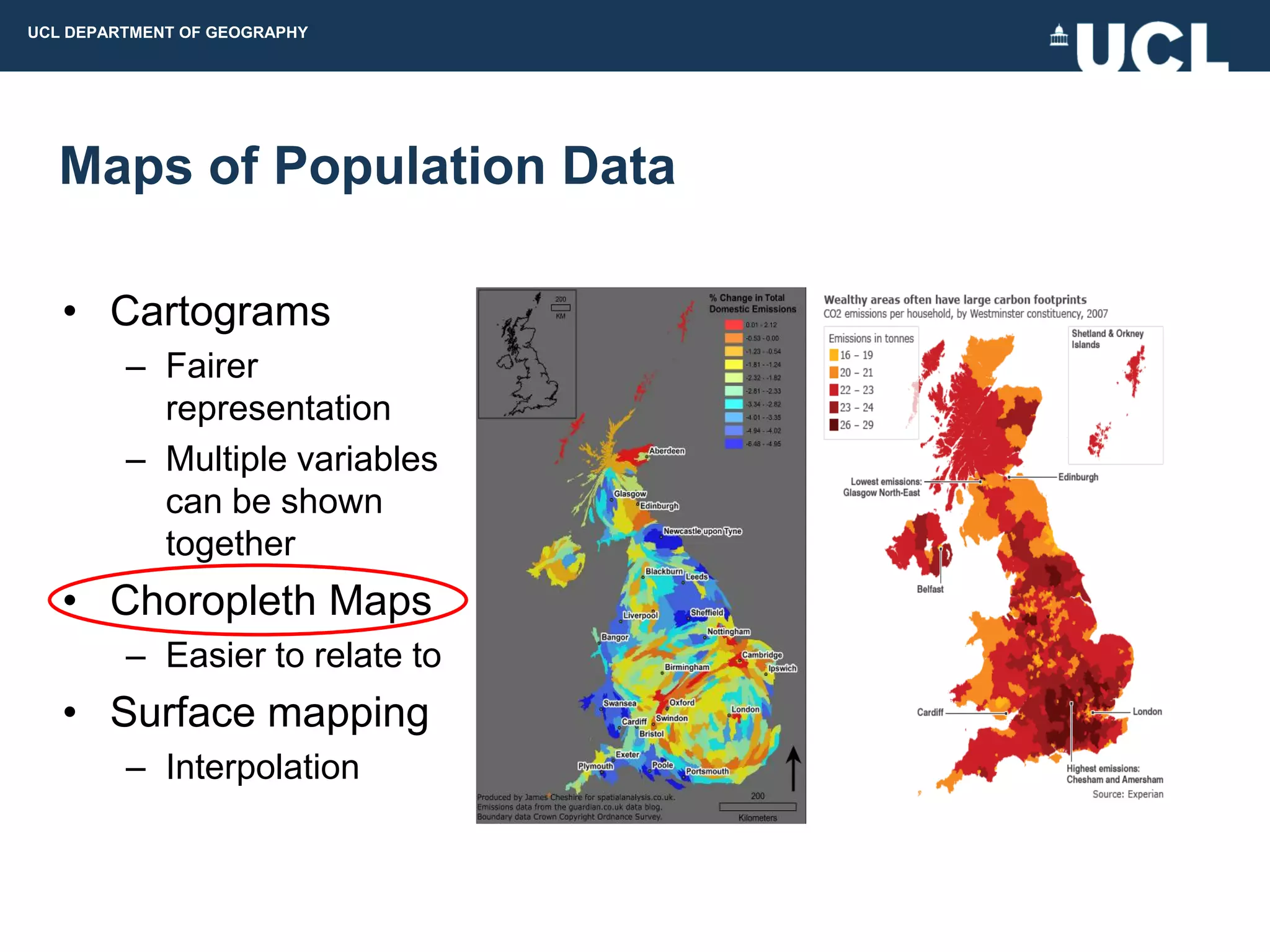

- 24. UCL DEPARTMENT OFGEOGRAPHY Maps of Population Data • Cartograms – Fairer representation – Multiple variables can be shown together • Choropleth Maps – Easier to relate to • Surface mapping – Interpolation

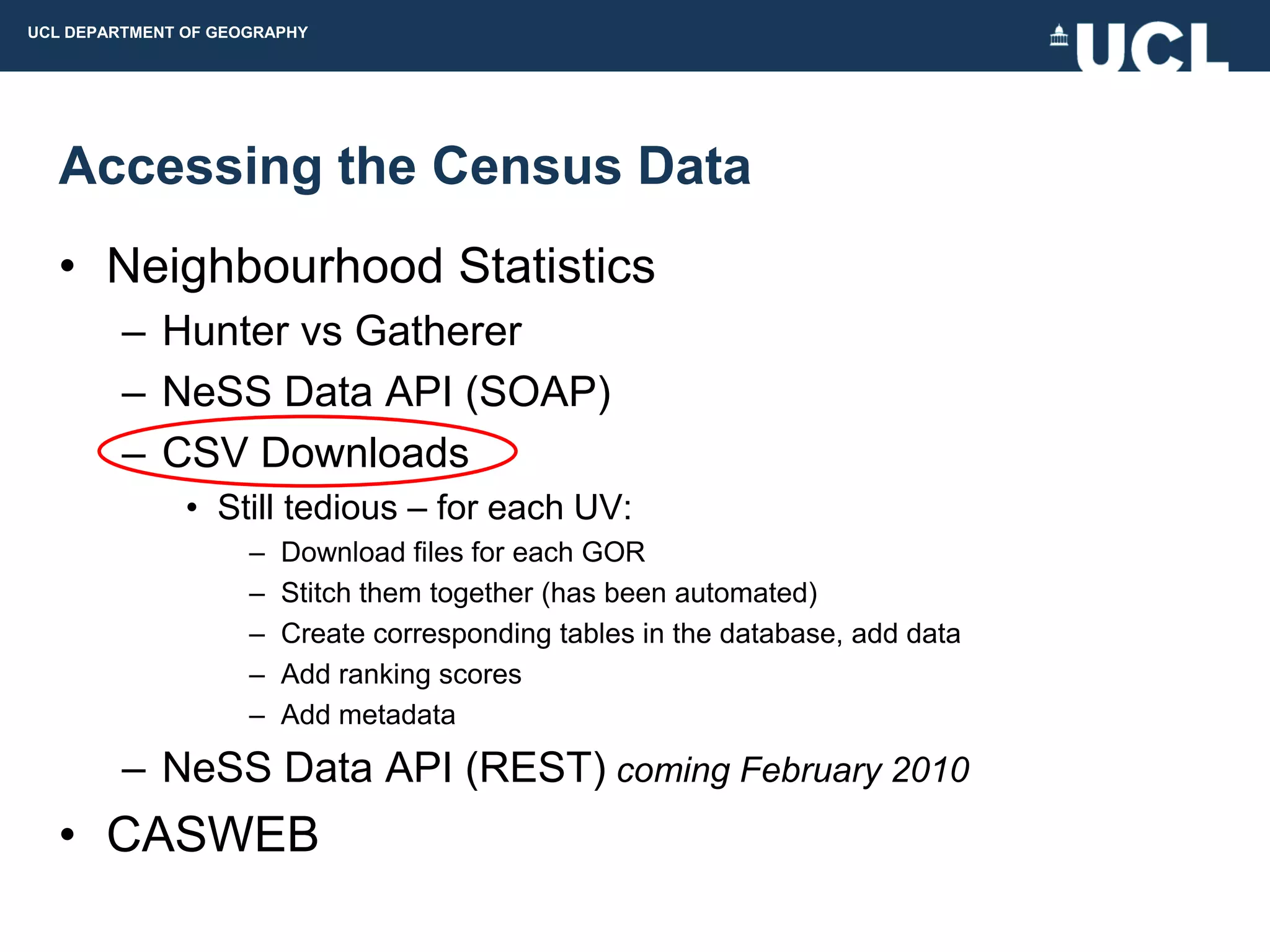

- 25. UCL DEPARTMENT OFGEOGRAPHY Accessing the Census Data • Neighbourhood Statistics – Hunter vs Gatherer – NeSS Data API (SOAP) – CSV Downloads • Still tedious – for each UV: – Download files for each GOR – Stitch them together (has been automated) – Create corresponding tables in the database, add data – Add ranking scores – Add metadata – NeSS Data API (REST) coming February 2010 • CASWEB

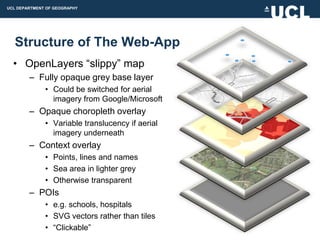

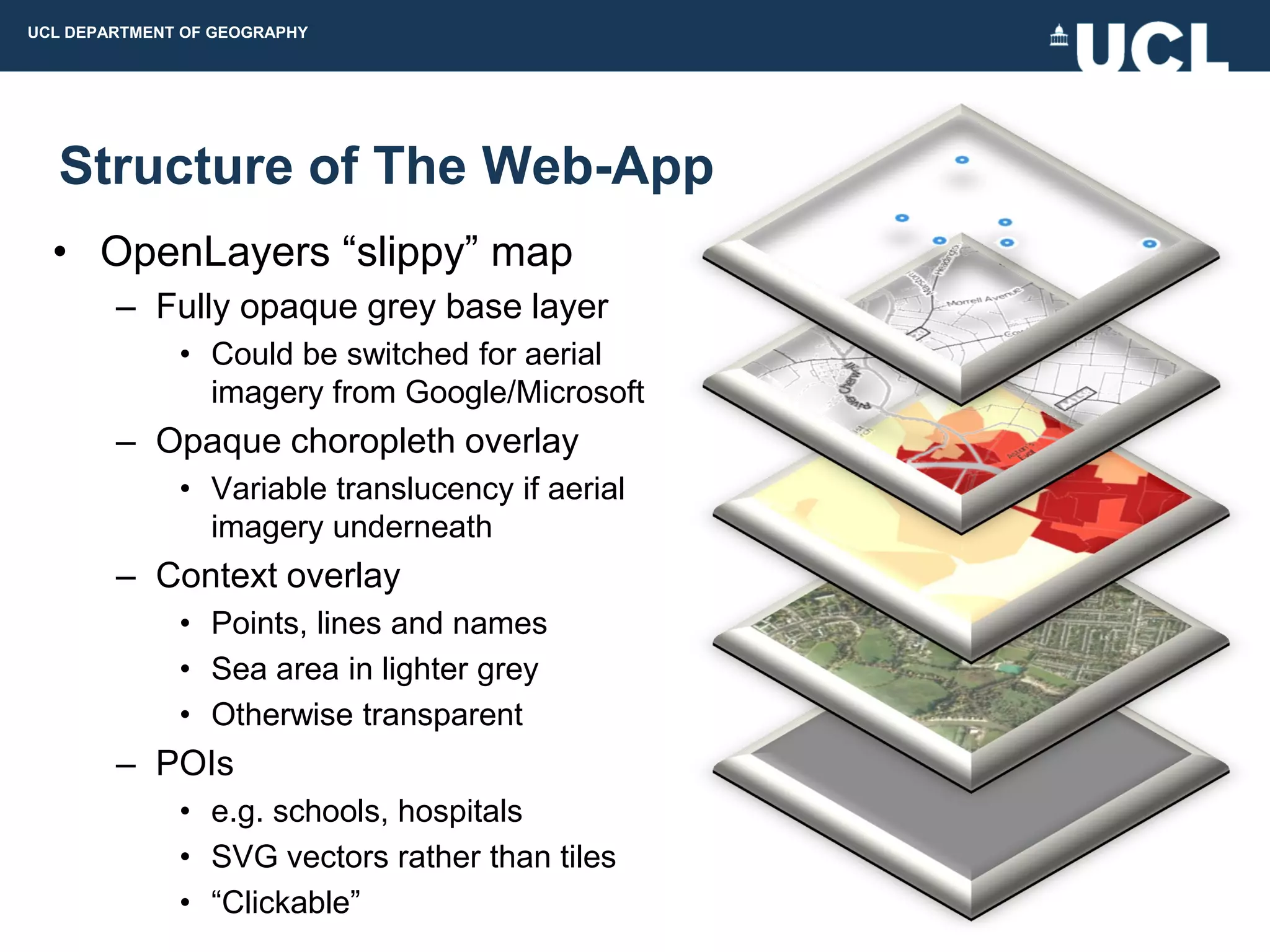

- 26. UCL DEPARTMENT OFGEOGRAPHY Structure of The Web-App • OpenLayers “slippy” map – Fully opaque grey base layer • Could be switched for aerial imagery from Google/Microsoft – Opaque choropleth overlay • Variable translucency if aerial imagery underneath – Context overlay • Points, lines and names • Sea area in lighter grey • Otherwise transparent – POIs • e.g. schools, hospitals • SVG vectors rather than tiles • “Clickable”

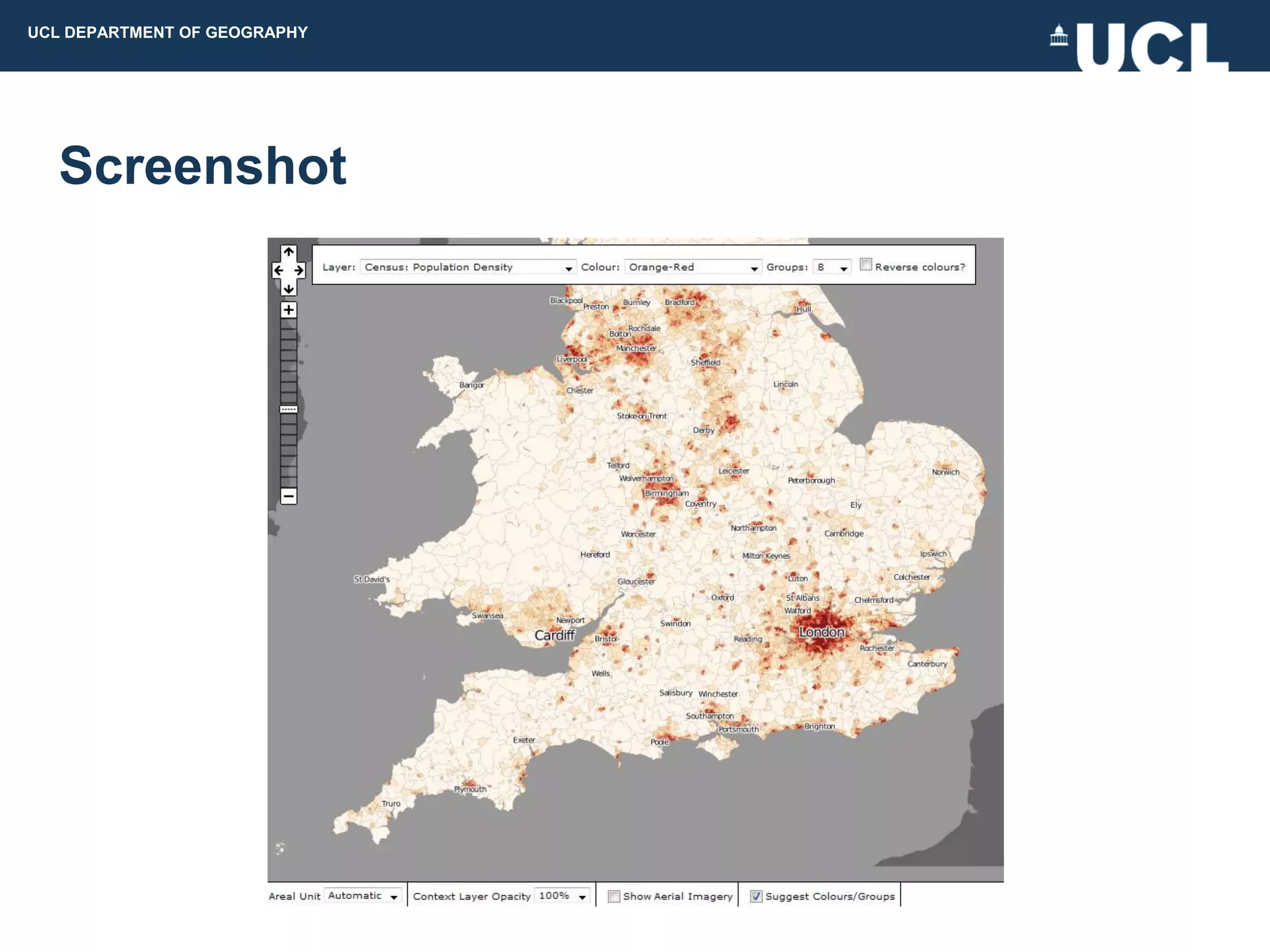

- 27. UCL DEPARTMENT OFGEOGRAPHY Screenshot

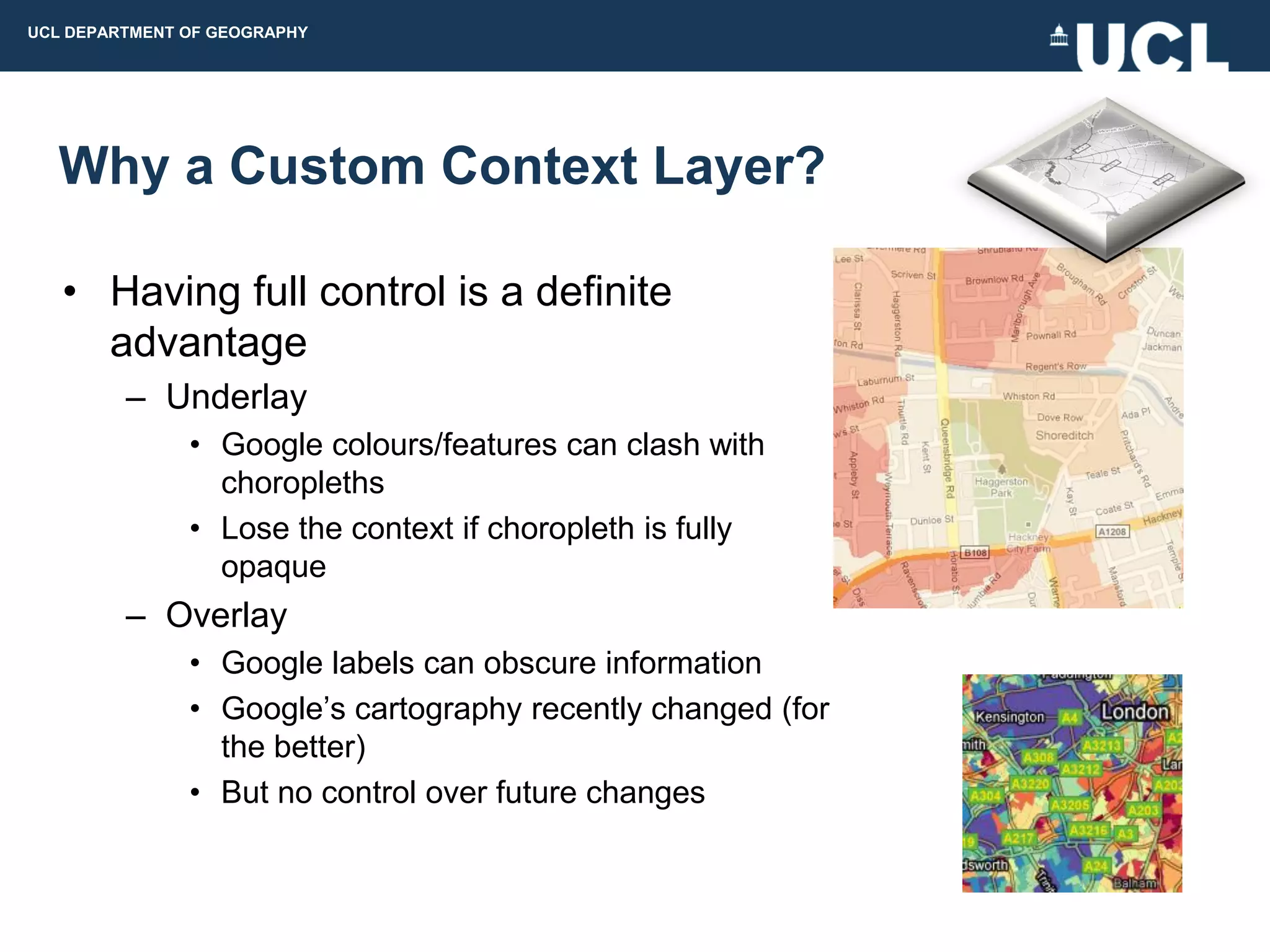

- 28. UCL DEPARTMENT OFGEOGRAPHY Why a Custom Context Layer? • Having full control is a definite advantage – Underlay • Google colours/features can clash with choropleths • Lose the context if choropleth is fully opaque – Overlay • Google labels can obscure information • Google‟s cartography recently changed (for the better) • But no control over future changes

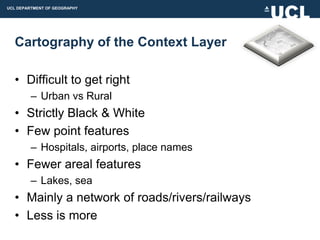

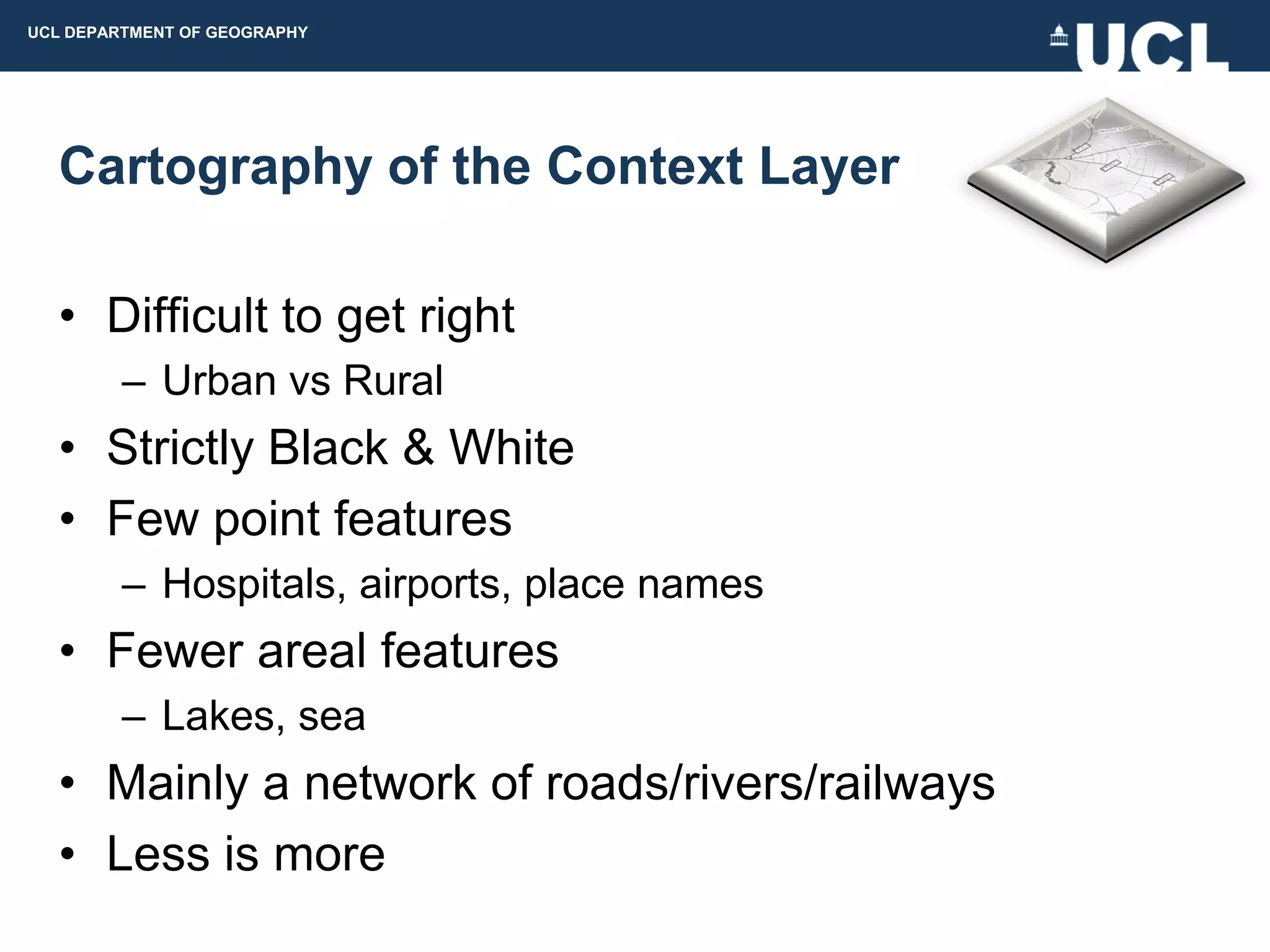

- 29. UCL DEPARTMENT OFGEOGRAPHY Cartography of the Context Layer • Difficult to get right – Urban vs Rural • Strictly Black & White • Few point features – Hospitals, airports, place names • Fewer areal features – Lakes, sea • Mainly a network of roads/rivers/railways • Less is more

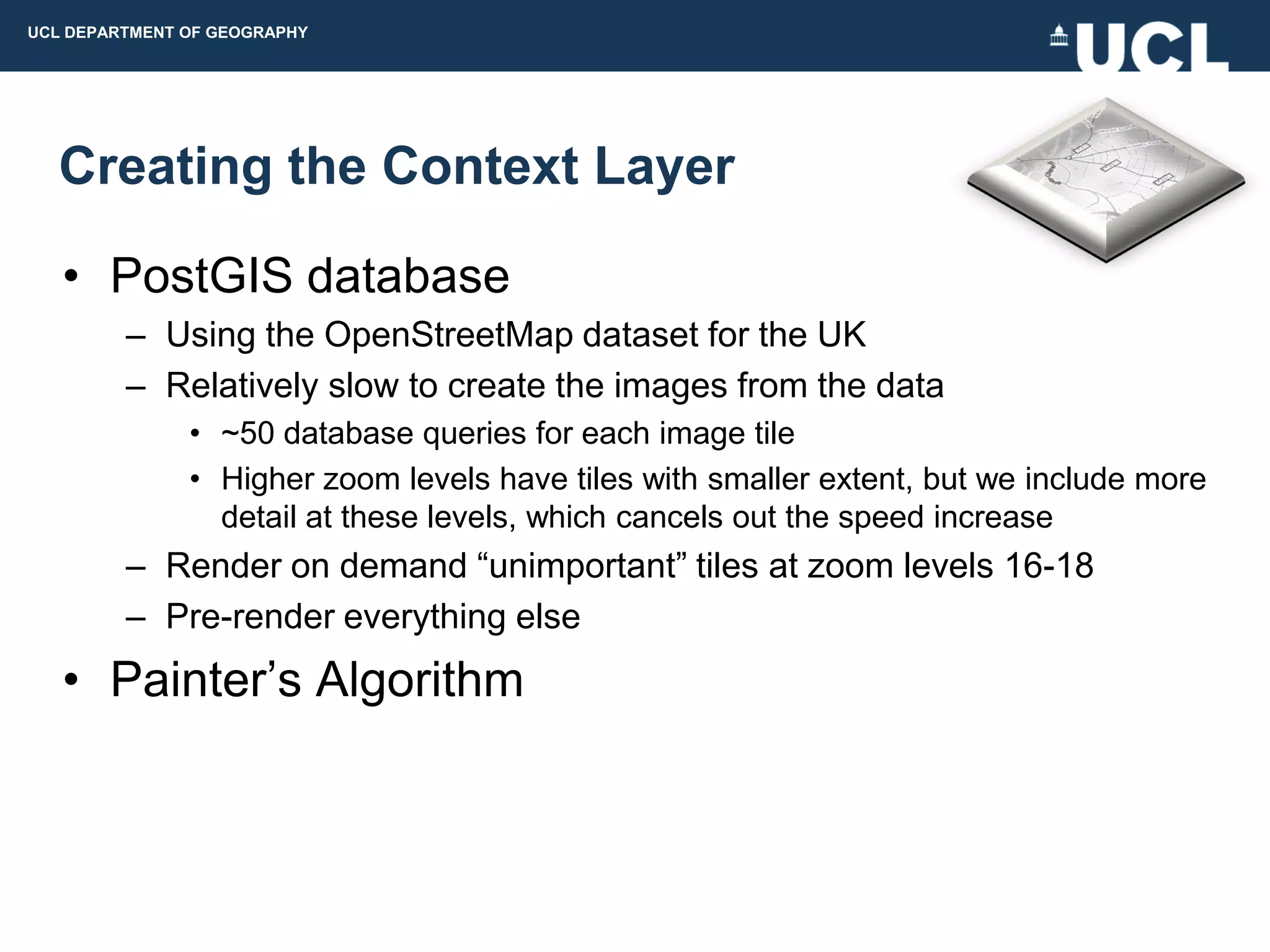

- 30. UCL DEPARTMENT OFGEOGRAPHY Creating the Context Layer • PostGIS database – Using the OpenStreetMap dataset for the UK – Relatively slow to create the images from the data • ~50 database queries for each image tile • Higher zoom levels have tiles with smaller extent, but we include more detail at these levels, which cancels out the speed increase – Render on demand “unimportant” tiles at zoom levels 16-18 – Pre-render everything else • Painter‟s Algorithm

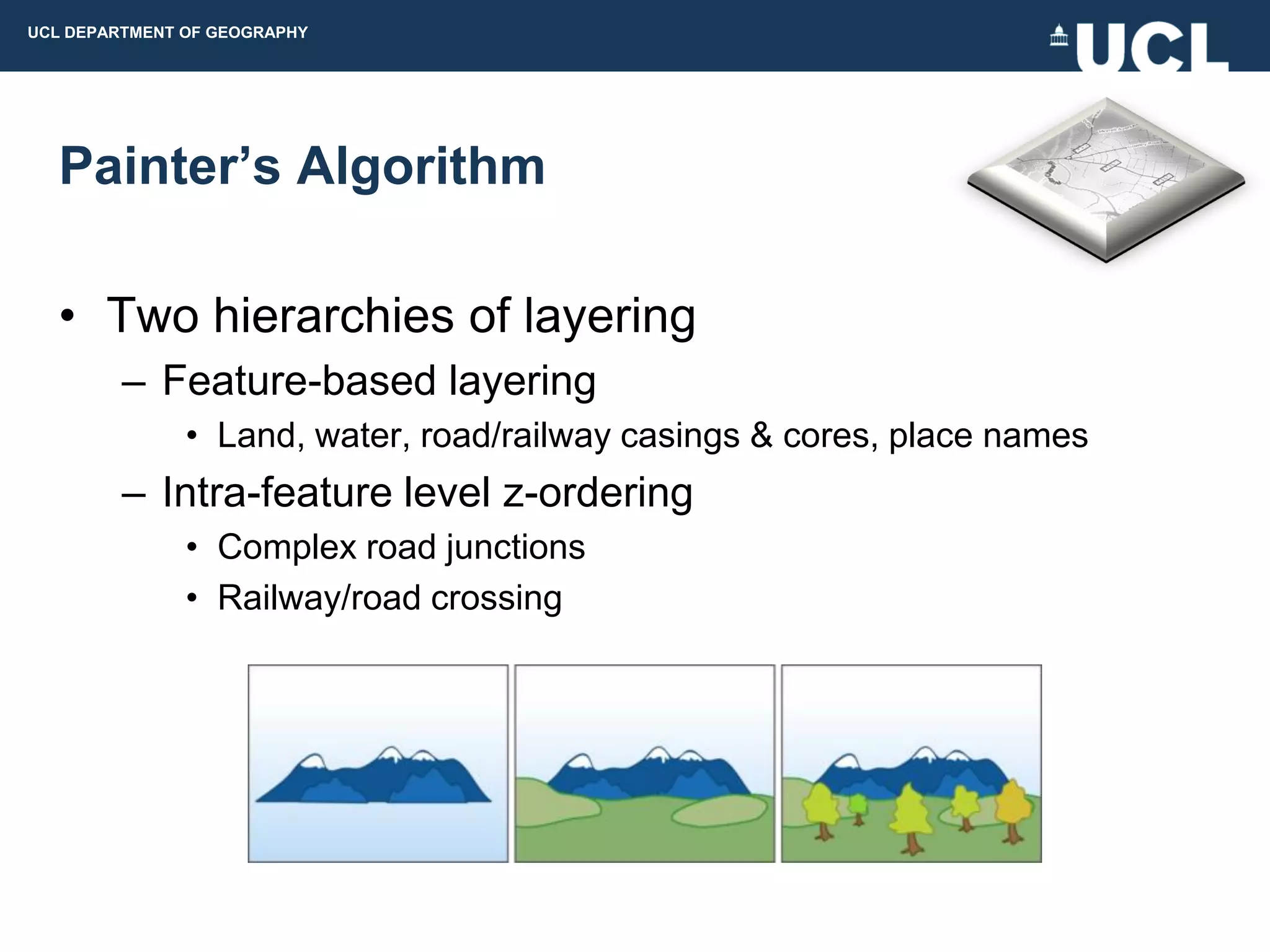

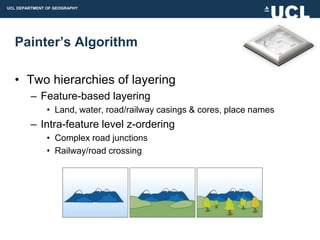

- 31. UCL DEPARTMENT OFGEOGRAPHY Painter’s Algorithm • Two hierarchies of layering – Feature-based layering • Land, water, road/railway casings & cores, place names – Intra-feature level z-ordering • Complex road junctions • Railway/road crossing

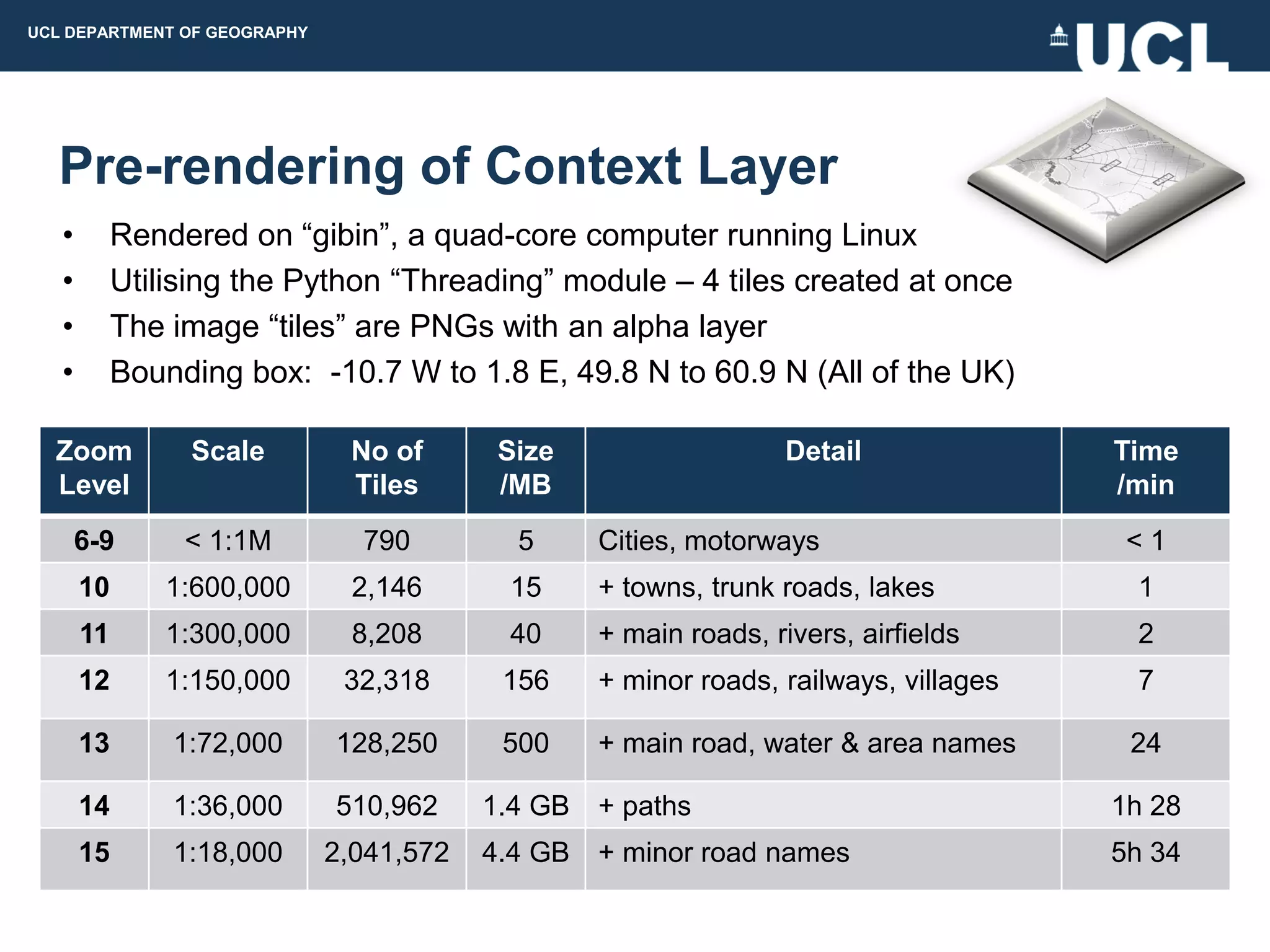

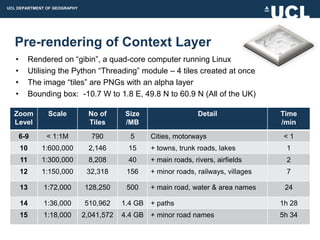

- 32. UCL DEPARTMENT OFGEOGRAPHY Pre-rendering of Context Layer • Rendered on “gibin”, a quad-core computer running Linux • Utilising the Python “Threading” module – 4 tiles created at once • The image “tiles” are PNGs with an alpha layer • Bounding box: -10.7 W to 1.8 E, 49.8 N to 60.9 N (All of the UK) Zoom Scale No of Size Detail Time Level Tiles /MB /min 6-9 < 1:1M 790 5 Cities, motorways <1 10 1:600,000 2,146 15 + towns, trunk roads, lakes 1 11 1:300,000 8,208 40 + main roads, rivers, airfields 2 12 1:150,000 32,318 156 + minor roads, railways, villages 7 13 1:72,000 128,250 500 + main road, water & area names 24 14 1:36,000 510,962 1.4 GB + paths 1h 28 15 1:18,000 2,041,572 4.4 GB + minor road names 5h 34

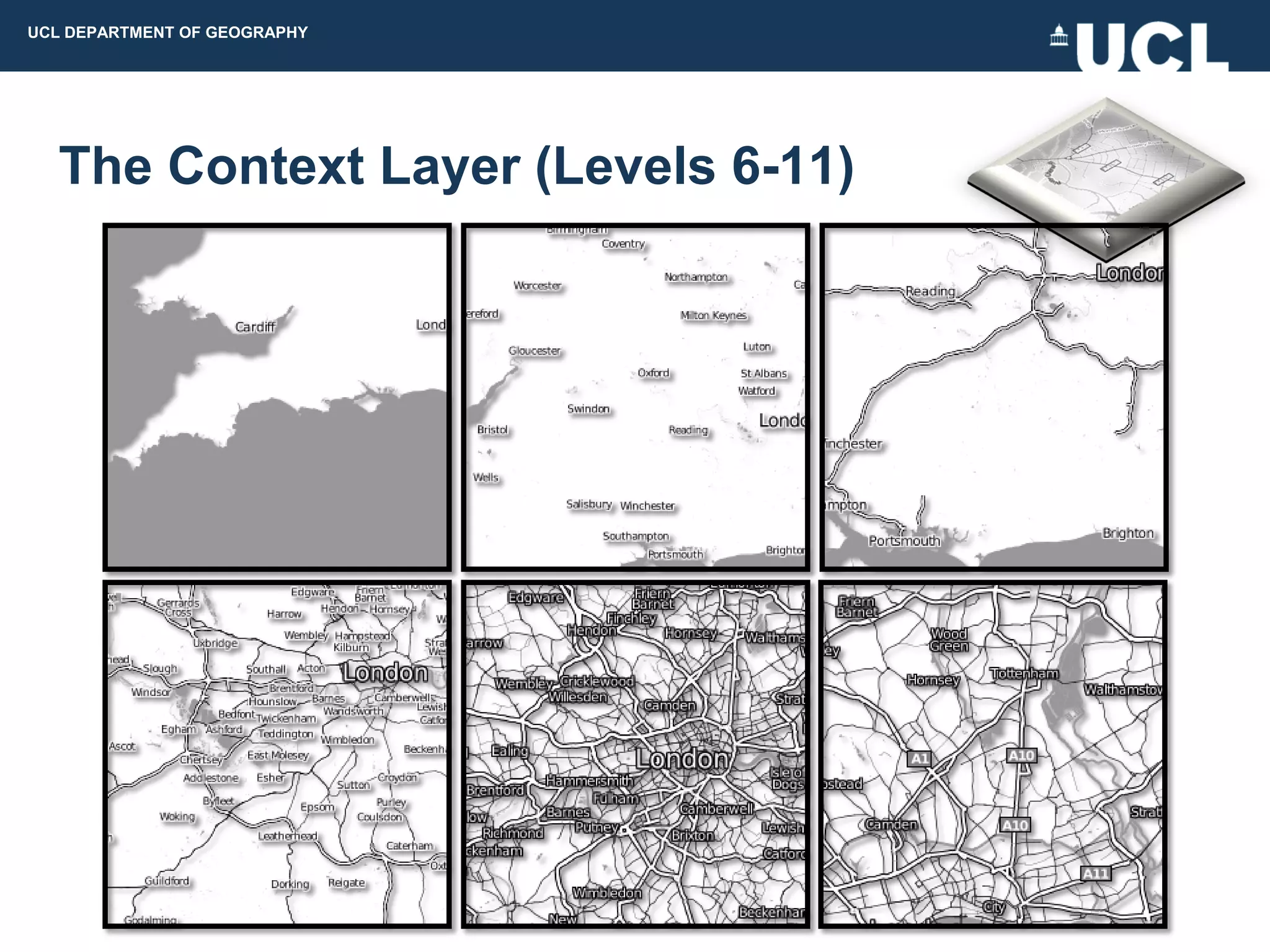

- 33. UCL DEPARTMENT OFGEOGRAPHY The Context Layer (Levels 6-11)

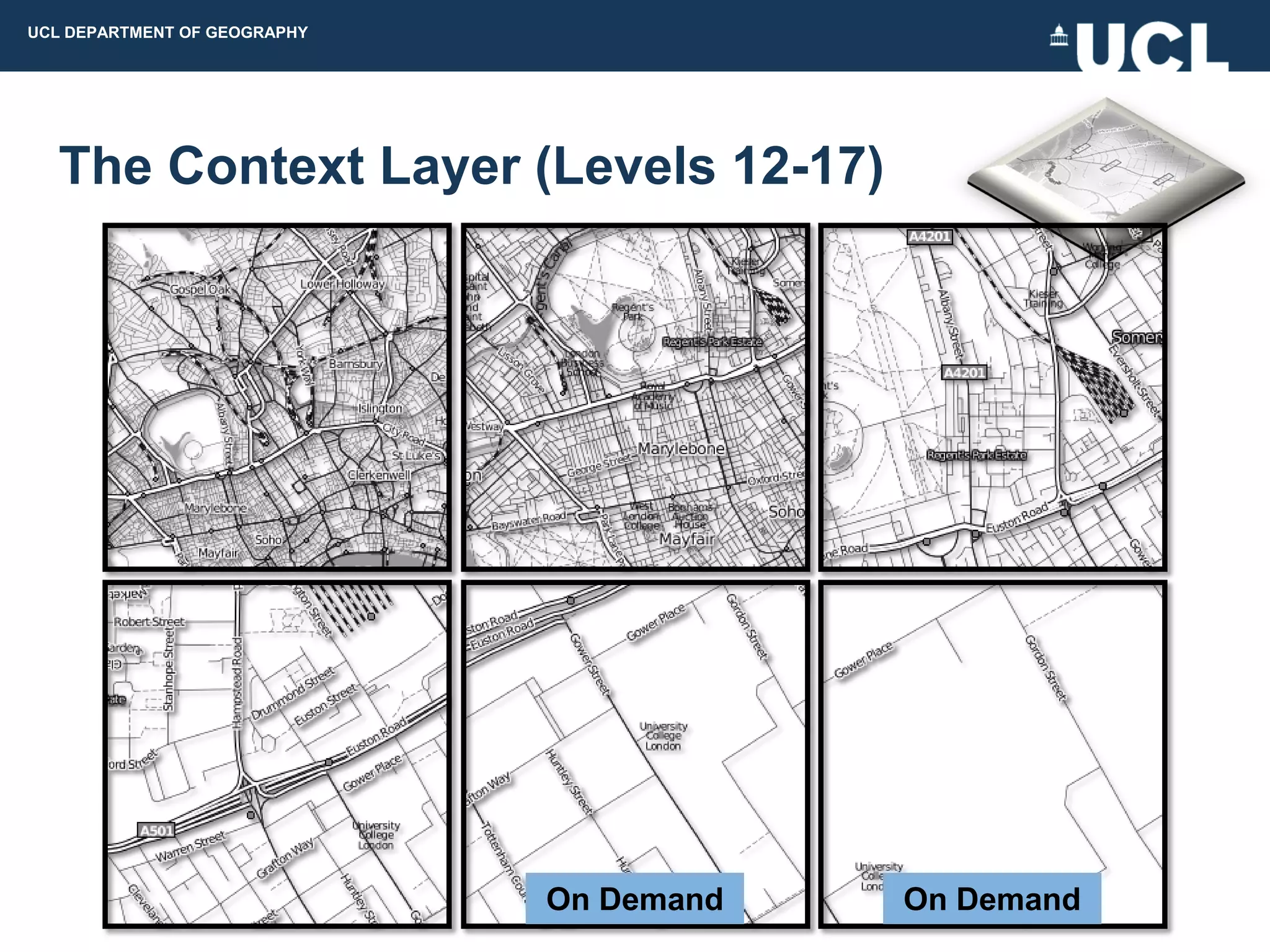

- 34. UCL DEPARTMENT OFGEOGRAPHY The Context Layer (Levels 12-17) On Demand On Demand

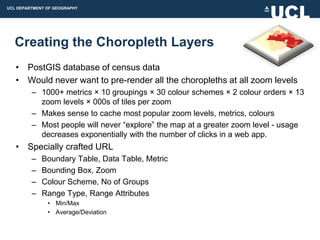

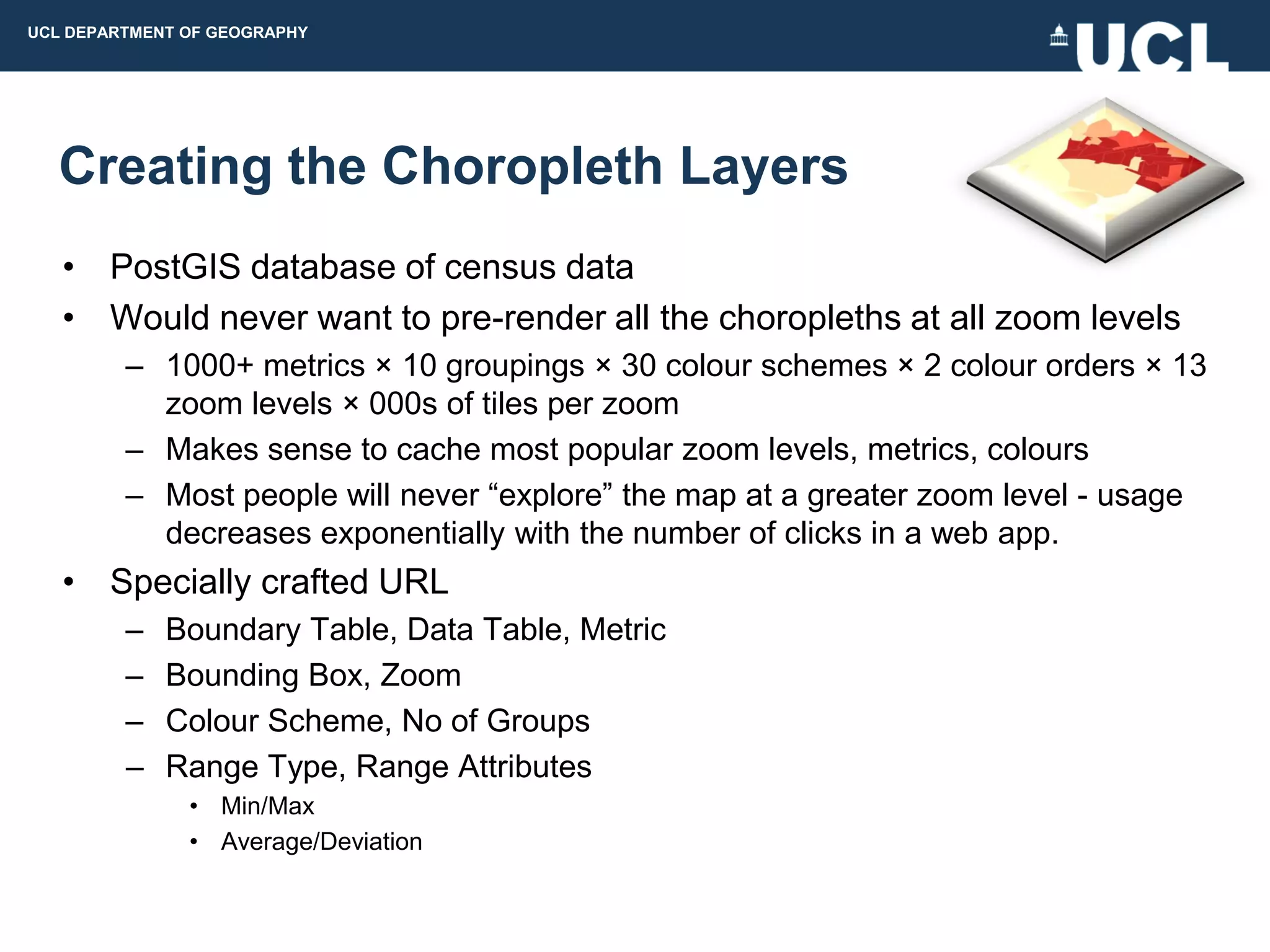

- 35. UCL DEPARTMENT OFGEOGRAPHY Creating the Choropleth Layers • PostGIS database of census data • Would never want to pre-render all the choropleths at all zoom levels – 1000+ metrics × 10 groupings × 30 colour schemes × 2 colour orders × 13 zoom levels × 000s of tiles per zoom – Makes sense to cache most popular zoom levels, metrics, colours – Most people will never “explore” the map at a greater zoom level - usage decreases exponentially with the number of clicks in a web app. • Specially crafted URL – Boundary Table, Data Table, Metric – Bounding Box, Zoom – Colour Scheme, No of Groups – Range Type, Range Attributes • Min/Max • Average/Deviation

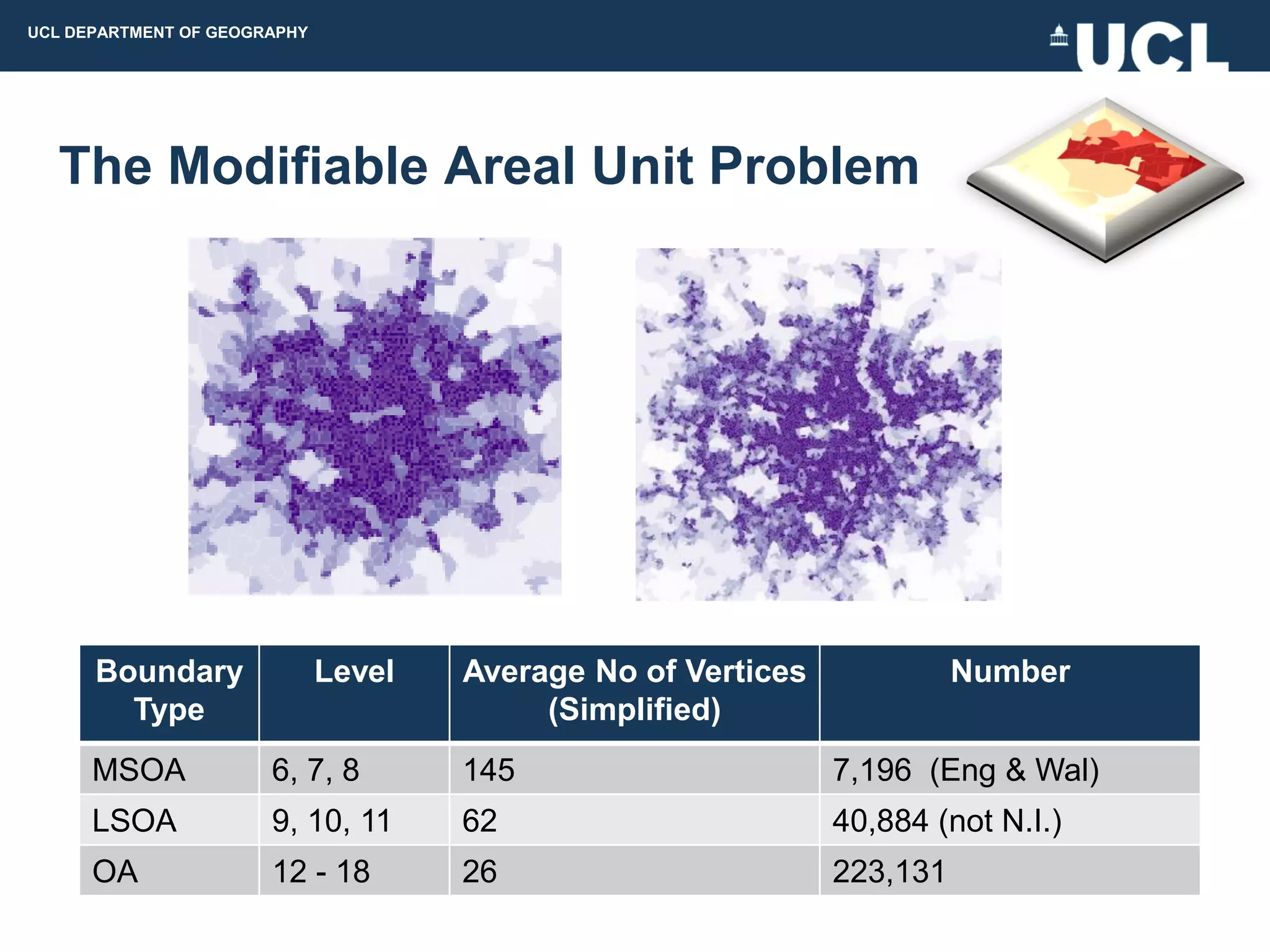

- 36. UCL DEPARTMENT OFGEOGRAPHY The Modifiable Areal Unit Problem Boundary Level Average No of Vertices Number Type (Simplified) MSOA 6, 7, 8 145 7,196 (Eng & Wal) LSOA 9, 10, 11 62 40,884 (not N.I.) OA 12 - 18 26 223,131

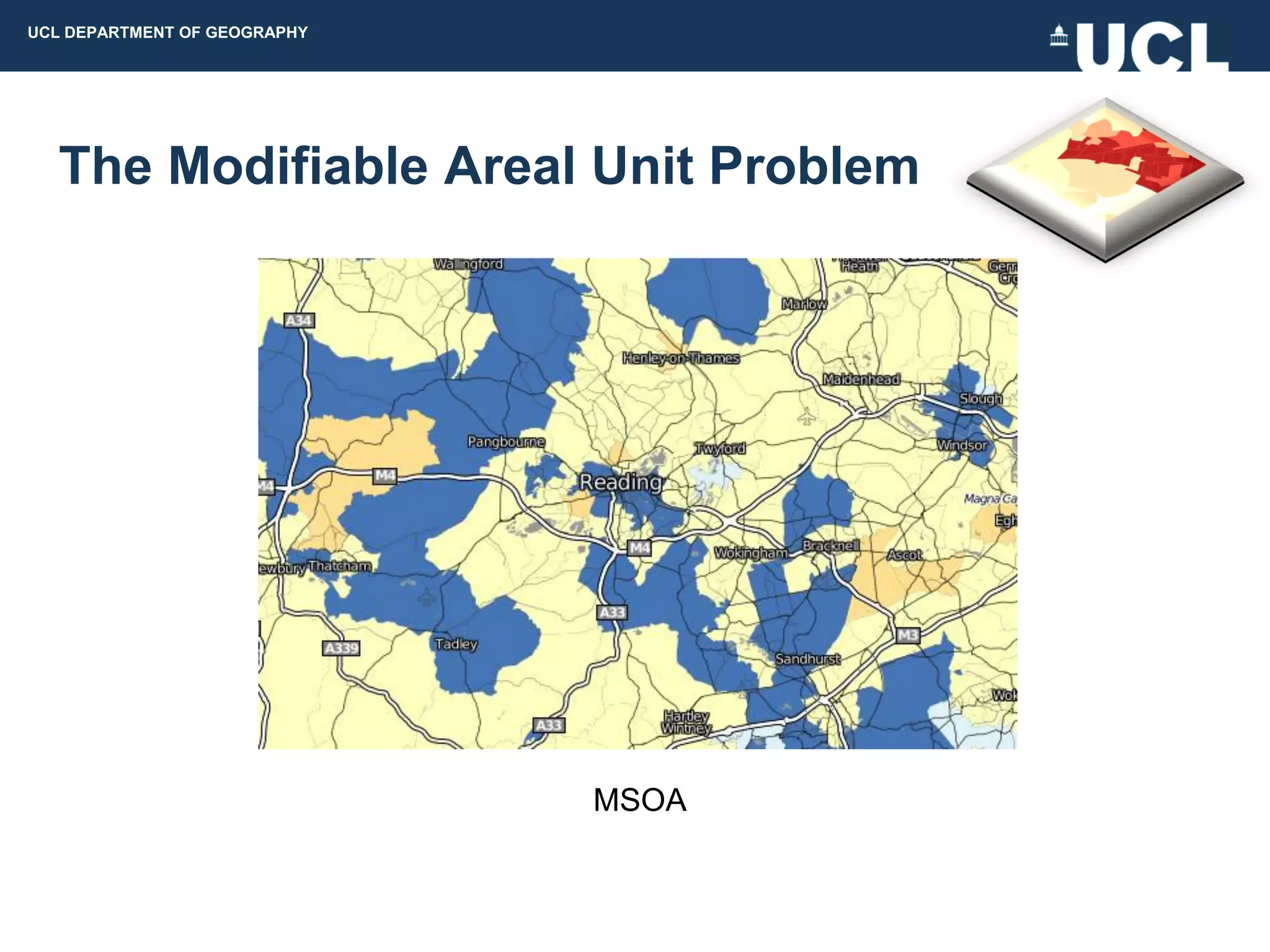

- 37. UCL DEPARTMENT OFGEOGRAPHY The Modifiable Areal Unit Problem MSOA

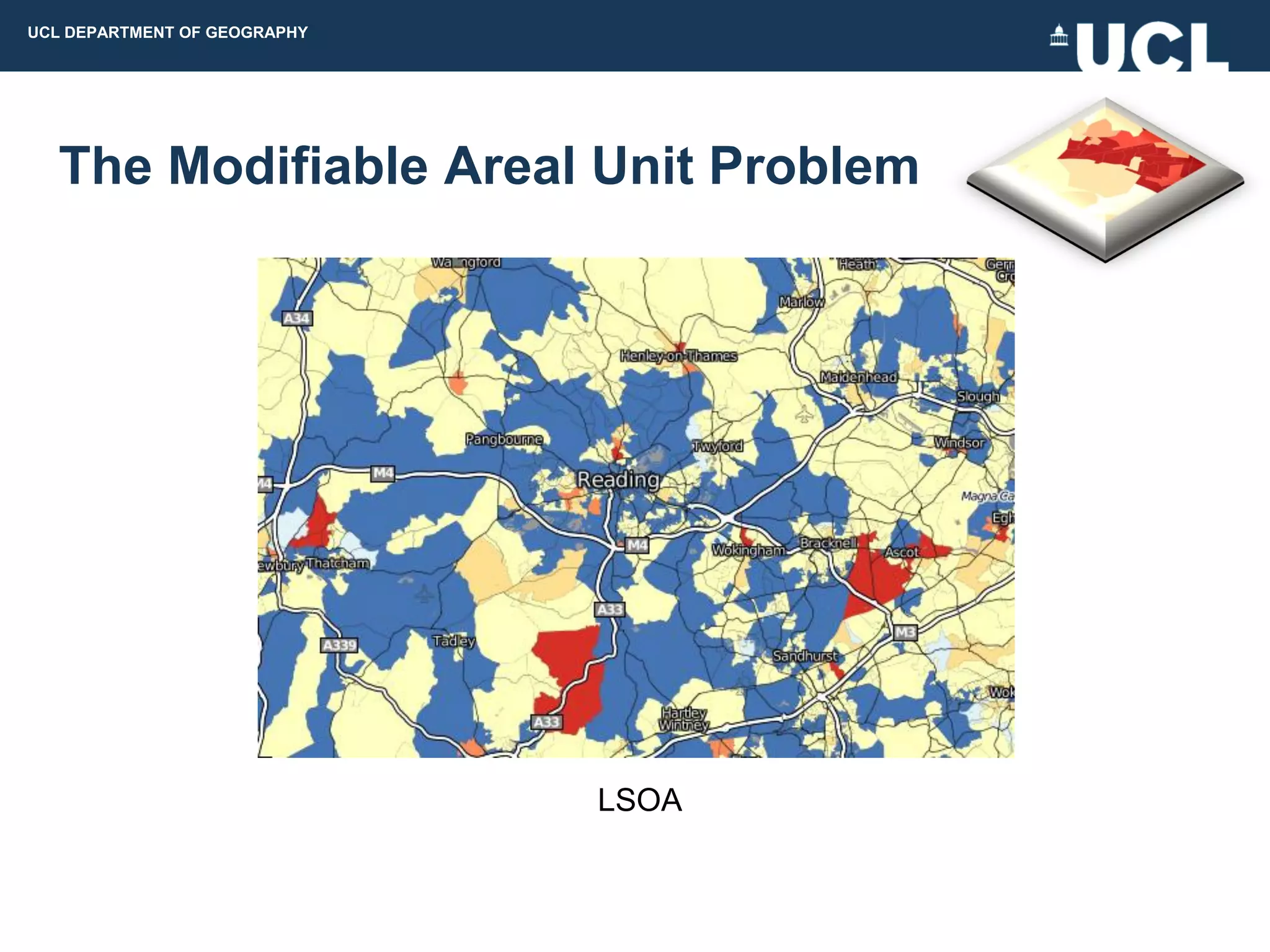

- 38. UCL DEPARTMENT OFGEOGRAPHY The Modifiable Areal Unit Problem LSOA

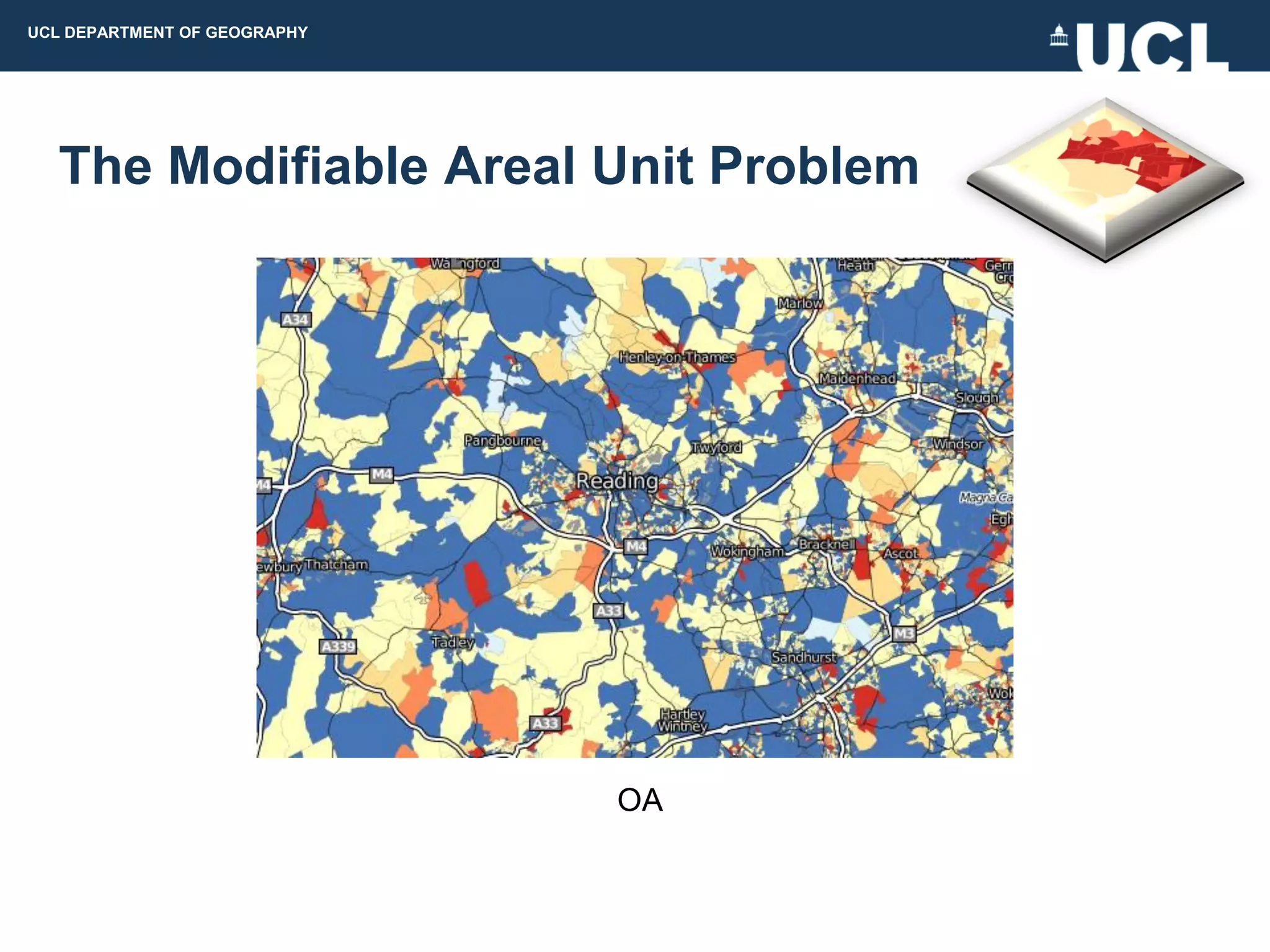

- 39. UCL DEPARTMENT OFGEOGRAPHY The Modifiable Areal Unit Problem OA

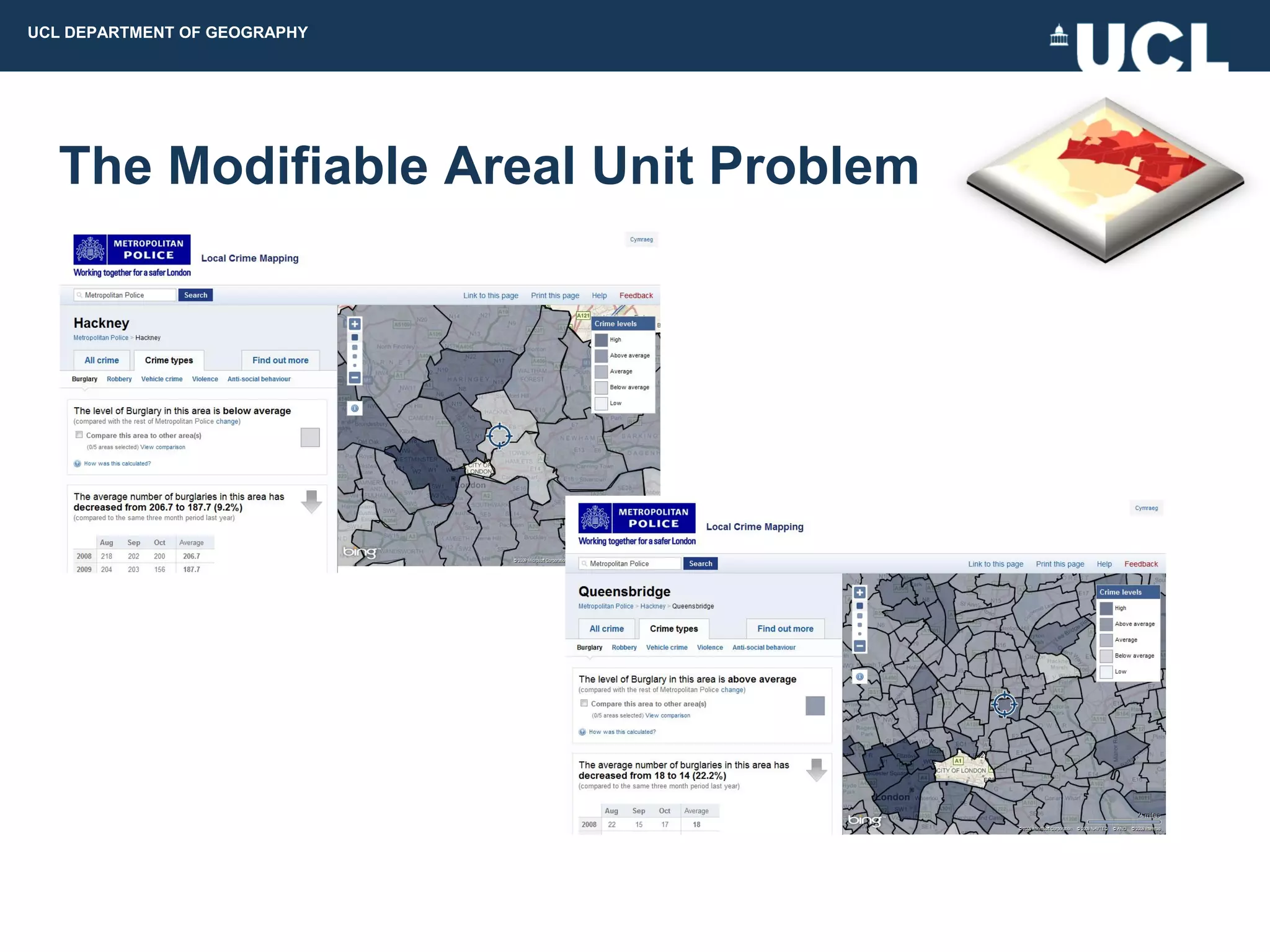

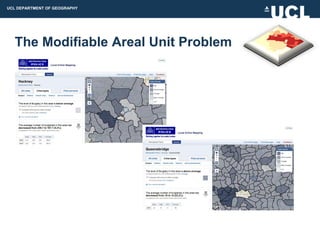

- 40. UCL DEPARTMENT OFGEOGRAPHY The Modifiable Areal Unit Problem

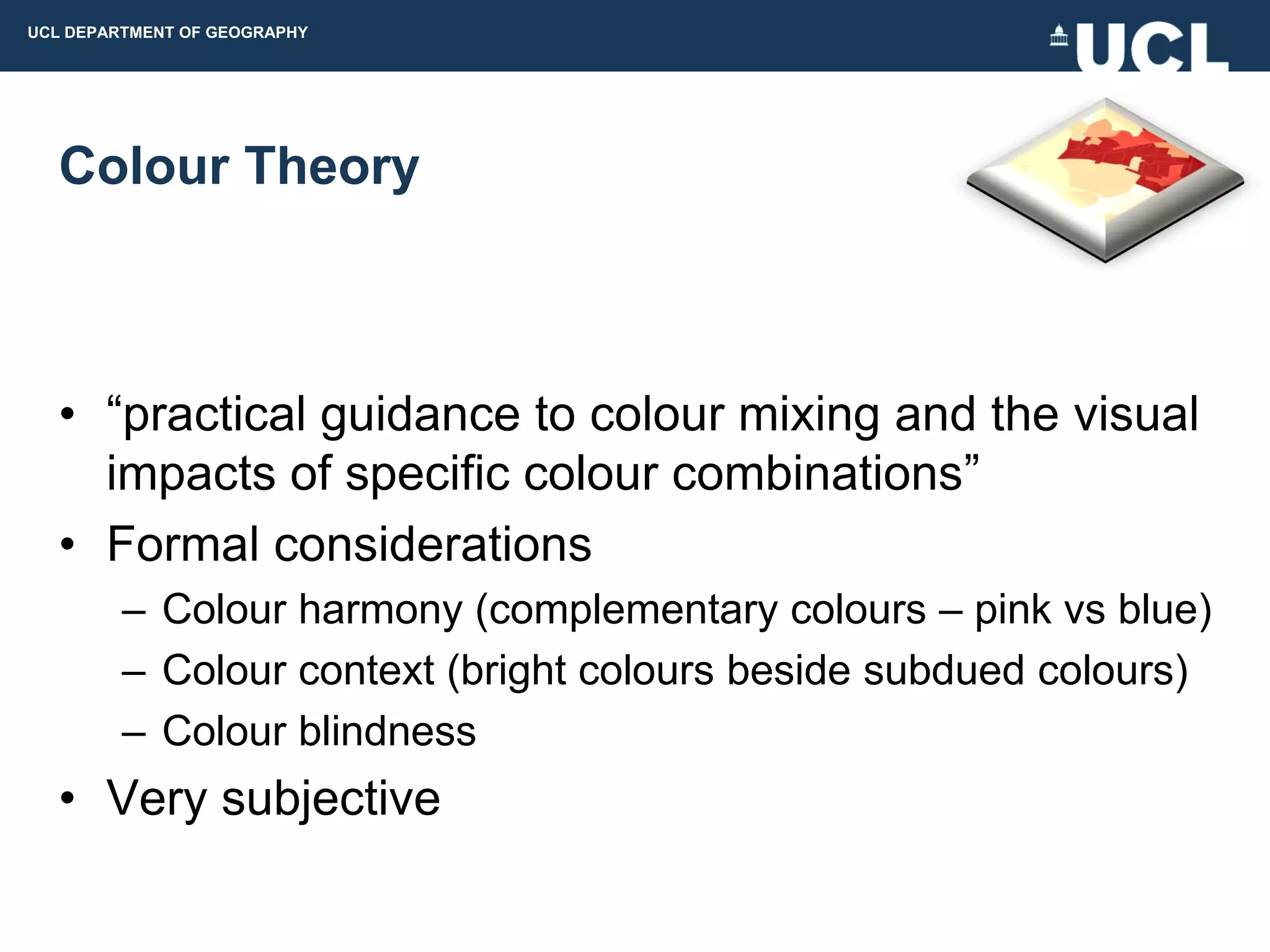

- 41. UCL DEPARTMENT OFGEOGRAPHY Colour Theory • “practical guidance to colour mixing and the visual impacts of specific colour combinations” • Formal considerations – Colour harmony (complementary colours – pink vs blue) – Colour context (bright colours beside subdued colours) – Colour blindness • Very subjective

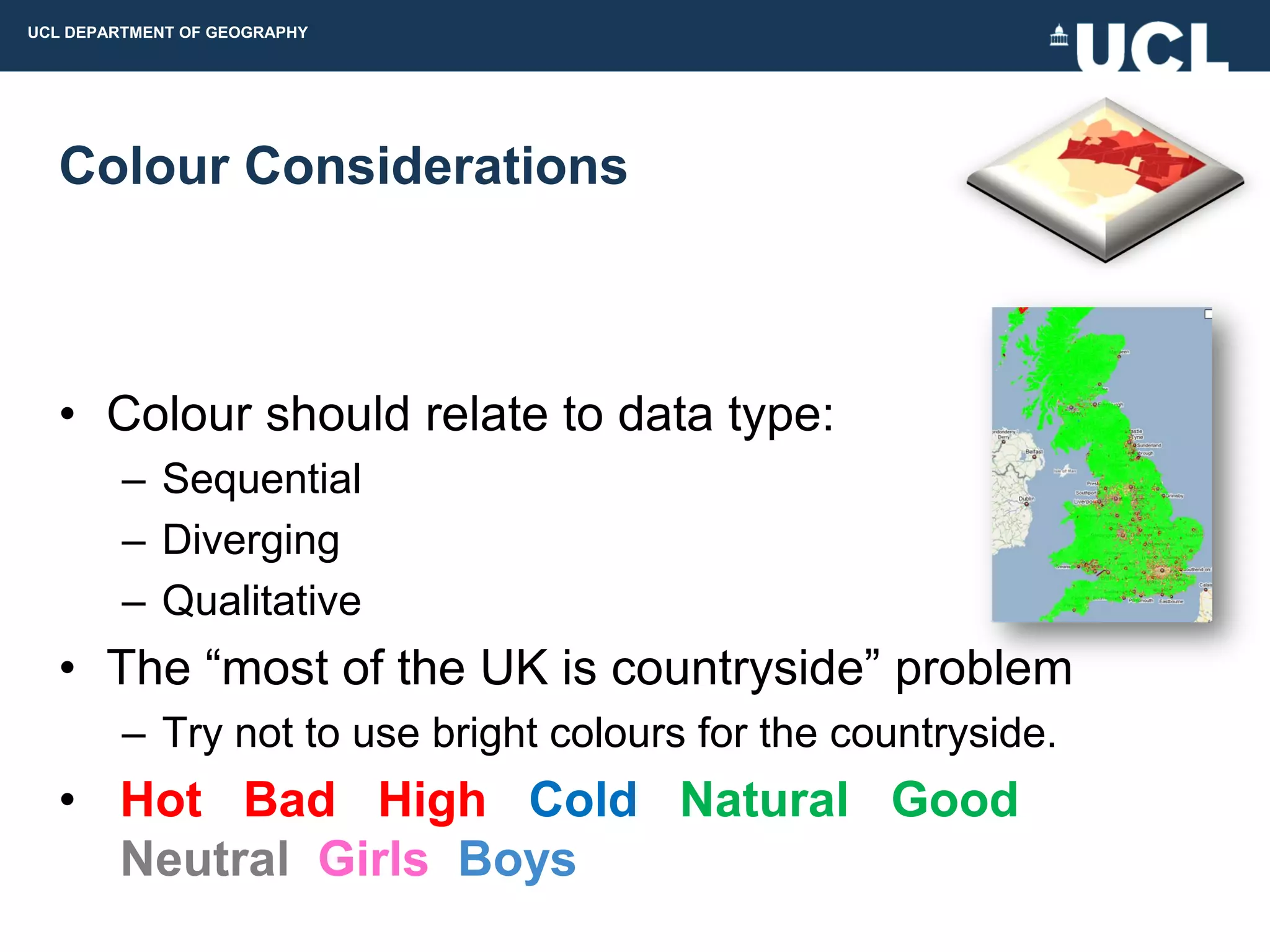

- 42. UCL DEPARTMENT OFGEOGRAPHY Colour Considerations • Colour should relate to data type: – Sequential – Diverging – Qualitative • The “most of the UK is countryside” problem – Try not to use bright colours for the countryside. • Hot Bad High Cold Natural Good Neutral Girls Boys

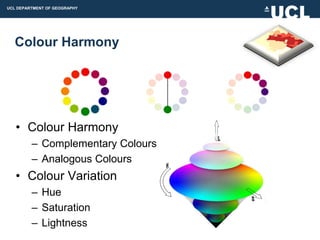

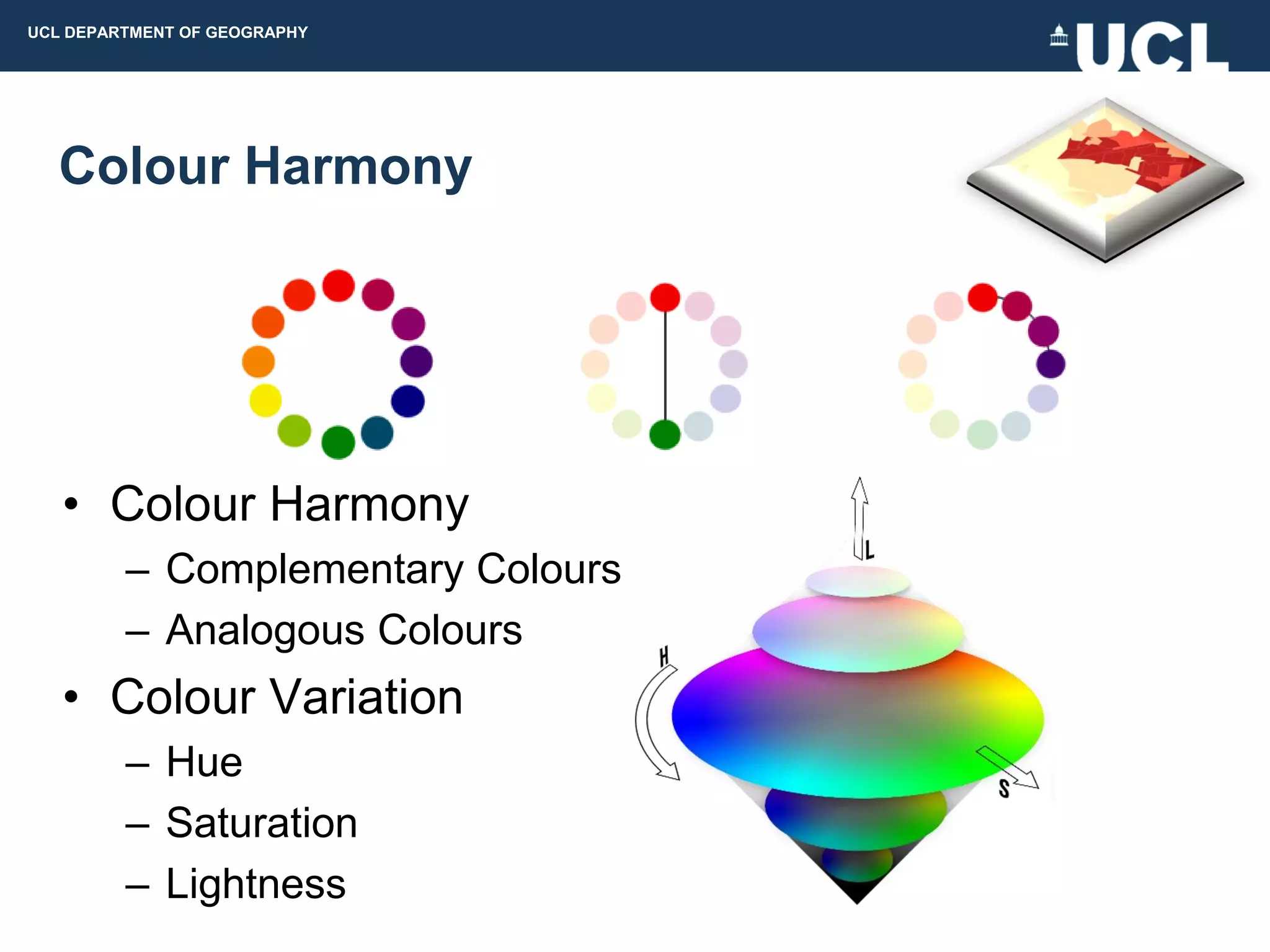

- 43. UCL DEPARTMENT OFGEOGRAPHY Colour Harmony • Colour Harmony – Complementary Colours – Analogous Colours • Colour Variation – Hue – Saturation – Lightness

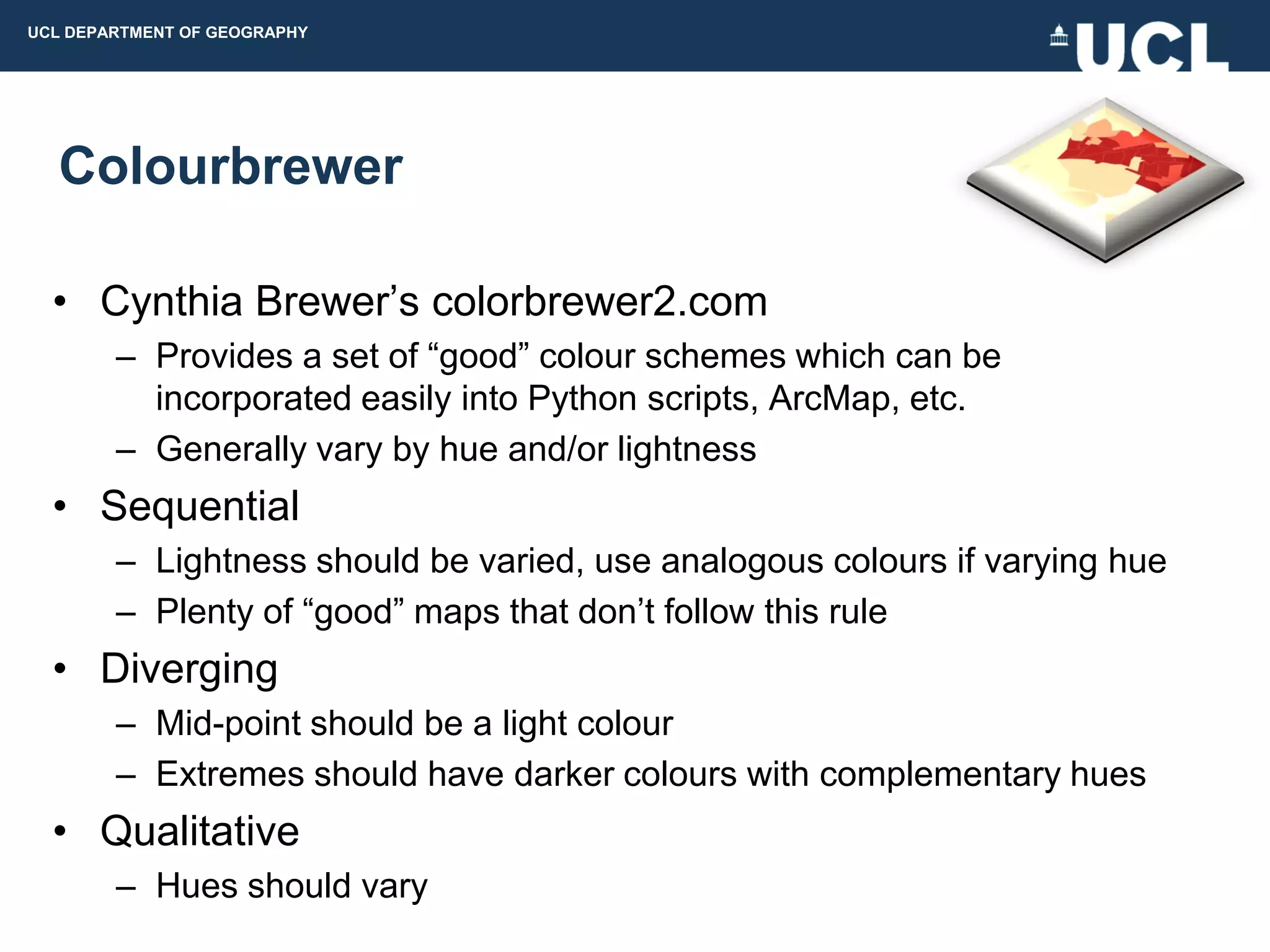

- 44. UCL DEPARTMENT OFGEOGRAPHY Colourbrewer • Cynthia Brewer‟s colorbrewer2.com – Provides a set of “good” colour schemes which can be incorporated easily into Python scripts, ArcMap, etc. – Generally vary by hue and/or lightness • Sequential – Lightness should be varied, use analogous colours if varying hue – Plenty of “good” maps that don‟t follow this rule • Diverging – Mid-point should be a light colour – Extremes should have darker colours with complementary hues • Qualitative – Hues should vary

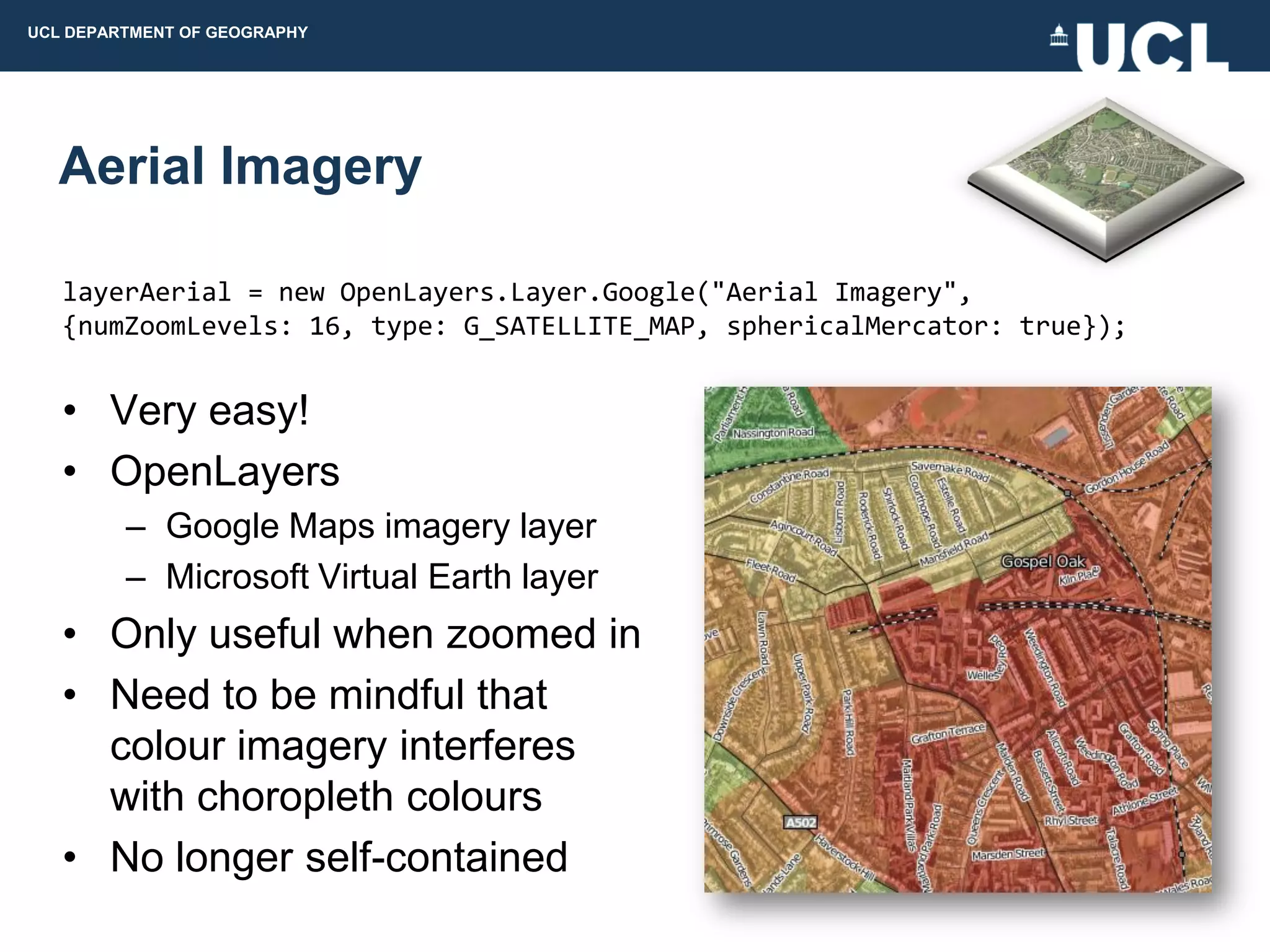

- 45. UCL DEPARTMENT OFGEOGRAPHY Aerial Imagery layerAerial = new OpenLayers.Layer.Google("Aerial Imagery", {numZoomLevels: 16, type: G_SATELLITE_MAP, sphericalMercator: true}); • Very easy! • OpenLayers – Google Maps imagery layer – Microsoft Virtual Earth layer • Only useful when zoomed in • Need to be mindful that colour imagery interferes with choropleth colours • No longer self-contained

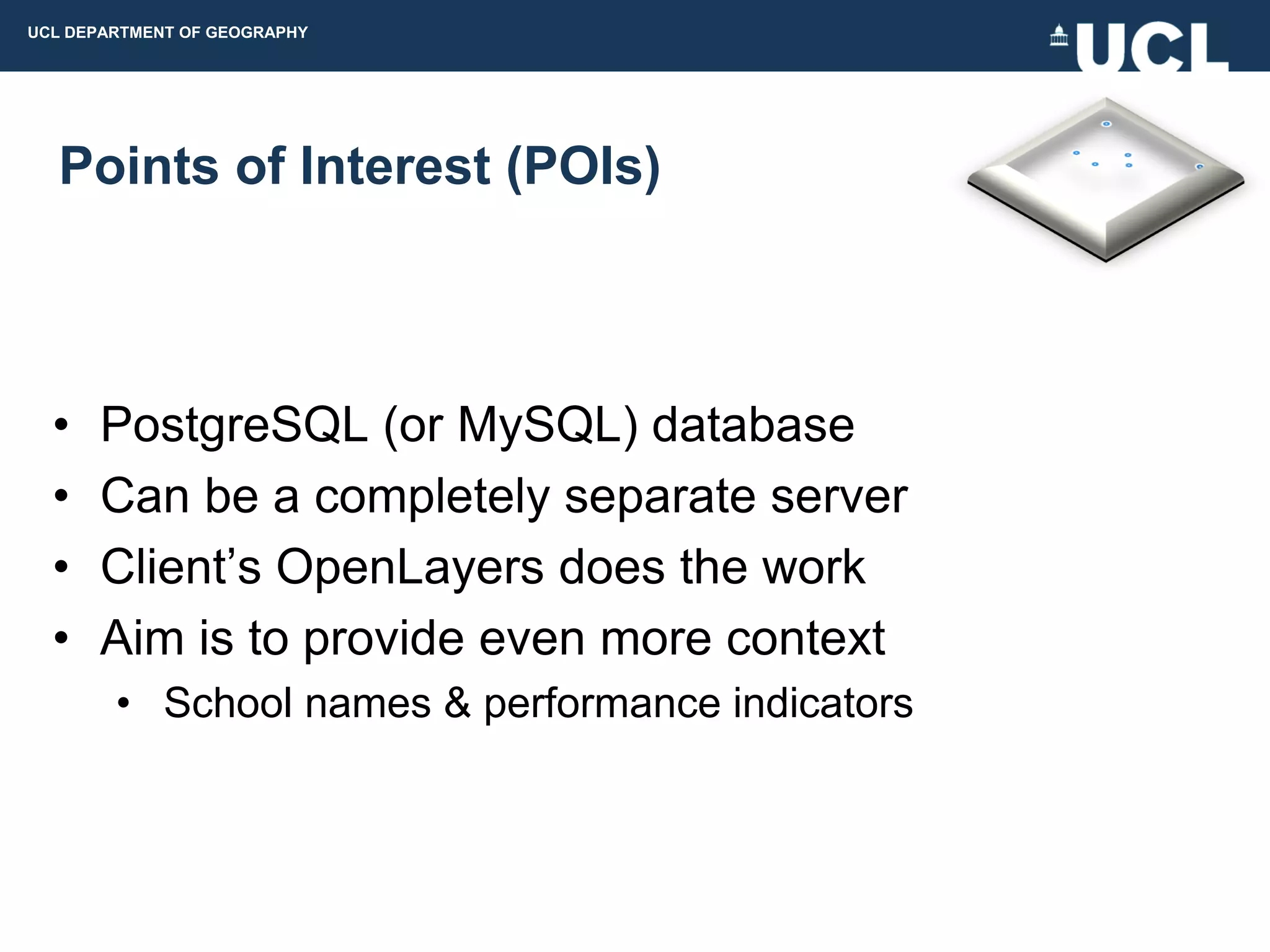

- 46. UCL DEPARTMENT OFGEOGRAPHY Points of Interest (POIs) • PostgreSQL (or MySQL) database • Can be a completely separate server • Client‟s OpenLayers does the work • Aim is to provide even more context • School names & performance indicators
- 47. UCL DEPARTMENT OFGEOGRAPHY User Interface Less is more Choice is good • How do you get people to explore the maps? – Maptube “visual directory” – Hierarchical drop-down lists – Tag cloud of keywords, maybe with a hierarchy

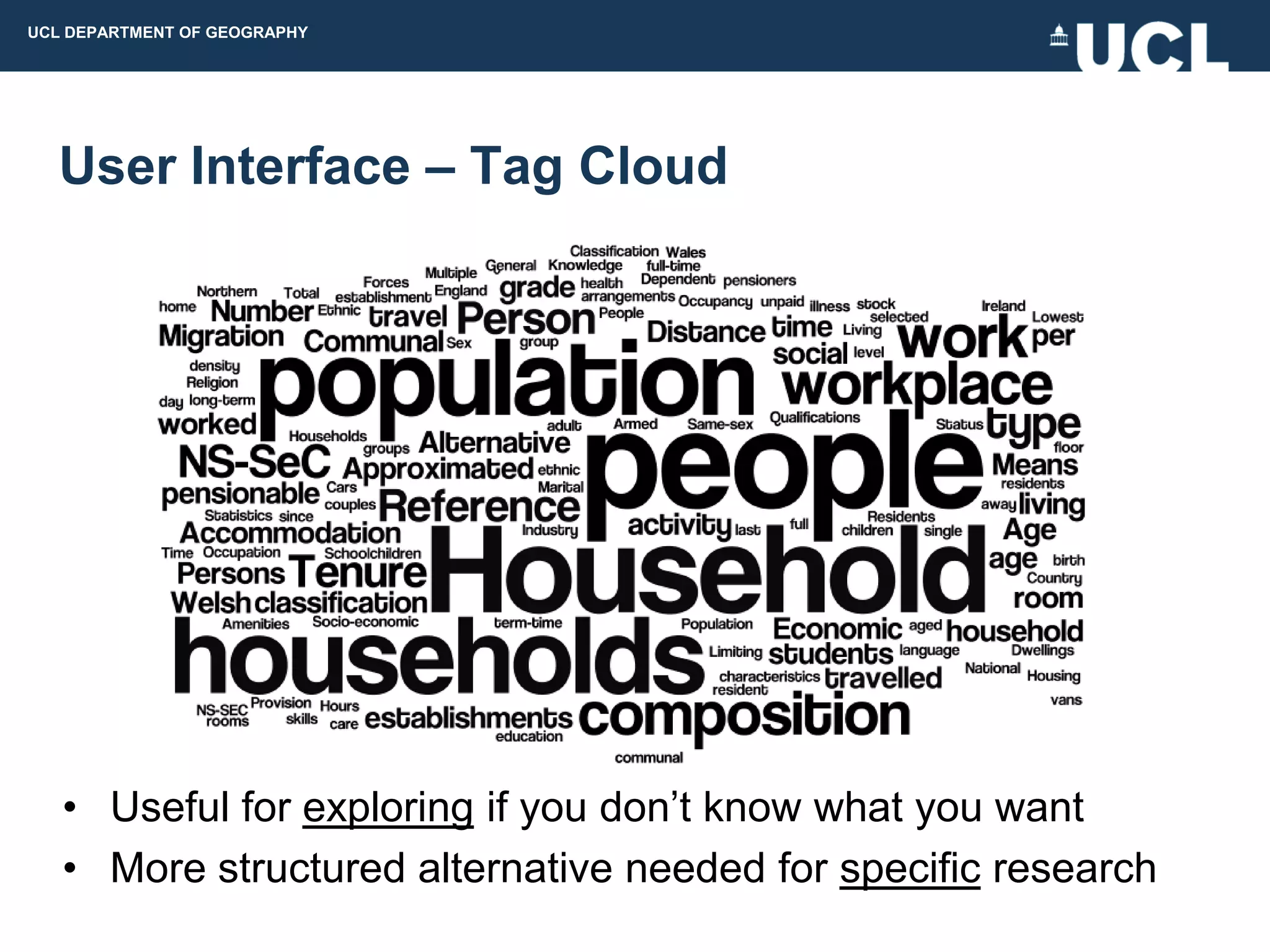

- 48. UCL DEPARTMENT OFGEOGRAPHY User Interface – Tag Cloud • Useful for exploring if you don‟t know what you want • More structured alternative needed for specific research

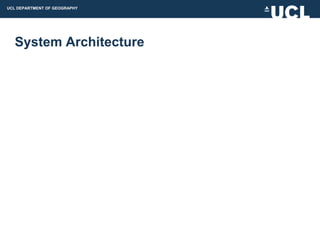

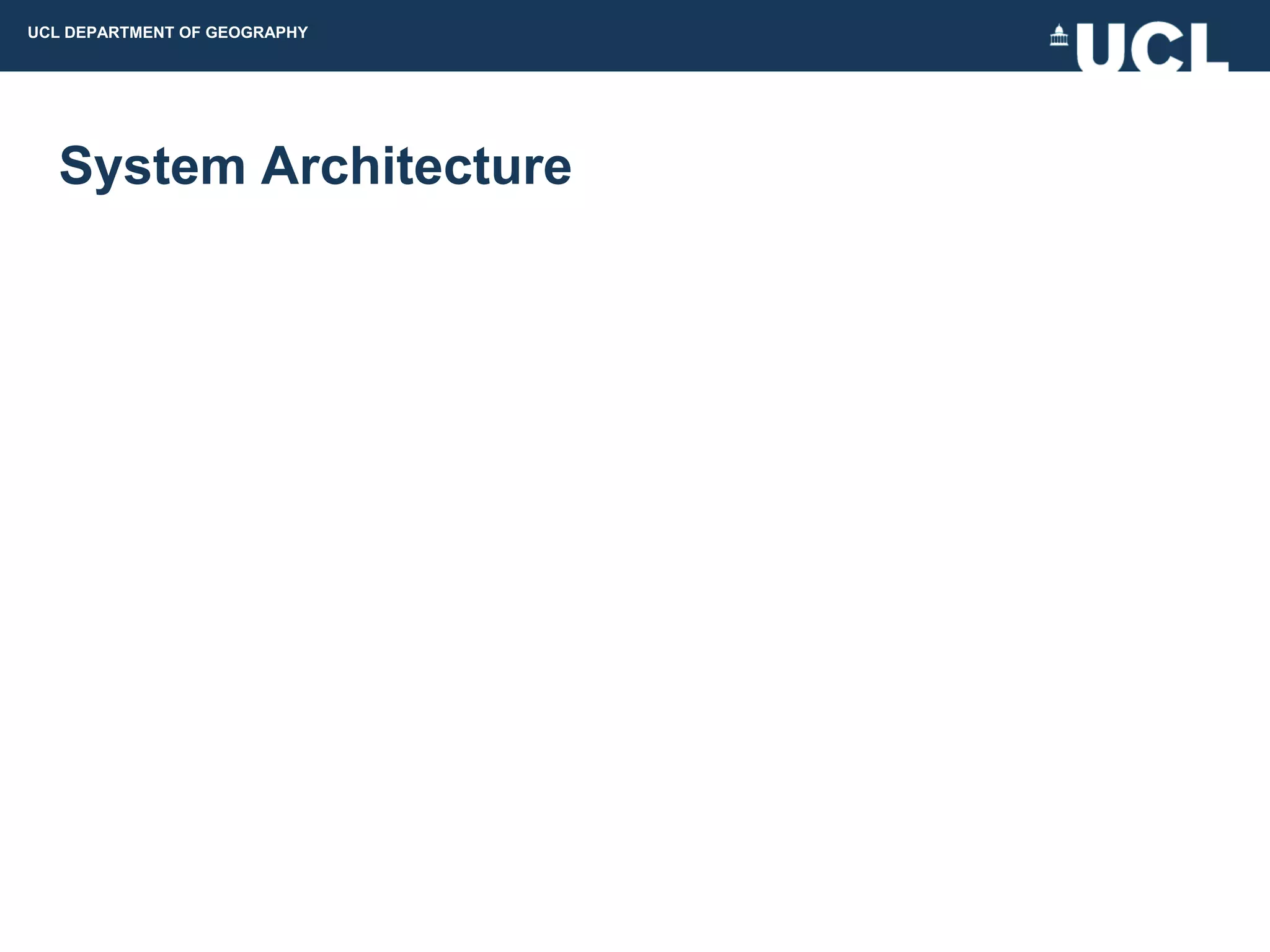

- 49. UCL DEPARTMENT OFGEOGRAPHY System Architecture

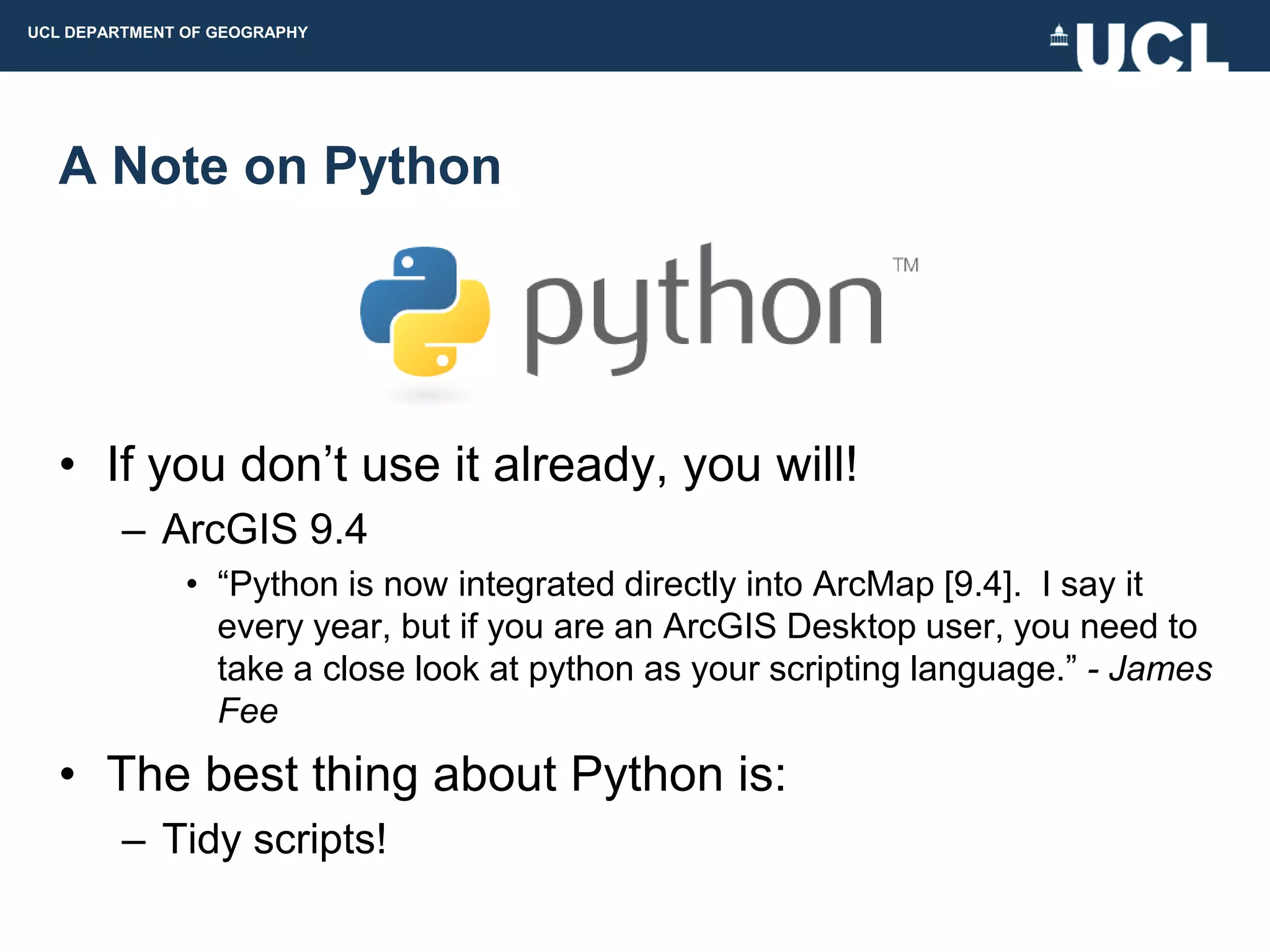

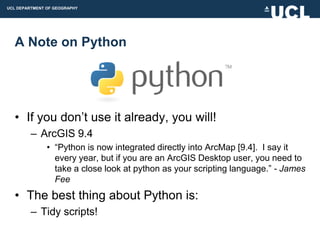

- 50. UCL DEPARTMENT OFGEOGRAPHY A Note on Python • If you don‟t use it already, you will! – ArcGIS 9.4 • “Python is now integrated directly into ArcMap [9.4]. I say it every year, but if you are an ArcGIS Desktop user, you need to take a close look at python as your scripting language.” - James Fee • The best thing about Python is: – Tidy scripts!

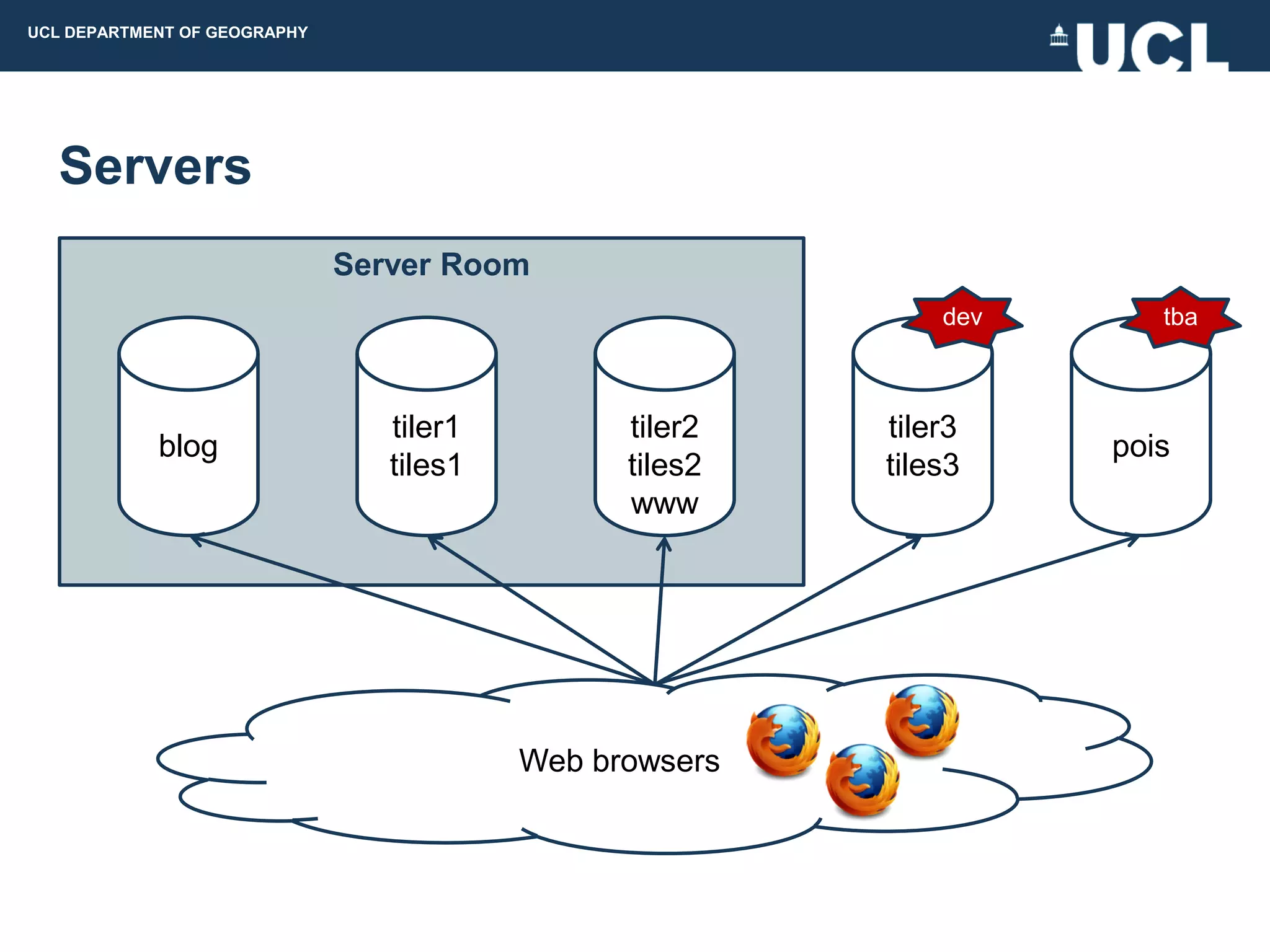

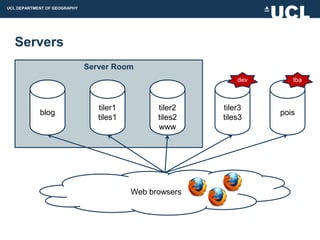

- 51. UCL DEPARTMENT OFGEOGRAPHY Servers Server Room dev tba tiler1 tiler2 tiler3 blog pois tiles1 tiles2 tiles3 www Web browsers

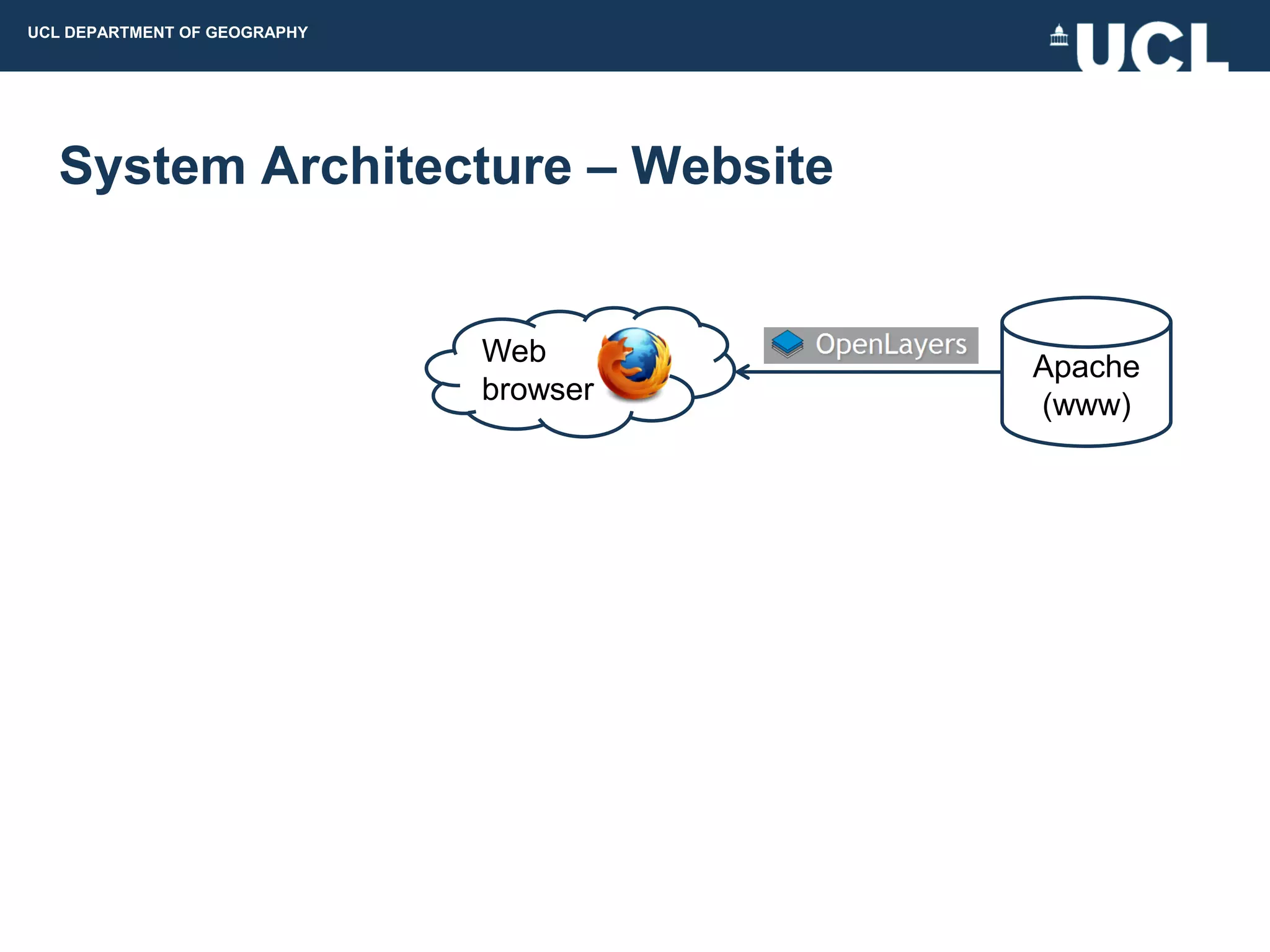

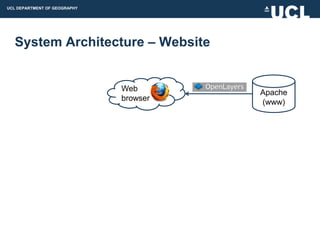

- 52. UCL DEPARTMENT OFGEOGRAPHY System Architecture – Website Web Apache browser (www)

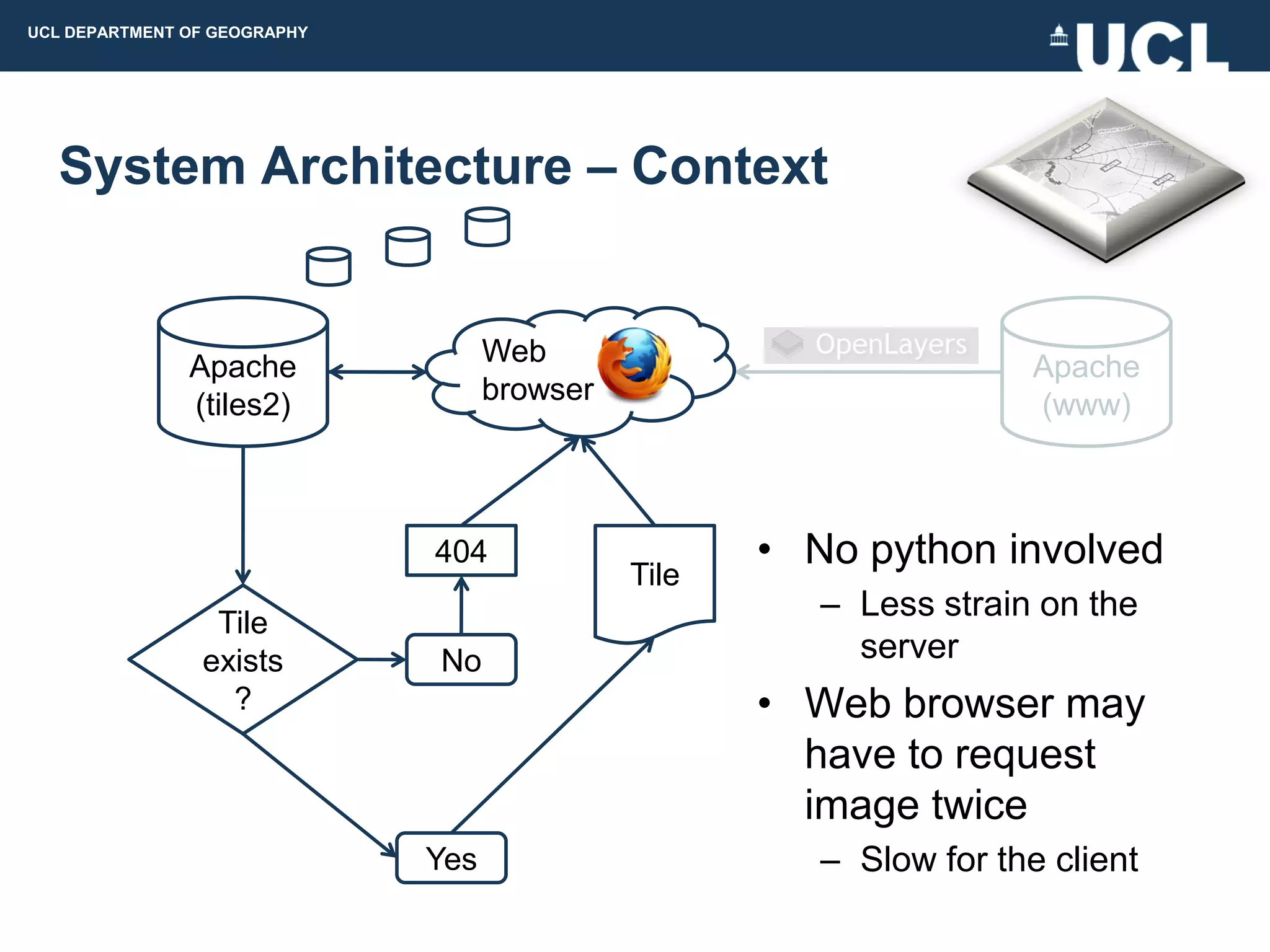

- 53. UCL DEPARTMENT OFGEOGRAPHY System Architecture – Context Apache Web Apache (tiles2) browser (www) 404 • No python involved Tile – Less strain on the Tile exists No server ? • Web browser may have to request image twice Yes – Slow for the client

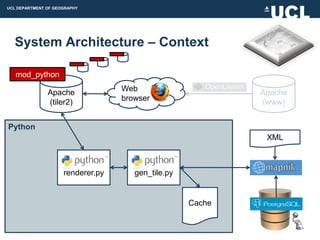

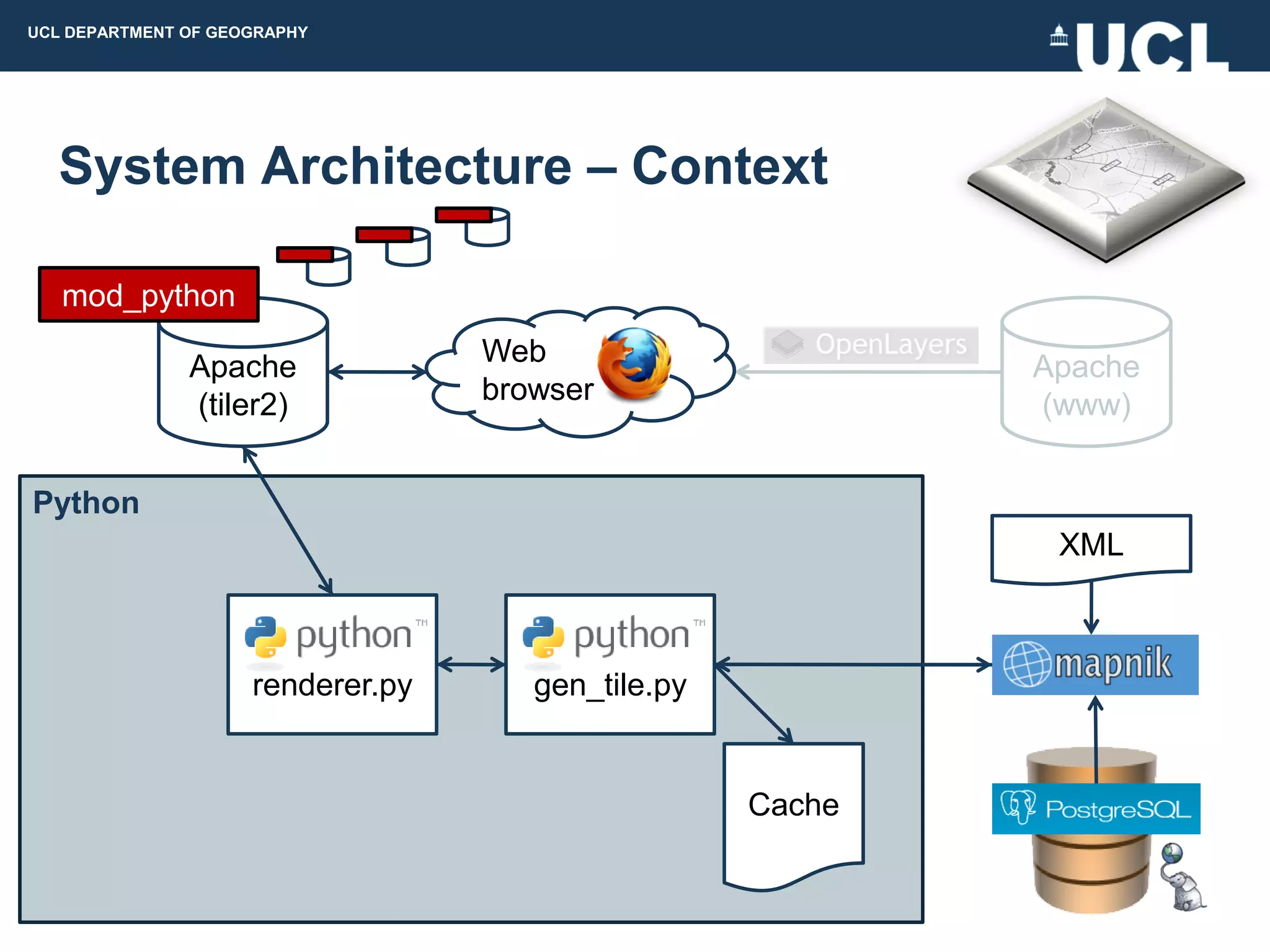

- 54. UCL DEPARTMENT OFGEOGRAPHY System Architecture – Context XML mod_python Apache Web Apache (tiler2) browser (www) Python XML renderer.py gen_tile.py Cache

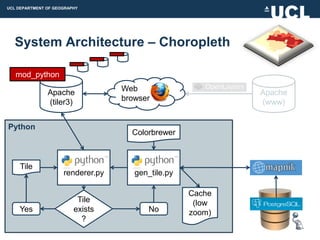

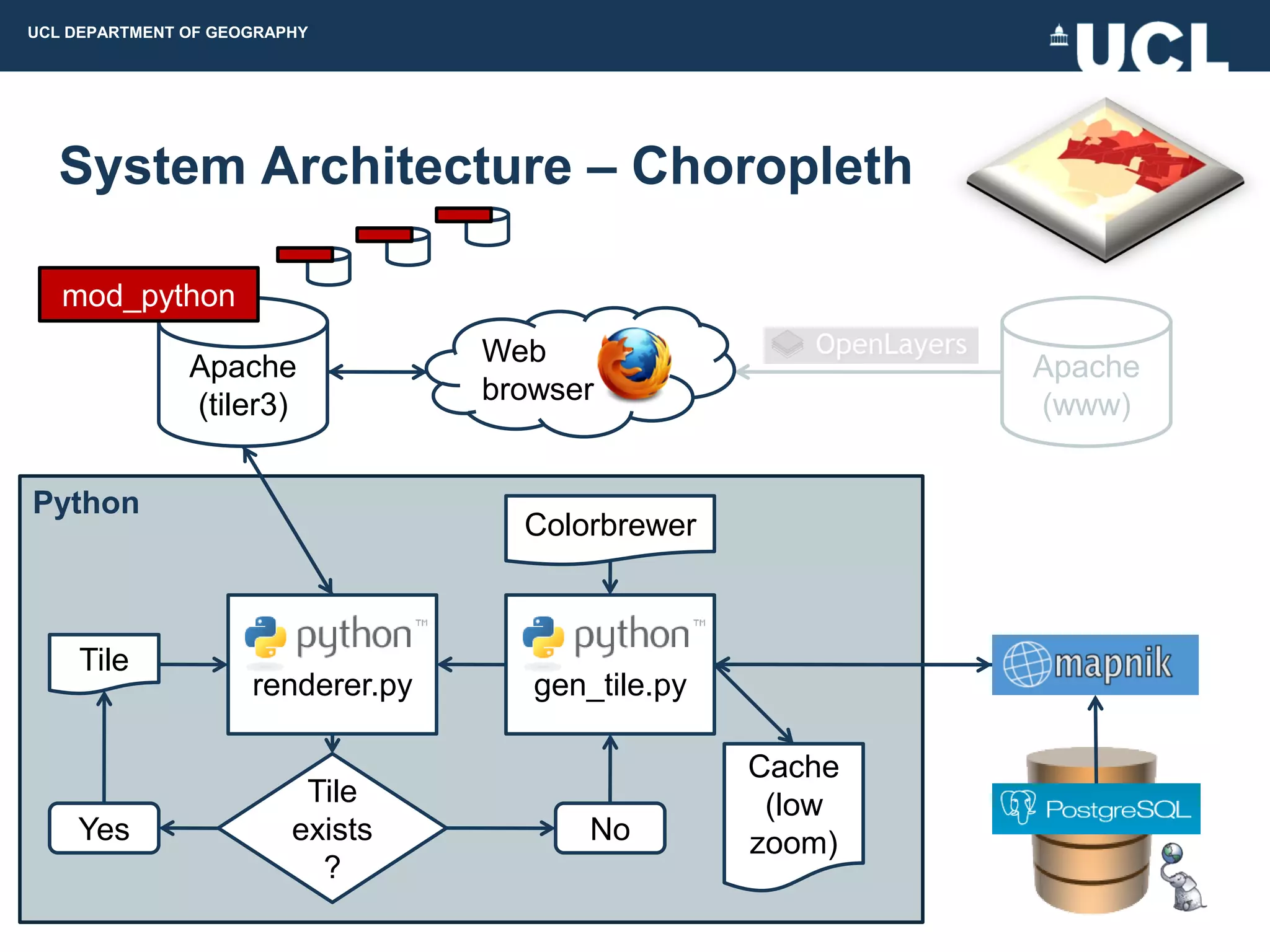

- 55. UCL DEPARTMENT OFGEOGRAPHY System Architecture – Choropleth mod_python Apache Web Apache (tiler3) browser (www) Python Colorbrewer Tile renderer.py gen_tile.py Cache Tile (low Yes exists No zoom) ?

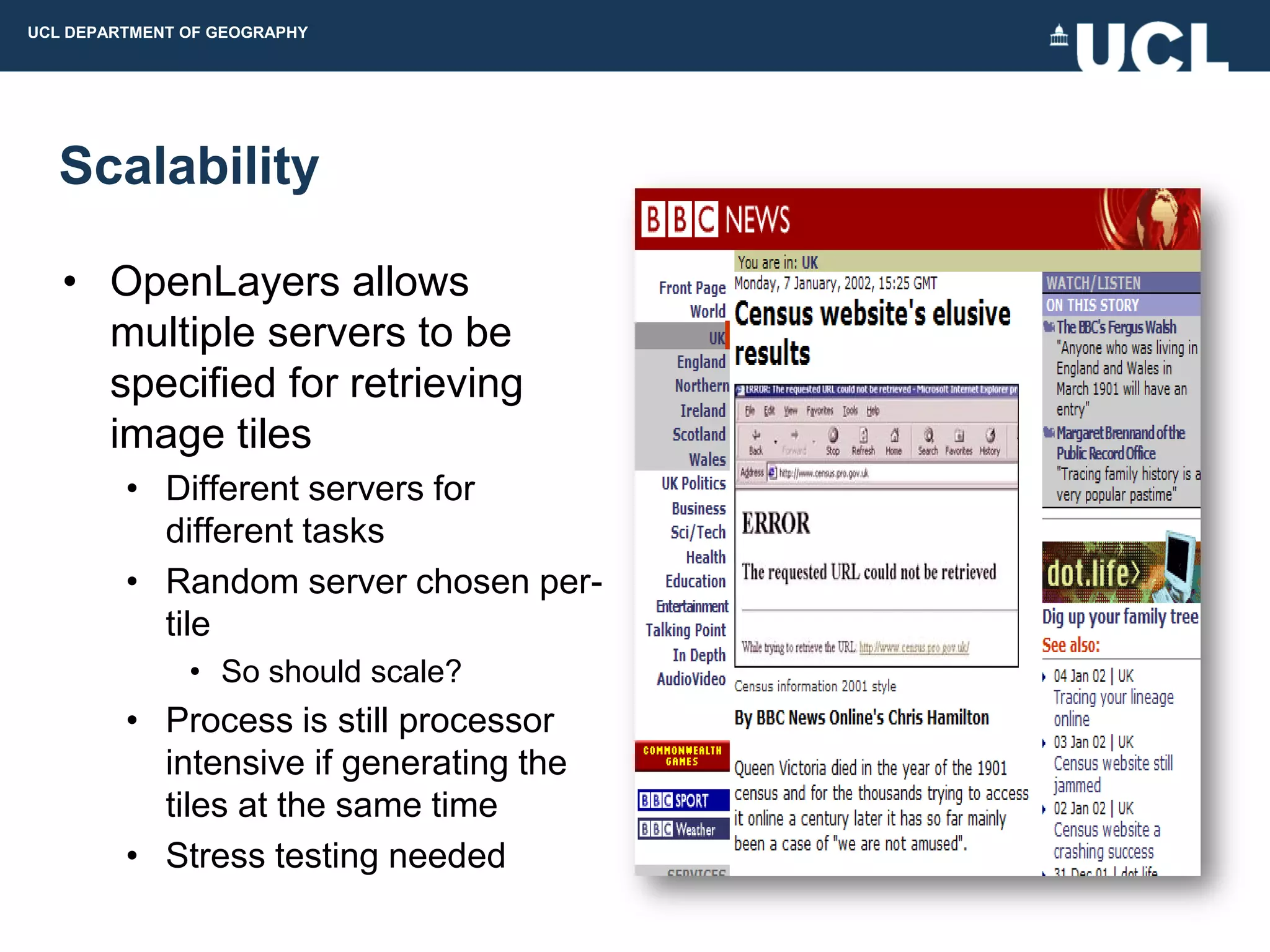

- 56. UCL DEPARTMENT OFGEOGRAPHY Scalability • OpenLayers allows multiple servers to be specified for retrieving image tiles • Different servers for different tasks • Random server chosen per- tile • So should scale? • Process is still processor intensive if generating the tiles at the same time • Stress testing needed

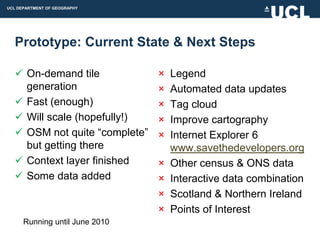

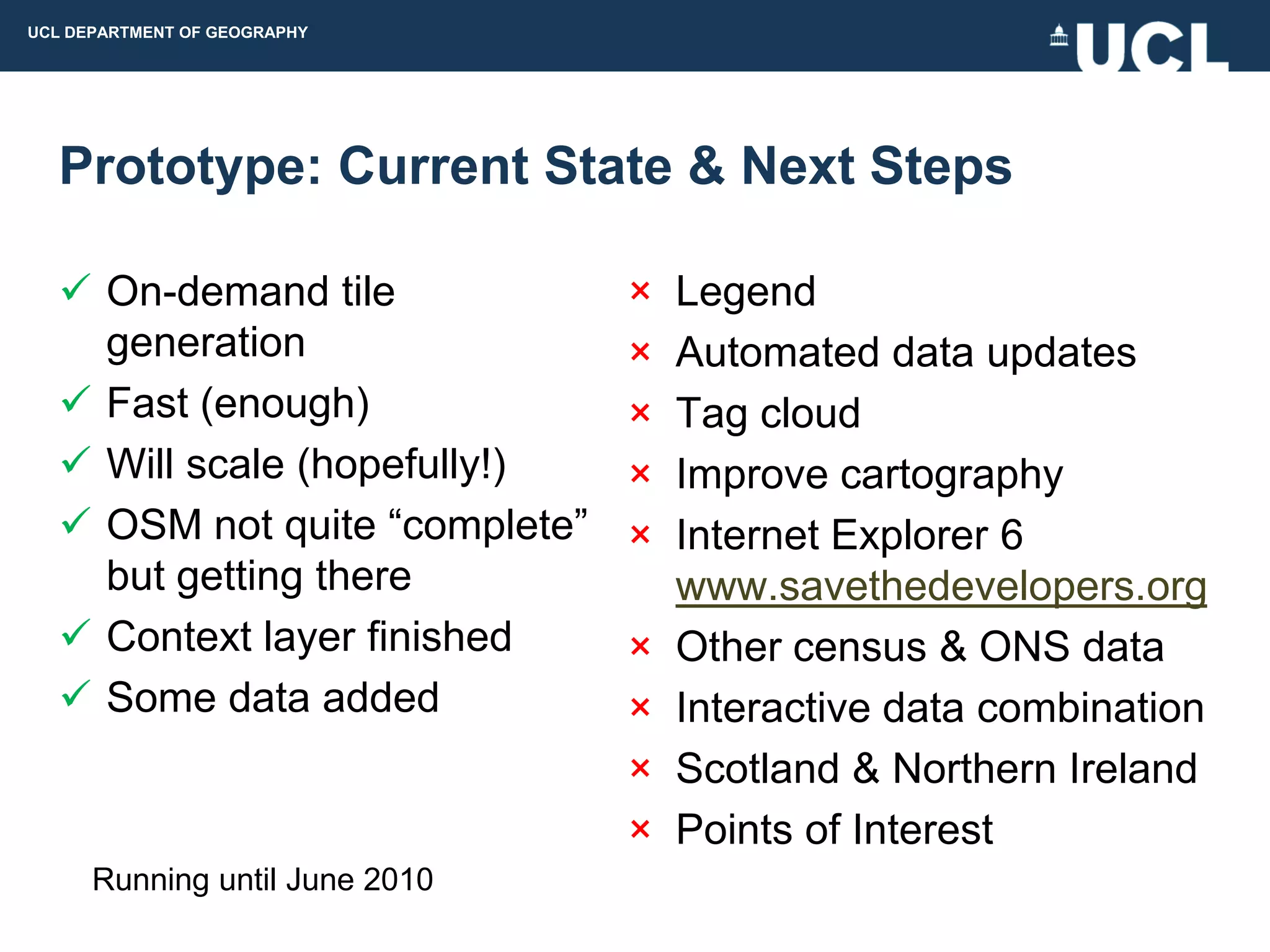

- 57. UCL DEPARTMENT OFGEOGRAPHY Prototype: Current State & Next Steps On-demand tile × Legend generation × Automated data updates Fast (enough) × Tag cloud Will scale (hopefully!) × Improve cartography OSM not quite “complete” × Internet Explorer 6 but getting there www.savethedevelopers.org Context layer finished × Other census & ONS data Some data added × Interactive data combination × Scotland & Northern Ireland × Points of Interest Running until June 2010

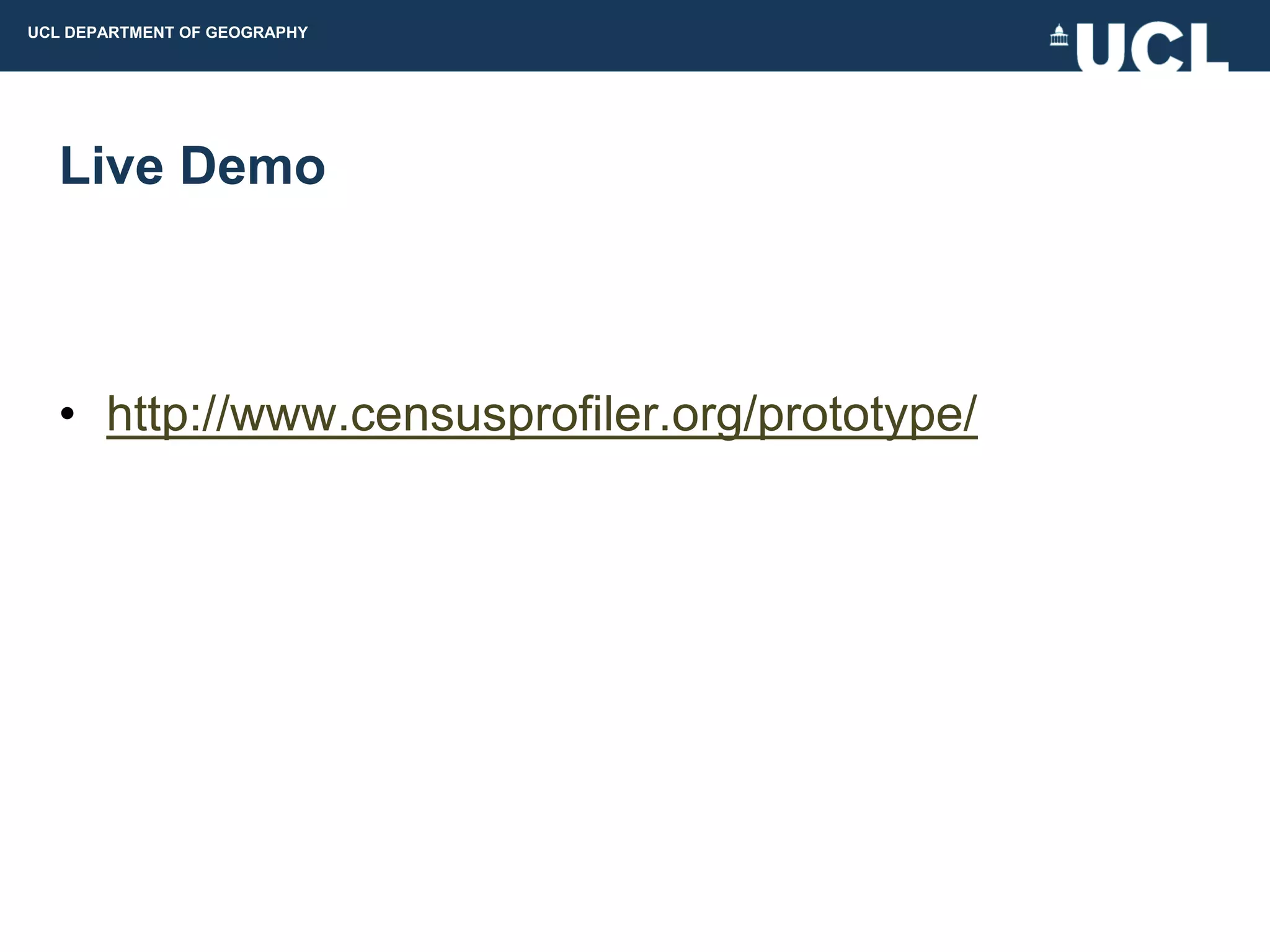

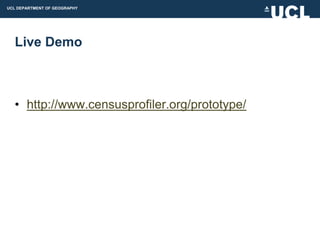

- 58. UCL DEPARTMENT OFGEOGRAPHY Live Demo • http://www.censusprofiler.org/prototype/

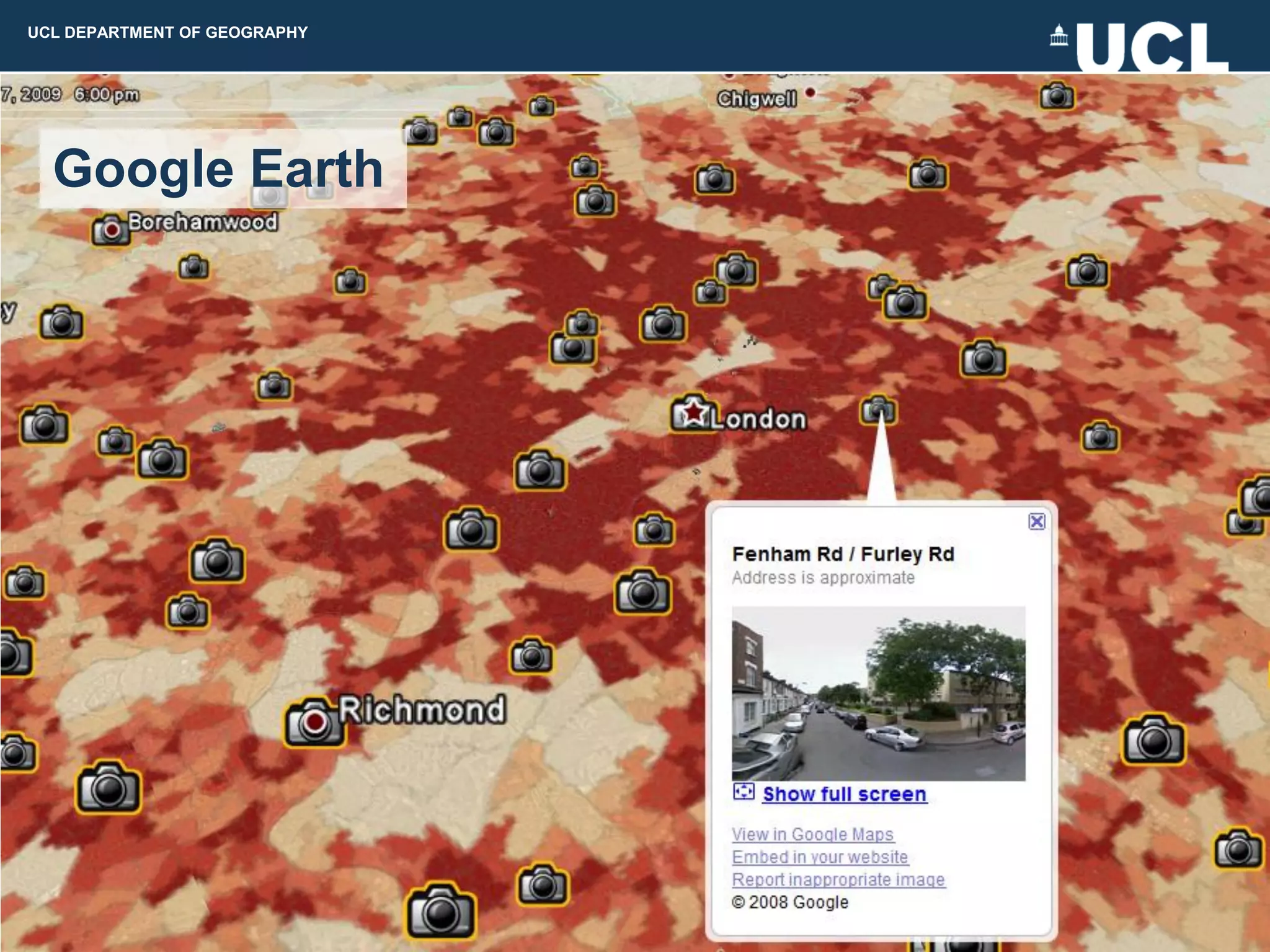

- 59. UCL DEPARTMENT OFGEOGRAPHY Google Earth

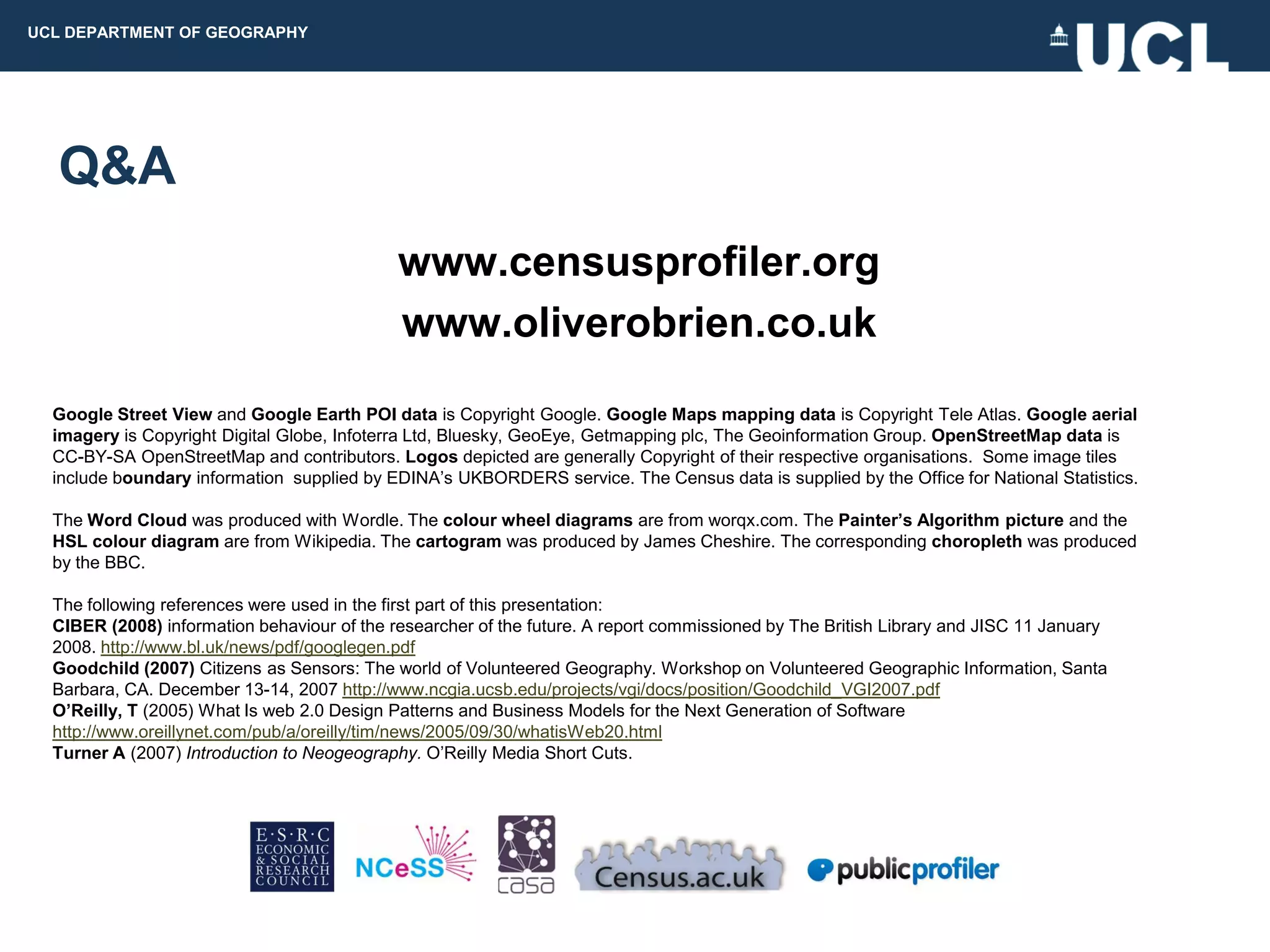

- 60. UCL DEPARTMENT OFGEOGRAPHY Q&A www.censusprofiler.org www.oliverobrien.co.uk Google Street View and Google Earth POI data is Copyright Google. Google Maps mapping data is Copyright Tele Atlas. Google aerial imagery is Copyright Digital Globe, Infoterra Ltd, Bluesky, GeoEye, Getmapping plc, The Geoinformation Group. OpenStreetMap data is CC-BY-SA OpenStreetMap and contributors. Logos depicted are generally Copyright of their respective organisations. Some image tiles include boundary information supplied by EDINA‟s UKBORDERS service. The Census data is supplied by the Office for National Statistics. The Word Cloud was produced with Wordle. The colour wheel diagrams are from worqx.com. The Painter’s Algorithm picture and the HSL colour diagram are from Wikipedia. The cartogram was produced by James Cheshire. The corresponding choropleth was produced by the BBC. The following references were used in the first part of this presentation: CIBER (2008) information behaviour of the researcher of the future. A report commissioned by The British Library and JISC 11 January 2008. http://www.bl.uk/news/pdf/googlegen.pdf Goodchild (2007) Citizens as Sensors: The world of Volunteered Geography. Workshop on Volunteered Geographic Information, Santa Barbara, CA. December 13-14, 2007 http://www.ncgia.ucsb.edu/projects/vgi/docs/position/Goodchild_VGI2007.pdf O’Reilly, T (2005) What Is web 2.0 Design Patterns and Business Models for the Next Generation of Software http://www.oreillynet.com/pub/a/oreilly/tim/news/2005/09/30/whatisWeb20.html Turner A (2007) Introduction to Neogeography. O‟Reilly Media Short Cuts.
