Cell division, occurring in both prokaryotes and eukaryotes, produces new cells from pre-existing ones for growth and repair. Mitosis results in two identical daughter cells, while meiosis produces four non-identical haploid gametes. The document details the phases of the cell cycle, the mechanisms of both mitotic and meiotic divisions, and the implications for genetic variability and reproduction.

1. Cellular Division

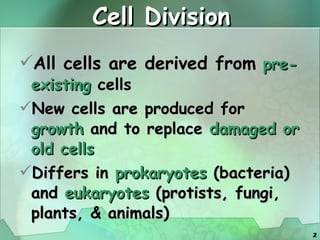

2. Cell Division All cells are derived from pre-existing cells New cells are produced for growth and to replace damaged or old cells Differs in prokaryotes (bacteria) and eukaryotes (protists, fungi, plants, & animals)

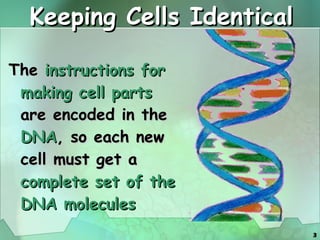

3. Keeping Cells Identical The instructions for making cell parts are encoded in the DNA , so each new cell must get a complete set of the DNA molecules

4. DNA Replication DNA must be copied or replicated before cell division Each new cell will then have an identical copy of the DNA Original DNA strand Two new, identical DNA strands

5. Identical Daughter Cells Parent Cell Two identical daughter cells

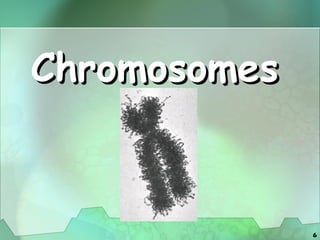

6. Chromosomes

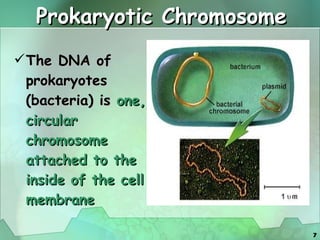

7. Prokaryotic Chromosome The DNA of prokaryotes (bacteria) is one, circular chromosome attached to the inside of the cell membrane

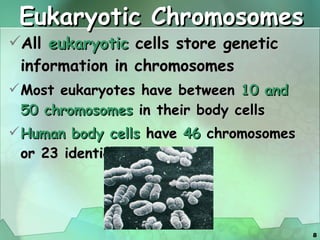

8. Eukaryotic Chromosomes All eukaryotic cells store genetic information in chromosomes Most eukaryotes have between 10 and 50 chromosomes in their body cells Human body cells have 46 chromosomes or 23 identical pairs

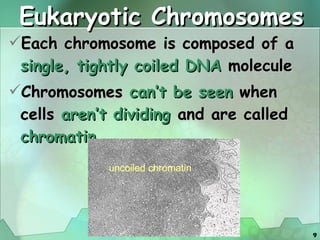

9. Eukaryotic Chromosomes Each chromosome is composed of a single, tightly coiled DNA molecule Chromosomes can’t be seen when cells aren’t dividing and are called chromatin

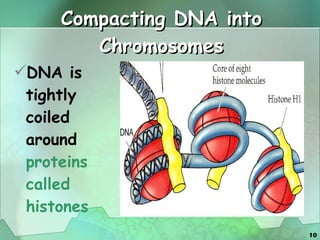

10. Compacting DNA into Chromosomes DNA is tightly coiled around proteins called histones

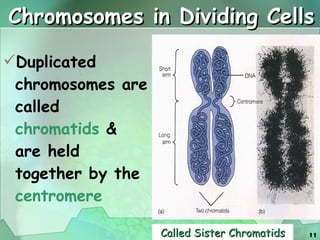

11. Chromosomes in Dividing Cells Duplicated chromosomes are called chromatids & are held together by the centromere Called Sister Chromatids

12. Karyotype A picture of the chromosomes from a human cell arranged in pairs by size First 22 pairs are called autosomes Last pair are the sex chromosomes XX female or XY male

13. Boy or Girl? Y - Chromosome X - Chromosome The Y Chromosome Decides

14. Cell Reproduction

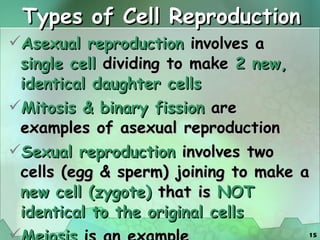

15. Types of Cell Reproduction Asexual reproduction involves a single cell dividing to make 2 new, identical daughter cells Mitosis & binary fission are examples of asexual reproduction Sexual reproduction involves two cells (egg & sperm) joining to make a new cell (zygote) that is NOT identical to the original cells Meiosis is an example

16. Cell Division in Prokaryotes

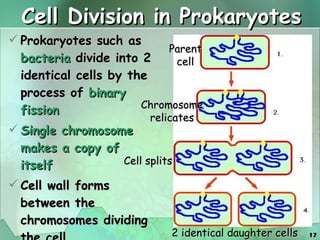

17. Cell Division in Prokaryotes Prokaryotes such as bacteria divide into 2 identical cells by the process of binary fission Single chromosome makes a copy of itself Cell wall forms between the chromosomes dividing the cell Parent cell 2 identical daughter cells Chromosome relicates Cell splits

18. Prokaryotic Cell Undergoing Binary Fission

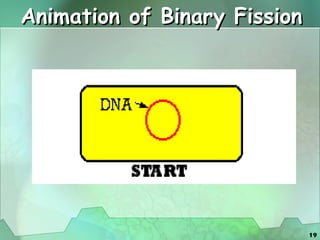

19. Animation of Binary Fission

20. The Cell Cycle

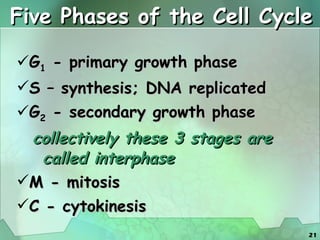

21. Five Phases of the Cell Cycle G 1 - primary growth phase S – synthesis; DNA replicated G 2 - secondary growth phase collectively these 3 stages are called interphase M - mitosis C - cytokinesis

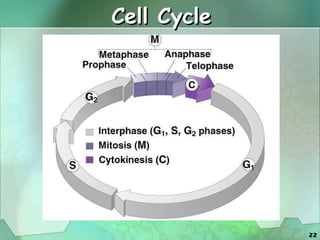

22. Cell Cycle

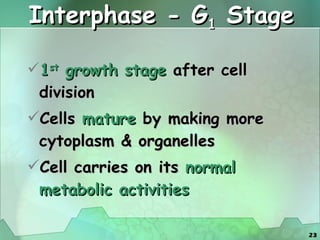

23. Interphase - G 1 Stage 1 st growth stage after cell division Cells mature by making more cytoplasm & organelles Cell carries on its normal metabolic activities

24. Interphase – S Stage Synthesis stage DNA is copied or replicated Two identical copies of DNA Original DNA

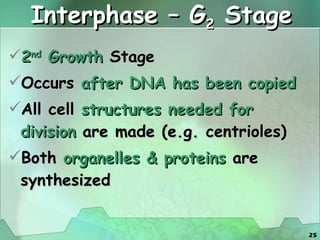

25. Interphase – G 2 Stage 2 nd Growth Stage Occurs after DNA has been copied All cell structures needed for division are made (e.g. centrioles) Both organelles & proteins are synthesized

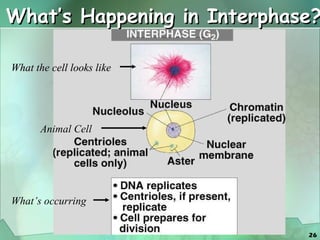

26. What’s Happening in Interphase? What the cell looks like Animal Cell What’s occurring

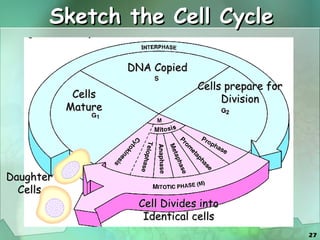

27. Sketch the Cell Cycle Daughter Cells DNA Copied Cells Mature Cells prepare for Division Cell Divides into Identical cells

28. Mitosis

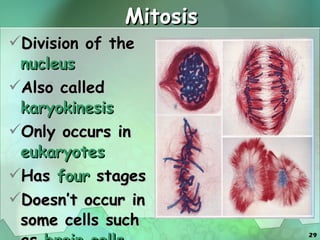

29. Mitosis Division of the nucleus Also called karyokinesis Only occurs in eukaryotes Has four stages Doesn’t occur in some cells such as brain cells

30. Four Mitotic Stages Pro phase Meta phase Ana phase Telo phase

31. Early Prophase Chromatin in nucleus condenses to form visible chromosomes Mitotic spindle forms from fibers in cytoskeleton or centrioles (animal) Chromosomes Nucleolus Cytoplasm Nuclear Membrane

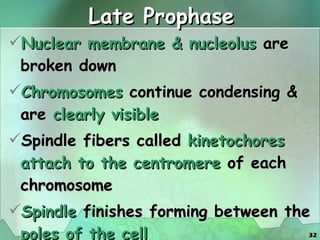

32. Late Prophase Nuclear membrane & nucleolus are broken down Chromosomes continue condensing & are clearly visible Spindle fibers called kinetochores attach to the centromere of each chromosome Spindle finishes forming between the poles of the cell

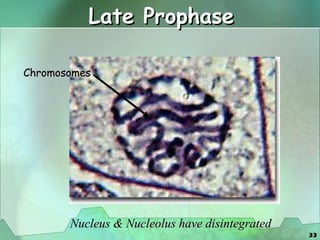

33. Late Prophase Nucleus & Nucleolus have disintegrated Chromosomes

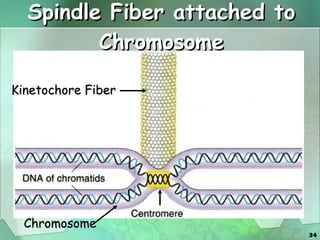

34. Spindle Fiber attached to Chromosome Kinetochore Fiber Chromosome

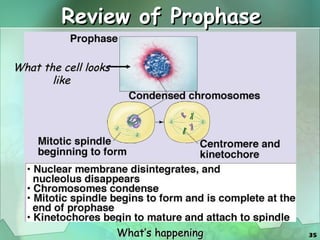

35. Review of Prophase What the cell looks like What’s happening

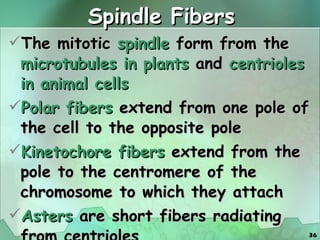

36. Spindle Fibers The mitotic spindle form from the microtubules in plants and centrioles in animal cells Polar fibers extend from one pole of the cell to the opposite pole Kinetochore fibers extend from the pole to the centromere of the chromosome to which they attach Asters are short fibers radiating from centrioles

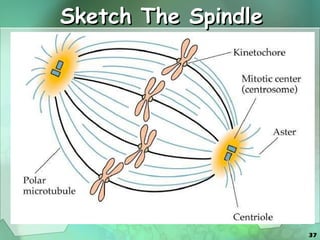

37. Sketch The Spindle

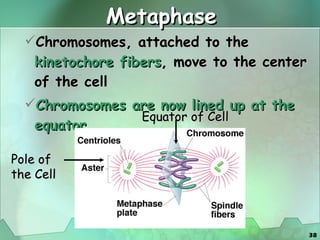

38. Metaphase Chromosomes, attached to the kinetochore fibers , move to the center of the cell Chromosomes are now lined up at the equator Pole of the Cell Equator of Cell

39. Metaphase Chromosomes lined at the Equator Asters at the poles Spindle Fibers

40. Metaphase Aster Chromosomes at Equator

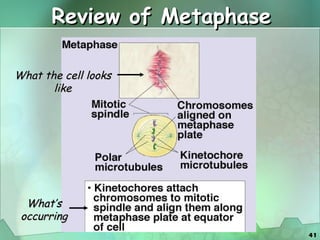

41. Review of Metaphase What the cell looks like What’s occurring

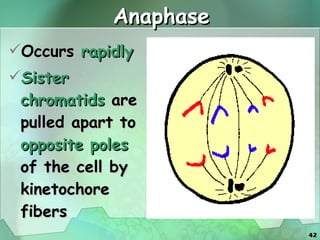

42. Anaphase Occurs rapidly Sister chromatids are pulled apart to opposite poles of the cell by kinetochore fibers

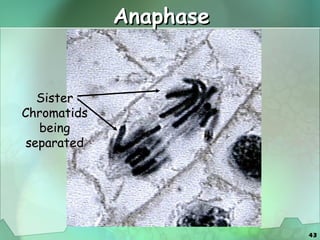

43. Anaphase Sister Chromatids being separated

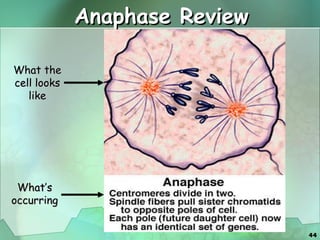

44. Anaphase Review What the cell looks like What’s occurring

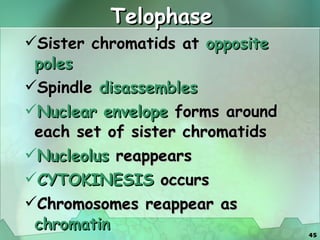

45. Telophase Sister chromatids at opposite poles Spindle disassembles Nuclear envelope forms around each set of sister chromatids Nucleolus reappears CYTOKINESIS occurs Chromosomes reappear as chromatin

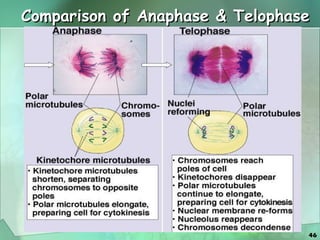

46. Comparison of Anaphase & Telophase

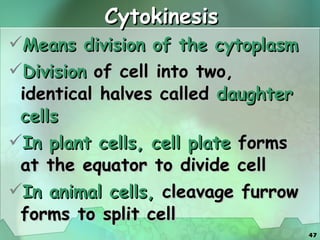

47. Cytokinesis Means division of the cytoplasm Division of cell into two, identical halves called daughter cells In plant cells, cell plate forms at the equator to divide cell In animal cells, cleavage furrow forms to split cell

48. Cytokinesis Cleavage furrow in animal cell Cell plate in plant cell

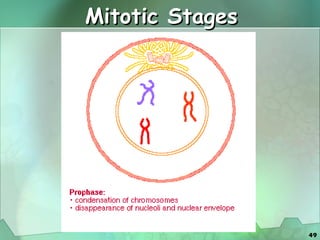

49. Mitotic Stages

50. Daughter Cells of Mitosis Have the same number of chromosomes as each other and as the parent cell from which they were formed Identical to each other, but smaller than parent cell Must grow in size to become mature cells (G 1 of Interphase)

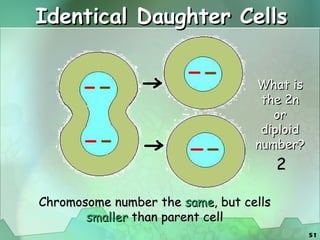

51. Identical Daughter Cells Chromosome number the same , but cells smaller than parent cell What is the 2n or diploid number? 2

52. Review of Mitosis

53. Name the Mitotic Stages: Interphase Prophase Metaphase Anaphase Telophase Name this? Name this?

54. Eukaryotic Cell Division Used for growth and repair Produce two new cells identical to the original cell Cells are diploid (2n) Chromosomes during Metaphase of mitosis Prophase Metaphase Anaphase Telophase Cytokinesis

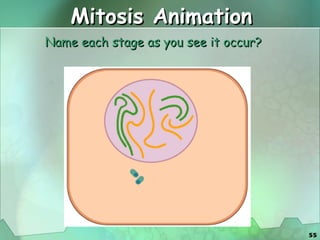

55. Mitosis Animation Name each stage as you see it occur?

56. Mitosis in Onion Root Tips Do you see any stages of mitosis?

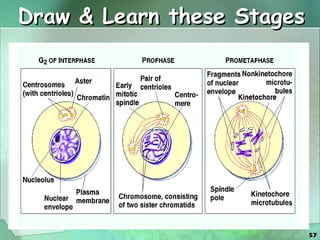

57. Draw & Learn these Stages

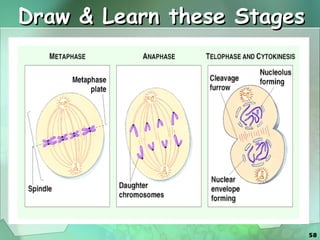

58. Draw & Learn these Stages

59. Test Yourself over Mitosis

60. Mitosis Quiz

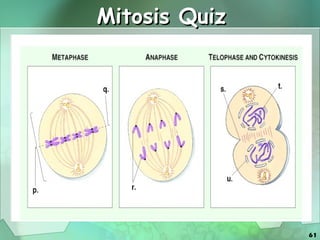

61. Mitosis Quiz

62. Name the Stages of Mitosis: Interphase Early prophase Mid-Prophase Late Prophase Metaphase Late Anaphase Early Anaphase Early Telophase, Begin cytokinesis Late telophase, Advanced cytokinesis

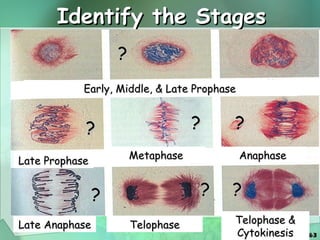

63. Identify the Stages Early, Middle, & Late Prophase Late Prophase Metaphase Anaphase Late Anaphase Telophase Telophase & Cytokinesis ? ? ? ? ? ? ?

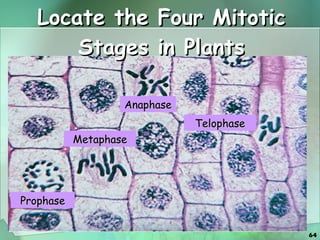

64. Locate the Four Mitotic Stages in Plants Metaphase Prophase Anaphase Telophase

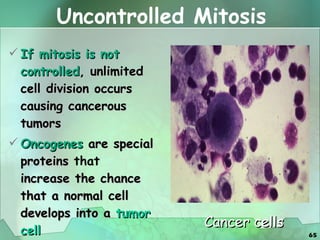

65. Uncontrolled Mitosis If mitosis is not controlled , unlimited cell division occurs causing cancerous tumors Oncogenes are special proteins that increase the chance that a normal cell develops into a tumor cell Cancer cells

66. Meiosis Formation of Gametes (Eggs & Sperm)

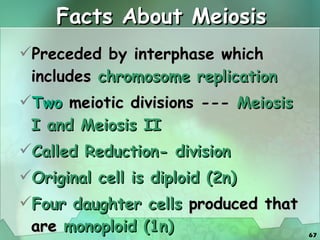

67. Facts About Meiosis Preceded by interphase which includes chromosome replication Two meiotic divisions --- Meiosis I and Meiosis II Called Reduction- division Original cell is diploid (2n) Four daughter cells produced that are monoploid (1n)

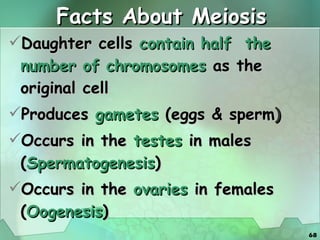

68. Facts About Meiosis Daughter cells contain half the number of chromosomes as the original cell Produces gametes (eggs & sperm ) Occurs in the testes in males ( Spermatogenesis ) Occurs in the ovaries in females ( Oogenesis )

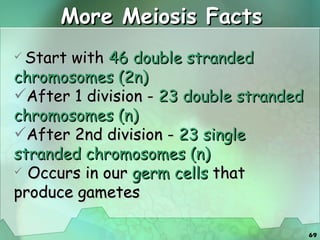

69. More Meiosis Facts Start with 46 double stranded chromosomes (2n) After 1 division - 23 double stranded chromosomes (n) After 2nd division - 23 single stranded chromosomes (n) Occurs in our germ cells that produce gametes

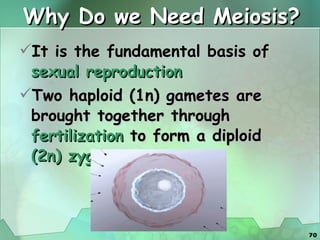

70. Why Do we Need Meiosis? It is the fundamental basis of sexual reproduction Two haploid (1n) gametes are brought together through fertilization to form a diploid (2n) zygote

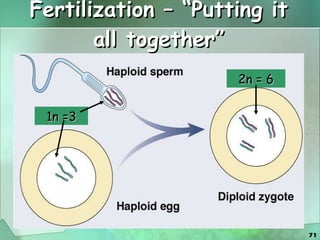

71. Fertilization – “Putting it all together” 1n =3 2n = 6

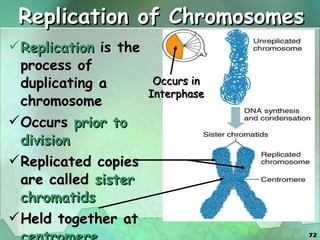

72. Replication of Chromosomes Replication is the process of duplicating a chromosome Occurs prior to division Replicated copies are called sister chromatids Held together at centromere Occurs in Interphase

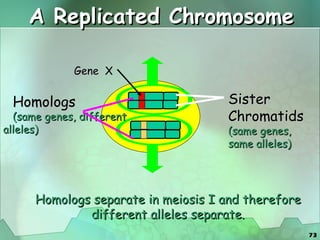

73. A Replicated Chromosome Gene X Homologs separate in meiosis I and therefore different alleles separate. Homologs (same genes, different alleles) Sister Chromatids (same genes, same alleles)

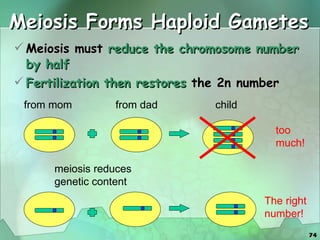

74. Meiosis Forms Haploid Gametes Meiosis must reduce the chromosome number by half Fertilization then restores the 2n number The right number! from mom from dad child meiosis reduces genetic content too much!

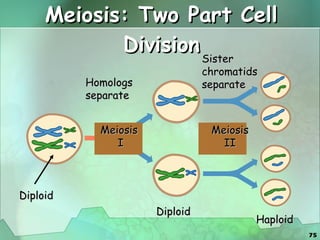

75. Meiosis: Two Part Cell Division Homologs separate Sister chromatids separate Diploid Diploid Haploid Meiosis I Meiosis II

76. Meiosis I: Reduction Division Early Prophase I (Chromosome number doubled ) Late Prophase I Metaphase I Anaphase I Telophase I (diploid) Nucleus Spindle fibers Nuclear envelope

77. Prophase I Early prophase Homologs pair. Crossing over occurs . Late prophase Chromosomes condense. Spindle forms. Nuclear envelope fragments.

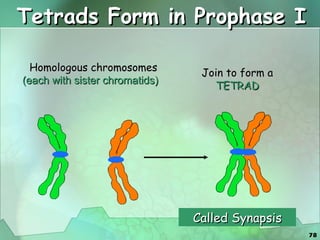

78. Tetrads Form in Prophase I Homologous chromosomes (each with sister chromatids) Join to form a TETRAD Called Synapsis

79. Crossing-Over Homologous chromosomes in a tetrad cross over each other Pieces of chromosomes or genes are exchanged Produces Genetic recombination in the offspring

80. Homologous Chromosomes During Crossing-Over

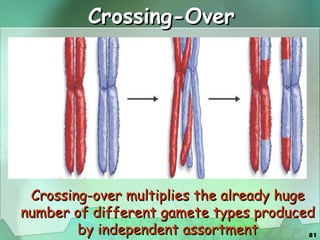

81. Crossing-Over Crossing-over multiplies the already huge number of different gamete types produced by independent assortment

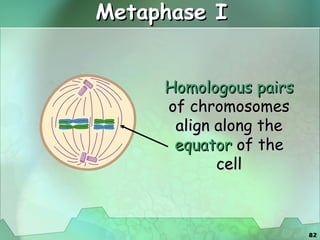

82. Metaphase I Homologous pairs of chromosomes align along the equator of the cell

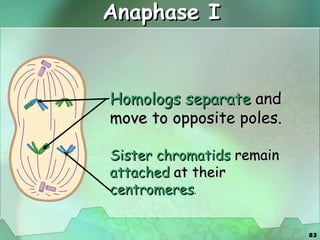

83. Anaphase I Homologs separate and move to opposite poles. Sister chromatids remain attached at their centromeres .

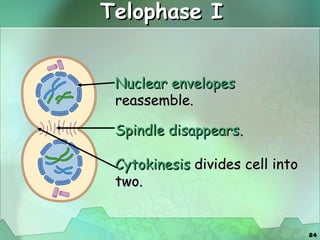

84. Telophase I Nuclear envelopes reassemble. Spindle disappears. Cytokinesis divides cell into two.

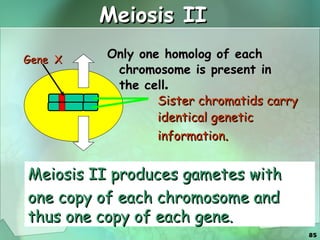

85. Meiosis II Only one homolog of each chromosome is present in the cell . Gene X Meiosis II produces gametes with one copy of each chromosome and thus one copy of each gene. Sister chromatids carry identical genetic information .

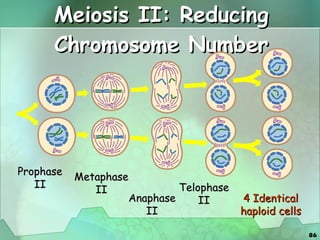

86. Meiosis II: Reducing Chromosome Number Prophase II Metaphase II Anaphase II Telophase II 4 Identical haploid cells

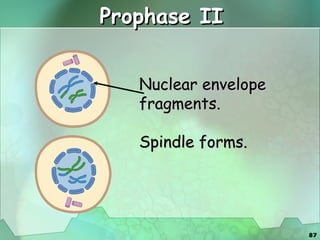

87. Prophase II Nuclear envelope fragments. Spindle forms.

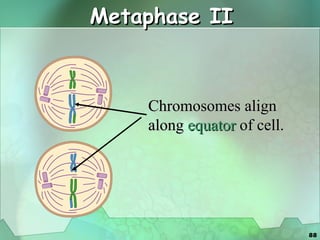

88. Metaphase II Chromosomes align along equator of cell.

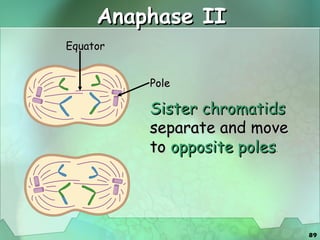

89. Anaphase II Sister chromatids separate and move to opposite poles . Equator Pole

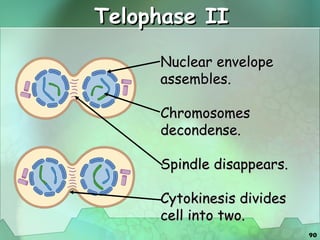

90. Telophase II Nuclear envelope assembles. Chromosomes decondense. Spindle disappears. Cytokinesis divides cell into two.

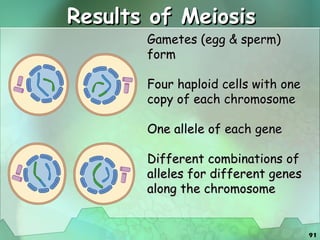

91. Results of Meiosis Gametes (egg & sperm) form Four haploid cells with one copy of each chromosome One allele of each gene Different combinations of alleles for different genes along the chromosome

92. Gametogenesis Oogenesis or Spermatogenesis

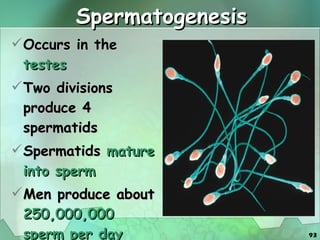

93. Spermatogenesis Occurs in the testes Two divisions produce 4 spermatids Spermatids mature into sperm Men produce about 250,000,000 sperm per day

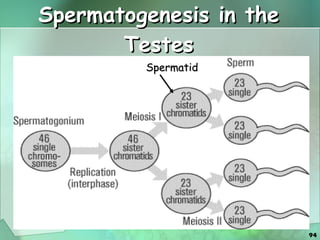

94. Spermatogenesis in the Testes Spermatid

95. Spermatogenesis

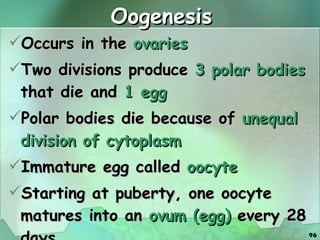

96. Oogenesis Occurs in the ovaries Two divisions produce 3 polar bodies that die and 1 egg Polar bodies die because of unequal division of cytoplasm Immature egg called oocyte Starting at puberty, one oocyte matures into an ovum (egg) every 28 days

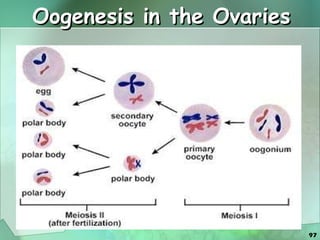

97. Oogenesis in the Ovaries

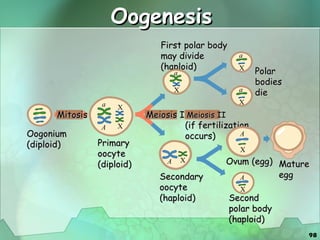

98. Oogenesis Oogonium (diploid) Mitosis Primary oocyte (diploid) Meiosis I Secondary oocyte (haploid) Meiosis II (if fertilization occurs) First polar body may divide (haploid) Polar bodies die Ovum (egg) Second polar body (haploid) a A X X a X A X a X a X Mature egg A X A X

99. Comparing Mitosis and Meiosis

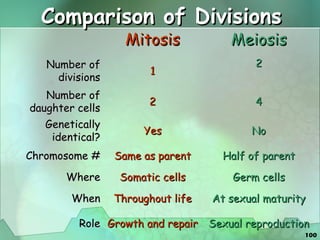

100. Comparison of Divisions Mitosis Meiosis Number of divisions 1 2 Number of daughter cells 2 4 Genetically identical? Yes No Chromosome # Same as parent Half of parent Where Somatic cells Germ cells When Throughout life At sexual maturity Role Growth and repair Sexual reproduction
