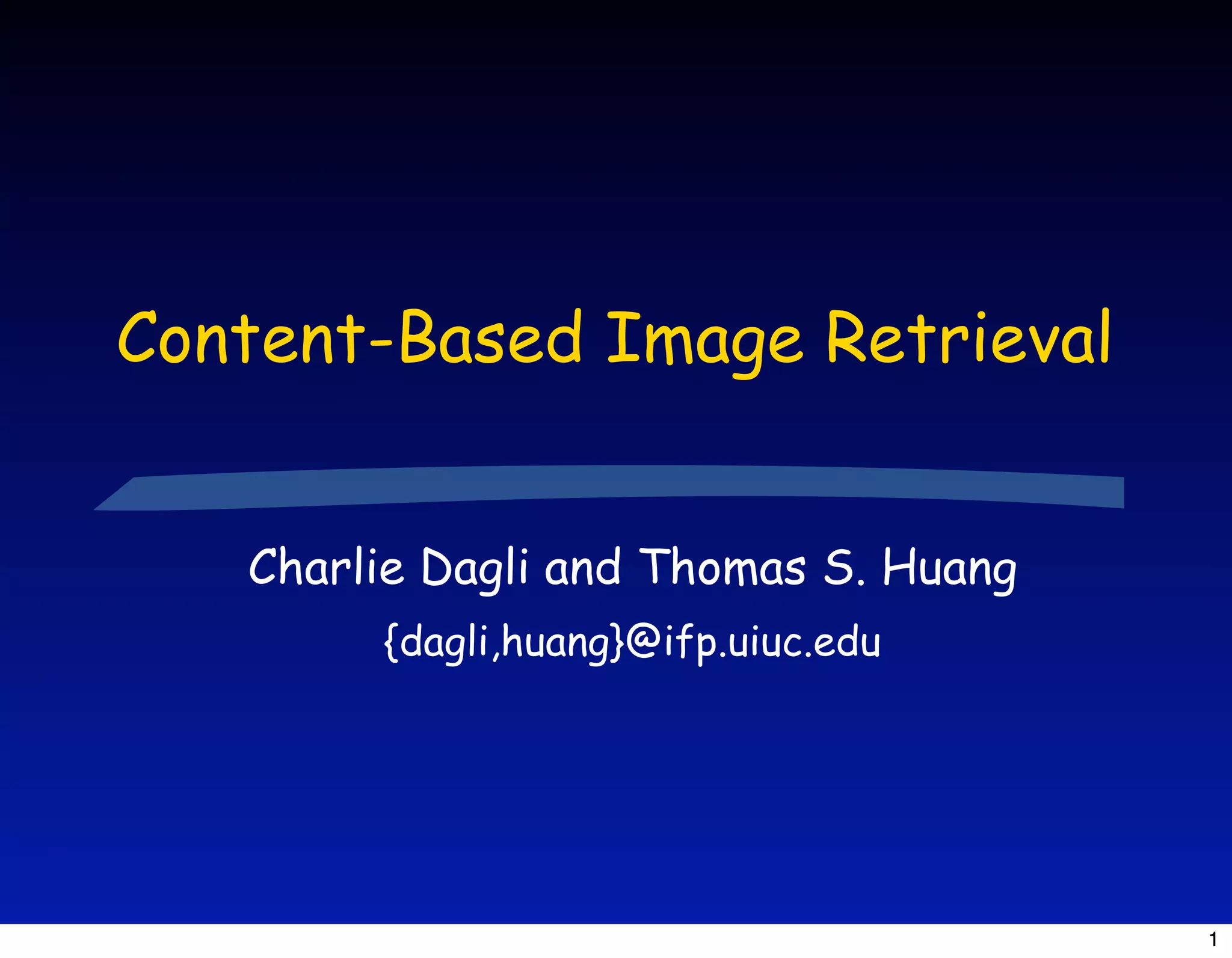

1. Content-Based Image Retrieval
Charlie Dagli and Thomas S. Huang
{dagli,huang}@ifp.uiuc.edu
1

2. Outline
What is CBIR ?

Image Features

Feature Weighting and Relevance

Feedback
User Interface and Visualization

2

3. What is Content-based Image
Retrieval (CBIR)?
Image Search Systems that search

for images by image content
<-> Keyword-based Image/Video Retrieval
(ex. Google Image Search, YouTube)
3

4. Applications of CBIR
Consumer Digital Photo Albums

Digital Cameras

Flickr

Medical Images

Digital Museum

Trademarks Search

MPEG-7 Content Descriptors

4

5. Basic Components of CBIR
Feature Extractor

Create the metadata

Query Engine

Calculate similarity

User Interface

5

6. How does CBIR work ?
Extract Features from Images

Let the user do Query

Query by Sketch

Query by Keywords

Query by Example

Refine the result by Relevance Feedback

Give feedback to the previous result

6

7. Query by Example
Pick example images, then ask the system

to retrieve “similar” images.
“Get similar images”
CBIR
Query Sample
Results
7

8. Relevance Feedback
User gives a feedback to the query results

System recalculates feature weights

Query Feedback
Feedback
Initial
sample 1st Result 2nd Result
8

9. Basic Components of CBIR
Feature Extractor

Create the metadata

Query Engine

Calculate similarity

User Interface

9

10. Image Features (Metadata)
Color

Texture

Structure

etc

10

11. Color Features
Which Color Space?

RGB, CMY, YCrCb, CIE, YIQ, HLS, …

Our Favorite is HSV

Designed to be similar to human perception

11

12. HSV Color Space
H (Hue)

Dominant color (spectral)

S (Saturation)

Amount of white

V (Value)

Brightness

How to Use This?
12

13. Straightforward way to use
HSV as color features
Histogram for each H, S, and V

Then compare in each bin

Is this a good idea?

13

14. Are these two that different?
Histogram comparison is very

sensitive
14

15. Color Moments [Stricker ‘95]
For each image, the color distribution in

each of H, S and V is calculated
1st (mean), 2nd (var) and 3rd moment for HSV

N
1
∑ pij
Ei =
N j=1
i : color channel {i=h,s,v}
N
1
N = # of pixels in image
∑ (pij − Ei ) 2 )1 2
σi = (
N j=1
Total 9 features
1N
si = ( ∑ (pij − Ei ) 3)1 3
N j=1
15

16. Shape Features
Region-Based Shape

Outer Boundary

Contour-Based Shape

Features of Contour

Edge-Based Shape

Ex. Histogram of edge length and

orientation
16

17. Region-based vs. Contour-based
Region-based

Suitable for Complex objects with

disjoint region
Contour-based

Suitable when semantics are contained in

the contour
17

18. Region-based vs. Contour-based
Region Complexity
Contour
Complexity
18

19. Region-based vs. Contour-based
Good Examples for Region-based shape
Good Examples for Contour-based shape
19

20. Angular Radial Transformation (ART)
[Kim’99]
A Region-based shape

Calculate the coefficients based on image

intensities in polar coordinates (n<3, m<12)
2π 1
∫ ∫
Fnm = Vnm (ρ,θ ) f (ρ,θ )ρdρdθ
0 o
f (ρ,θ )L image intensity in polar coordinates
Vnm (ρ,θ )L ART basis function
Vnm (ρ,θ ) = 1 / 2π exp( jmθ )Rn (ρ)
 1 n=0
Rn (ρ) = 
 2 cos(πnρ) n ≠ 0
Total 35 coefficients in 140 bits (4 bits/coeff)
€ 20

21. Curvature Scale-Space (CSS)
[Mokhtaarian ‘92]
A contour-based shape

1) Apply lowpass filter repeatedly until
concave contours smoothed out
2) “How contours are filtered” becomes
the features
Zero crossing in the curvature functions
•
after each application of the lowpass
filter
CSS Image
•
21

22. CSS Image
Tracks zero-crossing locations of each concavity in the contour
Contour Curvature
B
A
C
D
3 ITR
F
E
29 ITR
B
A
E
F
100
ITR
22
S

23. CSS Features
# of peaks in CSS images

Highest peak

Circularity (perimeter2/ area)

Eccentricity

Etc.

23

24. Texture Features
Wavelet-based Texture Features

[Smith’94]
24

25. Wavelet Filter Bank
Coarse Info (low
freq)
Wavelet
Filter
Original Image
Detail (high freq)
25

26. Texture Features from Wavelet
Wavelet
Original Feature
Image Extraction
f6,v6 f3,v3
f1,v1
Wavelet f5,v5 f4,v4
Filter
f2,v2 f0,vo
Bank
Take the mean
Decompose the
and variance of
images into
each subband
frequency subbands
26

27. Other approaches: Region-Based
Global features often times fail to

capture local content in an image
GLOBAL DESCRIPTION
{Green, Grassy, Hillside}
color, texture, shape
No sheep? No fence? No houses?
27

28. Other approaches: Region-Based
Segmentation-Based

Images are segmented by color/texture similarities:

Blobworld [Carson ‘99], Netra [Ma and Manjunath ‘99]
Grid-Based

Images are partitioned, features are calculated from

blocks: [Tian ‘00],[Moghaddam ‘99]
28

29. Other approaches: Region-Based
Combine Grid and Segmentation: [Dagli and Huang, ‘04]

29

30. Basic Components of CBIR
Feature Extractor

Create the metadata

Query Engine

Calculate similarity

User Interface

30

31. Now, We have many features
(too many?)
How to express visual “similarity”

with these features?
31

32. Visual Similarity ?
“Similarity” is Subjective and Context-

dependent.
“Similarity” is High-level Concept.

Cars, Flowers, …

But, our features are Low-level features.

Semantic Gap!

32

33. Which features are most important?
Not all features are always important.

“Similarity” measure is always changing

The system has to weight features on the fly.

How ?
33

34. Online Feature Weighting
Approach #1 - Manual

Ask the user to specify number

“35% of color and 50% of texture…”
Very difficult to determine the numbers

Approach #2 - Automatic

Learn feature weights from examples

Relevance Feedback

34

35. Online Feature Weighting
From Query Examples, the system

determines feature weighting matrix W
CBIR
Calculate W
Query
Result
rr r rT rr
distance( x, y ) = ( x − y ) W ( x − y )
35

36. How to Calculate W ?
No Negative Examples (1-class)

Positive and Negative Examples (2-class)

One Positive and Many Negative classes

(1+x)-class
Many Positive and Many Negative classes

(x+y)-class
36

37. When there are only relevant
images available…
We want to give more weights to

common features among example
images.
Use the variance.

Features with low variance

-> Common features
-> Give higher weight
37

38. One Class Relevance Feedback in
MARS [Rui ‘98]
Calculates the Variance among relevant examples.

The inverse of variance becomes the weight of each

feature.
This means “common features” between positive

examples have larger weights.
1/σ12 0
 
2
1/σ 2
 
W = 
2
1/σ 3
W is a k x k diagonal matrix
 
O
 
2
0 1/σ k 

38

39. Relevance Feedback as Two-Class
Problem (positive and negative)
Fisherʼs Discriminant Analysis (FDA)
Find a W that …

minimizes the scatter

of each class cluster
(within scatter)
positive
maximizes the scatter

between the clusters
negative
(between scatter)
39

40. Two-Class problem
Target function

W T SBW
W = argmax T
W is full matrix W SW W
 W
SB LBetween Scatter Matrix
SW LWithin Scatter Matrix
2
SW = ∑ ∑ (x j − mi )(x j − mi )T
j ∈group # i
i=1
SB = (m1 − m2 )(m1 − m2 )T
€
m1,m2 Lmean of each class
40

41. Solution
The problem is reduced to

generalized eigenvalue problem
SB w i = λi SW w i
1/ 2
W = ΦΛ
ΛLdiagonal matrix of eigenvalues
ΦLeigenvectors
41

42. From Two-class to (1+x)-class
Positive examples are usually from

one class such as flower
Negative examples can be from any

classes such as “car”, “elephant”,
“orange”…
It is not desirable to assume negative

images as one class.
42

43. RF as (1+x)-Class Problem
• Biased Discriminant Analysis [Zhou et al. ‘01]
• Negative examples can be any images
• Each negative image has its own group
positive
negative
SW = ∑ (x − m)(x − m)T
x ∈ positive
SB = ∑ (x − m)(x − m)T
x ∈negative
mLmean of positive class
The solution is similar to FDA
43

44. RF as (x+y)-Class Problem
Group BDA [Nakazato, Dagli ‘03]

Multiple Positive classes

Scattered Negative classes

positive
negative
44

45. RF as (x+y)-Class Problem
Group BDA [Nakazato, Dagli ‘03]

Multiple Positive classes

Scattered Negative classes

positive
negative
SW = ∑ i ∑ x ∈i (x − mi )(x − mi )T
SB = ∑ ∑ (y − mi )(y − mi )T
i y ∈negative
mi Lmean of positive class i
45

46. Basic Components of CBIR
Feature Extractor

Create the metadata

Query Engine

Calculate similarity

User Interface

46

47. User Interface and Visualization
Basic GUI

Direct Manipulation GUI

El Nino [UC San Diego]

Image Grouper [Nakazato and Huang]

3D Virtual Reality Display

47

48. Traditional GUI for Relevance
Feedback
User selects

relevant images
If good images

are found, add
them
When no more

images to add, the
search converges
Slider or Checkbox
48

49. ImageGrouper [Nakazato and Huang]
Query by Groups

Make a query by creating groups of images

Easier to try different combinations of

query sets (trial-and-Error Query)
49

50. ImageGrouper
Result View Pallete Panel
50

51. Note
Trial-and-Error Query is very important

because
Image similarity is subjective and context-

dependent.
In addition, we are using low-level image features.

(semantic gap)
Thus, it is VERY difficult to express the user’s

concept by these features.
51

52. Image Retrieval in 3D
Image retrieval and browsing in 3D

Virtual Reality
The user can see more images without

occlusion
Query results can be displayed in

various criteria
Results by Color features, by texture, by

combination of color and texture
52

53. 3D MARS
Texture
Structure
color
Initial Display
Result
53

54. 3D MARS in CAVE™
Shuttered glasses for

immersive 3D
experience
Click and Drag images

by WAND
Fly-through by

Joystick
54

55. Demos
Traditional GUI

IBM QBIC

• http://wwwqbic.almaden.ibm.com/
UIUC MARS

• http://chopin.ifp.uiuc.edu:8080
ImageGrouper

http://www.ifp.uiuc.edu/~nakazato/grouper

55

56. References (Image Features)
Bober, M., “MPEG-7 Visual Descriptors,” In IEEE Transactions on Circuits and

Systems for Video Technology, Vol. 11, No. 6, June 2001.
Stricker, M. and Orengo, M., “Similarity of Color Images,” In Proceedings of SPIE,

Vol. 2420 (Storage and Retrieval of Image and Video Databases III), SPIE Press,
Feb. 1995.
Zhou, X. S. and Huang, T. S., “Edge-based structural feature for content-base

image retrieval,” Pattern Recognition Letters, Special issue on Image and Video
Indexing, 2000.
Smith, J. R. and Chang S-F. Transform features for texture classification and

discrimination in large image databases. In Proceedings of IEEE Intl. Conf. on
Image Processing, 1994.
Smith J. R. and Chang S-F. “Quad-Tree Segmentation for Texture-based Image

Query.” In Proceedings of ACM 2nd International Conference on Multimedia, 1994.
Dagli, C. K. and Huang, T.S., “A Framework for Color Grid-Based Image Retrieval,”

In Proceedings of International Conference on Pattern Recognition, 2004.
Tian, Q. et. al. “Combine user defined region-of-interest and spatial layout in image

retrieval,” in IEEE Intl. Conf. on Image Processing, 2000.
Moghaddam B. et. al. “Defining image content with multiple regions-of-interest,” in

IEEE Wrkshp on Content-Based Access of Image and Video Libraries, 1999.
56

57. References (Relevance Feedback)
Rui, Y., et al., “Relevance Feedback: A Power Tool for

Interactive Content-Based Image Retrieval,” In IEEE
Trans. on Circuits and Video Technology, Vol.8, No.5,
Sept. 1998
Zhou, X. S., Petrovic, N. and Huang, T. S. “Comparing

Discriminating Transformations and SVM for Learning
during Multimedia Retrieval.” In Proceedings of ACM
Multimedia ‘01, 2001.
Ishikawa, Y., Subrammanya, R. and Faloutsos, C.,

“MindReader: Query database through multiple
examples,” In Proceedings of the 24th VLDB
Conference, 1998.
57

58. References (User Interfaces and
Visualizations)
Nakazato, M. and Huang, T. S. “3D MARS: Immersive Virtual

Reality for Content-Based Image Retrieval.“ In Proceedings of
2001 IEEE International Conference on Multimedia and Expo
(ICME2001), Tokyo, August 22-25, 2001
Nakazato, M., Manola, L. and Huang, T.S., “ImageGrouper: Search,

Annotate and Organize Images by Groups,” In Proc. of 5th Intl.
Conf. On Visual Information Systems (VIS’02), 2002.
Nakazato, M., Dagli C.K., and Huang T.S., “Evaluating Group-Based

Relevance Feedback for Content-Based Image Retrieval,” In
Proceedings of International Conference on Image Processing,
2003.
Santini, S. and Jain, R., “Integrated Browsing and Querying for

Image Database,” IEEE Multimedia, Vol. 7, No. 3, 2000, page
26-39.
58

59. Similar Region Shape, Different
Contour
59
