1. Spatial Filtering
CS474/674 - Prof. Bebis
Sections 3.4, 3.5, 3.6, 3.7, 3.8

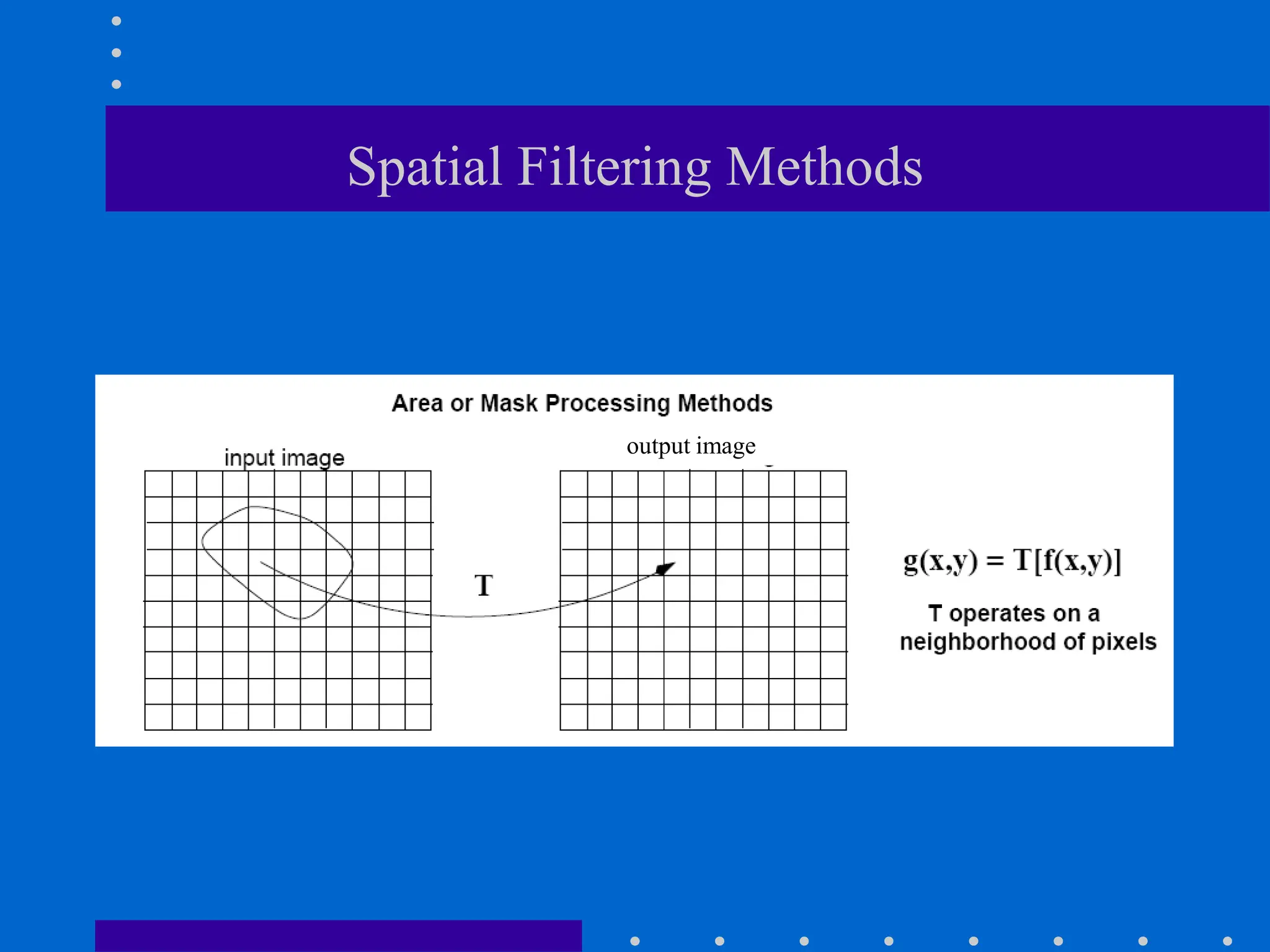

2. Spatial Filtering Methods
output image

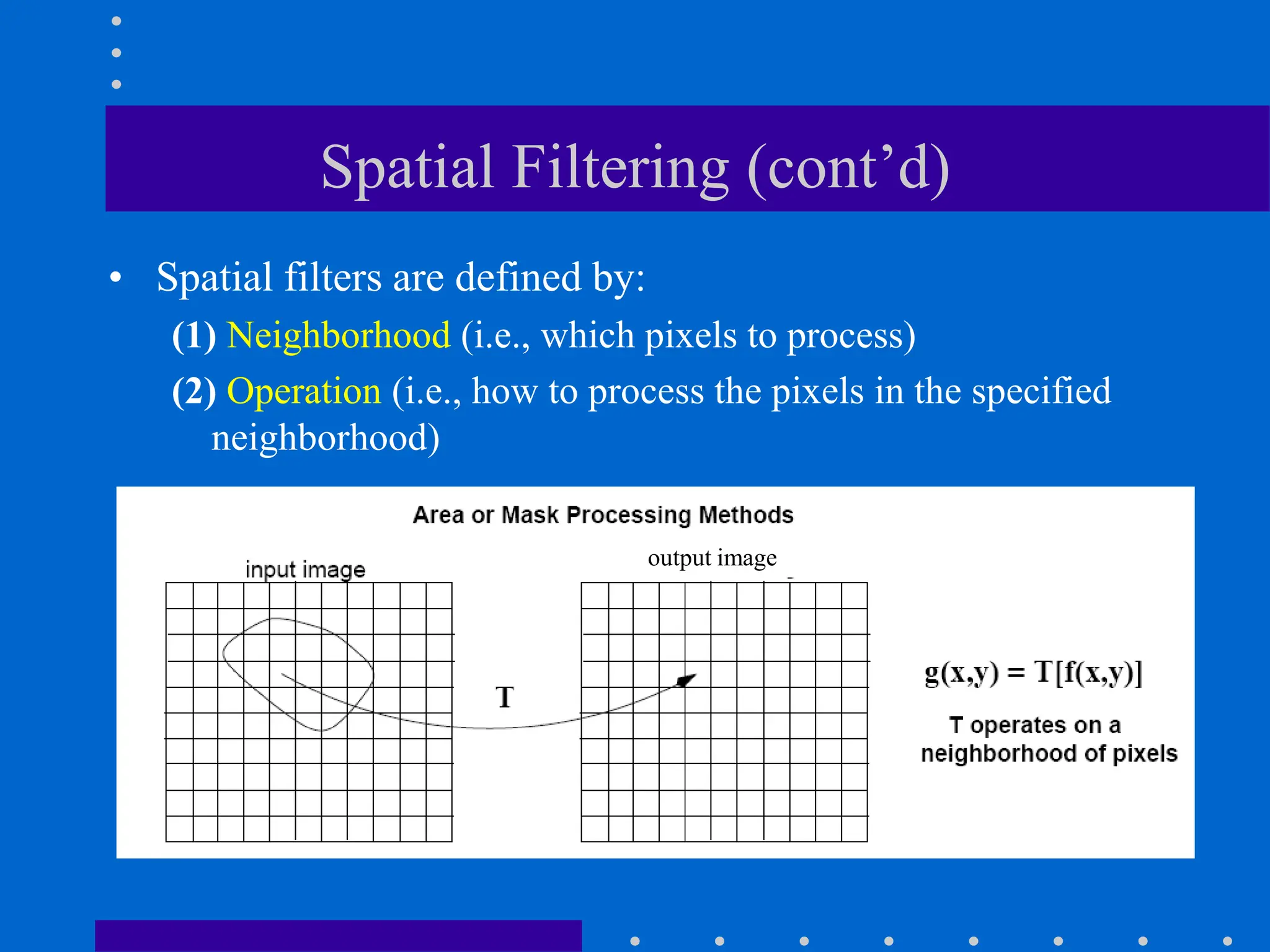

3. Spatial Filtering (cont’d)
• Spatial filters are defined by:
(1) Neighborhood (i.e., which pixels to process)
(2) Operation (i.e., how to process the pixels in the specified
neighborhood)
output image

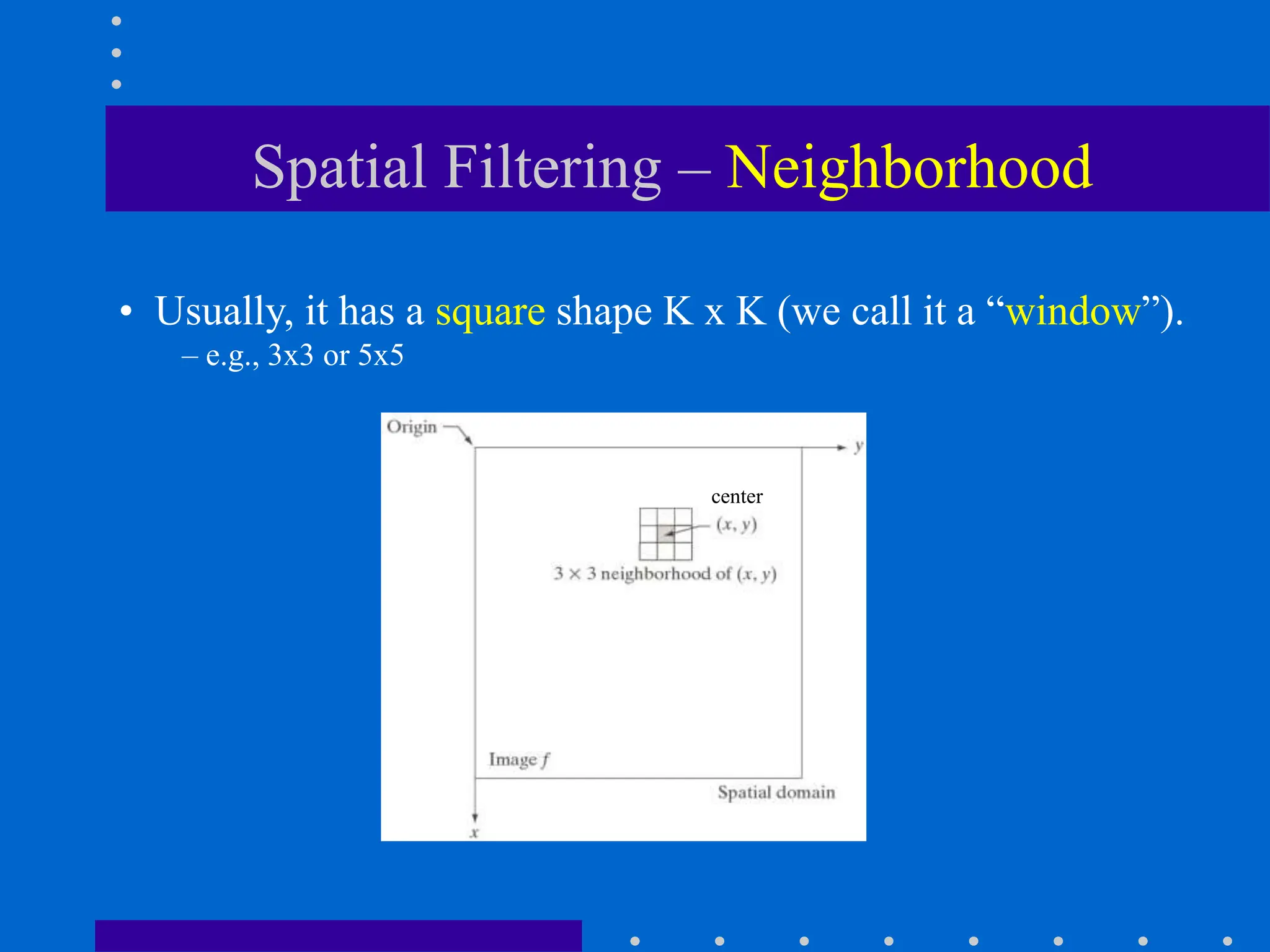

4. Spatial Filtering – Neighborhood
• Usually, it has a square shape K x K (we call it a “window”).
– e.g., 3x3 or 5x5
center

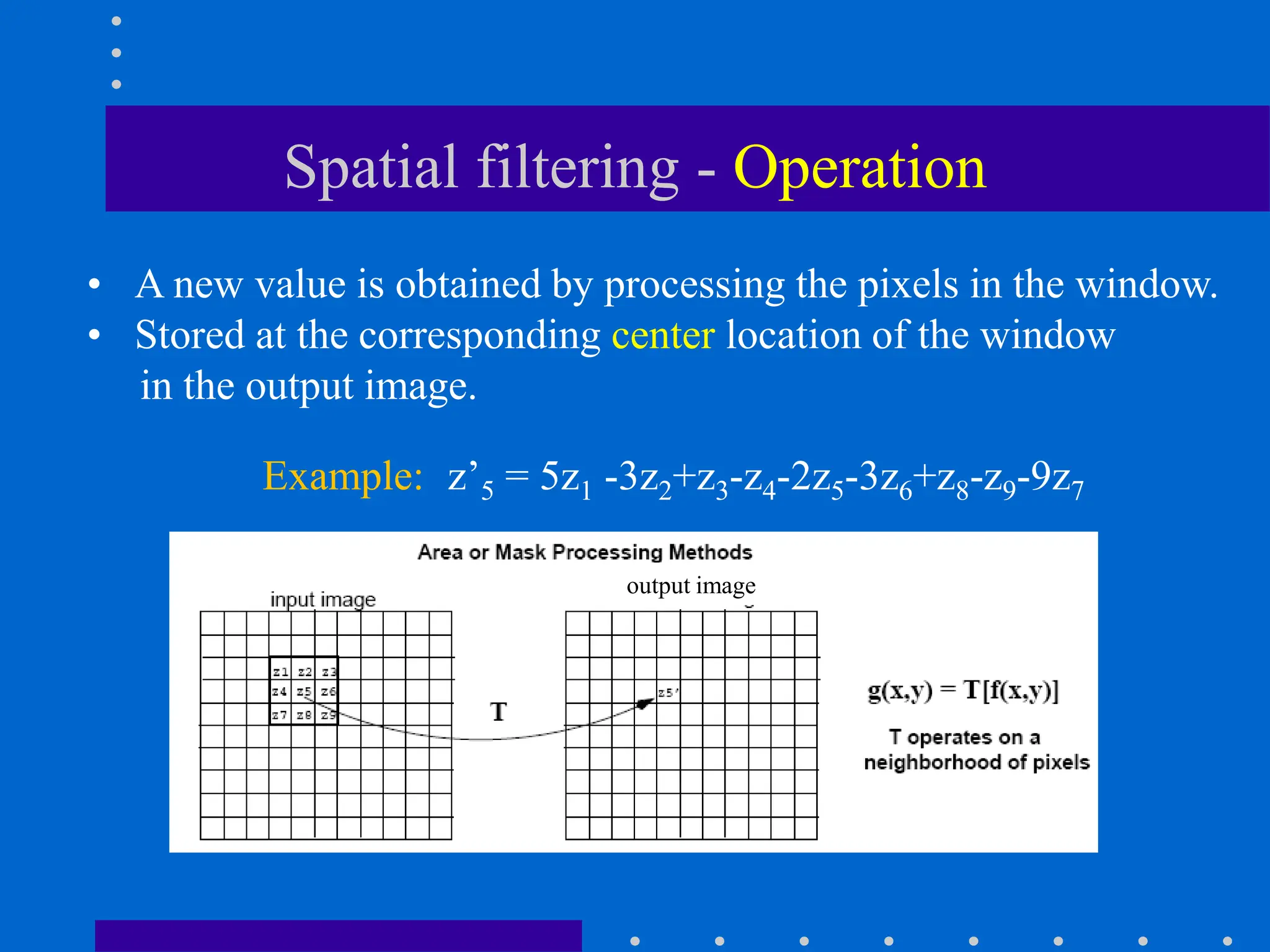

5. Spatial filtering - Operation
output image
• A new value is obtained by processing the pixels in the window.
• Stored at the corresponding center location of the window
in the output image.
z’5 = 5z1 -3z2+z3-z4-2z5-3z6+z8-z9-9z7
Example:

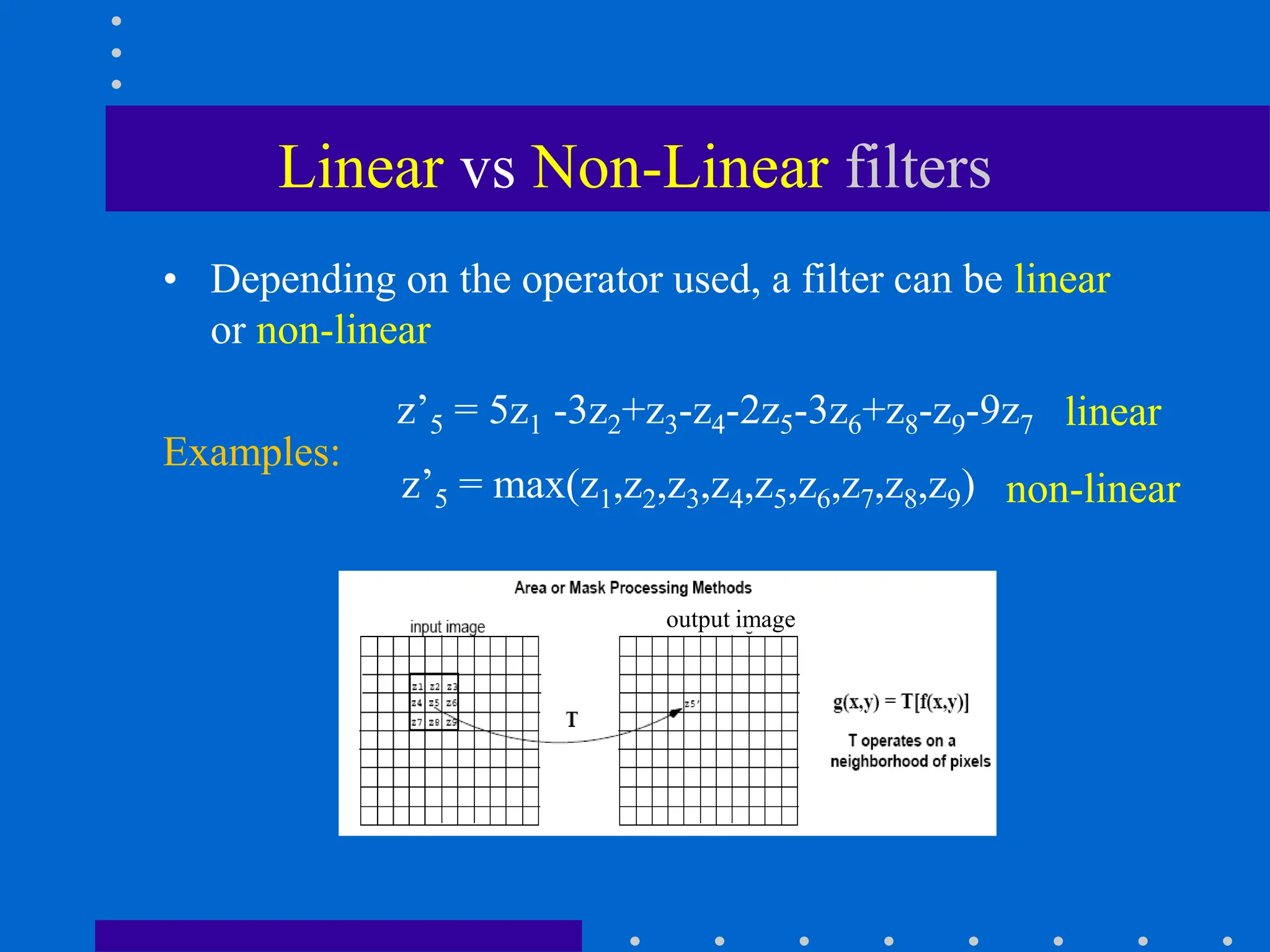

6. Linear vs Non-Linear filters
• Depending on the operator used, a filter can be linear
or non-linear
output image
z’5 = 5z1 -3z2+z3-z4-2z5-3z6+z8-z9-9z7
Examples:
z’5 = max(z1,z2,z3,z4,z5,z6,z7,z8,z9)
linear
non-linear

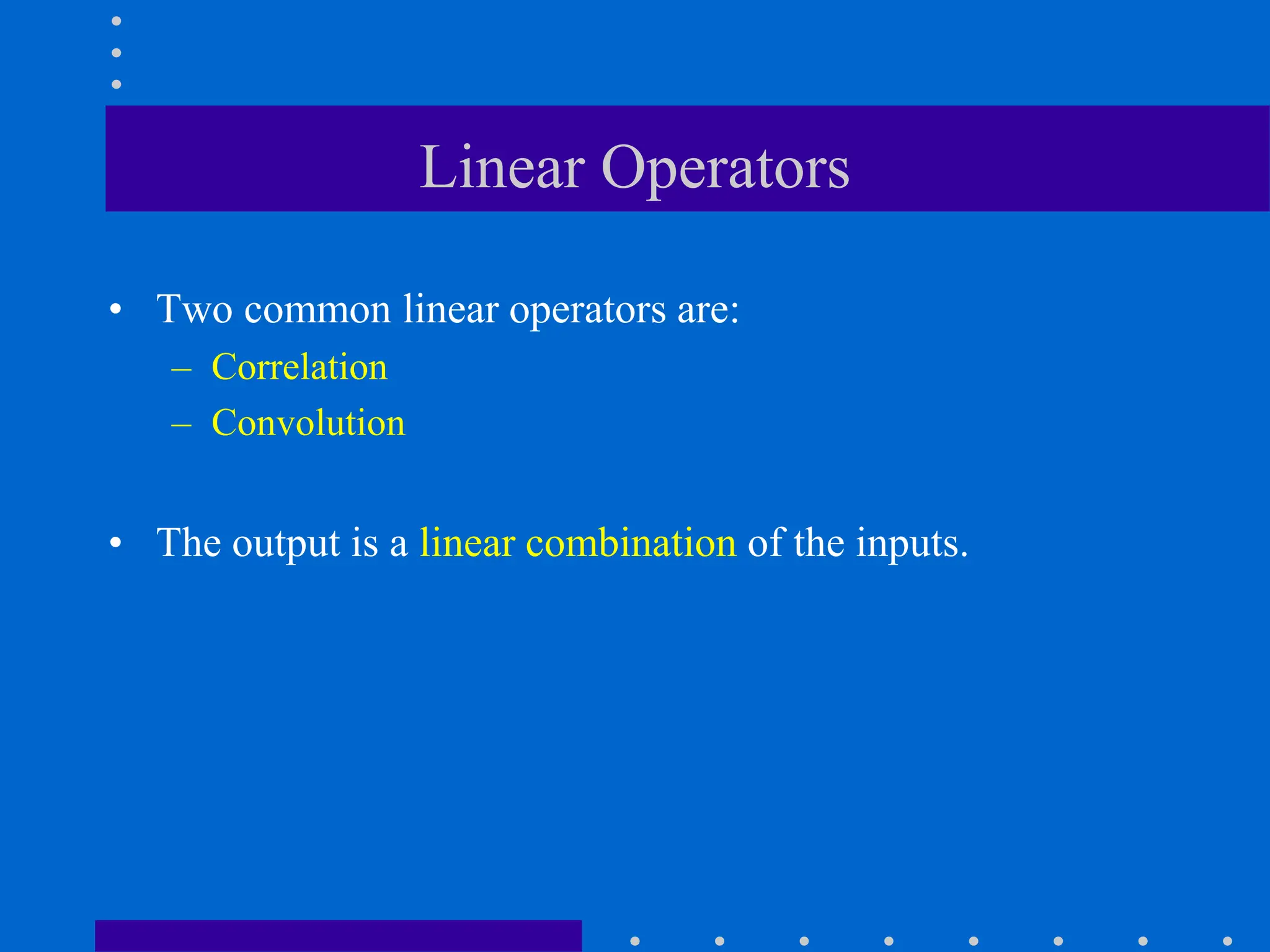

7. Linear Operators
• Two common linear operators are:
– Correlation
– Convolution
• The output is a linear combination of the inputs.

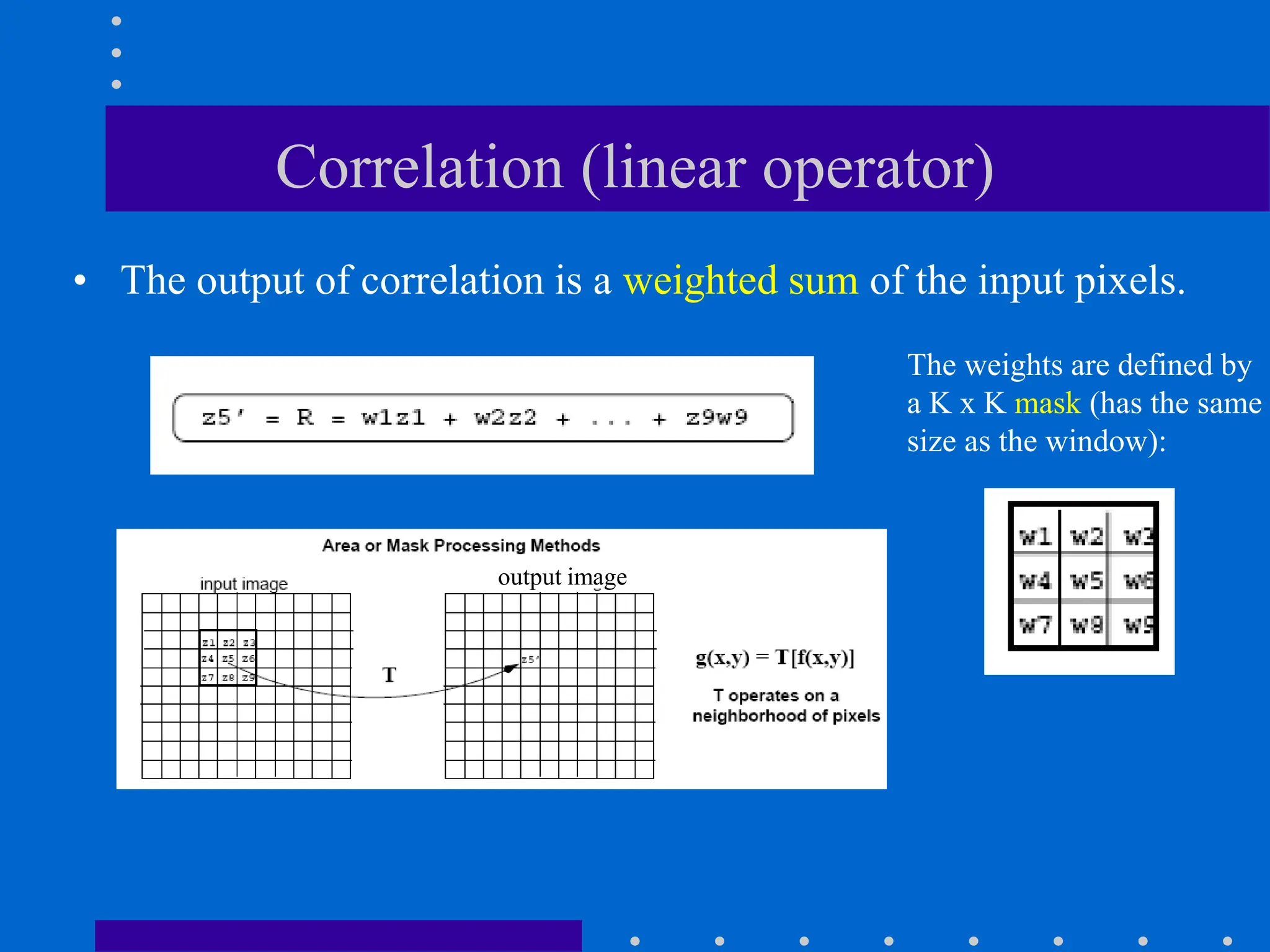

8. Correlation (linear operator)
output image
• The output of correlation is a weighted sum of the input pixels.
The weights are defined by
a K x K mask (has the same
size as the window):

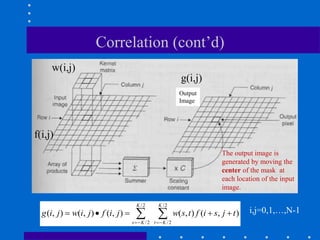

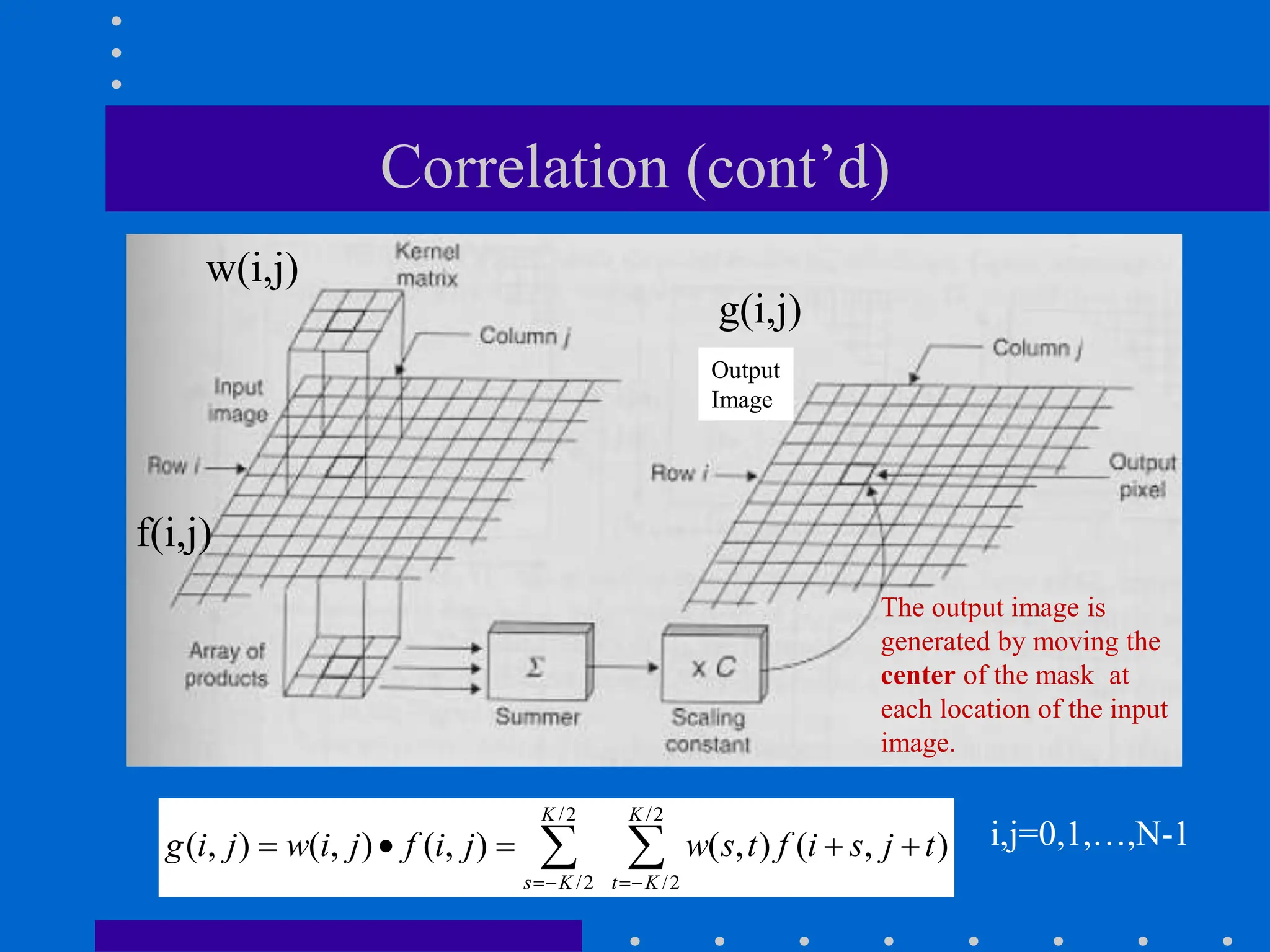

9. Correlation (cont’d)
Output
w(i,j)
f(i,j)
/2 /2
/2 /2
( , ) ( , ) ( , ) ( , ) ( , )
K K
s K t K
g i j w i j f i j w s t f i s j t
 
    
 
g(i,j)
The output image is
generated by moving the
center of the mask at
each location of the input
image.
i,j=0,1,…,N-1

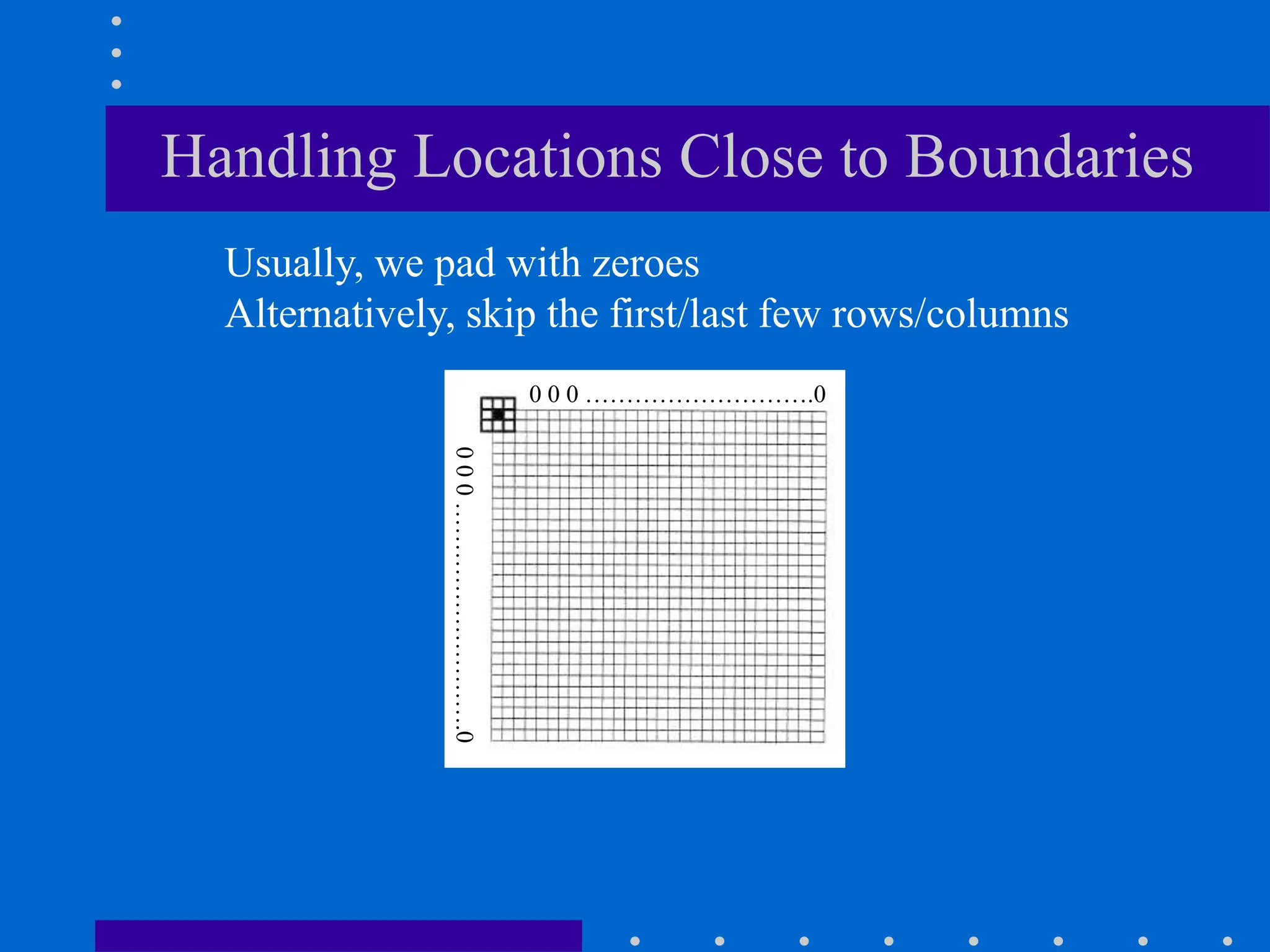

10. Handling Locations Close to Boundaries
Usually, we pad with zeroes
Alternatively, skip the first/last few rows/columns
0 0 0 ……………………….0
0
0
0
……………………….0

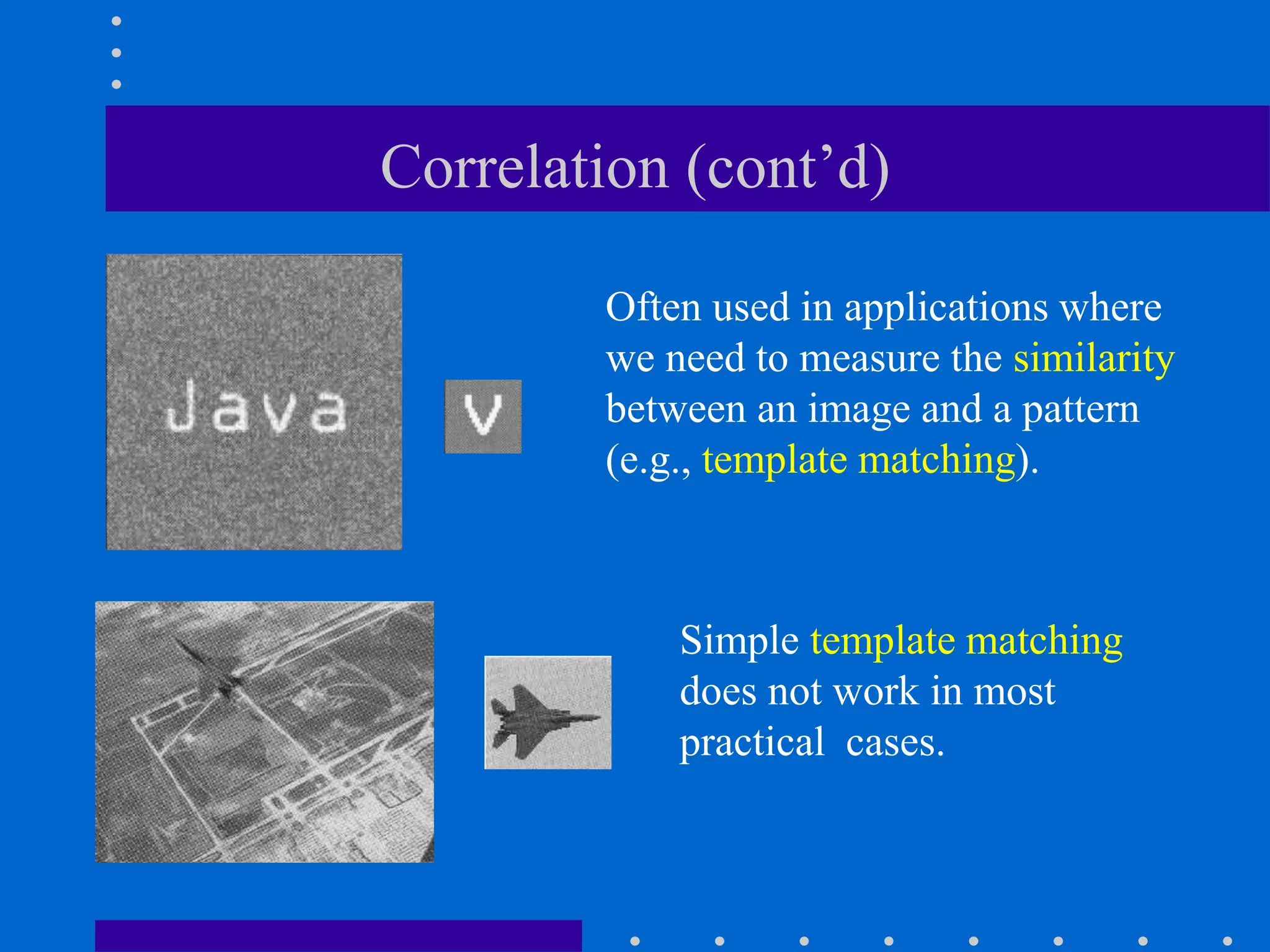

11. Correlation (cont’d)
Often used in applications where
we need to measure the similarity
between an image and a pattern
(e.g., template matching).
Simple template matching
does not work in most
practical cases.

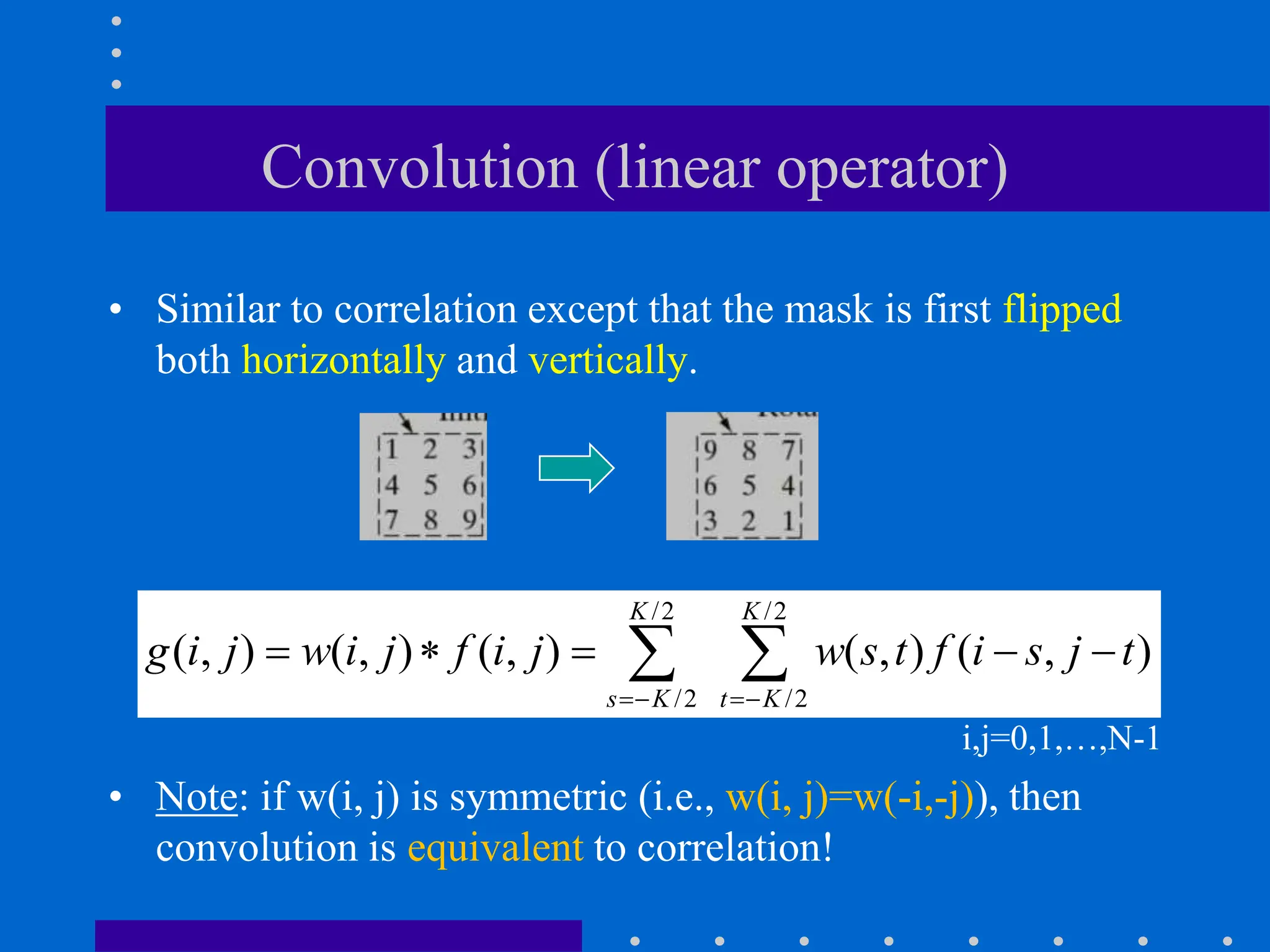

12. Convolution (linear operator)
• Similar to correlation except that the mask is first flipped
both horizontally and vertically.
• Note: if w(i, j) is symmetric (i.e., w(i, j)=w(-i,-j)), then
convolution is equivalent to correlation!
/2 /2
/2 /2
( , ) ( , ) ( , ) ( , ) ( , )
K K
s K t K
g i j w i j f i j w s t f i s j t
 
    
 
i,j=0,1,…,N-1

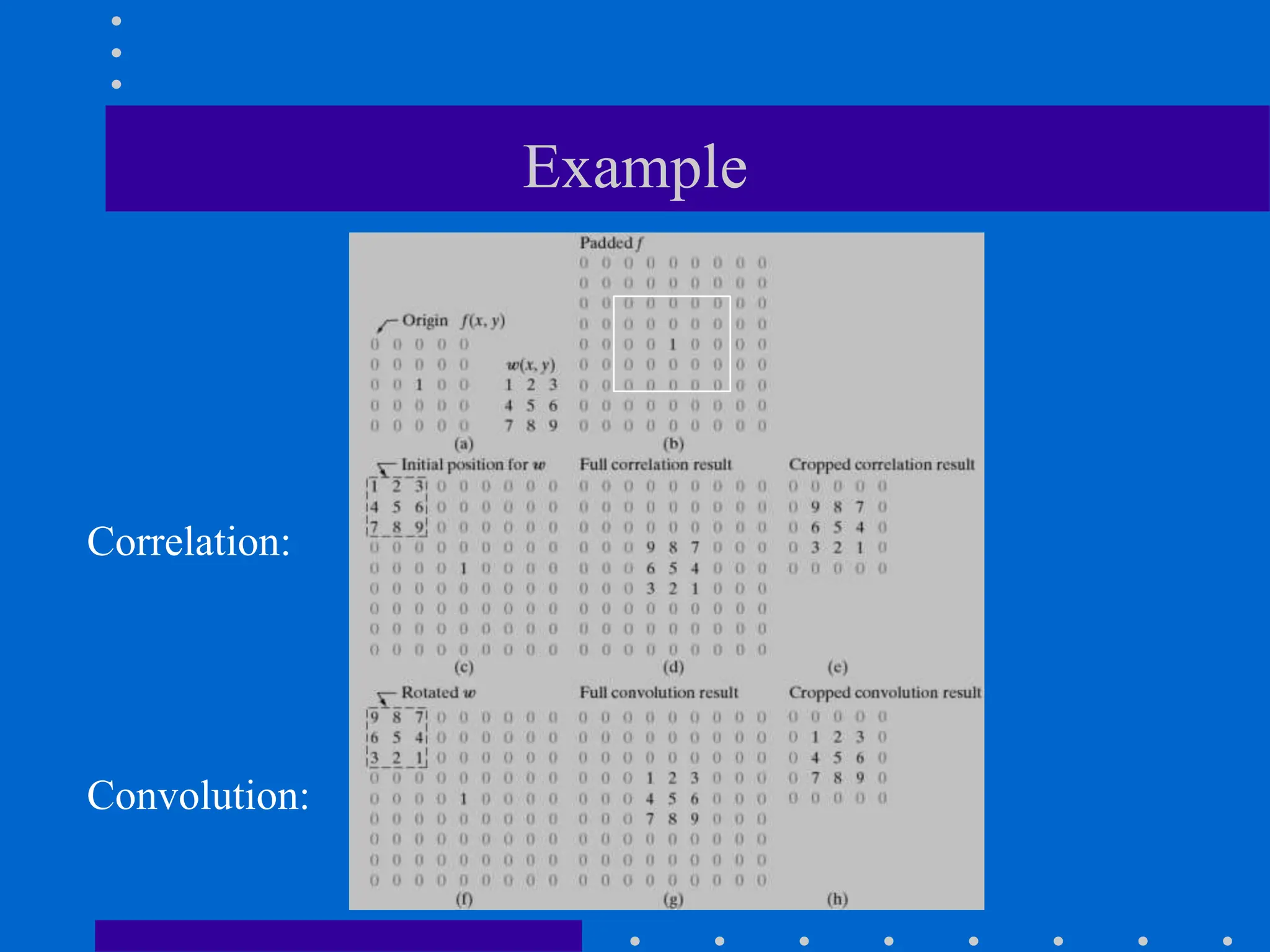

13. Example
Correlation:
Convolution:

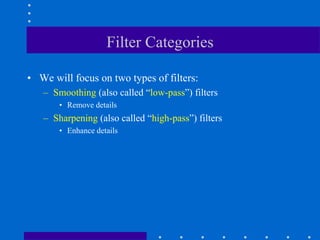

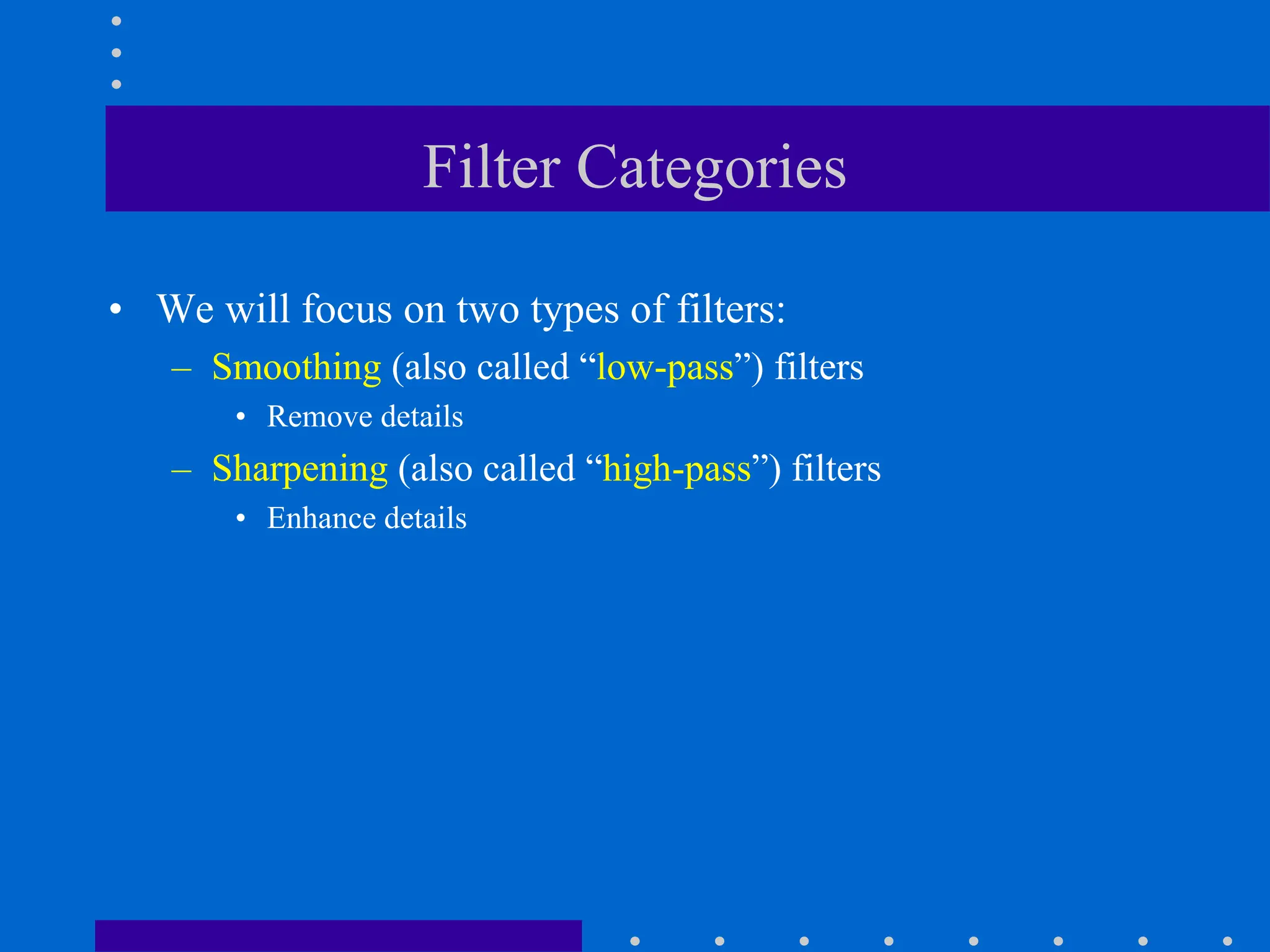

14. Filter Categories
• We will focus on two types of filters:
– Smoothing (also called “low-pass”) filters
• Remove details
– Sharpening (also called “high-pass”) filters
• Enhance details

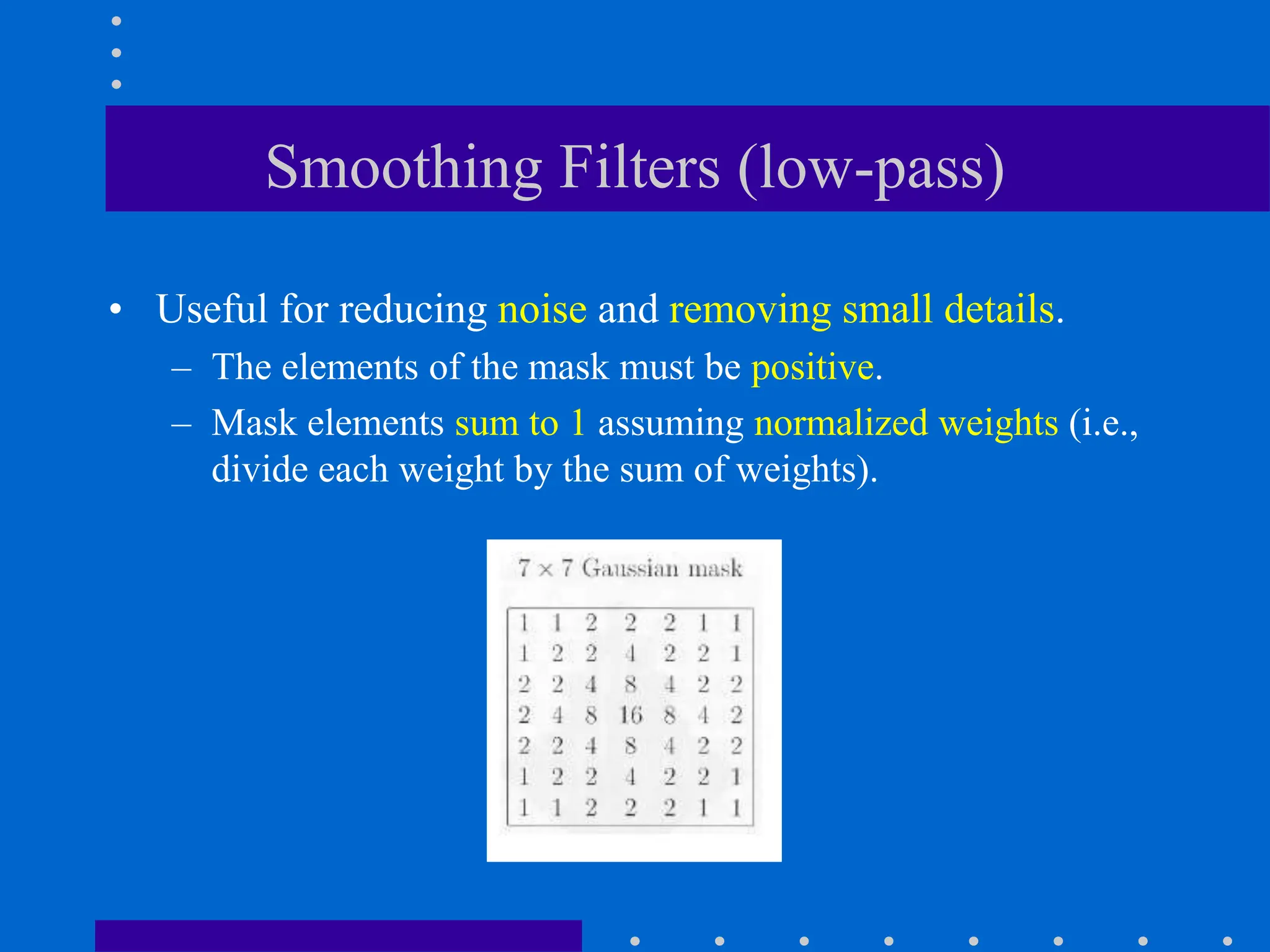

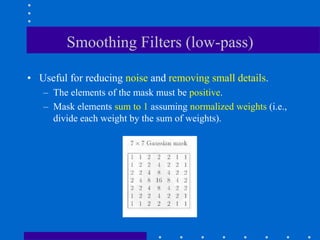

15. Smoothing Filters (low-pass)
• Useful for reducing noise and removing small details.
– The elements of the mask must be positive.
– Mask elements sum to 1 assuming normalized weights (i.e.,
divide each weight by the sum of weights).

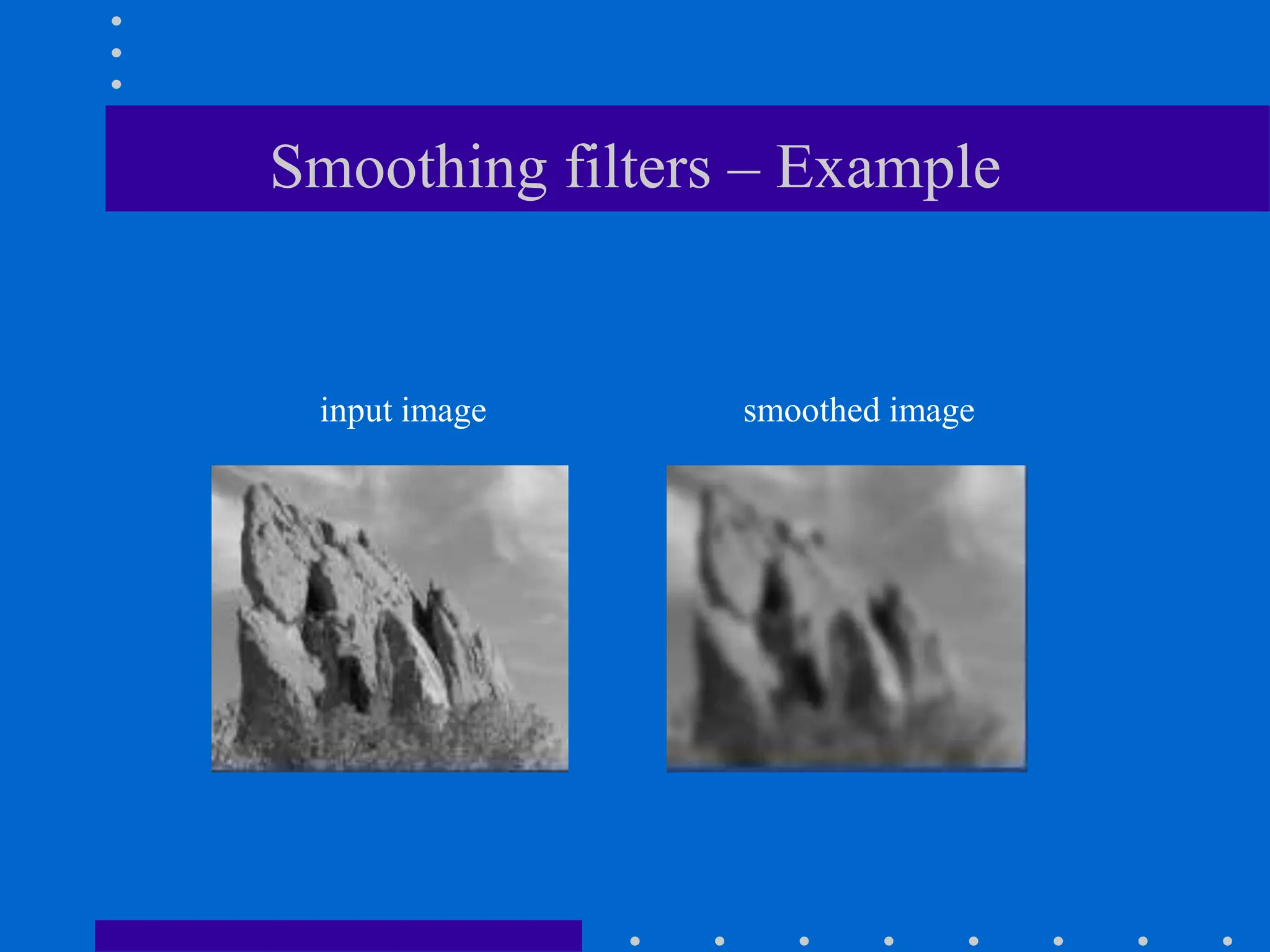

16. Smoothing filters – Example
smoothed image
input image

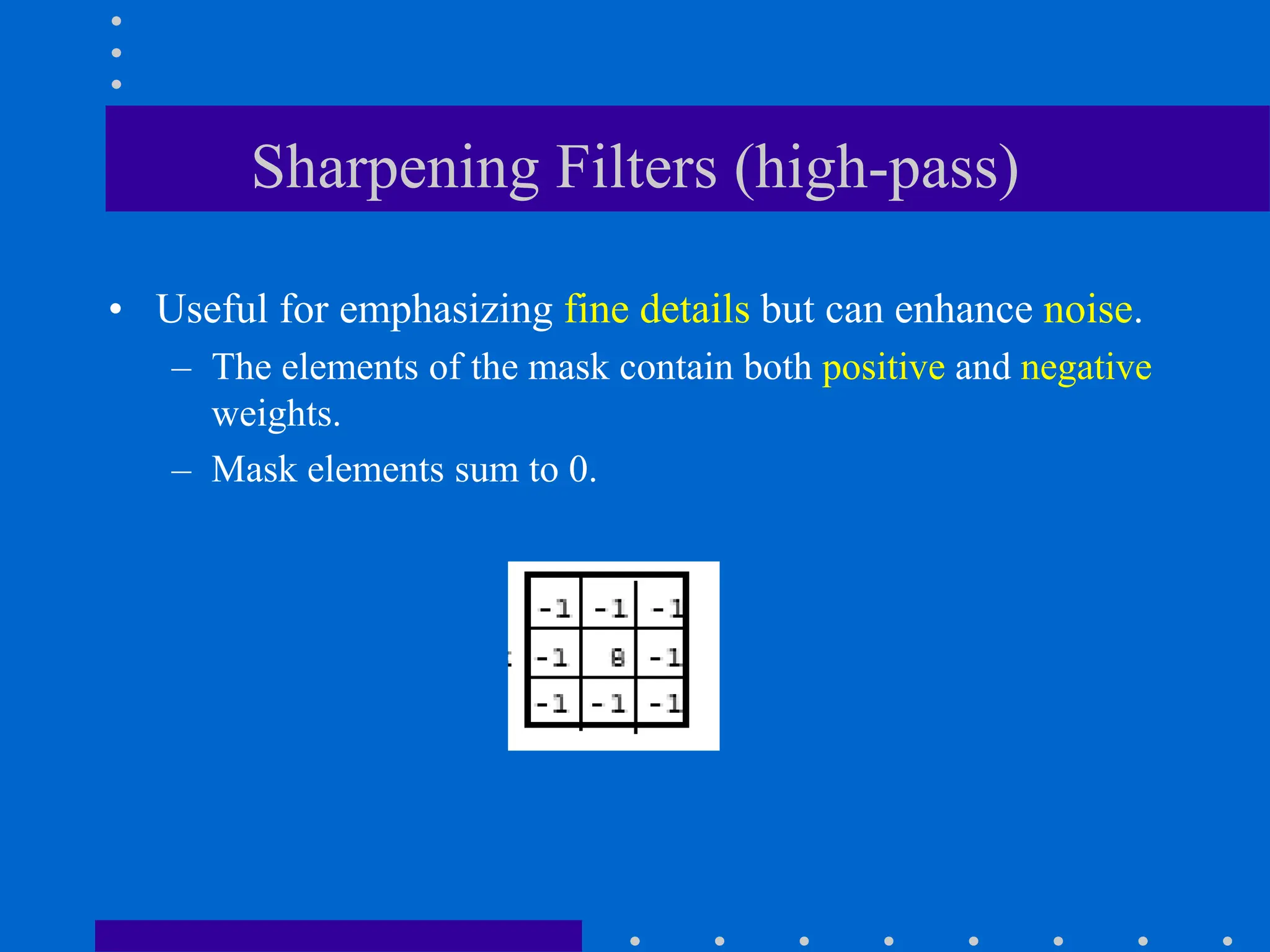

17. Sharpening Filters (high-pass)
• Useful for emphasizing fine details but can enhance noise.
– The elements of the mask contain both positive and negative
weights.
– Mask elements sum to 0.

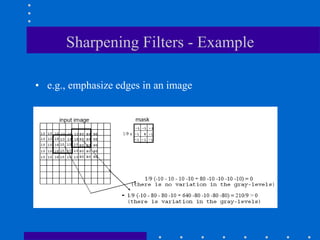

18. Sharpening Filters - Example
• e.g., emphasize edges in an image

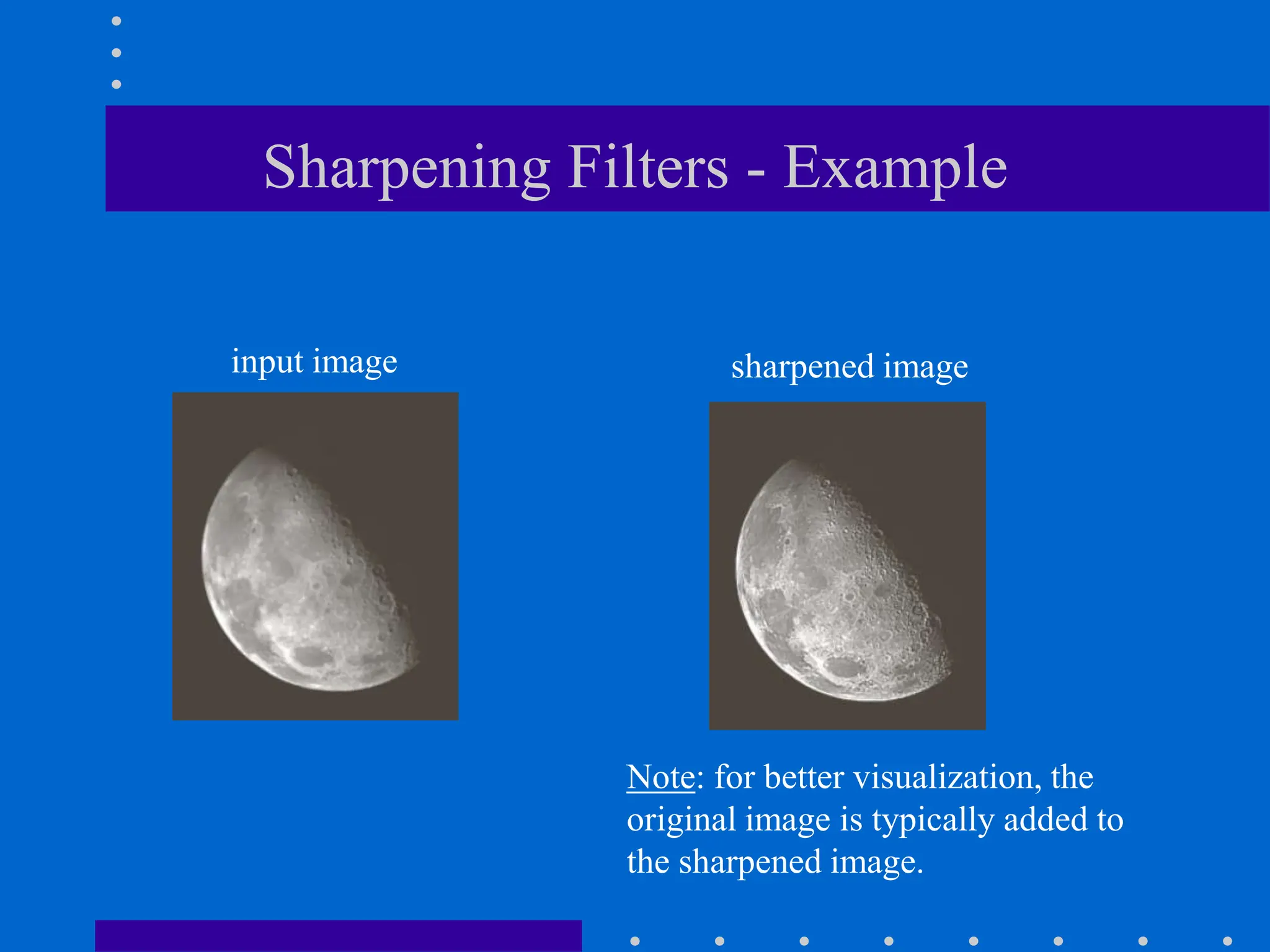

19. Sharpening Filters - Example
sharpened image
input image
Note: for better visualization, the
original image is typically added to
the sharpened image.

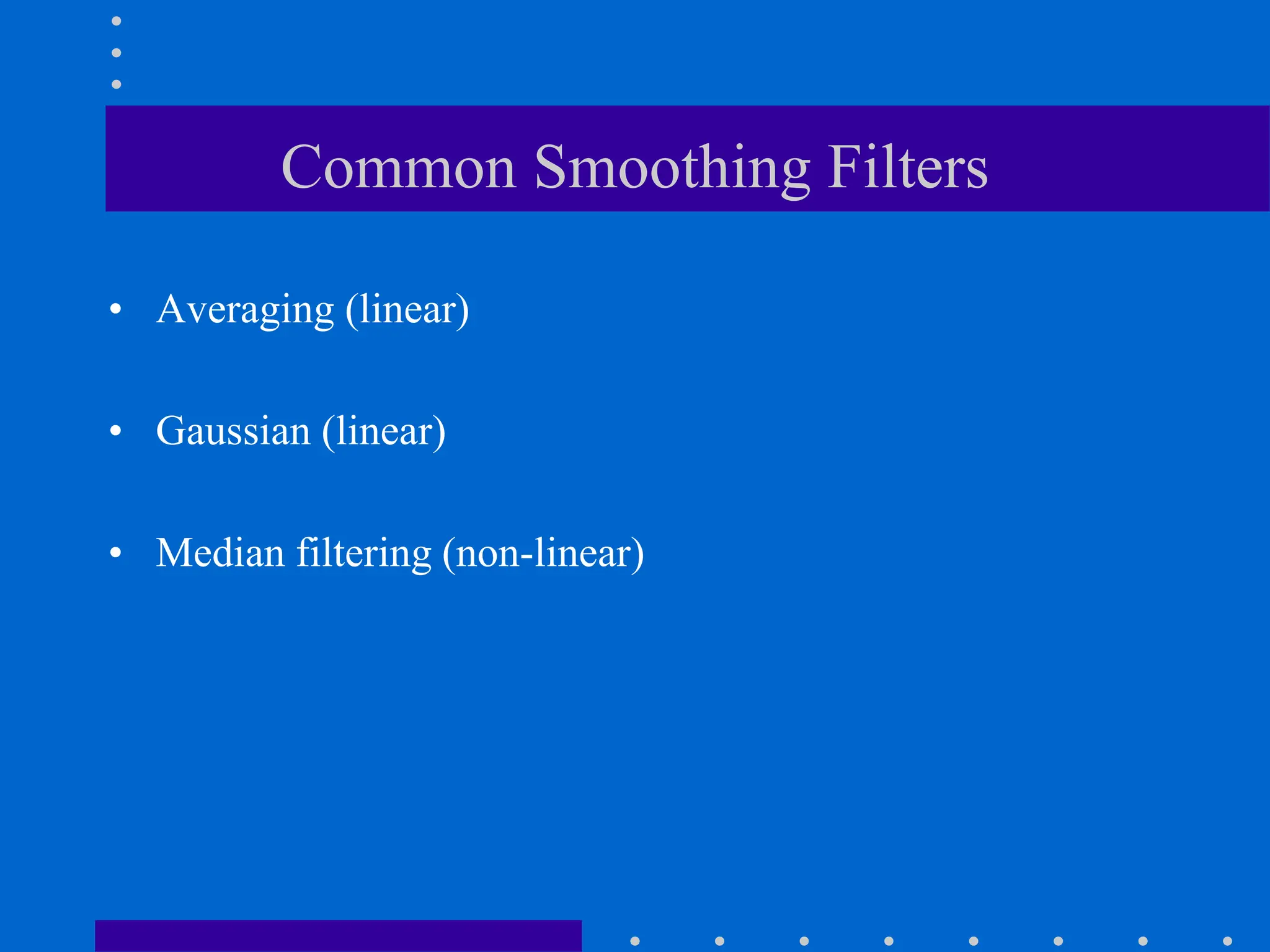

20. Common Smoothing Filters
• Averaging (linear)
• Gaussian (linear)
• Median filtering (non-linear)

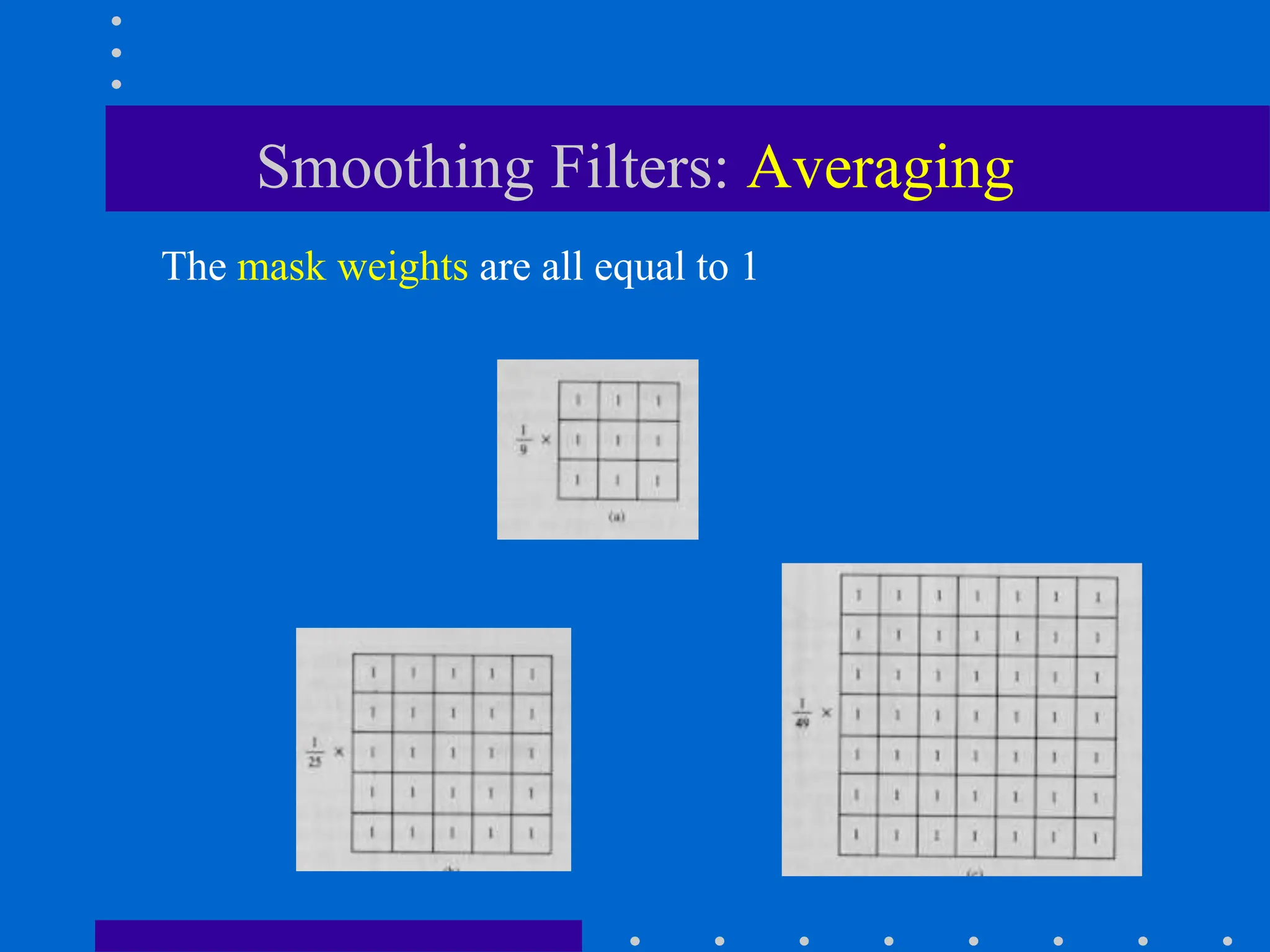

21. Smoothing Filters: Averaging
The mask weights are all equal to 1

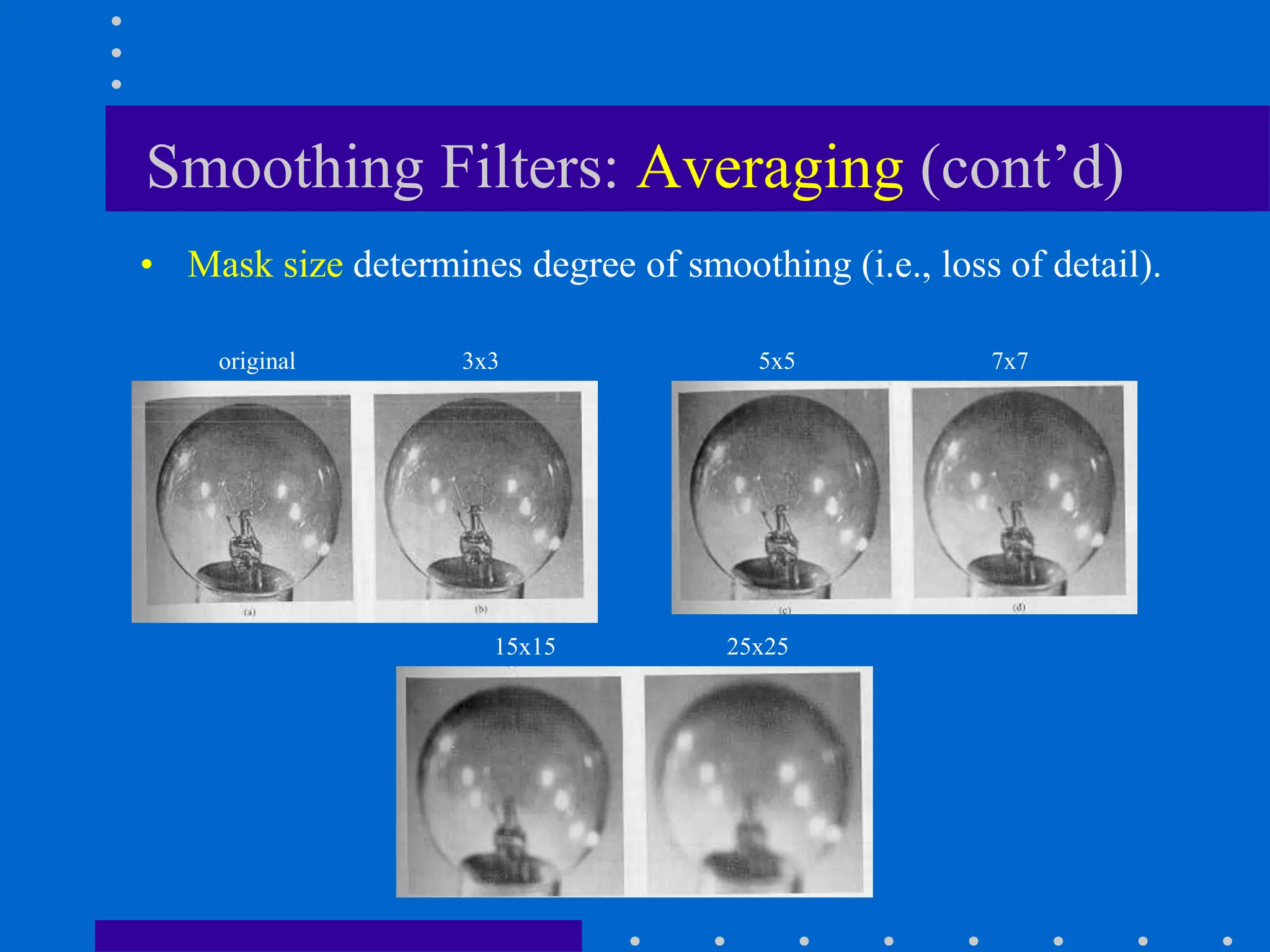

22. Smoothing Filters: Averaging (cont’d)
• Mask size determines degree of smoothing (i.e., loss of detail).
3x3 5x5 7x7
15x15 25x25
original

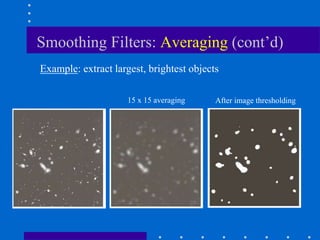

23. Smoothing Filters: Averaging (cont’d)
15 x 15 averaging After image thresholding
Example: extract largest, brightest objects

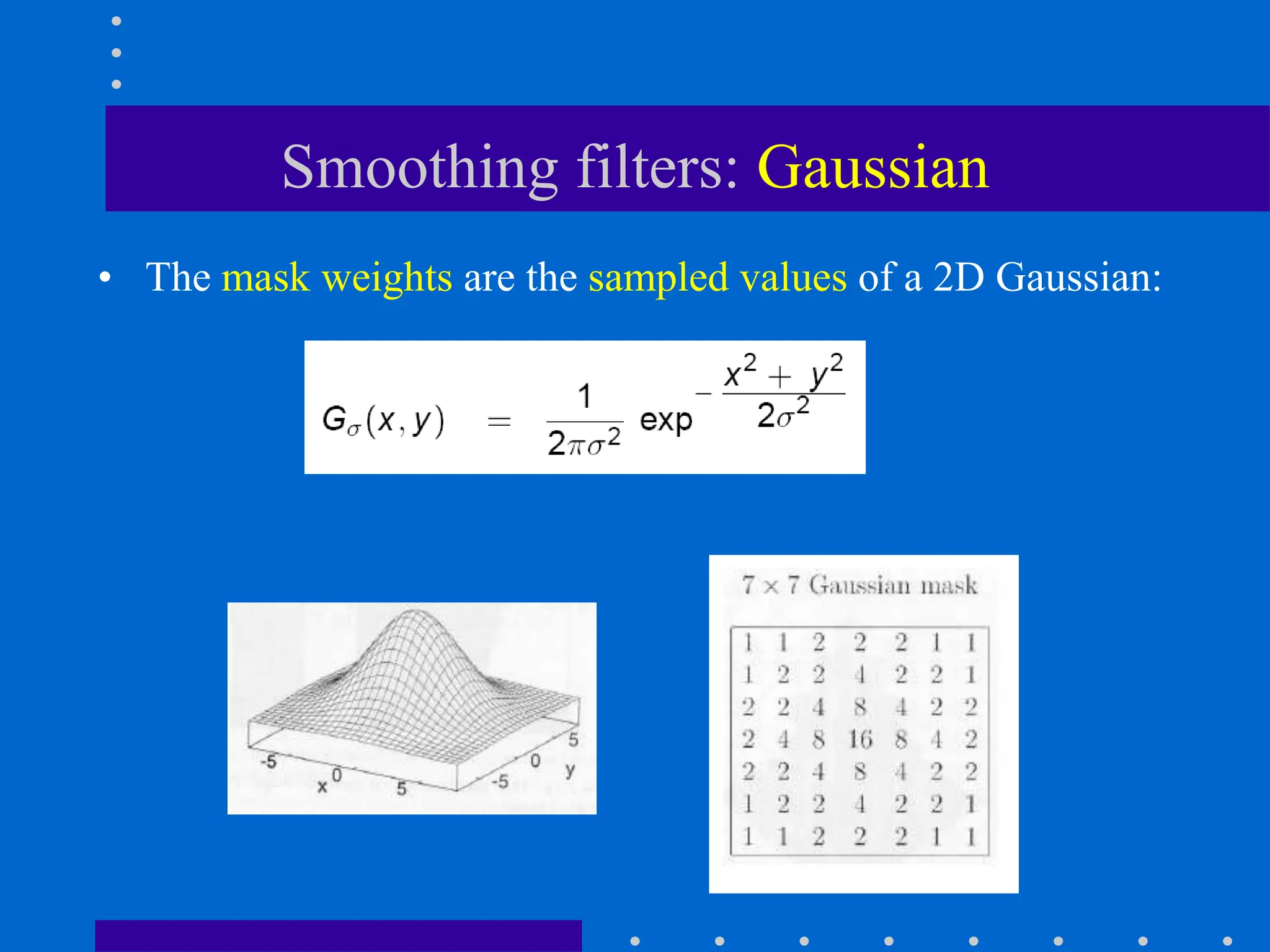

24. Smoothing filters: Gaussian
• The mask weights are the sampled values of a 2D Gaussian:

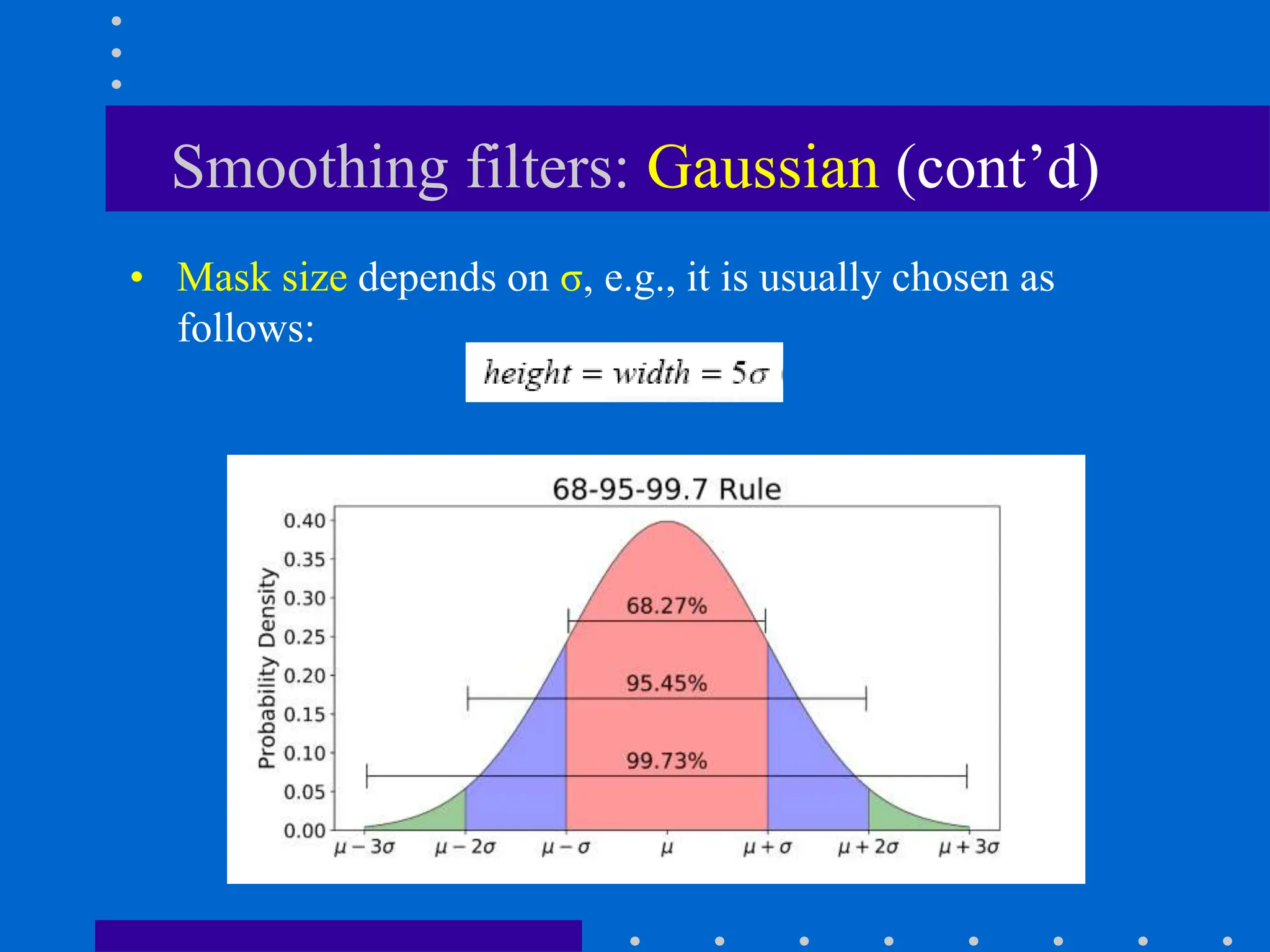

25. Smoothing filters: Gaussian (cont’d)
• Mask size depends on σ, e.g., it is usually chosen as
follows:

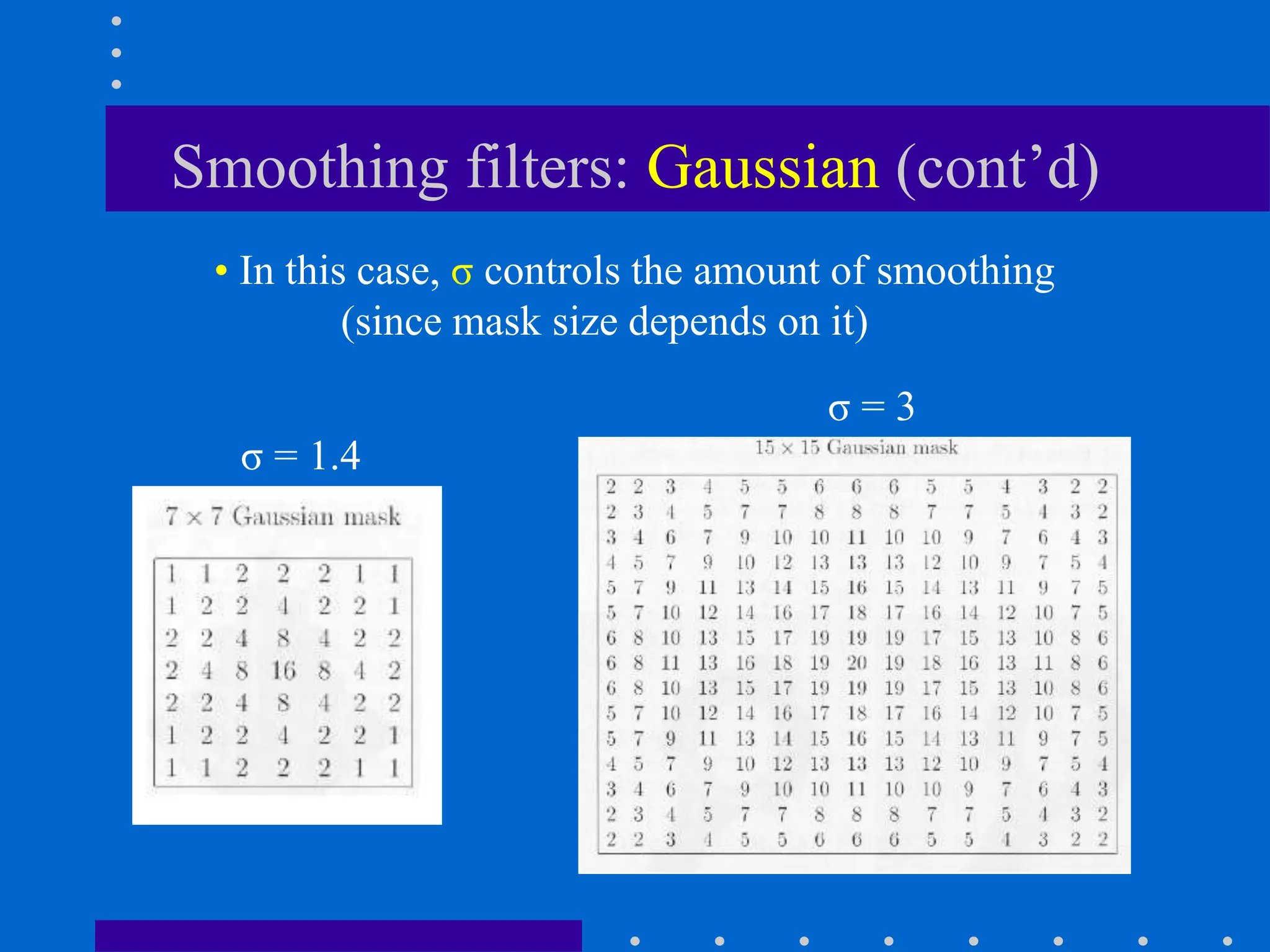

26. Smoothing filters: Gaussian (cont’d)
• In this case, σ controls the amount of smoothing
(since mask size depends on it)
σ = 3
σ = 1.4

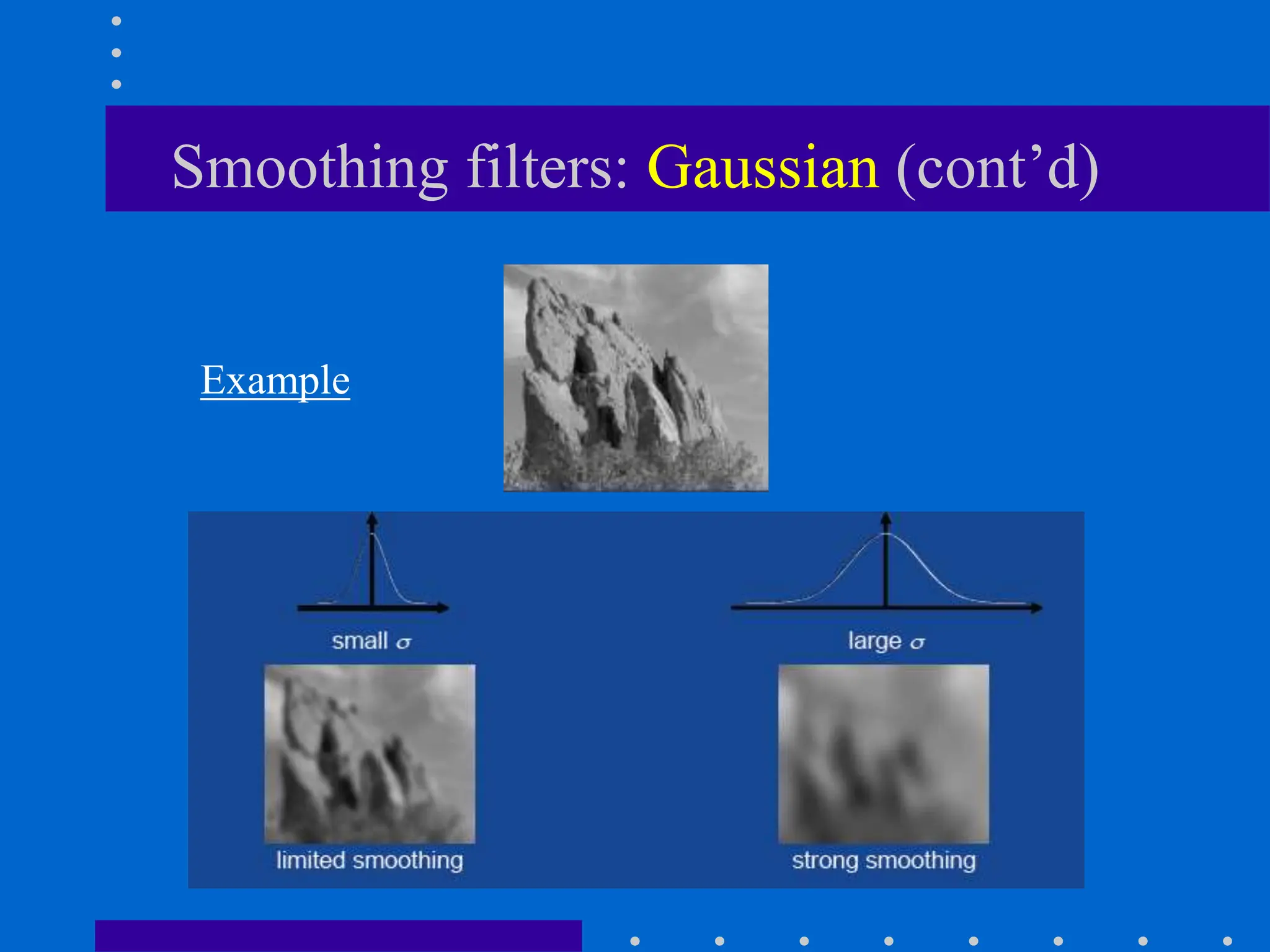

27. Smoothing filters: Gaussian (cont’d)
Example

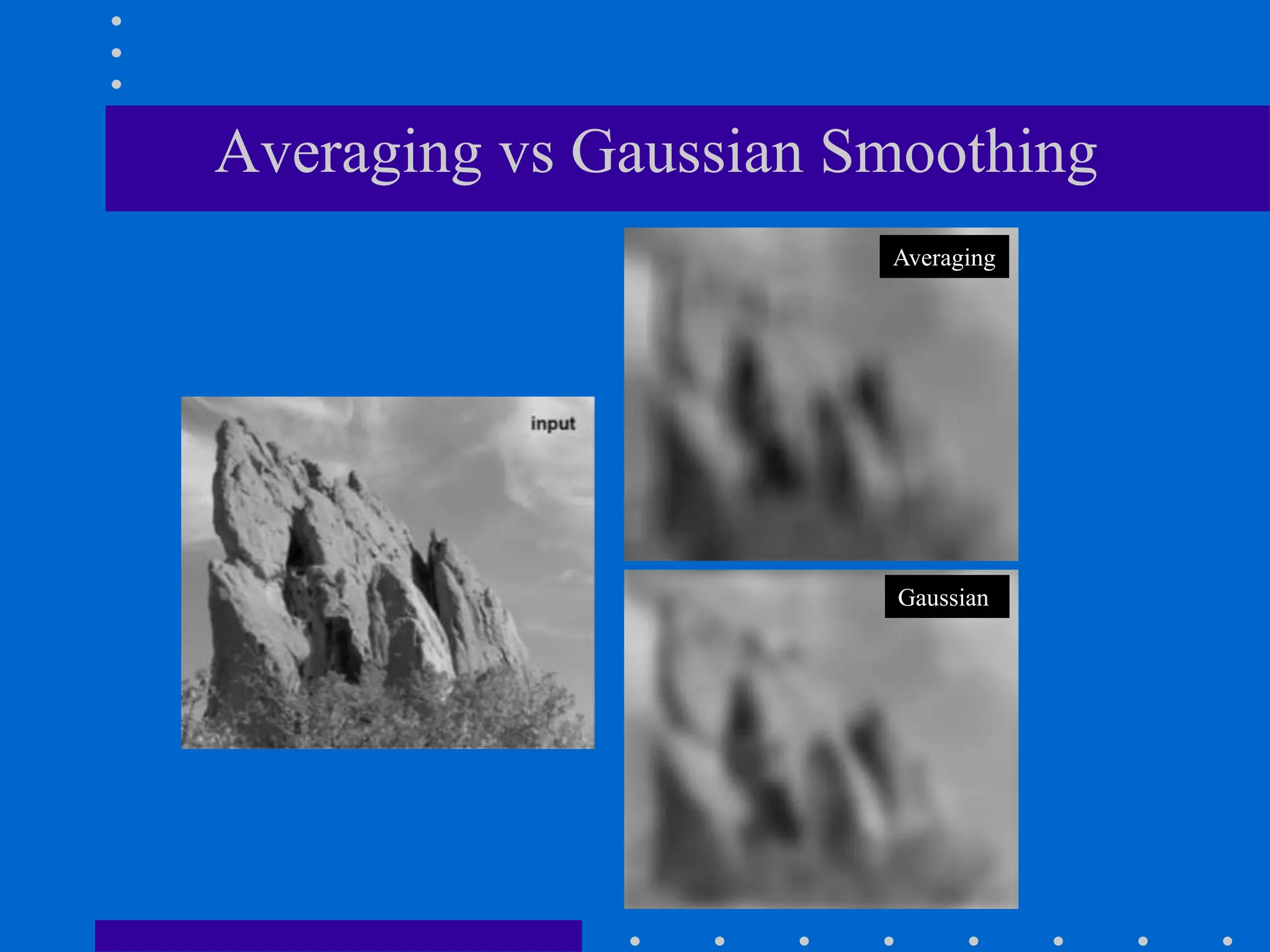

28. Averaging vs Gaussian Smoothing
Averaging
Gaussian

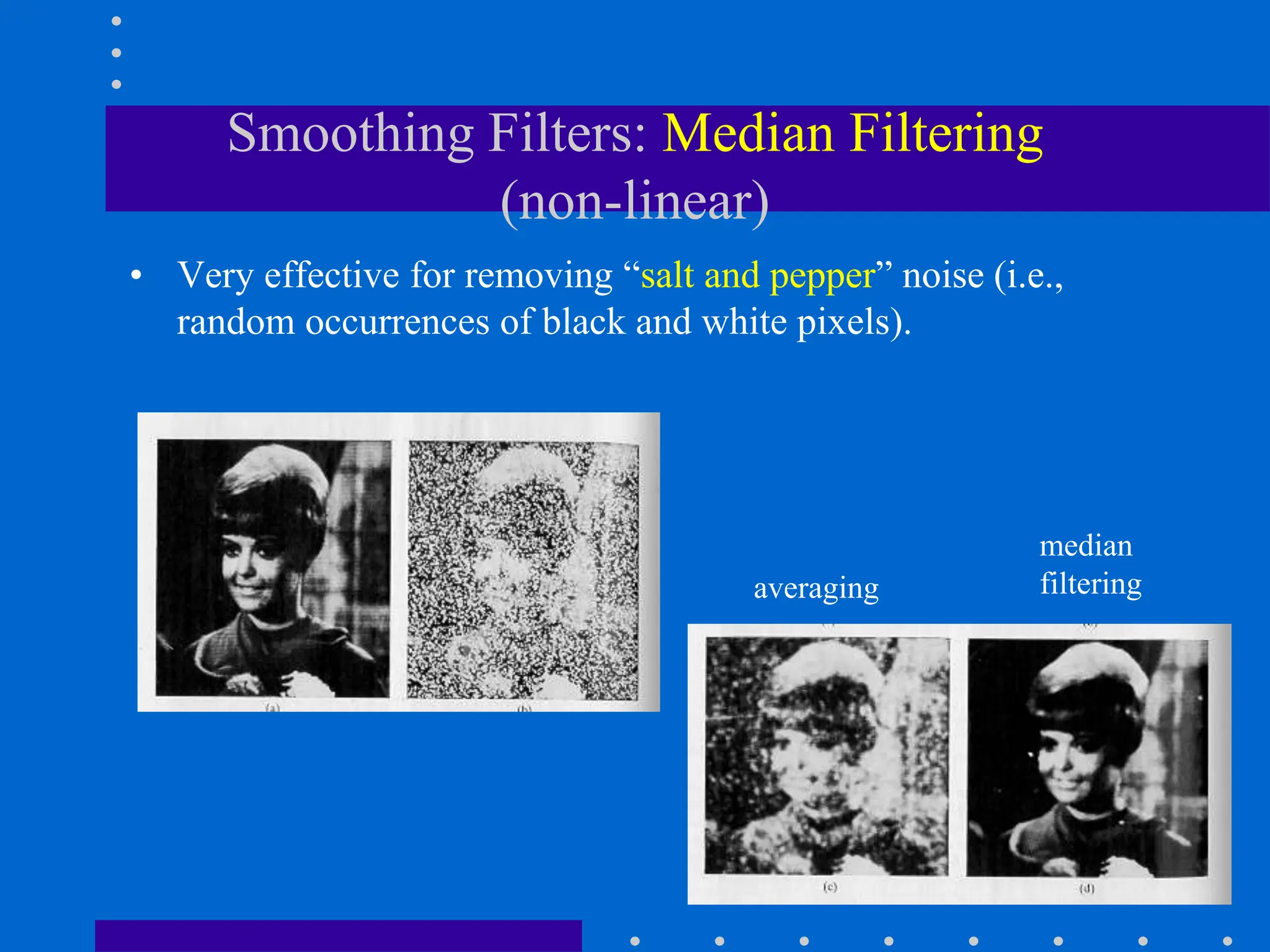

29. Smoothing Filters: Median Filtering
(non-linear)
• Very effective for removing “salt and pepper” noise (i.e.,
random occurrences of black and white pixels).
averaging
median
filtering

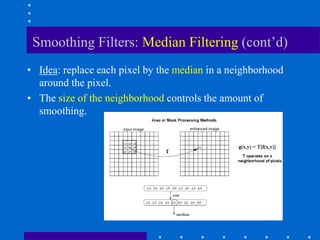

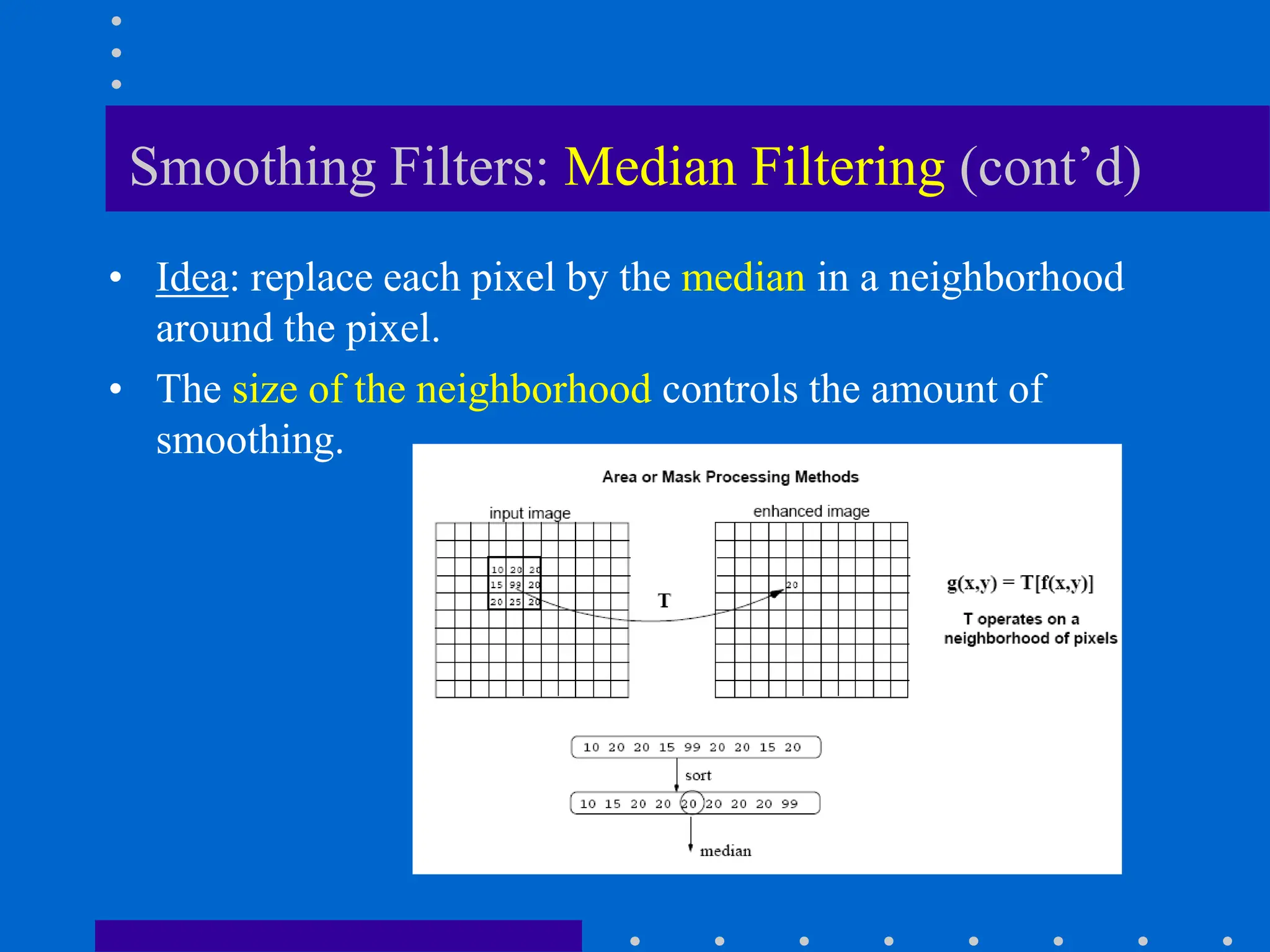

30. Smoothing Filters: Median Filtering (cont’d)
• Idea: replace each pixel by the median in a neighborhood
around the pixel.
• The size of the neighborhood controls the amount of
smoothing.

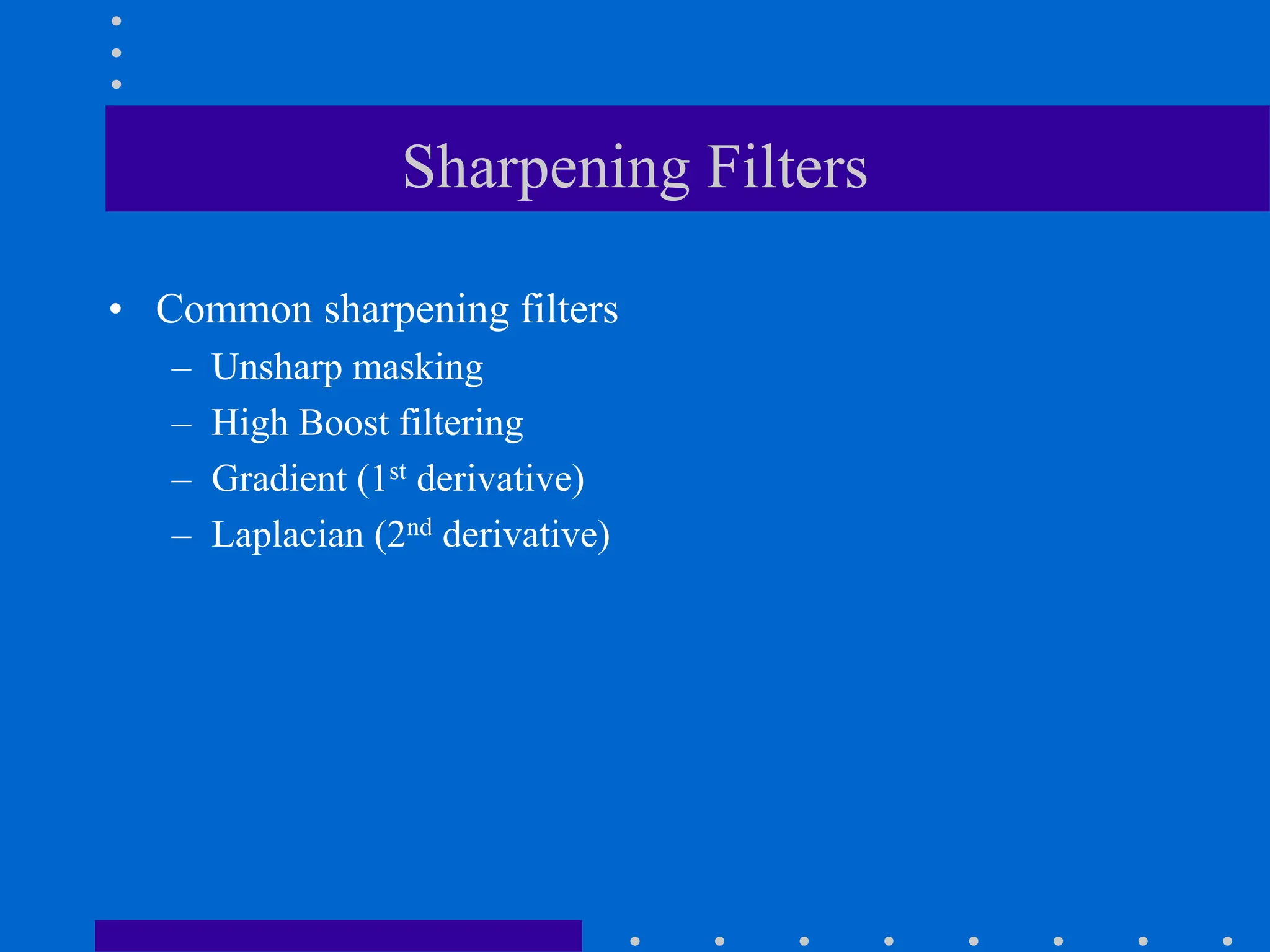

31. Sharpening Filters
• Common sharpening filters
– Unsharp masking
– High Boost filtering
– Gradient (1st derivative)
– Laplacian (2nd derivative)

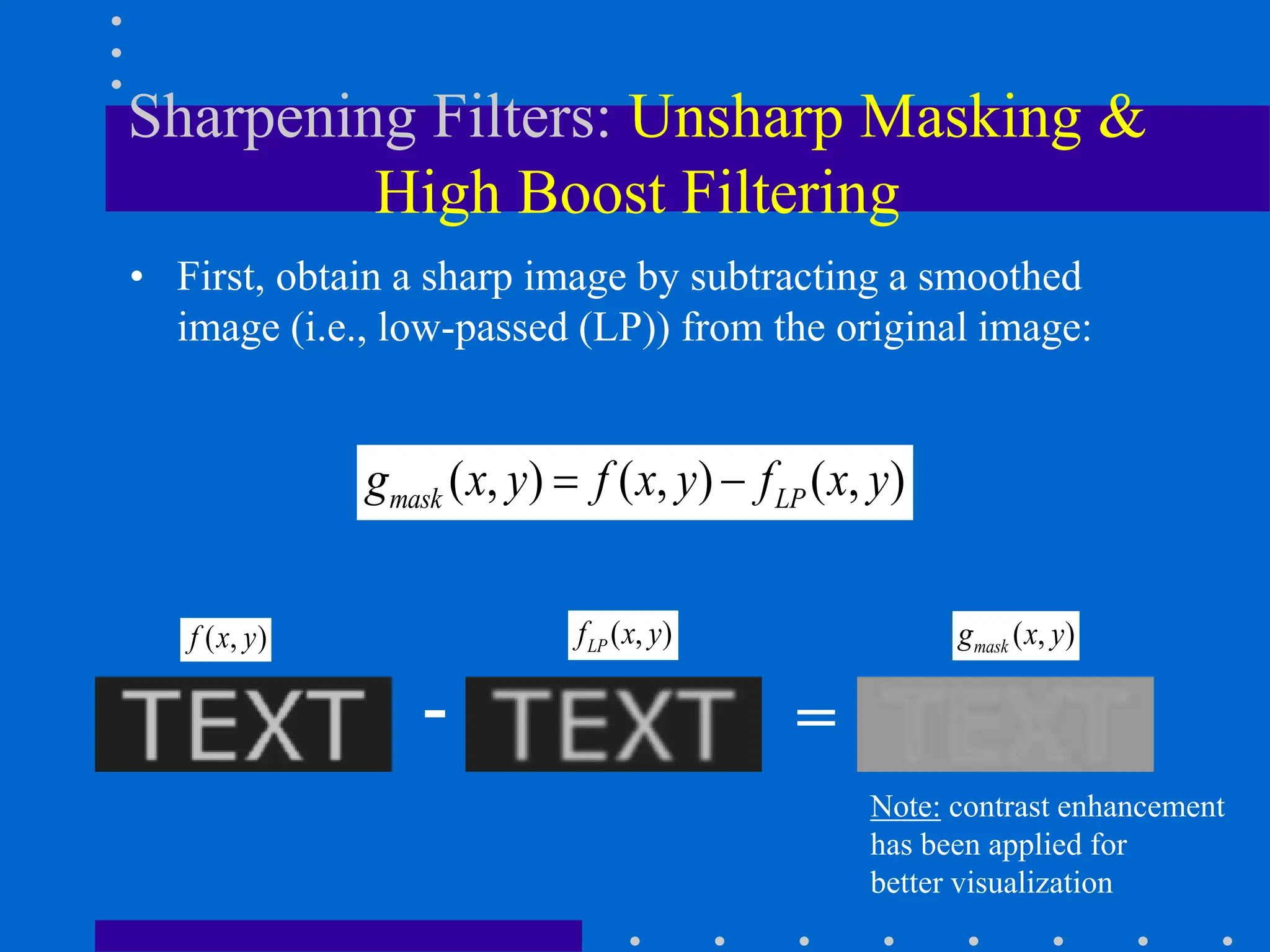

32. Sharpening Filters: Unsharp Masking &
High Boost Filtering
• First, obtain a sharp image by subtracting a smoothed
image (i.e., low-passed (LP)) from the original image:
- =
Note: contrast enhancement
has been applied for
better visualization
( , ) ( , ) ( , )
mask LP
g x y f x y f x y
 
( , )
mask
g x y
( , )
LP
f x y
( , )
f x y

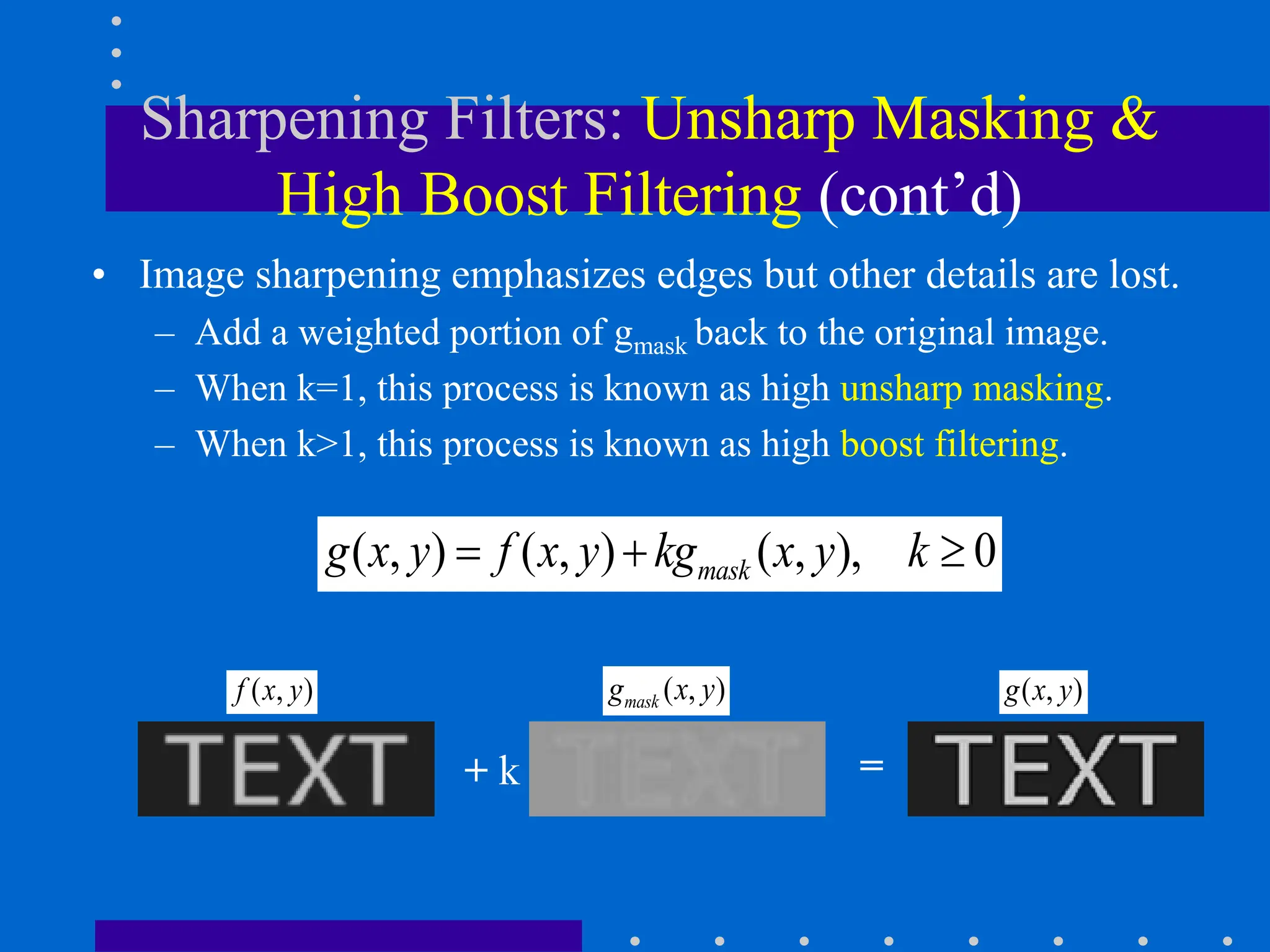

33. Sharpening Filters: Unsharp Masking &
High Boost Filtering (cont’d)
• Image sharpening emphasizes edges but other details are lost.
– Add a weighted portion of gmask back to the original image.
– When k=1, this process is known as high unsharp masking.
– When k>1, this process is known as high boost filtering.
+ k =
( , ) ( , ) ( , ), 0
mask
g x y f x y kg x y k
  
( , )
f x y ( , )
mask
g x y ( , )
g x y

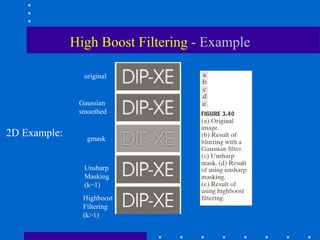

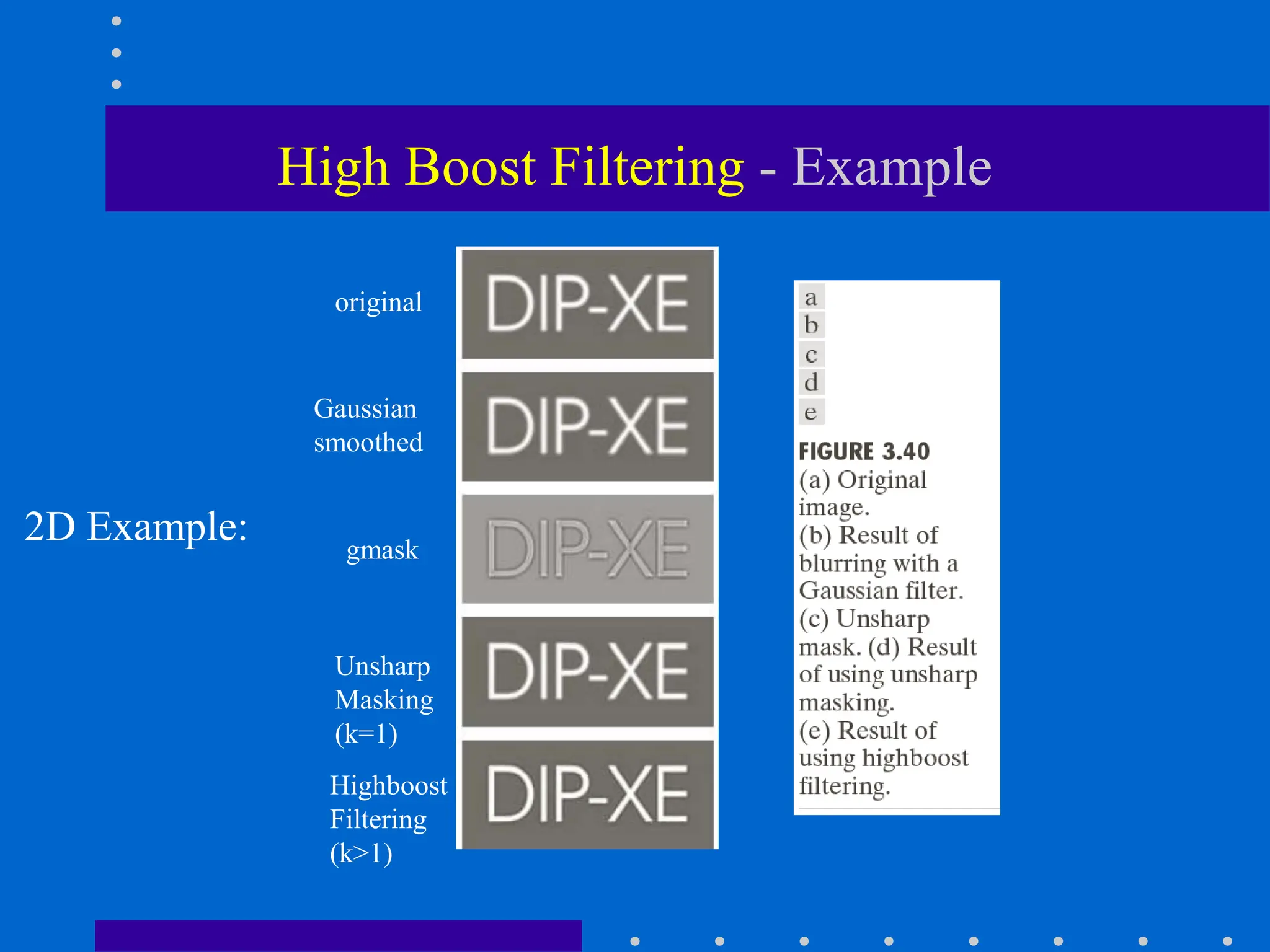

34. High Boost Filtering - Example
original
Gaussian
smoothed
gmask
Unsharp
Masking
(k=1)
Highboost
Filtering
(k>1)
2D Example:

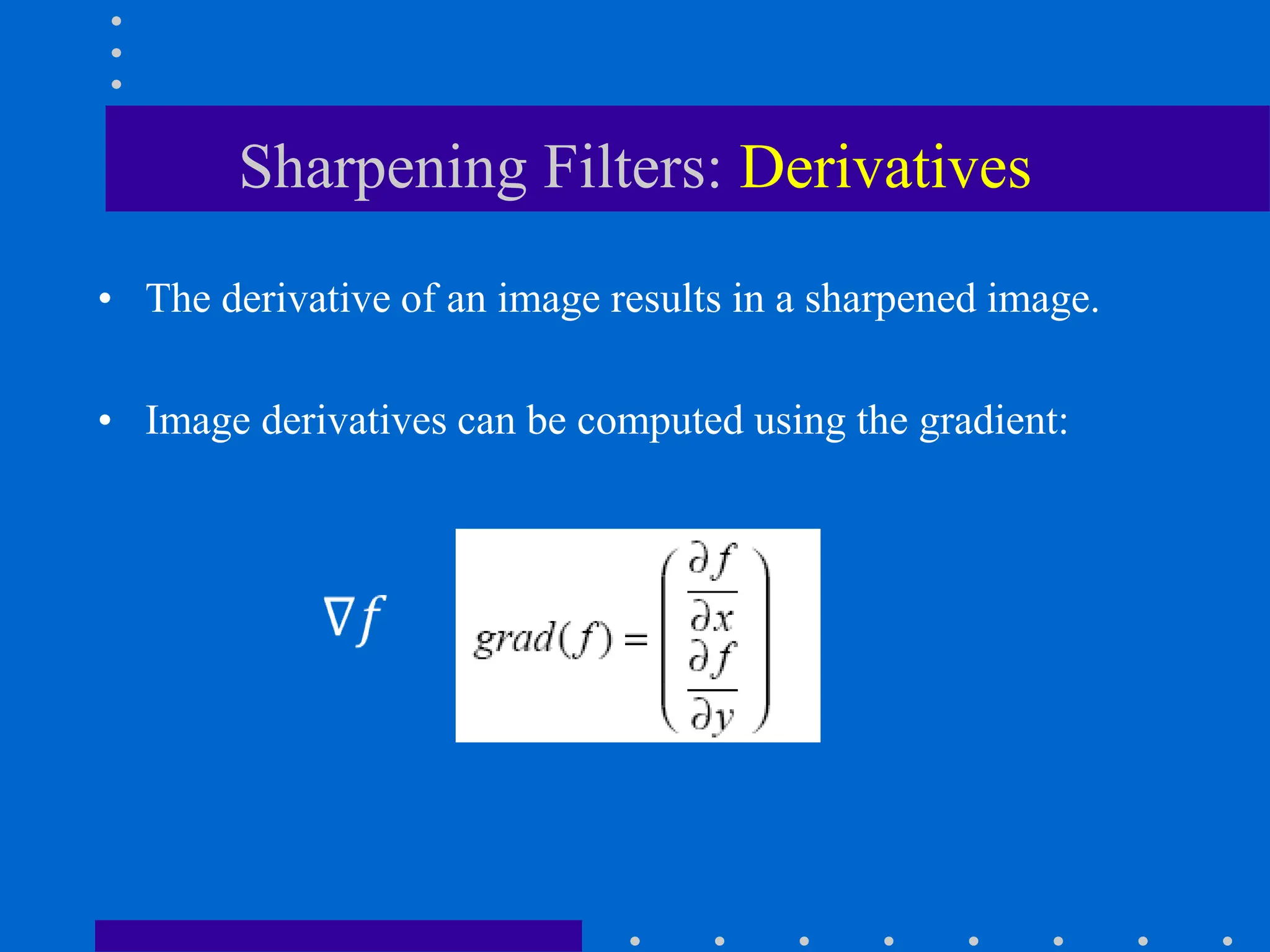

35. Sharpening Filters: Derivatives
• The derivative of an image results in a sharpened image.
• Image derivatives can be computed using the gradient:

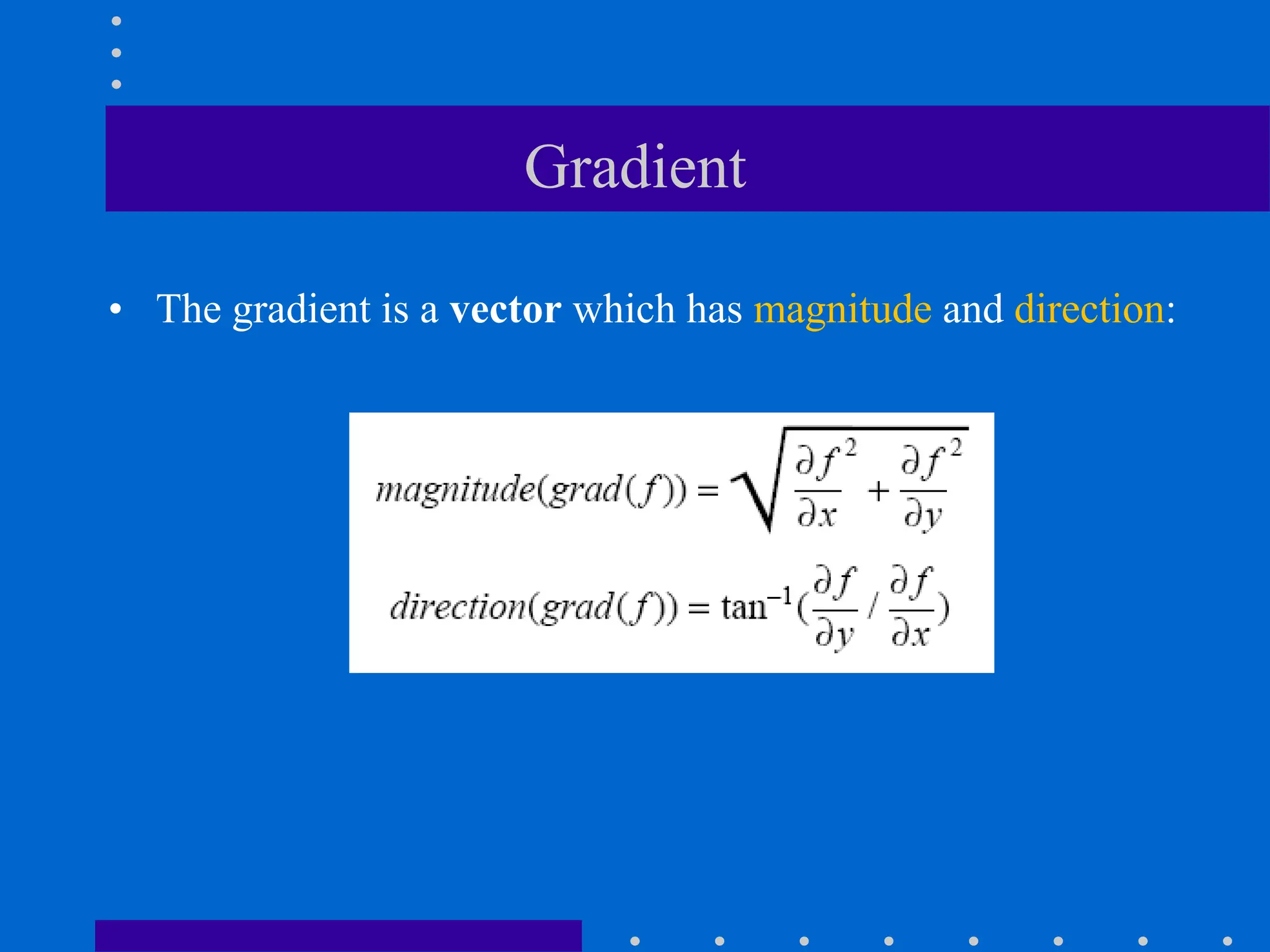

36. Gradient
• The gradient is a vector which has magnitude and direction:

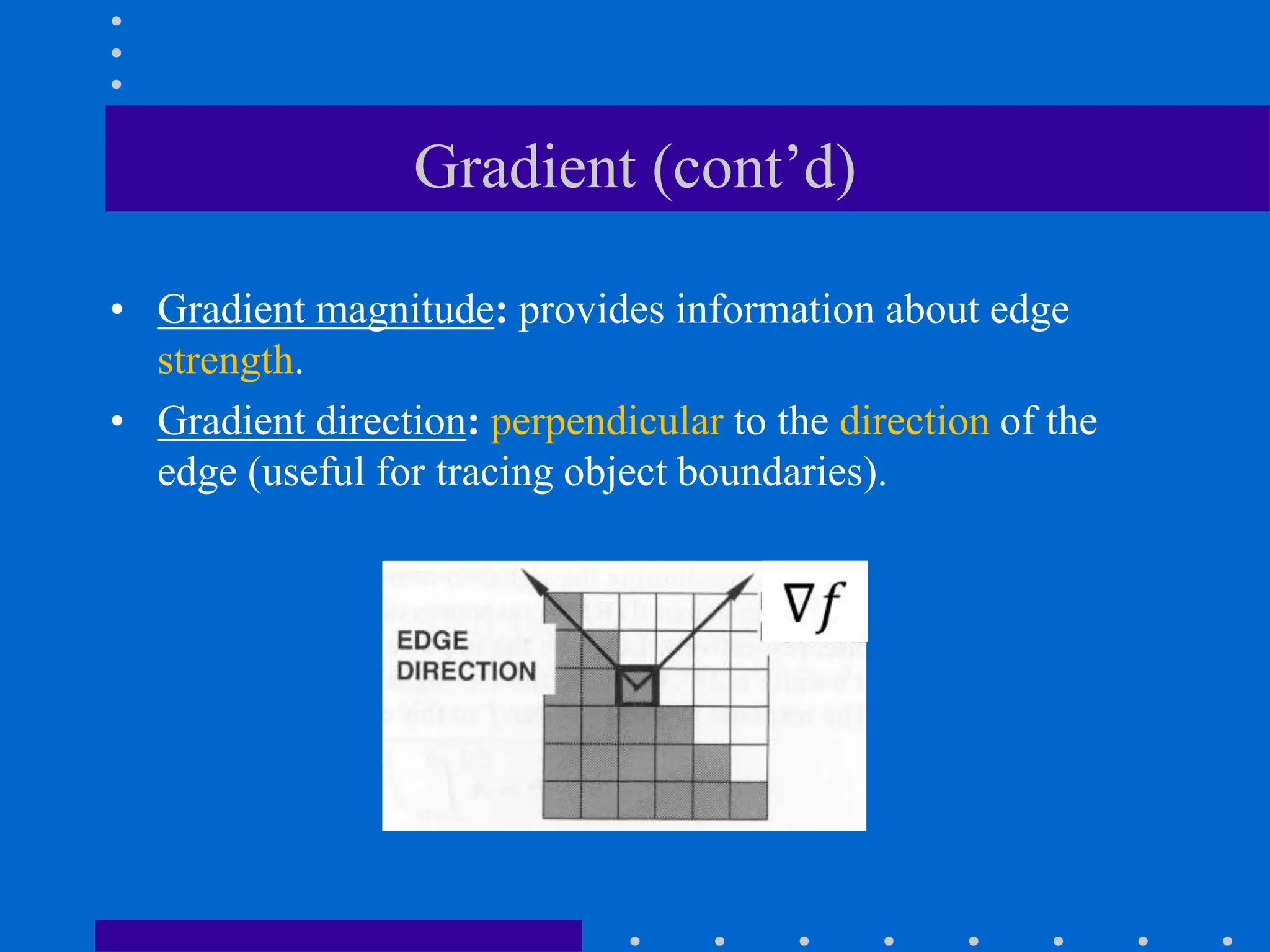

37. Gradient (cont’d)
• Gradient magnitude: provides information about edge
strength.
• Gradient direction: perpendicular to the direction of the
edge (useful for tracing object boundaries).

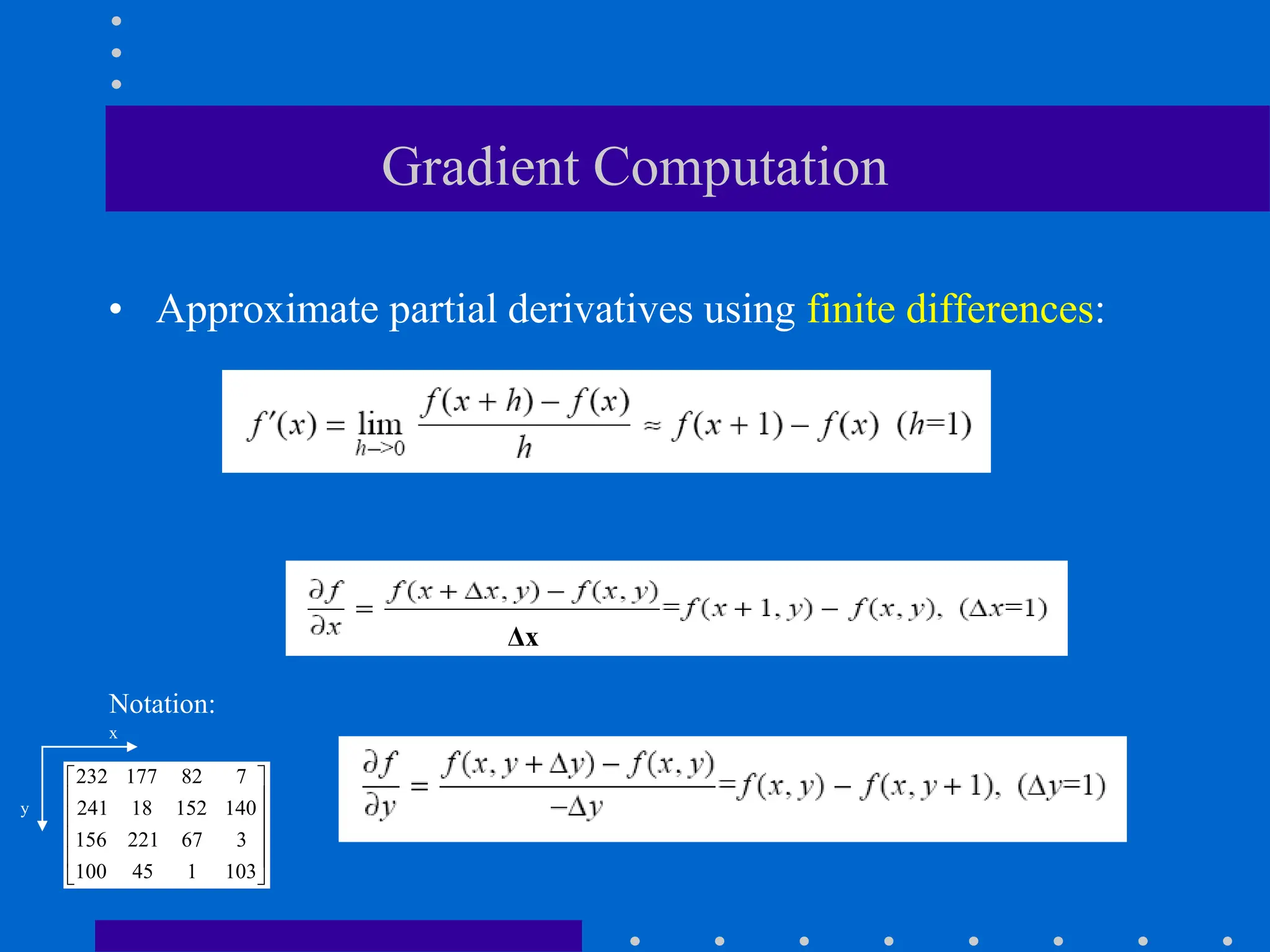

38. Gradient Computation
• Approximate partial derivatives using finite differences:
Δx
232 177 82 7
241 18 152 140
156 221 67 3
100 45 1 103
 
 
 
 
 
 
x
y
Notation:

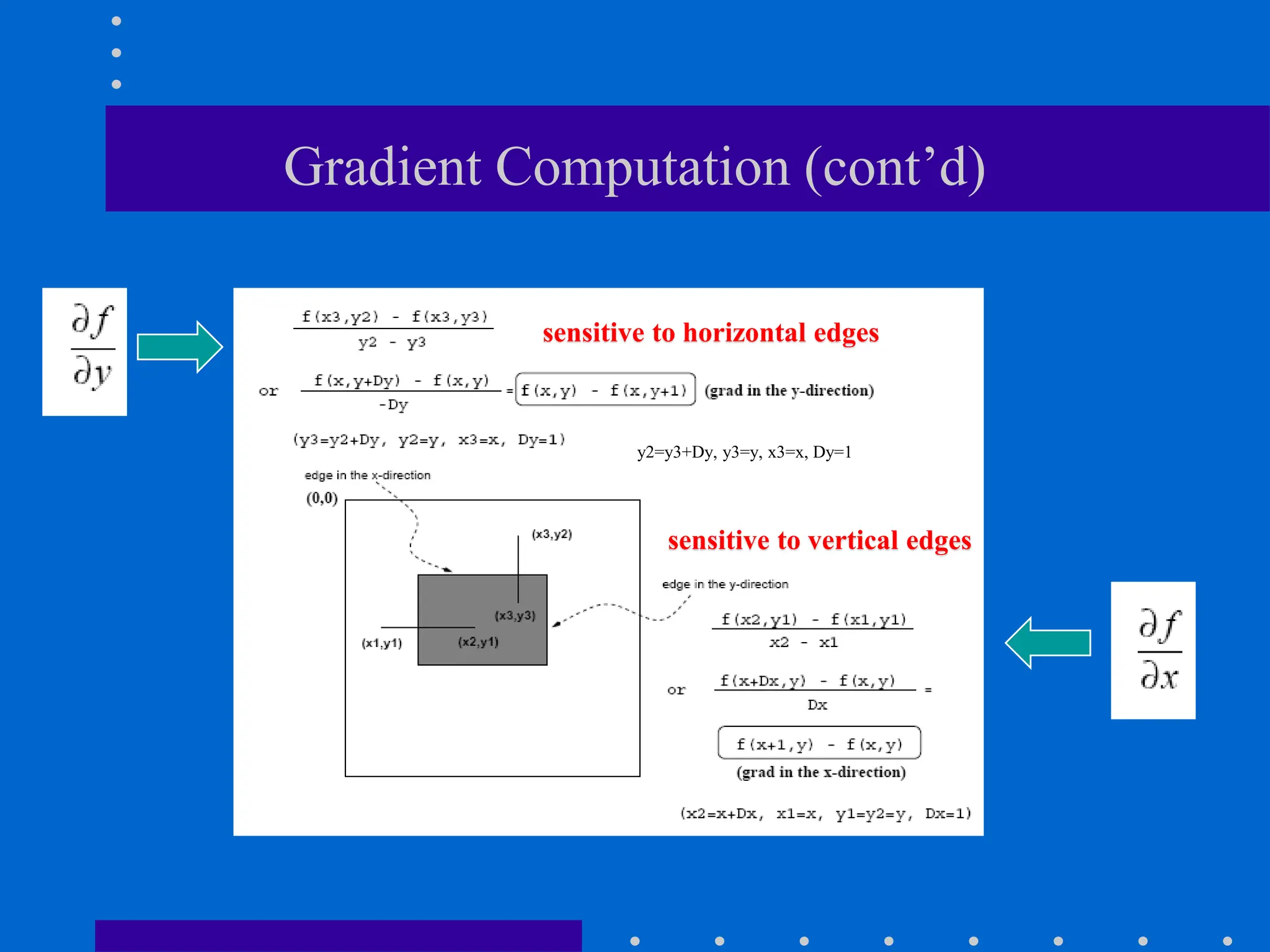

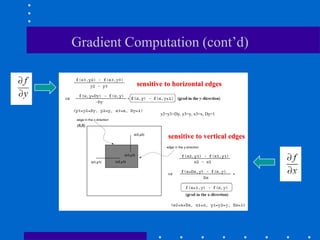

39. Gradient Computation (cont’d)
sensitive to vertical edges
sensitive to horizontal edges
y2=y3+Dy, y3=y, x3=x, Dy=1

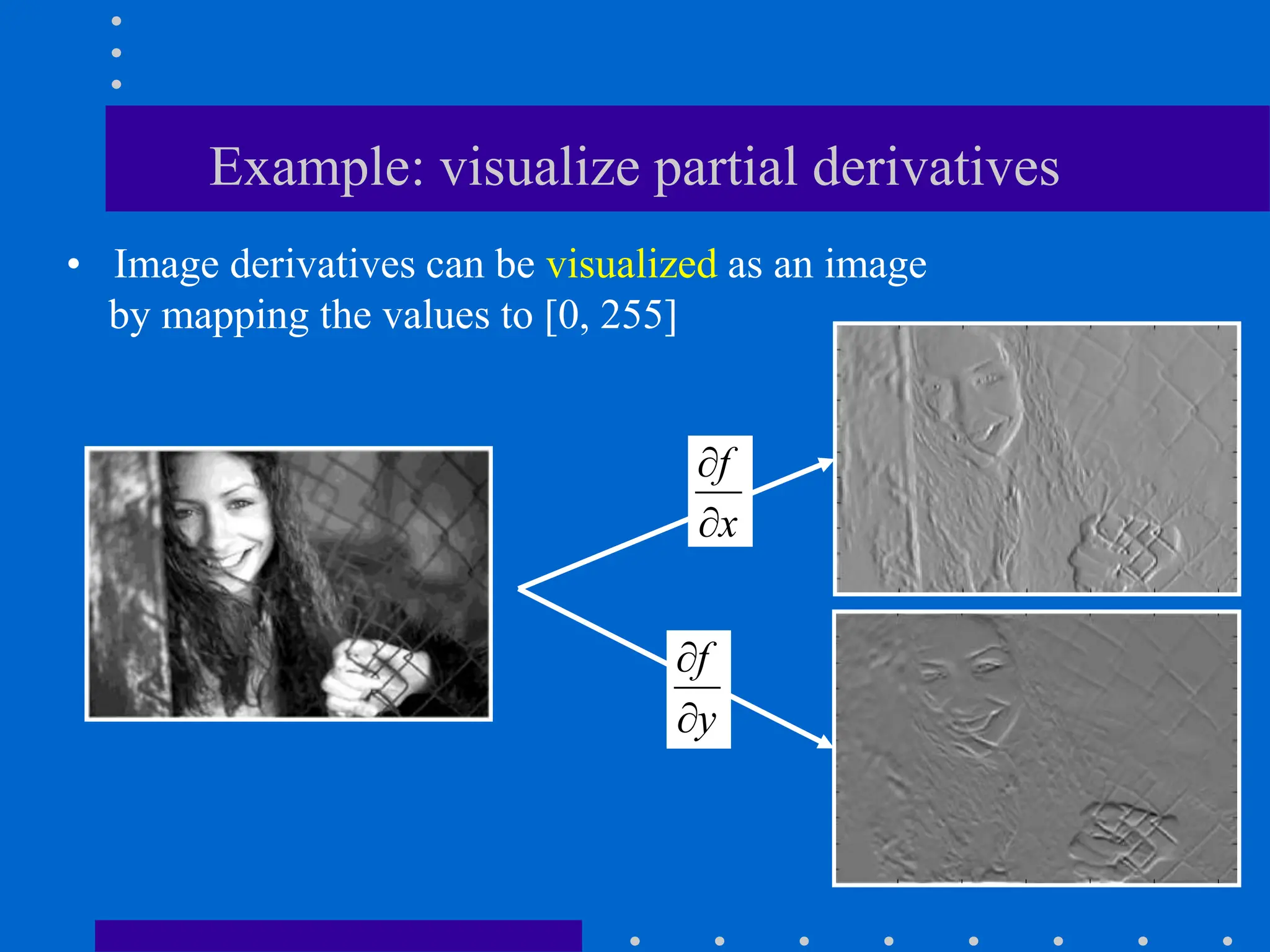

40. Example: visualize partial derivatives
f
x


f
y


• Image derivatives can be visualized as an image
by mapping the values to [0, 255]

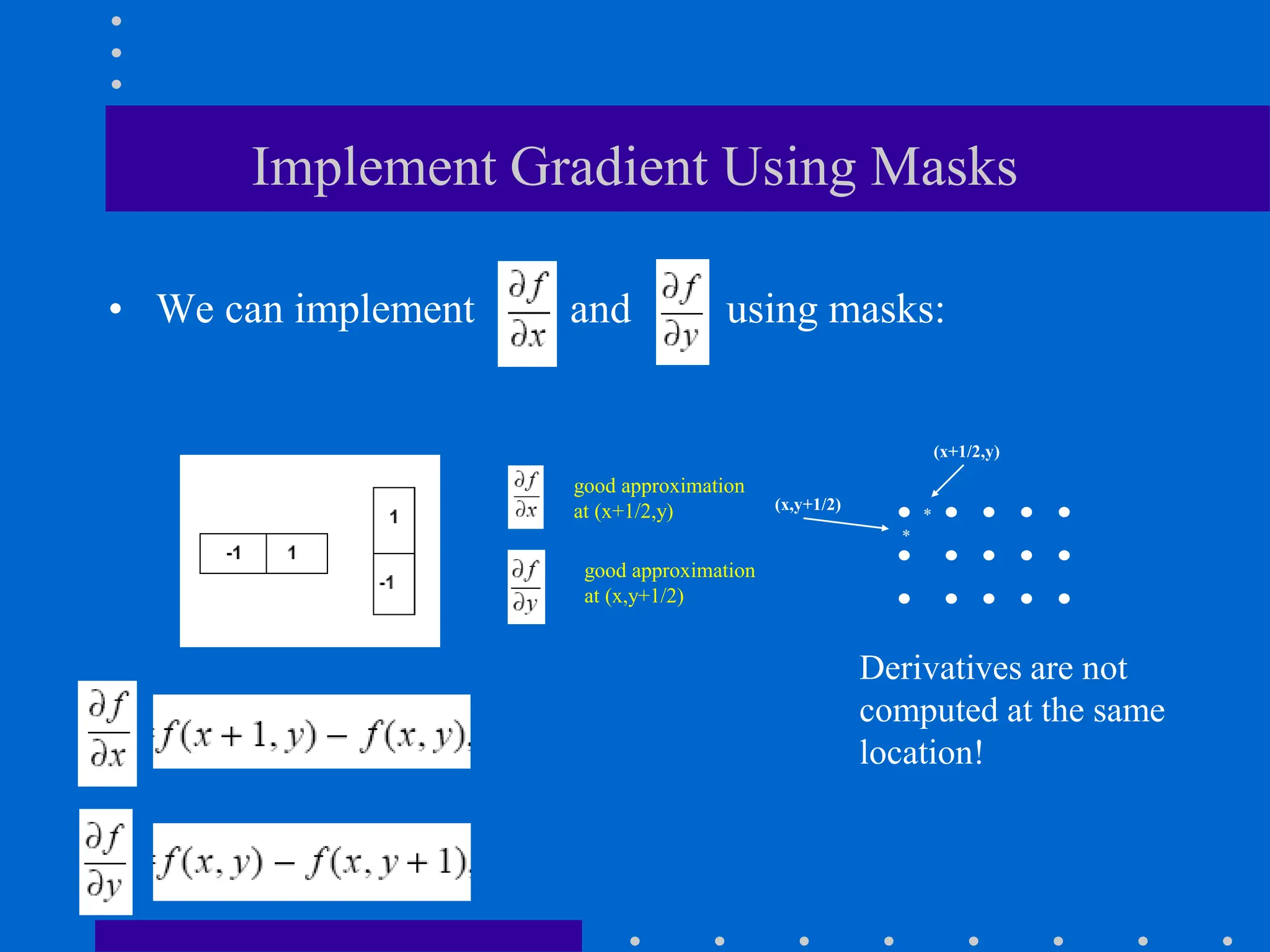

41. Implement Gradient Using Masks
• We can implement and using masks:
(x+1/2,y)
(x,y+1/2)
*
*
good approximation
at (x+1/2,y)
good approximation
at (x,y+1/2)
Derivatives are not
computed at the same
location!

42. Implement Gradient Using Masks (cont’d)
• A different approximation of the gradient:
• We can implement and using the following masks:
*
(x+1/2,y+1/2)
good approximation
Derivatives are
computed at the
same location!

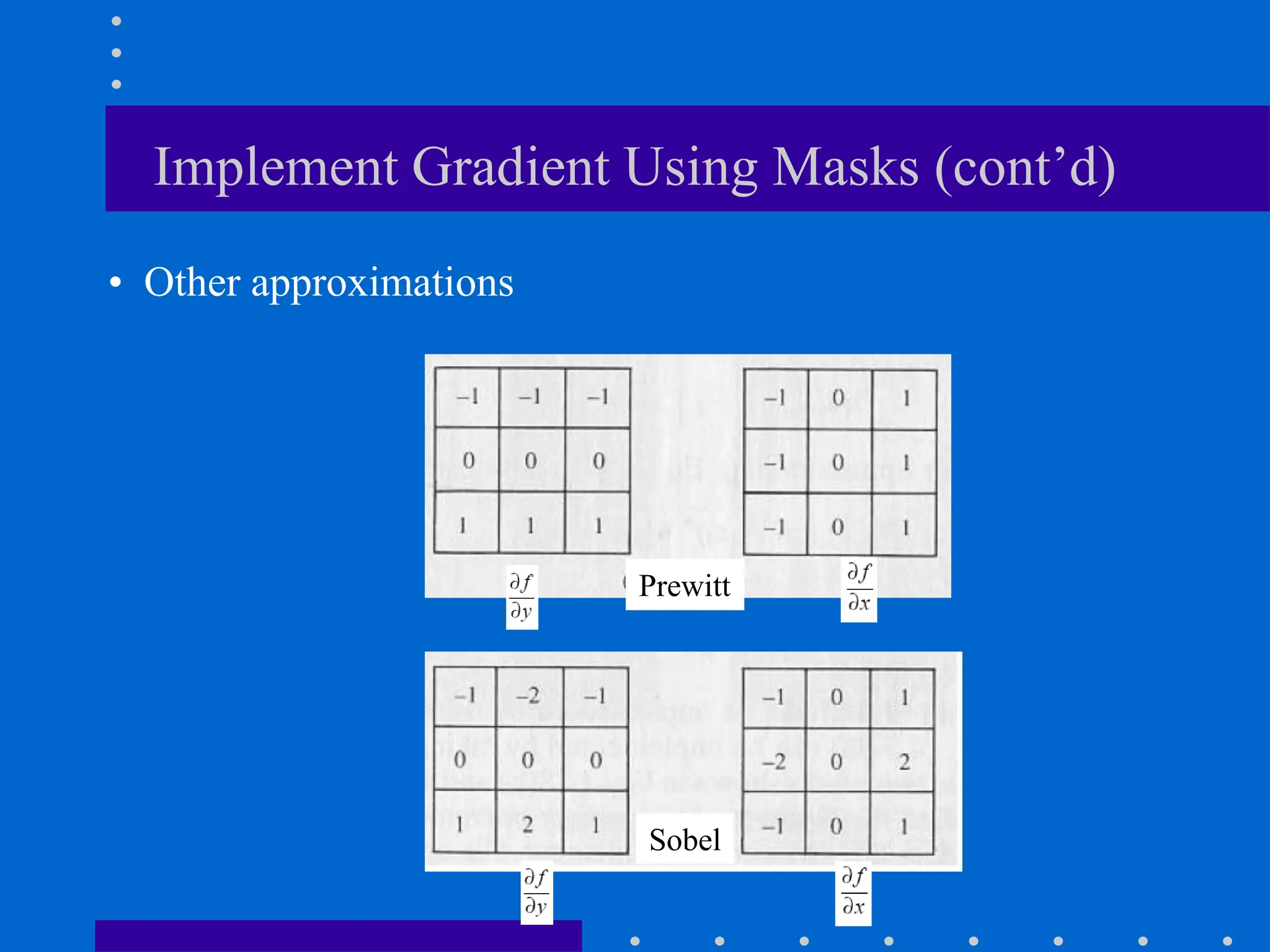

43. Implement Gradient Using Masks (cont’d)
• Other approximations
Sobel
Prewitt

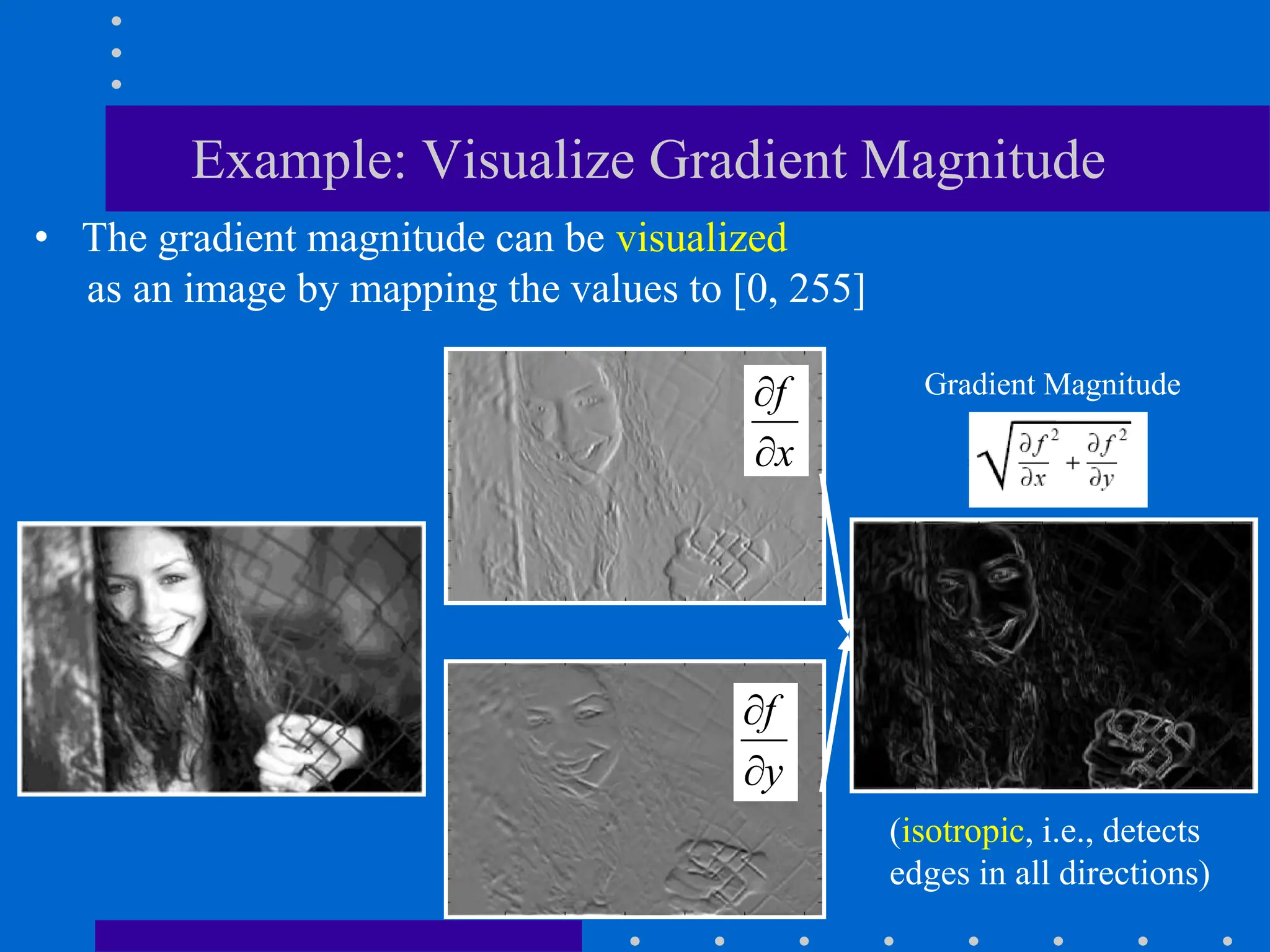

44. Example: Visualize Gradient Magnitude
f
y


f
x


Gradient Magnitude
(isotropic, i.e., detects
edges in all directions)
• The gradient magnitude can be visualized
as an image by mapping the values to [0, 255]

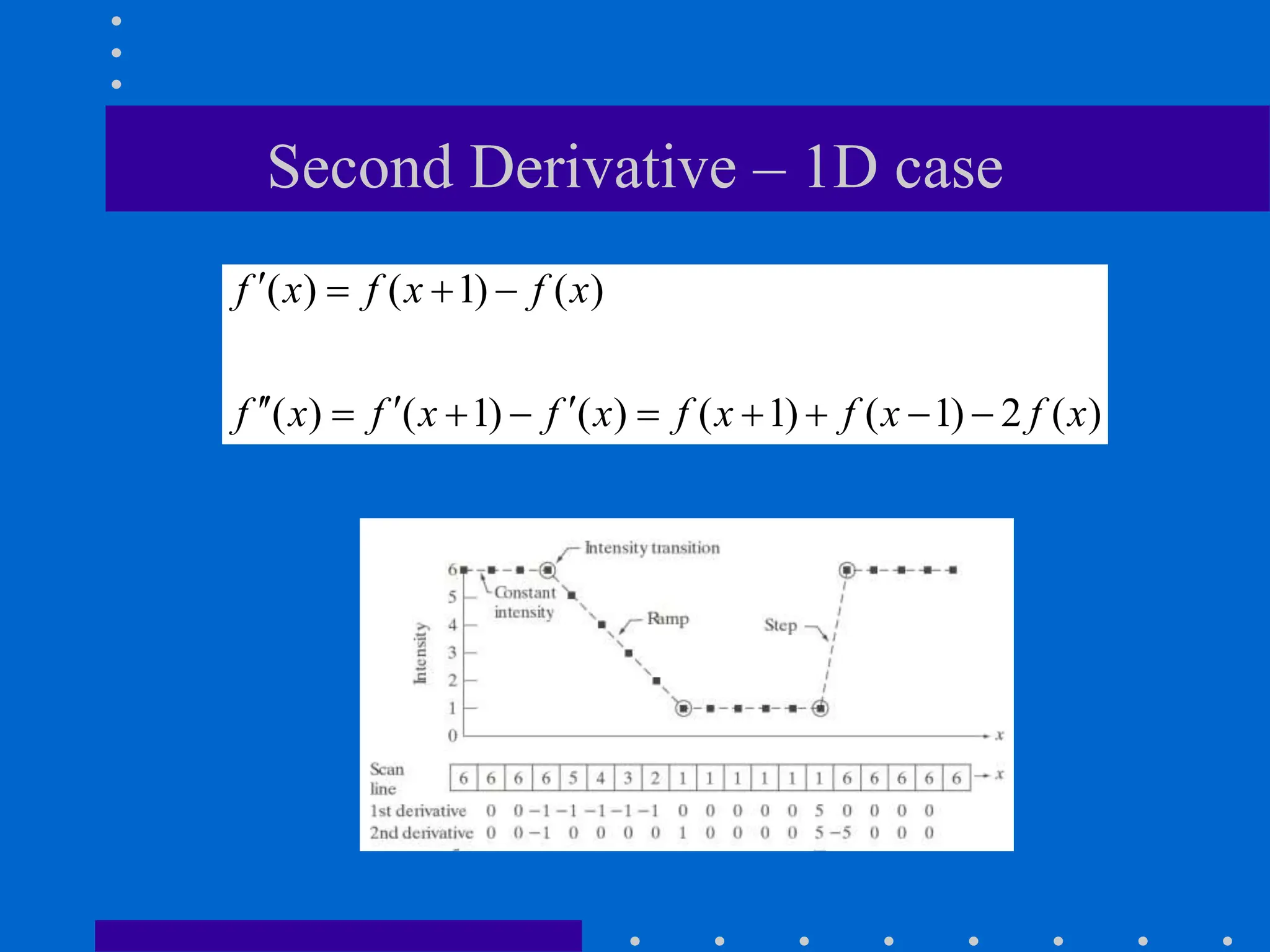

45. Second Derivative – 1D case
( ) ( 1) ( )
( ) ( 1) ( ) ( 1) ( 1) 2 ( )
f x f x f x
f x f x f x f x f x f x
   
  
       

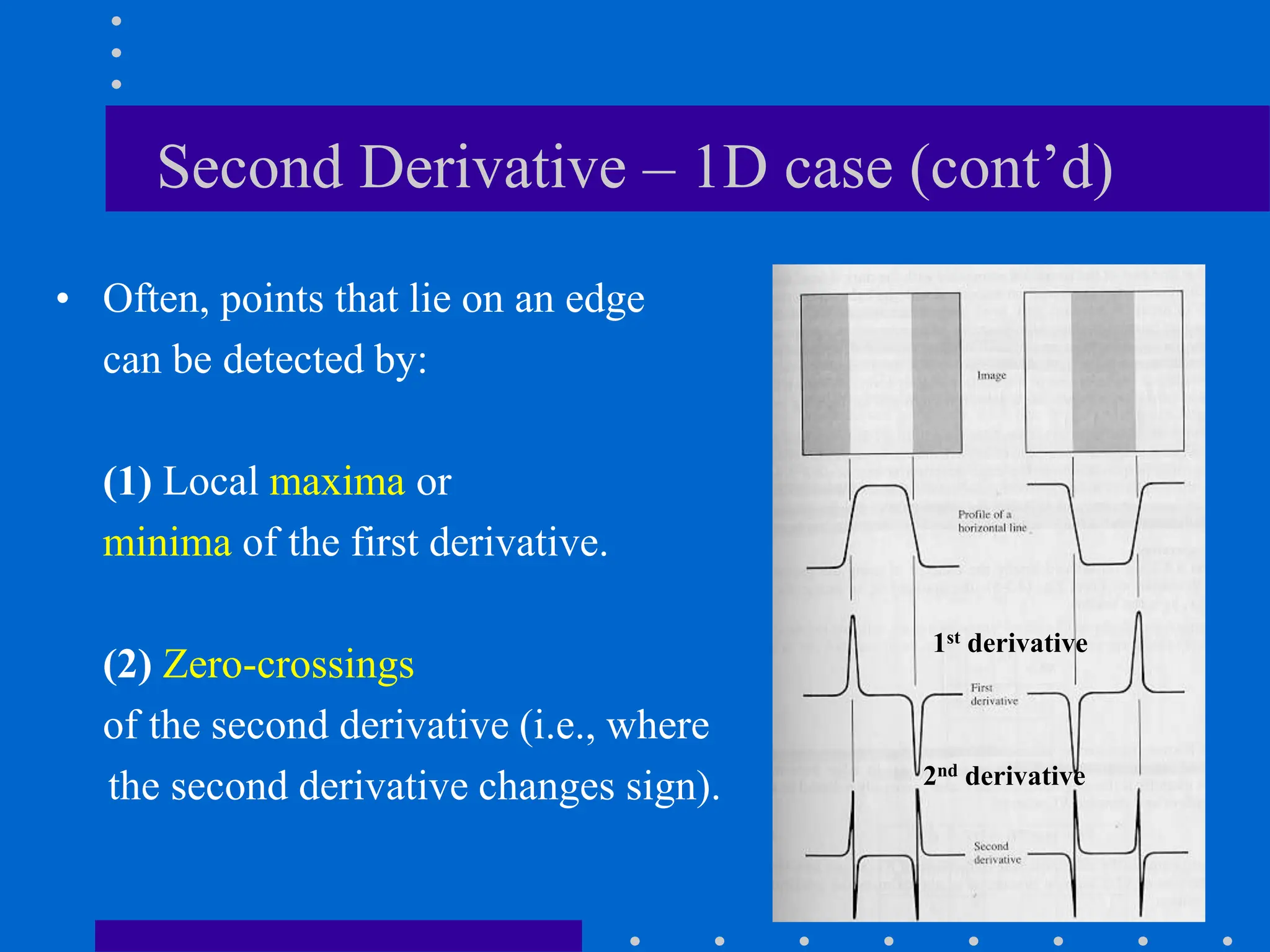

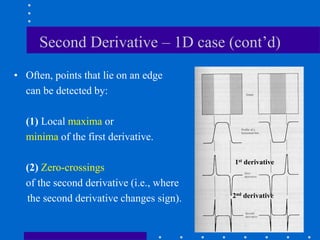

46. Second Derivative – 1D case (cont’d)
• Often, points that lie on an edge
can be detected by:
(1) Local maxima or
minima of the first derivative.
(2) Zero-crossings
of the second derivative (i.e., where
the second derivative changes sign). 2nd derivative
1st derivative

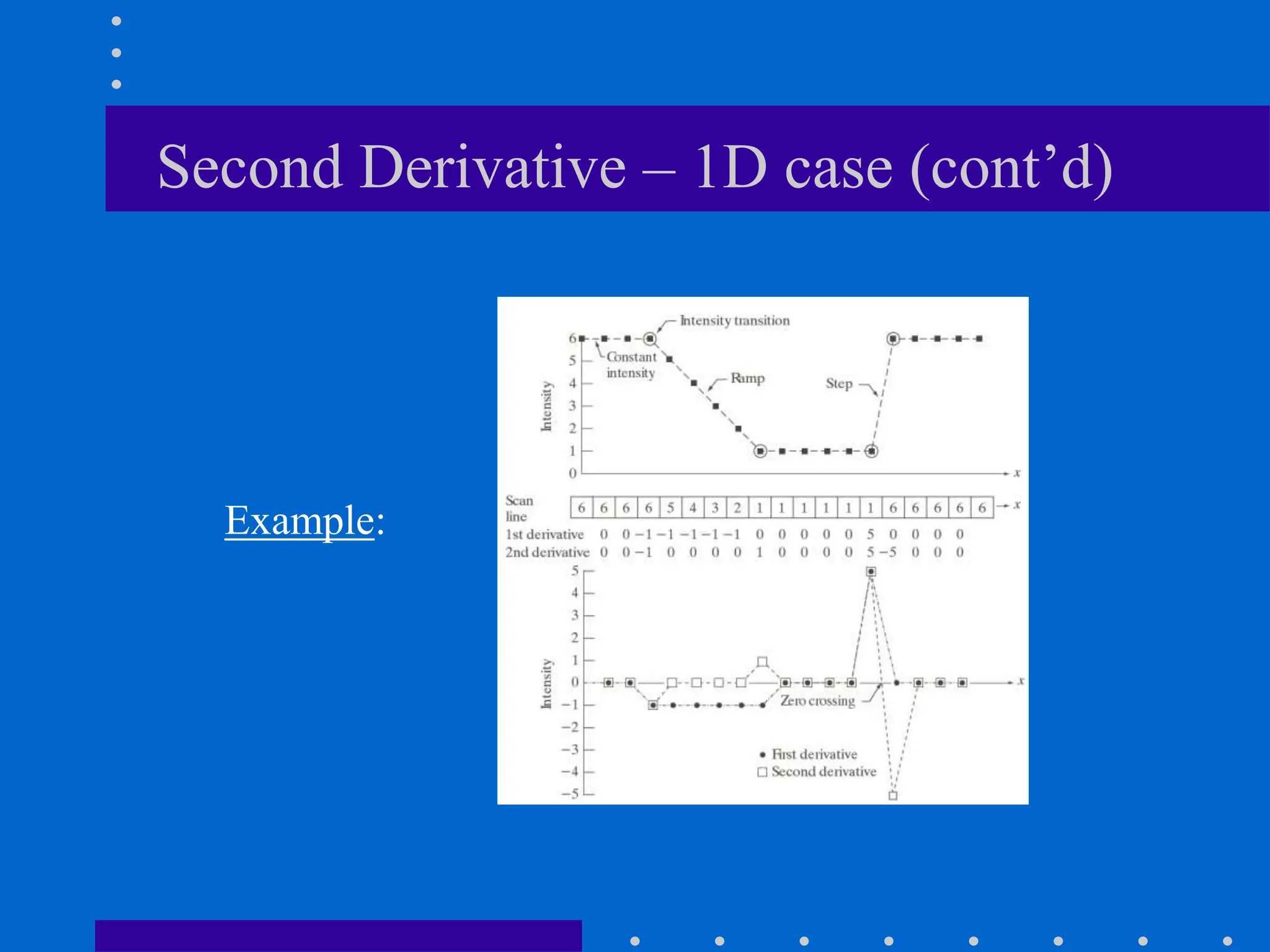

47. Second Derivative – 1D case (cont’d)
Example:

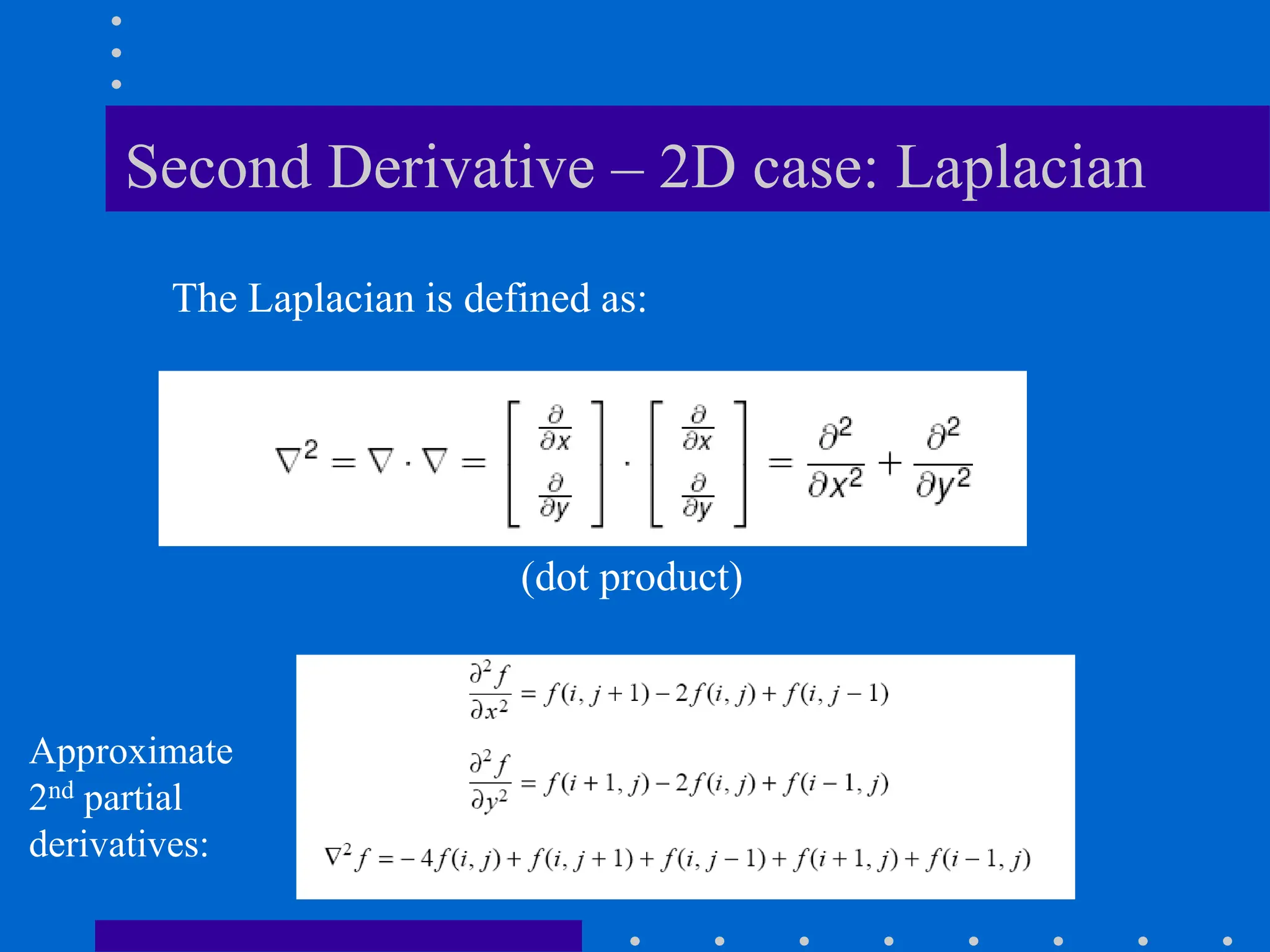

48. Second Derivative – 2D case: Laplacian
The Laplacian is defined as:
(dot product)
Approximate
2nd partial
derivatives:

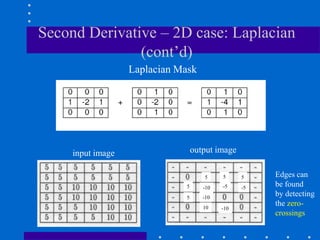

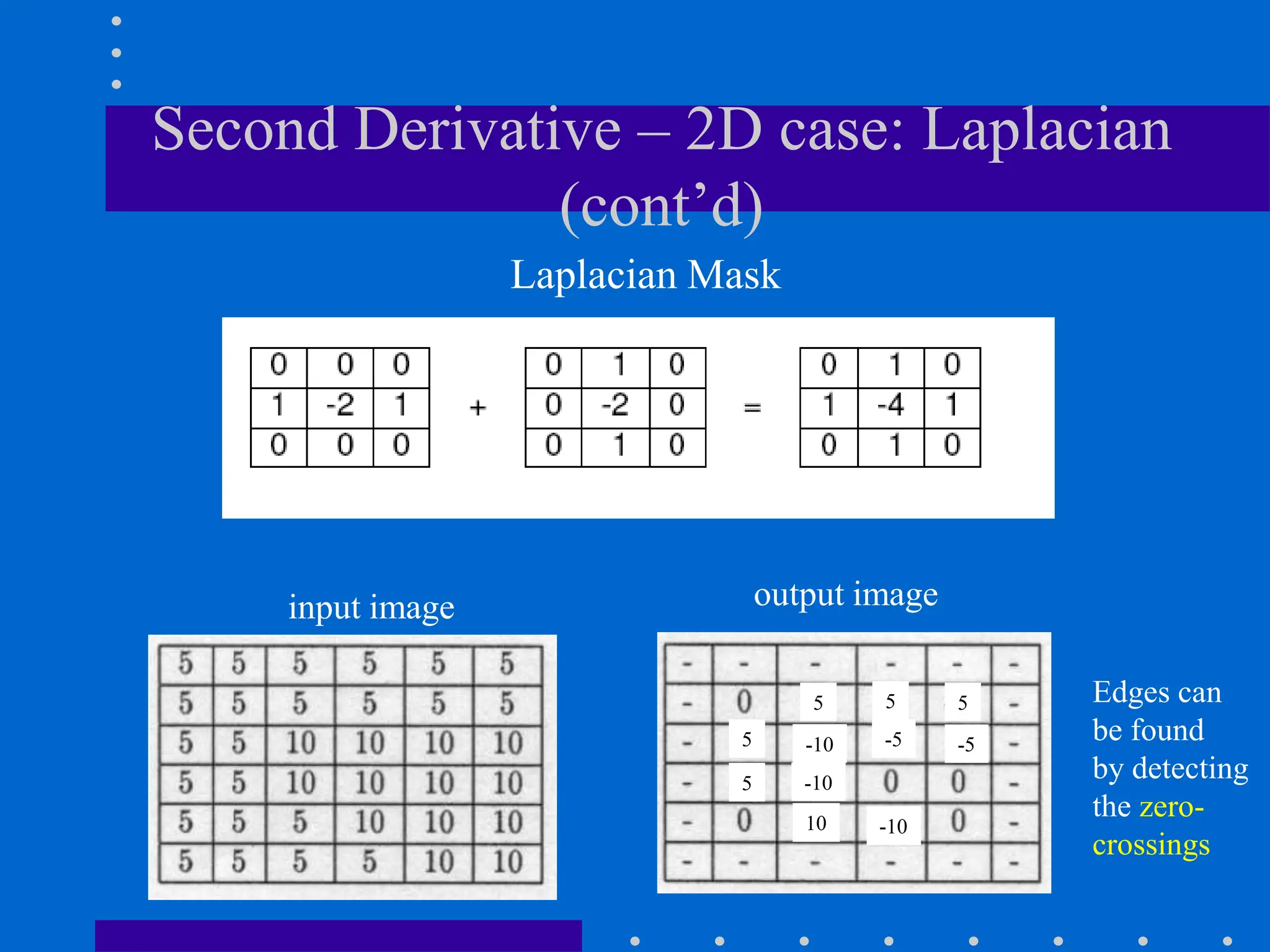

49. Second Derivative – 2D case: Laplacian
(cont’d)
Laplacian Mask
Edges can
be found
by detecting
the zero-
crossings
input image output image
5
5
5
5 5
-5 -5
-10
-10
-10
10

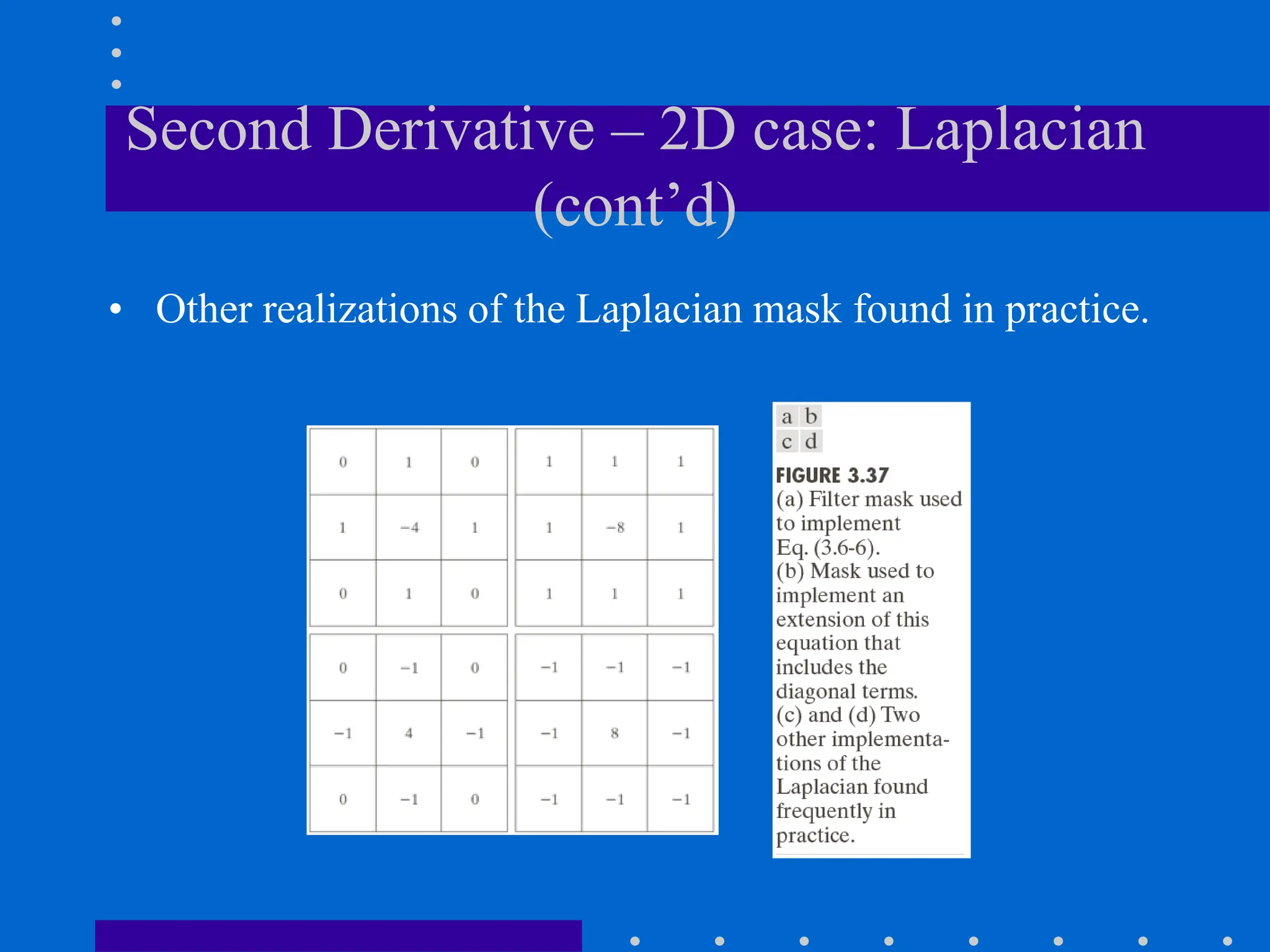

50. Second Derivative – 2D case: Laplacian
(cont’d)
• Other realizations of the Laplacian mask found in practice.

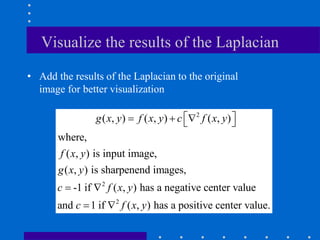

51. Visualize the results of the Laplacian
• Add the results of the Laplacian to the original
image for better visualization
2
2
2
( , ) ( , ) ( , )
where,
( , ) is input image,
( , ) is sharpenend images,
-1 if ( , ) has a negative center value
and 1 if ( , ) has a positive center value.
g x y f x y c f x y
f x y
g x y
c f x y
c f x y
 
  
 
 
 

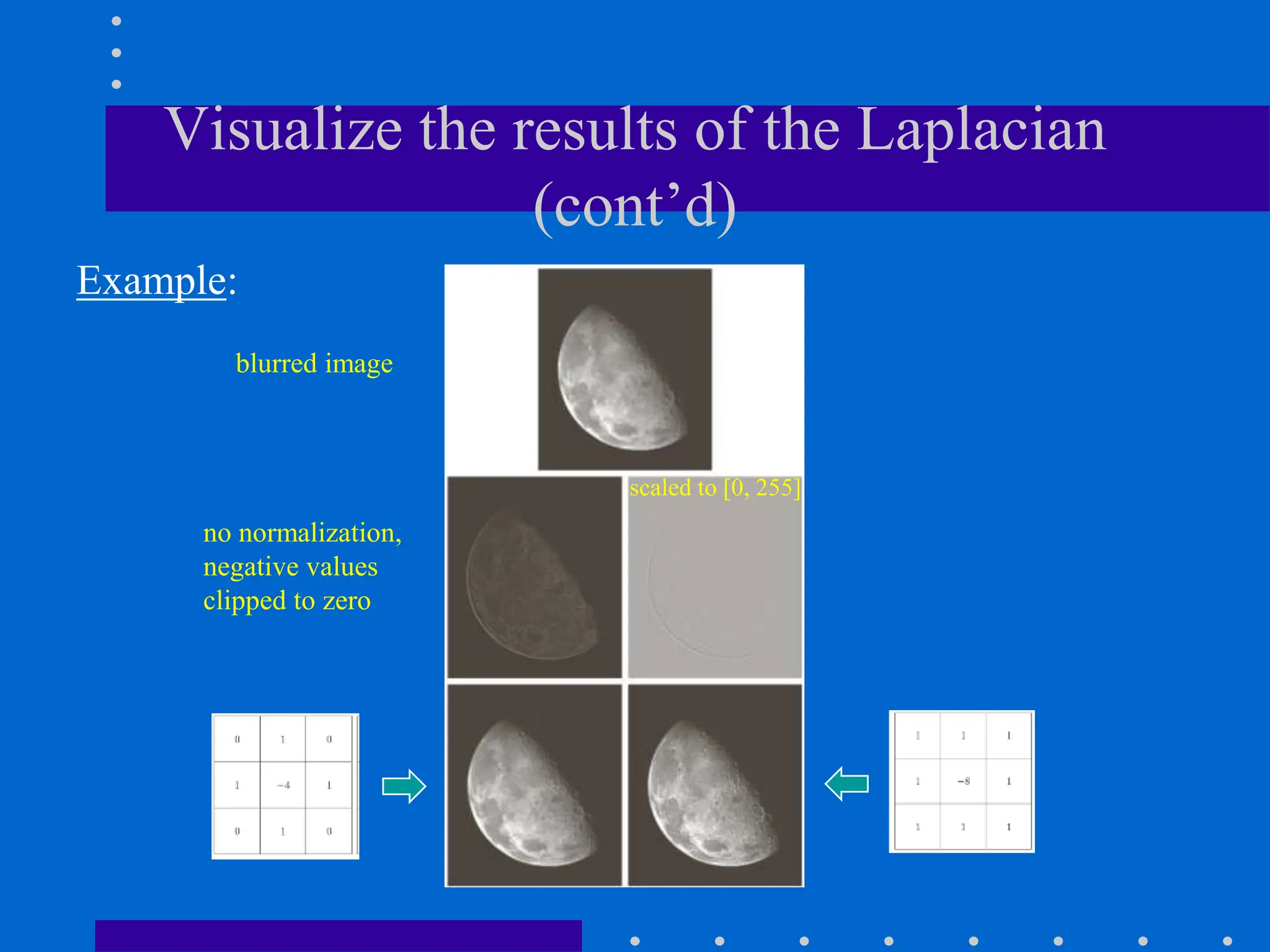

52. Visualize the results of the Laplacian
(cont’d)
no normalization,
negative values
clipped to zero
blurred image
scaled to [0, 255]
Example:

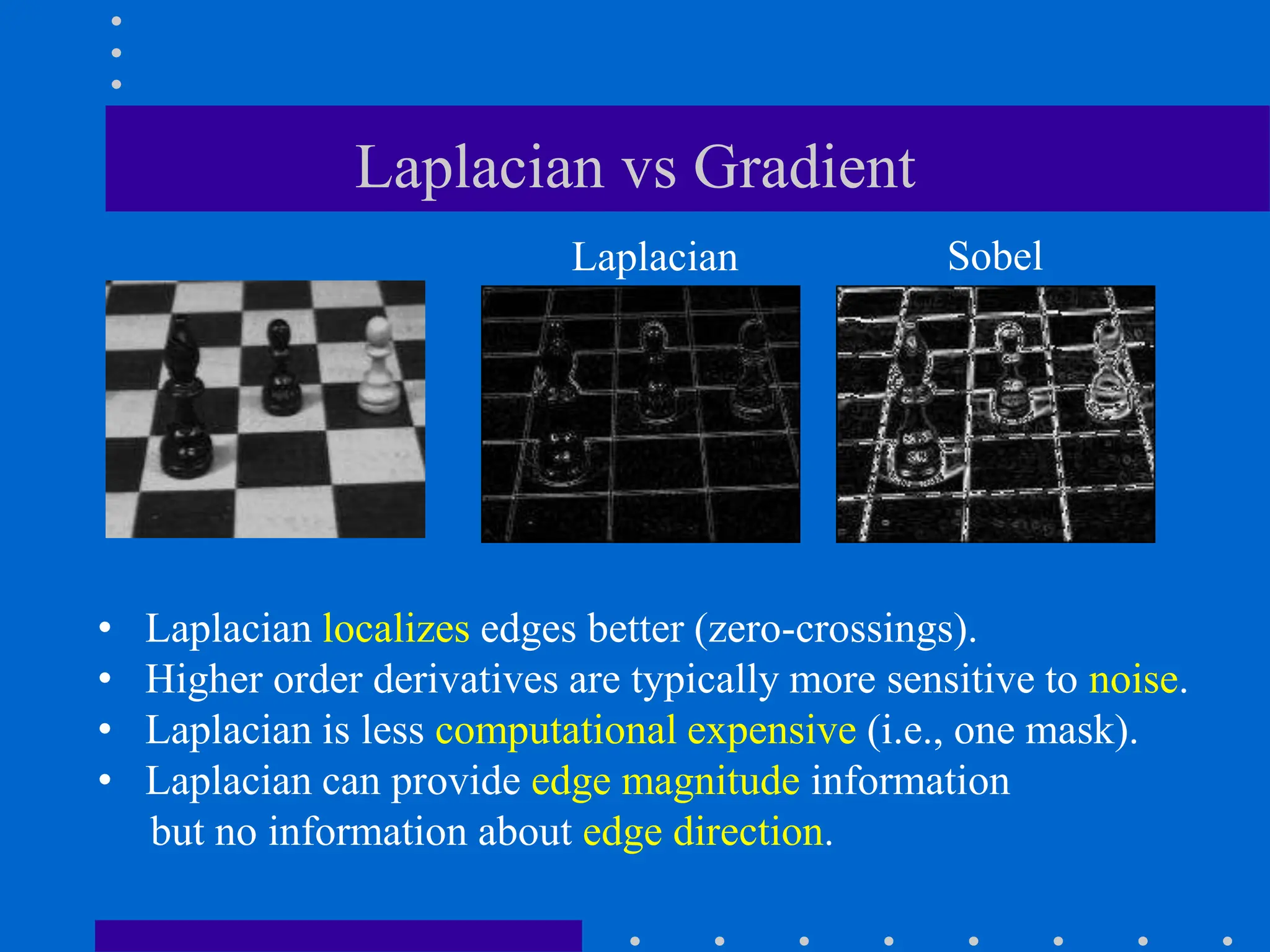

53. Laplacian vs Gradient
Laplacian Sobel
• Laplacian localizes edges better (zero-crossings).
• Higher order derivatives are typically more sensitive to noise.
• Laplacian is less computational expensive (i.e., one mask).
• Laplacian can provide edge magnitude information
but no information about edge direction.

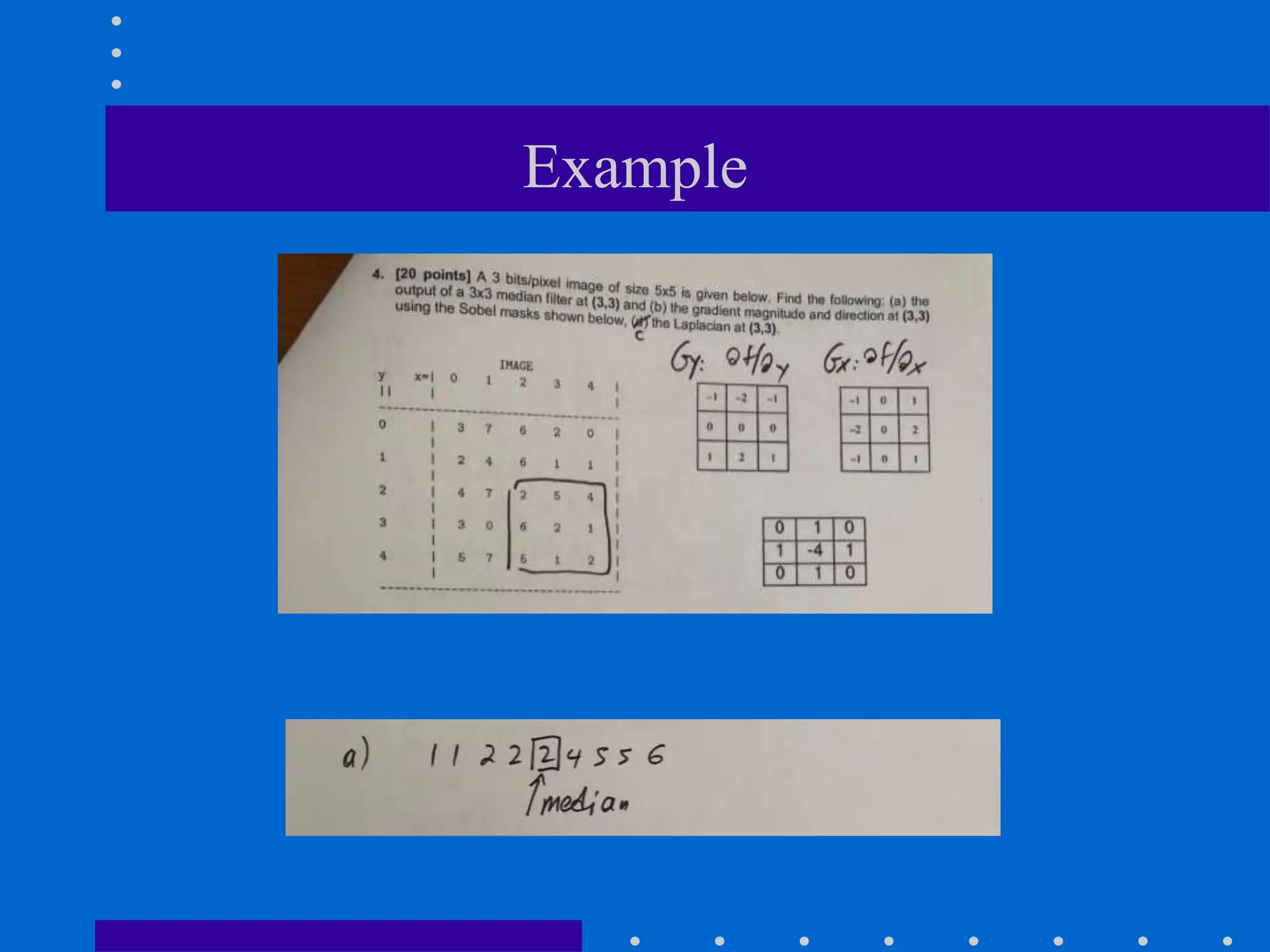

54. Example

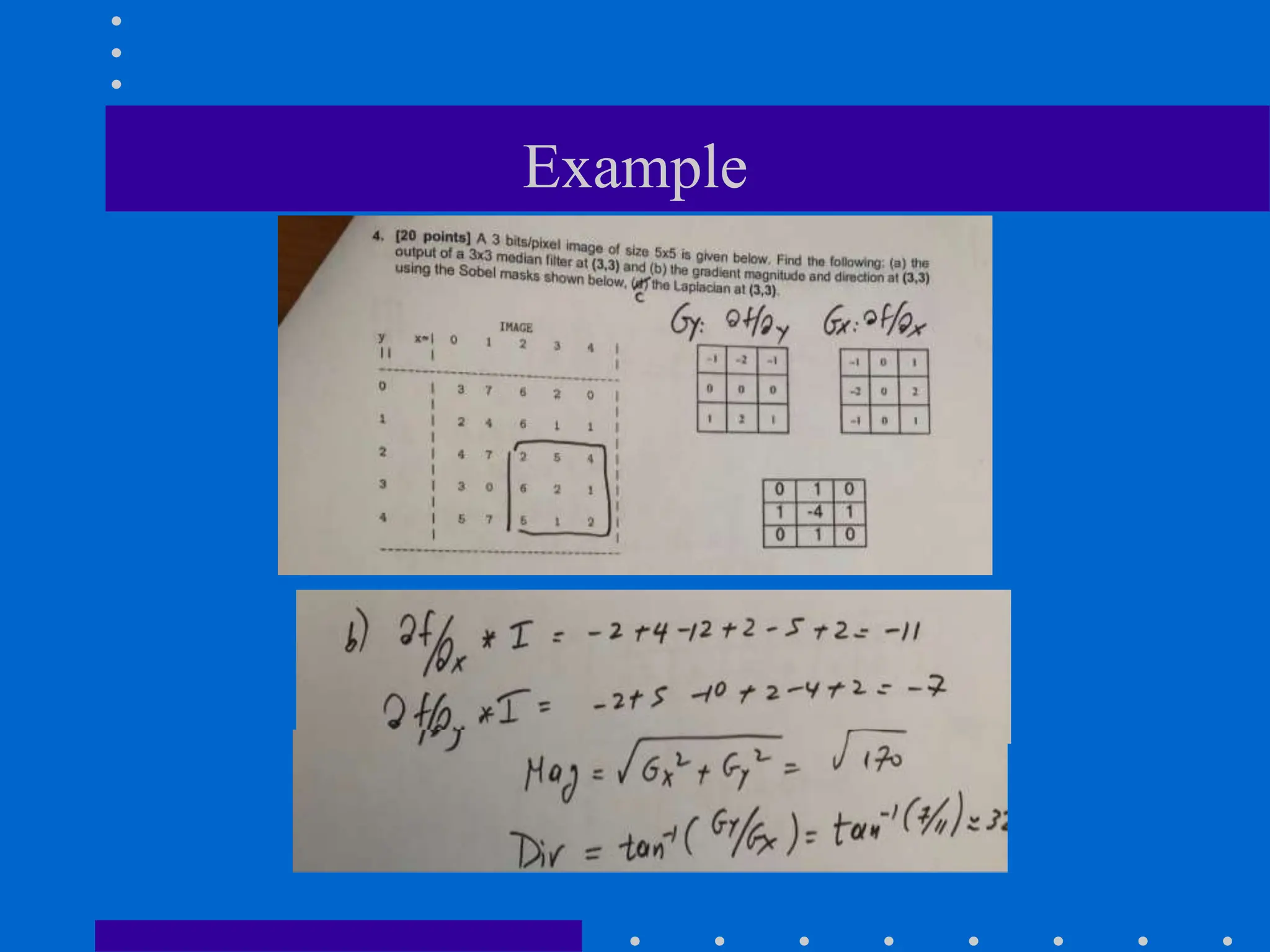

55. Example

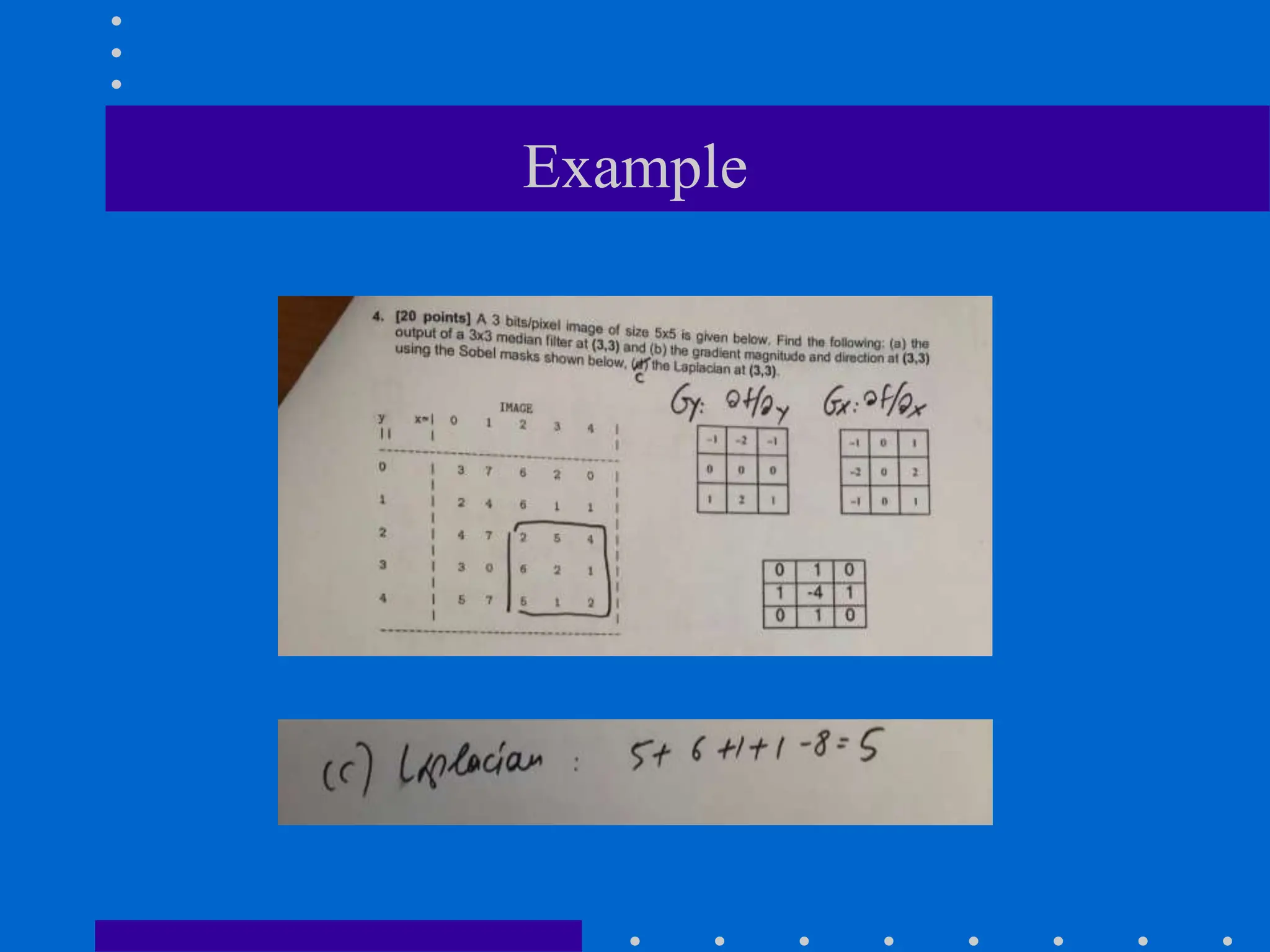

56. Example

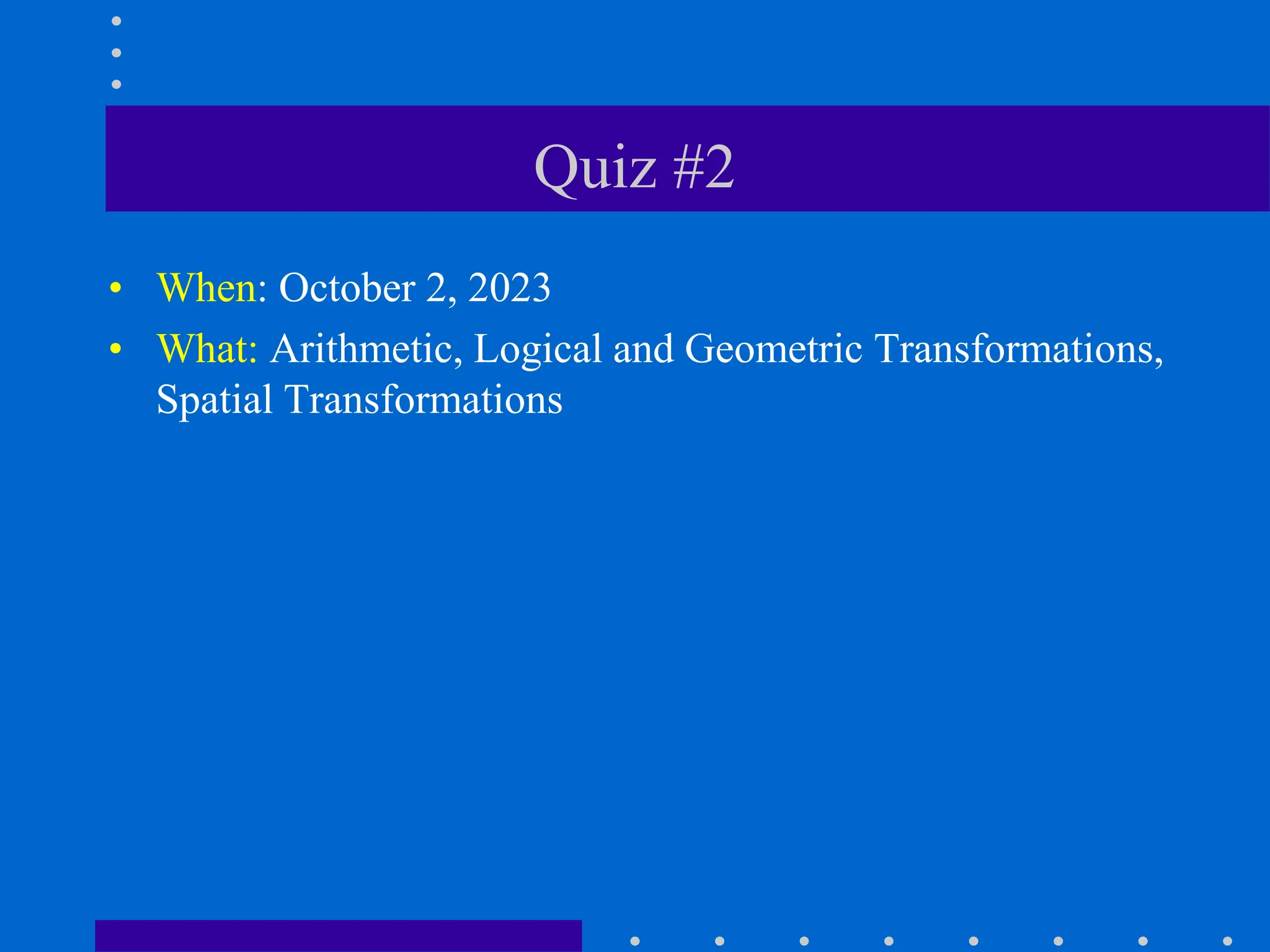

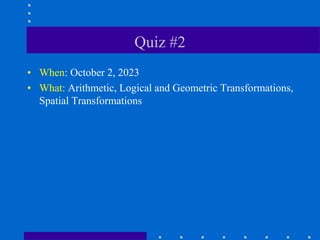

57. Quiz #2
• When: October 2, 2023
• What: Arithmetic, Logical and Geometric Transformations,
Spatial Transformations
