This document contains information about the course 20ME272 Computer Aided Engineering Graphics taught at Sri Ramakrishna Engineering College. It includes the course objectives, list of experiments, and information about various drafting and dimensioning techniques. It also provides details about different drawing tools, standards, and concepts such as projection of points and lines. The document uses diagrams and images to explain key drafting concepts and principles in engineering graphics.

1. 1
20ME272
COMPUTER AIDED ENGINEERING GRAPHICS
Semester - II
B.Tech. Information Technology
Academic Year : 2020-21
REGULATIONS 2020
Sri Ramakrishna Engineering College
Vattamalaipalayam, Coimbatore – 22
Department of Mechanical Engineering

2. 20ME272
COMPUTER AIDED ENGINEERING GRAPHICS
2
P.Saravanakumar
Assistant Professor(OG)
Department of Mechanical Engineering
Sri Ramakrishna Engineering College
Coimbatore-641022

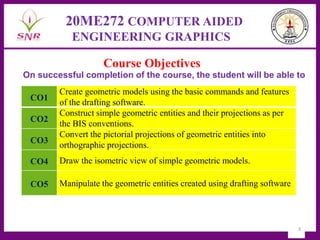

3. 3
20ME272 COMPUTER AIDED
ENGINEERING GRAPHICS
On successful completion of the course, the student will be able to
Course Objectives
CO1
Create geometric models using the basic commands and features
of the drafting software.
CO2
Construct simple geometric entities and their projections as per
the BIS conventions.
CO3
Convert the pictorial projections of geometric entities into
orthographic projections.
CO4 Draw the isometric view of simple geometric models.
CO5 Manipulate the geometric entities created using drafting software

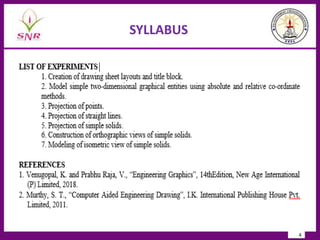

4. SYLLABUS
4

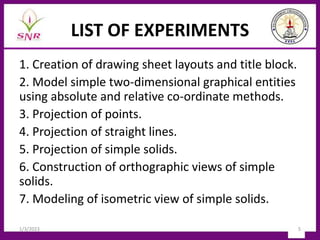

5. LIST OF EXPERIMENTS
1. Creation of drawing sheet layouts and title block.
2. Model simple two-dimensional graphical entities
using absolute and relative co-ordinate methods.
3. Projection of points.
4. Projection of straight lines.
5. Projection of simple solids.
6. Construction of orthographic views of simple
solids.
7. Modeling of isometric view of simple solids.
1/3/2023 5

6. Effectiveness of Graphics Language
1/3/2023 6

7. Effectiveness of Graphics Language
1/3/2023 7

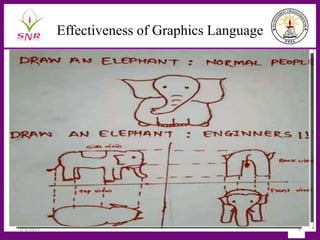

8. Effectiveness of Graphics Language
1/3/2023 8

9. Effectiveness of Graphics Language
1/3/2023 9

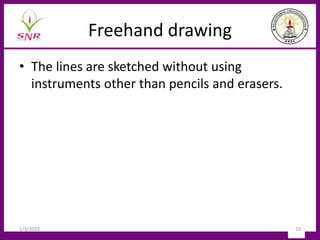

10. Freehand drawing
• The lines are sketched without using
instruments other than pencils and erasers.
1/3/2023 10

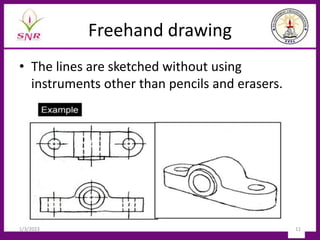

11. Freehand drawing
• The lines are sketched without using
instruments other than pencils and erasers.
1/3/2023 11

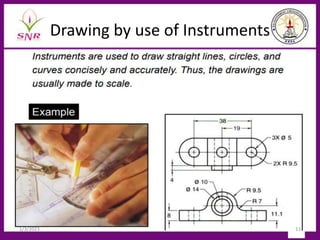

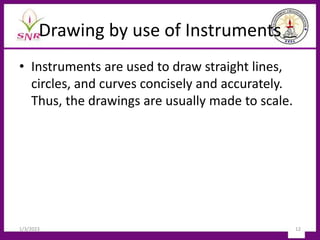

12. Drawing by use of Instruments
• Instruments are used to draw straight lines,
circles, and curves concisely and accurately.
Thus, the drawings are usually made to scale.
1/3/2023 12

13. Drawing by use of Instruments
1/3/2023 13

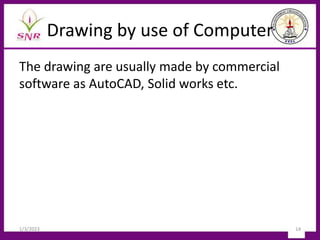

14. Drawing by use of Computer
The drawing are usually made by commercial
software as AutoCAD, Solid works etc.
1/3/2023 14

15. Drawing by use of Computer
1/3/2023 15

16. Engineering Drawing
1/3/2023 16

17. Elements of Engineering Drawing
1/3/2023 17

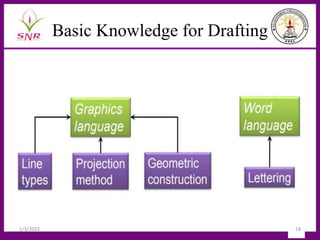

18. Basic Knowledge for Drafting
1/3/2023 18

19. DEFINITION
Standards are set of rules that govern how
Technical drawings are represented.
Drawing standards are used so that
drawings convey the same meaning to everyone
who reads them.
1/3/2023 19

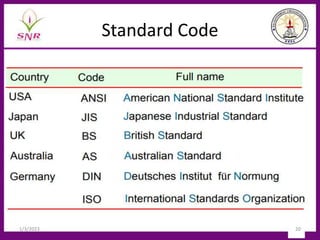

20. Standard Code
1/3/2023 20

21. Drawing Sheet
1/3/2023 21

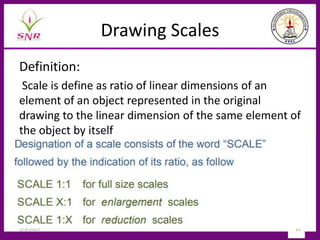

22. Drawing Scales
Definition:
Scale is define as ratio of linear dimensions of an
element of an object represented in the original
drawing to the linear dimension of the same element of
the object by itself
1/3/2023 22

23. Basic Line Types
1/3/2023 23

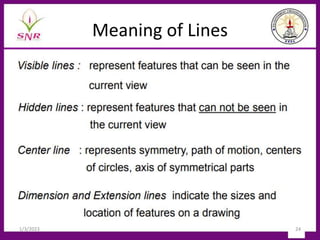

24. Meaning of Lines
1/3/2023 24

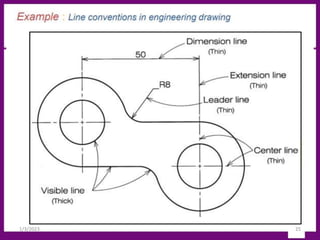

25. 1/3/2023 25

26. DRAWING INSTRUMENTS USED IN
ENGINEERING GRAPHICS
1/3/2023 26

27. DRAWING INSTRUMENTS
1.Drawing Board
2.Drawing Sheets
3.Standard Set-scales
4.Mini-Drafter
5.Instrument Box
6.Set-Squares (45,30 & 60 deg)
7.Protractor-cum-Procircle
8.Drawing Pencils (HB,H and 2H )
9.Sharpener and Emery Paper
10.Adhesive Tape (Cello-Tape )/ Clips
11.Pencil Eraser
12.French Curves
1/3/2023 27

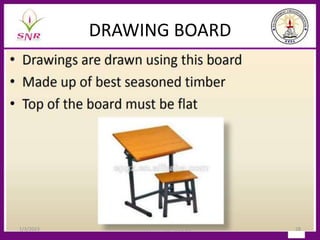

28. DRAWING BOARD
1/3/2023 28

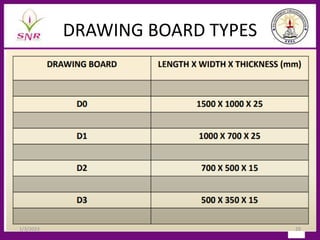

29. DRAWING BOARD TYPES
1/3/2023 29

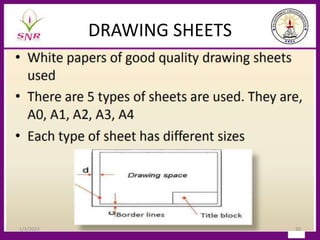

30. DRAWING SHEETS
1/3/2023 30

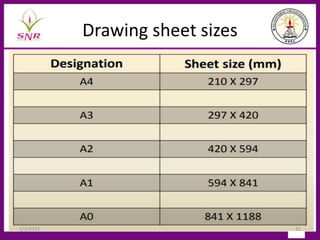

31. Drawing sheet sizes
1/3/2023 31

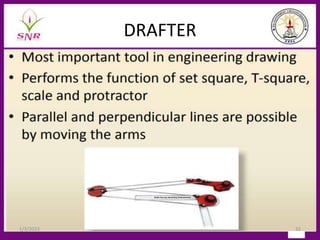

32. DRAFTER
1/3/2023 32

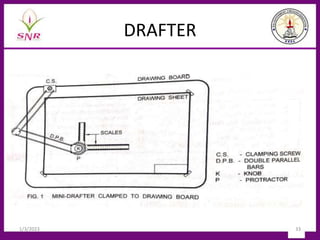

33. DRAFTER
1/3/2023 33

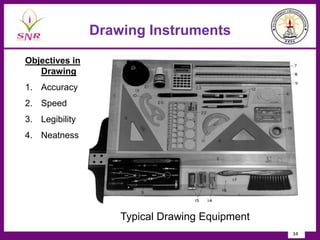

34. Drawing Instruments
Typical Drawing Equipment
Objectives in
Drawing
1. Accuracy
2. Speed
3. Legibility
4. Neatness
34

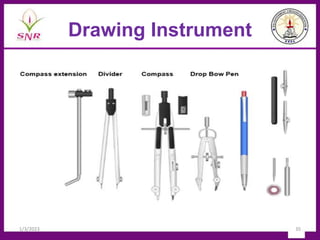

35. Drawing Instrument
1/3/2023 35

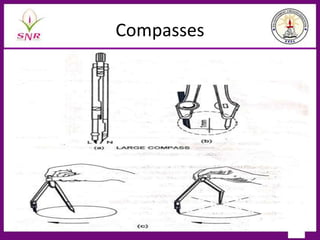

36. Compasses
1/3/2023 36

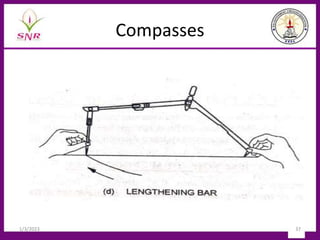

37. Compasses
1/3/2023 37

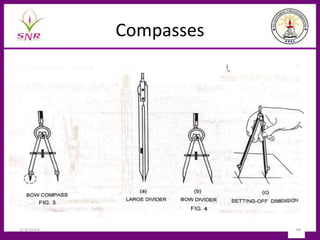

38. Compasses
1/3/2023 38

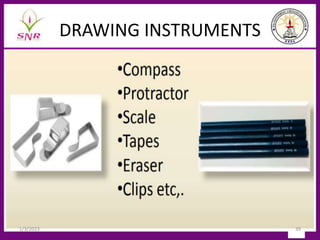

39. DRAWING INSTRUMENTS
1/3/2023 39

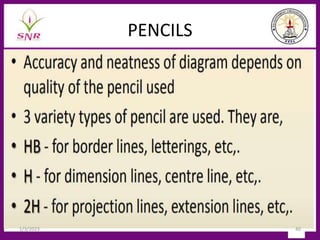

40. PENCILS
1/3/2023 40

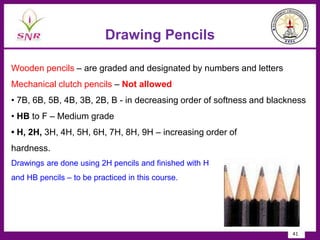

41. Drawing Pencils
Wooden pencils – are graded and designated by numbers and letters
Mechanical clutch pencils – Not allowed
• 7B, 6B, 5B, 4B, 3B, 2B, B - in decreasing order of softness and blackness
• HB to F – Medium grade
• H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H – increasing order of
hardness.
Drawings are done using 2H pencils and finished with H
and HB pencils – to be practiced in this course.
41

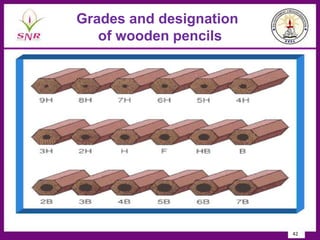

42. Grades and designation
of wooden pencils
42

43. Line types
43

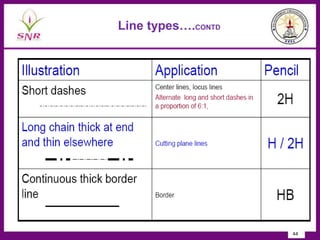

44. Line types….CONTD
44

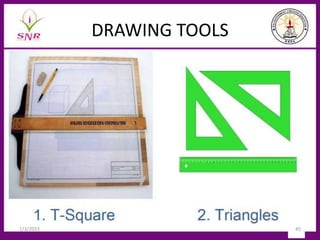

45. DRAWING TOOLS
1/3/2023 45

46. DRAWING TOOLS
1/3/2023 46

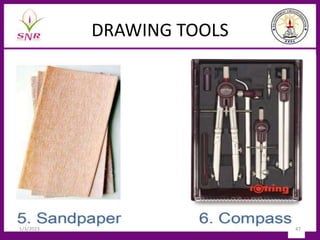

47. DRAWING TOOLS
1/3/2023 47

48. DRAWING TOOLS
1/3/2023 48

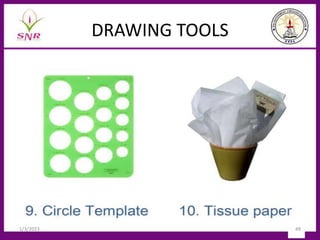

49. DRAWING TOOLS
1/3/2023 49

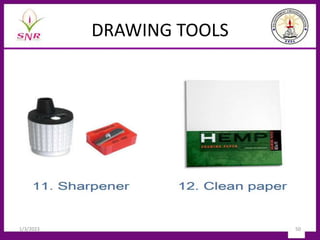

50. DRAWING TOOLS
1/3/2023 50

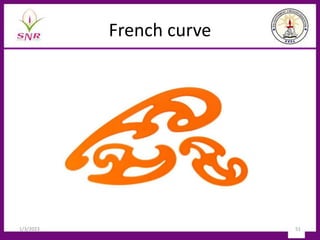

51. French curve
1/3/2023 51

52. BIS conventions and specifications
1/3/2023 52

53. Experiment :01
Creation of drawing sheet layouts
and
title block
1/3/2023 53

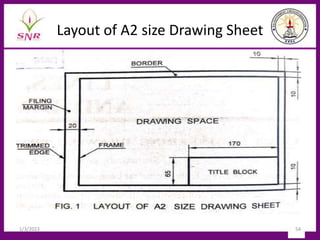

54. Layout of A2 size Drawing Sheet
1/3/2023 54

55. Title Block
1/3/2023 55

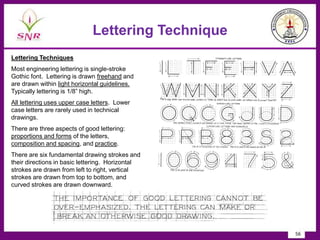

56. Lettering Technique
Lettering Techniques
Most engineering lettering is single-stroke
Gothic font. Lettering is drawn freehand and
are drawn within light horizontal guidelines.
Typically lettering is 1/8” high.
All lettering uses upper case letters. Lower
case letters are rarely used in technical
drawings.
There are three aspects of good lettering:
proportions and forms of the letters,
composition and spacing, and practice.
There are six fundamental drawing strokes and
their directions in basic lettering. Horizontal
strokes are drawn from left to right, vertical
strokes are drawn from top to bottom, and
curved strokes are drawn downward.
.
56

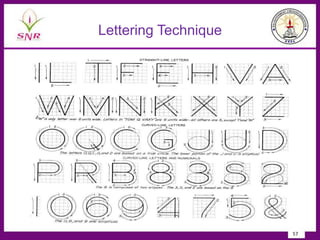

57. Lettering Technique
.
57

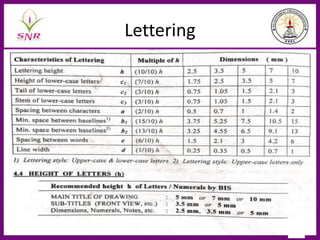

58. Lettering
1/3/2023 58

59. Lettering
1/3/2023 59

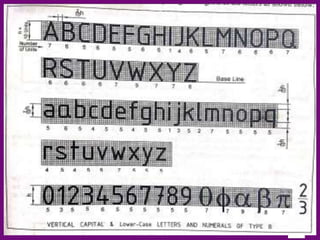

60. 1/3/2023 60

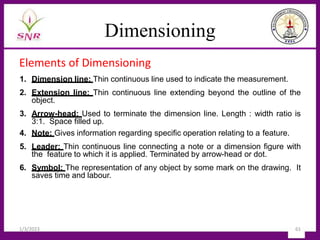

61. Dimensioning
Elements of Dimensioning
1. Dimension line: Thin continuous line used to indicate the measurement.
2. Extension line: Thin continuous line extending beyond the outline of the
object.
3. Arrow-head: Used to terminate the dimension line. Length : width ratio is
3:1. Space filled up.
4. Note: Gives information regarding specific operation relating to a feature.
5. Leader: Thin continuous line connecting a note or a dimension figure with
the feature to which it is applied. Terminated by arrow-head or dot.
6. Symbol: The representation of any object by some mark on the drawing. It
saves time and labour.
1/3/2023 61

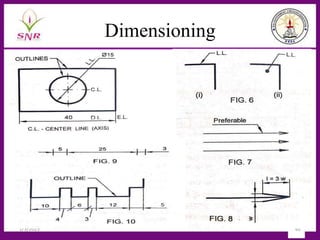

62. Dimensioning
1/3/2023 62

63. Methods of Dimensioning
Aligned Method
1/3/2023 63

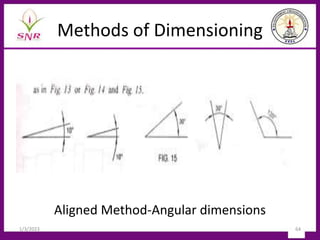

64. Methods of Dimensioning
Aligned Method-Angular dimensions
1/3/2023 64

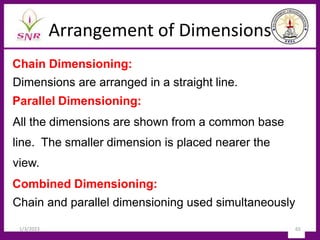

65. Arrangement of Dimensions
Chain Dimensioning:
Dimensions are arranged in a straight line.
Parallel Dimensioning:
All the dimensions are shown from a common base
line. The smaller dimension is placed nearer the
view.
Combined Dimensioning:
Chain and parallel dimensioning used simultaneously
1/3/2023 65

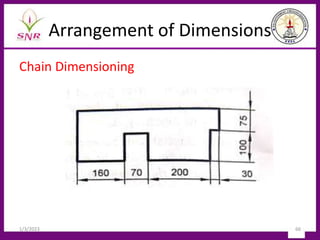

66. Arrangement of Dimensions
Chain Dimensioning
1/3/2023 66

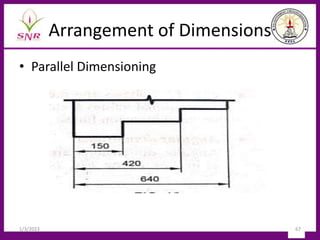

67. Arrangement of Dimensions
• Parallel Dimensioning
1/3/2023 67

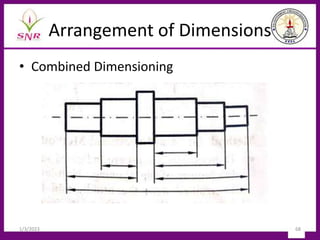

68. Arrangement of Dimensions
• Combined Dimensioning
1/3/2023 68

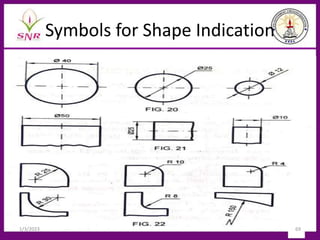

69. Symbols for Shape Indication
1/3/2023 69

70. Symbols for Shape Indication
1/3/2023 70

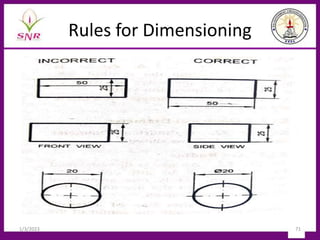

71. Rules for Dimensioning
1/3/2023 71

72. Rules for Dimensioning
1/3/2023 72

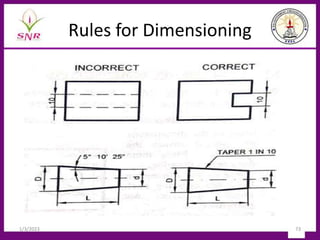

73. Rules for Dimensioning
1/3/2023 73

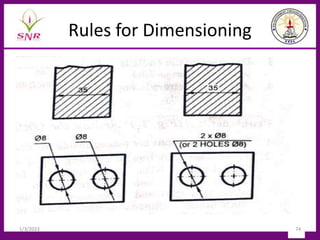

74. Rules for Dimensioning
1/3/2023 74

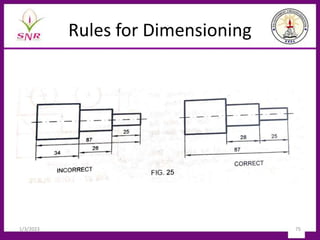

75. Rules for Dimensioning
1/3/2023 75

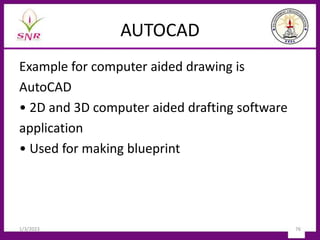

76. AUTOCAD
Example for computer aided drawing is
AutoCAD
• 2D and 3D computer aided drafting software
application
• Used for making blueprint
1/3/2023 76

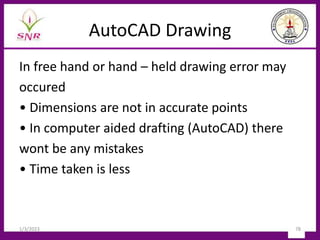

77. AutoCAD Drawing
1/3/2023 77

78. AutoCAD Drawing
1/3/2023 78
In free hand or hand – held drawing error may
occured
• Dimensions are not in accurate points
• In computer aided drafting (AutoCAD) there
wont be any mistakes
• Time taken is less

79. APPLICATIONS
Civil Engineering
• For construction of bridges, buildings and for
making maps
Mechanical Engineering
• For designing machines, bike parts, car parts,
etc,...
Electronics and Communication Engineering
• For understanding circuit connections and
component diagrams
1/3/2023 79

80. Drawing sheet sizes
1/3/2023 80

81. Layout of A2 size Drawing Sheet
1/3/2023 81

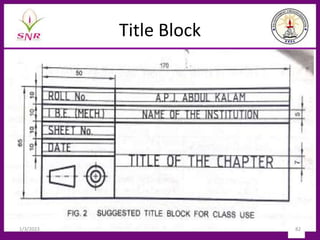

82. Title Block
1/3/2023 82

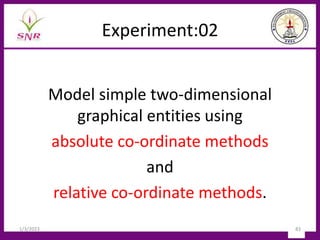

83. Experiment:02
Model simple two-dimensional
graphical entities using
absolute co-ordinate methods
and
relative co-ordinate methods.
1/3/2023 83

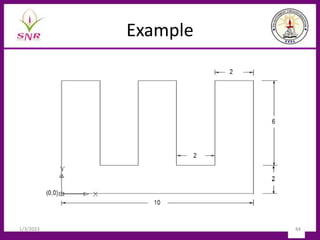

84. Example
1/3/2023 84

85. Absolute Coordinate System
1/3/2023 85

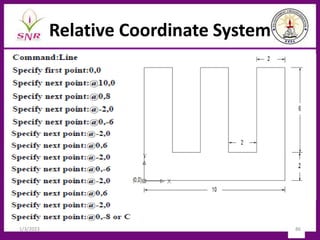

86. Relative Coordinate System
1/3/2023 86

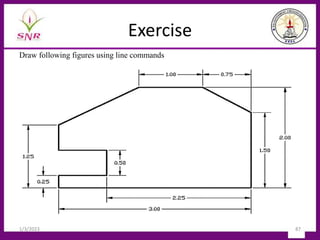

87. Exercise
1/3/2023 87
Draw following figures using line commands

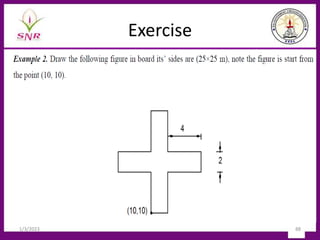

88. Exercise
1/3/2023 88

89. Coordinate System
1/3/2023 89
Absolute Coordinate System Relative Coordinate System

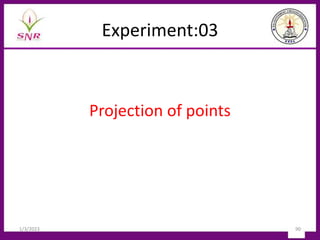

90. Experiment:03
Projection of points
1/3/2023 90

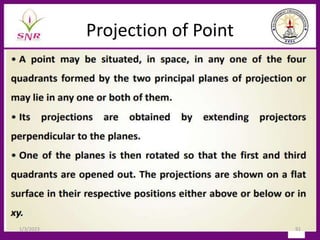

91. Projection of Point
1/3/2023 91

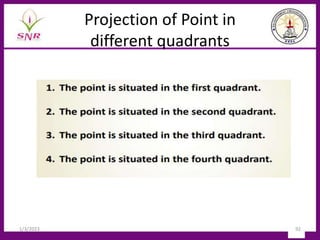

92. Projection of Point in
different quadrants
1/3/2023 92

93. 1/3/2023 93

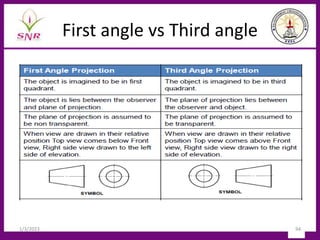

94. First angle vs Third angle
1/3/2023 94

95. ORTHOGRAPHIC PROJECTIONS OF
POINTS
1/3/2023 95

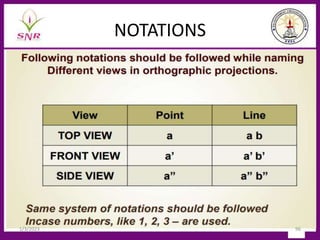

96. NOTATIONS
1/3/2023 96

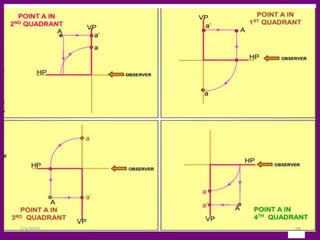

97. 1/3/2023 97

98. 1/3/2023 98

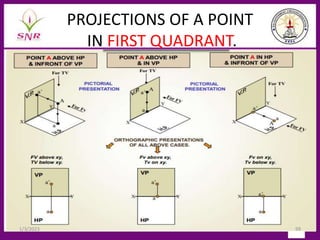

99. PROJECTIONS OF A POINT
IN FIRST QUADRANT.
1/3/2023 99

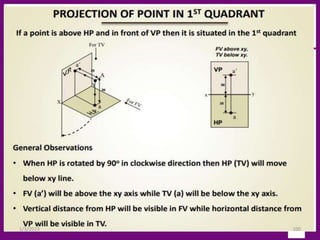

100. 1/3/2023 100

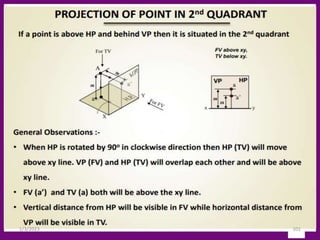

101. 1/3/2023 101

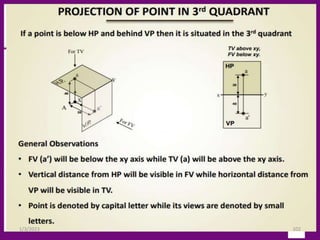

102. 1/3/2023 102

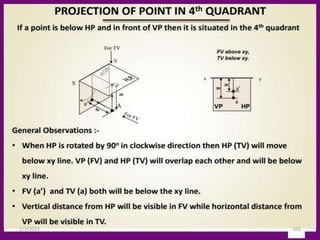

103. 1/3/2023 103

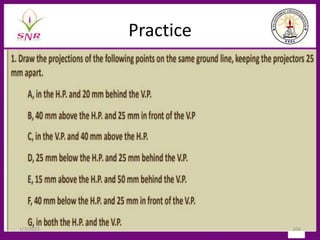

104. Practice
1/3/2023 104

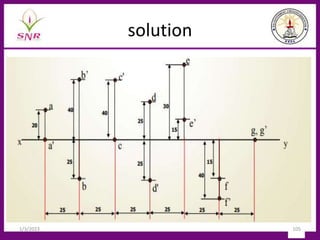

105. solution
1/3/2023 105

106. Experiment:04
Projection of straight lines
1/3/2023 106

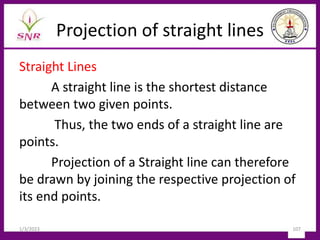

107. Projection of straight lines
Straight Lines
A straight line is the shortest distance
between two given points.
Thus, the two ends of a straight line are
points.
Projection of a Straight line can therefore
be drawn by joining the respective projection of
its end points.
1/3/2023 107

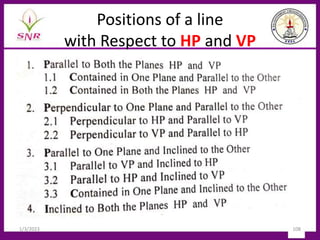

108. Positions of a line
with Respect to HP and VP
1/3/2023 108

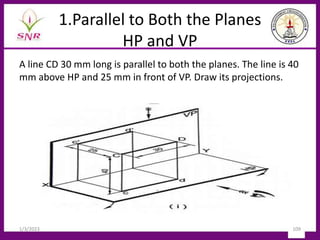

109. 1.Parallel to Both the Planes
HP and VP
A line CD 30 mm long is parallel to both the planes. The line is 40
mm above HP and 25 mm in front of VP. Draw its projections.
1/3/2023 109

110. Parallel to Both HP and VP
A line CD 30 mm long is parallel to both the planes. The line is 40
mm above HP and 25 mm in front of VP. Draw its projections.
1/3/2023 110

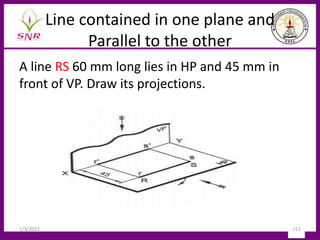

111. Line contained in one plane and
Parallel to the other
A line RS 60 mm long lies in HP and 45 mm in
front of VP. Draw its projections.
1/3/2023 111

112. Line contained in one plane and

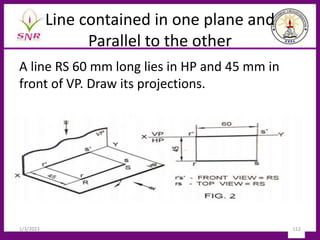

Parallel to the other
A line RS 60 mm long lies in HP and 45 mm in
front of VP. Draw its projections.
1/3/2023 112

113. Line contained in one plane and
Parallel to the other
A line PQ 55 mm long is lying in VP and 45 mm
above HP. Draw its projections.

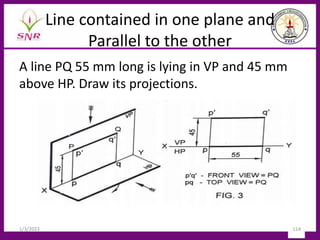

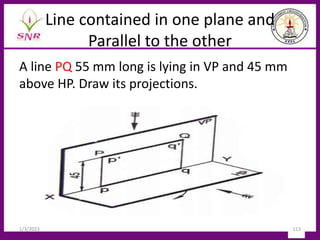

1/3/2023 113

114. Line contained in one plane and
Parallel to the other
A line PQ 55 mm long is lying in VP and 45 mm
above HP. Draw its projections.
1/3/2023 114

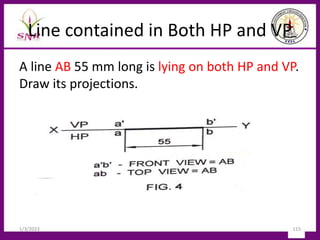

115. Line contained in Both HP and VP
A line AB 55 mm long is lying on both HP and VP.
Draw its projections.
1/3/2023 115

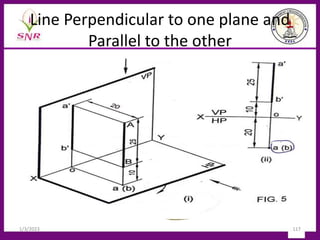

116. Line Perpendicular to one plane and
Parallel to the other
Line perpendicular to HP & parallel to VP
A line AB 25 mm long is parallel to VP and perpendicular to HP.
Point A is 35 mm above HP and 20 mm in front of VP. Point B is
10 mm above HP. Draw the projections of the line AB.
1/3/2023 116

117. Line Perpendicular to one plane and
Parallel to the other
Line perpendicular to HP & parallel to VP
A line AB 25 mm long is parallel to VP and perpendicular to HP.
Point A is 35 mm above HP and 20 mm in front of VP. Point B is
10 mm above HP. Draw the projections of the line AB.
1/3/2023 117

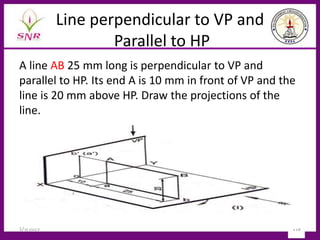

118. Line perpendicular to VP and
Parallel to HP
A line AB 25 mm long is perpendicular to VP and
parallel to HP. Its end A is 10 mm in front of VP and the
line is 20 mm above HP. Draw the projections of the
line.
1/3/2023 118

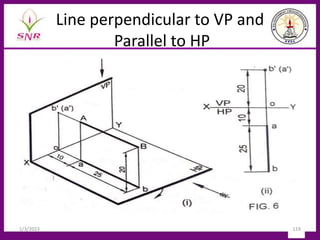

119. Line perpendicular to VP and
Parallel to HP
1/3/2023 119

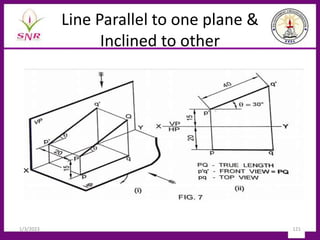

120. Line Parallel to one plane &
Inclined to other
Line Parallel to VP & Inclined to HP
A line PQ 40 mm long is parallel to VP and inclined at an angle of
30 to HP. The lower end P is 15 mm above HP and 20 mm in
front of VP. Draw the projections of the line.
1/3/2023 120

121. Line Parallel to one plane &
Inclined to other
1/3/2023 121

122. Line Parallel to HP &
Inclined to VP
Draw the projections of a line EF 40 mm long parallel to
HP and inclined at 35 to VP. E is 20 mm above HP and
15 mm in front of VP.
1/3/2023 122

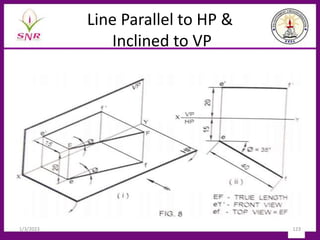

123. Line Parallel to HP &
Inclined to VP
1/3/2023 123

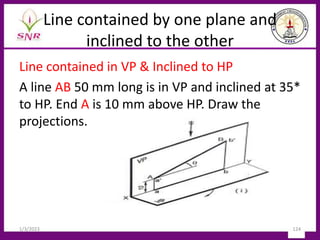

124. Line contained by one plane and
inclined to the other
Line contained in VP & Inclined to HP
A line AB 50 mm long is in VP and inclined at 35*
to HP. End A is 10 mm above HP. Draw the
projections.
1/3/2023 124

125. Line contained by one plane and
inclined to the other
1/3/2023 125

126. Line contained by one plane and
inclined to the other
1/3/2023 126

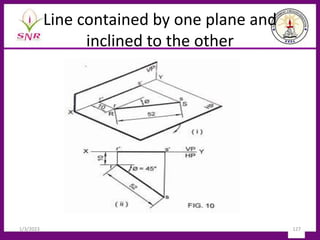

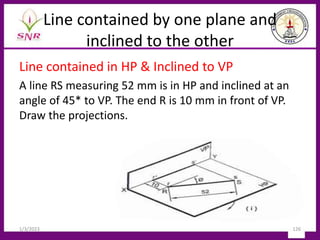

Line contained in HP & Inclined to VP
A line RS measuring 52 mm is in HP and inclined at an
angle of 45* to VP. The end R is 10 mm in front of VP.
Draw the projections.

127. Line contained by one plane and
inclined to the other
1/3/2023 127

128. Projections of Solids
• Any machine part or element or component is
formed of a single solid or combination of solids
of different shapes, known as Prisms, cylinders,
Pyramids, Cones and Spheres.
• Solid: A Solid is defined as an object having three
dimensions, viz., length, breadth and height or
thickness, measured along the three mutually
perpendicular axes.
• It is bounded by plane faces or curved surfaces or
combination of both.
1/3/2023 128

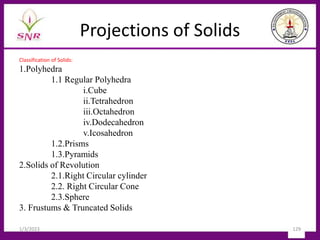

129. Projections of Solids
Classification of Solids:
1.Polyhedra
1.1 Regular Polyhedra
i.Cube
ii.Tetrahedron
iii.Octahedron
iv.Dodecahedron
v.Icosahedron
1.2.Prisms
1.3.Pyramids
2.Solids of Revolution
2.1.Right Circular cylinder
2.2. Right Circular Cone
2.3.Sphere
3. Frustums & Truncated Solids
1/3/2023 129

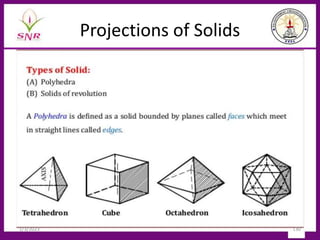

130. Projections of Solids
1/3/2023 130

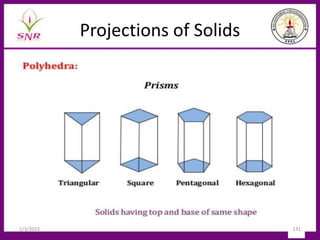

131. Projections of Solids
1/3/2023 131

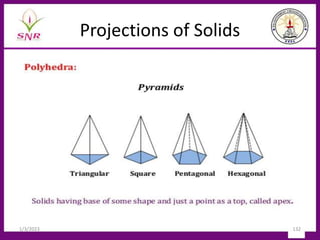

132. Projections of Solids
1/3/2023 132

133. Projections of Solids
1/3/2023 133

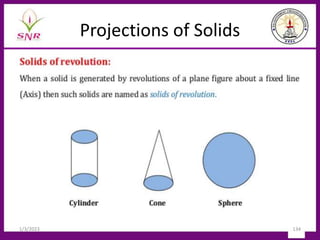

134. Projections of Solids
1/3/2023 134

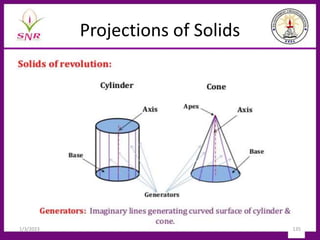

135. Projections of Solids
1/3/2023 135

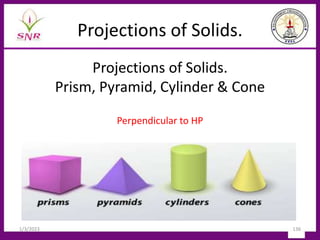

136. Projections of Solids.
Projections of Solids.
Prism, Pyramid, Cylinder & Cone
Perpendicular to HP
1/3/2023 136

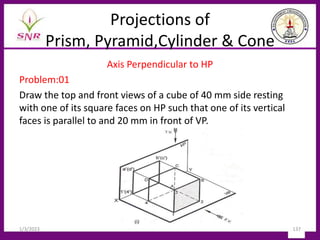

137. Projections of
Prism, Pyramid,Cylinder & Cone
Axis Perpendicular to HP
Problem:01
Draw the top and front views of a cube of 40 mm side resting
with one of its square faces on HP such that one of its vertical
faces is parallel to and 20 mm in front of VP.
1/3/2023 137

138. 1/3/2023 138

139. 1/3/2023 139

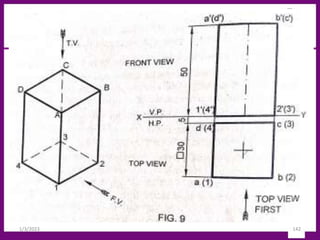

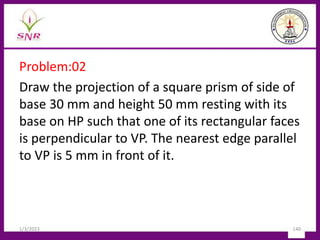

140. Problem:02
Draw the projection of a square prism of side of
base 30 mm and height 50 mm resting with its
base on HP such that one of its rectangular faces
is perpendicular to VP. The nearest edge parallel
to VP is 5 mm in front of it.
1/3/2023 140

141. 1/3/2023 141

142. 1/3/2023 142

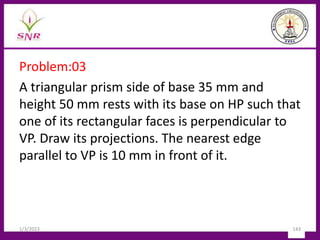

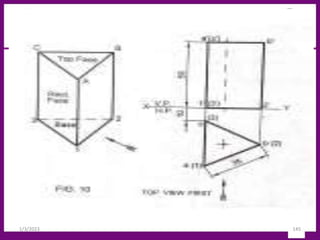

143. Problem:03
A triangular prism side of base 35 mm and
height 50 mm rests with its base on HP such that
one of its rectangular faces is perpendicular to
VP. Draw its projections. The nearest edge
parallel to VP is 10 mm in front of it.
1/3/2023 143

144. 1/3/2023 144

145. 1/3/2023 145

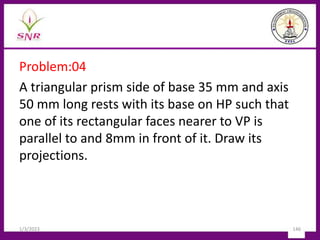

146. Problem:04
A triangular prism side of base 35 mm and axis
50 mm long rests with its base on HP such that
one of its rectangular faces nearer to VP is
parallel to and 8mm in front of it. Draw its
projections.
1/3/2023 146

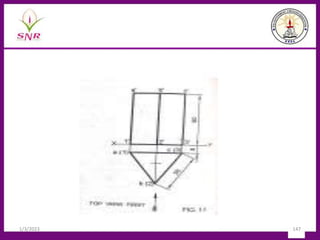

147. 1/3/2023 147

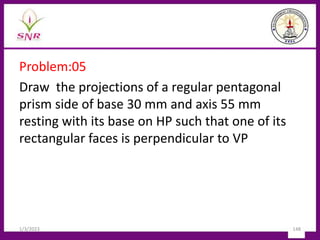

148. Problem:05
Draw the projections of a regular pentagonal
prism side of base 30 mm and axis 55 mm
resting with its base on HP such that one of its
rectangular faces is perpendicular to VP
1/3/2023 148

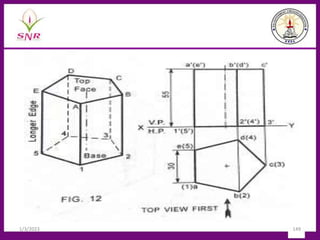

149. 1/3/2023 149

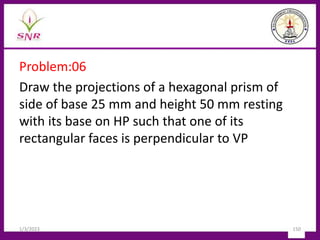

150. Problem:06
Draw the projections of a hexagonal prism of
side of base 25 mm and height 50 mm resting
with its base on HP such that one of its
rectangular faces is perpendicular to VP
1/3/2023 150

151. 1/3/2023 151

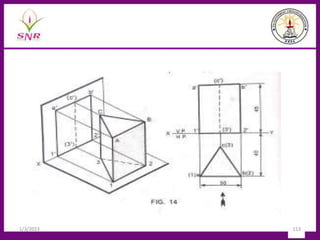

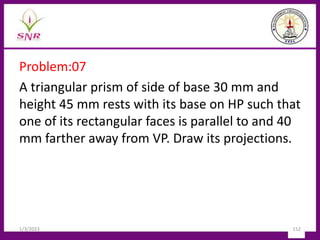

152. Problem:07
A triangular prism of side of base 30 mm and
height 45 mm rests with its base on HP such that
one of its rectangular faces is parallel to and 40
mm farther away from VP. Draw its projections.
1/3/2023 152

153. 1/3/2023 153

154. Problem:08
Draw the projections of a pentagonal prism side
of base 30 mm and axis 60 mm long resting with
its base on HP such that one of its rectangular
faces is parallel to and 10 mm in front of VP
1/3/2023 154

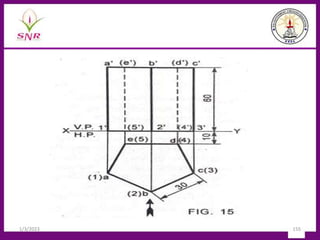

155. 1/3/2023 155

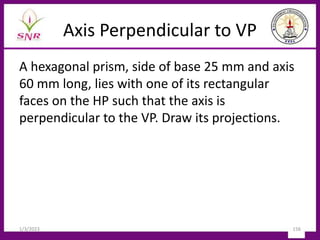

156. Axis Perpendicular to VP
A hexagonal prism, side of base 25 mm and axis
60 mm long, lies with one of its rectangular
faces on the HP such that the axis is
perpendicular to the VP. Draw its projections.
1/3/2023 156

157. 1/3/2023 157

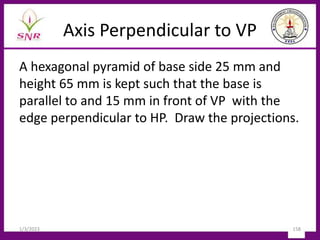

158. Axis Perpendicular to VP
A hexagonal pyramid of base side 25 mm and
height 65 mm is kept such that the base is
parallel to and 15 mm in front of VP with the
edge perpendicular to HP. Draw the projections.
1/3/2023 158

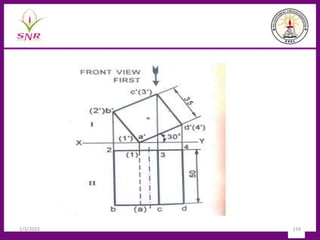

159. 1/3/2023 159

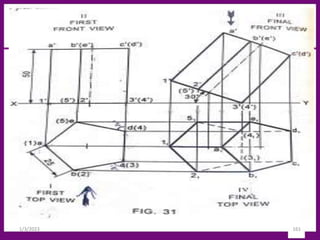

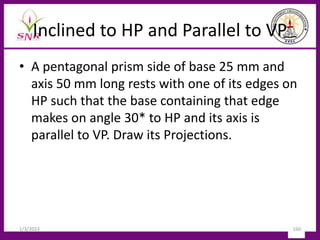

160. Inclined to HP and Parallel to VP
• A pentagonal prism side of base 25 mm and
axis 50 mm long rests with one of its edges on
HP such that the base containing that edge
makes on angle 30* to HP and its axis is
parallel to VP. Draw its Projections.
1/3/2023 160

161. 1/3/2023 161

162. Sample Diagram
1/3/2023 162

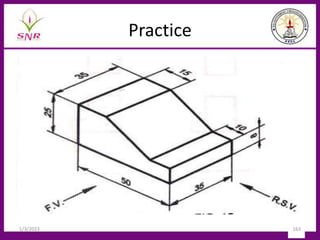

163. Practice
1/3/2023 163

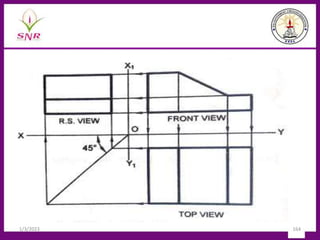

164. 1/3/2023 164

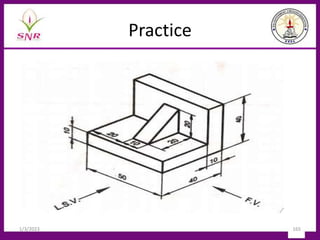

165. Practice
1/3/2023 165

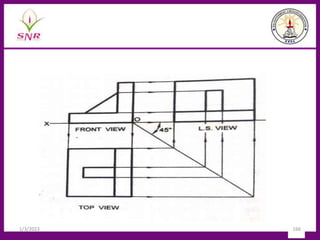

166. 1/3/2023 166

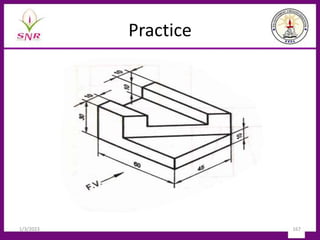

167. Practice
1/3/2023 167

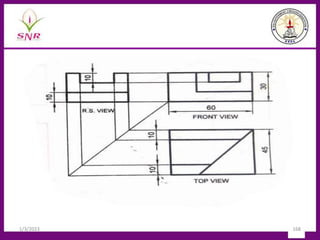

168. 1/3/2023 168

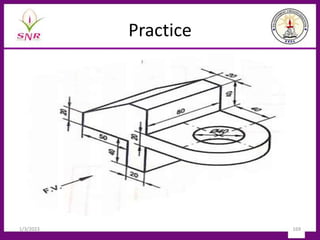

169. Practice
1/3/2023 169

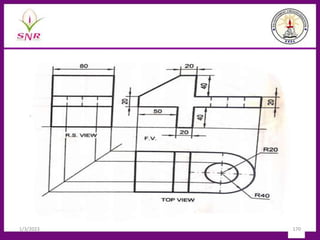

170. 1/3/2023 170

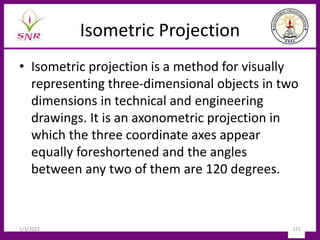

171. Isometric Projection
• Isometric projection is a method for visually
representing three-dimensional objects in two
dimensions in technical and engineering
drawings. It is an axonometric projection in
which the three coordinate axes appear
equally foreshortened and the angles
between any two of them are 120 degrees.
1/3/2023 171

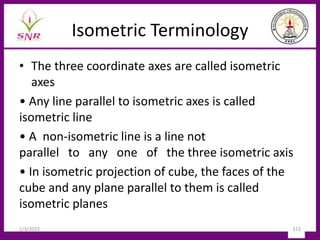

172. Isometric Terminology
• The three coordinate axes are called isometric
axes
• Any line parallel to isometric axes is called
isometric line
• A non-isometric line is a line not
parallel to any one of the three isometric axis
• In isometric projection of cube, the faces of the
cube and any plane parallel to them is called
isometric planes
1/3/2023 172

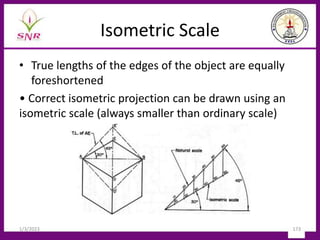

173. Isometric Scale
• True lengths of the edges of the object are equally
foreshortened
• Correct isometric projection can be drawn using an
isometric scale (always smaller than ordinary scale)
1/3/2023 173

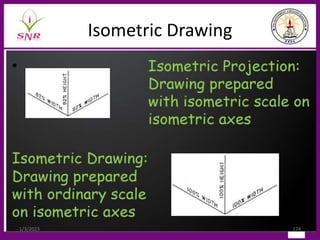

174. Isometric Drawing
1/3/2023 174

175. Steps for construction of Isometric
1/3/2023 175

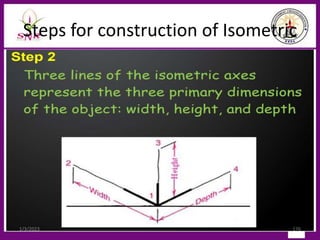

176. Steps for construction of Isometric
1/3/2023 176

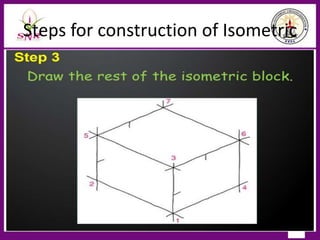

177. Steps for construction of Isometric
1/3/2023 177

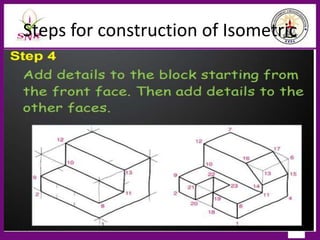

178. Steps for construction of Isometric
1/3/2023 178

179. Steps for construction of Isometric
1/3/2023 179

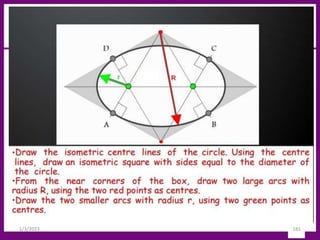

180. Objects with Circular Geometry
1/3/2023 180

181. 1/3/2023 181

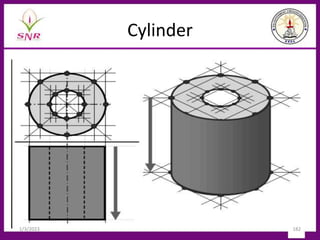

182. Cylinder
1/3/2023 182

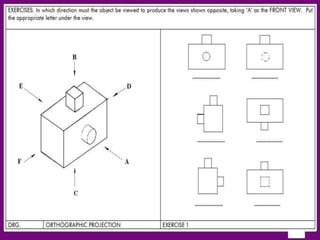

183. 1/3/2023 183

184. 1/3/2023 184

185. 1/3/2023 185

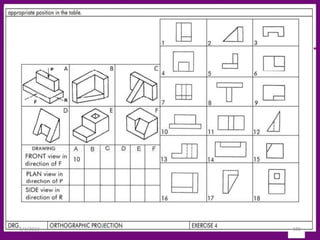

186. 1/3/2023 186

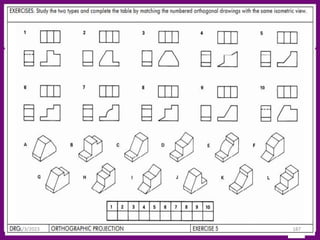

187. 1/3/2023 187

188. 1/3/2023 188

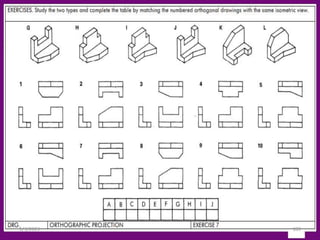

189. 1/3/2023 189

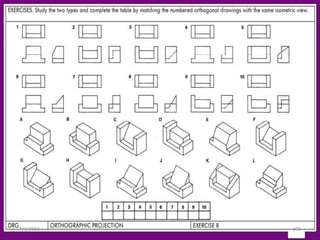

190. 1/3/2023 190

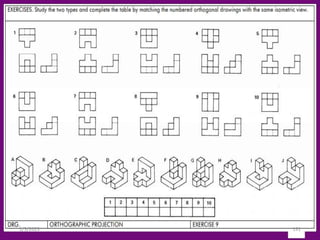

191. 1/3/2023 191

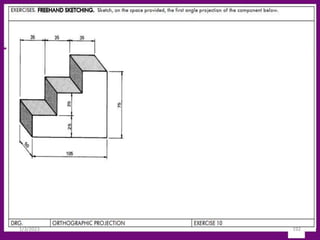

192. 1/3/2023 192

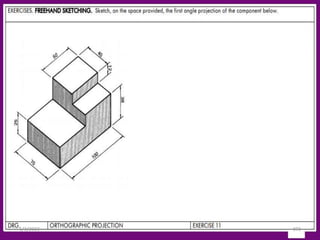

193. 1/3/2023 193

194. 1/3/2023 194

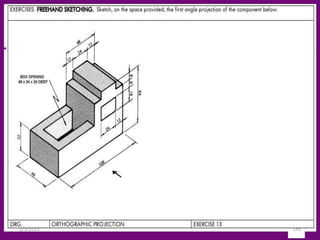

195. 1/3/2023 195

196. Thank you
1/3/2023 196
