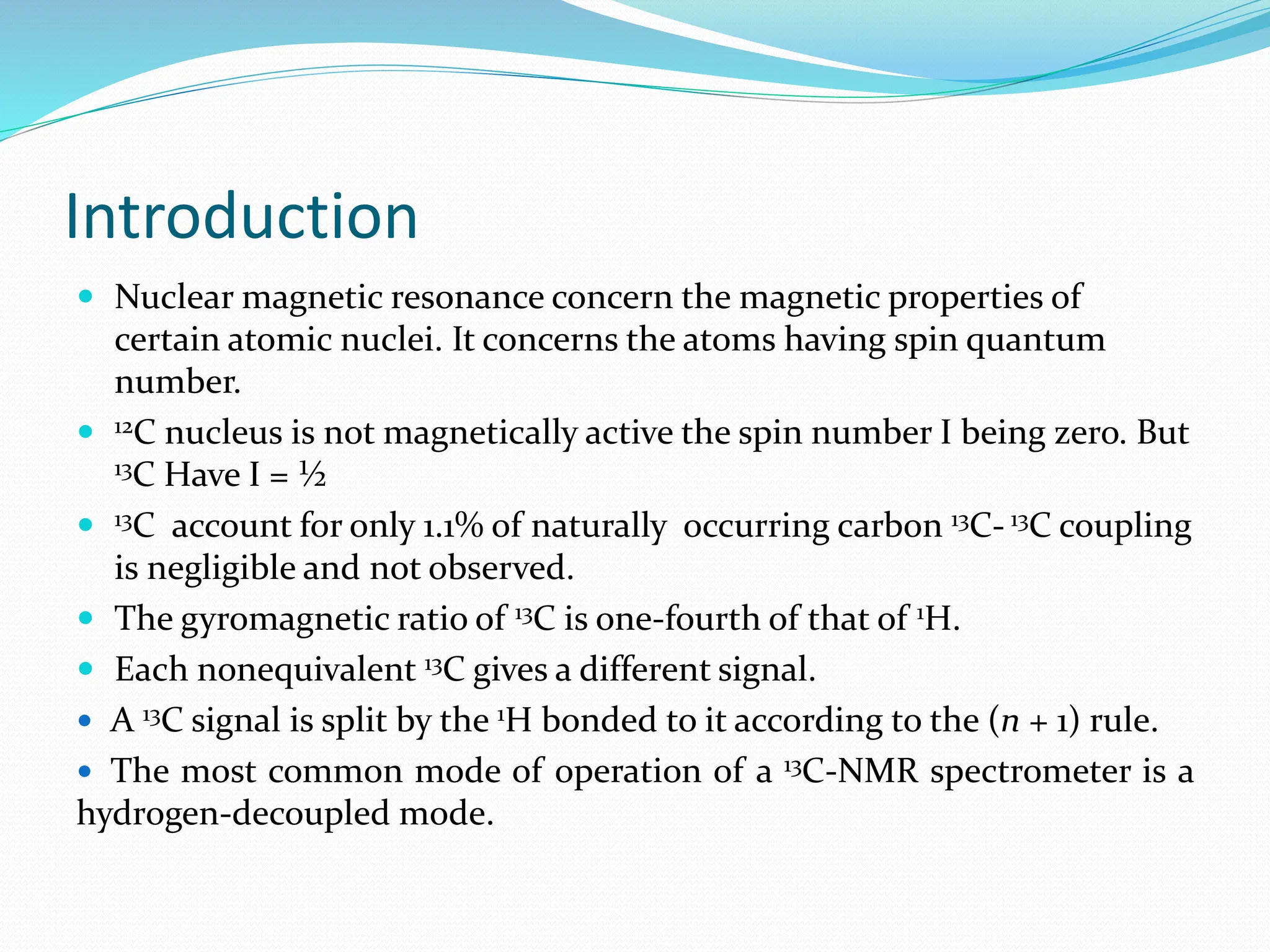

2. Introduction
 Nuclear magnetic resonance concern the magnetic properties of
certain atomic nuclei. It concerns the atoms having spin quantum
number.
 12C nucleus is not magnetically active the spin number I being zero. But
13C Have I = ½
 13C account for only 1.1% of naturally occurring carbon 13C- 13C coupling
is negligible and not observed.
 The gyromagnetic ratio of 13C is one-fourth of that of 1H.
 Each nonequivalent 13C gives a different signal.
 A 13C signal is split by the 1H bonded to it according to the (n + 1) rule.
 The most common mode of operation of a 13C-NMR spectrometer is a
hydrogen-decoupled mode.

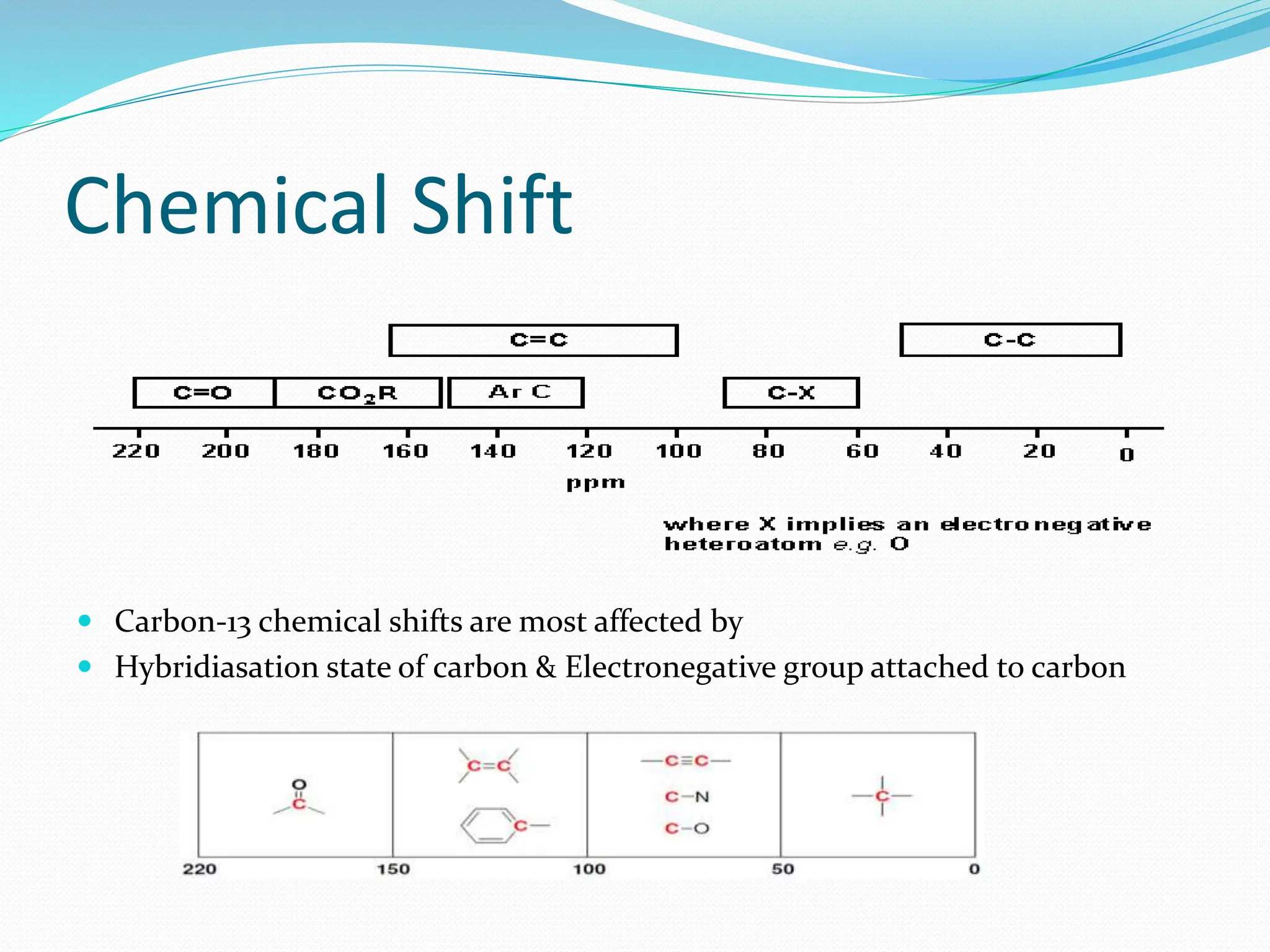

3. Chemical Shift
 Carbon-13 chemical shifts are most affected by
 Hybridiasation state of carbon & Electronegative group attached to carbon

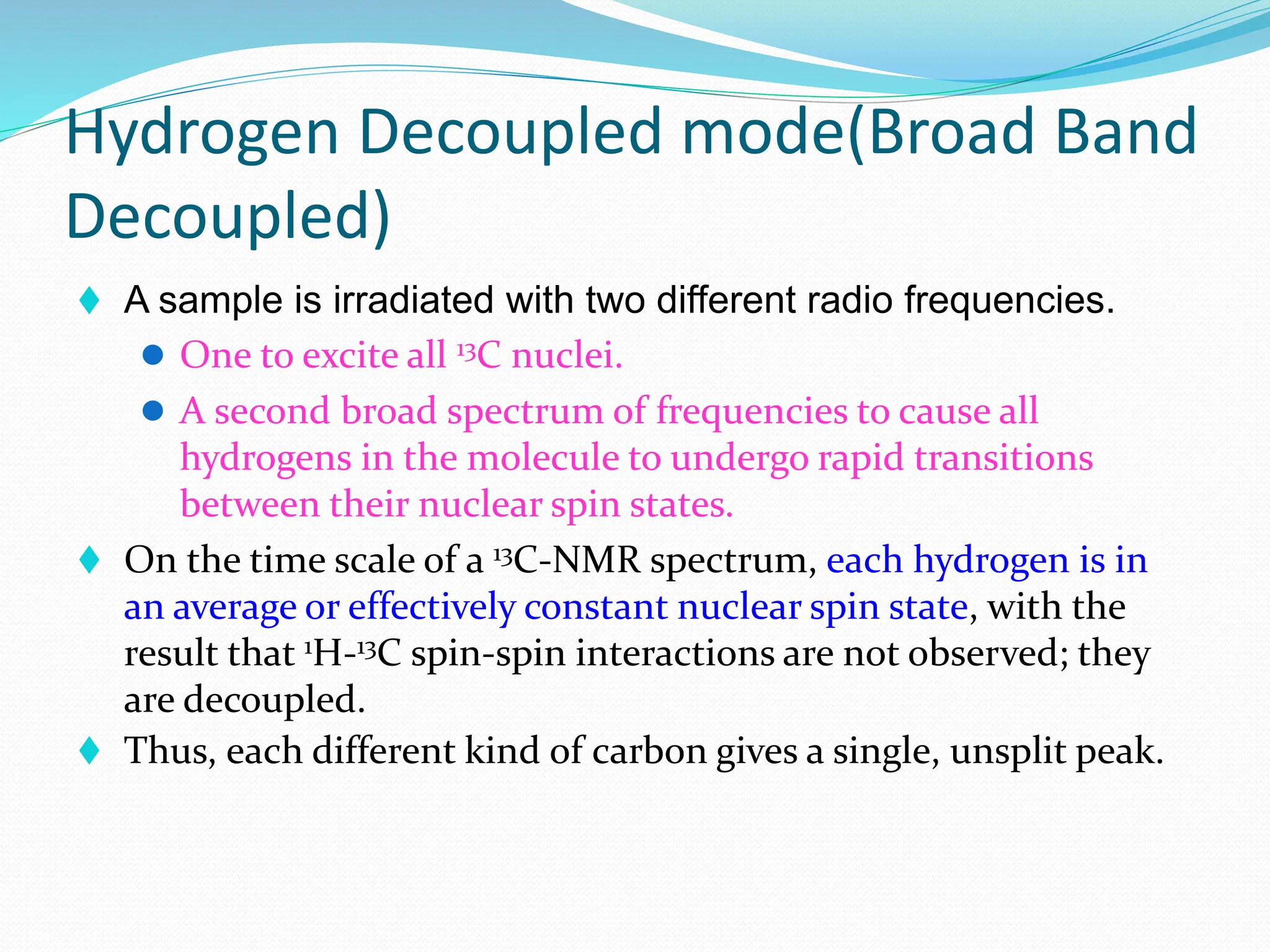

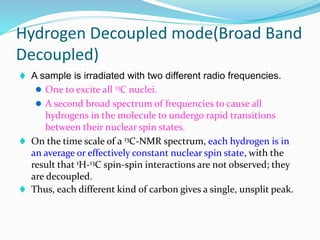

4. Hydrogen Decoupled mode(Broad Band
Decoupled)
 A sample is irradiated with two different radio frequencies.
 One to excite all 13C nuclei.
 A second broad spectrum of frequencies to cause all
hydrogens in the molecule to undergo rapid transitions
between their nuclear spin states.
 On the time scale of a 13C-NMR spectrum, each hydrogen is in
an average or effectively constant nuclear spin state, with the
result that 1H-13C spin-spin interactions are not observed; they
are decoupled.
 Thus, each different kind of carbon gives a single, unsplit peak.

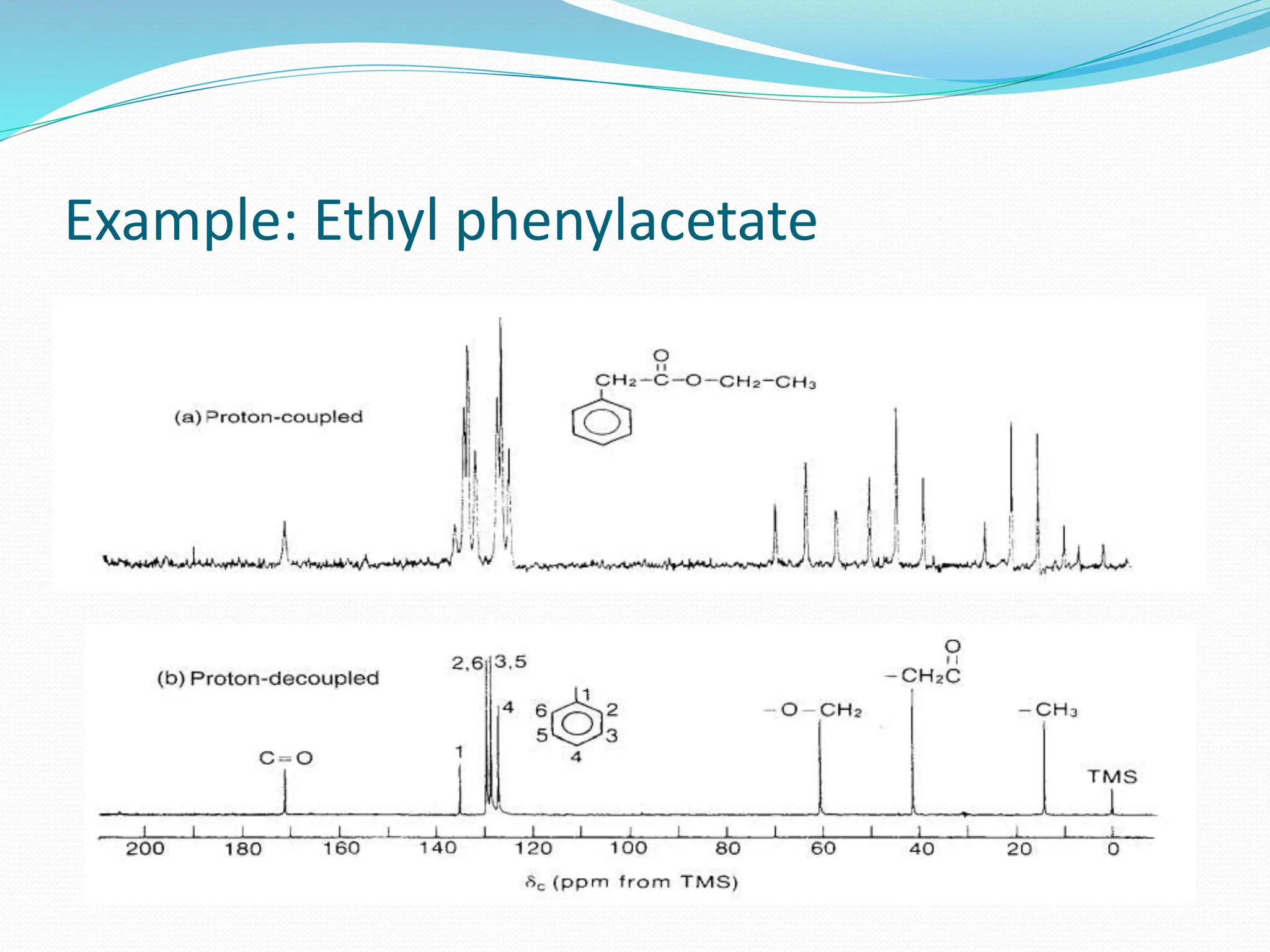

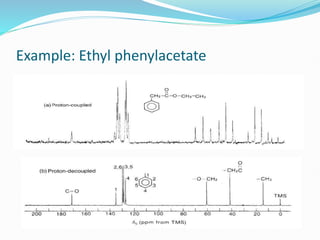

5. Example: Ethyl phenylacetate

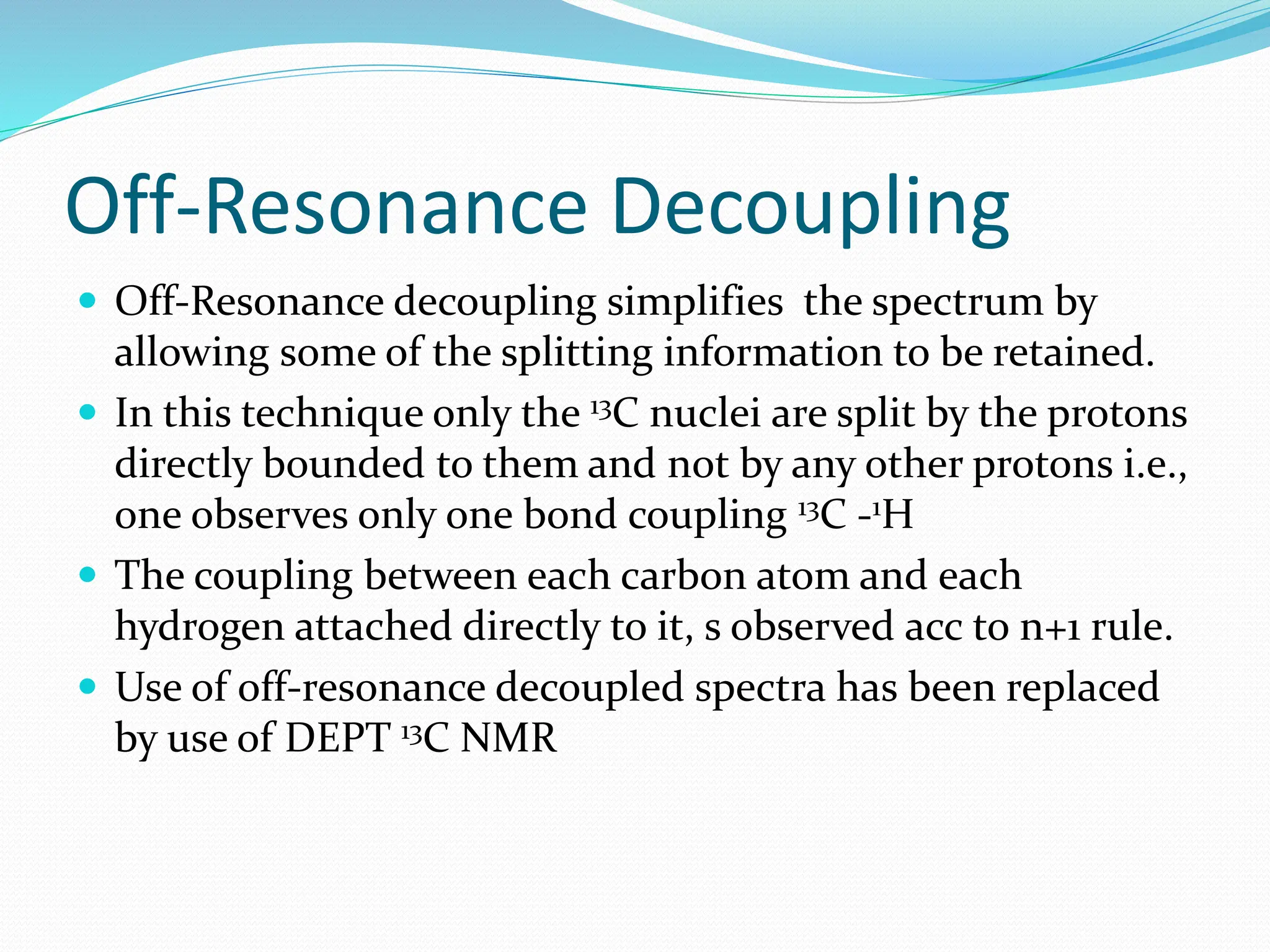

6. Off-Resonance Decoupling
 Off-Resonance decoupling simplifies the spectrum by
allowing some of the splitting information to be retained.
 In this technique only the 13C nuclei are split by the protons
directly bounded to them and not by any other protons i.e.,
one observes only one bond coupling 13C -1H
 The coupling between each carbon atom and each
hydrogen attached directly to it, s observed acc to n+1 rule.
 Use of off-resonance decoupled spectra has been replaced
by use of DEPT 13C NMR

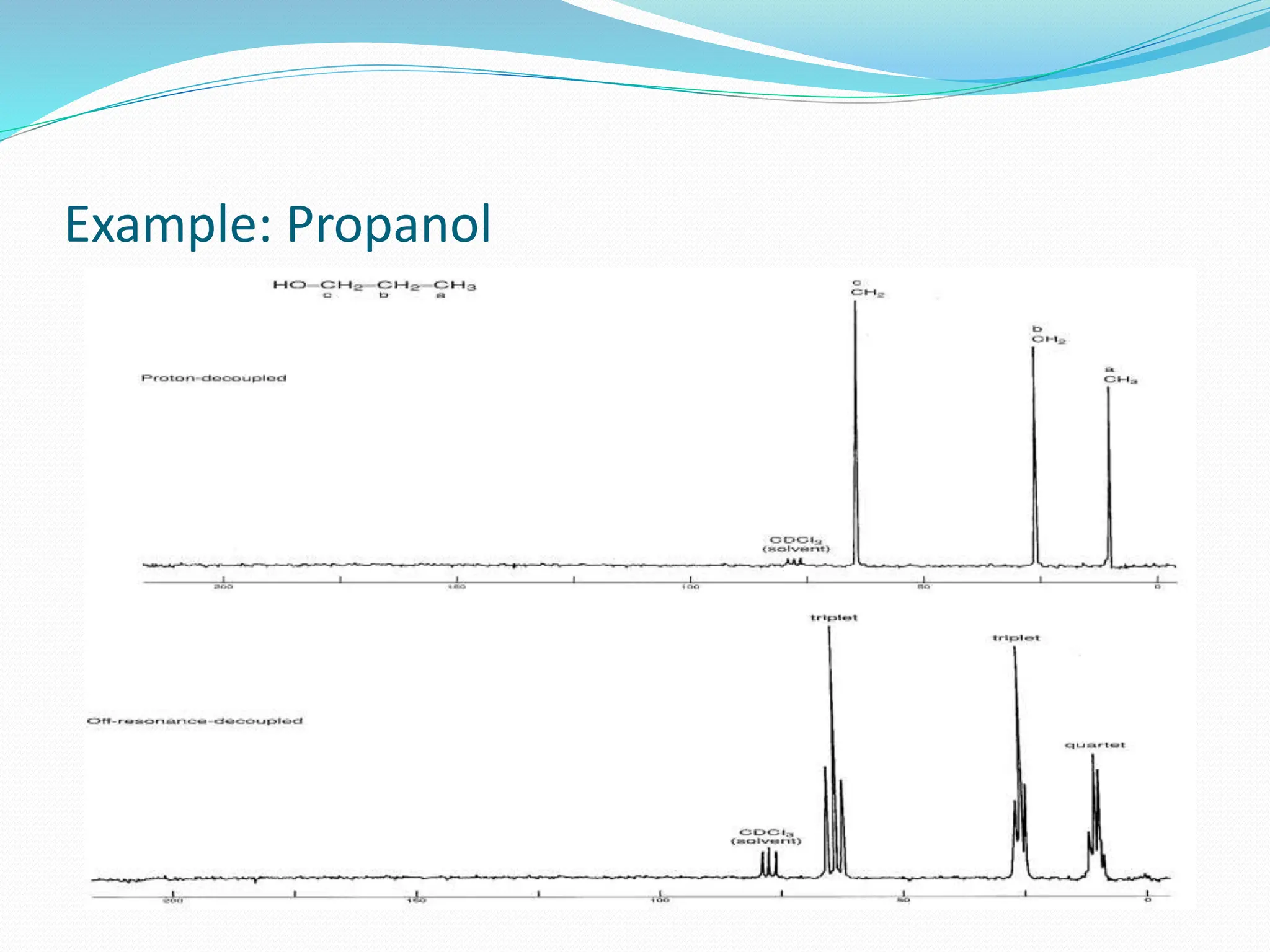

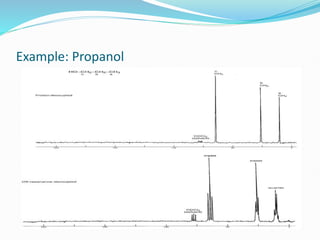

7. Example: Propanol

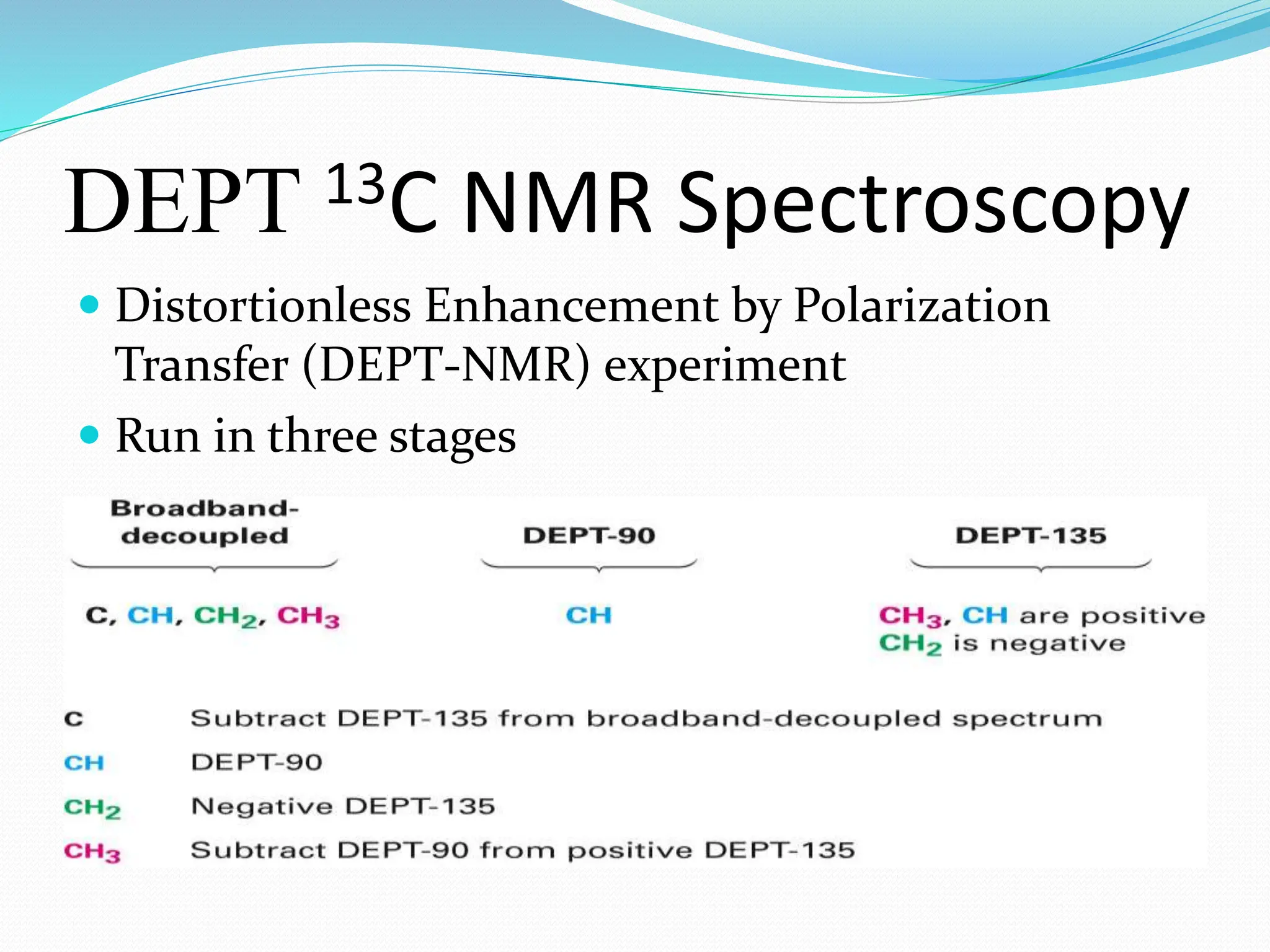

8. DEPT 13C NMR Spectroscopy
 Distortionless Enhancement by Polarization
Transfer (DEPT-NMR) experiment
 Run in three stages

9. Example: 6methylhept-5-en-2-ol

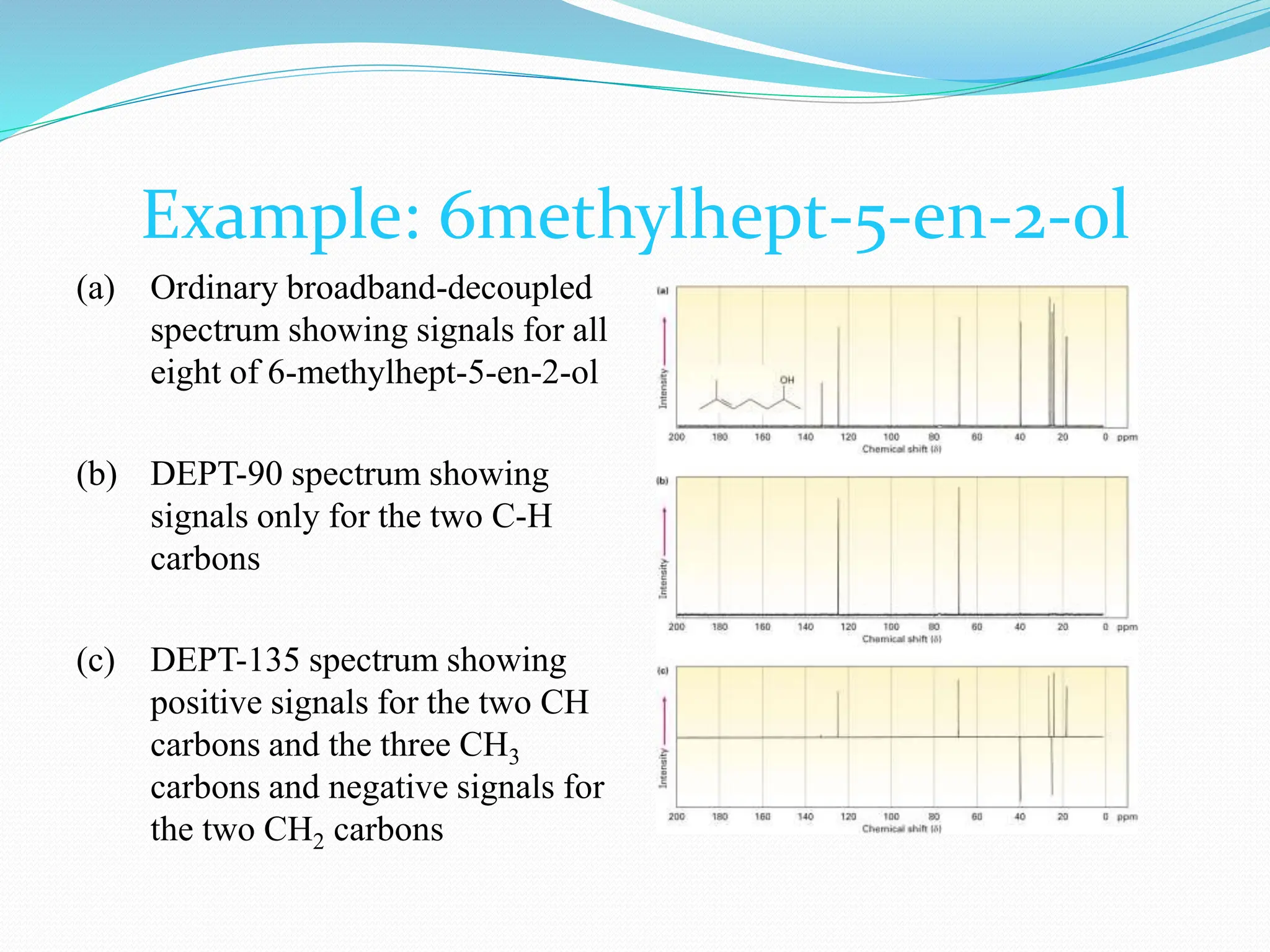

(a) Ordinary broadband-decoupled
spectrum showing signals for all
eight of 6-methylhept-5-en-2-ol
(b) DEPT-90 spectrum showing
signals only for the two C-H
carbons
(c) DEPT-135 spectrum showing
positive signals for the two CH
carbons and the three CH3
carbons and negative signals for
the two CH2 carbons

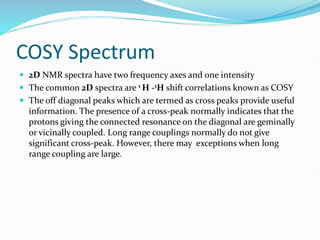

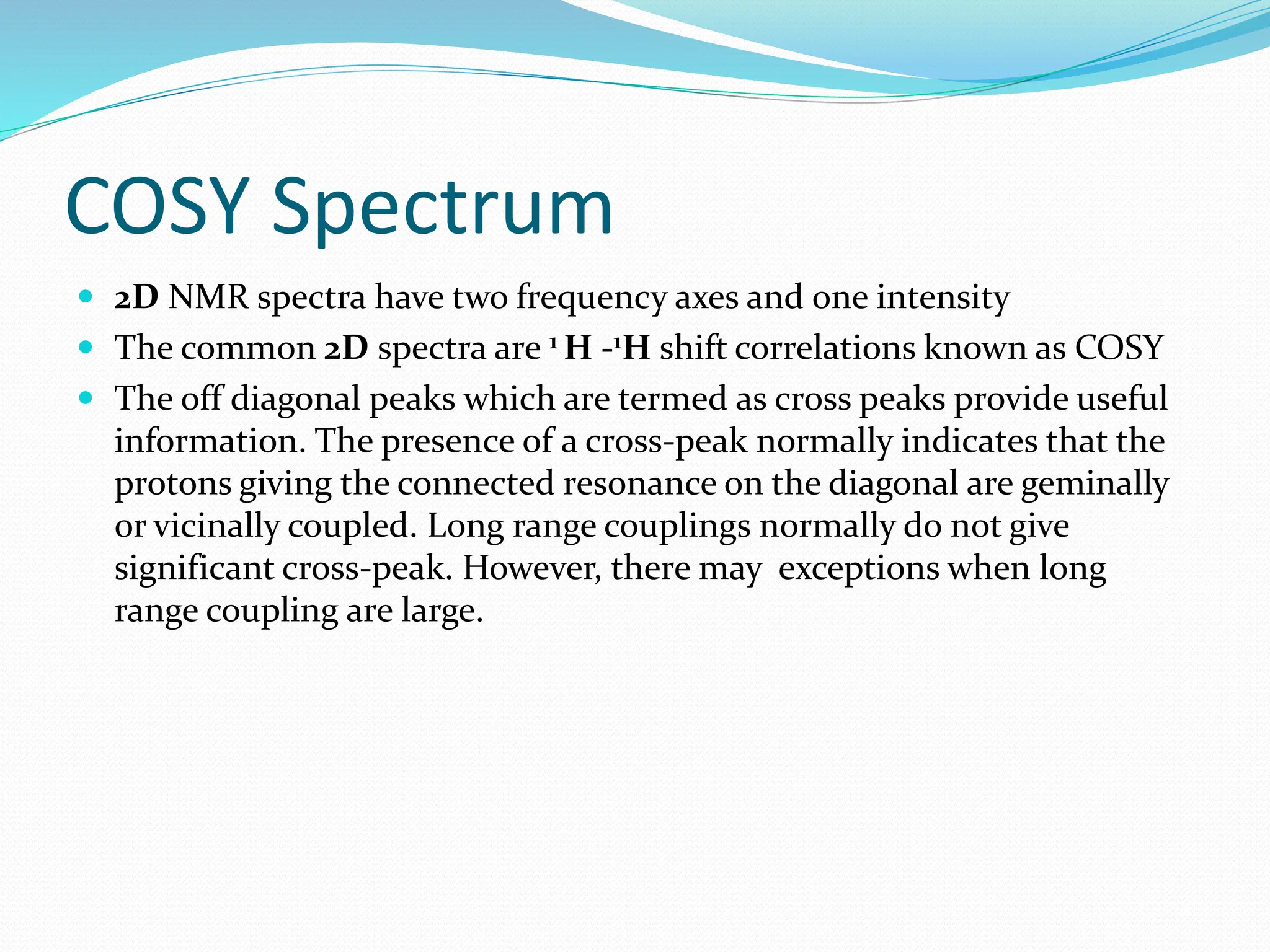

10. COSY Spectrum
 2D NMR spectra have two frequency axes and one intensity
 The common 2D spectra are 1 H -1H shift correlations known as COSY
 The off diagonal peaks which are termed as cross peaks provide useful
information. The presence of a cross-peak normally indicates that the
protons giving the connected resonance on the diagonal are geminally
or vicinally coupled. Long range couplings normally do not give
significant cross-peak. However, there may exceptions when long
range coupling are large.

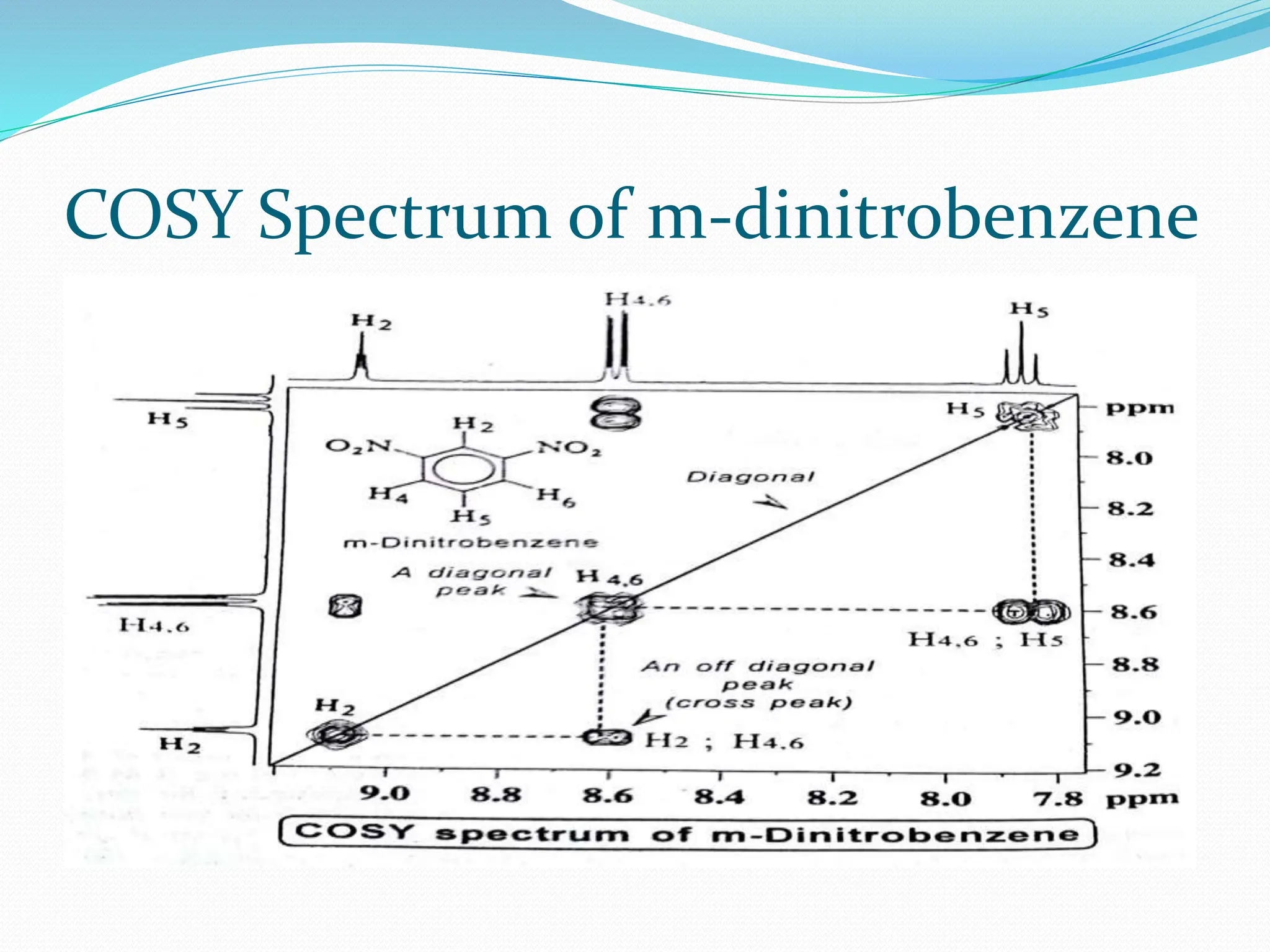

11. COSY Spectrum of m-dinitrobenzene

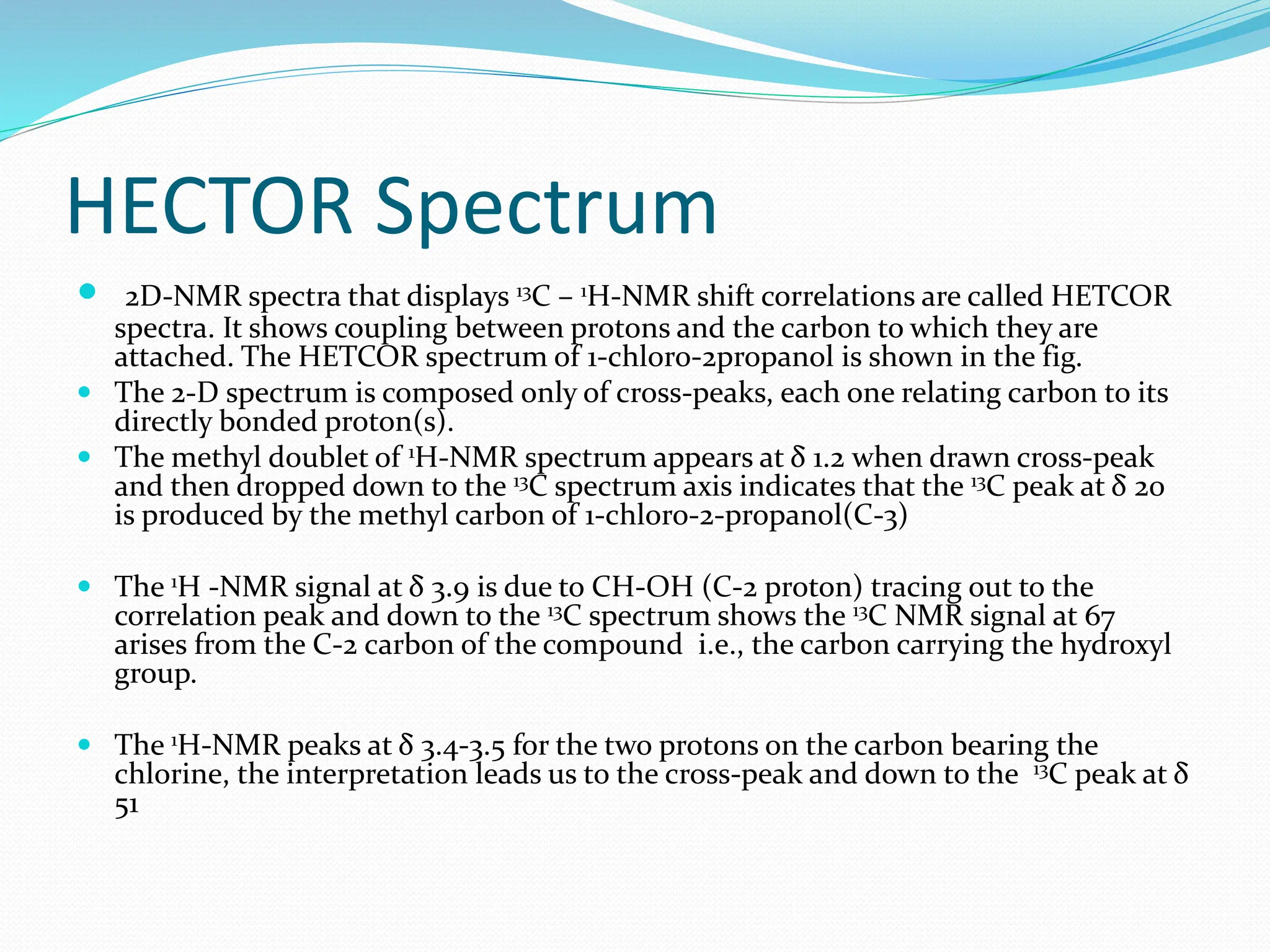

12. HECTOR Spectrum
 2D-NMR spectra that displays 13C – 1H-NMR shift correlations are called HETCOR
spectra. It shows coupling between protons and the carbon to which they are
attached. The HETCOR spectrum of 1-chloro-2propanol is shown in the fig.
 The 2-D spectrum is composed only of cross-peaks, each one relating carbon to its
directly bonded proton(s).
 The methyl doublet of 1H-NMR spectrum appears at δ 1.2 when drawn cross-peak
and then dropped down to the 13C spectrum axis indicates that the 13C peak at δ 20
is produced by the methyl carbon of 1-chloro-2-propanol(C-3)
 The 1H -NMR signal at δ 3.9 is due to CH-OH (C-2 proton) tracing out to the
correlation peak and down to the 13C spectrum shows the 13C NMR signal at 67
arises from the C-2 carbon of the compound i.e., the carbon carrying the hydroxyl
group.
 The 1H-NMR peaks at δ 3.4-3.5 for the two protons on the carbon bearing the
chlorine, the interpretation leads us to the cross-peak and down to the 13C peak at δ
51

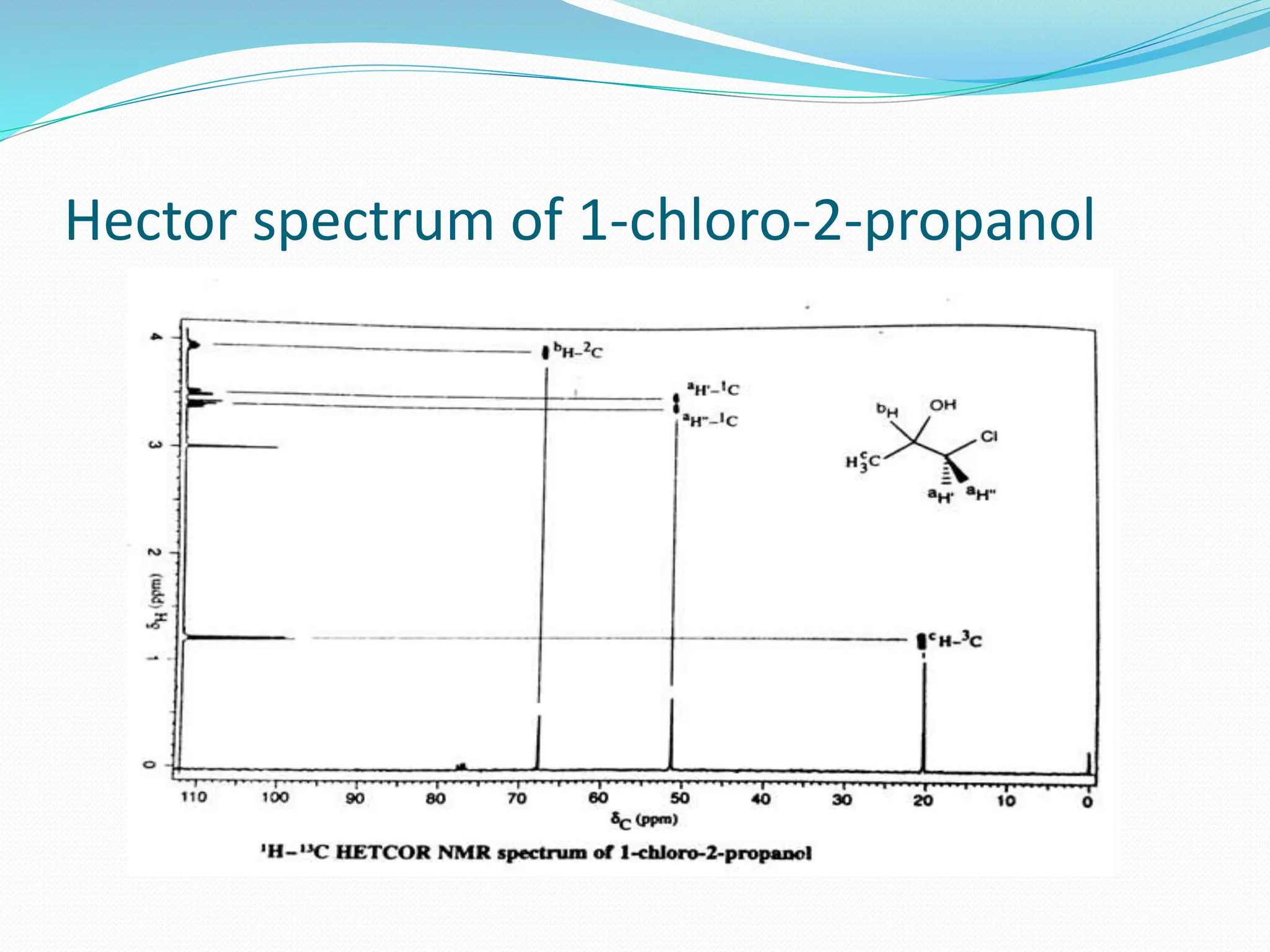

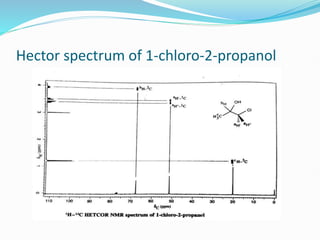

13. Hector spectrum of 1-chloro-2-propanol

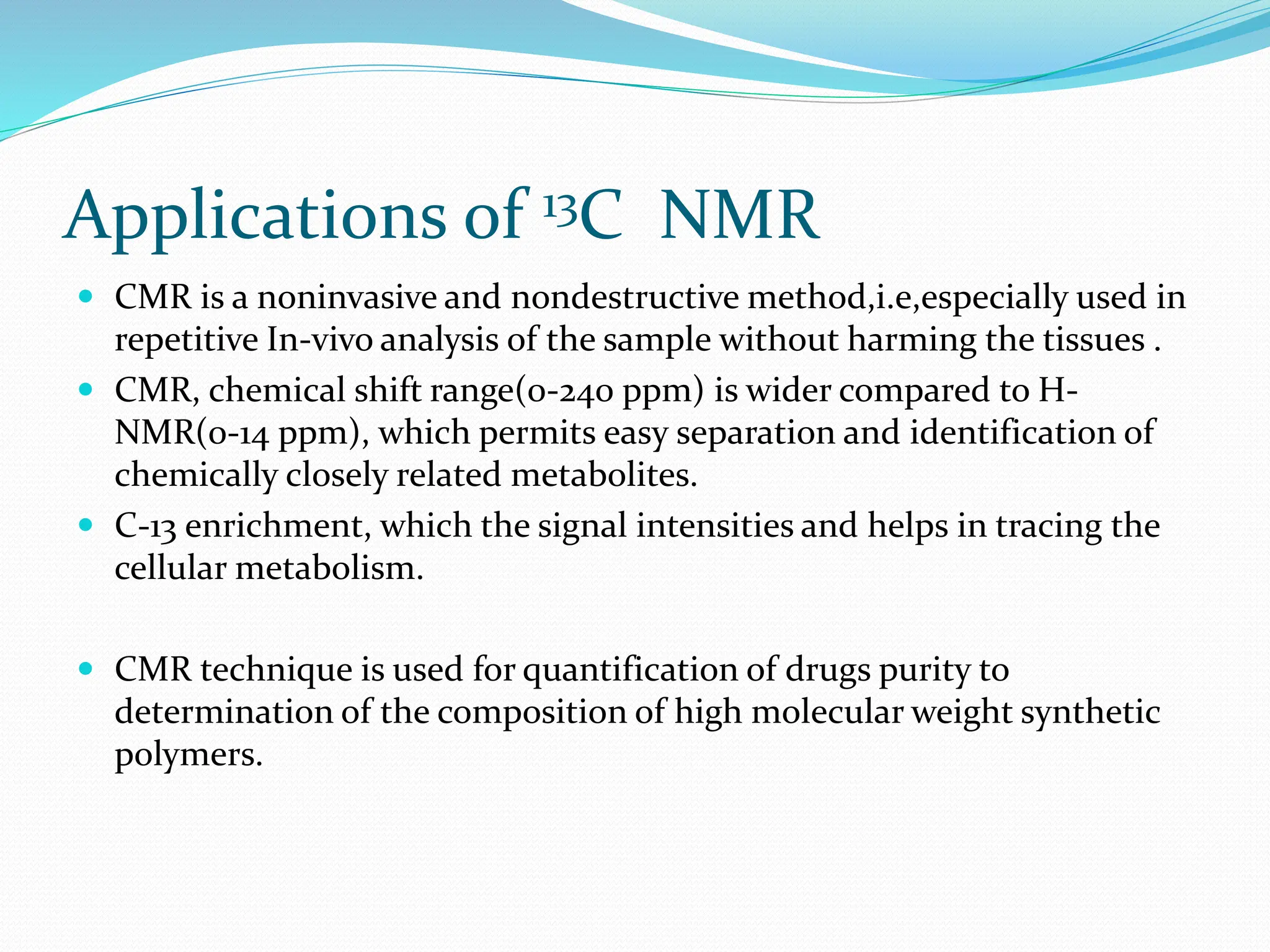

14. Applications of 13C NMR
 CMR is a noninvasive and nondestructive method,i.e,especially used in
repetitive In-vivo analysis of the sample without harming the tissues .
 CMR, chemical shift range(0-240 ppm) is wider compared to H-
NMR(0-14 ppm), which permits easy separation and identification of
chemically closely related metabolites.
 C-13 enrichment, which the signal intensities and helps in tracing the
cellular metabolism.
 CMR technique is used for quantification of drugs purity to
determination of the composition of high molecular weight synthetic
polymers.
