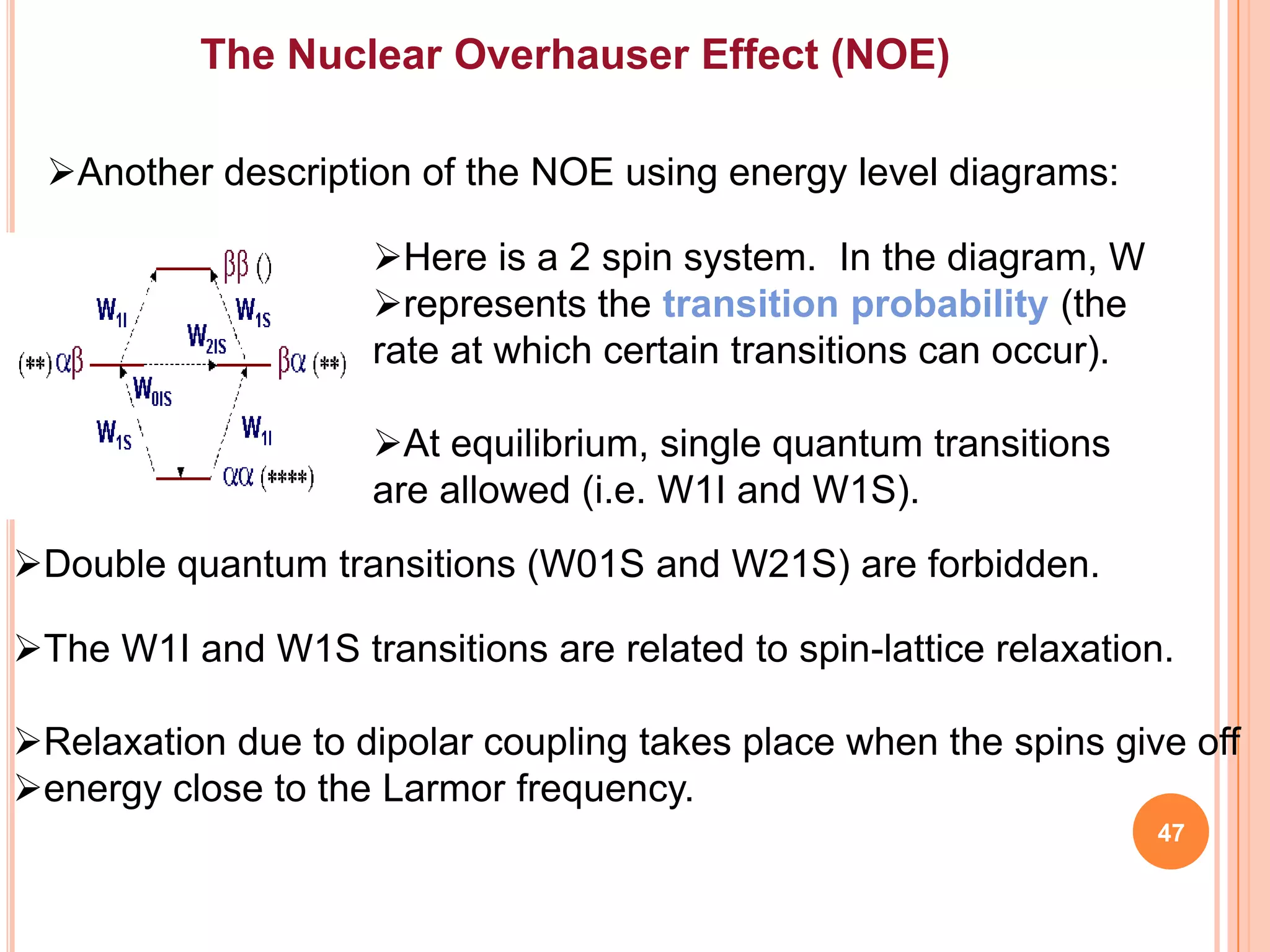

NUCLEAR OVERHAUSER ENHANCEMENT
Short-Comings of 13C-NMR Spectra
C13 NMR spectroscopy provides information about carbon atoms in molecules. It works based on the absorption of radio waves by carbon-13 nuclei in a magnetic field. There are a few key points:
1) C13 NMR is difficult to analyze due to the low natural abundance of C13 and its weaker magnetic resonance compared to protons.
2) Different types of carbon atoms (CH, CH2, CH3) can be distinguished based on their chemical shifts and coupling patterns. Proton decoupling is used to simplify spectra.
3) DEPT experiments analyze carbon types by enhancing signals from different hybridized carbons (CH, CH2, CH3) in different ways. This allows determining the number and type
Nuclear magnetic resonance spectroscopy techniques such as 13C NMR and 2D NMR experiments like COSY and HECTOR can be used to analyze organic compounds. [13C NMR provides information about the number and types of carbon atoms in a molecule based on their chemical shifts. Two-dimensional NMR experiments reveal coupling between nuclei like 1H-13C and 1H-1H couplings to help determine molecular structure.] DEPT NMR experiments distinguish between methylene, methine and methyl carbons. 13C NMR finds applications in fields like metabolic analysis, drug purity determination and polymer characterization.
Nuclear magnetic resonance (NMR) spectroscopy uses radio waves to analyze atomic nuclei and determine physical and chemical properties of molecules. There are two main types of NMR spectroscopy: 1H NMR, which identifies types and numbers of hydrogen atoms in a molecule, and 13C NMR, which identifies types of carbon atoms. NMR spectroscopy works by placing molecules in a strong magnetic field, applying a radiofrequency pulse to cause nuclear spin transitions, and detecting the radiofrequency signals emitted as the nuclei relax back to equilibrium. The frequency of these signals depends on factors such as neighboring atoms that shield or deshield nuclei from the magnetic field.
1. Nuclear magnetic resonance spectroscopy (NMR) involves placing a sample in a strong magnetic field and observing the absorption of radio waves by atomic nuclei within the sample.
2. NMR spectroscopy has been developed since the 1930s. Early developments included accurate measurements of nuclear magnetic moments in 1938 and the first demonstration of NMR for condensed matter in 1946.
3. Modern NMR instruments contain components like a strong magnet, radio transmitters and receivers, and recorders to detect NMR signals from nuclei like 1H and 13C and provide information about molecular structure.
Introduction & Definition, Theory, instrumentation, Continuous – wave (CW) instrument, The pulsed Fourier Transform [FT] instrument, Solvents, Chemical shift
i. Shielding and de-shielding
ii. Factors affecting chemical shift
1) The document discusses nuclear magnetic resonance (NMR) spectroscopy, including its instrumentation, techniques like double resonance and Fourier transform NMR, and applications.
2) It describes the key components of an NMR instrument, including permanent magnets, radio frequency generators and detectors, magnetic coils, and sample holders.
3) Techniques like double resonance and decoupling are explained, which allow simplifying complex spectra through the irradiation of nuclei to eliminate splitting.
Nuclear magnetic resonance (NMR) spectroscopy can detect certain atomic nuclei that have spin, including the carbon-13 isotope. While carbon-12 does not produce a signal in NMR due to having no spin, carbon-13 accounts for about 1.1% of naturally occurring carbon and can be detected. Carbon-13 has a very weak signal that is difficult to detect due to its low natural abundance and sensitivity being 1/5700 of hydrogen-1. However, the development of Fourier-transform NMR and signal averaging techniques have allowed the detection and analysis of carbon-13 NMR spectra.
Nuclear magnetic resonance spectroscopy is a technique that uses radio waves to analyze organic molecules. It can identify carbon-hydrogen structures within molecules using 1H NMR to determine hydrogen atoms and 13C NMR to determine carbon atom types. NMR works by placing molecules in a strong magnetic field and detecting radio wave absorption as nuclear spins transition between energy levels. This provides information about the molecule's structure at the atomic level.
ITS AGAIN AN IMPORTANT TOPIC OF ANALYTICAL CHEMISTRY WHERE C13 IS AN TYPE OF NUCLEAR MAGNETIC RESONANCE ALONG WITH PROTON NMR. STUDY THIS TOPIC WELL FOR BTTER UNDERTSANDING OF NMR WHICH IS BELIEVED TO BE ONE OF THE TOUGH PART.
HOPE YOU ALL WILL USE IT WELL.

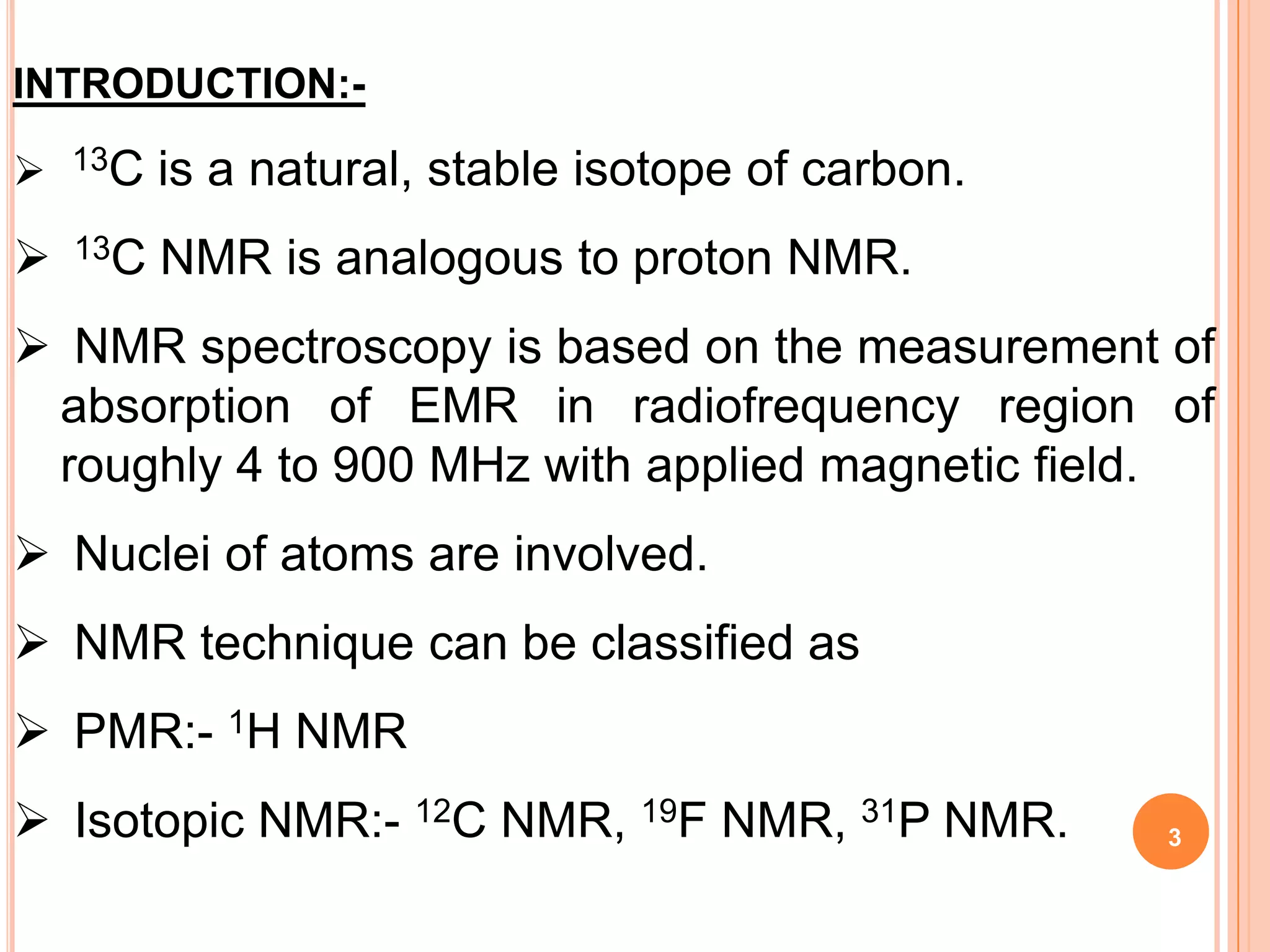

3. INTRODUCTION:-
13C is a natural, stable isotope of carbon.
13C NMR is analogous to proton NMR.
NMR spectroscopy is based on the measurement of
absorption of EMR in radiofrequency region of
roughly 4 to 900 MHz with applied magnetic field.
Nuclei of atoms are involved.
NMR technique can be classified as
PMR:- 1H NMR
Isotopic NMR:- 12C NMR, 19F NMR, 31P NMR. 3

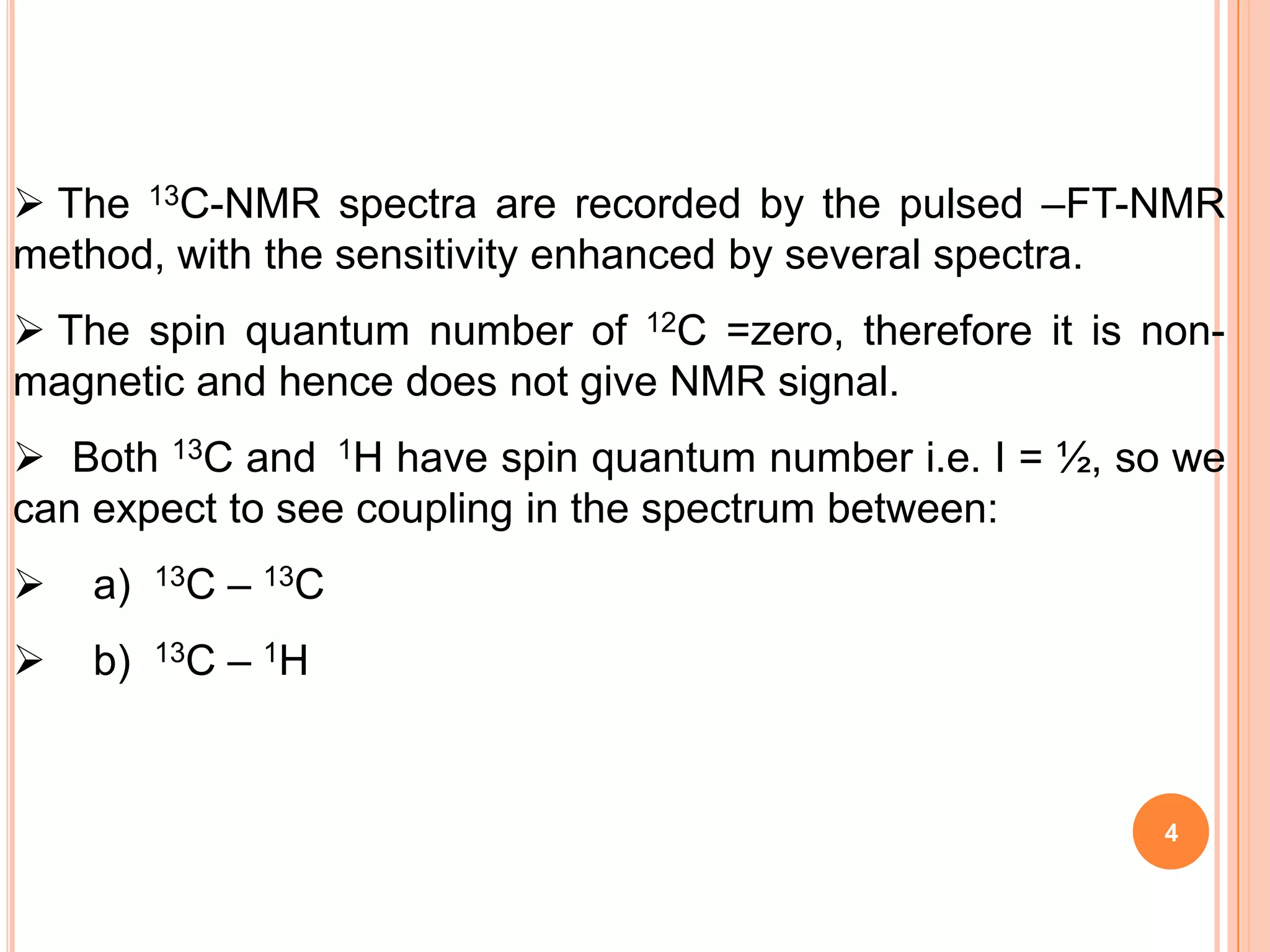

4. The 13C-NMR spectra are recorded by the pulsed –FT-NMR
method, with the sensitivity enhanced by several spectra.
The spin quantum number of 12C =zero, therefore it is non-
magnetic and hence does not give NMR signal.

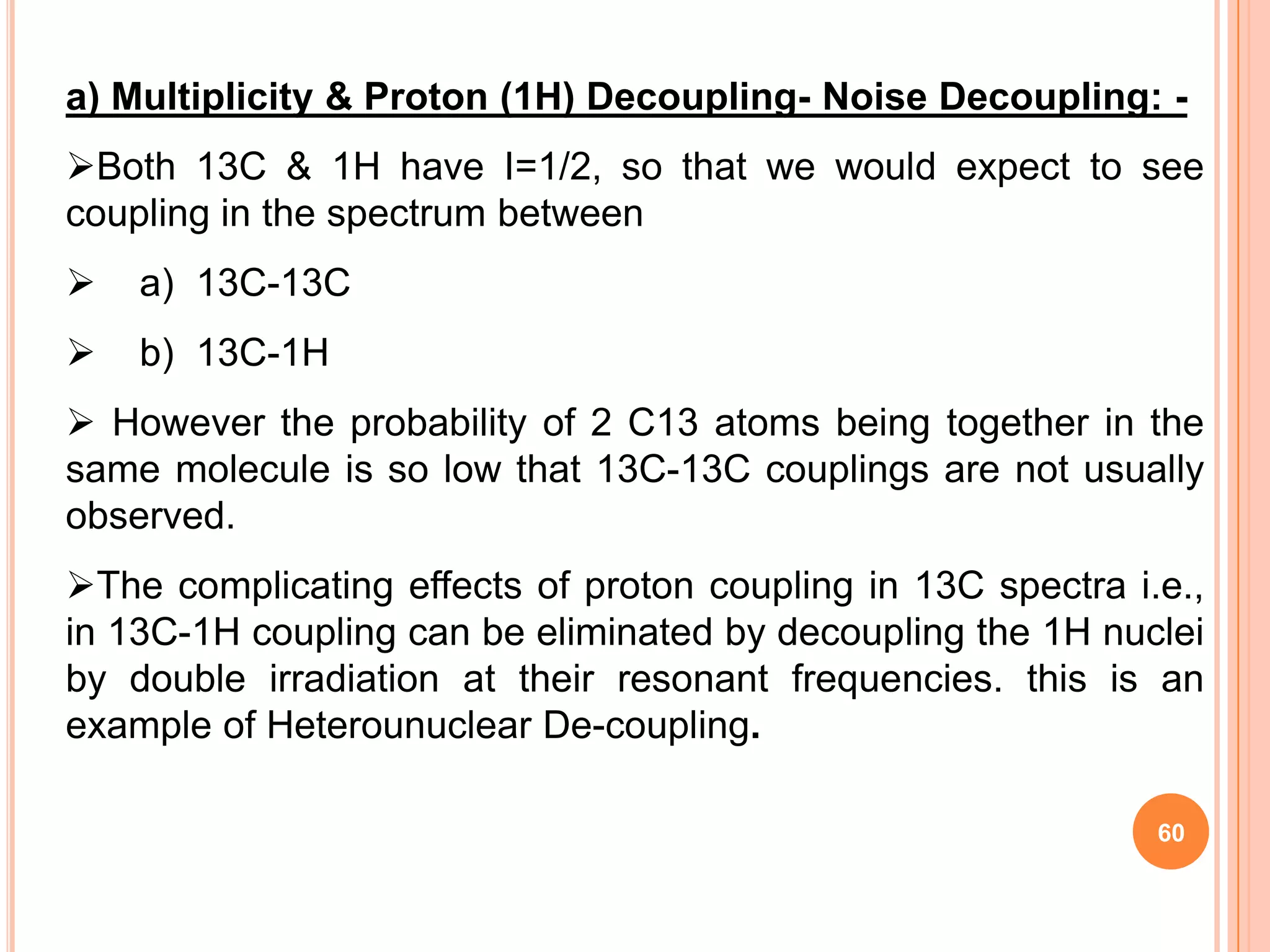

Both 13C and 1H have spin quantum number i.e. I = ½, so we
can expect to see coupling in the spectrum between:
a) 13C – 13C
b) 13C – 1H
4

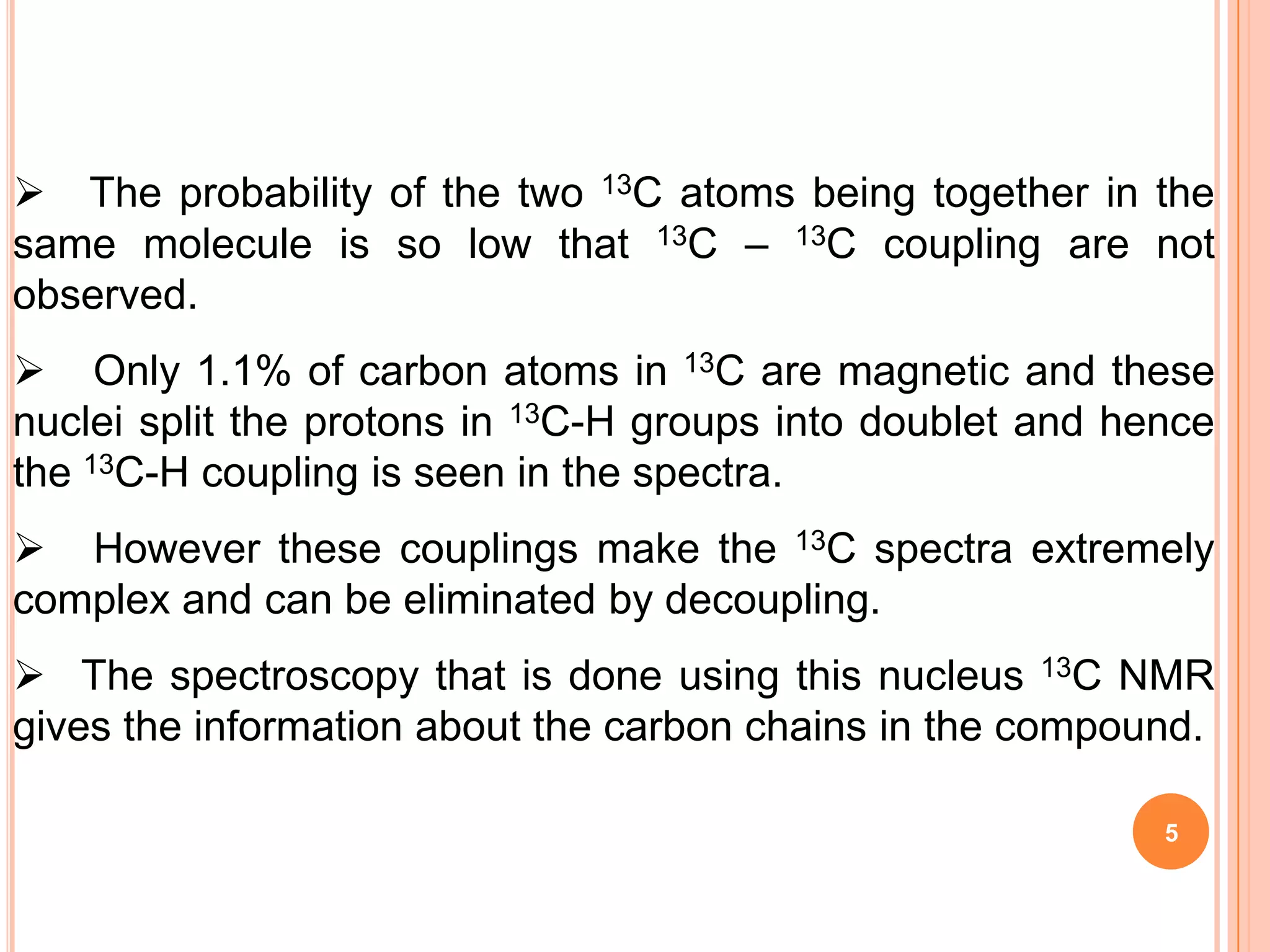

5. The probability of the two 13C atoms being together in the
same molecule is so low that 13C – 13C coupling are not
observed.
Only 1.1% of carbon atoms in 13C are magnetic and these
nuclei split the protons in 13C-H groups into doublet and hence
the 13C-H coupling is seen in the spectra.
However these couplings make the 13C spectra extremely
complex and can be eliminated by decoupling.
The spectroscopy that is done using this nucleus 13C NMR
gives the information about the carbon chains in the compound.
5

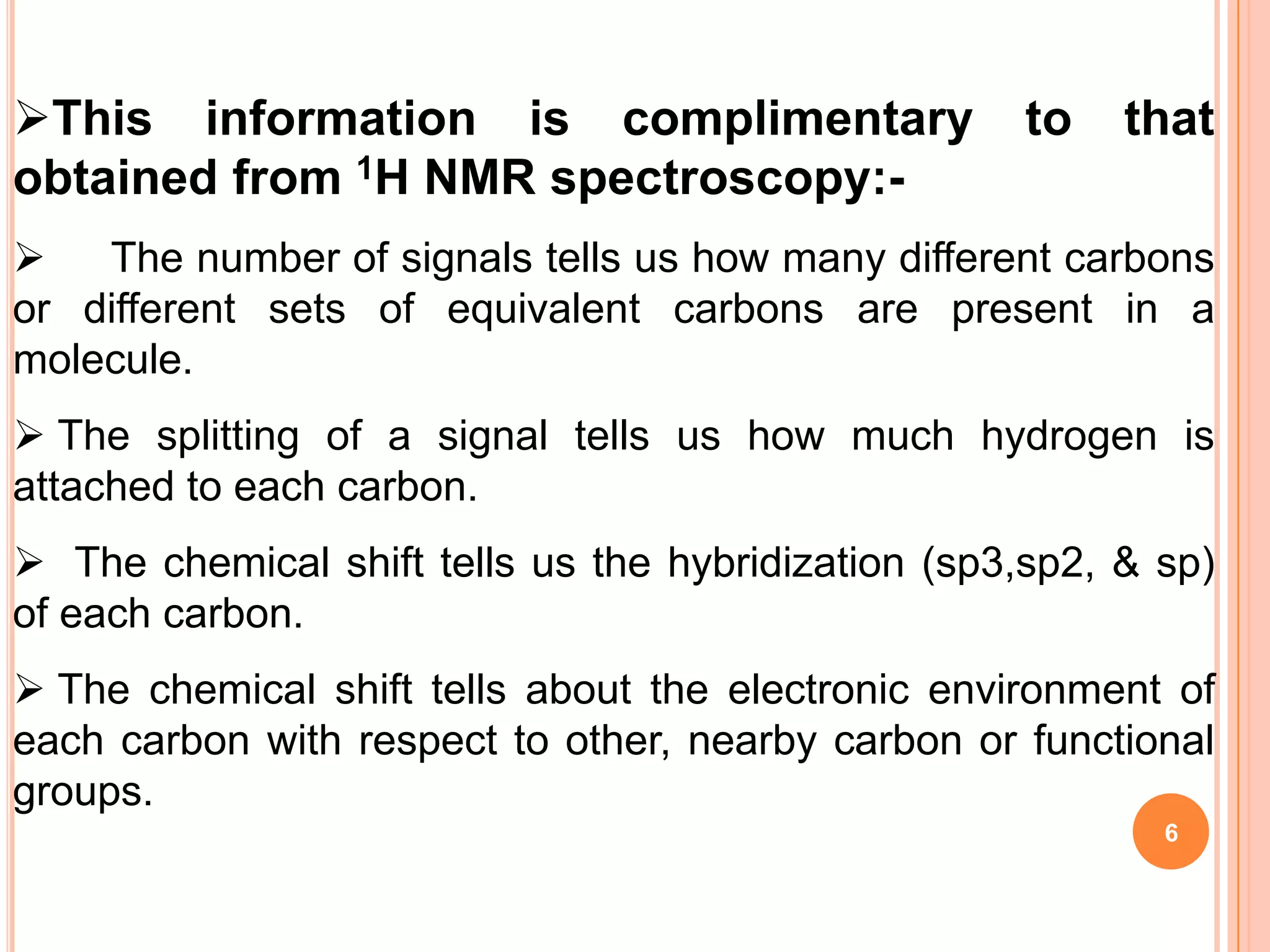

6. This information is complimentary to that
obtained from 1H NMR spectroscopy:-
The number of signals tells us how many different carbons
or different sets of equivalent carbons are present in a
molecule.
The splitting of a signal tells us how much hydrogen is
attached to each carbon.
The chemical shift tells us the hybridization (sp3,sp2, & sp)
of each carbon.
The chemical shift tells about the electronic environment of
each carbon with respect to other, nearby carbon or functional
groups.
6

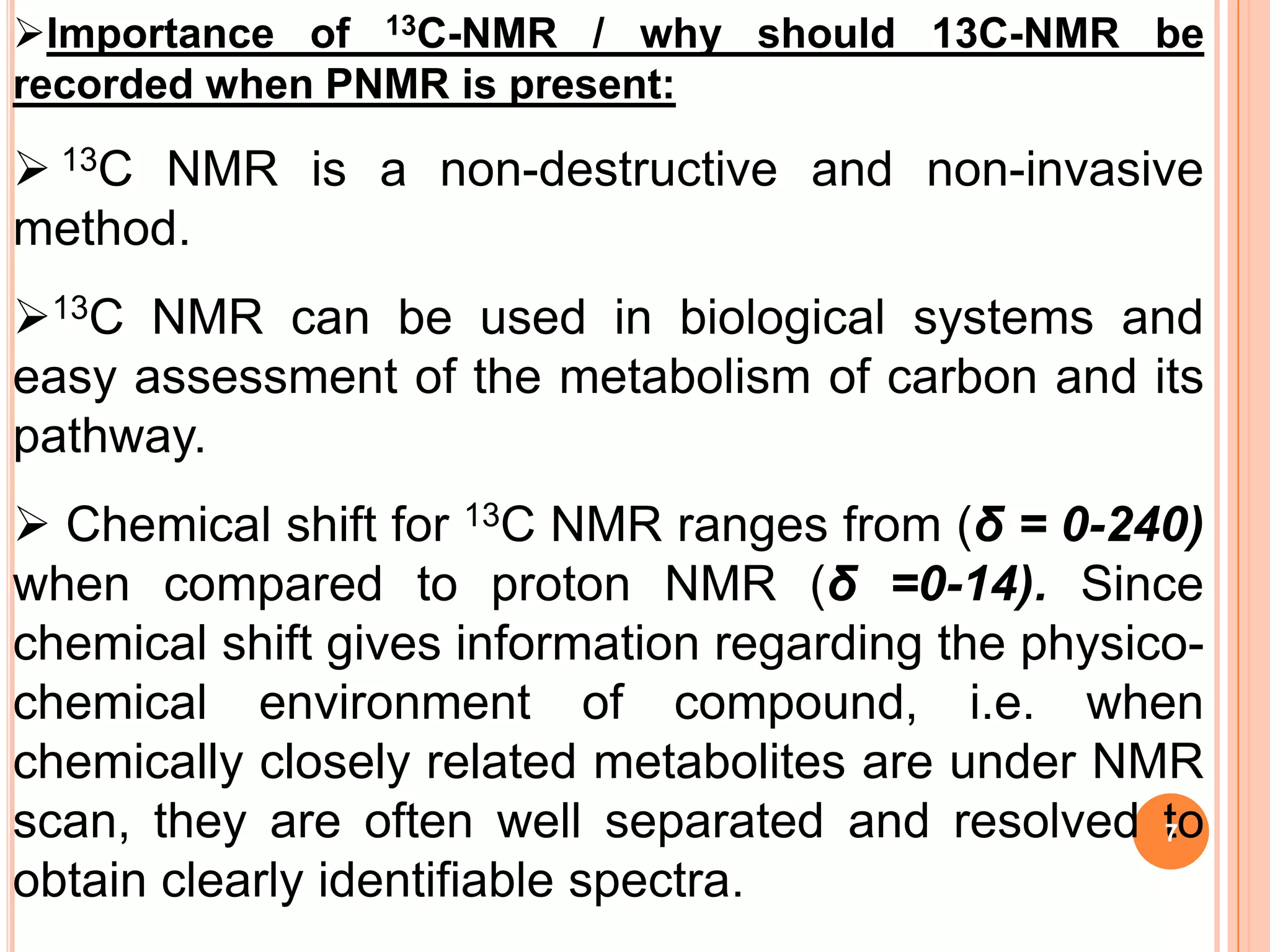

7. Importance of 13C-NMR / why should 13C-NMR be
recorded when PNMR is present:
13C NMR is a non-destructive and non-invasive
method.
13C NMR can be used in biological systems and
easy assessment of the metabolism of carbon and its
pathway.
Chemical shift for 13C NMR ranges from (δ = 0-240)
when compared to proton NMR (δ =0-14). Since
chemical shift gives information regarding the physico-
chemical environment of compound, i.e. when
chemically closely related metabolites are under NMR
scan, they are often well separated and resolved to 7
obtain clearly identifiable spectra.

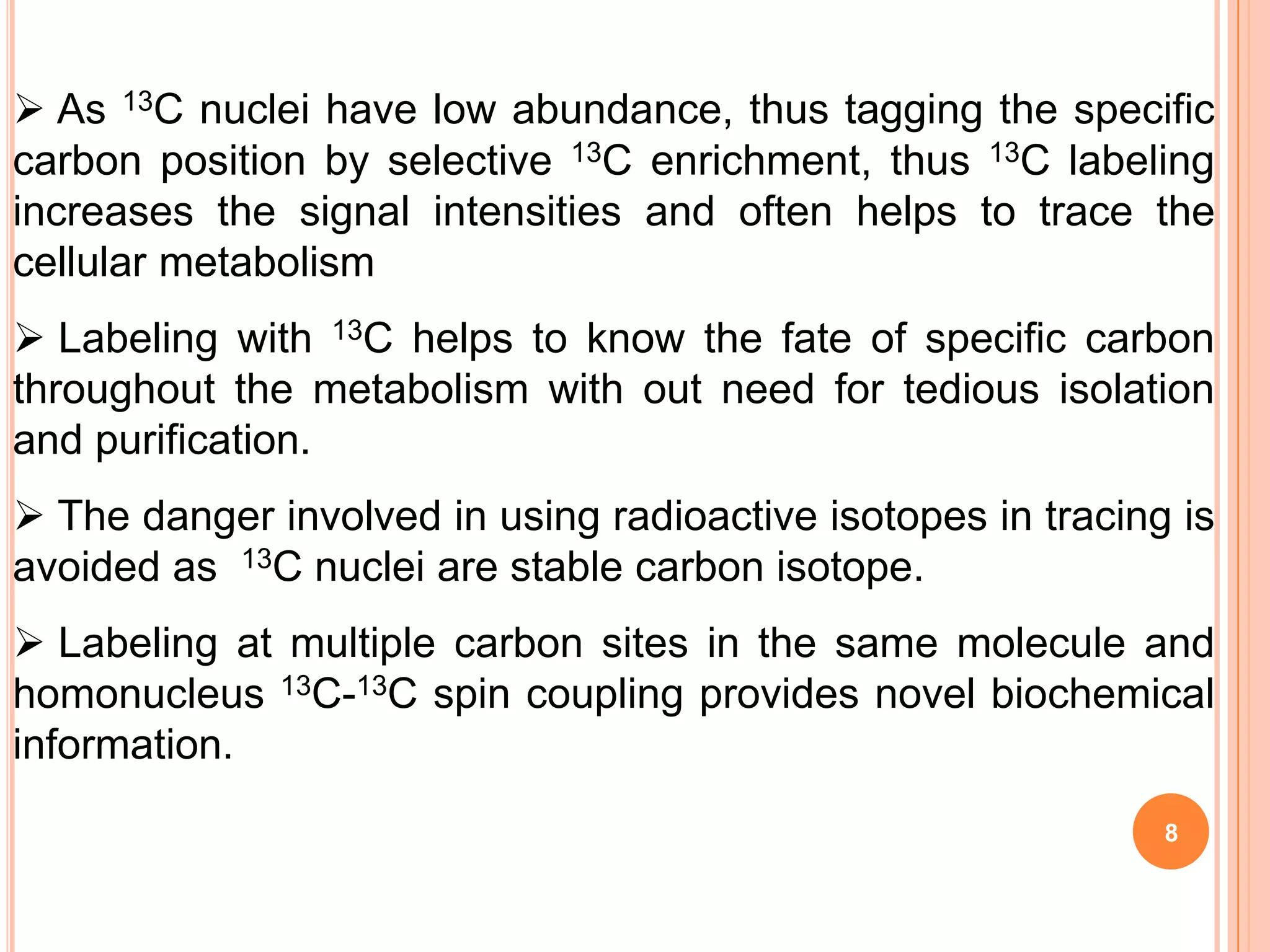

8. As 13C nuclei have low abundance, thus tagging the specific
carbon position by selective 13C enrichment, thus 13C labeling
increases the signal intensities and often helps to trace the
cellular metabolism
Labeling with 13C helps to know the fate of specific carbon
throughout the metabolism with out need for tedious isolation
and purification.
The danger involved in using radioactive isotopes in tracing is
avoided as 13C nuclei are stable carbon isotope.
Labeling at multiple carbon sites in the same molecule and
homonucleus 13C-13C spin coupling provides novel biochemical
information.
8

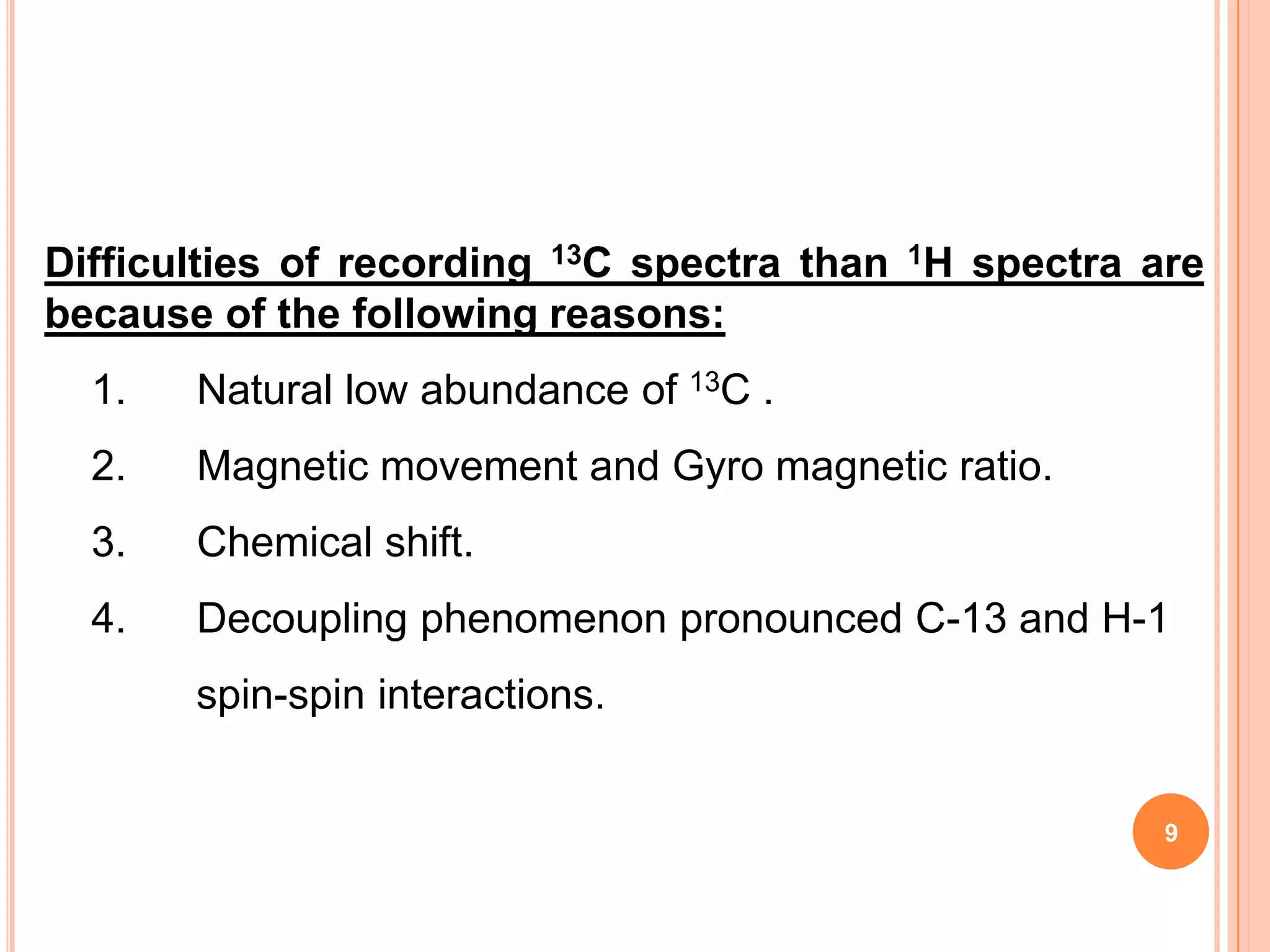

9. Difficulties of recording 13C spectra than 1H spectra are
because of the following reasons:
1. Natural low abundance of 13C .
2. Magnetic movement and Gyro magnetic ratio.
3. Chemical shift.
4. Decoupling phenomenon pronounced C-13 and H-1
spin-spin interactions.
9

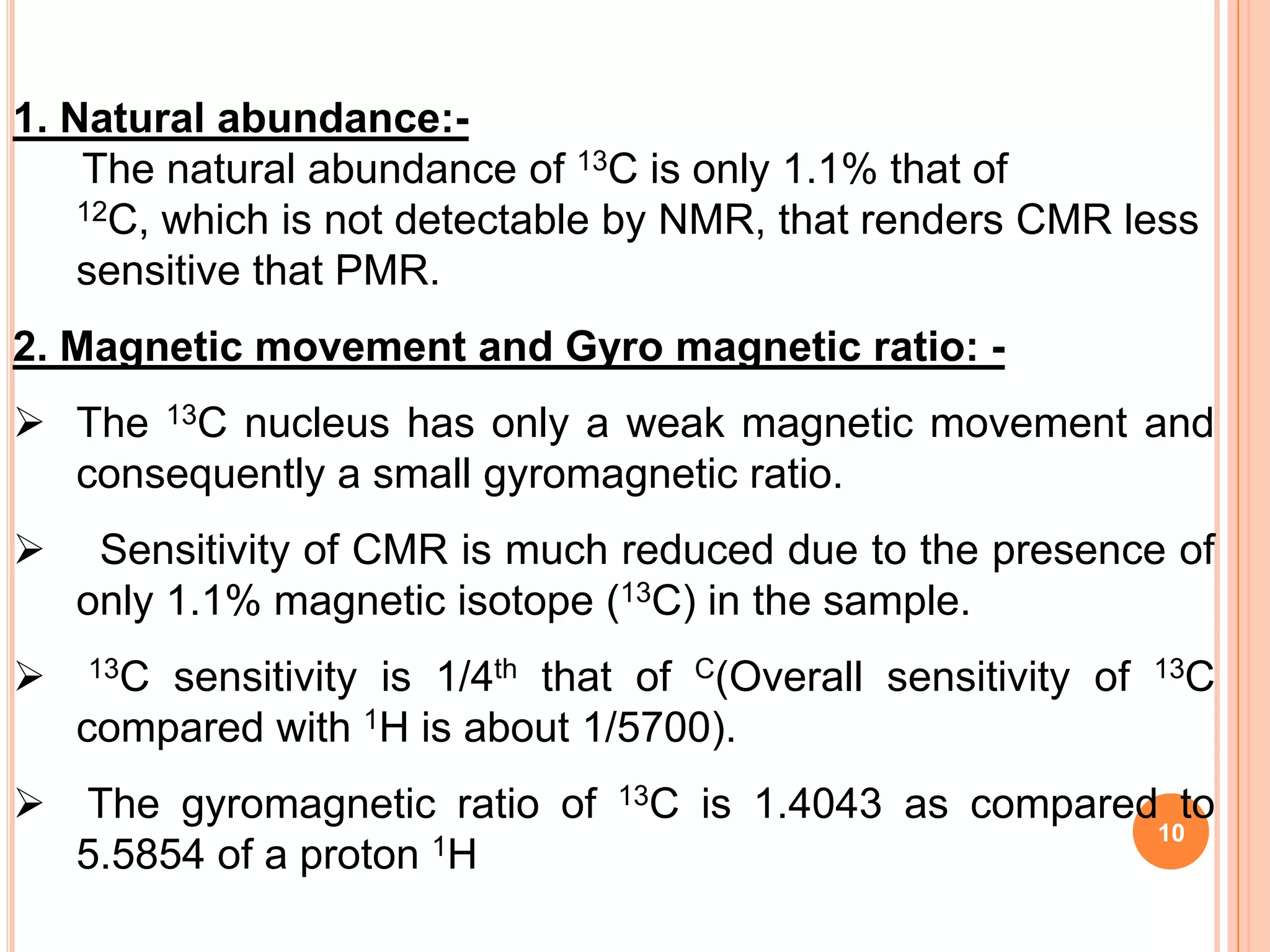

10. 1. Natural abundance:-
The natural abundance of 13C is only 1.1% that of
12C, which is not detectable by NMR, that renders CMR less
sensitive that PMR.
2. Magnetic movement and Gyro magnetic ratio: -
The 13C nucleus has only a weak magnetic movement and
consequently a small gyromagnetic ratio.
Sensitivity of CMR is much reduced due to the presence of
only 1.1% magnetic isotope (13C) in the sample.
13C sensitivity is 1/4th that of C(Overall sensitivity of 13C
compared with 1H is about 1/5700).
The gyromagnetic ratio of 13C is 1.4043 as compared to
10
5.5854 of a proton 1H

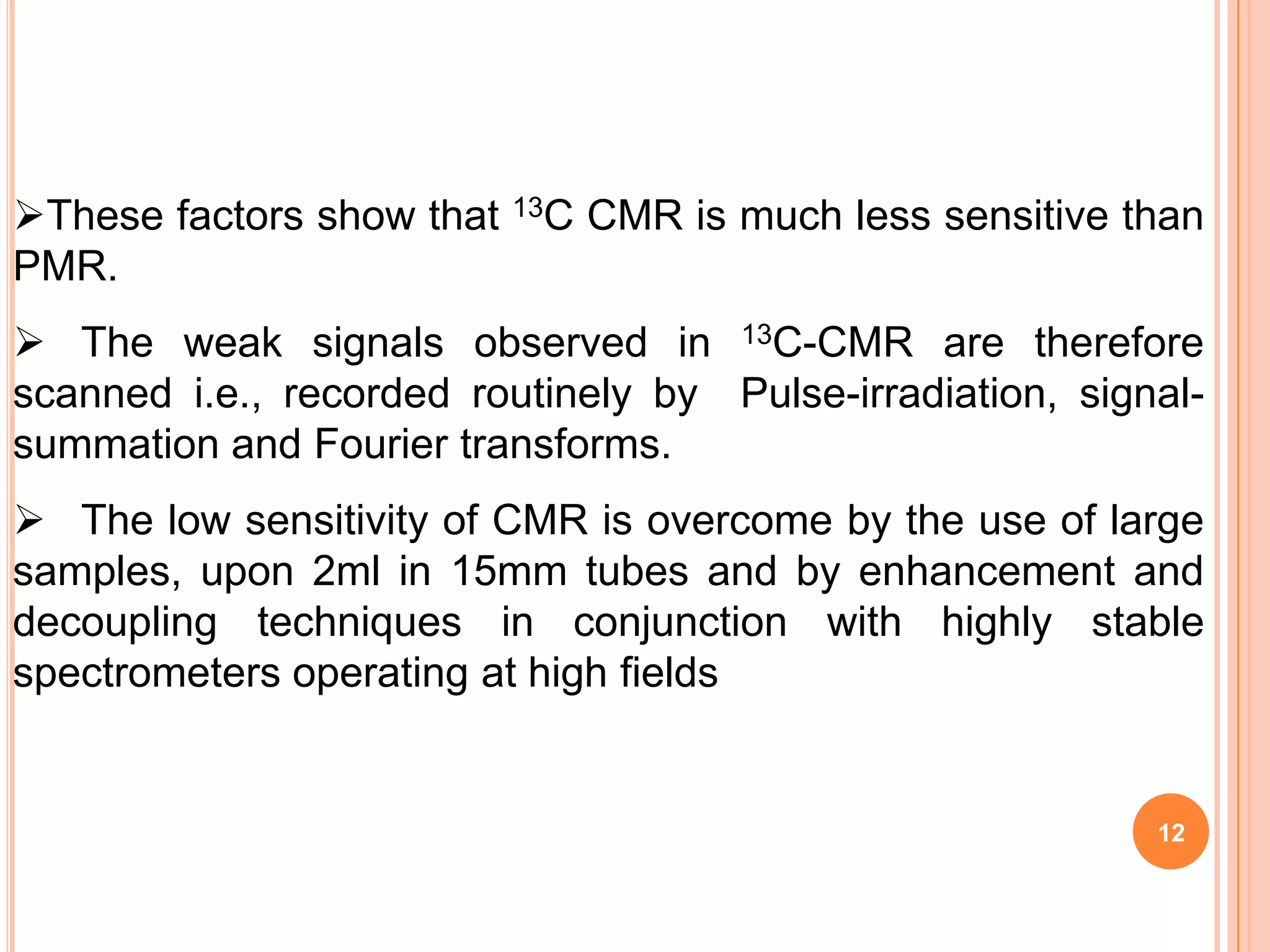

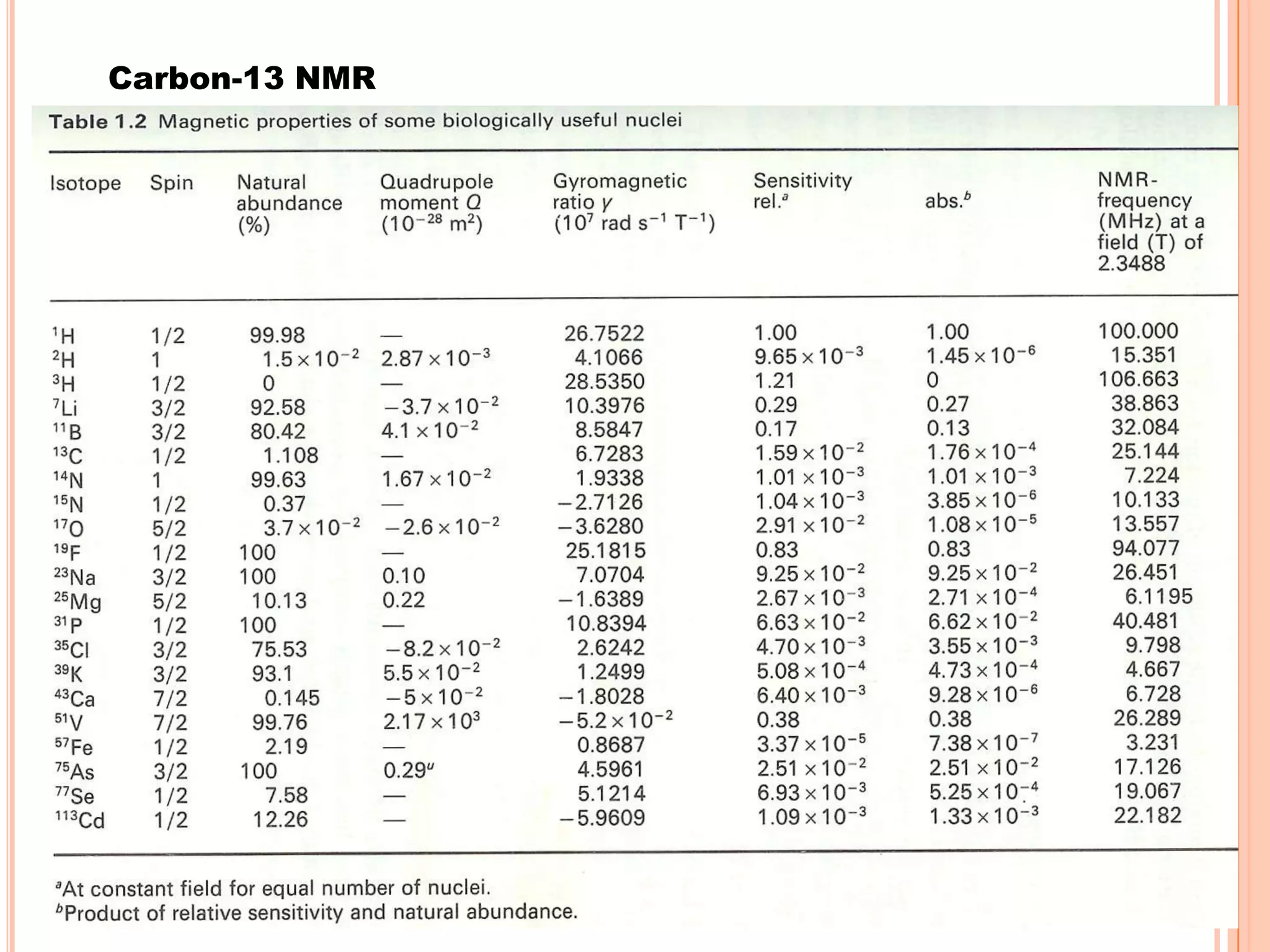

12. These factors show that 13C CMR is much less sensitive than
PMR.
The weak signals observed in 13C-CMR are therefore
scanned i.e., recorded routinely by Pulse-irradiation, signal-
summation and Fourier transforms.
The low sensitivity of CMR is overcome by the use of large
samples, upon 2ml in 15mm tubes and by enhancement and
decoupling techniques in conjunction with highly stable
spectrometers operating at high fields
12

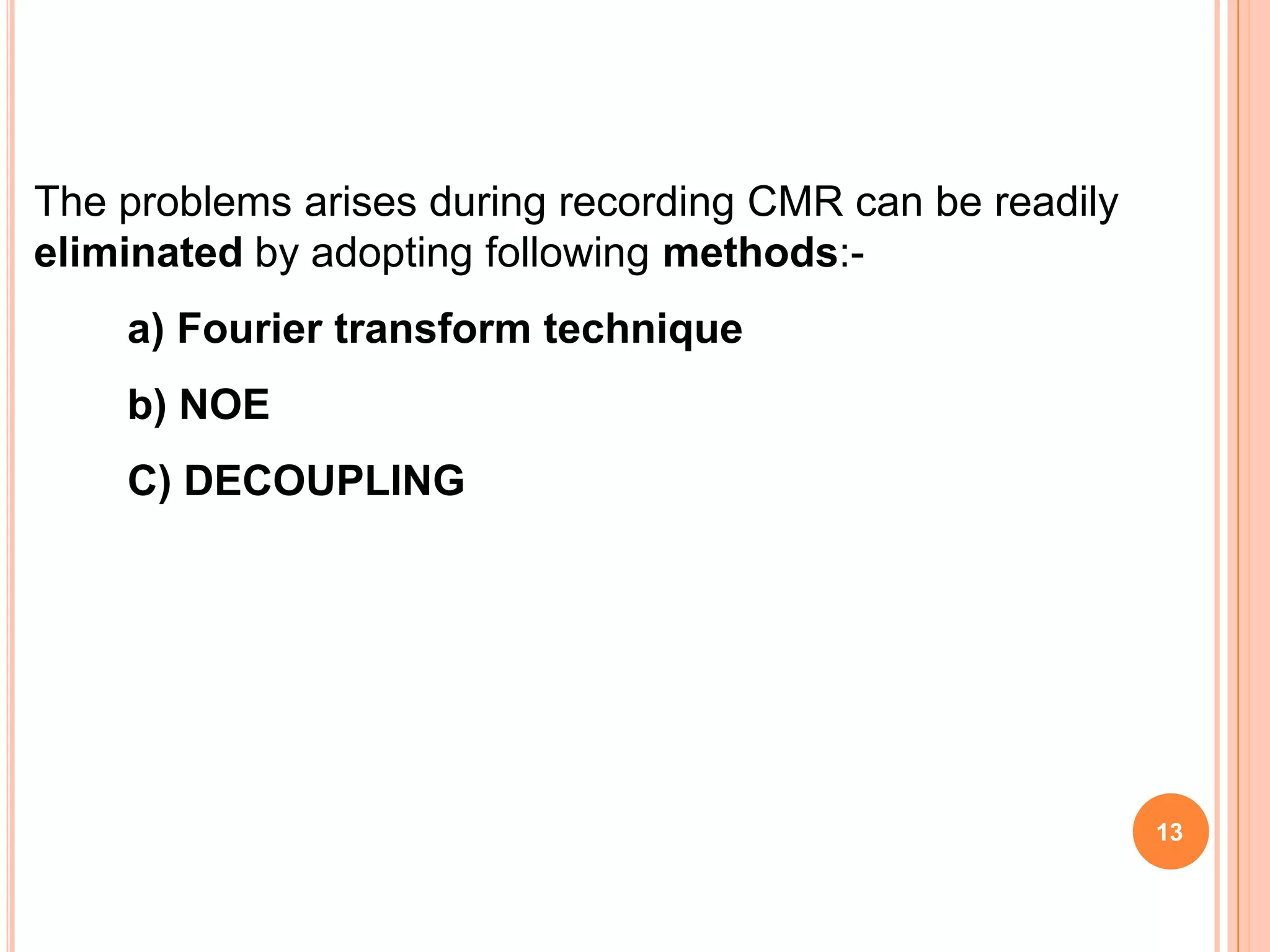

13. The problems arises during recording CMR can be readily
eliminated by adopting following methods:-
a) Fourier transform technique

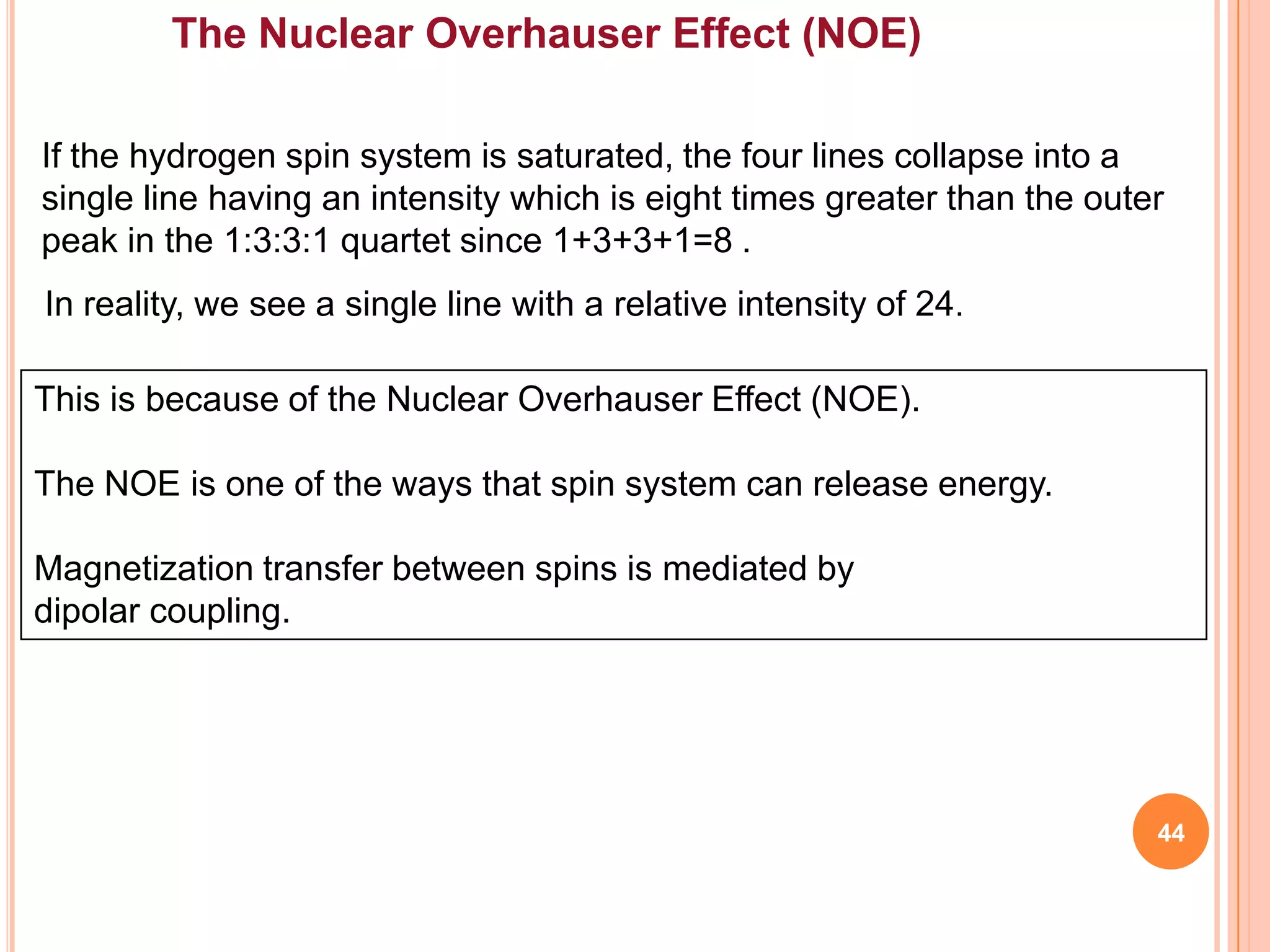

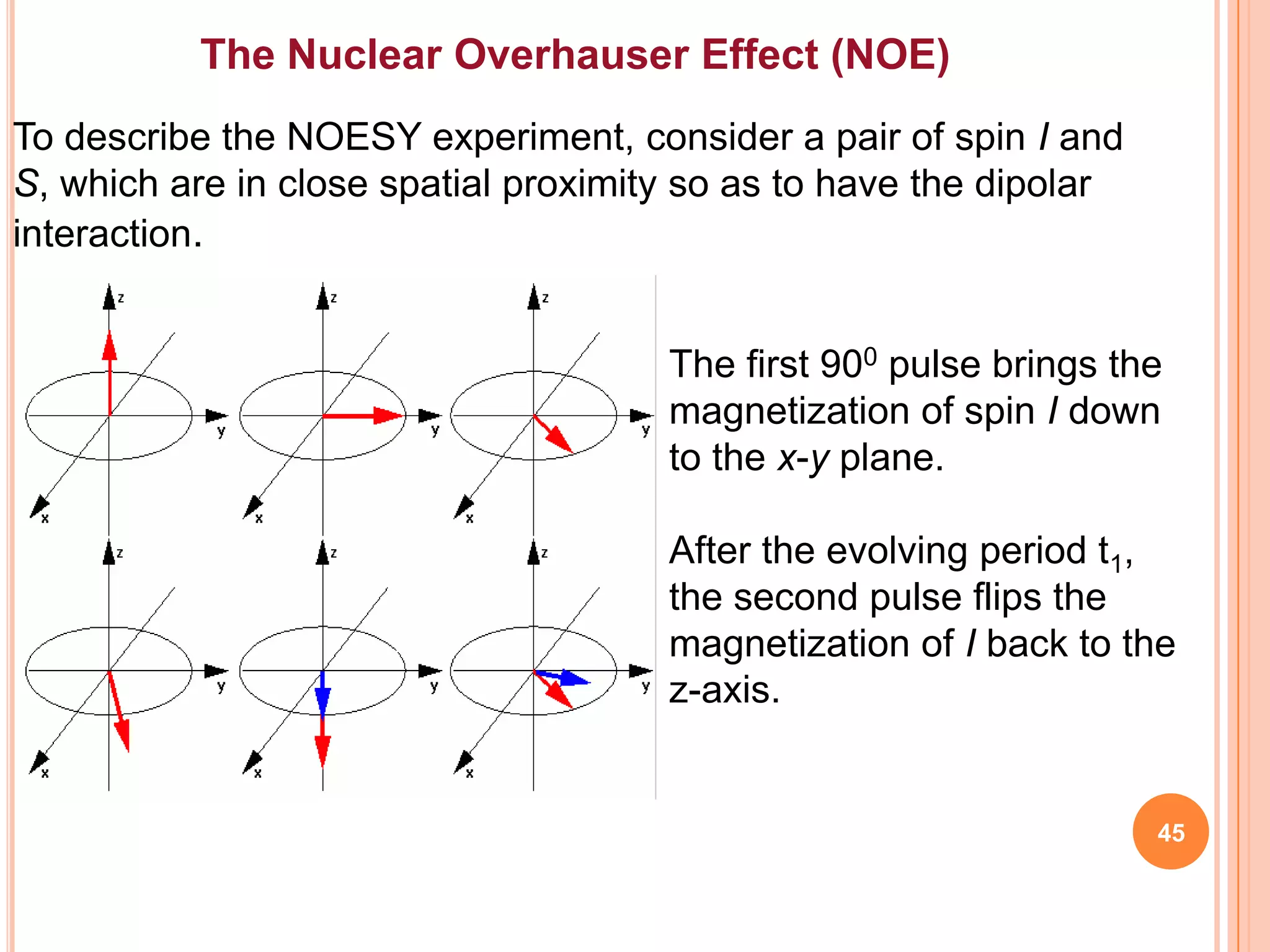

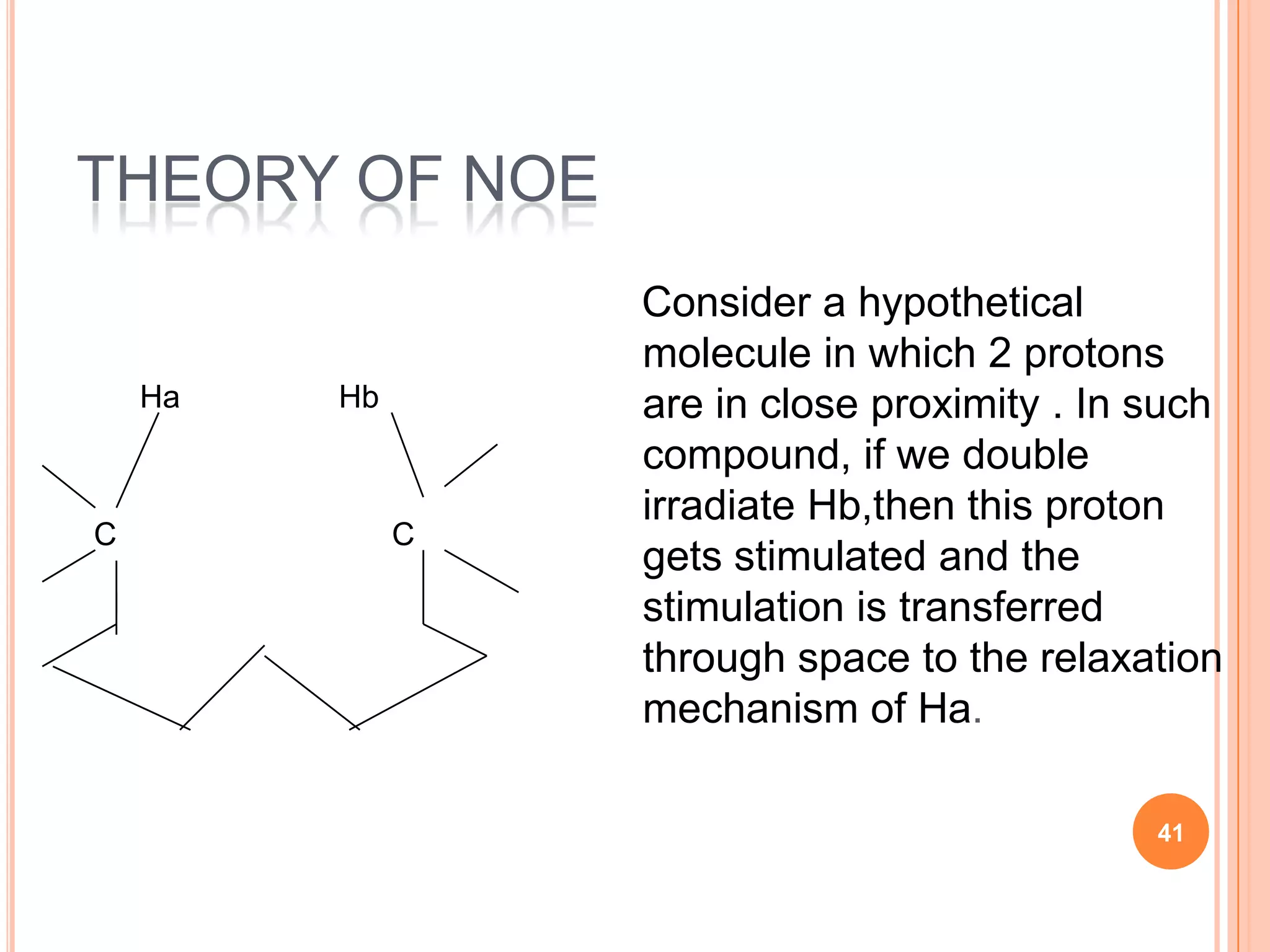

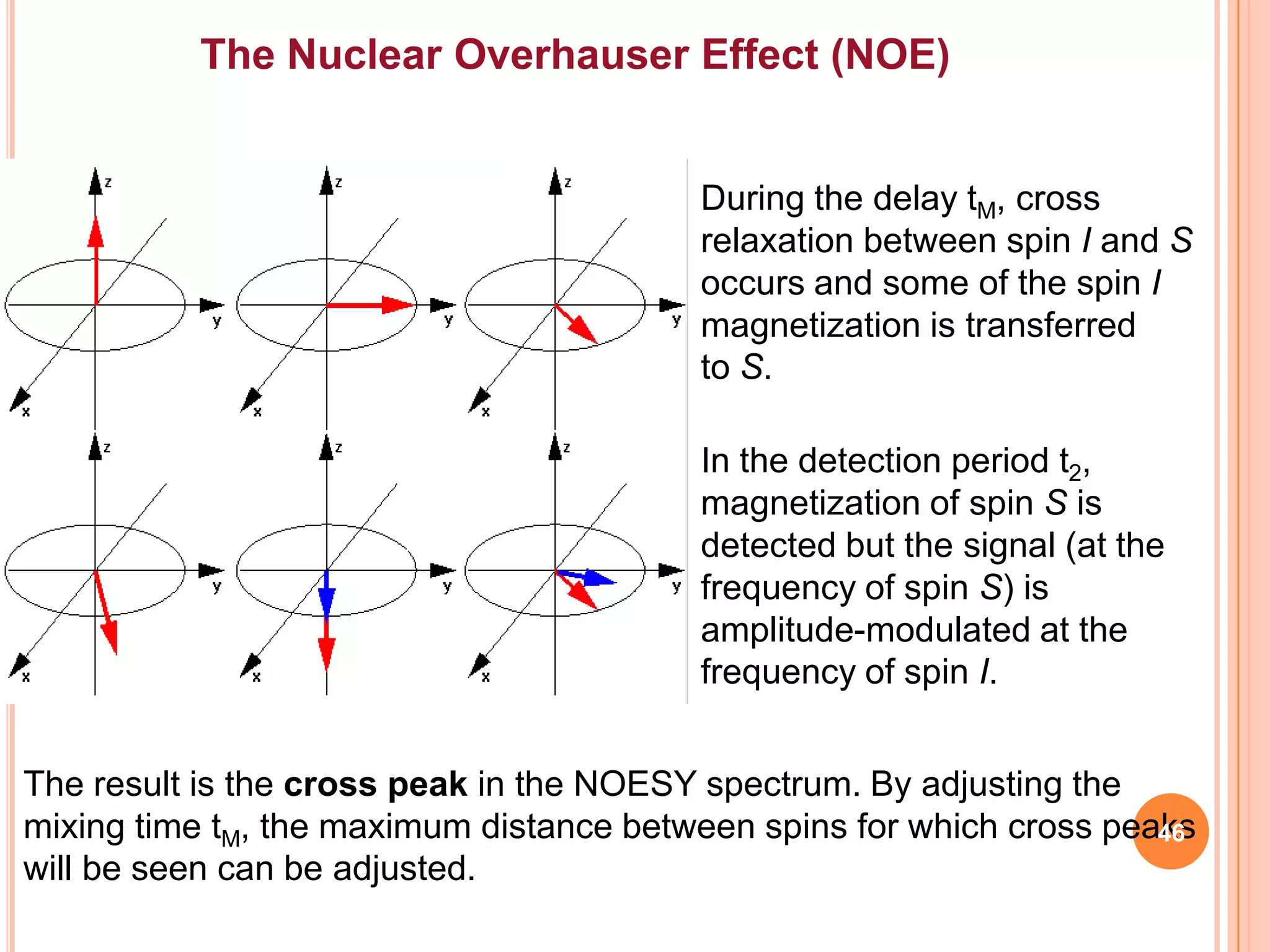

b) NOE

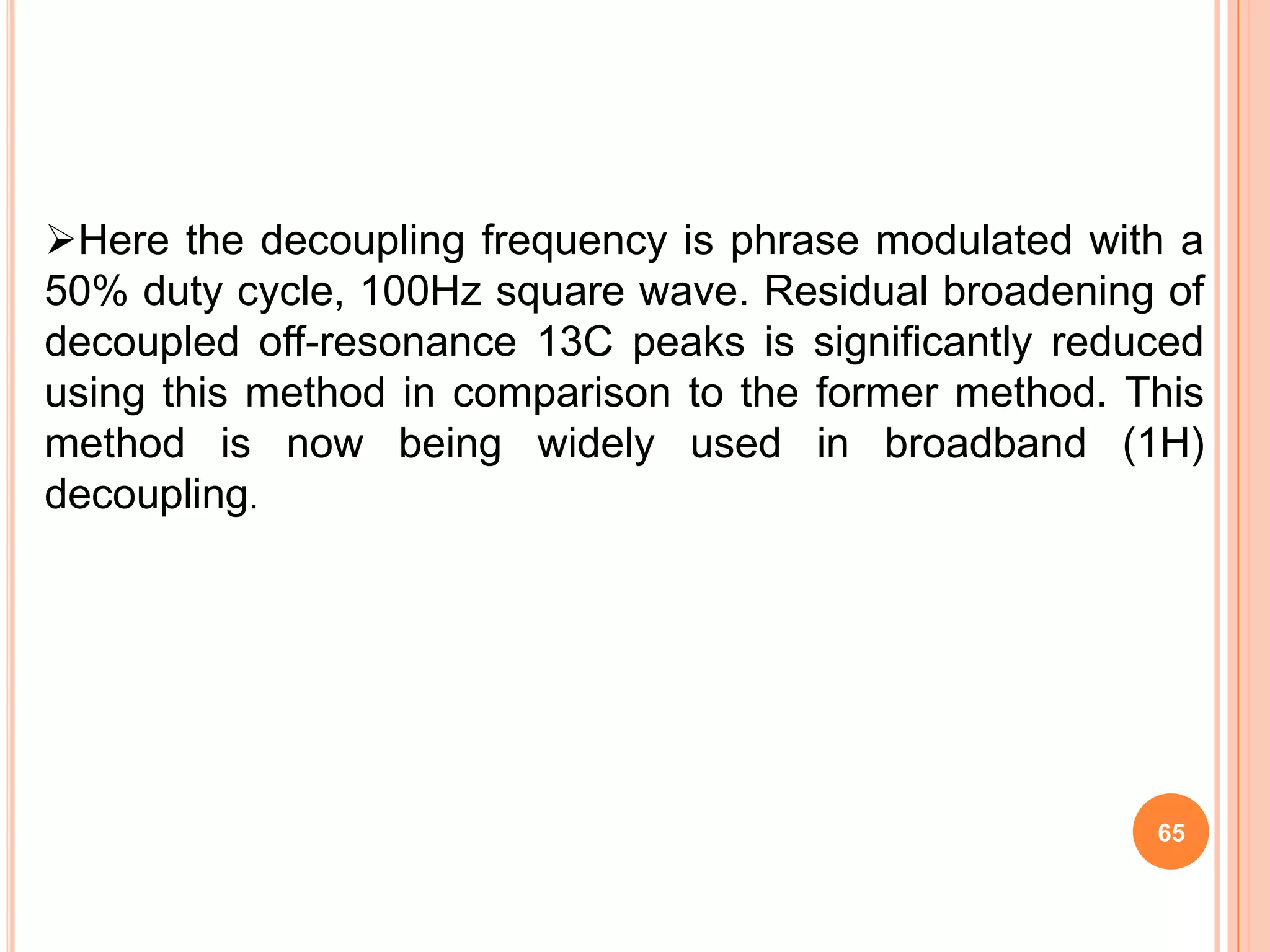

C) DECOUPLING
13

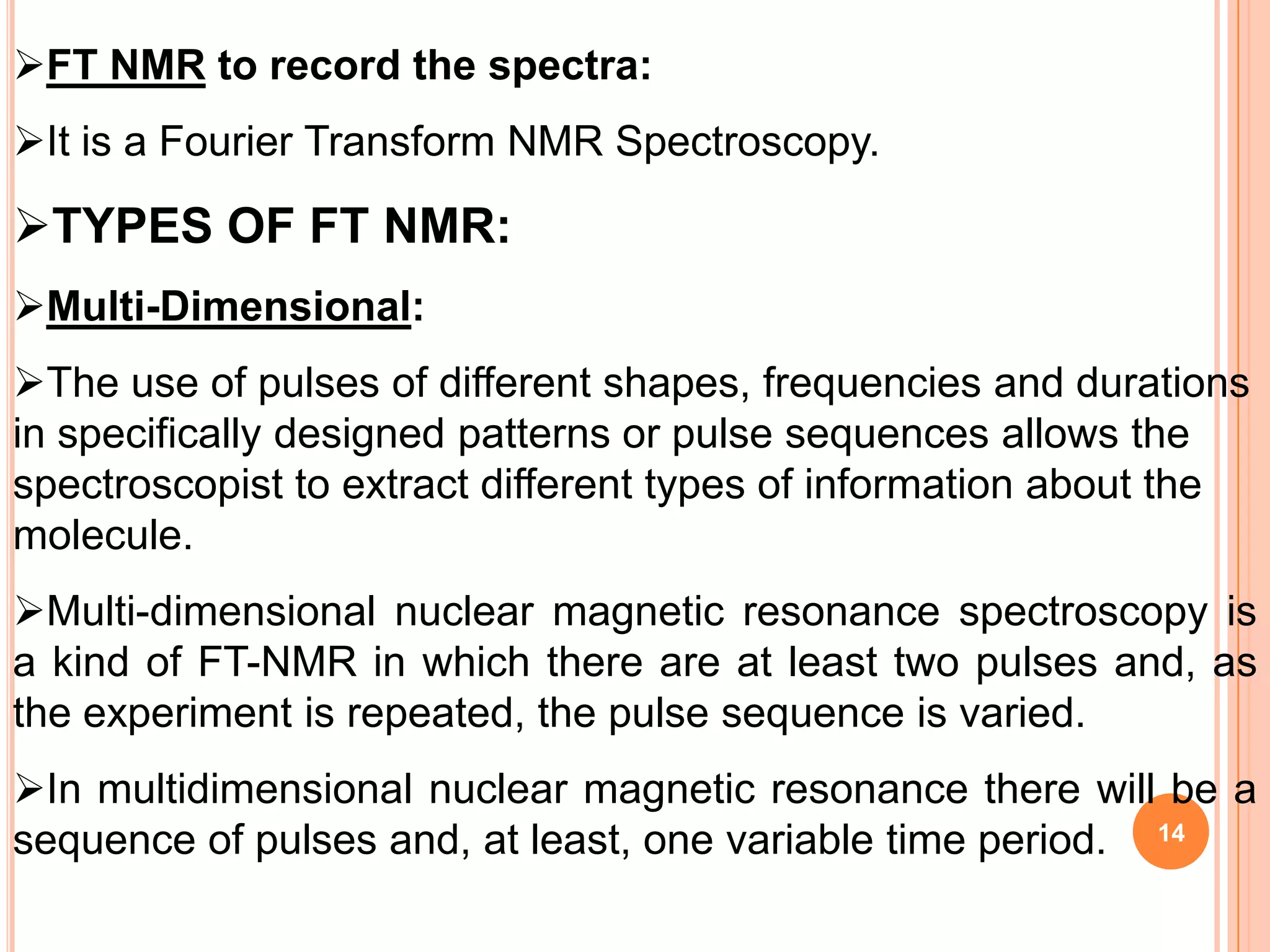

14. FT NMR to record the spectra:
It is a Fourier Transform NMR Spectroscopy.
TYPES OF FT NMR:
Multi-Dimensional:
The use of pulses of different shapes, frequencies and durations
in specifically designed patterns or pulse sequences allows the
spectroscopist to extract different types of information about the
molecule.

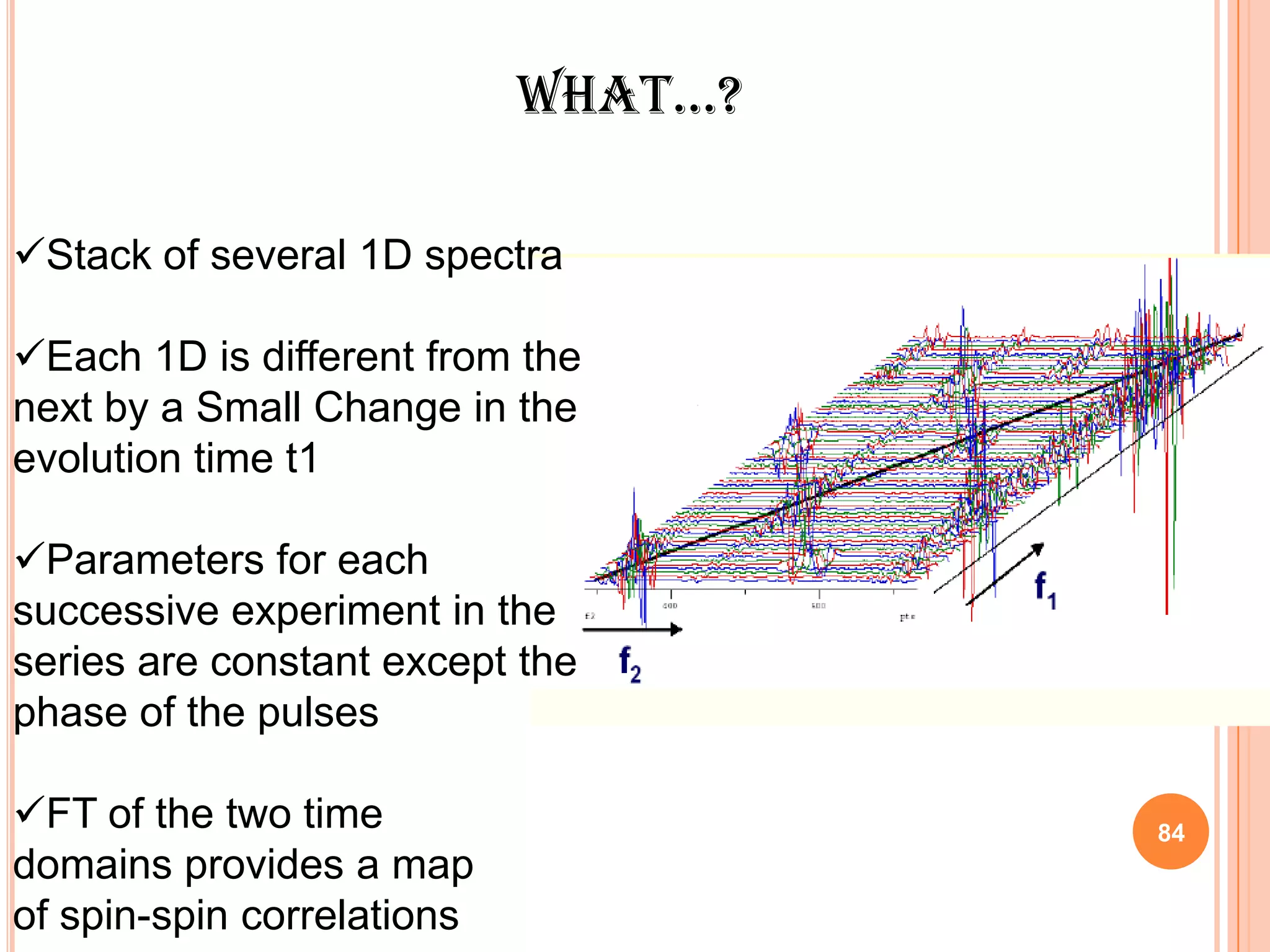

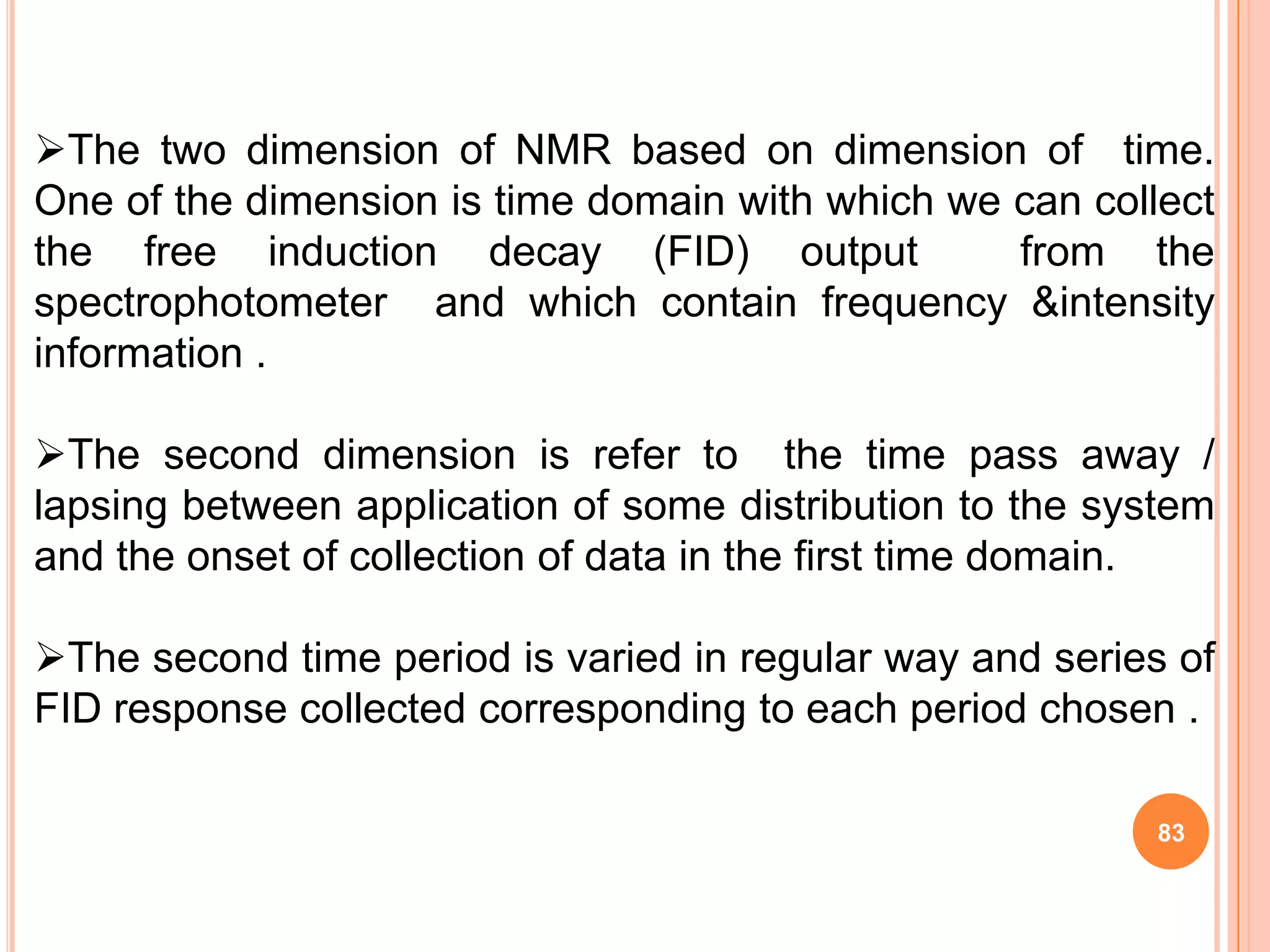

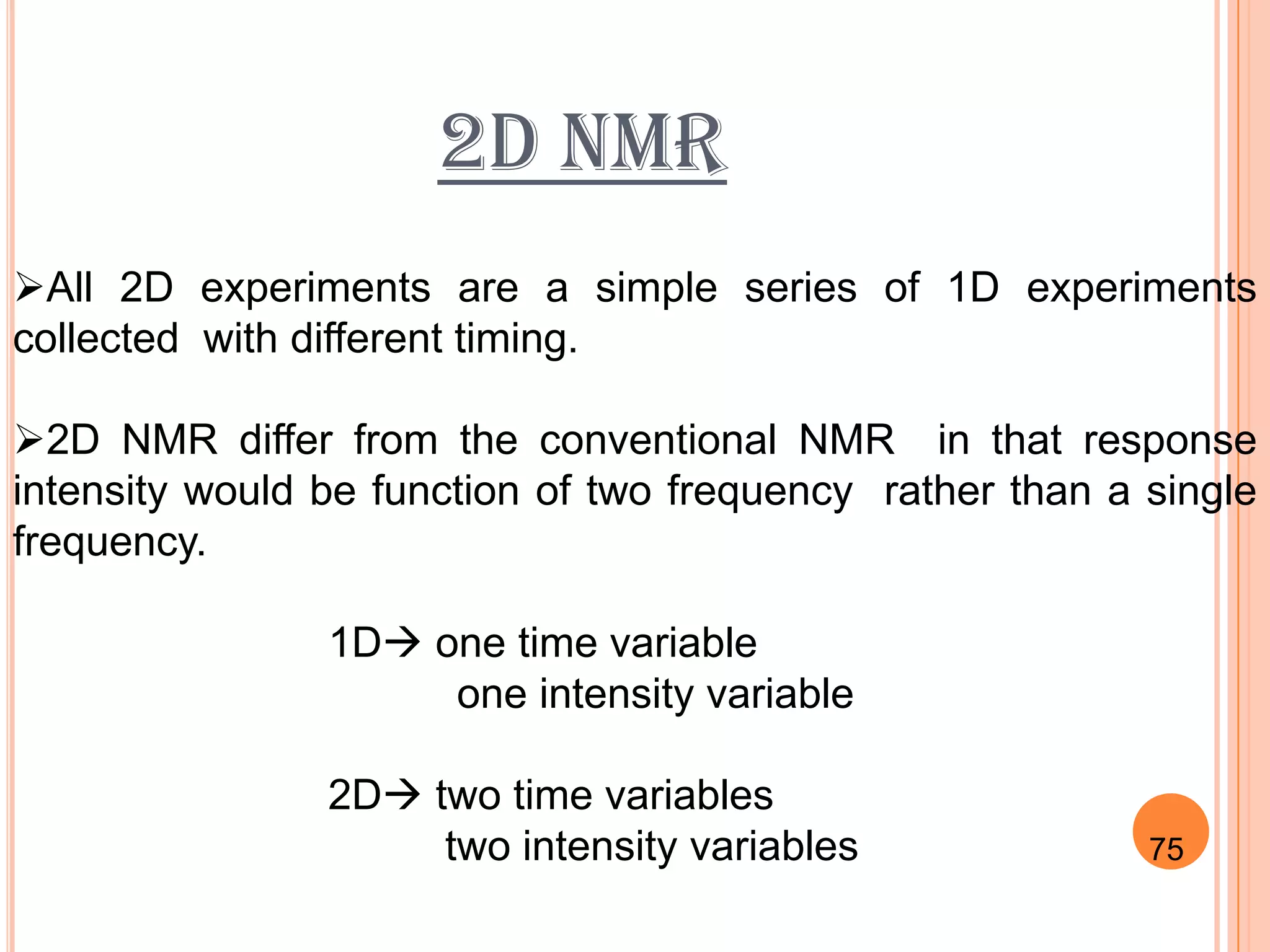

Multi-dimensional nuclear magnetic resonance spectroscopy is
a kind of FT-NMR in which there are at least two pulses and, as
the experiment is repeated, the pulse sequence is varied.
In multidimensional nuclear magnetic resonance there will be a
sequence of pulses and, at least, one variable time period. 14

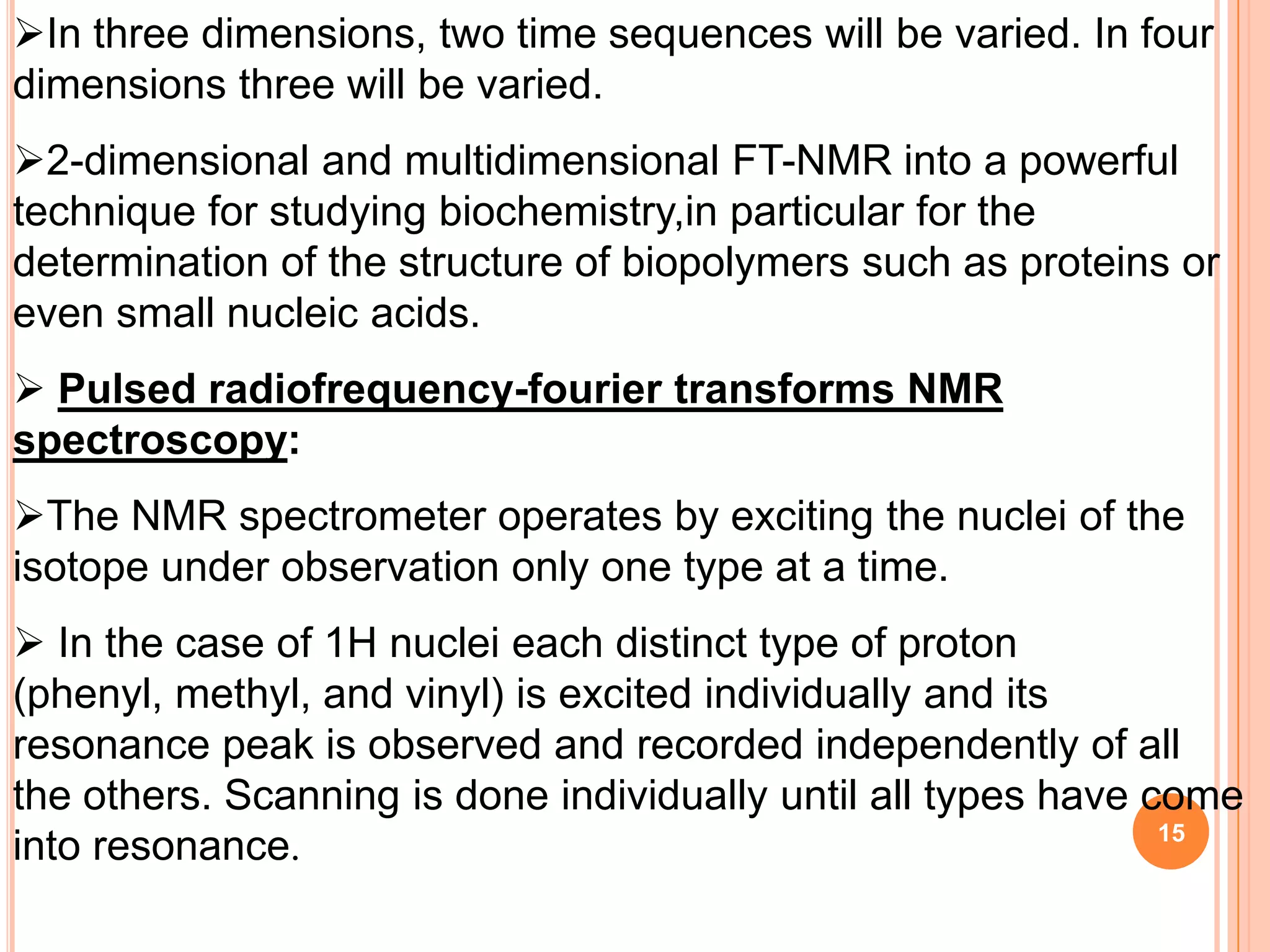

15. In three dimensions, two time sequences will be varied. In four
dimensions three will be varied.
2-dimensional and multidimensional FT-NMR into a powerful
technique for studying biochemistry,in particular for the
determination of the structure of biopolymers such as proteins or
even small nucleic acids.
Pulsed radiofrequency-fourier transforms NMR
spectroscopy:
The NMR spectrometer operates by exciting the nuclei of the
isotope under observation only one type at a time.
In the case of 1H nuclei each distinct type of proton
(phenyl, methyl, and vinyl) is excited individually and its
resonance peak is observed and recorded independently of all
the others. Scanning is done individually until all types have come
15
into resonance.

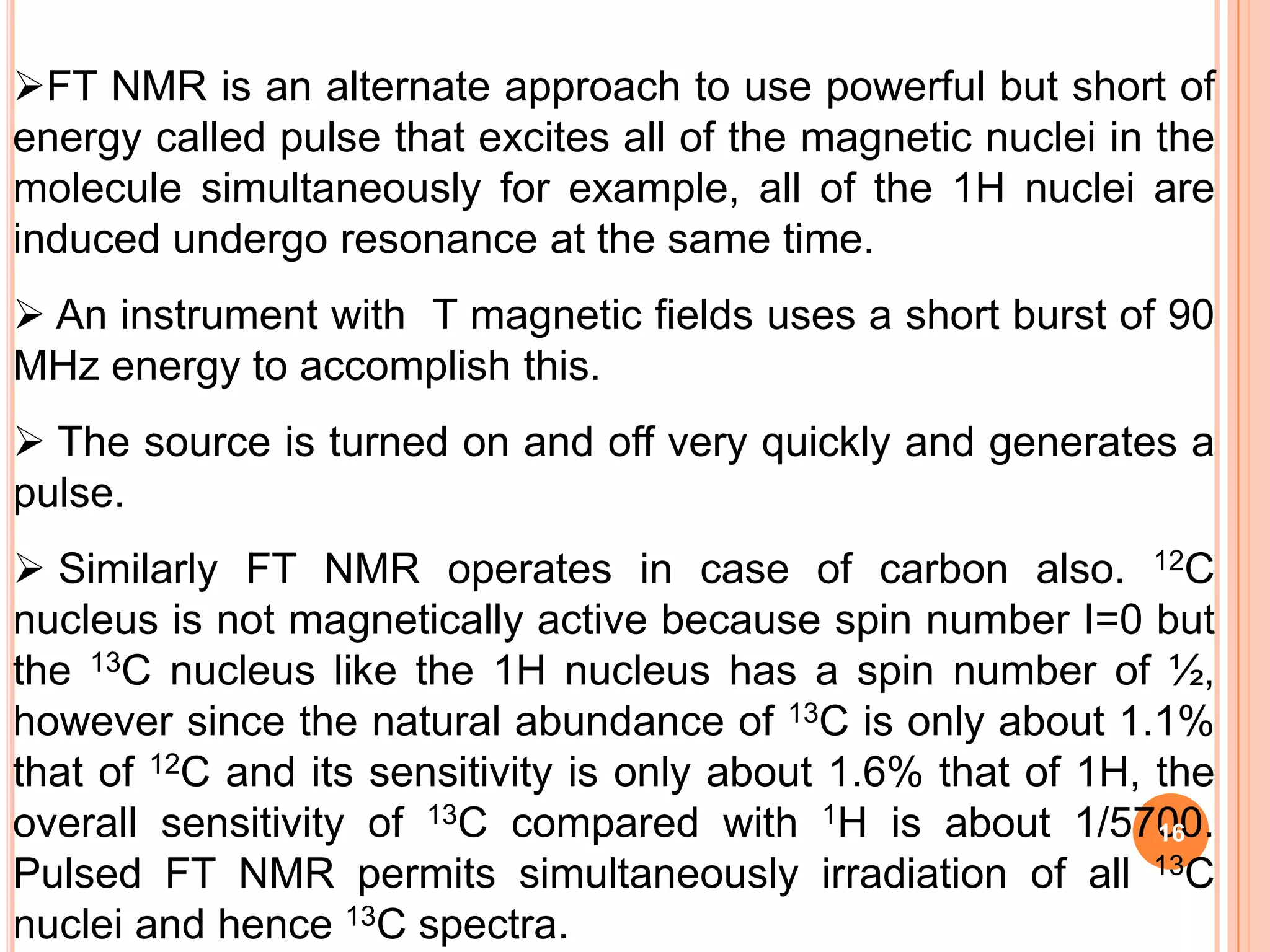

16. FT NMR is an alternate approach to use powerful but short of
energy called pulse that excites all of the magnetic nuclei in the
molecule simultaneously for example, all of the 1H nuclei are
induced undergo resonance at the same time.
An instrument with T magnetic fields uses a short burst of 90
MHz energy to accomplish this.
The source is turned on and off very quickly and generates a
pulse.
Similarly FT NMR operates in case of carbon also. 12C
nucleus is not magnetically active because spin number I=0 but
the 13C nucleus like the 1H nucleus has a spin number of ½,
however since the natural abundance of 13C is only about 1.1%
that of 12C and its sensitivity is only about 1.6% that of 1H, the
overall sensitivity of 13C compared with 1H is about 1/5700. 16
Pulsed FT NMR permits simultaneously irradiation of all 13C
nuclei and hence 13C spectra.

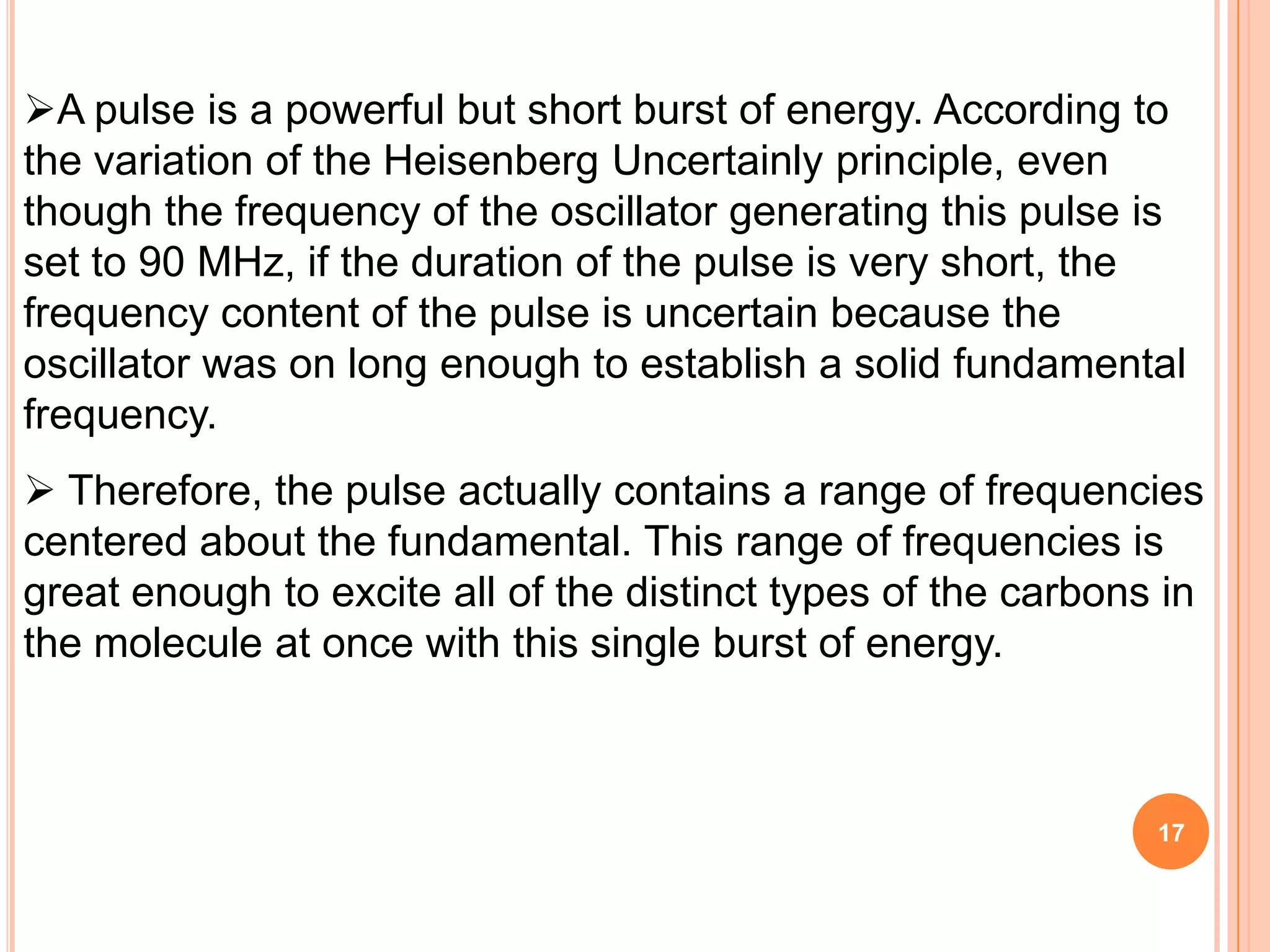

17. A pulse is a powerful but short burst of energy. According to
the variation of the Heisenberg Uncertainly principle, even
though the frequency of the oscillator generating this pulse is
set to 90 MHz, if the duration of the pulse is very short, the
frequency content of the pulse is uncertain because the
oscillator was on long enough to establish a solid fundamental
frequency.
Therefore, the pulse actually contains a range of frequencies
centered about the fundamental. This range of frequencies is
great enough to excite all of the distinct types of the carbons in
the molecule at once with this single burst of energy.
17

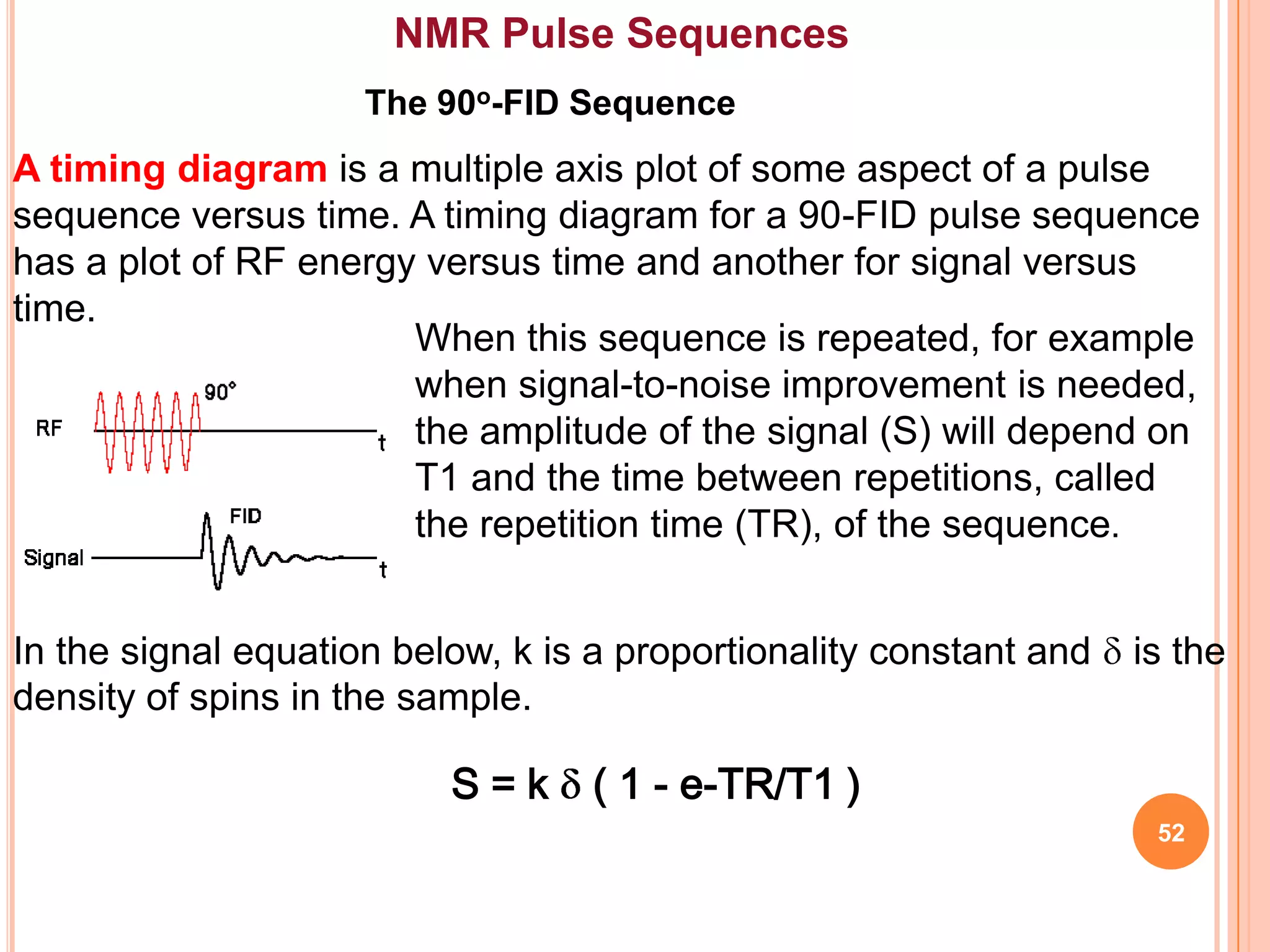

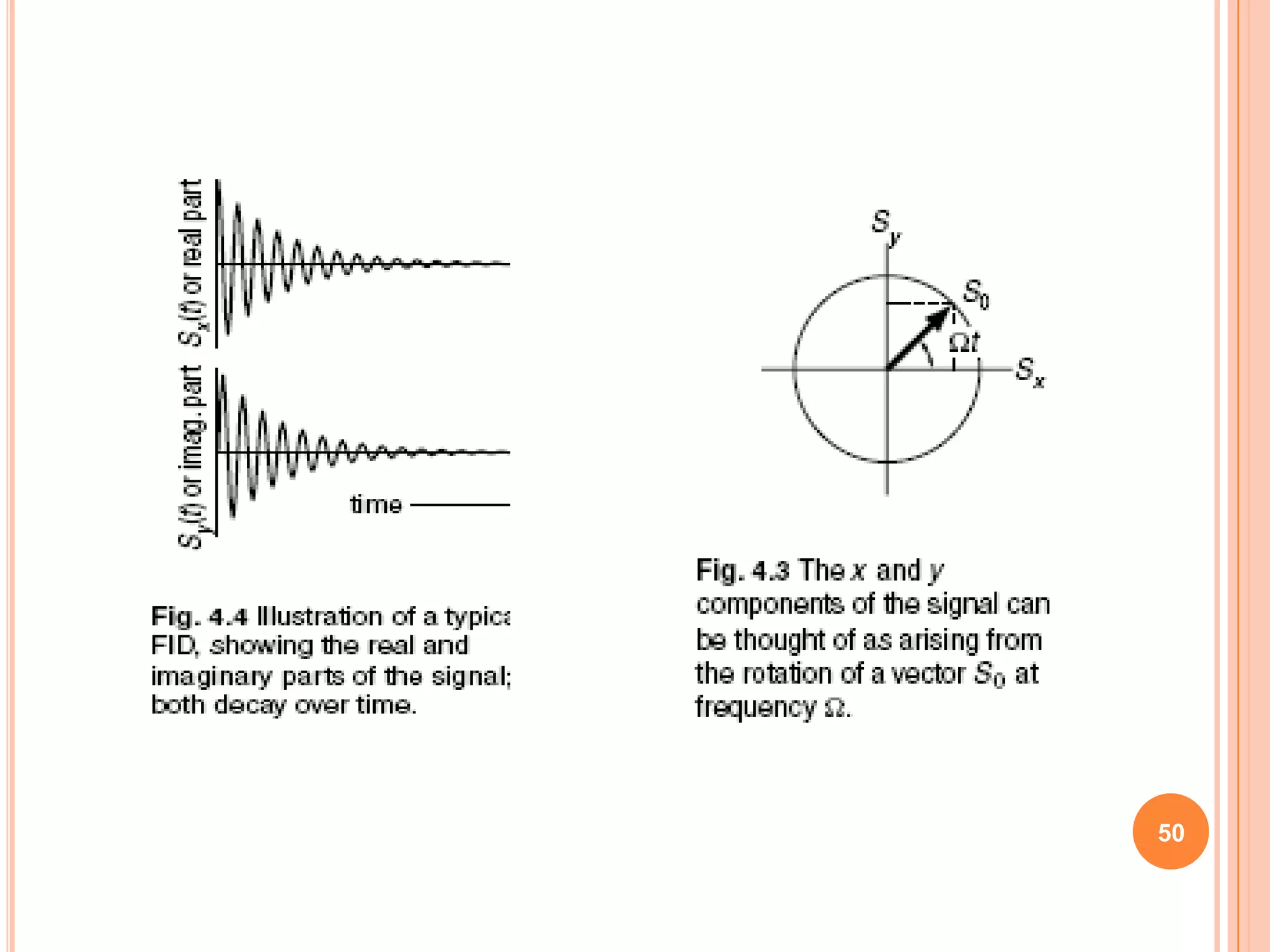

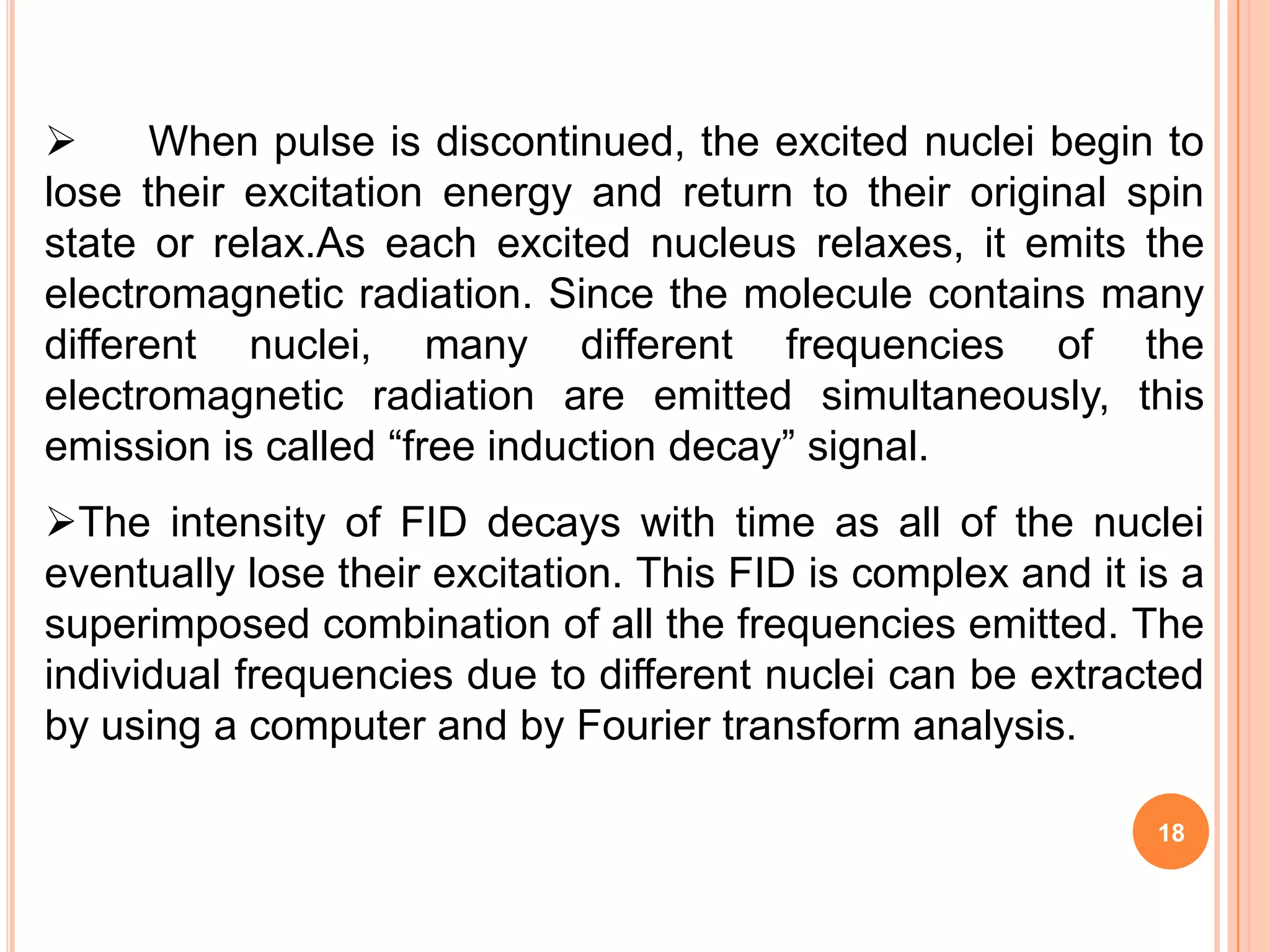

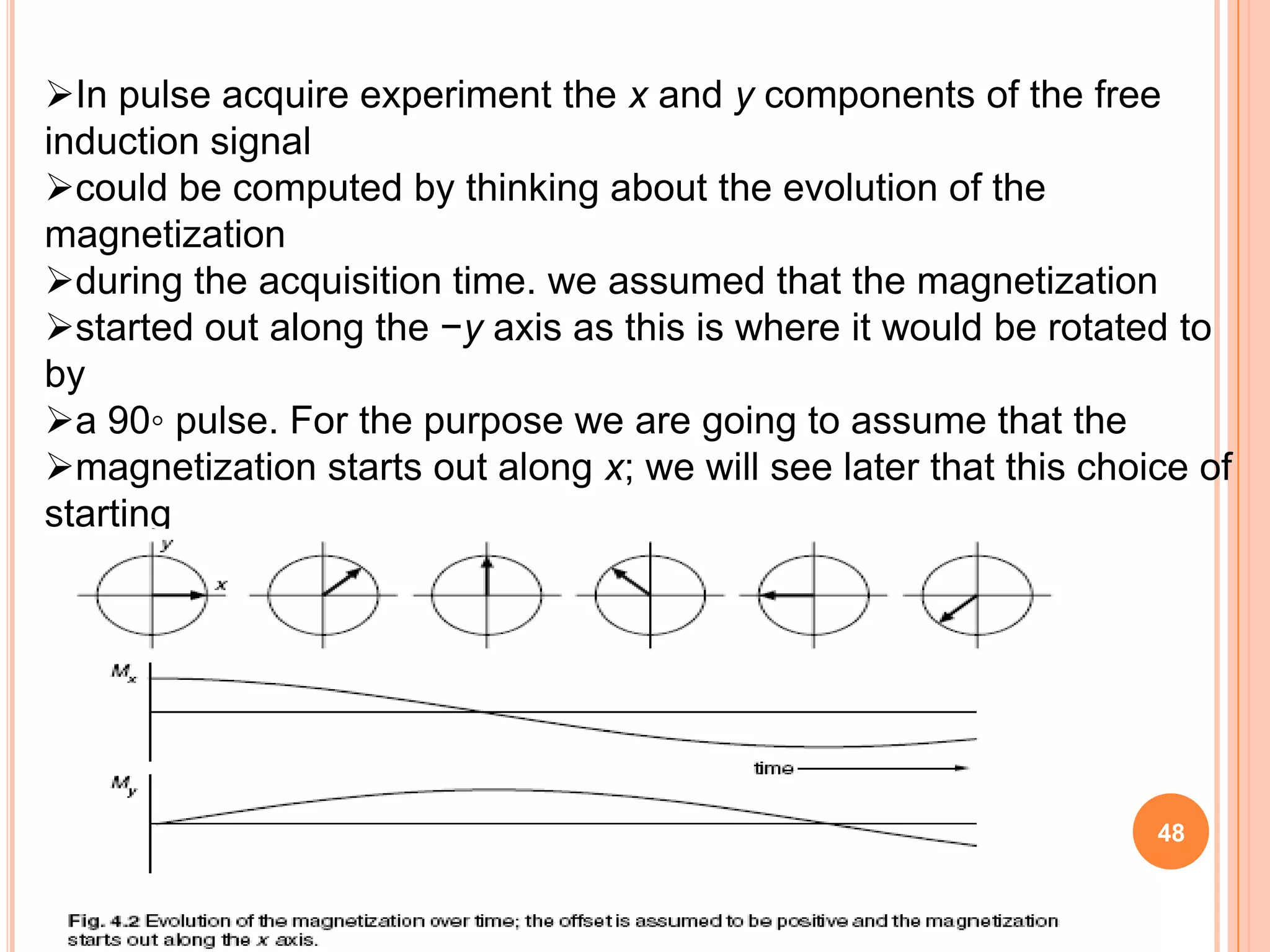

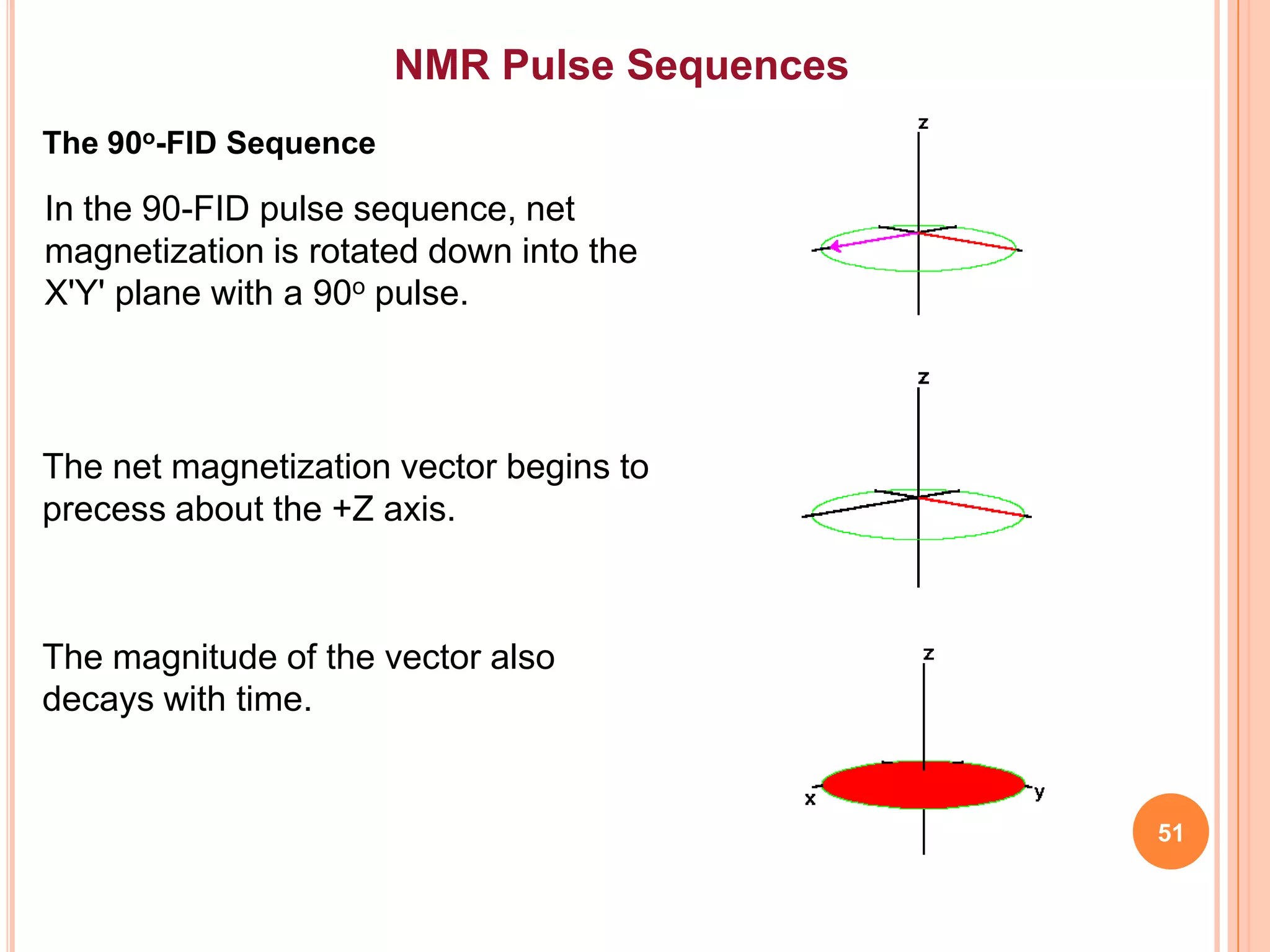

18. When pulse is discontinued, the excited nuclei begin to
lose their excitation energy and return to their original spin
state or relax.As each excited nucleus relaxes, it emits the
electromagnetic radiation. Since the molecule contains many
different nuclei, many different frequencies of the
electromagnetic radiation are emitted simultaneously, this
emission is called “free induction decay” signal.
The intensity of FID decays with time as all of the nuclei
eventually lose their excitation. This FID is complex and it is a
superimposed combination of all the frequencies emitted. The
individual frequencies due to different nuclei can be extracted
by using a computer and by Fourier transform analysis.
18

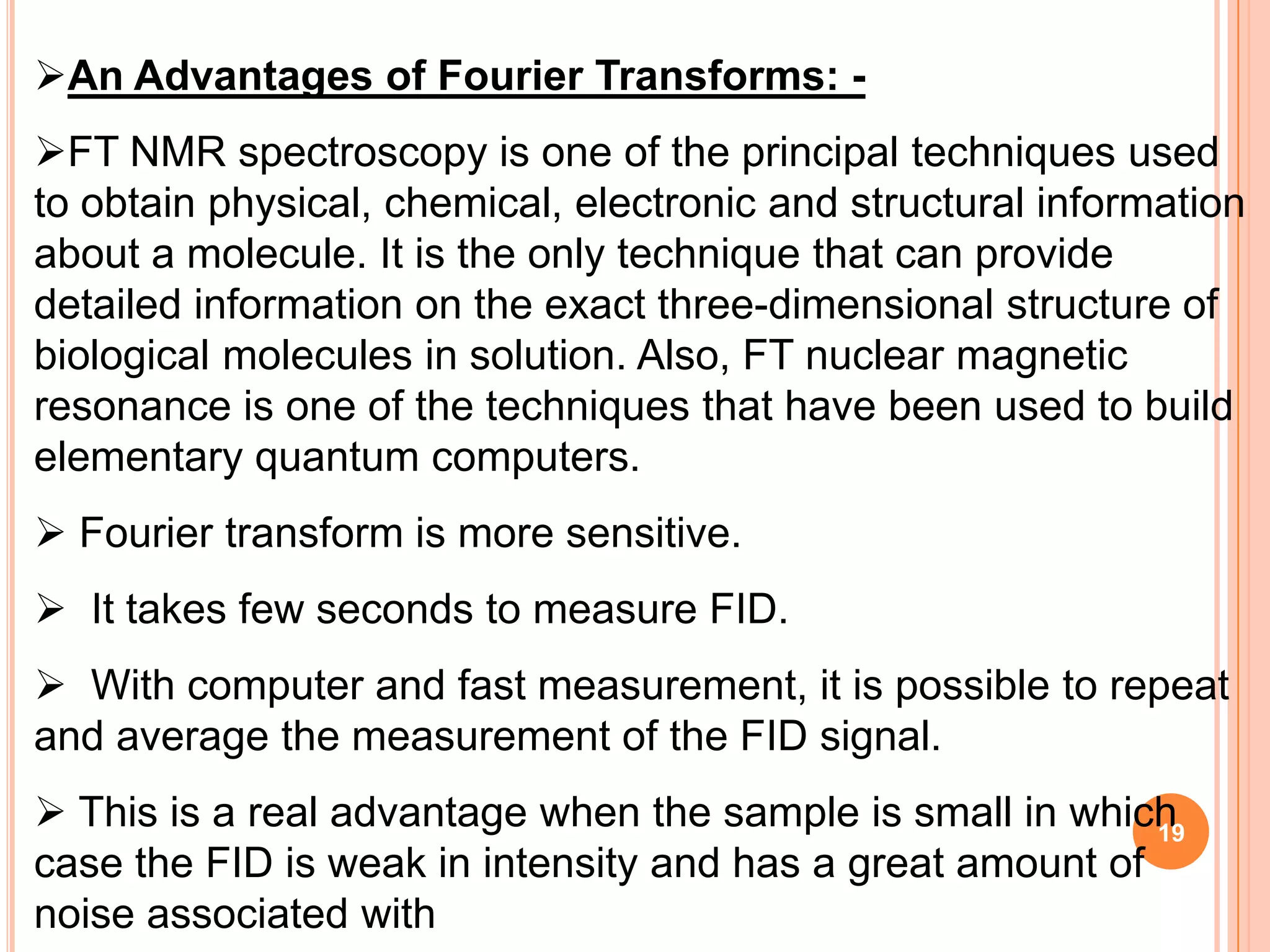

19. An Advantages of Fourier Transforms: -
FT NMR spectroscopy is one of the principal techniques used
to obtain physical, chemical, electronic and structural information
about a molecule. It is the only technique that can provide
detailed information on the exact three-dimensional structure of
biological molecules in solution. Also, FT nuclear magnetic
resonance is one of the techniques that have been used to build
elementary quantum computers.
Fourier transform is more sensitive.
It takes few seconds to measure FID.
With computer and fast measurement, it is possible to repeat
and average the measurement of the FID signal.
This is a real advantage when the sample is small in which19
case the FID is weak in intensity and has a great amount of
noise associated with

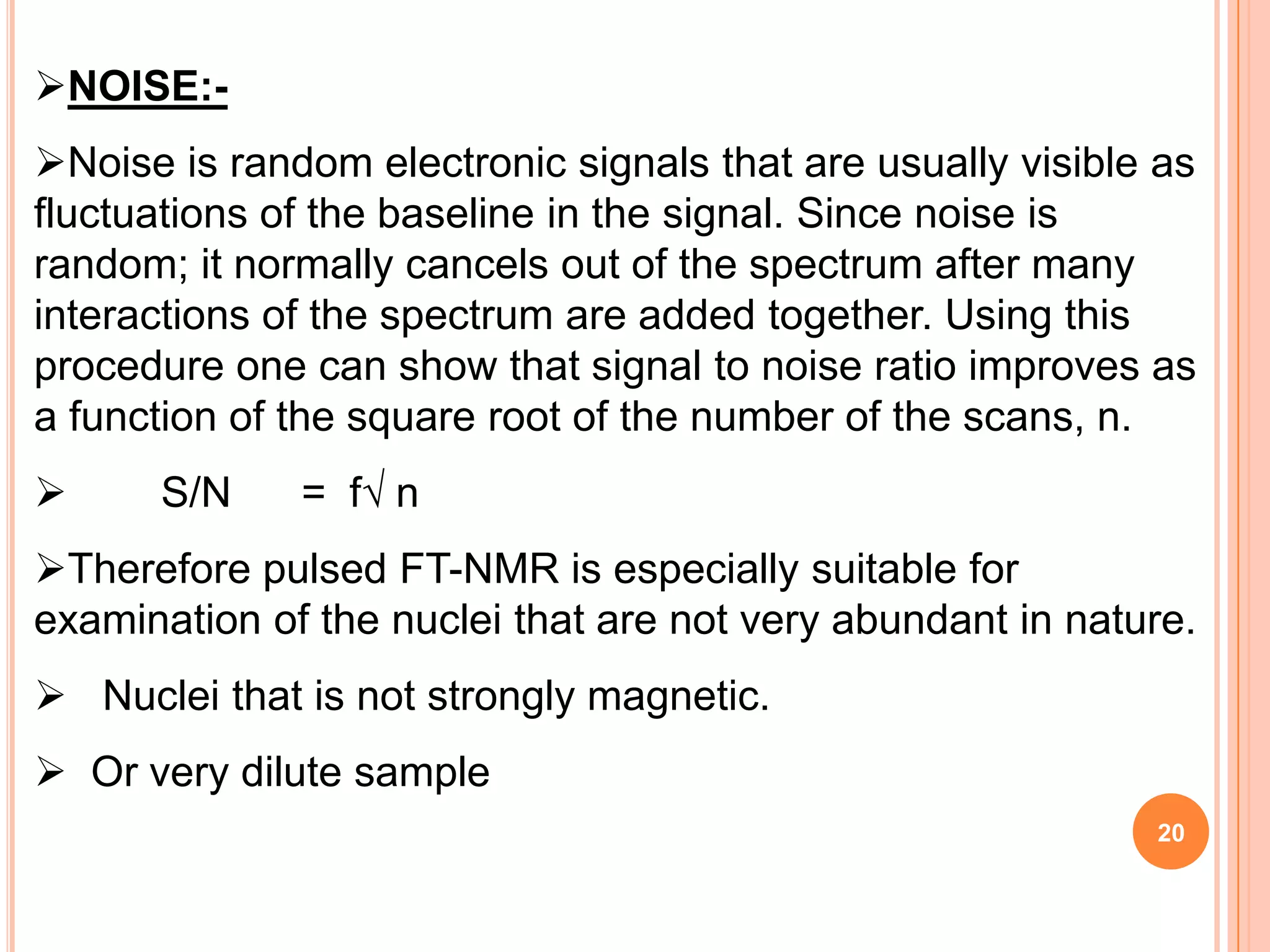

20. NOISE:-
Noise is random electronic signals that are usually visible as
fluctuations of the baseline in the signal. Since noise is
random; it normally cancels out of the spectrum after many
interactions of the spectrum are added together. Using this
procedure one can show that signal to noise ratio improves as
a function of the square root of the number of the scans, n.
S/N = f√ n
Therefore pulsed FT-NMR is especially suitable for
examination of the nuclei that are not very abundant in nature.
Nuclei that is not strongly magnetic.
Or very dilute sample
20

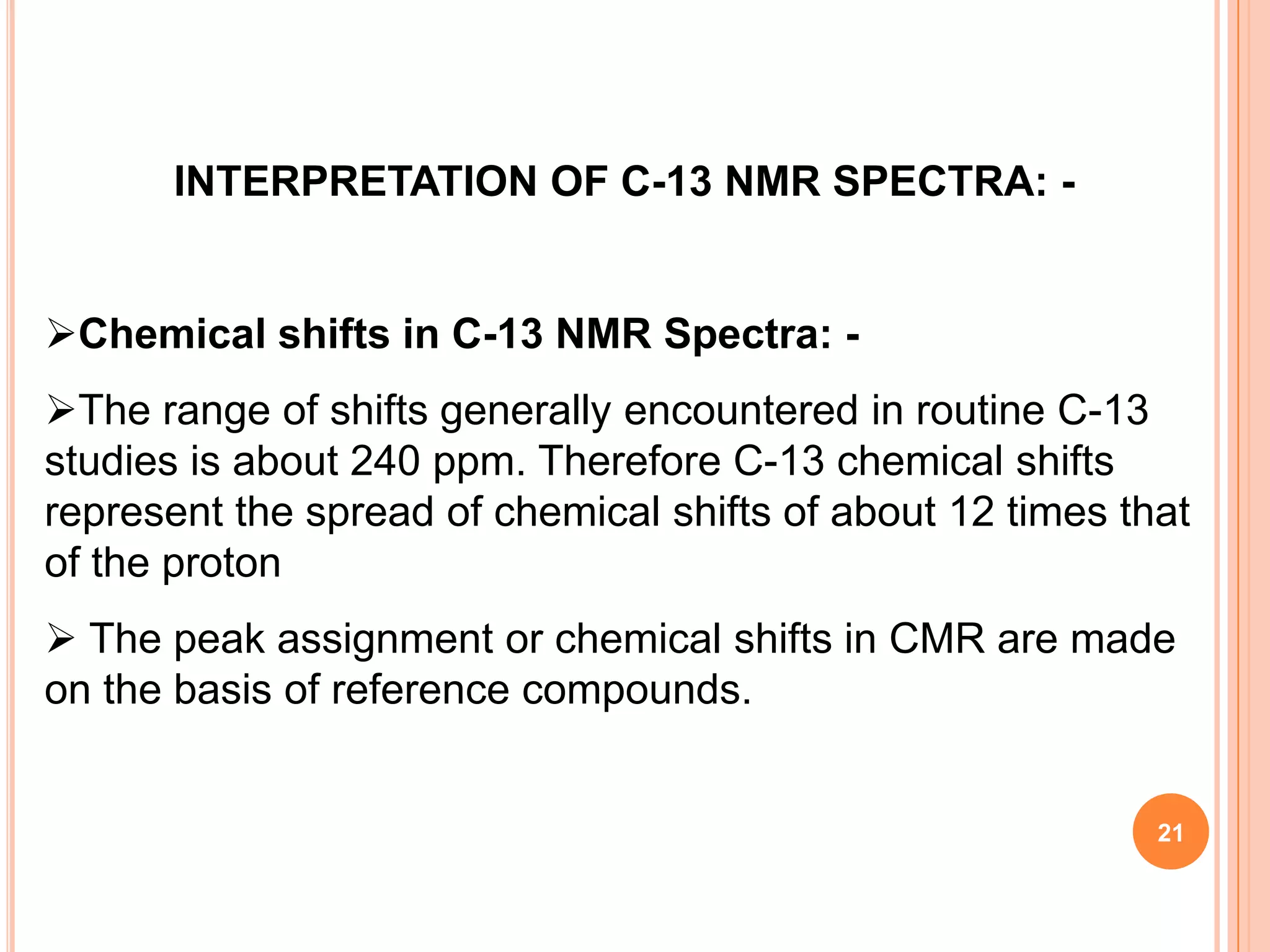

21. INTERPRETATION OF C-13 NMR SPECTRA: -
Chemical shifts in C-13 NMR Spectra: -
The range of shifts generally encountered in routine C-13
studies is about 240 ppm. Therefore C-13 chemical shifts
represent the spread of chemical shifts of about 12 times that
of the proton
The peak assignment or chemical shifts in CMR are made
on the basis of reference compounds.
21

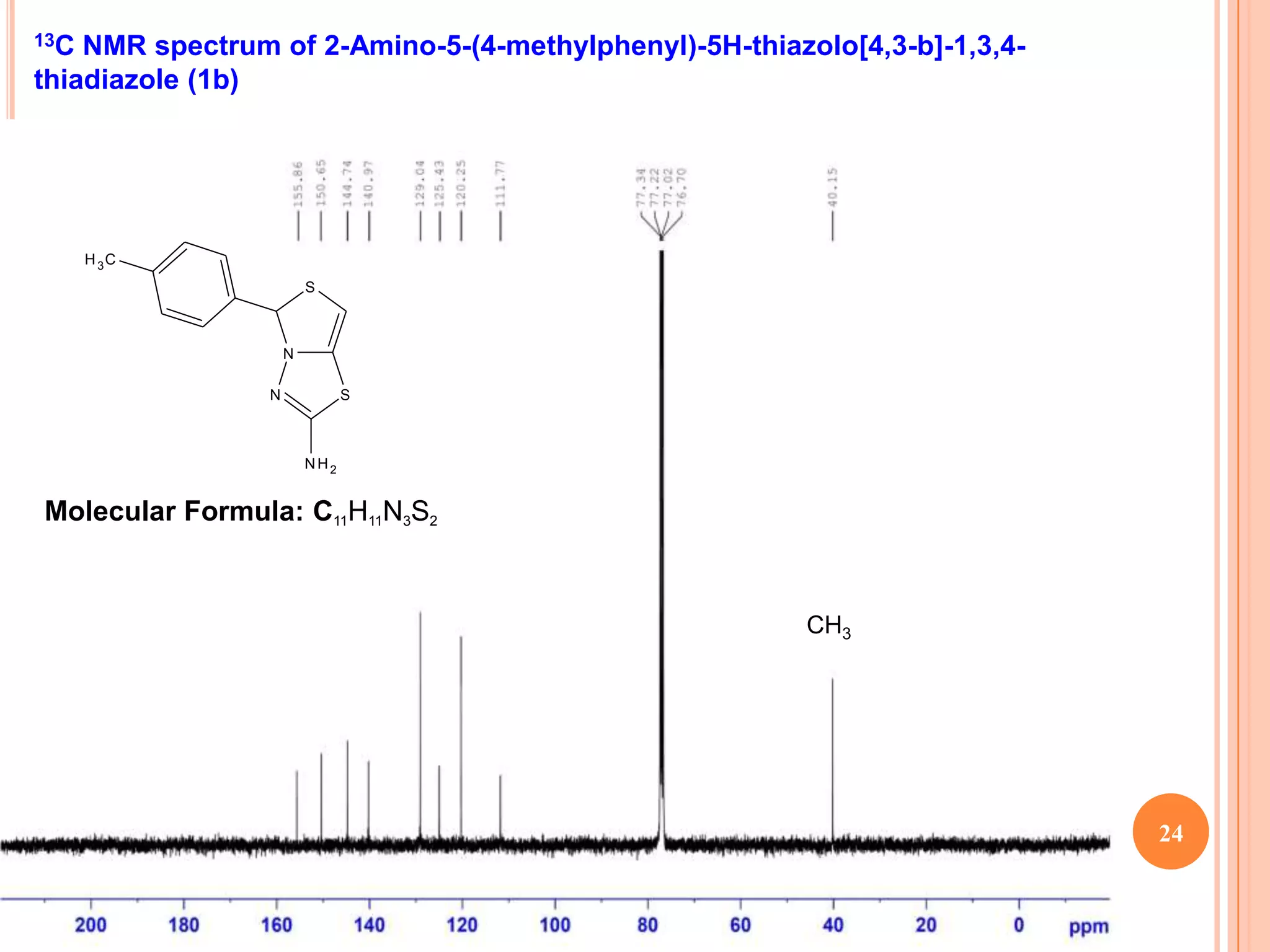

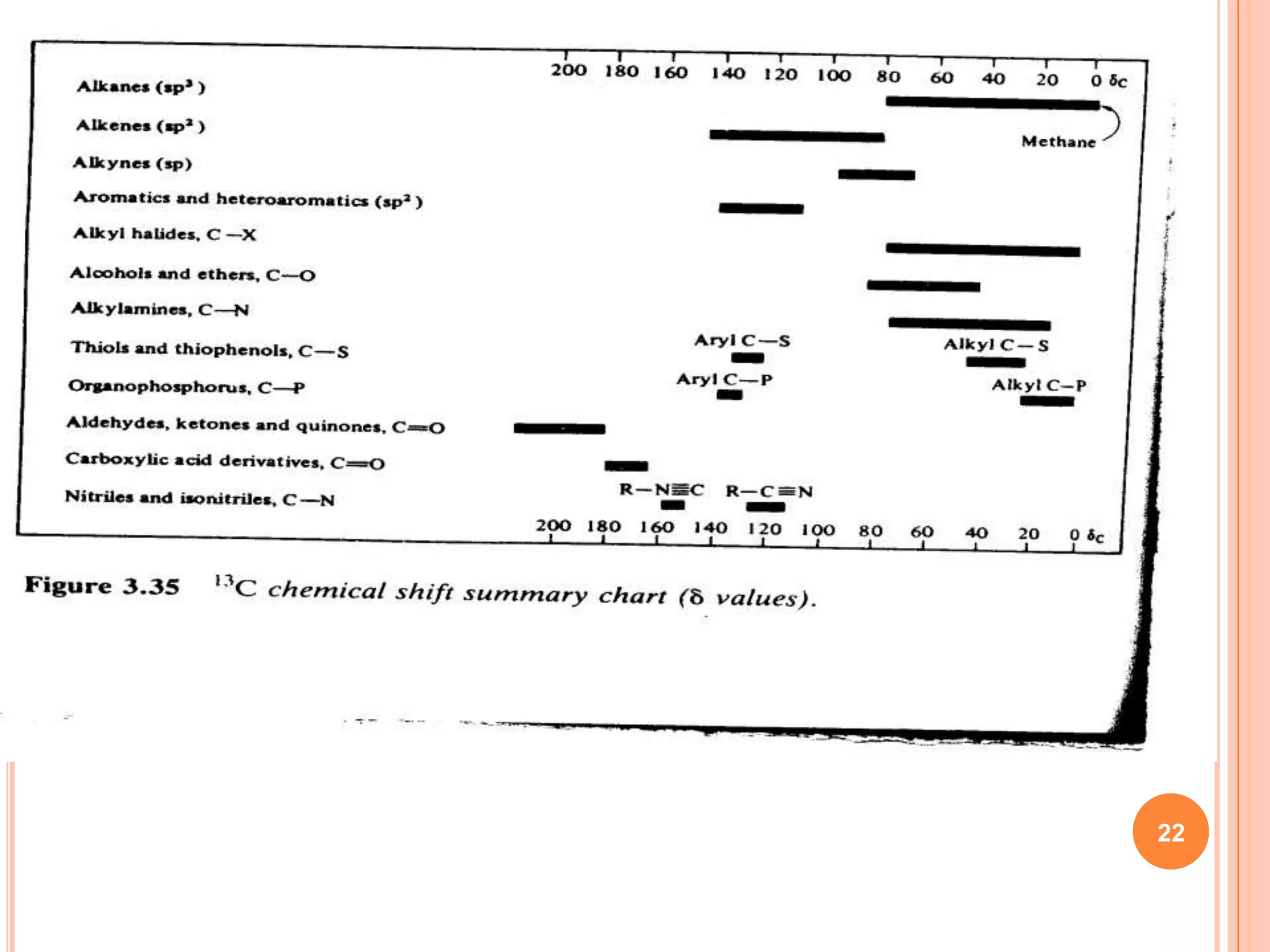

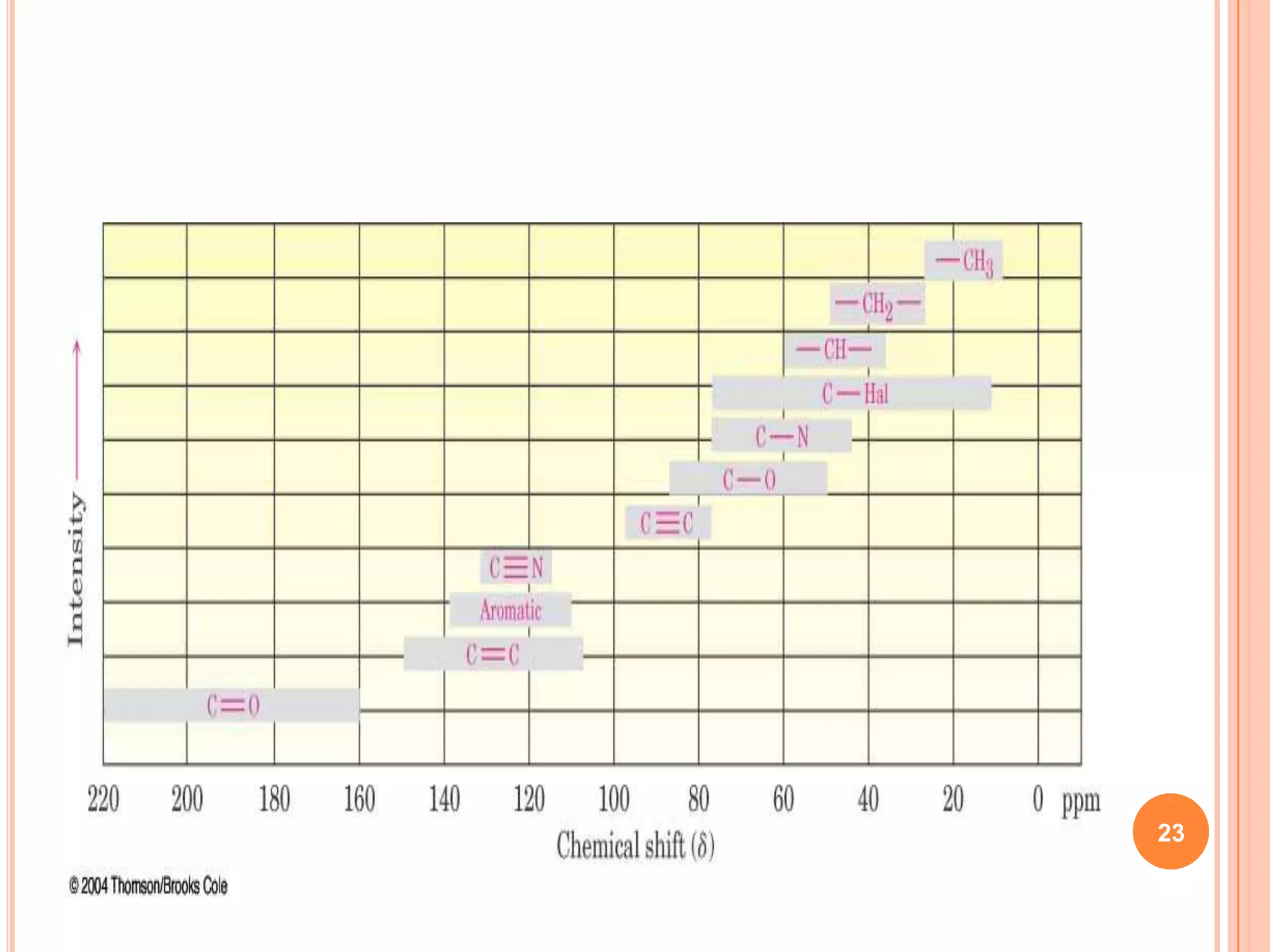

24. 13C NMR spectrum of 2-Amino-5-(4-methylphenyl)-5H-thiazolo[4,3-b]-1,3,4-
thiadiazole (1b)
H 3C
S
N
N S
NH2
Molecular Formula: C11H11N3S2
CH3
24

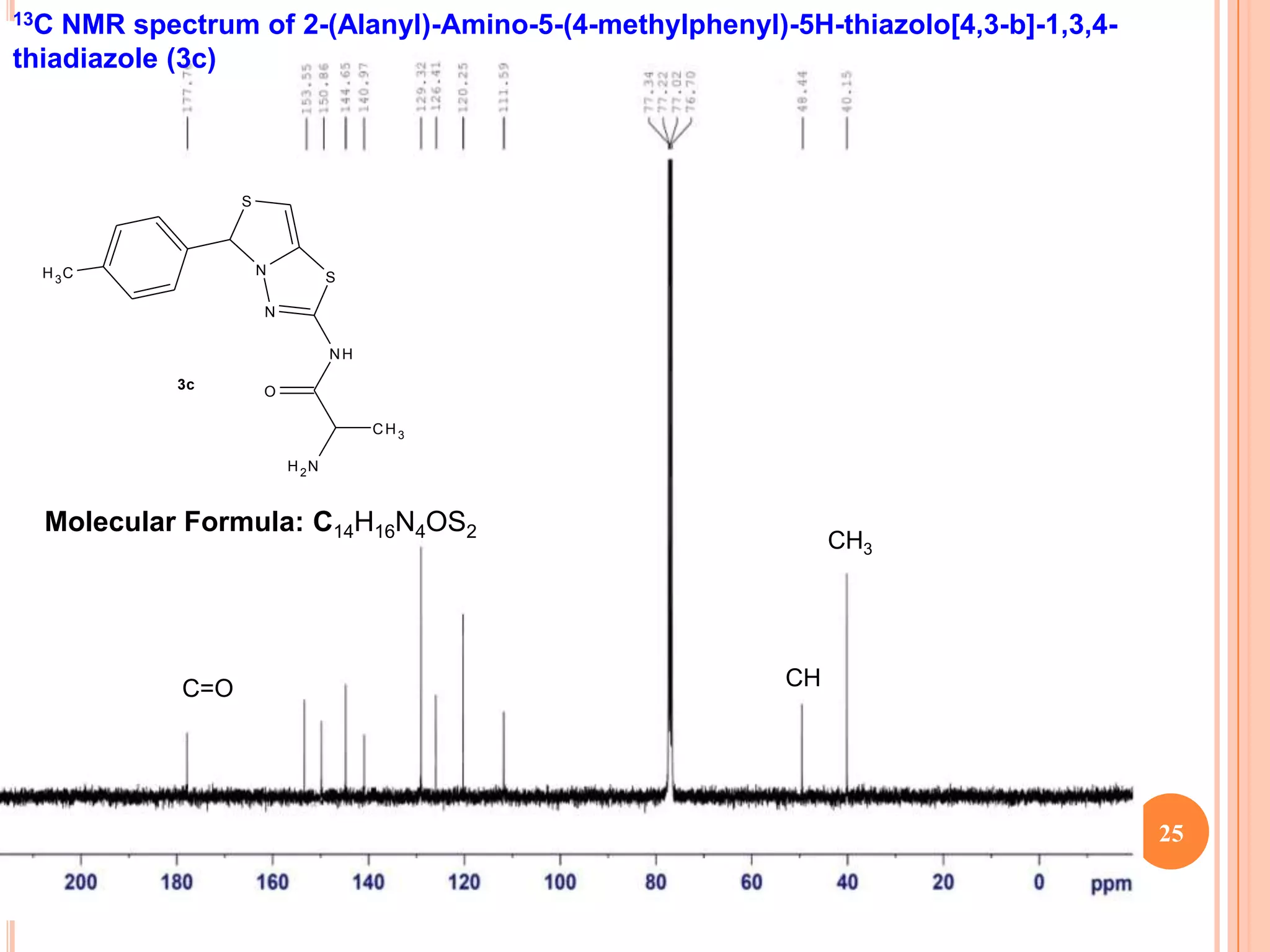

25. 13C NMR spectrum of 2-(Alanyl)-Amino-5-(4-methylphenyl)-5H-thiazolo[4,3-b]-1,3,4-
thiadiazole (3c)
S
H 3C N S
N
NH
3c O
CH3
H 2N
Molecular Formula: C14H16N4OS2
CH3
C=O CH
25

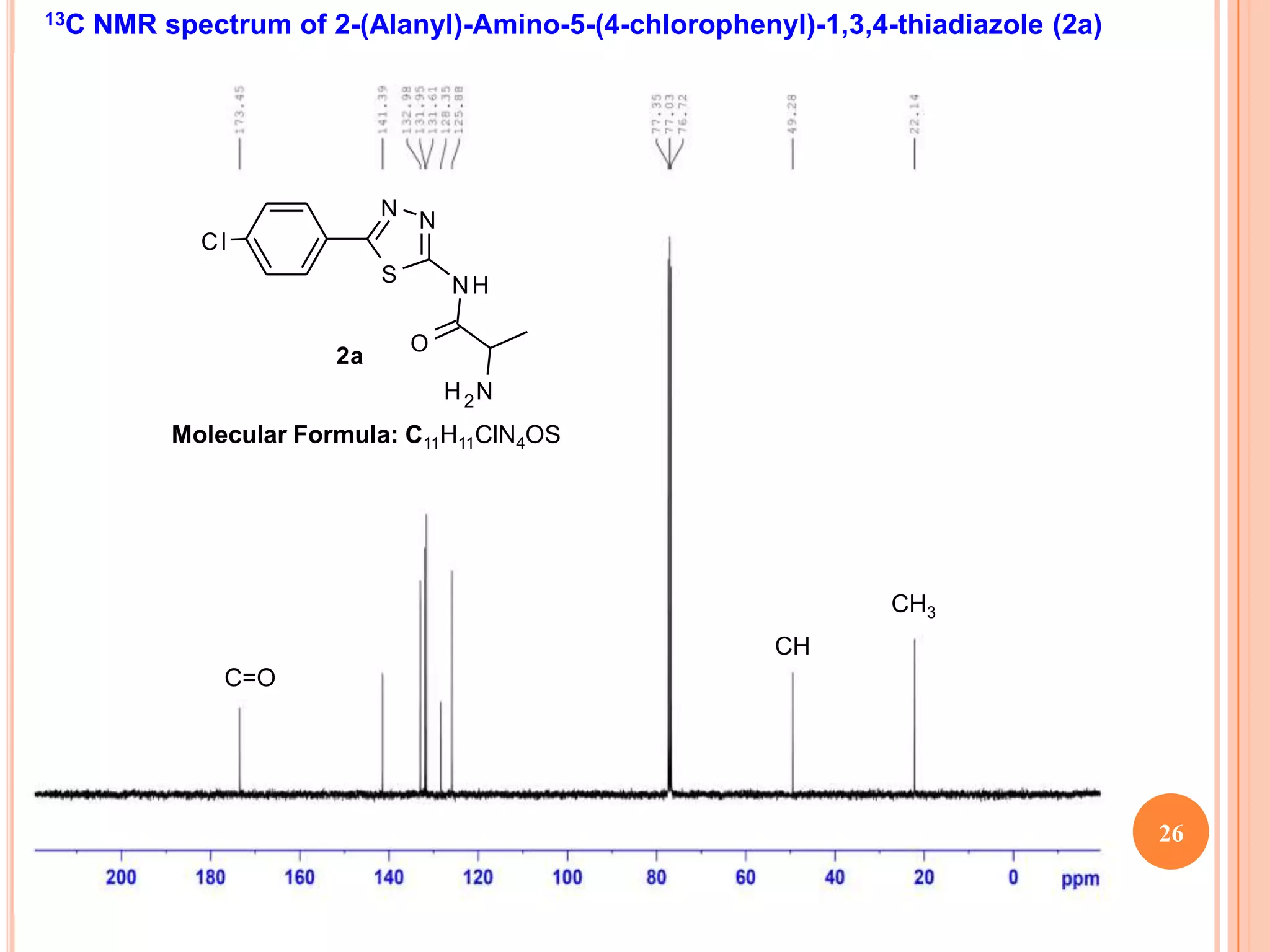

26. 13C NMR spectrum of 2-(Alanyl)-Amino-5-(4-chlorophenyl)-1,3,4-thiadiazole (2a)
N
N
Cl
S NH
O
2a
H 2N
Molecular Formula: C11H11ClN4OS
CH3
CH
C=O
26

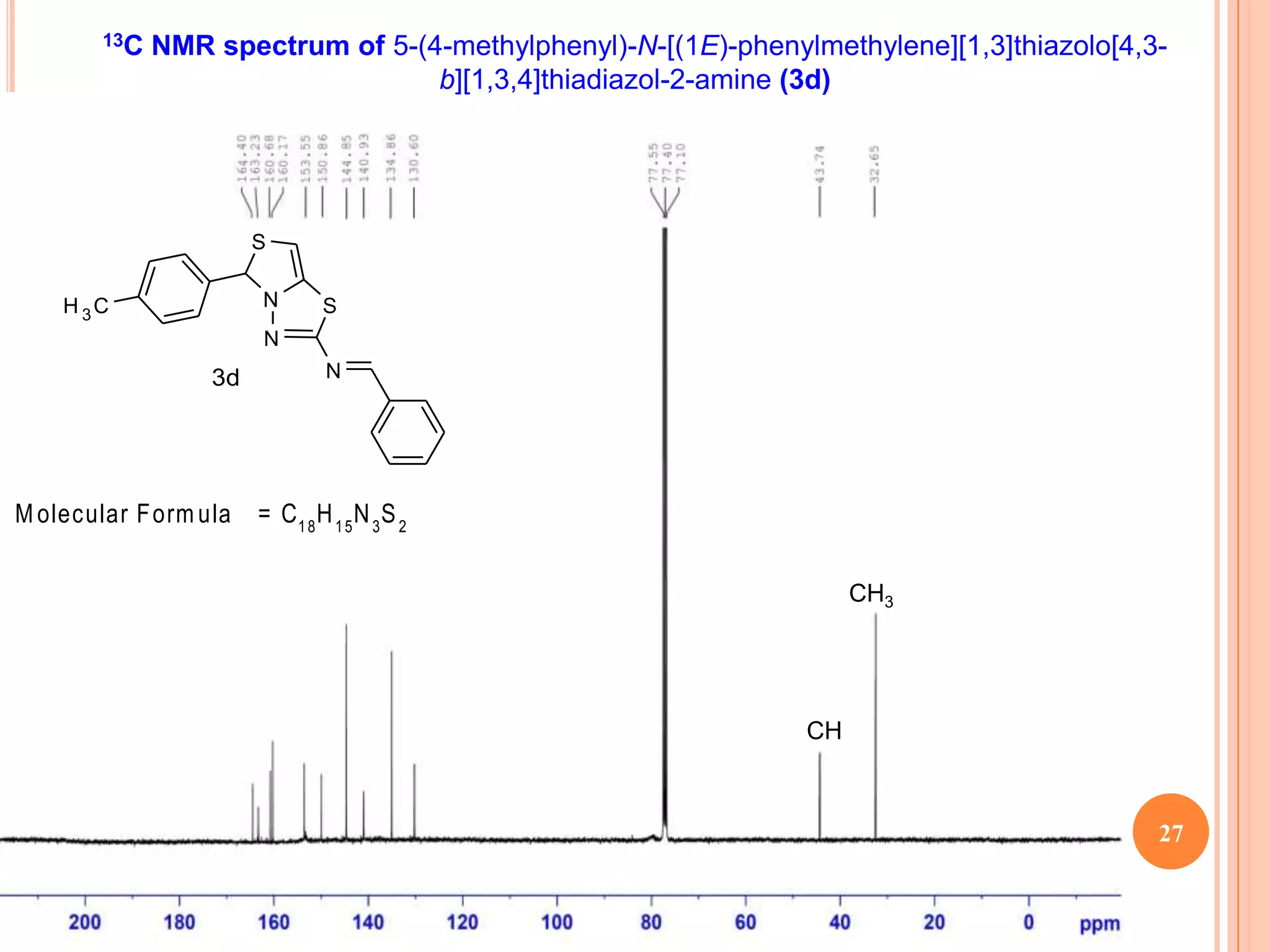

27. 13C NMR spectrum of 5-(4-methylphenyl)-N-[(1E)-phenylmethylene][1,3]thiazolo[4,3-
b][1,3,4]thiadiazol-2-amine (3d)
S
H 3C N S
N
3d N
M olecular F orm ula = C1 8H 1 5N 3S 2
CH3
CH
27

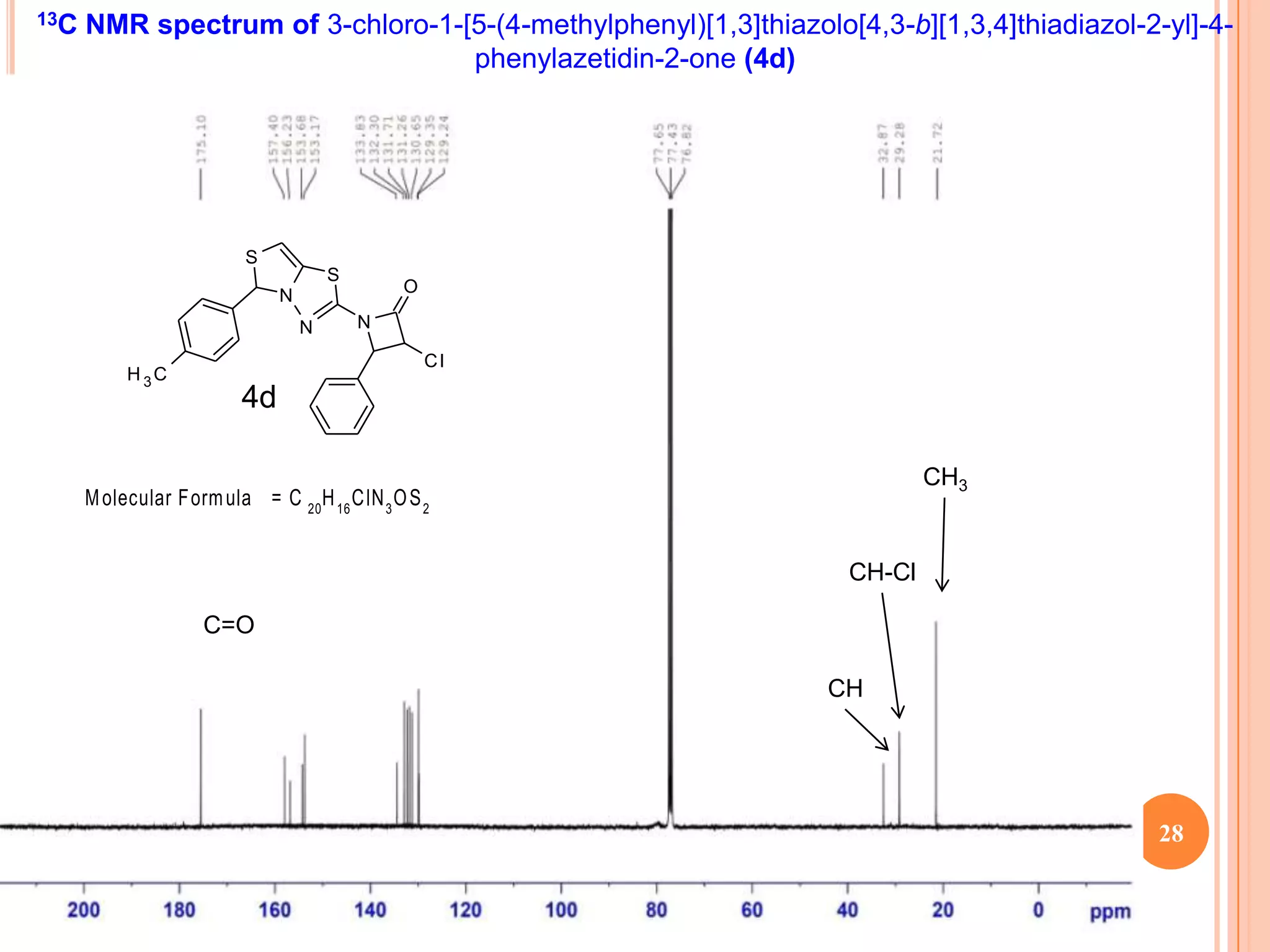

28. 13C NMR spectrum of 3-chloro-1-[5-(4-methylphenyl)[1,3]thiazolo[4,3-b][1,3,4]thiadiazol-2-yl]-4-
phenylazetidin-2-one (4d)
S
S
N O
N N
Cl
H 3C
4d
CH3
M olecular F orm ula = C 20 H 16 C lN 3 O S 2
CH-Cl
C=O
CH
28

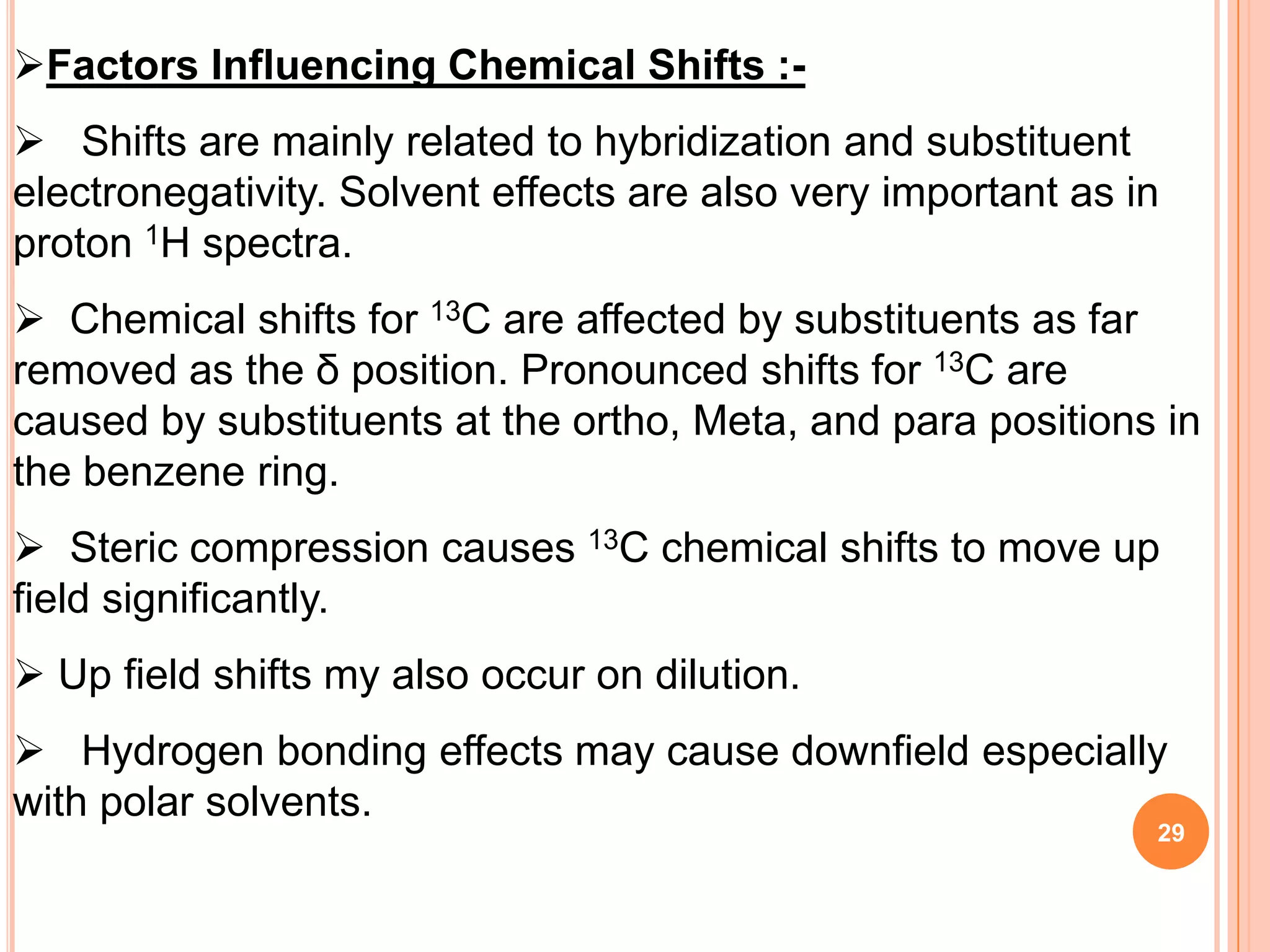

29. Factors Influencing Chemical Shifts :-
Shifts are mainly related to hybridization and substituent
electronegativity. Solvent effects are also very important as in
proton 1H spectra.
Chemical shifts for 13C are affected by substituents as far
removed as the δ position. Pronounced shifts for 13C are
caused by substituents at the ortho, Meta, and para positions in
the benzene ring.
Steric compression causes 13C chemical shifts to move up
field significantly.
Up field shifts my also occur on dilution.
Hydrogen bonding effects may cause downfield especially
with polar solvents.
29

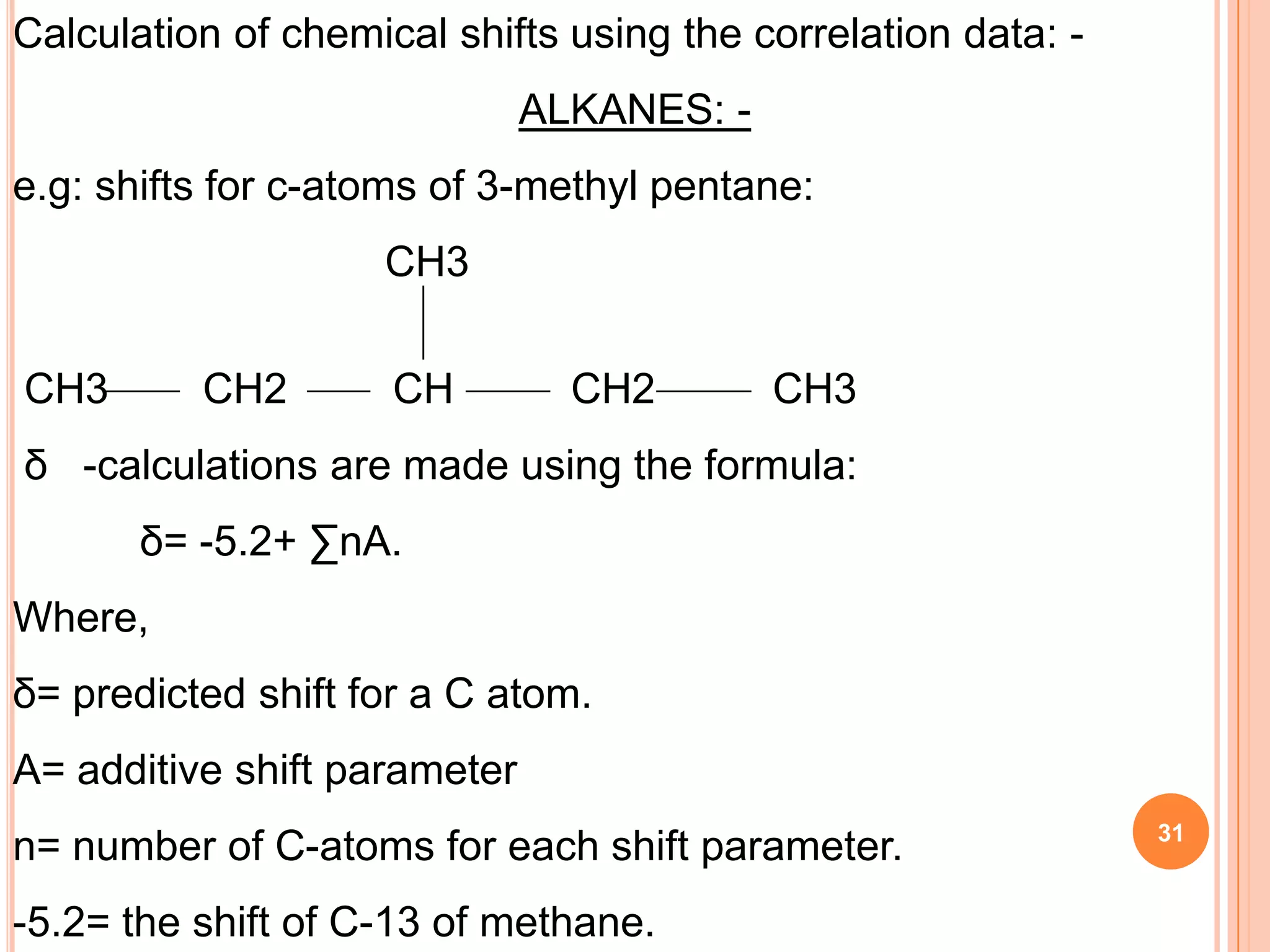

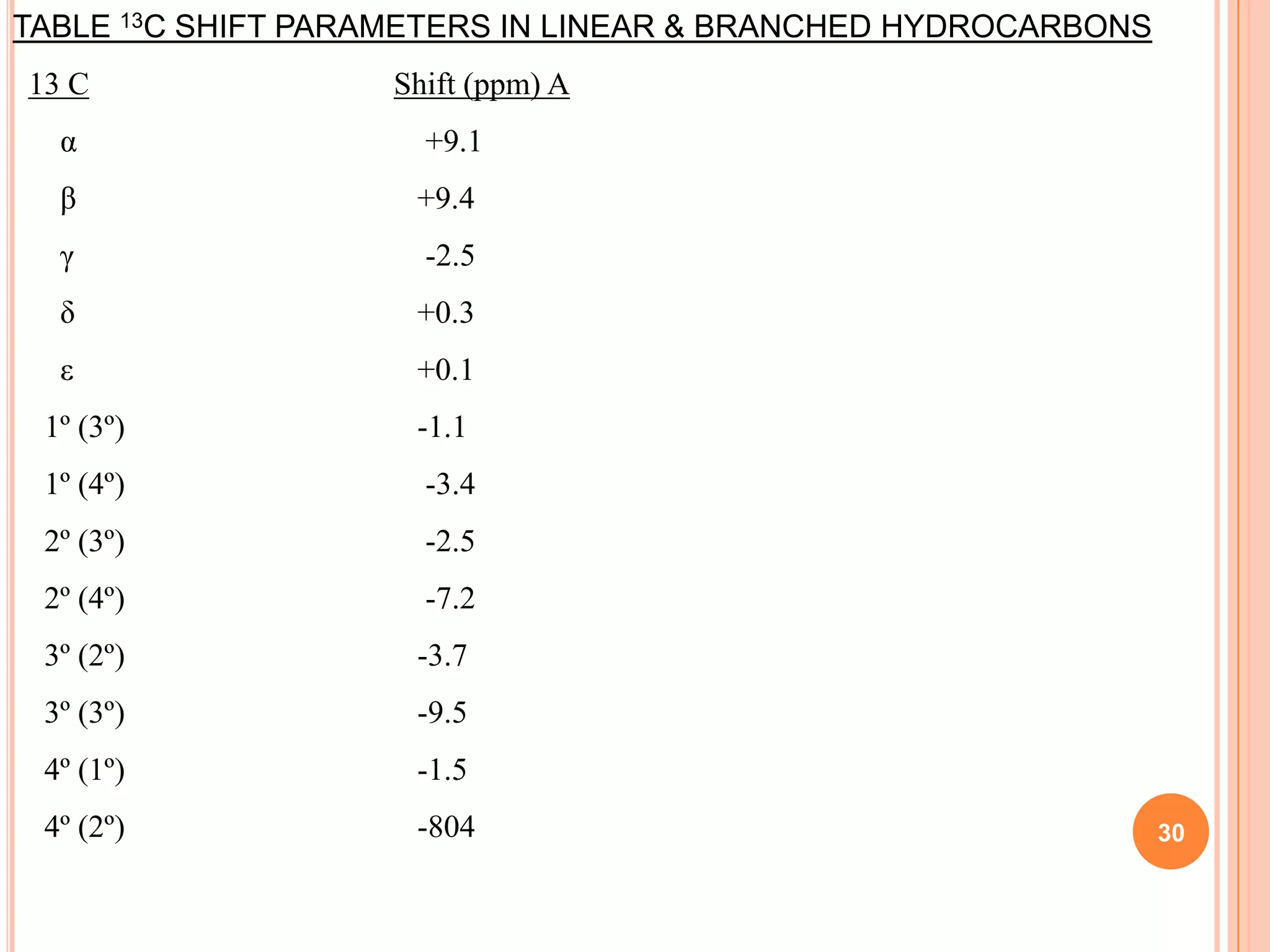

31. Calculation of chemical shifts using the correlation data: -
ALKANES: -
e.g: shifts for c-atoms of 3-methyl pentane:
CH3
CH3 CH2 CH CH2 CH3
δ -calculations are made using the formula:
δ= -5.2+ ∑nA.
Where,
δ= predicted shift for a C atom.
A= additive shift parameter
31
n= number of C-atoms for each shift parameter.
-5.2= the shift of C-13 of methane.

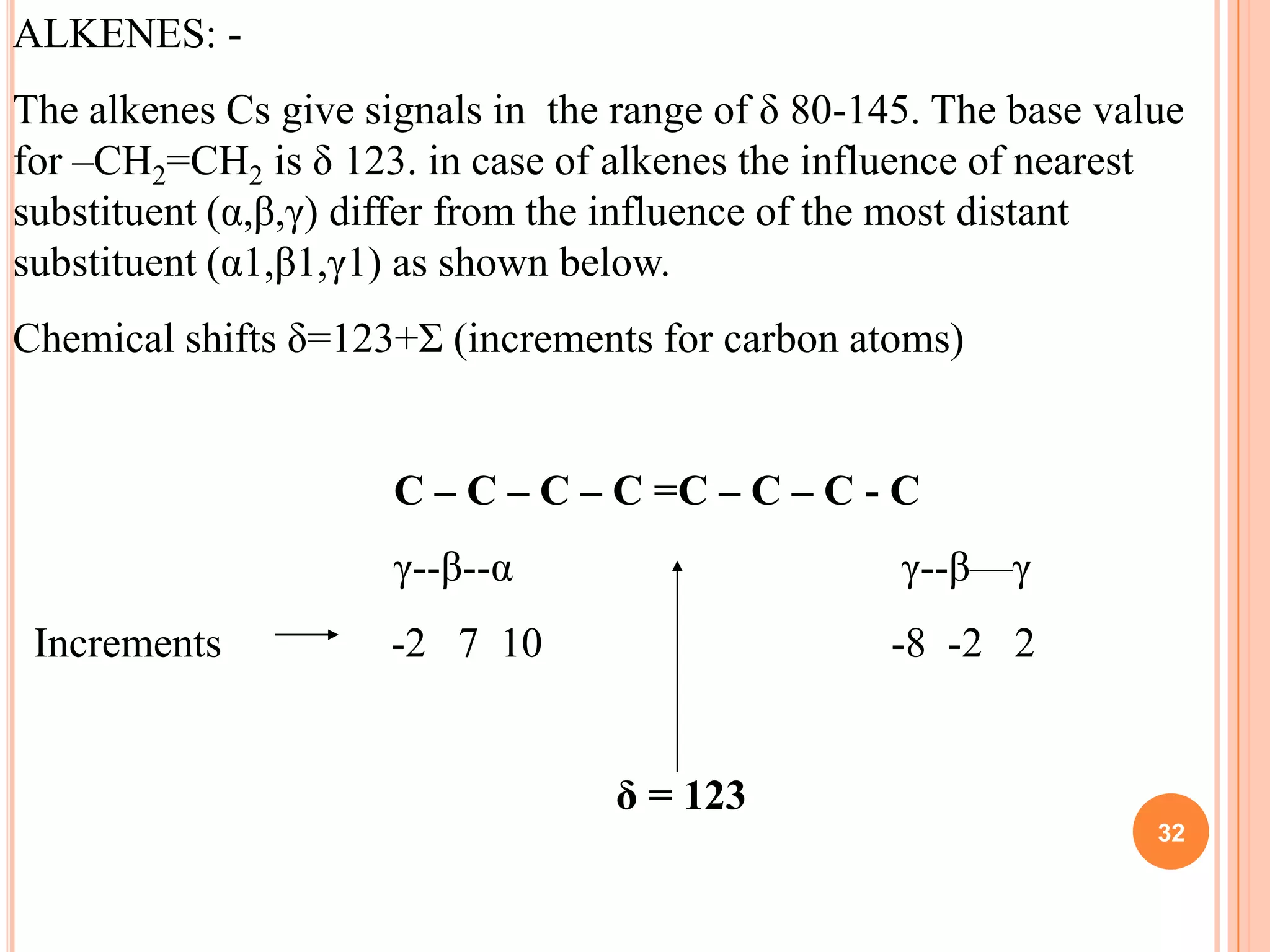

32. ALKENES: -
The alkenes Cs give signals in the range of δ 80-145. The base value
for –CH2=CH2 is δ 123. in case of alkenes the influence of nearest
substituent (α,β,γ) differ from the influence of the most distant
substituent (α1,β1,γ1) as shown below.
Chemical shifts δ=123+Σ (increments for carbon atoms)
C – C – C – C =C – C – C - C
γ--β--α γ--β—γ
Increments -2 7 10 -8 -2 2
δ = 123
32

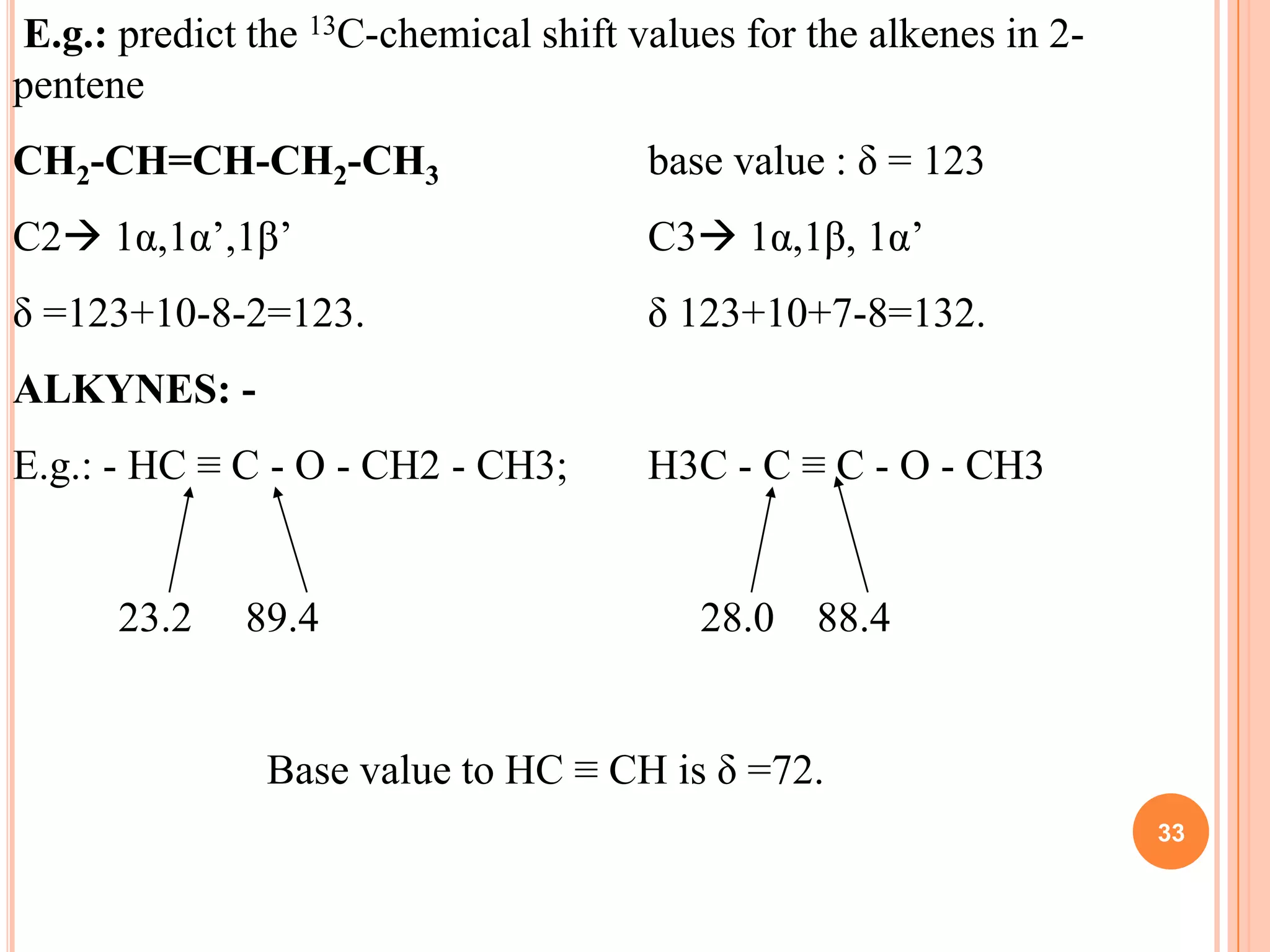

33. E.g.: predict the 13C-chemical shift values for the alkenes in 2-
pentene
CH2-CH=CH-CH2-CH3 base value : δ = 123
C2 1α,1α’,1β’ C3 1α,1β, 1α’
δ =123+10-8-2=123. δ 123+10+7-8=132.
ALKYNES: -
E.g.: - HC ≡ C - O - CH2 - CH3; H3C - C ≡ C - O - CH3
23.2 89.4 28.0 88.4
Base value to HC ≡ CH is δ =72.
33

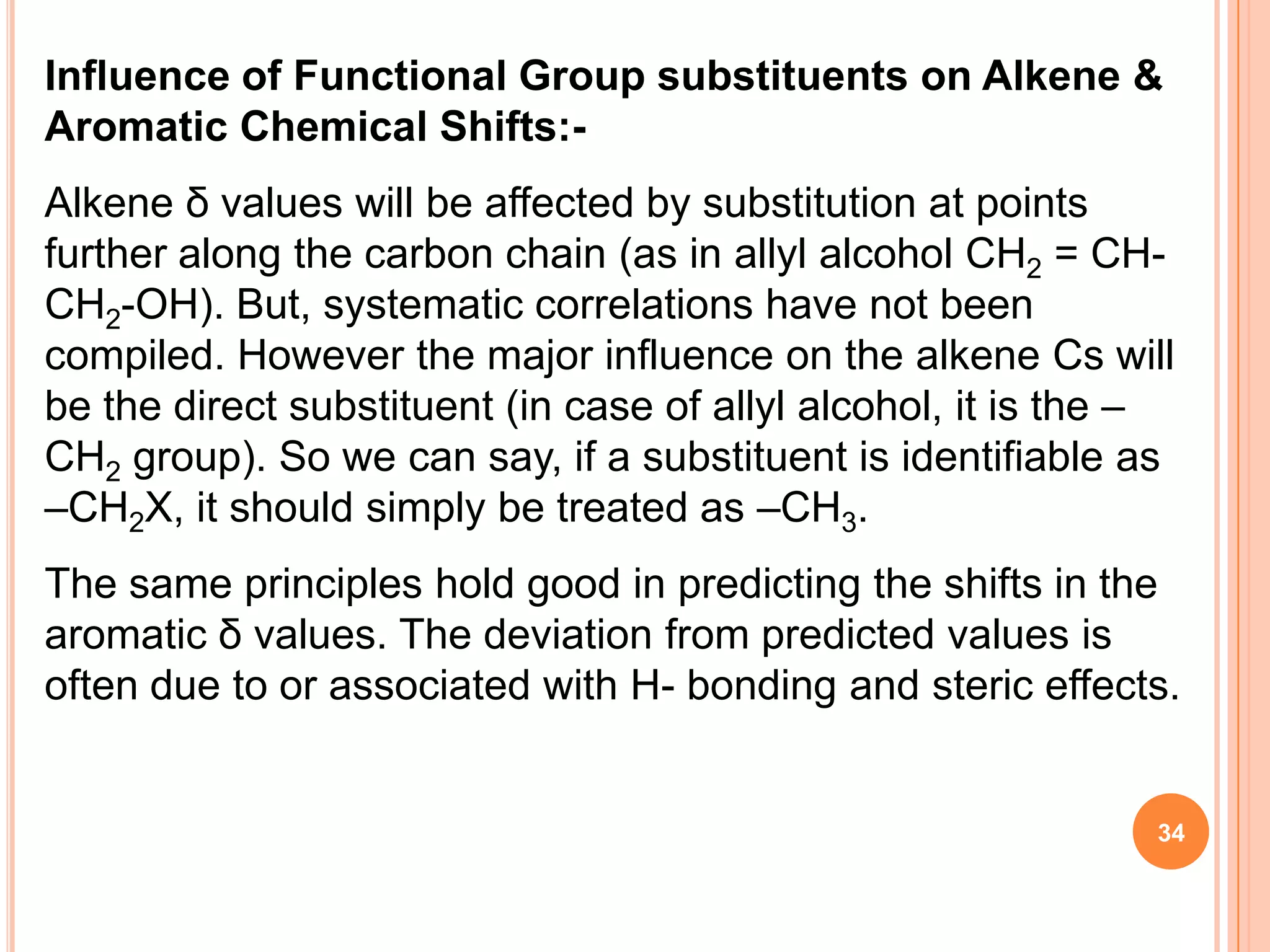

34. Influence of Functional Group substituents on Alkene &
Aromatic Chemical Shifts:-
Alkene δ values will be affected by substitution at points
further along the carbon chain (as in allyl alcohol CH2 = CH-
CH2-OH). But, systematic correlations have not been
compiled. However the major influence on the alkene Cs will
be the direct substituent (in case of allyl alcohol, it is the –
CH2 group). So we can say, if a substituent is identifiable as
–CH2X, it should simply be treated as –CH3.
The same principles hold good in predicting the shifts in the
aromatic δ values. The deviation from predicted values is
often due to or associated with H- bonding and steric effects.
34

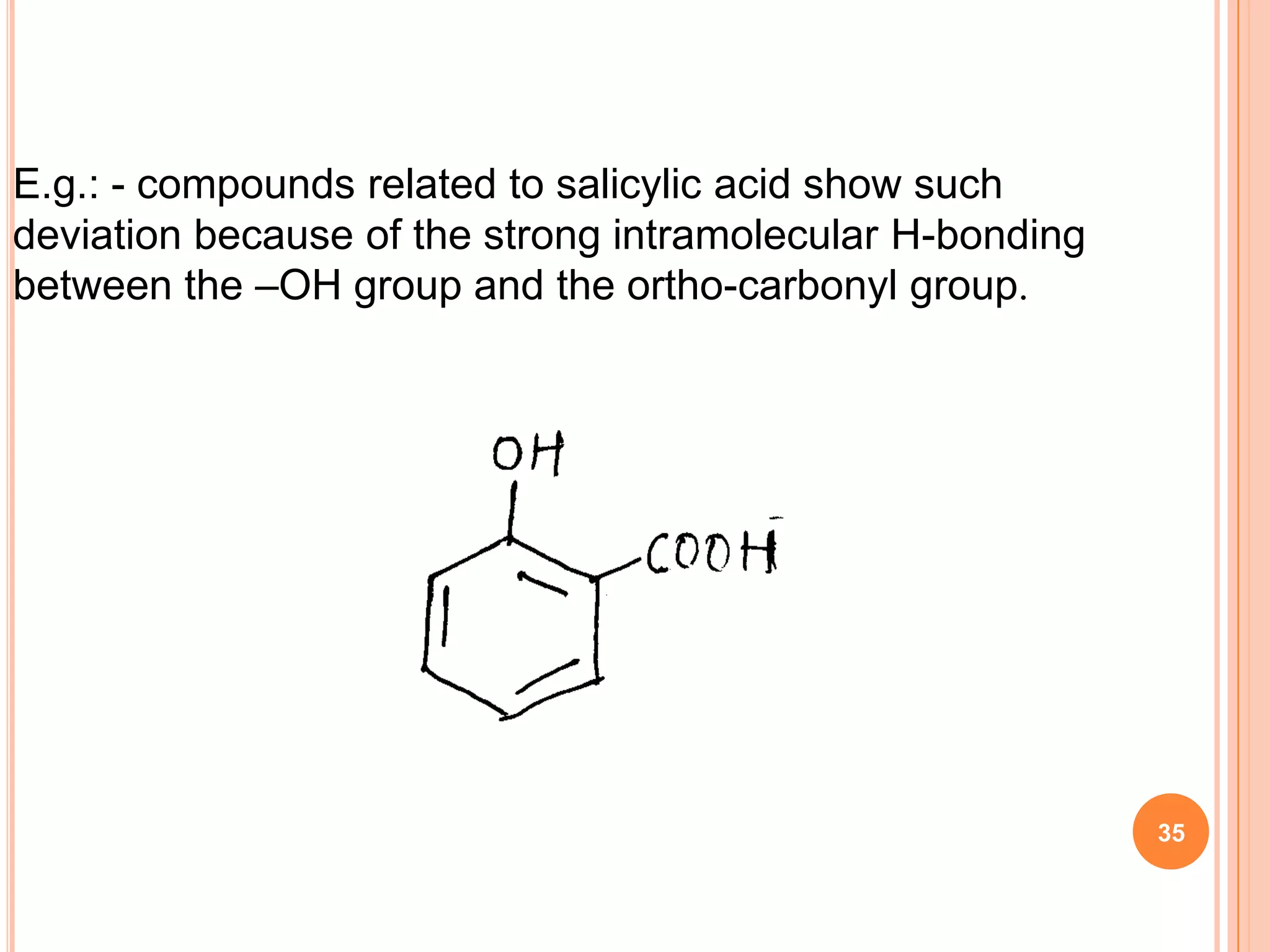

35. E.g.: - compounds related to salicylic acid show such
deviation because of the strong intramolecular H-bonding
between the –OH group and the ortho-carbonyl group.
35

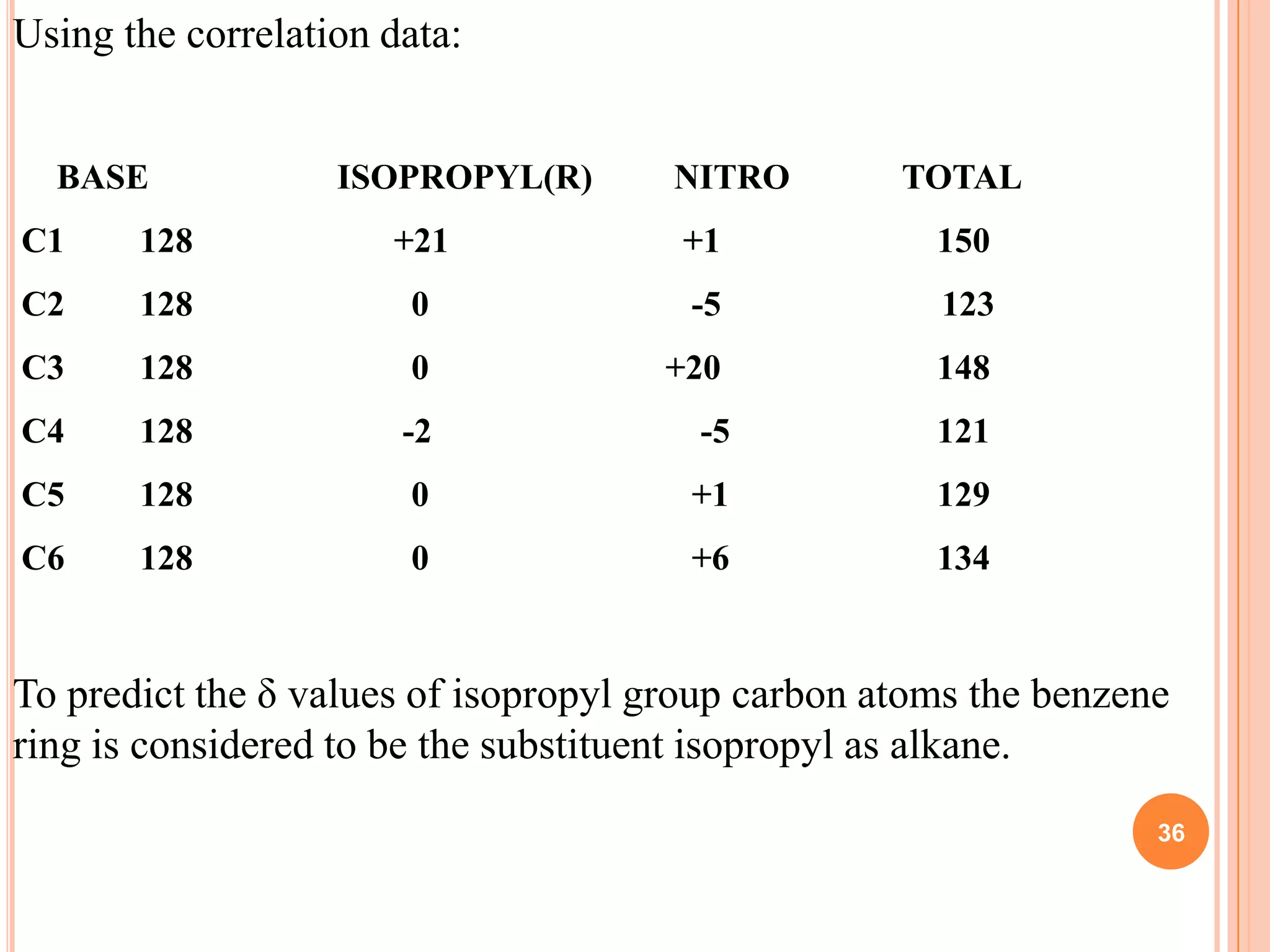

36. Using the correlation data:
BASE ISOPROPYL(R) NITRO TOTAL
C1 128 +21 +1 150
C2 128 0 -5 123
C3 128 0 +20 148
C4 128 -2 -5 121
C5 128 0 +1 129
C6 128 0 +6 134
To predict the δ values of isopropyl group carbon atoms the benzene
ring is considered to be the substituent isopropyl as alkane.
36

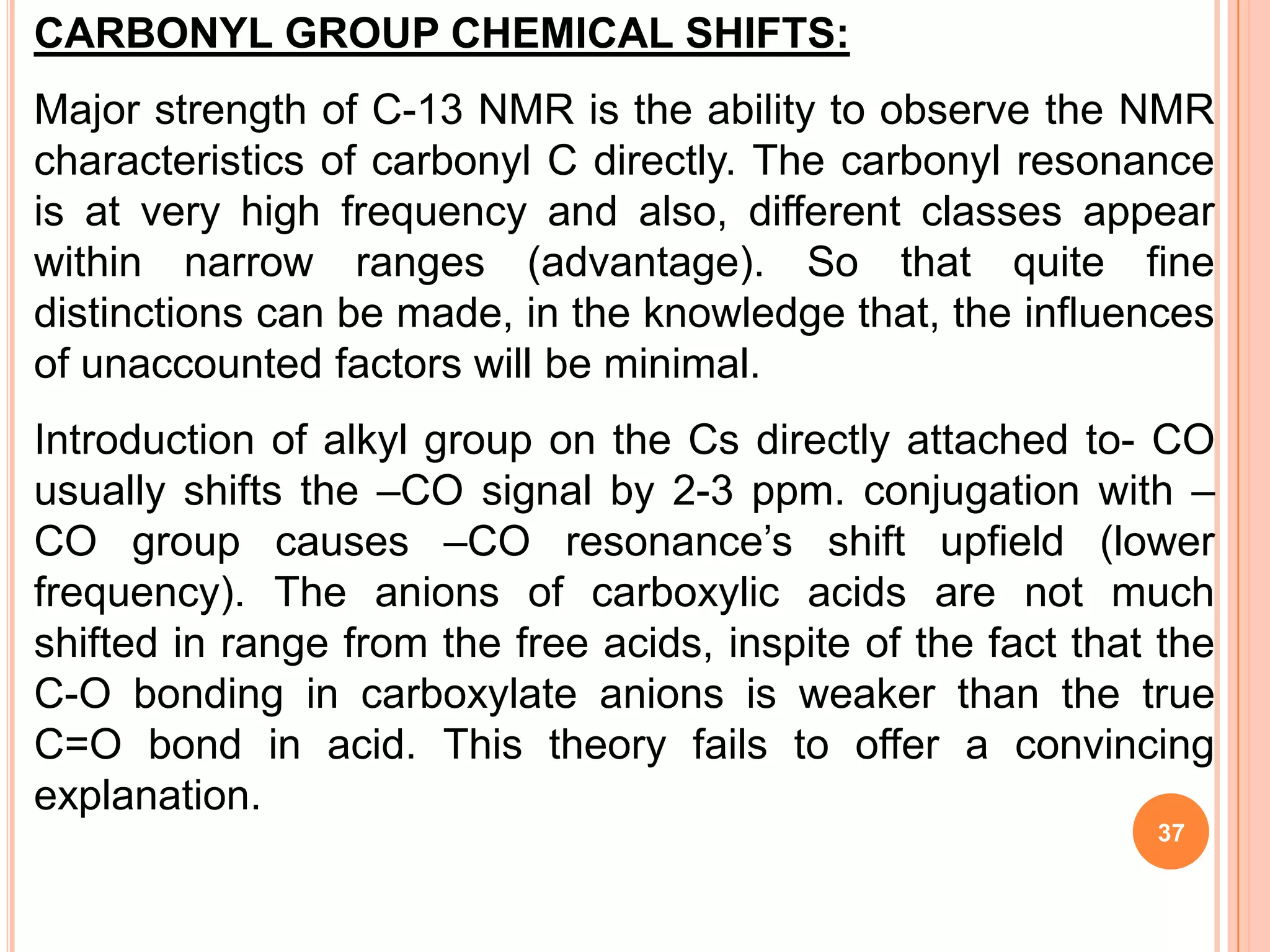

37. CARBONYL GROUP CHEMICAL SHIFTS:
Major strength of C-13 NMR is the ability to observe the NMR
characteristics of carbonyl C directly. The carbonyl resonance
is at very high frequency and also, different classes appear
within narrow ranges (advantage). So that quite fine
distinctions can be made, in the knowledge that, the influences
of unaccounted factors will be minimal.
Introduction of alkyl group on the Cs directly attached to- CO
usually shifts the –CO signal by 2-3 ppm. conjugation with –
CO group causes –CO resonance’s shift upfield (lower
frequency). The anions of carboxylic acids are not much
shifted in range from the free acids, inspite of the fact that the
C-O bonding in carboxylate anions is weaker than the true
C=O bond in acid. This theory fails to offer a convincing
explanation.
37
38. READING THE C-13 SPECTRUM:
The first steps in deducing the structure of an organic
compound, using the C-13 NMR spectrum are; -
Count the number of signals in the spectrum; tis is the
number of non-equivalent C environments in the molecule.
(Identify and discount the signals from solvent).
Use figure (δ values table) to assign signals approximately
the regions δ 0-80, δ 80-150 and δ 160-220(carbonyl carbons).
Note the intensities of the peaks: non-proton bearing Cs
give lower intensity signals, and groups of two or more
equivalent Cs give higher intensity signals.
Take account of any multiplicity into (q, t, d or s).
Use the correlation tables to predict the chemical shifts of all
38
Cs inn each putative structure.

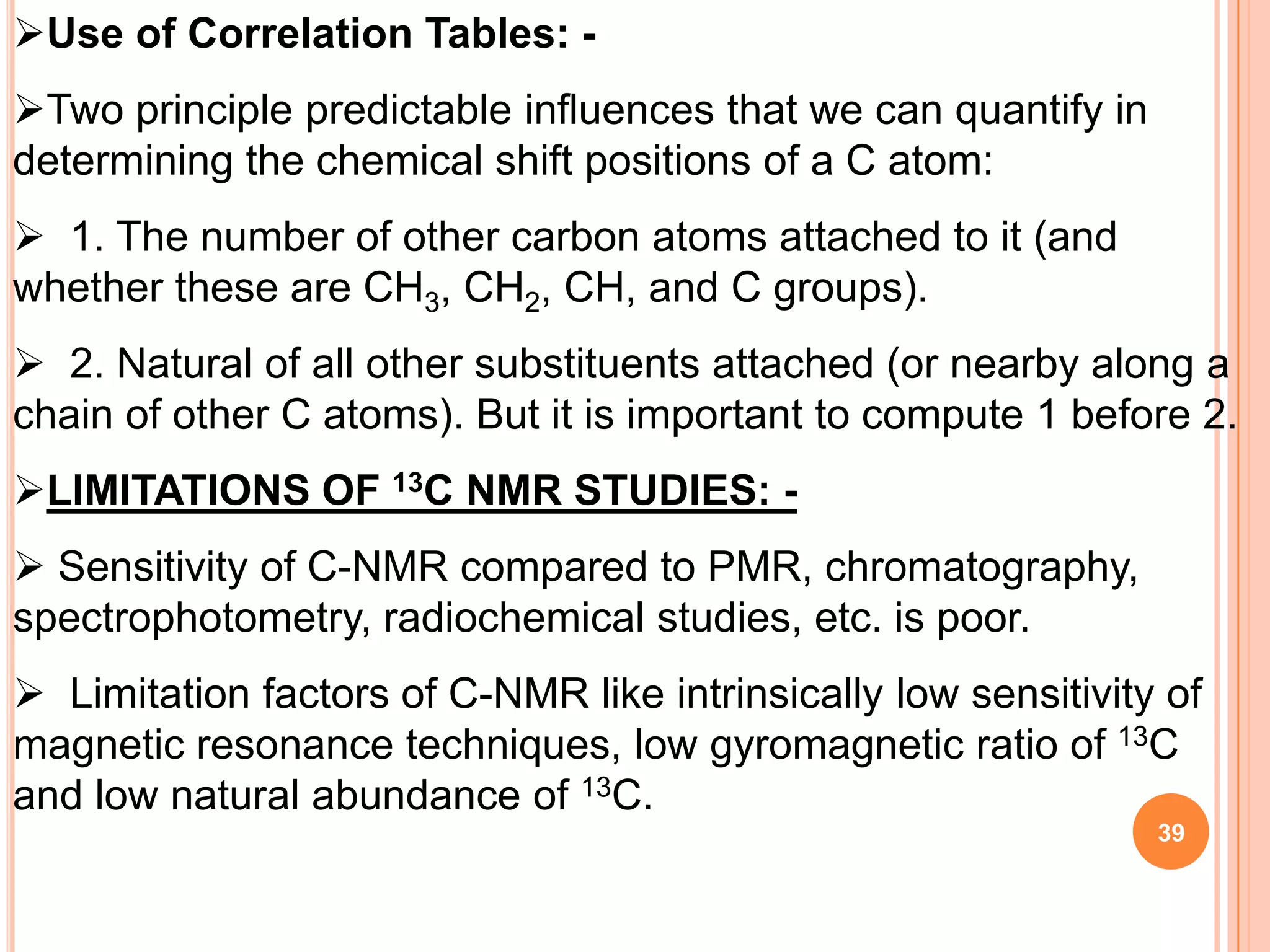

39. Use of Correlation Tables: -
Two principle predictable influences that we can quantify in
determining the chemical shift positions of a C atom:
1. The number of other carbon atoms attached to it (and
whether these are CH3, CH2, CH, and C groups).
2. Natural of all other substituents attached (or nearby along a
chain of other C atoms). But it is important to compute 1 before 2.
LIMITATIONS OF 13C NMR STUDIES: -
Sensitivity of C-NMR compared to PMR, chromatography,
spectrophotometry, radiochemical studies, etc. is poor.
Limitation factors of C-NMR like intrinsically low sensitivity of
magnetic resonance techniques, low gyromagnetic ratio of 13C
and low natural abundance of 13C.
39

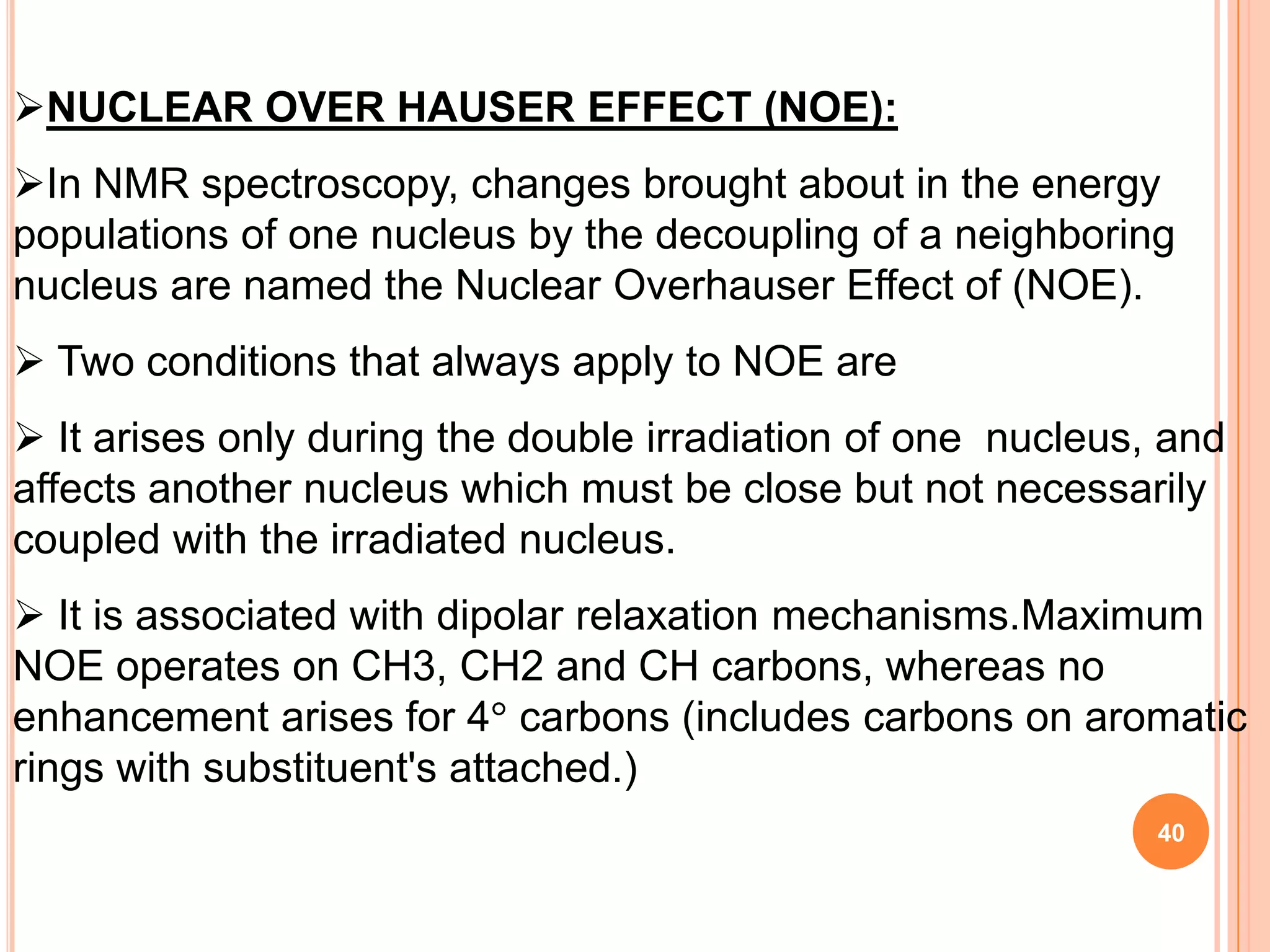

40. NUCLEAR OVER HAUSER EFFECT (NOE):
In NMR spectroscopy, changes brought about in the energy
populations of one nucleus by the decoupling of a neighboring
nucleus are named the Nuclear Overhauser Effect of (NOE).
Two conditions that always apply to NOE are
It arises only during the double irradiation of one nucleus, and
affects another nucleus which must be close but not necessarily
coupled with the irradiated nucleus.
It is associated with dipolar relaxation mechanisms.Maximum
NOE operates on CH3, CH2 and CH carbons, whereas no
enhancement arises for 4 carbons (includes carbons on aromatic
rings with substituent's attached.)
40
41. THEORY OF NOE
Consider a hypothetical
molecule in which 2 protons
Ha Hb are in close proximity . In such
compound, if we double
irradiate Hb,then this proton
C C
gets stimulated and the
stimulation is transferred
through space to the relaxation
mechanism of Ha.
41
42. Thus, due to increase in spin lattice relaxation of Ha, its
signal will appear more intense by 15 to 50%. So, if the
intensity of absorption of Ha signal is increased by double
irradiating Hb, then protons Ha and Hb must be in close
proximity in a molecule
42

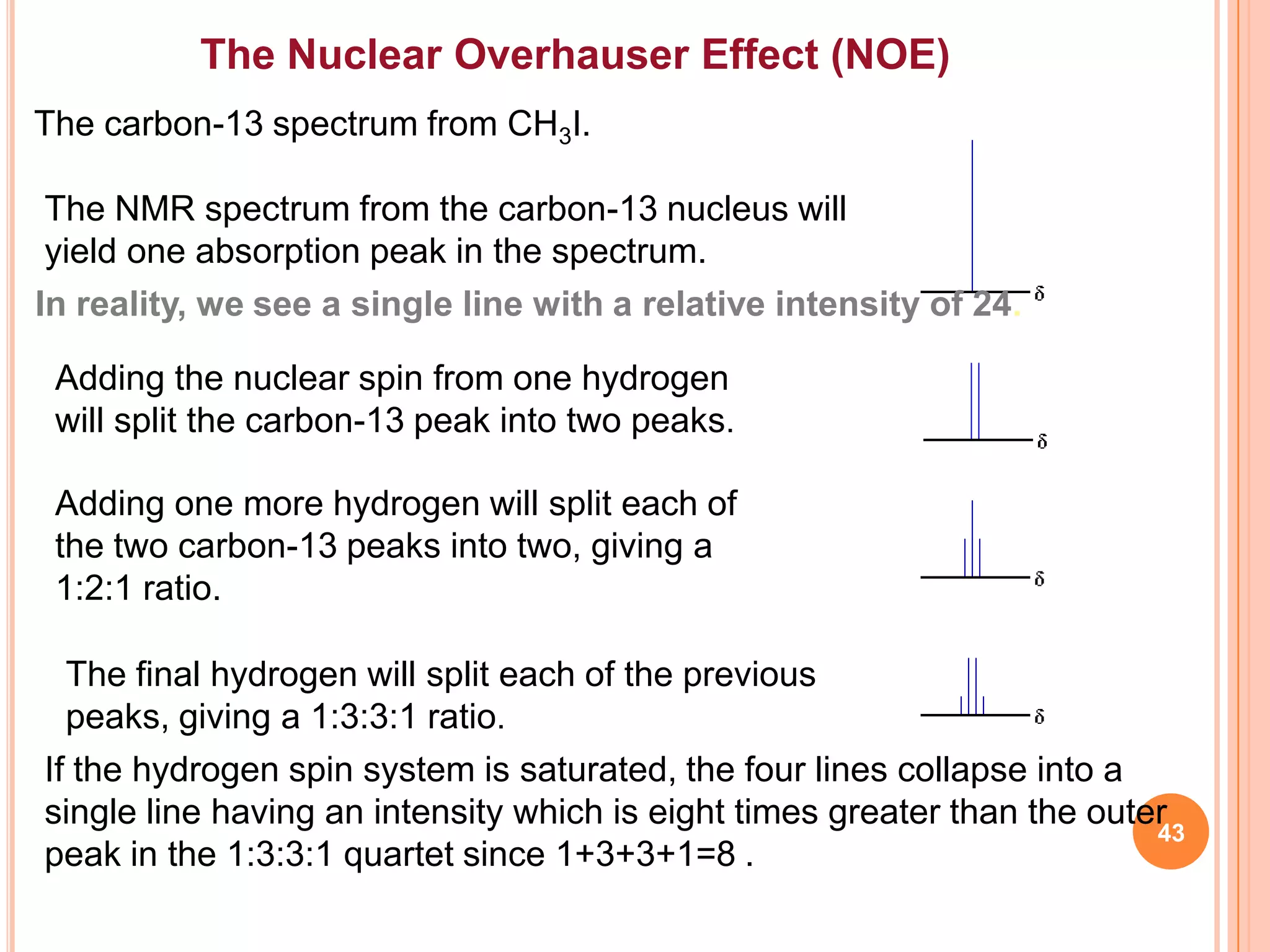

43. The Nuclear Overhauser Effect (NOE)
The carbon-13 spectrum from CH3I.
The NMR spectrum from the carbon-13 nucleus will
yield one absorption peak in the spectrum.
In reality, we see a single line with a relative intensity of 24.
Adding the nuclear spin from one hydrogen
will split the carbon-13 peak into two peaks.
Adding one more hydrogen will split each of
the two carbon-13 peaks into two, giving a
1:2:1 ratio.
The final hydrogen will split each of the previous
peaks, giving a 1:3:3:1 ratio.
If the hydrogen spin system is saturated, the four lines collapse into a
single line having an intensity which is eight times greater than the outer
43
peak in the 1:3:3:1 quartet since 1+3+3+1=8 .
44. The Nuclear Overhauser Effect (NOE)
If the hydrogen spin system is saturated, the four lines collapse into a
single line having an intensity which is eight times greater than the outer
peak in the 1:3:3:1 quartet since 1+3+3+1=8 .
In reality, we see a single line with a relative intensity of 24.
This is because of the Nuclear Overhauser Effect (NOE).
The NOE is one of the ways that spin system can release energy.
Magnetization transfer between spins is mediated by
dipolar coupling.
44
45. The Nuclear Overhauser Effect (NOE)
To describe the NOESY experiment, consider a pair of spin I and
S, which are in close spatial proximity so as to have the dipolar
interaction.
The first 900 pulse brings the
magnetization of spin I down
to the x-y plane.
After the evolving period t1,
the second pulse flips the
magnetization of I back to the
z-axis.
45
46. The Nuclear Overhauser Effect (NOE)
During the delay tM, cross
relaxation between spin I and S
occurs and some of the spin I
magnetization is transferred
to S.
In the detection period t2,
magnetization of spin S is
detected but the signal (at the
frequency of spin S) is
amplitude-modulated at the
frequency of spin I.
The result is the cross peak in the NOESY spectrum. By adjusting the
mixing time tM, the maximum distance between spins for which cross peaks
46
will be seen can be adjusted.
47. The Nuclear Overhauser Effect (NOE)
Another description of the NOE using energy level diagrams:
Here is a 2 spin system. In the diagram, W
represents the transition probability (the
rate at which certain transitions can occur).
At equilibrium, single quantum transitions
are allowed (i.e. W1I and W1S).
Double quantum transitions (W01S and W21S) are forbidden.
The W1I and W1S transitions are related to spin-lattice relaxation.
Relaxation due to dipolar coupling takes place when the spins give off
energy close to the Larmor frequency.
47
48. In pulse acquire experiment the x and y components of the free
induction signal
could be computed by thinking about the evolution of the
magnetization
during the acquisition time. we assumed that the magnetization
started out along the −y axis as this is where it would be rotated to
by
a 90◦ pulse. For the purpose we are going to assume that the
magnetization starts out along x; we will see later that this choice of
starting
position is essentially arbitrary.
48

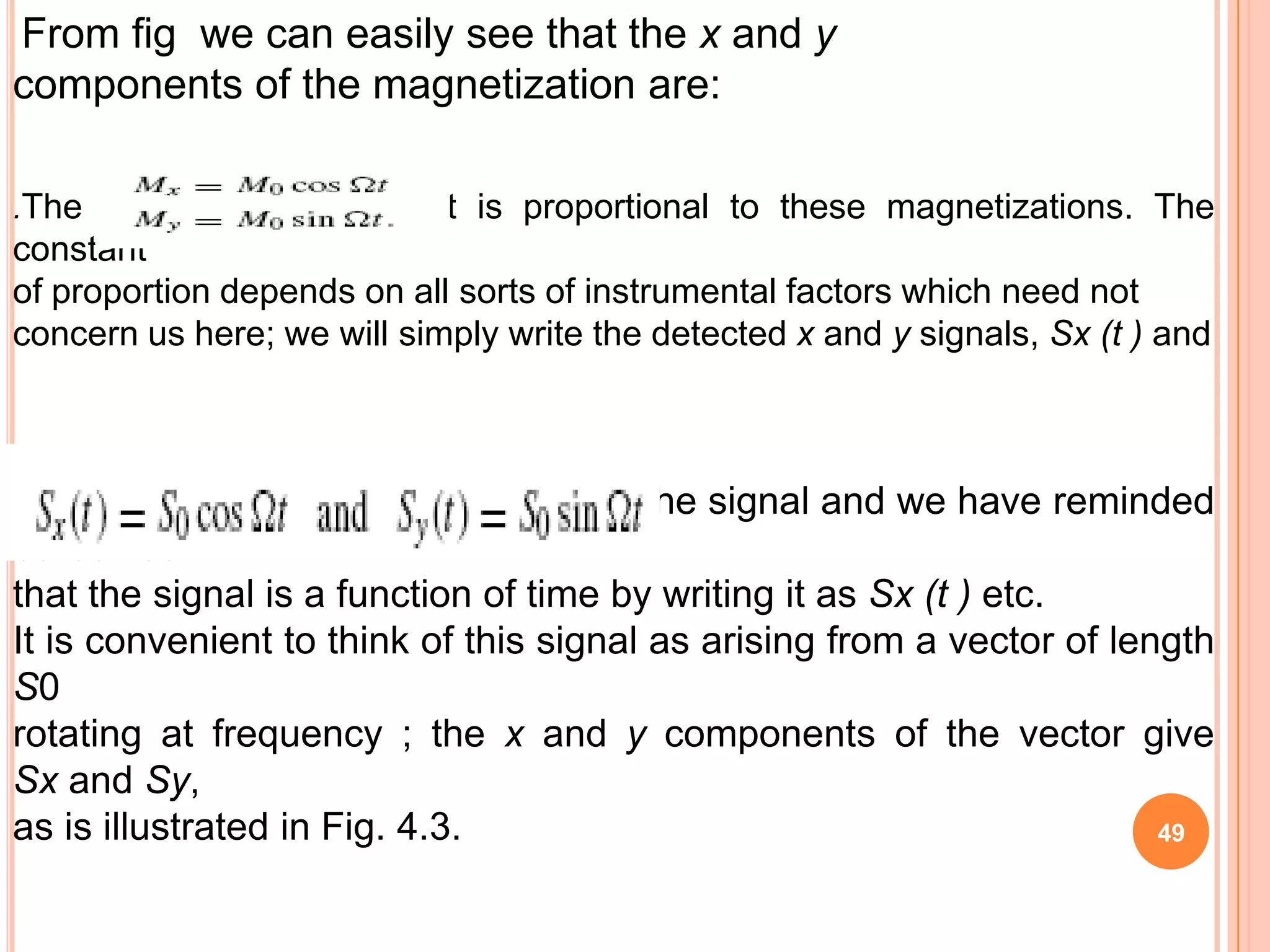

49. From fig we can easily see that the x and y
components of the magnetization are:
.The signal that we detect is proportional to these magnetizations. The
constant
of proportion depends on all sorts of instrumental factors which need not
concern us here; we will simply write the detected x and y signals, Sx (t ) and
where S0 gives is the overall size of the signal and we have reminded
ourselves
that the signal is a function of time by writing it as Sx (t ) etc.
It is convenient to think of this signal as arising from a vector of length
S0
rotating at frequency ; the x and y components of the vector give
Sx and Sy,
as is illustrated in Fig. 4.3. 49
51. NMR Pulse Sequences
The 90o-FID Sequence
In the 90-FID pulse sequence, net
magnetization is rotated down into the
X'Y' plane with a 90o pulse.
The net magnetization vector begins to
precess about the +Z axis.
The magnitude of the vector also
decays with time.
51
52. NMR Pulse Sequences
The 90o-FID Sequence
A timing diagram is a multiple axis plot of some aspect of a pulse
sequence versus time. A timing diagram for a 90-FID pulse sequence
has a plot of RF energy versus time and another for signal versus
time.
When this sequence is repeated, for example
when signal-to-noise improvement is needed,
the amplitude of the signal (S) will depend on
T1 and the time between repetitions, called
the repetition time (TR), of the sequence.
In the signal equation below, k is a proportionality constant and is the
density of spins in the sample.
S=k ( 1 - e-TR/T1 )
52

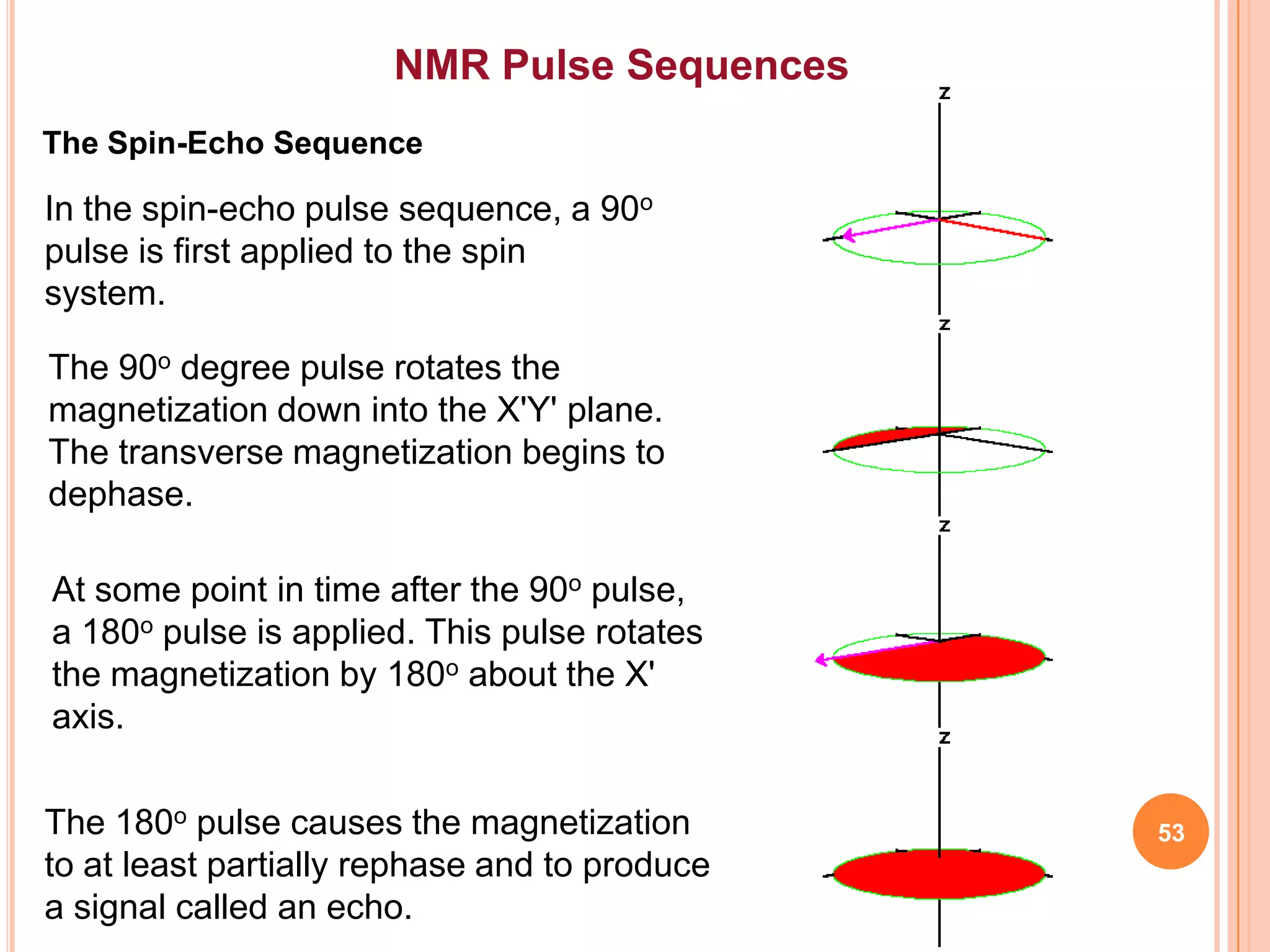

53. NMR Pulse Sequences
The Spin-Echo Sequence
In the spin-echo pulse sequence, a 90o
pulse is first applied to the spin
system.
The 90o degree pulse rotates the
magnetization down into the X'Y' plane.
The transverse magnetization begins to
dephase.
At some point in time after the 90o pulse,
a 180o pulse is applied. This pulse rotates
the magnetization by 180o about the X'
axis.
The 180o pulse causes the magnetization 53
to at least partially rephase and to produce
a signal called an echo.

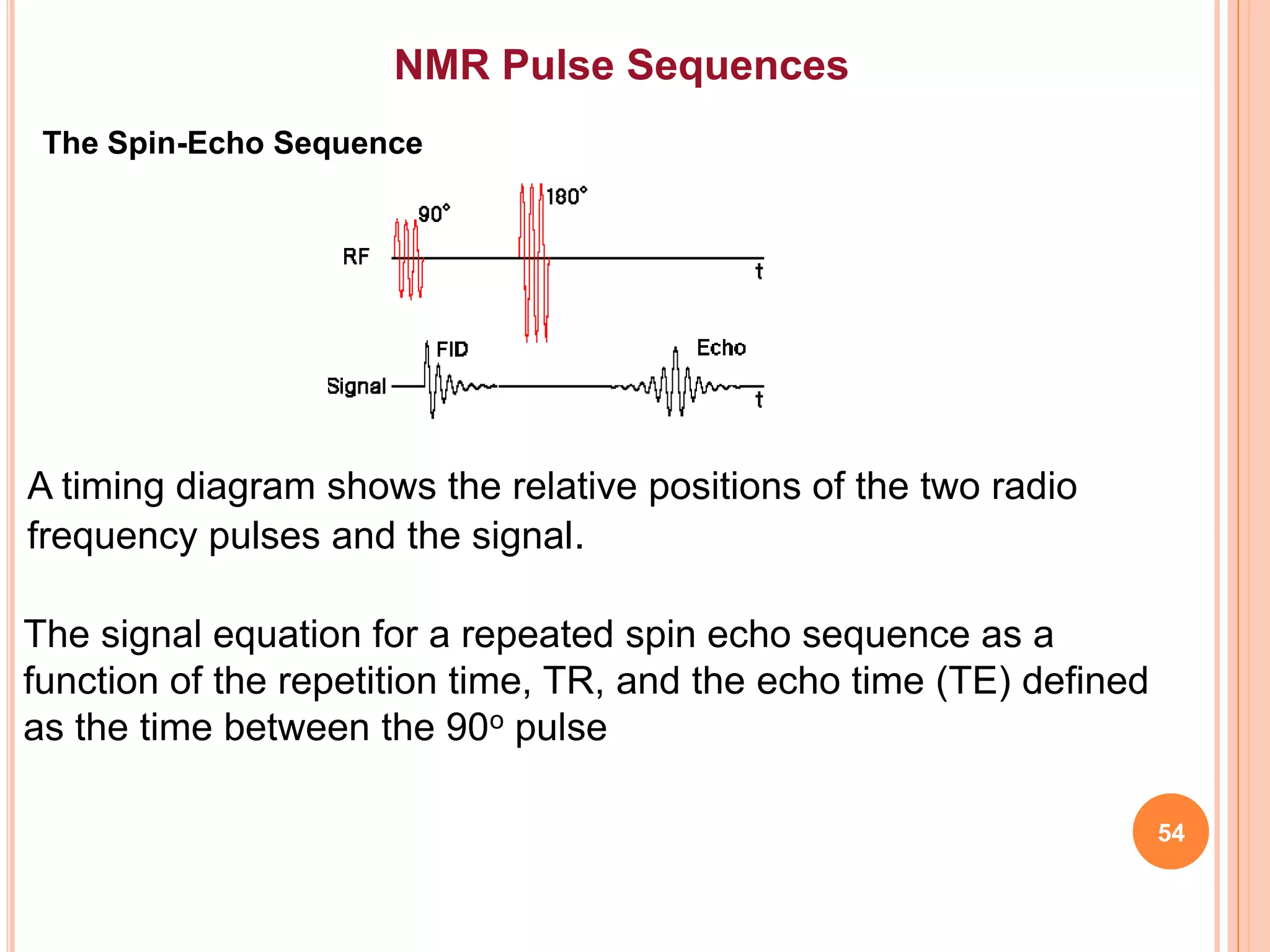

54. NMR Pulse Sequences
The Spin-Echo Sequence
A timing diagram shows the relative positions of the two radio
frequency pulses and the signal.
The signal equation for a repeated spin echo sequence as a
function of the repetition time, TR, and the echo time (TE) defined
as the time between the 90o pulse
54

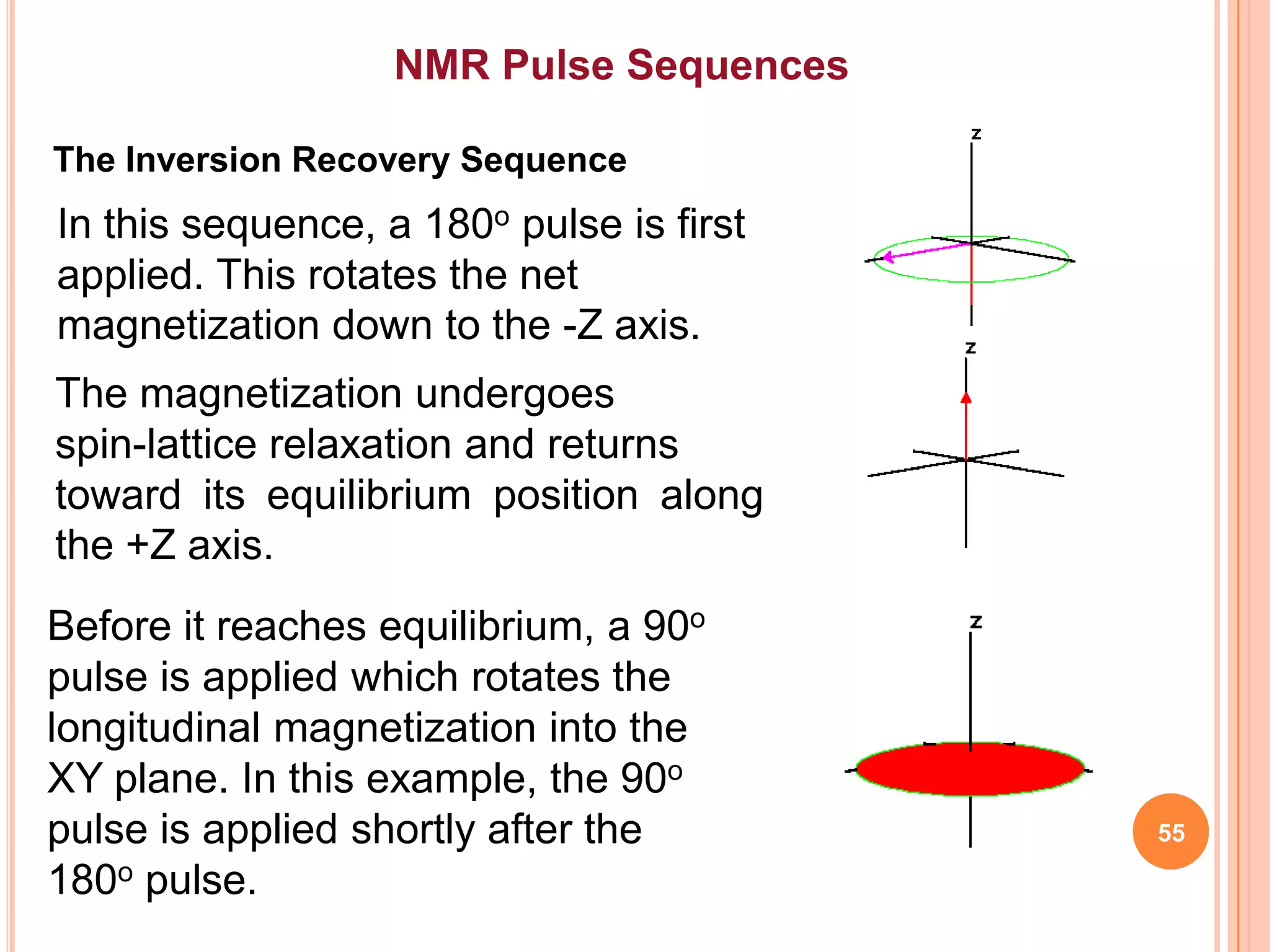

55. NMR Pulse Sequences
The Inversion Recovery Sequence
In this sequence, a 180o pulse is first
applied. This rotates the net
magnetization down to the -Z axis.
The magnetization undergoes
spin-lattice relaxation and returns
toward its equilibrium position along
the +Z axis.
Before it reaches equilibrium, a 90o
pulse is applied which rotates the
longitudinal magnetization into the
XY plane. In this example, the 90o
pulse is applied shortly after the 55
180o pulse.

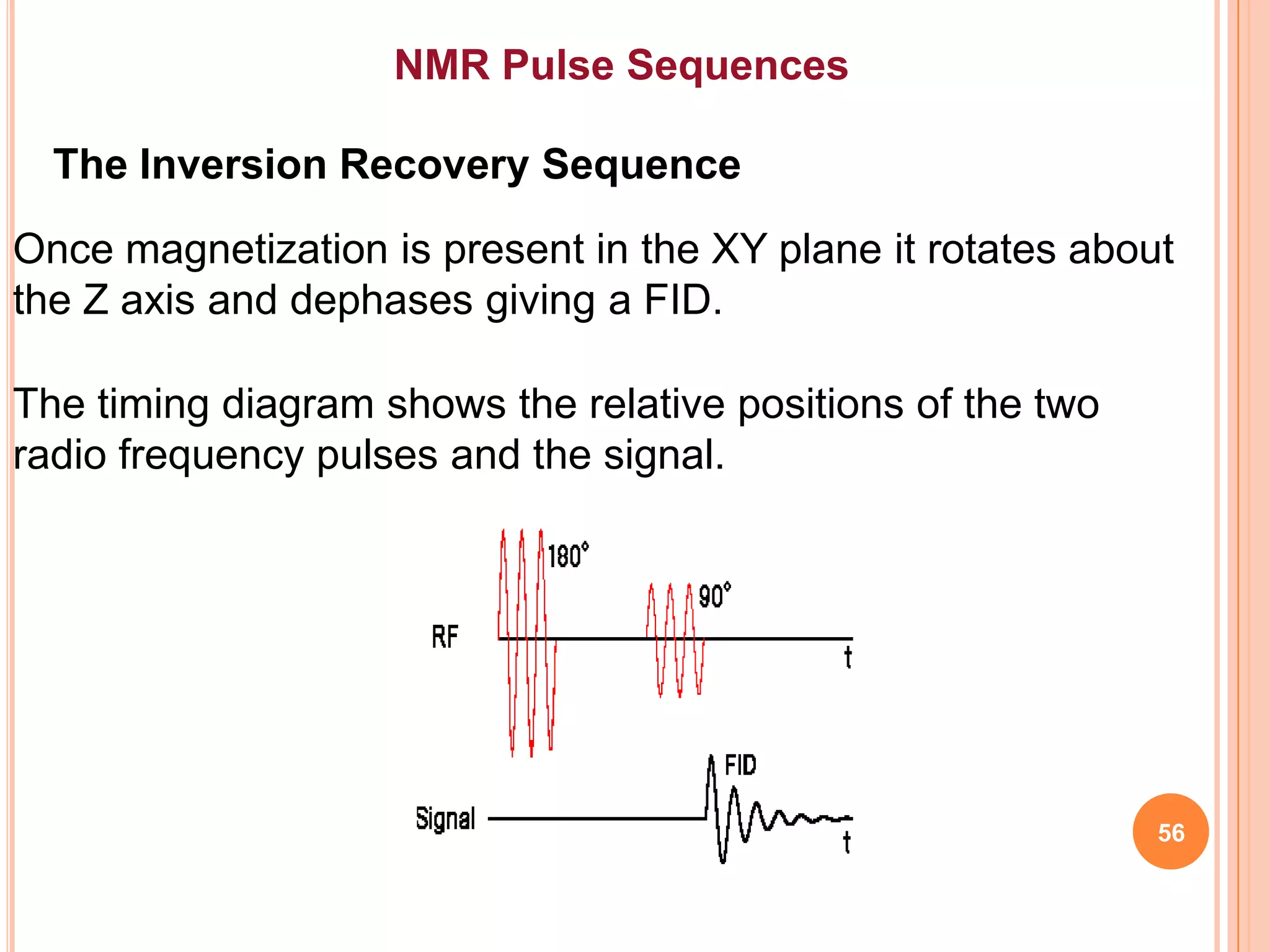

56. NMR Pulse Sequences
The Inversion Recovery Sequence
Once magnetization is present in the XY plane it rotates about
the Z axis and dephases giving a FID.
The timing diagram shows the relative positions of the two
radio frequency pulses and the signal.
56

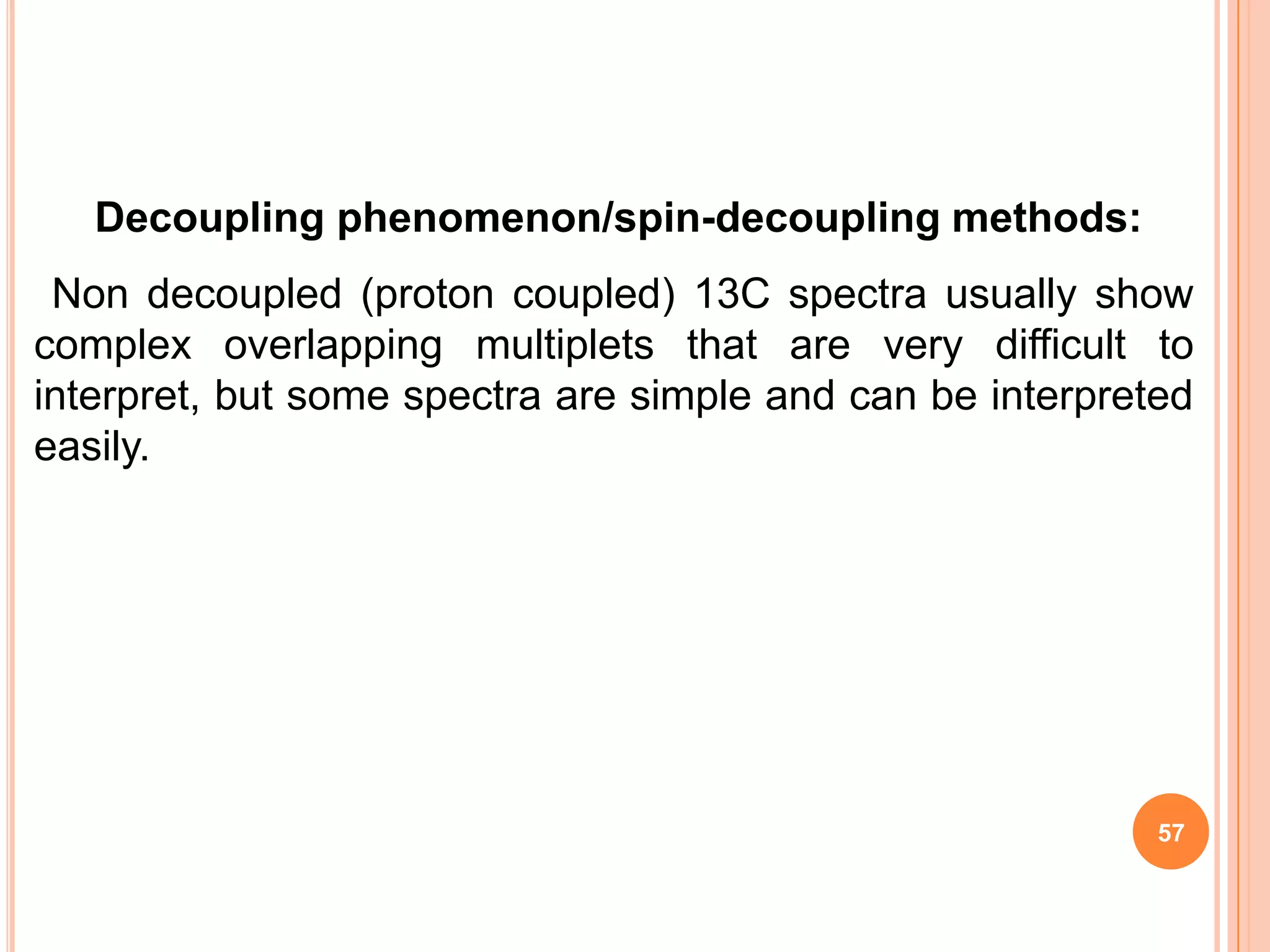

57. Decoupling phenomenon/spin-decoupling methods:
Non decoupled (proton coupled) 13C spectra usually show
complex overlapping multiplets that are very difficult to
interpret, but some spectra are simple and can be interpreted
easily.
57

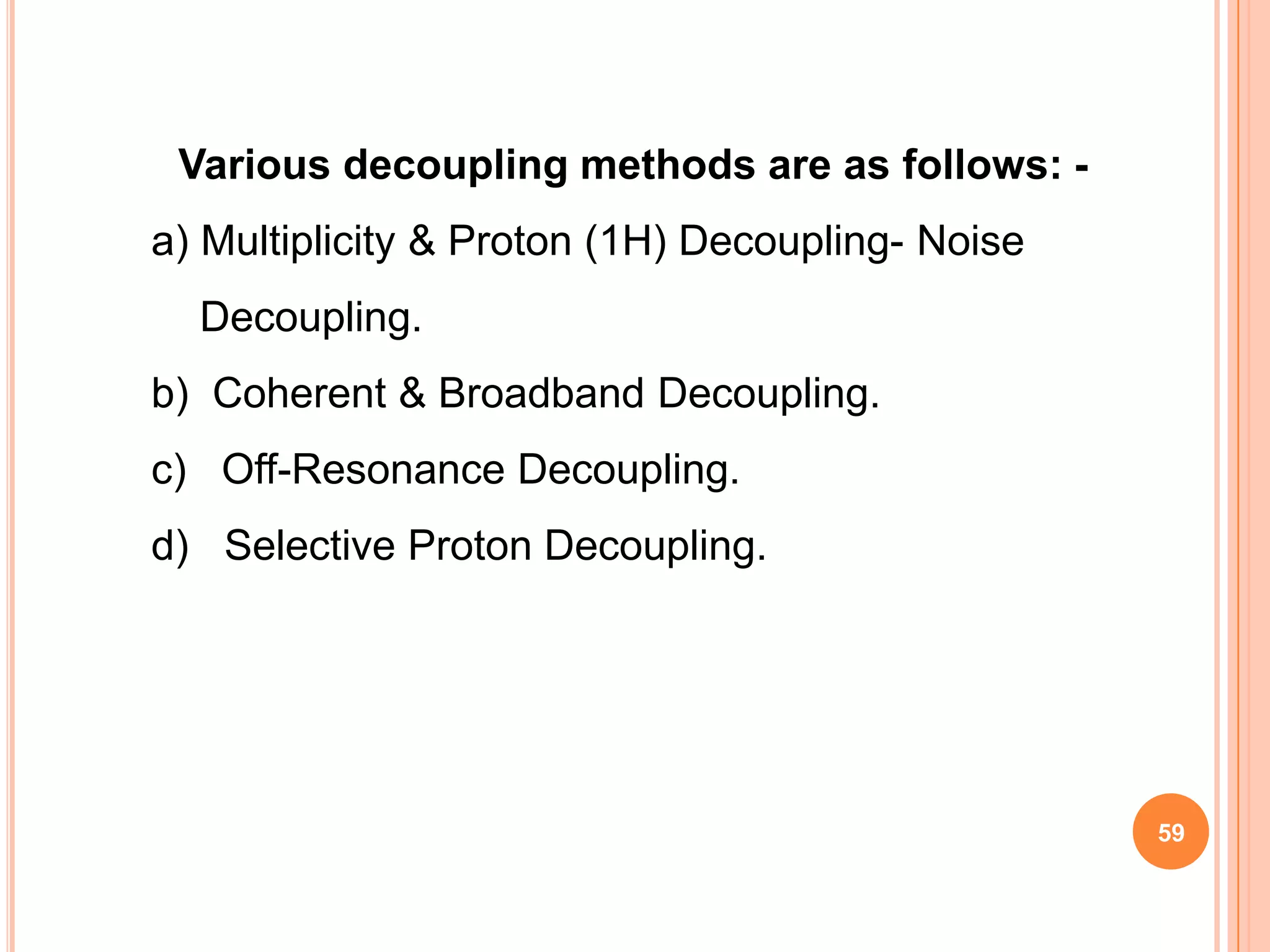

59. Various decoupling methods are as follows: -
a) Multiplicity & Proton (1H) Decoupling- Noise
Decoupling.
b) Coherent & Broadband Decoupling.
c) Off-Resonance Decoupling.
d) Selective Proton Decoupling.
59
60. a) Multiplicity & Proton (1H) Decoupling- Noise Decoupling: -
Both 13C & 1H have I=1/2, so that we would expect to see
coupling in the spectrum between
a) 13C-13C
b) 13C-1H
However the probability of 2 C13 atoms being together in the
same molecule is so low that 13C-13C couplings are not usually
observed.
The complicating effects of proton coupling in 13C spectra i.e.,
in 13C-1H coupling can be eliminated by decoupling the 1H nuclei
by double irradiation at their resonant frequencies. this is an
example of Heterounuclear De-coupling.
60

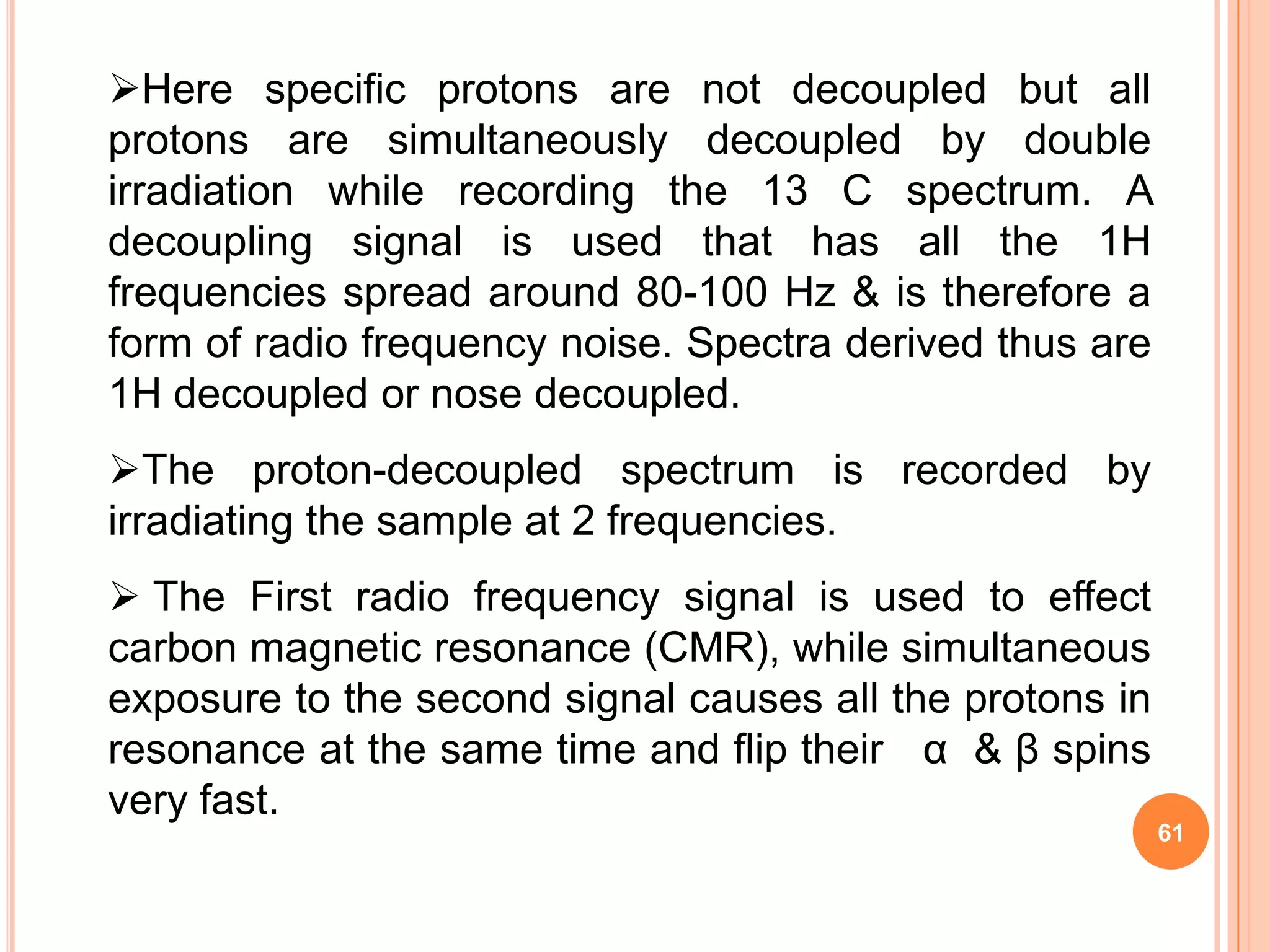

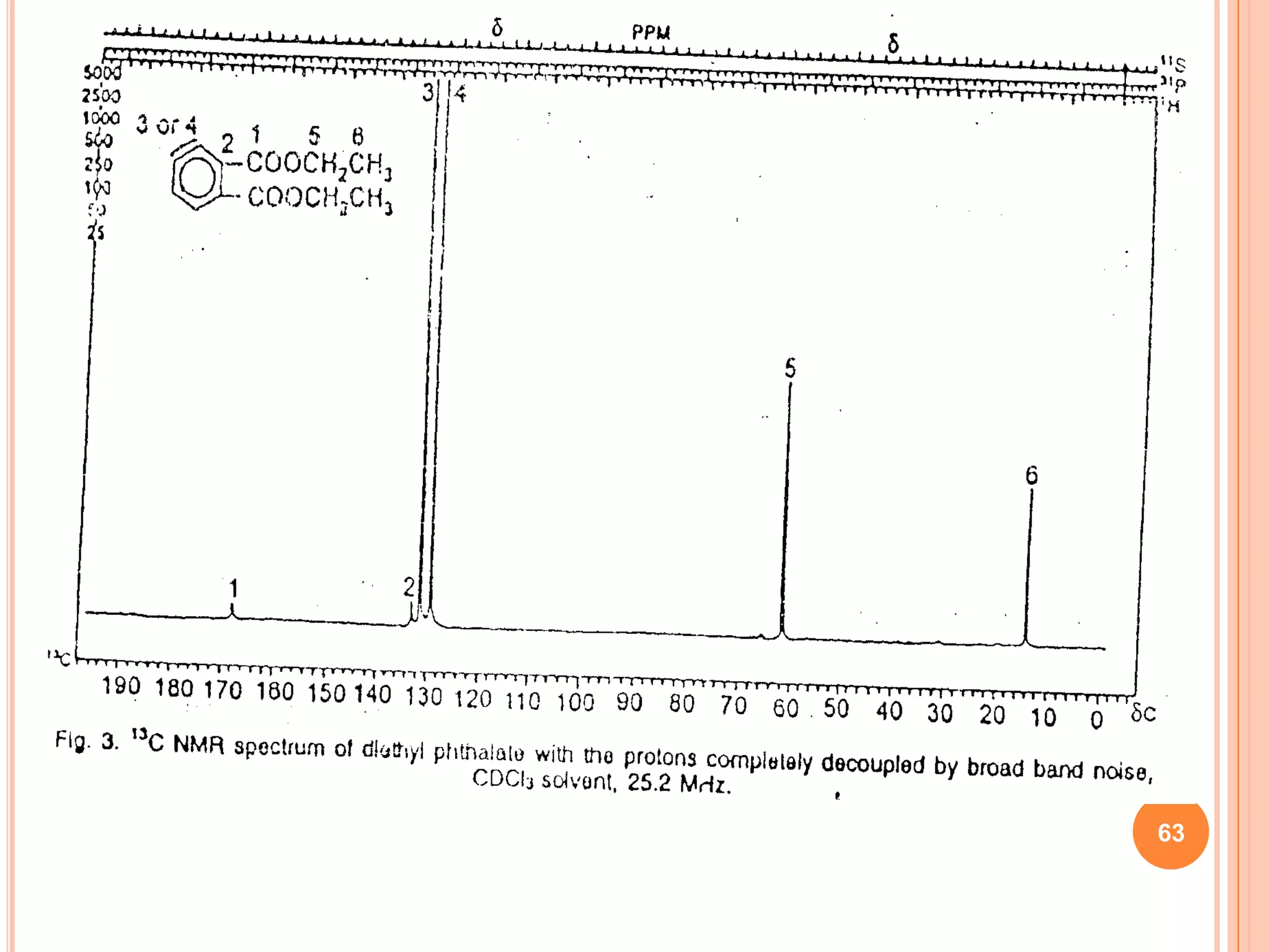

61. Here specific protons are not decoupled but all
protons are simultaneously decoupled by double
irradiation while recording the 13 C spectrum. A
decoupling signal is used that has all the 1H
frequencies spread around 80-100 Hz & is therefore a
form of radio frequency noise. Spectra derived thus are
1H decoupled or nose decoupled.
The proton-decoupled spectrum is recorded by
irradiating the sample at 2 frequencies.
The First radio frequency signal is used to effect
carbon magnetic resonance (CMR), while simultaneous
exposure to the second signal causes all the protons in
resonance at the same time and flip their α & β spins
very fast.
61

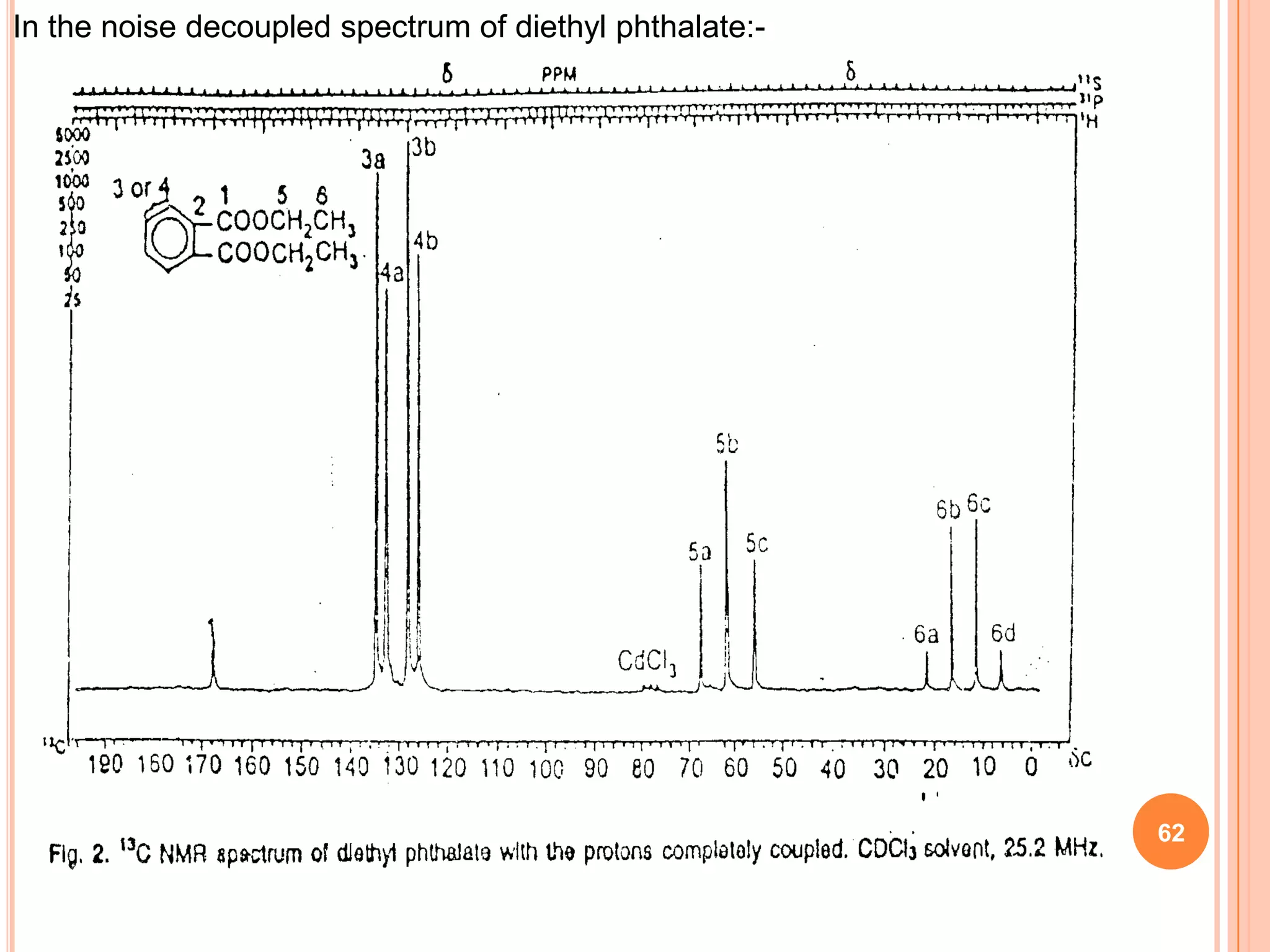

62. In the noise decoupled spectrum of diethyl phthalate:-
62

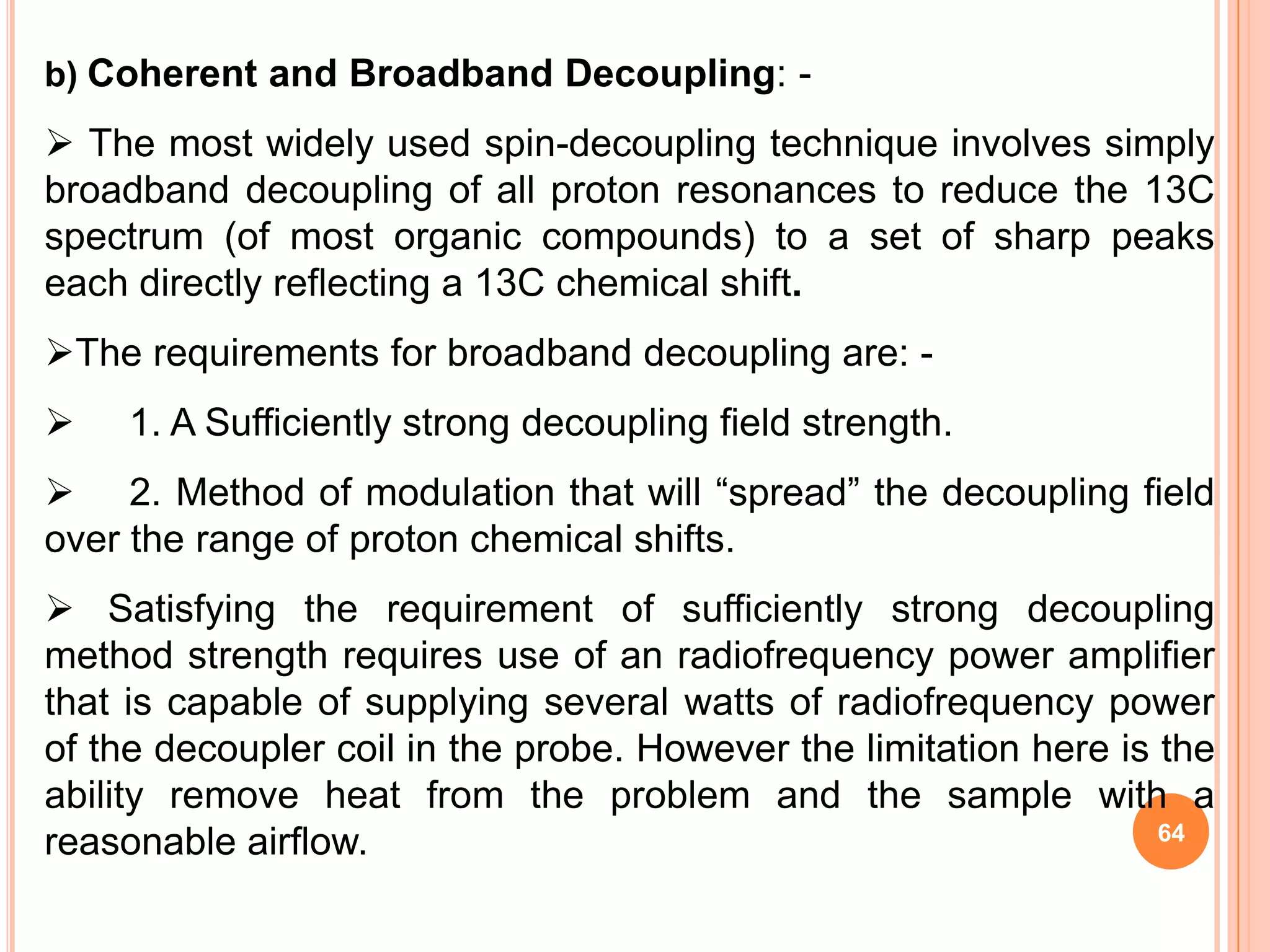

64. b) Coherent and Broadband Decoupling: -
The most widely used spin-decoupling technique involves simply
broadband decoupling of all proton resonances to reduce the 13C
spectrum (of most organic compounds) to a set of sharp peaks
each directly reflecting a 13C chemical shift.
The requirements for broadband decoupling are: -
1. A Sufficiently strong decoupling field strength.
2. Method of modulation that will “spread” the decoupling field
over the range of proton chemical shifts.
Satisfying the requirement of sufficiently strong decoupling
method strength requires use of an radiofrequency power amplifier
that is capable of supplying several watts of radiofrequency power
of the decoupler coil in the probe. However the limitation here is the
ability remove heat from the problem and the sample with a
64
reasonable airflow.
65. Here the decoupling frequency is phrase modulated with a
50% duty cycle, 100Hz square wave. Residual broadening of
decoupled off-resonance 13C peaks is significantly reduced
using this method in comparison to the former method. This
method is now being widely used in broadband (1H)
decoupling.
65

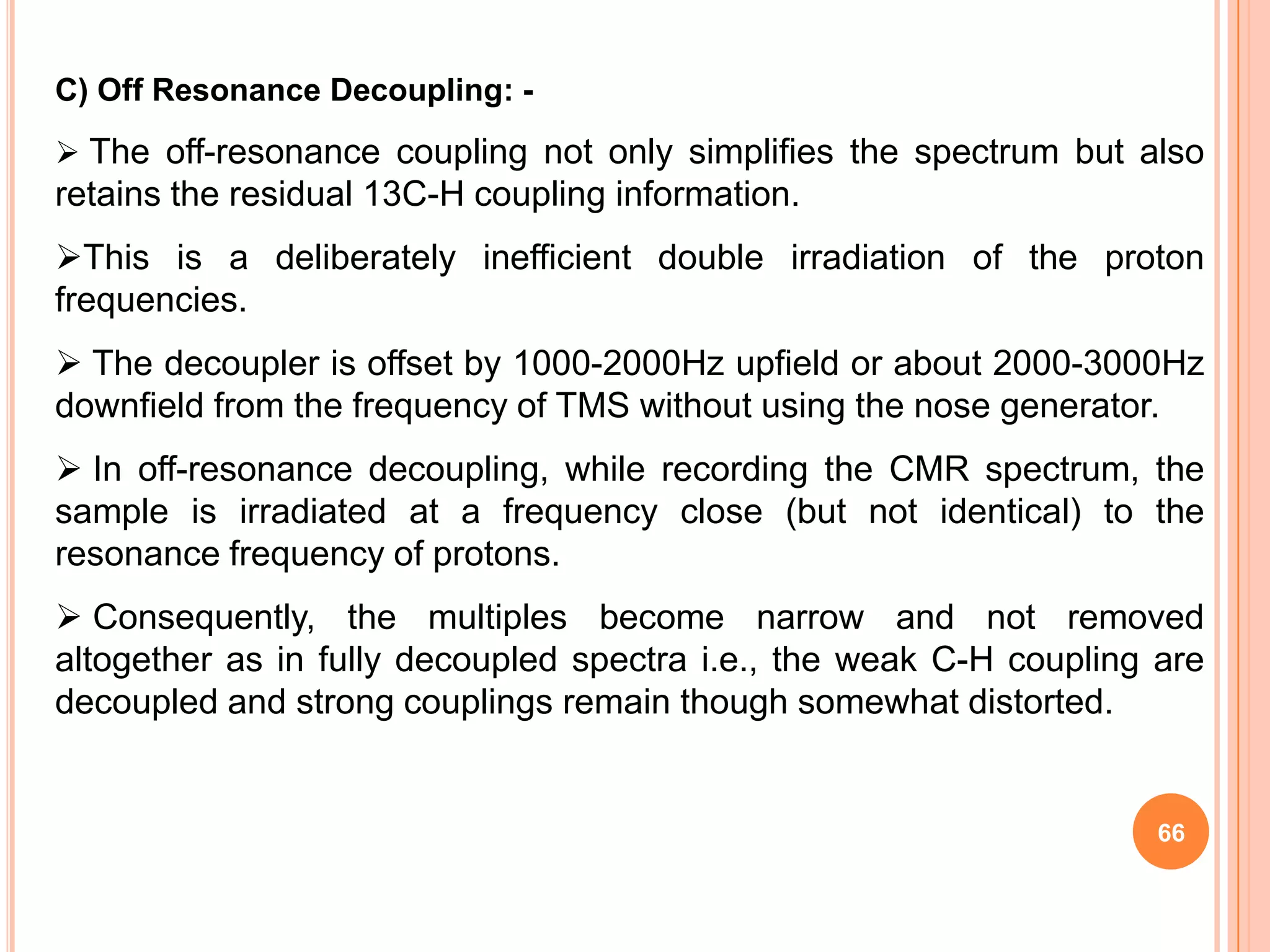

66. C) Off Resonance Decoupling: -
The off-resonance coupling not only simplifies the spectrum but also
retains the residual 13C-H coupling information.
This is a deliberately inefficient double irradiation of the proton
frequencies.
The decoupler is offset by 1000-2000Hz upfield or about 2000-3000Hz
downfield from the frequency of TMS without using the nose generator.
In off-resonance decoupling, while recording the CMR spectrum, the
sample is irradiated at a frequency close (but not identical) to the
resonance frequency of protons.
Consequently, the multiples become narrow and not removed
altogether as in fully decoupled spectra i.e., the weak C-H coupling are
decoupled and strong couplings remain though somewhat distorted.
66
67. The residuals coupling constant Jr is < true J.
Jr =2 J /γB2
= difference between decoupled frequencies and
Resonance frequencies of 1H of interest.
J = true coupling constant.
B2= strength of rotating magnetic field generated by the
decoupler frequencies.
= gyro-magnetic ratio.
67

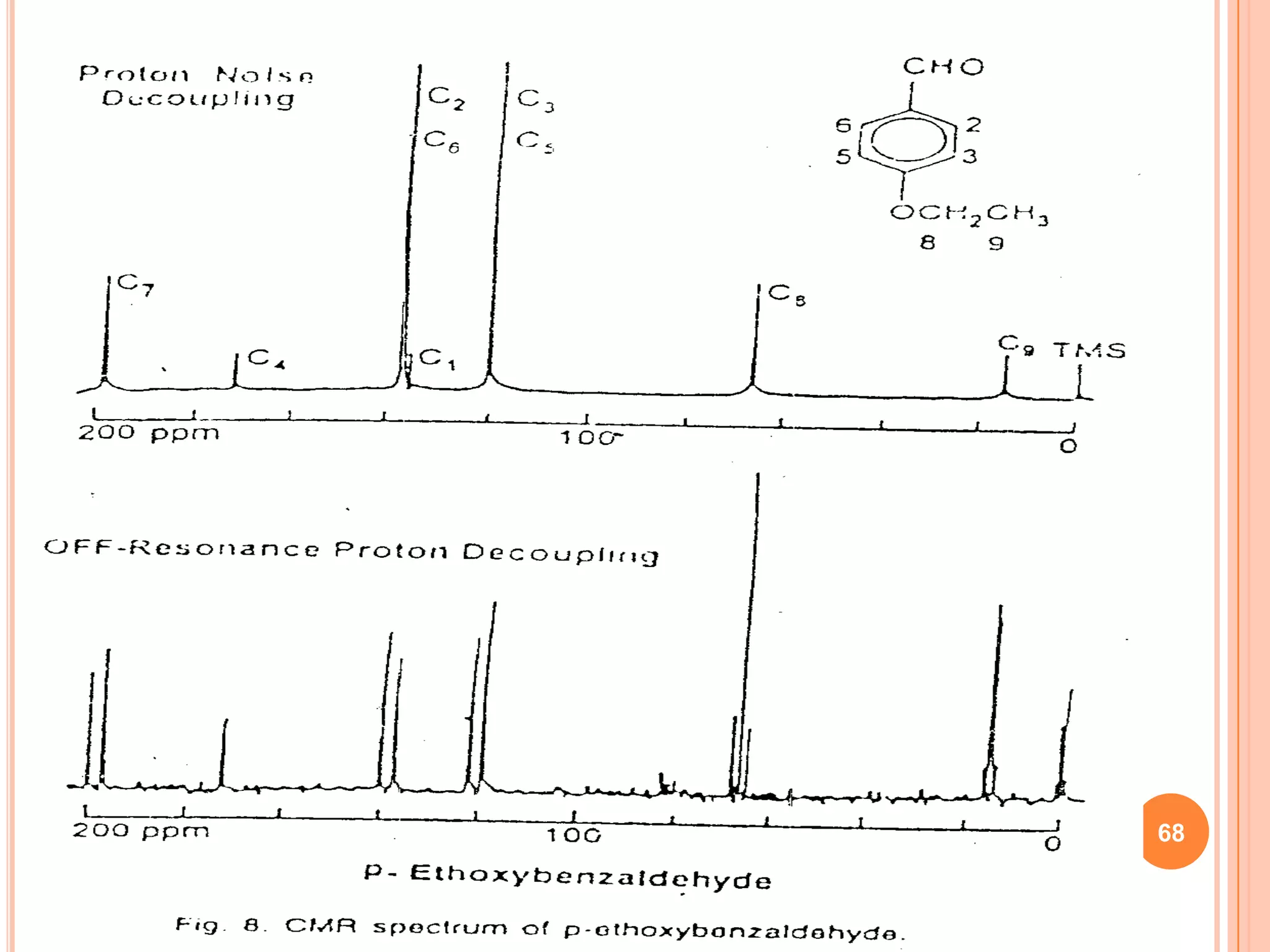

69. d) Selective Proton Decoupling: -
•When a specific proton is irradiated at its exact frequency at a lower
power level than is used for off-resonance decoupling, the absorbance of
the directly bonded 13C becomes a singlet, while the other 13C
absorptions show residual coupling.
DEUTERIUM COUPLING: -
The number of orientations, which any magnetic nucleus can adopt in
magnetic field, is (2I+1). I = spin quantum number.
Thus for 1H & 13C where, I = ½,2 orientations arise either +I or –I. But for
deuterium whose I = 1, 3 orientations arise:

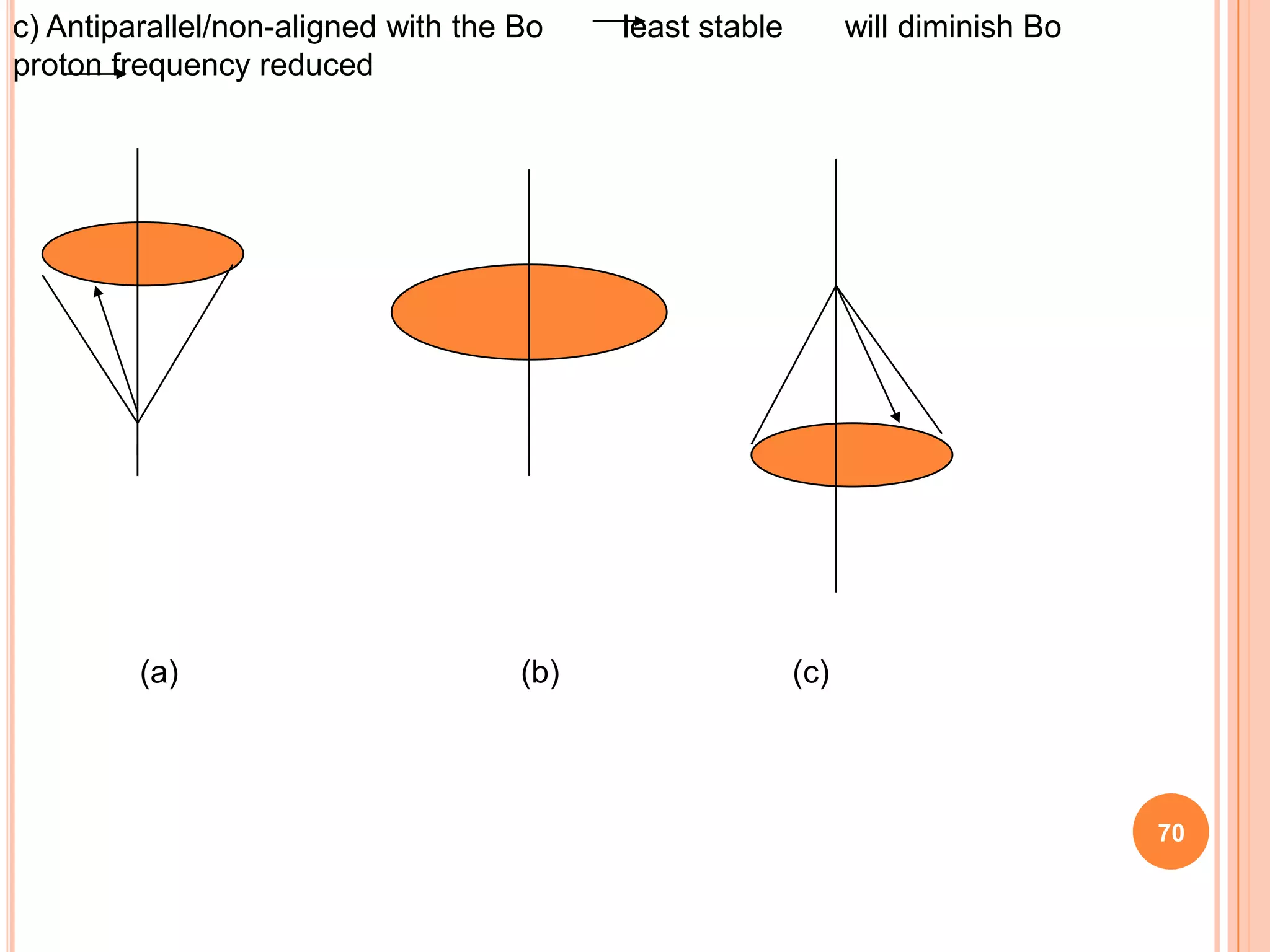

a) Aligned with the magnetic field most stable will augment Bo
b)Across the field on a plane
Deuterium nucleus is précessing on a plane cutting across Bo
(magnetic field) & will not change field strength (1H frequencies
unchanged).
69

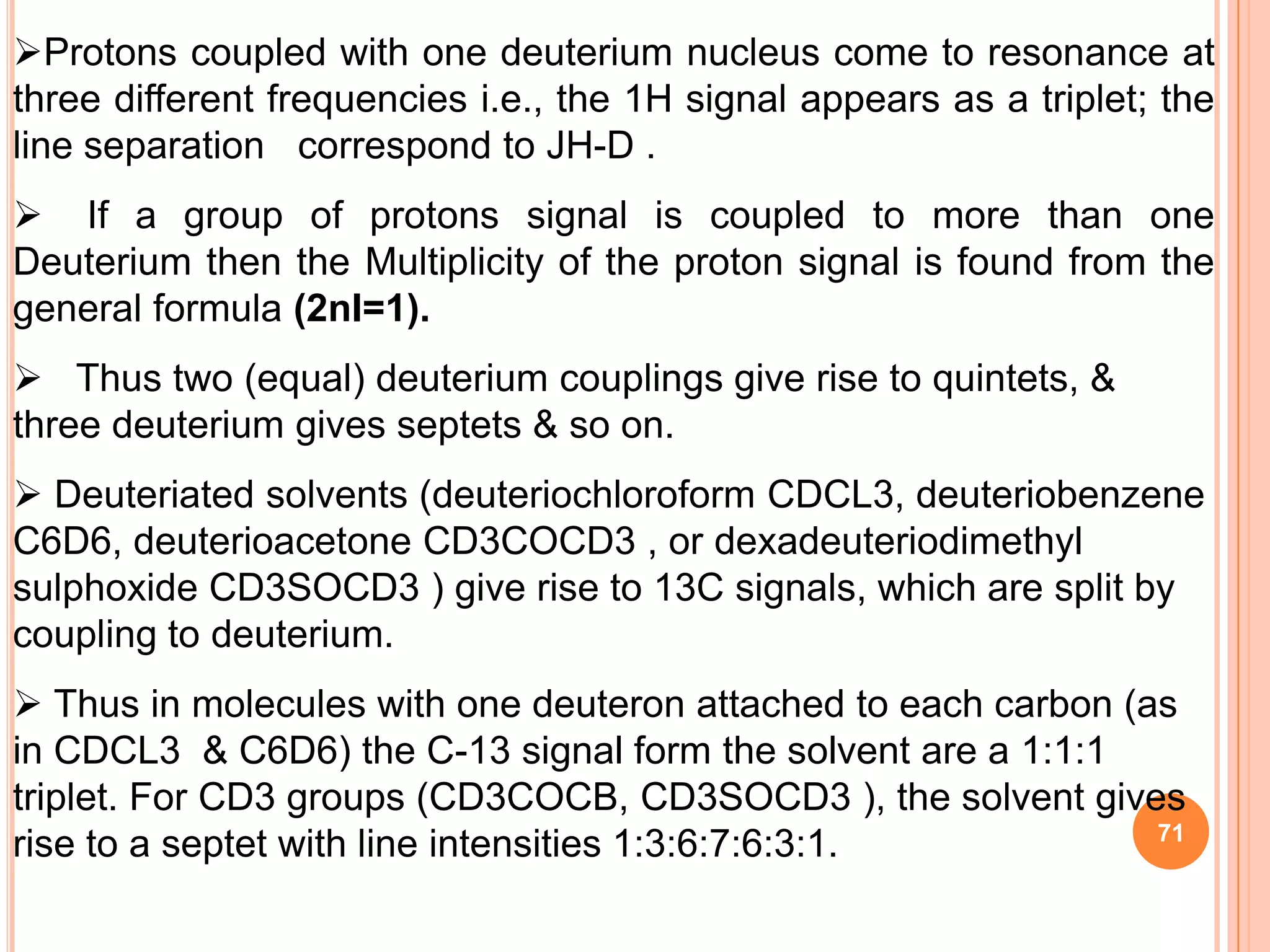

71. Protons coupled with one deuterium nucleus come to resonance at
three different frequencies i.e., the 1H signal appears as a triplet; the
line separation correspond to JH-D .
If a group of protons signal is coupled to more than one
Deuterium then the Multiplicity of the proton signal is found from the
general formula (2nI=1).
Thus two (equal) deuterium couplings give rise to quintets, &
three deuterium gives septets & so on.

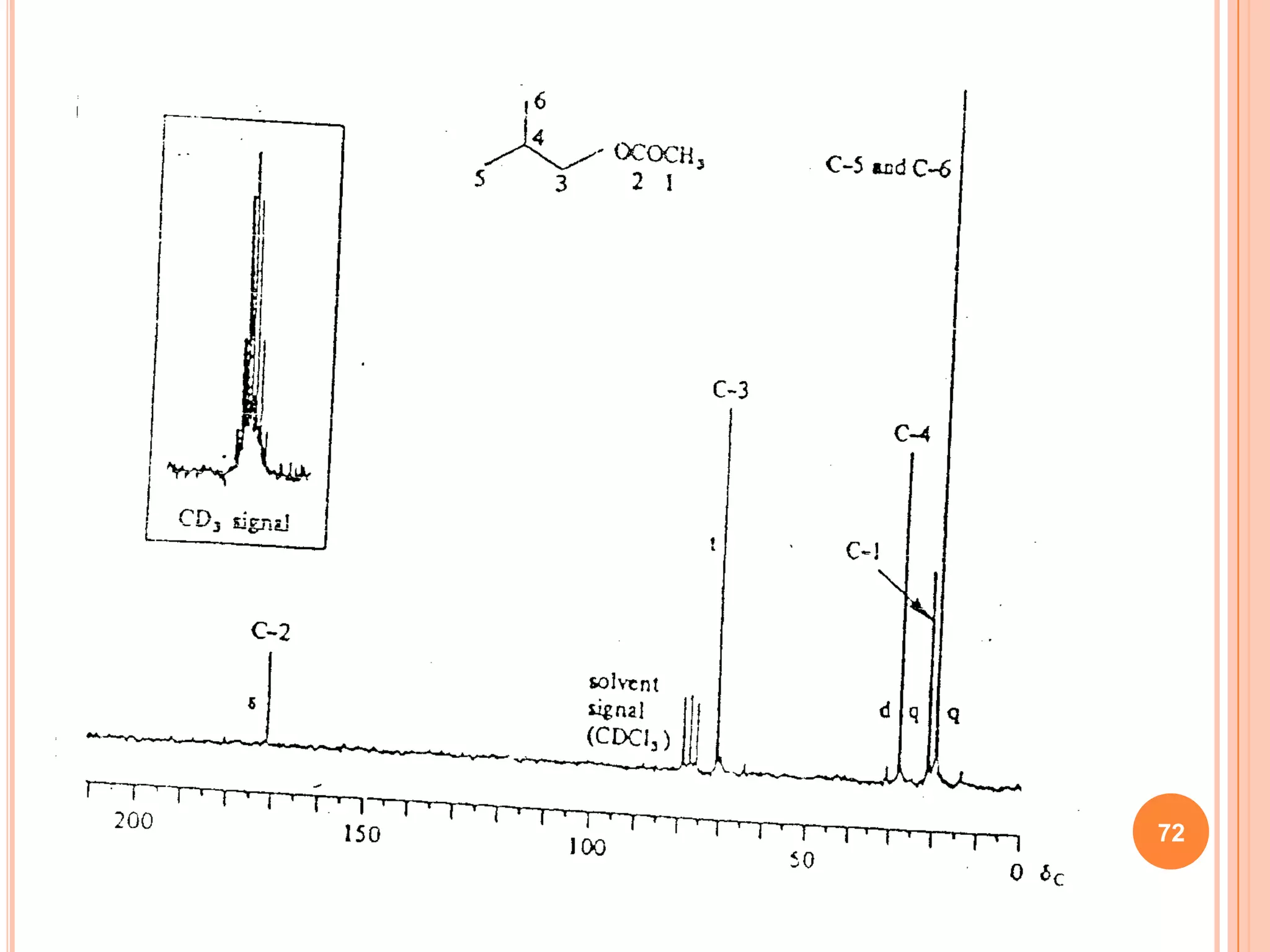

Deuteriated solvents (deuteriochloroform CDCL3, deuteriobenzene
C6D6, deuterioacetone CD3COCD3 , or dexadeuteriodimethyl
sulphoxide CD3SOCD3 ) give rise to 13C signals, which are split by
coupling to deuterium.
Thus in molecules with one deuteron attached to each carbon (as
in CDCL3 & C6D6) the C-13 signal form the solvent are a 1:1:1
triplet. For CD3 groups (CD3COCB, CD3SOCD3 ), the solvent gives
71
rise to a septet with line intensities 1:3:6:7:6:3:1.

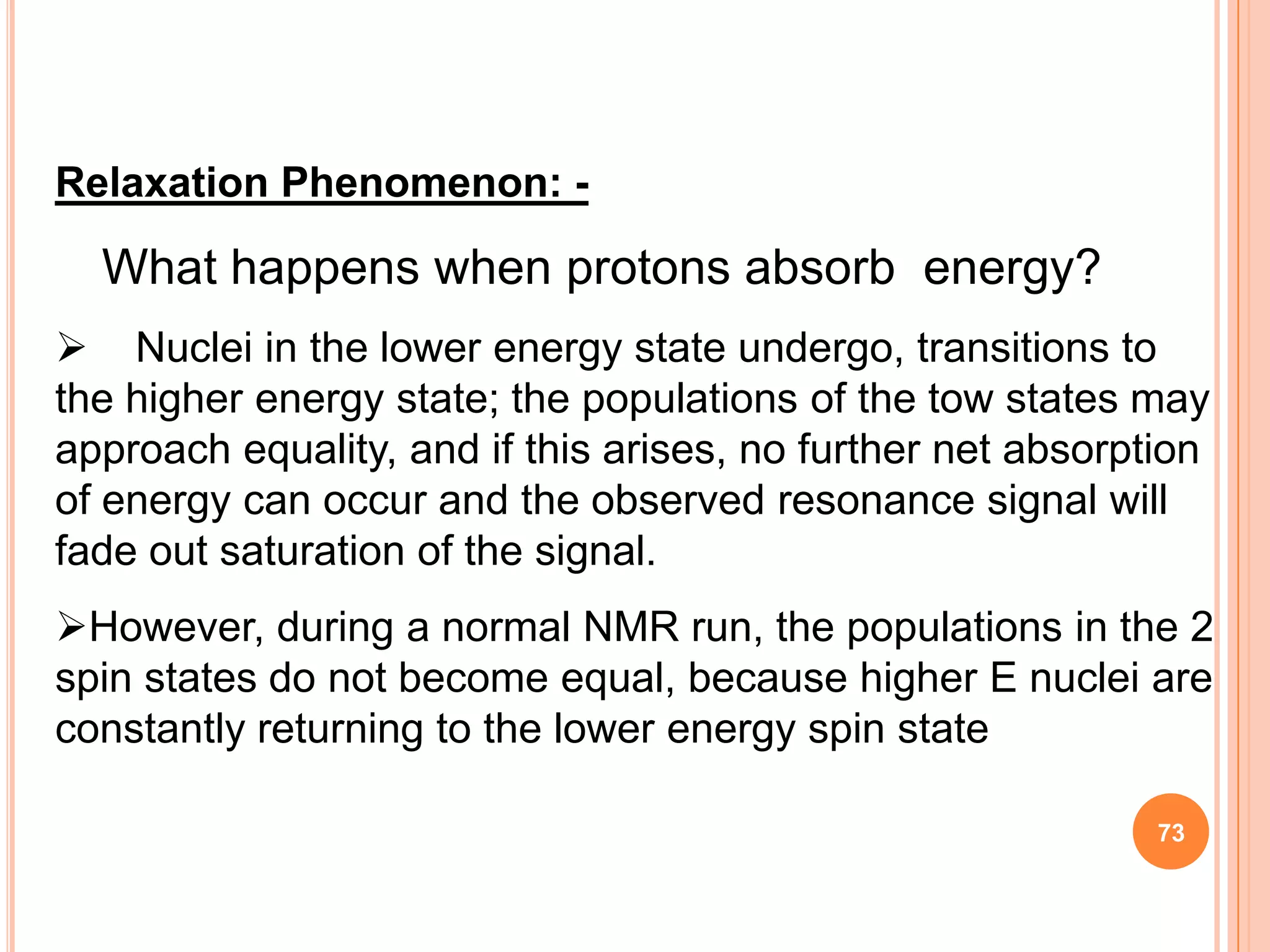

73. Relaxation Phenomenon: -
What happens when protons absorb energy?
Nuclei in the lower energy state undergo, transitions to
the higher energy state; the populations of the tow states may
approach equality, and if this arises, no further net absorption
of energy can occur and the observed resonance signal will
fade out saturation of the signal.
However, during a normal NMR run, the populations in the 2
spin states do not become equal, because higher E nuclei are
constantly returning to the lower energy spin state
73

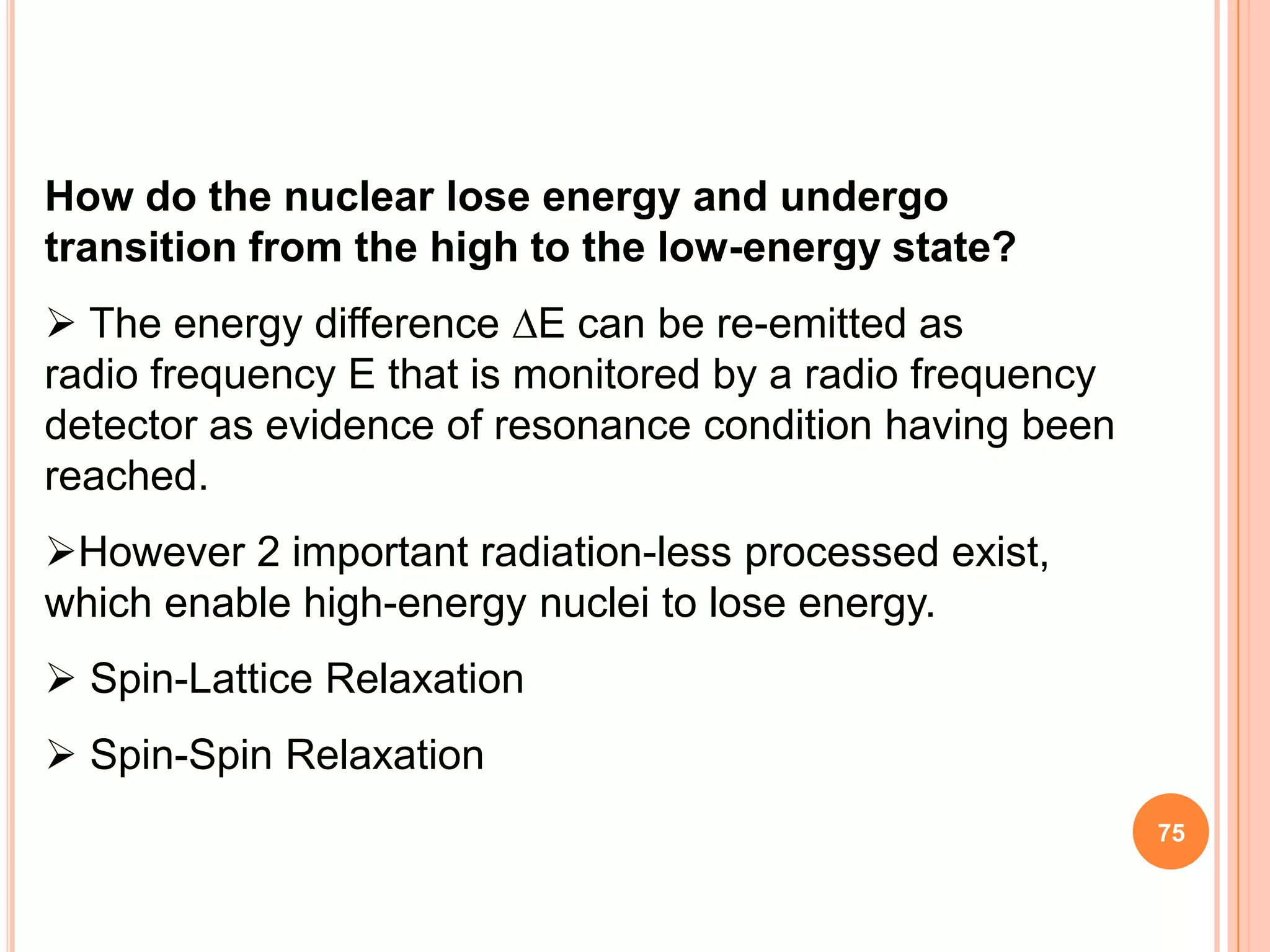

75. How do the nuclear lose energy and undergo
transition from the high to the low-energy state?
The energy difference E can be re-emitted as
radio frequency E that is monitored by a radio frequency
detector as evidence of resonance condition having been
reached.
However 2 important radiation-less processed exist,
which enable high-energy nuclei to lose energy.
Spin-Lattice Relaxation
Spin-Spin Relaxation
75

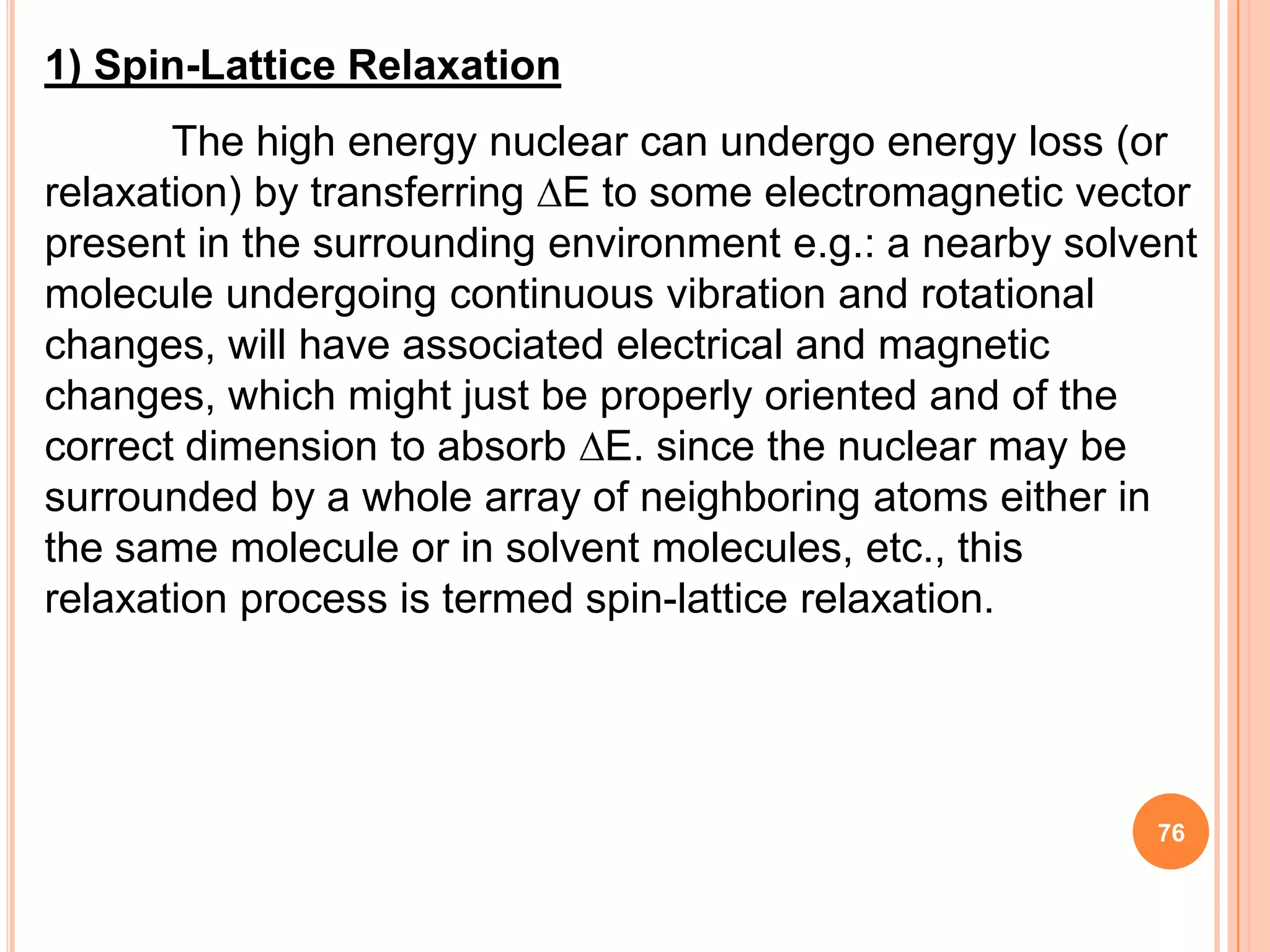

76. 1) Spin-Lattice Relaxation
The high energy nuclear can undergo energy loss (or
relaxation) by transferring E to some electromagnetic vector
present in the surrounding environment e.g.: a nearby solvent
molecule undergoing continuous vibration and rotational
changes, will have associated electrical and magnetic
changes, which might just be properly oriented and of the
correct dimension to absorb E. since the nuclear may be
surrounded by a whole array of neighboring atoms either in
the same molecule or in solvent molecules, etc., this
relaxation process is termed spin-lattice relaxation.
76

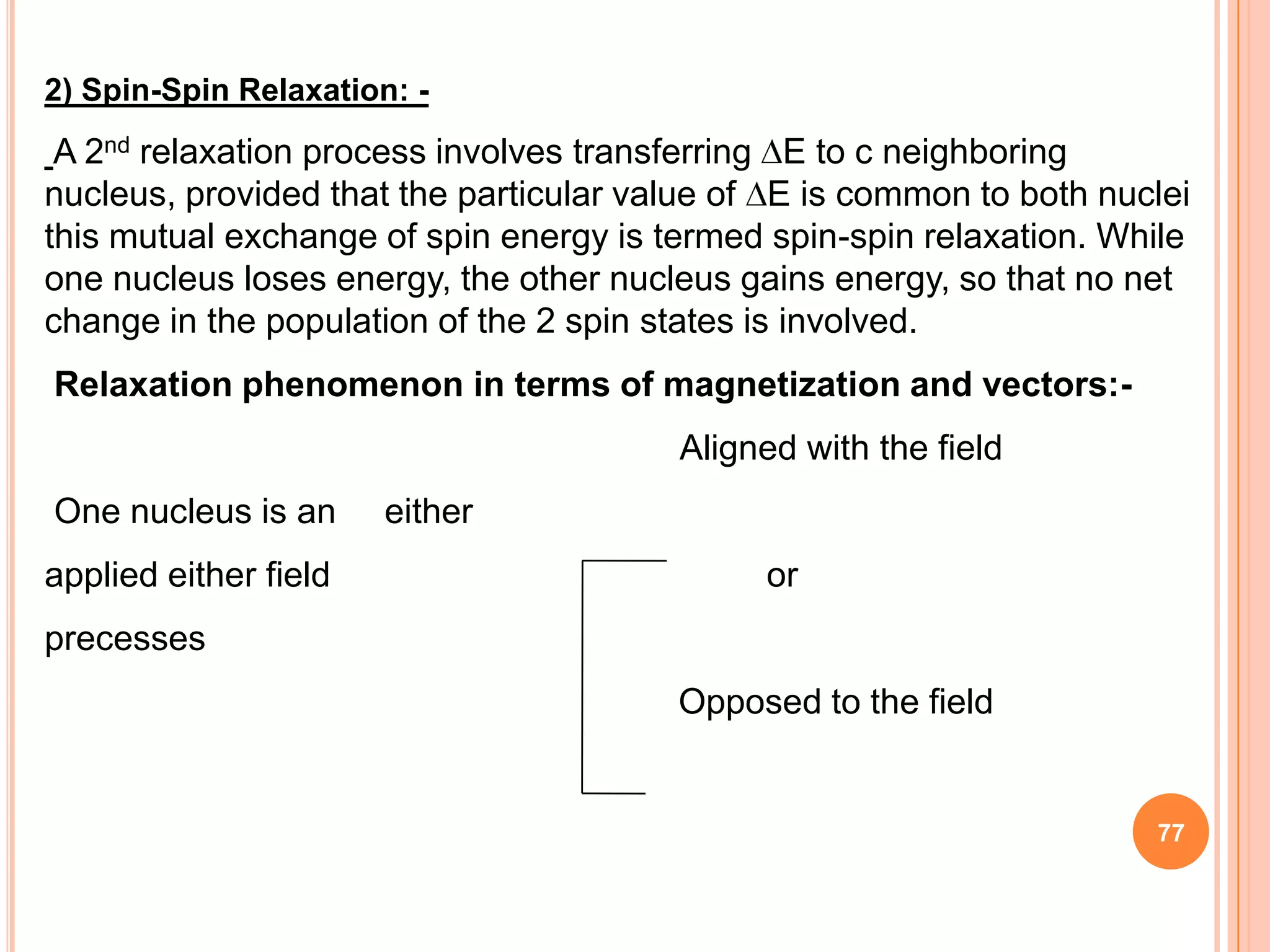

77. 2) Spin-Spin Relaxation: -
A 2nd relaxation process involves transferring E to c neighboring
nucleus, provided that the particular value of E is common to both nuclei
this mutual exchange of spin energy is termed spin-spin relaxation. While
one nucleus loses energy, the other nucleus gains energy, so that no net
change in the population of the 2 spin states is involved.
Relaxation phenomenon in terms of magnetization and vectors:-
Aligned with the field
One nucleus is an either
applied either field or
precesses
Opposed to the field
77

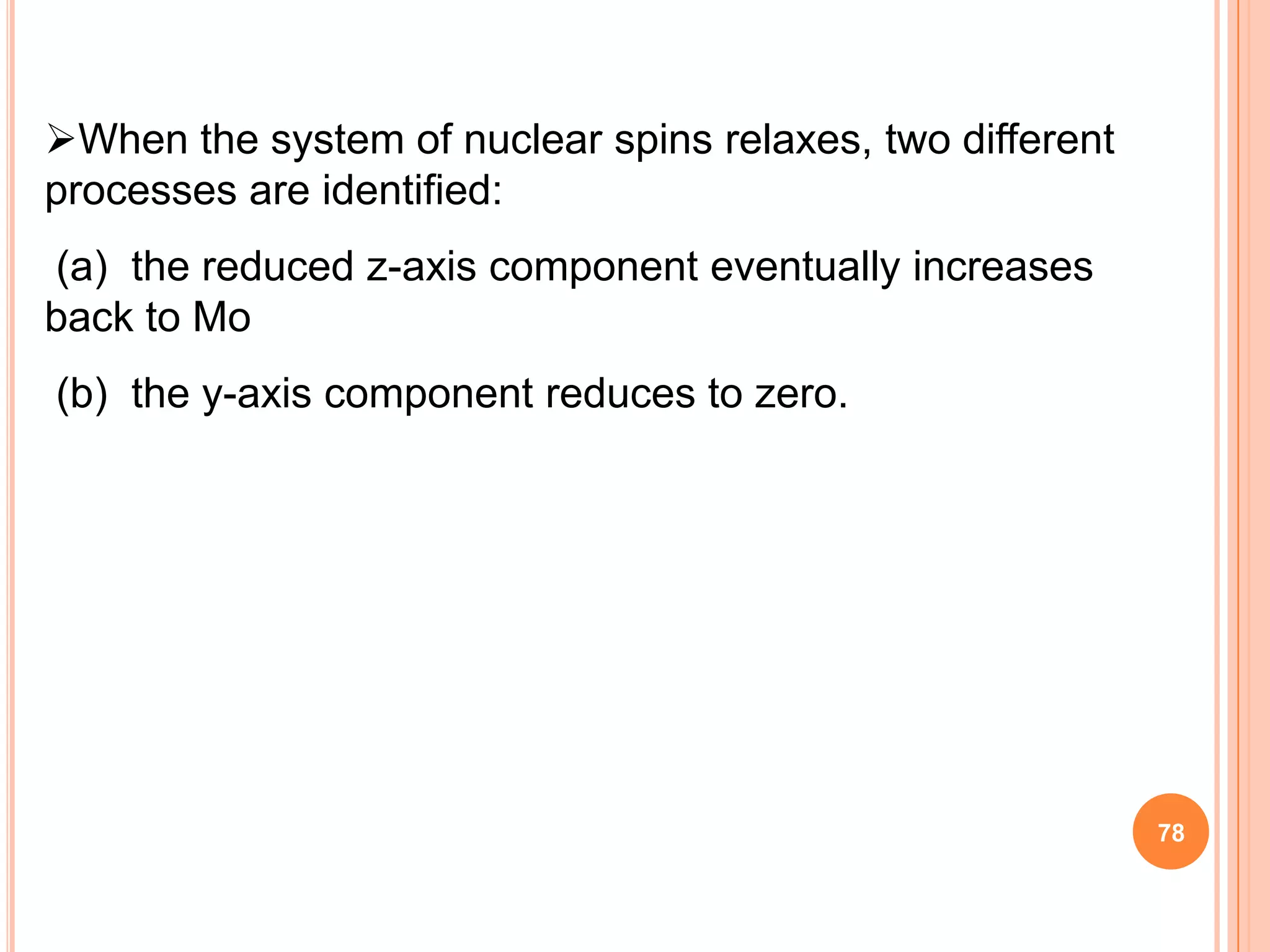

78. When the system of nuclear spins relaxes, two different
processes are identified:
(a) the reduced z-axis component eventually increases
back to Mo
(b) the y-axis component reduces to zero.
78

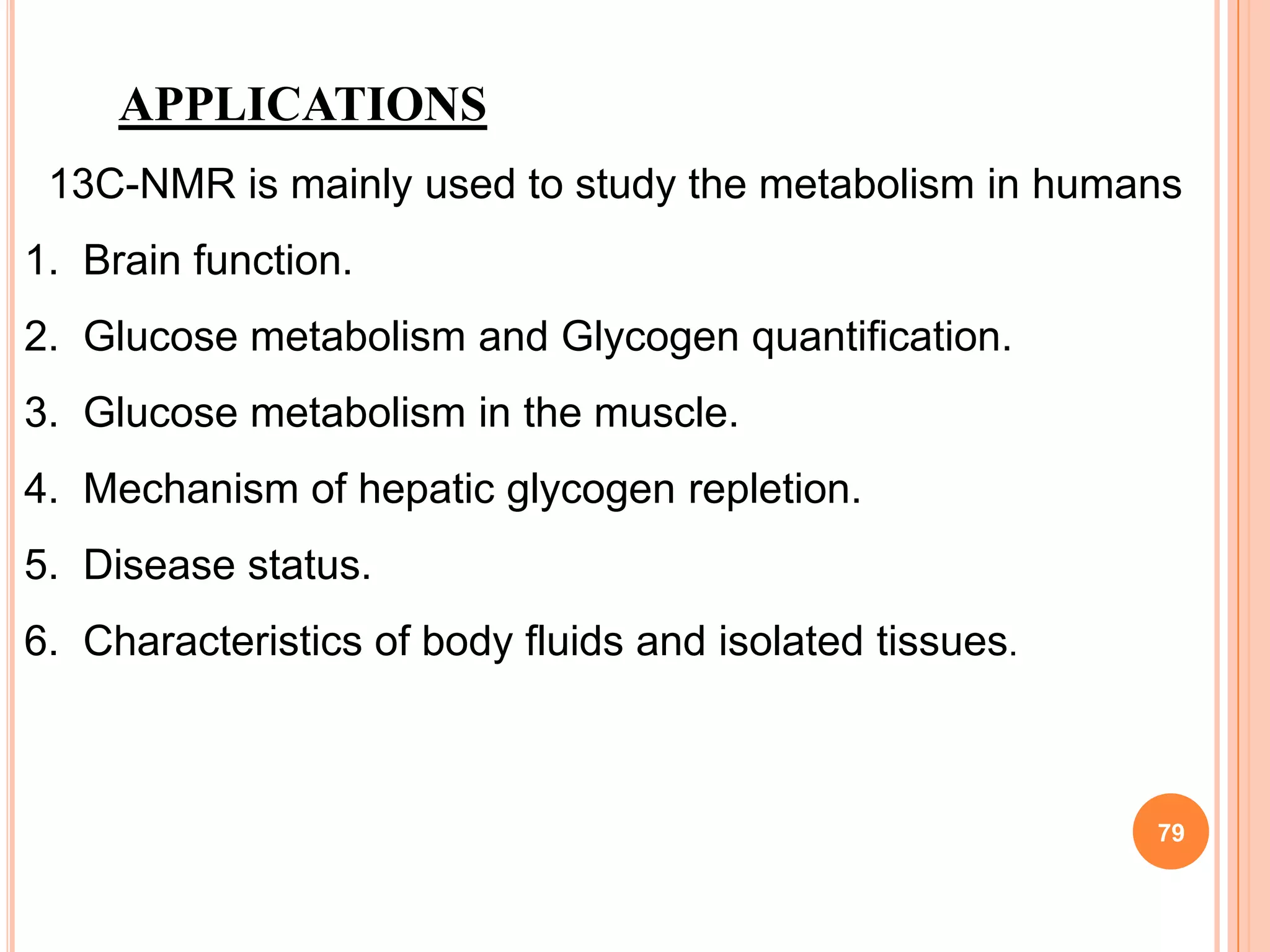

79. APPLICATIONS
13C-NMR is mainly used to study the metabolism in humans
1. Brain function.
2. Glucose metabolism and Glycogen quantification.
3. Glucose metabolism in the muscle.
4. Mechanism of hepatic glycogen repletion.
5. Disease status.
6. Characteristics of body fluids and isolated tissues.
79
80. 2D NMR
All 2D experiments are a simple series of 1D experiments
collected with different timing.
2D NMR differ from the conventional NMR in that response
intensity would be function of two frequency rather than a single
frequency.
1D one time variable
one intensity variable
2D two time variables
two intensity variables 75
80

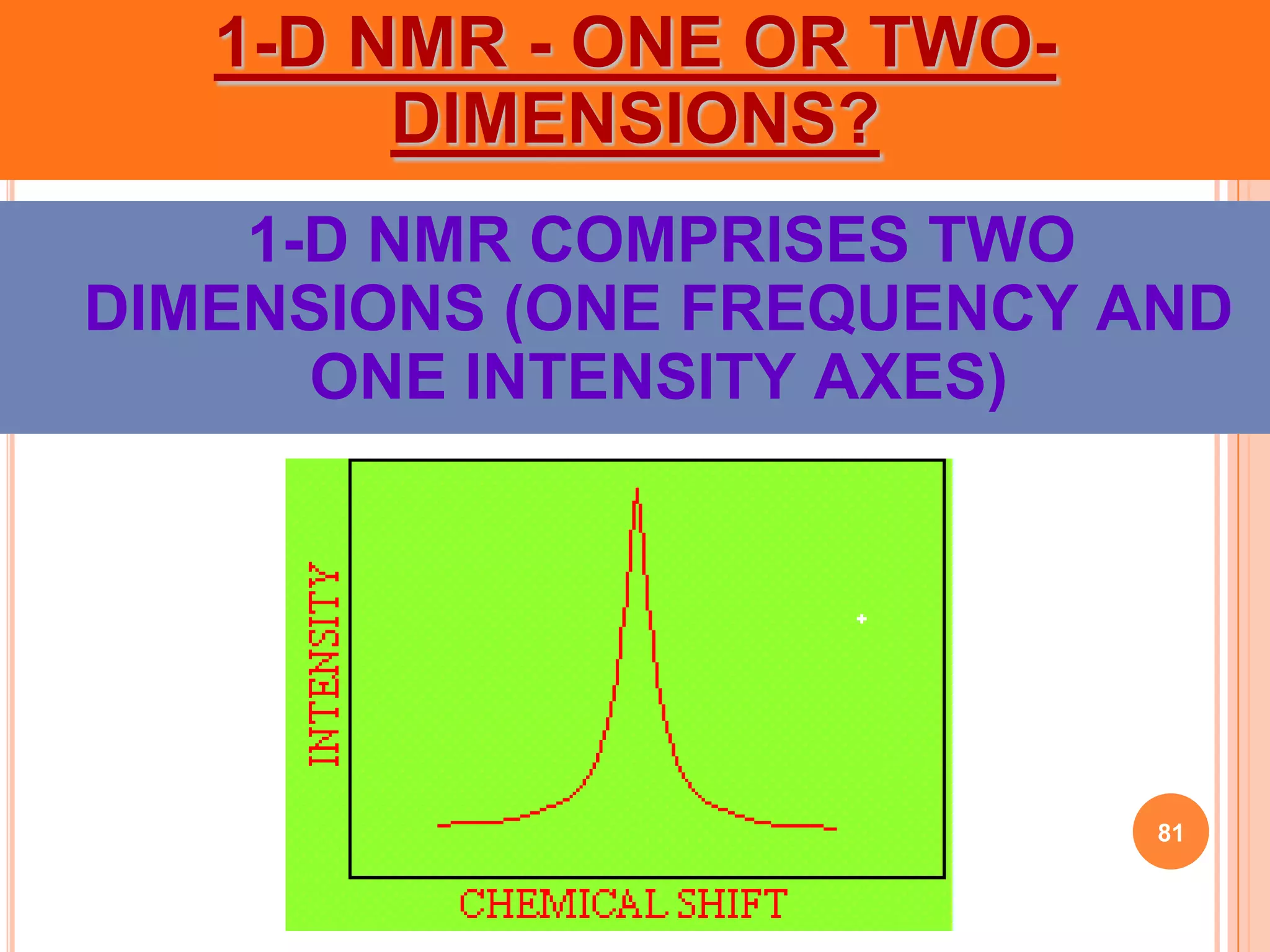

81. 1-D NMR - ONE OR TWO-
DIMENSIONS?
1-D NMR COMPRISES TWO
DIMENSIONS (ONE FREQUENCY AND
ONE INTENSITY AXES)
81

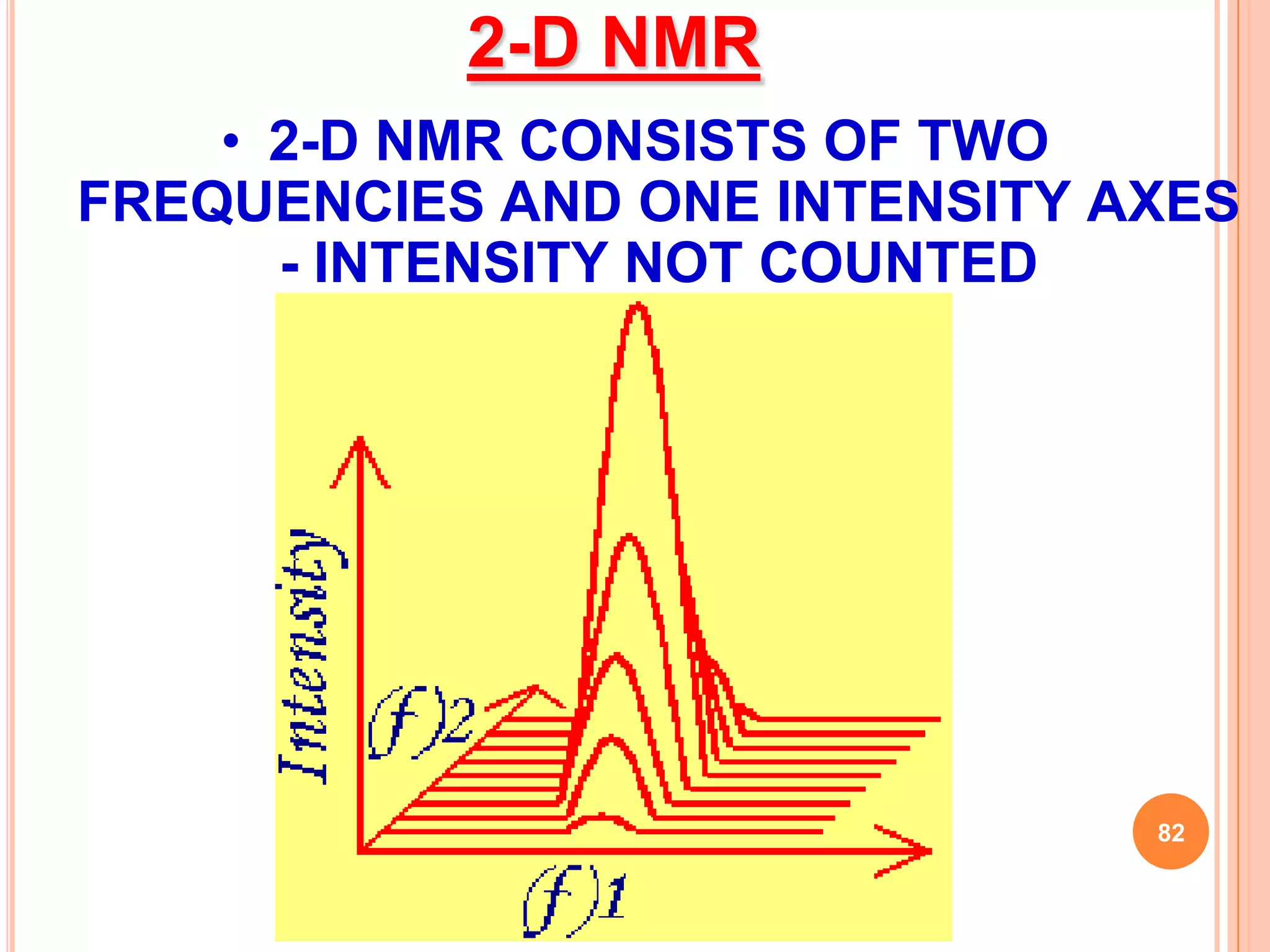

82. 2-D NMR
• 2-D NMR CONSISTS OF TWO
FREQUENCIES AND ONE INTENSITY AXES
- INTENSITY NOT COUNTED
82
83. The two dimension of NMR based on dimension of time.
One of the dimension is time domain with which we can collect
the free induction decay (FID) output from the
spectrophotometer and which contain frequency &intensity
information .
The second dimension is refer to the time pass away /
lapsing between application of some distribution to the system
and the onset of collection of data in the first time domain.
The second time period is varied in regular way and series of
FID response collected corresponding to each period chosen .
83
84. WHAT…?
Stack of several 1D spectra
Each 1D is different from the
next by a Small Change in the
evolution time t1
Parameters for each
successive experiment in the
series are constant except the
phase of the pulses
FT of the two time 84
domains provides a map
of spin-spin correlations

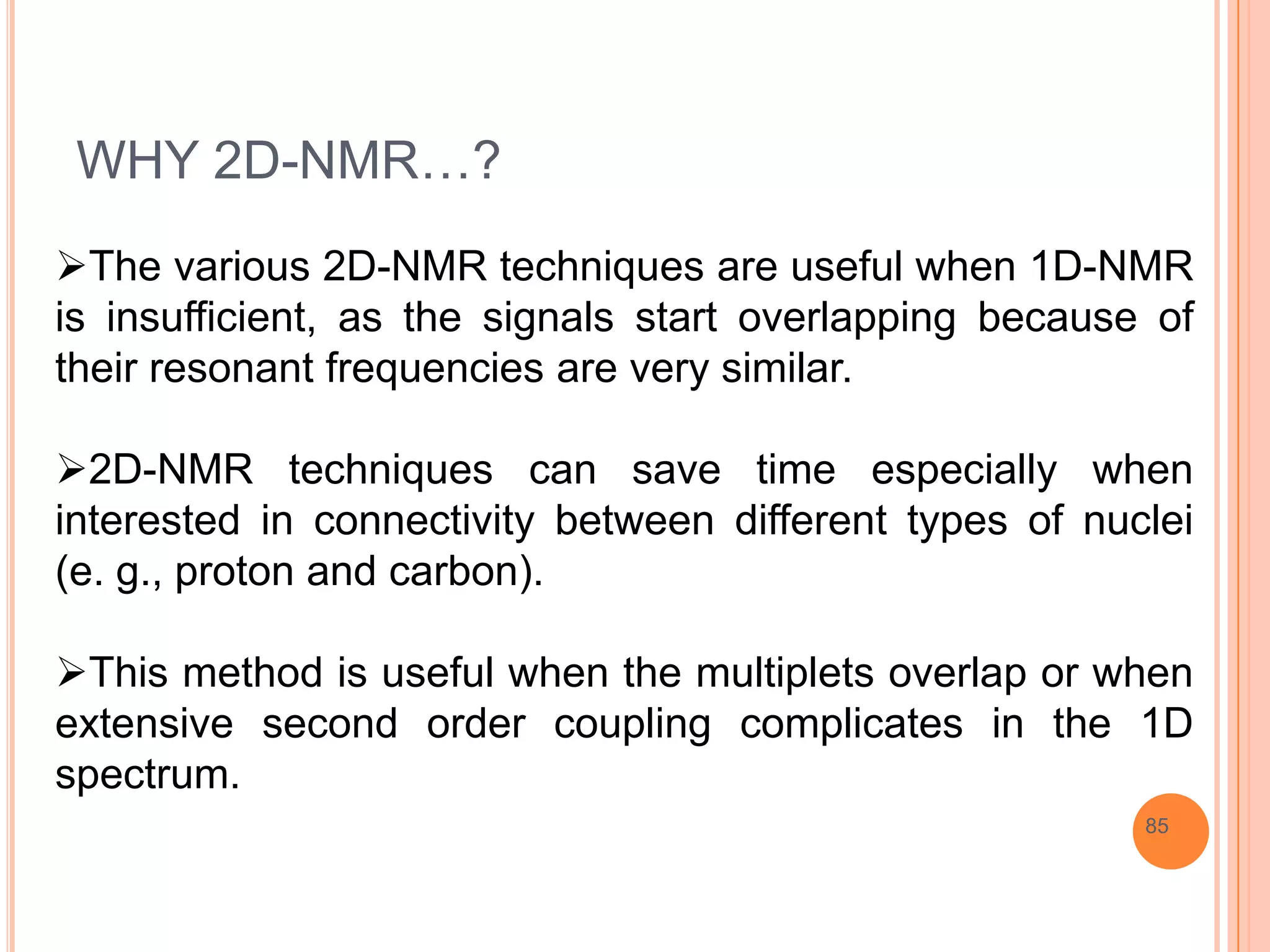

85. WHY 2D-NMR…?
The various 2D-NMR techniques are useful when 1D-NMR
is insufficient, as the signals start overlapping because of
their resonant frequencies are very similar.
2D-NMR techniques can save time especially when
interested in connectivity between different types of nuclei
(e. g., proton and carbon).
This method is useful when the multiplets overlap or when
extensive second order coupling complicates in the 1D
spectrum.
85

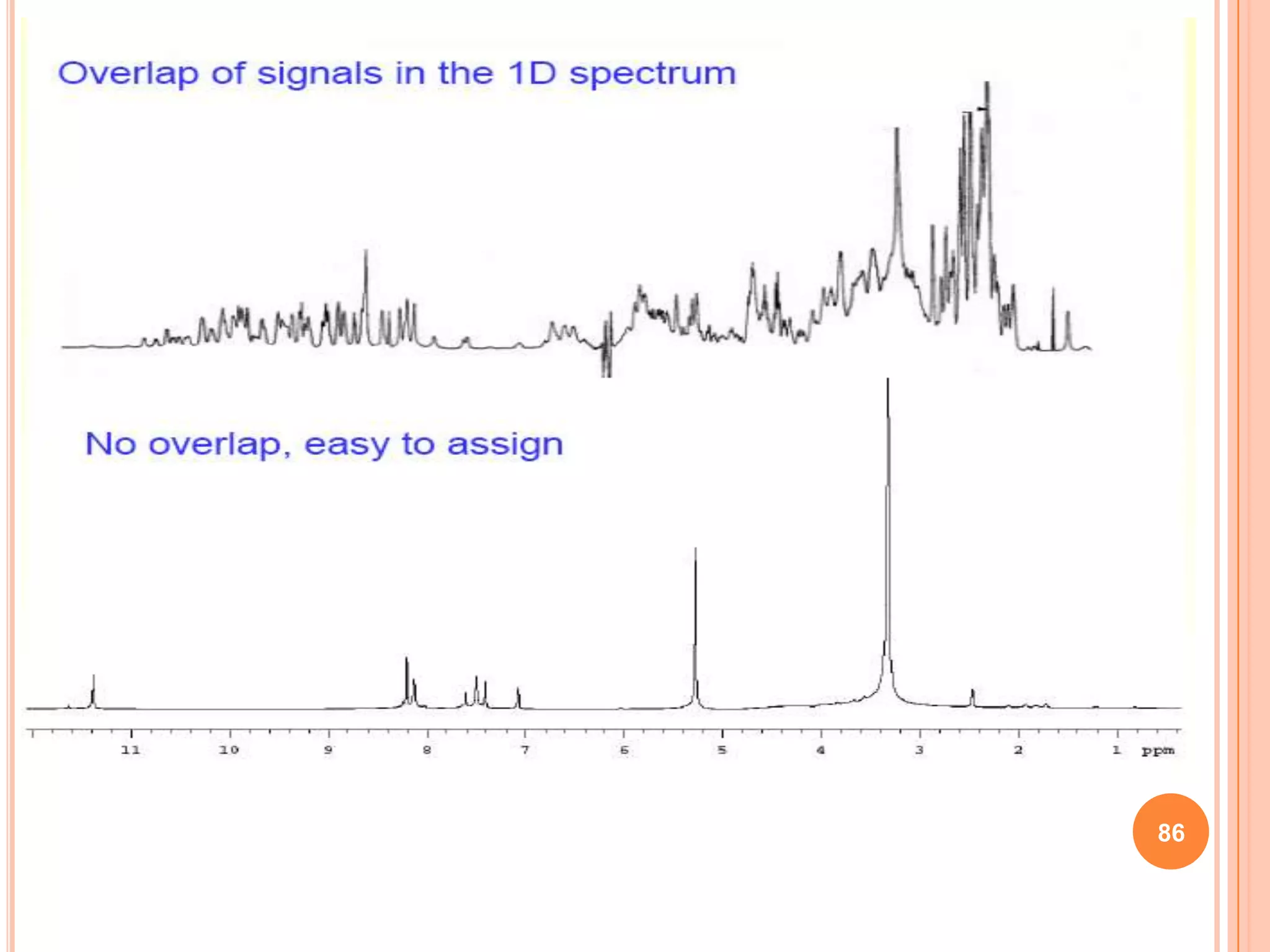

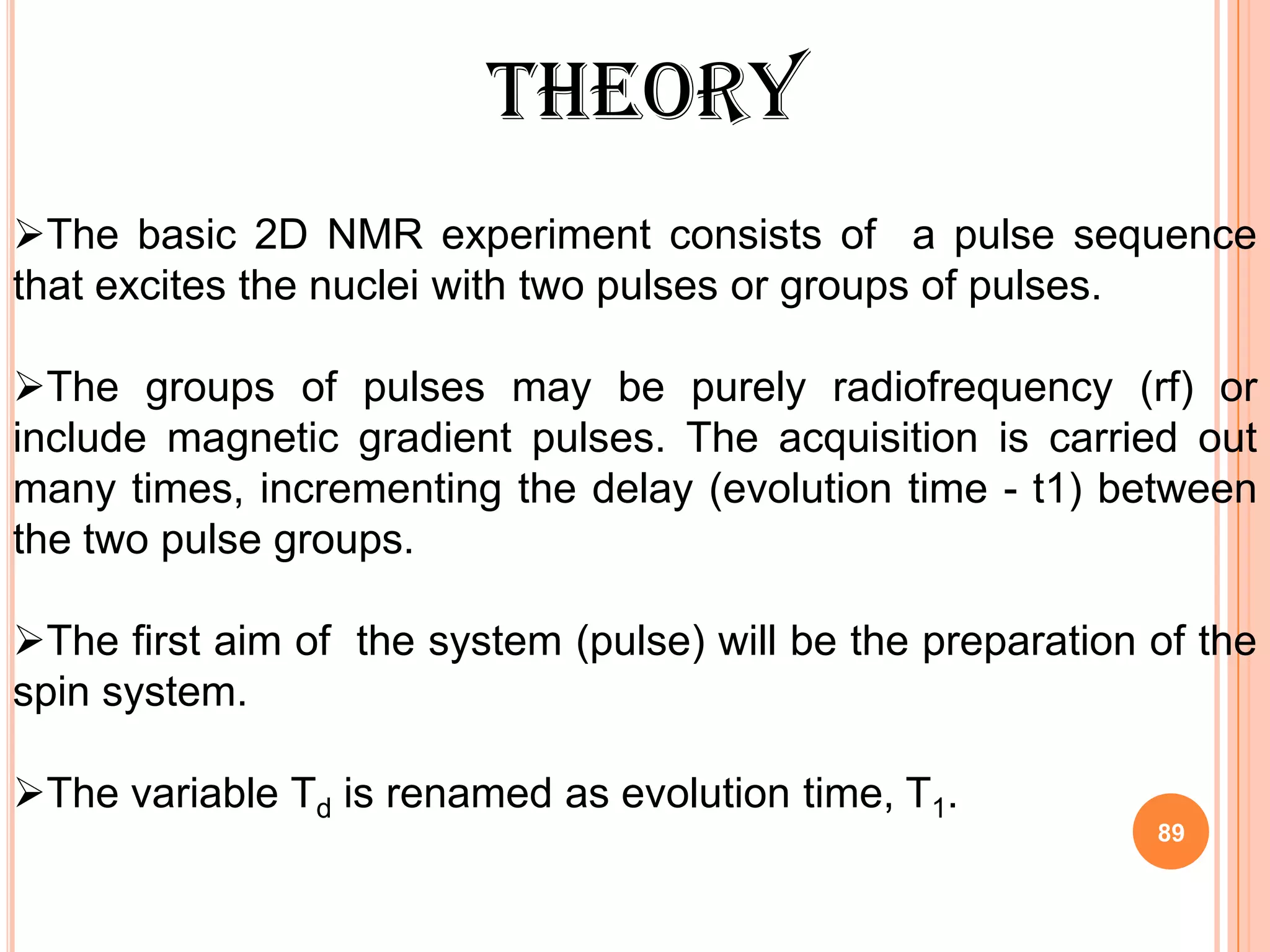

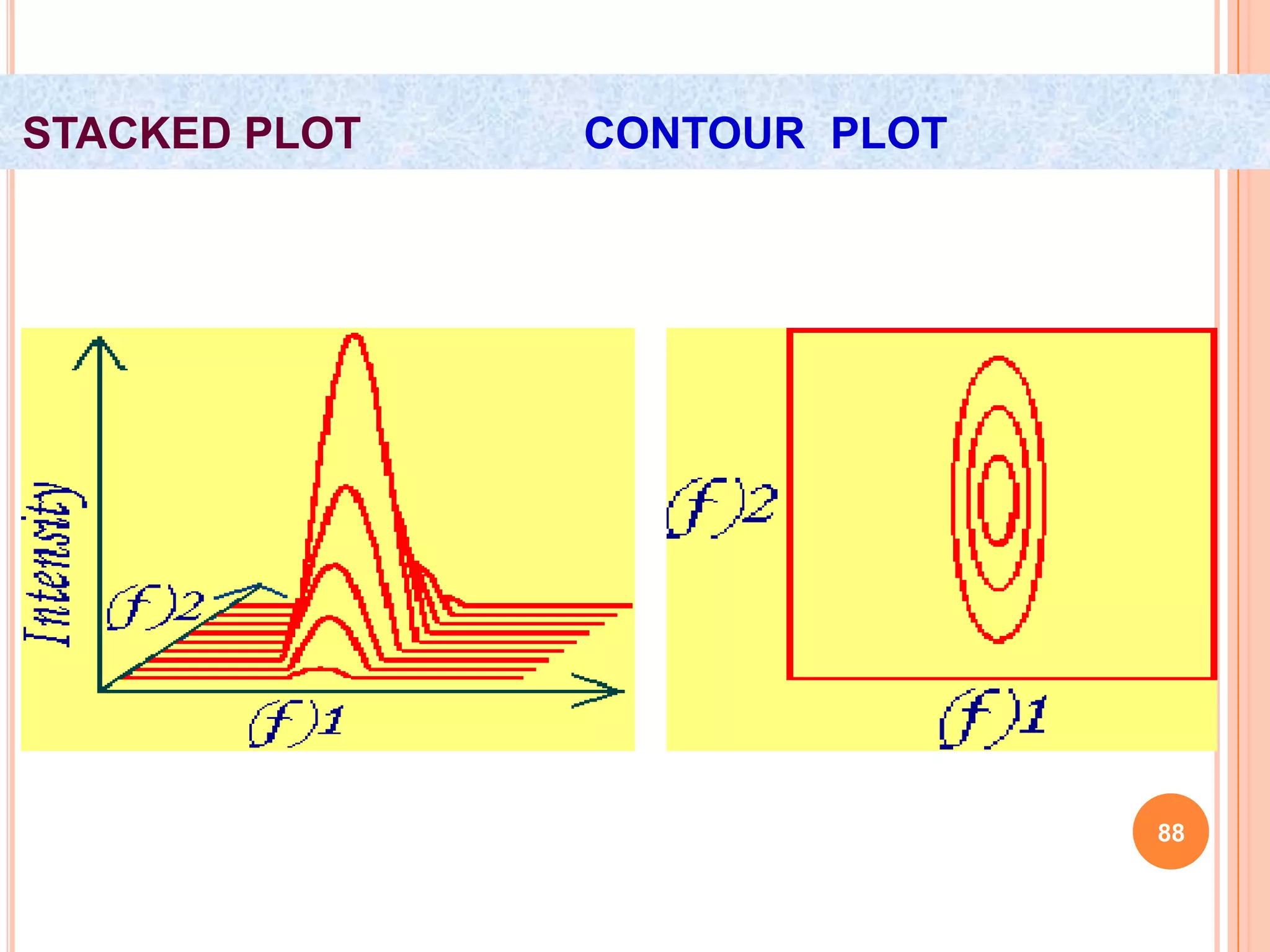

89. THEORY
The basic 2D NMR experiment consists of a pulse sequence
that excites the nuclei with two pulses or groups of pulses.
The groups of pulses may be purely radiofrequency (rf) or
include magnetic gradient pulses. The acquisition is carried out
many times, incrementing the delay (evolution time - t1) between
the two pulse groups.
The first aim of the system (pulse) will be the preparation of the
spin system.
The variable Td is renamed as evolution time, T1.
89

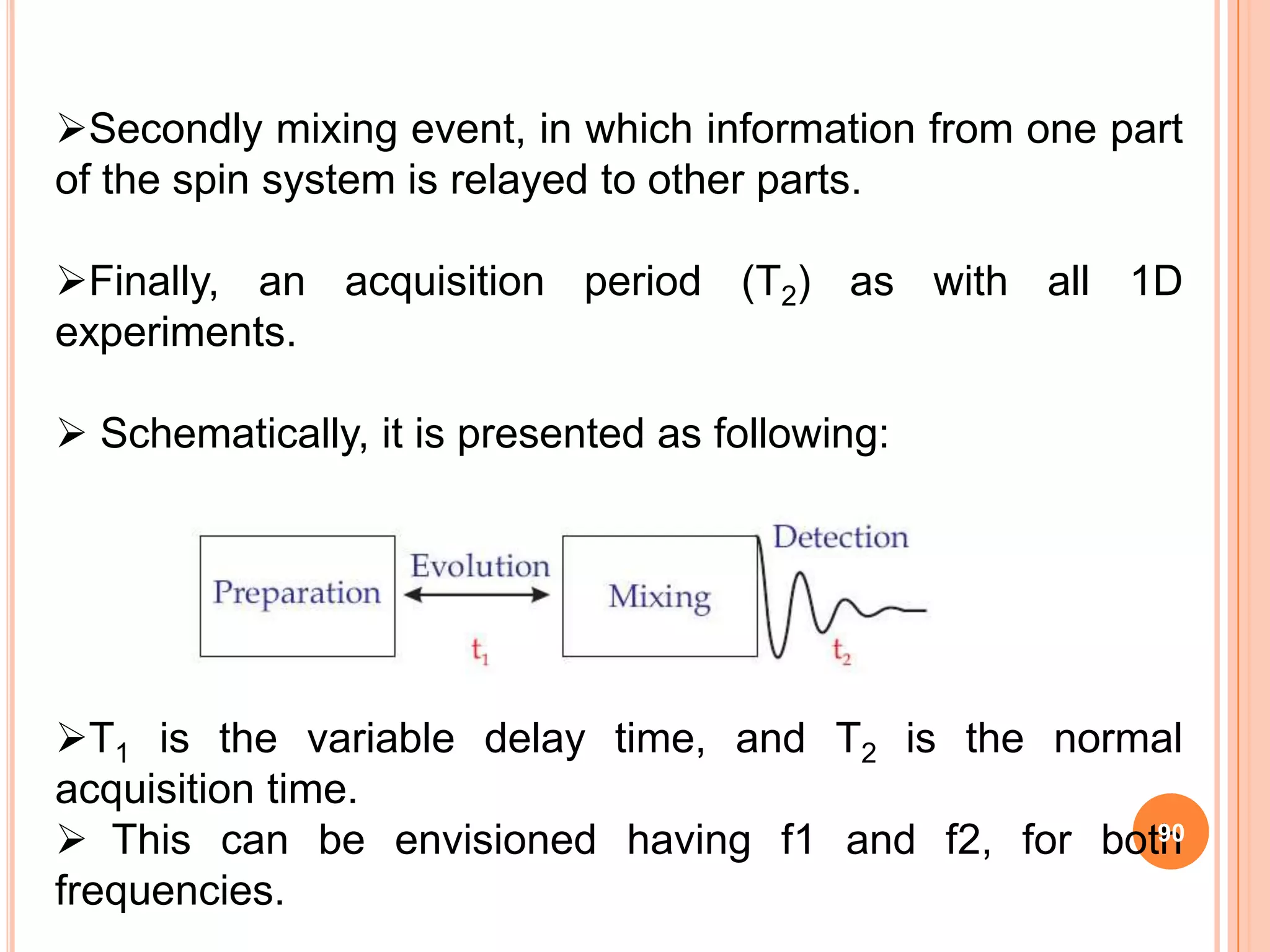

90. Secondly mixing event, in which information from one part
of the spin system is relayed to other parts.
Finally, an acquisition period (T2) as with all 1D
experiments.
Schematically, it is presented as following:
T1 is the variable delay time, and T2 is the normal
acquisition time.
This can be envisioned having f1 and f2, for both
90
frequencies.

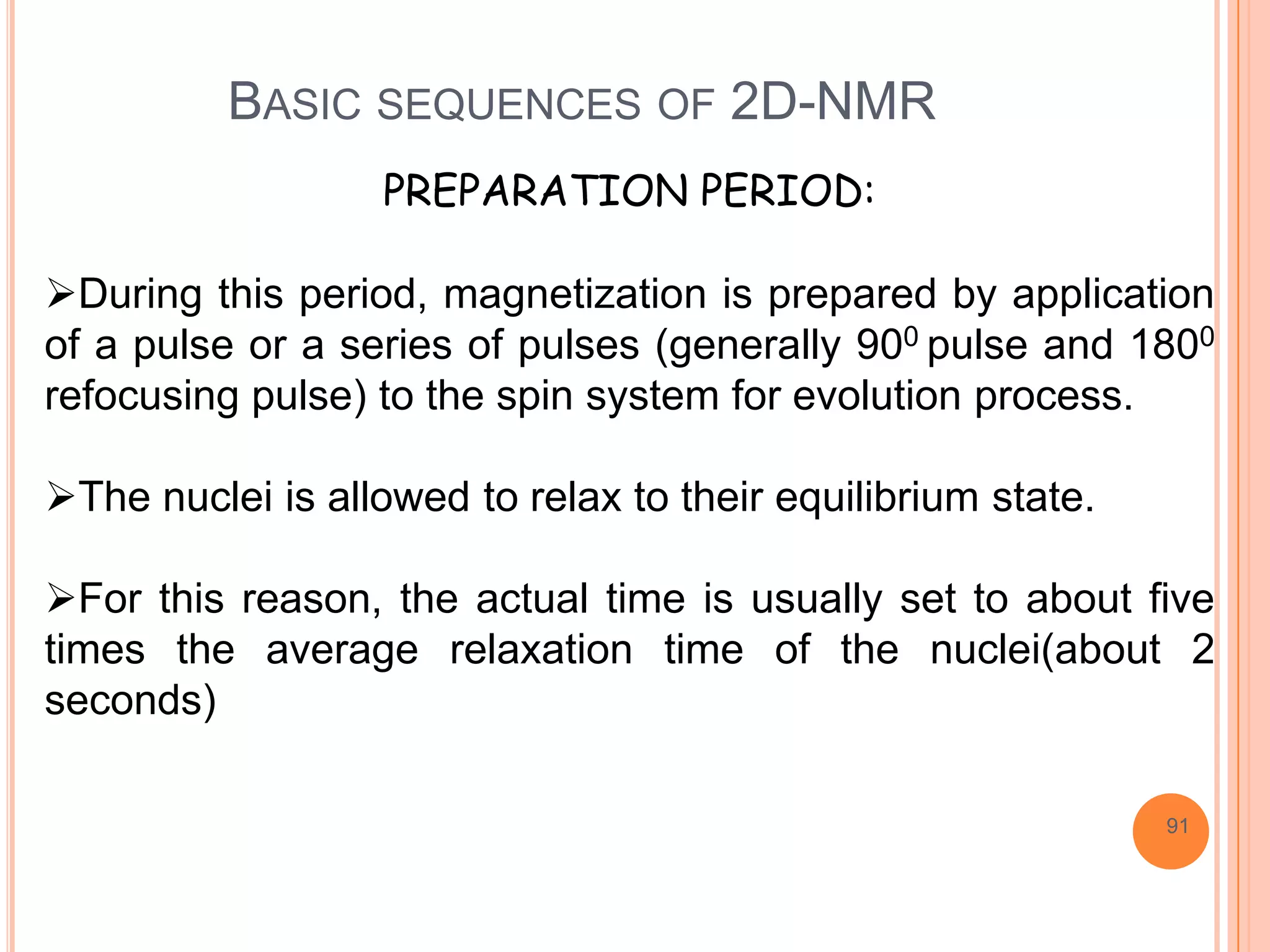

91. BASIC SEQUENCES OF 2D-NMR
PREPARATION PERIOD:
During this period, magnetization is prepared by application
of a pulse or a series of pulses (generally 900 pulse and 1800
refocusing pulse) to the spin system for evolution process.
The nuclei is allowed to relax to their equilibrium state.
For this reason, the actual time is usually set to about five
times the average relaxation time of the nuclei(about 2
seconds)
91

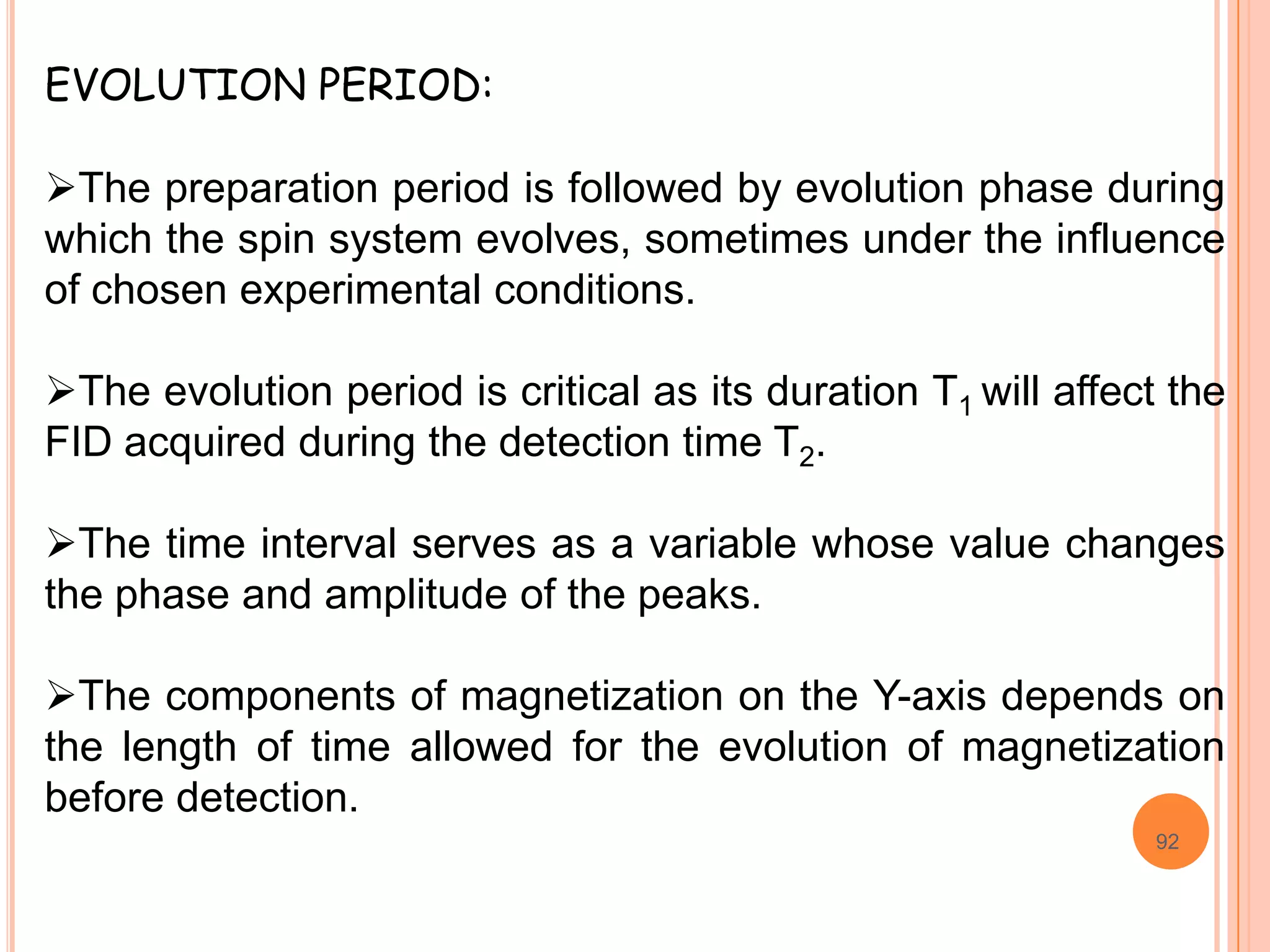

92. EVOLUTION PERIOD:
The preparation period is followed by evolution phase during
which the spin system evolves, sometimes under the influence
of chosen experimental conditions.
The evolution period is critical as its duration T1 will affect the
FID acquired during the detection time T2.
The time interval serves as a variable whose value changes
the phase and amplitude of the peaks.
The components of magnetization on the Y-axis depends on
the length of time allowed for the evolution of magnetization
before detection.
92

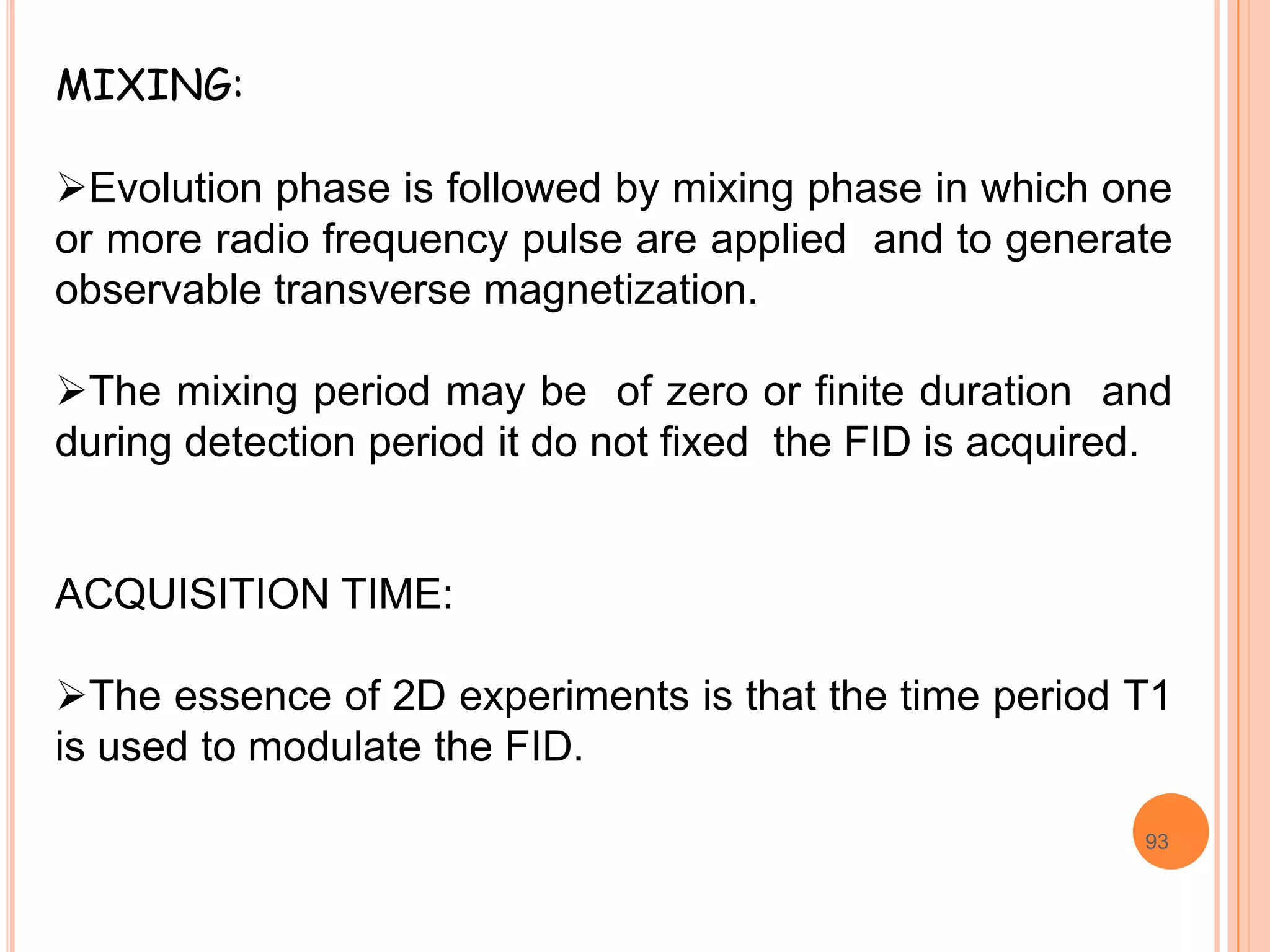

93. MIXING:
Evolution phase is followed by mixing phase in which one
or more radio frequency pulse are applied and to generate
observable transverse magnetization.
The mixing period may be of zero or finite duration and
during detection period it do not fixed the FID is acquired.
ACQUISITION TIME:
The essence of 2D experiments is that the time period T1
is used to modulate the FID.
93

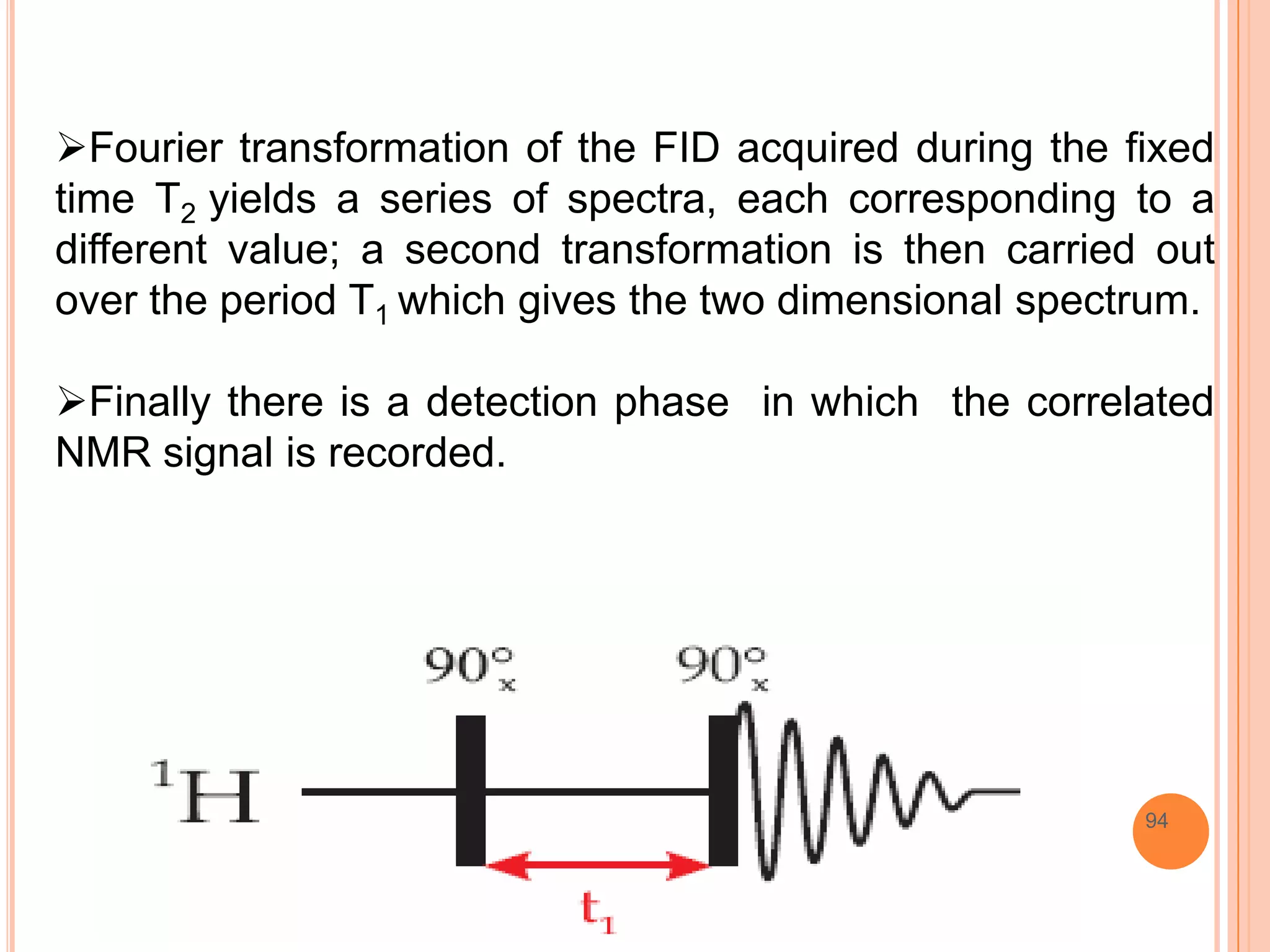

94. Fourier transformation of the FID acquired during the fixed
time T2 yields a series of spectra, each corresponding to a
different value; a second transformation is then carried out
over the period T1 which gives the two dimensional spectrum.
Finally there is a detection phase in which the correlated
NMR signal is recorded.
94

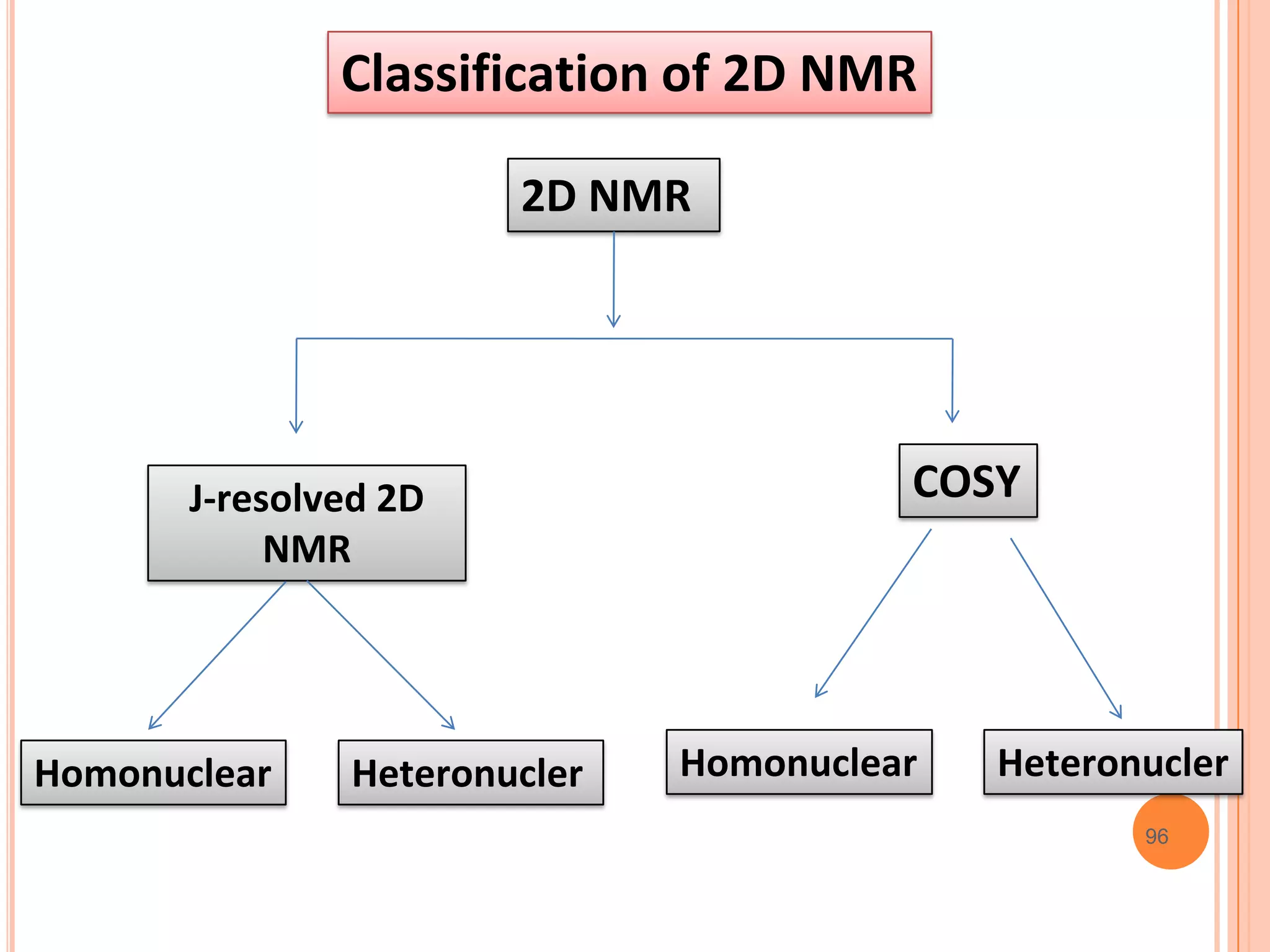

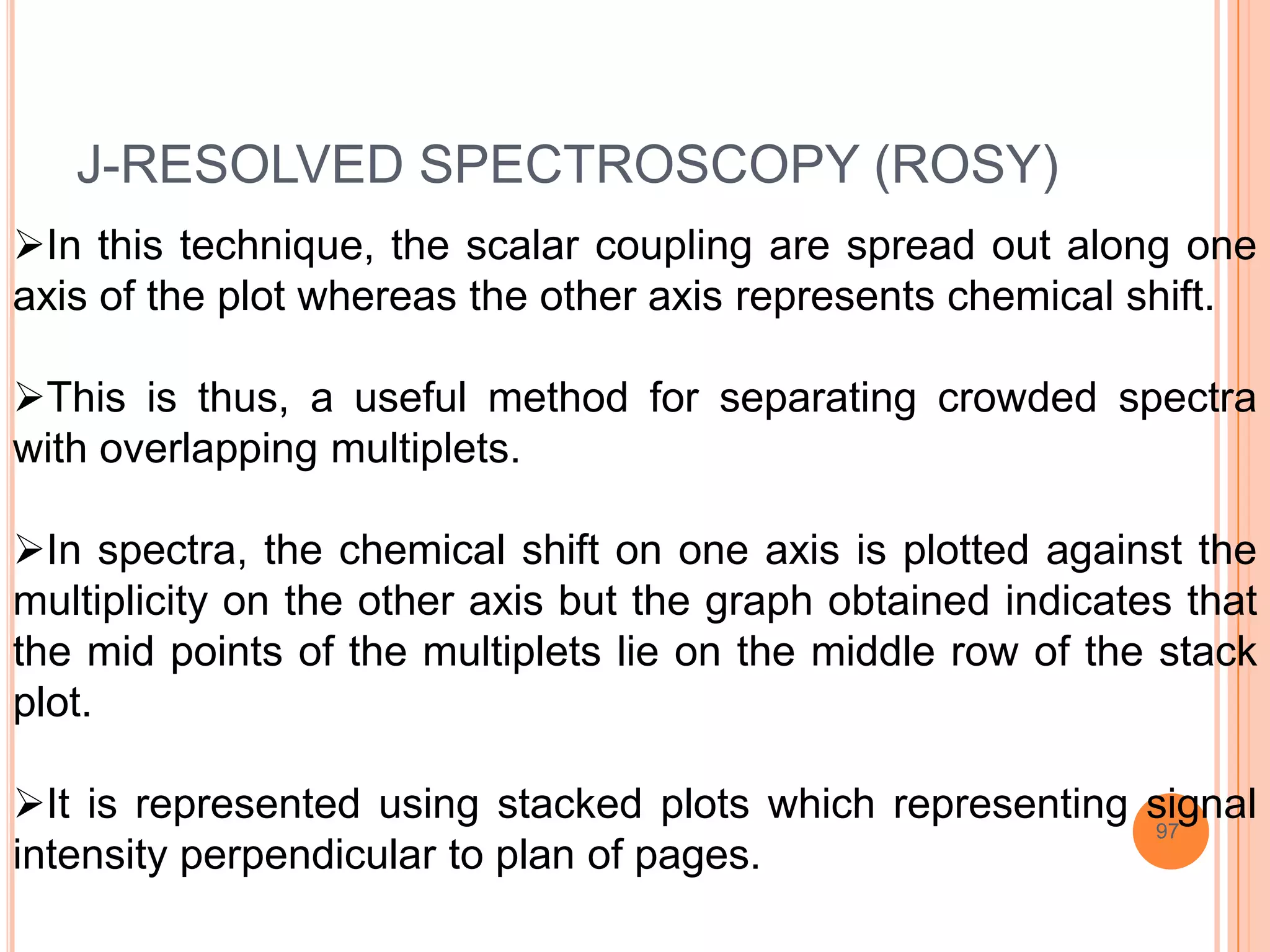

97. J-RESOLVED SPECTROSCOPY (ROSY)
In this technique, the scalar coupling are spread out along one
axis of the plot whereas the other axis represents chemical shift.
This is thus, a useful method for separating crowded spectra
with overlapping multiplets.
In spectra, the chemical shift on one axis is plotted against the
multiplicity on the other axis but the graph obtained indicates that
the mid points of the multiplets lie on the middle row of the stack
plot.
It is represented using stacked plots which representing signal
97
intensity perpendicular to plan of pages.

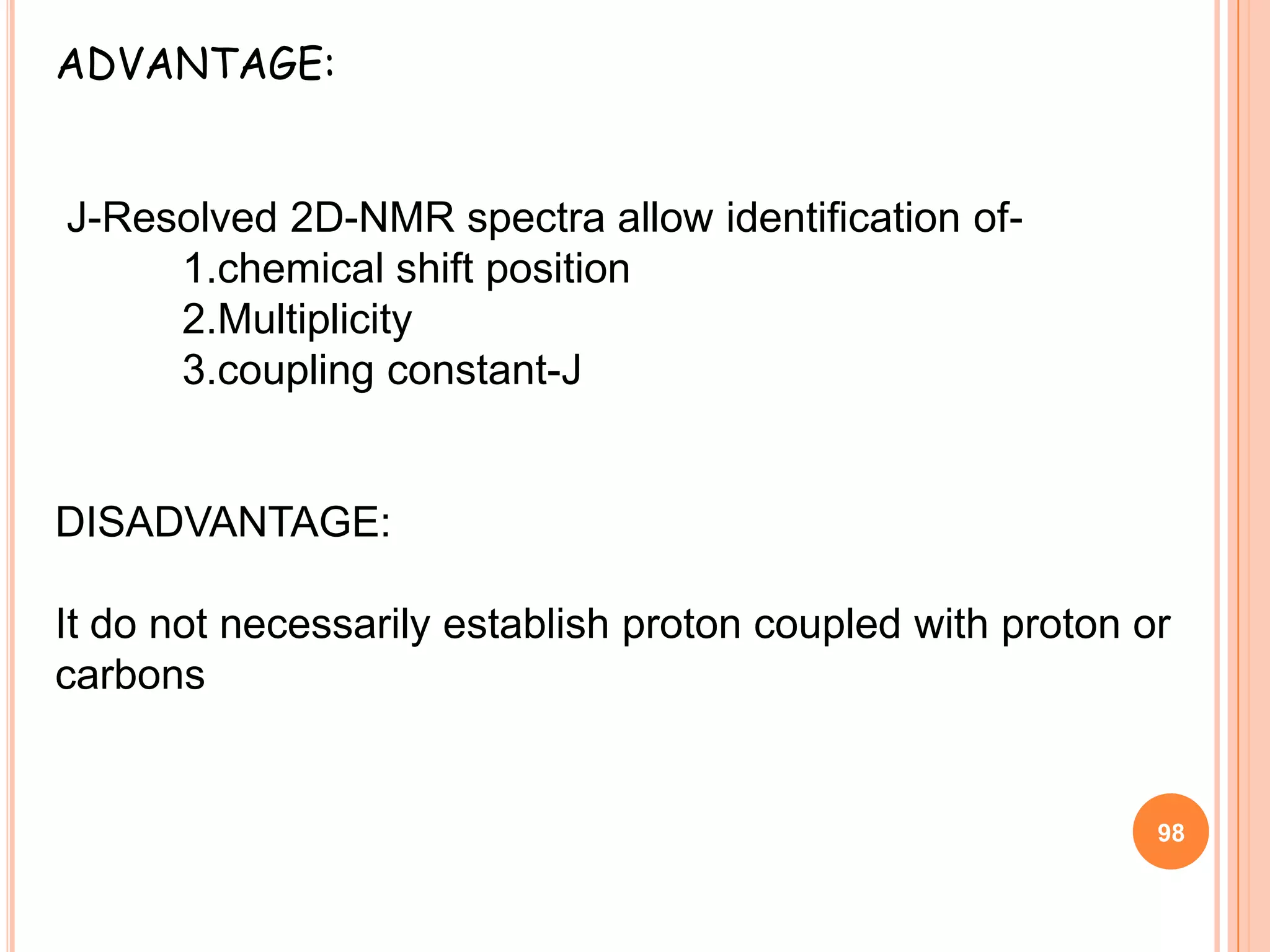

98. ADVANTAGE:
J-Resolved 2D-NMR spectra allow identification of-
1.chemical shift position
2.Multiplicity
3.coupling constant-J
DISADVANTAGE:
It do not necessarily establish proton coupled with proton or
carbons
98

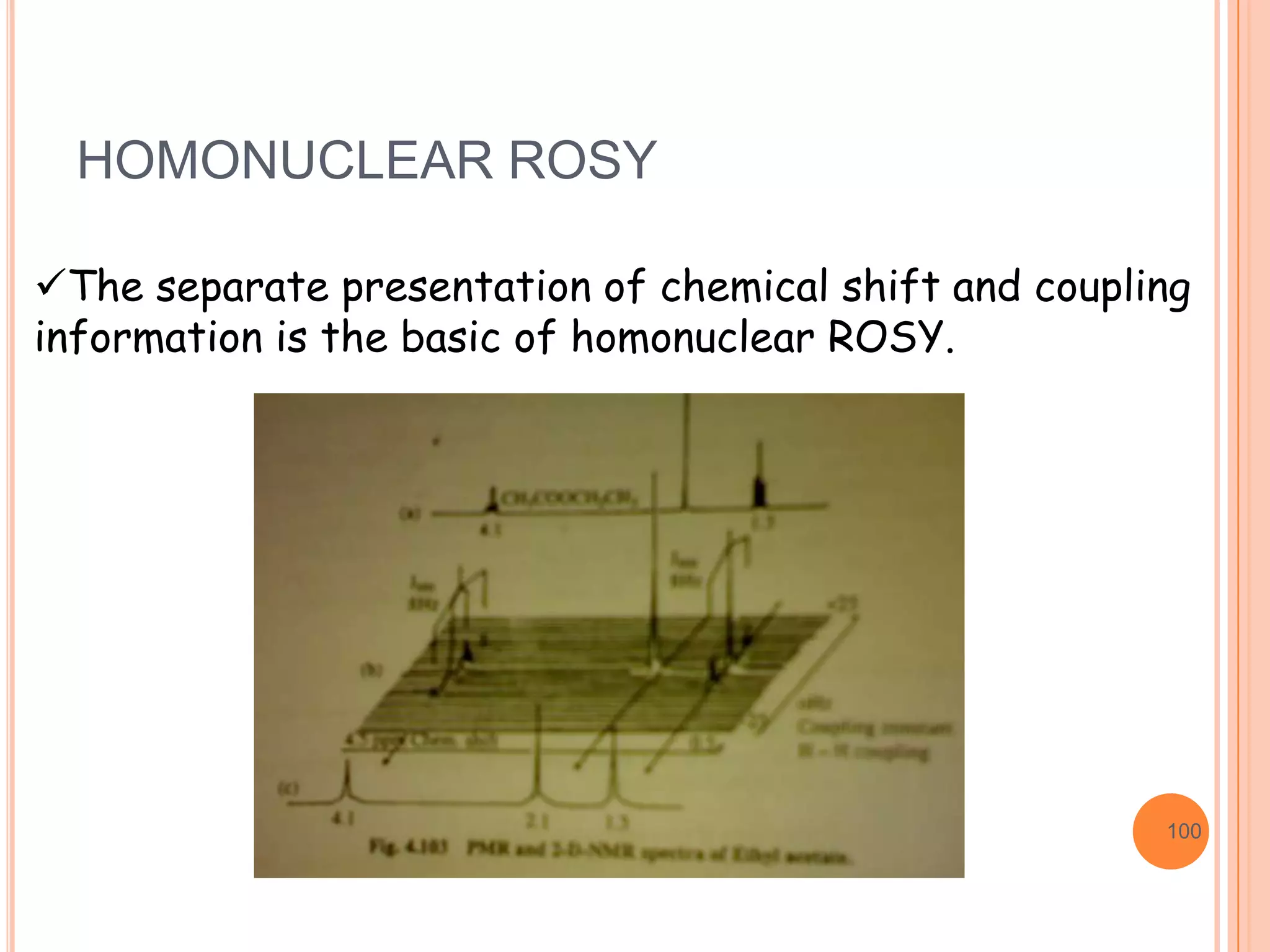

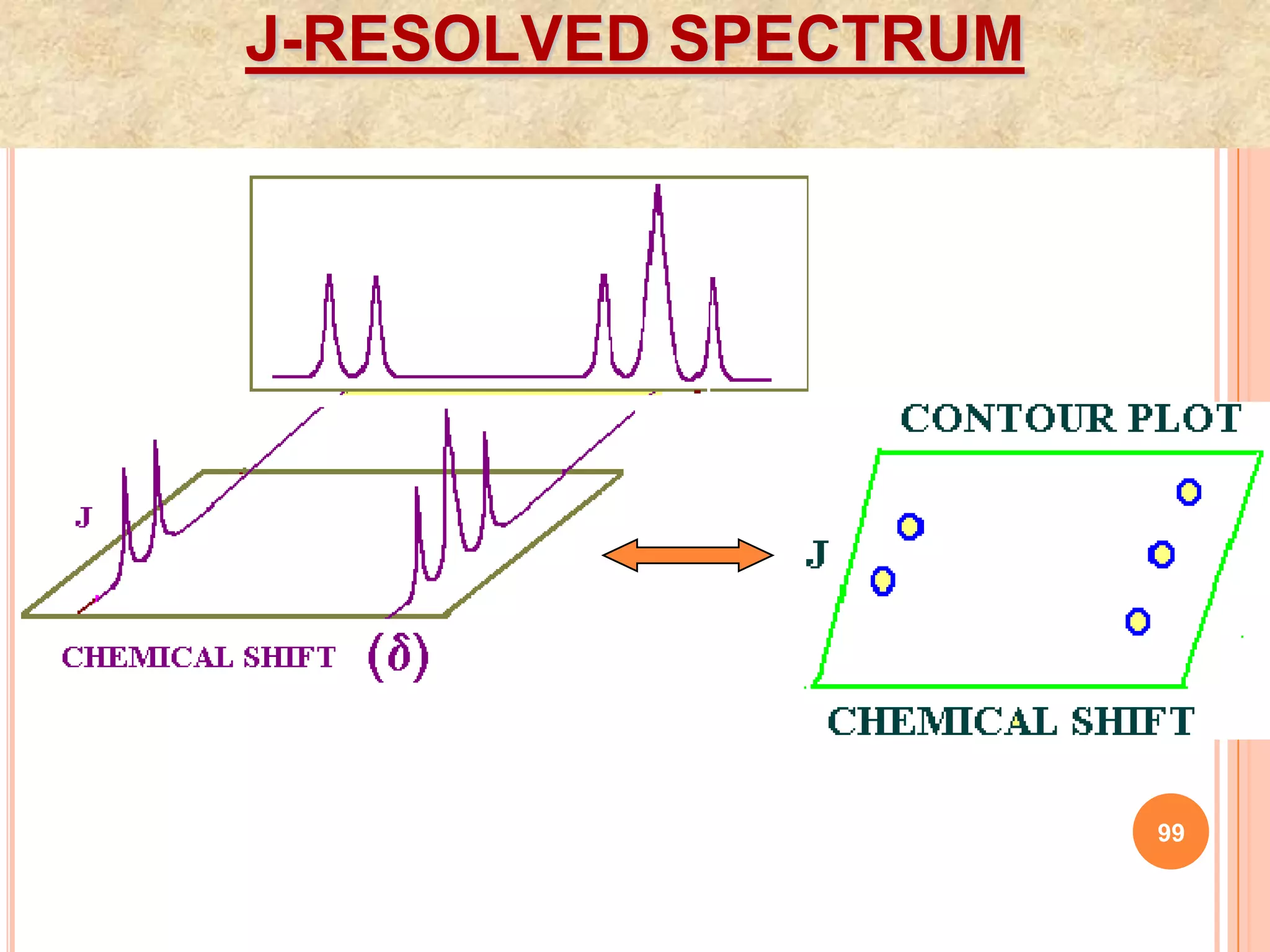

100. HOMONUCLEAR ROSY
The separate presentation of chemical shift and coupling
information is the basic of homonuclear ROSY.
100

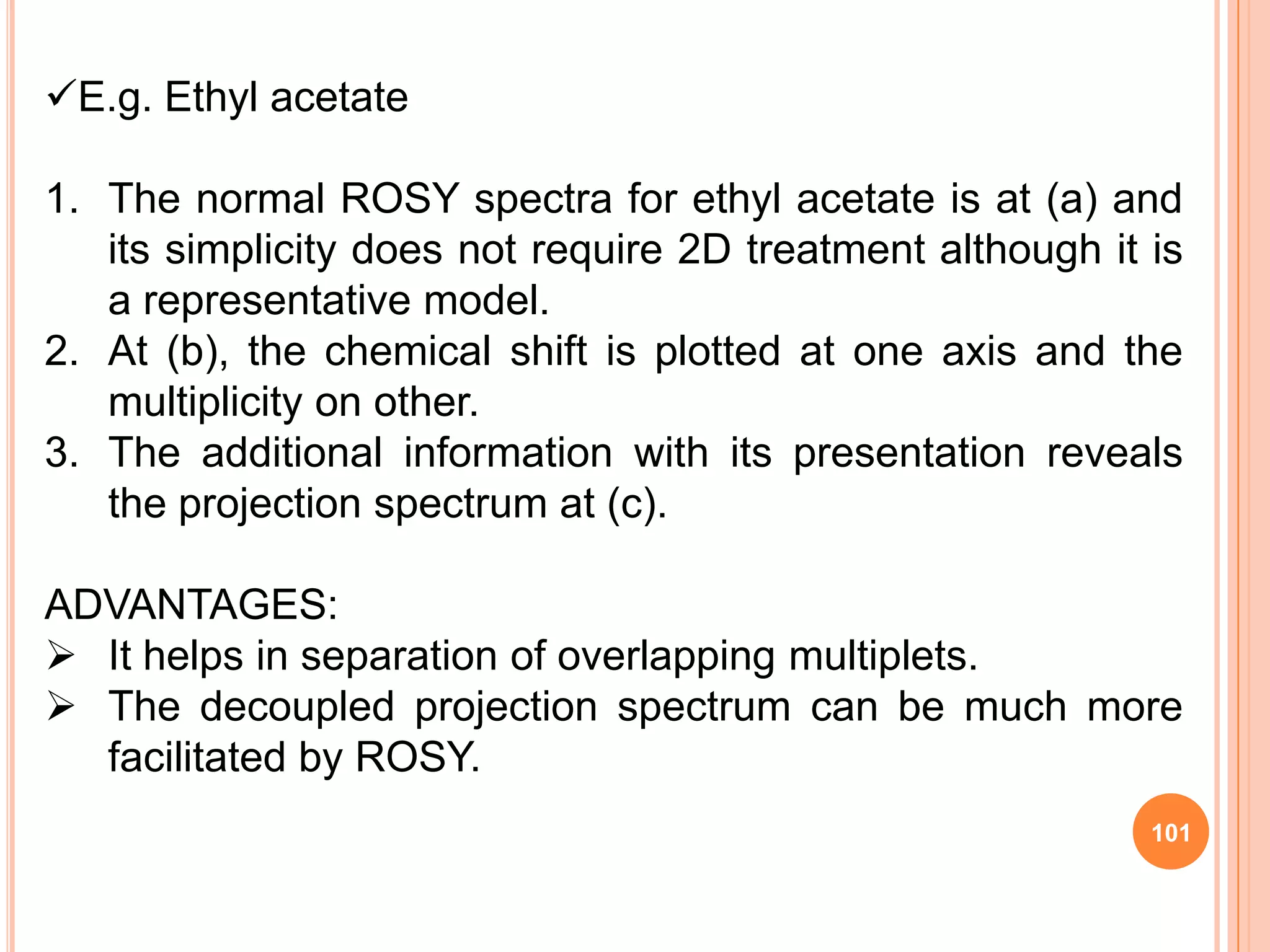

101. E.g. Ethyl acetate
1. The normal ROSY spectra for ethyl acetate is at (a) and
its simplicity does not require 2D treatment although it is
a representative model.
2. At (b), the chemical shift is plotted at one axis and the
multiplicity on other.
3. The additional information with its presentation reveals
the projection spectrum at (c).
ADVANTAGES:
It helps in separation of overlapping multiplets.
The decoupled projection spectrum can be much more
facilitated by ROSY.
101

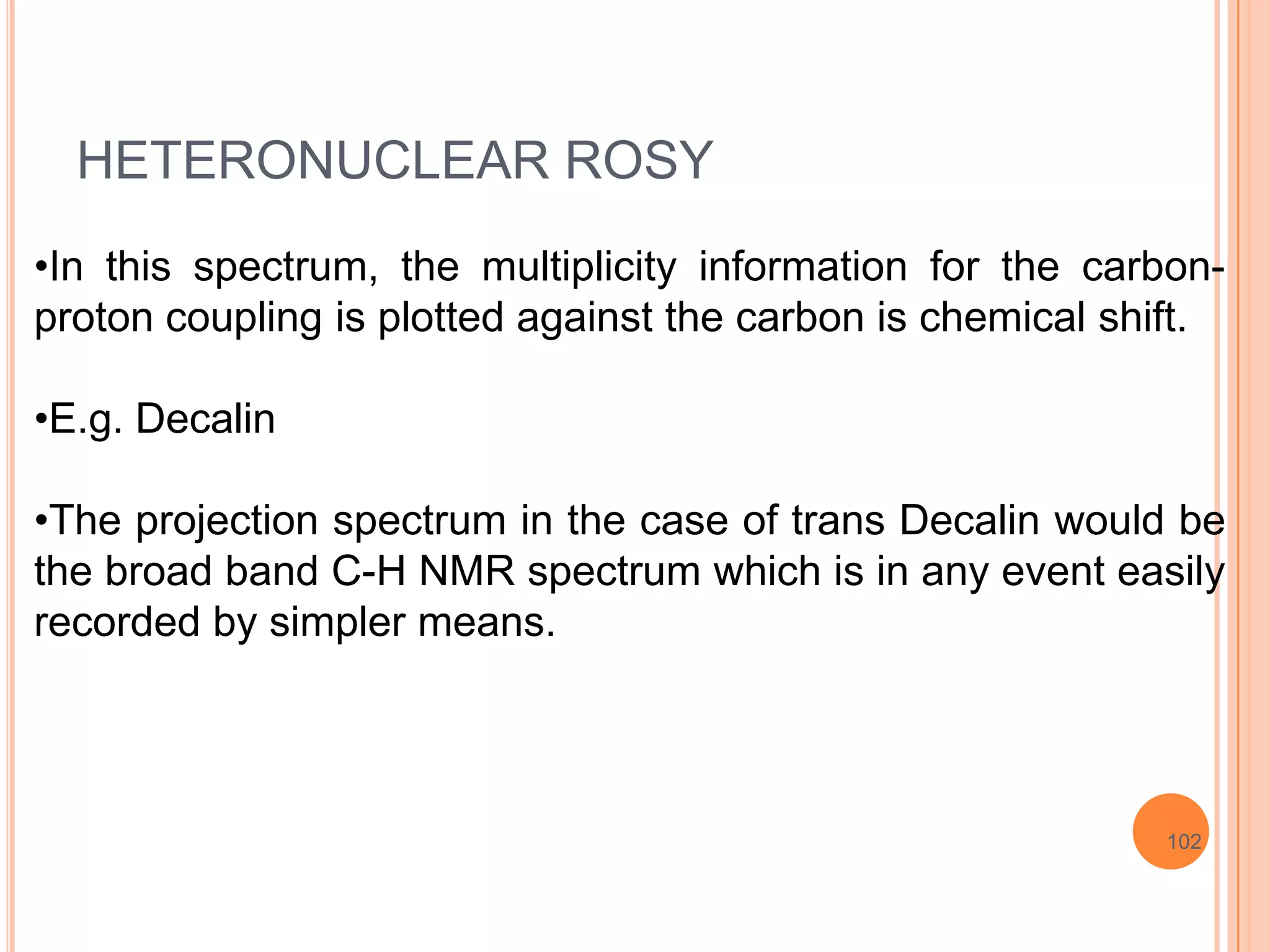

102. HETERONUCLEAR ROSY
•In this spectrum, the multiplicity information for the carbon-
proton coupling is plotted against the carbon is chemical shift.
•E.g. Decalin
•The projection spectrum in the case of trans Decalin would be
the broad band C-H NMR spectrum which is in any event easily
recorded by simpler means.
102

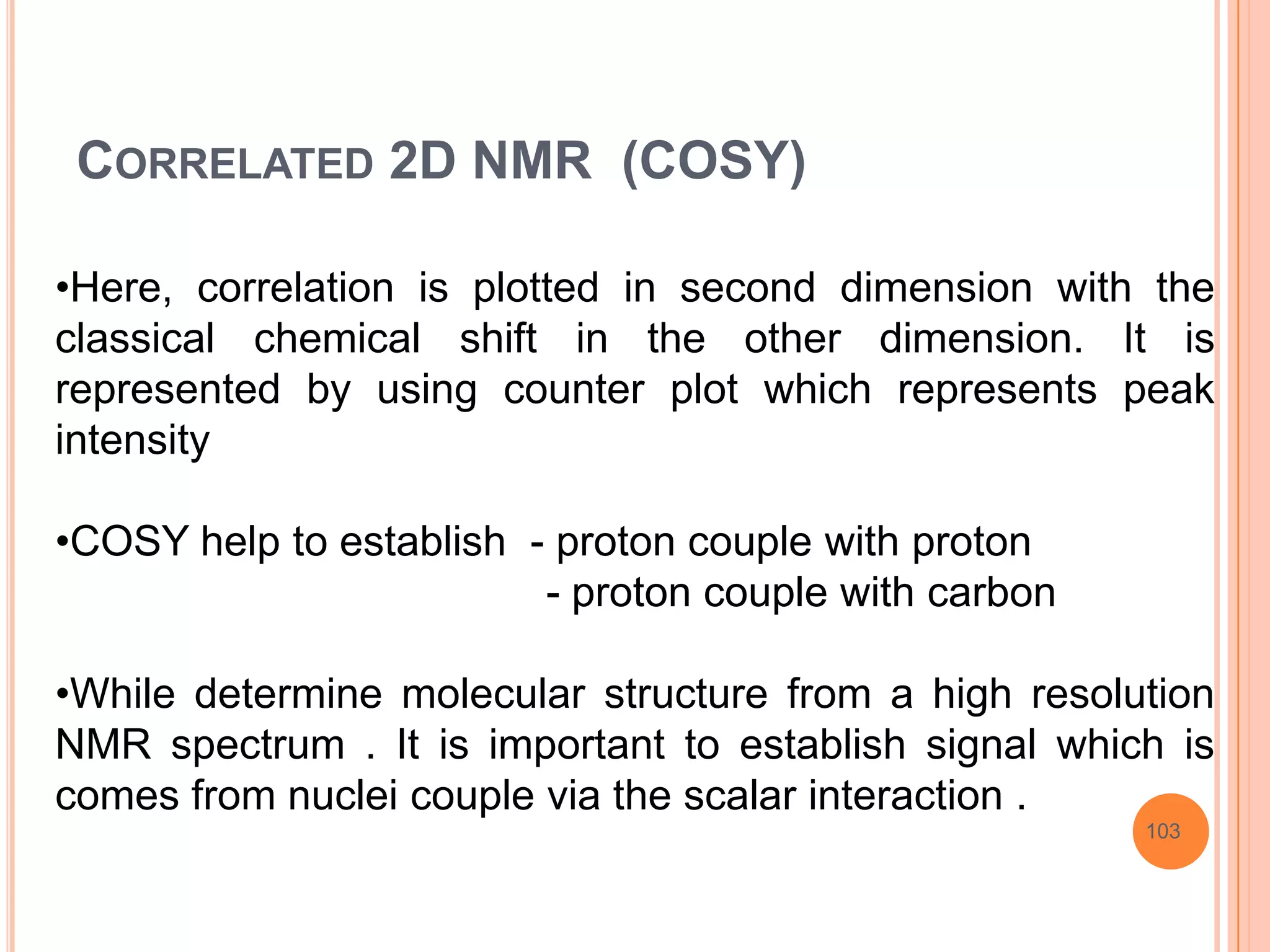

103. CORRELATED 2D NMR (COSY)
•Here, correlation is plotted in second dimension with the
classical chemical shift in the other dimension. It is
represented by using counter plot which represents peak
intensity
•COSY help to establish - proton couple with proton
- proton couple with carbon
•While determine molecular structure from a high resolution
NMR spectrum . It is important to establish signal which is
comes from nuclei couple via the scalar interaction .
103

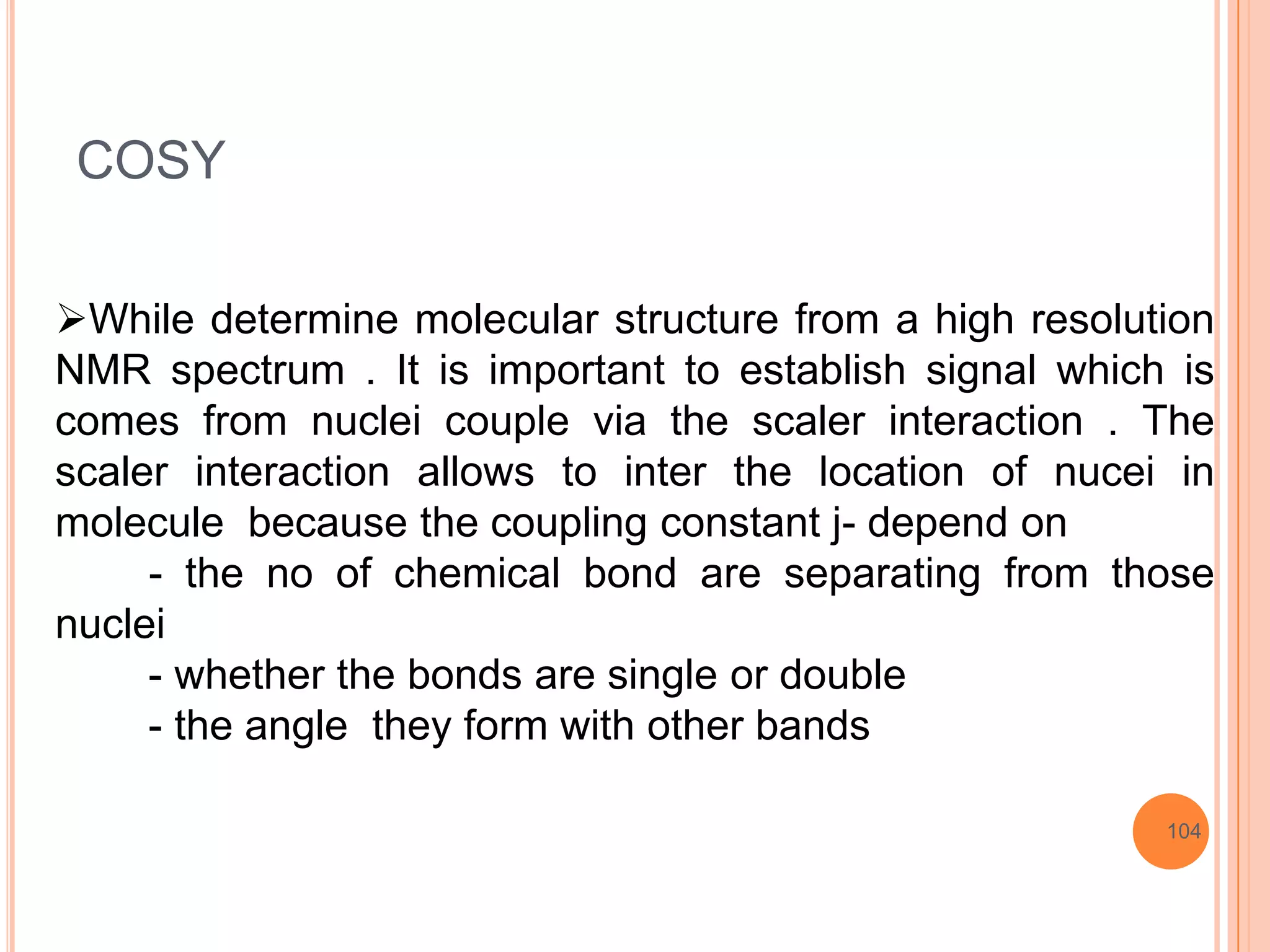

104. COSY
While determine molecular structure from a high resolution
NMR spectrum . It is important to establish signal which is
comes from nuclei couple via the scaler interaction . The
scaler interaction allows to inter the location of nucei in
molecule because the coupling constant j- depend on
- the no of chemical bond are separating from those
nuclei
- whether the bonds are single or double
- the angle they form with other bands
104

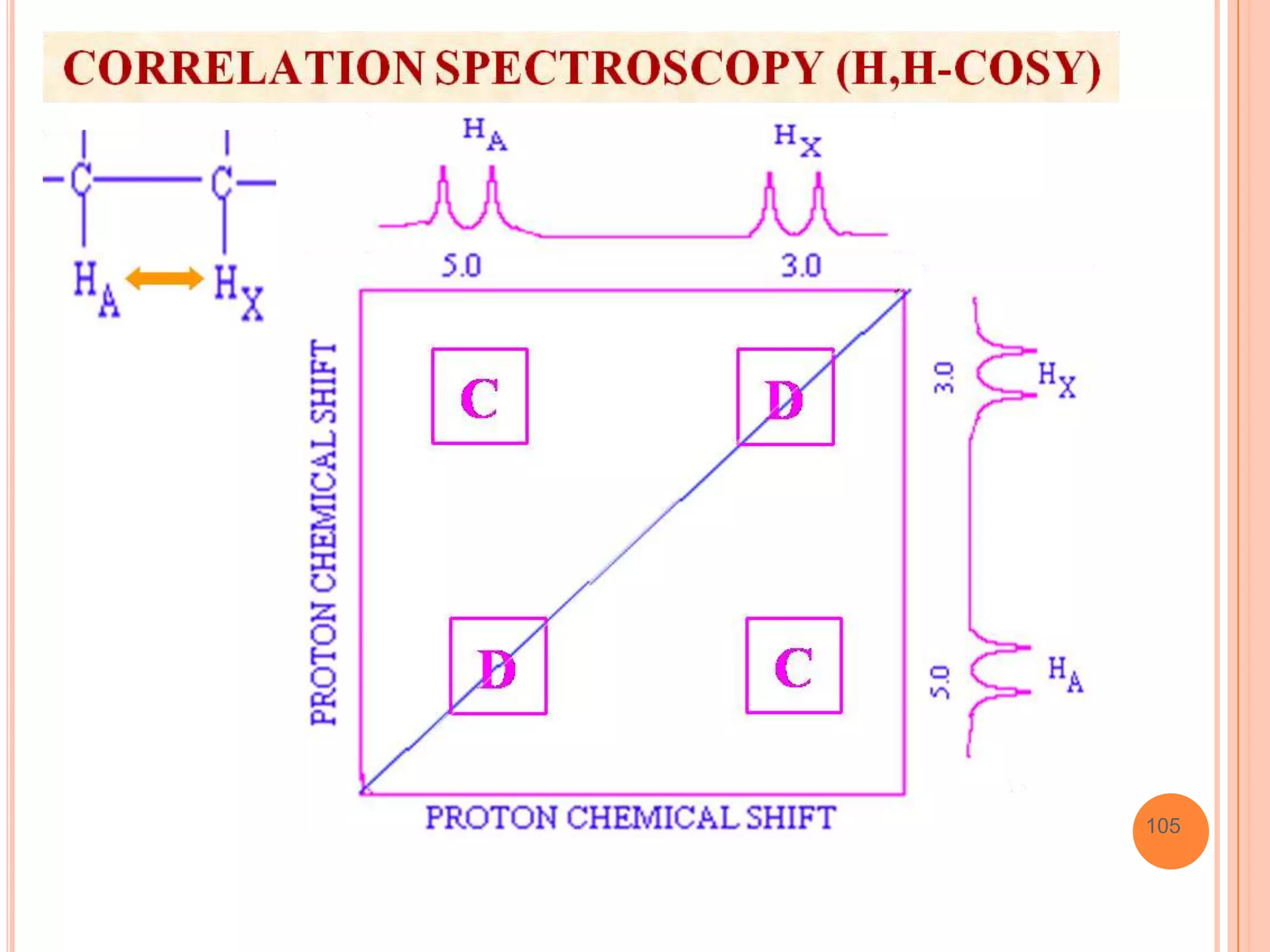

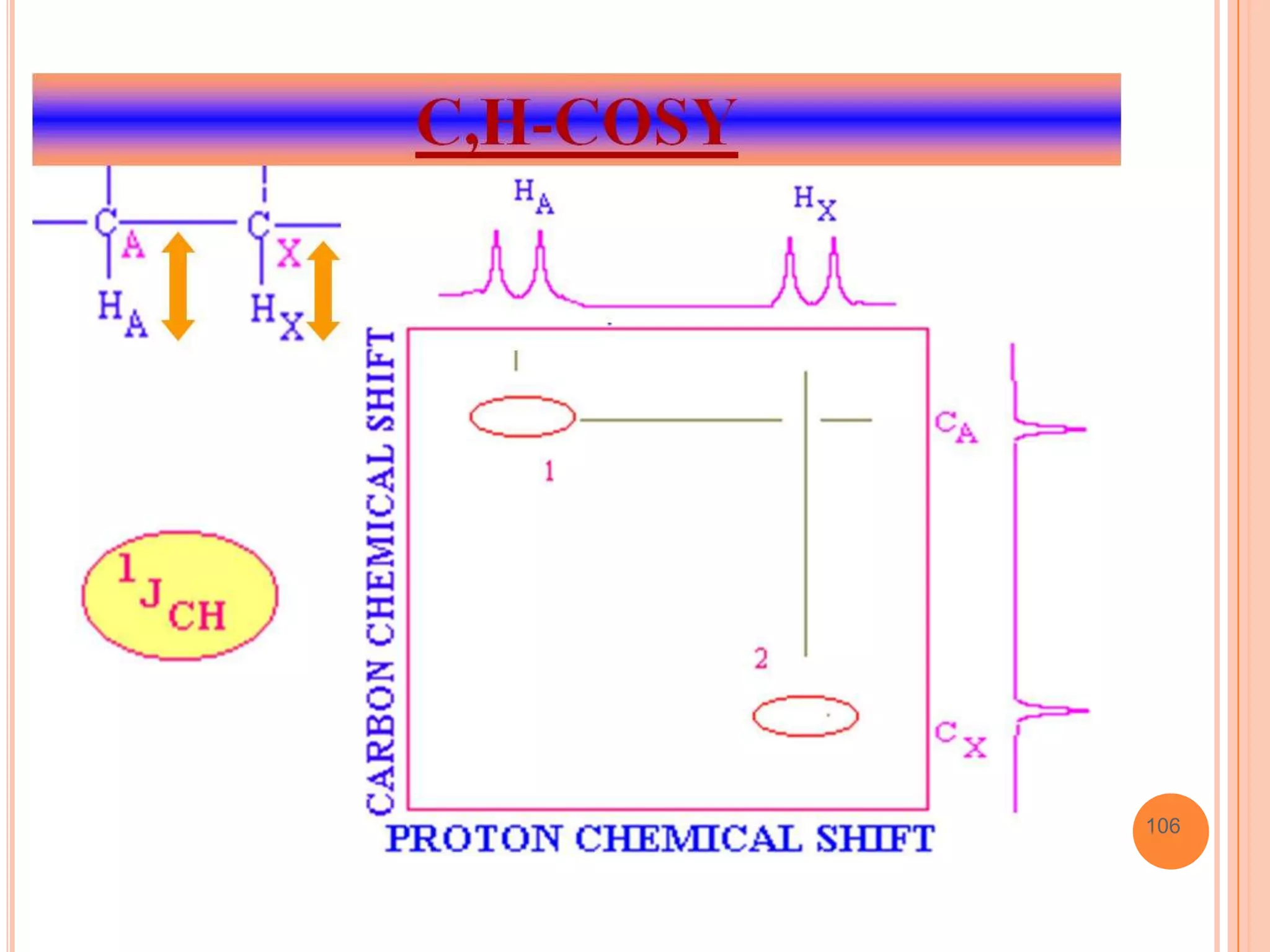

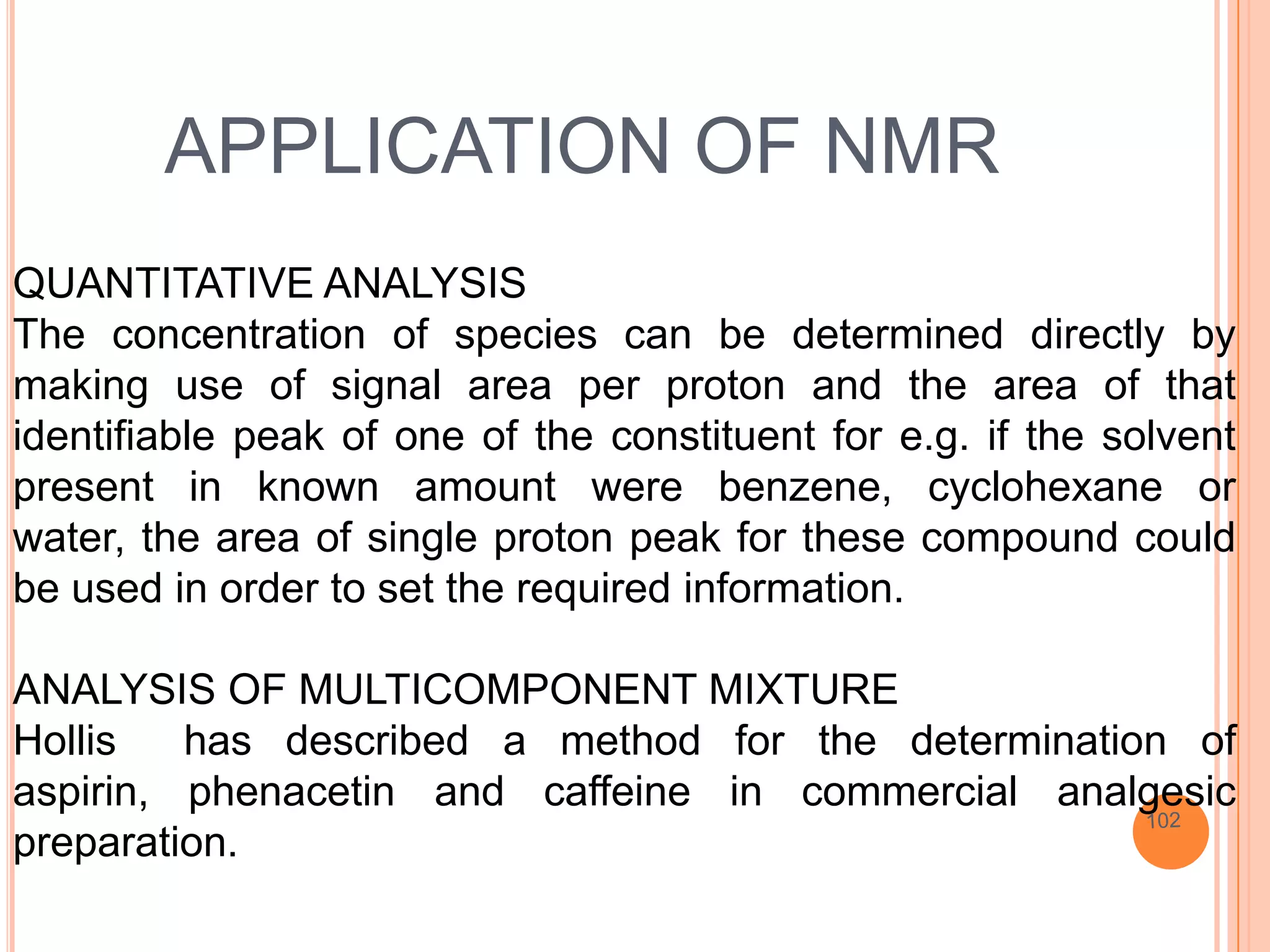

107. APPLICATION OF NMR
QUANTITATIVE ANALYSIS
The concentration of species can be determined directly by
making use of signal area per proton and the area of that
identifiable peak of one of the constituent for e.g. if the solvent
present in known amount were benzene, cyclohexane or
water, the area of single proton peak for these compound could
be used in order to set the required information.
ANALYSIS OF MULTICOMPONENT MIXTURE
Hollis has described a method for the determination of
aspirin, phenacetin and caffeine in commercial analgesic
preparation.

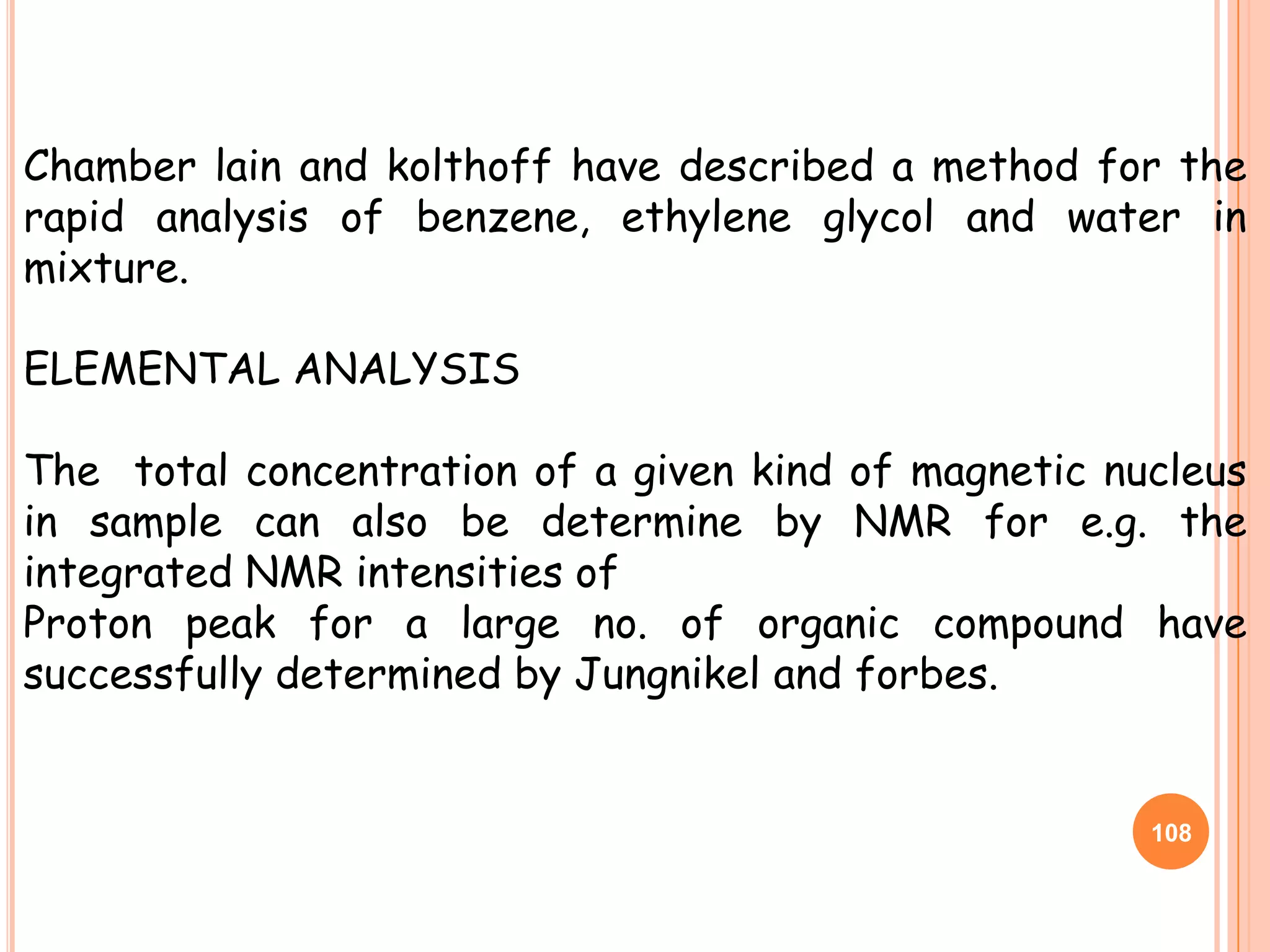

108. Chamber lain and kolthoff have described a method for the
rapid analysis of benzene, ethylene glycol and water in
mixture.
ELEMENTAL ANALYSIS
The total concentration of a given kind of magnetic nucleus
in sample can also be determine by NMR for e.g. the
integrated NMR intensities of
Proton peak for a large no. of organic compound have
successfully determined by Jungnikel and forbes.
108

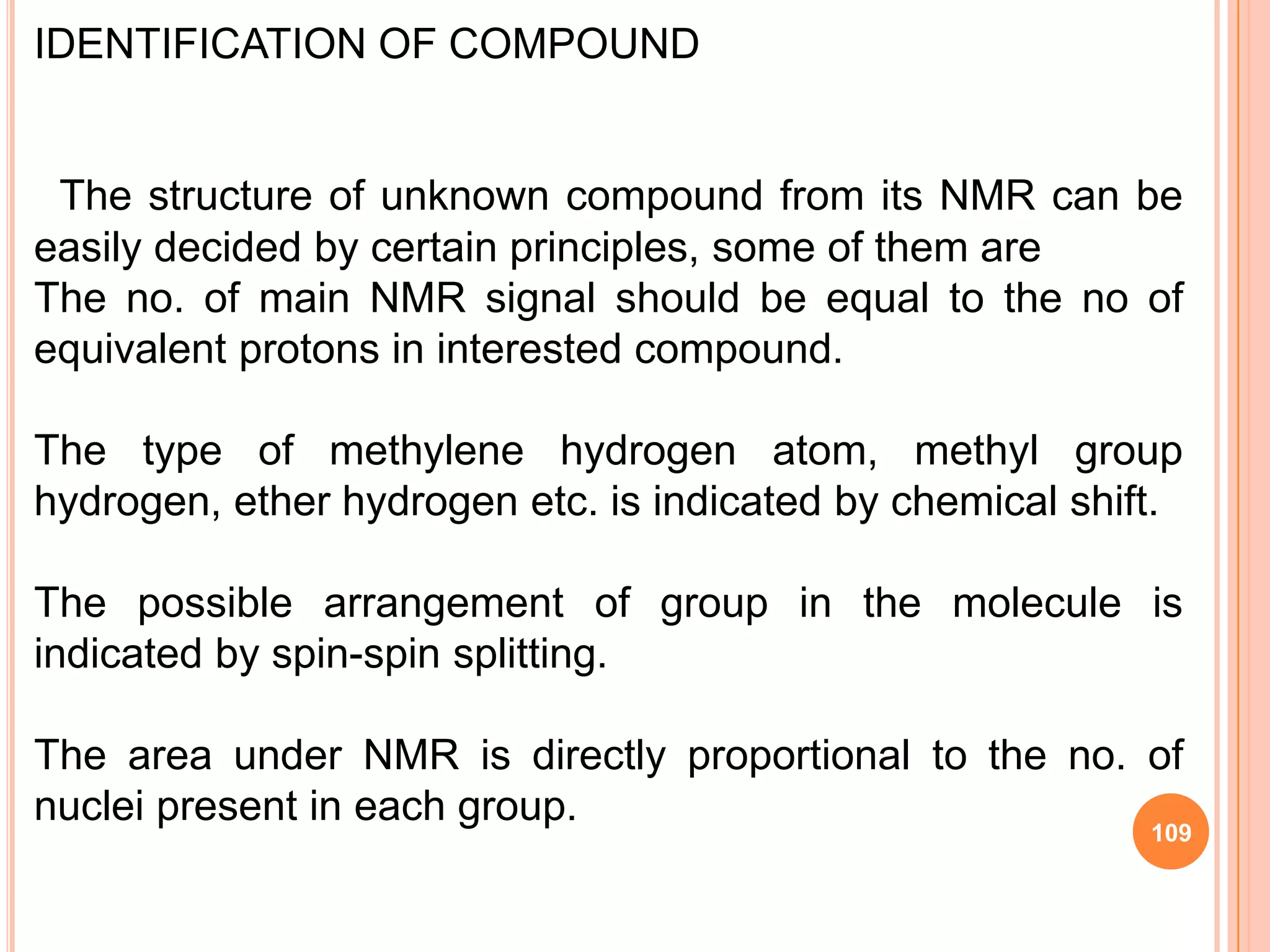

109. IDENTIFICATION OF COMPOUND
The structure of unknown compound from its NMR can be
easily decided by certain principles, some of them are
The no. of main NMR signal should be equal to the no of
equivalent protons in interested compound.
The type of methylene hydrogen atom, methyl group
hydrogen, ether hydrogen etc. is indicated by chemical shift.
The possible arrangement of group in the molecule is
indicated by spin-spin splitting.
The area under NMR is directly proportional to the no. of
nuclei present in each group.
109

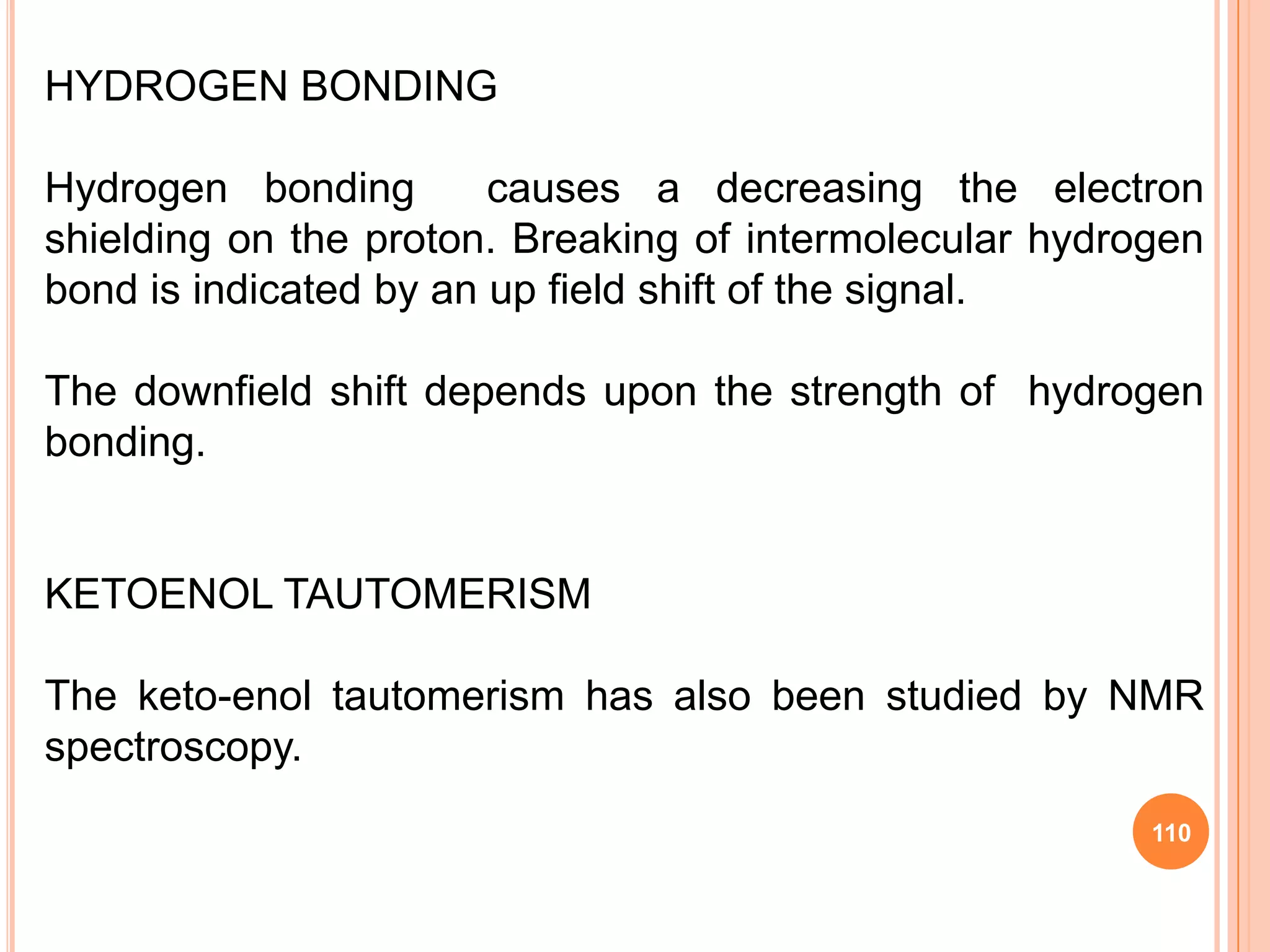

110. HYDROGEN BONDING
Hydrogen bonding causes a decreasing the electron
shielding on the proton. Breaking of intermolecular hydrogen
bond is indicated by an up field shift of the signal.
The downfield shift depends upon the strength of hydrogen
bonding.
KETOENOL TAUTOMERISM
The keto-enol tautomerism has also been studied by NMR
spectroscopy.
110

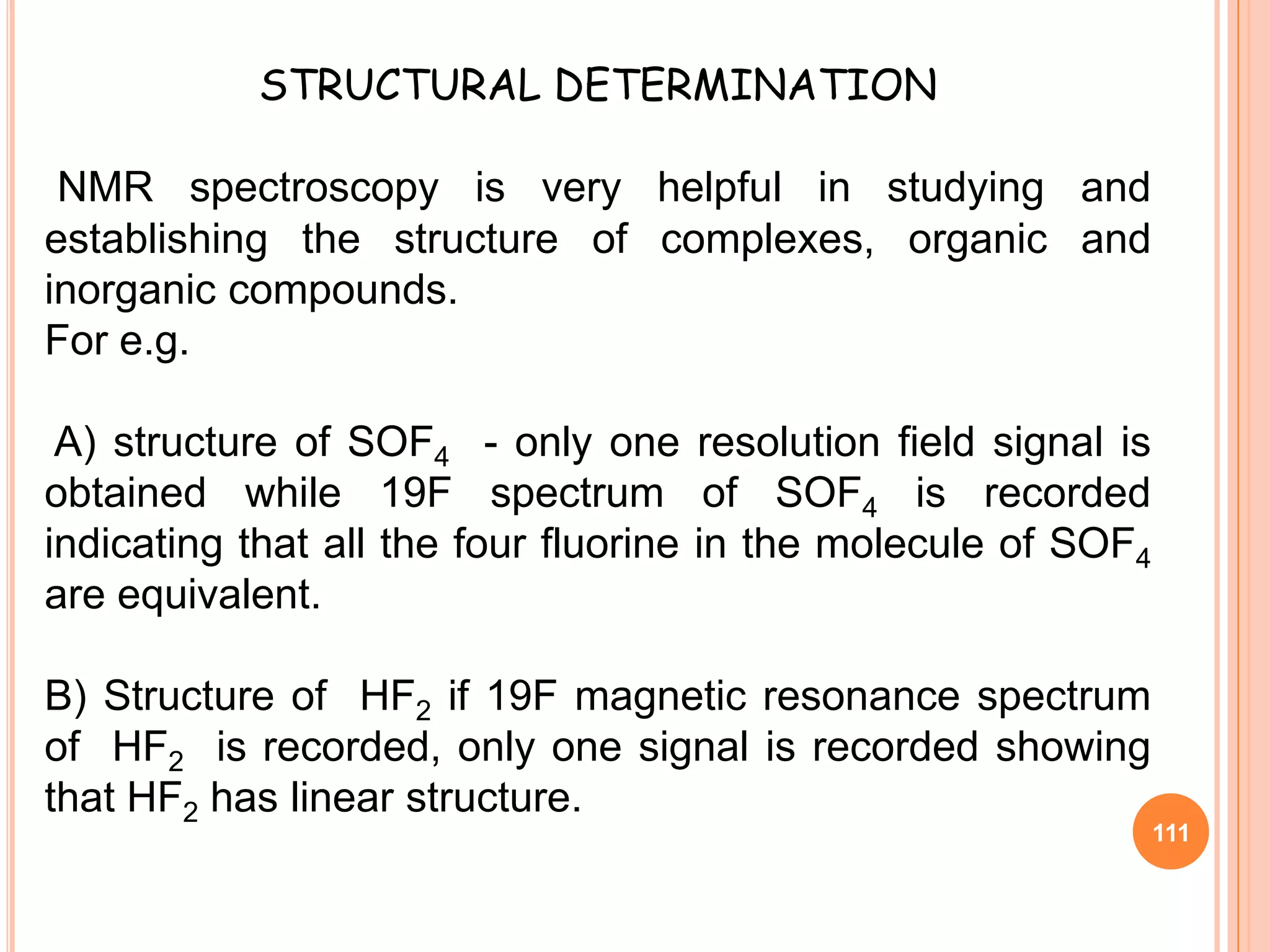

111. STRUCTURAL DETERMINATION
NMR spectroscopy is very helpful in studying and
establishing the structure of complexes, organic and
inorganic compounds.
For e.g.
A) structure of SOF4 - only one resolution field signal is
obtained while 19F spectrum of SOF4 is recorded
indicating that all the four fluorine in the molecule of SOF4
are equivalent.
B) Structure of HF2 if 19F magnetic resonance spectrum
of HF2 is recorded, only one signal is recorded showing
that HF2 has linear structure.
111

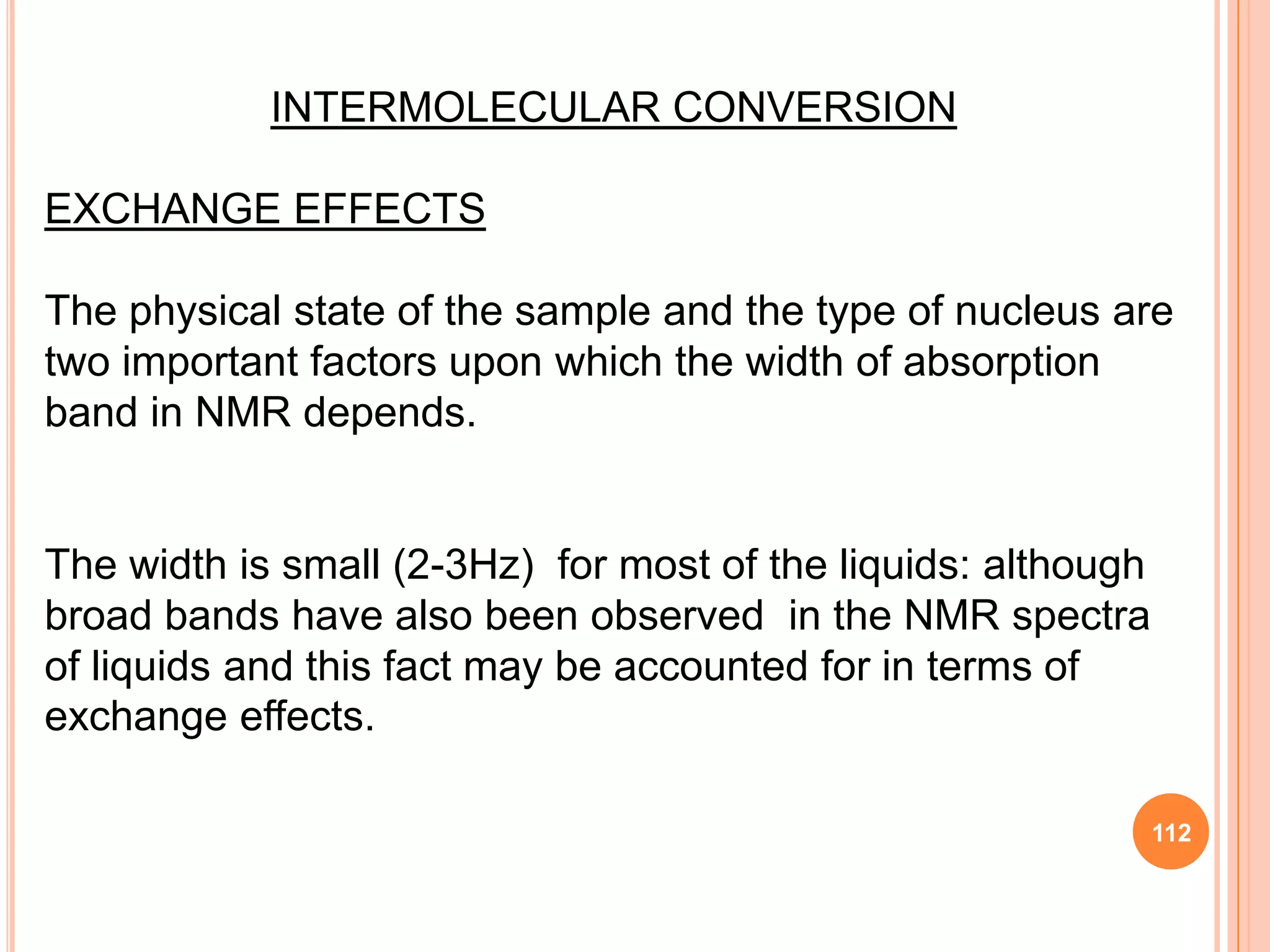

112. INTERMOLECULAR CONVERSION
EXCHANGE EFFECTS
The physical state of the sample and the type of nucleus are
two important factors upon which the width of absorption
band in NMR depends.
The width is small (2-3Hz) for most of the liquids: although
broad bands have also been observed in the NMR spectra
of liquids and this fact may be accounted for in terms of
exchange effects.
112
113. QUESTION
20 MARK
1(A).Explain the techniques used for decoupling its
interpretation between 13C NMR & 1H NMR interaction in
carbon-13 NMR.
1.(B)Describe the concept of NMR Spectroscopy. What are the
factor affecting Chemical Shifts. (April 2008, Sept 2007)
2.What are Decoupling methods? What is significance in 13C
NMR Spectroscopy?
10 MARK
1.What is Decoupling? What is its significance in 13C NMR
Spectroscopy?(May 2010)
2.Discuss 13C NMR Spectroscopy & its application (May 113
2012)
114. 5 MARK
1.Give Principles of 13C NMR Spectroscopy?(OCT
2010).
2.Explain Chemical Shifts in NMR.(2004)
3.Explain Brief account on 2-D NMR(May 2011)
4.Explain brief account on Nuclear overhouser
effect.(2006,2008,April 2009)
Give detail on NMR pulse sequense.(1996,2003,2006)
114
115. REFERENCES
1. James Keeper. In: Understanding of NMR spectroscopy;
Wiley VCH, NY.2002
2. Joseph B. Lambert, Eugene P. Mazzola. In: NMR
spectroscopy; Pearson Education Inc. NJ.
3. Jag Mohan. In: Organic spectroscopy; Narosa publication
house.
4. Skoog, Holler, Nieman. In: Principles of instrumental
analysis; Harcourt asia pte ltd.
5. G. Ganglitz, T. Vo-Dinh. In: Handbook of spectroscopy;
Wiley VCH, NY.2003.
6. Sharma BK. Instrumental methods of chemical analysis;
GOEL publishing House, Meerut 115
7. Some internet sources
116. References : -
8.Organic spectroscopy by William Kemp.
9.Spectroscopy of organic compounds by P.S.Kalsi.
10.Spectrometer identification of organic compounds by
Silverstein.
11.Elementary organic spectroscopy by Y.R.Sharma.
116
