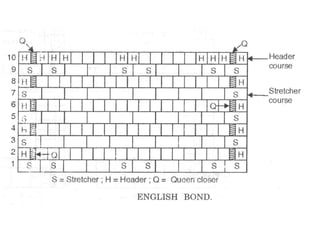

ENGLISH BOND COMMONLY USED

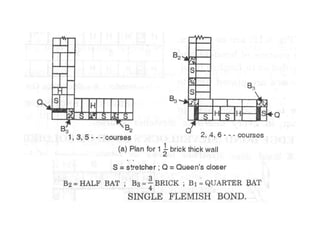

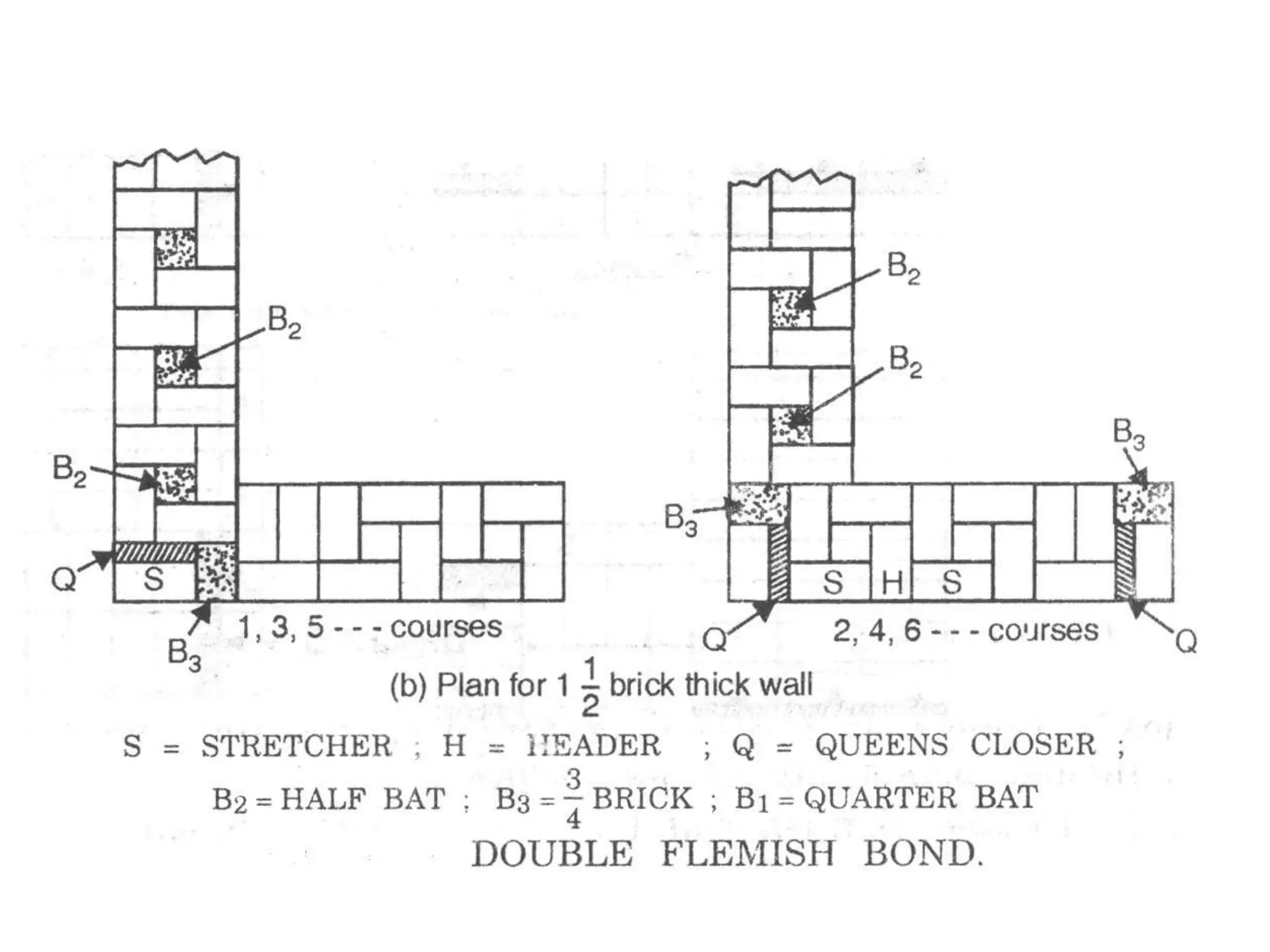

FLEMISH BOND APPEALING
STRETCHER BOND USED AS PARTITION WALL
HEADER BOND USED WHERE CURVED WALL IS REQUIRED.
RAT TRAP BOND - HAS CAVITY AND ACTS AS THERMAL RESISTANCE TO BUILDING AS WELL AS ECONOMICAL.
Brick masonry involves constructing walls by bonding bricks together with mortar. There are different types of bonds used including stretcher bond, header bond, English bond, and Flemish bond. English bond is the most common, which involves alternating courses of stretchers and headers with queen closers placed after the first header to break vertical joints. Proper bonding is important to impart strength and prevent weaknesses in the masonry wall. Terminology involved includes courses, stretchers, headers, beds, arrises, laps, perpends, quoins, and different types of bats and closures.
There are several types of bonds used in brickwork:
Stretcher bond uses bricks laid lengthwise. Header bond uses bricks laid perpendicular. English bond alternates headers and stretchers in each course. Flemish bond also alternates headers and stretchers but starts each alternate course with a header.
Proper bonding distributes load, adds stability, and can be decorative. Stretcher bond is used for thin walls while header bond is for thick, single wythe walls. English bond is most common, using headers and stretchers, with rules about placement. Flemish bond alternates starting each other course with a header.
The document discusses different types of masonry construction and bonds used in brick masonry walls. It provides details on various types of masonry including brick, stone, concrete, veneer, and gabion masonry. It also describes different bonds used in brick masonry like stretcher bond, header bond, English bond, and Flemish bond. Key points on supervising brick masonry construction are highlighted.
This document discusses different types of brick bonds used in masonry. It describes stretcher bond where only the long edges of bricks are visible, header bond where the short ends are visible in each course, and English bond which alternates between header and stretcher courses. Flemish bond is described as having headers and stretchers arranged alternately within each course, with closers used to break courses. Single and double Flemish bonds are distinguished based on whether the front and back surfaces both display the Flemish pattern.
Brick masonry, stone masonry and its manufacturingAdarshChatra1
Brick masonry is made of brick units bonded together with
mortar
• Components: i) Bricks ii) Mortar
• Mortar Act as a cementing material and units the individual
brick units together to act as a homogeneous mass
Cement mortar
Mud mortar
Lime mortar
Lime-surkhi mortar
1.Stretcher
• Brick laid with its length parallel to the front or direction of a wall.
• The course containing stretchers is called a stretcher course
2.Header
• Brick laid with its breadth or width parallel to the front or direction of the wall.
• Course containing headers is called a header course
3.Arrises
• Edges formed by the intersection of plane surfaces of brick
4. Bed
• Lower surface of the brick when laid flat
5. Bed joint
• Horizontal layer of mortar upon which the bricks are
laid
6. Perpends
• Vertical joints separating bricks in either length or cross directions
• For good bond, perpends in alternate courses should be vertically one
above the other
7. Lap
• Horizontal distance between the vertical joints in successive courses
• For good bond, lap should not be less than one-fourth of a brick

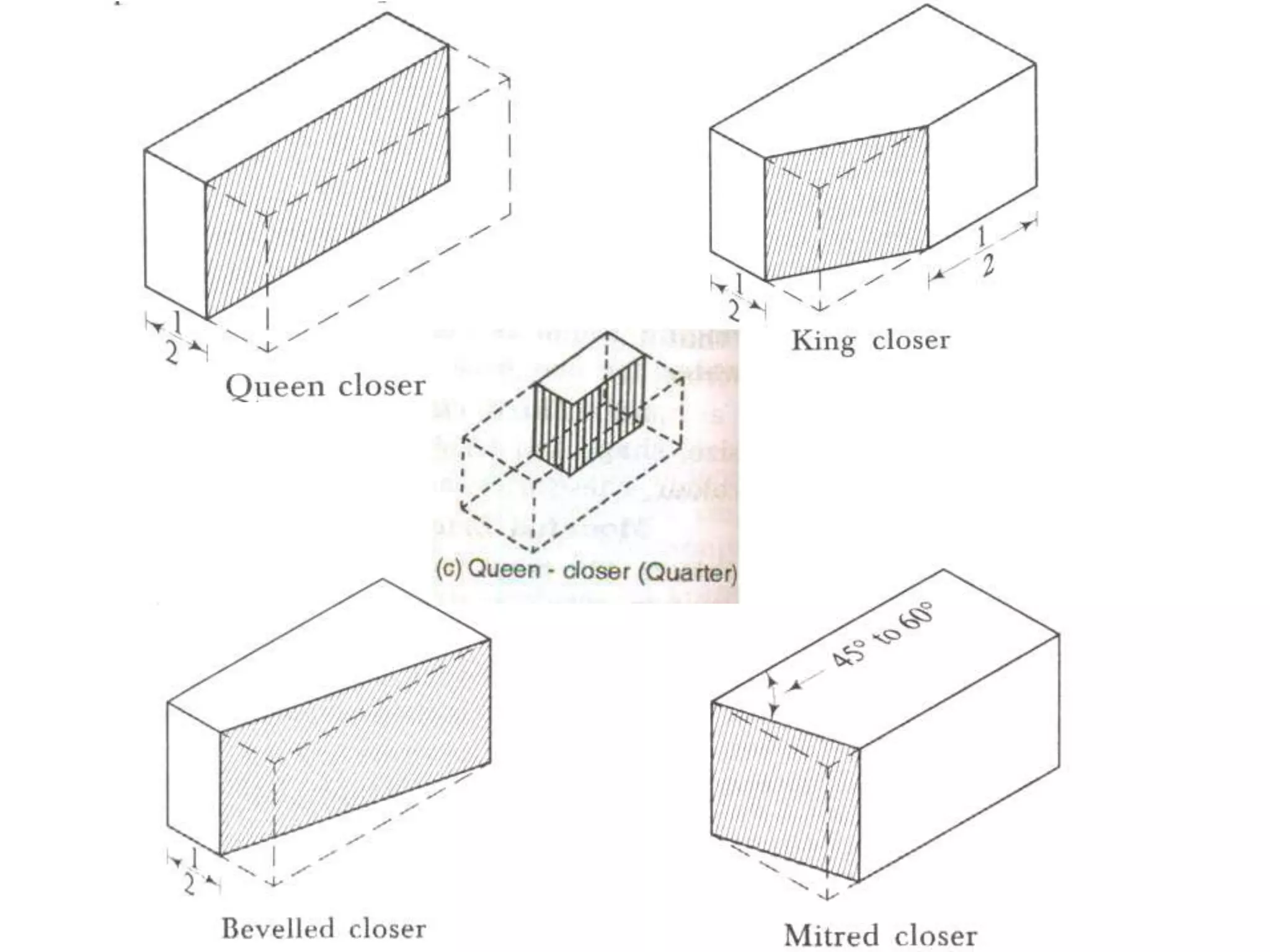

8. Closer
• Piece of brick with the cut made longitudinally used to close
up the bond at the end of brick courses
• Helps in preventing the joints of successive courses to come
in a vertical line
• Generally closer is not specially moulded but it is
prepared by the mason with the edge of the trowel
9. Queen closer
• Obtained by cutting the brick longitudinally
in 2 equal parts
10. King closer
• Obtained by cutting a triangular portion of the brick such that half a header
and half a stretcher are obtained on adjoining cut faces
• Used near door and window openings
11. Bevelled closer
• Obtained by cutting a triangular portion of half the width but of full length
• Used for splayed brickwork
12. Mitred closer
• Obtained by cutting a triangular portion of the brick through its width and
making an angle of 45-60 degree with the length of brick
• Used at corners, junctions etc.

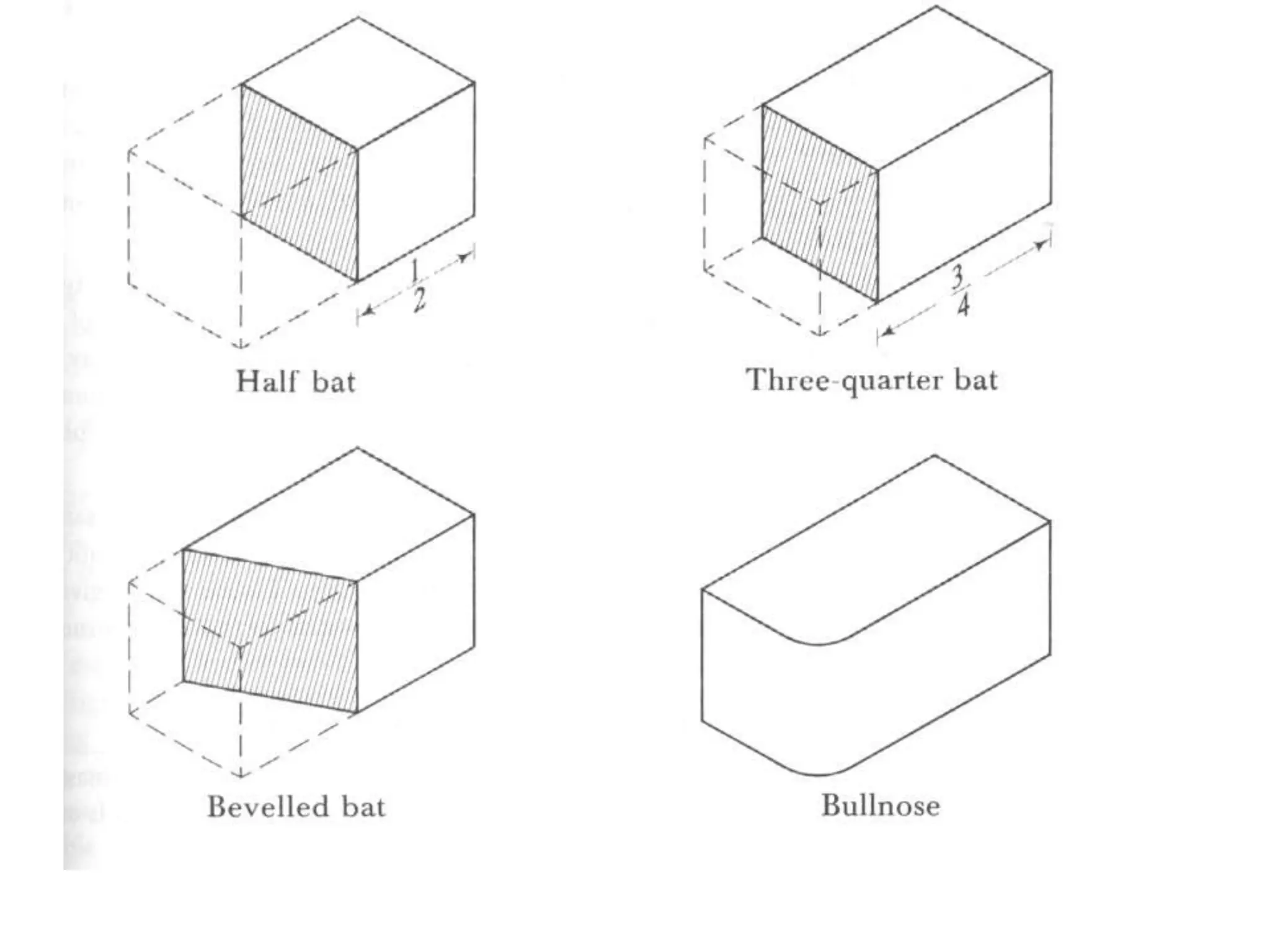

13. Bat
• It is portion of brick cut across the width
14.Bullnose
• Brick moulded with a rounded angle
• Used for a rounded quoin
external angle on the face side of wall
15.Cownose
• Brick moulded with a double bullnose on end

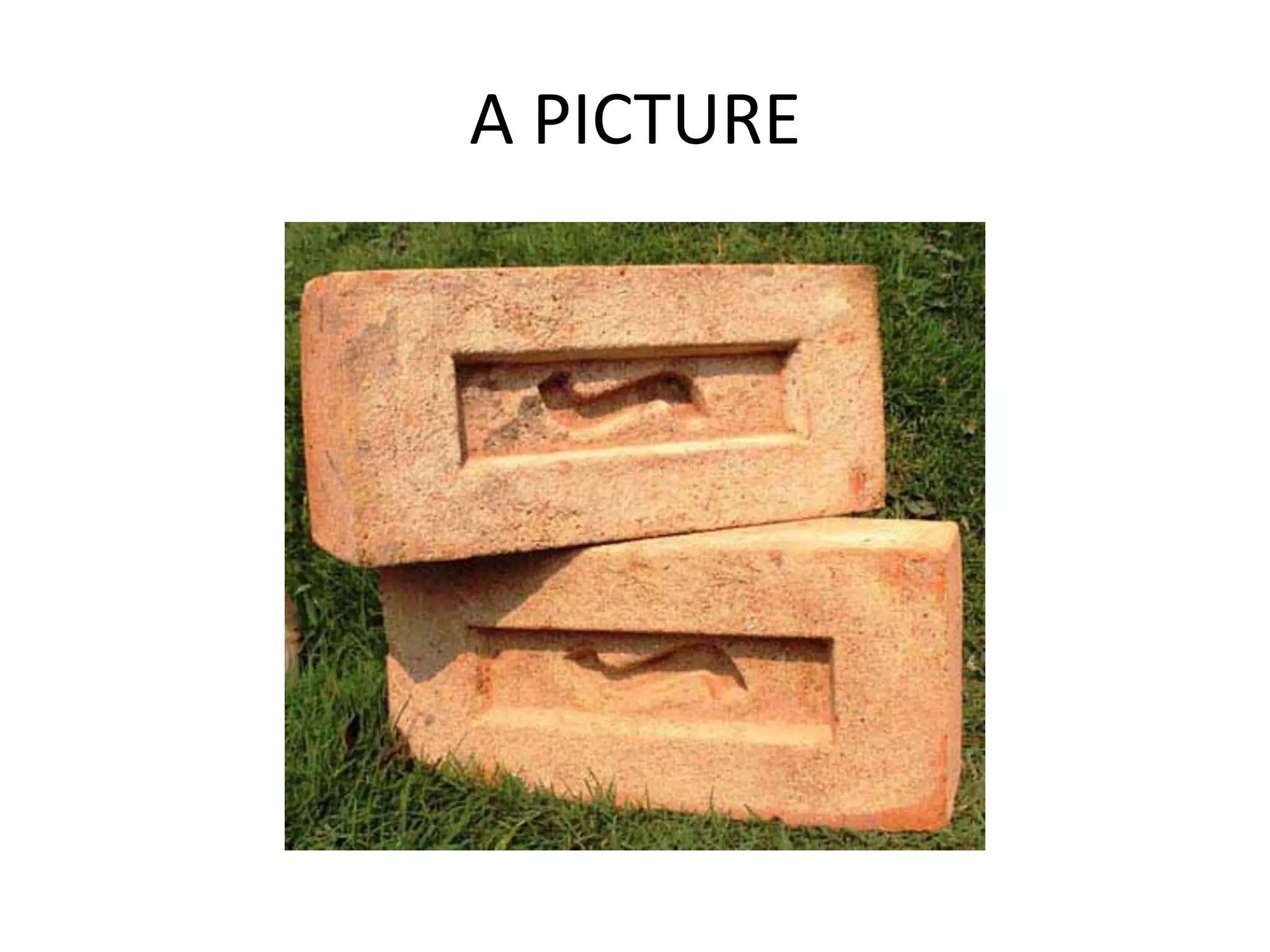

16. Frog
• Is a mark of depth about 10-20mm which is placed
brick to form a key for holding the mortar
Method of arranging the bricks in courses
• Individual units are tied together and the vertical joints of the successive
courses do not lie in same vertical line
• Bond types are distinguished by their elevation
• Bond types:
i. Stretcher bond v. English cross bond
ii. Header bond vi. Dutch bond
iii. English bond vii. Brick on edge bond
iv. Flemish bond viii. Raking bond

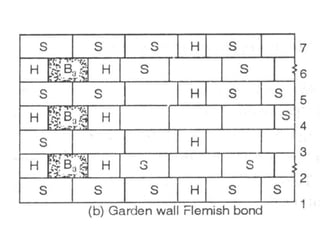

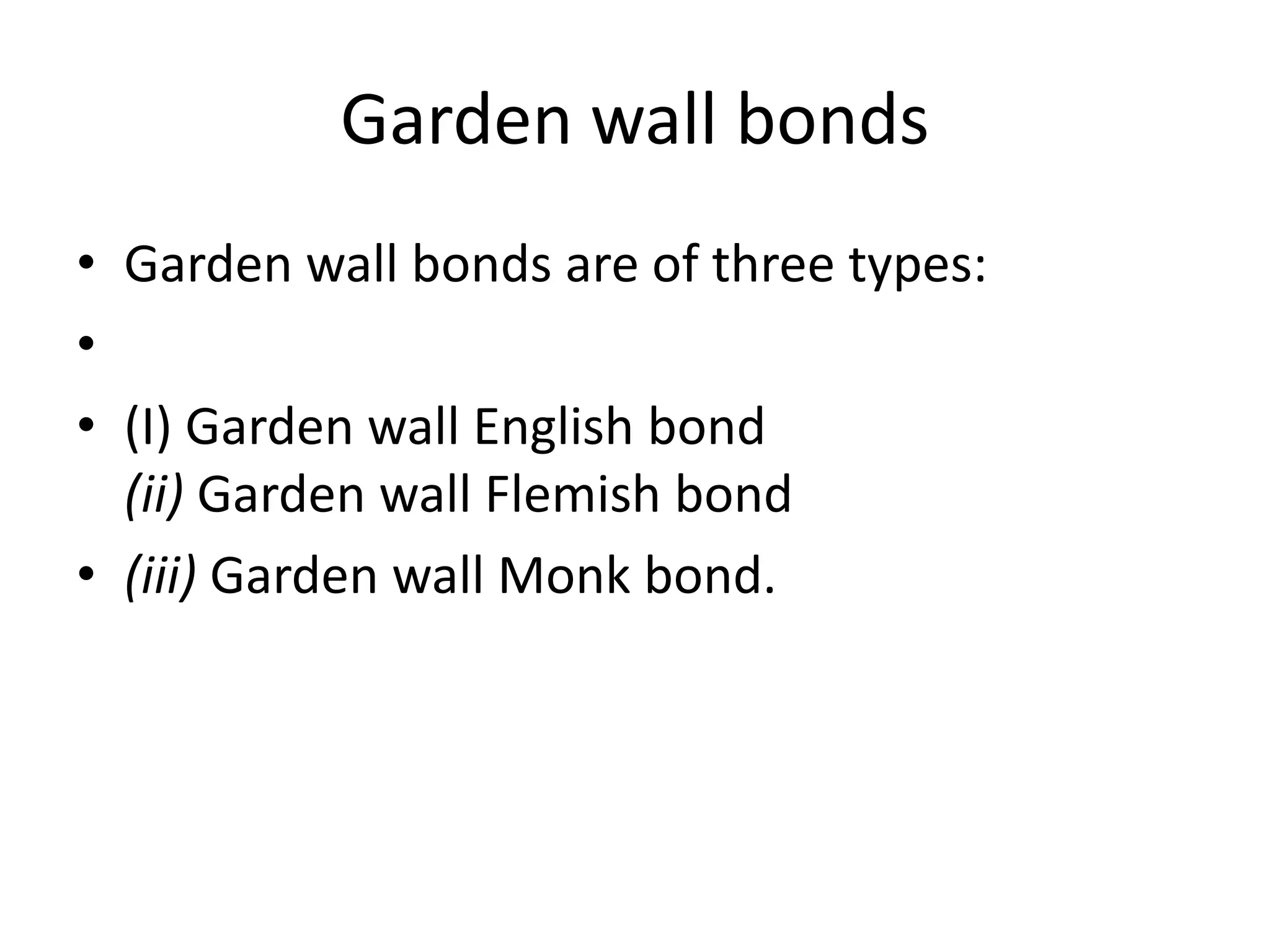

ix. Garden wall bond

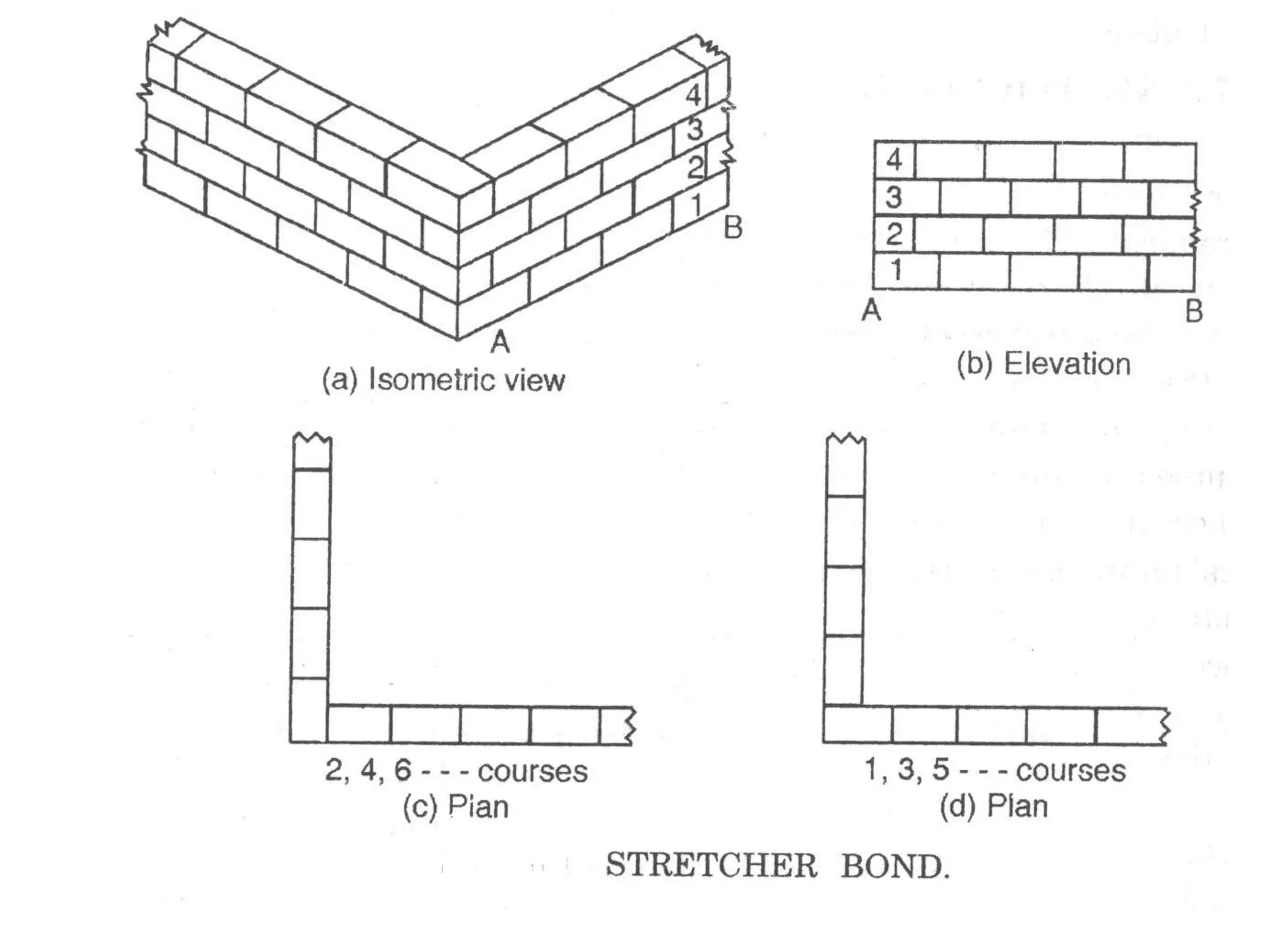

1. Stretcher bond
• All bricks are laid with their lengths in the longitudinal direction of the
wall; Thickness = half brick
• Only stretcher is visible in elevation
• Use: partition wall, sleeper walls

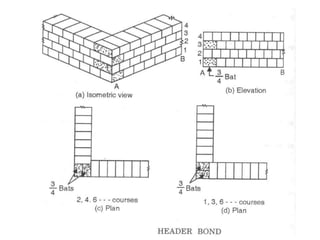

2. Header bond
• All bricks are laid as headers towards the face of the wall.
• Suitable for one b
Masonry involves constructing walls and other structures using masonry units like bricks, stones, or concrete blocks bonded together with mortar. There are different types of bonds used - stretcher bond involves laying all bricks as stretchers, header bond uses headers, and English bond and Flemish bond alternate headers and stretchers in courses. Proper bonding eliminates continuous vertical joints and strengthens the masonry structure. Stone masonry can be rubble masonry using roughly shaped stones or ashlar masonry with finely dressed stones.
Bonding is the arrangement of bricks or stones in successive courses to avoid vertical continuity of joints. This distributes load uniformly and strengthens the structure. The main types of bonds are English bond and Flemish bond. English bond alternates headers and stretchers in courses with queen closers. It is strongest but has rough appearance. Flemish bond alternates headers and stretchers within each course, using queen closers in alternate courses. It has better appearance but is weaker than English bond. Thickness of brick walls depends on load, height, floor spacing, and material strength.
This document defines and describes various types of bricks and brick masonry terminology. It discusses the ideal composition of bricks, common brick sizes, and terms used to describe parts of bricks like headers, stretchers, arrises, and beds. It also explains different bonds used in brick masonry like English bond, Flemish bond, stretching bond, and their characteristics. Closers like queen closers, king closers and bats of different sizes are also defined.
This Presentation about Brick Masonry with a Beautiful Slides. This presentation covers - Brick Masonry Definition, Type of Bricks, General Principals, Bonds of Bricks, Other Bonds, Junction in Walls, Bonds in Pires, Retraining Wall, Design of Retraining Wall, Strength of Brick Masonry, Reinforced Brickwork. Hope You Enjoy!
▶️ YouTube: https://www.youtube.com/c/JoynulAbadinRasel
☕ Buy me a Coffee: https://www.buymeacoffee.com/JoynulAbadinR
This document provides information about various construction materials used in building interiors, including stone masonry, brick masonry, glass, gypsum, and timber. For each material, it describes definitions, types, properties, manufacturing processes, and commercial forms. The document is a student project report submitted to Dezyne E'cole College by Sonal Gupta towards her 1st year residential design diploma. It includes an acknowledgment, synopsis, and sections on each material.
Architectural and constructions management experience since 2003 including 18 years located in UAE.
Coordinate and oversee all technical activities relating to architectural and construction projects,
including directing the design team, reviewing drafts and computer models, and approving design
changes.
Organize and typically develop, and review building plans, ensuring that a project meets all safety and
environmental standards.
Prepare feasibility studies, construction contracts, and tender documents with specifications and
tender analyses.
Consulting with clients, work on formulating equipment and labor cost estimates, ensuring a project
meets environmental, safety, structural, zoning, and aesthetic standards.
Monitoring the progress of a project to assess whether or not it is in compliance with building plans
and project deadlines.
Attention to detail, exceptional time management, and strong problem-solving and communication
skills are required for this role.
Technoblade The Legacy of a Minecraft Legend.Techno Merch
Technoblade, born Alex on June 1, 1999, was a legendary Minecraft YouTuber known for his sharp wit and exceptional PvP skills. Starting his channel in 2013, he gained nearly 11 million subscribers. His private battle with metastatic sarcoma ended in June 2022, but his enduring legacy continues to inspire millions.
ARENA - Young adults in the workplace (Knight Moves).pdfKnight Moves
Presentations of Bavo Raeymaekers (Project lead youth unemployment at the City of Antwerp), Suzan Martens (Service designer at Knight Moves) and Adriaan De Keersmaeker (Community manager at Talk to C)
during the 'Arena • Young adults in the workplace' conference hosted by Knight Moves.
Visual Style and Aesthetics: Basics of Visual Design
Visual Design for Enterprise Applications
Range of Visual Styles.
Mobile Interfaces:
Challenges and Opportunities of Mobile Design
Approach to Mobile Design
Patterns
PDF SubmissionDigital Marketing Institute in NoidaPoojaSaini954651
https://www.safalta.com/online-digital-marketing/advance-digital-marketing-training-in-noidaTop Digital Marketing Institute in Noida: Boost Your Career Fast
[3:29 am, 30/05/2024] +91 83818 43552: Safalta Digital Marketing Institute in Noida also provides advanced classes for individuals seeking to develop their expertise and skills in this field. These classes, led by industry experts with vast experience, focus on specific aspects of digital marketing such as advanced SEO strategies, sophisticated content creation techniques, and data-driven analytics.
Maximize Your Content with Beautiful Assets : Content & Asset for Landing Page pmgdscunsri
Figma is a cloud-based design tool widely used by designers for prototyping, UI/UX design, and real-time collaboration. With features such as precision pen tools, grid system, and reusable components, Figma makes it easy for teams to work together on design projects. Its flexibility and accessibility make Figma a top choice in the digital age.
Decormart Studio is widely recognized as one of the best interior designers in Bangalore, known for their exceptional design expertise and ability to create stunning, functional spaces. With a strong focus on client preferences and timely project delivery, Decormart Studio has built a solid reputation for their innovative and personalized approach to interior design.
Revolutionizing the Digital Landscape: Web Development Companies in Indiaamrsoftec1
Discover unparalleled creativity and technical prowess with India's leading web development companies. From custom solutions to e-commerce platforms, harness the expertise of skilled developers at competitive prices. Transform your digital presence, enhance the user experience, and propel your business to new heights with innovative solutions tailored to your needs, all from the heart of India's tech industry.
EASY TUTORIAL OF HOW TO USE CAPCUT BY: FEBLESS HERNANEFebless Hernane
CapCut is an easy-to-use video editing app perfect for beginners. To start, download and open CapCut on your phone. Tap "New Project" and select the videos or photos you want to edit. You can trim clips by dragging the edges, add text by tapping "Text," and include music by selecting "Audio." Enhance your video with filters and effects from the "Effects" menu. When you're happy with your video, tap the export button to save and share it. CapCut makes video editing simple and fun for everyone!
Storytelling For The Web: Integrate Storytelling in your Design ProcessChiara Aliotta
In this slides I explain how I have used storytelling techniques to elevate websites and brands and create memorable user experiences. You can discover practical tips as I showcase the elements of good storytelling and its applied to some examples of diverse brands/projects..

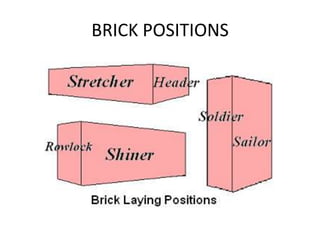

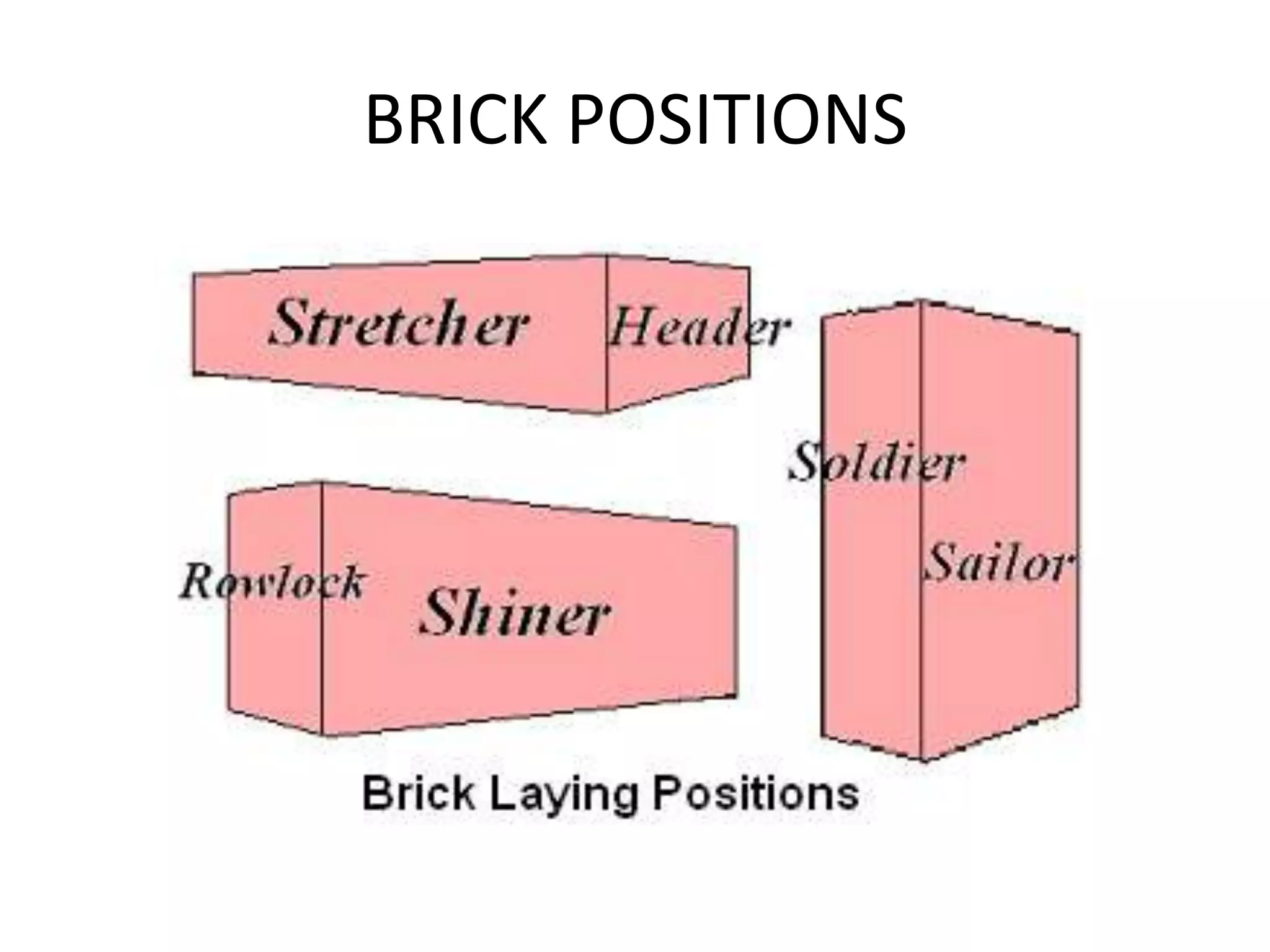

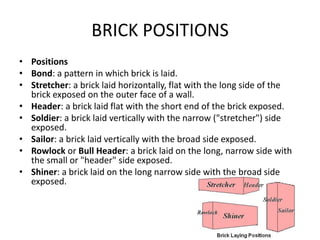

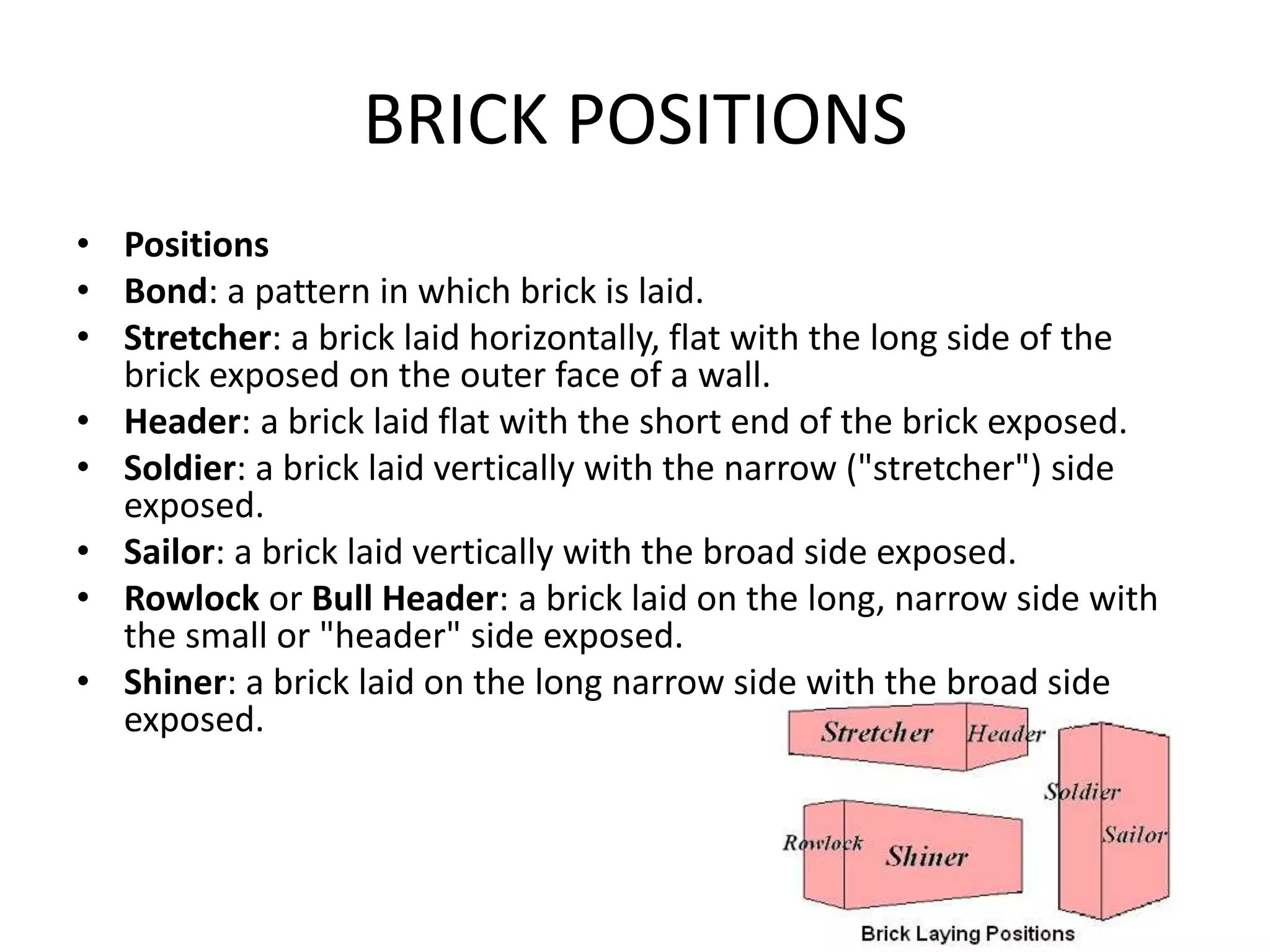

6. BRICK POSITIONS
• Positions
• Bond: a pattern in which brick is laid.
• Stretcher: a brick laid horizontally, flat with the long side of the
brick exposed on the outer face of a wall.
• Header: a brick laid flat with the short end of the brick exposed.
• Soldier: a brick laid vertically with the narrow ("stretcher") side
exposed.
• Sailor: a brick laid vertically with the broad side exposed.
• Rowlock or Bull Header: a brick laid on the long, narrow side with
the small or "header" side exposed.
• Shiner: a brick laid on the long narrow side with the broad side
exposed.
7.
8.
9.
10.
11.
12.
13.

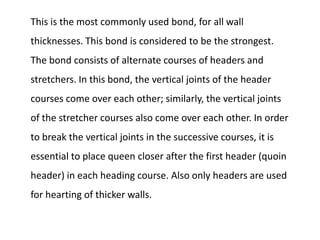

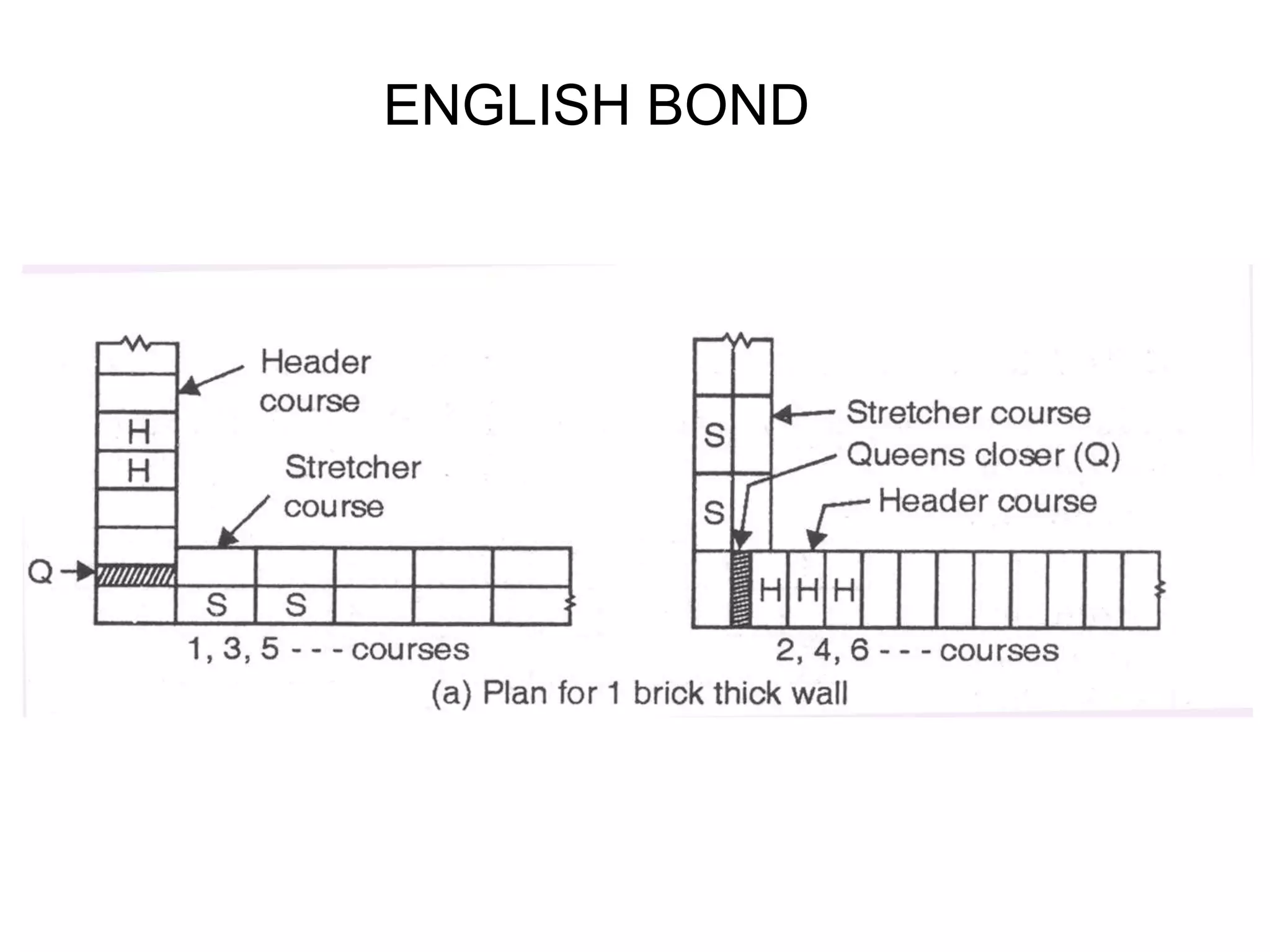

14. This is the most commonly used bond, for all wall
thicknesses. This bond is considered to be the strongest.
The bond consists of alternate courses of headers and
stretchers. In this bond, the vertical joints of the header
courses come over each other; similarly, the vertical joints
of the stretcher courses also come over each other. In order
to break the vertical joints in the successive courses, it is
essential to place queen closer after the first header (quoin
header) in each heading course. Also only headers are used
for hearting of thicker walls.
15. Q,
1

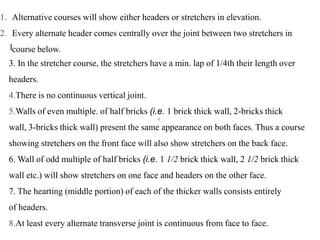

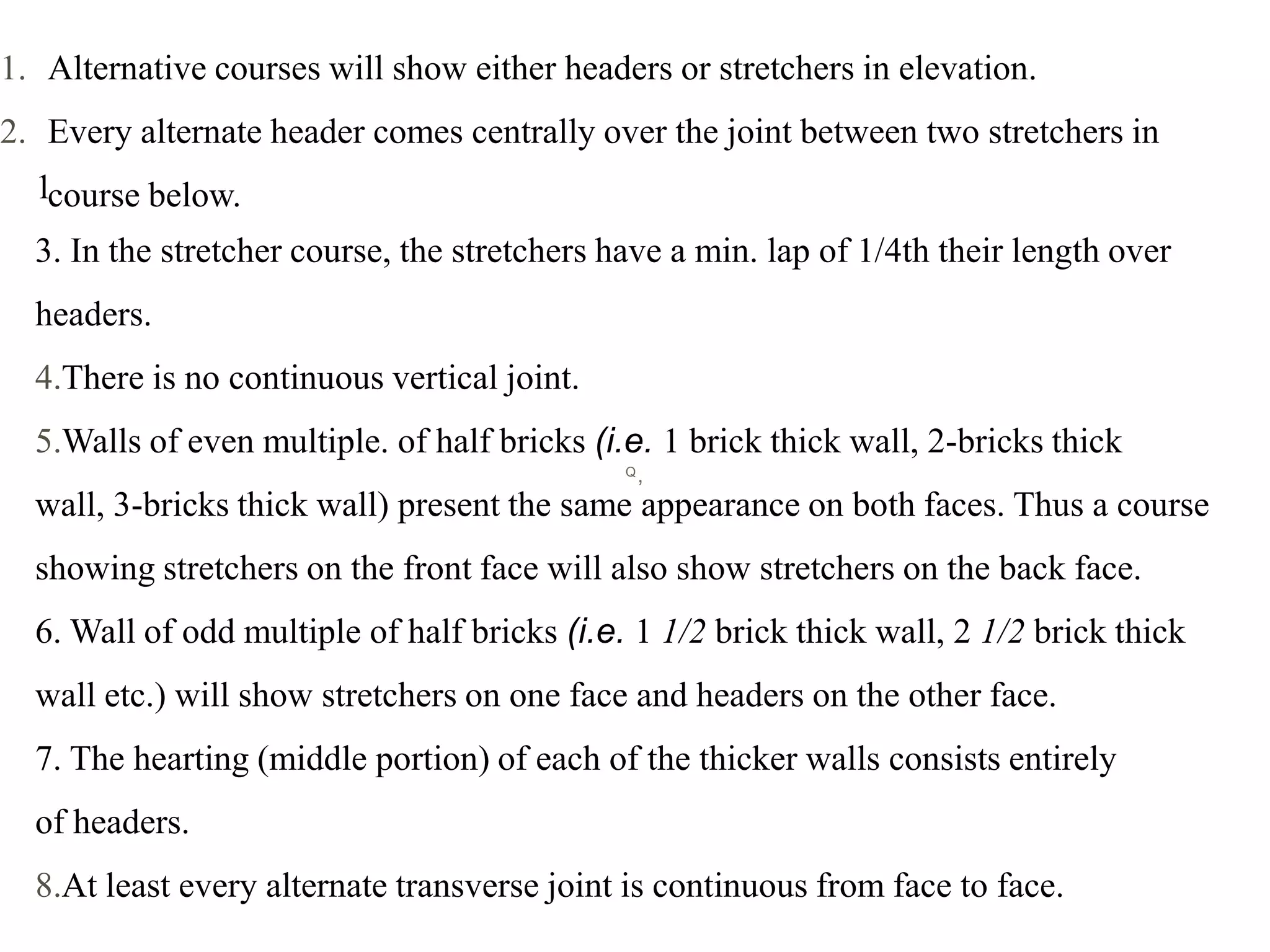

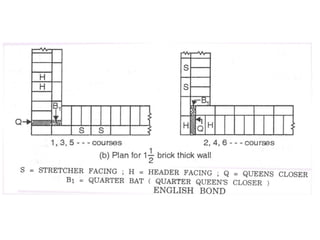

3. In the stretcher course, the stretchers have a min. lap of 1/4th their length over
headers.
4.There is no continuous vertical joint.
5.Walls of even multiple. of half bricks (i.e. 1 brick thick wall, 2-bricks thick
wall, 3-bricks thick wall) present the same appearance on both faces. Thus a course
showing stretchers on the front face will also show stretchers on the back face.
6. Wall of odd multiple of half bricks (i.e. 1 1/2 brick thick wall, 2 1/2 brick thick
wall etc.) will show stretchers on one face and headers on the other face.
7. The hearting (middle portion) of each of the thicker walls consists entirely
of headers.
8.At least every alternate transverse joint is continuous from face to face.
1. Alternative courses will show either headers or stretchers in elevation.
2. Every alternate header comes centrally over the joint between two stretchers in
course below.

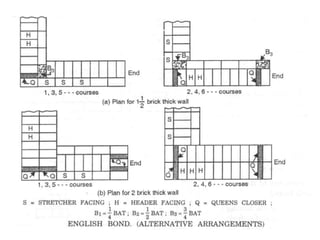

16. 8. A header course should never start with queen's closer, as it will get displaced.
9. The queen's closer should be placed just next to the quoin header. Queen's
closers are not required in stretcher courses.
10. Since the number of vertical joints in the header course are twice the number
of vertical joints in the stretcher course, the joint in the header course are made
thinner than the joints in the stretcher course.
22. FLEMISH BOND
In this type of bond, each course is comprised of alternate headers
and stretchers.
Every alternate course starts with a header at the corner (i.e .. quoin
header). Quoin closers are placed next to the quoin header in
alternate courses to develop the face lap. Every header is centrally
supported over the stretcher below it.
Flemish bonds are of two types :
(i) Double flemish bond (ii) Single flemish bond.

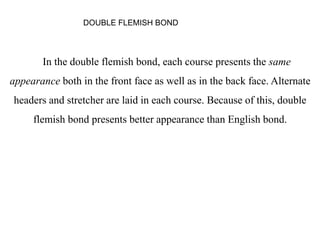

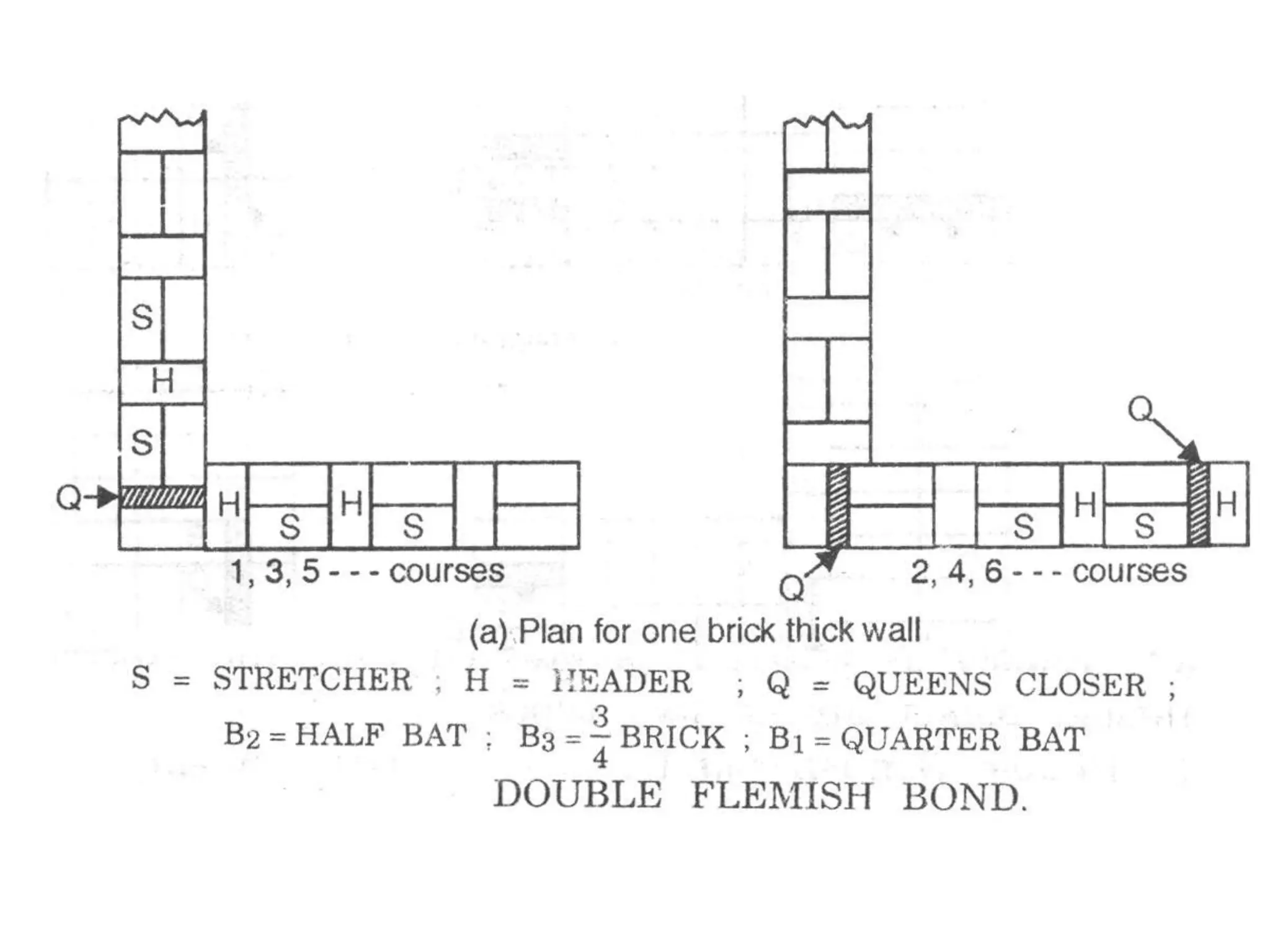

23. In the double flemish bond, each course presents the same
appearance both in the front face as well as in the back face. Alternate
headers and stretcher are laid in each course. Because of this, double
flemish bond presents better appearance than English bond.

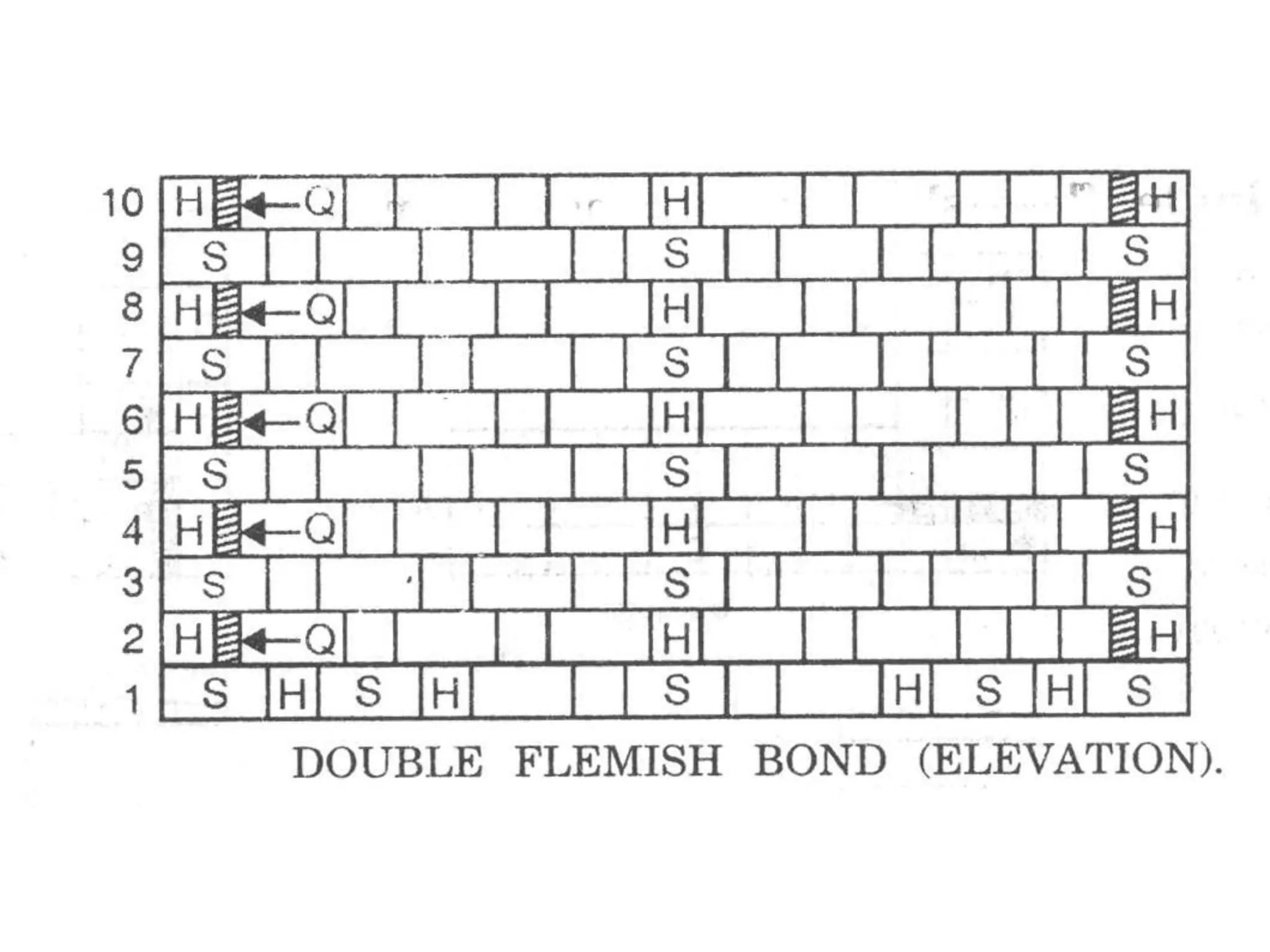

DOUBLE FLEMISH BOND

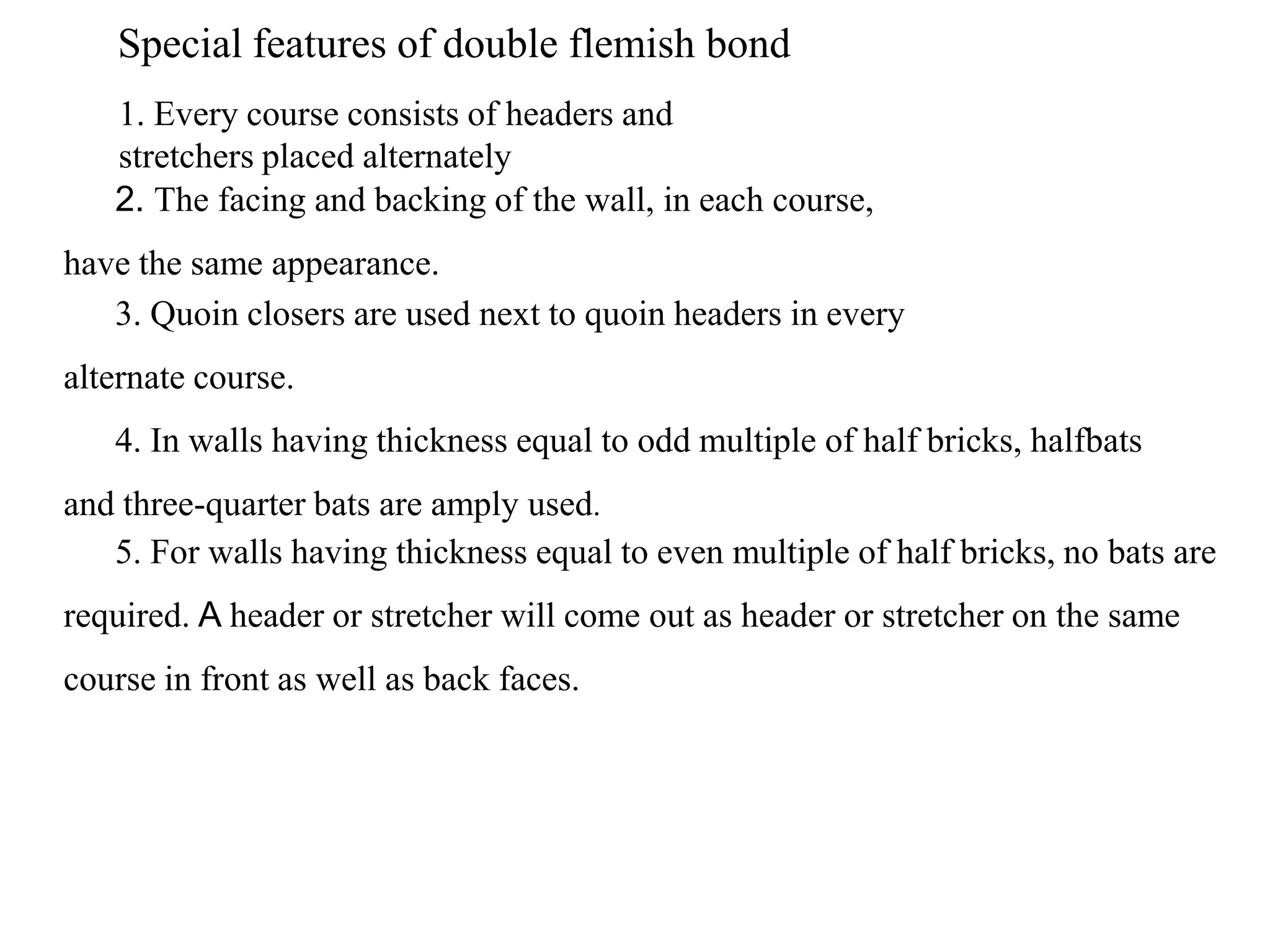

24. Special features of double flemish bond
1. Every course consists of headers and
stretchers placed alternately
2. The facing and backing of the wall, in each course,
have the same appearance.
3. Quoin closers are used next to quoin headers in every
alternate course.
4. In walls having thickness equal to odd multiple of half bricks, halfbats
and three-quarter bats are amply used.
5. For walls having thickness equal to even multiple of half bricks, no bats are
required. A header or stretcher will come out as header or stretcher on the same
course in front as well as back faces.
25.
26.
27.

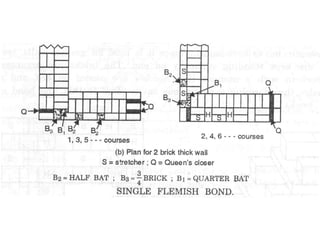

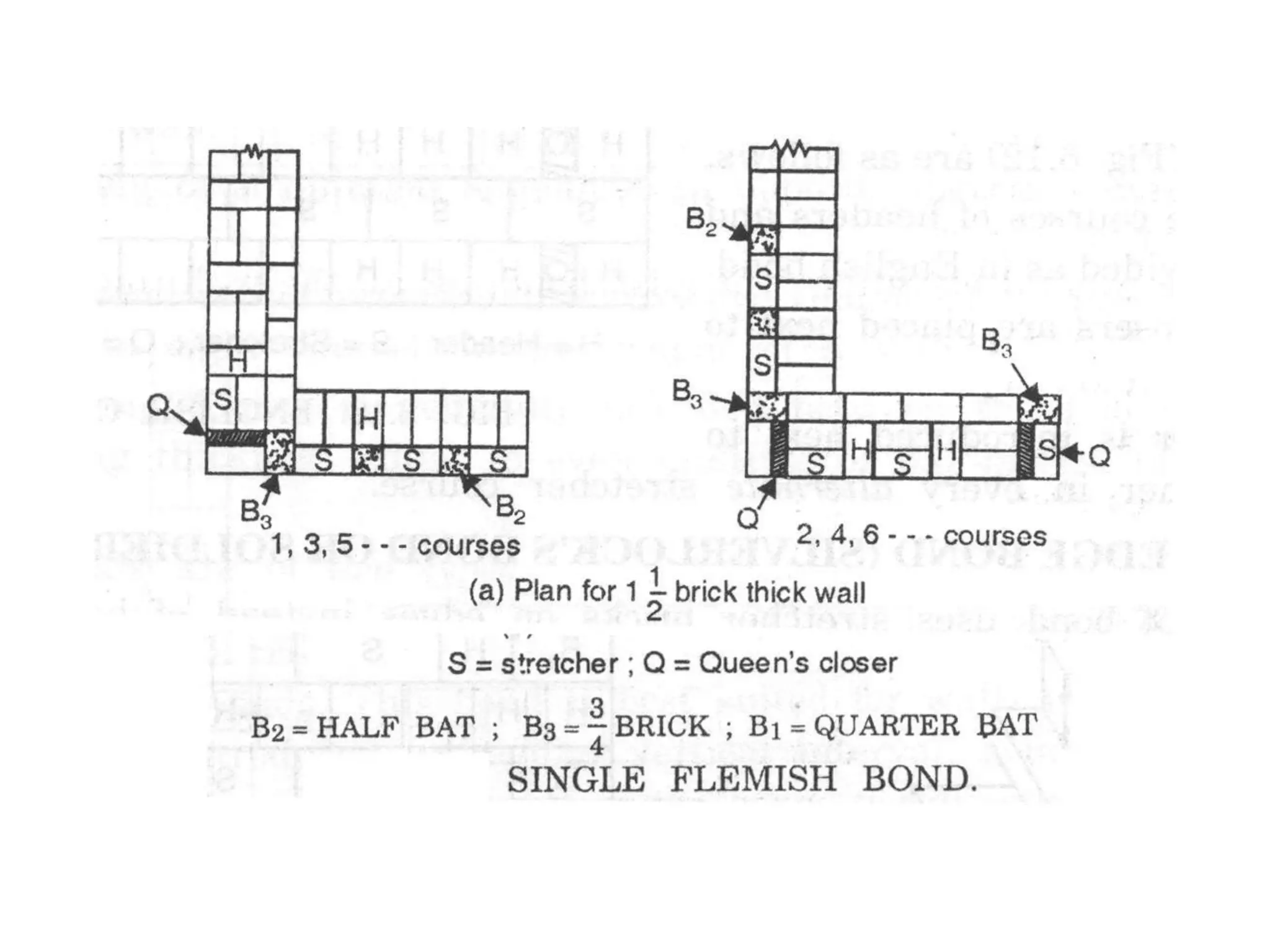

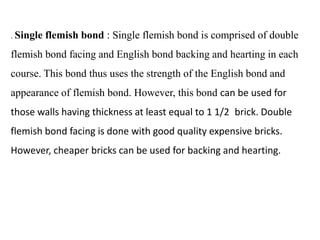

28. . Single flemish bond : Single flemish bond is comprised of double
flemish bond facing and English bond backing and hearting in each
course. This bond thus uses the strength of the English bond and
appearance of flemish bond. However, this bond can be used for
those walls having thickness at least equal to 1 1/2 brick. Double
flemish bond facing is done with good quality expensive bricks.
However, cheaper bricks can be used for backing and hearting.
29.
30.

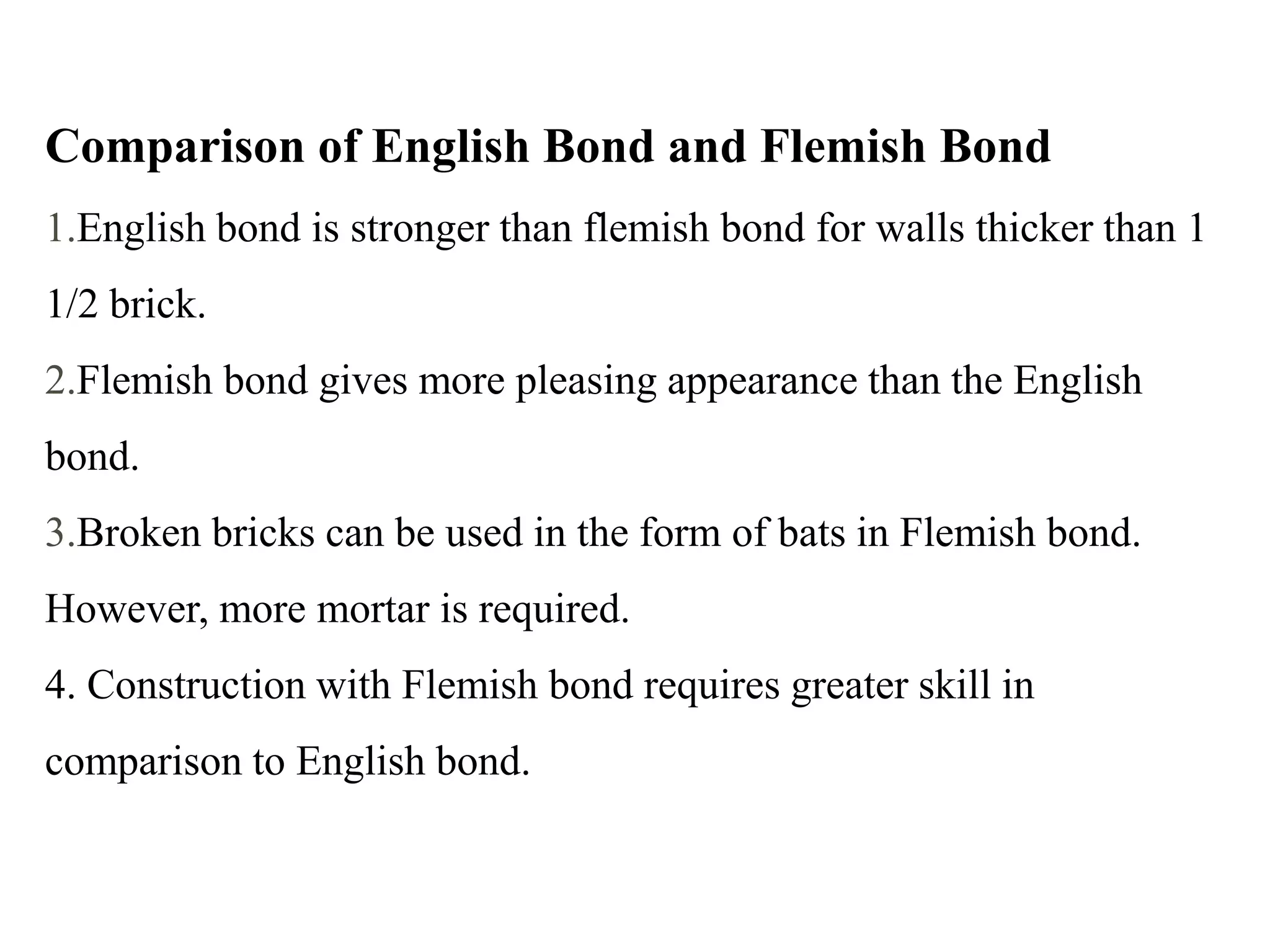

31. Comparison of English Bond and Flemish Bond
1.English bond is stronger than flemish bond for walls thicker than 1
1/2 brick.
2.Flemish bond gives more pleasing appearance than the English
bond.
3.Broken bricks can be used in the form of bats in Flemish bond.
However, more mortar is required.
4. Construction with Flemish bond requires greater skill in
comparison to English bond.
32.

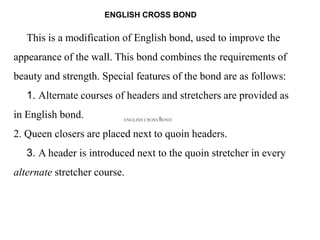

33. ENGLISH CROSS BONDH
This is a modification of English bond, used to improve the
appearance of the wall. This bond combines the requirements of
beauty and strength. Special features of the bond are as follows:
1. Alternate courses of headers and stretchers are provided as
in English bond.
2. Queen closers are placed next to quoin headers.
3. A header is introduced next to the quoin stretcher in every
alternate stretcher course.

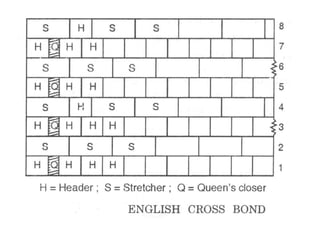

ENGLISH CROSS BOND

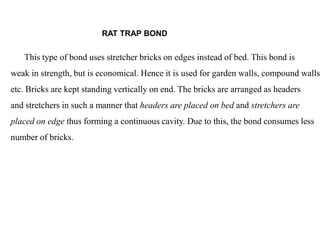

35. This type of bond uses stretcher bricks on edges instead of bed. This bond is
weak in strength, but is economical. Hence it is used for garden walls, compound walls
etc. Bricks are kept standing vertically on end. The bricks are arranged as headers
and stretchers in such a manner that headers are placed on bed and stretchers are
placed on edge thus forming a continuous cavity. Due to this, the bond consumes less
number of bricks.
RAT TRAP BOND
36.

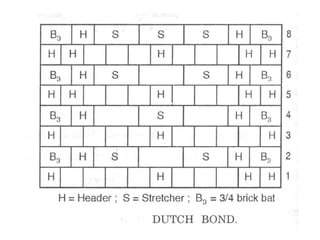

37. DUTCH BOND
"This is another modified form of English bond. In this bond the
corners of the wall are strengthened. Special features of this type of
bond is as follows :
1. Alternate courses of headers and stretchers are provided as in
English bond.
2. Every stretcher course starts at the quoin with a three-quarter bat.
3. In every alternate stretcher course, a header is placed next to the
three-quarter brick bat provided at the quoin.

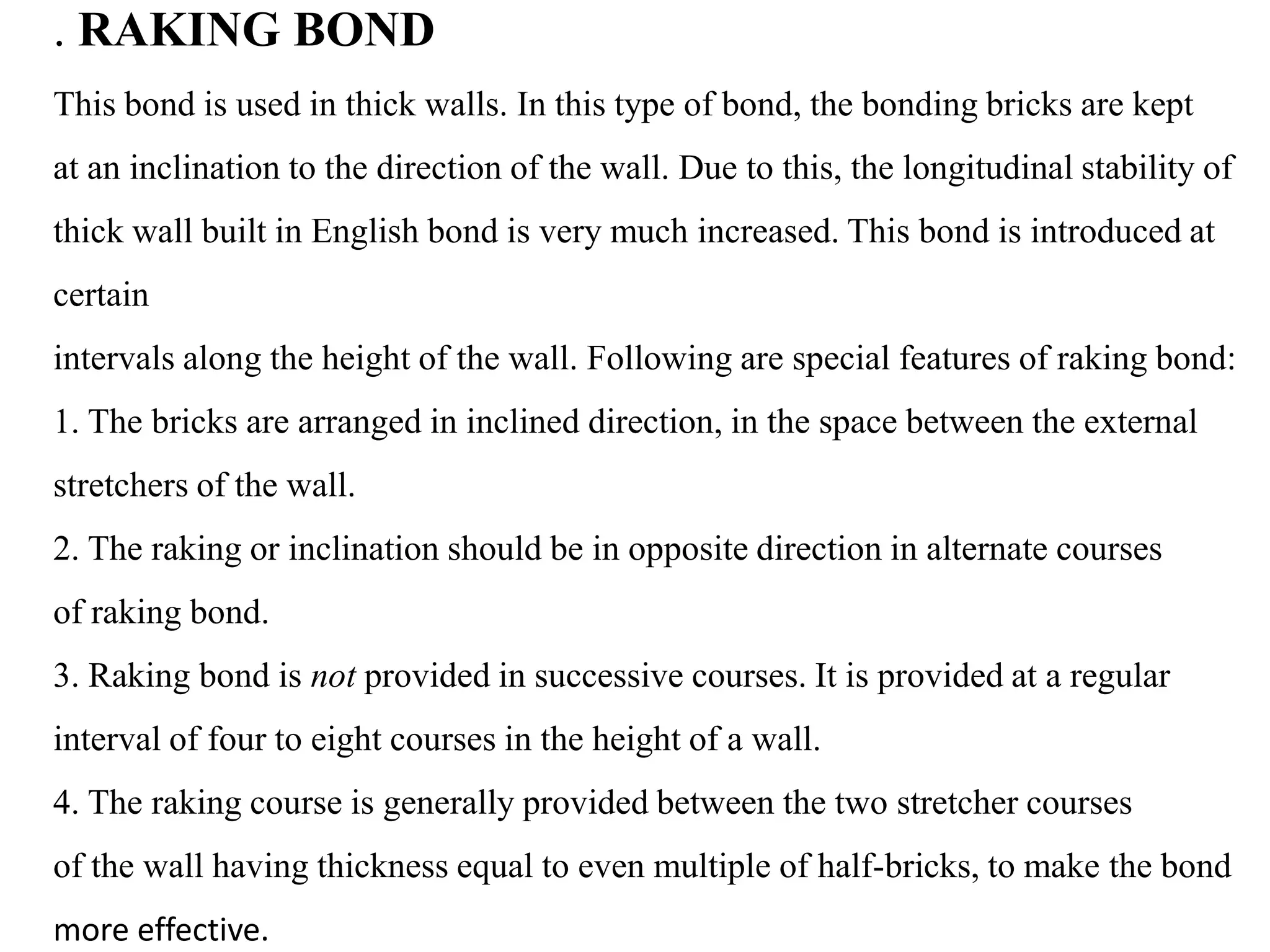

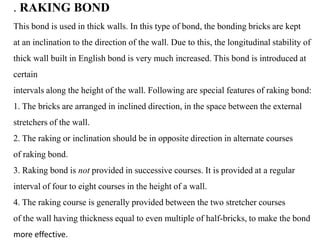

38. . RAKING BOND
This bond is used in thick walls. In this type of bond, the bonding bricks are kept
at an inclination to the direction of the wall. Due to this, the longitudinal stability of
thick wall built in English bond is very much increased. This bond is introduced at
certain
intervals along the height of the wall. Following are special features of raking bond:
1. The bricks are arranged in inclined direction, in the space between the external
stretchers of the wall.
2. The raking or inclination should be in opposite direction in alternate courses
of raking bond.
3. Raking bond is not provided in successive courses. It is provided at a regular
interval of four to eight courses in the height of a wall.
4. The raking course is generally provided between the two stretcher courses
of the wall having thickness equal to even multiple of half-bricks, to make the bond
more effective.
39.

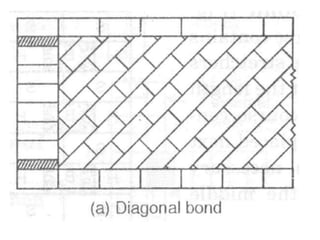

40. 1.Diagonal bond
In this type of bond, bricks are arranged at 45 in such a way that extreme
corners of the series remain in contact with the external line of stretchers.
Bricks cut to triangular shapes and of suitable sizes are packed in the small tri-
angular spaces at the ends. This bond is best suited for walls which are 2 to 4 bricks
thick. The bond is introduced at regular vertical interval, generally at every fifth or
seventh course. In every alternate course of the bond, the direction of bricks is
reversed.
41.

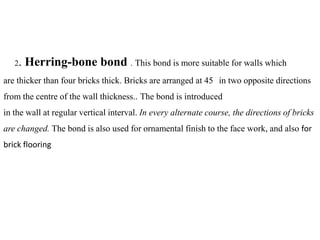

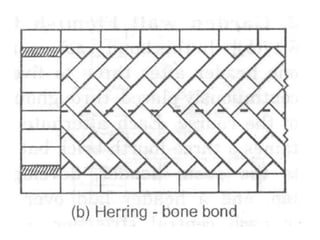

42. 2. Herring-bone bond . This bond is more suitable for walls which
are thicker than four bricks thick. Bricks are arranged at 45 in two opposite directions
from the centre of the wall thickness.. The bond is introduced
in the wall at regular vertical interval. In every alternate course, the directions of bricks
are changed. The bond is also used for ornamental finish to the face work, and also for
brick flooring
43.

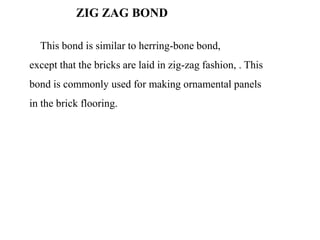

44. ZIG ZAG BOND
This bond is similar to herring-bone bond,
except that the bricks are laid in zig-zag fashion, . This
bond is commonly used for making ornamental panels
in the brick flooring.

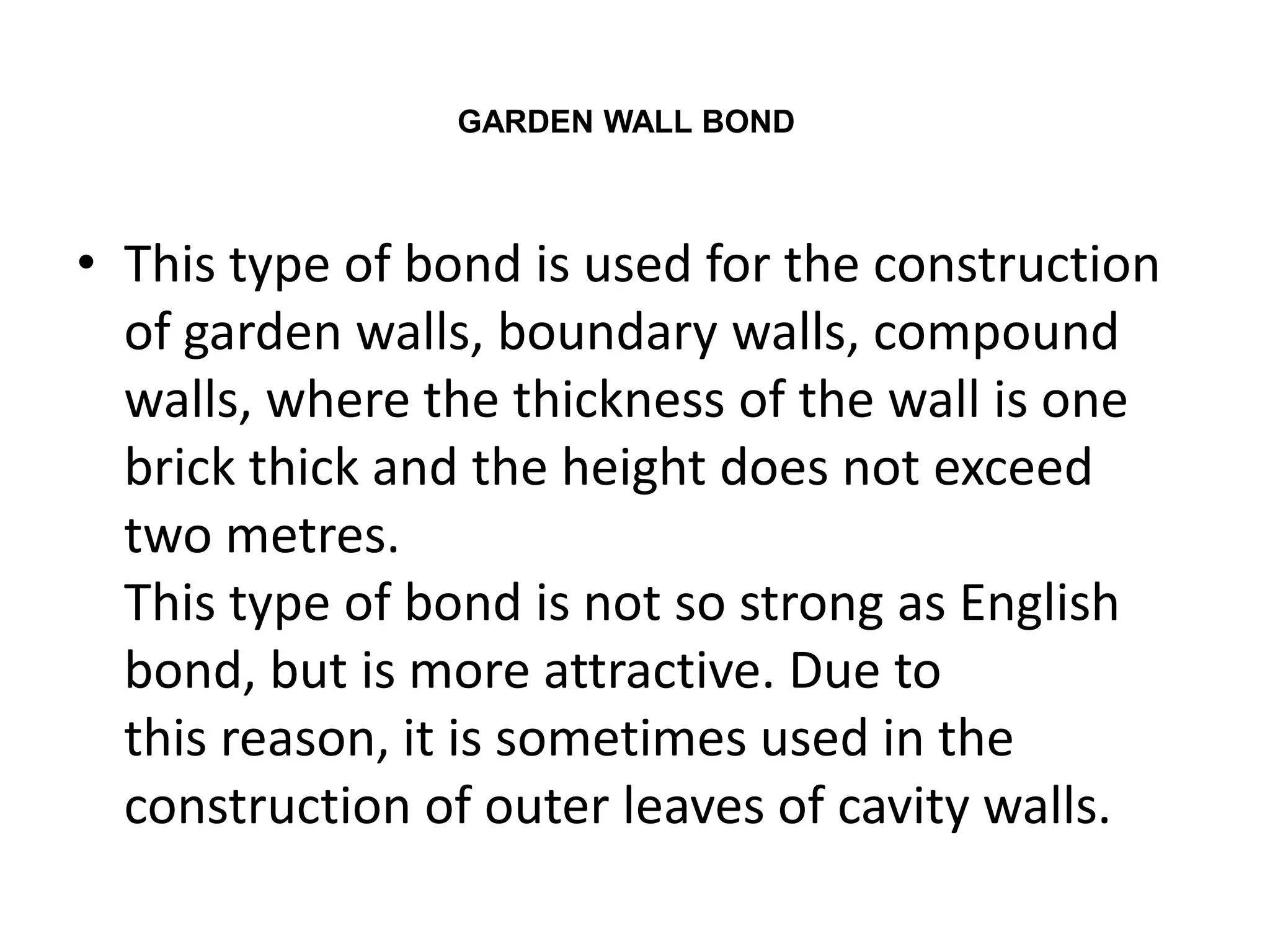

45. • This type of bond is used for the construction
of garden walls, boundary walls, compound
walls, where the thickness of the wall is one
brick thick and the height does not exceed
two metres.
This type of bond is not so strong as English
bond, but is more attractive. Due to
this reason, it is sometimes used in the
construction of outer leaves of cavity walls.
GARDEN WALL BOND

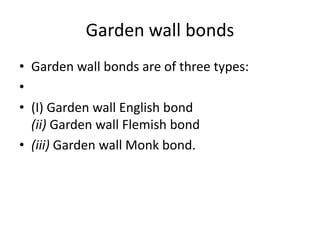

46. Garden wall bonds
• Garden wall bonds are of three types:
•
• (I) Garden wall English bond
(ii) Garden wall Flemish bond
• (iii) Garden wall Monk bond.

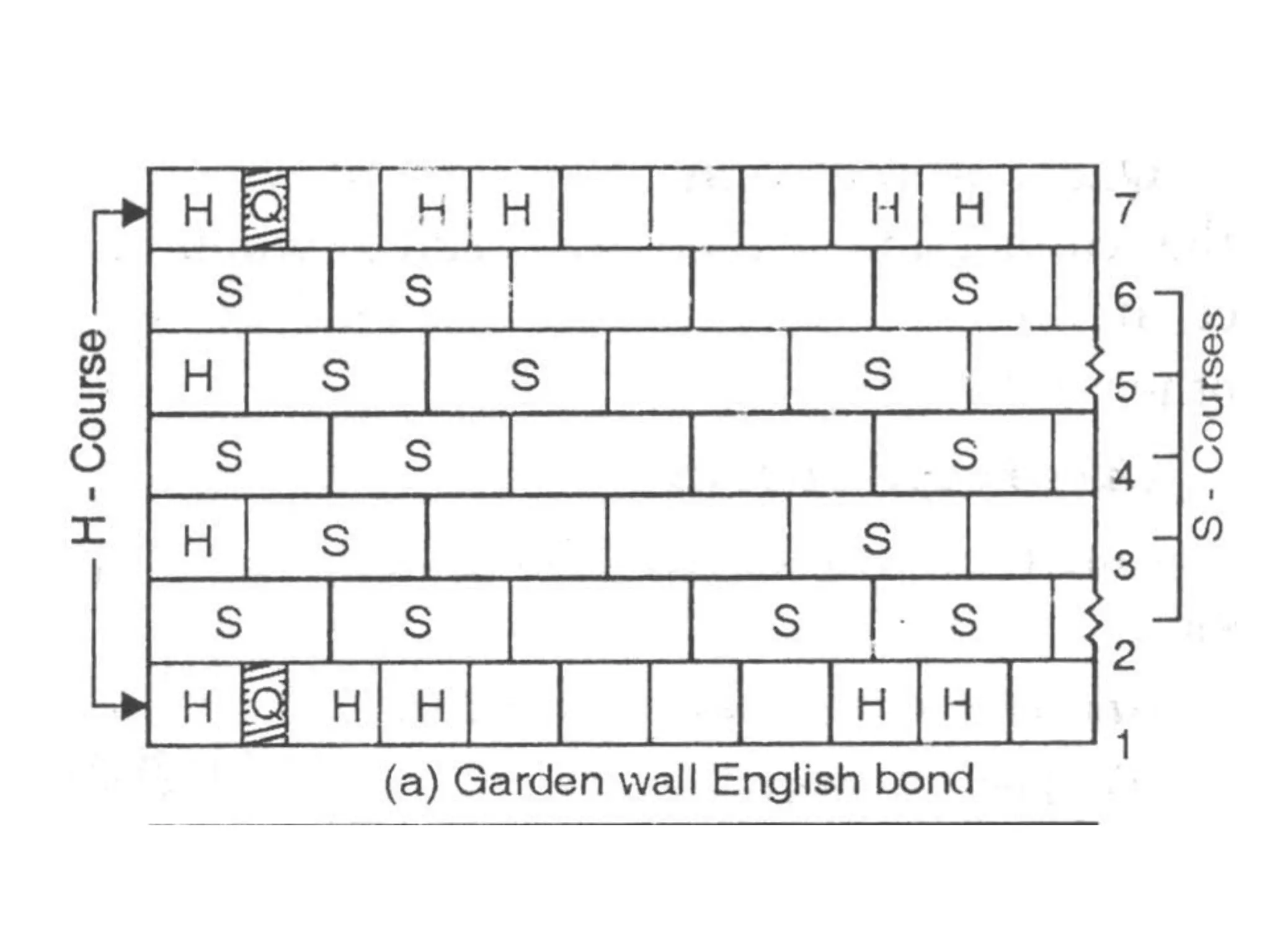

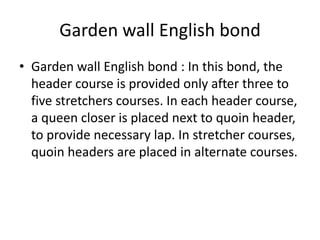

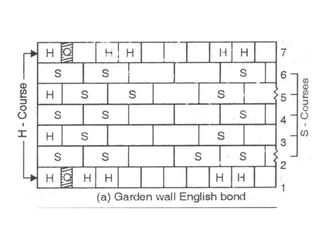

47. Garden wall English bond
• Garden wall English bond : In this bond, the
header course is provided only after three to
five stretchers courses. In each header course,
a queen closer is placed next to quoin header,
to provide necessary lap. In stretcher courses,
quoin headers are placed in alternate courses.
48.
49. Garden wall FIemish bond
• Garden wall FIemish bond : In this bond, each
course contains one header after three to five
stretchers continuously placed, throughout
the length of the course. Each alternate course
contains a three-fourth brick bat placed next
to the quoin header, develop necessary
lap, and a header laid over the middle
of each central stretcher. This bond is also
known as scotch bond or Sussex bond.
50.

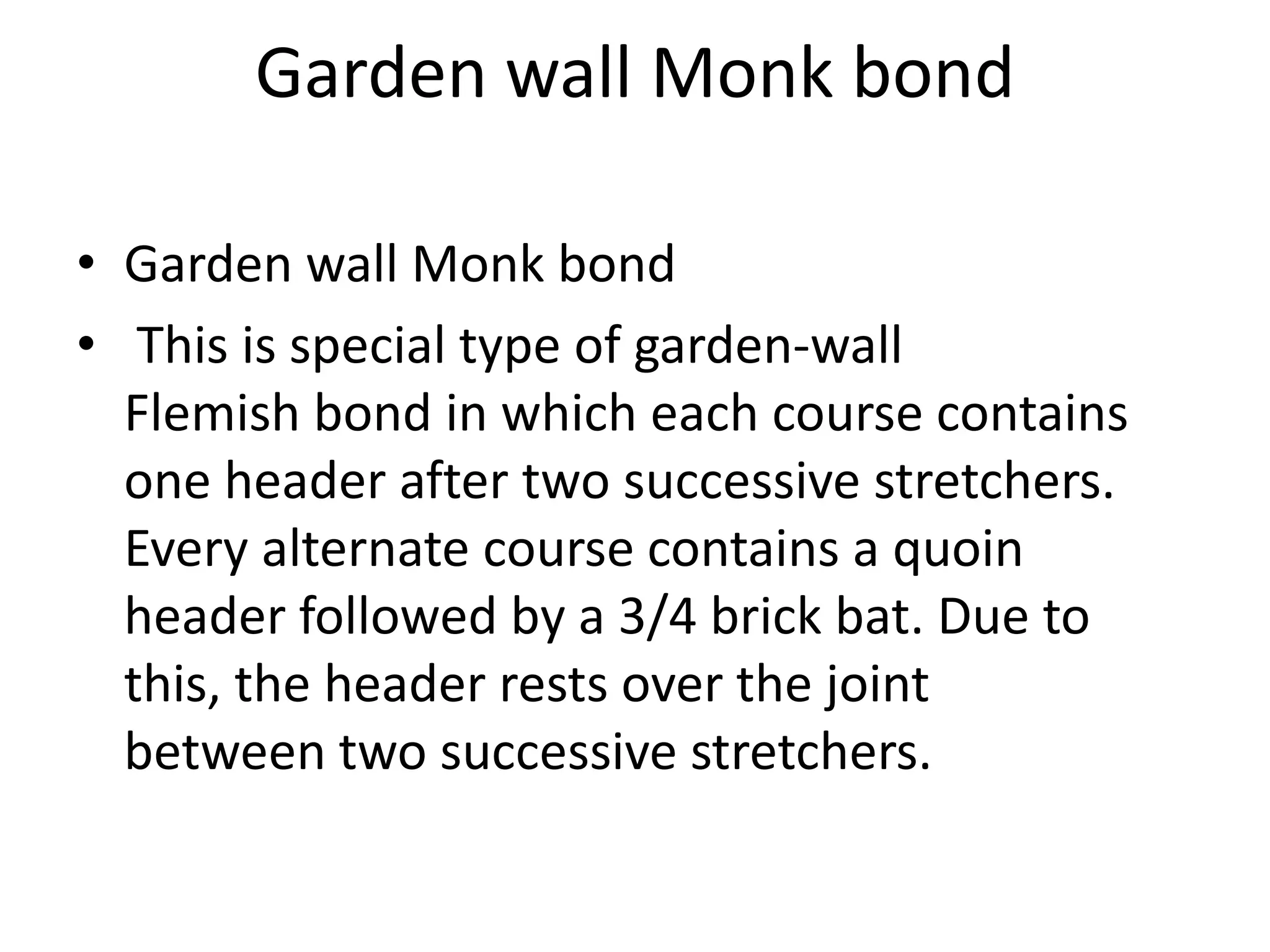

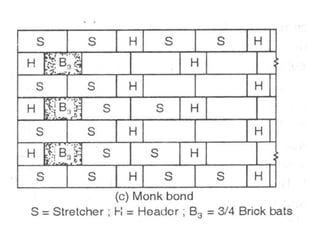

51. Garden wall Monk bond
• Garden wall Monk bond
• This is special type of garden-wall
Flemish bond in which each course contains
one header after two successive stretchers.
Every alternate course contains a quoin
header followed by a 3/4 brick bat. Due to
this, the header rests over the joint
between two successive stretchers.
52.

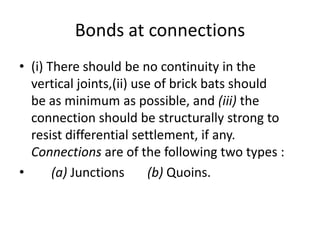

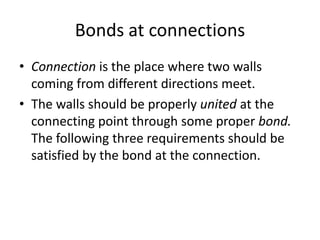

53. Bonds at connections
• Connection is the place where two walls
coming from different directions meet.
• The walls should be properly united at the
connecting point through some proper bond.
The following three requirements should be
satisfied by the bond at the connection.
54. Bonds at connections
• (i) There should be no continuity in the
vertical joints,(ii) use of brick bats should
be as minimum as possible, and (iii) the
connection should be structurally strong to
resist differential settlement, if any.
Connections are of the following two types :
• (a) Junctions (b) Quoins.

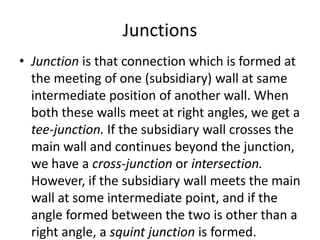

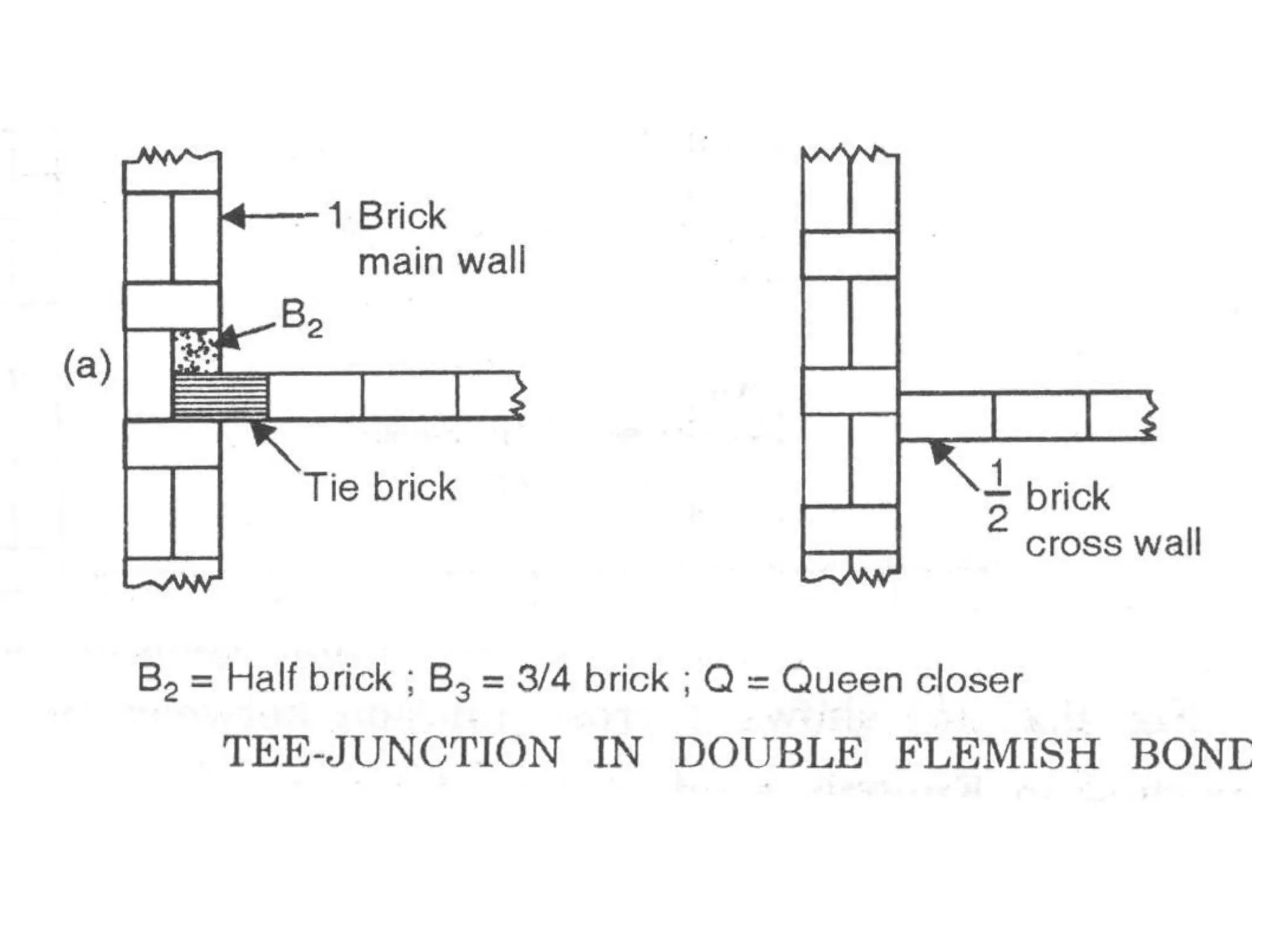

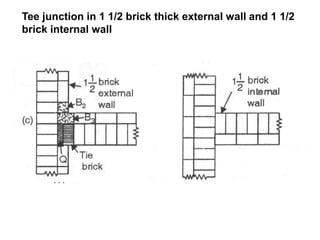

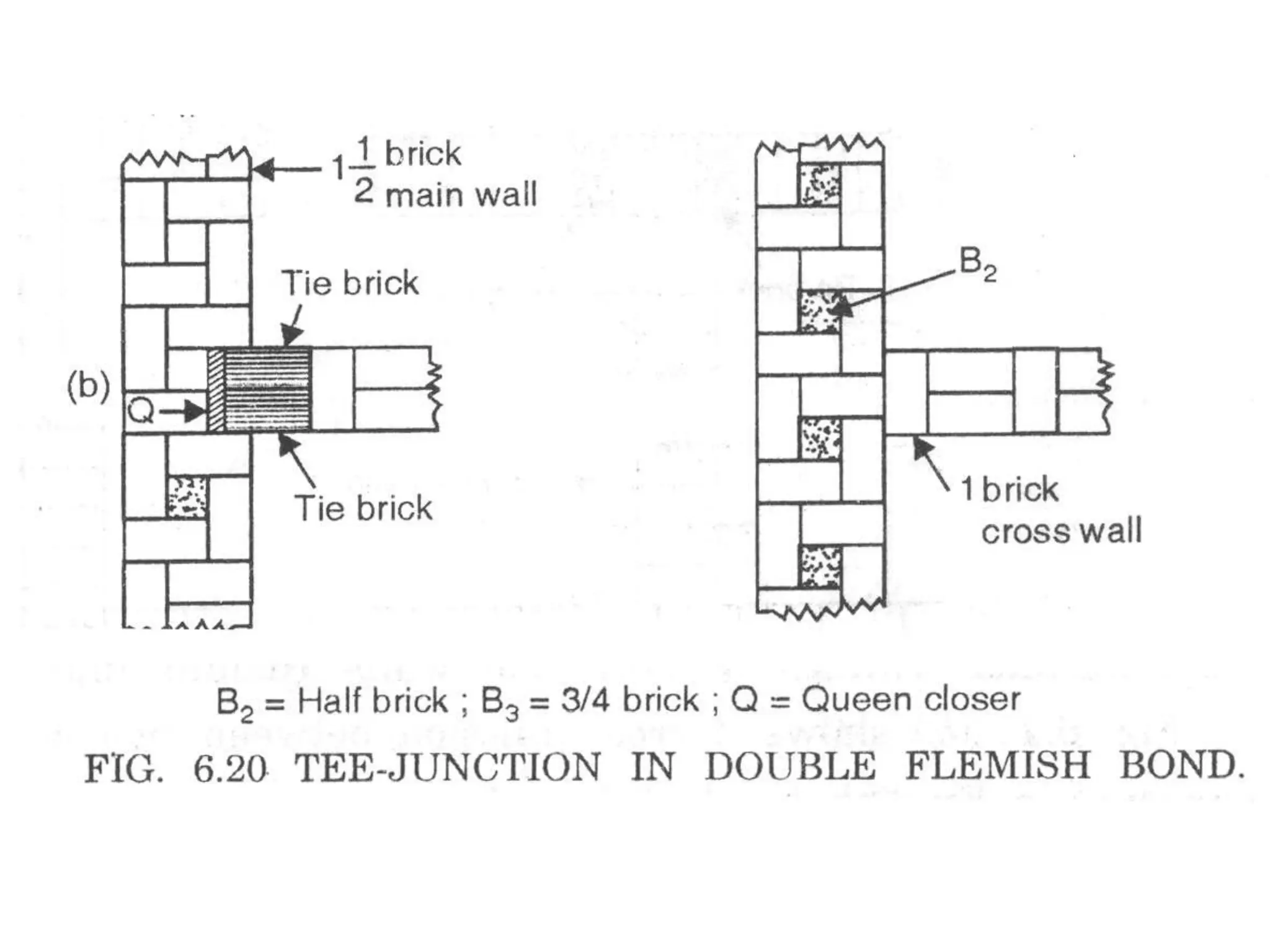

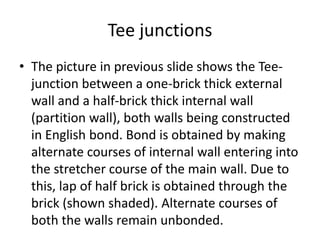

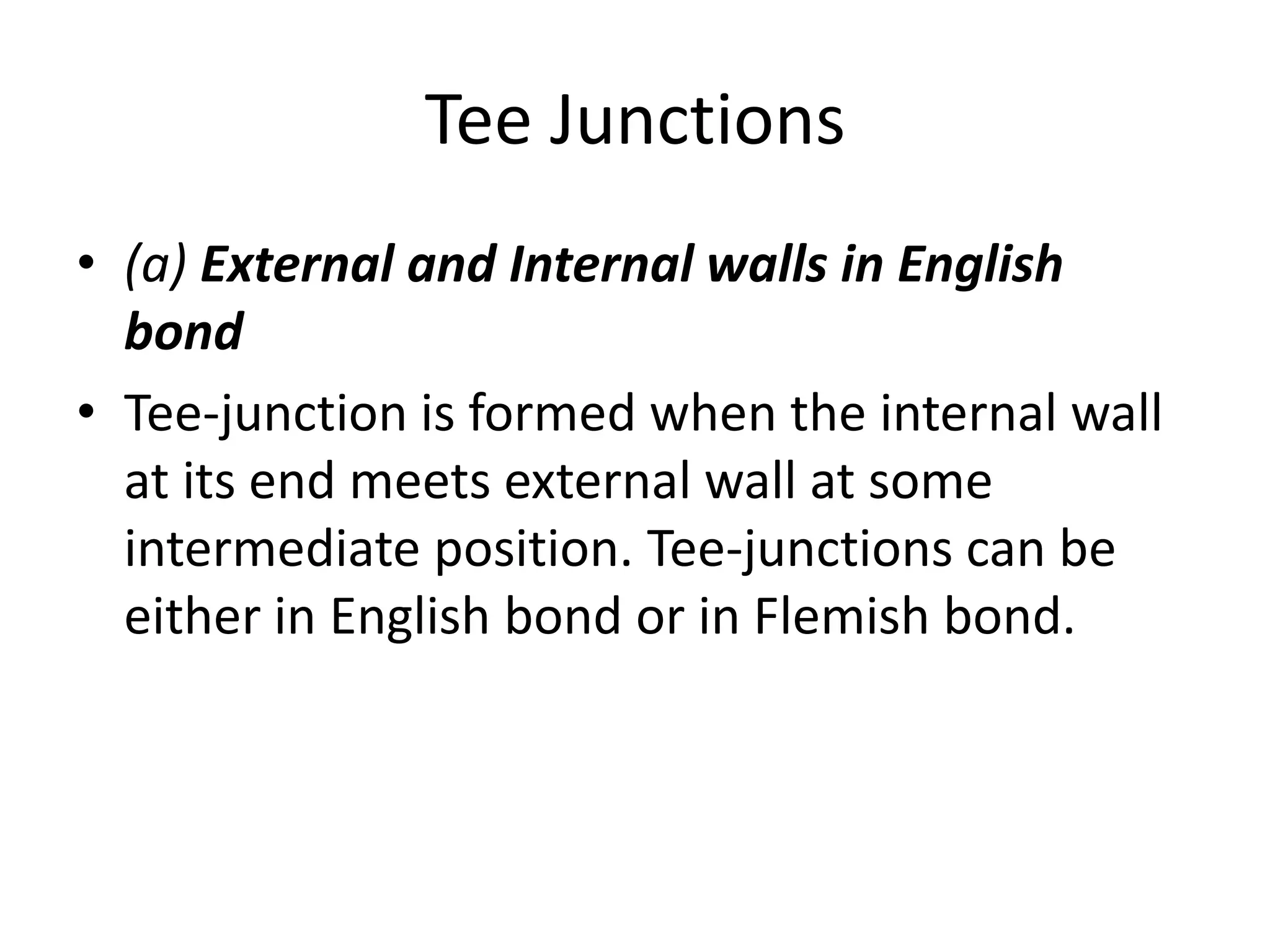

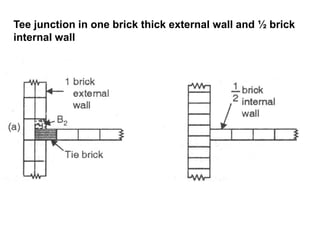

55. Junctions
• Junction is that connection which is formed at
the meeting of one (subsidiary) wall at same
intermediate position of another wall. When
both these walls meet at right angles, we get a
tee-junction. If the subsidiary wall crosses the
main wall and continues beyond the junction,
we have a cross-junction or intersection.
However, if the subsidiary wall meets the main
wall at some intermediate point, and if the
angle formed between the two is other than a
right angle, a squint junction is formed.

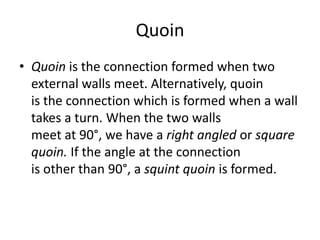

56. Quoin
• Quoin is the connection formed when two
external walls meet. Alternatively, quoin
is the connection which is formed when a wall
takes a turn. When the two walls
meet at 90°, we have a right angled or square
quoin. If the angle at the connection
is other than 90°, a squint quoin is formed.
57. Tee Junctions
• (a) External and Internal walls in English
bond
• Tee-junction is formed when the internal wall
at its end meets external wall at some
intermediate position. Tee-junctions can be
either in English bond or in Flemish bond.
58. Tee junction in one brick thick external wall and ½ brick
internal wall
59. Tee junctions
• The picture in previous slide shows the Tee-
junction between a one-brick thick external
wall and a half-brick thick internal wall
(partition wall), both walls being constructed
in English bond. Bond is obtained by making
alternate courses of internal wall entering into
the stretcher course of the main wall. Due to
this, lap of half brick is obtained through the
brick (shown shaded). Alternate courses of
both the walls remain unbonded.

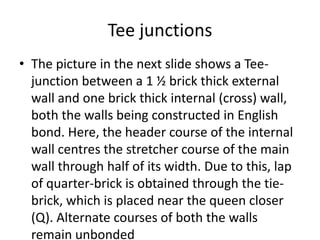

60. Tee junctions
• The picture in the next slide shows a Tee-
junction between a 1 ½ brick thick external
wall and one brick thick internal (cross) wall,
both the walls being constructed in English
bond. Here, the header course of the internal
wall centres the stretcher course of the main
wall through half of its width. Due to this, lap
of quarter-brick is obtained through the tie-
brick, which is placed near the queen closer
(Q). Alternate courses of both the walls
remain unbonded

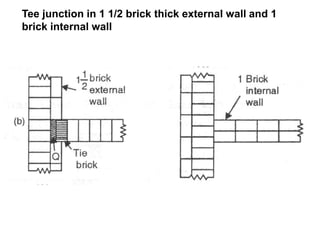

61. Tee junction in 1 1/2 brick thick external wall and 1
brick internal wall

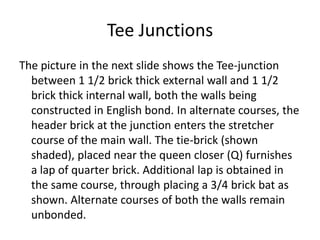

62. Tee Junctions
The picture in the next slide shows the Tee-junction
between 1 1/2 brick thick external wall and 1 1/2
brick thick internal wall, both the walls being
constructed in English bond. In alternate courses, the
header brick at the junction enters the stretcher
course of the main wall. The tie-brick (shown
shaded), placed near the queen closer (Q) furnishes
a lap of quarter brick. Additional lap is obtained in
the same course, through placing a 3/4 brick bat as
shown. Alternate courses of both the walls remain
unbonded.
63. Tee junction in 1 1/2 brick thick external wall and 1 1/2
brick internal wall
64. Tee Junctions

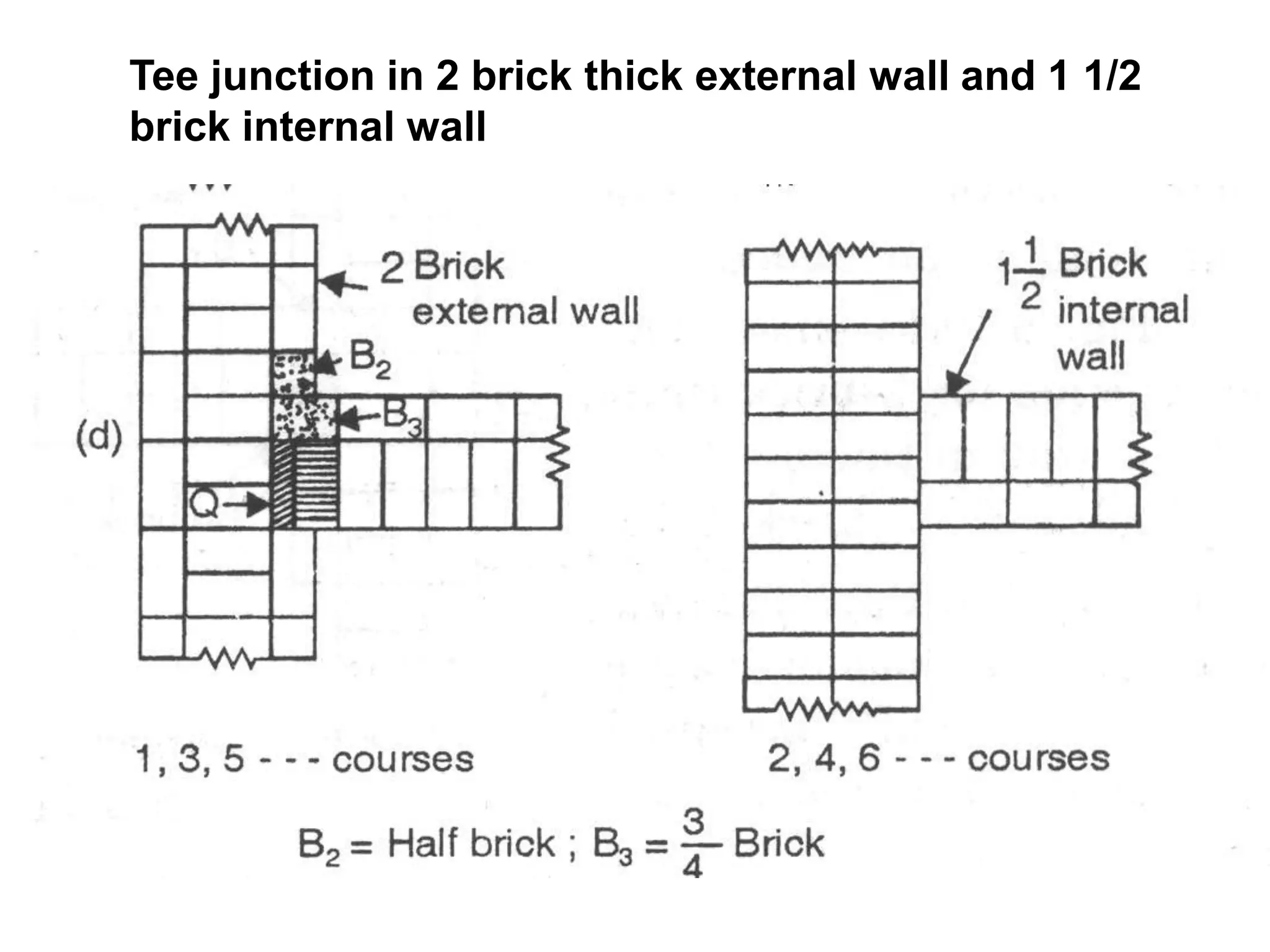

• The picture in the next slide shows the Tee-junction
between 2-brick thick main wall and 1 1/2 brick thick
cross-wall, both the walls being constructed in
English bond. Here, the header course of internal
wall enters the stretcher course of the main wall
through half of its width. Due to this, lap of quarter
brick is obtained through the tie-brick (header brick)
Which is placed near the queen closer (Q). Additional
lap is obtained in the same course, through placing a
3/4brick bat as shown. Here also, alternate courses
of both the walls remain unbonded.
65. Tee junction in 2 brick thick external wall and 1 1/2
brick internal wall

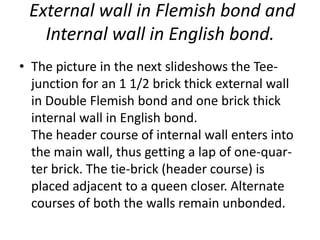

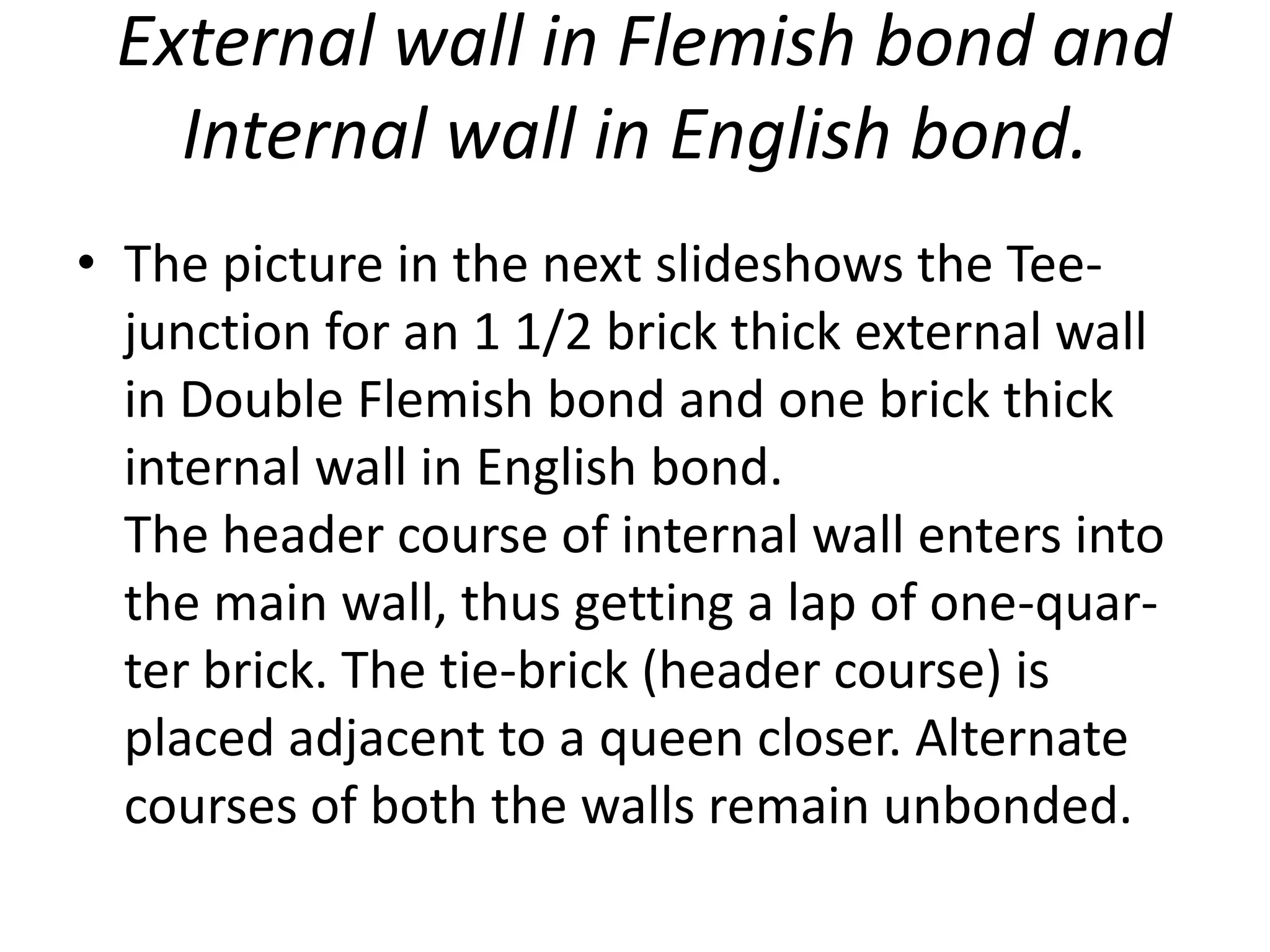

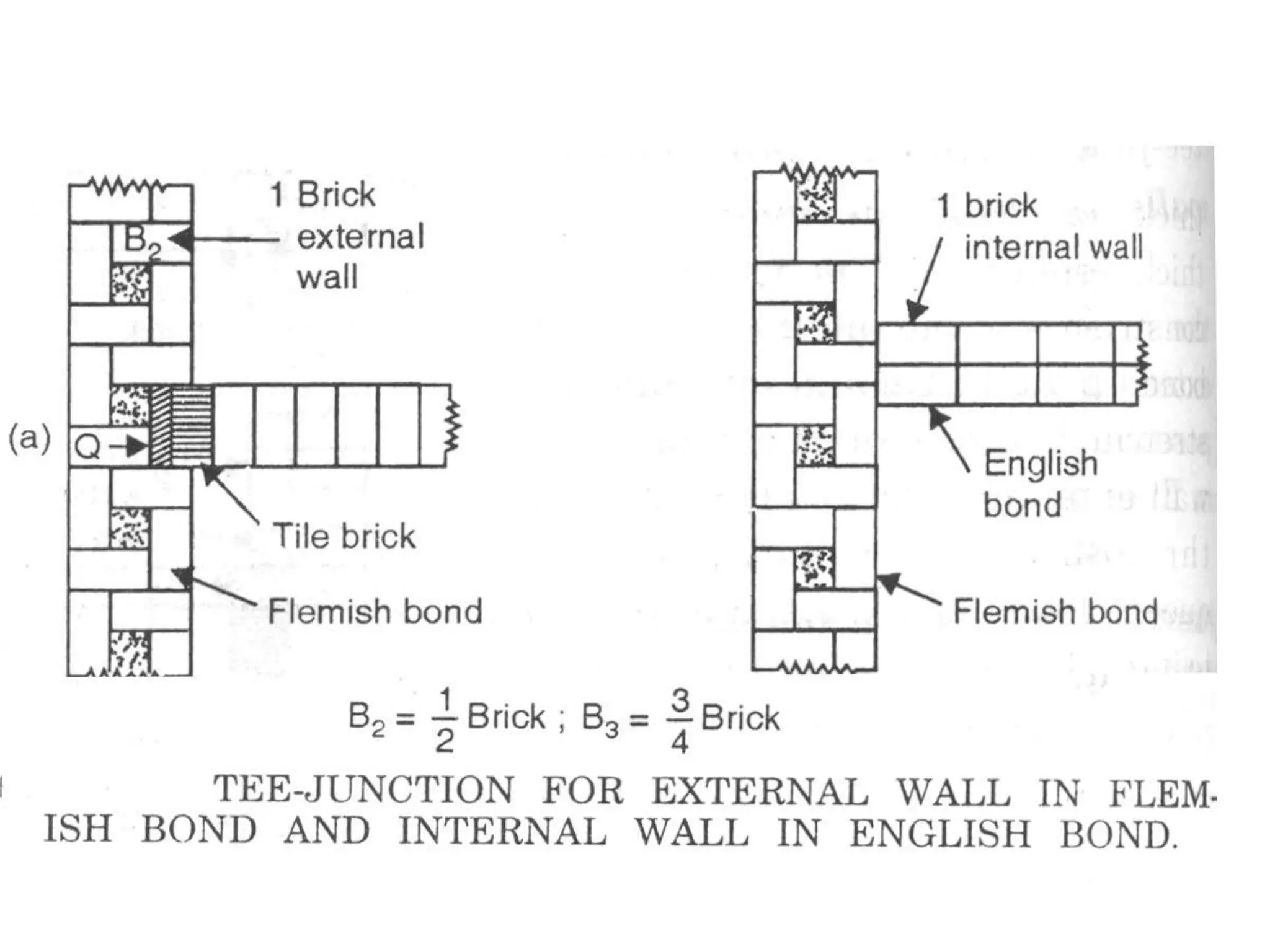

66. External wall in Flemish bond and
Internal wall in English bond.
• The picture in the next slideshows the Tee-
junction for an 1 1/2 brick thick external wall
in Double Flemish bond and one brick thick
internal wall in English bond.
The header course of internal wall enters into
the main wall, thus getting a lap of one-quar-
ter brick. The tie-brick (header course) is
placed adjacent to a queen closer. Alternate
courses of both the walls remain unbonded.
67.

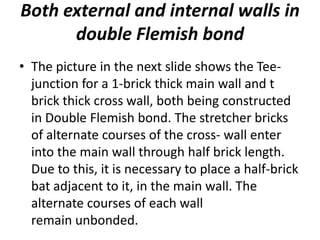

68. Both external and internal walls in
double Flemish bond
• The picture in the next slide shows the Tee-
junction for a 1-brick thick main wall and t
brick thick cross wall, both being constructed
in Double Flemish bond. The stretcher bricks
of alternate courses of the cross- wall enter
into the main wall through half brick length.
Due to this, it is necessary to place a half-brick
bat adjacent to it, in the main wall. The
alternate courses of each wall
remain unbonded.
69.

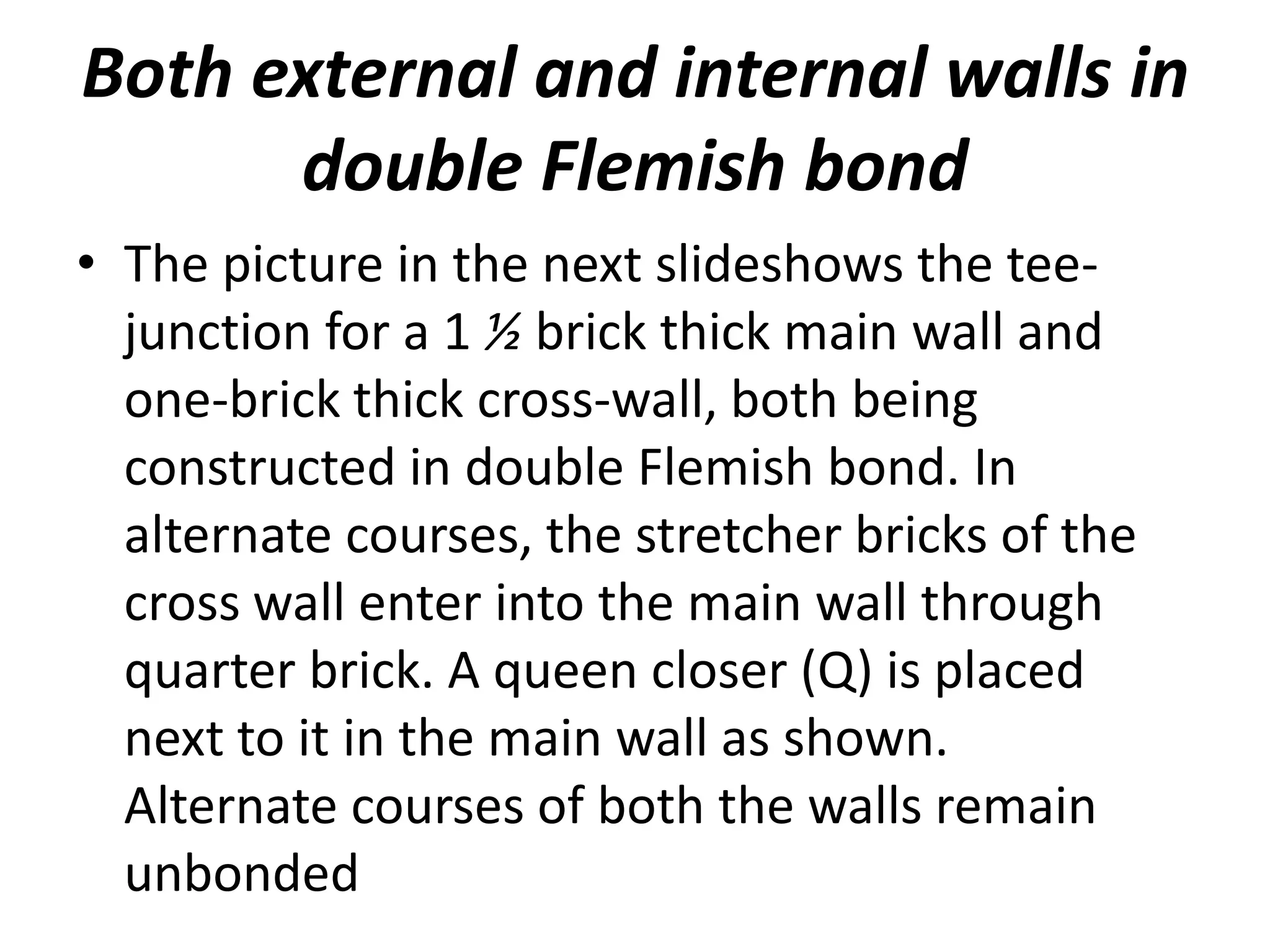

70. Both external and internal walls in
double Flemish bond
• The picture in the next slideshows the tee-
junction for a 1 ½ brick thick main wall and
one-brick thick cross-wall, both being
constructed in double Flemish bond. In
alternate courses, the stretcher bricks of the
cross wall enter into the main wall through
quarter brick. A queen closer (Q) is placed
next to it in the main wall as shown.
Alternate courses of both the walls remain
unbonded
71.

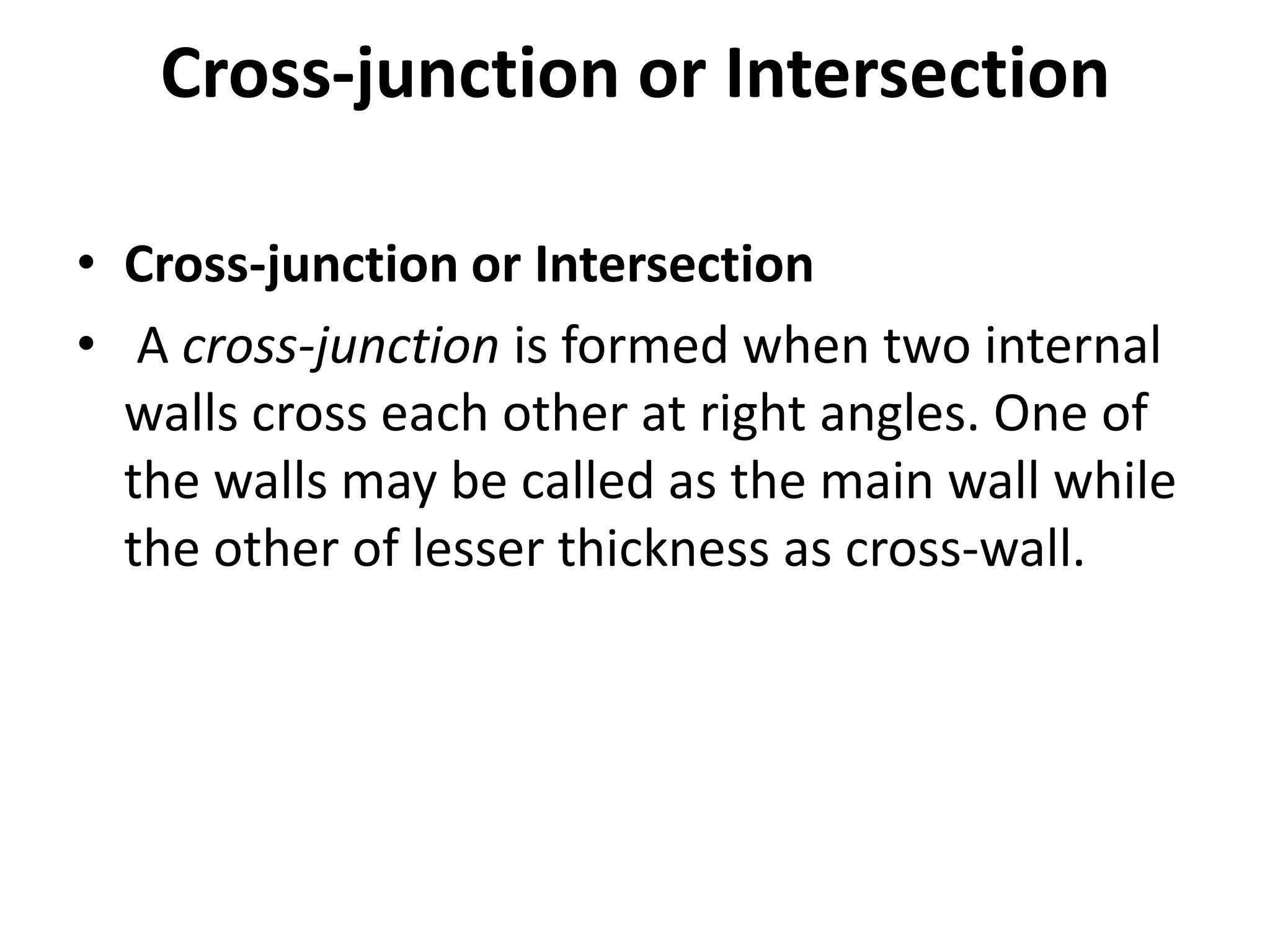

72. Cross-junction or Intersection
• Cross-junction or Intersection
• A cross-junction is formed when two internal
walls cross each other at right angles. One of
the walls may be called as the main wall while
the other of lesser thickness as cross-wall.

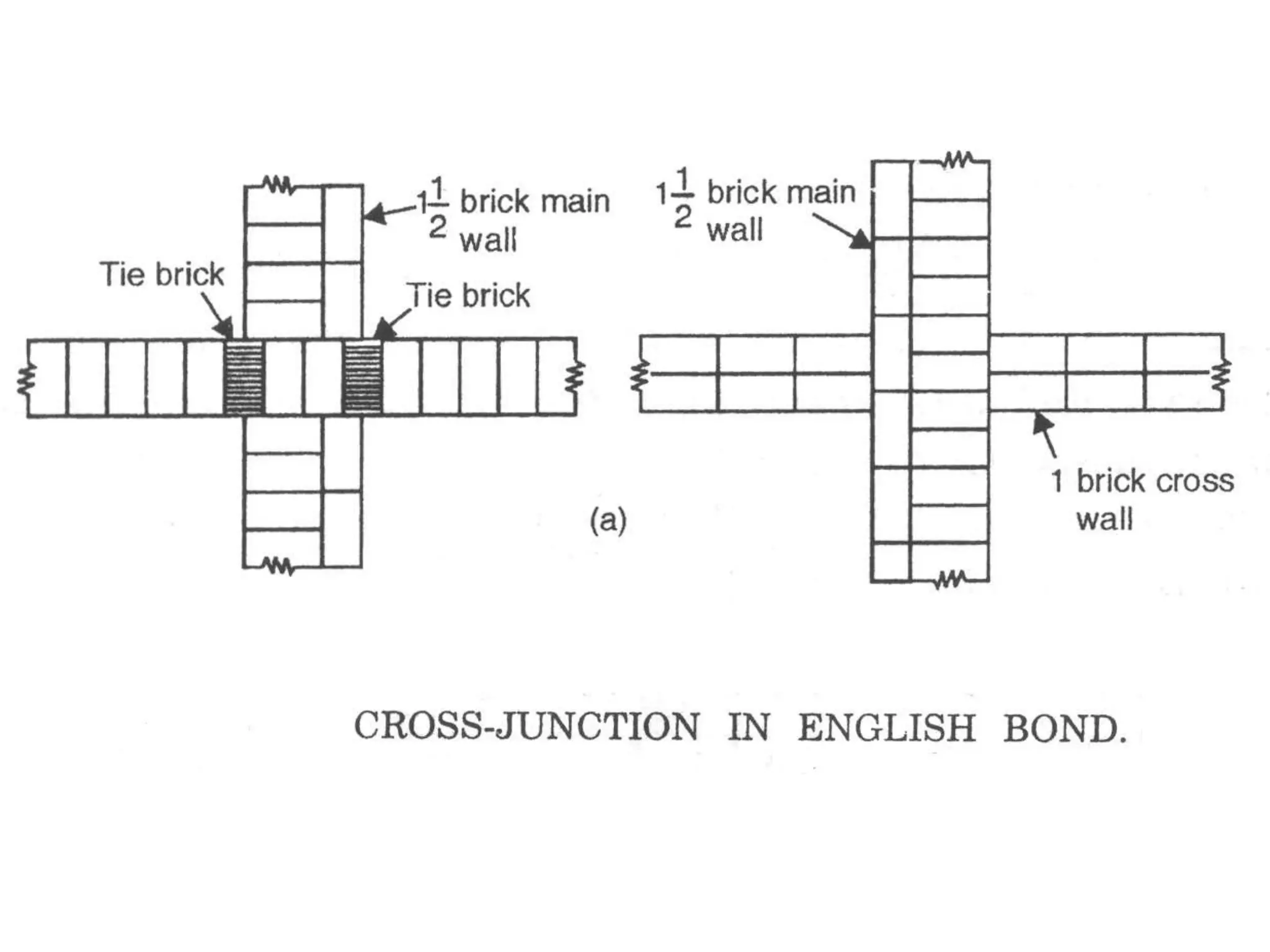

73. Cross-junction or Intersection

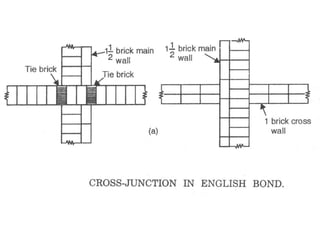

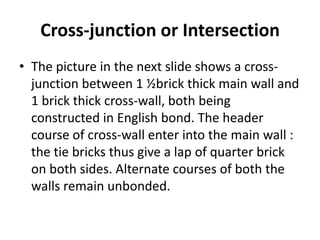

• The picture in the next slide shows a cross-
junction between 1 ½brick thick main wall and
1 brick thick cross-wall, both being
constructed in English bond. The header
course of cross-wall enter into the main wall :
the tie bricks thus give a lap of quarter brick
on both sides. Alternate courses of both the
walls remain unbonded.
74.

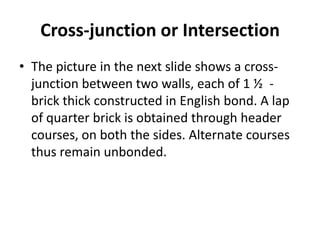

75. Cross-junction or Intersection
• The picture in the next slide shows a cross-
junction between two walls, each of 1 ½ -
brick thick constructed in English bond. A lap
of quarter brick is obtained through header
courses, on both the sides. Alternate courses
thus remain unbonded.
76. Squint junction
• A squint junction is formed when an internal
wall meets an external continuous wall at an
angle other than 90°. Usually, the angle of
squint is kept at 45 degrees, though
squint junctions are not very common in brick
work.

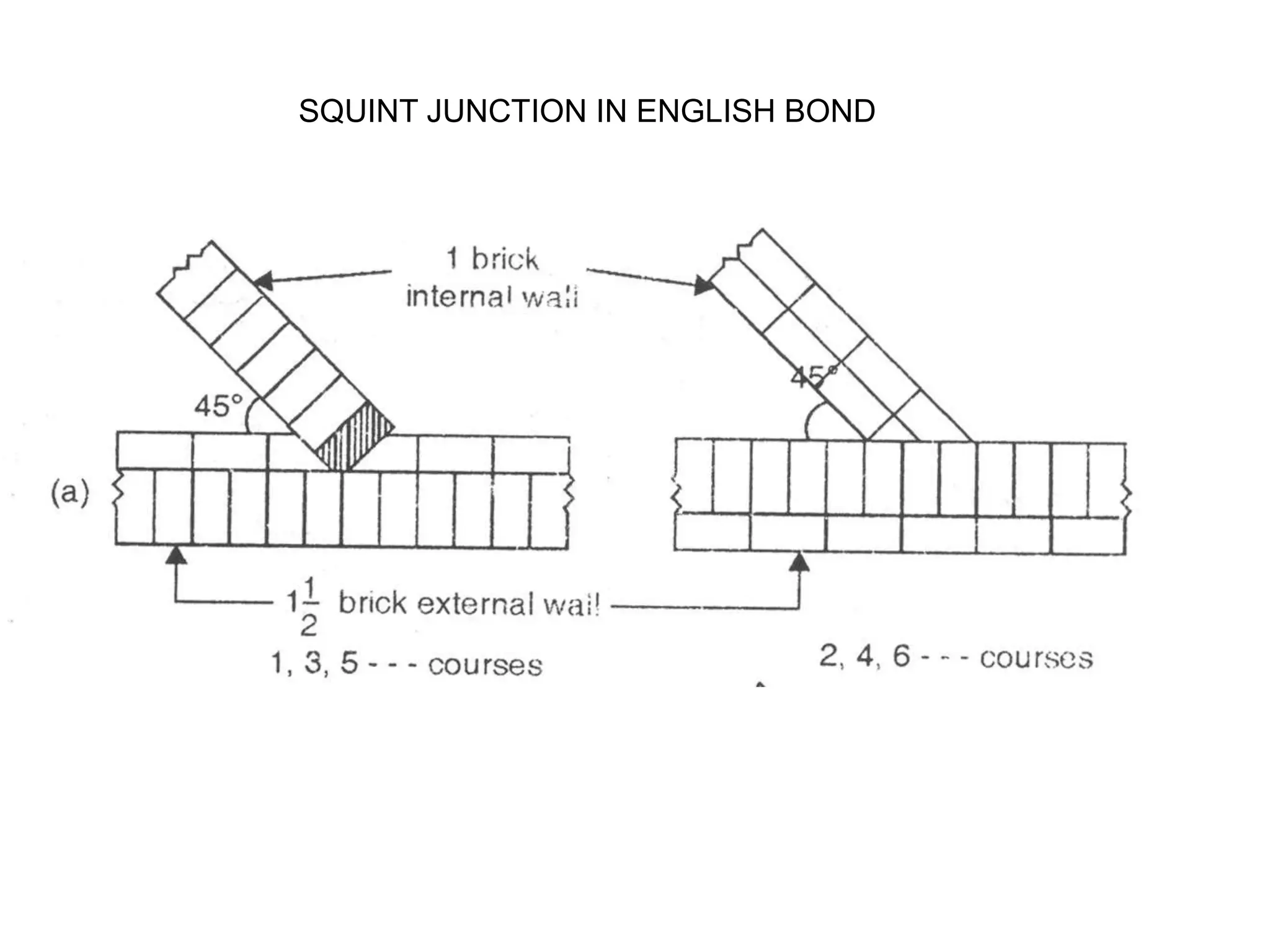

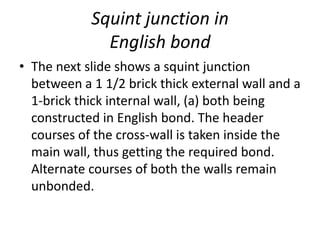

77. Squint junction in
English bond
• The next slide shows a squint junction
between a 1 1/2 brick thick external wall and a
1-brick thick internal wall, (a) both being
constructed in English bond. The header
courses of the cross-wall is taken inside the
main wall, thus getting the required bond.
Alternate courses of both the walls remain
unbonded.

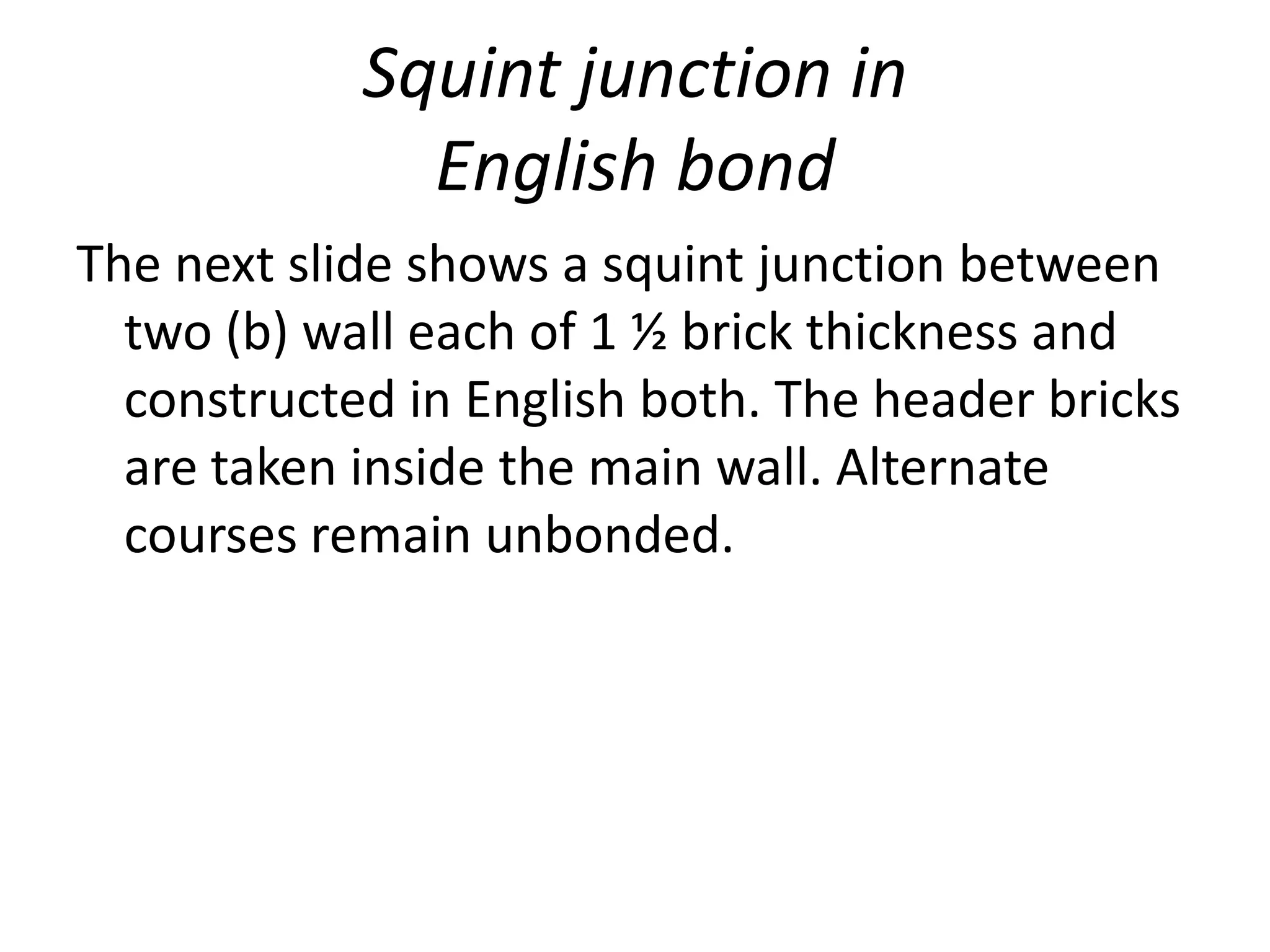

79. Squint junction in
English bond

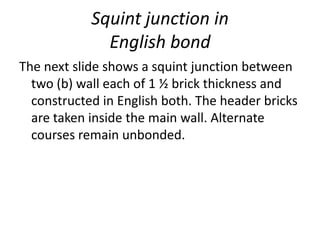

The next slide shows a squint junction between
two (b) wall each of 1 ½ brick thickness and
constructed in English both. The header bricks
are taken inside the main wall. Alternate
courses remain unbonded.

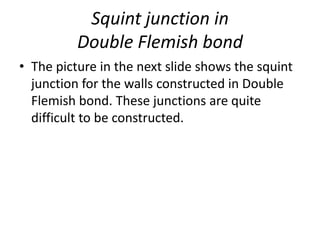

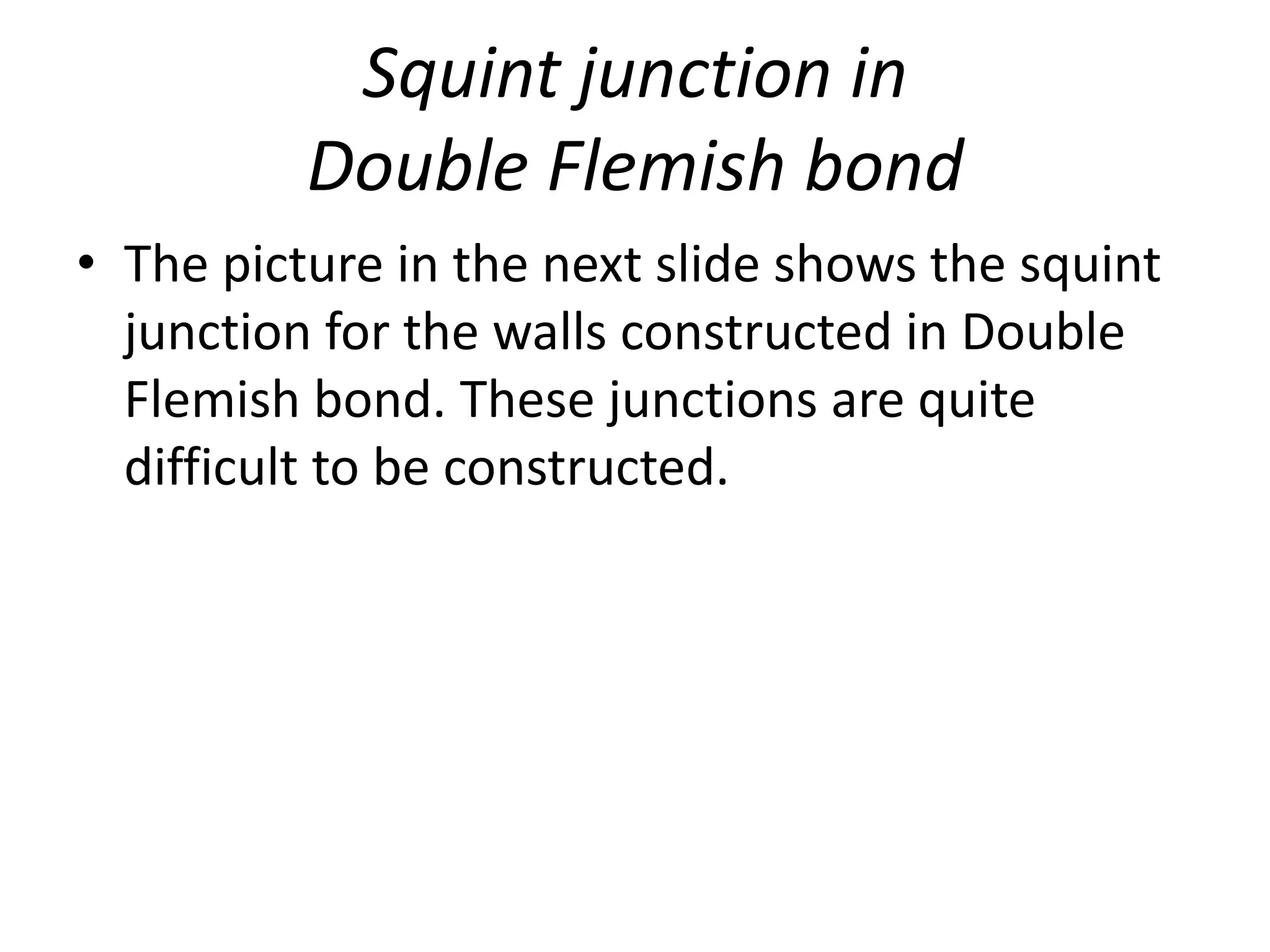

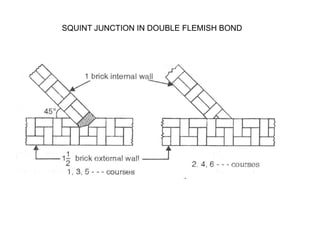

81. Squint junction in
Double Flemish bond

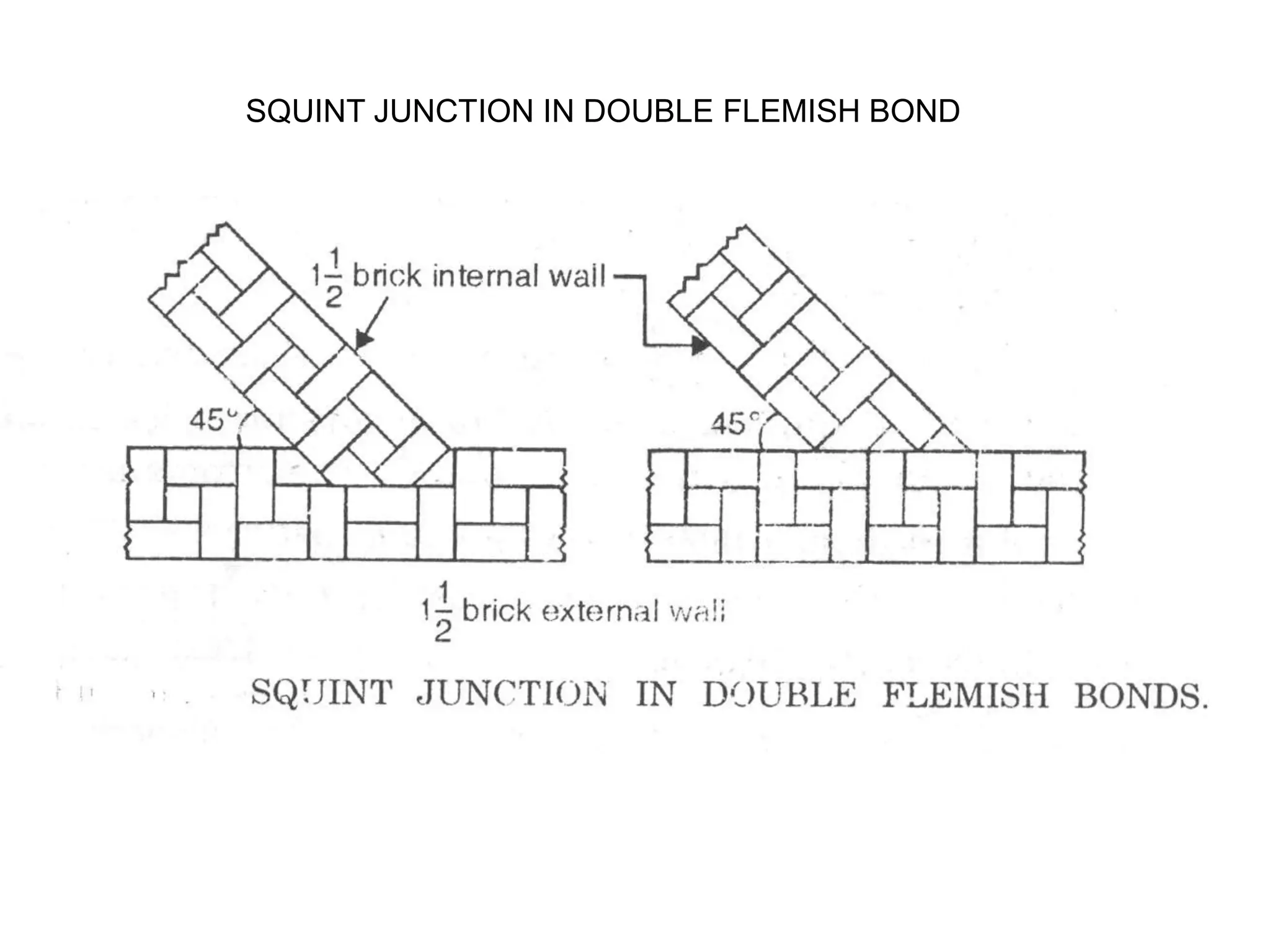

• The picture in the next slide shows the squint
junction for the walls constructed in Double
Flemish bond. These junctions are quite
difficult to be constructed.
84. QUOINS
• Quoin is the connection formed when two
external walls meet. Alternatively, quoin is the
connection which is formed when an external
wall takes a turn. Quoins are of two types :
• 1. Right-angle or square quoin.
• 2. Squint quoin

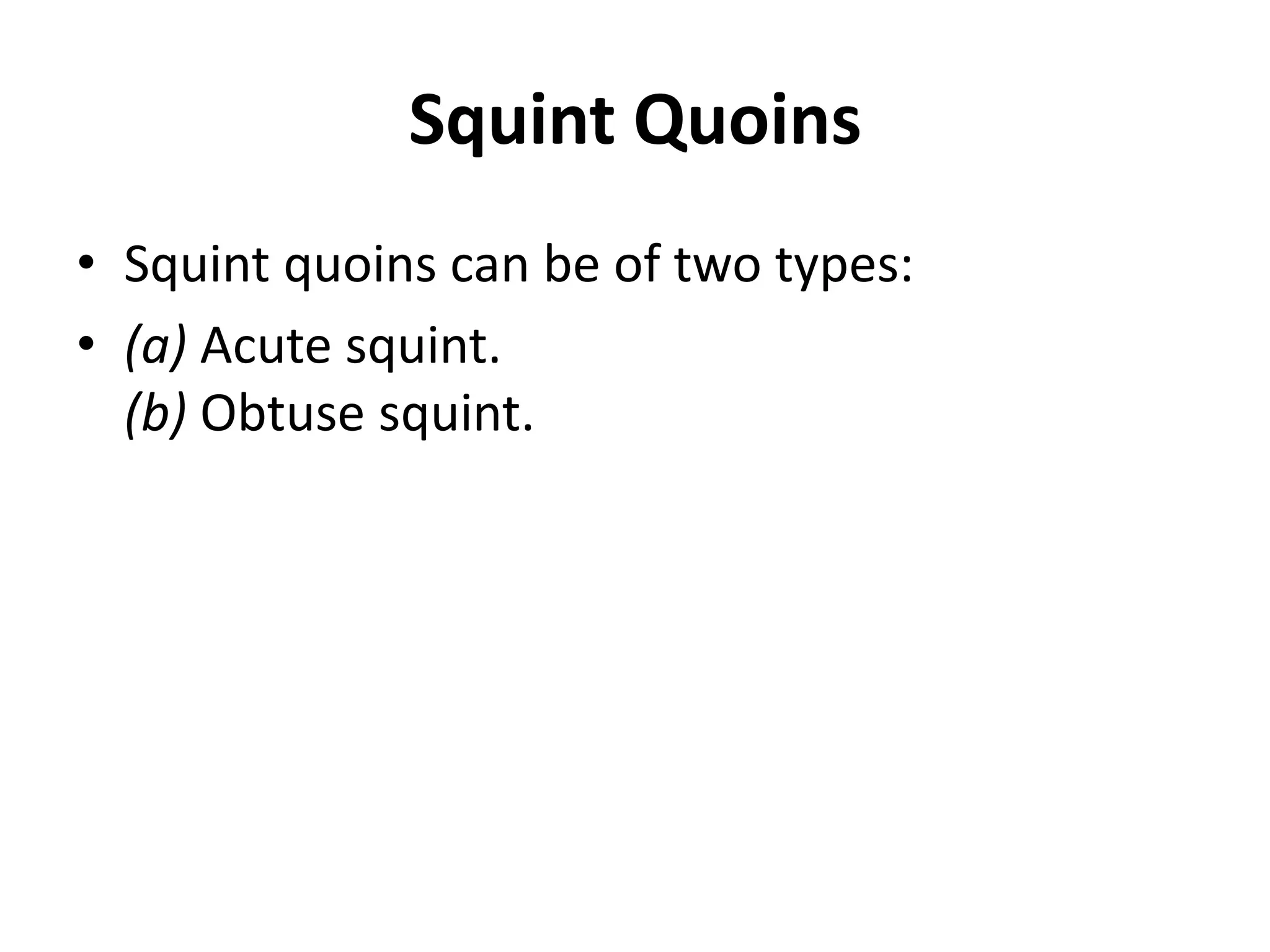

85. Squint Quoins
• Squint quoins can be of two types:
• (a) Acute squint.
(b) Obtuse squint.

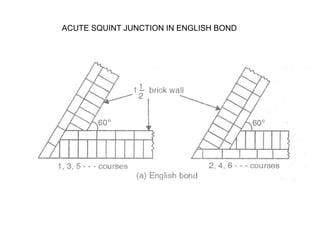

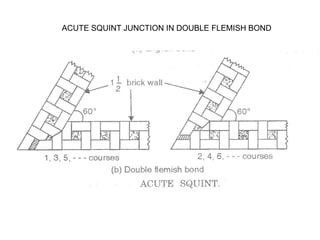

86. Acute squint
• (a) Acute squint:
• This is formed when the enclosed angle on the
inside of the two walls is less than 90° .
Generally, the acute angle is kept
equal to 60° .

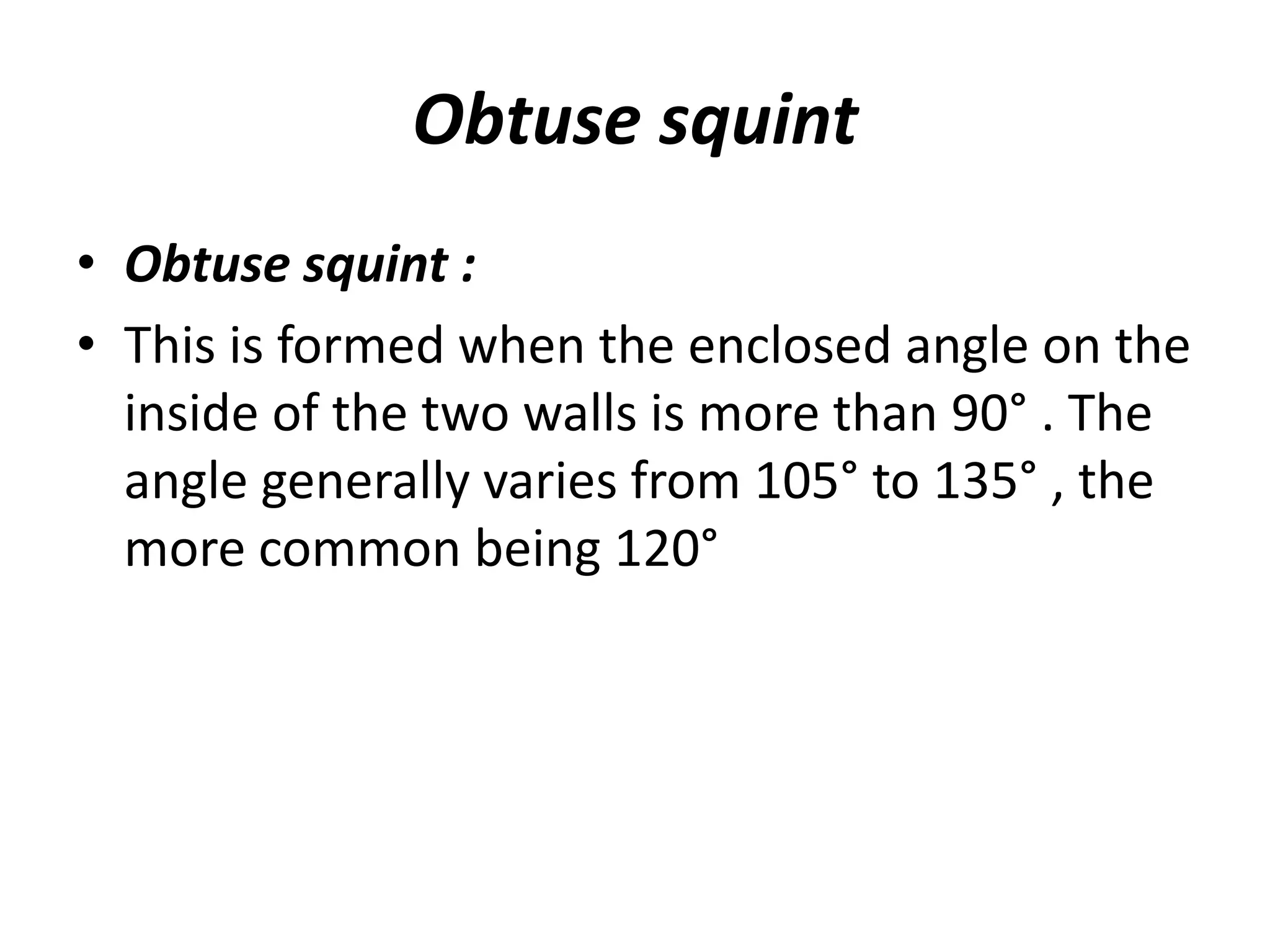

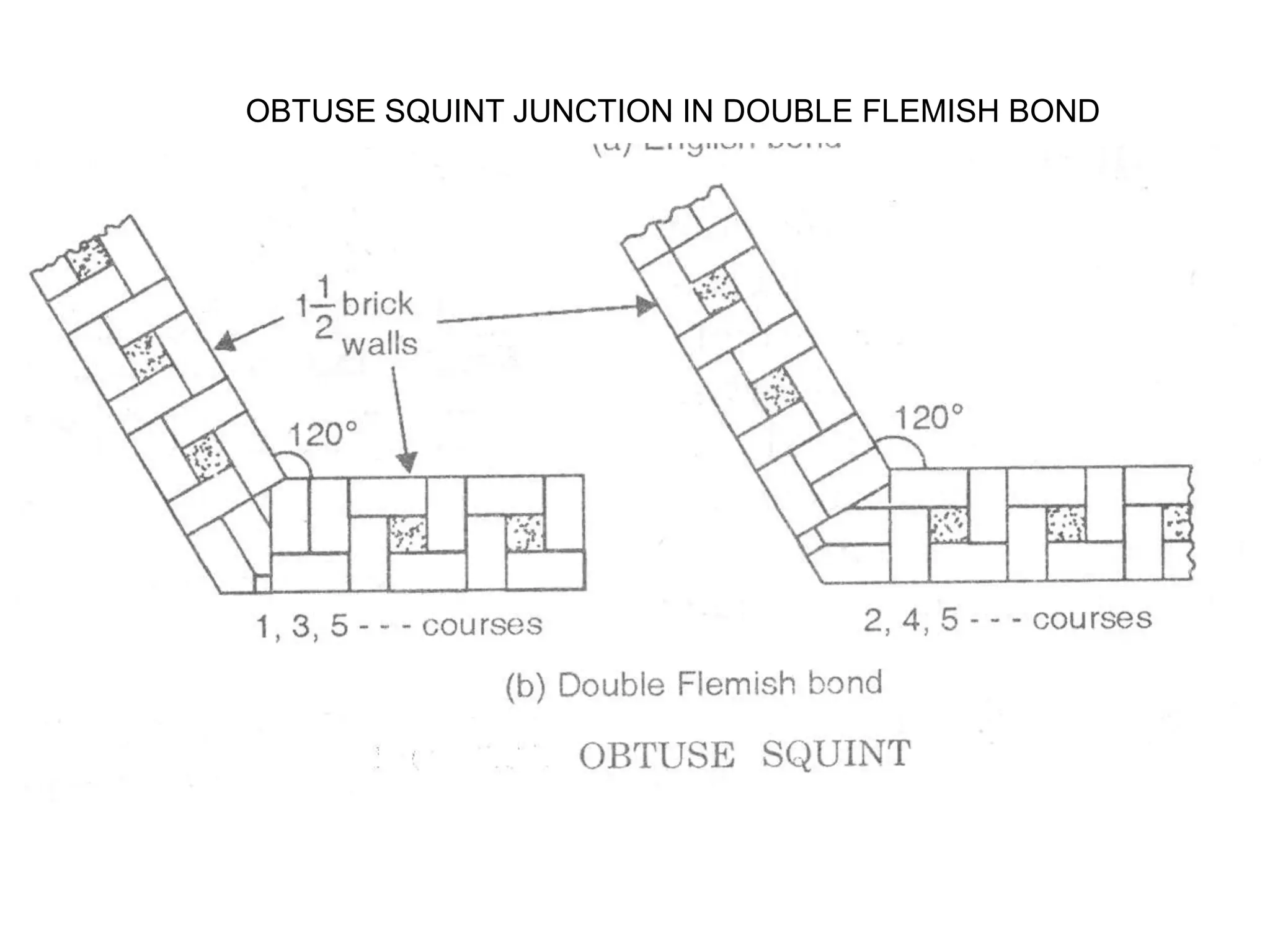

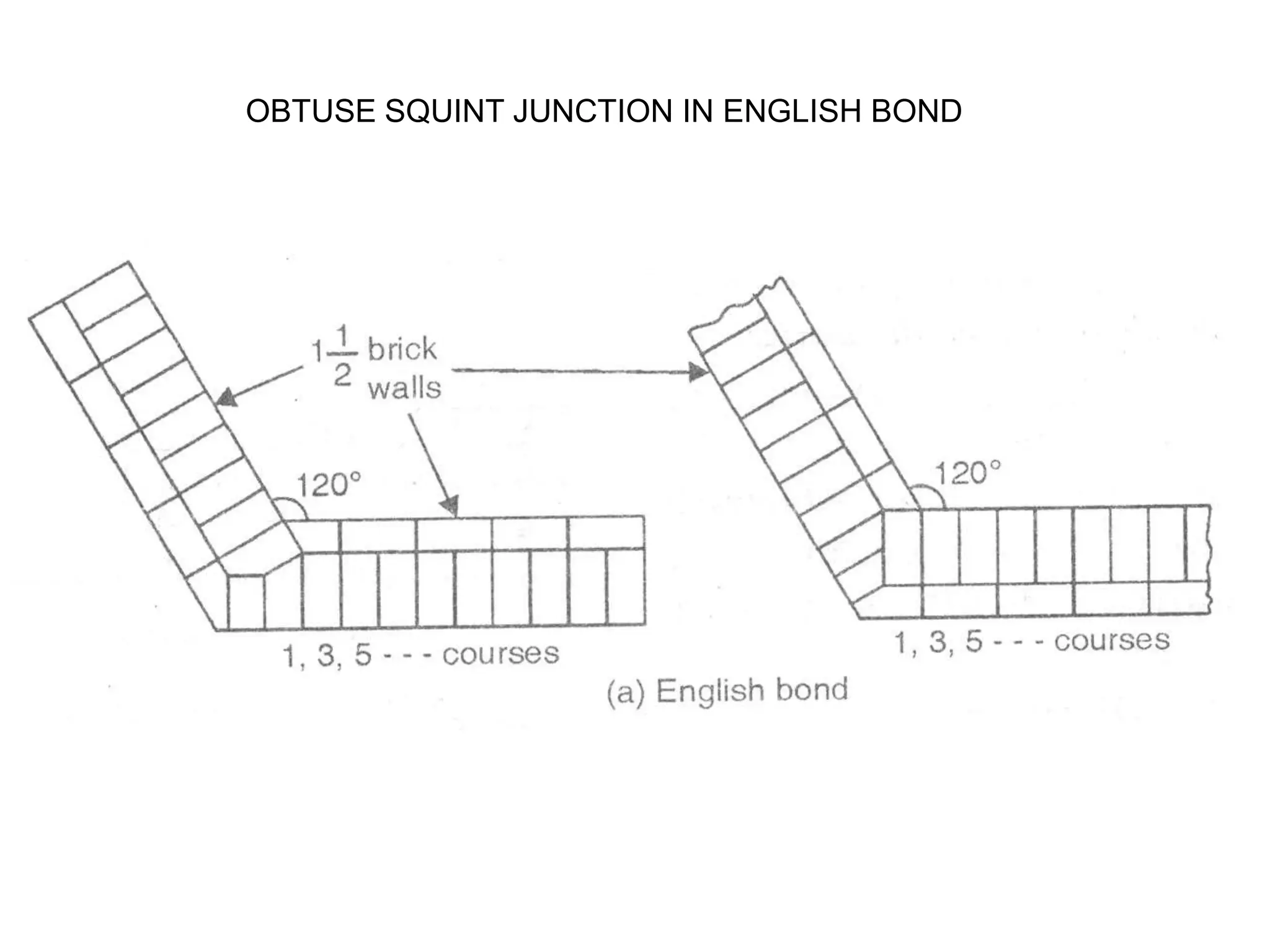

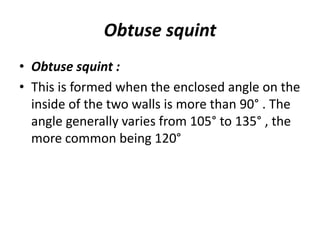

89. Obtuse squint
• Obtuse squint :
• This is formed when the enclosed angle on the
inside of the two walls is more than 90° . The
angle generally varies from 105° to 135° , the
more common being 120°

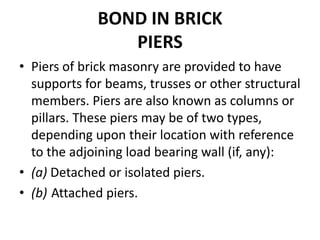

92. BOND IN BRICK
PIERS
• Piers of brick masonry are provided to have
supports for beams, trusses or other structural
members. Piers are also known as columns or
pillars. These piers may be of two types,
depending upon their location with reference
to the adjoining load bearing wall (if, any):
• (a) Detached or isolated piers.
• (b) Attached piers.

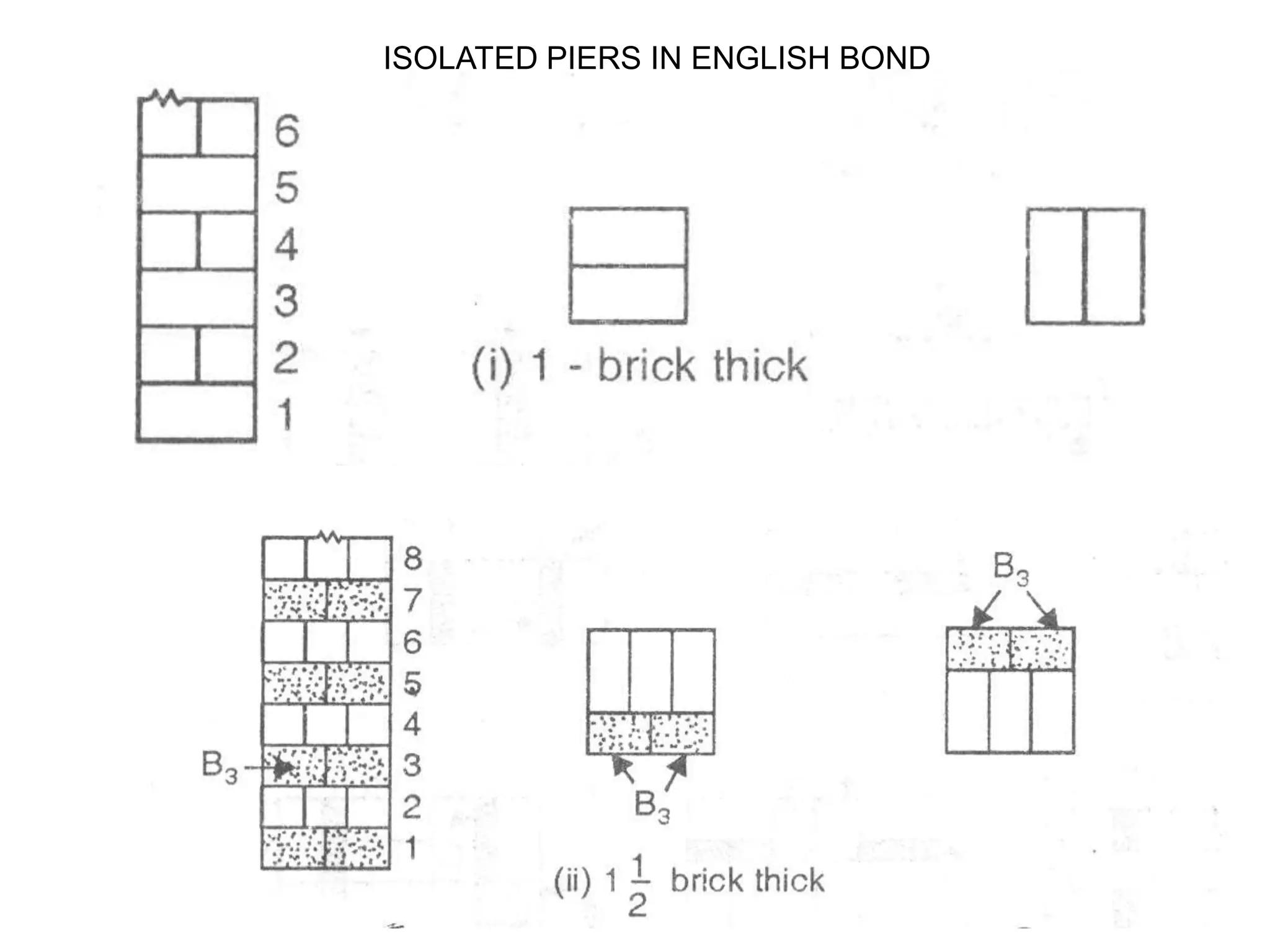

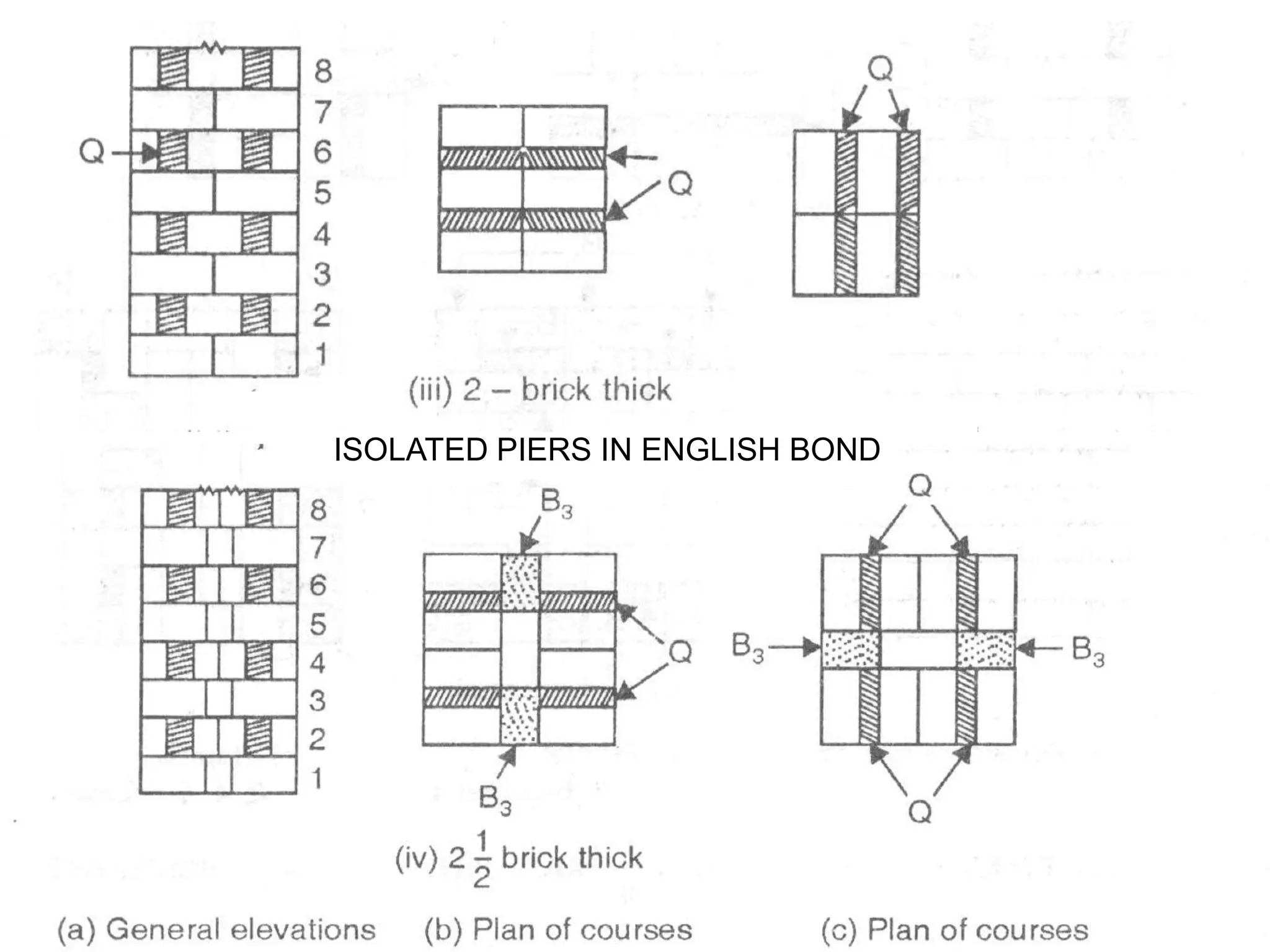

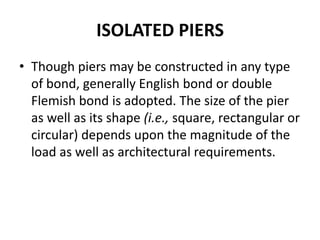

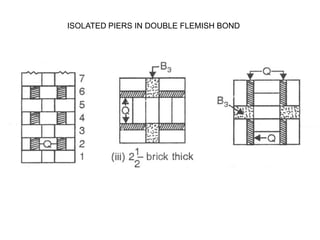

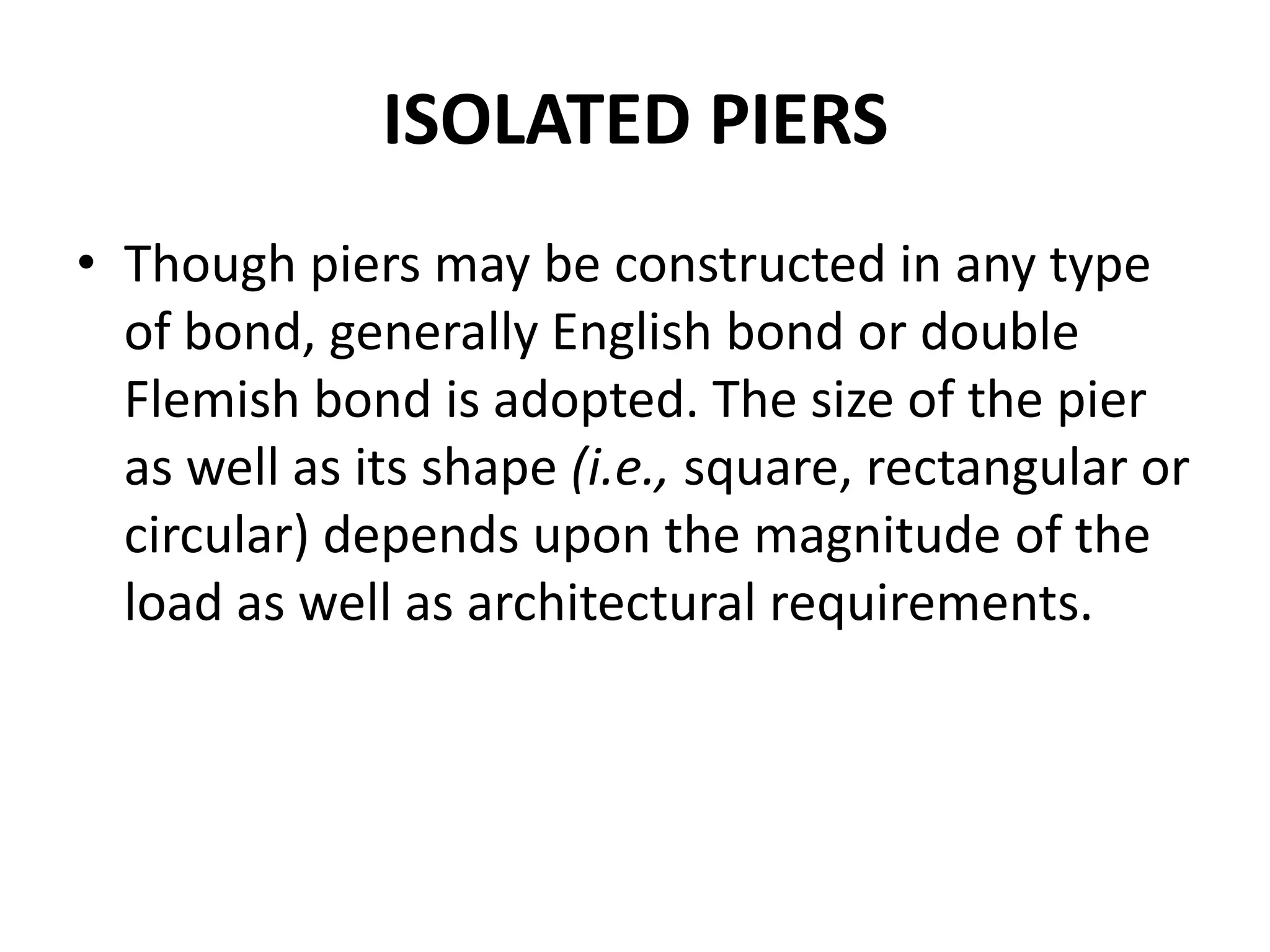

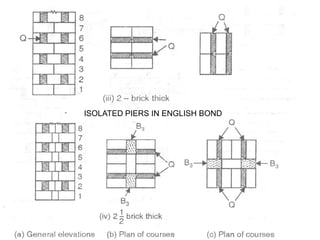

93. ISOLATED PIERS
• Though piers may be constructed in any type
of bond, generally English bond or double
Flemish bond is adopted. The size of the pier
as well as its shape (i.e., square, rectangular or
circular) depends upon the magnitude of the
load as well as architectural requirements.

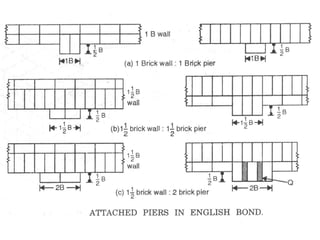

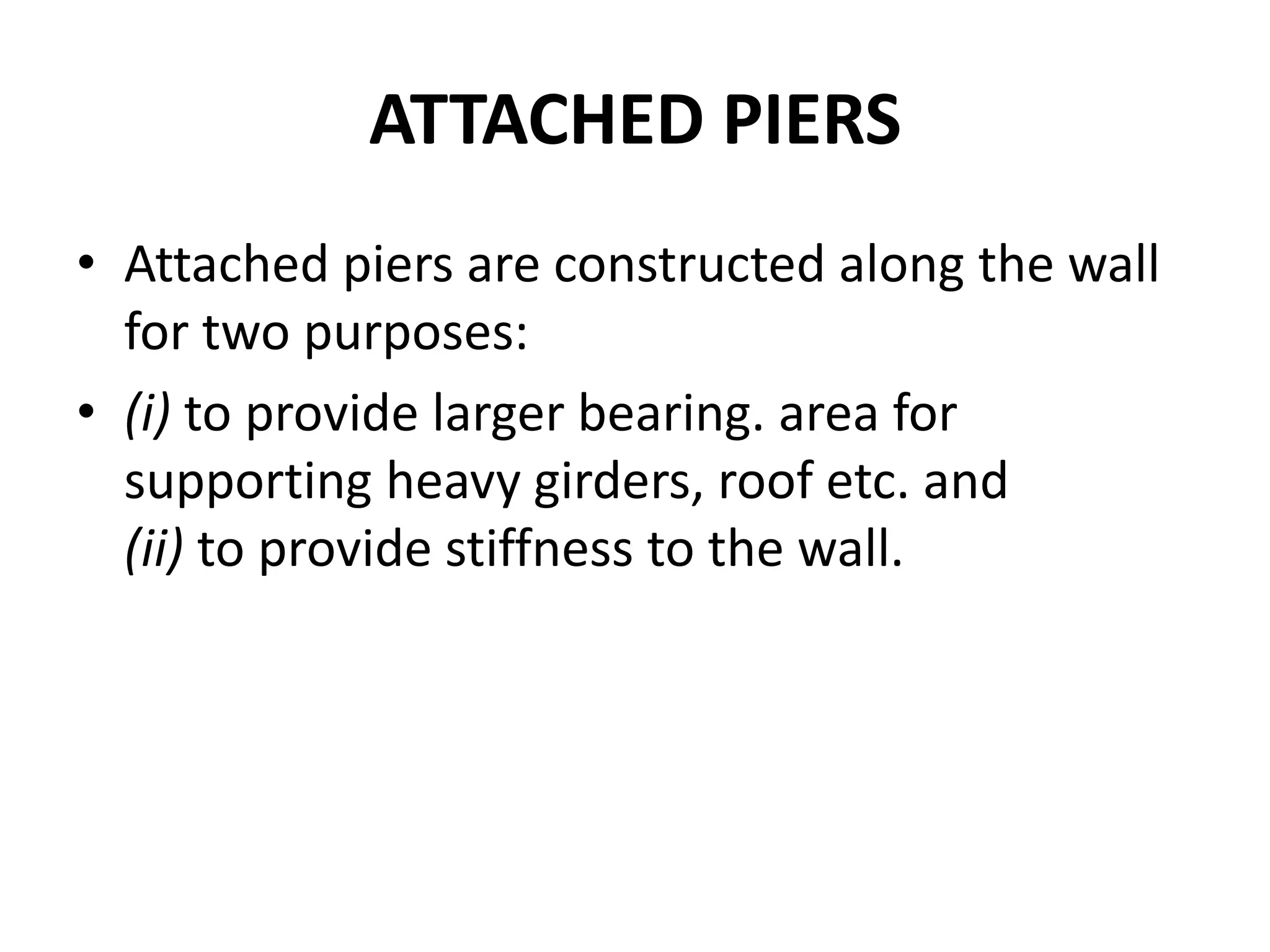

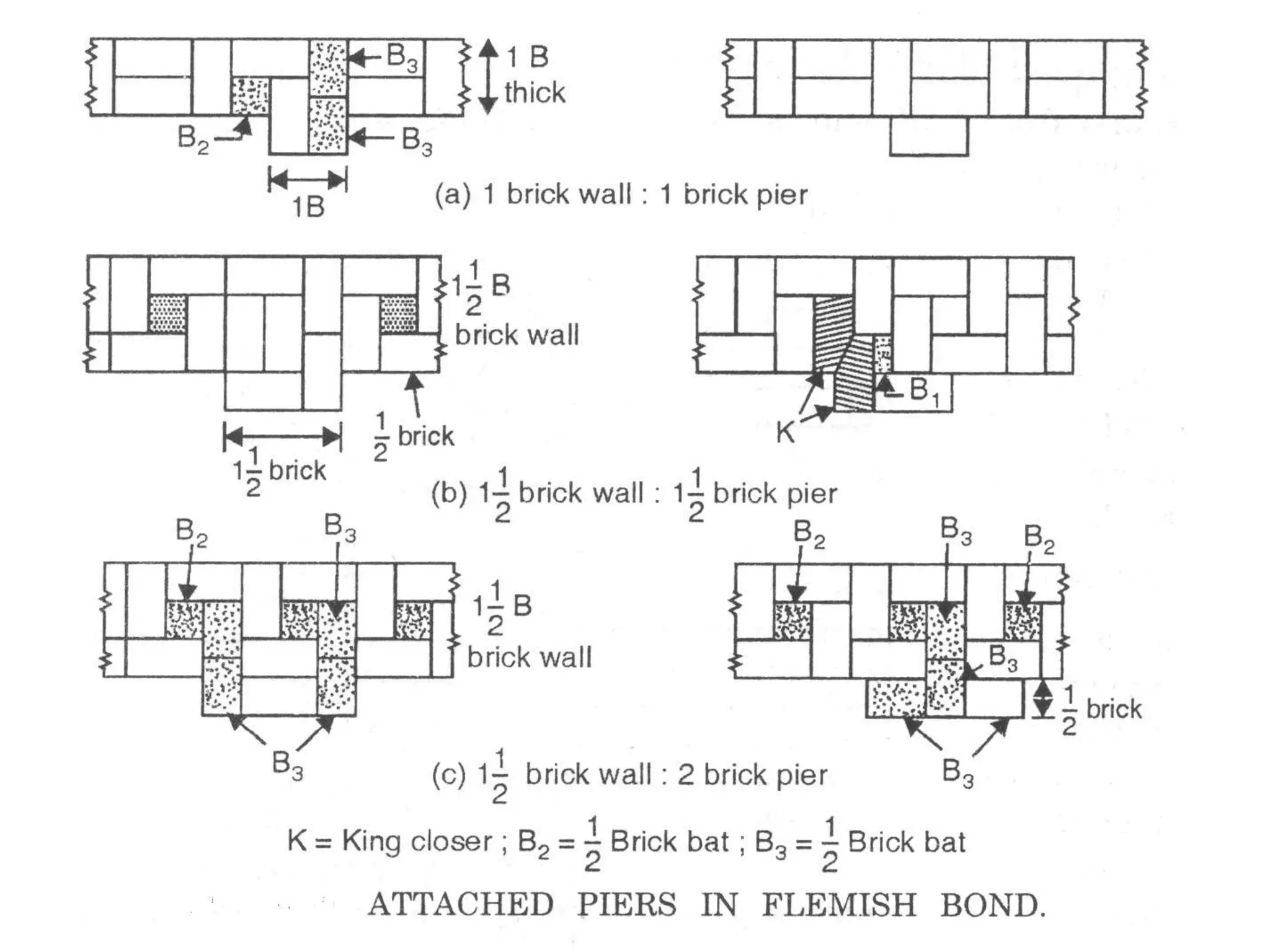

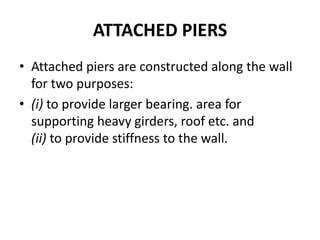

99. ATTACHED PIERS
• Attached piers are constructed along the wall
for two purposes:
• (i) to provide larger bearing. area for
supporting heavy girders, roof etc. and
(ii) to provide stiffness to the wall.
100.
101.
102.

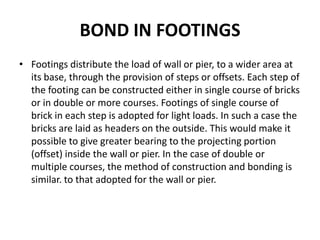

103. BOND IN FOOTINGS
• Footings distribute the load of wall or pier, to a wider area at
its base, through the provision of steps or offsets. Each step of
the footing can be constructed either in single course of bricks
or in double or more courses. Footings of single course of
brick in each step is adopted for light loads. In such a case the
bricks are laid as headers on the outside. This would make it
possible to give greater bearing to the projecting portion
(offset) inside the wall or pier. In the case of double or
multiple courses, the method of construction and bonding is
similar. to that adopted for the wall or pier.

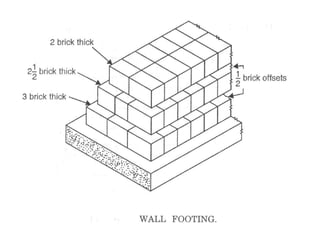

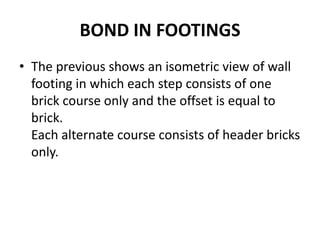

104. BOND IN FOOTINGS
• The previous shows an isometric view of wall
footing in which each step consists of one
brick course only and the offset is equal to
brick.
Each alternate course consists of header bricks
only.
