Breaking the-database-type-barrier-replicating-across-different-dbms
- 1. Linas Virbalas Continuent, Inc. © Continuent 2010

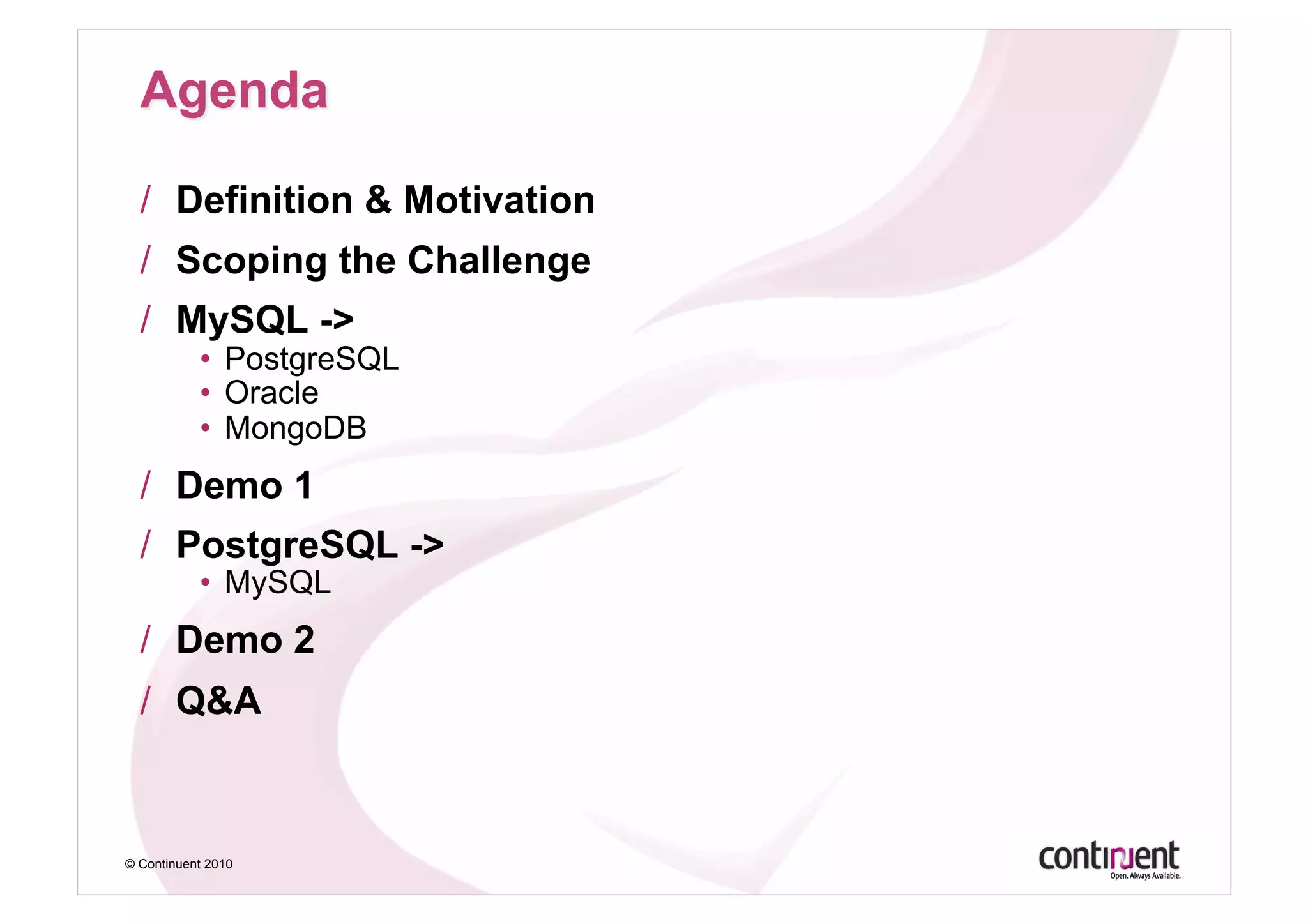

- 2. / Definition &Motivation / Scoping the Challenge / MySQL -> • PostgreSQL • Oracle • MongoDB / Demo 1 / PostgreSQL -> • MySQL / Demo 2 / Q&A © Continuent 2010
- 3.

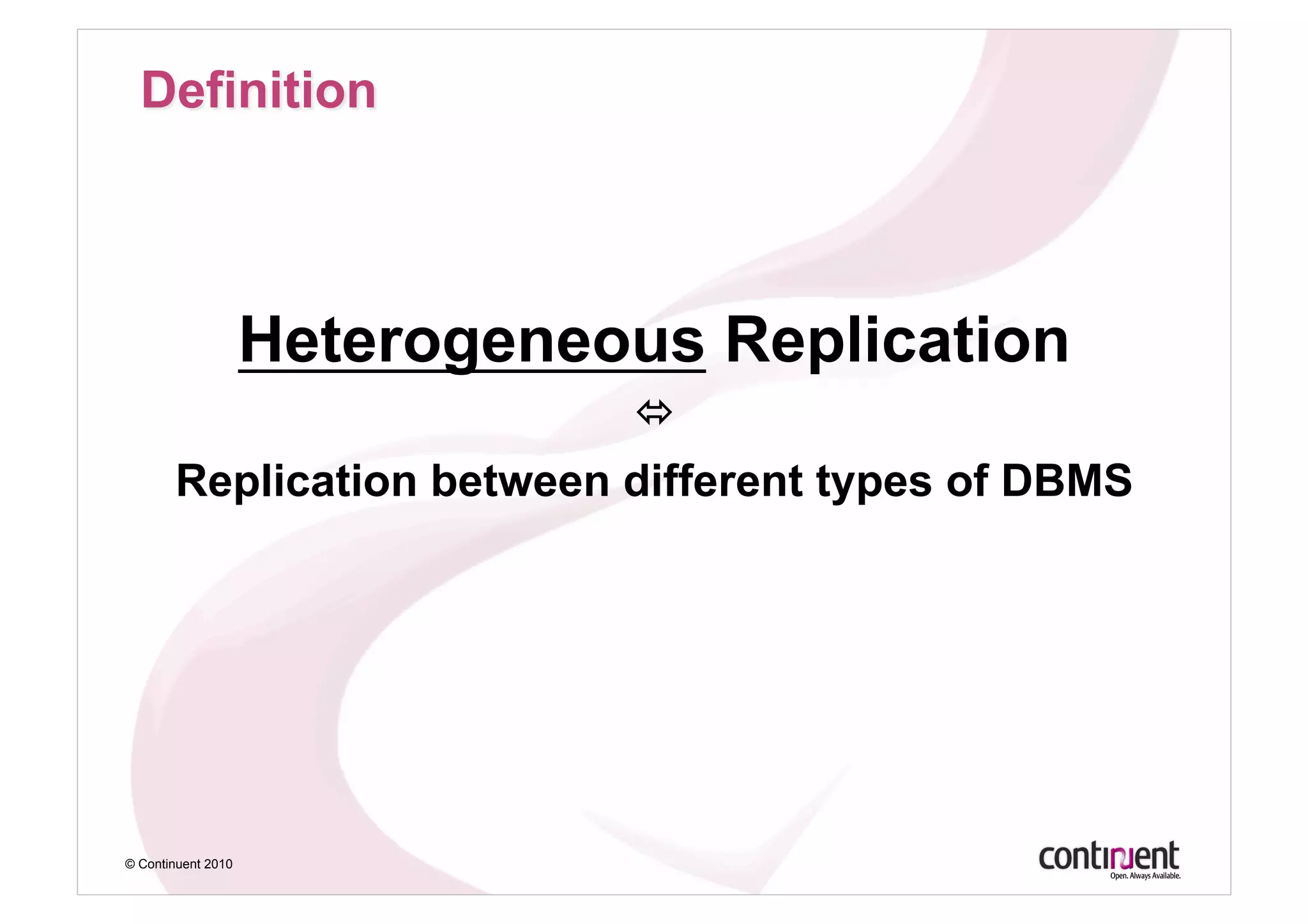

- 4. Heterogeneous Replication Replication between different types of DBMS © Continuent 2010

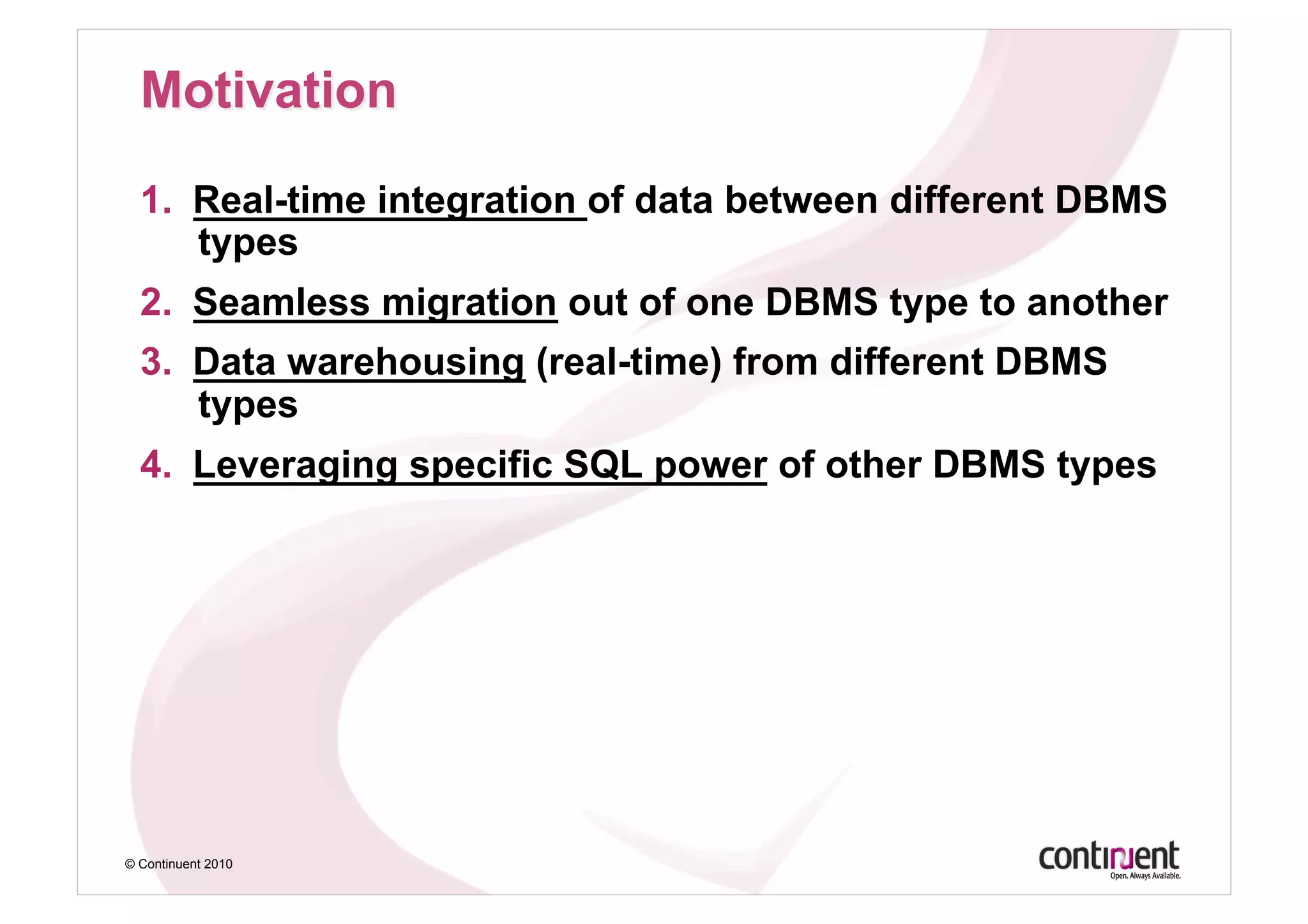

- 5. 1. Real-time integrationof data between different DBMS types 2. Seamless migration out of one DBMS type to another 3. Data warehousing (real-time) from different DBMS types 4. Leveraging specific SQL power of other DBMS types © Continuent 2010

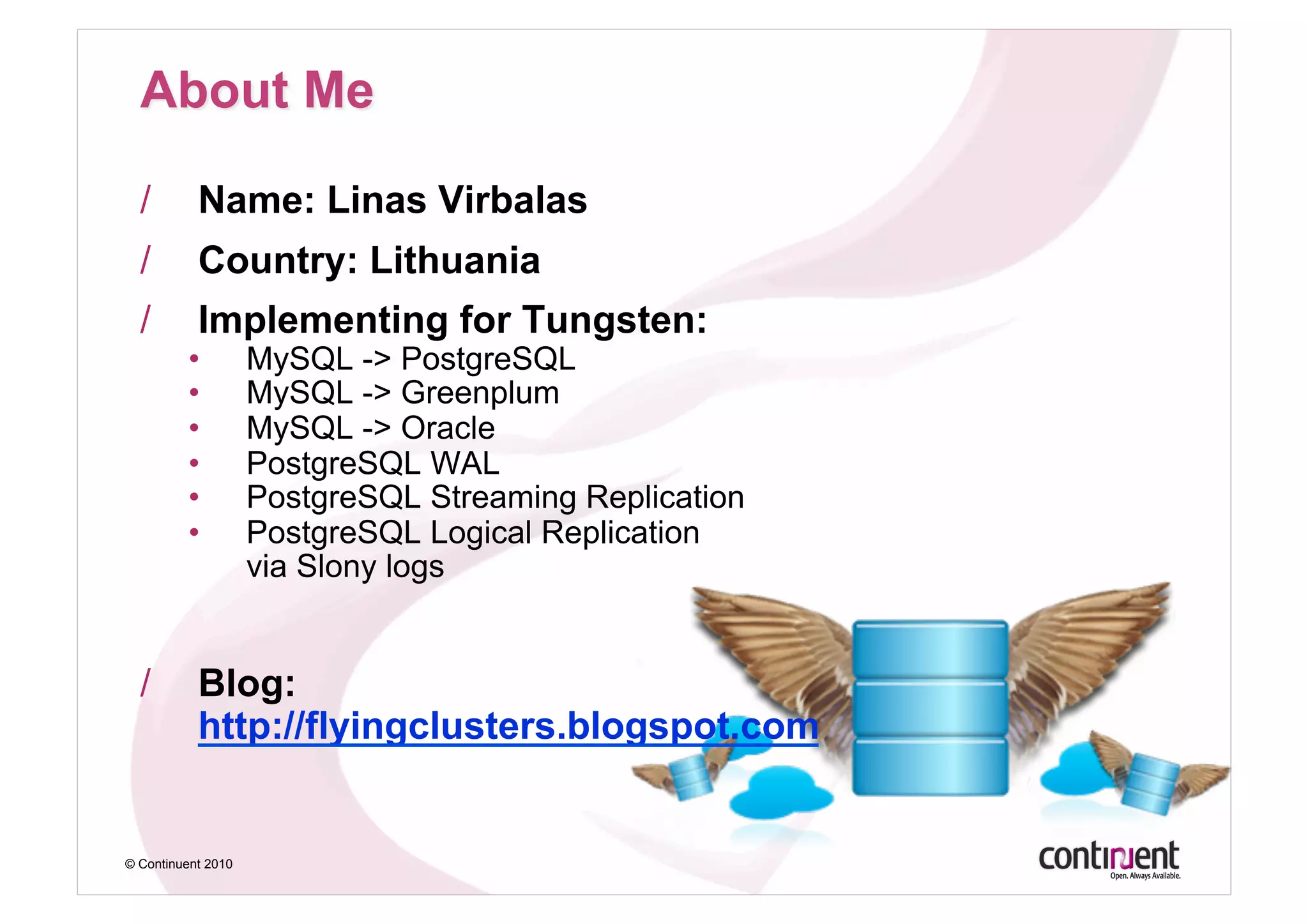

- 6. / Name: Linas Virbalas / Country: Lithuania / Implementing for Tungsten: • MySQL -> PostgreSQL • MySQL -> Greenplum • MySQL -> Oracle • PostgreSQL WAL • PostgreSQL Streaming Replication • PostgreSQL Logical Replication via Slony logs / Blog: http://flyingclusters.blogspot.com © Continuent 2010
- 7.

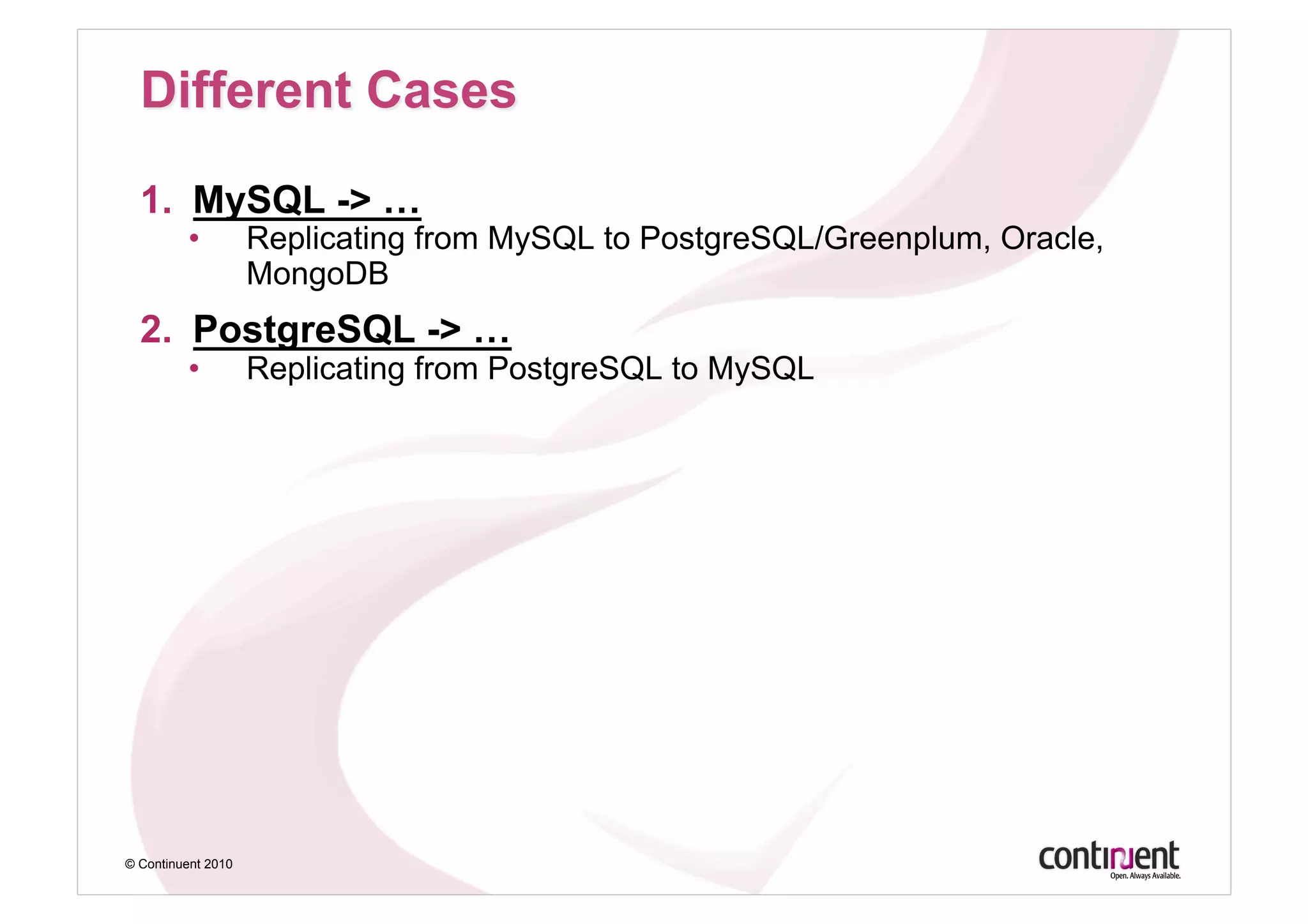

- 8. 1. MySQL ->… • Replicating from MySQL to PostgreSQL/Greenplum, Oracle, MongoDB 2. PostgreSQL -> … • Replicating from PostgreSQL to MySQL © Continuent 2010

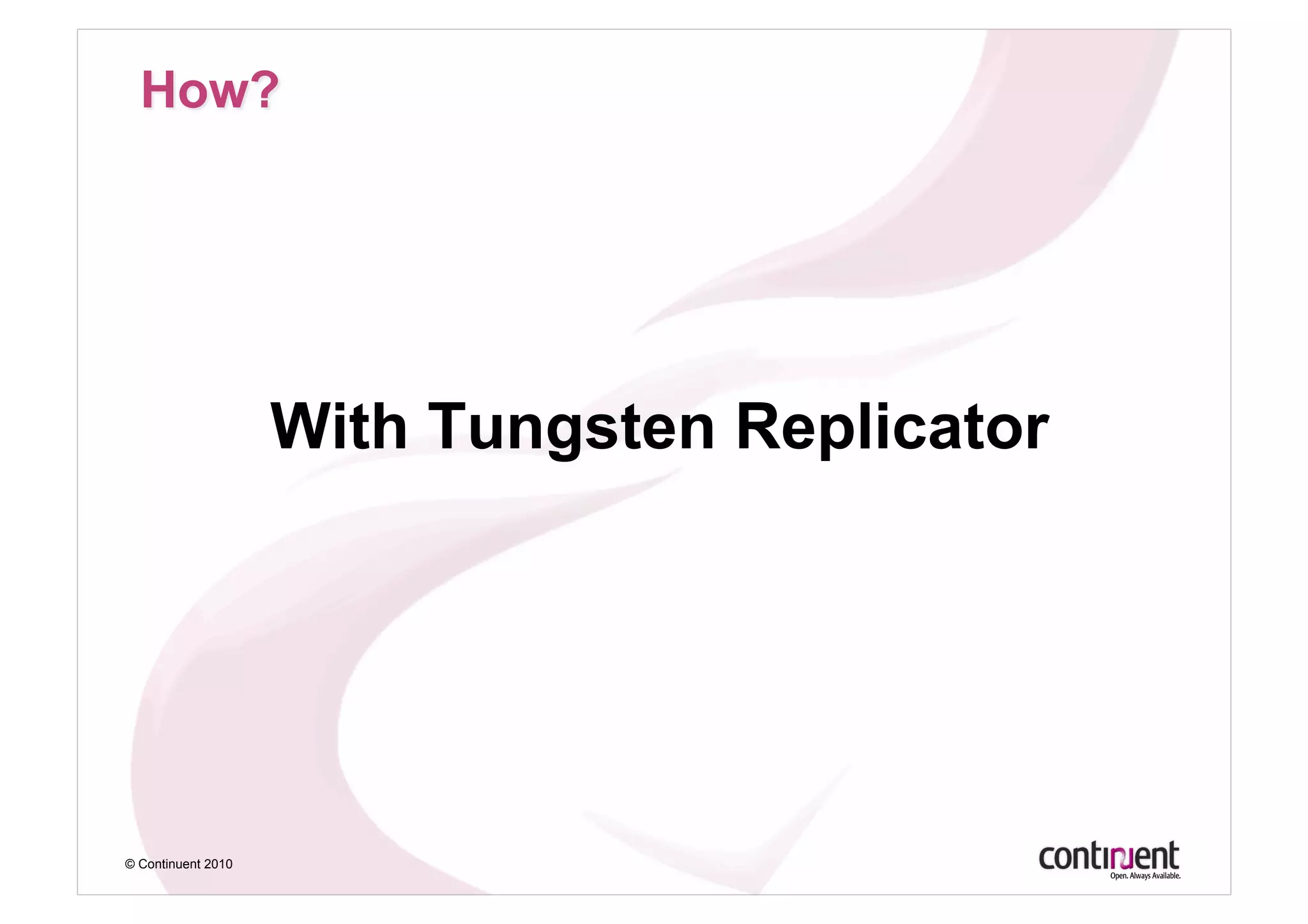

- 9. With Tungsten Replicator ©Continuent 2010

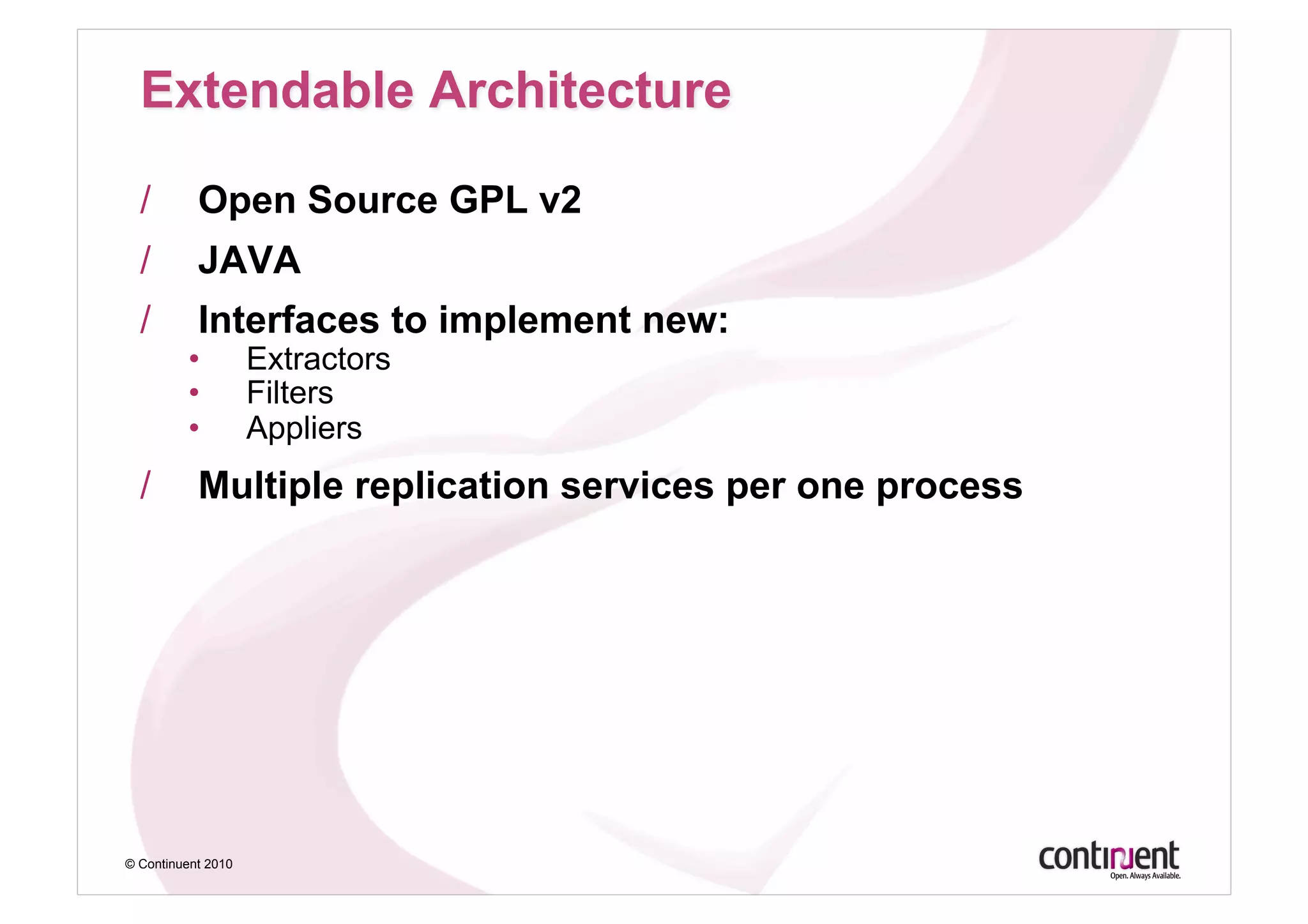

- 10. / Open Source GPL v2 / JAVA / Interfaces to implement new: • Extractors • Filters • Appliers / Multiple replication services per one process © Continuent 2010

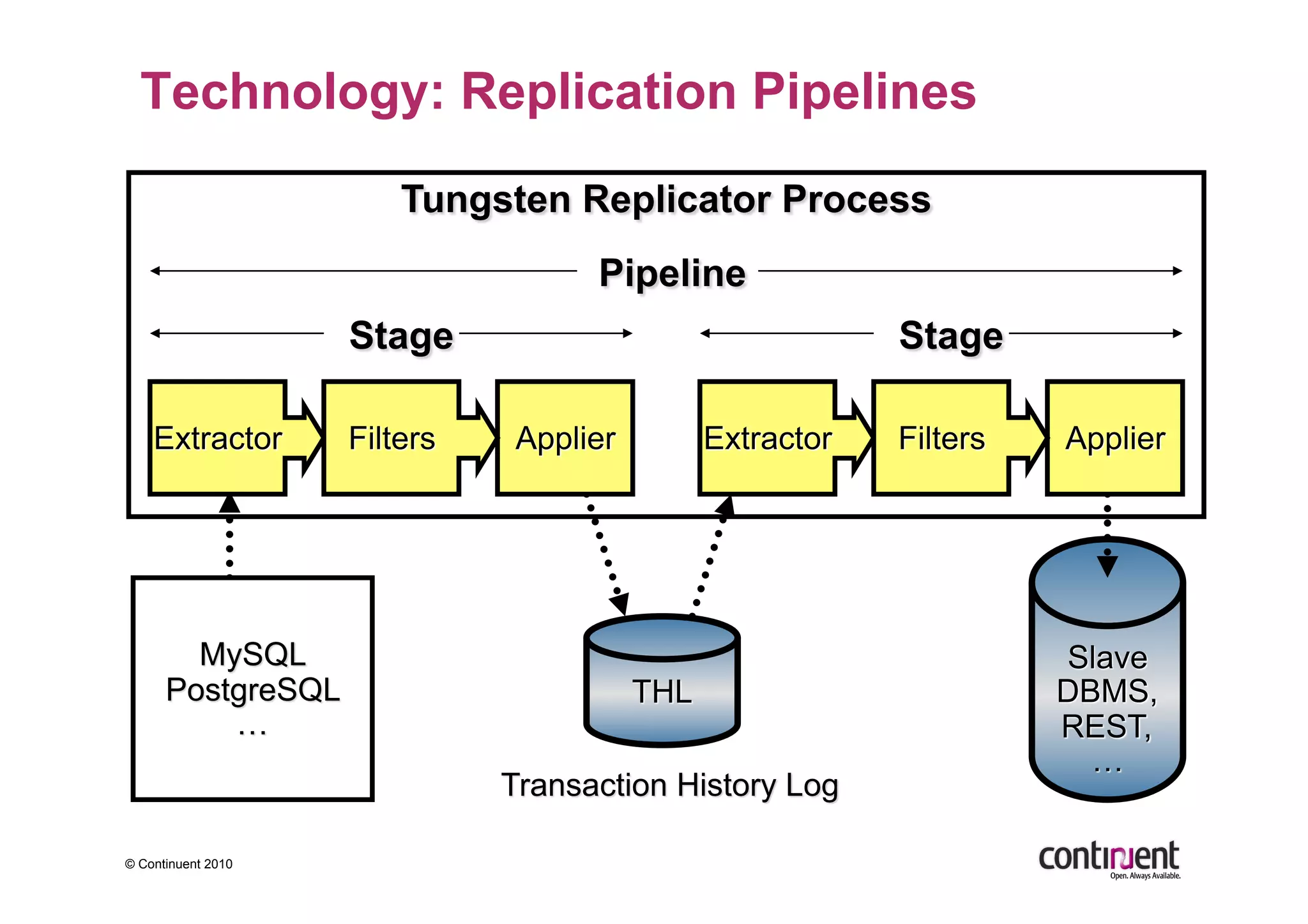

- 11. Technology: Replication Pipelines ©Continuent 2010
- 12.

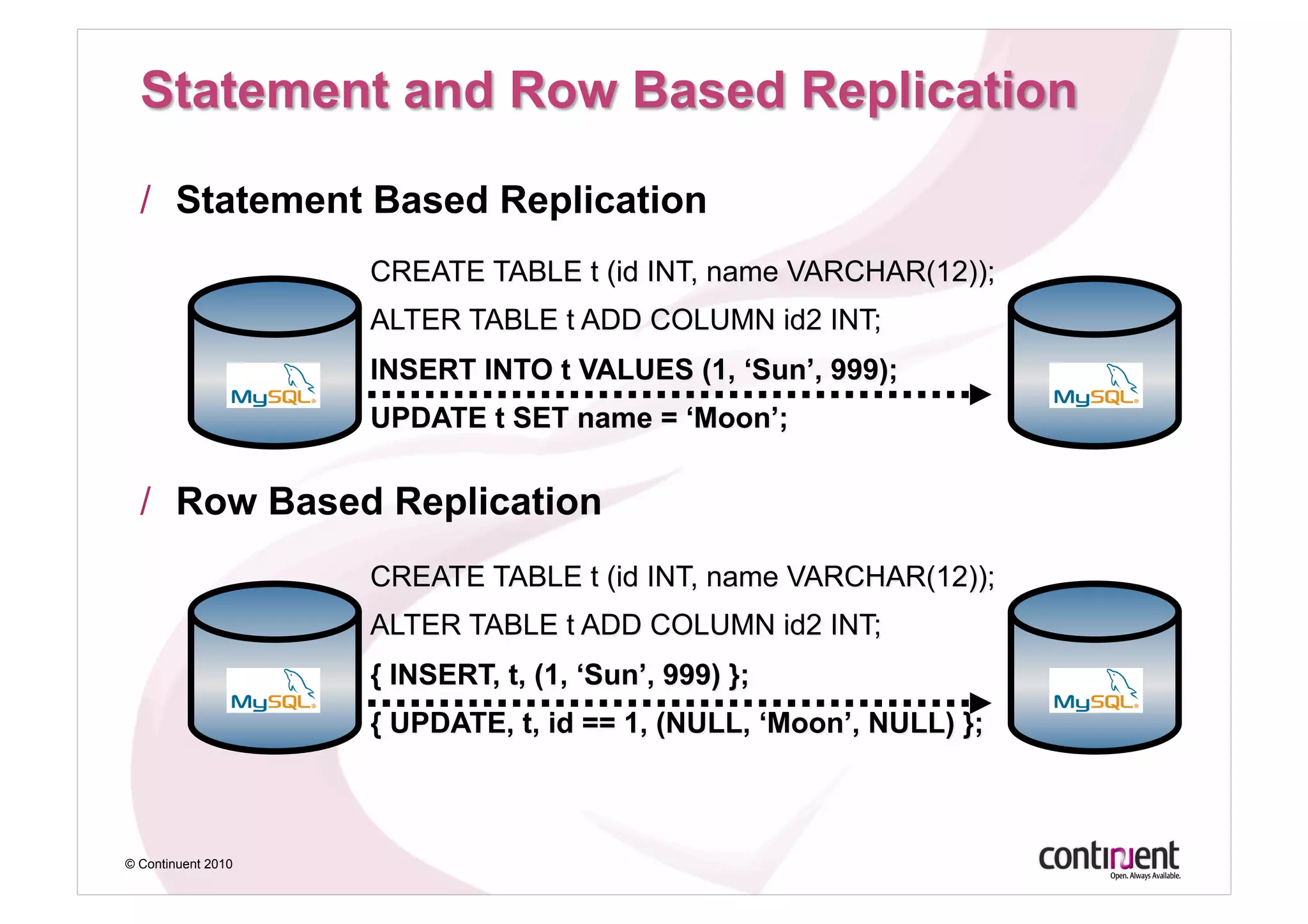

- 13. / Statement BasedReplication / Row Based Replication © Continuent 2010
- 14.

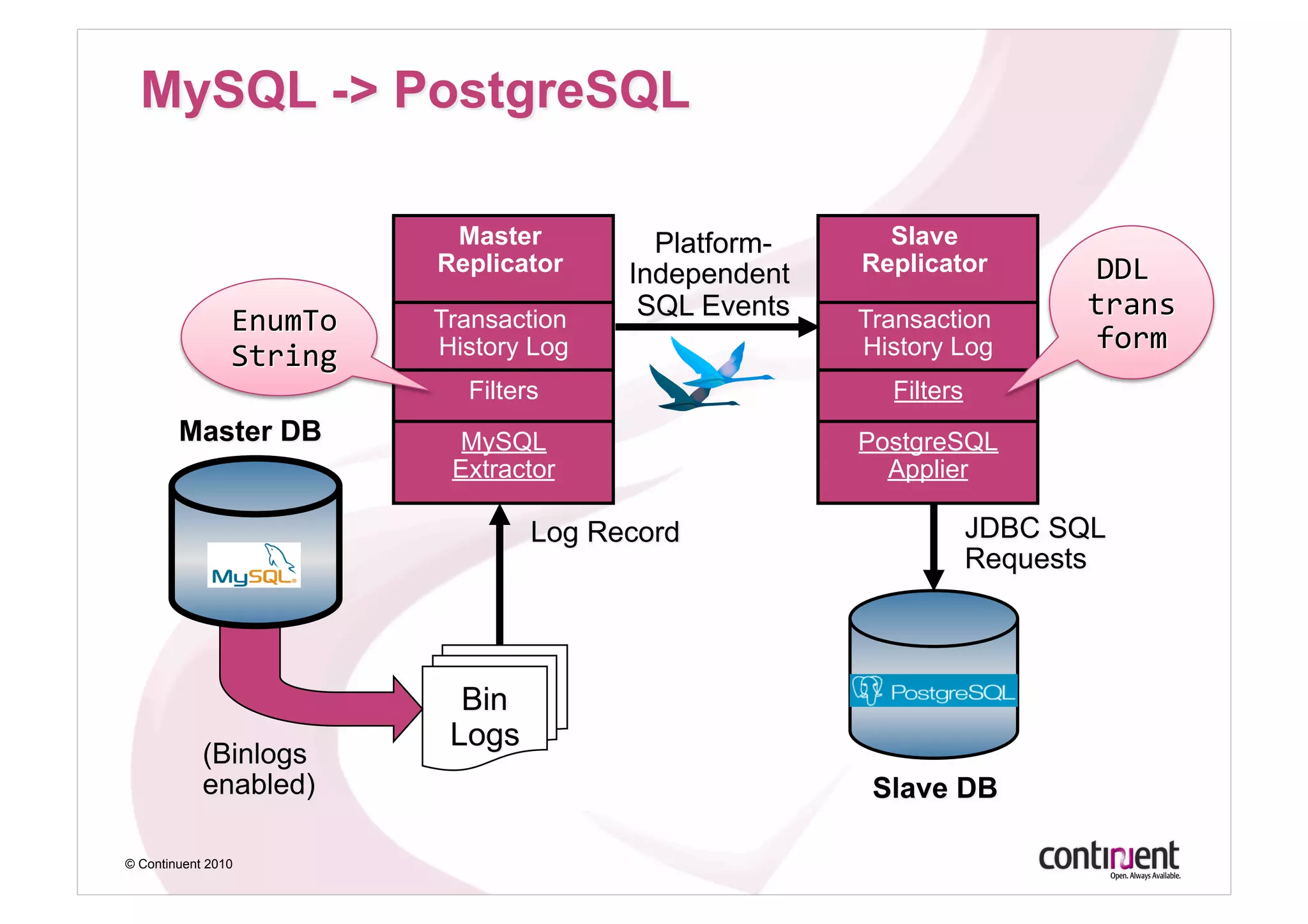

- 15. Master Slave Replicator Replicator Transaction Transaction History Log History Log Filters Filters MySQL PostgreSQL Extractor Applier © Continuent 2010

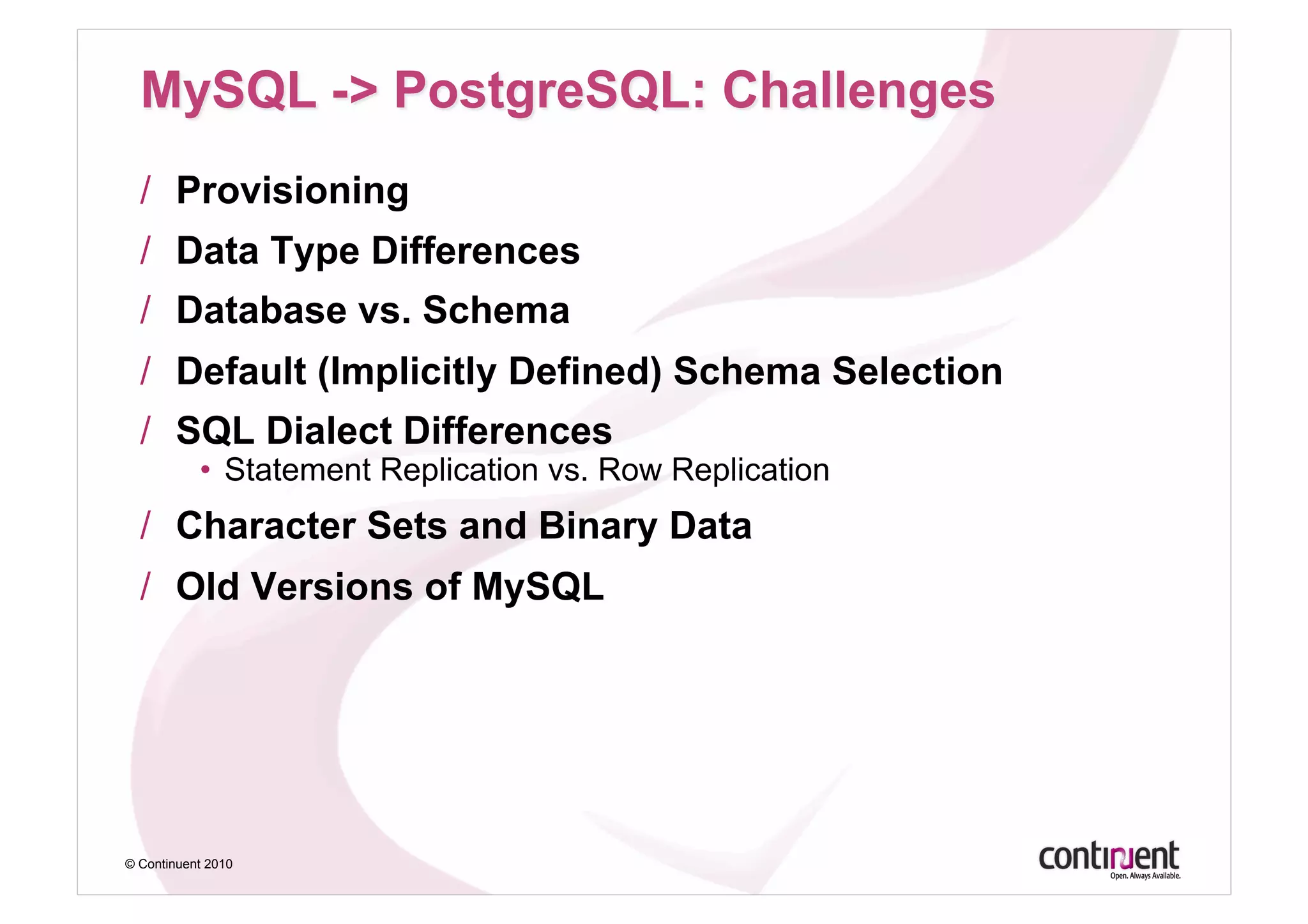

- 16. / Provisioning / Data Type Differences / Database vs. Schema / Default (Implicitly Defined) Schema Selection / SQL Dialect Differences • Statement Replication vs. Row Replication / Character Sets and Binary Data / Old Versions of MySQL © Continuent 2010

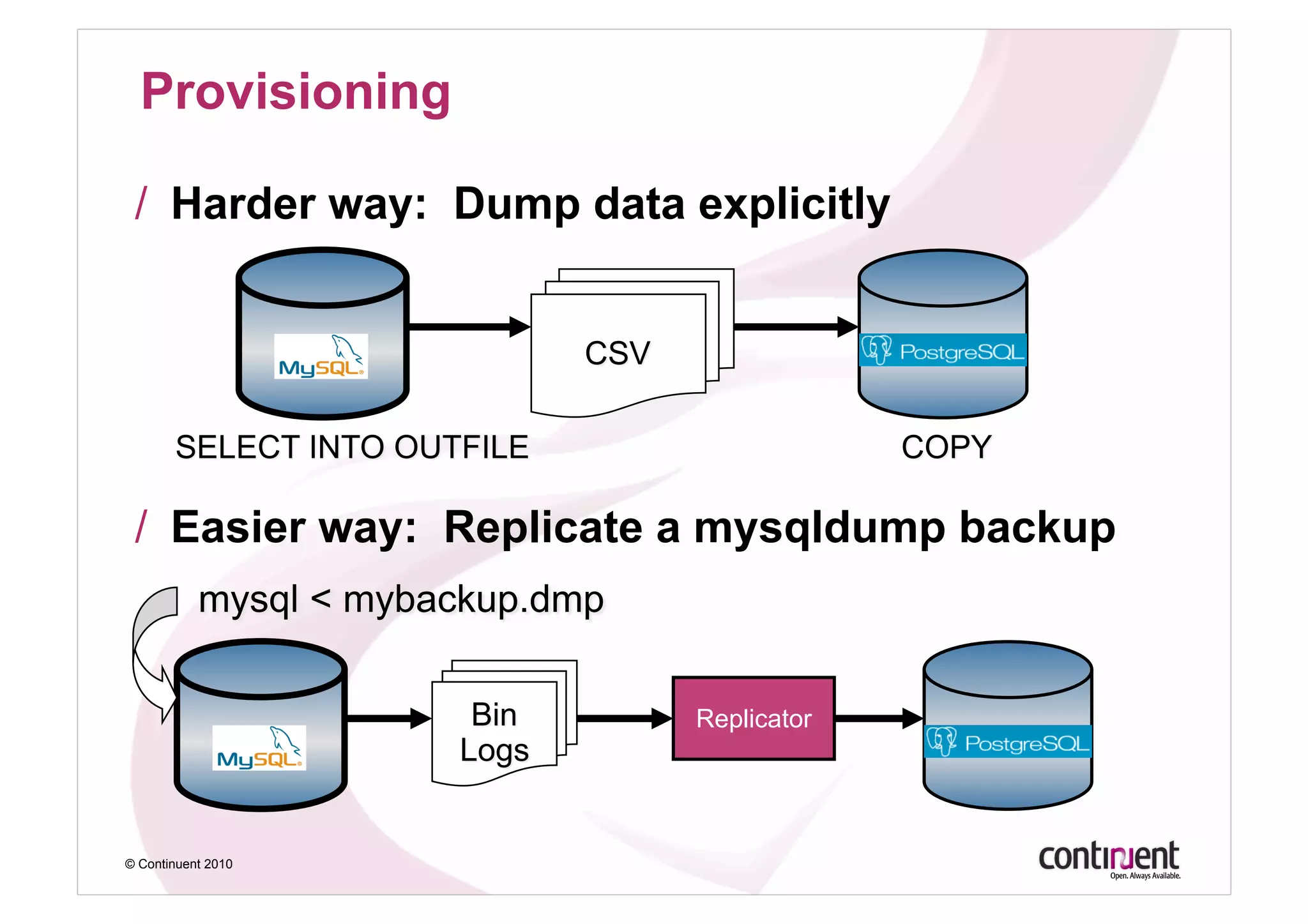

- 17. Provisioning / Harderway: Dump data explicitly / Easier way: Replicate a mysqldump backup Replicator © Continuent 2010

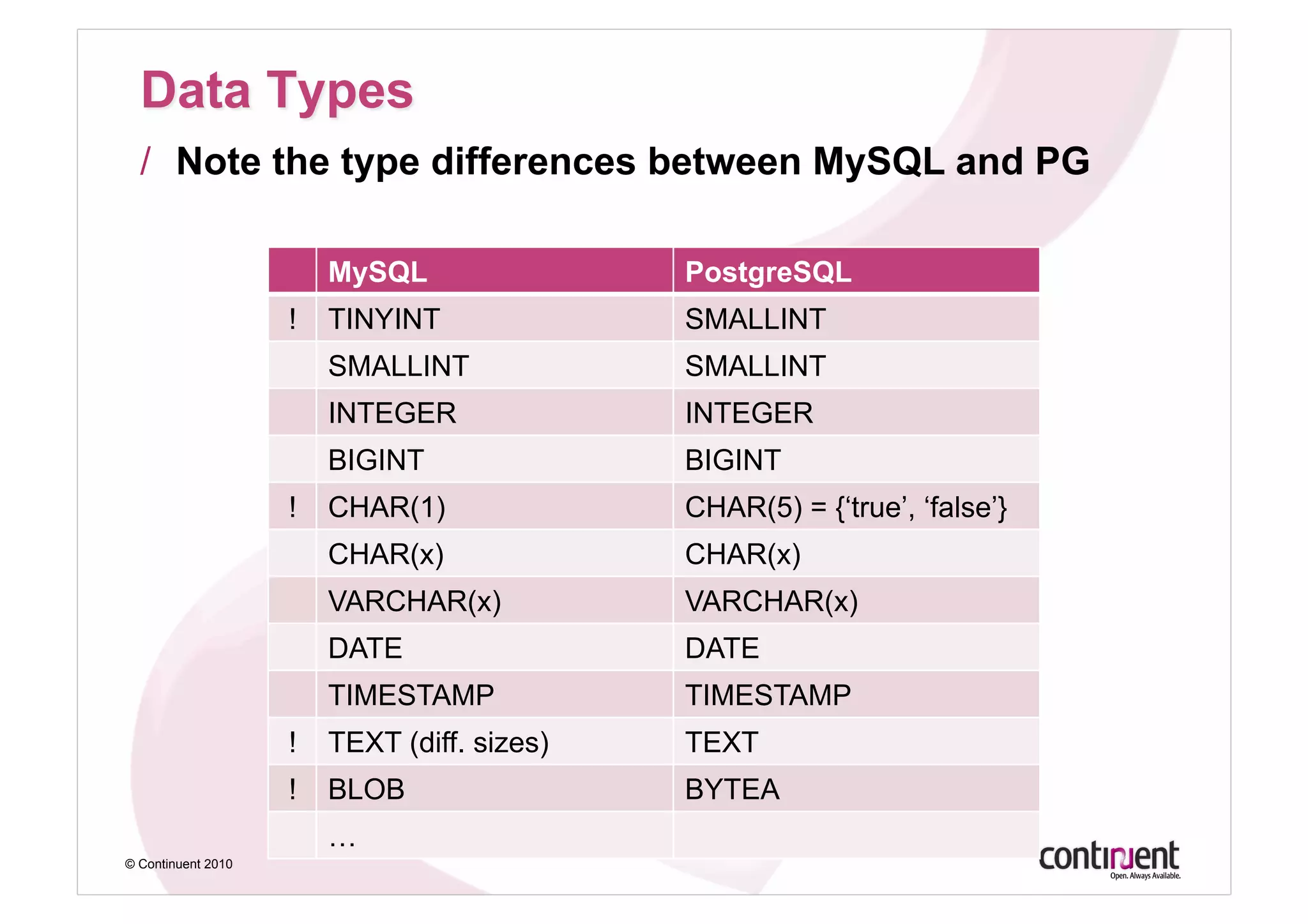

- 18. / Note thetype differences between MySQL and PG MySQL PostgreSQL ! TINYINT SMALLINT SMALLINT SMALLINT INTEGER INTEGER BIGINT BIGINT ! CHAR(1) CHAR(5) = {‘true’, ‘false’} CHAR(x) CHAR(x) VARCHAR(x) VARCHAR(x) DATE DATE TIMESTAMP TIMESTAMP ! TEXT (diff. sizes) TEXT ! BLOB BYTEA … © Continuent 2010

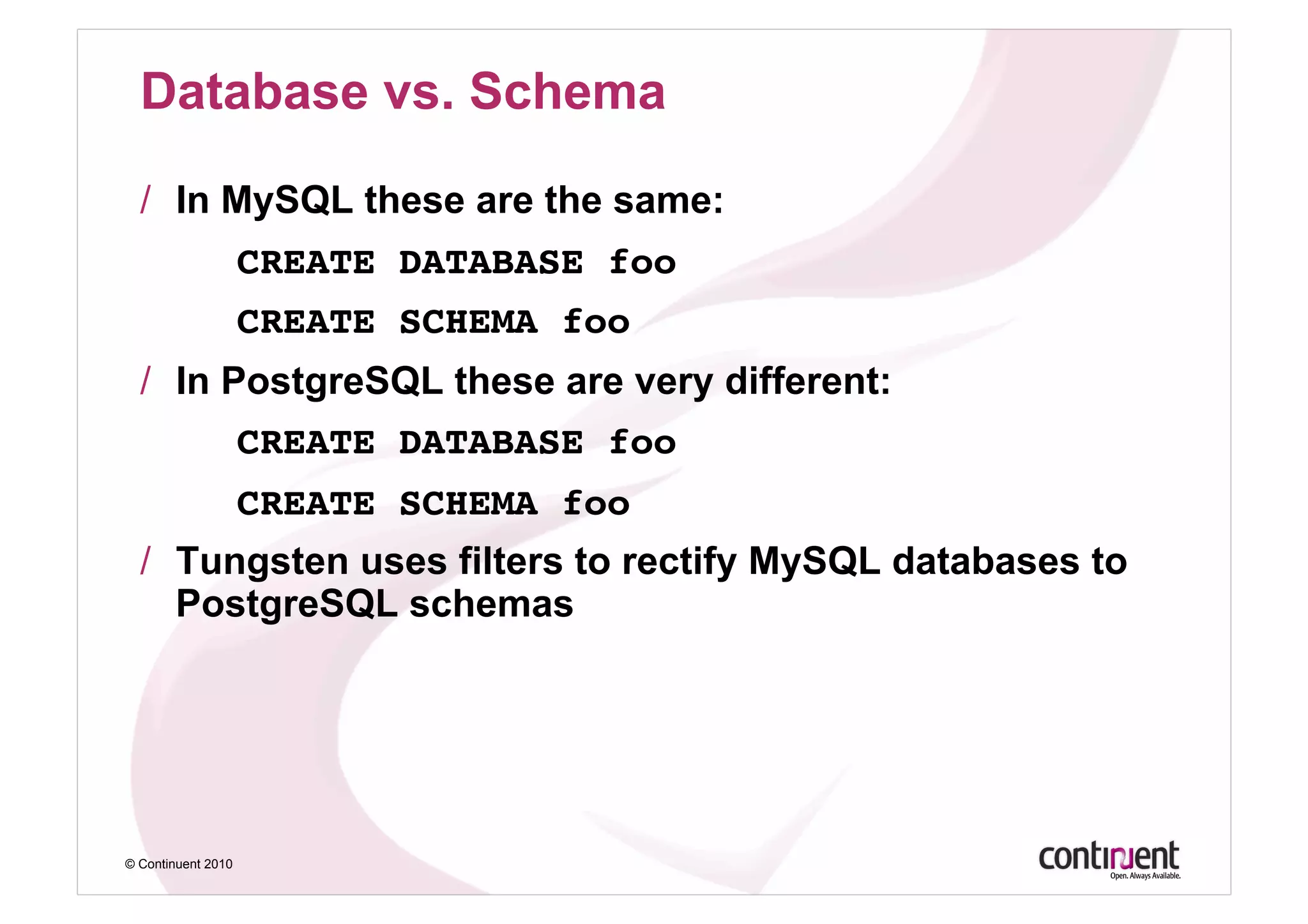

- 19. Database vs. Schema / In MySQL these are the same: ! !CREATE DATABASE foo! ! !CREATE SCHEMA foo! / In PostgreSQL these are very different: CREATE DATABASE foo! ! !CREATE SCHEMA foo! / Tungsten uses filters to rectify MySQL databases to PostgreSQL schemas © Continuent 2010

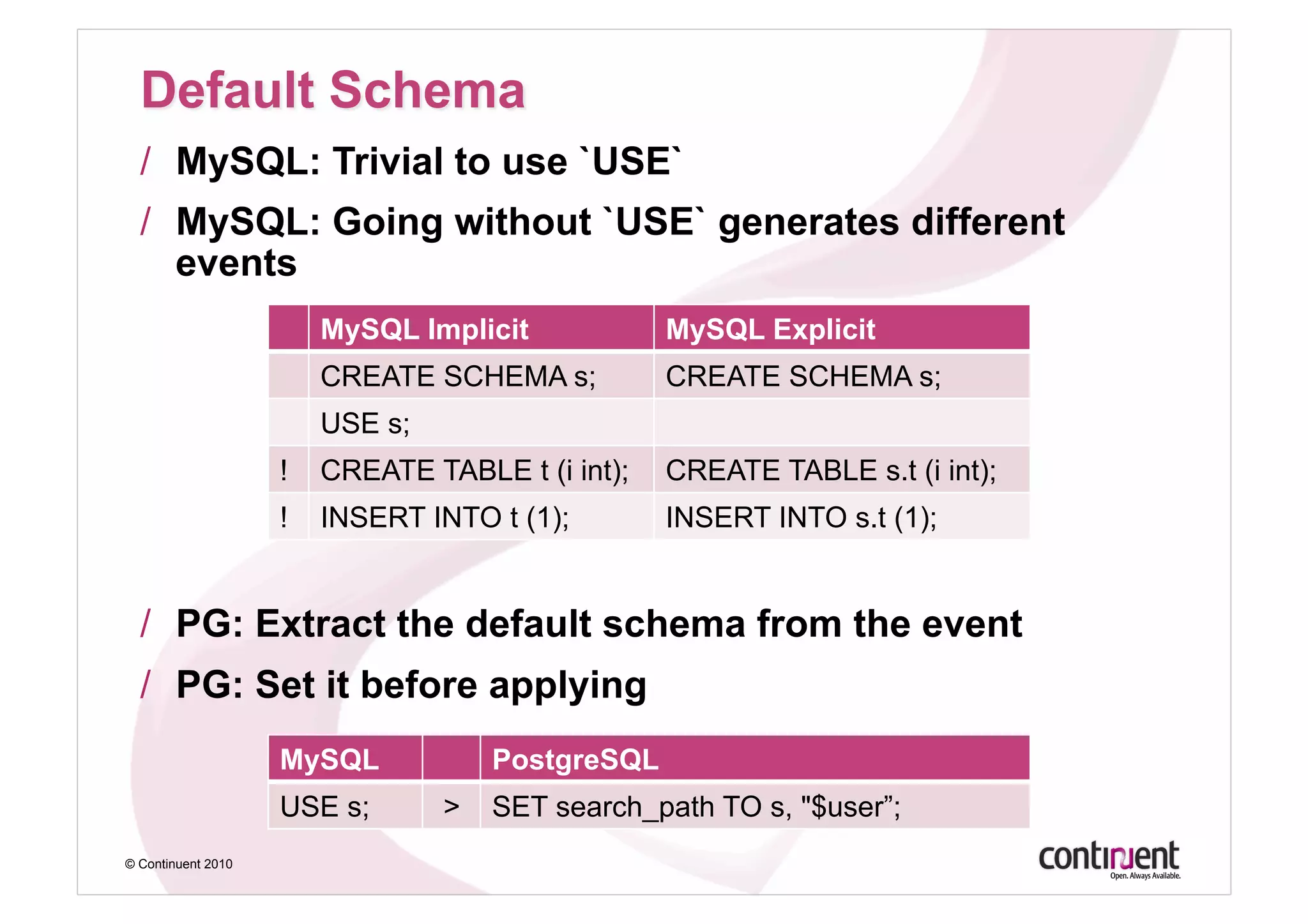

- 20. / MySQL: Trivialto use `USE` / MySQL: Going without `USE` generates different events MySQL Implicit MySQL Explicit CREATE SCHEMA s; CREATE SCHEMA s; USE s; ! CREATE TABLE t (i int); CREATE TABLE s.t (i int); ! INSERT INTO t (1); INSERT INTO s.t (1); / PG: Extract the default schema from the event / PG: Set it before applying MySQL PostgreSQL USE s; > SET search_path TO s, "$user”; © Continuent 2010

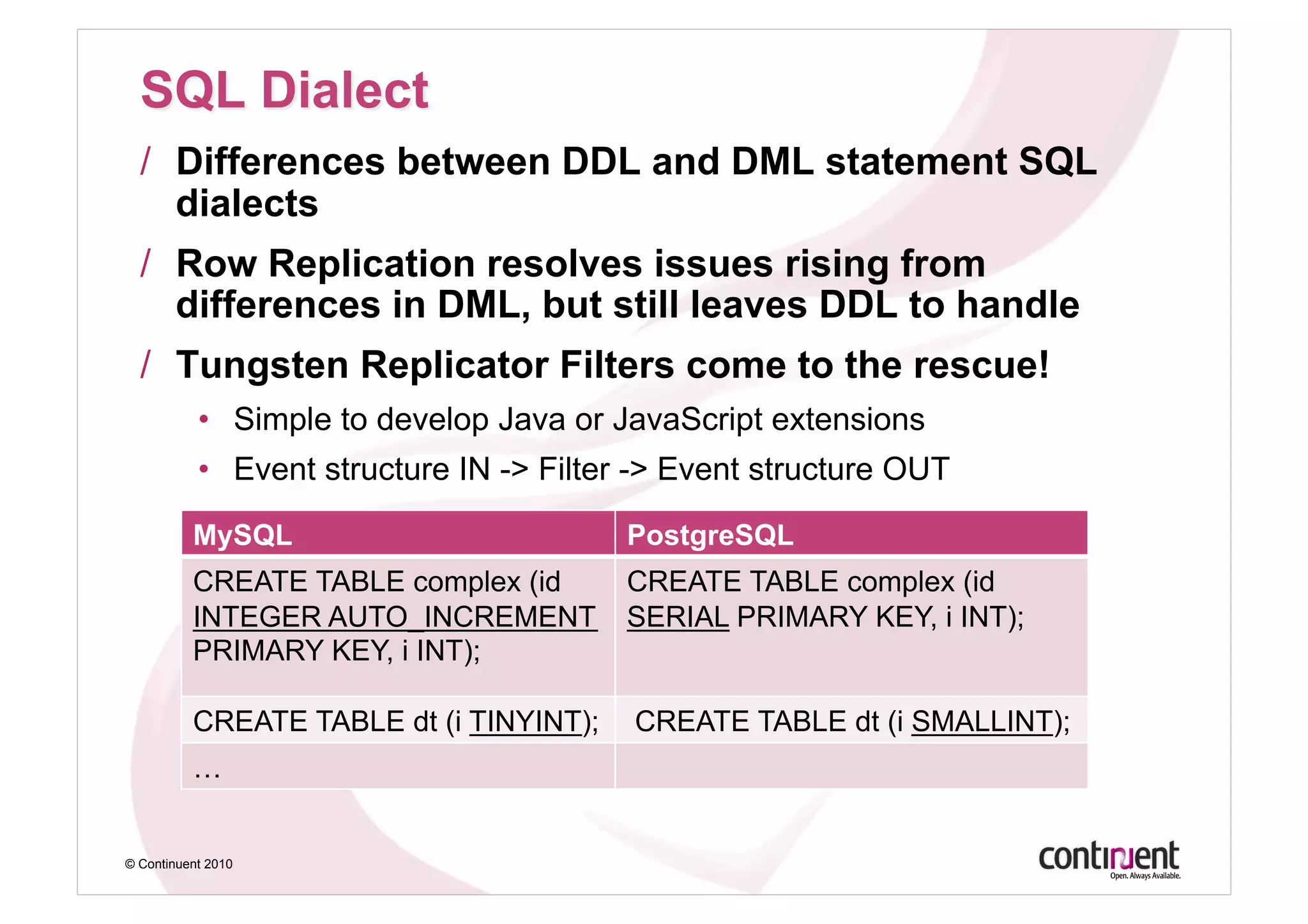

- 21. / Differences betweenDDL and DML statement SQL dialects / Row Replication resolves issues rising from differences in DML, but still leaves DDL to handle / Tungsten Replicator Filters come to the rescue! • Simple to develop Java or JavaScript extensions • Event structure IN -> Filter -> Event structure OUT MySQL PostgreSQL CREATE TABLE complex (id CREATE TABLE complex (id INTEGER AUTO_INCREMENT SERIAL PRIMARY KEY, i INT); PRIMARY KEY, i INT); CREATE TABLE dt (i TINYINT); CREATE TABLE dt (i SMALLINT); … © Continuent 2010

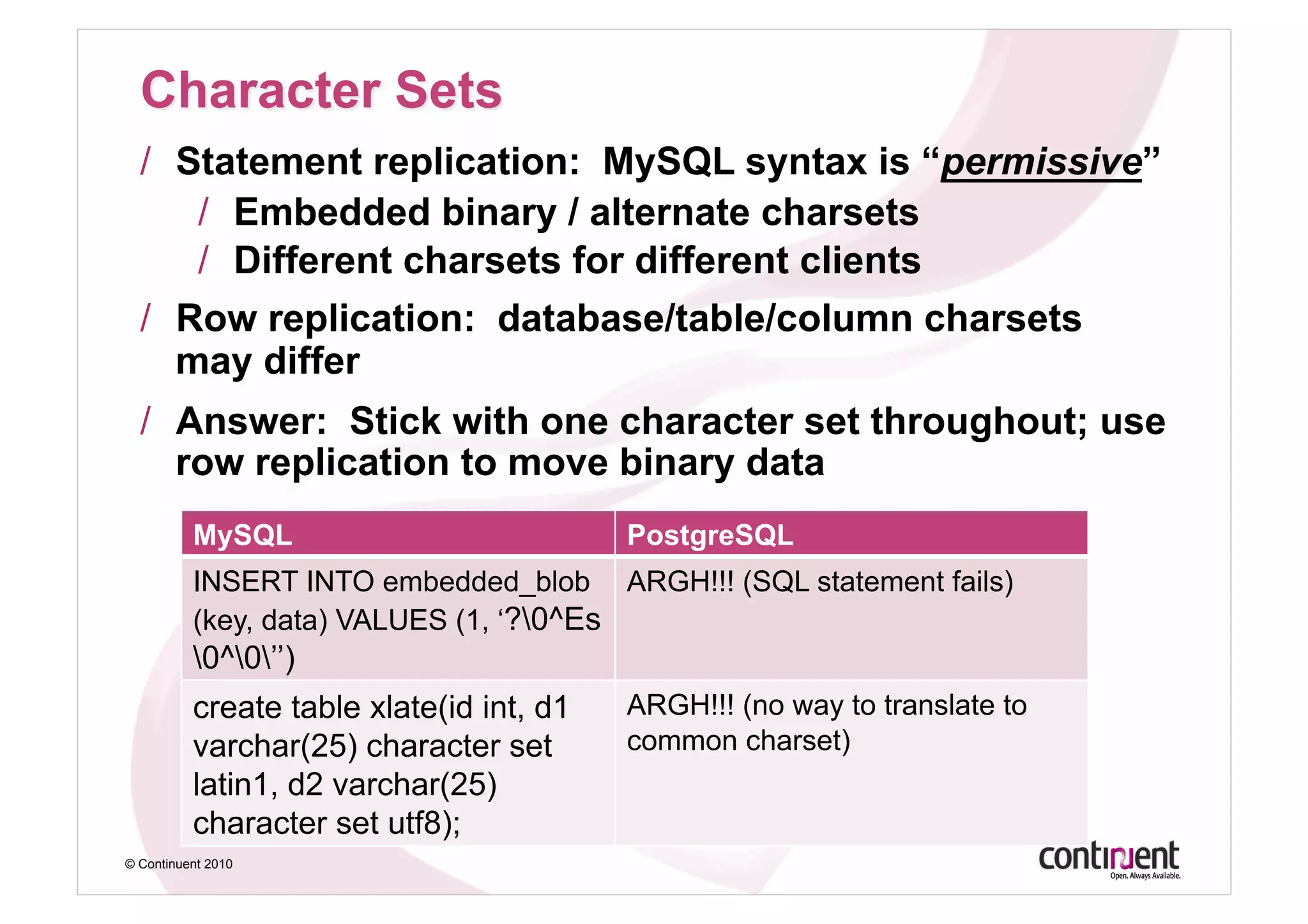

- 22. / Statement replication:MySQL syntax is “permissive” / Embedded binary / alternate charsets / Different charsets for different clients / Row replication: database/table/column charsets may differ / Answer: Stick with one character set throughout; use row replication to move binary data MySQL PostgreSQL INSERT INTO embedded_blob ARGH!!! (SQL statement fails) (key, data) VALUES (1, ‘?0^Es 0^0’’) create table xlate(id int, d1 ARGH!!! (no way to translate to varchar(25) character set common charset) latin1, d2 varchar(25) character set utf8); © Continuent 2010

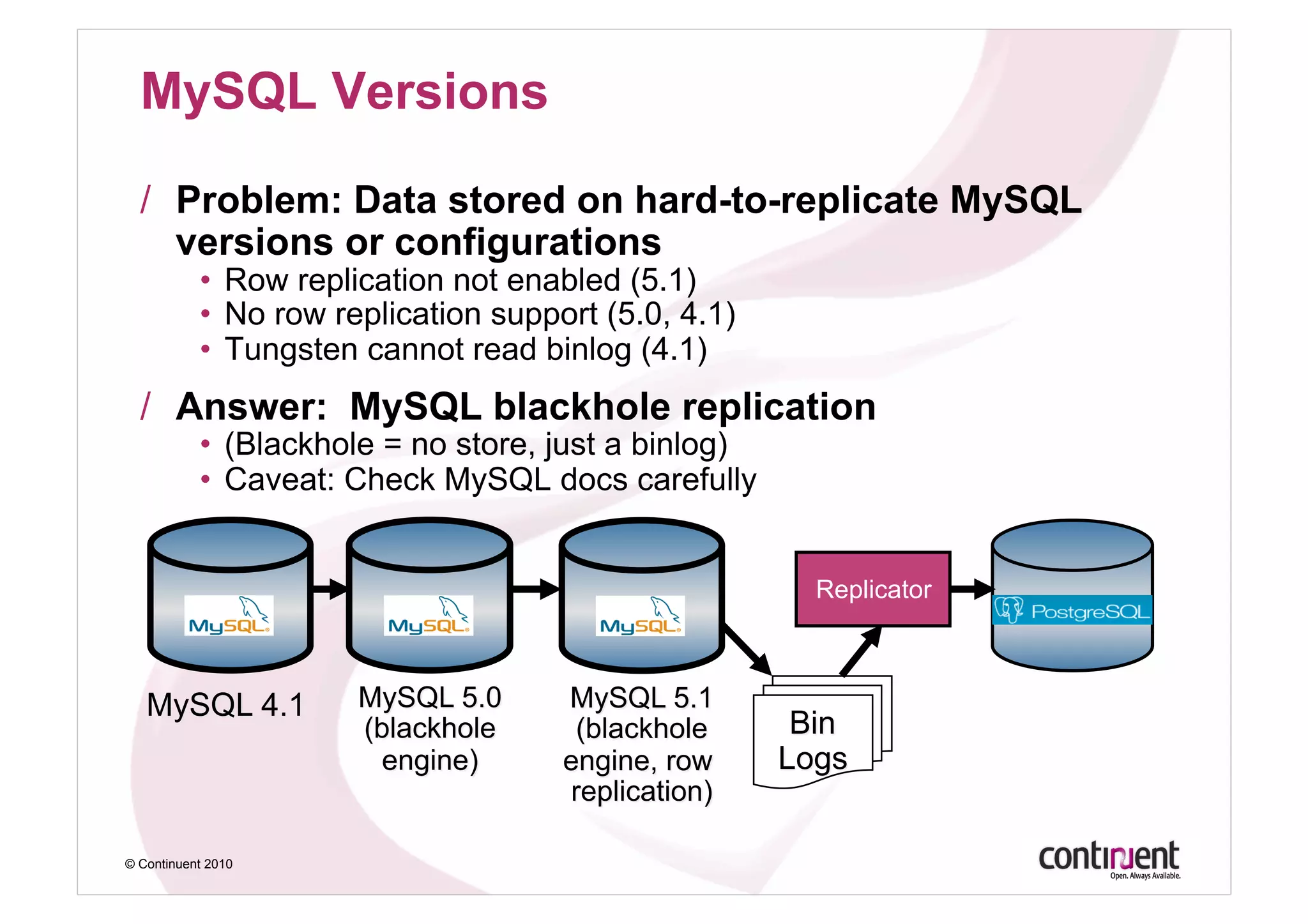

- 23. MySQL Versions / Problem: Data stored on hard-to-replicate MySQL versions or configurations • Row replication not enabled (5.1) • No row replication support (5.0, 4.1) • Tungsten cannot read binlog (4.1) / Answer: MySQL blackhole replication • (Blackhole = no store, just a binlog) • Caveat: Check MySQL docs carefully Replicator © Continuent 2010
- 24.

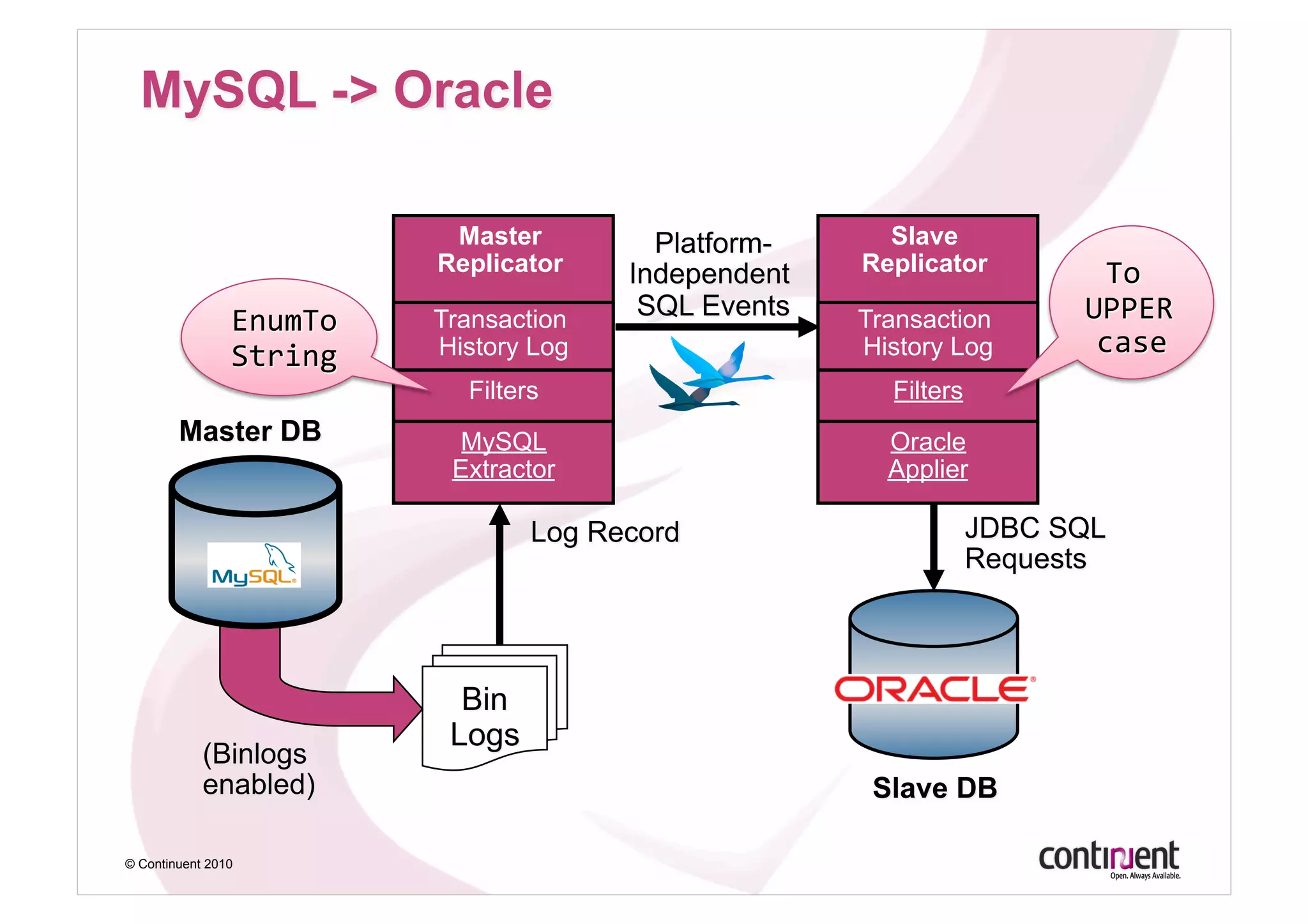

- 25. Master Slave Replicator Replicator Transaction Transaction History Log History Log Filters Filters MySQL Oracle Extractor Applier © Continuent 2010

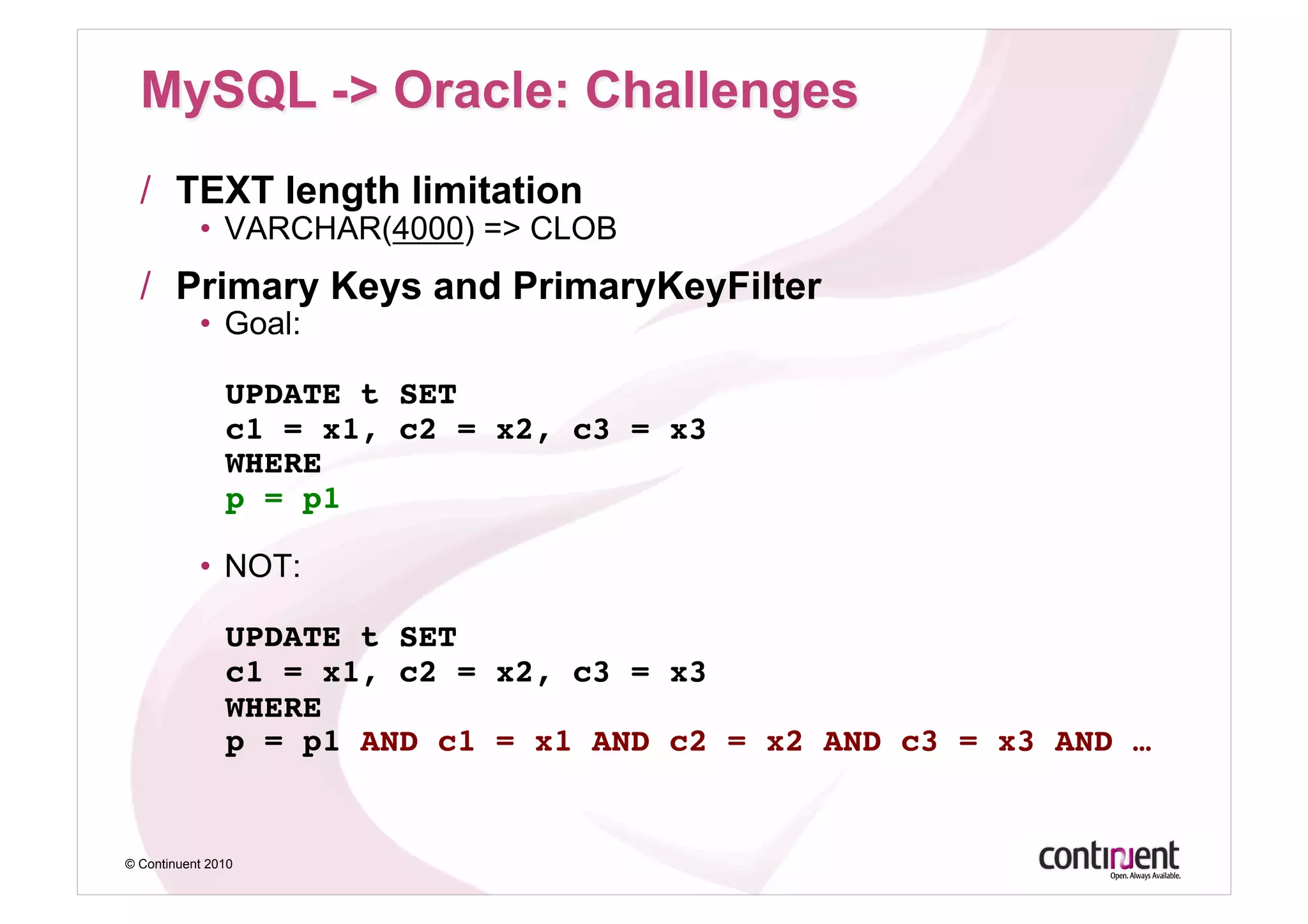

- 26. / TEXT lengthlimitation • VARCHAR(4000) => CLOB / Primary Keys and PrimaryKeyFilter • Goal: UPDATE t SET c1 = x1, c2 = x2, c3 = x3 WHERE p = p1 • NOT: UPDATE t SET c1 = x1, c2 = x2, c3 = x3 WHERE p = p1 AND c1 = x1 AND c2 = x2 AND c3 = x3 AND …! © Continuent 2010
- 27.

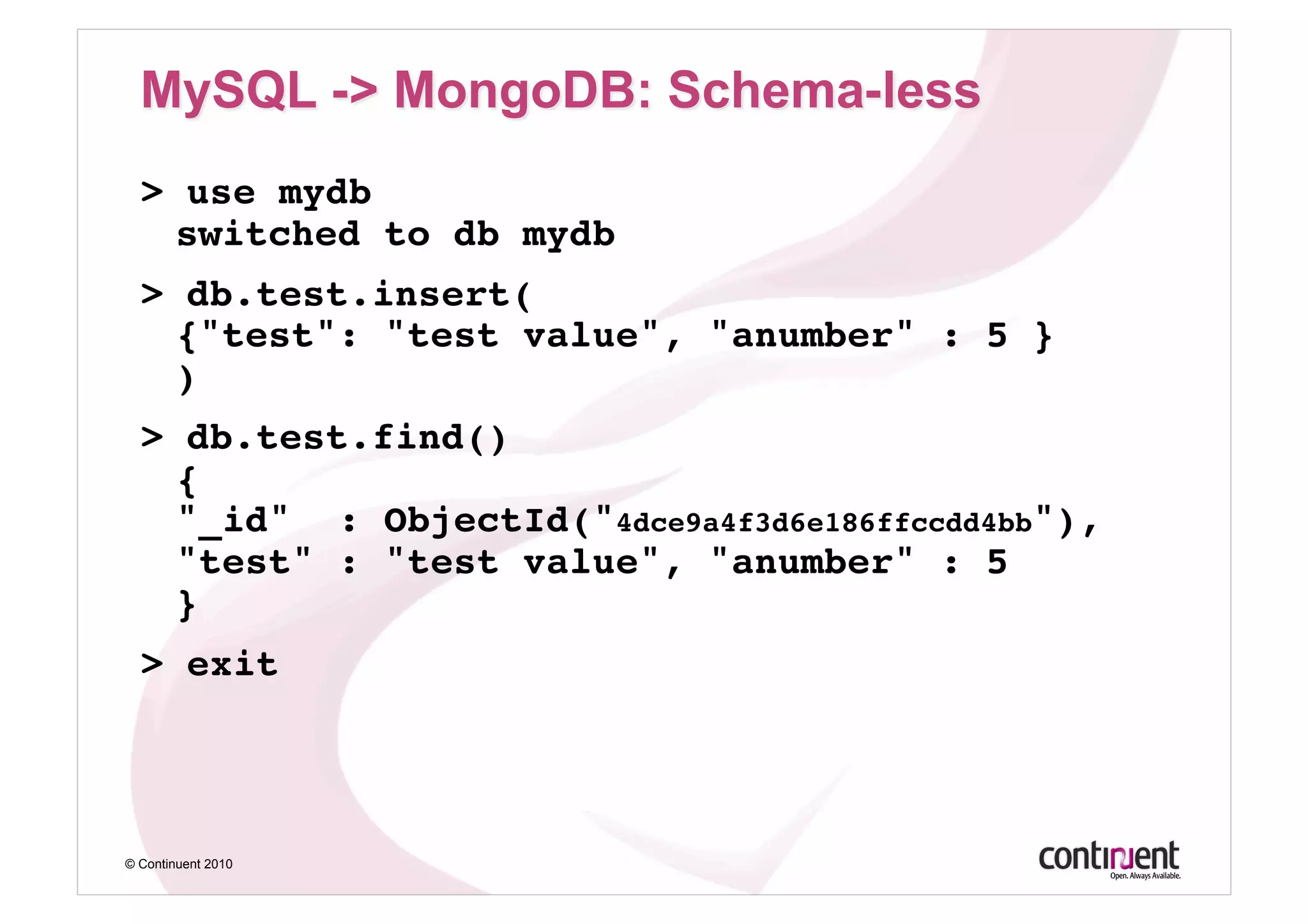

- 28. > use mydb switched to db mydb! > db.test.insert( {"test": "test value", "anumber" : 5 } )! > db.test.find() { "_id" : ObjectId("4dce9a4f3d6e186ffccdd4bb"), "test" : "test value", "anumber" : 5 }! > exit! © Continuent 2010

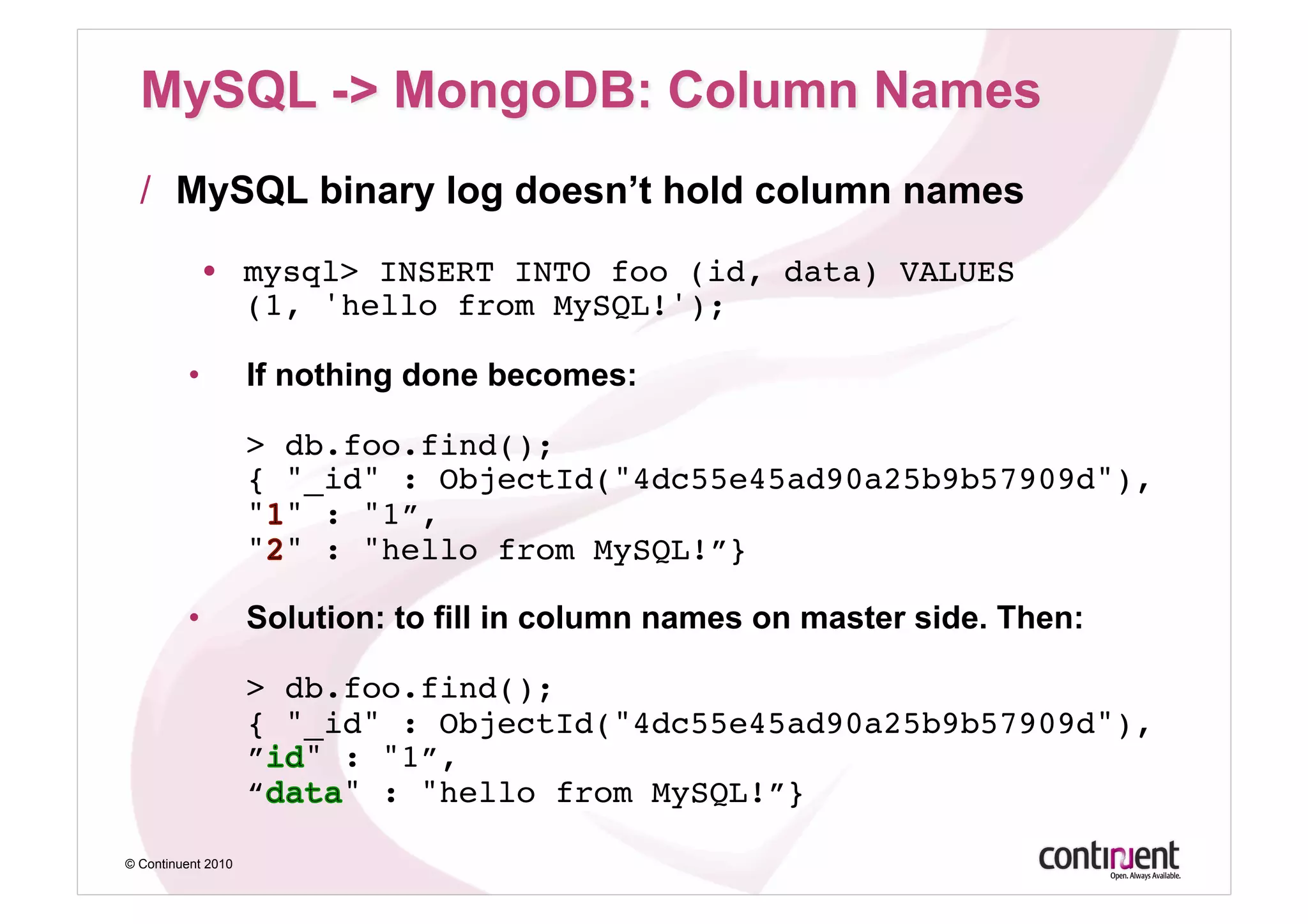

- 29. / MySQL binarylog doesn’t hold column names • mysql> INSERT INTO foo (id, data) VALUES (1, 'hello from MySQL!'); • If nothing done becomes: > db.foo.find(); { "_id" : ObjectId("4dc55e45ad90a25b9b57909d"), " " : "1”, " " : "hello from MySQL!”} • Solution: to fill in column names on master side. Then: > db.foo.find(); { "_id" : ObjectId("4dc55e45ad90a25b9b57909d"), ” " : "1”, “ " : "hello from MySQL!”} © Continuent 2010

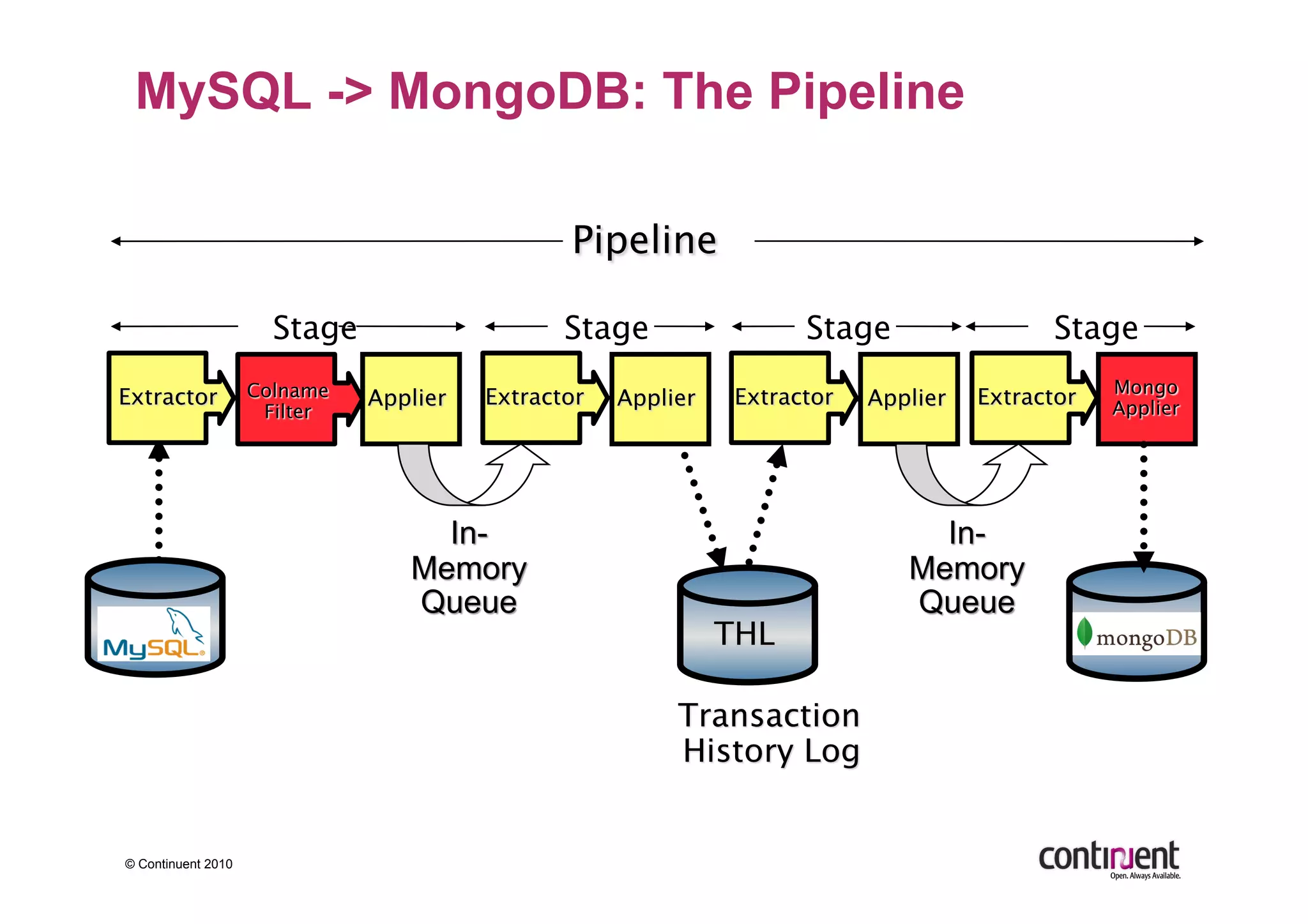

- 30. MySQL -> MongoDB:The Pipeline © Continuent 2010
- 31.
- 32.

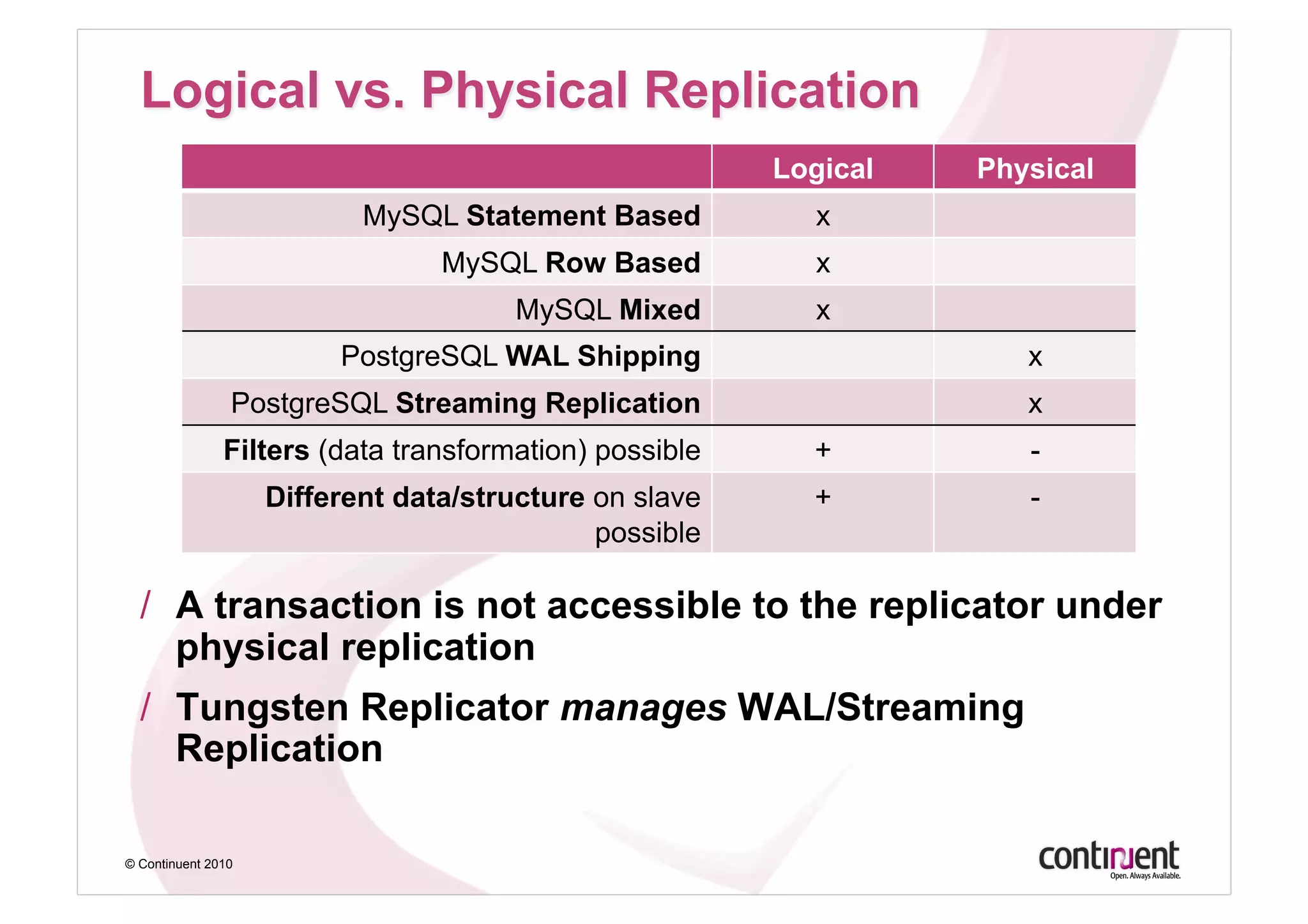

- 33. Logical Physical MySQL Statement Based x MySQL Row Based x MySQL Mixed x PostgreSQL WAL Shipping x PostgreSQL Streaming Replication x Filters (data transformation) possible + - Different data/structure on slave + - possible / A transaction is not accessible to the replicator under physical replication / Tungsten Replicator manages WAL/Streaming Replication © Continuent 2010

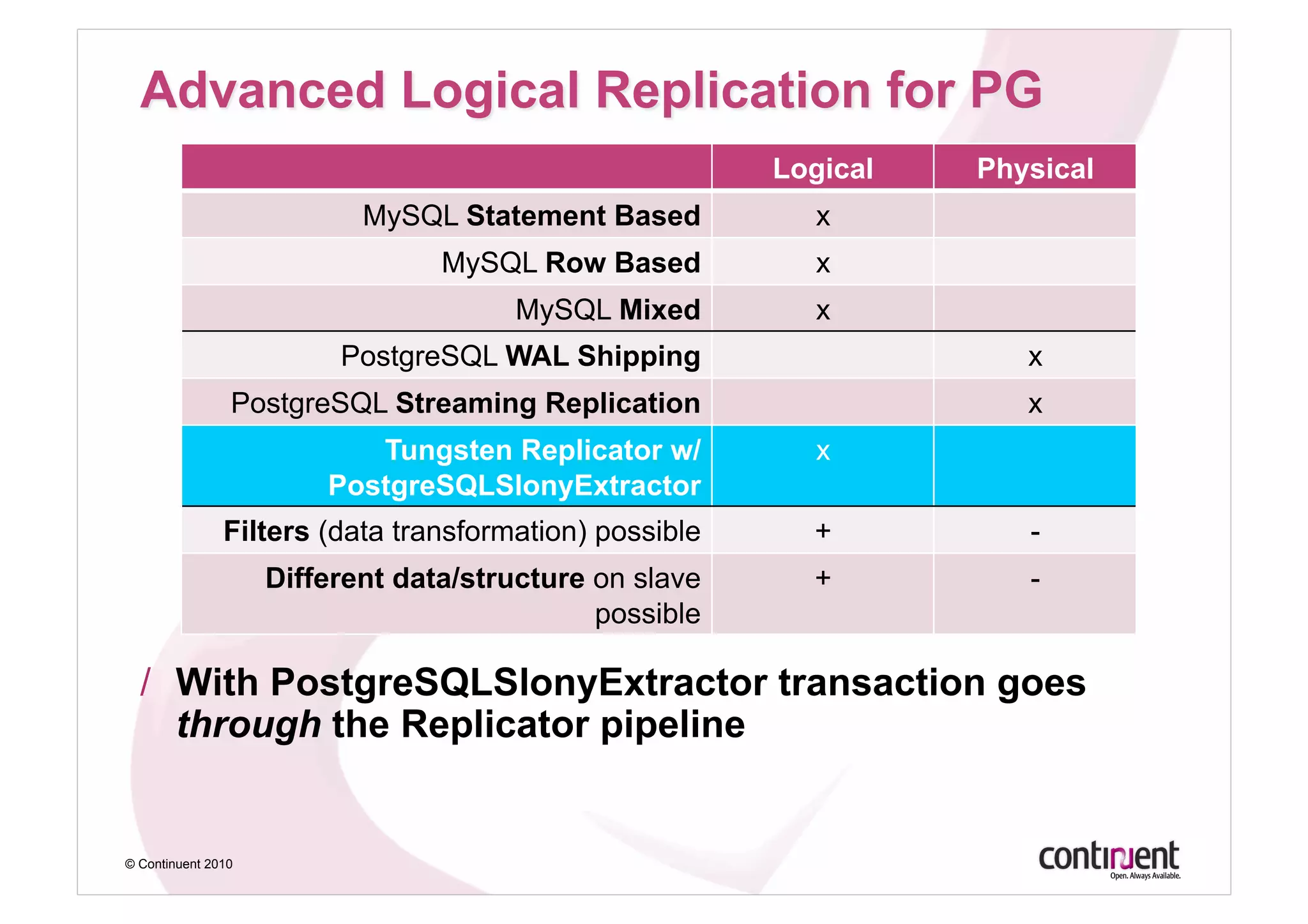

- 34. Logical Physical MySQL Statement Based x MySQL Row Based x MySQL Mixed x PostgreSQL WAL Shipping x PostgreSQL Streaming Replication x Tungsten Replicator w/ x PostgreSQLSlonyExtractor Filters (data transformation) possible + - Different data/structure on slave + - possible / With PostgreSQLSlonyExtractor transaction goes through the Replicator pipeline © Continuent 2010

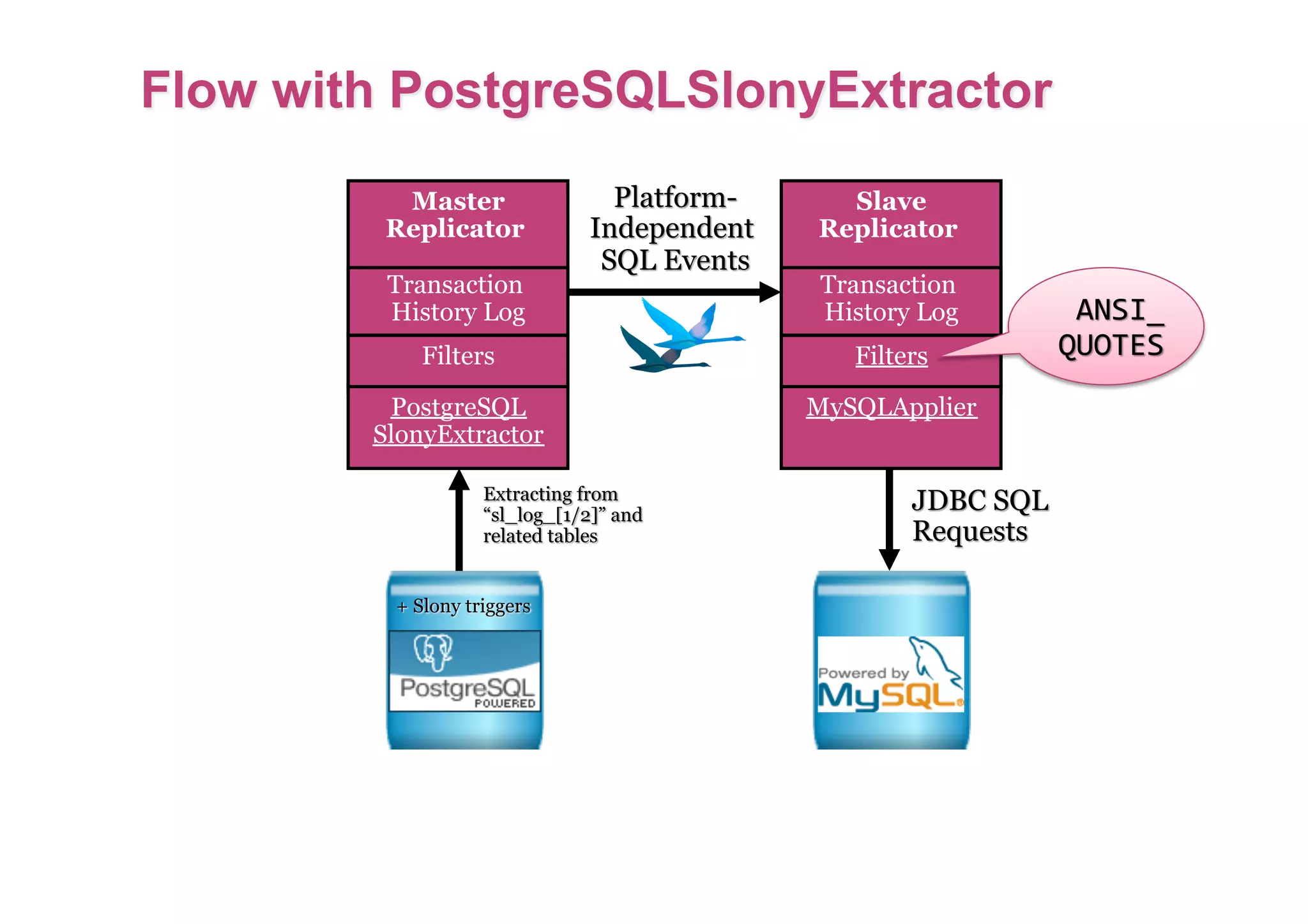

- 35. Master Slave Replicator Replicator Transaction Transaction History Log History Log Filters Filters PostgreSQL MySQLApplier SlonyExtractor
- 36.

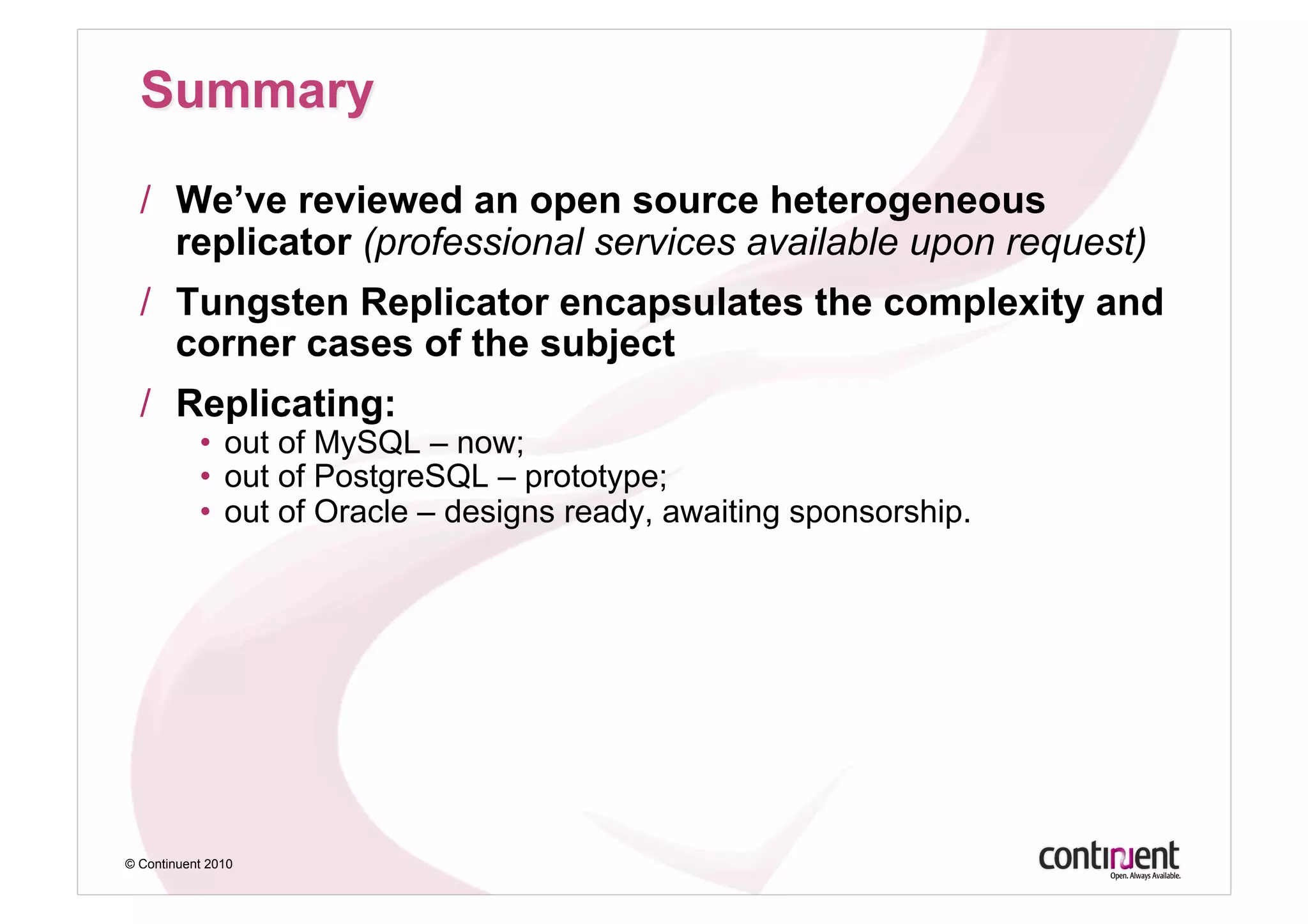

- 37. / We’ve reviewedan open source heterogeneous replicator (professional services available upon request) / Tungsten Replicator encapsulates the complexity and corner cases of the subject / Replicating: • out of MySQL – now; • out of PostgreSQL – prototype; • out of Oracle – designs ready, awaiting sponsorship. © Continuent 2010
- 38.

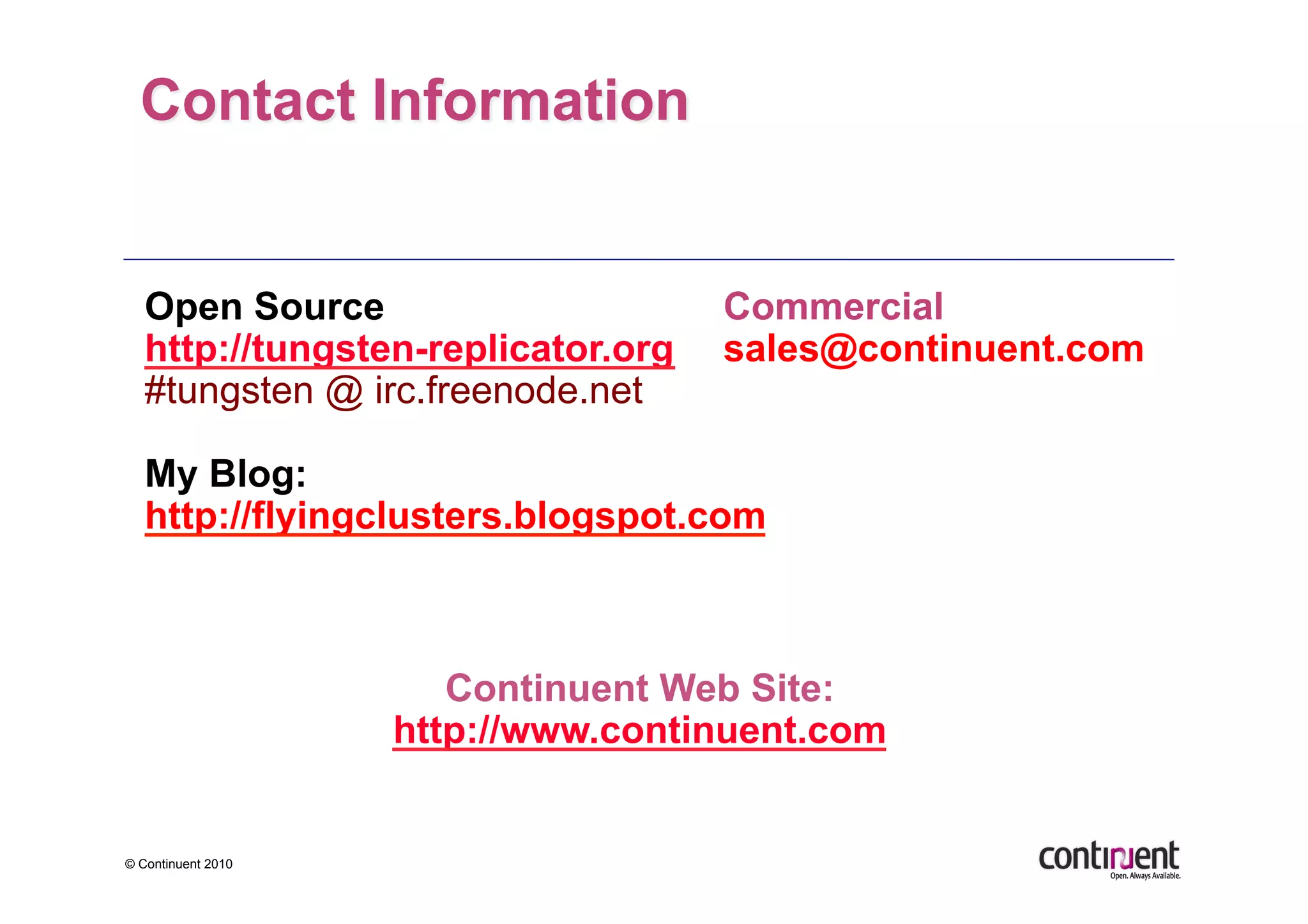

- 39. Open Source Commercial http://tungsten-replicator.org sales@continuent.com #tungsten @ irc.freenode.net My Blog: http://flyingclusters.blogspot.com Continuent Web Site: http://www.continuent.com © Continuent 2010
