1. Linas Virbalas
Continuent, Inc.
© Continuent 2010

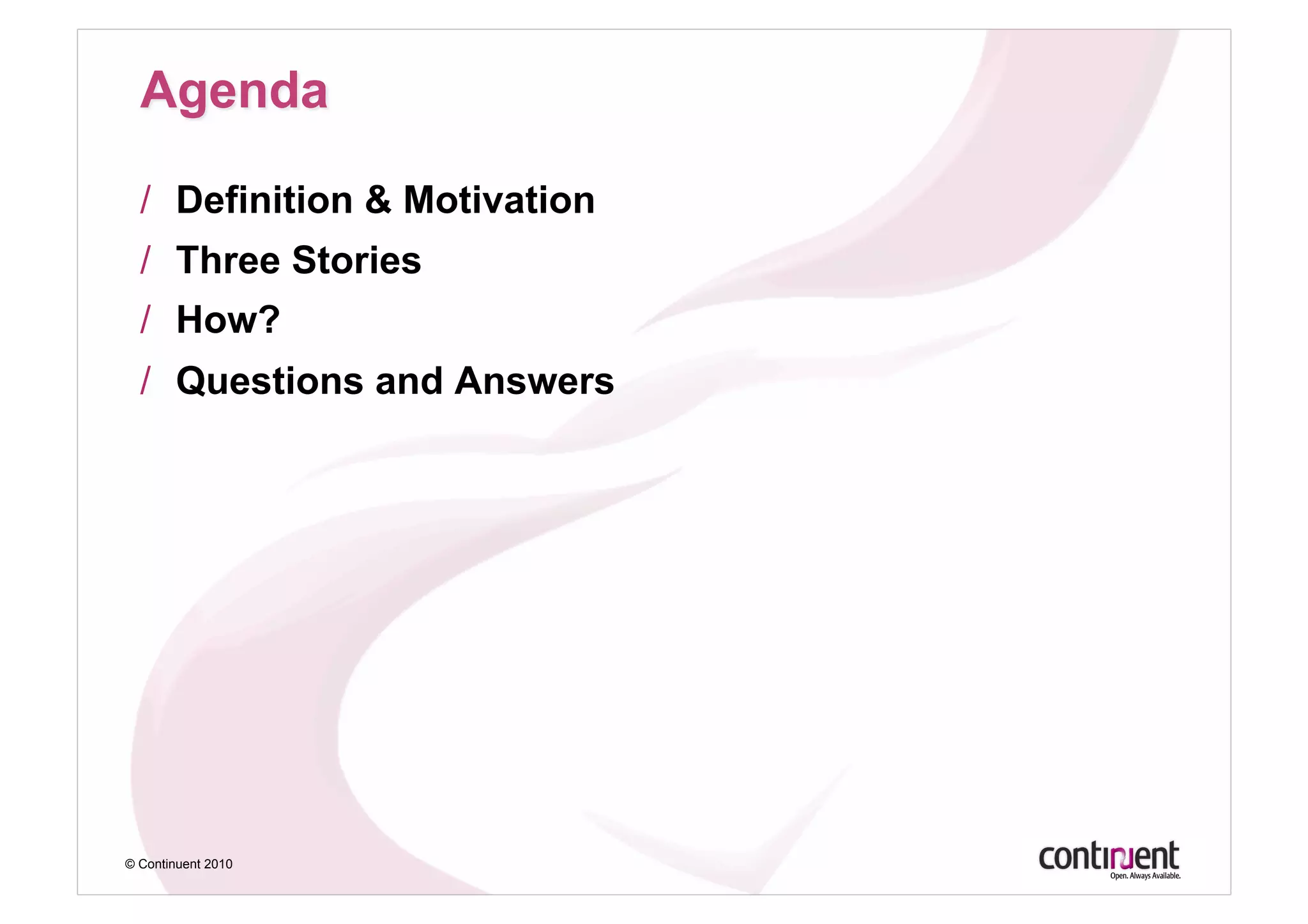

2. / Definition & Motivation
/ Three Stories
/ How?
/ Questions and Answers
© Continuent 2010

3. © Continuent 2010

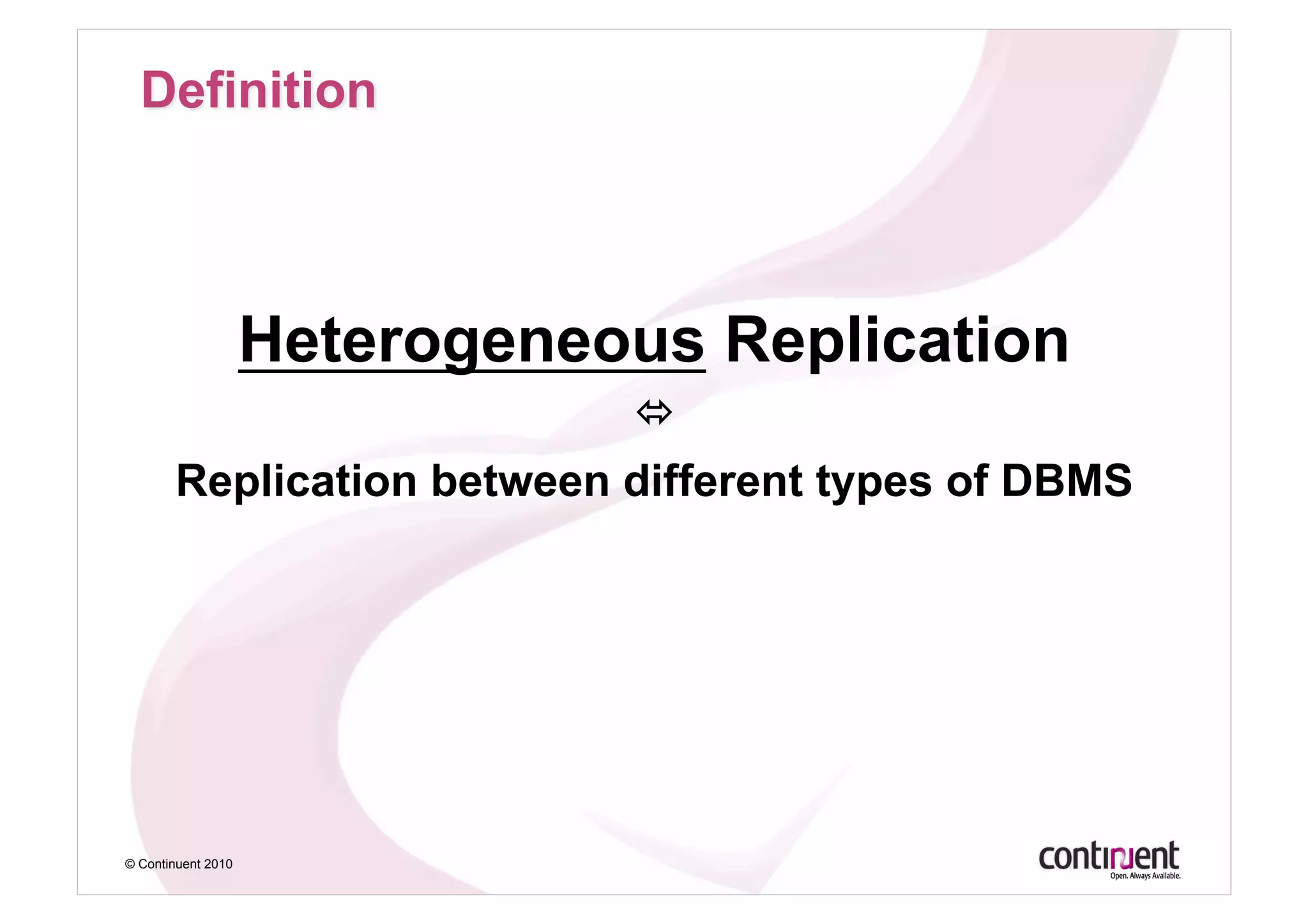

4. Heterogeneous Replication

Replication between different types of DBMS
© Continuent 2010

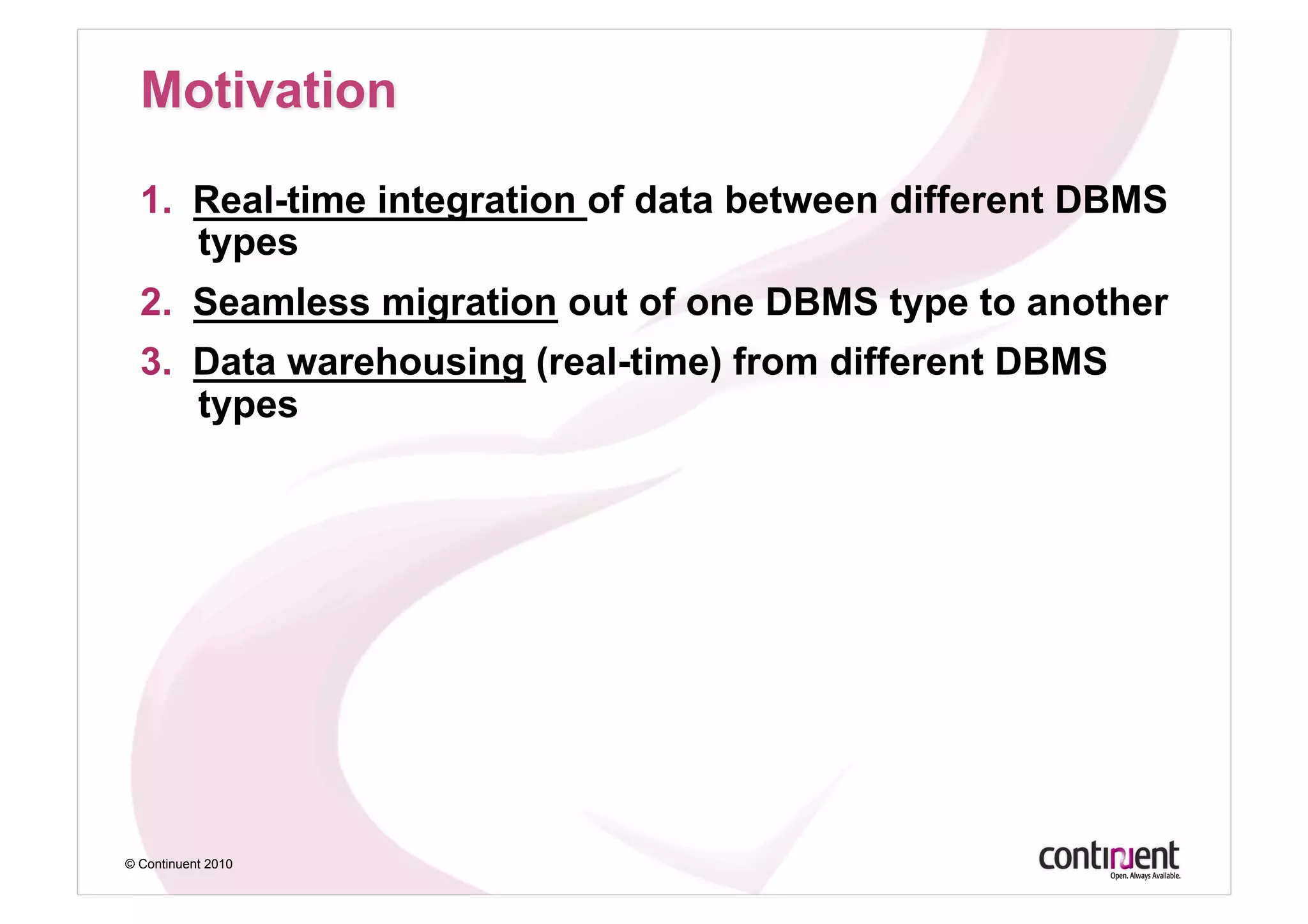

5. 1. Real-time integration of data between different DBMS
types
2. Seamless migration out of one DBMS type to another
3. Data warehousing (real-time) from different DBMS
types
© Continuent 2010

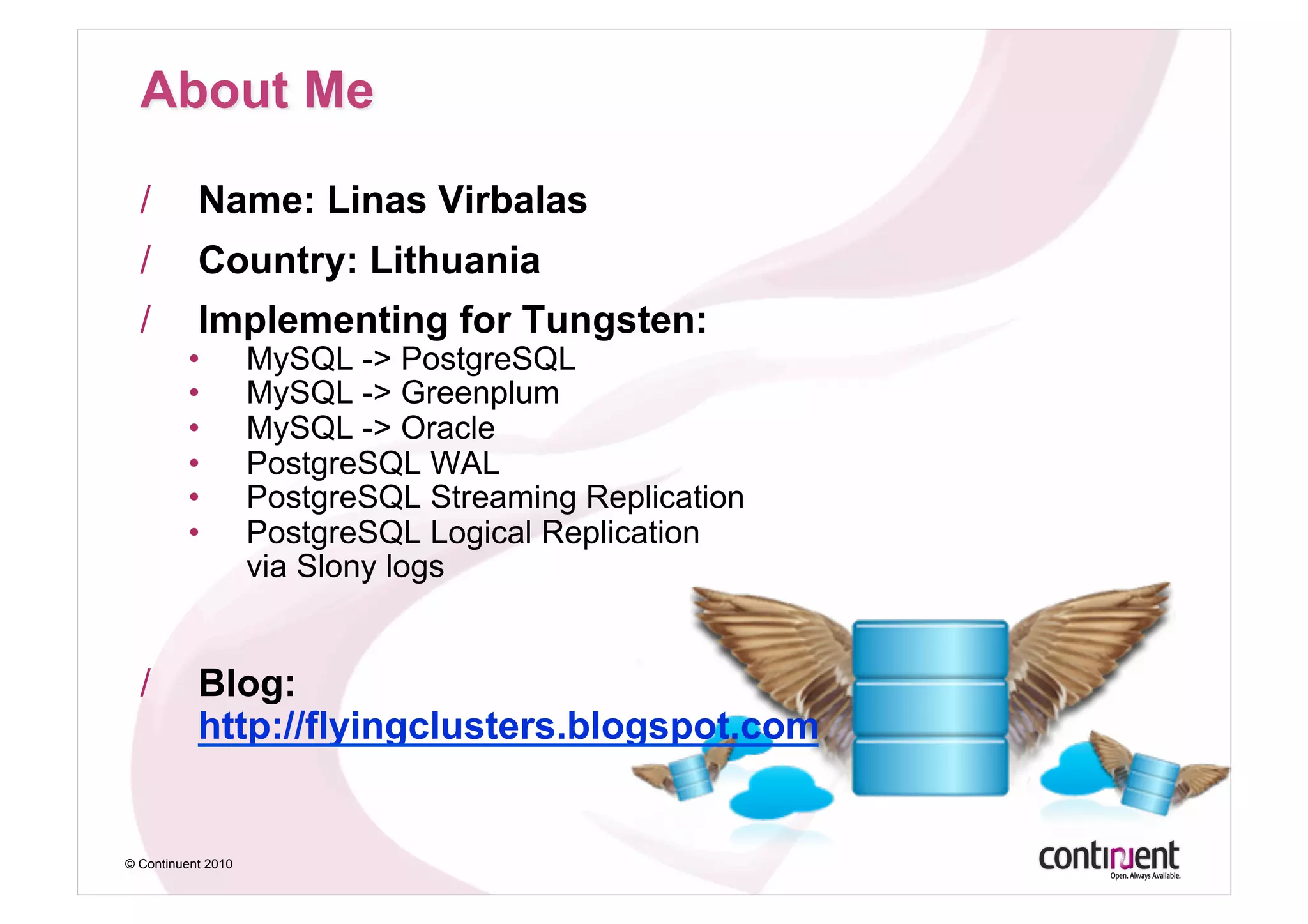

6. / Name: Linas Virbalas
/ Country: Lithuania
/ Implementing for Tungsten:
• MySQL -> PostgreSQL
• MySQL -> Greenplum
• MySQL -> Oracle
• PostgreSQL WAL
• PostgreSQL Streaming Replication
• PostgreSQL Logical Replication
via Slony logs
/ Blog:
http://flyingclusters.blogspot.com
© Continuent 2010

7. © Continuent 2010

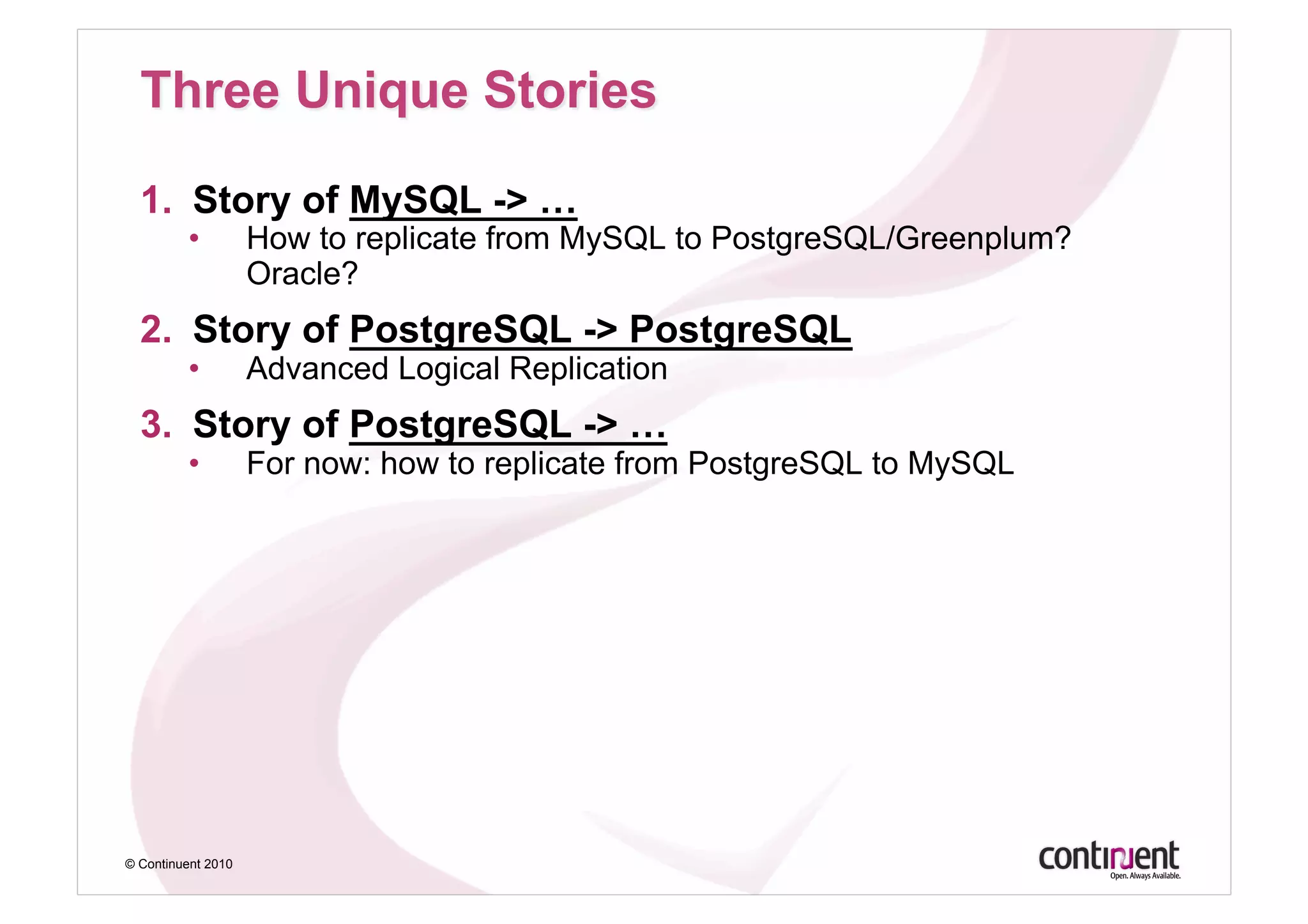

8. 1. Story of MySQL -> …
• How to replicate from MySQL to PostgreSQL/Greenplum?
Oracle?
2. Story of PostgreSQL -> PostgreSQL
• Advanced Logical Replication
3. Story of PostgreSQL -> …
• For now: how to replicate from PostgreSQL to MySQL
© Continuent 2010

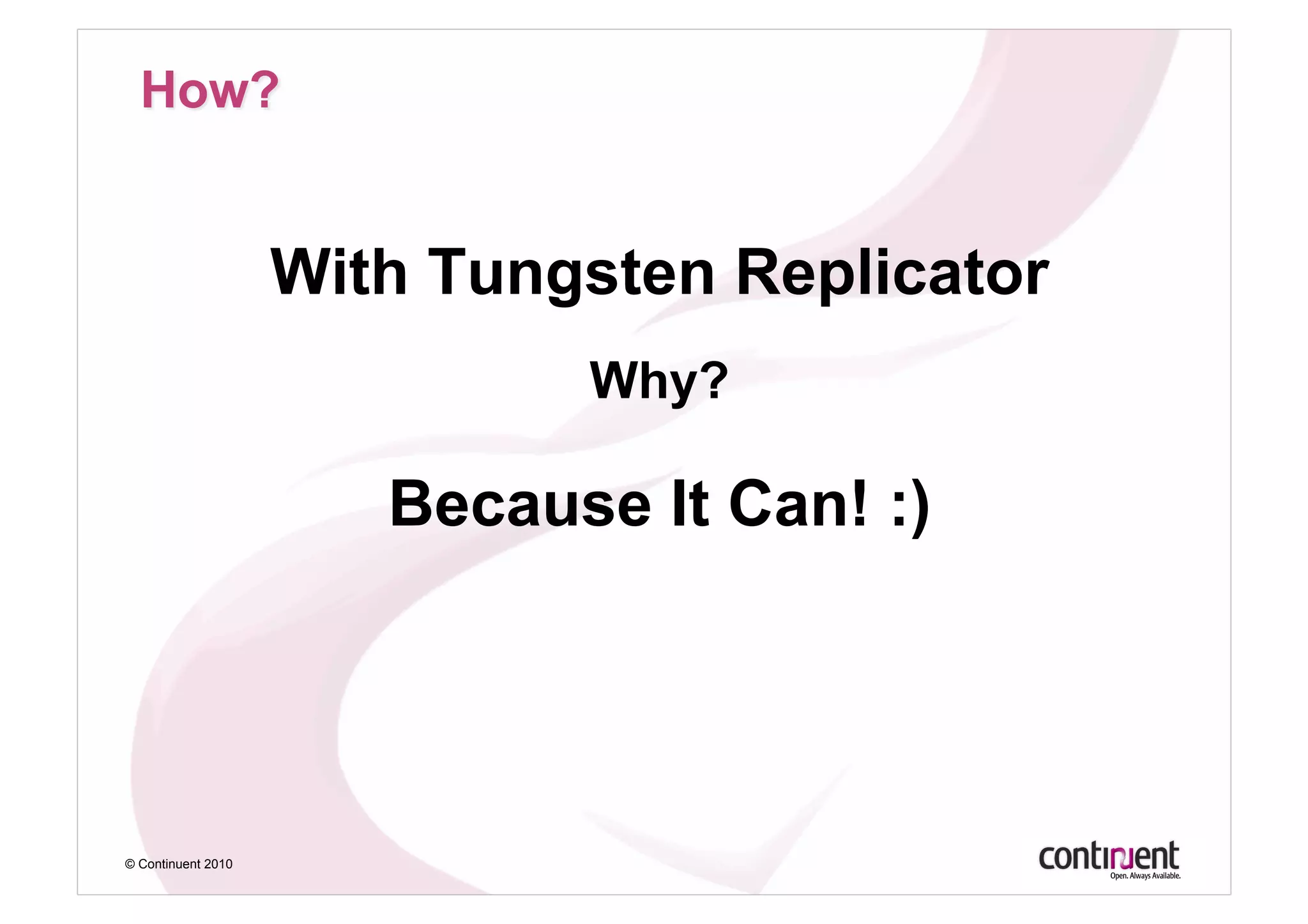

9. With Tungsten Replicator
Why?
Because It Can! :)
© Continuent 2010

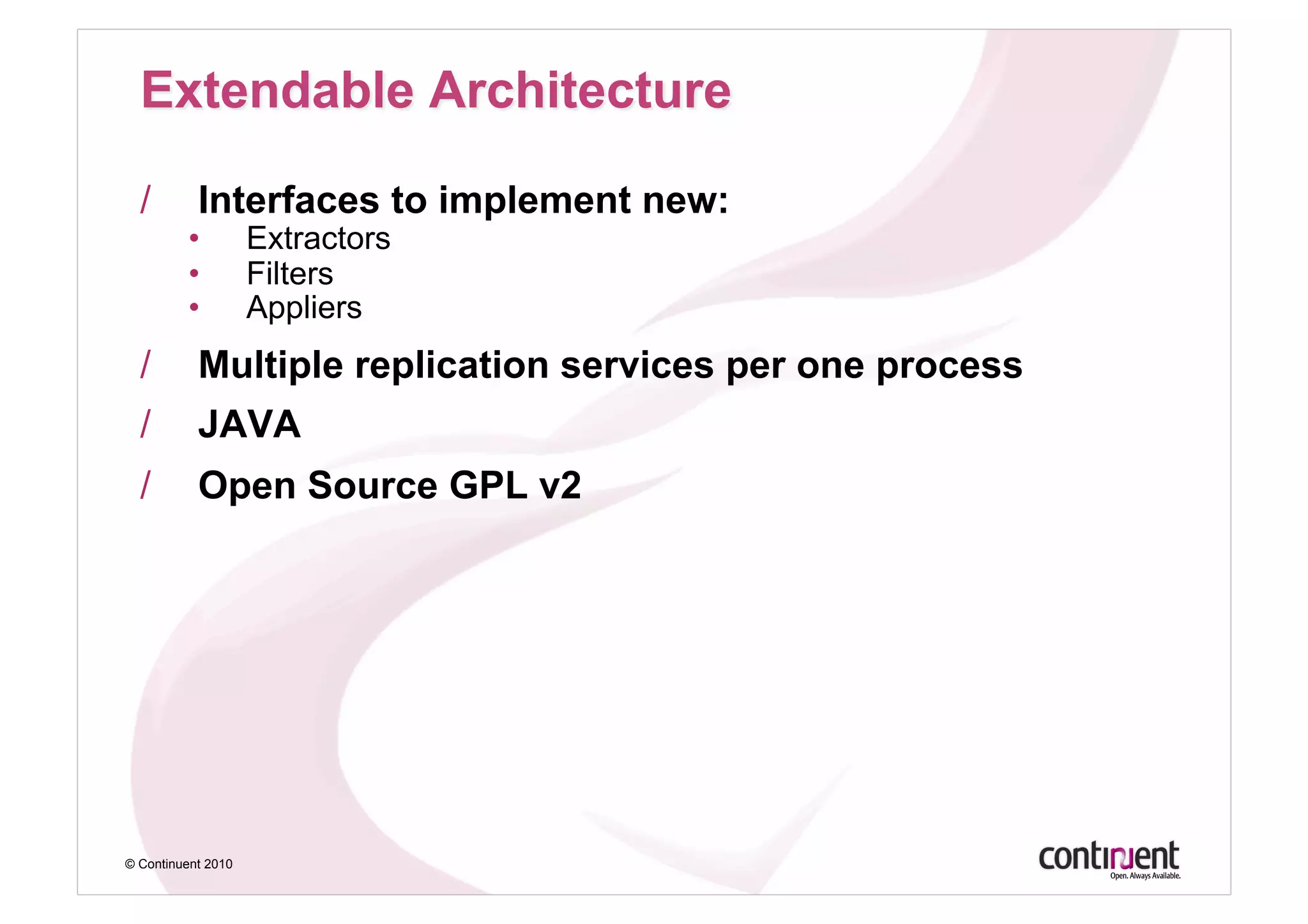

10. / Interfaces to implement new:
• Extractors
• Filters
• Appliers
/ Multiple replication services per one process
/ JAVA
/ Open Source GPL v2
© Continuent 2010

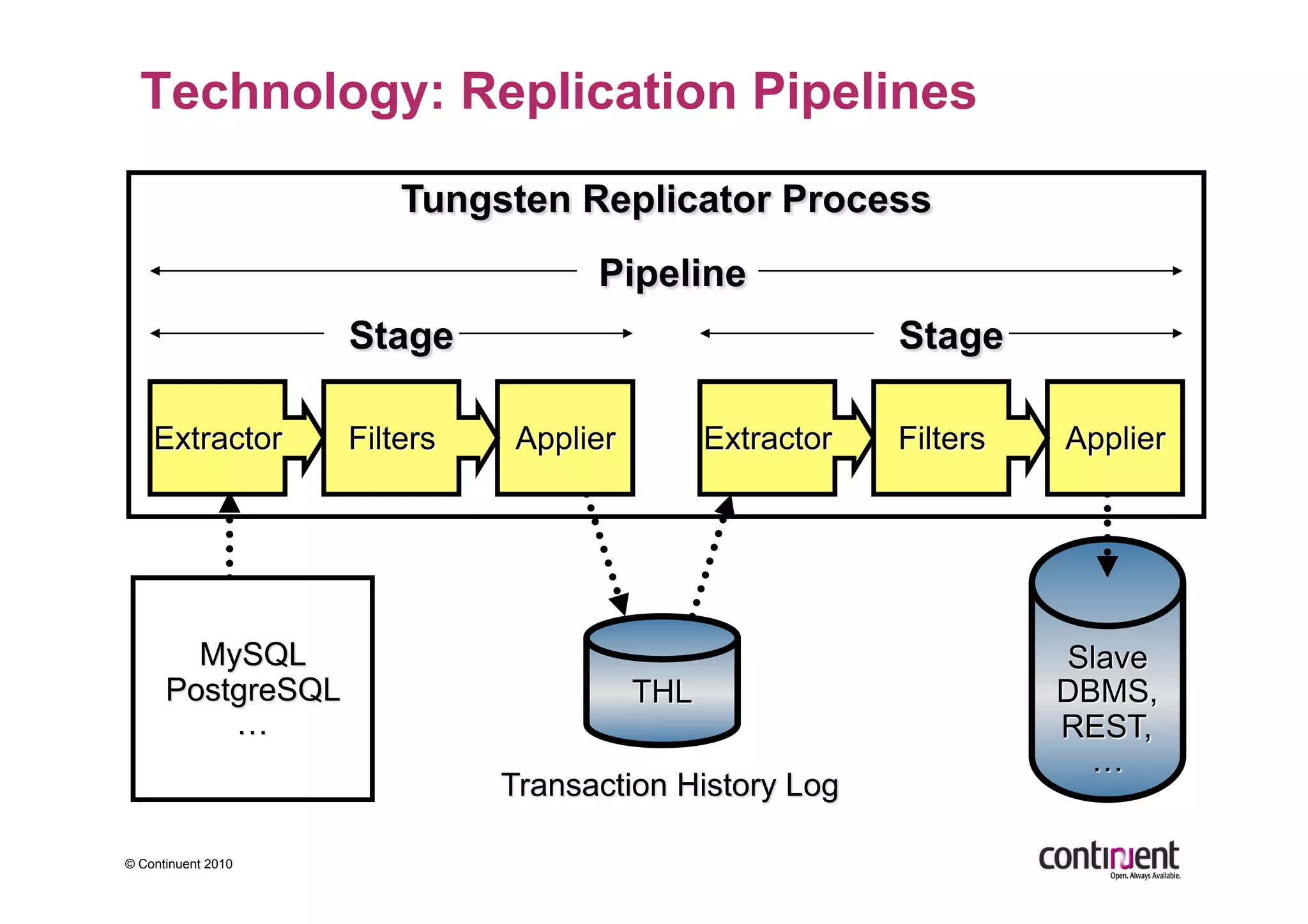

11. Technology: Replication Pipelines
© Continuent 2010

12. © Continuent 2010

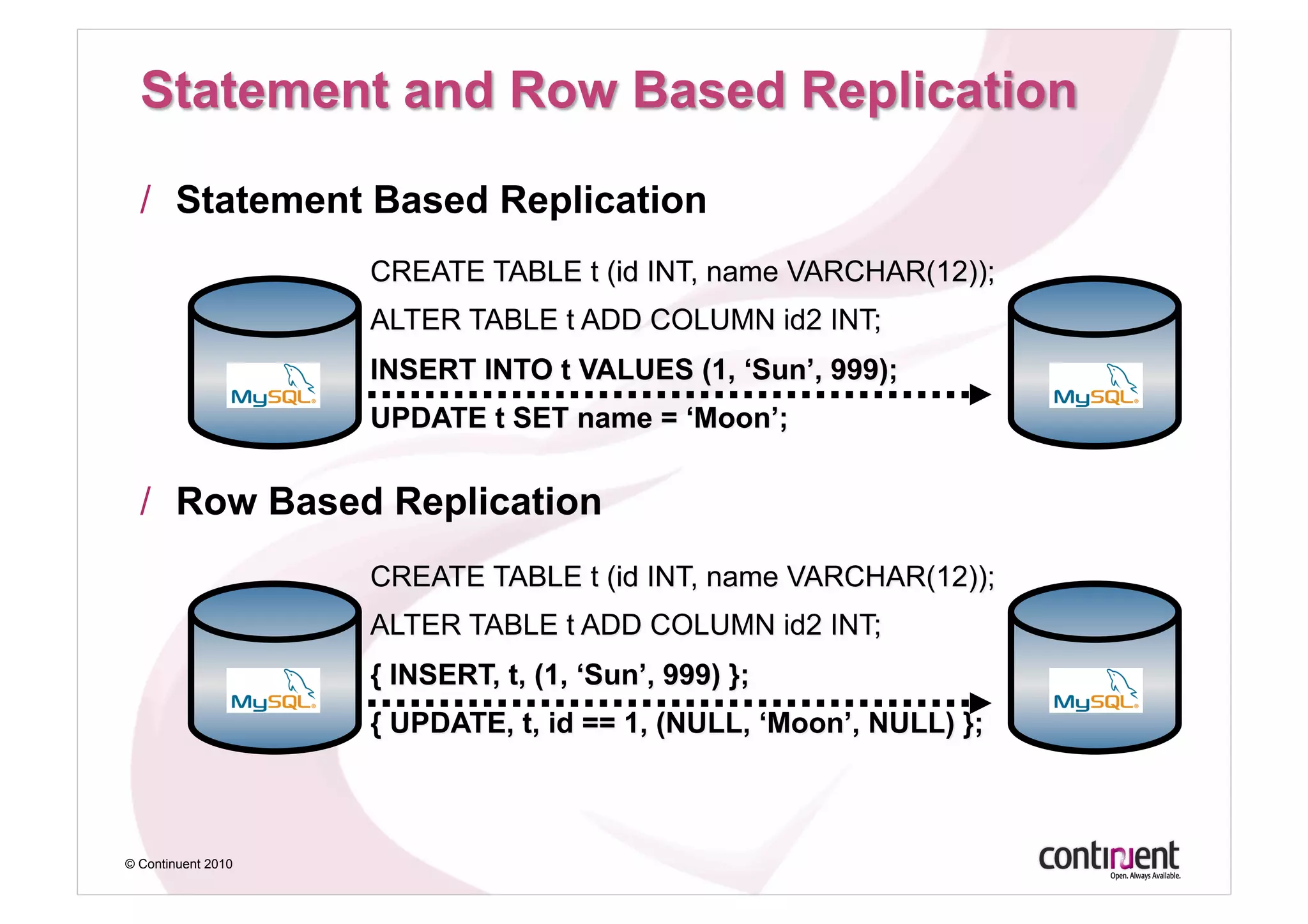

13. / Statement Based Replication
/ Row Based Replication
© Continuent 2010

14. © Continuent 2010

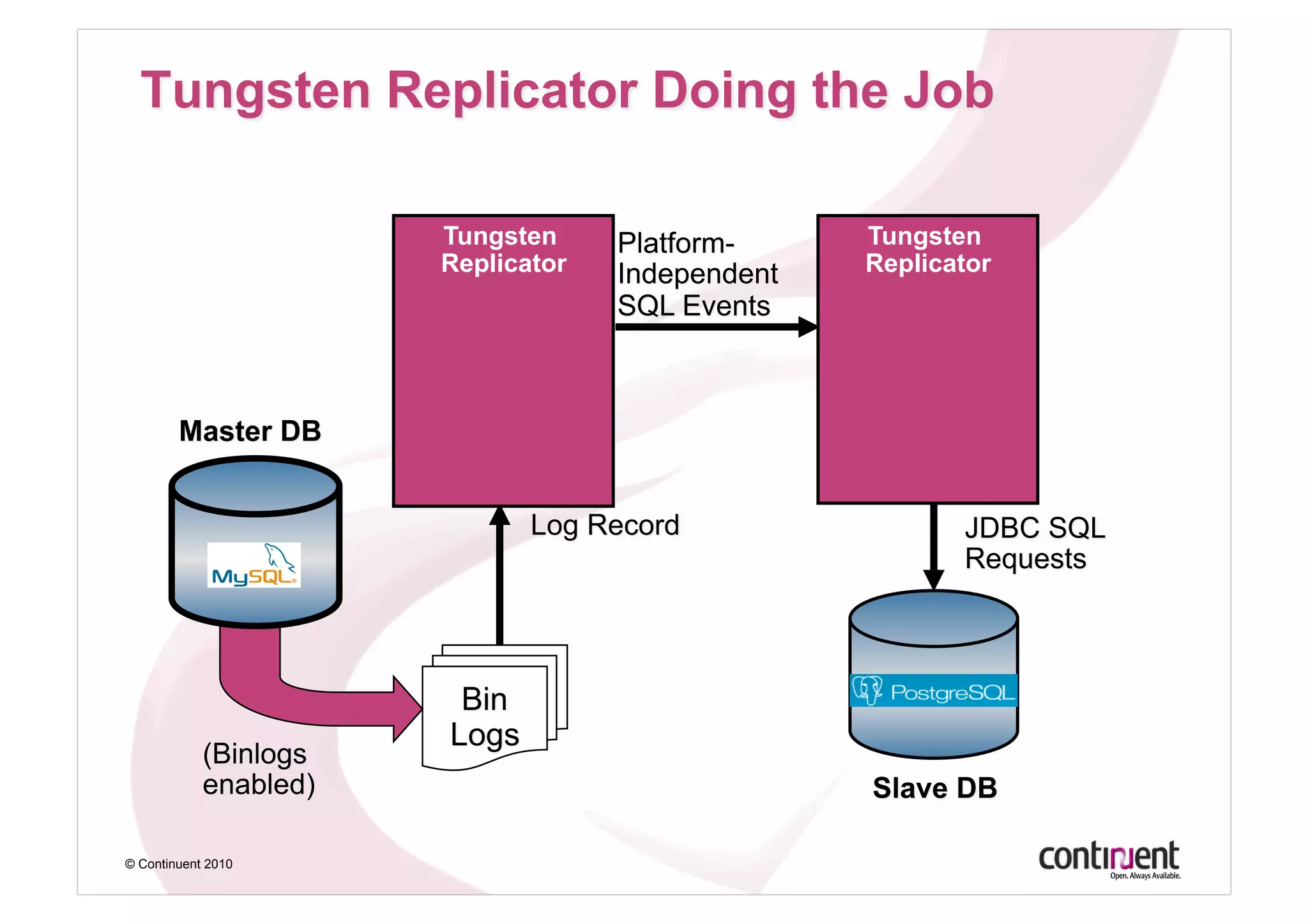

15. Tungsten Tungsten
Replicator Replicator
© Continuent 2010

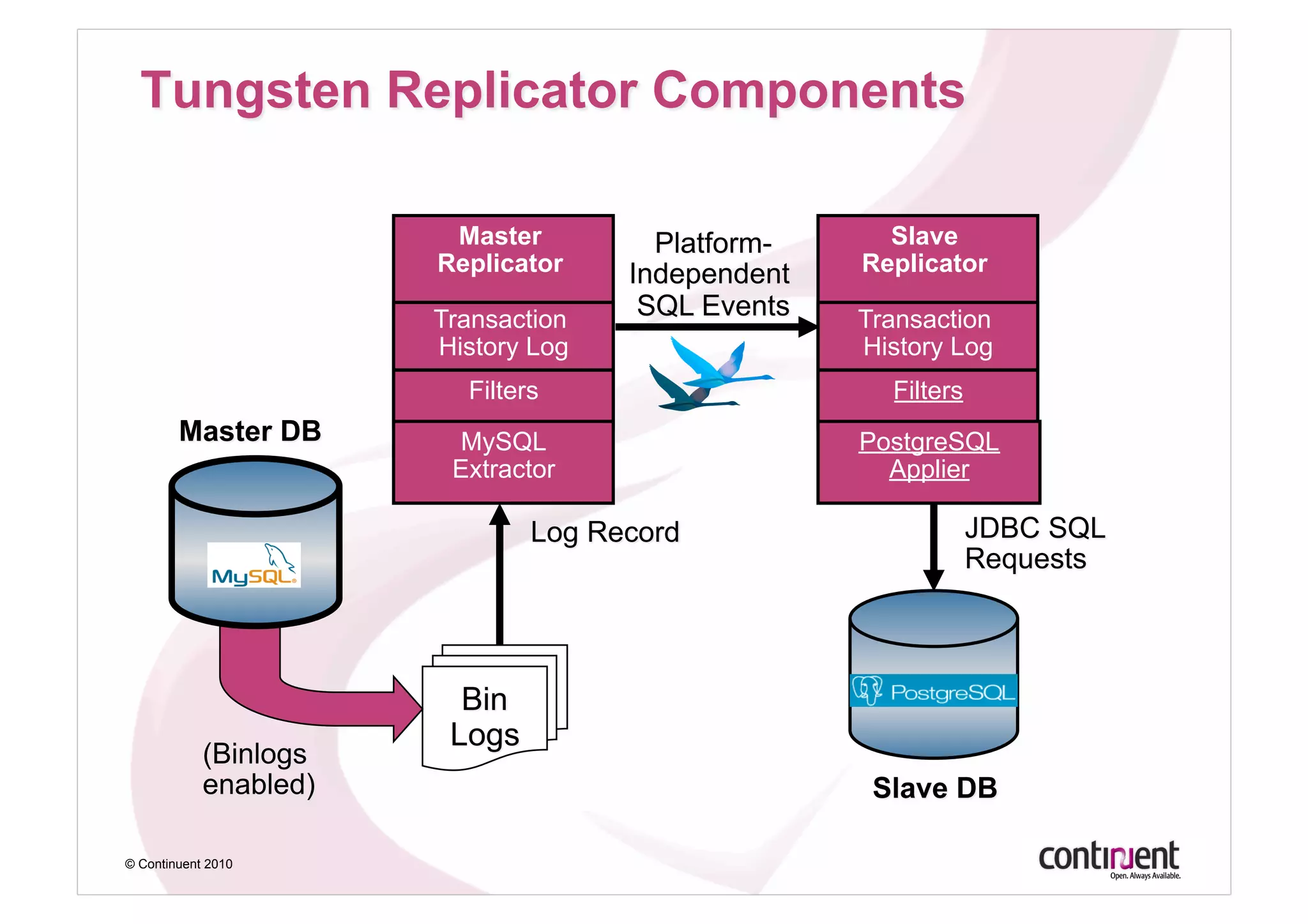

16. Master Slave
Replicator Replicator
Transaction Transaction
History Log History Log
Filters Filters
MySQL PostgreSQL
Extractor Applier
© Continuent 2010

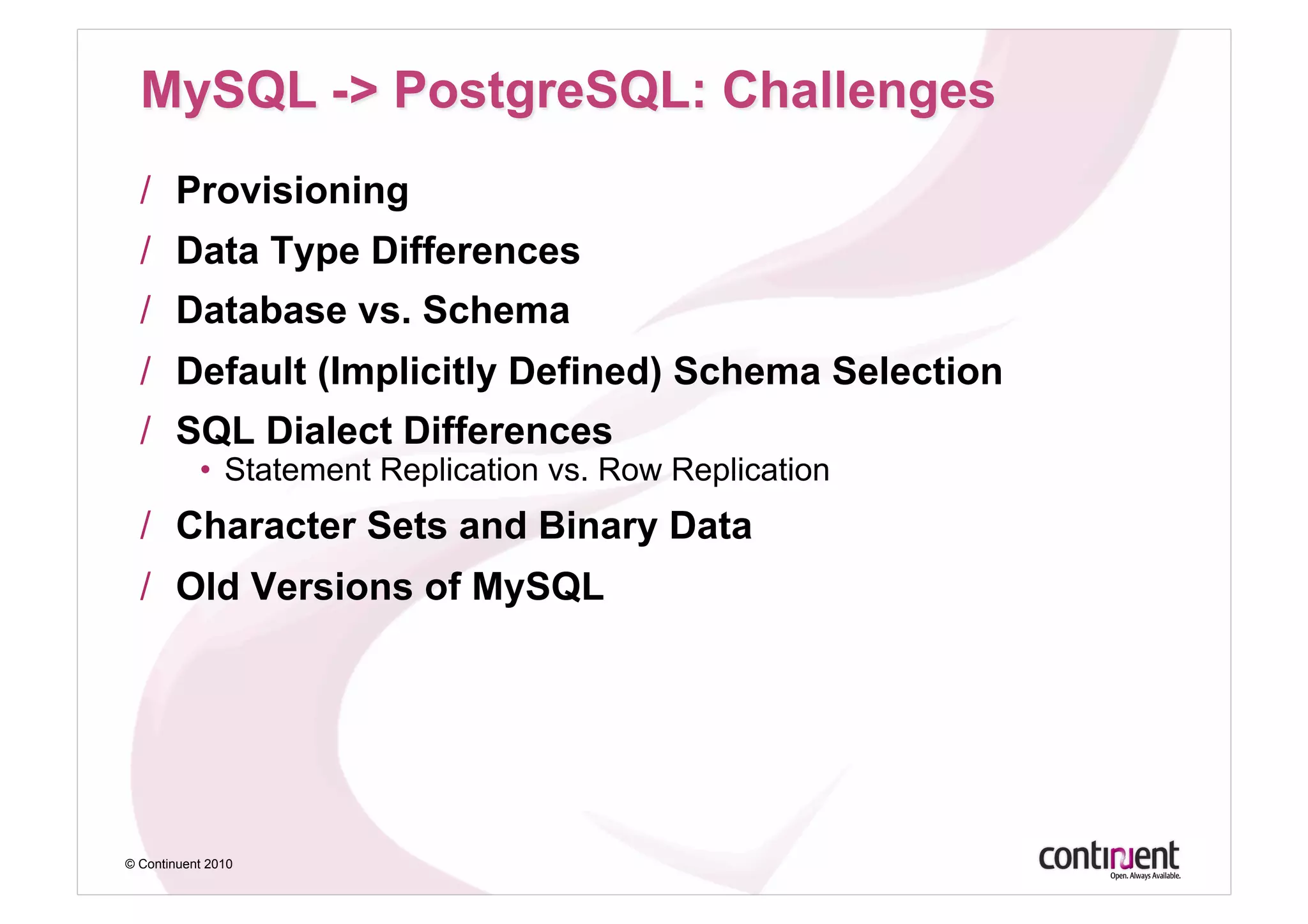

17. / Provisioning
/ Data Type Differences
/ Database vs. Schema
/ Default (Implicitly Defined) Schema Selection
/ SQL Dialect Differences
• Statement Replication vs. Row Replication
/ Character Sets and Binary Data
/ Old Versions of MySQL
© Continuent 2010

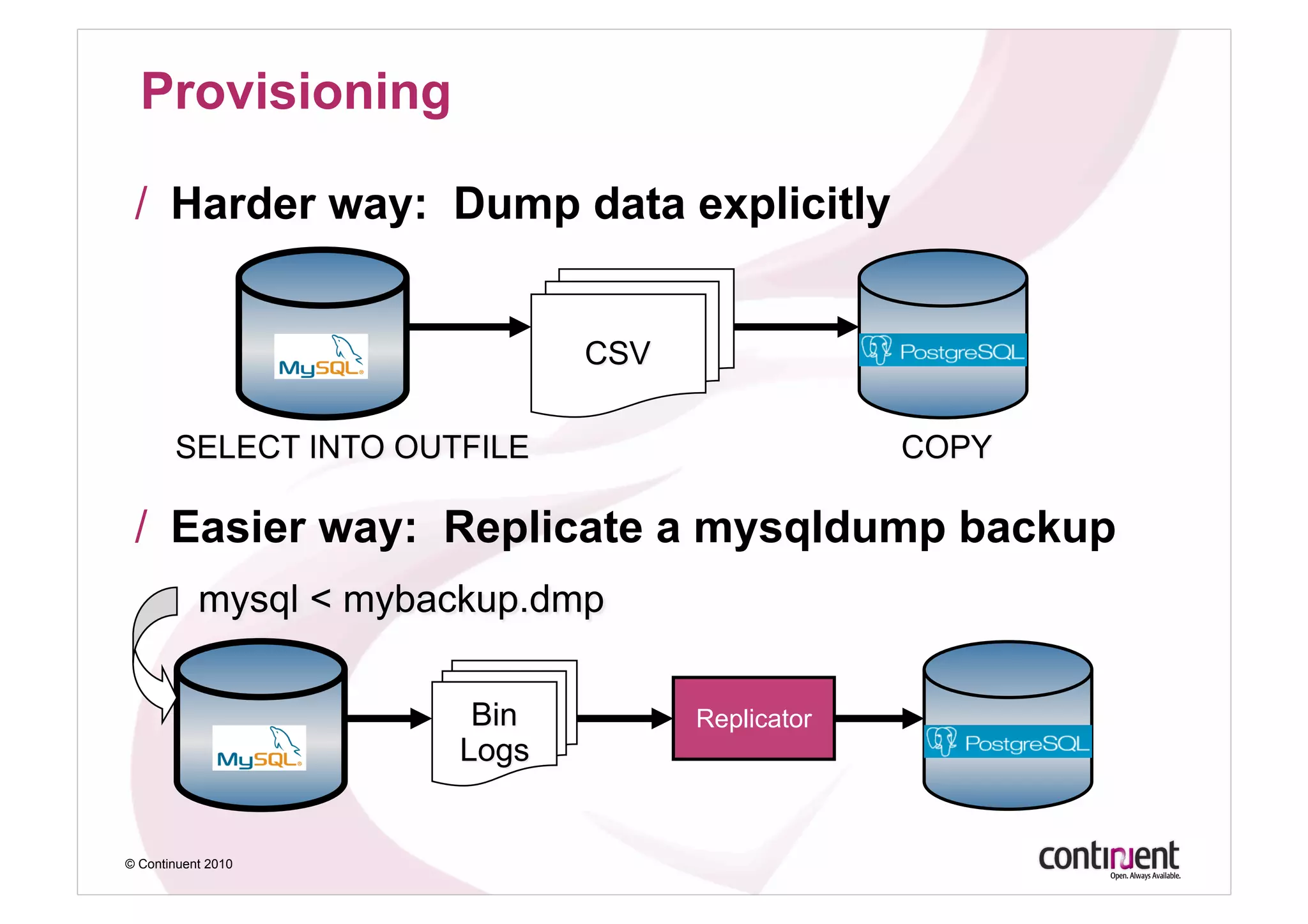

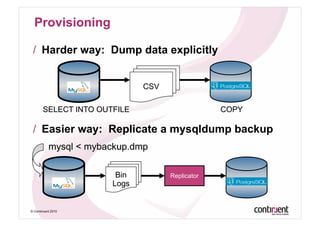

18. Provisioning
/ Harder way: Dump data explicitly
/ Easier way: Replicate a mysqldump backup
Replicator
© Continuent 2010

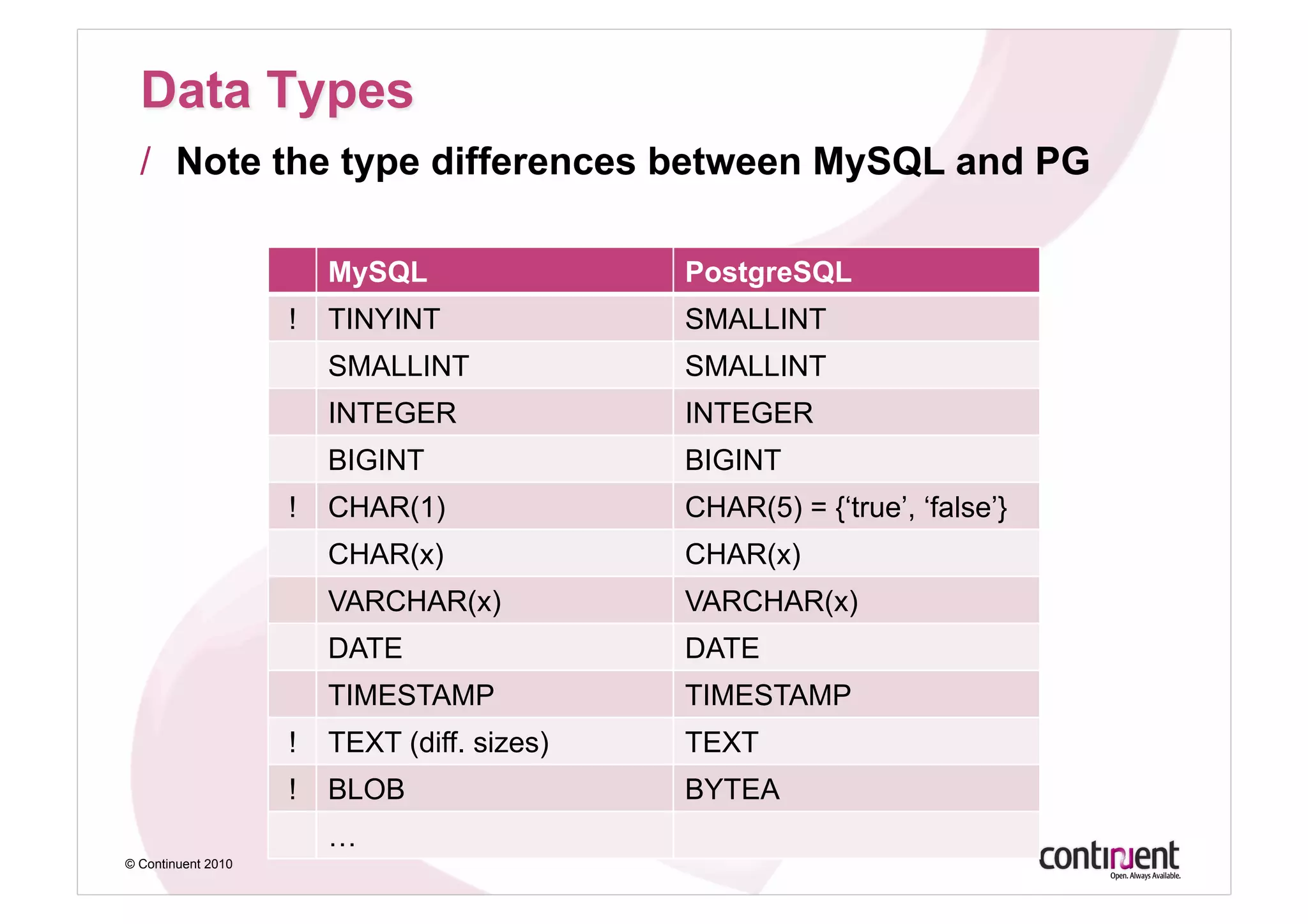

19. / Note the type differences between MySQL and PG
MySQL PostgreSQL
! TINYINT SMALLINT
SMALLINT SMALLINT
INTEGER INTEGER
BIGINT BIGINT
! CHAR(1) CHAR(5) = {‘true’, ‘false’}
CHAR(x) CHAR(x)
VARCHAR(x) VARCHAR(x)
DATE DATE
TIMESTAMP TIMESTAMP
! TEXT (diff. sizes) TEXT
! BLOB BYTEA
…
© Continuent 2010

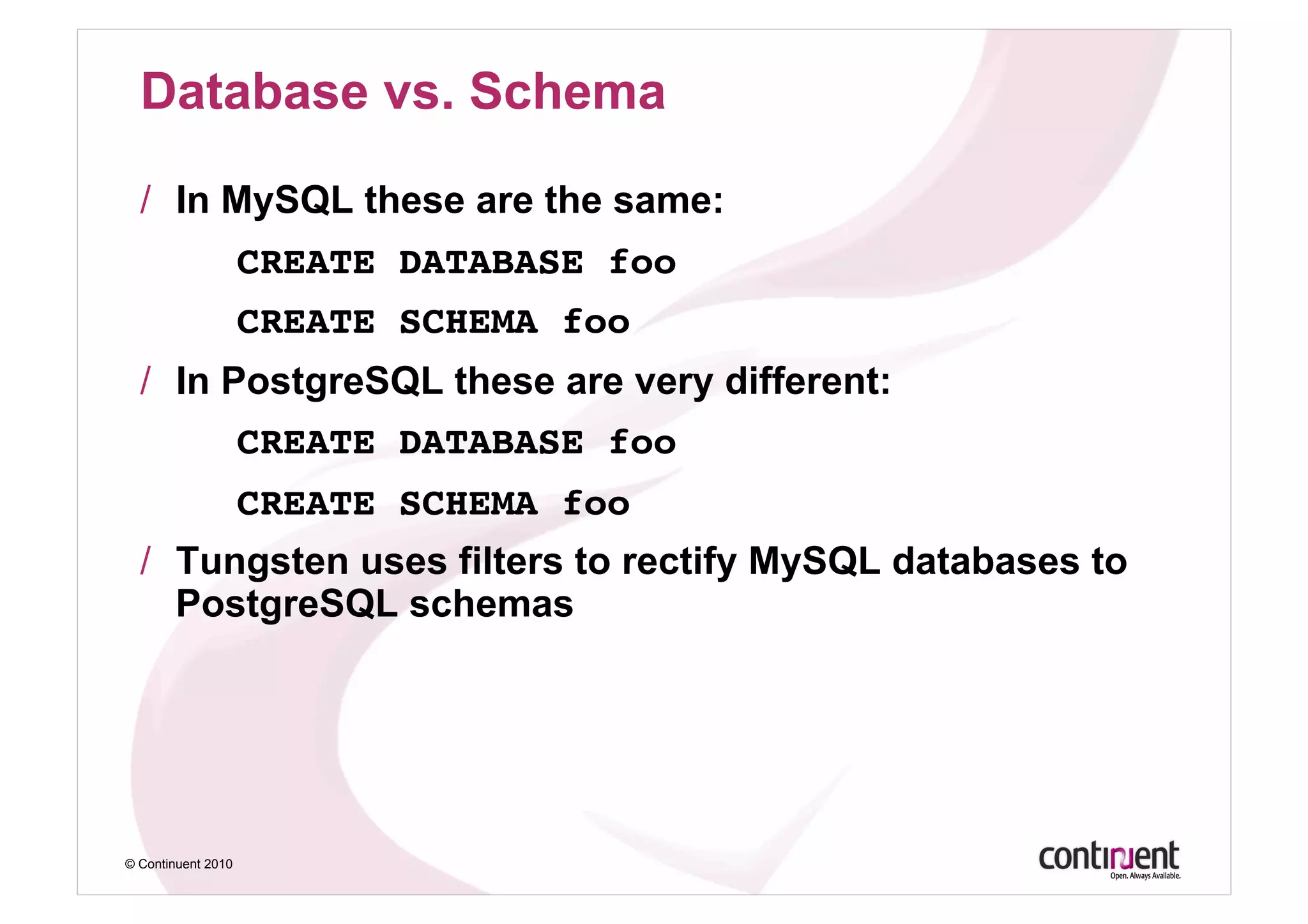

20. Database vs. Schema
/ In MySQL these are the same:
! !CREATE DATABASE foo!
! !CREATE SCHEMA foo!
/ In PostgreSQL these are very different:
CREATE DATABASE foo!
! !CREATE SCHEMA foo!
/ Tungsten uses filters to rectify MySQL databases to
PostgreSQL schemas
© Continuent 2010

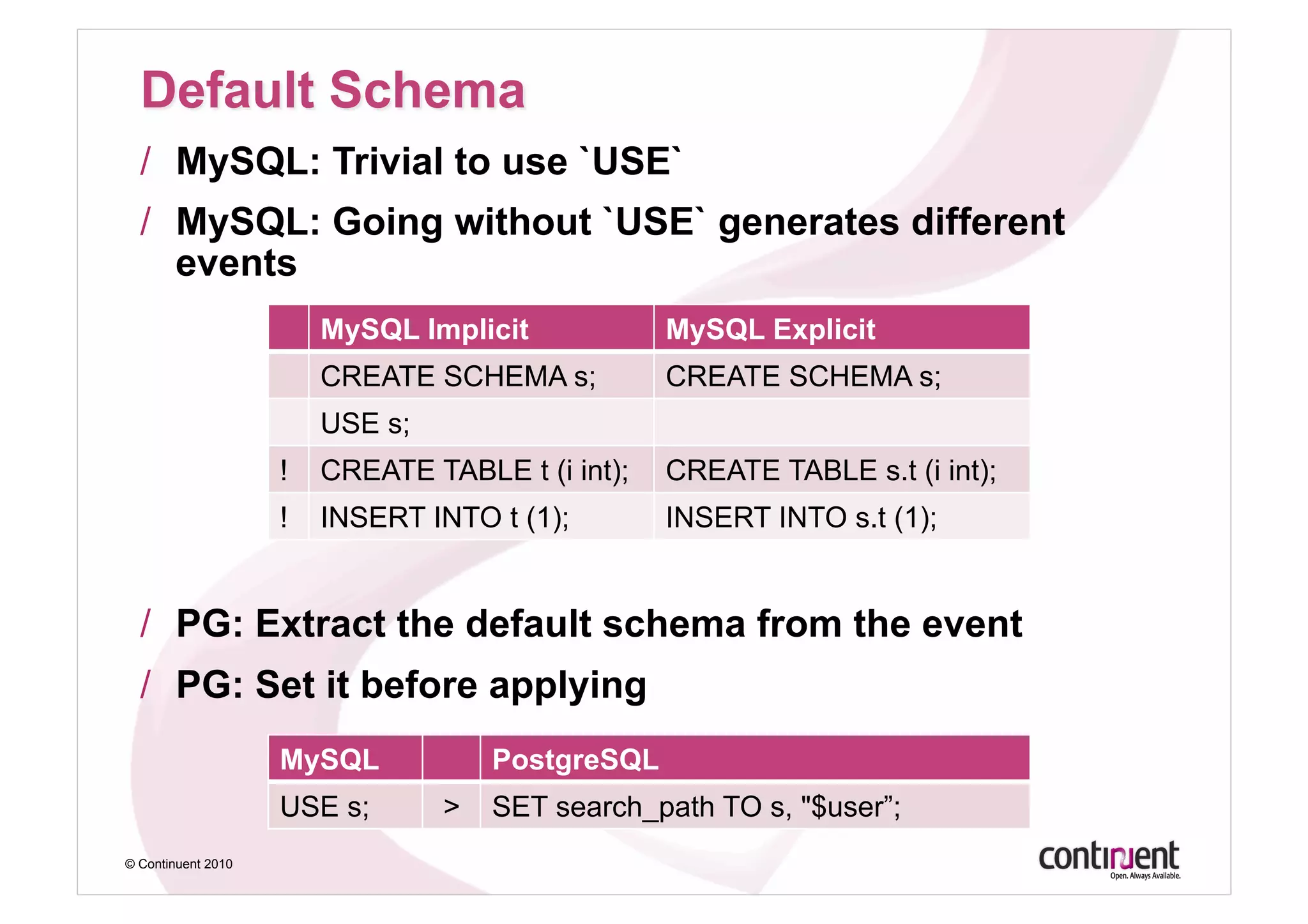

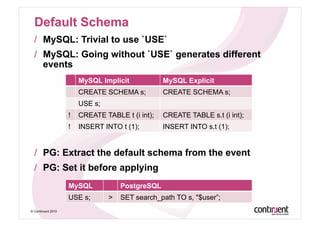

21. / MySQL: Trivial to use `USE`
/ MySQL: Going without `USE` generates different
events
MySQL Implicit MySQL Explicit
CREATE SCHEMA s; CREATE SCHEMA s;
USE s;
! CREATE TABLE t (i int); CREATE TABLE s.t (i int);
! INSERT INTO t (1); INSERT INTO s.t (1);
/ PG: Extract the default schema from the event
/ PG: Set it before applying
MySQL PostgreSQL
USE s; > SET search_path TO s, "$user”;
© Continuent 2010

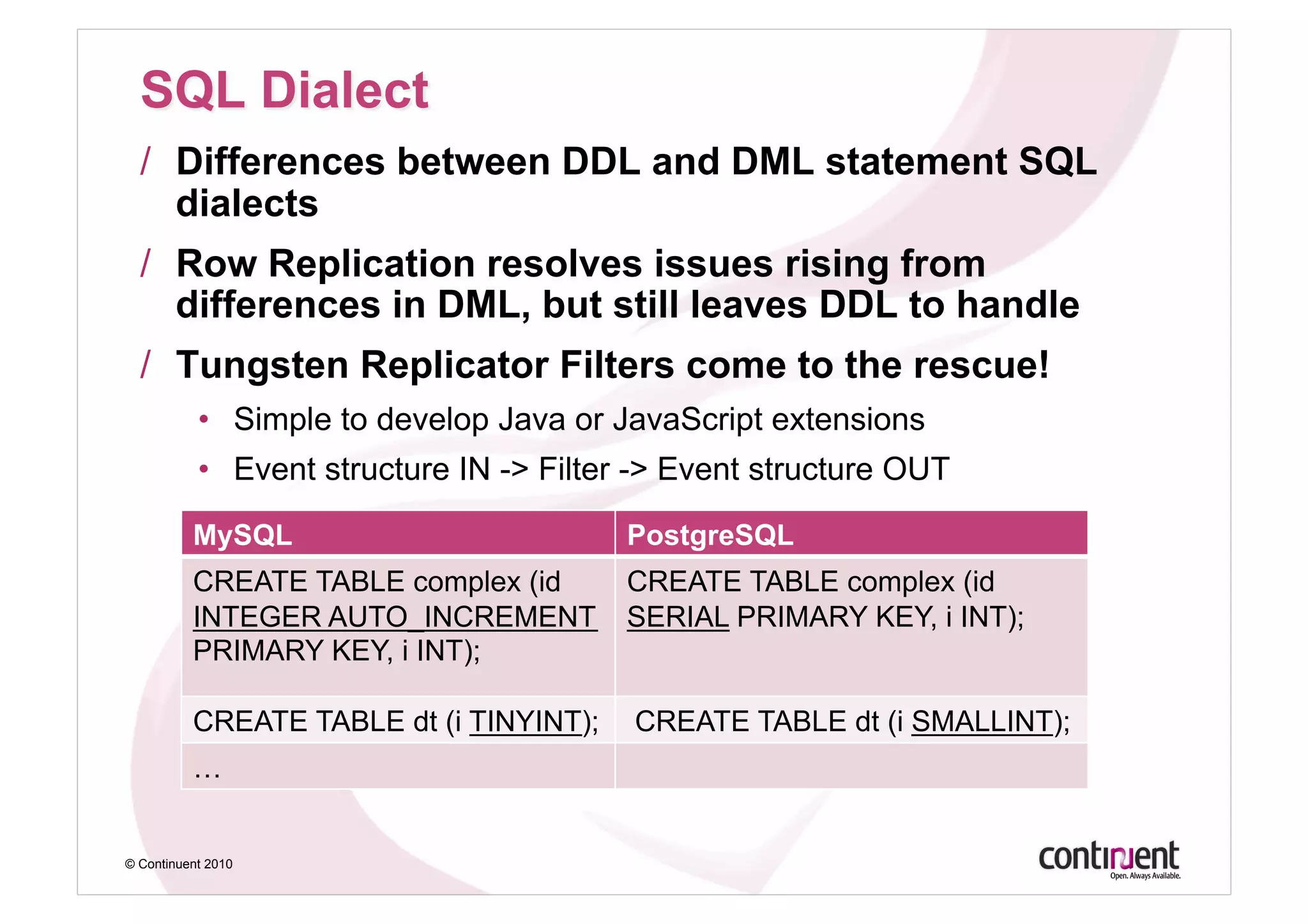

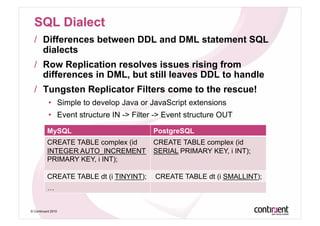

22. / Differences between DDL and DML statement SQL
dialects
/ Row Replication resolves issues rising from
differences in DML, but still leaves DDL to handle
/ Tungsten Replicator Filters come to the rescue!
• Simple to develop Java or JavaScript extensions
• Event structure IN -> Filter -> Event structure OUT
MySQL PostgreSQL
CREATE TABLE complex (id CREATE TABLE complex (id
INTEGER AUTO_INCREMENT SERIAL PRIMARY KEY, i INT);
PRIMARY KEY, i INT);
CREATE TABLE dt (i TINYINT); CREATE TABLE dt (i SMALLINT);
…
© Continuent 2010

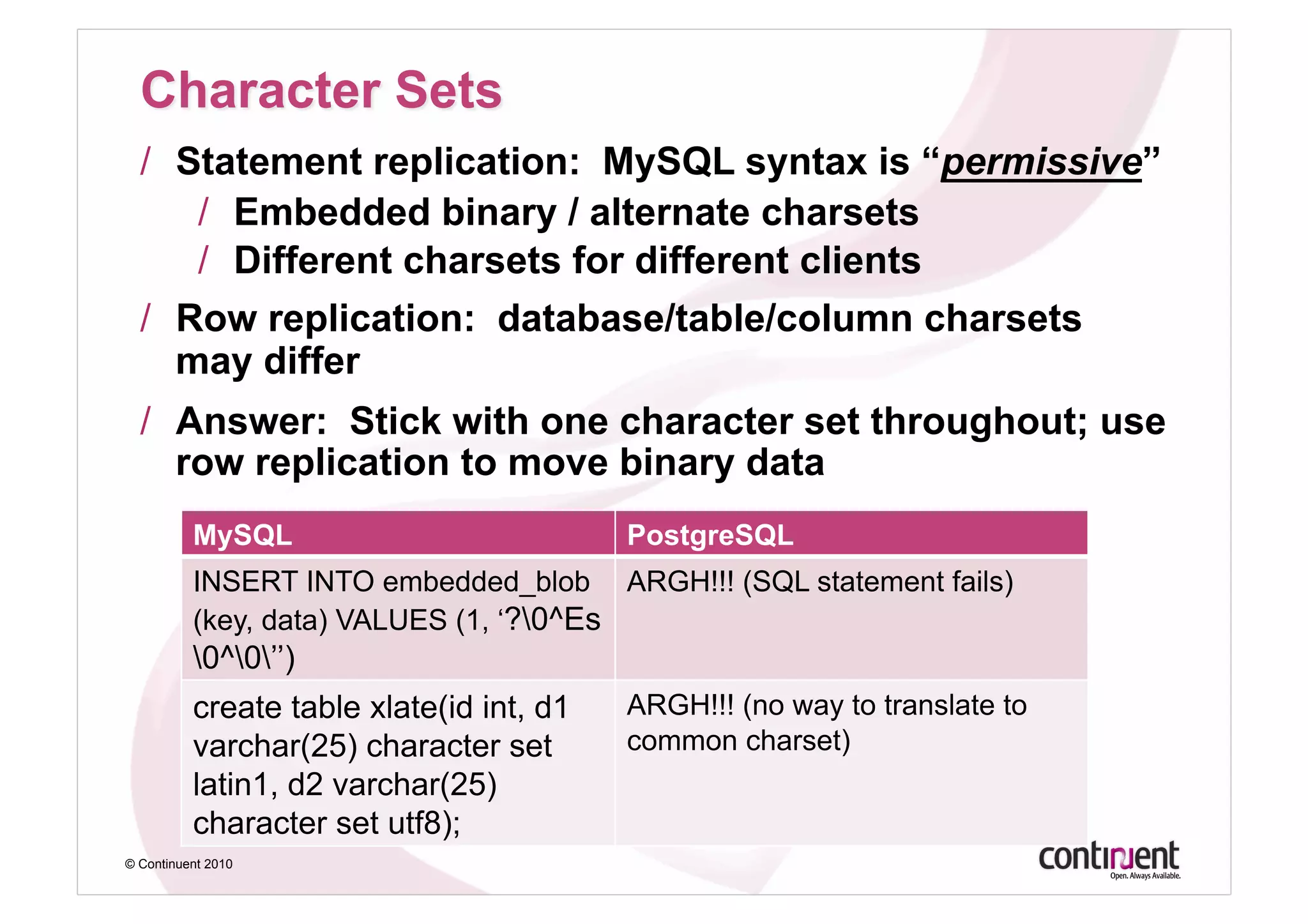

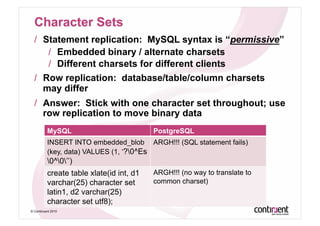

23. / Statement replication: MySQL syntax is “permissive”
/ Embedded binary / alternate charsets
/ Different charsets for different clients
/ Row replication: database/table/column charsets
may differ
/ Answer: Stick with one character set throughout; use
row replication to move binary data
MySQL PostgreSQL
INSERT INTO embedded_blob ARGH!!! (SQL statement fails)
(key, data) VALUES (1, ‘?0^Es
0^0’’)
create table xlate(id int, d1 ARGH!!! (no way to translate to
varchar(25) character set common charset)
latin1, d2 varchar(25)
character set utf8);
© Continuent 2010

24. © Continuent 2010

25. © Continuent 2010

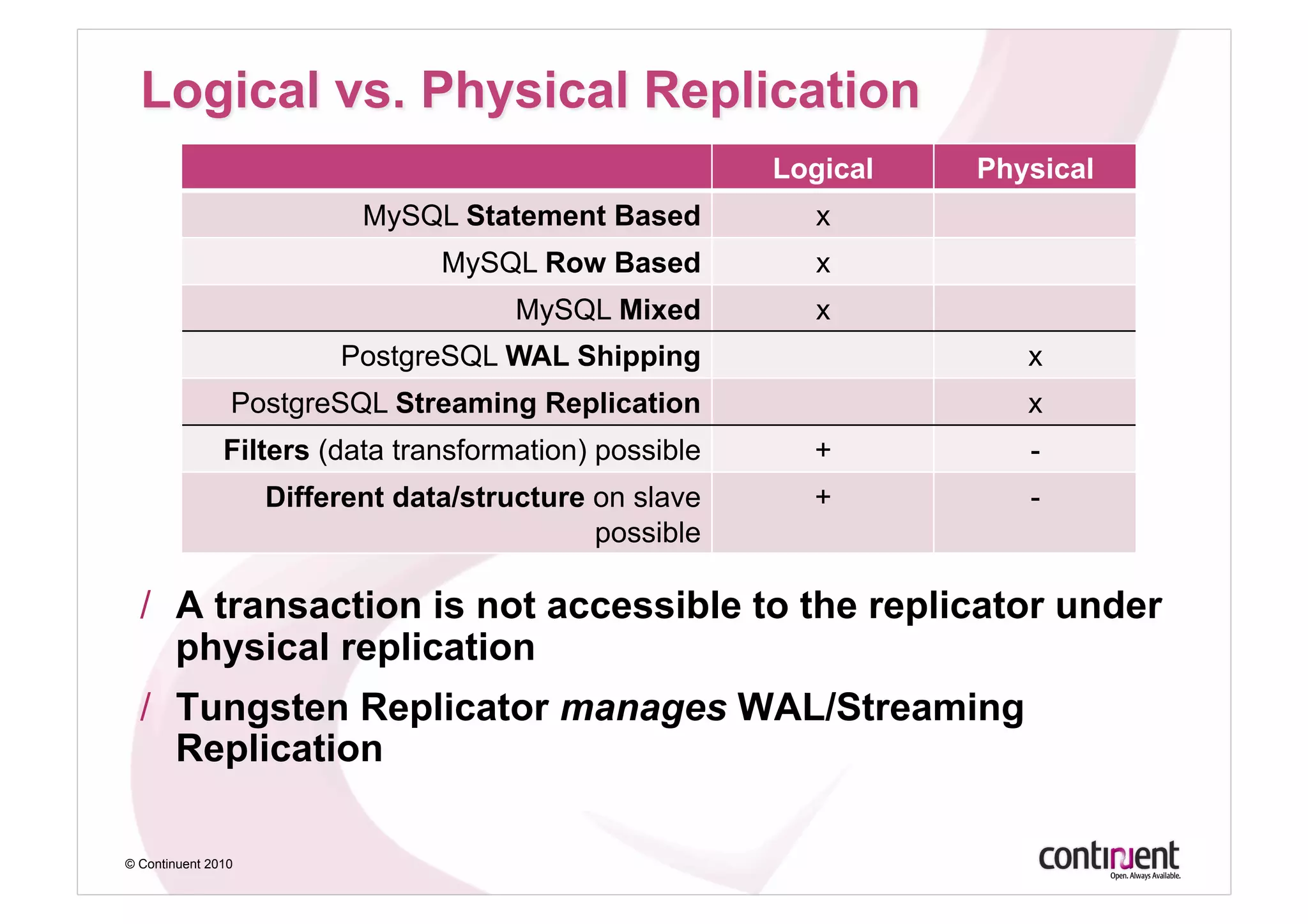

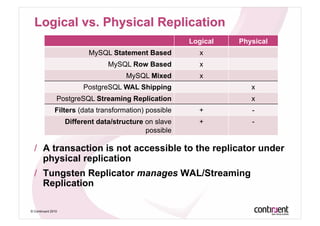

26. Logical Physical
MySQL Statement Based x
MySQL Row Based x
MySQL Mixed x
PostgreSQL WAL Shipping x
PostgreSQL Streaming Replication x
Filters (data transformation) possible + -
Different data/structure on slave + -
possible
/ A transaction is not accessible to the replicator under
physical replication
/ Tungsten Replicator manages WAL/Streaming
Replication
© Continuent 2010

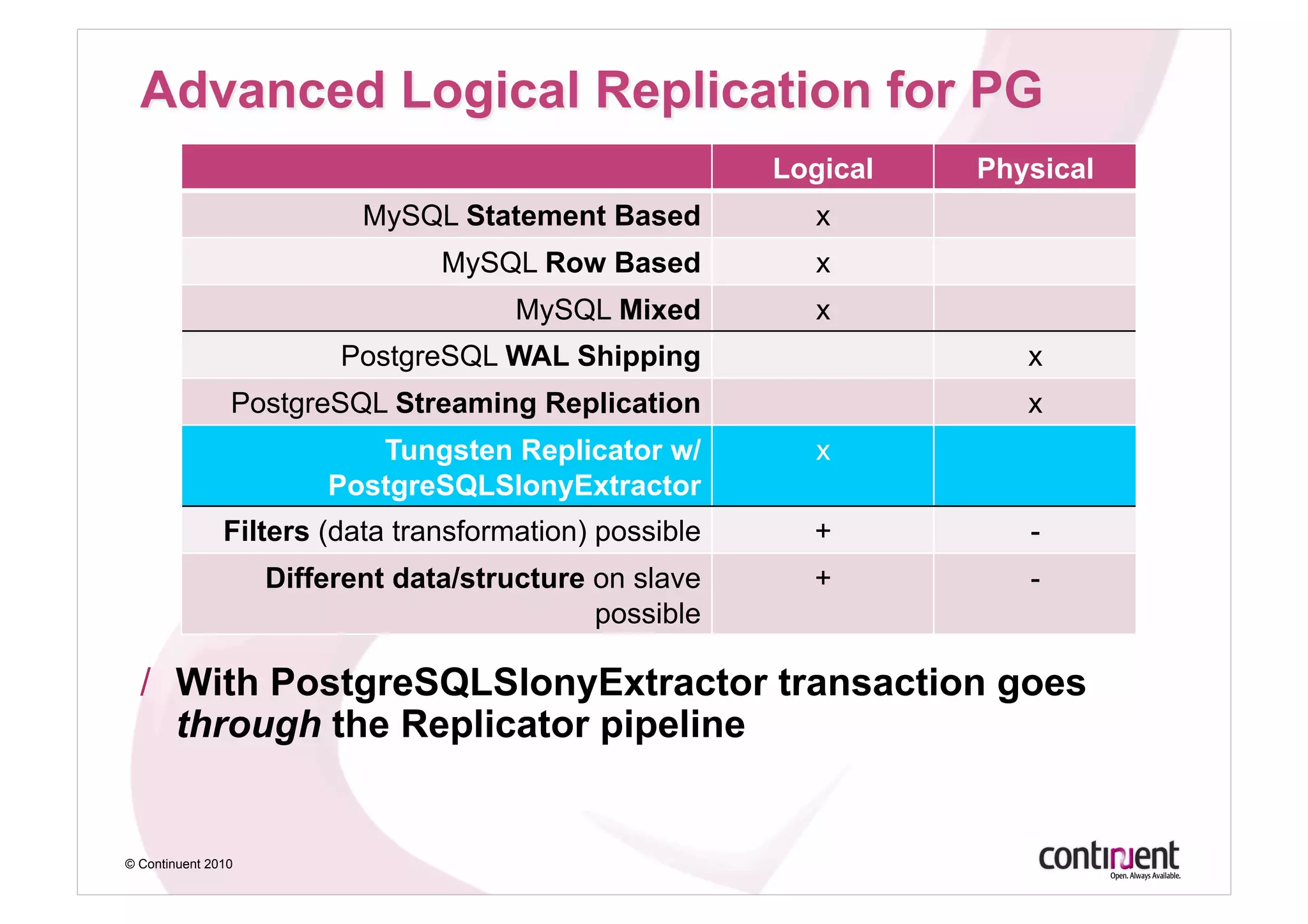

27. Logical Physical
MySQL Statement Based x
MySQL Row Based x
MySQL Mixed x
PostgreSQL WAL Shipping x
PostgreSQL Streaming Replication x
Tungsten Replicator w/ x
PostgreSQLSlonyExtractor
Filters (data transformation) possible + -
Different data/structure on slave + -
possible
/ With PostgreSQLSlonyExtractor transaction goes
through the Replicator pipeline
© Continuent 2010

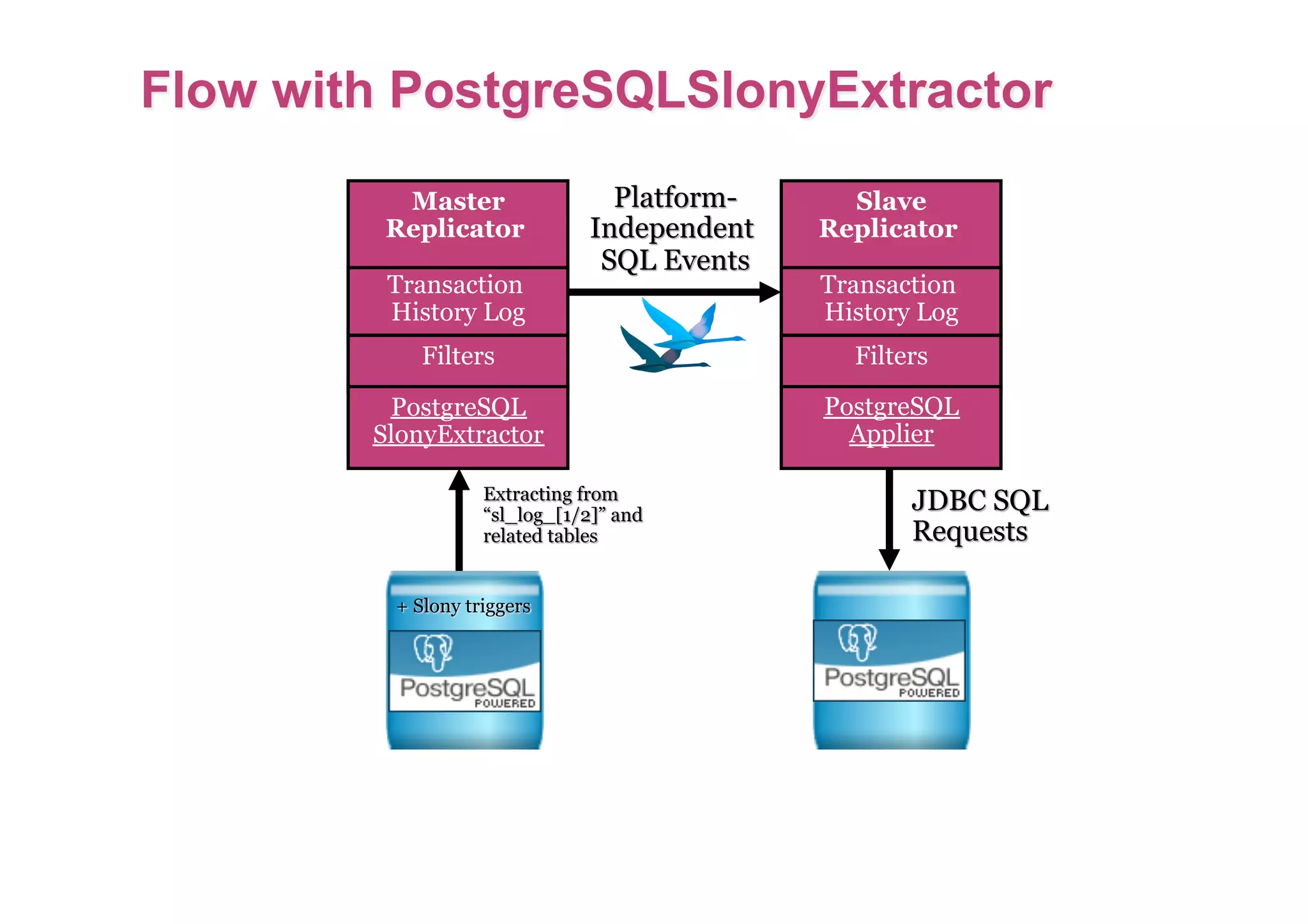

28. Master Slave
Replicator Replicator
Transaction Transaction
History Log History Log
Filters Filters
PostgreSQL
SlonyExtractor

29. © Continuent 2010

30. © Continuent 2010

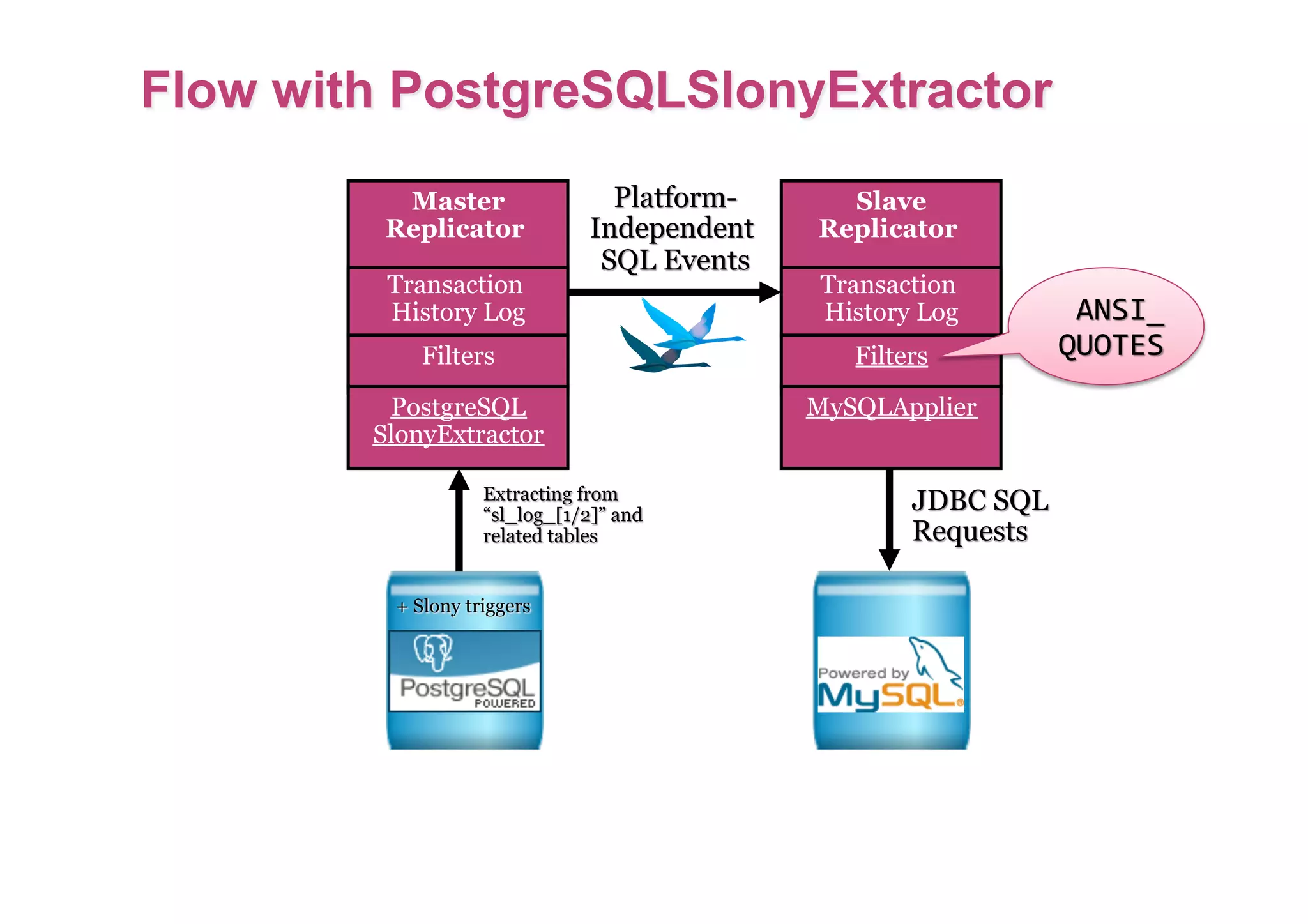

31. Master Slave
Replicator Replicator
Transaction Transaction
History Log History Log
Filters Filters
PostgreSQL MySQLApplier
SlonyExtractor

32. © Continuent 2010

33. © Continuent 2010

34. © Continuent 2010

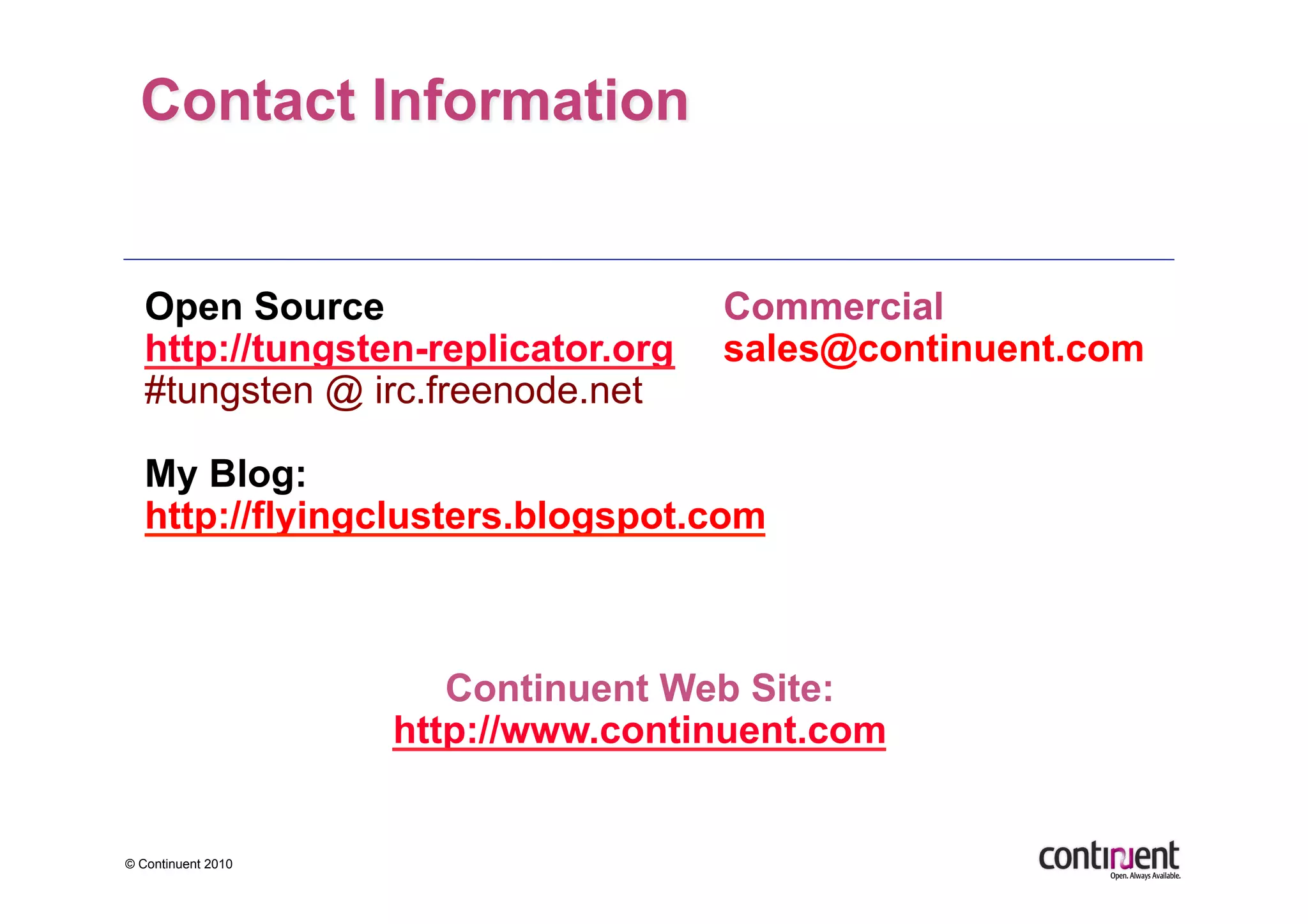

35. Open Source Commercial
http://tungsten-replicator.org sales@continuent.com
#tungsten @ irc.freenode.net
My Blog:
http://flyingclusters.blogspot.com
Continuent Web Site:
http://www.continuent.com
© Continuent 2010
