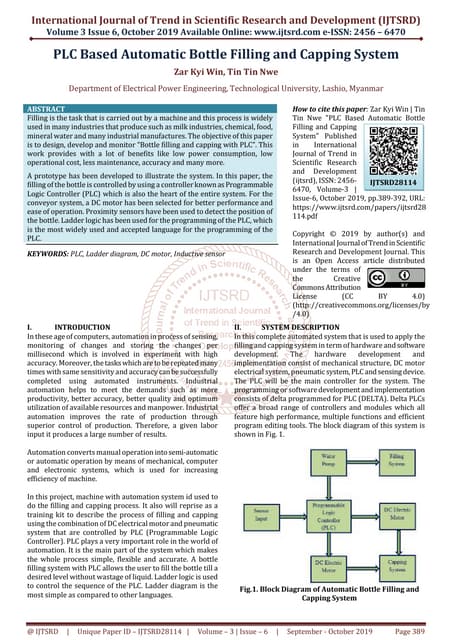

PLC Based Automatic Bottle Filling and Capping Systemijtsrd
Filling is the task that is carried out by a machine and this process is widely used in many industries that produce such as milk industries, chemical, food, mineral water and many industrial manufactures. The objective of this paper is to design, develop and monitor "Bottle filling and capping with PLC". This work provides with a lot of benefits like low power consumption, low operational cost, less maintenance, accuracy and many more. A prototype has been developed to illustrate the system. In this paper, the filling of the bottle is controlled by using a controller known as Programmable Logic Controller PLC which is also the heart of the entire system. For the conveyor system, a DC motor has been selected for better performance and ease of operation. Proximity sensors have been used to detect the position of the bottle. Ladder logic has been used for the programming of the PLC, which is the most widely used and accepted language for the programming of the PLC. Zar Kyi Win | Tin Tin Nwe "PLC Based Automatic Bottle Filling and Capping System" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-3 | Issue-6 , October 2019, URL: https://www.ijtsrd.com/papers/ijtsrd28114.pdf Paper URL: https://www.ijtsrd.com/engineering/electrical-engineering/28114/plc-based-automatic-bottle-filling-and-capping-system/zar-kyi-win
The aim of this project is to design a micro-controller Based automatic bottle filling system that sense the presence of bottle and fills it accordingly up to a fixed level.
The aim of this project is to design a micro controller Based automatic bottle filling system that sense the presence of bottle and fills it accordingly up to a fixed level.
PLC Based Automatic Bottle Filling and Capping Systemijtsrd
Filling is the task that is carried out by a machine and this process is widely used in many industries that produce such as milk industries, chemical, food, mineral water and many industrial manufactures. The objective of this paper is to design, develop and monitor "Bottle filling and capping with PLC". This work provides with a lot of benefits like low power consumption, low operational cost, less maintenance, accuracy and many more. A prototype has been developed to illustrate the system. In this paper, the filling of the bottle is controlled by using a controller known as Programmable Logic Controller PLC which is also the heart of the entire system. For the conveyor system, a DC motor has been selected for better performance and ease of operation. Proximity sensors have been used to detect the position of the bottle. Ladder logic has been used for the programming of the PLC, which is the most widely used and accepted language for the programming of the PLC. Zar Kyi Win | Tin Tin Nwe "PLC Based Automatic Bottle Filling and Capping System" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-3 | Issue-6 , October 2019, URL: https://www.ijtsrd.com/papers/ijtsrd28114.pdf Paper URL: https://www.ijtsrd.com/engineering/electrical-engineering/28114/plc-based-automatic-bottle-filling-and-capping-system/zar-kyi-win
The aim of this project is to design a micro-controller Based automatic bottle filling system that sense the presence of bottle and fills it accordingly up to a fixed level.
PowerPoint Presentation on Industrial Automation In which we discuss About PLCs, SCADA,HMI,VFD and various tools of Automation which is used in Industries.
Like Comment & Share
Automated irrigation system based on soil moisture using arduino boardjournalBEEI
In recent years, the best system of irrigation is studied by reducing the wasted amount of water and electricity. Automatic irrigation is the use of a device to operate irrigation structures so the change of flow of water from one bay, or set of bays, to another can occur in the absence of the irrigator. In this work, automatic control system of solar irrigation implemented practically using Arduino board. This photovoltaic (PV) system is applied in the garden of Engineering Technical College- Mosul (city in Iraq). PV system can be adjusted by many regions in Iraq where it planned to connect on small part of land. Irrigation process is controlled depending on moisture sensor that connected to sense the soil moisture and giving data to Arduino read pin. According to the program that uploaded to Arduino, DC pump can be controlled as ON-state or OFF-state as respect to the soil moisture percentage ratio. Finally, the practical results are approximately similar to that obtained from proteus Arduino simulator.
Hi friends
This PPT consist of automation information ,what is PLC,need of PLC applications,components of PLC ,PLC operations,Timers , Some Program, etc
instead of this it consists SCADA ,what is SCADA,need of SCADA,brands of SCADA, tags ,features of SCADA, Dynamic process graphic , script security etc.......
Technological innovations in the field of disease prevention and maintenance of patient health have enabled the evolution of fields such as monitoring systems. Heart rate is a very vital health parameter that is directly related to the soundness of the human cardiovascular system. Heart rate is the number of times the heart beats per minute, reflects different physiological conditions such as biological workload, stress at work and concentration on tasks, drowsiness and the active state of the autonomic nervous system. It can be measured either by the ECG waveform or by sensing the pulse - the rhythmic expansion and contraction of an artery as blood is forced through it by the regular contractions of the heart. The pulse can be felt from those areas where the artery is close to the skin. This paper describes a technique of measuring the heart rate through a fingertip and Arduino. It is based on the principal of photophelthysmography (PPG) which is non-invasive method of measuring the variation in blood volume in tissue using a light source and detector. While the heart is beating, it is actually pumping blood throughout the body, and that makes the blood volume inside the finger artery to change too. This fluctuation of blood can be detected through an optical sensing mechanism placed around the fingertip. The signal can be amplified and is sent to Arduino with the help of serial port communication. With the help of processing software heart rate monitoring and counting is performed. The sensor unit consists of an infrared light-emitting-diode (IR LED) and a photo diode. The IR LED transmits an infrared light into the fingertip, a part of which is reflected back from the blood inside the finger arteries. The photo diode senses the portion of the light that is reflected back. The intensity of reflected light depends upon the blood volume inside the fingertip. So, every time the heart beats the amount of reflected infrared light changes, which can be detected by the photo diode. With a high gain amplifier, this little alteration in the amplitude of the reflected light can be converted into a pulse.
This ppt describes how to detect vehicle movement on highways to switch ON only a block of street lights ahead of it (vehicle), and to switch OFF the trailing lights to save energy.
Edgefxkits.com has a wide range of electronic projects ideas that are primarily helpful for ECE, EEE and EIE students and the ideas can be applied for real life purposes as well.
http://www.edgefxkits.com/
Visit our page to get more ideas on popular electronic projects developed by professionals.
Edgefx provides free verified electronic projects kits around the world with abstracts, circuit diagrams, and free electronic software. We provide guidance manual for Do It Yourself Kits (DIY) with the modules at best price along with free shipping.
The project is based upon closed loop control system.
A Closed-loop Control System, also known as a feedback control system is a control system which uses the concept of an open loop system as its forward path but has one or more feedback loops (hence its name) or paths between its output and its input.
The reference to “feedback”, simply means that some portion of the output is returned “back” to the input to form part of the systems excitation.
Seminar Presentation on Programmeble Logic Controller , By an Engineering Student For doing Professional Presentation like Business Presentation, Industrial Use
The presentation gives you the basics of Programmable logic controller(PLC) and its use in industrial Automation along with
Supervisory control and Data Acquisition(SCADA).
contact for any info "nikhilbrahmas@gmail.com"
A presentation on the topic Automatic Bottling System using Arduino 2560 Mega Micro Controller for small scale industry based bottle filling applications.
Summer Internship Report For PLC Programming of Traffic light through Ladder ...Aman Gupta
For free download Subscribe to https://www.youtube.com/channel/UCTfiZ8qwZ_8_vTjxeCB037w and Follow https://www.instagram.com/fitrit_2405/ then please contact +91-9045839849 over WhatsApp.
An industrial PLCs system is used for the development of the controls of machinery. This paper describes the PLCs systems in terms of their architecture, their interface to the process hardware, the functionality and the application development facilities they provide. Some attention is also paid to the industrial standards to which they abide their planned evolution as well as the potential benefits of their use. Ladder Logic is a graphical programming language, initially programmed with simple contacts that simulates the opening and closing of relays. Ladder Logic programming has been expanded to include functions such as Counters, Timers, shift Registers and math operations. Ladder logic is a method of drawing electrical logic schematics. It is now a graphical language very popular for programming Programmable Logic Controllers (PLCs). It was originally invented to describe logic made from relays. The name is based on the observation that programs in this language resemble ladders, with two vertical "rails" and a series of horizontal "rungs" between them.
PC Based DC Motor Speed Control using PID for Laboratoryijtsrd
In this paper, PC based DC motor speed control using PID proportional, Integral, derivative control algorithm for laboratory. Arduino Uno microcontroller and L298N hybrid motor driver module are used to drive the dc motor. PID algorithm is uploaded to arduino and proportional gain kp , Integral gain ki , and derivative gain kd can be set and tuned via windows form application in computer. This application is developed by using c programming. The desired speed and PID gains are set by computer and drive the DC motor. The speed of the motor can retrieve by using encoder which is included in DC motor. By using this work, student can learn how to control the speed of DC motor using PID controller and how to tune the gains. Kyaw Zin Latt | Than Htike Aung | Zaw Min Min Htun "PC Based DC Motor Speed Control using PID for Laboratory" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-3 | Issue-5 , August 2019, URL: https://www.ijtsrd.com/papers/ijtsrd27898.pdfPaper URL: https://www.ijtsrd.com/engineering/electronics-and-communication-engineering/27898/pc-based-dc-motor-speed-control-using-pid-for-laboratory/kyaw-zin-latt
PowerPoint Presentation on Industrial Automation In which we discuss About PLCs, SCADA,HMI,VFD and various tools of Automation which is used in Industries.
Like Comment & Share
Automated irrigation system based on soil moisture using arduino boardjournalBEEI
In recent years, the best system of irrigation is studied by reducing the wasted amount of water and electricity. Automatic irrigation is the use of a device to operate irrigation structures so the change of flow of water from one bay, or set of bays, to another can occur in the absence of the irrigator. In this work, automatic control system of solar irrigation implemented practically using Arduino board. This photovoltaic (PV) system is applied in the garden of Engineering Technical College- Mosul (city in Iraq). PV system can be adjusted by many regions in Iraq where it planned to connect on small part of land. Irrigation process is controlled depending on moisture sensor that connected to sense the soil moisture and giving data to Arduino read pin. According to the program that uploaded to Arduino, DC pump can be controlled as ON-state or OFF-state as respect to the soil moisture percentage ratio. Finally, the practical results are approximately similar to that obtained from proteus Arduino simulator.
Hi friends
This PPT consist of automation information ,what is PLC,need of PLC applications,components of PLC ,PLC operations,Timers , Some Program, etc
instead of this it consists SCADA ,what is SCADA,need of SCADA,brands of SCADA, tags ,features of SCADA, Dynamic process graphic , script security etc.......
Technological innovations in the field of disease prevention and maintenance of patient health have enabled the evolution of fields such as monitoring systems. Heart rate is a very vital health parameter that is directly related to the soundness of the human cardiovascular system. Heart rate is the number of times the heart beats per minute, reflects different physiological conditions such as biological workload, stress at work and concentration on tasks, drowsiness and the active state of the autonomic nervous system. It can be measured either by the ECG waveform or by sensing the pulse - the rhythmic expansion and contraction of an artery as blood is forced through it by the regular contractions of the heart. The pulse can be felt from those areas where the artery is close to the skin. This paper describes a technique of measuring the heart rate through a fingertip and Arduino. It is based on the principal of photophelthysmography (PPG) which is non-invasive method of measuring the variation in blood volume in tissue using a light source and detector. While the heart is beating, it is actually pumping blood throughout the body, and that makes the blood volume inside the finger artery to change too. This fluctuation of blood can be detected through an optical sensing mechanism placed around the fingertip. The signal can be amplified and is sent to Arduino with the help of serial port communication. With the help of processing software heart rate monitoring and counting is performed. The sensor unit consists of an infrared light-emitting-diode (IR LED) and a photo diode. The IR LED transmits an infrared light into the fingertip, a part of which is reflected back from the blood inside the finger arteries. The photo diode senses the portion of the light that is reflected back. The intensity of reflected light depends upon the blood volume inside the fingertip. So, every time the heart beats the amount of reflected infrared light changes, which can be detected by the photo diode. With a high gain amplifier, this little alteration in the amplitude of the reflected light can be converted into a pulse.
This ppt describes how to detect vehicle movement on highways to switch ON only a block of street lights ahead of it (vehicle), and to switch OFF the trailing lights to save energy.
Edgefxkits.com has a wide range of electronic projects ideas that are primarily helpful for ECE, EEE and EIE students and the ideas can be applied for real life purposes as well.
http://www.edgefxkits.com/
Visit our page to get more ideas on popular electronic projects developed by professionals.
Edgefx provides free verified electronic projects kits around the world with abstracts, circuit diagrams, and free electronic software. We provide guidance manual for Do It Yourself Kits (DIY) with the modules at best price along with free shipping.
The project is based upon closed loop control system.
A Closed-loop Control System, also known as a feedback control system is a control system which uses the concept of an open loop system as its forward path but has one or more feedback loops (hence its name) or paths between its output and its input.
The reference to “feedback”, simply means that some portion of the output is returned “back” to the input to form part of the systems excitation.
Seminar Presentation on Programmeble Logic Controller , By an Engineering Student For doing Professional Presentation like Business Presentation, Industrial Use
The presentation gives you the basics of Programmable logic controller(PLC) and its use in industrial Automation along with
Supervisory control and Data Acquisition(SCADA).
contact for any info "nikhilbrahmas@gmail.com"
A presentation on the topic Automatic Bottling System using Arduino 2560 Mega Micro Controller for small scale industry based bottle filling applications.
Summer Internship Report For PLC Programming of Traffic light through Ladder ...Aman Gupta
For free download Subscribe to https://www.youtube.com/channel/UCTfiZ8qwZ_8_vTjxeCB037w and Follow https://www.instagram.com/fitrit_2405/ then please contact +91-9045839849 over WhatsApp.
An industrial PLCs system is used for the development of the controls of machinery. This paper describes the PLCs systems in terms of their architecture, their interface to the process hardware, the functionality and the application development facilities they provide. Some attention is also paid to the industrial standards to which they abide their planned evolution as well as the potential benefits of their use. Ladder Logic is a graphical programming language, initially programmed with simple contacts that simulates the opening and closing of relays. Ladder Logic programming has been expanded to include functions such as Counters, Timers, shift Registers and math operations. Ladder logic is a method of drawing electrical logic schematics. It is now a graphical language very popular for programming Programmable Logic Controllers (PLCs). It was originally invented to describe logic made from relays. The name is based on the observation that programs in this language resemble ladders, with two vertical "rails" and a series of horizontal "rungs" between them.
PC Based DC Motor Speed Control using PID for Laboratoryijtsrd
In this paper, PC based DC motor speed control using PID proportional, Integral, derivative control algorithm for laboratory. Arduino Uno microcontroller and L298N hybrid motor driver module are used to drive the dc motor. PID algorithm is uploaded to arduino and proportional gain kp , Integral gain ki , and derivative gain kd can be set and tuned via windows form application in computer. This application is developed by using c programming. The desired speed and PID gains are set by computer and drive the DC motor. The speed of the motor can retrieve by using encoder which is included in DC motor. By using this work, student can learn how to control the speed of DC motor using PID controller and how to tune the gains. Kyaw Zin Latt | Than Htike Aung | Zaw Min Min Htun "PC Based DC Motor Speed Control using PID for Laboratory" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-3 | Issue-5 , August 2019, URL: https://www.ijtsrd.com/papers/ijtsrd27898.pdfPaper URL: https://www.ijtsrd.com/engineering/electronics-and-communication-engineering/27898/pc-based-dc-motor-speed-control-using-pid-for-laboratory/kyaw-zin-latt
SMART HOME AUTOMATION USING MOBILE APPLICATIONEklavya Sharma
Our smart home automation kit provides smartphone application based solutions for control &
energy optimization in industry, commercial buildings & homes. The kit requires a Arduino
Uno R3 having ATMega328 microcontroller for processing, Bluetooth module HC-06 is
required to transmit and receive data, relays are required to control the AC loads, ULN2003 IC
is used to drive the relays, an Android smartphone with the Smart Home Automation
application installed is required to control the AC loads fixed in the switch board and a power
supply of 12 V is required to power up the relays and Arduino requires the power supply of 7
V. If the DPDT (Double Pole Double Throw) switches are used then the kit can be made to
work manually as well as remotely.
Furthermore, the system can be improved for the door control, the temperature detection, the
light dimmer control etc. Similarly, the application can be improved for voice recognition. The
Smart Home Automation can be improved for receiving and sending signal through ESP8266
Wi-Fi module and can be controlled through mobile or computer via web.
Dc motor speed control with feedback monitor based on c# applicationeSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Dc motor speed control with feedback monitor based on c# applicationeSAT Journals
Abstract Precise, cheap control and monitoring the speed of DC motor is ever hot area of work. In the present paper we have attempted to implement speed control and feedback monitoring for a 12 Volt/1000 RPM rated motor. Speed control is done with help of PWM pins on Arduino/AVR board and H-bridge IC L293D. Feedback speed monitoring is based on IR pair based interrupt monitoring. Hence Sensing and calculation part of process is handled by Arduino/AVR board. All of this is implemented with help of PC based user interface developed in C#. In a typical user interface speed control is achieved with help of trackBar and speed monitoring with help of Text window, was we get direct readout of current speed in RPM. Keywords: Arduino/AVR board, PWM, DC motor, IR based speed monitoring using interrupt, C# etc…
Three-Axis Auto Stabilizing Video Camera PlatformEklavya Sharma
Basically auto-stabilizing platform consists of platform which is balanced by movement of three servo motors in opposite direction to the movement of the platform. Arduino Uno process the tilt angles obtained from MPU-6050 and give instruction to the respective servo motors to rotate by certain angle depending on its previous position to balance or control the platform. The intent of the platform design is to maintain the platform at an initially selected angle while the support structure orientation changes. The software was written with logic to convert the digital data from the accelerometer and gyroscope to an acceleration and gyro magnitude vector and then converted
in degrees. The InvenSense MPU-6050 sensor contains a 3axis MEMS accelerometer and a 3axis MEMS gyro in a single chip whose outputs are calibrated properly by using KALMAN FILTER
to give the precise angle. The magnitude of the angle was then compared to a predetermined mathematical function to infer the angle of tilt of the platform. The angle of tilt is then converted
to angle of rotation for the servos to adjust their current position and bring the platform in balanced condition. Testing showed the platform to perform as expected. Although some error on the final angle was expected, the magnitude of the error observed indicated the platform design has a high sensitivity to low tolerance mechanical joints (slop). Overall the platform design was validated based on the positional accuracy of the platform given the low quality components used to create it. In other words, the platform performed greater than the sum of its parts.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad

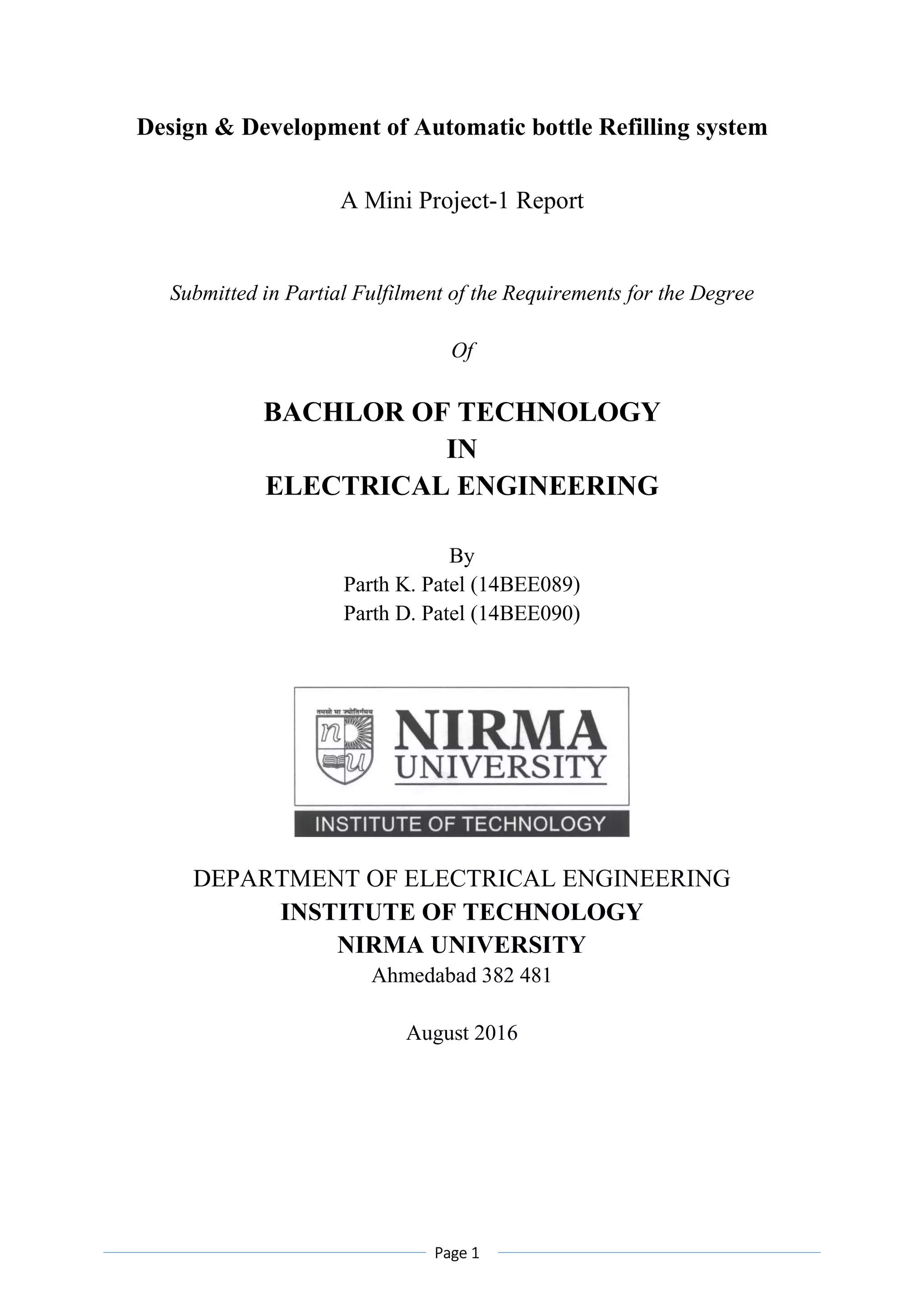

1. Page 1
Design & Development of Automatic bottle Refilling system
A Mini Project-1 Report
Submitted in Partial Fulfilment of the Requirements for the Degree
Of
BACHLOR OF TECHNOLOGY
IN
ELECTRICAL ENGINEERING
By
Parth K. Patel (14BEE089)
Parth D. Patel (14BEE090)
DEPARTMENT OF ELECTRICAL ENGINEERING
INSTITUTE OF TECHNOLOGY
NIRMA UNIVERSITY
Ahmedabad 382 481
August 2016
2. Page 2

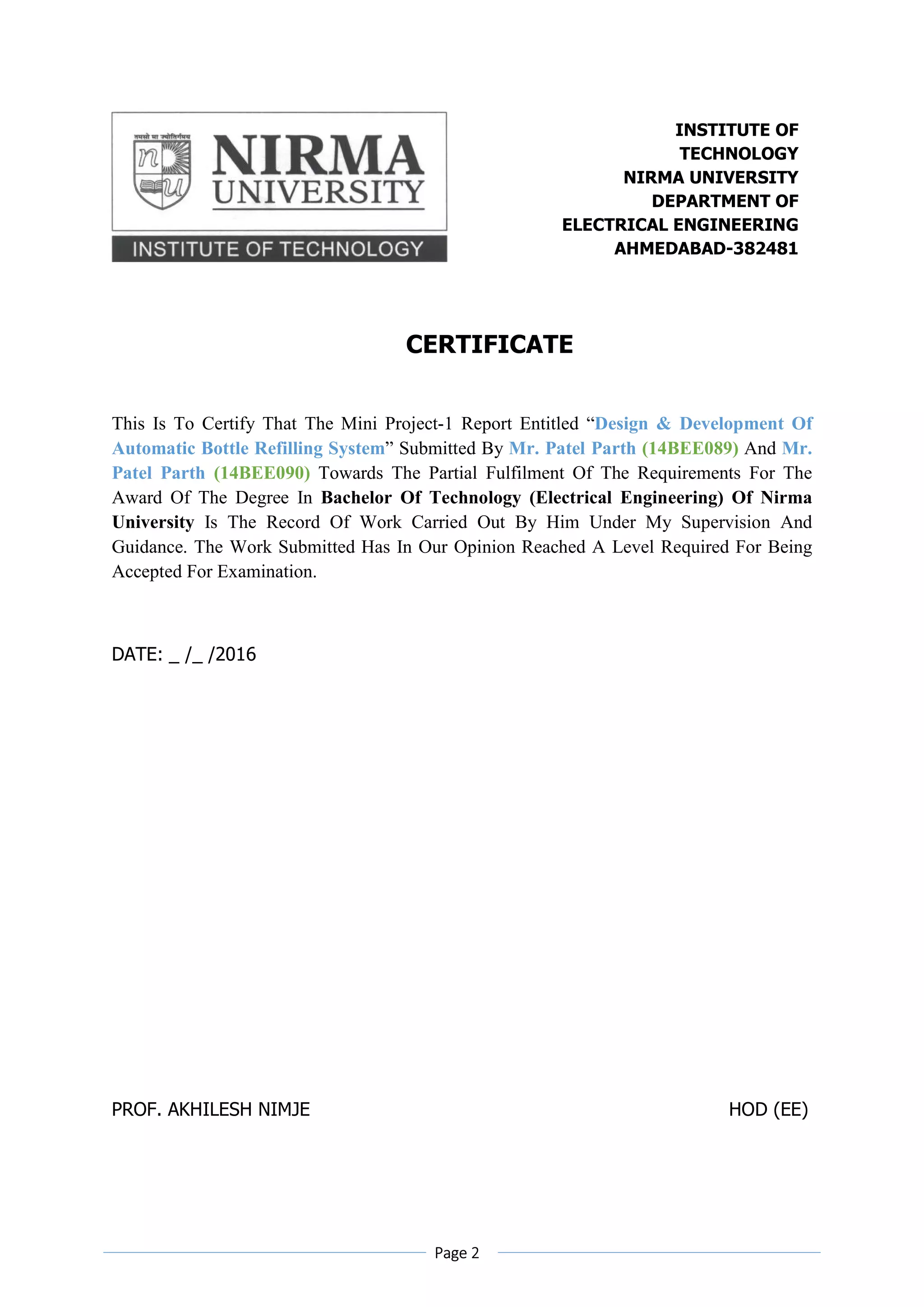

CERTIFICATE
This Is To Certify That The Mini Project-1 Report Entitled “Design & Development Of
” Submitted By Mr. Patel Parth (14BEE089) And Mr.Automatic Bottle Refilling System
Patel Parth (14BEE090) Towards The Partial Fulfilment Of The Requirements For The
Award Of The Degree In Bachelor Of Technology (Electrical Engineering) Of Nirma
University Is The Record Of Work Carried Out By Him Under My Supervision And
Guidance. The Work Submitted Has In Our Opinion Reached A Level Required For Being
Accepted For Examination.
DATE: _ /_ /2016
PROF. AKHILESH NIMJE HOD (EE)
INSTITUTE OF
TECHNOLOGY
NIRMA UNIVERSITY
DEPARTMENT OF
ELECTRICAL ENGINEERING
AHMEDABAD-382481
3. Page 3
ACKNOWLEDGEMENT
I must acknowledge the strength, energy and patience that almighty GOD bestowed upon me
to start & accomplish this work with the support of all concerned, a few of them I am trying
to name hereunder.
I would like to express my sincere respect and profound gratitude to authorities and staff of
Electrical Engineering Department for providing the department facilities for my project
work. I would also like to thank all my friends who have helped me indirectly for the
completion of my dissertation work. I would also like to thank all the teaching and non-
teaching staff for cooperating with me and providing valuable advice which helped me in the
completion of this project.
No words are adequate to express my indebtedness to my parents and for their blessing and
good wishes. To them I bow in the deepest reverence.
- Parth K. Patel (14BEE089)
- Parth D. Patel (14BEE090)
4. Page 4

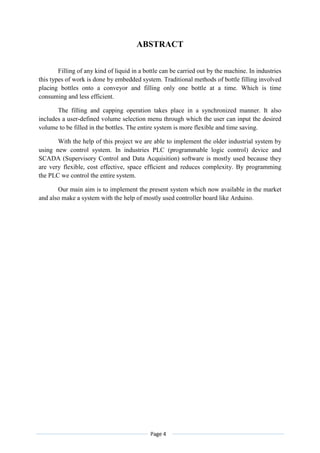

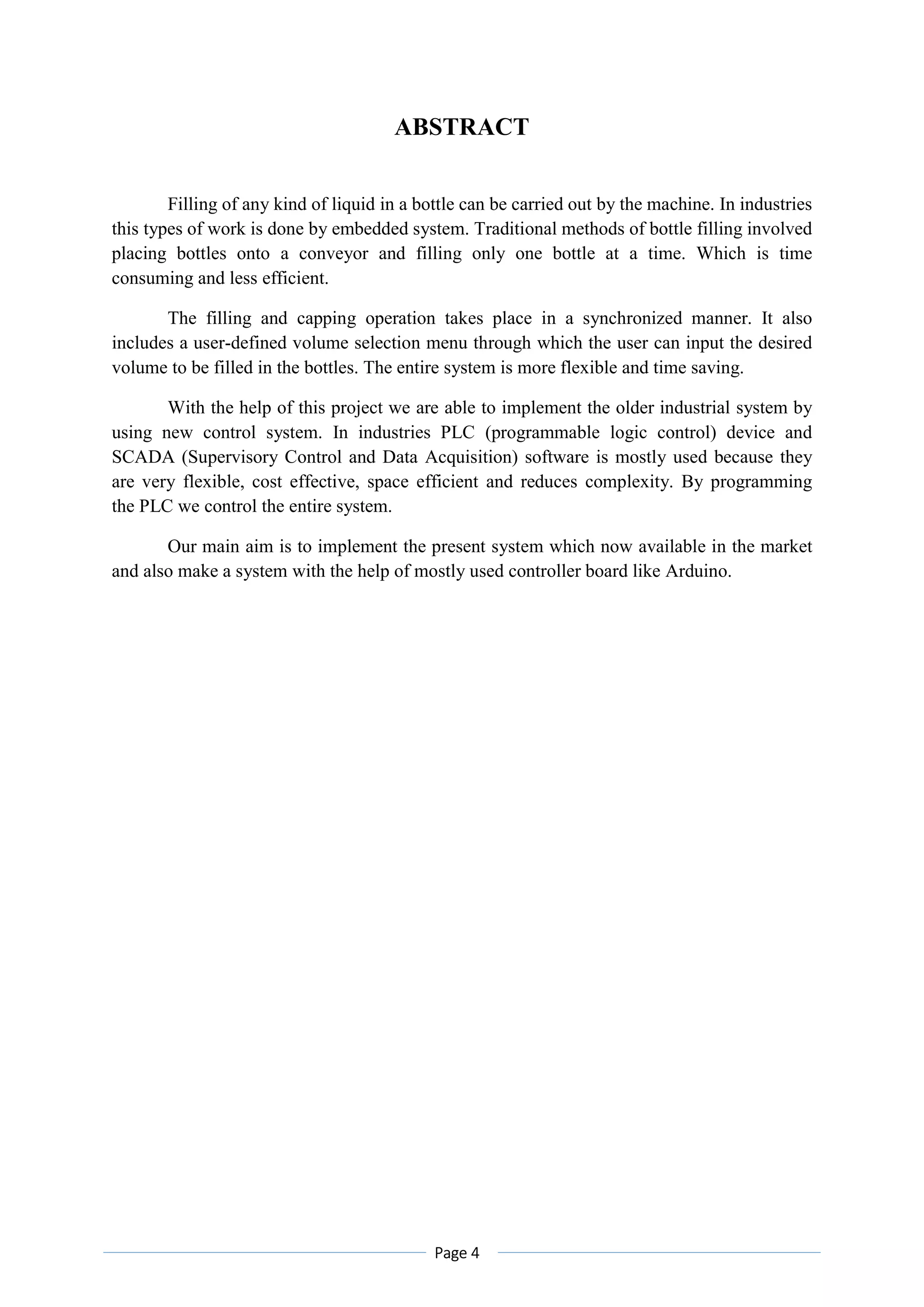

ABSTRACT
Filling of any kind of liquid in a bottle can be carried out by the machine. In industries
this types of work is done by embedded system. Traditional methods of bottle filling involved
placing bottles onto a conveyor and filling only one bottle at a time. Which is time
consuming and less efficient.
The filling and capping operation takes place in a synchronized manner. It also
includes a user-defined volume selection menu through which the user can input the desired
volume to be filled in the bottles. The entire system is more flexible and time saving.
With the help of this project we are able to implement the older industrial system by
using new control system. In industries PLC (programmable logic control) device and
SCADA (Supervisory Control and Data Acquisition) software is mostly used because they
are very flexible, cost effective, space efficient and reduces complexity. By programming
the PLC we control the entire system.
Our main aim is to implement the present system which now available in the market
and also make a system with the help of mostly used controller board like Arduino.
5. Page 5

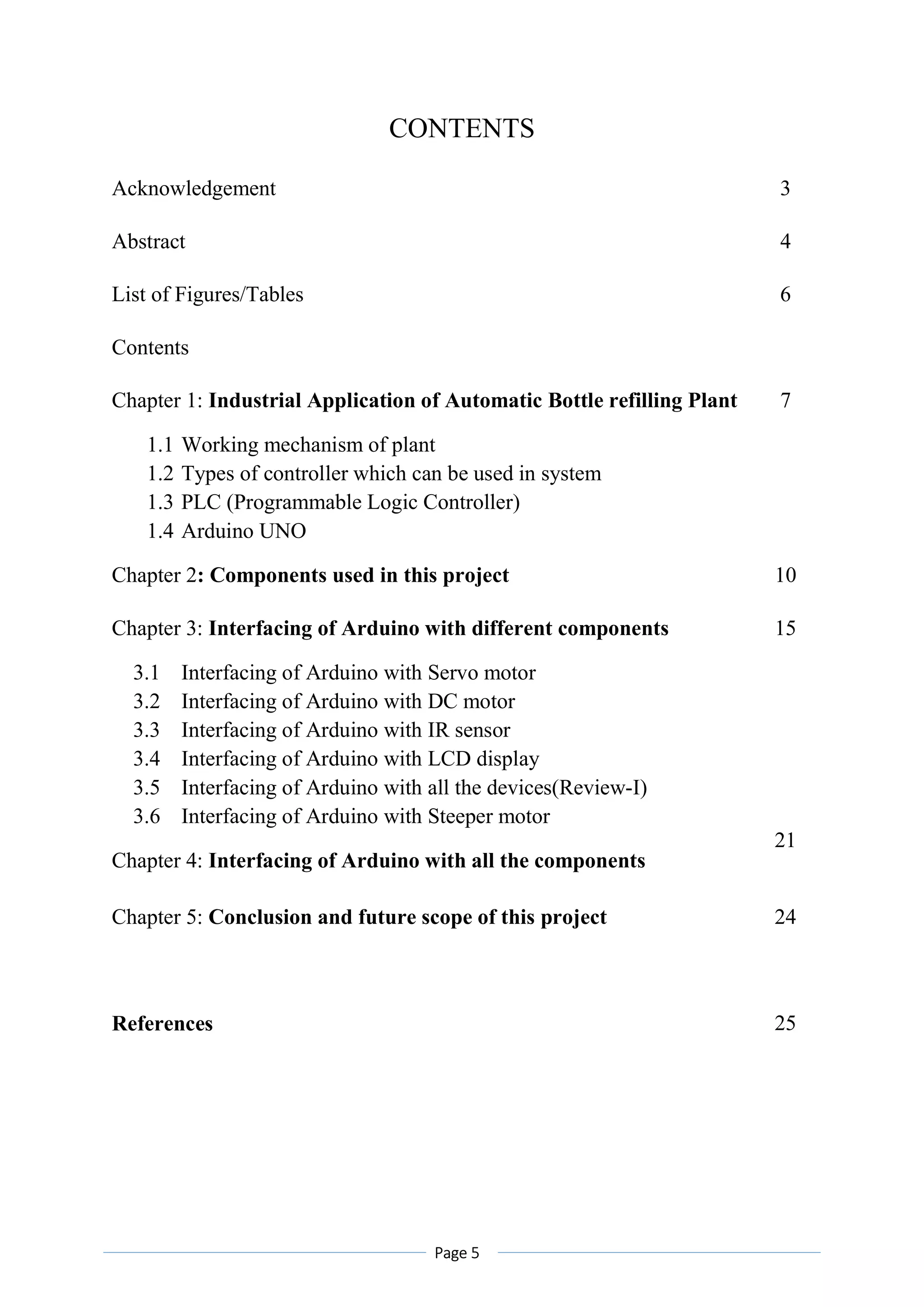

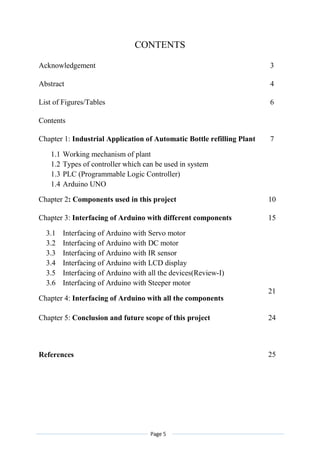

CONTENTS
Acknowledgement 3
Abstract 4

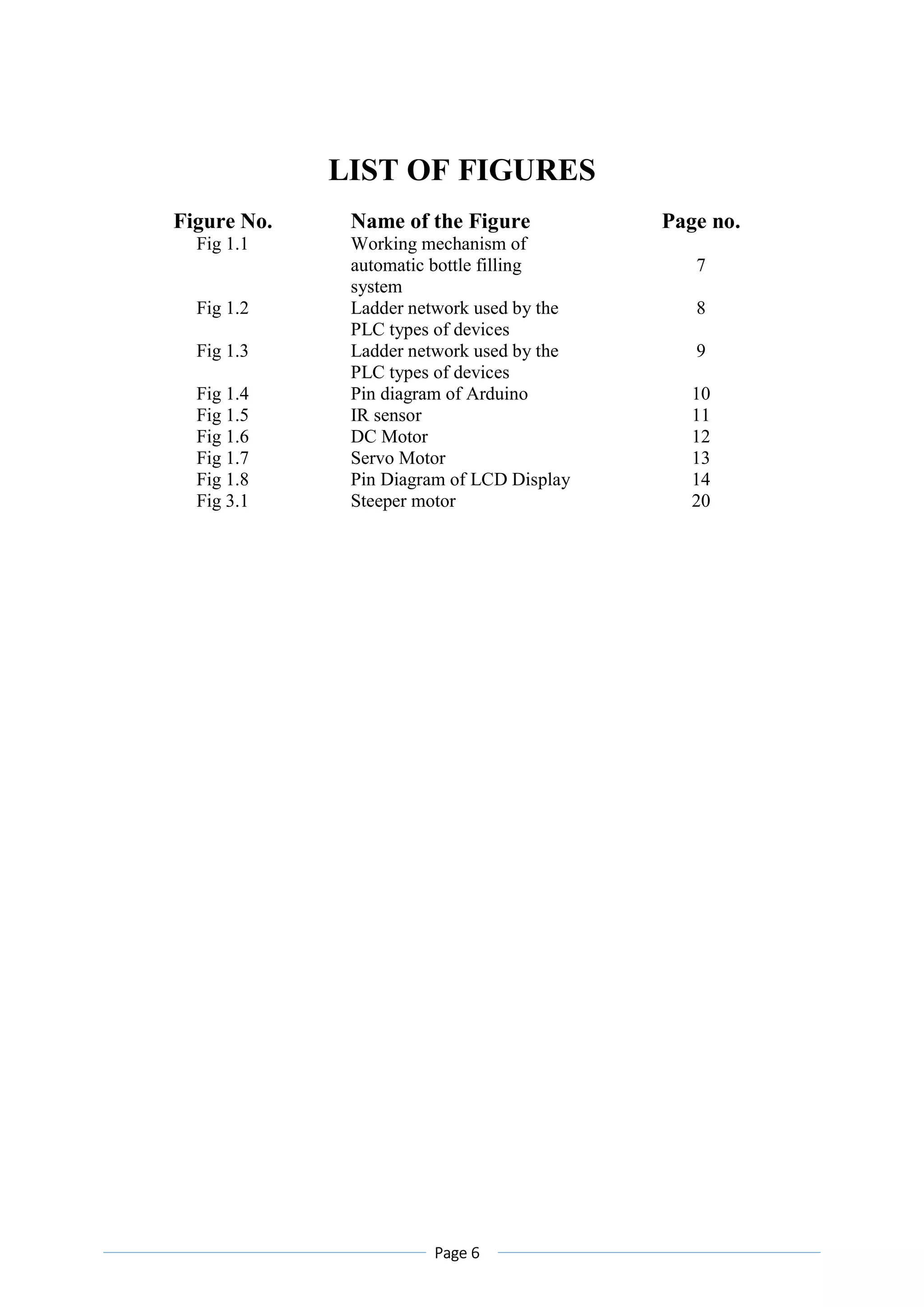

List of Figures/Tables 6
Contents
Chapter 1: Industrial Application of Automatic Bottle refilling Plant

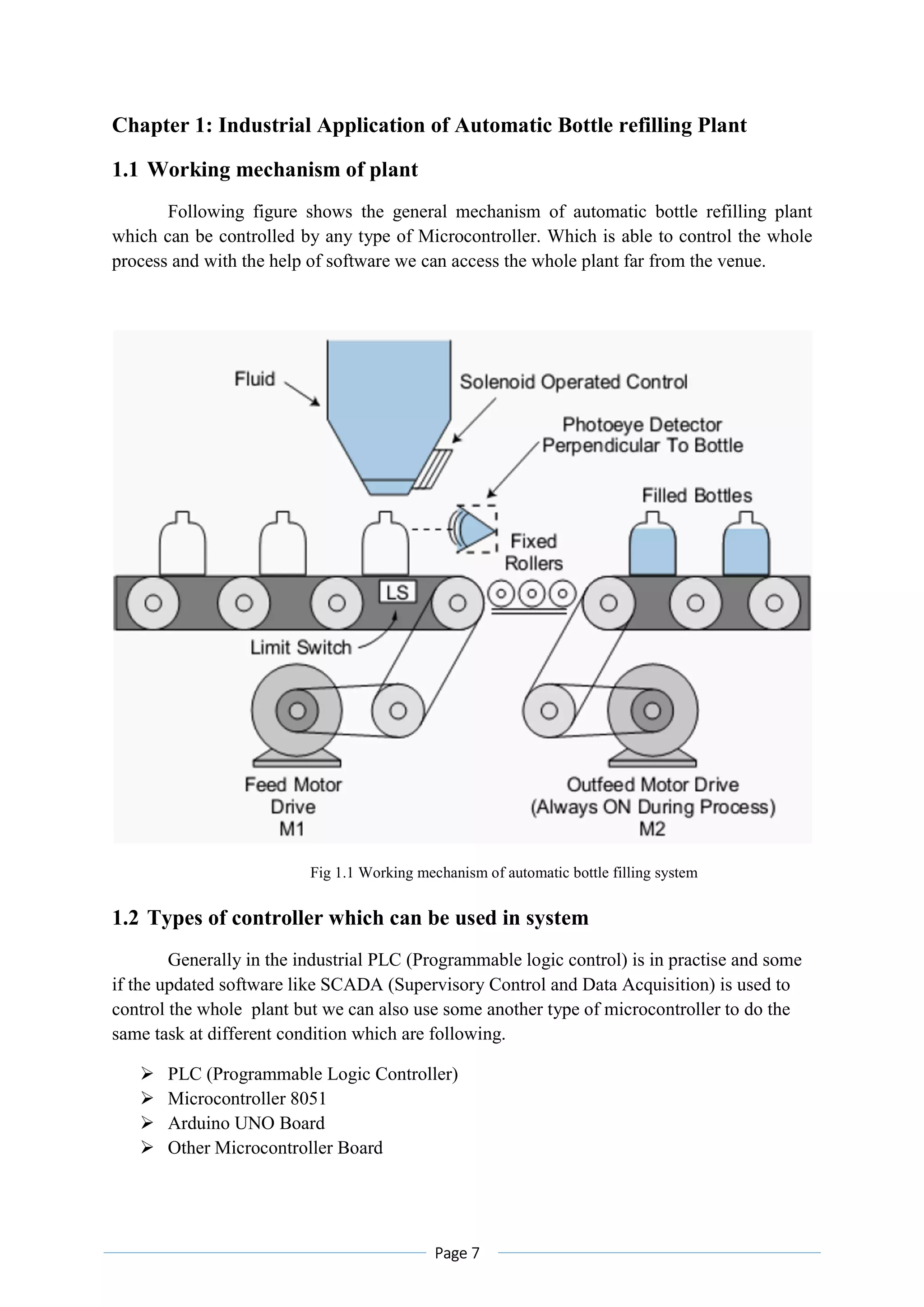

1.1 Working mechanism of plant
1.2 Types of controller which can be used in system

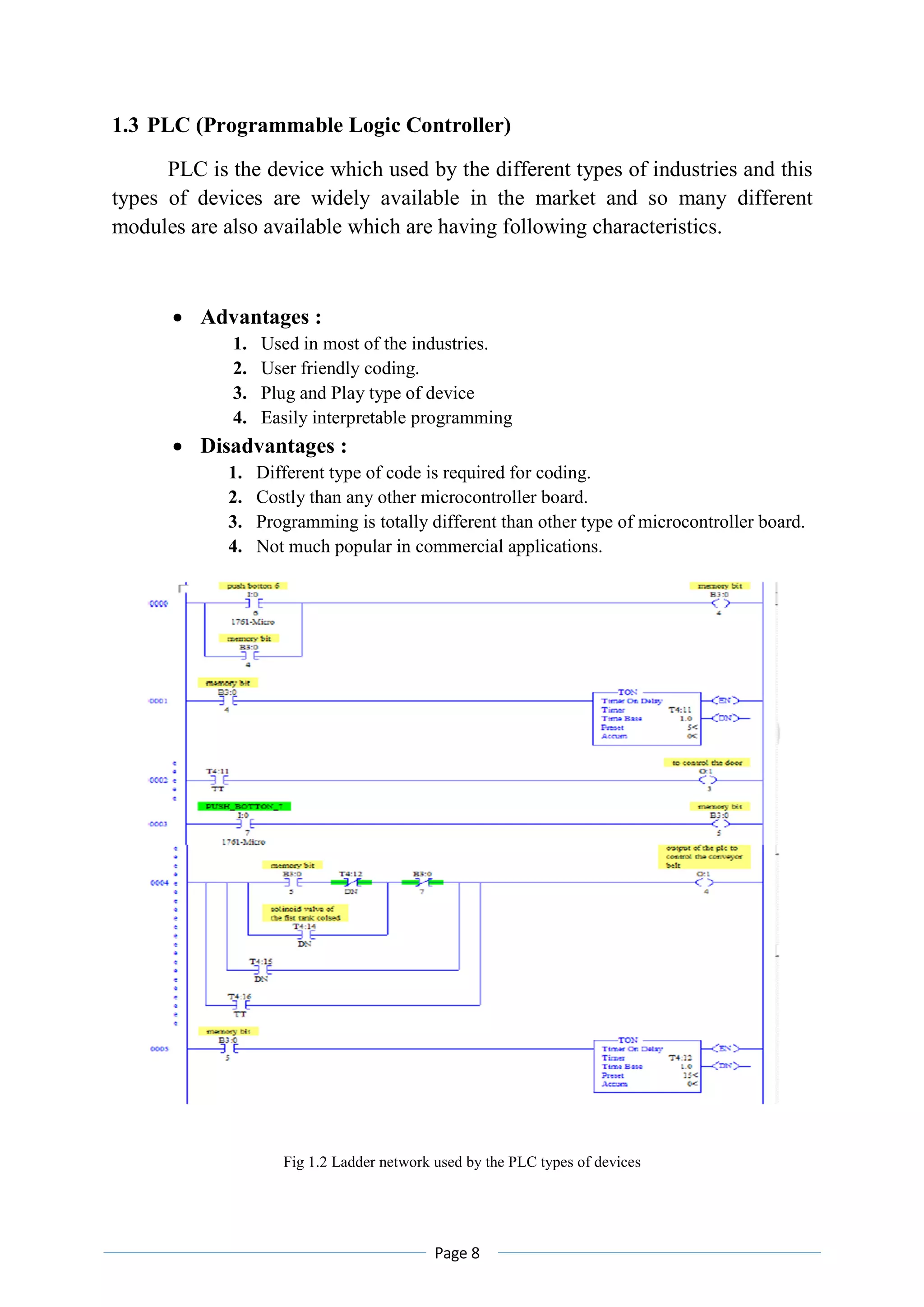

1.3 PLC (Programmable Logic Controller)
1.4 Arduino UNO
7

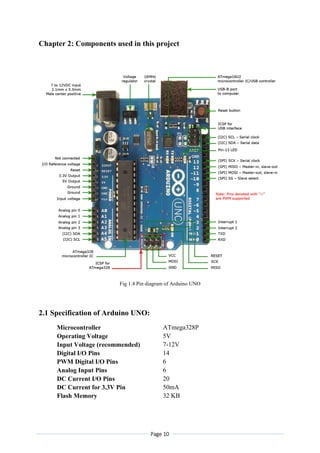

Chapter 2: Components used in this project 10
Chapter 3: Interfacing of Arduino with different components

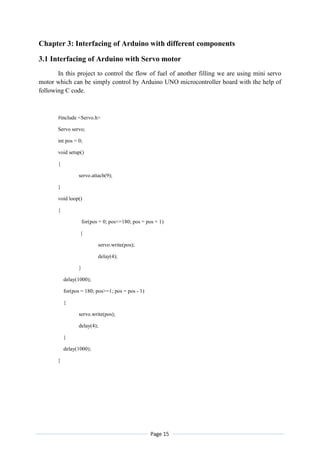

3.1 Interfacing of Arduino with Servo motor

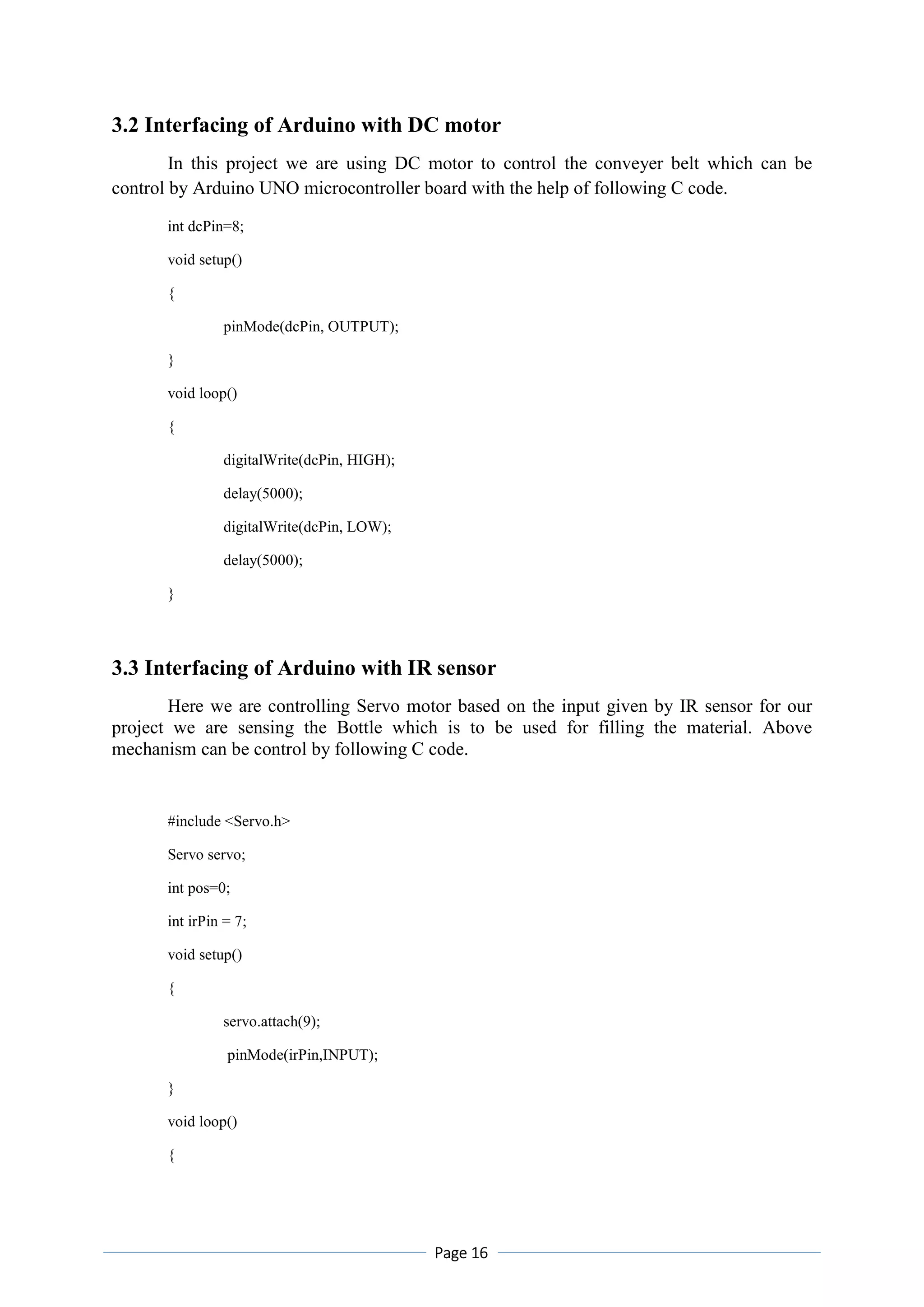

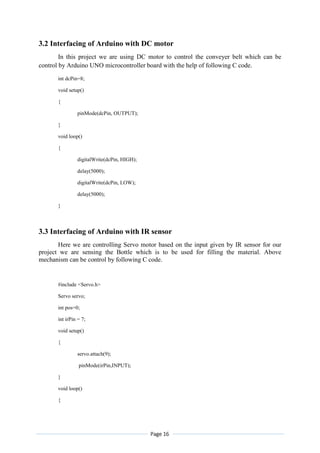

3.2 Interfacing of Arduino with DC motor

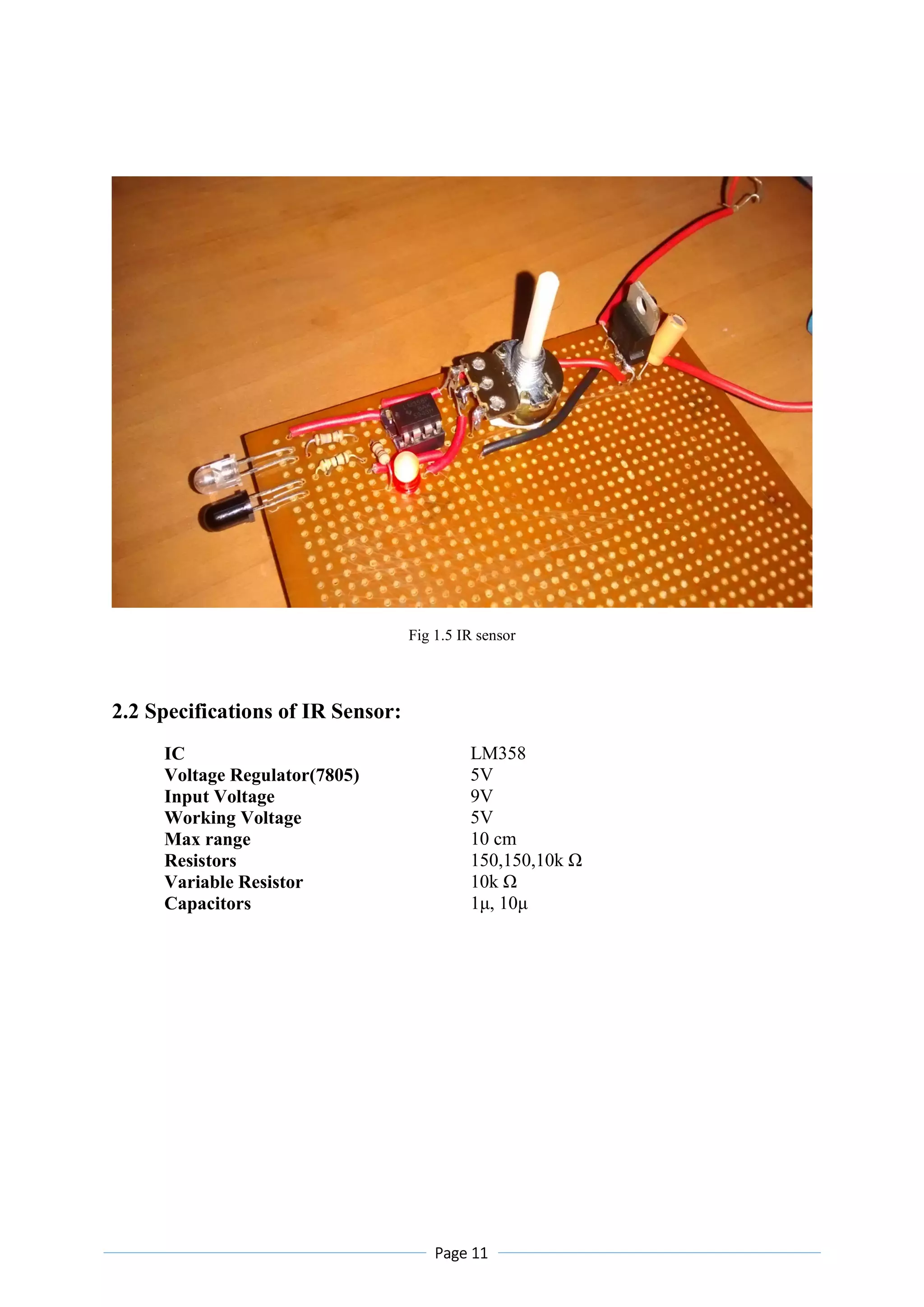

3.3 Interfacing of Arduino with IR sensor

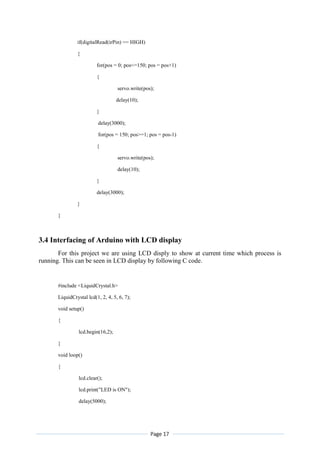

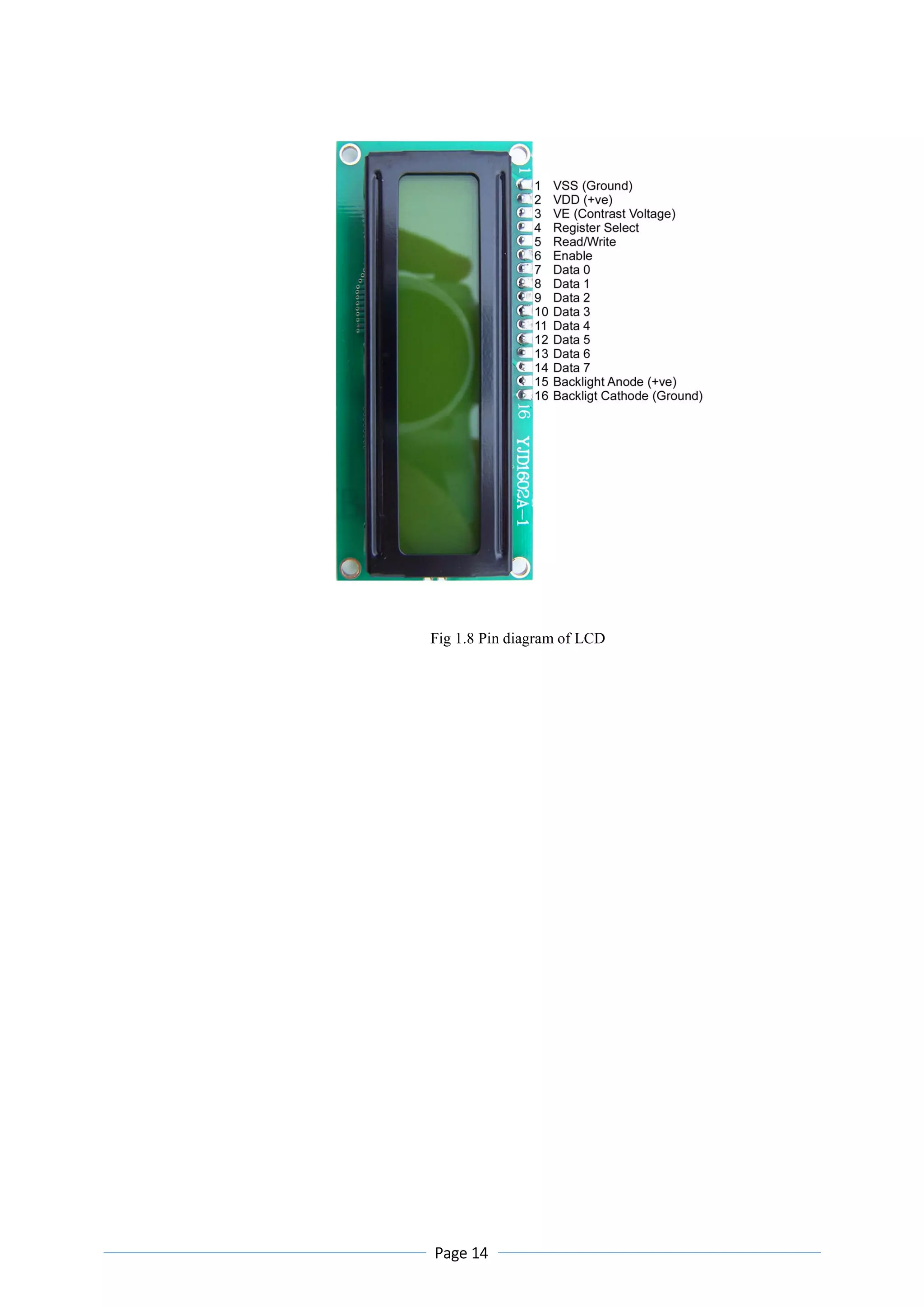

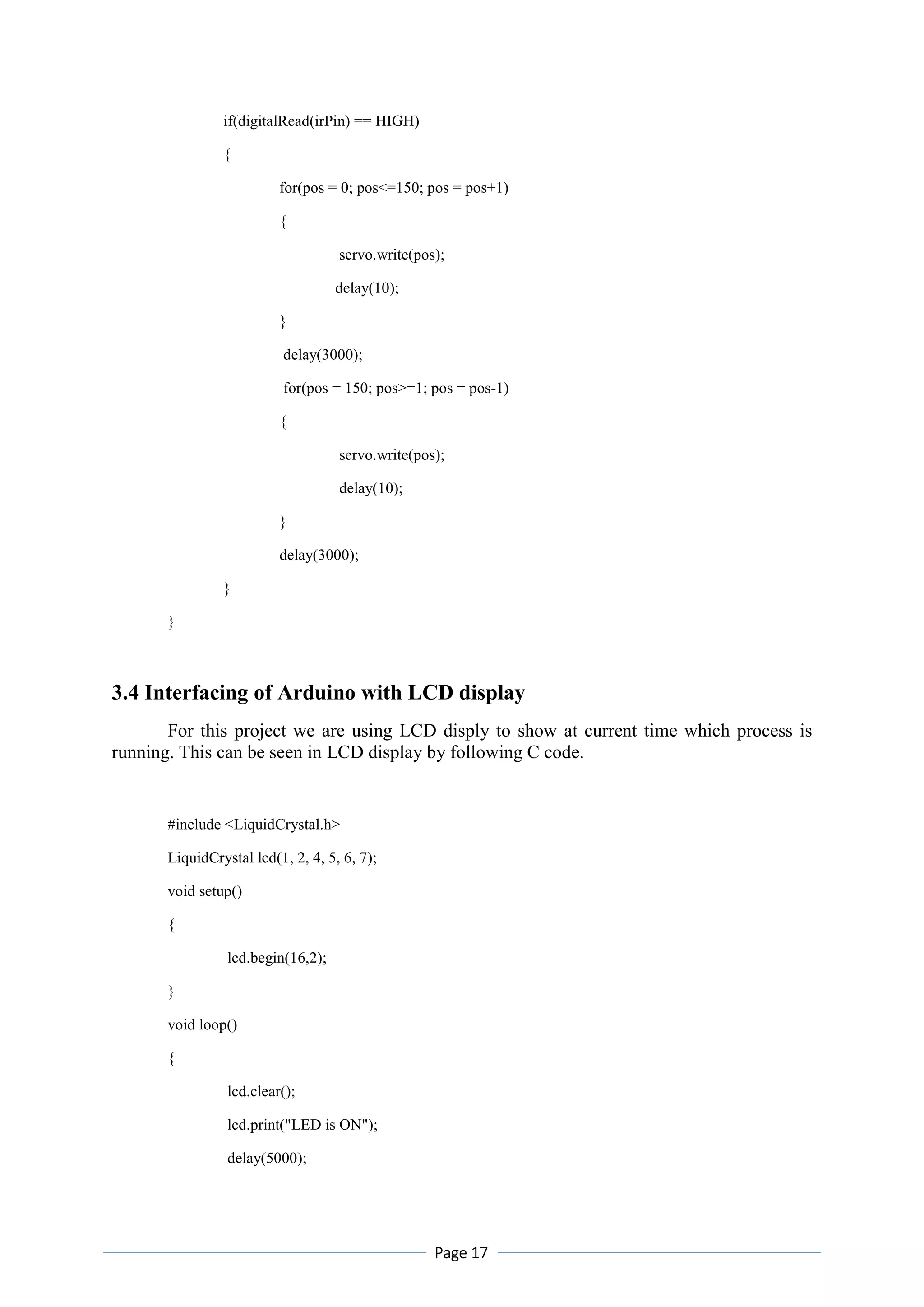

3.4 Interfacing of Arduino with LCD display

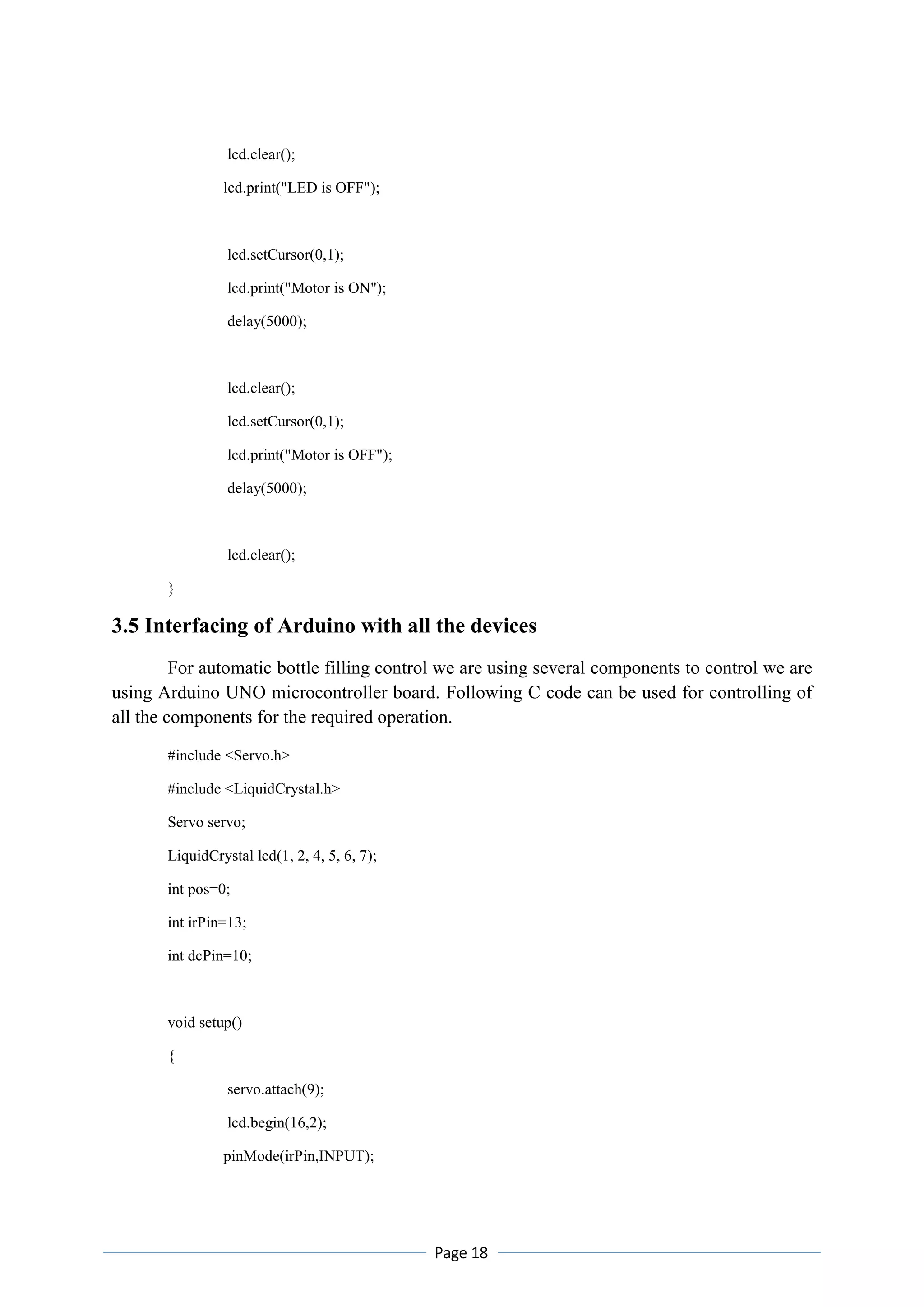

3.5 Interfacing of Arduino with all the devices(Review-I)

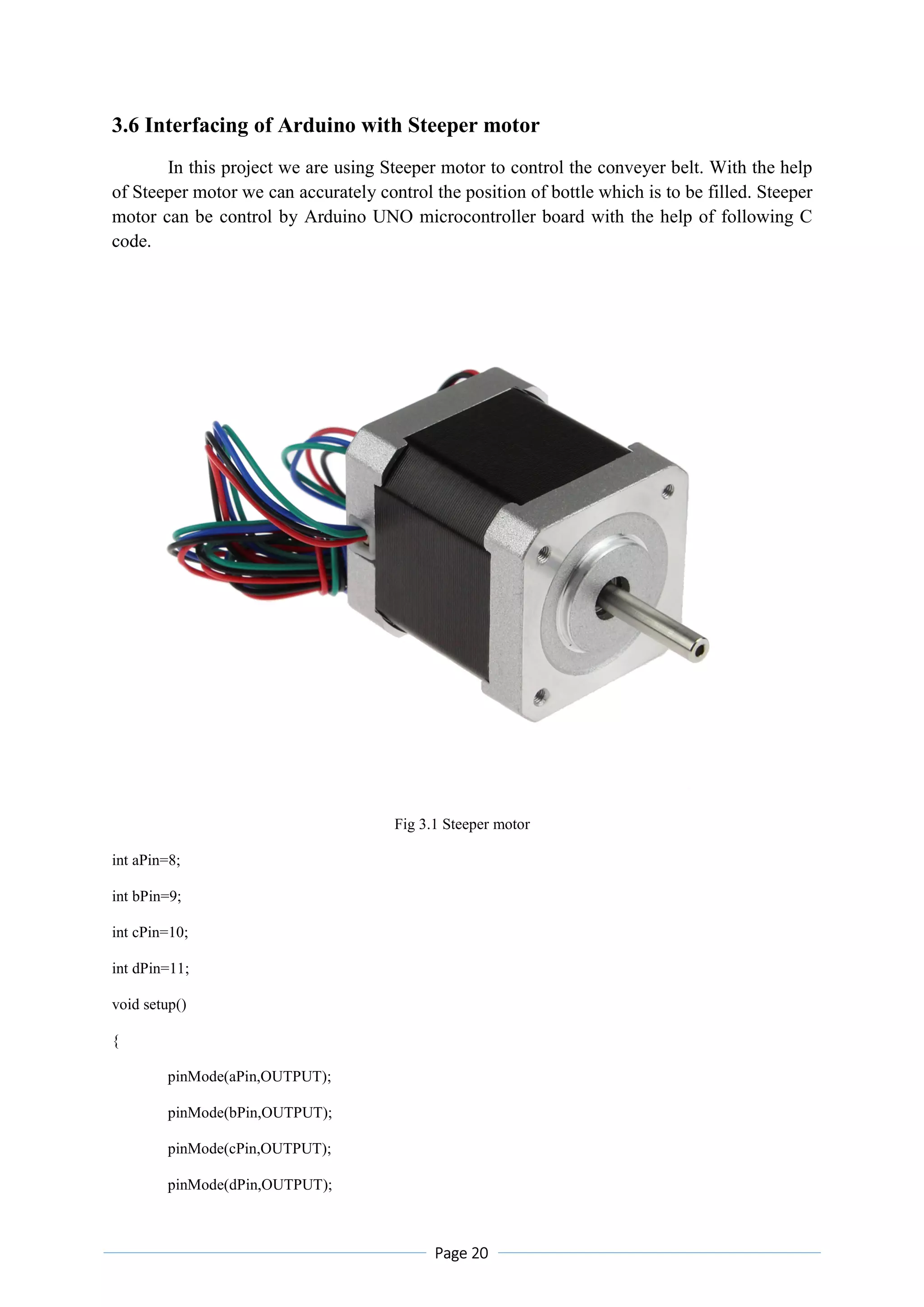

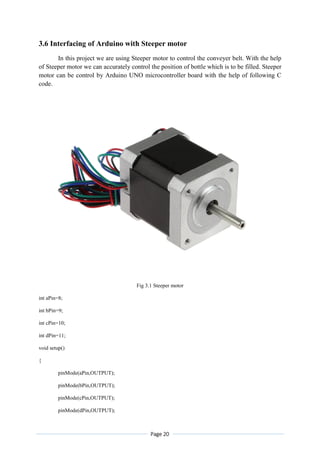

3.6 Interfacing of Arduino with Steeper motor

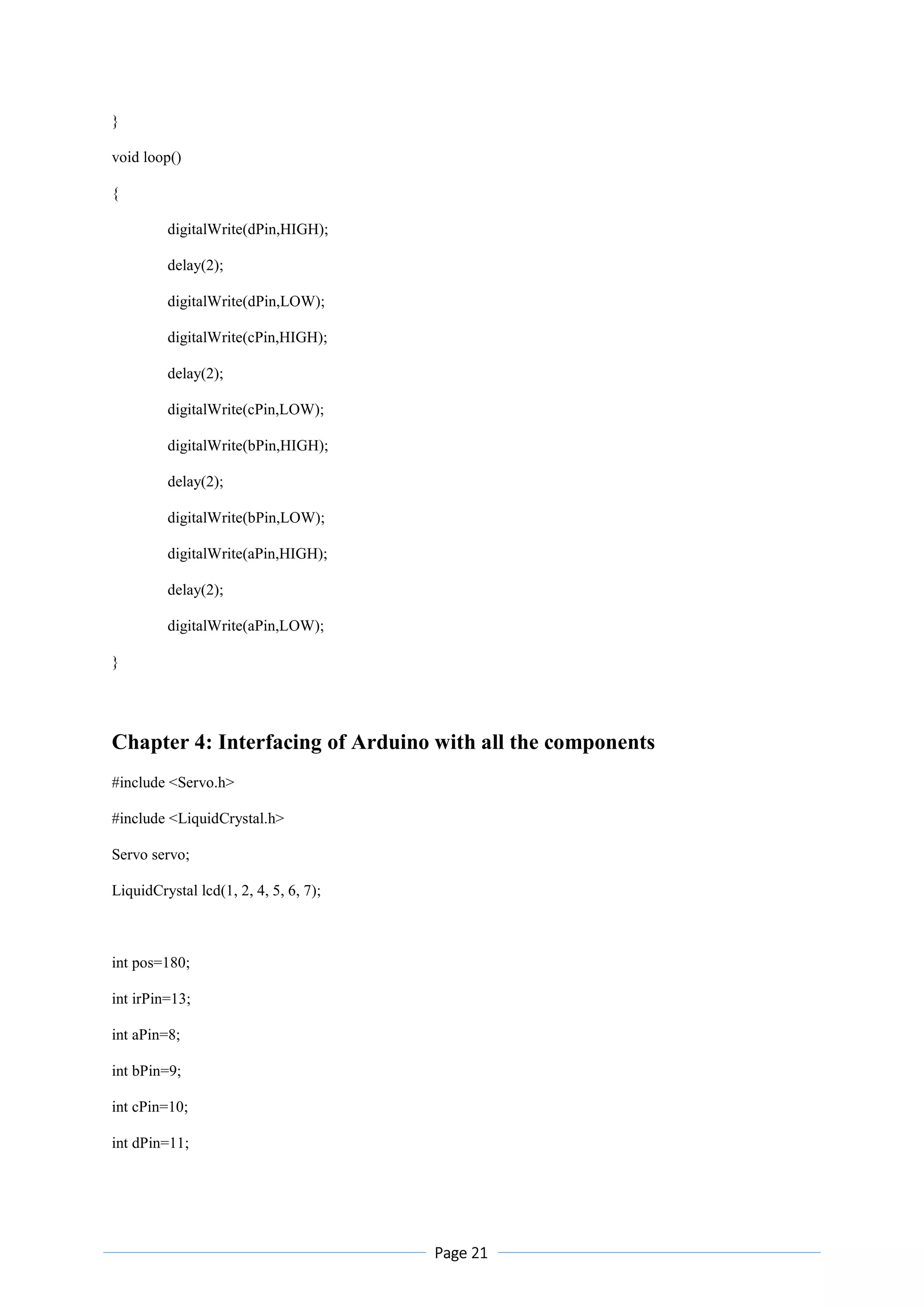

Chapter 4: Interfacing of Arduino with all the components
15
21

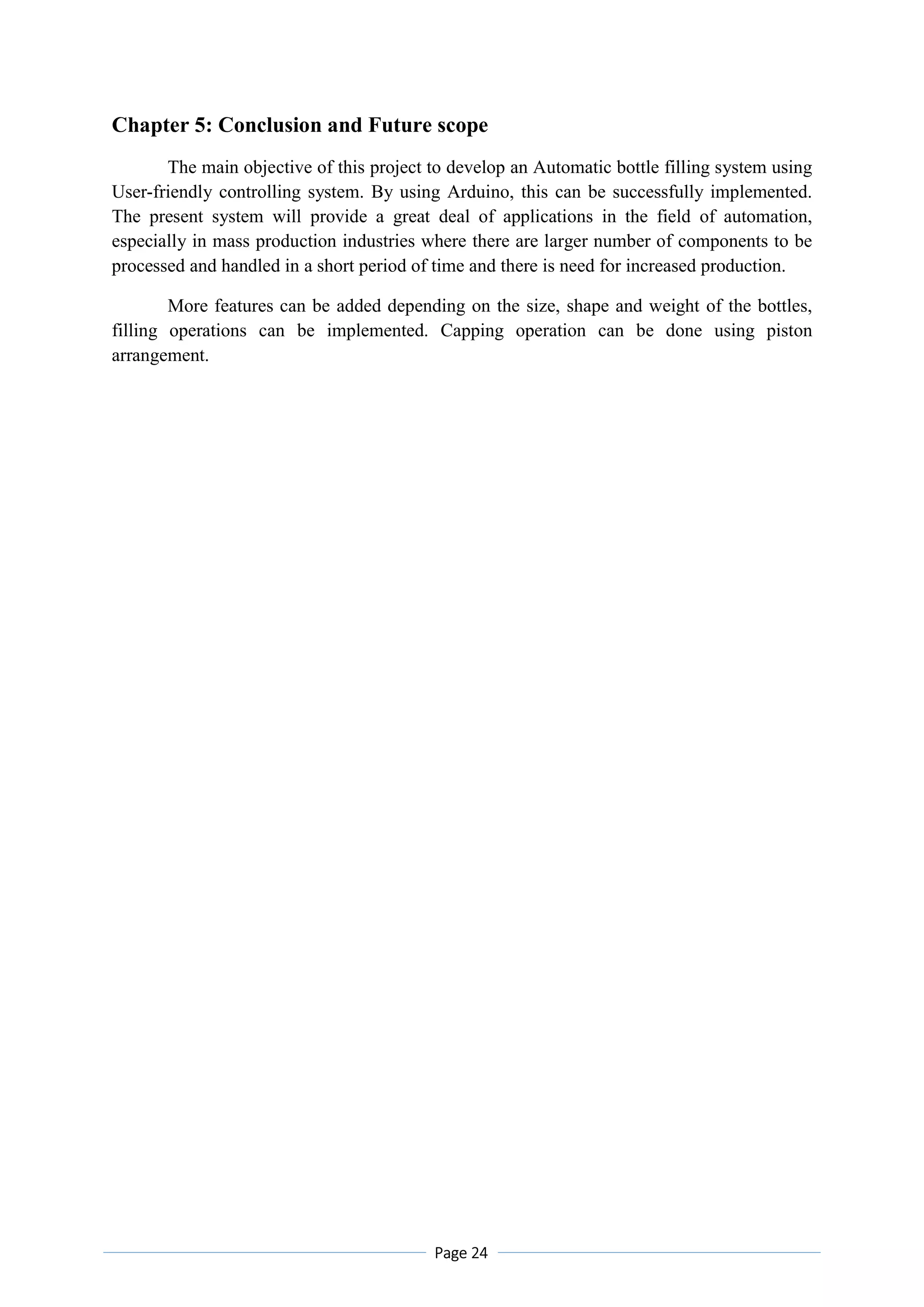

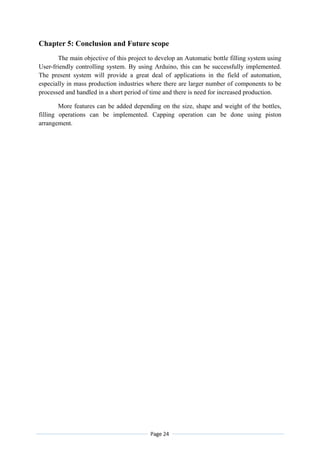

Chapter 5: Conclusion and future scope of this project 24
References 25
6. Page 6
LIST OF FIGURES
Figure No.
Fig 1.1
Fig 1.2
Fig 1.3
Fig 1.4
Fig 1.5
Fig 1.6
Fig 1.7
Fig 1.8
Fig 3.1
Name of the Figure
Working mechanism of
automatic bottle filling
system
Ladder network used by the
PLC types of devices
Ladder network used by the
PLC types of devices
Pin diagram of Arduino
IR sensor
DC Motor
Servo Motor
Pin Diagram of LCD Display
Steeper motor
Page no.
7
8
9
10
11
12
13
14
20
7. Page 7
Chapter 1: Industrial Application of Automatic Bottle refilling Plant
1.1 Working mechanism of plant
Following figure shows the general mechanism of automatic bottle refilling plant
which can be controlled by any type of Microcontroller. Which is able to control the whole
process and with the help of software we can access the whole plant far from the venue.
Fig 1.1 Working mechanism of automatic bottle filling system
1.2 Types of controller which can be used in system
Generally in the industrial PLC (Programmable logic control) is in practise and some
if the updated software like SCADA (Supervisory Control and Data Acquisition) is used to
control the whole plant but we can also use some another type of microcontroller to do the
same task at different condition which are following.
PLC (Programmable Logic Controller)
Microcontroller 8051
Arduino UNO Board
Other Microcontroller Board
8. Page 8
1.3 PLC (Programmable Logic Controller)
PLC is the device which used by the different types of industries and this
types of devices are widely available in the market and so many different
modules are also available which are having following characteristics.
Advantages :
1. Used in most of the industries.
2. User friendly coding.
3. Plug and Play type of device
4. Easily interpretable programming
Disadvantages :
1. Different type of code is required for coding.
2. Costly than any other microcontroller board.
3. Programming is totally different than other type of microcontroller board.
4. Not much popular in commercial applications.
Fig 1.2 Ladder network used by the PLC types of devices
9. Page 9

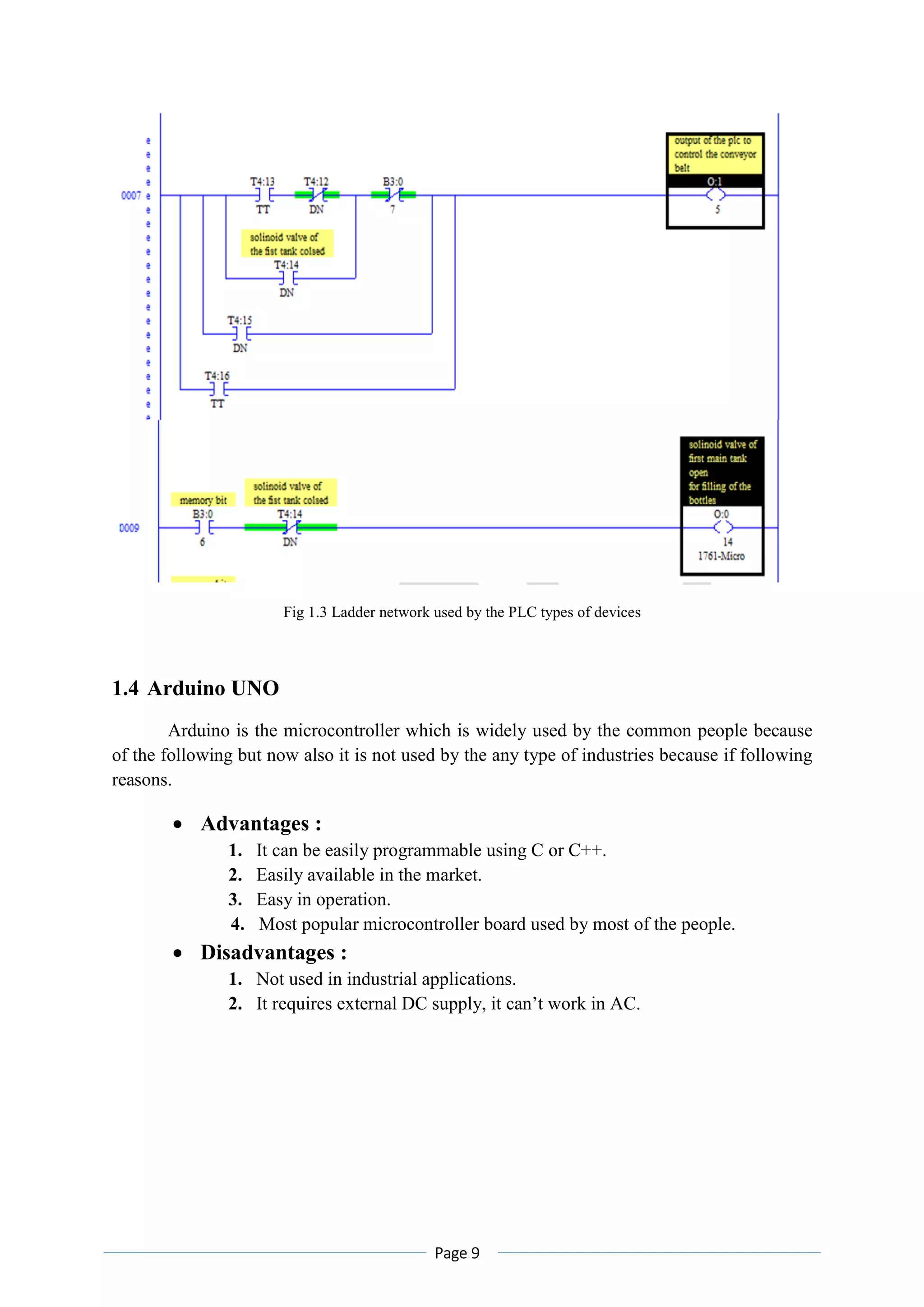

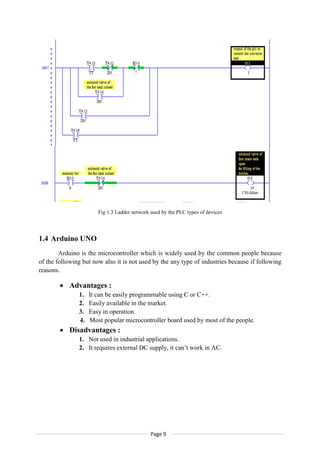

Fig 1.3 Ladder network used by the PLC types of devices
1.4 Arduino UNO
Arduino is the microcontroller which is widely used by the common people because
of the following but now also it is not used by the any type of industries because if following
reasons.
Advantages :
1. It can be easily programmable using C or C++.
2. Easily available in the market.
3. Easy in operation.
4. Most popular microcontroller board used by most of the people.
Disadvantages :
1. Not used in industrial applications.
2. It requires external DC supply, it can’t work in AC.
10. Page 10
Chapter 2: Components used in this project
Fig 1.4 Pin diagram of Arduino UNO
2.1 Specification of Arduino UNO:
Microcontroller
Operating Voltage
Input Voltage (recommended)
Digital I/O Pins
PWM Digital I/O Pins
ATmega328P
5V
7-12V
14
6
Analog Input Pins
DC Current I/O Pins
DC Current for 3.3V Pin
Flash Memory
6
20
50mA
32 KB
11. Page 11

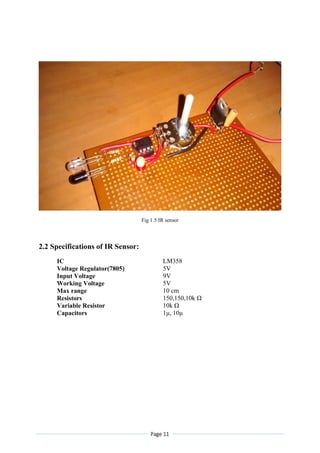

Fig 1.5 IR sensor
2.2 Specifications of IR Sensor:
IC
Voltage Regulator(7805)
Input Voltage
Working Voltage
Max range
Resistors
LM358
5V
9V
5V
10 cm
150,150,10k Ω
Variable Resistor
Capacitors
10k Ω
1μ, 10μ
12. Page 12

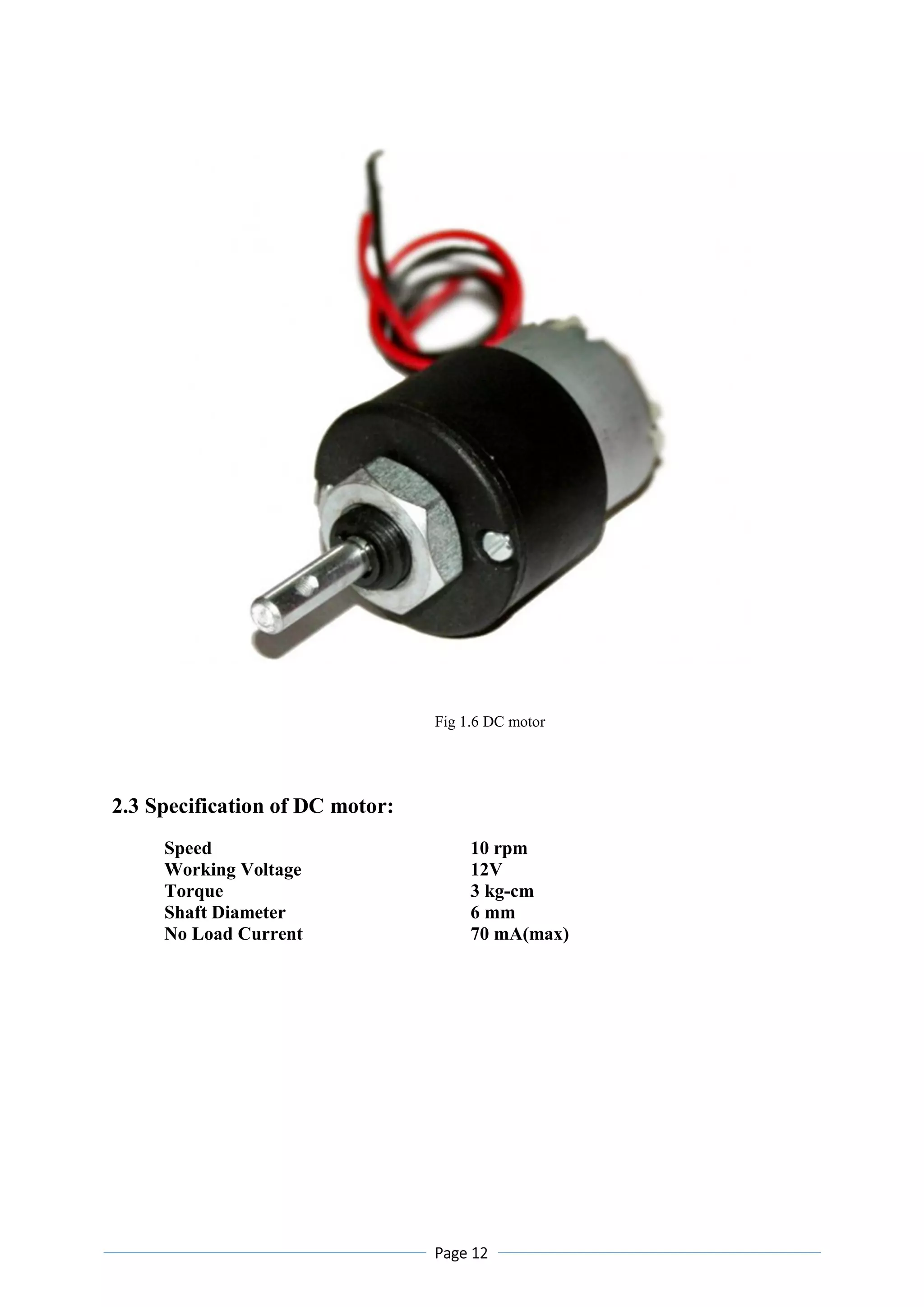

Fig 1.6 DC motor
2.3 Specification of DC motor:
Speed 10 rpm
Working Voltage
Torque
Shaft Diameter
No Load Current
12V
3 kg-cm
6 mm
70 mA(max)
13. Page 13

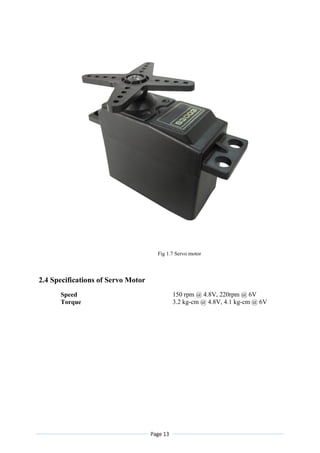

Fig 1.7 Servo motor
2.4 Specifications of Servo Motor
Speed
Torque
150 rpm @ 4.8V, 220rpm @ 6V
3.2 kg-cm @ 4.8V, 4.1 kg-cm @ 6V
15. Page 15
Chapter 3: Interfacing of Arduino with different components
3.1 Interfacing of Arduino with Servo motor
In this project to control the flow of fuel of another filling we are using mini servo
motor which can be simply control by Arduino UNO microcontroller board with the help of
following C code.
#include <Servo.h>
Servo servo;
int pos = 0;
void setup()
{
servo.attach(9);
}
void loop()
{
for(pos = 0; pos<=180; pos = pos + 1)
{
servo.write(pos);
delay(4);
}
delay(1000);
for(pos = 180; pos>=1; pos = pos - 1)
{
servo.write(pos);
delay(4);
}
delay(1000);
}
16. Page 16
3.2 Interfacing of Arduino with DC motor
In this project we are using DC motor to control the conveyer belt which can be
control by Arduino UNO microcontroller board with the help of following C code.
int dcPin=8;
void setup()
{
pinMode(dcPin, OUTPUT);
}
void loop()
{
digitalWrite(dcPin, HIGH);
delay(5000);
digitalWrite(dcPin, LOW);
delay(5000);
}
3.3 Interfacing of Arduino with IR sensor
Here we are controlling Servo motor based on the input given by IR sensor for our
project we are sensing the Bottle which is to be used for filling the material. Above
mechanism can be control by following C code.
#include <Servo.h>
Servo servo;
int pos=0;
int irPin = 7;
void setup()
{
servo.attach(9);
pinMode(irPin,INPUT);
}
void loop()
{
17. Page 17
if(digitalRead(irPin) == HIGH)
{
for(pos = 0; pos<=150; pos = pos+1)
{
servo.write(pos);
delay(10);
}
delay(3000);
for(pos = 150; pos>=1; pos = pos-1)
{
servo.write(pos);
delay(10);
}
delay(3000);
}
}
3.4 Interfacing of Arduino with LCD display
For this project we are using LCD disply to show at current time which process is
running. This can be seen in LCD display by following C code.
#include <LiquidCrystal.h>
LiquidCrystal lcd(1, 2, 4, 5, 6, 7);
void setup()
{
lcd.begin(16,2);
}
void loop()
{
lcd.clear();
lcd.print("LED is ON");
delay(5000);
18. Page 18
lcd.clear();
lcd.print("LED is OFF");
lcd.setCursor(0,1);
lcd.print("Motor is ON");
delay(5000);
lcd.clear();
lcd.setCursor(0,1);
lcd.print("Motor is OFF");
delay(5000);
lcd.clear();
}

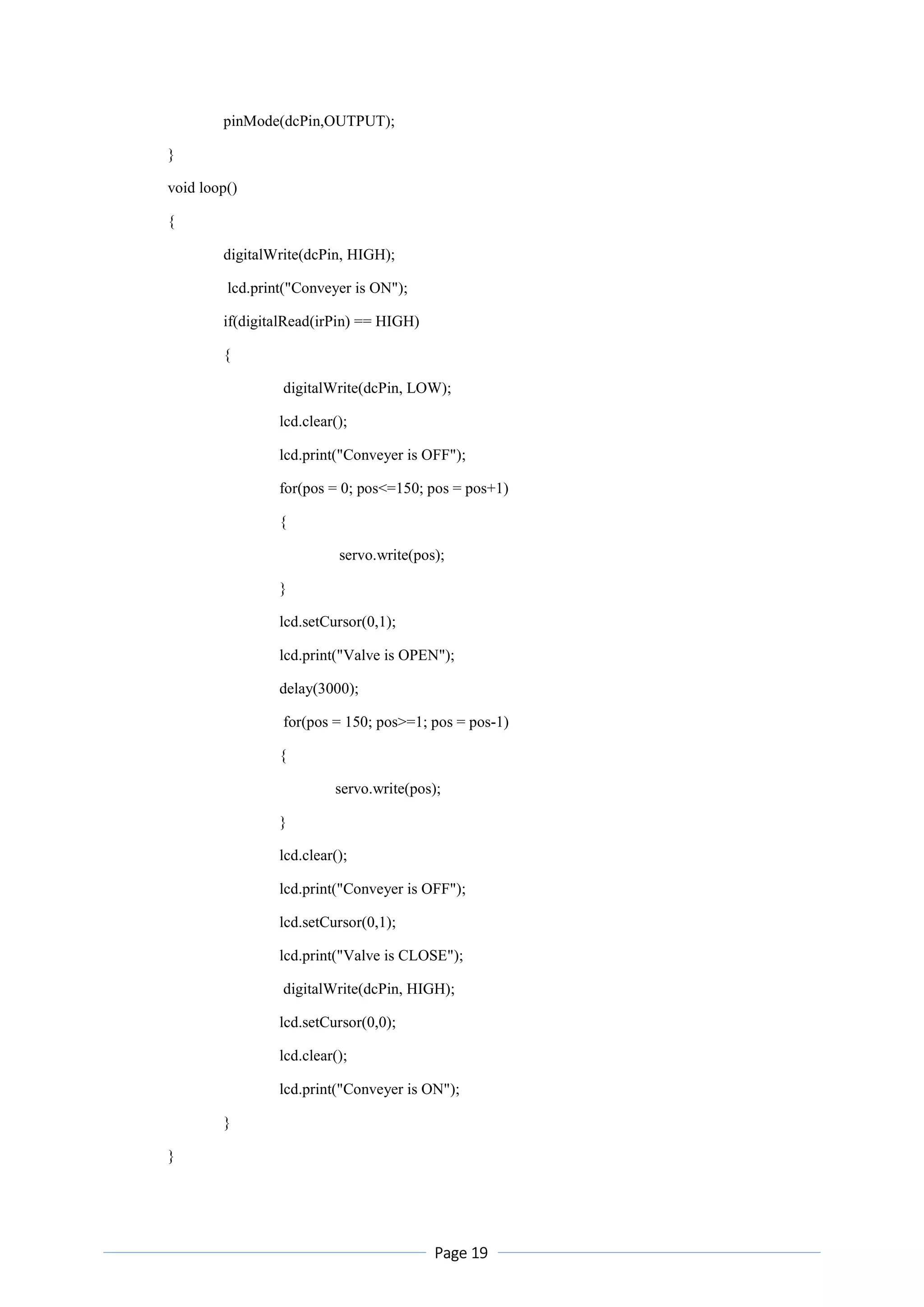

3.5 Interfacing of Arduino with all the devices
For automatic bottle filling control we are using several components to control we are
using Arduino UNO microcontroller board. Following C code can be used for controlling of
all the components for the required operation.
#include <Servo.h>
#include <LiquidCrystal.h>
Servo servo;
LiquidCrystal lcd(1, 2, 4, 5, 6, 7);
int pos=0;
int irPin=13;
int dcPin=10;
void setup()
{
servo.attach(9);
lcd.begin(16,2);
pinMode(irPin,INPUT);
20. Page 20
3.6 Interfacing of Arduino with Steeper motor
In this project we are using Steeper motor to control the conveyer belt. With the help
of Steeper motor we can accurately control the position of bottle which is to be filled. Steeper
motor can be control by Arduino UNO microcontroller board with the help of following C
code.
Fig 3.1 Steeper motor
int aPin=8;
int bPin=9;
int cPin=10;
int dPin=11;
void setup()
{
pinMode(aPin,OUTPUT);
pinMode(bPin,OUTPUT);
pinMode(cPin,OUTPUT);
pinMode(dPin,OUTPUT);

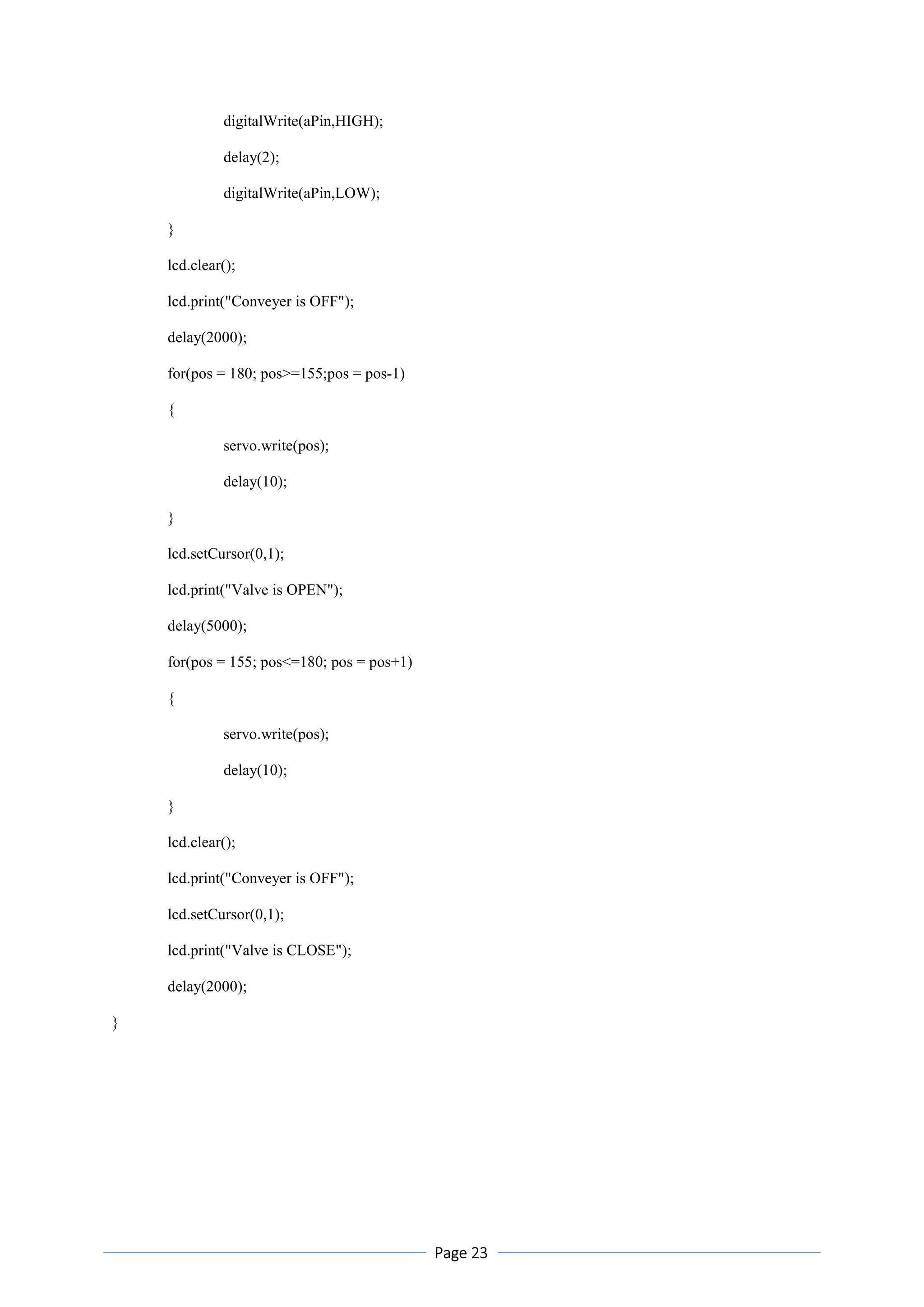

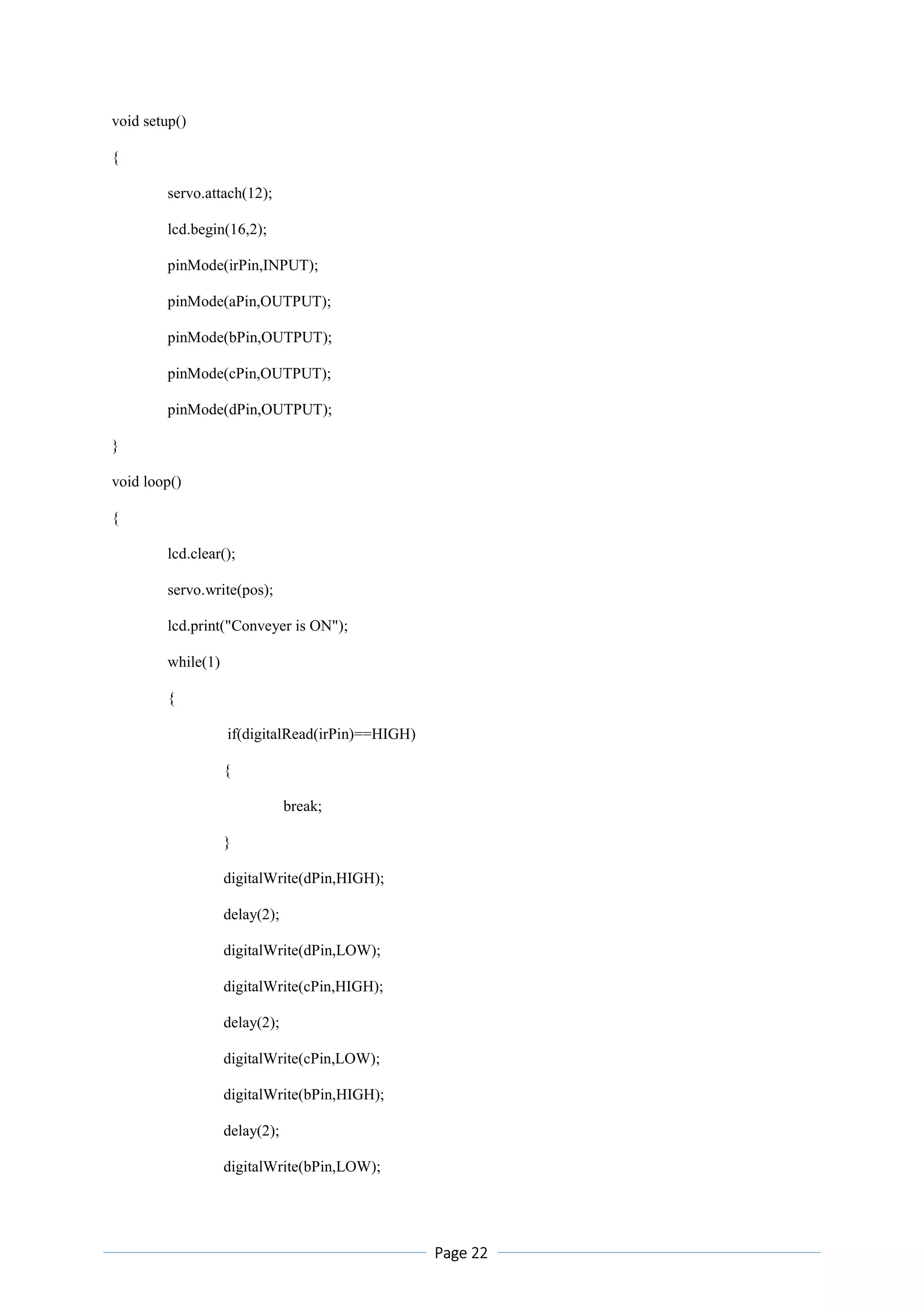

24. Page 24
Chapter 5: Conclusion and Future scope
The main objective of this project to develop an Automatic bottle filling system using
User-friendly controlling system. By using Arduino, this can be successfully implemented.
The present system will provide a great deal of applications in the field of automation,
especially in mass production industries where there are larger number of components to be
processed and handled in a short period of time and there is need for increased production.
More features can be added depending on the size, shape and weight of the bottles,
filling operations can be implemented. Capping operation can be done using piston
arrangement.
25. Page 25

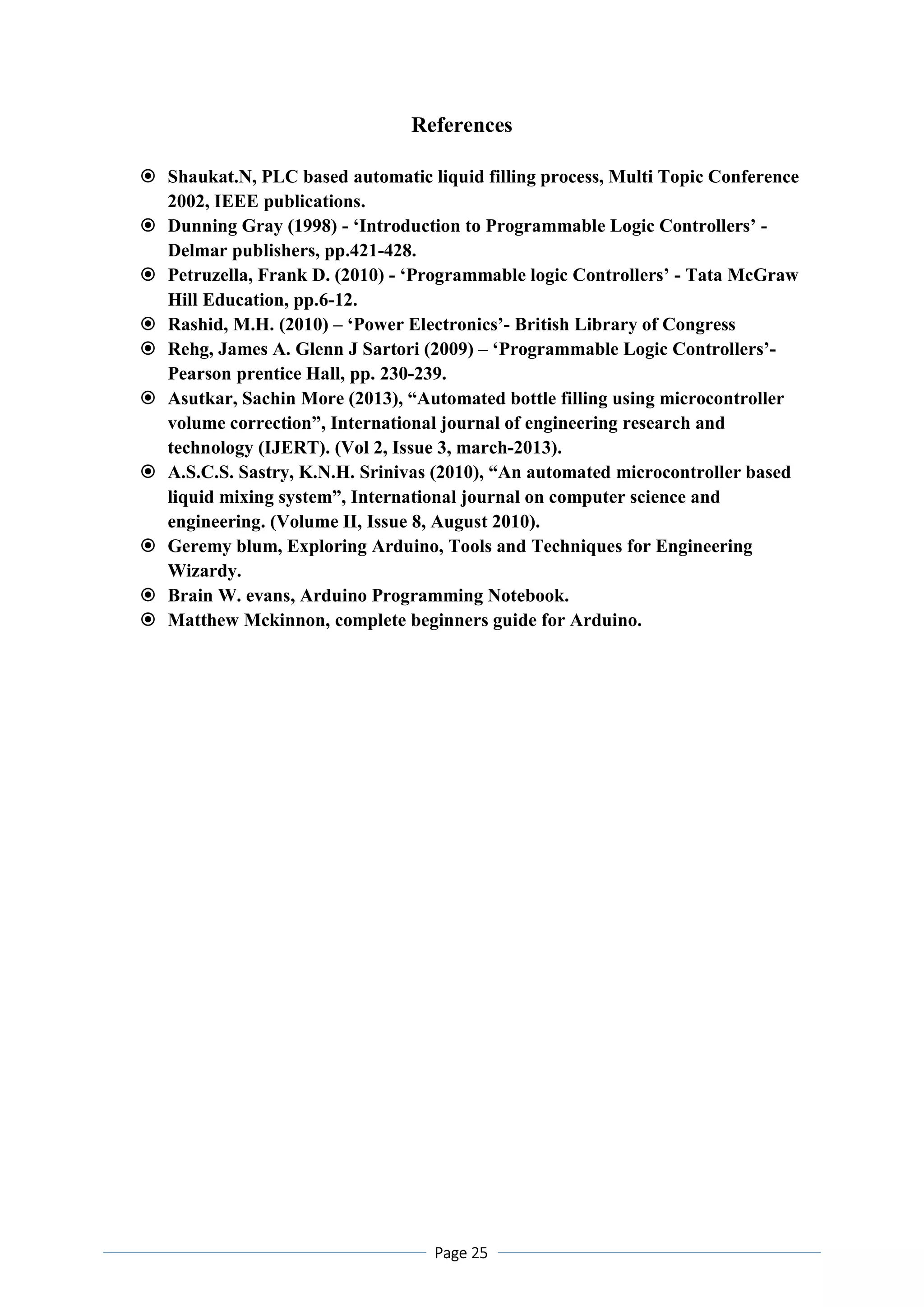

References
Shaukat.N, PLC based automatic liquid filling process, Multi Topic Conference
2002, IEEE publications.
Dunning Gray (1998) - ‘Introduction to Programmable Logic Controllers’ -
Delmar publishers, pp.421-428.
Petruzella, Frank D. (2010) - ‘Programmable logic Controllers’ - Tata McGraw
Hill Education, pp.6-12.
Rashid, M.H. (2010) – ‘Power Electronics’- British Library of Congress
Rehg, James A. Glenn J Sartori (2009) – ‘Programmable Logic Controllers’-
Pearson prentice Hall, pp. 230-239.
Asutkar, Sachin More (2013), “Automated bottle filling using microcontroller
volume correction”, International journal of engineering research and
technology (IJERT). (Vol 2, Issue 3, march-2013).
A.S.C.S. Sastry, K.N.H. Srinivas (2010), “An automated microcontroller based
liquid mixing system”, International journal on computer science and
engineering. (Volume II, Issue 8, August 2010).
Geremy blum, Exploring Arduino, Tools and Techniques for Engineering
Wizardy.
Brain W. evans, Arduino Programming Notebook.
Matthew Mckinnon, complete beginners guide for Arduino.
