This document provides information about a student's presentation on signed binary multiplication. It introduces the student giving their name, ID number, and department. It then lists the presentation topic, course title, and code. The document outlines that the presentation will cover what signed binary multiplication is, the flowchart of Booth's algorithm for signed binary multiplication, and an example problem working through the steps of the algorithm.

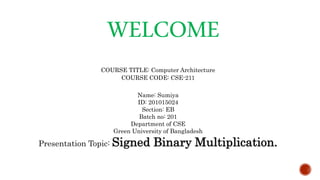

1. WELCOME
Name: Sumiya
ID: 201015024
Section: EB
Batch no: 201
Department of CSE
Green University of Bangladesh
Presentation Topic: Signed Binary Multiplication.
COURSE TITLE: Computer Architecture
COURSE CODE: CSE-211

2. • Signed Binary Multiplication
• Flow chart of signed Binary multiplication or Booth’s Algorithm
• Example & describe Binary multiplication or Booth’s Algorithm
Outline

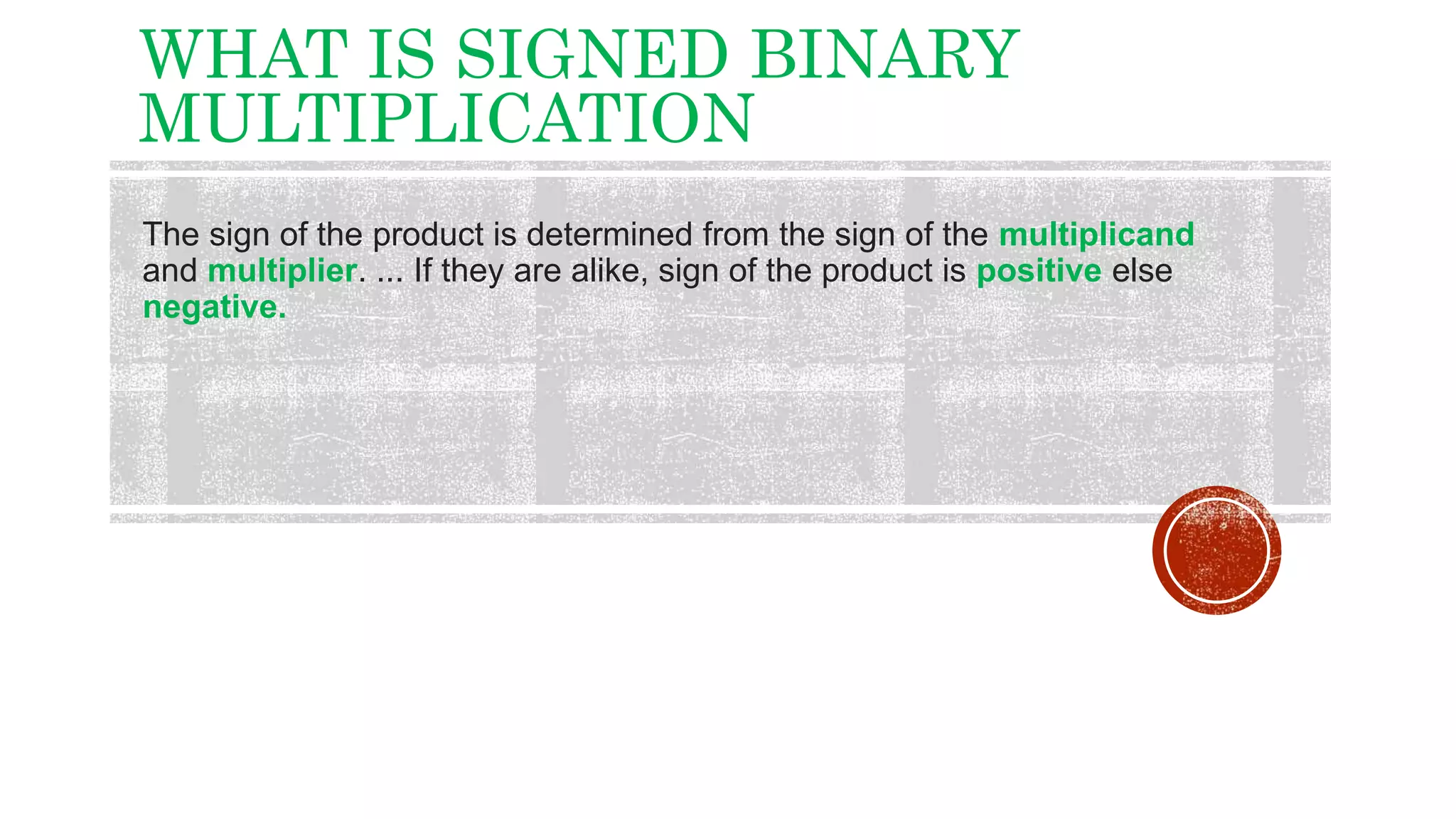

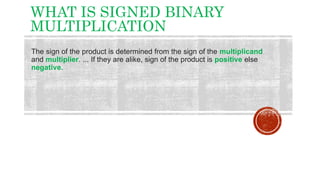

3. WHAT IS SIGNED BINARY
MULTIPLICATION
The sign of the product is determined from the sign of the multiplicand
and multiplier. ... If they are alike, sign of the product is positive else
negative.

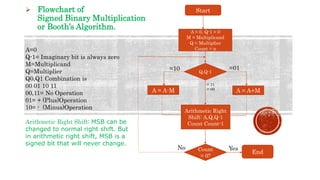

4.  Flowchart of
Signed Binary Multiplication
or Booth’s Algorithm.
Start
A = 0, Q-1 = 0
M = Multiplicand
Q = Multiplier
Count = n
Q,Q-1
A = A+MA = A-M
=10 =01
Arithmetic Right
Shift: A,Q,Q-1
Count Count-1
Count
= 0?
End
No
= 11
= 00
Yes
A=0
Q-1= Imaginary bit is always zero
M=Multiplicand
Q=Multiplier
Q0,Q1 Combination is
00 01 10 11
00,11= No Operation
01= + (Plus)Operation
10= - (Minus)Operation
Arithmetic Right Shift: MSB can be
changed to normal right shift. But
in arithmetic right shift, MSB is a
signed bit that will never change.

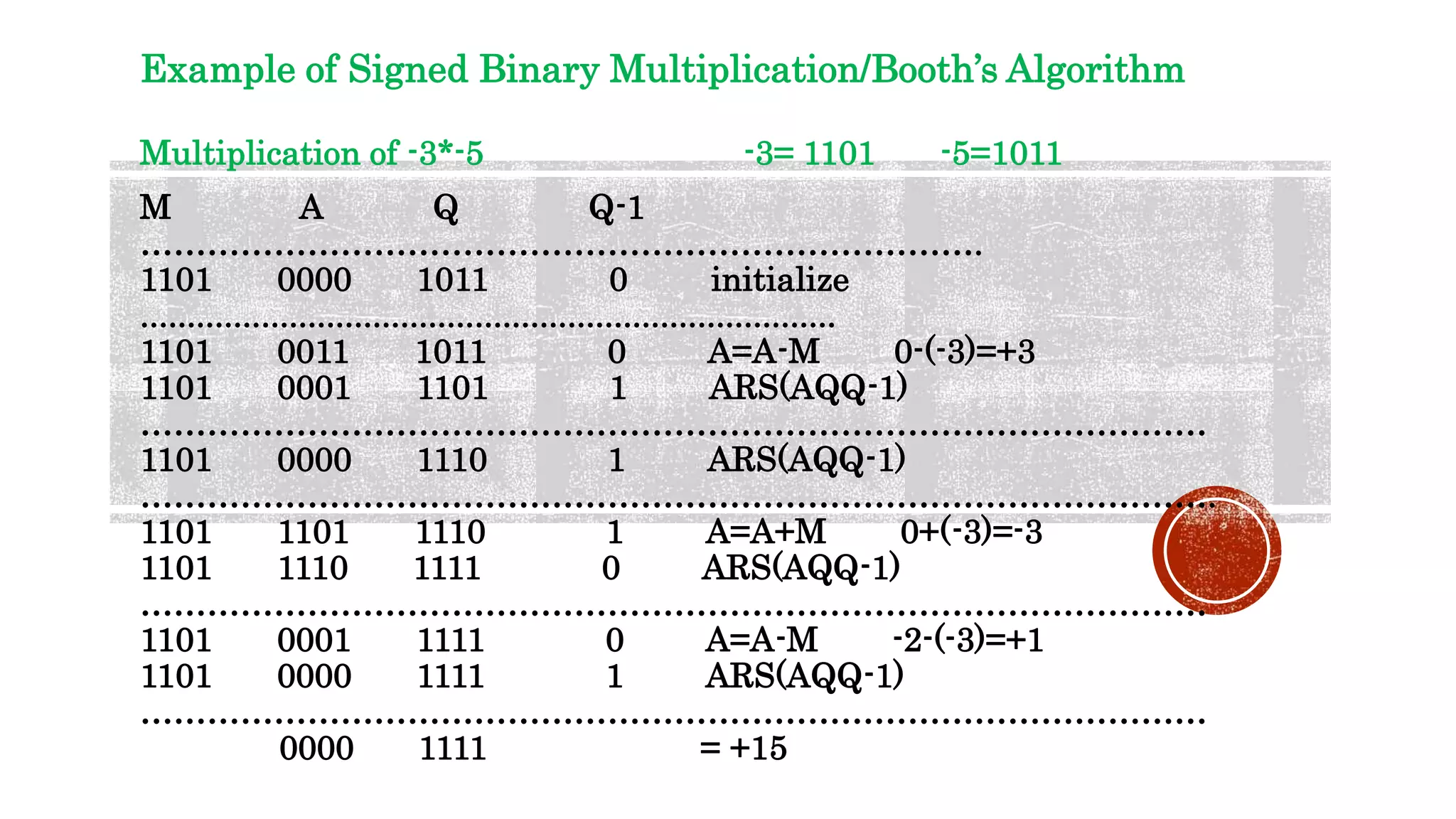

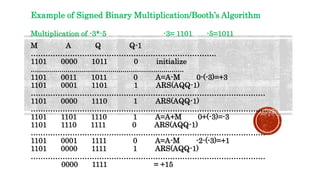

5. Multiplication of -3*-5 -3= 1101 -5=1011
M A Q Q-1
………………………………………………………………….
1101 0000 1011 0 initialize
...........................................................................
1101 0011 1011 0 A=A-M 0-(-3)=+3
1101 0001 1101 1 ARS(AQQ-1)
……………………………………………………………………………………
1101 0000 1110 1 ARS(AQQ-1)
…………………………………………………………………………………….
1101 1101 1110 1 A=A+M 0+(-3)=-3
1101 1110 1111 0 ARS(AQQ-1)
……………………………………………………………………………………
1101 0001 1111 0 A=A-M -2-(-3)=+1
1101 0000 1111 1 ARS(AQQ-1)
……………………………………………………………………………………
0000 1111 = +15
Example of Signed Binary Multiplication/Booth’s Algorithm
