This document provides an overview of bioremediation, which uses microorganisms like bacteria and fungi to degrade contaminants in soil, water, and other environments. It discusses how bioremediation works, essential factors for effective microbial bioremediation, different bioremediation methods, microbes involved, advantages and disadvantages, applications, and related technologies. The key points are that bioremediation relies on microbes breaking down pollutants into less toxic forms, various methods can be used like biostimulation or bioaugmentation, and it has benefits of being low-cost and minimizing site disruption while drawbacks include being time-consuming and not working for all compounds.

1. Bioremediation

2. Objectives
• Bioremediation
• How it works?
• Essential Factors for microbial Bioremediation
• Bioremediation Methods & Types
• Microbes involved in Bioremediation
• Advantages & Disadvantages of Bioremediation
• Application of Bioremediation
• Some Bioremediation related technologies.

3. What is Bioremediation?
• "Remediate" means to solve a problem, and "bio-
remediate" means to use biological organisms to solvean
environmental problem such as contaminated soil or
groundwater.
• Bioremediation means to use a biological remedy to abate
or clean up contamination.
• Bioremediation is a waste management technique that
involves the use of organisms to remove or neutralize
pollutants from a contaminatedsite.
• According to the EPA,bioremediation is a “treatment that
uses naturally occurring organisms to break down
hazardous substances into less toxic or non toxic
substances”.

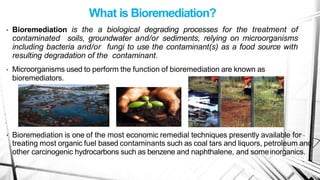

5. What is Bioremediation?
• Bioremediation is the a biological degrading processes for the treatment of
contaminated soils, groundwater and/or sediments, relying on microorganisms
including bacteria and/or fungi to use the contaminant(s) as a food source with
resulting degradation of the contaminant.
• Microorganisms used to perform the function of bioremediation are known as
bioremediators.
• Bioremediation is one of the most economic remedial techniques presently available for
treating most organic fuel based contaminants such as coal tars and liquors, petroleum and
other carcinogenic hydrocarbons such as benzene and naphthalene, and someinorganics.

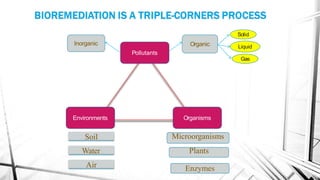

7. Organisms
Pollutants
Environments
Inorganic Organic
Solid
Liquid
Gas
Soil
Water
Air
Microorganisms
Plants
Enzymes

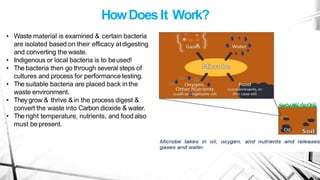

8. HowDoesIt Work?
• Waste material is examined & certain bacteria
are isolated based on their efficacy atdigesting
and converting the waste.
• Indigenous or local bacteria is to beused!
• The bacteria then go through several steps of
cultures and process for performance testing.
• The suitable bacteria are placed back in the
waste environment.
• Theygrow & thrive &in the process digest &
convert the waste into Carbon dioxide & water.
• The right temperature, nutrients, and foodalso
must be present.

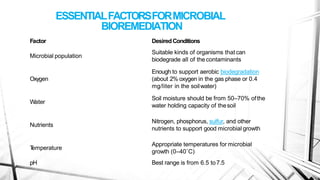

9. ESSENTIALFACTORSFORMICROBIAL
BIOREMEDIATION
Factor DesiredConditions
Microbial population
Oxygen
Water
Suitable kinds of organisms thatcan
biodegrade all of the contaminants
Enough to support aerobic biodegradation
(about 2% oxygen in the gas phase or 0.4
mg/liter in the soilwater)
Soil moisture should be from 50–70% ofthe
water holding capacity of thesoil
Nutrients
Nitrogen, phosphorus, sulfur, and other
nutrients to support good microbial growth
T
emperature
pH
Appropriate temperatures for microbial
growth (0–40˚C)
Best range is from 6.5 to7.5

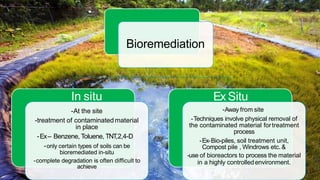

10. Bioremediation
In situ
-At the site
-treatment of contaminated material
in place
-Ex– Benzene, Toluene, TNT
,2,4-D
-only certain types of soils can be
bioremediated in-situ
-complete degradation is often difficult to
achieve
Ex Situ
-Away from site
-Techniques involve physical removal of
the contaminated material fortreatment
process
-Ex-Bio-piles, soil treatment unit,
Compost pile , Windrows etc. &
-use of bioreactors to process the material
in a highly controlledenvironment.

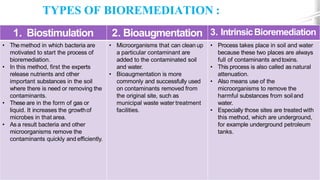

11. TYPES OF BIOREMEDIATION :
1. Biostimulation 2. Bioaugmentation 3. IntrinsicBioremediation
• The method in which bacteria are
motivated to start the process of
bioremediation.
• In this method, first the experts
release nutrients and other
important substances in the soil
where there is need or removing the
contaminants.
• These are in the form of gas or
liquid. It increases the growthof
microbes in that area.
• As a result bacteria and other
microorganisms remove the
contaminants quickly and efficiently.
• Microorganisms that can clean up
a particular contaminant are
added to the contaminated soil
and water.
• Bioaugmentation is more
commonly and successfully used
on contaminants removed from
the original site, such as
municipal waste water treatment
facilities.
• Process takes place in soil and water
because these two places are always
full of contaminants andtoxins.
• This process is also called as natural
attenuation.
• Also means use of the
microorganisms to remove the
harmful substances from soiland
water.
• Especially those sites are treated with
this method, which are underground,
for example underground petroleum
tanks.

14. Bioremediation byBacteria
Genetically engineered bacteria (Pseudomonas)
Bioremediation byFungi
Candida can degrade formaldehyde.
with plasmid producing enzymes to degrade octane Gibeberella can degrade cyanide.
and many different organic compounds from crude White rot fungi can degradeorganic
oil. pollutants in soil and effluent anddecolorize
• A selectedlist ofgenetically engineered kraft black liquor, e.g.Phanerochaete
microorganisms. chrysosporium can produce aromatic
mixtures with its lignolytic system.
Pentachlorophenol,dichlorodiphenyltrichloro
ethane (e.g. DDT), even TNT (trinitrotoluene)
can be degraded by white rot fungi.
➢ MET
ABOLIC EFFECT OF MO’S
ON XENOBIOTICS:
¤ Detoxification ¤ Activation
¤ Degradation ¤ Conjugation

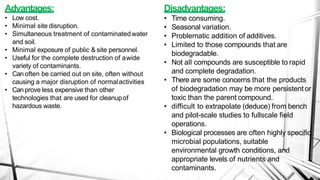

15. Advantages:
• Low cost.
• Minimal site disruption.
• Simultaneous treatment of contaminatedwater
and soil.
• Minimal exposure of public & site personnel.
• Useful for the complete destruction of awide
variety of contaminants.
• Can often be carried out on site, often without
causing a major disruption of normalactivities
• Can prove less expensive than other
technologies that are used for cleanupof
hazardous waste.
Disadvantages:
• Time consuming.
• Seasonal variation.
• Problematic addition of additives.
• Limited to those compounds that are
biodegradable.
• Not all compounds are susceptible to rapid
and complete degradation.
• There are some concerns that the products
of biodegradation may be more persistentor
toxic than the parent compound.
• difficult to extrapolate (deduce) from bench
and pilot-scale studies to fullscale field
operations.
• Biological processes are often highly specific.
microbial populations, suitable
environmental growth conditions, and
appropriate levels of nutrients and
contaminants.

19. Applicationsof Bioremediation
Bioremediation is used in following ways:
❖ Bioremediation of contaminated soil
❖ Bioremediation of aquifer Novel lab level
research
❖ Bioremediation of marine oil
pollutants Joint action of
Govt.(various
❖ Bioremediation of industrial waste ministries and Pilot Scale
their experiments
Slurry-phase bioremediation is useful too departments)
but only for small amounts of
contaminated soil. Environmental
Composting can be used to degrade cleanup
household wastes.

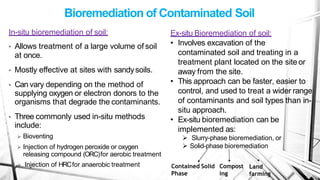

20. Bioremediation of Contaminated Soil
In-situ bioremediation of soil:
• Allows treatment of a large volume of soil
at once.
• Mostly effective at sites with sandysoils.
• Can vary depending on the method of
supplying oxygen or electron donors to the
organisms that degrade the contaminants.
• Three commonly used in-situ methods
include:
➢ Bioventing
➢ Injection of hydrogen peroxide or oxygen
releasing compound (ORC)for aerobic treatment
➢ Injection of HRCfor anaerobic treatment
Ex-situ Bioremediation of soil:
• Involves excavation of the
contaminated soil and treating in a
treatment plant located on the siteor
away from the site.
• This approach can be faster, easier to
control, and used to treat a wider range
of contaminants and soil types than in-
situ approach.
• Ex-situ bioremediation can be
implemented as:
➢ Slurry-phase bioremediation, or
➢ Solid-phase bioremediation
Contained Solid
Phase
Compost
ing
Land
farming

21. Bioremediation related technologies
• Phytoremediation -bioremediation through the use of plants that mitigate the environmentalproblem
without the need to excavate the contaminant material and dispose of it elsewhere.
• Bioventing-an in situ remediation technology that uses microorganisms to biodegradeorganic
constituents in the groundwatersystem.
• Bioleaching -the extraction of metals from their ores through the use of livingorganisms.
• Landfarming -an ex-situwaste treatment processthat is performed in the upper soil zone or in
biotreatment cells.
• Bioreactor -any manufactured or engineered device or system that supports a biologically active
environment.
• Vermicomposting-using various worms, usually red wigglers, white worms, and other earthworms to
create a heterogeneous mixture of decomposing vegetable or food waste, bedding materials, and
vermicast.
• Rhizofiltration -is a form of phytoremediation that involves filtering water through a mass ofroots to
remove toxic substances or excess nutrients.

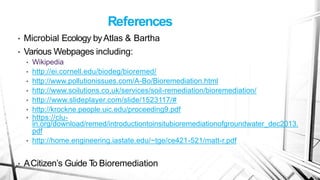

22. References
• Microbial Ecology byAtlas & Bartha
• Various Webpages including:
• Wikipedia
• http://ei.cornell.edu/biodeg/bioremed/
• http://www.pollutionissues.com/A-Bo/Bioremediation.html
• http://www.soilutions.co.uk/services/soil-remediation/bioremediation/
• http://www.slideplayer.com/slide/1523117/#
• http://krockne.people.uic.edu/proceeding9.pdf
• https://clu-
in.org/download/remed/introductiontoinsitubioremediationofgroundwater_dec2013.
pdf
• http://home.engineering.iastate.edu/~tge/ce421-521/matt-r.pdf
• ACitizen’s Guide T
o Bioremediation
