The Protein Data Bank (PDB) is a worldwide archive of 3D structural data of biological macromolecules including proteins and nucleic acids. It was established in 1971 and originally contained 7 structures. In 1998, the Research Collaboratory for Structural Bioinformatics took over management. In 2003, the worldwide PDB (wwPDB) was formed to maintain a single publicly available archive. The wwPDB consists of several partner organizations that act as deposition, processing, and distribution centers.

1. Protein Data Bank
Mr. Kamble Sainath Hanmant
Assistant Professor in Microbiology
D.B.F.Dayanand College of Arts And Science, Solapur

2.  The PDB was established in 1971 at Brookhaven National
Laboratory and originally contained 7 structures.
 In 1998, the Research Collaboratory for Structural
Bioinformatics (RCSB) became responsible for the
management of the PDB.
 In 2003, the wwPDB was formed to maintain a single PDB
archive of macromolecular structural data that is freely and
publicly available to the global community.
 It consists of organizations that act as deposition, data
processing and distribution centers for PDB data.

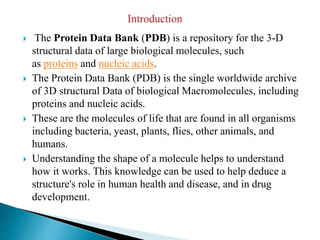

3.  The Protein Data Bank (PDB) is a repository for the 3-D
structural data of large biological molecules, such
as proteins and nucleic acids.
 The Protein Data Bank (PDB) is the single worldwide archive
of 3D structural Data of biological Macromolecules, including
proteins and nucleic acids.
 These are the molecules of life that are found in all organisms
including bacteria, yeast, plants, flies, other animals, and
humans.
 Understanding the shape of a molecule helps to understand
how it works. This knowledge can be used to help deduce a
structure's role in human health and disease, and in drug
development.

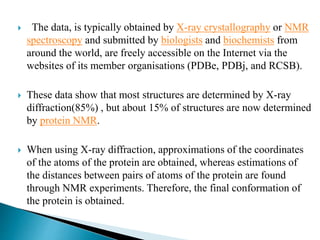

4.  The data, is typically obtained by X-ray crystallography or NMR
spectroscopy and submitted by biologists and biochemists from
around the world, are freely accessible on the Internet via the
websites of its member organisations (PDBe, PDBj, and RCSB).
 These data show that most structures are determined by X-ray
diffraction(85%) , but about 15% of structures are now determined
by protein NMR.
 When using X-ray diffraction, approximations of the coordinates
of the atoms of the protein are obtained, whereas estimations of
the distances between pairs of atoms of the protein are found
through NMR experiments. Therefore, the final conformation of
the protein is obtained.

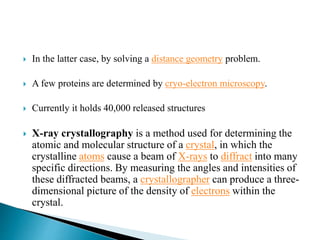

5.  In the latter case, by solving a distance geometry problem.
 A few proteins are determined by cryo-electron microscopy.
 Currently it holds 40,000 released structures

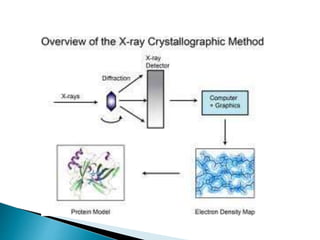

 X-ray crystallography is a method used for determining the
atomic and molecular structure of a crystal, in which the
crystalline atoms cause a beam of X-rays to diffract into many
specific directions. By measuring the angles and intensities of
these diffracted beams, a crystallographer can produce a three-
dimensional picture of the density of electrons within the
crystal.

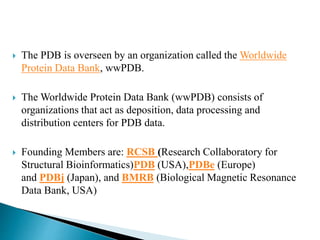

7.  The PDB is overseen by an organization called the Worldwide
Protein Data Bank, wwPDB.
 The Worldwide Protein Data Bank (wwPDB) consists of
organizations that act as deposition, data processing and
distribution centers for PDB data.
 Founding Members are: RCSB (Research Collaboratory for
Structural Bioinformatics)PDB (USA),PDBe (Europe)
and PDBj (Japan), and BMRB (Biological Magnetic Resonance
Data Bank, USA)

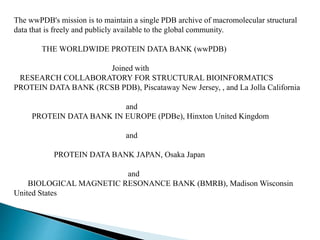

8. The wwPDB's mission is to maintain a single PDB archive of macromolecular structural
data that is freely and publicly available to the global community.
THE WORLDWIDE PROTEIN DATA BANK (wwPDB)
Joined with
RESEARCH COLLABORATORY FOR STRUCTURAL BIOINFORMATICS
PROTEIN DATA BANK (RCSB PDB), Piscataway New Jersey, , and La Jolla California
and
PROTEIN DATA BANK IN EUROPE (PDBe), Hinxton United Kingdom
and
PROTEIN DATA BANK JAPAN, Osaka Japan
and
BIOLOGICAL MAGNETIC RESONANCE BANK (BMRB), Madison Wisconsin
United States

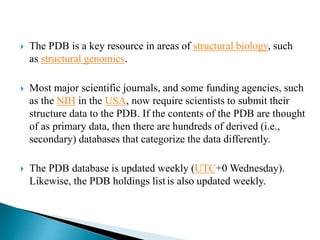

9.  The PDB is a key resource in areas of structural biology, such
as structural genomics.
 Most major scientific journals, and some funding agencies, such
as the NIH in the USA, now require scientists to submit their
structure data to the PDB. If the contents of the PDB are thought
of as primary data, then there are hundreds of derived (i.e.,
secondary) databases that categorize the data differently.
 The PDB database is updated weekly (UTC+0 Wednesday).
Likewise, the PDB holdings list is also updated weekly.

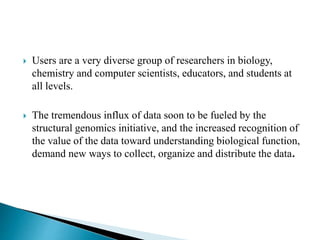

10.  Users are a very diverse group of researchers in biology,
chemistry and computer scientists, educators, and students at
all levels.
 The tremendous influx of data soon to be fueled by the
structural genomics initiative, and the increased recognition of
the value of the data toward understanding biological function,
demand new ways to collect, organize and distribute the data.

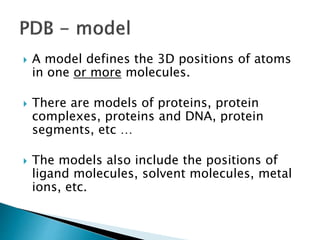

12.  A model defines the 3D positions of atoms
in one or more molecules.
 There are models of proteins, protein
complexes, proteins and DNA, protein
segments, etc …
 The models also include the positions of
ligand molecules, solvent molecules, metal
ions, etc.

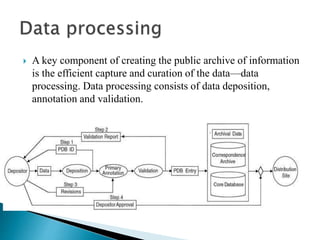

13.  A key component of creating the public archive of information
is the efficient capture and curation of the data—data
processing. Data processing consists of data deposition,
annotation and validation.
