Microbial biofilms are sessile communities of microbes that are irreversibly attached to surfaces and embedded in an extracellular matrix. They form through a multi-stage process beginning with initial reversible attachment followed by irreversible binding and growth. Quorum sensing allows cell-cell communication to coordinate biofilm formation. Mature biofilms are resistant to antimicrobial agents and can persist as sources of infection. Biofilms commonly form on medical devices and tissues, causing device-related and recurrent infections.

1. BIOFILMS
Microbial life on surfaces

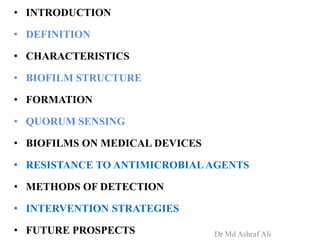

2. • INTRODUCTION
• DEFINITION
• CHARACTERISTICS
• BIOFILM STRUCTURE
• FORMATION
• QUORUM SENSING
• BIOFILMS ON MEDICAL DEVICES
• RESISTANCE TO ANTIMICROBIAL AGENTS
• METHODS OF DETECTION
• INTERVENTION STRATEGIES
• FUTURE PROSPECTS Dr Md Ashraf Ali

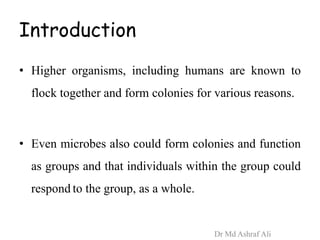

3. Introduction
• Higher organisms, including humans are known to
flock together and form colonies for various reasons.
• Even microbes also could form colonies and function
as groups and that individuals within the group could
respond to the group, as a whole.
Dr Md Ashraf Ali

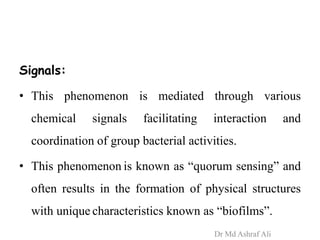

4. Signals:
• This phenomenon is mediated through various
chemical signals facilitating interaction and
coordination of group bacterial activities.
• This phenomenon is known as “quorum sensing” and
often results in the formation of physical structures
with unique characteristics known as “biofilms”.
Dr Md Ashraf Ali

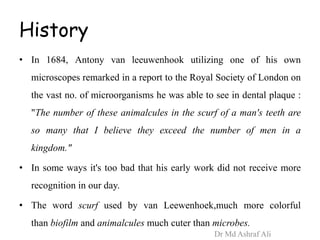

5. History
• In 1684, Antony van leeuwenhook utilizing one of his own
microscopes remarked in a report to the Royal Society of London on
the vast no. of microorganisms he was able to see in dental plaque :
"The number of these animalcules in the scurf of a man's teeth are
so many that I believe they exceed the number of men in a
kingdom."
• In some ways it's too bad that his early work did not receive more
recognition in our day.
• The word scurf used by van Leewenhoek,much more colorful
than biofilm and animalcules much cuter than microbes.
Dr Md Ashraf Ali

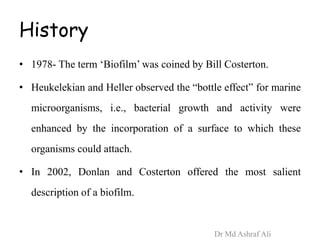

6. History
• 1978- The term ‘Biofilm’ was coined by Bill Costerton.
• Heukelekian and Heller observed the “bottle effect” for marine
microorganisms, i.e., bacterial growth and activity were
enhanced by the incorporation of a surface to which these
organisms could attach.
• In 2002, Donlan and Costerton offered the most salient
description of a biofilm.
Dr Md Ashraf Ali

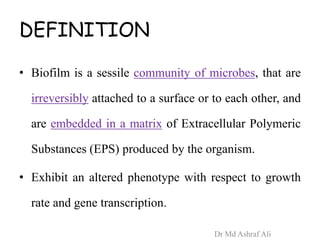

7. DEFINITION
• Biofilm is a sessile community of microbes, that are
irreversibly attached to a surface or to each other, and
are embedded in a matrix of Extracellular Polymeric
Substances (EPS) produced by the organism.
• Exhibit an altered phenotype with respect to growth
rate and gene transcription.
Dr Md Ashraf Ali

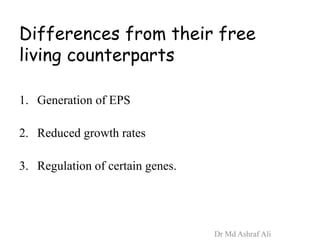

8. Differences from their free
living counterparts
1. Generation of EPS
2. Reduced growth rates
3. Regulation of certain genes.
Dr Md Ashraf Ali

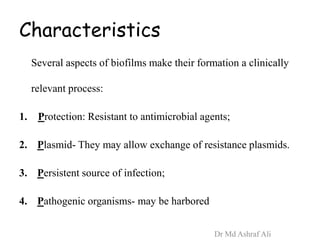

9. Characteristics
Several aspects of biofilms make their formation a clinically
relevant process:
1. Protection: Resistant to antimicrobial agents;
2. Plasmid- They may allow exchange of resistance plasmids.
3. Persistent source of infection;
4. Pathogenic organisms- may be harbored
Dr Md Ashraf Ali

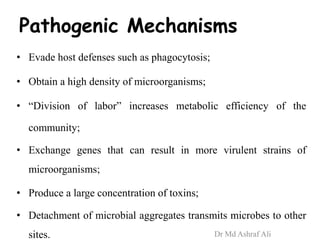

10. Pathogenic Mechanisms
• Evade host defenses such as phagocytosis;
• Obtain a high density of microorganisms;
• “Division of labor” increases metabolic efficiency of the
community;
• Exchange genes that can result in more virulent strains of
microorganisms;
• Produce a large concentration of toxins;
• Detachment of microbial aggregates transmits microbes to other
sites. Dr Md Ashraf Ali

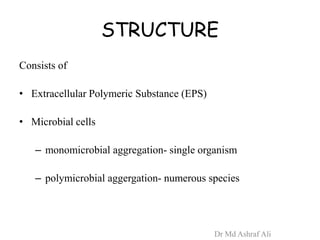

11. STRUCTURE
Consists of
• Extracellular Polymeric Substance (EPS)
• Microbial cells
– monomicrobial aggregation- single organism
– polymicrobial aggergation- numerous species
Dr Md Ashraf Ali

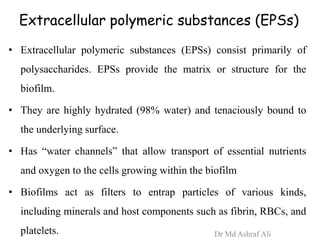

12. Extracellular polymeric substances (EPSs)
• Extracellular polymeric substances (EPSs) consist primarily of
polysaccharides. EPSs provide the matrix or structure for the
biofilm.
• They are highly hydrated (98% water) and tenaciously bound to
the underlying surface.
• Has “water channels” that allow transport of essential nutrients
and oxygen to the cells growing within the biofilm
• Biofilms act as filters to entrap particles of various kinds,
including minerals and host components such as fibrin, RBCs, and
platelets. Dr Md Ashraf Ali

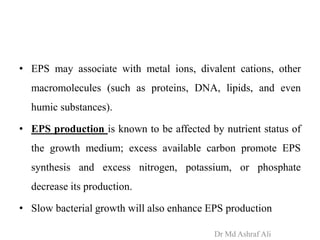

13. • EPS may associate with metal ions, divalent cations, other
macromolecules (such as proteins, DNA, lipids, and even
humic substances).
• EPS production is known to be affected by nutrient status of
the growth medium; excess available carbon promote EPS
synthesis and excess nitrogen, potassium, or phosphate
decrease its production.
• Slow bacterial growth will also enhance EPS production
Dr Md Ashraf Ali

14. Microorganism Isolated from
Candida albicans Artificial voice prosthesis
Central venous catheter
Intrauterine devices
Coagulase-negative
staphylococci
Artificial hip prosthesis
Artificial voice prosthesis
Central venous catheter
Intrauterine devices
Prosthetic heart valve
Urinary catheter
Enterococcus spp. Artificial hip prosthesis
Central venous catheter
Intrauterine devices
Prosthetic heart valve
Urinary catheter
Dr Md Ashraf Ali

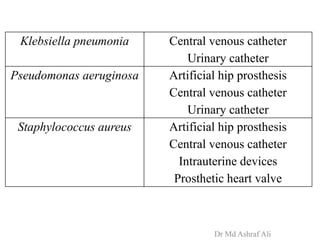

15. Klebsiella pneumonia Central venous catheter
Urinary catheter
Pseudomonas aeruginosa Artificial hip prosthesis
Central venous catheter
Urinary catheter
Staphylococcus aureus Artificial hip prosthesis
Central venous catheter
Intrauterine devices
Prosthetic heart valve
Dr Md Ashraf Ali

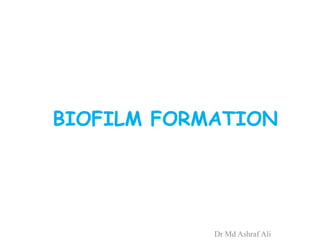

16. BIOFILM FORMATION
Dr Md Ashraf Ali

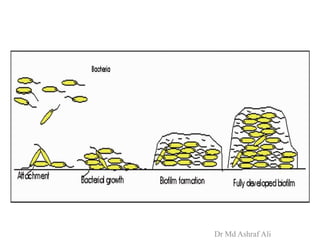

17. Dr Md Ashraf Ali

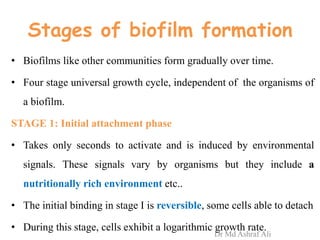

18. Stages of biofilm formation
• Biofilms like other communities form gradually over time.
• Four stage universal growth cycle, independent of the organisms of
a biofilm.
STAGE 1: Initial attachment phase
• Takes only seconds to activate and is induced by environmental
signals. These signals vary by organisms but they include a
nutritionally rich environment etc..
• The initial binding in stage I is reversible, some cells able to detach
• During this stage, cells exhibit a logarithmic growth rate.
Dr Md Ashraf Ali

19. STAGE II – Stage of irreversible binding and growth
• Begins minutes after stage 1.
• After adhering to the surface, bacteria multiply while emitting
chemical signals that “inter communicate” the bacterial cells.
• Motility is decreased and cell aggregates are formed.
• Cell aggregates become progressively layered.
• The genetic mechanisms for Extracellular Polymeric
Substance (EPS) production are activated which is able to trap
nutrients and planktonic bacteria.
Dr Md Ashraf Ali

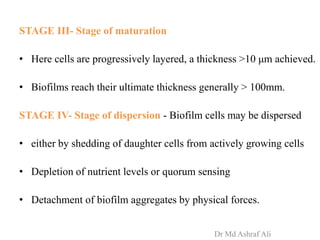

20. STAGE III- Stage of maturation
• Here cells are progressively layered, a thickness >10 μm achieved.
• Biofilms reach their ultimate thickness generally > 100mm.
STAGE IV- Stage of dispersion - Biofilm cells may be dispersed
• either by shedding of daughter cells from actively growing cells
• Depletion of nutrient levels or quorum sensing
• Detachment of biofilm aggregates by physical forces.
Dr Md Ashraf Ali

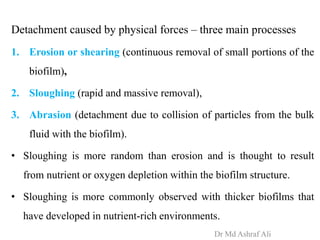

21. Detachment caused by physical forces – three main processes
1. Erosion or shearing (continuous removal of small portions of the
biofilm),
2. Sloughing (rapid and massive removal),
3. Abrasion (detachment due to collision of particles from the bulk
fluid with the biofilm).
• Sloughing is more random than erosion and is thought to result
from nutrient or oxygen depletion within the biofilm structure.
• Sloughing is more commonly observed with thicker biofilms that
have developed in nutrient-rich environments.
Dr Md Ashraf Ali

22. Dr Md Ashraf Ali

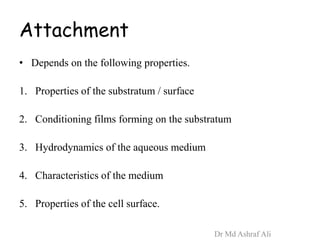

23. Attachment
• Depends on the following properties.
1. Properties of the substratum / surface
2. Conditioning films forming on the substratum
3. Hydrodynamics of the aqueous medium
4. Characteristics of the medium
5. Properties of the cell surface.
Dr Md Ashraf Ali

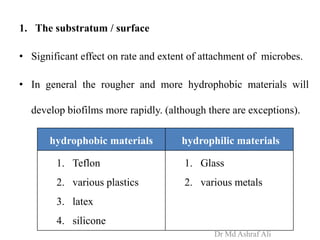

24. 1. The substratum / surface
• Significant effect on rate and extent of attachment of microbes.
• In general the rougher and more hydrophobic materials will
develop biofilms more rapidly. (although there are exceptions).
hydrophobic materials hydrophilic materials
1. Teflon
2. various plastics
3. latex
4. silicone
1. Glass
2. various metals
Dr Md Ashraf Ali

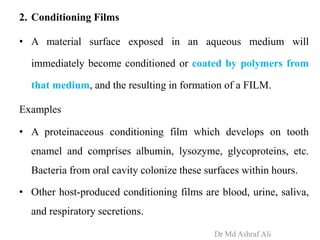

25. 2. Conditioning Films
• A material surface exposed in an aqueous medium will
immediately become conditioned or coated by polymers from
that medium, and the resulting in formation of a FILM.
Examples
• A proteinaceous conditioning film which develops on tooth
enamel and comprises albumin, lysozyme, glycoproteins, etc.
Bacteria from oral cavity colonize these surfaces within hours.
• Other host-produced conditioning films are blood, urine, saliva,
and respiratory secretions.
Dr Md Ashraf Ali

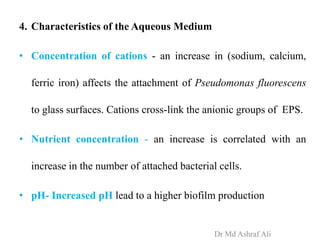

26. 4. Characteristics of the Aqueous Medium
• Concentration of cations - an increase in (sodium, calcium,
ferric iron) affects the attachment of Pseudomonas fluorescens
to glass surfaces. Cations cross-link the anionic groups of EPS.
• Nutrient concentration - an increase is correlated with an
increase in the number of attached bacterial cells.
• pH- Increased pH lead to a higher biofilm production
Dr Md Ashraf Ali

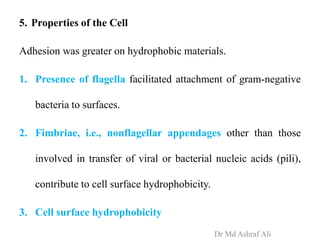

27. 5. Properties of the Cell
Adhesion was greater on hydrophobic materials.
1. Presence of flagella facilitated attachment of gram-negative
bacteria to surfaces.
2. Fimbriae, i.e., nonflagellar appendages other than those
involved in transfer of viral or bacterial nucleic acids (pili),
contribute to cell surface hydrophobicity.
3. Cell surface hydrophobicity
Dr Md Ashraf Ali

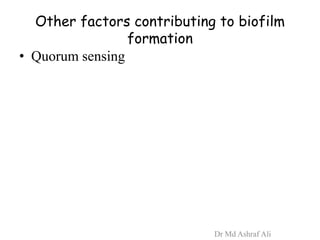

28. Other factors contributing to biofilm
formation
• Quorum sensing
Dr Md Ashraf Ali

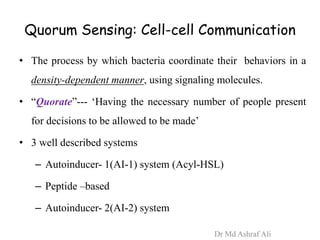

29. Quorum Sensing: Cell-cell Communication
• The process by which bacteria coordinate their behaviors in a
density-dependent manner, using signaling molecules.
• “Quorate”--- ‘Having the necessary number of people present
for decisions to be allowed to be made’
• 3 well described systems
– Autoinducer- 1(AI-1) system (Acyl-HSL)
– Peptide –based
– Autoinducer- 2(AI-2) system
Dr Md Ashraf Ali

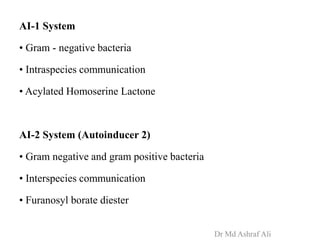

30. AI-1 System
• Gram - negative bacteria
• Intraspecies communication
• Acylated Homoserine Lactone
AI-2 System (Autoinducer 2)
• Gram negative and gram positive bacteria
• Interspecies communication
• Furanosyl borate diester
Dr Md Ashraf Ali

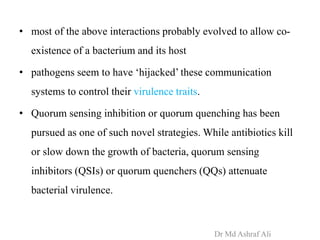

31. • most of the above interactions probably evolved to allow co-
existence of a bacterium and its host
• pathogens seem to have ‘hijacked’ these communication
systems to control their virulence traits.
• Quorum sensing inhibition or quorum quenching has been
pursued as one of such novel strategies. While antibiotics kill
or slow down the growth of bacteria, quorum sensing
inhibitors (QSIs) or quorum quenchers (QQs) attenuate
bacterial virulence.
Dr Md Ashraf Ali

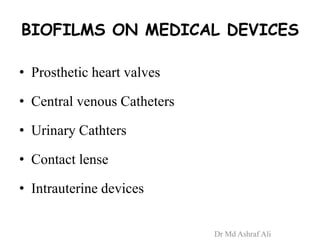

32. BIOFILMS ON MEDICAL DEVICES
• Prosthetic heart valves
• Central venous Catheters
• Urinary Cathters
• Contact lense
• Intrauterine devices
Dr Md Ashraf Ali

33. Prosthetic heart valves
Prosthetic valve endocarditis
• Microbial infection of the valve and surrounding tissues of heart.
• Early colonizers- preominantly CoNS
• Late PVE (>12m of valve replacement)
– Streptococci- viridans group
– CoNS
– S. aureus
– GNB
– Fungi- Candida
• Detection: Blood culture, transesophageal echo(biofilm)
Dr Md Ashraf Ali

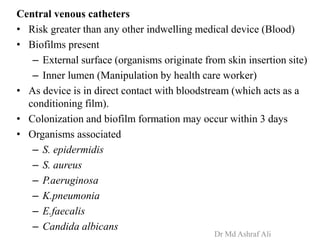

34. Central venous catheters
• Risk greater than any other indwelling medical device (Blood)
• Biofilms present
– External surface (organisms originate from skin insertion site)
– Inner lumen (Manipulation by health care worker)
• As device is in direct contact with bloodstream (which acts as a
conditioning film).
• Colonization and biofilm formation may occur within 3 days
• Organisms associated
– S. epidermidis
– S. aureus
– P.aeruginosa
– K.pneumonia
– E.faecalis
– Candida albicans
Dr Md Ashraf Ali

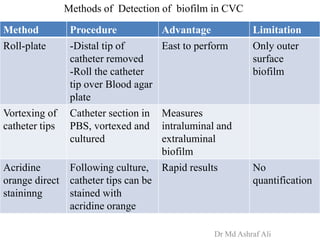

35. Methods of Detection of biofilm in CVC
Method Procedure Advantage Limitation
Roll-plate -Distal tip of
catheter removed
-Roll the catheter
tip over Blood agar
plate
East to perform Only outer
surface
biofilm
Vortexing of
catheter tips
Catheter section in
PBS, vortexed and
cultured
Measures
intraluminal and
extraluminal
biofilm
Acridine
orange direct
staininng
Following culture,
catheter tips can be
stained with
acridine orange
Rapid results No
quantification
Dr Md Ashraf Ali

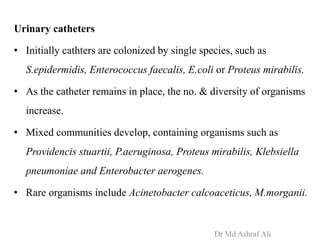

36. Urinary catheters
• Initially cathters are colonized by single species, such as
S.epidermidis, Enterococcus faecalis, E.coli or Proteus mirabilis.
• As the catheter remains in place, the no. & diversity of organisms
increase.
• Mixed communities develop, containing organisms such as
Providencis stuartii, P.aeruginosa, Proteus mirabilis, Klebsiella
pneumoniae and Enterobacter aerogenes.
• Rare organisms include Acinetobacter calcoaceticus, M.morganii.
Dr Md Ashraf Ali

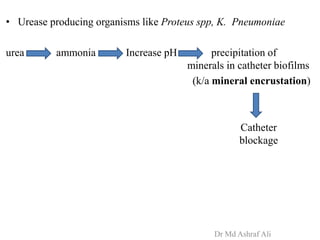

37. • Urease producing organisms like Proteus spp, K. Pneumoniae
urea ammonia Increase pH precipitation of
minerals in catheter biofilms
(k/a mineral encrustation)
Catheter
blockage
Dr Md Ashraf Ali

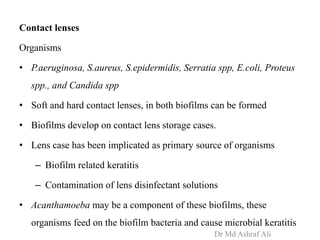

38. Contact lenses
Organisms
• P.aeruginosa, S.aureus, S.epidermidis, Serratia spp, E.coli, Proteus
spp., and Candida spp
• Soft and hard contact lenses, in both biofilms can be formed
• Biofilms develop on contact lens storage cases.
• Lens case has been implicated as primary source of organisms
– Biofilm related keratitis
– Contamination of lens disinfectant solutions
• Acanthamoeba may be a component of these biofilms, these
organisms feed on the biofilm bacteria and cause microbial keratitis
Dr Md Ashraf Ali

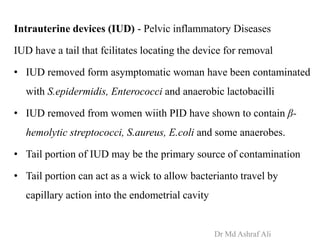

39. Intrauterine devices (IUD) - Pelvic inflammatory Diseases
IUD have a tail that fcilitates locating the device for removal
• IUD removed form asymptomatic woman have been contaminated
with S.epidermidis, Enterococci and anaerobic lactobacilli
• IUD removed from women wiith PID have shown to contain β-
hemolytic streptococci, S.aureus, E.coli and some anaerobes.
• Tail portion of IUD may be the primary source of contamination
• Tail portion can act as a wick to allow bacterianto travel by
capillary action into the endometrial cavity
Dr Md Ashraf Ali

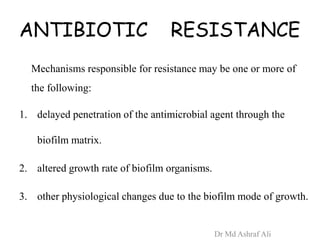

40. ANTIBIOTIC RESISTANCE
Mechanisms responsible for resistance may be one or more of
the following:
1. delayed penetration of the antimicrobial agent through the
biofilm matrix.
2. altered growth rate of biofilm organisms.
3. other physiological changes due to the biofilm mode of growth.
Dr Md Ashraf Ali

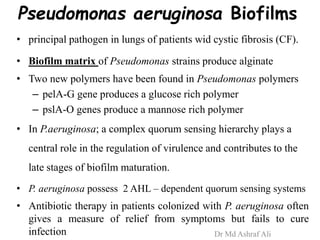

41. Pseudomonas aeruginosa Biofilms
• principal pathogen in lungs of patients wid cystic fibrosis (CF).
• Biofilm matrix of Pseudomonas strains produce alginate
• Two new polymers have been found in Pseudomonas polymers
– pelA-G gene produces a glucose rich polymer
– pslA-O genes produce a mannose rich polymer
• In P.aeruginosa; a complex quorum sensing hierarchy plays a
central role in the regulation of virulence and contributes to the
late stages of biofilm maturation.
• P. aeruginosa possess 2 AHL – dependent quorum sensing systems
• Antibiotic therapy in patients colonized with P. aeruginosa often
gives a measure of relief from symptoms but fails to cure
infection Dr Md Ashraf Ali

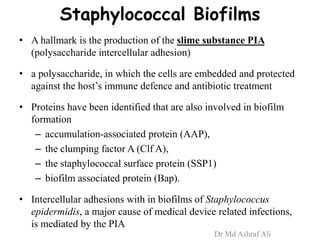

42. Staphylococcal Biofilms
• A hallmark is the production of the slime substance PIA
(polysaccharide intercellular adhesion)
• a polysaccharide, in which the cells are embedded and protected
against the host’s immune defence and antibiotic treatment
• Proteins have been identified that are also involved in biofilm
formation
– accumulation-associated protein (AAP),
– the clumping factor A (Clf A),
– the staphylococcal surface protein (SSP1)
– biofilm associated protein (Bap).
• Intercellular adhesions with in biofilms of Staphylococcus
epidermidis, a major cause of medical device related infections,
is mediated by the PIA
Dr Md Ashraf Ali

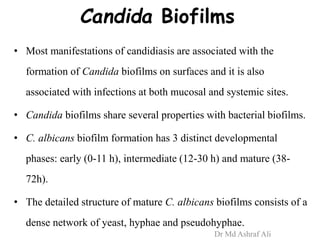

43. Candida Biofilms
• Most manifestations of candidiasis are associated with the
formation of Candida biofilms on surfaces and it is also
associated with infections at both mucosal and systemic sites.
• Candida biofilms share several properties with bacterial biofilms.
• C. albicans biofilm formation has 3 distinct developmental
phases: early (0-11 h), intermediate (12-30 h) and mature (38-
72h).
• The detailed structure of mature C. albicans biofilms consists of a
dense network of yeast, hyphae and pseudohyphae.
Dr Md Ashraf Ali

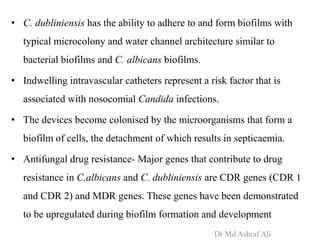

44. • C. dubliniensis has the ability to adhere to and form biofilms with
typical microcolony and water channel architecture similar to
bacterial biofilms and C. albicans biofilms.
• Indwelling intravascular catheters represent a risk factor that is
associated with nosocomial Candida infections.
• The devices become colonised by the microorganisms that form a
biofilm of cells, the detachment of which results in septicaemia.
• Antifungal drug resistance- Major genes that contribute to drug
resistance in C.albicans and C. dubliniensis are CDR genes (CDR 1
and CDR 2) and MDR genes. These genes have been demonstrated
to be upregulated during biofilm formation and development
Dr Md Ashraf Ali

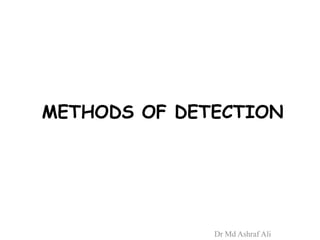

45. METHODS OF DETECTION
Dr Md Ashraf Ali

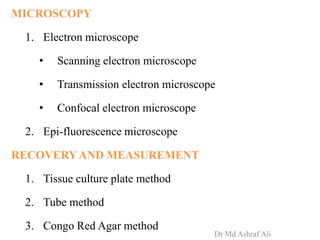

46. MICROSCOPY
1. Electron microscope
• Scanning electron microscope
• Transmission electron microscope
• Confocal electron microscope
2. Epi-fluorescence microscope
RECOVERYAND MEASUREMENT
1. Tissue culture plate method
2. Tube method
3. Congo Red Agar method
Dr Md Ashraf Ali

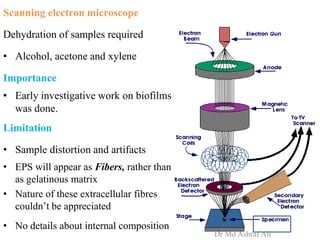

47. Scanning electron microscope
Dehydration of samples required
• Alcohol, acetone and xylene
Importance
• Early investigative work on biofilms
was done.
Limitation
• Sample distortion and artifacts
• EPS will appear as Fibers, rather than
as gelatinous matrix
• Nature of these extracellular fibres
couldn’t be appreciated
• No details about internal composition
Dr Md Ashraf Ali

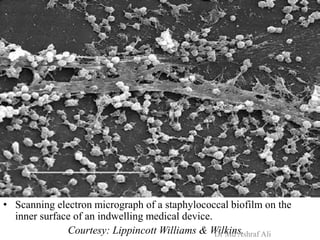

48. • Scanning electron micrograph of a staphylococcal biofilm on the
inner surface of an indwelling medical device.
Courtesy: Lippincott Williams & Wilkins.Dr Md Ashraf Ali

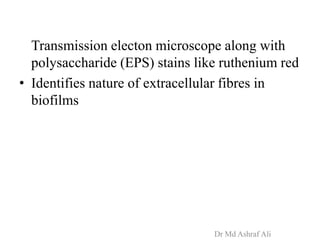

49. Transmission electon microscope along with
polysaccharide (EPS) stains like ruthenium red
• Identifies nature of extracellular fibres in
biofilms
Dr Md Ashraf Ali

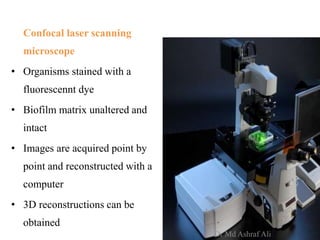

50. Confocal laser scanning
microscope
• Organisms stained with a
fluorescennt dye
• Biofilm matrix unaltered and
intact
• Images are acquired point by
point and reconstructed with a
computer
• 3D reconstructions can be
obtained
Dr Md Ashraf Ali

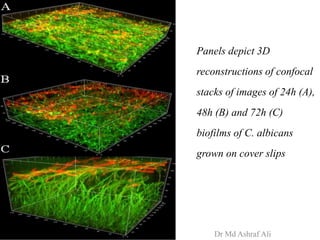

51. Panels depict 3D
reconstructions of confocal
stacks of images of 24h (A),
48h (B) and 72h (C)
biofilms of C. albicans
grown on cover slips
Dr Md Ashraf Ali

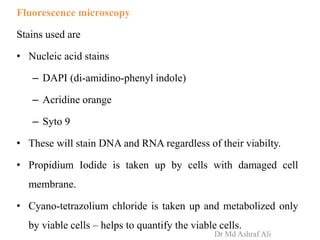

52. Fluorescence microscopy
Stains used are
• Nucleic acid stains
– DAPI (di-amidino-phenyl indole)
– Acridine orange
– Syto 9
• These will stain DNA and RNA regardless of their viabilty.
• Propidium Iodide is taken up by cells with damaged cell
membrane.
• Cyano-tetrazolium chloride is taken up and metabolized only
by viable cells – helps to quantify the viable cells.
Dr Md Ashraf Ali

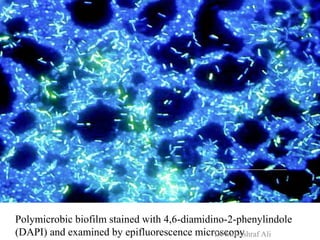

53. Polymicrobic biofilm stained with 4,6-diamidino-2-phenylindole
(DAPI) and examined by epifluorescence microscopyDr Md Ashraf Ali

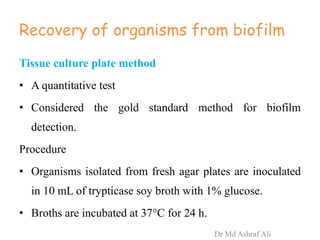

54. Recovery of organisms from biofilm
Tissue culture plate method
• A quantitative test
• Considered the gold standard method for biofilm
detection.
Procedure
• Organisms isolated from fresh agar plates are inoculated
in 10 mL of trypticase soy broth with 1% glucose.
• Broths are incubated at 37°C for 24 h.
Dr Md Ashraf Ali

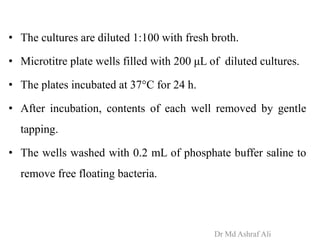

55. • The cultures are diluted 1:100 with fresh broth.
• Microtitre plate wells filled with 200 μL of diluted cultures.
• The plates incubated at 37°C for 24 h.
• After incubation, contents of each well removed by gentle
tapping.
• The wells washed with 0.2 mL of phosphate buffer saline to
remove free floating bacteria.
Dr Md Ashraf Ali

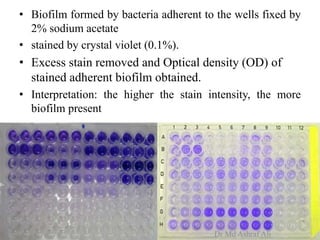

56. • Biofilm formed by bacteria adherent to the wells fixed by
2% sodium acetate
• stained by crystal violet (0.1%).
• Excess stain removed and Optical density (OD) of
stained adherent biofilm obtained.
• Interpretation: the higher the stain intensity, the more
biofilm present
Dr Md Ashraf Ali

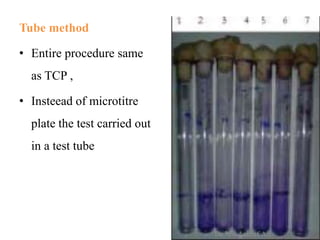

57. Tube method
• Entire procedure same
as TCP ,
• Insteead of microtitre
plate the test carried out
in a test tube
Dr Md Ashraf Ali

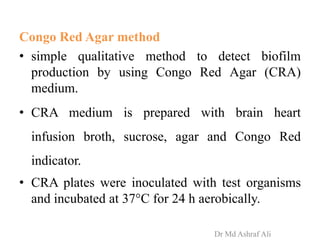

58. Congo Red Agar method
• simple qualitative method to detect biofilm
production by using Congo Red Agar (CRA)
medium.
• CRA medium is prepared with brain heart
infusion broth, sucrose, agar and Congo Red
indicator.
• CRA plates were inoculated with test organisms
and incubated at 37°C for 24 h aerobically.
Dr Md Ashraf Ali

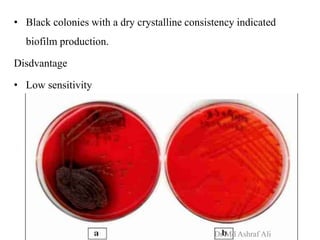

59. • Black colonies with a dry crystalline consistency indicated
biofilm production.
Disdvantage
• Low sensitivity
Dr Md Ashraf Ali

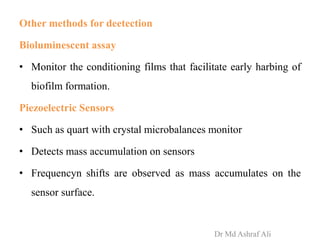

60. Other methods for deetection
Bioluminescent assay
• Monitor the conditioning films that facilitate early harbing of
biofilm formation.
Piezoelectric Sensors
• Such as quart with crystal microbalances monitor
• Detects mass accumulation on sensors
• Frequencyn shifts are observed as mass accumulates on the
sensor surface.
Dr Md Ashraf Ali

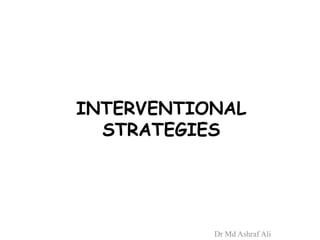

61. INTERVENTIONAL
STRATEGIES
Dr Md Ashraf Ali

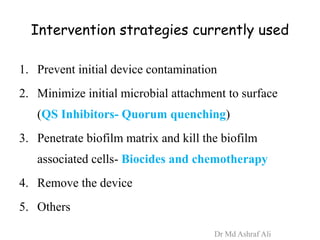

62. Intervention strategies currently used
1. Prevent initial device contamination
2. Minimize initial microbial attachment to surface
(QS Inhibitors- Quorum quenching)
3. Penetrate biofilm matrix and kill the biofilm
associated cells- Biocides and chemotherapy
4. Remove the device
5. Others
Dr Md Ashraf Ali

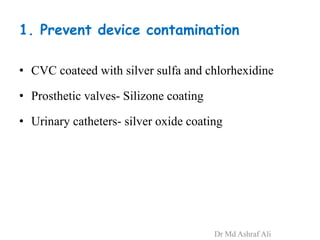

63. 1. Prevent device contamination
• CVC coateed with silver sulfa and chlorhexidine
• Prosthetic valves- Silizone coating
• Urinary catheters- silver oxide coating
Dr Md Ashraf Ali

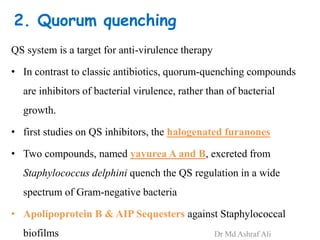

64. 2. Quorum quenching
QS system is a target for anti-virulence therapy
• In contrast to classic antibiotics, quorum-quenching compounds
are inhibitors of bacterial virulence, rather than of bacterial
growth.
• first studies on QS inhibitors, the halogenated furanones
• Two compounds, named yayurea A and B, excreted from
Staphylococcus delphini quench the QS regulation in a wide
spectrum of Gram-negative bacteria
• Apolipoprotein B & AIP Sequesters against Staphylococcal
biofilms Dr Md Ashraf Ali

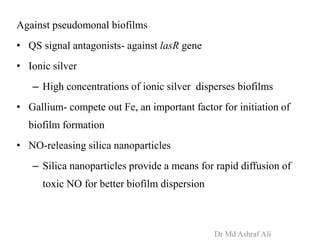

65. Against pseudomonal biofilms
• QS signal antagonists- against lasR gene
• Ionic silver
– High concentrations of ionic silver disperses biofilms
• Gallium- compete out Fe, an important factor for initiation of
biofilm formation
• NO-releasing silica nanoparticles
– Silica nanoparticles provide a means for rapid diffusion of
toxic NO for better biofilm dispersion
Dr Md Ashraf Ali

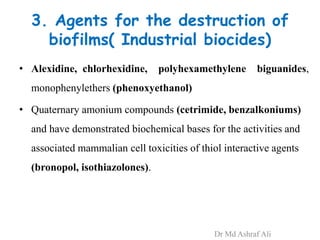

66. 3. Agents for the destruction of
biofilms( Industrial biocides)
• Alexidine, chlorhexidine, polyhexamethylene biguanides,
monophenylethers (phenoxyethanol)
• Quaternary amonium compounds (cetrimide, benzalkoniums)
and have demonstrated biochemical bases for the activities and
associated mammalian cell toxicities of thiol interactive agents
(bronopol, isothiazolones).
Dr Md Ashraf Ali

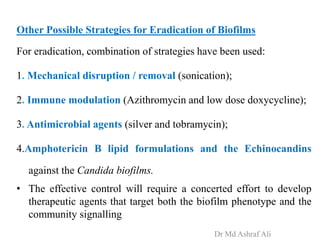

67. Other Possible Strategies for Eradication of Biofilms
For eradication, combination of strategies have been used:
1. Mechanical disruption / removal (sonication);
2. Immune modulation (Azithromycin and low dose doxycycline);
3. Antimicrobial agents (silver and tobramycin);
4.Amphotericin B lipid formulations and the Echinocandins
against the Candida biofilms.
• The effective control will require a concerted effort to develop
therapeutic agents that target both the biofilm phenotype and the
community signalling
Dr Md Ashraf Ali

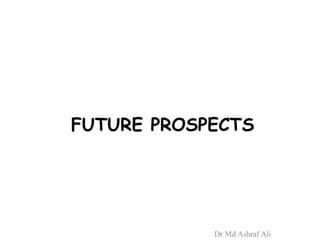

68. FUTURE PROSPECTS
Dr Md Ashraf Ali

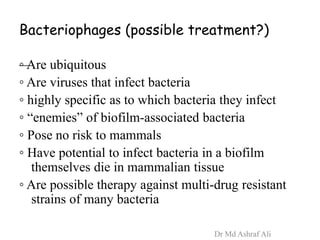

69. Bacteriophages (possible treatment?)
—◦ Are ubiquitous
◦ Are viruses that infect bacteria
◦ highly specific as to which bacteria they infect
◦ “enemies” of biofilm-associated bacteria
◦ Pose no risk to mammals
◦ Have potential to infect bacteria in a biofilm
themselves die in mammalian tissue
◦ Are possible therapy against multi-drug resistant
strains of many bacteria
Dr Md Ashraf Ali

70. Dr Md Ashraf Ali
