The document discusses openBIM, which uses open standards like Industry Foundation Classes (IFC) to enable real interoperability between different software applications. OpenBIM allows participants in a building project to use their preferred tools to access and share relevant BIM data. It also facilitates practical collaboration where models, designs, and analyses can progress in parallel. The document then provides an example case study of how an openBIM workflow was implemented for a commercial office building project.

1. Using an openBIM Workflow by Jeffrey W. Ouellette, Assoc. AIA, BIM Specialist, Integrated Practice

2. What is openBIM ?

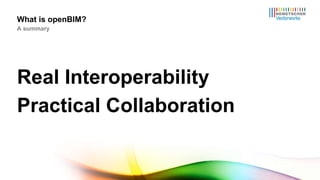

3. Real Interoperability Practical Collaboration What is openBIM? A summary

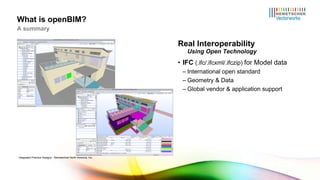

4. Real Interoperability Using Open Technology IFC (.ifc/.ifcxml/.ifczip) for Model data International open standard Geometry & Data Global vendor & application support What is openBIM? A summary Integrated Practice Designs - Nemetschek North America, Inc.

5. Real Interoperability Using Open Technology IFC (.ifc/.ifcxml/.ifczip) for Model data International open standard Geometry & Data Widespread Vendor and application support PDF for 2D/drawings International open standard line drawings, schematics, renderings, text can be queried, searched mark-ups without editing source data What is openBIM? A summary Integrated Practice Designs - Nemetschek North America, Inc.

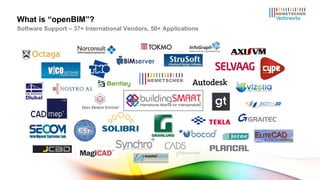

6. What is “openBIM”? Software Support – 37+ International Vendors, 50+ Applications

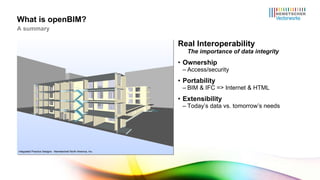

7. Real Interoperability The importance of data integrity Ownership Access/security Portability BIM & IFC => Internet & HTML Extensibility Today’s data vs. tomorrow’s needs What is openBIM? A summary Integrated Practice Designs - Nemetschek North America, Inc.

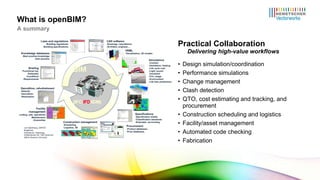

8. Practical Collaboration Delivering high-value workflows Design simulation/coordination Performance simulations Change management Clash detection QTO, cost estimating and tracking, and procurement Construction scheduling and logistics Facility/asset management Automated code checking Fabrication What is openBIM? A summary

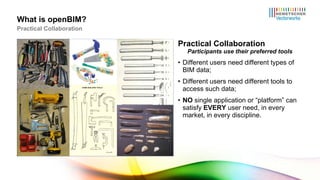

9. Practical Collaboration Participants use their preferred tools Different users need different types of BIM data; Different users need different tools to access such data; NO single application or “platform” can satisfy EVERY user need, in every market, in every discipline. What is openBIM? Practical Collaboration

10. Practical Collaboration Balance of Technology and Process No need to coordinate a particular vendor-specific application, version, or extensions between all users; Participants share only what data they need to share, when they need; Models, designs, and analyses by users can work in parallel; Users, regardless of technological maturity, can add value to the BIM. What is openBIM? Practical Collaboration Integrated Practice Designs - Nemetschek North America, Inc.

11. HOW does openBIM work?

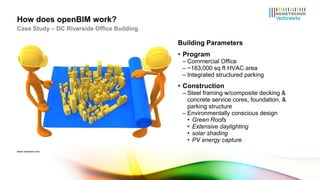

12. Building Parameters Program Commercial Office ~183,000 sq ft HVAC area Integrated structured parking Construction Steel framing w/composite decking & concrete service cores, foundation, & parking structure Environmentally conscious design Green Roofs Extensive daylighting solar shading PV energy capture How does openBIM work? Case Study – DC Riverside Office Building www.lumaxart.com

13. Site Parameters Location Washington D.C. Anacostia waterfront How does openBIM work? Case Study – DC Riverside Office Building

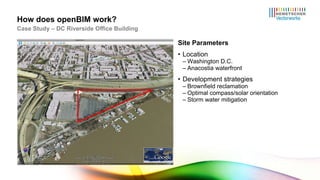

14. Site Parameters Location Washington D.C. Anacostia waterfront Development strategies Brownfield reclamation Optimal compass/solar orientation Storm water mitigation How does openBIM work? Case Study – DC Riverside Office Building

15. Project Team Owner Architect Structural Engineer MEP Engineer General Contractor BIM Manager/Coordinator How does openBIM work? Case Study – DC Riverside Office Building www.lumaxart.com

16. Team technology Owner – none How does openBIM work? Case Study – DC Riverside Office Building www.lumaxart.com

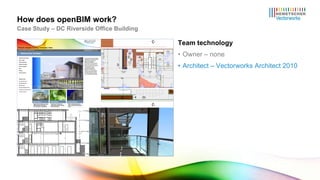

17. Team technology Owner – none Architect – Vectorworks Architect 2010 How does openBIM work? Case Study – DC Riverside Office Building

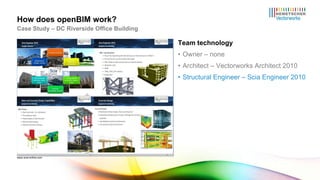

18. Team technology Owner – none Architect – Vectorworks Architect 2010 Structural Engineer – Scia Engineer 2010 How does openBIM work? Case Study – DC Riverside Office Building www.scia-online.com

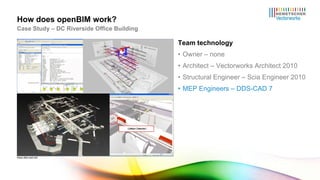

19. Team technology Owner – none Architect – Vectorworks Architect 2010 Structural Engineer – Scia Engineer 2010 MEP Engineers – DDS-CAD 7 How does openBIM work? Case Study – DC Riverside Office Building www.dds-cad.net

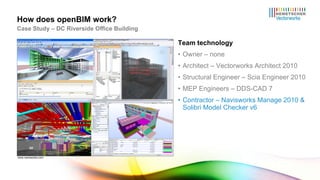

20. Team technology Owner – none Architect – Vectorworks Architect 2010 Structural Engineer – Scia Engineer 2010 MEP Engineers – DDS-CAD 7 Contractor – Navisworks Manage 2010 & Solibri Model Checker v6 How does openBIM work? Case Study – DC Riverside Office Building www.navisworks.com

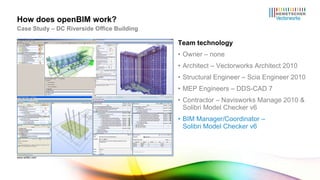

21. Team technology Owner – none Architect – Vectorworks Architect 2010 Structural Engineer – Scia Engineer 2010 MEP Engineers – DDS-CAD 7 Contractor – Navisworks Manage 2010 & Solibri Model Checker v6 BIM Manager/Coordinator – Solibri Model Checker v6 How does openBIM work? Case Study – DC Riverside Office Building www.solibri.com

22. Project Delivery IPD? Traditional? Design/build? How does openBIM work? Case Study – DC Riverside Office Building by AIA Contract Documents

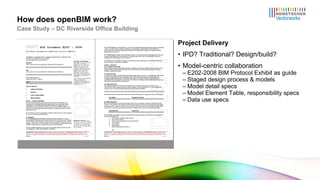

23. Project Delivery IPD? Traditional? Design/build? Model-centric collaboration E202-2008 BIM Protocol Exhibit as guide Staged design process & models Model detail specs Model Element Table, responsibility specs Data use specs How does openBIM work? Case Study – DC Riverside Office Building

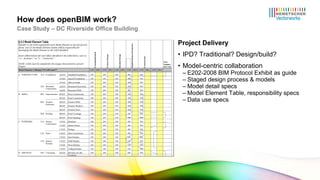

24. Project Delivery IPD? Traditional? Design/build? Model-centric collaboration E202-2008 BIM Protocol Exhibit as guide Staged design process & models Model detail specs Model Element Table, responsibility specs Data use specs How does openBIM work? Case Study – DC Riverside Office Building

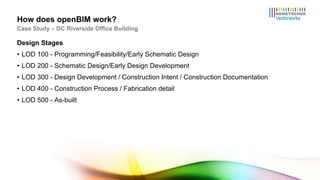

25. Design Stages LOD 100 - Programming/Feasibility/Early Schematic Design LOD 200 - Schematic Design/Early Design Development LOD 300 - Design Development / Construction Intent / Construction Documentation LOD 400 - Construction Process / Fabrication detail LOD 500 - As-built How does openBIM work? Case Study – DC Riverside Office Building

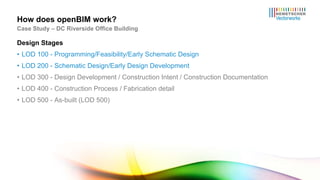

26. Design Stages LOD 100 - Programming/Feasibility/Early Schematic Design LOD 200 - Schematic Design/Early Design Development LOD 300 - Design Development / Construction Intent / Construction Documentation LOD 400 - Construction Process / Fabrication detail LOD 500 - As-built (LOD 500) How does openBIM work? Case Study – DC Riverside Office Building

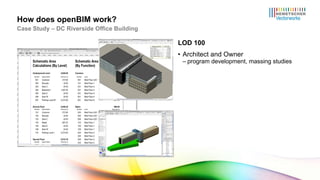

27. LOD 100 Architect and Owner program development, massing studies How does openBIM work? Case Study – DC Riverside Office Building

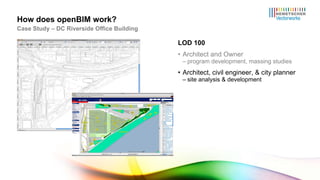

28. LOD 100 Architect and Owner program development, massing studies Architect, civil engineer, & city planner site analysis & development How does openBIM work? Case Study – DC Riverside Office Building

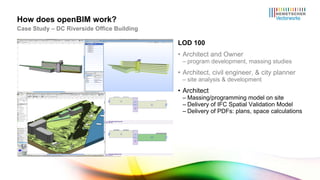

29. LOD 100 Architect and Owner program development, massing studies Architect, civil engineer, & city planner site analysis & development Architect Massing/programming model on site Delivery of IFC Spatial Validation Model Delivery of PDFs: plans, space calculations How does openBIM work? Case Study – DC Riverside Office Building

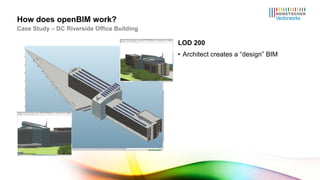

30. LOD 200 Architect creates a “design” BIM How does openBIM work? Case Study – DC Riverside Office Building

31. LOD 200 Architect creates a “design” BIM How does openBIM work? Case Study – DC Riverside Office Building

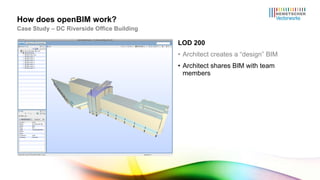

32. LOD 200 Architect creates a “design” BIM Architect shares BIM with team members How does openBIM work? Case Study – DC Riverside Office Building

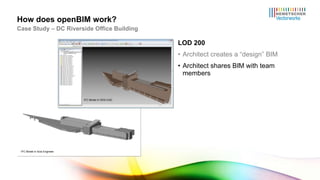

33. LOD 200 Architect creates a “design” BIM Architect shares BIM with team members How does openBIM work? Case Study – DC Riverside Office Building IFC Model in Scia Engineer IFC Model in DDS-CAD

34. LOD 200 Architect creates a “design” BIM Architect shares BIM with team members Component BIMs are created How does openBIM work? Case Study – DC Riverside Office Building

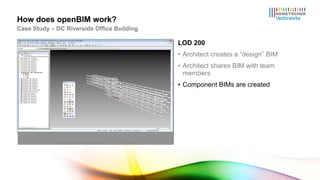

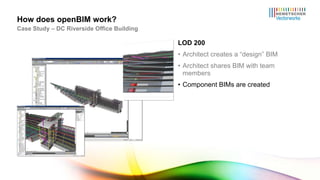

35. LOD 200 Architect creates a “design” BIM Architect shares BIM with team members Component BIMs are created How does openBIM work? Case Study – DC Riverside Office Building

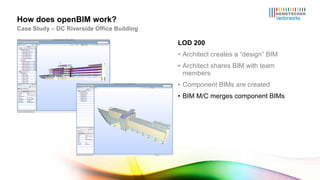

36. LOD 200 Architect creates a “design” BIM Architect shares BIM with team members Component BIMs are created BIM M/C merges component BIMs How does openBIM work? Case Study – DC Riverside Office Building

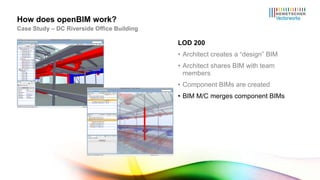

37. LOD 200 Architect creates a “design” BIM Architect shares BIM with team members Component BIMs are created BIM M/C merges component BIMs How does openBIM work? Case Study – DC Riverside Office Building

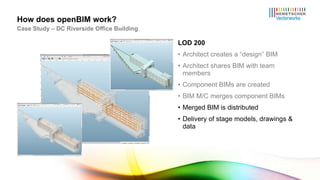

38. LOD 200 Architect creates a “design” BIM Architect shares BIM with team members Component BIMs are created BIM M/C merges component BIMs Merged BIM is distributed Delivery of stage models, drawings & data How does openBIM work? Case Study – DC Riverside Office Building

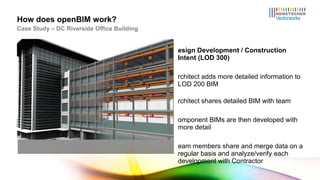

39. Design Development / Construction Intent (LOD 300) Architect adds more detailed information to LOD 200 BIM Architect shares detailed BIM with team Component BIMs are then developed with more detail Team members share and merge data on a regular basis and analyze/verify each development with Contractor How does openBIM work? Case Study – DC Riverside Office Building

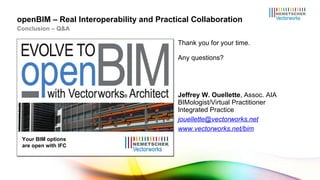

40. Thank you for your time. Any questions? Jeffrey W. Ouellette , Assoc. AIA BIMologist/Virtual Practitioner Integrated Practice [email_address] www.vectorworks.net/bim openBIM – Real Interoperability and Practical Collaboration Conclusion – Q&A Your BIM options are open with IFC
