1. Best Practices for Integrating
Lync with Your Avaya Environment
Presented by Certified Lync Masters Keenan Crockett & Jason Sloan
facebook.com/perficient linkedin.com/company/perficient twitter.com/Perficient_MSFT

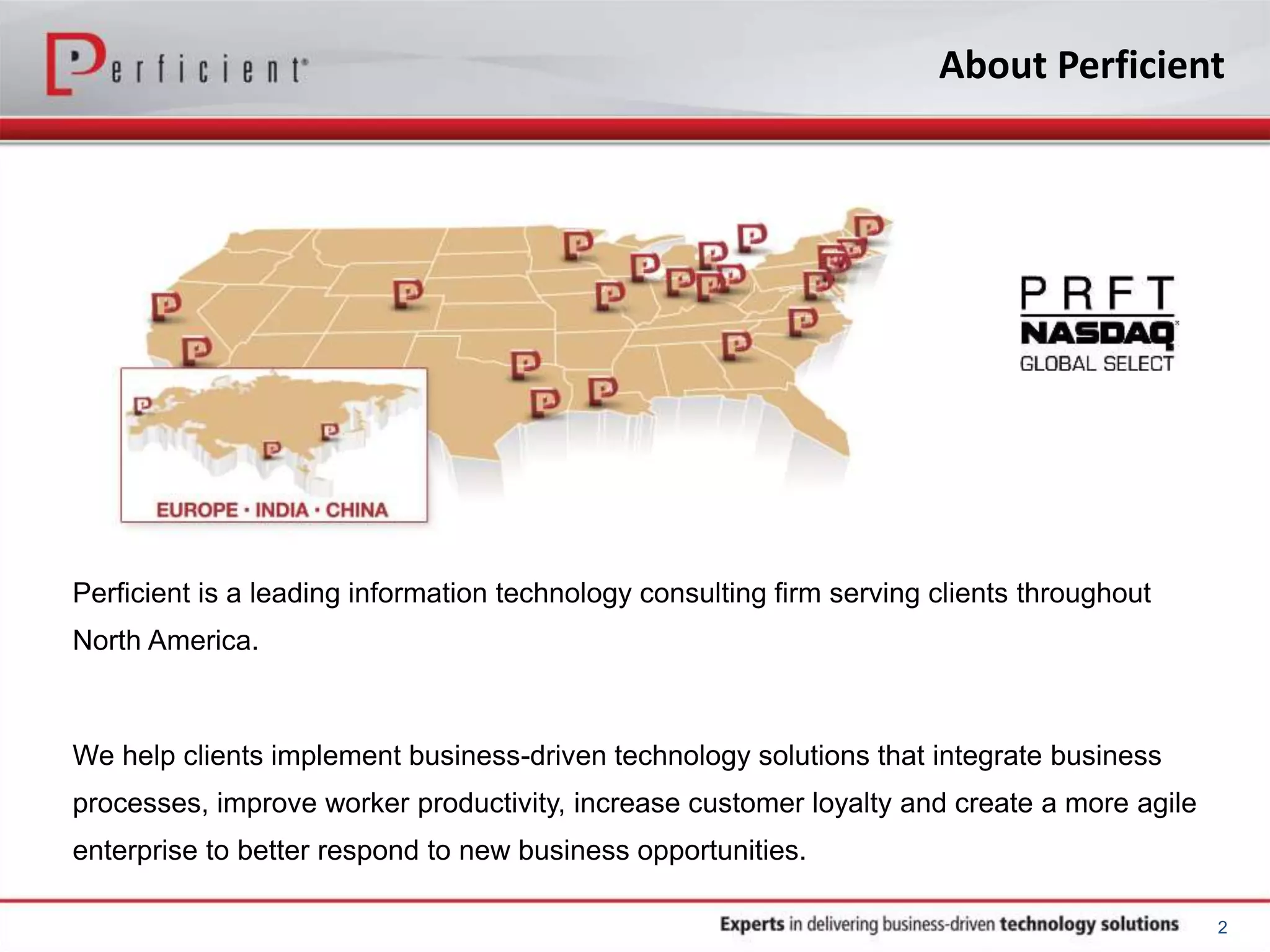

2. About Perficient
2
Perficient is a leading information technology consulting firm serving clients throughout
North America.
We help clients implement business-driven technology solutions that integrate business
processes, improve worker productivity, increase customer loyalty and create a more agile
enterprise to better respond to new business opportunities.

3. Perficient Profile
3
• Founded in 1997
• Public, NASDAQ: PRFT
• 2013 revenue $373 million
• Major market locations:
• Allentown, Atlanta, Boston, Charlotte, Chicago,
Cincinnati, Columbus, Dallas, Denver, Detroit,
Fairfax, Houston, Indianapolis, Lafayette,
Minneapolis, New York City, Northern California,
Oxford (UK), Philadelphia, Southern California, St.
Louis, Toronto, Washington, D.C.
• Global delivery centers in China and India
• >2,200 colleagues
• Dedicated solution practices
• ~90% repeat business rate
• Alliance partnerships with major technology vendors
• Multiple vendor/industry technology and growth awards

4. BUSINESS SOLUTIONS
Business Intelligence
Business Process Management
Customer Experience and CRM
Enterprise Performance Management
Enterprise Resource Planning
Experience Design (XD)
Management Consulting
Our Solutions Expertise
TECHNOLOGY SOLUTIONS
Business Integration/SOA
Cloud Services
Commerce
Content Management
Custom Application Development
Education
Information Management
Mobile Platforms
Platform Integration
Portal & Social

5. Our Microsoft Practice
National Service Provider
Perficient is a top Microsoft National Service Provider (NSP), one of only 34 elite
partners in the United States, with over 2,000 employees nationwide.
Partner Advisory Councils
Perficient is one of approximately 20 organizations worldwide to participate in 3
Microsoft Partner Advisory Councils: SharePoint, Office 365 and Unified
Communications.
Solution Areas
Perficient is a leader in delivering solutions with Office 365, Azure, SharePoint,
Business Intelligence, social business solutions including Yammer, as well as Lync,
Dynamics CRM and Sitecore.

6. Unified Communications Experience
Certified
Gold Certified Lync Voice
Gold Certified Lync Messaging
Member of the Microsoft Lync Partner Advisory Council
2 Lync Certified Masters
Full team of Lync Certified Consultants
Certified Microsoft “Voice Depth” Partner
Experienced
Integrations with Cisco, Avaya, Siemens, Nortel, and Shoretel
Hundreds of thousands of Lync seats deployed
Dozens of PBX Integrations
Extensive Voice and PBX Knowledge

7. Our Speakers
Keenan Crockett | Lync Team Lead & Senior Solution Architect
• Microsoft Certified Master - Lync Server, over 9 years of IT consulting experience
focused on UC, has deployed Lync for some of the largest global companies
• Responsible for selling and delivering UC solutions for complex business environments
• Supervises all Lync team members and provides architecture, escalation and oversight
for large and complex UC projects
Jason Sloan | Lead Technical Consultant
• Microsoft Certified Master - Lync Server, over 5 years of IT consulting experience
focused on UC, has deployed Lync for some of the largest global companies with
upward of 140k seats
• Responsible for design and delivery of Unified Communication solutions
• Co-organizer of the Kansas City Lync Users Group
• Avid contributor in the Lync Community, active on Twitter and Perficient Microsoft blog

8. What We’ll Cover
• Goals & Requirements
• Comparison of Lync 2013 & Avaya Voice Components
• Avaya Integration Best Practices
– Open Interoperability Program (OIP)
– Lync 2010/2013 & Avaya Qualifications
– Use of Session Boarder Controllers
– Example Call Flows
– Call Quality and Prioritization Planning
– Audio Conferencing Planning
– Voicemail Planning
• Considerations & Integration Challenges
– Softphone/Hardware phone options
– Simultaneous Ringing
– Remote Call Control
– Avaya Agile Communication Environment (ACE)
– Call Admission Control Overview

9. Goals & Requirements
• What are your business requirements?
• What are your business goals?
• What are your technical requirements?
• What are your technical goals?
• What are your technical limitations (TDM only, no Session Manager or
SBC)?
• Have you documented and tracked these goals and requirements?
• Have you communicated these goals and requirements with global
stakeholders?

10. Goals & Requirements
Define the user experience!
Lync can be integrated into Avaya numerous ways:
– Direct SIP (Enterprise Voice)
• A user can be enabled for Enterprise Voice and use the Lync
client to make and receive telephone calls between other Lync
users, Avaya stations, and to the PSTN.
– Remote Call Control (CSTA)
• The Lync client acts as a remote control for the Avaya phone. All
media streams are kept within the Avaya framework.
• Only signaling is sent between Lync & Avaya.
– Client Side Plug-In
• Avaya provided client side software.

11. Comparison of Lync & Avaya Voice Components
Microsoft Microsoft Notes Avaya Avaya Notes
Certified Voice Gateway Provided by certified third
parties (AudioCodes, Sonus,
etc.).
Provides TDM, analog, and
IP related telephony services
GX50 Media Gateways Provides TDM, analog,
and IP related
telephony services
Lync Front End Server Provides PBX and
conferencing MCU
Aura Communications Manager Provides PBX and
conferencing MCU
Lync Mediation Server Provides SIP signaling and
media transcoding to certified
third-party providers and
servers
CSTA signaling is not
provided by the mediation
role.
Aura Session Manager / SIP Enablement
Services (SES)
Provides SIP signaling
to third-party providers
and servers
Aura Application Enablement Server
(AES)
Provides application
programming interfaces
(APIs) and Computer
Supported
Telecommunications
Applications (CSTA)
signaling to third party
applications
Lync 2010/2013 client Avaya Client Applications (ACA) Third-party application
plug-ins

12. Comparison of Lync & Avaya Voice Components
Lync Mediation Server:
– Required for Enterprise Voice workload
– Required for PSTN dial-in conferencing workload
– Largely unchanged from previous versions
How Mediation Server is used:
– Allows connectivity to PBX’s, PSTN Gateways, SBCs or SIP Trunk
providers
– Similar to a Media Termination Point (MTP)
– Translates media streams
– Connects using TLS or TCP (UDP is not supported)

13. Comparison of Lync & Avaya Voice Components
Mediation Server Construction:
– Can be collocated as a service with Lync Front End server
– Can be stand-alone server
– Can be pooled with additional Mediation servers
– Can be hardware or virtual
Mediation Server Sizing:
– Consider call volumes
• PSTN
• Conferencing
– Call volume differences
• Collocated: ~150 max calls/mediation service
• Stand-Alone: ~1100-1500 max calls/mediation service

14. Comparison of Lync & Avaya Voice Components
• Avaya Codecs
– G.711
– G.729
• Lync Codecs
– Silk (peer-to-peer)
– RTAudio Wideband (peer-to-peer)
– RTAudio Narrowband(peer-to-peer & PSTN)
– G.722 (Conferencing)
– G.722 Stereo (peer-to-peer & Conferencing)
– G.711 (PSTN)
– Siren (Conferencing)
• Lync & Avaya Interop Codecs
– G.711

15. Avaya Integration Best Practices
Open Interoperability Program (OIP):
– Qualified vs. supported
– Qualified: The vendor has been independently qualified with Lync
– Supported: Vendor has not passed the formal UCOIP qualification
process, but sufficient internal testing has been performed by
Microsoft
– http://technet.microsoft.com/en-us/office/dn788945.aspx
– Avaya is not qualified, only supported* for Lync

16. Avaya Integration Best Practices
Avaya & Lync 2013 Supportability
Reference: http://technet.microsoft.com/en-us/office/dn788945.aspx

17. Avaya Integration Best Practices
Avaya & Lync 2010 Supportability
Reference: http://technet.microsoft.com/en-us/office/dn788945.aspx

18. Avaya Integration Best Practices
Avaya & Lync 2010 Supportability
Reference: http://technet.microsoft.com/en-us/office/dn788945.aspx
12/3/2014 21

19. Avaya Integration Best Practices
Use of Session Boarder Controller (SBC)
Q: Can Lync be directly integrated with Aura Session Manager?
A: Yes, absolutely. Take into account the limitations on the previous slides.
Q: What if I am not comfortable with the limitations outlined in the previous slides?
A: Deploy a certified voice gateway (TDM-to-IP or SBC) between Avaya & Lync.
The Avaya Session Boarder Controller for Enterprises (SBCE) is not certified with Lync.
Avaya CM Avaya
Session
Manager
Front End Pool
Avaya CM Avaya
Session
Manager
Front End Pool
Lync Certified
Voice Gateway

20. Avaya Integration Best Practices
Inbound Call Flow with EC500
Avaya CM Avaya
Session
Manager
Front End Pool
Avaya Phone Lync User
1
2
3
4 6
7
8
5
External PSTN
Caller

21. Avaya Integration Best Practices
Outbound Call Flow
Avaya CM Avaya
Session
Manager
Front End Pool
Lync User
7
6
5 4
3
2
1
External PSTN
Caller

22. Avaya Integration Best Practices

23. Avaya Integration Best Practices
Call Quality and Prioritization Planning
– Lync absolutely supports Quality of Service (QoS)
• With the correct planning that is…
– Audio
• Express Forwarding (EF) - Class Selector (CS) 5, DSCP 40
• Expedited Forwarding (EF) - Class Selector (CS) 5, DSCP 46
– Video
• Assured Forwarding (AF41) - DSCP 34
– App Sharing, File Transfer, etc.

24. Avaya Integration Best Practices
Call Quality and Prioritization Planning
– To support the prioritization of audio, video, application sharing, and
file transfer traffic in Lync, the media port range should be modified
to align with the QoS policies and queues.
Component Port Range Port Count Transport Port use
Clients and Servers 16384-32767 16383 TCP/UDP
Audio port range
(Minimum of 128 ports required)
Clients and Servers 32768-40767 7999 TCP/UDP
Video port range
(Minimum of 128 ports required).
Clients 40768-41767 999 TCP
Peer-to-peer file transfer
(Conferencing file transfer, clients use
PSOM. Minimum of 4 ports required)
Clients and Servers 41768-44767 2999 TCP
Application sharing
(Minimum of 128 ports required)
Clients
7100-7102
(Default)
3
(Default)
TCP
Client SIP Dynamic Port
(Control and signaling Information)
Servers
5060-5061
or
5067-5068
(Default)
2
(Default)
TCP/TLS
Server SIP Port
(Control and signaling Information)

25. Avaya Integration Best Practices
Audio Conferencing Planning
– How do you want conferences calls to ingress into the network?
• Through Avaya
• Through SBCs
• Direct to Lync
– Where will the Lync Front End and Mediation servers be placed?
– SIP Trunking
• Are you considering SIP Trunking?
• Compare core hubs to telco inbound local SIP Trunking service
• What is the amount of bandwidth reserved to SIP Trunking traffic?
• Does bandwidth need to be increased to support the Lync dial-in
conferencing workload?

26. Avaya Integration Best Practices
Audio Conferencing Planning
– Is it cheaper to leverage Avaya + Lync for the conferencing
workload?
– Avaya Media Gateway
• What is the current utilization of the Avaya media gateway(s)?
• What is the current capacity of the Avaya media gateway(s)?
• Is Session Manager deployed?
• Are Lync certified third-party gateways required?
– Are support teams siloed?

27. Avaya Integration Best Practices
Voicemail Planning
– Lync only supports Exchange for auto attendant routing and
voicemail deposit
– Simultaneous Ringing of an Avaya endpoint and a Lync endpoint
needs to be reviewed
Voicemail Backend Lync Supported Avaya Supported
Modular Messaging/
Aura Messaging
 
Exchange 2007 Unified Messaging  
Exchange 2010 Unified Messaging  
Exchange 2013 Unified Messaging  
Exchange Online  
Telephony advisor for Exchange 2013: http://technet.microsoft.com/en-us/library/ee364753%28v=exchg.150%29.aspx

28. Considerations & Integration Challenges
Softphone & Hard phone options
– Too many to count… http://catalog.lync.com/
– Headsets: pay special attention to wired, wireless (Bluetooth vs.
DECT)
– Hard phones: pay special attention to Lync optimized vs Lync
compatible

29. Considerations & Integration Challenges

30. Considerations & Integration Challenges
• Simultaneous Ringing between Lync and Avaya
– Pulling calls back
– Presence between systems
– Sharing the same extension between both PBXs
– Inbound dialing vs. outbound dialing
– Voicemail deposit
• Aura Messaging vs. Exchange Unified Messaging
• Remote Call Control
– Doesn’t necessarily fit the “Unified Communications” model
– Problematic
– Pairing relationship is between the Lync client and one phone
– Not a good solution for the mobile/traveling worker

31. Considerations & Integration Challenges
• Avaya Agile Communication Environment (ACE)
– Avaya’s client-side plug-in for the Lync client
– Similar to Remote Call Control functionality
– Attempts to keep audio and video controls within the Avaya
framework
• Ask yourself:
– How does this impact the end-user experience?
– Will this work remotely (no VPN or direct access)?
– What is the plan to maintain the client-side plug-in?
– What are the know issues/limitations with the client-side plug-in?

32. Considerations & Integration Challenges
Reference: http://www.avaya.com/usa/documents/avaya-microsoft-lync-integration---uc7491-03.pdf

33. Considerations & Integration Challenges
Lync Call Admission Control (CAC) Overview
– Used to manage voice and video limits
• Network congested sites can limit video and allow full audio
– Recommended to use in conjunction with QoS
– Reroute capabilities if calls are blocked
• Edge reroute of audio and video
• PSTN reroute
• Audio and video must follow same reroute path

34. Considerations & Integration Challenges
Lync Call Admission Control (CAC) Challenges
– Lync CAC is application layer only
• Cannot be shared with Avaya CAC mechanisms
• Is not controlled at the switch
– Requires planning sessions
• Network team must know their network
– Backbone, subnets, utilized and available bandwidth
• Lync will “share the pipe” with Avaya
• Lync team enters the data provided by the network team into the Lync
CAC configuration

35. Considerations & Integration Challenges
Lync Call Admission Control (CAC)
Challenges
– Cannot manage other data streams,
such as content sharing traffic
• Important for constrained sites with
heavy content sharing users
• QoS should be used to push data
streams to a lower priority
– Lync clients must be deployed
• OCS 2007 R2 clients do not support
CAC

37. Preparing for Windows
Server 2003 End-of-
Life
bit.ly/1vmHq6e
Connect with Perficient
