UML (Unified Modeling Language) is a standard language for modeling software systems using mainly graphical diagrams. It includes diagrams for use cases, class structure, object interaction, state machines, activities, components and deployment. UML aims to provide a standard way to visualize a system's architectural design which can be understood by all stakeholders and serves as input for the implementation.

1. By: DiGitAll UML an overview

10. The Unified Modeling Language. Specify Visualize Construct Document Unification Programming Language Tools / Repository Specification Process The UML Goal

16. Things in UML Structural Things Annotational Things Grouping Things Behavioral Things 1. Class 2. Interface 3. Collaboration 4. Use Case 5. Active Class 6. Components 7. Nodes 2. State Mechanism 1. Interaction 1. Packages 1. Notes

17. Diagrams in UML A Diagram is the graphical presentation of a set of elements, most often rendered as a connected graph of things and relationships. UML includes 9 such diagrams. 1. Class Diagram. 2. Object Diagram. 3. Use Case Diagram. 4. Sequence Diagram. 5. Collaboration Diagram. 6. State Chart Diagram. 7. Activity Diagram. 9. Deployment Diagram.

19. High Level Use Case Diagram Manage Resources Manage Projects System Admin Resource Manager Project Manager System Administrator

20. Managing Resources Use Case Diagram Add Skill Remove Skill Update Skill Find Skill Add Resource Remove Resource Update Resource Find Resource Unassign Skill from Resource Assign Skill from Resource Resource Manager

22. High-Level Resource Class Diagram Skill Resources Salaried Hourly Resource-Skill

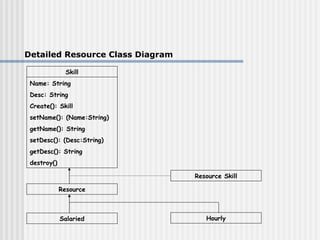

23. Detailed Resource Class Diagram Skill Name: String Desc: String Create(): Skill setName(): (Name:String) getName(): String setDesc(): (Desc:String) getDesc(): String destroy() Resource Salaried Hourly Resource Skill

26. Sequence Diagram

30. State Chart Diagram

33. Activity Diagram

34. Component Diagrams Component diagrams describe the organization of and dependencies among software implementation components. These diagrams contain components, which represent distributable physical units, including source code, object code, and executable code.

35. Deployment Diagrams Deployment diagrams describe the configuration of processing resource elements and the mapping of software implementation components onto them. These diagrams contain components and nodes, which represent processing or computational resources, including computers, printers, etc.
