Design Big Data System
Presenter: Phuong Huynh
Monita.vn - Marketing Platform 1

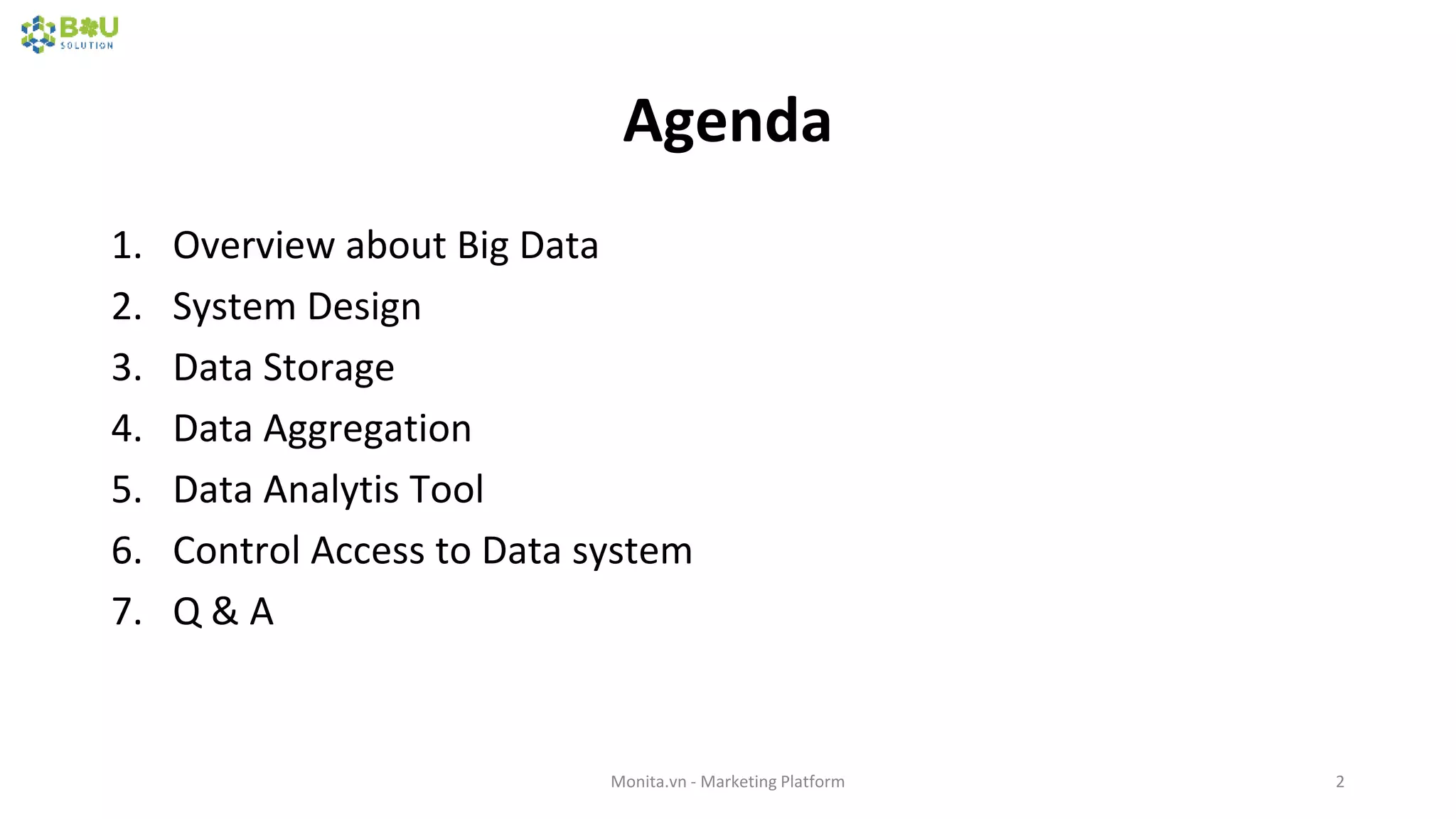

Agenda
1. Overview about Big Data
2. System Design
3. Data Storage
4. Data Aggregation
5. Data Analytis Tool
6. Control Access to Data system
7. Q & A

Overview
1. Why data is big in systems?
➢A large of applications and systems served
➢Data collected from variety of sources (business transactions, social media,..)
➢Data streams
➢Business required historical data
➢Data comes in all types of formats – from structured, numeric to unstructured
text, email, audio,..
Store to traditional databases (MySQL)?

Overview
2. Limitations in relational database
➢What's the context we are talking about?
➢Unstructured data to tables
➢Data that is very large and queries for this data
➢Broken Keys and Records (if a table lacks a unique key, the database
may return inaccurate results)
➢Skill set required by the RDBMS
➢Hardware required

Overview
3. Requirements in business
➢”Unknow Unknows” ?
➢Product health (Open App, User Behavior,..)
➢User Retention
➢Marketing Insight
➢Customer Service (card mapping errors, payment transactions
failed,..)
➢……more

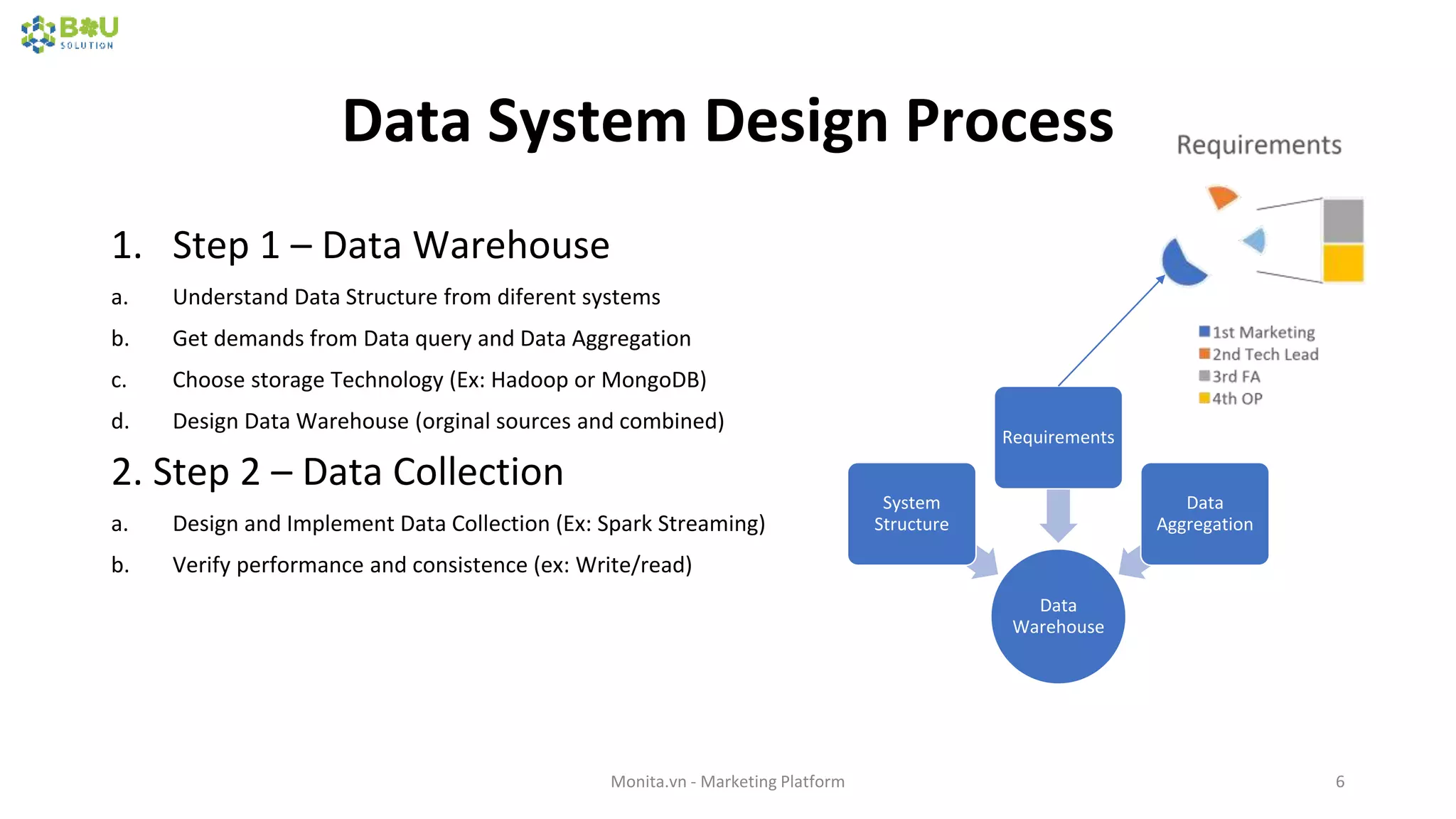

Data System Design Process
1. Step 1 – Data Warehouse
a. Understand Data Structure from diferent systems
b. Get demands from Data query and Data Aggregation
c. Choose storage Technology (Ex: Hadoop or MongoDB)
d. Design Data Warehouse (orginal sources and combined)
2. Step 2 – Data Collection
a. Design and Implement Data Collection (Ex: Spark Streaming)
b. Verify performance and consistence (ex: Write/read)
Data
Warehouse
System
Structure
Requirements
Data
Aggregation

Data System Design Process(cont.)

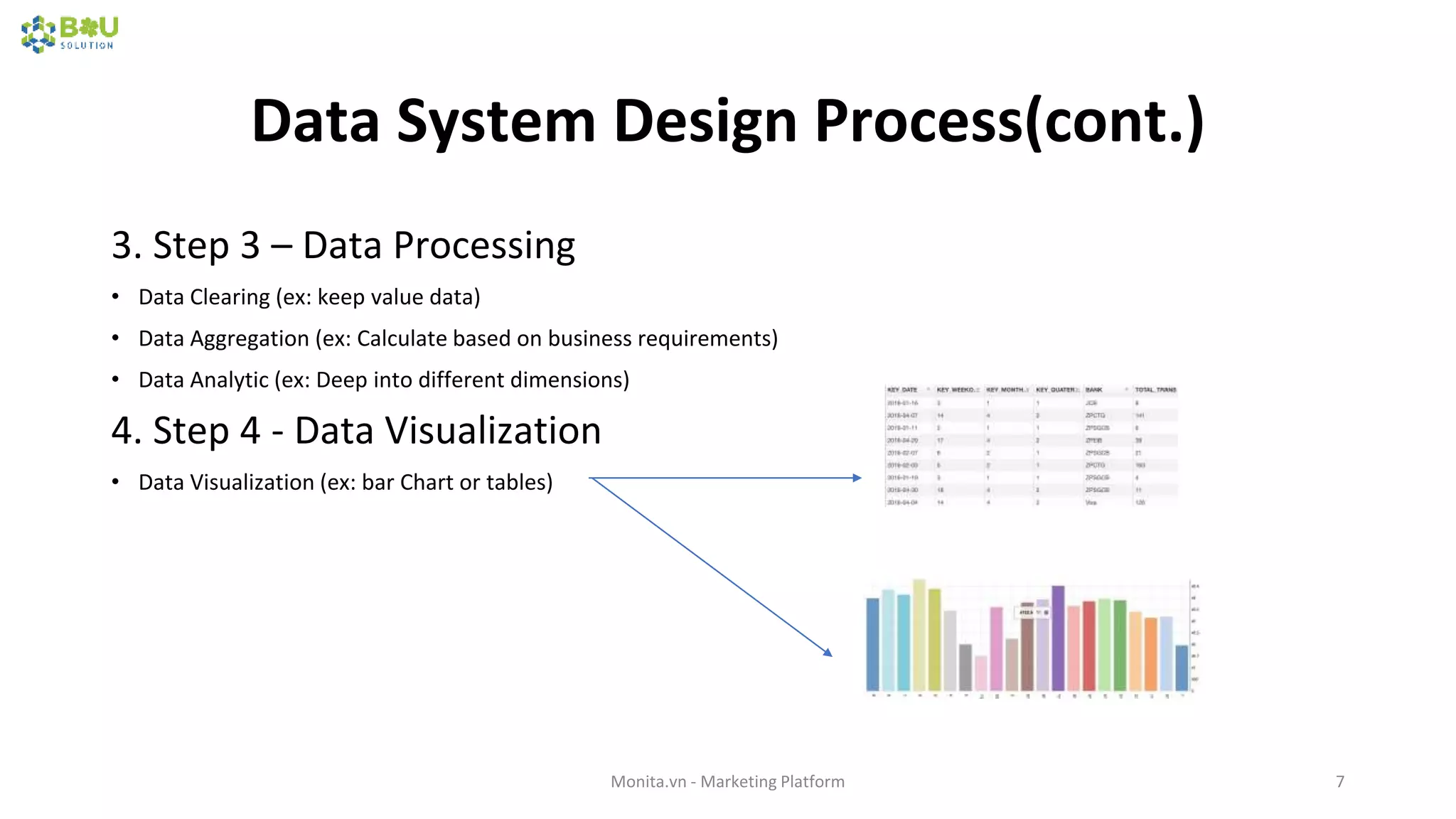

3. Step 3 – Data Processing
• Data Clearing (ex: keep value data)
• Data Aggregation (ex: Calculate based on business requirements)
• Data Analytic (ex: Deep into different dimensions)
4. Step 4 - Data Visualization
• Data Visualization (ex: bar Chart or tables)

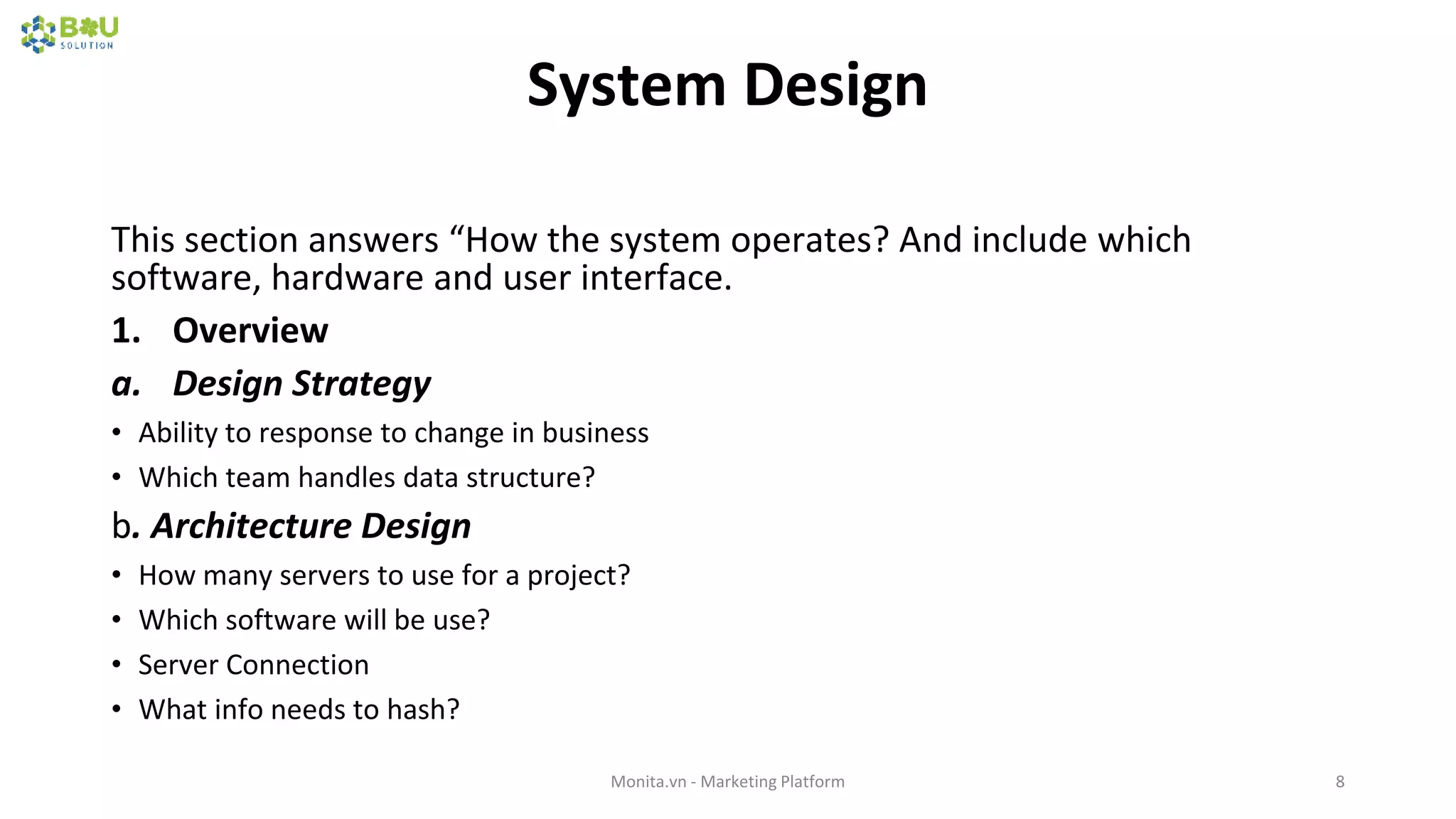

System Design
This section answers “How the system operates? And include which
software, hardware and user interface.
1. Overview
a. Design Strategy
• Ability to response to change in business
• Which team handles data structure?
b. Architecture Design
• How many servers to use for a project?
• Which software will be use?
• Server Connection
• What info needs to hash?

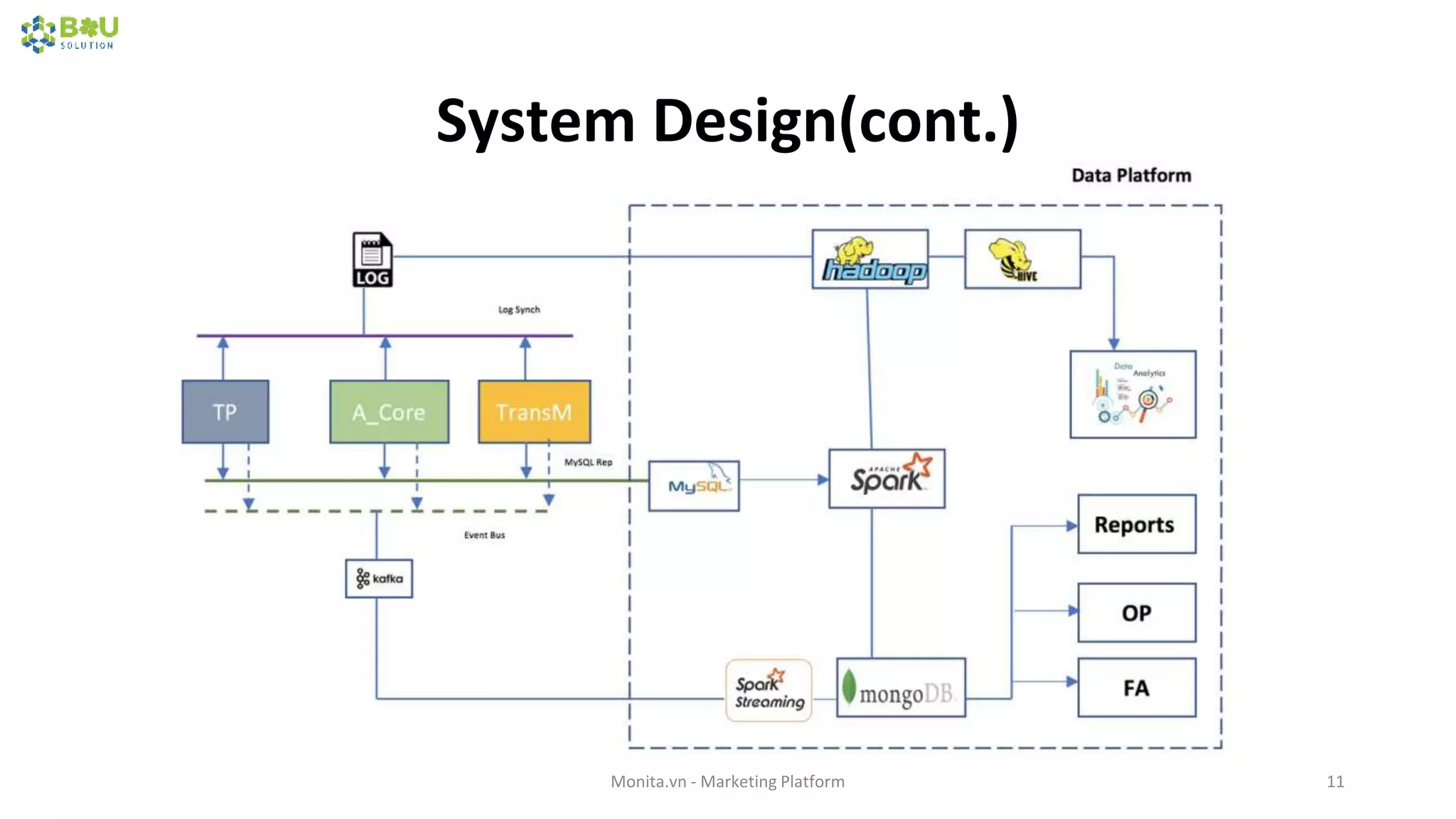

System Design(cont.)

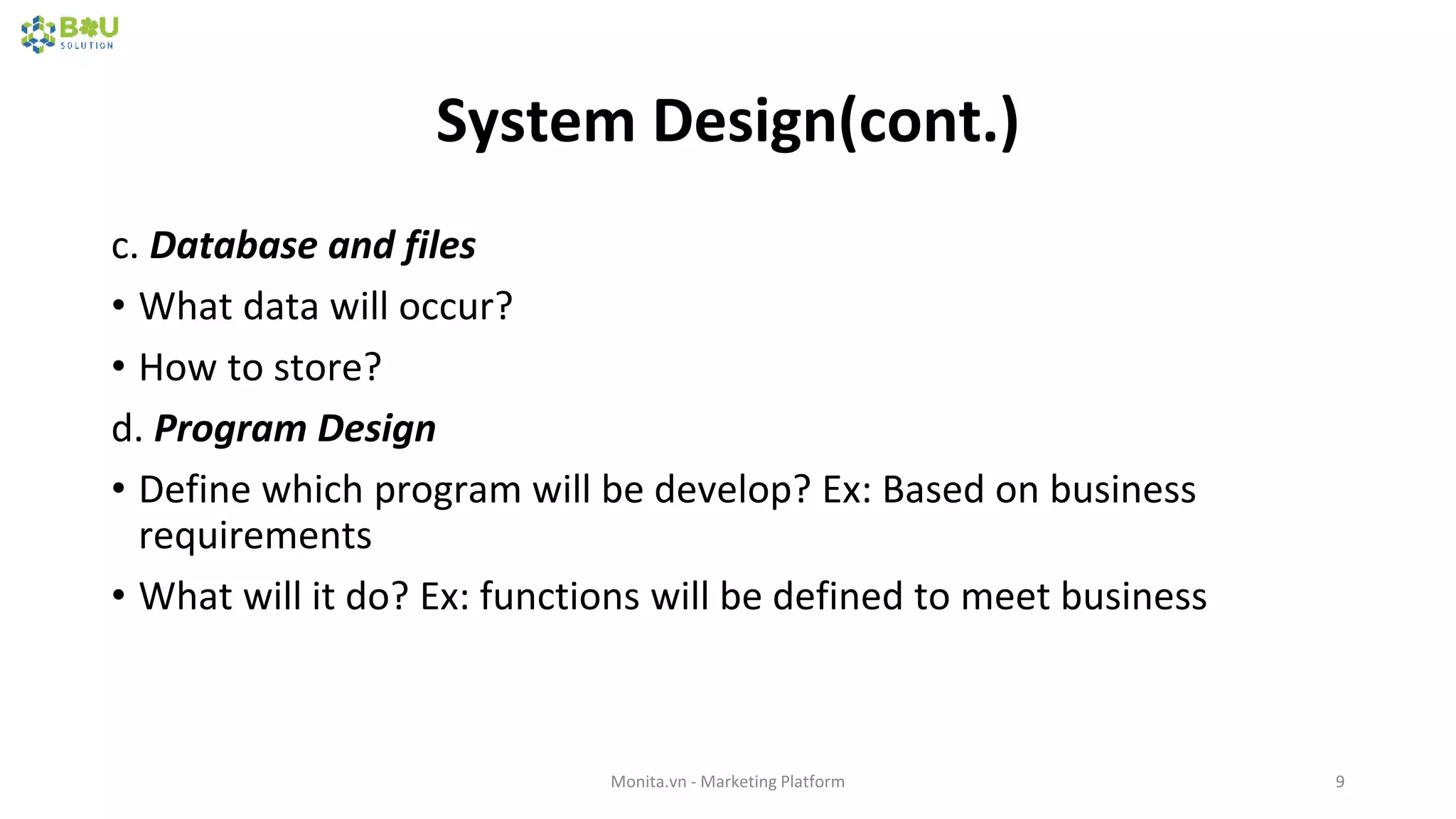

c. Database and files
• What data will occur?
• How to store?
d. Program Design
• Define which program will be develop? Ex: Based on business
requirements
• What will it do? Ex: functions will be defined to meet business

Questions to discuss:
- Why we need to follow 2 processes above?
- Is big data good?
- How to query from a table is over 50M records?

Data Storage

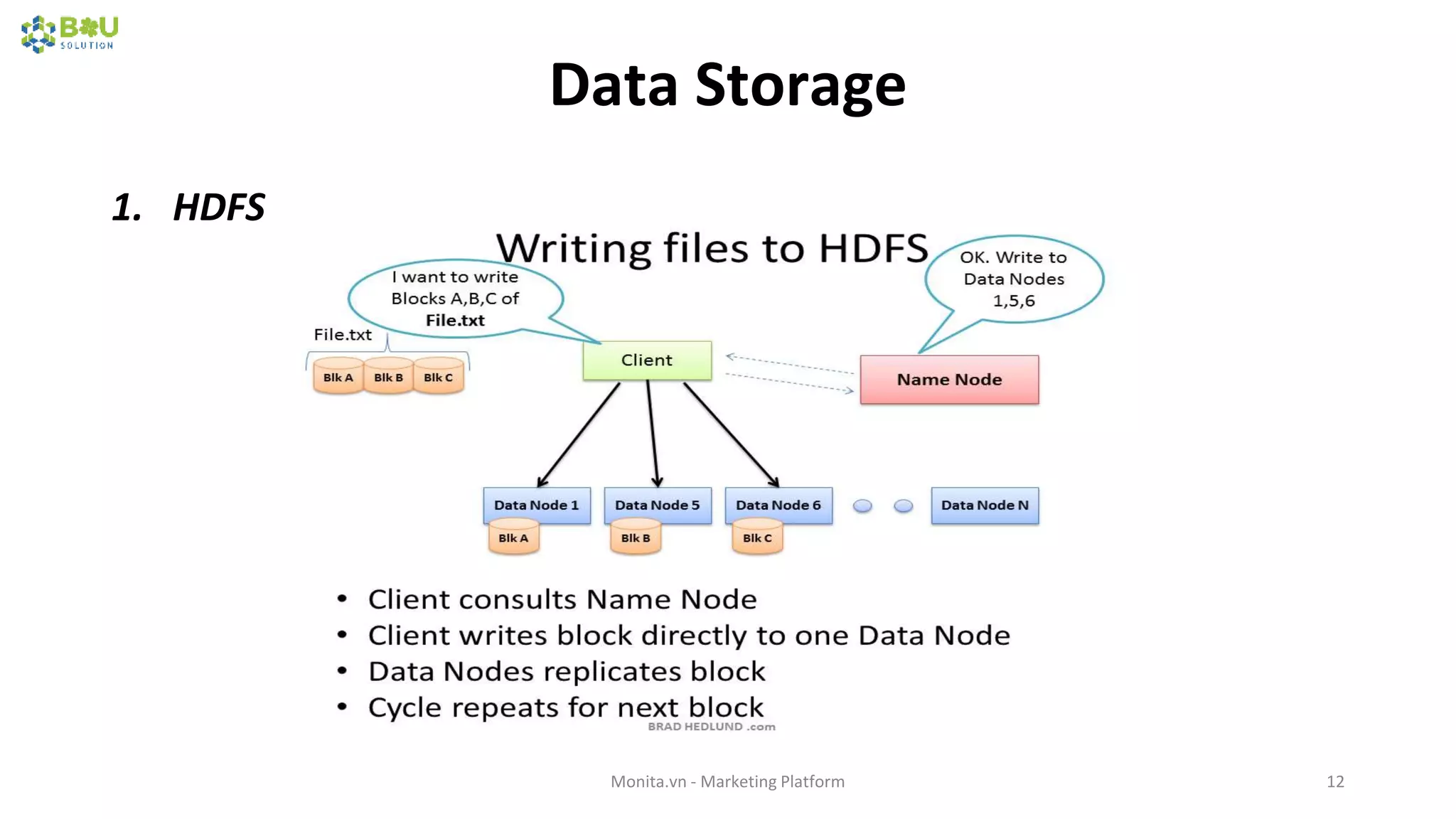

1. HDFS

Data Storage(cont.)

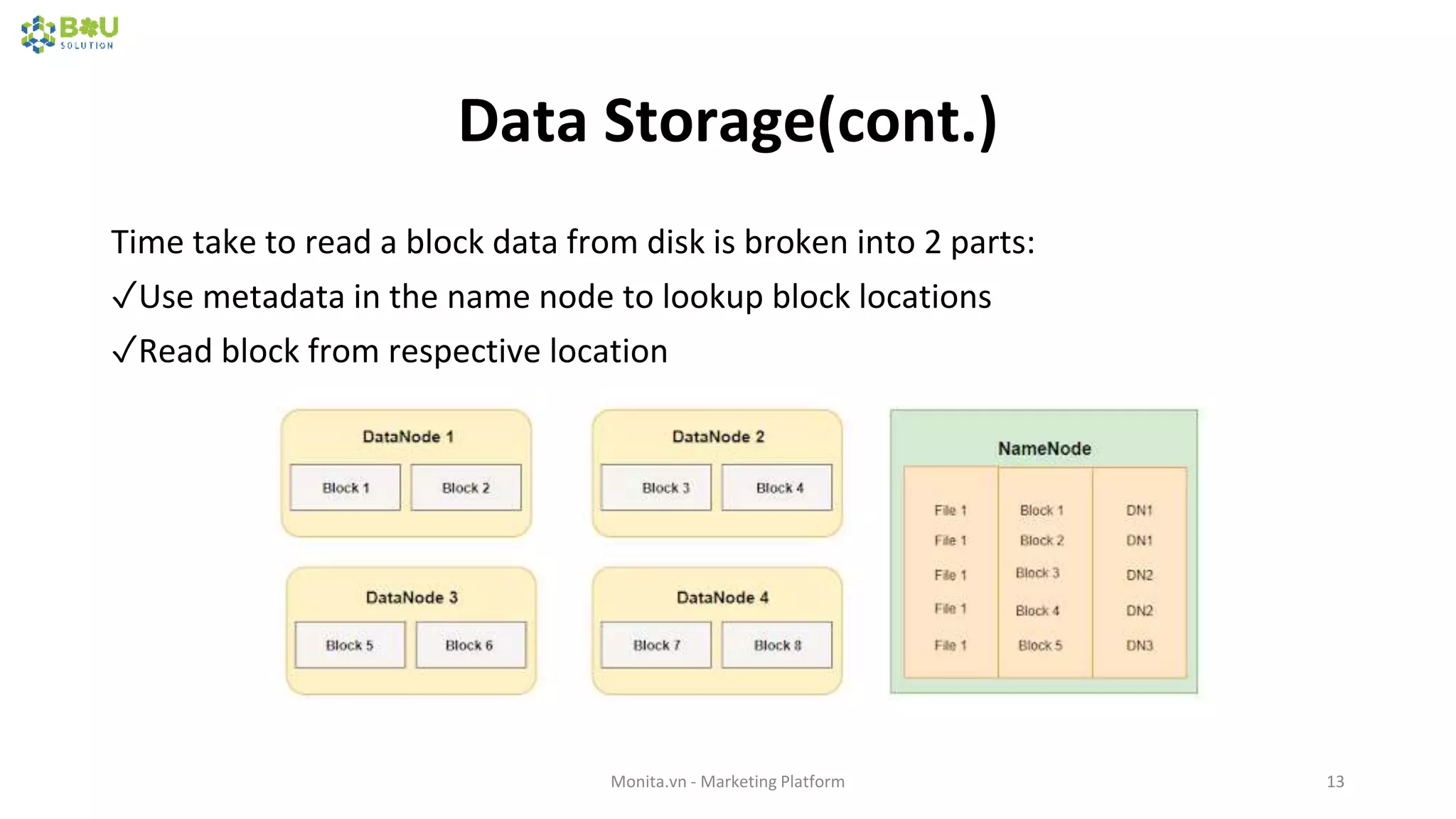

Time take to read a block data from disk is broken into 2 parts:
✓Use metadata in the name node to lookup block locations
✓Read block from respective location

Data Storage(cont.)

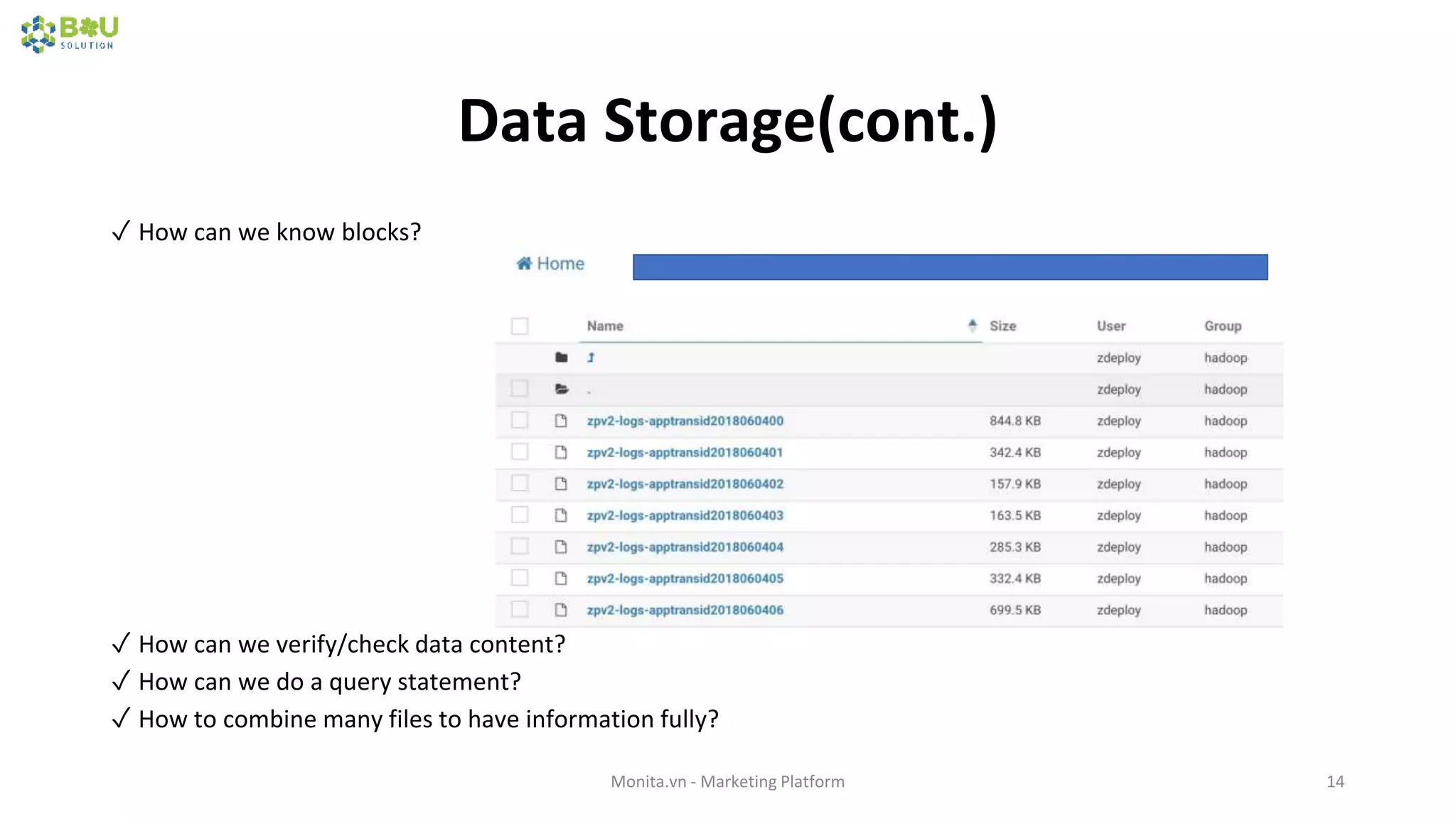

✓ How can we know blocks?
✓ How can we verify/check data content?
✓ How can we do a query statement?
✓ How to combine many files to have information fully?

Data Storage(cont.)

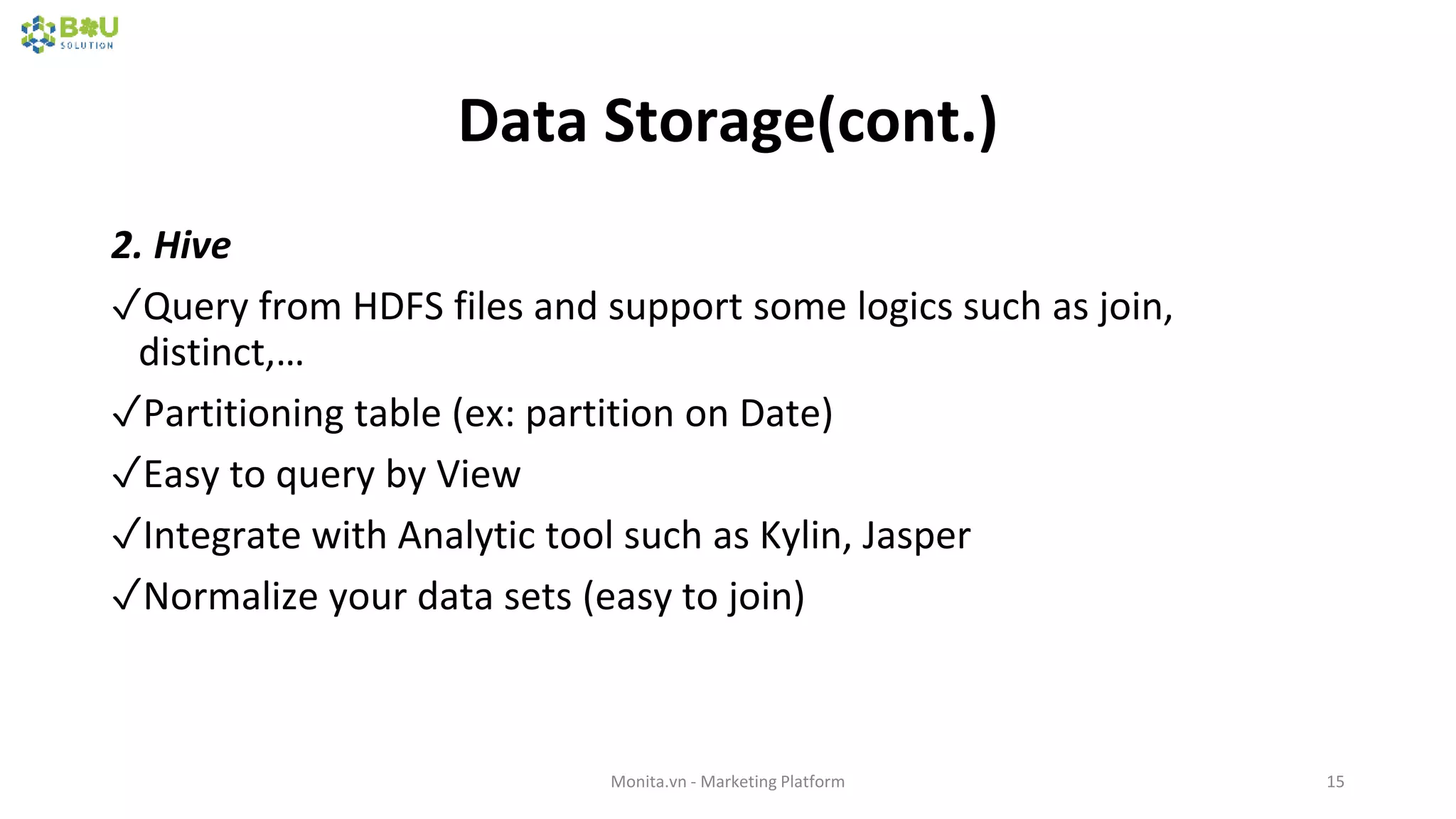

2. Hive
✓Query from HDFS files and support some logics such as join,
distinct,…
✓Partitioning table (ex: partition on Date)
✓Easy to query by View
✓Integrate with Analytic tool such as Kylin, Jasper
✓Normalize your data sets (easy to join)

Data Aggregation

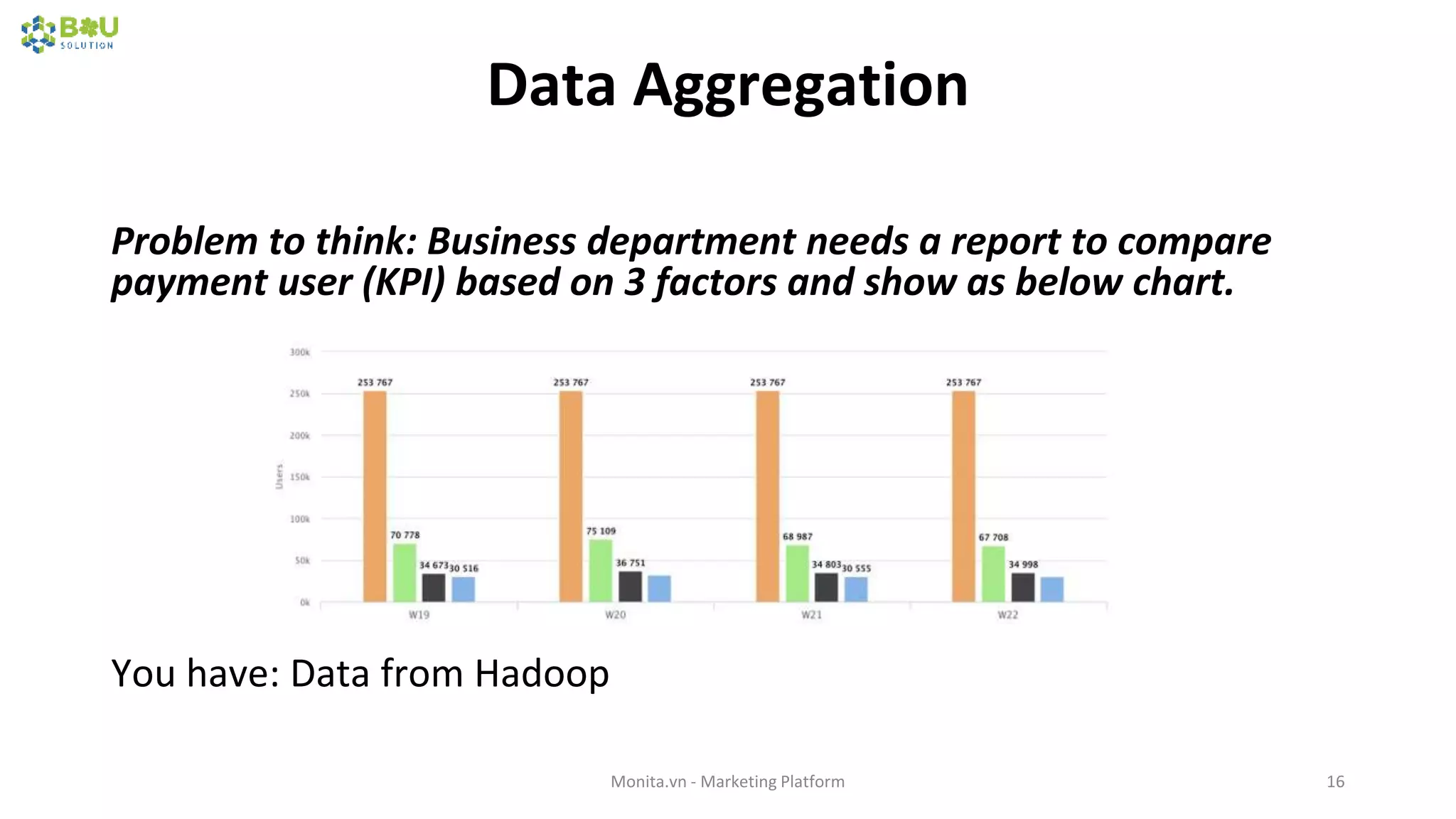

Problem to think: Business department needs a report to compare
payment user (KPI) based on 3 factors and show as below chart.
You have: Data from Hadoop

Data Aggregation(cont.)

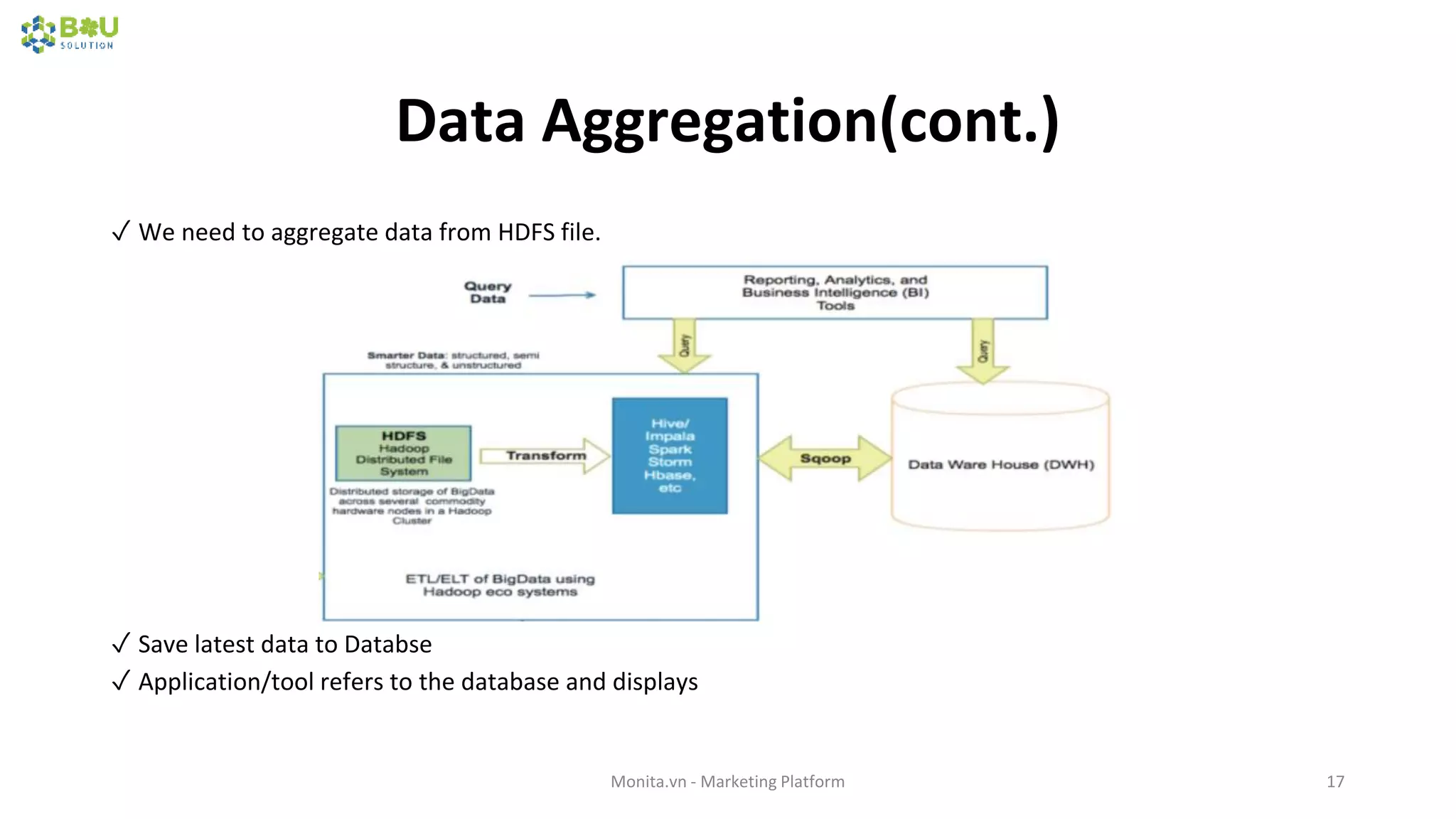

✓ We need to aggregate data from HDFS file.
✓ Save latest data to Databse
✓ Application/tool refers to the database and displays

Data Aggregation(cont.)

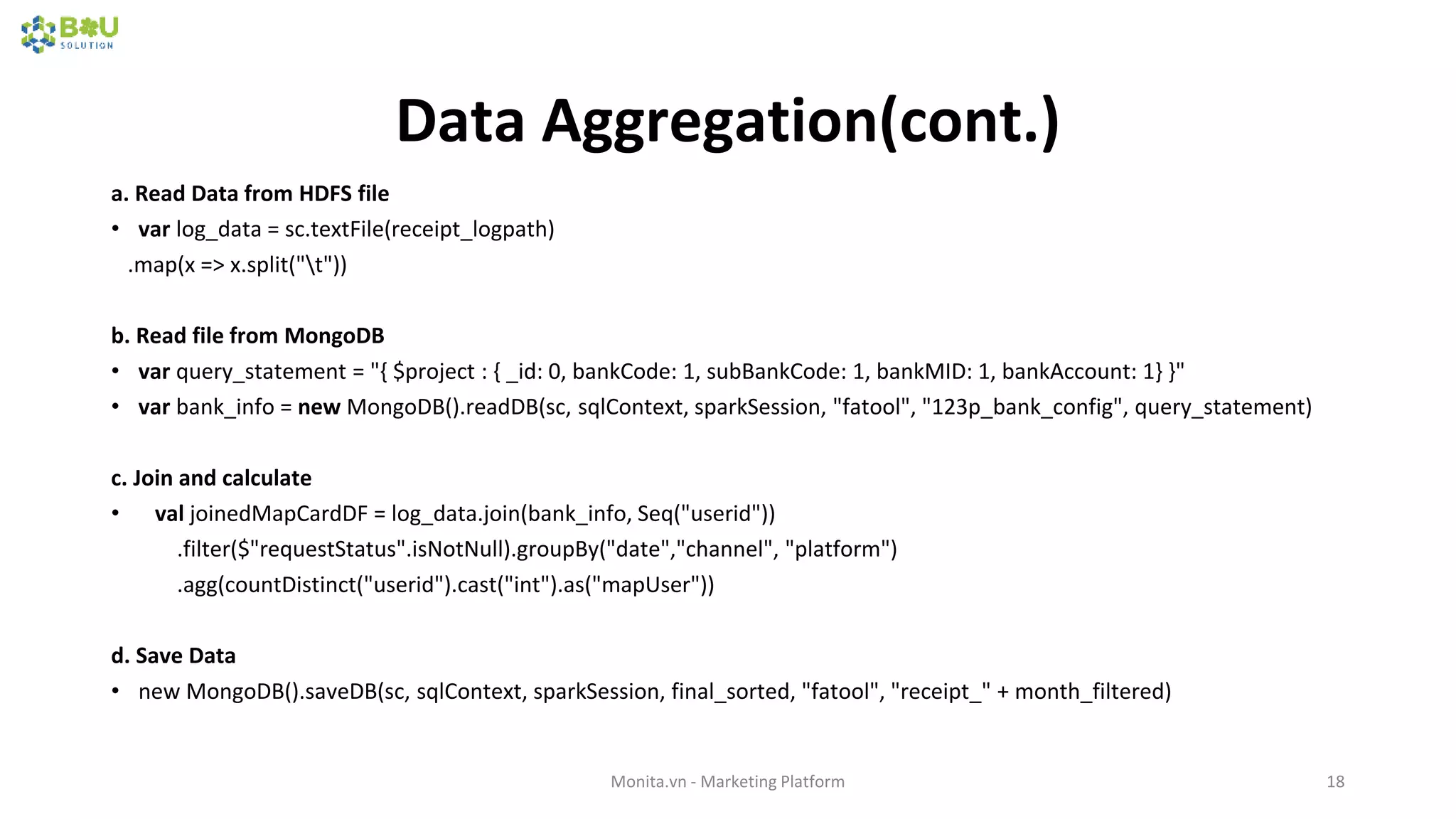

a. Read Data from HDFS file
• var log_data = sc.textFile(receipt_logpath)
.map(x => x.split("t"))
b. Read file from MongoDB
• var query_statement = "{ $project : { _id: 0, bankCode: 1, subBankCode: 1, bankMID: 1, bankAccount: 1} }"
• var bank_info = new MongoDB().readDB(sc, sqlContext, sparkSession, "fatool", "123p_bank_config", query_statement)
c. Join and calculate
• val joinedMapCardDF = log_data.join(bank_info, Seq("userid"))
.filter($"requestStatus".isNotNull).groupBy("date","channel", "platform")
.agg(countDistinct("userid").cast("int").as("mapUser"))
d. Save Data
• new MongoDB().saveDB(sc, sqlContext, sparkSession, final_sorted, "fatool", "receipt_" + month_filtered)

Analytic Tool

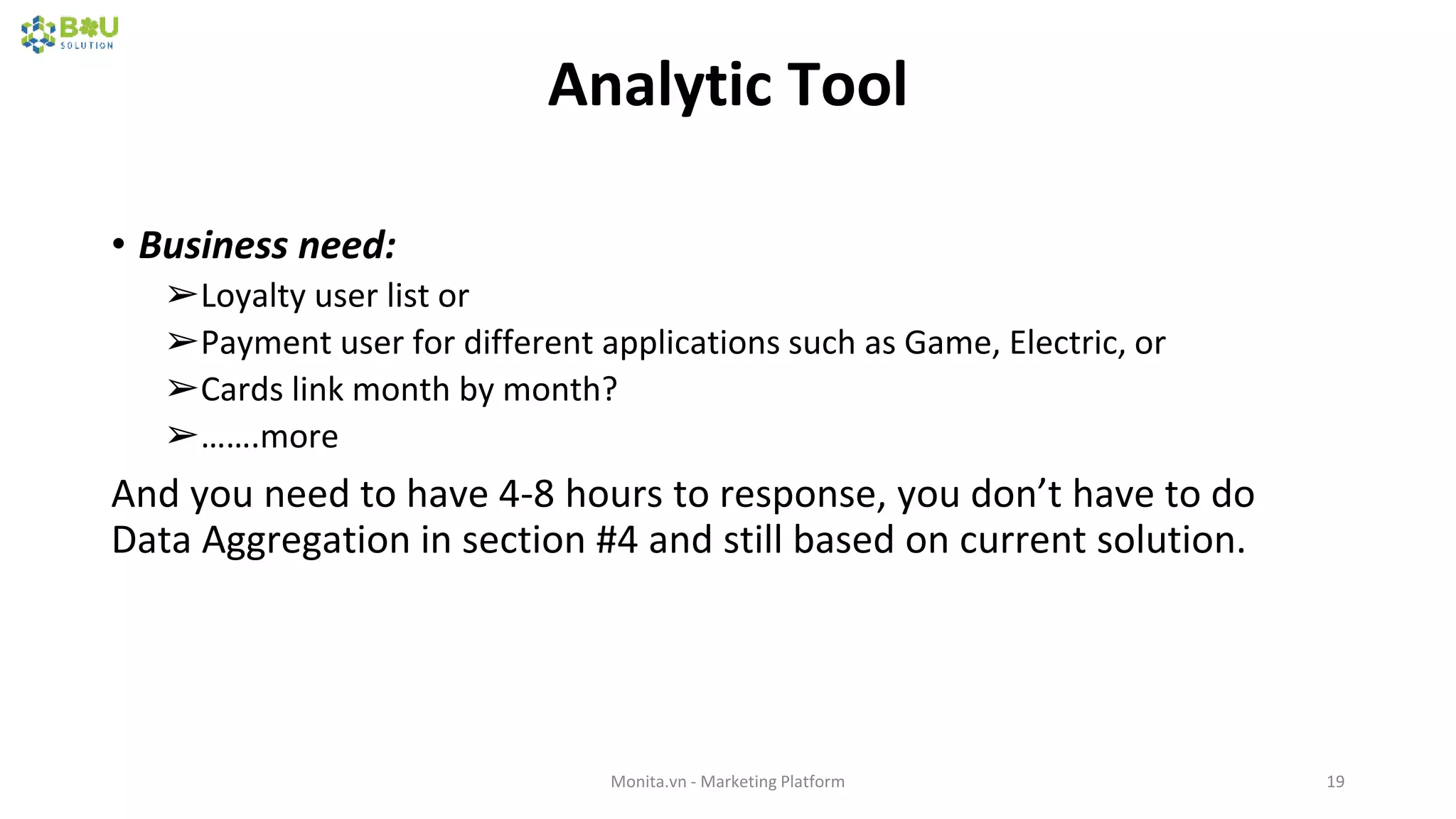

• Business need:
➢Loyalty user list or
➢Payment user for different applications such as Game, Electric, or
➢Cards link month by month?
➢…….more
And you need to have 4-8 hours to response, you don’t have to do
Data Aggregation in section #4 and still based on current solution.

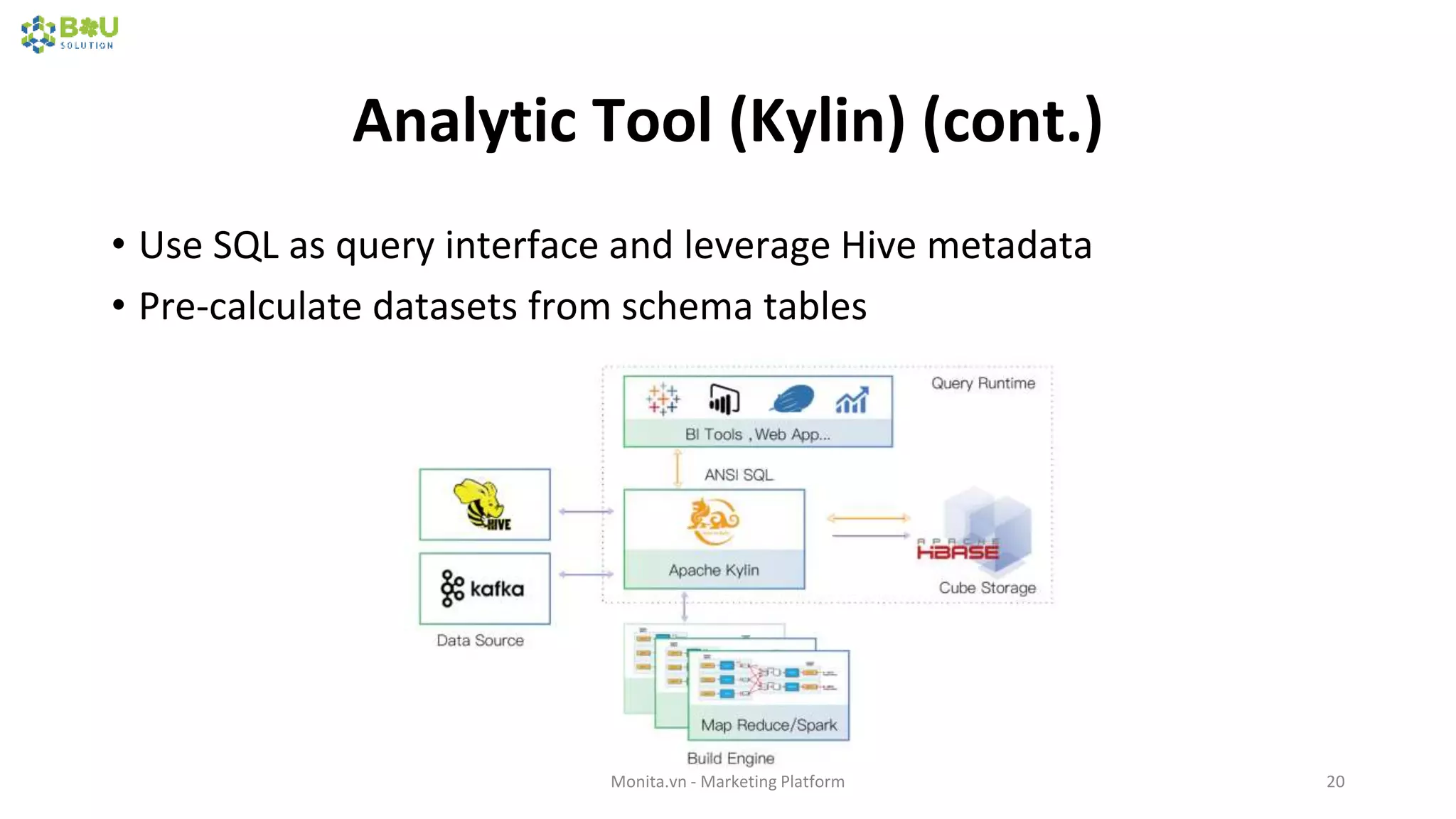

Analytic Tool (Kylin) (cont.)
• Use SQL as query interface and leverage Hive metadata
• Pre-calculate datasets from schema tables

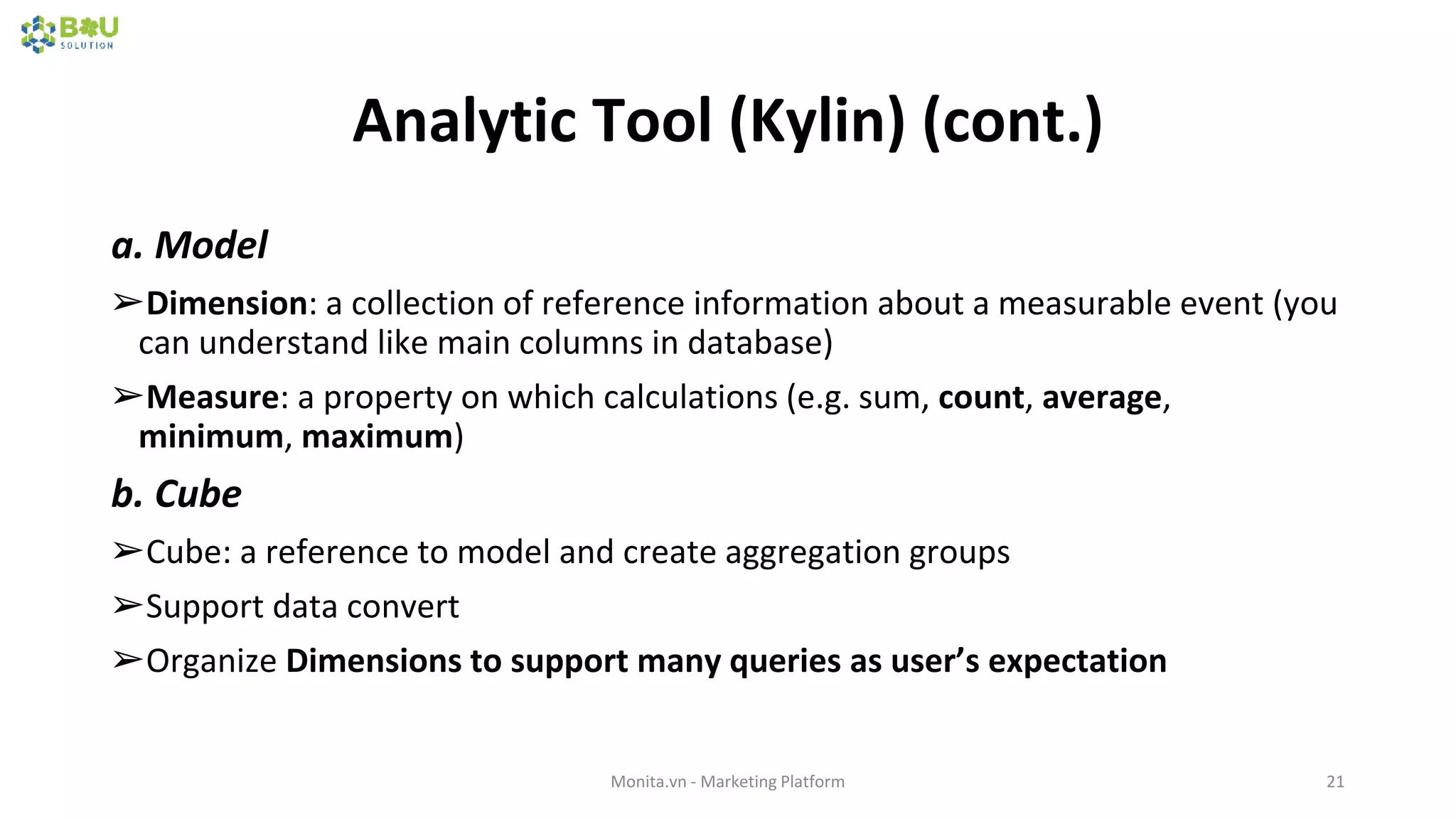

a. Model
➢Dimension: a collection of reference information about a measurable event (you
can understand like main columns in database)
➢Measure: a property on which calculations (e.g. sum, count, average,
minimum, maximum)
b. Cube
➢Cube: a reference to model and create aggregation groups
➢Support data convert
➢Organize Dimensions to support many queries as user’s expectation

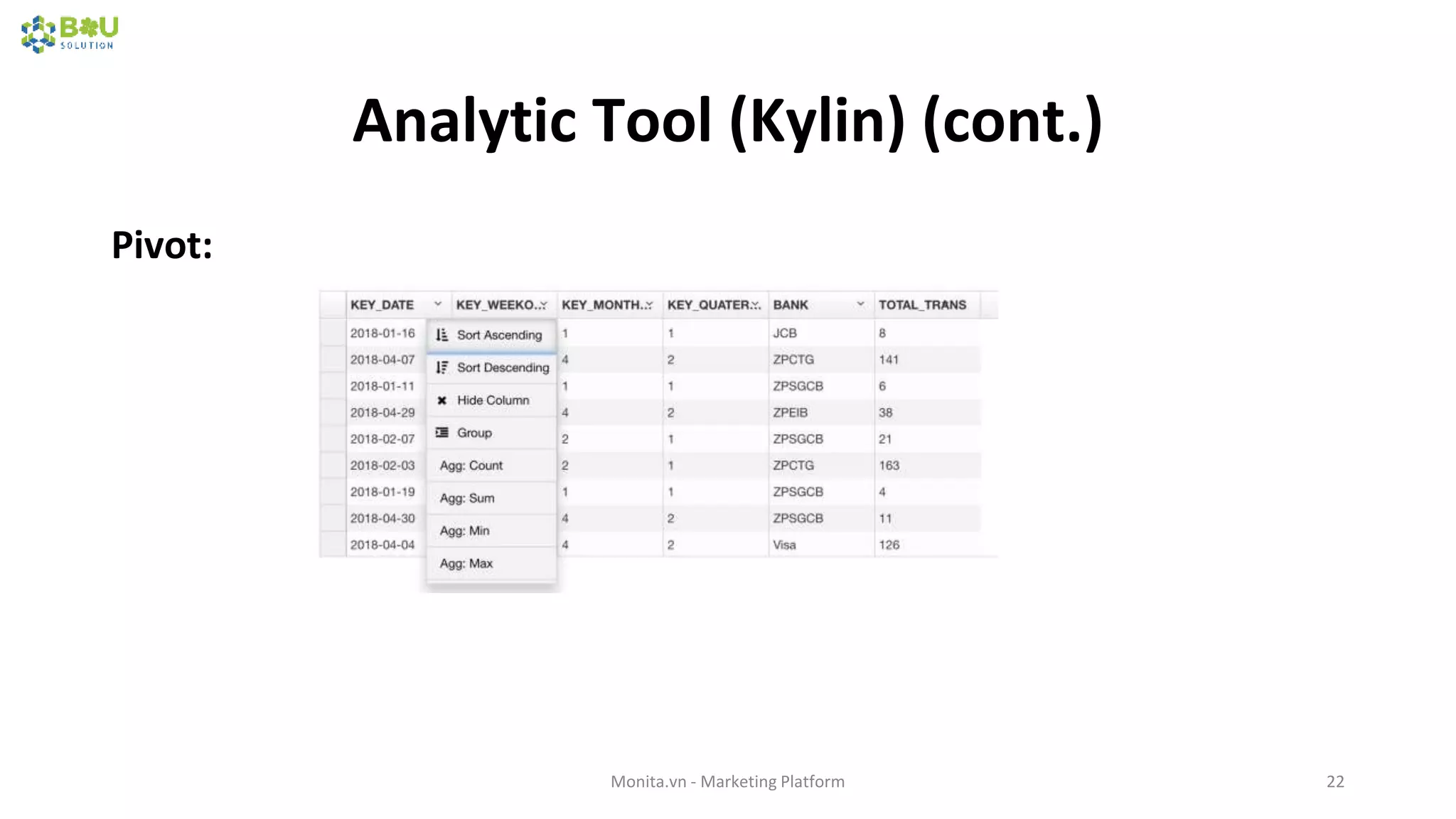

Pivot:

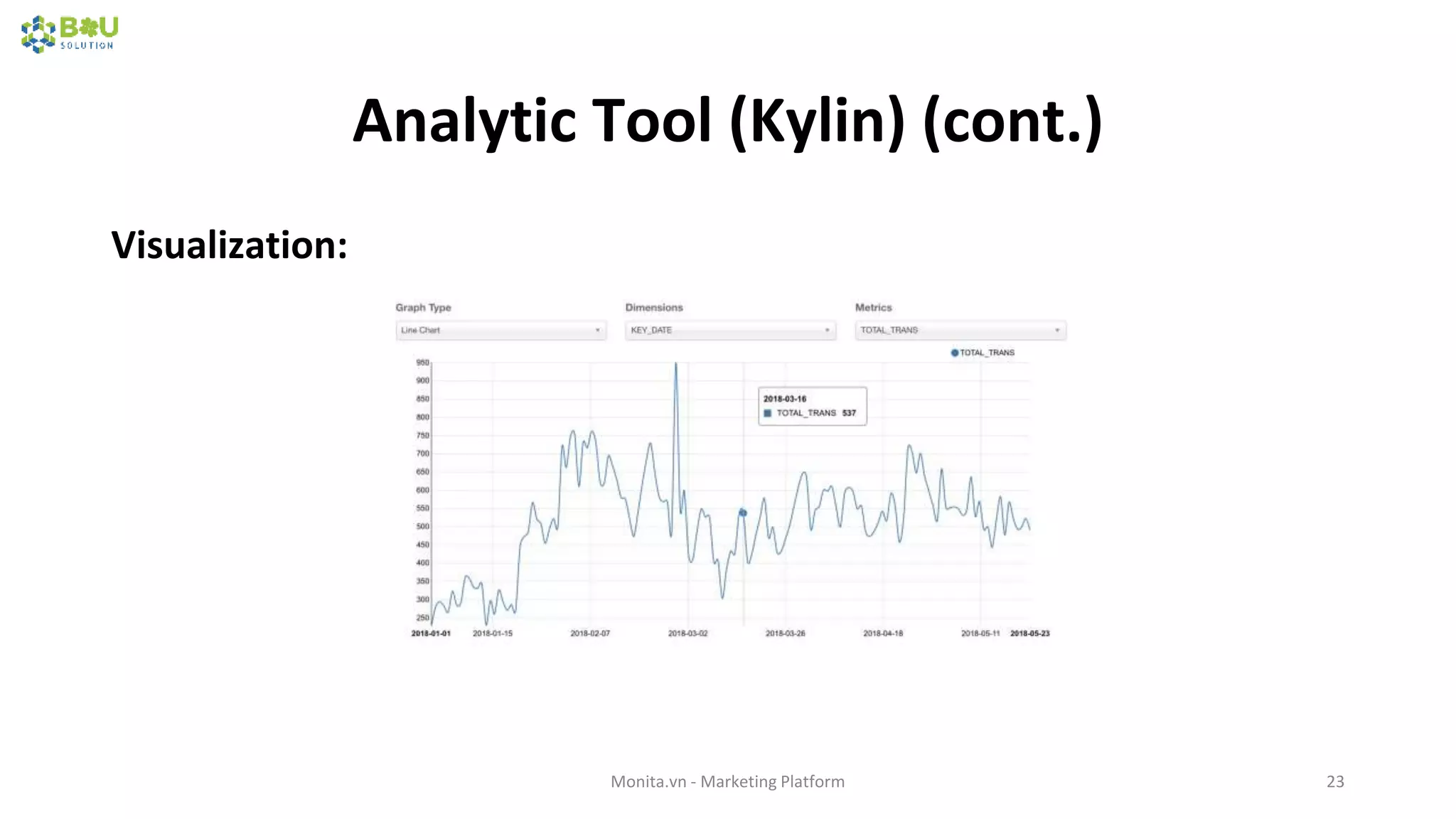

Visualization:

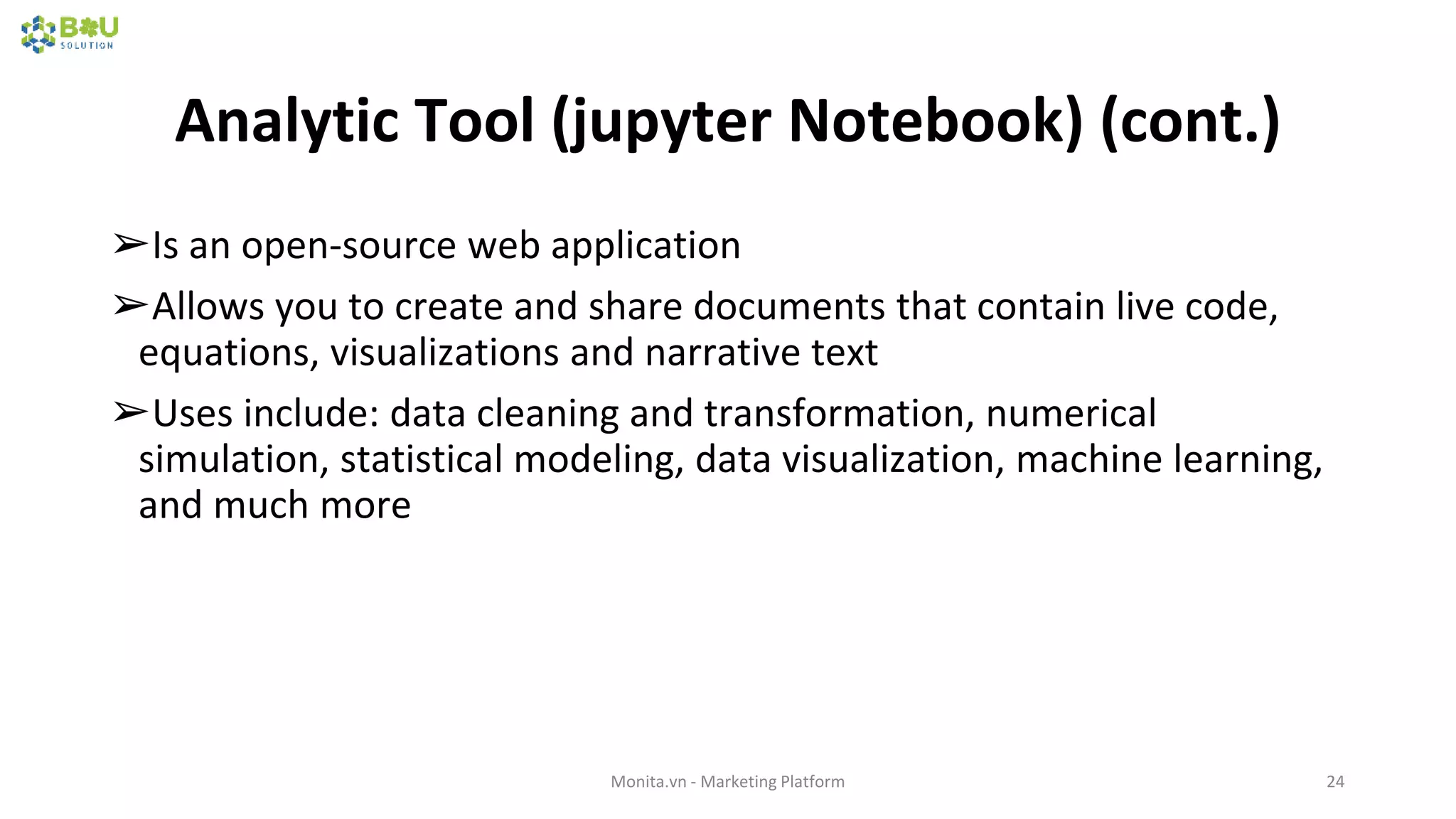

Analytic Tool (jupyter Notebook) (cont.)
➢Is an open-source web application
➢Allows you to create and share documents that contain live code,
equations, visualizations and narrative text
➢Uses include: data cleaning and transformation, numerical
simulation, statistical modeling, data visualization, machine learning,
and much more

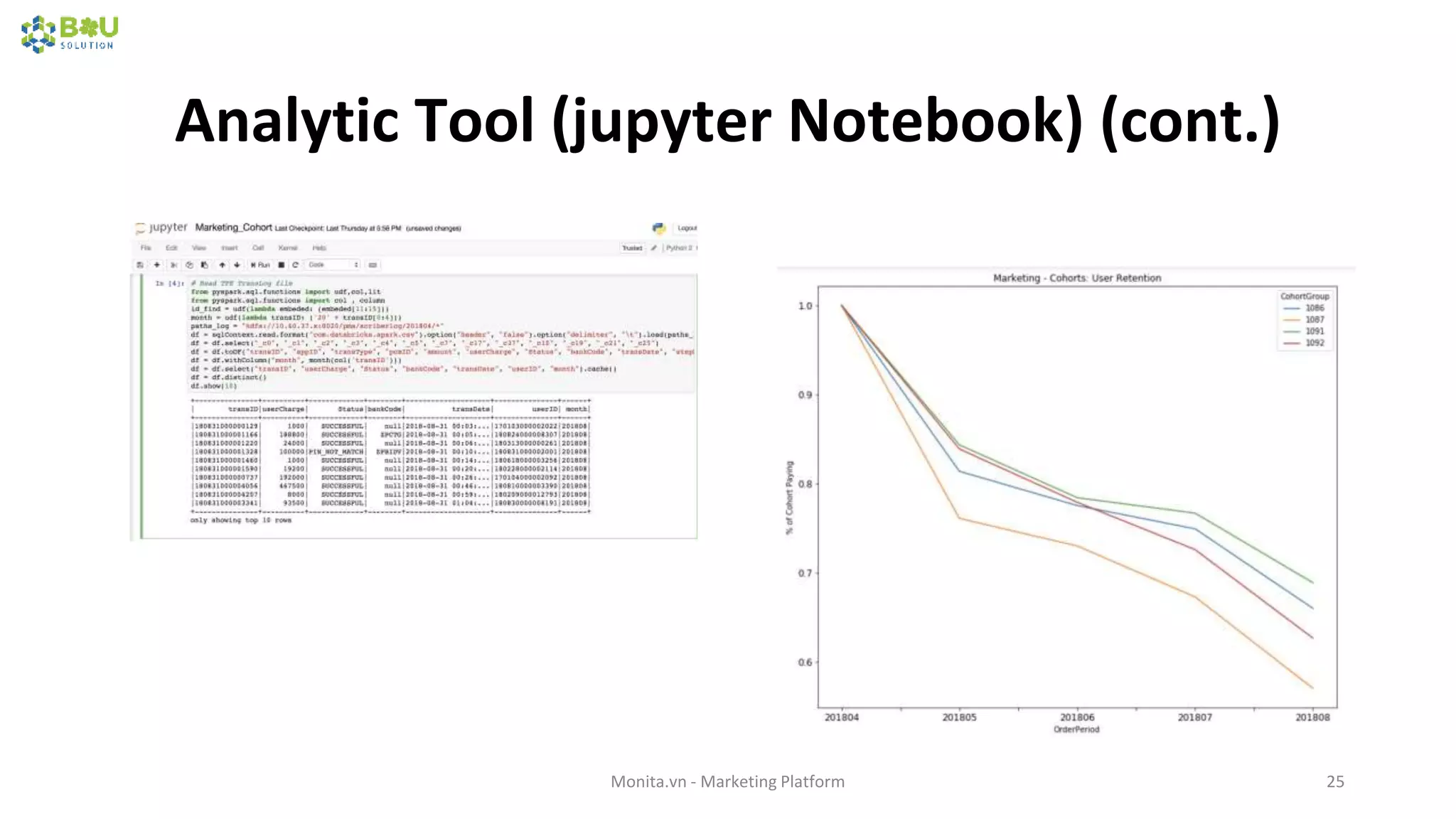

Analytic Tool (jupyter Notebook) (cont.)

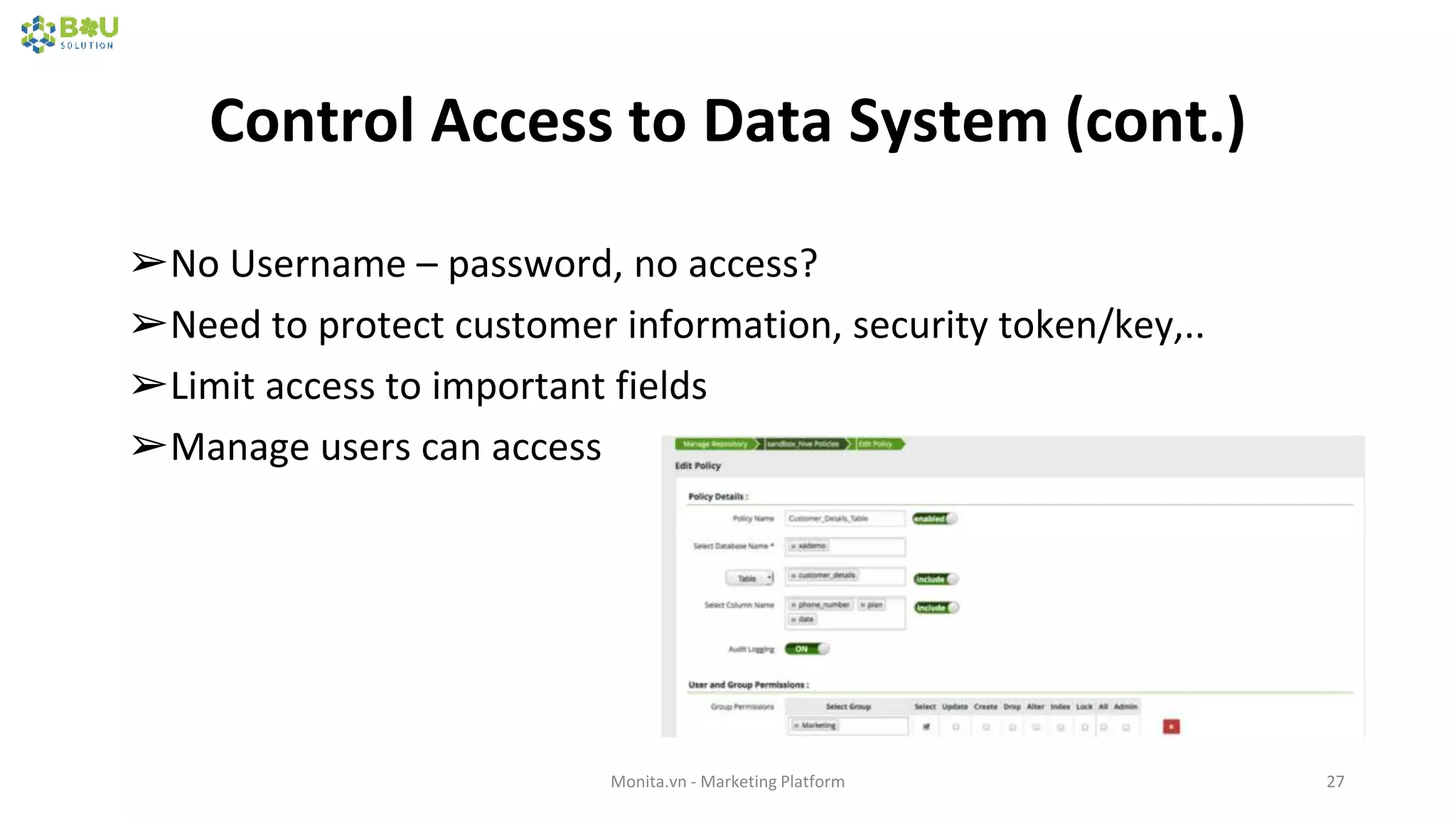

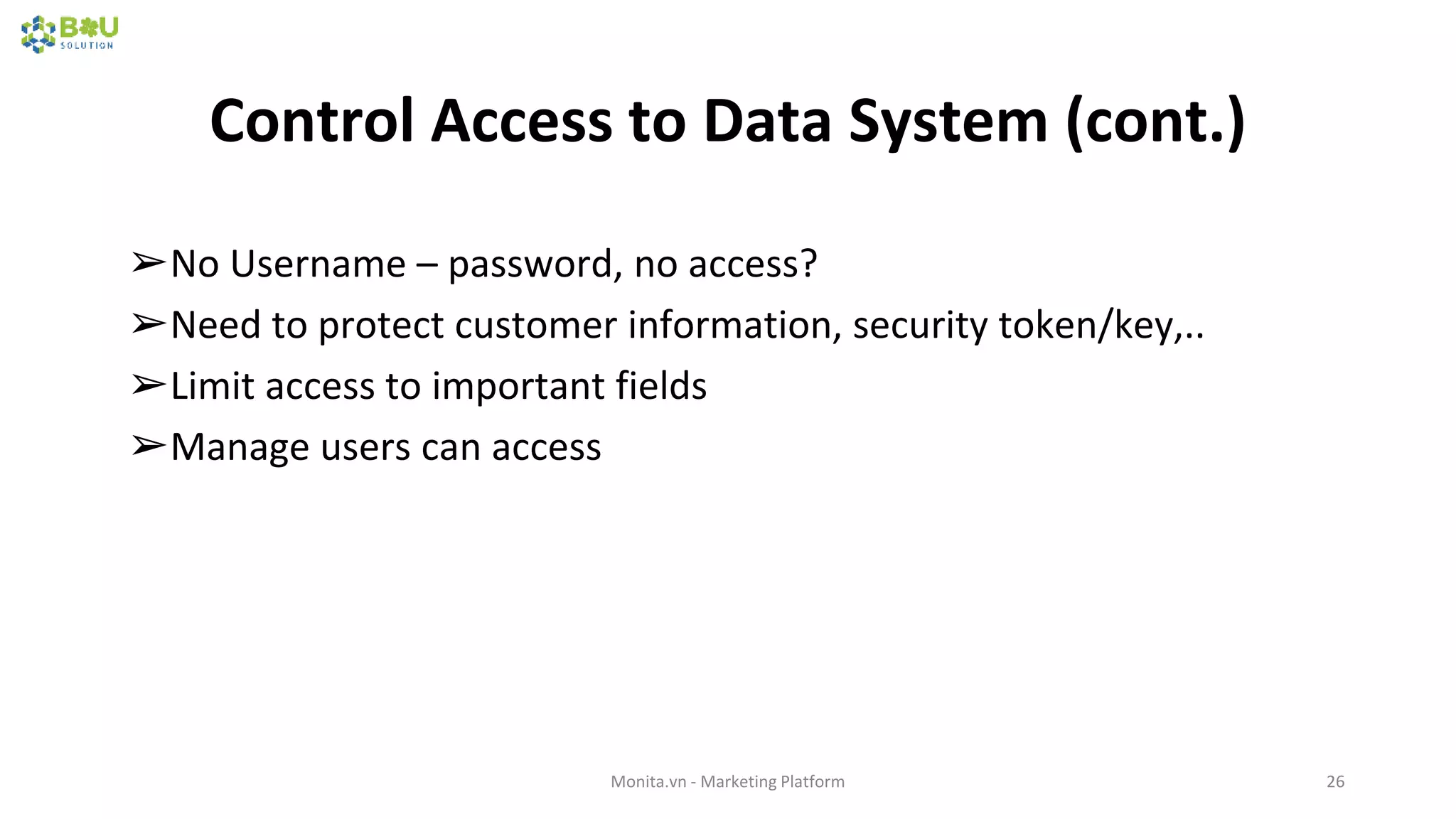

Control Access to Data System (cont.)
➢No Username – password, no access?
➢Need to protect customer information, security token/key,..
➢Limit access to important fields
➢Manage users can access

References
➢http://spark.apache.org/
➢https://hadoop.apache.org/
➢https://hive.apache.org/
➢https://www.mongodb.com/
➢http://kylin.apache.org/
➢http://jupyter.org/
➢https://kafka.apache.org/
➢https://ranger.apache.org/

Sumary
1. Overview about Big Data
2. Understand process to design a Big Data System
3. Data Storage
4. Data Analytic Tools
5. Security for Data System

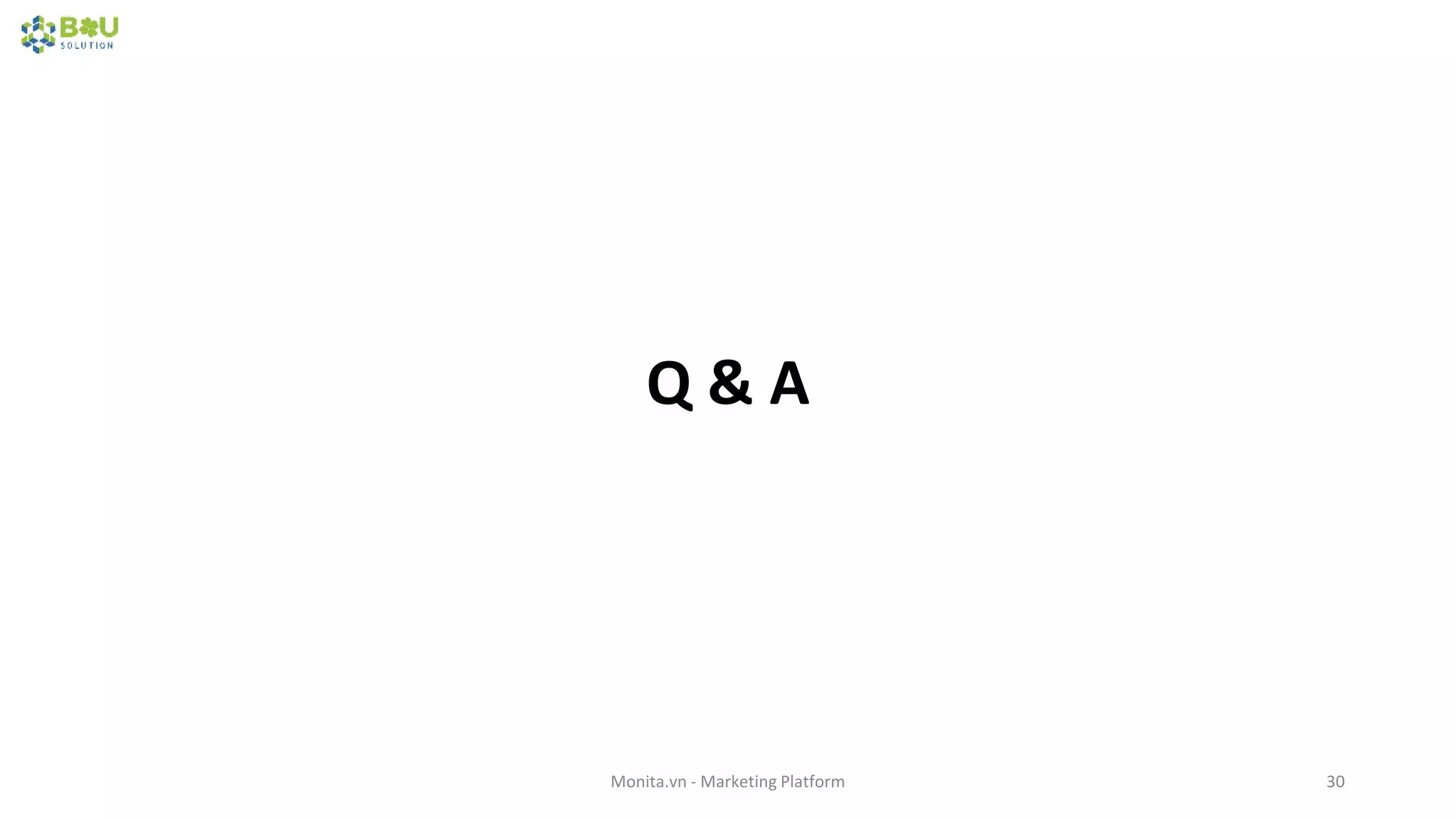

Q & A
