1. REAL TIME EMBEDDED CONTROL SYSTEMS
USING MBD CONCEPT
Eng. Mahmoud Hussein
18-oct-19 RTECS 2019
1

2. Contact Person
2
 Course Instructor
 Mahmoud Hussein
 Lecturer assistant, French university
 Email: Mahmoud.ahmed2013@gmail.com
 Mobile: 01007148378
RTECS

3. Rules
13
RTECS

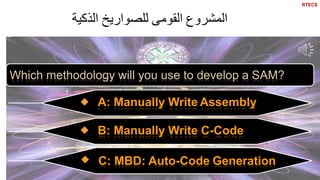

4. ‫الذكية‬ ‫للصواريخ‬ ‫القومى‬ ‫المشروع‬
4
Which methodology will you use to develop a SAM?
A: Manually Write Assembly
B: Manually Write C-Code
C: MBD: Auto-Code Generation
RTECS

5. Welcome to
Real Time Embedded Control Systems
RTECS

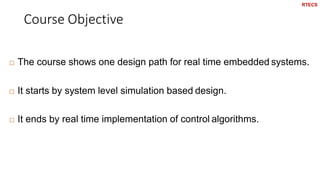

6. Course Objective
6
 The course shows one design path for real time embedded systems.
 It starts by system level simulation based design.
 It ends by real time implementation of control algorithms.
RTECS

7. Course Syllabus
7
 Part 1 : Introduction to Matlab and Simulink
 Recognize MATLAB and Simulink Environment
 MATLAB Fundamentals and Basic Operations
 M-File and Programming Basics
 Data Visualization (2D/3D)
 State flow.
 S-function
RTECS

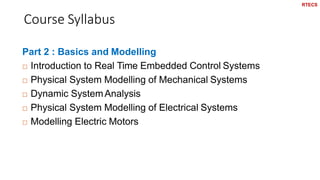

8. Course Syllabus
8
Part 2 : Basics and Modelling
 Introduction to Real Time Embedded Control Systems
 Physical System Modelling of Mechanical Systems
 Dynamic SystemAnalysis
 Physical System Modelling of Electrical Systems
 Modelling Electric Motors
RTECS

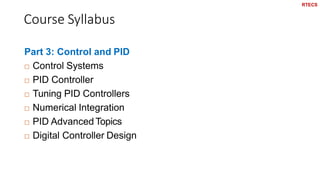

9. Course Syllabus
9
Part 3: Control and PID
 Control Systems
 PID Controller
 Tuning PID Controllers
 Numerical Integration
 PID Advanced Topics
 Digital Controller Design
RTECS

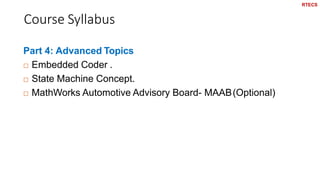

10. Course Syllabus
10
Part 4: Advanced Topics
 Embedded Coder .
 State Machine Concept.
 MathWorks Automotive Advisory Board- MAAB(Optional)
RTECS

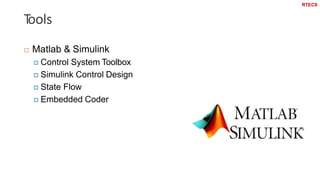

11. T
ools
11
 Matlab & Simulink
 Control System Toolbox
 Simulink Control Design
 State Flow
 Embedded Coder
RTECS

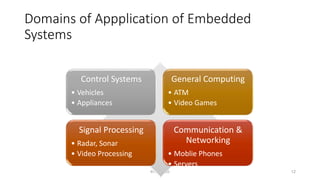

12. Domains of Appplication of Embedded
Systems
RTECS 2010 12
Control Systems
• Vehicles
• Appliances
General Computing
• ATM
• Video Games
Signal Processing
• Radar, Sonar
• Video Processing
Communication &
Networking
• Moblie Phones
• Servers

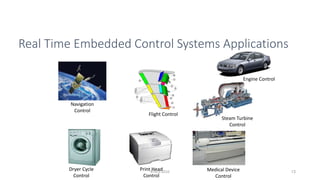

13. Real Time Embedded Control Systems Applications
RTECS 2010 13
Steam Turbine
Control
Flight Control
Print Head
Control
Navigation
Control
Engine Control
Dryer Cycle
Control
Medical Device
Control

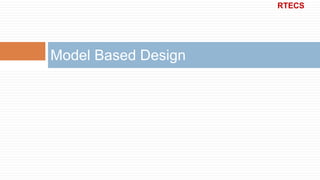

14. Model Based Design
RTECS

15. Model Based Design
• In Model-Based Design, a system model is at the center of the
development process, from requirements development, through
design, implementation, and testing.
• The model is a graphical representations of math-based simulation
methods.
RTECS 2019 15

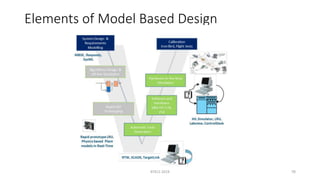

16. Elements of Model Based Design
RTECS 2019 16

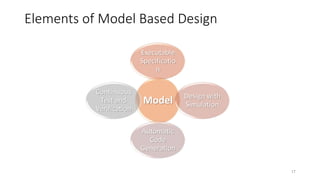

17. Elements of Model Based Design
17
Model
Executable
Specificatio
n
Design with
Simulation
Automatic
Code
Generation
Continuous
Test and
Verification

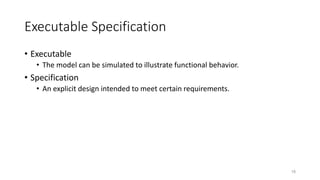

18. Executable Specification
• Executable
• The model can be simulated to illustrate functional behavior.
• Specification
• An explicit design intended to meet certain requirements.
18

19. Elements of Model Based Design
19
Model
Executable
Specification
Design with
Simulation
Automatic
Code
Generation
Continuous
Test and
Verification

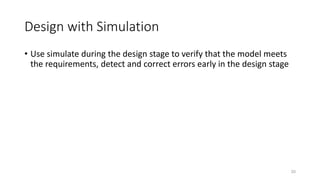

20. Design with Simulation
• Use simulate during the design stage to verify that the model meets
the requirements, detect and correct errors early in the design stage
20

21. Elements of Model Based Design
21
Model
Executable
Specificatio
n
Design with
Simulation
Automatic
Code
Generation
Continuous
Test and
Verification

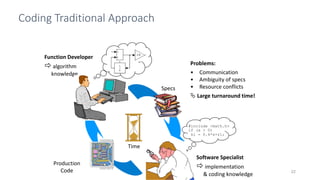

22. Coding Traditional Approach
RTECS 2010 22
Problems:
• Communication
• Ambiguity of specs
• Resource conflicts
 Large turnaround time!
Production
Code
Specs
Function Developer
 algorithm
knowledge
#include <math.h>
if (a > 0)
ki = 0.4*x+z1;
Software Specialist
 implementation
& coding knowledge
Time

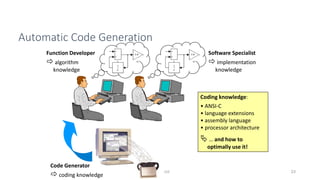

23. Automatic Code Generation
RTECS 2010 23
Function Developer
 algorithm
knowledge
Software Specialist
 implementation
knowledge
Coding knowledge:
• ANSI-C
• language extensions
• assembly language
• processor architecture
 … and how to
optimally use it!
Code Generator
 coding knowledge

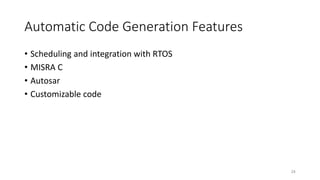

24. Automatic Code Generation Features
• Scheduling and integration with RTOS
• MISRA C
• Autosar
• Customizable code
24

25. Automatic Code Generators
• TargetLink from dSPACE, since 1999
• Real-Time Workshop Embedded Coder from
MathWorks
RTECS 2010 25

26. Automatic Code Generation
RTECS 2019 26
Implementation Model
(fixed-point)
C Code
Code generator
Compiler
(Linker)
Host PC
Target
Physical Model
(floating-point)
Cross-compiler
(Linker / Loader)

27. Automatic Code Generation
RTECS 2019 27
Implementation Model
(fixed-point)
C Code
Code generator
Compiler
(Linker)
Host PC
Target
Physical Model
(floating-point)
Cross-compiler
(Linker / Loader)

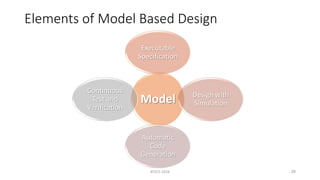

28. Elements of Model Based Design
RTECS 2019 28
Model
Executable
Specification
Design with
Simulation
Automatic
Code
Generation
Continuous
Test and
Verification

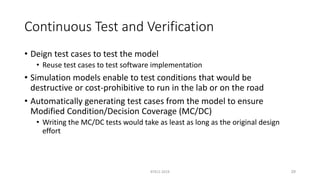

29. Continuous Test and Verification
• Deign test cases to test the model
• Reuse test cases to test software implementation
• Simulation models enable to test conditions that would be
destructive or cost-prohibitive to run in the lab or on the road
• Automatically generating test cases from the model to ensure
Modified Condition/Decision Coverage (MC/DC)
• Writing the MC/DC tests would take as least as long as the original design
effort
RTECS 2019 29

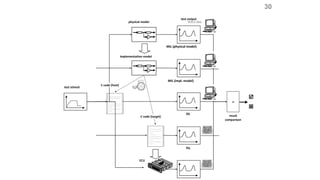

30. RTECS 2010
30



test output
result
comparison
physical model
implementation model
test stimuli
C code (target)
ECU
MiL (physical model)
MiL (impl. model)
SiL
PiL
C code (host)

31. Model in the Loop (MIL)
• Proof of Concept and Design Optimization
• Pure simulation
• Modelling of both the application and the
environment may be wrong
31
Controller
running in e.g. Simulink
Plant
running in e.g. Simulink

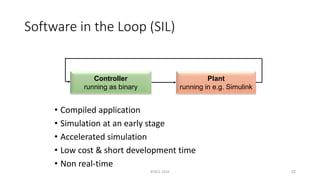

32. Software in the Loop (SIL)
• Compiled application
• Simulation at an early stage
• Accelerated simulation
• Low cost & short development time
• Non real-time
RTECS 2010 32
Controller
running as binary
Plant
running in e.g. Simulink

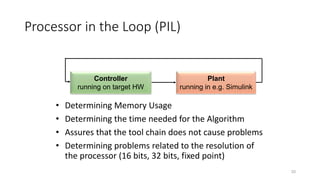

33. Processor in the Loop (PIL)
• Determining Memory Usage
• Determining the time needed for the Algorithm
• Assures that the tool chain does not cause problems
• Determining problems related to the resolution of
the processor (16 bits, 32 bits, fixed point)
33
Controller
running on target HW
Plant
running in e.g. Simulink

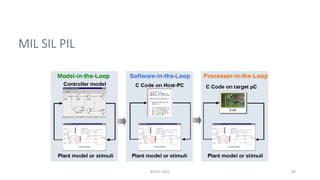

34. MIL SIL PIL
RTECS 2010 34

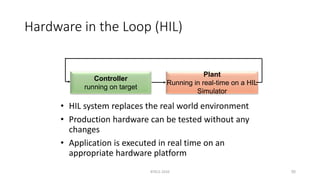

35. Hardware in the Loop (HIL)
• HIL system replaces the real world environment
• Production hardware can be tested without any
changes
• Application is executed in real time on an
appropriate hardware platform
RTECS 2010 35
Controller
running on target
Plant
Running in real-time on a HIL
Simulator

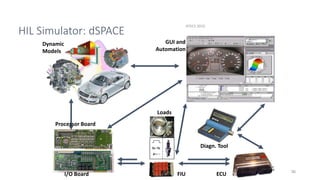

36. HIL Simulator: dSPACE
RTECS 2010
36
Dynamic
Models
Processor Board
I/O Board
GUI and
Automation
Diagn. Tool
ECU
Loads
FIU

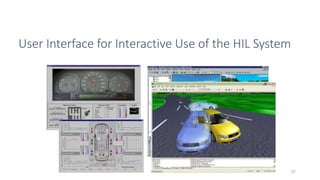

37. User Interface for Interactive Use of the HIL System
RTECS 2010 37

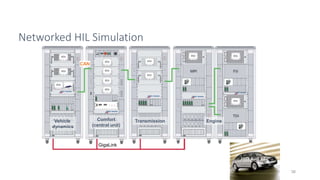

38. Networked HIL Simulation
38
Vehicle
dynamics
Comfort
(central unit)
Transmission Engine
GigaLink
CAN
2004 Audi A6

39. Networked HIL Simulation
RTECS 2010 39
Mercedes-Benz 2005 A-Class
Breadboard Table
appr. 8 powertrain
and chassis ECUs
appr. 20 body ECUs

40. What is a Model?
RTECS 2014
15
RTECS

41. What is a Model?
16
A model is a representation of a real system focusing onsome
important aspects
 Scale model
 Represents geometric proportions
 Flight simulator
 Focuses on flight dynamics
RTECS

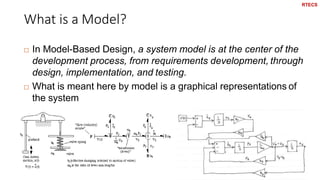

42. What is a Model?
17
 In Model-Based Design, a system model is at the center of the
development process, from requirements development, through
design, implementation, and testing.
 What is meant here by model is a graphical representations of
the system
RTECS

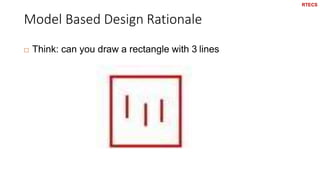

43. Model Based Design Rationale
18
 Think: can you draw a rectangle with 3 lines
RTECS

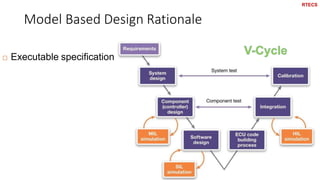

44. Model Based Design Rationale
19
 Executable specification
RTECS

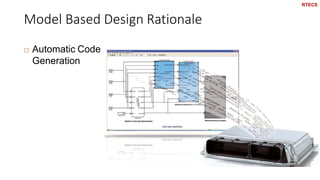

45. Model Based Design Rationale
20
 Automatic Code
Generation
RTECS

46. Model Based Design Rationale
21
1. Graphical Representation
2. Executable Specification
3. Automatic Code Generation
RTECS

47. Physical Systems
RTECS

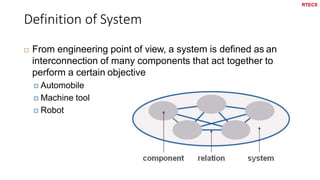

48. Definition of System
23
 From engineering point of view, a system is defined as an
interconnection of many components that act together to
perform a certain objective
 Automobile
 Machine tool
 Robot
RTECS

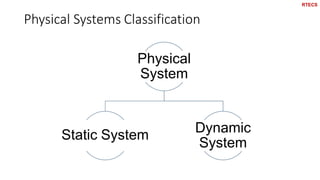

49. Physical Systems Classification
24
Physical
System
Static System Dynamic
System
RTECS

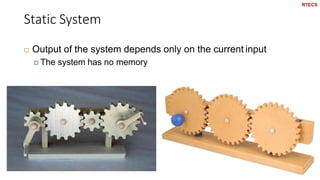

50. Static System
25
 Output of the system depends only on the current input
 The system has no memory
RTECS

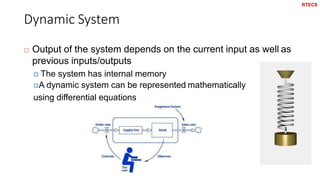

51. Dynamic System
26
 Output of the system depends on the current input as well as
previous inputs/outputs
 The system has internal memory
A dynamic system can be represented mathematically
using differential equations
RTECS

52. What is a Real Time System?
RTECS

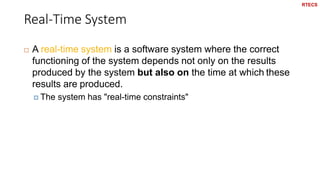

53. Real-Time System
43
 A real-time system is a software system where the correct
functioning of the system depends not only on the results
produced by the system but also on the time at which these
results are produced.
 The system has "real-time constraints"
RTECS

54. Hard Real-Time System
44
 A hard real-time system is a system whose operation is incorrectif
results are not produced according to the timing specification.
 Car engine control system is a hard real-time system
 because a delayed signal may cause engine failure or damage
 Flight Control System
 Airbag crash detection system
RTECS

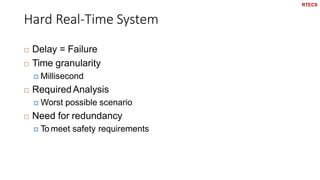

55. Hard Real-Time System
45
 Delay = Failure
 Time granularity
 Millisecond
 RequiredAnalysis
 Worst possible scenario
 Need for redundancy
 To meet safety requirements
RTECS

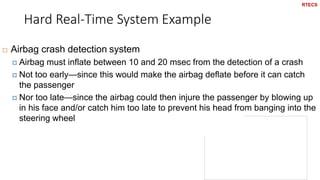

56. Hard Real-Time System Example
46
 Airbag crash detection system
 Airbag must inflate between 10 and 20 msec from the detection of a crash
 Not too early—since this would make the airbag deflate before it can catch
the passenger
 Nor too late—since the airbag could then injure the passenger by blowing up
in his face and/or catch him too late to prevent his head from banging into the
steering wheel
RTECS

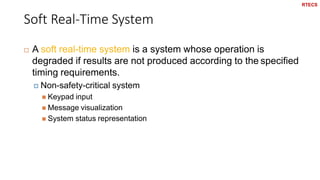

57. Soft Real-Time System
47
 A soft real-time system is a system whose operation is
degraded if results are not produced according to the specified
timing requirements.
 Non-safety-critical system
 Keypad input
 Message visualization
 System status representation
RTECS
