An innovative full time-domain macromodeling
technique for general, linear multiport systems is described. The
methodology is defined in a digital wave framework and timedomain
simulations are performed via an efficient method called
Segment Fast Convolution (SFC). It is based on a piecewiseconstant
(PWC) model of the impulse response of scattering
parameters, computed starting from a piecewise-linear fitting
of their step response (PWLFIT). Such step response is directly
available from time-domain reflectometer measurements
(TDR/TDT) or equivalent simulations. The model-building phase
is performed in a fast automated framework and an analytic
formulation of computational efficiency of the SFC with respect to
the standard time-domain convolution is given. Two application
examples are used to verify the PWLFIT performance and to
perform a comparison with macromodeling methods defined in
the frequency-domain, such as Vector Fitting (VF).
Index Terms—Digital wave models, time-domain macromodeling,
S-parameters, step response.
MIMO System Performance Evaluation for High Data Rate Wireless Networks usin...IJMER
Space–time block coding is used for data communication in fading channels by multiple
transmit antennas. Message data is encoded by applying a space–time block code and after the encoding
the data is break into ‘n’ streams of simultaneously transmitted strings through n transmit antennas. The
received signal at the receiver end is the superposition of the n transmitted signals distorted due to noise
.For data recovery maximum likelihood decoding scheme is applied through decoupling of the signals
transmitted from different antennas instead of joint detection. The maximum likelihood decoding scheme
applies the orthogonal structure of the space–time block code (OSTBC) and gives a maximum-likelihood
decoding algorithm based on linear processing at the receiver. In this paper orthogonal space–time
block codes based model is developed using Matlab/Simulink to get the maximum diversity order for a
given number of transmit and receive antennas subject with a simple decoding algorithm.
The simulink block of orthogonal space coding block with space–time block codes is applied with and
without gray coding. The OSTBC codes gives the maximum possible transmission rate for any number of
transmit antennas using any arbitrary real constellation such of M-PSK array. For different complex
constellation of M- PSK space–time block codes are applied that achieve 1/2 and 3/4 of the maximum
possible transmission rate for MIMO transmit antennas using different complex constellations.
NEW BER ANALYSIS OF OFDM SYSTEM OVER NAKAGAMI-n (RICE) FADING CHANNELijcseit
Modern wireless communication systems support high speed multimedia services. These services require
high data rates with acceptable error rates. Orthogonal Frequency Division Multiplexing (OFDM) is a
capable candidate to solve this problem. In this paper, a new expression for the BER of OFDM system has
been derived over Nakagami–n (Rice) fading channels using characteristics function (CHF) approach. The
exact probability density function of first order of Nakagami-n (Rice) random vector is used to derive the
expression for the error rates of OFDM system. The BER derivation of Rician fading channel is slightly
more complex compared to the Nakagami–m distribution because the PDF of the Rician RV contains an
explicit term of a modified Bessel function of first kind. Earlier, this problem was solved by replacing the
Bessel function with its infinite series and exponential integral representation. Here we propose an integral
expression to remove the complexity of the expression.
FPGA IMPLEMENTATION OF EFFICIENT VLSI ARCHITECTURE FOR FIXED POINT 1-D DWT US...VLSICS Design
In this paper, a scheme for the design of area efficient and high speed pipeline VLSI architecture for the computation of fixed point 1-d discrete wavelet transform using lifting scheme is proposed. The main focus of the scheme is to reduce the number and period of clock cycles and efficient area with little or no overhead on hardware resources. The fixed point representation requires less hardware resources compared with floating point representation. The pipelining architecture speeds up the clock rate of DWT and reduced bit precision reduces the area required for implementation. The architecture has been coded in verilog HDL on Xilinx platform and the target FPGA device used is Virtex-II Pro family, XC2VP7- 7board. The proposed scheme requires the least computing time for fixed point 1-D DWT and achieves the
less area for implementation, compared with other architectures. So this architecture is realizable for real time processing of DWT computation applications.
DIGITAL WAVE SIMULATION OF LOSSY LINES FOR MULTI-GIGABIT APPLICATIONPiero Belforte
Frequency domain Vector Fitting (VF) is a well known technique to generate circuital models of a spatially discretized lossy transmission lines from theoretical formulation of losses. The sub-picosecond time steps required by multi-gigahertz bandwidths and short transmission lines included in the models, determine long Spice simulation times. A 100X speedup can be gained using the Digital Wave Simulator (DWS) instead of Spice. DWS processes the waves of a Digital Network built up connecting together scattering blocks (circuit elements, nodes and S-parameter multi-ports) coming from a Spice-like description. Being a DSP wave processor instead of a classical nodal equations solver, DWS is computationally very fast and numerically stable. Comparisons with commercial simulators like Microcap11 and CST Cable Studio show a good matching of results. A further 10-100X simulation speedup is obtained if Piecewise-Linear Fitting (PWLF) is used to describe the time-domain behaviors of Scattering Parameters. Single or multiple cell Behavioral Time Models (BTM) can be extracted by PWLF from TDR/TDT measurements and processed by DWS fast convolution algorithms. A setup de-embedding can be performed by pwl breakpoints optimization to fit actual measurements. A RG58 coaxial cable is analyzed and its VF-derived eye-diagrams are compared to PWLF measurement-derived results. At multi-gigabit rates significant differences, due to cable physical implementation effects, are observed. The modeling/simulation alternatives (VF/Spice, VF/DWS and PWLF/DWS) are compared together and the advantages of PWLF/DWS in term of simplicity, stability and speed are highlighted.
MIMO System Performance Evaluation for High Data Rate Wireless Networks usin...IJMER
Space–time block coding is used for data communication in fading channels by multiple
transmit antennas. Message data is encoded by applying a space–time block code and after the encoding
the data is break into ‘n’ streams of simultaneously transmitted strings through n transmit antennas. The
received signal at the receiver end is the superposition of the n transmitted signals distorted due to noise
.For data recovery maximum likelihood decoding scheme is applied through decoupling of the signals
transmitted from different antennas instead of joint detection. The maximum likelihood decoding scheme
applies the orthogonal structure of the space–time block code (OSTBC) and gives a maximum-likelihood
decoding algorithm based on linear processing at the receiver. In this paper orthogonal space–time
block codes based model is developed using Matlab/Simulink to get the maximum diversity order for a
given number of transmit and receive antennas subject with a simple decoding algorithm.
The simulink block of orthogonal space coding block with space–time block codes is applied with and
without gray coding. The OSTBC codes gives the maximum possible transmission rate for any number of
transmit antennas using any arbitrary real constellation such of M-PSK array. For different complex
constellation of M- PSK space–time block codes are applied that achieve 1/2 and 3/4 of the maximum
possible transmission rate for MIMO transmit antennas using different complex constellations.
NEW BER ANALYSIS OF OFDM SYSTEM OVER NAKAGAMI-n (RICE) FADING CHANNELijcseit
Modern wireless communication systems support high speed multimedia services. These services require
high data rates with acceptable error rates. Orthogonal Frequency Division Multiplexing (OFDM) is a
capable candidate to solve this problem. In this paper, a new expression for the BER of OFDM system has
been derived over Nakagami–n (Rice) fading channels using characteristics function (CHF) approach. The
exact probability density function of first order of Nakagami-n (Rice) random vector is used to derive the
expression for the error rates of OFDM system. The BER derivation of Rician fading channel is slightly
more complex compared to the Nakagami–m distribution because the PDF of the Rician RV contains an
explicit term of a modified Bessel function of first kind. Earlier, this problem was solved by replacing the
Bessel function with its infinite series and exponential integral representation. Here we propose an integral
expression to remove the complexity of the expression.
FPGA IMPLEMENTATION OF EFFICIENT VLSI ARCHITECTURE FOR FIXED POINT 1-D DWT US...VLSICS Design
In this paper, a scheme for the design of area efficient and high speed pipeline VLSI architecture for the computation of fixed point 1-d discrete wavelet transform using lifting scheme is proposed. The main focus of the scheme is to reduce the number and period of clock cycles and efficient area with little or no overhead on hardware resources. The fixed point representation requires less hardware resources compared with floating point representation. The pipelining architecture speeds up the clock rate of DWT and reduced bit precision reduces the area required for implementation. The architecture has been coded in verilog HDL on Xilinx platform and the target FPGA device used is Virtex-II Pro family, XC2VP7- 7board. The proposed scheme requires the least computing time for fixed point 1-D DWT and achieves the
less area for implementation, compared with other architectures. So this architecture is realizable for real time processing of DWT computation applications.
DIGITAL WAVE SIMULATION OF LOSSY LINES FOR MULTI-GIGABIT APPLICATIONPiero Belforte
Frequency domain Vector Fitting (VF) is a well known technique to generate circuital models of a spatially discretized lossy transmission lines from theoretical formulation of losses. The sub-picosecond time steps required by multi-gigahertz bandwidths and short transmission lines included in the models, determine long Spice simulation times. A 100X speedup can be gained using the Digital Wave Simulator (DWS) instead of Spice. DWS processes the waves of a Digital Network built up connecting together scattering blocks (circuit elements, nodes and S-parameter multi-ports) coming from a Spice-like description. Being a DSP wave processor instead of a classical nodal equations solver, DWS is computationally very fast and numerically stable. Comparisons with commercial simulators like Microcap11 and CST Cable Studio show a good matching of results. A further 10-100X simulation speedup is obtained if Piecewise-Linear Fitting (PWLF) is used to describe the time-domain behaviors of Scattering Parameters. Single or multiple cell Behavioral Time Models (BTM) can be extracted by PWLF from TDR/TDT measurements and processed by DWS fast convolution algorithms. A setup de-embedding can be performed by pwl breakpoints optimization to fit actual measurements. A RG58 coaxial cable is analyzed and its VF-derived eye-diagrams are compared to PWLF measurement-derived results. At multi-gigabit rates significant differences, due to cable physical implementation effects, are observed. The modeling/simulation alternatives (VF/Spice, VF/DWS and PWLF/DWS) are compared together and the advantages of PWLF/DWS in term of simplicity, stability and speed are highlighted.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
A smart guidance navigation robot using petri net, database location, and rad...journalBEEI
The objective of this research is, to explain a new framework to navigate the movement of the robot towards a target goal. This involves the need for the robot to move from the initial position to 1 out of 30 rooms. Therefore the strategy used involves the combination of the room database stored in the RFID data using the petri net (PN) method to simulate and model the movement of the robot for navigation after which the dynamic behavior of the robot is moving to the desired location was analyzed. The process started from the creation of an environmental map determined by the user followed by modeling through PN and the result was used to produce a marking value which explains and navigates the movement of the robot towards the selected room. The marking value was also used as the database for the robot's movement and later substituted with the RFID to be used as the sensor input in the implementation stage. It was concluded that the robot has the ability to move to the target position according to the database stored in RFID and designed to move forward and turn left and right. For example, it followed the marking value M1 M2 M3M13M12 M11 M10 M9 M8 to Room 1 and M1 M2 M46 M47 to Room 29.
PARALLEL BIJECTIVE PROCESSING OF REGULAR NANO SYSTOLIC GRIDS VIA CARBON FIELD...ijcsit
New implementations for parallel processing applications using reversible systolic networks and the
corresponding nano and field-emission controlled-switching components is introduced. The extensions of
implementations to many-valued field-emission systolic networks using the introduced reversible systolic
architectures are also presented. The developed implementations are performed in the reversible domain to
perform the required parallel computing. The introduced systolic systems utilize recent findings in field
emission and nano applications to implement the function of the basic reversible systolic network using
nano controlled-switching. This includes many-valued systolic computing via carbon nanotubes and carbon
field-emission techniques. The presented realization of reversible circuits can be important for several
reasons including the reduction of power consumption, which is an important specification for the system
design in several future and emerging technologies, and also achieving high performance realizations. The
introduced implementations for non-classical systolic computation are new and interesting for the design
within modern technologies that require optimal design specifications of high speed, minimum power and
minimum size, which includes applications in adiabatic low-power signal processing.
Physical Layer Redesign for Unmanned Aerial Vehicle (UAV) Communication in 5GChathuranga Basnayaka
Unmanned aerial vehicles (UAVs) are expected to be an important component of thenext generation of mobile networks because of its low cost and flexible connectiv-ity. Telecommunication organizations are currently exploring possibilities for servingUAVs with existing and further cellular network and industries beginning to trialearly prototypes of the cellular connected UAV while scholars are in full swing intro-ducing mathematical and algorithmic solutions to address interesting new problemsarising from the cellular connected UAV communication system. Compared to theconventional mobile communication system with terrestrial users, cellular- connectedUAV communication possesses substantially different characteristics that present newresearch challenges as well as opportunities. Also, most of the research on cellular -connected UAV are still at initial stages. As a result, there are only a few simulationsand experimental results available. Because of that, the objective of this research isa redesign physical layer of unmanned aerial vehicle communication system to alignwith the fifth generation cellular network technology
A New Approach to Linear Estimation Problem in Multiuser Massive MIMO SystemsRadita Apriana
A novel approach for solving linear estimation problem in multi-user massive MIMO systems is
proposed. In this approach, the difficulty of matrix inversion is attributed to the incomplete definition of the
dot product. The general definition of dot product implies that the columns of channel matrix are always
orthogonal whereas, in practice, they may be not. If the latter information can be incorporated into dot
product, then the unknowns can be directly computed from projections without inverting the channel
matrix. By doing so, the proposed method is able to achieve an exact solution with a 25% reduction in
computational complexity as compared to the QR method. Proposed method is stable, offers an extra
flexibility of computing any single unknown, and can be implemented in just twelve lines of code.
ENERGY PERFORMANCE OF A COMBINED HORIZONTAL AND VERTICAL COMPRESSION APPROACH...IJCNCJournal
Energy efficiency is an essential issue to be reckoned in wireless sensor networks development. Since the low-powered sensor nodes deplete their energy in transmitting the collected information, several strategies have been proposed to investigate the communication power consumption, in order to reduce the amount of transmitted data without affecting the information reliability. Lossy compression is a promising solution recently adapted to overcome the challenging energy consumption, by exploiting the data correlation and discarding the redundant information. In this paper, we propose a hybrid compression approach based on two dimensions specified as horizontal (HC) and vertical compression (VC), typically implemented in cluster-based routing architecture. The proposed scheme considers two key performance metrics, energy expenditure, and data accuracy to decide the adequate compression approach based on HC-VC or VC-HC configuration according to each WSN application requirement. Simulation results exhibit the performance of both proposed approaches in terms of extending the clustering network lifetime.
Reliability Study of wireless corba using Petri net and end to end instanteno...Ahmed Koriem
Reliability Study of wireless corba using Petri net and end to end instantenous reliability measure
master degree seminar 10-2-2015
Al-azhar university- Communication and electronics department
A Broadband Wireless Access technology known as
Worldwide Interoperability for Microwave Access (WiMAX) is
based on IEEE 802.16 standards. It uses orthogonal frequency
division multiple accesses (OFDMA) as one of its multiple access
technique. Major design factors of OFDMA resource allocation are
scheduling and burst allocation. To calculate the appropriate
dimensions and location of each user’s data so as to construct the
bursts in the downlink subframe, is the responsibility of burst
allocation algorithm. Bursts are calculated in terms of number of
slots for each user. Burst Allocation Algorithm is used to overcome
the resource wastage in the form of unused and unallocated slots per
frame. It affects the Base station performance in mobile WiMAX
systems. In this Paper, HOCSA (Hybrid One Column Striping with
Non Increasing Area) algorithm is proposed to overcome frame
wastage. HOCSA is implemented by improving eOCSA algorithm
and is evaluated using MATLAB. HOCSA achieves significant
reduction of resource wastage per frame, leading to more
exploitation of the WiMAX frame.
Digital Wave Simulation of Lossy Lines for Multi-Gigabit ApplicationsPiero Belforte
Frequency domain Vector Fitting (VF) is a well known technique to generate circuital models of a spatially discretized lossy transmission lines from theoretical formulation of losses. The sub-picosecond time steps required by multi-gigahertz bandwidths and short transmission lines included in the models, determine long Spice simulation times. A 100X speedup can be gained using the Digital Wave Simulator (DWS) instead of Spice. DWS processes the waves of a Digital Network built up connecting together scattering blocks (circuit elements, nodes and S-parameter multi-ports) coming from a Spice-like description. Being a DSP wave processor instead of a classical nodal equations solver, DWS is computationally very fast and numerically stable. Comparisons with commercial simulators like Microcap11 and CST Cable Studio show a good matching of results. A further 10-100X simulation speedup is obtained if Piecewise-Linear Fitting (PWLF) is used to describe the time-domain behaviors of Scattering Parameters. Single or multiple cell Behavioral Time Models (BTM) can be extracted by PWLF from TDR/TDT measurements and processed by DWS fast convolution algorithms. A setup de-embedding can be performed by pwl breakpoints optimization to fit actual measurements. A RG58 coaxial cable is analyzed and its VF-derived eye-diagrams are compared to PWLF measurement-derived results. At multi-gigabit rates significant differences, due to cable physical implementation effects, are observed. The modeling/simulation alternatives (VF/Spice, VF/DWS and PWLF/DWS) are compared together and the advantages of PWLF/DWS in term of simplicity, stability and speed are highlighted.
Frequency domain behavior of S-parameters piecewise-linear fitting in a digit...Piero Belforte
This paper describes PWLFIT+, an extension to the frequency domain ofPWLFIT, a new paradigm in time-domain macromodel ing for linear multiportsystems, based on a piecewise-linea r (PWL) behavioral representation of the S-parameters step response.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
A smart guidance navigation robot using petri net, database location, and rad...journalBEEI
The objective of this research is, to explain a new framework to navigate the movement of the robot towards a target goal. This involves the need for the robot to move from the initial position to 1 out of 30 rooms. Therefore the strategy used involves the combination of the room database stored in the RFID data using the petri net (PN) method to simulate and model the movement of the robot for navigation after which the dynamic behavior of the robot is moving to the desired location was analyzed. The process started from the creation of an environmental map determined by the user followed by modeling through PN and the result was used to produce a marking value which explains and navigates the movement of the robot towards the selected room. The marking value was also used as the database for the robot's movement and later substituted with the RFID to be used as the sensor input in the implementation stage. It was concluded that the robot has the ability to move to the target position according to the database stored in RFID and designed to move forward and turn left and right. For example, it followed the marking value M1 M2 M3M13M12 M11 M10 M9 M8 to Room 1 and M1 M2 M46 M47 to Room 29.
PARALLEL BIJECTIVE PROCESSING OF REGULAR NANO SYSTOLIC GRIDS VIA CARBON FIELD...ijcsit
New implementations for parallel processing applications using reversible systolic networks and the
corresponding nano and field-emission controlled-switching components is introduced. The extensions of
implementations to many-valued field-emission systolic networks using the introduced reversible systolic
architectures are also presented. The developed implementations are performed in the reversible domain to
perform the required parallel computing. The introduced systolic systems utilize recent findings in field
emission and nano applications to implement the function of the basic reversible systolic network using
nano controlled-switching. This includes many-valued systolic computing via carbon nanotubes and carbon
field-emission techniques. The presented realization of reversible circuits can be important for several
reasons including the reduction of power consumption, which is an important specification for the system
design in several future and emerging technologies, and also achieving high performance realizations. The
introduced implementations for non-classical systolic computation are new and interesting for the design
within modern technologies that require optimal design specifications of high speed, minimum power and
minimum size, which includes applications in adiabatic low-power signal processing.
Physical Layer Redesign for Unmanned Aerial Vehicle (UAV) Communication in 5GChathuranga Basnayaka
Unmanned aerial vehicles (UAVs) are expected to be an important component of thenext generation of mobile networks because of its low cost and flexible connectiv-ity. Telecommunication organizations are currently exploring possibilities for servingUAVs with existing and further cellular network and industries beginning to trialearly prototypes of the cellular connected UAV while scholars are in full swing intro-ducing mathematical and algorithmic solutions to address interesting new problemsarising from the cellular connected UAV communication system. Compared to theconventional mobile communication system with terrestrial users, cellular- connectedUAV communication possesses substantially different characteristics that present newresearch challenges as well as opportunities. Also, most of the research on cellular -connected UAV are still at initial stages. As a result, there are only a few simulationsand experimental results available. Because of that, the objective of this research isa redesign physical layer of unmanned aerial vehicle communication system to alignwith the fifth generation cellular network technology
A New Approach to Linear Estimation Problem in Multiuser Massive MIMO SystemsRadita Apriana
A novel approach for solving linear estimation problem in multi-user massive MIMO systems is
proposed. In this approach, the difficulty of matrix inversion is attributed to the incomplete definition of the
dot product. The general definition of dot product implies that the columns of channel matrix are always
orthogonal whereas, in practice, they may be not. If the latter information can be incorporated into dot
product, then the unknowns can be directly computed from projections without inverting the channel
matrix. By doing so, the proposed method is able to achieve an exact solution with a 25% reduction in
computational complexity as compared to the QR method. Proposed method is stable, offers an extra
flexibility of computing any single unknown, and can be implemented in just twelve lines of code.
ENERGY PERFORMANCE OF A COMBINED HORIZONTAL AND VERTICAL COMPRESSION APPROACH...IJCNCJournal
Energy efficiency is an essential issue to be reckoned in wireless sensor networks development. Since the low-powered sensor nodes deplete their energy in transmitting the collected information, several strategies have been proposed to investigate the communication power consumption, in order to reduce the amount of transmitted data without affecting the information reliability. Lossy compression is a promising solution recently adapted to overcome the challenging energy consumption, by exploiting the data correlation and discarding the redundant information. In this paper, we propose a hybrid compression approach based on two dimensions specified as horizontal (HC) and vertical compression (VC), typically implemented in cluster-based routing architecture. The proposed scheme considers two key performance metrics, energy expenditure, and data accuracy to decide the adequate compression approach based on HC-VC or VC-HC configuration according to each WSN application requirement. Simulation results exhibit the performance of both proposed approaches in terms of extending the clustering network lifetime.
Reliability Study of wireless corba using Petri net and end to end instanteno...Ahmed Koriem
Reliability Study of wireless corba using Petri net and end to end instantenous reliability measure
master degree seminar 10-2-2015
Al-azhar university- Communication and electronics department
A Broadband Wireless Access technology known as
Worldwide Interoperability for Microwave Access (WiMAX) is
based on IEEE 802.16 standards. It uses orthogonal frequency
division multiple accesses (OFDMA) as one of its multiple access
technique. Major design factors of OFDMA resource allocation are
scheduling and burst allocation. To calculate the appropriate
dimensions and location of each user’s data so as to construct the
bursts in the downlink subframe, is the responsibility of burst
allocation algorithm. Bursts are calculated in terms of number of
slots for each user. Burst Allocation Algorithm is used to overcome
the resource wastage in the form of unused and unallocated slots per
frame. It affects the Base station performance in mobile WiMAX
systems. In this Paper, HOCSA (Hybrid One Column Striping with
Non Increasing Area) algorithm is proposed to overcome frame
wastage. HOCSA is implemented by improving eOCSA algorithm
and is evaluated using MATLAB. HOCSA achieves significant
reduction of resource wastage per frame, leading to more
exploitation of the WiMAX frame.
Digital Wave Simulation of Lossy Lines for Multi-Gigabit ApplicationsPiero Belforte
Frequency domain Vector Fitting (VF) is a well known technique to generate circuital models of a spatially discretized lossy transmission lines from theoretical formulation of losses. The sub-picosecond time steps required by multi-gigahertz bandwidths and short transmission lines included in the models, determine long Spice simulation times. A 100X speedup can be gained using the Digital Wave Simulator (DWS) instead of Spice. DWS processes the waves of a Digital Network built up connecting together scattering blocks (circuit elements, nodes and S-parameter multi-ports) coming from a Spice-like description. Being a DSP wave processor instead of a classical nodal equations solver, DWS is computationally very fast and numerically stable. Comparisons with commercial simulators like Microcap11 and CST Cable Studio show a good matching of results. A further 10-100X simulation speedup is obtained if Piecewise-Linear Fitting (PWLF) is used to describe the time-domain behaviors of Scattering Parameters. Single or multiple cell Behavioral Time Models (BTM) can be extracted by PWLF from TDR/TDT measurements and processed by DWS fast convolution algorithms. A setup de-embedding can be performed by pwl breakpoints optimization to fit actual measurements. A RG58 coaxial cable is analyzed and its VF-derived eye-diagrams are compared to PWLF measurement-derived results. At multi-gigabit rates significant differences, due to cable physical implementation effects, are observed. The modeling/simulation alternatives (VF/Spice, VF/DWS and PWLF/DWS) are compared together and the advantages of PWLF/DWS in term of simplicity, stability and speed are highlighted.
Frequency domain behavior of S-parameters piecewise-linear fitting in a digit...Piero Belforte
This paper describes PWLFIT+, an extension to the frequency domain ofPWLFIT, a new paradigm in time-domain macromodel ing for linear multiportsystems, based on a piecewise-linea r (PWL) behavioral representation of the S-parameters step response.
Digital Wave Simulation of Quasi-Static Partial Element Equivalent Circuit Me...Piero Belforte
This is an extended version of the paper published on IEEE Transactions on EMC, October 2016. PEEC modeling is a well established technique for obtaining a circuit equivalent for an electromagnetic problem. The time domain solution of such models is usually performed using nodal voltages and branch currents, or sometimes charge and currents. The present paper describes a possible alternative approach which can be obtained expressing and solving the problem in the waves domain. The digital wave theory is used to find an equivalent representation of the PEEC circuit in the wave domain. Through a pertinent continuous to discrete time transformation, the constitutive relations for partial inductances, capacitances and resistances are translated in an explicit form. The combination of such equations with Kirchhoff laws allows to achieve a semi-explicit resolution scheme. Three different physical configurations are analyzed and their extracted Digital Wave PEEC models are simulated at growing sizes using the general-purpose Digital Wave Simulator (DWS). The results are compared to those obtained by using standard SPICE simulators in both linear and nonlinear cases. When the size of the model is manageable by SPICE, an excellent accuracy and a speed-up factor of up to three orders of magnitude are observed with much lower memory requirements. PEEC model sizes manageable by DWS are also an order of magnitude larger than SPICE. A comparative analysis of results including the effect of parameters like the simulation time step choice is also presented.
VECTOR VS PIECEWISE-LINEAR FITTING FOR SIGNAL AND POWER INTEGRITY SIMULATIONPiero Belforte
The basic concepts of two fitting methods suitable for signal and power integrity simulation up to multi-gigabit/sec rates are presented. The traditional method is based on Vector Fitting (VF), a well known technique to approximate complex functions of frequency by a rational polynomial expression in terms of poles and residues. The second is a full time-domain approach mainly based on behavioral models supported by the Digital Wave Simulator.
PWLFIT/DWS advantages over VECTFIT/Spice can be summarized with the 3S acronym: SIMPLICITY, STABILITY and SPEED.
SIMPLICITY because the pwl fitting of a time-domain behavior is a very fast, explicit and intuitive process that doens't need the solution of implicit equations as required by Vector fitting. Time-domain S-parameter of actual devices in matched conditions shows simpler behaviors than the corresponding impedance in the frequency domain.
STABILITY because the use of Digital Wave processing is intrinsically very stable. Extracted pwl behaviors processed by fast convolution within DWS are unconditionally stable if the source behavior is stable. This means that NO numerical conditioning is required. As known Vector Fitting often require numerical conditioning to get stable results.
SPEED: time-domain pwl fitting is a very fast process. DWS simulations are also very fast even at very small time steps required by multigigabit system analysis. DWS/SPICE typical speedups are 100X for traditional VF derived RLC-TL circuits and up to 10000X when using pwl Behavioral Models in time domain.
The recent development of the automated version of PWLFIT[1,2,4] opens the door also to hybrid PWL/VF[5,8,9] methods. This further possibility expands up to six the number of possible alternatives to modeling and simulation methods
Online video-based abnormal detection using highly motion techniques and stat...TELKOMNIKA JOURNAL
At the essence of video surveillance, there are abnormal detection approaches, which have been proven to be substantially effective in detecting abnormal incidents without prior knowledge about these incidents. Based on the state-of-the-art research, it is evident that there is a trade-off between frame processing time and detection accuracy in abnormal detection approaches. Therefore, the primary challenge is to balance this trade-off suitably by utilizing few, but very descriptive features to fulfill online performance while maintaining a high accuracy rate. In this study, we propose a new framework, which achieves the balancing between detection accuracy and video processing time by employing two efficient motion techniques, specifically, foreground and optical flow energy. Moreover, we use different statistical analysis measures of motion features to get robust inference method to distinguish abnormal behavior incident from normal ones. The performance of this framework has been extensively evaluated in terms of the detection accuracy, the area under the curve (AUC) and frame processing time. Simulation results and comparisons with ten relevant online and non-online frameworks demonstrate that our framework efficiently achieves superior performance to those frameworks, in which it presents high values for the accuracy while attaining simultaneously low values for the processing time.
Co-Simulation Interfacing Capabilities in Device-Level Power Electronic Circu...IJPEDS-IAES
Power electronic circuit simulation today has become increasingly more demanding in both
the speed and accuracy. Whilst almost every simulator has its own advantages and disadvantages,
co-simulations are becoming more prevalent. This paper provides an overview of
the co-simulation capabilities of device-level circuit simulators. More specifically, a listing
of device-level simulators with their salient features are compared and contrasted. The
co-simulation interfaces between several simulation tools are discussed. A case study is
presented to demonstrate the co-simulation between a device-level simulator (PSIM) interfacing
a system-level simulator (Simulink), and a finite element simulation tool (FLUX).
Results demonstrate the necessity and convenience as well as the drawbacks of such a comprehensive
simulation.
Modified Adaptive Lifting Structure Of CDF 9/7 Wavelet With Spiht For Lossy I...idescitation
We present a modified structure of 2-D cdf 9/7 wavelet
transforms based on adaptive lifting in image coding. Instead
of alternately applying horizontal and vertical lifting, as in
present practice, Adaptive lifting performs lifting-based
prediction in local windows in the direction of high pixel
correlation. Hence, it adapts far better to the image orientation
features in local windows. The predicting and updating signals
of Adaptive lifting can be derived even at the fractional pixel
precision level to achieve high resolution, while still
maintaining perfect reconstruction. To enhance the
performance of adaptive based modified structure of 2-D CDF
9/7 is coupled with SPIHT coding algorithm to improve the
drawbacks of wavelet transform. Experimental results show
that the proposed modified scheme based image coding
technique outperforms JPEG 2000 in both PSNR and visual
quality, with the improvement up to 6.0 dB than existing
structure on images with rich orientation features .
System for Prediction of Non Stationary Time Series based on the Wavelet Radi...IJECEIAES
This paper proposes and examines the performance of a hybrid model called the wavelet radial bases function neural networks (WRBFNN). The model will be compared its performance with the wavelet feed forward neural networks (WFFN model by developing a prediction or forecasting system that considers two types of input formats: input9 and input17, and also considers 4 types of non-stationary time series data. The MODWT transform is used to generate wavelet and smooth coefficients, in which several elements of both coefficients are chosen in a particular way to serve as inputs to the NN model in both RBFNN and FFNN models. The performance of both WRBFNN and WFFNN models is evaluated by using MAPE and MSE value indicators, while the computation process of the two models is compared using two indicators, many epoch, and length of training. In stationary benchmark data, all models have a performance with very high accuracy. The WRBFNN9 model is the most superior model in nonstationary data containing linear trend elements, while the WFFNN17 model performs best on non-stationary data with the non-linear trend and seasonal elements. In terms of speed in computing, the WRBFNN model is superior with a much smaller number of epochs and much shorter training time.
Similar to Automated Piecewise-Linear Fitting of S-Parameters step-response (PWLFIT) for fast Time-domain modeling and simulation (20)
A parallel-plate capacitor implemented by a rectangular double-sided printed circuit board is characterized by means a stimulus signal injected at a corner. Both frequency-domain (VNA) and time-domain (TDR) techniques are utilized to determine the step response of the reflected wave (S11) to be compared to the theoretical behavior of the equivalent parallel plate capacitance. A commercial application is utilized to convert the frequency domain tabulated data of the frequency response into the corresponding TDR response. A very accurate and fast 2D TLM (Transmission Line Model) model can be easily extracted from these single time-domain experimental responses.
Multigigabit modeling of hi safe+ flying probe fp011Piero Belforte
This document describes the modeling methodology used to assess the performance of these probes in terms of allowed digital bandwidth of signals chosen for temporary fault insertion trials. This methodology is based on time-domain characterization of Scattering parameters (TDR/TDT) and subsequent extraction of a Behavioral Time-domain Model (BTM) [13] of the probe itself. This technique called PWLFIT (Piece-Wise Linear FITting) [14] [15]is supported by the Digital Wave Simulator DWS [16] [17] and its companion tool DWV [18] developed starting in the early '90s for very fast modeling and simulation of high-speed circuits and systems.
HDT (High Design Technology) related content on Cseltmuseum Dec. 13 2017Piero Belforte
HDT (High Design Technology) has been a high-tech startup founded at the end of '80s for the development of state-of-the art predictive CAE tools in the field of Signal/Power Integrity and EMC. Here the collection of posted content related to HDT on the CSELTMUSEUM Facebook public group.
HiSAFE related content on Cseltmuseum Dec. 13 2017 Piero Belforte
HiSAFE is a wideband (20Gbps) Fault Insertion System for Testing purposes. Here the collection of posted content related to HiSAFE on the CSELTMUSEUM Facebook public group.
A cheapernet local area network of Italtel is simulated using the DSP-based simulator SPRINT of HDT. The simulations are compared to actual measurement in several working conditions.
The main features of the new general-purpose circuit simulator based on Digital Wave algorithms are presented. The core algorithms including a wave calculation ordering processor were developed by Piero Belforte and Giancarlo Guaschino,, HDT founders, while Riccardo Sisto implemented Software modules regarding specific primitives of the simulator and the fast convolution calculator. The specific application to logic-timing-electrical simulation of high-speed boards were developed by Piero Belforte.
This paper has been presented by Riccardo Sisto at The main features of the new general-purpose circuit simulator based on Digital Wave algorithms are presented. The core algorithms including a wave calculation ordering processor were developed by Piero Belforte and Giancarlo Guaschino,, HDT founders, while Riccardo Sisto implemented Software modules regarding specific primitives of the simulator and the fast convolution calculator. The specific application to logic-timing-electrical simulation of high-speed boards were developed by Piero Belforte.The main features of the new general-purpose circuit simulator based on Digital Wave algorithms are presented. The core algorithms including a wave calculation ordering processor were developed by Piero Belforte and Giancarlo Guaschino,, HDT founders, while Riccardo Sisto implemented Software modules regarding specific primitives of the simulator and the fast convolution calculator. The specific application to logic-timing-electrical simulation of high-speed boards were developed by Piero Belforte. This paper was presented by Riccar do Sisto at IASTED International Conference on Signal Processing and Digital Filtering, Lugano, Switzerland in June 1990.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Runway Orientation Based on the Wind Rose Diagram.pptx
Automated Piecewise-Linear Fitting of S-Parameters step-response (PWLFIT) for fast Time-domain modeling and simulation
1. See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/336103152
Automated Piecewise-Linear Fitting of S-Parameters step-response (PWLFIT)
for fast Time-domain modeling and simulation
Research · December 2018
DOI: 10.13140/RG.2.2.34124.36481/2
CITATIONS
2
READS
170
5 authors, including:
Some of the authors of this publication are also working on these related projects:
3D DWS PLOTS: https://photos.app.goo.gl/n4XEbb8bYeZi1hCo2 View project
B-ISDN evolution View project
Piero Belforte
former CSELT and HDT
912 PUBLICATIONS 219 CITATIONS
SEE PROFILE
Domenico Spina
Ghent University
55 PUBLICATIONS 253 CITATIONS
SEE PROFILE
Luigi Lombardi
Micron Technology, Inc.
36 PUBLICATIONS 69 CITATIONS
SEE PROFILE
Tom Dhaene
Ghent University
475 PUBLICATIONS 6,335 CITATIONS
SEE PROFILE
All content following this page was uploaded by Piero Belforte on 29 September 2019.
The user has requested enhancement of the downloaded file.
2. 1
Time-Domain Piecewise-Linear Fitting Method
Based on Digital Wave Processing of S-Parameters

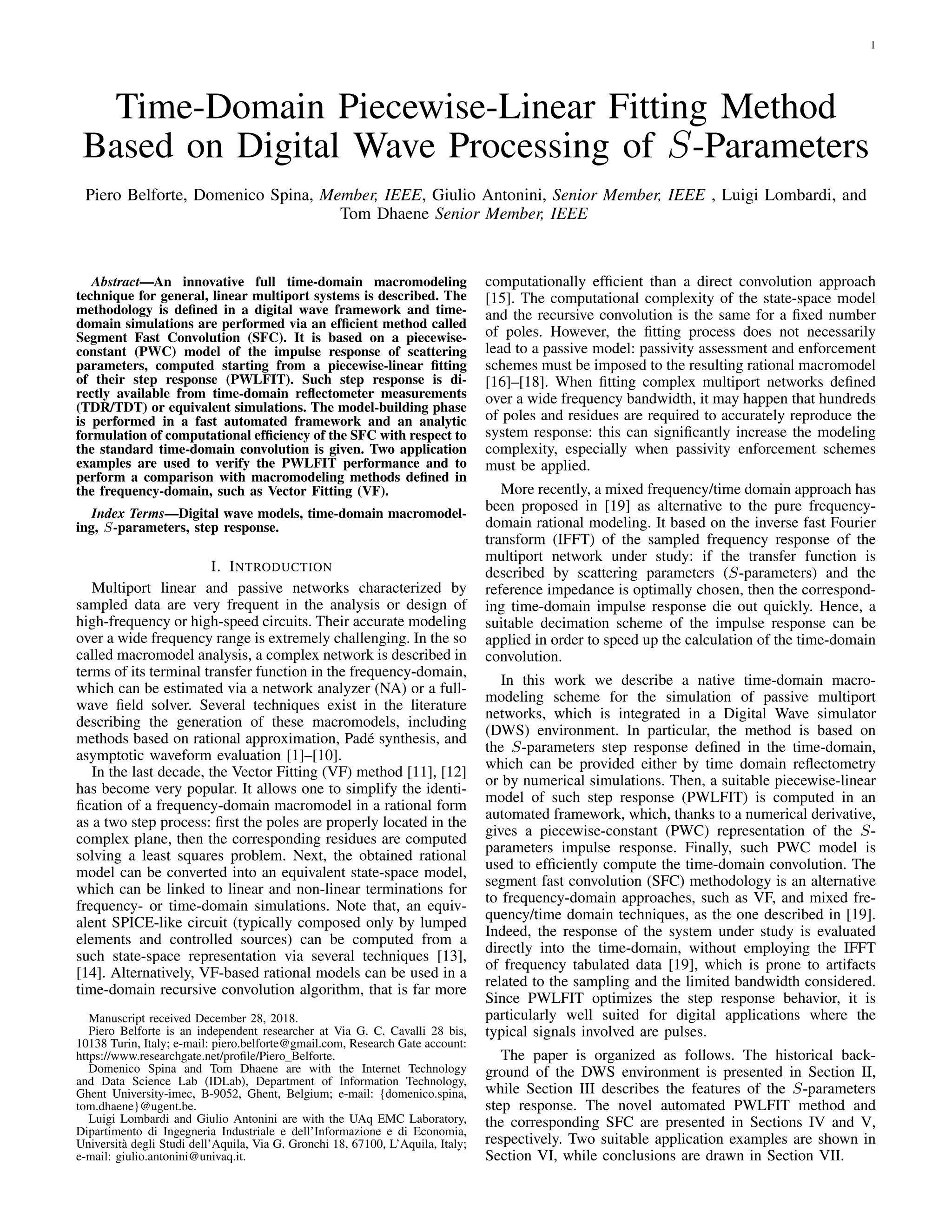

Piero Belforte, Domenico Spina, Member, IEEE, Giulio Antonini, Senior Member, IEEE , Luigi Lombardi, and
Tom Dhaene Senior Member, IEEE
Abstract—An innovative full time-domain macromodeling
technique for general, linear multiport systems is described. The
methodology is defined in a digital wave framework and time-
domain simulations are performed via an efficient method called
Segment Fast Convolution (SFC). It is based on a piecewise-
constant (PWC) model of the impulse response of scattering
parameters, computed starting from a piecewise-linear fitting
of their step response (PWLFIT). Such step response is di-
rectly available from time-domain reflectometer measurements
(TDR/TDT) or equivalent simulations. The model-building phase
is performed in a fast automated framework and an analytic
formulation of computational efficiency of the SFC with respect to
the standard time-domain convolution is given. Two application
examples are used to verify the PWLFIT performance and to
perform a comparison with macromodeling methods defined in
the frequency-domain, such as Vector Fitting (VF).
Index Terms—Digital wave models, time-domain macromodel-
ing, S-parameters, step response.
I. INTRODUCTION
Multiport linear and passive networks characterized by
sampled data are very frequent in the analysis or design of
high-frequency or high-speed circuits. Their accurate modeling
over a wide frequency range is extremely challenging. In the so
called macromodel analysis, a complex network is described in
terms of its terminal transfer function in the frequency-domain,
which can be estimated via a network analyzer (NA) or a full-
wave field solver. Several techniques exist in the literature
describing the generation of these macromodels, including
methods based on rational approximation, Padé synthesis, and
asymptotic waveform evaluation [1]–[10].
In the last decade, the Vector Fitting (VF) method [11], [12]
has become very popular. It allows one to simplify the identi-
fication of a frequency-domain macromodel in a rational form
as a two step process: first the poles are properly located in the
complex plane, then the corresponding residues are computed
solving a least squares problem. Next, the obtained rational
model can be converted into an equivalent state-space model,
which can be linked to linear and non-linear terminations for
frequency- or time-domain simulations. Note that, an equiv-
alent SPICE-like circuit (typically composed only by lumped
elements and controlled sources) can be computed from a
such state-space representation via several techniques [13],
[14]. Alternatively, VF-based rational models can be used in a
time-domain recursive convolution algorithm, that is far more
Manuscript received December 28, 2018.
Piero Belforte is an independent researcher at Via G. C. Cavalli 28 bis,
10138 Turin, Italy; e-mail: piero.belforte@gmail.com, Research Gate account:
https://www.researchgate.net/profile/Piero_Belforte.
Domenico Spina and Tom Dhaene are with the Internet Technology
and Data Science Lab (IDLab), Department of Information Technology,
Ghent University-imec, B-9052, Ghent, Belgium; e-mail: {domenico.spina,
tom.dhaene}@ugent.be.
Luigi Lombardi and Giulio Antonini are with the UAq EMC Laboratory,
Dipartimento di Ingegneria Industriale e dell’Informazione e di Economia,
Università degli Studi dell’Aquila, Via G. Gronchi 18, 67100, L’Aquila, Italy;
e-mail: giulio.antonini@univaq.it.
computationally efficient than a direct convolution approach
[15]. The computational complexity of the state-space model
and the recursive convolution is the same for a fixed number
of poles. However, the fitting process does not necessarily
lead to a passive model: passivity assessment and enforcement
schemes must be imposed to the resulting rational macromodel
[16]–[18]. When fitting complex multiport networks defined
over a wide frequency bandwidth, it may happen that hundreds
of poles and residues are required to accurately reproduce the
system response: this can significantly increase the modeling
complexity, especially when passivity enforcement schemes
must be applied.
More recently, a mixed frequency/time domain approach has
been proposed in [19] as alternative to the pure frequency-
domain rational modeling. It based on the inverse fast Fourier
transform (IFFT) of the sampled frequency response of the
multiport network under study: if the transfer function is
described by scattering parameters (S-parameters) and the
reference impedance is optimally chosen, then the correspond-
ing time-domain impulse response die out quickly. Hence, a
suitable decimation scheme of the impulse response can be
applied in order to speed up the calculation of the time-domain
convolution.
In this work we describe a native time-domain macro-
modeling scheme for the simulation of passive multiport
networks, which is integrated in a Digital Wave simulator
(DWS) environment. In particular, the method is based on
the S-parameters step response defined in the time-domain,
which can be provided either by time domain reflectometry
or by numerical simulations. Then, a suitable piecewise-linear
model of such step response (PWLFIT) is computed in an
automated framework, which, thanks to a numerical derivative,
gives a piecewise-constant (PWC) representation of the S-
parameters impulse response. Finally, such PWC model is
used to efficiently compute the time-domain convolution. The
segment fast convolution (SFC) methodology is an alternative
to frequency-domain approaches, such as VF, and mixed fre-
quency/time domain techniques, as the one described in [19].
Indeed, the response of the system under study is evaluated
directly into the time-domain, without employing the IFFT
of frequency tabulated data [19], which is prone to artifacts
related to the sampling and the limited bandwidth considered.
Since PWLFIT optimizes the step response behavior, it is
particularly well suited for digital applications where the
typical signals involved are pulses.
The paper is organized as follows. The historical back-
ground of the DWS environment is presented in Section II,
while Section III describes the features of the S-parameters
step response. The novel automated PWLFIT method and
the corresponding SFC are presented in Sections IV and V,
respectively. Two suitable application examples are shown in
Section VI, while conclusions are drawn in Section VII.

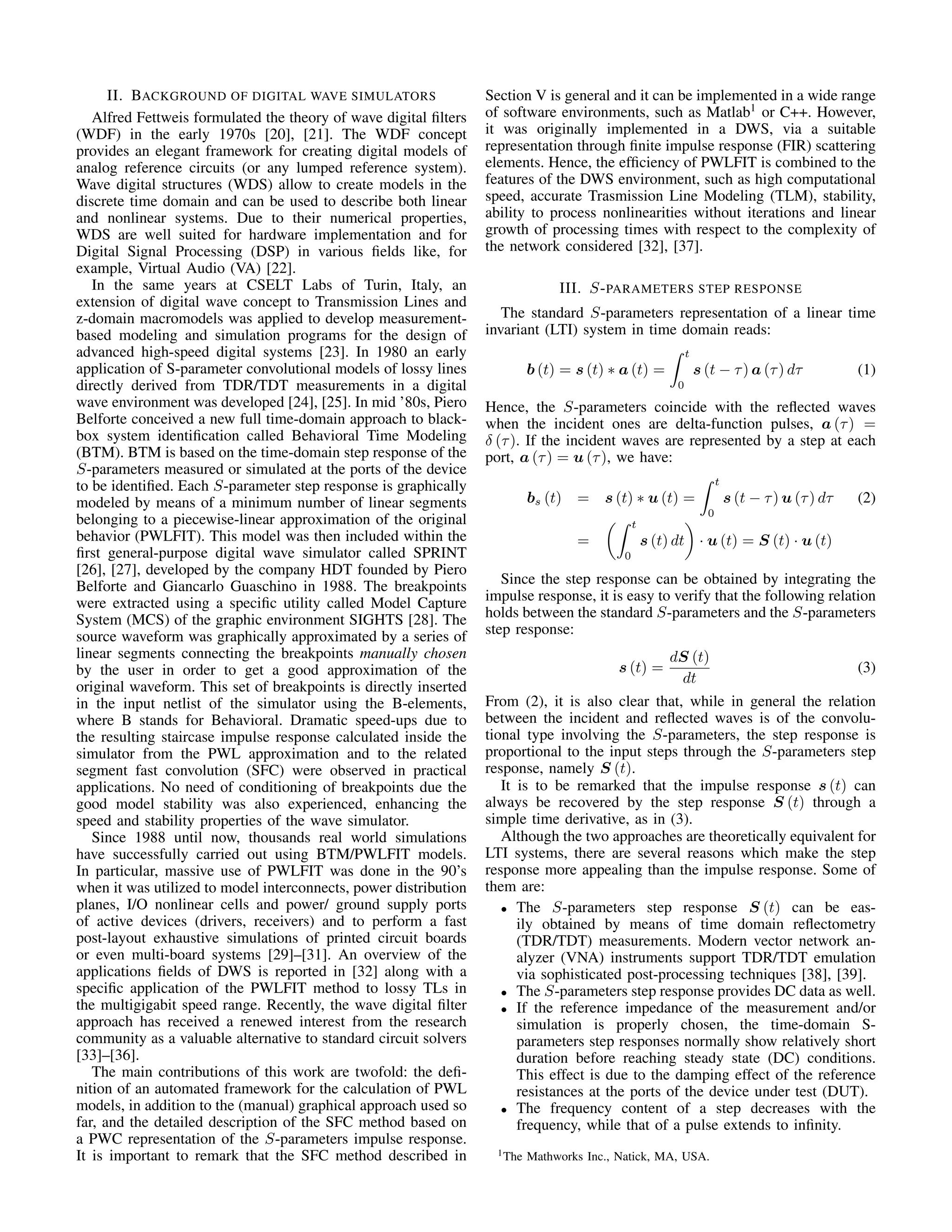

3. II. BACKGROUND OF DIGITAL WAVE SIMULATORS
Alfred Fettweis formulated the theory of wave digital filters
(WDF) in the early 1970s [20], [21]. The WDF concept
provides an elegant framework for creating digital models of
analog reference circuits (or any lumped reference system).
Wave digital structures (WDS) allow to create models in the
discrete time domain and can be used to describe both linear
and nonlinear systems. Due to their numerical properties,
WDS are well suited for hardware implementation and for
Digital Signal Processing (DSP) in various fields like, for
example, Virtual Audio (VA) [22].
In the same years at CSELT Labs of Turin, Italy, an
extension of digital wave concept to Transmission Lines and
z-domain macromodels was applied to develop measurement-
based modeling and simulation programs for the design of
advanced high-speed digital systems [23]. In 1980 an early
application of S-parameter convolutional models of lossy lines
directly derived from TDR/TDT measurements in a digital
wave environment was developed [24], [25]. In mid ’80s, Piero
Belforte conceived a new full time-domain approach to black-
box system identification called Behavioral Time Modeling
(BTM). BTM is based on the time-domain step response of the
S-parameters measured or simulated at the ports of the device
to be identified. Each S-parameter step response is graphically
modeled by means of a minimum number of linear segments
belonging to a piecewise-linear approximation of the original
behavior (PWLFIT). This model was then included within the
first general-purpose digital wave simulator called SPRINT
[26], [27], developed by the company HDT founded by Piero
Belforte and Giancarlo Guaschino in 1988. The breakpoints
were extracted using a specific utility called Model Capture
System (MCS) of the graphic environment SIGHTS [28]. The
source waveform was graphically approximated by a series of
linear segments connecting the breakpoints manually chosen
by the user in order to get a good approximation of the
original waveform. This set of breakpoints is directly inserted
in the input netlist of the simulator using the B-elements,
where B stands for Behavioral. Dramatic speed-ups due to
the resulting staircase impulse response calculated inside the
simulator from the PWL approximation and to the related
segment fast convolution (SFC) were observed in practical
applications. No need of conditioning of breakpoints due the
good model stability was also experienced, enhancing the
speed and stability properties of the wave simulator.
Since 1988 until now, thousands real world simulations
have successfully carried out using BTM/PWLFIT models.
In particular, massive use of PWLFIT was done in the 90’s
when it was utilized to model interconnects, power distribution
planes, I/O nonlinear cells and power/ ground supply ports
of active devices (drivers, receivers) and to perform a fast
post-layout exhaustive simulations of printed circuit boards
or even multi-board systems [29]–[31]. An overview of the
applications fields of DWS is reported in [32] along with a
specific application of the PWLFIT method to lossy TLs in
the multigigabit speed range. Recently, the wave digital filter
approach has received a renewed interest from the research
community as a valuable alternative to standard circuit solvers
[33]–[36].
The main contributions of this work are twofold: the defi-
nition of an automated framework for the calculation of PWL
models, in addition to the (manual) graphical approach used so
far, and the detailed description of the SFC method based on
a PWC representation of the S-parameters impulse response.
It is important to remark that the SFC method described in
Section V is general and it can be implemented in a wide range
of software environments, such as Matlab1
or C++. However,
it was originally implemented in a DWS, via a suitable
representation through finite impulse response (FIR) scattering
elements. Hence, the efficiency of PWLFIT is combined to the
features of the DWS environment, such as high computational
speed, accurate Trasmission Line Modeling (TLM), stability,
ability to process nonlinearities without iterations and linear
growth of processing times with respect to the complexity of
the network considered [32], [37].
III. S-PARAMETERS STEP RESPONSE
The standard S-parameters representation of a linear time
invariant (LTI) system in time domain reads:
b (t) = s (t) ∗ a (t) =
t
0
s (t − τ) a (τ) dτ (1)
Hence, the S-parameters coincide with the reflected waves
when the incident ones are delta-function pulses, a (τ) =
δ (τ). If the incident waves are represented by a step at each
port, a (τ) = u (τ), we have:
bs (t) = s (t) ∗ u (t) =
t
0
s (t − τ) u (τ) dτ (2)
=
t
0
s (t) dt · u (t) = S (t) · u (t)
Since the step response can be obtained by integrating the
impulse response, it is easy to verify that the following relation
holds between the standard S-parameters and the S-parameters
step response:
s (t) =
dS (t)
dt
(3)
From (2), it is also clear that, while in general the relation
between the incident and reflected waves is of the convolu-
tional type involving the S-parameters, the step response is
proportional to the input steps through the S-parameters step
response, namely S (t).
It is to be remarked that the impulse response s (t) can
always be recovered by the step response S (t) through a
simple time derivative, as in (3).
Although the two approaches are theoretically equivalent for
LTI systems, there are several reasons which make the step
response more appealing than the impulse response. Some of
them are:
• The S-parameters step response S (t) can be eas-
ily obtained by means of time domain reflectometry
(TDR/TDT) measurements. Modern vector network an-
alyzer (VNA) instruments support TDR/TDT emulation
via sophisticated post-processing techniques [38], [39].
• The S-parameters step response provides DC data as well.
• If the reference impedance of the measurement and/or
simulation is properly chosen, the time-domain S-
parameters step responses normally show relatively short
duration before reaching steady state (DC) conditions.
This effect is due to the damping effect of the reference
resistances at the ports of the device under test (DUT).
• The frequency content of a step decreases with the
frequency, while that of a pulse extends to infinity.
1The Mathworks Inc., Natick, MA, USA.

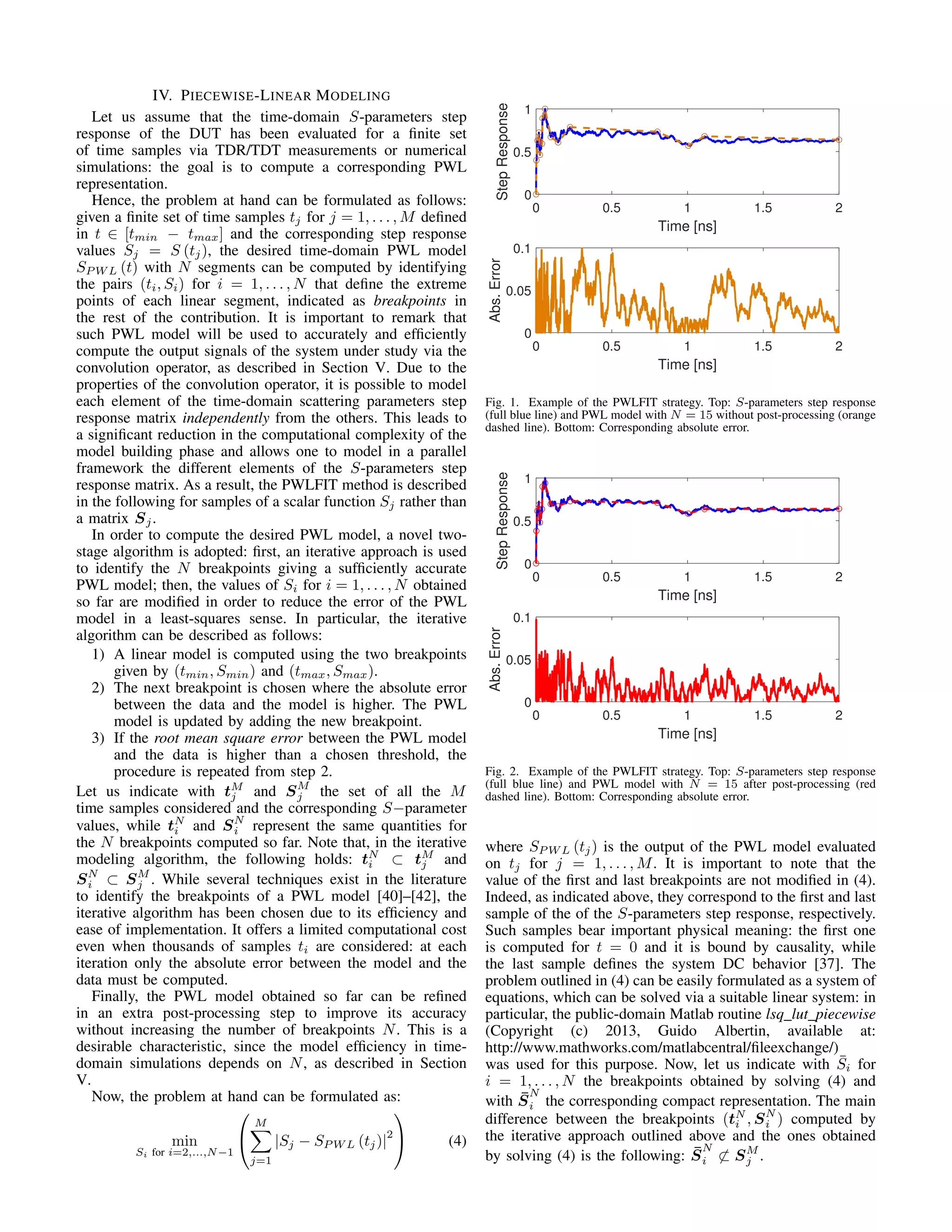

4. IV. PIECEWISE-LINEAR MODELING
Let us assume that the time-domain S-parameters step
response of the DUT has been evaluated for a finite set
of time samples via TDR/TDT measurements or numerical
simulations: the goal is to compute a corresponding PWL
representation.
Hence, the problem at hand can be formulated as follows:
given a finite set of time samples tj for j = 1, . . . , M defined
in t ∈ [tmin − tmax] and the corresponding step response
values Sj = S (tj), the desired time-domain PWL model
SP W L (t) with N segments can be computed by identifying
the pairs (ti, Si) for i = 1, . . . , N that define the extreme
points of each linear segment, indicated as breakpoints in
the rest of the contribution. It is important to remark that
such PWL model will be used to accurately and efficiently
compute the output signals of the system under study via the
convolution operator, as described in Section V. Due to the
properties of the convolution operator, it is possible to model
each element of the time-domain scattering parameters step
response matrix independently from the others. This leads to
a significant reduction in the computational complexity of the
model building phase and allows one to model in a parallel
framework the different elements of the S-parameters step
response matrix. As a result, the PWLFIT method is described
in the following for samples of a scalar function Sj rather than
a matrix Sj.
In order to compute the desired PWL model, a novel two-
stage algorithm is adopted: first, an iterative approach is used
to identify the N breakpoints giving a sufficiently accurate
PWL model; then, the values of Si for i = 1, . . . , N obtained
so far are modified in order to reduce the error of the PWL
model in a least-squares sense. In particular, the iterative
algorithm can be described as follows:
1) A linear model is computed using the two breakpoints
given by (tmin, Smin) and (tmax, Smax).
2) The next breakpoint is chosen where the absolute error
between the data and the model is higher. The PWL
model is updated by adding the new breakpoint.
3) If the root mean square error between the PWL model
and the data is higher than a chosen threshold, the
procedure is repeated from step 2.
Let us indicate with tM
j and SM
j the set of all the M
time samples considered and the corresponding S−parameter
values, while tN
i and SN
i represent the same quantities for
the N breakpoints computed so far. Note that, in the iterative
modeling algorithm, the following holds: tN
i ⊂ tM
j and
SN
i ⊂ SM
j . While several techniques exist in the literature
to identify the breakpoints of a PWL model [40]–[42], the
iterative algorithm has been chosen due to its efficiency and
ease of implementation. It offers a limited computational cost
even when thousands of samples ti are considered: at each
iteration only the absolute error between the model and the
data must be computed.
Finally, the PWL model obtained so far can be refined
in an extra post-processing step to improve its accuracy
without increasing the number of breakpoints N. This is a
desirable characteristic, since the model efficiency in time-
domain simulations depends on N, as described in Section
V.
Now, the problem at hand can be formulated as:
min
Si for i=2,...,N−1
M
j=1
|Sj − SP W L (tj)|
2
(4)
0 0.5 1 1.5 2
Time [ns]
0
0.5
1
StepResponse
0 0.5 1 1.5 2
Time [ns]
0
0.05
0.1
Abs.Error
Fig. 1. Example of the PWLFIT strategy. Top: S-parameters step response
(full blue line) and PWL model with N = 15 without post-processing (orange
dashed line). Bottom: Corresponding absolute error.
0 0.5 1 1.5 2
Time [ns]
0
0.5
1
StepResponse
0 0.5 1 1.5 2
Time [ns]
0
0.05
0.1
Abs.Error
Fig. 2. Example of the PWLFIT strategy. Top: S-parameters step response
(full blue line) and PWL model with N = 15 after post-processing (red
dashed line). Bottom: Corresponding absolute error.
where SP W L (tj) is the output of the PWL model evaluated
on tj for j = 1, . . . , M. It is important to note that the
value of the first and last breakpoints are not modified in (4).
Indeed, as indicated above, they correspond to the first and last
sample of the of the S-parameters step response, respectively.
Such samples bear important physical meaning: the first one
is computed for t = 0 and it is bound by causality, while
the last sample defines the system DC behavior [37]. The
problem outlined in (4) can be easily formulated as a system of
equations, which can be solved via a suitable linear system: in
particular, the public-domain Matlab routine lsq_lut_piecewise
(Copyright (c) 2013, Guido Albertin, available at:
http://www.mathworks.com/matlabcentral/fileexchange/)
was used for this purpose. Now, let us indicate with ¯Si for
i = 1, . . . , N the breakpoints obtained by solving (4) and
with ¯S
N
i the corresponding compact representation. The main
difference between the breakpoints (tN
i , SN
i ) computed by
the iterative approach outlined above and the ones obtained
by solving (4) is the following: ¯S
N
i ⊂ SM
j .

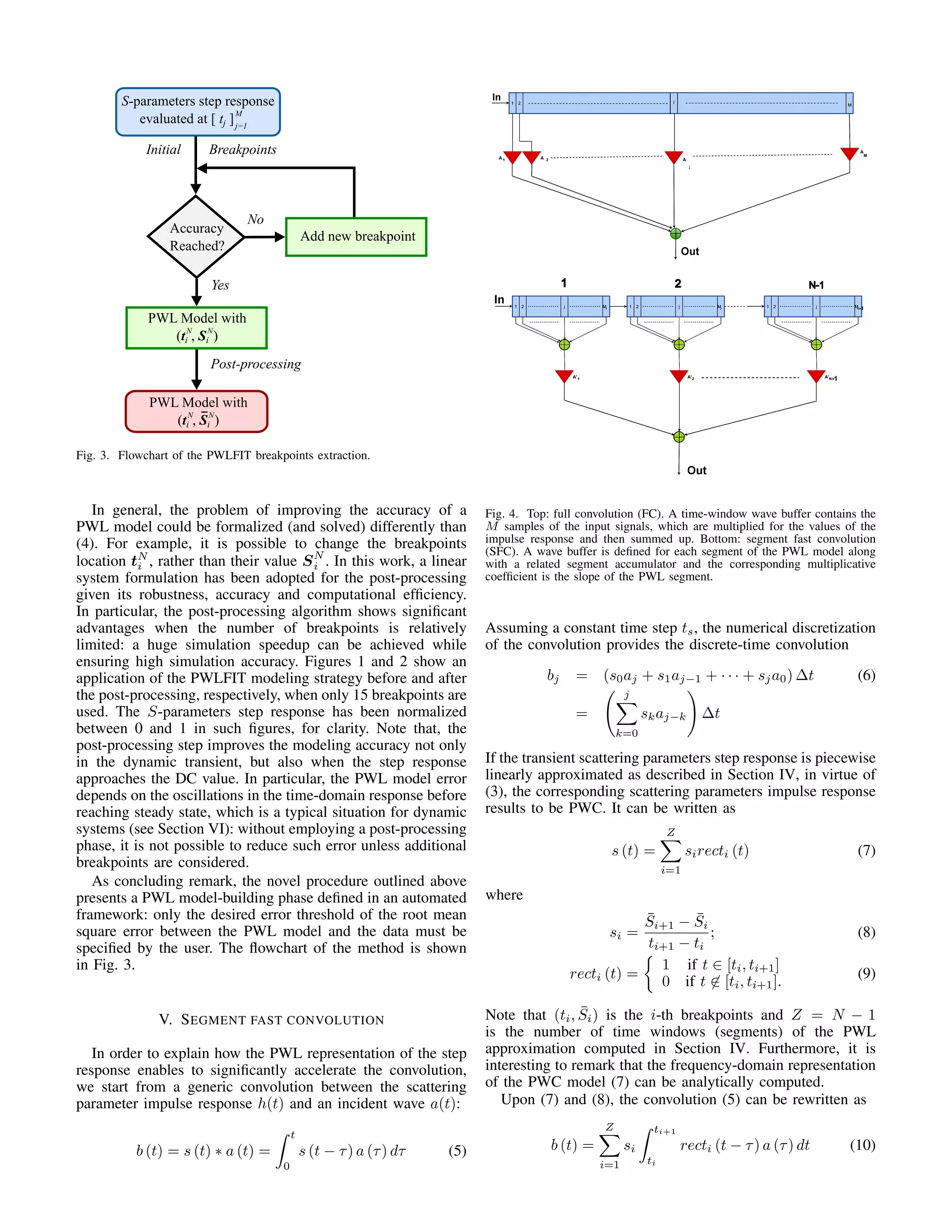

5. Initial Breakpoints
No
Post-processing
j=1
Yes
S-parameters step response
evaluated at [ tj ]l=1
LM
j=1
PWL Model with
(ti , Si )N N
Accuracy
Reached?
Add new breakpoint
PWL Model with
(ti , Si )N N
Fig. 3. Flowchart of the PWLFIT breakpoints extraction.
In general, the problem of improving the accuracy of a
PWL model could be formalized (and solved) differently than
(4). For example, it is possible to change the breakpoints
location tN
i , rather than their value SN
i . In this work, a linear
system formulation has been adopted for the post-processing
given its robustness, accuracy and computational efficiency.
In particular, the post-processing algorithm shows significant
advantages when the number of breakpoints is relatively
limited: a huge simulation speedup can be achieved while
ensuring high simulation accuracy. Figures 1 and 2 show an
application of the PWLFIT modeling strategy before and after
the post-processing, respectively, when only 15 breakpoints are
used. The S-parameters step response has been normalized
between 0 and 1 in such figures, for clarity. Note that, the
post-processing step improves the modeling accuracy not only
in the dynamic transient, but also when the step response
approaches the DC value. In particular, the PWL model error
depends on the oscillations in the time-domain response before
reaching steady state, which is a typical situation for dynamic
systems (see Section VI): without employing a post-processing
phase, it is not possible to reduce such error unless additional
breakpoints are considered.
As concluding remark, the novel procedure outlined above
presents a PWL model-building phase defined in an automated
framework: only the desired error threshold of the root mean
square error between the PWL model and the data must be
specified by the user. The flowchart of the method is shown
in Fig. 3.
V. SEGMENT FAST CONVOLUTION
In order to explain how the PWL representation of the step
response enables to significantly accelerate the convolution,
we start from a generic convolution between the scattering
parameter impulse response h(t) and an incident wave a(t):
b (t) = s (t) ∗ a (t) =
t
0
s (t − τ) a (τ) dτ (5)
Fig. 4. Top: full convolution (FC). A time-window wave buffer contains the
M samples of the input signals, which are multiplied for the values of the
impulse response and then summed up. Bottom: segment fast convolution
(SFC). A wave buffer is defined for each segment of the PWL model along
with a related segment accumulator and the corresponding multiplicative
coefficient is the slope of the PWL segment.
Assuming a constant time step ts, the numerical discretization
of the convolution provides the discrete-time convolution
bj = (s0aj + s1aj−1 + · · · + sja0) ∆t (6)
=
j
k=0
skaj−k ∆t
If the transient scattering parameters step response is piecewise
linearly approximated as described in Section IV, in virtue of
(3), the corresponding scattering parameters impulse response
results to be PWC. It can be written as
s (t) =
Z
i=1
sirecti (t) (7)
where
si =
¯Si+1 − ¯Si
ti+1 − ti
; (8)
recti (t) =
1 if t ∈ [ti, ti+1]
0 if t ∈ [ti, ti+1].
(9)
Note that (ti, ¯Si) is the i-th breakpoints and Z = N − 1
is the number of time windows (segments) of the PWL
approximation computed in Section IV. Furthermore, it is
interesting to remark that the frequency-domain representation
of the PWC model (7) can be analytically computed.
Upon (7) and (8), the convolution (5) can be rewritten as
b (t) =
Z
i=1
si
ti+1
ti
recti (t − τ) a (τ) dt (10)

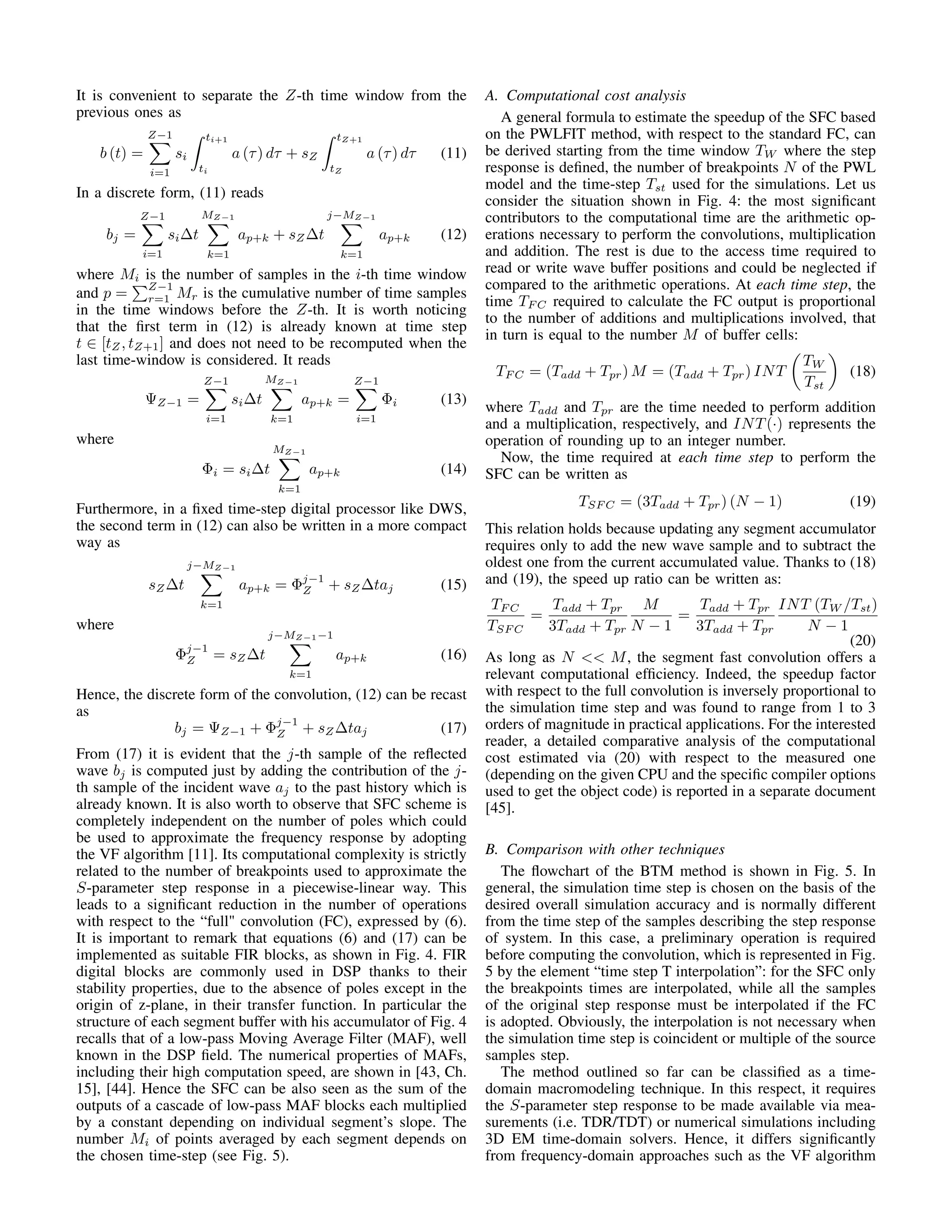

6. It is convenient to separate the Z-th time window from the
previous ones as
b (t) =
Z−1
i=1
si
ti+1
ti
a (τ) dτ + sZ
tZ+1
tZ
a (τ) dτ (11)
In a discrete form, (11) reads
bj =
Z−1
i=1
si∆t
MZ−1
k=1
ap+k + sZ∆t
j−MZ−1
k=1
ap+k (12)
where Mi is the number of samples in the i-th time window
and p =
Z−1
r=1 Mr is the cumulative number of time samples
in the time windows before the Z-th. It is worth noticing
that the first term in (12) is already known at time step
t ∈ [tZ, tZ+1] and does not need to be recomputed when the
last time-window is considered. It reads
ΨZ−1 =
Z−1
i=1
si∆t
MZ−1
k=1
ap+k =
Z−1
i=1
Φi (13)
where
Φi = si∆t
MZ−1
k=1
ap+k (14)
Furthermore, in a fixed time-step digital processor like DWS,
the second term in (12) can also be written in a more compact
way as
sZ∆t
j−MZ−1
k=1
ap+k = Φj−1
Z + sZ∆taj (15)
where
Φj−1
Z = sZ∆t
j−MZ−1−1
k=1
ap+k (16)
Hence, the discrete form of the convolution, (12) can be recast
as
bj = ΨZ−1 + Φj−1
Z + sZ∆taj (17)
From (17) it is evident that the j-th sample of the reflected
wave bj is computed just by adding the contribution of the j-
th sample of the incident wave aj to the past history which is
already known. It is also worth to observe that SFC scheme is
completely independent on the number of poles which could
be used to approximate the frequency response by adopting
the VF algorithm [11]. Its computational complexity is strictly
related to the number of breakpoints used to approximate the
S-parameter step response in a piecewise-linear way. This
leads to a significant reduction in the number of operations
with respect to the “full" convolution (FC), expressed by (6).
It is important to remark that equations (6) and (17) can be
implemented as suitable FIR blocks, as shown in Fig. 4. FIR
digital blocks are commonly used in DSP thanks to their
stability properties, due to the absence of poles except in the
origin of z-plane, in their transfer function. In particular the
structure of each segment buffer with his accumulator of Fig. 4
recalls that of a low-pass Moving Average Filter (MAF), well
known in the DSP field. The numerical properties of MAFs,
including their high computation speed, are shown in [43, Ch.
15], [44]. Hence the SFC can be also seen as the sum of the
outputs of a cascade of low-pass MAF blocks each multiplied
by a constant depending on individual segment’s slope. The
number Mi of points averaged by each segment depends on
the chosen time-step (see Fig. 5).
A. Computational cost analysis
A general formula to estimate the speedup of the SFC based
on the PWLFIT method, with respect to the standard FC, can
be derived starting from the time window TW where the step
response is defined, the number of breakpoints N of the PWL
model and the time-step Tst used for the simulations. Let us
consider the situation shown in Fig. 4: the most significant
contributors to the computational time are the arithmetic op-
erations necessary to perform the convolutions, multiplication
and addition. The rest is due to the access time required to
read or write wave buffer positions and could be neglected if
compared to the arithmetic operations. At each time step, the
time TF C required to calculate the FC output is proportional
to the number of additions and multiplications involved, that
in turn is equal to the number M of buffer cells:
TF C = (Tadd + Tpr) M = (Tadd + Tpr) INT
TW
Tst
(18)
where Tadd and Tpr are the time needed to perform addition
and a multiplication, respectively, and INT(·) represents the
operation of rounding up to an integer number.
Now, the time required at each time step to perform the
SFC can be written as
TSF C = (3Tadd + Tpr) (N − 1) (19)
This relation holds because updating any segment accumulator
requires only to add the new wave sample and to subtract the
oldest one from the current accumulated value. Thanks to (18)
and (19), the speed up ratio can be written as:
TF C
TSF C
=
Tadd + Tpr
3Tadd + Tpr
M
N − 1
=
Tadd + Tpr
3Tadd + Tpr
INT (TW /Tst)
N − 1
(20)
As long as N << M, the segment fast convolution offers a
relevant computational efficiency. Indeed, the speedup factor
with respect to the full convolution is inversely proportional to
the simulation time step and was found to range from 1 to 3
orders of magnitude in practical applications. For the interested
reader, a detailed comparative analysis of the computational
cost estimated via (20) with respect to the measured one
(depending on the given CPU and the specific compiler options
used to get the object code) is reported in a separate document
[45].
B. Comparison with other techniques
The flowchart of the BTM method is shown in Fig. 5. In
general, the simulation time step is chosen on the basis of the
desired overall simulation accuracy and is normally different
from the time step of the samples describing the step response
of system. In this case, a preliminary operation is required
before computing the convolution, which is represented in Fig.
5 by the element “time step T interpolation”: for the SFC only
the breakpoints times are interpolated, while all the samples
of the original step response must be interpolated if the FC
is adopted. Obviously, the interpolation is not necessary when
the simulation time step is coincident or multiple of the source
samples step.
The method outlined so far can be classified as a time-
domain macromodeling technique. In this respect, it requires
the S-parameter step response to be made available via mea-
surements (i.e. TDR/TDT) or numerical simulations including
3D EM time-domain solvers. Hence, it differs significantly
from frequency-domain approaches such as the VF algorithm

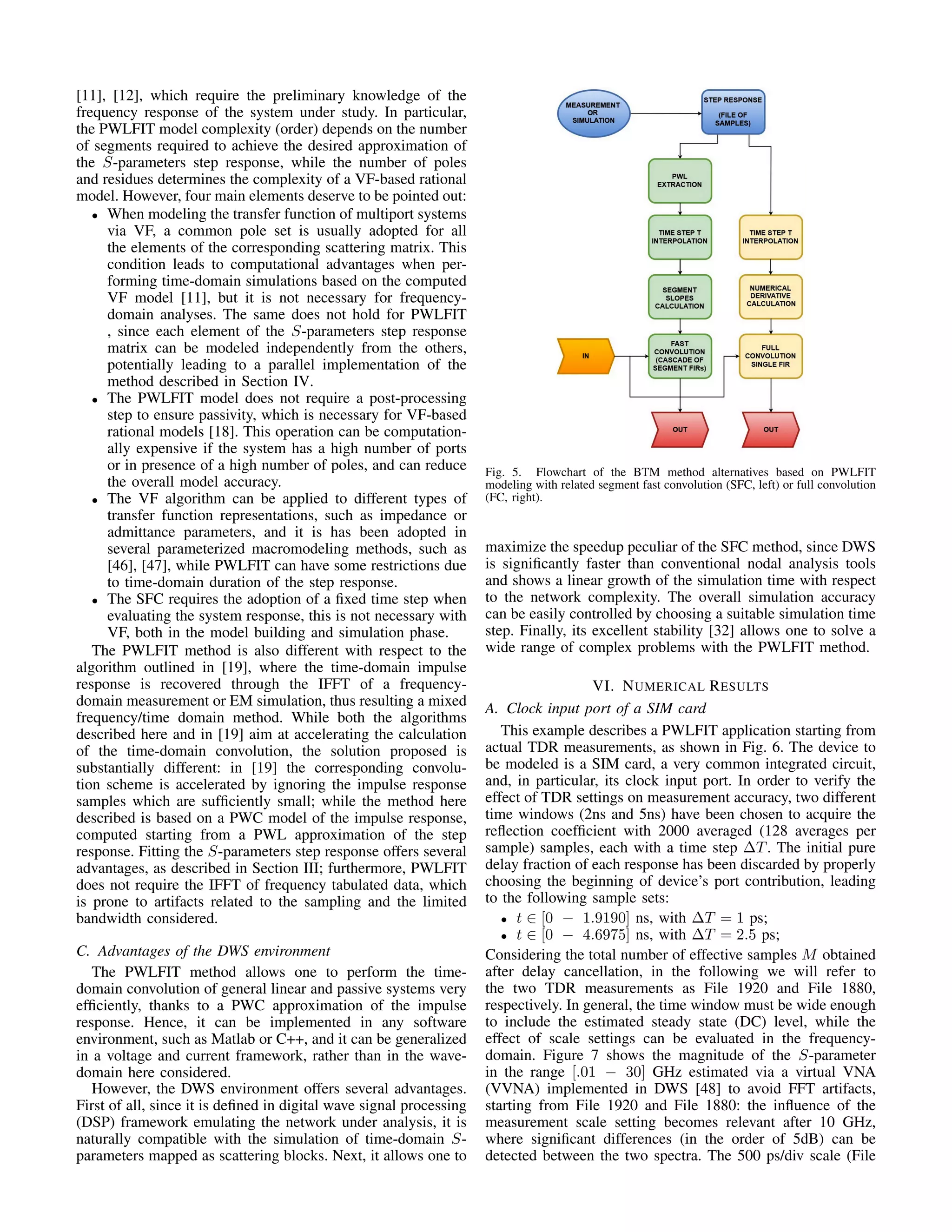

7. [11], [12], which require the preliminary knowledge of the
frequency response of the system under study. In particular,
the PWLFIT model complexity (order) depends on the number
of segments required to achieve the desired approximation of
the S-parameters step response, while the number of poles
and residues determines the complexity of a VF-based rational
model. However, four main elements deserve to be pointed out:
• When modeling the transfer function of multiport systems
via VF, a common pole set is usually adopted for all
the elements of the corresponding scattering matrix. This
condition leads to computational advantages when per-
forming time-domain simulations based on the computed
VF model [11], but it is not necessary for frequency-
domain analyses. The same does not hold for PWLFIT
, since each element of the S-parameters step response
matrix can be modeled independently from the others,
potentially leading to a parallel implementation of the
method described in Section IV.
• The PWLFIT model does not require a post-processing
step to ensure passivity, which is necessary for VF-based
rational models [18]. This operation can be computation-
ally expensive if the system has a high number of ports
or in presence of a high number of poles, and can reduce
the overall model accuracy.
• The VF algorithm can be applied to different types of
transfer function representations, such as impedance or
admittance parameters, and it is has been adopted in
several parameterized macromodeling methods, such as
[46], [47], while PWLFIT can have some restrictions due
to time-domain duration of the step response.
• The SFC requires the adoption of a fixed time step when
evaluating the system response, this is not necessary with
VF, both in the model building and simulation phase.
The PWLFIT method is also different with respect to the
algorithm outlined in [19], where the time-domain impulse
response is recovered through the IFFT of a frequency-
domain measurement or EM simulation, thus resulting a mixed
frequency/time domain method. While both the algorithms
described here and in [19] aim at accelerating the calculation
of the time-domain convolution, the solution proposed is
substantially different: in [19] the corresponding convolu-
tion scheme is accelerated by ignoring the impulse response
samples which are sufficiently small; while the method here
described is based on a PWC model of the impulse response,
computed starting from a PWL approximation of the step
response. Fitting the S-parameters step response offers several
advantages, as described in Section III; furthermore, PWLFIT
does not require the IFFT of frequency tabulated data, which
is prone to artifacts related to the sampling and the limited
bandwidth considered.
C. Advantages of the DWS environment
The PWLFIT method allows one to perform the time-
domain convolution of general linear and passive systems very
efficiently, thanks to a PWC approximation of the impulse
response. Hence, it can be implemented in any software
environment, such as Matlab or C++, and it can be generalized
in a voltage and current framework, rather than in the wave-
domain here considered.
However, the DWS environment offers several advantages.
First of all, since it is defined in digital wave signal processing
(DSP) framework emulating the network under analysis, it is
naturally compatible with the simulation of time-domain S-
parameters mapped as scattering blocks. Next, it allows one to
Fig. 5. Flowchart of the BTM method alternatives based on PWLFIT
modeling with related segment fast convolution (SFC, left) or full convolution
(FC, right).
maximize the speedup peculiar of the SFC method, since DWS
is significantly faster than conventional nodal analysis tools
and shows a linear growth of the simulation time with respect
to the network complexity. The overall simulation accuracy
can be easily controlled by choosing a suitable simulation time
step. Finally, its excellent stability [32] allows one to solve a
wide range of complex problems with the PWLFIT method.
VI. NUMERICAL RESULTS
A. Clock input port of a SIM card
This example describes a PWLFIT application starting from
actual TDR measurements, as shown in Fig. 6. The device to
be modeled is a SIM card, a very common integrated circuit,
and, in particular, its clock input port. In order to verify the
effect of TDR settings on measurement accuracy, two different
time windows (2ns and 5ns) have been chosen to acquire the
reflection coefficient with 2000 averaged (128 averages per
sample) samples, each with a time step ∆T. The initial pure
delay fraction of each response has been discarded by properly
choosing the beginning of device’s port contribution, leading
to the following sample sets:
• t ∈ [0 − 1.9190] ns, with ∆T = 1 ps;
• t ∈ [0 − 4.6975] ns, with ∆T = 2.5 ps;
Considering the total number of effective samples M obtained
after delay cancellation, in the following we will refer to
the two TDR measurements as File 1920 and File 1880,
respectively. In general, the time window must be wide enough
to include the estimated steady state (DC) level, while the
effect of scale settings can be evaluated in the frequency-
domain. Figure 7 shows the magnitude of the S-parameter
in the range [.01 − 30] GHz estimated via a virtual VNA
(VVNA) implemented in DWS [48] to avoid FFT artifacts,
starting from File 1920 and File 1880: the influence of the
measurement scale setting becomes relevant after 10 GHz,
where significant differences (in the order of 5dB) can be
detected between the two spectra. The 500 ps/div scale (File

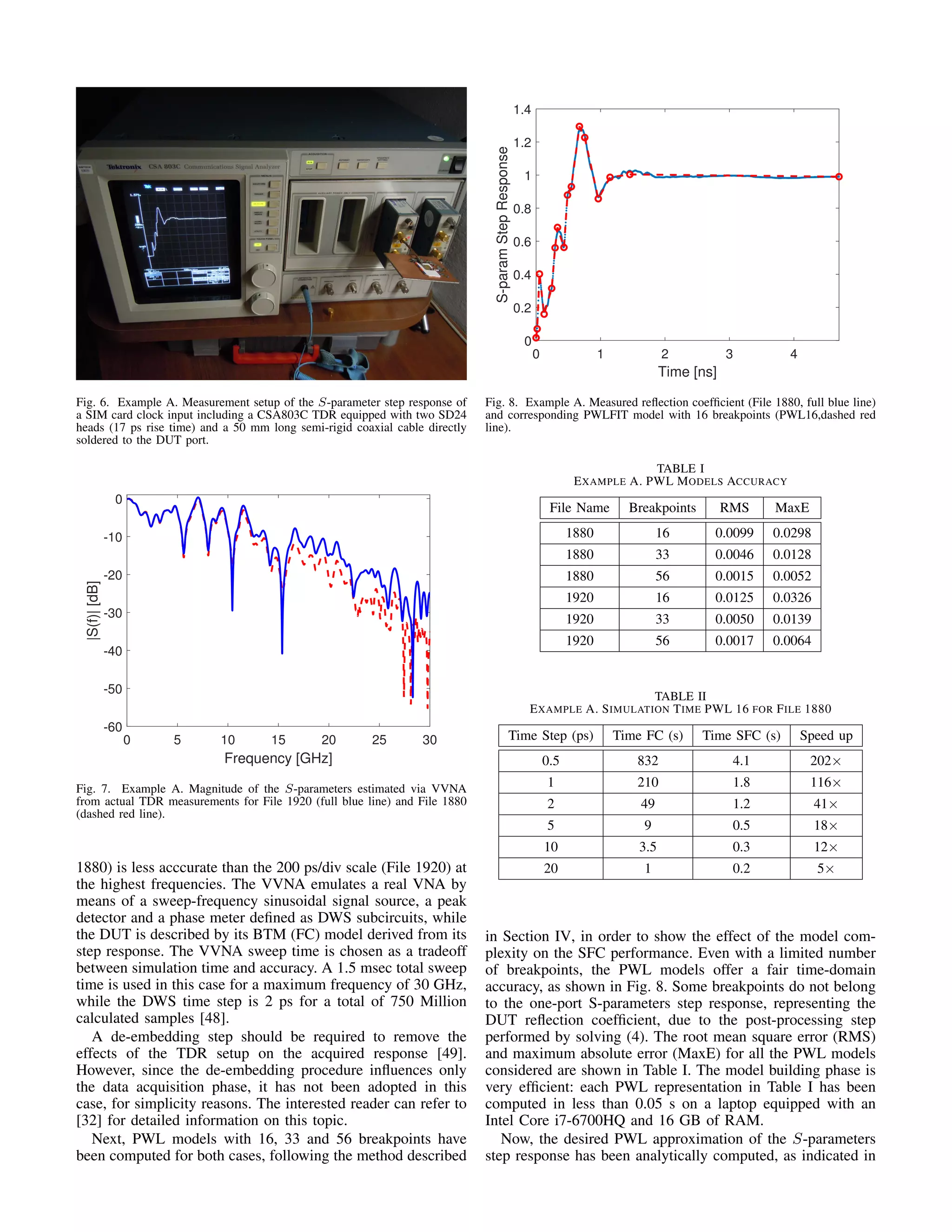

8. Fig. 6. Example A. Measurement setup of the S-parameter step response of
a SIM card clock input including a CSA803C TDR equipped with two SD24
heads (17 ps rise time) and a 50 mm long semi-rigid coaxial cable directly
soldered to the DUT port.
0 5 10 15 20 25 30
Frequency [GHz]
-60
-50
-40
-30
-20
-10
0
|S(f)|[dB]
Fig. 7. Example A. Magnitude of the S-parameters estimated via VVNA
from actual TDR measurements for File 1920 (full blue line) and File 1880
(dashed red line).
1880) is less acccurate than the 200 ps/div scale (File 1920) at
the highest frequencies. The VVNA emulates a real VNA by
means of a sweep-frequency sinusoidal signal source, a peak
detector and a phase meter defined as DWS subcircuits, while
the DUT is described by its BTM (FC) model derived from its
step response. The VVNA sweep time is chosen as a tradeoff
between simulation time and accuracy. A 1.5 msec total sweep
time is used in this case for a maximum frequency of 30 GHz,
while the DWS time step is 2 ps for a total of 750 Million
calculated samples [48].
A de-embedding step should be required to remove the
effects of the TDR setup on the acquired response [49].
However, since the de-embedding procedure influences only
the data acquisition phase, it has not been adopted in this
case, for simplicity reasons. The interested reader can refer to
[32] for detailed information on this topic.
Next, PWL models with 16, 33 and 56 breakpoints have
been computed for both cases, following the method described
0 1 2 3 4
Time [ns]
0
0.2
0.4
0.6
0.8
1
1.2
1.4
S-paramStepResponse
Fig. 8. Example A. Measured reflection coefficient (File 1880, full blue line)
and corresponding PWLFIT model with 16 breakpoints (PWL16,dashed red
line).
TABLE I
EXAMPLE A. PWL MODELS ACCURACY
File Name Breakpoints RMS MaxE
1880 16 0.0099 0.0298
1880 33 0.0046 0.0128
1880 56 0.0015 0.0052
1920 16 0.0125 0.0326
1920 33 0.0050 0.0139
1920 56 0.0017 0.0064
TABLE II
EXAMPLE A. SIMULATION TIME PWL 16 FOR FILE 1880
Time Step (ps) Time FC (s) Time SFC (s) Speed up
0.5 832 4.1 202×
1 210 1.8 116×
2 49 1.2 41×
5 9 0.5 18×
10 3.5 0.3 12×
20 1 0.2 5×
in Section IV, in order to show the effect of the model com-
plexity on the SFC performance. Even with a limited number
of breakpoints, the PWL models offer a fair time-domain
accuracy, as shown in Fig. 8. Some breakpoints do not belong
to the one-port S-parameters step response, representing the
DUT reflection coefficient, due to the post-processing step
performed by solving (4). The root mean square error (RMS)
and maximum absolute error (MaxE) for all the PWL models
considered are shown in Table I. The model building phase is
very efficient: each PWL representation in Table I has been
computed in less than 0.05 s on a laptop equipped with an
Intel Core i7-6700HQ and 16 GB of RAM.
Now, the desired PWL approximation of the S-parameters
step response has been analytically computed, as indicated in

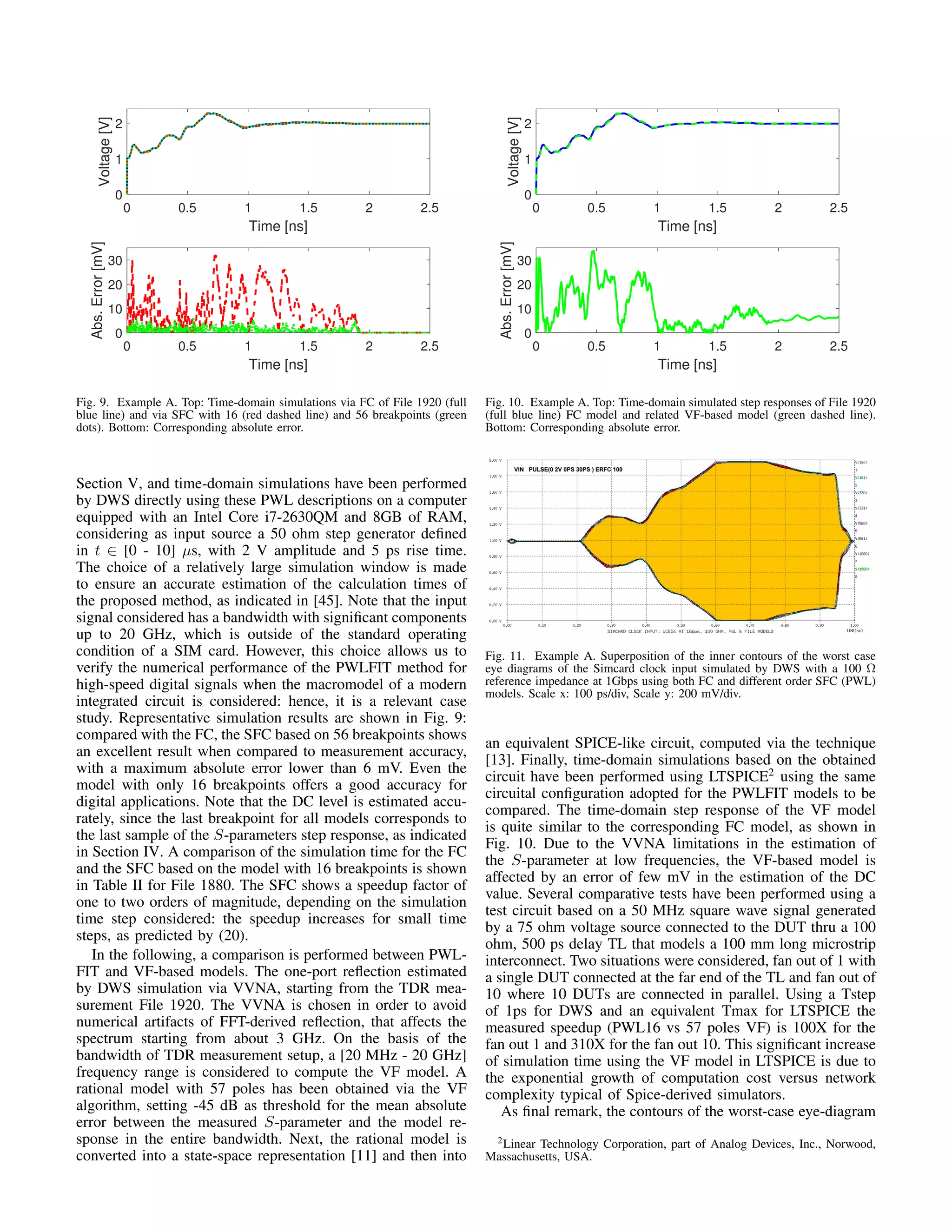

9. 0 0.5 1 1.5 2 2.5
Time [ns]
0
1
2
Voltage[V]
0 0.5 1 1.5 2 2.5
Time [ns]
0
10
20
30
Abs.Error[mV]
Fig. 9. Example A. Top: Time-domain simulations via FC of File 1920 (full
blue line) and via SFC with 16 (red dashed line) and 56 breakpoints (green
dots). Bottom: Corresponding absolute error.
Section V, and time-domain simulations have been performed
by DWS directly using these PWL descriptions on a computer
equipped with an Intel Core i7-2630QM and 8GB of RAM,
considering as input source a 50 ohm step generator defined
in t ∈ [0 - 10] µs, with 2 V amplitude and 5 ps rise time.
The choice of a relatively large simulation window is made
to ensure an accurate estimation of the calculation times of
the proposed method, as indicated in [45]. Note that the input
signal considered has a bandwidth with significant components
up to 20 GHz, which is outside of the standard operating
condition of a SIM card. However, this choice allows us to
verify the numerical performance of the PWLFIT method for
high-speed digital signals when the macromodel of a modern
integrated circuit is considered: hence, it is a relevant case
study. Representative simulation results are shown in Fig. 9:
compared with the FC, the SFC based on 56 breakpoints shows
an excellent result when compared to measurement accuracy,
with a maximum absolute error lower than 6 mV. Even the
model with only 16 breakpoints offers a good accuracy for
digital applications. Note that the DC level is estimated accu-
rately, since the last breakpoint for all models corresponds to
the last sample of the S-parameters step response, as indicated
in Section IV. A comparison of the simulation time for the FC
and the SFC based on the model with 16 breakpoints is shown
in Table II for File 1880. The SFC shows a speedup factor of
one to two orders of magnitude, depending on the simulation
time step considered: the speedup increases for small time
steps, as predicted by (20).
In the following, a comparison is performed between PWL-
FIT and VF-based models. The one-port reflection estimated
by DWS simulation via VVNA, starting from the TDR mea-
surement File 1920. The VVNA is chosen in order to avoid
numerical artifacts of FFT-derived reflection, that affects the
spectrum starting from about 3 GHz. On the basis of the
bandwidth of TDR measurement setup, a [20 MHz - 20 GHz]
frequency range is considered to compute the VF model. A
rational model with 57 poles has been obtained via the VF
algorithm, setting -45 dB as threshold for the mean absolute
error between the measured S-parameter and the model re-
sponse in the entire bandwidth. Next, the rational model is
converted into a state-space representation [11] and then into
0 0.5 1 1.5 2 2.5
Time [ns]
0
1
2
Voltage[V]
0 0.5 1 1.5 2 2.5
Time [ns]
0
10
20
30
Abs.Error[mV]
Fig. 10. Example A. Top: Time-domain simulated step responses of File 1920
(full blue line) FC model and related VF-based model (green dashed line).
Bottom: Corresponding absolute error.
Fig. 11. Example A. Superposition of the inner contours of the worst case
eye diagrams of the Simcard clock input simulated by DWS with a 100 Ω
reference impedance at 1Gbps using both FC and different order SFC (PWL)
models. Scale x: 100 ps/div, Scale y: 200 mV/div.
an equivalent SPICE-like circuit, computed via the technique
[13]. Finally, time-domain simulations based on the obtained
circuit have been performed using LTSPICE2
using the same
circuital configuration adopted for the PWLFIT models to be
compared. The time-domain step response of the VF model
is quite similar to the corresponding FC model, as shown in
Fig. 10. Due to the VVNA limitations in the estimation of
the S-parameter at low frequencies, the VF-based model is
affected by an error of few mV in the estimation of the DC
value. Several comparative tests have been performed using a
test circuit based on a 50 MHz square wave signal generated
by a 75 ohm voltage source connected to the DUT thru a 100
ohm, 500 ps delay TL that models a 100 mm long microstrip
interconnect. Two situations were considered, fan out of 1 with
a single DUT connected at the far end of the TL and fan out of
10 where 10 DUTs are connected in parallel. Using a Tstep
of 1ps for DWS and an equivalent Tmax for LTSPICE the
measured speedup (PWL16 vs 57 poles VF) is 100X for the
fan out 1 and 310X for the fan out 10. This significant increase
of simulation time using the VF model in LTSPICE is due to
the exponential growth of computation cost versus network
complexity typical of Spice-derived simulators.
As final remark, the contours of the worst-case eye-diagram
2Linear Technology Corporation, part of Analog Devices, Inc., Norwood,
Massachusetts, USA.

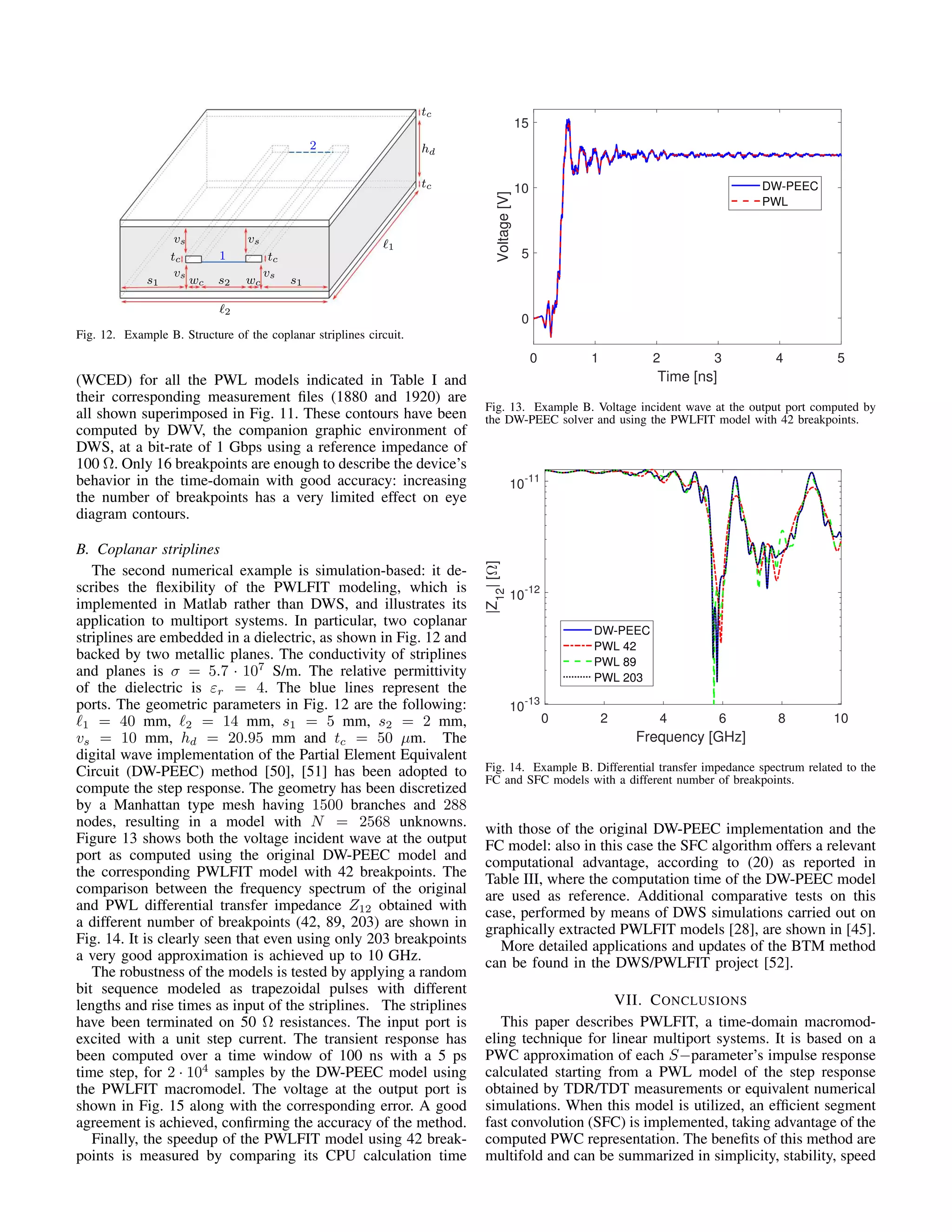

10. 2
1
hd
tc
tc
s1
vs
vs
tc
wc s2 wc
vs
vs
tc
s1
1
2
Fig. 12. Example B. Structure of the coplanar striplines circuit.
(WCED) for all the PWL models indicated in Table I and
their corresponding measurement files (1880 and 1920) are
all shown superimposed in Fig. 11. These contours have been
computed by DWV, the companion graphic environment of
DWS, at a bit-rate of 1 Gbps using a reference impedance of
100 Ω. Only 16 breakpoints are enough to describe the device’s
behavior in the time-domain with good accuracy: increasing
the number of breakpoints has a very limited effect on eye
diagram contours.
B. Coplanar striplines
The second numerical example is simulation-based: it de-
scribes the flexibility of the PWLFIT modeling, which is
implemented in Matlab rather than DWS, and illustrates its
application to multiport systems. In particular, two coplanar
striplines are embedded in a dielectric, as shown in Fig. 12 and
backed by two metallic planes. The conductivity of striplines
and planes is σ = 5.7 · 107
S/m. The relative permittivity
of the dielectric is εr = 4. The blue lines represent the
ports. The geometric parameters in Fig. 12 are the following:
1 = 40 mm, 2 = 14 mm, s1 = 5 mm, s2 = 2 mm,
vs = 10 mm, hd = 20.95 mm and tc = 50 µm. The
digital wave implementation of the Partial Element Equivalent
Circuit (DW-PEEC) method [50], [51] has been adopted to
compute the step response. The geometry has been discretized
by a Manhattan type mesh having 1500 branches and 288
nodes, resulting in a model with N = 2568 unknowns.
Figure 13 shows both the voltage incident wave at the output
port as computed using the original DW-PEEC model and
the corresponding PWLFIT model with 42 breakpoints. The
comparison between the frequency spectrum of the original
and PWL differential transfer impedance Z12 obtained with
a different number of breakpoints (42, 89, 203) are shown in
Fig. 14. It is clearly seen that even using only 203 breakpoints
a very good approximation is achieved up to 10 GHz.
The robustness of the models is tested by applying a random
bit sequence modeled as trapezoidal pulses with different
lengths and rise times as input of the striplines. The striplines
have been terminated on 50 Ω resistances. The input port is
excited with a unit step current. The transient response has
been computed over a time window of 100 ns with a 5 ps
time step, for 2 · 104
samples by the DW-PEEC model using
the PWLFIT macromodel. The voltage at the output port is
shown in Fig. 15 along with the corresponding error. A good
agreement is achieved, confirming the accuracy of the method.
Finally, the speedup of the PWLFIT model using 42 break-
points is measured by comparing its CPU calculation time
0 1 2 3 4 5
Time [ns]
0
5
10
15
Voltage[V]
DW-PEEC
PWL
Fig. 13. Example B. Voltage incident wave at the output port computed by
the DW-PEEC solver and using the PWLFIT model with 42 breakpoints.
0 2 4 6 8 10
Frequency [GHz]
10-13
10-12
10
-11
|Z12
|[]
DW-PEEC
PWL 42
PWL 89
PWL 203
Fig. 14. Example B. Differential transfer impedance spectrum related to the
FC and SFC models with a different number of breakpoints.
with those of the original DW-PEEC implementation and the
FC model: also in this case the SFC algorithm offers a relevant
computational advantage, according to (20) as reported in
Table III, where the computation time of the DW-PEEC model
are used as reference. Additional comparative tests on this
case, performed by means of DWS simulations carried out on
graphically extracted PWLFIT models [28], are shown in [45].
More detailed applications and updates of the BTM method
can be found in the DWS/PWLFIT project [52].
VII. CONCLUSIONS
This paper describes PWLFIT, a time-domain macromod-
eling technique for linear multiport systems. It is based on a
PWC approximation of each S−parameter’s impulse response
calculated starting from a PWL model of the step response
obtained by TDR/TDT measurements or equivalent numerical
simulations. When this model is utilized, an efficient segment
fast convolution (SFC) is implemented, taking advantage of the
computed PWC representation. The benefits of this method are
multifold and can be summarized in simplicity, stability, speed

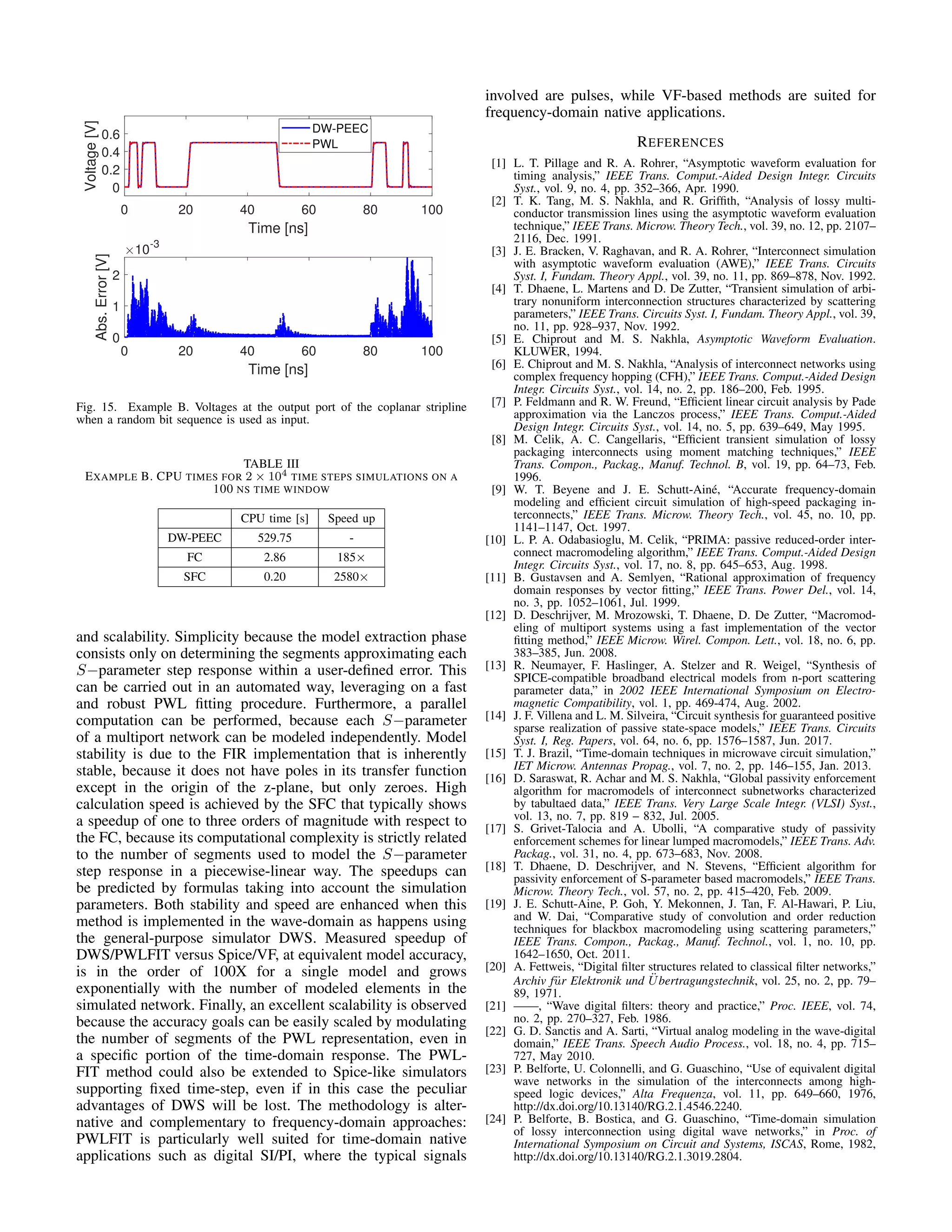

11. 0 20 40 60 80 100
Time [ns]
0
0.2
0.4
0.6
Voltage[V]
DW-PEEC
PWL
0 20 40 60 80 100
Time [ns]
0
1
2
Abs.Error[V]
10-3
Fig. 15. Example B. Voltages at the output port of the coplanar stripline
when a random bit sequence is used as input.
TABLE III
EXAMPLE B. CPU TIMES FOR 2 × 104 TIME STEPS SIMULATIONS ON A
100 NS TIME WINDOW
CPU time [s] Speed up
DW-PEEC 529.75 -
FC 2.86 185×
SFC 0.20 2580×
and scalability. Simplicity because the model extraction phase
consists only on determining the segments approximating each
S−parameter step response within a user-defined error. This
can be carried out in an automated way, leveraging on a fast
and robust PWL fitting procedure. Furthermore, a parallel
computation can be performed, because each S−parameter
of a multiport network can be modeled independently. Model
stability is due to the FIR implementation that is inherently
stable, because it does not have poles in its transfer function
except in the origin of the z-plane, but only zeroes. High
calculation speed is achieved by the SFC that typically shows
a speedup of one to three orders of magnitude with respect to
the FC, because its computational complexity is strictly related
to the number of segments used to model the S−parameter
step response in a piecewise-linear way. The speedups can
be predicted by formulas taking into account the simulation
parameters. Both stability and speed are enhanced when this
method is implemented in the wave-domain as happens using
the general-purpose simulator DWS. Measured speedup of
DWS/PWLFIT versus Spice/VF, at equivalent model accuracy,
is in the order of 100X for a single model and grows
exponentially with the number of modeled elements in the
simulated network. Finally, an excellent scalability is observed
because the accuracy goals can be easily scaled by modulating
the number of segments of the PWL representation, even in
a specific portion of the time-domain response. The PWL-
FIT method could also be extended to Spice-like simulators
supporting fixed time-step, even if in this case the peculiar
advantages of DWS will be lost. The methodology is alter-
native and complementary to frequency-domain approaches:
PWLFIT is particularly well suited for time-domain native
applications such as digital SI/PI, where the typical signals
involved are pulses, while VF-based methods are suited for
frequency-domain native applications.
REFERENCES
[1] L. T. Pillage and R. A. Rohrer, “Asymptotic waveform evaluation for
timing analysis,” IEEE Trans. Comput.-Aided Design Integr. Circuits
Syst., vol. 9, no. 4, pp. 352–366, Apr. 1990.
[2] T. K. Tang, M. S. Nakhla, and R. Griffith, “Analysis of lossy multi-
conductor transmission lines using the asymptotic waveform evaluation
technique,” IEEE Trans. Microw. Theory Tech., vol. 39, no. 12, pp. 2107–
2116, Dec. 1991.
[3] J. E. Bracken, V. Raghavan, and R. A. Rohrer, “Interconnect simulation
with asymptotic waveform evaluation (AWE),” IEEE Trans. Circuits
Syst. I, Fundam. Theory Appl., vol. 39, no. 11, pp. 869–878, Nov. 1992.
[4] T. Dhaene, L. Martens and D. De Zutter, “Transient simulation of arbi-
trary nonuniform interconnection structures characterized by scattering
parameters,” IEEE Trans. Circuits Syst. I, Fundam. Theory Appl., vol. 39,
no. 11, pp. 928–937, Nov. 1992.
[5] E. Chiprout and M. S. Nakhla, Asymptotic Waveform Evaluation.
KLUWER, 1994.
[6] E. Chiprout and M. S. Nakhla, “Analysis of interconnect networks using
complex frequency hopping (CFH),” IEEE Trans. Comput.-Aided Design
Integr. Circuits Syst., vol. 14, no. 2, pp. 186–200, Feb. 1995.
[7] P. Feldmann and R. W. Freund, “Efficient linear circuit analysis by Pade
approximation via the Lanczos process,” IEEE Trans. Comput.-Aided
Design Integr. Circuits Syst., vol. 14, no. 5, pp. 639–649, May 1995.
[8] M. Celik, A. C. Cangellaris, “Efficient transient simulation of lossy
packaging interconnects using moment matching techniques,” IEEE
Trans. Compon., Packag., Manuf. Technol. B, vol. 19, pp. 64–73, Feb.
1996.
[9] W. T. Beyene and J. E. Schutt-Ainé, “Accurate frequency-domain
modeling and efficient circuit simulation of high-speed packaging in-
terconnects,” IEEE Trans. Microw. Theory Tech., vol. 45, no. 10, pp.
1141–1147, Oct. 1997.
[10] L. P. A. Odabasioglu, M. Celik, “PRIMA: passive reduced-order inter-
connect macromodeling algorithm,” IEEE Trans. Comput.-Aided Design
Integr. Circuits Syst., vol. 17, no. 8, pp. 645–653, Aug. 1998.
[11] B. Gustavsen and A. Semlyen, “Rational approximation of frequency
domain responses by vector fitting,” IEEE Trans. Power Del., vol. 14,
no. 3, pp. 1052–1061, Jul. 1999.
[12] D. Deschrijver, M. Mrozowski, T. Dhaene, D. De Zutter, “Macromod-
eling of multiport systems using a fast implementation of the vector
fitting method,” IEEE Microw. Wirel. Compon. Lett., vol. 18, no. 6, pp.
383–385, Jun. 2008.
[13] R. Neumayer, F. Haslinger, A. Stelzer and R. Weigel, “Synthesis of
SPICE-compatible broadband electrical models from n-port scattering
parameter data,” in 2002 IEEE International Symposium on Electro-
magnetic Compatibility, vol. 1, pp. 469-474, Aug. 2002.
[14] J. F. Villena and L. M. Silveira, “Circuit synthesis for guaranteed positive
sparse realization of passive state-space models,” IEEE Trans. Circuits
Syst. I, Reg. Papers, vol. 64, no. 6, pp. 1576–1587, Jun. 2017.
[15] T. J. Brazil, “Time-domain techniques in microwave circuit simulation,”
IET Microw. Antennas Propag., vol. 7, no. 2, pp. 146–155, Jan. 2013.
[16] D. Saraswat, R. Achar and M. S. Nakhla, “Global passivity enforcement
algorithm for macromodels of interconnect subnetworks characterized
by tabultaed data,” IEEE Trans. Very Large Scale Integr. (VLSI) Syst.,
vol. 13, no. 7, pp. 819 – 832, Jul. 2005.
[17] S. Grivet-Talocia and A. Ubolli, “A comparative study of passivity
enforcement schemes for linear lumped macromodels,” IEEE Trans. Adv.
Packag., vol. 31, no. 4, pp. 673–683, Nov. 2008.
[18] T. Dhaene, D. Deschrijver, and N. Stevens, “Efficient algorithm for
passivity enforcement of S-parameter based macromodels,” IEEE Trans.
Microw. Theory Tech., vol. 57, no. 2, pp. 415–420, Feb. 2009.
[19] J. E. Schutt-Aine, P. Goh, Y. Mekonnen, J. Tan, F. Al-Hawari, P. Liu,
and W. Dai, “Comparative study of convolution and order reduction
techniques for blackbox macromodeling using scattering parameters,”
IEEE Trans. Compon., Packag., Manuf. Technol., vol. 1, no. 10, pp.
1642–1650, Oct. 2011.
[20] A. Fettweis, “Digital filter structures related to classical filter networks,”
Archiv f¨ur Elektronik und ¨Ubertragungstechnik, vol. 25, no. 2, pp. 79–
89, 1971.
[21] ——, “Wave digital filters: theory and practice,” Proc. IEEE, vol. 74,
no. 2, pp. 270–327, Feb. 1986.
[22] G. D. Sanctis and A. Sarti, “Virtual analog modeling in the wave-digital
domain,” IEEE Trans. Speech Audio Process., vol. 18, no. 4, pp. 715–
727, May 2010.
[23] P. Belforte, U. Colonnelli, and G. Guaschino, “Use of equivalent digital
wave networks in the simulation of the interconnects among high-
speed logic devices,” Alta Frequenza, vol. 11, pp. 649–660, 1976,
http://dx.doi.org/10.13140/RG.2.1.4546.2240.
[24] P. Belforte, B. Bostica, and G. Guaschino, “Time-domain simulation
of lossy interconnection using digital wave networks,” in Proc. of
International Symposium on Circuit and Systems, ISCAS, Rome, 1982,
http://dx.doi.org/10.13140/RG.2.1.3019.2804.
12. [25] P. Belforte and G. Guaschino, “Electrical simulation using digital wave
networks,” in Proc. of IASTED International Symposium, Paris, Jun.
1985, https://www.doi.org/10.13140/RG.2.1.4447.9207.
[26] P. Belforte, “Sprint & sights,” Application Handbook, 1989,
https://www.researchgate.net/publication/272504448_SPRINT_
SIGHTS_APPLICATION_BROCHURE.
[27] R. Sisto, “SPRINT: A DSP-based electrical simulator,” in Proc. of
IASTED International Symposium, Lugano, Italy, Jun. 1990.
[28] P. Belforte and G. Guaschino, DWV (Digital Wave Viewer) USER
MANUAL, June 2015, http://dx.doi.org/10.13140/RG.2.1.1300.7529.
[29] S. Forno, A. Biondello and V. Costa, “A high-performance
environment for modeling and simulation of digital systems,”
in HP High-Speed Digital Systems Design and Test
Symposium, 1993, http://hparchive.com/seminar_notes/1993_High-
Performance_Environment_for_Modelling_and_Simulation_of_Digital_
Systems.pdf.
[30] S. Forno and S. Rochel, “Advanced simulation and modeling
techniques for hardware quality verification of digital systems,” in in
Proc. Conference on European Design Automation (EURO-DAC ’94),
Los Alamitos, CA, USA, 1994,
https://www.cs.york.ac.uk/rts/docs/SIGDA-Compendium-1994-2004/
papers/1994/eurdac94/pdffiles/d07_4.pdf.
[31] P. Belforte, F. Maggioni, J. Torres, “Characterization and modeling
of Multi-Chip Module (MCM) substrates and components,” Technical
Report, 1993, http://dx.doi.org/10.13140/RG.2.1.3006.1287.
[32] P. Belforte, “Digital wave simulation of lossy lines for multi-gigabit
applications,” IEEE EMC Magazine, vol. 5, no. 2, 2016.
[33] B. P. Sto˘si´c, D. I. Krsti´c, and J. Jokovi´c, “Matlab/Simulink implemen-
tation of wave-based models for microstrips atructures utilizing short-
circuited and opened stubs,” Electronics, vol. 15, no. 2, pp. 31–38, Dec
2011.
[34] A. Bernardini, P. Maffezzoni, L. Daniel, and A. Sarti, “Wave-based
analysis of large nonlinear photovoltaic arrays,” IEEE Trans. Circuits
Syst. I, Reg. Papers, vol. 65, no. 4, pp. 1363–1376, Apr. 2018.
[35] K. J. Werner, A. Bernardini, J. O. Smith, and A. Sarti, “Modeling circuits
with arbitrary topologies and active linear multiports using wave digital
filters,” IEEE Trans. Circuits Syst. I, Reg. Papers, vol. 65, no. 12, pp.
4233–4246, Dec. 2018.
[36] A. Bernardini, K. J. Werner, J. O. Smith, and A. Sarti, “Generalized wave
digital filter realizations of arbitrary reciprocal connection networks,”
IEEE Trans. Circuits Syst. I, Reg. Papers, Early Access, 2018.
[37] P. Belforte and G. Guaschino, DWS 8.5: Digital Wave Simulator, 2015,
http://dx.doi.org/10.13140/RG.2.1.1892.0160.
[38] V. Ricchiuti, “Time domain measurement: TDR or VNA?” In Compli-
ance Magazine, Feb. 2013.
[39] Keysight Technologies, “Time domain analysis using a network ana-
lyzer,” Application Note, 2018,
http://literature.cdn.keysight.com/litweb/pdf/5989-5723EN.pdf.
[40] B. Hamann and J.-L. Chen, “Data point selection for piecewise linear
curve approximation,” Comput. Aided Geom. Des., vol. 11, no. 3, pp.
289 – 301, Jun. 1994.
[41] A. Toriello and J. P. Vielma, “Fitting piecewise linear continuous
functions,” Eur. J. Oper. Res., vol. 219, no. 1, pp. 86 – 95, May 2012.
[42] E. Camponogara and L. F. Nazari, “Models and algorithms for optimal
piecewise-linear function approximation,” Math. probl. eng., vol. 2015,
Article ID 876862, 9 pages, 2015.
[43] S. W. Smith, The Scientist and Engineer’s Guide to Digital Signal
Processing. California Technical Publishing, 2002.
[44] M. Viswanathan, “Moving average filter (MA filter),” 2010,
https://www.gaussianwaves.com/2010/11/
moving-average-filter-ma-filter-2/.
[45] P. Belforte, Full vs Fast Segment Convolution: Computational
cost comparative analysis. ResearchGate, 2018. [Online]. Avail-
able: https://www.researchgate.net/publication/328569300_Full_vs_
Fast_Segment_Convolution_Computational_cost_comparative_analysis
[46] E. Samuel, F. Ferranti, L. Knockaert, and T. Dhaene, “Passivity-
preserving parameterized model order reduction using singular values
and matrix interpolation,” IEEE Trans. Compon., Packag., Manuf. Tech-
nol., vol. 3, no. 6, pp. 1028–1037, Jun. 2013.
[47] D. Spina, F. Ferranti, G. Antonini, T. Dhaene, L. Knockaert, and D. V.
Ginste, “Time-domain Green’s function-based parametric sensitivity
analysis of multiconductor transmission lines,” IEEE Trans. Compon.,
Packag., Manuf. Technol., vol. 2, no. 9, pp. 1510–1517, Sept. 2012.
[48] P. Belforte, “Digital wave implementation of a virtual vector network
analyzer (VVNA),” 2018,
https://www.researchgate.net/publication/329339886_DIGITAL_
WAVE_IMPLEMENTATION_OF_A_VIRTUAL_VECTOR_
NETWORK_ANALYZER_VVNA.
[49] T. Dhaene, L. Martens and D. De Zutter, “Calibration and normalization
of time domain network analyzer measurements,” IEEE Trans. Microw.
Theory Tech., vol. 42, no. 4, pp. 580–589, Apr. 1994.
[50] A. E. Ruehli, G. Antonini, and L. Jiang, Circuit Oriented Electromag-
netic Modeling Using the PEEC Techniques. Wiley-IEEE Press, 2017.
[51] L. Lombardi, P. Belforte, and G. Antonini, “Digital wave simulation
of quasi-static partial element equivalent circuit method,” IEEE Trans.
Electromagn. Compat., vol. 59, no. 2, pp. 429–438, Apr. 2017.
[52] P. Belforte, “DWS-PWLFIT,” Research Gate, 2018,
https://www.researchgate.net/project/DWS-PWLFIT.
Piero Belforte was born in Turin in 1947, re-
ceived his Laurea degree in Electronics Engineering
summa cum laude in 1970 from the Politecnico of
Turin. From 1970 to 2000 he worked in CSELT,
the Research Center of Telecom Italia. In 1975 he
started the development of high-speed modeling and
simulation tools using innovative DSP algorithms
for fast computer simulation of high-speed elec-
tronic systems. In 1988 he founded and directed
the company HDT (High Design Technology) for
the development of state-of-the art CAE tools for
SI/PI/EMC prediction based on digital wave simula-
tion. From 2001 he continues his research activity as independent researcher.
He is author of several publications and international patents in the field of
digital electronics with reference to digital switching systems and techniques
for telecom networks, high-speed electronics, SI/PI, circuital modeling and
simulation, EMC and test equipment for high performance digital systems.
Domenico Spina (M’15) received the M.S. degree
(cum laude) in electronics engineering from the
University of L’Aquila, L’Aquila, Italy, in 2010,
and the joint Ph.D. degree in electrical engineering
from the Ghent University, Ghent, Belgium, and
the University of L’Aquila in 2014. Since 2015, he
has been a Postdoctoral Researcher in the Depart-
ment of Information Technology, Ghent University.
His current research interests include modeling and
simulation, uncertainty quantification, and machine
learning for electrical and photonics engineering.
Luigi Lombardi received the Laurea degree (cum
laude) in electronic engineering in 2015 and the
Ph.D. degree in 2019, both from the University of
L’Aquila, L’Aquila, Italy. Since November 2018 he
is with Micron Semiconductor.
Giulio Antonini (M’94 - SM’05) received the Lau-
rea degree (cum laude) in electrical engineering from
the University of L’Aquila, L’Aquila, Italy, in 1994
and the Ph.D. degree in electrical engineering from
University of Rome La Sapienza in 1998. Since
1998, he has been with the UAq EMC Laboratory,
University of L’Aquila, where he is currently a
Professor. His scientific interests are in the field of
computational electromagnetics and published more
than 250 papers published on international journals
and conference proceedings. He has coauthored the
book Circuit Oriented Electromagnetic Modeling
Using the PEEC Techniques, (Wiley-IEEE Press, 2017).
13. Tom Dhaene (M’00-SM’05) received the Ph.D.
degree in electrotechnical engineering from Ghent
University, Ghent, Belgium, in 1993. He was a Re-
search Assistant with the Department of Information
Technology, University of Ghent, Ghent, Belgium,
from 1989 to 1993. In 1993, he joined the Electronic
Design Automation Company Alphabit (now part
of Agilent), Santa Clara, CA, USA. He was one
of the key developers of the planar EM simulator
ADS Momentum. In September 2000, he joined the
Department of Mathematics and Computer Science,
University of Antwerp, Antwerp, Belgium, as a
Professor. Since October 2007, he has been a Full Professor in the Department
of Information Technology, Ghent University. He is the author or coauthor
of more 250 peer-reviewed papers and abstracts in international conference
proceedings, journals, and books. He holds five U.S. patents.
View publication statsView publication stats
