1. ARKAN IBRAHIM
2015 | GAZIANTEP
DAMS
BY:- ARKIAN IBRAHIM
A Report About
SUBMITTED TO: -
Y. Doc.Dr.Mazen KAVVAS
Student Number: -201566108

2. DAMS 11/23/2015
ARKAN IBRAHIM 1

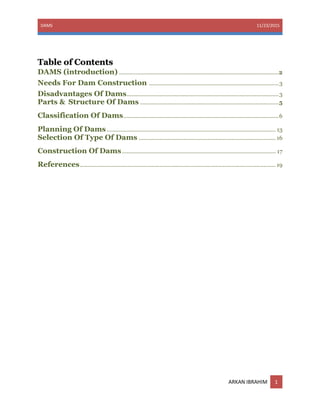

Table of Contents
DAMS (introduction) ..........................................................................................................2
Needs For Dam Construction ......................................................................................3
Disadvantages Of Dams.....................................................................................................3
Parts & Structure Of Dams ............................................................................................5
Classification Of Dams.......................................................................................................6
Planning Of Dams ................................................................................................................ 13
Selection Of Type Of Dams ........................................................................................... 16
Construction Of Dams...................................................................................................... 17
References.................................................................................................................................. 19

3. DAMS 11/23/2015
ARKAN IBRAHIM 2

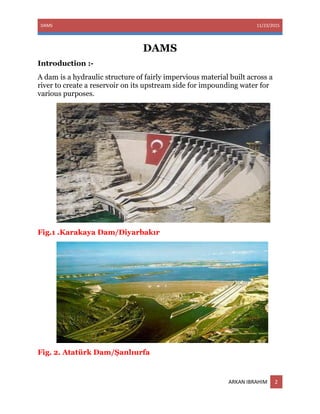

DAMS
Introduction :-
A dam is a hydraulic structure of fairly impervious material built across a
river to create a reservoir on its upstream side for impounding water for
various purposes.
Fig.1 .Karakaya Dam/Diyarbakır
Fig. 2. Atatürk Dam/Şanlıurfa

4. DAMS 11/23/2015
ARKAN IBRAHIM 3
-A dam and a reservoir are complements of each other.
-Dams are generally constructed in the mountainous reach of the river
where the valley is narrow and the foundation is good.
-Generally, a hydropower station is also constructed at or near the dam site
to develop hydropower.
-Dams are probably the most important hydraulic structure built on the
rivers. They are very huge structure and require huge money, manpower
and time to construct.
Needs For Dam Construction:
1. Drinking and domestic water supply,
2. Flood control,
3. Irrigation,
4. Industrial water supply,
5. Hydroelectric energy production,
6. Retention and control of sediments,
and Inland navigation, Improvement of water quality, Fish Farming,
Recreation facilities.
Disadvantages of Dams:
-for construction of a dam we need a lot agriculture land because generally
dams are constructed near river so they can collect the water and near to
river the land usually found good for agriculture.
-sometimes it needs to remove the living population then it becomes hard
to relocate them without their will. Ex. In India there are some cases are
going on to increase the height of dam but nearby living peoples are not
cooperating and so the projects are just in papers.
-due to availability of huge amount of water surface there is always a chance
of encouraging mosquito breeding.
-the mental fear remains in peoples who are living in direction of flow of
input water or other side of dam.
- imbalances of the ecosystem.
- Decreased amount of downstream water,
- Reduction in the fertility of farmlands,
- Spreading of some water-borne diseases.

5. DAMS 11/23/2015
ARKAN IBRAHIM 4

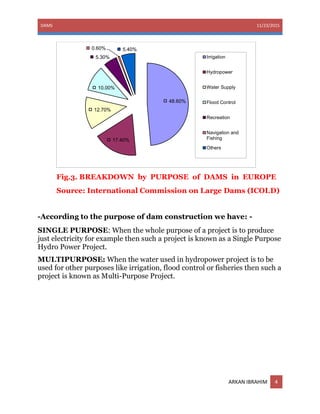

Fig.3. BREAKDOWN by PURPOSE of DAMS in EUROPE
Source: International Commission on Large Dams (ICOLD)
-According to the purpose of dam construction we have: -
SINGLE PURPOSE: When the whole purpose of a project is to produce
just electricity for example then such a project is known as a Single Purpose
Hydro Power Project.
MULTIPURPOSE: When the water used in hydropower project is to be
used for other purposes like irrigation, flood control or fisheries then such a
project is known as Multi-Purpose Project.
48.60%
17.40%
12.70%
10.00%
5.30%
0.60% 5.40%
Irrigation
Hydropower
Water Supply
Flood Control
Recreation
Navigation and
Fishing
Others

6. DAMS 11/23/2015
ARKAN IBRAHIM 5

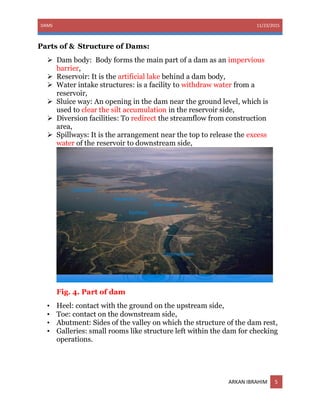

Parts of & Structure of Dams:
 Dam body: Body forms the main part of a dam as an impervious
barrier,
 Reservoir: It is the artificial lake behind a dam body,
 Water intake structures: is a facility to withdraw water from a
reservoir,
 Sluice way: An opening in the dam near the ground level, which is
used to clear the silt accumulation in the reservoir side,
 Diversion facilities: To redirect the streamflow from construction
area,
 Spillways: It is the arrangement near the top to release the excess
water of the reservoir to downstream side,
Fig. 4. Part of dam
• Heel: contact with the ground on the upstream side,
• Toe: contact on the downstream side,
• Abutment: Sides of the valley on which the structure of the dam rest,
• Galleries: small rooms like structure left within the dam for checking
operations.

7. DAMS 11/23/2015
ARKAN IBRAHIM 6
Fig. 4.1. Part of dam
Classification Of Dams:
A-ACCORDING to the SIZE of the DAM
1. Large (Big) dam,
2. Small dam,
-International Commision on Large Dams, (ICOLD) assumes a dam as big
when its height is bigger than 15m.
-If the height of the dam is between 10m and 15m and matches the
following criteria, then ICOLD accepts the dam as big:
 If the crest length is bigger than 500m,
 If the reservoir capacity is larger than 1 million m3 ,
 If the flood discharge is more than 2000 m3/s,
 If there are some difficulties in the construction of foundation,

8. DAMS 11/23/2015
ARKAN IBRAHIM 7

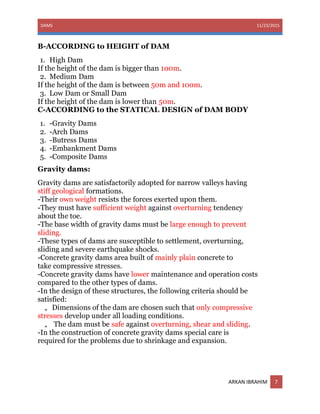

B-ACCORDING to HEIGHT of DAM
1. High Dam
If the height of the dam is bigger than 100m.
2. Medium Dam
If the height of the dam is between 50m and 100m.
3. Low Dam or Small Dam
If the height of the dam is lower than 50m.
C-ACCORDING to the STATICAL DESIGN of DAM BODY
1. -Gravity Dams
2. -Arch Dams
3. -Butress Dams
4. -Embankment Dams
5. -Composite Dams
Gravity dams:
Gravity dams are satisfactorily adopted for narrow valleys having
stiff geological formations.
-Their own weight resists the forces exerted upon them.
-They must have sufficient weight against overturning tendency
about the toe.
-The base width of gravity dams must be large enough to prevent
sliding.
-These types of dams are susceptible to settlement, overturning,
sliding and severe earthquake shocks.
-Concrete gravity dams area built of mainly plain concrete to
take compressive stresses.
-Concrete gravity dams have lower maintenance and operation costs
compared to the other types of dams.
-In the design of these structures, the following criteria should be
satisfied:
„ Dimensions of the dam are chosen such that only compressive
stresses develop under all loading conditions.
„ The dam must be safe against overturning, shear and sliding.
-In the construction of concrete gravity dams special care is
required for the problems due to shrinkage and expansion.

9. DAMS 11/23/2015
ARKAN IBRAHIM 8
ADVANTAGES OF GRAVITY DAMS
The gravity dams possess the following advantages:
1. These are more suitable in steep valleys where earth dams may tend
to slip.
2. In these dams, surplus water may be discharged through the sluices
provided in the body of the dam or over spillway built in a suitable
location of the dam.
3. Such dams, when built on strong foundation, may be built up to a
maximum practical height.
4. A gravity dam does not fail suddenly. Their failure can be predicted
well in advance so that loss of life and property may be saved.
5. Their cost of maintenance is least and benefit of cost ratio is highest.
6. These are found more advantageous in the regions of high rainfall
and heavy snowfalls.
7. In these dams, sedimentation of the reservoir, may be cleared
through deep set sluices.
DISADVANTAGES OF GRAVITY DAMS
The following are the disadvantages of a gravity dam:
1. Their initial cost of construction is high.
2. Their construction period is comparatively more.
3. These require a strong and sound foundation.
4. Dams once constructed, cannot be raised further.
5. For the supervision of concrete dams, skilled labor is required.
Fig.5.Friant Dam, California

10. DAMS 11/23/2015
ARKAN IBRAHIM 9

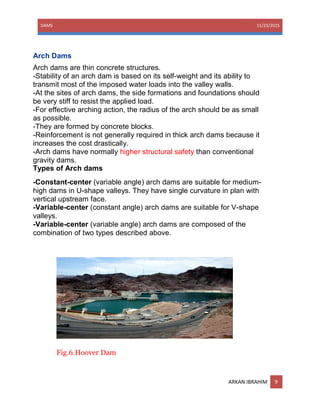

Arch Dams
Arch dams are thin concrete structures.
-Stability of an arch dam is based on its self-weight and its ability to
transmit most of the imposed water loads into the valley walls.
-At the sites of arch dams, the side formations and foundations should
be very stiff to resist the applied load.
-For effective arching action, the radius of the arch should be as small
as possible.
-They are formed by concrete blocks.
-Reinforcement is not generally required in thick arch dams because it
increases the cost drastically.
-Arch dams have normally higher structural safety than conventional
gravity dams.
Types of Arch dams
-Constant-center (variable angle) arch dams are suitable for medium-
high dams in U-shape valleys. They have single curvature in plan with
vertical upstream face.
-Variable-center (constant angle) arch dams are suitable for V-shape
valleys.
-Variable-center (variable angle) arch dams are composed of the
combination of two types described above.
Fig.6.Hoover Dam

11. DAMS 11/23/2015
ARKAN IBRAHIM 10

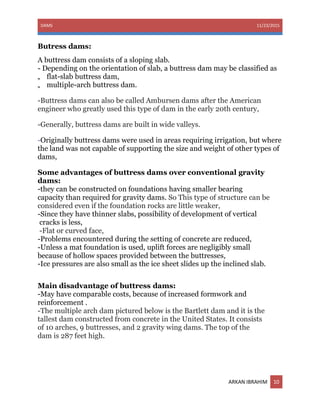

Butress dams:
A buttress dam consists of a sloping slab.
- Depending on the orientation of slab, a buttress dam may be classified as
„ flat-slab buttress dam,
„ multiple-arch buttress dam.
-Buttress dams can also be called Ambursen dams after the American
engineer who greatly used this type of dam in the early 20th century,
-Generally, buttress dams are built in wide valleys.
-Originally buttress dams were used in areas requiring irrigation, but where
the land was not capable of supporting the size and weight of other types of
dams,
Some advantages of buttress dams over conventional gravity
dams:
-they can be constructed on foundations having smaller bearing
capacity than required for gravity dams. So This type of structure can be
considered even if the foundation rocks are little weaker,
-Since they have thinner slabs, possibility of development of vertical
cracks is less,
-Flat or curved face,
-Problems encountered during the setting of concrete are reduced,
-Unless a mat foundation is used, uplift forces are negligibly small
because of hollow spaces provided between the buttresses,
-Ice pressures are also small as the ice sheet slides up the inclined slab.
Main disadvantage of buttress dams:
-May have comparable costs, because of increased formwork and
reinforcement .
-The multiple arch dam pictured below is the Bartlett dam and it is the
tallest dam constructed from concrete in the United States. It consists
of 10 arches, 9 buttresses, and 2 gravity wing dams. The top of the
dam is 287 feet high.

12. DAMS 11/23/2015
ARKAN IBRAHIM 11

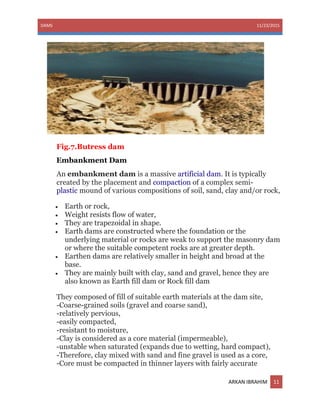

Fig.7.Butress dam
Embankment Dam
An embankment dam is a massive artificial dam. It is typically
created by the placement and compaction of a complex semi-
plastic mound of various compositions of soil, sand, clay and/or rock,
 Earth or rock,
 Weight resists flow of water,
 They are trapezoidal in shape.
 Earth dams are constructed where the foundation or the
underlying material or rocks are weak to support the masonry dam
or where the suitable competent rocks are at greater depth.
 Earthen dams are relatively smaller in height and broad at the
base.
 They are mainly built with clay, sand and gravel, hence they are
also known as Earth fill dam or Rock fill dam
They composed of fill of suitable earth materials at the dam site,
-Coarse-grained soils (gravel and coarse sand),
-relatively pervious,
-easily compacted,
-resistant to moisture,
-Clay is considered as a core material (impermeable),
-unstable when saturated (expands due to wetting, hard compact),
-Therefore, clay mixed with sand and fine gravel is used as a core,
-Core must be compacted in thinner layers with fairly accurate

13. DAMS 11/23/2015
ARKAN IBRAHIM 12
moisture control,
-Compacted asphalt may also be used as an economical core material
in case of loose foundations.
-Asphalt can absorb earthquake shocks effectively.
-Embankment dams are usually safer against deformations and
settlements.
Body volume of embankment dams is relatively greater than the other
types of dams.
-Normally cheaper than the other types where there is enough fill
material in the close vicinity.
-Fill dams comprise more than 70% of the dams in the world and
90% in Turkey.

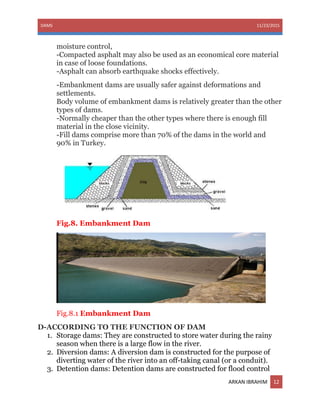

Fig.8. Embankment Dam
Fig.8.1 Embankment Dam
D-ACCORDING TO THE FUNCTION OF DAM
1. Storage dams: They are constructed to store water during the rainy
season when there is a large flow in the river.
2. Diversion dams: A diversion dam is constructed for the purpose of
diverting water of the river into an off-taking canal (or a conduit).
3. Detention dams: Detention dams are constructed for flood control

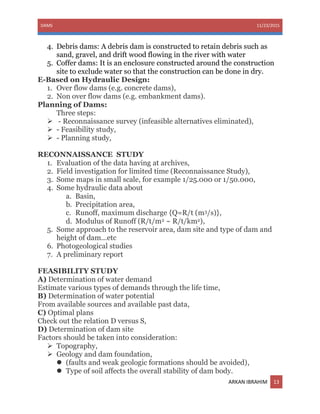

14. DAMS 11/23/2015
ARKAN IBRAHIM 13
4. Debris dams: A debris dam is constructed to retain debris such as
sand, gravel, and drift wood flowing in the river with water
5. Coffer dams: It is an enclosure constructed around the construction
site to exclude water so that the construction can be done in dry.
E-Based on Hydraulic Design:
1. Over flow dams (e.g. concrete dams),
2. Non over flow dams (e.g. embankment dams).
Planning of Dams:
Three steps:
 - Reconnaissance survey (infeasible alternatives eliminated),
 - Feasibility study,
 - Planning study,
RECONNAISSANCE STUDY
1. Evaluation of the data having at archives,
2. Field investigation for limited time (Reconnaissance Study),
3. Some maps in small scale, for example 1/25.000 or 1/50.000,
4. Some hydraulic data about
a. Basin,
b. Precipitation area,
c. Runoff, maximum discharge {Q=R/t (m3/s)},
d. Modulus of Runoff (R/t/m2 ~ R/t/km2),
5. Some approach to the reservoir area, dam site and type of dam and
height of dam...etc
6. Photogeological studies
7. A preliminary report
FEASIBILITY STUDY
A) Determination of water demand
Estimate various types of demands through the life time,
B) Determination of water potential
From available sources and available past data,
C) Optimal plans
Check out the relation D versus S,
D) Determination of dam site
Factors should be taken into consideration:
 Topography,
 Geology and dam foundation,
 (faults and weak geologic formations should be avoided),
 Type of soil affects the overall stability of dam body.

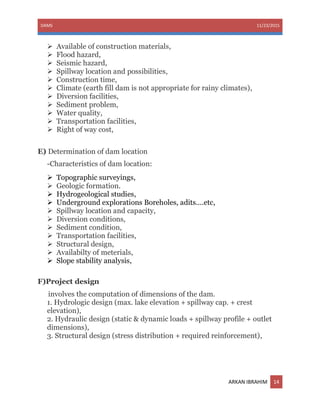

15. DAMS 11/23/2015
ARKAN IBRAHIM 14
 Available of construction materials,
 Flood hazard,
 Seismic hazard,
 Spillway location and possibilities,
 Construction time,
 Climate (earth fill dam is not appropriate for rainy climates),
 Diversion facilities,
 Sediment problem,
 Water quality,
 Transportation facilities,
 Right of way cost,
E) Determination of dam location
-Characteristics of dam location:
 Topographic surveyings,
 Geologic formation.
 Hydrogeological studies,
 Underground explorations Boreholes, adits....etc,
 Spillway location and capacity,
 Diversion conditions,
 Sediment condition,
 Transportation facilities,
 Structural design,
 Availabilty of meterials,
 Slope stability analysis,
F)Project design
involves the computation of dimensions of the dam.
1. Hydrologic design (max. lake elevation + spillway cap. + crest
elevation),
2. Hydraulic design (static & dynamic loads + spillway profile + outlet
dimensions),
3. Structural design (stress distribution + required reinforcement),

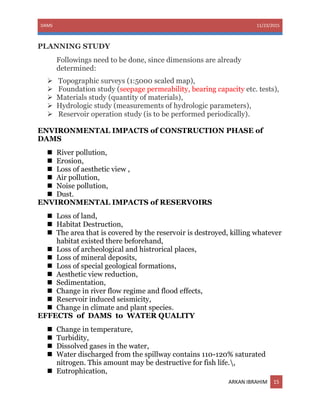

16. DAMS 11/23/2015
ARKAN IBRAHIM 15
PLANNING STUDY
Followings need to be done, since dimensions are already
determined:
 Topographic surveys (1:5000 scaled map),
 Foundation study (seepage permeability, bearing capacity etc. tests),
 Materials study (quantity of materials),
 Hydrologic study (measurements of hydrologic parameters),
 Reservoir operation study (is to be performed periodically).
ENVIRONMENTAL IMPACTS of CONSTRUCTION PHASE of
DAMS
 River pollution,
 Erosion,
 Loss of aesthetic view ,
 Air pollution,
 Noise pollution,
 Dust.
ENVIRONMENTAL IMPACTS of RESERVOIRS
 Loss of land,
 Habitat Destruction,
 The area that is covered by the reservoir is destroyed, killing whatever
habitat existed there beforehand,
 Loss of archeological and histrorical places,
 Loss of mineral deposits,
 Loss of special geological formations,
 Aesthetic view reduction,
 Sedimentation,
 Change in river flow regime and flood effects,
 Reservoir induced seismicity,
 Change in climate and plant species.
EFFECTS of DAMS to WATER QUALITY
 Change in temperature,
 Turbidity,
 Dissolved gases in the water,
 Water discharged from the spillway contains 110-120% saturated
nitrogen. This amount may be destructive for fish life.,
 Eutrophication,

17. DAMS 11/23/2015
ARKAN IBRAHIM 16
 It means increase in vegetation. If moss and other plants exist in
water, quality of that water gets worse.
Selection of Type of Dams:
1. Topography and valley shape,
2. Geology and foundation conditions (Bearing capacity of the underlying
soil, Foundation settlements, Permeability of the foundation soil),
3. Availability of construction materials,
4. Overall cost,
5. Spillway size and location,
6. Earthquake hazards,
7. Climatic conditions & Diversion problems,
8. Environmental considerations,
9. Roadway,
10.Length and height of dam,
11.Life of dam,
12.Miscellaneous considerations,
13.Safety,
14.Qualified labour.
Geological Investigation for a Concrete Dam
1. Rock should be sound and resistant to static and dynamic forces.
2. Valley slopes should be stable.
3. Dam foundation should be safe from sliding.
4. The foundation rocks should be of same geological properties.
5. Reservoir should be free from seepage/leakage.
6. Rocks should be resistant to corrosion, erosion, solution, drying and
wetting.
7. Reservoir drainage and overburdens should be resistant to erosion and
sliding.
8. In case of arch dams, the abutments should be extremely strong.
9. The site should have a permissible (a) spillway and (b) diversion tunnel
and/or outlet works, if any.
10. Construction material should be economically available.
11. Overall economy and safety.
Safety requirement for earth dams:
1. There is no danger of overtopping – sufficient freeboard and spillways.
2. The seepage line is well within the downstream face.
3. The upstream slope is safe from sudden draw down (rip-rap).

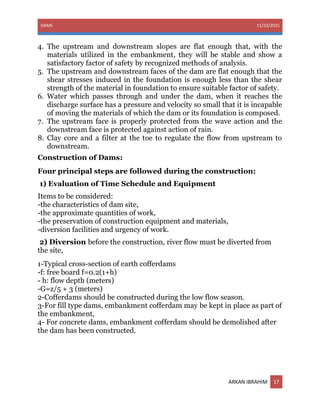

18. DAMS 11/23/2015
ARKAN IBRAHIM 17
4. The upstream and downstream slopes are flat enough that, with the
materials utilized in the embankment, they will be stable and show a
satisfactory factor of safety by recognized methods of analysis.
5. The upstream and downstream faces of the dam are flat enough that the
shear stresses induced in the foundation is enough less than the shear
strength of the material in foundation to ensure suitable factor of safety.
6. Water which passes through and under the dam, when it reaches the
discharge surface has a pressure and velocity so small that it is incapable
of moving the materials of which the dam or its foundation is composed.
7. The upstream face is properly protected from the wave action and the
downstream face is protected against action of rain.
8. Clay core and a filter at the toe to regulate the flow from upstream to
downstream.
Construction of Dams:
Four principal steps are followed during the construction:
1) Evaluation of Time Schedule and Equipment
Items to be considered:
-the characteristics of dam site,
-the approximate quantities of work,
-the preservation of construction equipment and materials,
-diversion facilities and urgency of work.
2) Diversion before the construction, river flow must be diverted from
the site,
1-Typical cross-section of earth cofferdams
-f: free board f=0.2(1+h)
- h: flow depth (meters)
-G=z/5 + 3 (meters)
2-Cofferdams should be constructed during the low flow season.
3-For fill type dams, embankment cofferdam may be kept in place as part of
the embankment,
4- For concrete dams, embankment cofferdam should be demolished after
the dam has been constructed.

19. DAMS 11/23/2015
ARKAN IBRAHIM 18

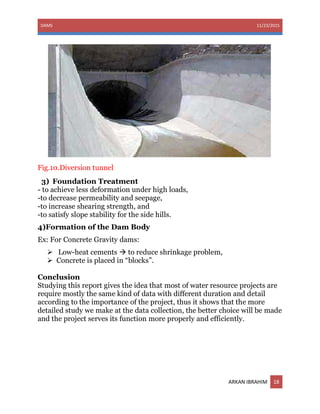

Fig.10.Diversion tunnel
3) Foundation Treatment
- to achieve less deformation under high loads,
-to decrease permeability and seepage,
-to increase shearing strength, and
-to satisfy slope stability for the side hills.
4)Formation of the Dam Body
Ex: For Concrete Gravity dams:
 Low-heat cements  to reduce shrinkage problem,
 Concrete is placed in “blocks”.
Conclusion
Studying this report gives the idea that most of water resource projects are
require mostly the same kind of data with different duration and detail
according to the importance of the project, thus it shows that the more
detailed study we make at the data collection, the better choice will be made
and the project serves its function more properly and efficiently.

20. DAMS 11/23/2015
ARKAN IBRAHIM 19
References:
1. -https://www.google.com.tr/webhp?sourceid=chrome-
instant&rlz=1C1AVNE_enTR664TR664&ion=1&espv=2&ie=UTF-
8#q=types%20of%20dams%20ppt
2. https://en.wikipedia.org/wiki/Embankment_dam
3. http://theconstructor.org/water-resources/classification-types-of-
dams/4439/
4. Reference: http://seminarprojects.com/Thread-a-presentation-on-
classification-of-dams-and-spillways-ppt#ixzz3qQwPIlKx
5. http://physdams.tripod.com/physics24/id4.html .
