• Dam is a solid barrier constructed at a suitable
location across a river valley to store flowing water.
• Storage of water is utilized for following objectives:
• Hydropower
• Irrigation
• Water for domestic consumption
• Drought and flood control
• For navigational facilities
• Other additional utilization is to develop fisheries

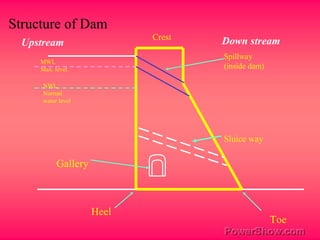

Structure of Dam
Heel
Gallery
Toe
Spillway
(inside dam)
Crest
NWL
Normal
water level
MWL
Max. level
Sluice way
Upstream Down stream

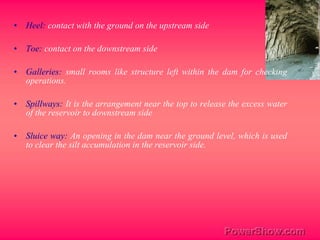

• Heel: contact with the ground on the upstream side
• Toe: contact on the downstream side
• Galleries: small rooms like structure left within the dam for checking
operations.
• Spillways: It is the arrangement near the top to release the excess water
of the reservoir to downstream side
• Sluice way: An opening in the dam near the ground level, which is used
to clear the silt accumulation in the reservoir side.
TYPES OF DAMS

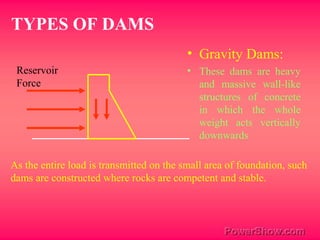

• Gravity Dams:
• These dams are heavy
and massive wall-like
structures of concrete
in which the whole
weight acts vertically
downwards
Reservoir
Force
As the entire load is transmitted on the small area of foundation, such
dams are constructed where rocks are competent and stable.

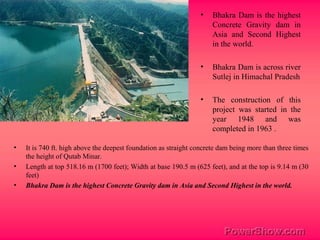

• Bhakra Dam is the highest
Concrete Gravity dam in
Asia and Second Highest
in the world.
• Bhakra Dam is across river
Sutlej in Himachal Pradesh
• The construction of this
project was started in the
year 1948 and was
completed in 1963 .
• It is 740 ft. high above the deepest foundation as straight concrete dam being more than three times
the height of Qutab Minar.
• Length at top 518.16 m (1700 feet); Width at base 190.5 m (625 feet), and at the top is 9.14 m (30
feet)
• Bhakra Dam is the highest Concrete Gravity dam in Asia and Second Highest in the world.
Buttress Dam:
• Buttress Dam – Is a
gravity dam reinforced by
structural supports
• Buttress - a support that
transmits a force from a
roof or wall to another
supporting structure
This type of structure can be considered even if the foundation
rocks are little weaker

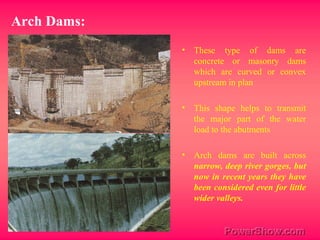

• These type of dams are
concrete or masonry dams
which are curved or convex
upstream in plan
• This shape helps to transmit
the major part of the water
load to the abutments
• Arch dams are built across
narrow, deep river gorges, but
now in recent years they have
been considered even for little
wider valleys.
Arch Dams:

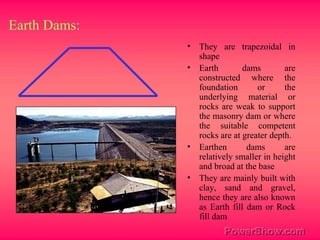

Earth Dams:
• They are trapezoidal in
shape
• Earth dams are
constructed where the
foundation or the
underlying material or
rocks are weak to support
the masonry dam or where
the suitable competent
rocks are at greater depth.
• Earthen dams are
relatively smaller in height
and broad at the base
• They are mainly built with
clay, sand and gravel,
hence they are also known
as Earth fill dam or Rock
fill dam
DAMS AND IT'S TYPES . . .

More Related Content

What's hot (20)

DAMS AND ITS TYPES
DAMS AND ITS TYPESDAMS AND ITS TYPES
DAMS AND ITS TYPES

Canal regulation works. m4pptx
Canal regulation works. m4pptxCanal regulation works. m4pptx
Canal regulation works. m4pptx

types of dam
types of damtypes of dam
types of dam

Canal Regulation Work
Canal Regulation WorkCanal Regulation Work
Canal Regulation Work

Dams and spillways
Dams and spillwaysDams and spillways
Dams and spillways

Dams arvind gupta-12march13 (2)
Dams   arvind gupta-12march13 (2)Dams   arvind gupta-12march13 (2)
Dams arvind gupta-12march13 (2)

Hydraulics structures
Hydraulics  structuresHydraulics  structures
Hydraulics structures

Diversion Headworks
Diversion HeadworksDiversion Headworks
Diversion Headworks

Dams pdf
Dams pdfDams pdf
Dams pdf

Force acting on gravity dam
Force acting on gravity damForce acting on gravity dam
Force acting on gravity dam

Dam design
Dam designDam design
Dam design

Spillways
SpillwaysSpillways
Spillways

Canal headworks
Canal headworksCanal headworks
Canal headworks

Earthen Dam
Earthen DamEarthen Dam
Earthen Dam

Earthen Dams
Earthen DamsEarthen Dams
Earthen Dams

Earthen dam
Earthen damEarthen dam
Earthen dam

Spillways components and types
Spillways components and typesSpillways components and types
Spillways components and types

Canal falls and its classification
Canal falls and its classificationCanal falls and its classification
Canal falls and its classification

Diversion head works
Diversion head worksDiversion head works
Diversion head works

Canal design
Canal designCanal design
Canal design


Viewers also liked

Viewers also liked (10)

Dams, Types of dams
Dams, Types of damsDams, Types of dams
Dams, Types of dams

Dam construction
Dam constructionDam construction
Dam construction

Water reservoirs
Water reservoirsWater reservoirs
Water reservoirs

1. reservoirs unit !
1. reservoirs   unit !1. reservoirs   unit !
1. reservoirs unit !

Reservoir planning ajitha miss
Reservoir planning ajitha missReservoir planning ajitha miss
Reservoir planning ajitha miss

Classification of reservoirs
Classification of reservoirsClassification of reservoirs
Classification of reservoirs

Reservoir
ReservoirReservoir
Reservoir

05 water supply system
05 water supply system05 water supply system
05 water supply system

Ppt of design of dams
Ppt of design of damsPpt of design of dams
Ppt of design of dams

Water distribution system
Water distribution systemWater distribution system
Water distribution system


Similar to DAMS AND IT'S TYPES . . . (20)

dams
damsdams
dams

Dams
DamsDams
Dams

damsandreservoir.ppt
damsandreservoir.pptdamsandreservoir.ppt
damsandreservoir.ppt

dams_ce242.ppt
dams_ce242.pptdams_ce242.ppt
dams_ce242.ppt

dams_ce242.ppt
dams_ce242.pptdams_ce242.ppt
dams_ce242.ppt

dams_ce242.ppt
dams_ce242.pptdams_ce242.ppt
dams_ce242.ppt

Dams by muhammad ahsan riaz
Dams by muhammad ahsan riazDams by muhammad ahsan riaz
Dams by muhammad ahsan riaz

Dams.ppt
Dams.pptDams.ppt
Dams.ppt

Dams PPT
Dams PPTDams PPT
Dams PPT

Dams.pptx
Dams.pptxDams.pptx
Dams.pptx

Introduction of dams
Introduction of damsIntroduction of dams
Introduction of dams

1 dams
1 dams1 dams
1 dams

DAM ENGINEERING
DAM ENGINEERINGDAM ENGINEERING
DAM ENGINEERING

Design of Hydraulic Structures
Design of Hydraulic StructuresDesign of Hydraulic Structures
Design of Hydraulic Structures

Dams and River (World Scenario)
Dams and River (World Scenario)Dams and River (World Scenario)
Dams and River (World Scenario)

Lecture 2 (a).pptx
Lecture 2 (a).pptxLecture 2 (a).pptx
Lecture 2 (a).pptx

Dams and Hydraulic Structures
Dams and Hydraulic StructuresDams and Hydraulic Structures
Dams and Hydraulic Structures

Dams
DamsDams
Dams

Sardar Sarovar Dam
Sardar Sarovar DamSardar Sarovar Dam
Sardar Sarovar Dam

Dam Of India.. Awesome!!!Ppt
Dam Of India.. Awesome!!!PptDam Of India.. Awesome!!!Ppt
Dam Of India.. Awesome!!!Ppt


Recently uploaded

Narcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdfNarcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdfPrerana Jadhav

Keynote by Prof. Wurzer at Nordex about IP-design
Keynote by Prof. Wurzer at Nordex about IP-designKeynote by Prof. Wurzer at Nordex about IP-design
Keynote by Prof. Wurzer at Nordex about IP-designMIPLM

Concurrency Control in Database Management system
Concurrency Control in Database Management systemConcurrency Control in Database Management system
Concurrency Control in Database Management systemChristalin Nelson

The State of AI in Insights and Research 2024: Results and Findings
The State of AI in Insights and Research 2024: Results and FindingsThe State of AI in Insights and Research 2024: Results and Findings
The State of AI in Insights and Research 2024: Results and FindingsRay Poynter

Virtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdf
Virtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdfVirtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdf
Virtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdfErwinPantujan2

AUDIENCE THEORY -CULTIVATION THEORY - GERBNER.pptx
AUDIENCE THEORY -CULTIVATION THEORY -  GERBNER.pptxAUDIENCE THEORY -CULTIVATION THEORY -  GERBNER.pptx
AUDIENCE THEORY -CULTIVATION THEORY - GERBNER.pptxiammrhaywood

ClimART Action | eTwinning Project
ClimART Action    |    eTwinning ProjectClimART Action    |    eTwinning Project
ClimART Action | eTwinning Projectjordimapav

Active Learning Strategies (in short ALS).pdf
Active Learning Strategies (in short ALS).pdfActive Learning Strategies (in short ALS).pdf
Active Learning Strategies (in short ALS).pdfPatidar M

HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...Nguyen Thanh Tu Collection

Expanded definition: technical and operational
Expanded definition: technical and operationalExpanded definition: technical and operational
Expanded definition: technical and operationalssuser3e220a

INTRODUCTION TO CATHOLIC CHRISTOLOGY.pptx
INTRODUCTION TO CATHOLIC CHRISTOLOGY.pptxINTRODUCTION TO CATHOLIC CHRISTOLOGY.pptx
INTRODUCTION TO CATHOLIC CHRISTOLOGY.pptxHumphrey A Beña

Transaction Management in Database Management System
Transaction Management in Database Management SystemTransaction Management in Database Management System
Transaction Management in Database Management SystemChristalin Nelson

4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptxmary850239

4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptx4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptxmary850239

Production of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptxProduction of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptxAnupkumar Sharma

How to Add Barcode on PDF Report in Odoo 17
How to Add Barcode on PDF Report in Odoo 17How to Add Barcode on PDF Report in Odoo 17
How to Add Barcode on PDF Report in Odoo 17Celine George

Grade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdf
Grade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdfGrade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdf
Grade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdfJemuel Francisco

Using Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea DevelopmentUsing Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea Developmentchesterberbo7

MECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptx
MECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptxMECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptx
MECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptxAnupkumar Sharma


Recently uploaded (20)

Narcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdfNarcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdf

Keynote by Prof. Wurzer at Nordex about IP-design
Keynote by Prof. Wurzer at Nordex about IP-designKeynote by Prof. Wurzer at Nordex about IP-design
Keynote by Prof. Wurzer at Nordex about IP-design

Concurrency Control in Database Management system
Concurrency Control in Database Management systemConcurrency Control in Database Management system
Concurrency Control in Database Management system

The State of AI in Insights and Research 2024: Results and Findings
The State of AI in Insights and Research 2024: Results and FindingsThe State of AI in Insights and Research 2024: Results and Findings
The State of AI in Insights and Research 2024: Results and Findings

Virtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdf
Virtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdfVirtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdf
Virtual-Orientation-on-the-Administration-of-NATG12-NATG6-and-ELLNA.pdf

AUDIENCE THEORY -CULTIVATION THEORY - GERBNER.pptx
AUDIENCE THEORY -CULTIVATION THEORY -  GERBNER.pptxAUDIENCE THEORY -CULTIVATION THEORY -  GERBNER.pptx
AUDIENCE THEORY -CULTIVATION THEORY - GERBNER.pptx

ClimART Action | eTwinning Project
ClimART Action    |    eTwinning ProjectClimART Action    |    eTwinning Project
ClimART Action | eTwinning Project

Active Learning Strategies (in short ALS).pdf
Active Learning Strategies (in short ALS).pdfActive Learning Strategies (in short ALS).pdf
Active Learning Strategies (in short ALS).pdf

HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...

Expanded definition: technical and operational
Expanded definition: technical and operationalExpanded definition: technical and operational
Expanded definition: technical and operational

INTRODUCTION TO CATHOLIC CHRISTOLOGY.pptx
INTRODUCTION TO CATHOLIC CHRISTOLOGY.pptxINTRODUCTION TO CATHOLIC CHRISTOLOGY.pptx
INTRODUCTION TO CATHOLIC CHRISTOLOGY.pptx

Transaction Management in Database Management System
Transaction Management in Database Management SystemTransaction Management in Database Management System
Transaction Management in Database Management System

4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx

INCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptx
INCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptxINCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptx
INCLUSIVE EDUCATION PRACTICES FOR TEACHERS AND TRAINERS.pptx

4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptx4.16.24 Poverty and Precarity--Desmond.pptx
4.16.24 Poverty and Precarity--Desmond.pptx

Production of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptxProduction of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptx

How to Add Barcode on PDF Report in Odoo 17
How to Add Barcode on PDF Report in Odoo 17How to Add Barcode on PDF Report in Odoo 17
How to Add Barcode on PDF Report in Odoo 17

Grade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdf
Grade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdfGrade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdf
Grade 9 Quarter 4 Dll Grade 9 Quarter 4 DLL.pdf

Using Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea DevelopmentUsing Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea Development

MECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptx
MECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptxMECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptx
MECHANISMS OF DIFFERENT TYPES OF HYPERSENITIVITY REACTIONS.pptx


DAMS AND IT'S TYPES . . .

  • 2. Dams • Dam is a solid barrier constructed at a suitable location across a river valley to store flowing water. • Storage of water is utilized for following objectives: • Hydropower • Irrigation • Water for domestic consumption • Drought and flood control • For navigational facilities • Other additional utilization is to develop fisheries
  • 3. Structure of Dam Heel Gallery Toe Spillway (inside dam) Crest NWL Normal water level MWL Max. level Sluice way Upstream Down stream
  • 4. • Heel: contact with the ground on the upstream side • Toe: contact on the downstream side • Galleries: small rooms like structure left within the dam for checking operations. • Spillways: It is the arrangement near the top to release the excess water of the reservoir to downstream side • Sluice way: An opening in the dam near the ground level, which is used to clear the silt accumulation in the reservoir side.
  • 5. TYPES OF DAMS • Gravity Dams: • These dams are heavy and massive wall-like structures of concrete in which the whole weight acts vertically downwards Reservoir Force As the entire load is transmitted on the small area of foundation, such dams are constructed where rocks are competent and stable.
  • 6. • Bhakra Dam is the highest Concrete Gravity dam in Asia and Second Highest in the world. • Bhakra Dam is across river Sutlej in Himachal Pradesh • The construction of this project was started in the year 1948 and was completed in 1963 . • It is 740 ft. high above the deepest foundation as straight concrete dam being more than three times the height of Qutab Minar. • Length at top 518.16 m (1700 feet); Width at base 190.5 m (625 feet), and at the top is 9.14 m (30 feet) • Bhakra Dam is the highest Concrete Gravity dam in Asia and Second Highest in the world.

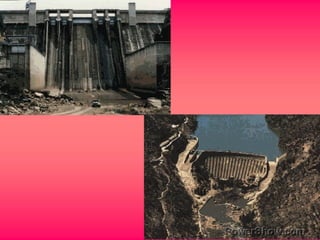

  • 7.
  • 8. Buttress Dam: • Buttress Dam – Is a gravity dam reinforced by structural supports • Buttress - a support that transmits a force from a roof or wall to another supporting structure This type of structure can be considered even if the foundation rocks are little weaker
  • 9. • These type of dams are concrete or masonry dams which are curved or convex upstream in plan • This shape helps to transmit the major part of the water load to the abutments • Arch dams are built across narrow, deep river gorges, but now in recent years they have been considered even for little wider valleys. Arch Dams:

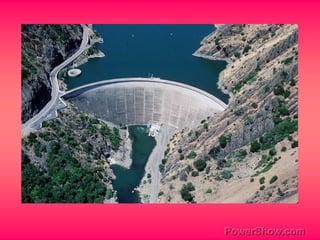

  • 10.
  • 11. Earth Dams: • They are trapezoidal in shape • Earth dams are constructed where the foundation or the underlying material or rocks are weak to support the masonry dam or where the suitable competent rocks are at greater depth. • Earthen dams are relatively smaller in height and broad at the base • They are mainly built with clay, sand and gravel, hence they are also known as Earth fill dam or Rock fill dam
