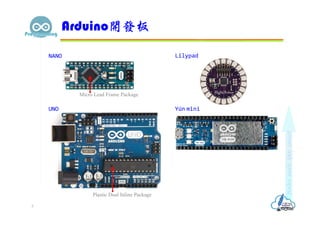

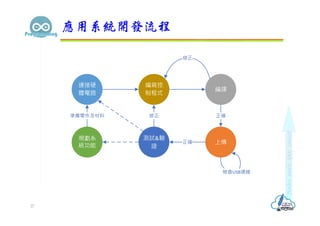

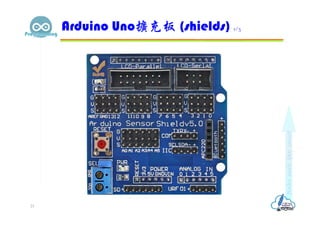

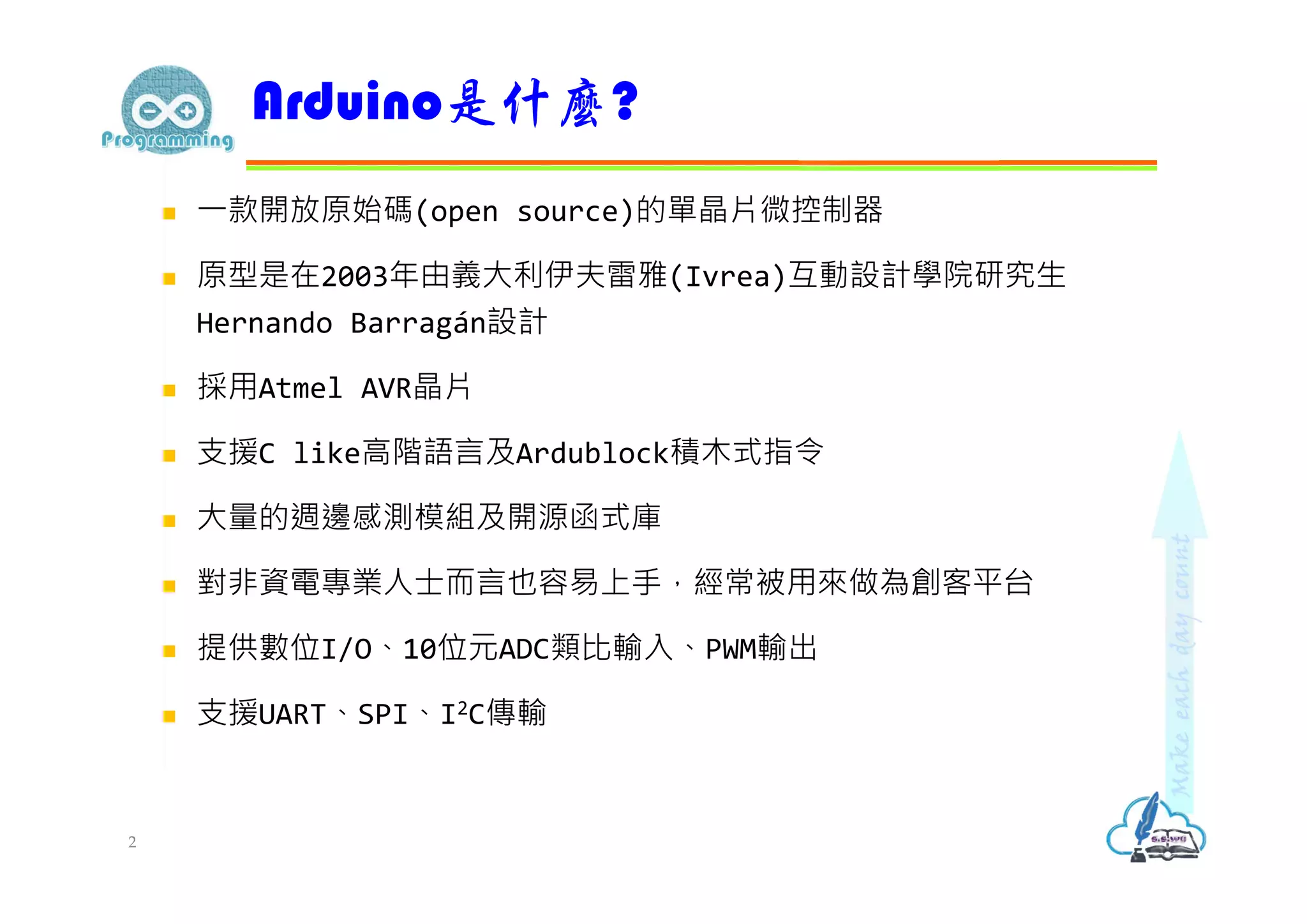

4. Arduino UNO開發板 1/7
4
數位訊號接腳 (I/O),D0與D1也是UART傳輸
接腳;D10~D13也是SPI;~表示支援PWM輸出
電源指示燈
ICSP接頭
類比訊號輸入接腳電源輸出接腳
DC 9V插座
穩壓IC
USB過載保護
(500mA)
Type B
USB接頭
重置按鈕
LED (D13)
串列傳輸LED
ATmega328p
16MHz

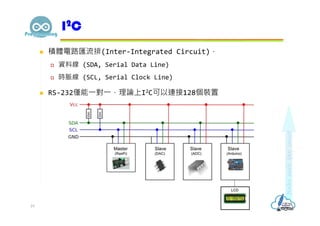

I2C SDA(與A4相連)
I2C SCL(與A5相連) SPI

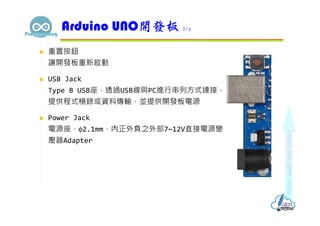

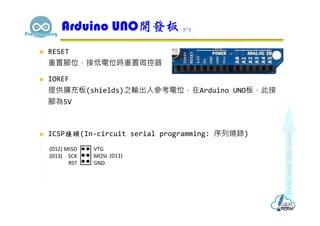

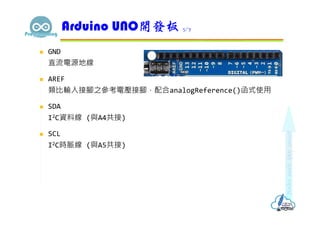

5. 重置按鈕
讓開發板重新啟動
USB Jack
Type B USB座,透過USB線與PC進行串列方式連接,
提供程式橈錄或資料傳輸,並提供開發板電源
Power Jack
電源座,φ2.1mm,內正外負之外部7~12V直接電源變
壓器Adapter
Arduino UNO開發板 2/7

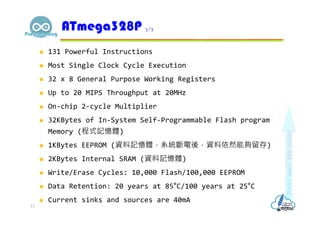

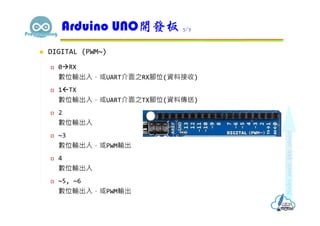

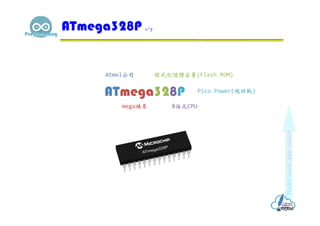

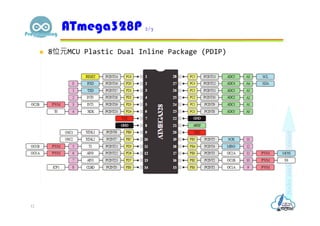

13. 131 Powerful Instructions
Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Up to 20 MIPS Throughput at 20MHz
On-chip 2-cycle Multiplier
32KBytes of In-System Self-Programmable Flash program
Memory (程式記憶體)
1KBytes EEPROM (資料記憶體,系統斷電後,資料依然能夠留存)
2KBytes Internal SRAM (資料記憶體)
Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
Data Retention: 20 years at 85°C/100 years at 25°C
Current sinks and sources are 40mA
ATmega328P 3/7
13

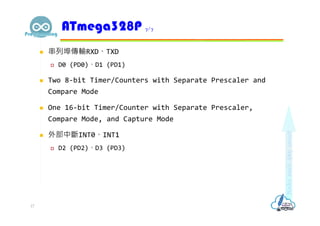

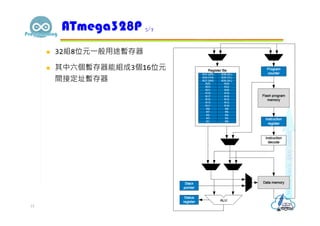

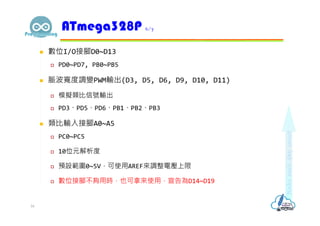

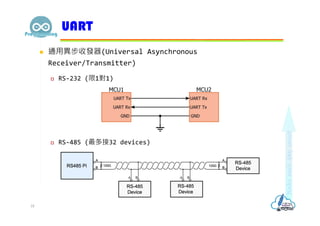

17. 串列埠傳輸RXD、TXD
D0 (PD0)、D1 (PD1)
Two 8-bit Timer/Counters with Separate Prescaler and
Compare Mode
One 16-bit Timer/Counter with Separate Prescaler,
Compare Mode, and Capture Mode
外部中斷INT0、INT1
D2 (PD2)、D3 (PD3)
ATmega328P 7/7
17
