Keynote: Architecting for Continuous Delivery (Pivotal Cloud Platform Roadshow)
The document discusses continuous delivery and microservices, outlining the benefits of using Pivotal Cloud Foundry (CF) and Spring Cloud for operational efficiency. It emphasizes the transition from monolithic to microservice architectures, highlighting their advantages in scalability and development speed. Additionally, it covers architectural constraints and the necessary practices to implement microservices effectively in an organization.
More Related Content
Similar to Keynote: Architecting for Continuous Delivery (Pivotal Cloud Platform Roadshow)
Keynote: Architecting for Continuous Delivery (Pivotal Cloud Platform Roadshow)
- 1. Architecting for ContinuousDelivery Microservices with Pivotal CF and Spring Cloud © Copyright 20134 Pivotal. All rights reserved. 1

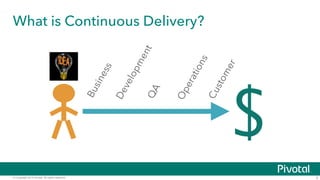

- 2. What is ContinuousDelivery? © Copyright 2014 Pivotal. All rights reserved. 2 $ Business Development QA Operations Customer

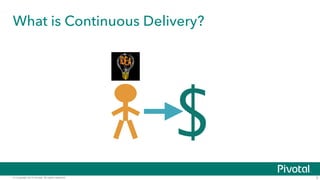

- 3. What is ContinuousDelivery? © Copyright 2014 Pivotal. All rights reserved. 3 $
- 4. Continuous Delivery -How? © Copyright 2014 Pivotal. All rights reserved. 4

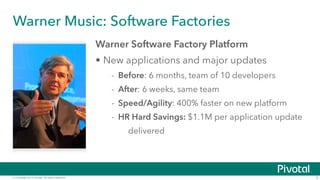

- 5. Warner Music: SoftwareFactories Warner Software Factory Platform • New applications and major updates - Before: 6 months, team of 10 developers - After: 6 weeks, same team - Speed/Agility: 400% faster on new platform - HR Hard Savings: $1.1M per application update delivered © Copyright 2014 Pivotal. All rights reserved. 5

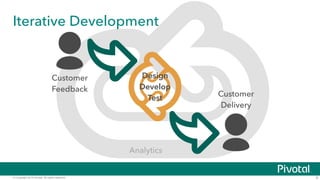

- 6. Iterative Development Design Develop Test Customer Feedback Customer Delivery Analytics © Copyright 2014 Pivotal. All rights reserved. 6

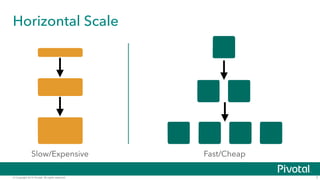

- 7. Horizontal Scale ©Copyright 2014 Pivotal. All rights reserved. 7 Slow/Expensive Fast/Cheap

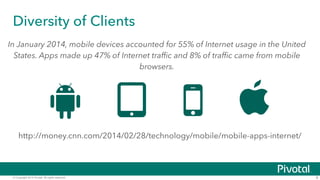

- 8. Diversity of Clients In January 2014, mobile devices accounted for 55% of Internet usage in the United States. Apps made up 47% of Internet traffic and 8% of traffic came from mobile © Copyright 2014 Pivotal. All rights reserved. 8 browsers. http://money.cnn.com/2014/02/28/technology/mobile/mobile-apps-internet/

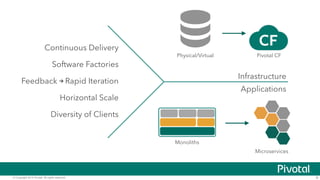

- 9. Physical/Virtual Pivotal CF Infrastructure Applications Monoliths Microservices Continuous Delivery Software Factories Feedback Rapid Iteration Horizontal Scale Diversity of Clients © Copyright 2014 Pivotal. All rights reserved. 9

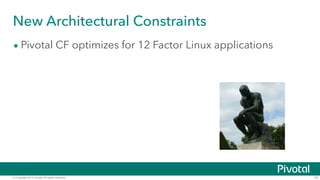

- 10. New Architectural Constraints • Pivotal CF optimizes for 12 Factor Linux applications © Copyright 2014 Pivotal. All rights reserved. 10

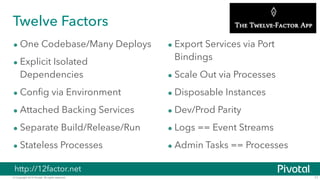

- 11. Twelve Factors •One Codebase/Many Deploys • Explicit Isolated Dependencies • Config via Environment • Attached Backing Services • Separate Build/Release/Run • Stateless Processes • Export Services via Port Bindings • Scale Out via Processes • Disposable Instances • Dev/Prod Parity • Logs == Event Streams • Admin Tasks == Processes http://12factor.net © Copyright 2014 Pivotal. All rights reserved. 11
- 12. New Architectural Constraints • Pivotal CF optimizes for 12 Factor Linux applications • Microservices: a radical departure from traditional monolithic applications • In both cases, the enterprise is forced to “think different.” © Copyright 2014 Pivotal. All rights reserved. 12

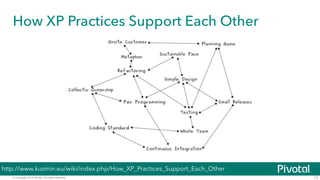

- 13. How XP PracticesSupport Each Other © Copyright 2014 Pivotal. All rights reserved. 13 http://www.kusmin.eu/wiki/index.php/How_XP_Practices_Support_Each_Other

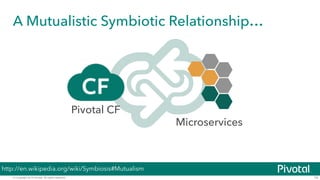

- 14. A Mutualistic SymbioticRelationship… © Copyright 2014 Pivotal. All rights reserved. 14 Microservices Pivotal CF http://en.wikipedia.org/wiki/Symbiosis#Mutualism
- 15. Microservices Overview ©Copyright 2014 Pivotal. © Copyright 2014 Pivotal. AAllll rriigghhttss rreesseerrvveedd.. 15
- 16. Simple vs. Easy • Simple • sim- plex • one fold/braid • vs complex • Easy • ease < aise < adjacens • lie near • vs hard © Copyright 2014 Pivotal. All rights reserved. 16

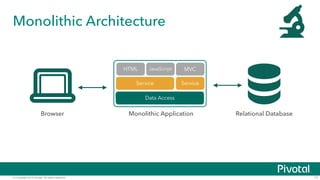

- 17. Monolithic Architecture ©Copyright 2014 Pivotal. All rights reserved. 17 Relational Database HTML JavaScript MVC Service Data Access Service Browser Monolithic Application

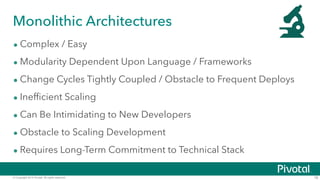

- 18. Monolithic Architectures •Complex / Easy • Modularity Dependent Upon Language / Frameworks • Change Cycles Tightly Coupled / Obstacle to Frequent Deploys • Inefficient Scaling • Can Be Intimidating to New Developers • Obstacle to Scaling Development • Requires Long-Term Commitment to Technical Stack © Copyright 2014 Pivotal. All rights reserved. 18

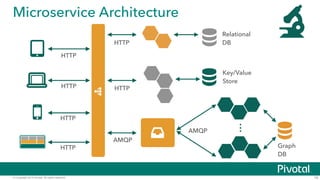

- 19. Microservice Architecture ©Copyright 2014 Pivotal. All rights reserved. 19 … HTTP HTTP HTTP HTTP HTTP HTTP AMQP AMQP Relational DB Key/Value Store Graph DB

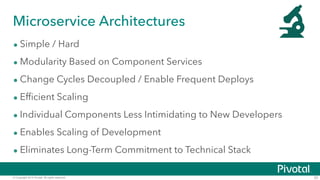

- 20. Microservice Architectures •Simple / Hard • Modularity Based on Component Services • Change Cycles Decoupled / Enable Frequent Deploys • Efficient Scaling • Individual Components Less Intimidating to New Developers • Enables Scaling of Development • Eliminates Long-Term Commitment to Technical Stack © Copyright 2014 Pivotal. All rights reserved. 20

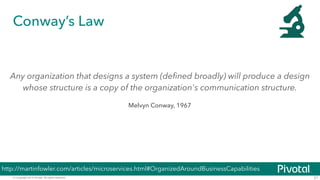

- 21. Conway’s Law ©Copyright 2014 Pivotal. All rights reserved. 21 Any organization that designs a system (defined broadly) will produce a design whose structure is a copy of the organization's communication structure. Melvyn Conway, 1967 http://martinfowler.com/articles/microservices.html#OrganizedAroundBusinessCapabilities

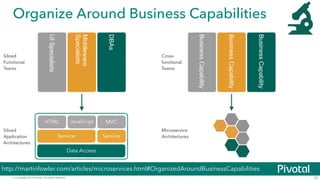

- 22. Organize Around BusinessCapabilities HTML JavaScript MVC Service Siloed Application Architectures © Copyright 2014 Pivotal. All rights reserved. 22 Data Access Service UI Specialists Middleware Specialists DBAs Business Capability Business Capability Business Capability Siloed Functional Teams Cross-functional Teams Microservice Architectures http://martinfowler.com/articles/microservices.html#OrganizedAroundBusinessCapabilities

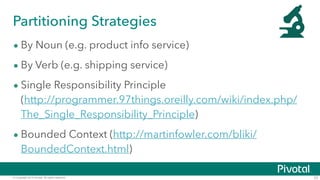

- 23. Partitioning Strategies •By Noun (e.g. product info service) • By Verb (e.g. shipping service) • Single Responsibility Principle (http://programmer.97things.oreilly.com/wiki/index.php/ The_Single_Responsibility_Principle) • Bounded Context (http://martinfowler.com/bliki/ BoundedContext.html) © Copyright 2014 Pivotal. All rights reserved. 23

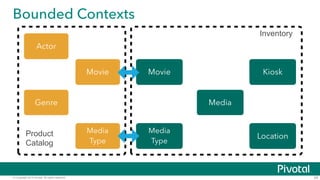

- 24. Bounded Contexts ©Copyright 2014 Pivotal. All rights reserved. 24 Movie Movie Actor Genre Media Type Media Type Kiosk Location Media Product Catalog Inventory

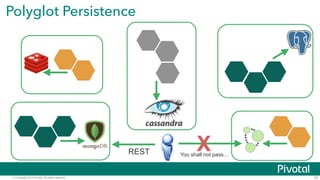

- 25. Polyglot Persistence ©Copyright 2014 Pivotal. All rights reserved. 25 REST X You shall not pass…

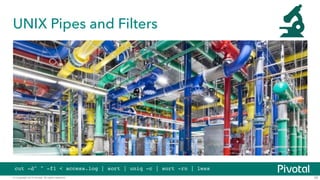

- 26. UNIX Pipes andFilters cut -d" " -f1 < access.log | sort | uniq -c | sort -rn | less © Copyright 2014 Pivotal. All rights reserved. 26
- 27. Choreography over Orchestration © Copyright 2014 Pivotal. All rights reserved. 27 https://www.flickr.com/photos/gabrielsaldana/5896491978 https://www.flickr.com/photos/chrisbrenschmidt/2223763842 http://martinfowler.com/articles/microservices.html#SmartEndpointsAndDumbPipes

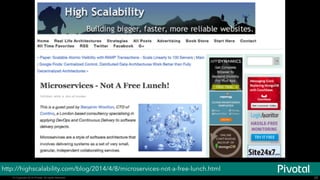

- 28. http://highscalability.com/blog/2014/4/8/microservices-not-a-free-lunch.html © Copyright2014 Pivotal. © Copyright 2014 Pivotal. AAllll rriigghhttss rreesseerrvveedd.. 28

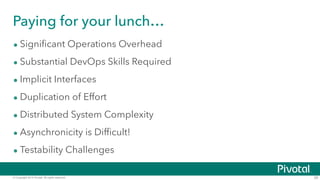

- 29. Paying for yourlunch… • Significant Operations Overhead • Substantial DevOps Skills Required • Implicit Interfaces • Duplication of Effort • Distributed System Complexity • Asynchronicity is Difficult! • Testability Challenges © Copyright 2014 Pivotal. All rights reserved. 29

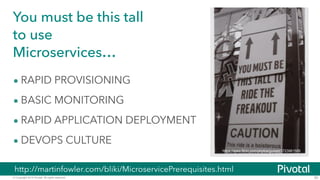

- 30. You must bethis tall to use Microservices… • RAPID PROVISIONING • BASIC MONITORING • RAPID APPLICATION DEPLOYMENT • DEVOPS CULTURE © Copyright 2014 Pivotal. All rights reserved. 30 https://www.flickr.com/photos/gusset/3723961589 http://martinfowler.com/bliki/MicroservicePrerequisites.html

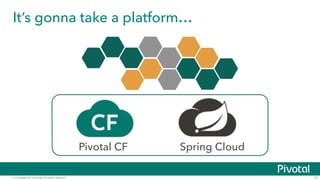

- 31. It’s gonna takea platform… © Copyright 2014 Pivotal. All rights reserved. 31 Pivotal CF Spring Cloud

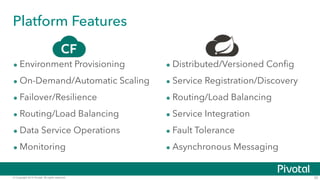

- 32. Platform Features •Environment Provisioning • On-Demand/Automatic Scaling • Failover/Resilience • Routing/Load Balancing • Data Service Operations • Monitoring • Distributed/Versioned Config • Service Registration/Discovery • Routing/Load Balancing • Service Integration • Fault Tolerance • Asynchronous Messaging © Copyright 2014 Pivotal. All rights reserved. 32

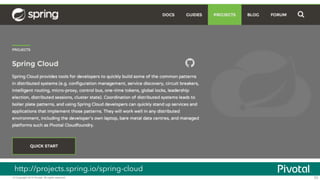

- 33. http://projects.spring.io/spring-cloud © Copyright2014 Pivotal. All rights reserved. 33

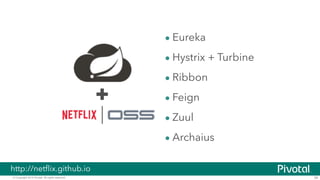

- 34. • Eureka •Hystrix + Turbine • Ribbon • Feign • Zuul • Archaius + http://netflix.github.io © Copyright 2014 Pivotal. All rights reserved. 34

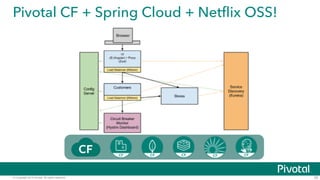

- 35. Pivotal CF +Spring Cloud + Netflix OSS! © Copyright 2014 Pivotal. All rights reserved. 35
- 36. DEMO © Copyright2014 Pivotal. All rights reserved. 36
- 37. Supporting Rapid Change DevOps Δ © Copyright 2014 Pivotal. All rights reserved. 37 Microservices is the first architectural style developed: POST & POST Continuous Delivery
- 38. Architecture is abstractuntil it is operationalized. Neal Ford © Copyright 2014 Pivotal. All rights reserved. 38
- 39. Architectures that aren’toperationalized exist only on whiteboards. Matt Stine © Copyright 2014 Pivotal. All rights reserved. 39
- 40. OPERATIONALIZED ARCHITECTURE ©Copyright 2014 Pivotal. All rights reserved. 40 Microservices Pivotal CF Spring Cloud
- 41. A NEW PLATFORMFOR A NEW ERA
