Simplify and Scale Enterprise Apps in the Cloud | Seattle 2023

The world’s leading
brands run on Azure

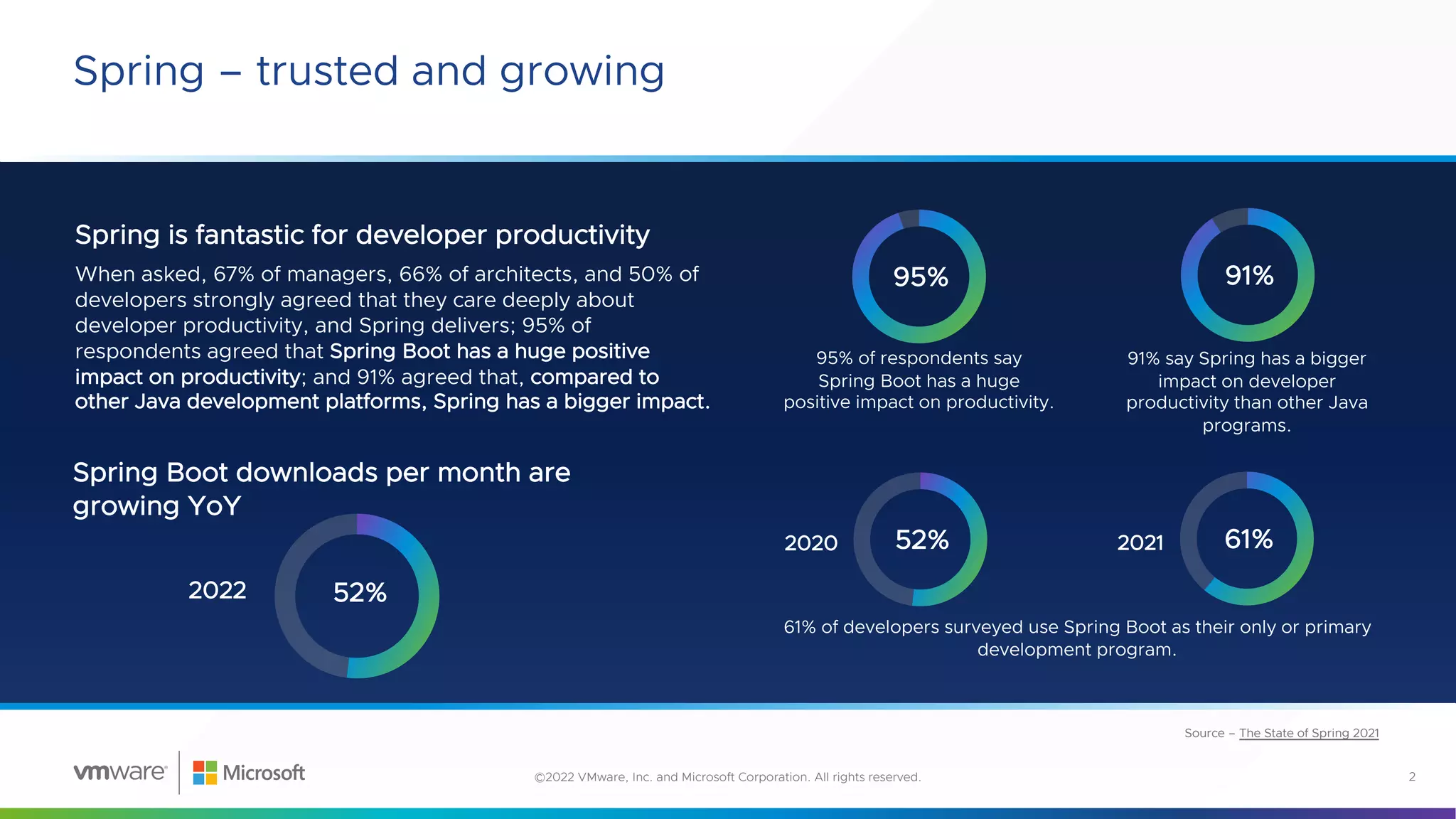

Spring – trusted and growing
Spring is fantastic for developer productivity
When asked, 67% of managers, 66% of architects, and 50% of
developers strongly agreed that they care deeply about
developer productivity, and Spring delivers; 95% of
respondents agreed that Spring Boot has a huge positive
impact on productivity; and 91% agreed that, compared to
other Java development platforms, Spring has a bigger impact.
95% of respondents say
Spring Boot has a huge
positive impact on productivity.
91% say Spring has a bigger
impact on developer
productivity than other Java
programs.
Spring Boot downloads per month are
growing YoY
61% of developers surveyed use Spring Boot as their only or primary
development program.
Source – The State of Spring 2021
95%
©2022 VMware, Inc. and Microsoft Corporation. All rights reserved. 2
52%
91%
61%
2021
2020
52%
2022

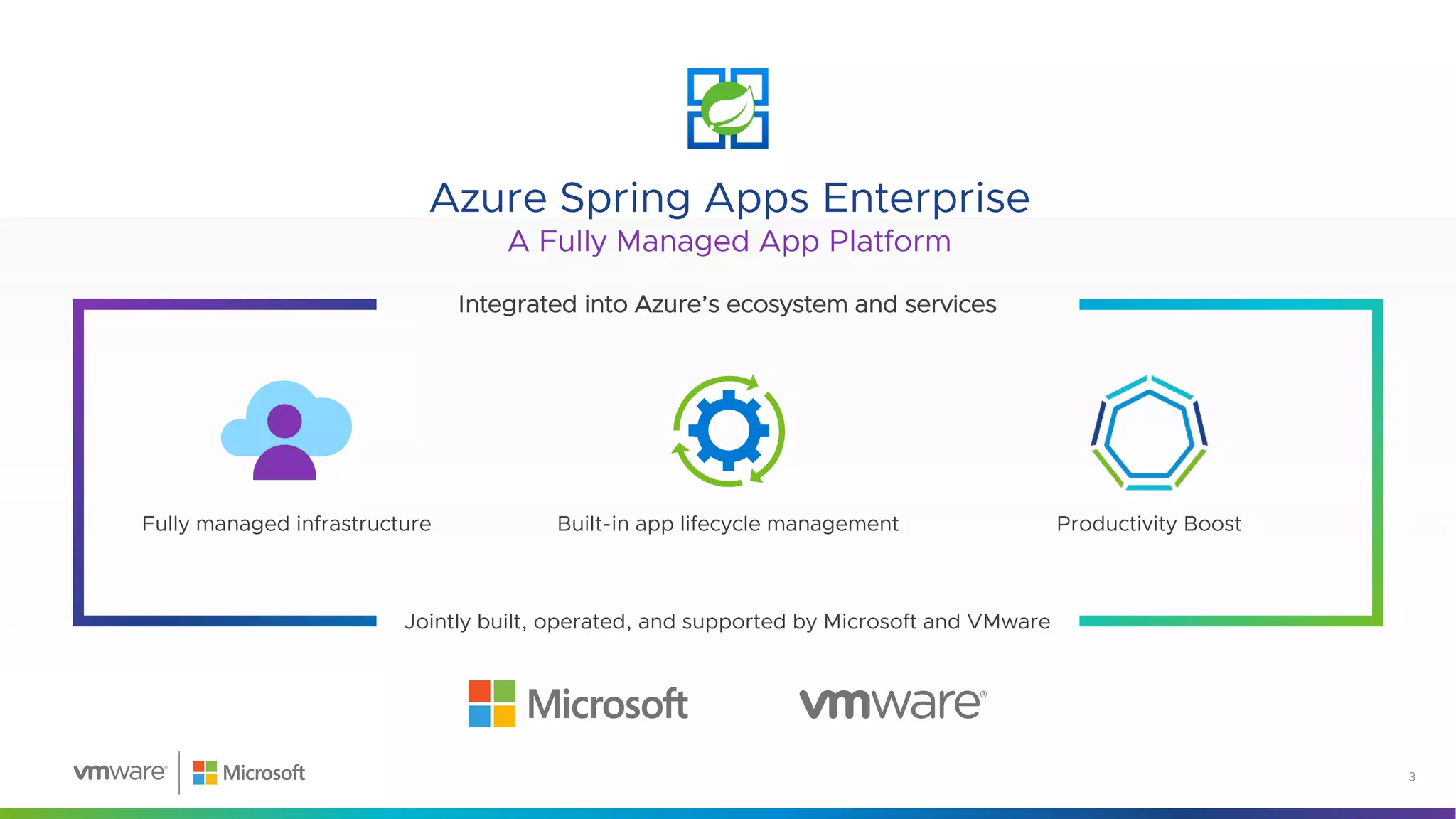

Integrated into Azure’s ecosystem and services
Fully managed infrastructure Built-in app lifecycle management Productivity Boost
Jointly built, operated, and supported by Microsoft and VMware
3
Azure Spring Apps Enterprise
A Fully Managed App Platform

Note: Most features covered today are only in the Enterprise Tier

Zero Management. Maximum Productivity.
Focus on Code
Not Toil
K8s Without
Learning K8s
VMware Tanzu
Productivity Boost
For Developers

The Tanzu Productivity Boost
5x Productivity
Boost for Junior
Devs
(with higher quality)
70% Time Saved
for App Operators
Accelerates
Customer’s
Timelines by Years
What We’ve Seen

Zero Management. Maximum Efficiency.
Developer
Self-Service
Less Work
More ROI
Security Baked In
For Operators

Harness the power of Kubernetes.
Without having to learn or manage
Kubernetes.
8
©2022 VMware, Inc. and Microsoft Corporation. All rights reserved.

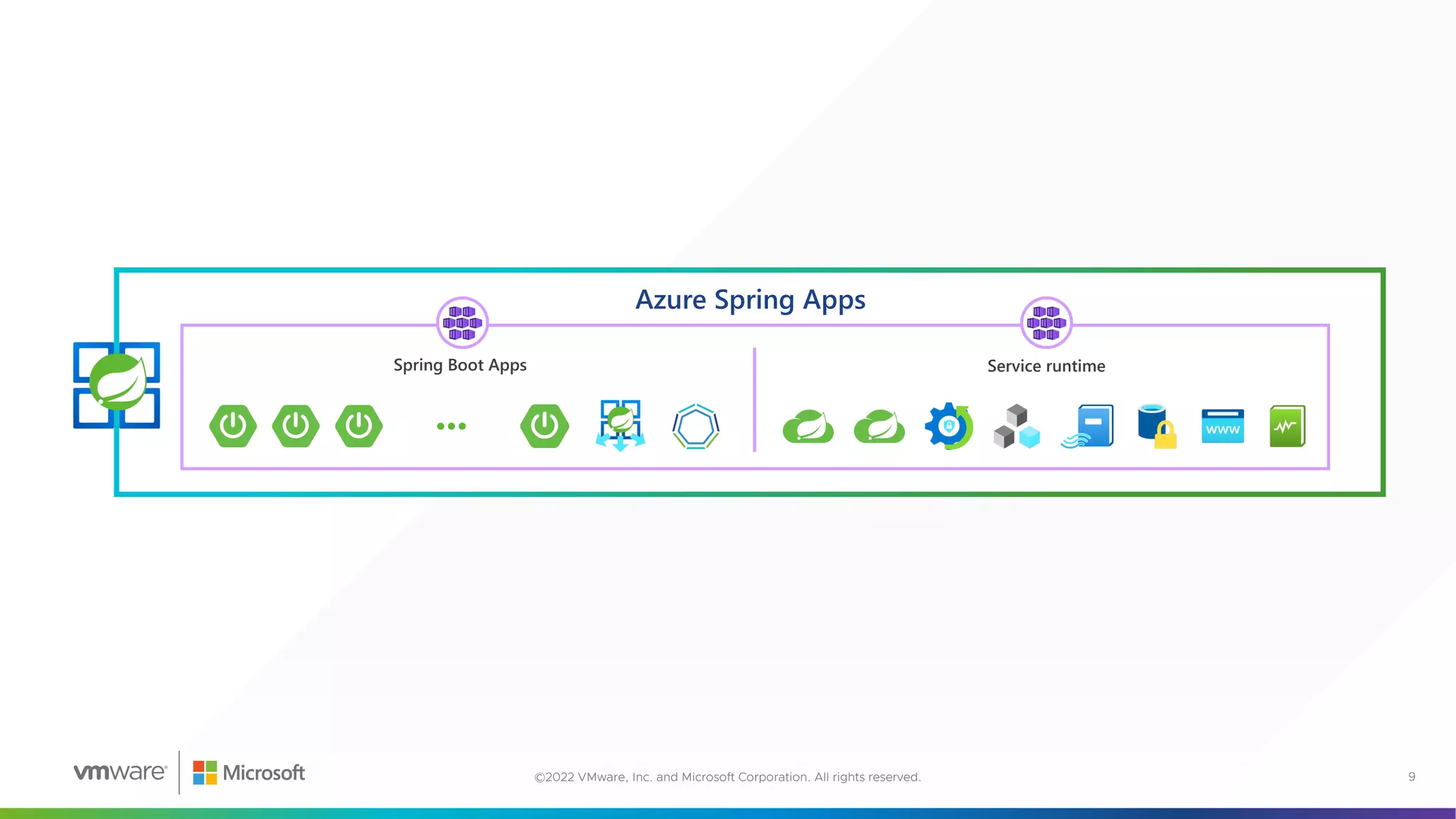

Azure Spring Apps
Spring Boot Apps Service runtime
9

Azure Spring Apps
Home for enterprise Spring Boot applications
11

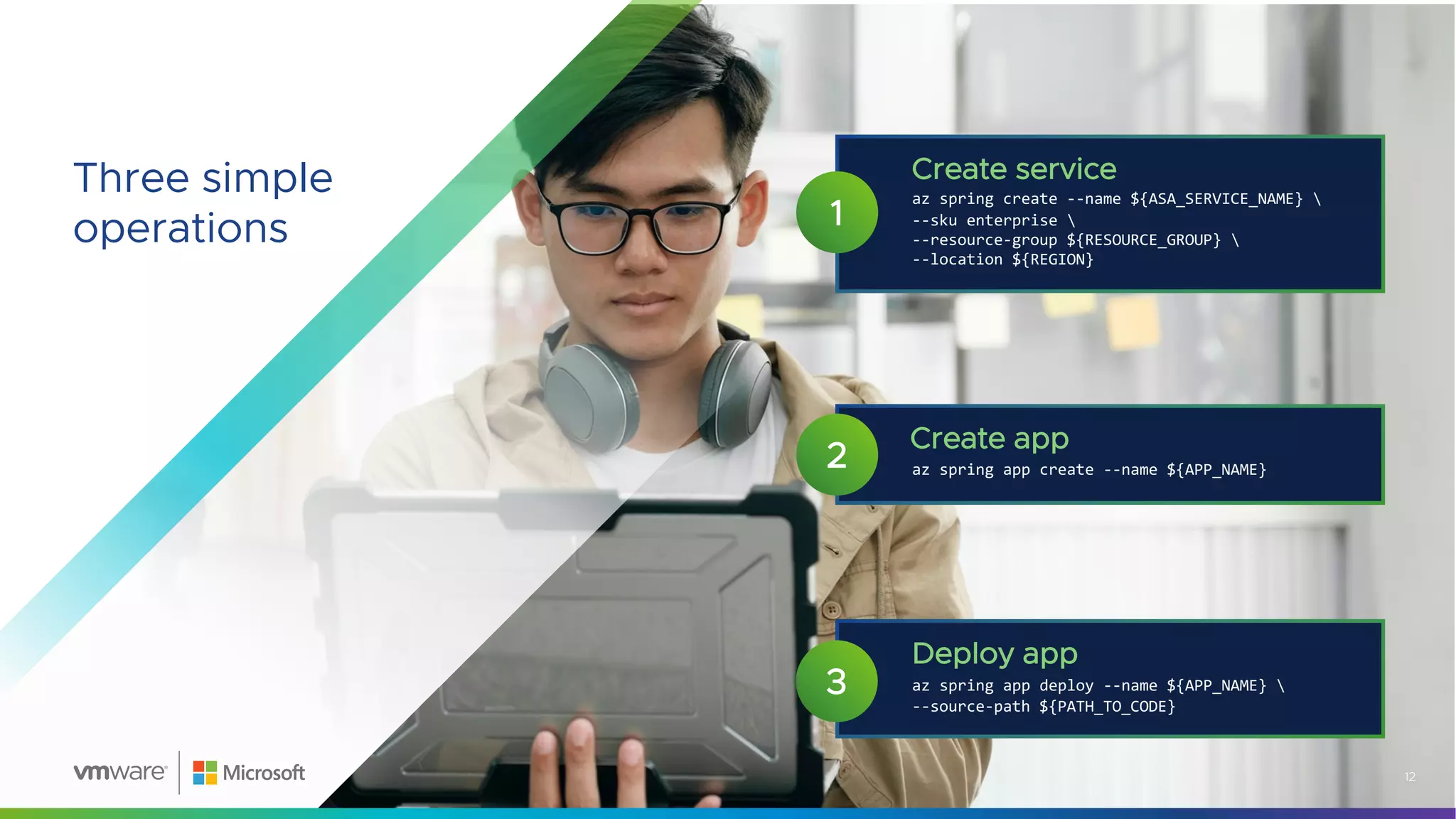

Three simple
operations
az spring create --name ${ASA_SERVICE_NAME}
--sku enterprise
--resource-group ${RESOURCE_GROUP}
--location ${REGION}
Create service
1
az spring app create --name ${APP_NAME}
Create app
2
Deploy app
az spring app deploy --name ${APP_NAME}
--source-path ${PATH_TO_CODE}
3
12

Azure Spring Apps Enterprise
13

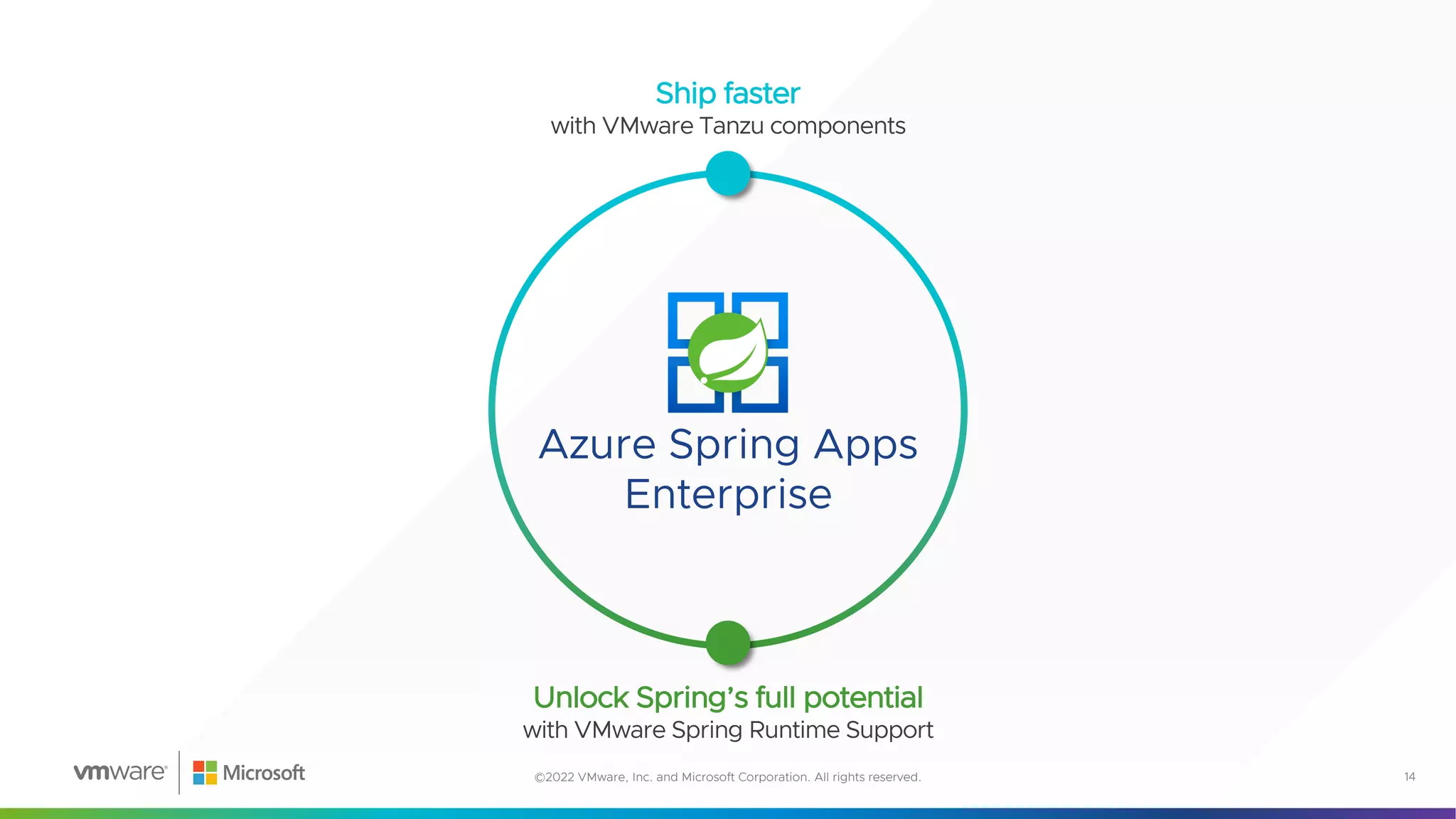

Azure Spring Apps
Enterprise
Unlock Spring’s full potential
with VMware Spring Runtime Support
Ship faster
with VMware Tanzu components
14

Ship faster
with VMware Tanzu
components
15
• Buildpacks with app
integrations
• Management of app
container creation
• Out-of-the-box SSO with
any identity provider
• Out-of-the-box
throttling and caching
• Accelerators for hardening
app config and best
practices
• Cloud-native streaming
and
batch data processing
pipelines
• ….
• Build Service
• Application
Configuration Service
• Service Registry
• Spring Cloud Gateway
• API portal
• Application Accelerator
• Application Live View
• SLA: 99.95
• ….

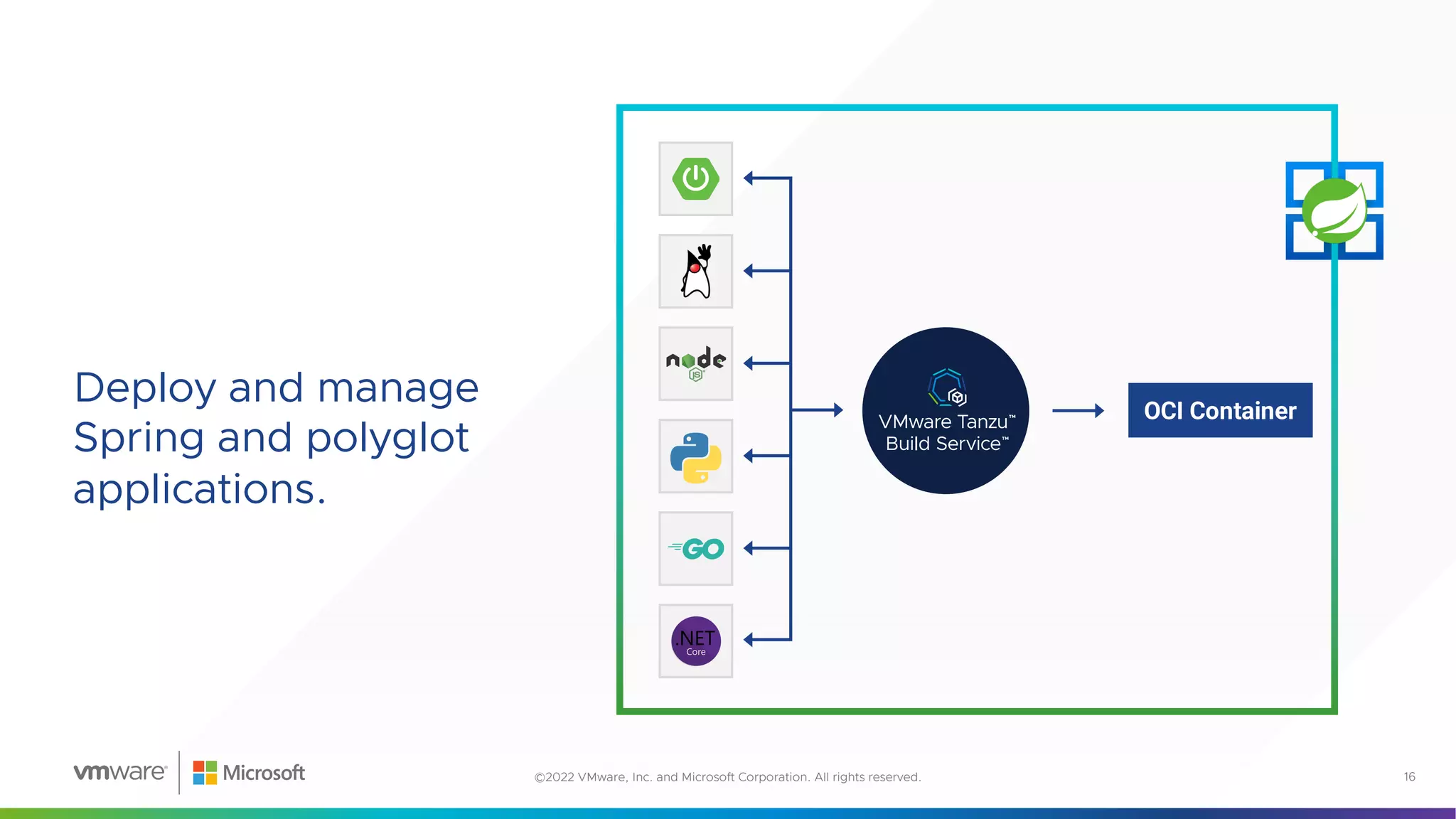

Deploy and manage
Spring and polyglot
applications.
16

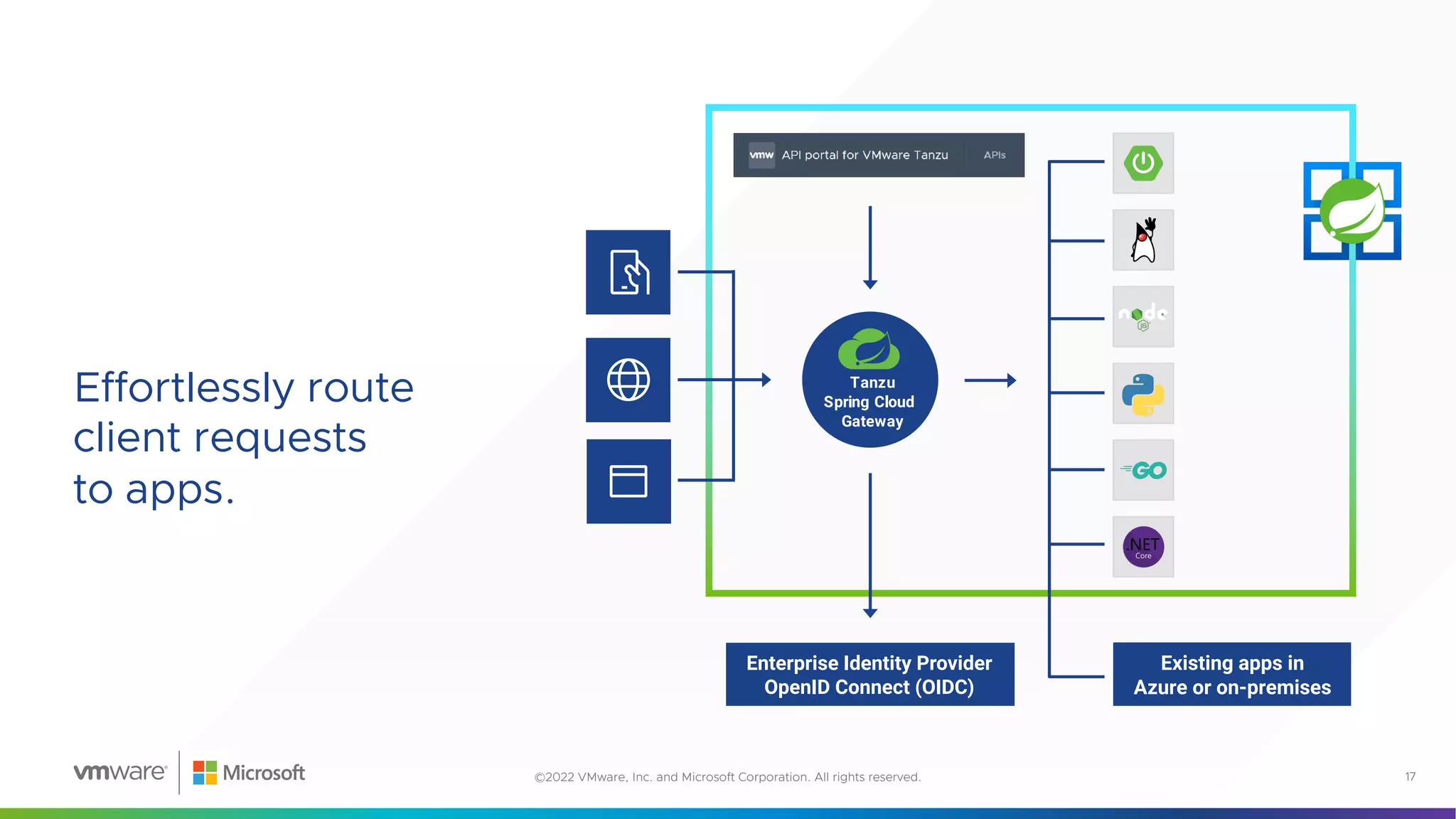

Effortlessly route
client requests
to apps.
17

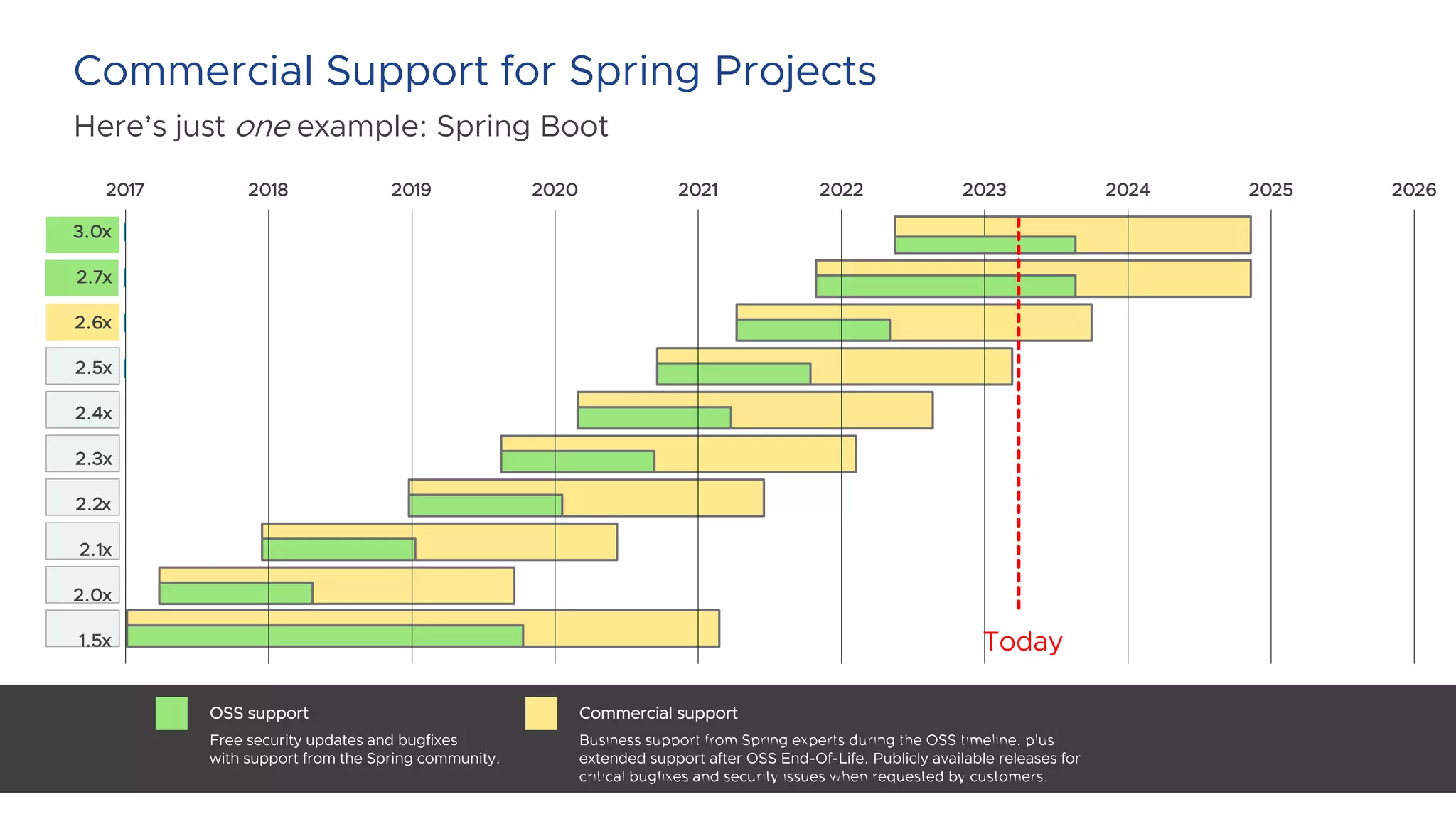

Commercial Support for Spring Projects
Here’s just one example: Spring Boot
2017 2018 2019 2020 2021 2022 2023 2024 2025 2026
3.0x
2.7x
2.6x
2.5x
2.4x
2.3x
2.2x
2.1x
2.0x
1.5x Today

AspectJ
Micrometer
Reactor
Spring AMQP
Spring Batch
Spring Boot
Spring Apps Commons
Spring Apps Config
Spring Apps Netflix
Spring Apps Bus
Spring Apps
Cloud Foundry
Spring Apps Open
Service Broker
Spring Apps Consul
Spring Apps Security
Spring Apps Sleuth
Spring Apps Zookeeper
Spring Apps Kubernetes
Spring Apps CLI
Spring Apps OpenFeign
Spring Cloud Gateway
Spring Apps Function
Spring Apps Contract
Spring Apps Task
Spring Apps Stream
Spring Apps Stream Binder
for Apache Kafka®
for RabbitMQ
for Kafka Streams
Spring Apps Vault
Spring CredHub
Spring Data for
Apache Cassandra™
Spring Data Commons
Spring Data KeyValue
Spring Data LDAP
Spring Data JDBC
Spring Data JPA
Spring Data MongoDB
Spring Data GemFire
Spring Data For
Apache Geode™
Spring Data Redis
Spring Data Rest
Spring Data Solr
Spring Framework
Spring HATEOAS
Spring Integration
(Core Modules + Kafka)
Spring For Apache Kafka®
Spring LDAP
Spring Kerberos
Spring Rest Docs
Spring Retry
Spring Statemachine
Spring Security
Spring Security OAuth
Spring Security SAML
Spring Apps Data Flow
Spring Session
Spring Session
for MongoDB
Spring Session for GemFire/
Apache Geode™
Spring Tool Suite
Spring Tools 4
Spring Vault
Spring Apps Skipper
Spring Apps Stream/
Task App Starters
Get 24/7 support
19

Demo:
Three simple
operations
az spring create --name ${ASA_SERVICE_NAME}
--sku enterprise
--resource-group ${RESOURCE_GROUP}
--location ${REGION}
Create service
1
az spring app create --name ${APP_NAME}
Create app
2
Deploy app
az spring app deploy --name ${APP_NAME}
--source-path ${PATH_TO_CODE}
3
20

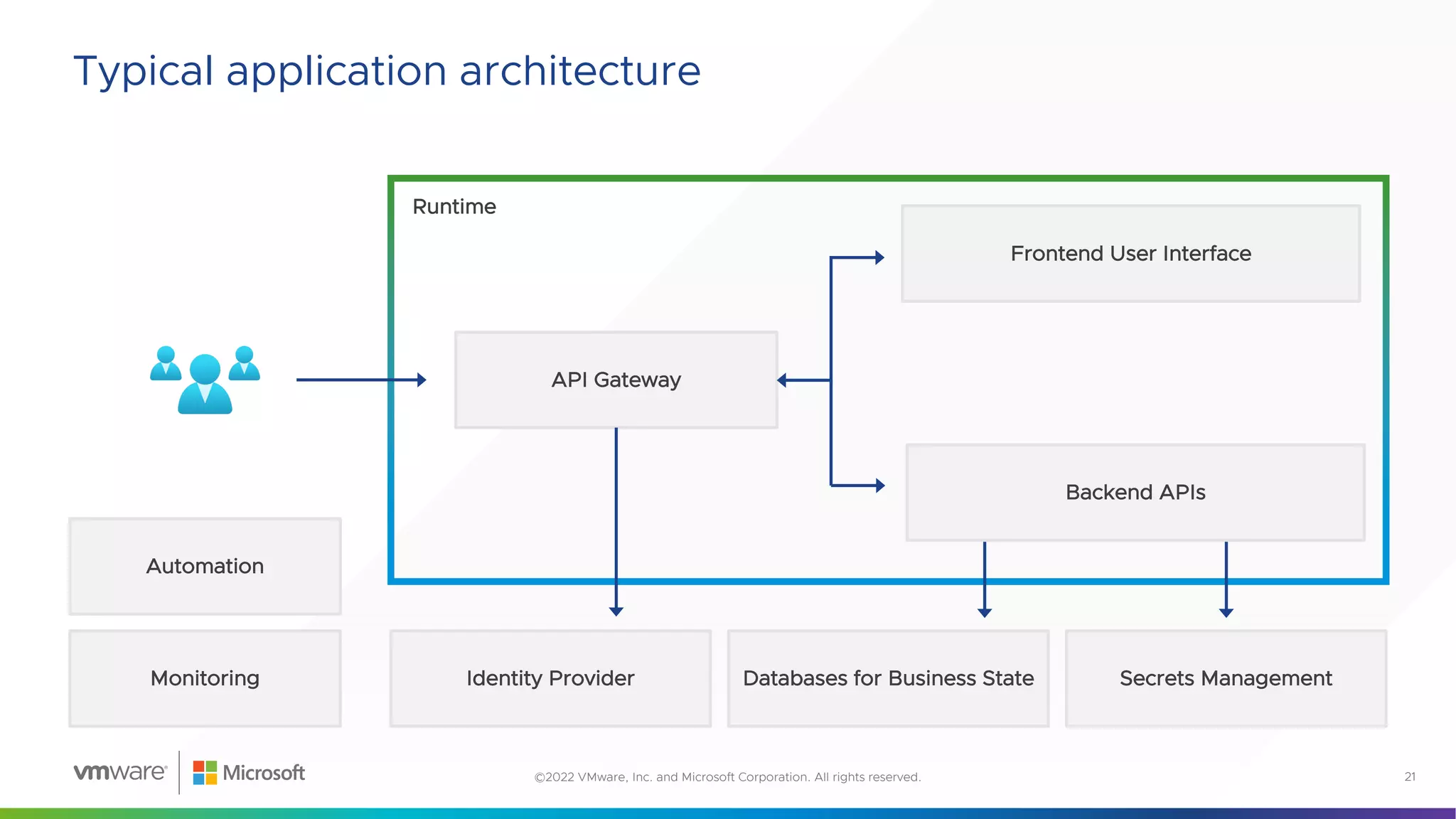

Typical application architecture
21
Runtime
API Gateway
Frontend User Interface
Automation
Monitoring Identity Provider Databases for Business State Secrets Management
Backend APIs
Runtime

Azure Spring Apps
Azure Active Directory PostgreSQL
Automation
Monitoring

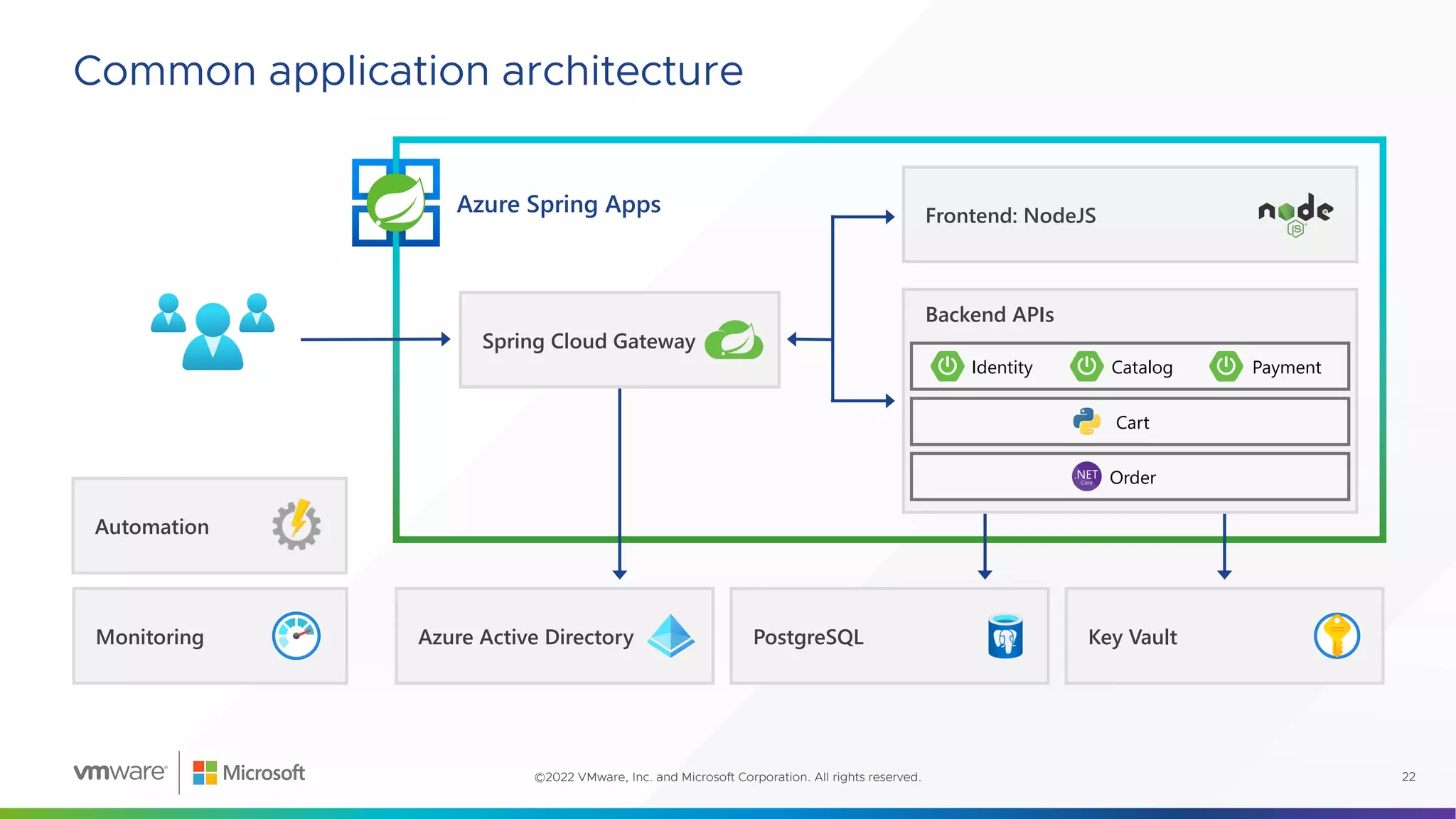

Common application architecture
22
Key Vault
Backend APIs
Identity Catalog Payment
Order
Cart
Frontend: NodeJS

Popular and easy to get started

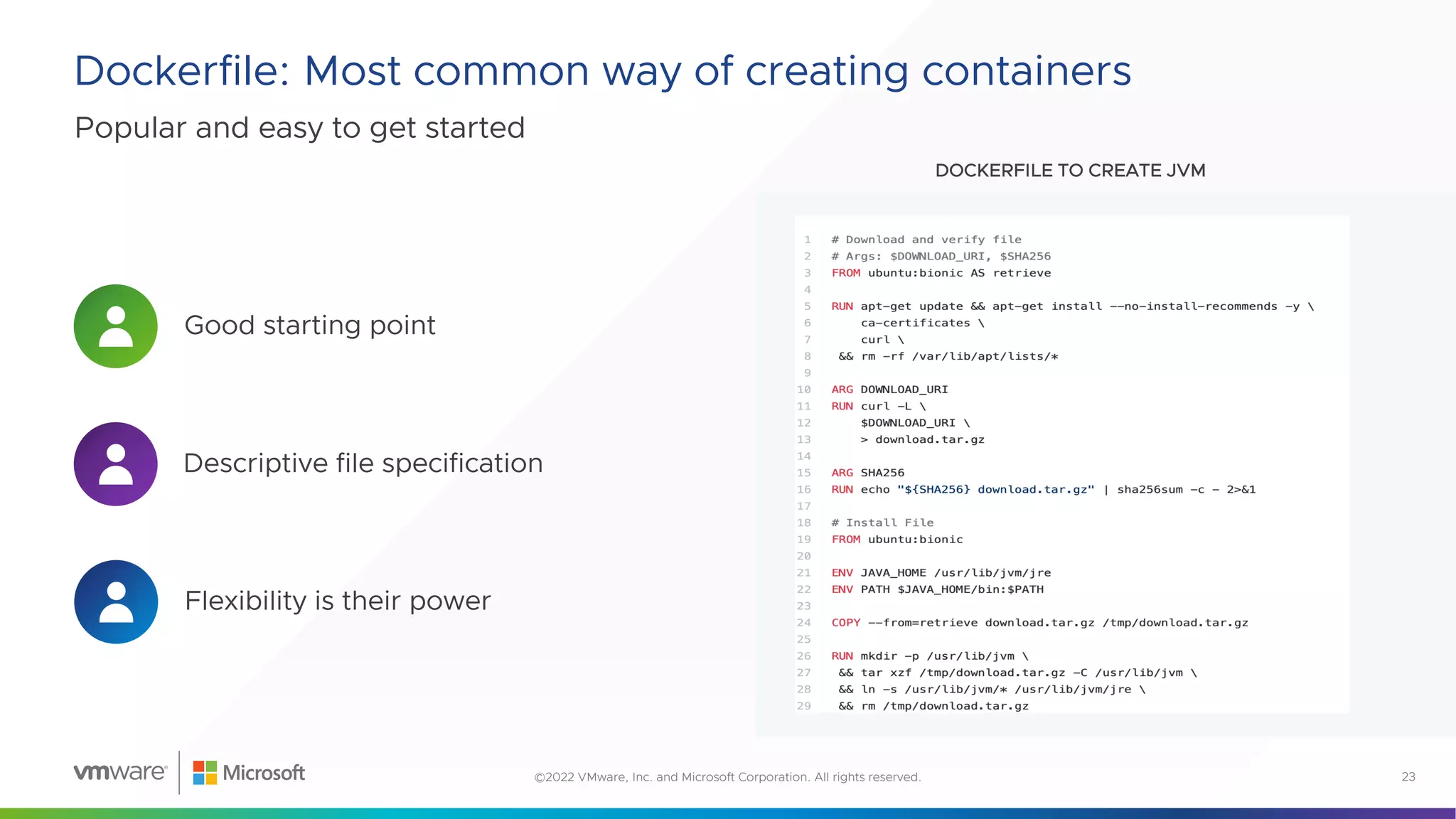

Dockerfile: Most common way of creating containers
©2022 VMware, Inc. and Microsoft Corporation. All rights reserved. 23
Confidential │ ©2020 VMware, Inc.
• Dockerfiles are the most common way
of creating Docker Images
• Their flexibility is their power
• Run any command, mutate any file
• Their flexibility is their weakness
• Keeping consistent, ensuring security
• Takes a lot of effort for "good"
Dockerfiles
5
Creating Docker Images
DOCKERFILE TO CREATE JVM
Descriptive file specification
Good starting point
Flexibility is their power

When dev teams build images differently, they introduce vulnerabilities and complexity

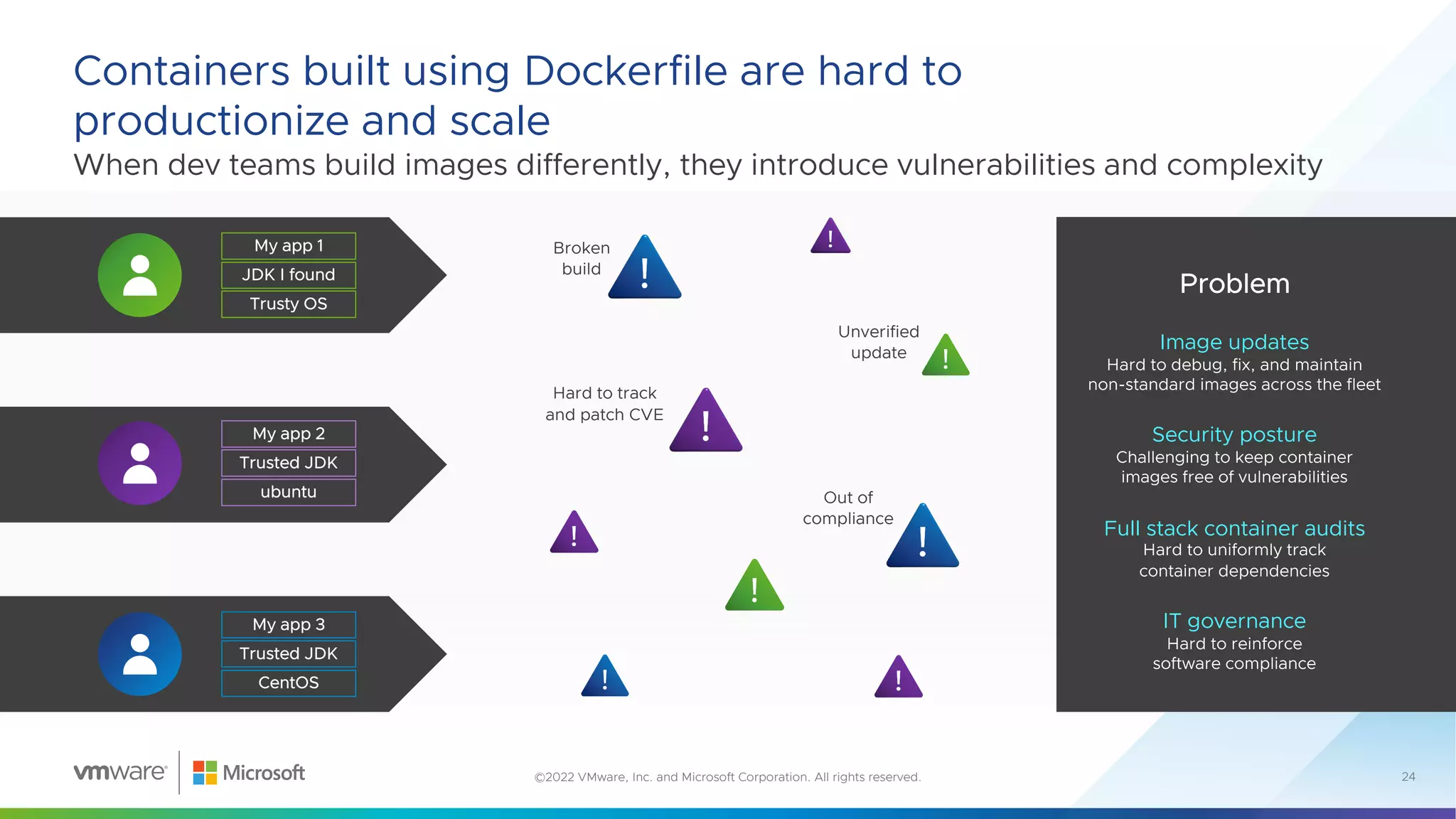

Containers built using Dockerfile are hard to
productionize and scale
24
Broken
build
Unverified
update
Hard to track
and patch CVE
Out of
compliance
Image updates
Security posture
Full stack container audits
IT governance

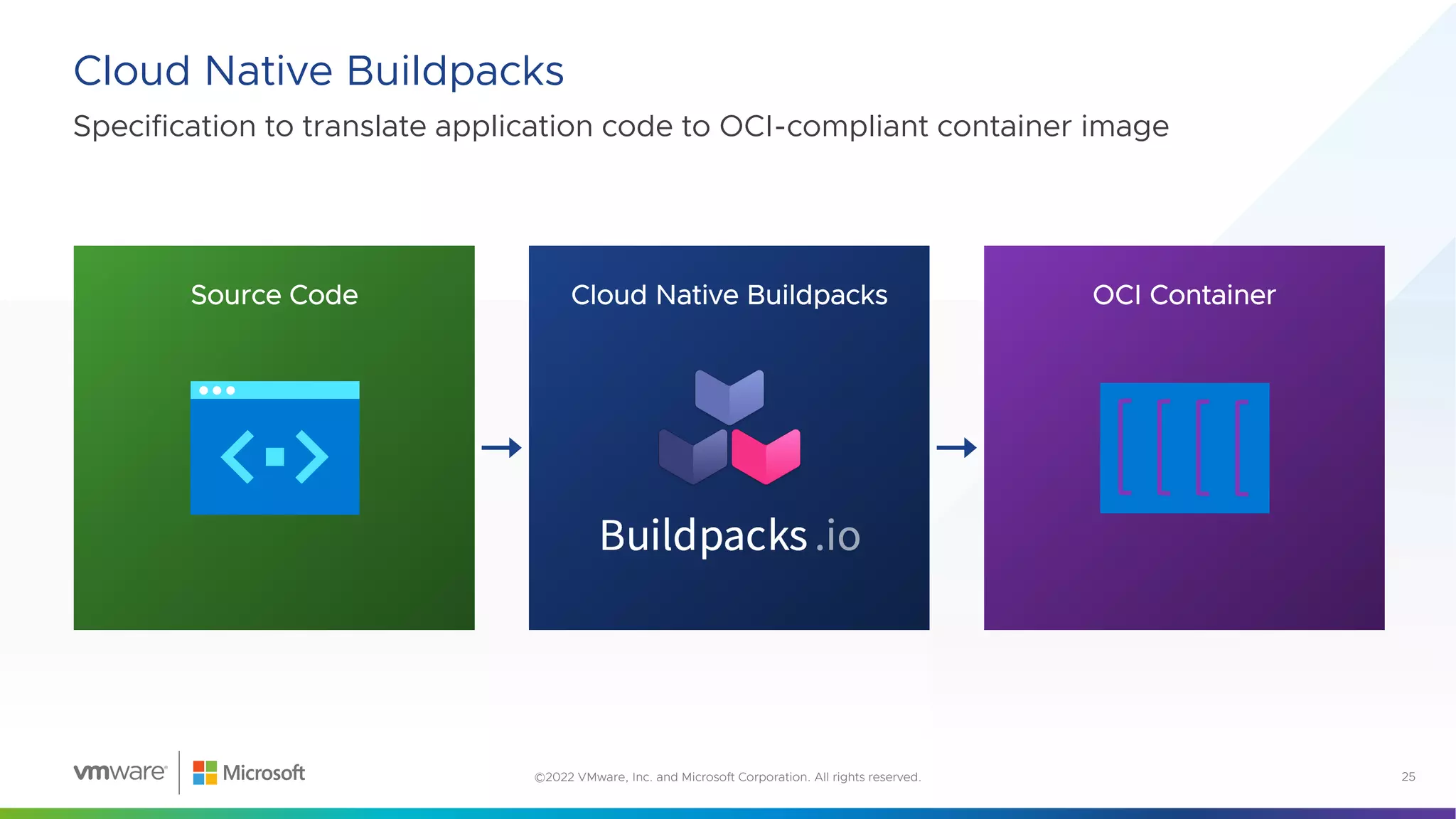

Specification to translate application code to OCI-compliant container image
Cloud Native Buildpacks
25

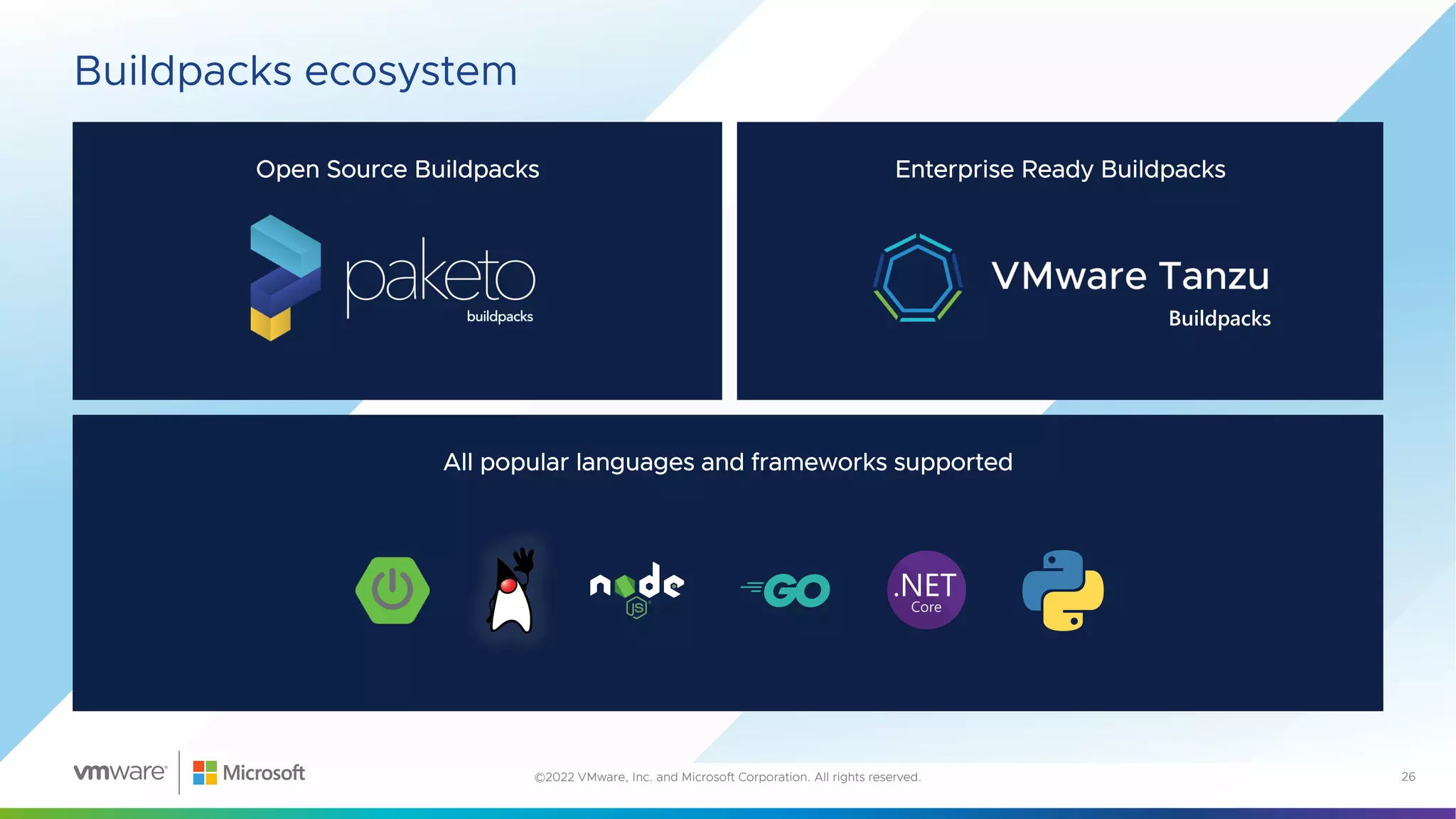

Buildpacks ecosystem
26

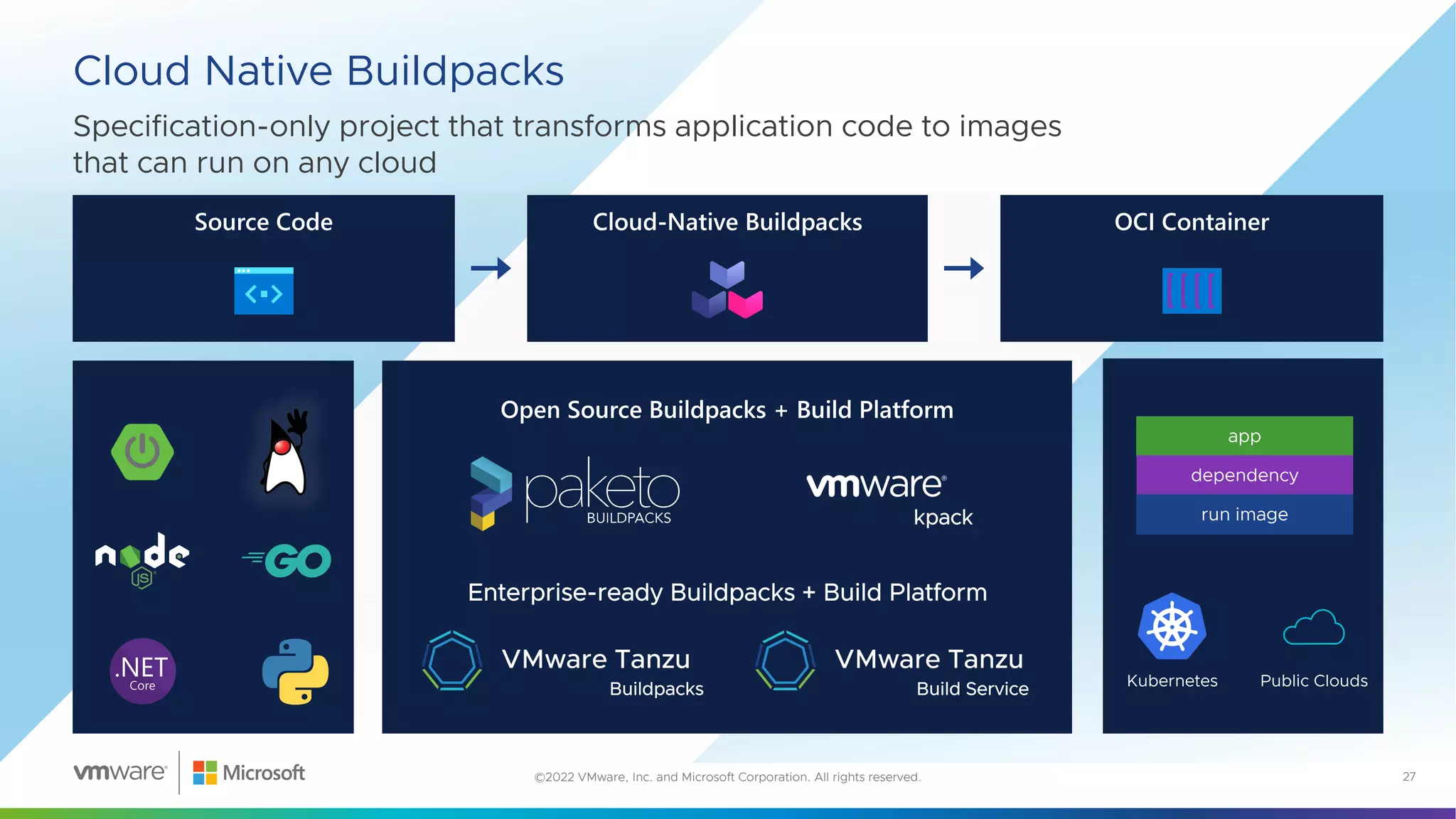

Specification-only project that transforms application code to images
that can run on any cloud
Cloud Native Buildpacks
27
dependency

Let’s start with a route and understand how the gateway helps me with XCCs

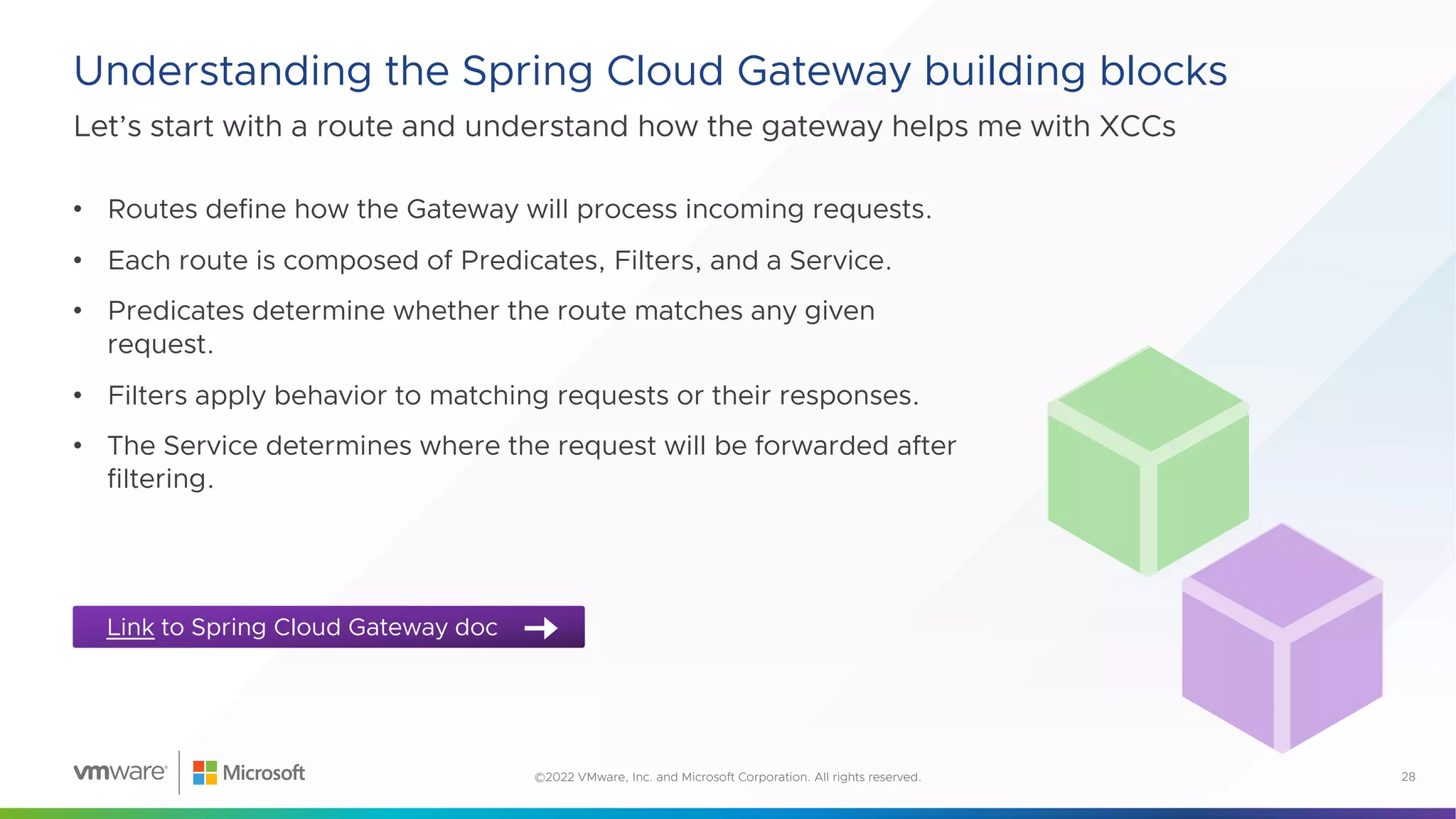

Understanding the Spring Cloud Gateway building blocks
28
Link to Spring Cloud Gateway doc
• Routes define how the Gateway will process incoming requests.
• Each route is composed of Predicates, Filters, and a Service.
• Predicates determine whether the route matches any given
request.
• Filters apply behavior to matching requests or their responses.
• The Service determines where the request will be forwarded after
filtering.

The logic for executing the cross-cutting concerns

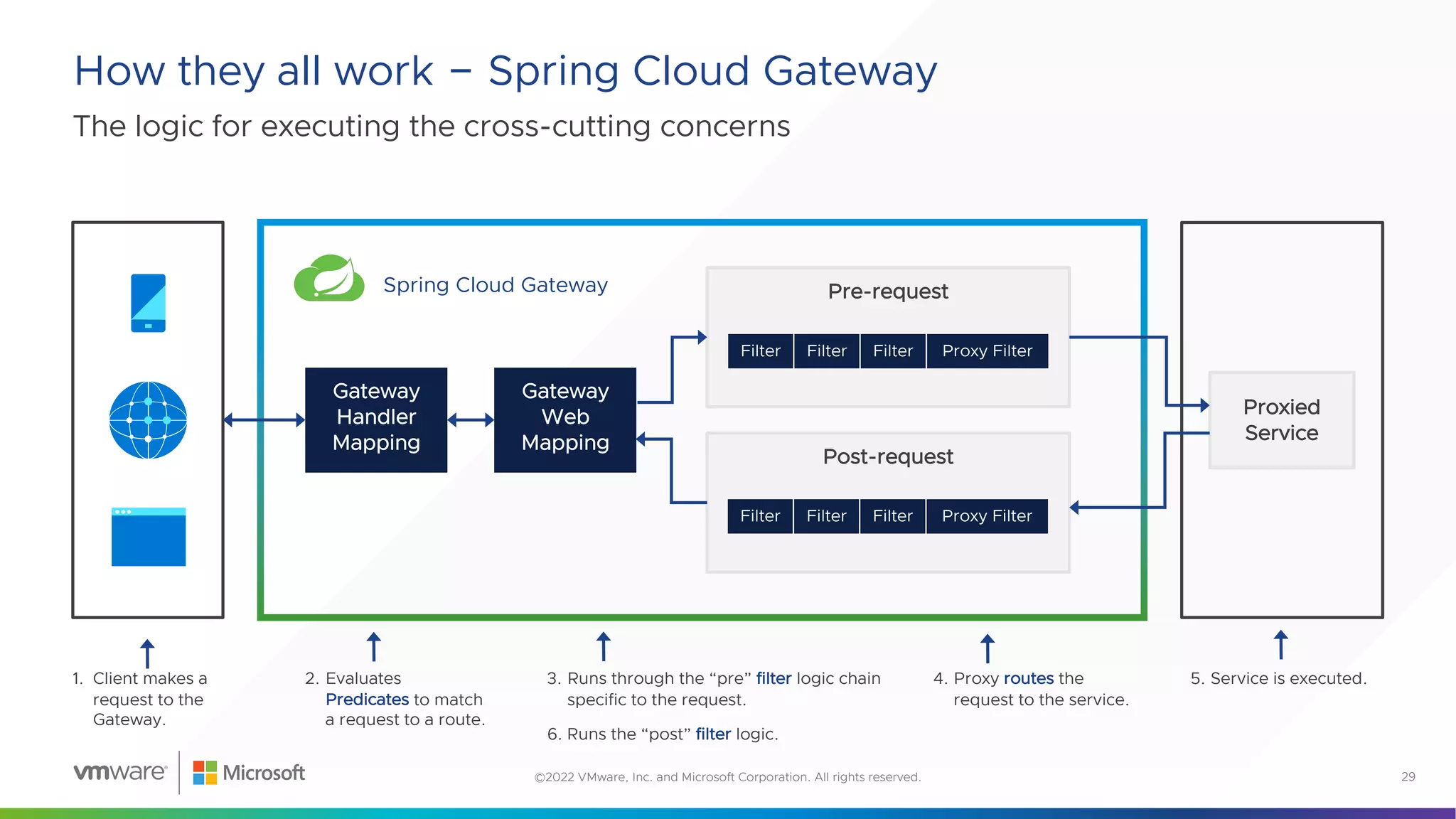

How they all work − Spring Cloud Gateway
29
1. Client makes a
request to the
Gateway.
2. Evaluates
Predicates to match
a request to a route.
3. Runs through the “pre” filter logic chain
specific to the request.
Pre-request
Post-request
4. Proxy routes the
request to the service.
Proxied
Service
5. Service is executed.
6. Runs the “post” filter logic.

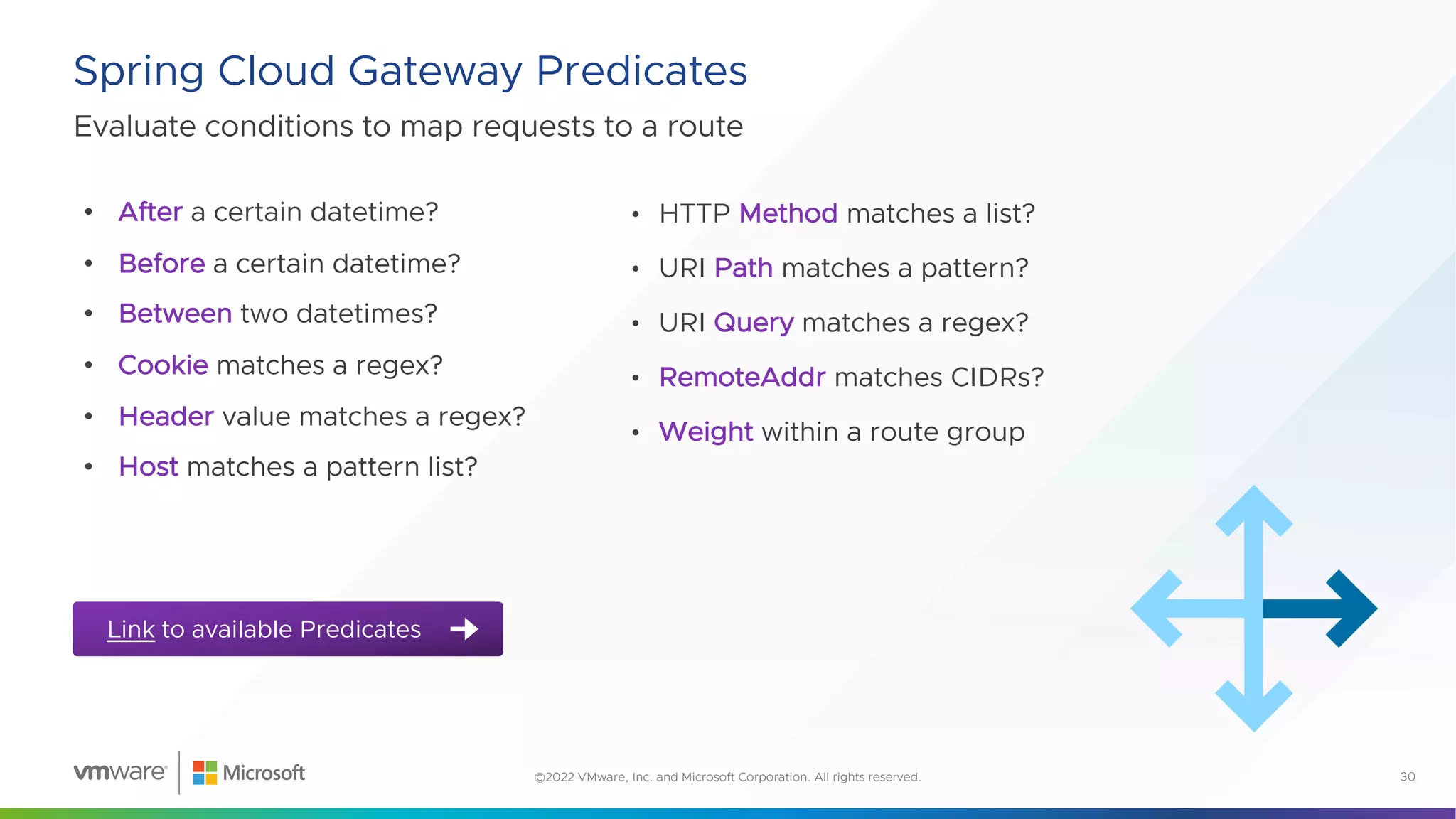

Evaluate conditions to map requests to a route
Spring Cloud Gateway Predicates
30
• HTTP Method matches a list?
• URI Path matches a pattern?
• URI Query matches a regex?
• RemoteAddr matches CIDRs?
• Weight within a route group
Link to available Predicates
• After a certain datetime?
• Before a certain datetime?
• Between two datetimes?
• Cookie matches a regex?
• Header value matches a regex?
• Host matches a pattern list?

Allow you to do things with requests/responses

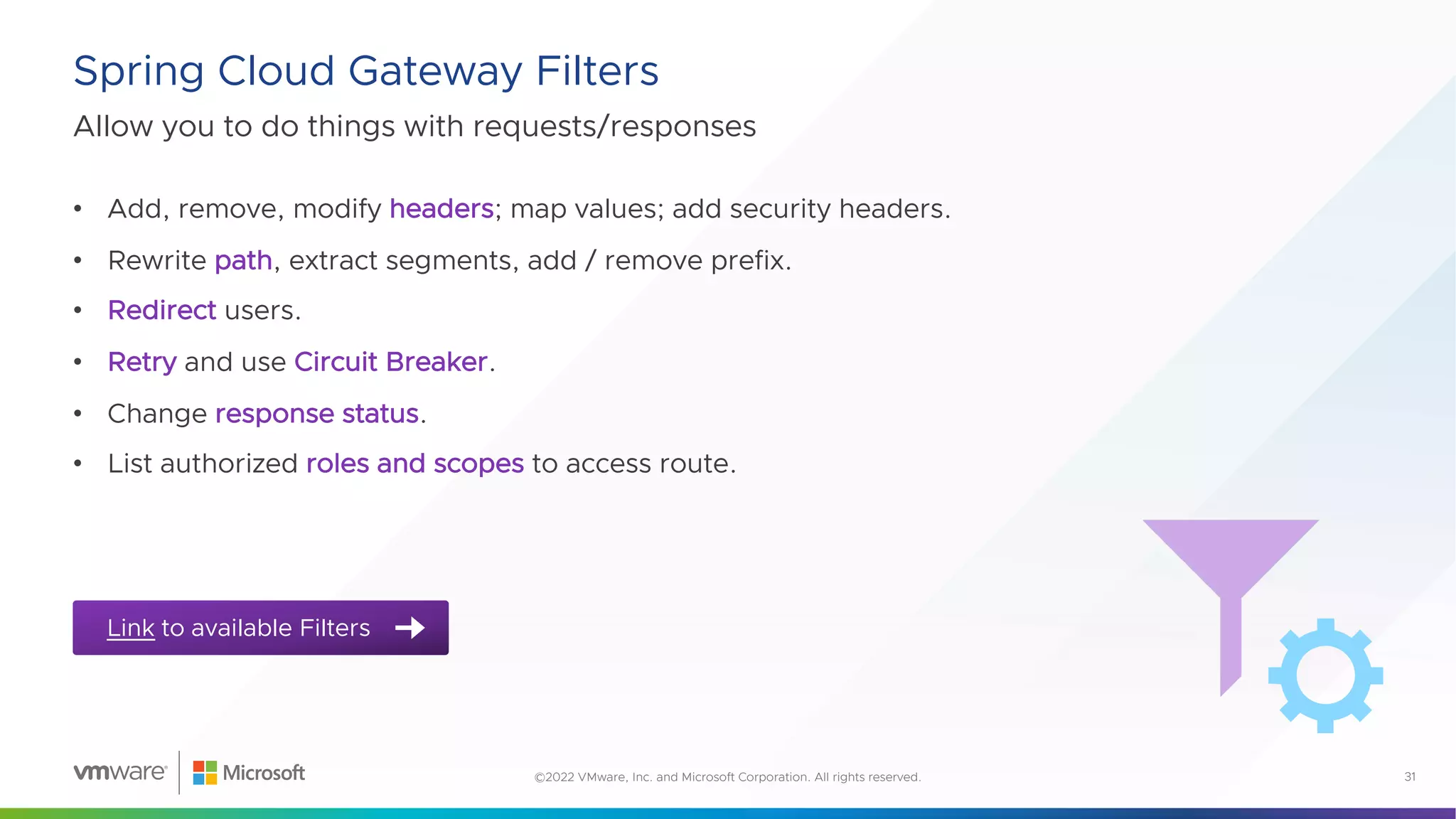

Spring Cloud Gateway Filters
31
Link to available Filters
• Add, remove, modify headers; map values; add security headers.
• Rewrite path, extract segments, add / remove prefix.
• Redirect users.
• Retry and use Circuit Breaker.
• Change response status.
• List authorized roles and scopes to access route.

Allows you to limit number of requests

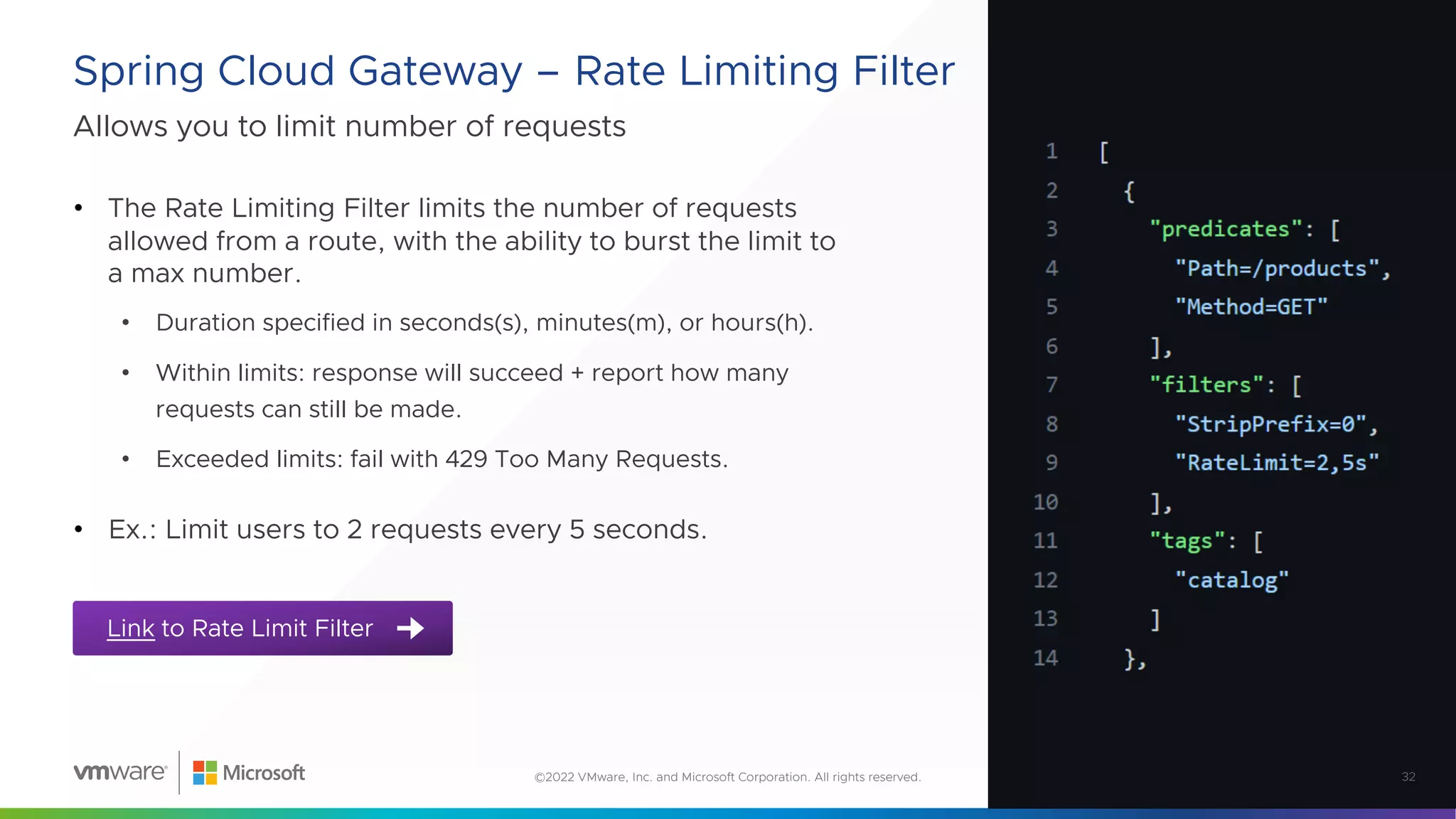

Spring Cloud Gateway – Rate Limiting Filter
32
• The Rate Limiting Filter limits the number of requests
allowed from a route, with the ability to burst the limit to
a max number.
• Duration specified in seconds(s), minutes(m), or hours(h).
• Within limits: response will succeed + report how many
requests can still be made.
• Exceeded limits: fail with 429 Too Many Requests.
• Ex.: Limit users to 2 requests every 5 seconds.
Link to Rate Limit Filter

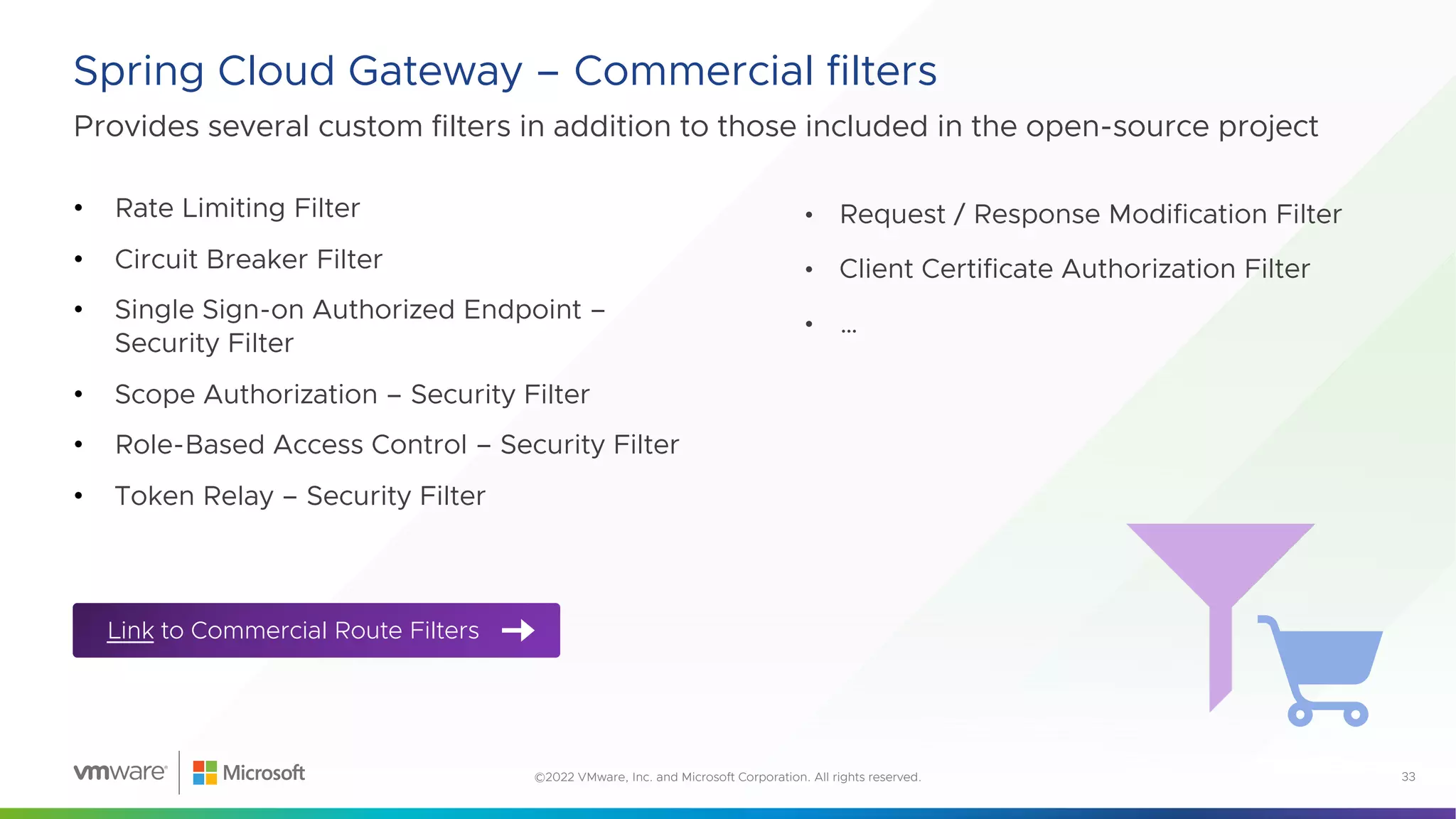

Provides several custom filters in addition to those included in the open-source project
Spring Cloud Gateway – Commercial filters
33
• Rate Limiting Filter
• Circuit Breaker Filter
• Single Sign-on Authorized Endpoint –
Security Filter
• Scope Authorization – Security Filter
• Role-Based Access Control – Security Filter
• Token Relay – Security Filter
• Request / Response Modification Filter
• Client Certificate Authorization Filter
• …
Link to Commercial Route Filters

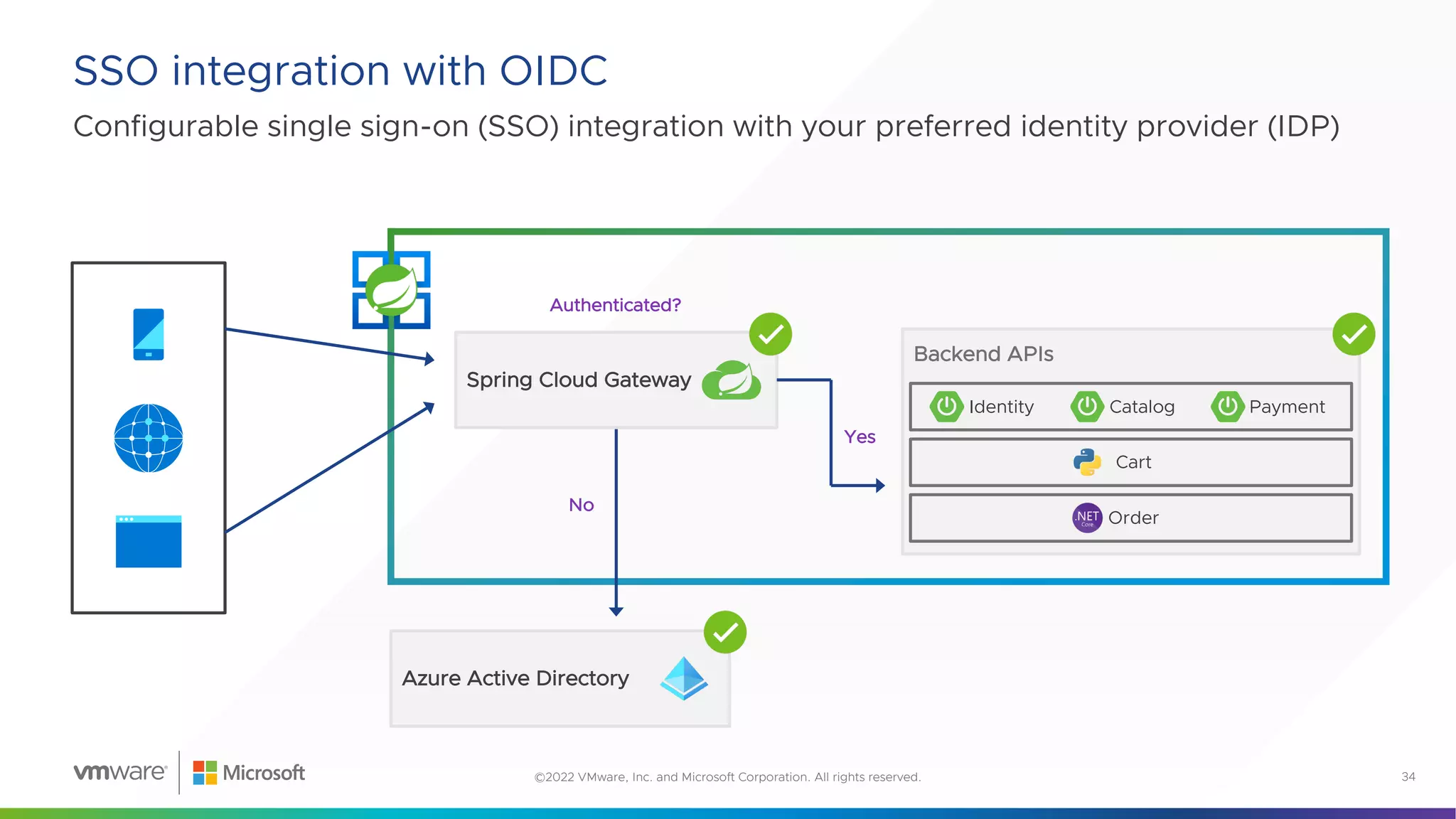

Configurable single sign-on (SSO) integration with your preferred identity provider (IDP)
SSO integration with OIDC
34
Authenticated?
No
Yes
Azure Active Directory
Backend APIs
Order
Cart

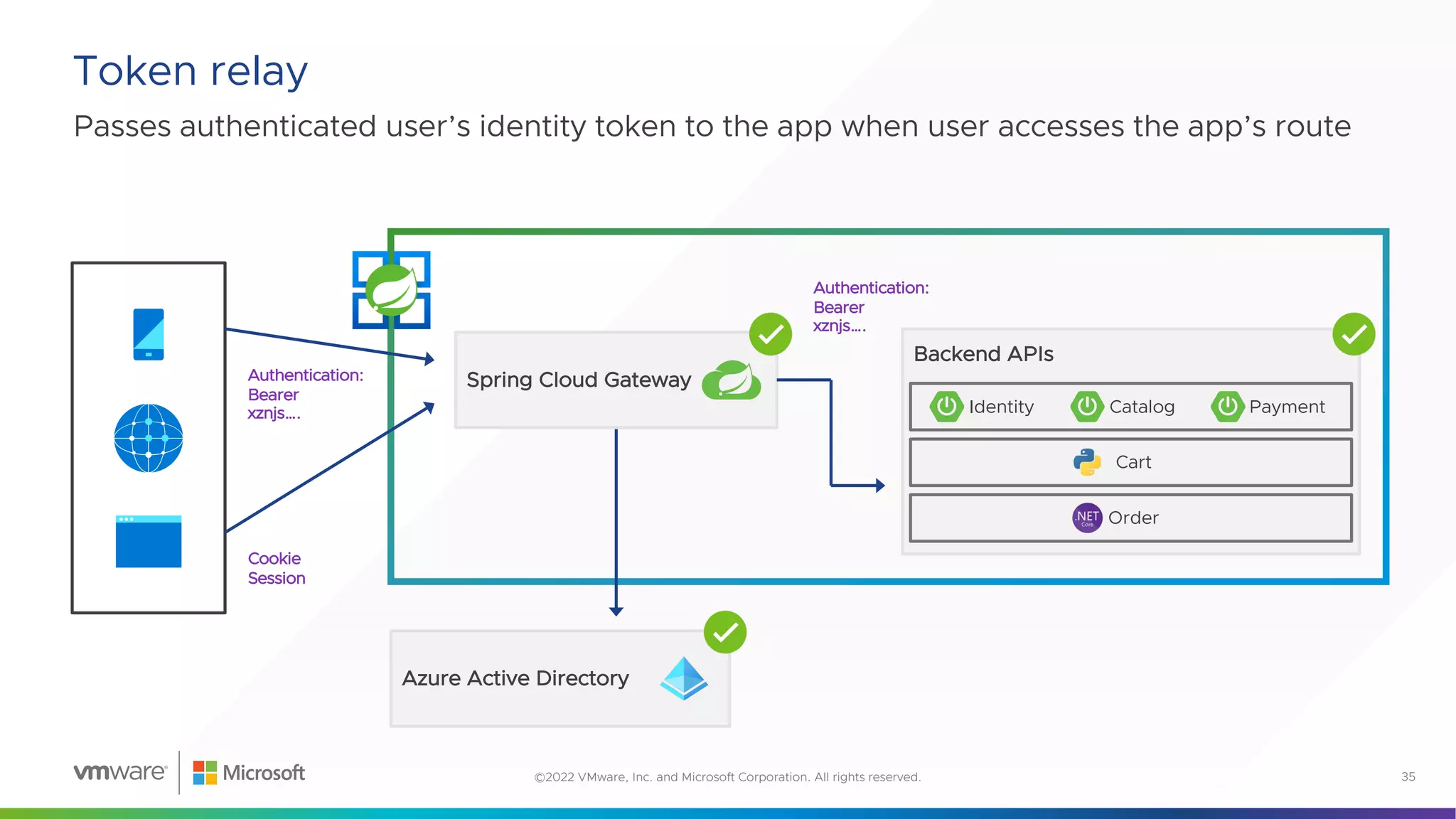

Passes authenticated user’s identity token to the app when user accesses the app’s route
Token relay
35
Cookie
Session
Authentication:
Bearer
xznjs….
Authentication:
Bearer
xznjs….
Azure Active Directory
Backend APIs
Order
Cart

Route filter

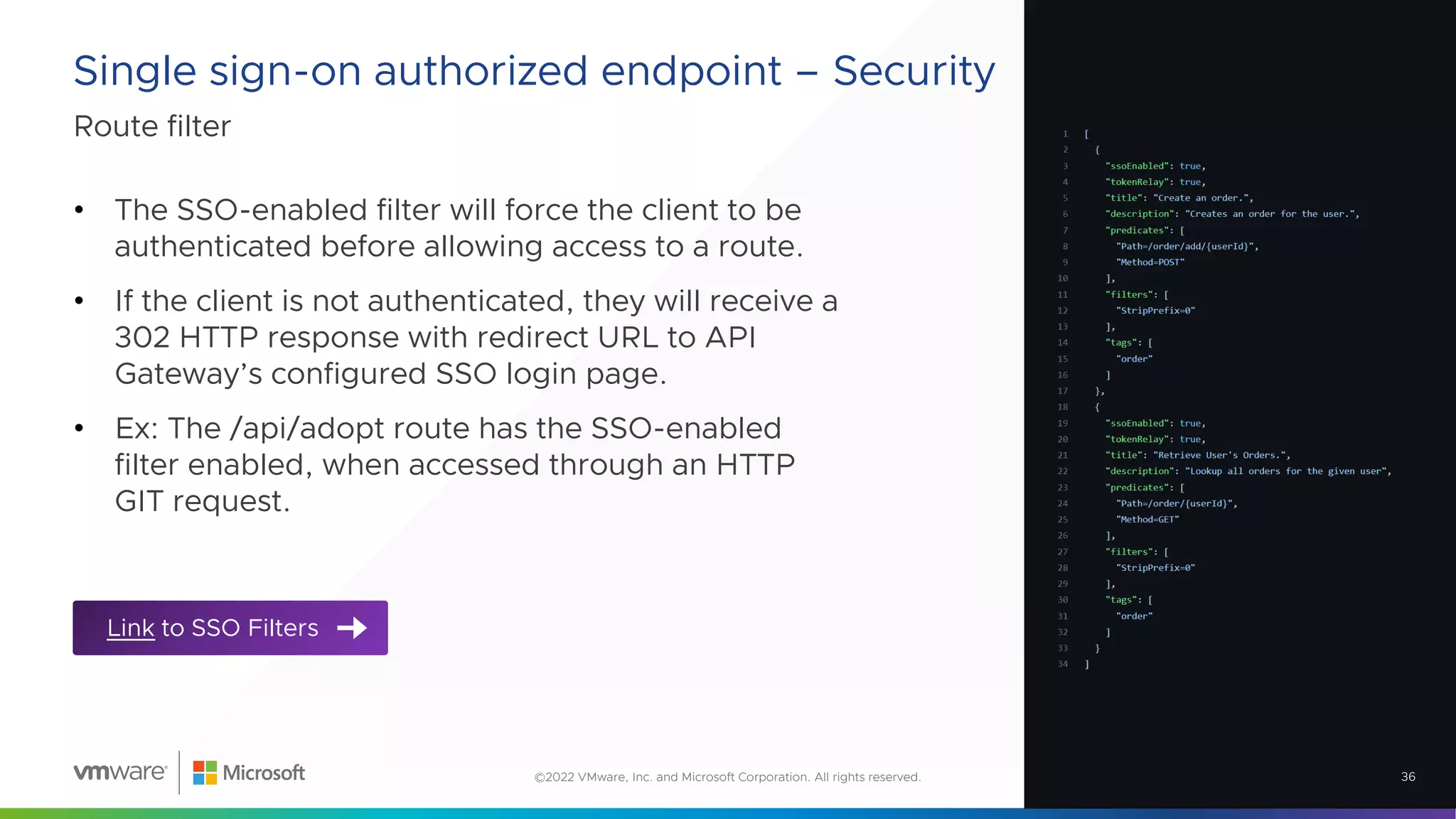

Single sign-on authorized endpoint – Security
36
• The SSO-enabled filter will force the client to be
authenticated before allowing access to a route.
• If the client is not authenticated, they will receive a
302 HTTP response with redirect URL to API
Gateway’s configured SSO login page.
• Ex: The /api/adopt route has the SSO-enabled
filter enabled, when accessed through an HTTP
GIT request.
Link to SSO Filters

Azure Spring Apps
Enterprise
37

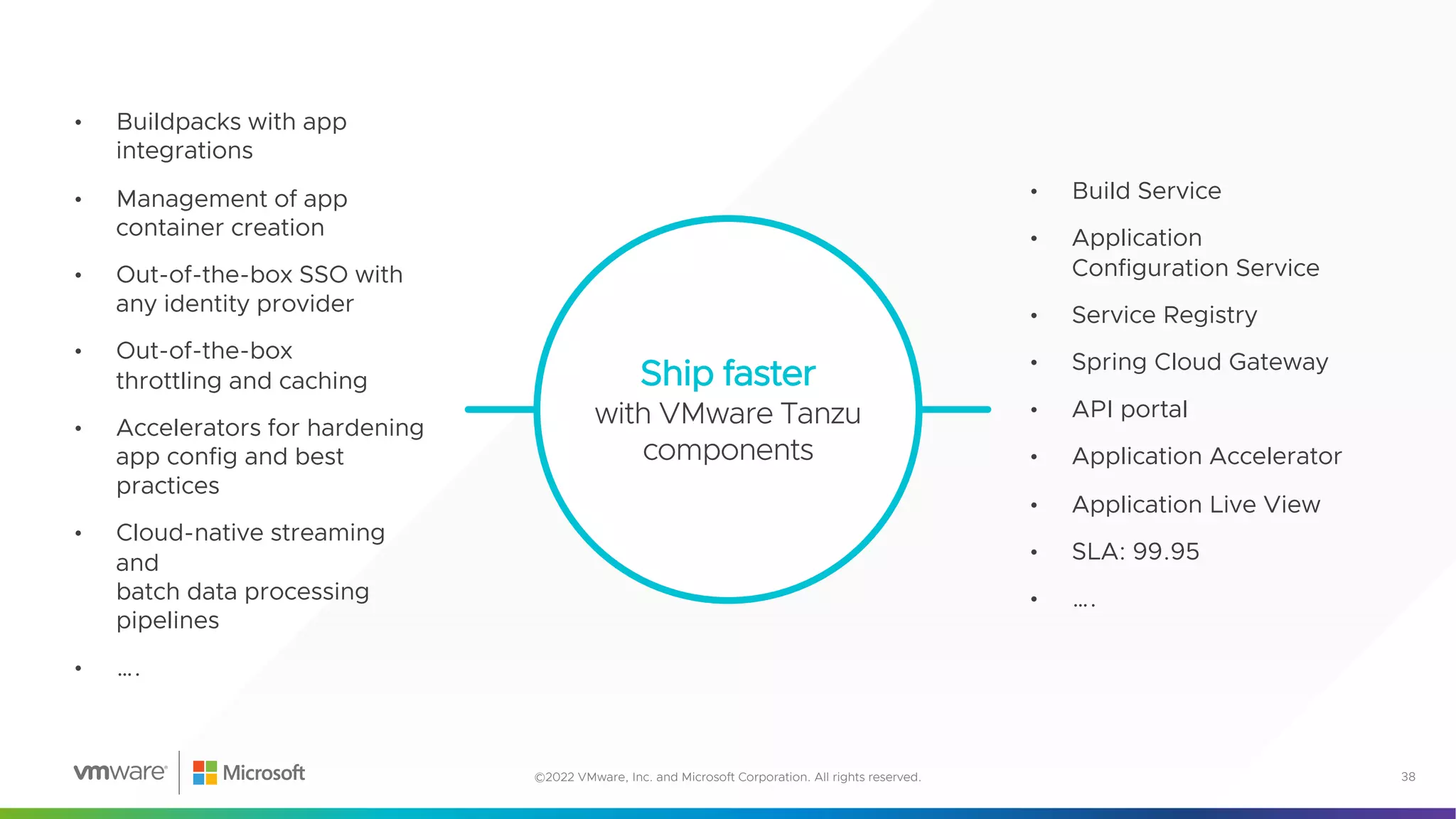

Ship faster
with VMware Tanzu components

Ship faster
with VMware Tanzu
components
38
• Buildpacks with app
integrations
• Management of app
container creation
• Out-of-the-box SSO with
any identity provider
• Out-of-the-box
throttling and caching
• Accelerators for hardening
app config and best
practices
• Cloud-native streaming
and
batch data processing
pipelines
• ….
• Build Service
• Application
Configuration Service
• Service Registry
• Spring Cloud Gateway
• API portal
• Application Accelerator
• Application Live View
• SLA: 99.95
• ….

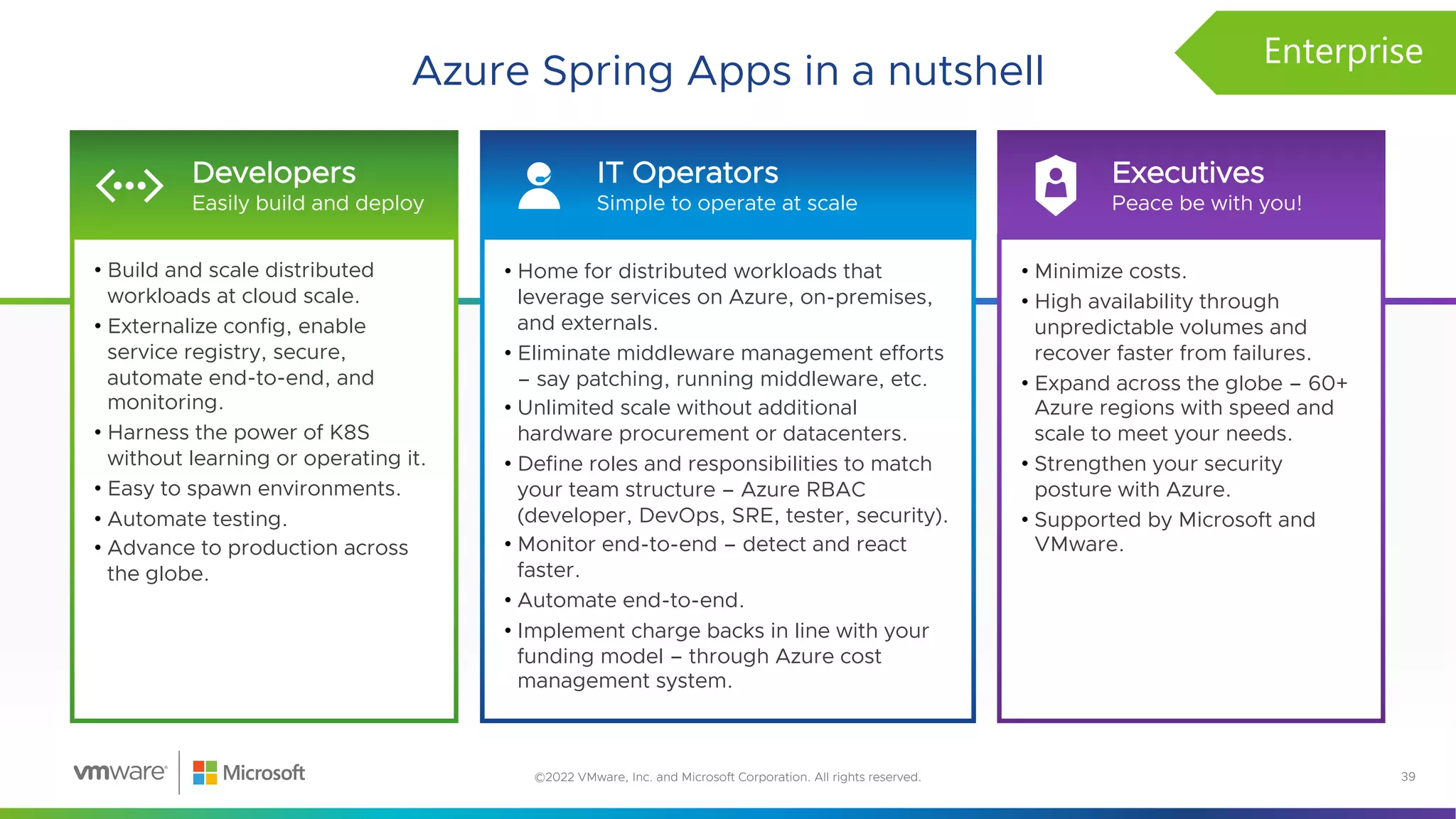

Azure Spring Apps in a nutshell
• Home for distributed workloads that
leverage services on Azure, on-premises,
and externals.
• Eliminate middleware management efforts
– say patching, running middleware, etc.
• Unlimited scale without additional
hardware procurement or datacenters.
• Define roles and responsibilities to match
your team structure – Azure RBAC
(developer, DevOps, SRE, tester, security).
• Monitor end-to-end – detect and react
faster.
• Automate end-to-end.
• Implement charge backs in line with your
funding model – through Azure cost
management system.
• Minimize costs.
• High availability through
unpredictable volumes and
recover faster from failures.
• Expand across the globe – 60+
Azure regions with speed and
scale to meet your needs.
• Strengthen your security
posture with Azure.
• Supported by Microsoft and
VMware.
• Build and scale distributed
workloads at cloud scale.
• Externalize config, enable
service registry, secure,
automate end-to-end, and
monitoring.
• Harness the power of K8S
without learning or operating it.
• Easy to spawn environments.
• Automate testing.
• Advance to production across
the globe.
Developers
Easily build and deploy
IT Operators
Simple to operate at scale
Executives
Peace be with you!
39
Enterprise

Accelerate Spring apps to cloud at scale today!
Develop your first
Spring Boot app
aka.ms/Start-Spring
Learn using a self-paced
workshop
aka.ms/Learn-Spring
Watch Demos
aka.ms/Spring-Playlist
Leverage Best Practices
aka.ms/Spring-Boot
Build and Deploy Java apps
on Azure
aka.ms/LearnJava
Interact With Azure Services
Using Spring
aka.ms/Spring-Cloud-Azure

Start Today!
aka.ms/spring-apps-enterprise
50 vCPU hours
100 Memory GB hours

Special Offers
42
Interested in a hands-on workshop?
What about a free app suitability assessment?
You bring your app, and our experts will tell you
the level of effort to deploy it onto Azure Spring
Apps Enterprise.
There are limited slots for both, so sign up early!
https://via.vmw.com/asa-e-signup

SIGNUP – Discover and Assess Spring apps (Private Preview)
– using Azure Migrate!
43
• App Discovery: Spot any active Spring
application, detailing Java and Spring Boot
versions, environment variables, JVM options,
binary locations, static content, binding ports,
and more.
• Cloud Readiness: Evaluate how ready your apps
are for the cloud.
• Cost Forecast: Get estimated expenses of cloud
deployment.
• Resourceful Docs: Access relevant migration
docs with ease. aka.ms/discover-spring-apps

44
We will be at SpringOne, and
VMware Explore!

Simplify and Scale Enterprise Apps in the Cloud | Seattle 2023

More Related Content

Similar to Simplify and Scale Enterprise Apps in the Cloud | Seattle 2023

More from VMware Tanzu

Recently uploaded

Simplify and Scale Enterprise Apps in the Cloud | Seattle 2023
