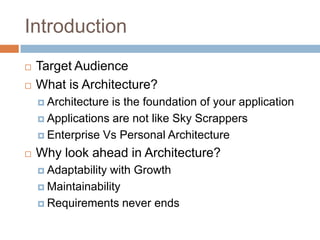

2. Introduction
 Target Audience
 What is Architecture?
 Architecture is the foundation of your application
 Applications are not like Sky Scrappers
 Enterprise Vs Personal Architecture
 Why look ahead in Architecture?
 Adaptabilitywith Growth
 Maintainability
 Requirements never ends

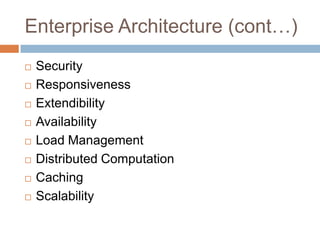

3. Enterprise Architecture (cont…)
 Security
 Responsiveness
 Extendibility
 Availability
 Load Management
 Distributed Computation
 Caching
 Scalability

4. Security

5. Security (cont…)

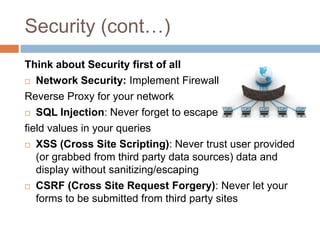

Think about Security first of all
 Network Security: Implement Firewall &
Reverse Proxy for your network
 SQL Injection: Never forget to escape
field values in your queries
 XSS (Cross Site Scripting): Never trust user provided
(or grabbed from third party data sources) data and
display without sanitizing/escaping
 CSRF (Cross Site Request Forgery): Never let your
forms to be submitted from third party sites

6. Security (cont…)

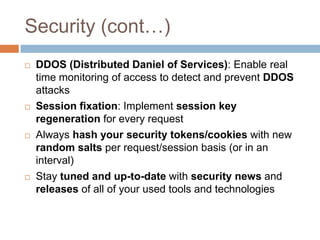

 DDOS (Distributed Daniel of Services): Enable real
time monitoring of access to detect and prevent DDOS
attacks
 Session fixation: Implement session key
regeneration for every request
 Always hash your security tokens/cookies with new
random salts per request/session basis (or in an
interval)
 Stay tuned and up-to-date with security news and
releases of all of your used tools and technologies

7. Responsiveness

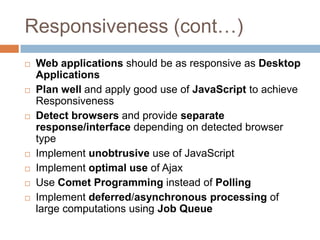

8. Responsiveness (cont…)
 Web applications should be as responsive as Desktop
Applications
 Plan well and apply good use of JavaScript to achieve
Responsiveness
 Detect browsers and provide separate
response/interface depending on detected browser
type
 Implement unobtrusive use of JavaScript
 Implement optimal use of Ajax
 Use Comet Programming instead of Polling
 Implement deferred/asynchronous processing of
large computations using Job Queue

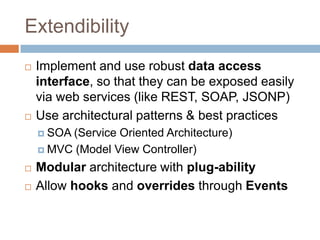

9. Extendibility
 Implement and use robust data access
interface, so that they can be exposed easily
via web services (like REST, SOAP, JSONP)
 Use architectural patterns & best practices
 SOA(Service Oriented Architecture)
 MVC (Model View Controller)
 Modular architecture with plug-ability
 Allow hooks and overrides through Events

10. Availability

11. Availability (cont…)
 Implement well planned Disaster Recovery policy
 Use version control for your sources
 Use RAID for your storage devices
 Keep hot standby fallback for each of your primary
data/content servers
 Perform periodical backup of your source repository,
files & data
 Implement periodical archiving of your old data
 Provide mechanism to the users to switch between
current and archived data when possible

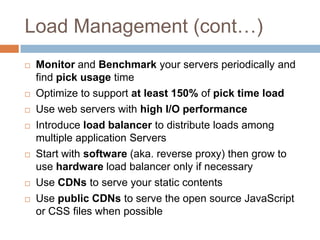

12. Load Management

13. Load Management (cont…)
 Monitor and Benchmark your servers periodically and
find pick usage time
 Optimize to support at least 150% of pick time load
 Use web servers with high I/O performance
 Introduce load balancer to distribute loads among
multiple application Servers
 Start with software (aka. reverse proxy) then grow to
use hardware load balancer only if necessary
 Use CDNs to serve your static contents
 Use public CDNs to serve the open source JavaScript
or CSS files when possible

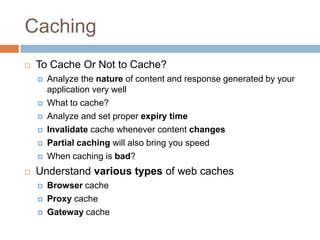

14. Caching
 To Cache Or Not to Cache?
 Analyze the nature of content and response generated by your
application very well
 What to cache?
 Analyze and set proper expiry time
 Invalidate cache whenever content changes
 Partial caching will also bring you speed
 When caching is bad?
 Understand various types of web caches
 Browser cache
 Proxy cache
 Gateway cache

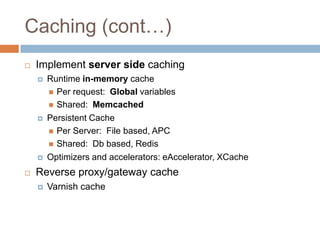

15. Caching (cont…)
 Implement server side caching
 Runtime in-memory cache
 Per request: Global variables
 Shared: Memcached
 Persistent Cache
 Per Server: File based, APC
 Shared: Db based, Redis
 Optimizers and accelerators: eAccelerator, XCache
 Reverse proxy/gateway cache
 Varnish cache

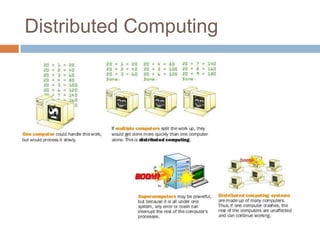

16. Distributed Computing

17. Scalability
 What the heck is this?
 Scalability is the soul of enterprise
architecture

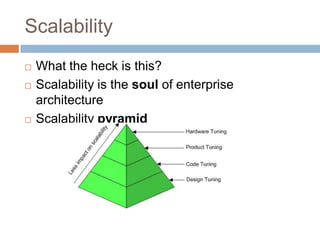

 Scalability pyramid

18. Scalability (cont…)

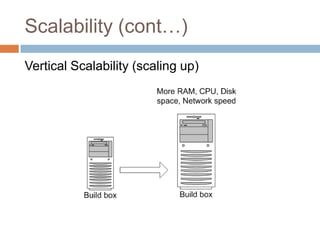

Vertical Scalability (scaling up)

19. Scalability (cont…)

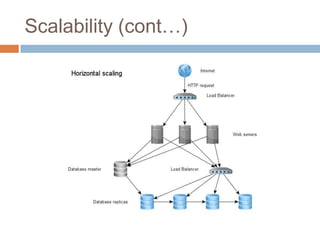

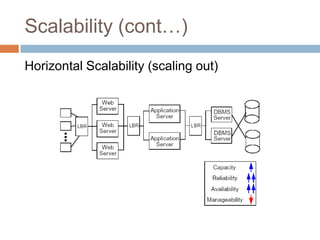

Horizontal Scalability (scaling out)

20. Scalability (cont…)

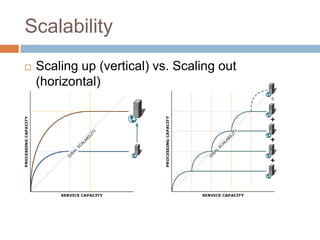

21. Scalability
 Scaling up (vertical) vs. Scaling out
(horizontal)

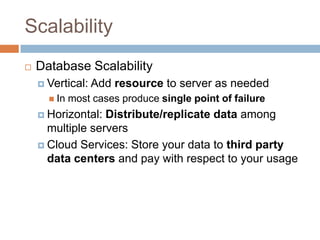

22. Scalability
 Database Scalability
 Vertical: Add resource to server as needed
 In most cases produce single point of failure
 Horizontal: Distribute/replicate data among
multiple servers
 Cloud Services: Store your data to third party
data centers and pay with respect to your usage

23. Scalability (cont…)
Scaling Database
Scaling options
 Master/Slave
 Master for Write, Slaves for Read
 Cluster Computing
 Single storage with multiple server node
 Table Partitioning
 Large tables are split among partitions
 Federated Tables
 Tables are shared among multiple servers
 Distributed Key Value Stores
 Distributed Object DB
 Database Sharding

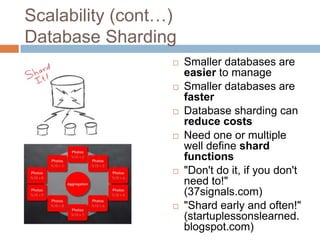

24. Scalability (cont…)
Database Sharding
 Smaller databases are
easier to manage
 Smaller databases are
faster
 Database sharding can
reduce costs
 Need one or multiple
well define shard
functions
 "Don't do it, if you don't
need to!"
(37signals.com)
 "Shard early and often!"
(startuplessonslearned.
blogspot.com)

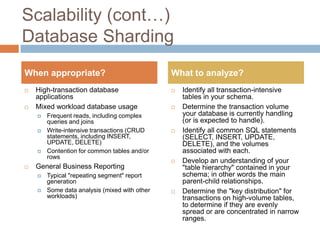

25. Scalability (cont…)
Database Sharding
When appropriate? What to analyze?
 High-transaction database  Identify all transaction-intensive
applications tables in your schema.
 Mixed workload database usage  Determine the transaction volume
 Frequent reads, including complex your database is currently handling
queries and joins (or is expected to handle).
 Write-intensive transactions (CRUD  Identify all common SQL statements
statements, including INSERT, (SELECT, INSERT, UPDATE,
UPDATE, DELETE) DELETE), and the volumes
 Contention for common tables and/or associated with each.
rows
 Develop an understanding of your
 General Business Reporting "table hierarchy" contained in your
 Typical "repeating segment" report schema; in other words the main
generation parent-child relationships.
 Some data analysis (mixed with other  Determine the "key distribution" for
workloads) transactions on high-volume tables,
to determine if they are evenly
spread or are concentrated in narrow
ranges.

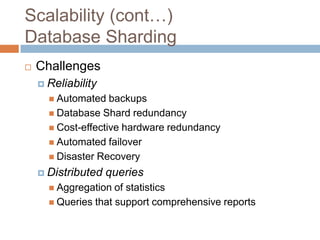

26. Scalability (cont…)
Database Sharding
 Challenges
 Reliability
 Automated backups
 Database Shard redundancy
 Cost-effective hardware redundancy
 Automated failover
 Disaster Recovery
 Distributed queries
 Aggregation of statistics
 Queries that support comprehensive reports

27. Scalability (cont…)
Database Sharding

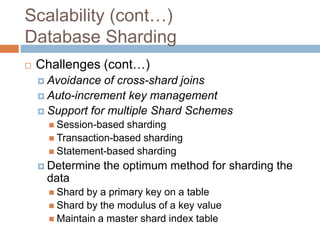

 Challenges (cont…)
 Avoidance of cross-shard joins
 Auto-increment key management
 Support for multiple Shard Schemes
 Session-based sharding
 Transaction-based sharding
 Statement-based sharding
 Determine the optimum method for sharding the
data
 Shard by a primary key on a table
 Shard by the modulus of a key value
 Maintain a master shard index table

28. Scalability (cont…)
Database Sharding

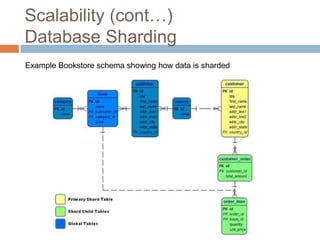

Example Bookstore schema showing how data is sharded

29. Tools
 Application framework
 Load balancer with multiple application servers
 Continuous integration
 Automated Testing
 TDD (Test Driven Development)
 BDD (Behavior Driven Development)
 Monitoring
 Services
 Servers
 Error Logging
 Access Logging
 Content Data Networks (CDN)
 FOSS

30. Think Ahead

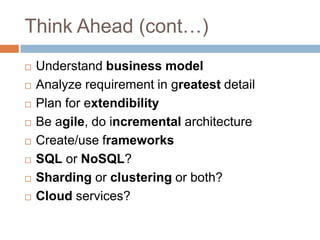

31. Think Ahead (cont…)
 Understand business model
 Analyze requirement in greatest detail
 Plan for extendibility
 Be agile, do incremental architecture
 Create/use frameworks
 SQL or NoSQL?
 Sharding or clustering or both?
 Cloud services?

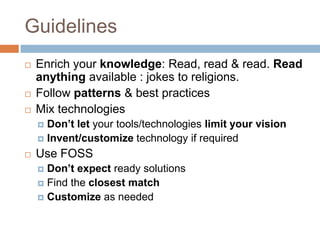

32. Guidelines
 Enrich your knowledge: Read, read & read. Read
anything available : jokes to religions.
 Follow patterns & best practices
 Mix technologies
 Don’t let your tools/technologies limit your vision
 Invent/customize technology if required
 Use FOSS
 Don’t expect ready solutions
 Find the closest match
 Customize as needed

33. Guidelines (cont…)

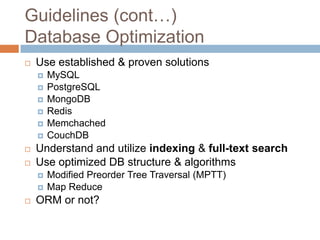

Database Optimization
 Use established & proven solutions
 MySQL
 PostgreSQL
 MongoDB
 Redis
 Memchached
 CouchDB
 Understand and utilize indexing & full-text search
 Use optimized DB structure & algorithms
 Modified Preorder Tree Traversal (MPTT)
 Map Reduce
 ORM or not?

34. Guidelines (cont…)
Database Optimization

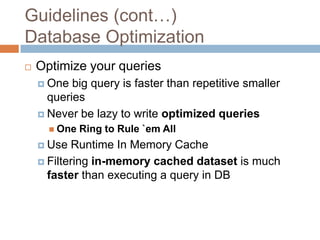

 Optimize your queries
 One big query is faster than repetitive smaller
queries
 Never be lazy to write optimized queries
 One Ring to Rule `em All
 Use Runtime In Memory Cache
 Filtering in-memory cached dataset is much
faster than executing a query in DB

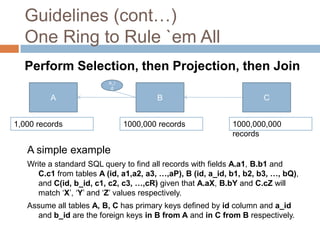

35. Guidelines (cont…)
One Ring to Rule `em All
Perform Selection, then Projection, then Join
a_i
d
A B C
1,000 records 1000,000 records 1000,000,000
records
A simple example
Write a standard SQL query to find all records with fields A.a1, B.b1 and
C.c1 from tables A (id, a1,a2, a3, …,aP), B (id, a_id, b1, b2, b3, …, bQ),
and C(id, b_id, c1, c2, c3, …,cR) given that A.aX, B.bY and C.cZ will
match ‘X’, ‘Y’ and ‘Z’ values respectively.
Assume all tables A, B, C has primary keys defined by id column and a_id
and b_id are the foreign keys in B from A and in C from B respectively.

36. Guidelines
One Ring to Rule `em All (cont…)

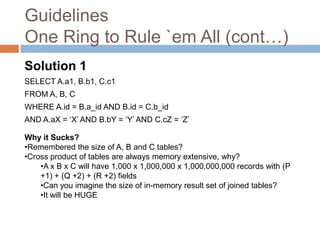

Solution 1
SELECT A.a1, B.b1, C.c1
FROM A, B, C
WHERE A.id = B.a_id AND B.id = C.b_id
AND A.aX = ‘X’ AND B.bY = ‘Y’ AND C.cZ = ‘Z’
Why it Sucks?
•Remembered the size of A, B and C tables?
•Cross product of tables are always memory extensive, why?
•A x B x C will have 1,000 x 1,000,000 x 1,000,000,000 records with (P
+1) + (Q +2) + (R +2) fields
•Can you imagine the size of in-memory result set of joined tables?
•It will be HUGE

37. Guidelines
One Ring to Rule `em All (cont…)

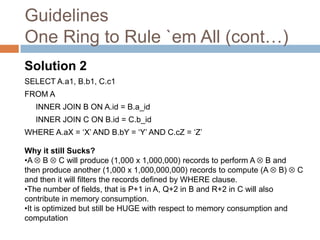

Solution 2
SELECT A.a1, B.b1, C.c1
FROM A
INNER JOIN B ON A.id = B.a_id
INNER JOIN C ON B.id = C.b_id
WHERE A.aX = ‘X’ AND B.bY = ‘Y’ AND C.cZ = ‘Z’
Why it still Sucks?
•A B C will produce (1,000 x 1,000,000) records to perform A B and
then produce another (1,000 x 1,000,000,000) records to compute (A B) C
and then it will filters the records defined by WHERE clause.
•The number of fields, that is P+1 in A, Q+2 in B and R+2 in C will also
contribute in memory consumption.
•It is optimized but still be HUGE with respect to memory consumption and
computation

38. Guidelines
One Ring to Rule `em All (cont…)
Optimal Solution
SELECT A.a1, B.b1, C.c1
FROM (SELECT id, a1 FROM A WHERE aX = ‘X’) as A
INNER JOIN ( SELECT id, b1, a_id FROM B WHERE bY = ‘Y’) as B ON A.id =
B.a_id
INNER JOIN ( SELECT id, c1, b_id FROM C WHERE cZ = ‘Z’) as C ON B.id =
Why this solution out performs?
C.b_id
•Let’s keep the explanation as an exercise 

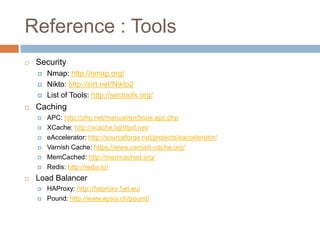

39. Reference : Tools
 Security
 Nmap: http://nmap.org/
 Nikto: http://cirt.net/Nikto2
 List of Tools: http://sectools.org/
 Caching
 APC: http://php.net/manual/en/book.apc.php
 XCache: http://xcache.lighttpd.net/
 eAccelerator: http://sourceforge.net/projects/eaccelerator/
 Varnish Cache: https://www.varnish-cache.org/
 MemCached: http://memcached.org/
 Redis: http://redis.io/
 Load Balancer
 HAProxy: http://haproxy.1wt.eu/
 Pound: http://www.apsis.ch/pound/

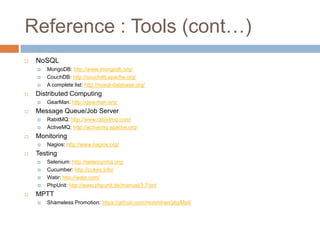

40. Reference : Tools (cont…)
 NoSQL
 MongoDB: http://www.mongodb.org/
 CouchDB: http://couchdb.apache.org/
 A complete list: http://nosql-database.org/
 Distributed Computing
 GearMan: http://gearman.org/
 Message Queue/Job Server
 RabitMQ: http://www.rabbitmq.com/
 ActiveMQ: http://activemq.apache.org/
 Monitoring
 Nagios: http://www.nagios.org/
 Testing
 Selenium: http://seleniumhq.org/
 Cucumber: http://cukes.info/
 Watir: http://watir.com/
 PhpUnit: http://www.phpunit.de/manual/3.7/en/
 MPTT
 Shameless Promotion: https://github.com/mnishihan/phpMptt

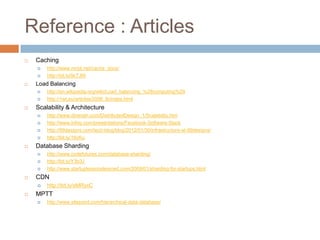

41. Reference : Articles
 Caching
 http://www.mnot.net/cache_docs/
 http://bit.ly/9cTJfA
 Load Balancing
 http://en.wikipedia.org/wiki/Load_balancing_%28computing%29
 http://1wt.eu/articles/2006_lb/index.html
 Scalability & Architecture
 http://www.diranieh.com/DistributedDesign_1/Scalability.htm
 http://www.infoq.com/presentations/Facebook-Software-Stack
 http://99designs.com/tech-blog/blog/2012/01/30/infrastructure-at-99designs/
 http://bit.ly/16cKu
 Database Sharding
 http://www.codefutures.com/database-sharding/
 http://bit.ly/Y3b3J
 http://www.startuplessonslearned.com/2009/01/sharding-for-startups.html
 CDN
 http://bit.ly/sMRyxC
 MPTT
 http://www.sitepoint.com/hierarchical-data-database/

42. Thank You
Join phpXperts [http://bit.ly/phpxperts]
Follow me on twitter [http://twitter.com/mnishihan]
Subscribe in facebook [http://fb.me/mnishihan]

43. Questions???
I will be glad to answer 
