This document provides an overview of advanced topics in Apache Maven 2, including working with multi-module projects, Maven inheritance and aggregation, profiles, properties, plugins, and configuring a Nexus repository. It discusses how Maven can be used to build projects with multiple modules and dependencies by defining a parent pom that inherits common configuration and defines child modules. It also describes features like profiles, properties, and plugins that add flexibility and customization to Maven builds. Finally, it provides guidance on configuring a Nexus repository for artifact storage and management.

1. Apache Maven 2 Overview
Part 2
Advanced Topics of Apache Maven 2
Anatoly Kondratyev
September 2012
30 January 2013
Exigen Services confidential Exigen Services confidential

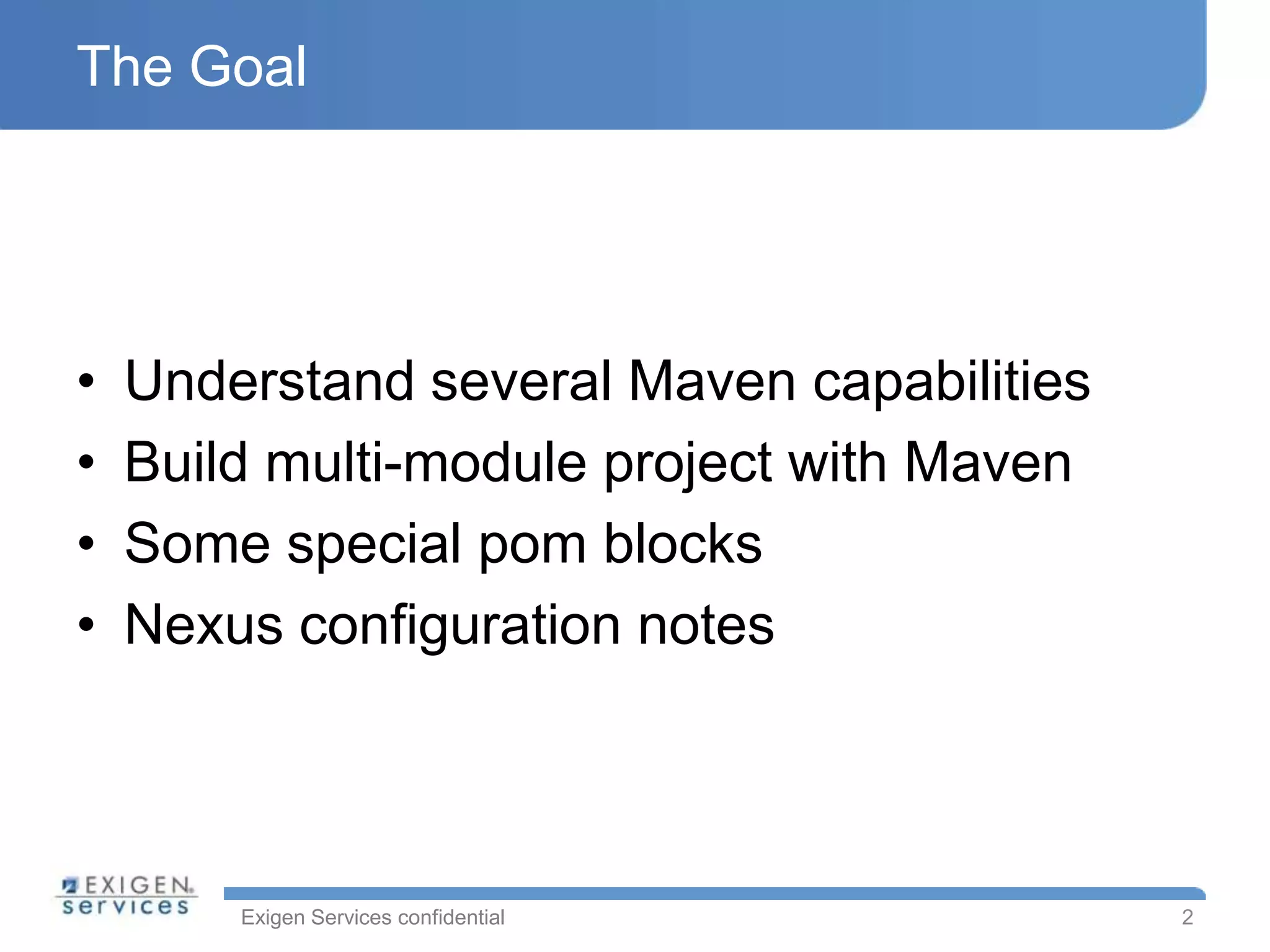

2. The Goal
• Understand several Maven capabilities
• Build multi-module project with Maven
• Some special pom blocks
• Nexus configuration notes
Exigen Services confidential 2

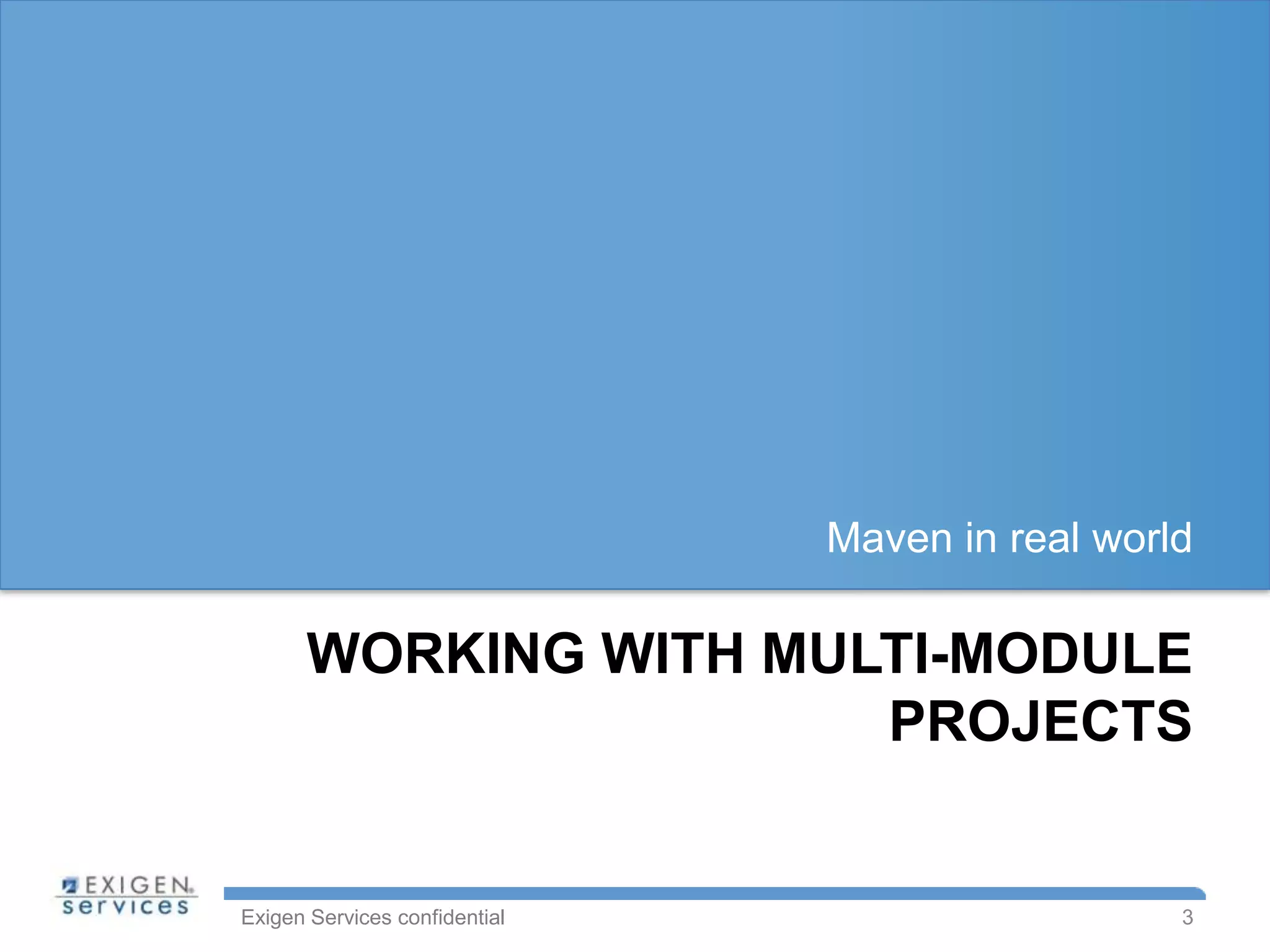

3. Maven in real world
WORKING WITH MULTI-MODULE
PROJECTS
Exigen Services confidential 3

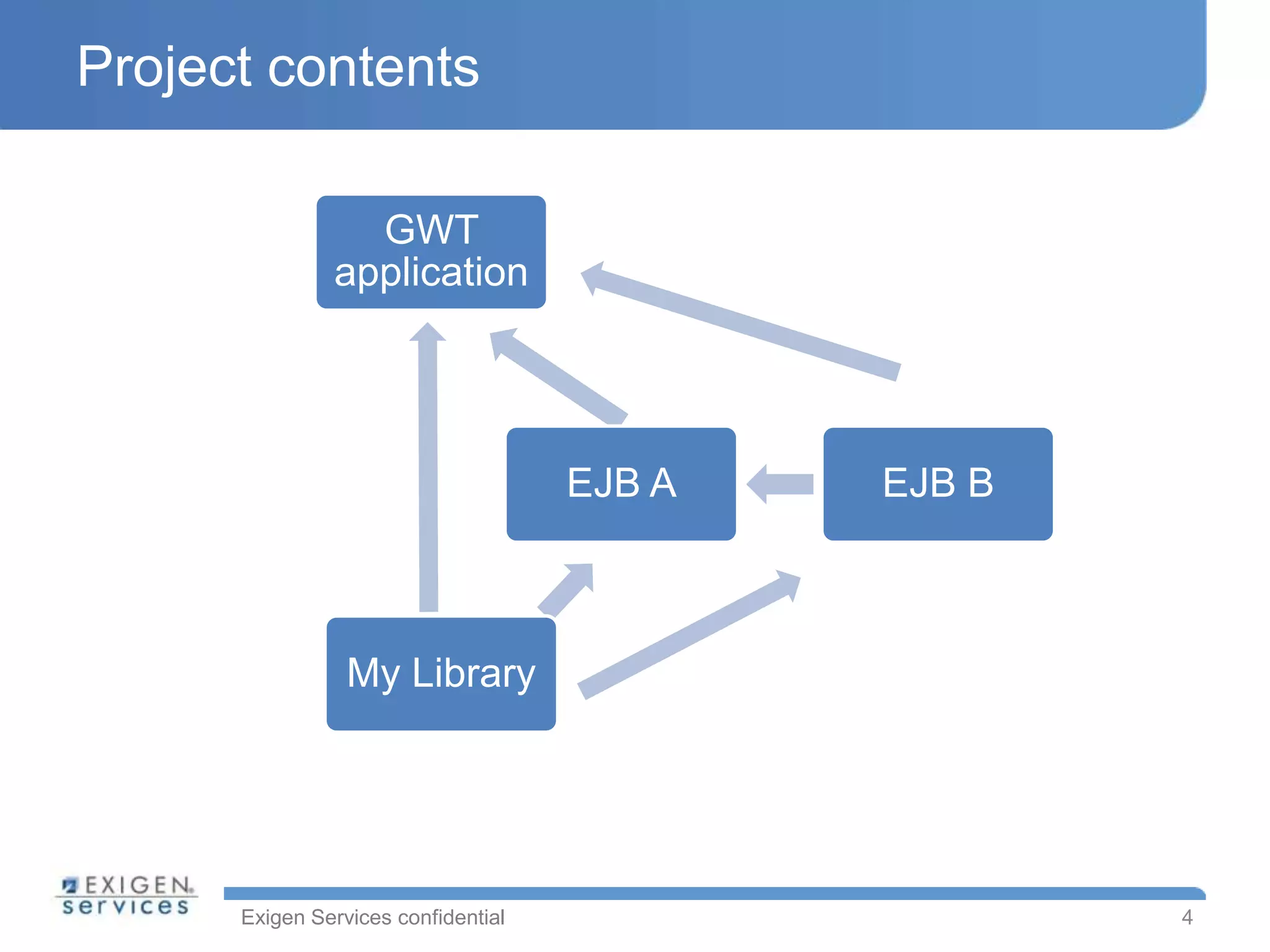

4. Project contents
GWT
application
EJB A EJB B
My Library
Exigen Services confidential 4

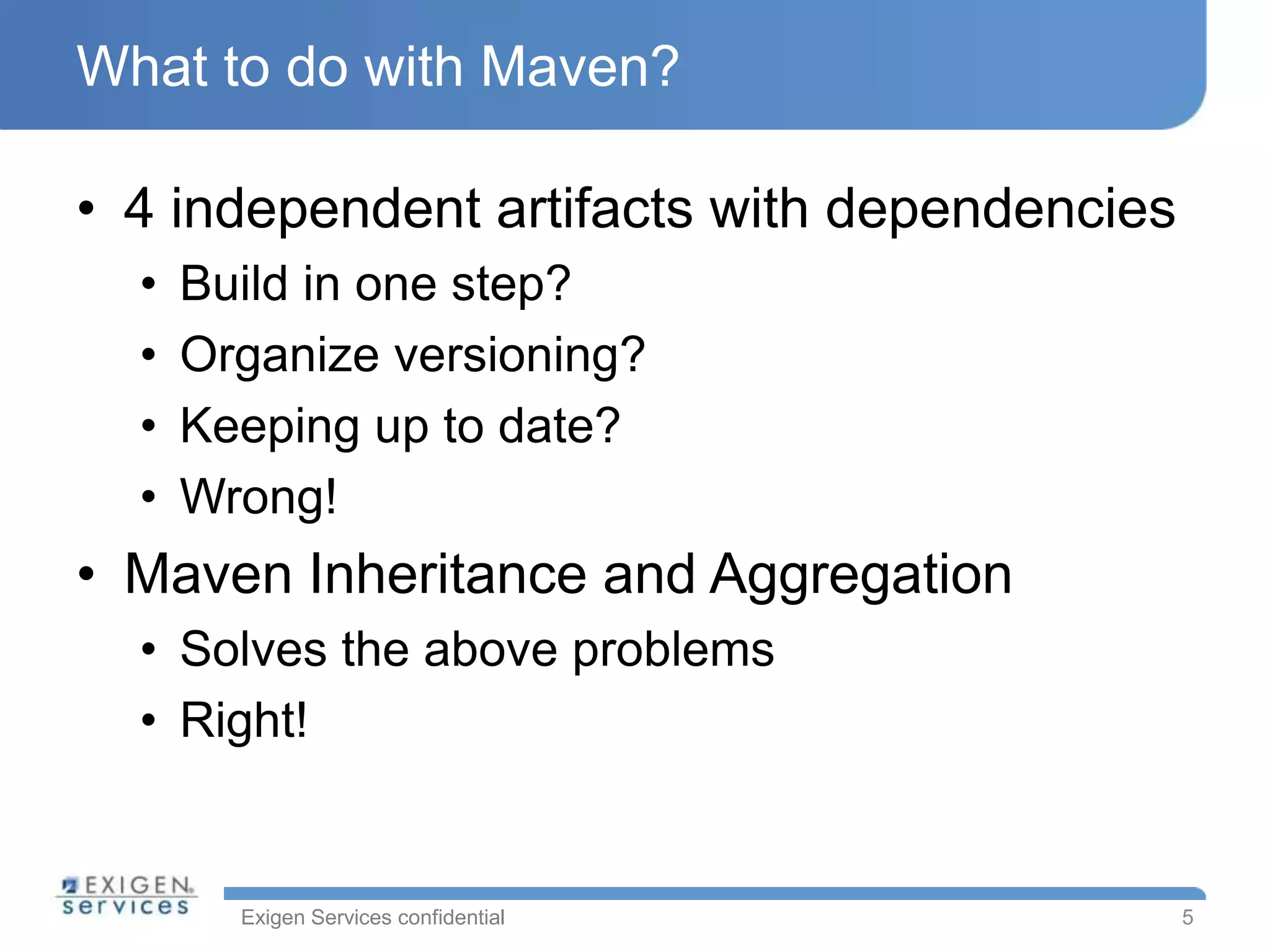

5. What to do with Maven?
• 4 independent artifacts with dependencies
• Build in one step?
• Organize versioning?
• Keeping up to date?
• Wrong!
• Maven Inheritance and Aggregation
• Solves the above problems
• Right!
Exigen Services confidential 5

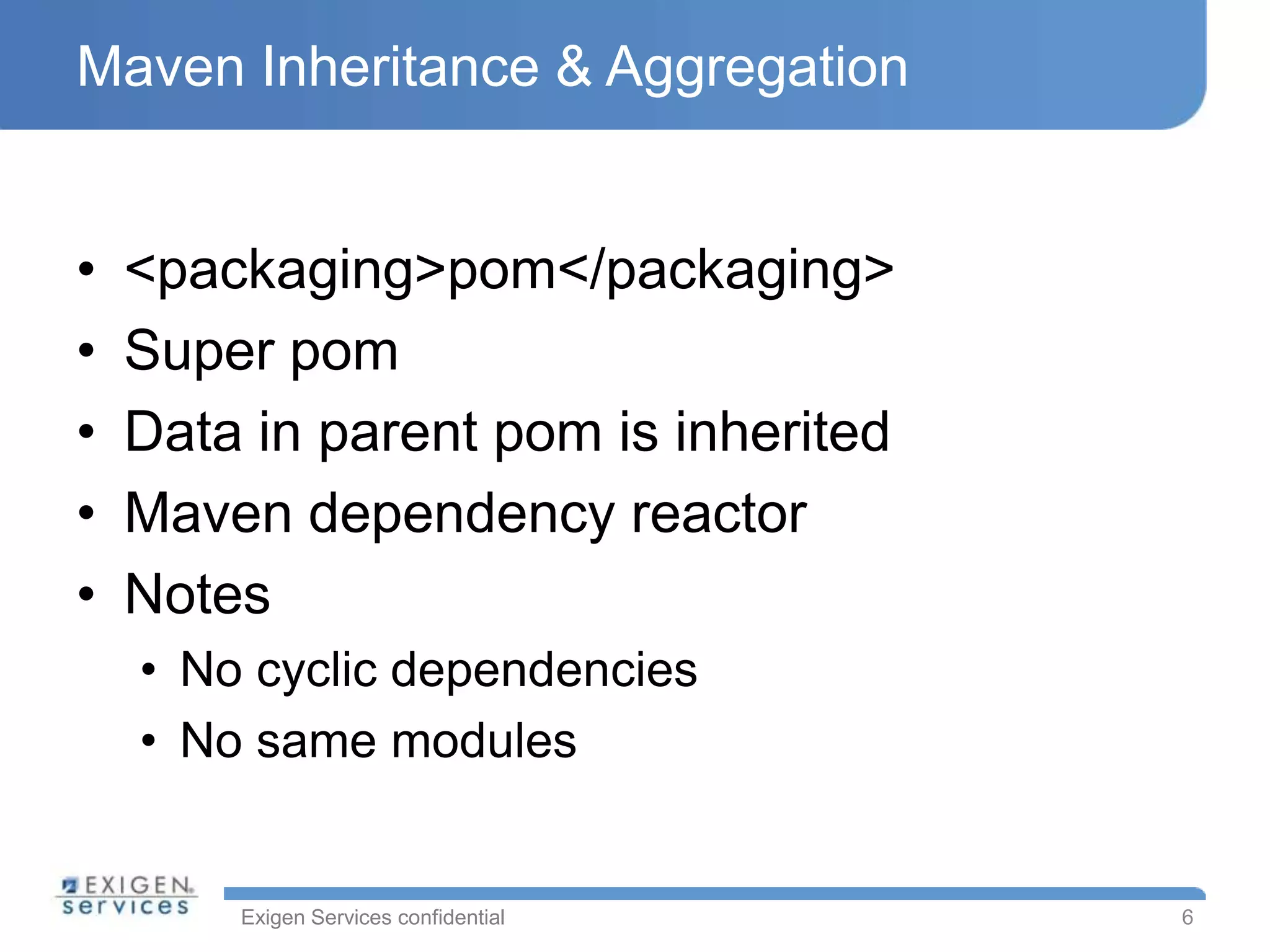

6. Maven Inheritance & Aggregation
• <packaging>pom</packaging>
• Super pom
• Data in parent pom is inherited
• Maven dependency reactor
• Notes
• No cyclic dependencies
• No same modules
Exigen Services confidential 6

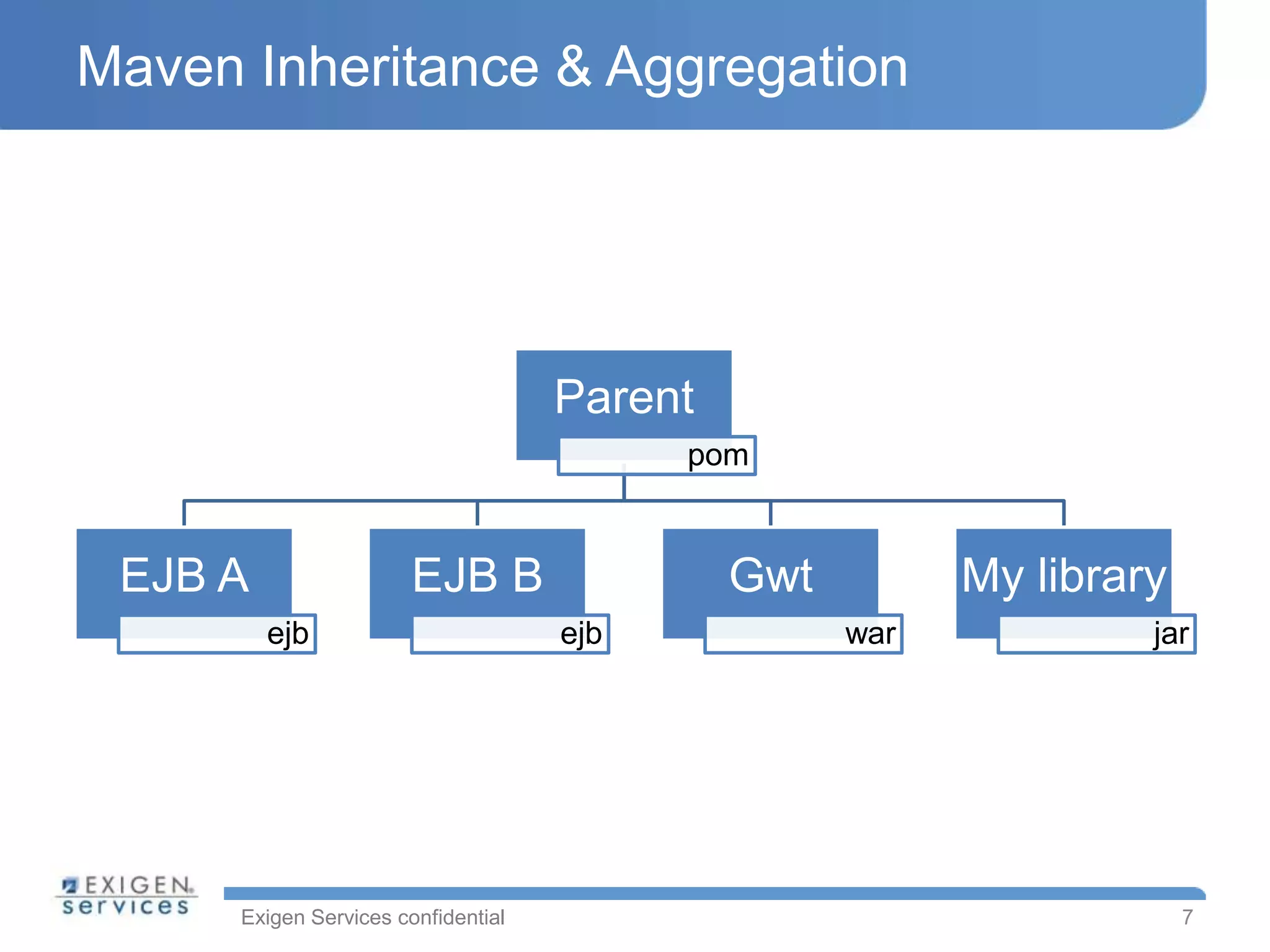

7. Maven Inheritance & Aggregation
Parent
pom
EJB A EJB B Gwt My library
ejb ejb war jar
Exigen Services confidential 7

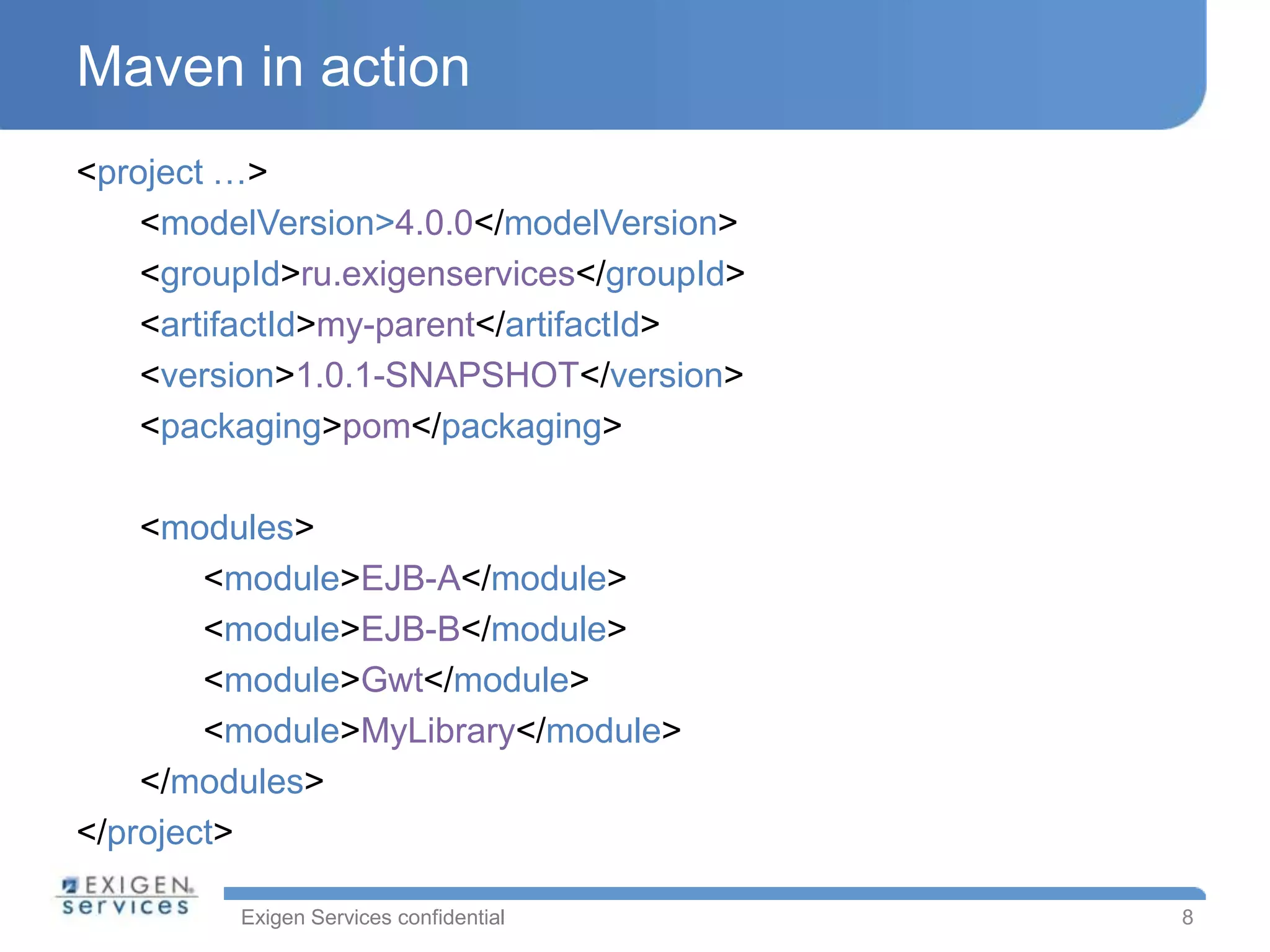

8. Maven in action
<project …>
<modelVersion>4.0.0</modelVersion>
<groupId>ru.exigenservices</groupId>
<artifactId>my-parent</artifactId>
<version>1.0.1-SNAPSHOT</version>
<packaging>pom</packaging>
<modules>
<module>EJB-A</module>
<module>EJB-B</module>
<module>Gwt</module>
<module>MyLibrary</module>
</modules>
</project>
Exigen Services confidential 8

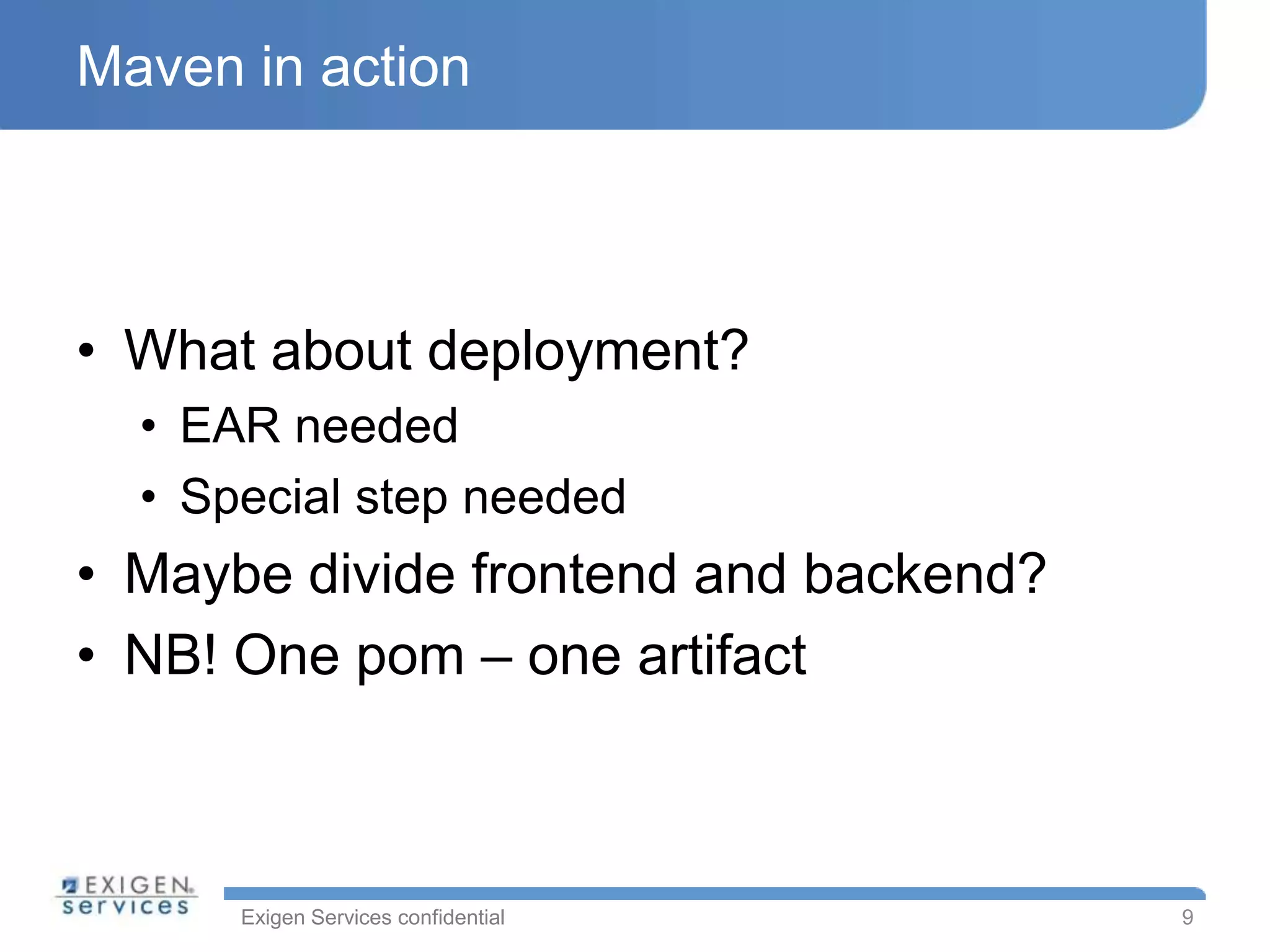

9. Maven in action
• What about deployment?
• EAR needed
• Special step needed
• Maybe divide frontend and backend?
• NB! One pom – one artifact
Exigen Services confidential 9

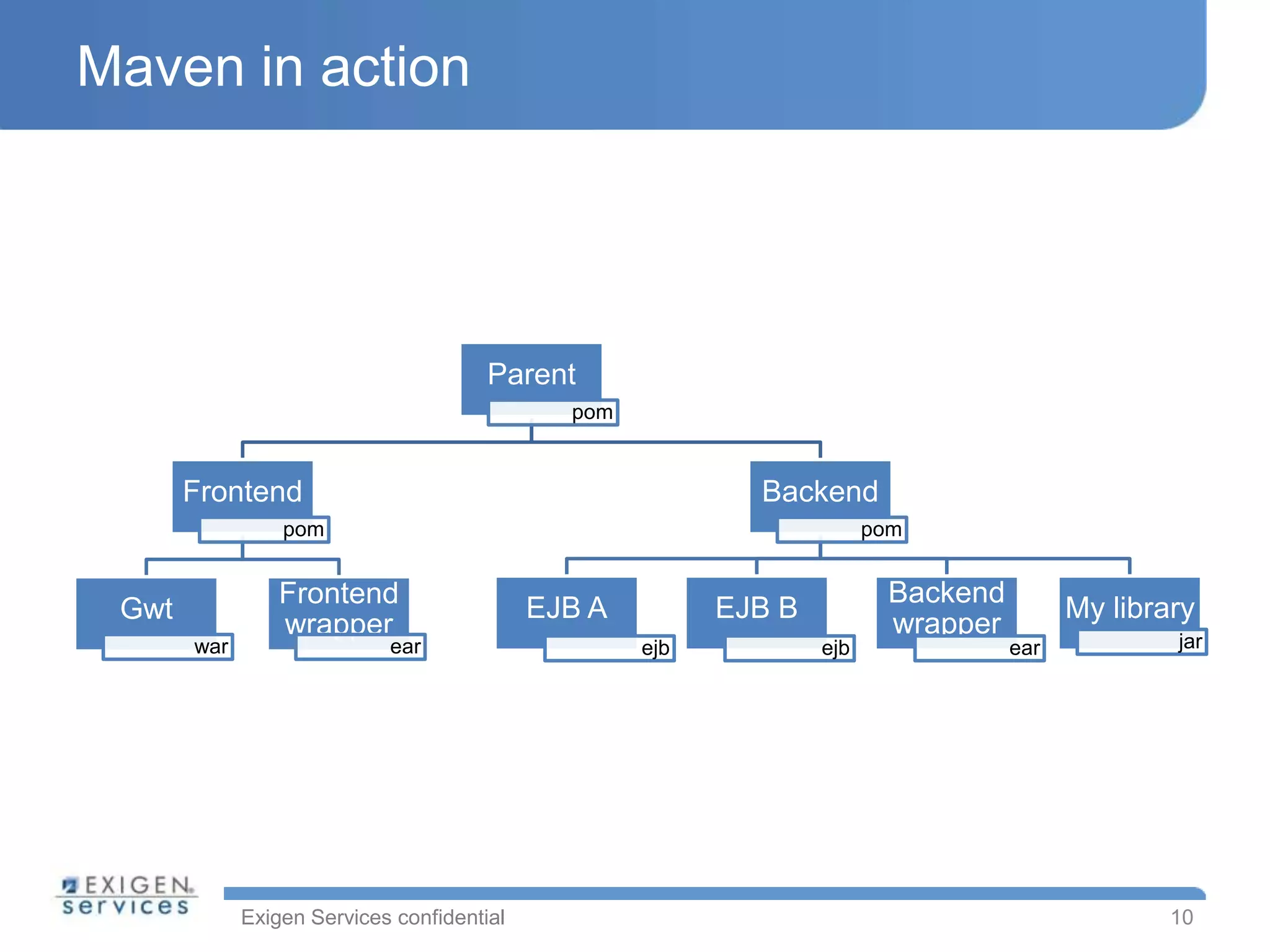

10. Maven in action
Parent
pom
Frontend Backend
pom pom
Frontend Backend
Gwt EJB A EJB B My library
wrapper wrapper jar
war ear ejb ejb ear
Exigen Services confidential 10

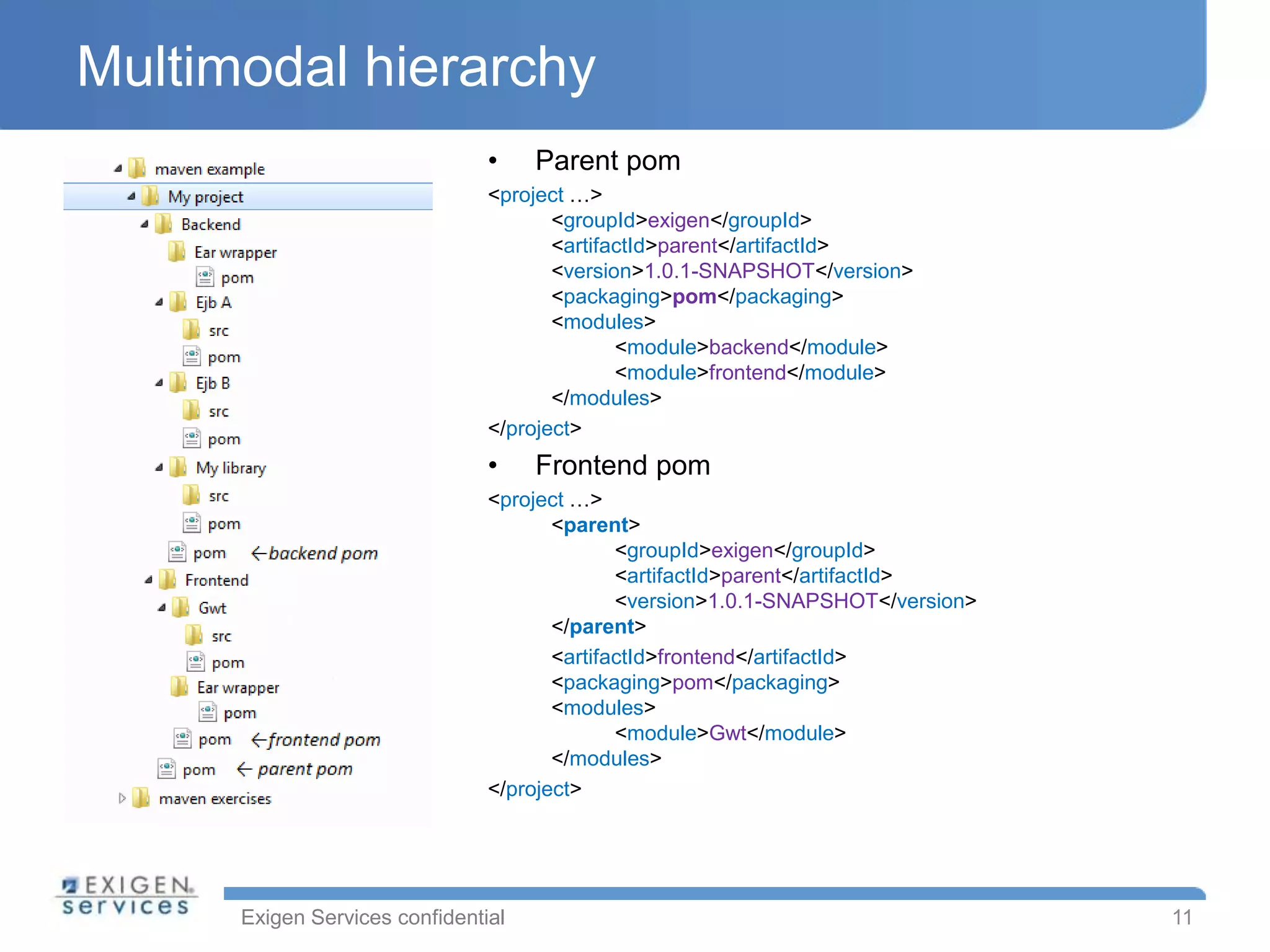

11. Multimodal hierarchy
• Parent pom
<project …>
<groupId>exigen</groupId>
<artifactId>parent</artifactId>
<version>1.0.1-SNAPSHOT</version>
<packaging>pom</packaging>
<modules>
<module>backend</module>
<module>frontend</module>
</modules>
</project>
• Frontend pom
<project …>
<parent>
<groupId>exigen</groupId>
<artifactId>parent</artifactId>
<version>1.0.1-SNAPSHOT</version>
</parent>
<artifactId>frontend</artifactId>
<packaging>pom</packaging>
<modules>
<module>Gwt</module>
</modules>
</project>
Exigen Services confidential 11

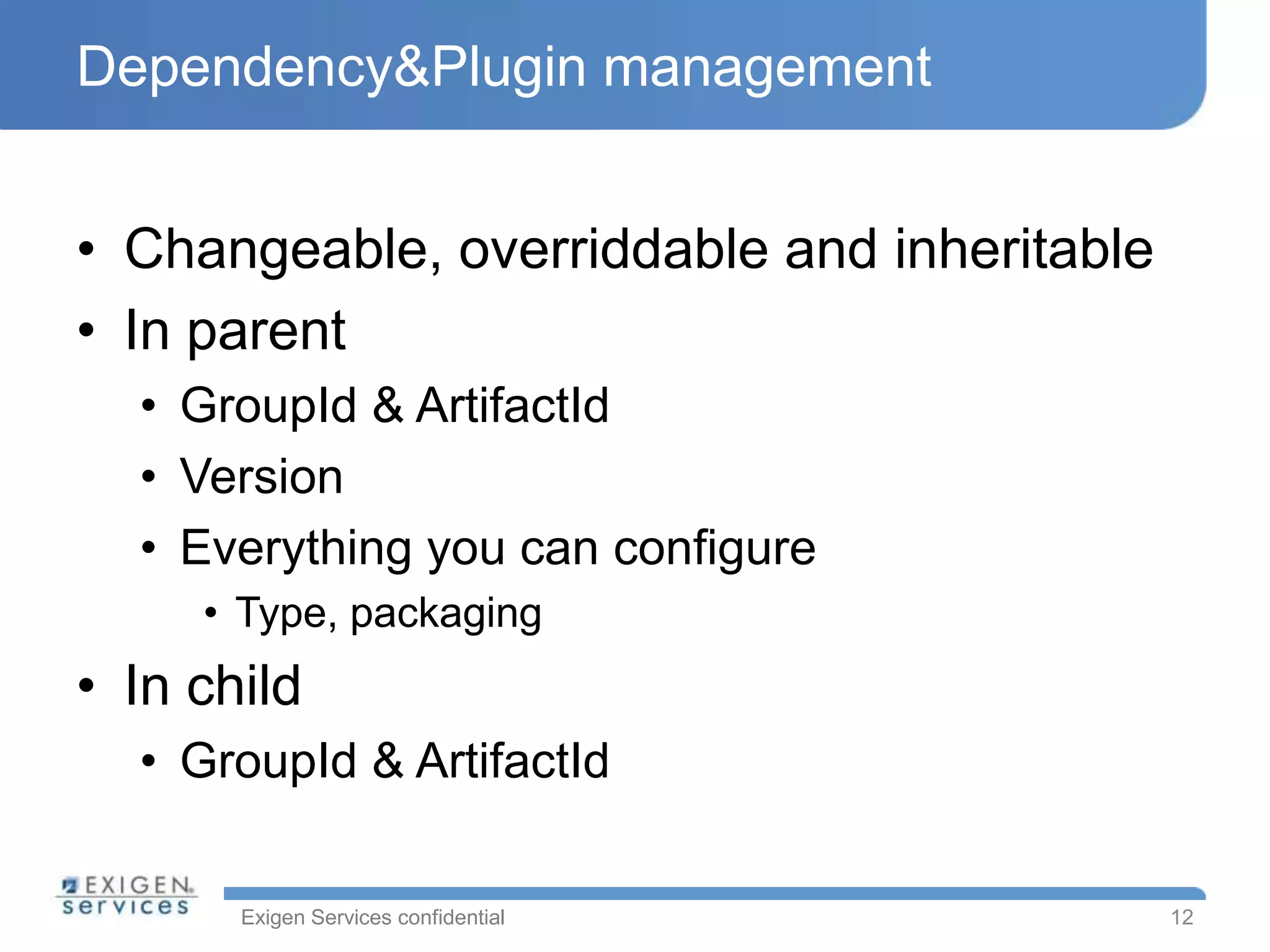

12. Dependency&Plugin management
• Changeable, overriddable and inheritable
• In parent
• GroupId & ArtifactId
• Version
• Everything you can configure
• Type, packaging
• In child
• GroupId & ArtifactId
Exigen Services confidential 12

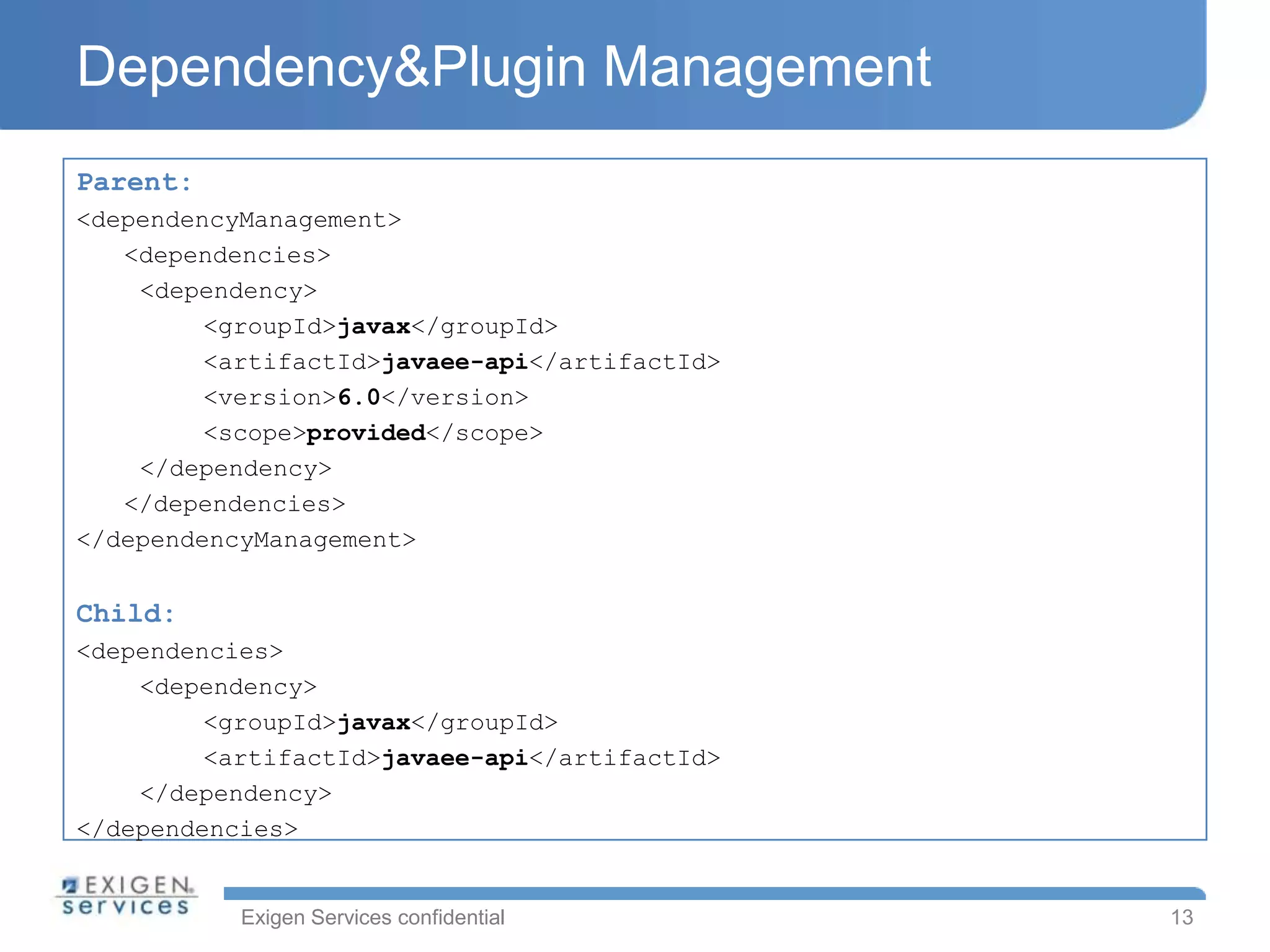

13. Dependency&Plugin Management
Parent:
<dependencyManagement>
<dependencies>
<dependency>
<groupId>javax</groupId>
<artifactId>javaee-api</artifactId>
<version>6.0</version>
<scope>provided</scope>
</dependency>
</dependencies>
</dependencyManagement>
Child:
<dependencies>
<dependency>
<groupId>javax</groupId>
<artifactId>javaee-api</artifactId>
</dependency>
</dependencies>
Exigen Services confidential 13

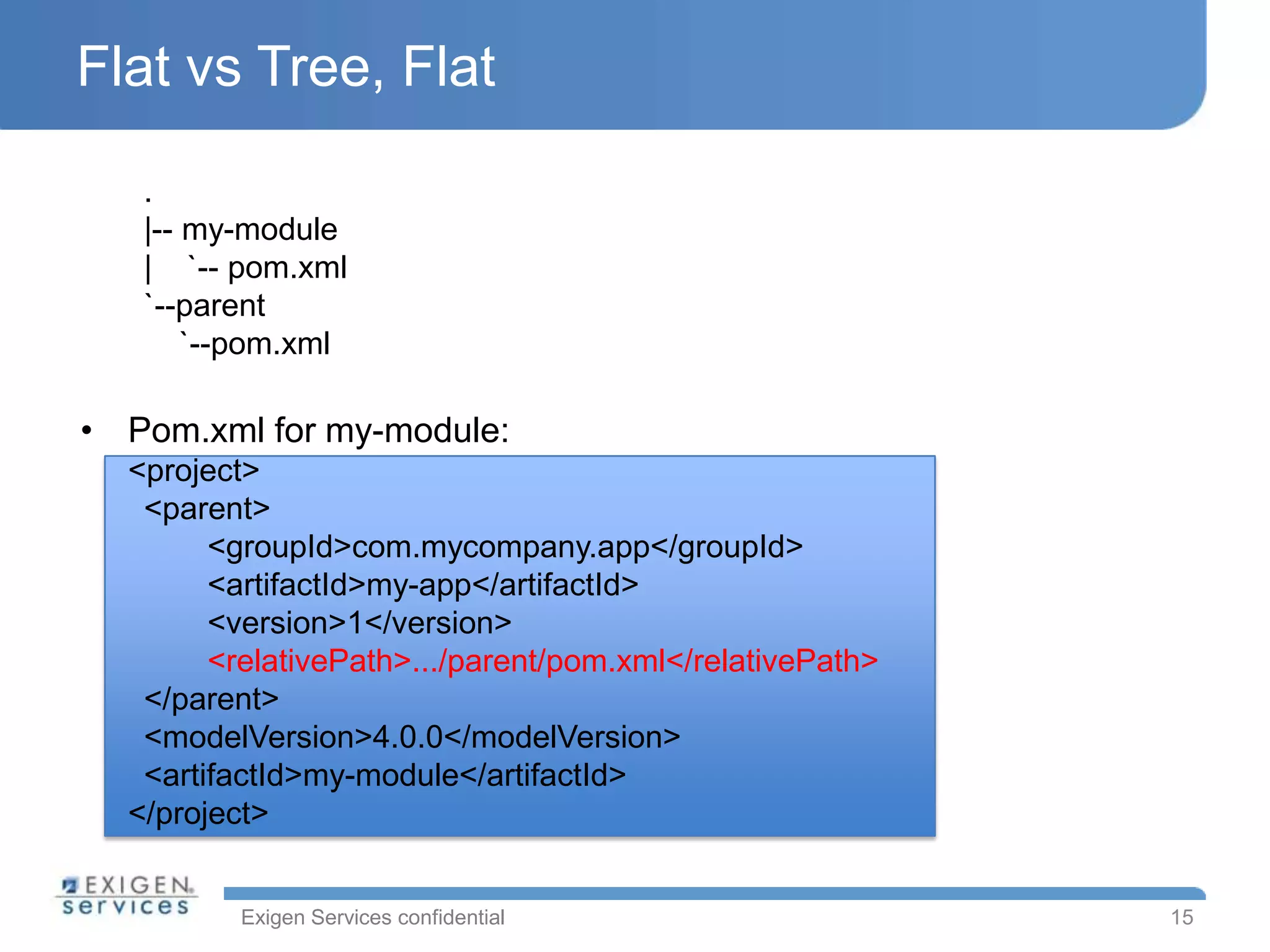

14. Flat vs Tree, Flat
.
|-- my-module
| `-- pom.xml
`--parent
`--pom.xml
• Pom.xml for my-module:
<project>
<parent>
<groupId>com.mycompany.app</groupId>
<artifactId>my-app</artifactId>
<version>1</version>
<relativePath>.../parent/pom.xml</relativePath>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>my-module</artifactId>
</project>
Exigen Services confidential 15

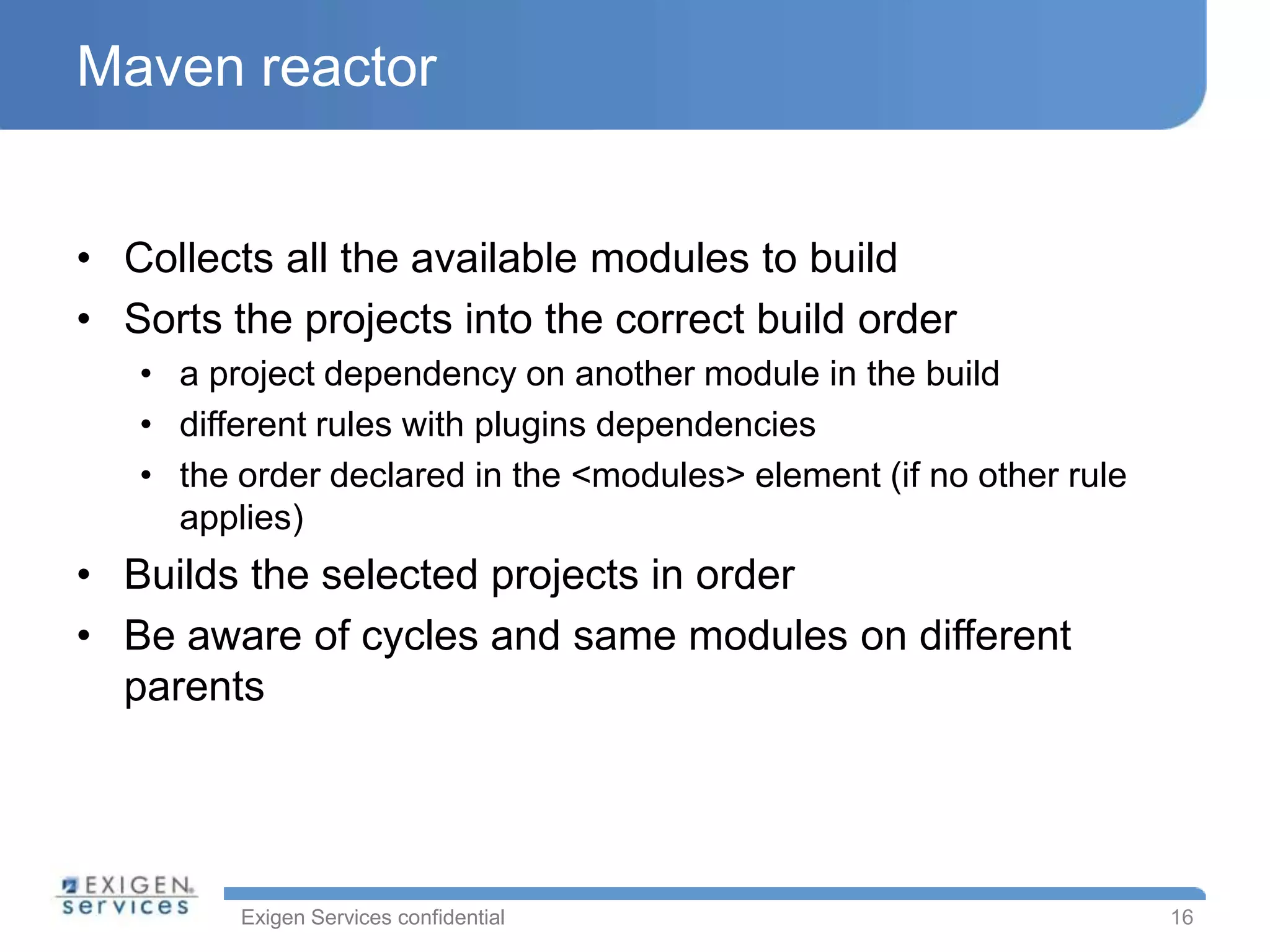

15. Maven reactor
• Collects all the available modules to build
• Sorts the projects into the correct build order
• a project dependency on another module in the build
• different rules with plugins dependencies
• the order declared in the <modules> element (if no other rule
applies)
• Builds the selected projects in order
• Be aware of cycles and same modules on different
parents
Exigen Services confidential 16

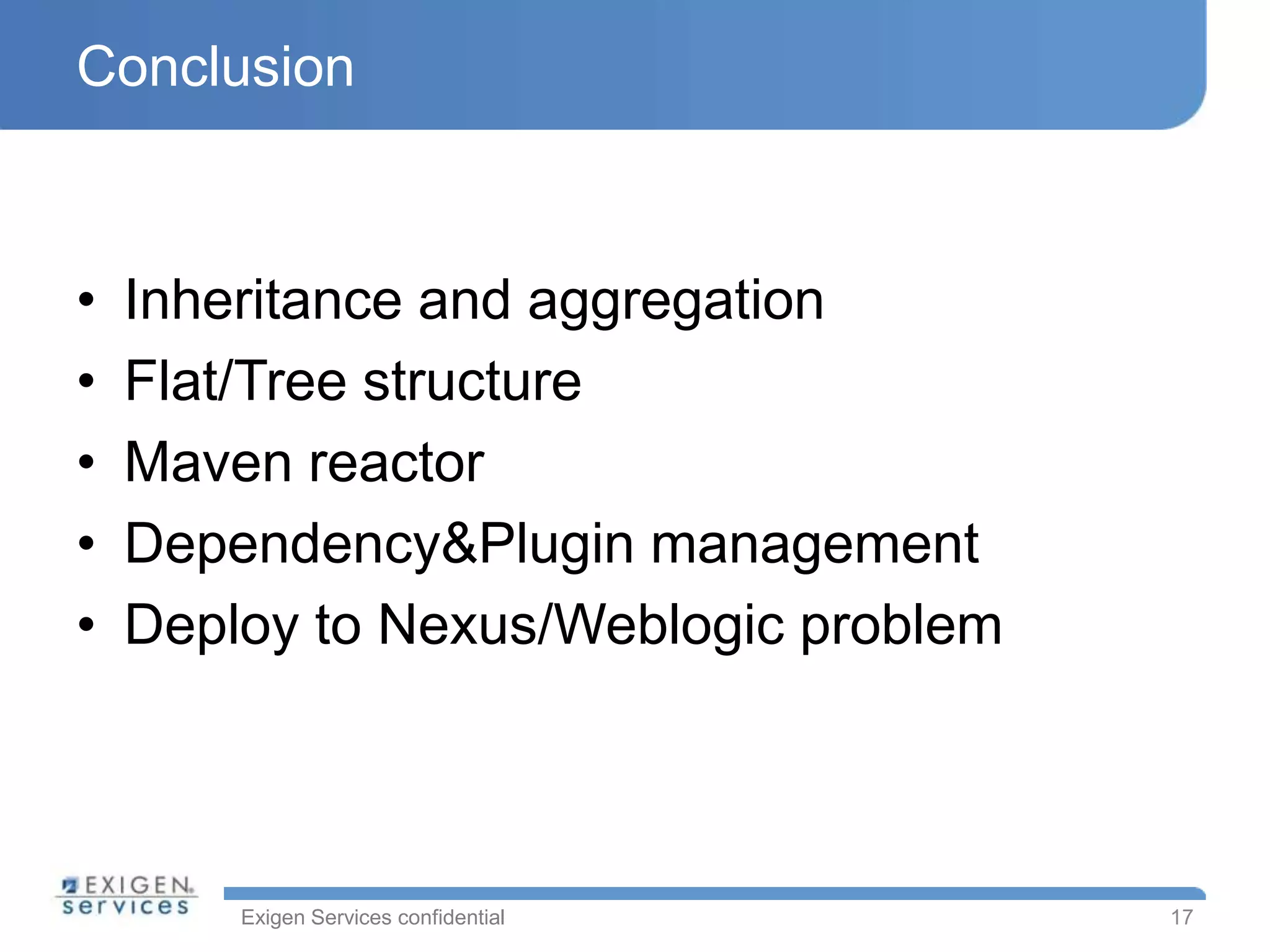

16. Conclusion
• Inheritance and aggregation
• Flat/Tree structure
• Maven reactor
• Dependency&Plugin management
• Deploy to Nexus/Weblogic problem
Exigen Services confidential 17

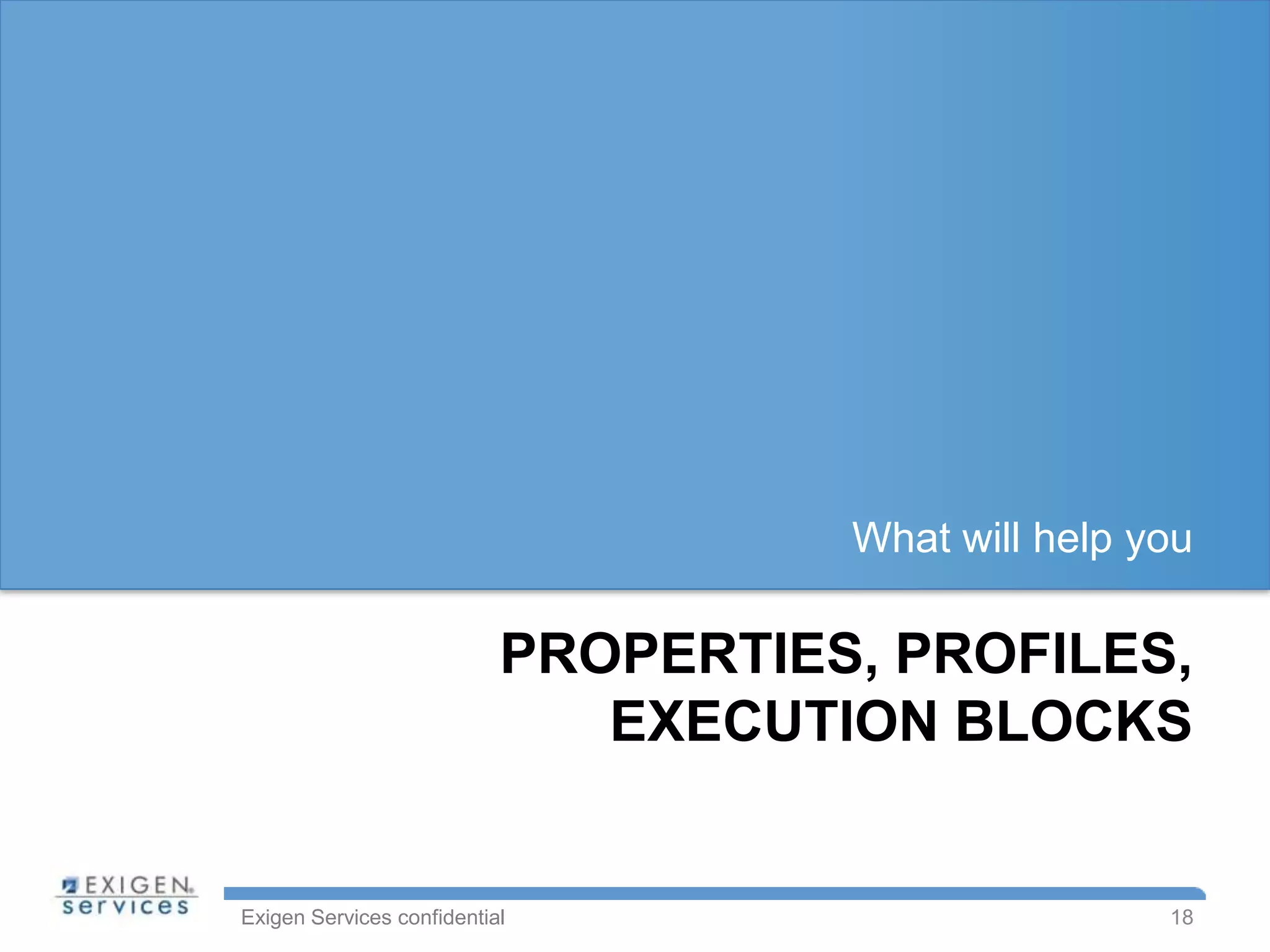

17. What will help you
PROPERTIES, PROFILES,
EXECUTION BLOCKS
Exigen Services confidential 18

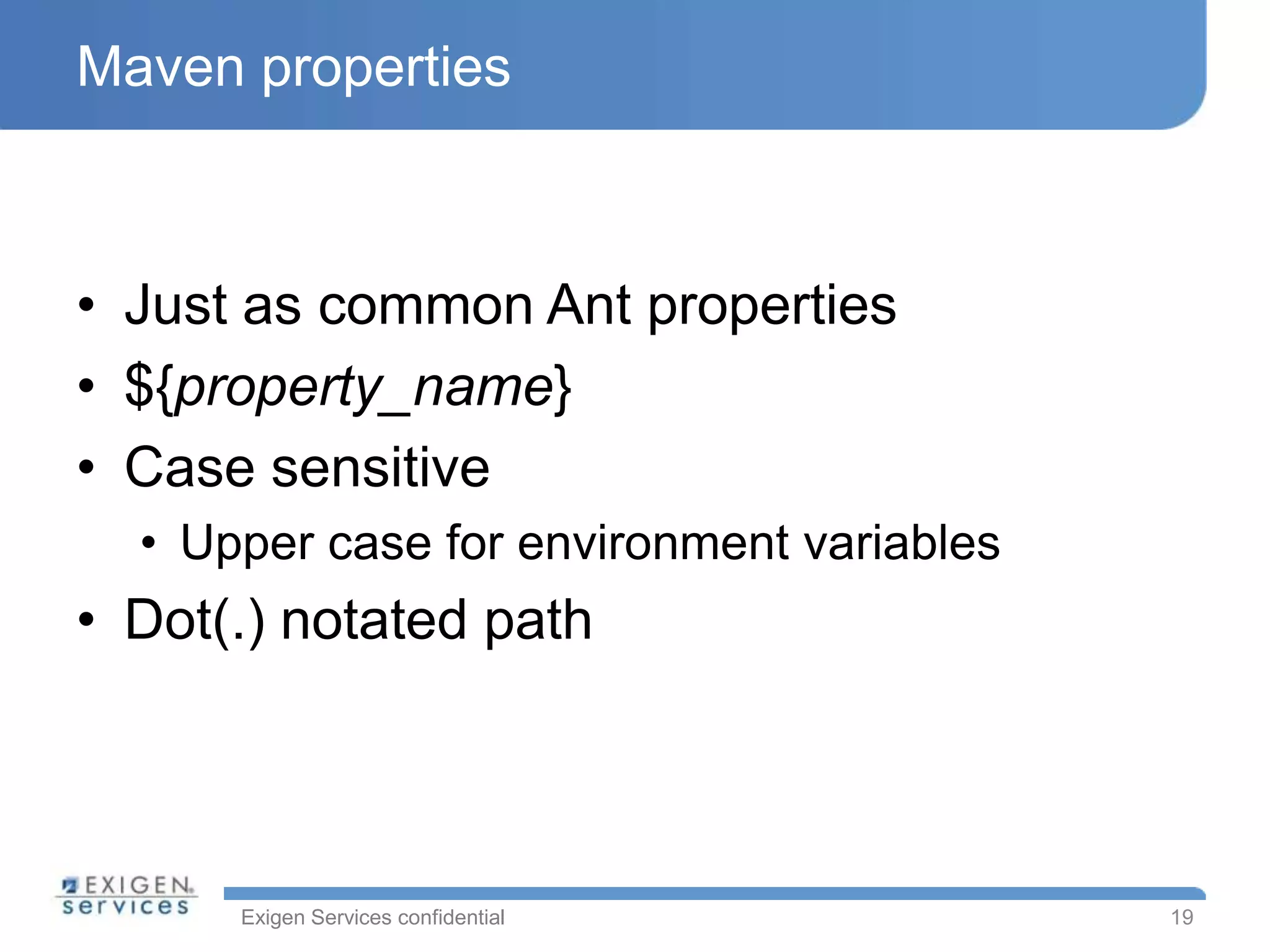

18. Maven properties
• Just as common Ant properties
• ${property_name}
• Case sensitive
• Upper case for environment variables
• Dot(.) notated path
Exigen Services confidential 19

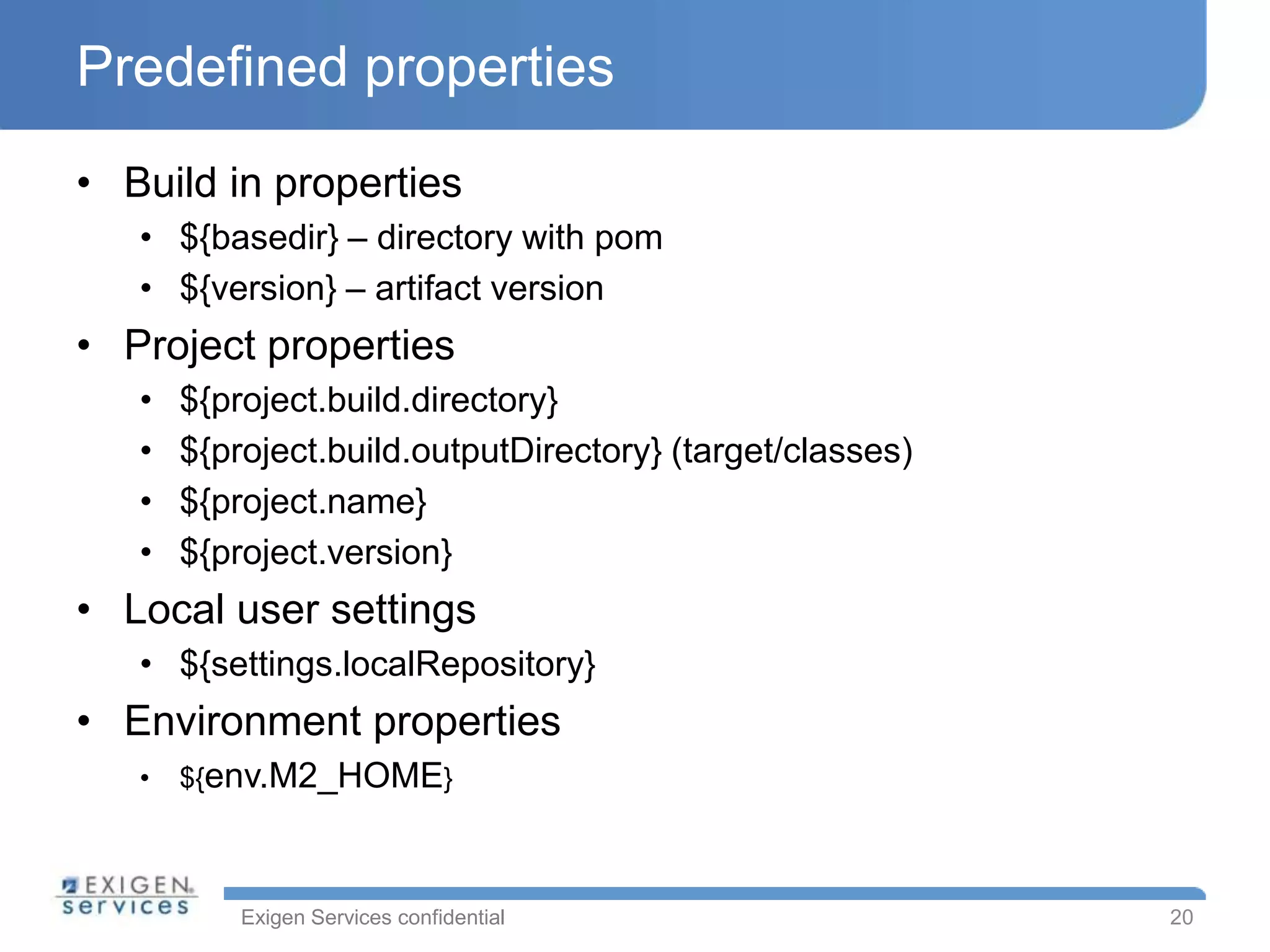

19. Predefined properties
• Build in properties
• ${basedir} – directory with pom
• ${version} – artifact version
• Project properties
• ${project.build.directory}
• ${project.build.outputDirectory} (target/classes)
• ${project.name}
• ${project.version}
• Local user settings
• ${settings.localRepository}
• Environment properties
• ${env.M2_HOME}
Exigen Services confidential 20

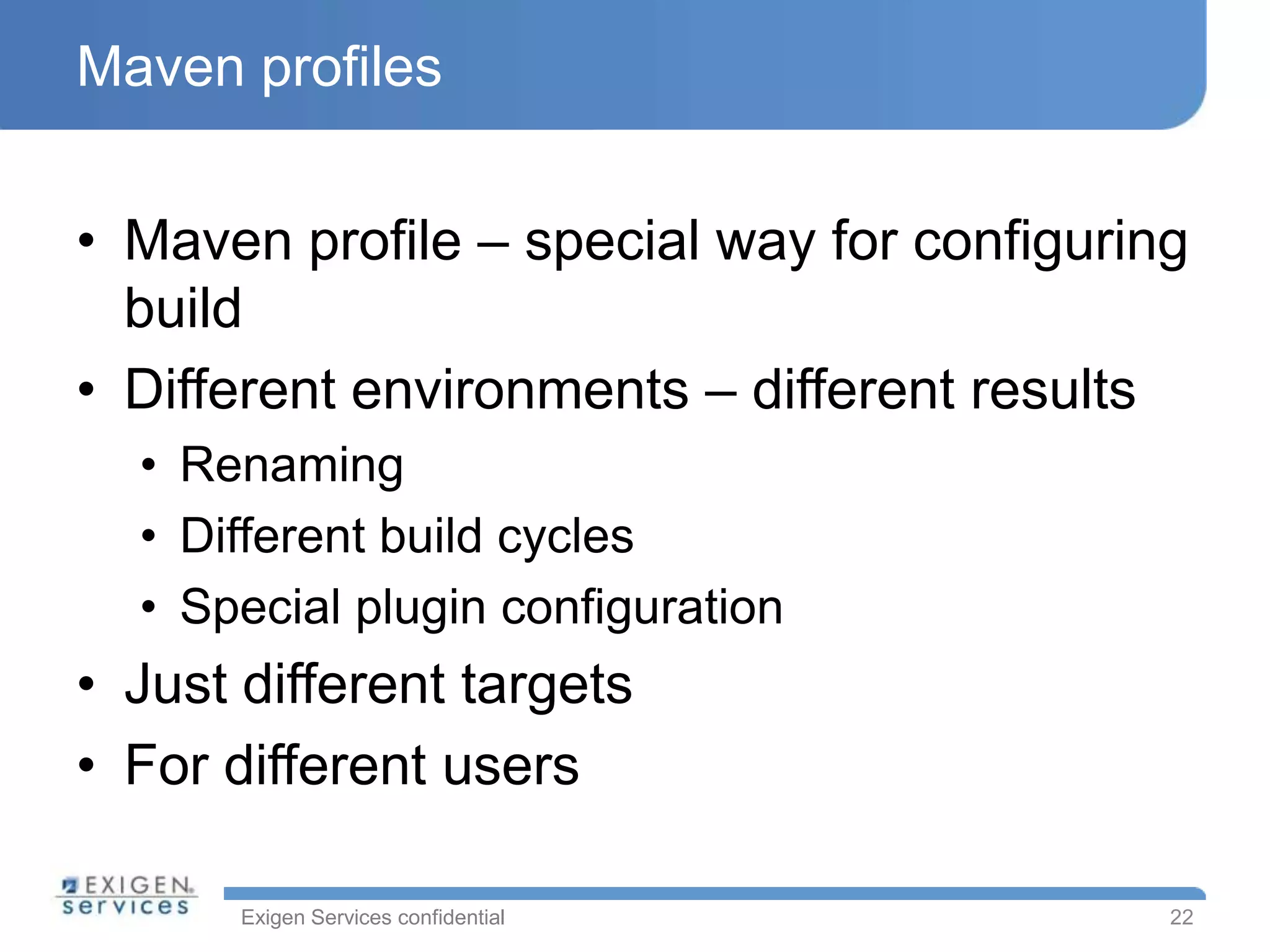

20. Maven profiles
• Maven profile – special way for configuring
build
• Different environments – different results
• Renaming
• Different build cycles
• Special plugin configuration
• Just different targets
• For different users
Exigen Services confidential 22

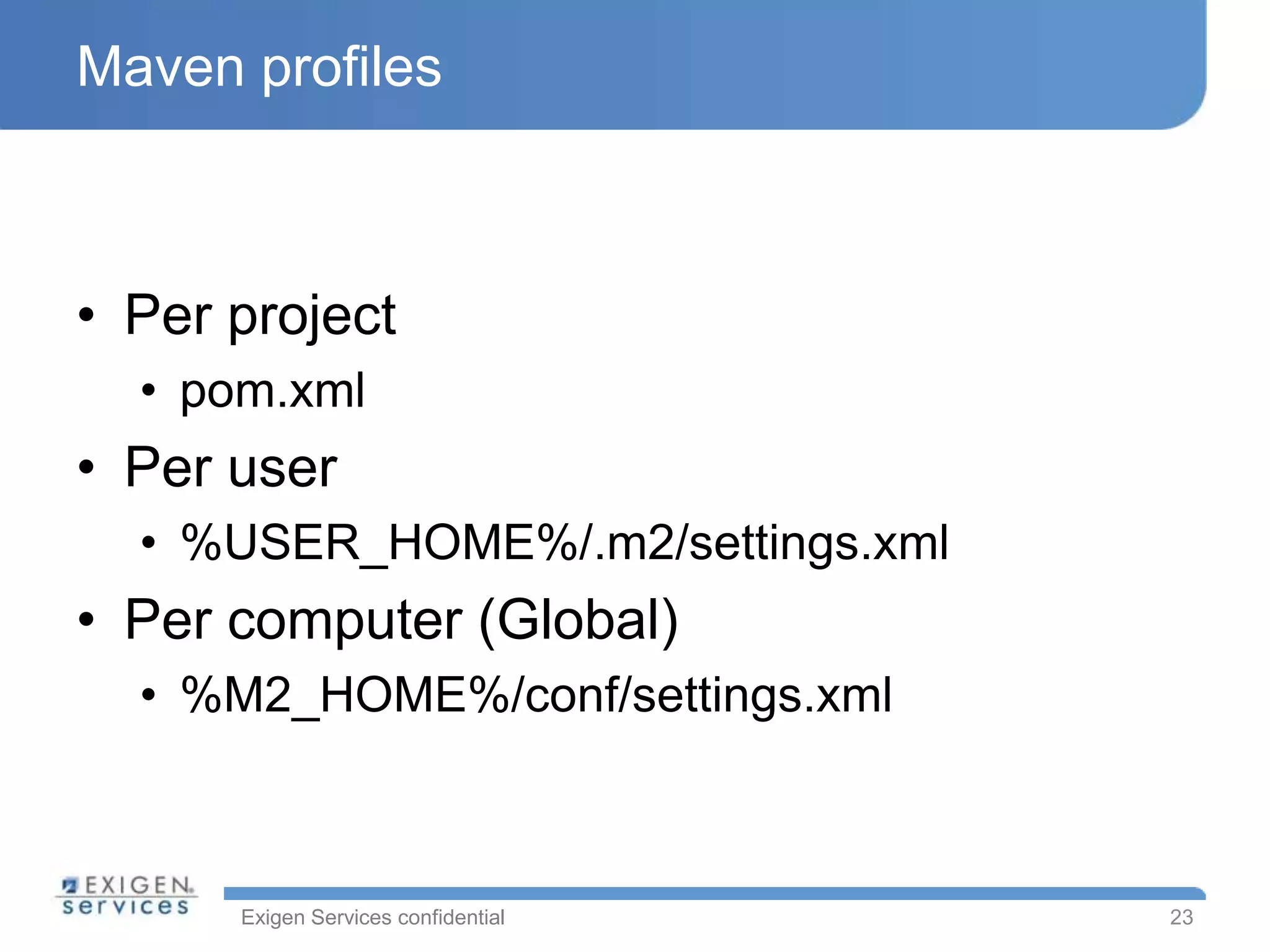

21. Maven profiles
• Per project
• pom.xml
• Per user
• %USER_HOME%/.m2/settings.xml
• Per computer (Global)
• %M2_HOME%/conf/settings.xml
Exigen Services confidential 23

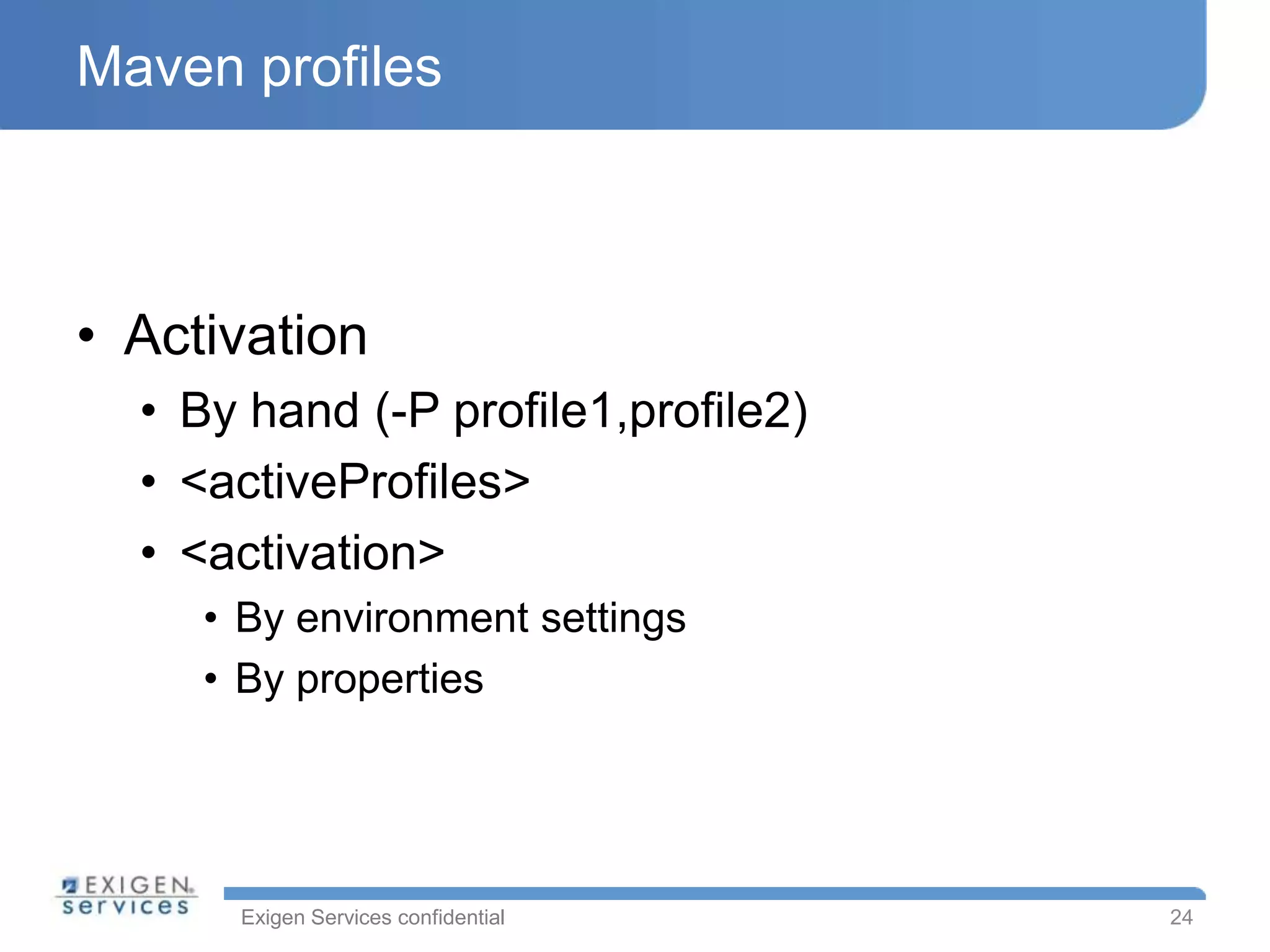

22. Maven profiles
• Activation
• By hand (-P profile1,profile2)
• <activeProfiles>
• <activation>
• By environment settings
• By properties
Exigen Services confidential 24

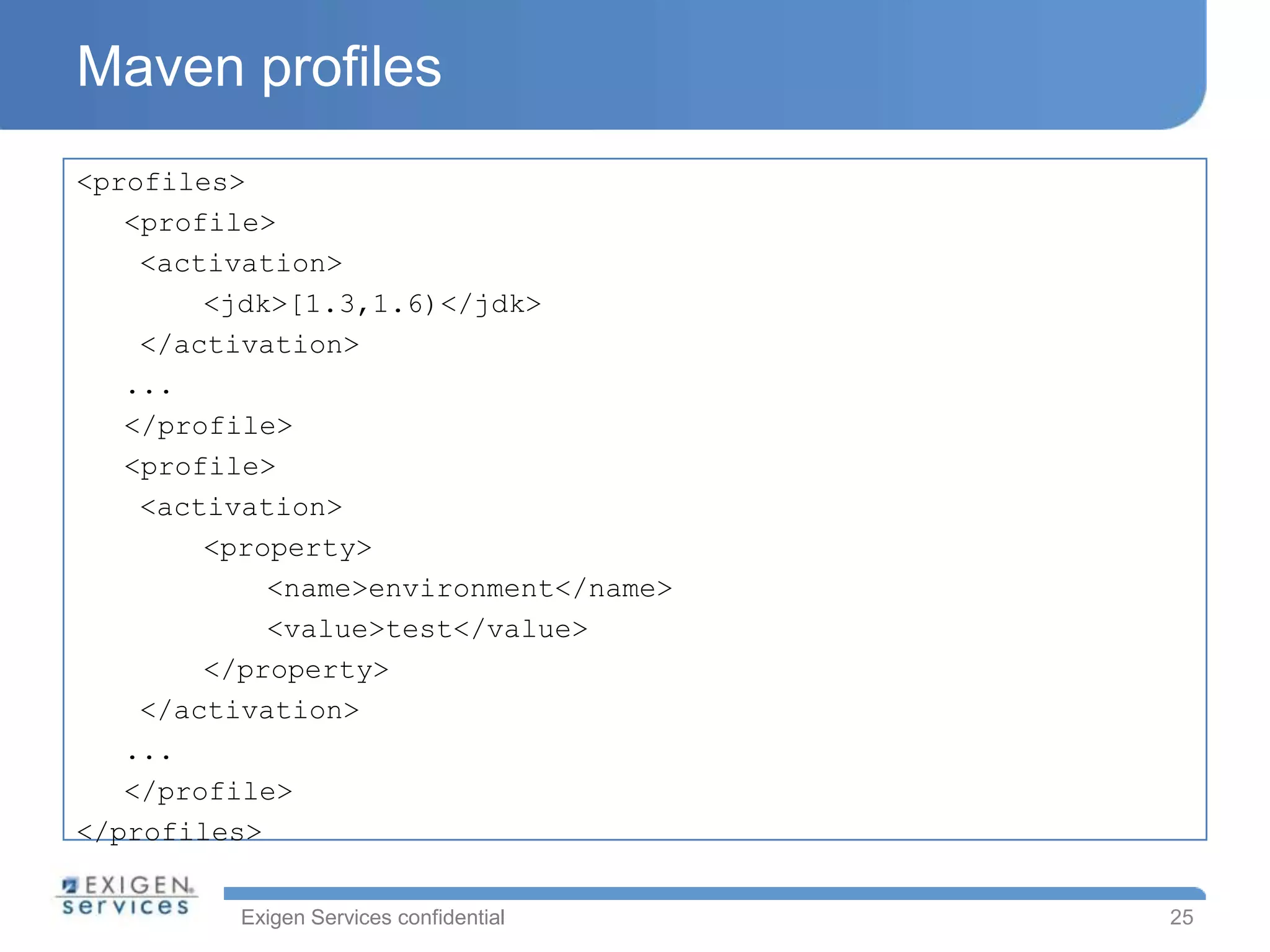

23. Maven profiles
<profiles>
<profile>
<activation>
<jdk>[1.3,1.6)</jdk>
</activation>
...
</profile>
<profile>
<activation>
<property>
<name>environment</name>
<value>test</value>
</property>
</activation>
...
</profile>
</profiles>
Exigen Services confidential 25

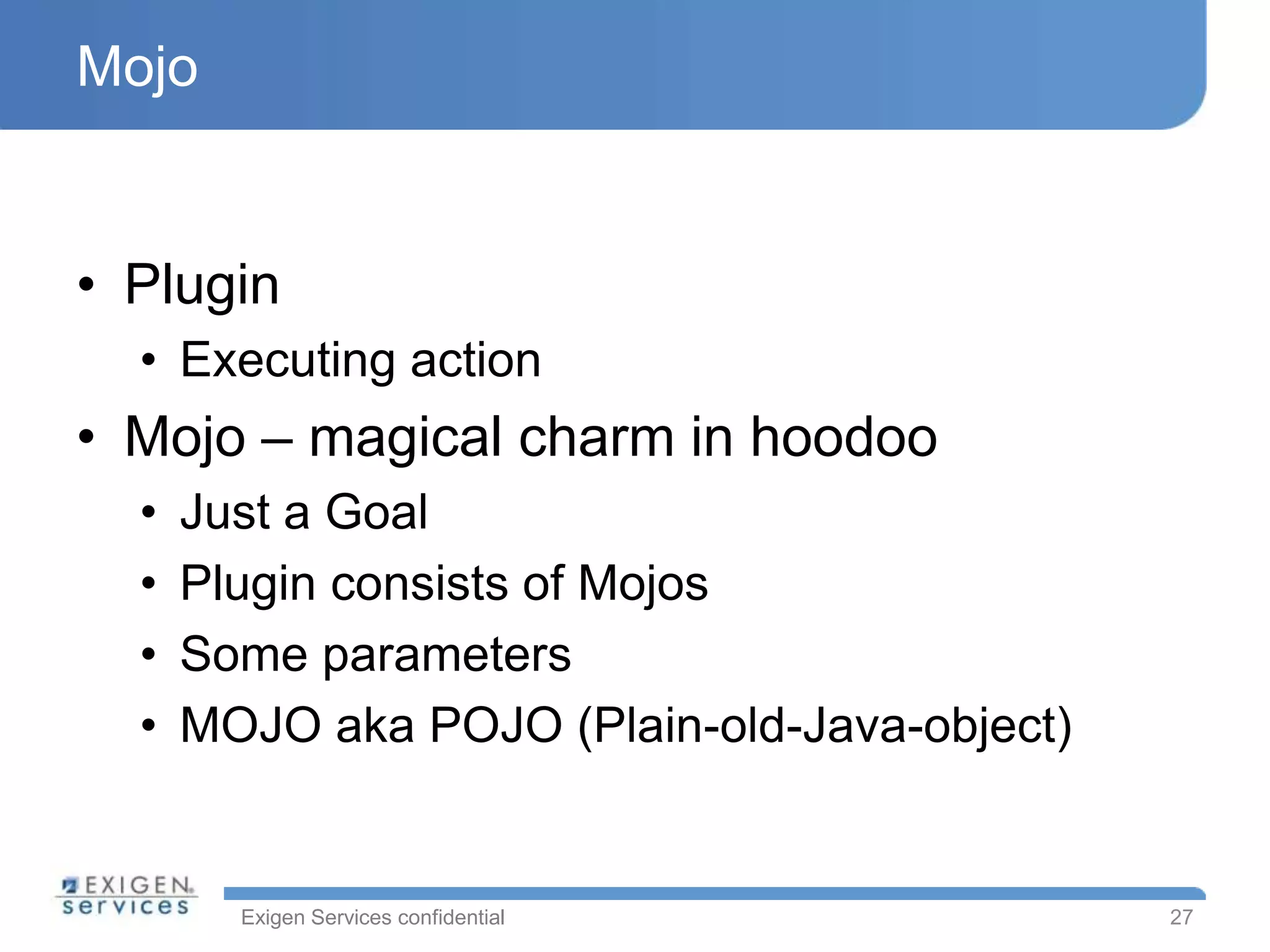

24. Mojo
• Plugin
• Executing action
• Mojo – magical charm in hoodoo
• Just a Goal
• Plugin consists of Mojos
• Some parameters
• MOJO aka POJO (Plain-old-Java-object)
Exigen Services confidential 27

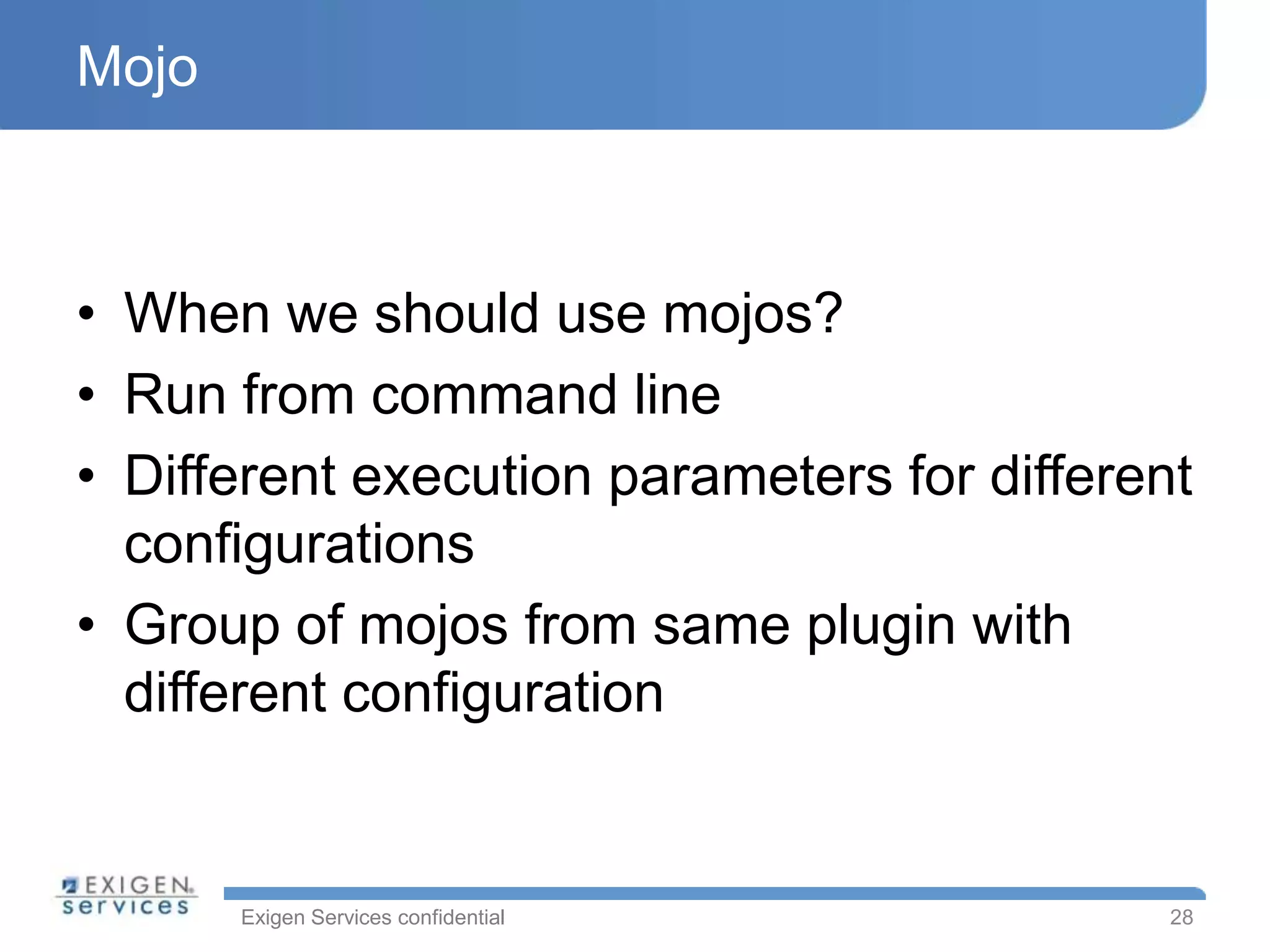

25. Mojo
• When we should use mojos?
• Run from command line
• Different execution parameters for different
configurations
• Group of mojos from same plugin with
different configuration
Exigen Services confidential 28

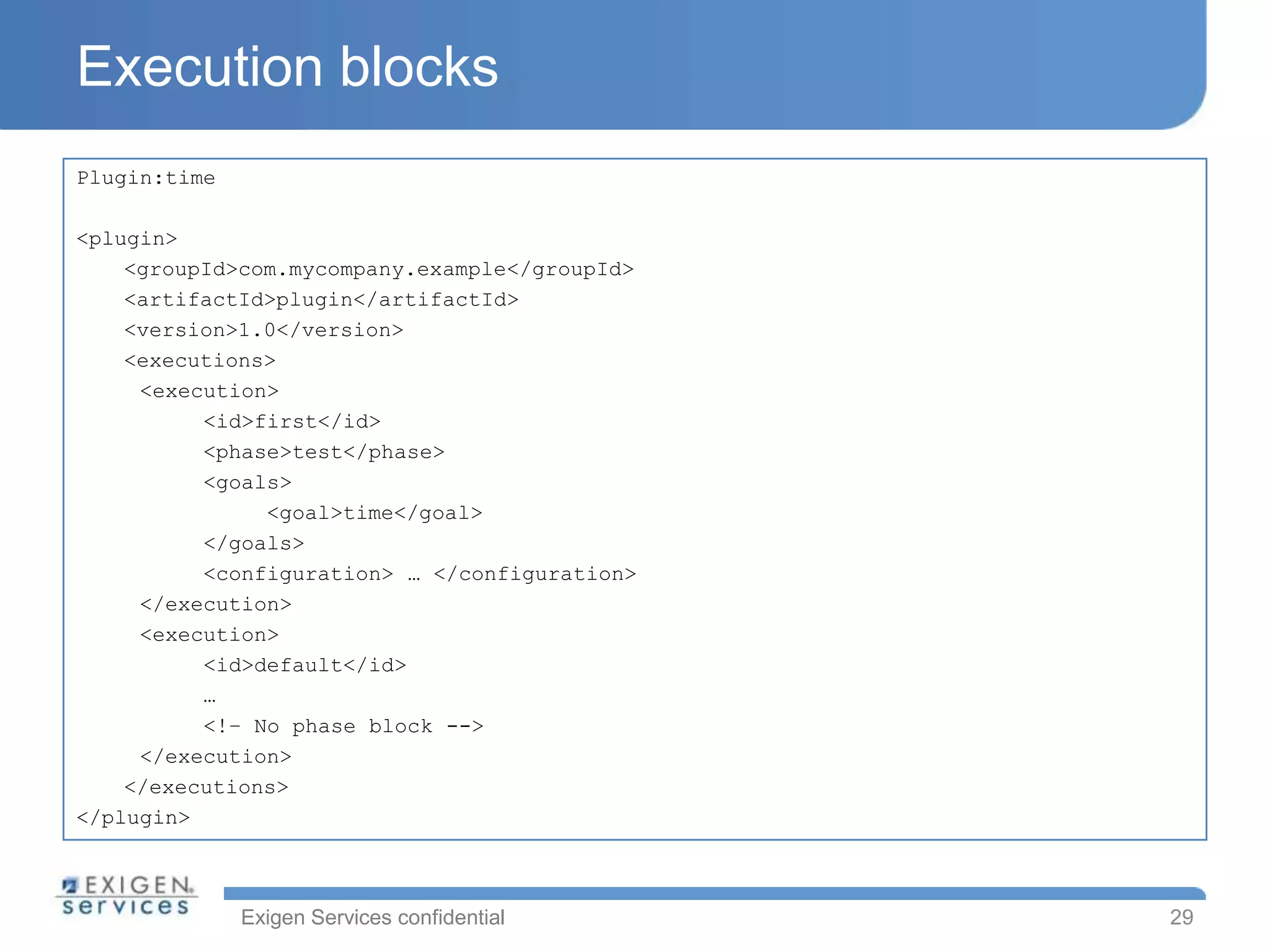

26. Execution blocks
Plugin:time
<plugin>
<groupId>com.mycompany.example</groupId>
<artifactId>plugin</artifactId>
<version>1.0</version>
<executions>
<execution>
<id>first</id>
<phase>test</phase>
<goals>
<goal>time</goal>
</goals>
<configuration> … </configuration>
</execution>
<execution>
<id>default</id>
…
<!– No phase block -->
</execution>
</executions>
</plugin>
Exigen Services confidential 29

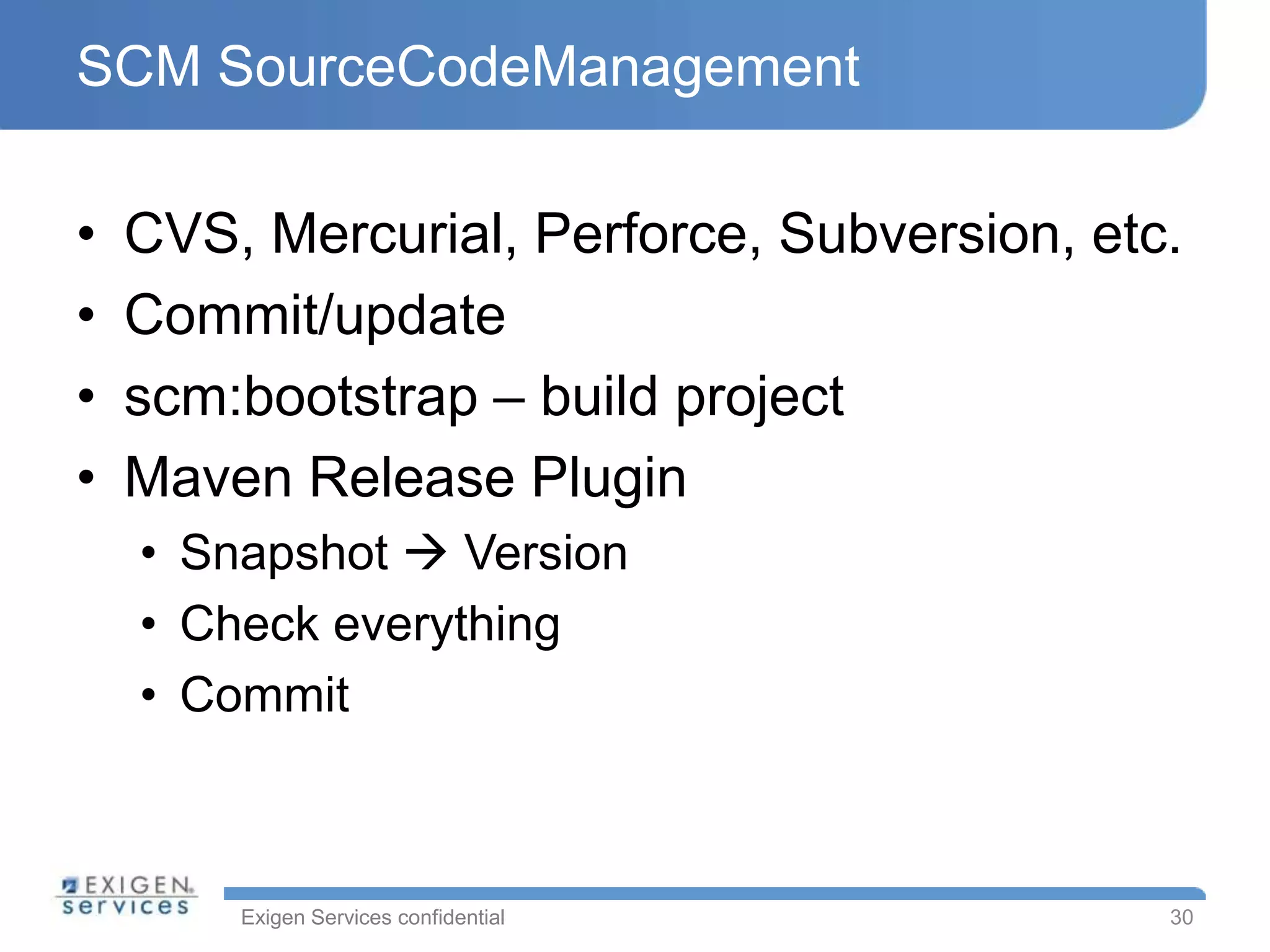

27. SCM SourceCodeManagement
• CVS, Mercurial, Perforce, Subversion, etc.
• Commit/update
• scm:bootstrap – build project
• Maven Release Plugin
• Snapshot  Version
• Check everything
• Commit
Exigen Services confidential 30

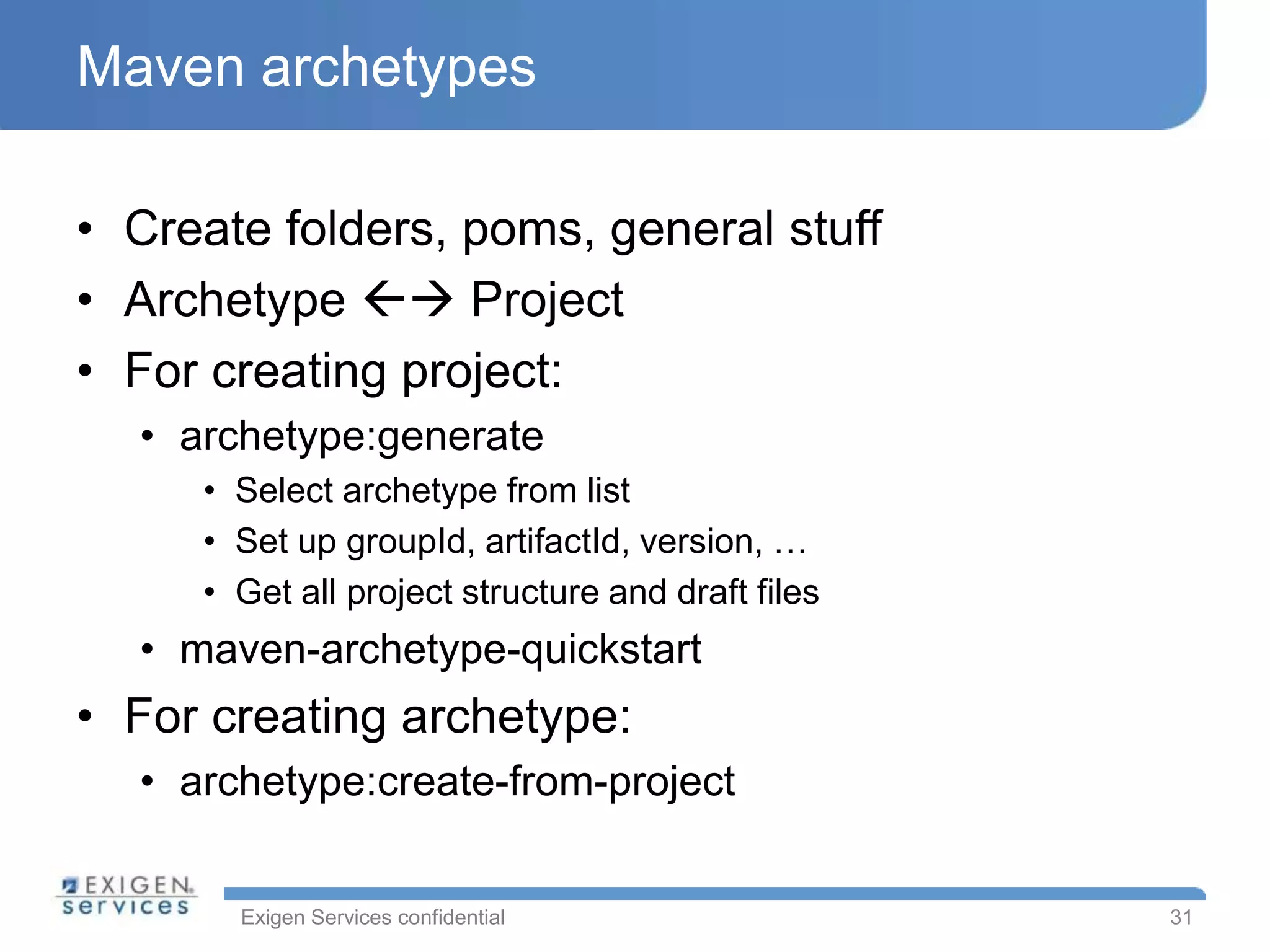

28. Maven archetypes
• Create folders, poms, general stuff
• Archetype  Project
• For creating project:
• archetype:generate
• Select archetype from list
• Set up groupId, artifactId, version, …
• Get all project structure and draft files
• maven-archetype-quickstart
• For creating archetype:
• archetype:create-from-project
Exigen Services confidential 31

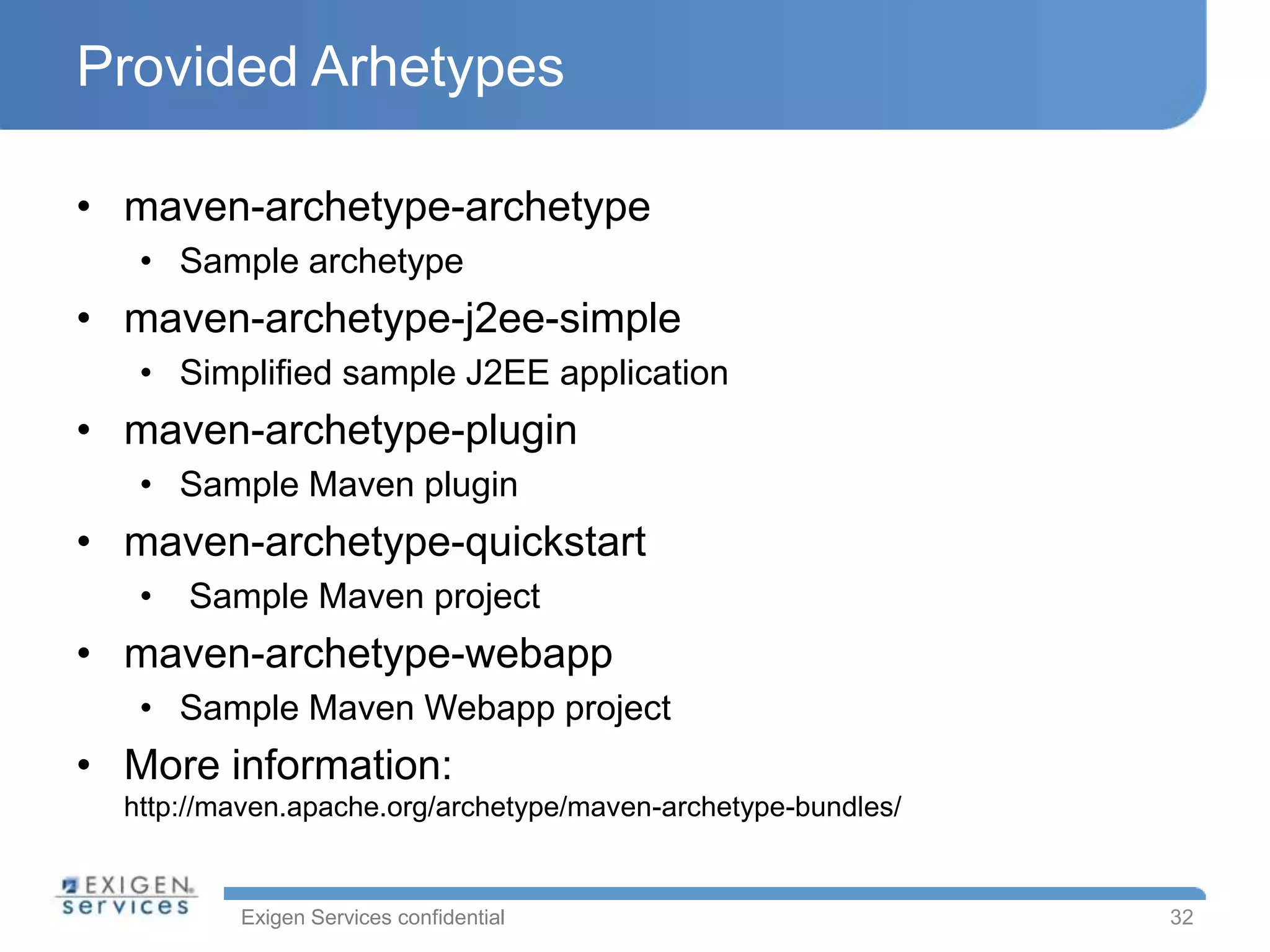

29. Provided Arhetypes
• maven-archetype-archetype
• Sample archetype
• maven-archetype-j2ee-simple
• Simplified sample J2EE application
• maven-archetype-plugin
• Sample Maven plugin
• maven-archetype-quickstart
• Sample Maven project
• maven-archetype-webapp
• Sample Maven Webapp project
• More information:
http://maven.apache.org/archetype/maven-archetype-bundles/
Exigen Services confidential 32

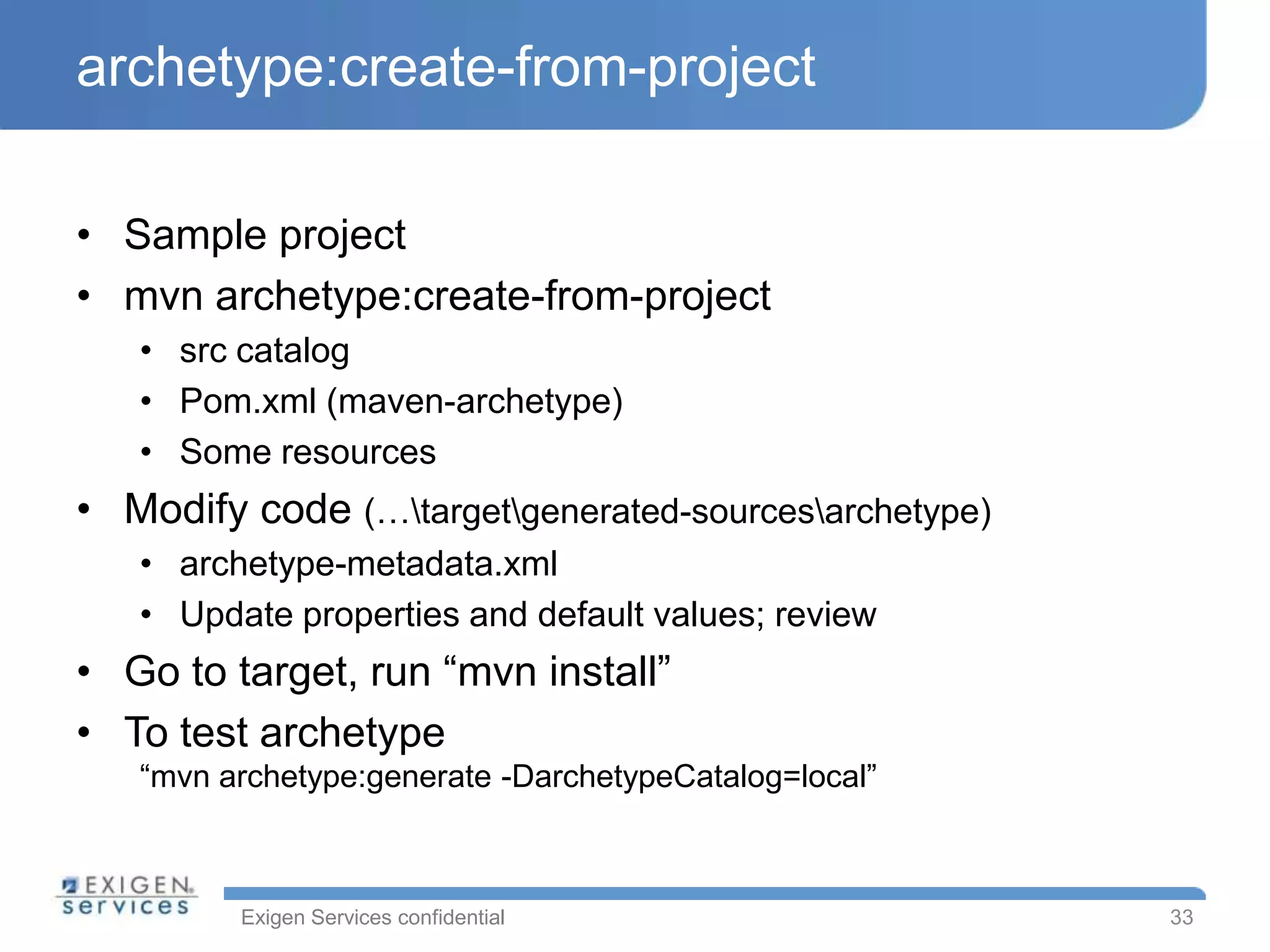

30. archetype:create-from-project
• Sample project
• mvn archetype:create-from-project
• src catalog
• Pom.xml (maven-archetype)
• Some resources
• Modify code (…targetgenerated-sourcesarchetype)
• archetype-metadata.xml
• Update properties and default values; review
• Go to target, run “mvn install”
• To test archetype
“mvn archetype:generate -DarchetypeCatalog=local”
Exigen Services confidential 33

31. Good configuration - great advantage
NEXUS
SETTING.XML
Exigen Services confidential 34

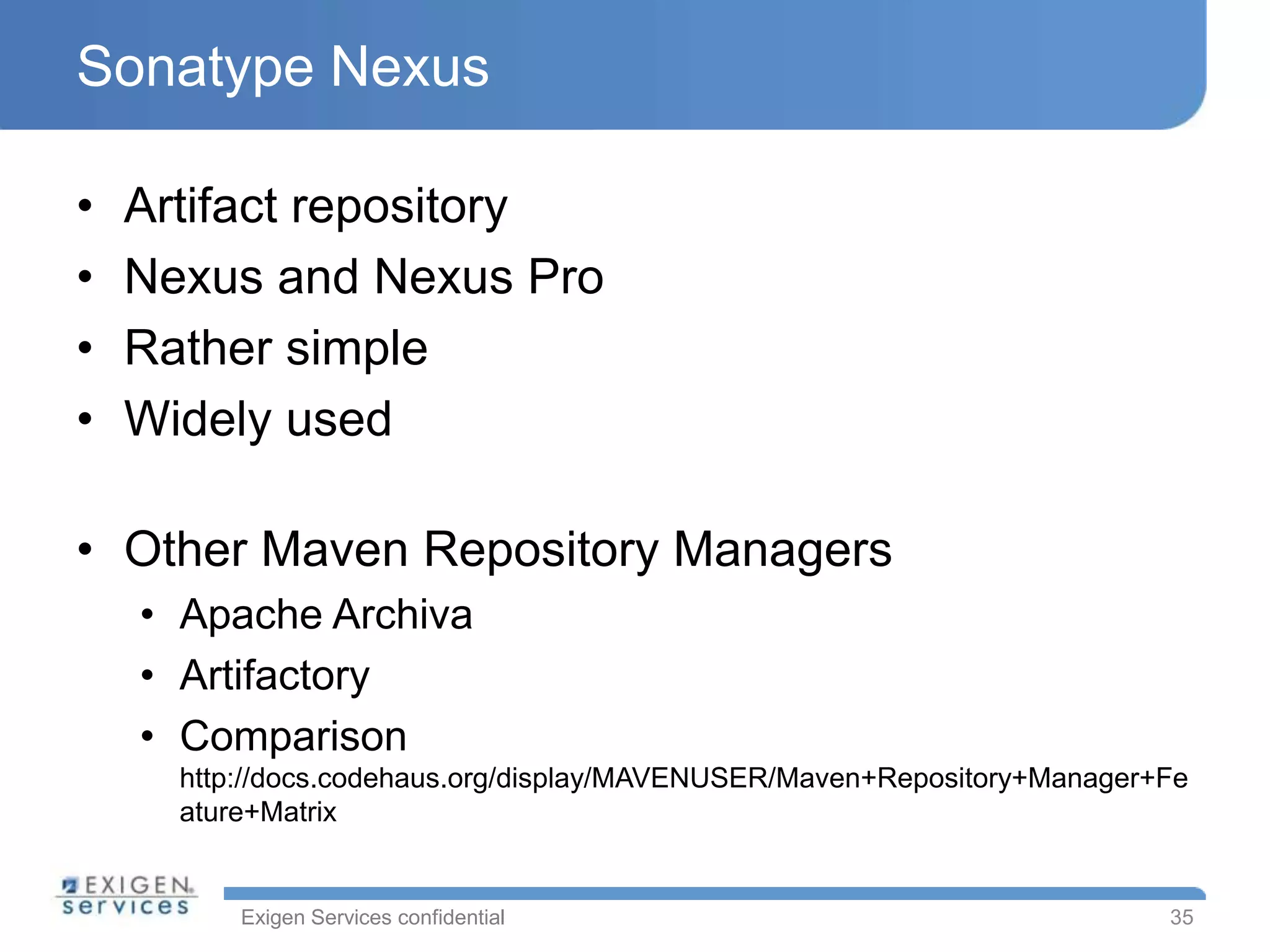

32. Sonatype Nexus
• Artifact repository
• Nexus and Nexus Pro
• Rather simple
• Widely used
• Other Maven Repository Managers
• Apache Archiva
• Artifactory
• Comparison
http://docs.codehaus.org/display/MAVENUSER/Maven+Repository+Manager+Fe
ature+Matrix
Exigen Services confidential 35

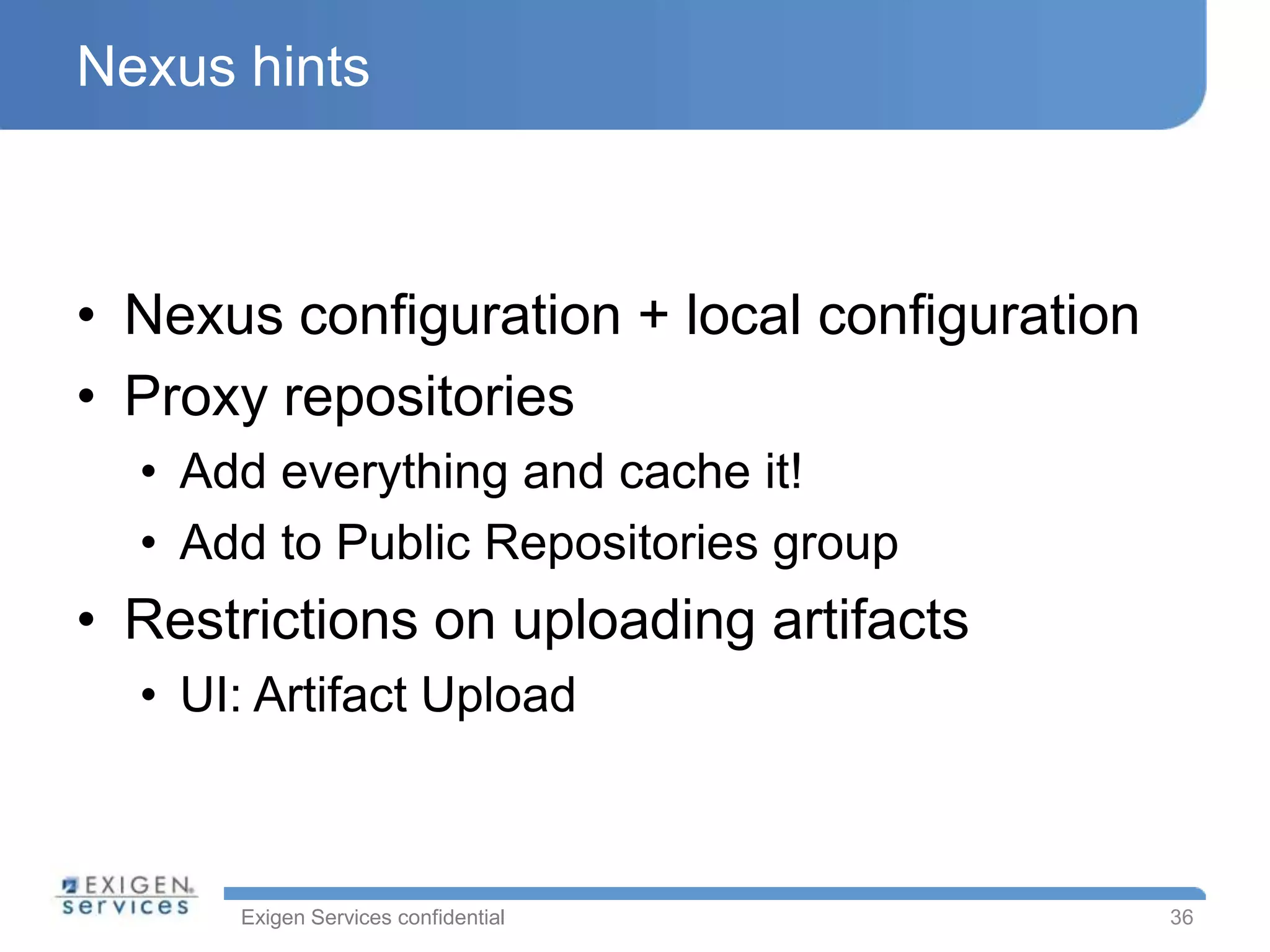

33. Nexus hints
• Nexus configuration + local configuration
• Proxy repositories
• Add everything and cache it!
• Add to Public Repositories group
• Restrictions on uploading artifacts
• UI: Artifact Upload
Exigen Services confidential 36

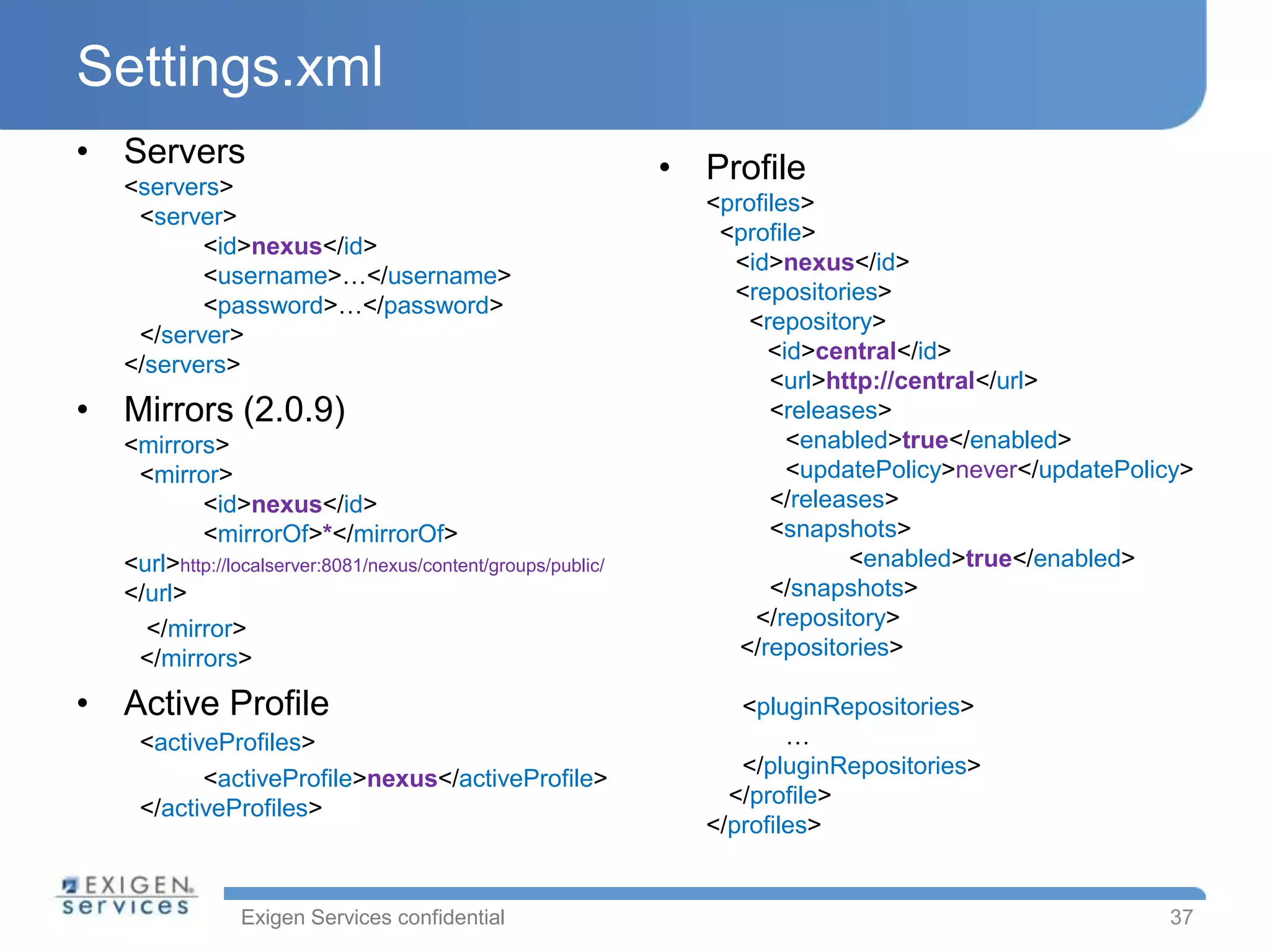

34. Settings.xml
• Servers • Profile
<servers>
<profiles>
<server>
<profile>
<id>nexus</id>
<id>nexus</id>
<username>…</username>
<repositories>
<password>…</password>
<repository>
</server>
<id>central</id>
</servers>
<url>http://central</url>
• Mirrors (2.0.9) <releases>
<mirrors> <enabled>true</enabled>
<mirror> <updatePolicy>never</updatePolicy>
<id>nexus</id> </releases>
<mirrorOf>*</mirrorOf> <snapshots>
<url>http://localserver:8081/nexus/content/groups/public/ <enabled>true</enabled>
</url> </snapshots>
</mirror> </repository>
</mirrors> </repositories>
• Active Profile <pluginRepositories>
<activeProfiles> …
</pluginRepositories>
<activeProfile>nexus</activeProfile>
</profile>
</activeProfiles>
</profiles>
Exigen Services confidential 37

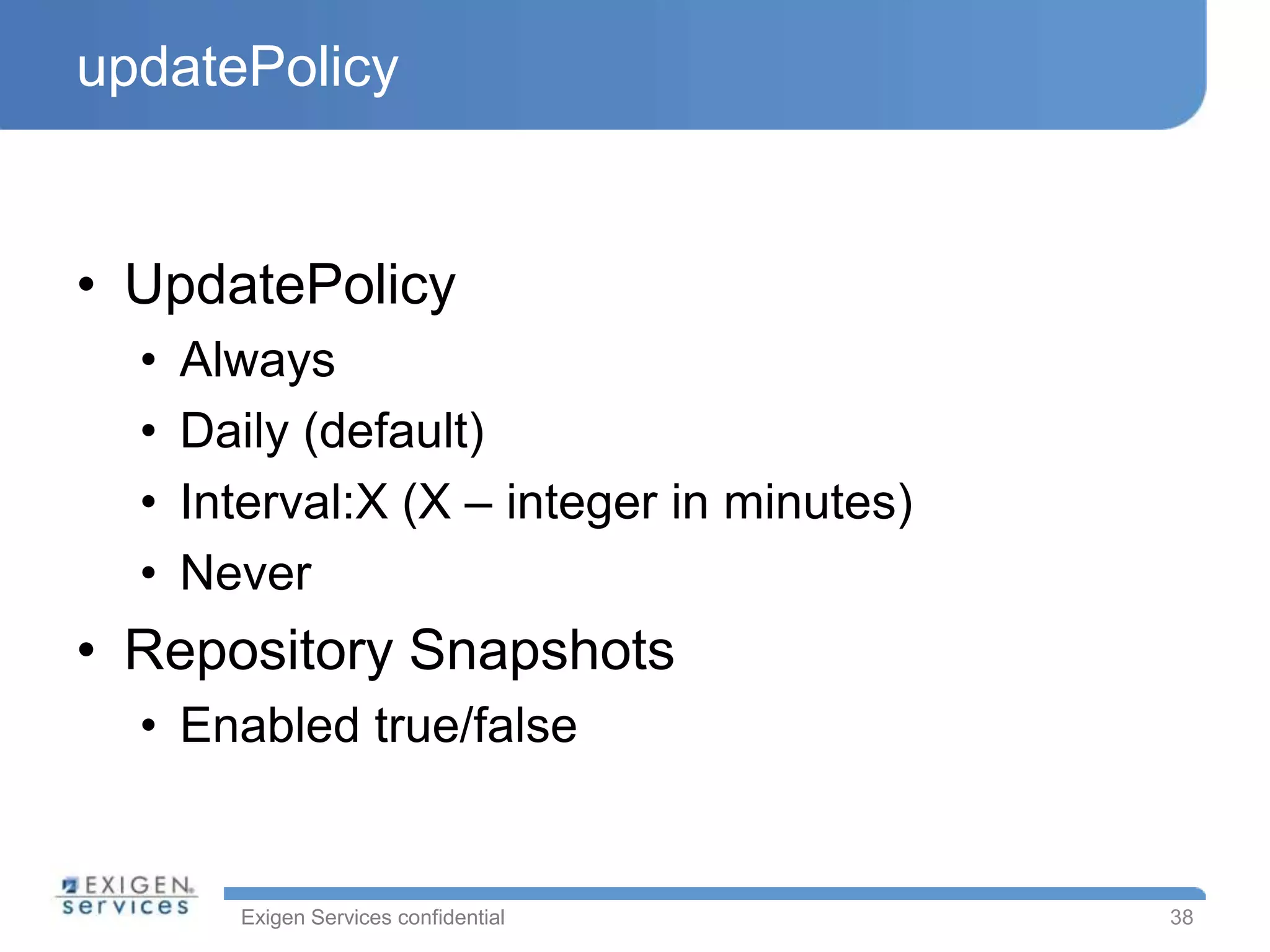

35. updatePolicy
• UpdatePolicy
• Always
• Daily (default)
• Interval:X (X – integer in minutes)
• Never
• Repository Snapshots
• Enabled true/false
Exigen Services confidential 38

36. When you have free time…
LICENSE, ORGANIZATION, DEVELOPER
S, CONTRIBUTORS
Exigen Services confidential 39

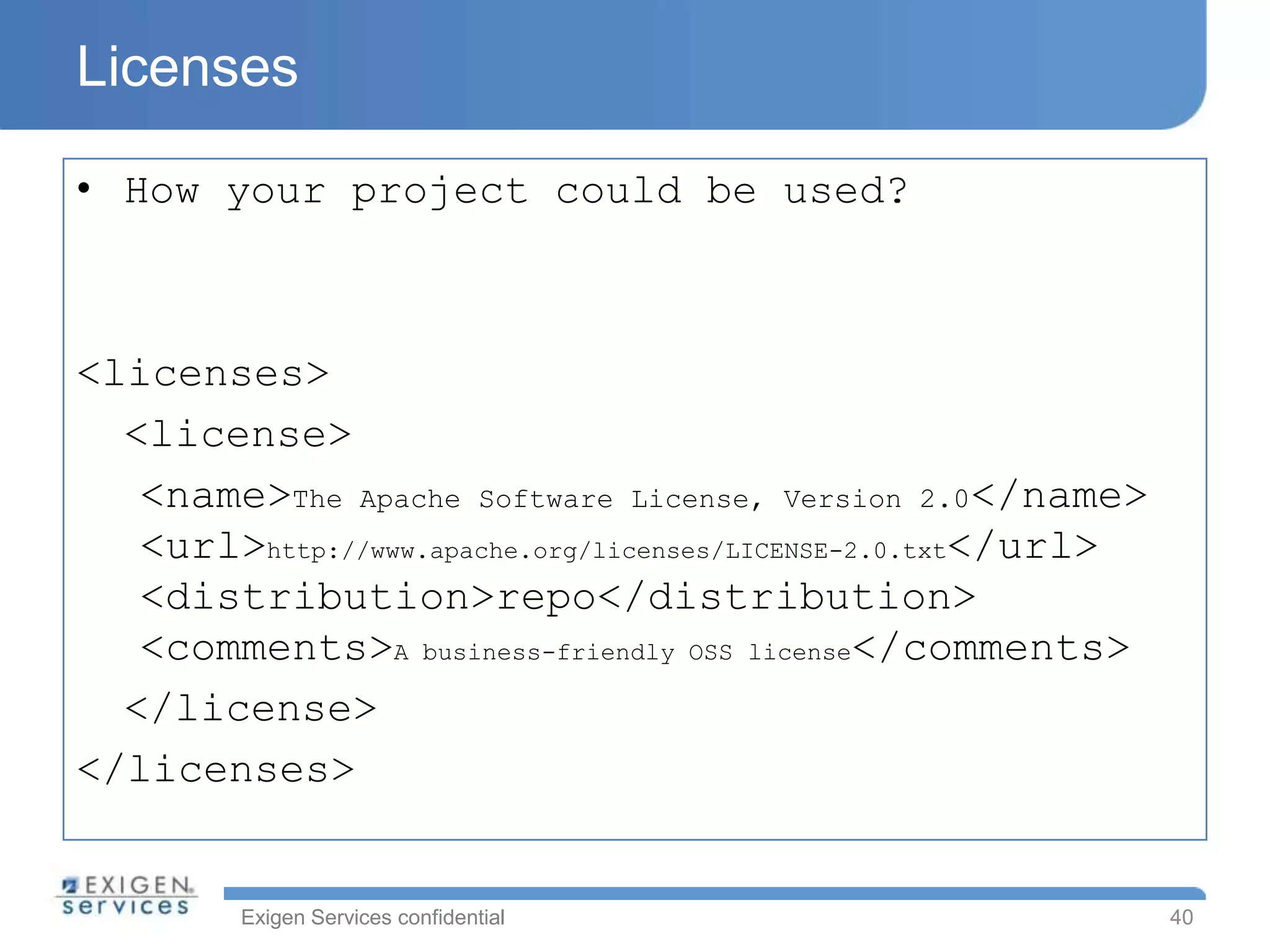

37. Licenses
• How your project could be used?
<licenses>
<license>
<name>The Apache Software License, Version 2.0</name>
<url>http://www.apache.org/licenses/LICENSE-2.0.txt</url>
<distribution>repo</distribution>
<comments>A business-friendly OSS license</comments>
</license>
</licenses>
Exigen Services confidential 40

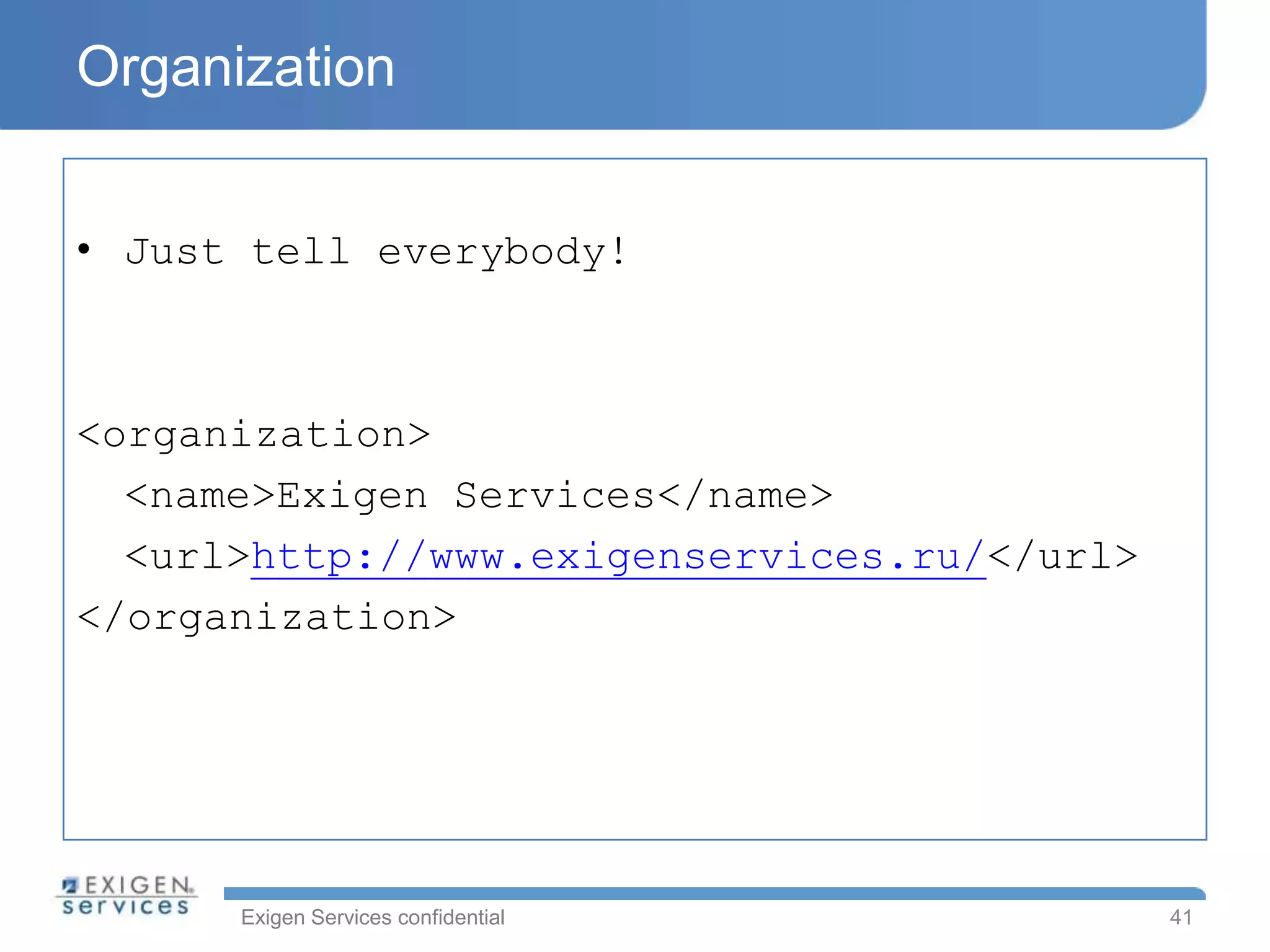

38. Organization
• Just tell everybody!
<organization>
<name>Exigen Services</name>
<url>http://www.exigenservices.ru/</url>
</organization>
Exigen Services confidential 41

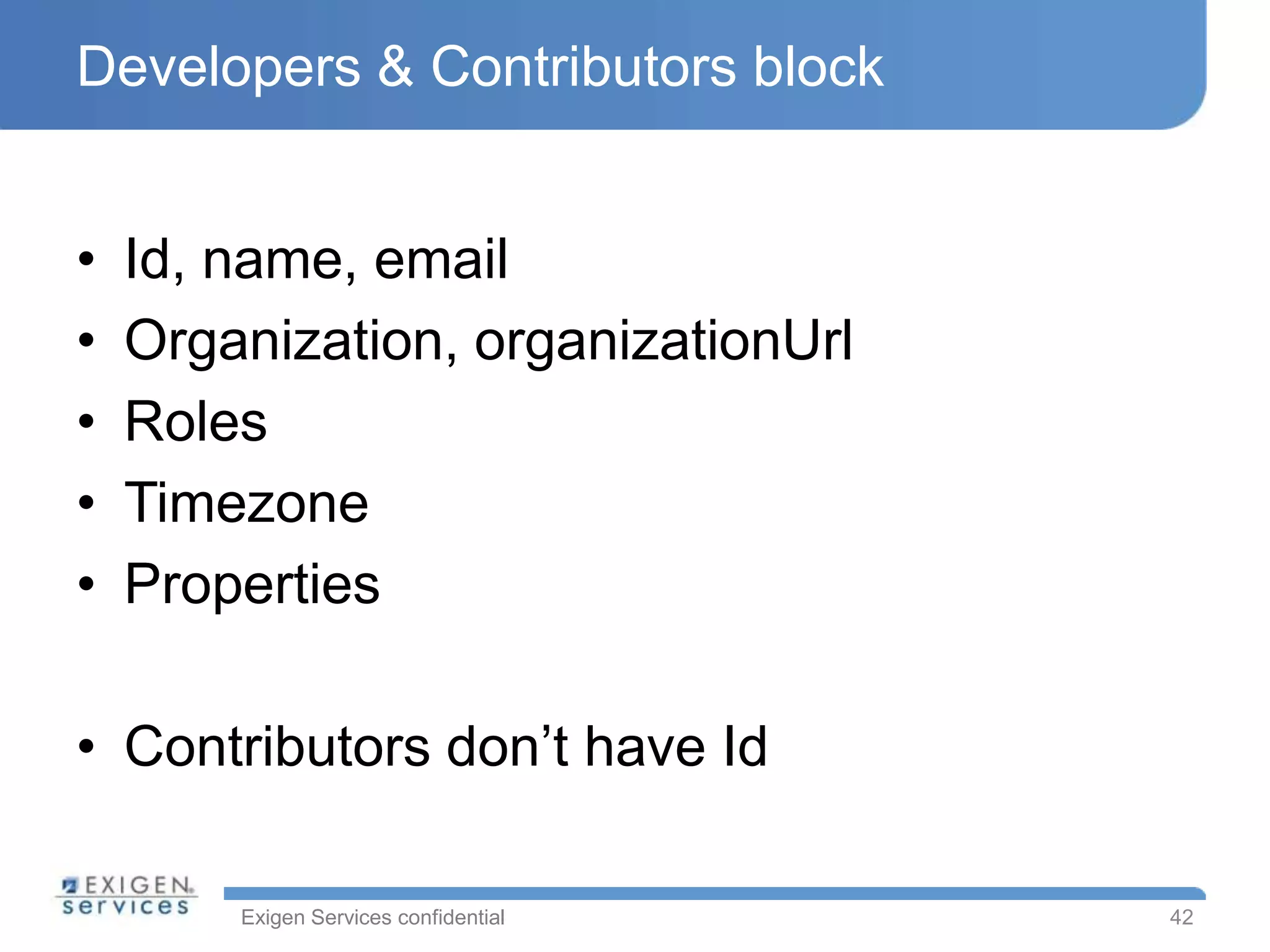

39. Developers & Contributors block
• Id, name, email
• Organization, organizationUrl
• Roles
• Timezone
• Properties
• Contributors don’t have Id
Exigen Services confidential 42

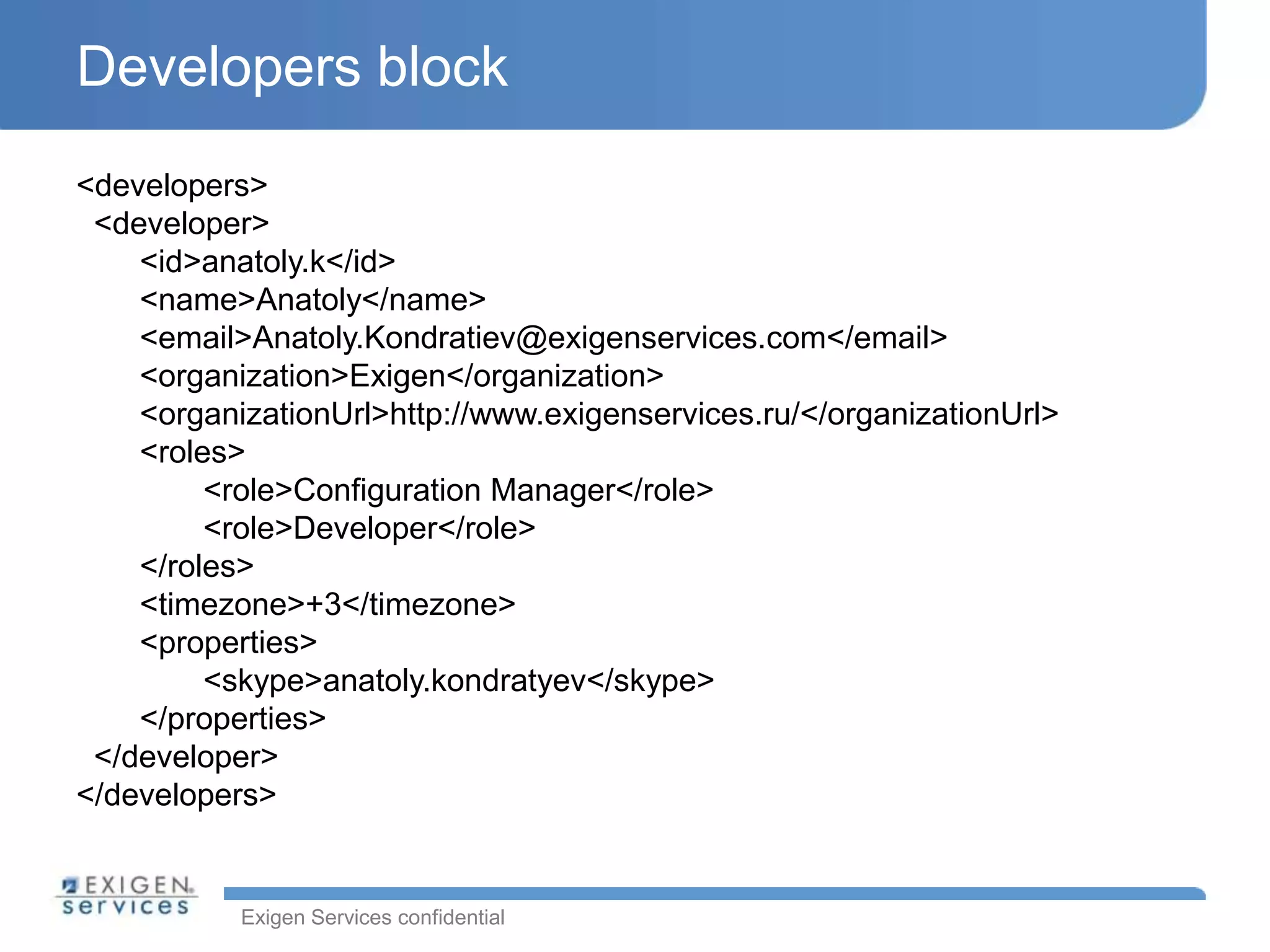

40. Developers block
<developers>
<developer>
<id>anatoly.k</id>
<name>Anatoly</name>
<email>Anatoly.Kondratiev@exigenservices.com</email>
<organization>Exigen</organization>
<organizationUrl>http://www.exigenservices.ru/</organizationUrl>
<roles>
<role>Configuration Manager</role>
<role>Developer</role>
</roles>
<timezone>+3</timezone>
<properties>
<skype>anatoly.kondratyev</skype>
</properties>
</developer>
</developers>
Exigen Services confidential

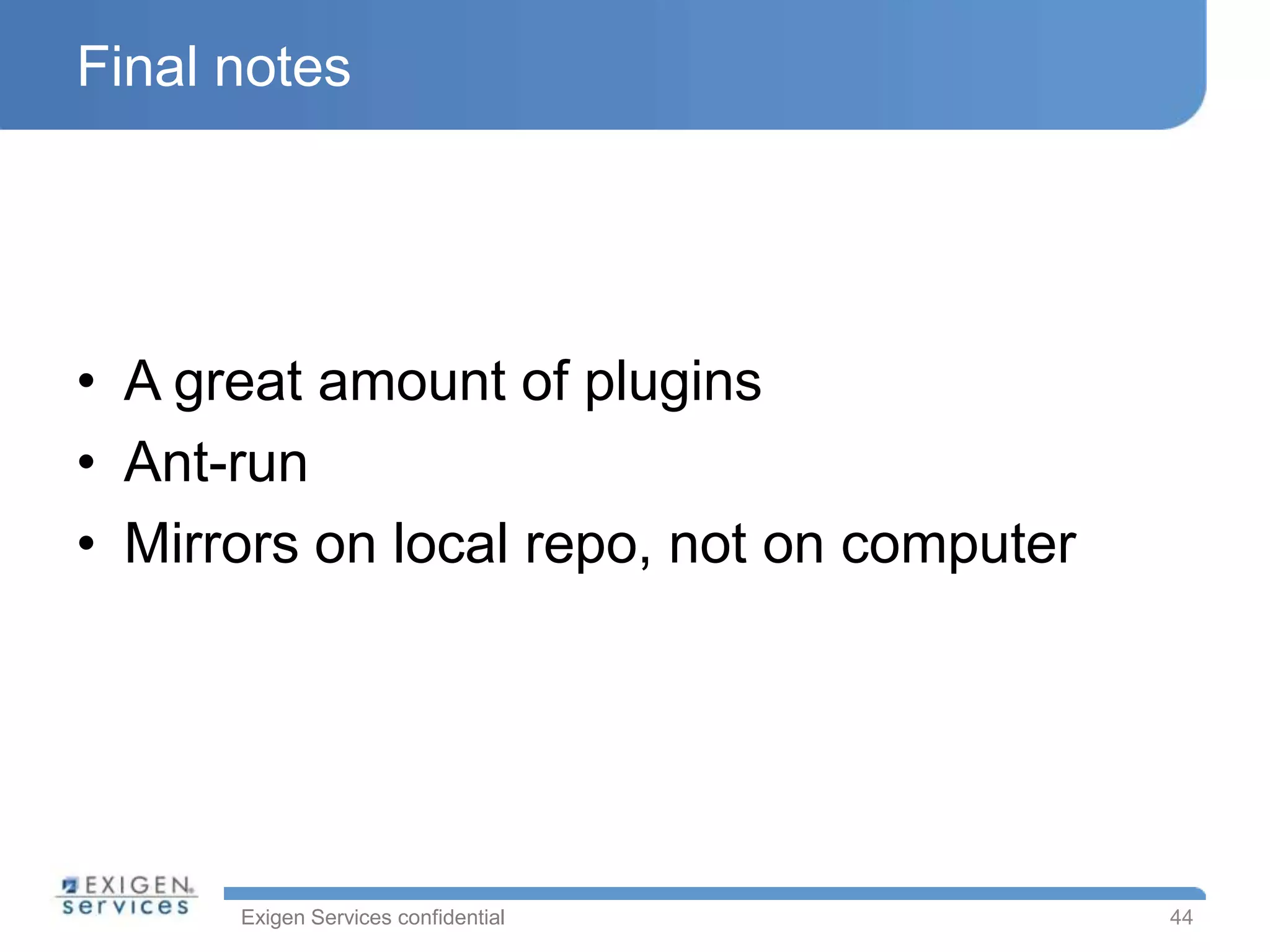

41. Final notes
• A great amount of plugins
• Ant-run
• Mirrors on local repo, not on computer
Exigen Services confidential 44

42. Now it’s your turn…
QUESTIONS
Exigen Services confidential 45
