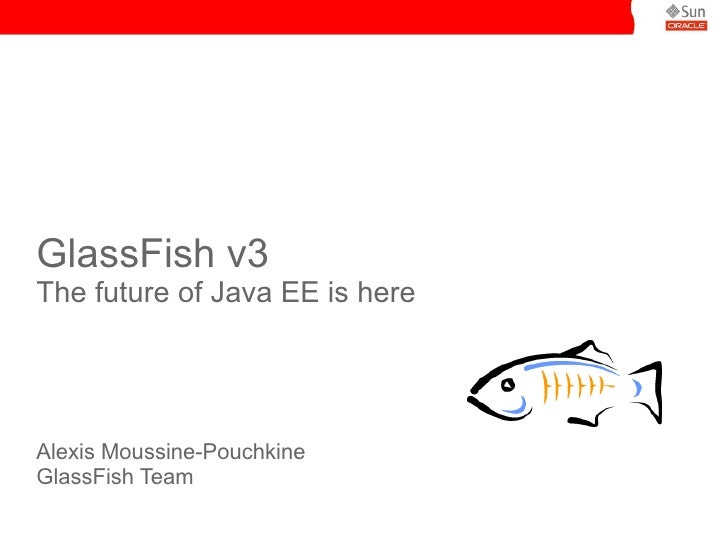

GlassFish v3
The future of Java EE is here




Alexis Moussine-Pouchkine
GlassFish Team
This is no science fiction




 Java EE 6 and GlassFish v3 shipped
                              th
final releases on Dece...
GlassFish Around You
Some History and Context


  Tomcat
   Jasper
                          GlassFish v1                        GlassFish v3
 ...
GlassFish
●   A Community
    ●   Users, Partners, Testers, Developers
    ●   Started in 2005 on java.net
    ●   Sub-pro...
Oracle GlassFish Server




 ●   GlassFish development continues (in the open!)
 ●   Support contracts thru 2017 + unlimit...
A brief History
                                                                        Ease of
                          ...
Java EE 6 – What's New?
●   Several new APIs
●   Web Profile
●   Extensibility & Pluggability
●   Dependency Injection
●  ...
New and improved specifications
●   EJB 3.1               ●   DI 1.0
●   JPA 2.0               ●   CDI 1.0
●   Servlet 3.0...
Demo




   Painless development with
          GlassFish v3
Painless Java EE development !
●   Incremental compile of all Java EE artifacts
●   Auto-deploy of all Java EE and static ...
Session Retention
●   Deployment option to maintain stateful
     sessions across re-deployments

$ asadmin redeploy --pro...
Introducing
GlassFish v3
Modular and Dynamic
●   Modular : Apache Felix (OSGi)
●   Extensible : HK2
●   Yet very Fast !
Demo




Painless (Java EE 6) development
Yes, Eclipse too !




GlassFish Tools Bundle for Eclipse : http://download.java.net/glassfish/eclipse/
More Painless Development
●   Fast auto-deploy of all Java EE and static
    artifacts
●   Application runner
    ●   java...
How hard should it be to test
EJBs?


 EJBContainer c = EJBContainer.createEJBContainer();
 Context ic = c.getContext();
 ...
How hard should it be to test
EJBs?

                                   New in EJB 3.1
 EJBContainer c = EJBContainer.crea...
How hard should it be to test
EJBs?

@Test public void test() {
    EJBContainer c = EJBContainer.createEJBContainer();
  ...
GlassFish Embedded

 org.glassfish.api.embedded.Server server;
 Server.Builder builder = new Server.Builder();
 server = b...
GlassFish Embedded

 org.glassfish.api.embedded.Server server;
 Server.Builder builder = new Server.Builder();
 server = b...
GlassFish Embedded

 org.glassfish.api.embedded.Server server;
 Server.Builder builder = new Server.Builder();
 server = b...
GlassFish Embedded
@BeforeClass public static void initContainer() {
    org.glassfish.api.embedded.Server server;
    Ser...
GlassFish Embedded
public static void main(String[] args) {
    org.glassfish.api.embedded.Server server;
    Server.Build...
What's the deal with OSGi?
●   GlassFish runs on top of OSGi (Felix by default)
    ●   Also runs unmodified on Knopflerfi...
Extending GlassFish v3
OSGi-style – an example, a demo and a picture

                                                    ...
Demo




       Extending GlassFish v3
             OSGi-style
Extending GlassFish v3
 SpringDM – another example, demo and picture
                                                     ...
Update Center
Demo




       GlassFish à la Carte
GlassFish à la carte
●   Unzip 5-MB bootstrap
    ●   Install core IPS packages
GlassFish à la carte
●   Unzip 5-MB bootstrap
    ●   Install core IPS packages
●   Define the repository to use
GlassFish à la carte
●   Unzip 5-MB bootstrap
    ●   Install core IPS packages
●   Define the repository to use
●   Insta...
GlassFish à la carte
●   Unzip 5-MB bootstrap
    ●   Install core IPS packages
●   Define the repository to use
●   Insta...
GlassFish à la carte
●   Unzip 5-MB bootstrap
    ●   Install core IPS packages
●   Define the repository to use
●   Insta...
GlassFish à la carte
●   Unzip 5-MB bootstrap
    ●   Install core IPS packages
●   Define the repository to use
●   Insta...
Monitoring and Management
Beyond web console and asadmin

●   Dynamic and non-intrusive monitoring of events
    from any ...
RESTful admin
●   JAX-RS/Jersey + Grizzly to provide REST
    interfaces to :
    ●   Configure runtime (via GET, POST, DE...
Demo




       RESTful admin
A lot more ...
●   Management and Monitoring
    ●   Dynamic, Btrace, ...
●   Dynamic languages
    ●   Rails, Grails, Dja...
GlassFish v3 – Practical
●   Get it from http://glassfish.org
    ●   GlassFish v3 now final !
    ●   Also from http://su...
Questions



alexis.mp@sun.com
http://blogs.sun.com/alexismp
twitter: alexismp
Glass Fishv3 March2010
Upcoming SlideShare
Loading in …5
×

Glass Fishv3 March2010

4,698 views

Published on

Full Java EE 6 support, great developer experience, multiple yet simple admin tools, embedded mode, mutli-language runtime, OSGi modularity, ... The GlassFish set of feature reads like the roadmap of our closest competitors. See how they can work for you. Today.

Published in: Technology
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
4,698
On SlideShare
0
From Embeds
0
Number of Embeds
55
Actions
Shares
0
Downloads
46
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

Glass Fishv3 March2010

  1. 1. GlassFish v3 The future of Java EE is here Alexis Moussine-Pouchkine GlassFish Team
  2. 2. This is no science fiction Java EE 6 and GlassFish v3 shipped th final releases on December 10 2009
  3. 3. GlassFish Around You
  4. 4. Some History and Context Tomcat Jasper GlassFish v1 GlassFish v3 Catalina JSTL (Java EE 5) (Java EE 6) Struts GlassFish v2 Crimson Launch v2.1 v2.1.1 XSLTC Xalan Xerces JAXB Jan JAX-RPC June May Sept. Nov. Dec. JSF 2005 2006 2007 2008 2009 2009 (you are here)
  5. 5. GlassFish ● A Community ● Users, Partners, Testers, Developers ● Started in 2005 on java.net ● Sub-projects – Jersey (JAX-RS), Metro (JAX-WS), Grizzly (nio), Atmosphere (Comet), OpenMQ (JMS), and scripting: jRoR, Grails, and now Django (jython) ● Application Server ● Enterprise Quality and Open Source ● Java EE 5 / 6 Reference Implementation ● Full Commercial Support from Sun/Oracle
  6. 6. Oracle GlassFish Server ● GlassFish development continues (in the open!) ● Support contracts thru 2017 + unlimited ● Remains the Java EE reference implementation ● Available as standalone support offering ● Soon-to-be-published 3.x roadmap
  7. 7. A brief History Ease of development (web) Ease of Java EE 6 development EJB 3.1 Java EE 5 JPA 2.0 Servlet 3.0 Web Services JSF 2.0 JAX-RS 1.1 Robust J2EE 1.4 CDI 1.0 Scalable @Inject Enterprise Bean Validat° Application J2EE 1.3 J2EE 1.2 Web Profile Annotations Servlet EJB 3 JSP JPA 1.0 EJB WS WS-* Managed Project JPE JMS CMP Management JSF Bean RMI/IIOP JCA Deployment May 1998 Dec 1999 Sept 2001 Nov 2003 May 2006 Q4 2009 10 specs 13 specs 20 specs 23 specs 28 specs
  8. 8. Java EE 6 – What's New? ● Several new APIs ● Web Profile ● Extensibility & Pluggability ● Dependency Injection ● Improvement to many APIs
  9. 9. New and improved specifications ● EJB 3.1 ● DI 1.0 ● JPA 2.0 ● CDI 1.0 ● Servlet 3.0 ● Managed Beans 1.0 ● JSF 2.0 ● Interceptors 1.1 ● JAX-RS 1.1 ● JAX-WS 2.2 ● Connectors 1.6 ● JSR-109 1.3 ● Bean Validation 1.0 ● JSP 2.2 / EL 2.2 ● JSR-250 1.1
  10. 10. Demo Painless development with GlassFish v3
  11. 11. Painless Java EE development ! ● Incremental compile of all Java EE artifacts ● Auto-deploy of all Java EE and static artifacts
  12. 12. Session Retention ● Deployment option to maintain stateful sessions across re-deployments $ asadmin redeploy --properties keepSessions=true myapp.war ● Greatly simplifies the development paradigm ● Integrated in IDEs
  13. 13. Introducing GlassFish v3
  14. 14. Modular and Dynamic ● Modular : Apache Felix (OSGi) ● Extensible : HK2 ● Yet very Fast !
  15. 15. Demo Painless (Java EE 6) development
  16. 16. Yes, Eclipse too ! GlassFish Tools Bundle for Eclipse : http://download.java.net/glassfish/eclipse/
  17. 17. More Painless Development ● Fast auto-deploy of all Java EE and static artifacts ● Application runner ● java -jar glassfish.jar toto.war ● Integration with maven 2 ● mvn gf:run, gf:start, gf:deploy, ... ● Containers can be added/removed dynamically ● Excellent Tools integration
  18. 18. How hard should it be to test EJBs? EJBContainer c = EJBContainer.createEJBContainer(); Context ic = c.getContext(); SimpleEjb ejb = (SimpleEjb) ic.lookup("java:global/sample/SimpleEjb"); ejb.sayHello();
  19. 19. How hard should it be to test EJBs? New in EJB 3.1 EJBContainer c = EJBContainer.createEJBContainer(); Context ic = c.getContext(); SimpleEjb ejb = (SimpleEjb) ic.lookup("java:global/sample/SimpleEjb"); ejb.sayHello(); Portable JNDI name
  20. 20. How hard should it be to test EJBs? @Test public void test() { EJBContainer c = EJBContainer.createEJBContainer(); Context ic = c.getContext(); SimpleEjb ejb = (SimpleEjb) ic.lookup("java:global/sample/SimpleEjb"); ejb.sayHello(); } Demo
  21. 21. GlassFish Embedded org.glassfish.api.embedded.Server server; Server.Builder builder = new Server.Builder(); server = builder.build();
  22. 22. GlassFish Embedded org.glassfish.api.embedded.Server server; Server.Builder builder = new Server.Builder(); server = builder.build(); ContainerBuilder b = server.createConfig(ContainerBuilder.Type.web); server.addContainer(b);
  23. 23. GlassFish Embedded org.glassfish.api.embedded.Server server; Server.Builder builder = new Server.Builder(); server = builder.build(); ContainerBuilder b = server.createConfig(ContainerBuilder.Type.web); server.addContainer(b); File archive = new File("hello.war"); server.getDeployer().deploy(archive); Same bits, different entry point All in one JAR available
  24. 24. GlassFish Embedded @BeforeClass public static void initContainer() { org.glassfish.api.embedded.Server server; Server.Builder builder = new Server.Builder(); server = builder.build(); ContainerBuilder b = server.createConfig(ContainerBuilder.Type.web); server.addContainer(b); File archive = new File("hello.war"); server.getDeployer().deploy(archive); } @Test public static void pingApplication() { ... }
  25. 25. GlassFish Embedded public static void main(String[] args) { org.glassfish.api.embedded.Server server; Server.Builder builder = new Server.Builder(); server = builder.build(); ContainerBuilder b = server.createConfig(ContainerBuilder.Type.web); server.addContainer(b); File archive = new File("realApplication.war"); server.getDeployer().deploy(archive); } Ship app server inside the application
  26. 26. What's the deal with OSGi? ● GlassFish runs on top of OSGi (Felix by default) ● Also runs unmodified on Knopflerfish and Equinox ● GlassFish ships with 200+ bundles ● Can run without OSGi (Static mode) ● Can use OSGi management tools (CLI or Web) ● Any OSGi bundle will run in GlassFish v3 ● Drop it in glassfish/modules{/autostart} ● Can also asadmin deploy it using --type osgi
  27. 27. Extending GlassFish v3 OSGi-style – an example, a demo and a picture ● OSGi declarative service ● Service-Component entry in the JAR Manifest ● Invoke the service from a servlet using standard @Resource injection ● Never use a GlassFish API ! ● No need to chose between OSGi and Java EE Step by step: http://blogs.sun.com/dochez/entry/glassfish_v3_extensions_part_4
  28. 28. Demo Extending GlassFish v3 OSGi-style
  29. 29. Extending GlassFish v3 SpringDM – another example, demo and picture ● Extend GlassFish with an unmodified Spring dm container ● Simple Spring bean implementing the service ● Invoke the service from a servlet using standard @Resource injection ● Still no use of a GlassFish API ● Single runtime for both Spring and full Java EE Step by step: http://blogs.sun.com/dochez/entry/glassfish_v3_extensions_part_4
  30. 30. Update Center
  31. 31. Demo GlassFish à la Carte
  32. 32. GlassFish à la carte ● Unzip 5-MB bootstrap ● Install core IPS packages
  33. 33. GlassFish à la carte ● Unzip 5-MB bootstrap ● Install core IPS packages ● Define the repository to use
  34. 34. GlassFish à la carte ● Unzip 5-MB bootstrap ● Install core IPS packages ● Define the repository to use ● Install individual packages ● Start with core glassfish-nucleus package ● Drags dependencies of course
  35. 35. GlassFish à la carte ● Unzip 5-MB bootstrap ● Install core IPS packages ● Define the repository to use ● Install individual packages ● Start with core glassfish-nucleus package ● Drags dependencies of course ● Install umbrella package (a distro really) ● Enough to run a JAX-RS/EJB31 demo
  36. 36. GlassFish à la carte ● Unzip 5-MB bootstrap ● Install core IPS packages ● Define the repository to use ● Install individual packages ● Start with core glassfish-nucleus package ● Drags dependencies of course ● Install umbrella package (a distro really) ● Enough to run a JAX-RS/EJB31 demo ● Create GlassFish server instance ● Deploy application
  37. 37. GlassFish à la carte ● Unzip 5-MB bootstrap ● Install core IPS packages ● Define the repository to use ● Install individual packages ● Start with core glassfish-nucleus package ● Drags dependencies of course ● Install umbrella package (a distro really) ● Enough to run a JAX-RS/EJB31 demo ● Create GlassFish server instance ● Deploy application ● Run!
  38. 38. Monitoring and Management Beyond web console and asadmin ● Dynamic and non-intrusive monitoring of events from any GlassFish runtime classes ● BTrace integration new! – Portable, dynamic and safe tracing tool for Java – Btrace annotations and API to write scripts ● Probe Providers defined in java or XML new! – Default providers & roll out your own ● RESTful interface new! ● DTrace for end-to-end new! ● Still exposed via JMX ● jconsole and visualvm as natural clients
  39. 39. RESTful admin ● JAX-RS/Jersey + Grizzly to provide REST interfaces to : ● Configure runtime (via GET, POST, DELETE) ● Invoke commands (restart, stop, deploy, etc..) ● Monitoring (GET only) ● Available from : ● http://localhost:4848/management/domain ● http://localhost:4848/monitoring/domain ● Use REST clients as Admin GUI substitute ● Use you favorite glue/scripting language or tool ● Data offered as either XML, HTML or JSON ● Extensible
  40. 40. Demo RESTful admin
  41. 41. A lot more ... ● Management and Monitoring ● Dynamic, Btrace, ... ● Dynamic languages ● Rails, Grails, Django, Scala/Lift... ● Comet, Atmosphere Full support for le ● ib ● mod_jk WebDAV, CGI, SSI n s te ● Web Services Metro x ● ● ● .Net 3.5 interop OpenMQ E
  42. 42. GlassFish v3 – Practical ● Get it from http://glassfish.org ● GlassFish v3 now final ! ● Also from http://sun.com/appserver http://www.oracle.com/goto/glassfish ● Choice ! ● Eclipse or NetBeans (or vi...) ● Felix or Equinox ● Graphical Installer, Zip version ● Download size starting at 30MB ● Can move from Web profile to full (and vice-versa)
  43. 43. Questions alexis.mp@sun.com http://blogs.sun.com/alexismp twitter: alexismp

×
