Apache maven 2. advanced topics
- 1. Exigen Services confidentialExigen Services confidential Apache Maven 2 Overview Part 2 Advanced Topics of Apache Maven 2 Anatoly Kondratyev September 2012 20 July 2015

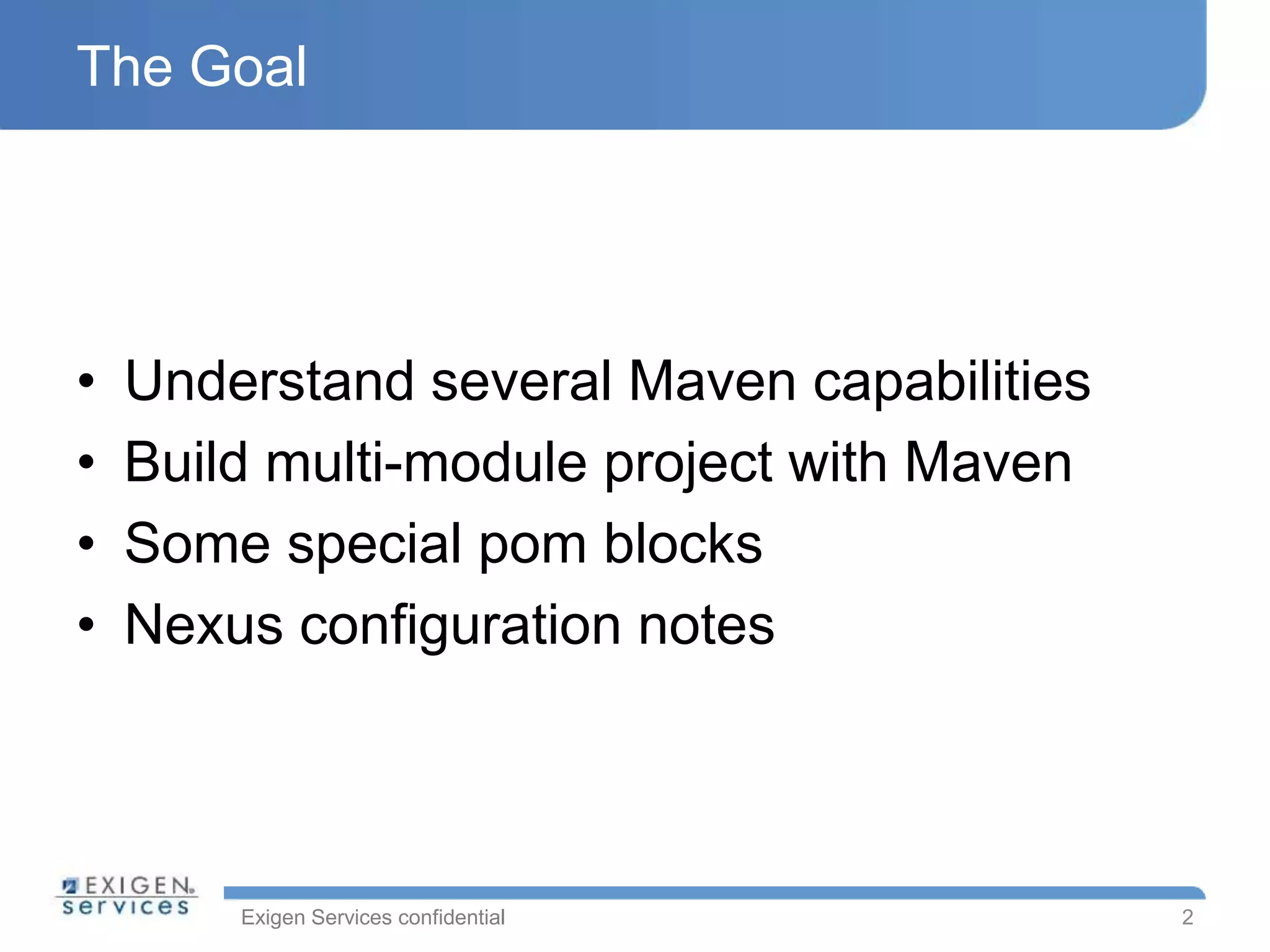

- 2. Exigen Services confidential TheGoal • Understand several Maven capabilities • Build multi-module project with Maven • Some special pom blocks • Nexus configuration notes 2

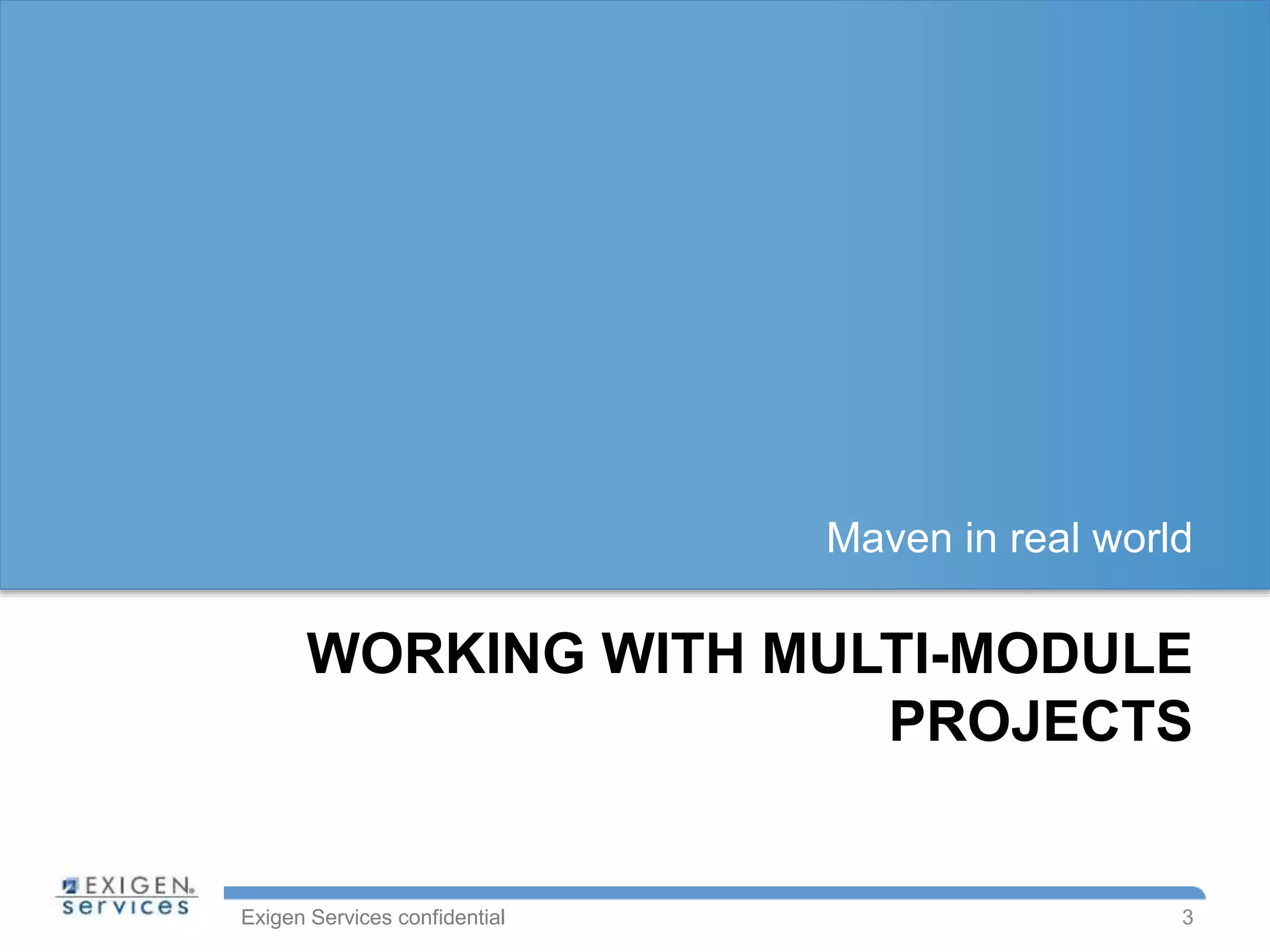

- 3. Exigen Services confidential WORKINGWITH MULTI-MODULE PROJECTS Maven in real world 3

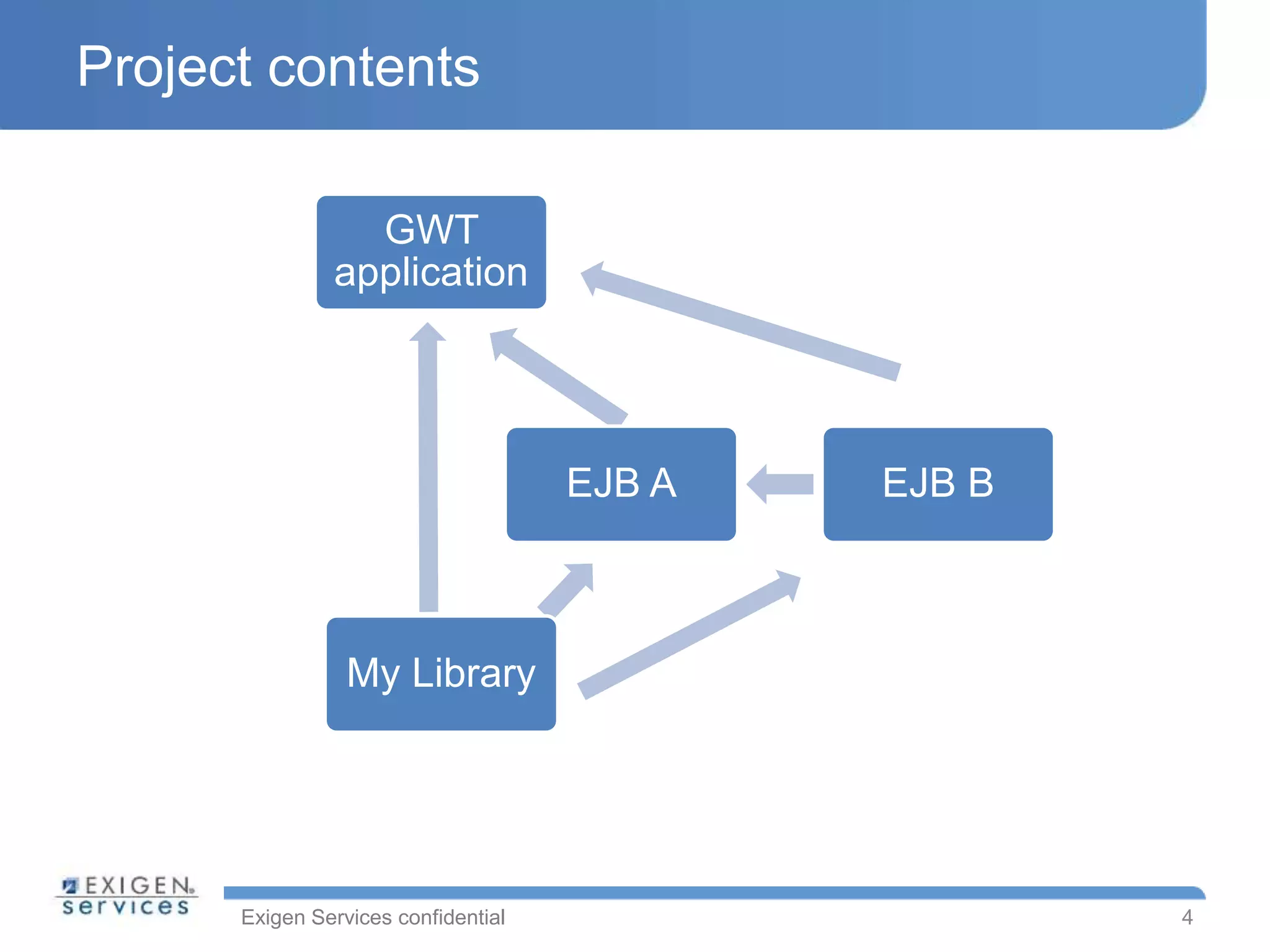

- 4. Exigen Services confidential Projectcontents 4 GWT application EJB BEJB A My Library

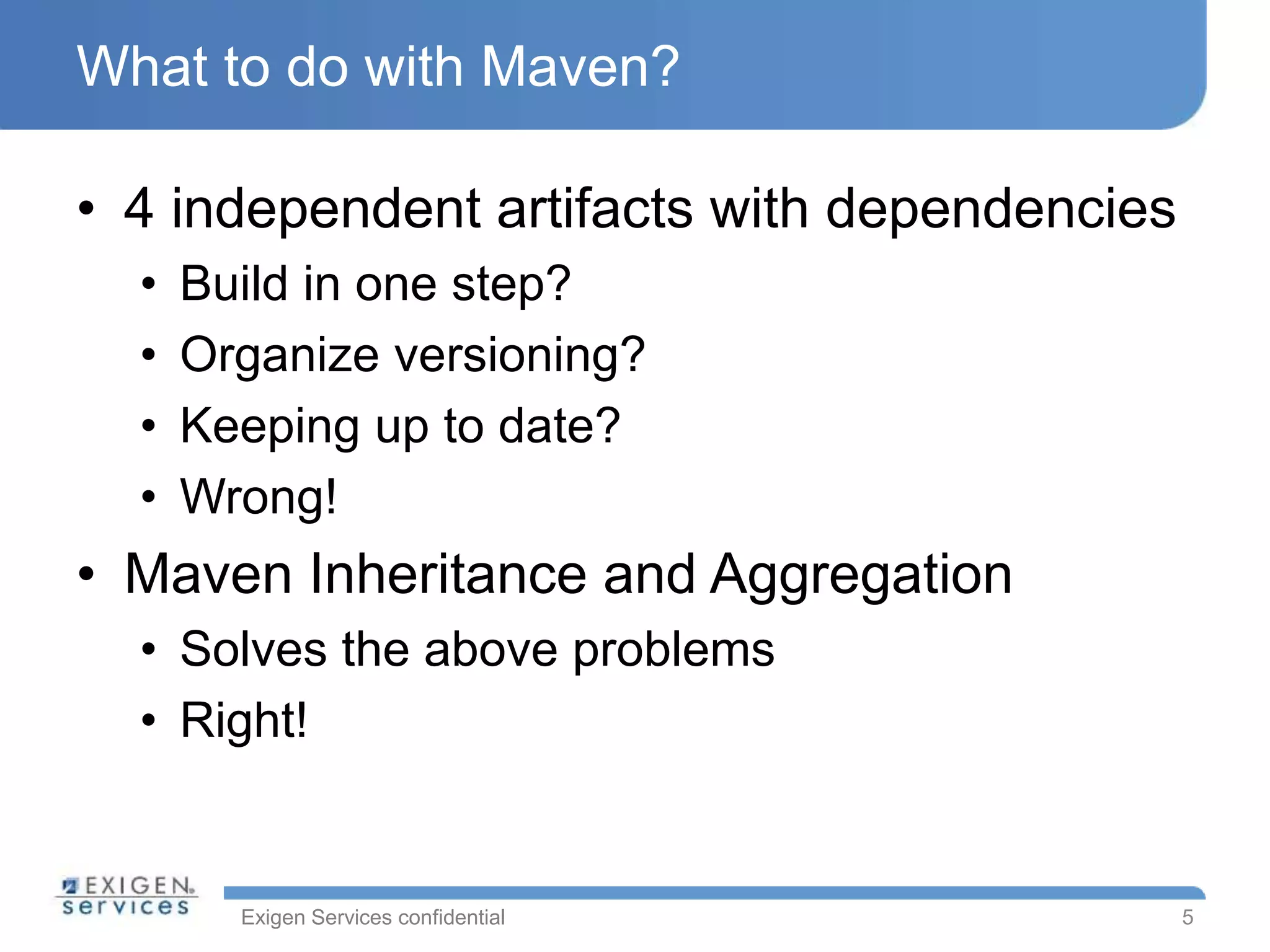

- 5. Exigen Services confidential Whatto do with Maven? • 4 independent artifacts with dependencies • Build in one step? • Organize versioning? • Keeping up to date? • Wrong! • Maven Inheritance and Aggregation • Solves the above problems • Right! 5

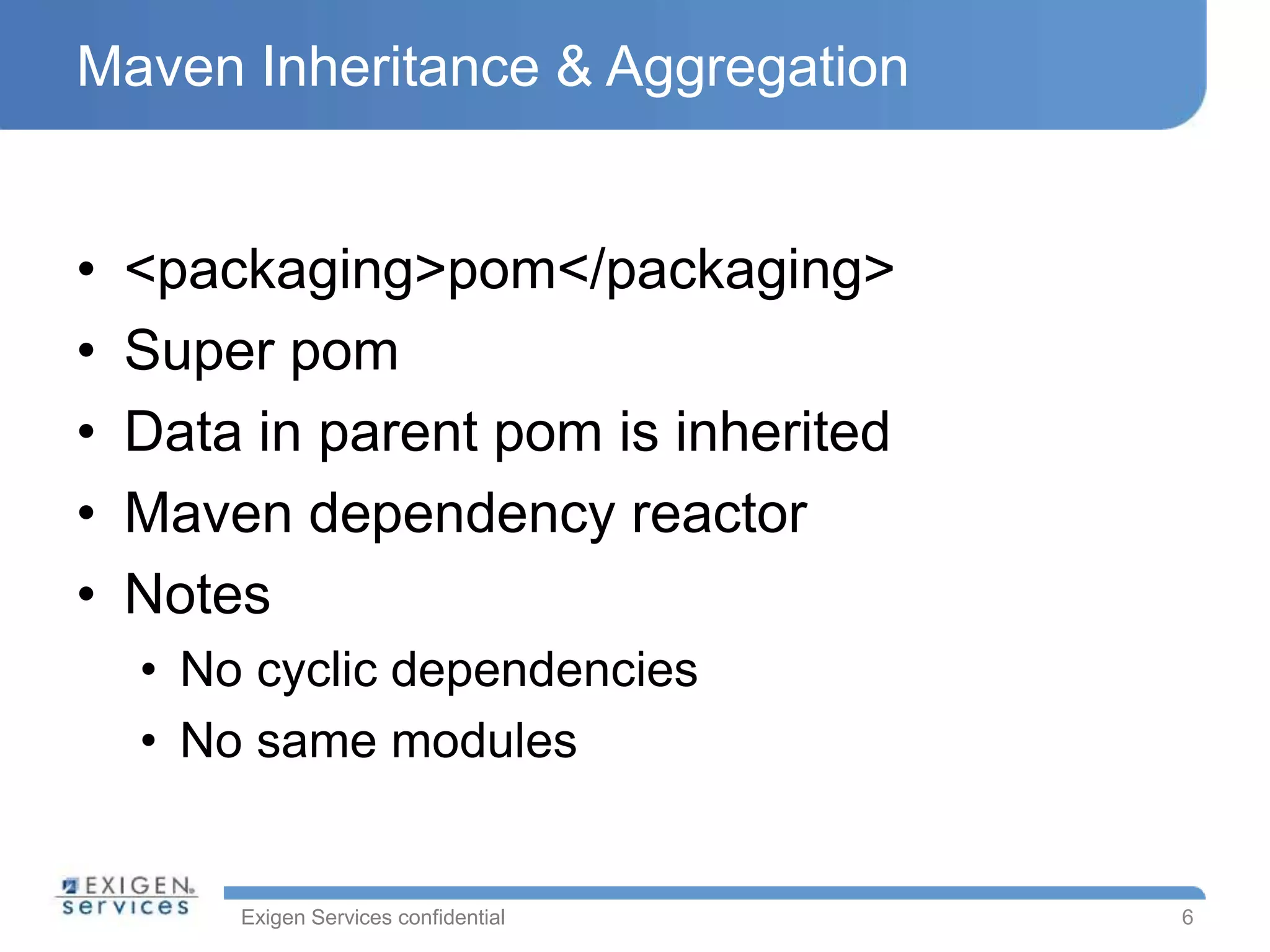

- 6. Exigen Services confidential MavenInheritance & Aggregation • <packaging>pom</packaging> • Super pom • Data in parent pom is inherited • Maven dependency reactor • Notes • No cyclic dependencies • No same modules 6

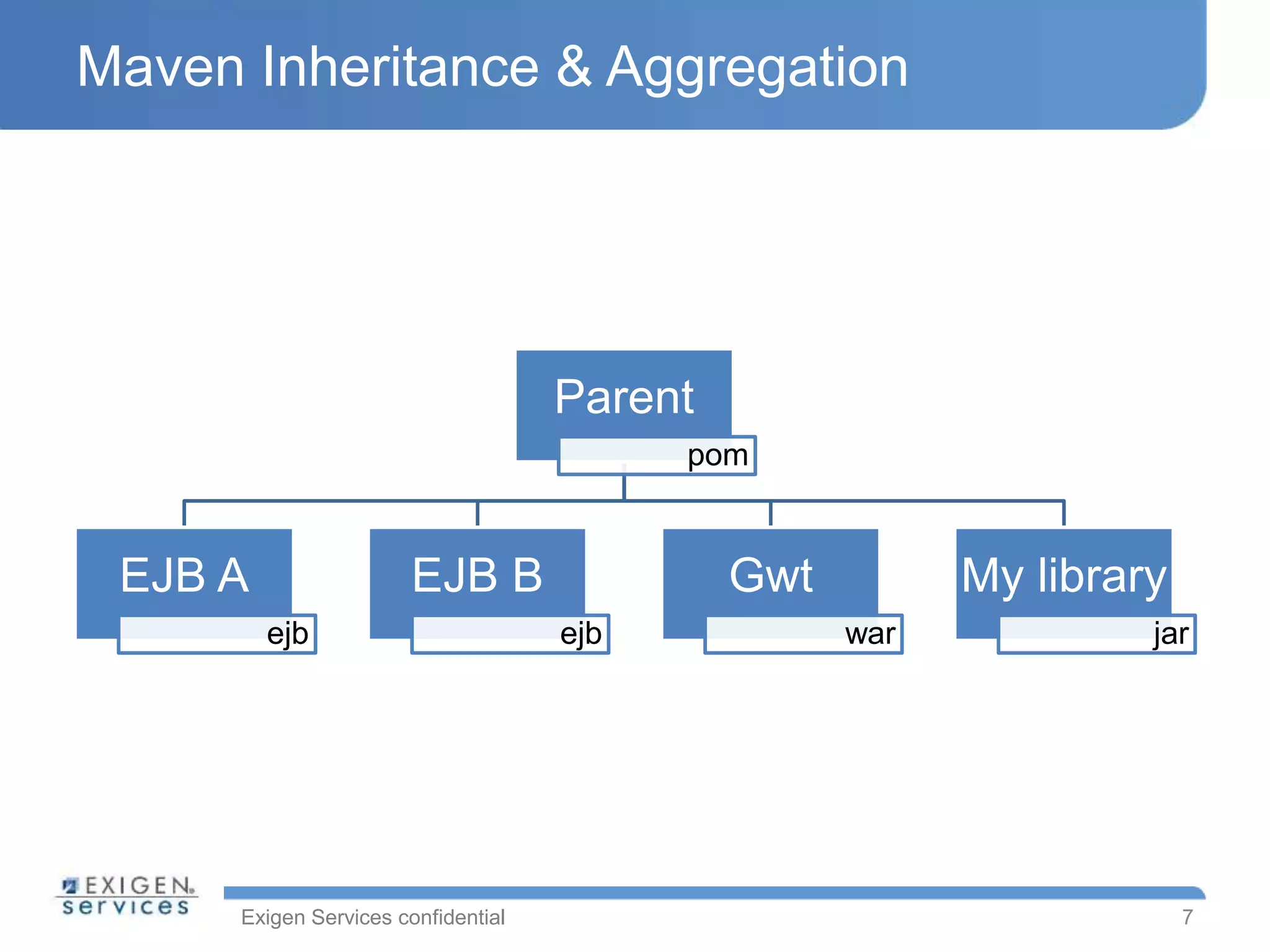

- 7. Exigen Services confidential MavenInheritance & Aggregation Parent pom EJB A ejb EJB B ejb Gwt war My library jar 7

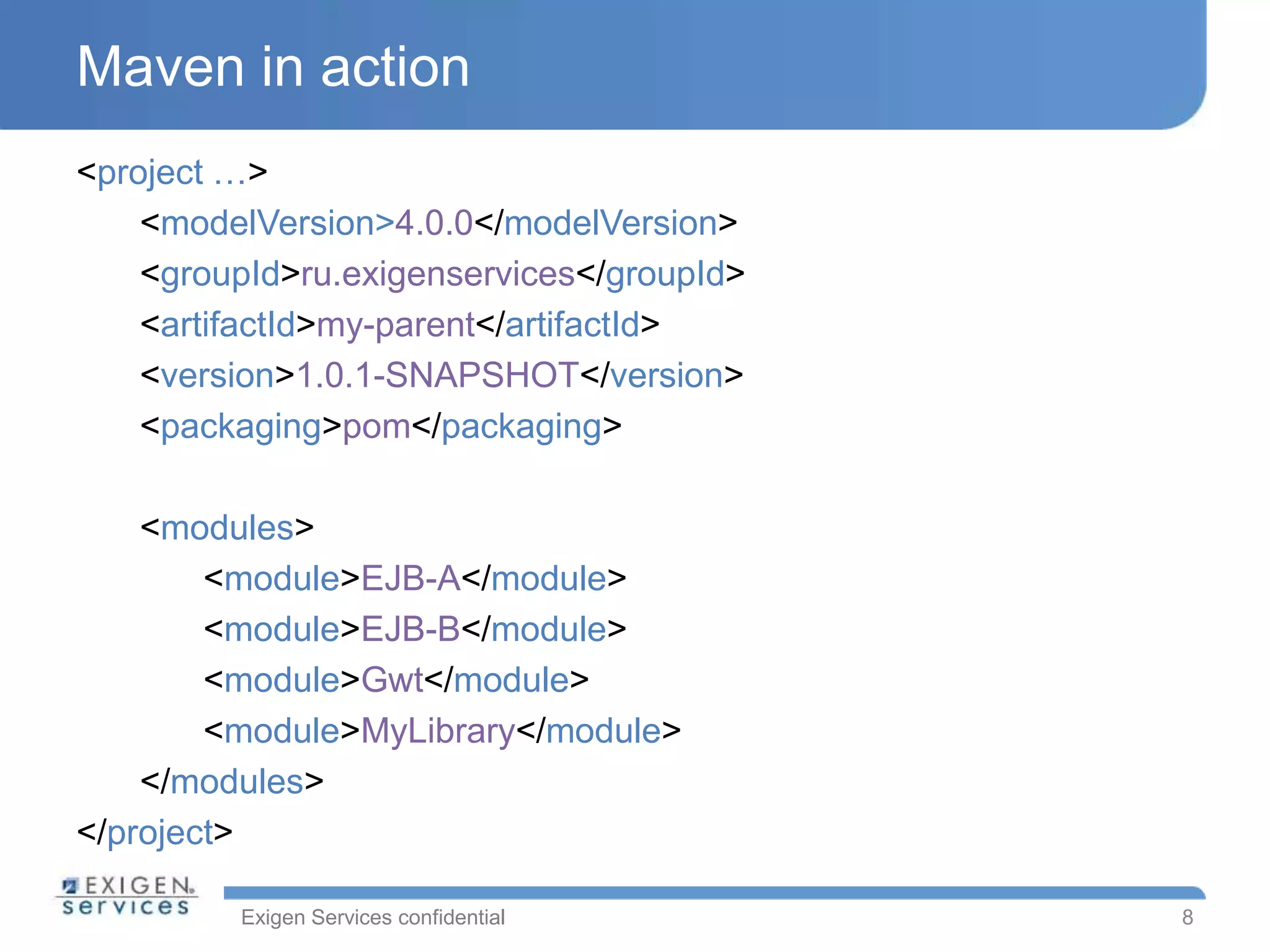

- 8. Exigen Services confidential Mavenin action 8 <project …> <modelVersion>4.0.0</modelVersion> <groupId>ru.exigenservices</groupId> <artifactId>my-parent</artifactId> <version>1.0.1-SNAPSHOT</version> <packaging>pom</packaging> <modules> <module>EJB-A</module> <module>EJB-B</module> <module>Gwt</module> <module>MyLibrary</module> </modules> </project>

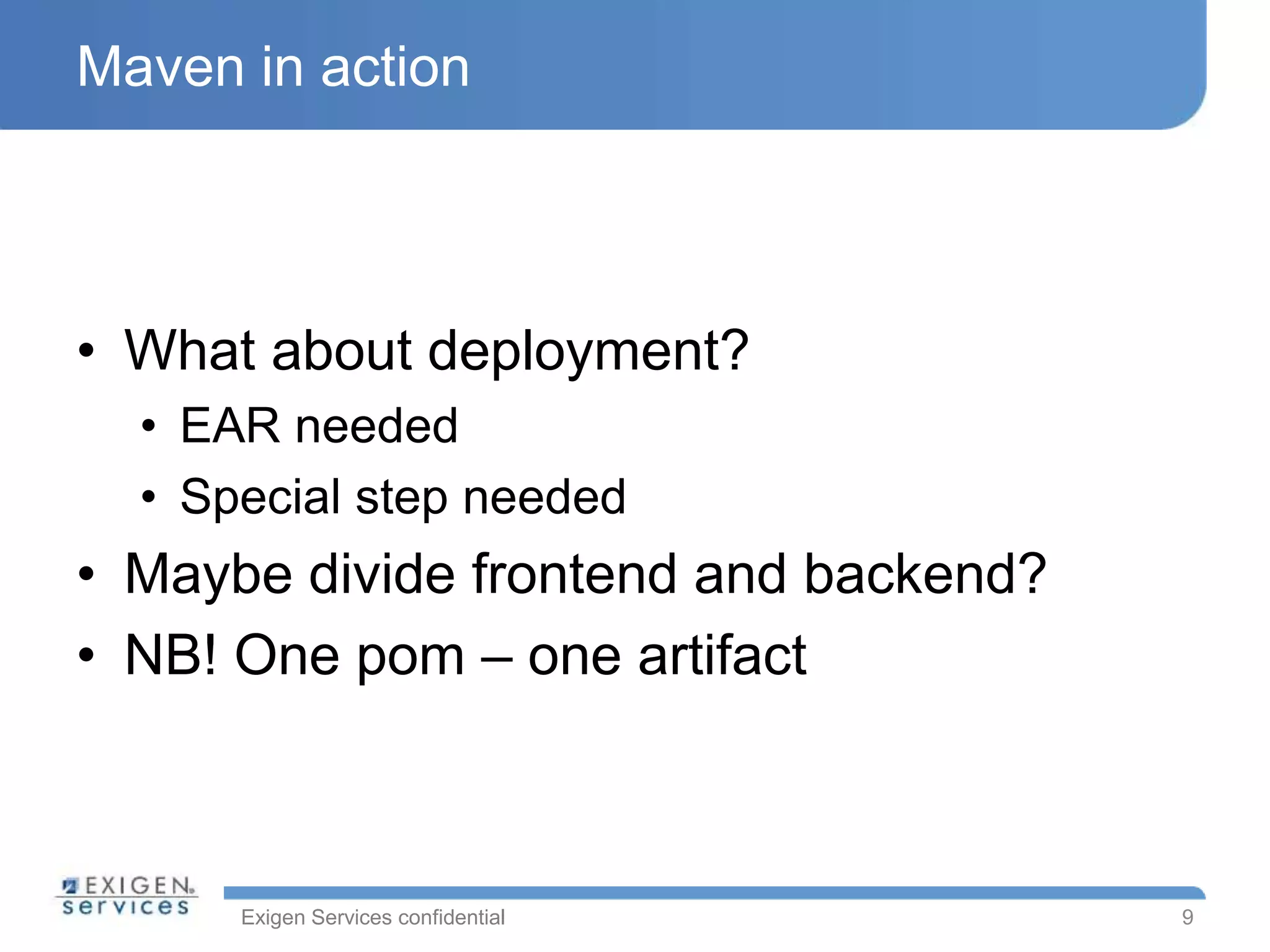

- 9. Exigen Services confidential Mavenin action • What about deployment? • EAR needed • Special step needed • Maybe divide frontend and backend? • NB! One pom – one artifact 9

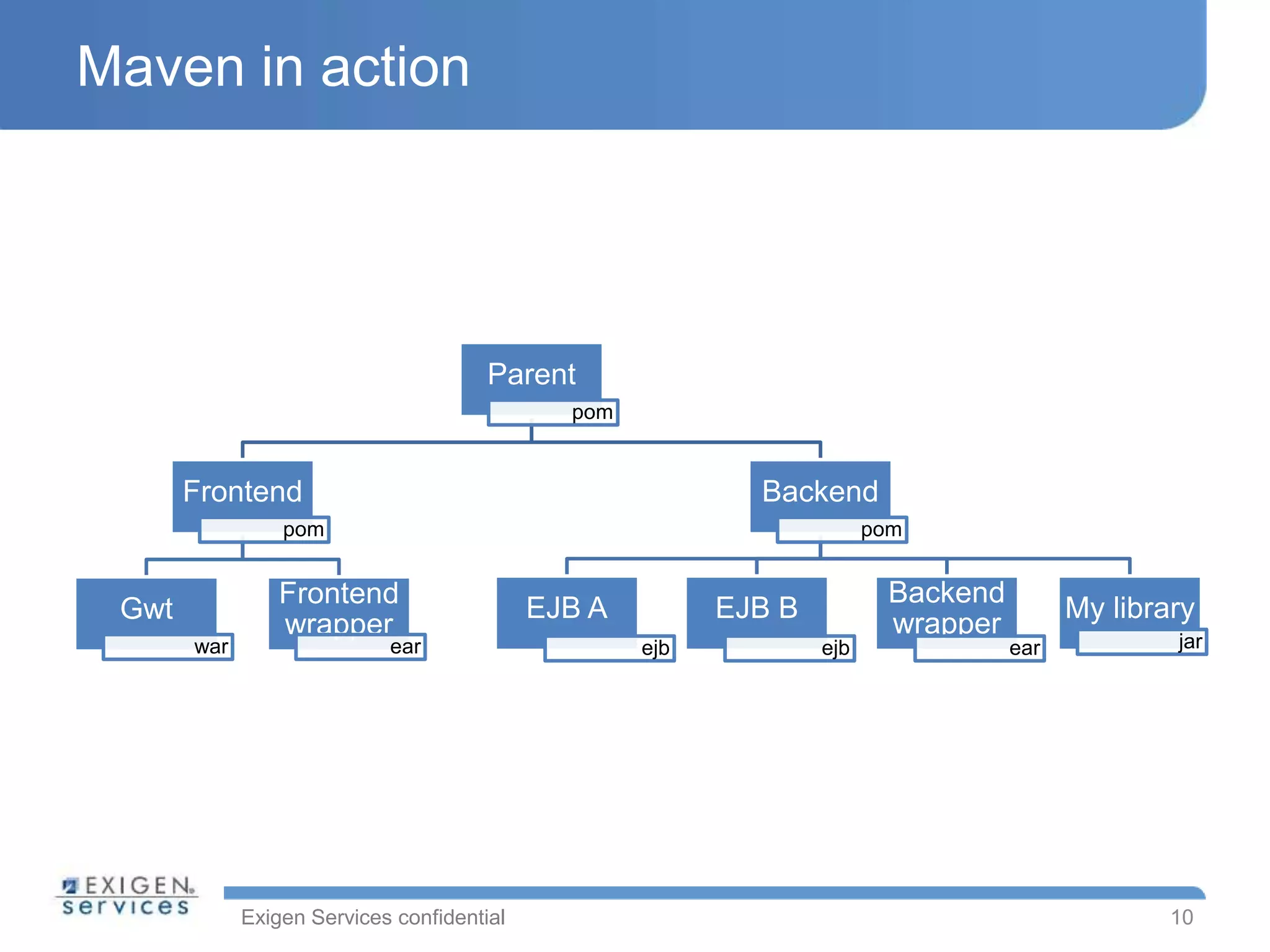

- 10. Exigen Services confidential Mavenin action Parent pom Frontend pom Gwt war Frontend wrapper ear Backend pom EJB A ejb EJB B ejb Backend wrapper ear My library jar 10

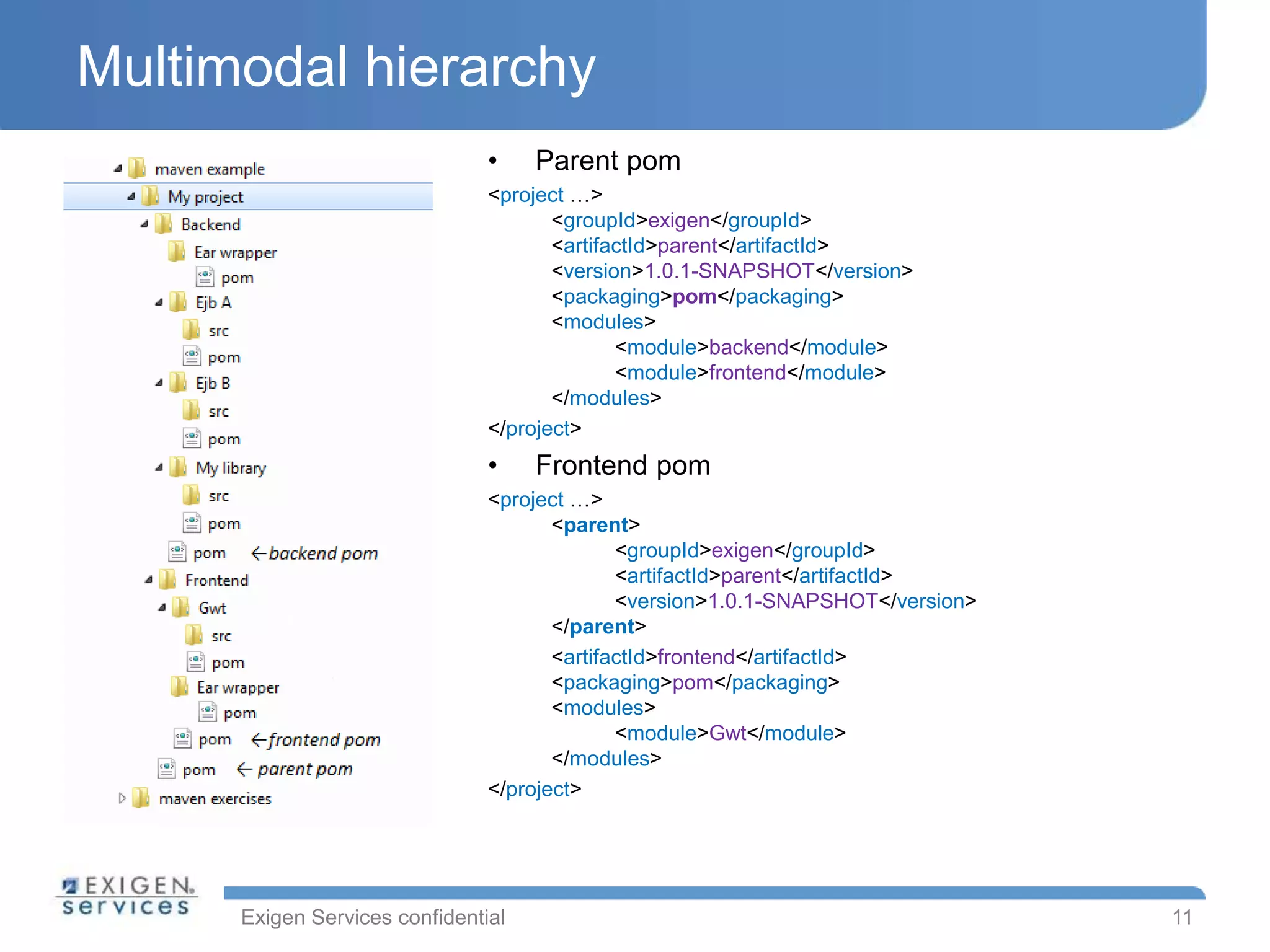

- 11. Exigen Services confidential Multimodalhierarchy • Parent pom <project …> <groupId>exigen</groupId> <artifactId>parent</artifactId> <version>1.0.1-SNAPSHOT</version> <packaging>pom</packaging> <modules> <module>backend</module> <module>frontend</module> </modules> </project> • Frontend pom <project …> <parent> <groupId>exigen</groupId> <artifactId>parent</artifactId> <version>1.0.1-SNAPSHOT</version> </parent> <artifactId>frontend</artifactId> <packaging>pom</packaging> <modules> <module>Gwt</module> </modules> </project> 11

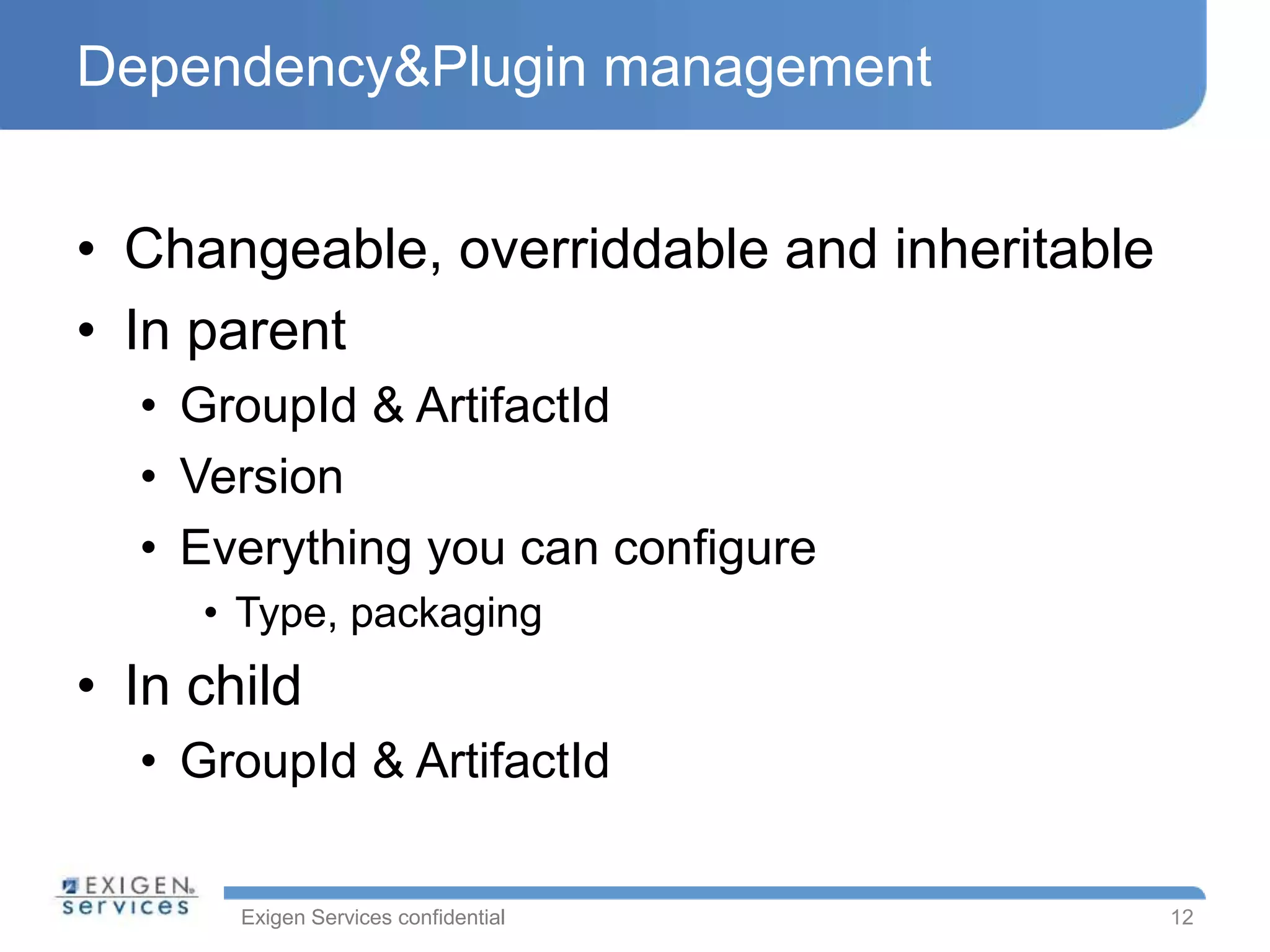

- 12. Exigen Services confidential Dependency&Pluginmanagement • Changeable, overriddable and inheritable • In parent • GroupId & ArtifactId • Version • Everything you can configure • Type, packaging • In child • GroupId & ArtifactId 12

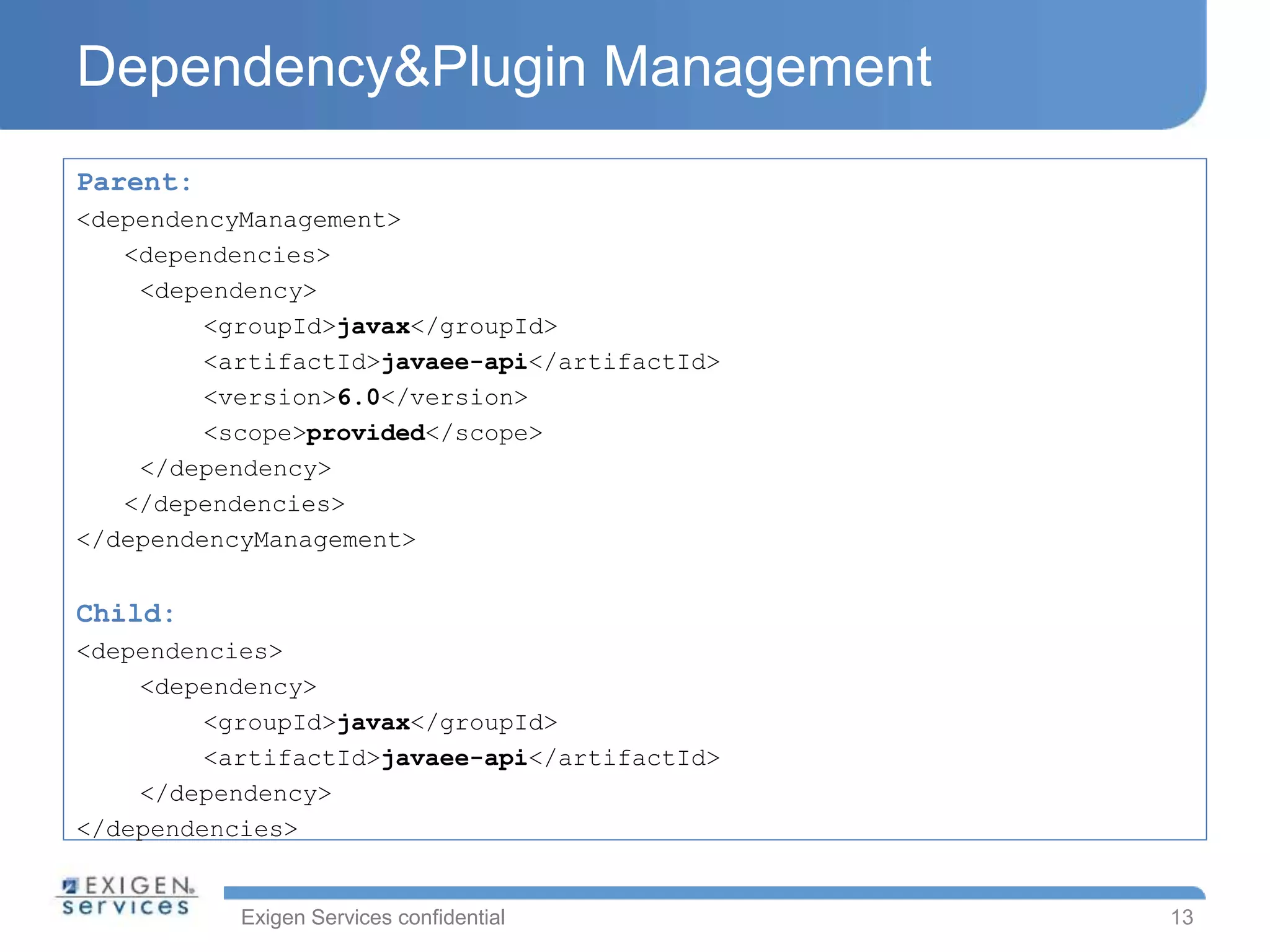

- 13. Exigen Services confidential Dependency&PluginManagement Parent: <dependencyManagement> <dependencies> <dependency> <groupId>javax</groupId> <artifactId>javaee-api</artifactId> <version>6.0</version> <scope>provided</scope> </dependency> </dependencies> </dependencyManagement> Child: <dependencies> <dependency> <groupId>javax</groupId> <artifactId>javaee-api</artifactId> </dependency> </dependencies> 13

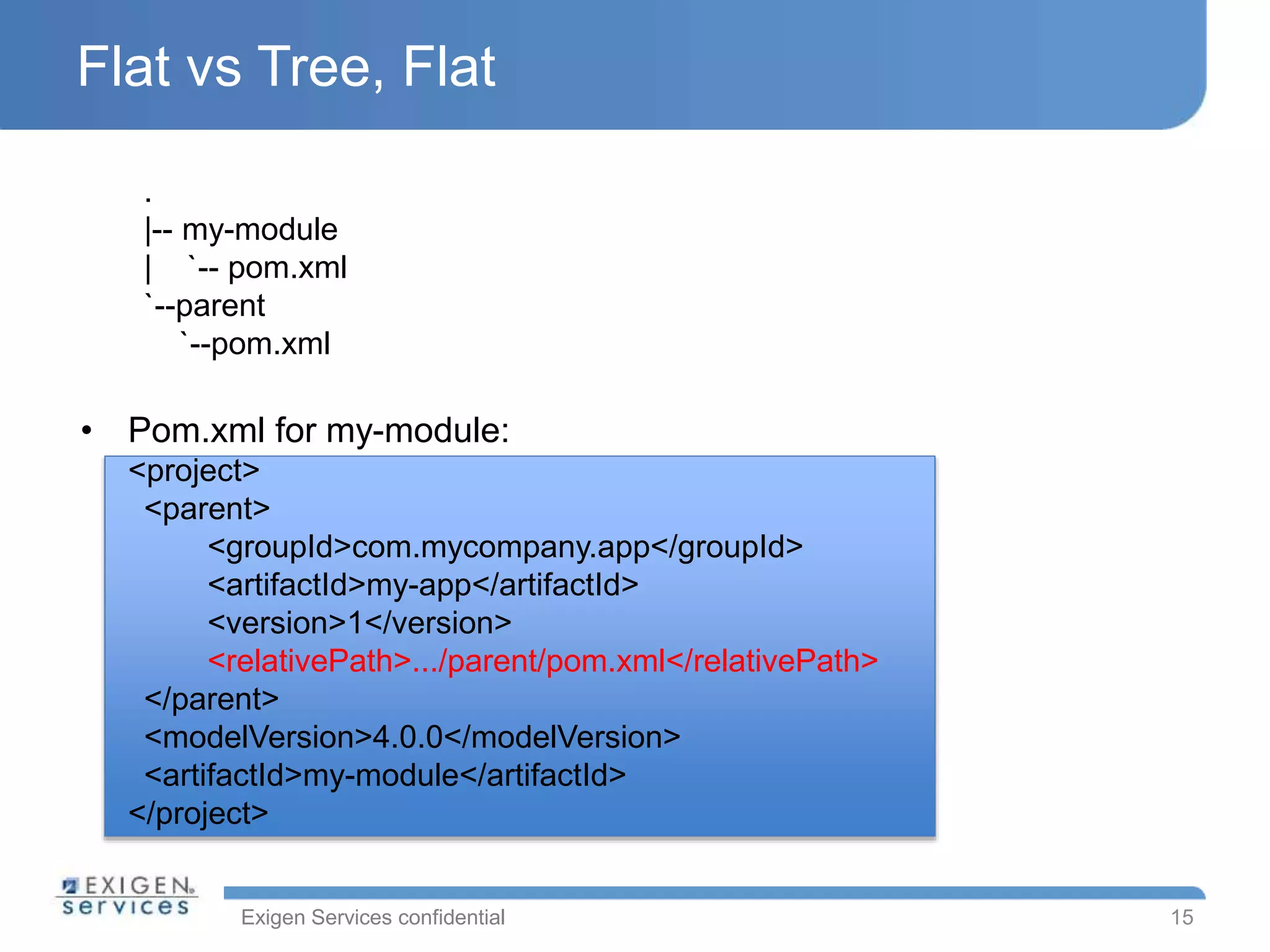

- 14. Exigen Services confidential Flatvs Tree, Flat . |-- my-module | `-- pom.xml `--parent `--pom.xml • Pom.xml for my-module: <project> <parent> <groupId>com.mycompany.app</groupId> <artifactId>my-app</artifactId> <version>1</version> <relativePath>.../parent/pom.xml</relativePath> </parent> <modelVersion>4.0.0</modelVersion> <artifactId>my-module</artifactId> </project> 15

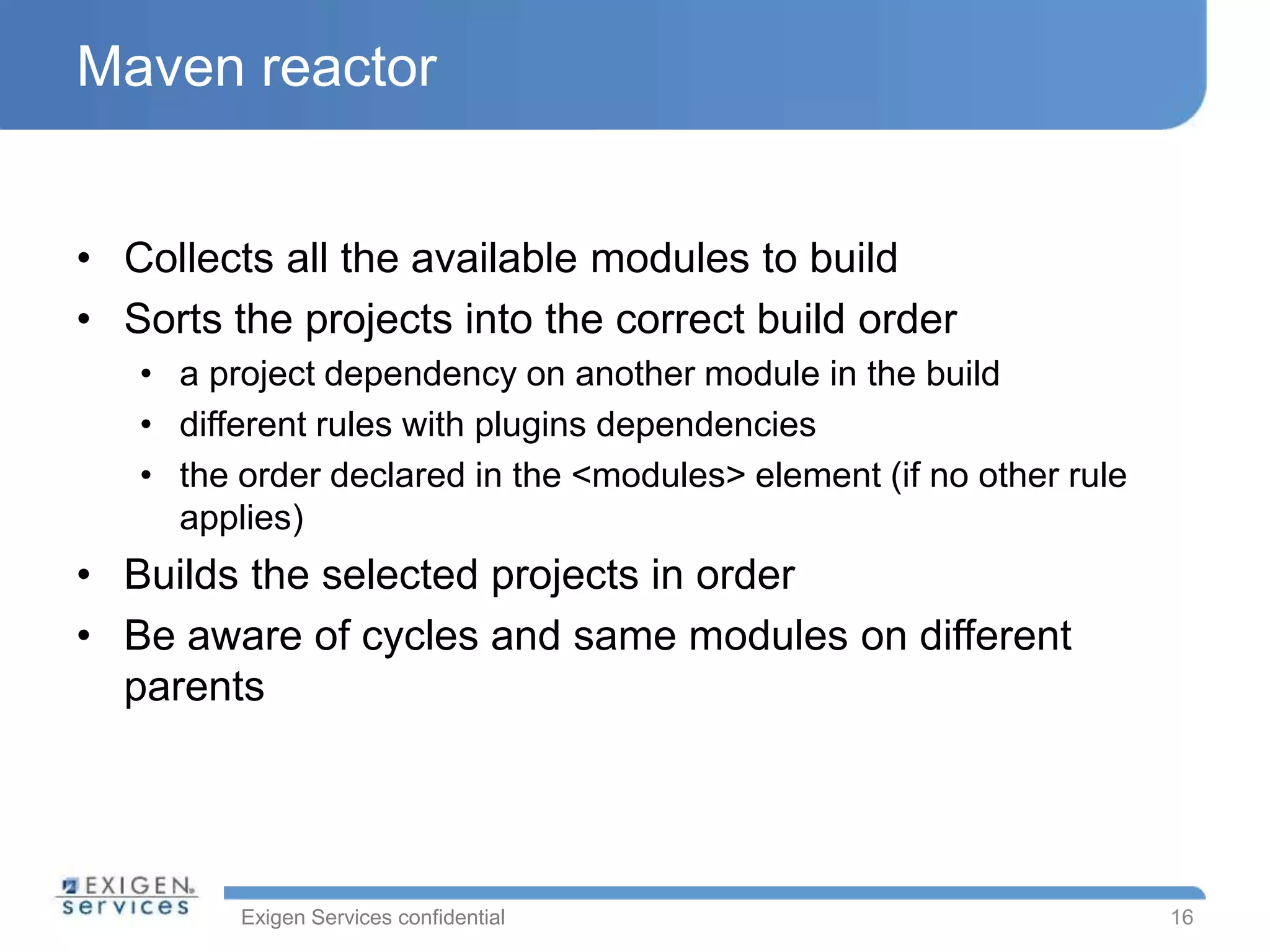

- 15. Exigen Services confidential Mavenreactor • Collects all the available modules to build • Sorts the projects into the correct build order • a project dependency on another module in the build • different rules with plugins dependencies • the order declared in the <modules> element (if no other rule applies) • Builds the selected projects in order • Be aware of cycles and same modules on different parents 16

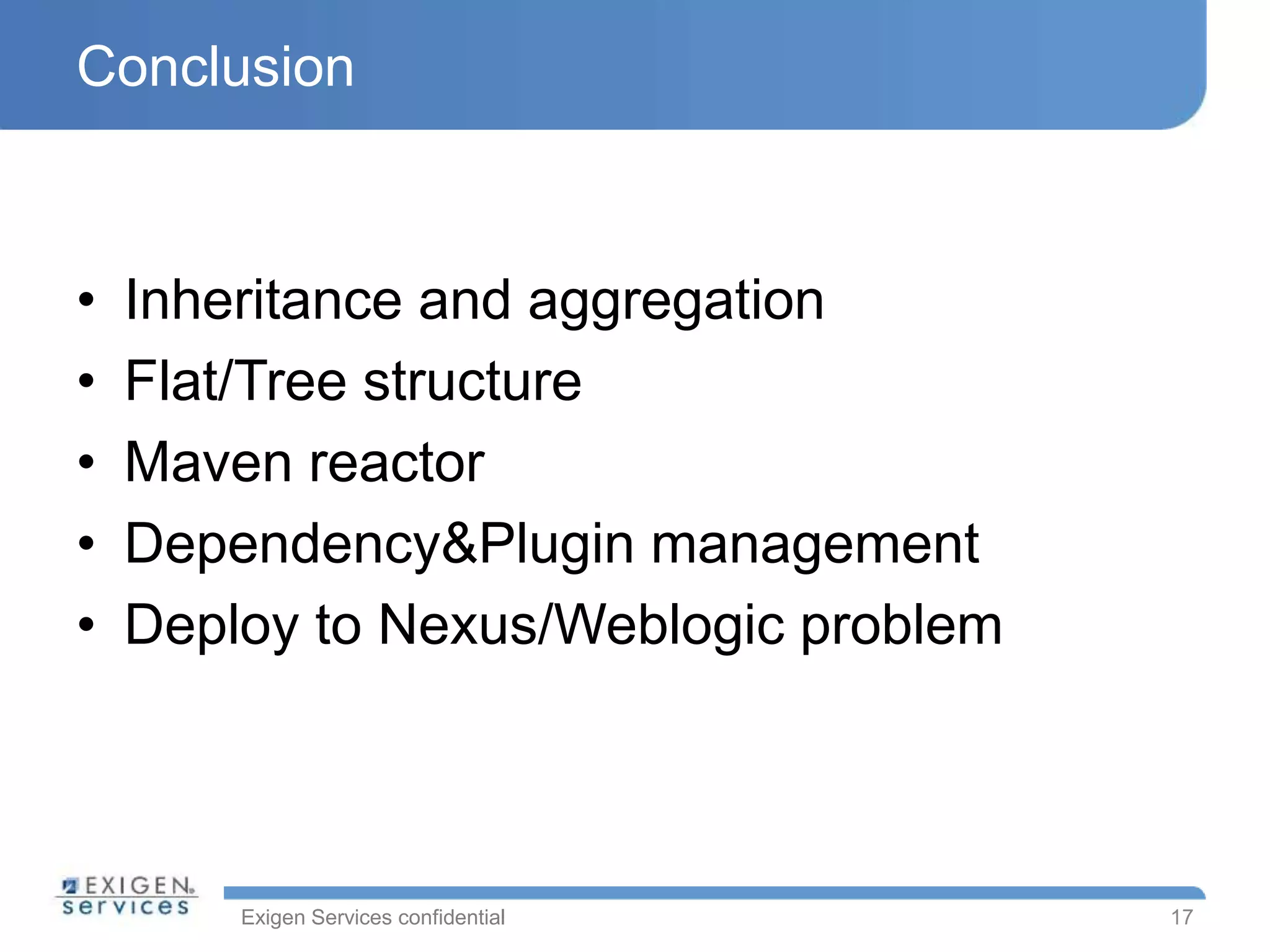

- 16. Exigen Services confidential Conclusion •Inheritance and aggregation • Flat/Tree structure • Maven reactor • Dependency&Plugin management • Deploy to Nexus/Weblogic problem 17

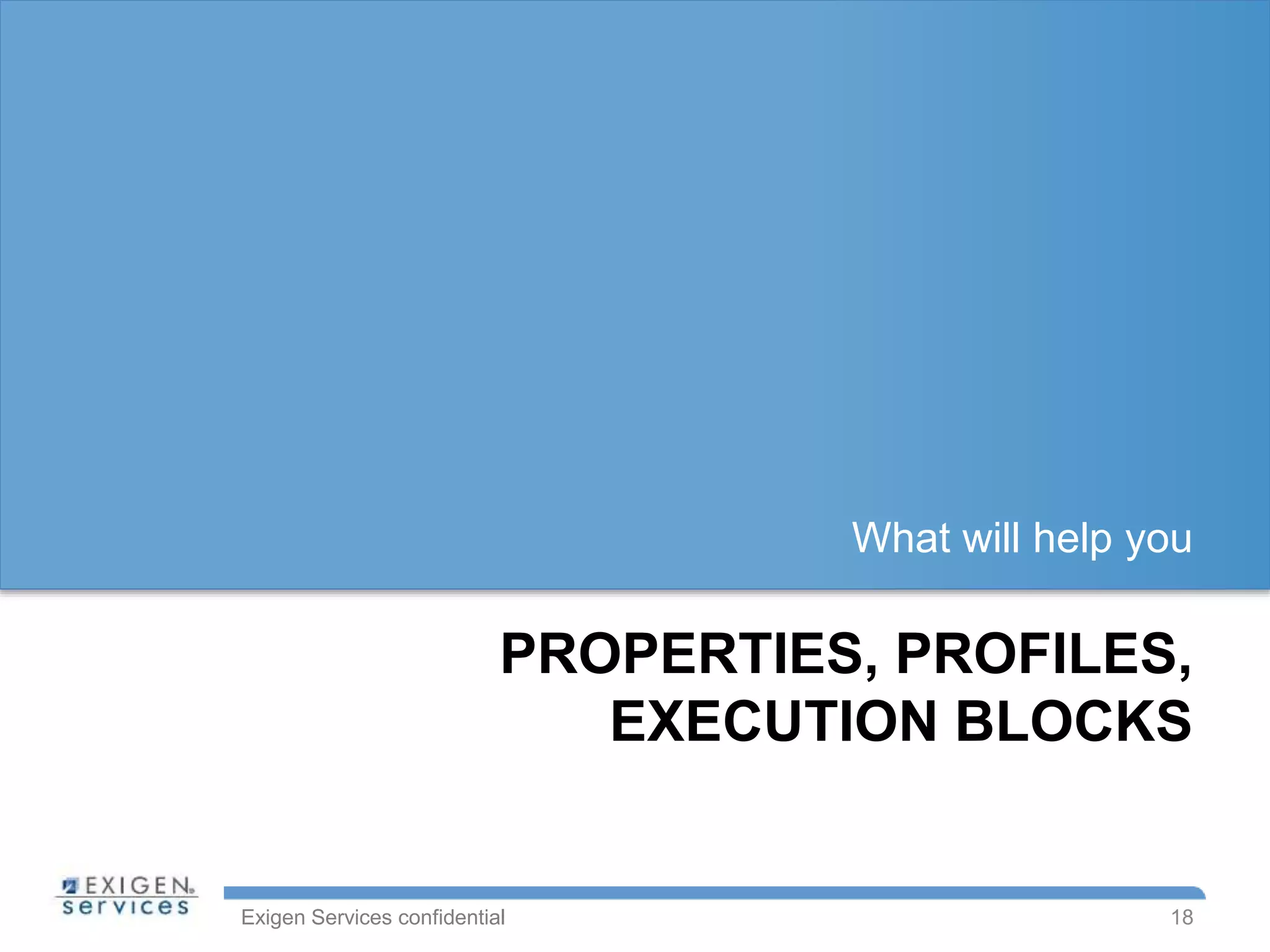

- 17. Exigen Services confidential PROPERTIES,PROFILES, EXECUTION BLOCKS What will help you 18

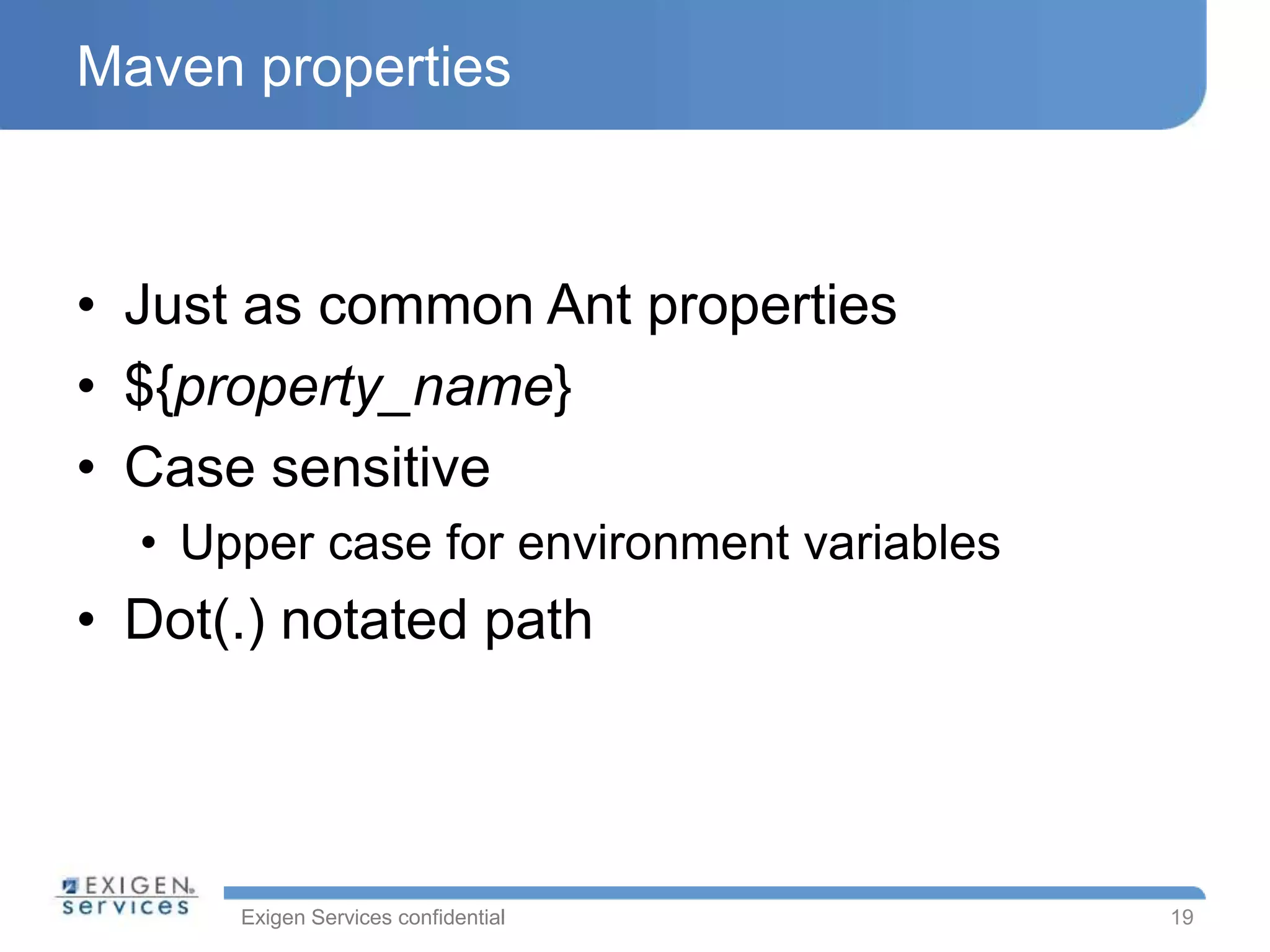

- 18. Exigen Services confidential Mavenproperties • Just as common Ant properties • ${property_name} • Case sensitive • Upper case for environment variables • Dot(.) notated path 19

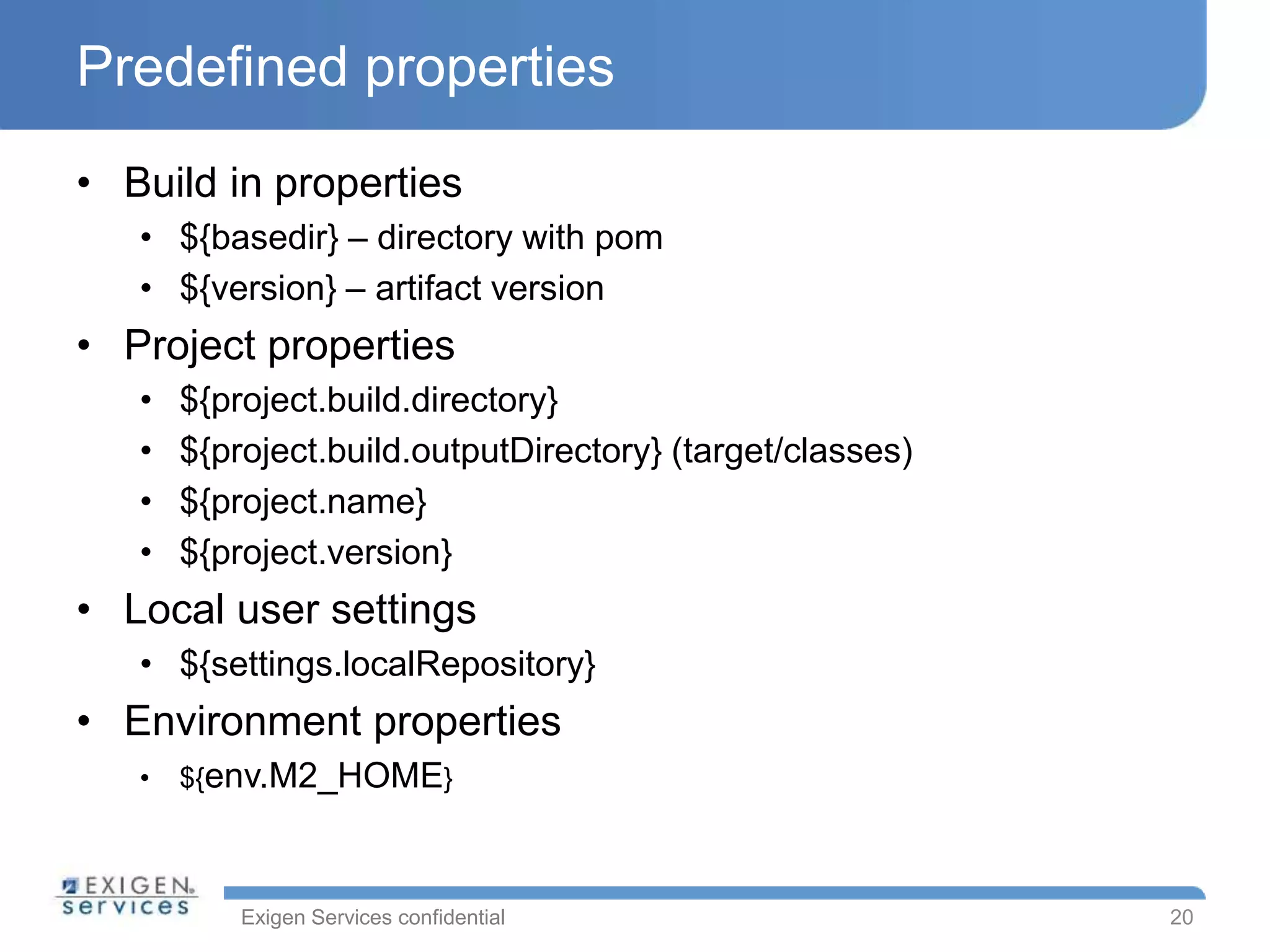

- 19. Exigen Services confidential Predefinedproperties • Build in properties • ${basedir} – directory with pom • ${version} – artifact version • Project properties • ${project.build.directory} • ${project.build.outputDirectory} (target/classes) • ${project.name} • ${project.version} • Local user settings • ${settings.localRepository} • Environment properties • ${env.M2_HOME} 20

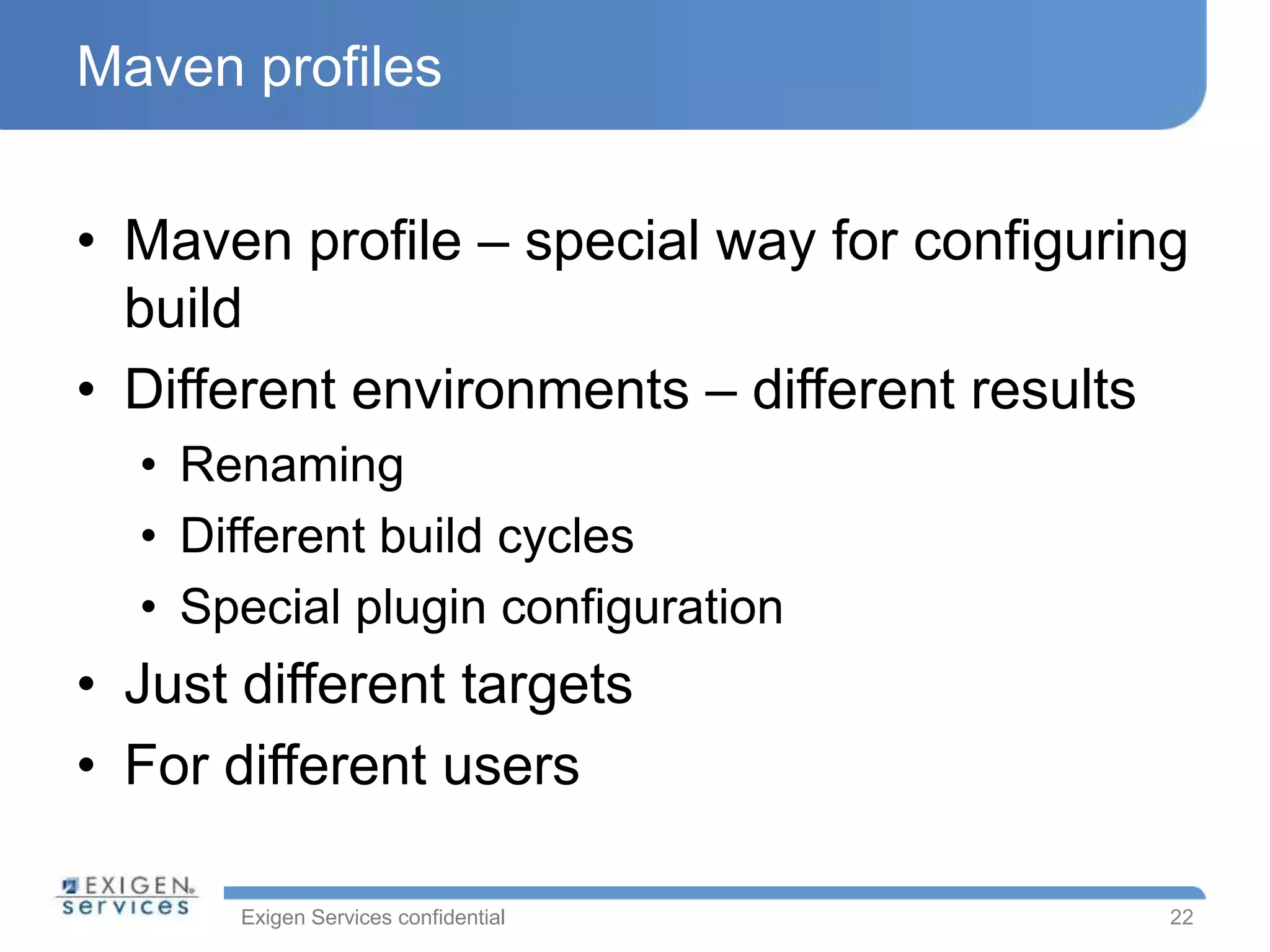

- 20. Exigen Services confidential Mavenprofiles • Maven profile – special way for configuring build • Different environments – different results • Renaming • Different build cycles • Special plugin configuration • Just different targets • For different users 22

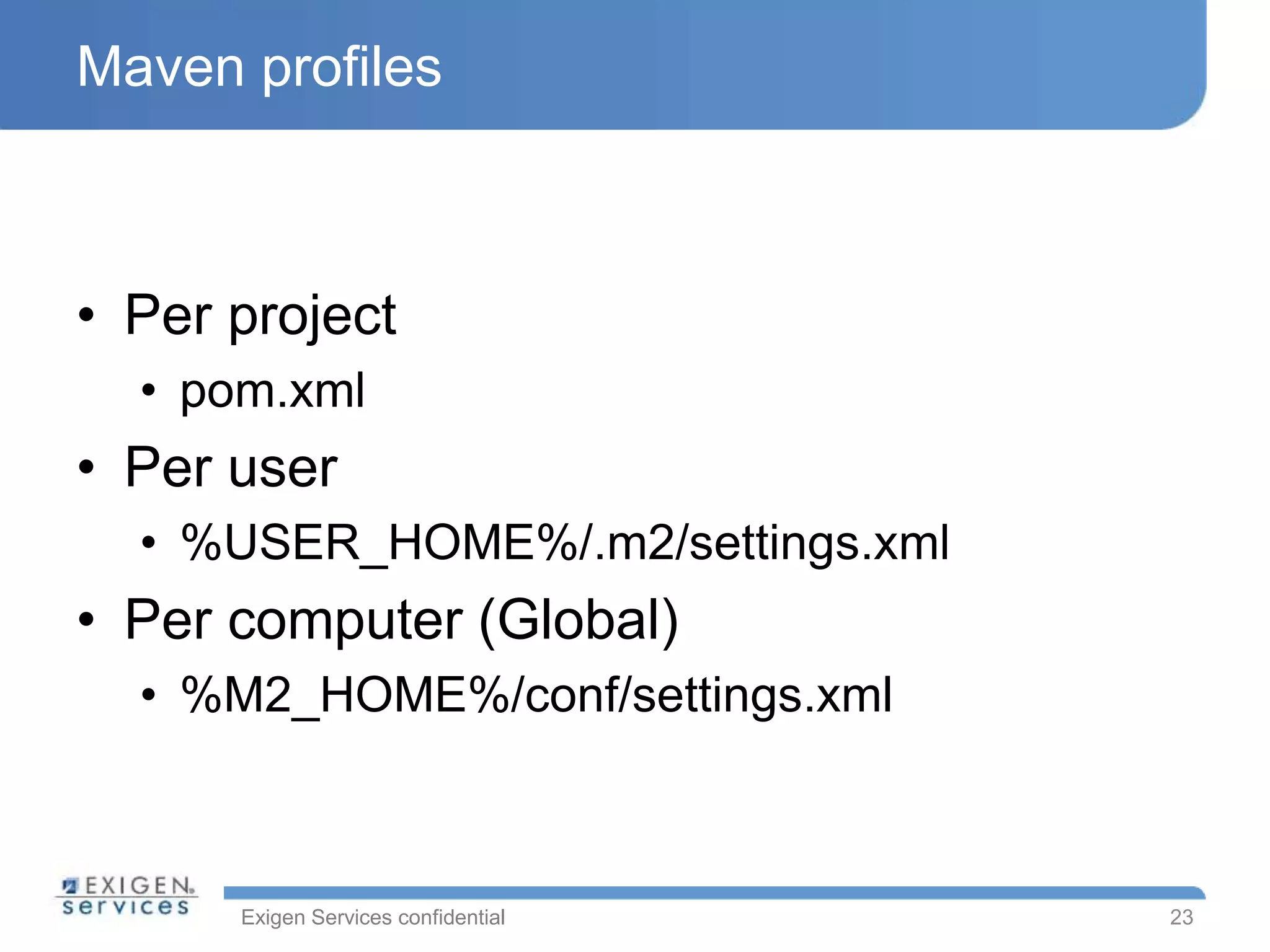

- 21. Exigen Services confidential Mavenprofiles • Per project • pom.xml • Per user • %USER_HOME%/.m2/settings.xml • Per computer (Global) • %M2_HOME%/conf/settings.xml 23

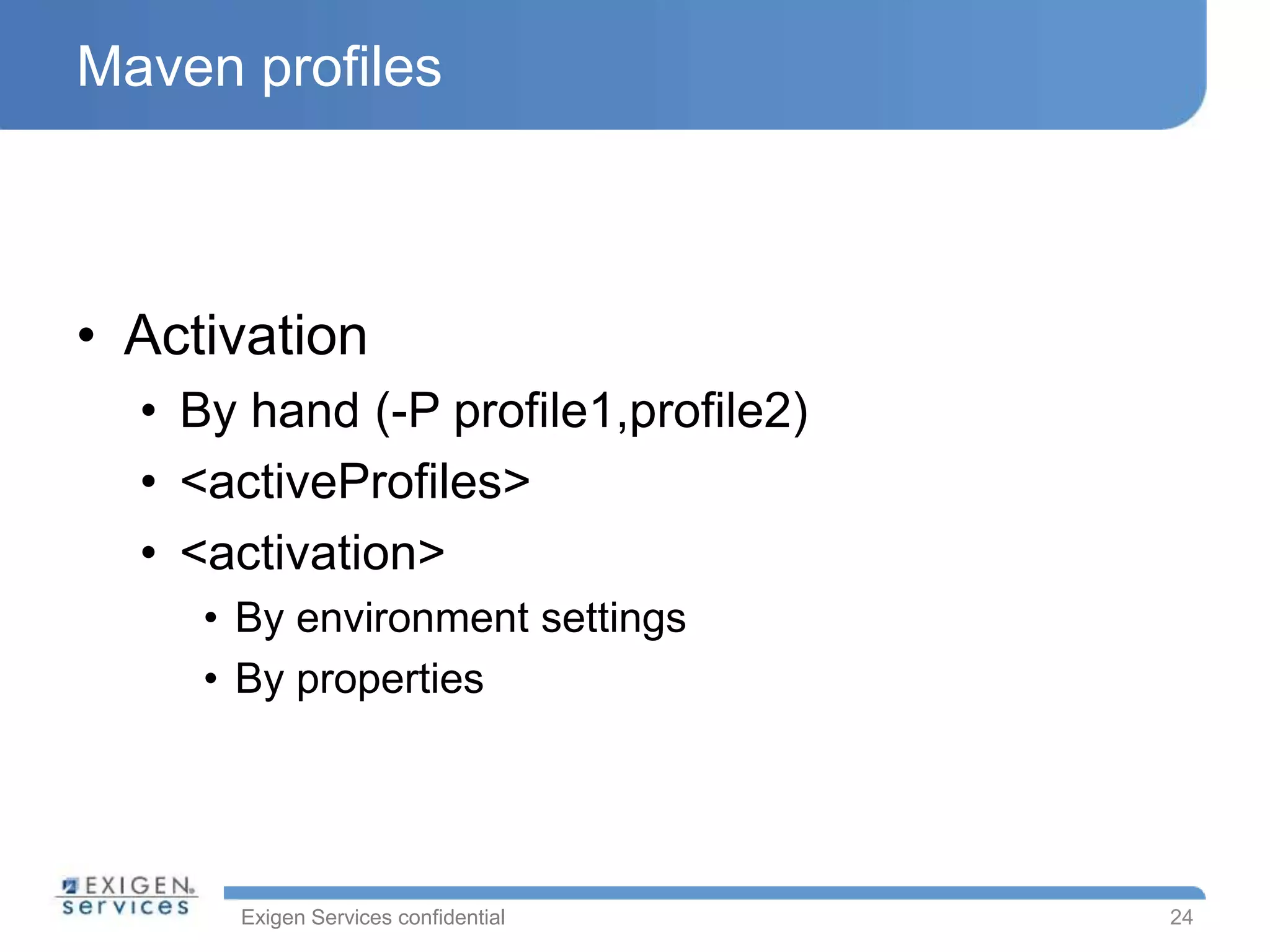

- 22. Exigen Services confidential Mavenprofiles • Activation • By hand (-P profile1,profile2) • <activeProfiles> • <activation> • By environment settings • By properties 24

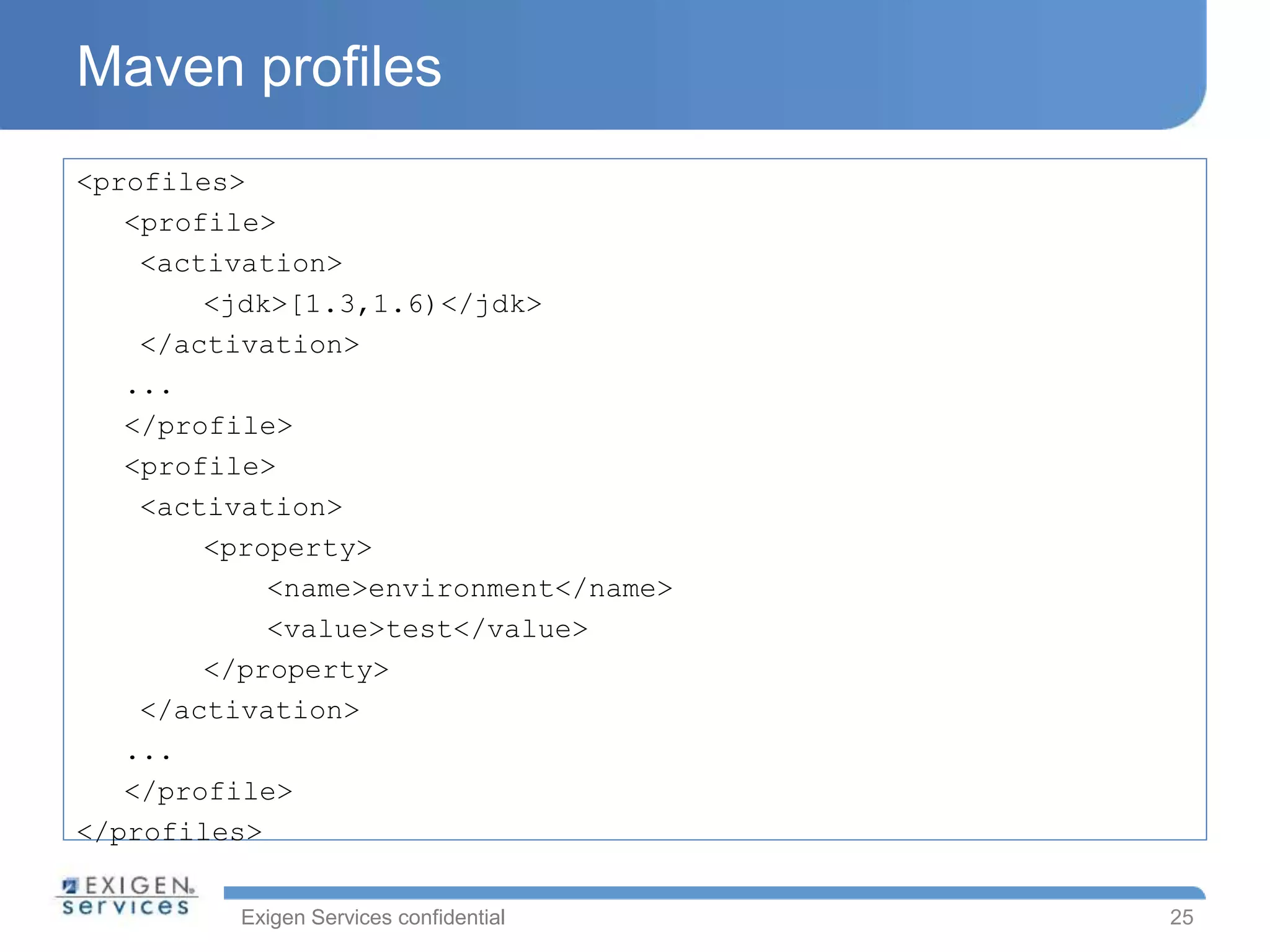

- 23. Exigen Services confidential Mavenprofiles <profiles> <profile> <activation> <jdk>[1.3,1.6)</jdk> </activation> ... </profile> <profile> <activation> <property> <name>environment</name> <value>test</value> </property> </activation> ... </profile> </profiles> 25

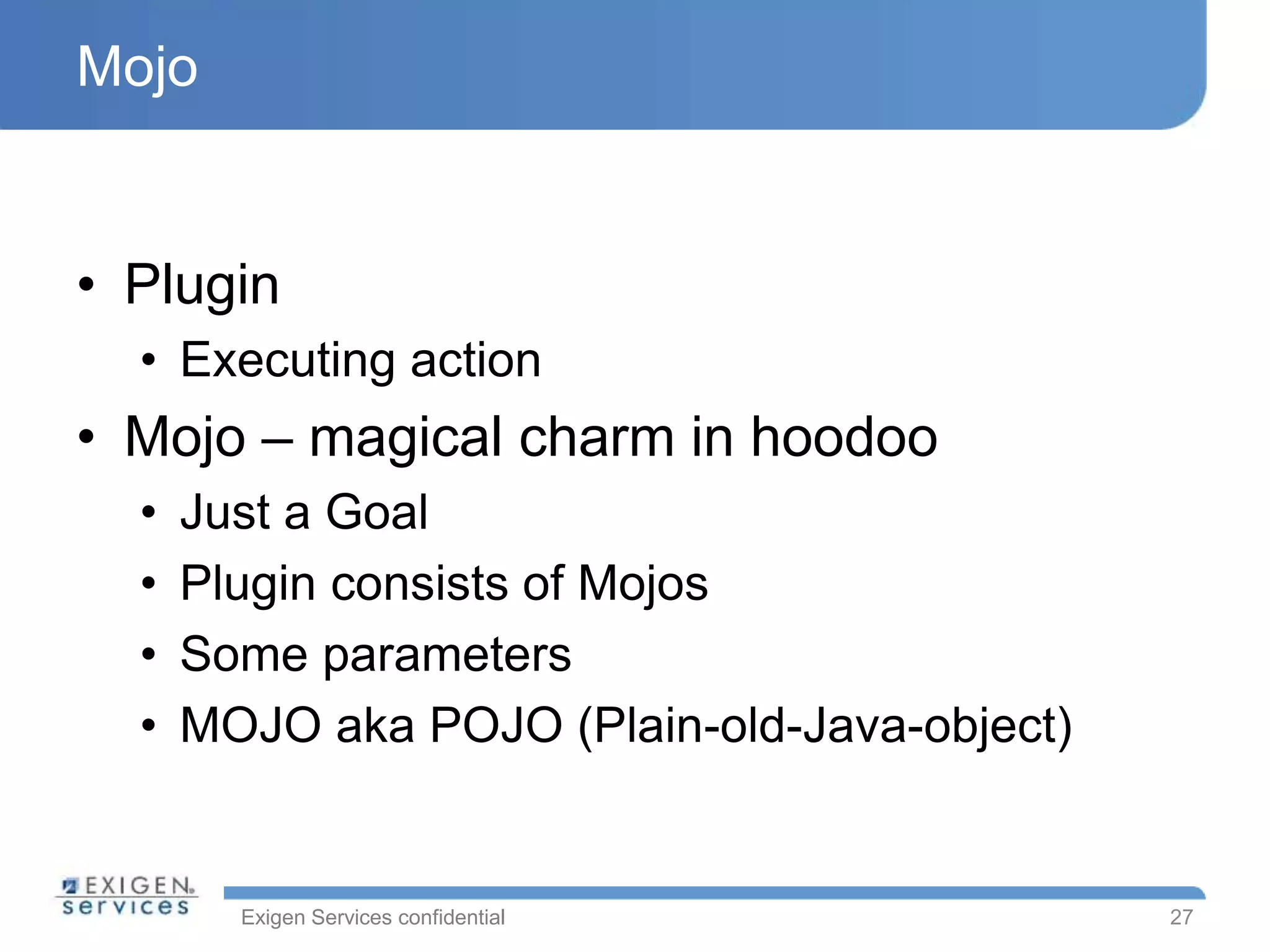

- 24. Exigen Services confidential Mojo •Plugin • Executing action • Mojo – magical charm in hoodoo • Just a Goal • Plugin consists of Mojos • Some parameters • MOJO aka POJO (Plain-old-Java-object) 27

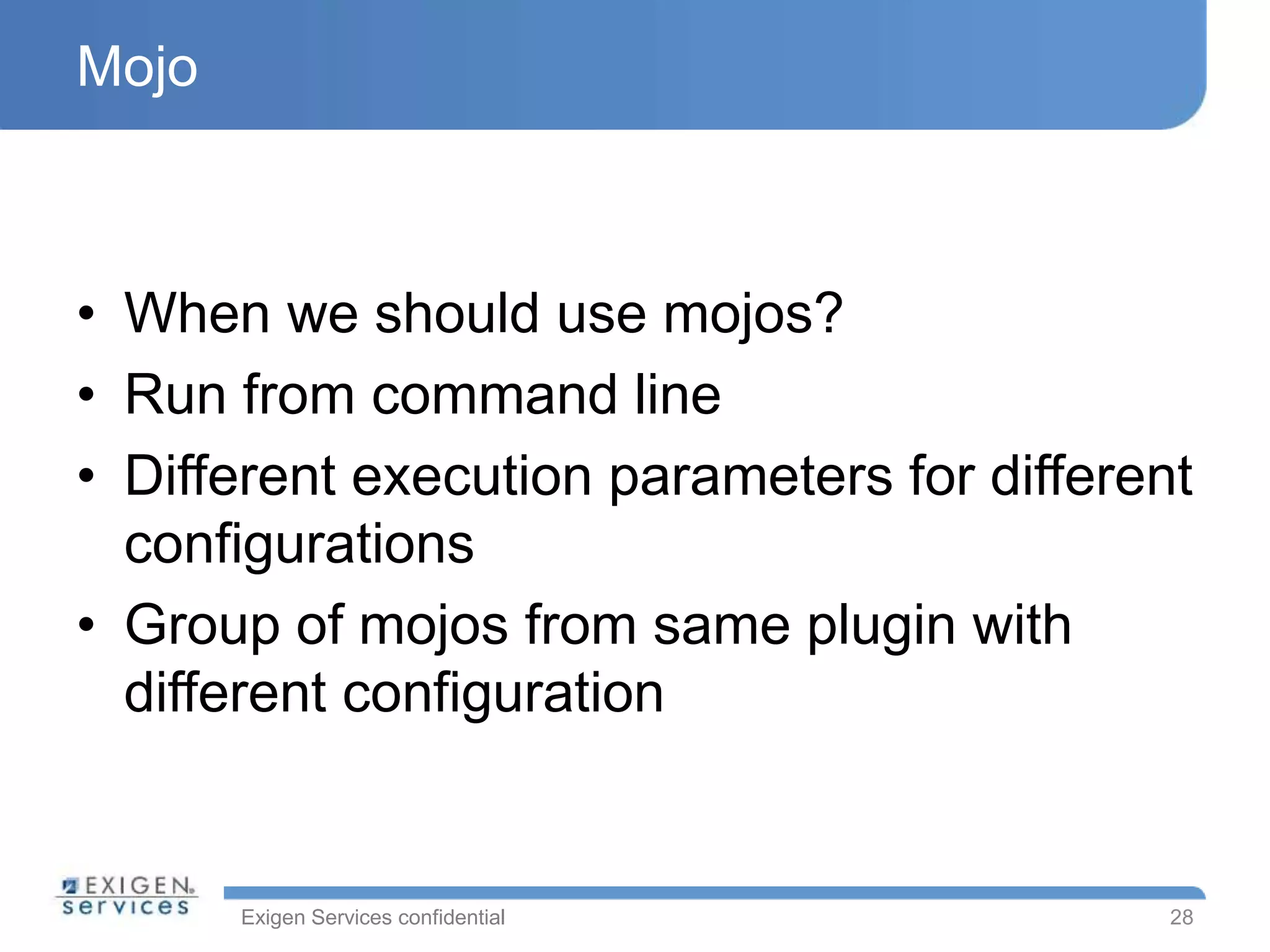

- 25. Exigen Services confidential Mojo •When we should use mojos? • Run from command line • Different execution parameters for different configurations • Group of mojos from same plugin with different configuration 28

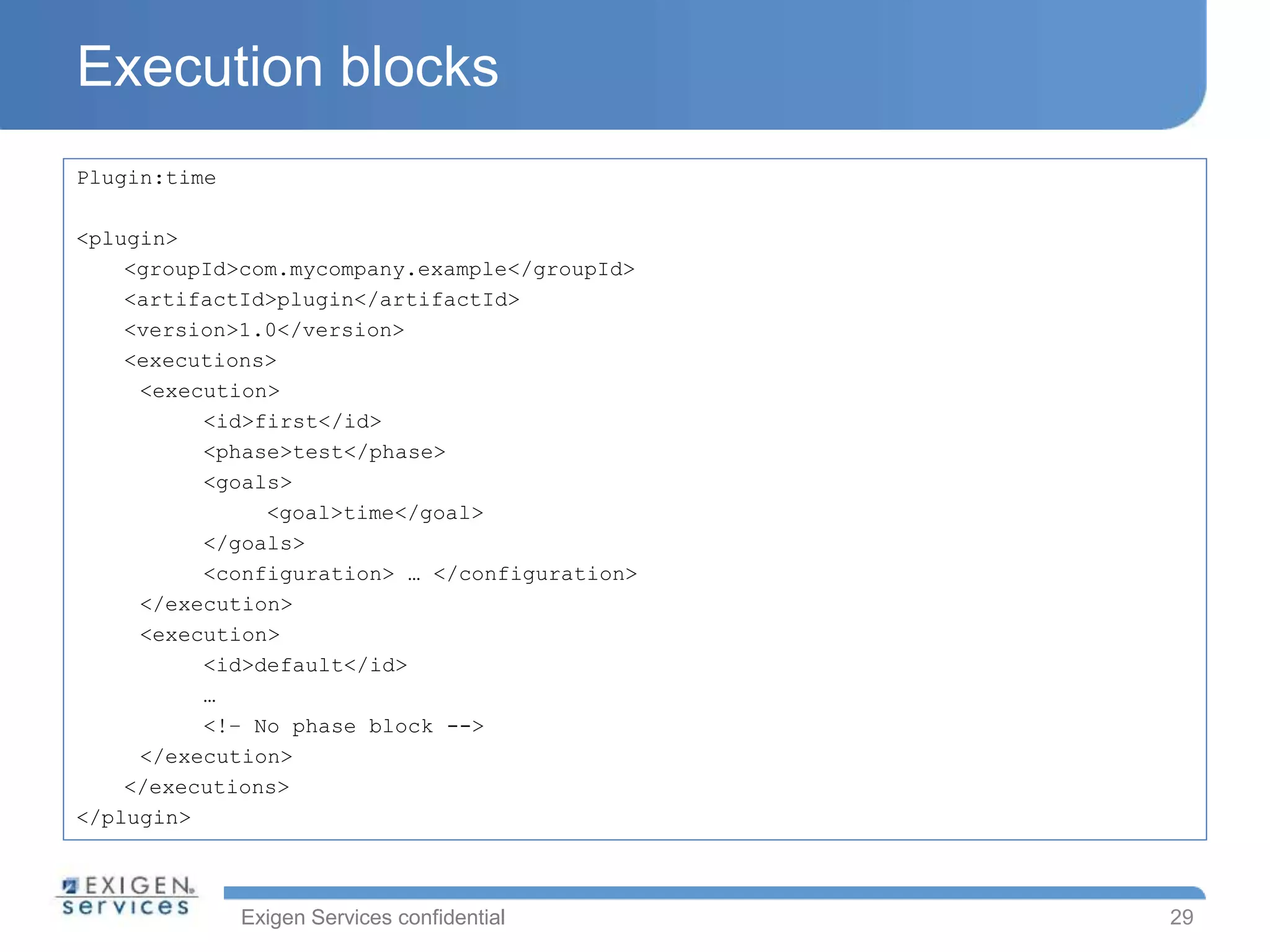

- 26. Exigen Services confidential Executionblocks Plugin:time <plugin> <groupId>com.mycompany.example</groupId> <artifactId>plugin</artifactId> <version>1.0</version> <executions> <execution> <id>first</id> <phase>test</phase> <goals> <goal>time</goal> </goals> <configuration> … </configuration> </execution> <execution> <id>default</id> … <!– No phase block --> </execution> </executions> </plugin> 29

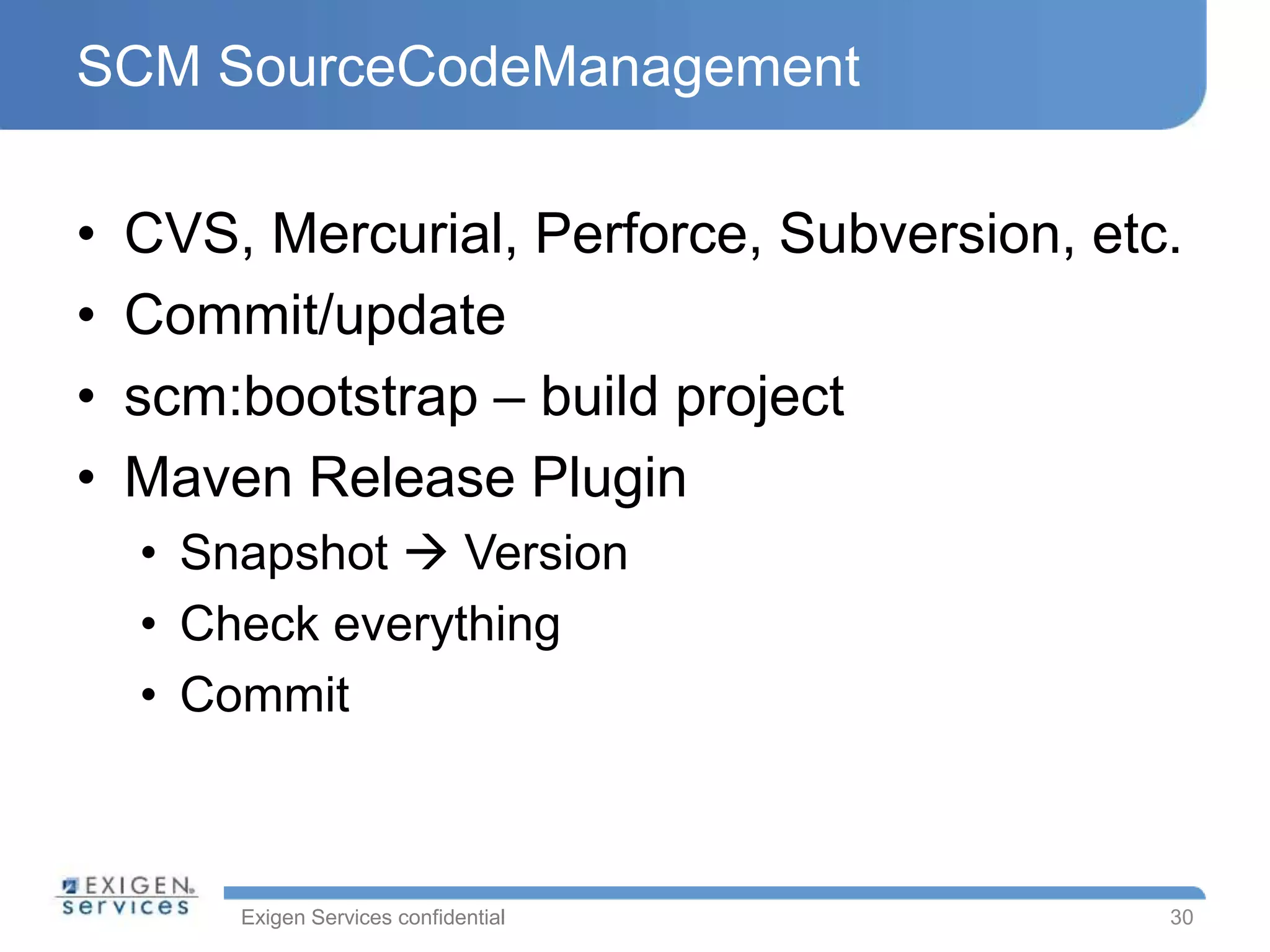

- 27. Exigen Services confidential SCMSourceCodeManagement • CVS, Mercurial, Perforce, Subversion, etc. • Commit/update • scm:bootstrap – build project • Maven Release Plugin • Snapshot Version • Check everything • Commit 30

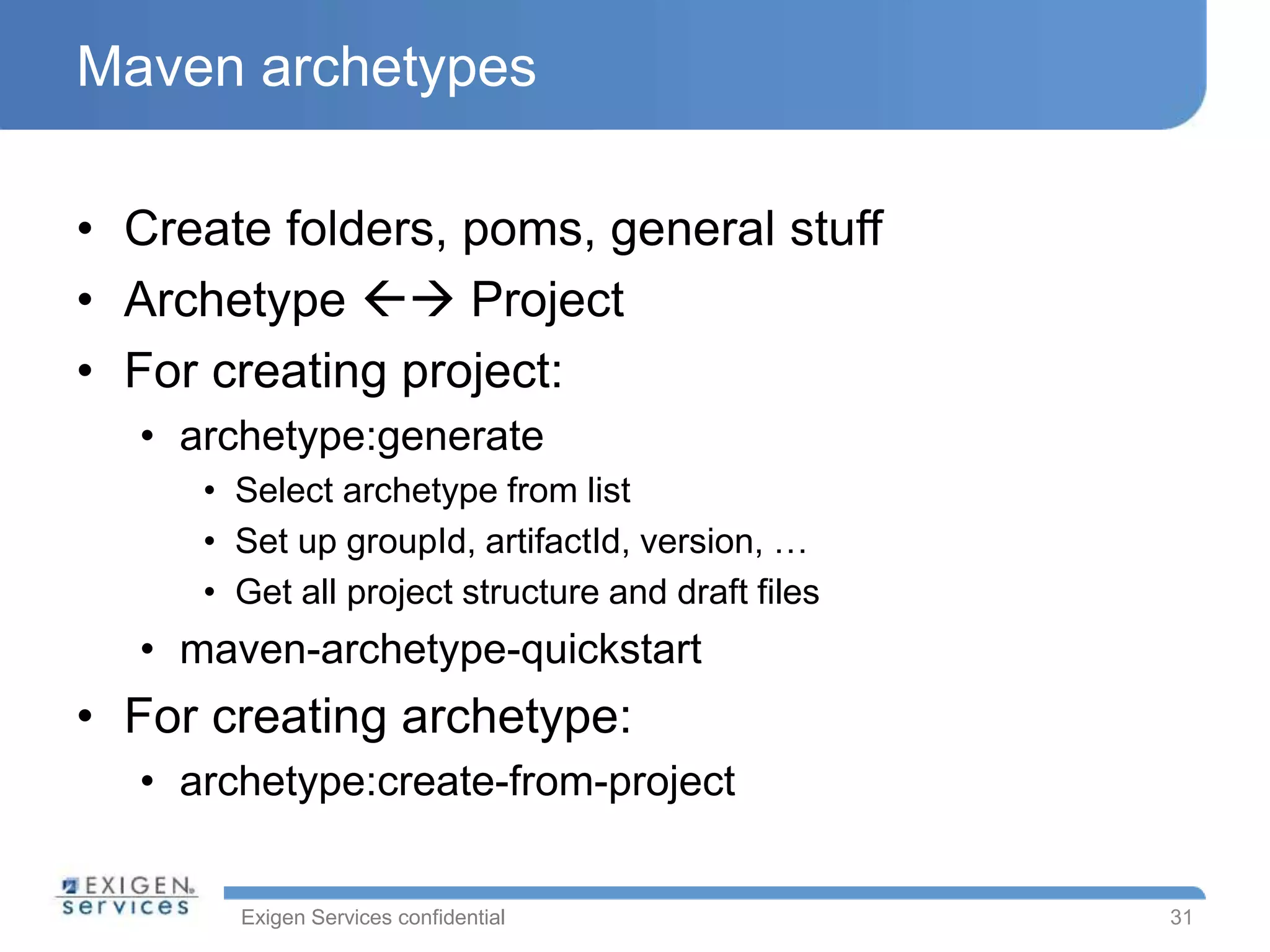

- 28. Exigen Services confidential Mavenarchetypes • Create folders, poms, general stuff • Archetype Project • For creating project: • archetype:generate • Select archetype from list • Set up groupId, artifactId, version, … • Get all project structure and draft files • maven-archetype-quickstart • For creating archetype: • archetype:create-from-project 31

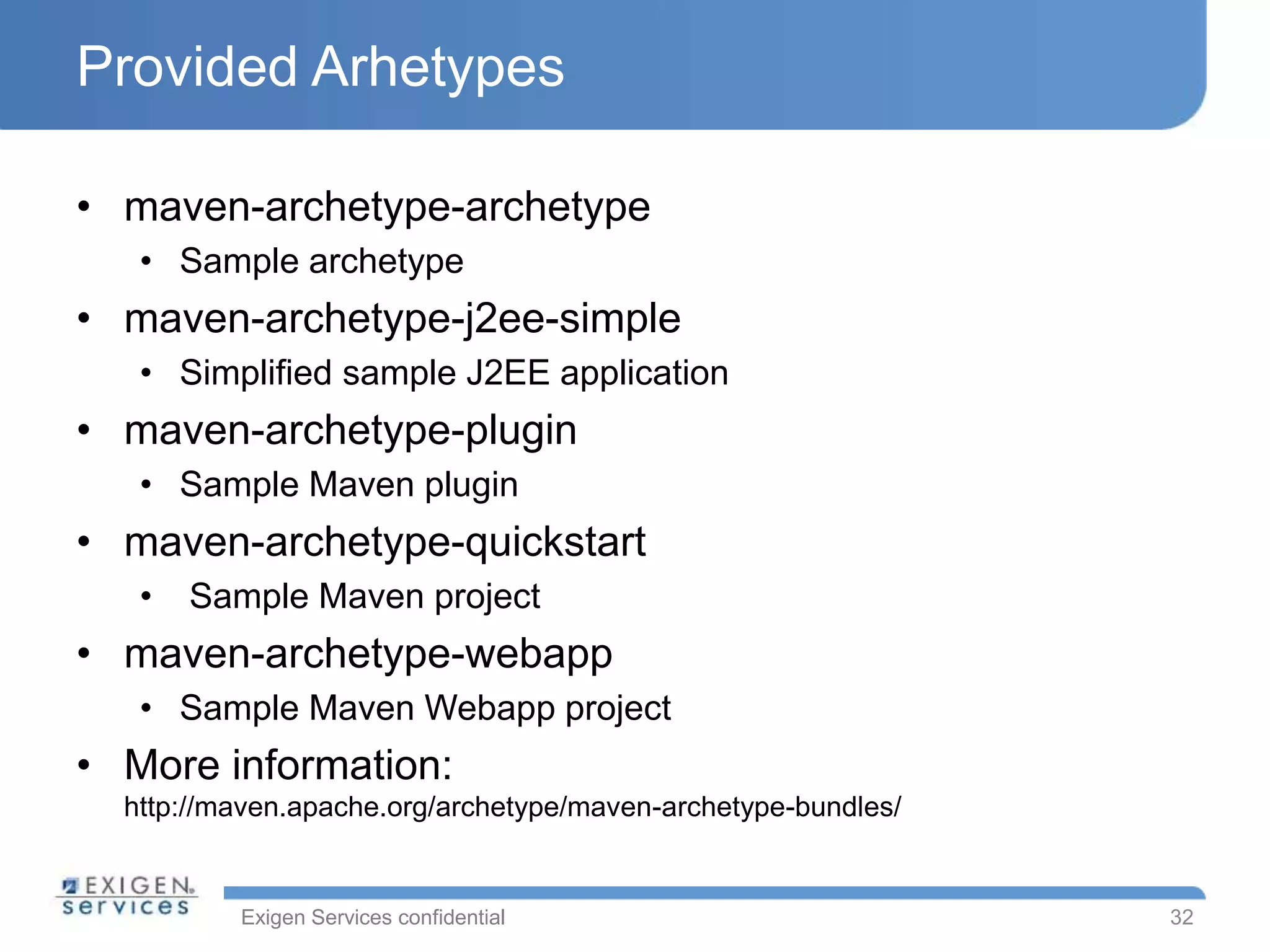

- 29. Exigen Services confidential ProvidedArhetypes • maven-archetype-archetype • Sample archetype • maven-archetype-j2ee-simple • Simplified sample J2EE application • maven-archetype-plugin • Sample Maven plugin • maven-archetype-quickstart • Sample Maven project • maven-archetype-webapp • Sample Maven Webapp project • More information: http://maven.apache.org/archetype/maven-archetype-bundles/ 32

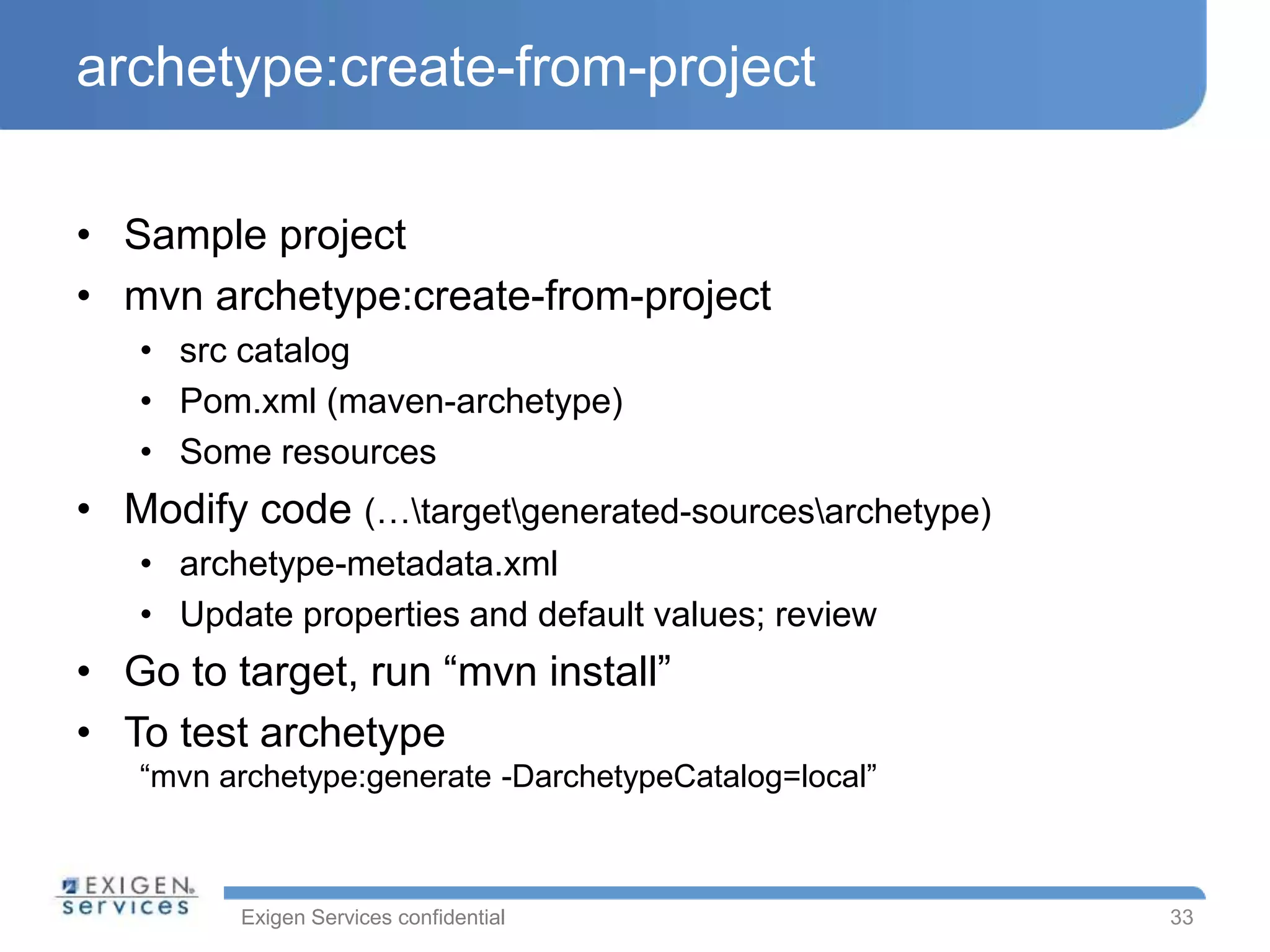

- 30. Exigen Services confidential archetype:create-from-project •Sample project • mvn archetype:create-from-project • src catalog • Pom.xml (maven-archetype) • Some resources • Modify code (…targetgenerated-sourcesarchetype) • archetype-metadata.xml • Update properties and default values; review • Go to target, run “mvn install” • To test archetype “mvn archetype:generate -DarchetypeCatalog=local” 33
- 31. Exigen Services confidential NEXUS SETTING.XML Goodconfiguration - great advantage 34

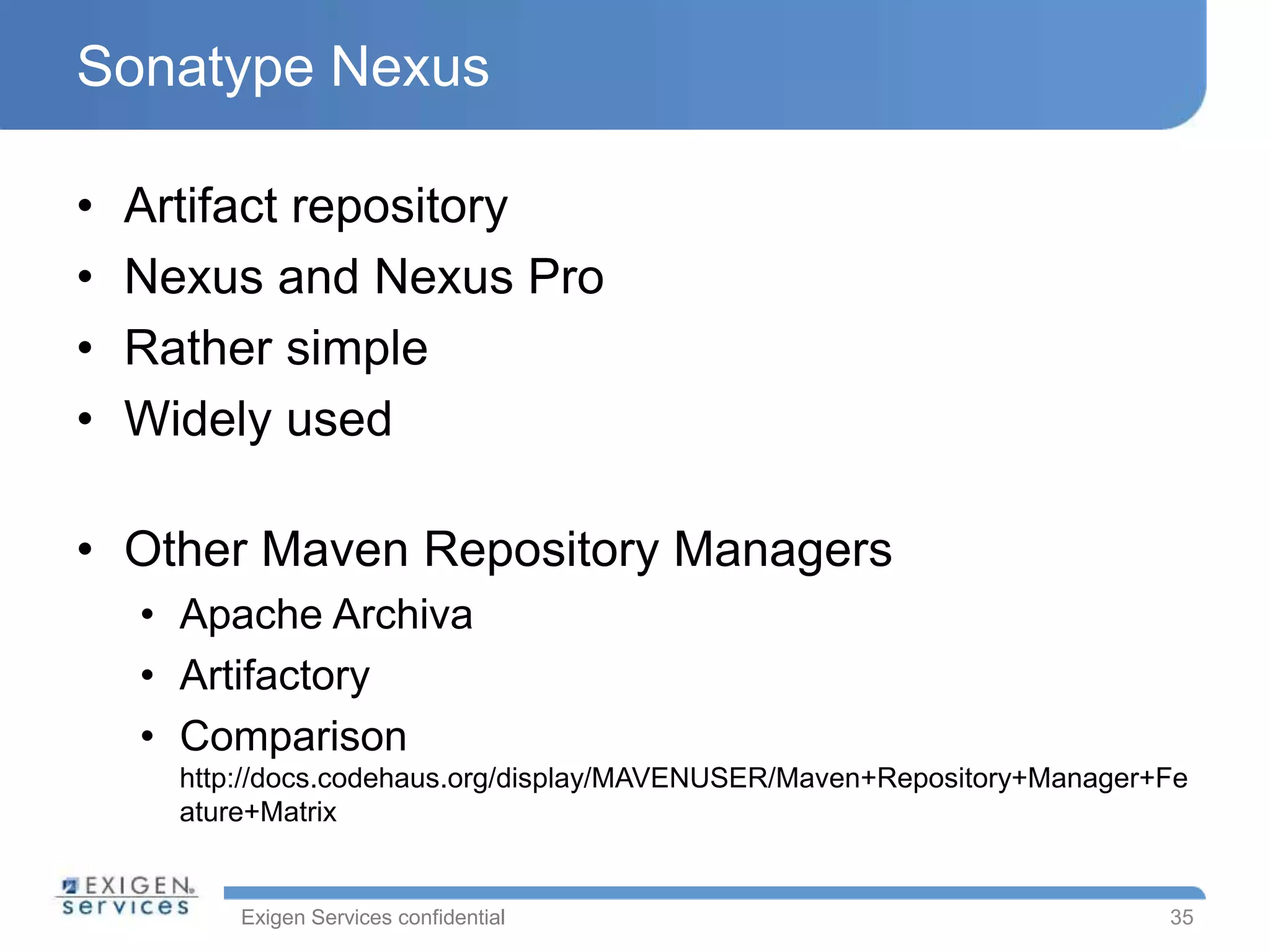

- 32. Exigen Services confidential SonatypeNexus • Artifact repository • Nexus and Nexus Pro • Rather simple • Widely used • Other Maven Repository Managers • Apache Archiva • Artifactory • Comparison http://docs.codehaus.org/display/MAVENUSER/Maven+Repository+Manager+Fe ature+Matrix 35

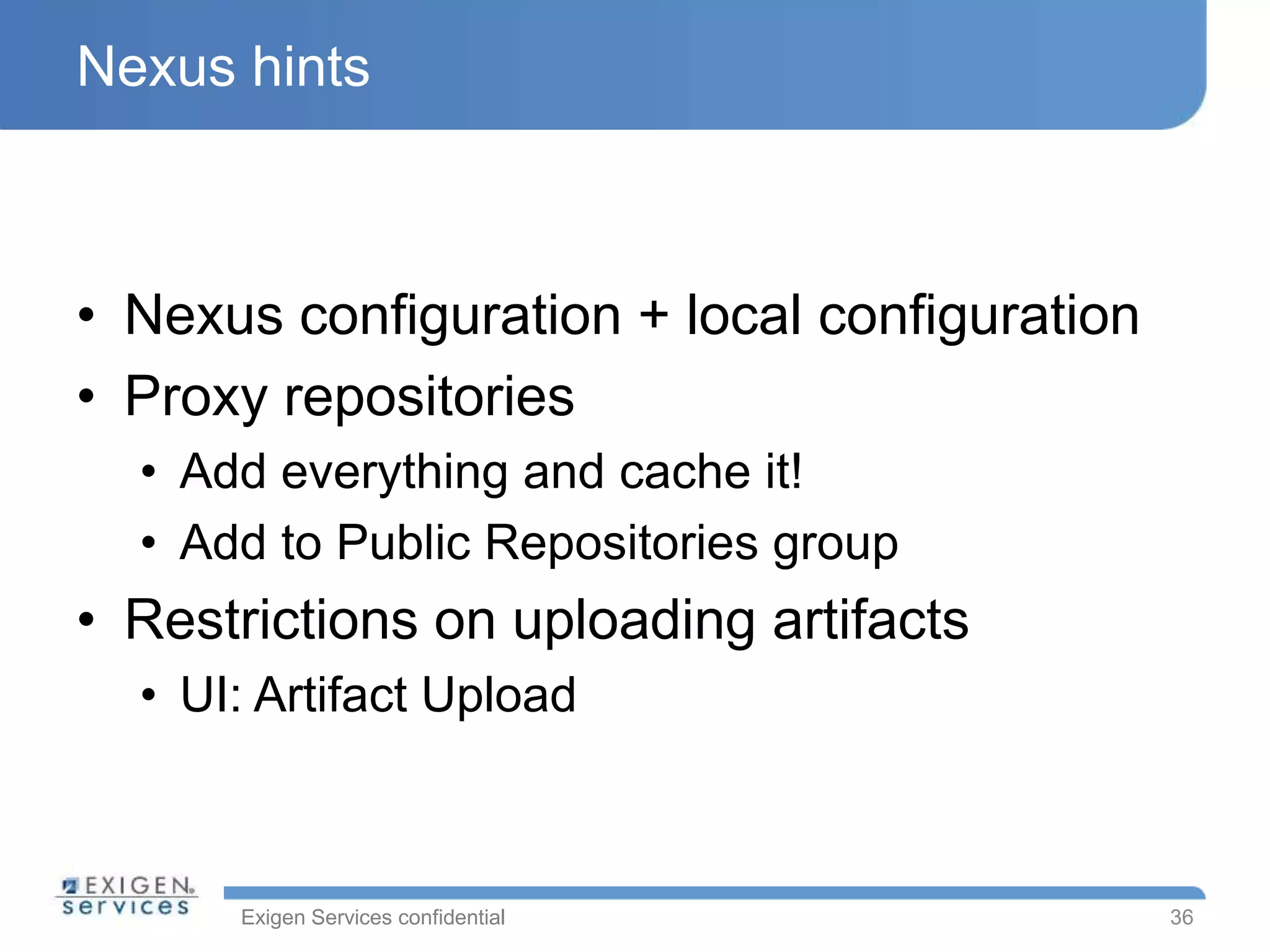

- 33. Exigen Services confidential Nexushints • Nexus configuration + local configuration • Proxy repositories • Add everything and cache it! • Add to Public Repositories group • Restrictions on uploading artifacts • UI: Artifact Upload 36

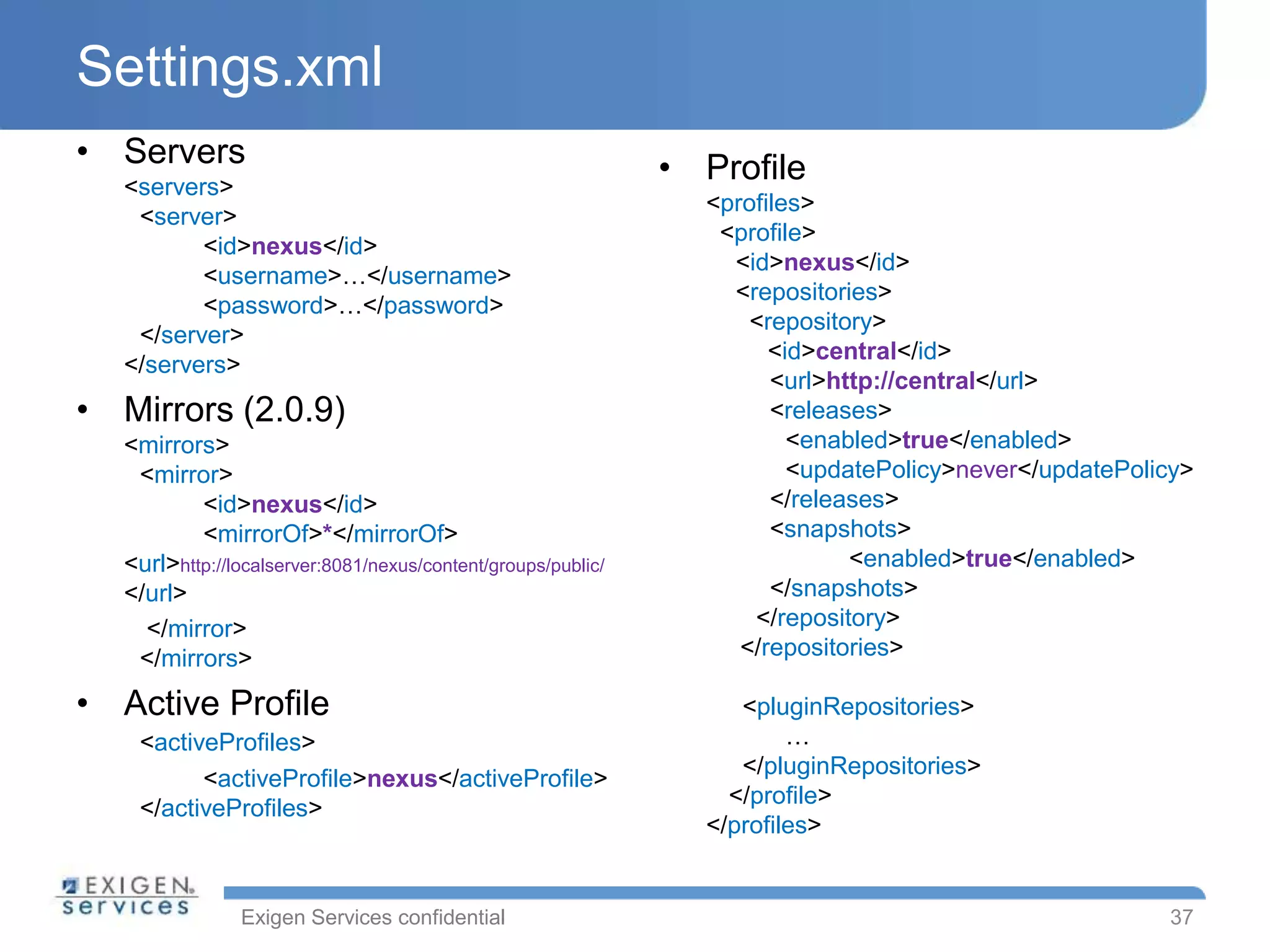

- 34. Exigen Services confidential Settings.xml •Servers <servers> <server> <id>nexus</id> <username>…</username> <password>…</password> </server> </servers> • Mirrors (2.0.9) <mirrors> <mirror> <id>nexus</id> <mirrorOf>*</mirrorOf> <url>http://localserver:8081/nexus/content/groups/public/ </url> </mirror> </mirrors> • Active Profile <activeProfiles> <activeProfile>nexus</activeProfile> </activeProfiles> • Profile <profiles> <profile> <id>nexus</id> <repositories> <repository> <id>central</id> <url>http://central</url> <releases> <enabled>true</enabled> <updatePolicy>never</updatePolicy> </releases> <snapshots> <enabled>true</enabled> </snapshots> </repository> </repositories> <pluginRepositories> … </pluginRepositories> </profile> </profiles> 37

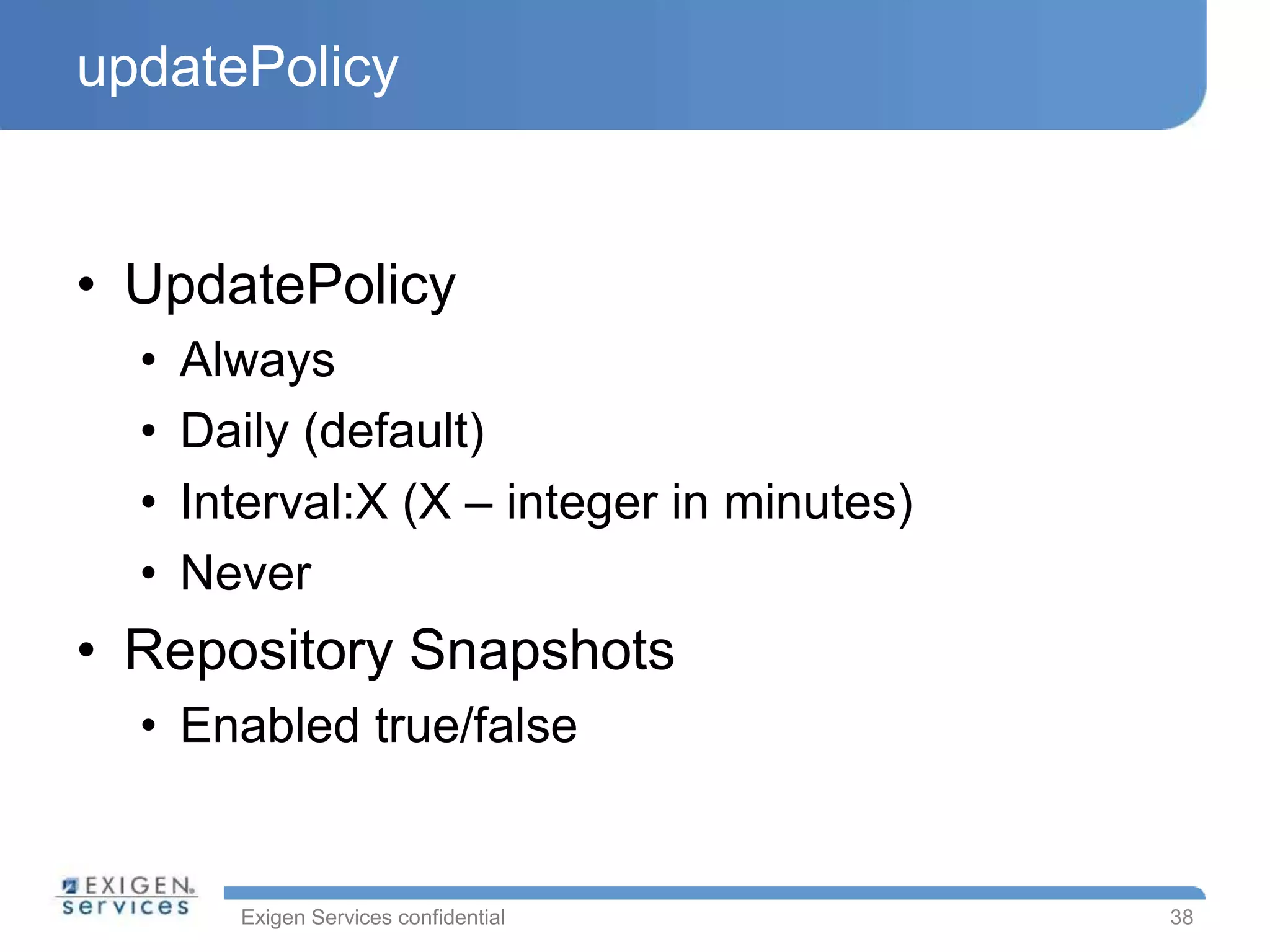

- 35. Exigen Services confidential updatePolicy •UpdatePolicy • Always • Daily (default) • Interval:X (X – integer in minutes) • Never • Repository Snapshots • Enabled true/false 38
- 36. Exigen Services confidential LICENSE,ORGANIZATION, DEVELOPERS, CONTRIBUTORS When you have free time… 39

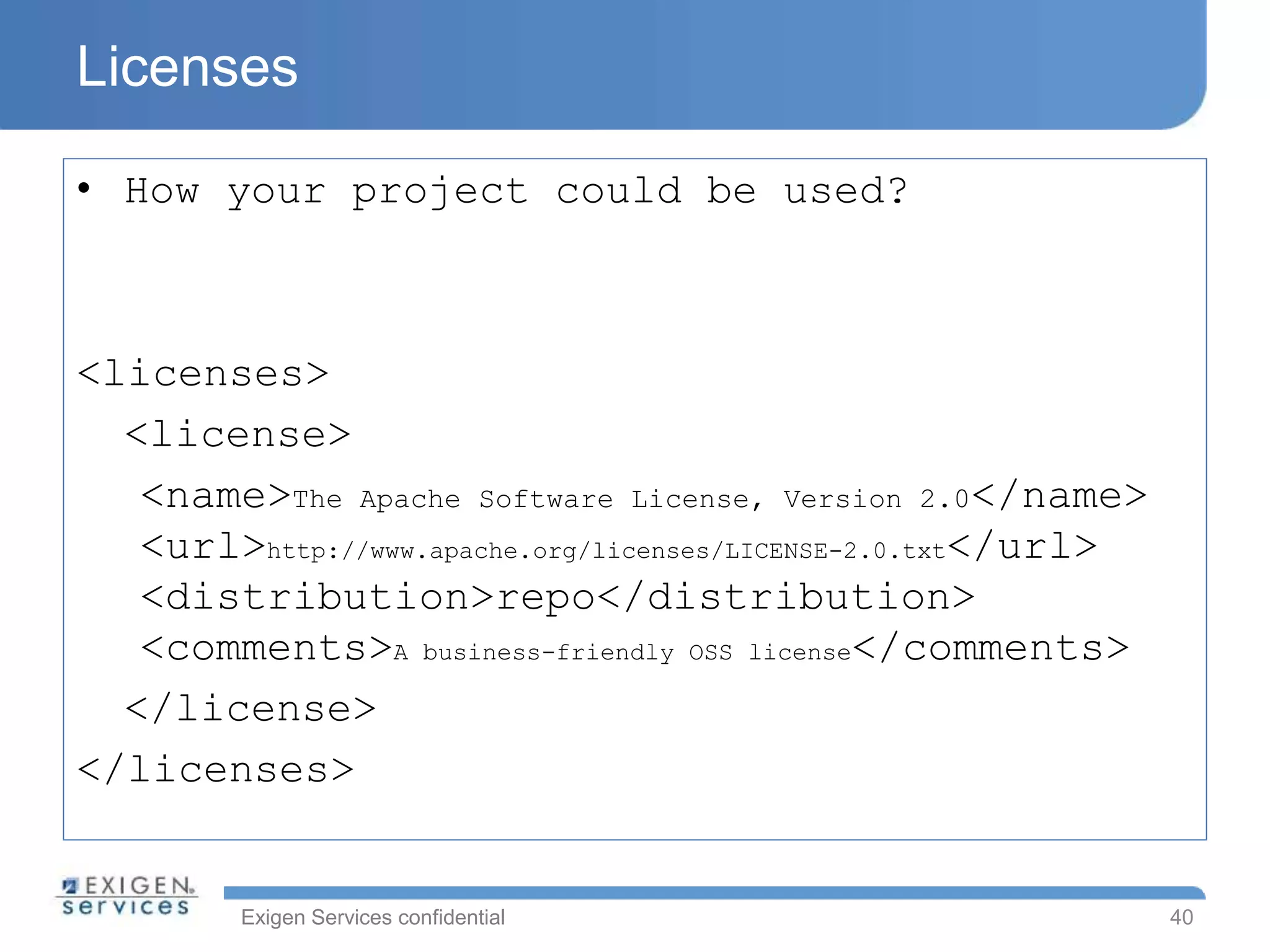

- 37. Exigen Services confidential Licenses •How your project could be used? <licenses> <license> <name>The Apache Software License, Version 2.0</name> <url>http://www.apache.org/licenses/LICENSE-2.0.txt</url> <distribution>repo</distribution> <comments>A business-friendly OSS license</comments> </license> </licenses> 40

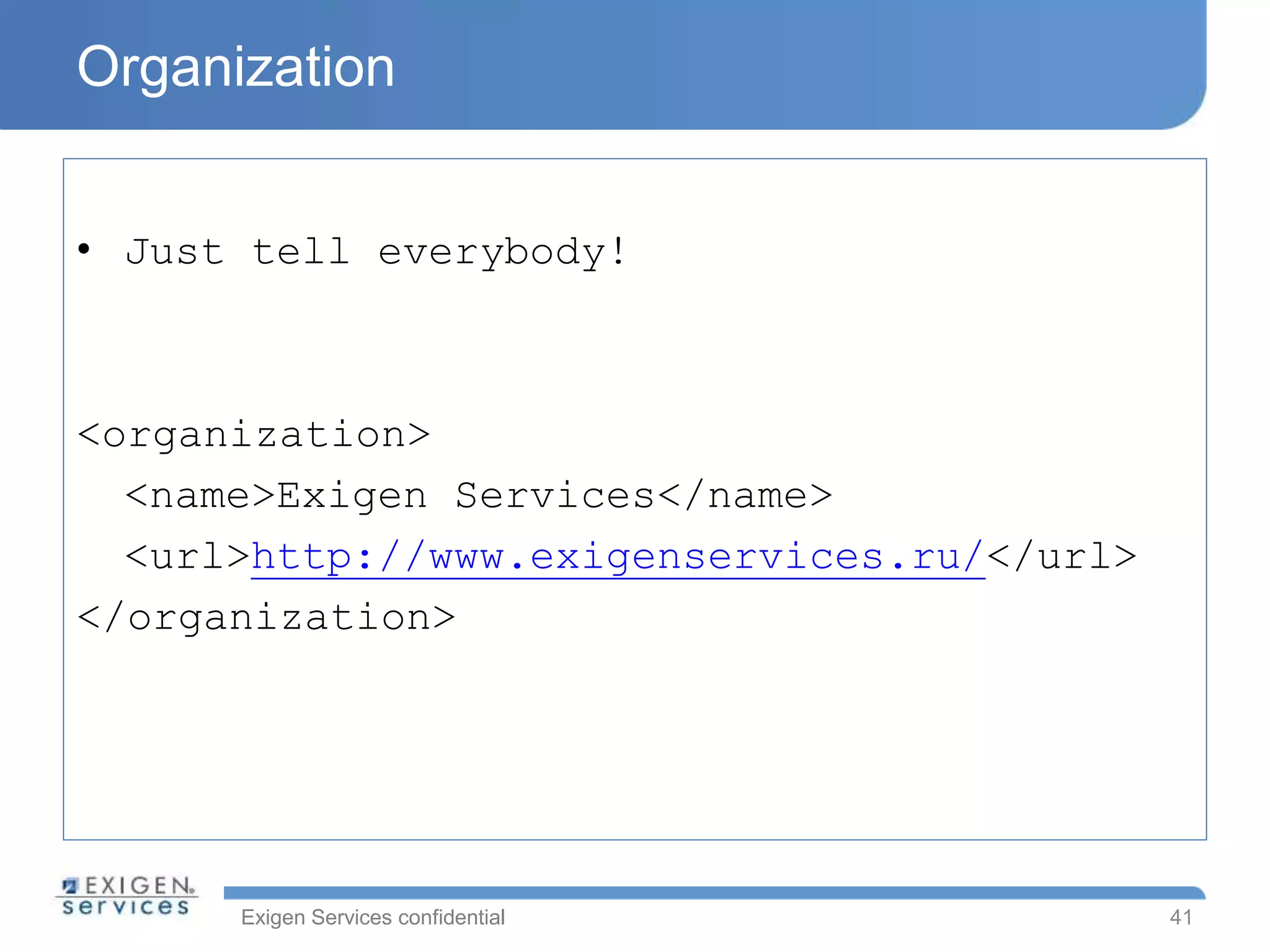

- 38. Exigen Services confidential Organization •Just tell everybody! <organization> <name>Exigen Services</name> <url>http://www.exigenservices.ru/</url> </organization> 41

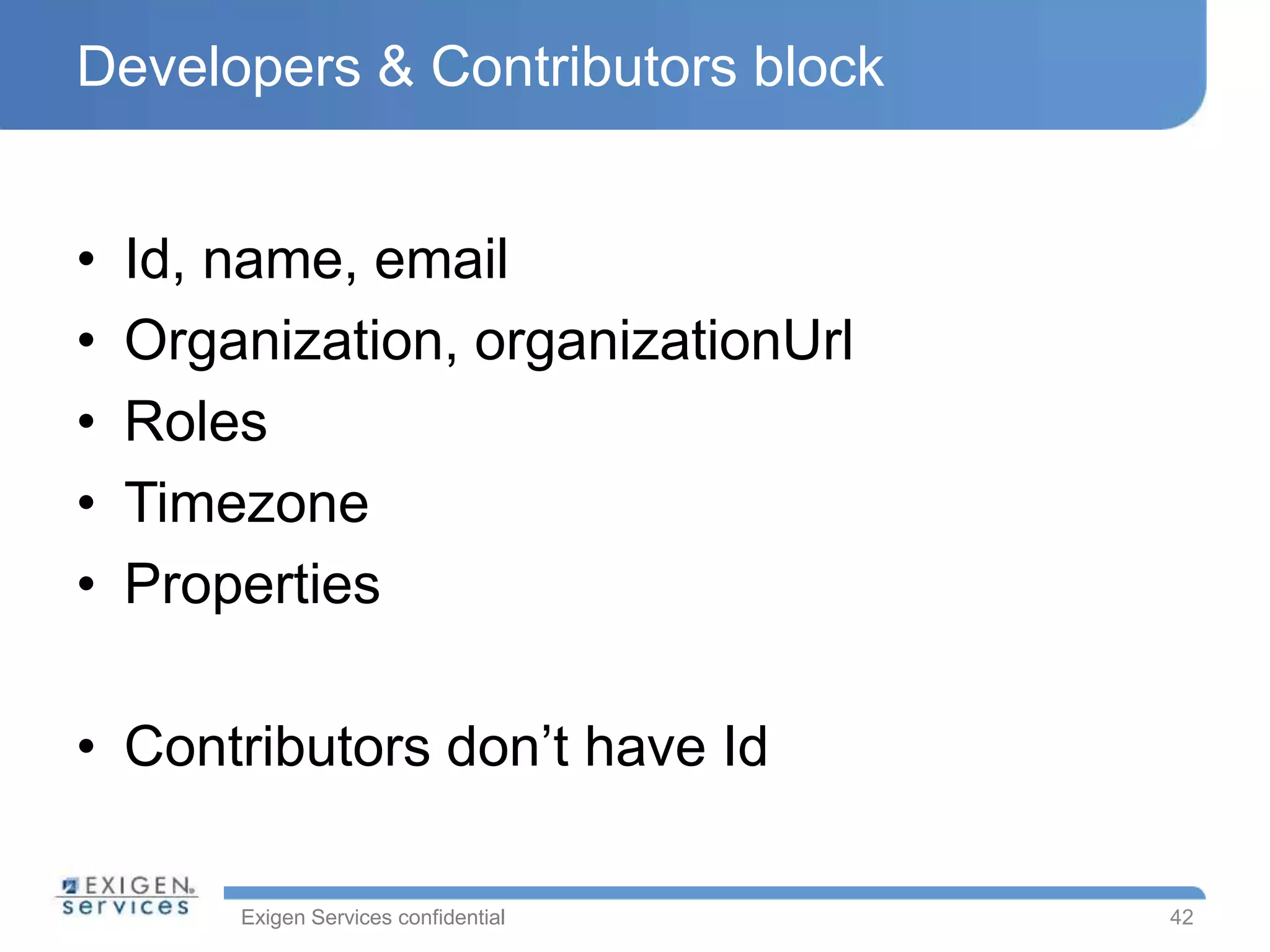

- 39. Exigen Services confidential Developers& Contributors block • Id, name, email • Organization, organizationUrl • Roles • Timezone • Properties • Contributors don’t have Id 42

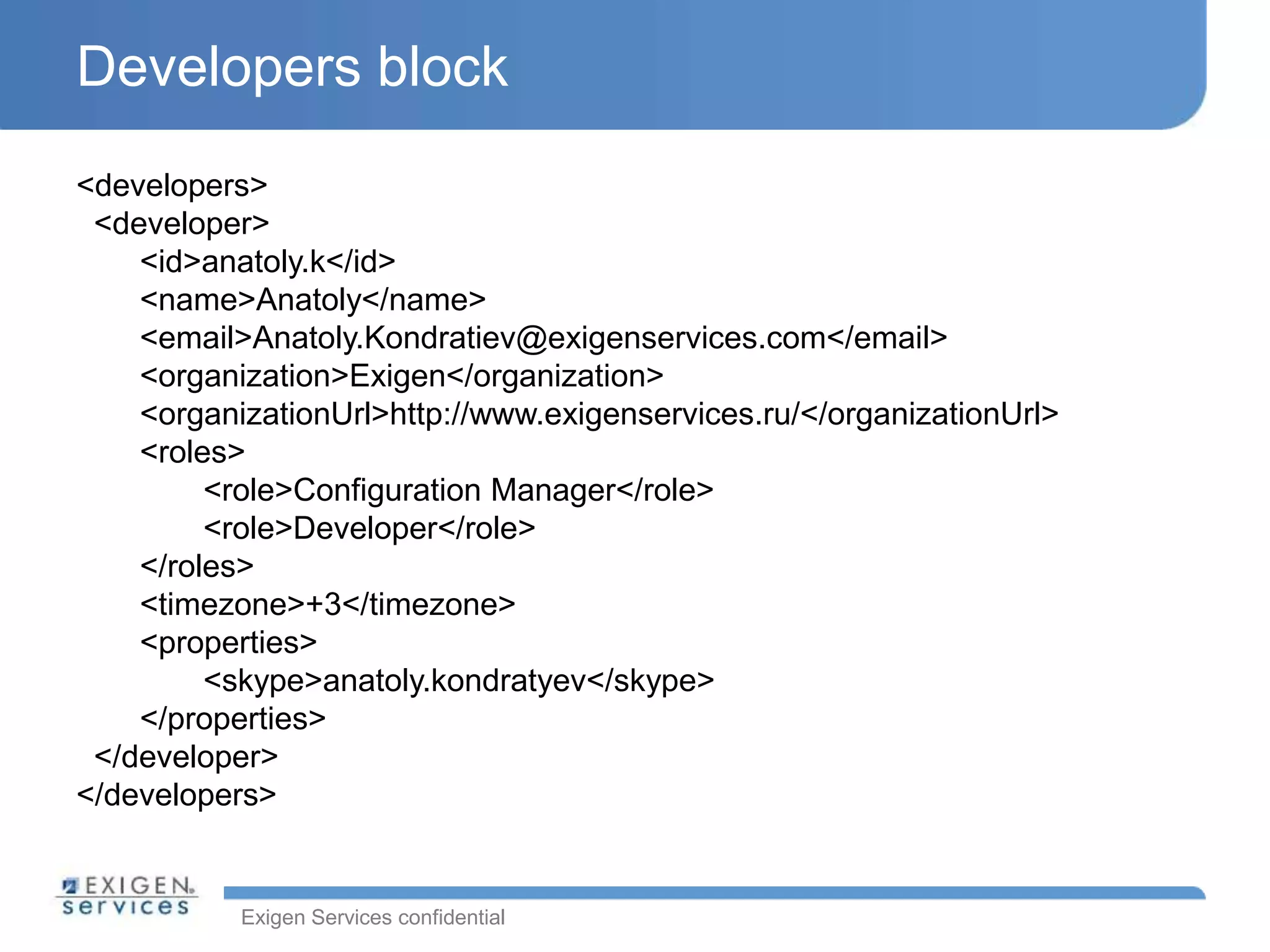

- 40. Exigen Services confidential Developersblock <developers> <developer> <id>anatoly.k</id> <name>Anatoly</name> <email>Anatoly.Kondratiev@exigenservices.com</email> <organization>Exigen</organization> <organizationUrl>http://www.exigenservices.ru/</organizationUrl> <roles> <role>Configuration Manager</role> <role>Developer</role> </roles> <timezone>+3</timezone> <properties> <skype>anatoly.kondratyev</skype> </properties> </developer> </developers>

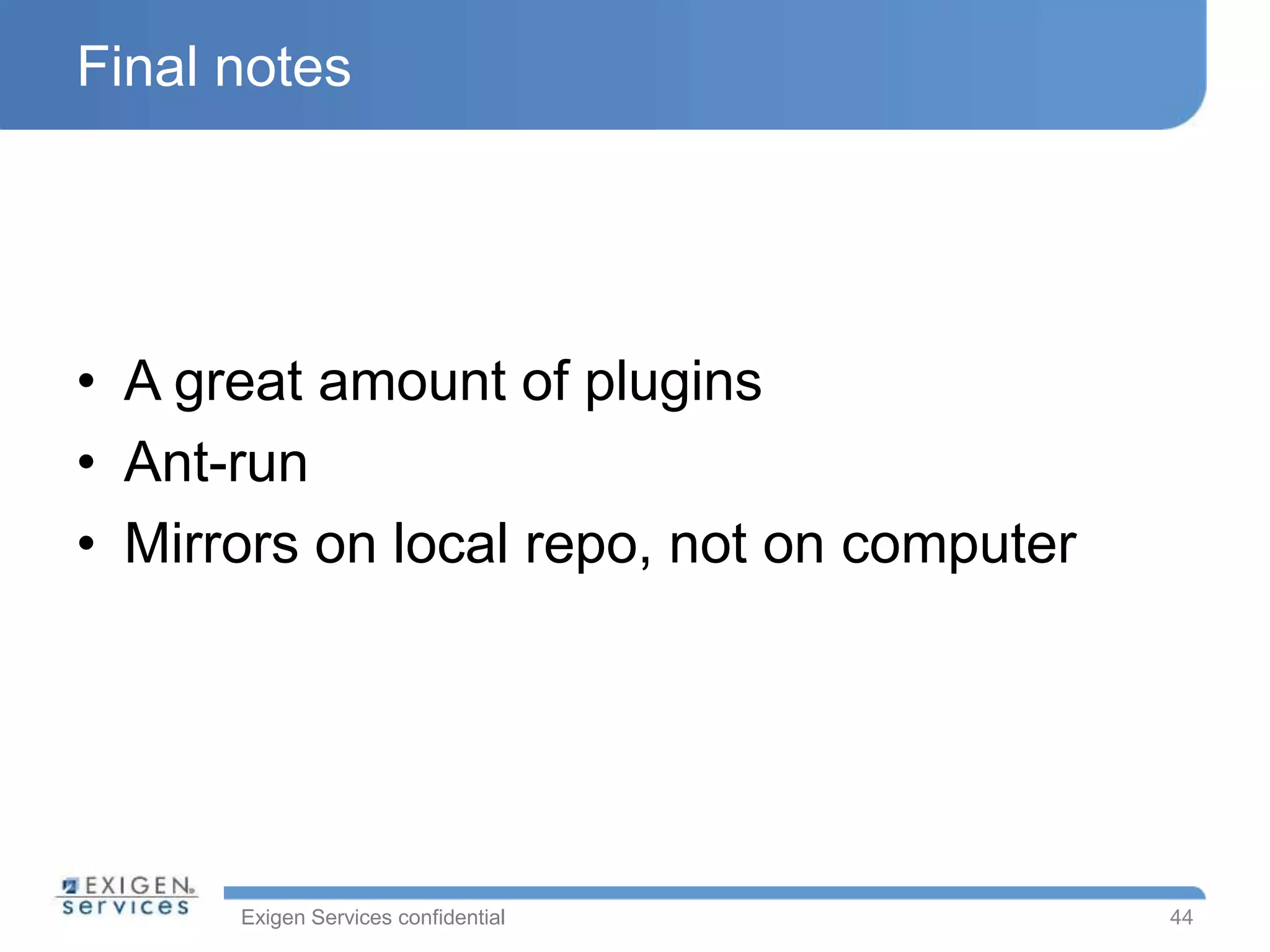

- 41. Exigen Services confidential Finalnotes • A great amount of plugins • Ant-run • Mirrors on local repo, not on computer 44
- 42. Exigen Services confidential QUESTIONS Nowit’s your turn… 45
