This document discusses experiences migrating from a rented VMware environment to a self-hosted OpenStack cloud and running Cloud Foundry on OpenStack. Some key points discussed include: - Upgrades to OpenStack before the Grizzly release required a lot of manual work and could result in a full week of downtime for instances to be offline. - The upcoming Havana to Icehouse upgrade aims for less than 30 minutes of downtime using Chef to automate configuration changes and testing upgrades on a separate OpenStack staging system. - Random kernel panics, hardware outages, and other factors can kill VMs, so availability zones and aggregates can be used to spread VMs across disjunct networks/racks.

1. CloudFoundryonOpenStack
AnExperienceReport

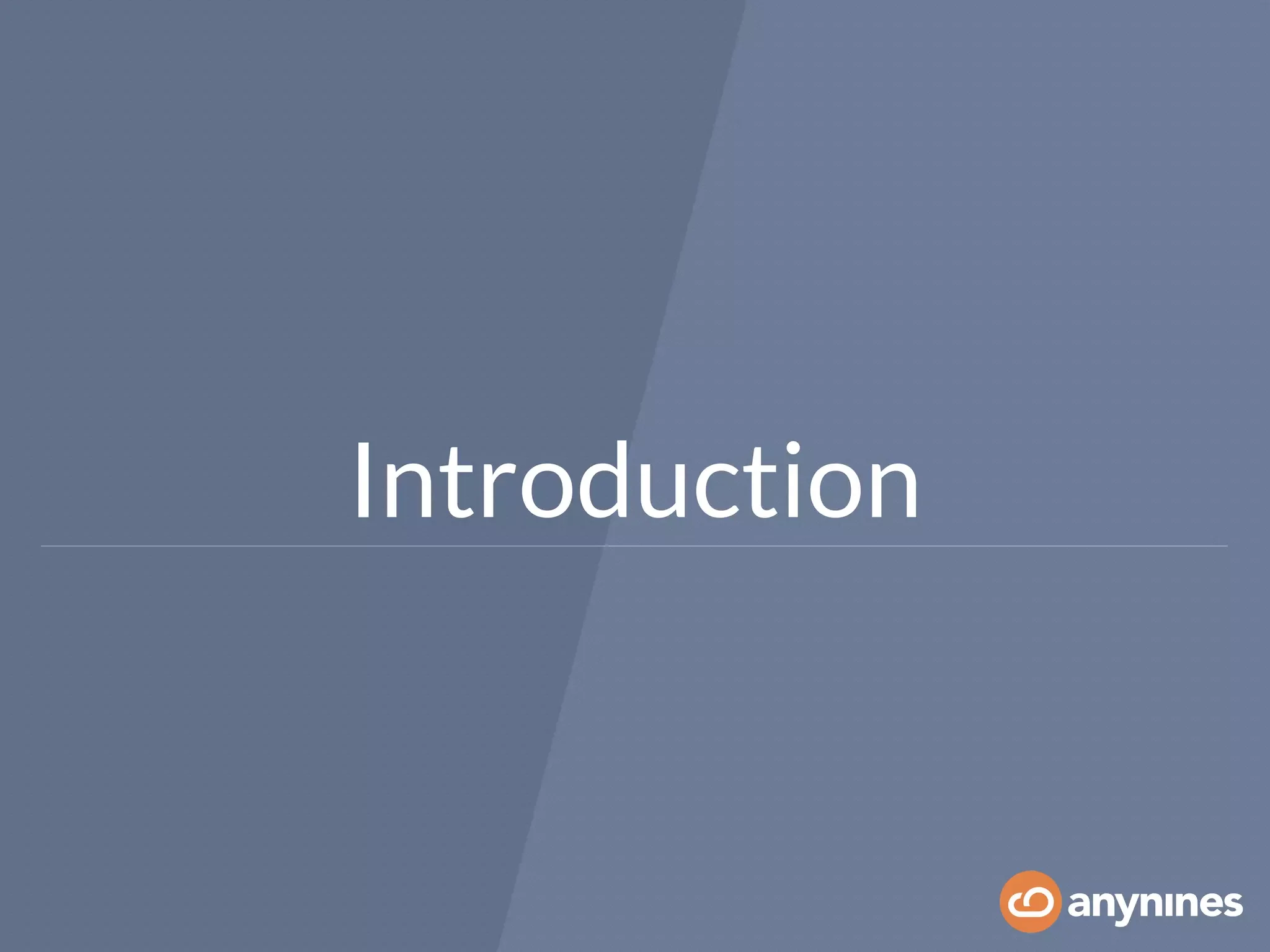

2. Introduction

3. about.me/fischerjulian

6. The anynines Stack

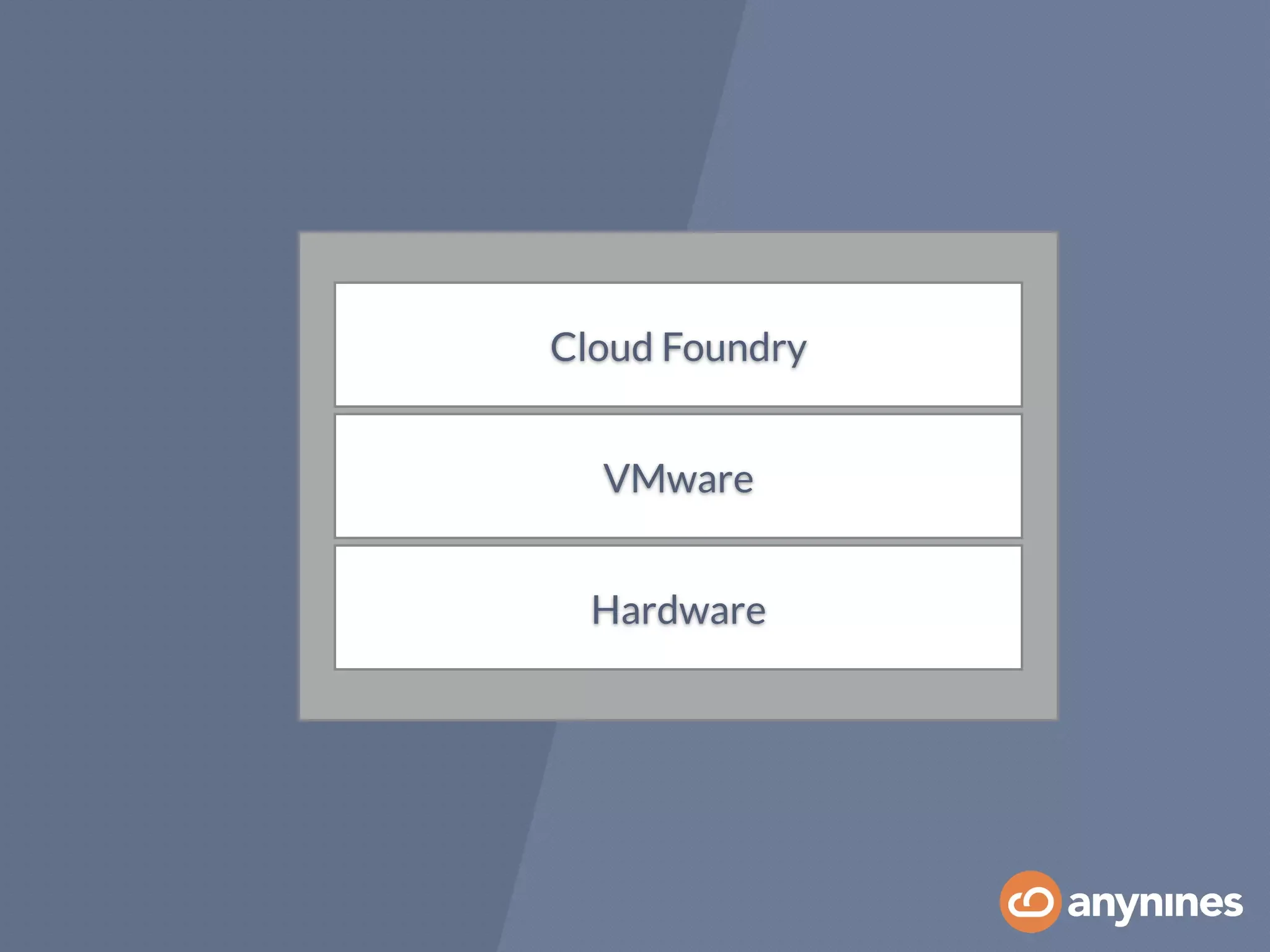

7. Hardware
OpenStack
Cloud Foundry
VMware

8. We migrated from a
Rented VMware to a
self-hosted OpenStack.

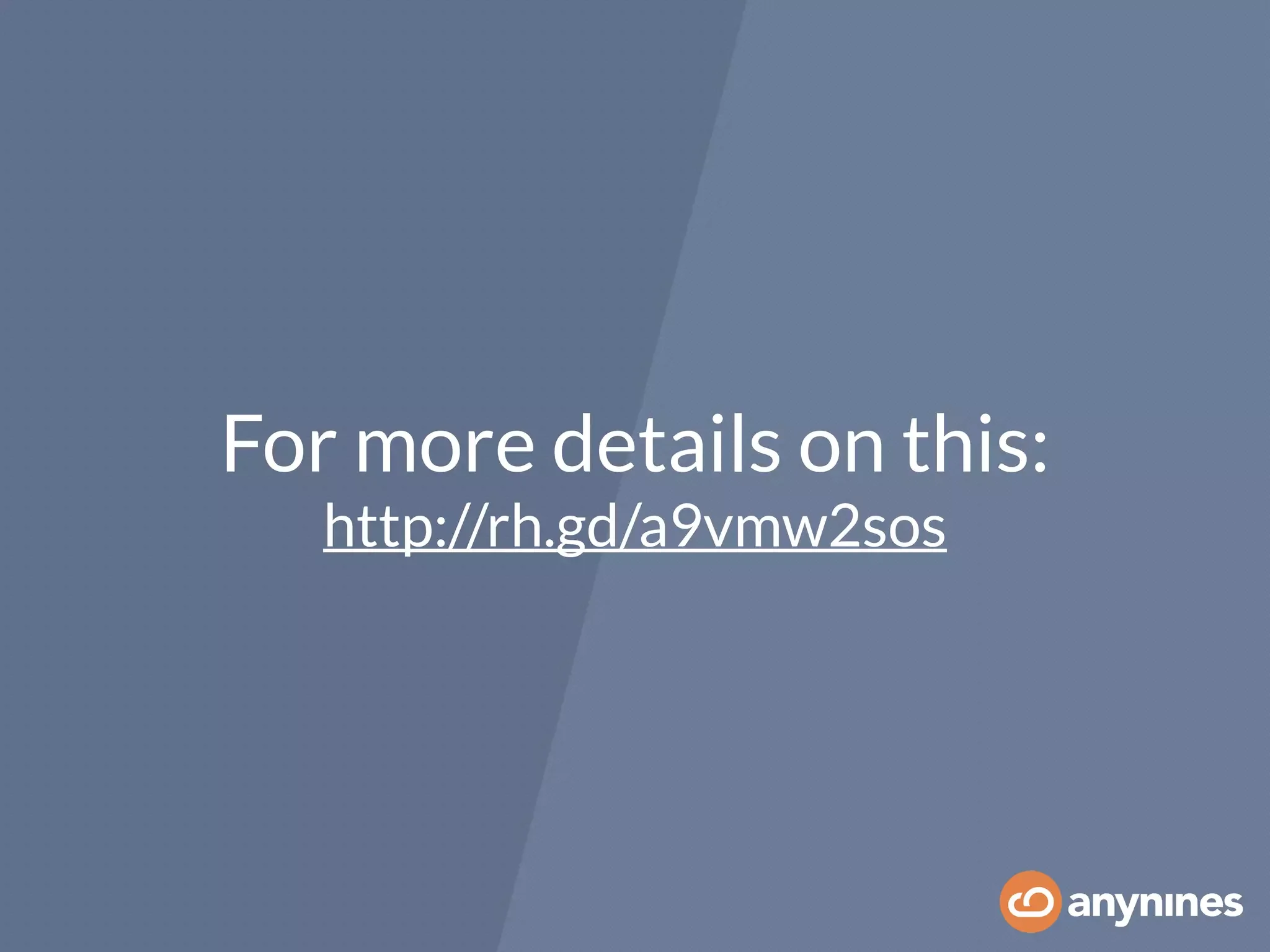

9. For more details on this:
http://rh.gd/a9vmw2sos

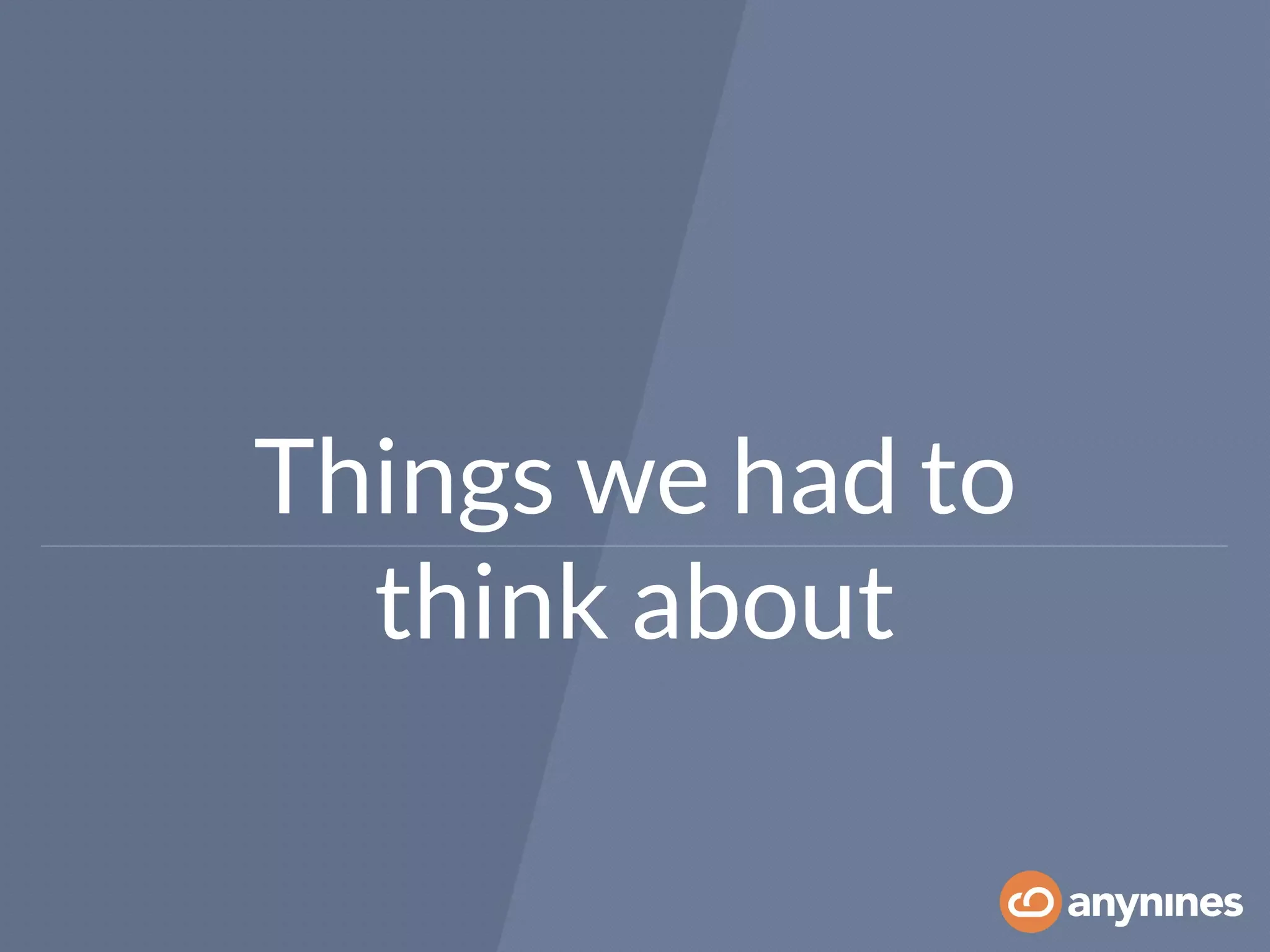

10. Things we had to
think about

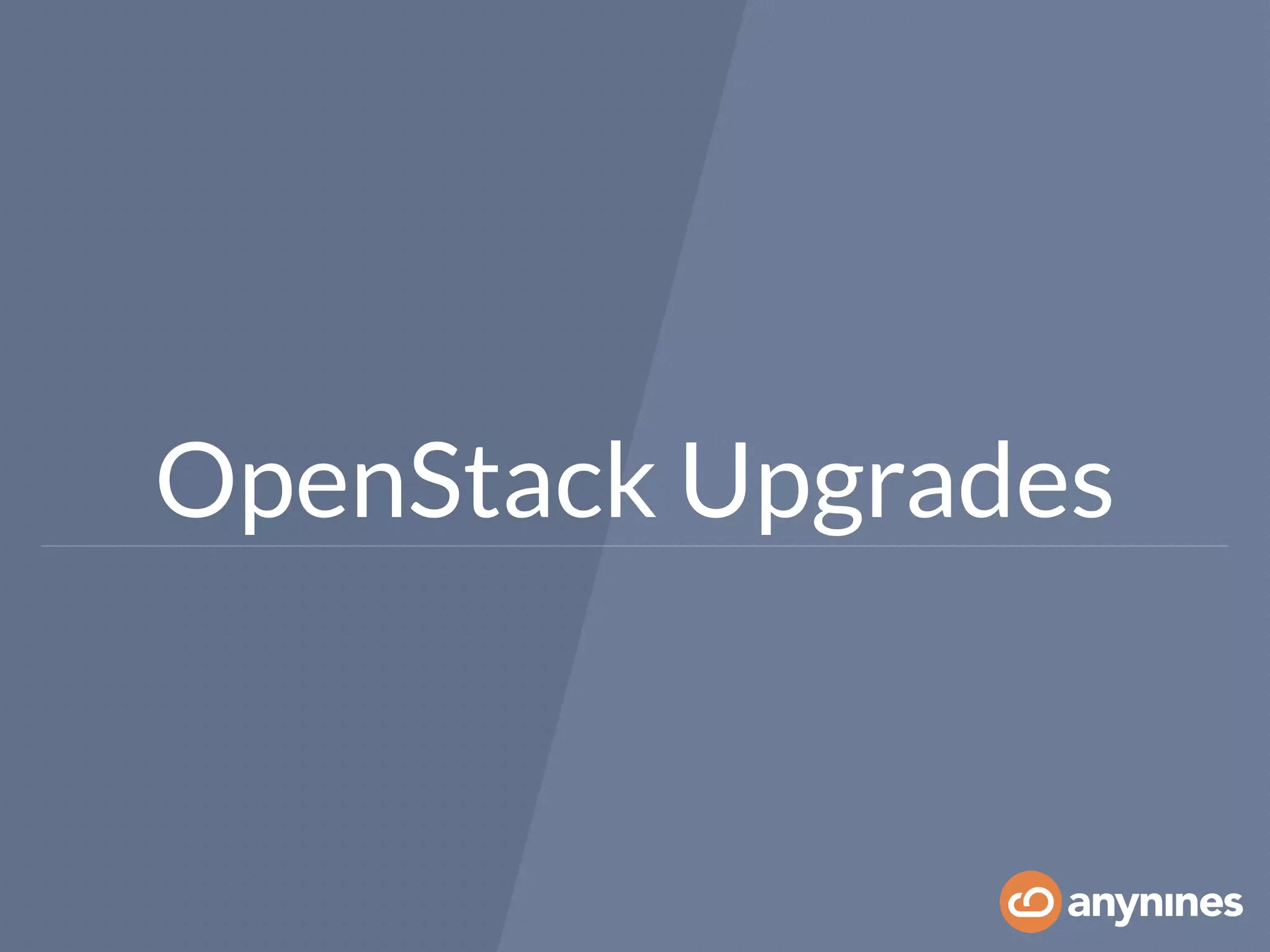

11. OpenStack Upgrades

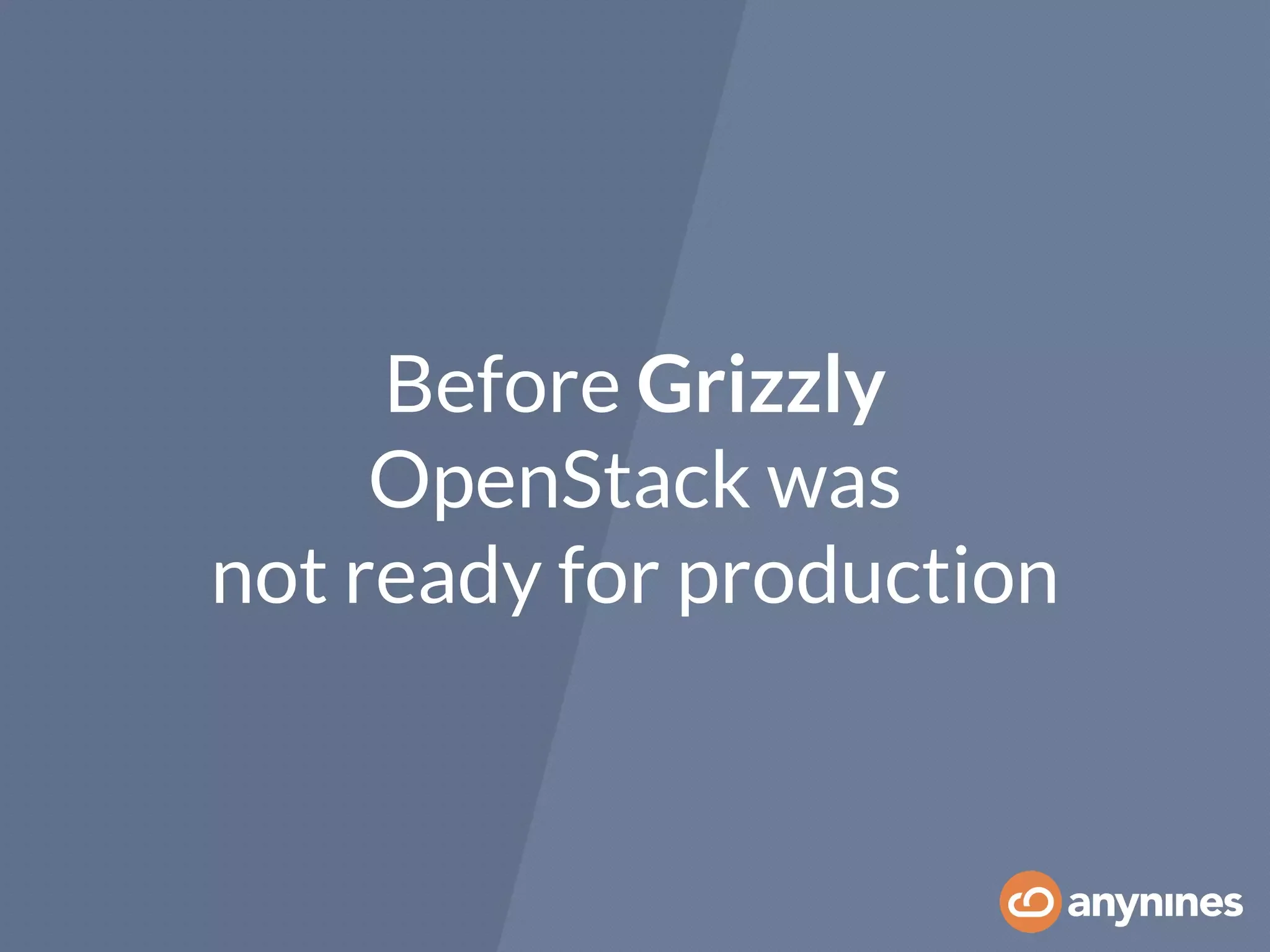

12. Before Grizzly
OpenStack was
not ready for production

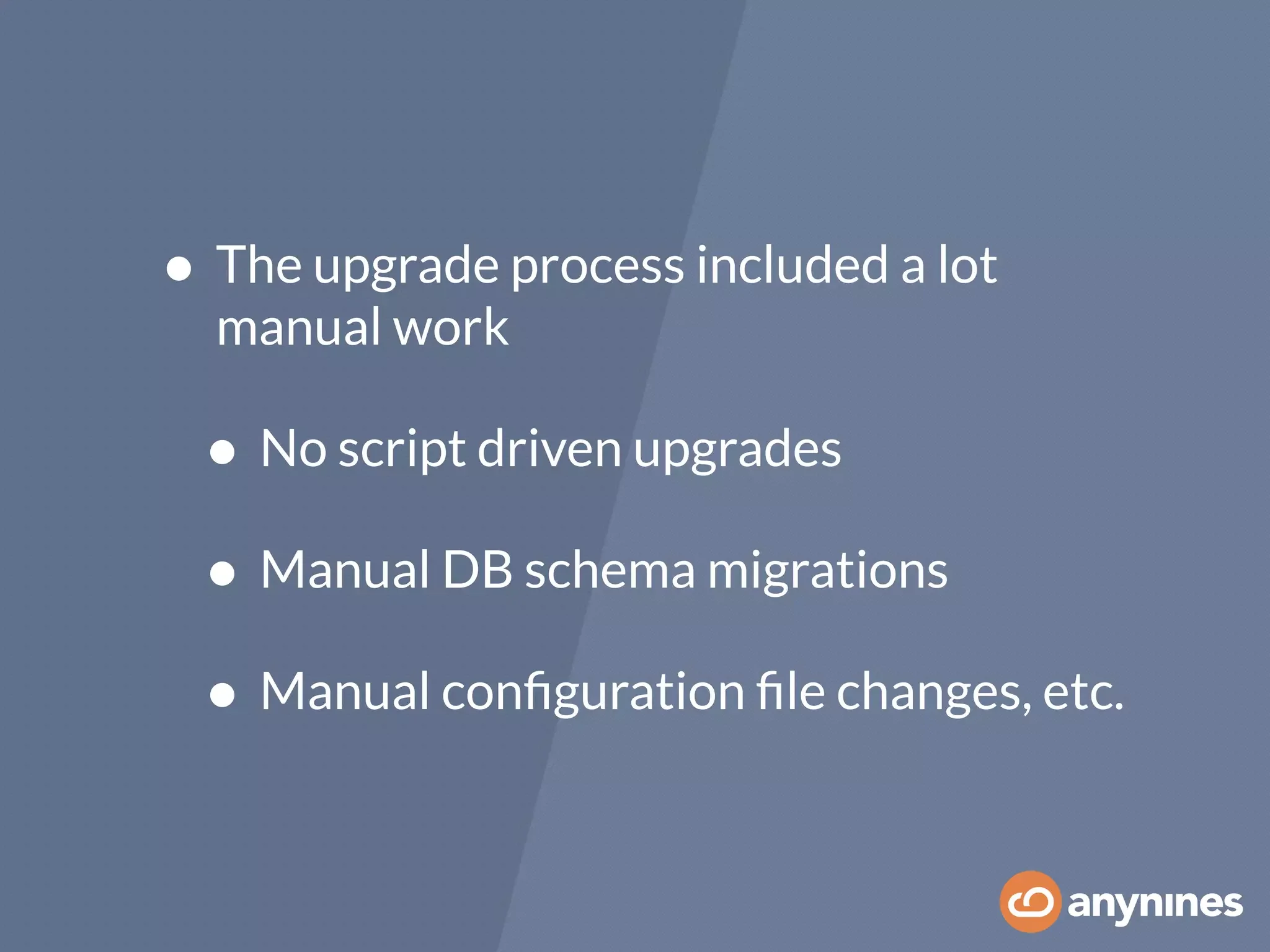

13. • The upgrade process included a lot
manual work
• No script driven upgrades
• Manual DB schema migrations
• Manual configuration file changes, etc.

14. „I scheduled a week of
total downtime with all instances
offline.“- jon@jonproulx , http://rh.gd/1sNhiiz

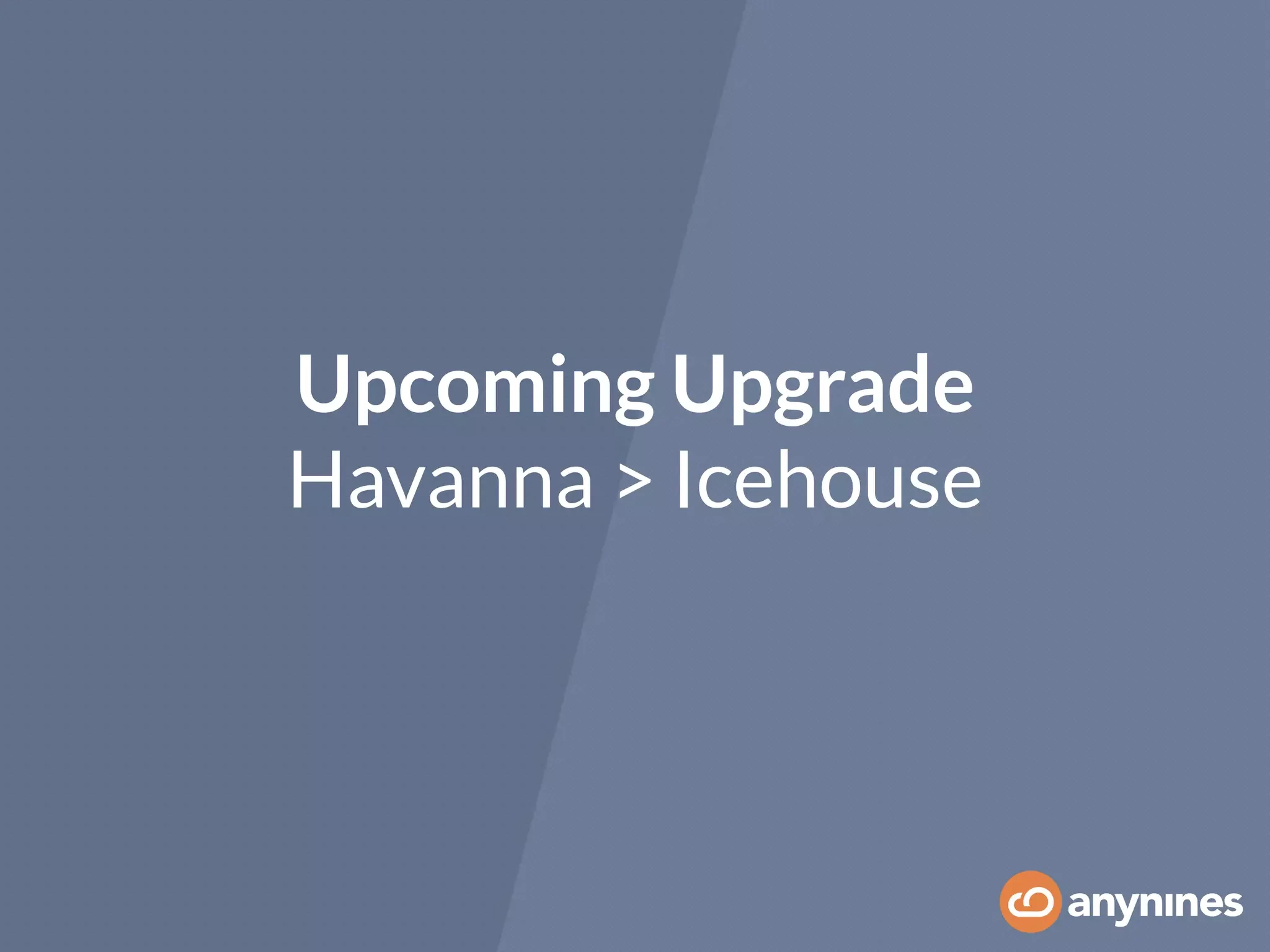

15. Upcoming Upgrade
Havanna > Icehouse

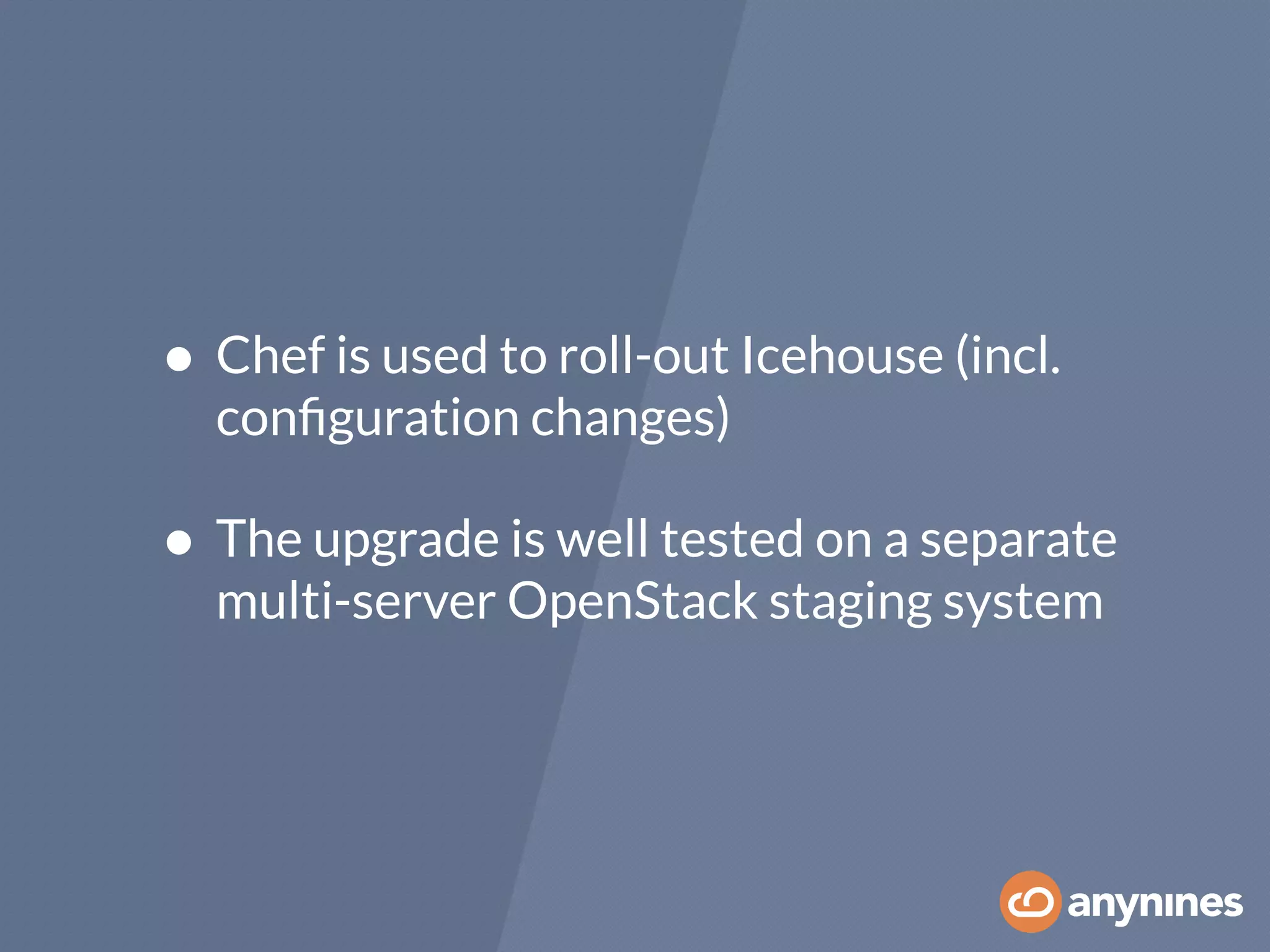

16. • Chef is used to roll-out Icehouse (incl.
configuration changes)
• The upgrade is well tested on a separate
multi-server OpenStack staging system

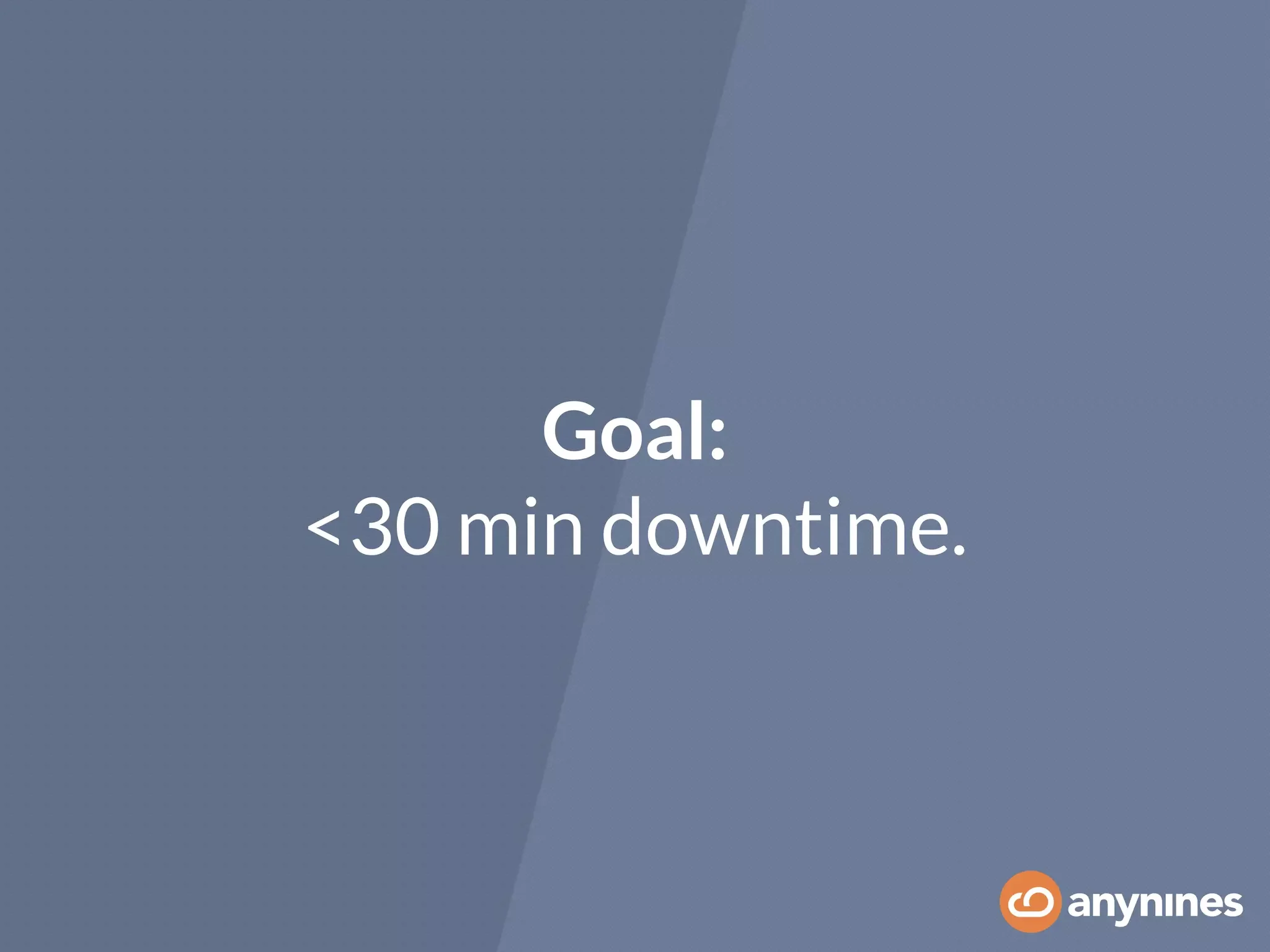

17. Goal:
<30 min downtime.

18. Let’s cross fingers :)

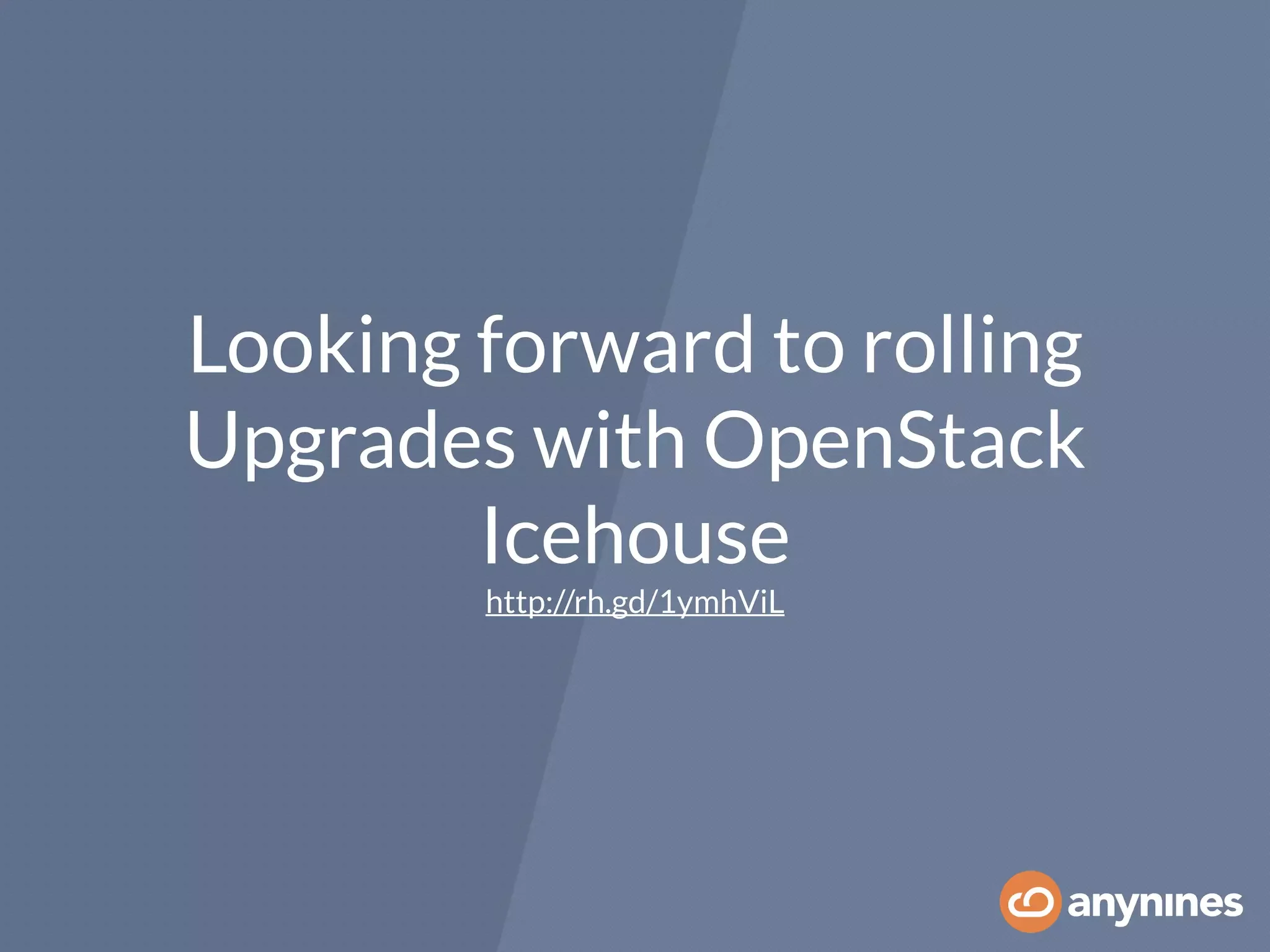

19. Looking forward to rolling
Upgrades with OpenStack
Icehouse
http://rh.gd/1ymhViL

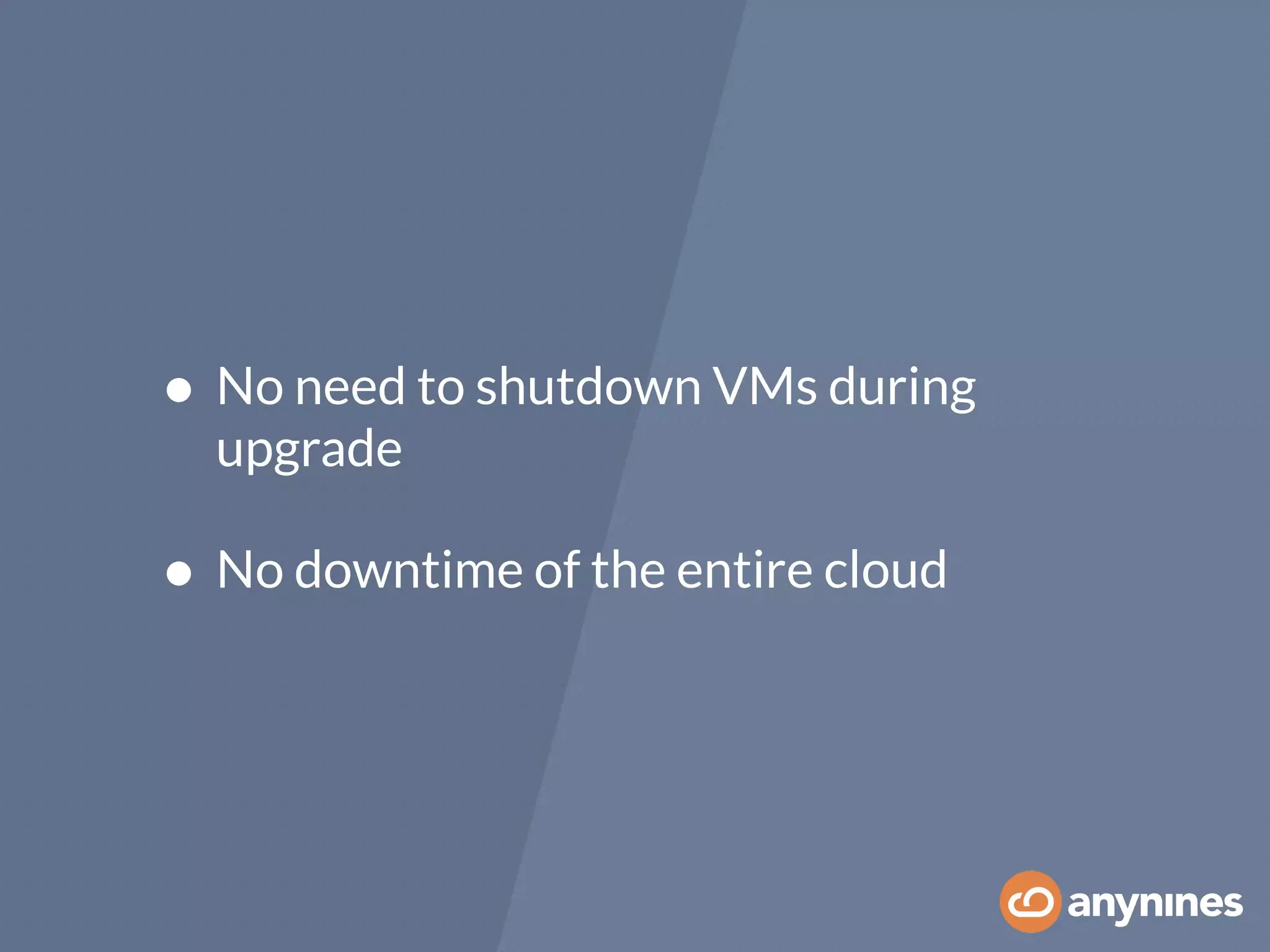

20. • No need to shutdown VMs during
upgrade
• No downtime of the entire cloud

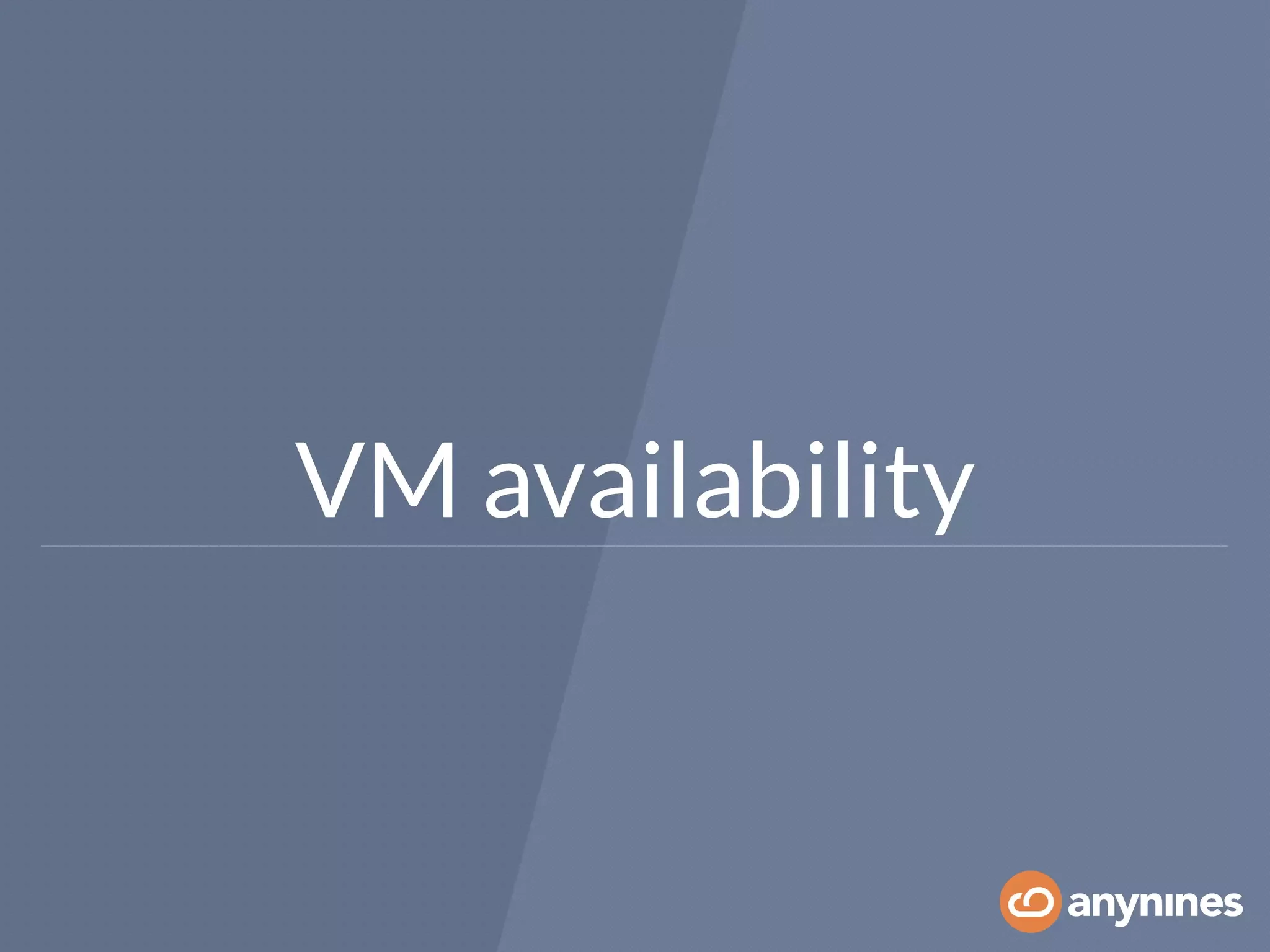

21. VM availability

22. What killes VMs?

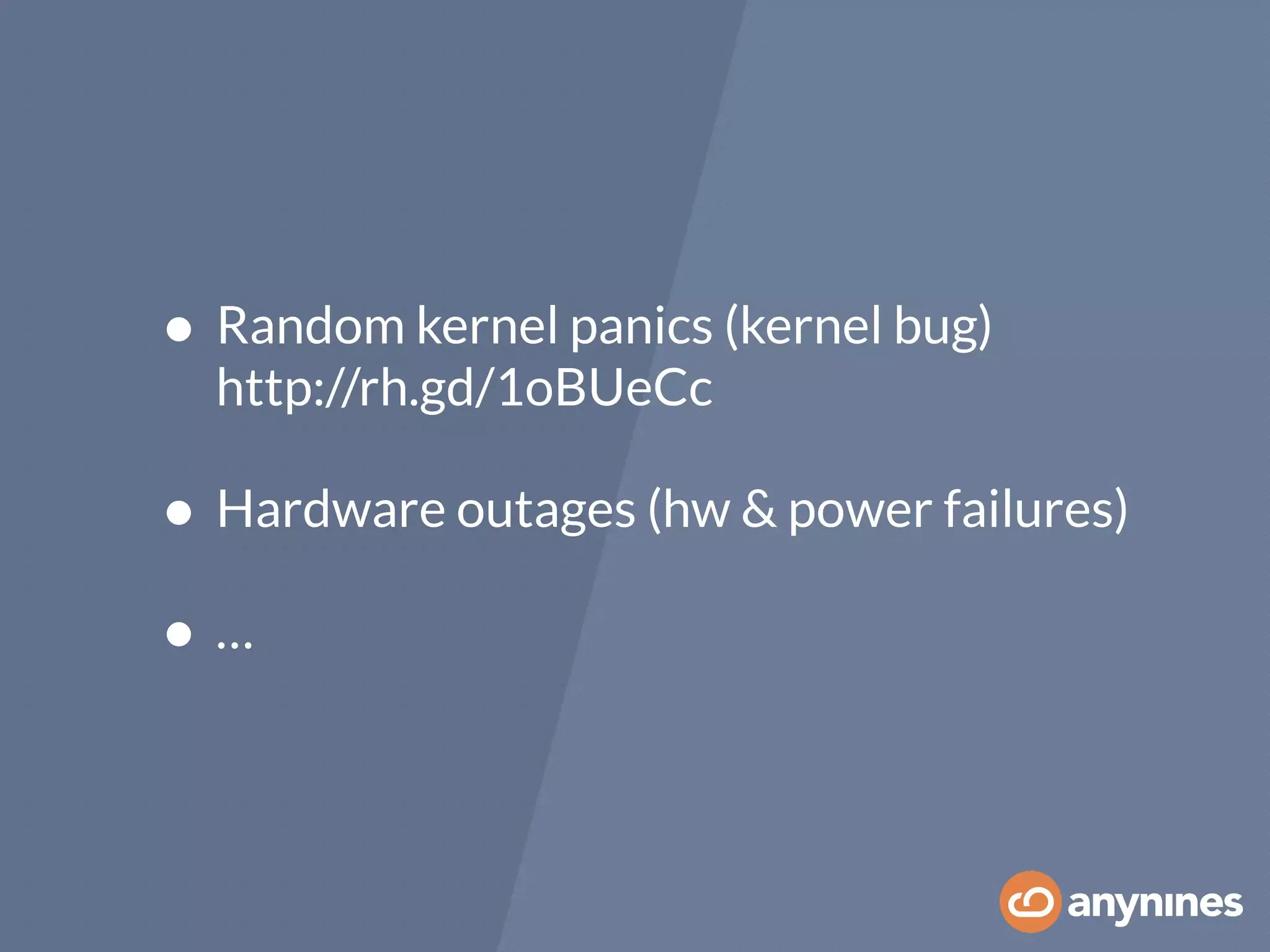

23. • Random kernel panics (kernel bug)
http://rh.gd/1oBUeCc
• Hardware outages (hw & power failures)
• …

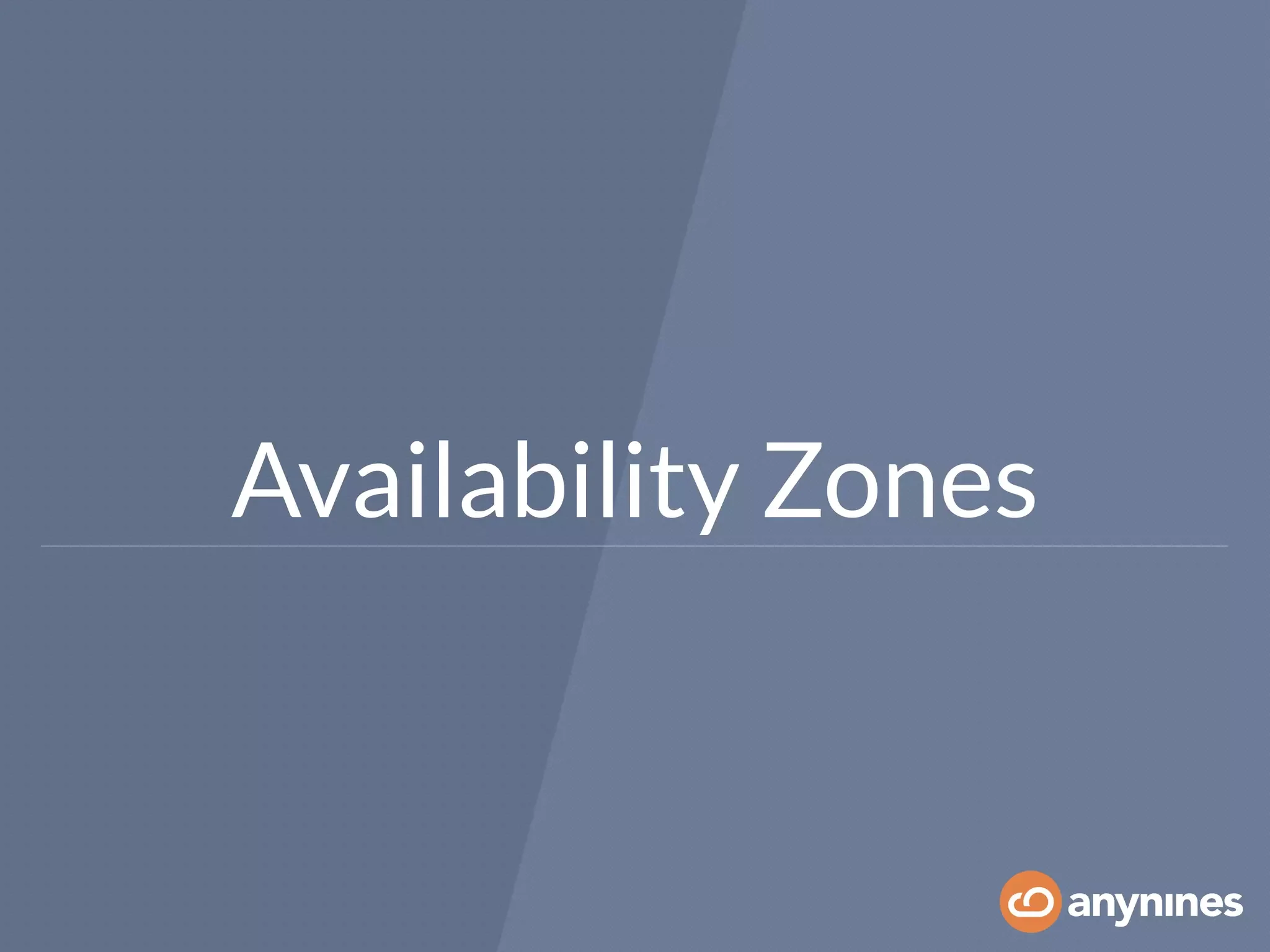

24. Availability Zones

25. • Build disjunct networks, racks, etc.
• Each disjunct zone = availability zone
• Tell OpenStack about availability zones
• On provision you can choose the AZ
• Build Bosh releases accordingly

26. Aggregates

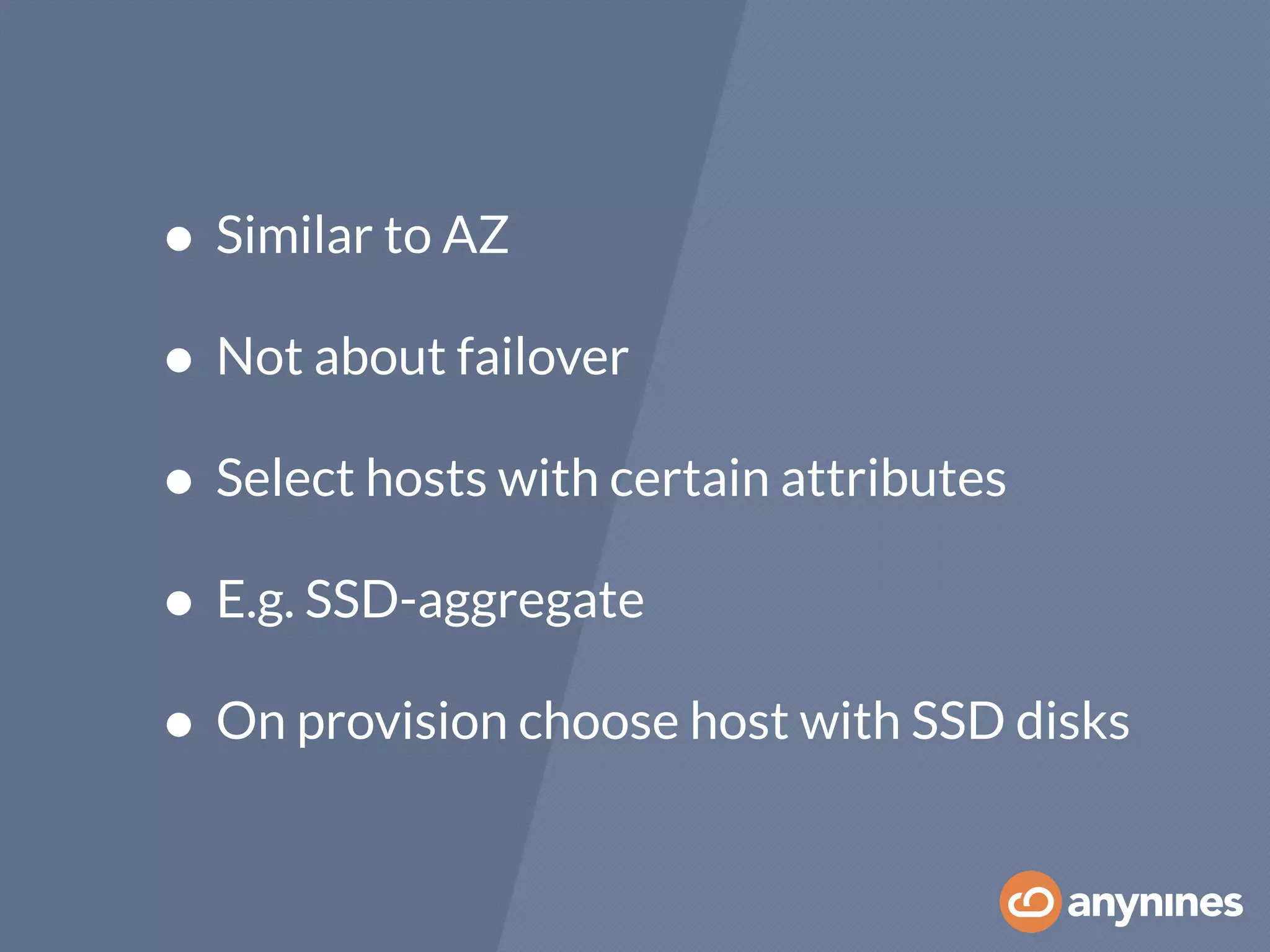

27. • Similar to AZ
• Not about failover
• Select hosts with certain attributes
• E.g. SSD-aggregate
• On provision choose host with SSD disks

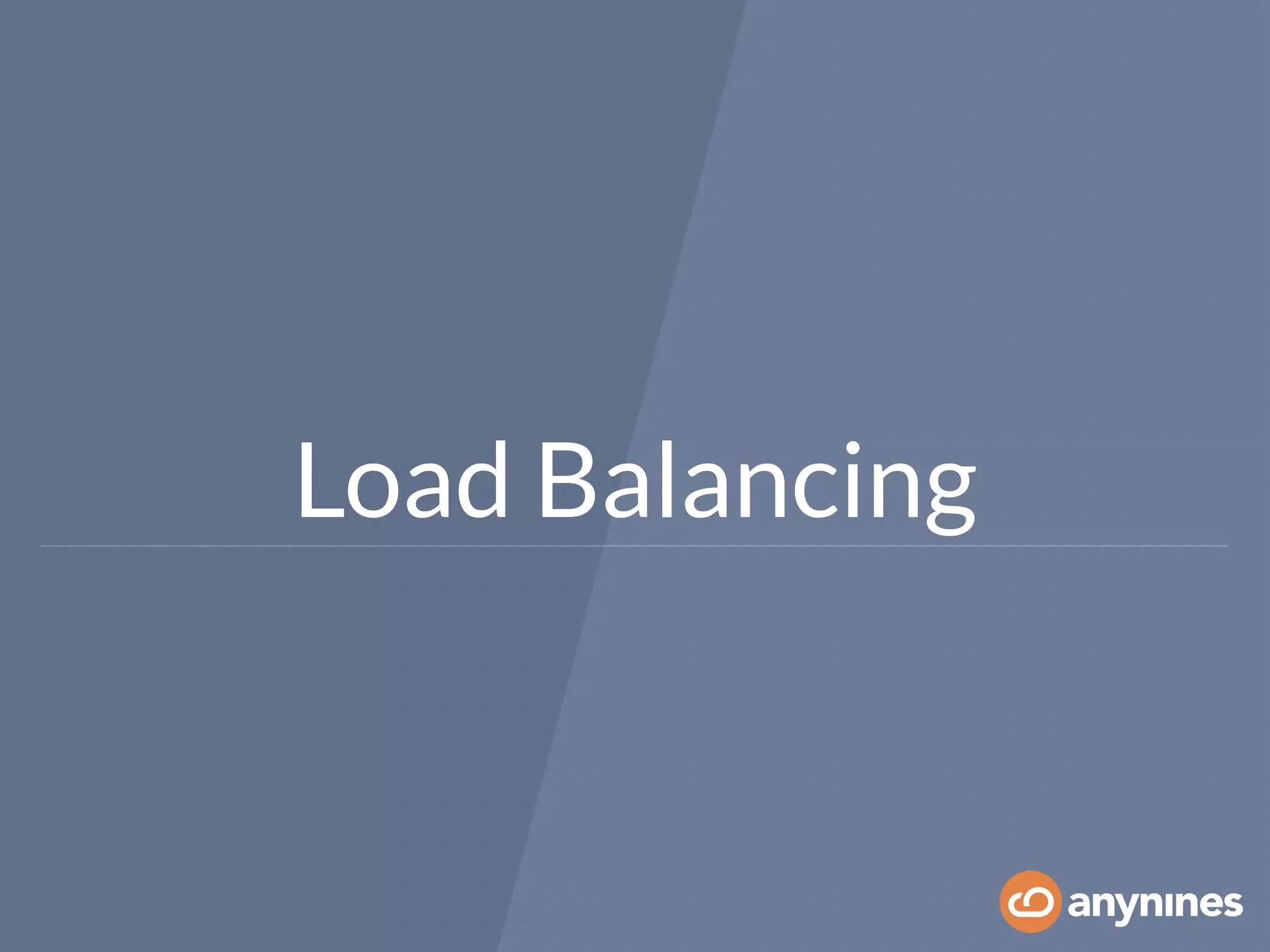

28. Load Balancing

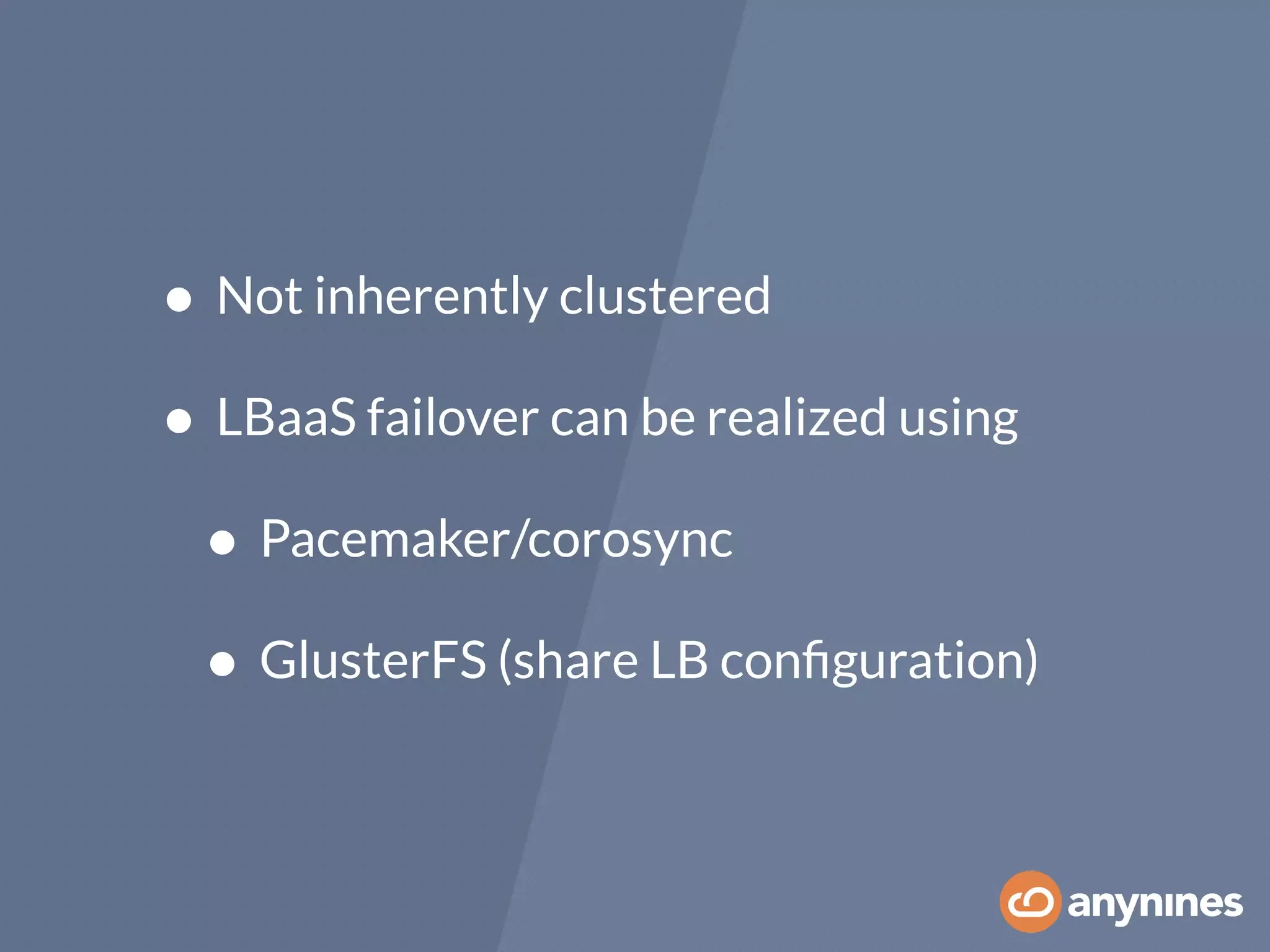

29. • Not inherently clustered
• LBaaS failover can be realized using
• Pacemaker/corosync
• GlusterFS (share LB configuration)

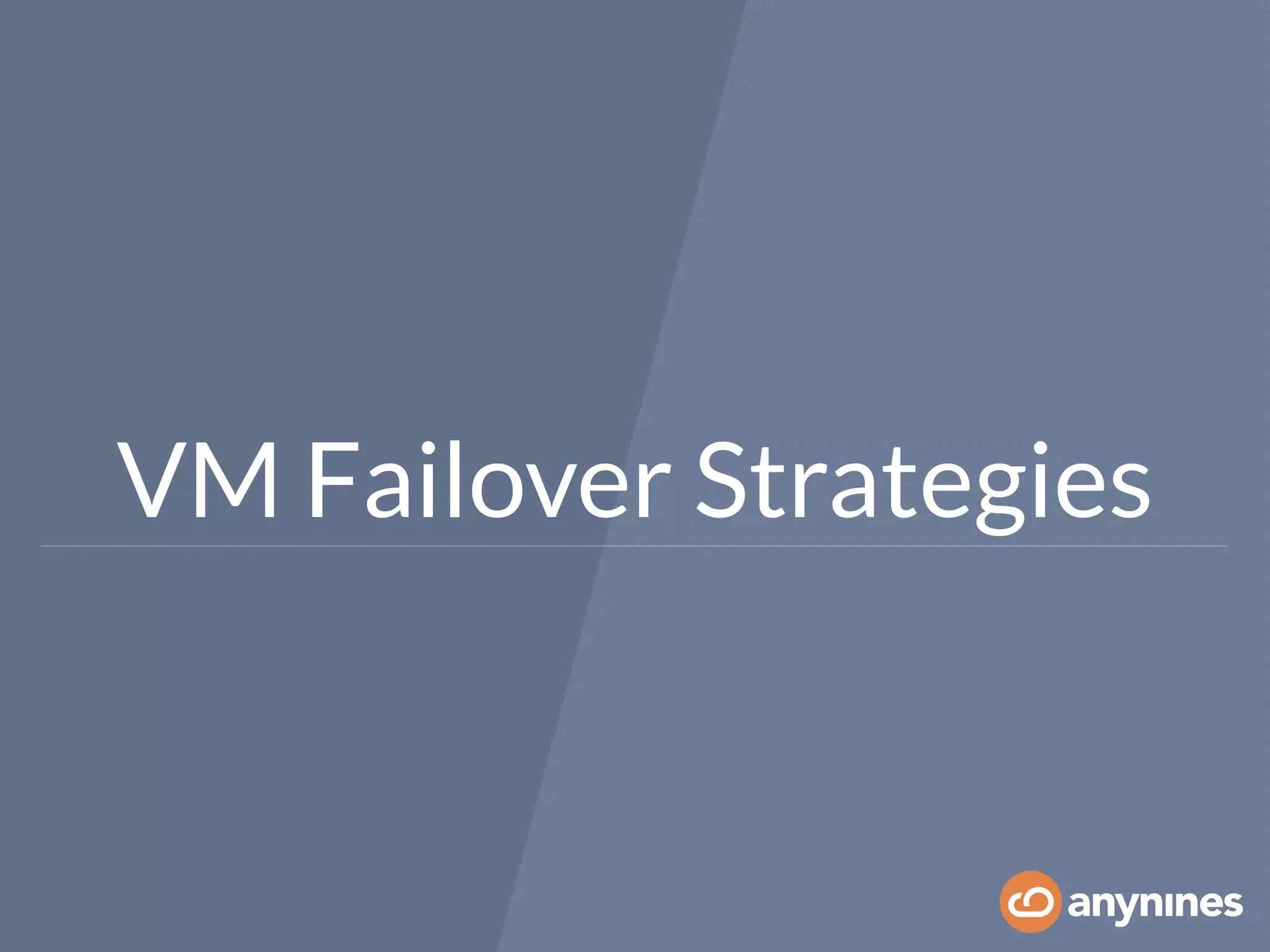

30. VM Failover Strategies

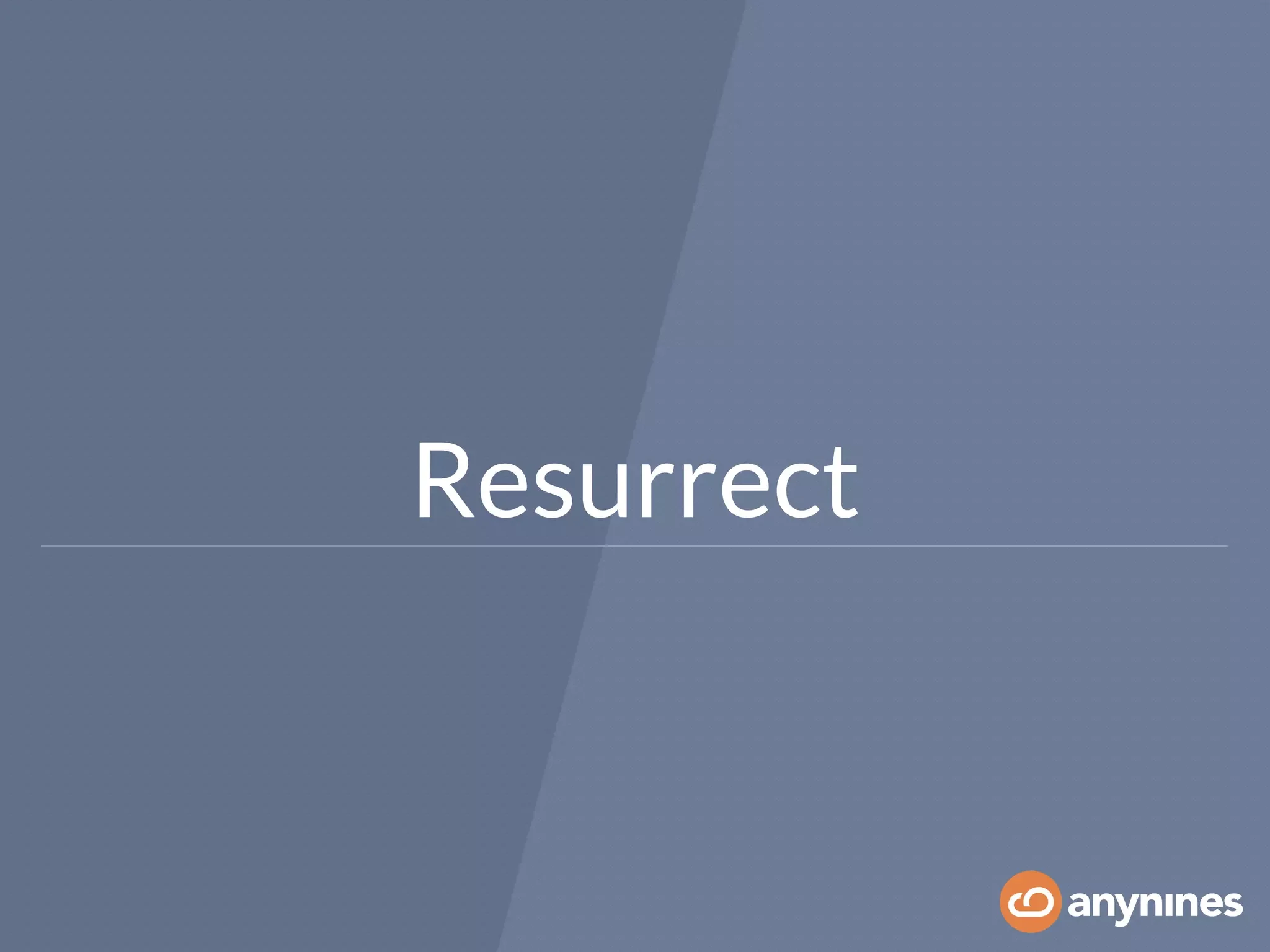

31. Resurrect

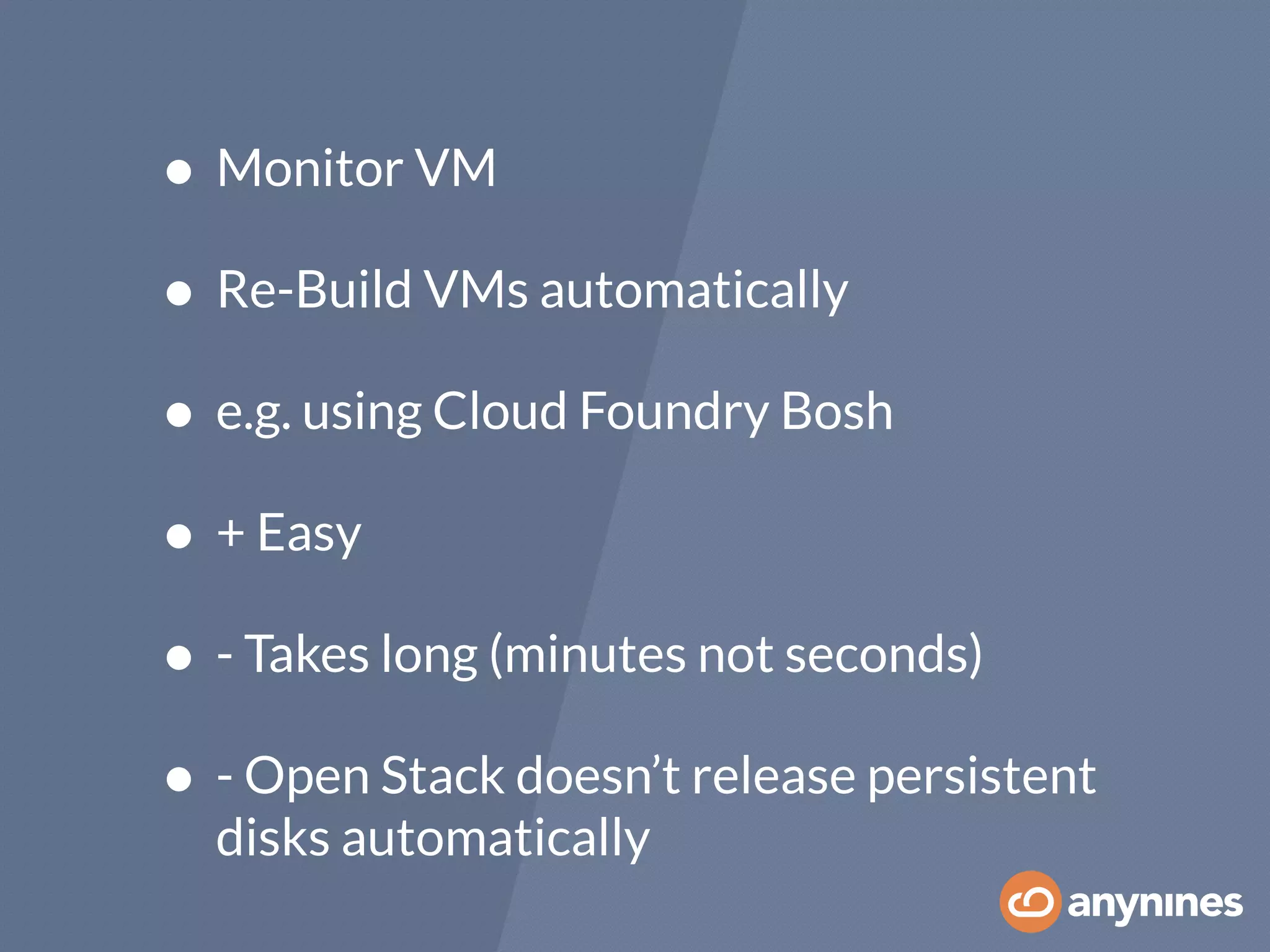

32. • Monitor VM
• Re-Build VMs automatically
• e.g. using Cloud Foundry Bosh
• + Easy
• - Takes long (minutes not seconds)
• - Open Stack doesn’t release persistent
disks automatically

33. Failover to Standby VM

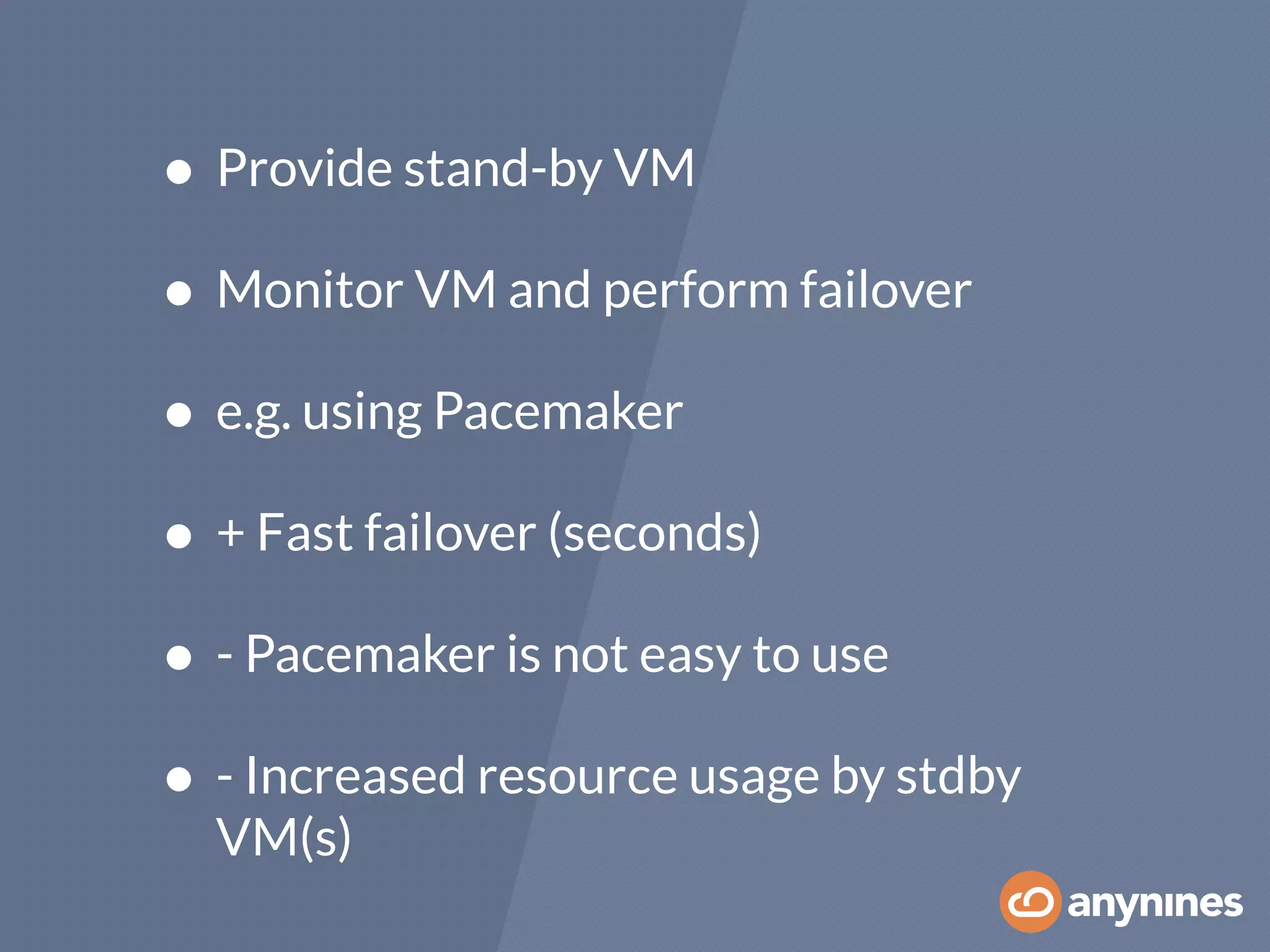

34. • Provide stand-by VM
• Monitor VM and perform failover
• e.g. using Pacemaker
• + Fast failover (seconds)
• - Pacemaker is not easy to use
• - Increased resource usage by stdby
VM(s)

35. IP Failover

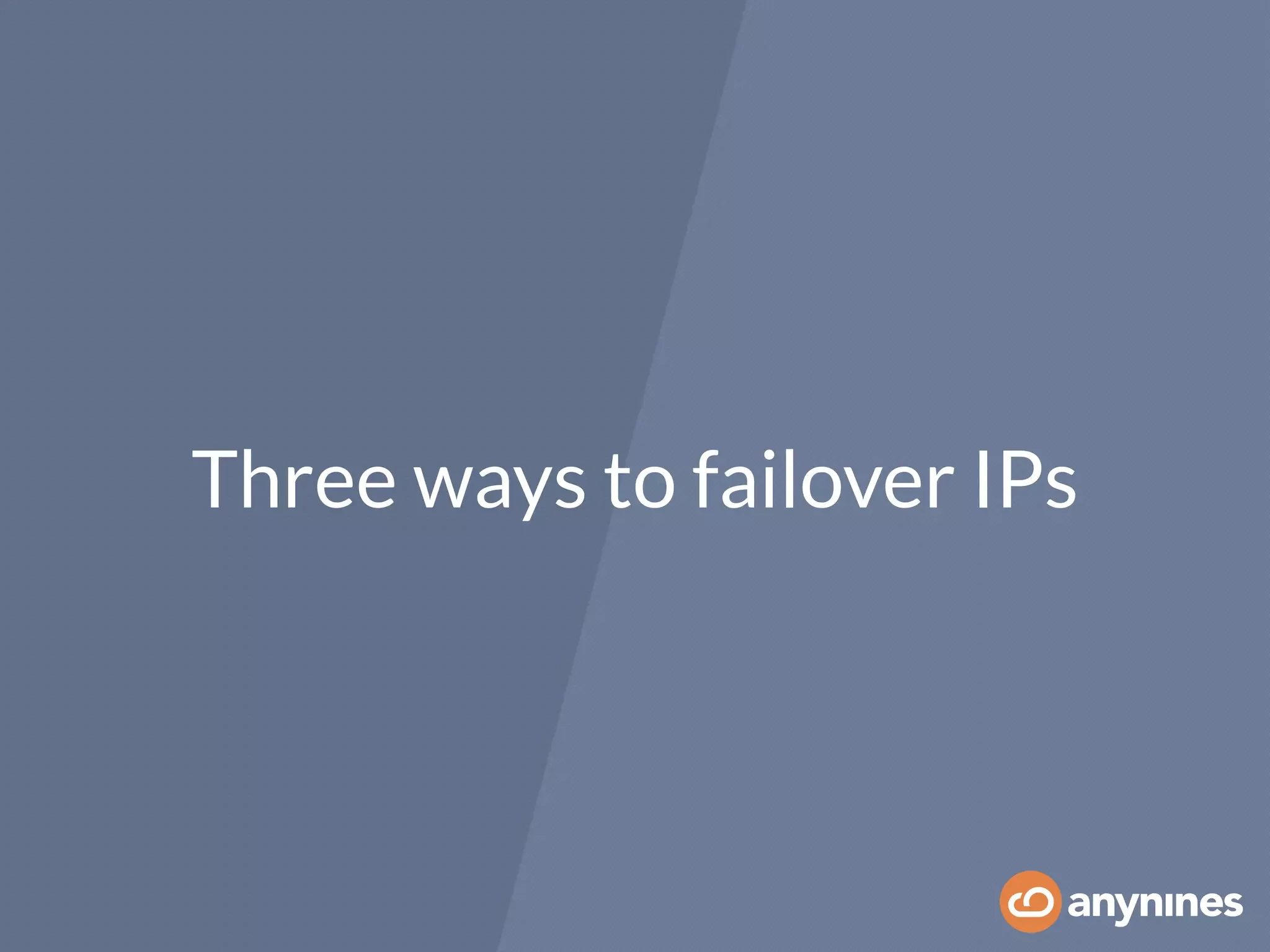

36. Three ways to failover IPs

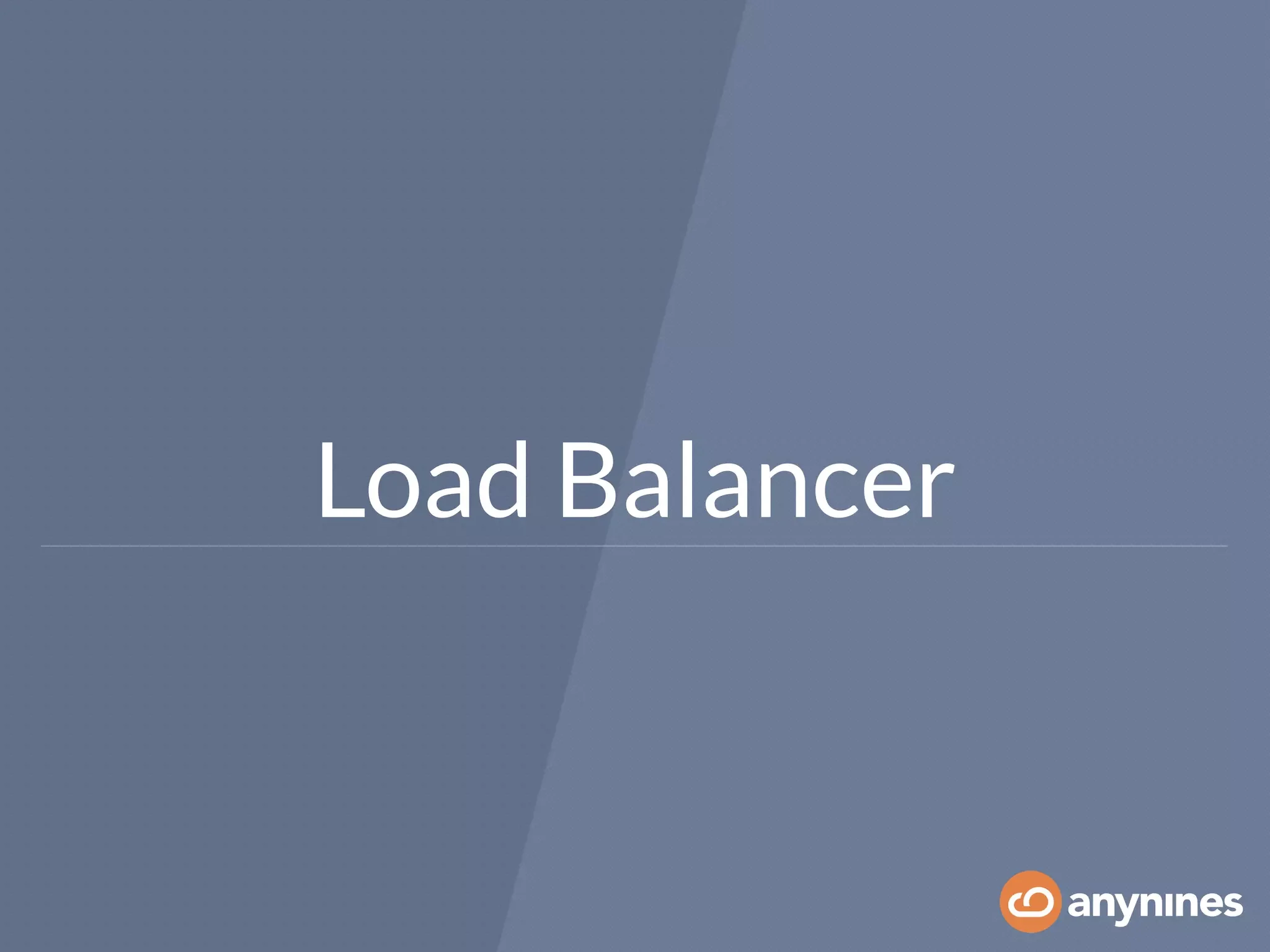

37. Load Balancer

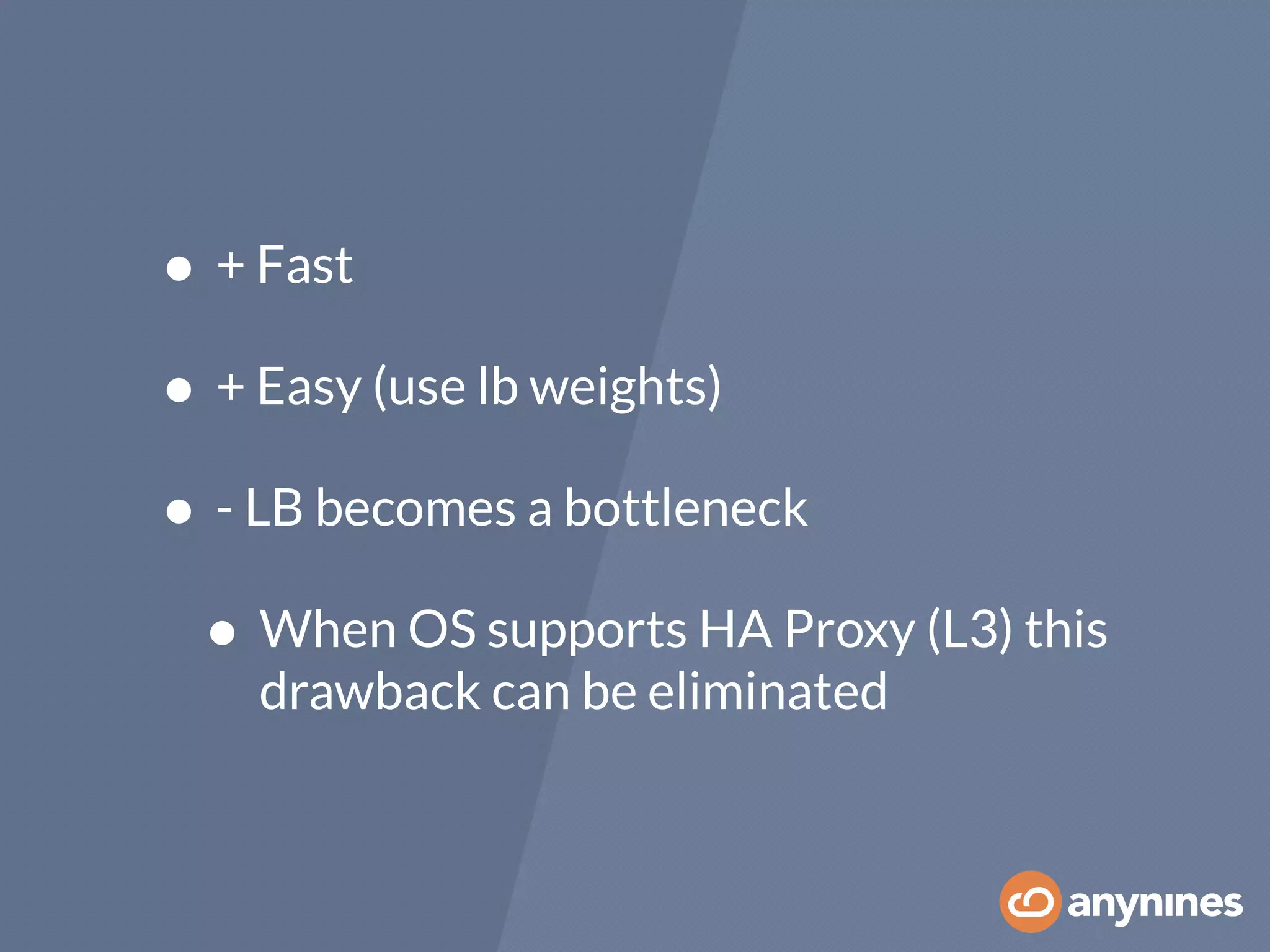

38. • + Fast
• + Easy (use lb weights)
• - LB becomes a bottleneck
• When OS supports HA Proxy (L3) this
drawback can be eliminated

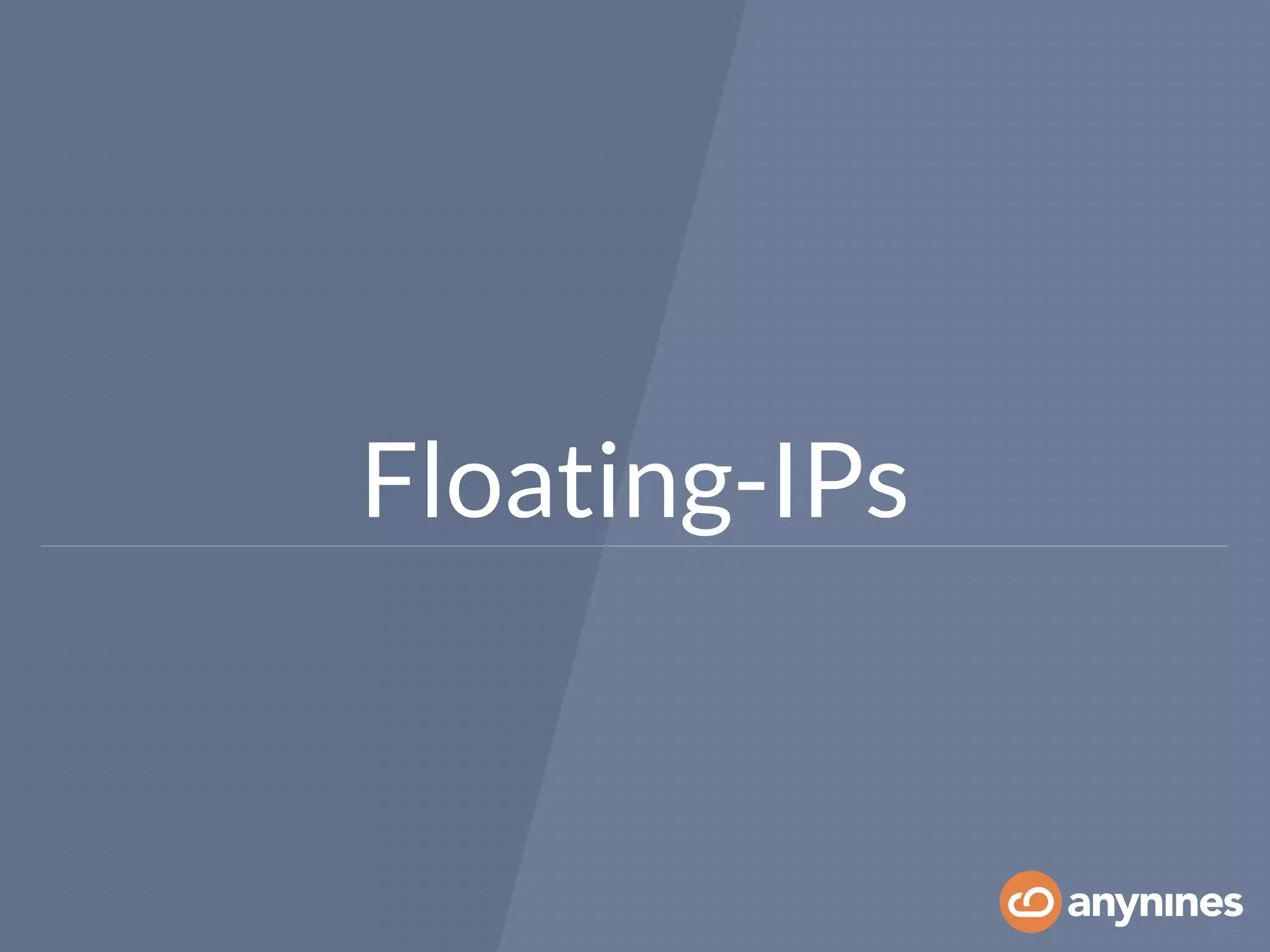

39. Floating-IPs

40. • + Easy
• + Fast
• - Only for public networking

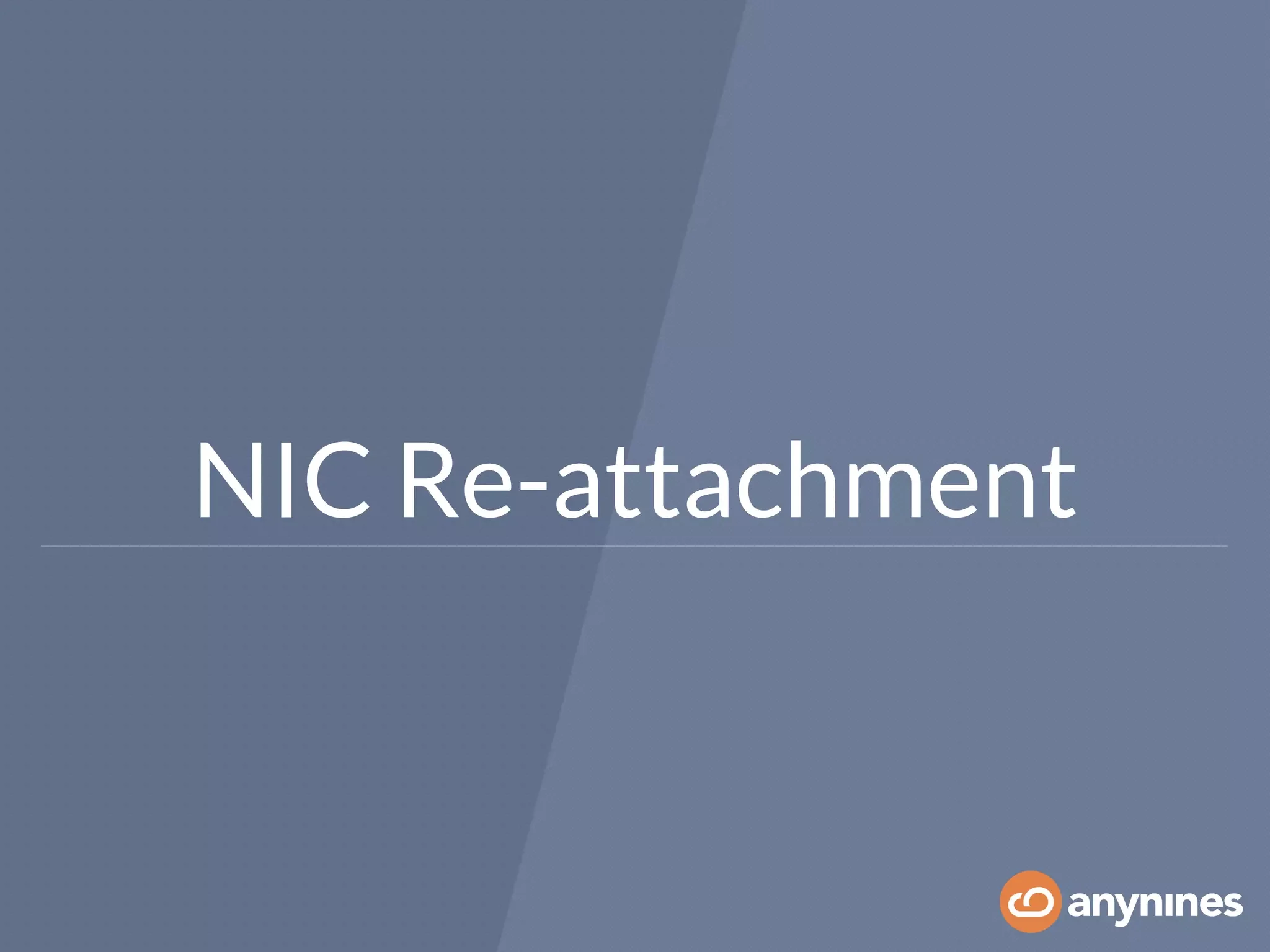

41. NIC Re-attachment

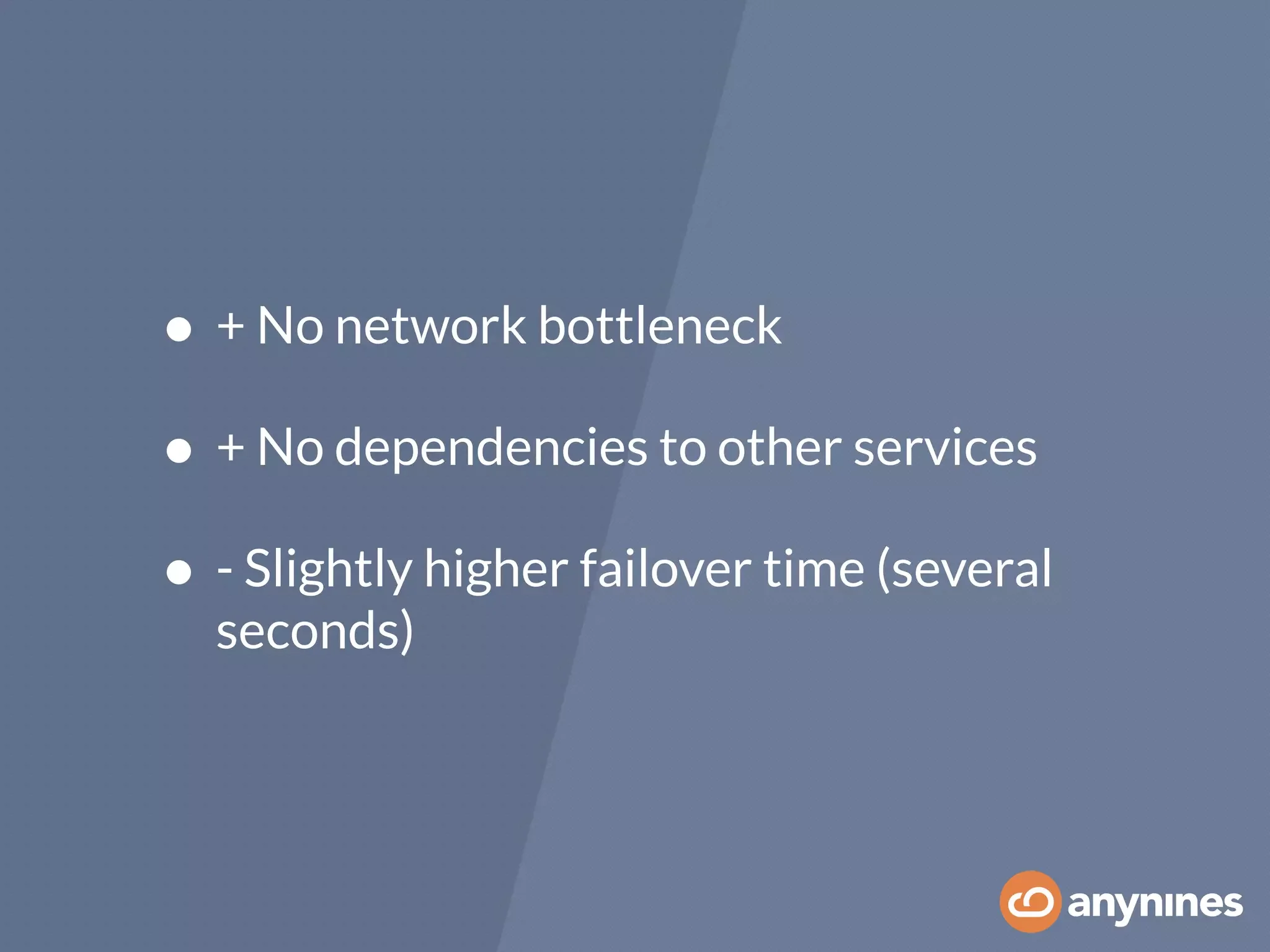

42. • + No network bottleneck
• + No dependencies to other services
• - Slightly higher failover time (several
seconds)

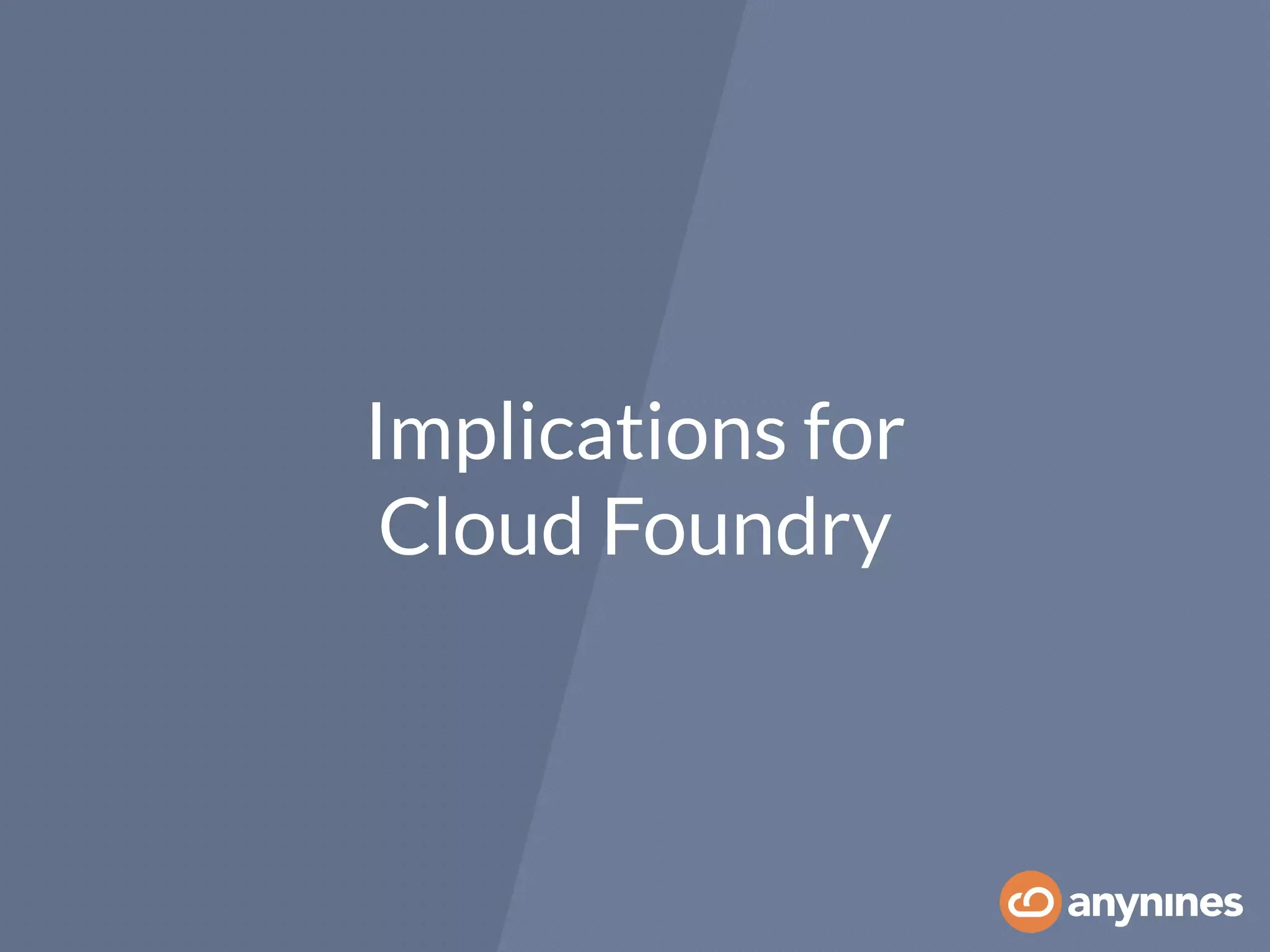

43. Implications for
Cloud Foundry

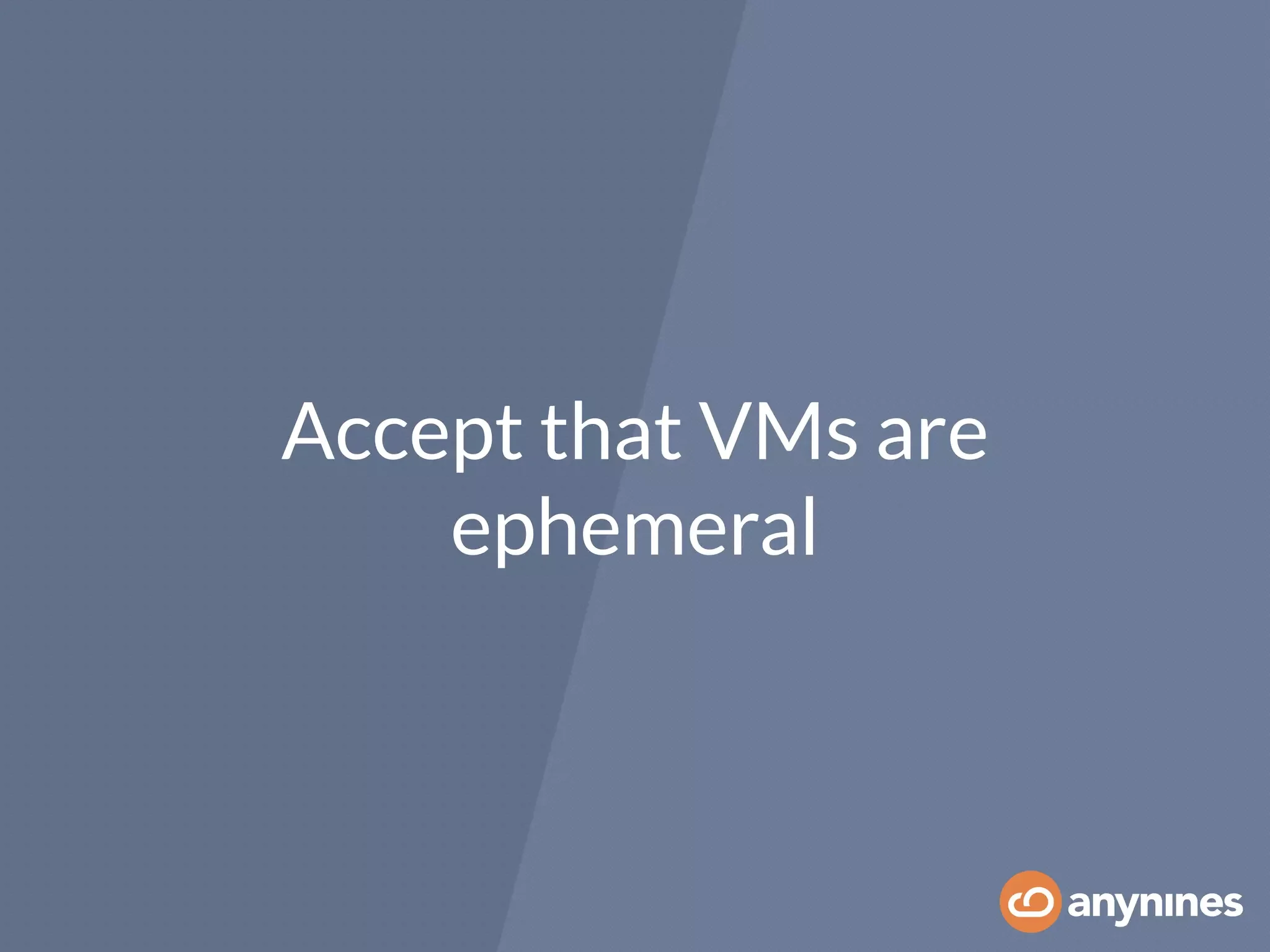

44. Accept that VMs are
ephemeral

45. Distribute CF components
across OS availability zones

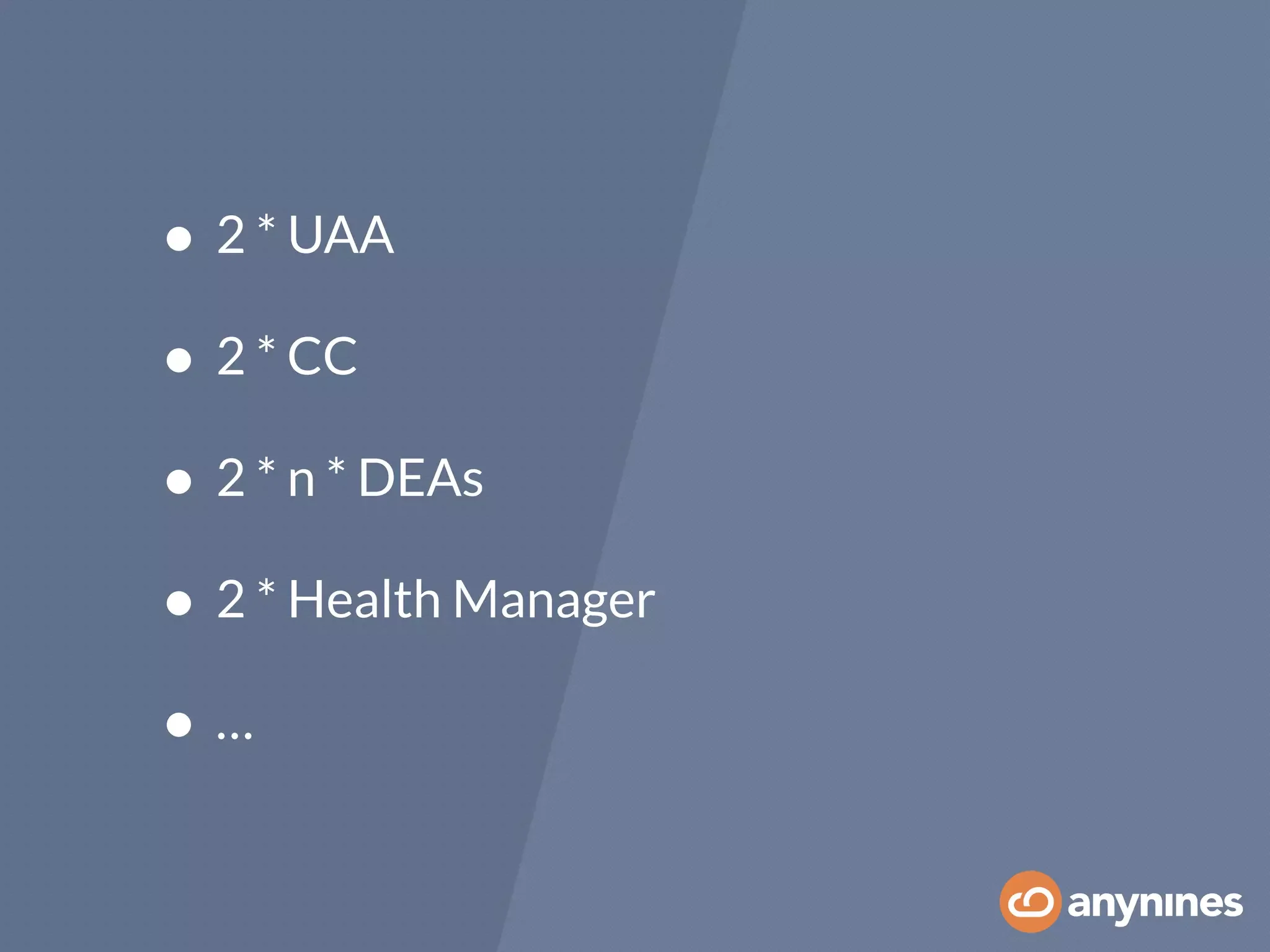

46. • 2 * UAA
• 2 * CC
• 2 * n * DEAs
• 2 * Health Manager
• …

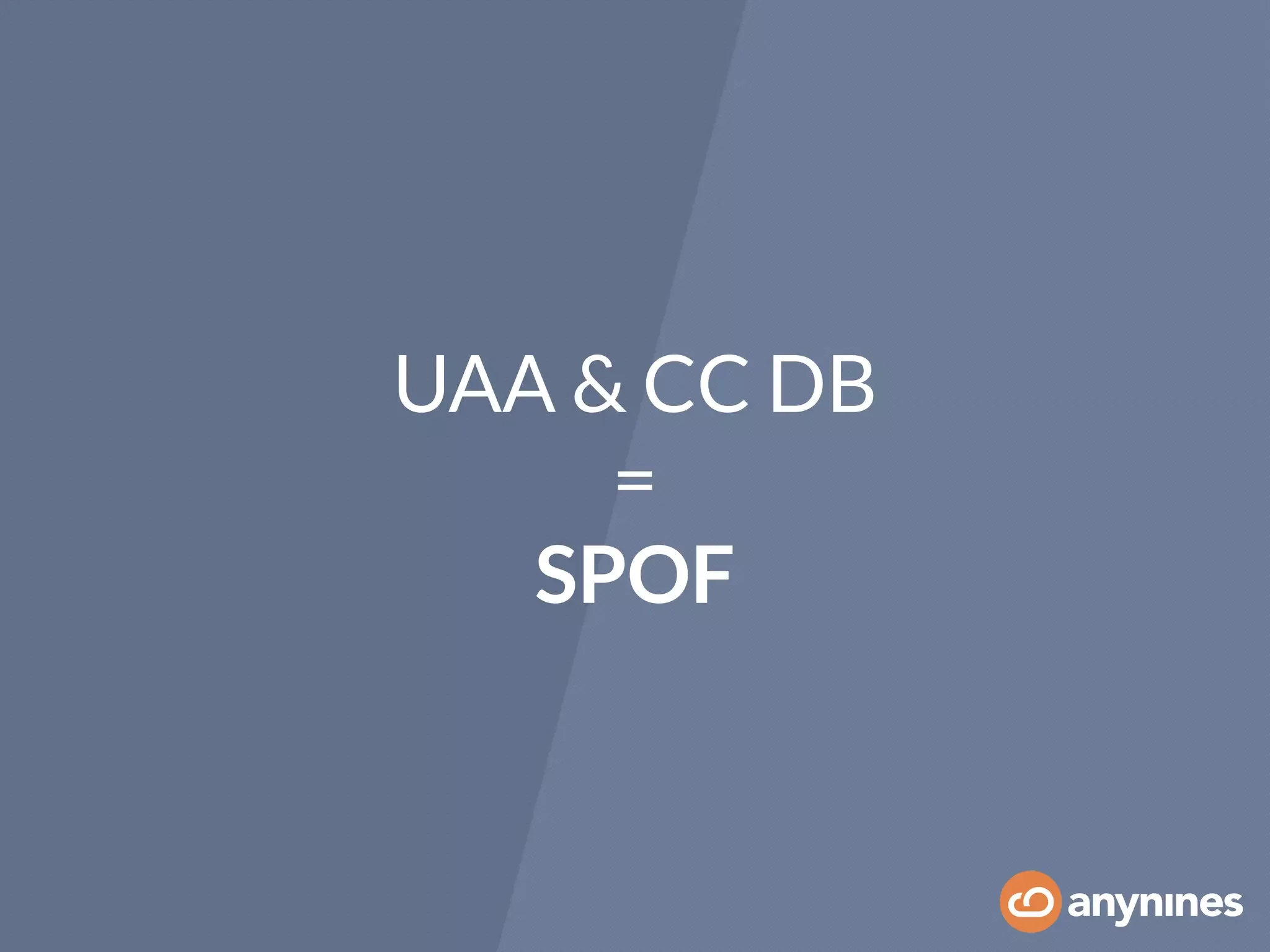

47. UAA & CC DB
=
SPOF

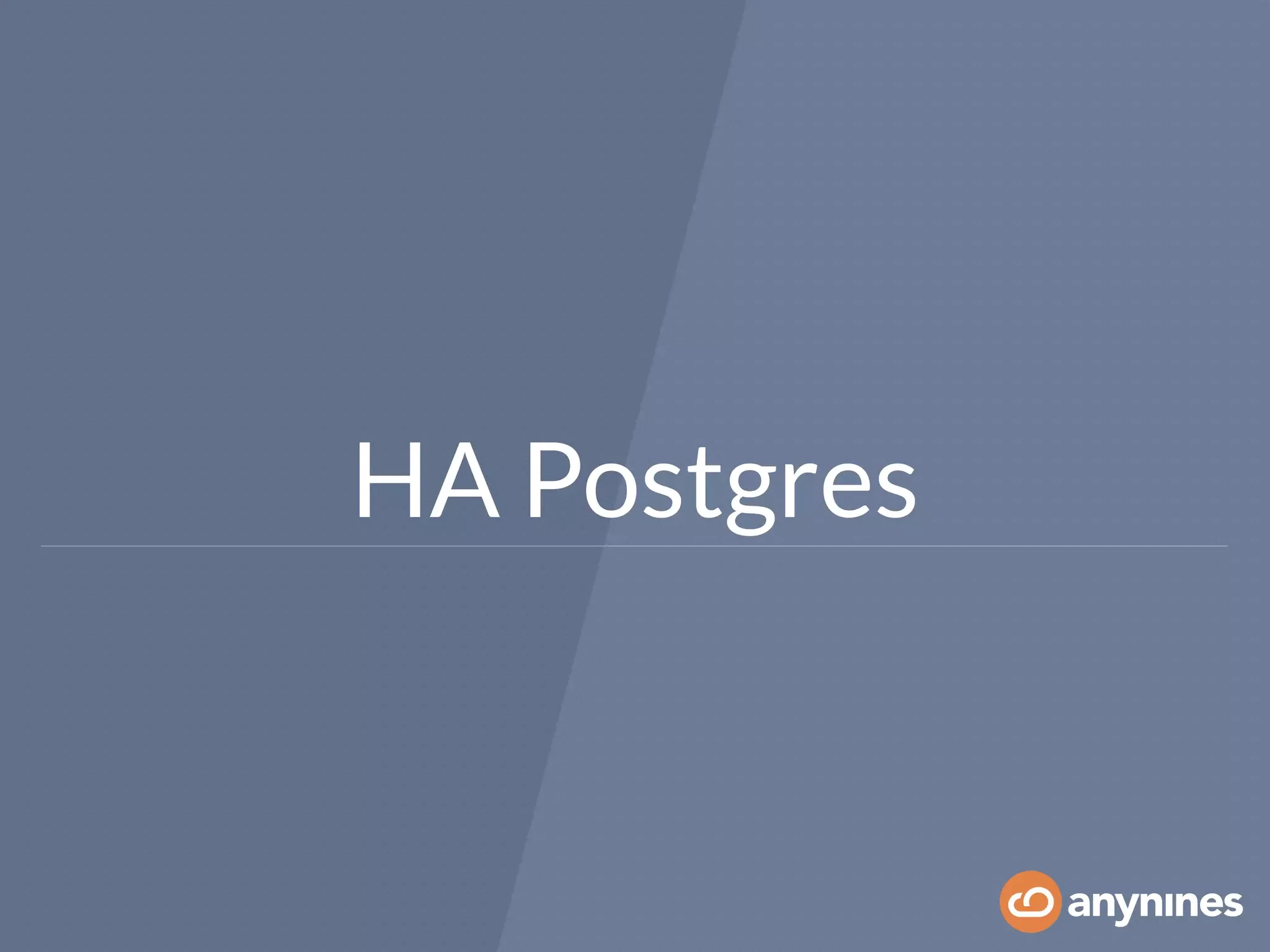

48. HA Postgres

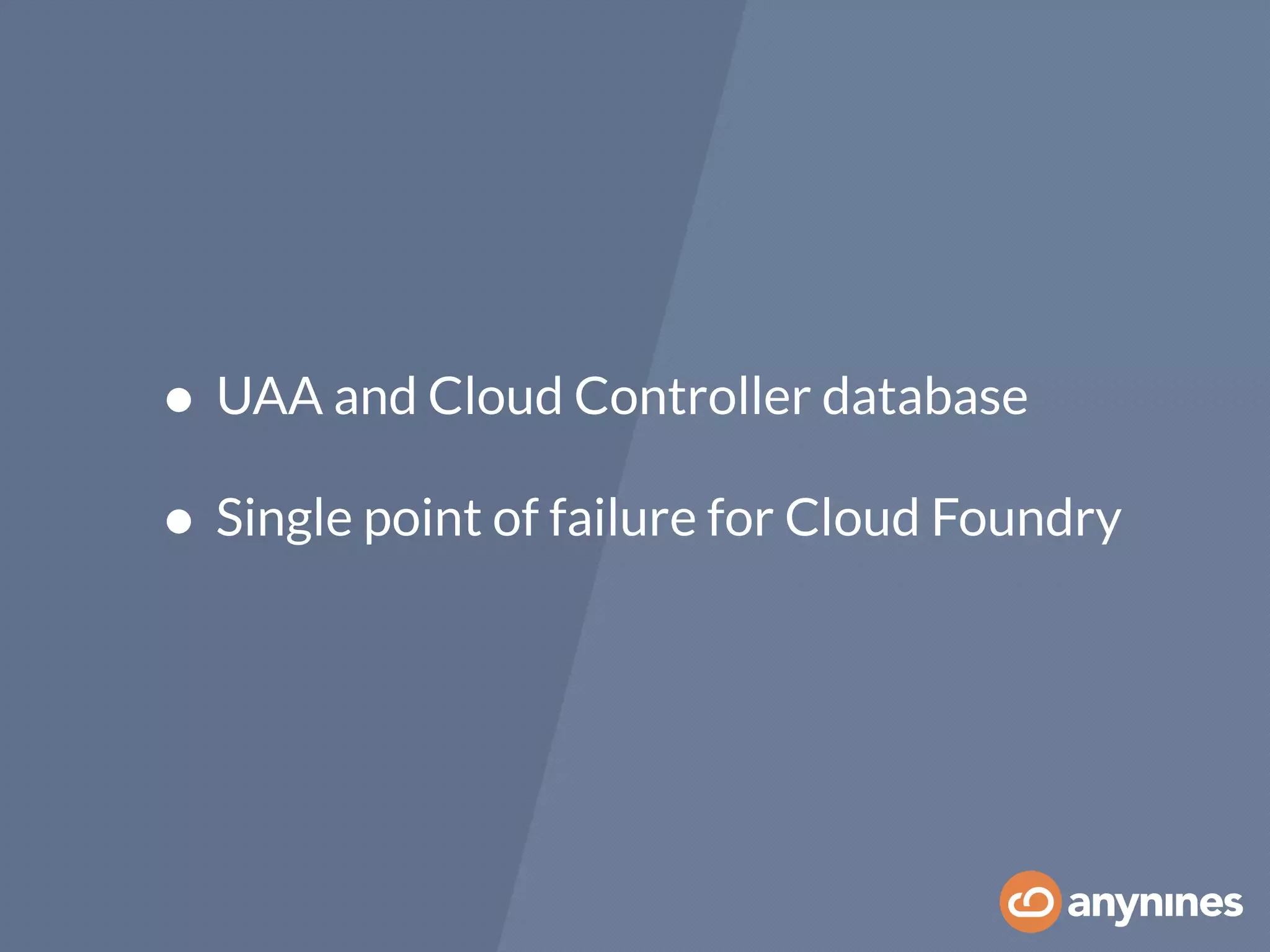

49. • UAA and Cloud Controller database
• Single point of failure for Cloud Foundry

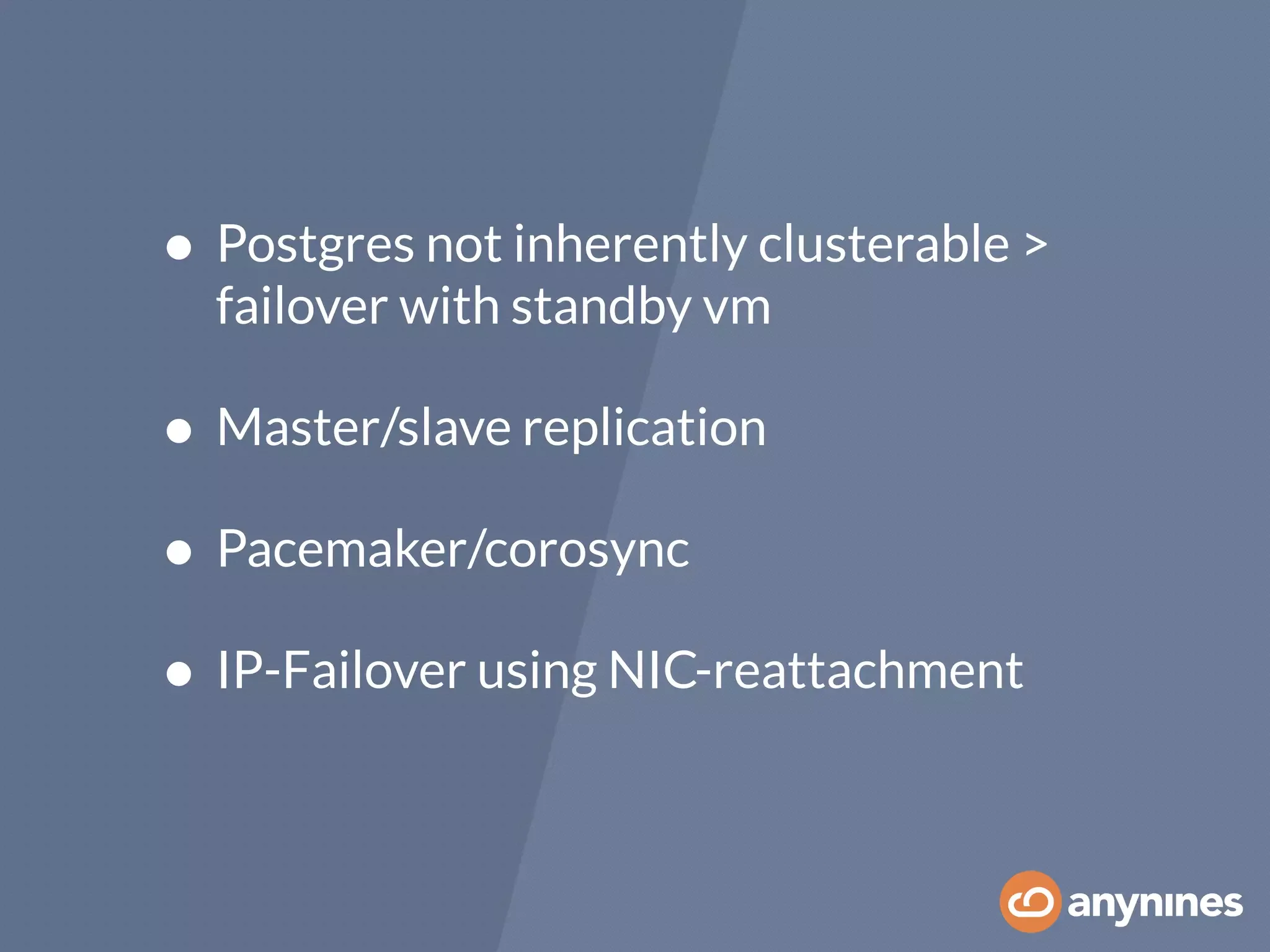

50. • Postgres not inherently clusterable >
failover with standby vm
• Master/slave replication
• Pacemaker/corosync
• IP-Failover using NIC-reattachment

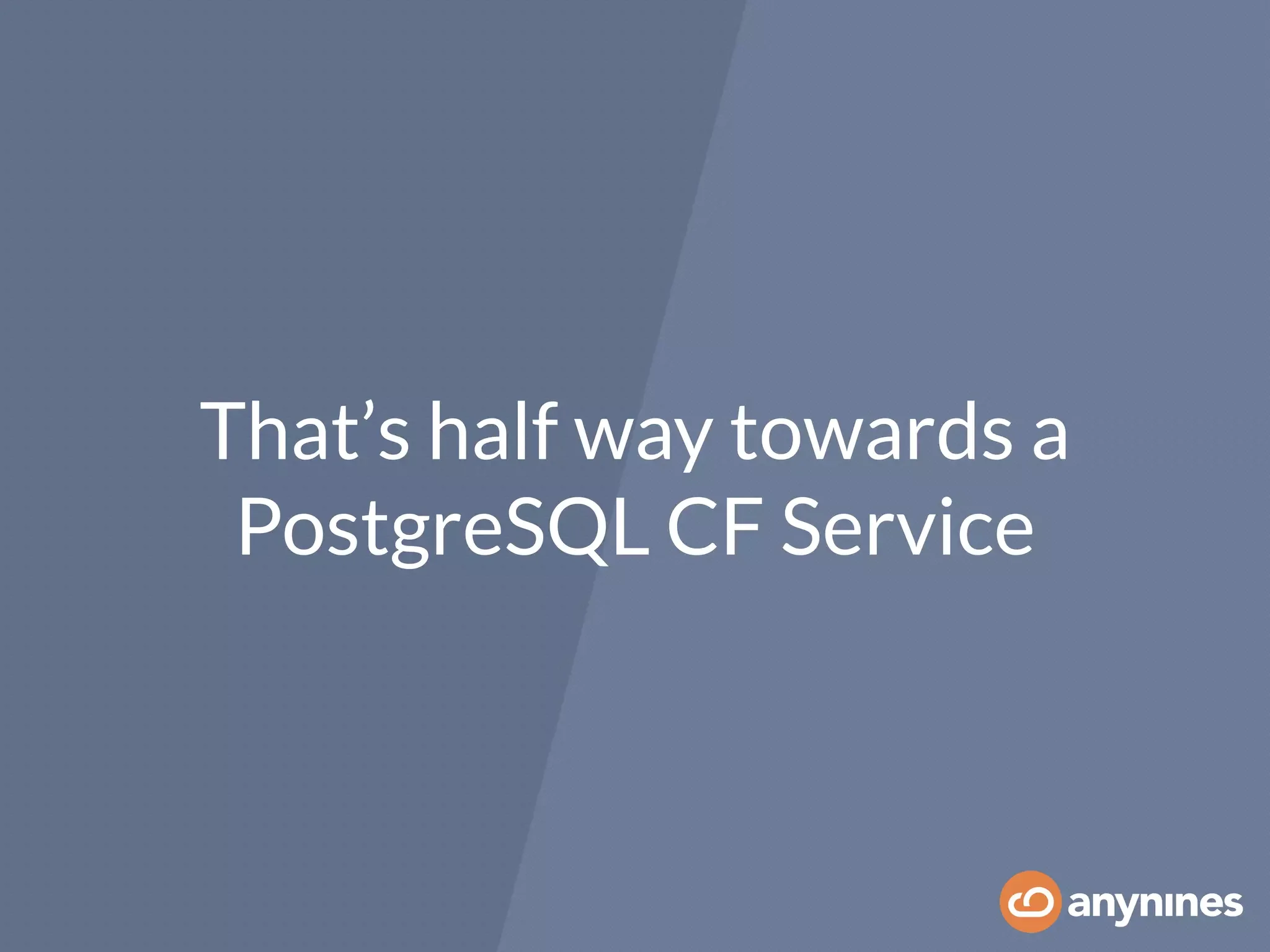

51. That’s half way towards a
PostgreSQL CF Service

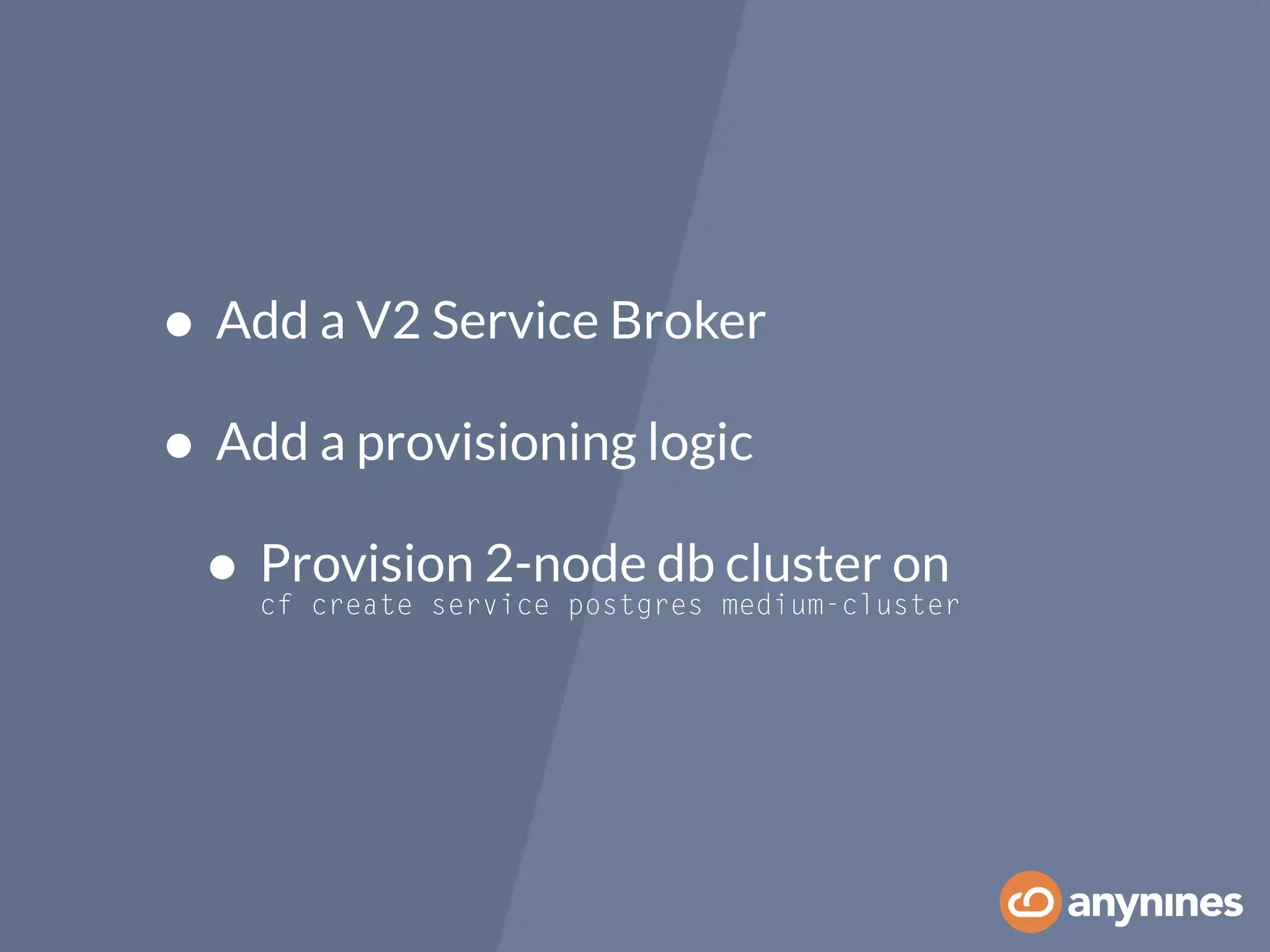

52. • Add a V2 Service Broker
• Add a provisioning logic
• Provision 2-node db cluster on
cf create service postgres medium-cluster

53. CF Service Design

54. • Use clusterable services if possible
• Implement automatic failover if not
• Autoprovisioning using Bosh
• Organize self-healing
• (Semi-)Automatic recovery from
degraded mode

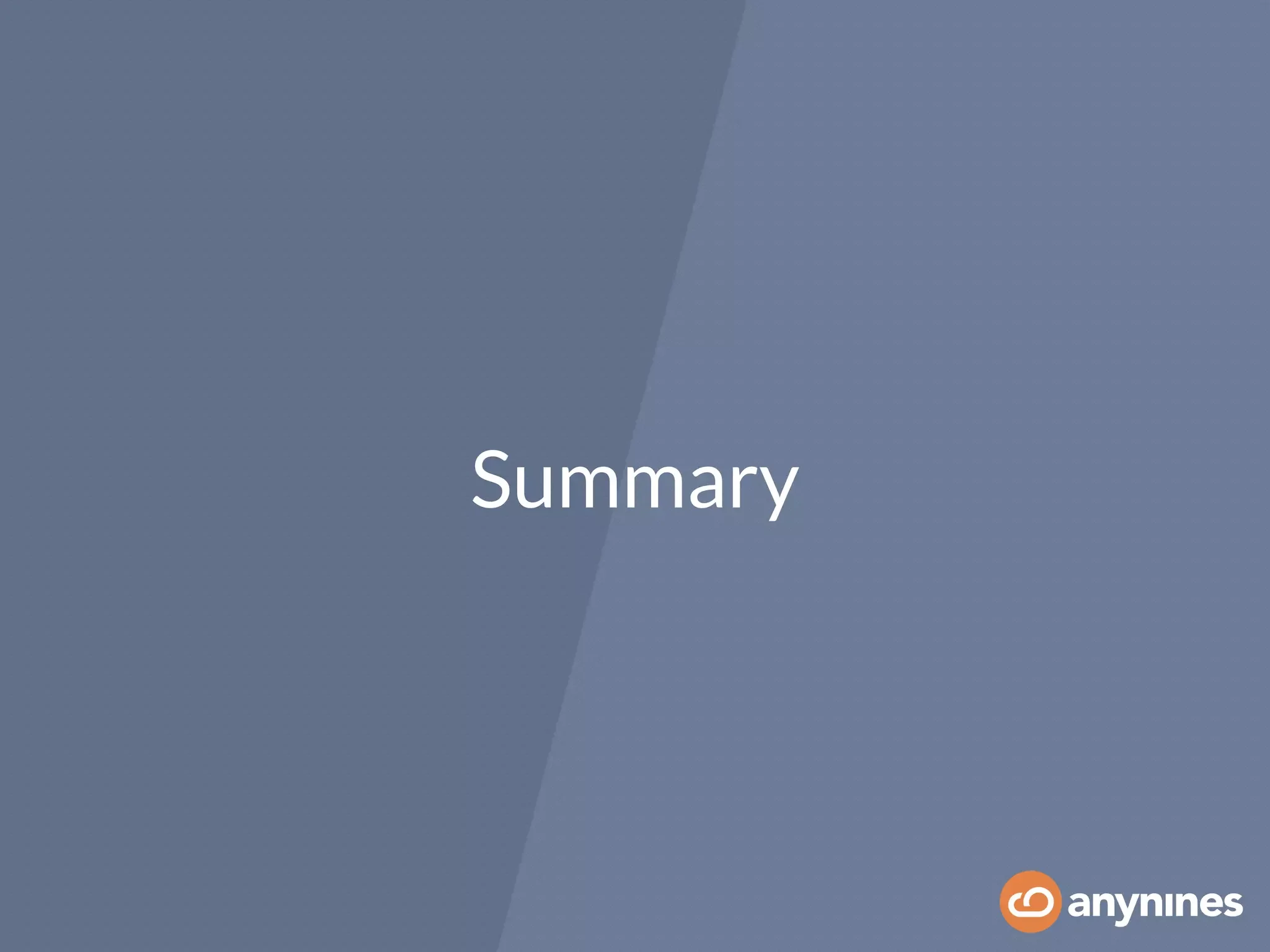

55. Summary

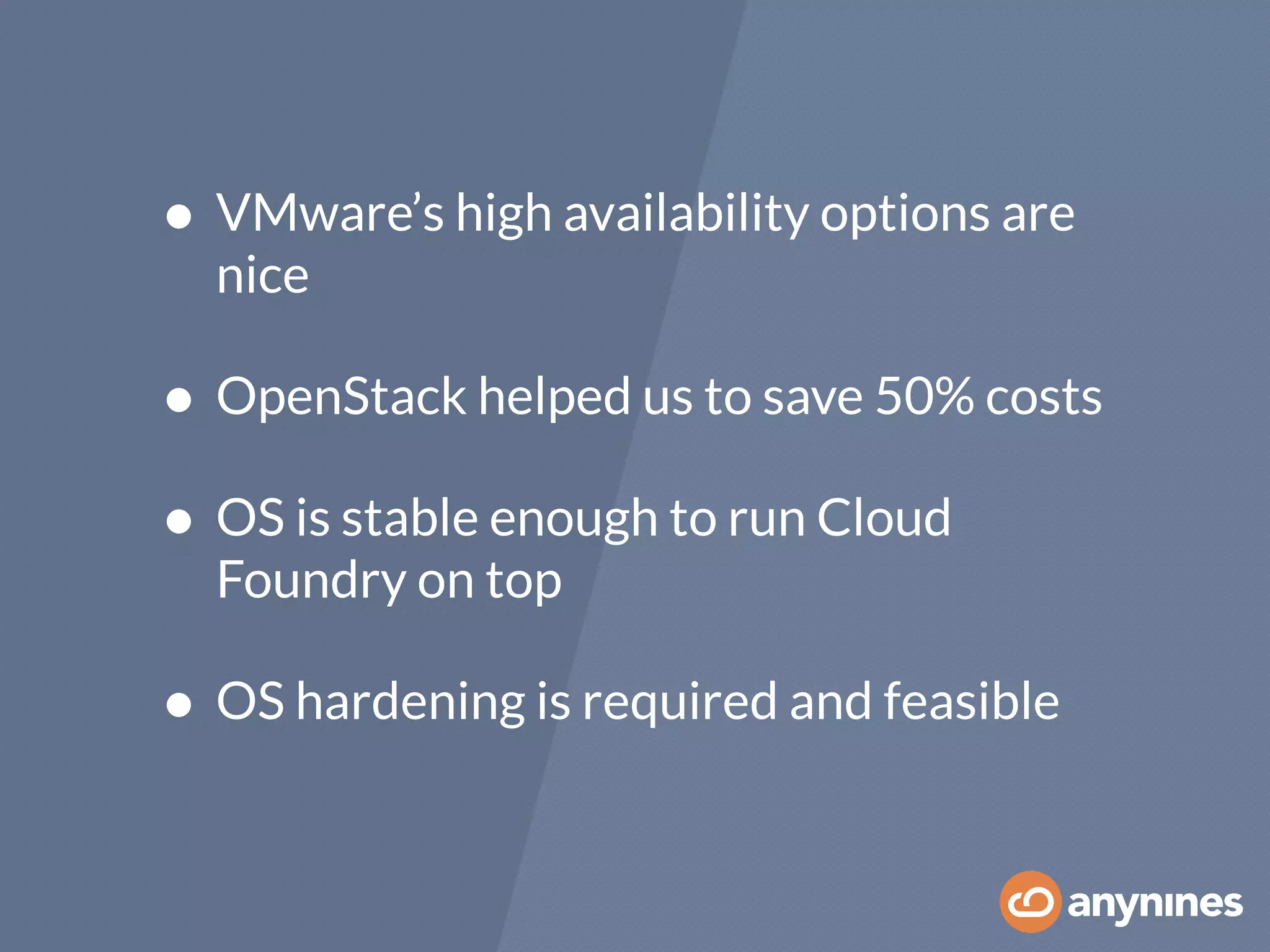

56. • VMware’s high availability options are
nice
• OpenStack helped us to save 50% costs
• OS is stable enough to run Cloud
Foundry on top
• OS hardening is required and feasible

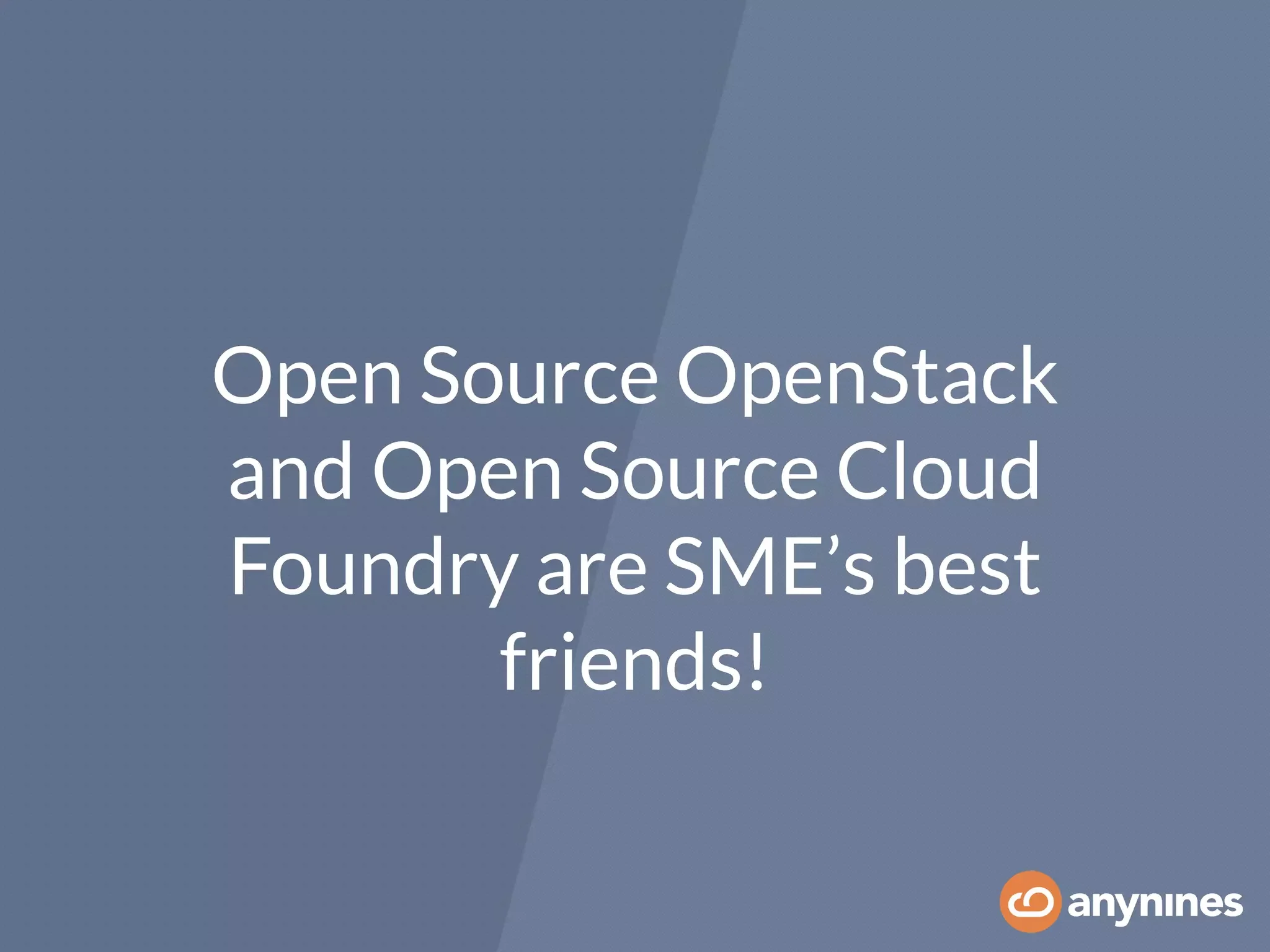

57. Open Source OpenStack
and Open Source Cloud
Foundry are SME’s best
friends!

58. Questions?

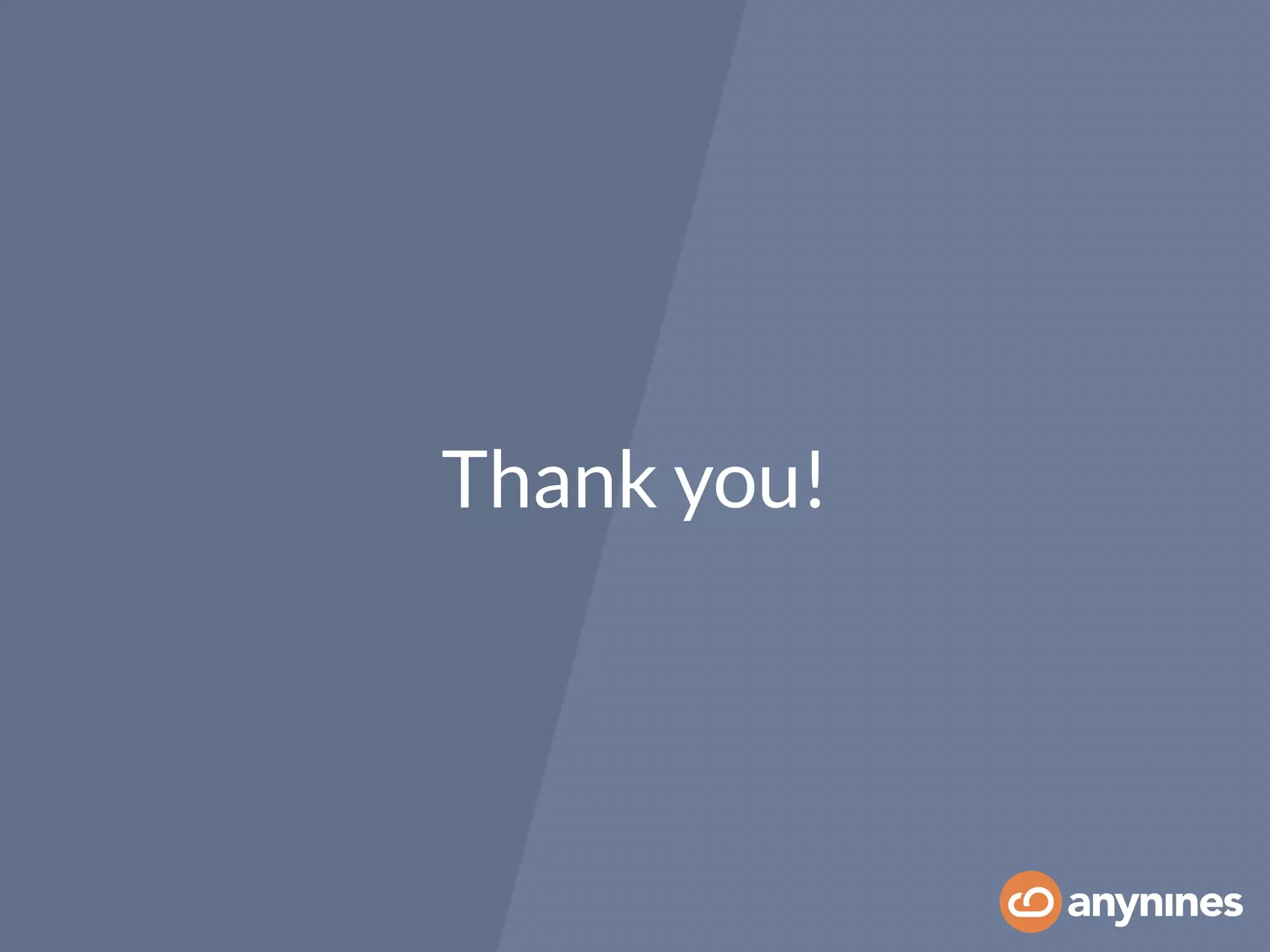

59. Thank you!

60. Preparing for
disaster recovery

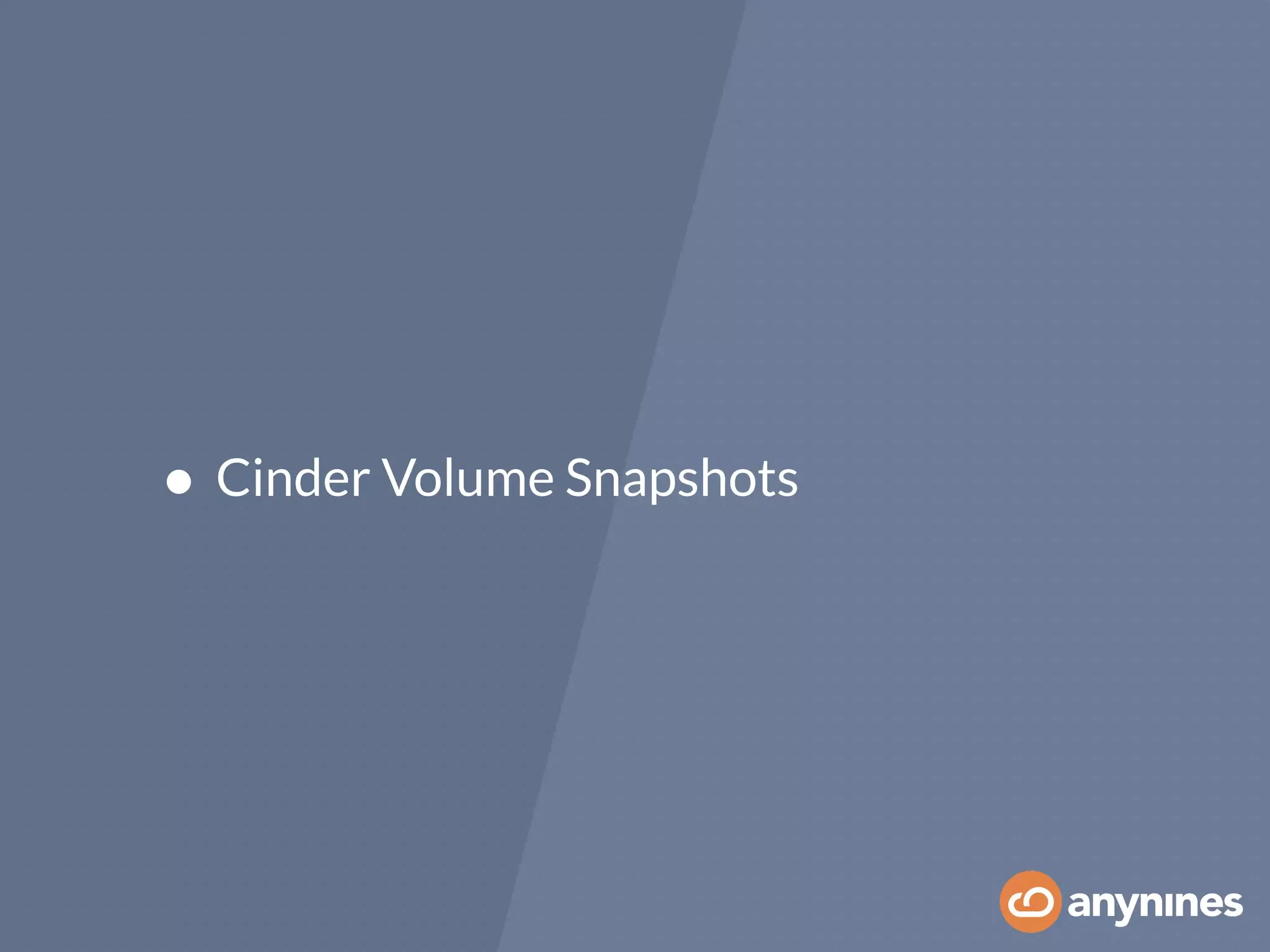

61. • Cinder Volume Snapshots

62. OpenStack Backups

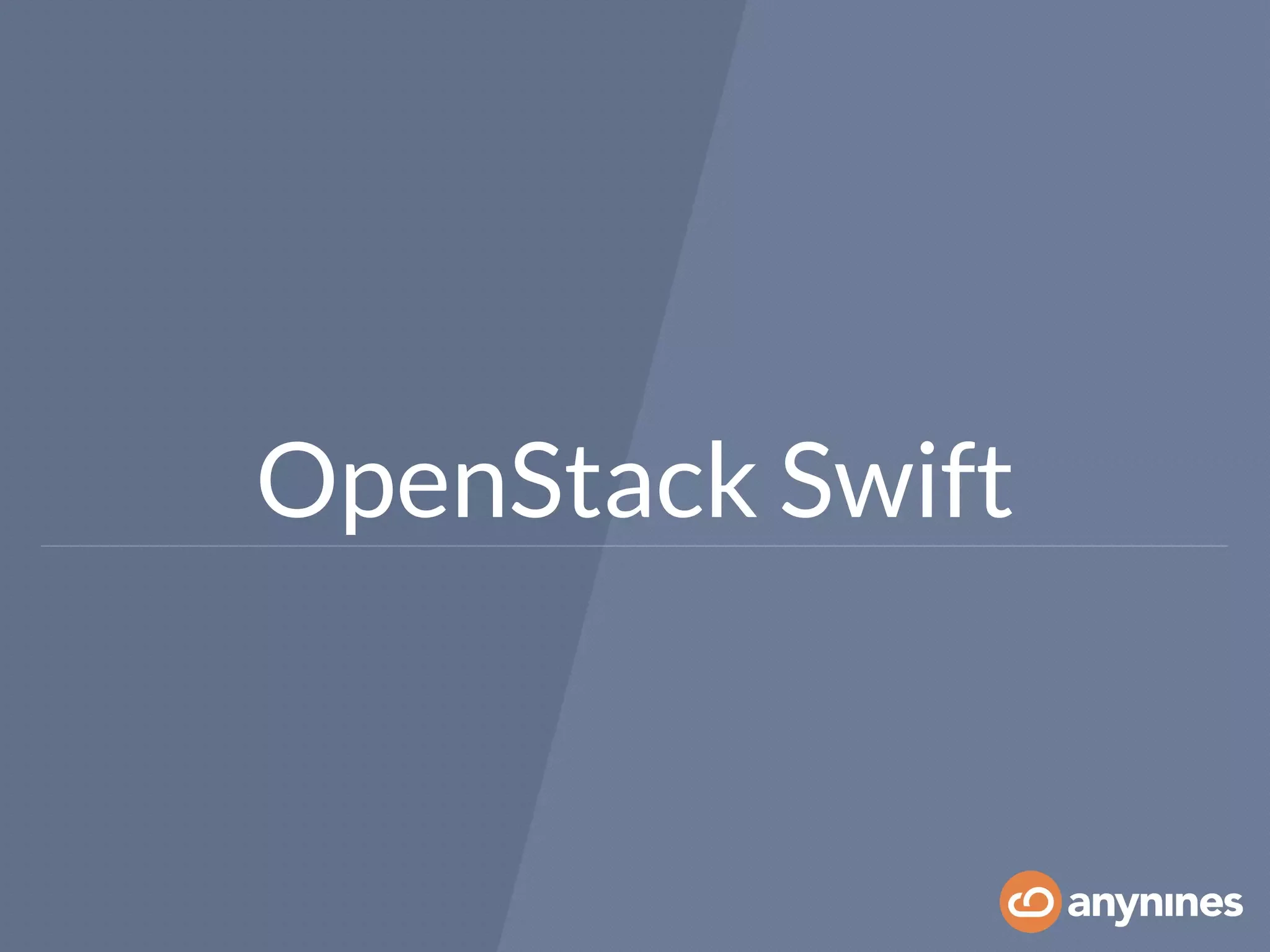

63. OpenStack Swift

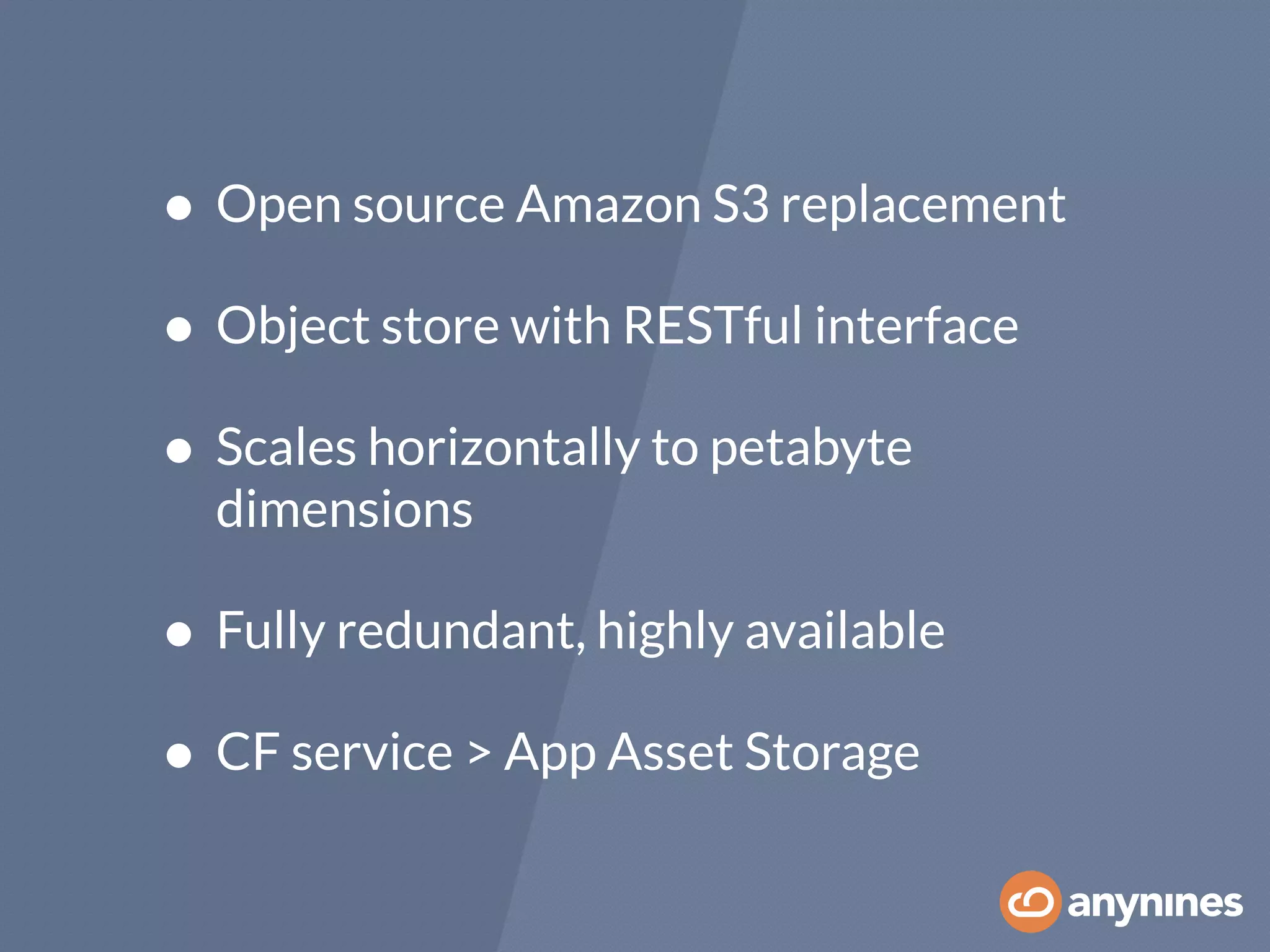

64. • Open source Amazon S3 replacement
• Object store with RESTful interface
• Scales horizontally to petabyte
dimensions
• Fully redundant, highly available
• CF service > App Asset Storage

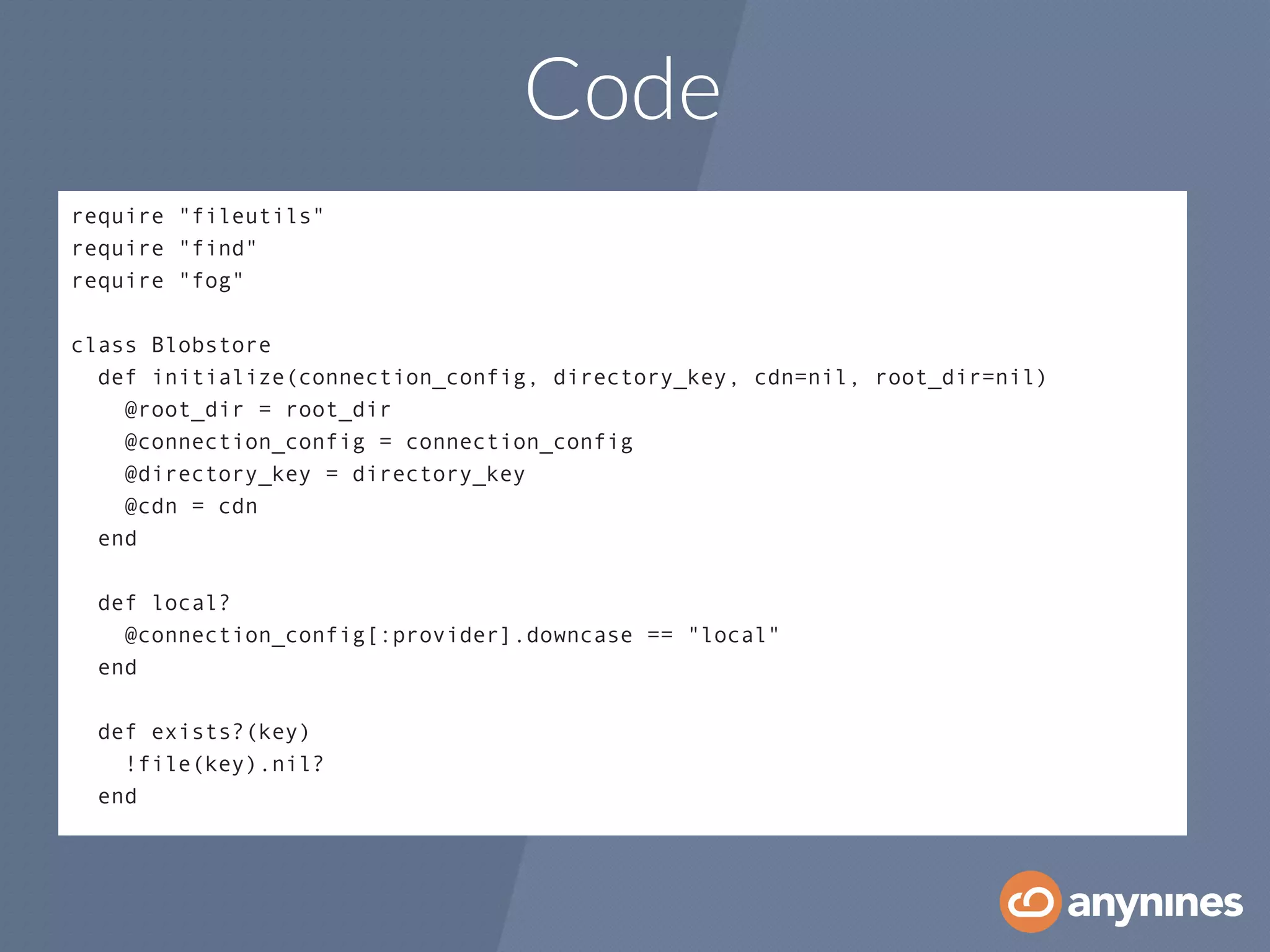

65. Code
require "fileutils"
require "find"
require "fog"
!
class Blobstore
def initialize(connection_config, directory_key, cdn=nil, root_dir=nil)
@root_dir = root_dir
@connection_config = connection_config
@directory_key = directory_key
@cdn = cdn
end
!
def local?
@connection_config[:provider].downcase == "local"
end
!
def exists?(key)
!file(key).nil?
end
