The document discusses utilizing BOSH for comprehensive lifecycle management of Cloud Foundry production environments, focusing on eliminating single points of failure (SPOFs) through clustering and redundancy. It emphasizes the importance of data services being production-ready and providing automated failover and monitoring mechanisms for PostgreSQL clusters. The document concludes by highlighting BOSH as an essential tool for automating Cloud Foundry deployments and addressing common infrastructure challenges.
More Related Content
![[NYC Meetup] Docker at Nuxeo](https://cdn.slidesharecdn.com/ss_thumbnails/dockermeetupnyc-140605110024-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
![[OpenStack Day in Korea 2015] Track 1-4 - VDI OpenStack? It Works!!!](https://cdn.slidesharecdn.com/ss_thumbnails/14-150213044503-conversion-gate02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Delivering a production Cloud Foundry Environment with Bosh | anynines
Delivering a production Cloud Foundry Environment with Bosh | anynines
- 1. Delivering a produc0on CFenv with Bosh
- 2.
- 3. • Few wordsabout Bosh • Deploying a produc0on run0me • Data services - The missing part
- 4.
- 5.
- 6. Comprehensive lifecycle management of distributedsystems with a single tool.

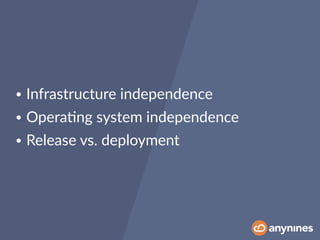

- 7. • Infrastructure independence •Opera0ng system independence • Release vs. deployment

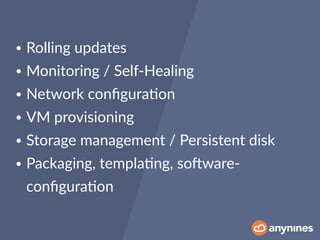

- 8. • Rolling updates •Monitoring / Self-Healing • Network configura0on • VM provisioning • Storage management / Persistent disk • Packaging, templa0ng, soOware- configura0on
- 9.
- 10.
- 11.
- 12.
- 13. A system isproduc0on ready, if nobody has to get up when ordinary failures occur.

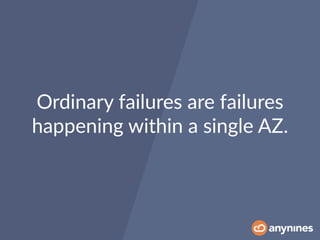

- 14. Ordinary failures arefailures happening within a single AZ.
- 15.
- 16.

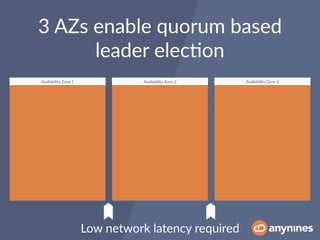

- 17. Availability Zone 1Availability Zone 2 Availability Zone 3 3 AZs enable quorum based leader elec0on Low network latency required
- 18.
- 19.

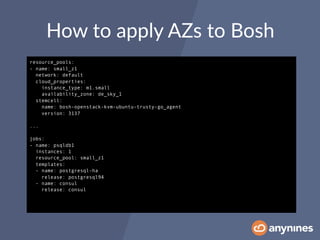

- 20. How to applyAZs to Bosh resource_pools: - name: small_z1 network: default cloud_properties: instance_type: m1.small availability_zone: de_sky_1 stemcell: name: bosh-openstack-kvm-ubuntu-trusty-go_agent version: 3137 ... jobs: - name: psqldb1 instances: 1 resource_pool: small_z1 templates: - name: postgresql-ha release: postgresql94 - name: consul release: consul
- 21.

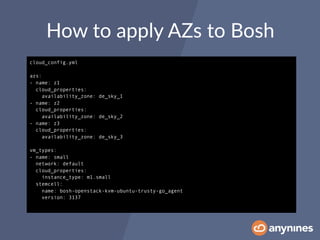

- 22. How to applyAZs to Bosh cloud_config.yml azs: - name: z1 cloud_properties: availability_zone: de_sky_1 - name: z2 cloud_properties: availability_zone: de_sky_2 - name: z3 cloud_properties: availability_zone: de_sky_3 vm_types: - name: small network: default cloud_properties: instance_type: m1.small stemcell: name: bosh-openstack-kvm-ubuntu-trusty-go_agent version: 3137

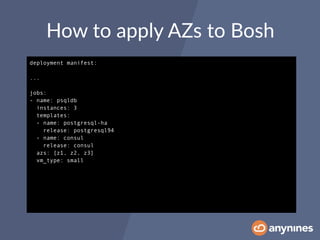

- 23. How to applyAZs to Bosh deployment manifest: ... jobs: - name: psqldb instances: 3 templates: - name: postgresql-ha release: postgresql94 - name: consul release: consul azs: [z1, z2, z3] vm_type: small
- 24.
- 25.
- 26.

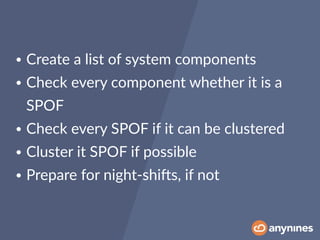

- 27. • Create alist of system components • Check every component whether it is a SPOF • Check every SPOF if it can be clustered • Cluster it SPOF if possible • Prepare for night-shiOs, if not
- 28. CF Run0me wSPOFs

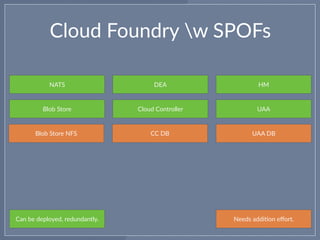

- 29. Cloud Foundry wSPOFs Can be deployed, redundantly. Cloud Controller HMDEA Blob Store UAA CC DB UAA DB NATS Blob Store NFS Needs addi0on effort.

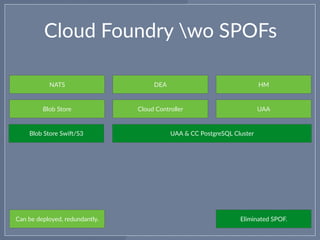

- 30. Cloud Foundry woSPOFs Can be deployed, redundantly. Cloud Controller HMDEA Blob Store UAA UAA & CC PostgreSQL Cluster NATS Blob Store SwiO/S3 Eliminated SPOF.

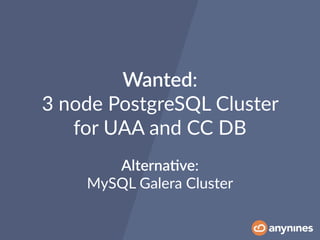

- 31. Wanted: 3 node PostgreSQLCluster for UAA and CC DB Alterna*ve: MySQL Galera Cluster
- 32.
- 33.
- 34.

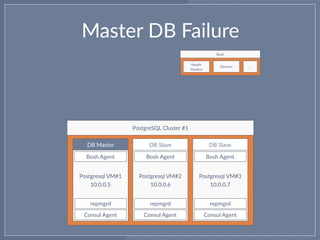

- 35. Master DB Failure PostgreSQLCluster #1 Health Monitor Bosh Director … Postgresql VM#1 10.0.0.5 DB Master Consul Agent repmgrd Bosh Agent Postgresql VM#2 10.0.0.6 DB Slave Consul Agent repmgrd Bosh Agent Postgresql VM#3 10.0.0.7 DB Slave Consul Agent repmgrd Bosh Agent
- 36.

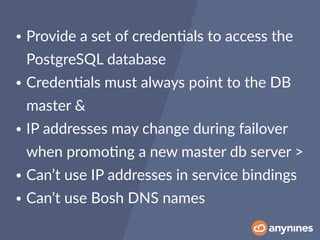

- 37. • Provide aset of creden0als to access the PostgreSQL database • Creden0als must always point to the DB master & • IP addresses may change during failover when promo0ng a new master db server > • Can’t use IP addresses in service bindings • Can’t use Bosh DNS names
- 38. Consul > HADNS

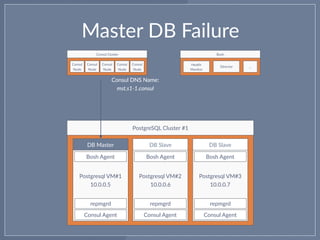

- 39. Master DB Failure PostgresqlVM#2 10.0.0.6 Postgresql VM#3 10.0.0.7 PostgreSQL Cluster #1 DB Slave DB Slave Consul Agent Consul Agent Postgresql VM#1 10.0.0.5 DB Master Consul Agent repmgrd repmgrd repmgrd Consul DNS Name: mst.s1-1.consul Consul Node Consul Cluster Consul Node Consul Node Consul Node Consul Node Consul DNS Name: mst.s1-1.consul Health Monitor Bosh Director … Bosh Agent Bosh Agent Bosh Agent

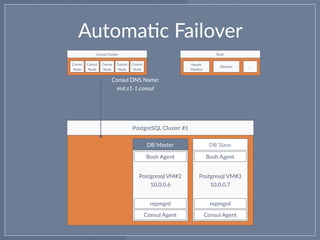

- 40. Automa0c Failover Postgresql VM#2 10.0.0.6 PostgresqlVM#3 10.0.0.7 PostgreSQL Cluster #1 DB Slave DB Slave Consul Agent Consul Agent repmgrd repmgrd DB Master Consul Node Consul Cluster Consul Node Consul Node Consul Node Consul Node Consul DNS Name: mst.s1-1.consul Consul DNS Name: mst.s1-1.consul Health Monitor Bosh Director … Bosh Agent Bosh Agent
- 41.
- 42. Recovery from degradedMode Postgresql VM#2 10.0.0.6 Postgresql VM#3 10.0.0.7 PostgreSQL Cluster #1 DB Slave DB Slave Consul Agent Consul Agent repmgrd repmgrd DB Master Consul Node Consul Cluster Consul Node Consul Node Consul Node Consul Node Consul DNS Name: mst.s1-1.consul Health Monitor Bosh Director … Postgresql VM#4 10.0.0.8 DB Slave Consul Agent repmgrd Bosh Agent Bosh AgentBosh Agent
- 43. Checkpoint reached: SPOFless CloudFoundry Run0me

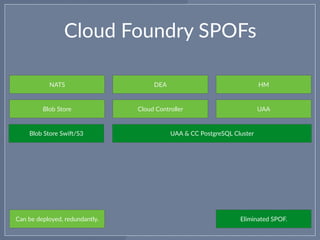

- 44. Cloud Foundry SPOFs Canbe deployed, redundantly. Cloud Controller HMDEA Blob Store UAA UAA & CC PostgreSQL Cluster NATS Blob Store SwiO/S3 Eliminated SPOF.
- 45. A Cloud Foundryis not produc0on ready without produc0on ready data services.
- 46.
- 47. Apps oOen strongly depend on data services

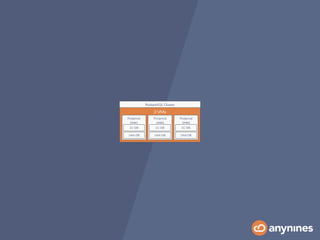

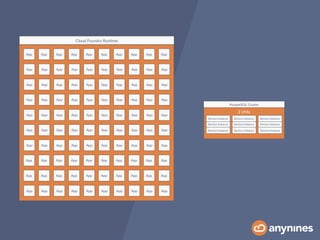

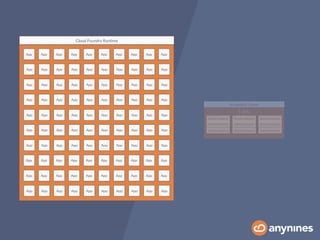

- 48. Cloud Foundry Run0me 3VMs PostgreSQL Cluster Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance Service Instance Service Instance Service Instance Service Instance Service Instance Service Instance Service Instance Service Instance App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App
- 49. Cloud Foundry Run0me 3VMs PostgreSQL Cluster Service Instance Service Instance Service Instance Service Instance Service Instance Service Instance App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App Service Instance Service Instance Service Instance

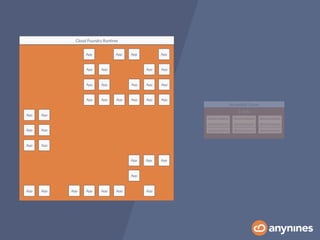

- 50. Cloud Foundry Run0me 3VMs PostgreSQL Cluster Service Instance Service Instance Service Instance Service Instance Service Instance Service Instance App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App Service Instance Service Instance Service Instance
- 51. Cloud Foundry Run0me 3VMs PostgreSQL Cluster Service Instance Service Instance Service Instance Service Instance Service Instance Service Instance App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App Service Instance Service Instance Service Instance
- 52. Shared data services arenot an op0on!
- 53. Use on-demand provisioned, dedicatedservice instances, instead.

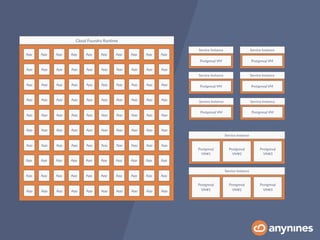

- 54. Cloud Foundry Run0me AppApp App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance Postgresql VM Service Instance Postgresql VM Service Instance

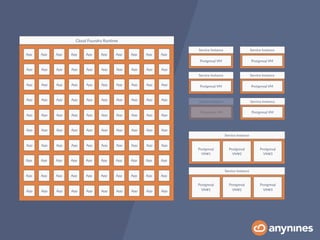

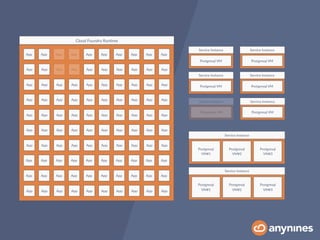

- 55. Cloud Foundry Run0me AppApp App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance Postgresql VM Service Instance Postgresql VM Service Instance
- 56. Cloud Foundry Run0me AppApp App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM Service Instance Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance Postgresql VM Service Instance Postgresql VM Service Instance
- 57. Service instance failures will be contained.
- 58. Let Bosh dothe dirty work.

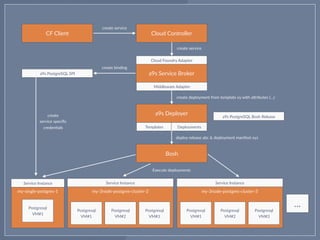

- 59. a9s Deployer Templates Deployments Bosh a9sService Broker my-3node-postgres-cluster-2 Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 my-single-postgres-1 Postgresql VM#1 Middleware Adapter Cloud Foundry Adapter a9s PostgreSQL SPI Service InstanceService Instance my-3node-postgres-cluster-3 Postgresql VM#1 Postgresql VM#2 Postgresql VM#3 Service Instance … Cloud ControllerCF Client create service create service create deployment from template xy with anributes {…} deploy release abc & deployment manifest xyz Execute deployments create service specific creden0als create binding a9s PostgreSQL Bosh Release

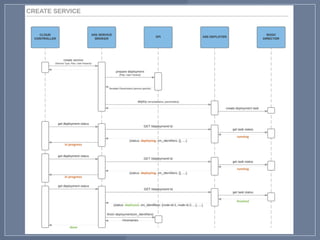

- 61.

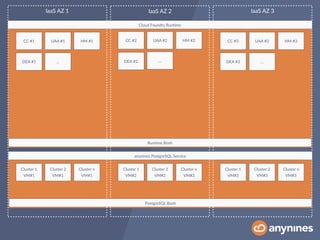

- 62. Cloud Foundry Run0me anyninesPostgreSQL Service PostgreSQL Bosh Run0me Bosh Cluster 1 VM#1 CC #1 UAA #1 HM #1 …DEA #1 CC #2 UAA #2 HM #2 …DEA #2 CC #3 UAA #3 HM #3 …DEA #3 Cluster 1 VM#2 Cluster 1 VM#3 Cluster 2 VM#1 Cluster 2 VM#2 Cluster 2 VM#3 Cluster n VM#1 Cluster n VM#2 Cluster n VM#3 IaaS AZ 1 IaaS AZ 2 IaaS AZ 3
- 63.
- 64. Bosh is agreat companion for all Cloud Foundry related automa0on challenges.
- 65. Including CF run0me anddata services.
- 66.
- 67.
- 68. Titeltext Title small LatoNormal 64pt Textebene Lato Leicht 42pt Title Lato Normal 84pt BeschriOung dunkel Lato leicht 18pt BeschriOung hell Lato Leicht 18pt Textebene Code Lato Leicht 18pt <— only on white background!!!
