This document provides an overview of the configuration management tool Ansible. It discusses Ansible's key features including being agentless, using YAML files for idempotent configuration, and supporting multiple platforms. The document also summarizes Ansible's core components like playbooks, templates, modules, and roles for automating infrastructure and application deployments. Finally, it touches on advanced topics such as dynamic inventory, vault encryption, and performance tuning.

1. https://lynt.cz
Ing. Vladimir Smitka
vladimir.smitka@lynt.cz
@smitka
Lynt services s.r.o.
6. 12. 2017 1

2. https://lynt.cz

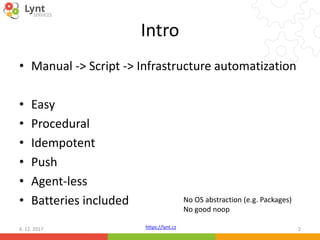

Intro
• Manual -> Script -> Infrastructure automatization
• Easy
• Procedural
• Idempotent
• Push
• Agent-less
• Batteries included
6. 12. 2017 2
No OS abstraction (e.g. Packages)
No good noop

3. https://lynt.cz

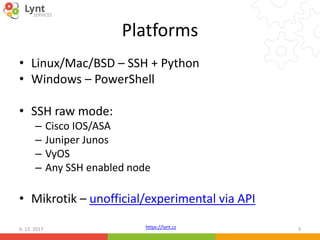

Platforms
• Linux/Mac/BSD – SSH + Python
• Windows – PowerShell
• SSH raw mode:
– Cisco IOS/ASA
– Juniper Junos
– VyOS
– Any SSH enabled node
• Mikrotik – unofficial/experimental via API
6. 12. 2017 3

4. https://lynt.cz

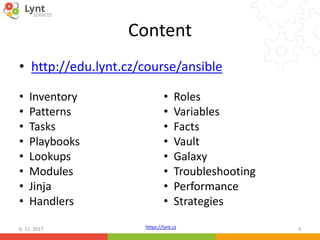

Content
• http://edu.lynt.cz/course/ansible
6. 12. 2017 4
• Inventory
• Patterns
• Tasks
• Playbooks
• Lookups
• Modules
• Jinja
• Handlers
• Roles
• Variables
• Facts
• Vault
• Galaxy
• Troubleshooting
• Performance
• Strategies

5. https://lynt.cz

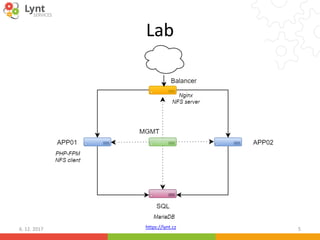

Lab
6. 12. 2017 5

6. https://lynt.cz

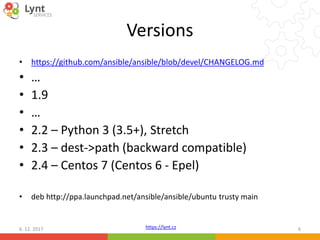

Versions
• https://github.com/ansible/ansible/blob/devel/CHANGELOG.md
• …
• 1.9
• …
• 2.2 – Python 3 (3.5+), Stretch
• 2.3 – dest->path (backward compatible)
• 2.4 – Centos 7 (Centos 6 - Epel)
• deb http://ppa.launchpad.net/ansible/ansible/ubuntu trusty main
6. 12. 2017 6

7. https://lynt.cz

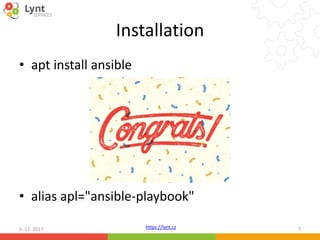

Installation
• apt install ansible
• alias apl="ansible-playbook"
6. 12. 2017 7

8. https://lynt.cz
Inventory
• /etc/ansible/hosts
• ansible --list-hosts all
• Localhost: ansible ansible_connection=local
• ansible -m ping all
• ansible -m command -a "uptime" all
• ansible -a "uptime" all
6. 12. 2017 8
Default module
INI, YAML

9. https://lynt.cz

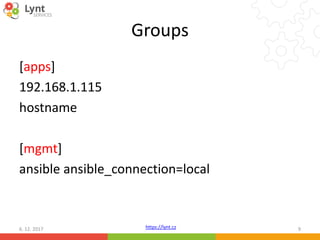

Groups
[apps]
192.168.1.115
hostname
[mgmt]
ansible ansible_connection=local
6. 12. 2017 9

10. https://lynt.cz

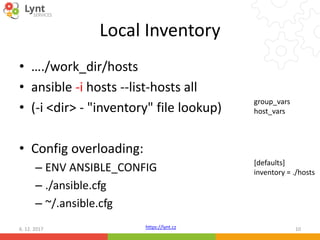

Local Inventory
• …./work_dir/hosts
• ansible -i hosts --list-hosts all
• (-i <dir> - "inventory" file lookup)
• Config overloading:
– ENV ANSIBLE_CONFIG
– ./ansible.cfg
– ~/.ansible.cfg
6. 12. 2017 10
[defaults]
inventory = ./hosts
group_vars
host_vars

11. https://lynt.cz
Patterns
• http://docs.ansible.com/ansible/latest/intro_
patterns.html
• ansible --list-hosts all
• ansible --list-hosts *
• ansible --list-hosts 192*
• ansible --list-hosts ansible
• ansible --list-hosts 'all,!ansible'
6. 12. 2017 11

12. https://lynt.cz

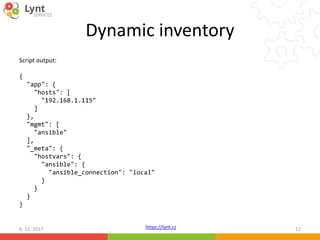

Dynamic inventory
Script output:
{
"app": {
"hosts": [
"192.168.1.115"
]
},
"mgmt": [
"ansible"
],
"_meta": {
"hostvars": {
"ansible": {
"ansible_connection": "local"
}
}
}
}
6. 12. 2017 12

13. https://lynt.cz

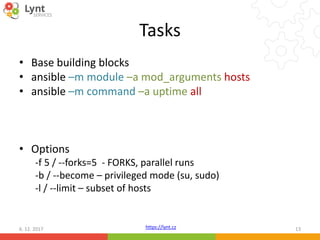

Tasks
• Base building blocks
• ansible –m module –a mod_arguments hosts
• ansible –m command –a uptime all
• Options
-f 5 / --forks=5 - FORKS, parallel runs
-b / --become – privileged mode (su, sudo)
-l / --limit – subset of hosts
6. 12. 2017 13

14. https://lynt.cz

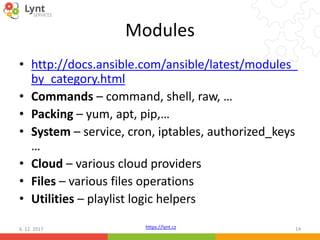

Modules
• http://docs.ansible.com/ansible/latest/modules_
by_category.html
• Commands – command, shell, raw, …
• Packing – yum, apt, pip,…
• System – service, cron, iptables, authorized_keys
…
• Cloud – various cloud providers
• Files – various files operations
• Utilities – playlist logic helpers
6. 12. 2017 14

15. https://lynt.cz

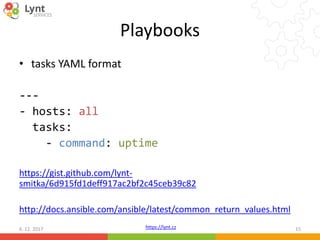

Playbooks
• tasks YAML format
---
- hosts: all
tasks:
- command: uptime
https://gist.github.com/lynt-
smitka/6d915fd1deff917ac2bf2c45ceb39c82
http://docs.ansible.com/ansible/latest/common_return_values.html
6. 12. 2017 15

16. https://lynt.cz

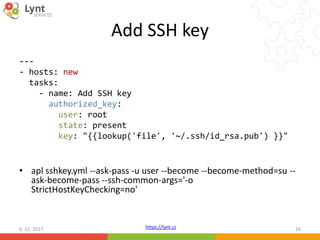

Add SSH key
---
- hosts: new
tasks:
- name: Add SSH key
authorized_key:
user: root
state: present
key: "{{lookup('file', '~/.ssh/id_rsa.pub') }}"
• apl sshkey.yml --ask-pass -u user --become --become-method=su --
ask-become-pass --ssh-common-args='-o
StrictHostKeyChecking=no'
6. 12. 2017 16

17. https://lynt.cz

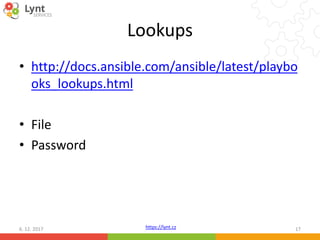

Lookups
• http://docs.ansible.com/ansible/latest/playbo
oks_lookups.html
• File
• Password
6. 12. 2017 17

18. https://lynt.cz

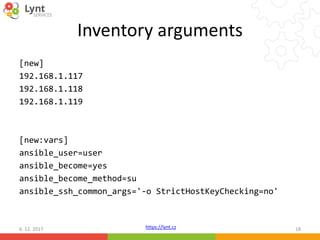

Inventory arguments
[new]
192.168.1.117
192.168.1.118
192.168.1.119
[new:vars]
ansible_user=user
ansible_become=yes
ansible_become_method=su
ansible_ssh_common_args='-o StrictHostKeyChecking=no'
6. 12. 2017 18

19. https://lynt.cz
APT
---
- hosts: all
tasks:
- name: install package
apt:name=mc state=present
update_cache=yes
6. 12. 2017 19

20. https://lynt.cz

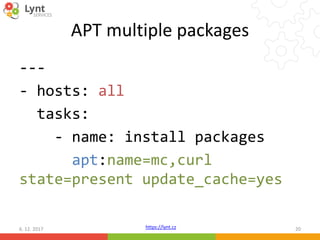

APT multiple packages
---
- hosts: all
tasks:
- name: install packages
apt:name=mc,curl
state=present update_cache=yes
6. 12. 2017 20

21. https://lynt.cz

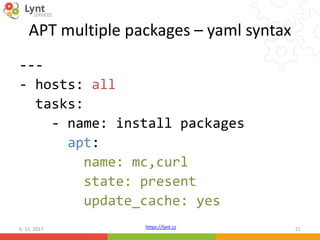

APT multiple packages – yaml syntax
---
- hosts: all
tasks:
- name: install packages
apt:
name: mc,curl
state: present
update_cache: yes
6. 12. 2017 21

22. https://lynt.cz

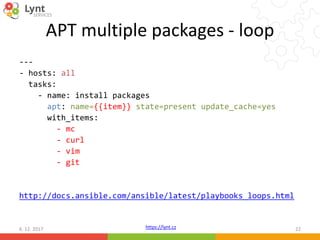

APT multiple packages - loop
---
- hosts: all
tasks:
- name: install packages
apt: name={{item}} state=present update_cache=yes
with_items:
- mc
- curl
- vim
- git
http://docs.ansible.com/ansible/latest/playbooks_loops.html
6. 12. 2017 22

23. https://lynt.cz
Files operations
• http://docs.ansible.com/ansible/latest/list_of_fil
es_modules.html
• Copy
• File
• LineInFile/BlockInFile
• Ini_file
• Replace
• Template
6. 12. 2017 23

24. https://lynt.cz

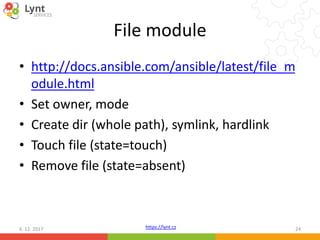

File module
• http://docs.ansible.com/ansible/latest/file_m
odule.html
• Set owner, mode
• Create dir (whole path), symlink, hardlink
• Touch file (state=touch)
• Remove file (state=absent)
6. 12. 2017 24

25. https://lynt.cz
Copy module
• http://docs.ansible.com/ansible/latest/copy_mo
dule.html
- copy:
src: nginx.conf
dest: /etc/nginx/nginx.conf
backup: yes
• content/src
• force
6. 12. 2017 25

26. https://lynt.cz
Copy content
- copy:
dest: /etc/hosts
backup: yes
content: |
127.0.0.1 localhost
192.168.1.115 ansible
6. 12. 2017 26

27. https://lynt.cz

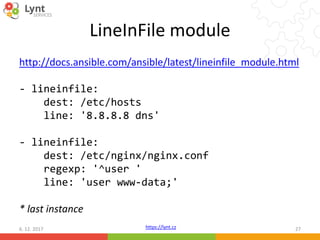

LineInFile module
http://docs.ansible.com/ansible/latest/lineinfile_module.html
- lineinfile:
dest: /etc/hosts
line: '8.8.8.8 dns'
- lineinfile:
dest: /etc/nginx/nginx.conf
regexp: '^user '
line: 'user www-data;'
* last instance
6. 12. 2017 27

28. https://lynt.cz
Replace module
- replace:
dest: /etc/nginx/web.conf
regexp: old.domain'
replace: 'new.domain'
backup: yes
* All instances
6. 12. 2017 28

29. https://lynt.cz
BlockInFile module
http://docs.ansible.com/ansible/latest/blockinfile_
module.html
- blockinfile:
dest: /etc/ssh/sshd_config
block: |
…
# BEGIN ANSIBLE MANAGED BLOCK
…
# END ANSIBLE MANAGED BLOCK
6. 12. 2017 29

30. https://lynt.cz

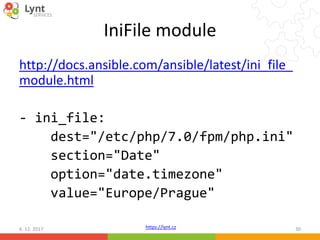

IniFile module
http://docs.ansible.com/ansible/latest/ini_file_
module.html
- ini_file:
dest="/etc/php/7.0/fpm/php.ini"
section="Date"
option="date.timezone"
value="Europe/Prague"
6. 12. 2017 30

31. https://lynt.cz

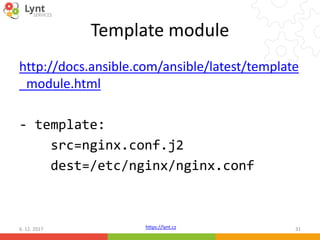

Template module
http://docs.ansible.com/ansible/latest/template
_module.html
- template:
src=nginx.conf.j2
dest=/etc/nginx/nginx.conf
6. 12. 2017 31

32. https://lynt.cz

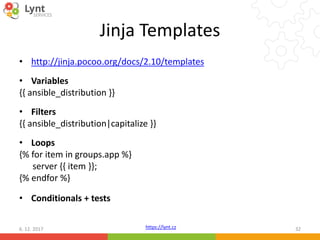

Jinja Templates
• http://jinja.pocoo.org/docs/2.10/templates
• Variables
{{ ansible_distribution }}
• Filters
{{ ansible_distribution|capitalize }}
• Loops
{% for item in groups.app %}
server {{ item }};
{% endfor %}
• Conditionals + tests
6. 12. 2017 32

33. https://lynt.cz

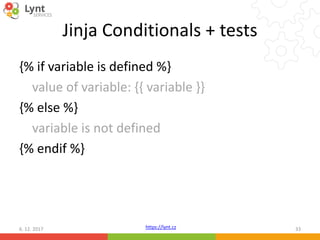

Jinja Conditionals + tests
{% if variable is defined %}
value of variable: {{ variable }}
{% else %}
variable is not defined
{% endif %}
6. 12. 2017 33

34. https://lynt.cz
Handlers
tasks:
- name: config nginx
template: src=nginx.conf.j2
dest=/etc/nginx/nginx.conf
notify:
- restart nginx
handlers:
- name: restart nginx
service: name=nginx state=restarted
6. 12. 2017 34

35. https://lynt.cz

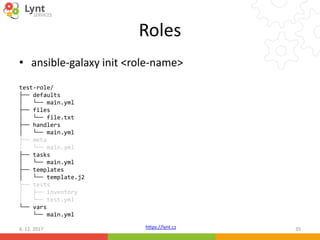

Roles
• ansible-galaxy init <role-name>
test-role/
├── defaults
│ └── main.yml
├── files
│ └── file.txt
├── handlers
│ └── main.yml
├── meta
│ └── main.yml
├── tasks
│ └── main.yml
├── templates
│ └── template.j2
├── tests
│ ├── inventory
│ └── test.yml
└── vars
└── main.yml
6. 12. 2017 35

36. https://lynt.cz

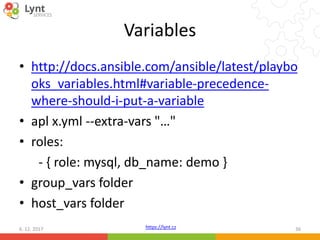

Variables
• http://docs.ansible.com/ansible/latest/playbo
oks_variables.html#variable-precedence-
where-should-i-put-a-variable
• apl x.yml --extra-vars "…"
• roles:
- { role: mysql, db_name: demo }
• group_vars folder
• host_vars folder
6. 12. 2017 36

37. https://lynt.cz
Facts
• ansible –m setup all
• /etc/ansible/facts.d/*.fact
- name: Upload simple fact
copy:
content: "1"
dest: /etc/ansible/facts.d/test.fact
6. 12. 2017 37

38. https://lynt.cz

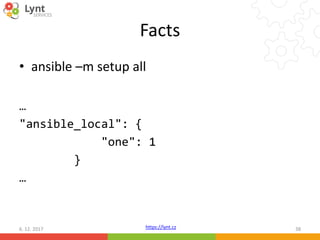

Facts
• ansible –m setup all
…
"ansible_local": {
"one": 1
}
…
6. 12. 2017 38

39. https://lynt.cz

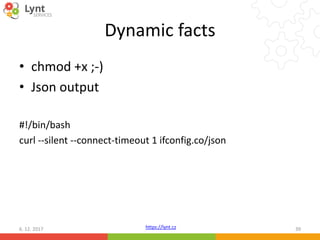

Dynamic facts
• chmod +x ;-)
• Json output
#!/bin/bash
curl --silent --connect-timeout 1 ifconfig.co/json
6. 12. 2017 39

40. https://lynt.cz

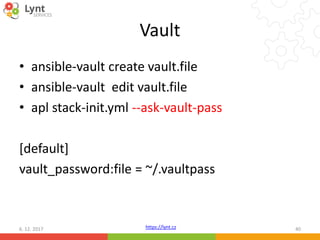

Vault
• ansible-vault create vault.file
• ansible-vault edit vault.file
• apl stack-init.yml --ask-vault-pass
[default]
vault_password:file = ~/.vaultpass
6. 12. 2017 40

41. https://lynt.cz

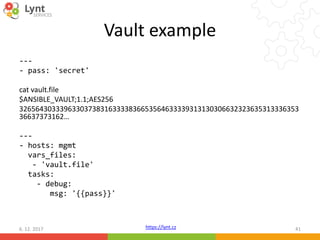

Vault example
---
- pass: 'secret'
cat vault.file
$ANSIBLE_VAULT;1.1;AES256
326564303339633037383163333836653564633339313130306632323635313336353
36637373162…
---
- hosts: mgmt
vars_files:
- 'vault.file'
tasks:
- debug:
msg: '{{pass}}'
6. 12. 2017 41

42. https://lynt.cz
Galaxy
• https://galaxy.ansible.com/
• ansible-galaxy install username.role_name
• ansible-galaxy install -p roles -r requirements.yml
requirements.yml:
# from galaxy
- src: yatesr.timezone
# from GitHub
- src: https://github.com/bennojoy/nginx
6. 12. 2017 42

43. https://lynt.cz
Performance
• gather_facts: false
- hosts: all
become: true
gather_facts: false
tasks:
- name: update apt cache
apt: update_cache=yes cache_valid_time=86400
[ssh_connection]
Pipelining = True
6. 12. 2017 43

44. https://lynt.cz
Ansible-pull
• https://github.com/ansible/ansible-
examples/blob/master/language_features/ans
ible_pull.yml
6. 12. 2017 44

45. https://lynt.cz

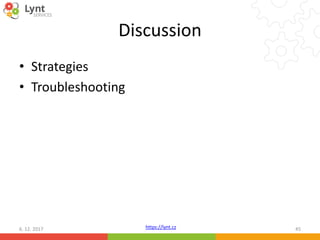

Discussion
• Strategies
• Troubleshooting
6. 12. 2017 45
