Android from A to Z

From A to Z
Android
Hazem Hagrass
Senior Software Engineer
hazem.hagrass@badrit.com 2

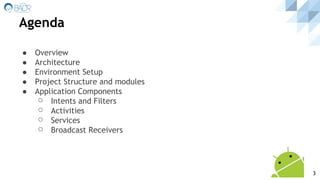

Agenda
● Overview
● Architecture
● Environment Setup
● Project Structure and modules
● Application Components
⚪ Intents and Filters
⚪ Activities
⚪ Services
⚪ Broadcast Receivers
3

Overview
4
Android: The Forgotten History

The Forgotten History

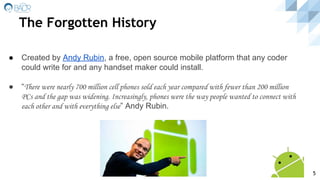

● Created by Andy Rubin, a free, open source mobile platform that any coder
could write for and any handset maker could install.
● “There were nearly 700 million cell phones sold each year compared with fewer than 200 million
PCs and the gap was widening. Increasingly, phones were the way people wanted to connect with
each other and with everything else” Andy Rubin.
5

● He would make his money by selling support for the system security services,
or email management.
6

● Rubin discussed the idea with Larry Page(Google's CEO), he didn’t want
money from Page. He already had funding. What he wanted was Google’s
imprimatur, even an email from Page would do.
● Rubin figured he could attract more VC funds with the search giant on board,
possibly with a hint that Google might be interested in developing its own
branded phone. He pulled out a prototype.
7

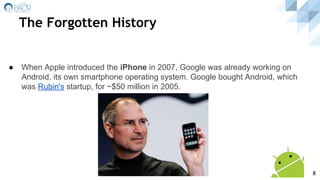

● When Apple introduced the iPhone in 2007, Google was already working on
Android, its own smartphone operating system. Google bought Android, which
was Rubin's startup, for ~$50 million in 2005.
8

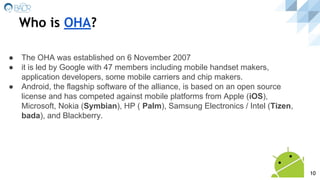

Who is OHA?
10
● The OHA was established on 6 November 2007
● it is led by Google with 47 members including mobile handset makers,
application developers, some mobile carriers and chip makers.
● Android, the flagship software of the alliance, is based on an open source
license and has competed against mobile platforms from Apple (iOS),
Microsoft, Nokia (Symbian), HP ( Palm), Samsung Electronics / Intel (Tizen,
bada), and Blackberry.

Steve Jobs!
"Everything is a f**king rip off of what we're doing," Jobs said of Android
11

Android powers hundreds of millions of mobile
devices in more than 190 countries around the world.
It's the largest installed base of any mobile platform
and growing fast
Android, the world's most popular mobile platform
12

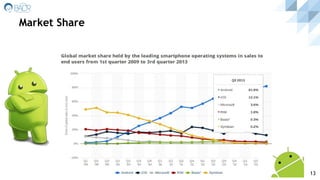

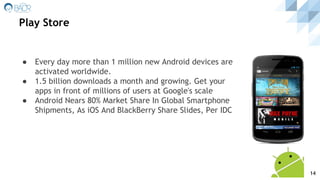

● Every day more than 1 million new Android devices are
activated worldwide.
● 1.5 billion downloads a month and growing. Get your
apps in front of millions of users at Google's scale
● Android Nears 80% Market Share In Global Smartphone
Shipments, As iOS And BlackBerry Share Slides, Per IDC
Play Store
14

Android is open!
Android is Open, it is built on the open Linux Kernel.
it can be liberally extended to incorporate new cutting edge technologies as
they emerge. The platform will continue to evolve as the developer
community works together to build innovative mobile applications.
Android was built from the ground-up to enable developers take full
advantage of all a handset has to offer.
It was built to be truly open. For example, an application can call upon any of
the phone’s core functionality such as making calls, sending text messages, or
using the camera
15

All applications are created equal
Android does not differentiate between the phone’s core applications and
third-party applications. They can all be built to have equal access to a
phone’s capabilities providing users with a broad spectrum of applications
and services
Equality
16

Architecture
17

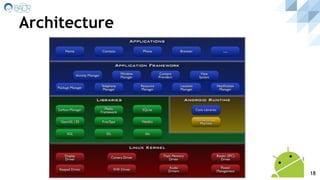

System Architecture

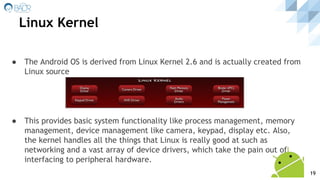

Linux Kernel
● The Android OS is derived from Linux Kernel 2.6 and is actually created from
Linux source
● This provides basic system functionality like process management, memory
management, device management like camera, keypad, display etc. Also,
the kernel handles all the things that Linux is really good at such as
networking and a vast array of device drivers, which take the pain out of
interfacing to peripheral hardware.
19

Libraries

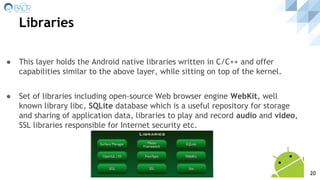

● This layer holds the Android native libraries written in C/C++ and offer
capabilities similar to the above layer, while sitting on top of the kernel.
● Set of libraries including open-source Web browser engine WebKit, well
known library libc, SQLite database which is a useful repository for storage
and sharing of application data, libraries to play and record audio and video,
SSL libraries responsible for Internet security etc.
20

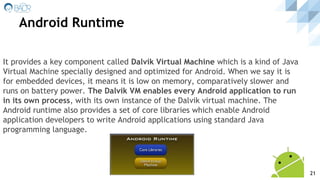

It provides a key component called Dalvik Virtual Machine which is a kind of Java
Virtual Machine specially designed and optimized for Android. When we say it is
for embedded devices, it means it is low on memory, comparatively slower and
runs on battery power. The Dalvik VM enables every Android application to run
in its own process, with its own instance of the Dalvik virtual machine. The
Android runtime also provides a set of core libraries which enable Android
application developers to write Android applications using standard Java
programming language.
Android Runtime
21

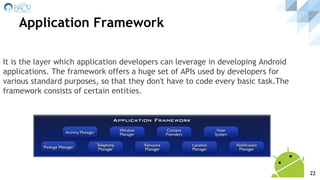

Application Framework
It is the layer which application developers can leverage in developing Android
applications. The framework offers a huge set of APIs used by developers for
various standard purposes, so that they don't have to code every basic task.The
framework consists of certain entities.
22

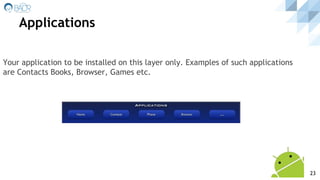

Your application to be installed on this layer only. Examples of such applications
are Contacts Books, Browser, Games etc.
Applications
23

Environment Setup
24

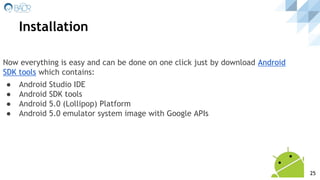

Installation

Now everything is easy and can be done on one click just by download Android
SDK tools which contains:
● Android Studio IDE
● Android SDK tools
● Android 5.0 (Lollipop) Platform
● Android 5.0 emulator system image with Google APIs
Installation
25

Project Structure
26
Structure and modules

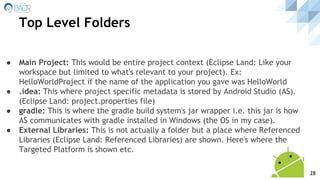

● Main Project: This would be entire project context (Eclipse Land: Like your
workspace but limited to what's relevant to your project). Ex:
HelloWorldProject if the name of the application you gave was HelloWorld
● .idea: This where project specific metadata is stored by Android Studio (AS).
(Eclipse Land: project.properties file)
● gradle: This is where the gradle build system's jar wrapper i.e. this jar is how
AS communicates with gradle installed in Windows (the OS in my case).
● External Libraries: This is not actually a folder but a place where Referenced
Libraries (Eclipse Land: Referenced Libraries) are shown. Here's where the
Targeted Platform is shown etc.
Top Level Folders
28

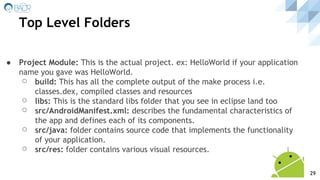

● Project Module: This is the actual project. ex: HelloWorld if your application
name you gave was HelloWorld.
⚪ build: This has all the complete output of the make process i.e.
classes.dex, compiled classes and resources
⚪ libs: This is the standard libs folder that you see in eclipse land too
⚪ src/AndroidManifest.xml: describes the fundamental characteristics of
the app and defines each of its components.
⚪ src/java: folder contains source code that implements the functionality
of your application.
⚪ src/res: folder contains various visual resources.
Top Level Folders
29

● Project Module: This is the actual project. ex: HelloWorld if your application
name you gave was HelloWorld.

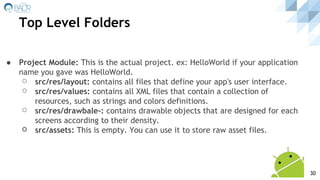

⚪ src/res/layout: contains all files that define your app's user interface.
⚪ src/res/values: contains all XML files that contain a collection of
resources, such as strings and colors definitions.
⚪ src/res/drawbale-: contains drawable objects that are designed for each
screens according to their density.
⚪ src/assets: This is empty. You can use it to store raw asset files.
Top Level Folders
30

● AndroidManifest.xml is an interface between the Android OS and your
application.

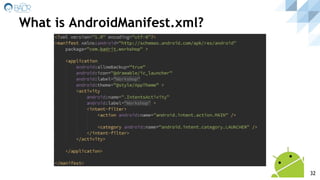

What is AndroidManifest.xml?
31

What is AndroidManifest.xml?
32

Application Components
33

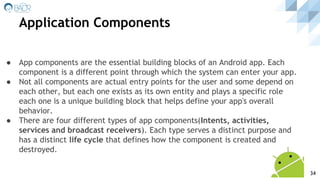

Intents, activities, services and broadcast receivers

● App components are the essential building blocks of an Android app. Each
component is a different point through which the system can enter your app.
● Not all components are actual entry points for the user and some depend on
each other, but each one exists as its own entity and plays a specific role
each one is a unique building block that helps define your app's overall
behavior.
● There are four different types of app components(Intents, activities,
services and broadcast receivers). Each type serves a distinct purpose and
has a distinct life cycle that defines how the component is created and
destroyed.
34

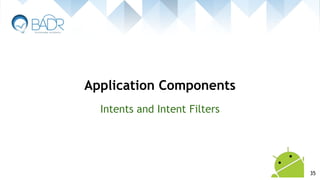

Intents and Intent Filters
35

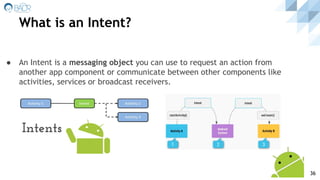

● An Intent is a messaging object you can use to request an action from
another app component or communicate between other components like
activities, services or broadcast receivers.
What is an Intent?
36

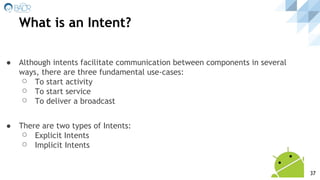

● Although intents facilitate communication between components in several
ways, there are three fundamental use-cases:
⚪ To start activity
⚪ To start service
⚪ To deliver a broadcast
● There are two types of Intents:
⚪ Explicit Intents
⚪ Implicit Intents
What is an Intent?
37

Intents Types
Explicit intents:
● Used to start a component in your own app, because you know the class
name of the activity or service you want to start.
● For example, start a new activity in response to a user action or start a
service to download a file in the background.
38

Intents Types
39

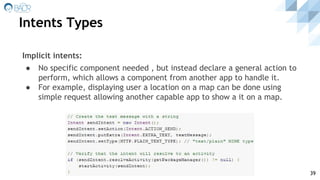

Implicit intents:
● No specific component needed , but instead declare a general action to
perform, which allows a component from another app to handle it.
● For example, displaying user a location on a map can be done using
simple request allowing another capable app to show a it on a map.

Intent contains at least one of:
40

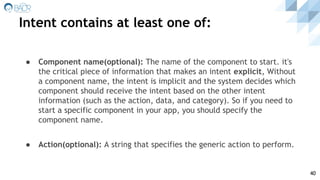

● Component name(optional): The name of the component to start. it's
the critical piece of information that makes an intent explicit, Without
a component name, the intent is implicit and the system decides which
component should receive the intent based on the other intent
information (such as the action, data, and category). So if you need to
start a specific component in your app, you should specify the
component name.
● Action(optional): A string that specifies the generic action to perform.

Intents Attributes
41

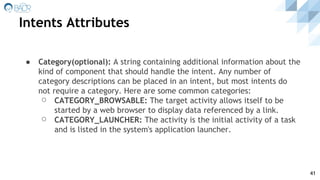

● Category(optional): A string containing additional information about the
kind of component that should handle the intent. Any number of
category descriptions can be placed in an intent, but most intents do
not require a category. Here are some common categories:
⚪ CATEGORY_BROWSABLE: The target activity allows itself to be
started by a web browser to display data referenced by a link.
⚪ CATEGORY_LAUNCHER: The activity is the initial activity of a task
and is listed in the system's application launcher.

Intents Attributes
42

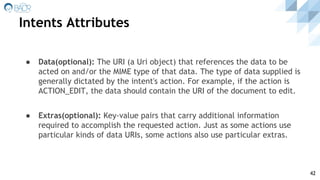

● Data(optional): The URI (a Uri object) that references the data to be
acted on and/or the MIME type of that data. The type of data supplied is
generally dictated by the intent's action. For example, if the action is
ACTION_EDIT, the data should contain the URI of the document to edit.
● Extras(optional): Key-value pairs that carry additional information
required to accomplish the requested action. Just as some actions use
particular kinds of data URIs, some actions also use particular extras.

Intents Attributes
43
● Flags(optional): The flags may instruct the Android system how to
launch an activity (for example, which task the activity should belong
to) and how to treat it after it's launched (for example, whether it
belongs in the list of recent activities).

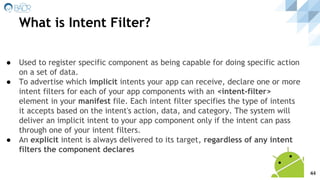

● Used to register specific component as being capable for doing specific action
on a set of data.

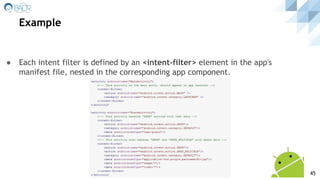

● To advertise which implicit intents your app can receive, declare one or more
intent filters for each of your app components with an <intent-filter>
element in your manifest file. Each intent filter specifies the type of intents
it accepts based on the intent's action, data, and category. The system will
deliver an implicit intent to your app component only if the intent can pass
through one of your intent filters.
● An explicit intent is always delivered to its target, regardless of any intent
filters the component declares
What is Intent Filter?
44

● Each intent filter is defined by an <intent-filter> element in the app's
manifest file, nested in the corresponding app component.
Example
45

Activities
47

An Activity is an application component that provides a single screen with which
users can interact in order to do something.
An application usually consists of multiple activities that are loosely bound to
each other. Each activity can start another activity in order to perform different
actions.
What is Activity?
48

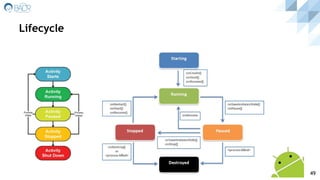

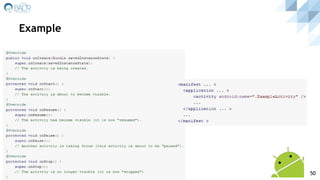

How to use?
51
You can start an activity by calling startActivity(), passing it an Intent that
describes the activity you want to start. The intent specifies either the exact
activity you want to start or describes the type of action you want to perform
(and the system selects the appropriate activity for you, which can even be
from a different application). An intent can also carry small amounts of data to
be used by the activity that is started.

Services
53

● A service is a component that runs in the background to perform long-running
operations without needing to interact with the user.
● For example, a service might play music in the background while the user is
in a different application, or it might fetch data over the network without
blocking user interaction with an activity.

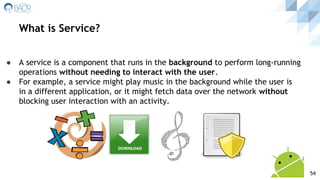

What is Service?
54

● A service can essentially take two forms:
a. Started(Unbounded): A service is "started" when an application
component (such as an activity) starts it by calling startService(). Once
started, a service can run in the background indefinitely, even if the
component that started it is destroyed. When the operation is done, the
service should stop itself.
Services Forms
55

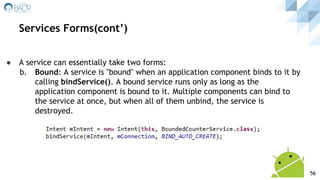

● A service can essentially take two forms:
b. Bound: A service is "bound" when an application component binds to it by
calling bindService(). A bound service runs only as long as the
application component is bound to it. Multiple components can bind to
the service at once, but when all of them unbind, the service is
destroyed.
Services Forms(cont’)
56

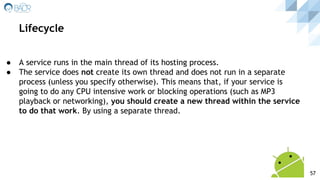

● A service runs in the main thread of its hosting process.
● The service does not create its own thread and does not run in a separate
process (unless you specify otherwise). This means that, if your service is
going to do any CPU intensive work or blocking operations (such as MP3
playback or networking), you should create a new thread within the service
to do that work. By using a separate thread.

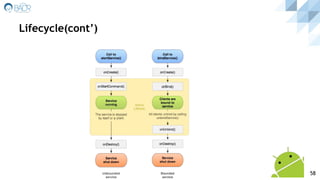

Lifecycle
57

● If the service is bound to an activity that has user focus, then it's less
likely to be killed, and if the service is declared to run in the
foreground, then it will almost never be killed. Otherwise, if the
service was started and is long-running, then the system will lower its
position in the list of background tasks over time and the service will
become highly susceptible to killing.
● if your service is started, then you must design it to gracefully handle
restarts by the system. If the system kills your service, it restarts it as
soon as resources become available again.
Lifecycle(cont’)
59

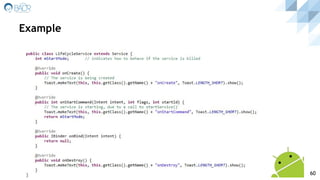

Services: Started Service
61

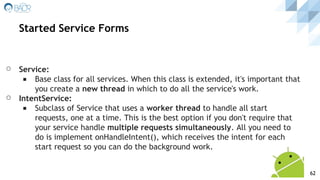

⚪ Service:
◾ Base class for all services. When this class is extended, it's important that
you create a new thread in which to do all the service's work.
⚪ IntentService:
◾ Subclass of Service that uses a worker thread to handle all start
requests, one at a time. This is the best option if you don't require that
your service handle multiple requests simultaneously. All you need to
do is implement onHandleIntent(), which receives the intent for each
start request so you can do the background work.
Started Service Forms
62

● Service:
⚪ It may block the Main Thread of the application.
● IntentService:
⚪ It cannot run tasks in parallel. Hence all the consecutive intents will go
into the message queue for the worker thread and will execute
sequentially.
⚪ It must be triggered from Main Thread.

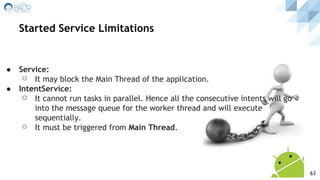

Started Service Limitations
63

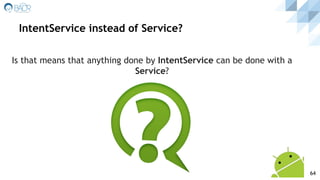

Is that means that anything done by IntentService can be done with a
Service?
IntentService instead of Service?
64

Is that means that anything done by IntentService can be done with a
Service?
If yes, then why IntentService?
Why IntentService?
65

Services: Bounded Service
66

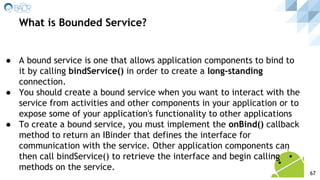

● A bound service is one that allows application components to bind to
it by calling bindService() in order to create a long-standing
connection.
● You should create a bound service when you want to interact with the
service from activities and other components in your application or to
expose some of your application's functionality to other applications
● To create a bound service, you must implement the onBind() callback
method to return an IBinder that defines the interface for
communication with the service. Other application components can
then call bindService() to retrieve the interface and begin calling
methods on the service.
What is Bounded Service?
67

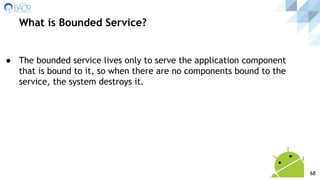

● The bounded service lives only to serve the application component
that is bound to it, so when there are no components bound to the
service, the system destroys it.
What is Bounded Service?
68

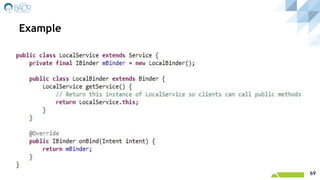

Download File from the internet on demand?
Which type of service to make this task?
70

Send info about specific file update change on the system?
71

execute calculations for your application in background?
72

Broadcast Receivers
74

● A broadcast receiver is a component that responds to system-wide broadcast
announcements.

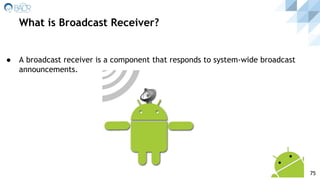

What is Broadcast Receiver?
75

● Many broadcasts originate from the system for example, a broadcast
announcing that the screen has turned off, the battery is low, or a picture
was captured.
● Apps can also initiate broadcasts for example, to let other apps know that
some data has been downloaded to the device and is available for them to
use.
● broadcast receivers don't display a user interface.
● They may create a status bar notification to alert the user when a broadcast
event occurs.
● Broadcast receiver is just a "gateway" to other components and is intended to
do a very minimal amount of work. For instance, it might initiate a service to
perform some work based on the event.
What is Broadcast Receiver?
76

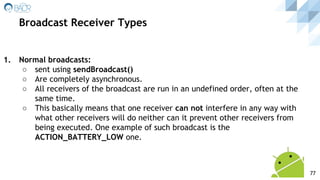

1. Normal broadcasts:
○ sent using sendBroadcast()
○ Are completely asynchronous.
○ All receivers of the broadcast are run in an undefined order, often at the
same time.
○ This basically means that one receiver can not interfere in any way with
what other receivers will do neither can it prevent other receivers from
being executed. One example of such broadcast is the
ACTION_BATTERY_LOW one.
Broadcast Receiver Types
77

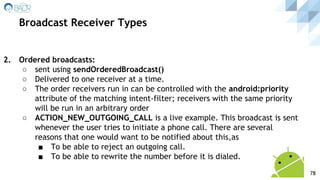

2. Ordered broadcasts:
○ sent using sendOrderedBroadcast()
○ Delivered to one receiver at a time.
○ The order receivers run in can be controlled with the android:priority
attribute of the matching intent-filter; receivers with the same priority
will be run in an arbitrary order
○ ACTION_NEW_OUTGOING_CALL is a live example. This broadcast is sent
whenever the user tries to initiate a phone call. There are several
reasons that one would want to be notified about this,as
■ To be able to reject an outgoing call.
■ To be able to rewrite the number before it is dialed.
Broadcast Receiver Types
78

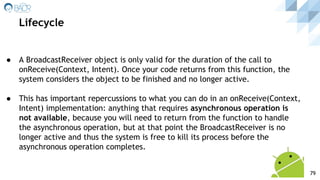

● A BroadcastReceiver object is only valid for the duration of the call to
onReceive(Context, Intent). Once your code returns from this function, the
system considers the object to be finished and no longer active.
● This has important repercussions to what you can do in an onReceive(Context,
Intent) implementation: anything that requires asynchronous operation is
not available, because you will need to return from the function to handle
the asynchronous operation, but at that point the BroadcastReceiver is no
longer active and thus the system is free to kill its process before the
asynchronous operation completes.
Lifecycle
79

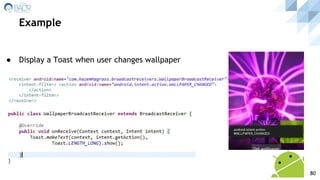

● Display a Toast when user changes wallpaper
Example
80

Android from A to Z

More Related Content

What's hot

Viewers also liked

Similar to Android from A to Z

More from BADR

Recently uploaded

Android from A to Z
