An introduction to Apache Hadoop architecture and the map reduce concept.

2. Apache Hadoop
Big Data Engineering
Prepared by:
● Islam Elbanna
● Mahmoud Hanafy
Presented by:
● Ahmed Mahran

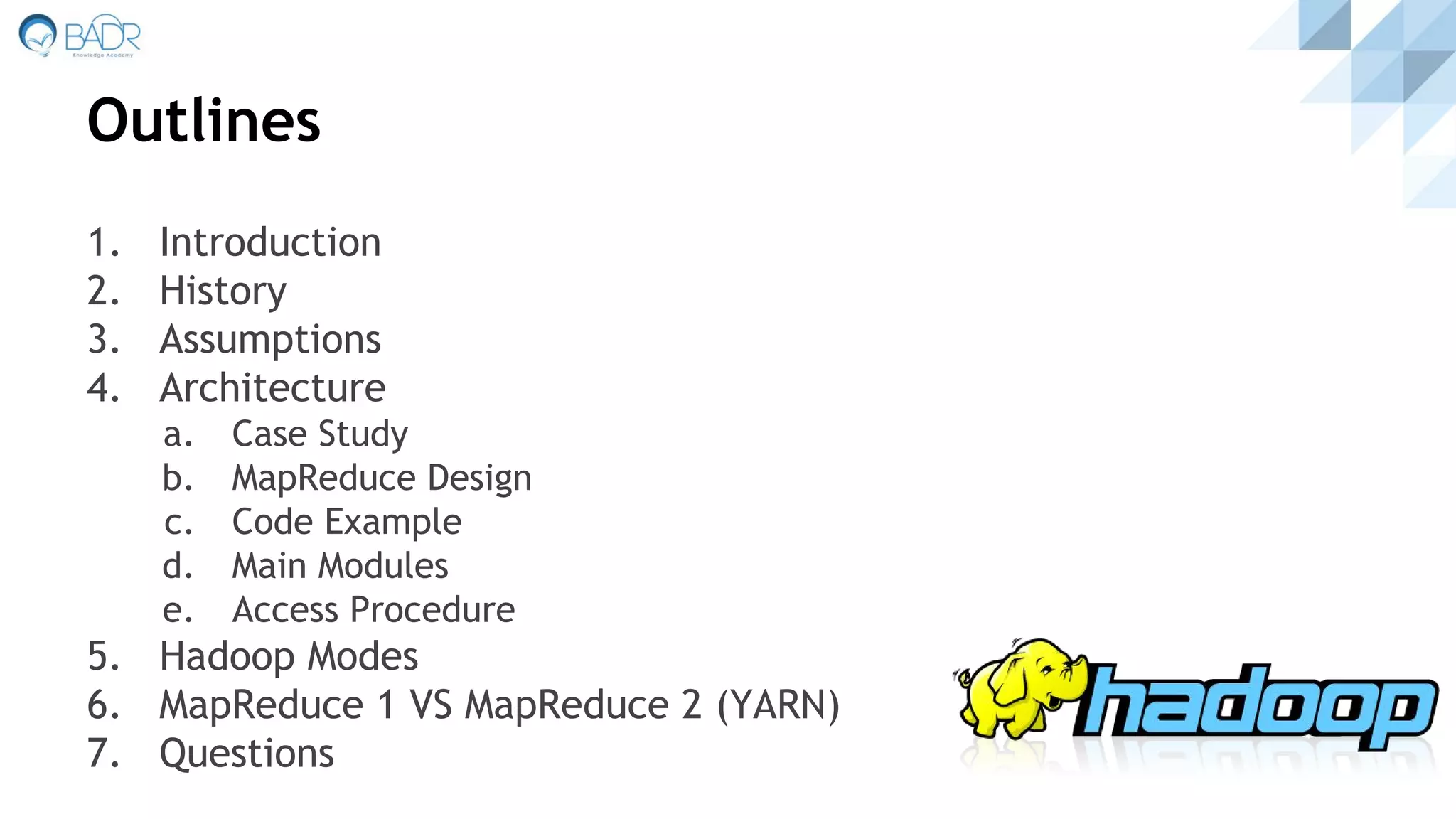

3. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

4. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

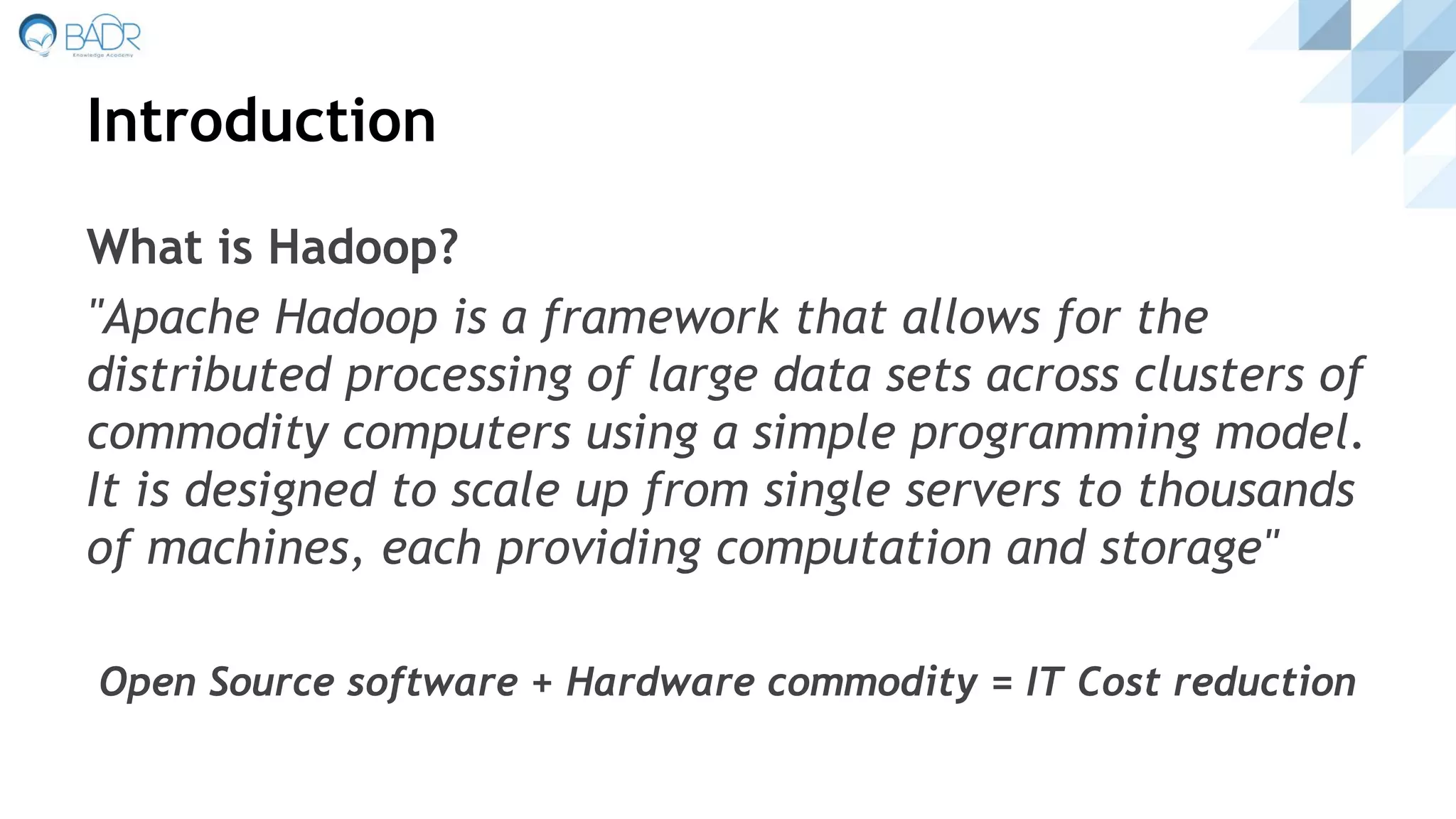

5. Introduction
What is Hadoop?
"Apache Hadoop is a framework that allows for the
distributed processing of large data sets across clusters of
commodity computers using a simple programming model.
It is designed to scale up from single servers to thousands
of machines, each providing computation and storage"
Open Source software + Hardware commodity = IT Cost reduction

6. Introduction - Cont.

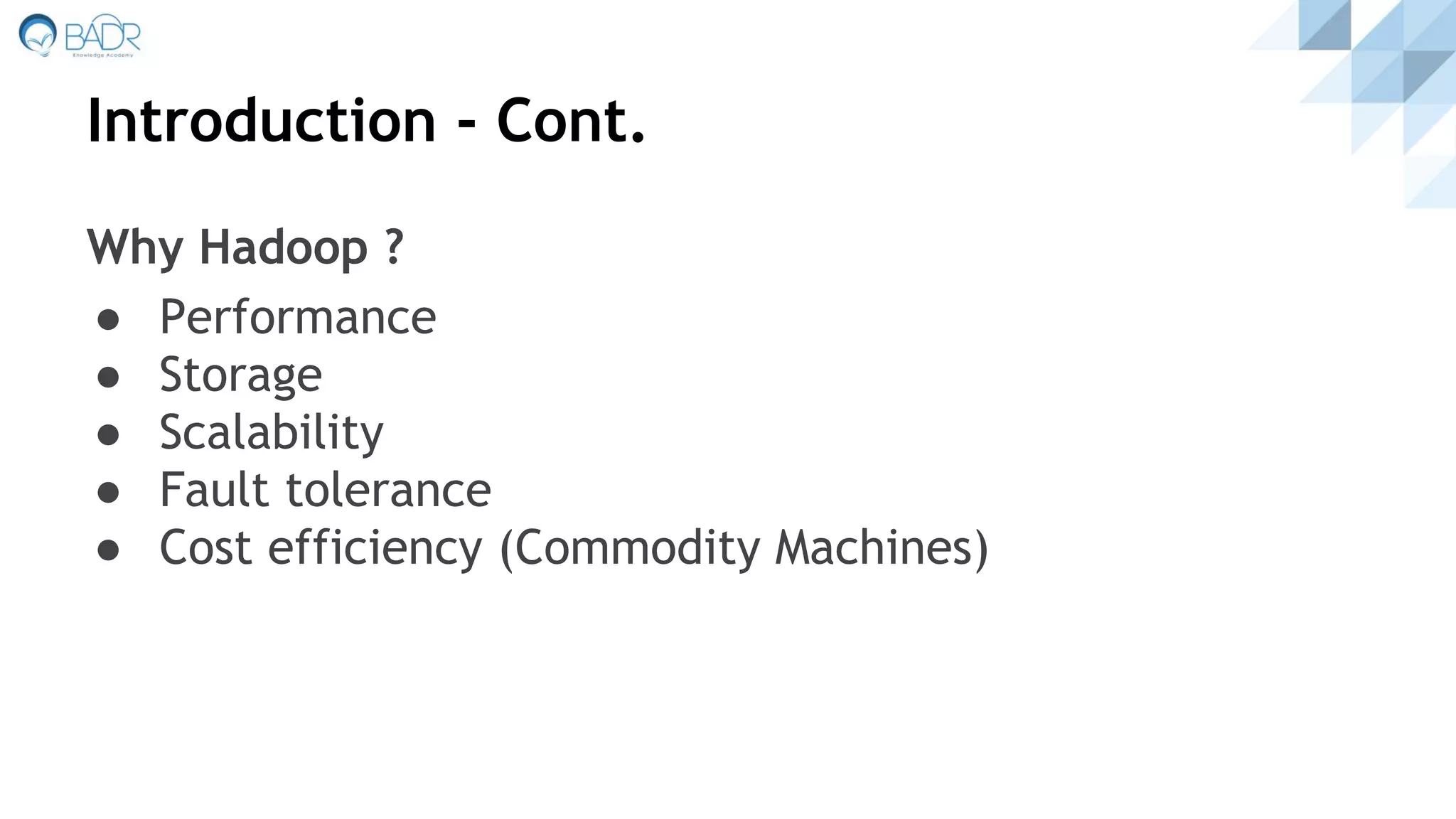

Why Hadoop ?
● Performance
● Storage
● Scalability
● Fault tolerance
● Cost efficiency (Commodity Machines)

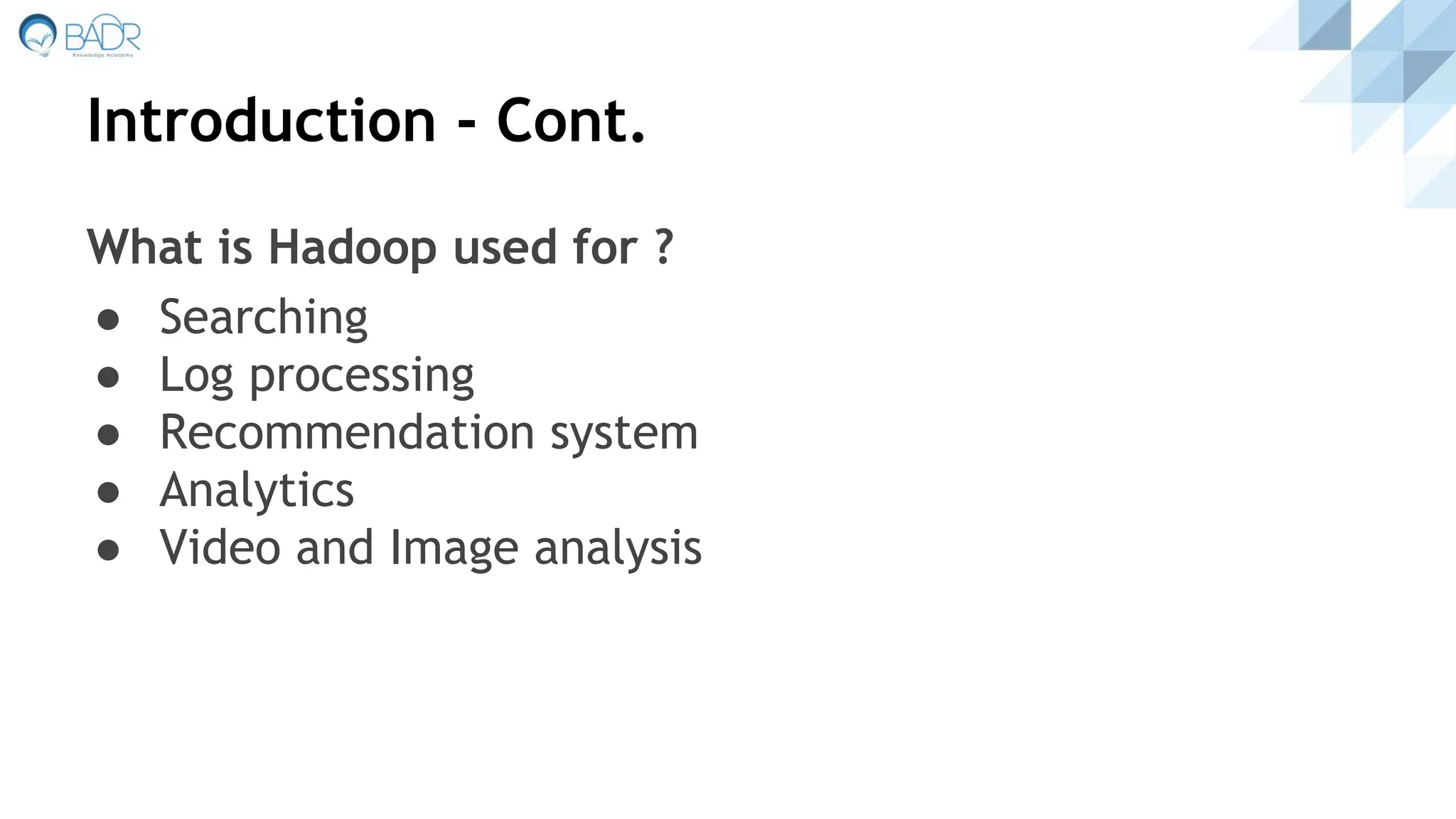

7. Introduction - Cont.
What is Hadoop used for ?
● Searching
● Log processing
● Recommendation system
● Analytics
● Video and Image analysis

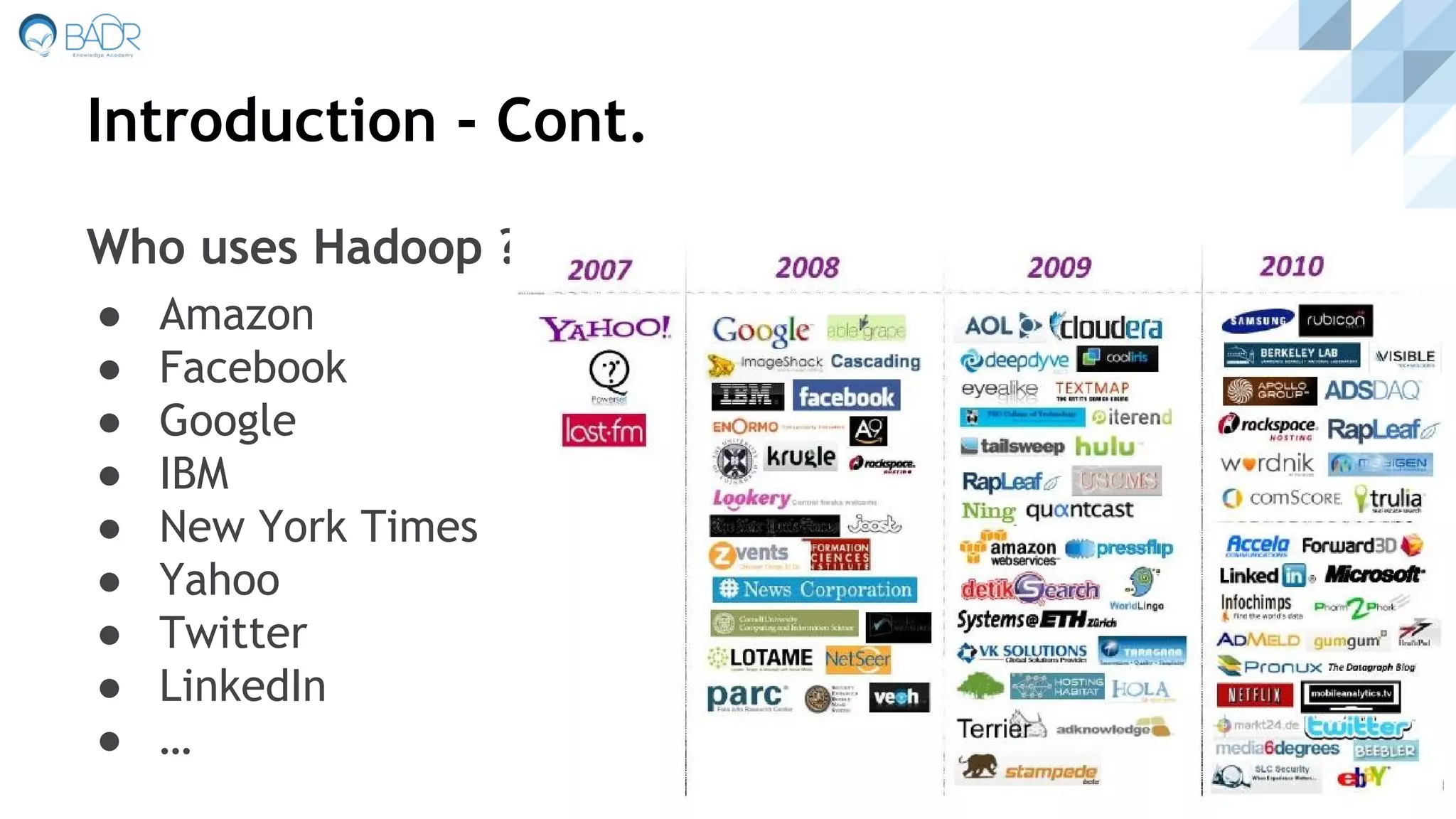

8. Introduction - Cont.
Who uses Hadoop ?
● Amazon
● Facebook
● Google
● IBM
● New York Times
● Yahoo
● Twitter
● LinkedIn
● …

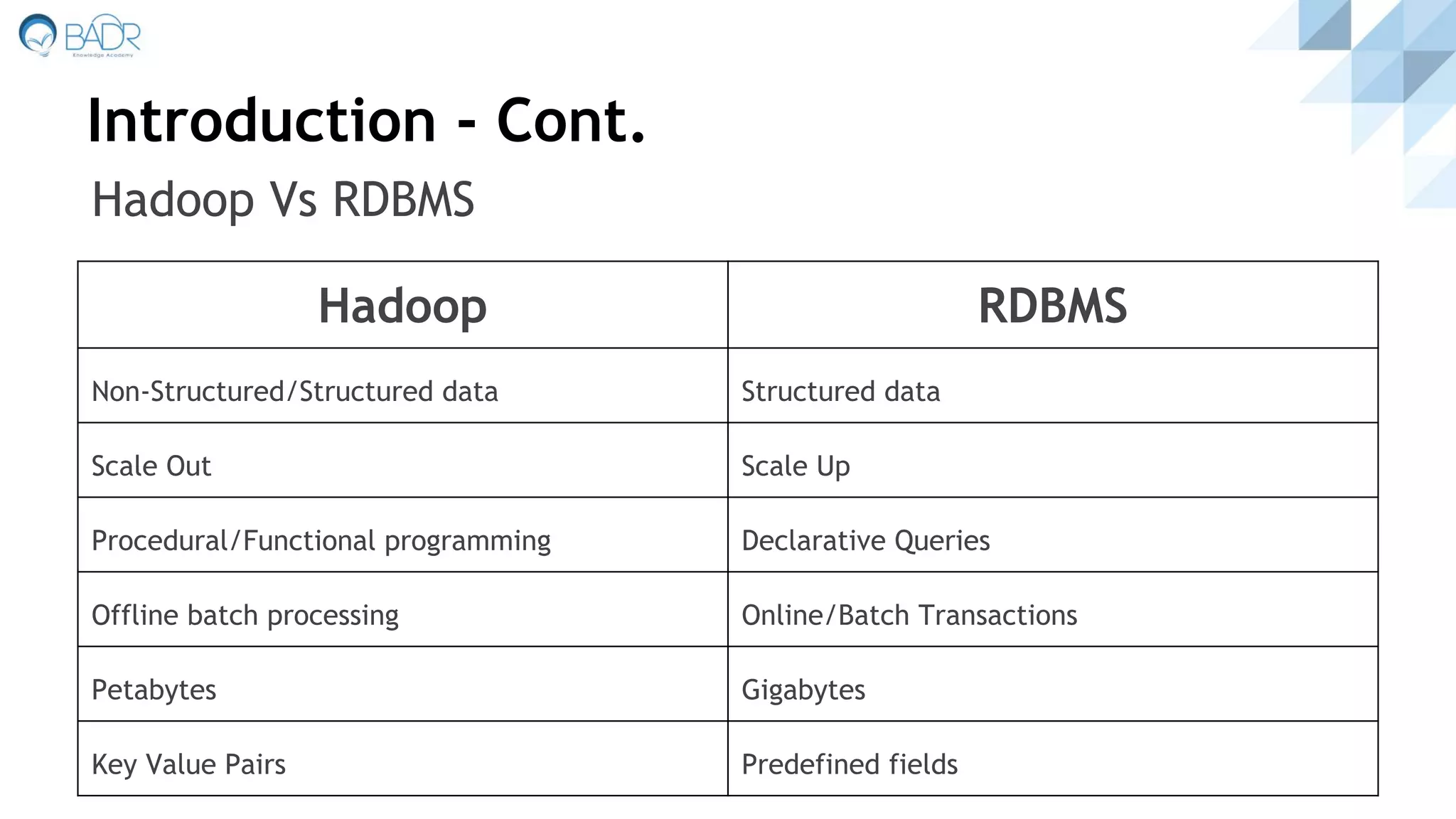

9. Introduction - Cont.
Hadoop RDBMS
Non-Structured/Structured data Structured data
Scale Out Scale Up
Procedural/Functional programming Declarative Queries
Offline batch processing Online/Batch Transactions
Petabytes Gigabytes
Key Value Pairs Predefined fields
Hadoop Vs RDBMS

10. Introduction - Cont.

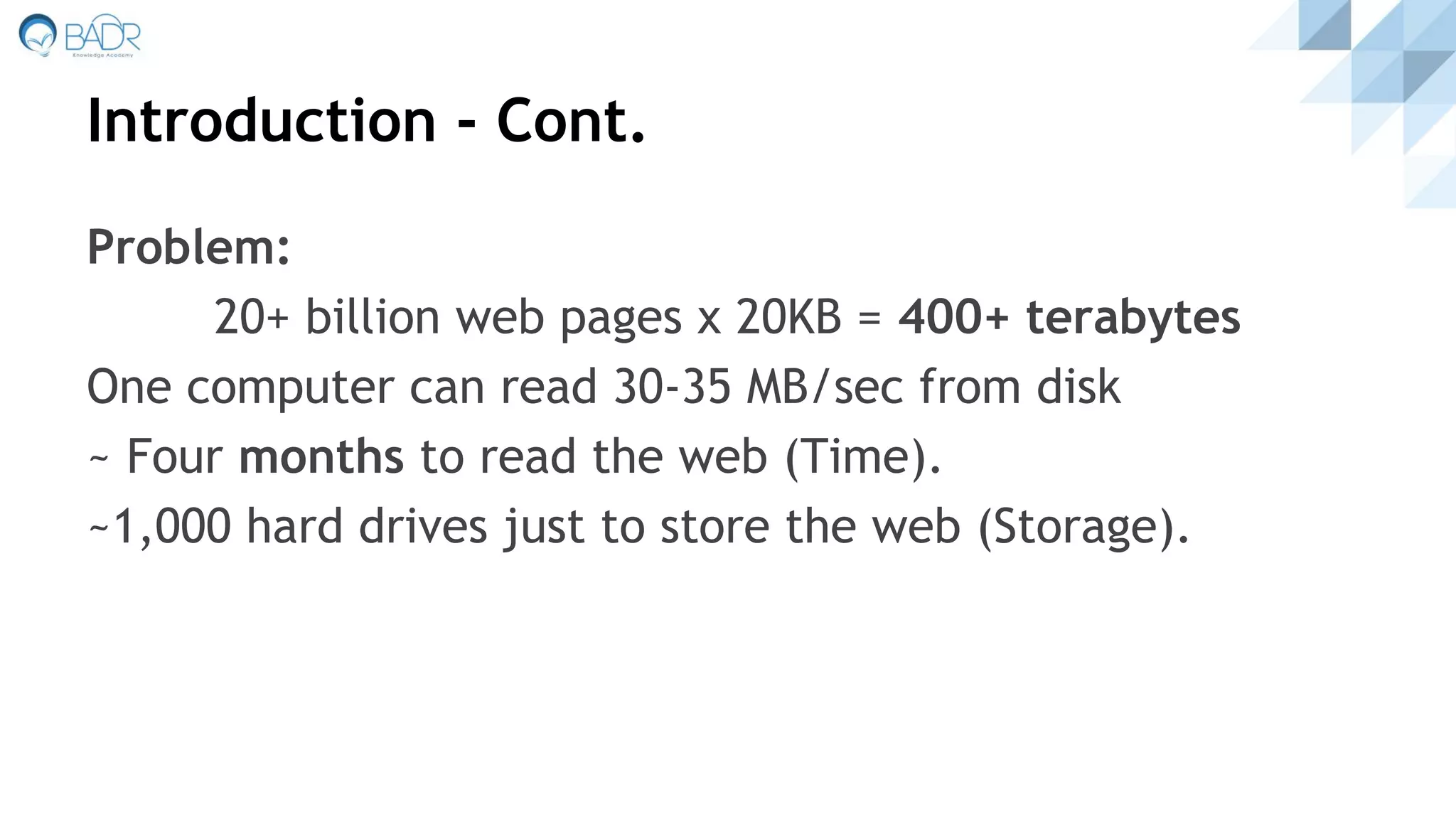

Problem:
20+ billion web pages x 20KB = 400+ terabytes
One computer can read 30-35 MB/sec from disk
~ Four months to read the web (Time).
~1,000 hard drives just to store the web (Storage).

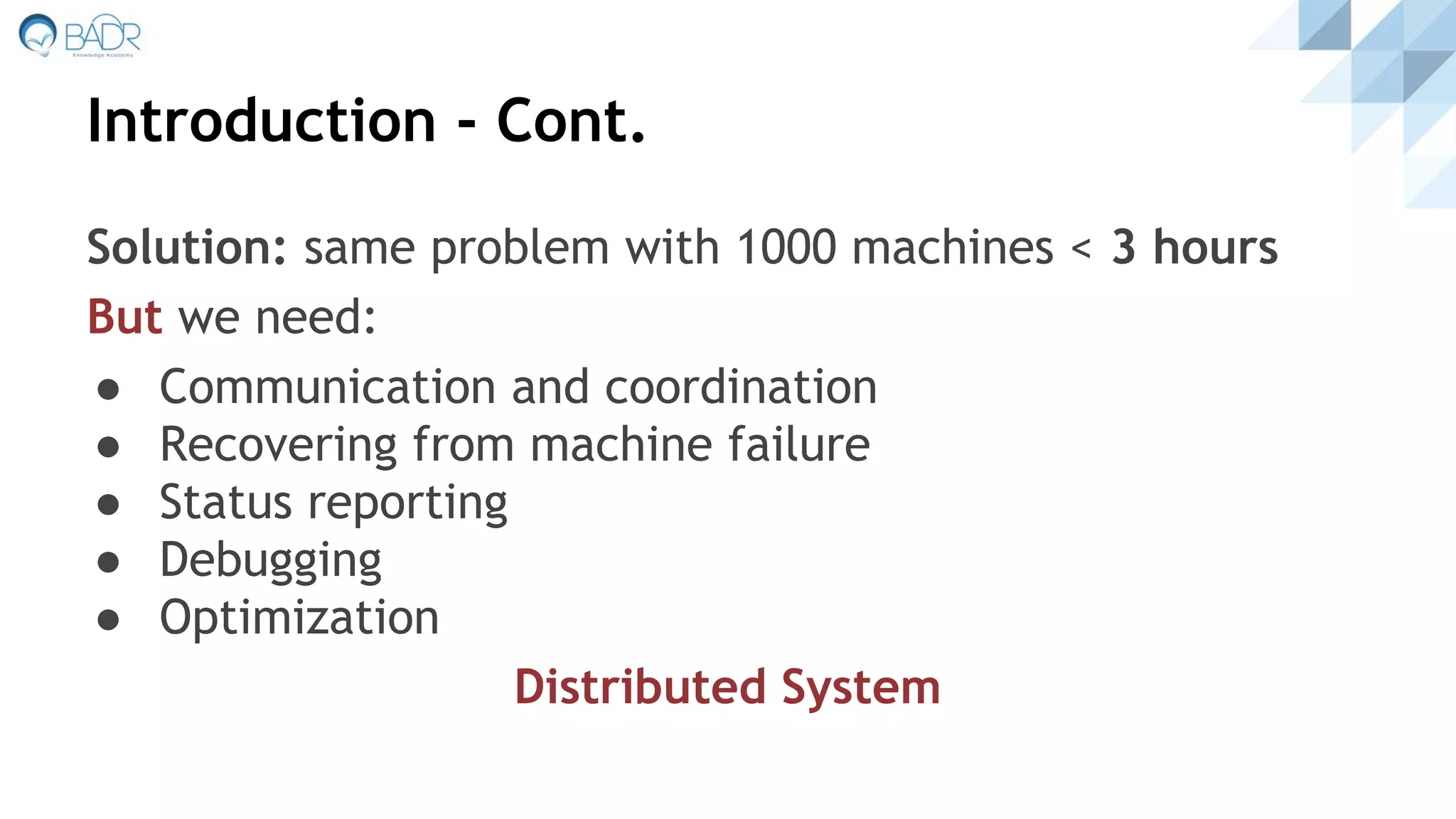

11. Introduction - Cont.
Solution: same problem with 1000 machines < 3 hours
But we need:
● Communication and coordination
● Recovering from machine failure
● Status reporting
● Debugging
● Optimization
Distributed System

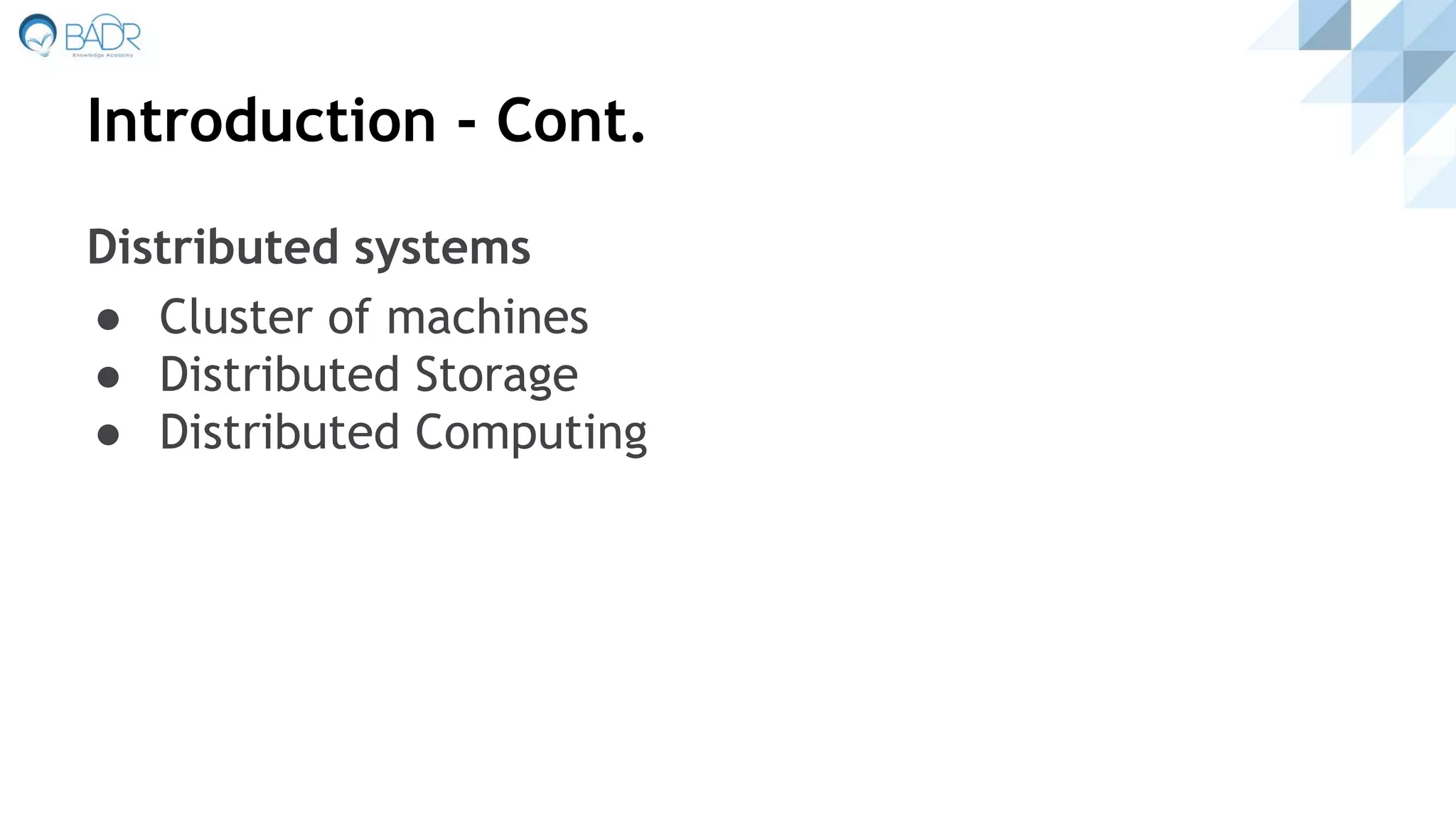

12. Introduction - Cont.
Distributed systems
● Cluster of machines
● Distributed Storage
● Distributed Computing

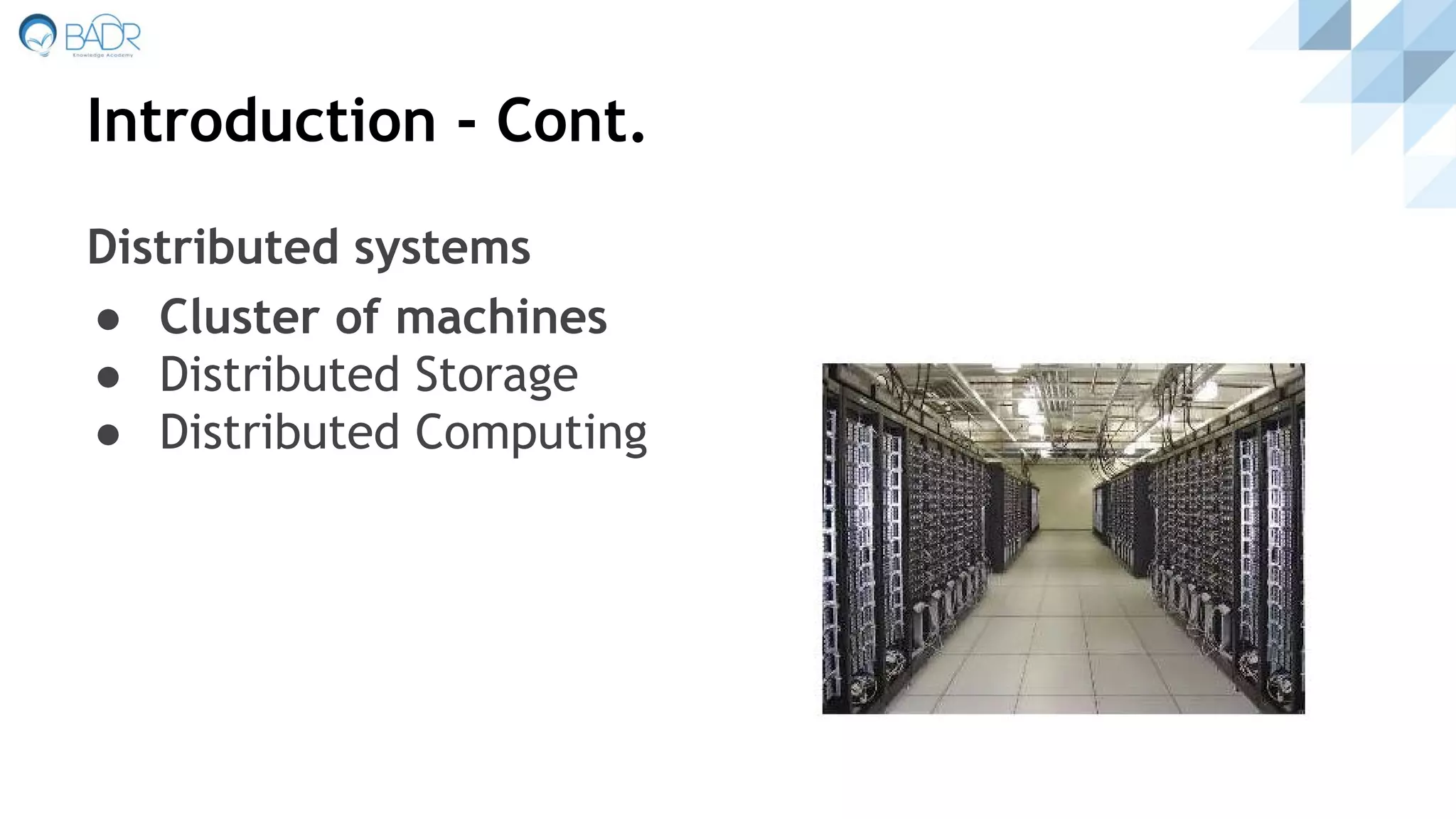

13. Introduction - Cont.
Distributed systems
● Cluster of machines
● Distributed Storage
● Distributed Computing

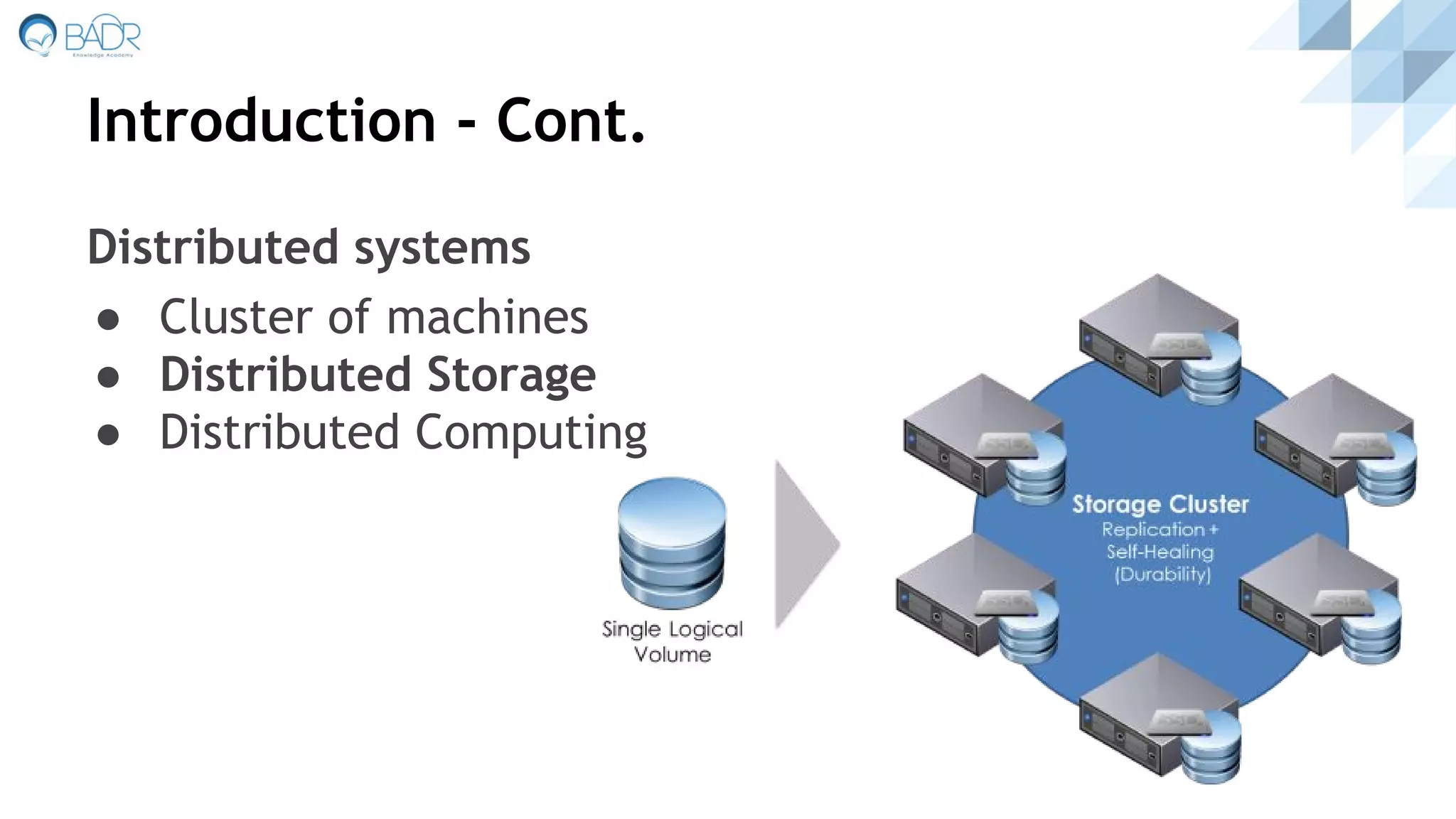

14. Distributed systems
● Cluster of machines
● Distributed Storage
● Distributed Computing
Introduction - Cont.

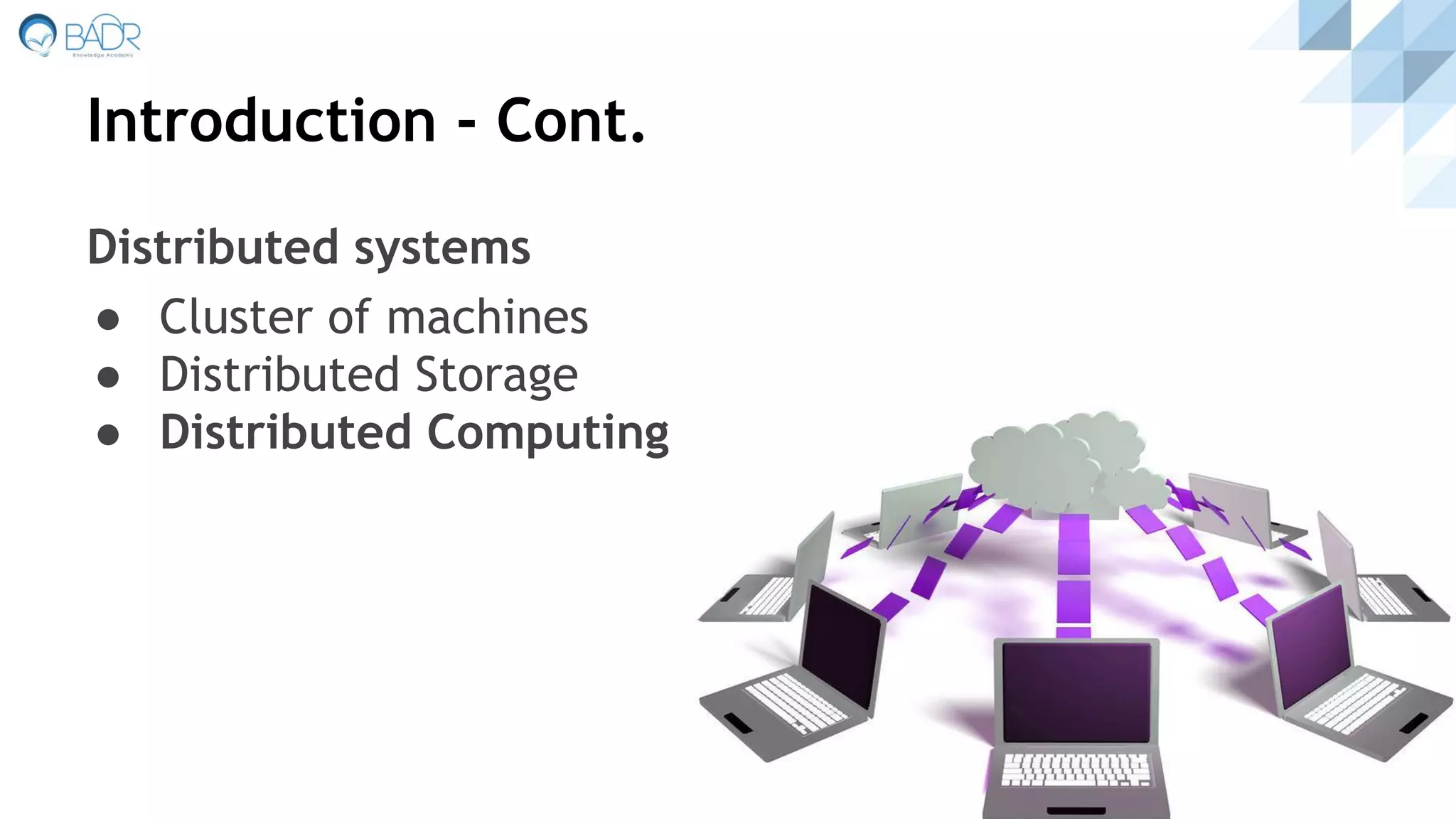

15. Introduction - Cont.
Distributed systems
● Cluster of machines
● Distributed Storage
● Distributed Computing

16. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

17. History

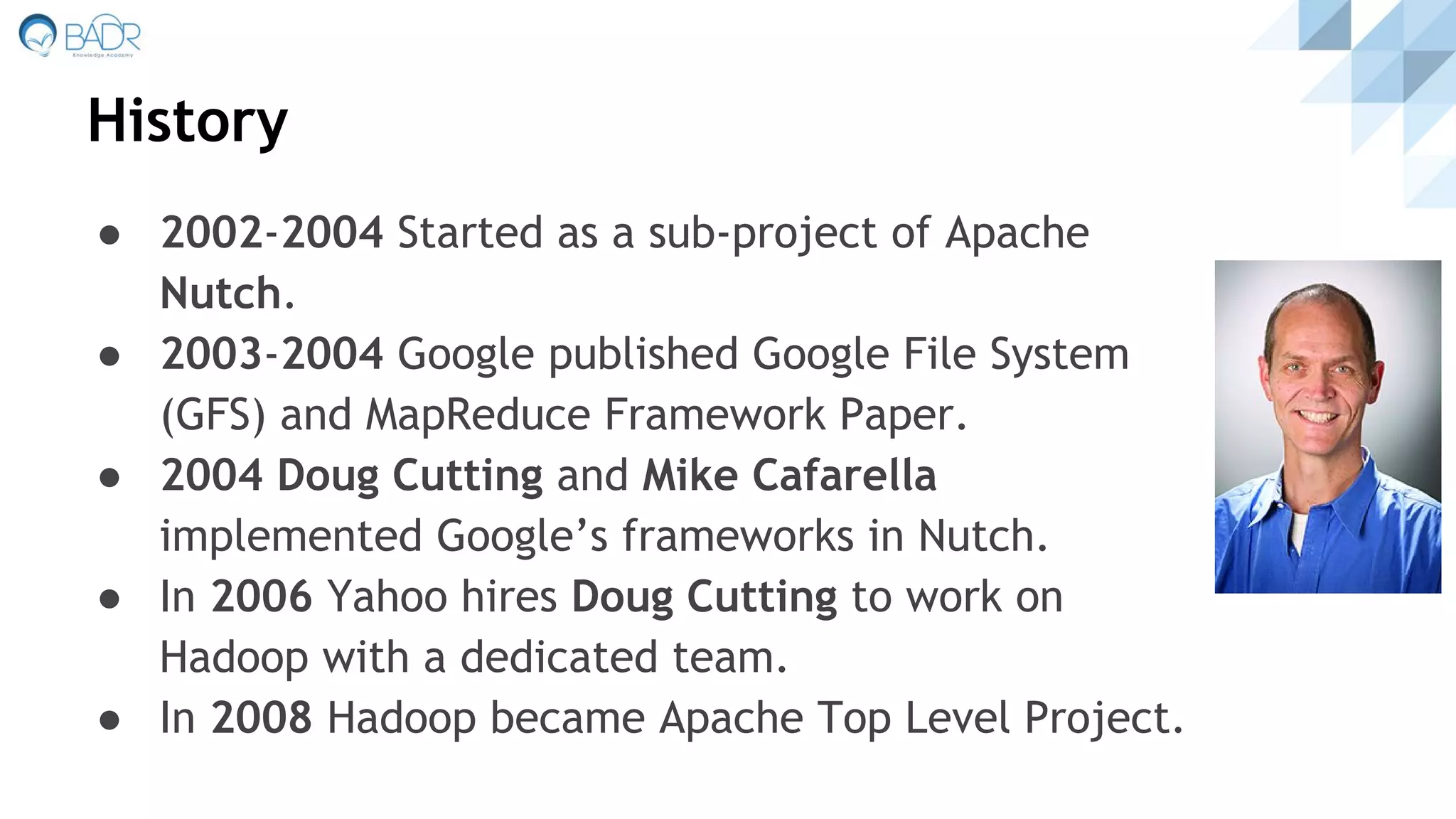

● 2002-2004 Started as a sub-project of Apache
Nutch.
● 2003-2004 Google published Google File System
(GFS) and MapReduce Framework Paper.
● 2004 Doug Cutting and Mike Cafarella
implemented Google’s frameworks in Nutch.
● In 2006 Yahoo hires Doug Cutting to work on
Hadoop with a dedicated team.
● In 2008 Hadoop became Apache Top Level Project.

18. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

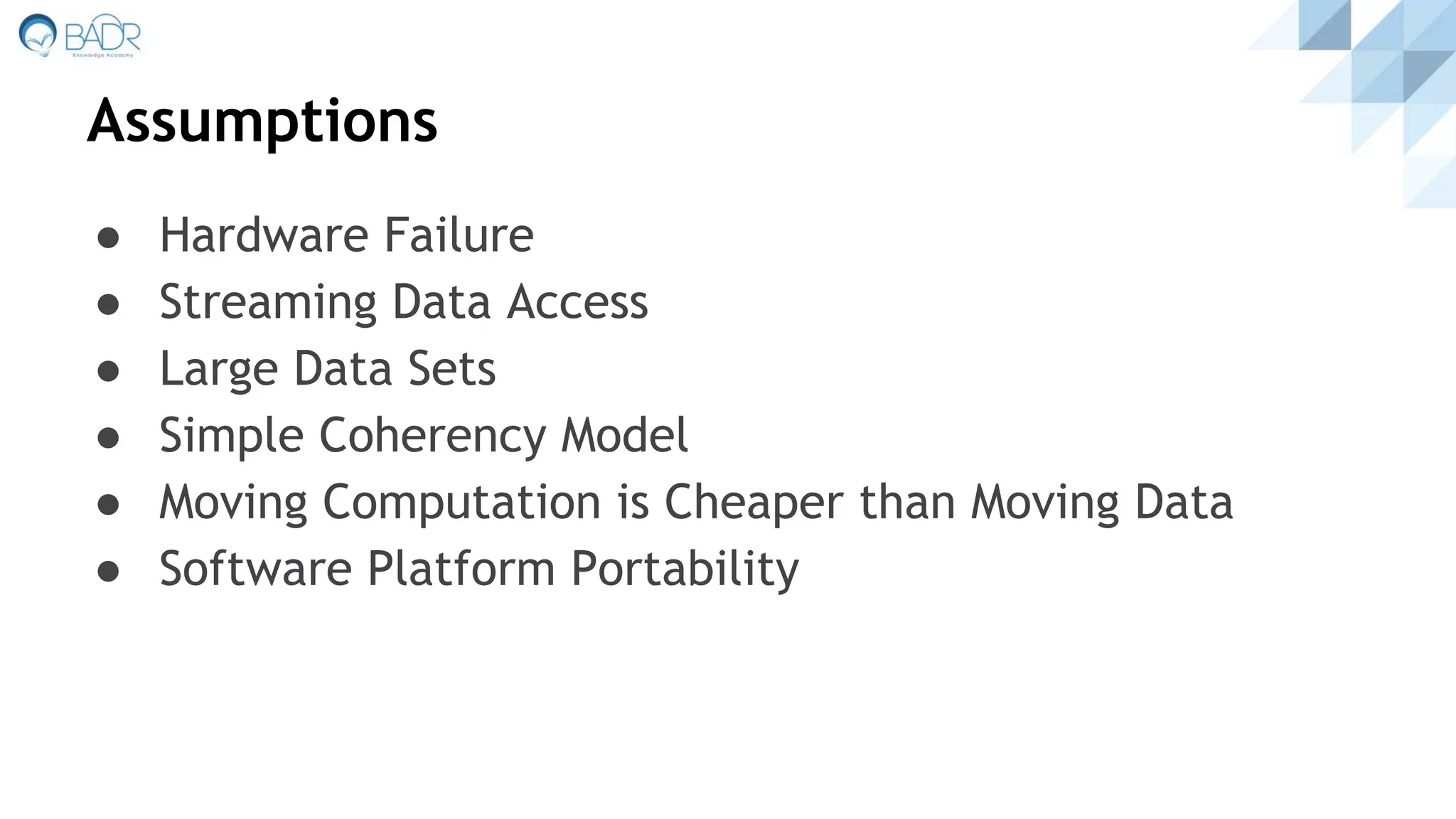

19. Assumptions
● Hardware Failure
● Streaming Data Access
● Large Data Sets
● Simple Coherency Model
● Moving Computation is Cheaper than Moving Data
● Software Platform Portability

20. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

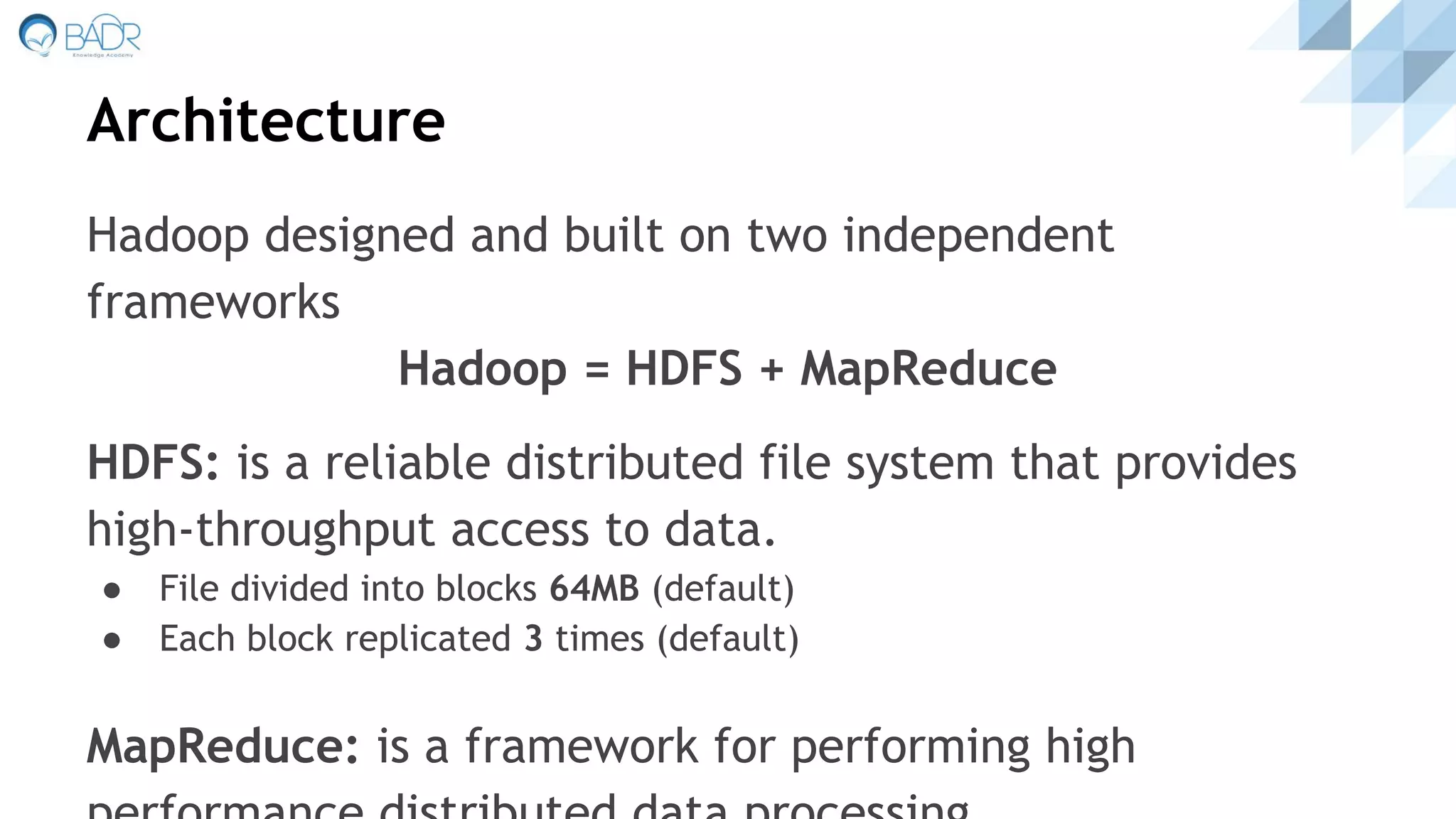

21. Architecture
Hadoop designed and built on two independent
frameworks
Hadoop = HDFS + MapReduce
HDFS: is a reliable distributed file system that provides
high-throughput access to data.
● File divided into blocks 64MB (default)
● Each block replicated 3 times (default)
MapReduce: is a framework for performing high

22. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

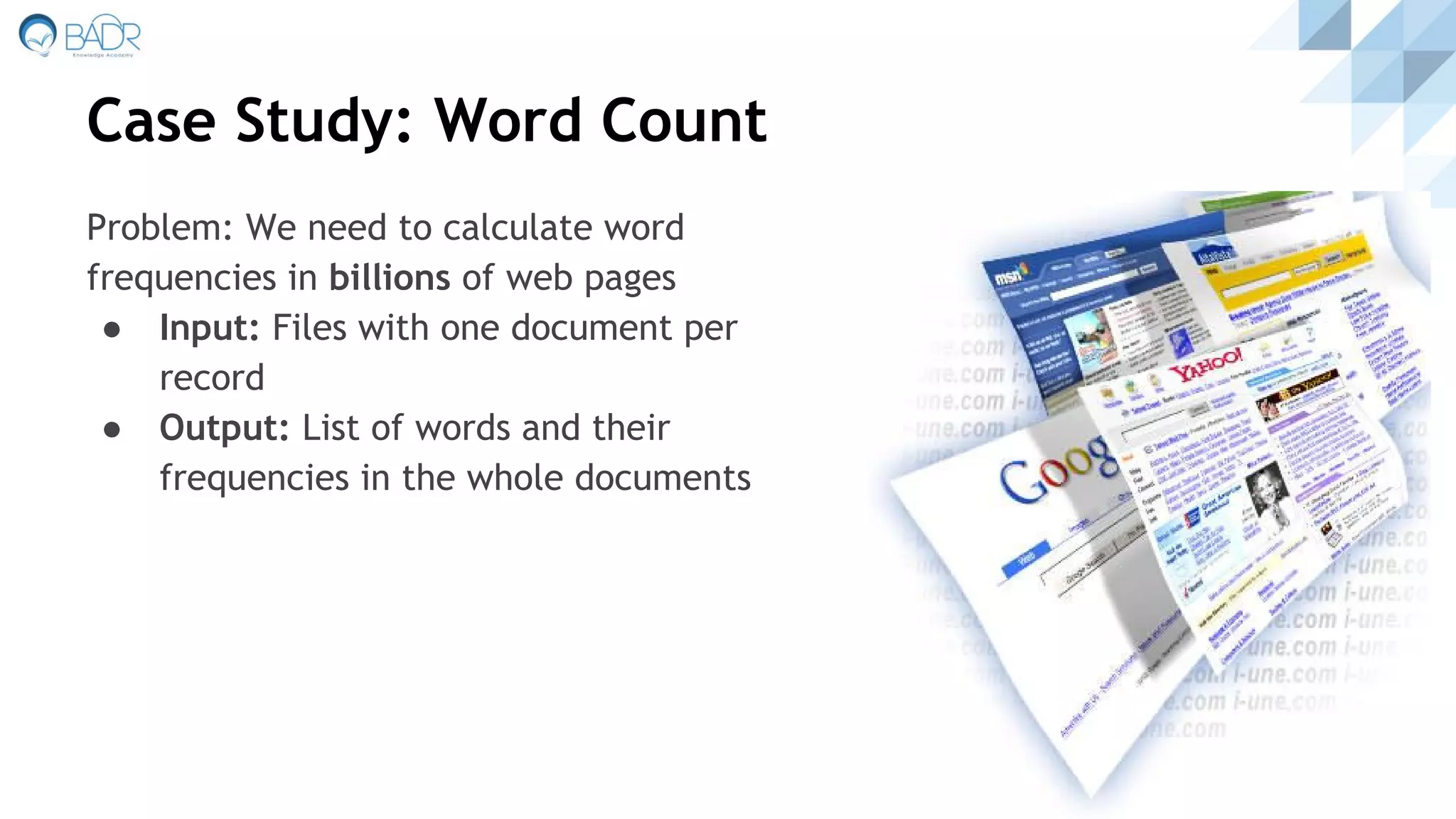

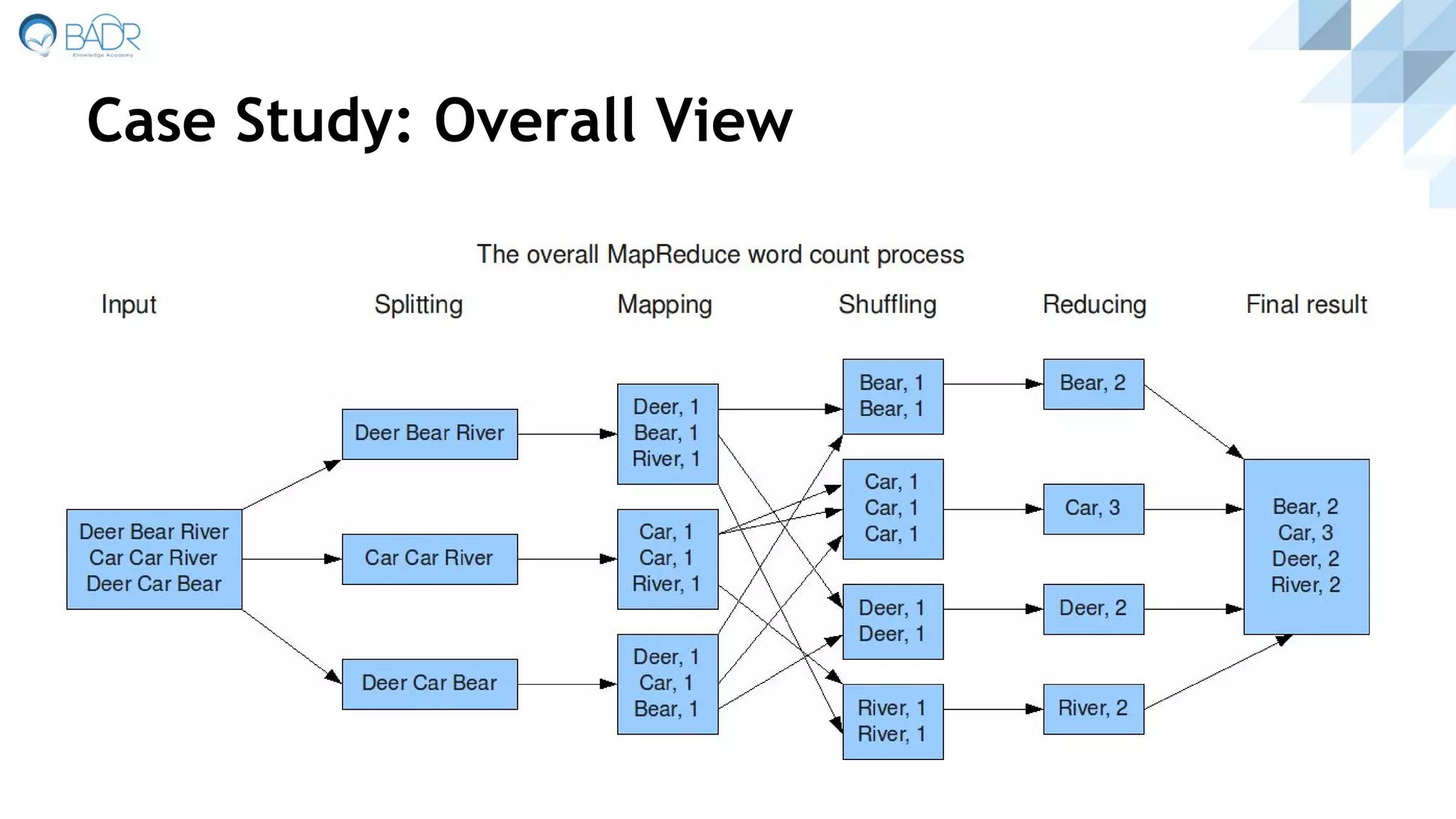

23. Case Study: Word Count
Problem: We need to calculate word
frequencies in billions of web pages
● Input: Files with one document per
record
● Output: List of words and their
frequencies in the whole documents

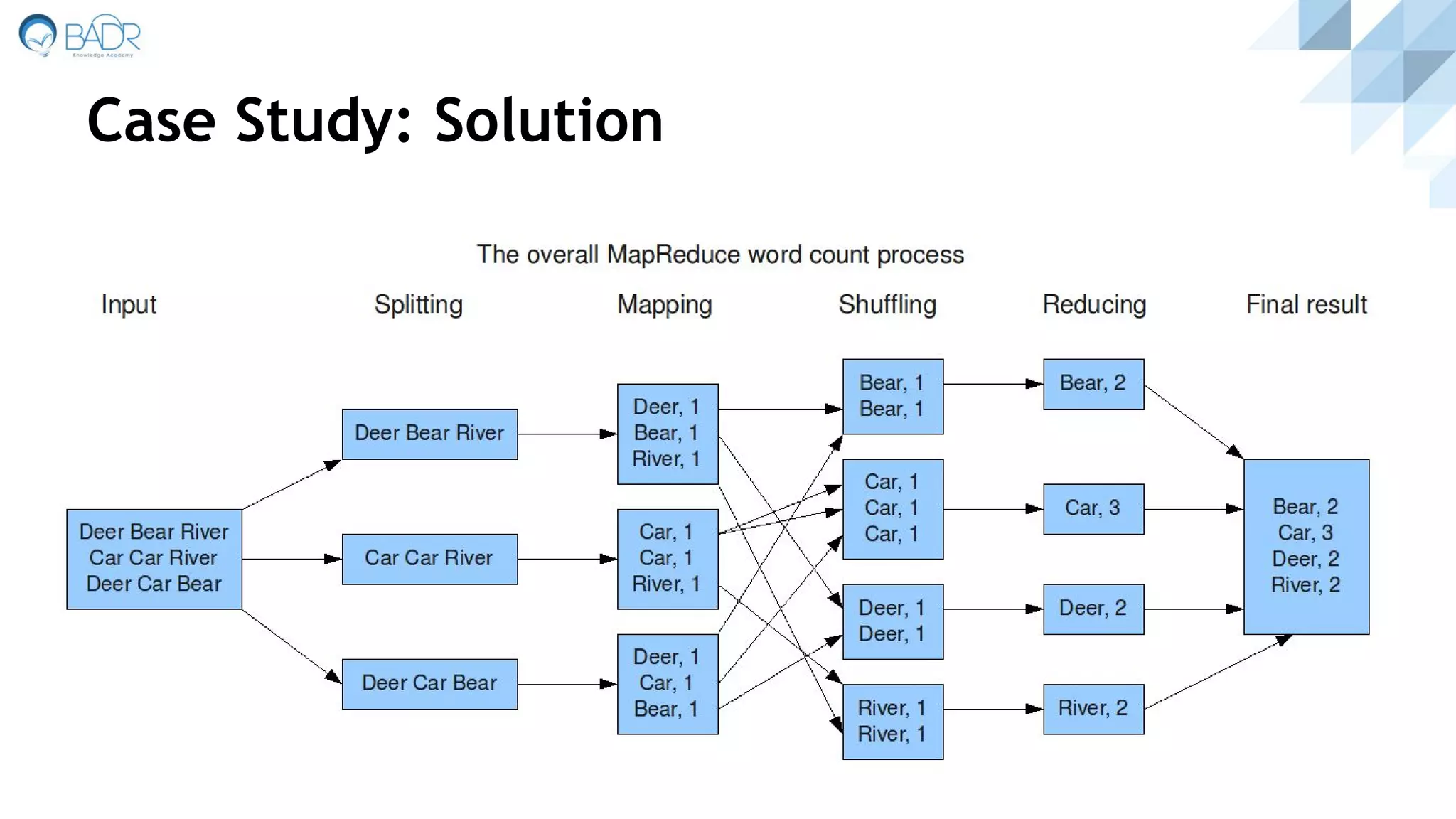

24. Case Study: Solution

25. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

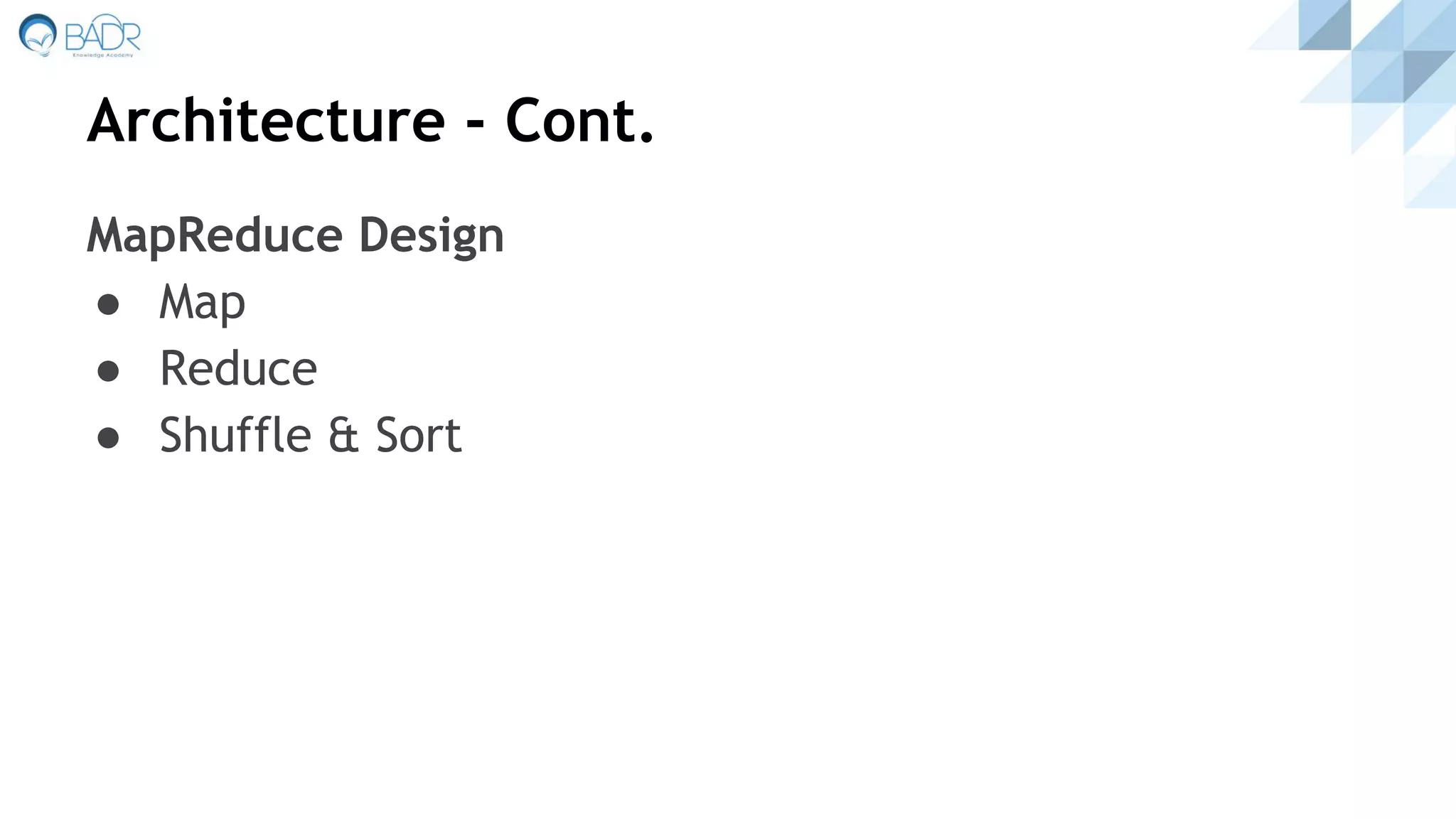

26. Architecture - Cont.
MapReduce Design
● Map
● Reduce
● Shuffle & Sort

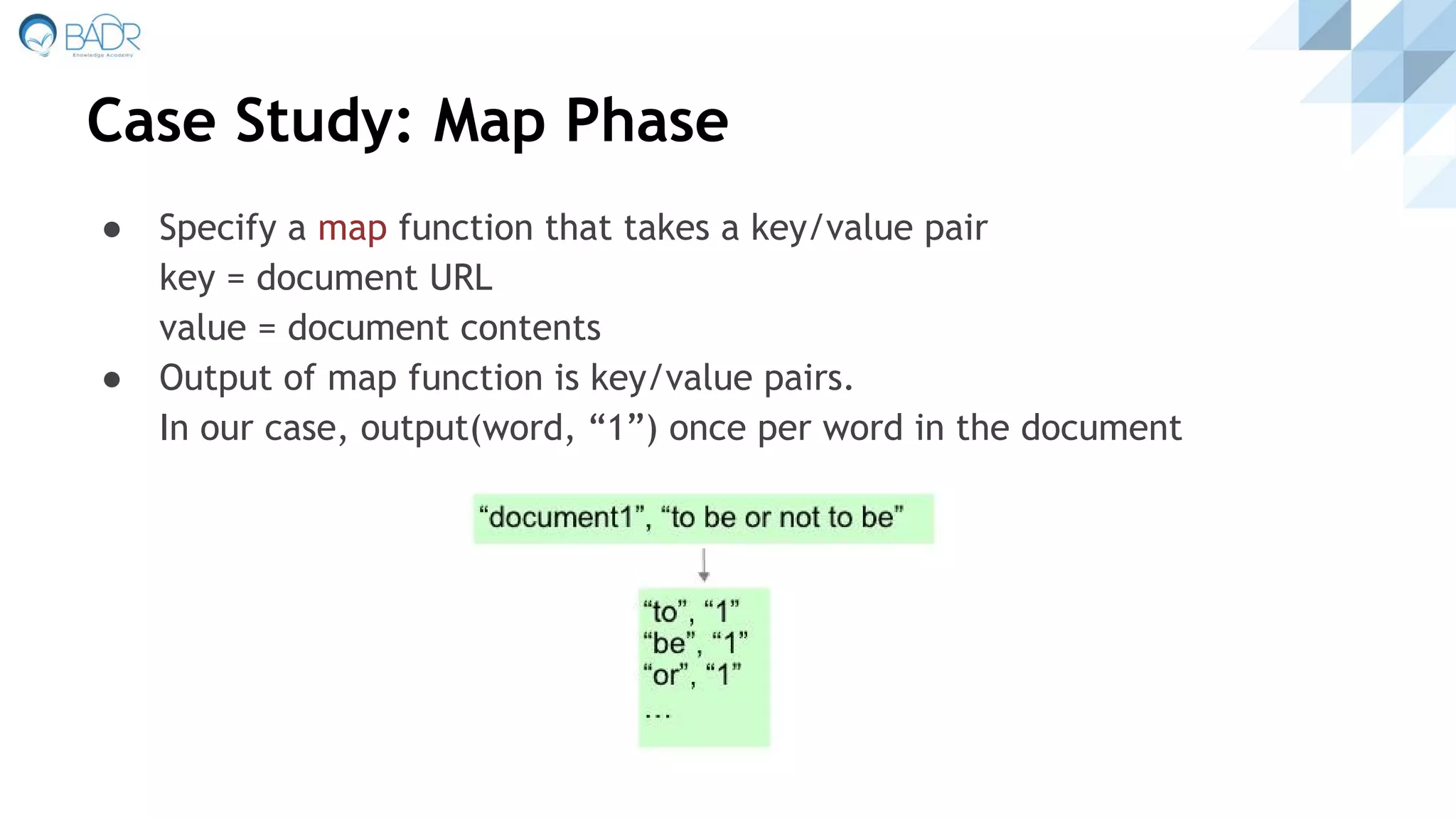

27. Case Study: Map Phase
● Specify a map function that takes a key/value pair
key = document URL
value = document contents
● Output of map function is key/value pairs.
In our case, output(word, “1”) once per word in the document

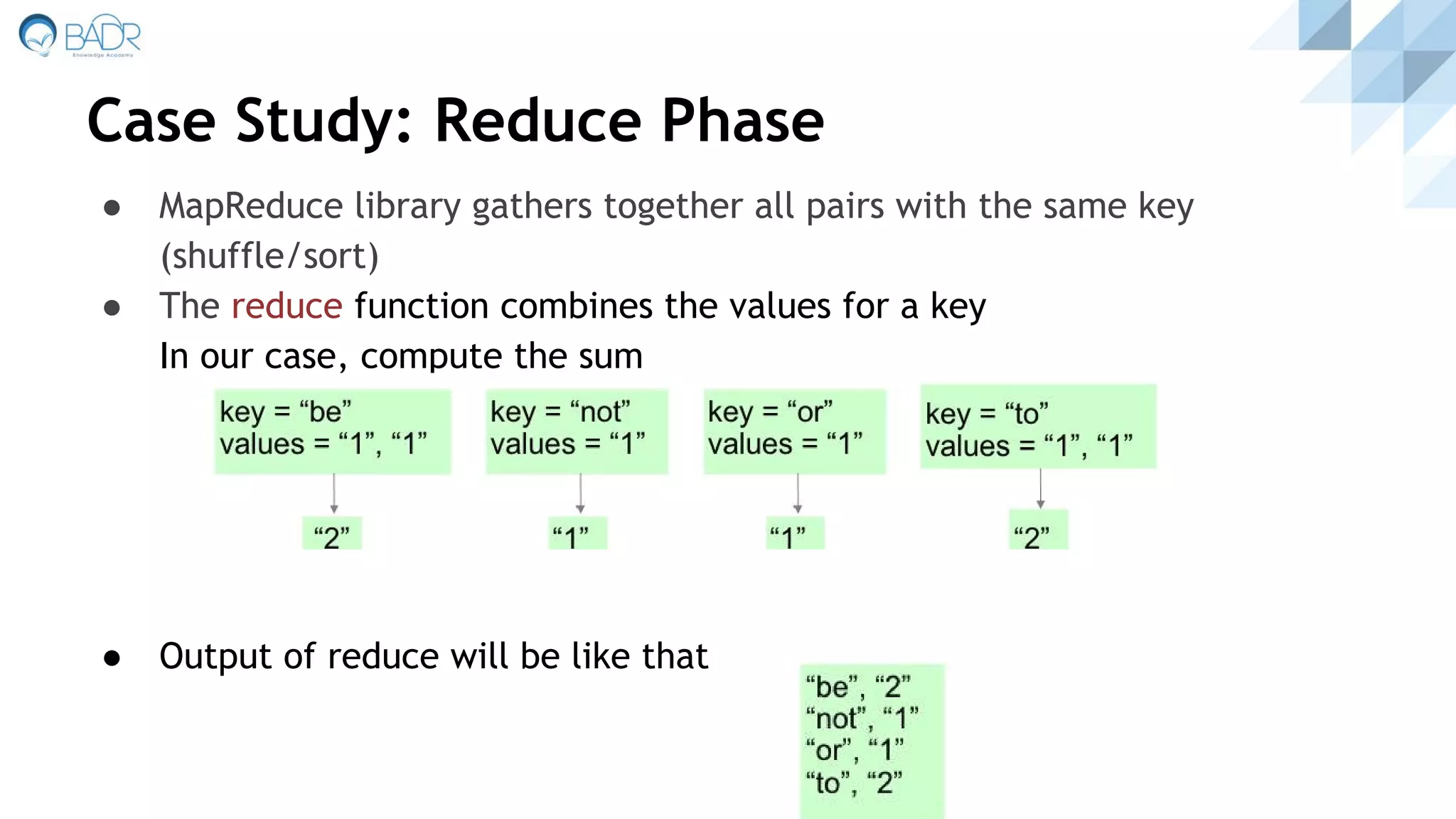

28. Case Study: Reduce Phase
● MapReduce library gathers together all pairs with the same key
(shuffle/sort)
● The reduce function combines the values for a key
In our case, compute the sum
● Output of reduce will be like that

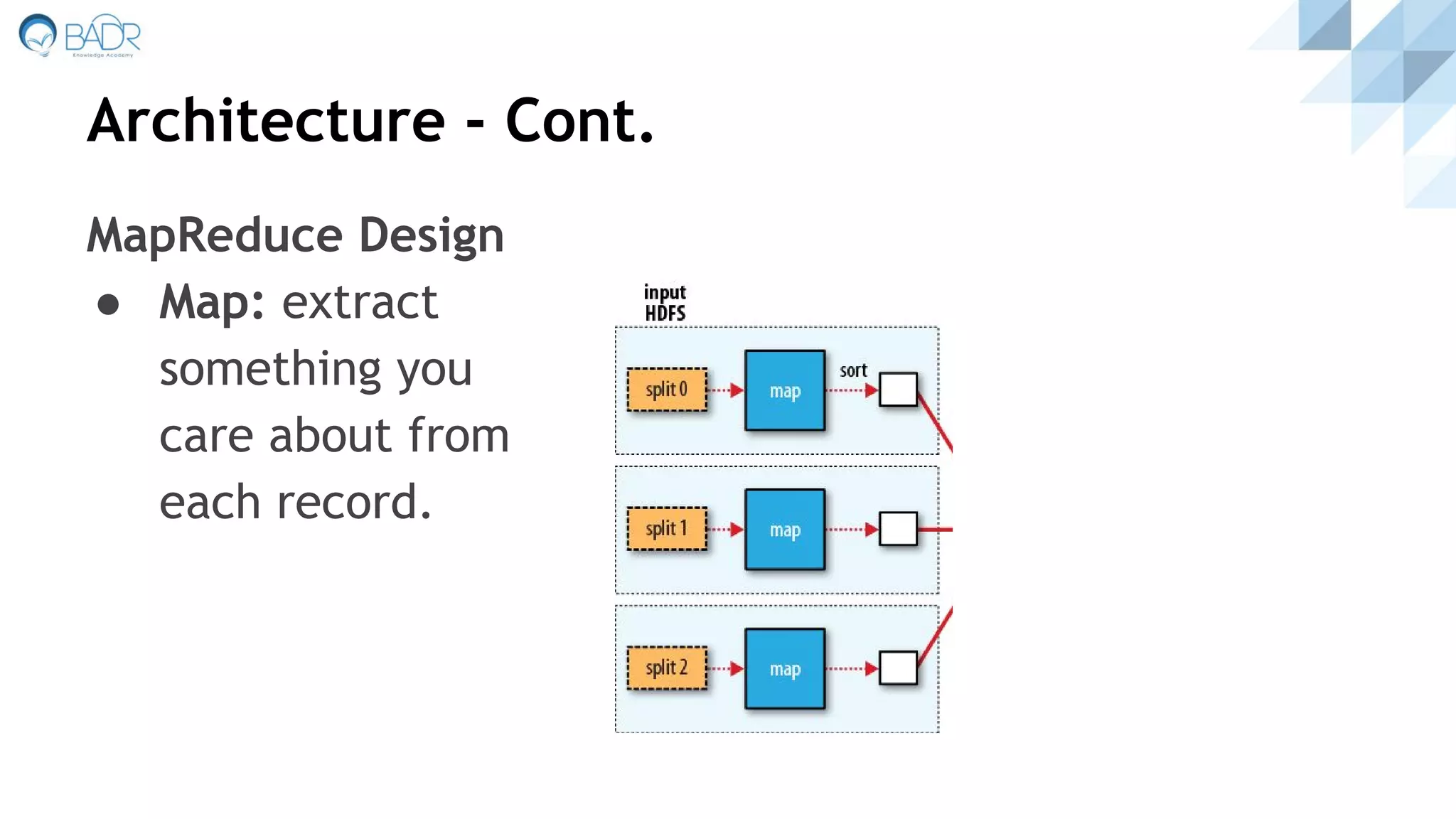

29. Architecture - Cont.
MapReduce Design
● Map: extract
something you
care about from
each record.

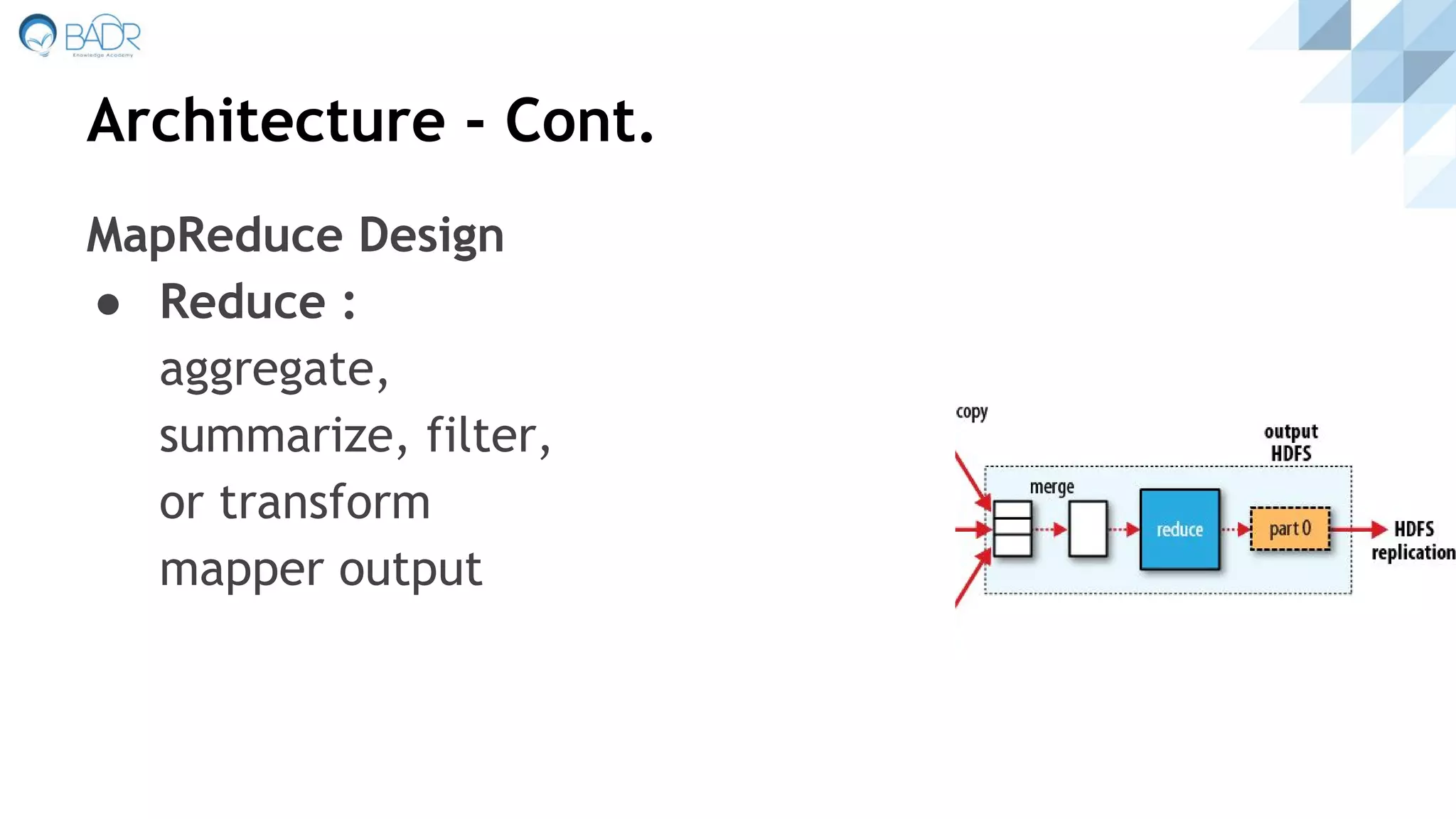

30. Architecture - Cont.
MapReduce Design
● Reduce :
aggregate,
summarize, filter,
or transform
mapper output

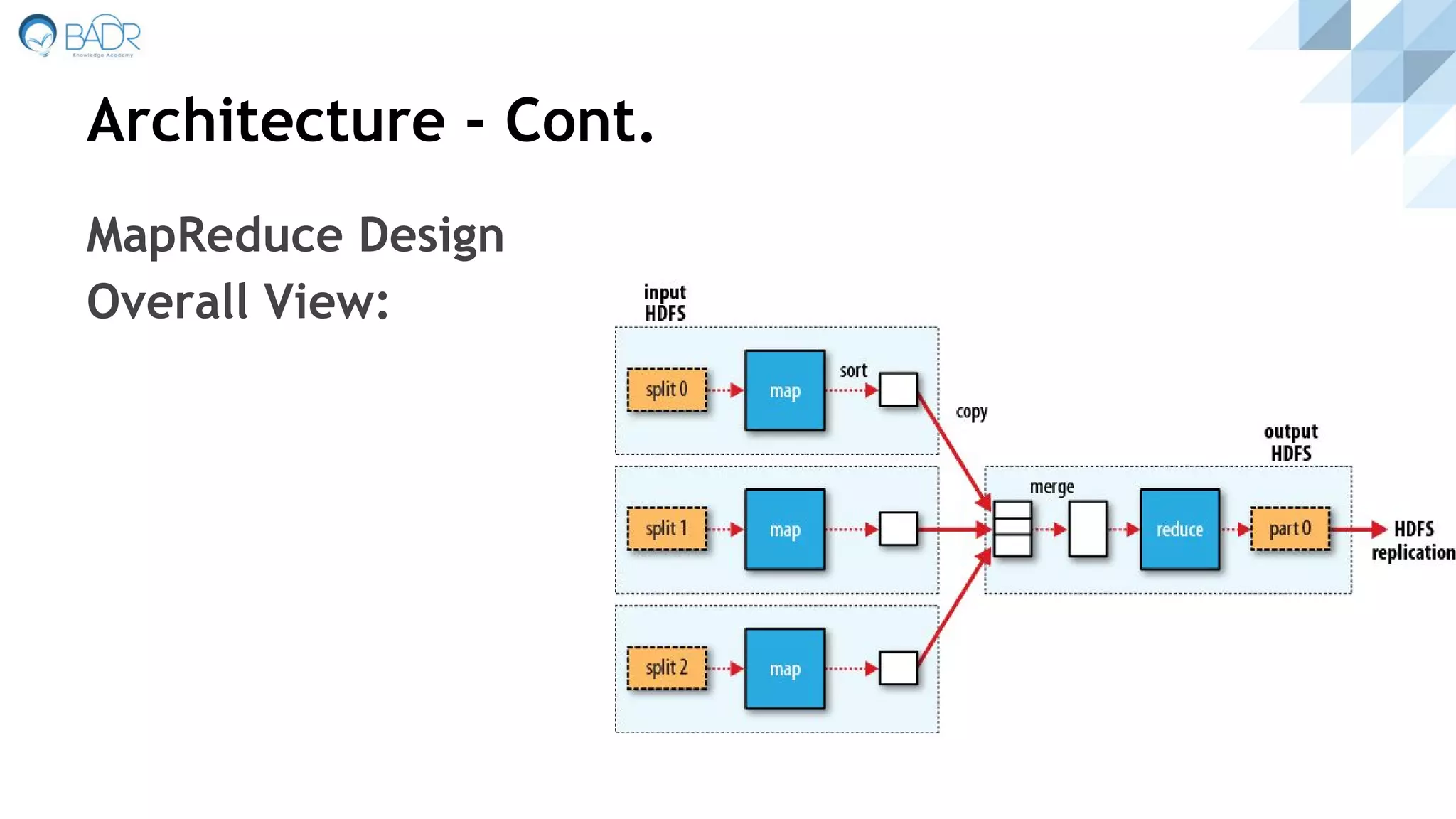

31. Architecture - Cont.
MapReduce Design
Overall View:

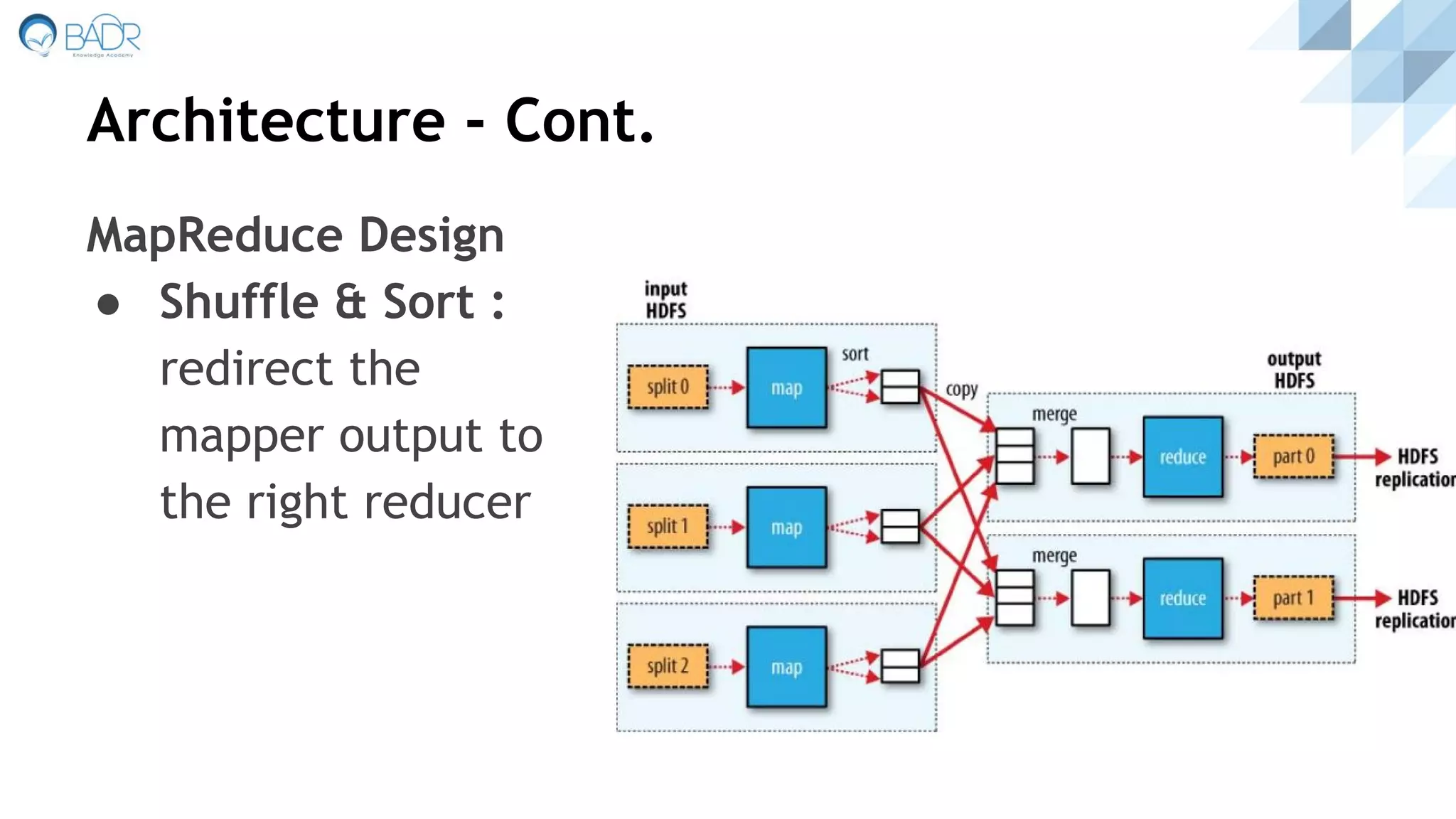

32. Architecture - Cont.
MapReduce Design
● Shuffle & Sort :
redirect the
mapper output to
the right reducer

33. Case Study: Overall View

34. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

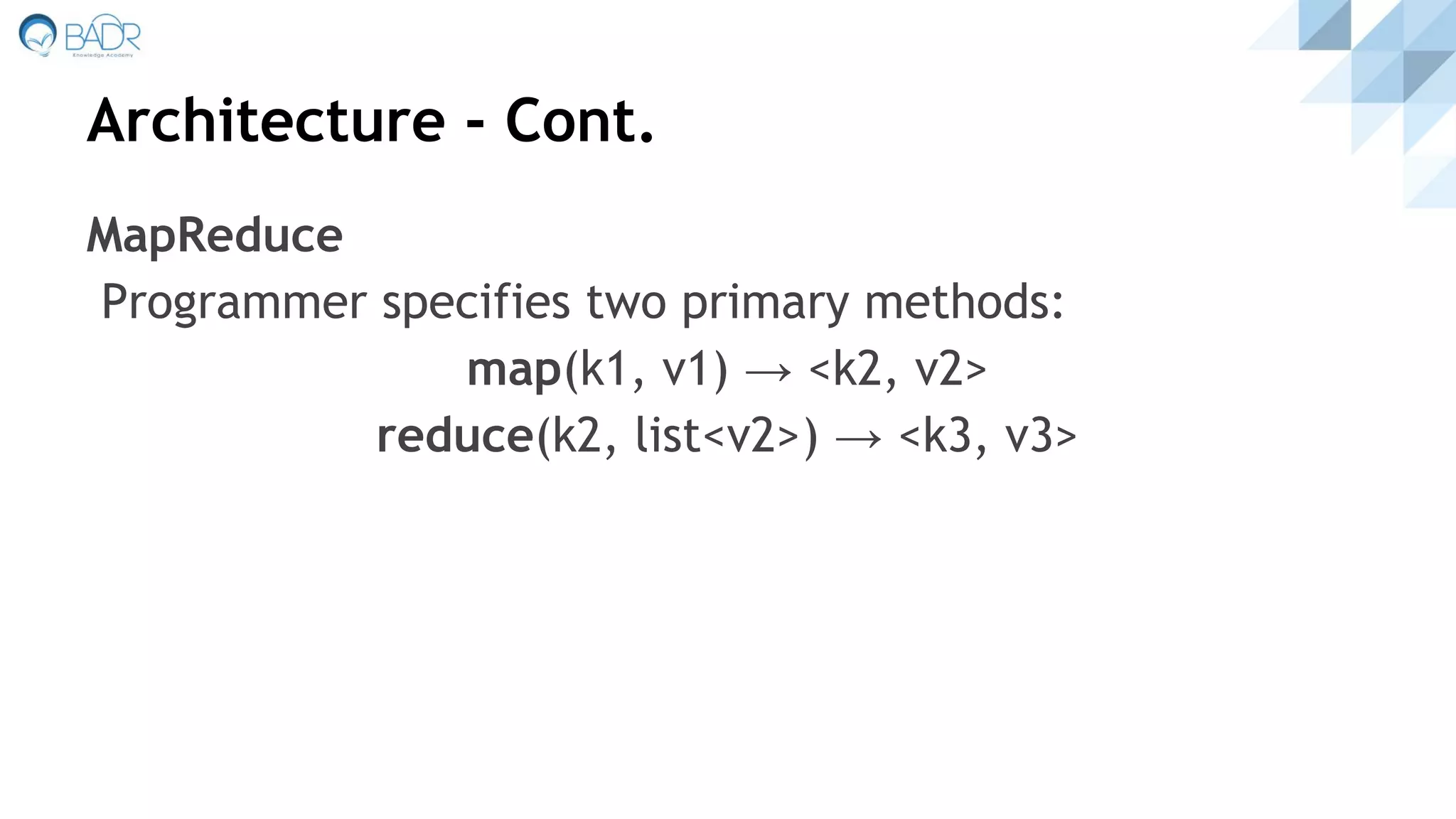

35. Architecture - Cont.
MapReduce
Programmer specifies two primary methods:
map(k1, v1) → <k2, v2>
reduce(k2, list<v2>) → <k3, v3>

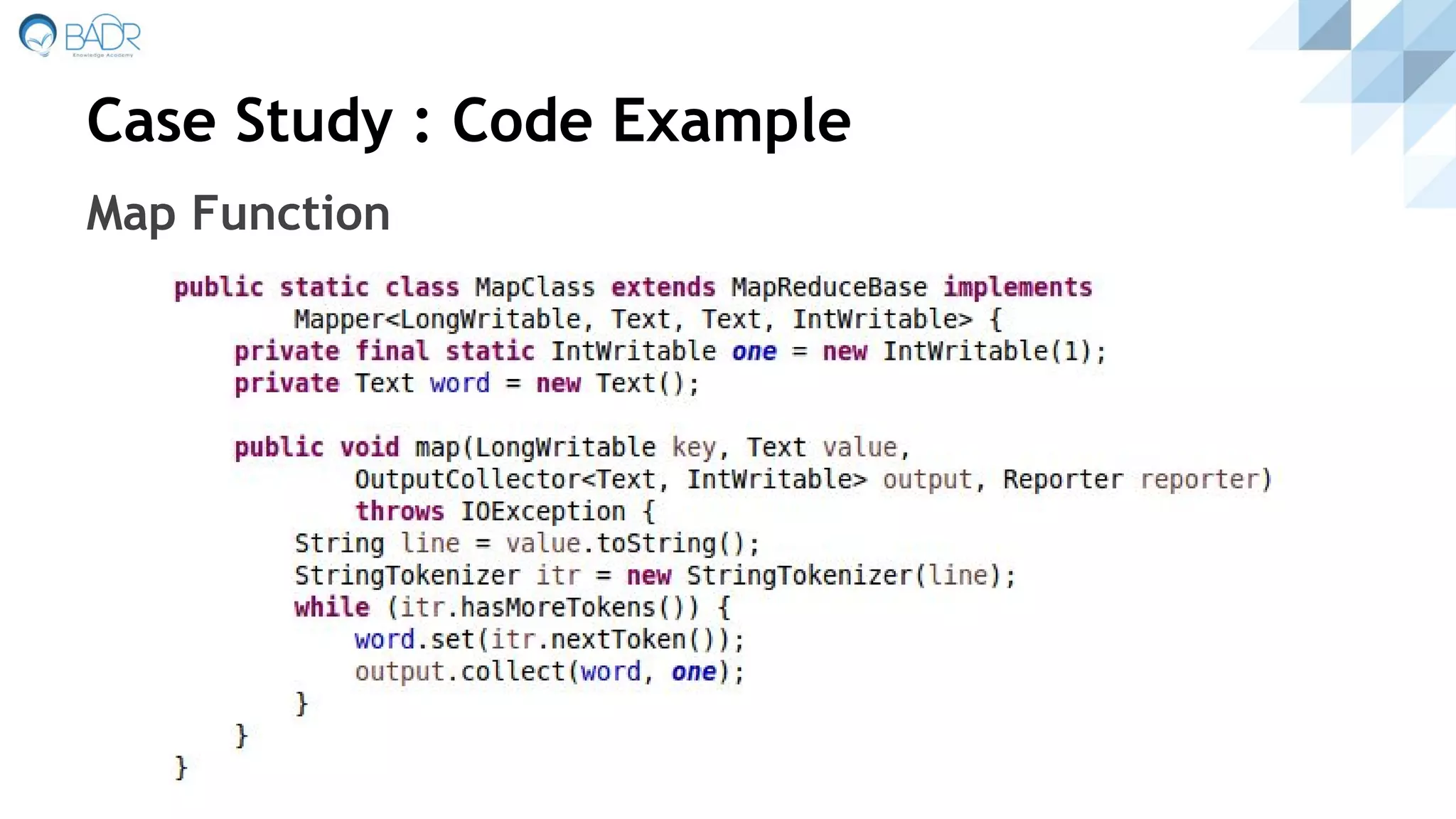

36. Case Study : Code Example
Map Function

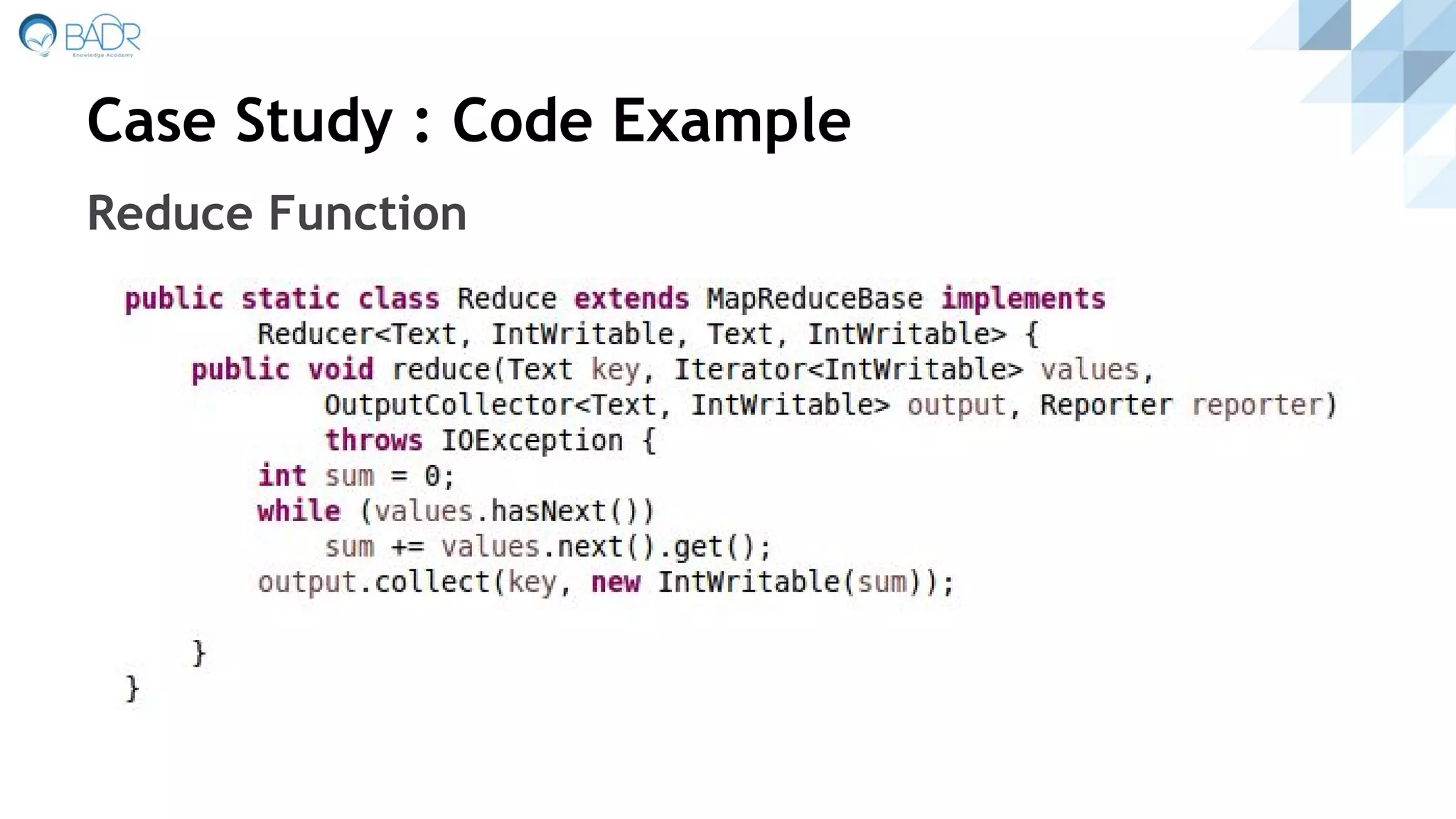

37. Case Study : Code Example
Reduce Function

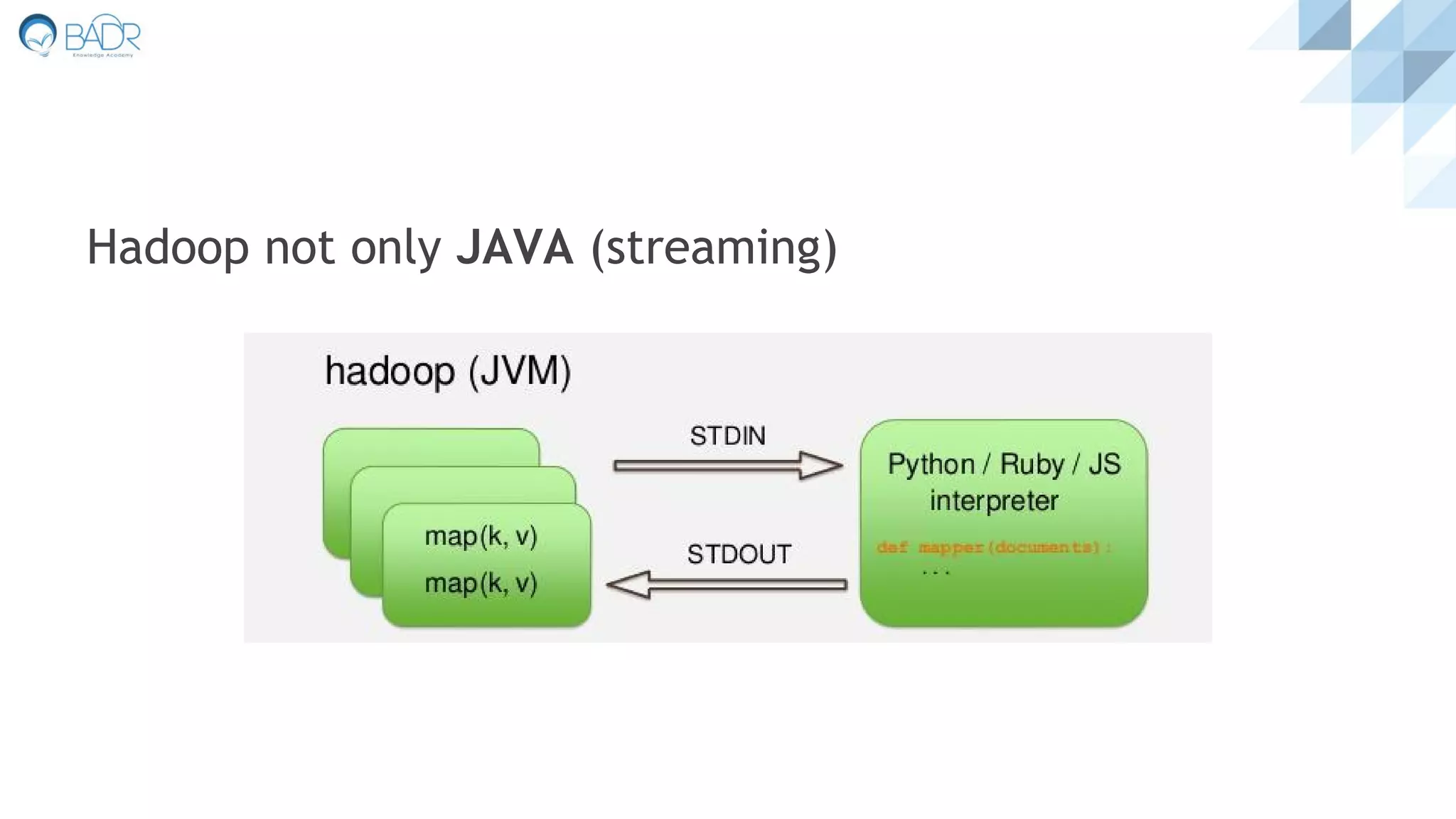

38. Hadoop not only JAVA (streaming)

39. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

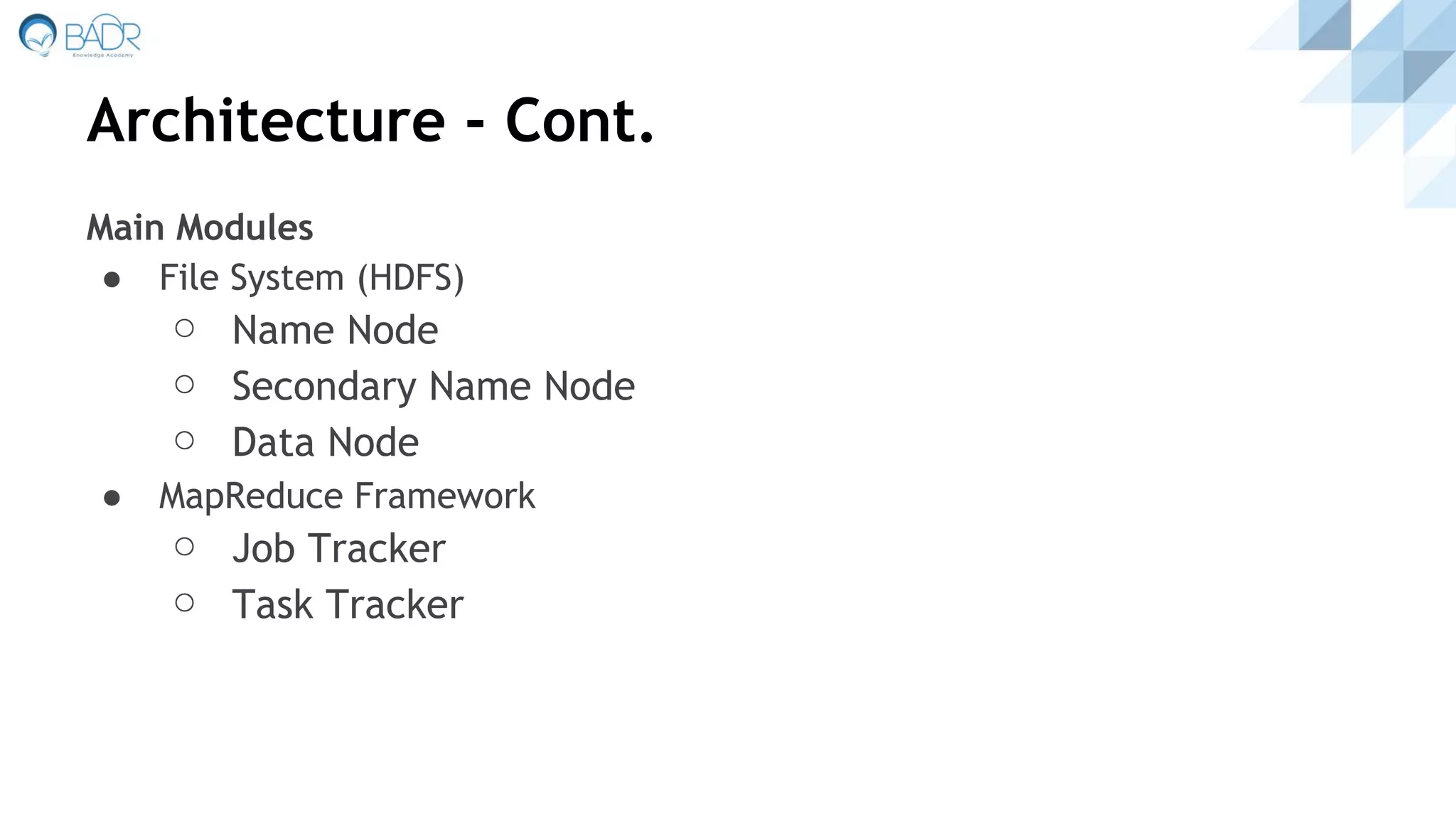

40. Architecture - Cont.
Main Modules
● File System (HDFS)
⚪ Name Node
⚪ Secondary Name Node
⚪ Data Node
● MapReduce Framework
⚪ Job Tracker
⚪ Task Tracker

41. Architecture - Cont.
Main Modules

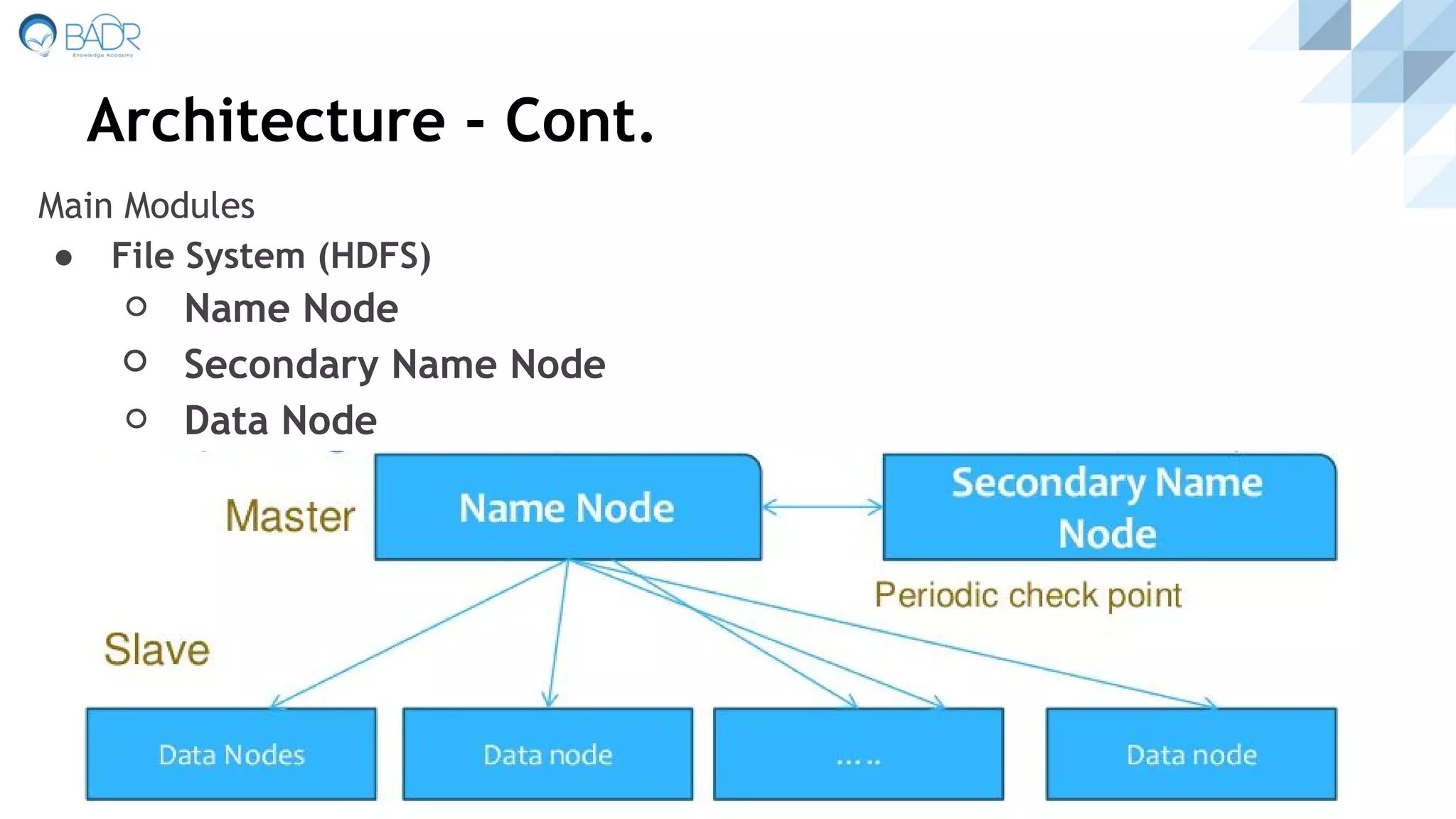

● File System (HDFS)
⚪ Name Node
⚪ Secondary Name Node
⚪ Data Node
⚪

42. Architecture - Cont.
Main Modules

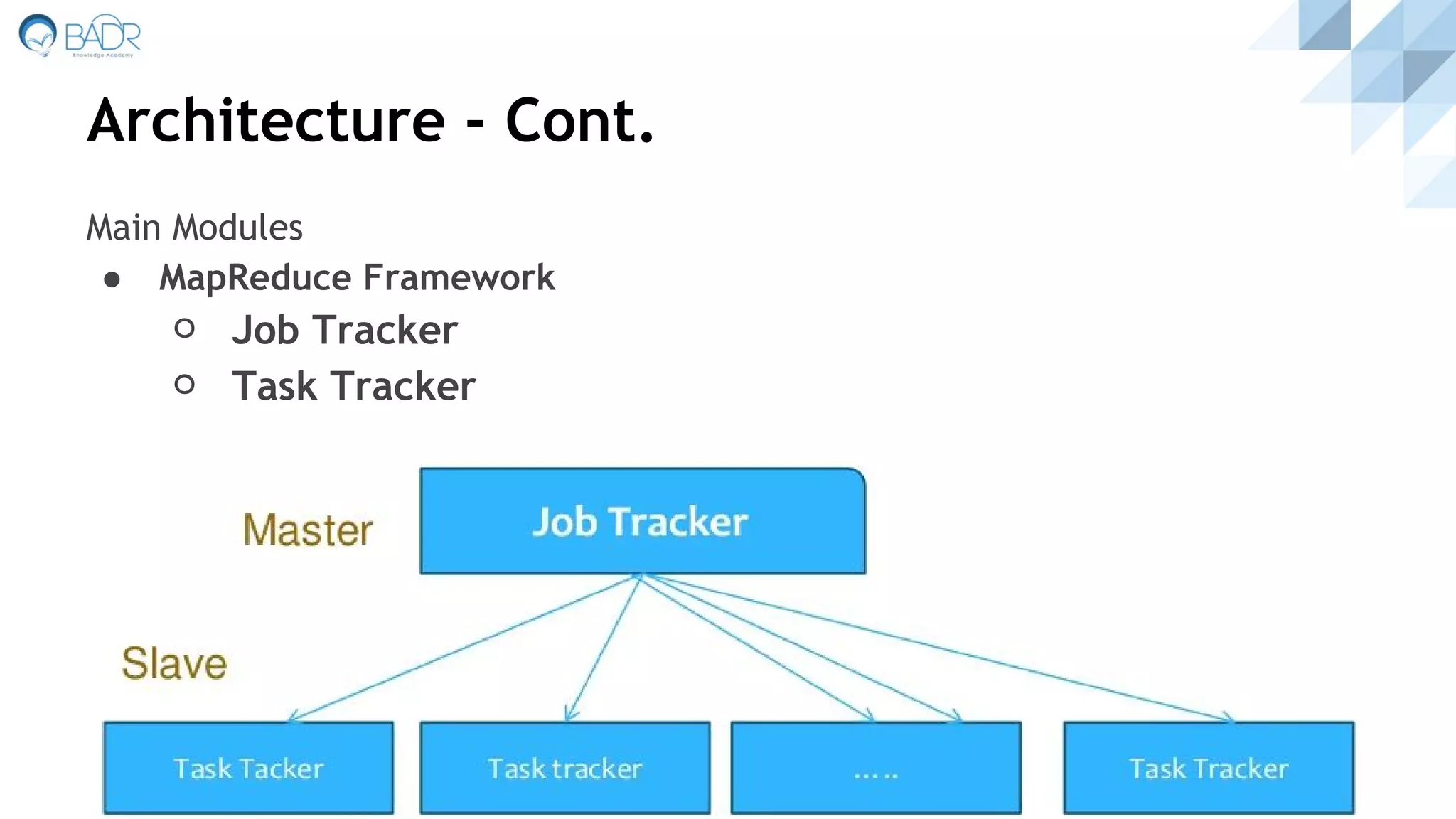

● MapReduce Framework
⚪ Job Tracker
⚪ Task Tracker

43. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

44. Architecture - Cont.

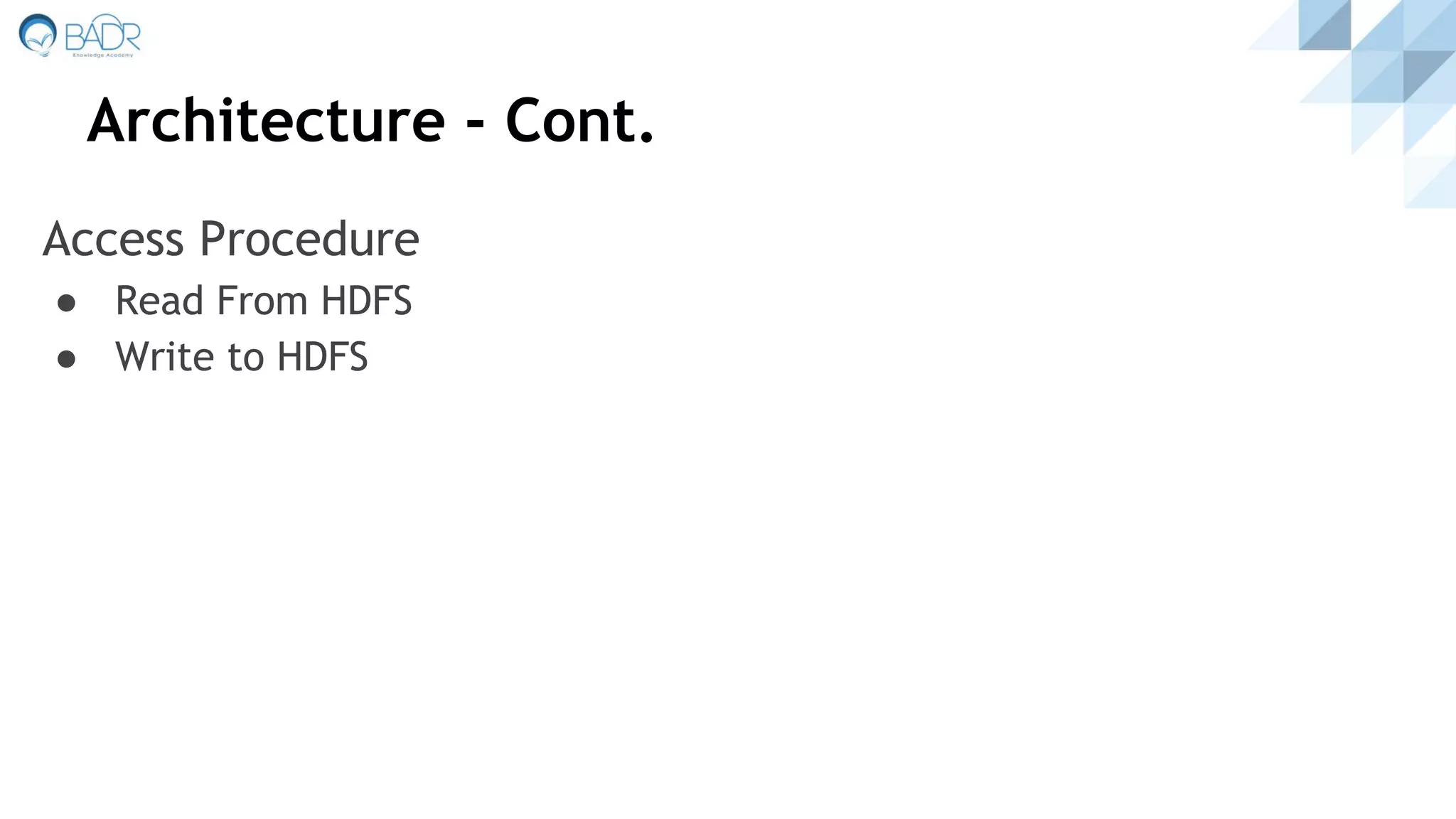

Access Procedure

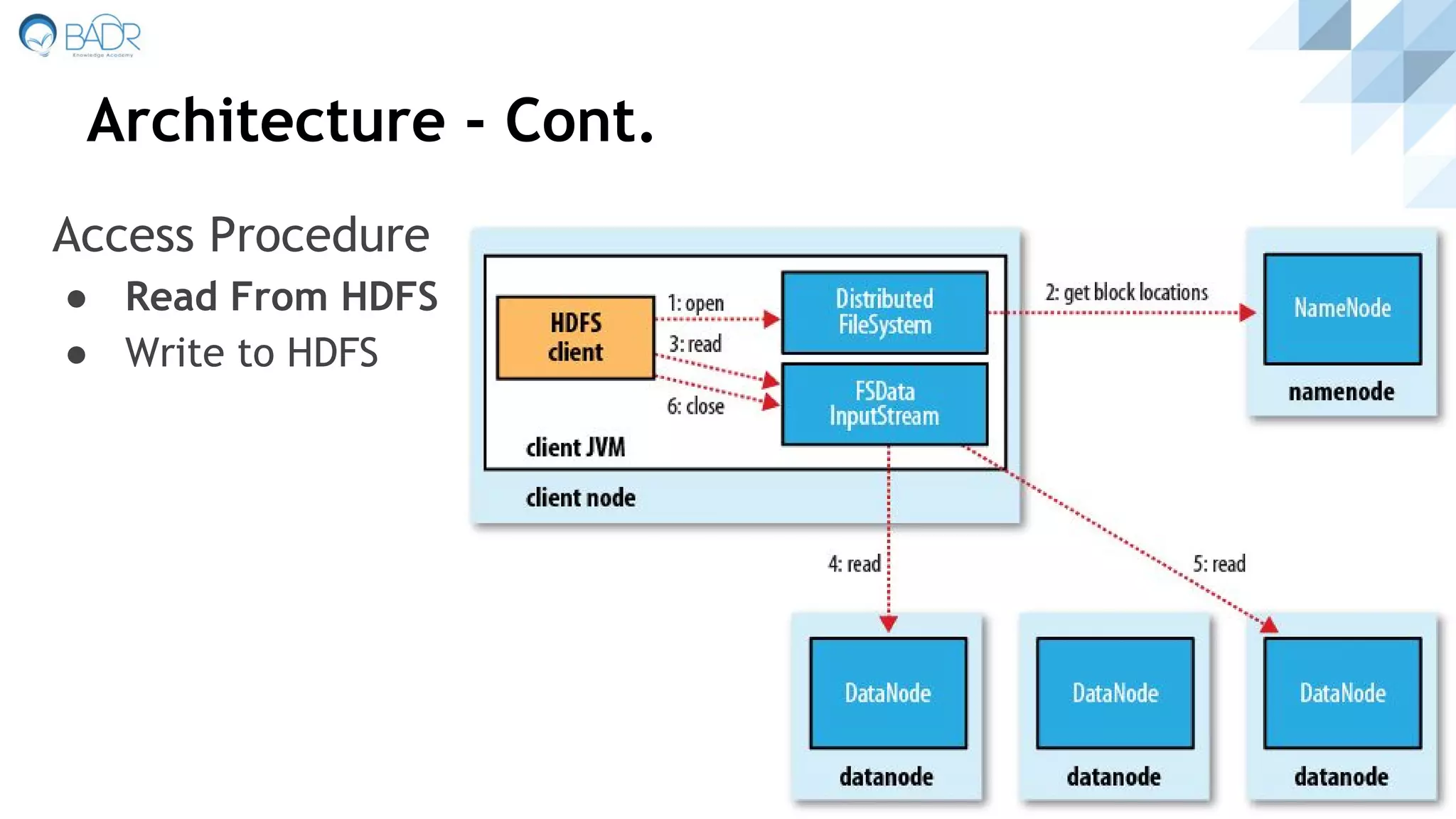

● Read From HDFS
● Write to HDFS

45. Architecture - Cont.
Access Procedure
● Read From HDFS
● Write to HDFS

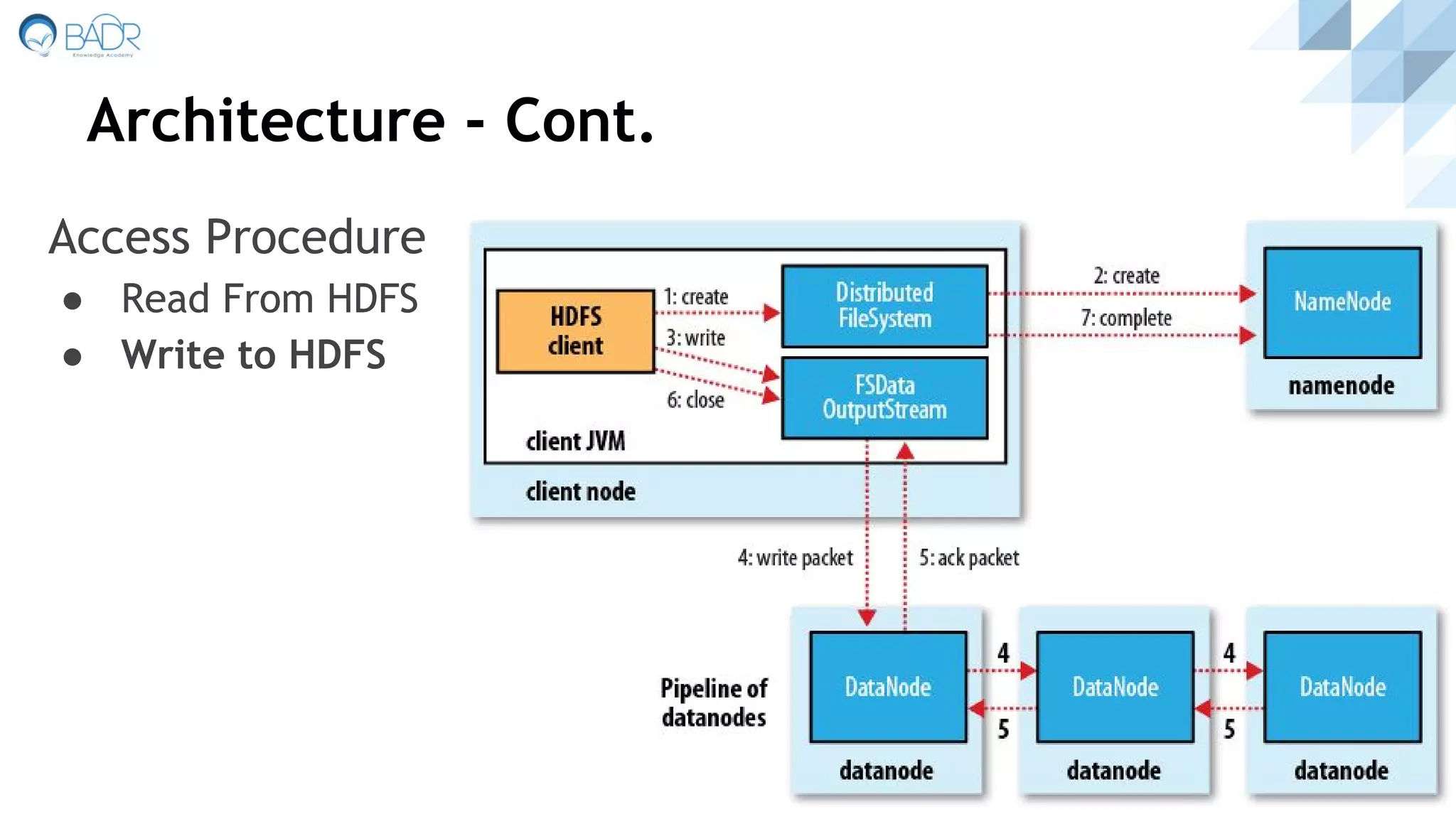

46. Architecture - Cont.
Access Procedure
● Read From HDFS
● Write to HDFS

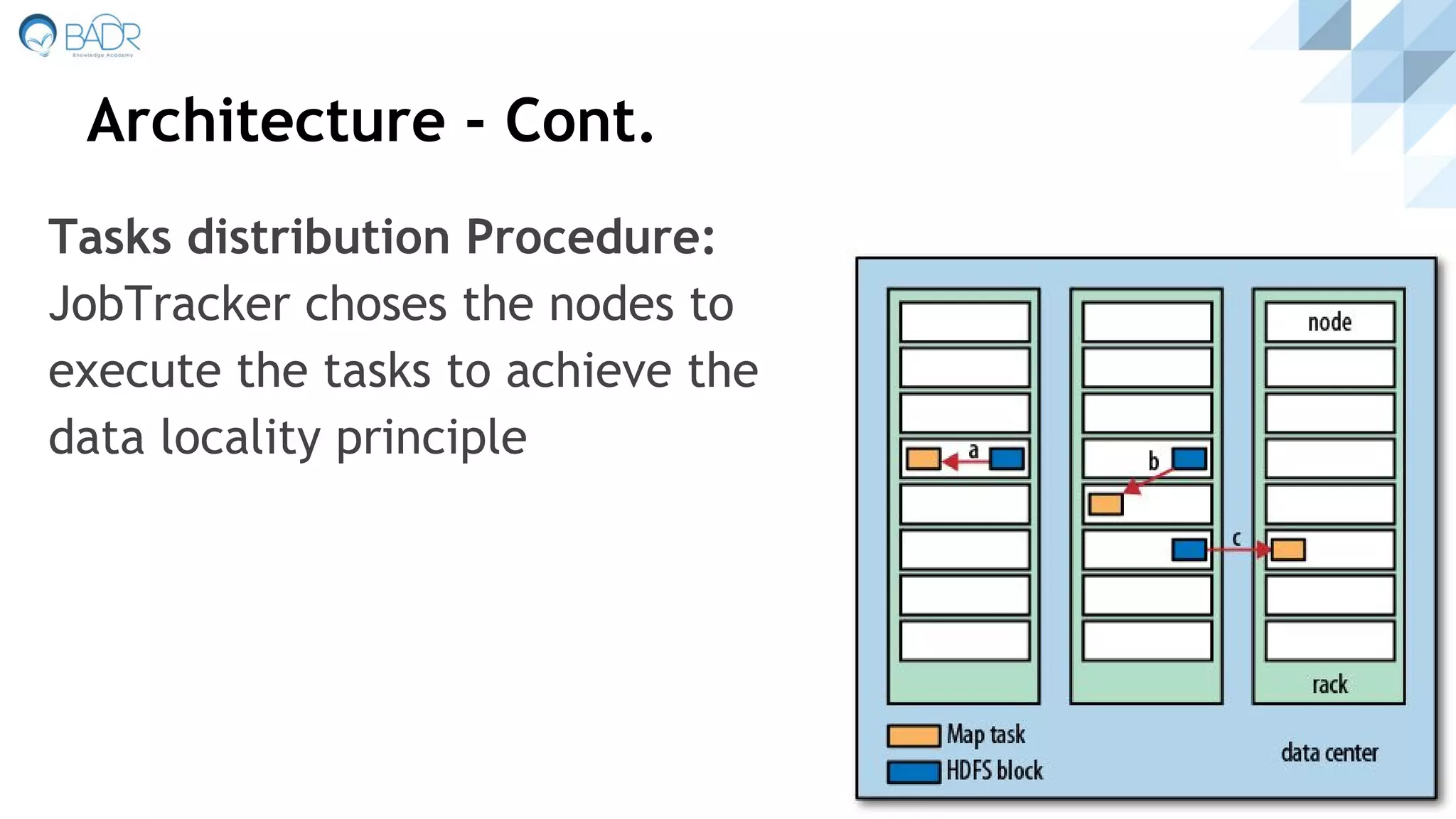

47. Architecture - Cont.
Tasks distribution Procedure:
JobTracker choses the nodes to
execute the tasks to achieve the
data locality principle

48. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

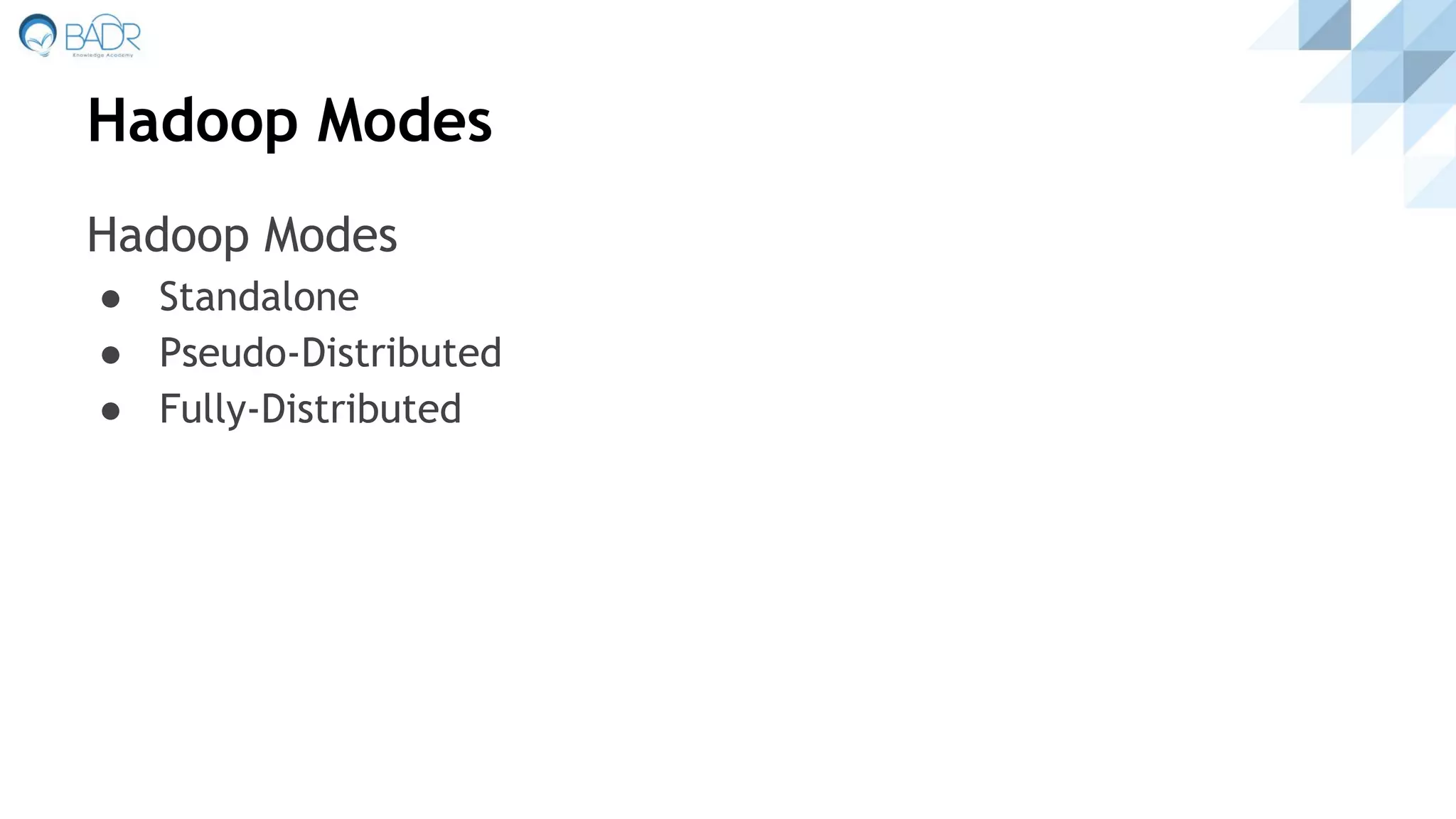

49. Hadoop Modes
Hadoop Modes
● Standalone
● Pseudo-Distributed
● Fully-Distributed

50. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

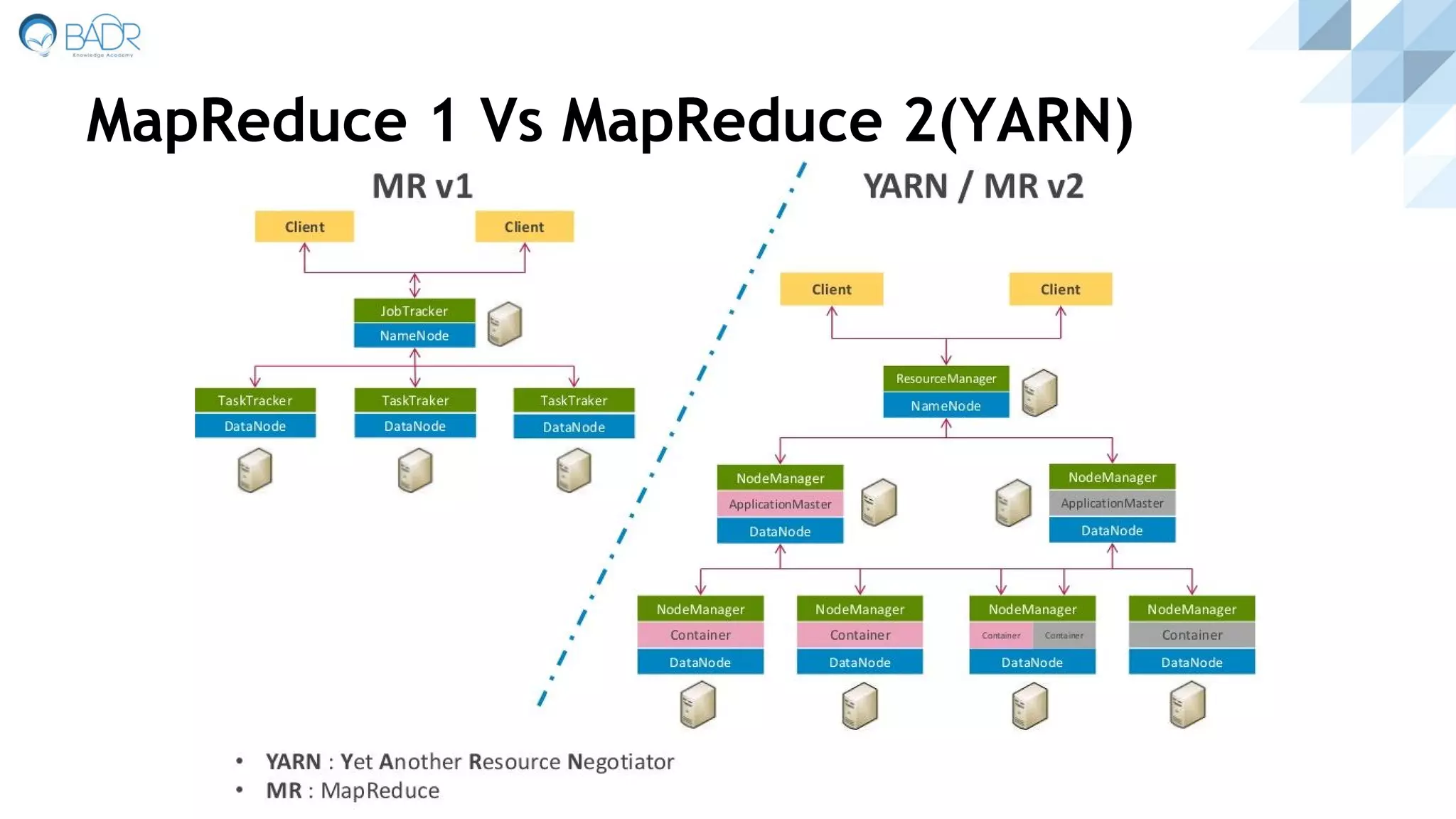

51. MapReduce 1 Vs MapReduce 2(YARN)

52. Outlines
1. Introduction
2. History
3. Assumptions
4. Architecture
a. Case Study
b. MapReduce Design
c. Code Example
d. Main Modules
e. Access Procedure
5. Hadoop Modes
6. MapReduce 1 VS MapReduce 2 (YARN)
7. Questions

53. Questions

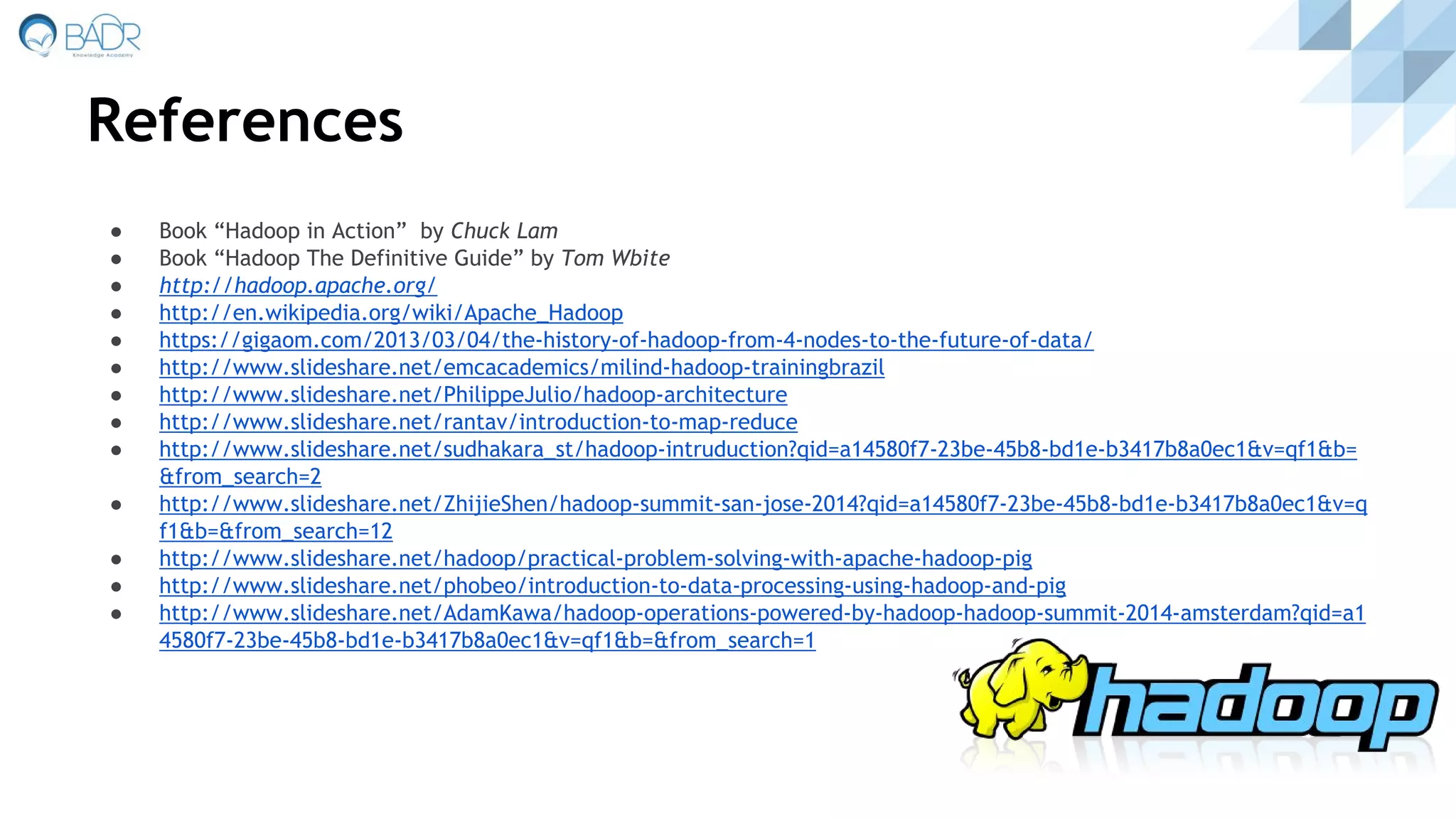

54. References
