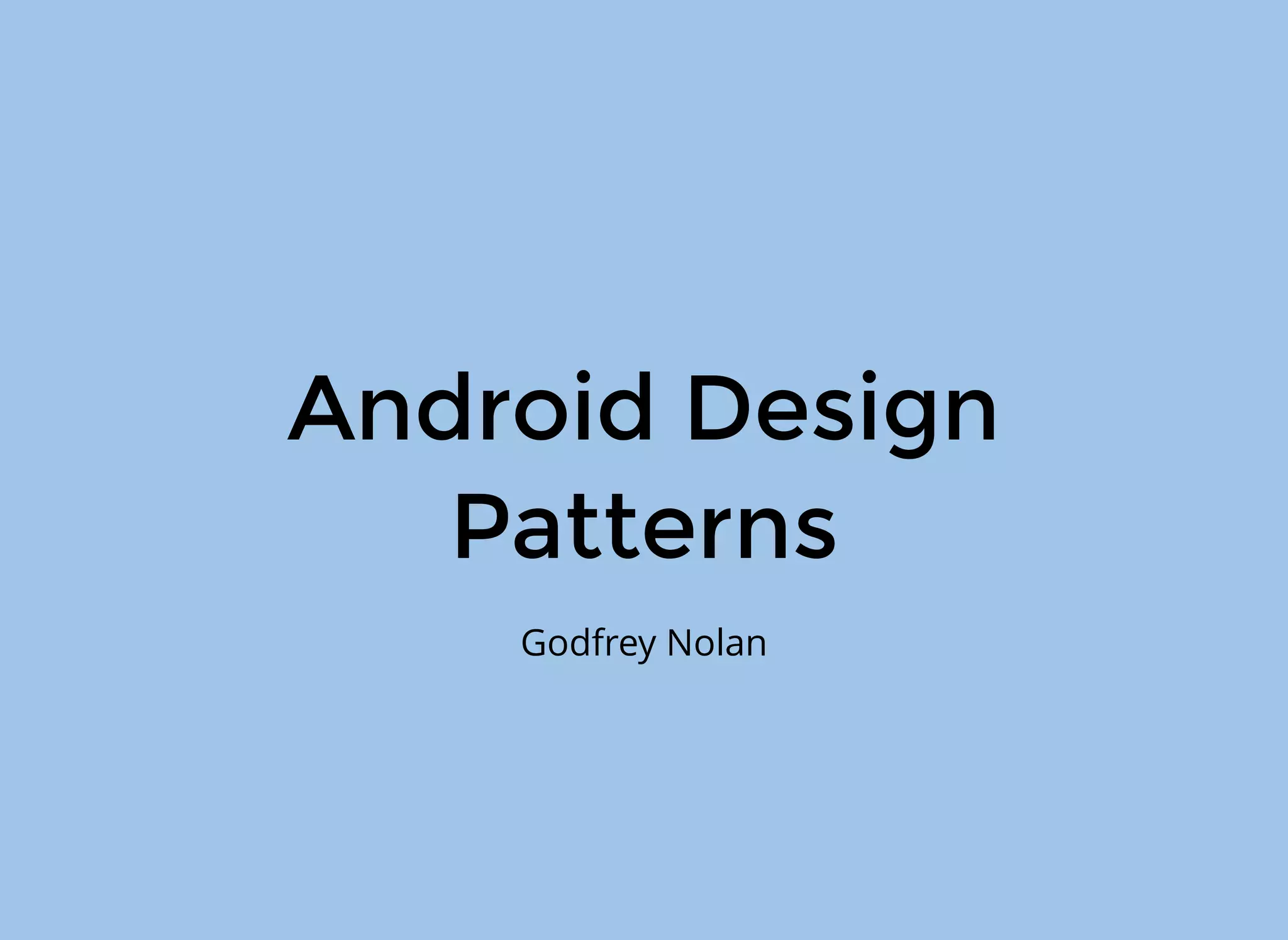

1. Android Design
Patterns
Godfrey Nolan

2. Android Application Architecture (Android Dev Summit) https://www.youtube.com/watch?v=BlkJzgjzL0c

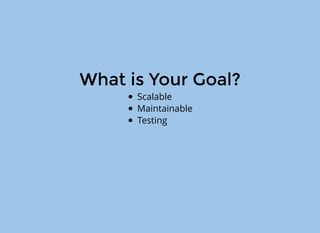

3. What is Your Goal?
Scalable
Maintainable
Testing

4. What is Your Goal?
Scalable
Add new features quickly
Maintainable
No spaghetti code
Don't cross the streams
Testing
Easy to mock

5. Why?
Easier to add new features
Easier to understand
Easier to police
Make our life easier
Make Unit Testing easier

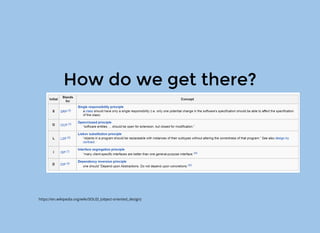

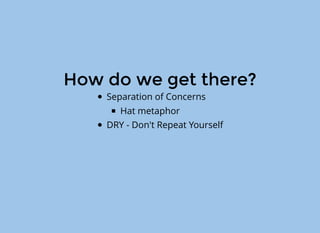

6. How do we get there?
https://en.wikipedia.org/wiki/SOLID_(object-oriented_design)

8. Classic Android

9. View Model
https://github.com/konmik/konmik.github.io/wiki/Introduction-to-Model-View-Presenter-on-Android

11. package alexandria.israelferrer.com.libraryofalexandria;
import android.app.Activity;
import android.content.Context;
import android.content.SharedPreferences;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.view.ViewStub;
import android.widget.BaseAdapter;
import android.widget.CheckBox;
import android.widget.CompoundButton;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.RatingBar;
import android.widget.TextView;
import com.google.gson.Gson;
import com.google.gson.reflect.TypeToken;
import com.squareup.picasso.Picasso;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.lang.reflect.Type;
import java.util.Collections;
import java.util.HashSet;
import java.util.LinkedList;
import java.util.List;
public class MainActivity extends Activity {
private static final String PACKAGE = "com.israelferrer.alexandria";
private static final String KEY_FAVS = PACKAGE + ".FAVS";
private List<ArtWork> artWorkList;
private ArtWorkAdapter adapter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
ListView listView = (ListView) findViewById(R.id.listView);
InputStream stream = getResources().openRawResource(R.raw.artwork);
Type listType = new TypeToken<List<ArtWork>>() {
}.getType();
artWorkList = new Gson().fromJson(new InputStreamReader(stream), listType);
final SharedPreferences preferences = getSharedPreferences(getPackageName()
, Context.MODE_PRIVATE);
for (ArtWork artWork : artWorkList) {
artWork.setRating(preferences.getFloat(PACKAGE + artWork.getId(), 0F));
}
adapter = new ArtWorkAdapter();
listView.setAdapter(adapter);
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.menu_main, menu);
return true;
}
public boolean onOptionsItemSelected(MenuItem item) {
// Handle action bar item clicks here. The action bar will
// automatically handle clicks on the Home/Up button, so long
// as you specify a parent activity in AndroidManifest.xml.
int id = item.getItemId();
//noinspection SimplifiableIfStatement
if (id == R.id.filter) {
adapter.orderMode();
return true;
}
return super.onOptionsItemSelected(item);
}
private class ArtWorkAdapter extends BaseAdapter {
private boolean isOrder;
private final List<ArtWork> orderedList;
public ArtWorkAdapter() {
super();
orderedList = new LinkedList<ArtWork>();
}
@Override
public int getCount() {
return artWorkList.size();
}
@Override
public Object getItem(int position) {
return artWorkList.get(position);
}
@Override
public long getItemId(int position) {
return Long.valueOf(artWorkList.get(position).getId());
}
public void orderMode() {
isOrder = !isOrder;
if (isOrder) {
orderedList.clear();
orderedList.addAll(artWorkList);
Collections.sort(orderedList);
notifyDataSetChanged();
} else {
notifyDataSetChanged();
}
}
@Override
public View getView(int position, View convertView, ViewGroup parent) {
final ArtWork artWork;
if (isOrder) {
artWork = orderedList.get(position);
} else {
artWork = artWorkList.get(position);
}
View row;
switch (artWork.getType()) {
case ArtWork.QUOTE:
row = getLayoutInflater().inflate(R.layout.text_row, null);
TextView quote = (TextView) row.findViewById(R.id.quote);
TextView author = (TextView) row.findViewById(R.id.author);
quote.setText(""" + artWork.getText() + """);
author.setText(artWork.getAuthor());
break;
case ArtWork.PAINTING:
final SharedPreferences preferences = getSharedPreferences(getPackageName()
, Context.MODE_PRIVATE);
final HashSet<String> favs = (HashSet<String>) preferences
.getStringSet(KEY_FAVS,
new HashSet<String>());
row = getLayoutInflater().inflate(R.layout.painting_row, null);
ImageView image = (ImageView) row.findViewById(R.id.painting);
TextView painter = (TextView) row.findViewById(R.id.author);
painter.setText(artWork.getTitle() + " by " + artWork.getAuthor());
Picasso.with(MainActivity.this).load(artWork.getContentUrl()).fit()
.into(image);
RatingBar rating = (RatingBar) row.findViewById(R.id.rate);
rating.setRating(artWork.getRating());
rating.setOnRatingBarChangeListener(new RatingBar.OnRatingBarChangeListener() {
@Override
public void onRatingChanged(RatingBar ratingBar, float rating,
boolean fromUser) {
preferences.edit().putFloat(PACKAGE + artWork.getId(), rating).apply();
artWork.setRating(rating);
}
});
CheckBox fav = (CheckBox) row.findViewById(R.id.fav);
fav.setChecked(favs.contains(artWork.getId()));
fav.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
@Override
public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
final HashSet<String> favs = new HashSet<String>((HashSet<String>)
preferences
.getStringSet(KEY_FAVS,
new HashSet<String>()));
if (isChecked) {
favs.add(artWork.getId());
} else {
favs.remove(artWork.getId());
}
preferences.edit().putStringSet(KEY_FAVS,
favs).apply();
}
});
break;
case ArtWork.MOVIE:
case ArtWork.OPERA:
row = new ViewStub(MainActivity.this);
break;
default:
row = getLayoutInflater().inflate(R.layout.text_row, null);
}
return row;
}
}
}

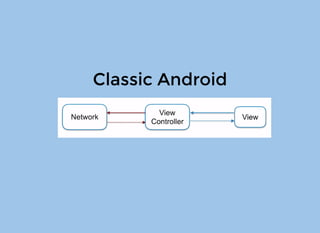

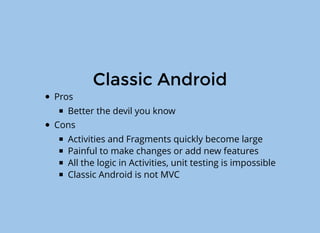

12. Classic Android
Pros
Better the devil you know
Cons
Activities and Fragments quickly become large
Painful to make changes or add new features
All the logic in Activities, unit testing is impossible
Classic Android is not MVC

13. MVC

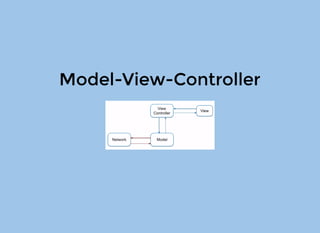

https://medium.com/@tinmegali/model-view-presenter-mvp-in-android-part-1-441bfd7998fe#.d19x8cido

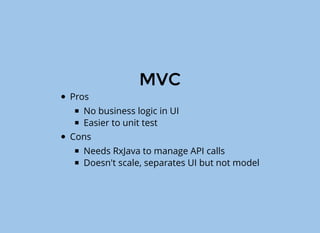

15. http://androidexample.com/Use_MVC_Pattern_To_Create_Very_Basic_Shopping_Cart__-_Android_Example

16. package com.androidexample.mvc;
//imports
public class FirstScreen extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.firstscreen);
final LinearLayout lm = (LinearLayout) findViewById(R.id.linearMain);
final Button secondBtn = (Button) findViewById(R.id.second);
//Get Global Controller Class object (see application tag in AndroidManifest.xml)
final Controller aController = (Controller) getApplicationContext();
/* ........ */
//Product arraylist size
int ProductsSize = aController.getProductsArraylistSize();
LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(
LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);
/******** Dynamically create view elements - Start **********/
for(int j=0;j< ProductsSize;j++)
{
// Get probuct data from product data arraylist
String pName = aController.getProducts(j).getProductName();
int pPrice = aController.getProducts(j).getProductPrice();
// Create LinearLayout to view elemnts
LinearLayout ll = new LinearLayout(this);
ll.setOrientation(LinearLayout.HORIZONTAL);
TextView product = new TextView(this);
product.setText(" "+pName+" ");
//Add textView to LinearLayout
ll.addView(product);
TextView price = new TextView(this);
price.setText(" $"+pPrice+" ");
//Add textView to LinearLayout
ll.addView(price);
final Button btn = new Button(this);
btn.setId(j+1);
btn.setText("Add To Cart");
// set the layoutParams on the button
btn.setLayoutParams(params);

17. package com.androidexample.mvc;
import java.util.ArrayList;
import android.app.Application;
public class Controller extends Application{
private ArrayList<ModelProducts> myProducts = new ArrayList<ModelProducts>();
private ModelCart myCart = new ModelCart();
public ModelProducts getProducts(int pPosition) {
return myProducts.get(pPosition);
}
public void setProducts(ModelProducts Products) {
myProducts.add(Products);
}
public ModelCart getCart() {
return myCart;
}
public int getProductsArraylistSize() {
return myProducts.size();
}
}
package com.androidexample.mvc;
public class ModelProducts {
private String productName;
private String productDesc;
private int productPrice;
public ModelProducts(String productName,String productDesc,int productPrice) {
this.productName = productName;
this.productDesc = productDesc;
this.productPrice = productPrice;
}
public String getProductName() {
return productName;
}
public String getProductDesc() {
return productDesc;
}
public int getProductPrice() {
return productPrice;
}
}

19. MVC
Pros
No business logic in UI
Easier to unit test
Cons
Doesn't scale, separates UI but not model
Controller often grows too big

20. https://github.com/konmik/konmik.github.io/wiki/Introduction-to-Model-View-Presenter-on-Android

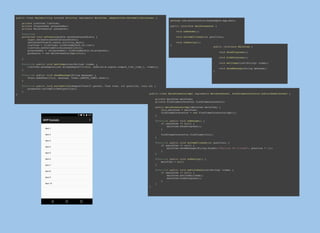

MVP

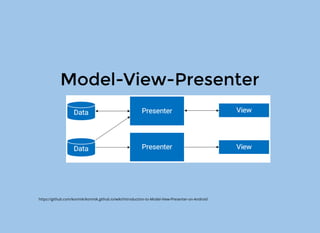

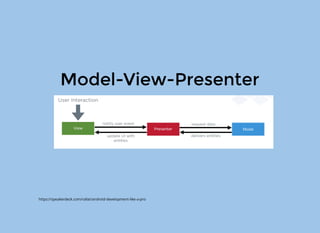

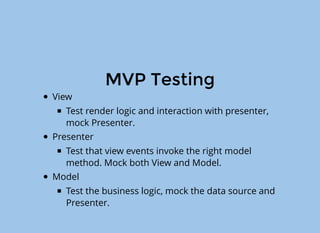

21. Model-View-Presenter
https://speakerdeck.com/rallat/android-development-like-a-pro

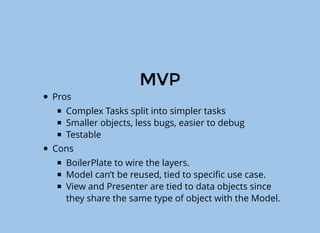

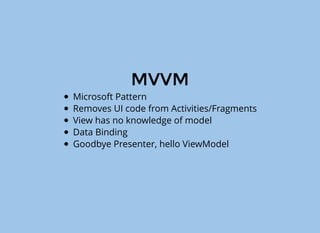

23. MVP
Increases separation of concerns into 3 layers
Passive View - Render logic
Presenter - Handle User events (Proxy)
Model - Business logic

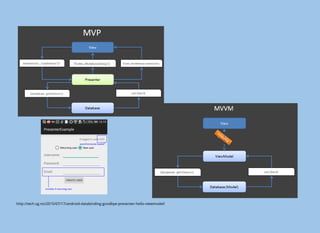

24. https://github.com/googlesamples/android-architecture/wiki/Samples-at-a-glance

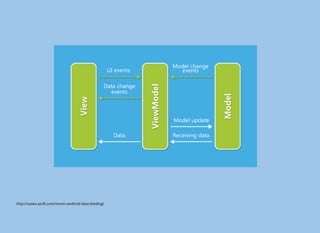

25. https://www.linkedin.com/pulse/mvc-mvp-mvvm-architecture-patterns-shashank-gupta

26. https://github.com/erikcaffrey/Android-Spotify-MVP

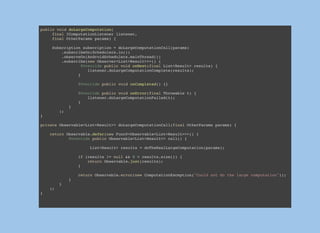

27. public interface ArtistsMvpView extends MvpView{
void showLoading();
void hideLoading();
void showArtistNotFoundMessage();
void showConnectionErrorMessage();
void renderArtists(List<Artist> artists);
void launchArtistDetail(Artist artist);
}
public class ArtistsPresenter implements Presenter<ArtistsMvpView>, ArtistCallback {
private ArtistsMvpView artistsMvpView;
private ArtistsInteractor artistsInteractor;
public ArtistsPresenter() {
}
@Override public void setView(ArtistsMvpView view) {
if (view == null) throw new IllegalArgumentException("You can't set a null view");
artistsMvpView = view;
artistsInteractor = new ArtistsInteractor(artistsMvpView.getContext());
}
@Override public void detachView() {
artistsMvpView = null;
}
public void onSearchArtist(String string) {
artistsMvpView.showLoading();
artistsInteractor.loadDataFromApi(string, this);
}
public void launchArtistDetail(Artist artist) {
artistsMvpView.launchArtistDetail(artist);
}
//.....
}
public class ArtistsInteractor {
SpotifyService mSpotifyService;
SpotifyApp mSpotifyApp;
public ArtistsInteractor(Context context) {
this.mSpotifyApp = SpotifyApp.get(context);
this.mSpotifyService = mSpotifyApp.getSpotifyService();
}
public void loadDataFromApi(String query, ArtistCallback artistCallback) {
mSpotifyService.searchArtist(query)
.subscribeOn(mSpotifyApp.SubscribeScheduler())
.observeOn(AndroidSchedulers.mainThread())
.subscribe(artistsSearch -> onSuccess(artistsSearch, artistCallback),
throwable -> onError(throwable, artistCallback));
}

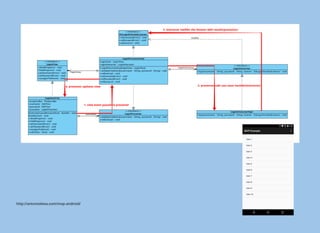

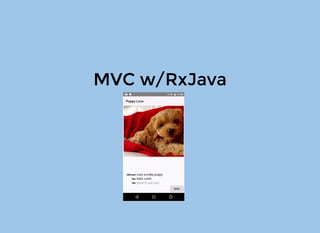

29. public class MainActivity extends Activity implements MainView, AdapterView.OnItemClickListener {
private ListView listView;
private ProgressBar progressBar;
private MainPresenter presenter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
listView = (ListView) findViewById(R.id.list);
listView.setOnItemClickListener(this);
progressBar = (ProgressBar) findViewById(R.id.progress);
presenter = new MainPresenterImpl(this);
}
@Override public void setItems(List<String> items) {
listView.setAdapter(new ArrayAdapter<>(this, android.R.layout.simple_list_item_1, items));
}
@Override public void showMessage(String message) {
Toast.makeText(this, message, Toast.LENGTH_LONG).show();
}
@Override public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
presenter.onItemClicked(position);
}
}
package com.antonioleiva.mvpexample.app.main;
public interface MainPresenter {
void onResume();
void onItemClicked(int position);
void onDestroy();
}
public class MainPresenterImpl implements MainPresenter, FindItemsInteractor.OnFinishedListener {
private MainView mainView;
private FindItemsInteractor findItemsInteractor;
public MainPresenterImpl(MainView mainView) {
this.mainView = mainView;
findItemsInteractor = new FindItemsInteractorImpl();
}
@Override public void onResume() {
if (mainView != null) {
mainView.showProgress();
}
findItemsInteractor.findItems(this);
}
@Override public void onItemClicked(int position) {
if (mainView != null) {
mainView.showMessage(String.format("Position %d clicked", position + 1));
}
}
@Override public void onDestroy() {
mainView = null;
}
@Override public void onFinished(List<String> items) {
if (mainView != null) {
mainView.setItems(items);
mainView.hideProgress();
}
}
}
public interface MainView {
void showProgress();
void hideProgress();
void setItems(List<String> items);
void showMessage(String message);
}
http://antonioleiva.com/mvp-android/

30. MVP Testing
View
Test render logic and interaction with presenter,
mock Presenter.
Presenter
Test that view events invoke the right model
method. Mock both View and Model.
Model
Test the business logic, mock the data source and
Presenter.

31. MVP
Pros
Complex Tasks split into simpler tasks
Smaller objects, less bugs, easier to debug
Testable
Cons
BoilerPlate to wire the layers.
Model can’t be reused, tied to specific use case.
View and Presenter are tied to data objects since
they share the same type of object with the Model.
https://speakerdeck.com/rallat/androiddevlikeaprodroidconsf

32. MVVM
Microsoft Pattern
Removes UI code from Activities/Fragments
View has no knowledge of model
Data Binding = Bind ViewModel to Layout
Goodbye Presenter, hello ViewModel

33. http://tech.vg.no/2015/07/17/android-databinding-goodbye-presenter-hello-viewmodel/

35. <LinearLayout
android:orientation="horizontal"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_below="@+id/password_block"
android:id="@+id/email_block"
android:visibility="@{data.emailBlockVisibility}">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textAppearance="?android:attr/textAppearanceMedium"
android:text="Email:"
android:minWidth="100dp"/>
<EditText
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:inputType="textEmailAddress"
android:ems="10"
android:id="@+id/email"/>
</LinearLayout>
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.fragment_main, container, false);
mBinding = FragmentMainBinding.bind(view);
mViewModel = new MainModel(this, getResources());
mBinding.setData(mViewModel);
attachButtonListener();
return view;
}
public void updateDependentViews() {
if (isExistingUserChecked.get()) {
emailBlockVisibility.set(View.GONE);
loginOrCreateButtonText.set(mResources.getString(R.string.log_in));
}
else {
emailBlockVisibility.set(View.VISIBLE);
loginOrCreateButtonText.set(mResources.getString(R.string.create_user));
}
}
http://tech.vg.no/2015/07/17/android-databinding-goodbye-presenter-hello-viewmodel/

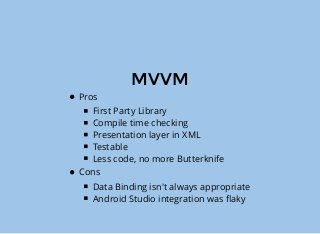

36. MVVM
Pros
First Party Library
Compile time checking
Presentation layer in XML
Testable
Less code, no more Butterknife
Cons
Data Binding isn't always appropriate
Android Studio integration was flaky

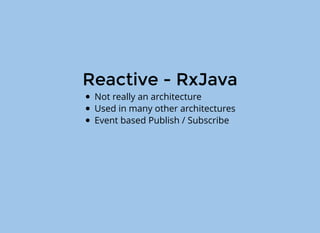

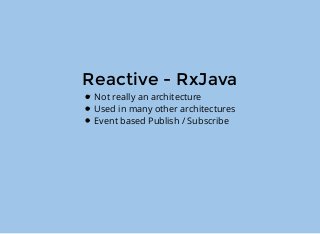

37. Reactive - RxJava
Not really an architecture
Used in many other architectures
Event based Publish / Subscribe

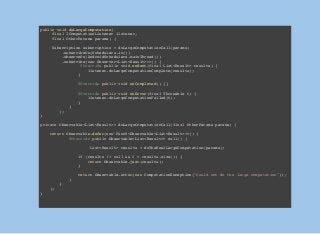

38. public void doLargeComputation(
final IComputationListener listener,
final OtherParams params) {
Subscription subscription = doLargeComputationCall(params)
.subscribeOn(Schedulers.io())
.observeOn(AndroidSchedulers.mainThread())
.subscribe(new Observer<List<Result>>>() {
@Override public void onNext(final List<Result> results) {
listener.doLargeComputationComplete(results);
}
@Override public void onCompleted() {}
@Override public void onError(final Throwable t) {
listener.doLargeComputationFailed(t);
}
}
);
}
private Observable<List<Result>> doLargeComputationCall(final OtherParams params) {
return Observable.defer(new Func0<Observable<List<Result>>>() {
@Override public Observable<List<Result>> call() {
List<Result> results = doTheRealLargeComputation(params);
if (results != null && 0 < results.size()) {
return Observable.just(results);
}
return Observable.error(new ComputationException("Could not do the large computation"));
}
}
);
}

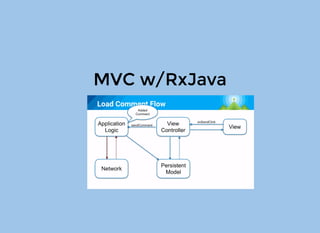

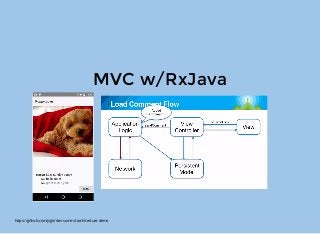

39. MVC w/RxJava
https://github.com/yigit/dev-summit-architecture-demo

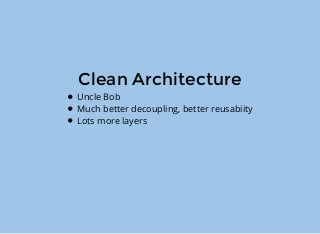

40. Clean Architecture
Uncle Bob
Much better decoupling, better reusabiity
Lots more layers

41. https://github.com/rallat/EffectiveAndroid

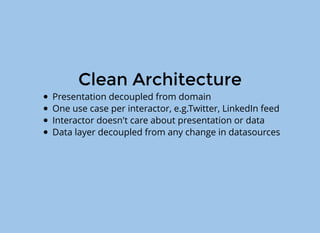

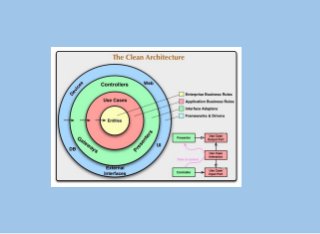

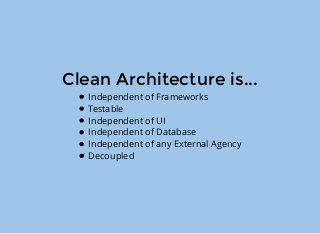

42. Clean Architecture is...
Independent of Frameworks
Testable
Independent of UI
Independent of Database
Independent of any External Agency
Decoupled

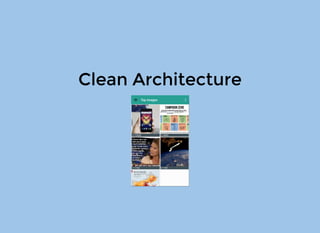

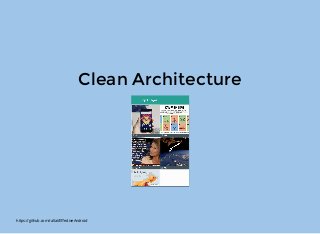

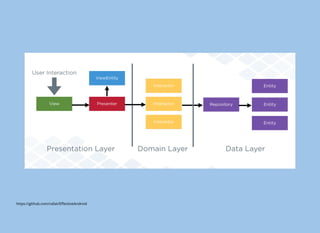

44. Clean Architecture
https://github.com/rallat/EffectiveAndroid

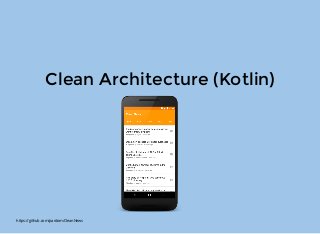

45. Clean Architecture (Kotlin)
https://github.com/pardom/CleanNews

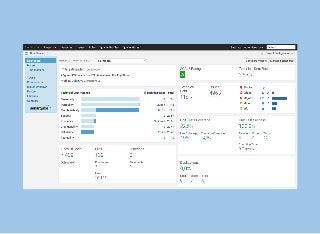

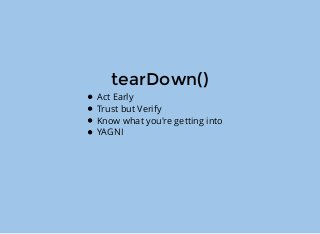

47. tearDown()
Act Early
Trust but Verify
Know what you're getting into
YAGNI

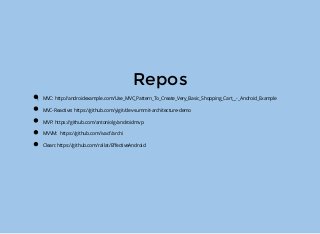

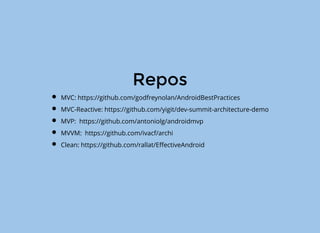

48. Repos
MVC: http://androidexample.com/Use_MVC_Pattern_To_Create_Very_Basic_Shopping_Cart__-_Android_Example
MVC-Reactive: https://github.com/yigit/dev-summit-architecture-demo
MVP: https://github.com/antoniolg/androidmvp
MVVM: https://github.com/ivacf/archi
Clean: https://github.com/rallat/EffectiveAndroid

49. Contact Details
godfrey@riis.com
@godfreynolan
slideshare.com/godfreynolan
