1. Robert Cooper
Reach Health

2.  Tablet-specific version of Android
 New UI Metaphors
 New LaF (Holographic)
 New/Improved APIs.
 Old APIs made optional (telephony, etc)
 New Technologies
 Basis for future releases
 3.1 seems to be on-deck
 Merged with phone branch?

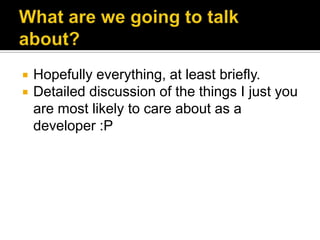

3.  Hopefully everything, at least briefly.
 Detailed discussion of the things I just you
are most likely to care about as a
developer :P

4.  ActionBar
 Used for “App Global” Tabs
 Special MenuItems or SubMenus
 App Icon with a “Logical Home” operation
 No Hard Buttons
 NotificationBar now includes “Back”, “Home”
and “Tasks”
 Long-Touch context menus deprecated as
a model

6.  Holographic look and feel added
 Make it more TRON-ish…
 … but not too TRON-ish
 Lots of glows, varied depth line
markers, 3D transitions
 Improved text ops mechanics

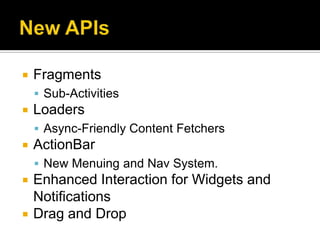

10.  Fragments
 Sub-Activities
 Loaders
 Async-Friendly Content Fetchers
 ActionBar
 New Menuing and Nav System.
 Enhanced Interaction for Widgets and
Notifications
 Drag and Drop

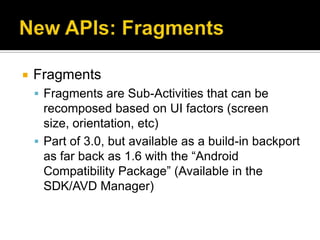

11.  Fragments
 Fragments are Sub-Activities that can be
recomposed based on UI factors (screen
size, orientation, etc)
 Part of 3.0, but available as a build-in backport
as far back as 1.6 with the “Android
Compatibility Package” (Available in the
SDK/AVD Manager)

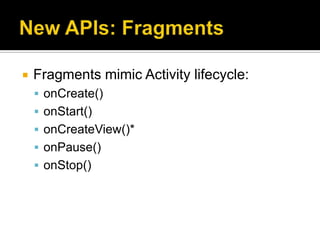

12.  Fragments mimic Activity lifecycle:
 onCreate()
 onStart()
 onCreateView()*
 onPause()
 onStop()

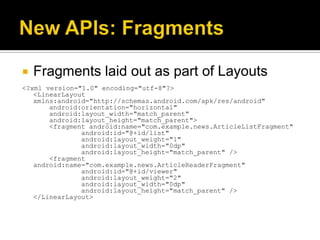

13.  Fragments laid out as part of Layouts
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="horizontal"
android:layout_width="match_parent"
android:layout_height="match_parent">
<fragment android:name="com.example.news.ArticleListFragment"
android:id="@+id/list"
android:layout_weight="1"
android:layout_width="0dp"
android:layout_height="match_parent" />
<fragment
android:name="com.example.news.ArticleReaderFragment"
android:id="@+id/viewer"
android:layout_weight="2"
android:layout_width="0dp"
android:layout_height="match_parent" />
</LinearLayout>

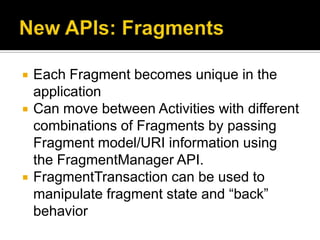

14.  Each Fragment becomes unique in the
application
 Can move between Activities with different
combinations of Fragments by passing
Fragment model/URI information using
the FragmentManager API.
 FragmentTransaction can be used to
manipulate fragment state and “back”
behavior

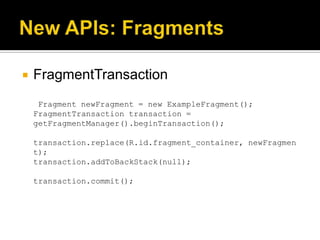

15.  FragmentTransaction
Fragment newFragment = new ExampleFragment();
FragmentTransaction transaction =
getFragmentManager().beginTransaction();
transaction.replace(R.id.fragment_container, newFragmen
t);
transaction.addToBackStack(null);
transaction.commit();

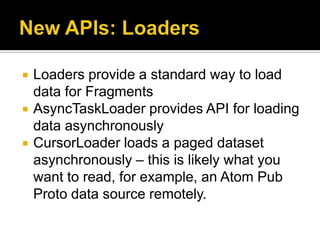

16.  Loaders provide a standard way to load
data for Fragments
 AsyncTaskLoader provides API for loading
data asynchronously
 CursorLoader loads a paged dataset
asynchronously – this is likely what you
want to read, for example, an Atom Pub
Proto data source remotely.

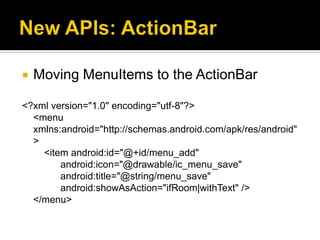

17.  Moving MenuItems to the ActionBar
<?xml version="1.0" encoding="utf-8"?>
<menu
xmlns:android="http://schemas.android.com/apk/res/android"
>
<item android:id="@+id/menu_add"
android:icon="@drawable/ic_menu_save"
android:title="@string/menu_save"
android:showAsAction="ifRoom|withText" />
</menu>

18.  Custom Views in ActionBar
<?xml version="1.0" encoding="utf-8"?>
<menu
xmlns:android="http://schemas.android.com/apk/res/andro
id">
<item android:id="@+id/menu_search"
android:title="Search"
android:icon="@drawable/ic_menu_search"
android:showAsAction="ifRoom"
android:actionLayout="@layout/searchview"
android:actionViewClass="android.widget.SearchView"
/>
</menu>

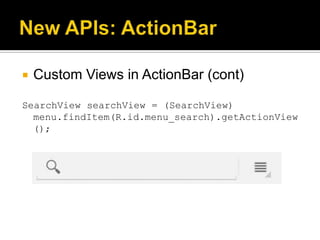

19.  Custom Views in ActionBar (cont)
SearchView searchView = (SearchView)
menu.findItem(R.id.menu_search).getActionView
();

20.  Navigation
 Big win over iOS!
 Implicit “Home” widget (vs iOS Nav Bar)
 App Global Tabs (vs iOS Tool Bar)
 App List Navigation

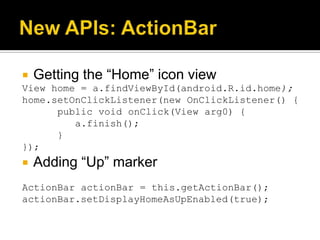

21.  Getting the “Home” icon view
View home = a.findViewById(android.R.id.home);
home.setOnClickListener(new OnClickListener() {
public void onClick(View arg0) {
a.finish();
}
});
 Adding “Up” marker
ActionBar actionBar = this.getActionBar();
actionBar.setDisplayHomeAsUpEnabled(true);

22.  ActionBar Tabs
final ActionBar actionBar = getActionBar();
actionBar.setNavigationMode(
ActionBar.NAVIGATION_MODE_TABS);
// remove the activity title to make space for tabs
actionBar.setDisplayShowTitleEnabled(false);
Fragment artistsFragment = new ArtistsFragment();
actionBar.addTab(actionBar.newTab()
.setText(R.string.tab_artists)
.setTabListener(new TabListener(artistsFragment)));
Fragment albumsFragment = new AlbumsFragment();
actionBar.addTab(actionBar.newTab()
.setText(R.string.tab_albums)
.setTabListener(new TabListener(albumsFragment)));

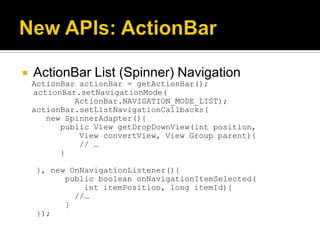

23.  ActionBar List (Spinner) Navigation
ActionBar actionBar = getActionBar();
actionBar.setNavigationMode(
ActionBar.NAVIGATION_MODE_LIST);
actionBar.setListNavigationCallbacks(
new SpinnerAdapter(){
public View getDropDownView(int position,
View convertView, View Group parent){
// …
}
}, new OnNavigationListener(){
public boolean onNavigationItemSelected(
int itemPosition, long itemId){
//…
}
});

24.  Notifications can now use RemoteViews to
allow interaction with the popup notification,
rather than just launch an intent.
RemoteViews layout = new RemoteViews(
getPackageName(), R.layout.notification);
notification.contentView = layout;
layout.setOnClickPendingIntent(
R.id.my_button,
getDialogPendingIntent(
"You pressed it!"));

25. PendingIntent getDialogPendingIntent(
String dialogText) {
return PendingIntent.getActivity(
this, // send back to the creating Act.
dialogText.hashCode(),
new Intent(ACTION_DIALOG)
.putExtra(Intent.EXTRA_TEXT,
dialogText)
.addFlags(
Intent.FLAG_ACTIVITY_NEW_TASK),
0);
}

26. Handling the PendingIntent:
if (ACTION_DIALOG.equals(intent.getAction())) {
showDialog(
intent.getStringExtra(
Intent.EXTRA_TEXT))
}
PendingIntent then becomes an invisible
call back into your Activity.

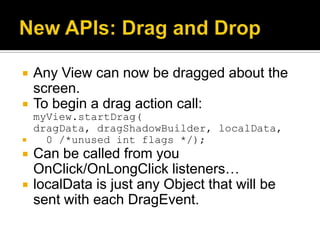

27.  Any View can now be dragged about the
screen.
 To begin a drag action call:
myView.startDrag(
dragData, dragShadowBuilder, localData,
 0 /*unused int flags */);
 Can be called from you
OnClick/OnLongClick listeners…
 localData is just any Object that will be
sent with each DragEvent.

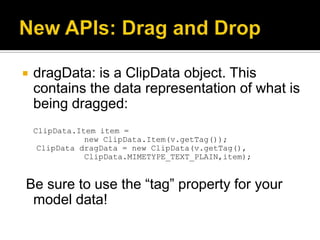

28.  dragData: is a ClipData object. This
contains the data representation of what is
being dragged:
ClipData.Item item =
new ClipData.Item(v.getTag());
ClipData dragData = new ClipData(v.getTag(),
ClipData.MIMETYPE_TEXT_PLAIN,item);
Be sure to use the “tag” property for your
model data!

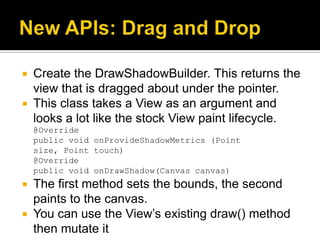

29.  Create the DrawShadowBuilder. This returns the
view that is dragged about under the pointer.
 This class takes a View as an argument and
looks a lot like the stock View paint lifecycle.
@Override
public void onProvideShadowMetrics (Point
size, Point touch)
@Override
public void onDrawShadow(Canvas canvas)
 The first method sets the bounds, the second
paints to the canvas.
 You can use the View’s existing draw() method
then mutate it

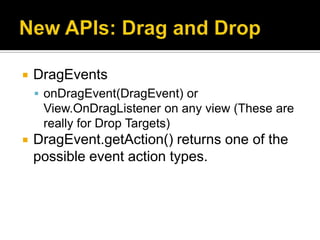

30.  DragEvents
 onDragEvent(DragEvent) or
View.OnDragListener on any view (These are
really for Drop Targets)
 DragEvent.getAction() returns one of the
possible event action types.

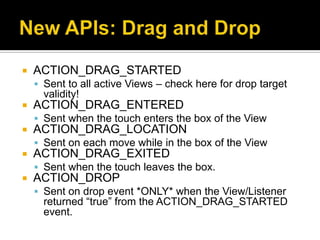

31.  ACTION_DRAG_STARTED
 Sent to all active Views – check here for drop target
validity!
 ACTION_DRAG_ENTERED
 Sent when the touch enters the box of the View
 ACTION_DRAG_LOCATION
 Sent on each move while in the box of the View
 ACTION_DRAG_EXITED
 Sent when the touch leaves the box.
 ACTION_DROP
 Sent on drop event *ONLY* when the View/Listener
returned “true” from the ACTION_DRAG_STARTED
event.

32.  Support for Hardware Accelerated Graphics
 Applies to stock animations and drawing APIs
 Comes damned near for free but…
 … if you haven’t tested it, it doesn’t work.
 Romain Guy eats his words! :P
 Property animation
 RenderScript
 A C99-ish script for doing OpenGL ops
 Should be like falling off a log for people with
OpenCL experience (read: not me)

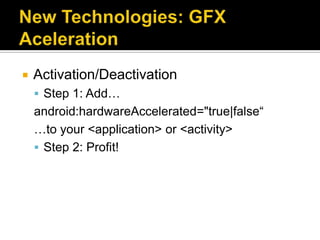

33.  Activation/Deactivation
 Step 1: Add…
android:hardwareAccelerated="true|false“
…to your <application> or <activity>
 Step 2: Profit!

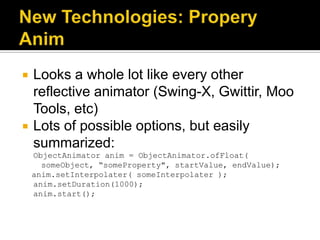

34.  Looks a whole lot like every other
reflective animator (Swing-X, Gwittir, Moo
Tools, etc)
 Lots of possible options, but easily
summarized:
ObjectAnimator anim = ObjectAnimator.ofFloat(
someObject, “someProperty", startValue, endValue);
anim.setInterpolater( someInterpolater );
anim.setDuration(1000);
anim.start();

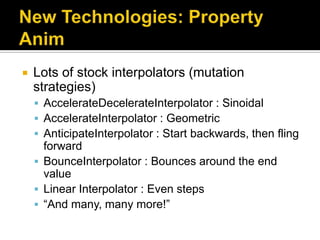

35.  Lots of stock interpolators (mutation
strategies)
 AccelerateDecelerateInterpolator : Sinoidal
 AccelerateInterpolator : Geometric
 AnticipateInterpolator : Start backwards, then fling
forward
 BounceInterpolator : Bounces around the end
value
 Linear Interpolator : Even steps
 “And many, many more!”

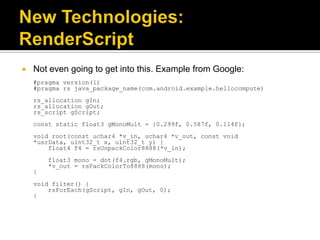

36.  Not even going to get into this. Example from Google:
#pragma version(1)
#pragma rs java_package_name(com.android.example.hellocompute)
rs_allocation gIn;
rs_allocation gOut;
rs_script gScript;
const static float3 gMonoMult = {0.299f, 0.587f, 0.114f};
void root(const uchar4 *v_in, uchar4 *v_out, const void
*usrData, uint32_t x, uint32_t y) {
float4 f4 = rsUnpackColor8888(*v_in);
float3 mono = dot(f4.rgb, gMonoMult);
*v_out = rsPackColorTo8888(mono);
}
void filter() {
rsForEach(gScript, gIn, gOut, 0);
}

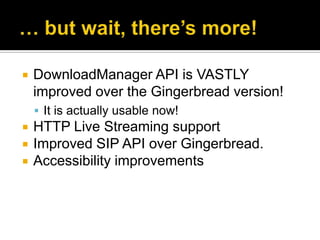

37.  DownloadManager API is VASTLY
improved over the Gingerbread version!
 It is actually usable now!
 HTTP Live Streaming support
 Improved SIP API over Gingerbread.
 Accessibility improvements

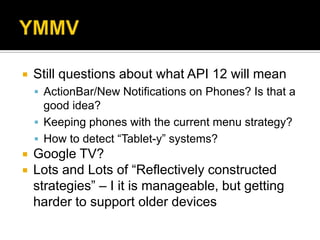

38.  Still questions about what API 12 will mean
 ActionBar/New Notifications on Phones? Is that a
good idea?
 Keeping phones with the current menu strategy?
 How to detect “Tablet-y” systems?
 Google TV?
 Lots and Lots of “Reflectively constructed
strategies” – I it is manageable, but getting
harder to support older devices
