Intro to Google TV
- 1. Intro to GoogleTV +Matt Gaunt
- 2.
- 3. The Open SmartTV Platform
- 4.

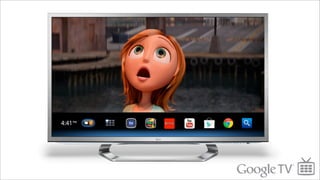

- 5. Big 7

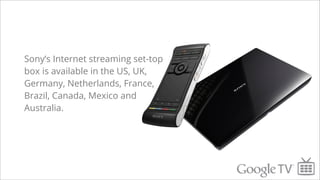

- 6. Sony’s Internet streamingset-top box is available in the US, UK, Germany, Netherlands, France, Brazil, Canada, Mexico and Australia.

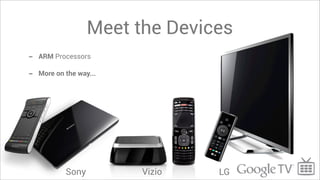

- 7. Meet the Devices - ARM Processors - More on the way... Sony Vizio LG
- 8.
- 9. “ In the US, homes have an average of 2.5 people and 2.93 TV sets (and rising!) Television Audience Report, 2009: The Nielsen Company ”
- 10. “ In the US, people “watch” an average of ~5 hours of TV per day Three Screen Report, Q1’10: The Nielsen Company ”
- 11. Continued Growth - 22% of US broadband household already own an HDTV with integrated TV apps Source: In-Stat “Q2’11 US Digital Entertainment Database,” July 26, 2011 - 60% of connected-TV households will use a TV app at least once per week Source: In-Stat “Q2’11 US Digital Entertainment Database,” July 26, 2011 - By 2015, 500 million web enabled TV’s Source: Crave Asia, July 8, 2011
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 19. Remote Control Mr. Leanback Favorite Beverage
- 20.
- 25.
- 35.

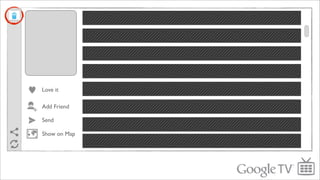

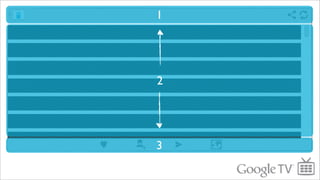

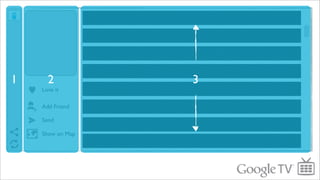

- 36. 1 2 3 Love it Add Friend Send Show on Map
- 37.
- 38.
- 39.
- 40.

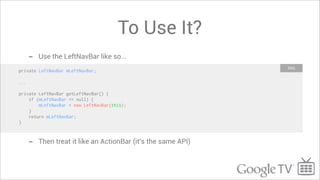

- 43. To Use It? - Use the LeftNavBar like so... XML private LeftNavBar mLeftNavBar; ... private LeftNavBar getLeftNavBar() { if (mLeftNavBar == null) { mLeftNavBar = new LeftNavBar(this); } return mLeftNavBar; } - Then treat it like an ActionBar (it’s the same API)
- 44. Grab the LibraryProject Here http://code.google.com/p/googletv-android-samples/
- 45.
- 46. Big, but small • Traditionally designed consumption not interaction • Far away = lower information density • Ironically, not so good for reading a lot of text • Big Sound: Great for video, and listening to music • Different than phones: personal, location, size, touch • Not just a big Tablet => more like a PHONE Big, but small Traditionally designed consumption not Far away = lower information density Ironically, not so good for reading a lot of Big Sound: Great for video, and listening Different than phones: personal, locatiot 29

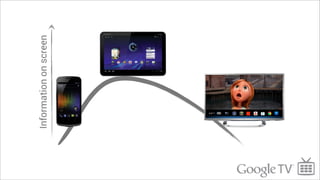

- 47. Information on screen Big 7
- 50.
- 51. Social Shared Experience - Games, learning, exploring, music, shared experiences - Privacy considerations
- 53.
- 55. Remote Control Mr. Leanback Still Drinking His Favorite Beverage
- 56. “ In the U.S., 88 percent of tablet owners and 86 percent of smartphone owners said they used their device while watching TV... Q4 2011 Survey of Connected Devices Owners ” Nielsen Company
- 57.
- 58. Remote Control Smartphone Tablet? Ms. Multi-screen Laptop Snack 39
- 59.

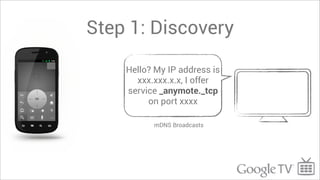

- 60. Step 1: Discovery Hello? My IP address is xxx.xxx.x.x, I offer service _anymote._tcp on port xxxx mDNS Broadcasts

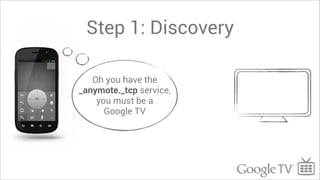

- 61. Step 1: Discovery Oh you have the _anymote._tcp service, you must be a Google TV

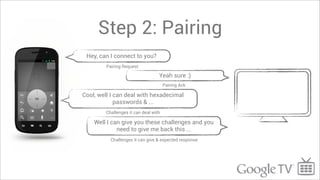

- 62. Step 2: Pairing Hey, can I connect to you? Pairing Request Yeah sure :) Pairing Ack Cool, well I can deal with hexadecimal passwords & ... Challenges it can deal with Well I can give you these challenges and you need to give me back this ... Challenges it can give & expected response

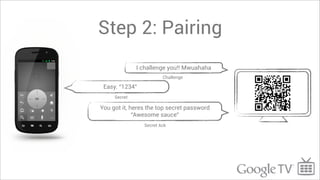

- 63. Step 2: Pairing I challenge you!! Mwuahaha Challenge Easy. “1234” Secret You got it, heres the top secret password “Awesome sauce” Secret Ack

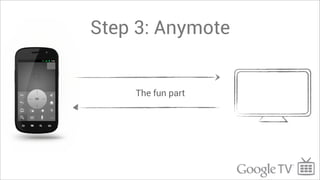

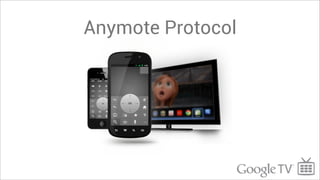

- 64. Step 3: Anymote The fun part
- 65. But this wasn’tfriendly :(

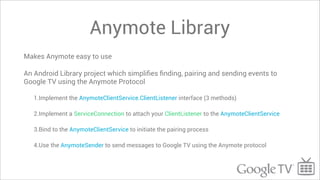

- 66. Anymote Library Makes Anymoteeasy to use An Android Library project which simplifies finding, pairing and sending events to Google TV using the Anymote Protocol 1.Implement the AnymoteClientService.ClientListener interface (3 methods) 2.Implement a ServiceConnection to attach your ClientListener to the AnymoteClientService 3.Bind to the AnymoteClientService to initiate the pairing process 4.Use the AnymoteSender to send messages to Google TV using the Anymote protocol

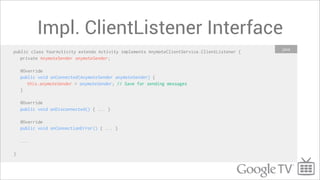

- 67. Impl. ClientListener Interface Java public class YourActivity extends Activity implements AnymoteClientService.ClientListener { private AnymoteSender anymoteSender; @Override public void onConnected(AnymoteSender anymoteSender) { this.anymoteSender = anymoteSender; // Save for sending messages } @Override public void onDisconnected() { ... } @Override public void onConnectionError() { ... } ... }

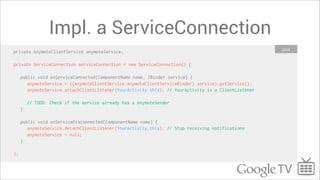

- 68. Impl. a ServiceConnection Java private AnymoteClientService anymoteService; private ServiceConnection serviceConnection = new ServiceConnection() { public void onServiceConnected(ComponentName name, IBinder service) { anymoteService = ((AnymoteClientService.AnymoteClientServiceBinder) service).getService(); anymoteService.attachClientListener(YourActivity.this); // YourActivity is a ClientListener // TODO: Check if the service already has a AnymoteSender } public void onServiceDisconnected(ComponentName name) { anymoteService.detachClientListener(YourActivity.this); // Stop receiving notifications anymoteService = null; } };

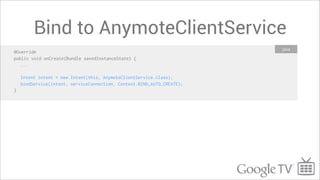

- 69. Bind to AnymoteClientService Java @Override public void onCreate(Bundle savedInstanceState) { ... Intent intent = new Intent(this, AnymoteClientService.class); bindService(intent, serviceConnection, Context.BIND_AUTO_CREATE); }

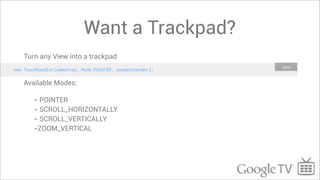

- 70. Want a Trackpad? Turn any View into a trackpad Java new TouchHandler(someView, Mode.POINTER, anymoteSender); Available Modes: - POINTER - SCROLL_HORIZONTALLY - SCROLL_VERTICALLY -ZOOM_VERTICAL

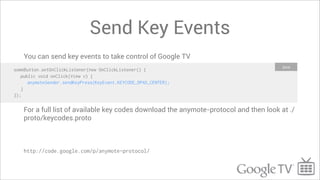

- 71. Send Key Events You can send key events to take control of Google TV Java someButton.setOnClickListener(new OnClickListener() { public void onClick(View v) { anymoteSender.sendKeyPress(KeyEvent.KEYCODE_DPAD_CENTER); } }); For a full list of available key codes download the anymote-protocol and then look at ./ proto/keycodes.proto http://code.google.com/p/anymote-protocol/

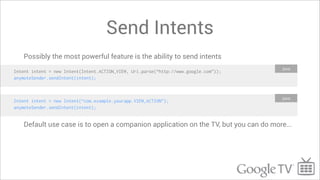

- 72. Send Intents Possibly the most powerful feature is the ability to send intents Java Intent intent = new Intent(Intent.ACTION_VIEW, Uri.parse(“http://www.google.com”)); anymoteSender.sendIntent(intent); Java Intent intent = new Intent(“com.example.yourapp.VIEW_ACTION”); anymoteSender.sendIntent(intent); Default use case is to open a companion application on the TV, but you can do more...

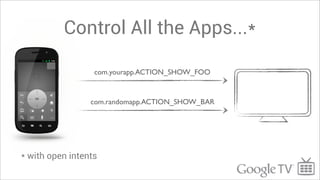

- 73. Control All theApps...* com.yourapp.ACTION_SHOW_FOO com.randomapp.ACTION_SHOW_BAR * with open intents

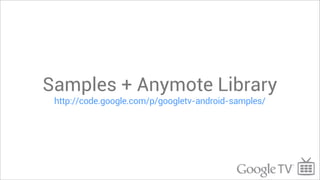

- 74. Samples + AnymoteLibrary http://code.google.com/p/googletv-android-samples/

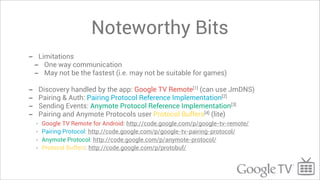

- 75. Noteworthy Bits - Limitations - One way communication - May not be the fastest (i.e. may not be suitable for games) - Discovery handled by the app: Google TV Remote[1] (can use JmDNS) - Pairing & Auth: Pairing Protocol Reference Implementation[2] - Sending Events: Anymote Protocol Reference Implementation[3] - Pairing and Anymote Protocols user Protocol Buffers[4] (lite) - Google TV Remote for Android: http://code.google.com/p/google-tv-remote/ - Pairing Protocol: http://code.google.com/p/google-tv-pairing-protocol/ - Anymote Protocol: http://code.google.com/p/anymote-protocol/ - Protocol Buffers: http://code.google.com/p/protobuf/

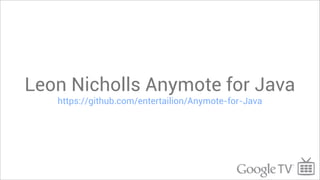

- 76. Leon Nicholls Anymotefor Java https://github.com/entertailion/Anymote-for-Java
- 77. Tips & Goodto Know

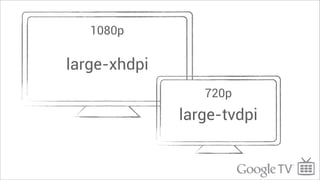

- 78. 1080p large-xhdpi 720p large-tvdpi

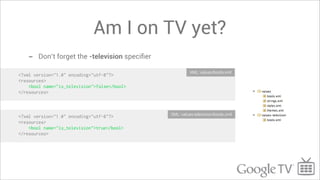

- 79. Am I onTV yet? - Don’t forget the -television specifier XML: values/bools.xml <?xml version="1.0" encoding="utf-8"?> <resources> <bool name="is_television">false</bool> </resources> XML: values-television/bools.xml <?xml version="1.0" encoding="utf-8"?> <resources> <bool name="is_television">true</bool> </resources>

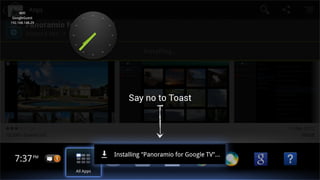

- 80. Say no toToast
- 81.
- 84. Please don’t dothis
- 85.

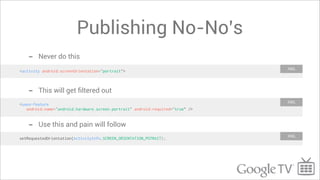

- 86. Publishing No-No’s - Never do this XML <activity android:screenOrientation="portrait"> - This will get filtered out XML <uses-feature android:name="android.hardware.screen.portrait" android:required=”true” /> - Use this and pain will follow XML setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_POTRAIT);
- 87. Publishing Checklist - Tell Play that you don’t need touch events XML <uses-feature android:name="android.hardware.touchscreen" android:required= “false” /> - Do you need to target Google TV only? XML <uses-feature android:name="com.google.android.tv" android:required= “true” /> - Lastly . . . Tell us about it
- 88.

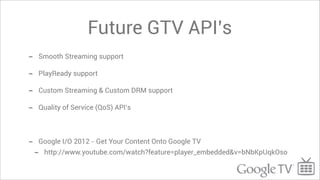

- 89. Future GTV API’s - Smooth Streaming support - PlayReady support - Custom Streaming & Custom DRM support - Quality of Service (QoS) API’s - Google I/O 2012 - Get Your Content Onto Google TV - http://www.youtube.com/watch?feature=player_embedded&v=bNbKpUqkOso
- 90.
- 91. http://developers.google.com/tv/ +Google TV Developers
