1. What’s New in
Android
Getting up to
speed with HC/ICS
Robert Cooper
Reach Health
@kebernet / +Robert Cooper

2. Why are you here?

3.  You never upgraded your app for Honeycomb
 You think cloning your iOS app to Android is a
keen idea
 You are completely new to Android
(most of this will pass you buy, but try and
osmotically absorb some of it)
 Android is neat
 Your boss said you need to be on this track

4. Who is this guy?

5. I wrote this... (not related)

6. I work here…

7. I also do this stuff…

8. So what is new?

9.  New UI metaphors
 ActionBar
 Onscreen, adaptive menus
 Spec Hardware changes
 No hard buttons
 New look and feel
 Mandatory for ICS across OEMs to render unmodified

10. So what is new?

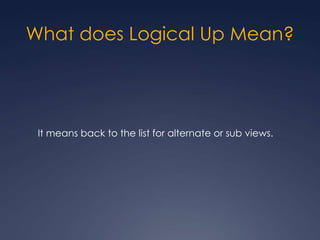

13. What does Logical Up Mean?
It means back to the list for alternate or sub views.

14. New LaF

15.  Holographic look and feel added
 Make it more TRON-ish…
 … but not too TRON-ish
 Lots of glows, varied depth line markers, 3D
transitions
 Improved text ops mechanics

17. New APIs

18.  Fragments
 Sub-Activities
 ActionBar
 New Menuing and Nav System.
 Enhanced Interaction for Widgets and Notifications
 Drag and Drop
 P2P Networking
 NFC (Android Beam)
 WiFi Direct

19. Fragments

20.  Fragments are Sub-Activities that can be
recomposed based on UI factors (screen
size, orientation, etc)
 Introduced with 3.0 tablets now global in 4.0
 Available as a build-in backport as far back as
1.6 with the “Android Compatibility Package”
(Available in the SDK/AVD Manager)

21. Mimics Activity Lifecycle
 onCreate()
 onStart()
 onCreateView() (this is new!)
 onPause()
 onStop()

22. Fragments are Layout parts
<?xml version="1.0" encoding="utf-8"?>
<LinearLayoutxmlns:android="http://schemas.android.com/apk/
res/android"
android:orientation="horizontal"
android:layout_width="match_parent"
android:layout_height="match_parent">
<fragment
android:name="com.example.news.ArticleListFragment"
android:id="@+id/list"
android:layout_weight="1"
android:layout_width="0dp"
android:layout_height="match_parent" />
<fragment
android:name="com.example.news.ArticleReaderFragment"
android:id="@+id/viewer"
android:layout_weight="2"
android:layout_width="0dp"
android:layout_height="match_parent" />
</LinearLayout>

23.  Fragments are Sub-Activities that can be Each
Fragment becomes unique in the application
 Can move between Activities with different
combinations of Fragments by passing Fragment
model/URI information using the
FragmentManager API.
 FragmentTransaction can be used to
manipulate fragment state and “back” behavior

24. FragmentTransaction
manipulates the back state
Fragment newFragment = new ExampleFragment();
FragmentTransaction transaction =
getFragmentManager().beginTransaction();
transaction.replace(R.id.fragment_container
, newFragment);
transaction.addToBackStack(null);
transaction.commit();

25. ActionBar
(Know it. Love it.)

26. What is it?
 New nav metaphor
 Home
 Logical “UP”
 Activity global tabs
 New menuing system
 Toolbar
 Overflow menuing

27. How to Use It
 NOT part of the compatibility package
 Check outActionBarSherlock.com for a backport
 You MUST request the Holographic theme
 android:theme="@android:style/Theme.Holo”
 android:theme="@android:style/Theme.Holo.Light”
 setTheme(android.R.style.Theme_Holo);
 setTheme(android.R.style.Theme_Holo_Light);

28. Menus on the ActionBar
<?xml version="1.0" encoding="utf-8"?>
<menu
xmlns:android="http://schemas.android.com/apk/res/android
">
<item android:id="@+id/menu_add"
android:icon="@drawable/ic_menu_save"
android:title="@string/menu_save"
android:showAsAction="ifRoom|withText" />
</menu>

30. Custom Views in the ActionBar
<?xml version="1.0" encoding="utf-8"?>
<menu
xmlns:android="http://schemas.android.com/apk/res/androi
d">
<item android:id="@+id/menu_search"
android:title="Search"
android:icon="@drawable/ic_menu_search"
android:showAsAction="ifRoom”
android:actionLayout="@layout/searchview"
android:actionViewClass="android.widget.SearchView”
/>
</menu>

31. SearchViewsearchView =
(SearchView) menu.findItem(R.id.menu_search)
.getActionView();

32.  Getting the “Home” icon view
View home = a.findViewById(android.R.id.home);
home.setOnClickListener(new OnClickListener() {
public void onClick(View arg0) {
a.finish();
}
});
 Adding “Up” marker
ActionBaractionBar = this.getActionBar();
//or SherlockActivity.getSupportActionBar();
actionBar.setDisplayHomeAsUpEnabled(true);

33. ActionBar Tabs
final ActionBaractionBar = getActionBar();
actionBar.setNavigationMode(
ActionBar.NAVIGATION_MODE_TABS);
// remove the activity title to make space for tabs
actionBar.setDisplayShowTitleEnabled(false);
Fragment artistsFragment = new ArtistsFragment();
actionBar.addTab(actionBar.newTab()
.setText(R.string.tab_artists)
.setTabListener(new TabListener(artistsFragment)));
Fragment albumsFragment = new AlbumsFragment();
actionBar.addTab(actionBar.newTab()
.setText(R.string.tab_albums)
.setTabListener(new TabListener(albumsFragment)));

35. Spinner/List/Drop down Nav
ActionBaractionBar = getActionBar();
actionBar.setNavigationMode(
ActionBar.NAVIGATION_MODE_LIST);
actionBar.setListNavigationCallbacks(
new SpinnerAdapter(){
public View getDropDownView(int position,
View convertView, View Group parent){
// …
}
}, new OnNavigationListener(){
public booleanonNavigationItemSelected(
intitemPosition, long itemId){
//…
}
});

37. Notifications
(They do stuff now)

38. Notifications can now use RemoteViews to allow
interaction with the popup notification, rather than just
launch an intent.
RemoteViews layout = new RemoteViews(
getPackageName(), R.layout.notification);
notification.contentView = layout;
layout.setOnClickPendingIntent(
R.id.my_button,
getDialogPendingIntent(
"You pressed it!"));

39. PendingIntentgetDialogPendingIntent(
String dialogText) {
return PendingIntent.getActivity(
this, // send back to the creating Act.
dialogText.hashCode(),
new Intent(ACTION_DIALOG)
.putExtra(Intent.EXTRA_TEXT,
dialogText)
.addFlags(
Intent.FLAG_ACTIVITY_NEW_TASK),
0);
}

40. Handling the PendingIntent:
if (ACTION_DIALOG.equals(intent.getAction())) {
showDialog(
intent.getStringExtra(
Intent.EXTRA_TEXT))
}
PendingIntent then becomes an invisible call back into
your Activity.

41. Drag and Drop

42.  Any View can now be dragged about the screen.
 To begin a drag action call:
myView.startDrag( dragData,
dragShadowBuilder, localData,
0 /*unused int flags */);
 Can be called from you OnClick/OnLongClick listeners…
 localData is just any Object that will be sent with each
DragEvent.

43.  Create the DrawShadowBuilder. This returns
the view that is dragged about under the
pointer.
 This class takes a View as an argument and
looks a lot like the stock View paint lifecycle.
@Override
public void onProvideShadowMetrics(Point size,
Point touch)
@Override
public void onDrawShadow(Canvas canvas)
 The first method sets the bounds, the second
paints to the canvas.
 You can use the View’s existing draw()
method then mutate it (read: opacity)

44.  DragEvents
 onDragEvent(DragEvent)
or
 View.OnDragListener on any view (These are really for Drop
Targets)
 DragEvent.getAction() returns one of the possible event
action types.

45.  ACTION_DRAG_STARTED
 Sent to all active Views – check here for drop target validity!
 ACTION_DRAG_ENTERED
 Sent when the touch enters the box of the View
 ACTION_DRAG_LOCATION
 Sent on each move while in the box of the View
 ACTION_DRAG_EXITED
 Sent when the touch leaves the box.
 ACTION_DROP
 Sent on drop event *ONLY* when the View/Listener returned
“true” from the ACTION_DRAG_STARTED event.

46. Android Beam

47.  You App has Data
 People like to share data
 People like to move data between devices
 The Cloud is Magic™
 NFC is complex. Android Beam is Simple

48. Sending a Beam
 Call NfcAdapter.getDefaultAdapther(ctx)
 Check for null.
 Call .setNdefPushMessage() with your Activity
and your data
 Profit!

49. final byte[] langBytes =
locale.getLanguage().getBytes(Charsets.US_ASCII);
final CharsetutfEncoding = encodeInUtf8 ?
Charsets.UTF_8 : Charset.forName("UTF-16");
final byte[] textBytes =text.getBytes(utfEncoding);
final intutfBit = encodeInUtf8 ? 0 : (1 << 7);
final char status = (char) (utfBit +
langBytes.length);
final byte[] data = Bytes.concat(new byte[] {(byte)
status}, langBytes, textBytes);
new
NdefRecord(NdefRecord.TNF_WELL_KNOWN, NdefRecord.RT
D_TEXT, new byte[0], data);

50. RTD_URI is a lot easier!

51. final byte[] typeBytes = "image/jpeg”
.getBytes(Charsets.US_ASCII);
final byte[] data = getData();
new
NdefRecord(NdefRecord.TNF_MIME_MEDIA, typeBytes,
new byte[0], data);

52. Getting a Beam
 Call NfcAdapter.setNdefPushMessageCallback()
with your activity(ies)
OR
 Handle ACTION_NDEF_DISCOVERED in your
Manifest for URLs or Mime Types
 Profit!

53. Too easy NOT to do.

54. WiFi Direct
(or JINI with Sockets)

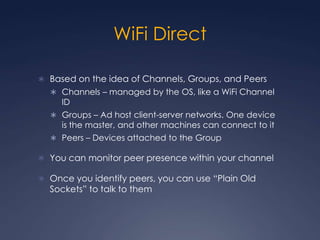

55. WiFi Direct
 Based on the idea of Channels, Groups, and Peers
 Channels – managed by the OS, like a WiFi Channel
ID
 Groups – Ad host client-server networks. One device
is the master, and other machines can connect to it
 Peers – Devices attached to the Group
 You can monitor peer presence within your channel
 Once you identify peers, you can use “Plain Old
Sockets” to talk to them

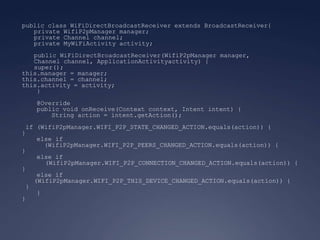

56. public class WiFiDirectBroadcastReceiver extends BroadcastReceiver{
private WifiP2pManager manager;
private Channel channel;
private MyWiFiActivity activity;
public WiFiDirectBroadcastReceiver(WifiP2pManager manager,
Channel channel, ApplicationActivityactivity) {
super();
this.manager = manager;
this.channel = channel;
this.activity = activity;
}
@Override
public void onReceive(Context context, Intent intent) {
String action = intent.getAction();
if (WifiP2pManager.WIFI_P2P_STATE_CHANGED_ACTION.equals(action)) {
}
else if
(WifiP2pManager.WIFI_P2P_PEERS_CHANGED_ACTION.equals(action)) {
}
else if
(WifiP2pManager.WIFI_P2P_CONNECTION_CHANGED_ACTION.equals(action)) {
}
else if
(WifiP2pManager.WIFI_P2P_THIS_DEVICE_CHANGED_ACTION.equals(action)) {
}
}
}

57. manager = (WifiP2pManager)
getSystemService(Context.WIFI_P2P_SERVICE);
channel = manager.initialize(this, getMainLooper(), null);
receiver = new WiFiDirectBroadcastReceiver(manager,
channel, this);
// ...
@Override
protected void onResume() {
super.onResume();
registerReceiver(receiver, intentFilter);
manager.createGroup(channel, new ActionListener(){
//...
}
}
@Override
protected void onPause() {
super.onPause();
unregisterReceiver(receiver);
}

58. Talking to Others
 Request a list of peers
 Select a Device from the list of peers
 Connect to the Device – this is Data Link
connect, not Application connect
 Open your sockets
 Once connected

59. manager.discoverPeers(channel, new WifiP2pManager.ActionListener() {
@Override
public void onSuccess() {
manager.requestPeers( new PeerListListener(){
public void onPeersAvailable(WiFiP2pDeviceList devices){
// do stuff here
}
}
}
@Override
public void onFailure(intreasonCode) {
}
});
//…
WifiP2pConfig config = new WifiP2pConfig();
config.deviceAddress = device.deviceAddress;
manager.connect(channel, config, new ActionListener() {
@Override
public void onSuccess() {
}
@Override
public void onFailure(int reason) {
}
});

60. WifiP2pConfig config = new WifiP2pConfig();
config.deviceAddress = device.deviceAddress;
manager.connect(channel, config, new ActionListener() {
@Override
public void onSuccess() {
}
@Override
public void onFailure(int reason) {
}
});
// from ConnectionInfoListener…
@Override
public void onConnectionInfoAvailable(
WifiP2pInfo info) {
info.groupOwnerAddress.getHostAddress();

61. Check the Demo App
 http://developer.android.com/resources/sample
s/WiFiDirectDemo/index.html
 In the SDK samples

62. What to Remember

63.  Make your app Androidish
(but not too Androidish)
 Use Fragments to recompose your app for
various form factors
 Android Beam support is brain free. Your app
*should* support it.
 WiFi direct can take the pain out of true on-the-
go P2P networking.
(Save your users WAN transfers)

64. Thanks!
Robert Cooper
Reach Health
@kebernet / +Robert Cooper
