1. Android Design Patterns
Raul Portales
@sla_shalafi
Platty Soft
@plattysoft

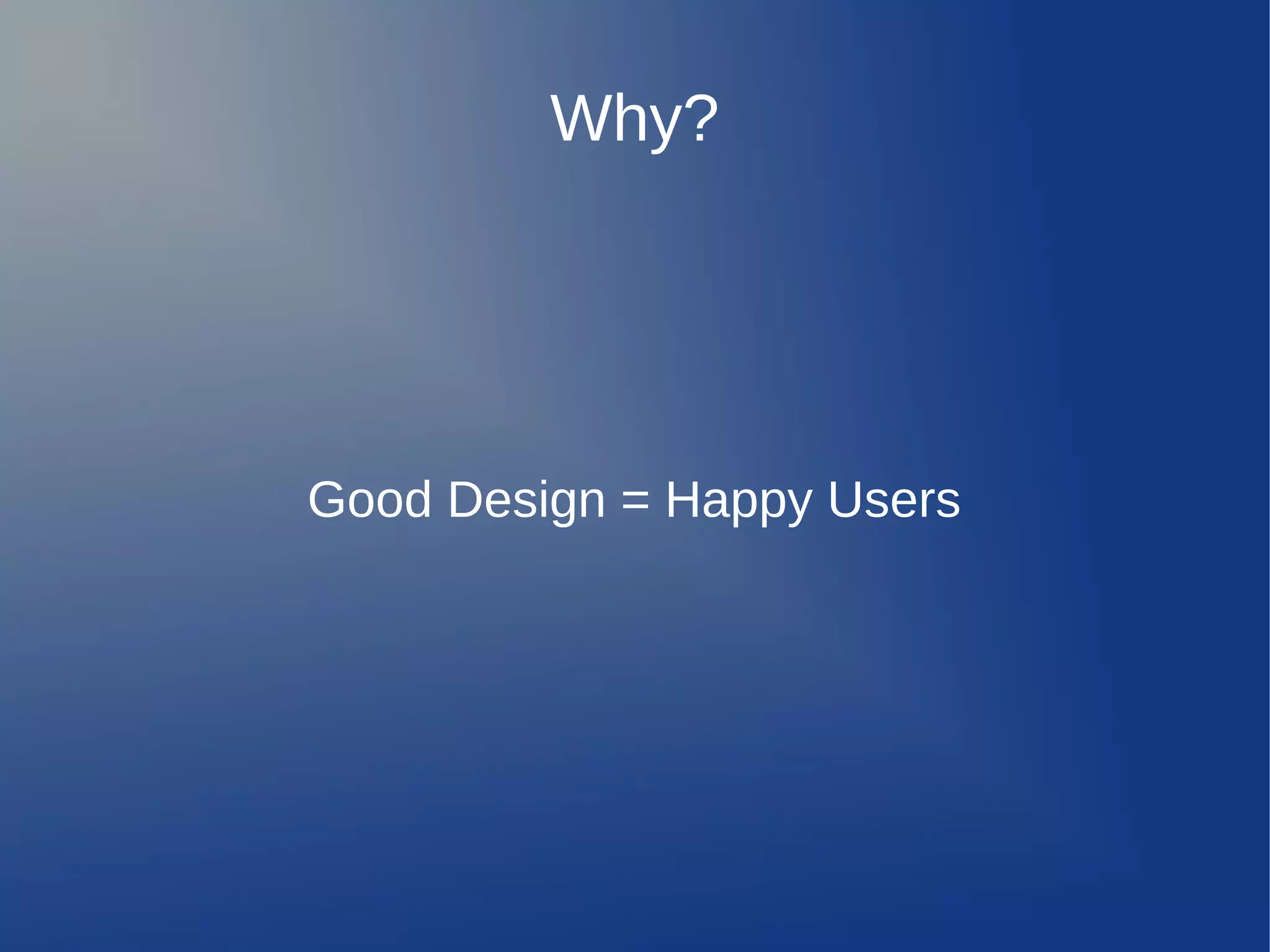

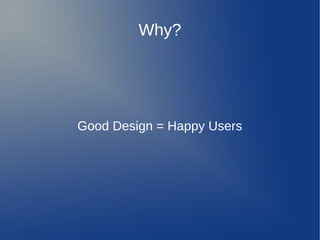

2. Why?
Good Design = Happy Users

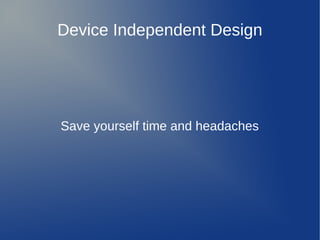

3. Device Independent Design
Save yourself time and headaches

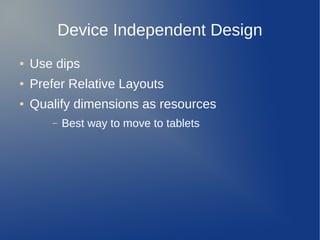

5. Device Independent Design
● Use dips
● Prefer Relative Layouts
● Qualify dimensions as resources
– Best way to move to tablets

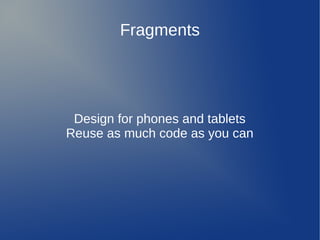

6. Fragments
Design for phones and tablets
Reuse as much code as you can

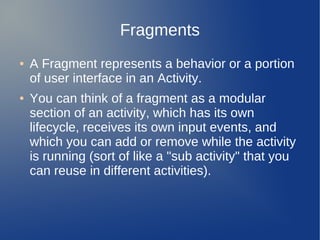

7. Fragments
● A Fragment represents a behavior or a portion
of user interface in an Activity.
● You can think of a fragment as a modular
section of an activity, which has its own
lifecycle, receives its own input events, and
which you can add or remove while the activity
is running (sort of like a "sub activity" that you
can reuse in different activities).

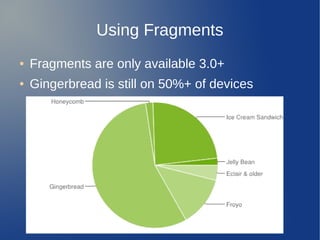

8. Using Fragments
● Fragments are only available 3.0+
● Gingerbread is still on 50%+ of devices

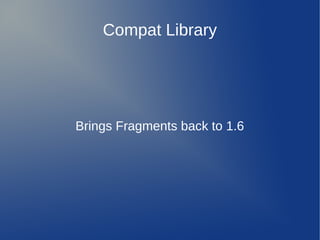

9. Compat Library
Brings Fragments back to 1.6

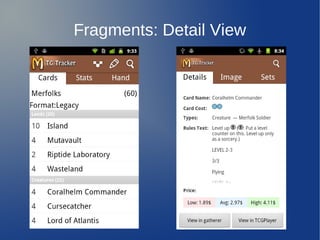

10. Fragments: Detail View

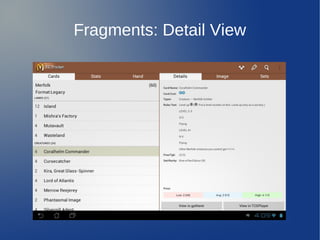

11. Fragments: Detail View

12. The tech side
● MasterFragment
● DetailFragment
● Qualify layouts
– xlarge-land → 2 fragments
– normal → 1 fragment
● MainActivity
– If has a detail fragment, use it
– Or write 2 different activities

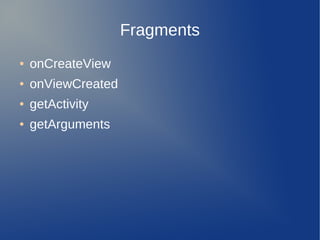

13. Fragments
● onCreateView
● onViewCreated
● getActivity
● getArguments

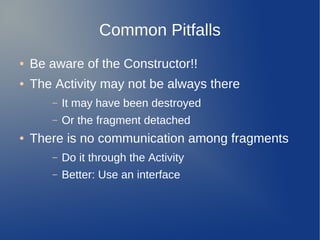

14. Common Pitfalls
● Be aware of the Constructor!!
● The Activity may not be always there
– It may have been destroyed
– Or the fragment detached
● There is no communication among fragments
– Do it through the Activity
– Better: Use an interface

15. FragmentManager
● findFragmentById
● findFragmentByTag
● FragmentTransaction
FragmentManager fm = getSupportFragmentManager();
FragmentTransaction ft = fm.beginTransaction();
ft.replace(R.id.mainFragment, MyFragment.newInstance());
ft.commitAllowingStateLoss();

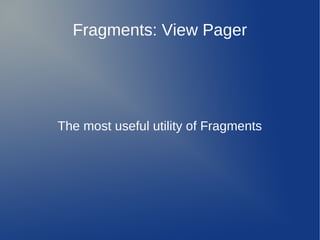

16. Fragments: View Pager
The most useful utility of Fragments

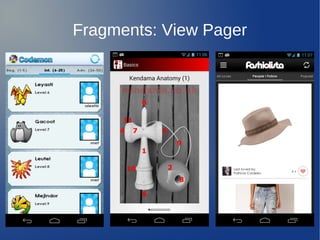

17. Fragments: View Pager

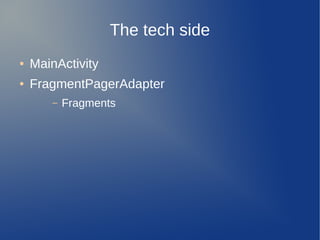

18. The tech side
● MainActivity
● FragmentPagerAdapter
– Fragments

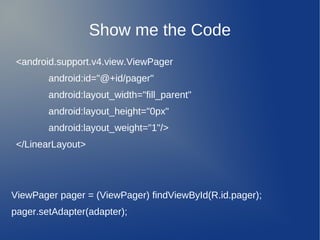

19. Show me the Code
<android.support.v4.view.ViewPager
android:id="@+id/pager"
android:layout_width="fill_parent"
android:layout_height="0px"
android:layout_weight="1"/>
</LinearLayout>
ViewPager pager = (ViewPager) findViewById(R.id.pager);
pager.setAdapter(adapter);

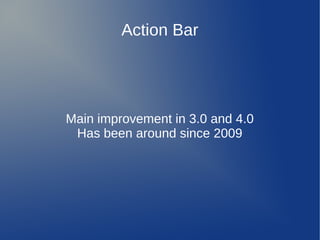

20. Action Bar
Main improvement in 3.0 and 4.0
Has been around since 2009

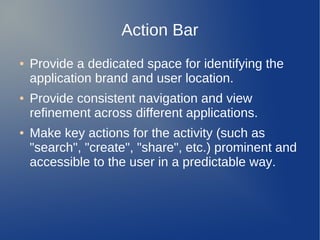

21. Action Bar
● Provide a dedicated space for identifying the
application brand and user location.
● Provide consistent navigation and view
refinement across different applications.
● Make key actions for the activity (such as
"search", "create", "share", etc.) prominent and
accessible to the user in a predictable way.

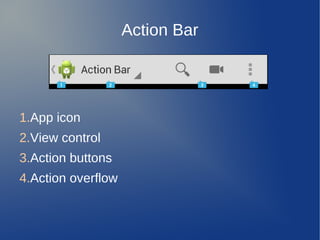

22. Action Bar
1.App icon
2.View control
3.Action buttons
4.Action overflow

23. Action Buttons
● Frequent
● Important
● Typical

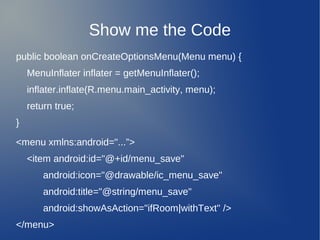

24. Show me the Code
public boolean onCreateOptionsMenu(Menu menu) {
MenuInflater inflater = getMenuInflater();
inflater.inflate(R.menu.main_activity, menu);
return true;
}
<menu xmlns:android="...”>
<item android:id="@+id/menu_save"
android:icon="@drawable/ic_menu_save"
android:title="@string/menu_save"
android:showAsAction="ifRoom|withText" />
</menu>

25. The Action Bar is NOT part of the Compat Library

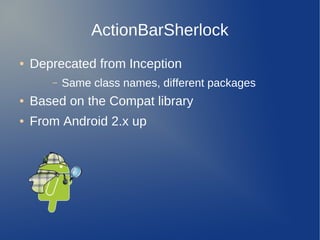

27. ActionBarSherlock
● Deprecated from Inception
– Same class names, different packages
● Based on the Compat library
● From Android 2.x up

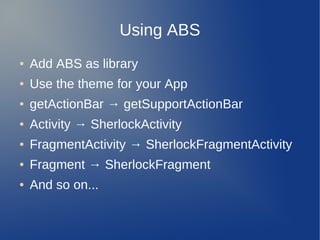

28. Using ABS
● Add ABS as library
● Use the theme for your App
● getActionBar → getSupportActionBar
● Activity → SherlockActivity
● FragmentActivity → SherlockFragmentActivity
● Fragment → SherlockFragment
● And so on...

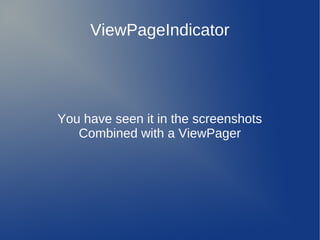

29. ViewPageIndicator
You have seen it in the screenshots
Combined with a ViewPager

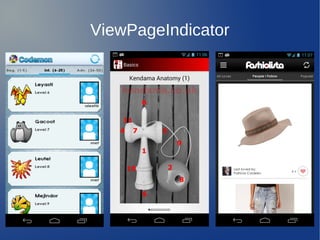

30. ViewPageIndicator

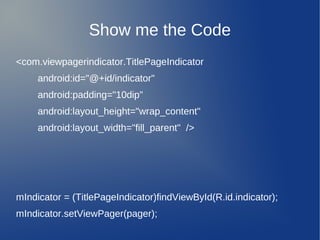

31. Show me the Code
<com.viewpagerindicator.TitlePageIndicator
android:id="@+id/indicator"
android:padding="10dip"
android:layout_height="wrap_content"
android:layout_width="fill_parent" />
mIndicator = (TitlePageIndicator)findViewById(R.id.indicator);
mIndicator.setViewPager(pager);

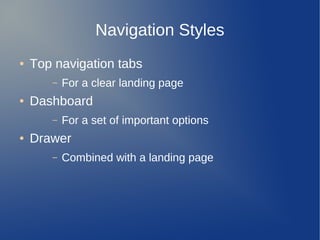

32. Navigation Styles
● Top navigation tabs
– For a clear landing page
● Dashboard
– For a set of important options
● Drawer
– Combined with a landing page

33. Navigation Styles
Vs.

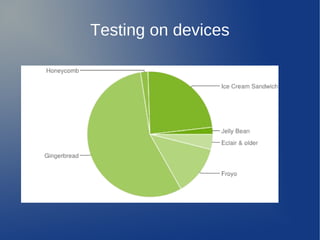

34. Testing on devices

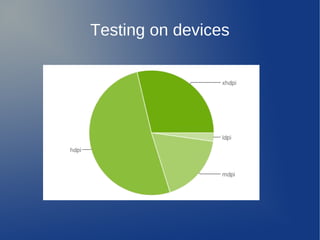

35. Testing on devices

36. Testing on devices

37. Testing on devices

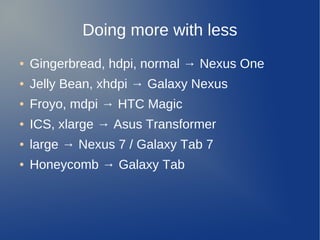

38. Doing more with less
● Gingerbread, hdpi, normal → Nexus One
● Jelly Bean, xhdpi → Galaxy Nexus
● Froyo, mdpi → HTC Magic
● ICS, xlarge → Asus Transformer
● large → Nexus 7 / Galaxy Tab 7
● Honeycomb → Galaxy Tab

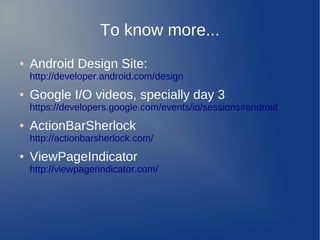

39. To know more...
● Android Design Site:
http://developer.android.com/design
● Google I/O videos, specially day 3
https://developers.google.com/events/io/sessions#android
● ActionBarSherlock
http://actionbarsherlock.com/
● ViewPageIndicator
http://viewpagerindicator.com/
