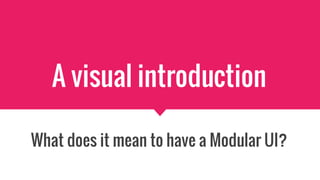

2. A visual introduction
What does it mean to have a Modular UI?

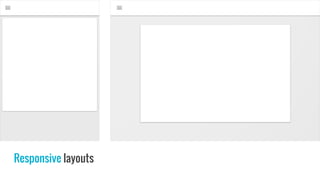

3. Responsive layouts

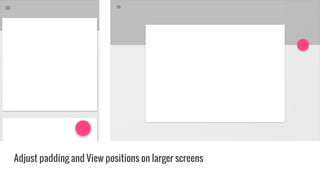

4. Adjust padding and View positions on larger screens

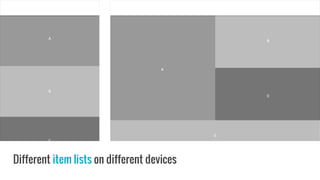

5. Different item lists on different devices

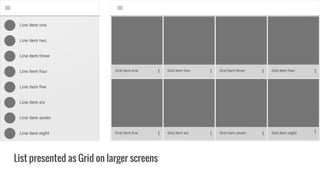

6. List presented as Grid on larger screens

7. Runtime-configurable layouts

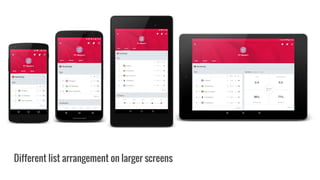

8. Different list arrangement on larger screens

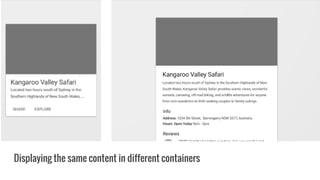

9. Displaying the same content in different containers

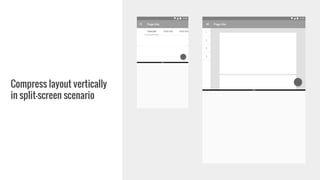

10. Compress layout vertically
in split-screen scenario

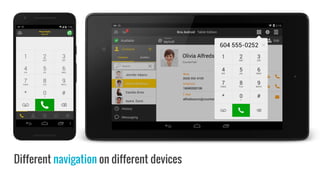

11. Different navigation on different devices

12. Architecture & Layering

13. Android SDK helps.. with some stuff
● Screen sizes: small, normal, large, xlarge
● Screen aspect ratio: long, notlong
● Device orientation: land, port
● Screen densities: ldpi, mdpi, hdpi, xhdpi,
xxhdpi, xxxhdpi
● Density pixels (dp) instead of pixels (px)
● Precise screen sizes: w__dp, h__dp, sw__dp

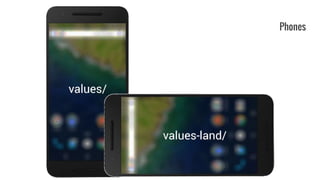

14. Phones

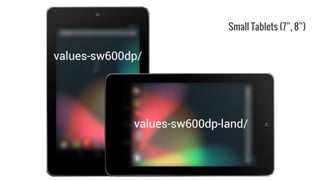

15. Small Tablets (7”, 8”)

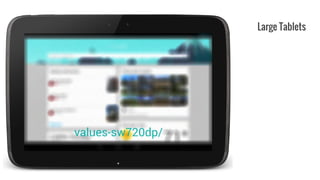

16. Large Tablets

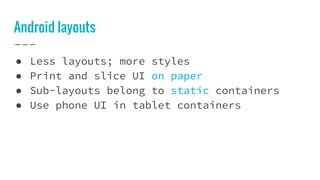

17. Android layouts
● Less layouts; more styles
● Print and slice UI on paper
● Sub-layouts belong to static containers
● Use phone UI in tablet containers

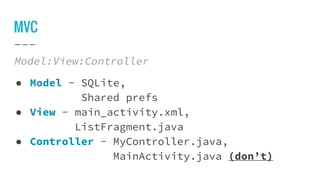

18. MVC
Model:View:Controller
● Model - SQLite,
Shared prefs
● View - main_activity.xml,
ListFragment.java
● Controller - MyController.java,
MainActivity.java (don’t)

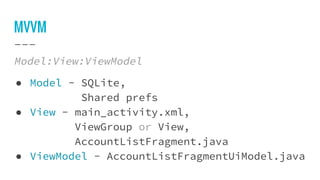

19. MVVM
Model:View:ViewModel
● Model - SQLite,
Shared prefs
● View - main_activity.xml,
ViewGroup or View,
AccountListFragment.java
● ViewModel - AccountListFragmentUiModel.java

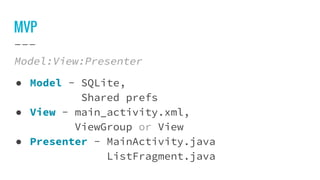

20. MVP
Model:View:Presenter
● Model - SQLite,
Shared prefs
● View - main_activity.xml,
ViewGroup or View
● Presenter - MainActivity.java
ListFragment.java

21. MVP - Variations
Passive View
● View not aware of the Model
● Presenter does the hard work
Supervising Controller
● View interacts directly with the Model
● Presenter handles extreme cases

22. Components for Android

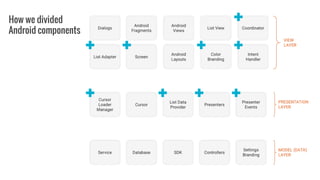

23. How we divided
Android components

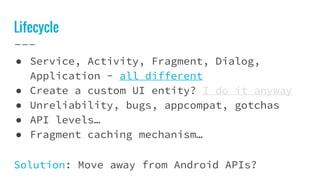

24. Lifecycle
● Service, Activity, Fragment, Dialog,
Application - all different
● Create a custom UI entity? I do it anyway
● Unreliability, bugs, appcompat, gotchas
● API levels…
● Fragment caching mechanism…
Solution: Move away from Android APIs?

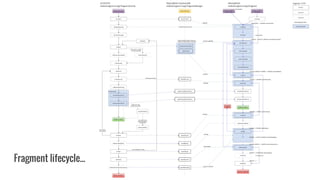

25. Fragment lifecycle...

26. Android Lists with RecyclerView
● Decouple!
● Android: Recycler View, Adapter, Layout
Manager, Item Animator, Item Decorator,
Recycled Pool, Cache, Item Decoration
Advice: Split “adapter” component
(1) data provider and (2) recycler adapter

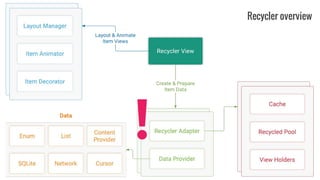

27. Recycler overview

28. Asynchronous work
● UI events must go to a UI thread
● Long operations go on a background thread
● Thread or AsyncTask or RxJava
● Events? Otto or GreenRobot or others
● A swarm of events
Advice: Keep it minimal for your needs

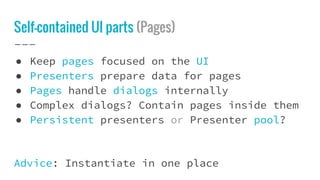

29. Self-contained UI parts (Pages)
● Keep pages focused on the UI
● Presenters prepare data for pages
● Pages handle dialogs internally
● Complex dialogs? Contain pages inside them
● Persistent presenters or Presenter pool?
Advice: Instantiate in one place

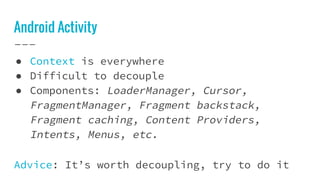

30. Android Activity
● Context is everywhere
● Difficult to decouple
● Components: LoaderManager, Cursor,
FragmentManager, Fragment backstack,
Fragment caching, Content Providers,
Intents, Menus, etc.
Advice: It’s worth decoupling, try to do it

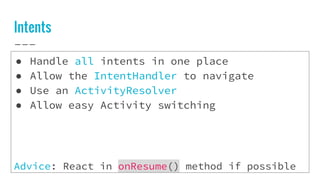

31. Intents
● Handle all intents in one place
● Allow the IntentHandler to navigate
● Use an ActivityResolver
● Allow easy Activity switching
Advice: React in onResume() method if possible

32. Connecting the dots

33. Rules for a ‘happy’ UI
● Enumerate pages somehow (enum optimized?)
● Pages need a common navigation API
● Framework creates (and caches) pages
● Follow the Activity lifecycle
Example of a ‘happy’ UI code:
navigate().with(myBundle).to(Pages.LOGIN);

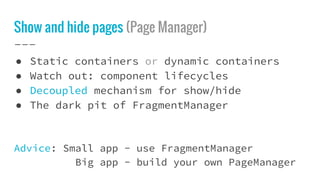

34. Show and hide pages (Page Manager)
● Static containers or dynamic containers
● Watch out: component lifecycles
● Decoupled mechanism for show/hide
● The dark pit of FragmentManager
Advice: Small app - use FragmentManager
Big app - build your own PageManager

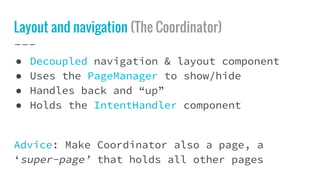

35. Layout and navigation (The Coordinator)
● Decoupled navigation & layout component
● Uses the PageManager to show/hide
● Handles back and “up”
● Holds the IntentHandler component
Advice: Make Coordinator also a page, a
‘super-page’ that holds all other pages

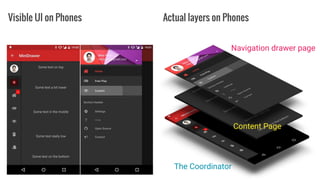

36. Visible UI on Phones Actual layers on Phones
The Coordinator
Content Page
Navigation drawer page

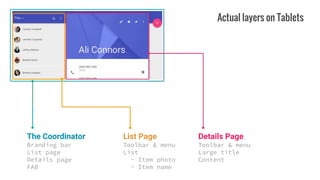

37. The Coordinator
Branding bar
List page
Details page
FAB
List Page
Toolbar & menu
List
- Item photo
- Item name
Details Page
Toolbar & menu
Large title
Content
Actual layers on Tablets

38. Page Modularity
External configuration causes trouble
● A lot of if-else branches in pages
● Custom Views rule the app (learning curve)
Solution: Have a distinct page for each UI
Advice: Create a PageResolver component

39. Drawbacks
● A lot of decoupling and cosmetic work
● A lot of method references
● Difficult to switch to
● Makes sense only for complex UIs
● Team education
● Limited support (open-source?)

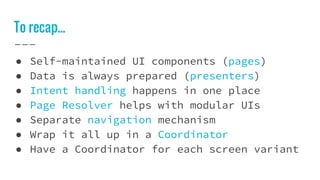

40. To recap...
● Self-maintained UI components (pages)
● Data is always prepared (presenters)
● Intent handling happens in one place
● Page Resolver helps with modular UIs
● Separate navigation mechanism
● Wrap it all up in a Coordinator
● Have a Coordinator for each screen variant

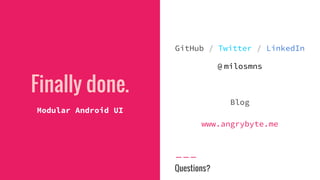

41. Finally done.
