During this session, Giles Sirett Managing Consultant of ShapeBlue will look at the USE-CASE’s for CloudPlatform, the different versions of the technology available and the benefits it brings to service providers and enterprises alike. Using his real world project experience, Giles will openly discuss competing technologies and where Citrix CloudPlatform sits in the currently Cloud eco-system. He will also look at the benefits to be gained from Citrix CloudPortal and Citrix CloudBridge.

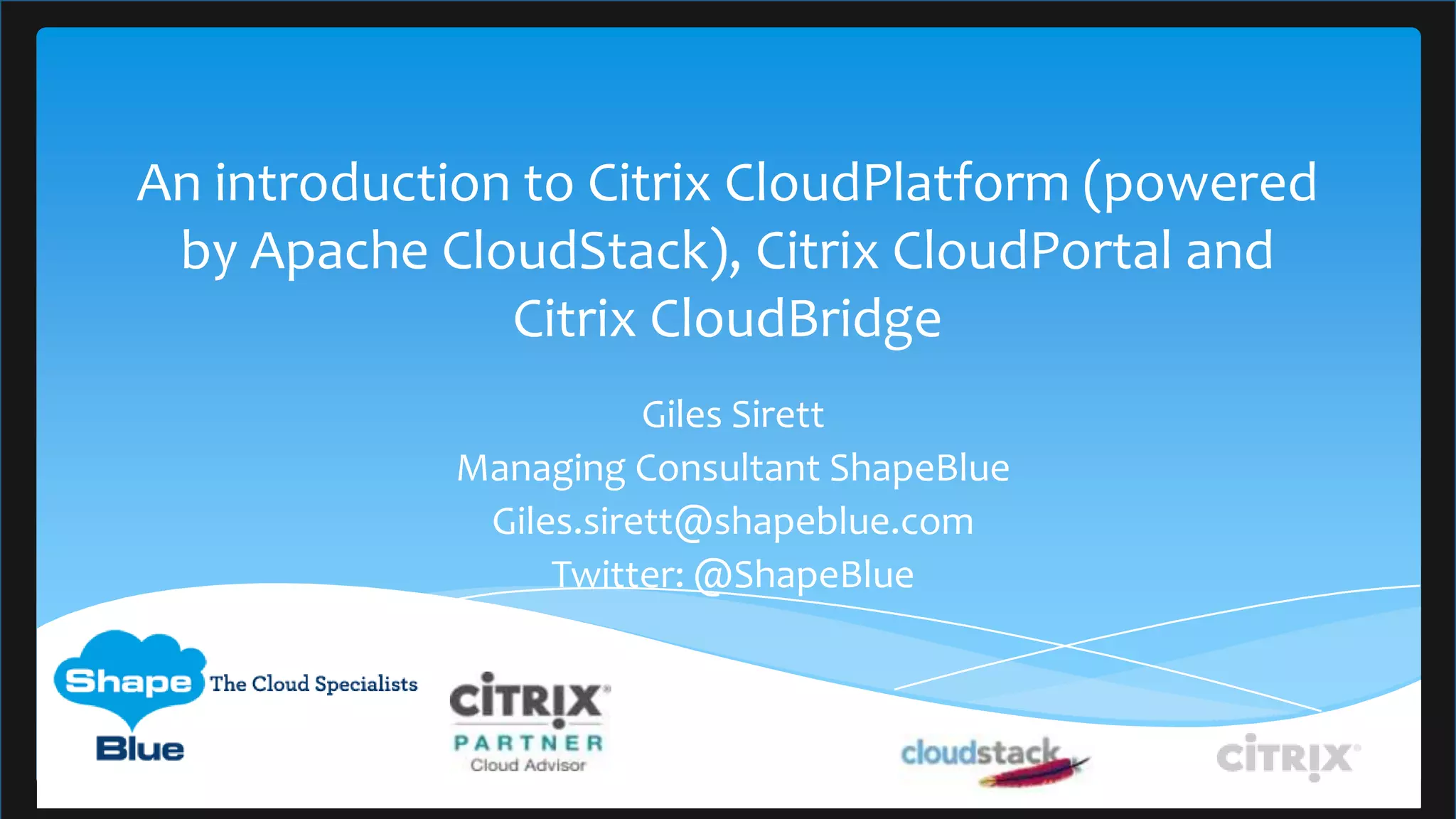

1. An introduction to Citrix CloudPlatform (powered
by Apache CloudStack), Citrix CloudPortal and
Citrix CloudBridge
Giles Sirett
Managing Consultant ShapeBlue
Giles.sirett@shapeblue.com
Twitter: @ShapeBlue

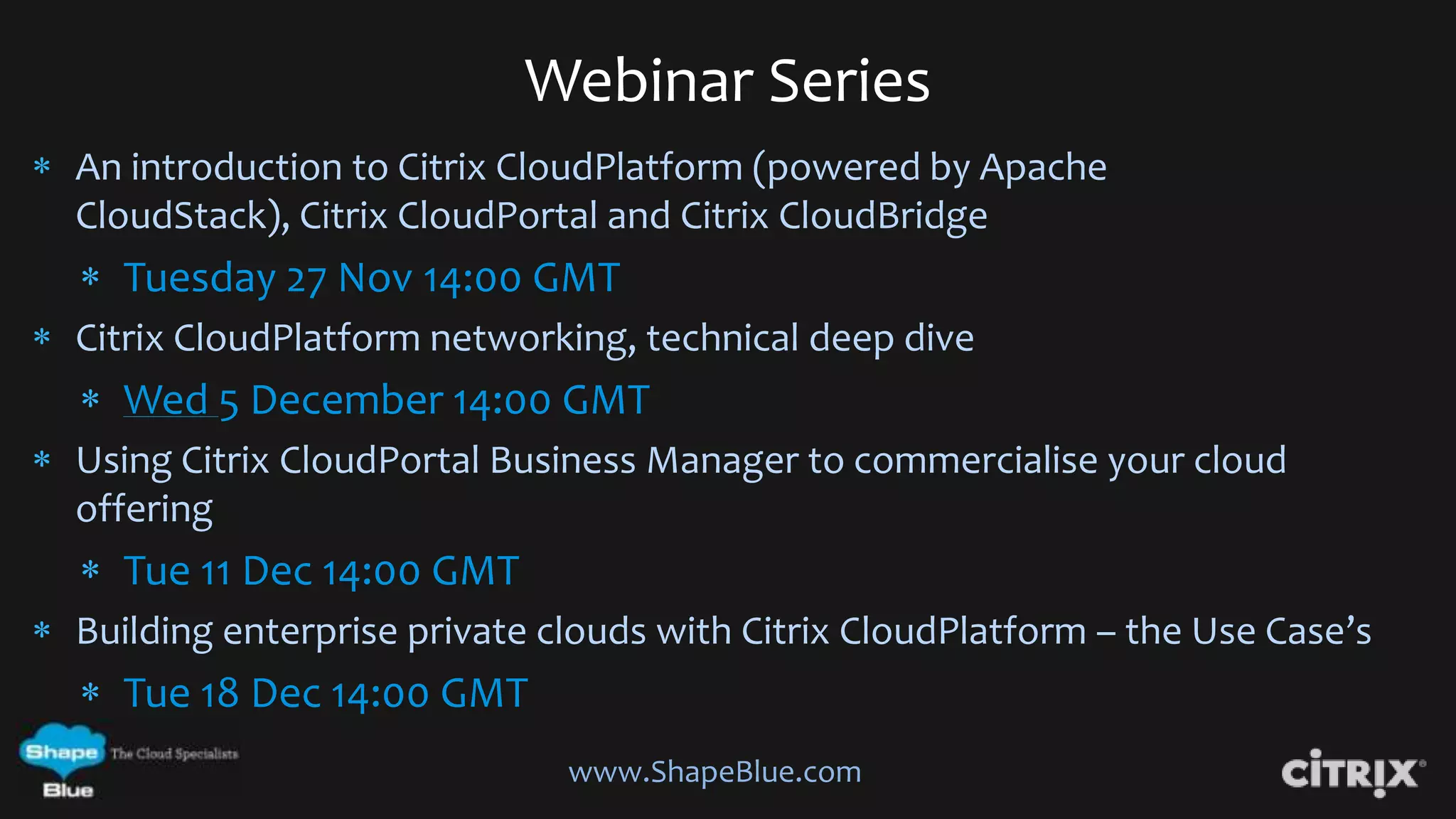

2. Webinar Series
An introduction to Citrix CloudPlatform (powered by Apache
CloudStack), Citrix CloudPortal and Citrix CloudBridge
Tuesday 27 Nov 14:00 GMT
Citrix CloudPlatform networking, technical deep dive
Wed 5 December 14:00 GMT
Using Citrix CloudPortal Business Manager to commercialise your cloud
offering
Tue 11 Dec 14:00 GMT
Building enterprise private clouds with Citrix CloudPlatform – the Use Case’s
Tue 18 Dec 14:00 GMT
www.ShapeBlue.com

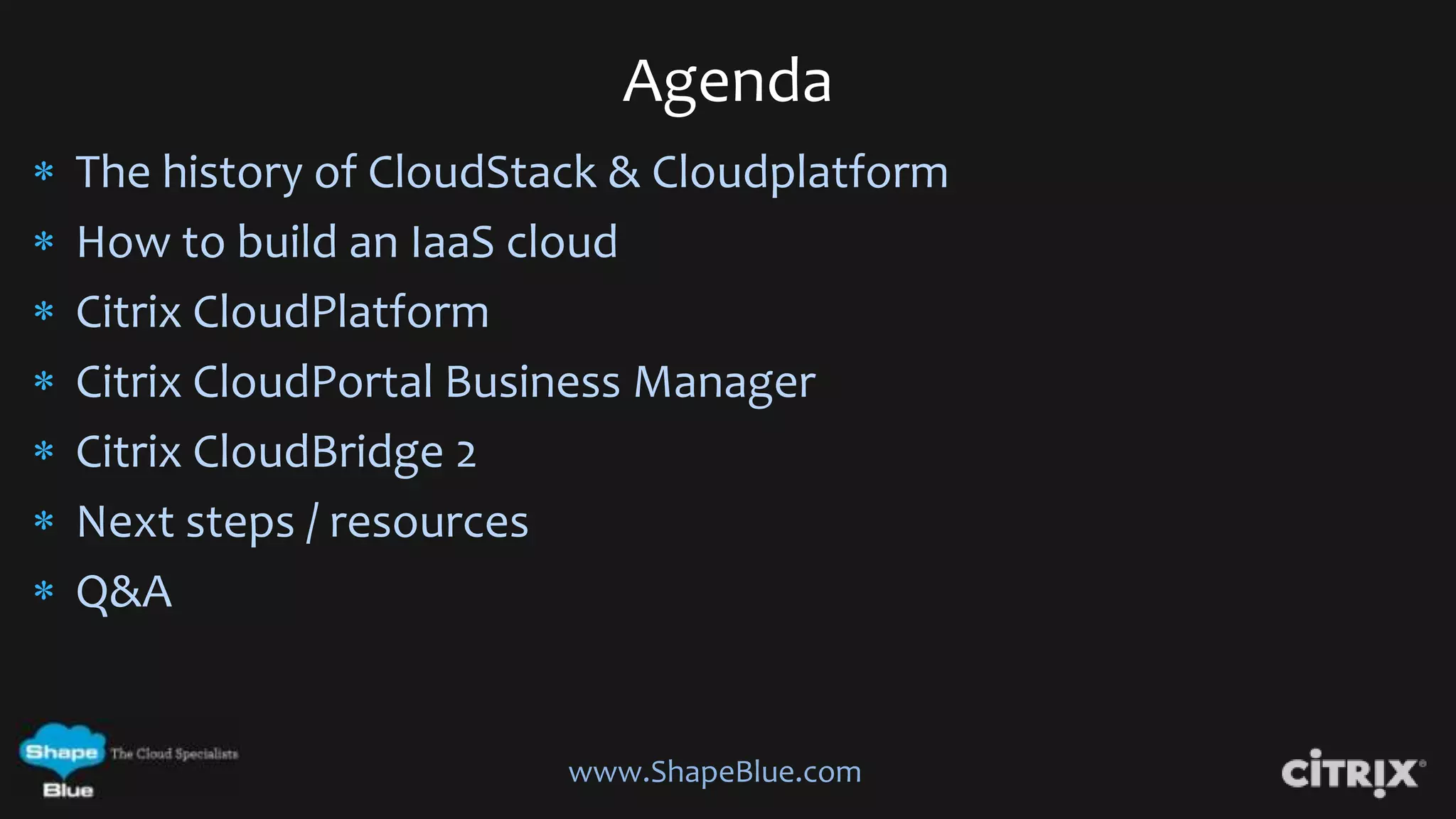

3. Agenda
The history of CloudStack & Cloudplatform
How to build an IaaS cloud
Citrix CloudPlatform
Citrix CloudPortal Business Manager
Citrix CloudBridge 2
Next steps / resources
Q&A
www.ShapeBlue.com

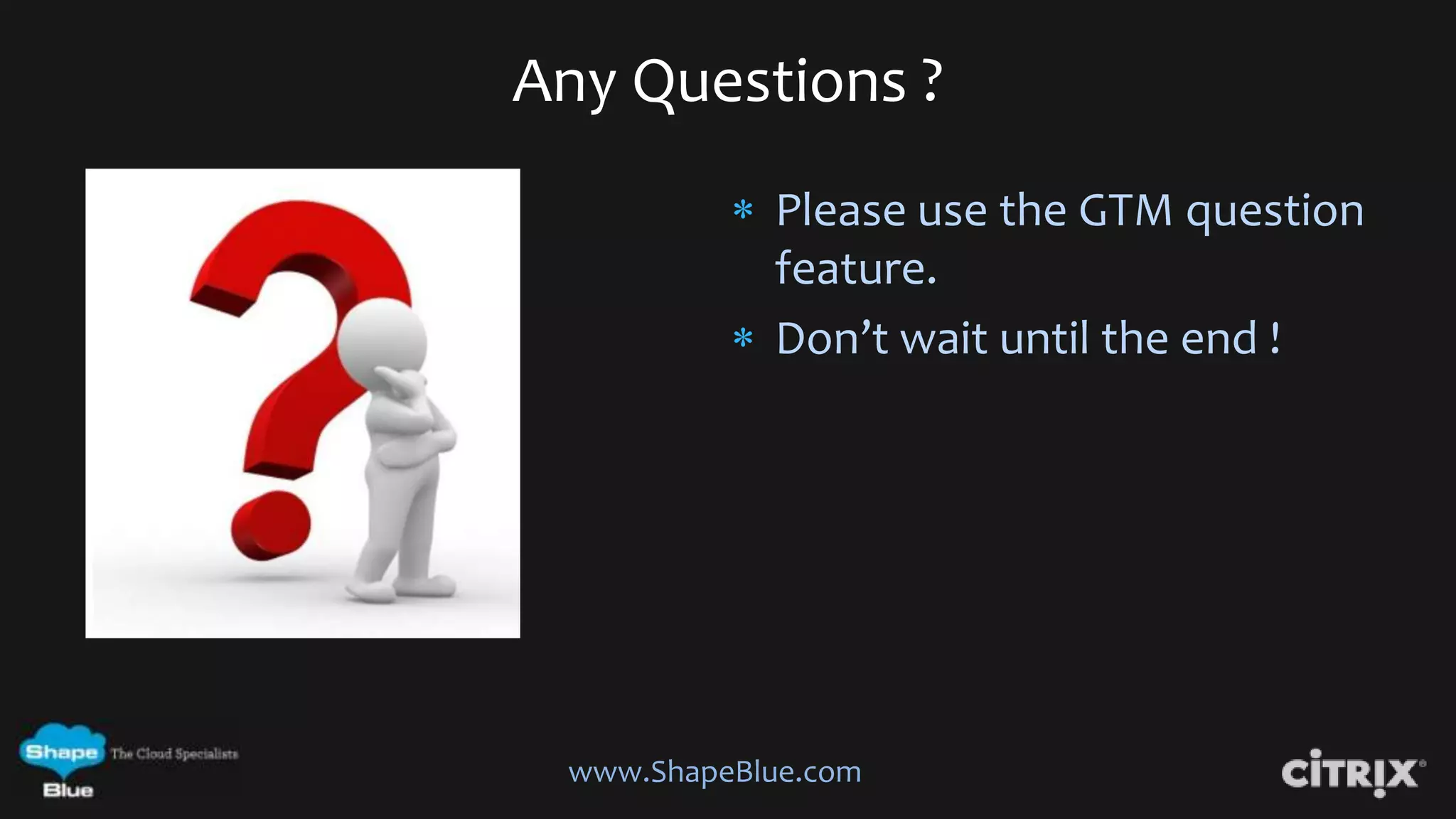

4. Any Questions ?
Please use the GTM question
feature.
Don’t wait until the end !
www.ShapeBlue.com

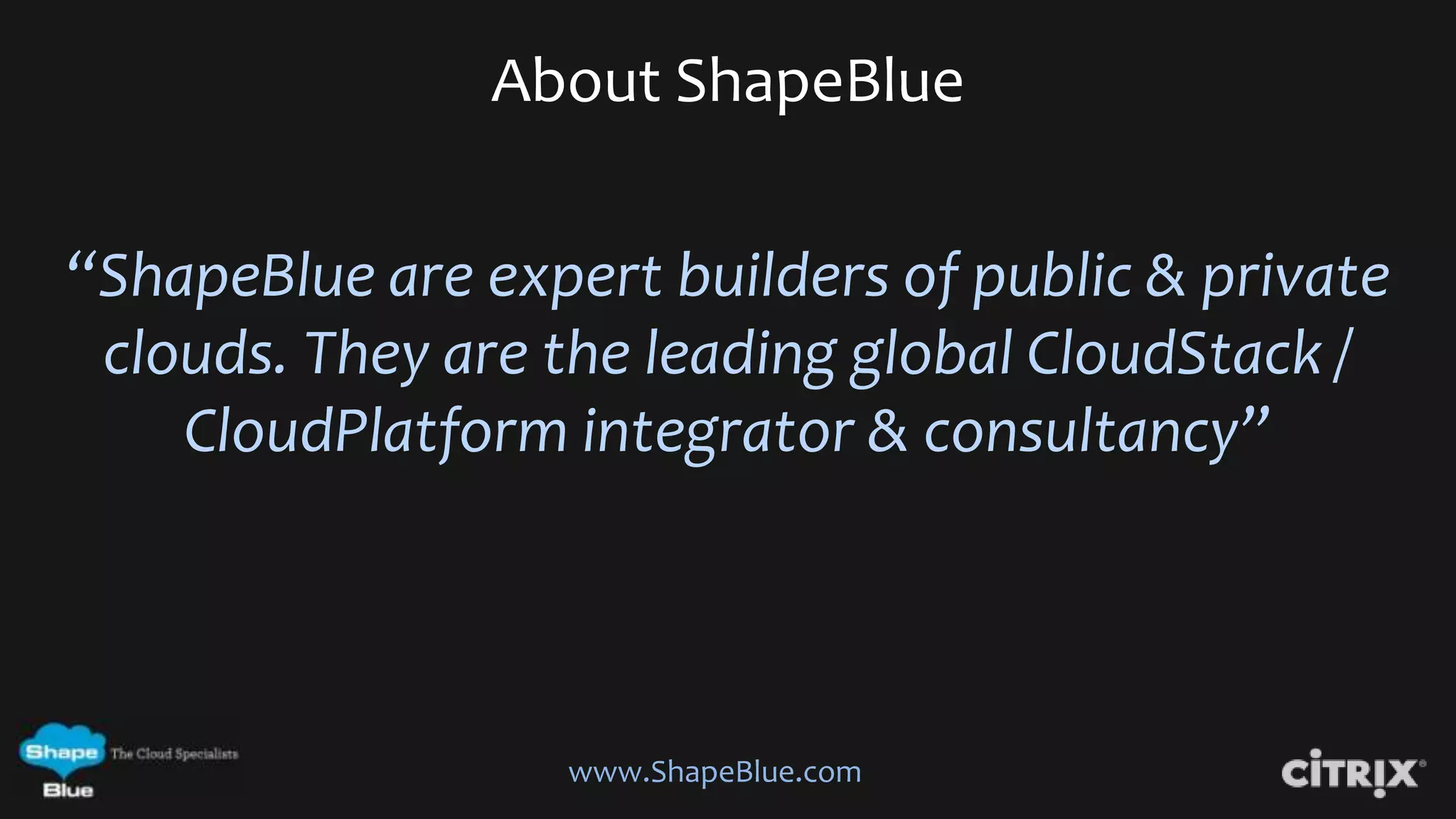

5. About ShapeBlue
“ShapeBlue are expert builders of public & private
clouds. They are the leading global CloudStack /
CloudPlatform integrator & consultancy”
www.ShapeBlue.com

6. About ShapeBlue
www.ShapeBlue.com

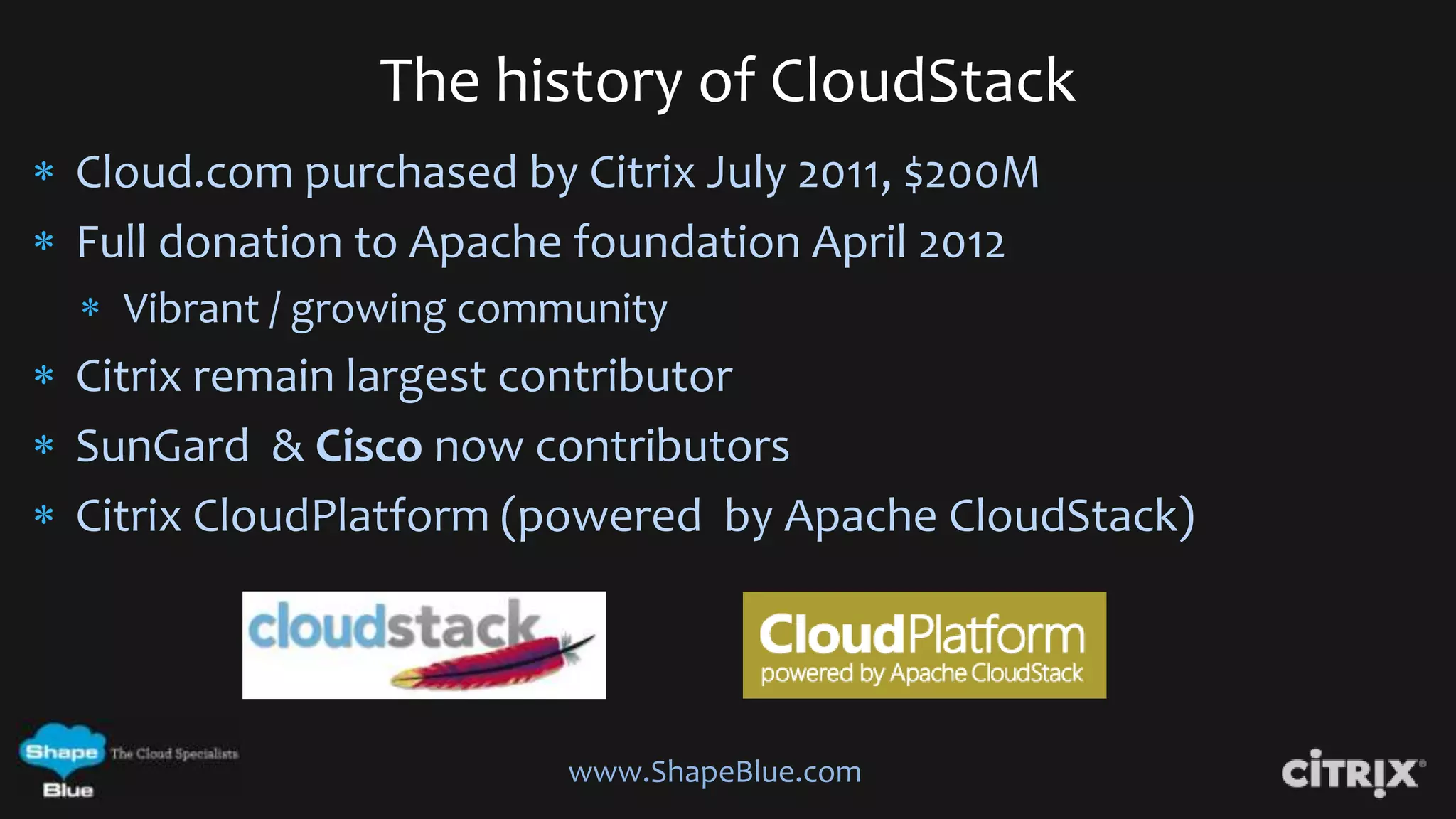

7. The history of CloudStack
Cloud.com purchased by Citrix July 2011, $200M
Full donation to Apache foundation April 2012
Vibrant / growing community
Citrix remain largest contributor
SunGard & Cisco now contributors
Citrix CloudPlatform (powered by Apache CloudStack)
www.ShapeBlue.com

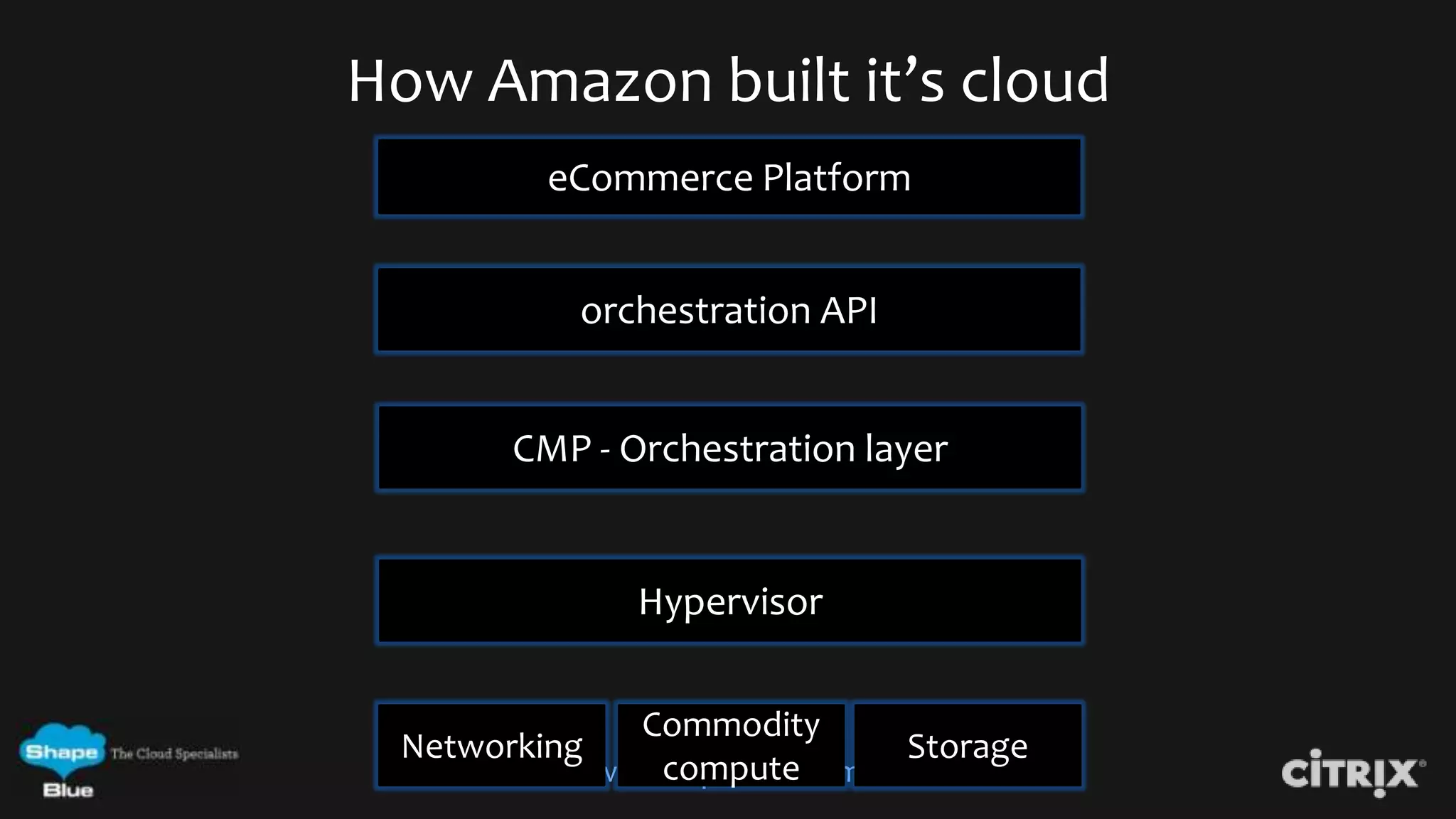

8. How Amazon built it’s cloud
eCommerce Platform
orchestration API
CMP - Orchestration layer
Hypervisor
Commodity
Networking Storage
compute
www.ShapeBlue.com

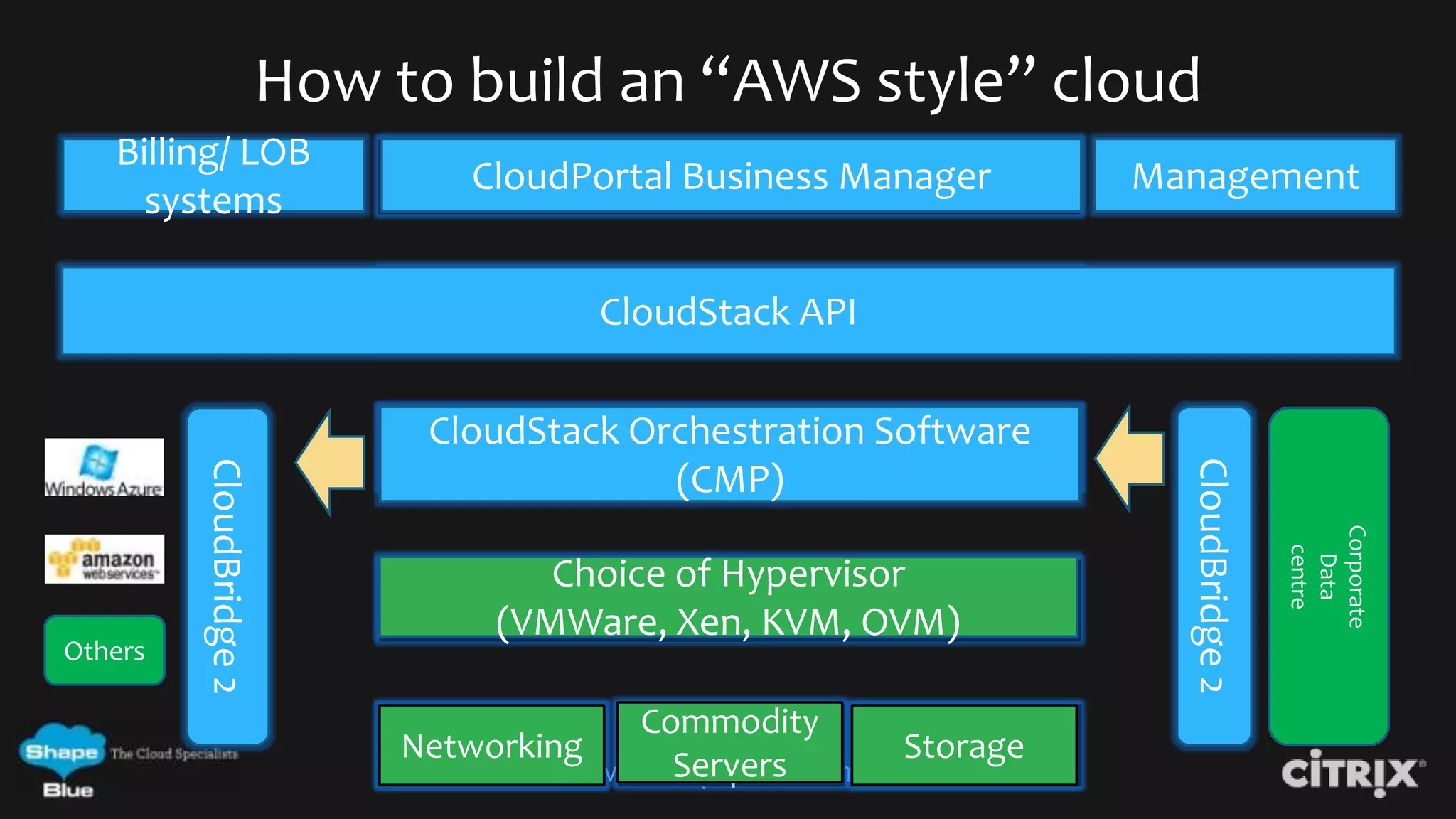

9. How to build an “AWS style” cloud
Billing/ LOB
CloudPortal Business Manager
eCommerce Platform Management
systems
orchestration API
CloudStack API
CloudStackOrchestration layer
CMP - Orchestration Software
CloudBridge 2
CloudBridge 2
(CMP)
Corporate
centre
Data
Choice of Hypervisor
Hypervisor
(VMWare, Xen, KVM, OVM)
Others
Commodity
Networking Storage
Storage
Servers
compute
www.ShapeBlue.com

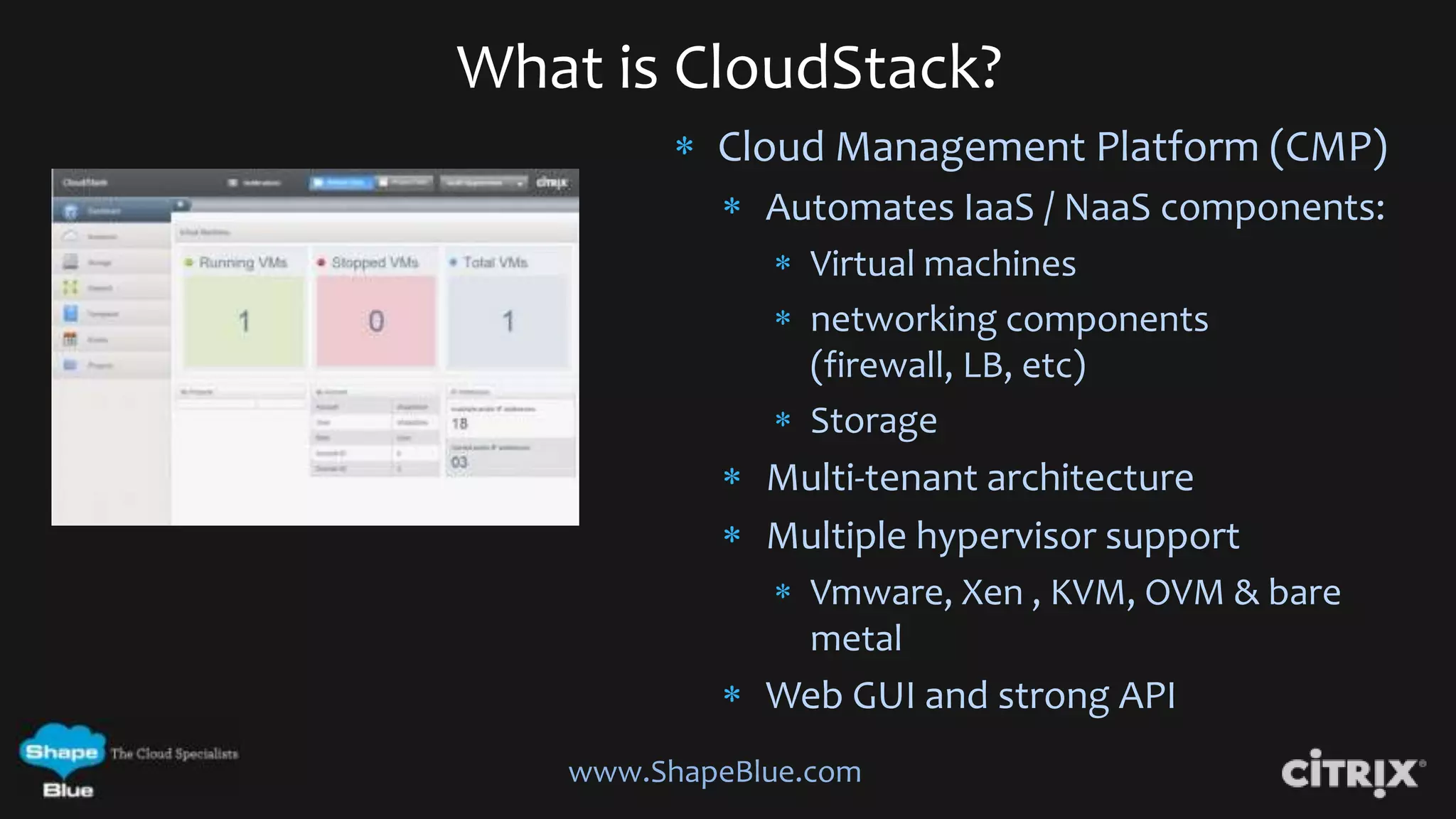

10. What is CloudStack?
Cloud Management Platform (CMP)
Automates IaaS / NaaS components:
Virtual machines
networking components
(firewall, LB, etc)
Storage
Multi-tenant architecture
Multiple hypervisor support
Vmware, Xen , KVM, OVM & bare
metal
Web GUI and strong API
www.ShapeBlue.com

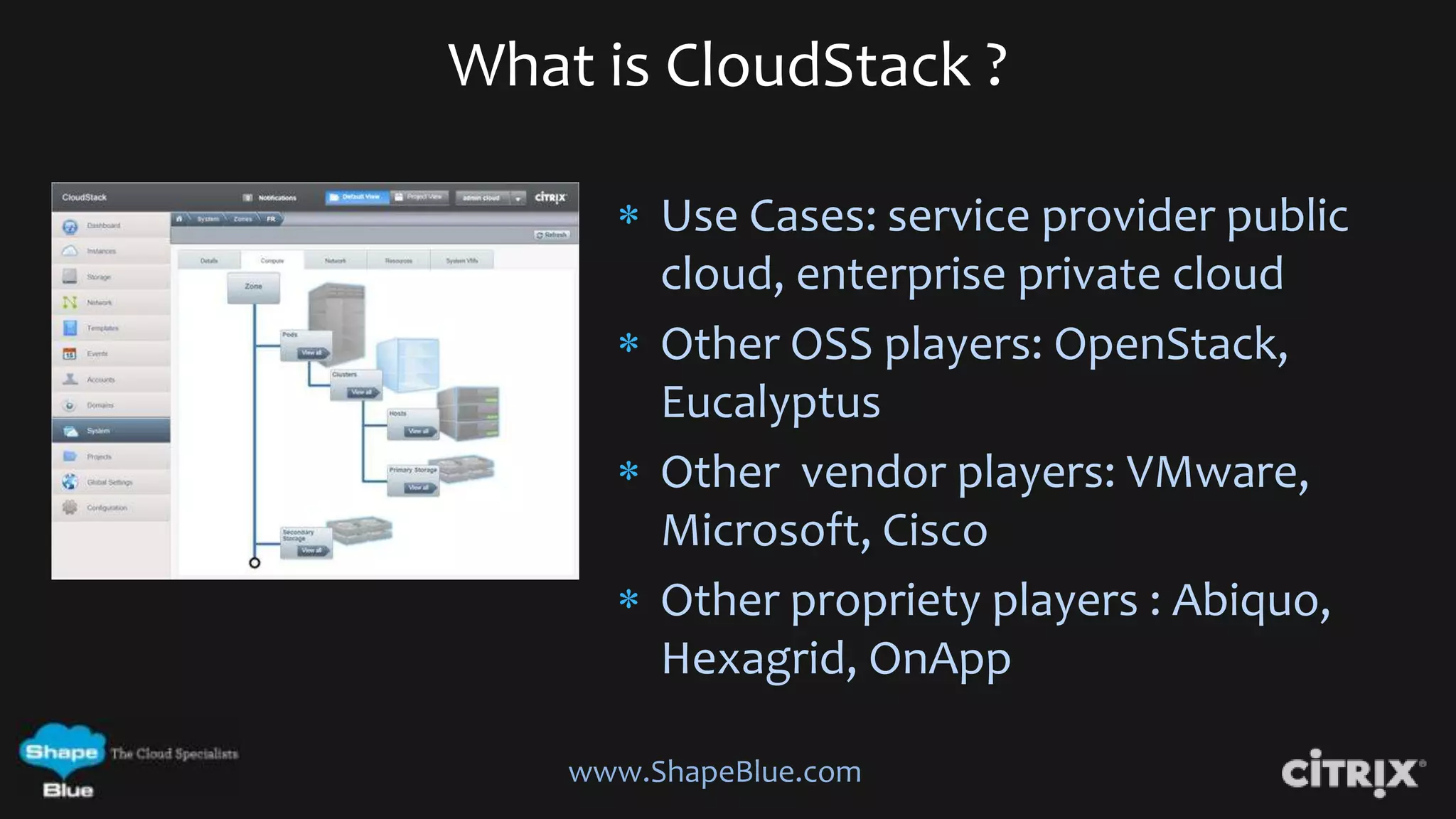

11. What is CloudStack ?
Use Cases: service provider public
cloud, enterprise private cloud
Other OSS players: OpenStack,
Eucalyptus
Other vendor players: VMware,
Microsoft, Cisco
Other propriety players : Abiquo,
Hexagrid, OnApp
www.ShapeBlue.com

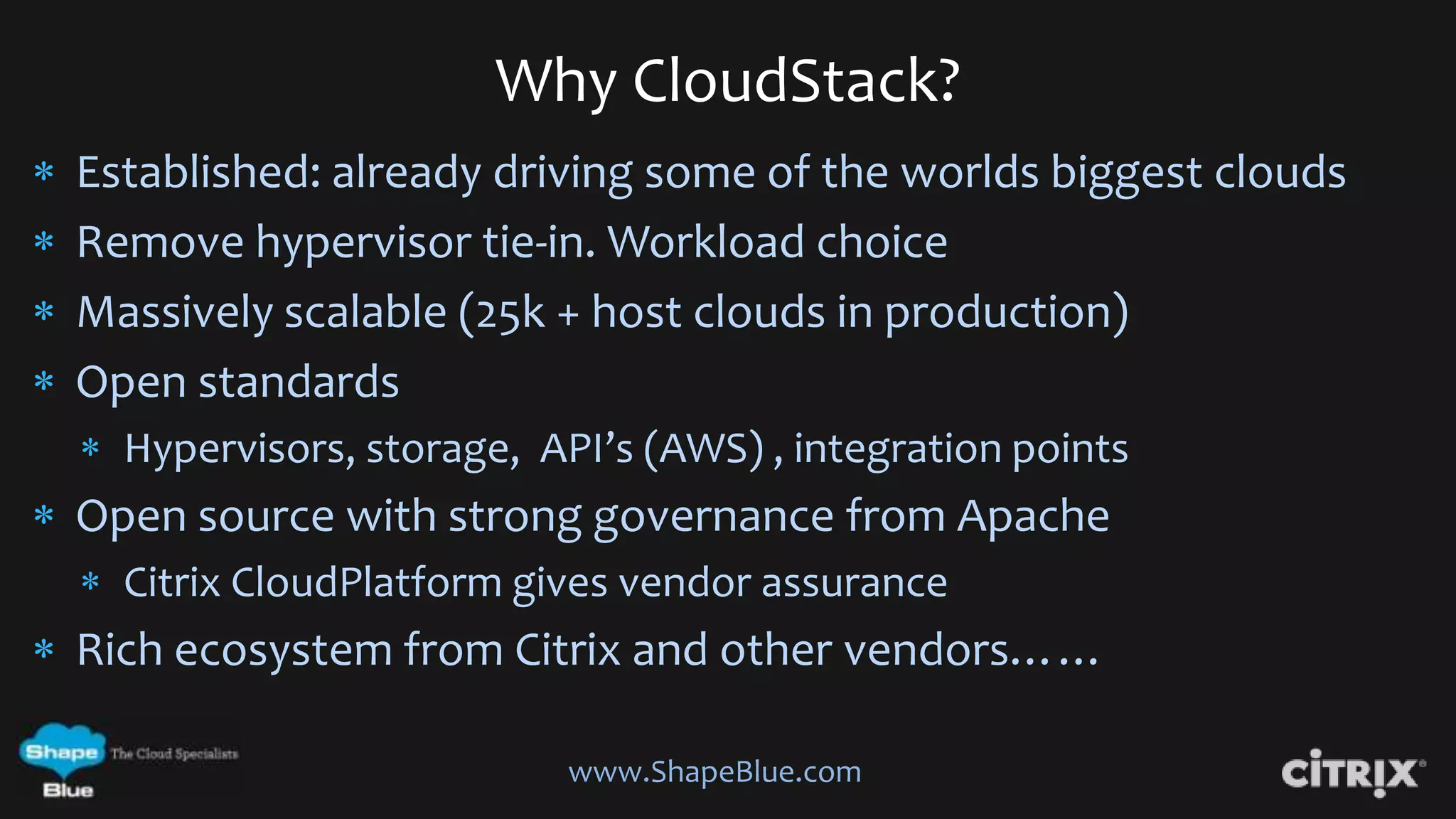

12. Why CloudStack?
Established: already driving some of the worlds biggest clouds
Remove hypervisor tie-in. Workload choice
Massively scalable (25k + host clouds in production)
Open standards
Hypervisors, storage, API’s (AWS) , integration points
Open source with strong governance from Apache
Citrix CloudPlatform gives vendor assurance
Rich ecosystem from Citrix and other vendors……
www.ShapeBlue.com

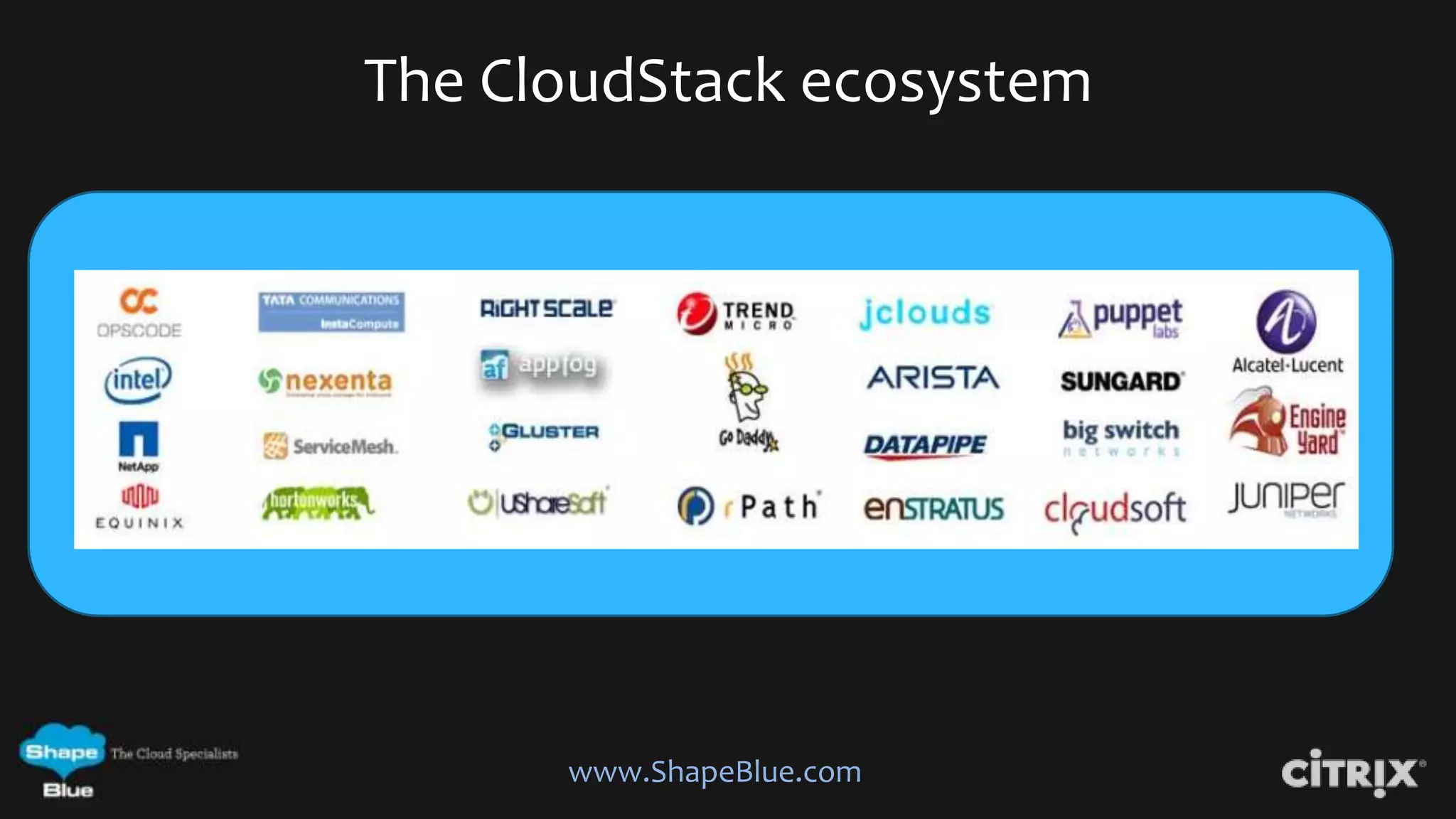

13. The CloudStack ecosystem
www.ShapeBlue.com

14. CloudStack Demo
CloudStack UI
Creating & managing VM
instances
Networking as a service
www.ShapeBlue.com

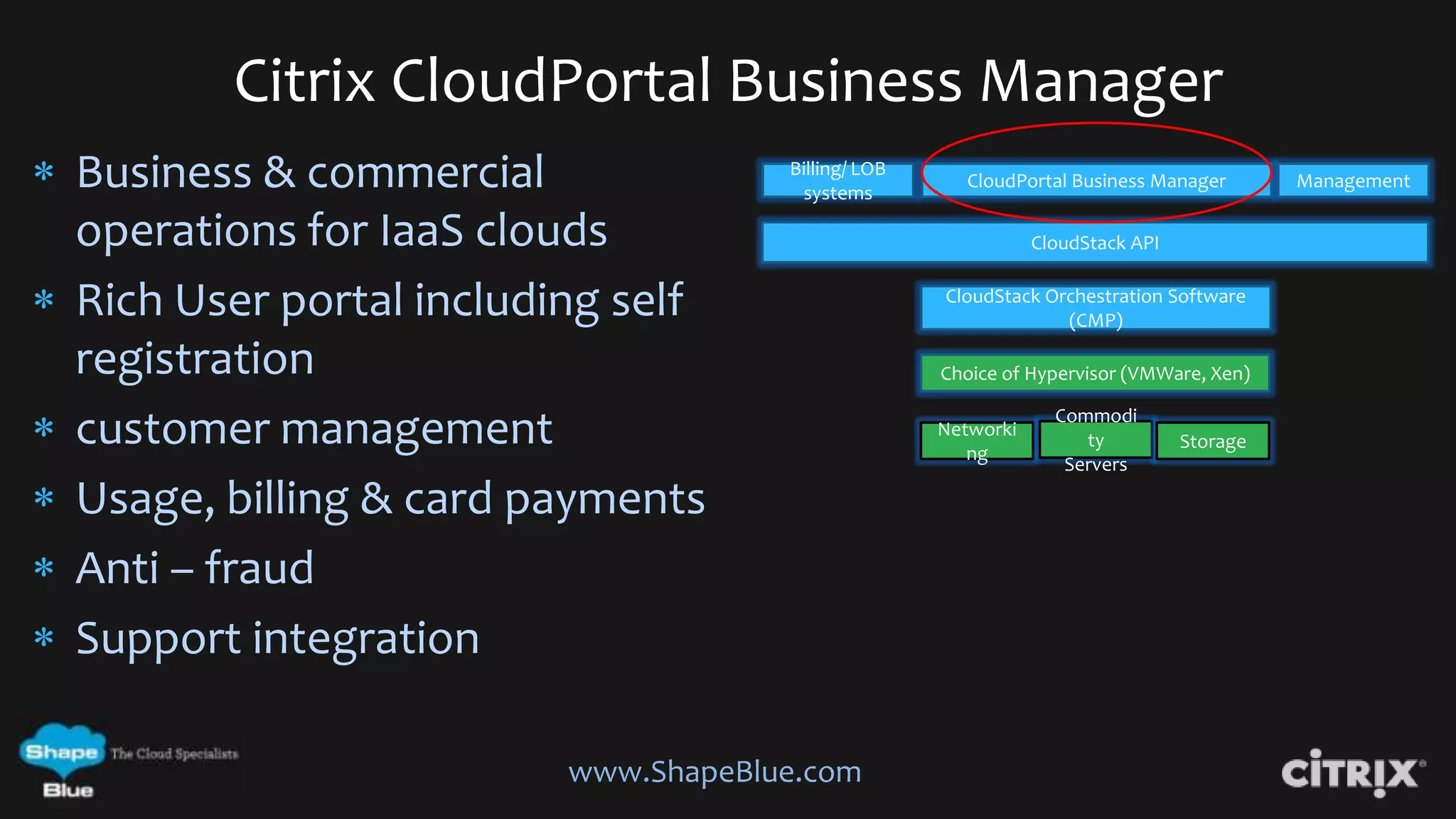

15. Citrix CloudPortal Business Manager
Business & commercial Billing/ LOB
systems
CloudPortal Business Manager Management
operations for IaaS clouds CloudStack API
Rich User portal including self CloudStack Orchestration Software
(CMP)
registration Choice of Hypervisor (VMWare, Xen)
Commodi
customer management Networki
ng
ty Storage
Servers
Usage, billing & card payments
Anti – fraud
Support integration
www.ShapeBlue.com

16. Why CloudPortal Business Manager?
Time to market
Automation
Multi language / currency
Rich IaaS pricing model
(fixed, utility, multi-channel)
www.ShapeBlue.com

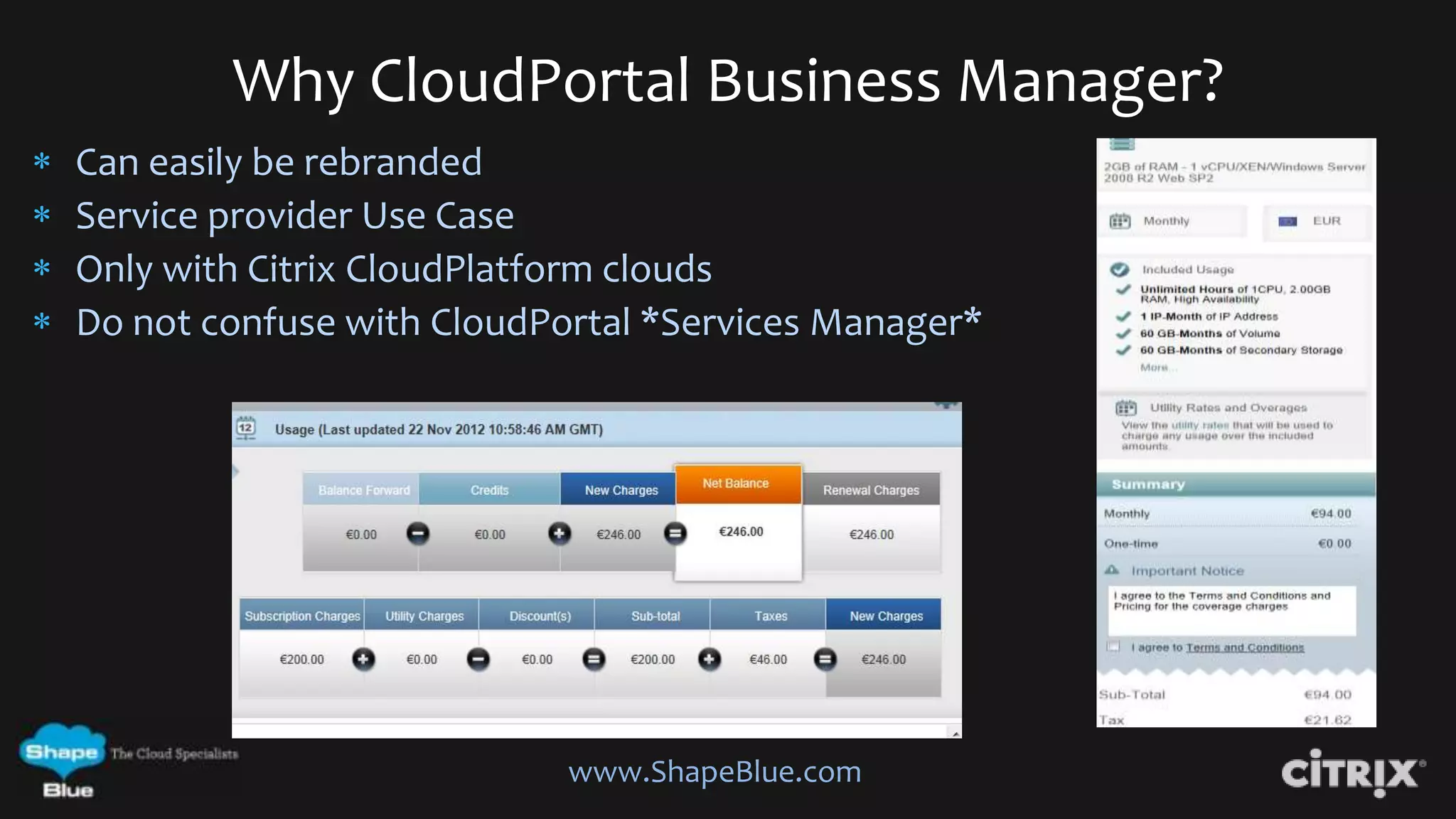

17. Why CloudPortal Business Manager?
Can easily be rebranded
Service provider Use Case
Only with Citrix CloudPlatform clouds
Do not confuse with CloudPortal *Services Manager*
www.ShapeBlue.com

18. CloudPortal BM Demo
The user experience
Purchasing IaaS compute
Billing & payment
www.ShapeBlue.com

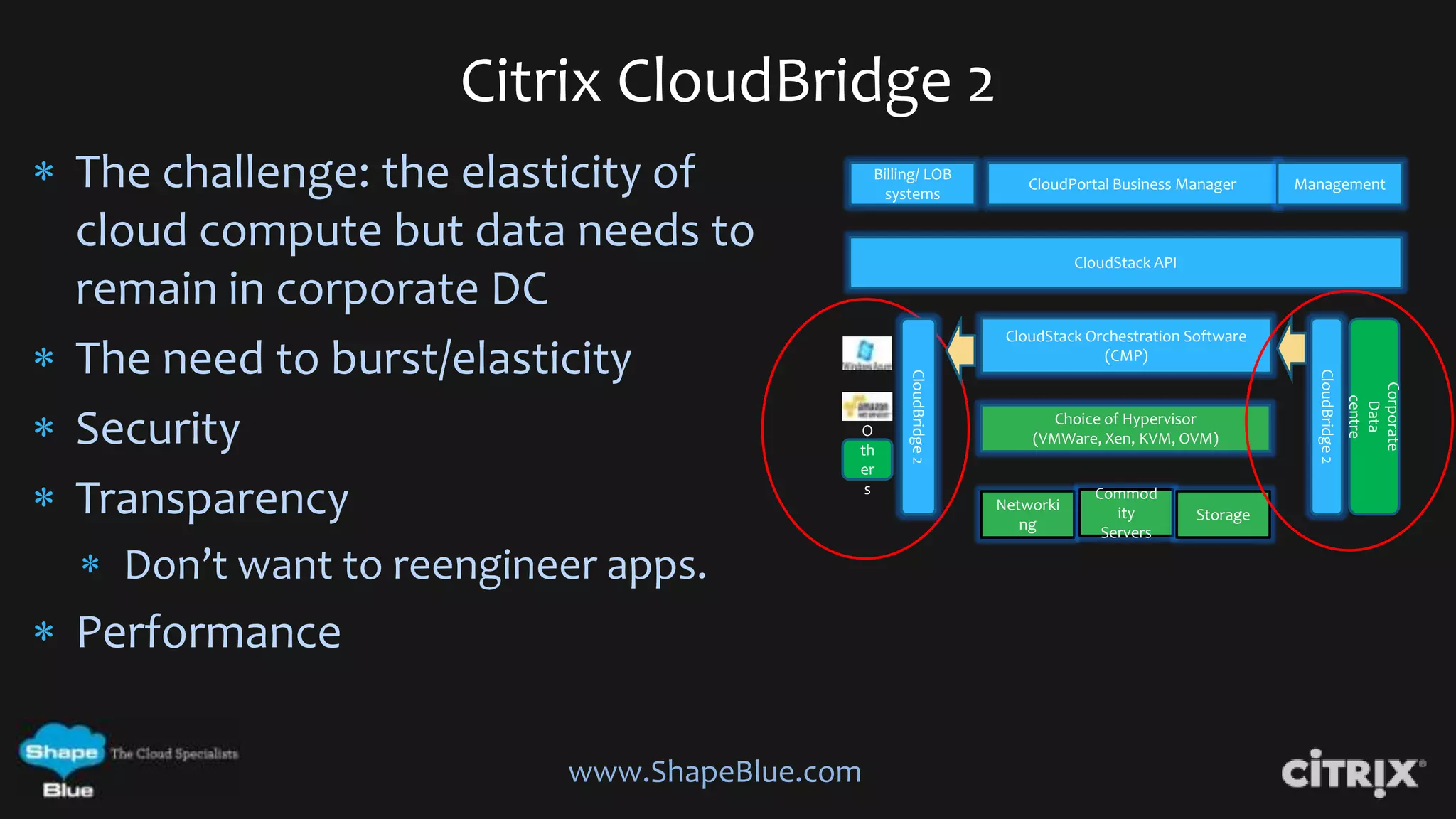

19. Citrix CloudBridge 2
The challenge: the elasticity of Billing/ LOB
systems
CloudPortal Business Manager Management
cloud compute but data needs to CloudStack API
remain in corporate DC
CloudStack Orchestration Software
The need to burst/elasticity (CMP)
CloudBridge 2
CloudBridge 2
Corporate
centre
Data
Security O
th
Choice of Hypervisor
(VMWare, Xen, KVM, OVM)
er
Transparency s
Networki
ng
Commod
ity Storage
Servers
Don’t want to reengineer apps.
Performance
www.ShapeBlue.com

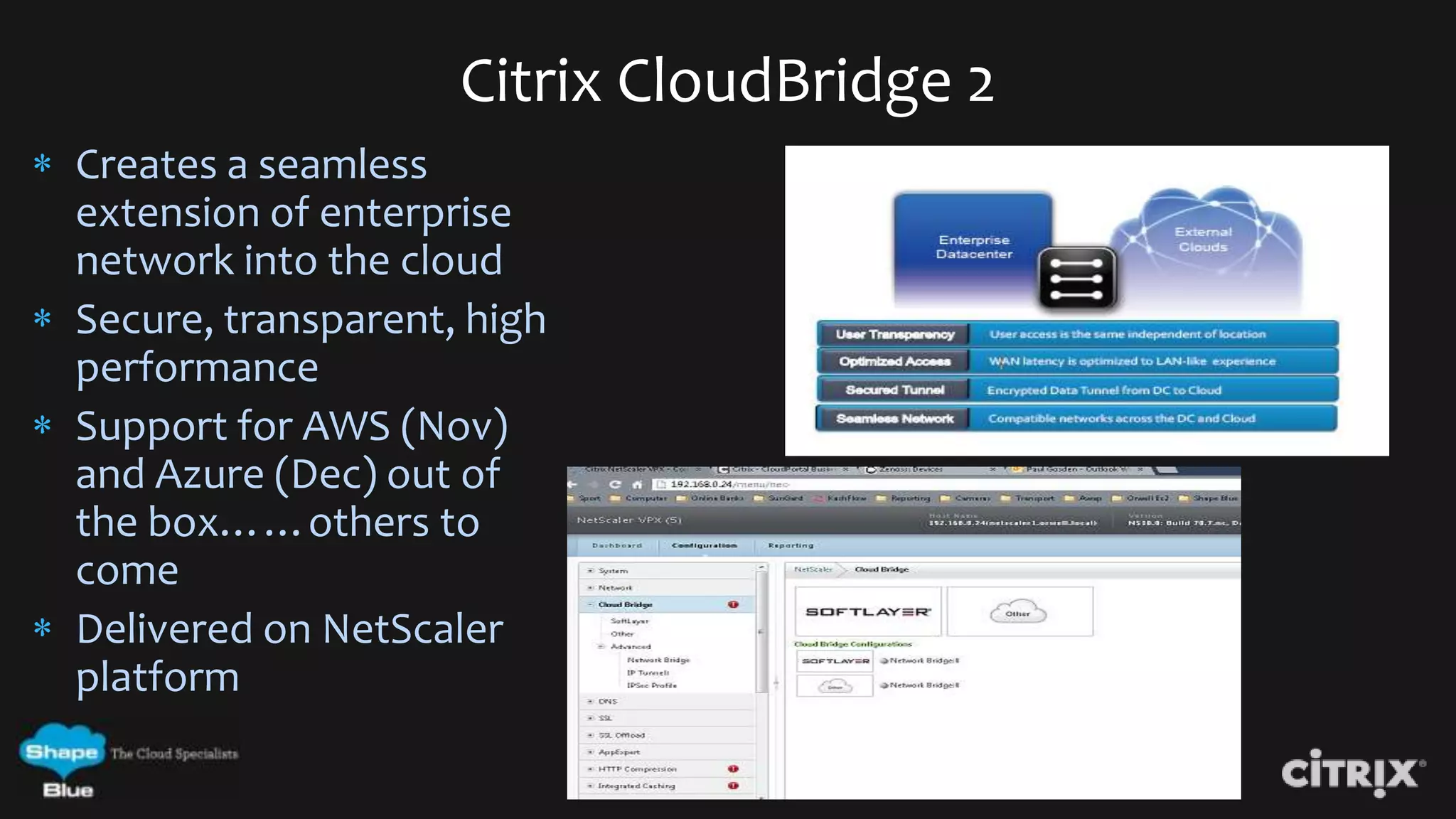

20. Citrix CloudBridge 2
Creates a seamless
extension of enterprise
network into the cloud
Secure, transparent, high
performance
Support for AWS (Nov)
and Azure (Dec) out of
the box……others to
come
Delivered on NetScaler
platform
www.ShapeBlue.com

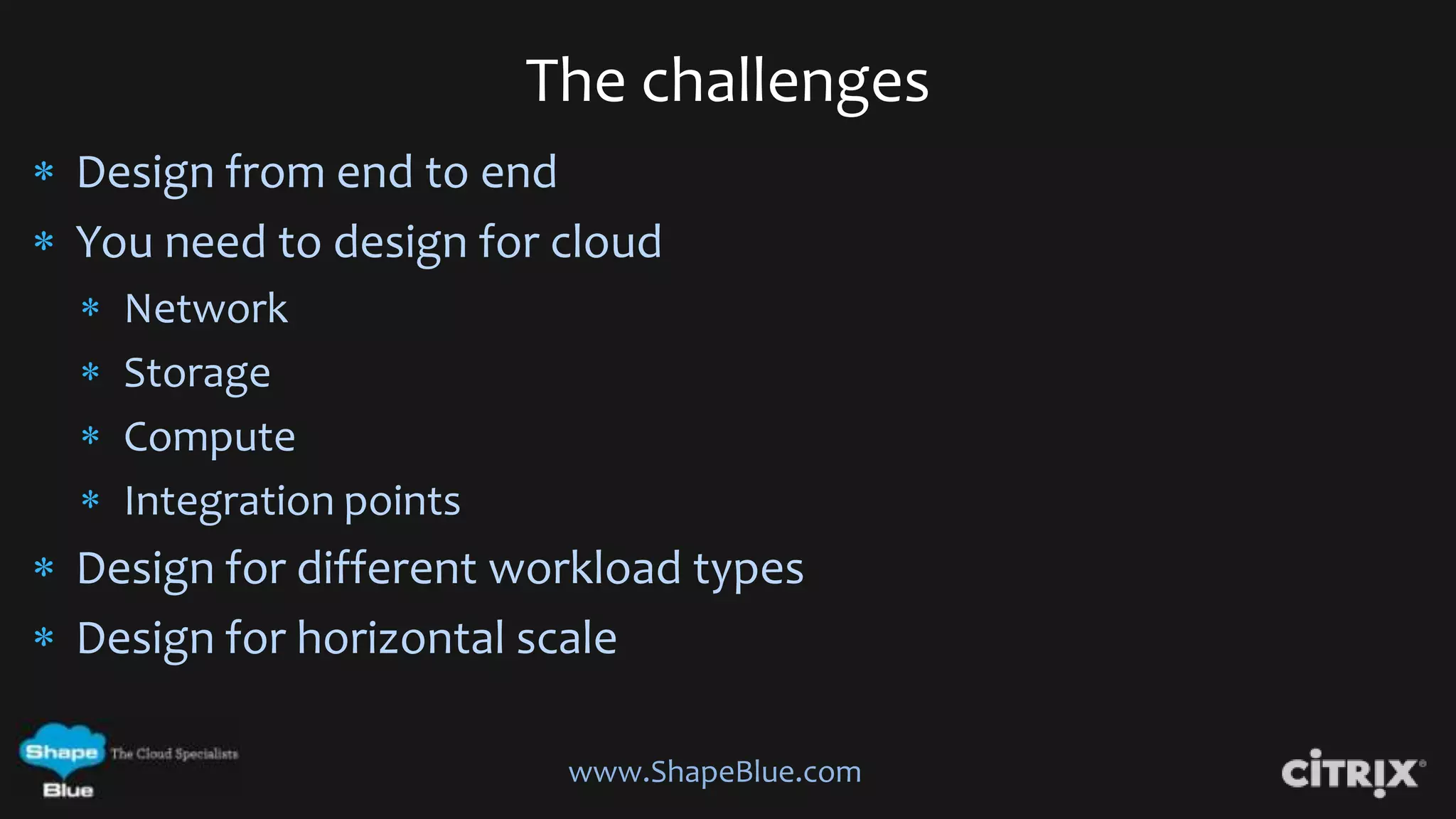

21. The challenges
Design from end to end
You need to design for cloud
Network
Storage
Compute
Integration points
Design for different workload types
Design for horizontal scale
www.ShapeBlue.com

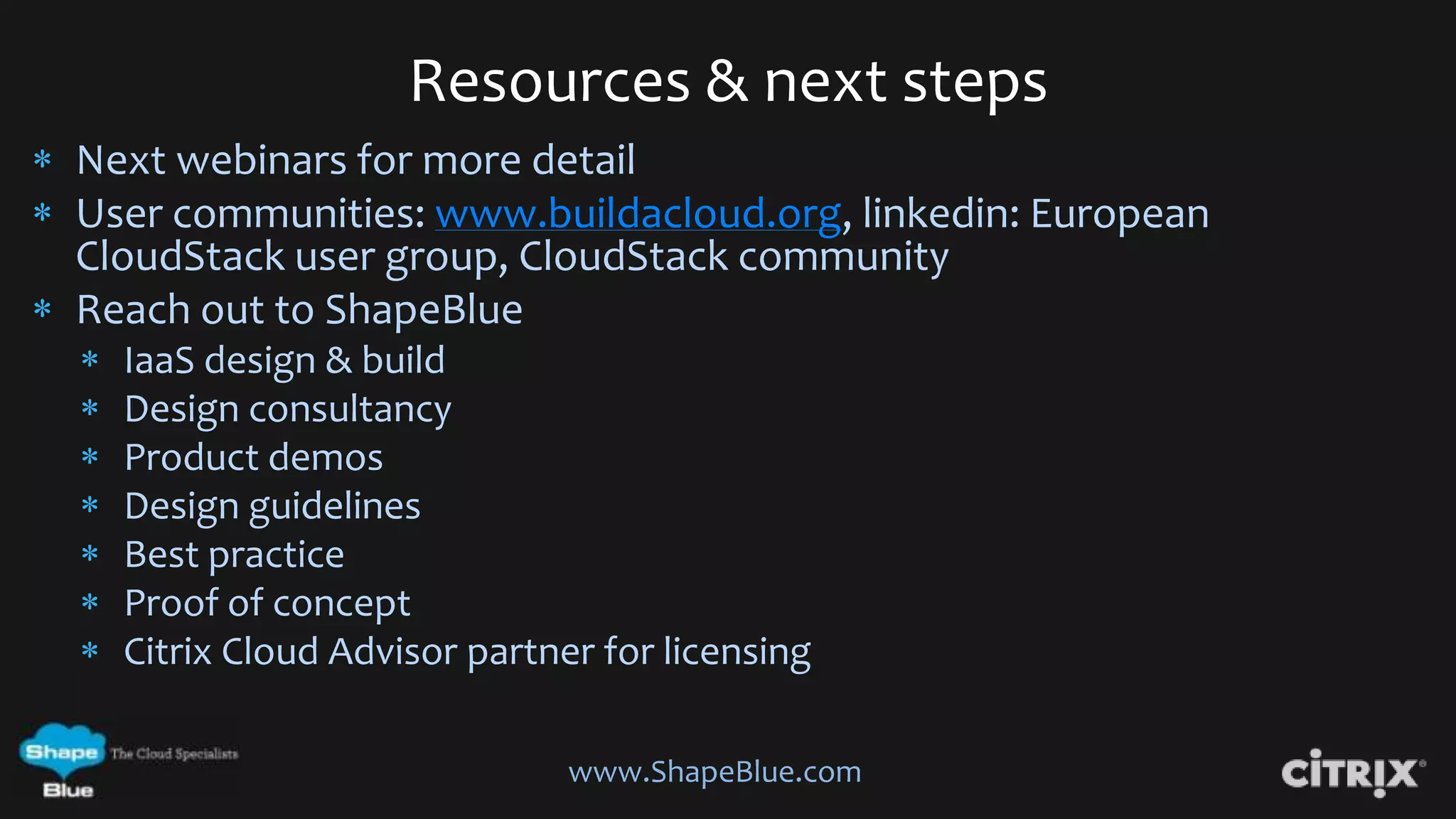

22. Resources & next steps
Next webinars for more detail
User communities: www.buildacloud.org, linkedin: European
CloudStack user group, CloudStack community
Reach out to ShapeBlue
IaaS design & build
Design consultancy
Product demos
Design guidelines
Best practice
Proof of concept
Citrix Cloud Advisor partner for licensing
www.ShapeBlue.com

23. Any Questions ?
Giles Sirett
Giles.sirett@shapeblue.com
Twitter: @ShapeBlue
