Olivier Maes discusses lessons learned from 100 cloud deployments. Key points include: - Citrix cloud computing powers many large production clouds with over 130 deployments. - The Citrix cloud architecture uses core components like CloudStack, NetScaler, and CloudBridge. - CloudStack is an open source cloud orchestration platform that has powered hundreds of clouds since 2008. - Moving CloudStack to the Apache Software Foundation increased its community and adoption rates. - Different workloads require tailored cloud architectures, like traditional enterprise or Amazon-style availability zones.

1. Lessons learned from 100 cloud
deployments
Olivier Maes
Sr Director Market Development EMEA
Cloud Platforms Group
Olivier.maes@citrix.com
Twitter:omaes72

2. Who did we learn from?

3. Citrix cloud computing powers the world’s largest clouds
130 production clouds, 20.000 downloads/month, 50 customers in EMEA
Telco and Service Web 2.0 and Public Sector
Providers Media Enterprise
3

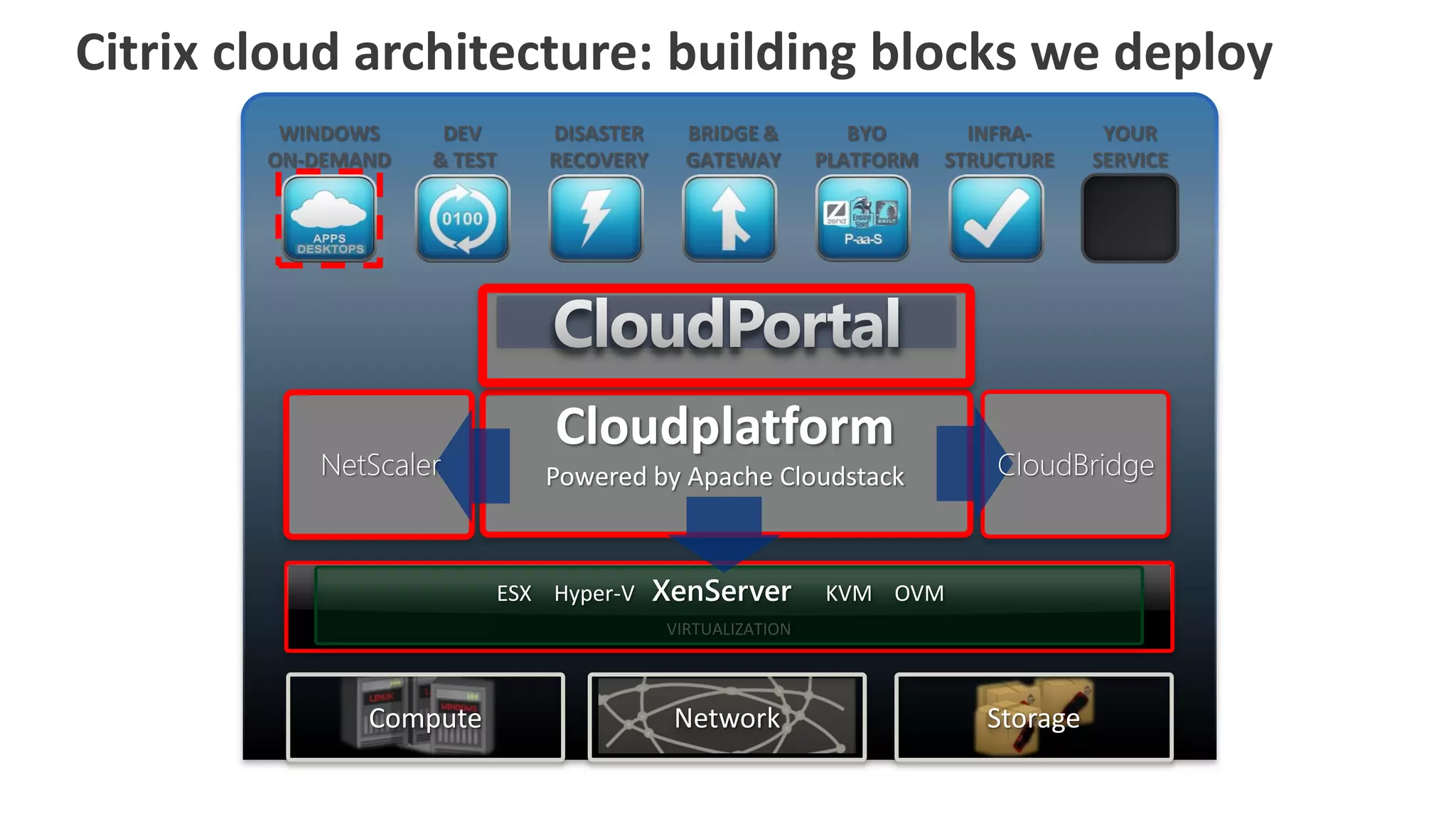

5. Citrix cloud architecture: building blocks we deploy
WINDOWS DEV DISASTER BRIDGE & BYO INFRA- YOUR
ON-DEMAND & TEST RECOVERY GATEWAY PLATFORM STRUCTURE SERVICE
Cloudplatform
NetScaler Powered by Apache Cloudstack CloudBridge
ESX Hyper-V XenServer KVM OVM
VIRTUALIZATION
Compute Network Storage

6. Openness matters

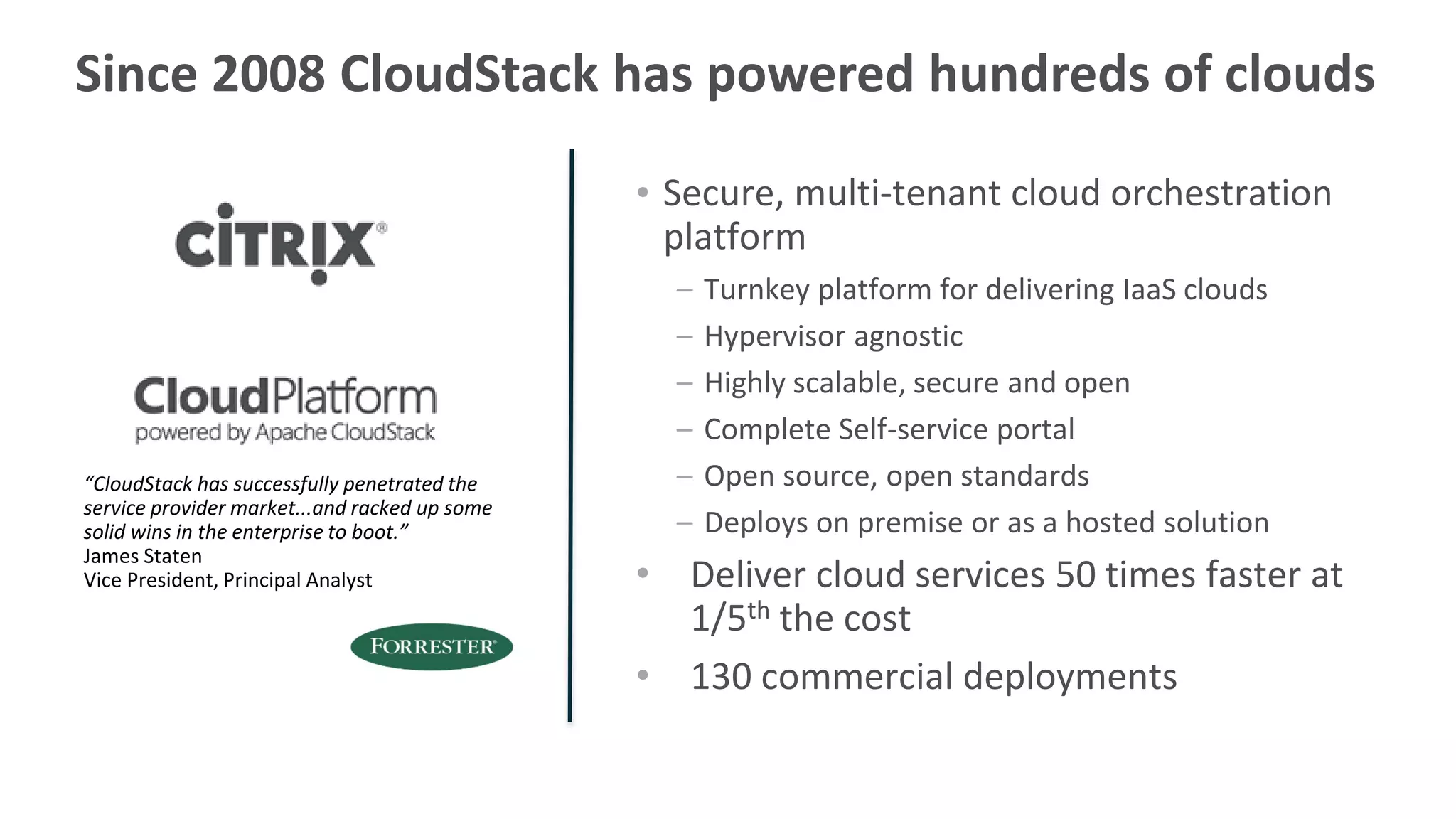

7. Since 2008 CloudStack has powered hundreds of clouds
• Secure, multi-tenant cloud orchestration
platform
– Turnkey platform for delivering IaaS clouds
– Hypervisor agnostic
– Highly scalable, secure and open
– Complete Self-service portal
“CloudStack has successfully penetrated the – Open source, open standards
service provider market...and racked up some
solid wins in the enterprise to boot.” – Deploys on premise or as a hosted solution
James Staten
Vice President, Principal Analyst • Deliver cloud services 50 times faster at
1/5th the cost
• 130 commercial deployments

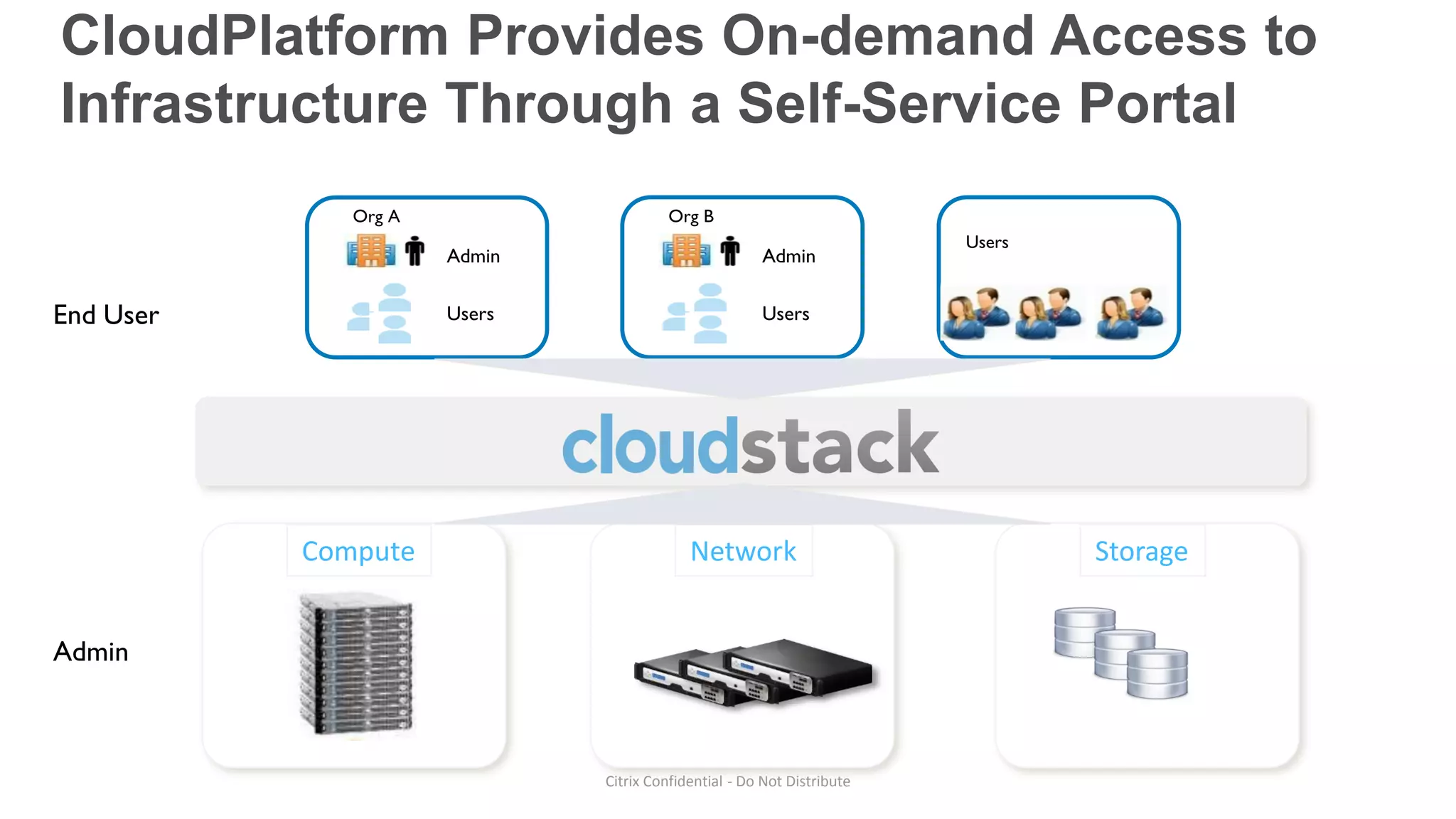

8. CloudPlatform Provides On-demand Access to
Infrastructure Through a Self-Service Portal
Org A Org B
Users
Admin Admin
End User Users Users
Compute Network Storage
Admin
Citrix Confidential - Do Not Distribute

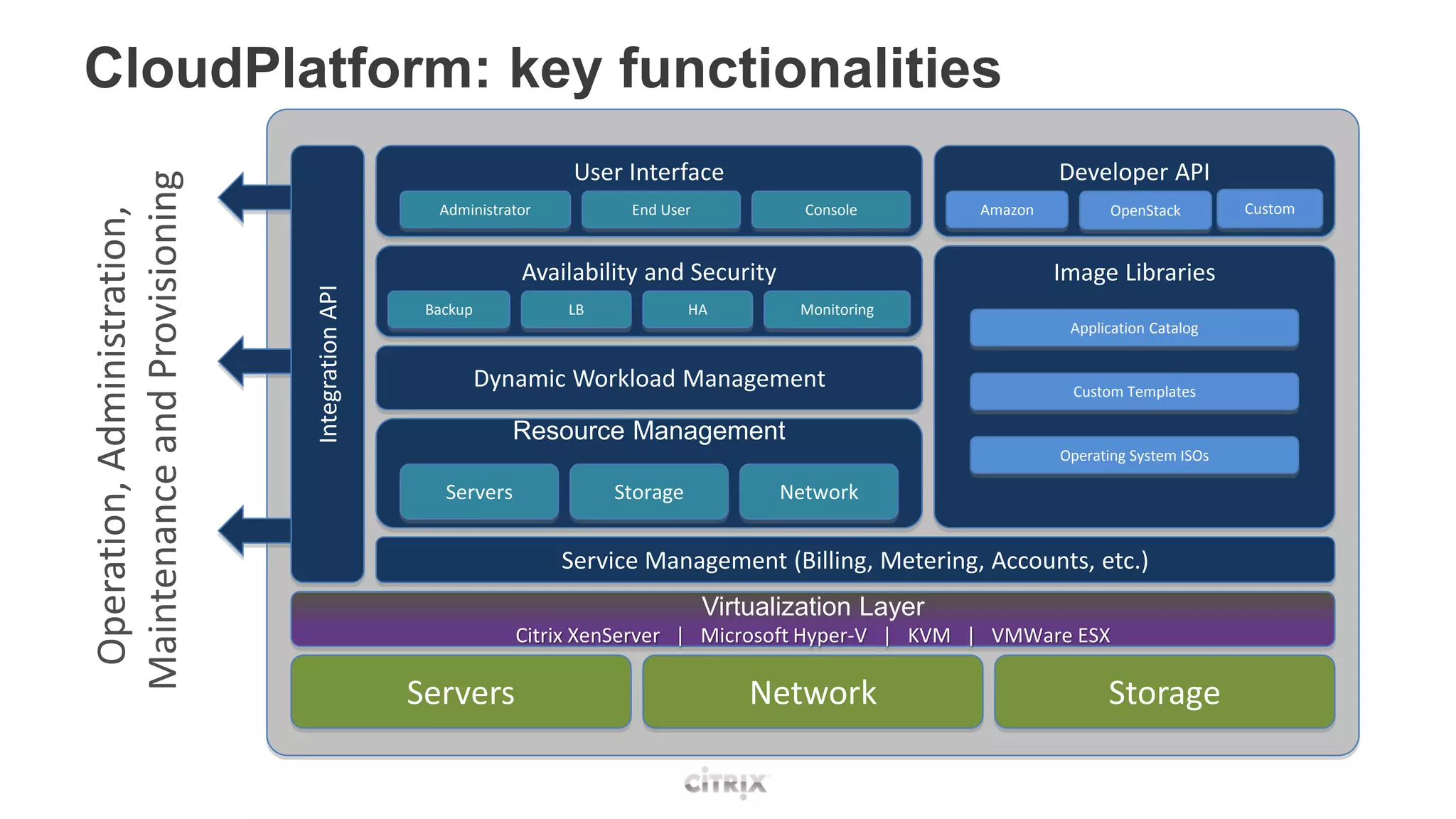

9. CloudPlatform: key functionalities
Maintenance and Provisioning User Interface Developer API
Administrator End User Console Amazon OpenStack Custom
Operation, Administration,
Availability and Security Image Libraries
Integration API
Backup LB HA Monitoring
Application Catalog
Dynamic Workload Management Custom Templates
Resource Management
Operating System ISOs
Servers Storage Network
Service Management (Billing, Metering, Accounts, etc.)
Virtualization Layer
Citrix XenServer | Microsoft Hyper-V | KVM | VMWare ESX
Servers Network Storage

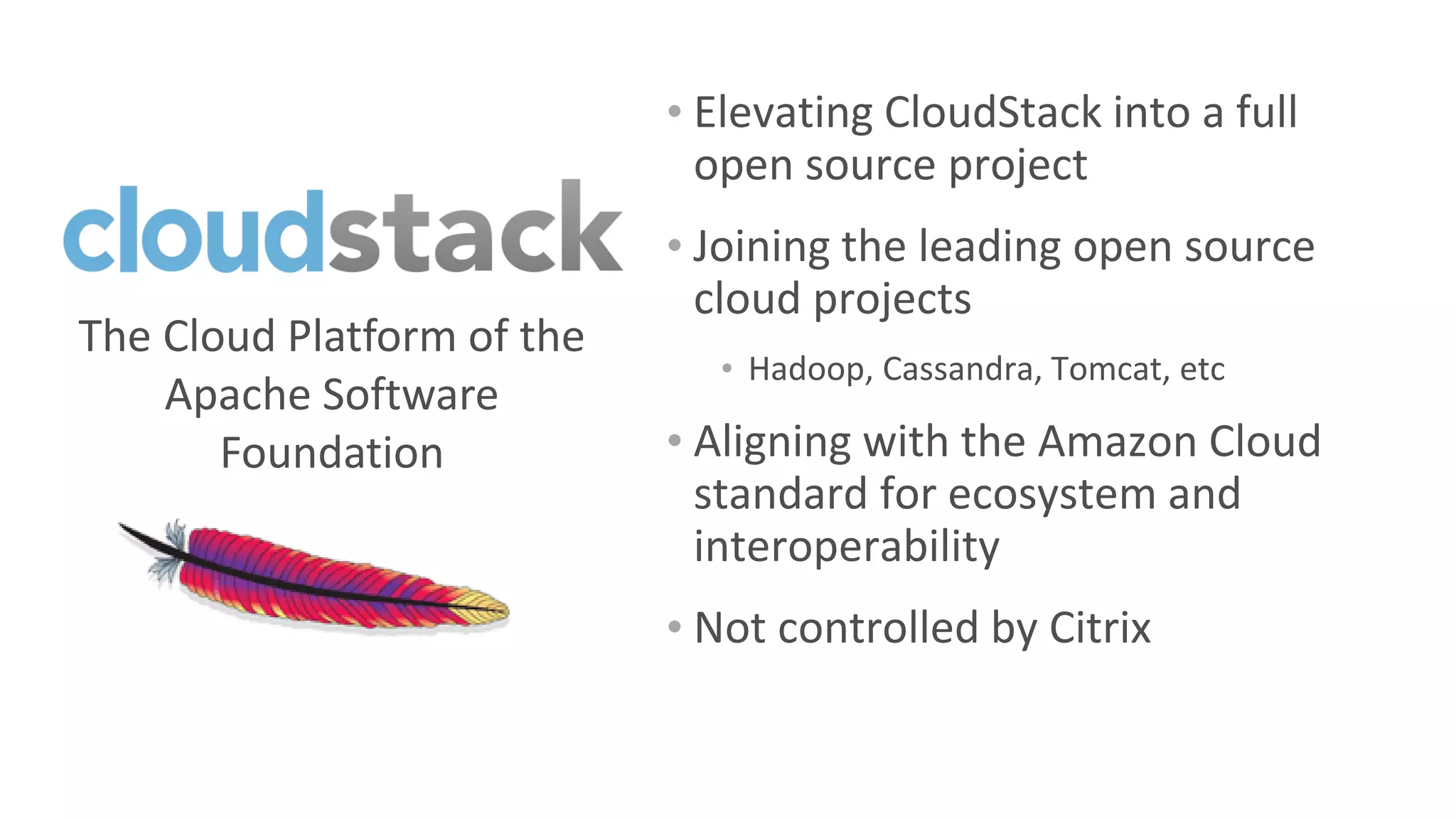

10. • Elevating CloudStack into a full
open source project
• Joining the leading open source
cloud projects
The Cloud Platform of the
• Hadoop, Cassandra, Tomcat, etc
Apache Software
Foundation • Aligning with the Amazon Cloud
standard for ecosystem and
interoperability
• Not controlled by Citrix

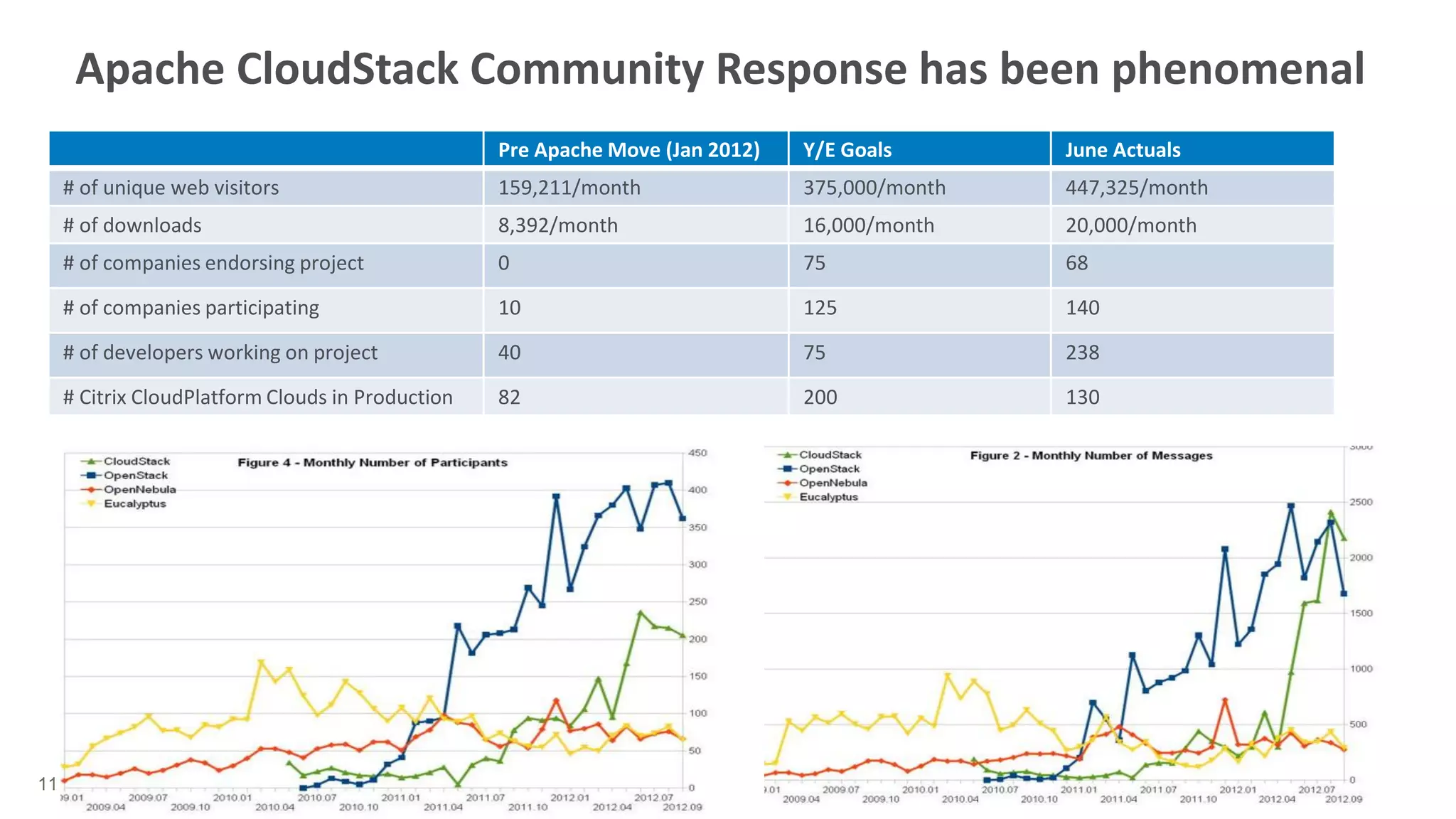

11. Apache CloudStack Community Response has been phenomenal
Pre Apache Move (Jan 2012) Y/E Goals June Actuals
# of unique web visitors 159,211/month 375,000/month 447,325/month
# of downloads 8,392/month 16,000/month 20,000/month
# of companies endorsing project 0 75 68
# of companies participating 10 125 140
# of developers working on project 40 75 238
# Citrix CloudPlatform Clouds in Production 82 200 130
11

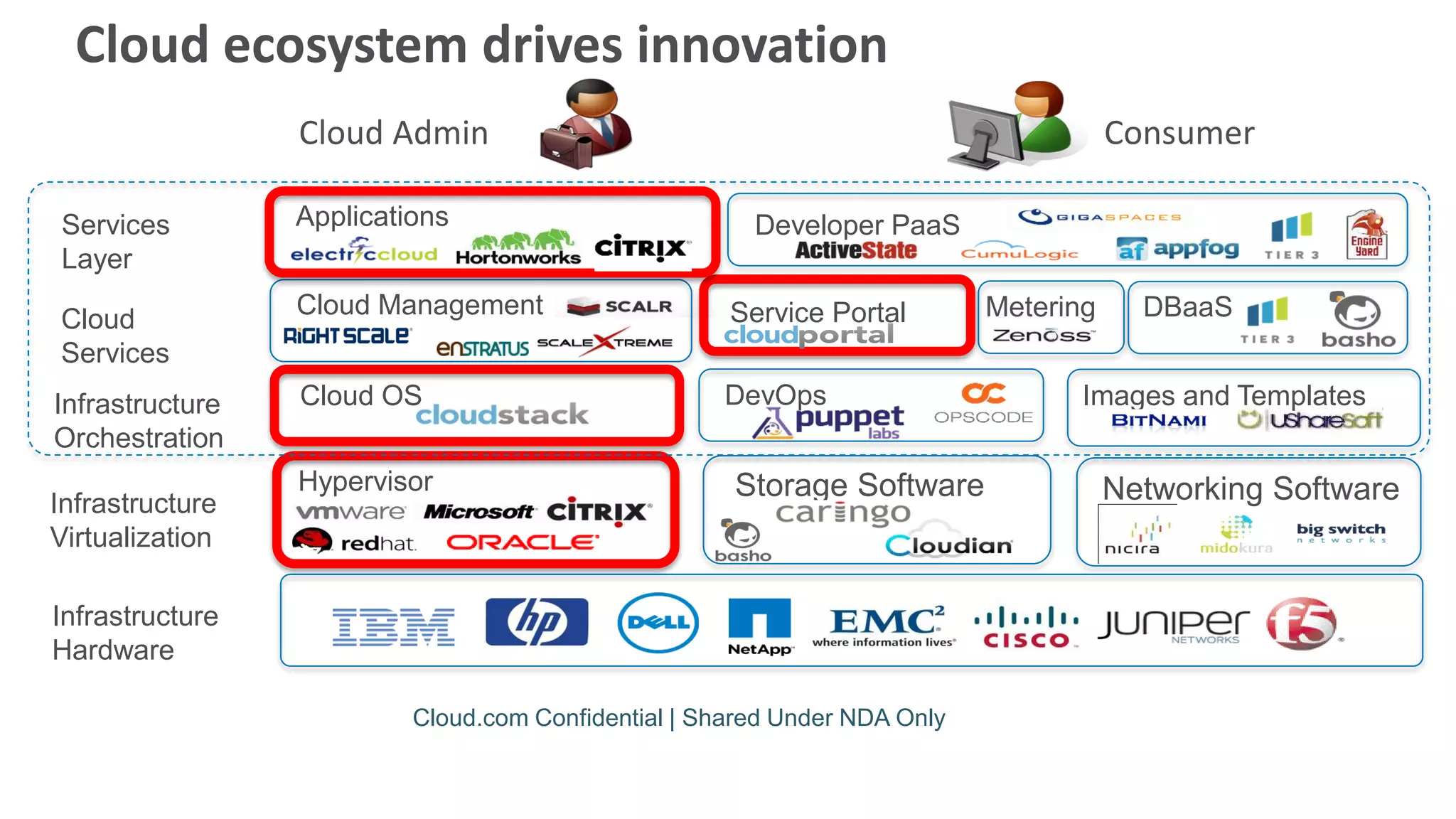

12. Cloud ecosystem drives innovation
Cloud Admin Consumer
Services Applications Developer PaaS
Layer
Cloud Management Service Portal Metering DBaaS
Cloud
Services
Infrastructure Cloud OS DevOps Images and Templates
Orchestration
Hypervisor Storage Software Networking Software
Infrastructure
Virtualization
Infrastructure
Hardware
Cloud.com Confidential | Shared Under NDA Only

13. “Managed” Clouds and Private
clouds prevail

14. Cloudplatforms support multiple cloud strategies
On Premise Hosted
Private Cloud Managed Hosted Private Cloud Federated/Hybrid Public
Private Cloud Cloud Services Cloud Services
Enterprise Enterprise Enterprise Multi-tenant Users Multi-tenant Users
Data Center Data Center
3rd party 3rd party hosted &
operated operated
• Dedicated resource • 3rd party owned and • Mix of shared and • Shared resources
• Total control/security operated dedicated resources • Elastic scaling
• Internal network • SLA bound • Shared facility and • Pay as you go
• Security staff • Public internet
• Dedicated resource • VPN access

15. Centralized management of your availability zones
CloudPlatform Management Cluster
San Jose London
Miami Hosted Dehli Tokyo
Hosted Rio

16. Self Service portals are high in
demand

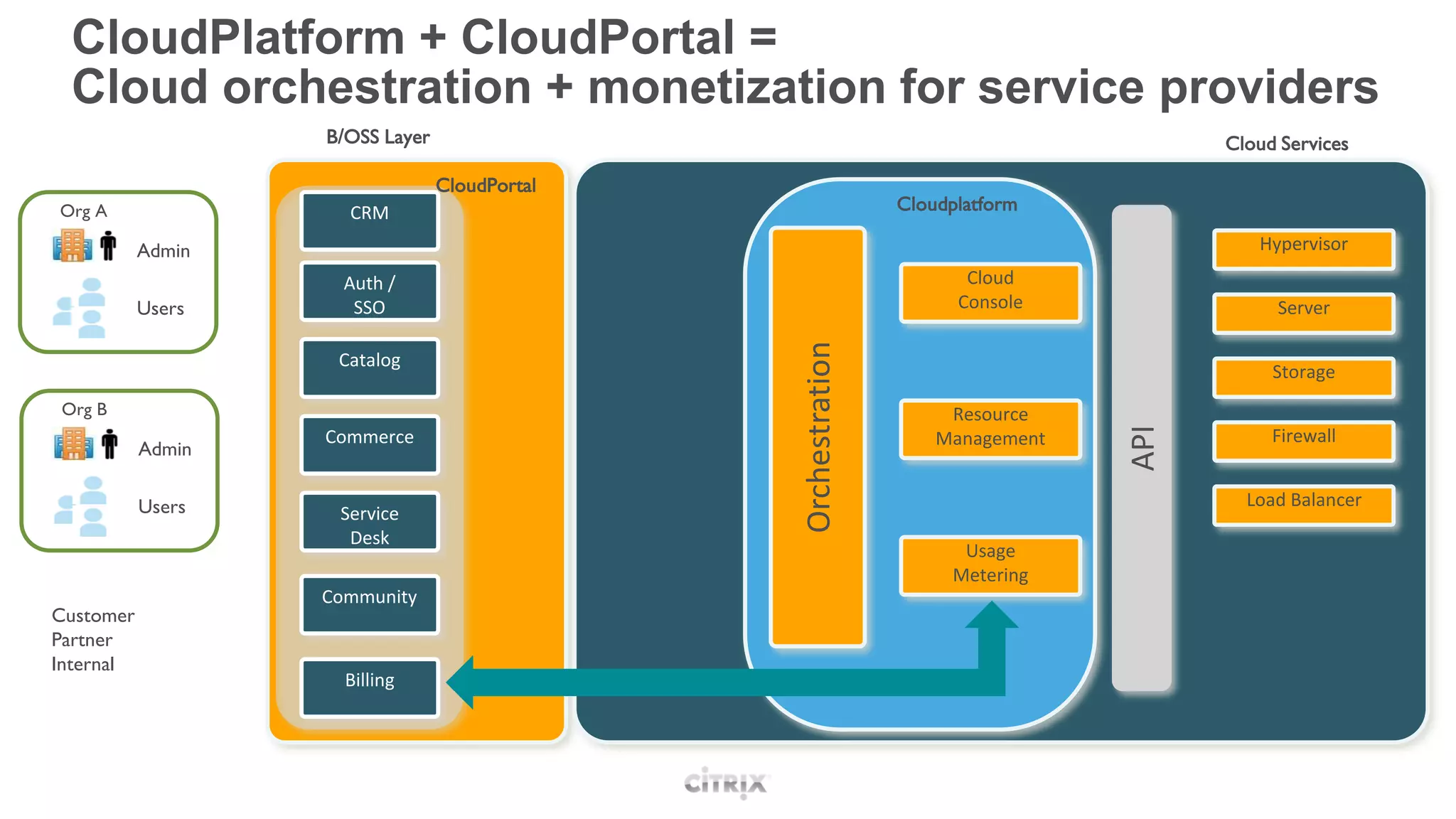

17. CloudPlatform + CloudPortal =
Cloud orchestration + monetization for service providers
B/OSS Layer Cloud Services
CloudPortal
Org A CRM Cloudplatform
Admin Hypervisor
Auth / Cloud
Users SSO Console Server
Orchestration
Catalog
Storage
Org B Resource
API
Commerce Management Firewall
Admin
Users Load Balancer
Service
Desk
Usage
Metering
Community
Customer
Partner
Internal
Billing

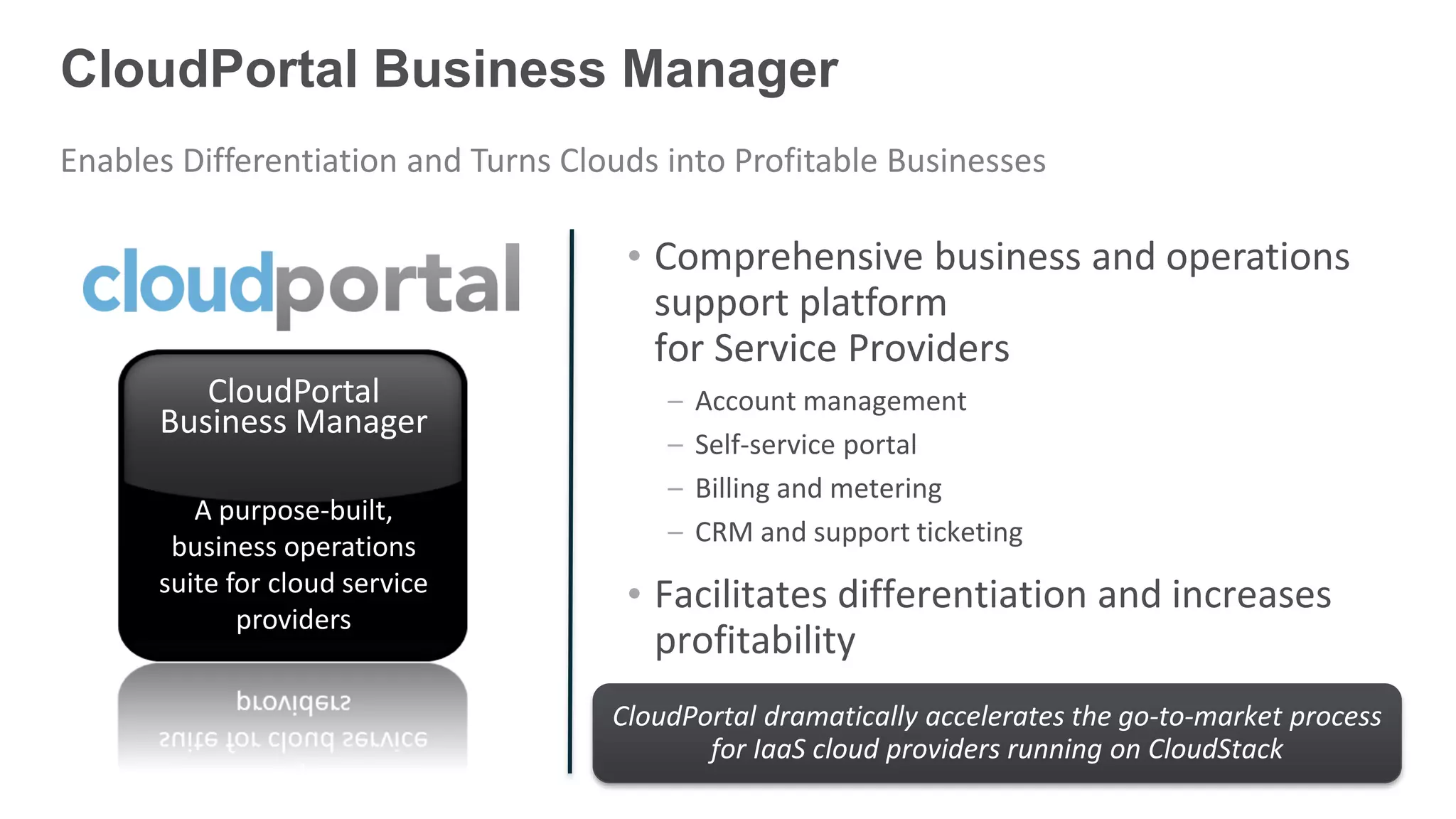

18. CloudPortal Business Manager
Enables Differentiation and Turns Clouds into Profitable Businesses
• Comprehensive business and operations
support platform
for Service Providers
CloudPortal – Account management
Business Manager
– Self-service portal
– Billing and metering
A purpose-built,
business operations – CRM and support ticketing
suite for cloud service • Facilitates differentiation and increases
providers
profitability
CloudPortal dramatically accelerates the go-to-market process
for IaaS cloud providers running on CloudStack

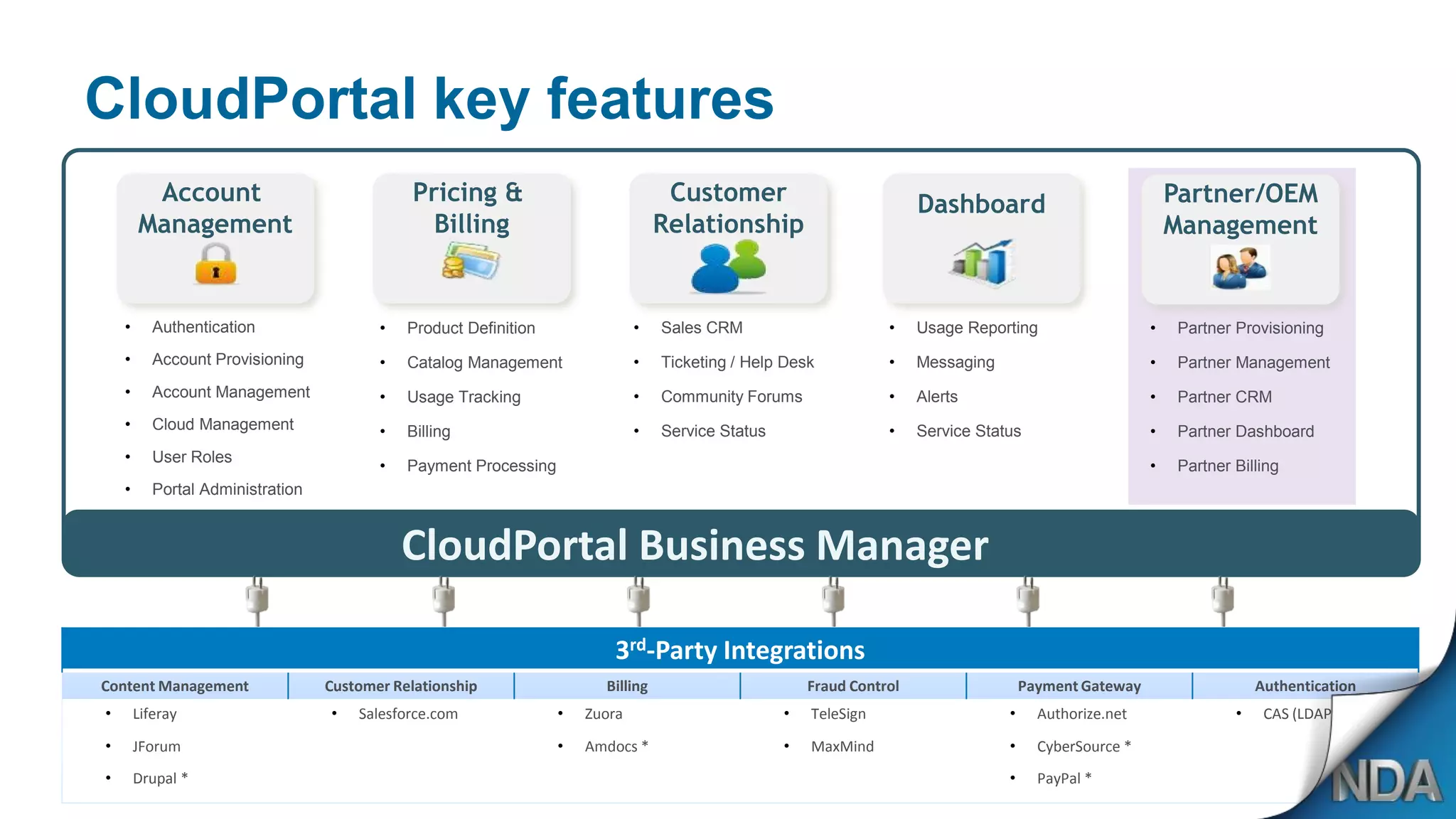

19. CloudPortal key features
Account Pricing & Customer Dashboard Partner/OEM
Management Billing Relationship Management
• Authentication • Product Definition • Sales CRM • Usage Reporting • Partner Provisioning
• Account Provisioning • Catalog Management • Ticketing / Help Desk • Messaging • Partner Management
• Account Management • Usage Tracking • Community Forums • Alerts • Partner CRM
• Cloud Management • Billing • Service Status • Service Status • Partner Dashboard
• User Roles
• Payment Processing • Partner Billing
• Portal Administration
CloudPortal Business Manager
3rd-Party Integrations
Content Management Customer Relationship Billing Fraud Control Payment Gateway Authentication
• Liferay • Salesforce.com • Zuora • TeleSign • Authorize.net • CAS (LDAP/AD)
• JForum • Amdocs * • MaxMind • CyberSource *
• Drupal * • PayPal *

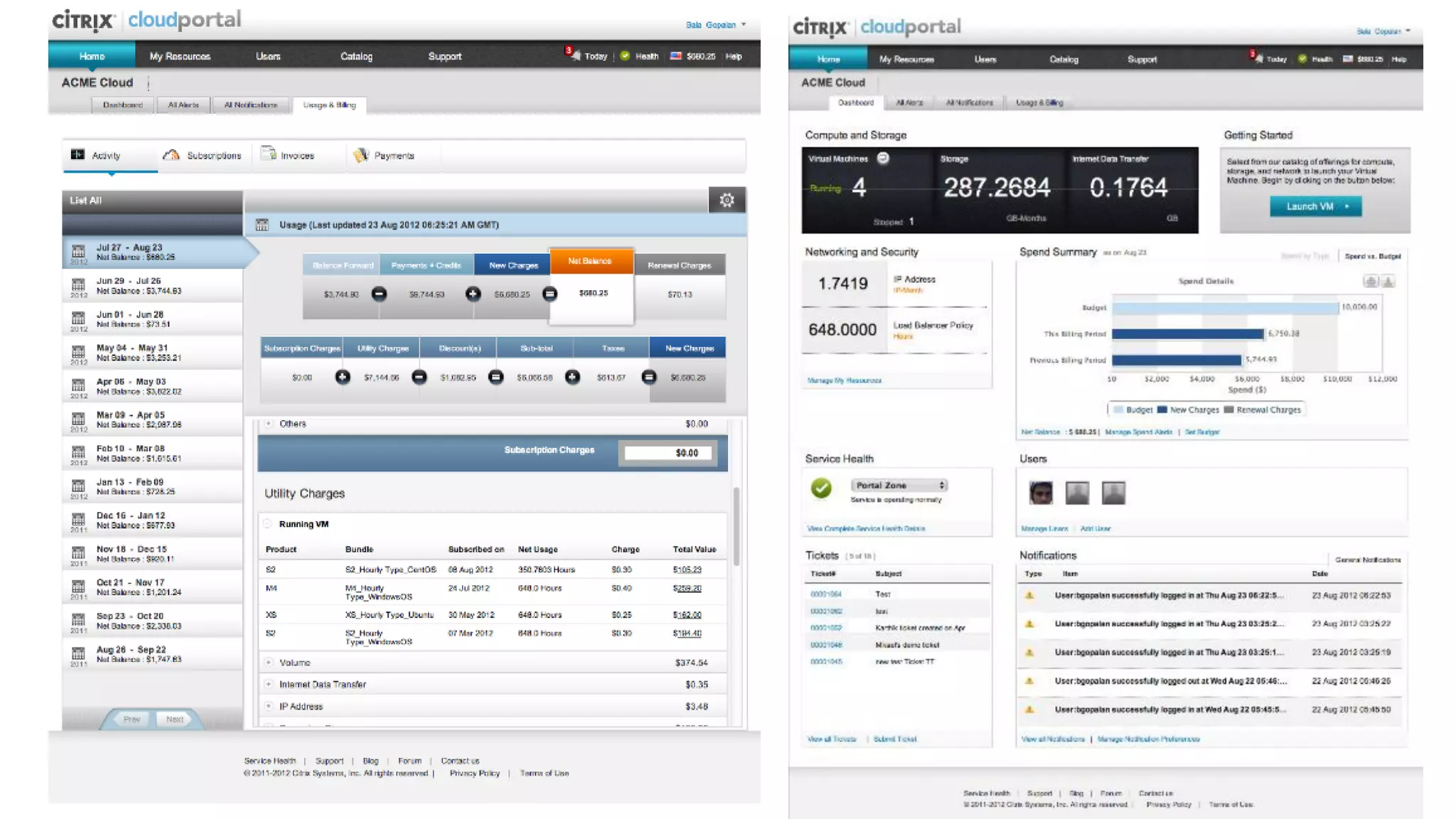

21. Workloads dictate cloud
architecture

22. Architecture definition is a process
IaaS Cloud
Define target workloads
Determine how that workload will be delivered reliably
Determine the necessary functionality and performance
Develop your technical architecture
Implement your environment

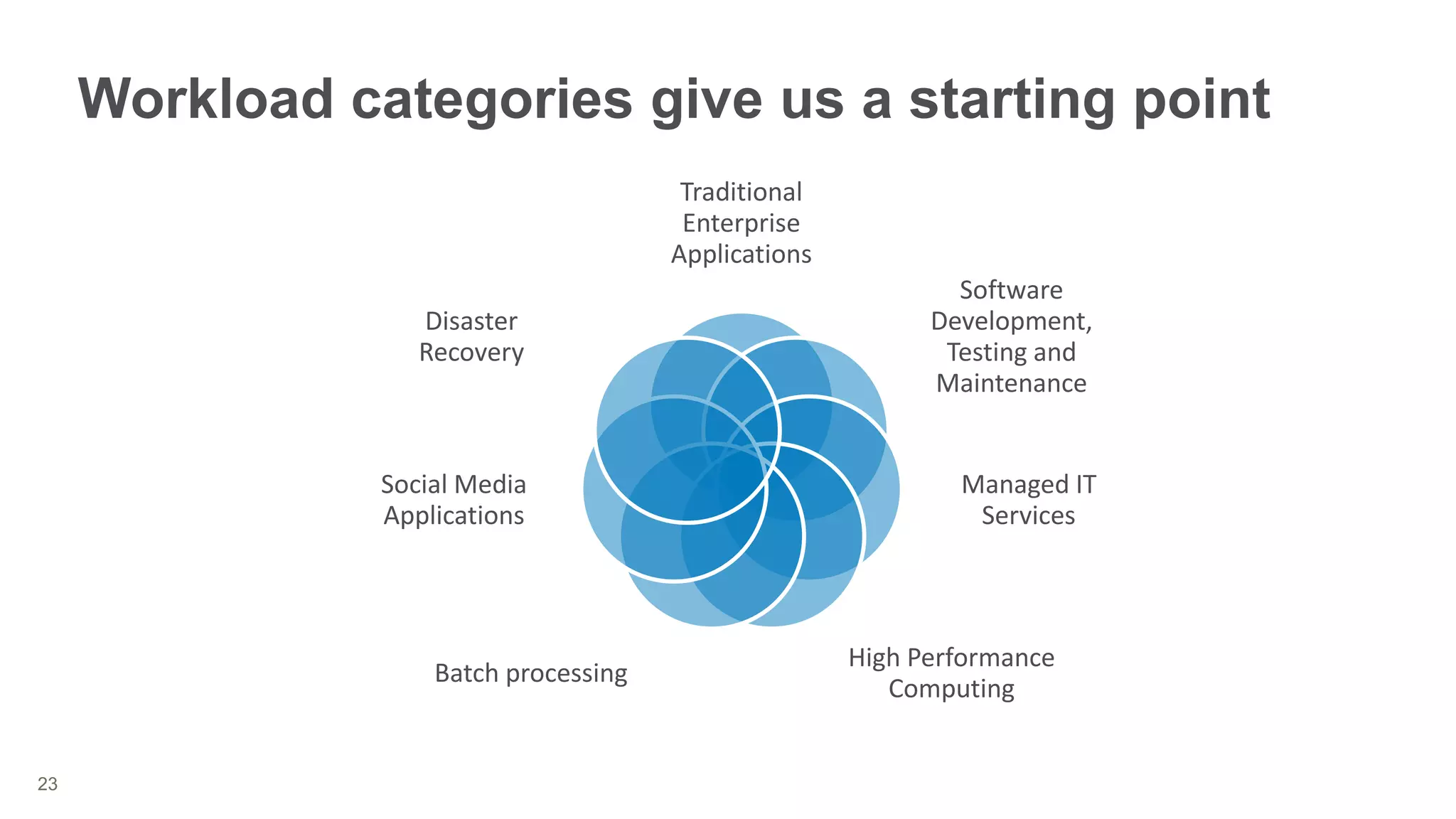

23. Workload categories give us a starting point
Traditional
Enterprise
Applications
Software
Disaster Development,
Recovery Testing and
Maintenance
Social Media Managed IT
Applications Services
High Performance
Batch processing
Computing
23

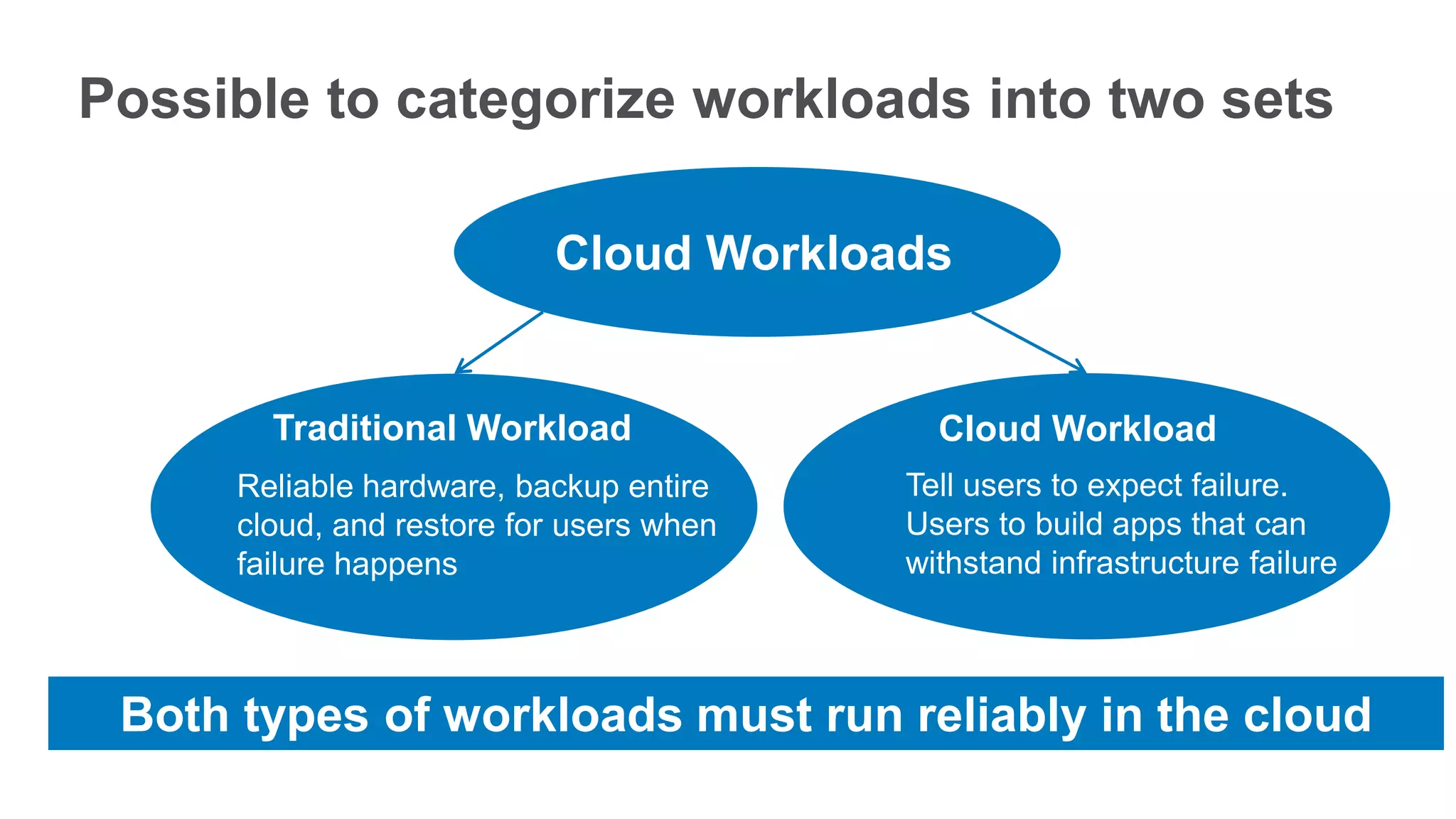

24. Possible to categorize workloads into two sets
Cloud Workloads
Traditional Workload Cloud Workload
Reliable hardware, backup entire Tell users to expect failure.
cloud, and restore for users when Users to build apps that can
failure happens withstand infrastructure failure
Both types of workloads must run reliably in the cloud

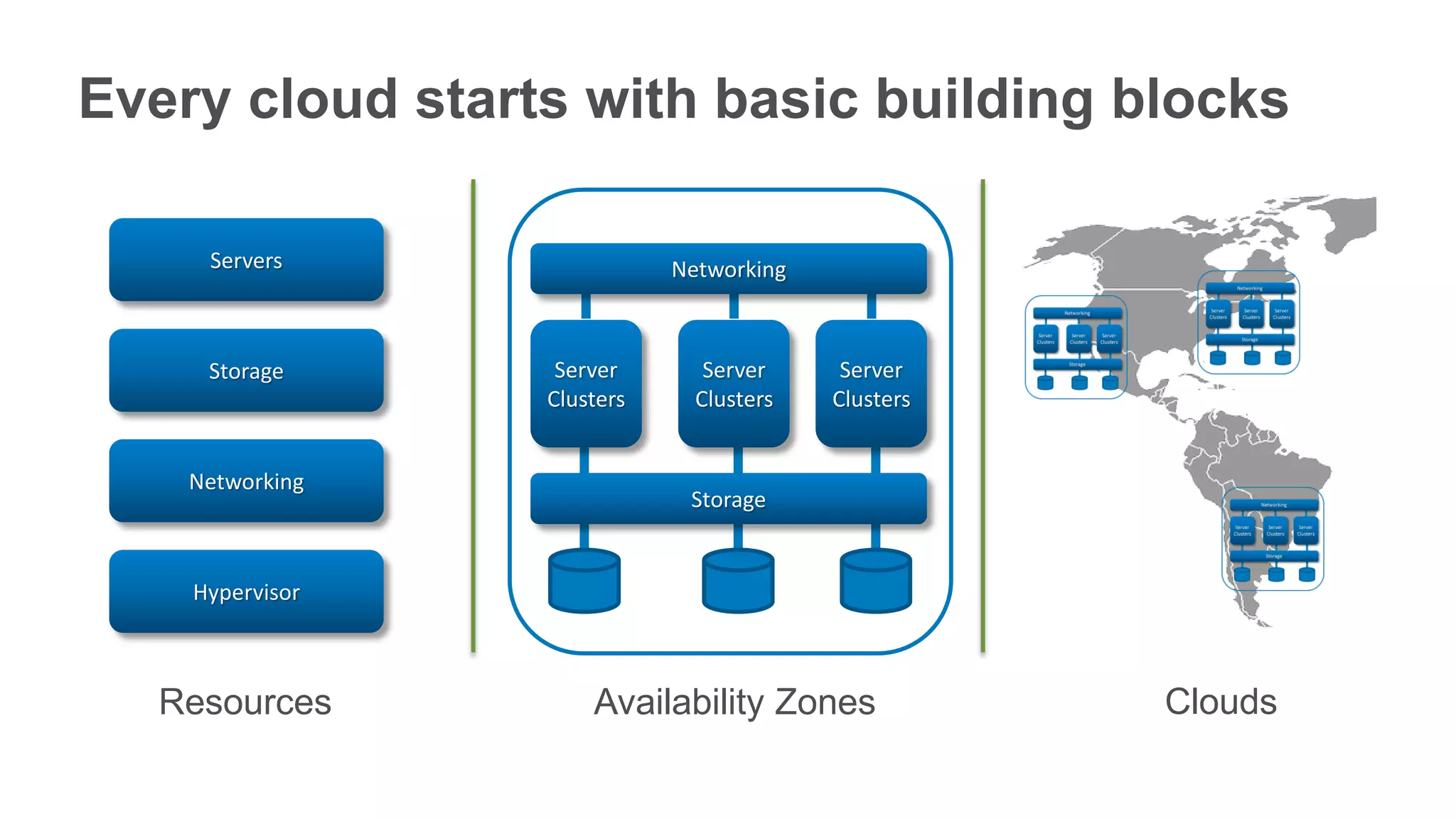

25. Every cloud starts with basic building blocks
Servers Networking
Storage Server Server Server
Clusters Clusters Clusters
Networking
Storage
Hypervisor
Resources Availability Zones Clouds

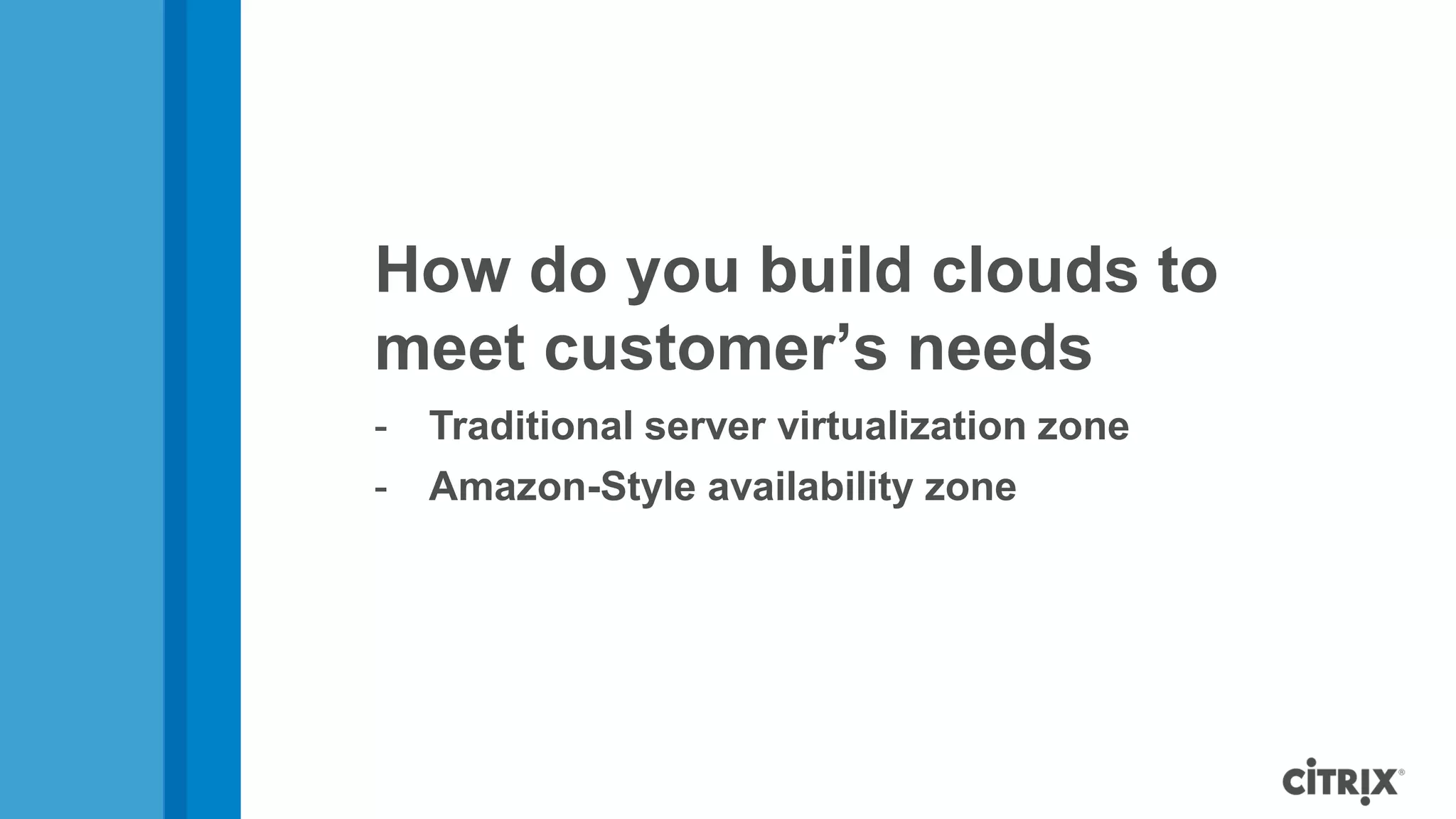

26. How do you build clouds to
meet customer’s needs
- Traditional server virtualization zone
- Amazon-Style availability zone

27. Designing a zone for a traditional workload
Hypervisor
Feature Rich– vSphere, vCenter
vCenter/XenCenter
Storage
Enterprise Networking (e.g., VLAN)
SAN
Server Server Server Networking
Cluster Cluster Cluster L2 VLANs
Network Services
Enterprise Storage (e.g., SAN)
Load Balancing PV-LANs
Multi-tier Apps
Multi-tier VLANs OVF

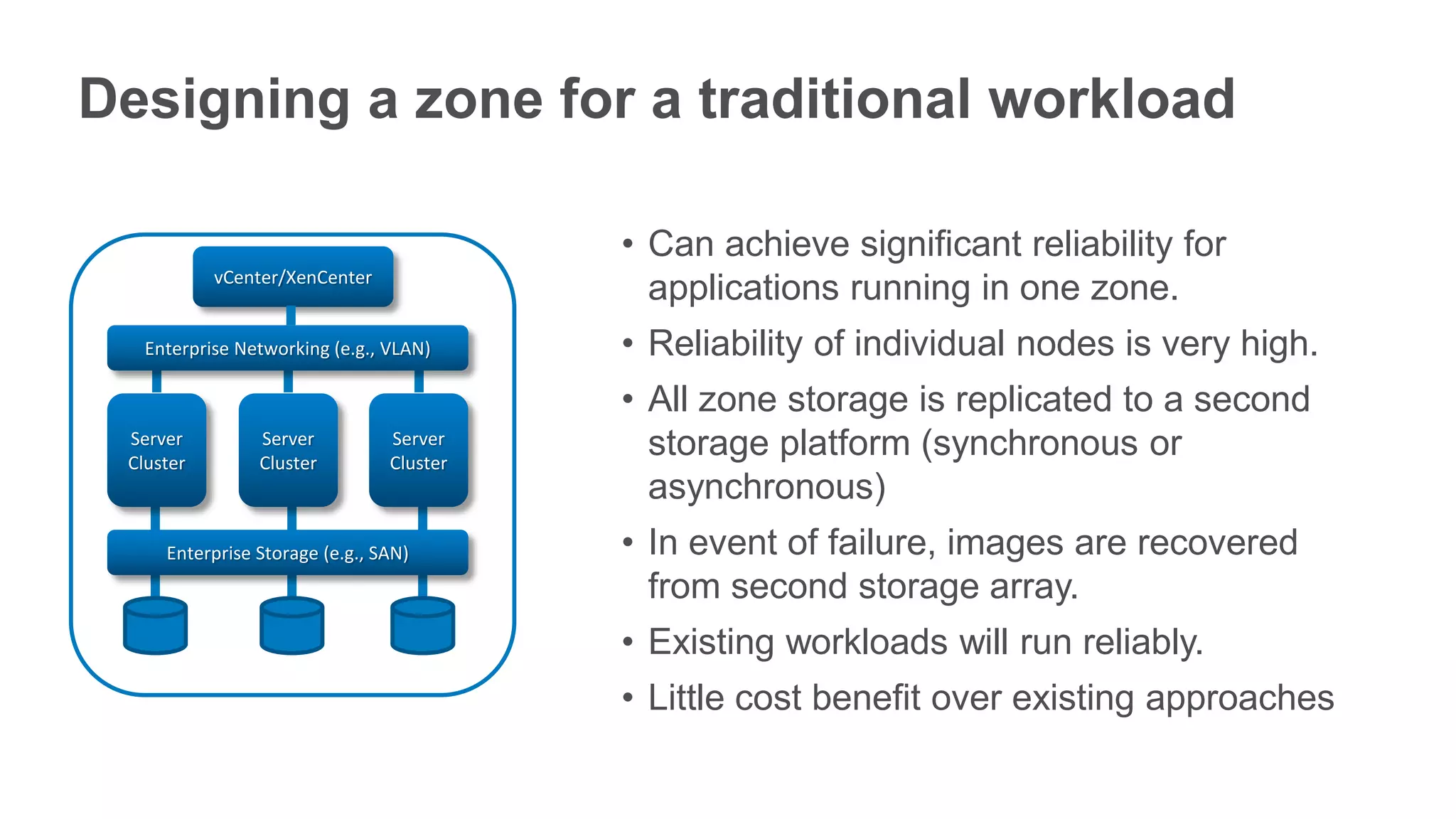

28. Designing a zone for a traditional workload
• Can achieve significant reliability for
vCenter/XenCenter
applications running in one zone.
Enterprise Networking (e.g., VLAN) • Reliability of individual nodes is very high.
• All zone storage is replicated to a second
Server
Cluster
Server
Cluster
Server
Cluster
storage platform (synchronous or
asynchronous)
Enterprise Storage (e.g., SAN) • In event of failure, images are recovered
from second storage array.
• Existing workloads will run reliably.
• Little cost benefit over existing approaches

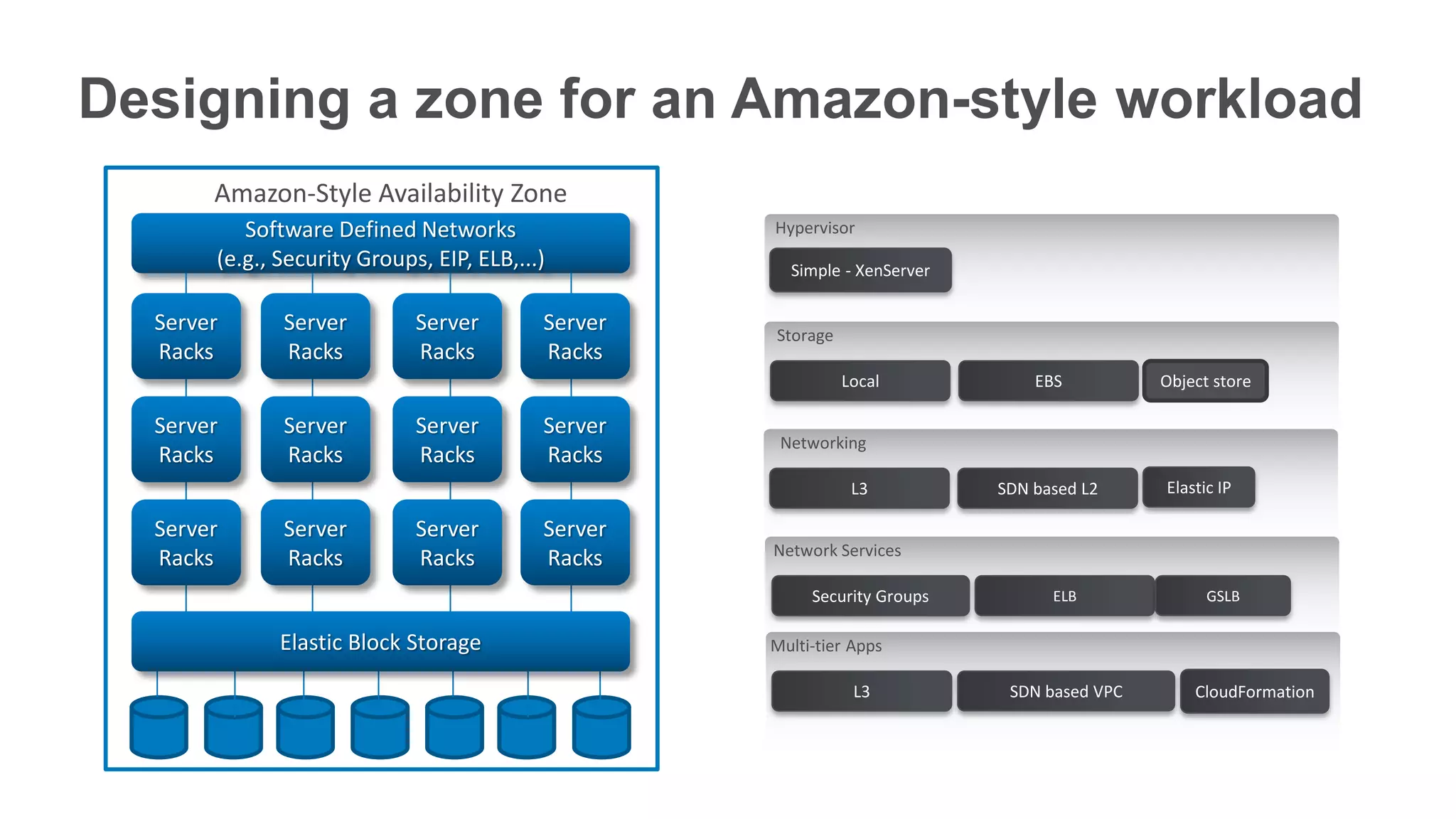

29. Designing a zone for an Amazon-style workload
Amazon-Style Availability Zone
Software Defined Networks Hypervisor
(e.g., Security Groups, EIP, ELB,...) Simple - XenServer
Server Server Server Server Storage
Racks Racks Racks Racks
Local EBS Object store
Server Server Server Server
Networking
Racks Racks Racks Racks
L3 SDN based L2 Elastic IP
Server Server Server Server
Network Services
Racks Racks Racks Racks
Security Groups ELB GSLB
Elastic Block Storage Multi-tier Apps
L3 SDN based VPC CloudFormation

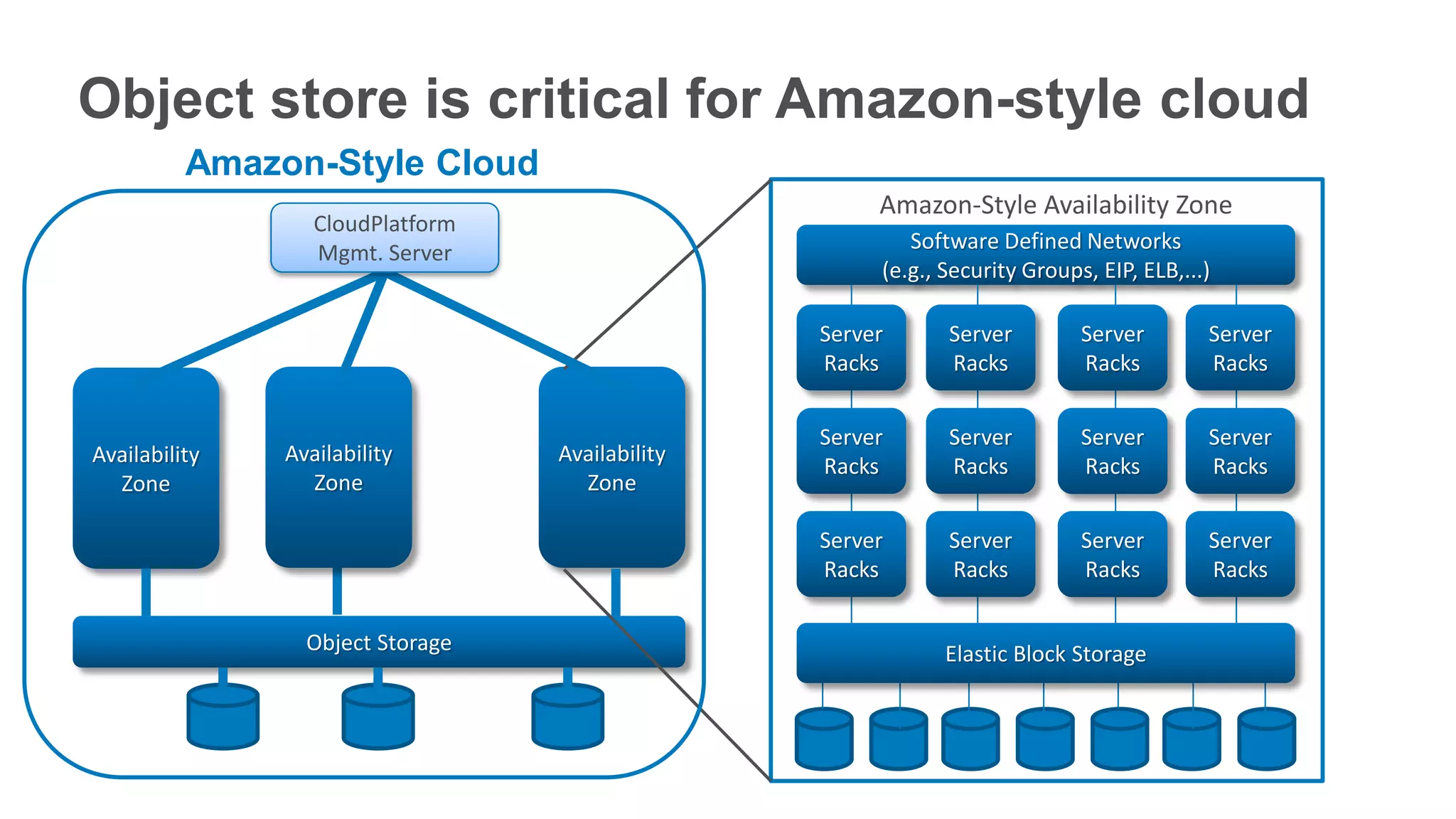

30. Object store is critical for Amazon-style cloud
Amazon-Style Cloud
Amazon-Style Availability Zone
CloudPlatform
Mgmt. Server Software Defined Networks
(e.g., Security Groups, EIP, ELB,...)
Server Server Server Server
Racks Racks Racks Racks
Server Server Server Server
Availability Availability Availability
Racks Racks Racks Racks
Zone Zone Zone
Server Server Server Server
Racks Racks Racks Racks
Object Storage Elastic Block Storage

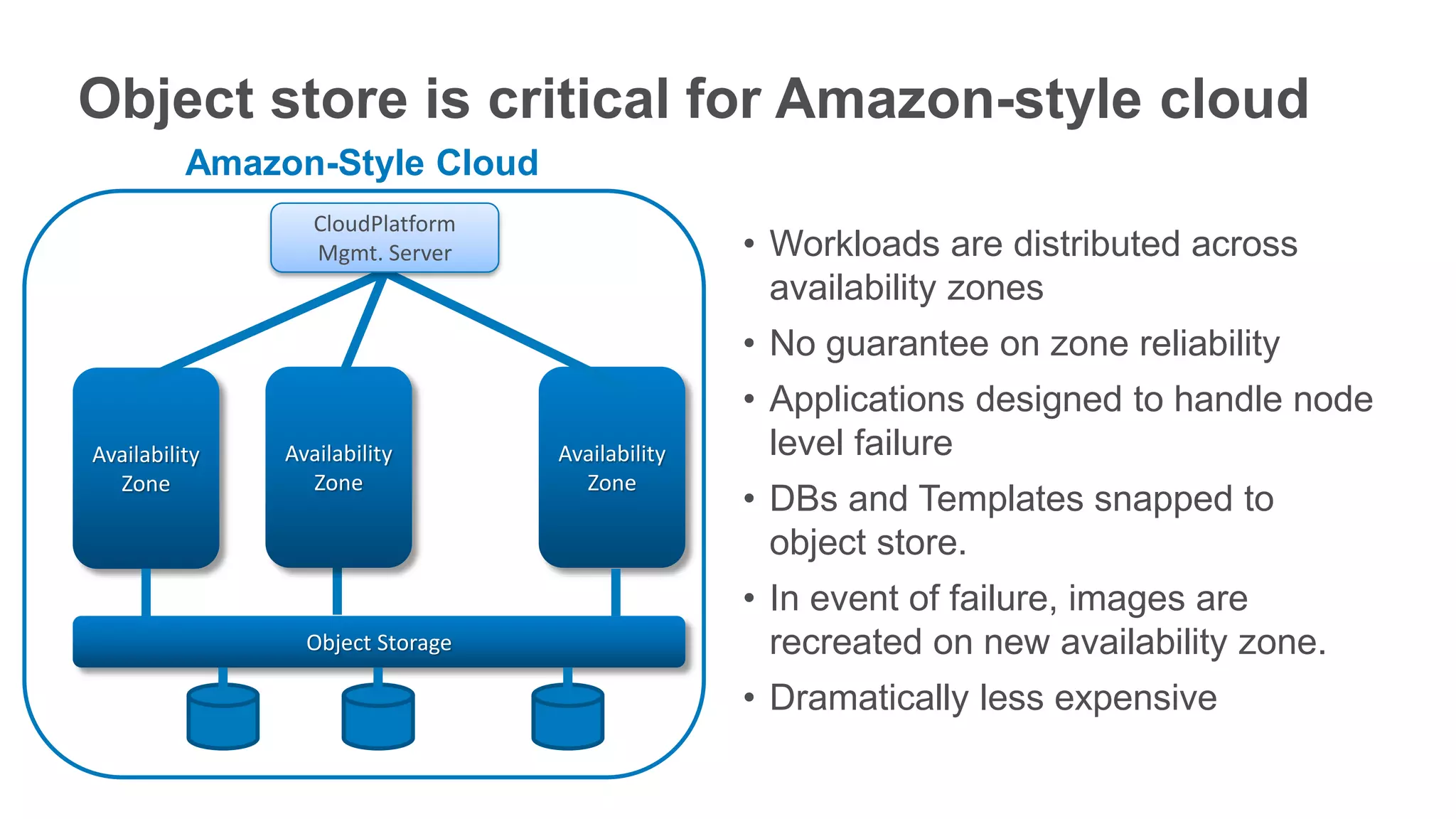

31. Object store is critical for Amazon-style cloud
Amazon-Style Cloud
CloudPlatform
Mgmt. Server • Workloads are distributed across
availability zones
• No guarantee on zone reliability
• Applications designed to handle node
Availability Availability Availability level failure
Zone Zone Zone
• DBs and Templates snapped to
object store.
• In event of failure, images are
Object Storage recreated on new availability zone.
• Dramatically less expensive

32. Cloud Transition – General to Workload specific
Past Today
General
Traditional-Style Amazon-Style
Architecture
• General architecture for any
• Workload-centric architecture
workload
• Workload-specific failure/disaster
• Limited definitive failure/disaster
recovery
recovery strategy
• Separate legacy and cloud app
• Focused on legacy or cloud app
architectures with interoperability
architectures

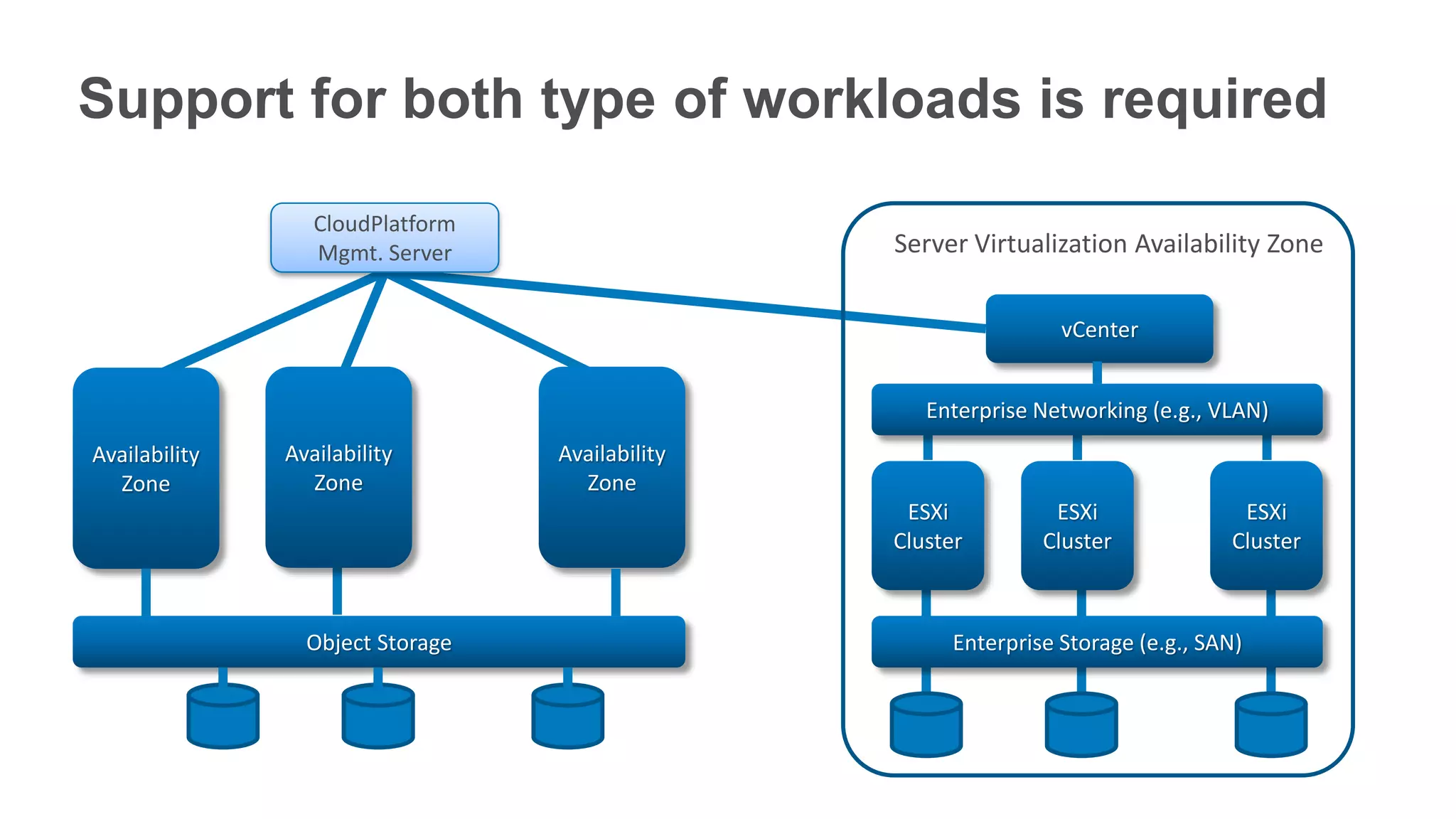

33. Support for both type of workloads is required
CloudPlatform
Mgmt. Server Server Virtualization Availability Zone
vCenter
Enterprise Networking (e.g., VLAN)
Availability Availability Availability
Zone Zone Zone
ESXi ESXi ESXi
Cluster Cluster Cluster
Object Storage Enterprise Storage (e.g., SAN)

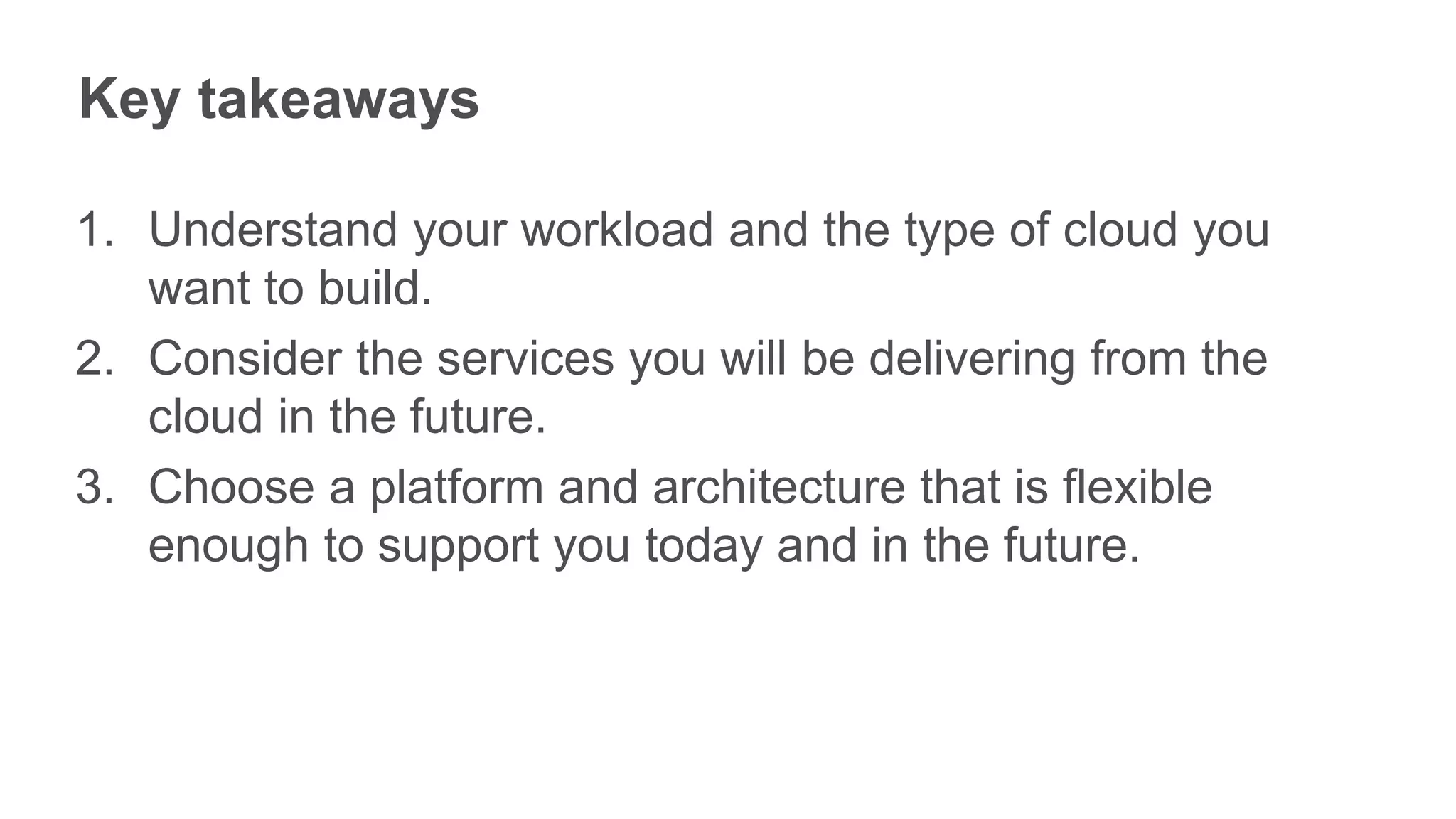

34. Key takeaways
1. Understand your workload and the type of cloud you
want to build.
2. Consider the services you will be delivering from the
cloud in the future.
3. Choose a platform and architecture that is flexible
enough to support you today and in the future.

35. Learn how to build your own cloud
with new educational resources from
Citrix
and partners. http://bit.ly/OHhO08.
• http://www.cloudstack.org
• http://incubator.apache.org/project
s/cloudstack
